FIGIDAI E
TABLE OF CONTENTS
Important Safety Instructions ........................... 2-5 Warranty ......................................................... 21
Washer Operating Instructions ....................... 6-12 Notes ............................................................. 22
Dryer Operating Instructions ........................ 13-16 Fran_als ........................................................... 23
Care and Cleaning ........................................ 17-18 Espa_ol ........................................................... 45
Avoid Servtce .............................................. t9-20
www fligidatle corn USA 1-800-944-9044 www fligidatEe ca Canada 1-800-265-8352
_o
3>
o_
GO

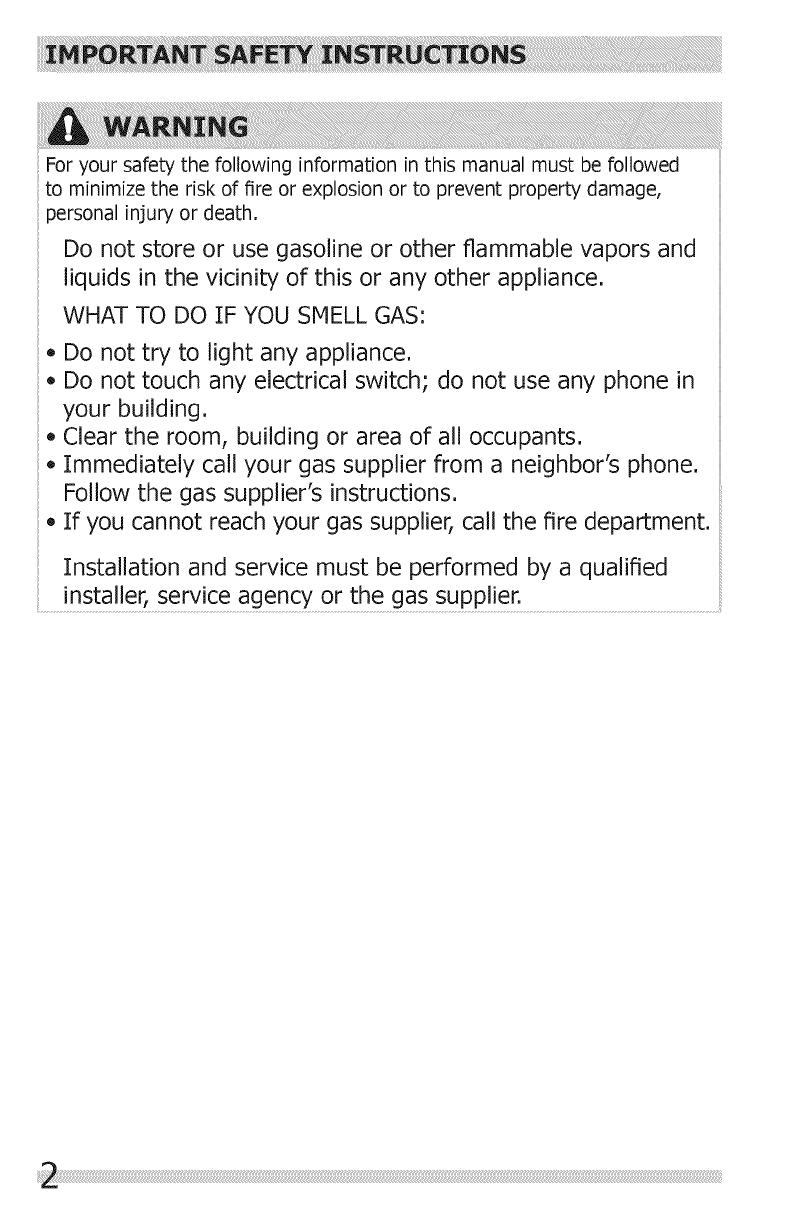

For your safety the following information in this manual must be followed
minimize the risk of fire or explosion or to prevent property damage,
personal injury or death.
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in
your building.
•Clear the room, building or area of all occupants.
•Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
•If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified
.................installer, service agency or the gas supplier. .........................................................................................................................................

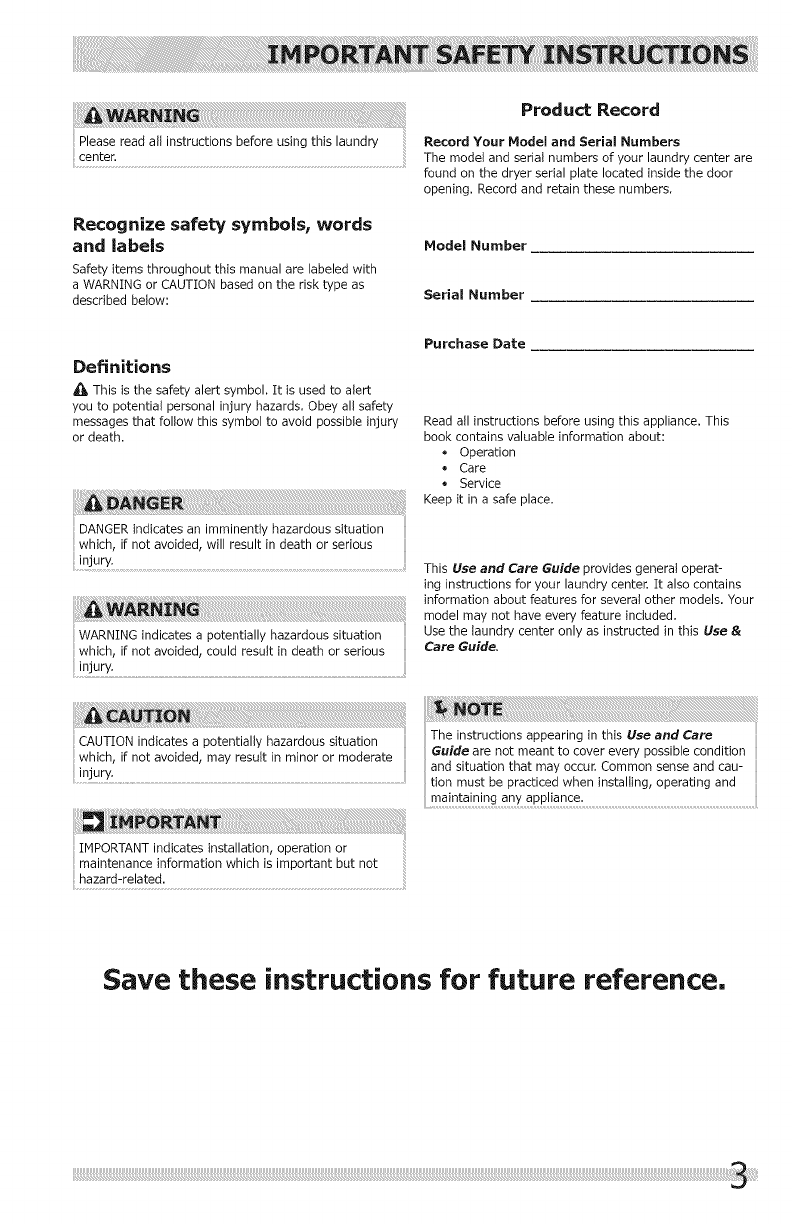

Recognize safety symboisr words
and labels
Safety items throughout this manual are labeled with
a WARNING or CAUTION based on the risk type as
described below:
Definitions
_lb This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury
or death.
Product Record
Record Your Model and Serial Numbers
The model and serial numbers of your laundry center are
found on the dryer serial plate located inside the door
opening. Record and retain these numbers,
Model Number
Serial Number
Purchase Date
Read all instructions before using this appliance. This
book contains valuable information about:
• Operation
• Care
• Service
Keep it in a safe place,
This Use and Care Guide provides general operat-
ing instructions for your laundry center. It also contains
information about features for several other models. Your
model may not have every feature included,
Use the laundry center only as instructed in this Use &
Care Guide,
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
_nJu!Y:..............................................................................................................................................................
IMPORTANT indicates installation, operation or
maintenance information which is important but not
hazard-related.
The instructions appearing in this Use and Care
Guide are not meant to cover every possible condition
and situation that may occur, Common sense and cau-
tion must be practiced when installing, operating and
maintaining any appliance.
Save these instructions for future reference.
240 v Electric Dryer 120 v Gas Dryer
Grounding type
wail receDtacle
10-30R
3-w re Ul-aDDroved servic_ Do not, und_
cora mu_t D_ instauea any circumstances
oneloctrlraryors/no_ t_ :DII_
D ovidod with ung i_ or bypass the
grounding prong.
Power cord with
3-prong grounded plug
Avoid fire hazard or electrical shock. Do not use an adaptor plug or extension cord or remove grounding
prong from electrical power cord. Failure to follow this warning can cause serious injury, fire or death.
A WARNING -RISK OF FIRE
To reduce the risk of fire, electrical shock, or injury to persons when using this laundry center, comply with the
basic warnings listed below. Failure to comply with these warnings could result in serious personal injuries.
You can be killed or seriously injured if you don't follow these Important Safety Instructions:
PREVENT FIRE
Do not wash or dry items that have been previously
cleaned in, soaked in, or spotted with gasoline, clean-
ing solvents, kerosene, cooking oils, waxes, etc. Do not
store these items on or near the washer. These sub-
stances give off vapors or chemical reactions that could
ignite or explode.
Do not put oily or greasy rags or clothing on top of the
laundry center. These substances give off vapors that
could ignite the materials.
Do not add gasoline, cleaning solvents, or other flam-
mable or explosive substances to the wash water. These
substances give off vapors that could ignite or explode.
Under certain conditions, hydrogen gas may be pro-
duced in a hot water system that has not been used
for 2 weeks or more. HYDROGENGAS IS EXPLOSIVE.
If the hot water system has not been used for such a
period, before using the washer, turn on all hot water
faucets and let the water flow from each for several
minutes. This wilt release any accumulated hydrogen
gas. Hydrogen gas is flammable; do not smoke or use
an open flame during this time.
Do not store or use gasoline or other flammable vapors
or liquids in the vicinity of this or any other appliance.
Do not place items exposed to cooking oils in your
dryer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause a
load to catch fire.
Do not dry articles containing rubber, plastic or similar ma-
terials such as bras, galoshes, bath mats, rugs, bibs, baby
pants, plastic bags and pillows that may melt or burn.
Some rubber materials, when heated, can under certain
circumstances produce fire by spontaneous combustion.
Clean the lint screen before or after each toad. The in-
terior of the dryer, lint screen housing and exhaust duct
should be cleaned approximately every 18 months by
qualified service personnel. An excessive amount of lint
build-up in these areas could result in inefficient drying
and possible fire. See Care and Cleaning.

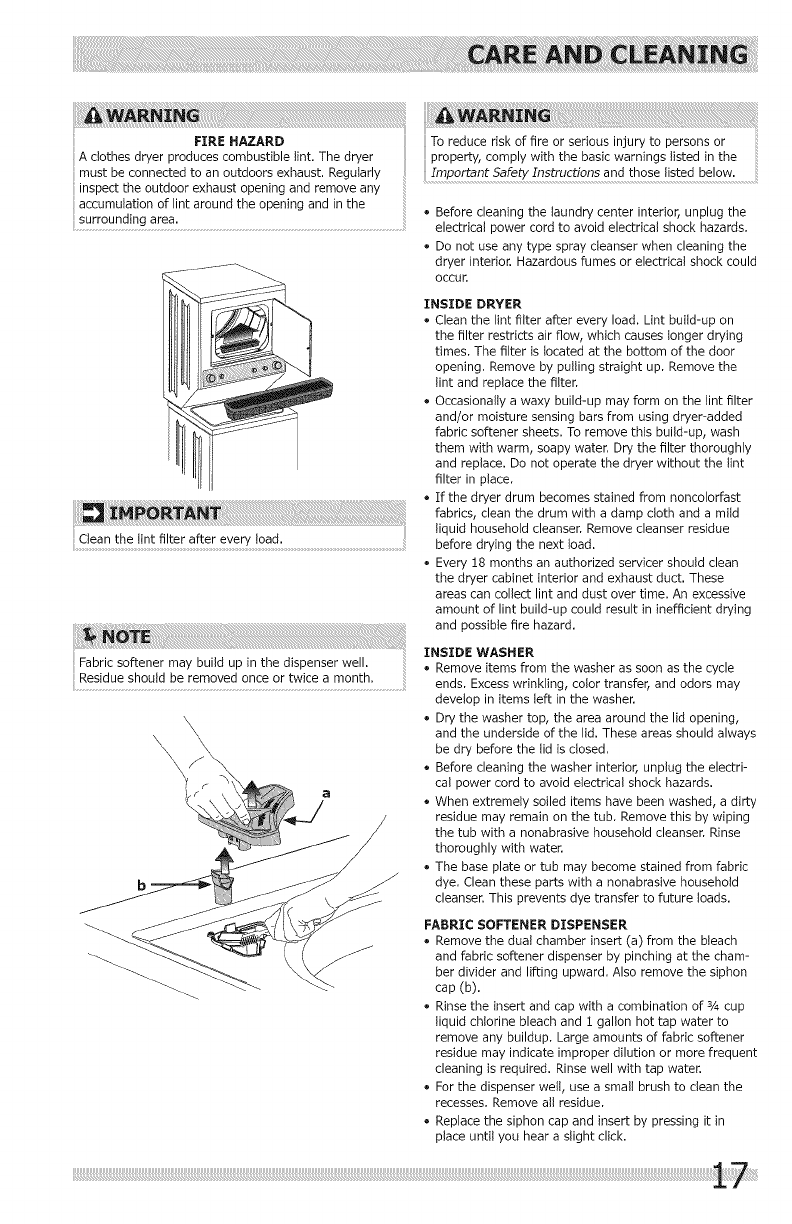

FIRE HAZARD
A clothes dryer produces combustible lint. The dryer
must be connected to an outdoors exhaust. Regularly
inspect the outdoor exhaust opening and remove any
accumulation of tint around the opening and in the
surrounding area.
* Do not operate the dryer if the tint screen is blocked,
damaged or missing. Fire hazard, overheating and
damage to fabrics can occur.
* Do not obstruct the flow of ventilating air. Do not stack
or place laundry or throw rugs against the front or back
of the dryer.
Do not spray any type of aerosol into, on or near dryer
at any time.
* Do not use fabric softeners or products to eliminate
static unless recommended by the manufacturer of the
fabric softener or product.
* Do not continue to use the laundry center if you hear
squeaking, grinding, rubbing or other unusual noises.
This could be a sign of mechanical breakdown and lead
to fire or serious injury. Contact a qualified technician
immediately.
* Failure to comply with these warnings could result in
fire, explosion, serious bodily injury and/or damage to
the rubber or plastic parts of the laundry center.
PROTECT CHILDREN
*Do not allow children to play on or in the laundry cen-
ter. Close supervision of children is necessary when the
washer is used near children. As children grow, teach
them the proper, safe use of all appliances.
Destroy the carton, plastic bag and other packing
materials after the laundry center is unpacked. Children
might use them for play. Cartons covered with rugs, bed-
spreads or plastic sheets can become airtight chambers.
, Keep laundry products out of children's reach. To prevent
personal injury, observe all warnings on product labels.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i i: i!!! ii ii i 6 ii i i i i i i!i!i!i i!i!i iiii iii !i !i:! ii i iii! ii
Before the laundry center is removed from service or
discarded, remove the washer door to prevent acciden-
tal entrapment.
Failure to comply with these warnings could result in
serious personal injuries,
PREVENT fNJURY
To prevent shock hazard and assure stability during
operation, the laundry center must be installed and
electrically grounded by a qualified service person in
accordance with local codes. Installation instructions
are packed in the washer for installer's reference. Refer
to INSTALLATION INSTRUCTIONS for detailed
grounding procedures. If the laundry center is moved
to a new location, have it checked and reinstalled by a
qualified service person.
To prevent personal injury or damage to the laundry
center, the electrical power cord of a gas dryer must
be plugged into a properly grounded and polarized
3-prong outlet. The third grounding prong must never
be removed. Never ground the dryer to a gas pipe. Do
not use an extension cord or an adaptor plug.
* Follow package directions when using laundry products.
Incorrect usage can produce poisonous gas - resulting
in serious injury or death.
* Do not combine laundry products for use in I load un-
less specified on the label.
* Do not mix chlorine bleach with ammonia or acids such
as vinegar.
Do not use or mix liquid chlorine bleach with other
household chemicals such as toilet cleaners, rust
removers, acid or products containing ammonia. These
mixtures can produce dangerous fumes which can
cause serious injury or death.
Avoid fire hazard or electrical shock. Do not use an
adaptor plug or extension cord or remove grounding
prong from electrical power cord. Failure to follow this
warning can cause serious injury, fire or death.
Groundingtype
wattreceptacle
Power cord with
3:#tong groundedp!ug
ALWAYSdisconnect the laundry center from the electri-
cal supply before attempting any service or cleaning.
Failure to do so can result in electrical shock or injury.
Do not use any type spray cleanser when cleaning
dryer interior. Hazardous fumes or electrical shock could
occur.
To prevent injury, do not reach into the laundry center
while parts are moving. Before loading, unloading or
adding items, push in the cycle selector knob to stop
the cycle. Allow the wash tub or dryer drum to coast to
a complete stop before reaching inside.
PREVENT INJURY AND DAHAGE TO THE APPLI =
ANCE
To prevent serious personal injury and damage to the
laundry center:
All repairs and servicing must be performed by an
authorized servicer unless specifically recommended
in this Use & Care Guide. Use only authorized factory
parts.
Do not tamper with controls.
Do not install or store the laundry center where it witl
be exposed to the weather. Do not operate the laundry
center in below freezing temperatures.
Do not install on carpet. Install laundry center on a
solid floor. It may be necessary to reinforce the floor to
prevent vibration or movement.
Do not sit on, step on or stand on the laundry center.
Do not rest heavy toads on top. The laundry center is
not meant to support weight.
To reduce the risk of electric shock, disconnect this
appliance from the power supply before attempting
any user maintenance. Canceling a cycle or turning the
power off at the console does not disconnect this appli-
ance from the power supply.
This laundry center is equipped with an electrical over-
load protector. The washer motor will stop if it becomes
overheated.
A thermal limiter switch automatically turns off the
dryer motor in the unlikely event of an overheated
situation. A service technician must replace the thermal
limiter switch after correcting the fault.
• Failure to comply with these warnings could result in
serious personal injuries.
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to
warn customer of potential exposure to such substances. Included in this list are soot and carbon monoxide, both of
which may be produced by the use of this product.
Washing Procedures
To reduce the risk of fire, electric shock or injury
to persons, read these ,MPORTANT SAFETYINSTRUCTIONS in this Use and Care Guide before
operating your washer. .....
1
Sort laundry into loads
that can be washed
together.
Sort item.<;
by recom-
mended cycle
and water temperature.
Separate white, light and colorfast items from dark
and non-colorfast items.
Separate items that shed tint from items that
attract tint. Casual, synthetic, knit, and corduroy
items will pick up lint from towels, rugs, and
bedspreads.
•Separate heavily soiled items from lightly soiled items.
Separate lacy, sheer, loosely knit, or delicate items
from durable items.
Do not machine wash items containing fiberglass.
Small particles of fiberglass left in the drum may
transfer to fabrics in other loads and cause skin
irritation and/or damage to fabrics.
2 Prepare items for washing,
Empty pockets.
Brush off lint and dirt. Shake out rugs and beach
towels.
Close zippers, fasten hooks, button buttons, tie
strings and sashes, and remove non-washable
trims and ornaments.
Mend rips and tears to prevent further damage
during washing.
Turn knit items inside out to prevent pilling.
Place delicate and small items such as bras,
hosiery and baby socks in + +_
mesh bag. .. _,:_
_r;?_3_7 S77_'kD'fk_
(Mesh bag not included.)
Pretreat stains and heavy soil.
See Stain Removal Guide
in this guide for
safe, successful
stain removal
instructions.
4Add ameasured amount of detergent to the
wash tub before adding the laundry load.
For best results
Use a low-sudsing, high efficiency deter-
gent to prevent oversudsing. Look for this
symbol on the detergent label: '_
Follow detergent manufacturer's directions. The
amount required depends on type of detergent,
load size and soil level, and water hardness.
If desired, add liquid bleach to bleach dispenser.
Before adding the wash toad, add liquid bleach to
bleach dispenser located in left front corner under
the lid:
Refer to bleach manufacturer's directions for
quantity to add.
Then add 1 cup (240 ml) water to flush the dis-
penser.
Do not use powdered bleach in the bleach dispens-
er. Add powdered bleach to the empty tub.
Add laundry load to washer.
Add iterns one at a time, each tightly bunched into
its own "ball" to allow beneficial item interaction.
Avoid loading items in a fiat, laid-out fashion.
For best washing performance, dry toad level
should not be higher than the upper row of holes in
the wash tub. Do not overload the washer.
Combine large and small items in a load. Load small
items first. Large items should not be more than
half the total wash load.
When washing a single heavy item, add 1 or 2
towels to balance the load.

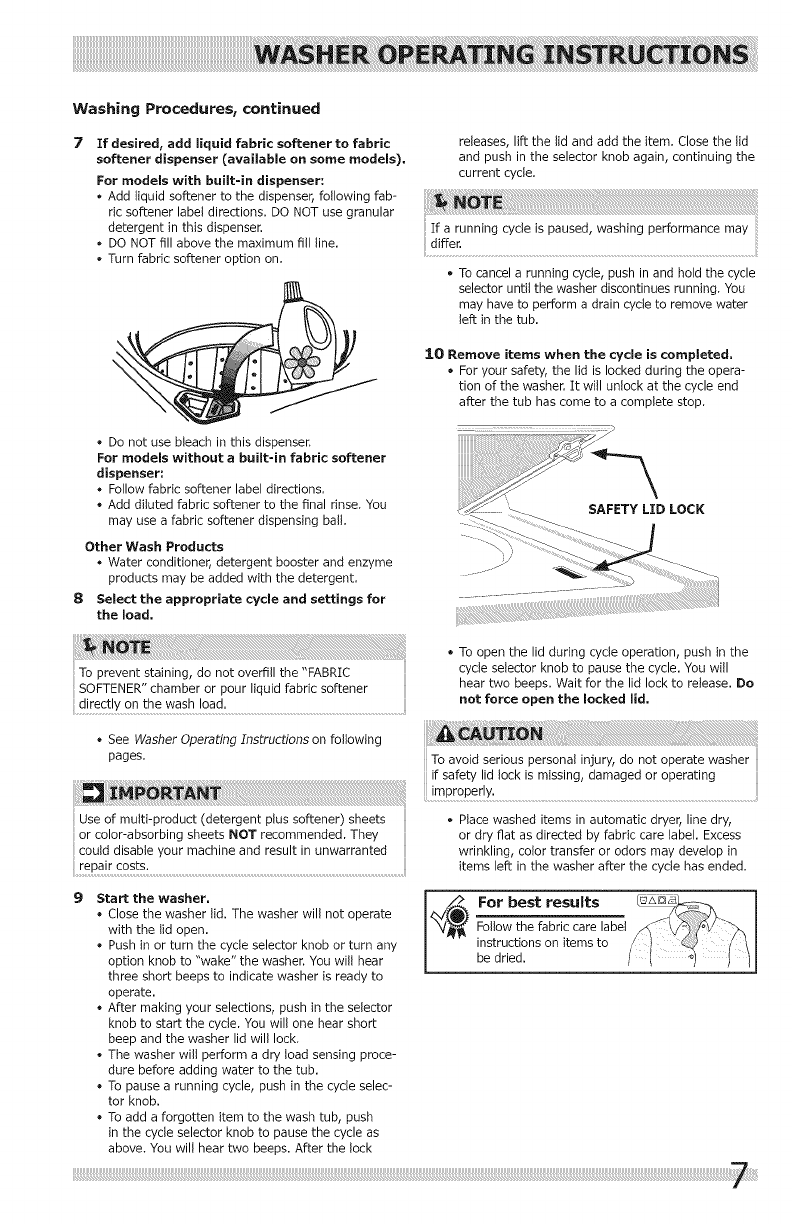

Washing Procedures, continued
If desired, add liquid fabric softener to fabric
softener dispenser (available on some models).
For models with built=in dispenser:
Add liquid softener to the dispenser, following fab-
ric softener label directions. DO NOT use granular
detergent in this dispenser.
DO NOT fill above the maximum fill line.
Turn fabric softener option on.
• Do not use bleach in this dispenser.
For models without abuilt-in fabric softener
dispenser:
• Follow fabric softener label directions.
• Add diluted fabric softener to the final rinse. You
may use a fabric softener dispensing ball.
Other Wash Products
Water conditioner, detergent booster and enzyme
products may be added with the detergent.
8Select the appropriate cycle and settings for
the load.
To prevent staining, do not overfill the "FABRIC
SOFTENER" chamber or pour liquid fabric softener
directly on the wash load.
See Washer Operating Instructions on following
pages.
Use of multi-product (detergent plus softener) sheets
or color-absorbing sheets NOT recommended. They
could disable your machine and result in unwarranted
Start the washer.
• Close the washer tid. The washer will not operate
with the tid open.
• Push in or turn the cycle selector knob or turn any
option knob to "wake" the washer. You wilt hear
three short beeps to indicate washer is ready to
operate.
• After making your selections, push in the selector
knob to start the cycle. You will one hear short
beep and the washer lid will lock.
• The washer wilt perform a dry toad sensing proce-
dure before adding water to the tub.
• To pause a running cycle, push in the cycle selec-
tor knob.
• Toadd a forgotten item to the wash tub, push
in the cycle selector knob to pause the cycle as
above. You will hear two beeps. After the lock
releases, lift the lid and add the item. Close the lid
and push in the selector knob again, continuing the
current cycle.
If a running cycle is paused, washing performance may
differ.
To cancel arunning cycle, push in and hold the cycle
selector untit the washer discontinues running, You
may have to perform a drain cycle to remove water
left in the tub.
10 Remove items when the cycle is completed.
For your safety, the lid is locked during the opera-
tion of the washer. It witl unlock at the cycle end
after the tub has come to a complete stop.
SAFETY LID LOCK
• To open the lid during cycle operation, push in the
cycle selector knob to pause the cycle. You will
hear two beeps. Wait for the lid lock to release. Do
not force open the locked lid.
To avoid serious personal injury, do not operate washer
if safety lid tock is missing, damaged or operating
improperly.
Place washed items in automatic dryer, line dry,
or dry fiat as directed by fabric care label. Excess
wrinkling, color transfer or odors may develop in
items left in the washer after the cycle has ended.
I_ For best results
Follow the fabric care label
instructions on items to
be dried.
This manual covers many models and not all cycles, options, or features listed are available on every model. Consoles shown above
for reference only. Your model may diffe_
Washing Cycle Select.ion
Turn the cycle selector in either direction to the cycle
desired,
l_ For best results
Follow the fabric care label
instructions on items to
be washed.
To change the cycle after it has begun, push in or turn the
cycle selector knob to pause the current running cycle.
Make the new selection and push in the cycle selector
knob again to start the new cycle.
normal
Use this load for light to normally soiled cottons, linens,
towels, shirts, denims and mixed loads.
Perform this cycle with fabric softener option off (if
available), energy saver option selected (if available),
and rinse level in the auto position (if available).
whites (on select models only)
Use this cycle for white fabrics and lightly colored
clothing. Refer to fabric care label for use of liquid
chlorine bleach. Hot water is recommended to ensure
optimal bleach activation.
heavy duty
Use this cycle for heavily soiled, durable garments - ex.
towels, sports gear, or fabric tote bags. For best soil
and stain removal, use the hottest water safe for the
fabrics being washed.
delicates
Use this cycle for tightly soiled knits and delicates which
require gentle washing.
normal/heavy (on select models only)
Use this cycle for heavily soiled towels, shirts, denims
and mixed loads.
bedding
This cycle is designed for large items such as blankets,
sheets, mattress pads, duvet covers and similar items.
quick wash (on select models only)
Quickly wash a small, lightly soiled toad in 25 minutes.
Washers connected to water supplies with lower inlet
pressure wilt experience longer filling times and may
not complete cycle as quickly.
rinse & spin
Select rinse &spin for loads that need a cold water
rinse or to add fabric softener that may have been
omitted in a regular cycle.
presoak
Use this cycle to soak heavily soiled and stained items
before washing. Any temperature may be selected,
but cold water is recommended with this cycle as
warmer water may set some stains. Use the amount
of detergent recommended for a normal wash cycle. If
desired, use a bleach or a soaking agent safe for the
fabric. The washer witl continue on with a soil-loosening
wash cycle immediately after the soak phase.
casual
Use this cycle for poly blends with a permanent press
or no-iron finish.

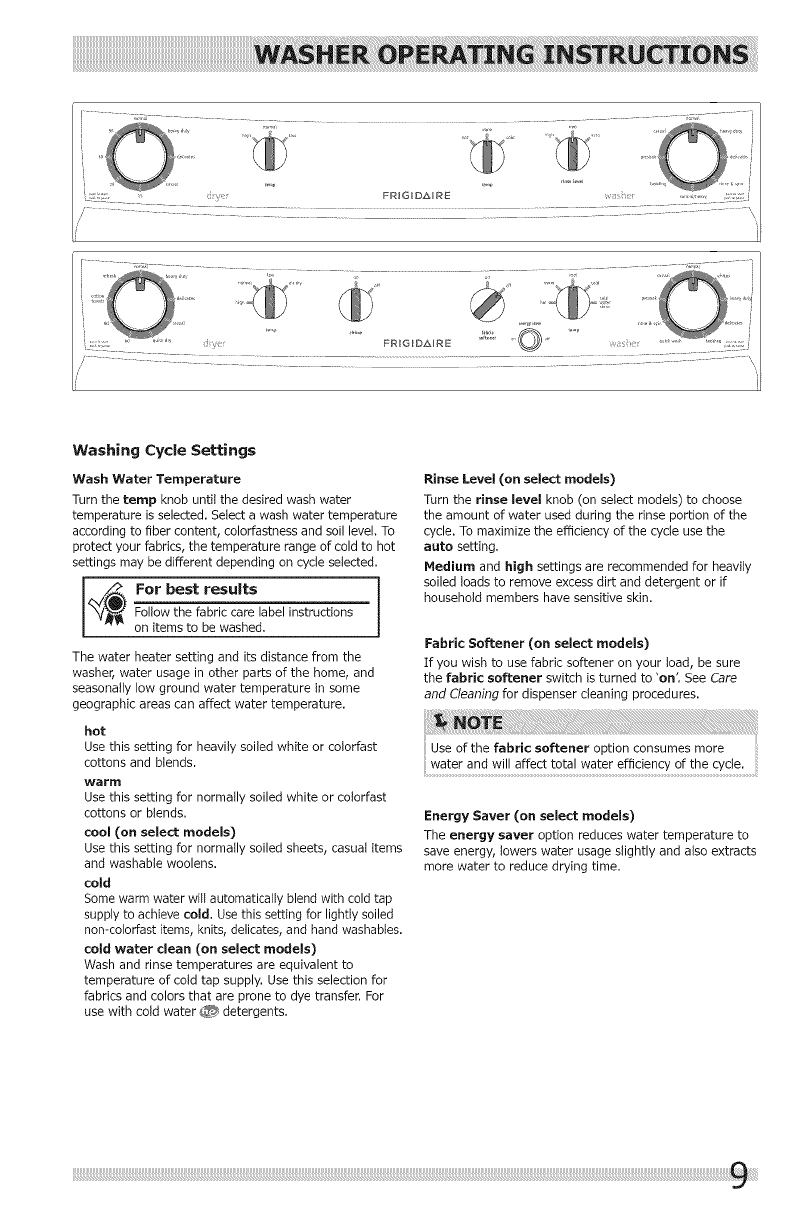

Washing Cycle Settings
Wash Water Temperature
Turn the tamp knob until the desired wash water
temperature is selected. Select a wash water temperature
according to fiber content, colorfastness and soil level, To
protect your fabrics, the temperature range of cold to hot
settings may be different depending on cycle selected.
[_ For best results
Follow the fabric care label instructions
on items to be washed.
The water heater setting and its distance from the
washer, water usage in other parts of the home, and
seasonally low ground water temperature in some
geographic areas can affect water temperature.
hot
Use this setting for heavily soiled white or colorfast
cottons and btends,
warm
Use this setting for normally soiled white or colorfast
cottons or blends.
cool (on select models)
Use this setting for normally soiled sheets, casual items
and washable woolens.
cold
Some warm water will automatically blend with cold tap
supply to achieve cold. Use this setting for lightly soiled
non-colorfast items, knits, delicates, and hand washables.
cold water clean (on select models)
Wash and rinse temperatures are equivalent to
temperature of cold tap supply. Use this selection for
fabrics and colors that are prone to dye transfer. For
use with cold water _ detergents.
Rinse Level (on select models)
Turn the rinse level knob (on select models) to choose
the amount of water used during the rinse portion of the
cycle. To maximize the efficiency of the cycle use the
auto setting,
Medium and high settings are recommended for heavily
soiled loads to remove excess dirt and detergent or if
household members have sensitive skin.
Fabric Softener (on select models)
if you wish to use fabric softener on your toad, be sure
the fabric softener switch is turned to 'on'. See Care
and Cleaning for dispenser cleaning procedures.
Use of the fabric softener option consumes more
wa!ea wi,a!!ect !o!awa!e ! eye!e:........
Energy Saver (on select models)
The energy saver option reduces water temperature to
save energy, lowers water usage slightly and also extracts
more water to reduce drying time.

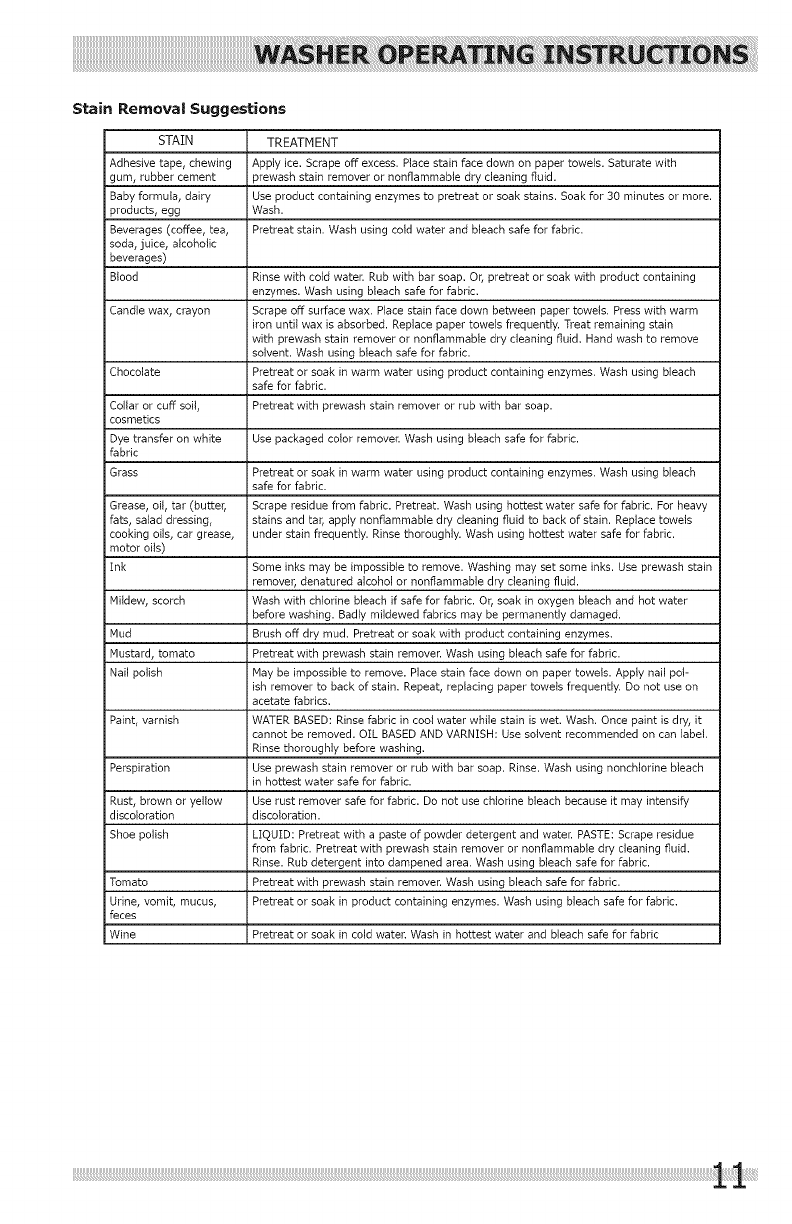

Safe Stain Removal Procedures
To reduce the risk of fire or serious injury to persons or
property, comply with the basic warnings listed below:
Read and comply with all instructionson stain
removal products.
Keep stain removal products in their original labeled
containers and out of children's reach.
Thoroughly wash any utensils used.
Do not combine stain removal products, especially
ammonia and chlorine bleach. Dangerous fumes can
result.
Never wash items which have been previously
cleaned in, washed in, soaked in or spotted with
gasoline, dry cleaning solvents or other flammable
or explosive substances because they give off vapors
that could ignite or explode.
Never use highly flammable solvents, such as gaso-
line, inside the home. Vapors can explode on contact
with flames or sparks.
For Successful Stain Removal:
*Remove stains promptly.
Determine the kind of stain, then follow the recom-
mended treatment in the stain removal chart on the
next page.
To pretreat stains, use a prewash product, liquid
detergent, or a paste made from powder detergent
and water.
Use cold water on unknown stains as hot water can
set stains.
Consult care label instructions for treatments to avoid
on specific fabrics.
Check for colorfastness by testing stain remover prod-
ucts on an inside seam.
Rinse and wash items after stain removal.
removers, acid or products containing ammonia. These
mixtures can produce dangerous fumes which can
/_} For best results
Follow the fabdc care label instructions
on items to be washed.
i!!i!i!l!_!0 ill
S_in Removal Suggestions
STAIN TREATMENT
Adhesive tape, chewing Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with
gum, rubber cement _rewash stain remover or nonflammable dry cleaning fluid.
Baby formula, dairy Use product containing enzymes to pretreat or soak stains. Soak for 30 minutes or more.
products, egg Wash.
Beverages (coffee, tea, Pretreat stain. Wash using cold water and bleach safe for fabric.
soda, juice, alcoholic
beverages)
Blood Rinse with cold water. Rub with bar soap. Or, pretreat or soak with product containing
enzymes. Wash using bleach safe for fabric.
Candle wax, crayon Scrape off surface wax. Place stain face down between paper towels. Press with warm
iron until wax is absorbed. Replace paper towels frequently. Treat remaining stain
with prewash stain remover or nonflammable dry cleaning fluid. Hand wash to remove
solvent. Wash using bleach safe for fabric.
Chocolate Pretreat or soak in warm water using product containing enzymes. Wash using bleach
safe for fabric.
Collar or cuff soil, Pretreat with prewash stain remover or rub with bar soap.
cosmetics
Dye transfer on white Use packaged color remover. Wash using bleach safe for fabric.
fabric
Grass Pretreat or soak in warm water using product containing enzymes. Wash using bleach
safe for fabric.
Grease, oil, tar (butter, Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy
fats, salad dressing, stains and tar, apply nonflammable dry cleaning fluid to back of stain. Replace towels
cooking oils, car grease, under stain frequently. Rinse thoroughly. Wash using hottest water safe for fabric.
motor oils)
Ink Some inks may be impossible to remove. Washing may set some inks. Use prewash stain
remover, denatured alcohol or nonflammable dry cleaning fluid.
Mildew, scorch Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and hot water
before washing. Badly mildewed fabrics may be permanently damaged.
Mud Brush off dry mud. Pretreat or soak with product containing enzymes.
Mustard, tomato Pretreat with prewash stain remover. Wash using bleach safe for fabric.
Nail polish Nay be impossible to remove. Place stain face down on paper towels. Apply nail pol-
ish remover to back of stain. Repeat, replacing paper towels frequently. Do not use on
acetate fabrics.
Paint, varnish WATER BASED: Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it
cannot be removed. OIL BASED AND VARNISH: Use solvent recommended on can label.
Rinse thoroughly before washing.
Perspiration Use prewash stain remover or rub with bar soap. Rinse. Wash using nonchlorine bleach
in hottest water safe for fabric.
Rust, brown or yellow Use rust remover safe for fabric. Do not use chlorine bleach because it may intensify
discoloration discoloration.
Shoe polish LIQUID: Pretreat with a paste of powder detergent and water. PASTE: Scrape residue
from fabric. Pretreat with prewash stain remover or nonflammable dry cleaning fluid.
Rinse. Rub detergent into dampened area. Wash using bleach safe for fabric.
Tomato Pretreat with prewash stain remover. Wash using bleach safe for fabric.
Urine, vomit, mucus, Pretreat or soak in product containing enzymes. Wash using bleach safe for fabric.
feces
Wine Pretreat or soak in cold water. Wash in hottest water and bleach safe for fabric

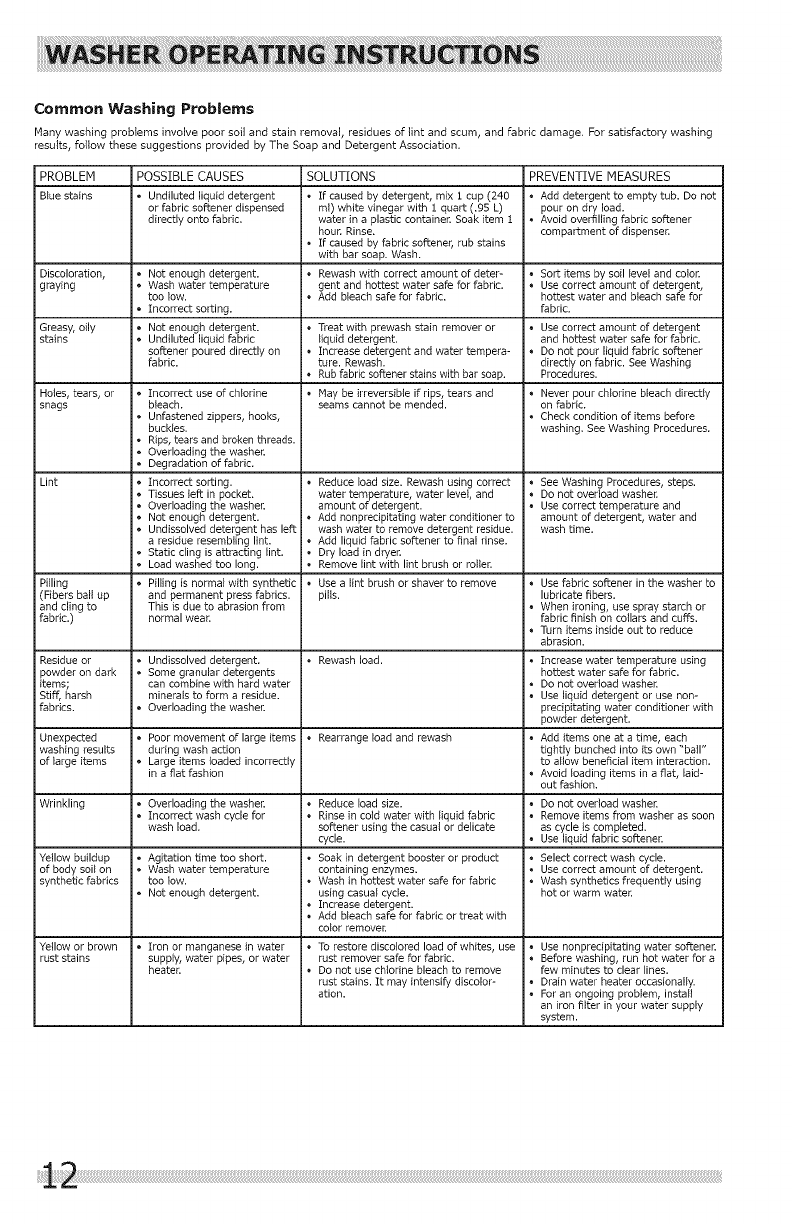

Common Washing Problems
Many washing problems involve poor soil and stain removal, residues of lint and scum, and fabric damage. For satisfactory washing
results, follow these suggestions provided by The Soap and Detergent Association.
PROBLEM
Bluestains
Discoloration,
graying
Greasy, oily
stains
Holes, tears, or
snags
Lint
Pilling
(Fibers ball up
and cling to
fabric.)
Residue or
)owder on dark
items;
Stiff, harsh
fabrics.
Unexpected
washing results
of large items
Wrinkling
Yellow buildup
of body soil on
synthetic fabrics
Yellow or brown
rust stains
POSSIBLE CAUSES
• Undiluted liquid detergent
or fabric softener dispensed
directly onto fabric.
* Not enough detergent.
* Wash water temperature
too low.
° Incorrect sorting.
* Not enough detergent.
* Undiluted liquid fabric
softener poured directly on
fabric.
• Incorrect use of chlorine
bleach.
• Unfastened zippers, hooks,
buckles.
• Rips, tears and broken threads.
• Overloading the washer.
• Degradation of fabric.
• Incorrect sorting.
• Tissues left in pocket.
• Overloading the washer.
• Not enough detergent.
• Undissolved detergent has left
a residue resembling lint.
• Static cling is attracting lint.
• Load washed too long.
• Pilling is normal with synthetic
and permanent press fabrics.
This is due to abrasion from
normal wear.
• Undissolved detergent.
• Some granular detergents
can combine with hard water
minerals to form a residue,
• Overloading the washer.
• Poor movement of large items
during wash action
• Large items loaded incorrectly
in a fiat fashion
• Overloading the washer.
• Incorrect wash cycle for
wash load.
• Agitation time too short.
• Wash water temperature
too low.
• Not enough detergent.
• Iron or manganese in water
supply, water pipes, or water
heater.
SOLUTIONS
• If caused by detergent, mix 1 cup (240
mt) white vinegar with 1 quart (.95 L)
water in a plastic container. Soak item 1
hour. Rinse.
• If caused by fabric softener, rub stains
with bar soap. Wash.
• Rewash with correct amount of deter-
gent and hottest water safe for fabric.
Add bleach safe for fabric.
• Treat with prewash stain remover or
tiquid detergent.
Increase detergent and water tempera-
ture. Rewash.
• Rub fabric softener stains with bar soap.
May be irreversible if rips, tears and
seams cannot be mended.
• Reduce load size. Rewash using correct
water temperature, water level, and
amount of detergent.
• Add nonpredpitating water conditioner to
wash water to remove detergent residue.
Add liquid fabric softener to final rinse.
Dry load in dryer.
Remove lint with lint brush or roller.
Use a lint brush or shaver to remove
pills.
• Rewash load.
• Rearrange load and rewash
• Reduce load size.
• Rinse in cold water with liquid fabric
softener using the casual or delicate
cycle.
• Soak in detergent booster or product
containing enzymes.
• Wash in hottest water safe for fabric
using casual cycle.
Increase detergent.
Add bleach safe for fabric or treat with
color remover
To restore discolored load of whites, use
rust remover safe for fabric.
Do not use chlorine bleach to remove
rust stains. It may intensify discolor-
ation.
PREVENTIVE MEASURES
• Add detergent to empty tub. Do not
pour on dry load.
• Avoid overfilling fabric softener
compartment of dispenser.
• Sort items by soil level and color.
• Use correct amount of detergent,
hottest water and bleach safe for
fabric.
Use correct amount of detergent
and hottest water safe for fabric.
Do not pour liquid fabric softener
directly on fabric. See Washing
Procedures.
Never pour chlorine bleach directly
on fabric.
Check condition of items before
washing. See Washing Procedures.
• See Washing Procedures, steps.
Do not overload washer.
Use correct temperature and
amount of detergent, water and
wash time.
• Use fabric softener in the washer to
lubricate fibers.
When ironing, use spray starch or
fabric finish on collars and cuffs.
Turn items inside out to reduce
abrasion.
Increase water temperature using
hottest water safe for fabric.
Do not overload washer.
Use liquid detergent or use non-
precipitating water conditioner with
powder detergent.
Add items one at a time, each
tightly bunched into its own "bail"
to allow beneficial item interaction.
Avoid loading items in a fiat, laid-
out fashion.
Do not overload washer.
Remove items from washer as soon
ascycle is completed.
Use liquid fabric softener
Select correct wash cycle.
Use correct amount of detergent.
Wash synthetics frequently using
hot or warm water.
• Use nonprecipitatJng water softener.
Before washing, run hot water for a
few minutes to clear lines.
Drain water heater occasionally.
For an ongoing problem, install
an iron filter in your water supply
system.

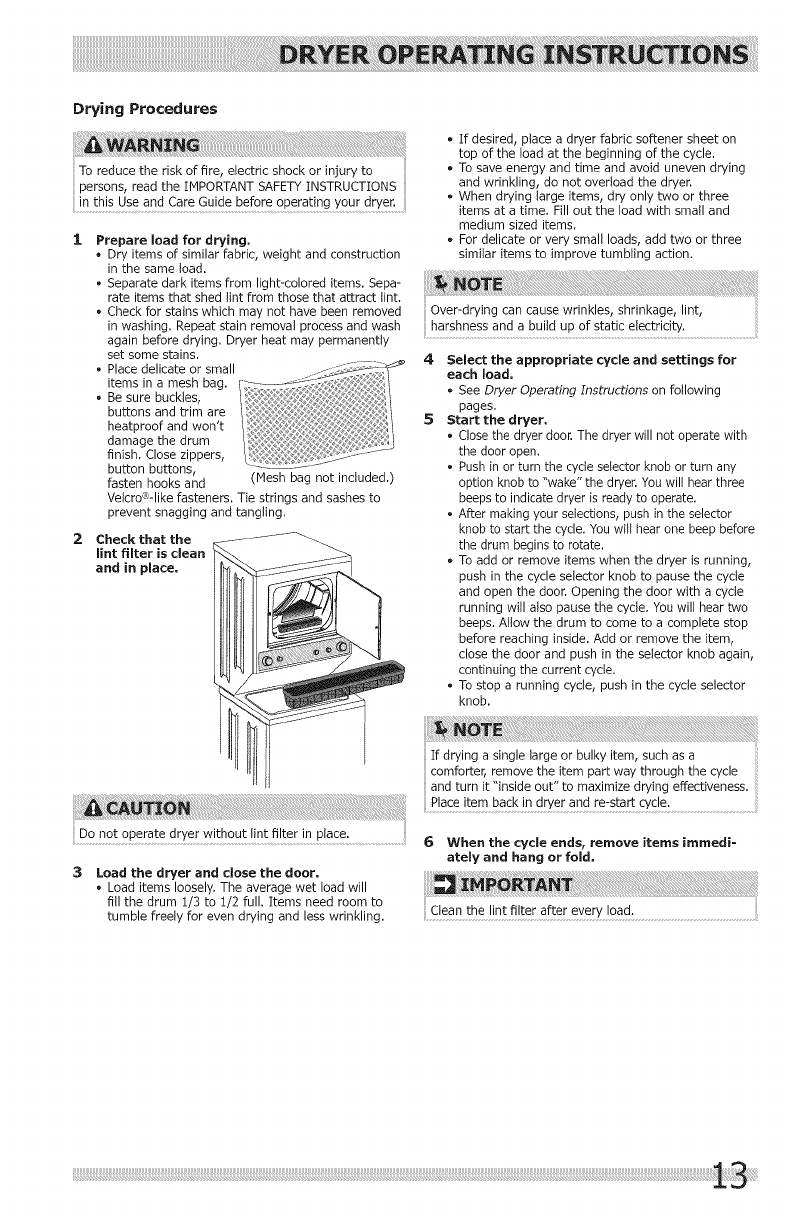

Drying Procedures
To reduce the risk of fire, eiectric shock or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS
in this Use and Care Guide before operating your dryer. ....
Prepare load for drying.
Dry items of similar fabric, weight and construction
in the same toad.
Separate dark items from light-colored items. Sepa-
rate items that shed lint from those that attract tint.
Check for stains which may not have been removed
in washing. Repeat stain removal process and wash
again before drying. Dryer heat may permanently
set some stains.
Place delicate or small
items in a mesh bag.
Be sure buckles,
buttons and trim are
heatproof and won't
damage the drum
finish. Close zippers,
button buttons,
fasten hooks and (Mesh bag not included.)
Velcro®-Iike fasteners. Tie strings and sashes to
prevent snagging and tangling.
Check that the
lint filter is clean
and in place.
If desired, place a dryer fabric softener sheet on
top of the load at the beginning of the cycle.
To save energy and time and avoid uneven drying
and wrinkling, do not overload the dryer.
When drying large items, dry only two or three
items at a time. Fill out the load with small and
medium sized items.
• For delicate or very small loads, add two or three
similar items to improve tumbling action.
Over-drying can cause wrinkles, shrinkage, lint,
harshness and a build up of static electricity.
Select the appropriate cycle and settings for
each load.
See Dryer Operating Instructions on following
pages.
Start the dryer.
•Closethe dryer door. The dryer will not operate with
the door open.
• Push in or turn the cycle selector knob or turn any
option knob to "wake" the dryer. You will hear three
beeps to indicate dryer is ready to operate.
• After making your selections, push in the selector
knob to start the cycle. You will hear one beep before
the drum begins to rotate.
• Toadd or remove items when the dryer is running,
push in the cycle selector knob to pause the cycle
and open the door. Opening the door with a cycle
running will also pause the cycle. You will hear two
beeps. Allow the drum to come to a complete stop
before reaching inside. Add or remove the item,
close the door and push in the selector knob again,
continuing the current cycle.
• Tostop a running cycle, push in the cycle selector
knob.
Do not operate dryer without tint filter in piace.
Load the dryer and close the door.
Load items loosely. The average wet load will
fill the drum 1/3 to 1/2 full. Items need room to
tumble freely for even drying and less wrinkling.
comforter, remove the item part way through the cycle
and turn it "inside out" to maximize drying effectiveness.
Place item back in dryer and re-start cycle.
6When the cycle ends, remove items immedi-
ateiy and hang or fold,
Clean the lint filter after every load.
This manual covers many models and not all cycles, options, or features listed are available on every model. Consoles shown above
for reference onl_ Your model may diffe_
Drying Cycle Selection
Turn the cycle selector in either direction to the cycle
desired.
For best results
Follow the fabric
label instructions on
items to be dried.
To change the cycle after it has begun, push in or turn
the cycle selector knob to pause the current running
cycle. Make the new selection and push in the cycle
selector knob again to start the new cycle.
Auto Dry Cycles
Auto Dry cycles take the guesswork out of selecting
the correct drying time for each load. Moisture sensing
bars in the front of the dryer drum (on certain models)
sense the moisture level of the toad as it tumbles
through the heated air. With Auto Dry cycles, the toad
will automatically be dried at the selected temperature
to a specific dryness level. Auto Dry cycles save time and
energy and protect fabrics.
When the load has reached the dryness level, it will
continue to tumble during a cool down period. This helps
reduce wrinkling and makes items easier to handle during
unloading.
Drying time varies depending on size and dampness of
load and fabric type. If the load is too small or almost
dry, the moisture sensing bars may not detect enough
moisture to continue the cycle and the cycle may end
after a few minutes. If this occurs, select a Timed Dry
cycle.
Room temperature and humidity, type of installation and
electrical voltage or gas pressure can also affect drying
time.
normal
Select this cycle to dry everyday fabrics including
cottons, linens and sheets.
heavy duty
Select this Auto Dry cycle to dry durable fabrics such as
work wear and overalls.
deiicates
Select this cycle to dry knits and delicates.
casual
Select this cycle to dry cottons, blends and permanent
press items with a no-iron finish.
cotton towels (on select models)
Select this cycle to dry heavy loads such as towels and
non-rubber-backed bath mats.
Drying Cycle Selection Drying Cycle Settings
Timed Dry Cycles Drying Temperature
Select the temperature setting most suitable for each
load, To protect your fabrics, not all temperatures are
available with every cycle, If an unavailable temperature
setting is selected by the user, the nearest available
containing feathers or down, foam rubber, plastics temperature will be substituted.
similarly textured, rubber-like materials. Use a Timed The air dry (on select models) setting can be used only
Dry cycle and the air dry setting, n a timed cycle, Air dry setting tumbles the load without
heat. Use air dry to freshen clothing, pillows or blankets,
quick dry (on select models only) or to dust draperies,
Select this timed cycle to quickly dry a small load made
up of just a few items. It provides approximately 20
minutes of tumbling followed by a cool down period,
refresh (on select models only)
Select refresh to help remove wrinkles from clean and
dry items that were not taken from the dryer at the
end of the cycle, have been stored in crowded closets
or drawers, or unpacked from luggage following a
trip. It provides approximately 10 minutes of tumbling
followed by a 5-minute cool down period,
timed dry
To manually select the drying time for any load, turn
the knob to a numbered setting: 15 (on select models),
30, 60, or 90 minutes. Moisture sensing bars (if
equipped) are not active and dryer will continue to heat
throughout the cycle until the final coo! down period,
Chime (on select models)
A signal will sound at the end of the cycle if selected,
Other Dryer Features
Drying Rack (some models)
Use the drying rack to dry items which should not be
tumble dried. If your model did not come with a drying
rack, you may order one.
Place the front bar
under the lip of the lint
screen opening.
i. Open the dryer door and remove the lint screen.
2. Insert drying rack into the dryer drum. Place the front
bar under the lip of the lint screen opening.
3. Place items to be dried on top of the rack. Weight
should not exceed i0 tbs. Leave space between items,
but do not let items hang over the sides or through
the grids. Do not tumble other items when using the
drying rack.
4. Select a timed cycle. If items to be dried contain
plastic, foam rubber, rubber-like materials, feathers or
down, then only use the air dry temperature setting.
5. When items are dry, remove the rack and replace the
lint screen. If tint screen is not in place, tumbling items
could enter the exhaust system and cause damage to
the dryer.
Common Drying Problems
Many drying problems involve poor cleaning results, poor soit and stain removal, residues of lint and scum, and fabric
damage. For satisfactory drying results, follow these suggestions provided by The Soap and Detergent Association.
PROBLEM
Greasy, oily
stains
Lint
POSSIBLE CAUSES
Fabricsoftener sheet.
, Overloading.
Overdrying causes static
electricity.
Lint screen not dean when
cycle began.
, Lint is attached to "pills."
SOLUTIONS
Rub fabric softener stains with
bar soap. Rinse and rewash.
Reduce load size and rewash
using liquid fabric softener in
the final rinse.
Or, add a fabric softener sheet
and tumble without heat.
Use lint brush or roller to
remove lint.
Use a lint brush or shaver to
remove pills.
Pilling , Overdrying.
(Fibers break
off,ball up and
cling to fabric.)
Shrinking _ Temperature too high. •Irreversible condition.
Overdrying.
Wrinkling _ Overloading. •Reduce load size and tumble at
Leaving items in dryer after medium or low heat for 5-10
cycle ends. minutes.
Remove items immediately.
Hang or fold.
PREVENTIVE MEASURES
, Add a few bath towels to small loads
for proper tumbling.
, Some "silk-like" fabrics should be air
dried.
, Use proper drying temperature.
, Place fabric softener sheet on top of
load before starting the dryer.
, Do not overload dryer.
, Use fabric softener in washer or dryer
to reduce static electricity.
, Remove items when they are slightly
damp to avoid overdrying.
, Check that lint filter is clean and in
place.
, Use fabric softener to lubricate fibers.
, When ironing, use spray starch or
fabric finish on collars and cuffs.
, Turn items inside out to reduce
abrasion.
,Follow fabric care label directions.
, If shrinking is a concern, check load
often.
, Remove items while slightly damp and
hang or lay fiat to complete drying.
, Block knits into shape.
, Do not overload dryer.
, Remove items as soon as cycle ends.
FIRE HAZARD
A clothes dryer produces combustible lint. The dryer
must be connected to an outdoors exhaust. Regularly
inspect the outdoor exhaust opening and remove any
accumulation of lint around the opening and in the
surroundingarea.
Fabric softener may build up in the dispenser well.
Residue should be removed once or twice a month,
property, comply with the basic warnings listed in the
Important Safety Instructions and those listed below.
• Before cleaning the laundry center interior, unplug the
electrical power cord to avoid electrical shock hazards.
• Do not use any type spray cleanser when cleaning the
dryer interior. Hazardous fumes or electrical shock could
occur.
INSIDE DRYER
• Clean the lint filter after every load. Lint build-up on
the filter restricts air flow, which causes longer drying
times. The filter is located at the bottom of the door
opening. Remove by pulling straight up. Remove the
lint and replace the filter.
• Occasionally a waxy build-up may form on the tint filter
and/or moisture sensing bars from using dryer-added
fabric softener sheets. To remove this build-up, wash
them with warm, soapy water. Dry the filter thoroughly
and replace. Do not operate the dryer without the lint
filter in place.
• If the dryer drum becomes stained from noncolorfast
fabrics, clean the drum with a damp cloth and a mitd
liquid household cleanser. Remove cleanser residue
before drying the next load.
• Every 18 months an authorized servicer should clean
the dryer cabinet interior and exhaust duct. These
areas can collect lint and dust over time. An excessive
amount of lint build-up could result in inefficient drying
and possible fire hazard.
INSIDE WASHER
• Remove items from the washer as soon as the cycle
ends. Excess wrinkling, color transfer, and odors may
develop in items left in the washer.
• Dry the washer top, the area around the lid opening,
and the underside of the lid. These areas should always
be dry before the lid is closed.
• Before cleaning the washer interior, unplug the electri-
cal power cord to avoid electrical shock hazards.
• When extremely soiled items have been washed, a dirty
residue may remain on the tub. Remove this by wiping
the tub with a nonabrasive household cleanser. Rinse
thoroughly with water.
• The base plate or tub may become stained from fabric
dye. Clean these parts with a nonabrasive household
cleanser. This prevents dye transfer to future loads.
FABRIC SOFTENER DISPENSER
• Remove the dual chamber insert (a) from the bleach
and fabric softener dispenser by pinching at the cham-
ber divider and lifting upward. Also remove the siphon
cap (b).
• Rinse the insert and cap with a combination of 3/4cup
liquid chlorine bleach and i gallon hot tap water to
remove any buildup. Large amounts of fabric softener
residue may indicate improper dilution or more frequent
cleaning is required. Rinse wetl with tap water.
• For the dispenser well, use a small brush to clean the
recesses. Remove alt residue.
• Replace the siphon cap and insert by pressing it in
place until you hear a slight click.

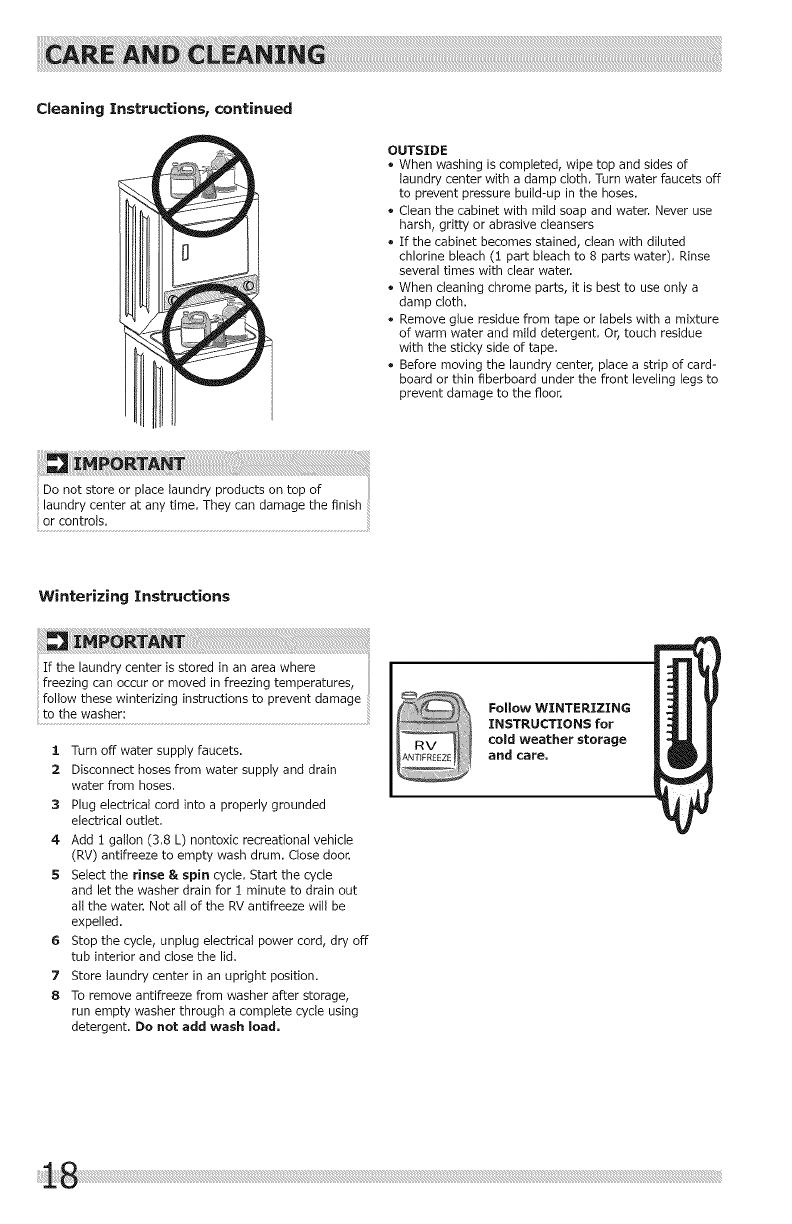

Cleaning Instructions, continued
OUTSIDE
• When washing is completed, wipe top and sides of
laundry center with a damp cloth, Turn water faucets off
to prevent pressure build-up in the hoses.
Clean the cabinet with mild soap and water, Never use
harsh, gritty or abrasive cleansers
® If the cabinet becomes stained, clean with diluted
chlorine bleach (! part bleach to 8 parts water), Rinse
several times with clear water.
® When cleaning chrome parts, it is best to use only a
damp cloth.
® Remove glue residue from tape or labels with a mixture
of warm water and mild detergent, Or, touch residue
with the sticky side of tape,
• Before moving the laundry center, place a strip of card-
board or thin fiberboard under the front leveling legs to
prevent damage to the floor.
Do not store or place laundry products on top of
laundry center at any time, They can damage the finish
or controls.
Winterizing Instructions
If the laundry center is stored in an area where
freezing can occur or moved in freezing temperatures,
follow these winterizing instructions to prevent damage
to the washer:
i Turn off water supply faucets.
2Disconnect hoses from water supply and drain
water from hoses,
3 Plug electrical cord into a properly grounded
electrical outlet,
4 Add ! gallon (3,8 L) nontoxic recreational vehicle
(RV) antifreeze to empty wash drum. Close door.
5Select the rinse I_ spin cycle, Start the cycle
and let the washer drain for ! minute to drain out
all the water. Not all of the RV antifreeze will be
expelled.
6 Stop the cycle, unplug electrical power cord, dry off
tub interior and close the lid.
7 Store laundry center in an upright position.
8 To remove antifreeze from washer after storage,
run empty washer through a complete cycle using
detergent. Do not add wash load,
Follow WINTERIZING
INSTRUCTIONS for
cold weather storage
and care,
Before calling for service, review this list, It may save both time and expense, The list includes common occurrences
that are not the result of defective workmanship or materials in this laundry center.
OCCURRENCE POSSIBLE CAUSE SOLUTION
Rattling and clanking Foreign objects such as coins or safety pins may be Stop washer and check drum. If noise continues after washer is
noise, in drum or pump. reffrarted, objects may be in pump. Call your authorized servicer
Belt buckles and metal fasteners are hitting wash To prevent unnecessary noise and damage to tub, fasten
drum. fasteners and turn items inside out.
Thumping sound. Heaw wash loads may produce a thumping sound. Stop washer and redistribute wash load.
This is usually normal. If sound continues, washer is
probably out of balance,
Vibrating noise. Washer is not resting firmly on floon Move washer so it rests firmly on floor. Adjust leveling legs. See
INSTALLATION INSTRUCTIONS for details,
Wash load unevenly distributed in tub. Stop washer and rearrange wash load.
Washer does not start. Washer lid is open. Close washer lid. The washer will not operate when the lid is open.
Electrical power cord may not be plugged in or con- Make sure plug fits tightly in wall outlet.
nection may be loose.
House fuse blown, circuit breaker tripped, or a Reset circuit breaker or replace fuse. Do not increase fuse
power outage has occurred, capacity. If problem is a circuit overload, have it corrected by
a qualified electrician. If problem is a power outage, call local
electric company.
Water supply faucets are not turned on. Turn on water supply faucets.
Motor is overheated. Washer motor will stop if it Wait for the motor to cool down before attempting to restart.
becomes overheated.
Washer won't spin. Lid is not completely closed. Close washer lid. The washer will not operate when the lid is open.
Residue left in drum. Heavily soiled items. Wipe drum with a nonabrasive household cleanser, then rinse.
Shake or brush excess dirt and sand from items before washing
Dryer does not start. Electrical power cord is not securely plugged in or Make sure the plug fits tightly in wall outlet.
plug may be loose.
House fuse blown or circuit breaker tripped. Reset circuit breaker or replace fuse.
Make sure electrical line is not overloaded.
Call authorized service person for replacement,
Replace fuse.
Thermal limiter tripped.
Dryer runs but won't There are 2 house fuses in the dryer circuit. If 1 of the
heat. 2 fuses is blown, the drum may turn but the heater will
not operate. (electric models)
Gas supply valve is not open (gas models). Check to make sure supply valve is open. See INSTALLATION
INSTRUCTIONS for procedure.
Dryer does not have enough air supply to support See INSTALLAT]:ON INSTRUCTIONS.
the burner flame (gas models).
LP gas supply tank is empty or there has been a util- Refill or replace tank. Dryer should heat when utility service
ity interruption of natural gas (gas models), is restored.
Drying cycle takes too Lint filter is dogged with lint. Make sure all lint has been removed from the dryer lint filter
long, outside of the before starting each cycle.
dryer feels too hot or
smells hot. Exhaust duct requirements have not been met. Exhaust duct must be at least 4 inches in diameter and made of
rigid or semi-rigid metal.
When ill place, the duct must have no more than four 90° bends and
must not exceed length listed in INSTALLAq_ON INSTRUCTION&
Drying time will be 20% longer than drying on a 240 volt circuit.
See "Operating Instructions."
Clean out any obstruction.
Use a dehumidifier near the drye£
Electric dryer is connected to a 208 volt circuit.
Drying procedures have not been followed.
Outside exhaust hood or exhaust duct may be
clogged or restricted.
High humidity.
OCCURRENCE POSSIBLE CAUSE SOLUTION
Excessive wrinkling. Dryer is overloaded. Do not overload. See "Operating Instructions."
Items left in dryer too long. Remove items as soon as cycle ends.
Tnsufficient sorting of items. See "Operating Instructions."
Drying temperature too high. Follow fabric care label instructions.
Scratching or chipping of Foreign objects such as coins, pins, clips or buttons Always remove foreign objects from pockets before laundering.
the drum finish, are inside the dryer,* Remove objects from drum and restart dryer.
Permanently attached items such as belt buckles, zippers Turn items inside out before drying to prevent scratching and dam-
and fasteners may be hitting the inside of _ drum.* age to the dlyel:
_Drum damage caused by foreign objects or permanently attached items is not covered by the warranty.
Wash toad too wet after Washer is overloaded. Do not overload washen See Washing Procedures.
spin. Load is out of balance. Rearrange load to allow proper spinning.
Drain hose is kinked. Straighten drain hose.
Water does not enter Washer lid is open. Close washer lid, The washer will not operate when the lid is open.
washer or it enters
slowly. Water supply is not adequate in area. Check another faucet in the house. Wait until water supply
and pressure increase.
Water supply faucets are not completely open. Fully open hot and cold faucets.
Water is being used elsewhere in the house. Water pressure must be at least 20 psi (69 kPa). Avoid running
water elsewhere while washer is filling.
Water inlet hoses are kinked. Straighten hoses.
Warm or hot water is not Hot water heater is set too low or is a distance Measure hot water temperature at nearby faucet with candy
hot enough, from washen or meat thermometec Water temperature should be at least
120°F (50°C). Adjust water heater as necessary,
Hot water is being used elsewhere in the house. Avoid using hot water elsewhere before or during washer use.
There may not be enough hot water available for proper clean-
ing. If problem persists, your hot water system may be unable
to support more than 1 use at a time.
Water in washer does not Drain hose is kinked or clogged. Clean and straighten the drain hose.
drain or drains slowly.
Water leaks. Loose fill hose connection at faucet or washen Check and tighten hose connections. Install rubber sealing
washers provided.
House drain pipes are cfagged. Unclog drain pipes. Contact plumber if necessary.
Incorrect wash and rinse Hot and cold water hoses are connected to wrong Connect hot water hose to hot water faucet and cold water
temperatures, supply faucets, hose to cold water faucet.
Water is entering washer Drain hose standpipe is incorrect height. Standpipe must be a minimum of 33" (84 cm) high to prevent
but tub does not fill. siphoning. See INSTALLATION ]:NSTRUCT:[ONS.
Water is present in tub after Lid lock malfunction. Do not bypass lid lock. Call your authorized service_
wash cycle is complete.
The drain and spin cycles Lid lock malfunction. Do not bypass lid lock. Call your authorized service_
did not occur.
For the applicable warranty period as set forth below, as measured from your original date of purchase, Electrolux wil! repair or
replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used
and maintained in accordance with the provided instructions.
Warranty Periods:
• Atl parts -- One year including labor
• Wash tub -- Functional life of the product (excluding labor)
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
S. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary
household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a
part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other
cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage
expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux
parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse,
inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT
AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT
NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR
ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITFEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE
OTHER RIGHTS THAT VARY FROM STATE TO STATE.
IF YOU NEED SERVICE
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be
required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be
obtained by contacting Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrotux Major Appliances North
America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux
authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty
must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are
subject to change without notice.
USA Canada
1.800.944,9044 _ 1.800,265.8352
Electrolux Major Appliances Electrolux Electrolux Canada Corp.
10200 David Taylor Drive 58S5 Terry Fox Way
Charlotte, NC 28262 Mississauga, Ontario, Canada
LSV 3E4
