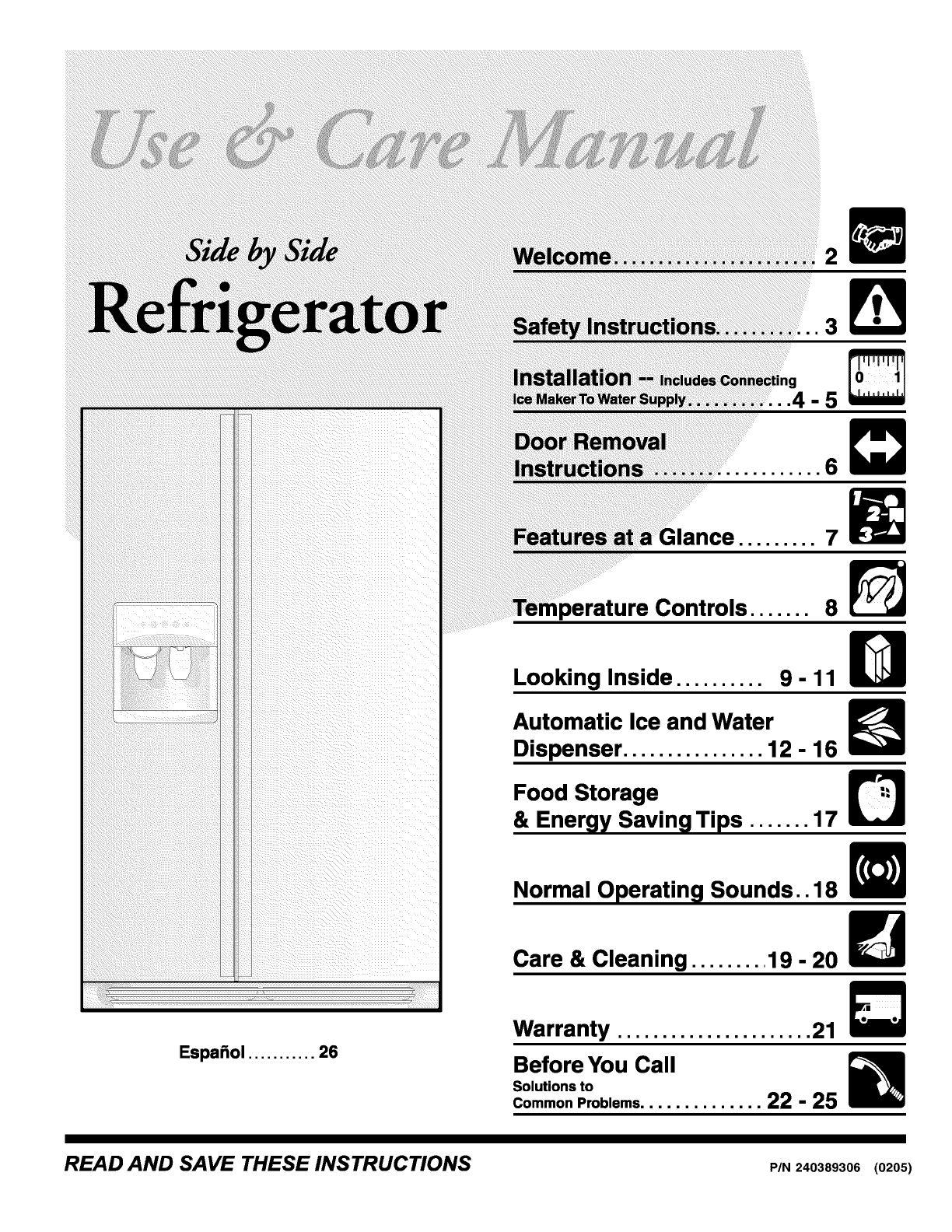

,,4-5

perature Controls ....... 8

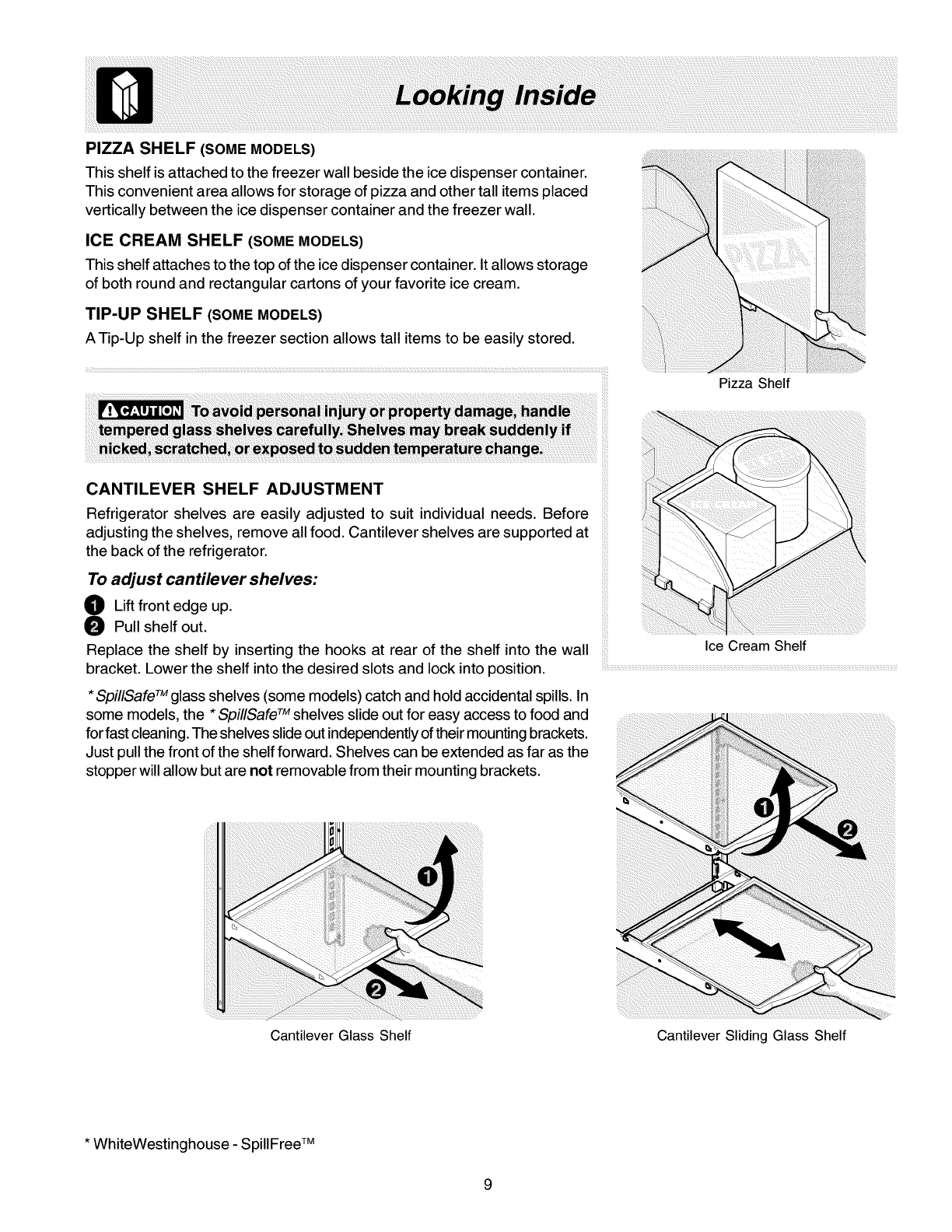

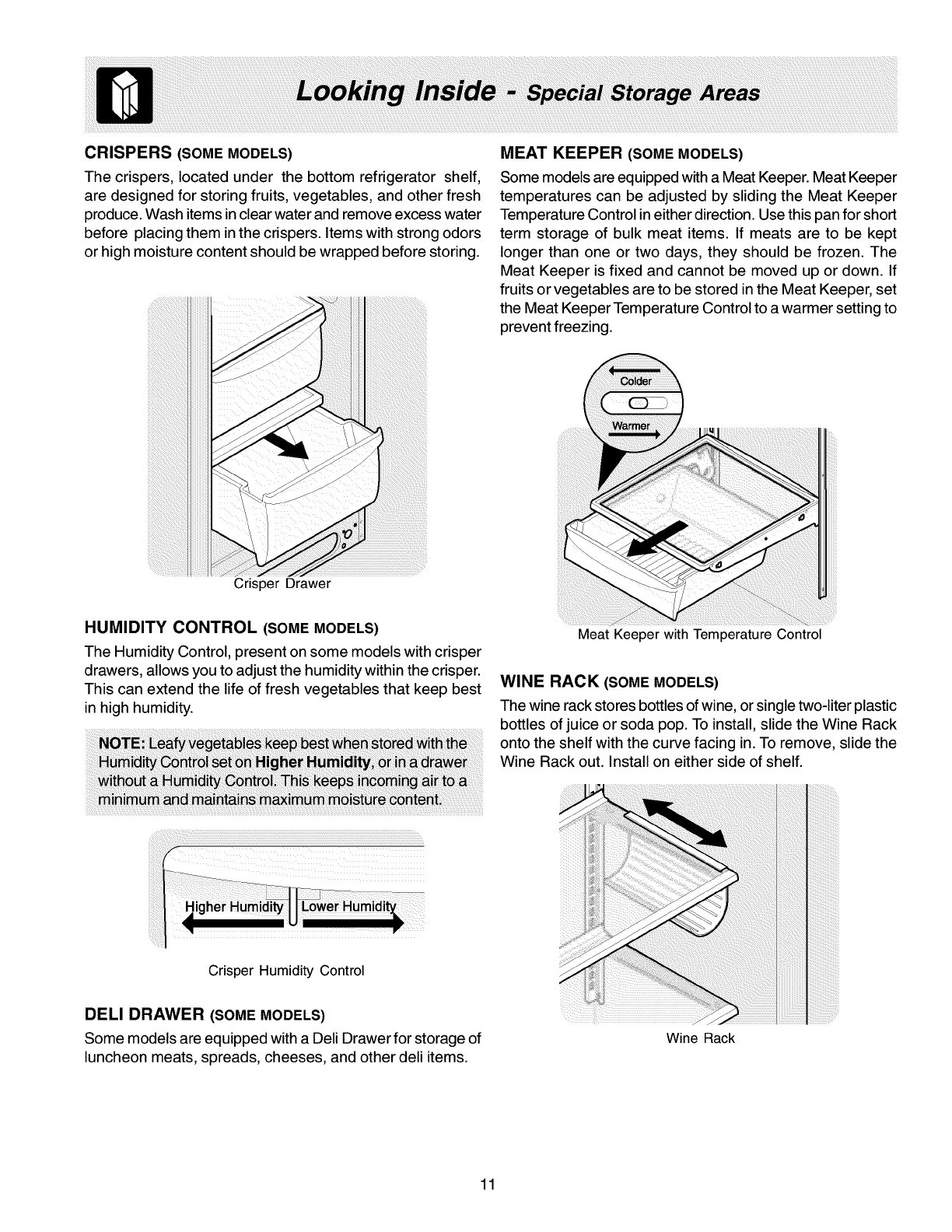

Looking Inside .......... 9- 11

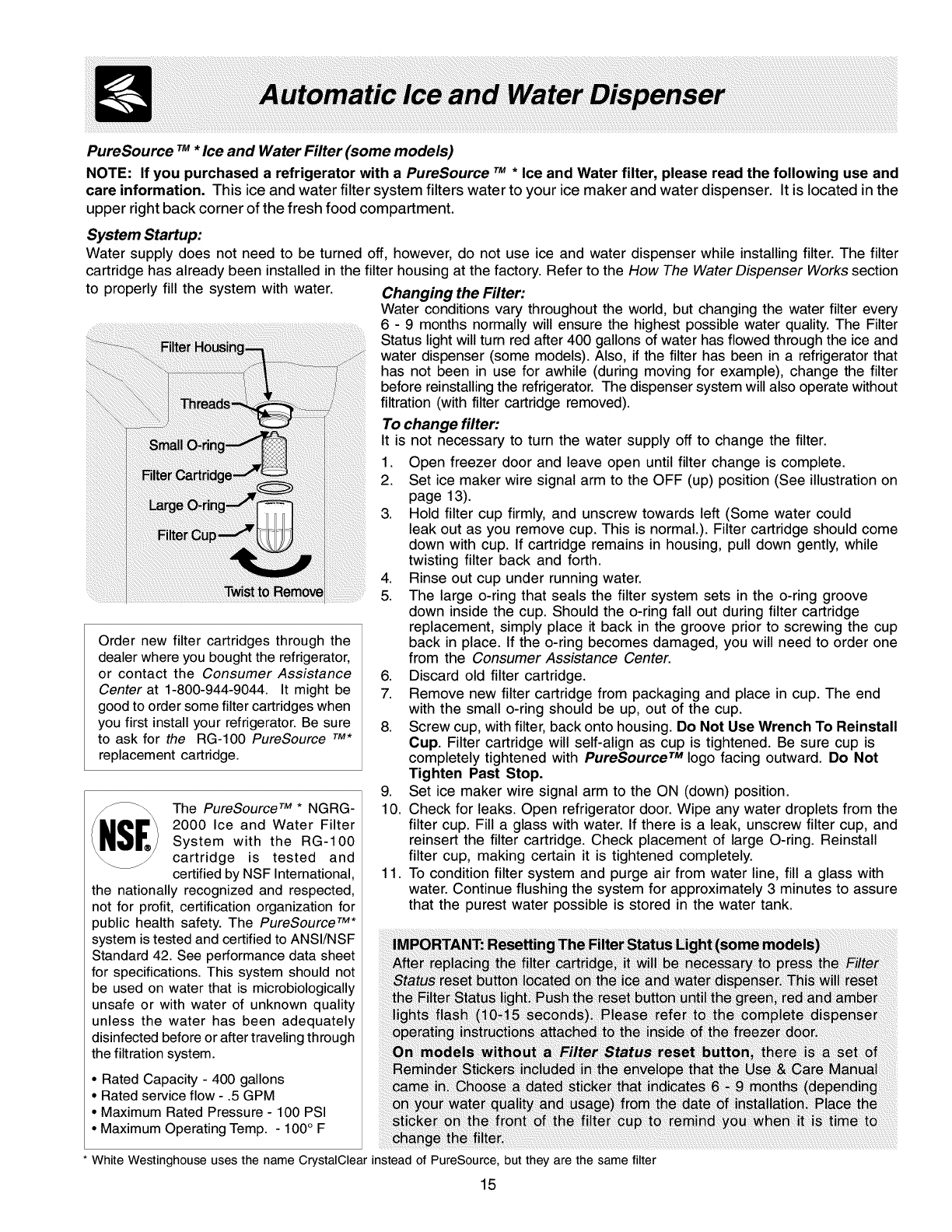

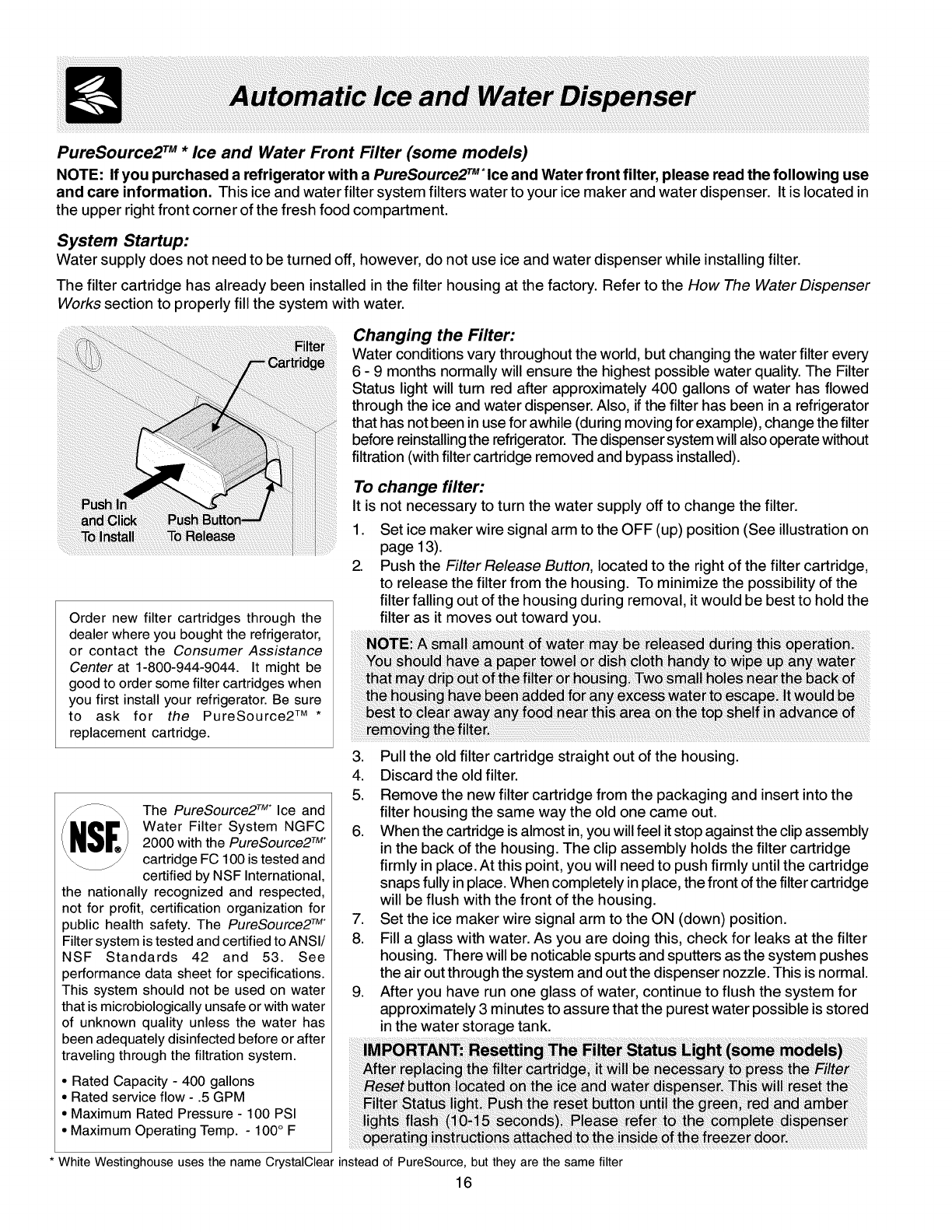

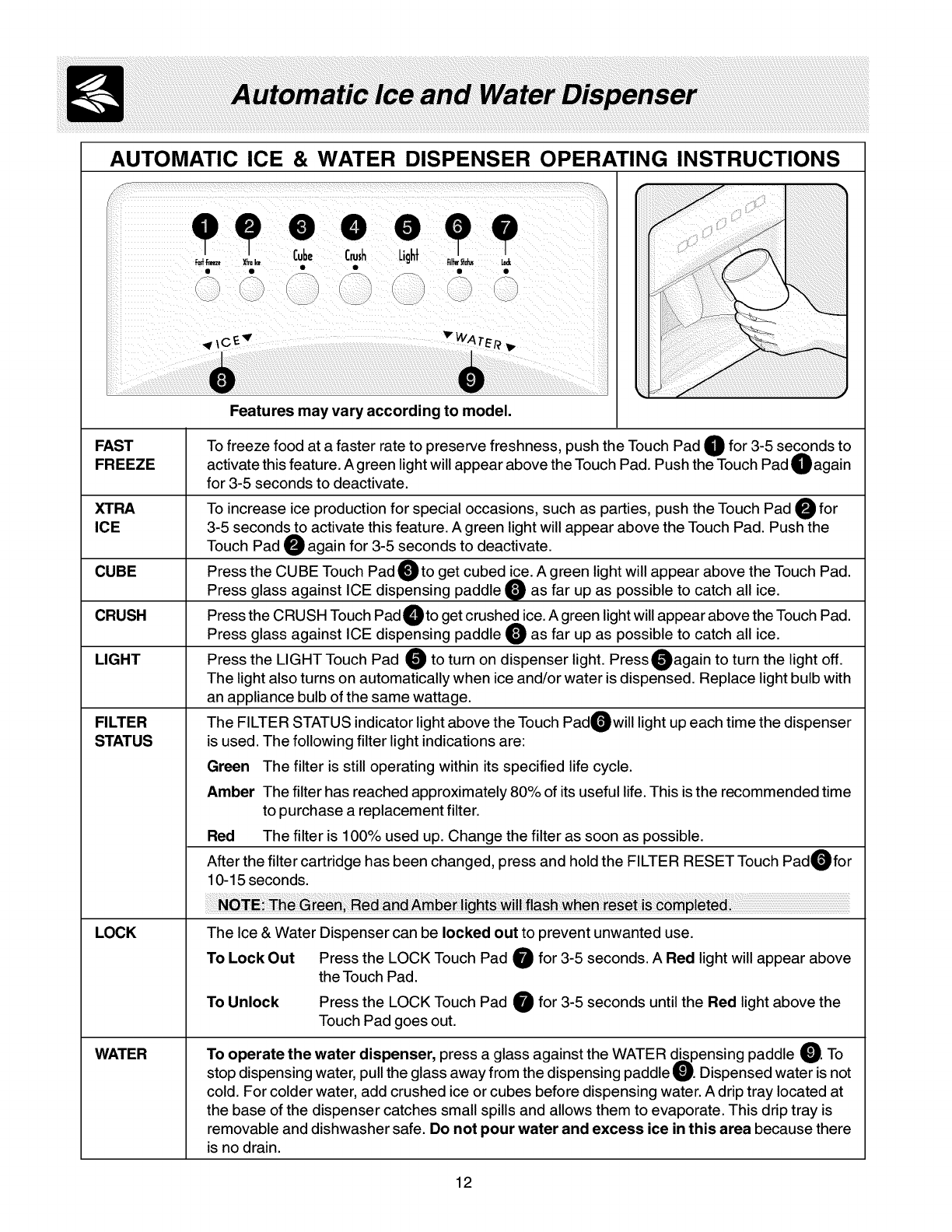

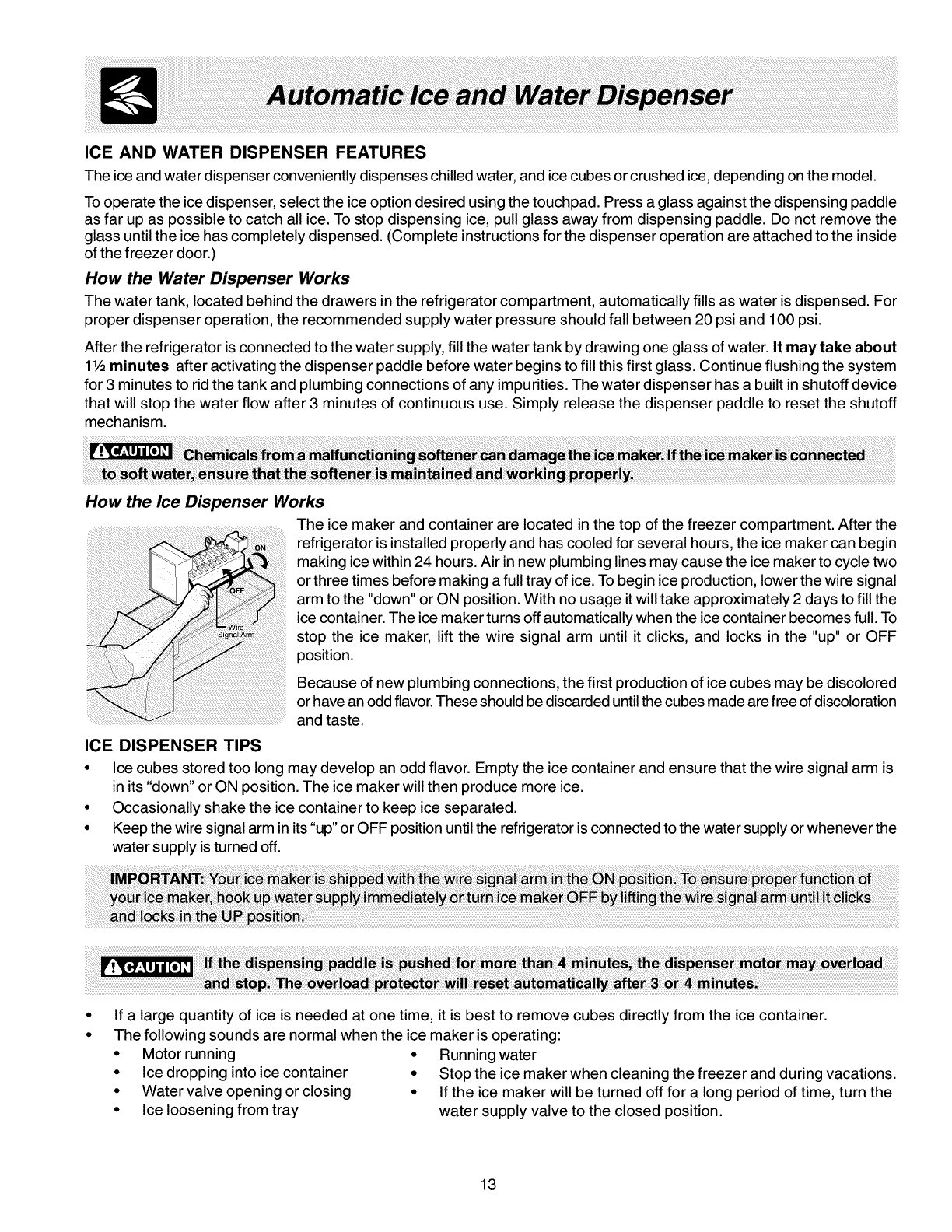

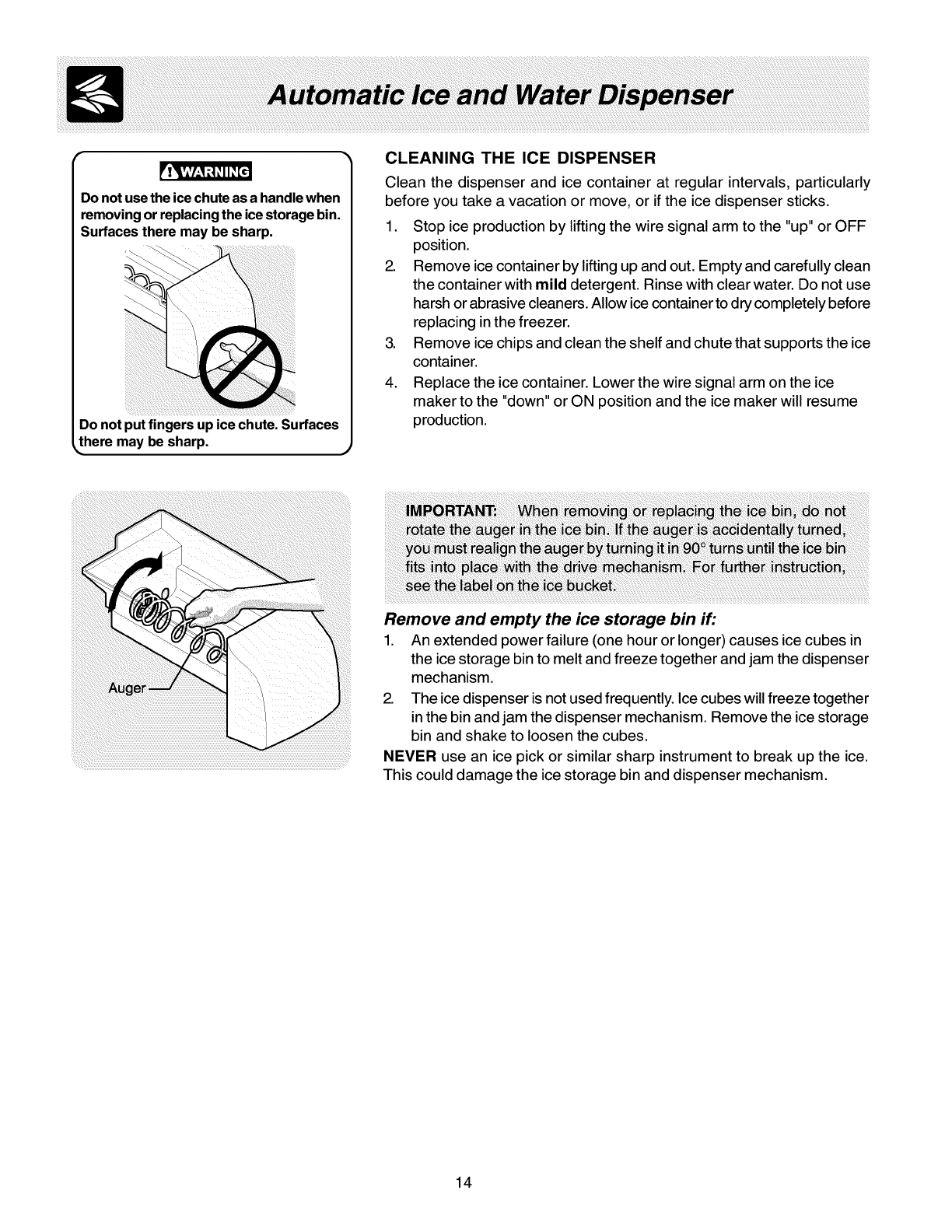

Automatic Ice and Water

Dispenser ................ 12 -16

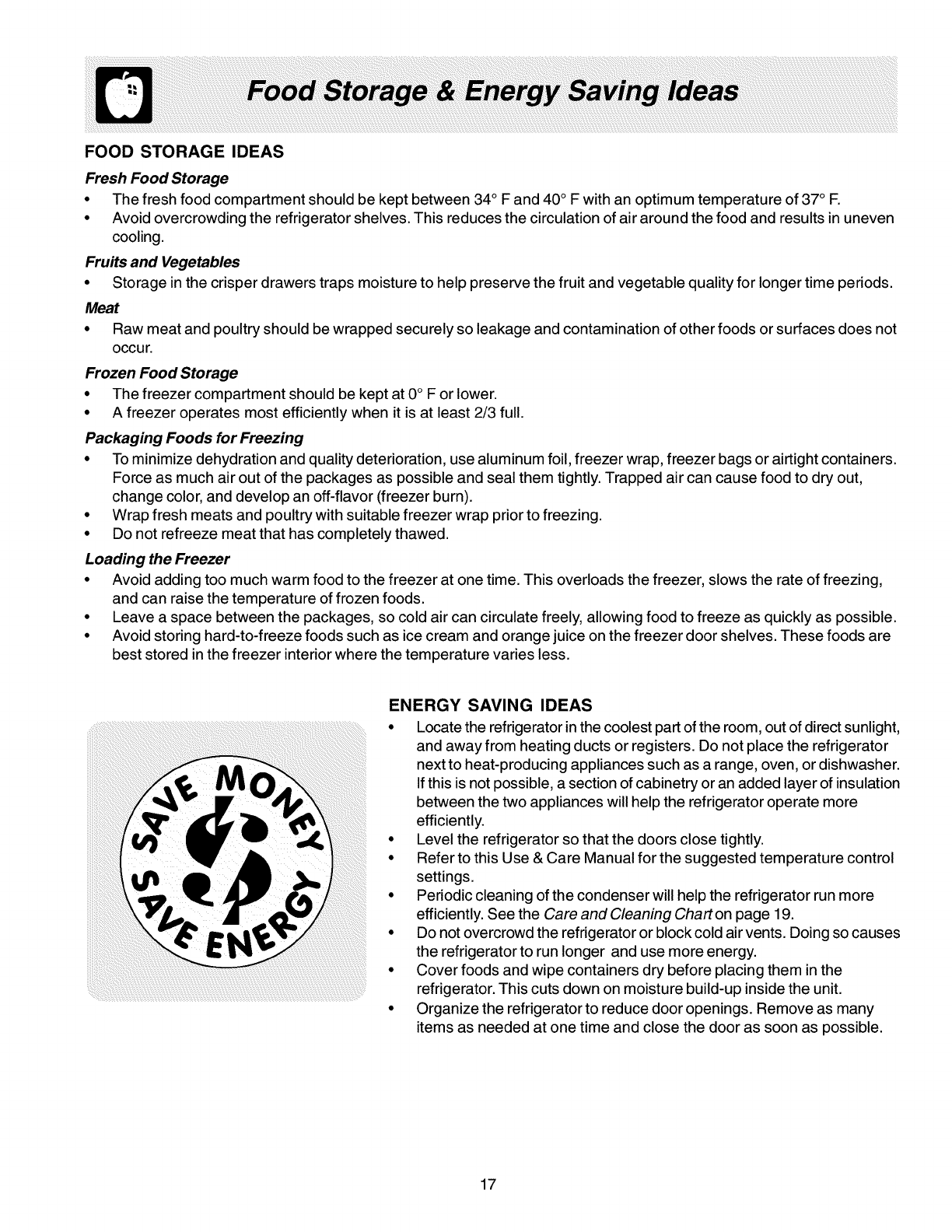

Food Storage

& Energy Saving Tips ....... 17

......... 7_

Espa_ol ........... 26

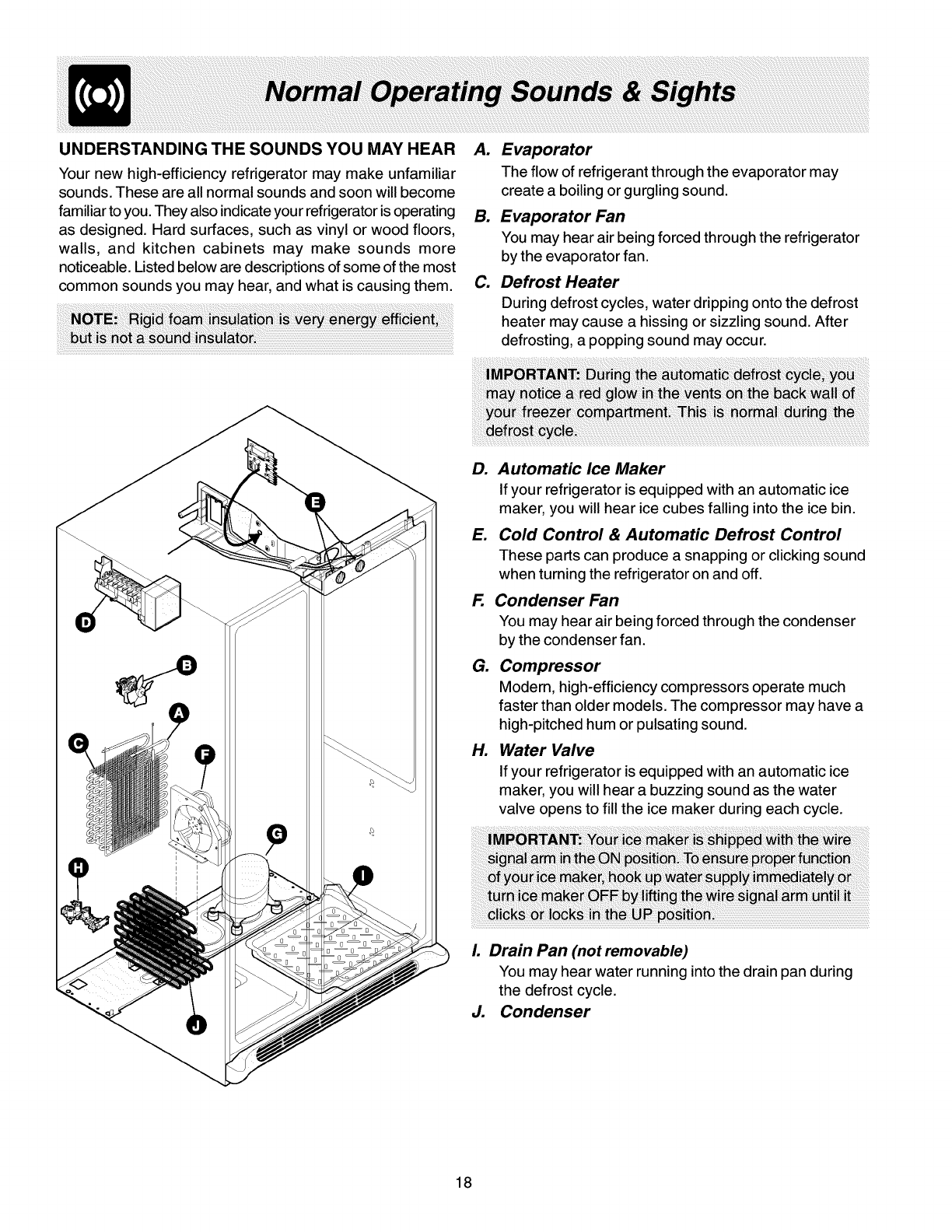

Normal Operating Sounds.. 18

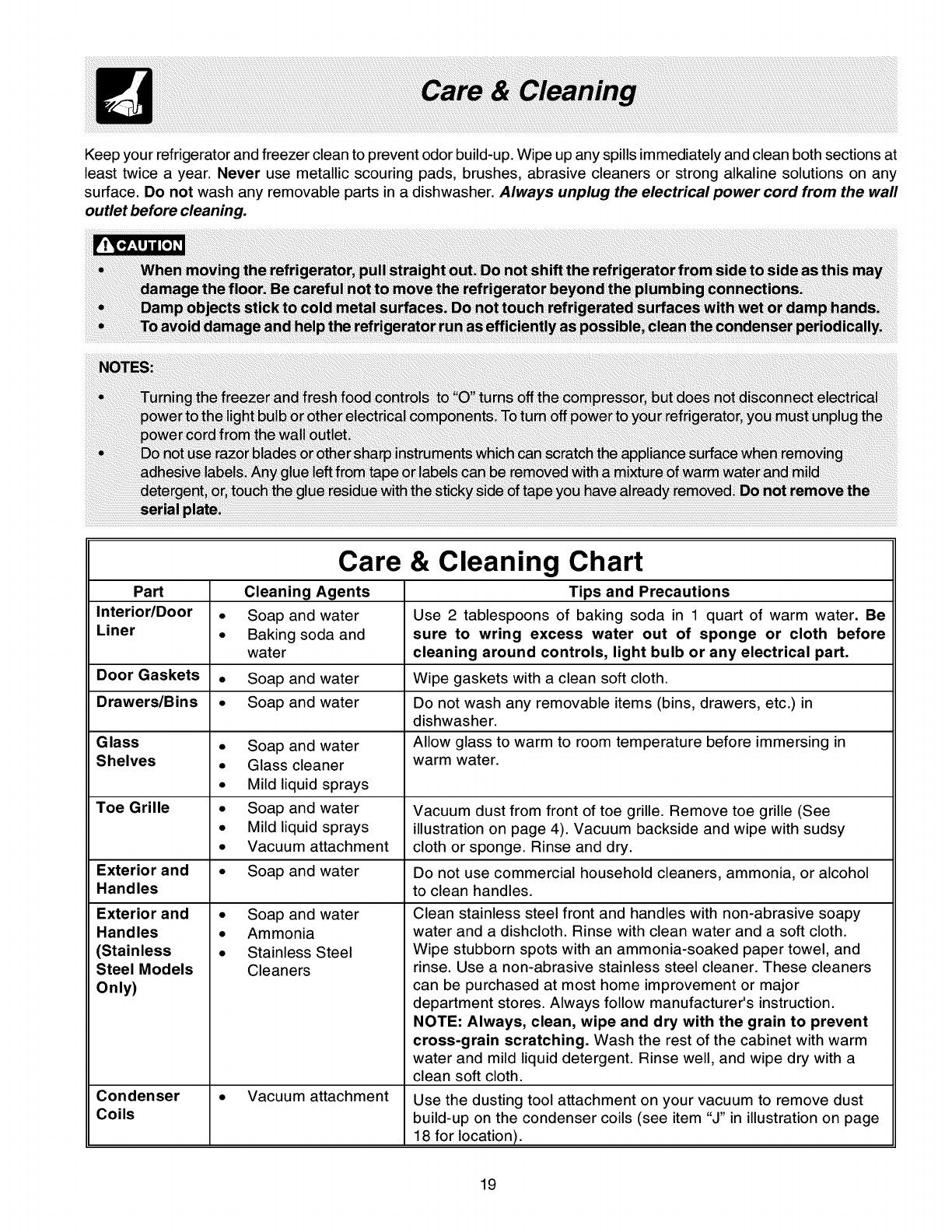

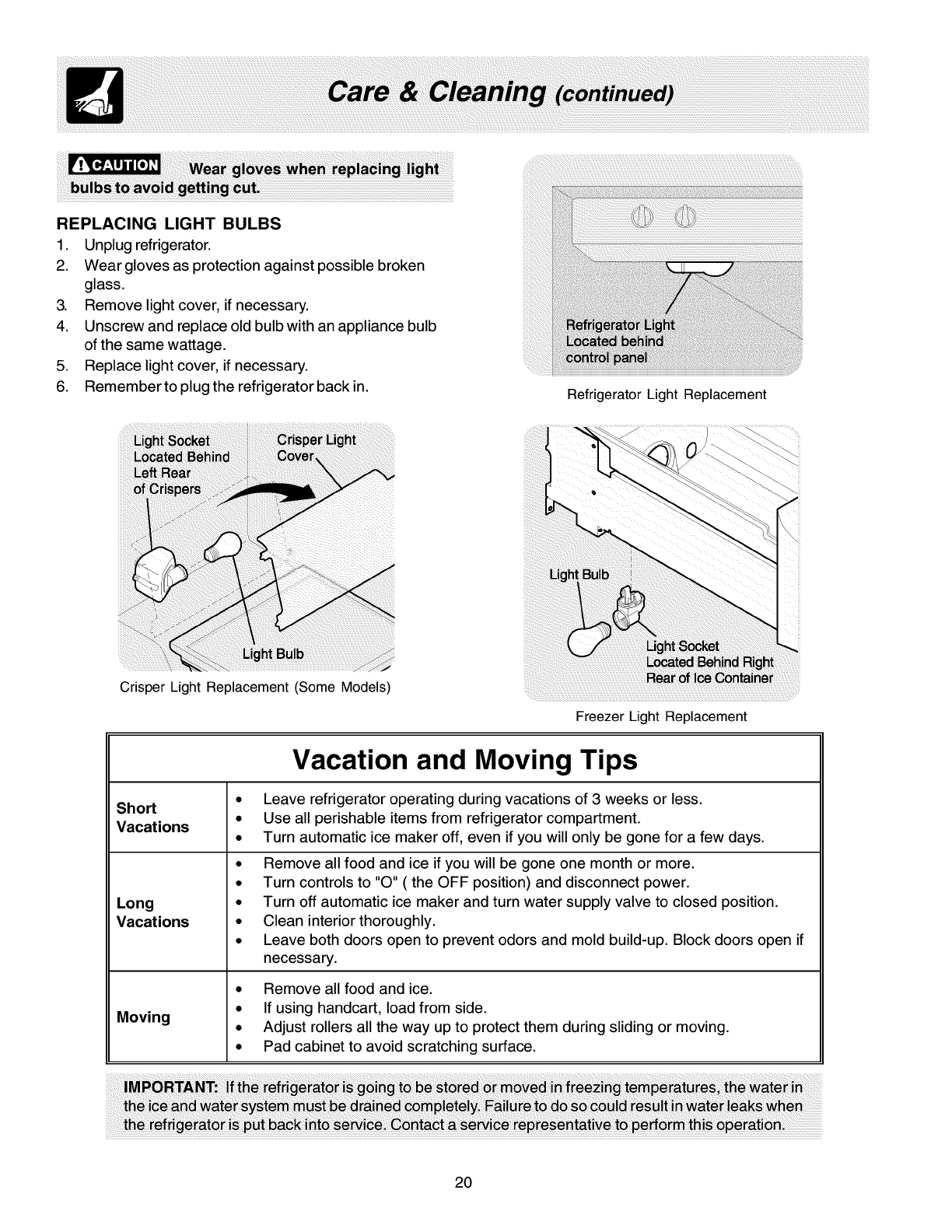

Care & Cleaning ......... 19 -20

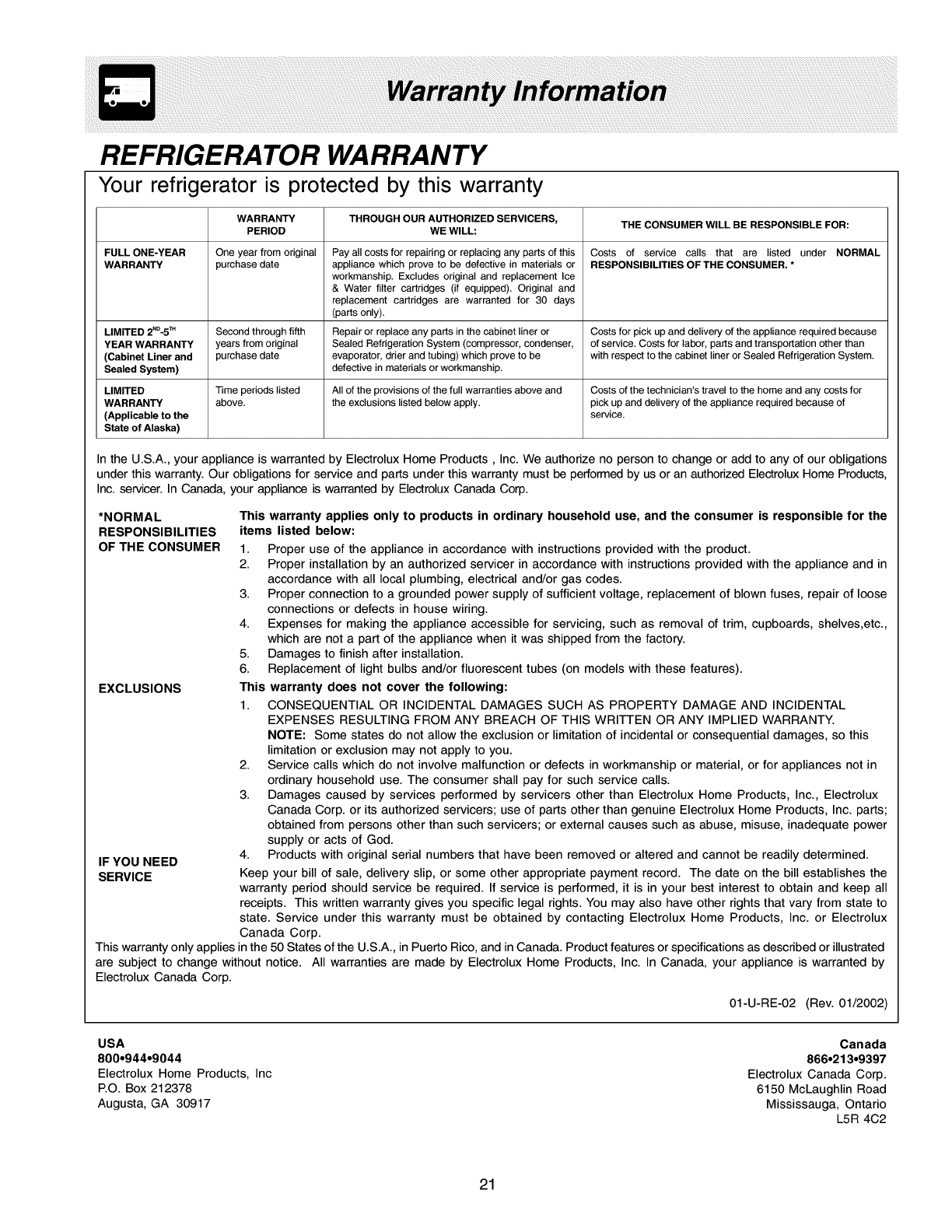

Warranty ...................... 21

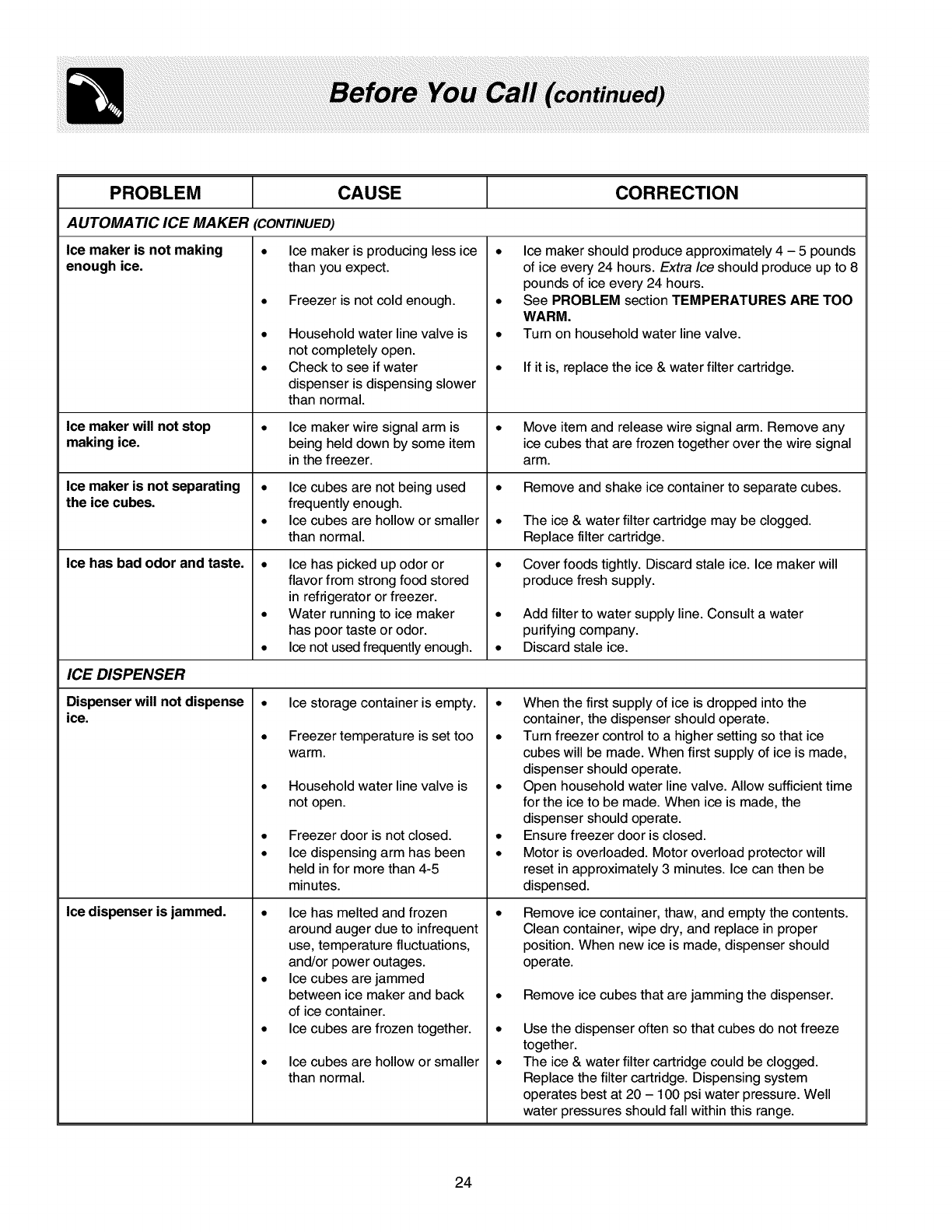

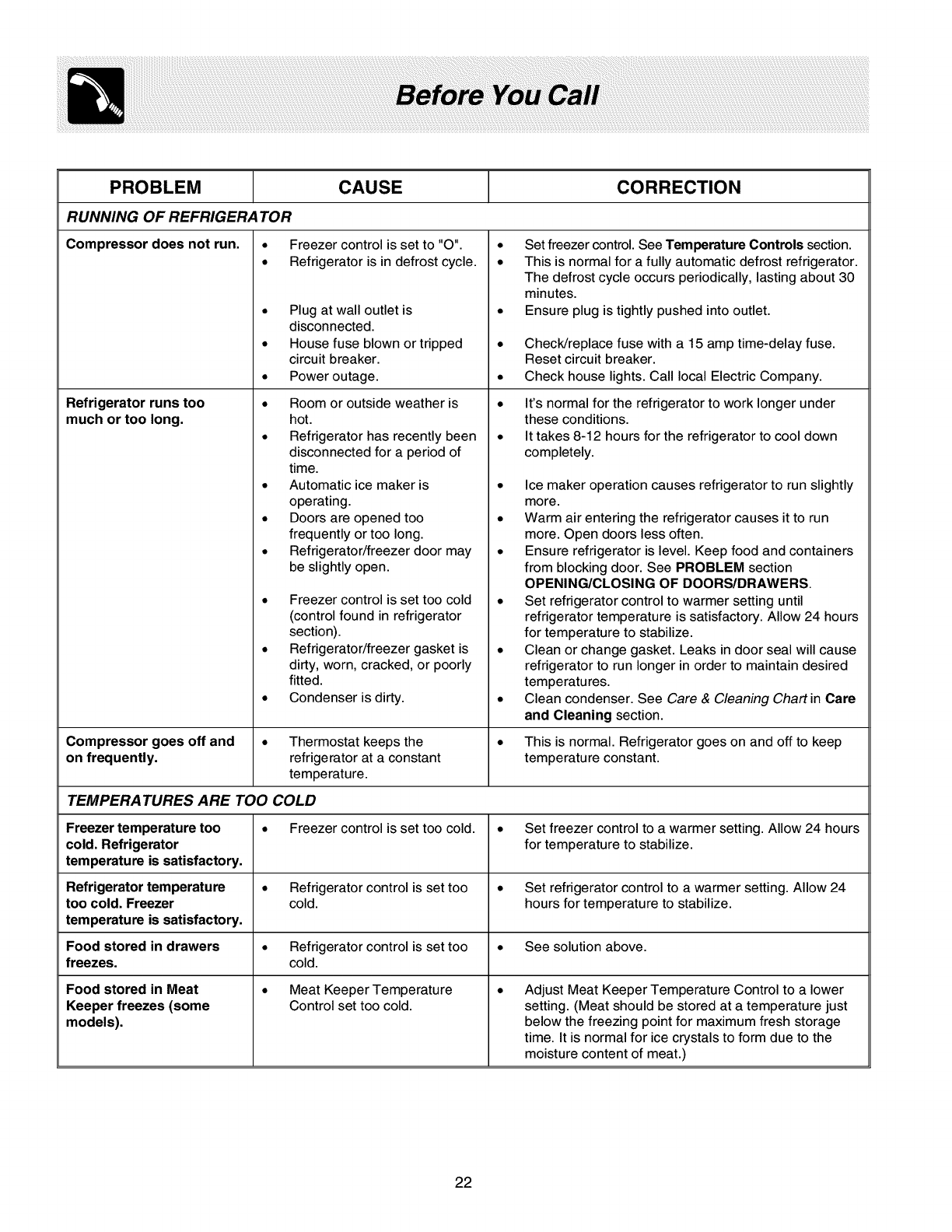

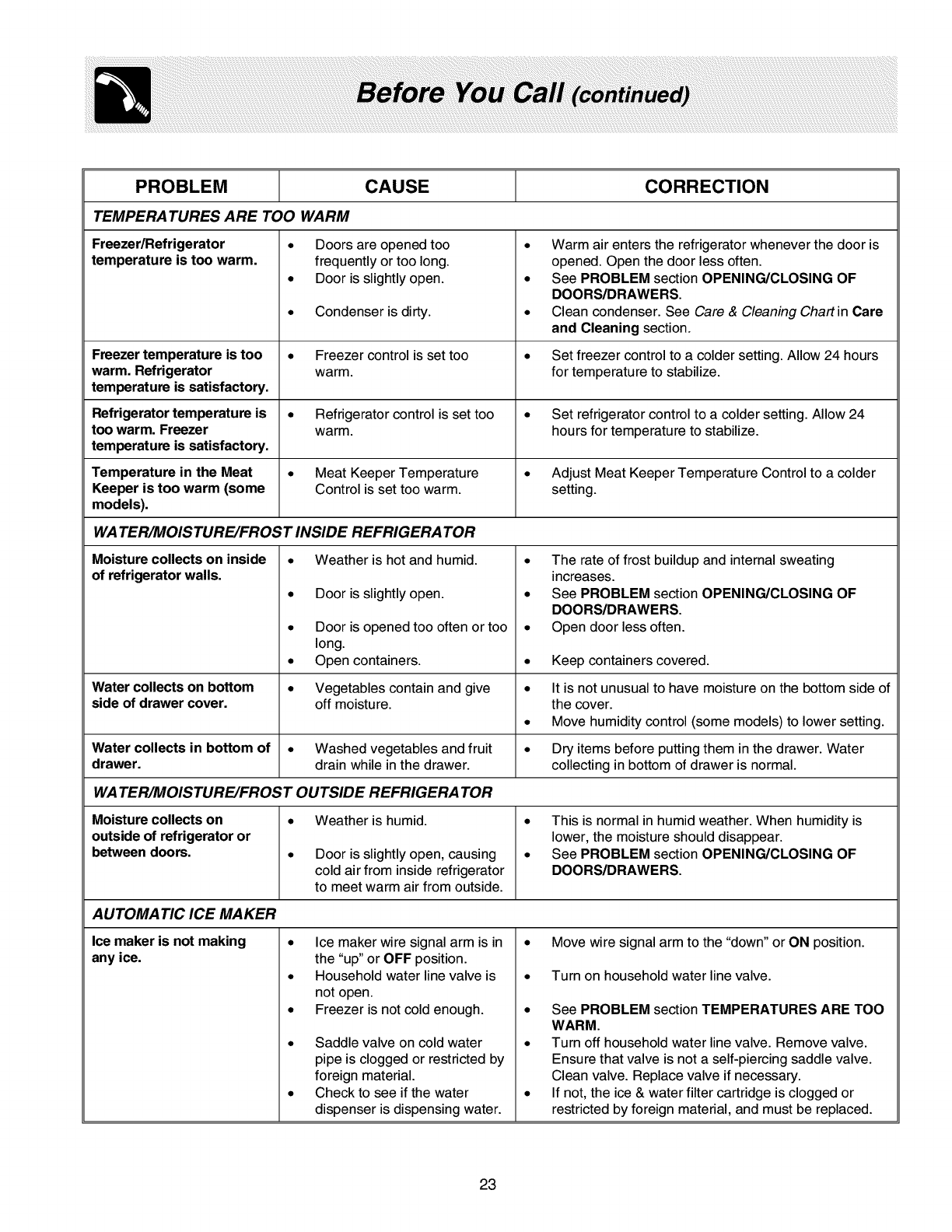

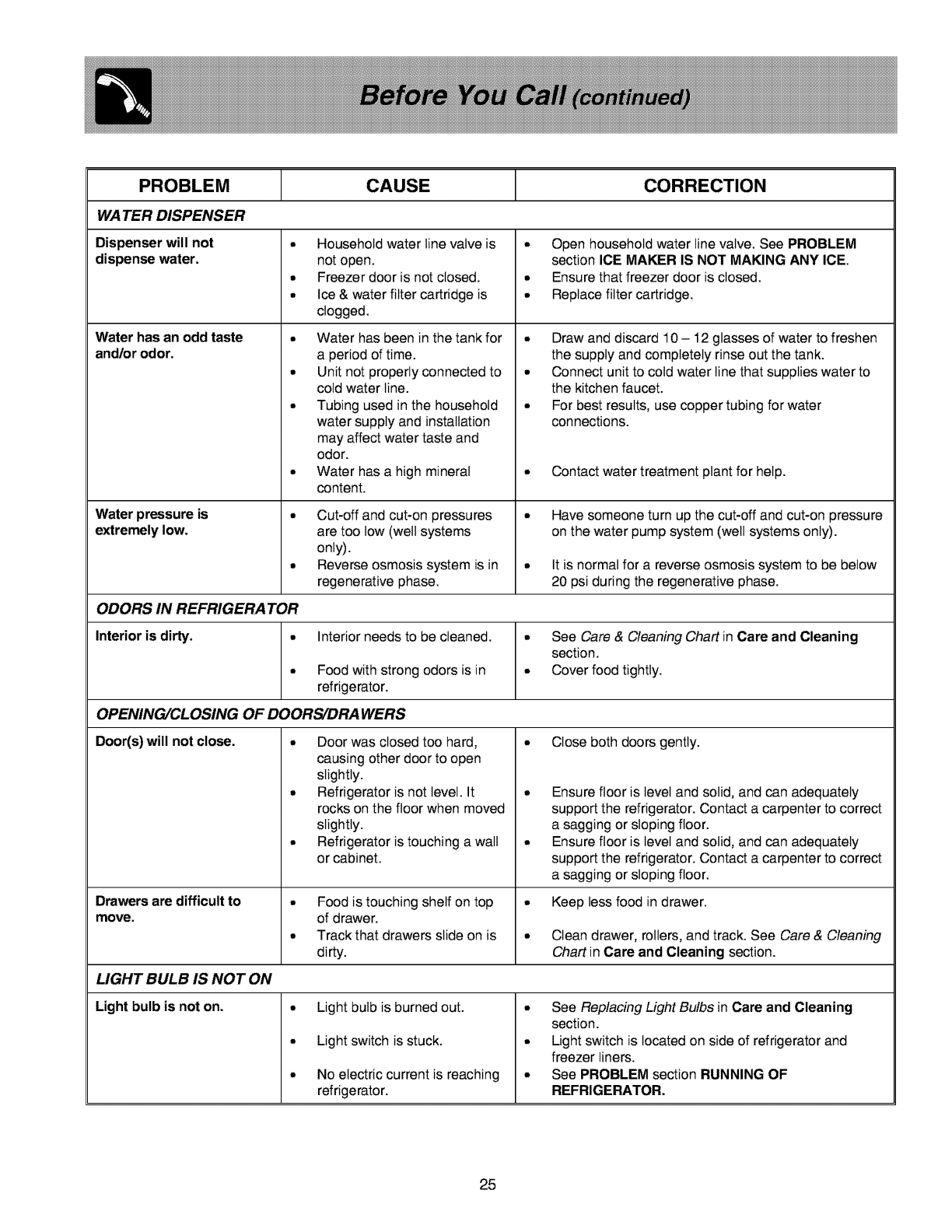

Before You Call

Solutions to

CommonProblems.............. 22 -25

READ AND SAVE THESE INSTRUCTIONS P/N240389306(0205)

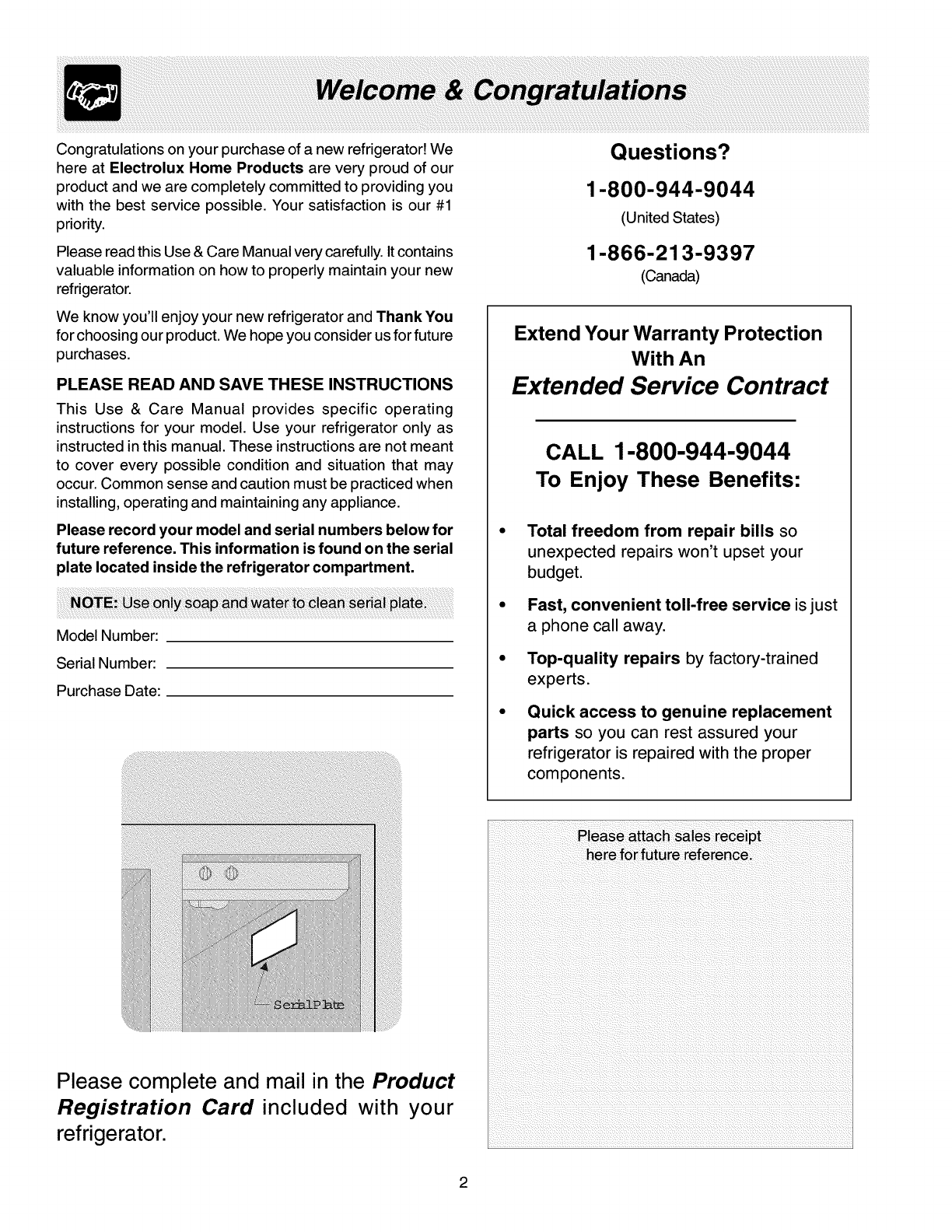

Congratulations on your purchase of a new refrigerator! We

here at Electrolux Home Products are very proud of our

product and we are completely committed to providing you

with the best service possible. Your satisfaction is our #1

priority.

Please read this Use & Care Manual very carefully. It contains

valuable information on how to properly maintain your new

refrigerator.

We know you'll enjoy your new refrigerator and Thank You

for choosing our product. We hope you consider us for future

purchases.

PLEASE READ AND SAVE THESE INSTRUCTIONS

This Use & Care Manual provides specific operating

instructions for your model. Use your refrigerator only as

instructed in this manual. These instructions are not meant

to cover every possible condition and situation that may

occur. Common sense and caution must be practiced when

installing, operating and maintaining any appliance.

Please record your model and serial numbers below for

future reference. This information is found on the serial

plate located inside the refrigerator compartment.

Model Number:

Serial Number:

Purchase Date:

Questions?

1-800-944-9044

(United States)

1-866-213-9397

(Canada)

Extend Your Warranty Protection

With An

Extended Service Contract

CALL 1-800-944-9044

To Enjoy These Benefits:

Total freedom from repair bills so

unexpected repairs won't upset your

budget.

Fast, convenient toll-free service is just

a phone call away.

Top-quality repairs by factory-trained

experts.

Quick access to genuine replacement

parts so you can rest assured your

refrigerator is repaired with the proper

components.

Please complete and mail in the Product

Registration Card included with your

refrigerator.

Please attach sales receipt

here for future reference.

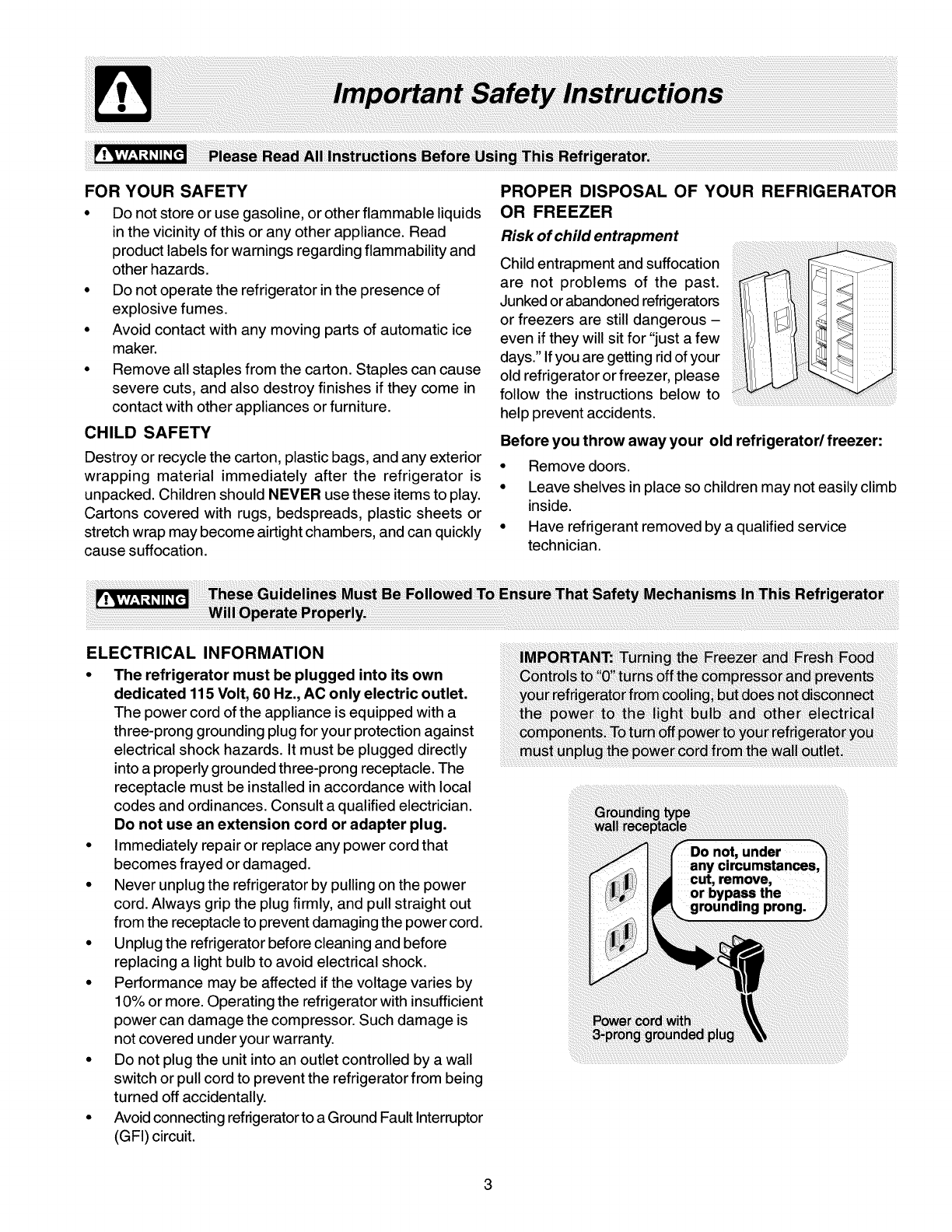

FORYOURSAFETY

• Donotstoreorusegasoline,orotherflammableliquids

inthevicinityofthisoranyotherappliance.Read

productlabelsforwarningsregardingflammabilityand

otherhazards.

• Donotoperatetherefrigeratorinthepresenceof

explosivefumes.

• Avoidcontactwithanymovingpartsofautomaticice

maker.

• Removeallstaplesfromthecarton.Staplescancause

severecuts,andalsodestroyfinishesiftheycomein

contactwithotherappliancesorfurniture.

CHILD SAFETY

Destroyorrecyclethecarton,plasticbags,andanyexterior

wrappingmaterialimmediatelyafterthe refrigeratoris

unpacked.ChildrenshouldNEVERusetheseitemstoplay.

Cartonscoveredwithrugs,bedspreads,plasticsheetsor

stretchwrapmaybecomeairtightchambers,andcanquickly

causesuffocation.

PROPER DISPOSAL OF YOUR REFRIGERATOR

OR FREEZER

Risk of child entrapment

Child entrapment and suffocation

are not problems of the past.

Junked or abandoned refrigerators

or freezers are still dangerous -

even if they will sit for "just a few

days." If you are getting rid of your

old refrigerator or freezer, please

follow the instructions below to

help prevent accidents.

Before you throw away your old refrigerator/freezer:

• Remove doors.

• Leave shelves in place so children may not easily climb

inside.

• Have refrigerant removed by a qualified service

technician.

ELECTRICAL INFORMATION

•The refrigerator must be plugged into its own

ded icated 115 Volt, 60 Hz., AC only electric outlet.

The power cord of the appliance is equipped with a

three-prong grounding plugfor your protectionagainst

electrical shock hazards. It must be plugged directly

into a properlygrounded three-prong receptacle. The

receptacle must be installed in accordance with local

codes and ordinances. Consult a qualified electrician.

Do not use an extension cord or adapter plug.

•Immediately repair or replace any power cord that

becomes frayed or damaged.

•Never unplugthe refrigerator by pulling on the power

cord. Always grip the plug firmly, and pull straight out

from the receptacle to prevent damaging the power cord.

•Unplug the refrigerator before cleaning and before

replacing a light bulb to avoid electrical shock.

•Performance may be affected if the voltage varies by

10% or more. Operating the refrigerator with insufficient

power can damage the compressor. Such damage is

not covered under your warranty.

•Do not plug the unit into an outlet controlled by a wall

switch or pullcord to prevent the refrigerator from being

turned off accidentally.

• Avoid connectingrefrigeratorto a Ground Fault Interruptor

(GFI) circuit.

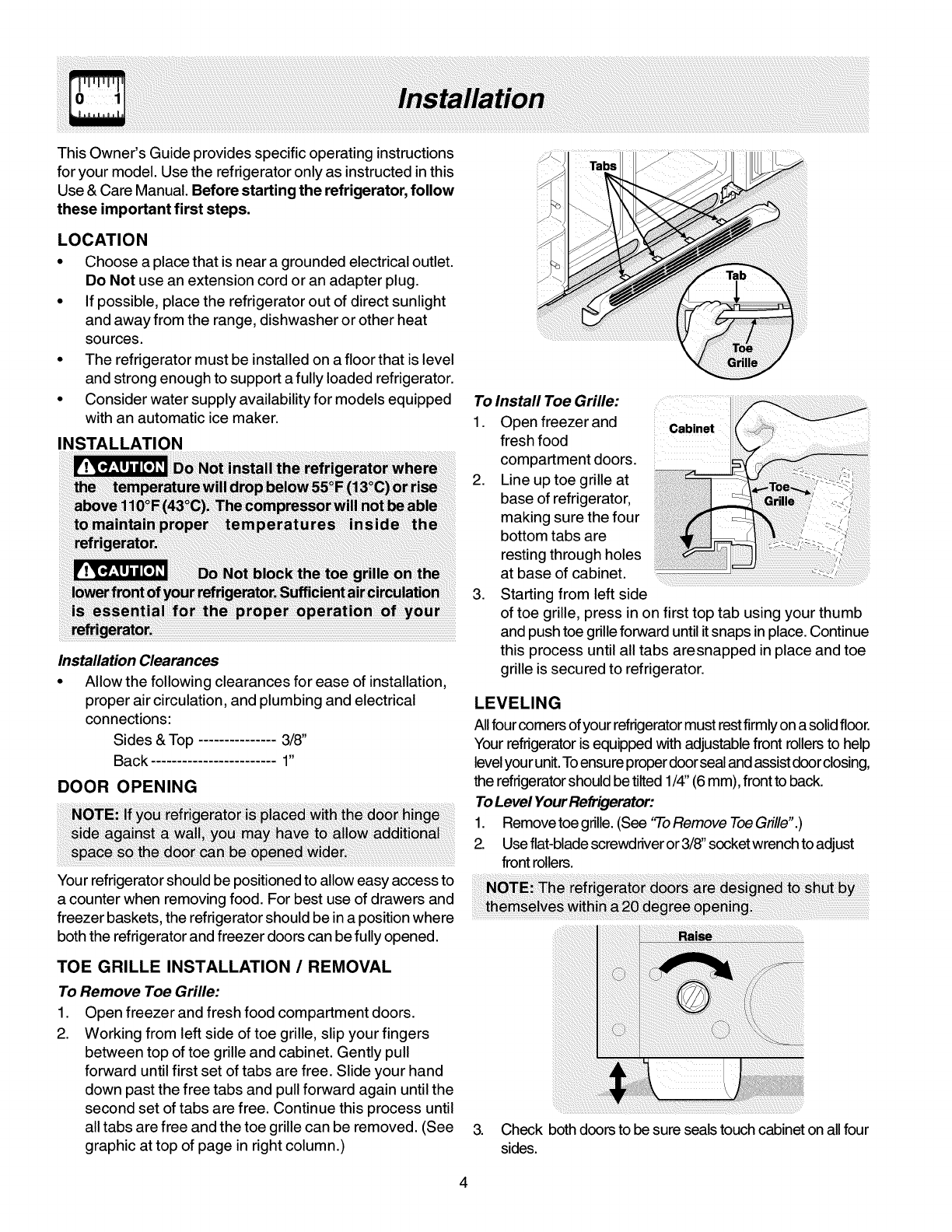

ThisOwner'sGuideprovidesspecificoperatinginstructions

foryourmodel.Usetherefrigeratoronlyasinstructedinthis

Use&CareManual.Beforestartingtherefrigerator,follow

these important first steps.

LOCATION

• Choose a place that is near a grounded electrical outlet.

Do Not use an extension cord or an adapter plug.

• If possible, place the refrigerator out of direct sunlight

and away from the range, dishwasher or other heat

sources.

• The refrigerator must be installed on a floor that is level

and strong enough to support a fully loaded refrigerator.

• Consider water supply availability for models equipped

with an automatic ice maker.

INSTALLATION

Installation Clearances

• Allow the following clearances for ease of installation,

proper air circulation, and plumbing and electrical

connections:

Sides & Top 3/8"

Back ........................ 1"

DOOR OPENING

Your refrigerator should be positioned to allow easy access to

a counter when removing food. For best use of drawers and

freezer baskets, the refrigerator should be in a position where

both the refrigerator and freezer doors can be fully opened.

TOE GRILLE INSTALLATION /REMOVAL

To Remove Toe Grille:

1. Open freezer and fresh food compartment doors.

2. Working from left side of toe grille, slip your fingers

between top of toe grille and cabinet. Gently pull

forward until first set of tabs are free. Slide your hand

down past the free tabs and pull forward again until the

second set of tabs are free. Continue this process until

all tabs are free and the toe grille can be removed. (See

graphic at top of page in right column.)

To Install Toe Grille:

1. Open freezer and Cabinet

fresh food

compartment doors.

2. Line up toe grille at

base of refrigerator,

making sure the four

bottom tabs are

resting through holes

at base of cabinet.

3. Starting from left side

of toe grille, press in on first top tab using your thumb

and push toe grille forward until it snaps in place. Continue

this process until all tabs aresnapped in place and toe

grille is secured to refrigerator.

LEVELING

Allfour comers of your refrigeratormust restfirmly on a solid floor.

Your refrigerator is equipped with adjustable front rollers to help

level your unit.Toensure properdoor seal and assist doorclosing,

the refrigerator should be tilted 1/4"(6 mm), front to back.

ToLevel Your Refrigerator:

1. Remove toe grille. (See '3-0Remove ToeGnlle".)

2_ Useflat-blade screwdriver or 3/8" socket wrench to adjust

front rollers.

3. Check both doors to be sure seals touch cabinet on allfour

sides.

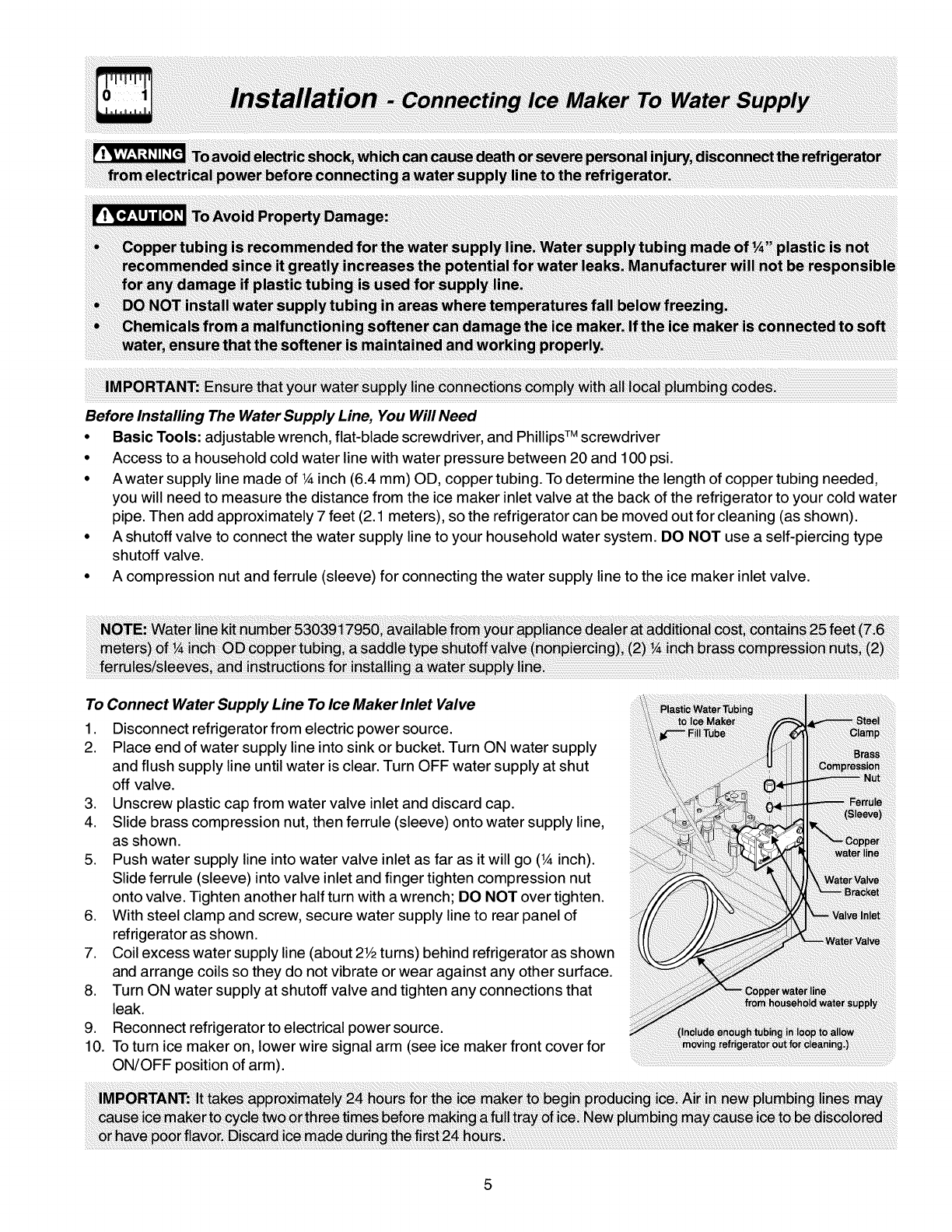

Before Installing The Water Supply Line, You Will Need

• Basic Tools: adjustable wrench, flat-blade screwdriver, and Phillips TM screwdriver

• Access to a household cold water line with water pressure between 20 and 100 psi.

• A water supply line made of 1/_inch (6.4 mm) OD, copper tubing. To determine the length of copper tubing needed,

you will need to measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water

pipe. Then add approximately 7 feet (2.1 meters), so the refrigerator can be moved out for cleaning (as shown).

• A shutoff valve to connect the water supply line to your household water system. DO NOT use a self-piercing type

shutoff valve.

• A compression nut and ferrule (sleeve) for connecting the water supply line to the ice maker inlet valve.

To Connect Water Supply Line To Ice Maker Inlet Valve

1. Disconnect refrigerator from electric power source.

2. Place end of water supply line into sink or bucket. Turn ON water supply

and flush supply line until water is clear. Turn OFF water supply at shut

off valve.

3. Unscrew plastic cap from water valve inlet and discard cap.

4. Slide brass compression nut, then ferrule (sleeve) onto water supply line,

as shown.

5. Push water supply line into water valve inlet as far as it will go (1/_inch).

Slide ferrule (sleeve) into valve inlet and finger tighten compression nut

onto valve. Tighten another half turn with a wrench; DO NOT over tighten.

6. With steel clamp and screw, secure water supply line to rear panel of

refrigerator as shown.

7. Coil excess water supply line (about 2V2turns) behind refrigerator as shown

and arrange coils so they do not vibrate or wear against any other surface.

8. Turn ON water supply at shutoff valve and tighten any connections that

leak.

9. Reconnect refrigerator to electrical power source.

10. To turn ice maker on, lower wire signal arm (see ice maker front cover for

ON/OFF position of arm).

iili

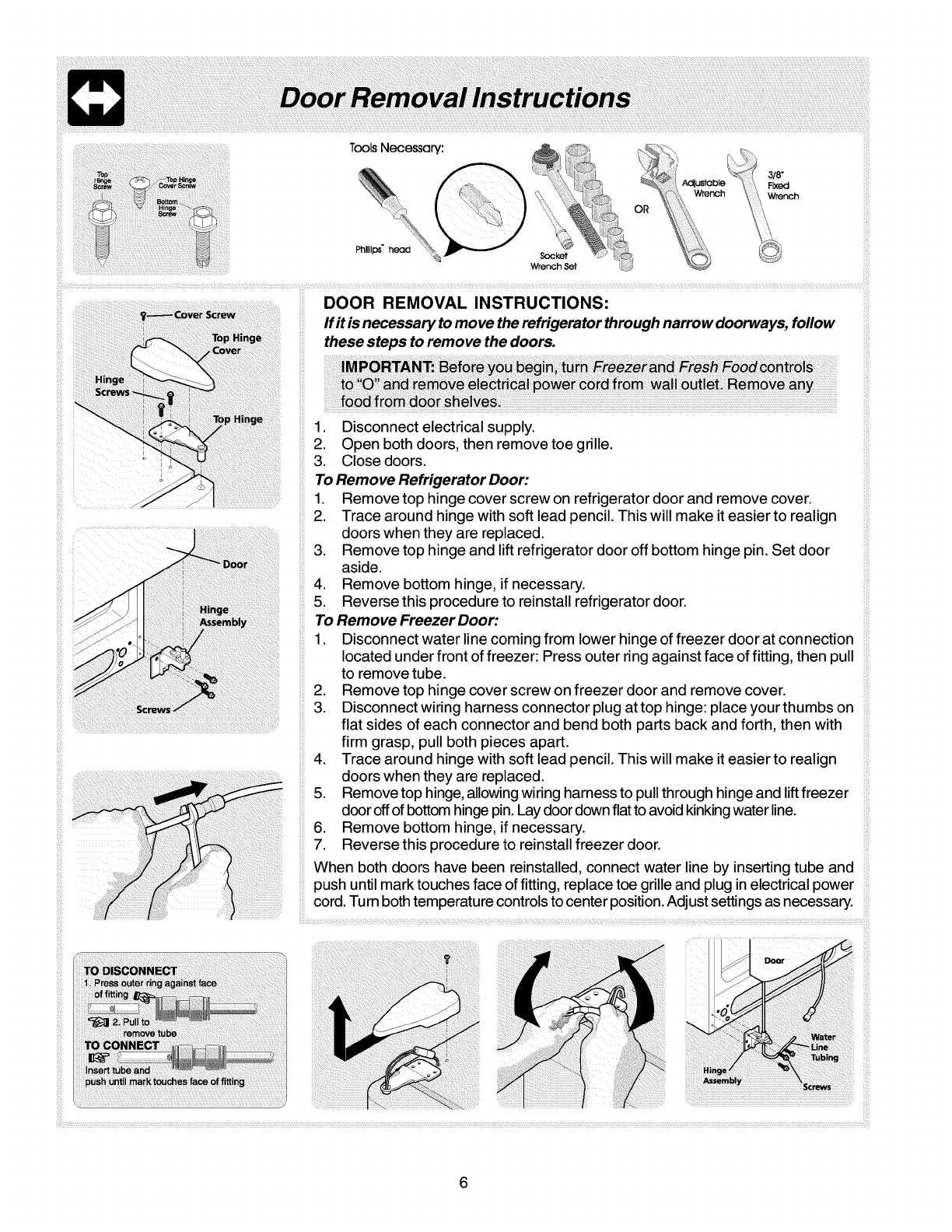

Tools Necessary:

Phillips" head

To Remove Freezer Door:

1. Disconnect water line coming from lower hinge of freezer door at connection

located under front of freezer: Press outer ring against face of fitting, then pull

to remove tube.

2. Remove top hinge cover screw on freezer door and remove cover.

3. Disconnect wiring harness connector plug at top hinge: place your thumbs on

flat sides of each connector and bend both parts back and forth, then with

firm grasp, pull both pieces apart.

4. Trace around hinge with soft lead pencil. This will make it easier to realign

doors when they are replaced.

5. Remove top hinge, allowing wiring harness to pull through hinge and liftfreezer

door offof bottom hinge pin. Lay door down flat to avoid kinking water line.

6. Remove bottom hinge, if necessary.

7. Reverse this procedure to reinstall freezer door.

When both doors have been reinstalled, connect water line by inserting tube and

push until mark touches face of fitting, replace toe grille and plug in electrical power

cord. Turn both temperature controls to center position. Adjust settings as necessary.

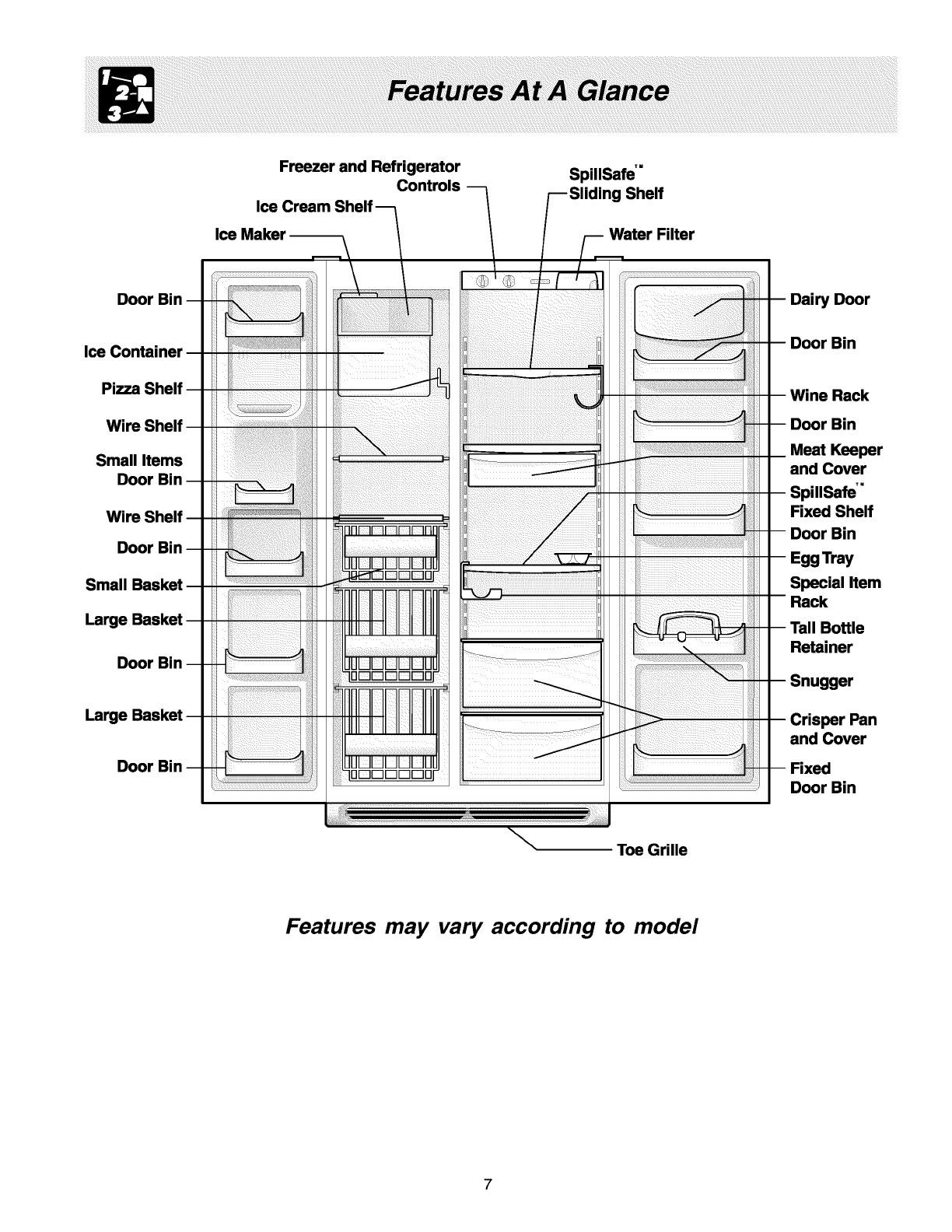

Ice

Freezer and Refrigerator SpillSafe TM

Controls Shelf

Ice Cream

Water Filter

Door Bin

Ice Container

Pizza Shelf

Wire Shelf

Small Items

Door Bin

Wire Shelf

Door Bin

Small Basket

Large Basket

Door Bin

Large Basket

Door Bin

Dairy Door

Door Bin

Wine Rack

Door Bin

Meat Keeper

and Cover

SpillSafe'"

Fixed Shelf

Door Bin

Egg Tray

Special Item

Rack

Tall Bottle

Retainer

-- Snugger

Crisper Pan

and Cover

Fixed

Door Bin

Toe Grille

Features may vary according to model

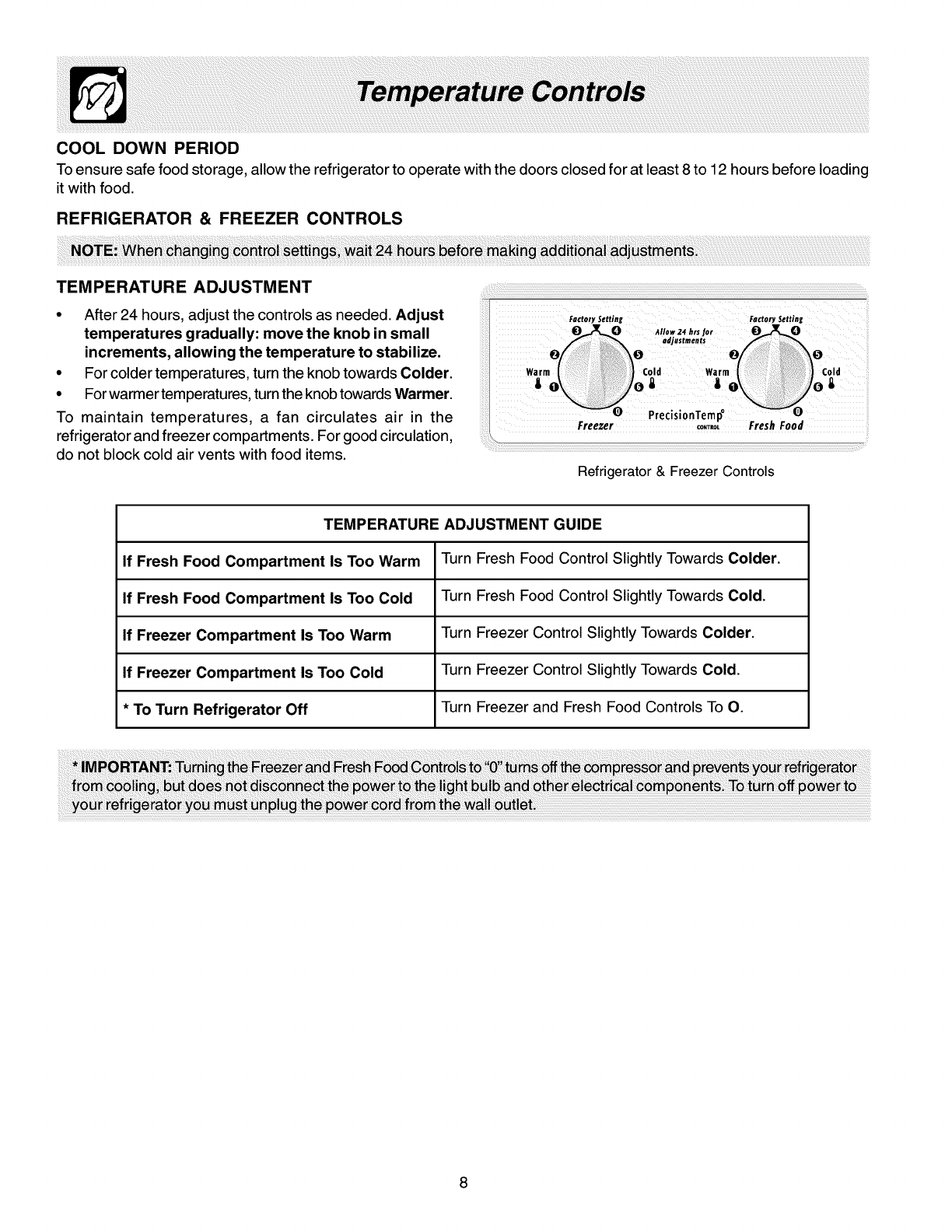

COOL DOWN PERIOD

Toensure safe food storage, allow the refrigerator to operate with the doors closed for at least 8 to 12 hours before loading

it with food.

REFRIGERATOR & FREEZER CONTROLS

TEMPERATURE ADJUSTMENT

io fter 24 hours, adjust the controls as needed. Adjust

temperatures gradually: move the knob in small

increments, allowing the temperature to stabilize.

For coldertemperatures, turn the knob towards Colder.

For warmertemperatures,turnthe knobtowardsWarmer.

maintain temperatures, a fan circulates air in the

refrigeratorand freezer compartments. For good circulation,

do not block cold air vents with food items.

Refrigerator & Freezer Controls

TEMPERATURE ADJUSTMENT GUIDE

If Fresh Food Compartment Is Too Warm Turn Fresh Food Control Slightly Towards Colder.

If Fresh Food Compartment Is Too Cold Turn Fresh Food Control Slightly Towards Cold.

If Freezer Compartment Is Too Warm Turn Freezer Control Slightly Towards Colder.

If Freezer Compartment Is Too Cold Turn Freezer Control Slightly Towards Cold.

* To Turn Refrigerator Off Turn Freezer and Fresh Food Controls To O.

PIZZA SHELF (SOME MODELS)

This shelf is attached to the freezer wall beside the ice dispenser container.

This convenient area allows for storage of pizza and other tall items placed

vertically between the ice dispenser container and the freezer wall.

ICE CREAM SHELF (SOME MODELS)

This shelf attaches to the top of the ice dispenser container. It allows storage

of both round and rectangular cartons of your favorite ice cream.

TIP-UP SHELF (SOME MODELS)

ATip-Up shelf in the freezer section allows tall items to be easily stored.

CANTILEVER SHELF ADJUSTMENT

Refrigerator shelves are easily adjusted to suit individual needs. Before

adjusting the shelves, remove all food. Cantilever shelves are supported at

the back of the refrigerator.

To adjust cantilever shelves:

OLiftfront edge up.

Pull shelf out.

Replace the shelf by inserting the hooks at rear of the shelf into the wall

bracket. Lower the shelf into the desired slots and lock into position.

iili

Pizza Shelf

Ice Cream Shelf

* SpillSafe TM glass shelves (some models) catch and hold accidental spills. In

some models, the * SpillSafe TM shelves slide out for easy access to food and

for fast cleaning. The shelves slide out independently of their mounting brackets.

Just pull the front of the shelf forward. Shelves can be extended as far as the

stopper will allow but are not removable from their mounting brackets.

Cantilever Glass Shelf

* WhiteWestinghouse - SpillFree TM

Cantilever Sliding Glass Shelf

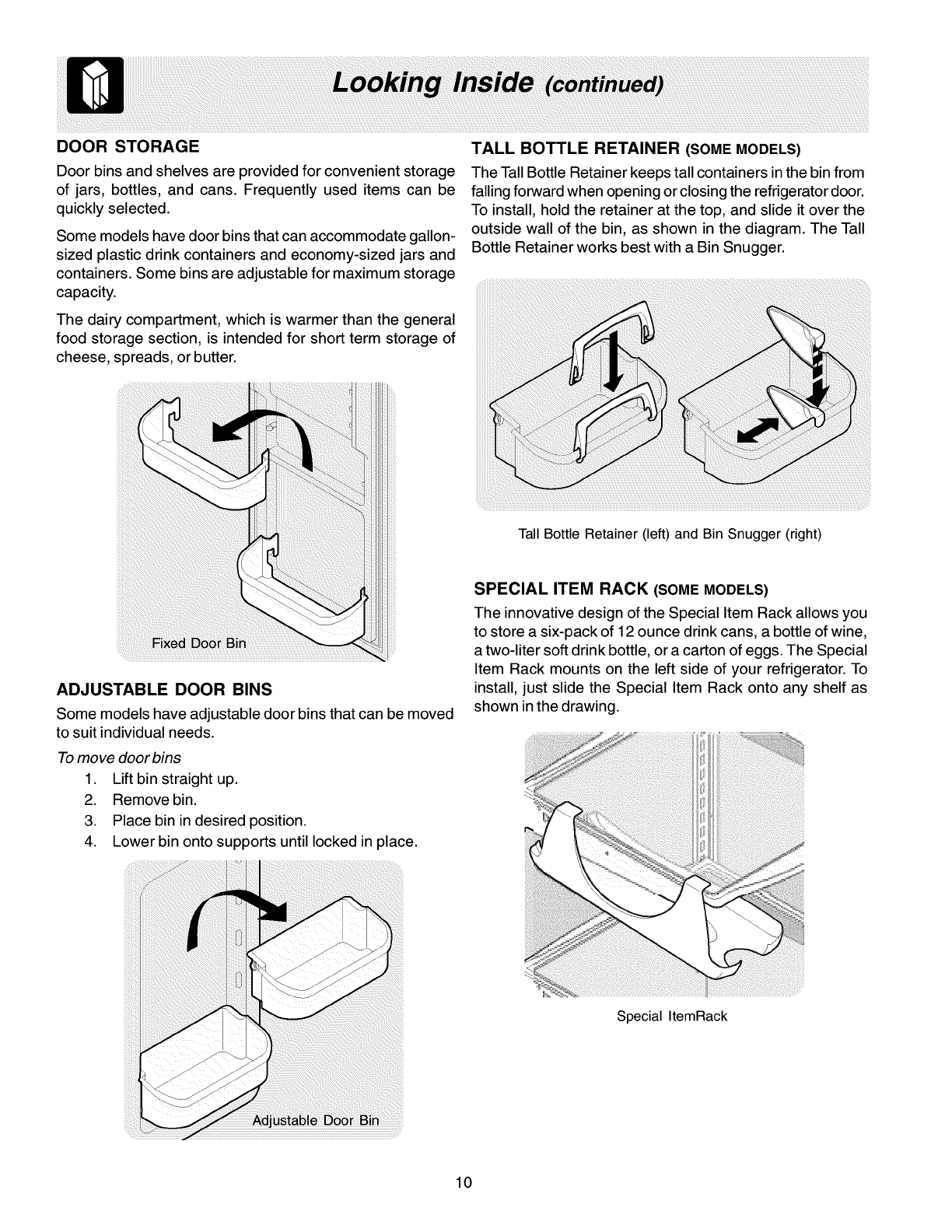

DOOR STORAGE

Door bins and shelves are provided for convenient storage

of jars, bottles, and cans. Frequently used items can be

quickly selected.

Some models have door bins that can accommodate gallon-

sized plastic drink containers and economy-sized jars and

containers. Some bins are adjustable for maximum storage

capacity.

The dairy compartment, which is warmer than the general

food storage section, is intended for short term storage of

cheese, spreads, or butter.

TALL BOTTLE RETAINER (SOME MODELS)

The Tall Bottle Retainer keeps tall containers inthe bin from

falling forward when opening orclosingthe refrigeratordoor.

To install, hold the retainer at the top, and slide it over the

outside wall of the bin, as shown in the diagram. The Tall

Bottle Retainer works best with a Bin Snugger.

Tall Bottle Retainer (left) and Bin Snugger (right)

ADJUSTABLE DOOR BINS

Some models have adjustable door bins that can be moved

to suit individual needs.

To move door bins

1. Lift bin straight up.

2. Remove bin.

3. Place bin in desired position.

4. Lower bin onto supports untillocked in place.

SPECIAL ITEM RACK (SOME MODELS)

The innovative design of the Special Item Rack allows you

to store asix-pack of 12 ounce drink cans, a bottle of wine,

a two-liter soft drink bottle, or a carton of eggs. The Special

Item Rack mounts on the left side of your refrigerator. To

install, just slide the Special Item Rack onto any shelf as

shown inthe drawing.

Special ItemRack

CRISPERS (SOME MODELS)

The crispers, located under the bottom refrigerator shelf,

are designed for storing fruits, vegetables, and other fresh

produce.Wash itemsinclear water and removeexcess water

before placing them inthe crispers. Items with strong odors

or high moisture content should be wrapped before storing.

Crisper Drawer

MEAT KEEPER (SOME MODELS)

Some models are equipped with a Meat Keeper. Meat Keeper

temperatures can be adjusted by sliding the Meat Keeper

Temperature Control in either direction. Use thispan for short

term storage of bulk meat items. If meats are to be kept

longer than one or two days, they should be frozen. The

Meat Keeper is fixed and cannot be moved up or down. If

fruits or vegetables are to be stored in the Meat Keeper, set

the Meat Keeper Temperature Control to a warmer setting to

prevent freezing.

HUMIDITY CONTROL (SOME MODELS)

The Humidity Control, present on some models with crisper

drawers, allows you to adjust the humiditywithinthe crisper.

This can extend the life of fresh vegetables that keep best

in high humidity.

Meat Keeper with Temperature Control

WINE RACK (SOME MODELS)

The wine rack stores bottles of wine, or single two-literplastic

bottles of juice or soda pop. To install, slide the Wine Rack

onto the shelf with the curve facing in. To remove, slide the

Wine Rack out. Install on either side of shelf.

Crisper Humidity Control

DELl DRAWER (SOME MODELS)

Some models are equipped with a Deli Drawer for storage of

luncheon meats, spreads, cheeses, and other deli items.

Wine Rack

AUTOMATIC ICE & WATER DISPENSER OPERATING INSTRUCTIONS

FAST

FREEZE

XTRA

ICE

CUBE

CRUSH

LIGHT

FILTER

STATUS

LOCK

WATER

Features may vary according to model.

To freeze food at a faster rate to preserve freshness, push the Touch Pad el for 3-5 seconds to

activate this feature. Agreen light will appear above the Touch Pad. Push the Touch Pad _tagain

for 3-5 seconds to deactivate.

To increase ice production for special occasions, such as parties, push the Touch Pad O for

3-5 seconds to activate this feature. A green light will appear above the Touch Pad. Push the

Touch Pad O again for 3-5 seconds to deactivate.

Press the CUBE Touch Pad _to get cubed ice. A green light will appear above the Touch Pad.

Press glass against ICE dispensing paddle _ as far up as possible to catch all ice.

Press the CRUSH Touch Pad _to get crushed ice. A green light will appear above the Touch Pad.

Press glass against ICE dispensing paddle OI as far up as possible to catch all ice.

Press the LIGHT Touch Pad O to turn on dispenser light. Press_again to turn the light off.

The light also turns on automatically when ice and/or water is dispensed. Replace light bulb with

an appliance bulb of the same wattage.

The FILTER STATUS indicator light above the Touch Pad_lwill light up each time the dispenser

is used. The following filter light indications are:

Green The filter is still operating within its specified life cycle.

Amber The filter has reached approximately 80% of its useful life. This is the recommended time

to purchase a replacement filter.

Red The filter is 100% used up. Change the filter as soon as possible.

After the filter cartridge has been changed, press and hold the FILTER RESET Touch Pad_for

10-15 seconds.

The Ice & Water Dispenser can be locked out to prevent unwanted use.

To Lock Out Press the LOCK Touch Pad _ for 3-5 seconds. A Red light will appear above

the Touch Pad.

To Unlock Press the LOCK Touch Pad O for 3-5 seconds until the Red light above the

Touch Pad goes out.

To operate the water dispenser, press a glass against the WATER dispensing paddle I_. To

stop dispensing water, pull the glass away from the dispensing paddle _. Dispensed water is not

cold. For colder water, add crushed ice or cubes before dispensing water. A drip tray located at

the base of the dispenser catches small spills and allows them to evaporate. This drip tray is

removable and dishwasher safe. Do not pour water and excess ice in this area because there

is no drain.

ICE AND WATER DISPENSER FEATURES

The ice and water dispenser conveniently dispenses chilled water, and ice cubes or crushed ice, depending on the model.

To operate the ice dispenser, select the ice option desired using the touchpad. Press a glass against the dispensing paddle

as far up as possible to catch all ice. To stop dispensing ice, pull glass away from dispensing paddle. Do not remove the

glass until the ice has completely dispensed. (Complete instructions for the dispenser operation are attached to the inside

of the freezer door.)

How the Water Dispenser Works

The water tank, located behind the drawers in the refrigerator compartment, automatically fills as water is dispensed. For

proper dispenser operation, the recommended supply water pressure should fall between 20 psi and 100 psi.

After the refrigerator is connected to the water supply, fill the water tank by drawing one glass of water. It may take about

11/2minutes after activating the dispenser paddle before water begins to fill this first glass. Continue flushing the system

for 3 minutes to rid the tank and plumbing connections of any impurities. The water dispenser has a built in shutoff device

that will stop the water flow after 3 minutes of continuous use. Simply release the dispenser paddle to reset the shutoff

mechanism.

How the Ice Dispenser Works

The ice maker and container are located in the top of the freezer compartment. After the

refrigerator is installed properly and has cooled for several hours, the ice maker can begin

making ice within 24 hours. Air in new plumbing lines may cause the ice maker to cycle two

or three times before making a full tray of ice. To begin ice production, lower the wire signal

arm to the "down" or ON position. With no usage it will take approximately 2 days to fill the

ice container. The ice maker turns off automatically when the ice container becomes full. To

stop the ice maker, lift the wire signal arm until it clicks, and locks in the "up" or OFF

position.

Because of new plumbing connections, the first production of ice cubes may be discolored

or have an odd flavor. These should be discarded until the cubes made are free of discoloration

and taste.

ICE DISPENSER TIPS

•Ice cubes stored too long may develop an odd flavor. Empty the ice container and ensure that the wire signal arm is

in its "down" or ON position. The ice maker will then produce more ice.

• Occasionally shake the ice container to keep ice separated.

• Keep the wire signal arm in its "up" or OFF position until the refrigerator is connected to the water supply or whenever the

water supply is turned off.

If a large quantity of ice is needed at one time, it is best to remove cubes directly from the ice container.

The following sounds are normal when the ice maker is operating:

• Motor running • Running water

• Ice dropping into ice container =Stop the ice maker when cleaning the freezer and during vacations.

• Water valve opening or closing • If the ice maker will be turned off for a long period of time, turn the

• Ice loosening from tray water supply valve to the closed position.

Do not use the ice chute as a handle when

removing or replacing the ice storage bin.

Surfaces there may be sharp.

Do not put fingers up ice chute. Surfaces

there may be sharp, j

CLEANING THE ICE DISPENSER

Clean the dispenser and ice container at regular intervals, particularly

before you take a vacation or move, or if the ice dispenser sticks.

1. Stop ice production by lifting the wire signal arm to the "up" or OFF

position.

2_ Remove ice container by lifting up and out. Empty and carefully clean

the container with mild detergent. Rinse with clear water. Do not use

harsh or abrasive cleaners. Allow ice container to dry completely before

replacing in the freezer.

3. Remove ice chips and clean the shelf and chute that supports the ice

container.

4. Replace the ice container. Lower the wire signal arm on the ice

maker to the "down" or ON position and the ice maker will resume

production.

Remove and empty the ice storage bin if:

\ 1. An extended power failure (one hour or longer) causes ice cubes in

I the ice storage bin to melt and freeze together and jam the dispenser

mechanism.

2_ The ice dispenser is not used frequently. Ice cubes will freeze together

in the bin and jam the dispenser mechanism. Remove the ice storage

bin and shake to loosen the cubes.

NEVER use an ice pick or similar sharp instrument to break up the ice.

This could damage the ice storage bin and dispenser mechanism.

PureSource T=* Ice and Water Filter (some models)

NOTE: If you purchased a refrigerator with a PureSource TU* Ice and Water filter, please read the following use and

care information. This ice and water filter system filters water to your ice maker and water dispenser. It is located in the

upper right back corner of the fresh food compartment.

System Startup:

Water supply does not need to be turned off, however, do not use ice and water dispenser while installing filter. The filter

cartridge has already been installed in the filter housing at the factory. Refer to the How The Water Dispenser Works section

to properly fill the system with water. Changing the Filter:

Order new filter cartridges through the

dealer where you bought the refrigerator,

or contact the Consumer Assistance

Center at 1-800-944-9044. It might be

good to order some filter cartridges when

you first install your refrigerator. Be sure

to ask for the RG-100 PureSource TM*

replacement cartridge.

The mureSource TM *NGRG-

2000 Ice and Water Filter

System with the RG-100

cartridge is tested and

certified by NSF International,

the nationally recognized and respected,

not for profit, certification organization for

public health safety. The PureSource TM*

system is tested and certified to ANSI/NSF

Standard 42. See performance data sheet

for specifications. This system should not

be used on water that is microbiologically

unsafe or with water of unknown quality

unless the water has been adequately

disinfected before or after traveling through

the filtration system.

•Rated Capacity - 400 gallons

• Rated service flow - .5 GPM

• Maximum Rated Pressure- 100 PSI

• Maximum Operating Temp. - 100 ° F

Water conditions vary throughout the world, but changing the water filter every

6 - 9 months normally will ensure the highest possible water quality. The Filter

Status light will turn red after 400 gallons of water has flowed through the ice and

water dispenser (some models). Also, if the filter has been in a refrigerator that

has not been in use for awhile (during moving for example), change the filter

before reinstalling the refrigerator. The dispenser system will also operate without

filtration (with filter cartridge removed).

To change filter:

It is not necessary to turn the water supply off to change the filter.

1. Open freezer door and leave open until filter change is complete.

2. Set ice maker wire signal arm to the OFF (up) position (See illustration on

page 13).

3. Hold filter cup firmly, and unscrew towards left (Some water could

leak out as you remove cup. This is normal.). Filter cartridge should come

down with cup. If cartridge remains in housing, pull down gently, while

twisting filter back and forth.

4. Rinse out cup under running water.

5. The large o-ring that seals the filter system sets in the o-ring groove

down inside the cup. Should the o-ring fall out during filter cartridge

replacement, simply place it back in the groove prior to screwing the cup

back in place. If the o-ring becomes damaged, you will need to order one

from the Consumer Assistance Center.

6. Discard old filter cartridge.

7. Remove new filter cartridge from packaging and place in cup. The end

with the small o-ring should be up, out of the cup.

8. Screw cup, with filter, back onto housing. Do Not Use Wrench To Reinstall

Cup. Filter cartridge will self-align as cup is tightened. Be sure cup is

completely tightened with PureSource TM logo facing outward. Do Not

Tighten Past Stop.

9. Set ice maker wire signal arm to the ON (down) position.

10. Check for leaks. Open refrigerator door. Wipe any water droplets from the

filter cup. Fill a glass with water. If there is a leak, unscrew filter cup, and

reinsert the filter cartridge. Check placement of large O-ring. Reinstall

filter cup, making certain it is tightened completely.

11. To condition filter system and purge air from water line, fill a glass with

water. Continue flushing the system for approximately 3 minutes to assure

that the purest water possible is stored in the water tank.

White Westinghouse uses the name CrystalClear instead of PureSource, but they are the same filter

PureSource2 TM * Ice and Water Front Filter (some models)

NOTE: If you purchased a refrigerator with a PureSource2 TM*Ice and Water front filter, please read the following use

and care information. This ice and water filter system filters water to your ice maker and water dispenser. It is located in

the upper right front corner of the fresh food compartment.

System Startup:

Water supply does not need to be turned off, however, do not use ice and water dispenser while installing filter.

The filter cartridge has already been installed in the filter housing at the factory. Refer to the How The Water Dispenser

Works section to properly fill the system with water.

Changing the Filter:

Water conditions vary throughout the world, but changing the water filter every

6 - 9 months normally will ensure the highest possible water quality. The Filter

Status light will turn red after approximately 400 gallons of water has flowed

through the ice and water dispenser. Also, if the filter has been in a refrigerator

that has not been in use for awhile (during moving for example), change the filter

before reinstalling the refrigerator. The dispenser system will also operate without

filtration (with filter cartridge removed and bypass installed).

Order new filter cartridges through the

dealer where you bought the refrigerator,

or contact the Consumer Assistance

Center at 1-800-944-9044. It might be

good to order some filter cartridges when

you first install your refrigerator. Be sure

to ask for the PureSource2 TM *

replacement cartridge.

The PureSource2 TM*Ice and

Water Filter System NGFC

2000 with the PureSource2 TM*

cartridge FC 100 is tested and

certified by NSF International,

the nationally recognized and respected,

not for profit, certification organization for

public health safety. The PureSource2 TM*

Filter system is tested and certified to ANSI/

NSF Standards 42 and 53. See

performance data sheet for specifications.

This system should not be used on water

that is microbiologically unsafe or with water

of unknown quality unless the water has

been adequately disinfected before or after

traveling through the filtration system.

•Rated Capacity - 400 gallons

• Rated service flow - .5 GPM

• Maximum Rated Pressure- 100 PSI

• Maximum Operating Temp. - 100 ° F

To change filter:

It is not necessary to turn the water supply off to change the filter.

.Set ice maker wire signal arm to the OFF (up) position (See illustration on

page 13).

Push the Filter Release Button, located to the right of the filter cartridge,

to release the filter from the housing. To minimize the possibility of the

filter falling out of the housing during removal, it would be best to hold the

filter as it moves out toward you.

3. Pull the old filter cartridge straight out of the housing.

4. Discard the old filter.

5. Remove the new filter cartridge from the packaging and insert into the

filter housing the same way the old one came out.

6. When the cartridge is almost in, you will feel it stop against the clip assembly

in the back of the housing. The clip assembly holds the filter cartridge

firmly in place. At this point, you will need to push firmly until the cartridge

snaps fully in place. When completely in place, the front of the filter cartridge

will be flush with the front of the housing.

7. Set the ice maker wire signal arm to the ON (down) position.

8. Fill a glass with water. As you are doing this, check for leaks at the filter

housing. There will be noticable spurts and sputters as the system pushes

the air out through the system and out the dispenser nozzle. This is normal.

9. After you have run one glass of water, continue to flush the system for

approximately 3 minutes to assure that the purest water possible is stored

in the water storage tank.

White Westinghouse uses the name CrystalClear instead of PureSource, but they are the same filter

FOOD STORAGE IDEAS

Fresh Food Storage

•The fresh food compartment should be kept between 34° F and 40 ° F with an optimum temperature of 37° F.

• Avoid overcrowding the refrigerator shelves. This reduces the circulation of air around the food and results in uneven

cooling.

Fruits and Vegetables

• Storage in the crisper drawers traps moisture to help preserve the fruit and vegetable quality for longer time periods.

Meat

• Raw meat and poultry should be wrapped securely so leakage and contamination of other foods or surfaces does not

occur.

Frozen Food Storage

• The freezer compartment should be kept at 0° F or lower.

• A freezer operates most efficiently when it is at least 2/3 full.

Packaging Foods for Freezing

• Tominimize dehydration and quality deterioration, use aluminum foil, freezer wrap, freezer bags or airtight containers.

Force as much air out of the packages as possible and seal them tightly. Trapped air can cause food to dry out,

change color, and develop an off-flavor (freezer burn).

• Wrap fresh meats and poultry with suitable freezer wrap prior to freezing.

• Do not refreeze meat that has completely thawed.

Loading the Freezer

• Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing,

and can raise the temperature of frozen foods.

• Leave a space between the packages, so cold air can circulate freely, allowing food to freeze as quickly as possible.

• Avoid storing hard-to-freeze foods such as ice cream and orange juice on the freezer door shelves. These foods are

best stored in the freezer interior where the temperature varies less.

ENERGY SAVING IDEAS

• Locate the refrigerator in the coolest part of the room, out of direct sunlight,

and away from heating ducts or registers. Do not place the refrigerator

next to heat-producing appliances such as a range, oven, or dishwasher.

Ifthis is not possible, a section of cabinetry or an added layer of insulation

between the two appliances will help the refrigerator operate more

efficiently.

• Level the refrigerator so that the doors close tightly.

• Refer to this Use & Care Manual for the suggested temperature control

settings.

• Periodic cleaning of the condenser will help the refrigerator run more

efficiently. See the Care and Cleaning Charton page 19.

• Do not overcrowd the refrigerator or block cold air vents. Doing so causes

the refrigerator to run longer and use more energy.

• Cover foods and wipe containers dry before placing them in the

refrigerator. This cuts down on moisture build-up inside the unit.

• Organize the refrigerator to reduce door openings. Remove as many

items as needed at one time and close the door as soon as possible.

UNDERSTANDING THE SOUNDS YOU MAY HEAR

Your new high-efficiency refrigerator may make unfamiliar

sounds. These are all normal sounds and soon will become

familiar to you. They also indicate your refrigerator is operating

as designed. Hard surfaces, such as vinyl or wood floors,

walls, and kitchen cabinets may make sounds more

noticeable. Listed below are descriptions of some of the most

common sounds you may hear, and what is causing them.

A. Evaporator

The flow of refrigerant through the evaporator may

create a boiling or gurgling sound.

B. Evaporator Fan

You may hear air being forced through the refrigerator

by the evaporator fan.

C. Defrost Heater

During defrost cycles, water dripping onto the defrost

heater may cause a hissing or sizzling sound. After

defrosting, a popping sound may occur.

D. Automatic Ice Maker

If your refrigerator is equipped with an automatic ice

maker, you will hear ice cubes falling into the ice bin.

E. Cold Control & Automatic Defrost Control

These parts can produce a snapping or clicking sound

when turning the refrigerator on and off.

F. Condenser Fan

You may hear air being forced through the condenser

by the condenser fan.

G. Compressor

Modern, high-efficiency compressors operate much

faster than older models. The compressor may have a

high-pitched hum or pulsating sound.

H. Water Valve

If your refrigerator is equipped with an automatic ice

maker, you will hear a buzzing sound as the water

valve opens to fill the ice maker during each cycle.

L Drain Pan (not removable)

You may hear water running into the drain pan during

the defrost cycle.

J. Condenser

Keepyourrefrigeratorandfreezercleantopreventodorbuild-up.Wipeupanyspillsimmediatelyandcleanbothsectionsat

leasttwicea year.Neverusemetallicscouringpads,brushes,abrasivecleanersorstrongalkalinesolutionsonany

surface.Donotwashanyremovablepartsinadishwasher.Always unplug the electrical power cord from the wall

outlet before cleaning.

Care &Cleaning Chart

Part Cleaning Agents Tips and Precautions

Interior/Door • Soap and water Use 2 tablespoons of baking soda in 1 quart of warm water. Be

Liner • Baking soda and sure to wring excess water out of sponge or cloth before

water cleaning around controls, light bulb or any electrical part.

Door Gaskets • Soap and water Wipe gaskets with a clean soft cloth.

Drawers/Bins • Soap and water Do not wash any removable items (bins, drawers, etc.) in

dishwasher.

Glass • Soap and water Allow glass to warm to room temperature before immersing in

Shelves • Glass cleaner warm water.

• Mild liquid sprays

Toe Grille • Soap and water Vacuum dust from front of toe grille. Remove toe grille (See

• Mild liquid sprays illustration on page 4). Vacuum backside and wipe with sudsy

• Vacuum attachment cloth or sponge. Rinse and dry.

• Soap and water

Exterior and

Handles

Exterior and

Handles

(Stainless

Steel Models

Only)

Condenser

Coils

• Soap and water

• Ammonia

• Stainless Steel

Cleaners

Vacuum attachment

Do not use commercial household cleaners, ammonia, or alcohol

to clean handles.

Clean stainless steel front and handles with non-abrasive soapy

water and a dishcloth. Rinse with clean water and a soft cloth.

Wipe stubborn spots with an ammonia-soaked paper towel, and

rinse. Use a non-abrasive stainless steel cleaner. These cleaners

can be purchased at most home improvement or major

department stores. Always follow manufacturer's instruction.

NOTE: Always, clean, wipe and dry with the grain to prevent

cross-grain scratching. Wash the rest of the cabinet with warm

water and mild liquid detergent. Rinse well, and wipe dry with a

clean soft cloth.

Use the dusting tool attachment on your vacuum to remove dust

build-up on the condenser coils (see item "J" in illustration on page

18 for location).

REPLACING LIGHT BULBS

1. Unplug refrigerator.

2. Wear gloves as protection against possible broken

glass.

3. Remove light cover, if necessary.

4. Unscrew and replace old bulb with an appliance bulb

of the same wattage.

5. Replace light cover, if necessary.

6. Remember to plug the refrigerator back in. Refrigerator Light Replacement

Crisper Light Replacement (Some Models)

Freezer Light Replacement

Vacation and Moving Tips

Short

Vacations

Long

Vacations

Moving

• Leave refrigerator operating during vacations of 3 weeks or less.

• Use all perishable items from refrigerator compartment.

• Turn automatic ice maker off, even if you will only be gone for a few days.

• Remove all food and ice if you will be gone one month or more.

• Turn controls to "O" ( the OFF position) and disconnect power.

• Turn off automatic ice maker and turn water supply valve to closed position.

• Clean interior thoroughly.

• Leave both doors open to prevent odors and mold build-up. Block doors open if

necessary.

• Remove all food and ice.

• If using handcart, load from side.

• Adjust rollers all the way up to protect them during sliding or moving.

• Pad cabinet to avoid scratching surface.

REFRIGERATOR WARRANTY

Your refrigerator is protected by this warranty

WARRANTY THROUGH OUR AUTHORIZED SERVICERS, THE CONSUMER WILL BE RESPONSIBLE FOR:

PERIOD WE WILL:

FULLONE-YEAR Oneyear from original Pay allcostsfor repairingor replacingany partsof this Costs of service calls that are listed under NORMAL

WARRANTY purchasedate appliancewhich prove to be defective in materialsor RESPONSIBILITIESOFTHE CONSUMER.*

workmanship.Excludesoriginal and replacementIce

& Water filter cartridges (if equipped). Original and

replacementcartridges are warranted for 30 days

(partsonly).

LIMITED2"D-5TM Secondthroughfifth Repairorreplaceanyparts inthe cabinetliner or Costsfor pickup anddeliveryof theappliancerequiredbecause

YEAR WARRANTY yearsfromoriginal SealedRefrigerationSystem(compressor,condenser, of service.Costsfor labor,partsandtransportationotherthan

(Cabinet Liner and purchasedate evaporator,drier andtubing)whichproveto be withrespectto the cabinetliner orSealedRefrigerationSystem.

Sealed System) defectivein materialsorworkmanship.

LIMITED Timeperiodslisted All of the provisionsof thefull warrantiesabove and Costsof the technician'stravel to the homeandany costsfor

WARRANTY above, theexclusionslistedbelowapply, pickup and deliveryof the appliancerequiredbecauseof

(Applicable to the service.

Stateof Alaska)

In the U.S.A., your appliance is warranted by Electrolux Home Products, Inc. We authorize no person to change or add to any of our obligations

under this warranty. Our obligations for service and parts under this warranty must be performed by us or an authorized Electrolux Home Products,

Inc. servicer. In Canada, your appliance is warranted by Electrolux Canada Corp.

*NORMAL This warranty applies only to products in ordinary household use, and the consumer is responsible for the

RESPONSIBILITIES items listed below:

OF THE CONSUMER 1. Proper use of the appliance in accordance with instructions provided with the product.

2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in

accordance with all local plumbing, electrical and/or gas codes.

3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose

connections or defects in house wiring.

4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,etc.,

which are not a part of the appliance when it was shipped from the factory.

5. Damages to finish after installation.

6. Replacement of light bulbs and/or fluorescent tubes (on models with these features).

EXCLUSIONS This warranty does not cover the following:

1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL

EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.

NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this

limitation or exclusion may not apply to you.

2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in

ordinary household use. The consumer shall pay for such service calls.

3. Damages caused by services performed by servicers other than Electrolux Home Products, Inc., Electrolux

Canada Corp. or its authorized servicers; use of parts other than genuine Electrolux Home Products, Inc. parts;

obtained from persons other than such servicers; or external causes such as abuse, misuse, inadequate power

supply or acts of God.

4. Products with original serial numbers that have been removed or altered and cannot be readily determined.

IF YOU NEED

SERVICE Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the

warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all

receipts. This written warranty gives you specific legal rights. You may also have other rights that vary from state to

state. Service under this warranty must be obtained by contacting Electrolux Home Products, Inc. or Electrolux

Canada Corp.

This warranty only applies in the 50 States of the U.S.A., in Puerto Rico, and in Canada. Product features or specifications as described or illustrated

are subject to change without notice. All warranties are made by Electrolux Home Products, Inc. In Canada, your appliance is warranted by

Electrolux Canada Corp.

01-U-RE-02 (Rev. 01/2002)

USA

800.944.9044

Electrolux Home Products, Inc

P.O. Box 212378

Augusta, GA 30917

Canada

866.213.9397

Electrolux Canada Corp.

6150 McLaughlin Road

Mississauga, Ontario

L5R 4C2

PROBLEM CAUSE CORRECTION

RUNNING OF REFRIGERATOR

Compressor does not run.

Refrigerator runs too

much or too long.

• Freezer control is set to "O".

• Refrigerator is in defrost cycle.

Plug at wall outlet is

disconnected.

House fuse blown or tripped

circuit breaker.

Power outage.

Room or outside weather is

hot.

Refrigerator has recently been

disconnected for a period of

time.

Automatic ice maker is

operating.

Doors are opened too

frequently or too long.

Refrigerator/freezer door may

be slightly open.

Freezer control is set too cold

(control found in refrigerator

section).

Refrigerator/freezer gasket is

dirty, worn, cracked, or poorly

fitted.

Condenser is dirty.

• Set freezer control.See Temperature Controls section.

•This is normal for a fully automatic defrost refrigerator.

The defrost cycle occurs periodically, lasting about 30

minutes.

• Ensure plug is tightly pushed into outlet.

Check/replace fuse with a 15 amp time-delay fuse.

Reset circuit breaker.

Check house lights. Call local Electric Company.

It's normal for the refrigerator to work longer under

these conditions.

It takes 8-12 hours for the refrigerator to cool down

completely.

• Ice maker operation causes refrigerator to run slightly

more.

• Warm air entering the refrigerator causes it to run

more. Open doors less often.

• Ensure refrigerator is level. Keep food and containers

from blocking door. See PROBLEM section

OPENING/CLOSING OF DOORS/DRAWERS.

•Set refrigerator control to warmer setting until

refrigerator temperature is satisfactory. Allow 24 hours

for temperature to stabilize.

• Clean or change gasket. Leaks in door seal will cause

refrigerator to run longer in order to maintain desired

temperatures.

Clean condenser. See Care & Cleaning Chart in Care

and Cleaning section.

Compressor goes off and • Thermostat keeps the • This is normal. Refrigerator goes on and off to keep

on frequently, refrigerator at a constant temperature constant.

temperature.

TEMPERA TURES ARE TOO COLD

Freezer temperature too • Freezer control is set too cold. • Set freezer control to a warmer setting. Allow 24 hours

cold. Refrigerator for temperature to stabilize.

temperature is satisfactory.

Refrigerator temperature • Refrigerator control is set too • Set refrigerator control to a warmer setting. Allow 24

too cold. Freezer cold. hours for temperature to stabilize.

temperature is satisfactory.

Food stored in drawers • Refrigerator control is set too • See solution above.

freezes, cold.

Food stored in Meat

Keeper freezes (some

models).

• Meat Keeper Temperature

Control set too cold. Adjust Meat Keeper Temperature Control to a lower

setting. (Meat should be stored at a temperature just

below the freezing point for maximum fresh storage

time. It is normal for ice crystals to form due to the

moisture content of meat.)

PROBLEM CAUSE CORRECTION

TEMPERA TURES ARE TOO WARM

Freezer/Refrigerator

temperature is too warm. Doors are opened too

frequently or too long.

Door is slightly open.

Condenser is dirty.

•Warm air enters the refrigerator whenever the door is

opened. Open the door less often.

• See PROBLEM section OPENING/CLOSING OF

DOORS/DRAWERS.

•Clean condenser. See Care &Cleaning Char/in Care

and Cleaning section.

Freezer temperature is too • Freezer control is set too • Set freezer control to a colder setting. Allow 24 hours

warm. Refrigerator warm. for temperature to stabilize.

temperature is satisfactory.

Refrigerator temperature is • Refrigerator control is set too • Set refrigerator control to acolder setting. Allow 24

too warm. Freezer warm. hours for temperature to stabilize.

temperature is satisfactory.

Temperature in the Meat • Meat Keeper Temperature • Adjust Meat Keeper Temperature Control to a colder

Keeper is too warm (some Control is set too warm. setting.

models).

WA TER/MOISTURE/FROST INSIDE REFRIGERATOR

•Weather is hot and humid.

Moisture collects on inside

of refrigerator walls.

• Door is slightly open.

• Door is opened too often or too

long.

Open containers.

• The rate of frost buildup and internal sweating

increases.

• See PROBLEM section OPENING/CLOSING OF

DOORS/DRAWERS.

• Open door less often.

• • Keep containers covered.

Water collects on bottom • Vegetables contain and give • It is not unusual to have moisture on the bottom side of

side of drawer cover, off moisture, the cover.

• Move humidity control (some models) to lower setting.

Water collects in bottom of • Washed vegetables and fruit • Dry items before putting them in the drawer. Water

drawer, drain while in the drawer, collecting in bottom of drawer is normal.

WA TER/MOISTURE/FROST OUTSIDE REFRIGERATOR

• Weather is humid.

Moisture collects on

outside of refrigerator or

between doors. • Door is slightly open, causing

cold air from inside refrigerator

to meet warm air from outside.

• This is normal in humid weather. When humidity is

lower, the moisture should disappear.

• See PROBLEM section OPENING/CLOSING OF

DOORS/DRAWERS.

AUTOMA TIC ICE MAKER

Ice maker is not making

any ice. • Ice maker wire signal arm is in

the "up" or OFF position.

• Household water line valve is

not open.

• Freezer is not cold enough.

• Saddle valve on cold water

pipe is clogged or restricted by

foreign material.

Check to see if the water

dispenser is dispensing water.

Move wire signal arm to the "down" or ON position.

Turn on household water line valve.

See PROBLEM section TEMPERATURES ARE TOO

WARM.

Turn off household water line valve. Remove valve.

Ensure that valve is not a self-piercing saddle valve.

Clean valve. Replace valve if necessary.

If not, the ice & water filter cartridge is clogged or

restricted by foreign material, and must be replaced.

PROBLEM CAUSE

AUTOMA TIC ICE MAKER (CONTINUED)

Ice maker is not making •Ice maker is producing less ice

enough ice. than you expect.

CORRECTION

Ice makerwill not stop

making ice.

Ice maker is not separating

the ice cubes.

Ice has bad odor and taste.

Freezer is not cold enough.

Household water line valve is

not completely open.

Check to see if water

dispenser is dispensing slower

than normal.

Ice maker wire signal arm is

being held down by some item

in the freezer.

•Ice cubes are not being used

frequently enough.

•Ice cubes are hollow or smaller

than normal.

•Ice has picked up odor or

flavor from strong food stored

in refrigerator or freezer.

•Water running to ice maker

has poor taste or odor.

•Ice not used frequently enough.

Ice maker should produce approximately 4 - 5 pounds

of ice every 24 hours. Extra Ice should produce up to 8

pounds of ice every 24 hours.

See PROBLEM section TEMPERATURES ARE TOO

WARM.

Turn on household water linevalve.

If it is, replace the ice & water filter cartridge.

Move item and release wire signal arm. Remove any

ice cubes that are frozen together over the wire signal

arm.

Remove and shake ice container to separate cubes.

The ice & water filter cartridge may be clogged.

Replace filter cartridge.

Cover foods tightly. Discard stale ice. Ice maker will

produce fresh supply.

•Add filter to water supply line. Consult a water

purifying company.

•Discard stale ice.

ICE _SPENSER

Dispenser will not dispense

ice.

Ice dispenser is jammed.

•Ice storage container is empty.

•Freezer temperature is set too

warm.

Household water line valve is

not open.

Freezer door is not closed.

Ice dispensing arm has been

held in for more than 4-5

minutes.

•Ice has melted and frozen

around auger due to infrequent

use, temperature fluctuations,

and/or power outages.

•Ice cubes are jammed

between ice maker and back

of ice container.

•Ice cubes are frozen together.

Ice cubes are hollow or smaller

than normal.

•When the first supply of ice is dropped into the

container, the dispenser should operate.

•Turn freezer control to a higher setting so that ice

cubes will be made. When first supply of ice is made,

dispenser should operate.

•Open household water line valve. Allow sufficient time

for the ice to be made. When ice is made, the

dispenser should operate.

•Ensure freezer door is closed.

•Motor is overloaded. Motor overload protector will

reset in approximately 3 minutes. Ice can then be

dispensed.

Remove ice container, thaw, and empty the contents.

Clean container, wipe dry, and replace in proper

position. When new ice is made, dispenser should

operate.

Remove ice cubes that are jamming the dispenser.

Use the dispenser often so that cubes do not freeze

together.

The ice & water filter cartridge could be clogged.

Replace the filter cartridge. Dispensing system

operates best at 20 - 100 psi water pressure. Well

water pressures should fall within this range.

PROBLEM _CAUSE CORRECTION

WATER DISPENSER

Dispenser will not

dispense water.

Water has an odd taste

and/or odor.

Water pressure is

extremely low.

,, Household water line valve is

not open.

,, Freezer door is not closed.

,, Ice & water filter cartridge is

clogged.

,, Water has been inthe tank for

a period of time.

,, Unit not properly connected to

cold water line.

,, Tubing used in the household

water supply and installation

may affect water taste and

odor.

,, Water has a high mineral

content.

,, Cut-off and cut-on pressures

are too tow (well systems

only).

,, Reverse osmosis system is in

regenerative phase.

,, Open household water line valve. See PROBLEM

section ICE MAKER IS NOT MAKING ANY ICE.

,, Ensure that freezer door is closed.

,, Replace filter cartridge.

,, Draw and discard 10 - 12 glasses of water to freshen

the supply and completely rinse out the tank.

,, Connect unit to cold water line that supplies water to

the kitchen faucet.

,, For best results, use copper tubing for water

connections.

Contact water treatment plant for help.

Have someone turn up the cut-off and cut-on pressure

on the water pump system (well systems only).

It is normal for a reverse osmosis system to be below

20 psi during the regenerative phase.

ODORS IN REFRIGERATOR

Interior is dirty. ,, Interior needs to be cleaned. ,, See Care & Cleaning Chaff in Care and Cleaning

section.

,, Food with strong odors is in ,, Cover food tightly.

refrigerator.

OPENING/CLOSING OF DOORS/DRA WERS

Door(s) will not close. ,, ,, Close both doors gently.Door was closed too hard,

causing other door to open

slightly.

Refrigerator is not level. It

rocks on the floor when moved

slightly.

Refrigerator is touching a wall

or cabinet.

,, Ensure floor is level and solid, and can adequately

support the refrigerator. Contact a carpenter to correct

a sagging or sloping floor.

,, Ensure floor is level and solid, and can adequately

support the refrigerator. Contact a carpenter to correct

a sagging or sloping floor.

Drawers are difficult to ,, Food is touching shelf on top ,, Keep tess food in drawer.

move. of drawer.

,, Track that drawers slide on is ,, Clean drawer, rollers, and track. See Care & Cleaning

dirty. Chart in Care and Cleaning section.

LIGHT BULB IS NOT ON

Light bulb is not on. •Light bulb is burned out.

•Light switch is stuck.

,, No electric current is reaching

refrigerator.

,, See Replacing Light Bulbs in Care and Cleaning

section.

,, Light switch is located on side of refrigerator and

freezer liners.

,, See PROBLEM section RUNNING OF

REFRIGERATOR.

Frigidaire FRS26H5ASB4 User Manual REFRIGERATOR Manuals And Guides L0206039

FRIGIDAIRE Side by Side Refrigerator Manual L0206039 FRIGIDAIRE Side by Side Refrigerator Owner's Manual, FRIGIDAIRE Side by Side Refrigerator installation guides

LT150H33IBV, LT150H38IBV, WLT150H38IBV, WLT170H38IBV L0206039

Navigation menu

Versions of this User Manual:

Views

Navigation
