![](asset-1.png)
se Care Guide
Guide 'utilisation et 'entretien
f
Printed in U.S.A.
www.frigidaire.com P/N 137153200A (0904)
![](asset-2.png)

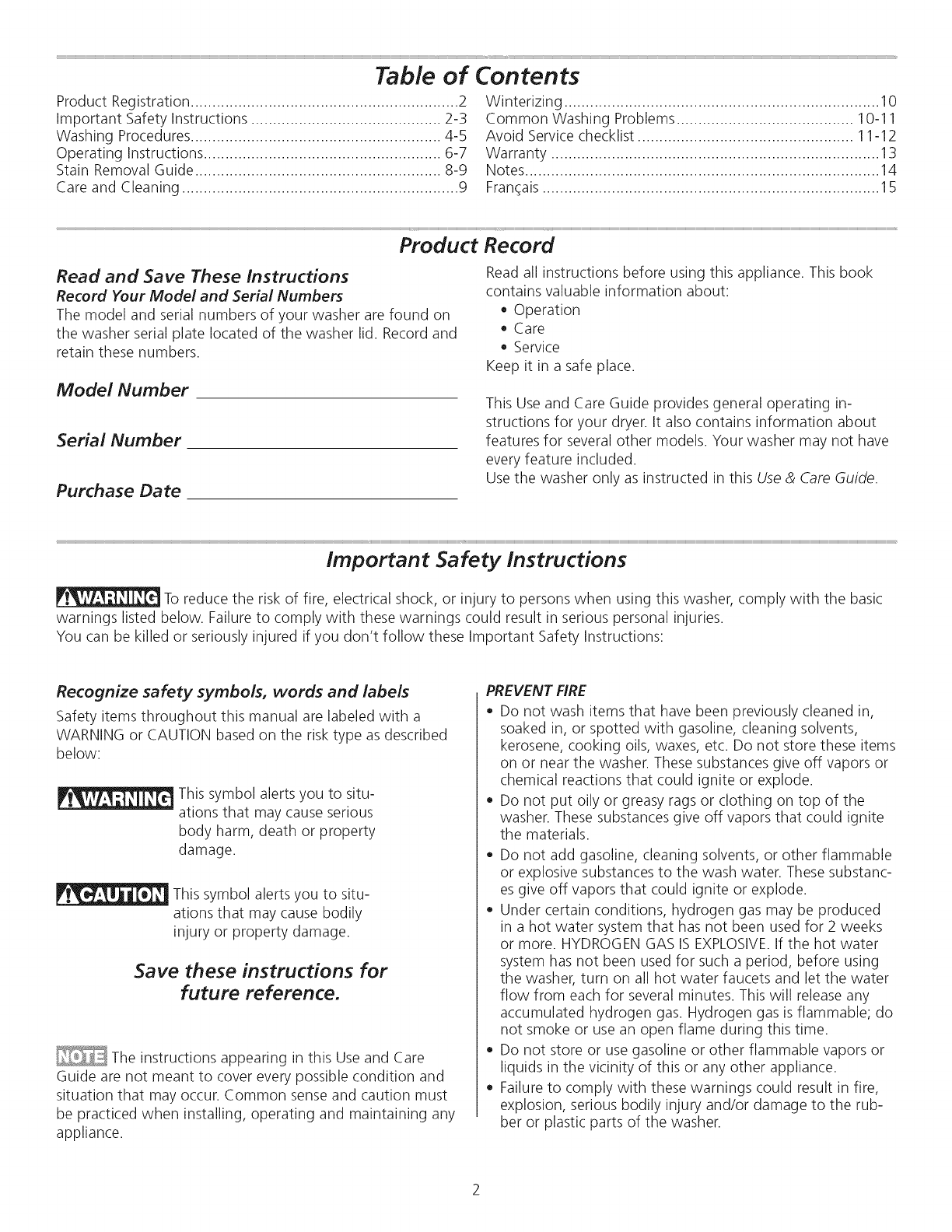

Table of Contents
Product Registration .............................................................. 2
Important Safety Instructions ............................................ 2-3
Washing Procedures.......................................................... 4-5
Operating Instructions ....................................................... 6-7
Stain Removal Guide ......................................................... 8-9
Care and Cleaning ................................................................ 9
Winterizing ......................................................................... 10
Common Washing Problems ......................................... 10-11
Avoid Service checklist .................................................. 11-12
Warranty ............................................................................ 13
Notes .................................................................................. 14
Francais .............................................................................. 15
Product Record
Read and Save These Instructions
Record Your Model and Serial Numbers
The model and serial numbers of your washer are found on
the washer serial plate located of the washer lid. Record and
retain these numbers.
Model Number
Serial Number
Purchase Date
Read all instructions before using this appliance. This book
contains valuable information about:
• Operation
• Care
• Service
Keep it in a safe place.
This Use and Care Guide provides general operating in-
structions for your dryer. It also contains information about
features for several other models. Your washer may not have
every feature included.
Use the washer only as instructed in this Use & Care Guide.
important Safety instructions
To reduce the risk of fire, electrical shock, or injury to persons when using this washer, comply with the basic
warnings listed below. Failure to comply with these warnings could result in serious personal injuries.
You can be killed or seriously injured if you don't follow these Important Safety Instructions:
Recognize safety symbols, words and labels
Safety items throughout this manual are labeled with a
WARNING or CAUTION based on the risk type as described
below:
This symbol alerts you to situ-
ations that may cause serious
body harm, death or property
damage.
This symbol alerts you to situ-
ations that may cause bodily
injury or property damage.
Save these instructions for
future reference.
The instructions appearing in this Use and Care
Guide are not meant to cover every possible condition and
situation that may occur. Common sense and caution must
be practiced when installing, operating and maintaining any
appliance.
PREVENT FIRE
= Do not wash items that have been previously cleaned in,
soaked in, or spotted with gasoline, cleaning solvents,
kerosene, cooking oils, waxes, etc. Do not store these items
on or near the washer. These substances give off vapors or
chemical reactions that could ignite or explode.
Do not put oily or greasy rags or clothing on top of the
washer. These substances give off vapors that could ignite
the materials.
Do not add gasoline, cleaning solvents, or other flammable
or explosive substances to the wash water. These substanc-
es give off vapors that could ignite or explode.
Under certain conditions, hydrogen gas may be produced
in a hot water system that has not been used for 2 weeks
or more. HYDROGENGAS IS EXPLOSIVE.If the hot water
system has not been used for such a period, before using
the washer, turn on all hot water faucets and let the water
flow from each for several minutes. This will release any
accumulated hydrogen gas. Hydrogen gas is flammable; do
not smoke or use an open flame during this time.
Do not store or use gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliance.
Failure to comply with these warnings could result in fire,
explosion, serious bodily injury and/or damage to the rub-
ber or plastic parts of the washer.
![](asset-3.png)

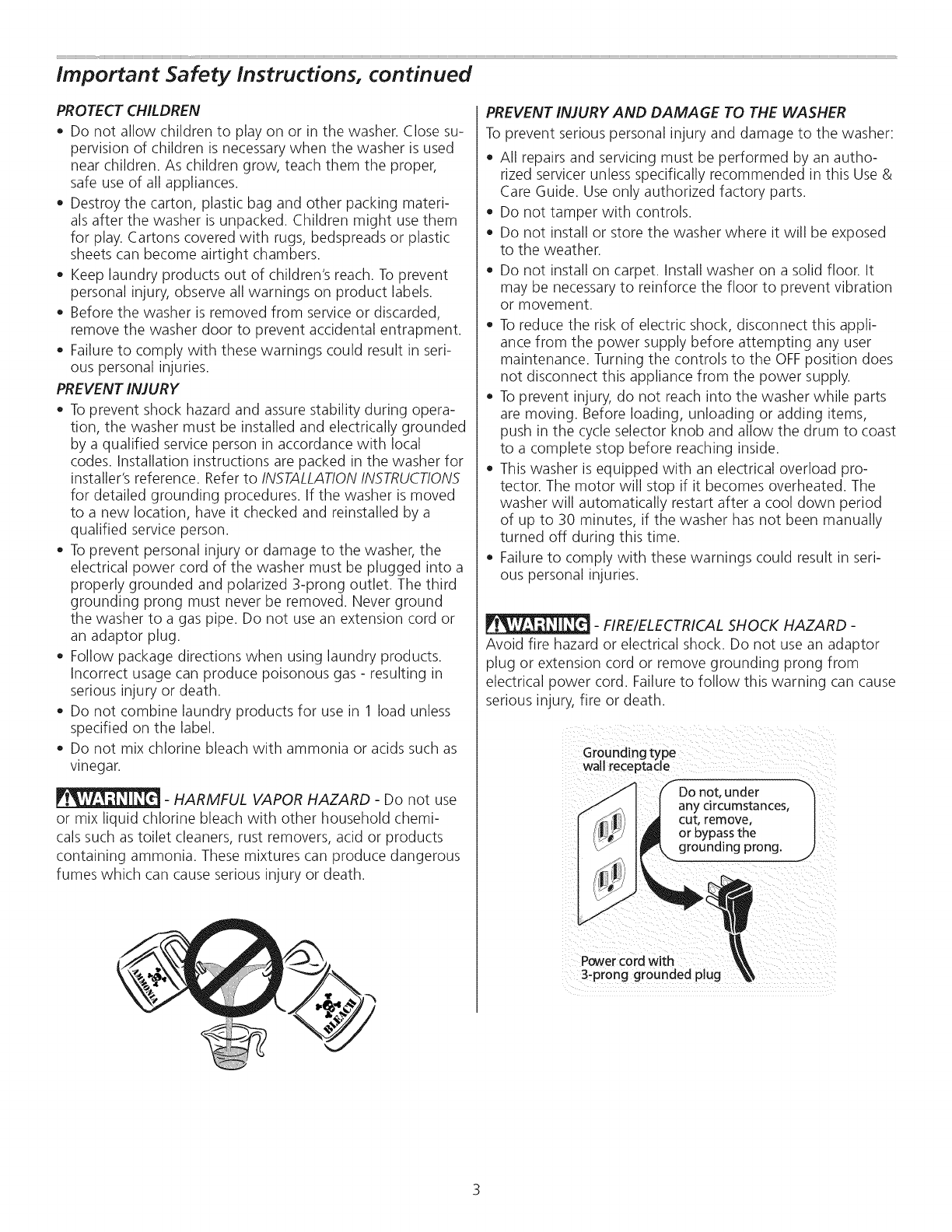

Important Safety Instructions, continued
PROTECT CHILDREN
• Do not allow children to play on or in the washer. Close su-
pervision of children is necessary when the washer is used
near children. As children grow, teach them the proper,
safe use of all appliances.
• Destroy the carton, plastic bag and other packing materi-
als after the washer is unpacked. Children might use them
for play. Cartons covered with rugs, bedspreads or plastic
sheets can become airtight chambers.
• Keep laundry products out of children's reach. To prevent
personal injury, observe all warnings on product labels.
• Before the washer is removed from service or discarded,
remove the washer door to prevent accidental entrapment.
• Failure to comply with these warnings could result in seri-
ous personal injuries.
PREVENT INJURY
• To prevent shock hazard and assure stability during opera-
tion, the washer must be installed and electrically grounded
by a qualified service person in accordance with local
codes. Installation instructions are packed in the washer for
installer's reference. Refer to INSTALLATIONINSTRUCTIONS
for detailed grounding procedures. If the washer is moved
to a new location, have it checked and reinstalled by a
qualified service person.
• To prevent personal injury or damage to the washer, the
electrical power cord of the washer must be plugged into a
properly grounded and polarized 3-prong outlet. The third
grounding prong must never be removed. Never ground
the washer to a gas pipe. Do not use an extension cord or
an adaptor plug.
• Follow package directions when using laundry products.
Incorrect usage can produce poisonous gas - resulting in
serious injury or death.
• Do not combine laundry products for use in 1 load unless
specified on the label.
• Do not mix chlorine bleach with ammonia or acids such as
vinegar.
-HARMFUL VAPOR HAZARD - Do not use
or mix liquid chlorine bleach with other household chemi-
cals such as toilet cleaners, rust removers, acid or products
containing ammonia. These mixtures can produce dangerous
fumes which can cause serious injury or death.
PREVENT INJURY AND DAMAGE TO THE WASHER
To prevent serious personal injury and damage to the washer:
• All repairs and servicing must be performed by an autho-
rized servicer unless specifically recommended in this Use &
Care Guide. Use only authorized factory parts.
• Do not tamper with controls.
• Do not install or store the washer where it will be exposed
to the weather.
• Do not install on carpet. Install washer on a solid floor. It
may be necessary to reinforce the floor to prevent vibration
or movement.
• To reduce the risk of electric shock, disconnect this appli-
ance from the power supply before attempting any user
maintenance. Turning the controls to the OFFposition does
not disconnect this appliance from the power supply.
• Toprevent injury, do not reach into the washer while parts
are moving. Before loading, unloading or adding items,
push in the cycle selector knob and allow the drum to coast
to a complete stop before reaching inside.
• This washer is equipped with an electrical overload pro-
tector. The motor will stop if it becomes overheated. The
washer will automatically restart after a cool down period
of up to 30 minutes, if the washer has not been manually
turned off during this time.
• Failure to comply with these warnings could result in seri-
ous personal injuries.
-FIRE/ELECTRICAL SHOCK HAZARD -
Avoid fire hazard or electrical shock. Do not use an adaptor
plug or extension cord or remove grounding prong from
electrical power cord. Failure to follow this warning can cause
serious injury, fire or death.
Grounding type
wall receptacle
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Power cord with
3-prong grounded plug
![](asset-4.png)

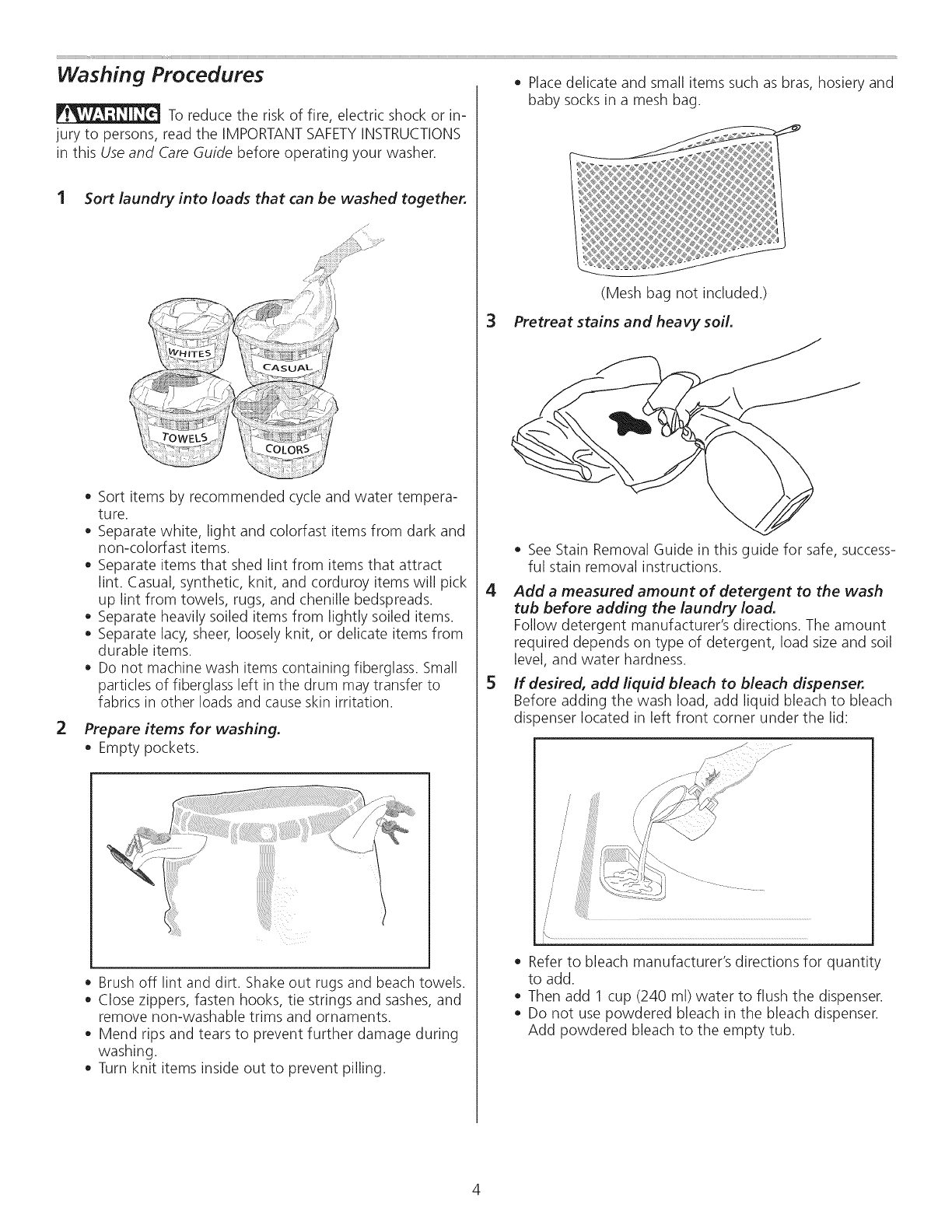

Washing Procedures
To reduce the risk of fire, electric shock or in-
jury to persons, read the IMPORTANTSAFETYINSTRUCTIONS
in this Useand Care Guide before operating your washer.
Sort laundry into loads that can be washed together.
/i
_,_ii_iii_i_ _iii__
,_iiiiiijiii_
CASUA_
,, COLO_S_
Sort items by recommended cycle and water tempera-
ture.
Separate white, light and colorfast items from dark and
non-colorfast items.
Separate items that shed lint from items that attract
lint. Casual, synthetic, knit, and corduroy items will pick
up lint from towels, rugs, and chenille bedspreads.
Separate heavily soiled items from lightly soiled items.
Separate lacy, sheer, loosely knit, or delicate items from
durable items.
Do not machine wash items containing fiberglass. Small
particles of fiberglass left in the drum may transfer to
fabrics in other loads and cause skin irritation.
Prepare items for washing.
•Empty pockets.
•Brush off lint and dirt. Shake out rugs and beach towels.
•Close zippers, fasten hooks, tie strings and sashes, and
remove non-washable trims and ornaments.
•Mend rips and tears to prevent further damage during
washing.
•Turn knit items inside out to prevent pilling.
Placedelicate and small items such as bras, hosiery and
baby socks in a mesh bag.
(Mesh bag not included.)
3Pretreat stains and heavy soil.
4
See Stain Removal Guide in this guide for safe, success-
fu{ stain removal instructions.
Add a measured amount of detergent to the wash
tub before adding the laundry load.
Follow detergent manufacturer's directions. The amount
required depends on type of detergent, load size and soil
level, and water hardness.
If desired, add liquid bleach to bleach dispenser.
Before adding the wash load, add liquid bleach to bleach
dispenser located in left front corner under the lid:
i\
Refer to bleach manufacturer's directions for quantity
to add.
Then add 1 cup (240 ml) water to flush the dispenser.
Do not use powdered bleach in the bleach dispenser.
Add powdered bleach to the empty tub.
![](asset-5.png)
Washing Procedures, continued
6 Add laundry load to washer.
• Dry load level should not be higher than the top of the
agitator vanes. Do not overload the washer.
Do not put items on top of agitator or wrap them
around it. Load items evenly.
Combine large and small items in a load. Load large
items first. Large items should not be more than half
the total wash load.
When washing a single heavy item, add 1 or 2 towels
to balance the load.
If desired, add liquid fabric softener to fabric soft-
ener dispenser (available on some models).
For models with a built-in dispenser:
• Add liquid softener to the dispenser, following fabric
softener label directions. DO NOT use granular deter-
gent in this dispenser.
• Add water to bring liquid level to fill line on dispenser
cap.
• Removethe dispenser from the agitator after each use.
Rinseboth cap and cup with warm
water. Replace dispenser in the
agitator.
Do not use bleach in this dispenser.
To separate cap from cup,
put thumb into dispenser and push
against side of cup (see picture to the
left). After cleaning, push cap and
cup firmly together. Replace dispens-
er by lining up the ribs and grooves
and snapping it into position.
If a build-up of fabric softener occurs, clean with hot water.
DO NOT REMOVE SERVICE CAP FOUND INSIDE THE
AGITATOR POST.
For models without a fabric softener dispenser, follow
fabric softener label directions. Add diluted fabric softener
to the final rinse. Do not pour fabric softener directly
on the wash load.
8Select cycle and settings according to type, size and
soil level of each load.
See Operating instructions on next page.
9Start the washer.
Close the washer lid and pull out the cycle selector knob.
The washer will not fill with water, agitate or spin when the
lid is open, and will only start to do so if the lid is closed.
The washer will automatically turn off if the lid is lifted dur-
ing agitation to add a garment or laundry product after the
cycle has begun. The washer will resume the cycle where it
left off when the lid is again closed. If the washer doesn't
agitate when the lid is closed, check the cycle selector
knob. It may have accidentally been pushed in when the lid
was opened, Pull out the knob to restart the washer.
To stop the washer during agitation, push in the cycle
selector knob.
Do not stop and restart washer during a spin when us-
ing the fabric softener dispenser.
To change a cycle after it has started, push in the cycle
selector knob. Turn it clockwise to the desired setting.
Pull out the knob to restart the washer.
10 Remove items when the cycle is completed.
The lid must be closed during spin. For your safety, the
lid locks when pro-pumping and remains locked when
pumping and spinning. It will remain locked for about
2-3 minutes after the cycle ends and the tub has come to
a complete stop.
'SAFETY LID LOCK
To open the lid during a spin, push in the cycle selec-
tor knob and wait about 2-3 minutes for the lid lock to
release Do not force open the locked lid.
Placewashed items in automatic dryer, line dry, or dry
flat as directed by fabric care label. Excesswrinkling,
color transfer or odors may develop in items left in the
washer after the cycle has ended.
To avoid serious personal injury, do not oper-
ate washer if safety lid lock is missing, damaged or operating
improperly.
![](asset-6.png)

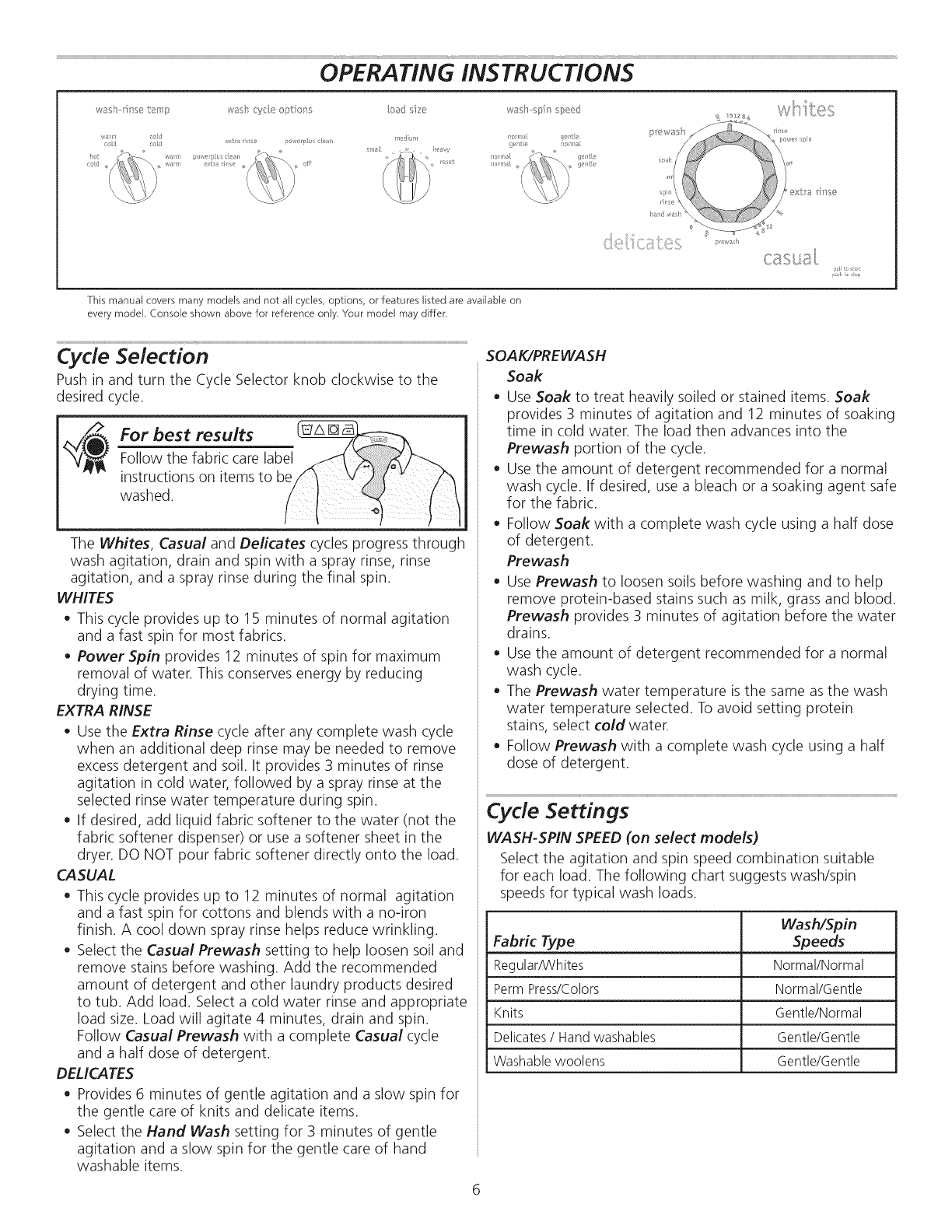

OPERATING INSTRUCTIONS
wasf/-fi_ se temp wash cyc_ opli_ r/s
eaw
wash-sp _-/s?eed
]cm[ ]} f w, s
_:r,a[ 'ii _e/tie
%;; ex[:ra i" _se
_--_,_ _.
5_ (wssl
This manual covers many models and not all cycles, options, or features listed are available on
every model. Console shown above for reference only. Your model may differ,
Cycle Selection
Push in and turn the Cycle Selector knob clockwise to the
desired cycle.
For best results
Follow the fabric care label
instructions on items to be
washed.
The Whites, Casual and Delicates cycles progress through
wash agitation, drain and spin with a spray rinse, rinse
agitation, and a spray rinse during the final spin.
WHffES
• This cycle provides up to 15 minutes of normal agitation
and a fast spin for most fabrics.
Power Spin provides 12 minutes of spin for maximum
removal of water. This conserves energy by reducing
drying time.
EXTRA RINSE
•Use the Extra Rinse cycle after any complete wash cycle
when an additional deep rinse may be needed to remove
excess detergent and soil. It provides 3 minutes of rinse
agitation in cold water, followed by a spray rinse at the
selected rinse water temperature during spin.
If desired, add liquid fabric softener to the water (not the
fabric softener dispenser) or use a softener sheet in the
dryer. DO NOT pour fabric softener directly onto the load.
CASUAL
•This cycle provides up to 12 minutes of normal agitation
and a fast spin for cottons and blends with a no-iron
finish. A cool down spray rinse helps reduce wrinkling.
Select the Casual Prewash setting to help loosen soil and
remove stains before washing. Add the recommended
amount of detergent and other laundry products desired
to tub. Add load. Select a cold water rinse and appropriate
load size. Load will agitate 4 minutes, drain and spin.
Follow Casual Prewash with a complete Casual cycle
and a half close of detergent.
DELICATES
Provides 6 minutes of gentle agitation and a slow spin for
the gentle care of knits and delicate items.
Select the Hand Wash setting for 3 minutes of gentle
agitation and a slow spin for the gentle care of hand
washable items.
SOAK/PREWASH
Soak
Use Soak to treat heavily soiled or stained items. Soak
provides 3 minutes of agitation and 12 minutes of soaking
time in cold water. The load then advances into the
Prewash portion of the cycle.
Use the amount of detergent recommended for a normal
wash cycle. If desired, use a bleach or a soaking agent safe
for the fabric.
Follow Soak with a complete wash cycle using a half dose
of detergent.
Prewash
Use Prewash to loosen soils before washing and to help
remove protein-based stains such as milk, grass and blood.
Prewash provides 3 minutes of agitation before the water
drains.
Use the amount of detergent recommended for a normal
wash cycle.
The Prewash water temperature is the same as the wash
water temperature selected. To avoid setting protein
stains, select cold water.
Follow Prewash with a complete wash cycle using a half
dose of detergent.
Cycle Settings
WASH-SPIN SPEED (on select models)
Select the agitation and spin speed combination suitable
for each load. The following chart suggests wash/spin
speeds for typical wash loads.
Wash/Spin
Fabric Type Speeds
Regular/Whites Normal/Normal
Perm Press/Colors Normal/Gentle
Knits Gentle/Normal
Delicates /Hand washables Gentle/Gentle
Washable woolens Gentle/Gentle
![](asset-7.png)
wash cyce ptiens oa:/size wash s:_ speed s s_2a,
(xrz_ rirs p_,erp s b J_ ! !du/, _n[4 iOrl _[ [)_w_ ;/:_
ou r)Js ,z_, _o 4_ , !,orn/ _ qn
This manual covers many models and not all cycles, options, or features listed are available on
every modek Console shown above for reference only. Your model may differ.

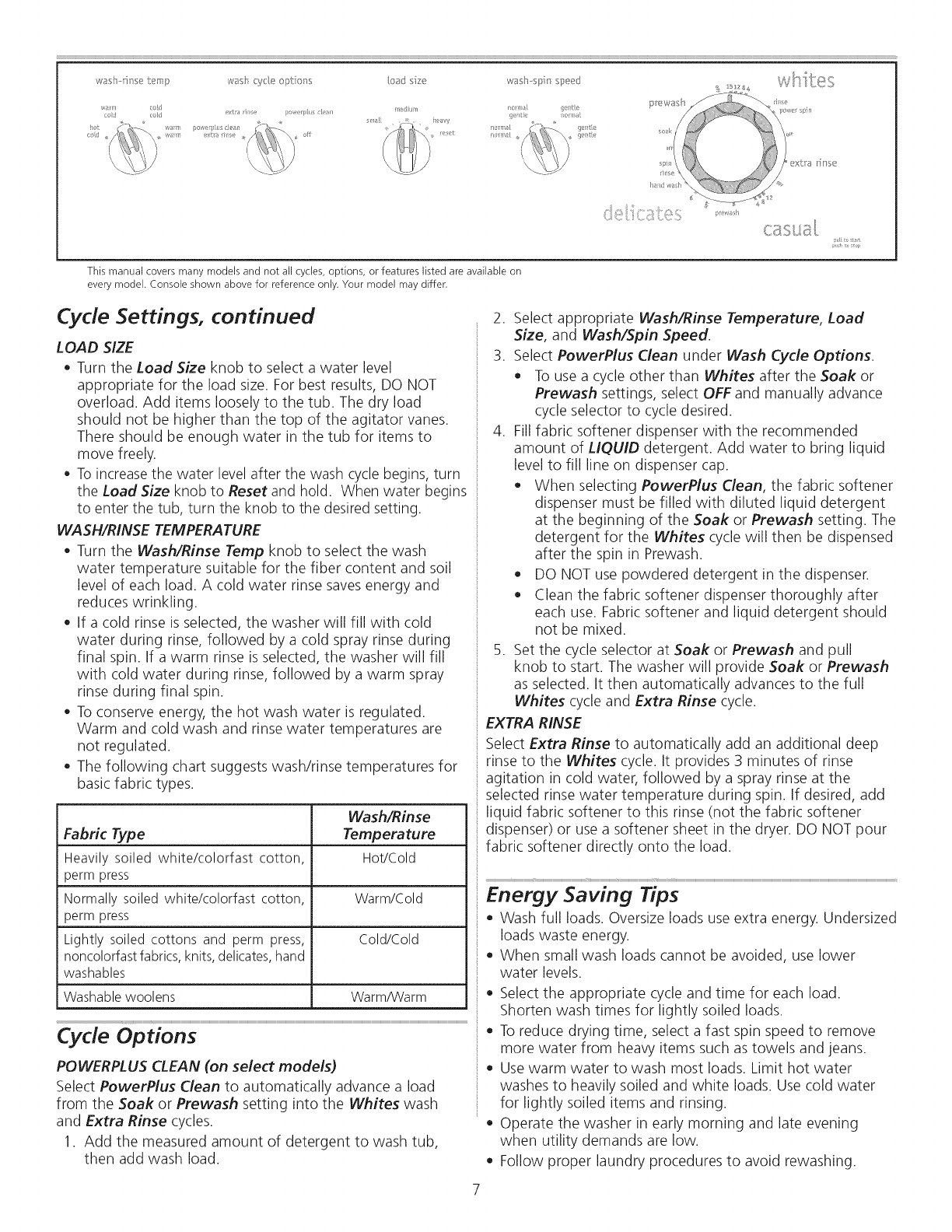

Cycle Settings, continued
LOAD SIZE
• Turn the Load Size knob to select a water level
appropriate for the load size. For best results, DO NOT
overload. Add items loosely to the tub. The dry load
should not be higher than the top of the agitator vanes.
There should be enough water in the tub for items to
move freely.
To increasethe water level after the wash cycle begins, turn
the LoadSize knob to Reset and hold. When water begins
to enter the tub, turn the knob to the desired setting.
WASH/RINSE TEMPERATURE
Turn the Wash/Rinse Temp knob to select the wash
water temperature suitable for the fiber content and soil
level of each load. A cold water rinse savesenergy and
reduces wrinkling.
If a cold rinse is selected, the washer will fill with cold
water during rinse, followed by a cold spray rinse during
final spin. If a warm rinse is selected, the washer will fill
with cold water during rinse, followed by a warm spray
rinse during final spin.
To conserve energy, the hot wash water is regulated.
Warm and cold wash and rinse water temperatures are
not regulated.
The following chart suggests wash/rinse temperatures for
basic fabric types.
Wash/Rinse
Temp era ture
Hot/Cold
Warm/Cold
Cold/Cold
Fabric Type
Heavily soiled white/colorfast cotton,
perm press
Normally soiled white/colorfast cotton,
perm press
Lightly soiled cottons and perm press,
noncolorfastfabrics,knits,delicates,hand
washables
Washablewoolens Warm/Warm •
Cycle Options "
POWERPLUS CLEAN (on select models)
Select PowerPlus Clean to automatically advance a load
from the Soak or Prewash setting into the Whites wash
and Extra Rinse cycles.
1. Add the measured amount of detergent to wash tub,
then add wash load.
,
3.
,
Select appropriate Wash/Rinse Temperature, Load
Size, and Wash/Spin Speed.
Select PowerPlus Clean under Wash Cycle Options.
To use a cycle other than Whites after the Soak or
Prewash settings, select OFF and manually advance
cycle selector to cycle desired.
Fill fabric softener dispenser with the recommended
amount of L/QUID detergent. Add water to bring liquid
level to fill line on dispenser cap.
When selecting PowerPlus Clean, the fabric softener
dispenser must be filled with diluted liquid detergent
at the beginning of the Soak or Prewash setting. The
detergent for the Whites cycle will then be dispensed
after the spin in Prewash.
DO NOT use powdered detergent in the dispenser.
Clean the fabric softener dispenser thoroughly after
each use. Fabric softener and liquid detergent should
not be mixed.
5. Set the cycle selector at Soak or Prewash and pull
knob to start. The washer will provide Soak or Prewash
as selected. It then automatically advances to the full
Whites cycle and Extra Rinse cycle.
EXTRA RINSE
Select Extra Rinse to automatically add an additional deep
rinse to the Whites cycle. It provides 3 minutes of rinse
agitation in cold water, followed by a spray rinse at the
selected rinse water temperature during spin. If desired, add
liquid fabric softener to this rinse (not the fabric softener
dispenser) or use a softener sheet in the dryer. DO NOT pour
fabric softener directly onto the load.
Energy Saving Tips
Wash full loads. Oversize loads use extra energy. Undersized
loads waste energy.
• When small wash loads cannot be avoided, use lower
water levels.
Select the appropriate cycle and time for each load.
Shorten wash times for lightly soiled loads.
To reduce drying time, select a fast spin speed to remove
more water from heavy items such as towels and jeans.
Use warm water to wash most loads. Limit hot water
washes to heavily soiled and white loads. Use cold water
for lightly soiled items and rinsing.
Operate the washer in early morning and late evening
when utility demands are low.
Follow proper laundry procedures to avoid rewashing.
![](asset-8.png)
Safe Stain Removal Procedures
To reduce the risk of fire or serious injury to persons or property, comply
with the basic warnings listed below:
• Read and comply with all instructions on stain removal products.
Keep stain removal products in their original labeled containers and
out of children's reach.
Thoroughly wash any utensils used.
Do not combine stain removal products, especially ammonia and
chlorine bleach. Dangerous fumes can result.
Never wash items which have been previously cleaned in, washed
in, soaked in or spotted with gasoline, dry cleaning solvents or other
flammable or explosive substances because they give off vapors that
could ignite or explode.
Never use highly flammable solvents, such as gasoline, inside the
home. Vapors can explode on contact with flames or sparks.
For Successful Stain Removal:
Remove stains promptly.
Determine the kind of stain, then follow the recommended treatment
in the stain removal chart on the next page.
To pretreat stains, use a prewash product, liquid detergent, or a paste
made from powder detergent and water.
Use cold water on unknown stains because hot water can set stains.
Consult care label instructions for treatments to avoid on specific
fabrics.
Check for colorfastness by testing stain remover products on an inside
seam.
Rinse and wash items after stain removal.
-HARMFUL VAPOR HAZARD -
Do not use or mix liquid chlorine bleach with other
household chemicals such as toilet cleaners, rust
removers, acid or products containing ammonia.
These mixtures can produce dangerous fumes
which can cause serious injury or death.
For best results
Follow the fabric care label instruc-
tions on items to be washed.
EiAD
Stain Removal Suggestions
STAIN TREATMENT
Adhesive tape, chewing gum, Apply ice. Scrape off excess. Placestain face down on paper towels. Saturate with prewash stain remover
rubber cement or nonflammable dry cleaning fluid.
Baby formula, dairy products, Use product containing enzymes to pretreat or soak stains. Soak for 30 minutes or more. Wash.
egg
Beverages (coffee, tea, Pretreat stain. Wash using cold water and bleach safe for fabric.
soda, juice, alcoholic bever-
ages)
Blood Rinse with cold water. Rub with bar soap. Or, pretreat or soak with product containing enzymes. Wash
using bleach safe for fabric.
Candle wax, crayon Scrape off surface wax. Place stain face down between paper towels. Presswith warm iron until wax is
absorbed. Replace paper towels frequently. Treat remaining stain with prewash stain remover or nonflam-
mable dry cleaning fluid. Hand wash to remove solvent. Wash using bleach safe for fabric.
Chocolate Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.
Collar or cuff soil, cosmetics Pretreat with prewash stain remover or rub with bar soap.
Dye transfer on white fabric Use packaged color remover. Wash using bleach safe for fabric.
Grass _ Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.
Grease, oil, tar (butter, fats, Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy stains and tar,
salad dressing, cooking oils, apply nonflammable dry cleaning fluid to back of stain. Replace towels under stain frequently. Rinse thor-
car grease, motor oils) oughly. Wash using hottest water safe for fabric.
Ink Some inks may be impossible to remove. Washing may set some inks. Use prewash stain remover, dena-
tured alcohol or nonflammable dry cleaning fluid.
Mildew, scorch Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and hot water before washing.
Badly mildewed fabrics may be permanently damaged.
![](asset-9.png)
Stain Removal Suggestions, continued
STAIN TREATMENT
Mud Brushoff dry mud. Pretreator soakwith product containing enzymes.
Mustard,tomato Pretreatwith prewashstain remover.Washusing bleach safefor fabric.
Nail polish May be impossibleto remove.Placestainface down on papertowels. Apply nail polish removerto back
of stain. Repeat,replacingpapertowels frequently.Do not useon acetatefabrics.
Paint,varnish WATERBASED:Rinsefabric in coolwater while stainis wet. Wash.Oncepaint isdry,it cannot be removed.
OILBASEDANDVARNISH:Usesolventrecommendedon can label. Rinsethoroughly beforewashing.
Perspiration Useprewashstain removeror rub with bar soap.Rinse.Washusing nonchlorine bleach in hottest water
safefor fabric.
Rust,brown or yellow discol- Userustremoversafefor fabric. Do not use chlorine bleachbecauseit may intensifydiscoloration.
oration
Shoepolish LIQUID:Pretreatwith a pasteof powder detergentand water. PASTE:Scraperesiduefrom fabric. Pretreat
with prewash stain remover or nonflammable dry cleaningfluid. Rinse.Rubdetergent into dampened
area.Washusing bleachsafefor fabric.
Tomato Pretreatwith prewashstain remover.Washusing bleach safefor fabric.
Urine,vomit, mucus,feces Pretreator soakin product containing enzymes.Washusing bleachsafefor fabric.
Wine Pretreator soakin cold water. Washin hottest water and bleachsafefor fabric
Care and Cleaning
Inside
• Remove items from the washer as soon as the cycle ends. Excesswrinkling,
color transfer, and odors may develop in items left in the washer.
Dry the washer top, the area around the lid opening, and the underside of
the lid. These areas should always be dry before the lid is closed.
Before cleaning the washer interior, unplug the electrical power cord to
avoid electrical shock hazards.
• When extremely soiled items have been washed, a dirty residue may remain
on the tub. Remove this by wiping the tub with a nonabrasive household
cleanser. Rinse thoroughly with water.
• The agitator or tub may become stained from fabric dye. Clean these parts
with a nonabrasive household cleanser. This prevents dye transfer to future
loads.
Outside
When washing is completed, wipe top and sides of washer with a damp
cloth. Turn water faucets off to prevent pressure build-up in the hoses.
• Clean the cabinet with mild soap and water. Never use harsh, gritty or abra-
sive cleansers
• If the cabinet becomes stained, clean with diluted chlorine bleach (1 part
bleach to 8 parts water). Rinseseveral times with clear water.
• Remove glue residue from tape or labels with a mixture of warm water and
mild detergent. Or, touch residue with the sticky side of tape.
• Before moving the washer, place a strip of cardboard or thin fiberboard
under the front leveling legs to prevent damage to the floor.
J
J
J
J
Do not store or place laundry
products on top of washer at any time. They
can damage the finish or controls.
![](asset-a.png)
Winterizing Instructions
If the washer is stored in an area where freez-
ing can occur or moved in freezing temperatures, follow these
winterizing instructions to prevent damage to the washer:
1. Turn off water supply faucets.
2. Disconnect hoses from water supply and drain water from hoses.
3. Plug electrical cord into a properly grounded electrical outlet.
4. Add 1 gallon (3.8 L) nontoxic recreational vehicle (RV) antifreeze to
empty wash drum. Close lid.
5. Set cycle selector knob at a spin setting. Pull out knob and let washer
spin for 1 minute to drain out all water. Not all of the RV antifreeze will
be expelled.
6. Push in knob, unplug electrical power cord, dry tub interior, and close
lid.
7. Store washer in an upright position.
8. To remove antifreeze from washer after storage, run empty washer
through a complete cycle using detergent. De net add wash lead,
Fellow WINTERIZING
INSTRUCTIONS for cold
weather storage and
care.
Common Washing Problems
Many washing problems involve poor soil and stain removal, residues of lint and scum, and fabric damage. For satisfactory
washing results, follow these suggestions provided by The Soap and Detergent Association.
PROBLEM POSSIBLECAUSES SOLUTIONS PREVENTIVE MEASURES
Bluestains o
Discolor-
ation, gray-
ing
Greasy, oily
stains
Holes, tears,
or snags
Lint
Pilling
(Fibers ball
up and cling
to fabric.)
Undiluted liquid detergent or
fabric softener dispensed directly
onto fabric.
Not enough detergent.
Wash water temperature too low.
Incorrect sorting.
Not enough detergent.
Undiluted liquid fabric softener
poured directly on fabric.
Incorrect use of chlorine bleach.
Unfastened zippers, hooks,
buckles.
Rips, tears and broken threads.
Overloading the washer.
Degradation of fabric.
o
o
o
o
o
Incorrect sorting.
Tissues left in pocket.
Overloading the washer.
Not enough detergent.
Undissolved detergent has left a
residue resembling lint.
Static cling is attracting lint.
Load washed too long.
Pilling is normal with synthetic
and permanent press fabrics. This
is due to abrasion from normal
wear.
If caused by detergent, mix 1 cup (240 ml)
white vinegar with 1 quart (.95 L)water in
a plastic container. Soak item 1 hour. Rinse.
If caused by fabric softener, rub stains with
bar soap. Wash.
, Rewash with correct amount of detergent
and hottest water safe for fabric.
, Add bleach safe for fabric.
Treat with prewash stain remover or liquid
detergent.
Increase detergent and water temperature.
Rewash.
Rub fabric softener stains with bar soap.
May be irreversible if rips, tears and seams
cannot be mended.
Reduce load size. Rewash using correct wa-
ter temperature, water level, and amount
of detergent.
Add nonprecipitating water conditioner to
wash water to remove detergent residue.
Add liquid fabric softener to final rinse.
Dry load in dryer.
Remove lint with lint brush or roller.
Use a lint brush or shaver to remove pills.
Avoid overfilling detergent and
fabric softener compartments of
dispenser.
Sort items by soil level and color.
Use correct amount of detergent,
hottest water and bleach safe for
fabric.
o
o
o
o
Use correct amount of detergent
and hottest water safe for fabric.
Do not pour liquid fabric softener
directly on fabric. See Operating
Your, step 5.
Never pour chlorine bleach di-
rectly on fabric.
Check condition of items before
washing. See Operating Your,
steps 2 and 5.
SeeOperating Your, steps 1 and
2.
Do not overload washer.
Use correct temperature and
amount of detergent, water and
wash time.
o Use fabric softener in the washer
to lubricate fibers.
, When ironing, use spray starch or
fabric finish on collars and cuffs.
, Turn items inside out to reduce
abrasion.
10
![](asset-b.png)
Common Washing Problems, continued
PROBLEM POSSIBLECAUSES SOLUTIONS PREVENTIVE MEASURES
,, Rewashload. ,,Residue or
powder on
dark items;
Stiff, harsh
fabrics.
Wrinkling
Yellow
buildup of
body soil
on synthetic
fabrics
Yellow or
brown rust
stains
o Undissolved detergent.
Some granular detergents can
combine with hard water minerals
to form a residue.
Overloading the washer.
Overloading the washer.
Incorrect wash cycle for wash
load.
Agitation time too short.
Wash water temperature too low.
Not enough detergent.
Iron or manganese in water sup-
ply, water pipes, or water heater.
o
o
o
o
o
o
Reduce load size.
Rinse in cold water with liquid fabric soft-
ener using the casual or delicate cycle.
Soak in detergent booster or product con-
taining enzymes.
Wash in hottest water safe for fabric using
casual cycle.
Increase detergent.
Add bleach safe for fabric or treat with
color remover.
To restore discolored load of whites, use
rust remover safe for fabric.
Do not use chlorine bleach to remove rust
stains. It may intensify discoloration.
Increase water temperature using
hottest water safe for fabric.
Do not overload washer.
Use liquid detergent or use non-
precipitating water conditioner
with powder detergent.
Do not overload washer.
Remove items from washer as
soon as cycle is completed.
Use liquid fabric softener.
Select correct wash cycle.
Use correct amount of detergent.
Wash synthetics frequently using
hot or warm water.
Use nonprecipitating water
softener.
Before washing, run hot water for
a few minutes to clear lines.
Drain water heater occasionally.
For an ongoing problem, install
an iron filter in your water supply
system.
Avoid Service Checklist
Before calling for service, review this list. It may save both time and expense. The list includes common occurrences that are
not the result of defective workmanship or materials in this washer.
OCCURRENCE POSSIBLECAUSE SOLUTION
"Clunking" or gear A certain amount of "clunking" or gear sounds This is normal.
sounds, are normal in a heavy-duty washer.
Rattling and clanking Foreign objects such as coins or safety pins may Stop washer and check drum. If noise continues after washer is
noise, be in drum or pump. restarted, objects may be in pump. Call your authorized servicer.
Belt buckles and metal fasteners are hitting wash To prevent unnecessary noise and damage to tub, fasten fasten-
drum. ers and turn items inside out.
Thumping sound. Heavy wash loads may produce a thumping Stop washer and redistribute wash load.
sound. This is usually normal. If sound continues,
washer is probably out of balance.
Squealing sound or hot Washer is overloaded. Do not overload washer. Stop washer and reduce load.
rubber odor.
Vibrating noise. Washer is not resting firmly on floor. Move washer so it rests firmly on floor. Adjust leveling legs. See
INSTALLATION INSTRUCTIONS for details.
Shipping bolt has not been removed during instal- See INSTALLATION INSTRUCTIONS for removing shipping bolt.
lation.
Wash load unevenly distributed in tub. Stop washer and rearrange wash load.
11
![](asset-c.png)

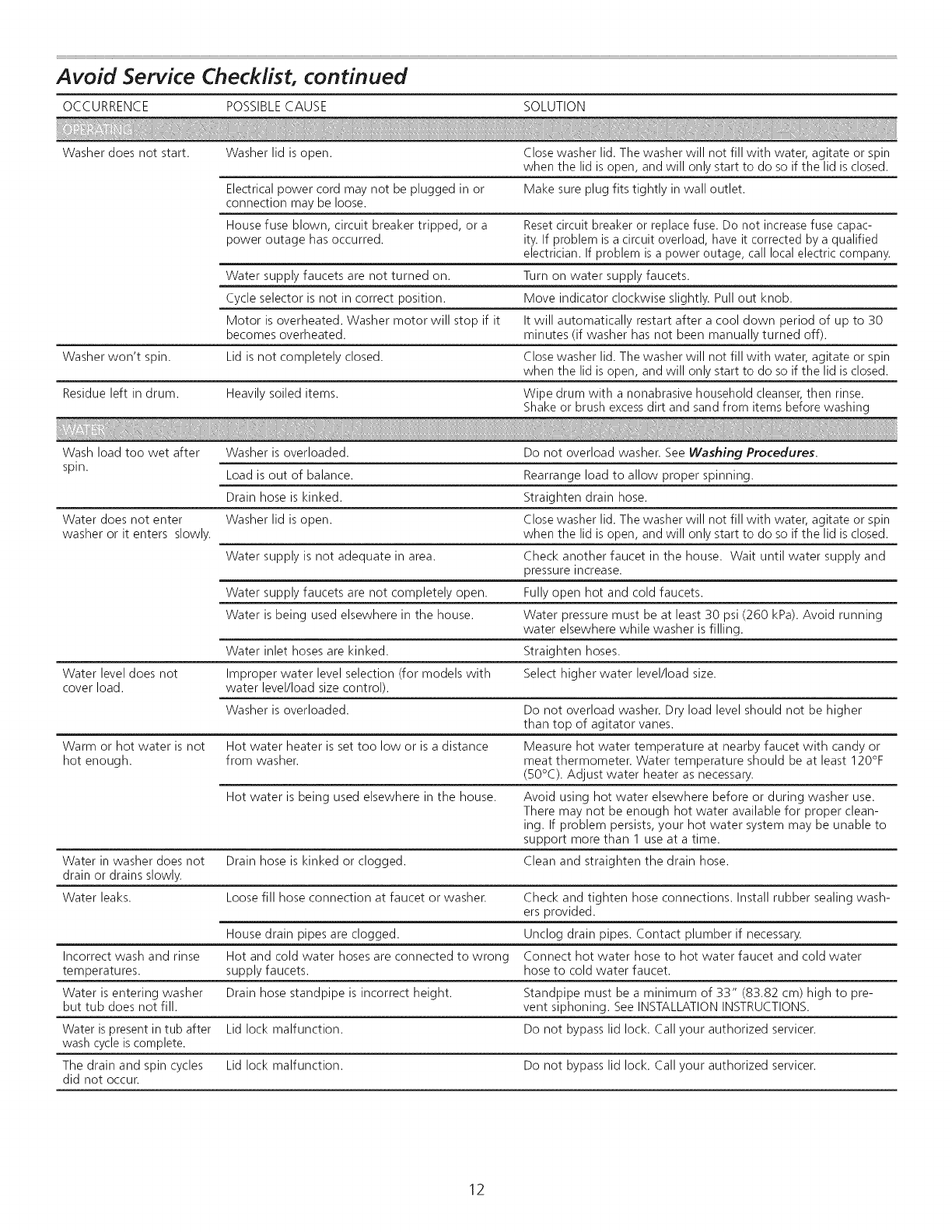

Avoid Service Checklist, continued
OCCURRENCE POSSIBLE CAUSE SOLUTION
Washer does not start. Washer lid is open. Close washer lid. The washer will not fill with water, agitate or spin
when the lid is open, and will only start to do so if the lid is closed.
Electrical power cord may not be plugged in or Make sure plug fits tightly in wall outlet.
connection may be loose.
House fuse blown, circuit breaker tripped, or a Reset circuit breaker or replace fuse. Do not increase fuse capac-
power outage has occurred, ity. If problem is a circuit overload, have it corrected by a qualified
electrician. If problem is a power outage, call local electric company.
Water supply faucets are not turned on. Turn on water supply faucets.
Cycle selector is not in correct position. Move indicator clockwise slightly. Pull out knob.
Motor is overheated. Washer motor will stop if it It will automatically restart after a cool down period of up to 30
becomes overheated, minutes (if washer has not been manually turned off).
Washer won't spin. Lid is not completely closed. Close washer lid. The washer will not fill with water, agitate or spin
when the lid is open, and will only start to do so if the lid is closed.
Residue left in drum. Heavily soiled items. Wipe drum with a nonabrasive household cleanser, then rinse.
Shake or brush excess dirt and sand from items before washing
Wash load too wet after Washer is overloaded. Do not overload washer. See Washing Procedures.
spin. Load is out of balance. Rearrange load to allow proper spinning.
Drain hose is kinked. Straighten drain hose.
Water does not enter Washer lid is open. Close washer lid. The washer will not fill with water, agitate or spin
washer or it enters slowly, when the lid is open, and will only start to do so if the lid is closed.
Water supply is not adequate in area. Check another faucet in the house. Wait until water supply and
pressure increase.
Water supply faucets are not completely open. Fully open hot and cold faucets.
Water is being used elsewhere in the house. Water pressure must be at least 30 psi (260 kPa). Avoid running
water elsewhere while washer is filling.
Water inlet hoses are kinked. Straighten hoses.
Water level does not Improper water level selection (for models with Select higher water level/load size.
cover load. water level/load size control).
Washer is overloaded. Do not overload washer. Dry load level should not be higher
than top of agitator vanes.
Warm or hot water is not Hot water heater is set too low or is a distance Measure hot water temperature at nearby faucet with candy or
hot enough, from washer, meat thermometer. Water temperature should be at least 120°F
(B0°C). Adjust water heater as necessary.
Hot water is being used elsewhere in the house. Avoid using hot water elsewhere before or during washer use.
There may not be enough hot water available for proper clean-
ing. If problem persists, your hot water system may be unable to
support more than 1 use at a time.
Water in washer does not Drain hose is kinked or clogged. Clean and straighten the drain hose.
drain or drains slowly.
Water leaks. Loose fill hose connection at faucet or washer. Check and tighten hose connections. Install rubber sealing wash-
ers provided.
House drain pipes are clogged. Unclog drain pipes. Contact plumber if necessary.
Incorrect wash and rinse Hot and cold water hoses are connected to wrong Connect hot water hose to hot water faucet and cold water
temperatures, supply faucets, hose to cold water faucet.
Water is entering washer Drain hose standpipe is incorrect height. Standpipe must be a minimum of 33" (83.82 cm) high to pre-
but tub does not fill. vent siphoning. See INSTALLATION INSTRUCTIONS.
Water is present in tub after Lid lock malfunction. Do not bypass lid lock. Call your authorized servicer.
wash cycle is complete.
The drain and spin cycles Lid lock malfunction. Do not bypass lid lock. Call your authorized servicer.
did not occur.
12
![](asset-d.png)
Yourapplianceiscoveredbyaoneyearlimitedwarranty.Foroneyearfromyouroriginaldateof
purchase,Electroluxwillpayallcostsfor repairingor replacinganypartsof thisappliancethat proveto
bedefectiveinmaterialsorworkmanshipwhensuchapplianceisinstalled,usedandmaintainedin
accordancewiththeprovidedinstructions.
Exclusions This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
S. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc.,which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESSTHAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN
LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOWTHE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.
If You Need
Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA Canada
1.800.944.9044 1.800.265.8352
Electrolux Major Appliances Electrolux Canada Corp.
North America Electrolux 5855 Terry Fox Way
RO. Box 212378 Mississauga, Ontario, Canada
Augusta, GA 30907 L5V 3E4
13
![](asset-e.png)
Notes
14
