Drop-In Cooktop
FPEC3085K S
30" Electric24" Built-In
Signature Features
Energy Saver Plus Cycle
Eco-friendly cycle uses less energy
without compromising cleaning
performance.
Energy Saver Dry Option
No heat dry option.
Fits-More™ Capacity
Our large capacity, tall-tub dishwasher
fits up to 14 place settings so you can
wash even more at once.
Quiet Dishwasher
Dishwashers
FFBD2411N S / M / W / B / Q
Product Dimensions
Height (Adjustable) 33-1/2" – 35"
Width 24"
Depth (Including Door) 25"
More Easy-To-Use Features
2-4-6 Hour Delay Start
Set your dishwasher to run on your
schedule.
NSF® Certified
Sanitize cycle removes 99.9% of common
household bacteria.
Attractive Stainless Steel Exterior1
SpaceWise® Silverware Basket
There’s a place for all of your silverware in
our multi-compartment, removable basket.
5 Wash Cycle Options
Ready-Select® Controls
Easily select options with the touch of
a button.
High Temperature Wash
Control Lock Option
ENERGY STAR®
NSF® International
Certification
Available in:
1 Select models only.
White
(W)
Silver Mist
(M)
Stainless
(S)
Black
(B)
Bisque
(Q)
Specifications
subject to change.
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
B
A
D
C
24" Built-In Dishwashers
Frigidaire Baseline
Meets requirements
of ASSE 1006
Accessories information available
on the web at frigidaire.com
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FFBD2400L 03/14 © 2014 Electrolux Home Products, Inc.
1 For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
Cutout Dimensions
Height (Min.)
Height (Max.)
Width (Min.)
Depth (Min.)
34-1/4"
35-1/4"
24"
24"

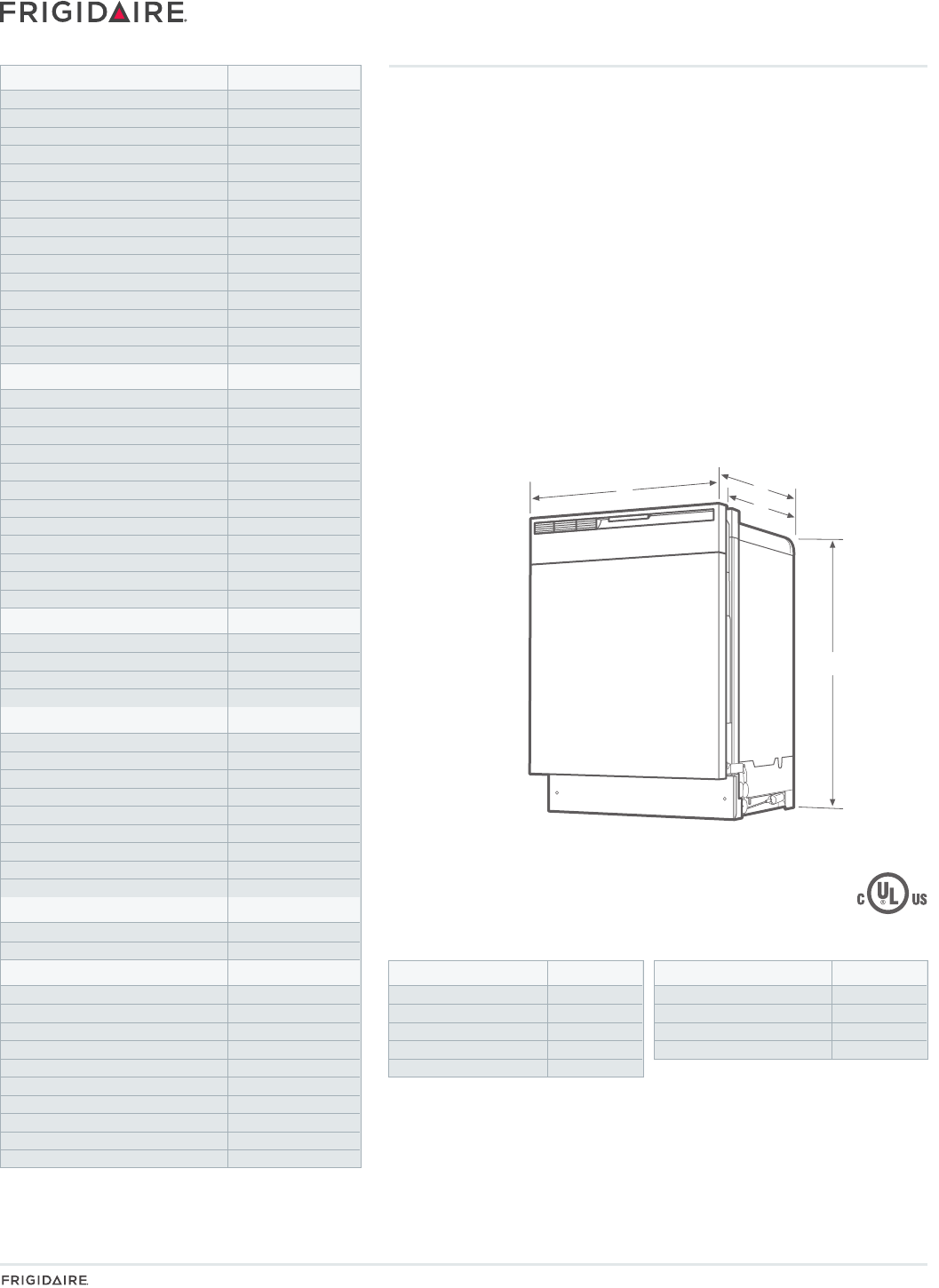

Product Dimensions
A - Height (Adjustable)
B - Width
C - Depth (Including Door)
D - Depth (To Tub Flange)
Depth with Door Open 90°
33-1/2" – 35"
24"
25"
22-1/2"
49-1/4"
Dishwashers
FFBD2411N S / M / W/ B / Q 24" Built-In
Features
Control Design
Digital Display
Door Latch
Stay-Put Door Hinge Design
Low Rinse-Aid Indicator Light
Interior Design
Interior Color
Wash System
Wash Levels / Wash Speeds
Sound Package
Filter
Filter Trap
Soft Food Disposer
dB Level
Drying System
Cycles
Number of Cycles
Heavy
Normal
Light
Delicate
Favorite
China / Crystal
Rinse Only
Energy Saver Plus
Upper Rack Wash Only
Cycle Indicator Light
Control Lock
Options
Heat / No Heat Dry
Hi-Temp Wash
NSF® Certified Sanitize Rinse
Delay Start
Rack System
Rack Design / Rack Coating
Upper Rack –
Stemware / Champagne Glass Holders
Fold-Down Tines
Cup Shelves
Lower Rack –
SpaceWise® Silverware Basket
Fold-Down Tines
Small Items Cover
Certifications
ENERGY STAR®
NSF® International Certification
Specifications
Water Inlet Location
Water Usage (Gallons)
Water Pressure (PSI)
Integral Air Gap on Supply
Leveling Legs
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts 1
Amps @ 120 Volts
Shipping Weight (Approx.)
Ready-Select®
Yes
Yes
Tall Tub
White
Direct Feed
5 / 1
UltraQuiet™ III
Plastic
Removable
Yes
55
Active Vent
5
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
2-4-6 Hour
Better Rack System / PVC
Ultra I
Yes
Yes
Left Bottom Front
6.0
20 – 120
Yes
4
Right Bottom Front
120V / 60 Hz / 15A
1.44
10
64 Lbs.
Specifications
subject to change.
Meets
requirements of
ASSE 1006
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
Front
33
1/2"
Adjustable
to 35"
24"
Power supply location (right bottom front)
49
1/4"
22
1/2"
RightLeft
25"
Water inlet
(left bottom front)
Door in 90°
open position

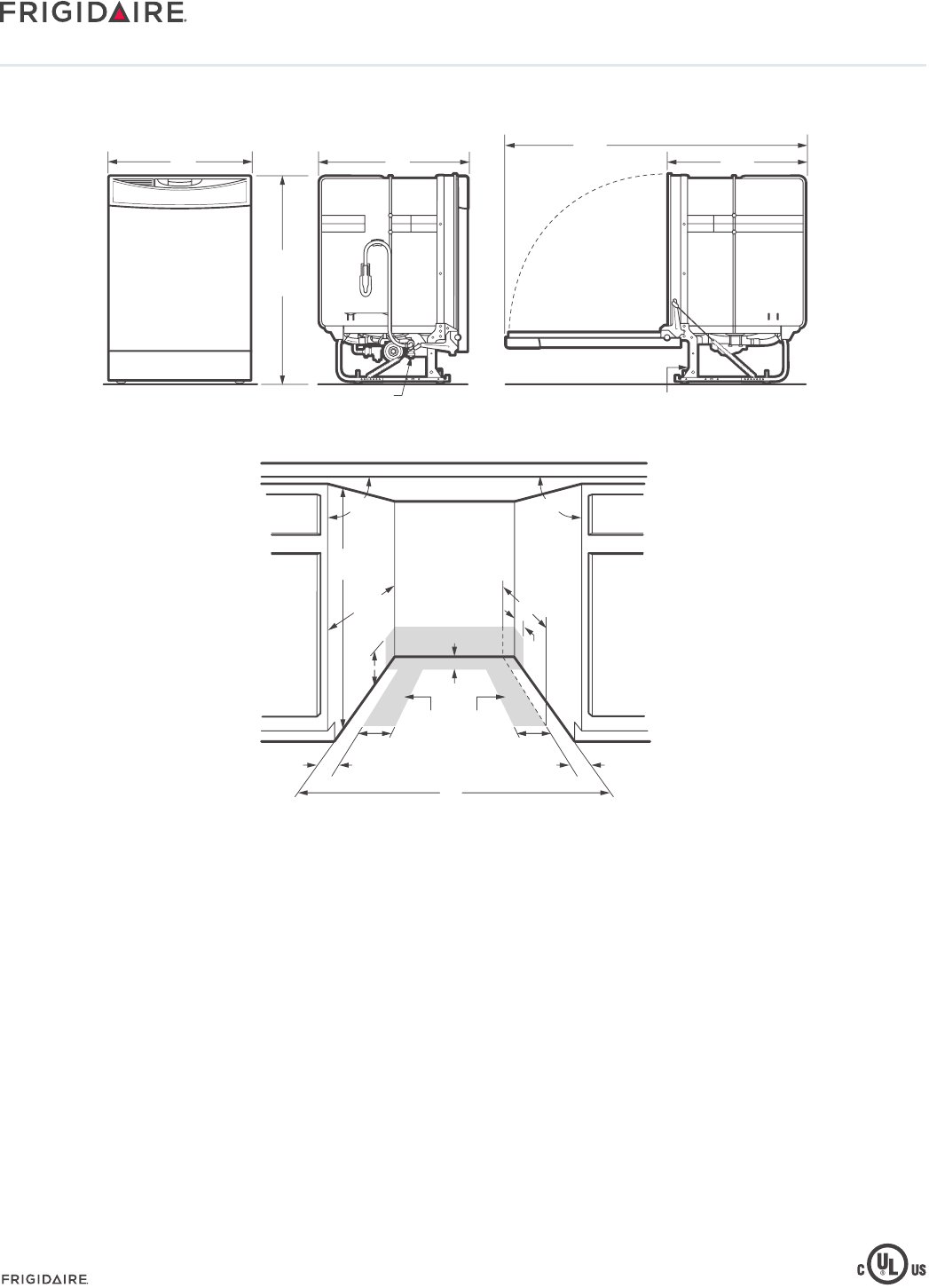

24" Built-In Dishwasher w/Ready-Select Controls (RSC)
w/Plastic Tub (PT) Baseline
6"
2
1/2"2
1/2"
4"
18"
24"
min.
Electrical, water,
and drain
lines
must be confined
to shaded
area
6"
24"
7
3/4"
90° 90°
3"
341/4"
min.
Hot
water
line
Electrical
wiring
FFBD2411N 03/14 © 2014 Electrolux Home Products, Inc.
Dishwashers
FFBD2411N S / M / W/ B / Q 24" Built-In
Dishwasher Specifications
• Product Shipping Weight (approx.) – 64 Lbs.
• Voltage Rating – 120V / 60 Hz / 15 Amps (maximum 20 Amps if
connected with disposer)
• Connected Load (kW Rating) @ 120 Volts = 1.44 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
• Amps @ 120V = 10 Amps
• Always consult local and national electric & plumbing codes.
Meets requirements of ASSE 1006 — integral air gap on supply.
• Water Pressure – Hot water line to dishwasher must provide
between 20 and 120 pounds per square inch (psi) with at least 120° F
hot water temperature.
• Make sure location has correct drain, water and electrical outlets
to make connections.
• Electrical and water supplies should enter cabinet opening on floor,
or through back or side walls, as shown in shaded areas.
• Keep back free of drain, water & electrical supply.
• Connections preferably located toward left side of dishwasher.
Do not cross drain, water or electrical lines in front of motor, blower
or frame.
• If connecting drain hose to sink trap, local code may require
installation of Air Gap Kit (not included).
• Leveling legs supplied to adjust height.
• When installing adjacent to wall, cabinet or other obstruction that
extends beyond front edge of unit, allow 2" minimum clearance
between opened door and obstruction.
• Floor should be flat and free of obstructions.
• When installing at end of cabinet line, sides and back must be
fully enclosed.
• Do not install unit under a cooktop, damage will occur.
• Recommended to seal cabinets, enclosing all sides of dishwasher,
including underside of countertop, with oil-based paint or moisture-
proof polyurethane to prevent possible steam/moisture damage.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_SSR FR 01/14 © 2014 Electrolux Home Products, Inc.
General Installation Guidelines
with Side-by-Side Refrigerator
Top

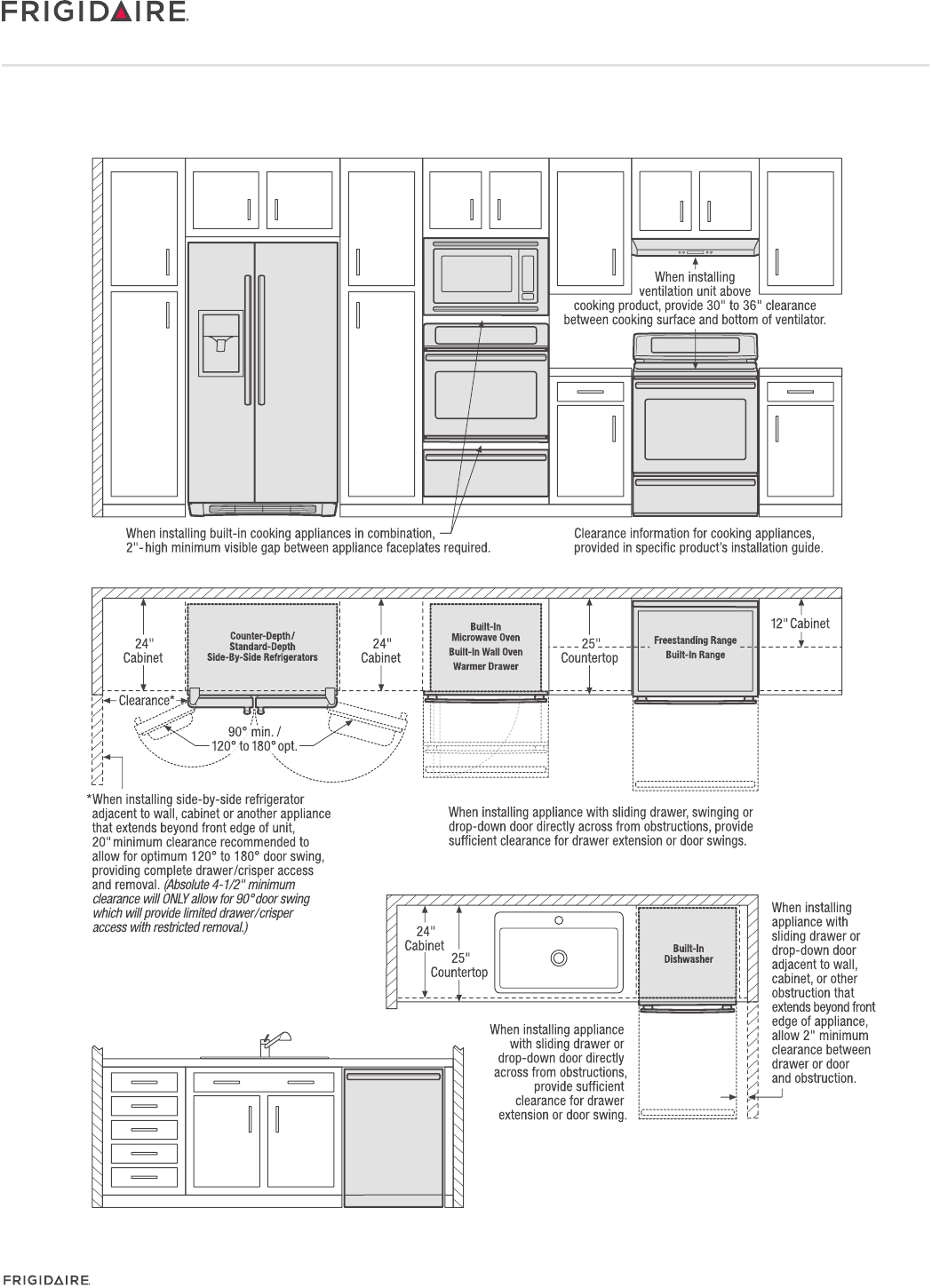

Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Specifications
subject to change.
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_TMR FR 01/14 © 2014 Electrolux Home Products, Inc.

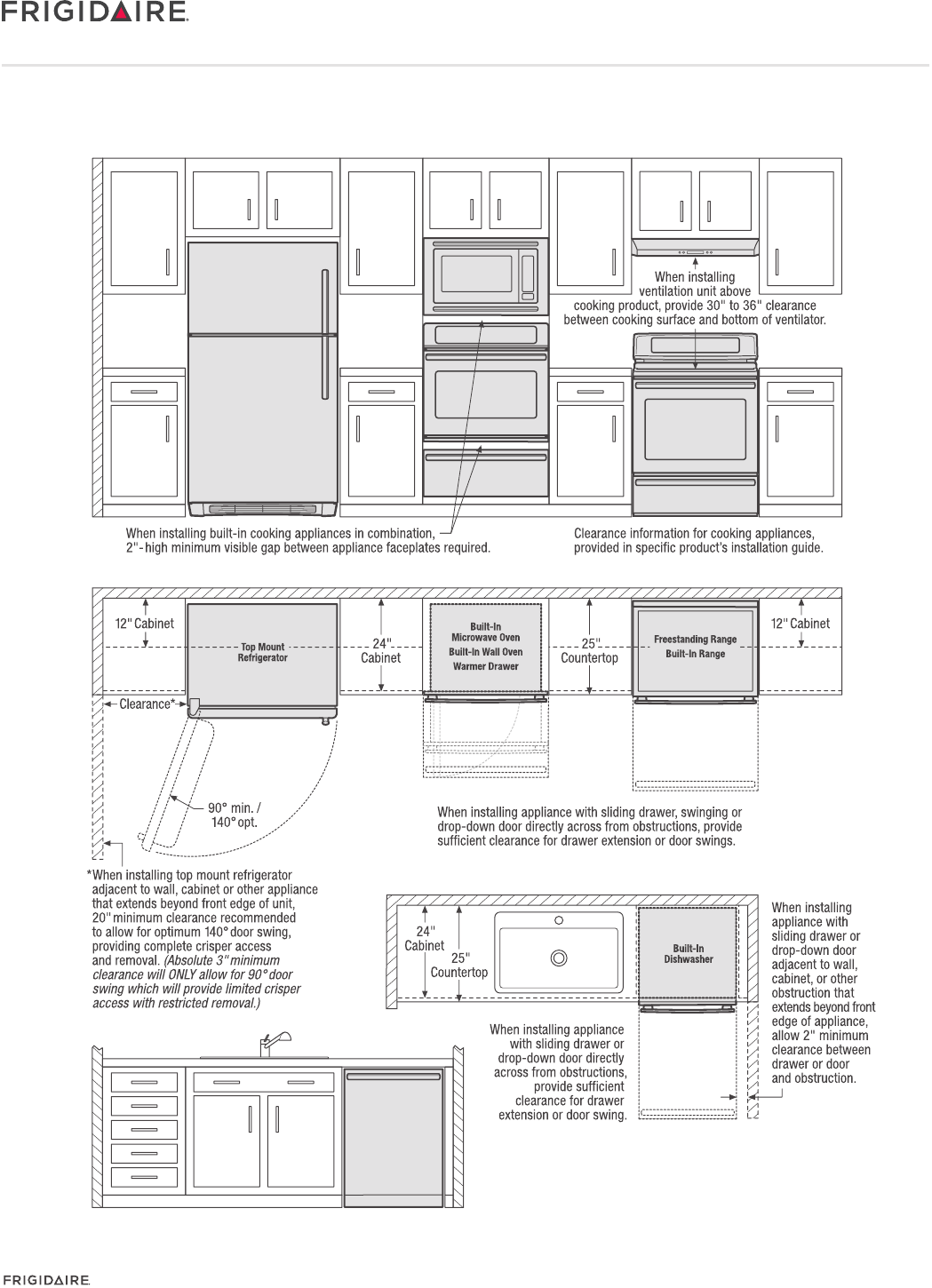

Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with Top Mount Refrigerator
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_FDR FR 01/14 © 2014 Electrolux Home Products, Inc.
Top

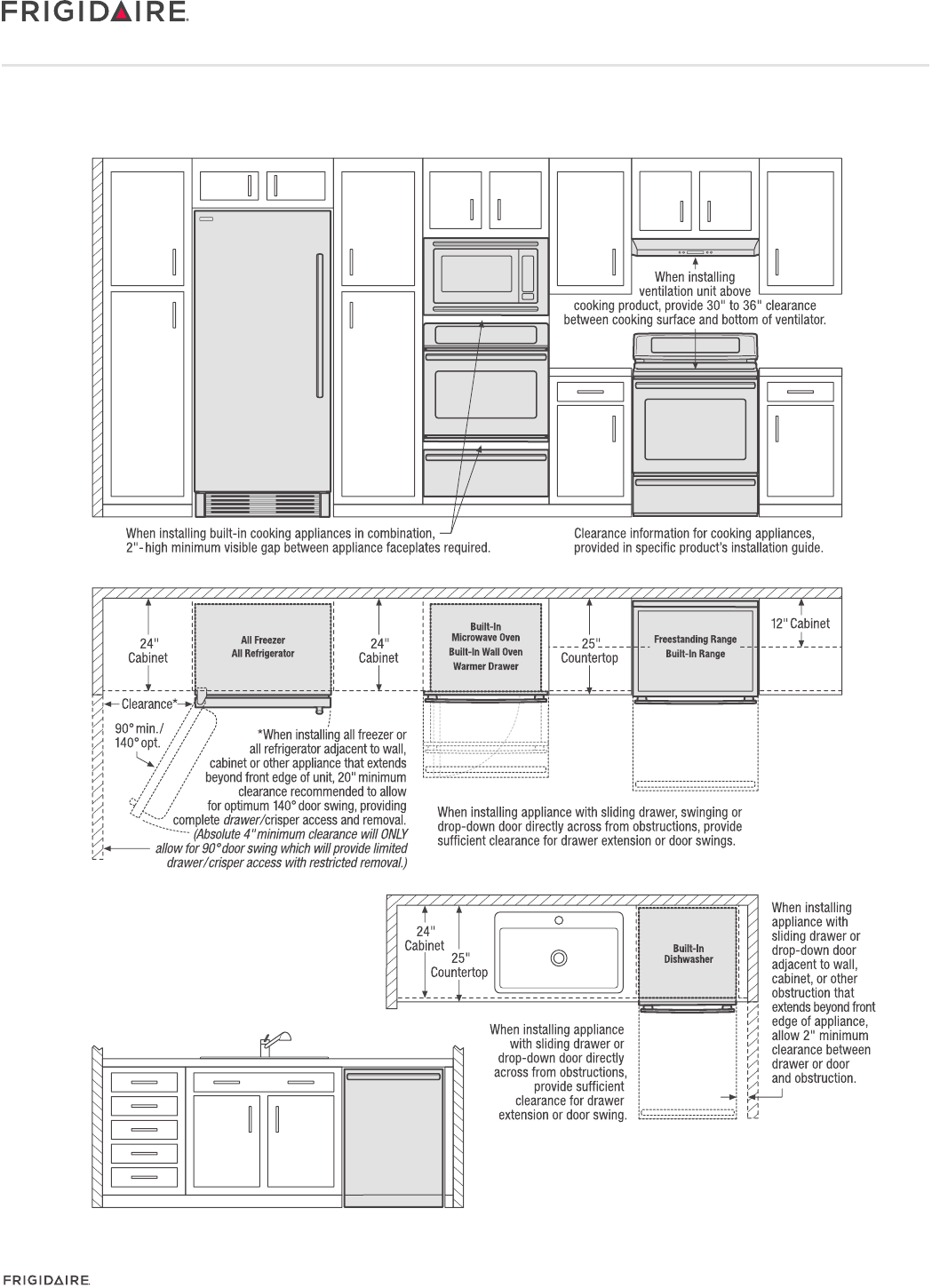

Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
General Installation Guidelines
with French Door Refrigerator
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_ARAF FR 01/14 © 2014 Electrolux Home Products, Inc.

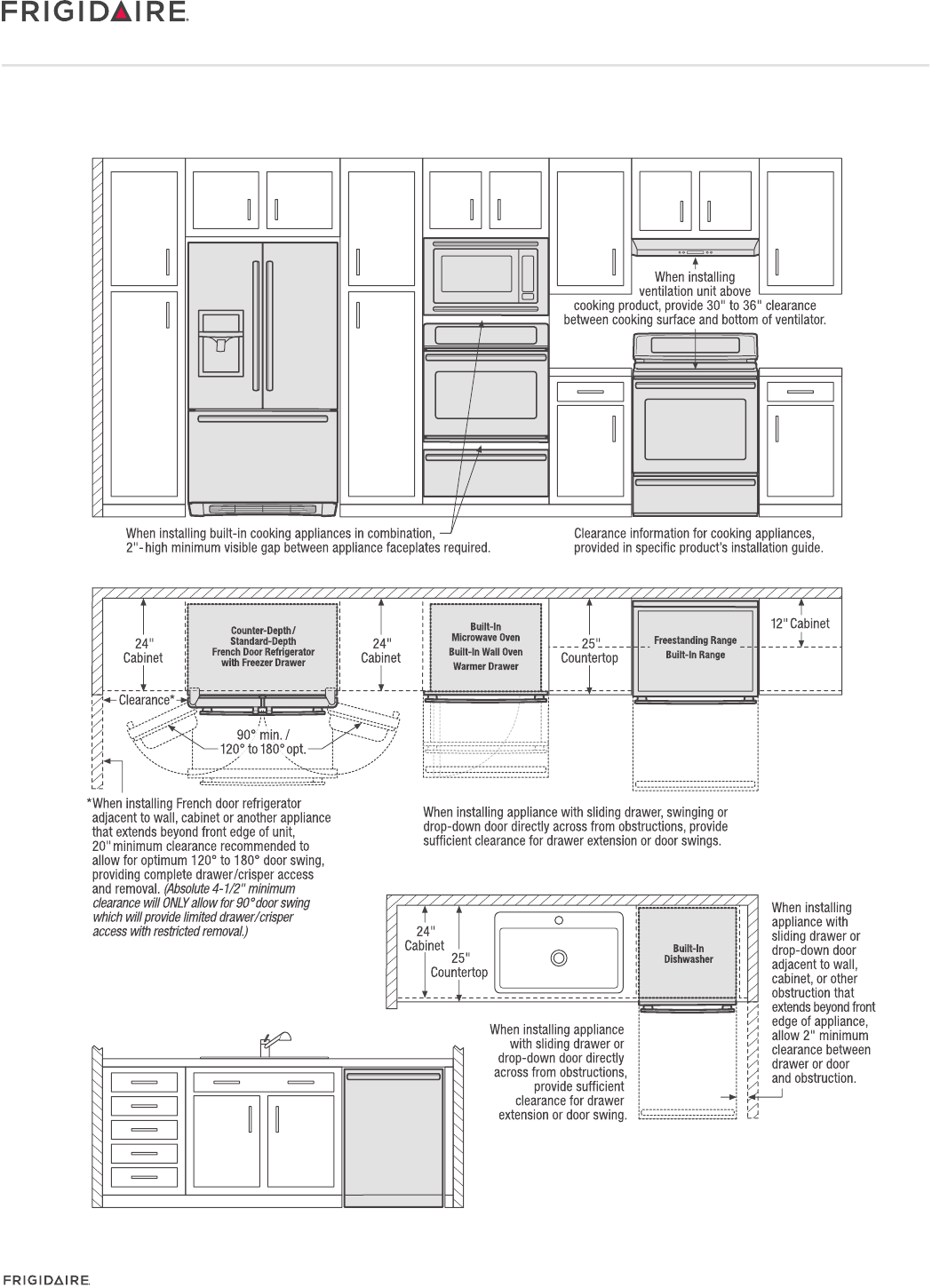

Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with All Refrigerator or All Freezer
