Product No. FGHD2433KB1 FGHD2433KF1 FGHD2433KW1
Series Built-in 24" Built-in 24" Built-in 24"
Color black stainless white
Owner's Guide English 154769001 154769001 154769001
Owner's Guide Spanish 154769003 154769003 154769003
Owner's Guide French 154769002 154769002 154769002
Service Data Sheet 154768201 154768201 154768201
Energy Guide 154758432 154758432 154758432
Installation Instructions 154427301 154427301 154427301
Market North America North America North America
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995552584
09/09/18
(EN/SERVICE/ECL)
821
24-INCH BUILT-IN
DISHWASHER
Model No.
FGHD2433K
Copyright ©
All rights reserved.
Publication No: 5995552584 FGHD2433K
09/09 2
CONTROL PANEL
FGHD2433K Publication No: 5995552584
# Functional Parts 3 09/09
* Non-Illustrated Parts
CONTROL PANEL
Model Index: A FGHD2433K (FGHD2433KB1)
B FGHD2433K (FGHD2433KF1)
C FGHD2433K (FGHD2433KW1)
POS. NO PART NO. DESCRIPTION
1 # 154791803 A - - Console Assembly, w/overlay, black, & cover gasket
1 # 154791806 - B - Console Assembly, w/overlay, stainless/black, & cover gasket
1 # 154791801 - - C Console Assembly, w/overlay, white, & cover gasket
3 # 154752901 A B C Board, control
4 154718801 A B C Cover, control
8 # 154734601 A B C Display Assembly
9 154282901 A B C Screw, Phillips, 8-10 x .7
10 154294701 A B C Screw, #7 plas .375, (6), disp. assy.
33 154478901 A B C Gasket, cover
* # 154734201 A B C Harness, wiring, main
* 154758432 A B C Energy Guide
* 154409401 A B C Screw, ground, #8-18 x .375
Publication No: 5995552584 FGHD2433K
09/09 4
DOOR
FGHD2433K Publication No: 5995552584
# Functional Parts 5 09/09
* Non-Illustrated Parts
DOOR
Model Index: A FGHD2433K (FGHD2433KB1)
B FGHD2433K (FGHD2433KF1)
C FGHD2433K (FGHD2433KW1)
POS. NO PART NO. DESCRIPTION
1 154579101 A B C Spring, friction pulley, (2)
1A 154578801 A B C Cable, friction pulley, (2)
2 154093301 A B C Screw, arm assy, (4)
3 154691201 A B C Arm Assy, LH
3A 154691101 A B C Arm Assy, RH
* 154647101 A B C Hinge Pin, arm assy
* 154686401 A B C Bearing, hinge pin
4 154409401 A B C Screw, ground, #8-18 x .375
5 154079601 A B C Nut, arm assy, and handle mtg.
6 154282901 A B C Screw, Phillips, 8-10 x .7
7 154743503 A B C Liner, door assembly, grey, complete
8 154294701 A B C Screw, #7 plas .375, (6), disp. assy.
9 # 154542107 A B C Dispenser, det/rinse aid, w/read switch
9* 154719301 A B C Shield, dispenser assy
10 154103702 A B C Screw, latch mtg, (2)
11 154579201 A B C Pulley, friction, LH
11 154579202 A B C Pulley, friction, RH
* 154200601 A B C Screw, #10-16 x 3/8
12 # 154758101 A B C Latch Assembly, door
13 154755801 A B C Duct Assembly, vent, w/tape
14 154733701 A B C Vent assy, dry, w/gaskets
14* 154436201 A B C Screw, dry duct, (3)
20 154790803 A - - Door Assembly, w/insullation, black, w/badge
20 154790805 - B - Door Assembly, w/insullation, stainless, w/badge
20 154790801 - - C Door Assembly, w/insullation, white, w/badge
20* 154253201 A B C Insulation, door
21 154754701 A B C Screw, truss hd, 8-18 type AB, (2)
40 154724903 A - - Handle, towel bar, black
40 154724905 - B - Handle, towel bar, stainless
40 154724901 - - C Handle, towel bar, white
41 154760101 A B C Bracket, handle support, (2)
49 154759101 A B C Gasket, door, bottom
51 154320301 A B C Clamp, drip loop, wire
53 154425001 A B C Nut, Keps, (2), handle mtg.
Publication No: 5995552584 FGHD2433K
09/09 6
TUB
FGHD2433K Publication No: 5995552584
# Functional Parts 7 09/09
* Non-Illustrated Parts
TUB
Model Index: A FGHD2433K (FGHD2433KB1)
B FGHD2433K (FGHD2433KF1)
C FGHD2433K (FGHD2433KW1)
POS. NO PART NO. DESCRIPTION
1 # 154729502 A B C Tub assy, w/frame parts, grey, & vent hole
* 154685101 A B C Gasket, tub, corner, (2)
2 154544601 A B C Strike, door
3 # 154561001 A B C Gasket, tub
4 154200602 A B C Screw, 10-16 x 3/8, hex
5 154767502 A B C Roller Assembly, tub, (8), w/screw-washer
6 5303943103 A B C Screw, w/washer, (8)
9 # 154773301 A B C Vent assy, blower
9* 154691601 A B C Cover, connector, vent assy
10 154562902 A B C Bezel, vent, gray
22 154446002 A B C Tubing, water inlet
23 5303318539 A B C Clamp, tubing, (2)
24 # 154753201 A B C Hose, drain
* 154380601 A B C Clamp, hose, 1.5" open, worm gear, (5)
25 # 154767802 A B C Float
28 154408701 A B C Switch Assy, float
29 # 154642901 A B C Thermostat, hi limit
30 154241101 A B C Retainer, thermostat
30* 154297701 A B C Screw, retainer-thermo
* 154753301 A B C Insulation, blanket
* 154635101 A B C Insulation, back
* 5300807270 A B C Screw, (2), countertop mtg.
* 154041001 A B C Screw, plask #1, 10-10 x 9/16
* 154200601 A B C Screw, #10-16 x 3/8
* 154200701 A B C Screw, #10-32 x 3/8
Publication No: 5995552584 FGHD2433K
09/09 8
MOTOR & PUMP
TUB
24B
TUB
24
24A
32
32A
63
10
58
66
62
64
MFGHD2433KB0
65
14
13
2
1
70
55
59
59A
16
61
60
71
FGHD2433K Publication No: 5995552584
# Functional Parts 9 09/09
* Non-Illustrated Parts
MOTOR & PUMP
Model Index: A FGHD2433K (FGHD2433KB1)
B FGHD2433K (FGHD2433KF1)
C FGHD2433K (FGHD2433KW1)
POS. NO PART NO. DESCRIPTION
1 # 154663801 A B C Heater, round
1* 154106202 A B C Nut, heater, (2)
1* 154289801 A B C Shield, heater terminal
2 154465101 A B C Bracket, heater, (2)
10 154724001 A B C Cover, volute
13 154246801 A B C Gasket, sump
14 154723801 A B C Sump Assembly
16 154246502 A B C Retainer, sump
16* 154754901 A B C Screw, sump mtg, 8-16, (4)
24 154608102 A B C Spray arm, grey, lower, w/heat shield
24A 154468502 A B C Spray arm, grey, center
24B 154607802 A B C Spray arm, assembly, upper
32 154464101 A B C Tube, delivery
32* 154106801 A B C Clamp, hose, 1.29" open, worm gear, (2)
32* 154491101 A B C Screw, delivery tube
32A 154406401 A B C Gasket, delivery tube
55 154595901 A B C Bracket, motor
55* 5303316032 A B C Screw, truss ss, 8 .625, (7)
58 154246402 A B C Check ball
59 154246901 A B C O-ring, rear
59A 154247001 A B C O-ring, front
60 # 154736201 A B C Pump Assembly, drain, w/seal-impeller
60* 154617301 A B C Flapper, valve, drain pump
60* 154741501 A B C Screw, drain motor mtg, (3)
61 154463402 A B C Grommet, delivery tube
62 154294102 A B C Support, spray arm, grey, lower
63 154776101 A B C Base, soil director
64 154252302 A B C Filter, soil director, grey
65 154283005 A B C Filter Assy, grey
66 154252702 A B C Trap, glass, grey
70 # 154719201 A B C Motor & Pump Assy
71 # 154762601 A B C Sensor, turbidity, snap-in, w/seal
* 154200601 A B C Screw, #10-16 x 3/8
* 154297701 A B C Screw, retainer-thermo
Publication No: 5995552584 FGHD2433K
09/09 10

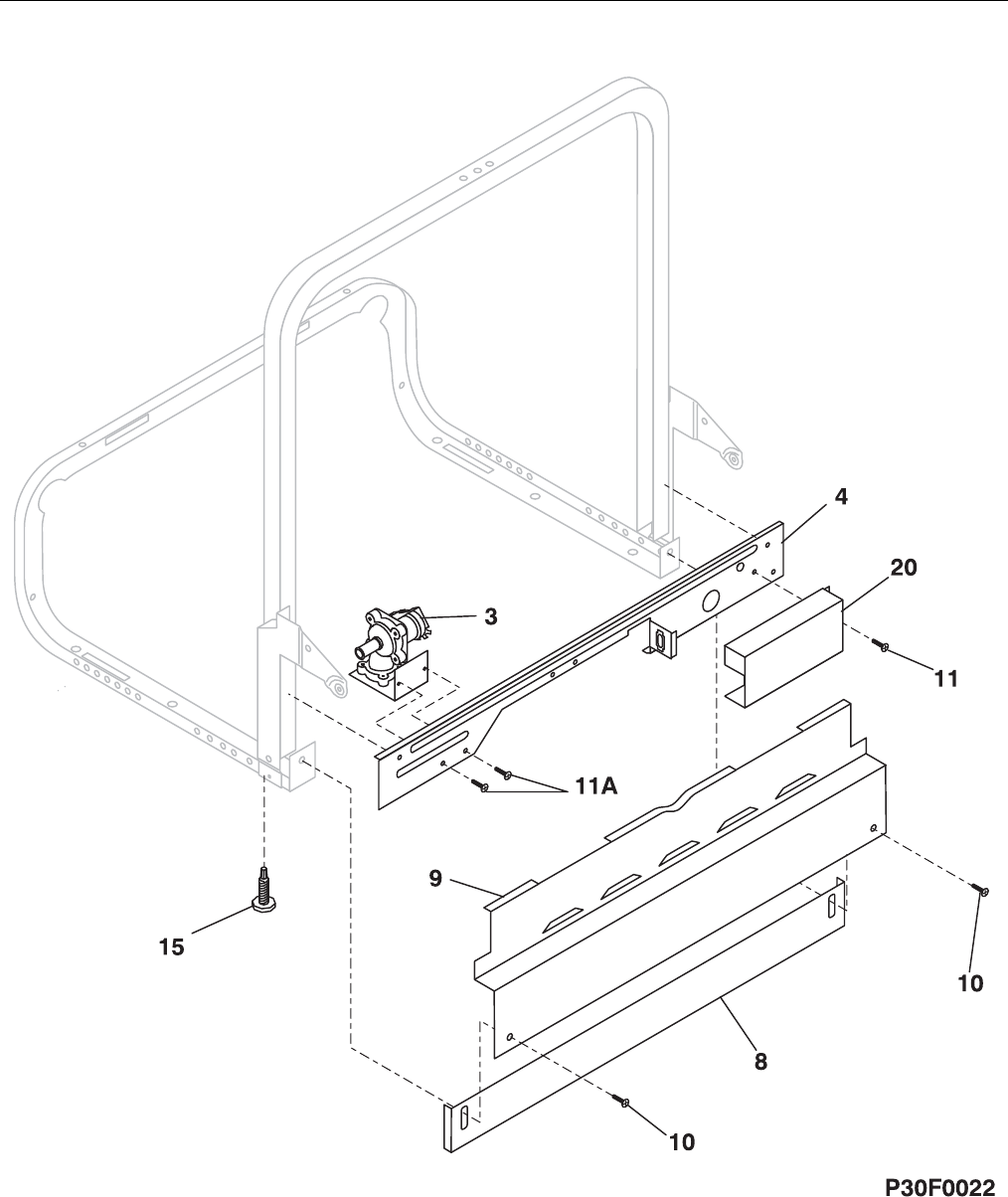

FRAME
FGHD2433K Publication No: 5995552584
# Functional Parts 11 09/09
* Non-Illustrated Parts
FRAME
Model Index: A FGHD2433K (FGHD2433KB1)
B FGHD2433K (FGHD2433KF1)
C FGHD2433K (FGHD2433KW1)
POS. NO PART NO. DESCRIPTION
3 # 154637401 A B C Valve, water
4 154669301 A B C Brace, front frame
8 154589403 A B - Toeplate, adjustable, black
8 154589401 - - C Toeplate, adjustable, white
8* 154528101 A B C Insulation, toeplate
9 154589503 A B - Kickplate Assy, black
9 154589501 - - C Kickplate Assy, white
10 154754801 A B - Screw, toeplate mtg, 8-18 AB hex hd, black, (2)
10 154371301 - - C Screw, Phillips head, white
11 154409401 A B C Screw, ground, #8-18 x .375
11A 154200601 A B C Screw, #10-16 x 3/8
15 154571101 A B C Leg, leveling, (4)
20 154758501 A B C Cover, junction box, w/label
* 154041001 A B C Screw, plask #1, 10-10 x 9/16
Publication No: 5995552584 FGHD2433K
09/09 12

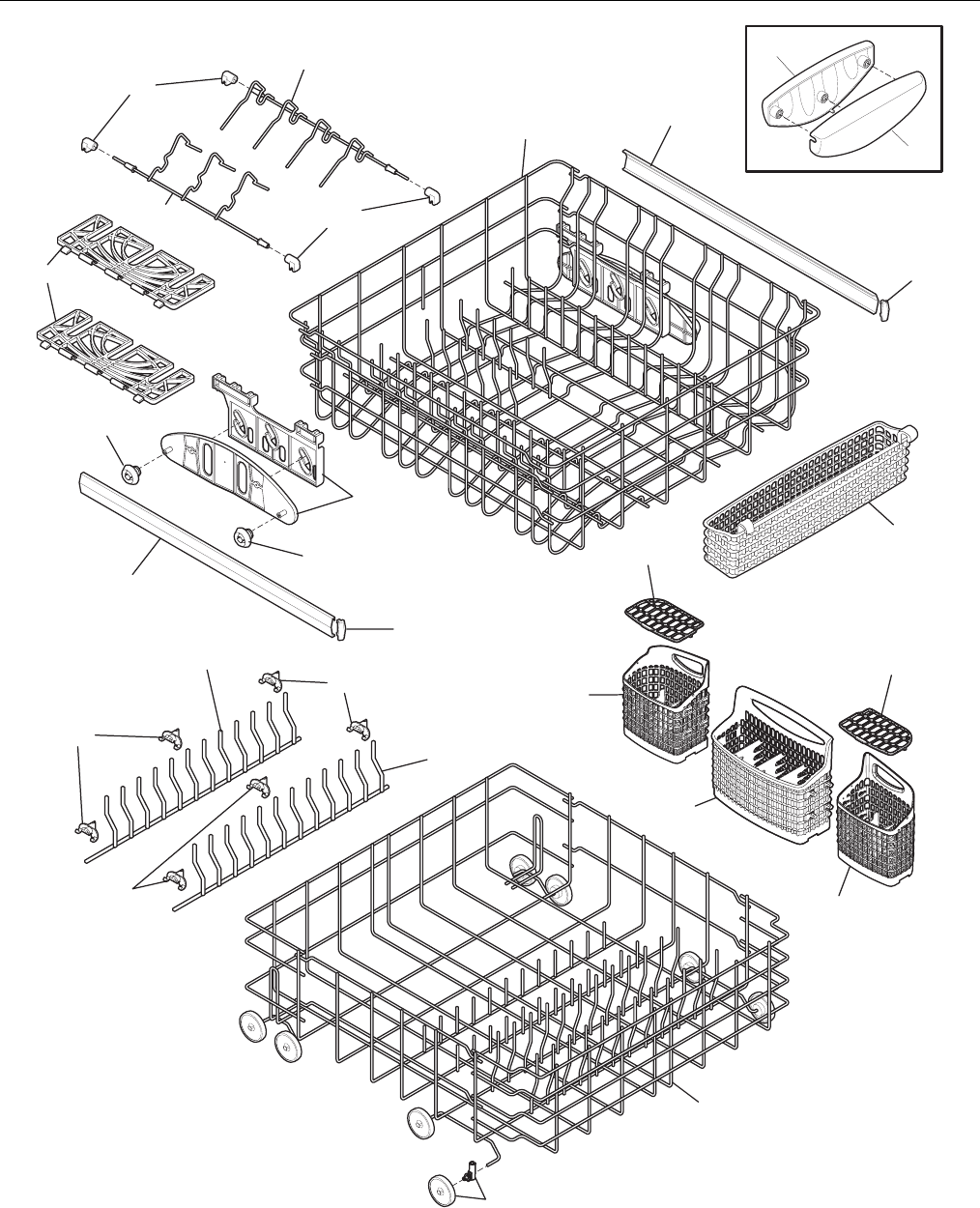

RACKS
RFGHD2433KB0
6
5
11
5
6
1
7
3
13B
14A
14A
13A
20
21
14
14
14
13
13
4
4
30
10
2
2A
2B
16A
16B
FGHD2433K Publication No: 5995552584
# Functional Parts 13 09/09
* Non-Illustrated Parts
RACKS
Model Index: A FGHD2433K (FGHD2433KB1)
B FGHD2433K (FGHD2433KF1)
C FGHD2433K (FGHD2433KW1)
POS. NO PART NO. DESCRIPTION
1 154432604 A B C Rack assy, lower, grey
2 154424002 A B C Basket, silverware, grey, main
2A 154747801 A B C Basket, silverware, grey, back
2B 154747901 A B C Basket, silverware, grey, front
3 154494404 A B C Rack assy, upper, grey
4 154494502 A B C Wheel assy., upper rack, (4)
5 5304440996 A B C Cap, slide, grey, (4)
6 154597801 A B C Slide, rack, upper, (2)
7 154174503 A B C Wheel & bracket assy, grey, lower rack, (8)
10 154466902 A B C Basket, utility, grey
11 154436104 A B C Shelf, cup, half width, grey
13 154721402 A B C Fence, fold down, grey, lower rack, (2), full length
13A 154740302 A B C Fence, multi, 3 wire, LH, upper rack
13B 154740402 A B C Fence, multi, 4 wire, RH, upper rack
14 154428402 A B C Bracket, fold down fence, grey, lower rack, (6)
14A 154242003 A B C Bracket, multi fence, grey, upper rack, (4)
16A 154748101 A B C Lid, back basket
16B 154748001 A B C Lid, front basket
20 154732602 A B C Handle, pull, front, upper rack
21 154530902 A B C Handle, pull, grey, rear, upper rack
30 154780102 A B C Bracket, adjustment, LH, upper rack, assembly
30* 154780202 A B C Bracket, adjustment, RH, upper rack, assembly
