Installation Instructions
Over the Ran e Microwave Oven
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT -Save these instructions for
local inspector's use.
•IMPORTANT-observe all governing codes
and ordinances.
• Note to Installer- Be sure to leave these
instructions with the Consumer.
• Note to Consumer- Keep these instructions for
future reference.
• Skill level - Installation of this appliance requires
basic mechanical and electrical skills.
• Proper installation is the responsibility of the
installer.
• Product failure due to improper installation is not
covered under the Warranty.
READ CAREFULLY. KEEP THESE INSTRUCTIONS.
Installation Instructions
CONTENTS
General information
Important Safety Instructions ..................... 3
Electrical Requirements .............................. 3
Hood Exhaust ........................................... 4, 5
Damage - Shipment/Installation ................. 6
Parts Included ............................................... 6
Tools You Will Need ..................................... 7
Mounting Space ............................................ 7
Step-by-step installation guide
Placement of Mounting Plate ................ 8-10
Removing the Mounting Plate ................... 8
Finding the Wall Studs .............................. 8
Determining Wall Plate Location ............... 9
Aligning the Wall Plate ............................ 10
Installation Types ................................. 11-21
ARecirculating ........................................... 12-13
Attach Mounting Plate to Wall ................. 12
Preparation of Top Cabinet ..................... 12
Mount the Microwave Oven ..................... 13
BOutside Top Exhaust .............................. 14-17
Attach Mounting Plate to Wall ................. 14
Preparation of Top Cabinet ..................... 15
Adjust Blower .......................................... 15
Check Damper Operation ........................ 16
Mount Microwave Oven ........................... 16
Adjust Exhaust Adaptor ........................... 17
Connecting Ductwork .............................. 17
COutside Back Exhaust ............................. 18-21
Preparing Rear Wall ................................ 18
Attach Mounting Plate to Wall ........... 18, 19
Preparation of Top Cabinet ..................... 19
Adjust Blower .................................... 19, 20
Mount the Microwave Oven ............... 20, 21
Before You Use Your Microwave .............. 22
2
Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
This product requires a three-prong grounded outlet.
The installer must perform a ground continuity check
on the power outlet box before beginning the
installation to insure that the outlet box is properly
grounded. If not properly grounded, or if the outlet
box does not meet electrical requirements noted
(under ELECTRICAL REQUIREMENTS), a qualified
electrician should be employed to correct any
deficiencies.
CAUTION: For personal
safety, remove house fuse or
open circuit breaker before
beginning installation to
avoid severe or fatal shock
injury.
CAUTION: For personal safety, the mounting
surface must be capable of supporting the
cabinet load, in addition to the added weight of
this 59 pound product, plus additional oven loads
of up to 50 pounds or a total weight of 109
pounds.
CAUTION: For personal safety, this product
cannot be installed in cabinet arrangements such
as an island or a peninsula. It must be mounted to
BOTH a top cabinet AND a wall.
NOTE: For easier installation and personal
safety, it is recommended that two people install
this product.
IMPORTANT-PLEASE READ CAREFULLY. FOR
PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED TO AVOID SEVERE OR
FATAL SHOCK.
Insure proper
ground exists
before use
The power cord of this
appliance is equipped
with a three-prong
(grounding) plug which
mates with a standard
three-prong (grounding)
wall receptacle to
minimize the possibility
of electric shock hazard
from this appliance.
You should have the wall receptacle and circuit
checked by a qualified electrician to make sure
the receptacle is properly grounded.
Where a standard two-prong wall receptacle is
encountered, it is very important to have it
replaced with a properly grounded three-prong
wall receptacle, installed by a qualified
electrician.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT,
DEFORM OR REMOVE ANY OF THE PRONGS
FROM THE POWER CORD. DO NOT USE WITH
AN EXTENSION CORD.
ELECTRICAL REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz, 14.5 amps
and 1.6 kilowatts.
This product must be connected to a supply circuit of
the proper voltage and frequency. Wire size must
conform to the requirements of the National Electrical
Code or the prevailing local code for this kilowatt
rating. The power supply cord and plug should be
brought to a separate 20 ampere branch circuit single
grounded outlet. The outlet box should be located in
the cabinet above the microwave oven. The outlet
box and supply circuit should be installed by a
qualified electrician and conform to the National
Electrical Code or the prevailing local code.
3
Installation Instructions
HOOD EXHAUST
NOTE: Read these next two pages only if you plan to vent your exhaust to the outside. If you plan to
recirculate the air back into the room, proceed to page 11.
OUTSIDE TOP EXHAUST (EXAMPLE ONLY)
The following chart describes an example of one possible ductwork installation.
DUCT PIECES
Roof Cap
12 Ft. Straight Duct (6"
Round)
EQUIVALENT NUMBER
LENGTH x USED
24 Ft. x (1)
12 Ft. x (1)
[]
Rectangular-to-Round 5 Ft.
Transition Adaptor*
Equivalent lengths of duct pieces are based on actual
tests and reflect requirements for good venting
performance with any vent hood.
x (1)
Total Length
EQUIVALENT
= LENGTH
=24 Ft.
=12 Ft.
=5Ft.
= 41 Ft.
* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have
to be cut to fit, using the tin snips, in order to allow free movement of the damper.
OUTSIDE BACK EXHAUST (EXAMPLE ONLY)
The following chart describes an example of one possible ductwork installation.
DUCT PIECES
Roof Cap
3 Ft. Straight Duct
(3¼"x 10"
Rectangular)
EQUIVALENT NUMBER
LENGTH* x USED
40 Ft. x (1)
3Ft. x (1)
(_ 90 ° Elbow 10 Ft.
Equivalent lengths of duct pieces are based on actual
tests and reflect requirements for good venting
performance with any vent hood.
x (2)
Total Length
EQUIVALENT
=LENGTH
= 4O Ft.
= 3 Ft.
= 2O Ft.
=63 Ft.
NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be
prepared at the time it is constructed by leaving enough space between the wall studs to accommodate
exhaust.
4
Installation Instructions

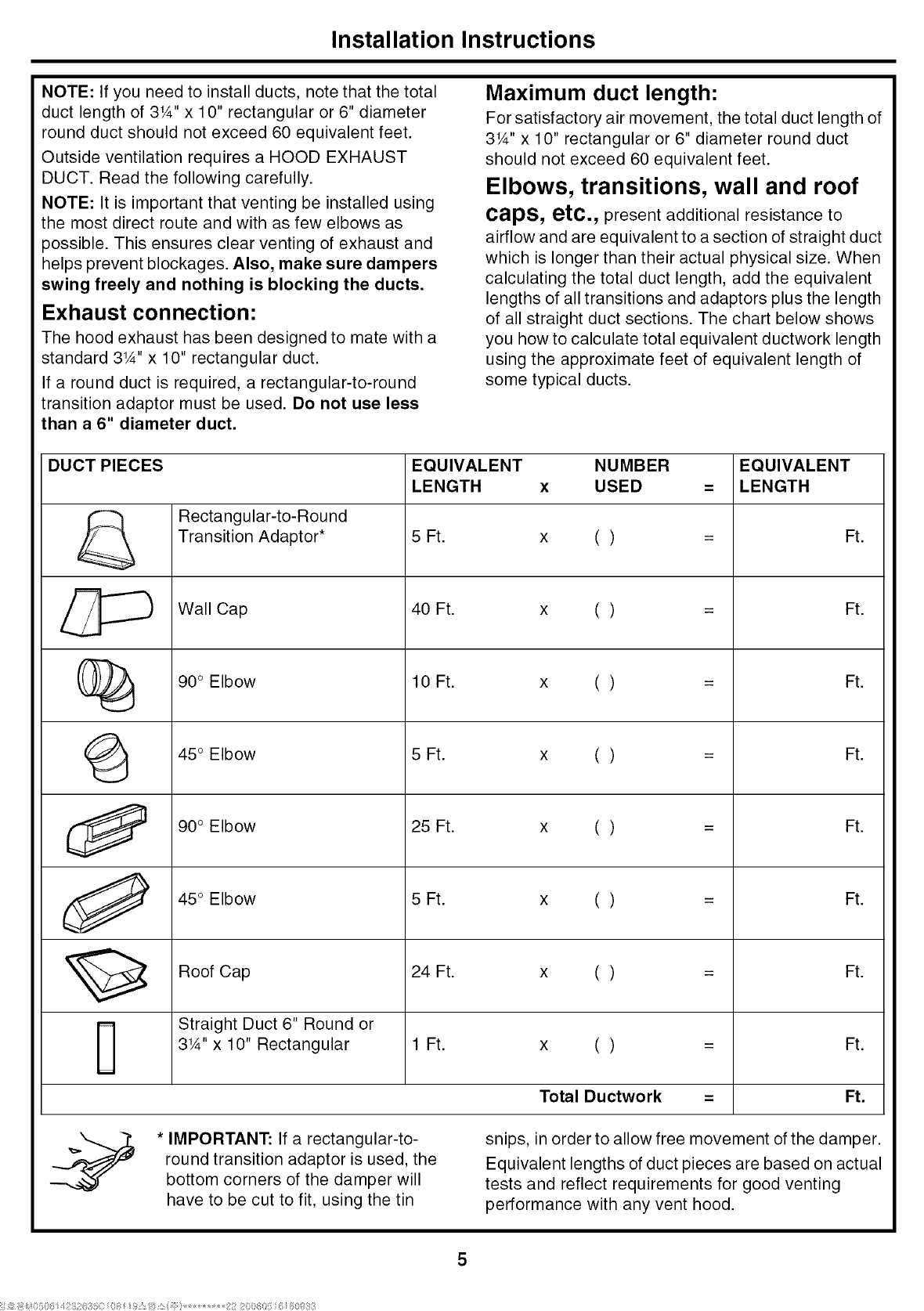

NOTE: If you need to install ducts, note that the total
duct length of 3W' x 10" rectangular or 6" diameter
round duct should not exceed 60 equivalent feet.
Outside ventilation requires a HOOD EXHAUST
DUCT. Read the following carefully.
NOTE: It is important that venting be installed using
the most direct route and with as few elbows as
possible. This ensures clear venting of exhaust and
helps prevent blockages. Also, make sure dampers
swing freely and nothing is blocking the ducts.
Exhaust connection:
The hood exhaust has been designed to mate with a
standard 3W'x 10" rectangular duct.
If a round duct is required, a rectangular-to-round
transition adaptor must be used. Do not use less
than a 6" diameter duct.
Maximum duct length:
For satisfactory air movement, the total duct length of
3W' x 10" rectangular or 6" diameter round duct
should not exceed 60 equivalent feet.
Elbows, transitions, wall and roof
caps, etc., present additional resistance to
airflow and are equivalent to a section of straight duct
which is longer than their actual physical size. When
calculating the total duct length, add the equivalent
lengths of all transitions and adaptors plus the length
of all straight duct sections. The chart below shows
you how to calculate total equivalent ductwork length
using the approximate feet of equivalent length of
some typical ducts.
DUCT PIECES EQUIVALENT NUMBER EQUIVALENT
LENGTH x USED =LENGTH
Rectangular-to-Round
Transition Adaptor* 5 Ft. x ( = Ft.
Wall Cap 40 Ft. x ( = Ft.
(_ 90 ° Elbow 10 Ft. x ( = Ft.
(_ 45 ° Elbow 5 Ft. x ( = Ft.
90 ° Elbow 25 Ft. x ( = Ft.
J 45 ° Elbow 5 Ft. x ( = Ft.
Roof Cap 24 Ft. x ( = Ft.
[_ Straight Duct 6" Round or
3W'x 10" Rectangular 1 Ft. x ( = Ft.
Total Ductwork = Ft.
* IMPORTANT: If a rectangular-to-
round transition adaptor is used, the
bottom corners of the damper will
have to be cut to fit, using the tin
snips, in order to allow free movement of the damper.
Equivalent lengths of duct pieces are based on actual
tests and reflect requirements for good venting
performance with any vent hood.
5
Installation Instructions
DAMAGE - SHIPMENT/
INSTALLATION
•If the unit is damaged in shipment, return the
unit to the store in which it was bought for repair
or replacement.
• If the unit is damaged by the customer, repair
or replacement is the responsibility of the
customer.
• If the unit is damaged by the installer (if other
than the customer), repair or replacement must
be made by arrangement between customer and
installer.

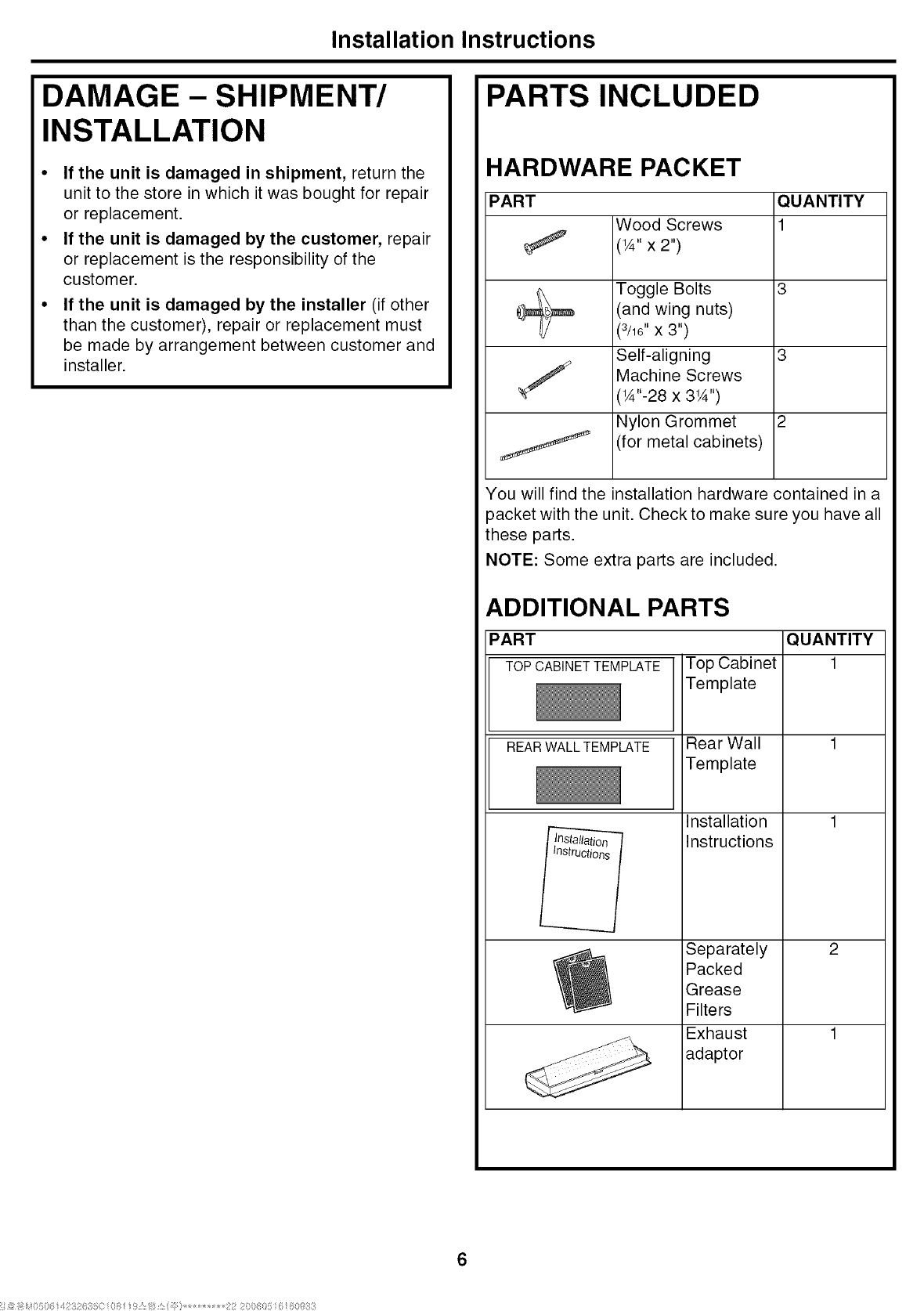

PARTS INCLUDED
HARDWARE PACKET
PART QUANTITY
Wood Screws 1
_' (W'x 2")
Toggle Bolts 3
@_ (and wi_,g nuts)
(3/16" X
Self-aligning 3
Machine Screws
(W'-28 x 3W')
Nylon Grommet 2
(for metal cabinets)
You will find the installation hardware contained in a
3acket with the unit. Checkto make sure you have all
these parts.
NOTE: Some extra parts are included.
ADDITIONAL PARTS
PART
TOPCABINETTEMPLATE
REAR WALL TEMPLATE
Top Cabinet
Template
Rear Wall
Template
Installation
Instructions
Separately
Packed
Grease
Filters
Exhaust
adaptor
QUANTITY
1
6
Installation Instructions

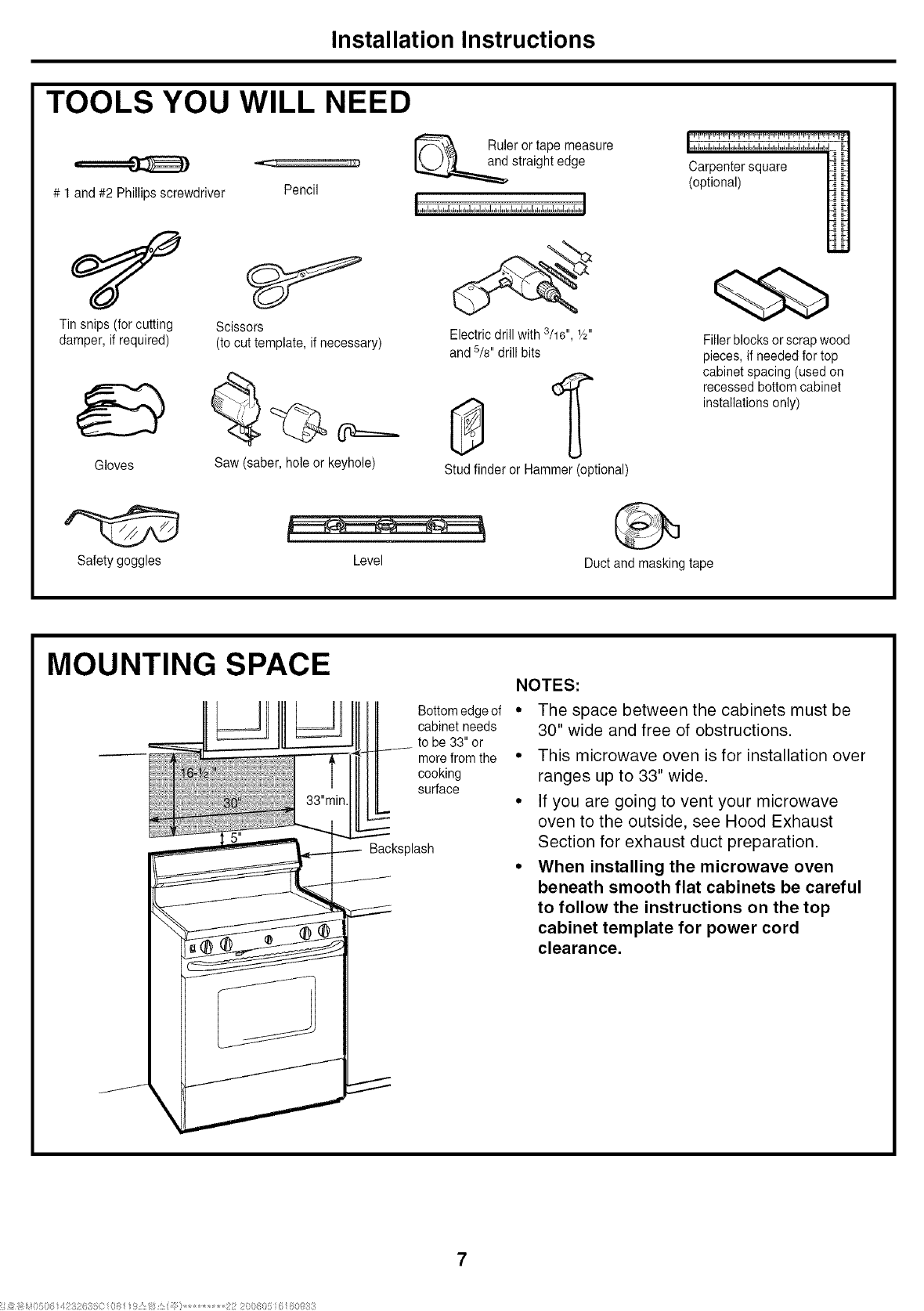

TOOLS YOU WILL NEED
Pencil
# 1 and #2 Phillips screwdriver
Ruler or tape measure
straight edge
Tin snips (for cutting
damper, if required)
Gloves
Scissors
(to cut template, if necessary)
Saw (saber, hole or keyhole)
Electric drill with 3/16", 1/2"
and 5/8"drill bits
Stud finder or Hammer (optional)
Carpenter square 4__
(optional) _ _
J[
Filler blocks or scrap wood
pieces, if needed for top
cabinet spacing (used on
recessed bottom cabinet
installations only)
Safety goggles Level Duct and masking tape
MOUNTING SPACE
Bottom edgeof *
cabinet needs
to be 33" or
more from the *
cooking
surface
Q
Backsplash
NOTES:
The space between the cabinets must be
30" wide and free of obstructions.
This microwave oven is for installation over
ranges up to 33" wide.
If you are going to vent your microwave
oven to the outside, see Hood Exhaust
Section for exhaust duct preparation.
When installing the microwave oven
beneath smooth flat cabinets be careful
to follow the instructions on the top
cabinet template for power cord
clearance.
7
Installation Instructions

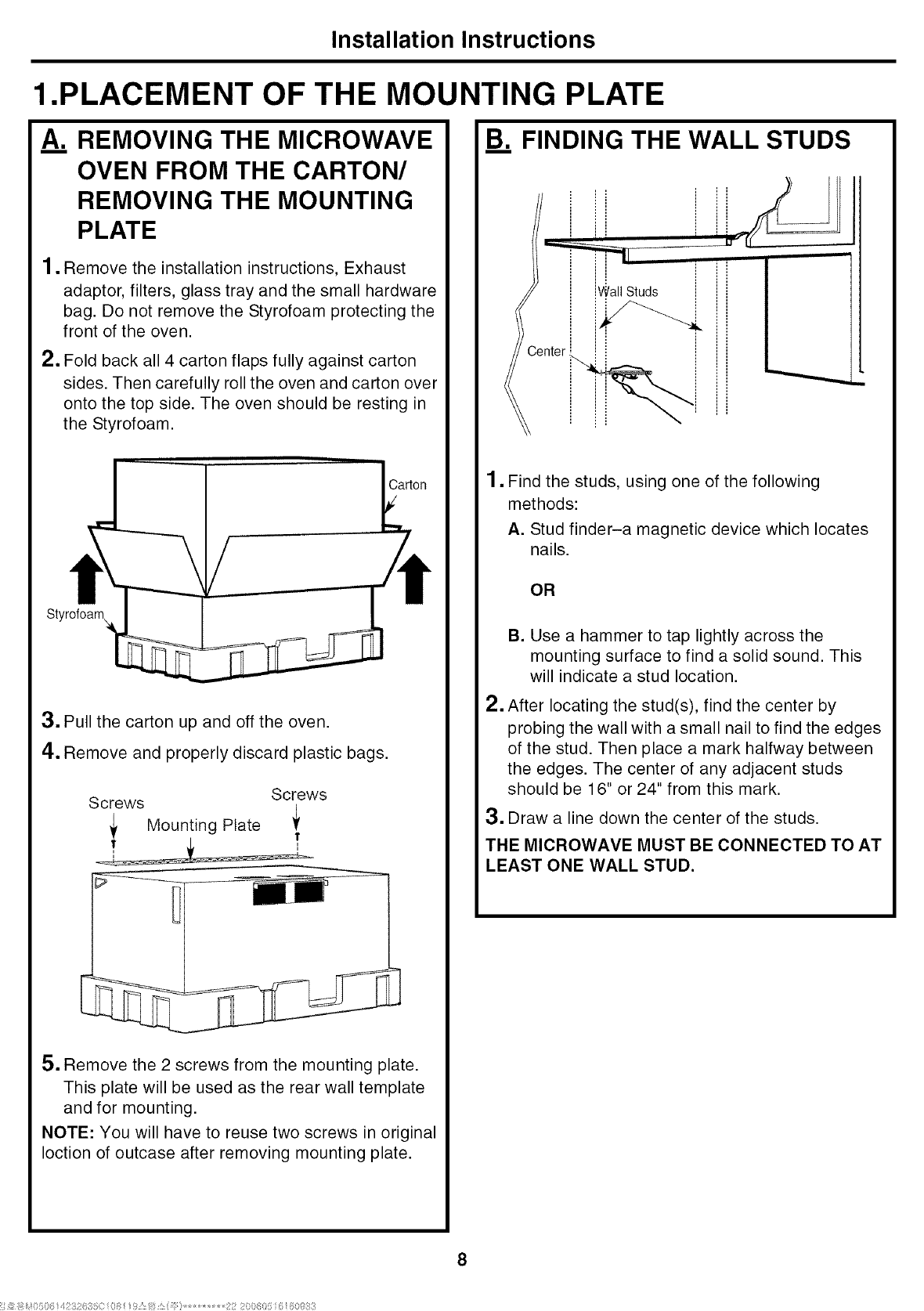

1.PLACEMENT OF THE MOUNTING PLATE
A. REMOVING THE MICROWAVE
OVEN FROM THE CARTON/
REMOVING THE MOUNTING
PLATE
1. Remove the installation instructions, Exhaust
adaptor, filters, glass tray and the small hardware
bag. Do not remove the Styrofoam protecting the
front of the oven.
2, Fold back all 4 carton flaps fully against carton
sides. Then carefully roll the oven and carton over
onto the top side. The oven should be resting in
the Styrofoam.
3. Pull the carton up and off the oven.
4, Remove and properly discard plastic bags.
Screws
Screws
Mounting Plate T
5, Remove the 2 screws from the mounting plate.
This plate will be used as the rear wall template
and for mounting.
NOTE: You will have to reuse two screws in original
Ioction of outcase after removing mounting plate.
B. FINDING THE WALL STUDS
iWall Studs
1. Find the studs, using one of the following
methods:
A. Stud finder-a magnetic device which locates
nails.
OR
B. Use a hammer to tap lightly across the
mounting surface to find a solid sound. This
will indicate a stud location.
2. After locating the stud(s), find the center by
probing the wall with a small nail to find the edges
of the stud. Then place a mark halfway between
the edges. The center of any adjacent studs
should be 16" or 24" from this mark.
3. Draw a line down the center of the studs.
THE MICROWAVE MUST BE CONNECTED TO AT
LEAST ONE WALL STUD.
8
Installation Instructions
DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET
Plate position - beneath flat bottom cabinet
Draw a vertical line on
the wall at the center of
the 30" wide space.
Tape the Rear Wall
Template onto the wall
matching the centerline
and touching the
bottom of the cabinet.
_mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmd
Plate position - beneath framed recessed
cabinet bottom
33" to Cooktop
Draw a vertical line on the wall at the center of the
30" space.
Tape the Rear Wall Template onto the wall
matching the centerline and touching the bottom
cabinet frame.
Plate position - beneath recessed bottom
cabinet with front overhang
,+
Your cabinets may have decorative trim that
interferes with the microwave installation. Remove
the decorative trim to install the microwave properly
and to make it level.
THE MICROWAVE MUST BE LEVEL.
Use a level to make sure the cabinet bottom is level.
If the cabinets have a front overhang only, with no
back or side frame, install the mounting plate down
the same distance as the front overhang depth. This
will keep the microwave level.
1. Measure the inside depth of the front overhang.
2. Draw a horizontal line on the back wall an equal
distance below the cabinet bottom as the inside
depth of the front overhang.
3. For this type of installation with front overhang
only, align the mounting tabs with this horizontal
line, not touching the cabinet bottom as described
in Step D.
9
Installation Instructions

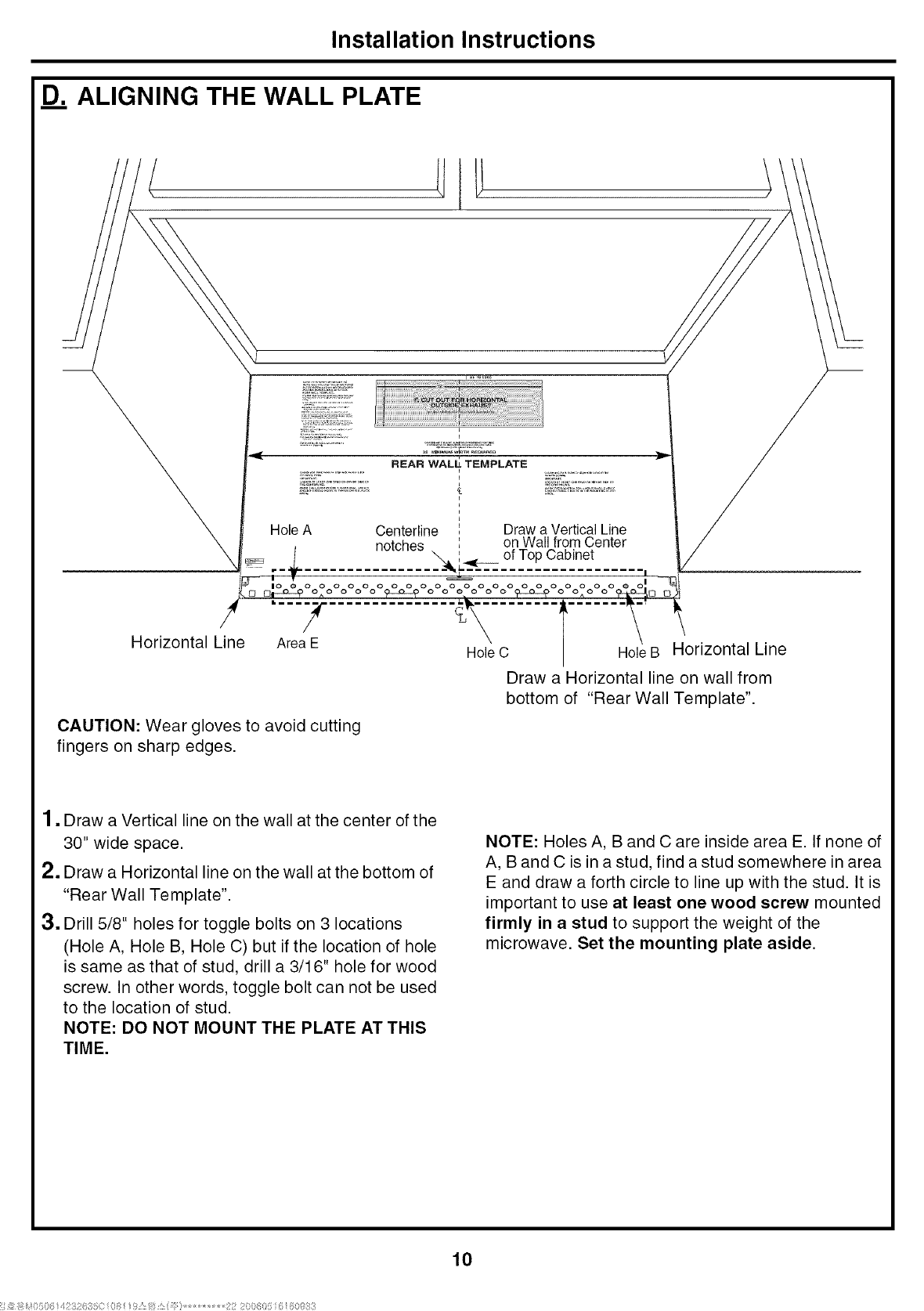

D_ ALIGNING THE WALL PLATE
Horizontal Line
Hole A
Area E
REAR WALI_ TEMPLATE
Centerline Draw a Vertical Line
notches on Wall from Center
of Cabinet
Hole C
CAUTION: Wear gloves to avoid cutting
fingers on sharp edges.
Hole B Horizontal Line
Draw a Horizontal line on wall from
bottom of "Rear Wall Template".
1, Draw a Vertical line on the wall at the center of the
30" wide space.
2. Draw a Horizontal line on the wall at the bottom of
"Rear Wall Template".
3. Drill 5/8" holes for toggle bolts on 3 locations
(Hole A, Hole B, Hole C) but if the location of hole
is same as that of stud, drill a 3/16" hole for wood
screw. In other words, toggle bolt can not be used
to the location of stud.
NOTE: DO NOT MOUNT THE PLATE AT THIS
TIME.
NOTE: Holes A, B and C are inside area E. If none of
A, B and C is in a stud, find a stud somewhere in area
E and draw a forth circle to line up with the stud. It is
important to use at least one wood screw mounted
firmly in a stud to support the weight of the
microwave. Set the mounting plate aside.
10
Installation Instructions
2. INSTALLATION TYPES (Choose A, B or C)
This microwave oven is designed for adaptation to
the following three types of ventilation:
A. Recirculating (Non-Vented Ductless)
B. Outside Top Exhaust (Vertical Duct)
C. Outside Back Exhaust (Horizontal Duct)
NOTE: This microwave is shipped after being
assembled for "Recirculating". And exhaust adaptor
is shipped assembled to the filler-upper. Select the
type of ventilation required for your installation and
proceed to that section.
A. RECIRCULATING
(NON-VENTED DUCTLESS)
B. OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
iiiiiii_i_i_ii!_!!_i_!_i_i_i_i_!!i!!_!_!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!ii!!i!!!!
tAdaptor inPlacefor
Outside Top
Exhaust
C__OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
11
Installation Instructions
A. RECIRCULATING (Non-Vented Ductless)
INSTALLATION OVERVIEW
A1. Attach Mounting Plate to Wall
A2. Prepare Top Cabinet
A3. Mount the Microwave Oven
÷
AI.__.ATTACH THE MOUNTING PLATE
TO THE WALL
-,,,,,_
===e
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud.
1, Remove the toggle wings from the bolts.
2. Insert the bolts into the mounting plate through
the holes designated to go into drywall and
reattach the toggle wings to 3A" onto each bolt.
To use toggle bolts:
Spacing for Toggles More
Than Wall Thickness
i
Toggle Wtngs
Mounting
Plate _
Wall
Bolt End
3. Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall to
mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure to coincide bottom line of the
Mounting plate with Horizontal line of "Rear wall
Template" and then the Mounting plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
4. Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
A2._..USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
• Read the instructions on the TOP CABINET
TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
12
Installation Instructions
MOUNT THE MICROWAVE OVEN
FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use handle during
installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not used, case
damage may occur from over tightening screws.
NOTE: When mounting the microwave oven, thread
power cord through hole in bottom of top cabinet.
Keep it tight throughout Steps 1-3. Do not pinch cord
or lift oven by pulling cord.
\\ 1, Lift microwave, tilt it
forward, and hook slots
at back bottom edge
onto four lower tabs of
mounting plate.
2. Rota;[e front o{ oven
up against cabinet
bottom
3, Insert a self-aligning screw through top center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged. (It will be completely
tightened later.) Be sure to keep power cord
tight. Be careful not to pinch the cord,
especially when mounting flush to bottom of
cabinet.
Cabinet Front
Cabinet Bottom Shelf
Filler Block
Equivalent to
Depth of
Cabinet Recess
igning Screw
Microwave Oven Top
4. Attach the microwave oven to the top cabinet.
5. Insert 2 self-aligning screws through outer
top cabinet holes. Turn two full turns on
each screw.
6. Tighten center
screw completely.
7. Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
L
8. Install grease filters. See the Owner's Manual
packed with the microwave.
13
Installation Instructions
B._,..OUTSIDE TOP EXHAUST (Vertical Duct)
INSTALLATION OVERVIEW
B1. Attach Mounting Plate to Wall
B2. Prepare Top Cabinet
B3. Adjust Blower
B4. Check Damper Operation
B5. Mount Microwave Oven
B6. Adjust Exhaust Adaptor
B7. Connect Ductwork
Blm ATTACH THE MOUNTING PLATE
TO THE WALL
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach
the plate to a wall stud.
1. Remove the toggle wings from the bolts.
2, Insert the bolts into the mounting plate through the
holes designated to go into drywall and reattach
the toggle wings to 3_,,onto each bolt.
To use toggle bolts:
Mounting
Plate _.
Spacingfor Toggles More
Than Wall Thickness
i i Toggle Wings
I
Wall
Bolt End
3, Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall to
mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure to coincide bottom line of the
Mounting plate with Horizontal line of "Rear wall
Template" and then the Mounting plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
4. Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
14
Installation Instructions
B2. USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws, a
hole large enough for the power cord to fit through,
and a cutout large enough for the exhaust adaptor.
• Read the instructions on the TOP CABINET
TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
B3. ADAPTING MICROWAVE
BLOWER FOR OUTSIDE TOP
EXHAUST
1. Remove and save
screw that holds
blower plate to
microwave.
2, Lift up the
blower plate.
Screw
B_.ckof
Microwave
3. Carefully pull out the blower unit. The wires will
extend far enough to allow you to adjust the
blower unit.
CAUTION: Do not touch blade of blower to prevent
cracking and breaking. Hold outer case when the
blower is removed and re-installed.
4, Roll the blower unit 90 ° so that fan blade
openings are facing toward the top of the
microwave.
Roll
15
Installation Instructions
J
5. Place the blower unit back into the opening.
CAUTION: Do not pull or stretch the blower unit
wiring. Make sure the wires are not pinched.
6. Secure blower unit to microwave with the screw.
B4. INSTALLATION PROCEDURE FOR
EXHAUST ADAPTOR AND
PROPER DAMPER OPERATION
CHECK
1. Remove and save screw
from the panel-outer
_tor and Damper is shipped
Exhaust Ad_
after bein( assembled to the filler-upper.
2, Slide exhaust adaptor following the instructions
show in diagram.
3, Make sure tape securing damper is removed and
damper pivots easily before mounting microwave
4. Lift damper and Re-screw at same location as (1)
• You will need to make adjustments to assure
proper alignment with your house exhaust duct
after the microwave is installed.
B5._,..MOUNT THE MICROWAVE OVEN
FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use handle during
installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not used, case
damage may occur from over tightening screws.
NOTE: When mounting the microwave oven, thread
power cord through hole in bottom of top cabinet.
Keep it tight throughout Steps 1-3. Do not pinch cord
or lift oven by pulling cord.
1. Lift microwave, tilt it
forward, and hook slots
at back bottom edge
onto four lower tabs of
mounting plate.
2, Rotate front of oven up
against cabinet bottom
3. Insert a self-aligning screw through top center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged. (It will be completely
tightened later.) Be sure to keep power cord
tight. Be careful not to pinch the cord,
especially when mounting flush to bottom of
cabinet,
16
Installation Instructions
B5.__.MOUNT THE MICROWAVE OVEN
(cont.)
Cabinet Front
Cabinet Bottom Shelf
Filler Block
T Equivalent to
Depth of Cabinet
Recess
Self-Aligning Screw
Microwave Oven Top
4. Attach the microwave oven to the top cabinet.
5, Insert 2 self-aligning screws
through outer top cabinet holes.
Turn two full turns on each screw.
6, Tighten center screw
completely.
7, Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
L
8, Install grease filters. See the Owner's Manual
packed with the microwave.
B6_ ADJUST THE EXHAUST ADAPTOR
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Back of
Blower-Plate Damper Microwave
Adjustment, Slide the
Exhaust Adaptor as
Needed
B7_ CONNECTING DUCTWORK
House Duct
1. Extend the house duct down to connect to the
exhaust adaptor.
2, Seal exhaust duct joints using duct tape.
17
Installation Instructions
C.__.OUTSIDE BACK EXHAUST (Horizontal Duct)
INSTALLATION OVERVIEW
01. Prepare Rear Wall
02. Attach Mounting Plate to Wall
03. Prepare Top Cabinet
04. Adjust Blower
05. Mount the Microwave Oven
|
C1__PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
You need to cut an opening in the rear wall for outside
exhaust.
• Read the instructions on the REAR WALL
TEMPLATE.
• Tape it to the rear wall.
• Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
C2._.ATTACH THE MOUNTING PLATE
TO THE WALL
ii "
il
¢_.. i
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach
the plate to a wall stud.
1, Remove the toggle wings from the bolts.
2. Insert the bolts into the mounting plate through
the holes designated to go into drywall and
reattach the toggle wings to 3_, onto each bolt.
18
Installation Instructions

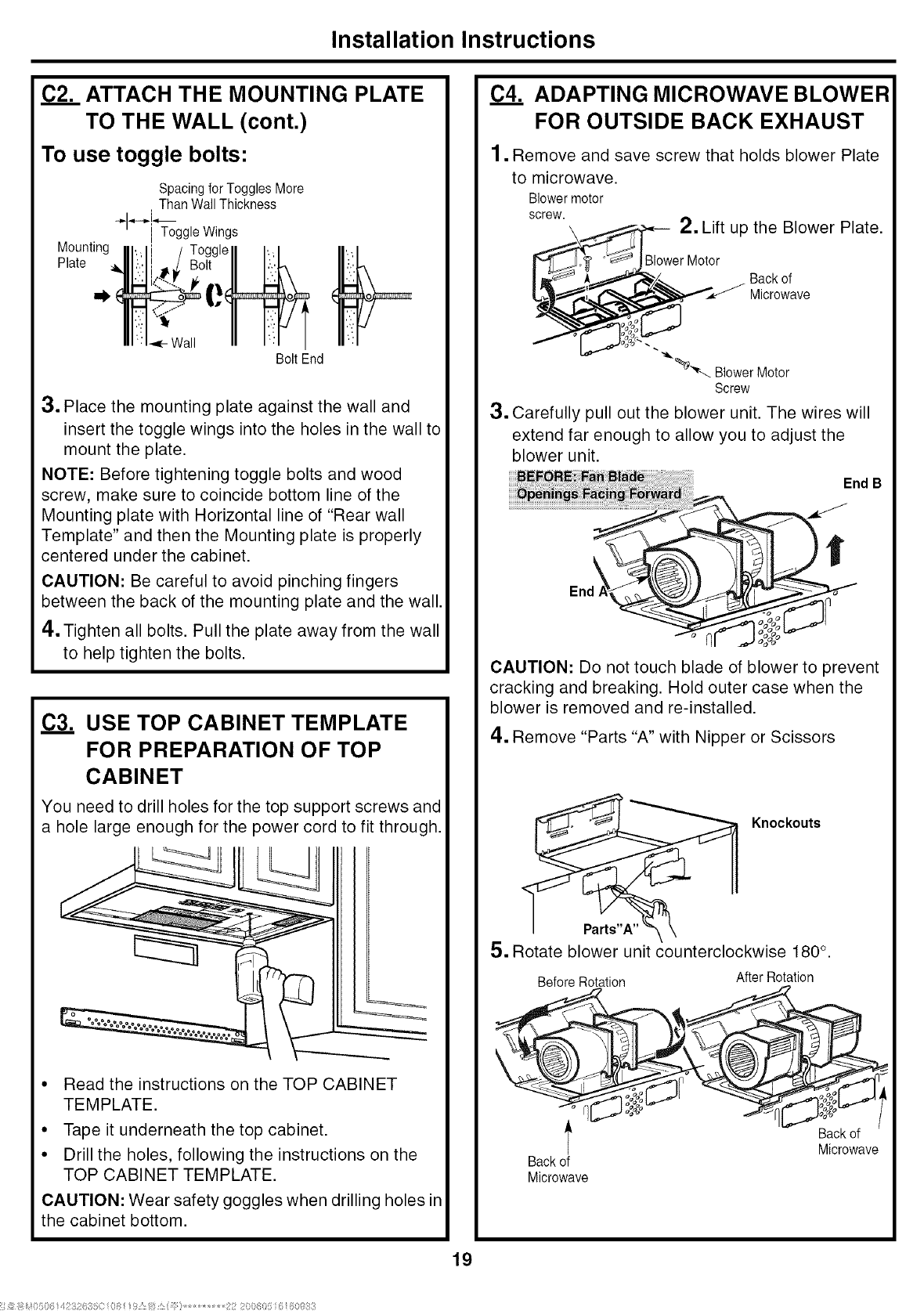

C2.__.ATTACH THE MOUNTING PLATE
TO THE WALL (cont.)
To use toggle bolts:
Spacing for Toggles More
Than Wall Thickness
I I Toggle Wings
Mounting
Plate
Bolt End
3. Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall to
mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure to coincide bottom line of the
Mounting plate with Horizontal line of "Rear wall
Template" and then the Mounting plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
4. Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
03. USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
• Read the instructions on the TOP CABINET
TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes in
the cabinet bottom.
19
04_ ADAPTING MICROWAVE BLOWER
FOR OUTSIDE BACK EXHAUST
1. Remove and save screw that holds blower Plate
to microwave.
Blower motor
screw. 2. Lift up the Blower Plate.
Blower Motor
Back of
Microwave
"_'_'_ Blower Motor
Screw
3, Carefully pull out the blower unit. The wires will
extend far enough to allow you to adjust the
blower unit.
End B
CAUTION: Do not touch blade of blower to prevent
cracking and breaking. Hold outer case when the
blower is removed and re-installed.
4. Remove "Parts "A" with Nipper or Scissors
Knockouts
5. Rotate blower unit counterclockwise 180 °.
Before Rotation After Rotation
I Back of
Microwave
Back of
Microwave
Installation Instructions
6. Place the blower unit back into the opening.
End A
End B
CAUTION: Do not pull or stretch the blower unit
wiring. Make sure the wires are not pinched.
NOTE: The blower unit exhaust openings should
match exhaust openings on rear of microwave
oven.
7, Secure the blower unit to the microwave with the
screw.
Blower-Plate
?
Back of
Microwave Plate screw
8, Attach the exhaust adaptor to the rear of the oven
by sliding it into the guides at the top center of the
back of the oven.
Adaptor
Back of
Microwave
__'_""? UIde
Guide From Blower motor screw
(after attached the exhaust adaptor)
Push in securely until it is in the lower locking tabs.
Take care to assure that the damper hinge is installed
so that it is at the top and that the damper swings
freely.
MOUNT THE MICROWAVE OVEN
FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use handle during
installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not used, case
damage may occur from over tightening screws.
NOTE: When mounting the microwave oven, thread
power cord through hole in bottom of top cabinet.
Keep it tight throughout Steps 1-3. Do not pinch cord
or lift oven by pulling cord.
\ 1. Lift microwave, tilt it
forward, and hook slot_
at back bottom edge
onto four lower tabs of
mounting plate.
oven
up against cabinet
bottom
3, Insert a self-aligning screw through top center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged. (It will be completely
tightened later.) Be sure to keep power cord
tight. Be careful not to pinch the cord,
especially when mounting flush to bottom of
cabinet.
20
Installation Instructions
C5.__.MOUNT THE MICROWAVE OVEN
(cont.)
Install grease filters. See the Owner's Manual packed
with the microwave.
Cabinet Front
Cabinet Bottom Shelf
Filler Block
- quivalent to
Depth of Cabinet
Recess
Self-Aligning Screw
Microwave Oven Top
4. Attach the microwave oven to the top cabinet.
5. Insert 2 self-aligning screws
through outer top cabinet holes.
Turn two full turns on each screw.
_'ighten center
screw completely.
7. Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
L
8. Install grease filters. See the Owner's Manual
packed with the microwave.
21
Installation Instructions
BEFORE YOU USE YOUR MICROWAVE
1. Make sure the microwave oven has been
installed according to instructions.
2. Remove all packing material from the microwave
ove n.
3, Install turntable and ring in cavity.
4. Replace house fuse or turn breaker back on.
6. Read the Owner's Manual.
7, KEEP INSTALLATION INSTRUCTIONS FOR
THE LOCAL INSPECTOR'S USE.
m
5, Plug power cord into a dedicated 20 amp
electrical outlet.
Insure proper .
ground existsJ
before use --
22
NOTE
Installation Instructions
23
Part No. : 316488509
Code No. : DE68-03265D

Navigation menu
