User Manual

MULTI-GLO WIRELESS CONTROLLER

UserManual

ThankyouforpurchasingtheBiogenikTMWirelessControllerforPS3.Pleasereadthismanualcarefully.



Thecontentsofthispackageinclude:

 1x2.4GHzWirelessControllerforPS3

 1xControllerReceiverDongle

 1xMiniUSBChargeCable

 1xUserManual

 1xWarrantyCard



ProductFeatures:

 2.4GhzWirelessTechnologyprovidesanoperatingdistanceupto10meters

 BrightLEDslightuptranslucentexteriorshell

 Changecoloursonthefly‐8differentLEDcoloroptions

 Ergonomicallydesignedforextendedgamingsessions

 Texturedrubbergripsenhancecomfortandgrip

 ImprovedR2&L2triggerbuttonsgiveyouanedgeonthecompetition

 Built‐indualrumblemotorsprovideanimmersivegamingexperience

 Analogcontrolsticksprovidesmooth,accuratetargeting

 Built‐in650mAhrechargeableLi‐ionbattery

 StandbyModepreservesbatterypowerwhenthecontrollerisinactive



Note:TheWirelessControllerisonlycompatiblewithPS3consoles.TheWirelessControllersupports

allgamesthatfeaturetheDualShock3™icon,however,thecontrollerdoesnotfeatureSIXAXIS.



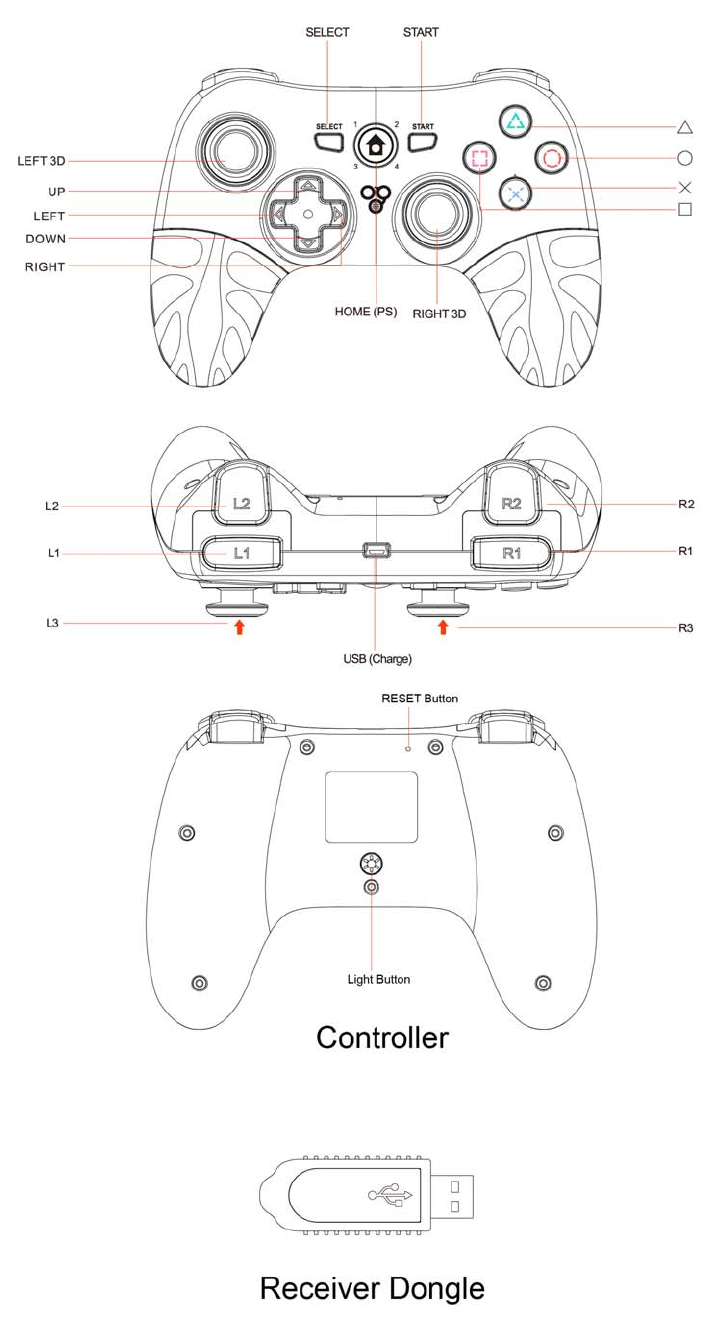

ProductDiagram:(seebelow)



LEFT3D

UP

LEFT

DOWN

RIGHT

SELECT

START

HOME

RIGHT3D



USB(CHARGE)



RESETBUTTON

LIGHTBUTTON

CONTROLLER

RECEIVERDONGLE



SynchronizationInstructions:

1. TurnONthePS3console.

2. PlugthereceiverdongleintoanavailableUSBportonthePS3console.

3. Pressthe"HOME"buttonontheWirelessController.

Duringsynchronization,theLEDonthereceiverwillflashquickly.IfthechannelLEDandreceiver

LEDbothglowsolid,thewirelessconnectionwassuccessful.Ifsynchronizationwasunsuccessful,

unplugthereceiverdongleandrepeatstep2.

4. Afterthefirstsuccessfulconnection,theWirelessControllerandthereceiverdonglewill

automaticallyconnectwhenthecontrollerispoweredonorisawakenfromsleepmode.Press

the"HOME"buttontore‐activatetheconnection.



LEDindicatorandPlayerChannelMapping:

 Player1:LED1

 Player2:LED2

 Player3:LED3

 Player4:LED4

 Player5:LED4+LED1

 Player6:LED4+LED2

 Player7:LED4+LED3



Note:ThePlayerChannelLEDisalsousedtoindicatelowbatterypower.Itwillflashquicklyandthe

vibrationwillautomaticallybeturnedofftoconservebatterypower.



LightButton

 PresstheLEDLightbuttononthebackofthecontrollertochangethecoloroftheglowingeffect.

o Theglowingeffectwillchangeinthefollowingsequence:RedGreenBluePurple

BabyBlueYellowWhiteColorGradientOFFRed…



Standby(PowerSaving)Mode

TheWirelessControllerwillautomaticallyenterstandbymodetoconservebatterypowerwhenit

hasn’tbeenusedforaperiodoftime.Pressthe“HOME”buttontore‐activatethecontroller.The

controllerwillautomaticallysyncafterreturningtoactivemode.



Troubleshooting

TheWirelessControllerdoesnotwork.

IftheWirelessControllerfailstooperate,oroperatesincorrectly,followthestepsbelowbefore

seekingassistance.

 MakesurethePS3isturnedONandthereceiverdongleisinsertedproperly.

 MakesuretheWirelessControllerisproperlysynchronizedwiththereceiverdongle.

 MakesuretheWirelessControlleriswithintheoperatingdistance.

 MakesurethebatteryoftheWirelessControllerisfullycharged.



Ifafterverifyingthestepsabove,theWirelessControllerstilldoesnotworkordoesworknotcorrectly,

trythefollowing:

 TurnOFFthepowerofthePS3console.

 WaitafewsecondsandthenturnONthePS3console.

 PresstheRESETbuttononthebackoftheWirelessControllertoresetthecontroller.

 Waitafewsecondsandthenre‐synchronizetheWirelessController.



FCCSTATEMENTS

ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:

(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference

received,includinginterferencethatmaycauseundesiredoperation.



FCCID:TAZ2967

MADEINCHINA



Warning:

Modificationsnotapprovedbythepartyresponsibleforcompliancecouldvoiduser’sauthorityto

operatetheequipment.



NOTE:

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforClassBdigitaldevice,

pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection

againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcan

radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,may

causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningthe

equipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe

followingmeasures:

•Reorientorrelocatethereceivingantenna.

•Increasetheseparationbetweentheequipmentandthereceiver.

•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



Touc hSens e®TechnologyLicensedfromImmersionCorporation.Protectedbyoneormoreofthe

followingpatents:



U.S.Patents:5831408,5844392,5857986,5907487,5959613,6020875,6088017,6104158,

6219032,6246390,6252583,6271833,6275213,6278439,6343349,6400352,6411276,6424333,

6715045,6801008,7131073,7199790,7209117,7299321,7327348,7345672,and7502011.


