OPERATOR’S MANUAL
FRYMASTER BIELA14 SERIES GEN II LOV™
ELECTRIC FRYER
TABLE OF CONTENTS
WARRANTY STATEMENT ................................................................................................... Page i
INTRODUCTION ................................................................................................................... Page 1-1
INSTALLATION INSTRUCTIONS ....................................................................................... Page 2-1
OPERATING INSTRUCTIONS ............................................................................................. Page 3-1
M3000 COMPUTER INSTRUCTIONS ................................................................................. Page 4-1
OPERATING THE BUILT-IN FILTRATION SYSTEM ........................................................... Page 5-1
PREVENTIVE MAINTENANCE ............................................................................................ Page 6-1
OPERATOR TROUBLESHOOTING ..................................................................................... Page 7-1

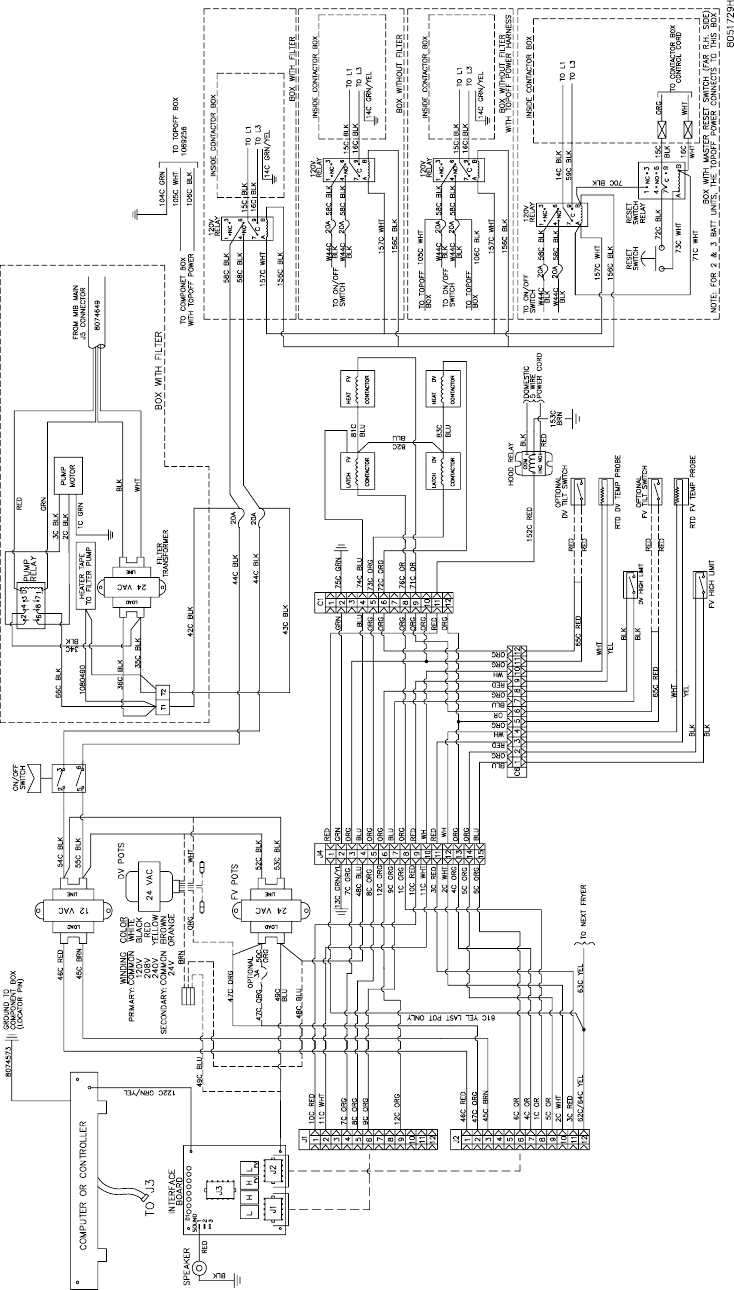

WIRING DIAGRAMS ............................................................................................................. Page 8-1
Frymaster L.L.C., 8700 Line Avenue, Shreveport, LA 71106
PHONE 318-865-1711 FAX 318-219-7135
PRINTED IN THE UNITED STATES SERVICE HOTLINE 1-800-24-FRYER APRIL 2011
*8196442*
FOR YOUR SAFETY
Do Not Store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
This equipment chapter is to be
installed in the Fryer Section of the
Equipment Manual.
MANUFACTURED
BY
8700 Line Ave.
SHREVEPORT, LOUISIANA 71106
PHONE: 1-318-865-1711
TOLL FREE: 1-800-551-8633
1-800-24 FRYER
FAX: 1-318-219-7135
NOTICE
IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS
MANITOWOC FOOD SERVICE EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR
RECYCLED PART PURCHASED DIRECTLY FROM FRYMASTER DEAN, OR ANY OF ITS
FACTORY AUTHORIZED SERVICE CENTERS, AND/OR THE PART BEING USED IS
MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID.
FURTHER, FRYMASTER DEAN AND ITS AFFILIATES WILL NOT BE LIABLE FOR ANY
CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE
DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF ANY
MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICE CENTER.
NOTICE
This appliance is intended for professional use only and is to be operated by qualified
personnel only. A Frymaster Authorized Service Agency (ASA) or other qualified
professional should perform installation, maintenance, and repairs. Installation,
maintenance, or repairs by unqualified personnel may void the manufacturer’s warranty.
See Chapter 1 of this manual for definitions of qualified personnel.
NOTICE
This equipment must be installed in accordance with the appropriate national and local
codes of the country and/or region in which the appliance is installed. See NATIONAL
CODE REQUIREMENTS in Chapter 2 of this manual for specifics.
NOTICE TO U.S. CUSTOMERS
This equipment is to be installed in compliance with the basic plumbing code of the
Building Officials and Code Administrators International, Inc. (BOCA) and the Food Service
Sanitation Manual of the U.S. Food and Drug Administration.
NOTICE
Drawings and photos used in this manual are intended to illustrate operational, cleaning
and technical procedures and may not conform to onsite management operational
procedures.
NOTICE TO OWNERS OF UNITS EQUIPPED WITH COMPUTERS
U.S.
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: 1) This device may not cause harmful interference, and 2) This device must
accept any interference received, including interference that may cause undesired
operation. While this device is a verified Class A device, it has been shown to meet the
Class B limits.
CANADA
This digital apparatus does not exceed the Class A or B limits for radio noise emissions as
set out by the ICES-003 standard of the Canadian Department of Communications.
Cet appareil numerique n’emet pas de bruits radioelectriques depassany les limites de
classe A et B prescrites dans la norme NMB-003 edictee par le Ministre des Communcations
du Canada.
DANGER
Improper installation, adjustment, maintenance or service, and unauthorized alterations or
modifications can cause property damage, injury, or death. Read the installation, operating,
and service instructions thoroughly before installing or servicing this equipment.
DANGER
The front ledge of this appliance is not a step! Do not stand on the appliance. Serious
injury can result from slips or contact with the hot oil.
DANGER
Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or
any other appliance.
DANGER
The crumb tray in fryers equipped with a filter system must be emptied into a fireproof
container at the end of frying operations each day. Some food particles can spontaneously
combust if left soaking in certain shortening material.
WARNING
Do not bang fry baskets or other utensils on the fryer’s joiner strip. The strip is present to
seal the joint between the fry vessels. Banging fry baskets on the strip to dislodge
shortening will distort the strip, adversely affecting its fit. It is designed for a tight fit and
should only be removed for cleaning.
DANGER
Adequate means must be provided to limit the movement of this appliance without
depending on or transmitting stress to the electrical conduit. A restraint kit is provided with
the fryer. If the restraint kit is missing contact your local KES.
DANGER
This fryer has a power cord (three-phase) for each frypot and a single five-wire cord for the
entire system. Prior to movement, testing, maintenance and any repair on your Frymaster
fryer; disconnect ALL electrical power cords from the electrical power supply.
DANGER
Keep all items out of drains. Closing actuators may cause damage or injury.
NOTICE
The instructions in this manual for using a bulk oil system for filling and discarding oil are
for an RTI system. These instructions may not be applicable to other bulk oil systems.
M3000 Menu Summary Tree
Reflected below are the major programming sections in the M3000 and the order in which submenu
headings will be found under the sections in the Installation and Operation Manual.
Adding New Product Menu Items (Product Selection) See section 4.10.2
Storing Product Menu Items in Product Buttons See section 4.10.3
Draining, Refilling, and Disposing of Oil See section 4.10.4
Filter Menu
Programming
Info Mode
[Press and hold ◄ FLTR or FLTR ►]
Auto Filter
Maint Filter
Dispose
Drain to Pan
Fill Vat from Drain Pan
Fill Vat from Bulk (Bulk Only)
Pan to Waste (Bulk Only)
Name
Cook Time
Temp
Cook ID
Duty Time 1
Duty Time 2
Qual Tmr
AIF Disable
Assign Btn
Level 1 Program
[Press and hold TEMP and INFO buttons, 2 beeps, displays Level 1, enter 1234]
Product Selection
AIF Clock
Disabled
Enabled
Fryer Setup
Deep Clean Mode
Level 2 Program (Manager Level)
[Press and hold TEMP and INFO buttons, 3 beeps, displays Level 2, enter 1234]
[Press and hold INFO for 3 seconds, displays Info Mode]
Full/Split Vat Configuration
Filter Stats
Review Usage
Last Load
Setup [enter 1234]
Usage [enter 4321]
Level 1 [enter 1234]
Level 2 [enter 1234]
Volume 1-9
Tone 1-3
Alert Tone Volume and Tone
Prod Comp
E-Log
Password Setup
Filter After
Filter Time Sets amount of time between filter cycles
Sets number of cooks before filter prompt
Change passwords
Log of last 10 error codes
Sensitivity for product
………………………………………………………………………………………………………….. 4.11
…….……………….....………………………………………………………….. 4.12
……………………………………………….. 4.13
………………...………………………...………………………………………..……………………….. 4.14
…………………….……………………………………………………………….. 4.9
……..……………………...…………………………………….. 4.12.2
..………………………………………………………………………………… 4.12.1
..…….....………………………………………………………….. 4.10.2
High-Limit Test …………….…………………….…………………………………….. 4.12.3
…………………………………….. 4.13.1
…………………………….. 4.13.2
……………………………… 4.13.3
...………………………………………….. 4.13.4
………….. 4.13.5
………….. 4.13.6
………………….……………………………………………………………….. 4.14.3
………….……………………………………………………………….. 4.14.2
..……………….……………………………………………………………….. 4.14.1
i
LOV™ ELECTRIC WARRANTY STATEMENT
Frymaster, L.L.C. makes the following limited warranties to the original purchaser only for this
equipment and replacement parts:
A. WARRANTY PROVISIONS - FRYERS
1. Frymaster L.L.C. warrants all components against defects in material and workmanship for a
period of two years.
2. All parts, with the exception of the frypot, O-rings and fuses, are warranted for two years
after installation date of fryer.
3. If any parts, except fuses and filter O-rings, become defective during the first two years after
installation date, Frymaster will also pay straight-time labor costs up to two hours to replace
the part, plus up to 100 miles/160 km of travel (50 miles/80 km each way).
B. WARRANTY PROVISIONS - FRYPOTS
The frypot has a lifetime parts and labor warranty. If a frypot develops a leak after installation,
Frymaster will replace the frypot, allowing up to the maximum time per the Frymaster time
allowance chart hours of straight-time labor. Components attached to the frypot, such as the
high-limit, probe, gaskets, seals, and related fasteners, are also covered by the lifetime warranty
if replacement is necessitated by the frypot replacement. Leaks due to abuse or from threaded
fittings such as probes, sensors, high-limits, drain valves or return piping are not included.
C. PARTS RETURN
All defective in-warranty parts must be returned to a Frymaster Authorized Service Agency
within 60 days for credit. After 60 days, no credit will be allowed.
D. WARRANTY EXCLUSIONS
This warranty does not cover equipment that has been damaged due to misuse, abuse, alteration,
or accident such as:
• improper or unauthorized repair (including any frypot which is welded in the field);
• failure to follow proper installation instructions and/or scheduled maintenance procedures as
prescribed in your MRC cards. Proof of scheduled maintenance is required to maintain the
warranty;
• improper maintenance;
• damage in shipment;
• abnormal use;
• removal, alteration, or obliteration of either the rating plate or the date code on the heating
elements;
• operating the frypot without shortening or other liquid in the frypot;
ii
• no fryer will be warranted under the ten-year program for which a proper start-up form has not
been received.
This warranty also does not cover:
• transportation or travel over 100 miles/160 km (50 miles/80 km each way), or travel over two
hours;
• overtime or holiday charges;
• consequential damages (the cost of repairing or replacing other property which is damaged), loss
of time, profits, use or any other incidental damages of any kind.
There are no implied warranties of merchantability or fitness for any particular use or purpose.
This warranty is applicable at the time of this printing and is subject to change.
1-1
BIELA14 SERIES GEN II LOV™ ELECTRIC FRYER
CHAPTER 1: INTRODUCTION
1.1 General
Read the instructions in this manual thoroughly before attempting to operate this equipment. This
manual covers all configurations of McDonald’s BIELA14 LOV™ models. The fryers in this model
family have most parts in common, and when discussed as a group, will be referred to as “LOV™
fryers.
Although similar in appearance to the RE14 McDonald’s electric fryers, the BIELA14 fryers feature
a low oil volume frypot, automatic oil top off and an automatic intermittent filtration unit. The
Euro-Look design incorporates a rounded topcap and a large round drain, which ensures that fries
and other debris, will be washed into the filter pan. The BIELA14 LOV™ fryers are controlled with
an M3000 computer. Fryers in this series come in full- or split-vat arrangements, and can be
purchased in batteries of up to five fryers.
1.2 Safety Information
Before attempting to operate your unit, read the instructions in this manual thoroughly.
Throughout this manual, you will find notations enclosed in double-bordered boxes similar to the
one below.
DANGER
Hot oil causes severe burns. Never attempt to move a fryer containing hot oil or to
transfer hot oil from one container to another.
CAUTION boxes contain information about actions or conditions that may cause or result in a
malfunction of your system.
WARNING boxes contain information about actions or conditions that may cause or result in
damage to your system, and which may cause your system to malfunction.
DANGER boxes contain information about actions or conditions that may cause or result in
injury to personnel, and which may cause damage to your system and/or cause your system to
malfunction.
The BIELA14 LOV™ fryers incorporate a high-temperature detection feature which shuts off power
to the elements should the temperature controls fail.
NOTE: The Frymaster BIELA14 fryer requires a start-up, demonstration and training
before normal restaurant operations can begin.
1-2
1.3 Computer Information for the M3000 Computers
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. While this device is a verified Class A device, it has been
shown to meet the Class B limits. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of
the equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at their own expense.
The user is cautioned that any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
If necessary, the user should consult the dealer or an experienced radio and television technician for
additional suggestions.
The user may find the following booklet prepared by the Federal Communications Commission
helpful: "How to Identify and Resolve Radio-TV Interference Problems". This booklet is available
from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4.
1.4 European Community (CE) Specific Information
The European Community (CE) has established certain specific standards regarding equipment of
this type. Whenever a difference exists between CE and non-CE standards, the information or
instructions concerned are identified by means of shadowed boxes similar to the one below.
CE Standard
Example of box used to distinguish CE and
Non-CE specific information.
1.5 Installation, Operating, and Service Personnel
Operating information for Frymaster equipment has been prepared for use by qualified and/or
authorized personnel only, as defined in Section 1.6. All installation and service on Frymaster
equipment must be performed by qualified, certified, licensed, and/or authorized installation
or service personnel, as defined in Section 1.6.
1.6 Definitions
QUALIFIED AND/OR AUTHORIZED OPERATING PERSONNEL
Qualified/authorized operating personnel are those who have carefully read the information in this
manual and have familiarized themselves with the equipment functions, or who have had previous
experience with the operation of the equipment covered in this manual.
1-3
QUALIFIED INSTALLATION PERSONNEL
Qualified installation personnel are individuals, firms, corporations, and/or companies which, either
in person or through a representative, are engaged in and are responsible for the installation of
electrical appliances. Qualified personnel must be experienced in such work, be familiar with all
electrical precautions involved, and have complied with all requirements of applicable national and
local codes.
QUALIFIED SERVICE PERSONNEL
Qualified service personnel are those who are familiar with Frymaster equipment and who have been
authorized by Frymaster, L.L.C. to perform service on the equipment. All authorized service
personnel are required to be equipped with a complete set of service and parts manuals, and to stock
a minimum amount of parts for Frymaster equipment. A list of Frymaster Factory Authorized
Servicers (FAS’s) is located on the Frymaster website at www.frymaster.com. Failure to use
qualified service personnel will void the Frymaster warranty on your equipment
1.7 Shipping Damage Claim Procedure
What to do if your equipment arrives damaged:
Please note that this equipment was carefully inspected and packed by skilled personnel before
leaving the factory. The freight company assumes full responsibility for safe delivery upon
acceptance of the equipment.
1. File Claim for Damages Immediately - regardless of extent of damage.
2. Inspect For and Record All Visible Loss or Damage, and ensure that this information is noted
on the freight bill or express receipt and is signed by the person making the delivery.
3. Concealed Loss or Damage- If damage is unnoticed until equipment is unpacked, notify the
freight company or carrier immediately upon discovery and file a concealed damage claim.
This must be submitted within 15 days of date of delivery. Be sure to retain container for
inspection.
Frymaster
DOES NOT ASSUME RESPONSIBILITY FOR DAMAGE OR LOSS
INCURRED IN TRANSIT.
1-4
1.8 Service Information
For non-routine maintenance or repairs, or for service information, contact your local Frymaster
Authorized Service Agency (ASA). In order to assist you quickly, the Frymaster Authorized Service
Agency (ASA) or Service Department representative requires certain information about your
equipment. Most of this information is printed on a data plate affixed to the inside of the fryer door.
Part numbers are found in the Service and Parts Manual. Parts orders may be placed directly with
your local ASA or distributor. Included with fryers when shipped from the factory is a list of
Frymaster ASA’s. If you do not have access to this list, contact the Frymaster Service Department at
1-800-551-8633 or 1-318-865-1711 or by email at service@frymaster.com.
The following information will be needed in order to assist you efficiently:
Model Number _________________________
Serial Number__________________________
Voltage _______________________________
Nature of the Problem____________________
_____________________________________
_____________________________________
RETAIN AND STORE THIS MANUAL IN A SAFE PLACE FOR FUTURE USE.
2-1
BIELA14 SERIES GEN II LOV™ ELECTRIC FRYER
CHAPTER 2: INSTALLATION INSTRUCTIONS
2.1 General Installation Requirements
Proper installation is essential for the safe, efficient, trouble-free operation of this appliance.
Qualified, licensed, and/or authorized installation or service personnel, as defined in Section
1.6 of this manual, should perform all installation and service on Frymaster equipment.
Failure to use qualified, licensed, and/or authorized installation or service personnel (as
defined in Section 1.6 of this manual) to install or otherwise service this equipment will void
the Frymaster warranty and may result in damage to the equipment or injury to personnel.
Where conflicts exist between instructions and information in this manual and local or
national codes or regulations, installation and operation shall comply with the codes or
regulations in force in the country in which the equipment is installed.
Service may be obtained by contacting your local Frymaster Authorized Service Agency.
NOTICE
All fryers shipped without factory supplied cords and plug assemblies must be
hardwired using flexible conduit to the terminal block located on the rear of the fryer.
These fryers should be wired to NEC specifications. Hardwired units must include
installation of restraint devices.
DANGER
Adequate means must be provided to limit the movement of this appliance without
depending on or transmitting stress to the electrical conduit. A restraint kit is
provided with the fryer. If the restraint kit is missing contact your local Frymaster
Authorized Service Agency (ASA).
NOTICE
If this equipment is wired directly into the electrical power supply, a means for
disconnection from the supply having a contact separation of at least 3-mm in all
poles must be incorporated in the fixed wiring.
NOTICE
This equipment must be positioned so that the plug is accessible unless other
means for disconnection from the power supply (e.g., a circuit breaker) is provided.
NOTICE
If this appliance is permanently connected to fixed wiring, it must be connected by
means of copper wires having a temperature rating of not less than 167°F (75°C).
2-2
NOTICE
If the electrical power supply cord is damaged, it must be replaced by a Frymaster
Authorized Service Agency technician or a similarly qualified person in order to
avoid a hazard.
DANGER
This appliance must be connected to a power supply having the same voltage and
phase as specified on the rating plate located on the inside of the appliance door.
DANGER
All wiring connections for this appliance must be made in accordance with the
wiring diagram(s) furnished with the appliance. Refer to the wiring diagram(s)
affixed to the inside of the appliance door when installing or servicing this
equipment.
DANGER
Do not attach an apron drainboard to a single fryer. The fryer may become unstable,
tip over, and cause injury. The appliance area must be kept free and clear of
combustible material at all times.
DANGER
Building codes prohibit a fryer with its open tank of hot oil being installed beside an
open flame of any type, including those of broilers and ranges.
In the event of a power failure, the fryer(s) will automatically shut down. If this occurs, turn the
power switch OFF. Do not attempt to start the fryer(s) until power is restored.
This appliance must be kept free and clear of combustible material, except that it may be installed on
combustible floors.
A clearance of 6 inches (15cm) must be provided at both sides and back adjacent to combustible
construction. A minimum of 24 inches (61cm) should be provided at the front of the equipment for
servicing and proper operation.
WARNING
Do not block the area around the base or under the fryers.
2.1.2 Electrical Grounding Requirements
All electrically operated appliances must be grounded in accordance with all applicable national and
local codes, and, where applicable, CE codes. All units (cord connected or permanently connected)
should be connected to a grounded power supply system. A wiring diagram is located on the inside
of the fryer door. Refer to the rating plate on the inside of the fryer door for proper voltages.
WARNING
To ensure the safe and efficient operation of the fryer and hood, the electrical plug
for the control power, which powers the hood, must be fully engaged and locked in
its pin and sleeve socket.
2-3
2.1.3 Australian Requirements
To be installed in accordance with AS 5601 / AG 601, local authority, gas, electricity, and any other
relevant statutory regulations.
2.2 Power Requirements
The three phase supply plug for the elements is rated at 60 amps, 250 VAC and is NEMA
configuration L15-60P. The control and filter plug is rated at 20 amps, 120/208 VAC and is NEMA
configuration L21-20P. Each fryer should have its cord for the element supply on an individual
circuit as well as the control cord.
AMPS PER LEG
VOLTAGE PHASE WIRE
SERVICE MIN.
SIZE AWG
(mm2) L1 L2 L3
208 3 3 6 (16) 39 39 39
240 3 3 6 (16) 34 34 34
480 3 3 8 (10) 17 17 17
220/380 3 4 6 (16) 21 21 21
240/415 3 4 6 (16) 20 20 21
230/400 3 4 6 (16) 21 21 21
NOTICE
If this appliance is permanently connected to fixed wiring, it must be connected by
means of copper wires having a temperature rating of not less than 167°F (75°C).
DANGER
This appliance must be connected to a power supply having the same voltage and
phase as specified on the rating plate located on the inside of the appliance door.
DANGER
All wiring connections for this appliance must be made in accordance with the
wiring diagram(s) furnished with the appliance. Refer to the wiring diagram(s)
affixed to the inside of the appliance door when installing or servicing this
equipment.
2.3 After Fryers Are Positioned At the Frying Station
DANGER
No structural material on the fryer should be altered or removed to accommodate
placement of the fryer under a hood. Questions? Call the Frymaster Service Hotline
at 1-800-551-8633.
1. Once the fryer has been positioned at the frying station, use a carpenter’s level placed across the
top of the frypot to verify that the unit is level, both side-to-side and front-to-back.
To level fryers, adjust the casters being careful to ensure the fryer(s) are at the proper height in
the frying station.
2-4
When the fryer is leveled in its final position, install the restraints provided by the KES to limit
its movement so that it does not depend on or transmit stress to the electrical conduit or
connection. Install the restraints in accordance with the provided instructions. If the restraints are
disconnected for service or other reasons, they must be reconnected before the fryer is used.
DANGER
Adequate means must be provided to limit the movement of this appliance without
depending on or transmitting stress to the electrical conduit. A restraint kit is
provided with the fryer. If the restraint kit is missing contact your local Frymaster
Authorized Service Agency (ASA).
DANGER
Hot oil can cause severe burns. Avoid contact. Under all circumstances, oil must be
removed from the fryer before attempting to move it to avoid spills, falls, and severe
burns. Fryers may tip and cause personal injury if not secured in a stationary
position.
2. Clean and fill frypot(s) to the bottom oil level line with cooking oil. (See Equipment Setup and
Shutdown Procedures in Chapter 3.)
3–1
BIELA14 SERIES GEN II LOV™ ELECTRIC FRYER
CHAPTER 3: OPERATING INSTRUCTIONS

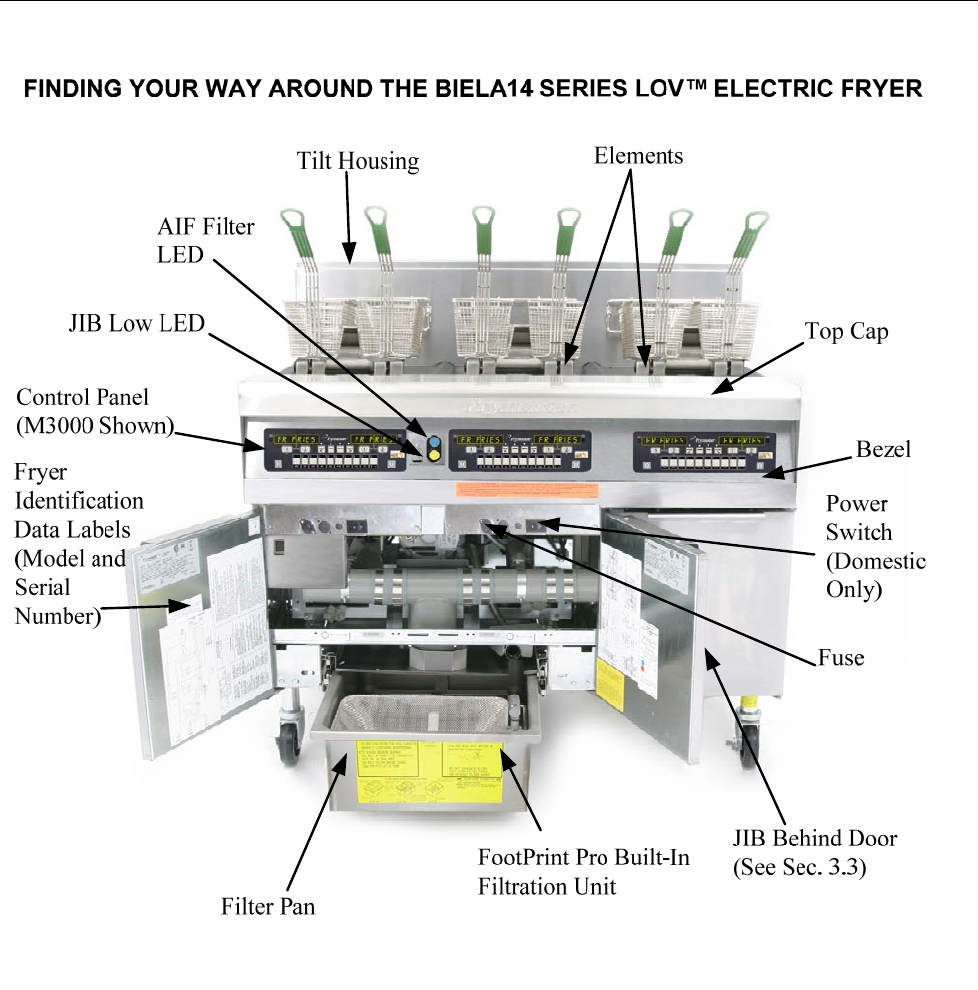

TYPICAL CONFIGURATION (BIELA314 SHOWN)
NOTE: The appearance of your fryer may differ slightly from that
shown depending upon configuration and date of manufacture.
3–2
3.1 Equipment Setup and Shutdown Procedures
Setup
DANGER
Never operate the appliance with an empty frypot. The frypot must be filled to the fill line
with water or oil before energizing the elements. Failure to do so will result in irreparable
damage to the elements and may cause a fire.
DANGER
Remove all drops of water from the frypot before filling with oil. Failure to do so will cause
spattering of hot liquid when the oil is heated to cooking temperature.
WARNING
The BIELA14 is not intended to use solid shortening. Use only liquid shortening with this
fryer. The use of solid shortening will clog the oil lines. The oil capacity of the BIELA14
fryer is 31 lbs. (3.7 gallons/14 liters) for a full-vat and 15.5 lbs. (2.5 gallons/7 liters) for a dual-
vat at 70°F (21°C).
1. Fill the frypot with cooking oil to the bottom OIL LEVEL line located on the rear of the frypot. This will
allow for oil expansion as heat is applied. Do not fill cold oil any higher than the bottom line; overflow
may occur as heat expands the oil. For bulk oil systems see Section 4.11.4 on page 4-22 for instructions
to fill the vat from bulk.
2. Ensure that the power cord(s) is/are plugged and locked (if applicable) into the appropriate receptacle(s).
Verify that the face of the plug is flush with the outlet plate, with no portion of the prongs visible.
3. Ensure that the power is switched on. Some models are equipped with a master switch located behind the
fryer door cabinet on the front panel of the component box, next to the fuse.
4. Ensure that the computer is switched ON. When the computer is switched on, the fryer will begin
heating and will display MLT-CYCL alternating with LOW TEMP until the fryer temperature reaches
180°F (82°C). LOW TEMP is displayed until within 15° of setpoint. Once the fryer reaches setpoint,
the computer display changes to the product or dashed lines and the fryer is ready for use.
5. Ensure that the oil level is at the top OIL LEVEL line when the oil is at its cooking temperature.
Shutdown
1. Turn the fryer off.
2. Filter the oil and clean the fryers (See Chapters 5 and 6).
3. Place the frypot covers on the frypots.
3.2 Operation

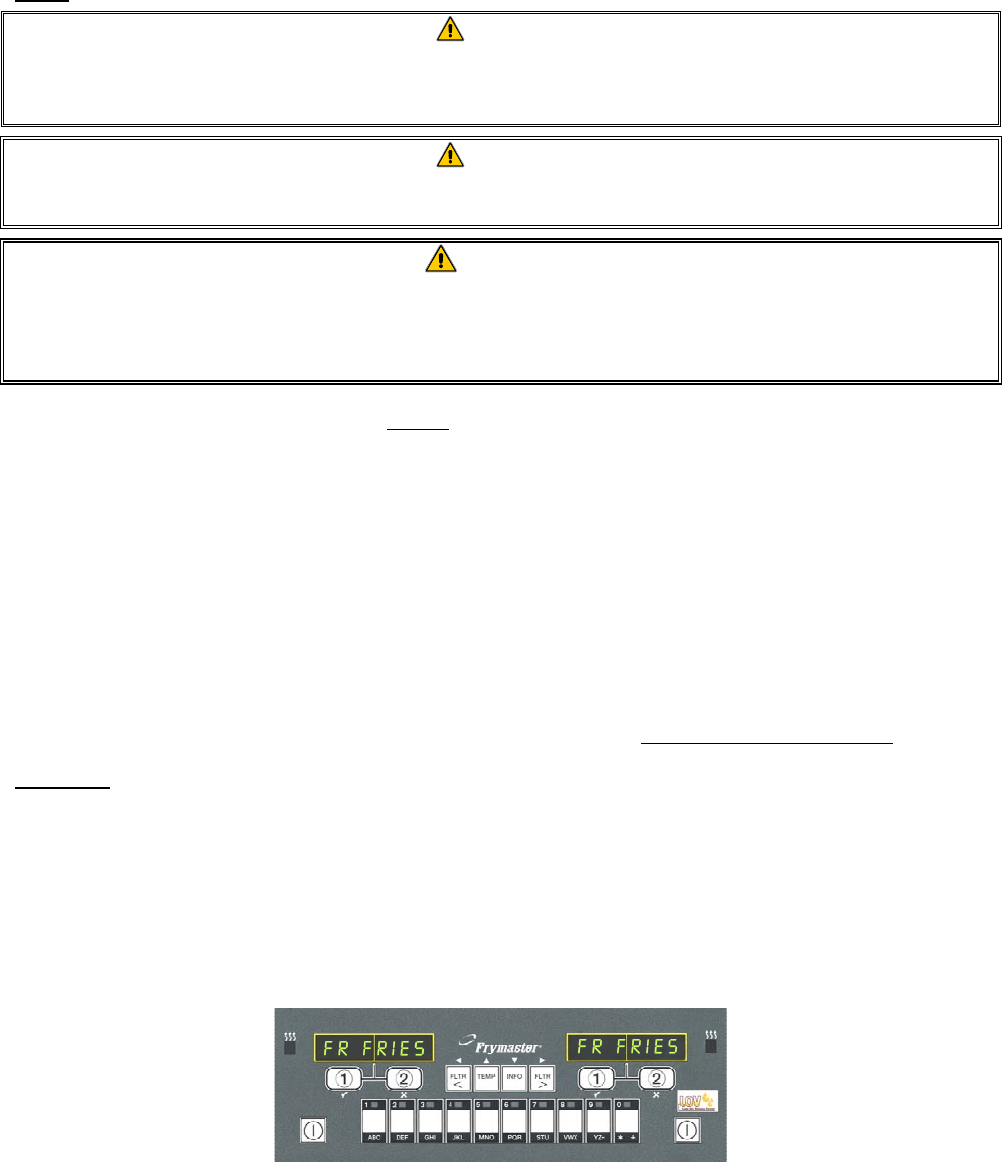

This fryer is equipped with M3000 computers (illustrated below). Refer to the M3000 Computer Operating
Instructions in Chapter 4 for the computer programming and operating procedures.
M3000 COMPUTER
Refer to Chapter 5 of this manual for operating instructions for the built-in filtration system.
3–3
3.3 Low Oil Volume Automatic Refill
When the Low Oil Volume (LOV™)
system is in place on the fryer, the frypot
oil levels are continually checked and
topped off as necessary from a reservoir in
the cabinet. The reservoir holds a 35
pound box of oil. In a typical operation
this will last approximately two days.

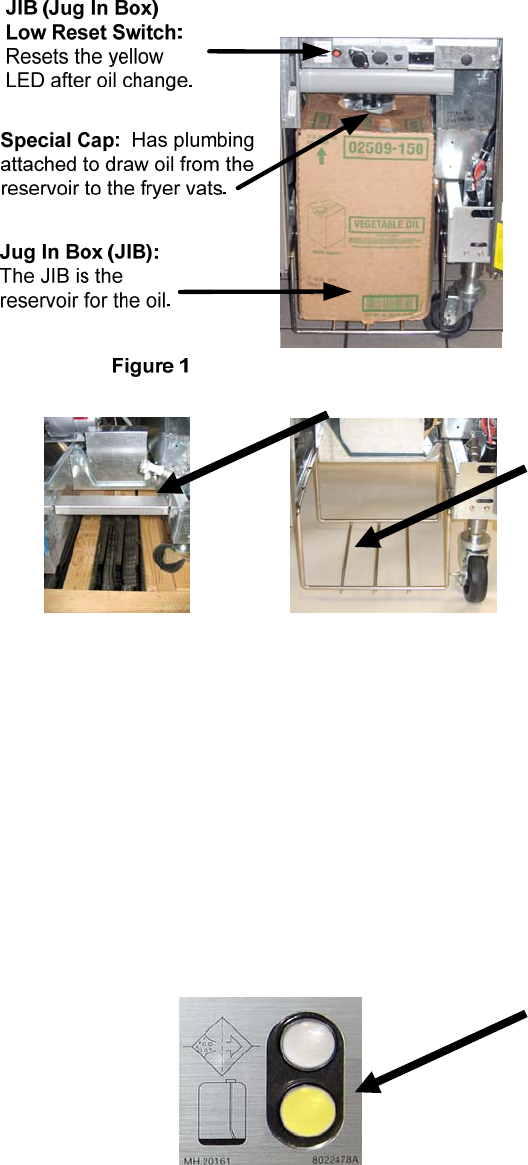

Components of the system are annotated
at the right (see Figure 1).
NOTE: The system is intended to top
off the frypots, not fill them. The frypots
will require manual filling upon startup
and after deep clean (boil-out).
3.3.1 Prepare the System for Use

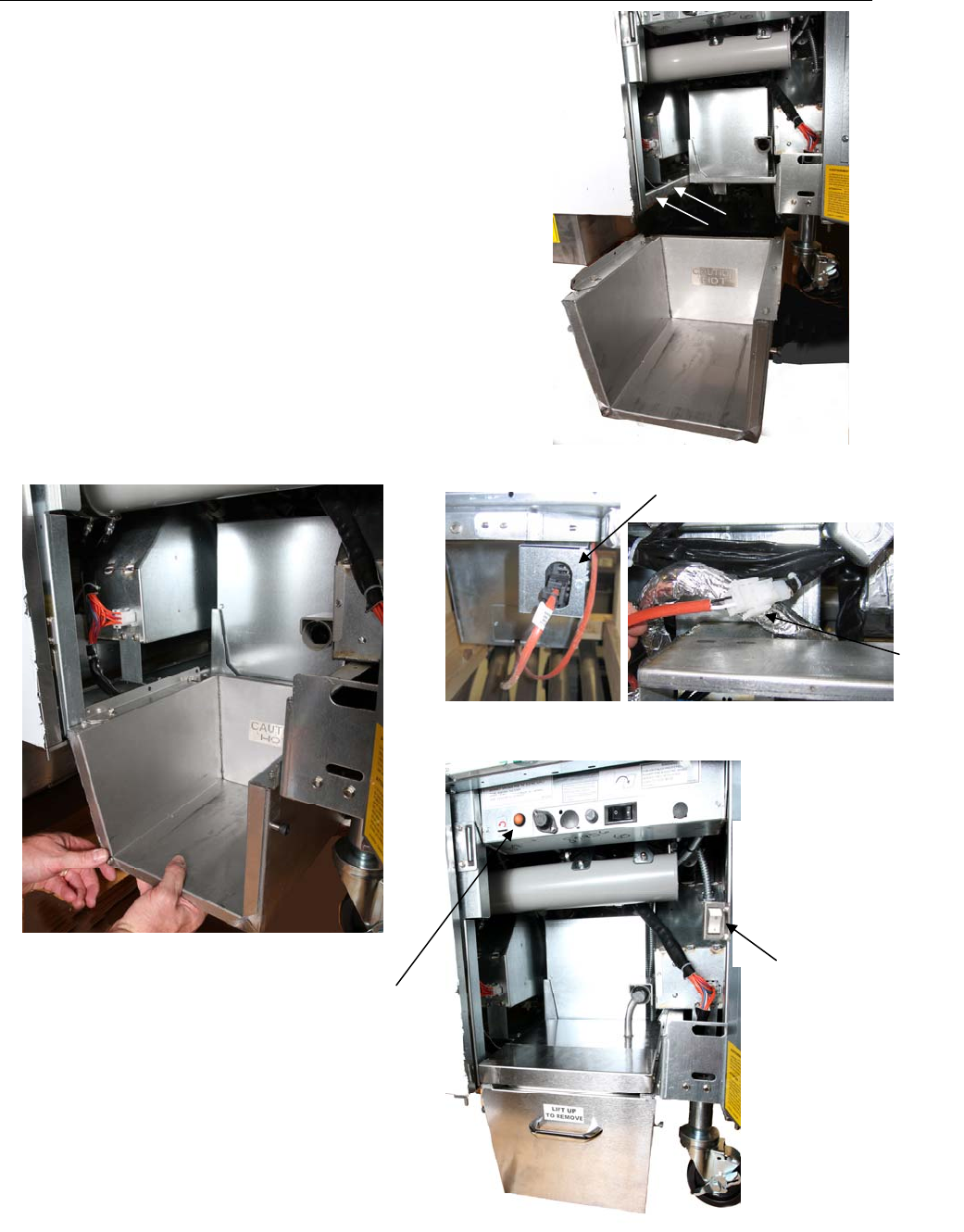

To prepare the system for its initial
operation, remove cross brace (see Figure
2). Using the screws removed from the
cross brace, attach the JIB basket shipped
in the accessories pack (see Figure 3). If
using the solid shortening option see
Appendix B.
Figure 2 Figure 3
3.3.2 Install the Oil Reservoir
Remove the original lid from the oil container and foil liner. Replace with the provided cap, which has
connected suction hardware. Ensure the feeder tube from the cap reaches to the bottom of the oil
container.
Place the oil container inside the cabinet and slide it into place (as shown on the following page).
Avoid catching the suction hardware on the cabinet interior as the container is placed in the fryer.
The system is now ready for operation.
3.3.3 Routine Oil Changes
When the oil reservoir level is low, an
orange LED is activated (see Figure 4).
Once the reservoir is refilled and/or
replaced, press and hold the orange reset
button above the JIB until the orange LED
is no longer illuminated. If using solid
shortening see Appendix C for
instructions.
Figure 4
3–4
1. Open the cabinet and slide the JIB
from the cabinet (see Figure 5).
Figure 5

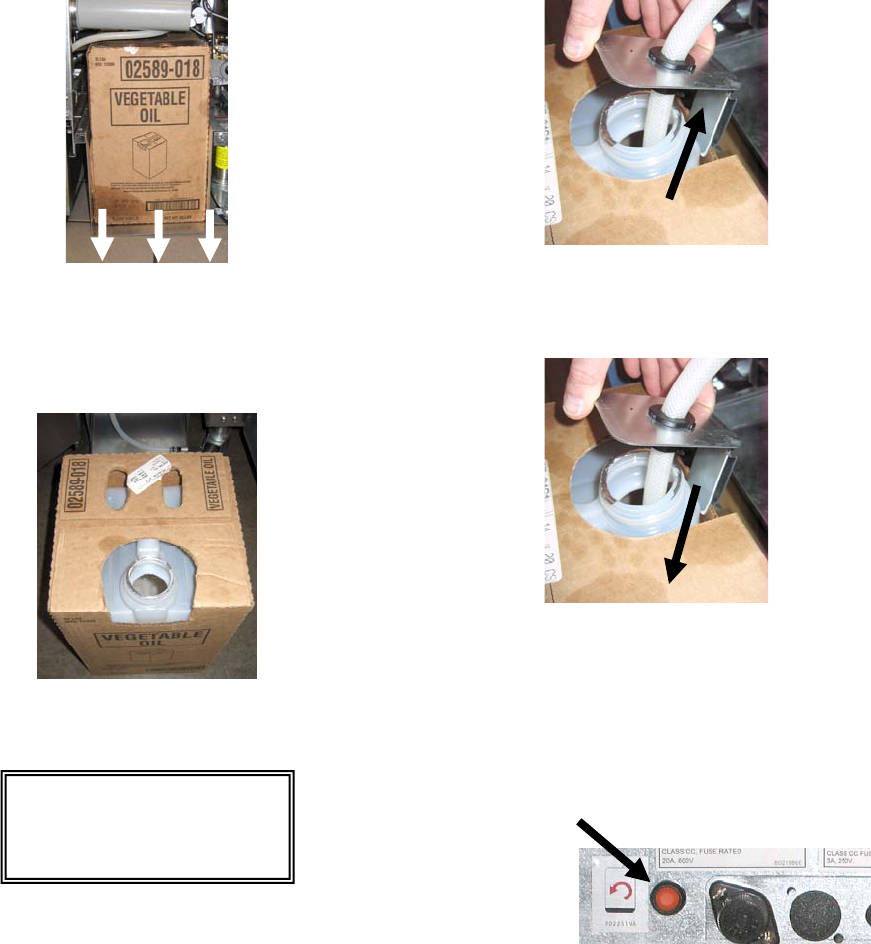

2. Remove the cap and pour any remaining oil in the
container into all fry vats equally (see Figure 6).
Figure 6
3. With the replacement jug upright
remove the cap and foil seal (see
Figure 7).
Figure 7
4. Put the tube in the new full container (see Figure 8).
Figure 8
5. Slide the JIB onto the shelf inside the fryer cabinet (as
seen in Figure 5).
6. Press and hold the orange JIB reset switch until the
orange JIB LED is no longer illuminated (see Figure
9).
3.3.4 Bulk Oil Systems
Instructions for installing and using bulk oil systems are found in Appendix A located
at the rear of this manual.
WARNING:
Do not add HOT or
USED oil to a JIB.
Figure 9
4-1
BIELA14 SERIES GEN II LOV™ ELECTRIC FRYER
CHAPTER 4: M3000 COMPUTER INSTRUCTIONS
4.1 M3000 General Information
Welcome to the M3000, a computer that retains the one-button ease of the M2000 and 100B and the
utility of 40-product menu capability. The computer is easy to use. One button push starts a cook
cycle for an item cooked in a dedicated vat. The same flexible computer on a multi-product vat
requires only two button pushes to
launch a cook cycle. Just choose a
menu item on a product button and
press, and then press a cook channel
button under the display showing
the desired item. The computer can
move seamlessly from McNuggets
to Crispy Chicken to any added
menu item.
In a typical store setting, the
M3000s on the three-vat fry station
display FR FRIES (shown above)
and will launch a cook cycle with
one push of a cook channel button.
On the chicken/filet station, the
LED display shows dashed lines.
To launch a cook cycle, press a
product button and then press the
cook channel button that
corresponds with the location of the
dropped basket. By pressing the product button for McChicken, McChick will appear in the display.
Just press the cook channel button corresponding to the location of the appropriate dropped basket.
The M3000 will operate with electric and gas fryers, both full- and split-vat.
Cook Channel
and Selection
Buttons
ON/OFF
Product Buttons
Heat
Indicator
Lamp
Filter, Temp, Info,
Programming and
Navigation Buttons
ON/OFF
FR FRIES
FR FRIES
Pressing product buttons 3 or 9 displays McChick.
Pressing either cook cycle button under the McChick
displays launches a cook cycle.
4-2

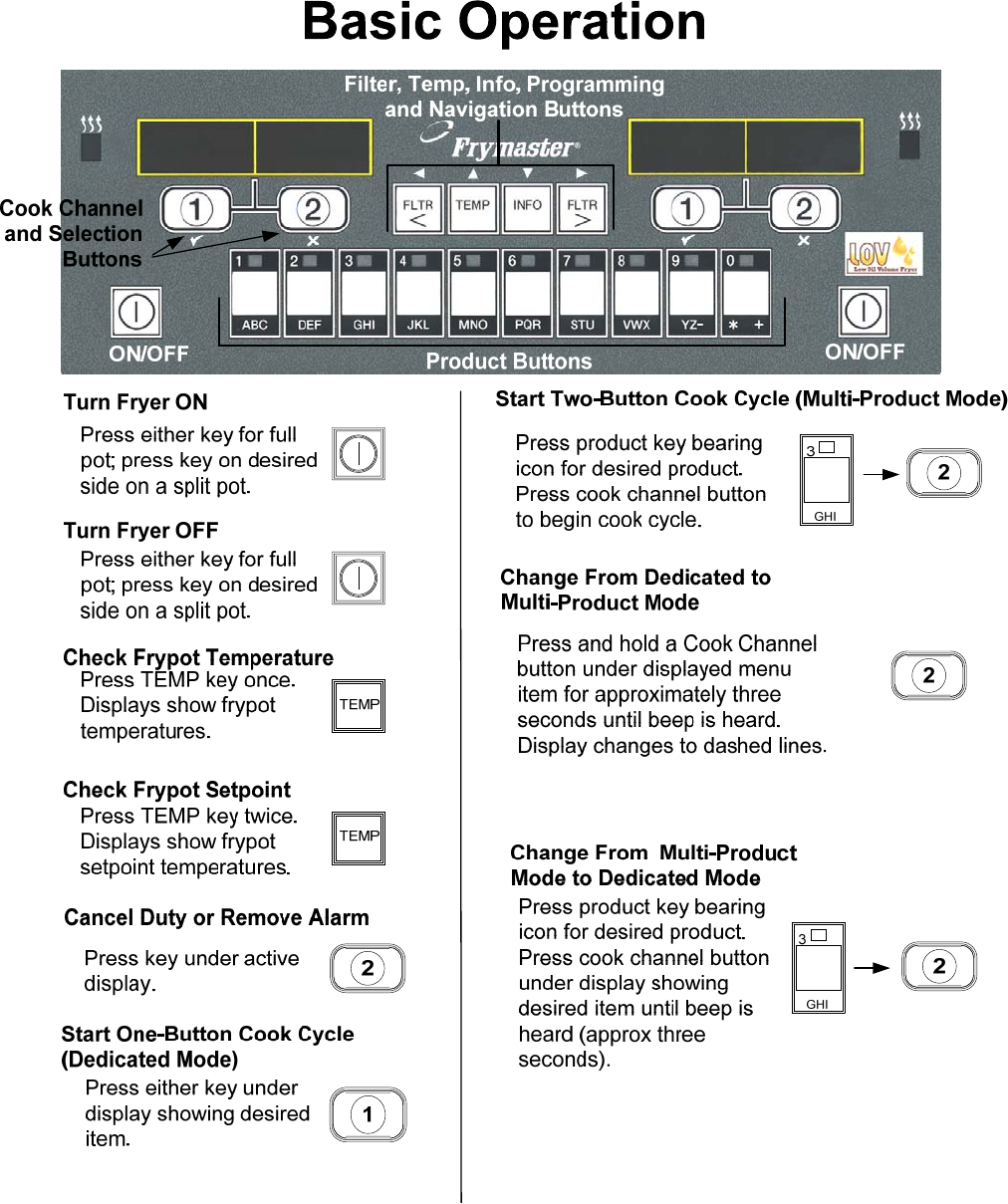

4.2 Basic Operation
4-3

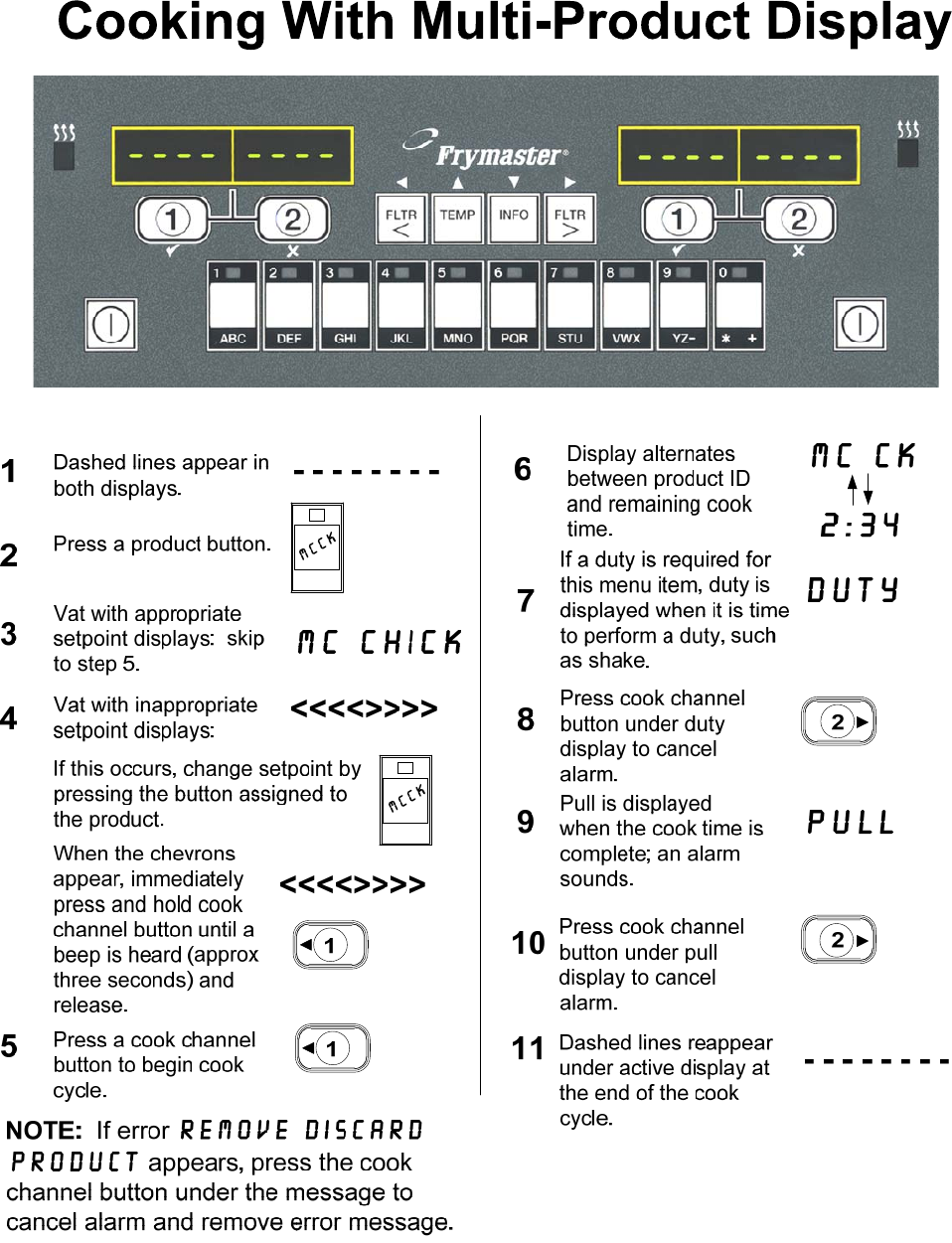

4.3 Cooking with Multi-Product Display
4-4
4.4 Cooking with Dedicated Display
4-5

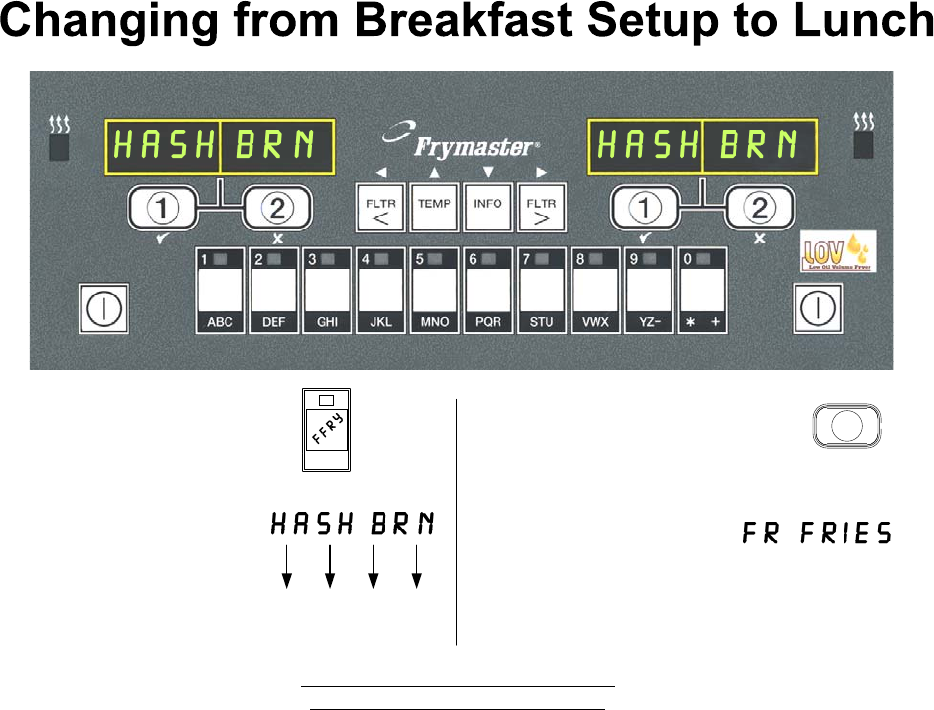

4.5 Changing from Breakfast Setup to Lunch
Press and quickly
release product button
for french fries.
<<<< >>>>
1
ABC
1
Computer will change
from HASH BRN to
<<<< >>>>; an alarm
will sound.
Press and hold the cook
channel button under the
display until a beep is heard
(approximately three seconds)
and release.
Display changes to FR
FRIES.
1
2
3
4
Perform these steps on both sides to
change both displays to FR FRIES
4-6

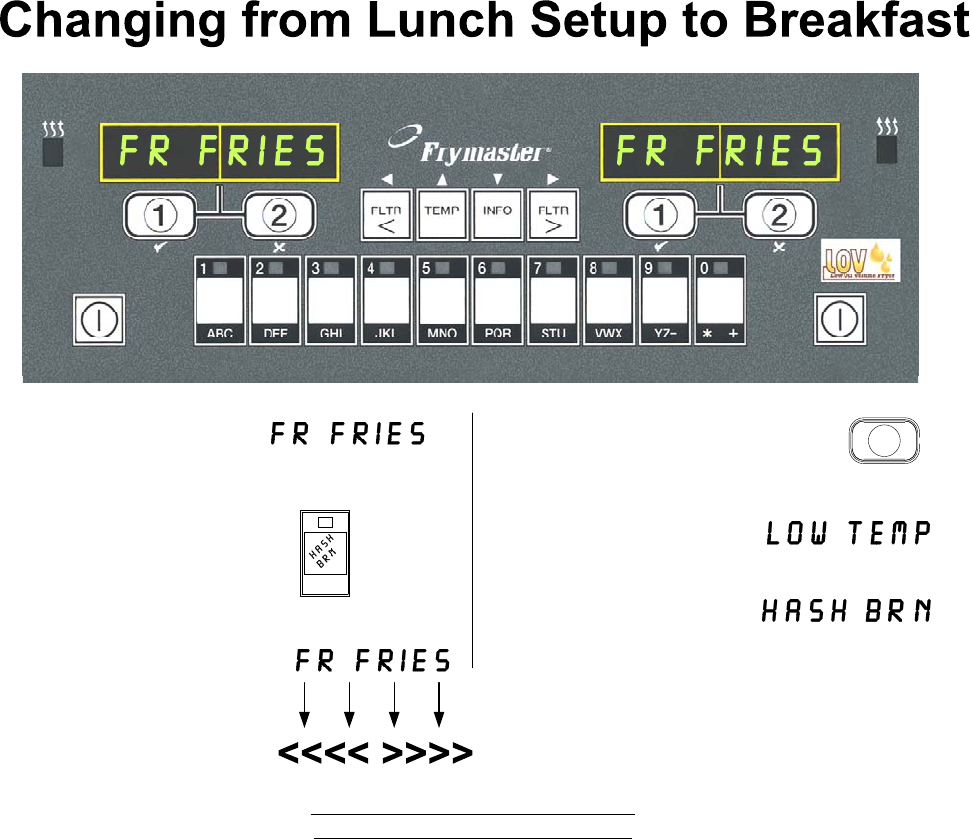

4.6 Changing from Lunch Setup to Breakfast
Press and quickly
release product button
for hash browns.
1
Computer display will
change from FR
FRIES to <<<< >>>>;
an alarm sounds.
Press and hold the cook channel
button under the display until a
beep is heard (approximately
three seconds) and release.
Display changes to LOW
TEMP until setpoint is
reached.
1
2
3
4
Computer displays
5
Display changes to
Hash Brn.
6
Perform these steps on both sides to
change both displays to HASH BRN
4-7
4.7 M3000 Button Description and Functions
4.7.1 Navigation Buttons
The menu on the M3000 uses 34and tu buttons to
navigate the various menus and submenus.
When programming, the left screen shows a menu or
submenu item. The right screen is for data entry. Data is
entered with alpha-numeric characters, scrolling through
lists or by toggling between choices.
Left Display Right Display
During programming if a button is not pushed within one minute, the computer returns to operation
mode.
4.7.2 Filter, Temperature and Info Buttons
The < FLTR and FLTR > buttons (see Figure 1) are used to filter the left and right vats of a split
vat or a full vat fryer on demand. The FLTR buttons, if pressed once displays the number of cook
cycles remaining until a filtration prompt. When the FLTR button is pressed twice, the date and
time of the last filter is displayed. The TEMP button, if pressed once while the fryer is on,
displays current vat temperature on both sides. If the TEMP button is pressed twice while the fryer
is on, it shows the setpoint temperatures of the vats. If the fryer is off, the display shows the current
versions of software. The INFO button (see Figure 1), if pressed once when the fryer is on, shows
the recovery time for each vat from the last test. Recovery is the time required for the fryer to raise
the temperature of the oil 50°F (28°C) between 250°F (121°C) and 300°F (149°C). Maximum
recovery time should not exceed 1:40 for electric or 2:25 for gas. If the INFO button is pressed and
held for three seconds it shows information such as usage, filter statistics and last cook cycles (see
page 4-34 for more details on the INFO button).
4.7.3 Cook Channel and Selection Buttons
The buttons are dual-function buttons shared with
the number 1 and 2 buttons. They are located directly
below the LED displays. Use these buttons to select or
cancel functions. The button is used to back out of and
exit submenus.
4-8
4.8 M3000 Menu Summary Tree
Reflected below are the major programming sections in the M3000 and the order in which submenu headings will be
found under the sections in the Installation and Operation Manual.
Adding New Product Menu Items (Product Selection) See section 4.10.2
Storing Product Menu Items in Product Buttons See section 4.10.3
Draining, Refilling, and Disposing of Oil See section 4.10.4
Filter Menu
Programming
Info Mode
[Press and hold ◄ FLTR or FLTR ►]
Auto Filter
Maint Filter
Dispose
Drain to Pan
Fill Vat from Drain Pan
Fill Vat from Bulk (Bulk Only)
Pan to Waste (Bulk Only)
Name
Cook Time
Temp
Cook ID
Duty Time 1
Duty Time 2
Qual Tmr
AIF Disable
Assign Btn
Level 1 Program
[Press and hold TEMP and INFO buttons, 2 beeps, displays Level 1, enter 1234]
Product Selection
AIF Clock
Disabled
Enabled
Fryer Setup
Deep Clean Mode
Level 2 Program (Manager Level)
[Press and hold TEMP and INFO buttons, 3 beeps, displays Level 2, enter 1234]
[Press and hold INFO for 3 seconds, displays Info Mode]
Full/Split Vat Configuration
Filter Stats
Review Usage
Last Load
Setup [enter 1234]
Usage [enter 4321]
Level 1 [enter 1234]
Level 2 [enter 1234]
Volume 1-9
Tone 1-3
Alert Tone Volume and Tone
Prod Comp
E-Log
Password Setup
Filter After
Filter Time Sets amount of time between filter cycles
Sets number of cooks before filter prompt
Change passwords
Log of last 10 error codes
Sensitivity for product
………………………………………………………………………………………………………….. 4.11
…….……………….....………………………………………………………….. 4.12
……………………………………………….. 4.13
………………...………………………...………………………………………..……………………….. 4.14
…………………….……………………………………………………………….. 4.9
……..……………………...…………………………………….. 4.12.2
..………………………………………………………………………………… 4.12.1
..…….....………………………………………………………….. 4.10.2
High-Limit Test …………….…………………….…………………………………….. 4.12.3
…………………………………….. 4.13.1
…………………………….. 4.13.2
……………………………… 4.13.3
...………………………………………….. 4.13.4
………….. 4.13.5
………….. 4.13.6
………………….……………………………………………………………….. 4.14.3
………….……………………………………………………………….. 4.14.2
..……………….……………………………………………………………….. 4.14.1
4-9
4.9 Fryer Setup Mode Programming
The computer, upon initial power up, when changing out a computer or accessed from Level 1, can
have parameters set. The setup sets the time, date, date format, language, fryer type, vat type, oil
system type and the temperature scale. These settings should only be changed by a technician.
The computer displays OFF.

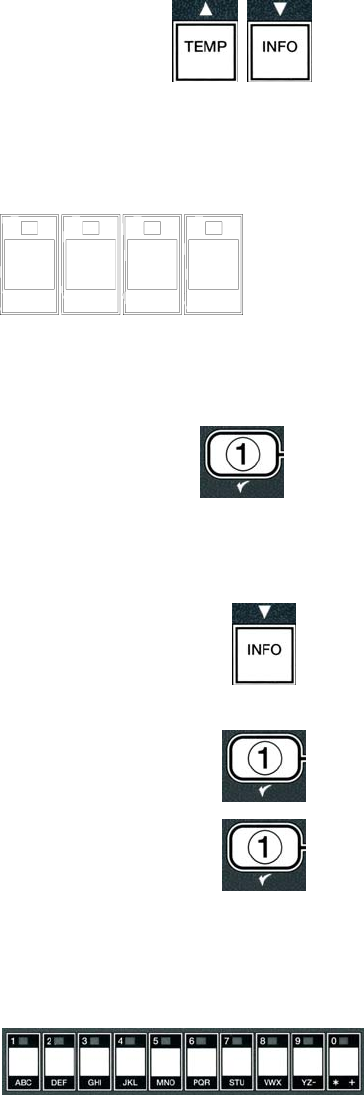

1. Enter Level 1 programming mode by pressing the TEMP
and INFO buttons simultaneously until LEVEL 1 is
displayed. The computer displays ENTER CODE.
2. Enter 1234.
1
2
3
4
(1234)
The computer displays level 1 program for three seconds changing to Product
selection .
3. Press the t button once to scroll to FRYER SETUP.
4. Press the (1 yes) button.
The computer displays ENTER CODE.
5. Enter 1234.
1
2
3
4
(1234)
The computer displays LANGUAGE on the left and ENGLISH on the right.
6. Use the 3and 4buttons to scroll through the
language menu.
7. With the desired language selection displayed, press the (1 yes) button.
The computer displays TEMP Format on the left and F on the right.
8. Use the 3and 4buttons to toggle between F and C temperature scales.
NOTE: F is used for Fahrenheit, C is used for Celsius.
9. With the desired selection displayed, press the (1 yes) button.
The computer displays time format on the left and 12 hr on the right.
4-10
10. Use the 3and 4 buttons to toggle between 12hr and
24hR.
11. With the desired selection displayed, press the (1
yes) button .
The computer displays ENTER TIME on the left and current time on the right in hh:MM format.
AM or PM is displayed if 12 hours system is chosen.
Example: 7:30 AM is entered 0730 if using the 12 hour format. 2:30 is entered 1430 if using 24 hour
format. To change AM and PM use the tu buttons.
12. Enter time in hours and minutes using the number
buttons 0-9.
13. With the desired selection displayed, press the (1
yes) button.
The computer displays DATE FORMAT on the left and US on the right.
14. Use the 3and 4 buttons to toggle between US and
interntl.
15. With the desired selection displayed, press the (1
yes) button.
The computer displays enter date on the left and MM-DD-YY or DD-MM-YY on the
right changing to the current date.
Example:
US Format – Dec. 5, 2008 is entered as 120508.
International Format – 5 Dec. 2008 is entered as 051208
16. Enter the date using the number buttons 0-9.
17. With the desired selection displayed, press the (1
yes) button.
The computer displays fryer type on the left and Elec on the right.
18. Use the 3and 4buttons to toggle between elec and
gas.
19. With the desired selection displayed, press the (1
yes) button.
The computer displays VAT type on the left and SPLIT on the right.
4-11
20. Use the 3and 4buttons to toggle between split and
full.
21. With the desired selection displayed, press the (1
yes) button.
The computer displays OIl SYSTEM on the left and JIB on the right.
22. Use the 3and 4buttons to toggle between jib and
bulk.
NOTE: A JIB system uses a disposable JIB (Jug in a Box). A BULK system has large storage oil
tanks that are connected to the fryer that fills a reservoir.
23. With the desired selection displayed, press the (1
yes) button.
The computer displays LANGUAGE on the left and ENGLISH on the right. Use the tu
buttons to scroll and edit any additional fields.
24. Press the (2) button to exit.
The computer displays setup complete changing to off.
4.10 M3000 Common Tasks
Covered in this section are common tasks used in stores:
1. Escaping out of a menu or sub-menu.
2. Adding new product items.
3. Storing menu items in product buttons.
4. Draining, disposing and refilling the vats.
4.10.1 Escape Menu Items
To escape or back out of MENUS and SUB-MENUS, press the (2)
button.
4-12
4.10.2 Adding New Product Items to the Menu (PRODUCT SELECTION)
This function is used to add additional products to the computer menu.
To add a new product to the menu:
1. With the computer OFF, enter Level 1 programming mode by
pressing the TEMP and INFO buttons simultaneously until LEVEL
1 is displayed.
The computer displays ENTER Code.
2. Enter 1234. 1
2
3
4
(1234)
The computer displays level 1 program for three seconds changing to Product
selection.
3. With Product selection displayed, press the (1
yes) button to select a menu item.
The computer displays PRODUCT Selection for three seconds then displays select
product.
4. With Select Product displayed on the left and Fr Fries
displayed on the right use the u button to advance through menu items
until the menu item to be modified or a numbered spot is displayed ( ex.
PROD 13).
5. Press the (1 yes) button to select the product to modify.
The computer displays modify? alternating with yes no.
6. Press the (1 yes) button to modify selection or the (2 no)
button to return to PRODUCT SELECTION.
If yes is chosen, left display shows NAME and the right display shows product name (ex. PROD
13. The right display will show a blinking character.
7. Using the number keys, enter the first letter of the new
product. Each key has three letters. Press until derived
letter is displayed.
The full product name is limited to eight characters including spaces (ex. FR FRIES).
4-13
8. Press the 4 button to advance the cursor to the next display space. Use
the #0 key to insert a space. The 3button can be used to move the
cursor back.
For example, to enter “WINGS”, press the #8 key two times until W appears in the display. Then
use the 4 button to advance the cursor to the next display space. Press the #3 key until I appears.
Continue on until WINGS is spelled out on the display.
9. Once the name appears as it is to be saved, press the ubutton to save the
name and scroll to cook time.
10. With cook time displayed on the left and :00
displayed on the right, use the number keys to enter the
product cook time in minutes and seconds (ex. 3:10 as
310).
11. With the cook time entered, press the u (INFO) button to
save the cook time and scroll to TEMP (cook
temperature).
12. With temp displayed on the left and 32F displayed on
the right, use the number keys to enter the cook
temperature for the product (ex. 335° as 335).
13. With the cook temperature entered, press the u (INFO)
button to save the cook temperature value and scroll to the
COOK ID.
14. With cook ID displayed on the left and a blinking P
13 displayed on the right, use the instructions in step eight
to enter a four-letter name for the menu item. This is the
shortened name that alternates with the cook time during a
cook cycle.
15. With the correct cook ID abbreviation entered, press the u
(INFO) button to save the cook ID abbreviation and scroll
to the DUTY TIME 1 (Shake Time), which is used to
set the time in the cook cycle the product should be shaken.
16. With duty time1 displayed on the left and :00
displayed on the right, use the number keys to enter the
time in minutes and seconds for the first duty to be
preformed (ex. shake the product after 30 seconds is
entered as 30).
4-14
17. With duty time 1 (shake time) entered, press the u
(INFO) button to save duty time one and scroll to DUTY
TIME 2. If a product calls for a second duty to be
preformed, it can be entered here. Use the instructions
above to enter duty time two, otherwise press the u
(INFO) button to save the duty time and scroll to QUAL
TMR (Quality Timer), which is used to set the hold time
before the food is to be discarded.
18. With qual tmr displayed on the left and :00
displayed on the right use the number keys to enter the
time in minutes and seconds for the product hold time
(ex. 7:00 minutes as 700).
19. With QUAL TMR (hold time) entered, press the u
(INFO) button to save the quality time and scroll to AIF
DISABLE
20. With AIF Disable displayed on the left and NO
displayed on the right use the 3and4 buttons to toggle
between YES and NO. This feature, if set to yes,
disables the AIF (auto intermittent filtration) for the
programmed product. This is used to prevent co-
mingling of product-specific oils.
21. If the AIF DISABLE selection is set to NO press the
u (INFO) button to save the AIF disable selection and
scroll to the ASSIGN BTN selection.
The computer displays ASSIGN BTN on the left and the
chosen product on the right.
To assign the entered product to a button, follow instructions
below.
22. With the chosen product displayed on the right, and ASSIGN BTN on the left, press a button
between 1-0 to assign the product. The LED in the chosen product button will illuminate (see
photo above). To unassign a product from a button, press the button assigned to that product.
The LED no longer illuminates.
23. Once the button is assigned, press the u (INFO) button to save the
assigned button.
The computer displays name on the left with the product (ex. WINGS)
on the right.
* Note: If additional programming, to add other products, is necessary
press the (2) button once and then the u button and return to step 4.
4-15
24. If no further programming is necessary, press the (2) button. The
computer displays the select product option with the product
(ex. FR FRIEs) on the right screen. Press the (2) button again.
Computer displays Level 1 program changing to the
Product selection prompt.
25. Press the (2) button to quit and to return to OFF.
4.10.3 Storing Menu Items in Product Buttons
This function is used to store individual menu items to product buttons for one or two button
cooking.
To store menu items to a specific button:
1. Perform steps 1-6 on pages 4-12.
2. The computer displays name on the left and the selected product (ex. wings) on the right.
3. Press the t button to scroll to the ASSIGN BTN option used to assign
a menu item to a specific product button.
4. The computer displays assign btn on the left and wings on the
right.
5. With assign btn displayed on the left and the
chosen product (ex. wings) displayed on the right,
press a button between 1-0 to assign the product. The
LED in the chosen product button will illuminate. To
unassign a product from a button, press the button
assigned to that product. The LED no longer illuminates.
6. Once the button is assigned, press the u (INFO) button to save the assigned
button.
The computer displays name on the left with the product (ex. WINGS) on the
right.
7. If no further programming is necessary, press the (2) button twice to return
to Level 1 program changing to the Product selection
prompt.
8. Press the (2) button again to quit and to return to OFF.
4-16

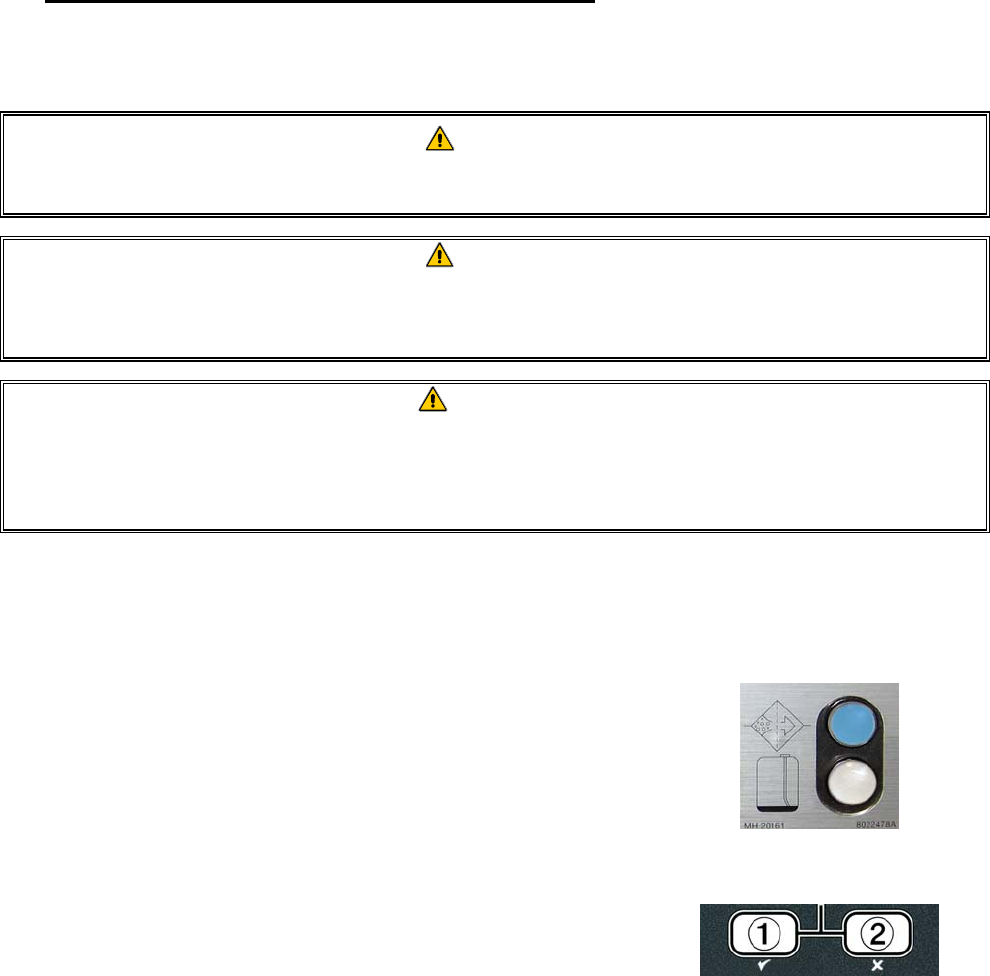

4.10.4 Draining and Refilling Vats, and Disposing of Oil
When cooking oil is exhausted, drain the oil into an appropriate container for transport to the
disposal container. Frymaster recommends a McDonald’s Shortening Disposal Unit (MSDU). Do
not drain deep clean (boil-out) solution into an MSDU. NOTE: If using an MSDU built
before January 2004 the filter pan cover must be removed to allow the unit to be positioned beneath
the drain. To remove the cover, lift up on the front edge slightly and slip the oil guard up and pull it
straight out of the cabinet. Refer to the documentation furnished with your disposal unit for specific
operating instructions. If a shortening disposal unit is not available, allow the oil to cool to 100°F
(38°C), then drain the oil into a METAL container with a capacity of FOUR gallons (15 liters) or
larger to prevent oil from spilling.
4.10.4.1 Disposal for Non-Bulk Oil Systems
This option is used to dispose of old oil into either an MSDU or a METAL pot.
1. Remove the filter pan and position the MSDU or METAL container with a capacity of FOUR
gallons (15 liters) or larger under the fryer to drain the oil.
2. With the computer OFF, press and hold the FLTR button of the
corresponding vat for three seconds; a chirp sounds
The computer displays filter menu for three seconds, changing to MAINT Filter.
3. With MAINT Filter displayed, press the u (INFO) button to scroll
to dispose.
Computer displays DISPOSE.
4. Press the (1 yes) button to continue.
The computer display alternates between Dispose? and Yes NO.
5. To dispose press the (1 yes) button to continue.

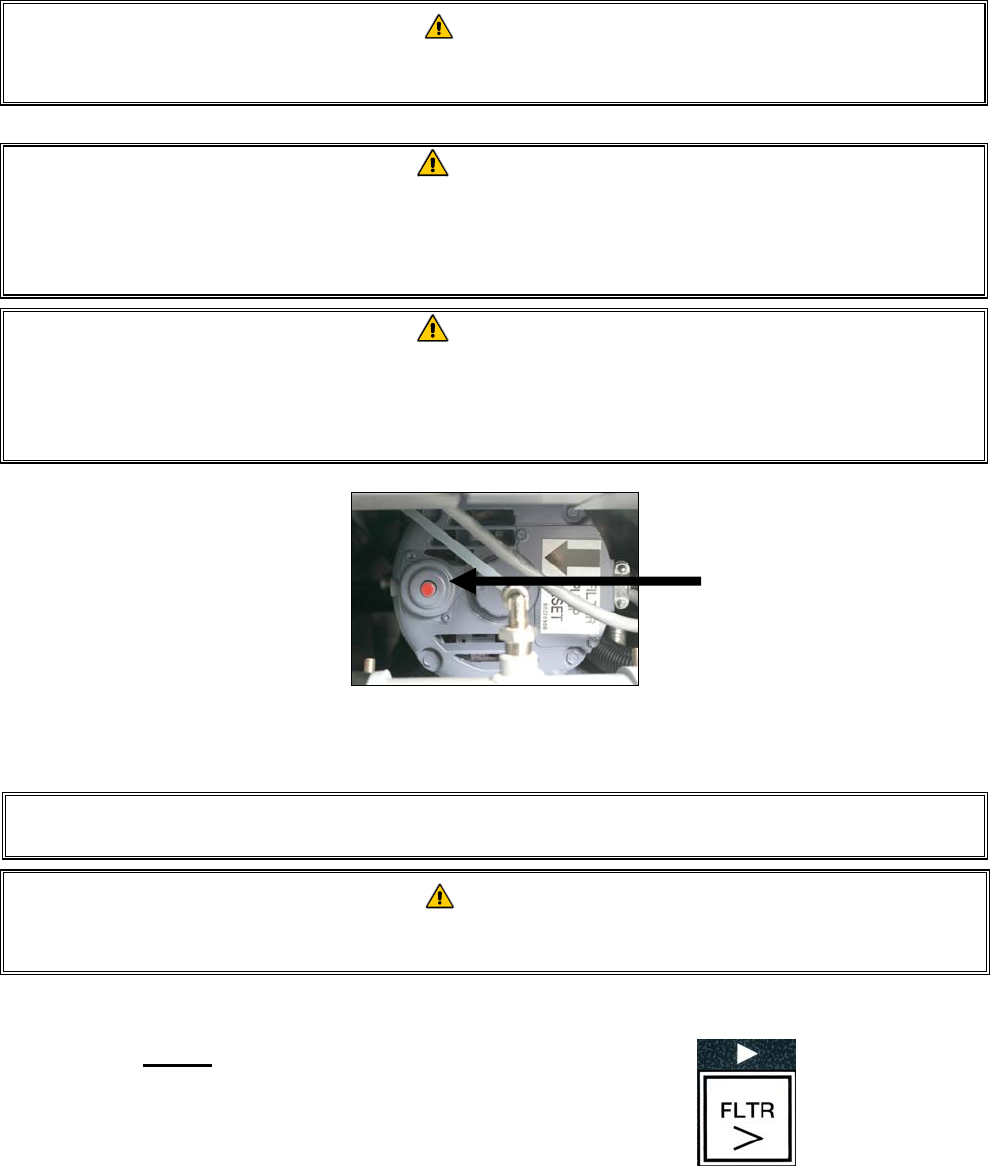

WARNING
NEVER drain deep clean (boil-out) solution into an MSDU. Deep Clean (boil-out)
solution can cause damage to an MSDU.
DANGER
When draining oil into a disposal unit, do not fill above the maximum fill line located
on the container.
DANGER
Allow oil to cool to 100°F (38°C) before draining into an appropriate METAL container
for disposal.
4-17
DANGER
When draining oil into an appropriate METAL container, make sure the container will
hold at least FOUR gallons (15 liters) or more, otherwise hot liquid could overflow
and cause injury.
The computer displays INSERT DISPOSAL UNIT. Once the filter pan is removed the
computer displays alternating with IS DISPOSE UNIT IN PLACE? and YES NO.
6. With the MSDU or a METAL container with a capacity of FOUR gallons
(15 liters) or larger is in place, press the (1 yes) button to continue.
The heating source is disabled, the drain valve opens and the computer displays disposing for
20 seconds.
The drain valve remains open and the computer displays Vat empty?
alternating with yes.
7. With the vat empty, press the (1 yes) button to continue .
The computer displays cln vat Complete? alternating with YES.
8. Clean the vat with a scrub brush and when complete press the (1 yes)
button to continue.
The drain valve closes and the vat is ready to be refilled with oil. Continue to next section if fryer is
set to JIB.
4.10.4.2 Refilling JIB Oil Systems
JIB (Jug In Box) oil systems use oil stored in boxed jugs inside the fryer cabinet.
If the oil system was set to JIB during initial setup, the computer displays manual fill VAT
alternating with YES.
1. Carefully pour oil into the pot until it reaches the low fill line in the fryer.
2. Press the (1 yes) button when vat is full.
The computer displays off.
4.10.4.3 Draining and Disposing Oil using Bulk Oil Systems
Bulk oil systems use a pump to move exhausted oil from the fryer to a holding tank. Additional
plumbing is used to connect the bulk oil systems to the fryers.
WARNING
Ensure a filter pad is in place prior to draining or disposing of oil. Failure to insert a
filter pad may result in clogged lines and/or pumps.
4-18
1. With the computer OFF, press and hold the FLTR button of the
corresponding vat for three seconds.
The computer displays fltr menu for three seconds changing to Auto
Filter.
2. Press the u (INFO) button and scroll to dispose.
3. With dispose displayed, press the (1 yes) button to continue.
The computer display alternates between Dispose? and Yes NO.
If the computer displays RTI TANK FULL alternating with CONFIRM see
*NOTE on Page 4-19.
4. To dispose press the (1 yes) button to continue.
If INSERT PAN is displayed, remove and replace the filter pan, ensuring that
the pan is seated firmly into the fryer.
The computer displays DRAINING.
The drain valve remains open and the computer displays Vat empty?
alternating with yes.
5. When the vat is empty, press the (1 yes) button to continue.
The computer displays cln vat Complete? alternating with yes.
6. Clean the vat with a scrub brush and when complete press the (1 yes)
button to continue.
The computer displays OPEN DISPOSE VALVE.

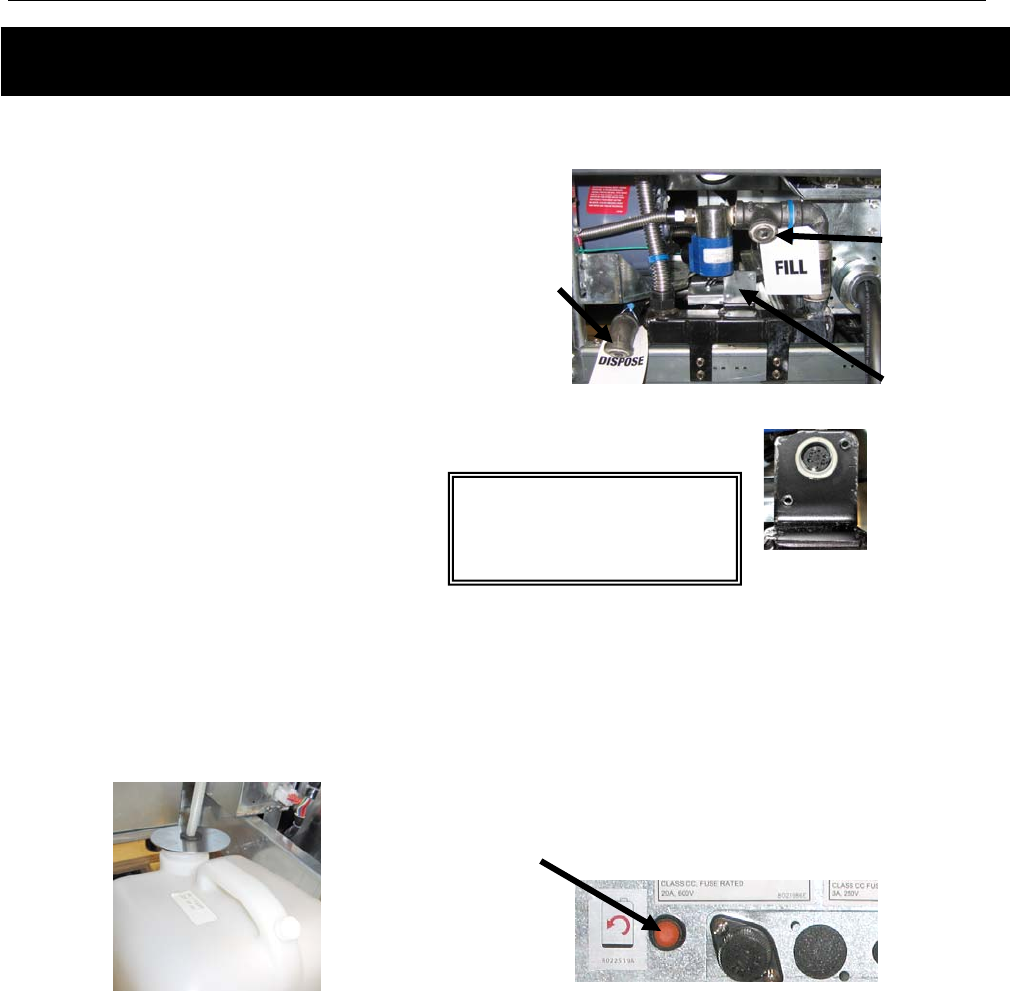

7. Open the left cabinet door and unlock the valve if necessary. Pull the
dispose valve completely forward to start disposal.
The computer displays DISPOSING for four minutes.
The pump transfers the waste oil from the pan to the bulk oil waste tanks.
When finished, the computer displays REMOVE PAN.
8. Remove the filter pan and ensure the pan is empty.
The computer display alternates between IS PAN EMPTY? and Yes NO
9. Press the (2) button to run the pump again if the pan has oil remaining;
otherwise continue to the next step.
10. Once the pan is empty, press the (1) button.
4-19
The computer displays CLOSE DISPOSE VALVE.

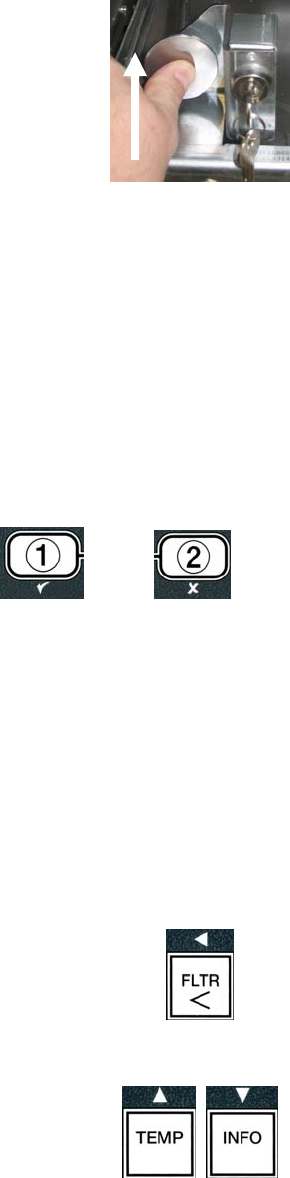

11. Close the dispose valve by pushing the valve handle toward the rear of the
fryer until it stops. Relock the valve if required by your manager.
The vat is ready to be refilled with oil. Continue to Section 4.10.4.4 to fill the vat, otherwise press
the (2) button to exit.
*NOTE: If the computer displays RTI TANK FULL alternating with CONFIRM press the
(1) button and call the bulk oil waste provider. The display returns to OFF.
4.10.4.4 Refilling the Vat from Bulk Oil Systems after Disposal
The computer displays fill pot from bulk? alternating with yeS NO.
The bulk oil refill pump uses a momentary switch. It only pumps when the switch is depressed.
1. Press and hold the (1 yes) button to refill the vat
until the oil reaches the lower fill line.
2. With the vat full, release the (1 yes) button.
3. Press the (2) button, when the vat is full, to close the fill valve.
The computer displays off.
4.11 Filter Menu
The filter menu selections are used for filtering, draining, filling and disposing.
4.11.1 Accessing the Filter Menu
1. Press and hold the filter button for the selected vat for three seconds.
The computer displays filter menu for three seconds, changing to MAINT Filter.
2. Press the t and u buttons to scroll between:
a. auto filter See pg. 5-2
b. maint filter See pg. 5-8
c. dispose See pg. 4-16
d. drain to pan See pg. 4-20
e. fill VAT from DRAIN pan See pg. 4-21
f. fill VAT from bulk See pg. 4-22
g. PAN TO WASTE See pg. 4-23
4-20
The first two menu items: AUTO FILTER and MANTAINENCE (MANUAL) FILTER are covered
in Chapter 5. The other menu items are covered on the following pages.
The DRAIN TO PAN and FILL VAT FROM DRAIN PAN functions are used primarily for
diagnostic purposes. They are used when oil is to be drained to the pan or returned to the frypot.
4.11.2 Drain to Pan
The drain to pan function drains the oil from the frypot to the filter pan.
1. With the computer OFF, press and hold the filter button for three
seconds, for the selected vat to drain.
The computer displays filter menu for three seconds, changing to MAINT Filter.
2. Use the t and ubuttons to scroll to drain to pan.
3. With drain to pan displayed, press the (1) to
continue.
The computer displays drain to pan? alternating with yes no.
4. Press the (1 yes) to continue drain to pan.
The heating source is disabled and the system checks that the pan is in place. If no pan is detected,
the computer displays INSERT PAN until the pan is detected.
With the pan detected, the drain valve opens. The computer displays draining for 20 seconds.
The computer displays vat empty? alternating with yes.
5. Press the (1 yes) button if the vat is empty to continue.
The computer displays FILL VAT FROM Drain pan? alternating with yes no with an
audible alarm. To refill the vat continue to the next step, otherwise skip to step 8.
6. Press the (1 yes) button to refill the vat.
The computer displays FILLING. After filling the computer displays IS VAT
FULL? alternating with yes NO.
If the vat is not full press the (2 NO) button to run the filter pump again.
7. Press the (1 yes) button if the vat is full to return to OFF.
8. Press the (2 NO) button.
The computer displays REMOVE PAN.
4-21
DANGER
Open the filter pan slowly to avoid splashing of hot oil that may cause severe burns,
slipping and falling.
9. Carefully pull the filter pan from the fryer.
The computer displays IS PAN EMPTY? alternating with yes no.
NOTE: A small quantity of oil may remain in the pan after refilling.
10. If the pan is empty, press the (1 yes) button to return to OFF.
If the pan is not empty, press the (2 NO) button (see Figure 4.11.2.10) and
return to FILL VAT FROM Drain pan? alternating with yes no
after step 5.
If the pan is not empty and the fryer is using a bulk oil system, press the (2
NO) button and the computer displays PAN TO WASTE? alternating with
yes no.
11. Press the (1 yes) button to dispose of the oil to the bulk oil waste tanks.
Skip to section 4.10.4.3 Disposing Oil Using Bulk Systems between step 6
and step 7.
4.11.3 Fill Vat from Drain Pan
Fill vat from drain pan selection is used to refill the frypot from the filter pan.
1. With the computer OFF, press and hold the filter button for the vat to be
refilled for three seconds.
The computer displays filter menu for three seconds, changing to MAINT Filter.
2. Use the t and ubuttons to scroll to fill VAT from DRAIN
pan.
3. With fill Vat from DRAIN pan displayed, press the (1
yes) to continue.
The computer displays fill VAT from DRAIN pan? alternating with yes no.
4. Press the (1 yes) button to continue.
System checks that the drain valve is closed. The return valve opens and the
filter pump refills the vat.
4-22
The computer displays FILLING while the vat is refilling. After filling the computer displays IS
VAT FULL? alternating with yes NO.
5. Press the (1 yes) button if vat is full to exit and return to OFF. If vat
is not full press (2 NO) button to continue filling.
4.11.4 Fill Vat from Bulk
Fill vat from bulk selection is used when filling the frypot from a bulk oil system.
1. With the computer OFF, press and hold the filter button for the vat to be
refilled for three seconds.
The computer displays filter menu for three seconds, changing to MAINT Filter.
2. Use the t and ubuttons to scroll to fill VAT from bulk.
3. With fill VAT from bulk displayed, press the (1 yes)
button to continue.
The computer displays fill Vat from bulk? alternating with yes no.
4. Press the (yes) button to continue.
The computer displays PRESS and hold yes to fill
alternating with YES.
The return valve opens and the bulk pump is energized. The bulk oil refill pump uses a momentary
switch. It only pumps as long as the switch is depressed.
5. Press and hold the (yes) button to fill the vat.
The computer displays FILLING while the vat is filling.
6. When the vat is filled to the lower fill line, release the (1 yes)
button.
The computer displays CONTINUE FILLING? alternating with yes
no.
7. To continue filling return to step 5. Otherwise, press the (2 NO)
button to exit and return to off.
4-23
4.11.5 Pan to Waste
Pan to waste selection is an option that allows bulk oil systems to pump excess oil in the pan to the
bulk oil waste tanks without draining the existing oil in the frypot.
1. With the computer OFF, press and hold the filter button for the vat to be
refilled for three seconds.
The computer displays filter menu for three seconds, changing to MAINT Filter.
2. Use the t and ubuttons to scroll to PAN TO WASTE.
3. With PAN TO WASTE displayed, press the (1 yes) button to
continue.
The computer displays PAN TO WASTE? alternating with yes no.
4. Press the (yes) button and go to Section 4.10.4..3 page 4-18 and
continue after step 6 or press (2 NO) button to exit to filter menu.
4.12 Programming Level One
Level one programming is used to enter new products, control when AIF (auto intermittent filtration)
is disabled and perform deep clean (boil-out) and high-limit test.
To enter Level 1 programming mode:
1. With the computer OFF, press the TEMP and INFO buttons
simultaneously for THREE seconds until LEVEL 1 is displayed; a chirp
sounds.
The computer displays ENTER Code.
2. Enter 1234. 1
2
3
4
(1234)
The computer displays level 1 program for three seconds changing to Product
selection.
4-24
3. Press the t and ubuttons to scroll between:
a. Product selection See pg. 4-12
b. aif clock See pg. 4-24
c. DEEP CLEAN MODE See pg. 4-25
d. hi limit test See pg. 4-30
e. Fryer setup See pg. 4-9
4. With the selection displayed, press the (1 yes) button to select chosen
menu item.
4.12.1 AIF CLOCK
The AIF Clock mode allows programming of times to lock out the AIF (auto intermittent filtration)
prompt. This is useful for busy times of the day, like the noon rush.
1. Perform steps 1-3 on page 4-23 through 4-24.
2. Use the u (INFO) button to scroll to AIF clock.
3. Press the (1 yes) button to continue.
The computer displays AIF clock on the left and DISABLED on the right.
4. Use the 3and 4buttons to toggle between:
a. disabled
b. enabled
Set this function to enabled if there are times in which the AIF (auto intermittent filtration)
feature is disabled (ex. noon rush).
5. With enabled displayed, press the u button.
*Skip to step 12 if disabled is chosen.
6. With enabled displayed, press the t and u buttons (see Figure
4.12.2.5) to scroll between M-F 1 thru Sun 4. (ex. On Monday – Friday
no filtering is desired during a lunch rush from 11:30 AM until 1:30 PM. On
the computer scroll to M-F 1 12:00 AM.
7. Using the number keys enter the start time when AIF
should be suspended.
8. Press the t and u buttons to toggle from AM to PM.
4-25
9. Press the u (INFO) button. The computer displays 0 DUR. This is the
amount of time the AIF is to remain suspended.
10. Use the number keys to enter a time between 0 and 999
minutes (ex. 1½ hours is entered as 90 minutes). Enter
90 for this example. The computer displays 090
DUR. Four different time periods to suspend filtration
are available for each day or set of days. (M-F 1-4, Sat 1-
4 and Sun 1-4)
11. Press the u (INFO) button to accept time and move to the next time period.
12. When finished, press the button once to exit and return to PRODUCT
selection display.
13. Press the (2) button to quit and to return to OFF.
4.12.2 DEEP CLEAN MODE (BOIL-OUT)
The deep clean mode is used to remove carbonized oil from the frypot.
NOTE: Refer to Kay Chemical “Fryer Deep Clean Procedure” instructions to clean the
LOV™ fryer.
1. Perform steps 1-3 on page 4-23 through 4-24.
The computer displays DEEP CLEAN MODE.
2. Press the (1 yes) button.
Bulk Oil System: Ensure a complete and clean filter pan is in place.
JIB Oil System: Ensure an MSDU or suitable metal container is in place under the drain with a
capacity of FOUR gallons (15 liters) or more.
The computer displays DEEP CLEAN? alternating with yes no.
3. Press the (1 yes) button.
4. Full Vat: Computer displays IS Oil REMOVED? alternating with
Yes No.
Split Vat: Computer displays Deep Clean alternating with L R.
Press the (1) or (2) button under the split vat to be cleaned. The
computer displays IS OIL REMOVED? alternating with yes no*.
4-26
*If the bulk oil system waste tank is full, the computer displays RTI TANK
FULL alternating with CONFIRM. Press the (1) button and call the bulk
oil waste provider. The display returns to OFF.
DANGER
When draining oil into a disposal unit, do not fill above the maximum fill line located
on the container.
DANGER
Allow oil to cool to 100°F (38°C) before draining into an appropriate METAL container
for disposal.
DANGER
When draining oil into an appropriate MSDU or METAL container, make sure the
container will hold at least FOUR gallons (15 liters) or more. Otherwise oil could
overflow and can cause injury.
5. Empty fry vat: Press the (1 yes) button and skip to step 12.
Oil-filled Fry Vat: Press the (2 no) button.
6. JIB Oil System: The computer displays is Disposal unit in
place? alternating with yes no. Ensure an MSDU or suitable metal
container is in place under the drain with a capacity of FOUR gallons (15
liters) or larger is in place. Press the (1 yes) button to dispose the oil.
The computer displays disposing ending with VAT EMPTY?
alternating with YES. Press the (1 yes) button and skip to step 12.
Bulk* Oil System: Computer displays DRAINING. Once the oil has
drained into the filter pan the computer displays Vat empty?
alternating with yes. Press the (1 yes) button and continue.
*If INSERT PAN is displayed, remove and replace the filter pan.
Bulk Oil System: The computer displays OPEN DISPOSE VALVE.
7. Bulk Oil System: Open the left cabinet door and unlock the lock if
necessary. Pull the dispose valve completely forward to start disposal.
Bulk Oil System: The computer displays DISPOSING for four minutes.
The pump transfers the waste oil from the pan to the bulk oil waste tanks.
Bulk Oil System: When finished, the computer displays REMOVE
PAN.
8. Bulk Oil System: Remove the filter pan and ensure the pan is empty.
Bulk Oil System: The computer display alternates between IS PAN
EMPTY? and Yes NO
4-27

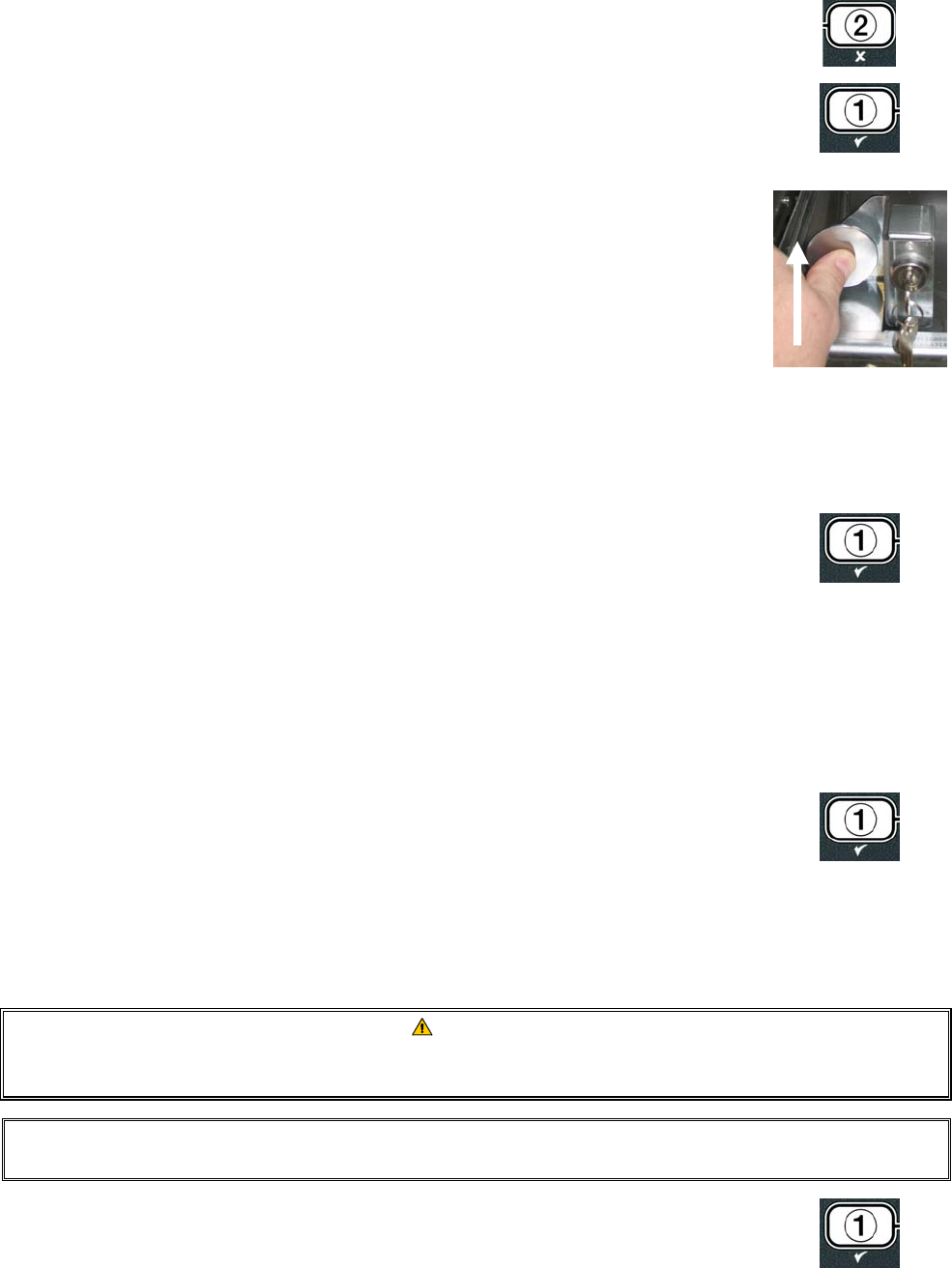

9. Bulk Oil System: Press the (2) button to run the pump again if the pan
has oil remaining; otherwise continue to the next step.
10. Bulk Oil System: Once the pan is empty, press the (1) button (see Figure
4.10.4.3.10).
Bulk Oil System: The computer displays CLOSE DISPOSE VALVE.
11. Bulk Oil System: Close the dispose valve by pushing the valve handle until
it stops.
Bulk Oil System: The computer displays INSERT PAN. Insert the pan.
12. Bulk or JIB System: The drain valve closes and the computer displays SOLUTION
added? alternating with Yes. Fill frypot to be cleaned with water and cleaning solution
mix. Referring to maintenance requirement card and Kay Chemical provided instructions “Fryer
Deep Clean Procedure” for McDonald’s deep clean (boil-out) procedure.
13. Bulk or JIB System: Press the (1 yes) button to continue and start the
cleaning procedure.
The computer displays DEEP CLEAN, alternating with a countdown timer starting at 60:00
minutes on the display. The vat heats to 195° F (91° C) for one hour. To cancel DEEP CLEAN,
press and hold the (2) button for three seconds. The computer displays IS SOLUTION
REMOVED? alternating with YES. Skip to step 15.
After one hour the heater shuts off and the computer displays CLEAN DONE with an alarm.
14. Bulk or JIB System: Press the (1 yes) button to silence the alarm.
15. Bulk or JIB System: The computer displays IS SOLUTION REMOVED? alternating with
YES. Remove solution following Kay Chemical instructions.
16. Bulk or JIB System: Remove the filter pan and remove crumb basket, hold-down ring, filter pad
and screen. Replace empty filter pan in fryer.
DANGER
Allow deep-clean (boil-out) solution to cool to 100°F (38°C) before disposal,
otherwise hot liquid can cause injury.
NOTE: Refer to Kay Chemical provided instructions “Fryer Deep Clean Procedure”
for instructions to remove cleaning solution.
17. Bulk or JIB System: Once the solution is removed, press the (1 yes)
button.
4-28
18. Bulk or JIB System: The computer displays SCRUB VAT
COMPLETE? alternating with yes. Press the 9 (1 yes) button.
19. Bulk or JIB System: The computer displays DRAINING. The drain opens to drain the small
amount of residual solution left in the vat. Rinse excess solution from vat.
20. Bulk or JIB System: The computer displays Rinse complete?
alternating with yes. Press the 9 (1 yes) button to continue when the
vat is completely rinsed.
21. Bulk or JIB System: The computer displays REMOVE PAN. Remove the filter pan.
22. Bulk or JIB System: The computer displays VAT and pan DRY?, alternating with
yes. Ensure the vat and pan are completely dry.
DANGER
Ensure that the frypot and filter pan are completely dry and free of water before
filling with oil. Failure to do so will cause splattering of hot liquid when the oil is
heated to cooking temperature.
23. Bulk or JIB System: The computer displays INSERT pan. Reinstall screen, filter pad,
hold down ring and crumb basket removed in step 16. Insert the filter pan.
24. JIB system: The computer displays MANUAL FILL alternating with
yes. Press the 9 (1 yes) button and display returns to OFF.
Bulk system: Go to Section 4.11.4 Fill Vat From Bulk on page 4-22 and
begin after step 3.
4.12.3 HIGH-LIMIT TEST MODE
The high-limit test mode is used to test the high limit circuit. The high-limit test will destroy the oil.
It should only be performed with old oil. Shut the fryer off and call for service immediately if the
temperature reaches 460°F (238°C) without the second high-limit tripping and the computer displays
high LIMIT FAILURE alternating with DISCONNECT POWER with an alert tone during
testing.
The test is cancelled at any time by turning the fryer off. When the fryer is turned back on, it returns
to the operating mode and displays the product.
1. Perform steps 1-3 on pages 4-23 through 4-24.
Computer displays hi limit test.
2. Press the 9 (1 yes) button to continue the high-limit test.
The computer displays hi-limit? alternating with yes no.
3. Press the 9 (1 yes) button to continue the test. If performing the test on a split
vat press the 9 (1 yes) button on the side which corresponds to the vat.
The computer displays press and h0ld check.
4. Press and hold the 9 (1 yes) button to initiate the high-limit test.
4-29
The vat begins to heat. The computer displays the actual vat temperature during the test. When the
temperature reaches 410°F ± 10° F (210°C ± 12°C)*, the computer displays hot hi-1 alternating
with the actual temperature (ex. 410F) and continues heating.
*NOTE: In computers used in the European Union (those with the CE mark), the temperature is
395°F (202°C).
The fryer continues heating until the second high limit trips. Generally this happens once the
temperature reaches 423°F to 447°F (217°C to 231°C) for non-CE high limits and 405°F to 426°F
(207°C to 219°C) for CE high limits.
Once the high-limit opens the computer displays HELP HI-2 alternating with the actual
temperature (ex. 430F).
5. Release the (1 yes) button.
If the high-limit fails, the computer displays HIGH LIMIT FAILURE alternating with
DISCONNECT POWER. If this happens, disconnect power to the fryer and call for service
immediately.
The vat stops heating and the computer displays the current temperature setting alternating with the
actual temperature (ex. 430F) until the temperature cools below 400°F (204°C).
6. Press the soft power button to cancel the alarm.
7. Once the temperature cools below 400°F (204°C) press the (2) button
once to exit the high-limit test.
8. Press the (2) button again to exit to OFF.
9. Follow the procedures on page 4-16 to dispose of the oil.
4.13 Programming Level Two
To enter Level two programming mode:
1. With the computer OFF press the TEMP and INFO buttons simultaneously
for 10 seconds until LEVEL 2 is displayed; a third chirp sounds.
The computer displays ENTER Code.
2. Enter 1234. 1
2
3
4
(1234)
The computer displays level 2 program for three seconds changing to Product
comp.
4-30
3. Press the t and u buttons to scroll between:
a. Prod comp See pg. 4-30
b. e-log See pg. 4-31
c. password SETUP See pg. 4-31
d. alert tone See pg. 4-32
e. filter After See pg. 4-33
f. filter time See pg. 4-34
NOTE:
Use the 3and 4buttons to move between positions within the selections.
When entering numbers, press the corresponding button using the 0-9 keys.
Press the t and ubuttons to accept input and move to the next or previous menu item.
4. With the desired selection displayed press the (1 yes) button.
4.13.1 PRODUCT COMP MODE
The product comp mode allows the product compensation (sensitivity) to be changed. Some menu
items may need an adjustment, depending on their cooking characteristics. Use caution when
changing the product compensation, as it could have an adverse affect on the products cooking
cycles. The default setting for product compensation is set to four.
1. Perform steps 1-3 on pages 4-29 through 4-30.
Computer displays Prod Comp.
2. With prod comp displayed press the (1 yes) button.
Computer displays PRODUCT SELECTION changing to Select product.
3. Use the t and u to scroll through the product list.
The computer displays the product selected.
4. With a product selected, press the (1 yes) button to select a product.
The computer displays modify? alternating with yes no.
5. Press the (1 yes) button to continue or the (2 no) button to return to
LEVEL 2 PROGRAM.
Computer displays LOAD COMP on left side with 4 or another value on the right. This is the
sensitivity setting recommended for this product.
NOTE: It is highly recommended to NOT adjust this setting, as it could have an
adverse effect on the product.
4-31
6. If changing this setting, enter a number between 0-9.
7. Press the (2) button to accept selection.
8. Press the (2) button two times to exit.
The computer displays OFF.
4.13.2 E-LOG MODE
The E-LOG mode is used to view the ten most recent error codes encountered on the fryer. These
codes are displayed from 1-10 with the most recent displayed first. The time, date and error code are
displayed.
1. Perform steps 1-3 on pages 4-29 through 4-30.
Computer displays e-LOG .
2. Press the (1 yes) button to accept selection.
Computer displays NOW on left and current date with current time on the right.
3. Use the ubutton to scroll through the ten most recent error codes starting
with “A” through “J”. Once the last error is displayed, use the t button to
scroll back to the top.
If no errors exist, the computer displays NO ERRORS. Errors are displayed by position A
through J, the side of the error if a split vat, error code and time alternating with the date. An error
code displaying and “L” indicates left side of a split vat and “R” indicates right side of a split vat
where the error occurred (example –A R E06 06:34AM 12/09/08). Error codes are listed in
section 7.2.5 of this manual.
4. Press the (2) button two times to exit.
The computer displays OFF.
4.13.3 PASSWORD SETUP MODE
The password mode allows a restaurant manager to change passwords for various modes and levels.
1. Perform steps 1-3 on pages 4-29 through 4-30.
Computer displays password SETUP.
2. Press the (1 yes) button to accept selection.
Computer displays fryer setup.
3. Press the t and u buttons to scroll between:
a. FRYER Setup – Established password to enter FRYER
Setup mode. (Default is 1234)
4-32
b. usage – Established password to enter usage mode to reset
usage statistics. (Default is 4321)
c. level 1 – Establishes password to enter level 1 mode.
(Default is 1234)
d. level 2 – Establishes password to enter level 2 mode.
(Default is 1234)
4. Press the (1 yes) button to accept selection.
The computer displays modify? alternating with yes no.
5. Press the (1 yes) button.
The computer displays FRYER SETUP on the left and NEW PASSWORD flashes for three
seconds then1234 or the current password is displayed on the right.
6. Using the 0-9 keys enter a new password or reenter
the existing password.
7. Press the (1 yes) button.
The computer displays CONFIRM on the left and 1234 or the new password is displayed on the
right.
8. Press the (1 yes) button to confirm.
The computer displays PASSWORD SETUP on the left. The right side is blank.
9. Repeat steps 3-8 to change or confirm fryer setup, usage, level one and level two passwords.
10. Press the (2) button again to exit.
The computer displays OFF.
4.13.4 ALERT TONE MODE
The alert tone volume is adjustable to nine levels and the tone is adjustable to three frequencies. Use
different frequencies to distinguish protein or French fry stations.
1. Perform steps 1-3 on pages 4-29 through 4-30.
Computer displays alert tone.
2. With the desired selection displayed, press the (1 yes) button.
4-33
The computer displays volume 1-9 on the left and 9 on the right.
3. Use the number keys to set volume level. Select from
nine levels of volume with 1 being the softest and 9
the loudest.
4. Use the t and u buttons to scroll to tone 1-3.
The computer displays tone 1-3 on the left and 1 on the right.
5. Use the number keys, to set the tone frequency from 1
to 3.
6. Press the (2) button to return to product level 2 program
prompt.
7. Press the (2) button again to exit.
The computer displays OFF.
4.13.5 FILTER AFTER
The AIF filtration mode uses two measures before prompting to filter. One checks for cook cycles
which is adjusted in this section and the other checks for time which is adjusted in the following
section 4.13.6 FILTER TIME. The prompt for filtration is initiated by whichever occurs first; either
the number of cycles elapsed or time elapsed.
The FILTER AFTER option is used to set the number of cooking cycles which occur before the
filtration prompt is displayed.
1. Perform steps 1-3 on page 4-29 through 4-30.
Scroll to FILTER AFTER.
2. With FILTER after displayed, press the (1 yes) button.
The computer displays filter after on the left and 0 or another number on the right.
3. Use the number keys from 0 to 9 to enter the number of
cook cycles before prompting to filter (ex. after every
12 cycles enter as 12).
The computer displays filter AFTER on the left and 12 on the right.
4. Press the (2) button to return to product level 2 program
prompt.
4-34
5. Press the (2) button again to exit.
The computer displays OFF.
4.13.6 FILTER TIME
The FILTER time option is used to set the elapsed time before a filtration prompt. This option
is useful in lower volume stores, where filtration is desired more often than the amount the cook
cycles would generate.
1. Perform steps 1-3 on pages 4-29 through 4-30.
Scroll to FILTER TIME.
2. With FILTER TIME displayed, press the (1 yes) button.
The computer displays filter time on the left and 0 on the right.
3. Use the number keys from 0 to 9 to enter the amount of
time in hours between filter prompts (ex. after every
two hours, enter as 2).
The computer displays filter time on the left and 02 on the right.
4. Press the (2) button to return to product level 2 program
prompt.
5. Press the (2) button to exit.
The computer displays OFF.
4.14 INFO Mode
The INFO button is used to display information and navigate menus. Pressed once, it shows each
vat’s recovery time.
Press the INFO button for three seconds and it displays usage, filter statistics and last cook cycles.
To enter INFO mode:
1. Press the u (INFO) button for three seconds.
The computer displays info mode for three seconds changing to filter stats.
4-35
2. Press the t and ubuttons to scroll between:
FULL VAT CONFIGURATION
a. filter stats See pg. 4-35
b. review usage See pg. 4-36
c. last load See pg. 4-37
SPLIT VAT CONFIGURATION
a. filter stats See pg. 4-35
b. review usage See pg. 4-36
c. last load L See pg. 4-37
d. last load R See pg. 4-37
NOTE:
Use the 3and 4 buttons to move between days within the selections.
Press the t and u buttons to move to other menu items.
3. With the desired selection displayed, press the (1 yes) button to select
chosen menu item.
4.14.1 FILTER STATS MODE
The filter stats mode displays vat filtration counts and skipped filters by day and the average number
of cook cycles per filter prompt.
1. Perform steps 1-3 on pages 4-34 through 4-35.
The computer displays filter STATS.
2. With the desired selection displayed, press the (1 yes) button.
The computer displays current day on the left side and current date on the right side.
3. Use the 3and 4 buttons to scroll records; starting at the current day and
going back one week.
4. Press the t and ubuttons to scroll between:
FULL VAT CONFIGURATION
a. DAY (TUE), DATE (07/03/07) – Current day and date.
b. fIltErEd # day, – Number of times vat filtered and day.
c. flt bpsd # day, – Number of times filter was bypassed and day.
d. flt avg day, – Average number of cook cycles per filter and day.
4-36
SPLIT VAT CONFIGURATION
a. DAY (wed), DATE (03/20/07) – Current day and date.
b. l fIltErEd # DAy – Number of times left vat filtered and day.
c. L flt bpsd # day, – Number of times left vat filter was bypassed and day.
d. L flt avg day, – Average number of cook cycles per filter/left vat and day.
e. R filtered # day, – Number of times right vat filtered and day.
f. R flt bpsd # day, – Number of times right vat filter was bypassed and day.
g. R flt avg day, – Average number of cook cycles per filter/right vat and day.
5. Press the (2) button to return to INFO MODE changing to filter
stats prompt.
6. Press the (2) button again to quit.
The computer displays OFF.
4.14.2 REVIEW USAGE MODE
The review usage displays total cook cycles per vat, number of cook cycles per vat, number of cook
cycles exited prior to completion, the number of hours the vat(s) have been on and the date of last
usage reset.
1. Perform steps 1-3 on pages 4-34 through 4-35.
Scroll to review usage.
2. With review usage displayed, press the (1 yes) button.
The computer displays USAGE SINCE changing to the date and time that the usage was last
reset.
3. Press the t and ubuttons to scroll between:
FULL VAT CONFIGURATION
a. usage since time, date – Usage since date and time of last reset.
b. total cooks # – Number of cook cycles for all products.
c. quit cook # – Number of cook cycles exited within first 30 seconds.
d. on hrs # – Number of hours the vat has been on.
e. reset usage – Resets usage counters.
SPLIT VAT CONFIGURATION
a. usage since time, date – Usage since time and date of last reset.
b. total cooks # – Number of cook cycles for all products.
c. quit cook # – Number of cook cycles exited within first 30 seconds.
d. L on hrs # – Number of hours the left vat has been on
e. R on hrs # – Number of hours the right vat has been on
f. reset usage – Resets usage counters.
4-37
4. If resetting usage statistics, return to step 3 and scroll to RESET USAGE, otherwise skip to
step 7.
The computer displays reset usage.
5. With the desired selection displayed, press the (1 yes) button to select
chosen menu item.
The computer displays enter code.
6. Using the number keys enter 4321. Note: Codes are
changeable.
4
3
2
1
(4321)
The computer displays RESET USAGE COMPLETE changing to REVIEW USAGE. Skip
to step 8.
7. Press the (2) button to return to INFO MODE changing to filter
stats prompt.
8. Press the (2) button to quit.
The computer displays OFF.
4.14.3 LAST LOAD MODE
The last load mode displays data for the last cook cycle.
1. Perform steps 1-3 on pages 4-34 through 4-35.
The computer displays last LOAD for full vat configurations or load l or Load r for
split vat configurations.
2. With the desired selection displayed, press the (1 yes) button.
3. Press the t and ubuttons to scroll between:
FULL / SPLIT VAT CONFIGURATION
a. PRODUCT fry – Last product cooked.
b. STARTED 02:34PM – Time last cook cycle started.
c. actual 3:15 – Actual cooking time including stretch time.
d. progtime 3:10 – Programmed cook time.
e. Max temp 337° – Maximum oil temperature recorded during the cook cycle.
f. Min temp 310° – Minimum oil temperature recorded during the cook cycle.
g. avg temp 335° – Average oil temperature recorded during the cook cycle.
h. heat on 70 – Percentage of the cook time the heat source was on.
i. ready yes – Displays if the fryer was back to proper temperature before the cook
cycle was started.
NOTE – Above numbers are examples. They do not reflect actual conditions.
4-38
4. Press the (2) button to return to INFO MODE changing to filter
stats prompt.
5. Press the (2) button again to quit.
The computer displays OFF.
5-1
BIELA14 SERIES GEN II LOV™ ELECTRIC FRYER
CHAPTER 5: FILTRATION INSTRUCTIONS
5.1 Introduction
The FootPrint Pro filtration system allows the oil in one frypot to be safely and efficiently filtered
while the other frypots in a battery remain in operation.
Section 5.2 covers preparation of the filter system for use. Operation of the system is covered in
Section 5.3.
WARNING
The on-site supervisor is responsible for ensuring that operators are made aware of
the inherent hazards of operating a hot oil filtering system, particularly the aspects
of oil filtration, draining and cleaning procedures.
WARNING
The filter pad or paper MUST be replaced daily.
5.2 Preparing the Filter for Use
1. Pull the filter pan out from the cabinet
and remove the crumb tray, hold-down
ring, filter pad (or paper), and filter
screen. (See Figure 1) Clean all metal
parts with a solution of All Purpose
Concentrate and hot water then dry
thoroughly.
The pan cover must not be removed
except for cleaning, interior access, or to
allow a shortening disposal unit
(MSDU) to be positioned under the
drain. If using an MSDU built before
January 2004 see instructions on page 4-
16.
2. Inspect the filter pan connection fitting
to ensure that both O-rings are in good
condition. (See Figure 2)
Figure 1
Figure 2
Inspect the filter
connection fitting
O-rings.
5-2
3. Then in reverse order, place the metal filter screen in the center of the bottom of the pan, then lay
a filter pad over the screen, ensuring that the rough side of the pad is up. Make sure that the pad
is in between the embossed ridges of the filter pan. Then position the hold down ring on top of
the pad. If using filter paper, lay a sheet of filter paper over the top of the pan overlapping on all
sides. Position the hold down ring over the filter paper and lower the ring into the pan, allowing
the paper to fold up and around the ring as it is pushed to the bottom of the pan. Then sprinkle 1
packet (8-ounces) of filter powder over the filter paper.
4. Reinstall the crumb tray at the front of the pan. (See Figure 1)
DO NOT USE FILTER POWDER WITH THE PAD!
5. Push the filter pan back into the fryer, positioning it under the fryer. Ensure “A” is displayed on
the MIB board. The filtration system is now ready for use.
DANGER
Do not drain more than one frypot at a time into the built-in filtration unit to avoid
overflow and spillage of hot oil that may cause severe burns, slipping and falling.
DANGER
The crumb tray in fryers equipped with a filter system must be emptied into a
fireproof container at the end of frying operations each day. Some food particles can
spontaneously combust if left soaking in certain shortening material.
WARNING
Do not bang fry baskets or other utensils on the fryer’s joiner strip. The strip is
present to seal the joint between the fry vessels. Banging fry baskets on the strip to
dislodge shortening will distort the strip, adversely affecting its fit. It is designed for
a tight fit and should only be removed for cleaning.
5.3 Auto Intermittent Filtration (AIF)
Auto Intermittent Filtration (AIF) is a feature that, after a number of preset cook cycles or time, will
automatically filter frypots.
An M3000 computer controls the Auto Intermittent Filtration
(AIF) system on the LOV™ fryer. After a preset number of cook
cycles or time the computer displays FIltEr now?
alternating with YES NO. The blue LED is activated
simultaneously. The LED will turn off once a filtration cycle is
started. If NO is selected or a cook cycle is started, the blue LED
will go off and will prompt again soon to filter the oil.
1. Press 9 (1) YES to start filtration and 8 (2) NO to cancel
filtration.
5-3
If the oil level is too low, the computer displays OIL LEVEL TOO LOW alternating with
YES. Press 9 (1) YES to acknowledge issue and return to idle cook mode. Check to see if the
JIB is low on oil. If JIB is not low and this continues to occur, contact your ASA.
If YES is chosen, SKIM VAT is displayed for ten seconds changing to cOnfIRm alternating
with YES NO. Skim the crumbs from the oil with a front to back motion, removing as many
crumbs as possible from each vat. This is critical to optimizing usable oil life and quality in the oil.
Note: If NO is chosen in response to either FILTER now or CONFIRM, filtering is
cancelled and the fryer resumes normal operation. The FILTER now prompt is
displayed once the FILTER AFTER count is satisfied. This sequence repeats until yes is
chosen.
If the filter pan is not fully engaged, the computer displays INSERT PAN. Once the filter pan is
pushed fully into place, the computer displays SKIM VAT.
2. When 9 (1) YES is chosen, the auto filtration cycle is started. The fryer displays
DRAINING, WASHING and FILLING during the process.
Note: Simultaneous filtering of multiple vats does not occur.
Once filtering is complete the computer display changes to low temp until the fryer reaches
setpoint.
Once fryer reaches setpoint and the computer display changes to the product name or dashed lines,
the fryer is ready for use.
The complete filtering process takes roughly four minutes.
NOTE: If during filtration the filter pan is pulled, the filtration process stops and resumes once pan
is reseated into place.
DANGER
Keep all items out of drains. Closing actuators may cause damage or injury.
5.3.1 Auto Demand Filtration
Auto demand filtration is used to manually start an auto filtration.
1. The fryer MUST be at setpoint temperature.
With the computer on press and hold the
FLTR button for three seconds.
The computer displays fIltEr menu for three seconds changing to Auto Filter.
5-4
2. Press the 9 (1 yes) button to continue.
The computer displays filter NOW? Alternating with YES/NO.
3. Go to step 1 section 5.3 on page 5-2 to continue.
5.4 Troubleshooting the Auto Intermittent Filtration (AIF)
5.4.1 Incomplete Filtration
Should the AIF procedure fail after the filter pad was changed an error message is generated. Use
the chart on page 5-6 to clear the error.
The computer displays IS VAT FULL? alternating with yes no.
The MIB board displays three horizontal lines.
1. If the vat is full press the 9 (1 yes) button to continue. The computer
returns to idle cook mode or OFF.
If the pot is not filled completely continue to next step.
2. Press 8 (2 NO) if pot is not filled completely.
The computer displays FILLING while the pump runs again. When the pump stops, the computer
displays IS VAT FULL? alternating with yes no again. If the vat is full go to step 1. If the
vat is not completely filled continue.
3. Press 8 (2 NO) if pot is not filled completely.
The computer displays FILLING while the pump runs again. When the pump stops, the computer
displays IS VAT FULL? alternating with yes no again. If the vat is full go to step 1. If the
vat is not completely filled continue.
4. Press 8 (2 NO) if pot is not filled completely. If this is the second
consecutive sequence of incomplete filtration skip to step 8.
The computer displays CHANGE FILTER PAD? alternating with YES NO and an alarm.
5. Press 9 (1 yes) to continue.
Pressing 8 (2 NO) allows the fryer to return to cook mode in most cases for
four minutes or 15 minutes if the pad is expired*, ending with the
CHANGE FILTER PAD? alternating with YES NO display. This
repeats until YES is chosen.
5-5
The computer displays REMOVE PAN.
*NOTE: If the filter pad change time has expired, normally every 25 hours,
the CHANGE FILTER PAD? message repeats every 15 minutes
instead of every four minutes.
6. Remove the pan. The computer display changes to CHANGE PAD. Change the filter pad and
ensure the filter pan has been pulled forward, out of the cabinet for at least 30 seconds. Once the
pan has been out for 30 seconds the computer displays OFF. Ensure the pan is dry and
assembled correctly. Push the filter pan back into the fryer. Ensure “A” is displayed on the MIB
board.
7. Switch the computer on. The computer displays low temp until the fryer reaches setpoint.
8. If a filtration error occurs six consecutive times, the return valve closes and the computer
displays SERVICE REQUIRED alternating with YES and an alarm.
9. Press 9 (1 yes) to silence alarm and continue.
The computer displays SYSTEM ERROR and the error message for 15
seconds changing to SYSTEM ERROR FIXED alternating with YES
NO.
10. Press 8 (2 NO) to continue cooking. Call your ASA to repair and reset
the fryer. The error will be re-displayed every 15 minutes until the issue
is repaired. Auto filtration and auto top off is disabled until the fryer is
reset.
5-6

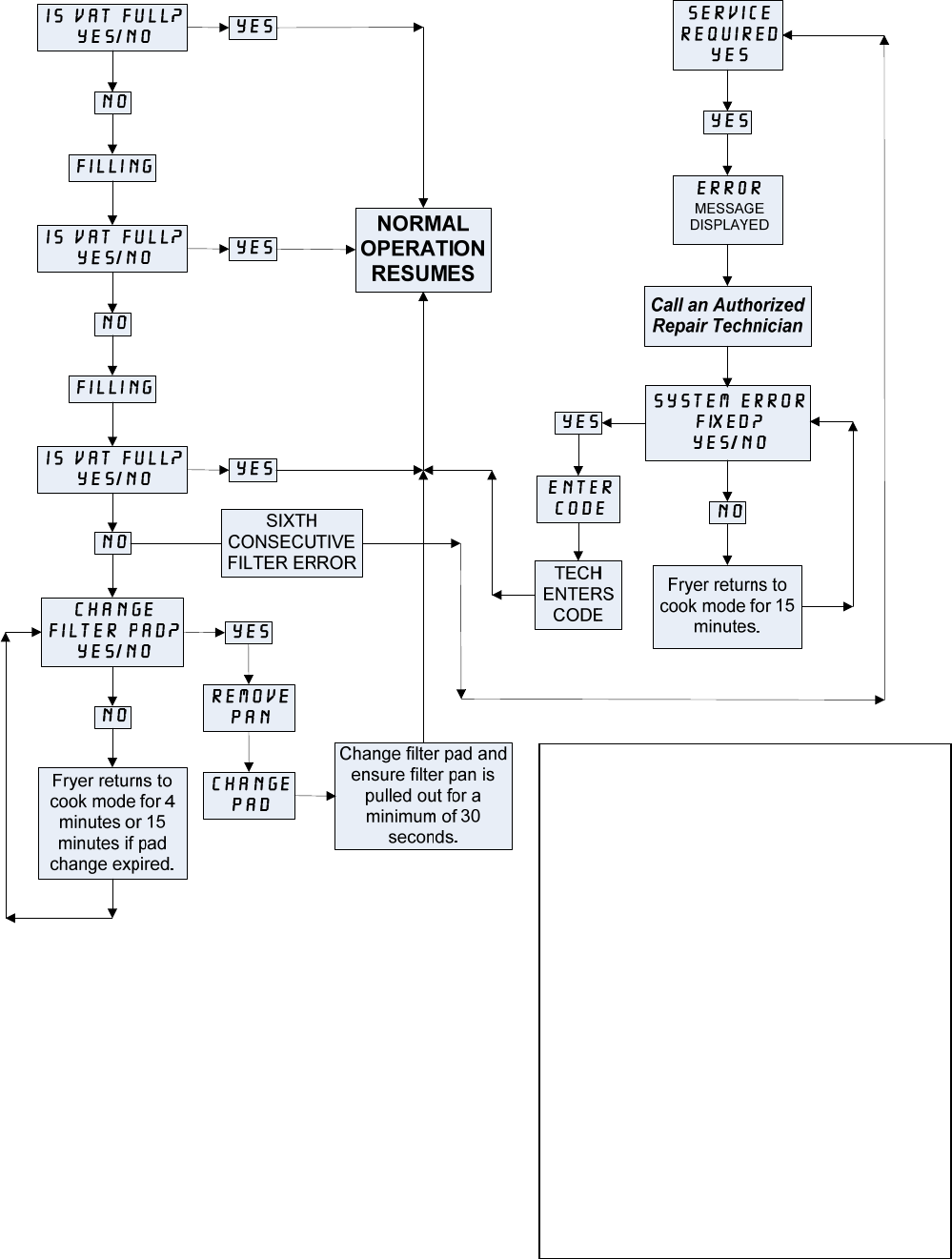

5.4.4 Filter Error Flowchart
This chart follows the process of clearing
a filtration issue. The prompt is
displayed when any of the following
occur:
1. a clogged filter pad,
2. a tripped or defective filter pump,
3. a leaky O-ring on the pick-up tube,
4. a failed drain valve/actuator, or
5. a failed return valve/actuator.
If the computer displays SERVICE
REQUIRED, the fryer can be used in
most cases by answering NO when the
prompt for SYSTEM ERROR
FIXED? YES NO is displayed. The
message repeats every 15 minutes until
the issue is repaired and fryer reset by a
technician.
5-7
5.4.5 Filter Busy
When FILTER BUSY is displayed the MIB board is waiting on another vat to be filtered or
waiting on another issue to clear. Wait 15 minutes to see if problem is corrected. If not, call your
local ASA.
DANGER
Do not drain more than one frypot at a time into the built-in filtration unit to avoid
overflow and spillage of hot oil that may cause severe burns, slipping and falling.
WARNING
The filter pump is equipped with a manual reset switch in case the filter motor
overheats or an electrical fault occurs. If this switch trips, turn off power to the filter
system and allow the pump motor to cool 20 minutes before attempting to reset the
switch (see photo below).
WARNING
Use caution and wear appropriate safety equipment when resetting the filter pump
reset switch. Resetting the switch must be accomplished with care to avoid the
possibility of a serious burn from careless maneuvering around the drain tube and
frypot.
Filter Pump Reset Switch
5.5 Manual or End of Day Filtration (MAINT FLTR)
NOTICE
The filter pad or paper must be replaced daily.
DANGER
Do not drain more than one frypot at a time into the built-in filtration unit to avoid
overflow and spillage of hot oil that may cause severe burns, slipping and falling.
Ensure that the filter pad or paper is replaced daily to keep the system operating correctly.
1. The fryer MUST be at setpoint temperature.
With the computer ON press and hold the
FLTR button for three seconds.
5-8
Computer displays fIltEr menu for three seconds changing to Auto Filter.
2. Press the u(INFO) button to scroll to maInT fIltEr.
3. When the desired selection is displayed press the 9 (1) button to
continue.
The computer displays maInT fIltEr? alternating with Yes NO.
4. Press the 9 (1 yes) button to start the manual filtration process. If
CLOSE DISPOSE VALVE is displayed, close the RTI dispose
valve. Press the 8 (2 NO) button to exit.
If no pan is in place the computer displays INSERT PAN until a pan is detected. The computer
displays filtering and oil drains from the frypot.
DANGER
Keep all items out of drains. Closing actuators may cause damage or injury.
The computer display changes to scrub vat complete? alternating with Yes.
5. Clean the vat with a scrub brush and press the 9 (1 yes) button to
continue when complete.
The computer displays wash vat? alternating with Yes.
6. Press the 9 (1 yes) button to continue.
The computer displays washing.
The return valve opens and the pot is flushed with oil from the pan.
The filter pump shuts off and the computer displays wash
again? alternating with yes no.
7. If the pot is clean of debris, press the 8 (2 NO) button to continue
and skip the wash again cycle. If crumbs are still present, press the
9 (1 yes)
b
utton and the filter pump runs for another 30 seconds.
This cycle repeats until the 8 (2 NO) button is pressed.
5-9
The computer displays rinsing. The drain valve closes and the filter pump continues to run and
refills the pot.
The drain valve opens and remains open and the computer displays
rinse again? alternating with yes no.
8. If the pot is clear of debris, press the 8 (2 NO) button to continue
and skip the rinse again cycle. If rinse again is desired, press the 9
(1 yes) button and the rinse repeats. This cycle repeats until the 8
(2 NO) button is pressed.
DANGER
Keep all items out of drains. Closing actuators may cause damage or injury.
The computer displays polish? alternating with yes no.
9. Press the 9 (1 yes) button to continue.
The filter pump turns on. The drain and return valves are open and oil is
pumped through the frypot. The computer displays POLISHING
alternating with a five minute countdown timer. When the timer expires,
the filter pump shuts off. To exit polish press the 8 (2 NO) button.
The computer displays fill vat? alternating with yes.
10. Press the 9 (YES) button to continue.
The computer displays FILLING.
The drain valve closes and the filter pump turns on and refills the frypot. As
the frypot fills, bubbles appear, the return valve closes and the pump shuts
off. Once the system verifies the oil level, the top off pump will add oil if
necessary.
The computer displays is VAT FULL? alternating with yes no.
11. Press the 9 (YES) button if the pot is filled. Press the 8 (2 NO) button
to run the pump again*. If the vat oil level is not completely filled,
check the filter pan to see if most of the oil has returned. The pan may
have a small amount of oil. The computer displays is VAT FULL?
alternating with yes no again.
12. Press the 9 (YES) button.
The computer displays off.
*NOTE: After a maintenance filtration it is normal to leave some
oil in the pan and the level of oil may not return to the level prior
to starting maintenance filtration. Answering YES after two
attempts at refilling the vat enables auto top off to compensate
for any loss of oil during filtration.
6–1
BIELA14 SERIES GEN II LOV™ ELECTRIC FRYER
CHAPTER 6: PREVENTATIVE MAINTENANCE
6.1 Cleaning the Fryer
DANGER
The crumb tray in fryers equipped with a filter system must be emptied into a fireproof
container at the end of frying operations each day. Some food particles can spontaneously
combust if left soaking in certain shortening material.
DANGER
Never attempt to clean the fryer during the frying process or when the frypot is filled with hot
oil. If water comes in contact with oil heated to frying temperature, it will cause spattering of
the oil, which can result in severe burns to nearby personnel.
WARNING
Use McDonald’s All Purpose Concentrate. Read the directions for use and precautionary
statements before use. Particular attention must be paid to the concentration of cleaner and
the length of time the cleaner remains on the food contact surfaces.
6.1.1 Clean Inside and Outside of the Fryer Cabinet – Daily
Clean inside the fryer cabinet with a dry, clean cloth. Wipe all accessible metal surfaces and components to
remove accumulated oil and dust.
Clean the outside of the fryer cabinet with a clean, damp cloth soaked with McDonald’s All Purpose
Concentrate. Wipe with a clean, damp cloth.
6.1.2 Clean the Built-in Filtration System – Daily
WARNING
Never drain water into the filter pan. Water will damage the filter pump.
There are no periodic preventive maintenance checks and services required for your FootPrint Pro Filtration
System other than daily cleaning of the filter pan and associated components with a solution of hot water and
McDonald’s All Purpose Concentrate.
6.1.3 Clean Behind Fryers – Weekly
Clean behind fryers in accordance with the procedure detailed in maintenance requirement card (MRC14A).
WARNING
To ensure the safe and efficient operation of the fryer and hood, the electrical plug for the
120-volt line, which powers the hood, must be fully engaged and locked in its pin and sleeve
socket.
6.1.4 Clean the Frypot and Heating Elements – Quarterly
DANGER
Never operate the appliance with an empty frypot. The frypot must be filled to the fill line
with water or cooking oil before energizing the elements. Failure to do so will result in
irreparable damage to the elements and may cause a fire.
6–2
Deep Clean (Boiling Out) the Frypot
After the fryer has been in use for a period of time, a hard film of caramelized cooking oil will form
on the inside of the frypot. This film should be periodically removed by following the deep-clean
(boil-out) procedure contained in Kay Chemical “Fryer Deep Clean Procedure” instructions. Refer
to page 4-25 for specific details on setting up the computer for deep clean (boil-out) operation.
Replace the O-rings
Refer to McDonald’s MRC cards for specific details on replacing the O-rings on the filter
connection.
6.1.5 Clean Detachable Parts and Accessories – Weekly
Wipe all detachable parts and accessories with a clean, dry cloth. Use a clean cloth saturated with a
solution of McDonald’s All Purpose Concentrate to remove accumulated carbonized oil on
detachable parts and accessories. Rinse the parts and accessories thoroughly with clean water and
wipe dry before reinstalling.
6.1.6 Check M3000 Computer Set Point Accuracy- Bi-Weekly
1. Insert a good-grade thermometer or pyrometer probe into the oil, with the end touching the fryer
temperature-sensing probe.
2. When the computer display shows a series of dashes “----” or a product name (indicating that the
frypot contents are within the cooking range), press the switch once to display the
temperature of the oil as sensed by the temperature probe.
3. Press the switch twice to display the set point.
4. Note the temperature on the thermometer or pyrometer. Actual temperature and pyrometer
readings should be within ± 5º F (3º C) of each other. If not, contact a Factory Authorized
Service Center for assistance.
6.2 Annual/Periodic System Inspection
This appliance should be inspected and adjusted periodically by qualified service personnel as part
of a regular kitchen maintenance program.
Frymaster recommends that a Factory Authorized Service Technician inspect this appliance at least
annually as follows:
Fryer
● Inspect the cabinet inside and out, front and rear for excess oil.
● Verify that the heating element wires are in good condition and that leads have no visible fraying or
insulation damage and that they are free of oil.
● Verify that heating elements are in good condition with no carbon/caramelized oil build-up. Inspect
the elements for signs of extensive dry-firing.
6-3
● Verify that the tilt mechanism is working properly when lifting and lowering elements and that the
element wires are not binding and/or chafing.
● Verify the heating-element amp-draw is within the allowed range as indicated on the appliance’s
rating plate.
● Verify that the temperature and high-limit probes are properly connected, tightened and functioning
properly, and that mounting hardware and probe guards are present and properly installed.
● Verify that component box and contactor box components (i.e. computer/controller, relays, interface
boards, transformers, contactors, etc.) are in good condition and free from oil and other debris.
● Verify that component box and contactor box wiring connections are tight and that wiring is in good
condition.
● Verify that all safety features (i.e. contactor shields, reset switches, etc.) are present and functioning
properly.
● Verify that the frypot is in good condition and free of leaks and that the frypot insulation is in
serviceable condition.
● Verify that all wiring harnesses and connections are tight and in good condition.
Built-In Filtration System
● Inspect all oil-return and drain lines for leaks and verify that all connections are tight.
● Inspect the filter pan for leaks and cleanliness. If there is a large accumulation of crumbs in the
crumb basket, advise the owner/operator that the crumb basket should be emptied into a fireproof
container and cleaned daily.
● Verify that all O-rings and seals are present and in good condition. Replace O-rings and seals if
worn or damaged.
● Check filtration system integrity as follows:
− Verify that filter pan cover is present and properly installed.
− With the filter pan empty, place each vat into fill vat from drain pan selection, one at a time.
Verify proper functioning of each oil return valve by activating the filter pump using the return to
pan selection. Verify that the pump activates and that bubbles appear in the cooking oil of the
associated frypot.
− Verify that the filter pan is properly prepared for filtering with a clean filter pad, then drain a
frypot of oil heated to 350°F (177°C) into the filter pan by using the drain to pan selection (see
page 4-20). Now using the fill vat from drain pan selection (see page 4-21), allow all oil to return
to the frypot (indicated by bubbles in the cooking oil). Press the check button when all oil is
returned. The frypot should have refilled in approximately 2 minutes and 30 seconds.
7-1
BIELA14 SERIES GEN II LOV™ ELECTRIC FRYER
CHAPTER 7: OPERATOR TROUBLESHOOTING
7.1 Introduction
This section provides an easy reference guide to some of the common problems that may occur
during the operation of this equipment. The troubleshooting guides that follow are intended to help
correct, or at least accurately diagnose, problems with this equipment. Although the chapter covers
the most common problems reported, you may encounter problems that are not covered. In such
instances, the Frymaster Technical Services staff will make every effort to help you identify and
resolve the problem.
When troubleshooting a problem, always use a process of elimination starting with the simplest
solution and working through to the most complex. Never overlook the obvious – anyone can forget
to plug in a cord or fail to close a valve completely. Most importantly, always try to establish a clear
idea of why a problem has occurred. Part of any corrective action involves taking steps to ensure
that it doesn’t happen again. If a controller malfunctions because of a poor connection, check all
other connections, too. If a fuse continues to blow, find out why. Always keep in mind that failure
of a small component may often be indicative of potential failure or incorrect functioning of a more
important component or system.
Before calling a service agent or the Frymaster HOTLINE (1-800-24-FRYER):
• Verify that electrical cords are plugged in and that circuit breakers are on.
• Verify that frypot drain valves are fully closed.
• Have your fryer’s model and serial numbers ready to give to the technician assisting
you.
DANGER
Hot oil will cause severe burns. Never attempt to move this appliance when filled
with hot oil or to transfer hot oil from one container to another.
DANGER
This equipment should be unplugged when servicing, except when electrical circuit
tests are required. Use extreme care when performing such tests.
This appliance may have more than one electrical power supply connection point.
Disconnect all power cords before servicing.
Inspection, testing, and repair of electrical components should be performed by an
authorized service agent only.
7-2
7.2 Troubleshooting
7.2.1 Computer and Heating Problems
Problem Probable Causes Corrective Action
A. Computer not turned on. A. Press the ON/OFF switch to turn
the computer on.
B. No power to the fryer. B. Verify computer power cord is
plugged in and that circuit breaker
is not tripped.
C. Computer has failed. C. Call your ASA for assistance.
D. Damaged computer wiring
harness.
D. Call your ASA for assistance.
No Display on
Computer.
E. Power supply component or
interface board has failed. E. Call your ASA for assistance.
M3000 displays IS
VAT FULL?
YES NO after a
filtration.
A filter error has occurred due to dirty
or clogged filter pad or paper, clogged
filter pumps, improperly installed
filter pan components, worn or
missing O-rings, cold oil or filter
pump thermal overload.
Follow instructions on page 5-4
through 5-6 to clear the filter error.
If problem persists, call your ASA
for assistance.
M3000 displays
CHANGE FILTER
PAD?
Filter error has occurred, filter pad
clogged, 25 hour filter pad change
prompt has occurred or change filter pad
was ignored on a prior prompt.
Change the filter pad and ensure the
filter pan has been removed from the
fryer for a minimum of 30 seconds.
Do NOT ignore CHANGE
FILTER PAD prompts.
A. Main power cord not plugged in.
A. Verify that both the main power
cord and 120V is fully seated in its
receptacle, locked into place and
that circuit breaker is not tripped
B. Computer has failed. B. Call your ASA for assistance.
Fryer does not heat.
C. One or more other components have
failed. C. Call your ASA for assistance.
Fryer heats until high-
limit trips with heat
indicator ON.
Temperature probe or computer has
failed. Call your ASA for assistance.
Fryer heats until high-
limit trips without
heat indicator ON. Contactor or computer has failed Call your ASA for assistance.
7.2.2 Error Messages and Display Problems
Problem Probable Causes Corrective Action
M3000 display is in
wrong temperature
scale (Fahrenheit or
Celsius).
Incorrect display option programmed.
Toggle between F° to C° by pressing
and holding 3and4simultaneously
until TECH MODE appears. Enter
1658. The computer displays OFF.
Turn the computer on to check
temperature. If the desired scale is not
displayed, repeat.
7-3
Problem Probable Causes Corrective Action
M3000 display shows
hot-hi-1.
Frypot temperature is more than 410ºF
(210ºC) or, in CE countries, 395ºF
(202ºC).
Shut the fryer down immediately and
call your ASA for assistance.
M3000 display shows
hELP HI-2 or
High limit
failure.
Failed high limit
Shut the fryer down immediately and
call your ASA for assistance.
M3000 display shows
TEMP PROBE
FAILURE.
Problem with the temperature
measuring circuitry including the probe
or damaged computer wiring harness or
connector.
Shut the fryer down and call your ASA
for assistance.
M3000 display shows
HEATING
FAILURE.
Failed computer, failed interface board,
open high-limit thermostat.
Call your ASA for assistance.
Heating indicator is
on, but fryer is not
heating.
Three phase power cord unplugged or
circuit breaker is tripped.
Verify that both the main power cord and
120V is fully seated in its receptacle,
locked into place and that circuit breaker
is not tripped If the problem continues
call your ASA for assistance.
M3000 display shows
RECOVERY
FAULT and alarm
sounds.
Recovery time exceeded maximum time
limit.
Clear error and silence the alarm by
pressing the 9 button. Maximum
recovery time for electric is 1:40. If this
error continues call your ASA for
assistance.
M3000 display shows
REMOVE
DISCARD.
A product cook is started that has a
different setpoint than the current vat
temperature.
Remove and discard product. Press the
cook button under the display with the
error to remove the error. Reset the
setpoint of the vat before trying to cook
product.
Computer locks up. Computer error. Call your ASA for assistance.
M3000 displays
SERVICE
REQUIRED followed
by an error message.
An error has occurred which requires a
service technician.
Press 8 (2 NO) to continue cooking and
call your ASA for assistance. In some
cases, cooking may not be available.
7.2.3 Filtration Problems
Problem Probable Causes Corrective Action
Fryer filters after each
cook cycle. Filter after setting incorrect.
Change or overwrite the filter after
setting by re-entering the filter after
value in level two. See section 4.13.5
on page 4-33.
MAINT FILTER
(Manual Filter) won’t
start. Temperature too low. Ensure fryer is at setpoint before
starting MAINT FILTER.
Filter pump won't
start or pump stops
during filtering.
A. Power cord is not plugged in or
circuit breaker is tripped.
A. Verify that the power cord is fully
plugged in and the circuit breaker
is not tripped.
7-4
Problem Probable Causes Corrective Action
B. Pump motor has overheated causing
the thermal overload switch to trip.
B. If the motor is too hot to touch for
more than a few seconds, the
thermal overload switch has
probably tripped. Allow the motor
to cool at least 45 minutes then
press the Pump Reset Switch. (See
page 5-7)
C. Blockage in filter pump. C. Call your ASA for assistance.
Drain valve or return
valve stays open. A. AIF board has failed.
B. Actuator has failed. Call your ASA for assistance.
M3000 display shows
INSERT pan.
A. Filter pan is not fully set into fryer.
B. Missing filter pan magnet.
C. Defective filter pan switch.
A. Pull filter pan out and fully
reinsert into fryer.
B. Ensure the filter pan magnet is in
place and replace if missing.
C. If the filter pan magnet is fully
against the switch and computer
continues to display INSERT
pan, switch is possibly
defective.
Auto filtration won’t
start.
A. Check that MIB board is not in
manual mode.
B. Check to see that the MIB cover is
not damaged and depressing the
buttons.
C. AIF disable is set to yes, blue light
doesn’t light.
D. Filter relay has failed.
E. Oil level to low.
A. Ensure MIB board is in “A”
automatic mode. Power cycle the
fryer.
B. Remove and replace cover and see
if filtration will start.
C. Set AIF disable in Level 1 to no.
D. Call your ASA for assistance.
E. Ensure oil level is above the top
oil level sensor.
M3000 display shows
filter busy. Another filtration cycle or filter pad
change is still in process.
Wait until the previous filtration cycle
ends to start another filtration cycle.
Change filter pad if prompted.
7.2.4 Auto Top-Off Problems
Problem Probable Causes Corrective Action
Frypots won’t top off.
A. Fryer temperature too low.
B. Oil is too cold.
C. JIB out of oil (orange light
illuminated)
D. Service required error exists
A. Fryer temperature must be at
setpoint.
B. Ensure that the oil in the JIB is
above 70°F (21°C).
C. Ensure the JIB is not out of oil.
Replace JIB and reset orange LED.
If problem persists call your ASA
for assistance.
D. Call your ASA for assistance.
One vat doesn’t top
off.
A. Filter error exists.
B. Service required error exists
C. Solenoid, pump, pin issue, RTD or
ATO issue.
A. Clear filter error properly. If
problem persists call your ASA for
assistance.
B. Call your ASA for assistance.
7-5
7.2.5 Bulk Oil System Problems
Problem Probable Causes Corrective Action
JIB won’t fill.
A. Incorrect setup procedure.
B. Another function is in process.
C. Dispose valve not completely closed.
D. Bulk oil tank is empty.
E. Solenoid, pump or switch issue.
A. Power cycle fryer by disconnecting
and reconnecting 5-pin control
power cord.
B. If a filtration or any other filter
menu function is in process or
FILTER NOW? YES/NO,
CONFIRM YES/NO, or SKIM
VAT are displayed, wait until the
process is complete and try again.
C. Ensure the dispose valve handle is
pushed fully closed.
D. Call your bulk oil provider.
E. Call you ASA for assistance.
JIB or vat filling slow. A. Pump or line issues beyond the scope
of operator troubleshooting.
A. Contact your bulk oil provider.
Frypot won’t fill.
A. Incorrect setup procedure.
B. Dispose valve not completely closed.
C. Bulk oil tank is empty.
D. RTI pump issue.
A. Power cycle fryer by disconnecting
and reconnecting 5-pin control
power cord.
B. Ensure the dispose valve handle is
pushed fully closed.
C. Call your bulk oil provider.
D. Call you ASA for assistance.
7.2.6 Error Log Codes
Code ERROR MESSAGE EXPLANATION
E01 REMOVE DISCARD (Right) A product cook is started on the right side of a
split vat or in a full vat that has a different
setpoint other than the current vat temperature.
E02 REMOVE DISCARD (Left) A product cook is started on the right side of a
split vat or in a full vat that has a different
setpoint other than the current vat temperature.
E03 ERROR TEMP PROBE FAILURE TEMP Probe reading out of range
E04 HI 2 BAD High limit reading is out of range.
E05 HOT HI 1 High limit temperature is past more than 410°F
(210°C), or in CE countries, 395°F (202°C)
E06 HEATING FAILURE A component has failed in the high limit circuit
such as computer, interface board, contactor or
open-high limit.
E07 ERROR MIB SOFTWARE Internal MIB software error
E08 ERROR ATO BOARD MIB detects ATO board connection lost; ATO
board failure
E09 ERROR PUMP NOT FILLING Dirty pad and it needs changed or it was
bypassed; filter pump problem
E10 ERROR DRAIN VALVE NOT OPEN Drain valve was trying to open and confirmation
is missing
E11 ERROR DRAIN VALVE NOT CLOSED Drain valve was trying to close and confirmation
7-6
is missing
E12 ERROR RETURN VALVE NOT OPEN Return valve was trying to open and confirmation
is missing
E13 ERROR RETURN VALVE NOT CLOSED Return valve was trying to close and confirmation
is missing
E14 ERROR AIF BOARD MIB detects AIF missing; AIF board failure
E15 ERROR MIB BOARD Cooking computer detects MIB connections lost;
Check software version on each computer. If
versions are missing, check CAN connections
between each computer; MIB board failure
E16 ERROR AIF PROBE AIF RTD reading out of range
E17 ERROR ATO PROBE ATO RTD reading out of range
E18 Not used
E19 M3000 CAN TX FULL Connection between computers lost. Check for
loose CAN cables between computers and MIB
board. Check software version by pressing the
TEMP button with the computers displaying OFF.
If a computer displays only M3000 software, the
computer may be defective.
E20 INVALID CODE LOCATION SD card removed during update
E21 FILTER PAD PROCEDURE ERROR
(Change Filter Pad) 25 hour timer has expired or dirty filter logic has
activated
E22 OIL IN PAN ERROR The MIB has reset the oil in pan flag.
E23 CLOGGED DRAIN (Gas) Vat did not empty during filtration
E24 AIF BOARD OIB FAILED (Gas) Oil is back sensor failed.
E25 RECOVERY FAULT Recovery time exceeded maximum time limit.
E26 RECOVERY FAULT CALL SERVICE Recovery time exceeded maximum time limit for
two or more cycles.
E27 LOW TEMP ALARM Oil temperature has dropped lower than 15°F
(8°C) in idle mode or 45°F (25°C) in cook mode.
8-1
BIELA14 SERIES GEN II LOV™ ELECTRIC FRYER
CHAPTER 8: WIRING DIAGRAMS
8.1 Wiring Diagrams

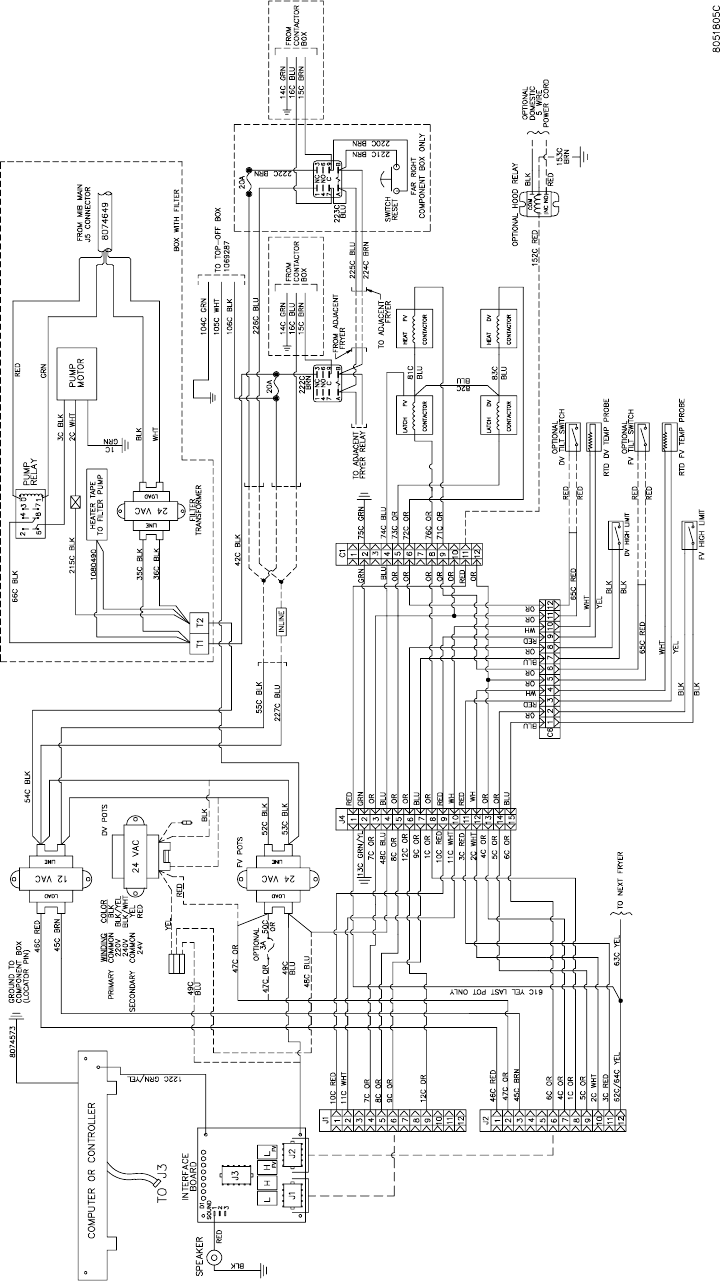

8.1.1 Component Wiring (Domestic)
8-2

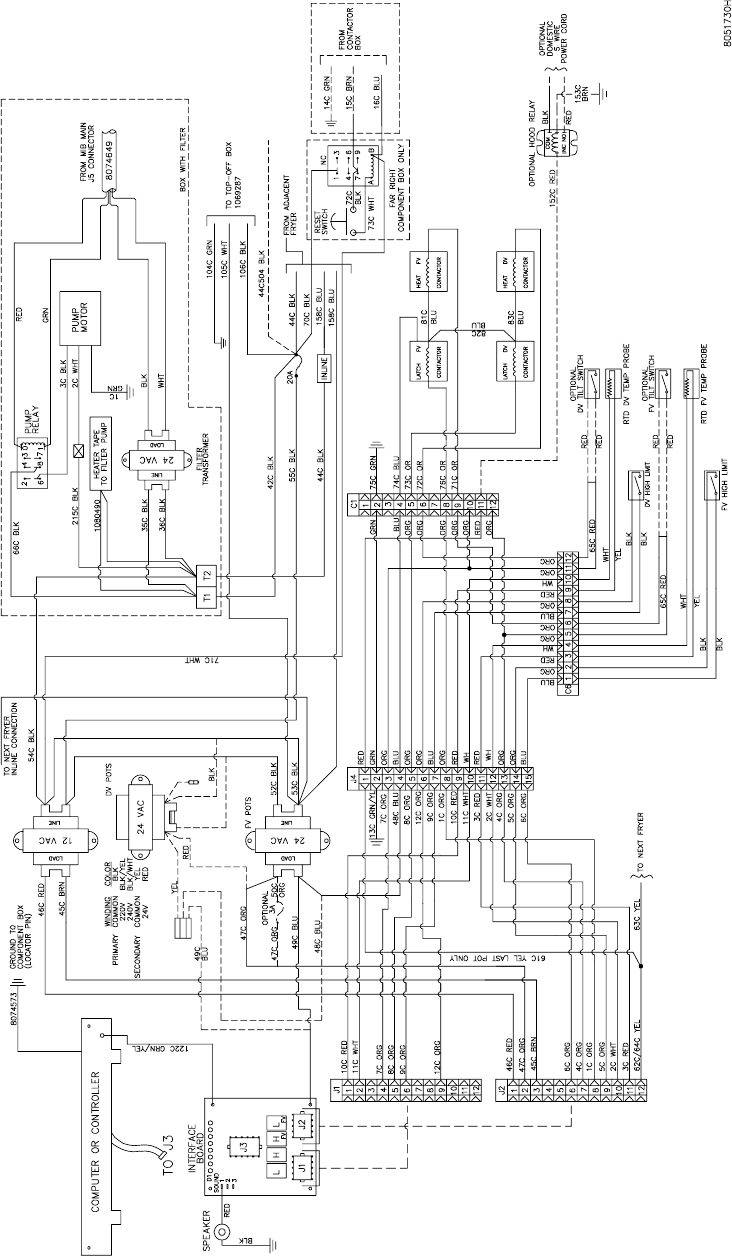

8.1.2 Component Wiring (CE)
8-3
8.1.3 Component Wiring (CSA)
8-4
8.1.4 Component Wiring (Australia)
8-5

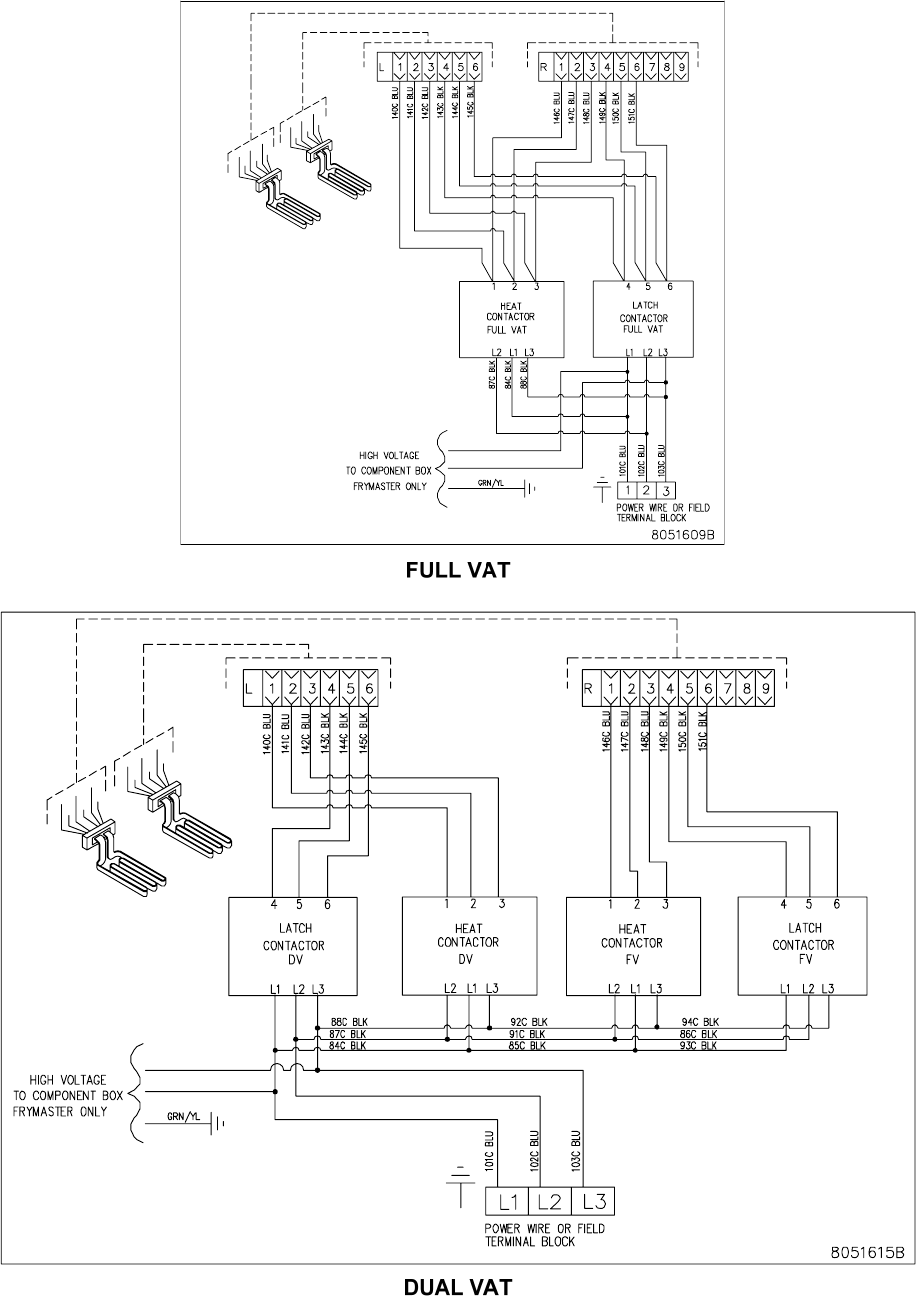

8.1.5 Contactor Box – Delta Configuration
8-6
8.1.6 Contactor Box – WYE Configuration
8-7

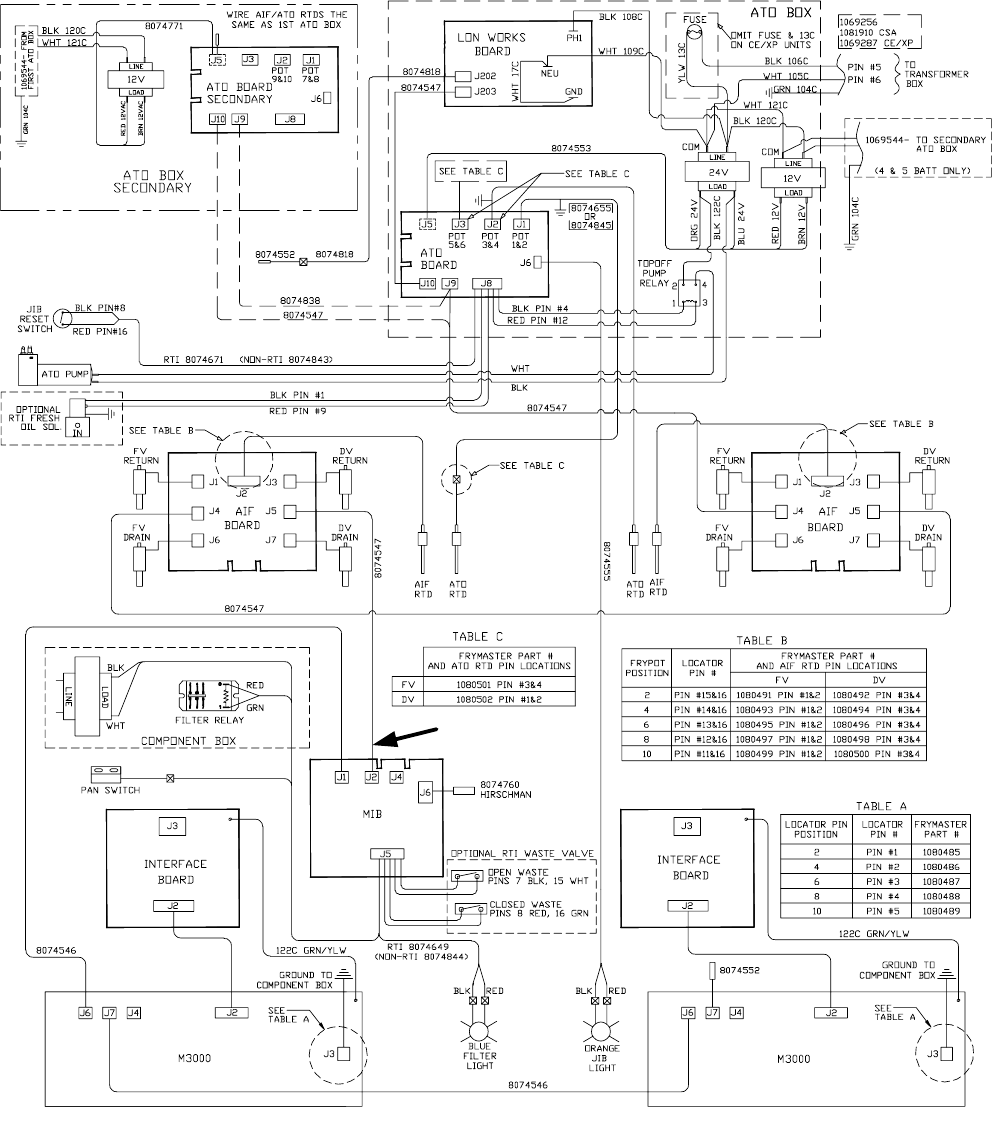

8.1.7 BIELA14 Series GEN II LOV™ Simplified Wiring
START OF 6-WIRE
DATA & POWER
8051734Q
8-8

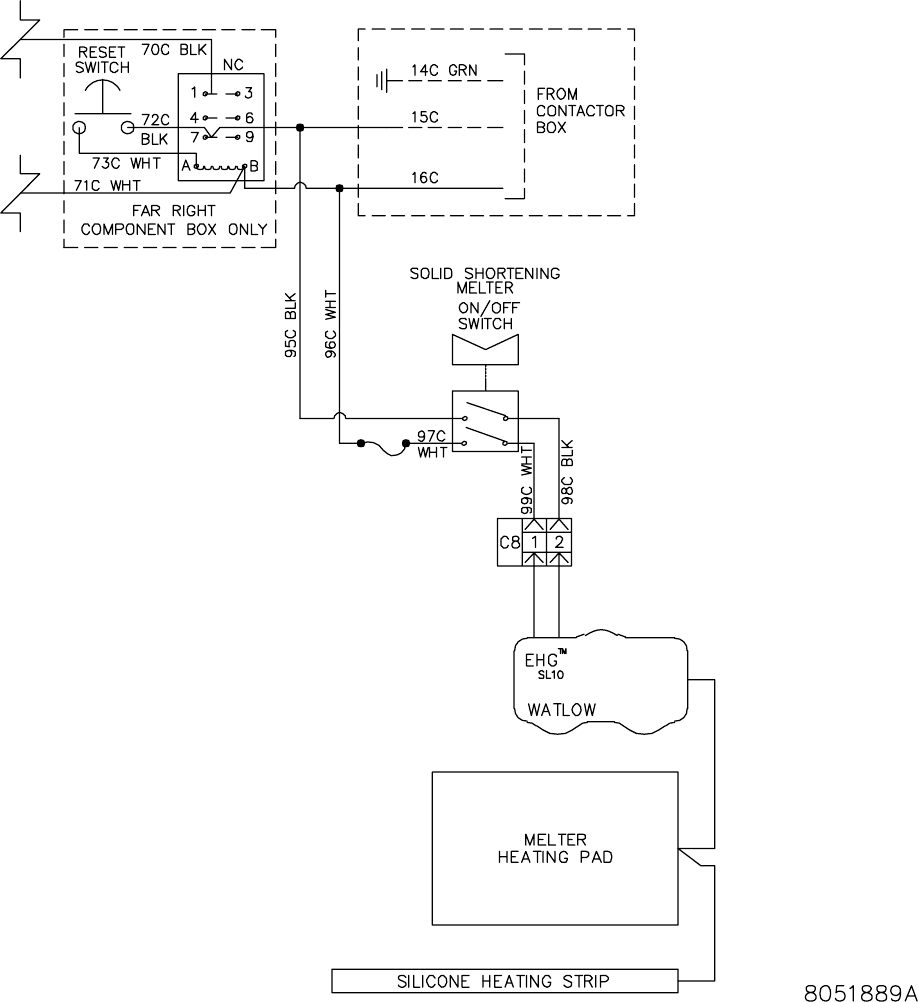

8.1.8 Solid Shortening Melting Unit Wiring Diagram
A–1
BIELA14 SERIES GEN II LOV™ ELECTRIC FRYER
APPENDIX A: RTI (BULK OIL) INSTRUCTIONS
A.1.1 Bulk Oil Systems
Bulk oil systems have large oil storage tanks,
typically located in the rear of the restaurant,
that are connected to a rear manifold on the
fryer. Waste oil is pumped from the fryer, via
the fitting located on the bottom, to the
disposal tanks and fresh oil is pumped from
the tanks, thru the fitting located on the top, to
the fryer (see Figure 1). Remove the plate
exposing the RTI connection and connect the
RTI connection to the fryer (see Figure 2). Set
the fryer to bulk through the setup mode and
set all computers to bulk oil. See Section 4.9
on page 4-9. It is imperative that the fryer
system be completely power cycled after
changing setup from JIB to Bulk.
Figure 1
Figure 2
The LOV™ fryers, equipped for use with bulk
oil systems, have an onboard fresh oil jug
supplied by RTI. Remove the cap and insert
the standard fitting into the jug with the metal
cap resting on the lip of the jug. The oil is
pumped in and out of the jug through the same
fitting. (see Figure 3).
Figure 3
The momentary switch used to reset the JIB low LED is also
used to fill the jug in an RTI system. After resetting the JIB
LED, pressing and holding the momentary switch, located
above the JIB, allows the operator to fill the jug from the bulk
oil storage tank (see Figure 4).
To fill the jug, press and hold the JIB reset button until the jug
is full, then release.*
NOTE: Do NOT overfill the jug.
Figure 4
For instructions on filling the vat from bulk, see Section
4.11.4 page 4-22.
* NOTE: It takes approximately twelve seconds from the time the fill JIB button is pressed until the RTI pump
starts. It may take up to 20 seconds before the level in the JIB begins to rise. Typically it takes
approximately three minutes to fill the JIB. It takes approximately one minute to fill a split vat and
two minutes to fill a full vat.
Fresh Oil
Connection
Waste Oil
Connection
WARNING:
Do not add HOT or
USED oil to a JIB.
NOTE: The instructions in this manual for using a bulk oil system for filling and discarding oil are for
an RTI system. These instructions may not be applicable to other bulk oil systems.
RTI wiring
connection
(behind
plate).
BIELA14 SERIES GEN II LOV™ ELECTRIC FRYER
APPENDIX B: JIB Preparation with Solid Shortening Option
1. Open right door of fryer and remove brace
in JIB cabinet.
2. Position melter in front of cabinet. Loosen
bracket on left side of melter, if necessary,
to ease placement in the cabinet.
3. Use the provided screws to attach the
melter to existing holes in the interior rails
of the fryer cabinet on both sides. See
figures 1 and 2.
4. On the back side of the melter, attach the
white two-pin connectors and plug in the
black connector to the outlet box shown in
figure 3.
5. Position the oil reservoir in the melter,
sliding the oil pickup tube into the female
receptacle. Position the front lid and the
front of the melter. See figure 4.
Figure 1: Position the melter in the cabinet and attach with
provided screws to the cabinet interior.
Figure 2: Position the melter.
Figure 4: The
assembled melter is
shown in position.
Orange button resets
system after a low oil
display.
Melter ON/OFF switch.

Figure 3: Attach the two-pin white connectors and plug the
black connector into the utility box as shown.
BIELA14 SERIES GEN II LOV™ ELECTRIC FRYER
APPENDIX C: Solid Shortening Melter Use
• Ensure shortening melter is on.
• Fill melter with shortening.
• Allow 2-3 hours for solid shortening to
melt. DO NOT attempt to use the top off
system with unmelted oil in the top off
system. The low oil reservoir light will
come on if the fryer calls for oil before
the shortening in the melter is liquid.
• Once the shortening is fully melted,
press and hold the orange reset button
to turn off the light and reset the top off
system.
• DO NOT ADD hot oil to the shortening
melter. The temperature of the oil
reservoir should not exceed 140°F. Add
small amounts of solid shortening to the reservoir to ensure it has sufficient oil to
operate the top-off system.
• For best results, DO NOT TURN OFF the solid shortening melter overnight.
• The on/off switch for the melter is also used as a reset switch if the system’s high
limit temperature is reached.
Melter
ON/OFF
switch
Reset oil reservoir system
Frymaster, L.L.C., 8700 Line Avenue, Shreveport, Louisiana 71106
TEL 1-318-865-1711 FAX (Parts) 1-318-688-2200 FAX (Tech Support) 1-318-219-7135
PRINTED IN THE UNITED STATES SERVICE HOTLINE
1-800-551-8633
819-6442
A
PRIL 2011

Navigation menu
