Fuji Film 03000001 WPS NFC READER/WRITER User Manual
Fuji Film Corporation WPS NFC READER/WRITER
User manual
Document No. : ZST300-052
August 26, 2014
User manual
For WPS NFC READER/WRITER
ICT-3153
Document No. : ZST300-052
August 26, 2014
2
Contents
1．
．．
．
SCOPE............................................................................................................................................... 3
2．
．．
．
OVERVIEW ........................................................................................................................................ 3
3．
．．
．
COMPANY NAME.............................................................................................................................. 3
4．
．．
．
MODEL NAME ................................................................................................................................... 3
5．
．．
．
HOW TO USE FOR NORMAL OPERATION ...................................................................................... 3
6．
．．
．
SAFETY INSTRUCTION (CAUTION & WARNING CONFIRMATION) ................................................ 5
7．
．．
．
SPECIFICATION ................................................................................................................................ 7
8．
．．
．
WARRANTY..................................................................................................................................... 10
9．
．．
．
ATTACHED GOODS AND PACKING .............................................................................................. 10
10．
．．
．
OTHER............................................................................................................................................. 10
ATTACHED DRAWING 1: READER/WRITER APPEARANCE ................................................................... 11

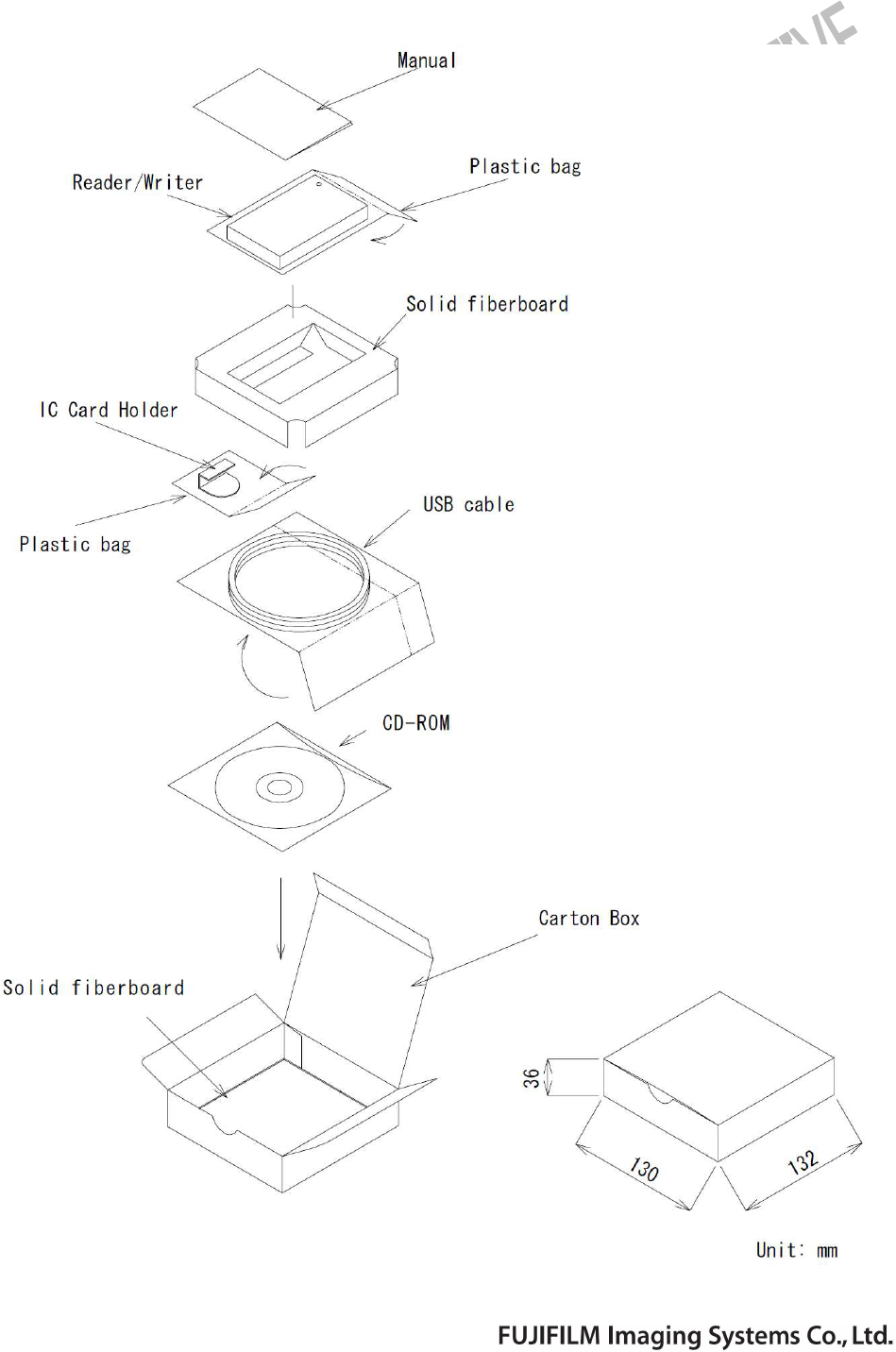

ATTACHED DRAWING 2: UNITARY PACKING ......................................................................................... 12

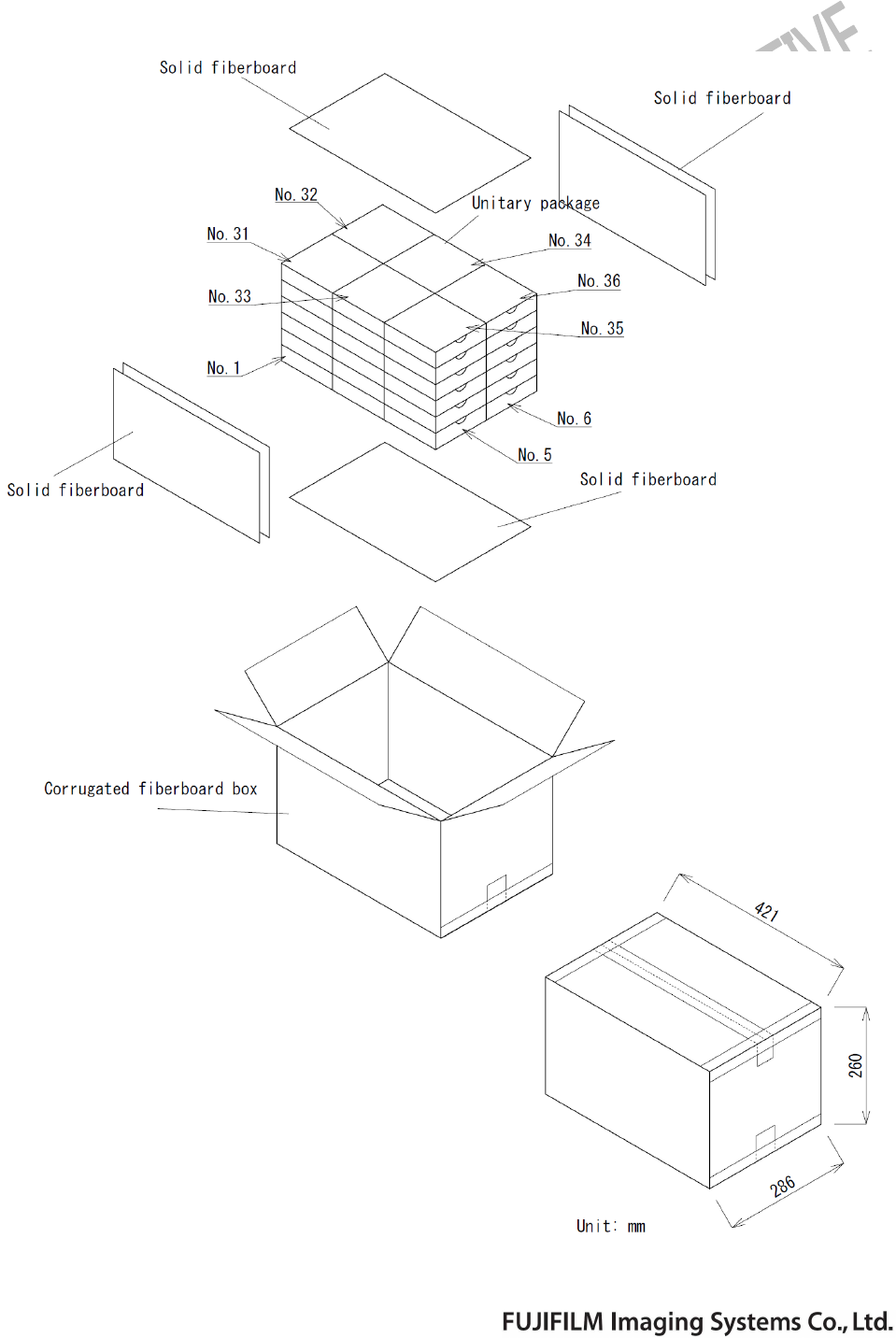

ATTACHED DRAWING 3: PACKING.......................................................................................................... 13
Document No. : ZST300-052
August 26, 2014
3
1． Scope
This document applies to the user manual for the contactless IC card reader/writer ICT-3153.
2． Overview
The product is a compact, low-power-consumption reader/writer with USB interface.
The product is provided with a USB interface; through control from a host controller, it can transmit
and receive data to and from many types of contactless IC cards and tags.
3． Company name
Company name: FUJIFILM Imaging Systems Co., Ltd.
4． Model name
Model name: ICT-3153
5． How to use for normal operation
5-1. Installation of a device driver
When you use this product for the first time, it is necessary to install required software, such as
a device driver, in PC used.
Please install in the following procedures.
Installation procedure
1) Start a computer.
2) Log on by account with administrator authority (Administrators).
3) Terminate all other applications under starting.
When virus checking software etc. have started, it may be unable to install correctly.
4) Start an installer from the folder in software CD-ROM.
* Computer OS is 32bit OS:
Double click "setup.exe" in "x86" folder.
* Computer OS is 64bit OS:
Double click "setup.exe" in "x64" folder.
5) After processing of an installer is completed, connect this product to the USB port of a
computer with the USB cable of appended goods.
Installation of a device driver is completion in the above operation.
For details, please refer to "ZSD300-004 NFC reader writer setup procedure" in attached
CD-ROM.
Document No. : ZST300-052
August 26, 2014
4
5-2. Connect product to computer
1) Connect USB mini-B connecter of an attached USB cable to USB port of product.
2) Connect USB A connecter of an attached USB cable to USB port of computer.
5-3. Checking of operations of a product
1) Start a diagnose software.
Double click "Diagnose_Software.exe".
2) Click “Start” button.
3) Click “Polling Start” button.
4) Set “FeliCa card” on a product, then display “FeliCa” .
USB
Reader/Writer
ICT
-
3153
USB cable
Computer
Reader/Writer
ICT-3153
USB
Mini-B
USB A
USB port
Document No. : ZST300-052
August 26, 2014
5
6． Safety instruction (Caution & warning confirmation)
6-1. The product must be evaluated and verified in the final use environment as operationally
required. The product uses a high-frequency magnetic field to communicate with contactless
IC cards. This means that the characteristics of the communication with cards depend on the
ambient noise and/or electromagnetic environment including metals.
6-2. The product must be evaluated and verified in the final use environment as operationally
required. A transceiver, motor, monitor, power supply or any other device, which generates
noise if located near the product, may affect operation of the product.
6-3. As communication equipment, the product uses 13.56 MHz radio waves, which are within the
ISM (Industrial Scientific Medical) band for public use. For this reason, it may cause
interference depending on how and/or where it is used. To reduce the effect of interference,
the installation must be mutually checked to a sufficient degree before it is used. If precision
equipment, or the like, which is susceptible to radio waves is brought close to the product,
then such equipment may malfunction or suffer a breakdown. In actual use, such equipment
should not be brought close to the product or it should be shielded, for example, so that it is
ensured that it is not adversely affected by radio waves. The product may affect radio
astronomy, medical devices, and other sensitive equipment; if the product is used for these
purposes, particular attention must be paid.
6-4. The product is a board-type module intended to be embedded into other devices. It must be
safeguarded by installing a protective cover to ensure that no electronic part comes in contact
with the human body.
If an electronic part of the product is touched by human hands or the like, an electric shock,
burn, or failure may be caused.
6-5. The product is a board-type module. In an environment where static electricity may be applied,
the product must be safeguarded by covering it with an insulating sheet to avoid static
electricity application. Static electricity, if applied to the product, may cause a breakdown or
the like.
6-6. To connect power or a host controller to the product, it must be properly connected in
accordance with this specification. Incorrect product connection wiring or power supply
voltage causes a breakdown, fire, electric shock, or the like.
6-7. To prevent static electricity from being applied to the product, the electricity must be removed
from charged workers before the product is installed and cabling is carried out. Static
electricity, if applied to the product, may cause a breakdown or the like.
6-8. The connector of the product must be inserted or removed with power turned off. Inserting or
removing the connector of the product with power turned on causes an electric shock,
malfunction, breakdown, or the like.
Document No. : ZST300-052
August 26, 2014
6
6-9. The product is a board-type module. It must be safeguarded by installing a protective cover
before it is used to prevent dirt, moisture, metal, or the like from adhering to the product. Dirt,
moisture, metals, or the like, if adhered to the product, causes a breakdown, fire, or electric
shock.
6-10. Attention should be paid to ensure that the product is not used in a place where the difference
between the highest and lowest temperatures is large and that it is not exposed to steam or
the like. Failure to observe this causes product failure, electric shock, or the like.
6-11. The product must not be used in an environment where it is exposed to organic solvents, oils,
water, or the like. Failure to observe this causes product failure, ignition accident, or the like.
6-12. The product must not be used in an environment where a corrosive, noxious, or flammable
gas or the like exists. Failure to observe this causes product failure, ignition accident, or the
like.
6-13. Although we strive to increase the quality and reliability, system measures, including a fail-safe
mechanism, must be implemented to ensure that no product failure or operation directly
threatens lives, does harm to the human body, or leads to a large loss of property.
6-14. It should be noted that if, for example, production of an electronic part mounted on the product
is ceased, then the product specifications may be changed or the production of it may be
discontinued.
6-15. It should be noted that in no case will we be liable for direct and indirect losses or influences
(including losses of business profits and losses caused by disruption to operations, etc.)
resulting from the use of this specification and product.
12-16. FCC NOTICE
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Document No. : ZST300-052
August 26, 2014
7
7． Specification
7-1. Hardware Specification

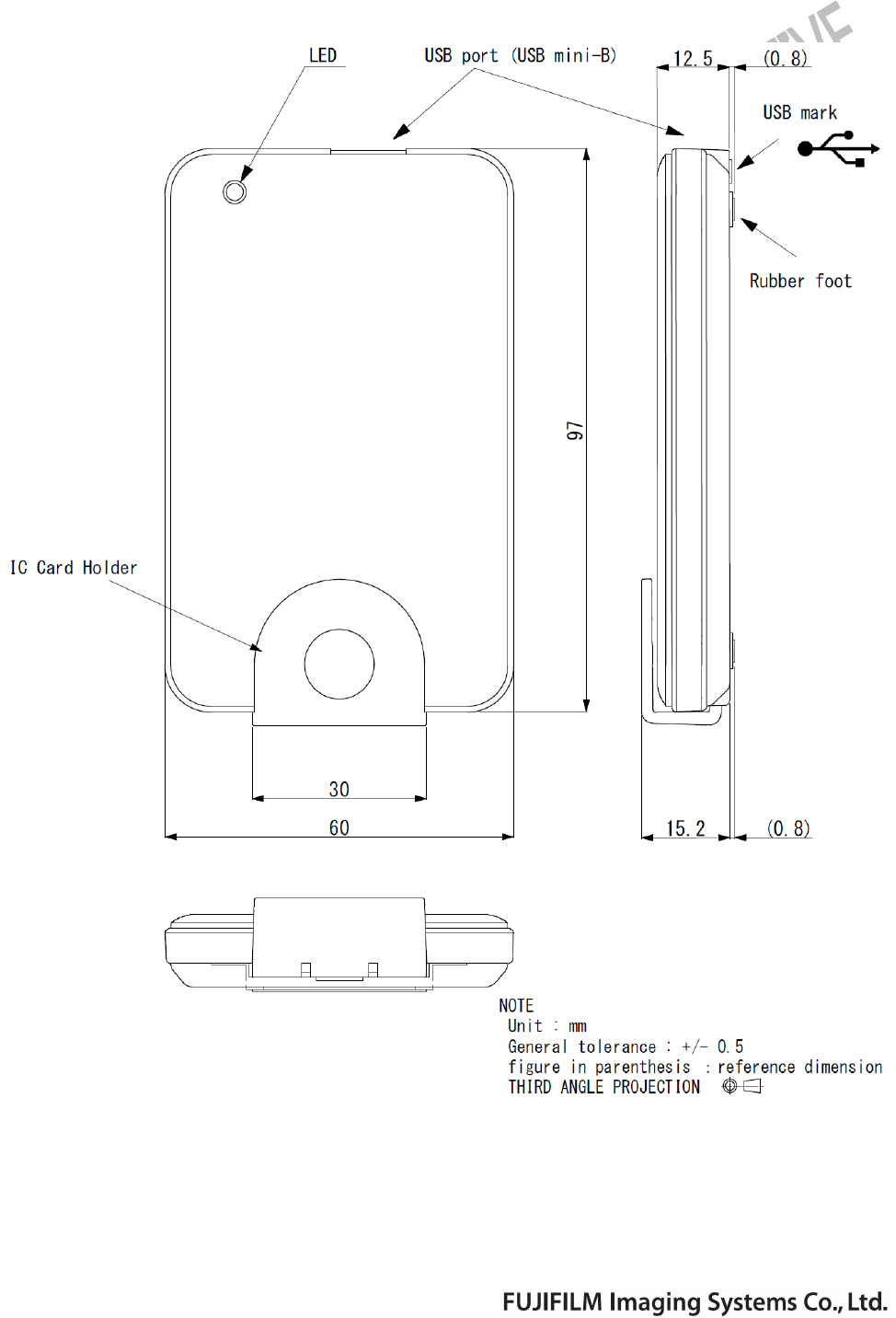

7-1-1. Appearance See Attached Drawing 1
7-1-2. Dimensions 97 +/- 0.5 x 60 +/- 0.5 x 12.5 +/- 0.5 mm
(Not including protrusion)
7-1-3. Weight Approximately 35 grams
7-1-4. Power Supply Voltage USB Bus-powered
+5 VDC +/- 5% (with a ripple voltage of 50 mV or less)
7-1-5. Consumption Current 1) During a carrier halt: 50 mA (max.)
2) During carrier output: 250 mA (max.)
3) In energy saving mode: 0.5mA (max)
7-1-6. Temperatures 1) Operating temperature range: 0 ~ +40 °C
2) Storage temperature range: -20 ~ +60 °C
7-1-7. Humidity 1) Operating humidity range : 20 ~ 85%RH (Non Condensing)
2) Storage humidity range: 20 ~ 85%RH (Non Condensing)
7-1-8. Resistance to Vibration Vibration frequency: 10 ~ 55 Hz
Cycle: 20 cycles
Sweep speed: 1 octave/min
Amplitude or Acceleration: 0.35 mm (half-amplitude) or 50 m/s
2
Directionx, y, z : 3 direction
No part breakage, dropping, or the like that impairs functionality
must be detected.
7-1-9. Resistance to Impact Peak acceleration: 500 m/s
2
Time: 11 ms
Pulse shape: Sine half wave
Direction: +/-x, +/-y, +/-z (6 times in total)
No part breakage, dropping, or the like that impairs functionality
must be detected.
Document No. : ZST300-052
August 26, 2014
8
7-1-10. Approvals Radio Act for Japan
Internal reader/writer module: Type Certification No.: AC-14051
FCC
This product is conform to the FCC standards.
FCC Rules (Federal Communications Commission)
This product complies with Part 15 Subpart C of the FCC Rules.
FCC ID : W2Z-03000001
FCC NOTICE
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
7-1-11. RoHS Compatible with RoHS (Restriction of Hazardous Substances)
(2002/95/EC)
7-2. USB Interface
1) Interface Universal Serial Bus Specification Revision 2.0
2) Data Flow Types Controlled Transfer / Bulk Transfer
3) Transfer rate 12 Mbps
4) Power Supply USB Bus-powered
5) Connector * Model No.: 10057202-R01LF
* Supplier: FCI
6) Connector Pin assigns
Pin # Signal Name Remarks
1 VBUS Power (+5 V +/- 5%)
2 D- Data signal
3 D+ Data signal
4 GND Ground
5 Reserved Not to be connected
6 GND Ground
7) Control Library and Device Driver
A purpose-built device driver and library are used to exercise control.
The details are defined in the API specification.
Document No. : ZST300-052
August 26, 2014
9
7-3. Communication Method
ISO/IEC 14443 Type A
ISO/IEC 14443 Type B
ISO/IEC 18092 FeliCa
Transmit
Modified Miller NRZ Manchester Bit coding
Receive
Manchester NRZ Manchester
Transmit
ASK 100% ASK 10％ ASK 10% Modulation
type Receive
OOK BPSK ASK
Carrier frequency fc=13.56MHz
Subcarrier
fc/16=847kHz
fc=13.56MHz
Subcarrier
fc/16=847kHz
fc=13.56MHz
Data speed 106kbps(fc/128) 106kbps(fc/128)
212kbps(fc/64)
424kbps(fc/32)
847kbps(fc/16)
212kbps(fc/64)
424kbps(fc/32)
7-4. Supported contactless IC card types
1）ISO/IEC14443 Type A
- MIFARE DESFire
- MIFARE Classic1K/4K
- MIFARE Ultralight
- MIFARE Ultralight C
- my-d move
2）ISO/IEC14443 Type B
- FUJIFILM Imaging Systems Co., Ltd. original Type B card
3）ISO/IEC18092
- FeliCa
- FeliCa Lite
- FeliCa Lite-S- FeSCa Series（FeliCa Lite-S）
Notes:
1) In some cases, even the cards shown above are incapable of providing proper or stable
communications. It must be completely ensured in advance that the desired IC card
works properly in the environment where it will be embedded.
2) Some types of IC cards may be incapable of providing proper communications near the
antenna surface. If this is the case, possible attempts must be made to achieve proper
communications, perhaps by separating the control panel on the mounting case from
the antenna surface.
* MIFARE is a registered trademark of NXP Semiconductors.
* FeliCa is a registered trademark of Sony Corporation.
* FeliCa is a technique developed by Sony Corporation for contactless IC cards.
* My-d is a trademark or a registered trademark of Infineon Technologies.
* FeSCa is a registered trademark of FUJIFILM Imaging Systems Co., Ltd.
Document No. : ZST300-052
August 26, 2014
10
8． Warranty
8-1. Warranty The warranty period shall be 15 months after delivery; provided that
the product is used under normal conditions according to this
specification. Should a failure occur under normal use during the
period, the product will be replaced at no charge. Even during the
warranty period, the following problems shall be remedied at cost.
1) Failures caused by improper handling or use not compliant with
this specification.
2) Problems caused by an undue repair or modification not
conducted by us.
3) Failures and/or damage caused by transportation, dropping, or
the like after the delivery
4) Failures and/or damage resulting from a fire, earthquake,
abnormal voltage, or any other act of God
5) Other failures and/or damage that are not considered attributable
to us.
9． Attached goods and packing
9-1. Attached goods Attached goods are as follows.
No. Item Qty Comment
1 USB cable 1 Approximately 1m length
2 IC Card Holder 1
3 Manual 1
4 CD-ROM 1 Include Device Driver, etc.
9-2. Packing See Attached Drawing 2 and Drawing 3.
10．Other
If a question arises in regard to this specification, it shall be promptly solved by mutual
consultation.
Document No. : ZST300-052
August 26, 2014
11
Attached Drawing 1: Reader/Writer Appearance
Document No. : ZST300-052
August 26, 2014
12
Attached Drawing 2: Unitary Packing
Document No. : ZST300-052
August 26, 2014
13
Attached Drawing 3: Packing
