User manual

User Manual
N5000
Power button
Press and hold this button to power on/o the
data terminal.
Volume button
Adjust the volume. When pressing this button
when there is an incoming call, the ringing will
become mute.
Power button + volume subtraction button
After lighting the screen, this action can take a
screenshot.
Scanning button
Click to start scanning in the application.
Headphone jack Front camera
Power
button
Scanning
button
Return
button
Home buttonUSB hole
Menu
button
Volume
addition and
subtraction
button

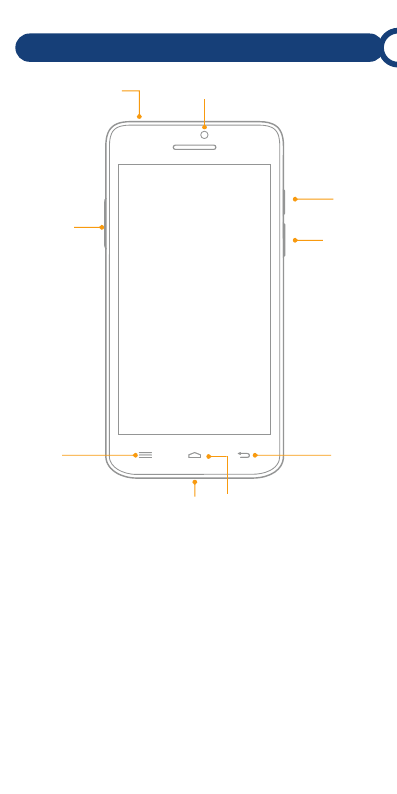

Data terminal illustration and instructions
Notice:
Please do not point laser at eyes. Long exposure
can cause unrecoverable damage the eyes.

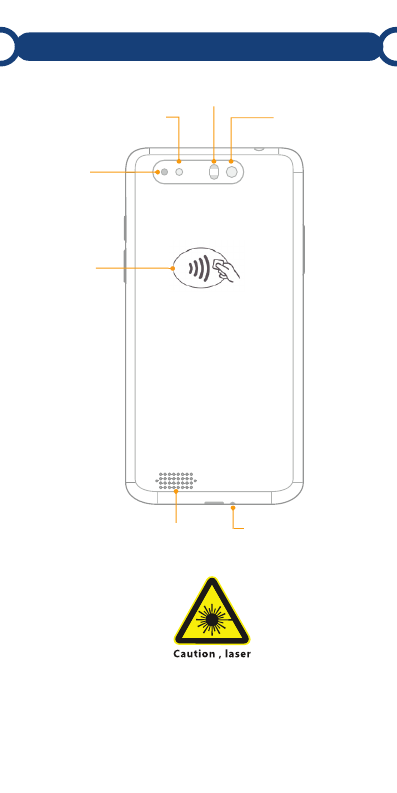

Speaker hole Microphone hole
Rear camera
Laser
aiming
Scanning camera
Double ash
NFC
Antenna
Data terminal illustration and instructions

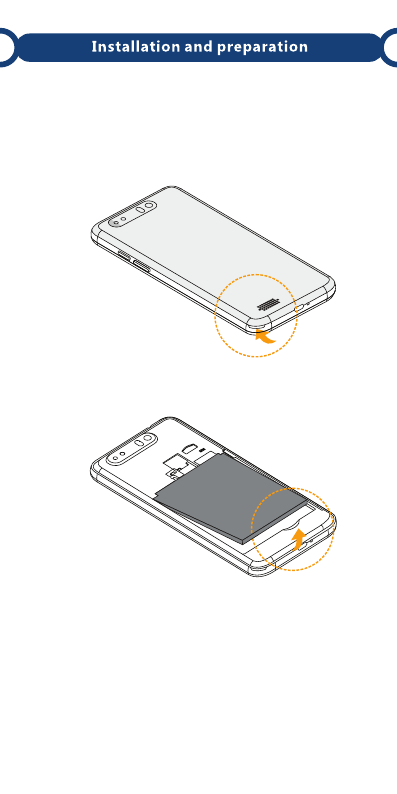

1. Open the back cover
2. Remove the battery
Please insert the battery before using the
data terminal. Make sure the data terminal is
turned off before the battery is removed from
the data terminal.
Q: How to you extend the standby time of
the data terminal
?
Answer:
1. If you do not need to use the WLAN or
Bluetooth, you can turn o the WLAN or Bluetooth.
Change this by going to settings > wireless and
network > WLAN or Bluetooth.
2. If you do not need to use GPS, you can turn
o the GPS. Go to settings > information location
access > GPS satellite.
3. Screen brightness and duration of sleep will
affect the standby time of the data terminal. You can
adjust these two settings by going to settings >
display.
4. Exit and shut down the applications that are
not in use.
5. Reduce the volume.
Q: How to free up data terminal memory?
Answer:
1. Move theles and e-mail attachments to the
Micro SD card.
2. Remove all cache pages and browsing history
information from the browser.
3. Uninstall the applications which are no longer
necessary.
Important tips
I
n order to avoid unneccessary harm, please note
the following information when using the data terminal.
Please use the original accessories and battery,
do not use incompatible products.
Keep the dry.
Please find qualied maintenance sta to repair
data terminal .
Please consult the connection method in the
instructions when connecting to other devices. Do
not connect to unsuitable devices.
Battery charging
The battery icon in the upper right corner of the
screen shows electricity quantity or charging status,
you can also choose to show the percentage of
electricity quantity.
(Trick in the select box in setting > battery >
electricity quantity percentage)
Please charge by using the attached charger
connected to a power outlet or connecting to a
computer with a USB cable.
Please do not turn on the data terminal where
wireless devices are forbidden to use, including
aircrafts,medical facilities and medical equipment
indicating not to use data terminal .
Please do not turn on the data terminal where it
may cause interference or danger, such as around
petrol stations, fuel or chemicals, blasting areas, etc.
data terminal
Connect the data terminal
to the computer
Connect to the computer with a USB cable, open
the data storage though the pop-up window or
drop-down notication bar. While using the data
storage, a part of the program cannot be used, such
asle management, etc.
Open the back cover
Gently pull the opening in the lower left corner
of the N5000 outwards to remove the back cover.
Insert or remove the battery
Align the battery metal contact entrance with
the body battery contactor. Press down to insert
the battery. To remove the battery, pull the battery
out of the recess at the bottom or the battery
compartment.
1. Do not dispose of batteries in a fire as they may
explode.
2. The battery can be charged and discharged over
500 times. If the battery life is unreasonably short,
please replace the battery with a new one.
3. Use only the included battery and AC adapter.
4. Do not continue to charge a battery that is fully
charged. Overcharging will shorten battery lifespan.
If a fully charged battery is not used, it will discharge
slowly, which does not affect its normal use.
5. Do not use damaged or faulty AC adapters or
batteries.
6. Properly dispose of and recycle batteries. Do not
dispose of them as household garbage.
Battery Safety Guidelines
Dual core 1.2GHZ
Full touch screen, stylish look
5.0qHD
4GB (ROM) + 1GB (RAM)
146.7*73*9.3(mm)
(length*width*thickness)
155g
2500mAh
Bluetooth / WiFi
T-Flash card slot, maximum support
32GB capacity card
Scanning head professional 1D / 2D
scanning head
Processor
Style
LCD
System
memory
Size
Weight
(including
battery)
Battery
capacity
Wireless
transmis-
sion mode
User
memory
mode
Scanning
head
Data terminal configuration
The number in this logo represents that the
products have a 20 years environmentally friendly
use period under normal conditions. Some other
components may also have an environmentally
friendly use period logo, their environmentally
friendly use period depends on the number in the
logo. Because of different models, the product may
not include all of the above parts, except for the
host, please refer to our actual sales product
configurations.
Rear camera: 5 million pixel autofocus
camera + double LED ash
Front camera + double LED ash
USB 2.0
Capacitive touch screen
3 hours
After free drops at a height of 80cm
for 6 times (one time per side), the
device is not damaged.
Camera
USB type
Touch
screen
Fast
charging
Host
protection
function
Data terminal configuration
It represents that the content of this hazardous
substance contained in all homogeneous materials
for this component is all under the limit require-
ment in GB/T 26572
It represents that the content of this hazardous
substance contained in all homogeneous materials
or at least one component is above the limitation in
GB/T 26572, and there is no mature alternatives in
the industry, meeting the environmental protection
requirements of EU ROHs instructions.
Polybrominated
Biphenyls
(PBB)
Mercury
(Hg)
Lead
(Pb)
Harmful Substance
Declaration of toxic and hazardous substances
in electronic information products.
Component
Host
Charge
Battery
This form is compiled in accordance with the SJ/T
11364.
Cable
www.newlandaidc.com
Cadmium
(CD)
Six valence
Chromium
(CR (VI))
Polybrominated
Diphenyl Ethers
(PBDE)
Newland China
+86-591-83978605
contact@nlscan.com
www.newlandaidc.com
Newland Europe
+31(0)-345-87-0033
info@newland-id.com
www.newland-id.com
Newland North America
+1-510-490-3888
info@newlandna.com
www.newlandamerica.com
Newland Latin America
+1-239-598-0068
info@newlandla.com
www.newlandamerica.com
Newland Taiwan
+886-2-7731-5388
info@newland-id.com.tw
www.newland-id.com.tw
Newland Korea
+82-10-8990-4838
th.sung@newland-id.com.tw
www.newlandaidc.com
Warning tips
a This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this devicemust accept anyinterference received,
including interference that may cause undesiredoperation.
b Any Changes or modifications not expressly approved
by the party responsible for compliance could void the
user's authority to operate the equipment.
c Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio ortelevision reception, which
can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one
or more of the followingmeasures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV
technician for help.
d Specific Absorption Rate (SAR) information:
This data terminal meets the government's
requirements for exposure to radio waves. The guidelines
are based on standards that were developed by independent
scientific organizations through periodic and thorough
evaluation of scientific studies. The standards include a
substantial safety margin designed to assure the safety of all
persons regardless of age or health.
Warning tips
e FCC RF Exposure Information and Statement
The SAR limit for body is 1.6W/kg, for limbs is 4.0W/kg.
Device types: DataTerminal (FCCID:SL9N5000)
has also been tested against this SAR limit. The highest
reported SAR value for body is 0.091W/kg, and for limbs
is 0.410W/kg.
This device was tested for
typical body-worn operations with the back of the handset
kept 1.0cm from the body. To maintain compliance with FCC
RF exposure requirements, use accessories that maintain
a 1.0cm separation distance between the user's body and
the back of the handset. The use of belt clips, holsters and
similar accessories should not contain metallic components
in its assembly. The use of accessories that do not satisfy
these requirements may not comply with FCC RF exposure
requirements, and should be avoided.
f Body-worn Operation
This device was tested for typical body-worn operations.
To comply with RF exposurerequirements, a minimum
separation distance of 1.0cm must be maintained between
the user’s body and the handset, including the antenna.
Third-party belt-clips, holsters, and similar accessories used
by this device should not contain any metallic components.
Body-worn accessories that do not meet these requirements
may not comply with RF exposure requirements and should
be avoided. Use only the supplied or an approved antenna.
Use accessories that maintain a 1.0cm sepatation distance
between the user's body and the device.
