PAN & TILT

Printed in the USA 4/2009-5M

FUJINON HEADQUARTERS:

NEW JERSEY – SALES & SERVICE CENTER

10 High Point Drive, Wayne, NJ 07470-7434

(973) 633-5600 FAX: (973) 633-5216

E-mail: lens.sales@fujinon.com

www.fujinon.com

SOUTH EAST:

FLORIDA – SALES

4101 No. 48th Terrace, Hollywood, FL 33021

(954) 966-0484 FAX: (954) 966-1368

E-mail: kelly.n@fujinon.com

GEORGIA – SALES

12296 S. Main Street, Box 152, Trenton, GA 30752

(706) 657-8481 FAX: (706) 657-8438

E-mail: susan.t@fujinon.com

GEORGIA – SERVICE CENTER

1231 Collier Road, Suite G, Atlanta, GA 30318

(404) 351-1470 FAX: (404) 351-7035

E-mail: wzeferino@fujinon.com

LATIN AMERICA:

FLORIDA – SALES

2900 N.W. 112th Avenue, Suite 1, Miami, FL 33172

(305) 406-2910 FAX: (305) 406-9903

E-mail: mario@fujinon.com or yukio.ito@fujinon.com

MIDWEST:

ILLINOIS – SALES

655 Deerfield Road

Ste. 100, #206, Deerfield, IL 60015-3241

(847) 945-8923 FAX: (847) 945-8943

E-mail: atanielian@fujinon.com

SOUTH CENTRAL:

TEXAS – SALES & SERVICE CENTER

4951 Airport Parkway

Ste. 802-A, Addison, TX 75001-6617

(972) 385-8902 FAX: (972) 392-3251

E-mail: dave.w@fujinon.com

WEST:

CALIFORNIA – SALES & SERVICE CENTER

W. Bay Business Park, 2621 Manhattan Beach Blvd.

Redondo Beach, CA 90278-1604

(310) 536-0800 FAX: (310) 536-0022

E-mail: ndlt@fujinon.com

WASHINGTON – SALES

P.O. Box 36, Mercer Island, WA 98040

(206) 230-0237

E-mail: josh.ewing@fujinon.com

CANADA:

ONTARIO – SALES

16715 Yonge Street, Unit #12, Suite 203

Newmarket, ON, L3X 1X4, Canada

(905) 898-1382 FAX: (905) 898-3350

E-mail: stosh.durbacz@fujinon.com

FUJINON CORPORATION:

JAPAN

1-324 Uetake, Kita-Ku, Saitama City

Saitama 331-9624 Japan

Phone: 81-48-668-2142 FAX: 81-48-651-8517

E-mail: sales@msv.fujinon.co.jp

www.fujinon.co.jp

PAN & TILT

CONTROLLERS

EOP-102J-30E EOP-102J-60B EOP-102J-70B

Operation

RS-485 via twisted pair cable – E-connector/ RS-232 via DB-9 connector

Pan / Tilt

Variable-speed joystick

Zoom

Variable-speed rocker switch

Focus

Variable-speed potentiometer

Iris

Close, open, auto, remote

Shot Memory

32 32 per head 32 per head

Back-up

Reservable for more than 5 years (Lithium battery)

Qty of Head Control

144

Auxiliary Input

2 auxiliary relay contacts for controlling

accessory equipment at the pan and tilt head

Power Source

120 VAC via 12 VDC adapter (included)

Power Consumption

5 W

Camera Control

Camera On/Off

Shutter Speed

Gain Adjust, Color Bar

Auto White, Auto Black

Weight

Approximately 0.8 kg

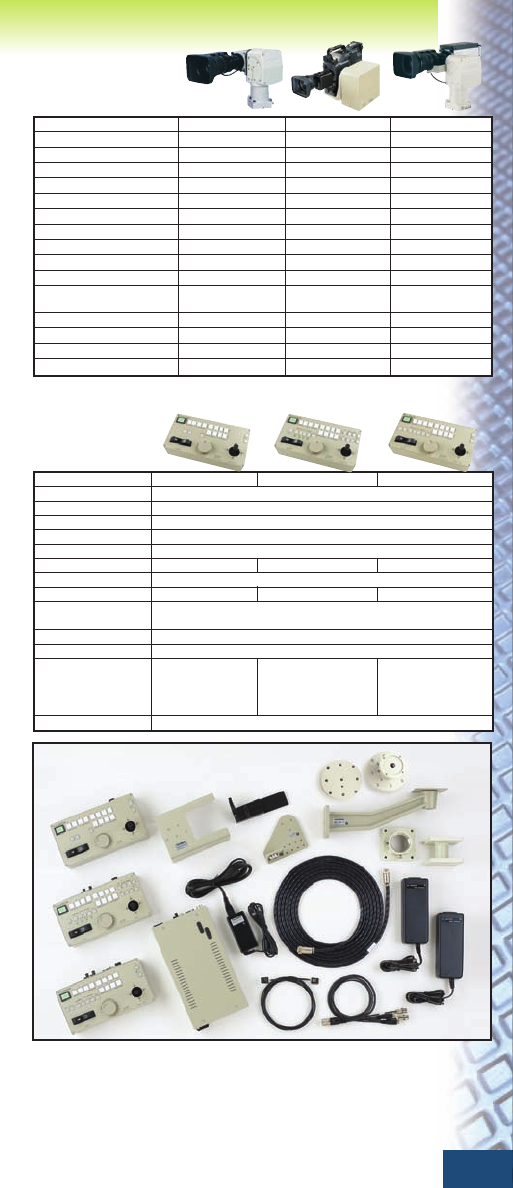

PAN & TILT

HEAD SPECIFICATIONS

J. K.

Q. R.

MODEL CPT-70F-02A CPT-70D-02A** EPT-7G-H2A

Pan Range 300° 270° 300°

Pan Speed 25° / Sec. 9° / Sec. 25° / Sec.

Tilt Speed 20° / Sec. 9° / Sec. 20° / Sec.

Tilt Range +/- 95° +/- 95° +/- 95°

Stopping Accuracy +/- 5' +/- 15' +/- 10'

Lens Type MD MD MD

Acoustic Noise NC40db NC40db NC40db

Load Capacity 4 kg / 8.8 lbs. 10 kg / 22 lbs. 4 kg / 8.8 lbs.

Power Consumption DC 15V / 10W (max) DC 15V / 10W (max) DC 15V / 30W (max)

Operating Temperature -10° C ~ +50° C -10° C ~ +50° C 0° C ~ +45° C

Power Source 15V DC 15V DC 15V DC

(ESC-103K-04A)

Drive System DC Servo DC Servo DC Servo

Weight 2.3 kg / 5.06 lbs. 7 kg / 15.4 lbs. 2.3 kg / 5.06 lbs.

Dimensions WxDxH (mm) 130 x 102 x 222 233 x 277 x 226 130 x 102 x 222

Max. Cable Length* 1350 m / 4430 ft. 1350 m / 4430 ft. 1350 m / 4430 ft.

* Max. cable length varies depending on multi-head controller options (see S2BA1/S2-CA1 on pg. 40)

** EOP-102J-60B not available on CPT-70D-02A

Broadcast & Communications Products Division

www.fujinon.com

A. EOP-102J-30E

B. EOP-102J-60B

C. EOP-102J-70B

D. ESC-103K-04A

E. PS-470A-01A

F. UTB-219A-03A

G. CLH-8B

H. UTB-219A-02A/04A

I. UHD-344A-XXX

J. Communication Cable

Between EOP & ESC

K. UHC-335J-XXX

L. MX-462E-01A

M. MX-462E-02A

N. FTA-C10D

O. FPA-C10D

P. CMA-200A-01A

Q. FHTA-10 Tripod

Adapter

R. FH-10–High Hat

Mount

Fuji_PG_6pg_Cvr_09 3/31/09 1:43 PM Page 1

40 41

EOP-102J-70B

Aux.

1 & 2

2 Ch

Alternate

Page Button

Page x 8 shot

= 32 preset

Head Select (1–4)

(Available on

EOP-102J-60B/70B)

4 pin E-conn

RS-485

DB9(M)

RS-232

12V DC

External P/S

Supplied

Preset Buttons

32 Preset

(4 page x 8 shot)

Iris Control

Auto/Manual

Pan/Tilt

Control

Focus

Control

Memo

Button

Zoom

Control

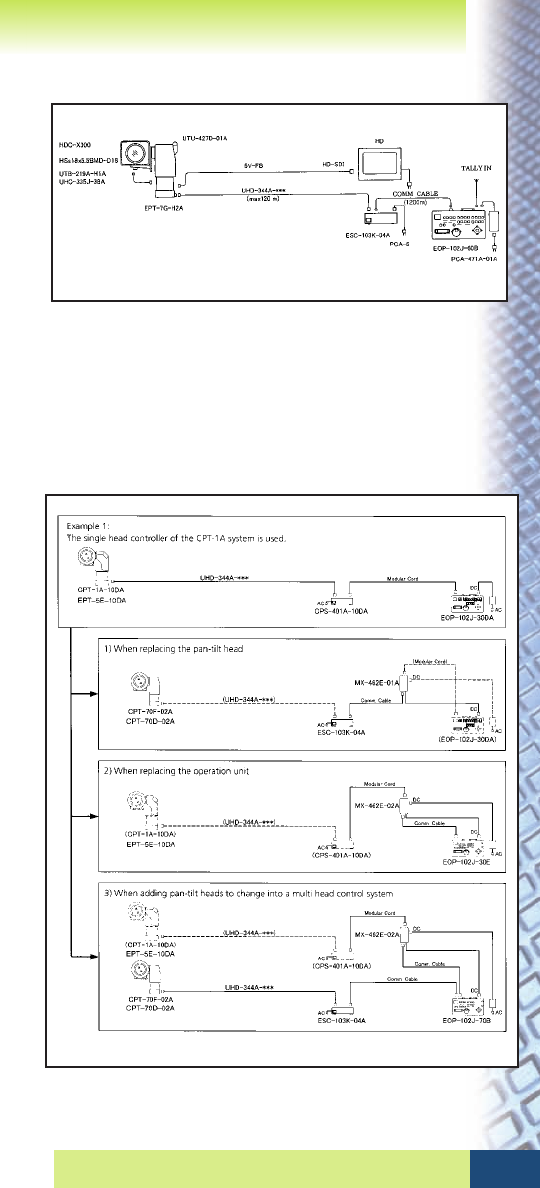

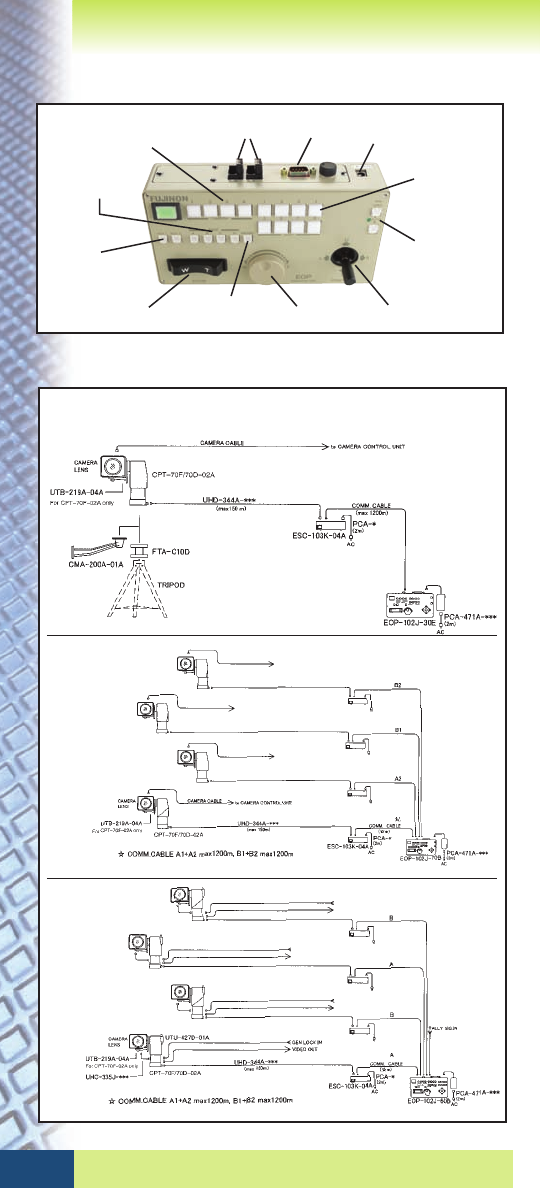

COMPATIBILITY WITH EXISTING SYSTEMS

Compatibility with existing CPT-1A and EPT-5E systems

is possible by the utilization of certain adaptors. The

diagrams below depict some common configuration

scenarios.

CPT-70F/70D CONFIGURATIONS

S1-BA1

Single-Head Control System

S2-BA1

Multi-Head

Control

System

S2-CA1

Multi-Head

Control

System

w/ Camera

Control Function

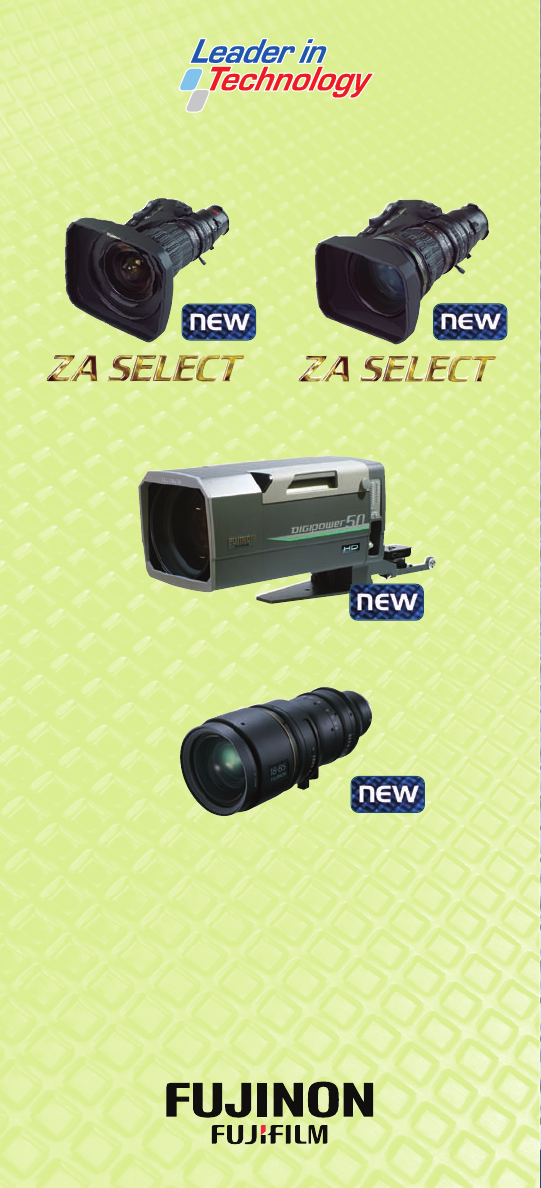

INTRODUCING…NEW 2009 LENSES

PAN & TILT PAN & TILT

EPT-7G-H2A CONFIGURATIONS

HD Series 2/3"

ZA12x4.5B RM/RD

Videoconferencing 2/3"

HD Series 2/3"

ZA17x7.6B RM/RD

PL Mount Cine Zoom

18-85mm T2.0

(more models to be released late 2009)

HDTV Field

XA50x9.5BE SM

ZA12x4.5B MD

ZA12x4.5BE MD

ZA17x7.6B MD

ZA17x7.6BE MD

ZA22x7.6B MD

ZA22x7.6BE MD

(photos not yet available)

Fuji_PG_6pg_Cvr_09 3/31/09 2:38 PM Page 2

HD & SD ENG Features . . . . . . . . . . . . . . . . . . 4–5

HD & SD Studio/Field Features . . . . . . . . . . . . . . 6

PL Mount Cine Lenses . . . . . . . . . . . . . . . . . . . . . . 7

24p/HD Digital Cine Lenses . . . . . . . . . . . . . . . 8–9

PF Lenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–12

Lenses for 1/3" HD Cameras . . . . . . . . . . . . . . . . 13

Lenses for 1/2" HD Cameras . . . . . . . . . . . . . . . . 14

HDTV ENG Select Series Lenses . . . . . . . . . 15–16

HDTV ENG Premier Series Lenses . . . . . . . . 17–20

HDTV Studio Lenses . . . . . . . . . . . . . . . . . . . . . . . 21

HDTV Field Lenses . . . . . . . . . . . . . . . . . . . . . 22–24

SDTV ENG/EFP Professional Lenses . . . . . . . . . . . 25

HDTV Videoconferencing Lenses . . . . . . . . . . . . . 26

SDTV Videoconferencing Lenses . . . . . . . . . . . . . 27

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 28–38

Pan & Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39–41

TABLE OF CONTENTS

Suffix

MD Motor Drive

RM Manual Focus Servo Zoom

ZM Manual Focus Servo Zoom with Quick Frame

RD Full Servo (ENG Style)

ZD Full Servo with Quick Frame

SM Manual/Servo Module Interchangeable

HD 2/3" Format

Manual Focus Servo Zoom

Extender

Extender and

Ratio Converter

R M

Zoom Ratio

Letter indicates Camera Manufacturer

and Correlates to Flange Focal Distance

23 X

Focal Length

at Wide End

7. 6 E

Not every product shown in this guide is available worldwide.

Prefix

A2/3" FORMAT

(ENG)

Ah 2/3" FORMAT

(EFP)

S1/2" FORMAT

(ENG)

T1/3" FORMAT

(ENG)

HA/XA/HAs 2/3" FORMAT

(High Definition)

ZA 2/3" FORMAT

(High Definition)

HAc 2/3" FORMAT

(High Definition, Cine Compact Zoom)

HAe 2/3" FORMAT

(High Definition, Cine Super Zoom)

HAeF 2/3" FORMAT

(High Definition, Cine Super Prime)

HS/HSs/XS 1/2" FORMAT

(High Definition)

HTs/Th 1/3" FORMAT

(High Definition)

HK PL MOUNT LENSES

Example

Features, specifications and availability subject to change without notice.

Not responsible for typographical errors or omissions.

Fuji_PG_Inside_09.qxd 3/31/09 12:44 PM Page 1

HD & SD ENG FEATURES

DIGIPOWER

In order to enhance the newest optical design technology,

Fujinon has developed the digital servo control system

DIGI POWER offering advanced performance of its zoom

lenses. In addition to improved specification and performance

the utilization of digital circuitry in our DIGI POWER

product line has made many new features available that

were virtually impossible in the past. DIGI POWER lenses

provide for vastly improved accuracy and repeatability over

previous designs and enable custom control parameters to be

memorized for individual camera operator’s preferences. An

optional 16 bit processor for zoom, focus and iris is available for

applications requiring a high degree of accuracy.

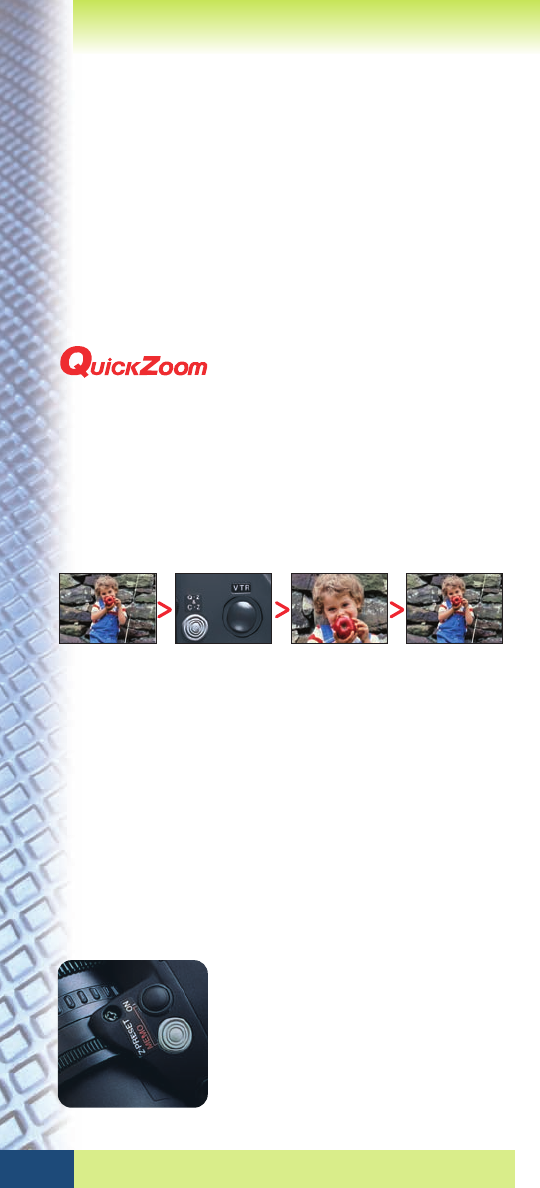

QUICKZOOM speed is 0.6 sec. / 0.7 sec.* from end to end.

QUICKZOOM provides a rapid zoom movement to the

telephoto position to check focus by the simple push of a

button. Releasing the button returns the lens to the

previously selected zoom position. Furthermore, by setting

the switch, QUICKZOOM can be performed remotely from

zoom rate demand units.

*0.6 sec. : Studio and Field lens

0.7 sec. : ENG/EFP lens

QUICKZOOM solves the problem of having to reframe a

shot after checking focus. This exclusive feature is a

standard component on all of DIGI POWER lenses.

Utilizing the QUICKZOOM function can be an extremely

time saving and productive production tool, by allowing a

quick check if focus after a framed shot has been established.

Simply press the Q-Z button and the lens zooms in tight at

maximum speed, check focus and release the Q-Z button. The

lens zooms out to the pre-selected shot automatically. No

more guess work as to what the framed shot was prior to

checking focus.

ONE SHOT PRESET

Zoom and focus can be preset and

memorized in advance at a selected

position. One touch of the switch during

shooting will instantly return to the

memorized position for time saving

production.

Frame your shot. Press Q-Z button. Lens zooms back

to original frame

in full focus.

1234

Lens automatically

zooms in.

Check focus and

release Q-Z button.

Fuji_PG_Inside_09.qxd 3/31/09 12:44 PM Page 2

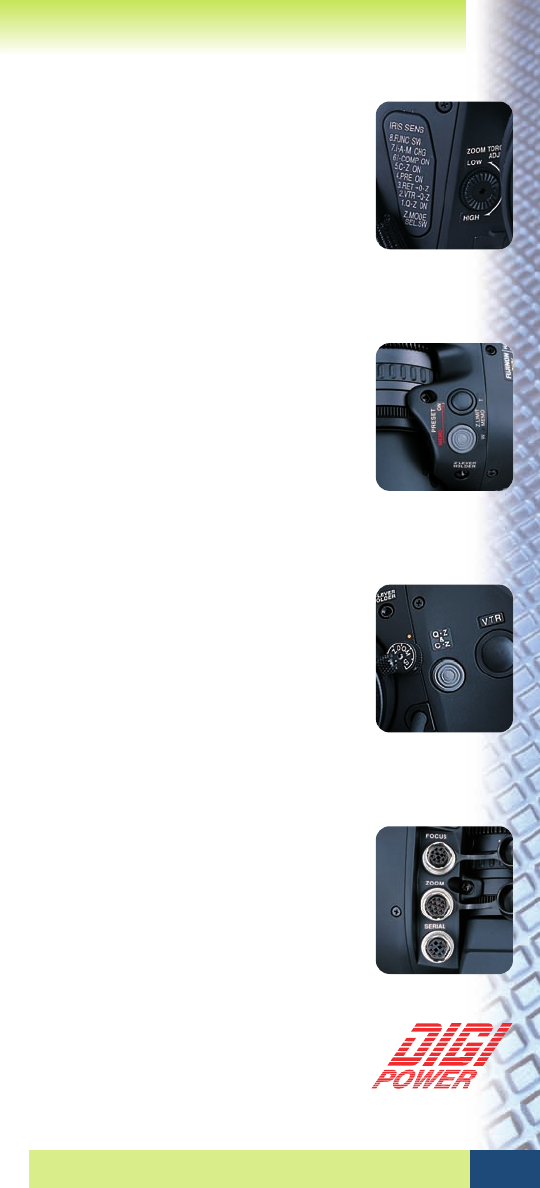

ZOOM MODE SELECT

A zoom mode switch provides the option

to change the zoom response from “nor-

mal” to more sensitive on the wide or

telephoto side. With the 3-zoom mode

(10-zoom mode on ENG/EFP) the user

can select the most suitable fine touch.

These zooming mode settings are ideal

when switching between productions such

as drama and sports.

ZOOM LIMIT

The zoom limit function can be used in the

servo operational mode. By using this

function, the zoom movement toward

both the wide side and the telephoto side

can be limited. An override switch quickly

returns the lens to normal mode.

Standard on: DIGI POWER Studio and Field lens,

DIGIPOWER ENG / EFP lens

AUTO-CRUISING ZOOM

Pressing the C-Z button while zooming

will fix the zoom speed at the existing

rate. Pressing the seesaw switch a second

time slightly will return the zoom speed to

normal.

Standard on: DIGI POWER Studio and Field lens,

DIGIPOWER ENG / EFP lens

ZOOM MAXIMUM SPEED

ADJUSTMENT

The maximum zooming speed obtained

when pressing the seesaw switch to the

end can be adjusted.

16 BIT ACCURACY FOR

REMOTE CONTROL

Remote control of zoom, focus and iris for all

DIGI POWER lenses is possible via 13 bit

serial digital connection. Optional 16 bit

processing is available for more accurate

positioning in virtual studios and other

applications.

ACCESSORY COMPATIBILITY

Analog control accessories can be used

with the DIGI POWER lens. (Some

functions may be limited.)

HD & SD ENG FEATURES

Fuji_PG_Inside_09.qxd 3/31/09 12:44 PM Page 3

ONE SHOT PRESET

Zoom and focus can be preset and memorized in advance at

a selected position. One touch of the switch during shooting

will instantly return

to the memorized

position for time

saving production.

ZOOM MODE

SELECT

A zoom mode

switch provides the

option to change

the zoom response from “normal” to

more sensitive on the wide or telephoto

side. With the 3-zoom mode (10-zoom

mode on ENG/EFP) the user can select

the most suitable fine touch. These

zooming mode settings are ideal when

switching between productions such as

drama and sports.

ADVANCED BACK FOCUS:

REMOTE MACRO AND

FOCUS FADER

This system allows macro shoot-

ing as close as 0.3m (0.05m on

HA27x6.5) from the object.

Focus fades are also possible at

the wide side of the zoom range

with the use of a simple remote

control unit. Focus fader

enhances the creative possibilities

of these lenses while adding a unique look to the production.

Standard on DigiPower Field lenses and HA27x6.5.

AUTOMATIC COMPENSATION OF FOCUS BREATHING

When focusing is operated, the angular field of view

normally changes, which creates an effect similar to zoom-

ing. This is called focus breathing. This compensation mech-

anism enables the

angular field of view

to remain constant

by synchronizing the

zoom movement to

the focus movement,

thus reducing image

size change when

focusing.

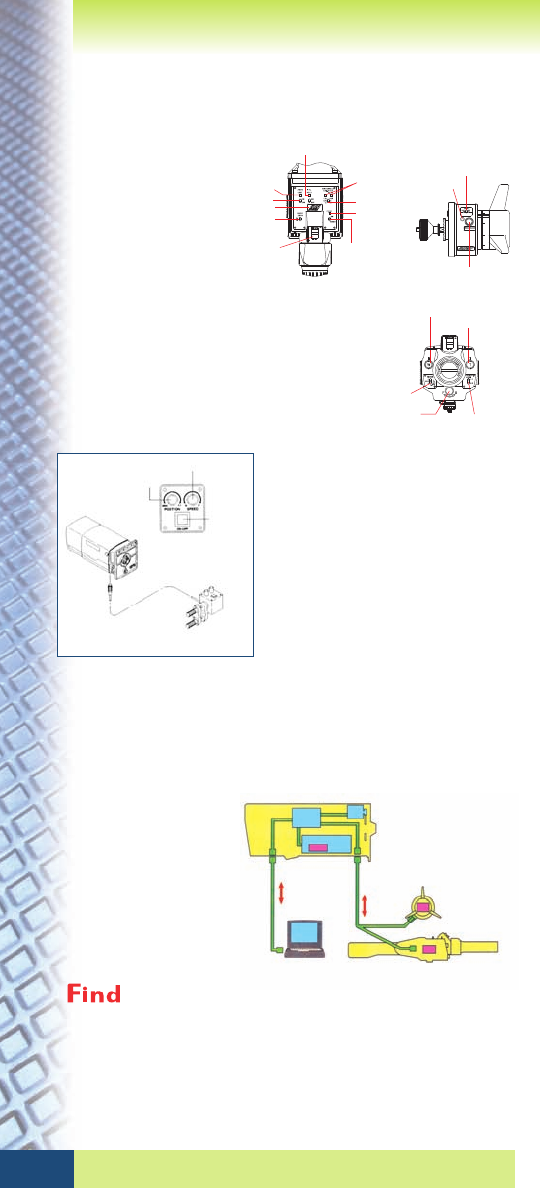

SYSTEM

Fujinon has developed a self-diagnostic system to provide

immediate analysis of the lens electronic systems. This

system, called “FIND” is available as option for all DIGI

POWER lenses. Installing software for DIGI POWER in

your PC allows a graphical user interface for lens history

and diagnostic functions.

F-No. hold indicator

Zoom limit indicator

Zoom limit switch

F-No. hold switch

Intercom select

switch

One shot

preset switch

One shot preset switch

Focus preset release switch

One shot preset

indicator

One shot

preset indicator

Extender

select switch

Aspect ratio

indicator

Zoom limit control knob

(wide side)

Zoom limit control knob

(tele side)

Preset mode

select switch

Zoom speed

control knob

Zoom mode

select switch

HD & SD STUDIO/FIELD FEATURES

Speed control knob

Position set knob

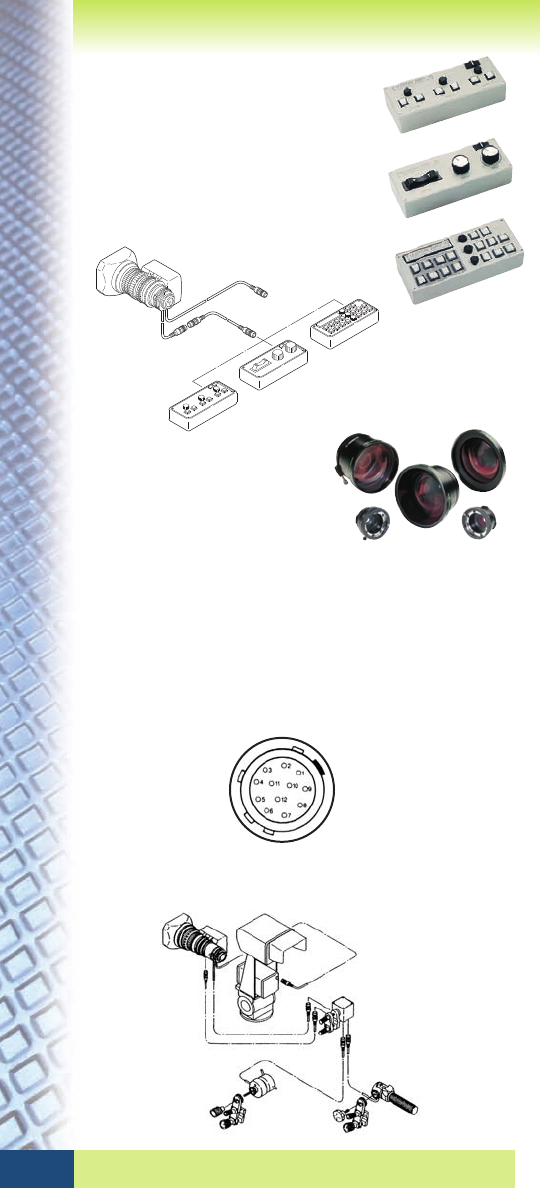

20-PIN

Macro

ON/OFF

switch

Remote macro control unit

EA-3A-10A

10 bit

DIGITAL EPD

W/ FOCUS & ZOOM

PRESET 3-MODE

CURVE SELECT

DIGITAL ERD

W/ FOCUS & ZOOM PRESET

QUICK ZOOM 3-MODE

CURVE SELECT

FIND

SYSTEM

ZOOM SPEED MAX 0.6 sec

RS232C

RS485

CURRENT

CABLE

EFZ-11C

DIGITAL ESM

CPU 13bit

CPU

32bit

RISC

CPU

IRIS

DRIVE

UNIT

Fuji_PG_Inside_09.qxd 3/31/09 12:44 PM Page 4

eset switch

release switch

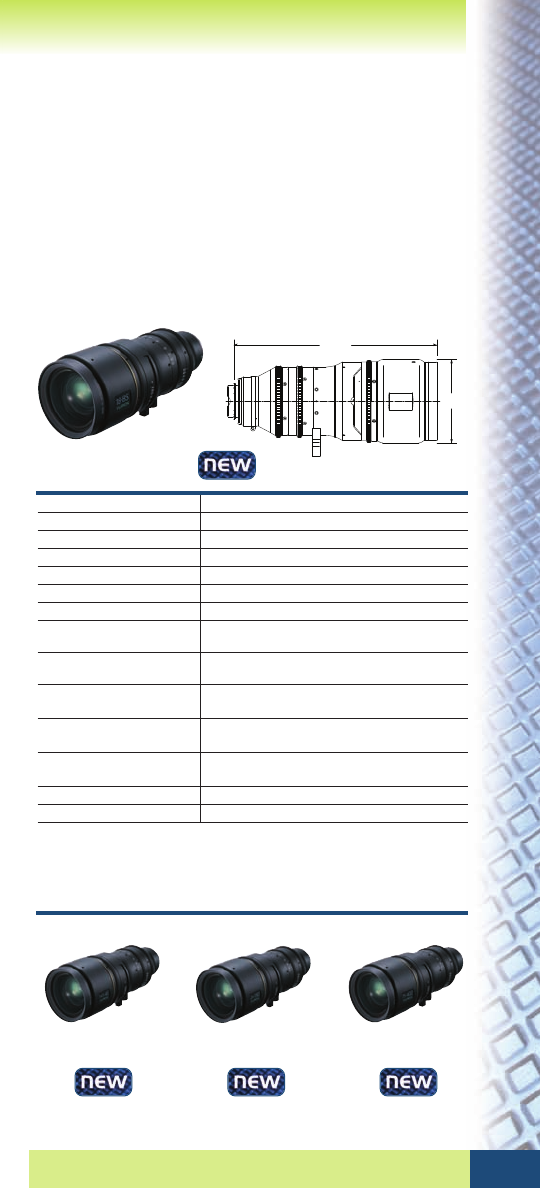

S NEW FUJINON PL SERIES CINE LENSES

FOR FILM AND DIGITAL CINEMATOGRAPHY

LENS 18-85mm (HK4.7x 18-F)

Application 35mm Film and Digital Cinema Camera

Focal Length 18 ~ 85 mm

Zoom Ratio 4.7x

Maximum Relative Aperture F1.9 (18 ~ 85 mm)

T-No. T2.0

Iris Range T2 – T16 / Closed

Image Format 24.0 x 13.5 mm (ø 27.5 mm)

Aspect ratio / 16:9

Flange Focal Length 52mm (Adjustable Range ±0.2mm)

(in air)

Close Focus Limit 0.82 m / 2.7 ft

(from image plane)

Field Angle 18 mm 67°23'

85 mm 16°04'

Object at Close Focus 18 mm 658 x 369 mm

85 mm 139 x 78 mm

Mount PL Mount

Weight 5.5 kg / 12.1 lbs

New Fujinon PL Series zoom lenses are designed for

current and emerging 35mm motion picture Film and

Digital Cinematography cameras, with useful focal

ranges, fast T stops, and exceptional optical perfor-

mance. Familiar marks and gear placement, comparable

physical size and weight, and consistent image quality in

four focal range choices enable fast and efficient produc-

tion without compromise. With focal length coverage

from 14.5mm to 400mm, Fujinon’s new PL Series open

new opportunities for creative Cinematic expression.

Available End of 2009: (Specifications subject to change)

14.5-45mm / T 2.0 24-180mm / T2.6

18-85mm / T2.0

75-400mm / T2.8

144.3 mm

352 mm

Fuji_PG_Inside_09.qxd 3/31/09 1:55 PM Page 5

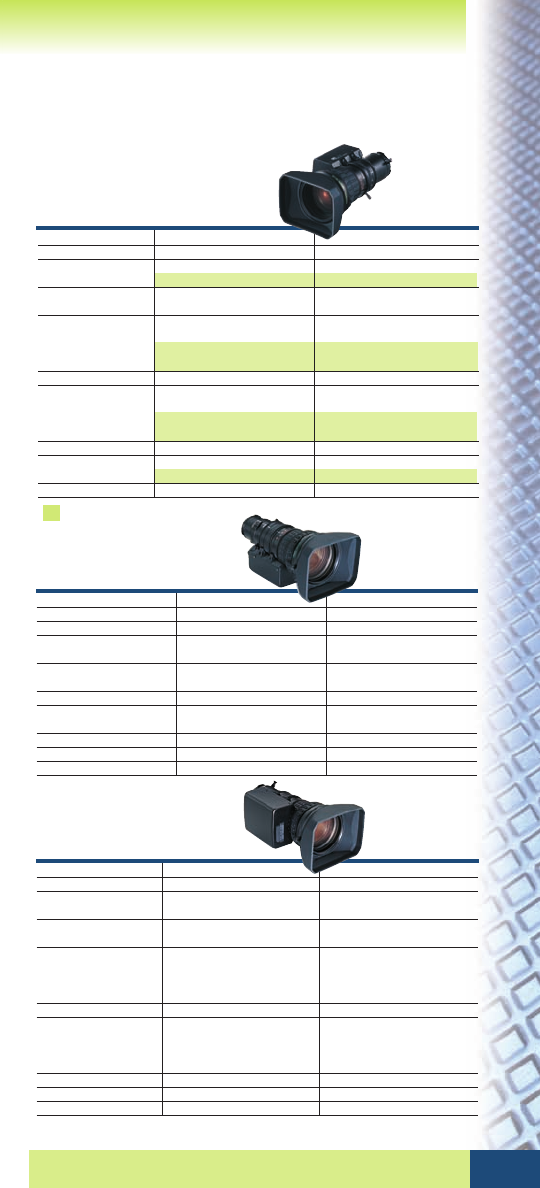

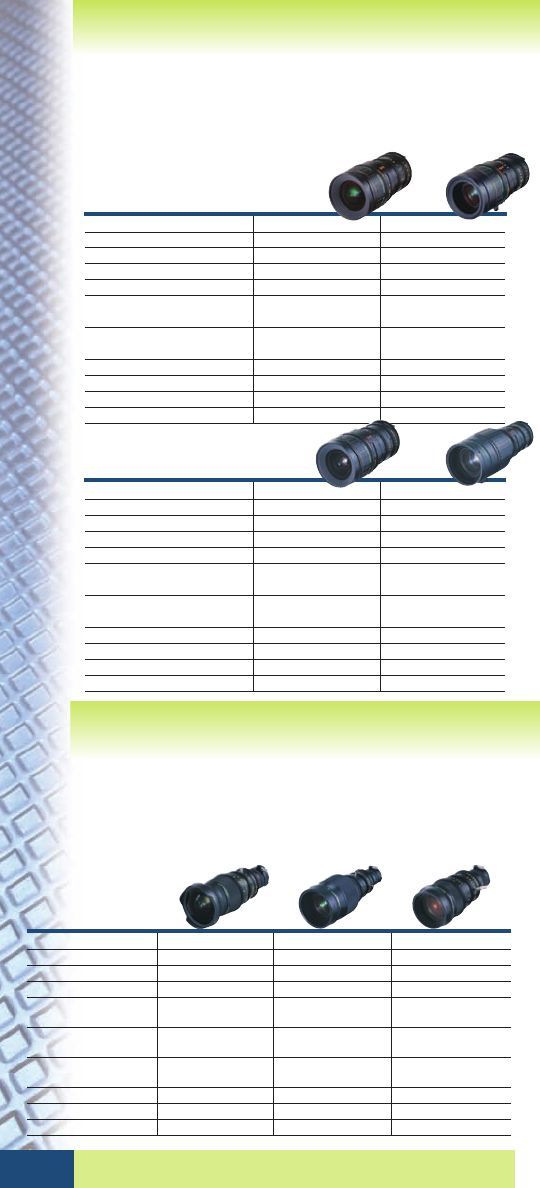

C SERIES CINE ZOOM LENSES FOR 2/3" HD

E SERIES CINE ZOOM LENSES FOR 2/3" HD

LENS 5-15mm T 1.6 10-100mm T 1.8

Model Number

HAe3x5 HAe10x10

Zoom Ratio 3X 10X

T-No. T1.6 T1.8

Close Focus from Image Plane 0.56 m / 1.84 ft 0.94 m / 3.08 ft

Object at Close Focus

5 mm 541x304 mm 10 mm 633x356 mm

16:9 Aspect Ratio

15 mm 178x100 mm 100 mm 65x37 mm

Angular Field of View

5 mm 87°36'x56°39' 10 mm 51°14'x30°10'

16:9 Aspect Ratio

15 mm 35°27'x20°22' 100 mm 5°29'x3°05'

Focus Rotation 280° 280°

Zoom Rotation 160° 160°

Diameter x Length

ø 128 x 287 mm ø 128 x 302 mm

Weight 5 kg / 11 lbs 5.8 kg / 12.76 lbs

LENS 6-30mm T 1.8 9.5-114mm T 1.6

Model Number

HAe5x6 HAe12x9.5

Zoom Ratio 5X 12X

T-No. T1.8 T 1.6

Close Focus from Image Plane 0.56 m / 1.84 ft 1.2 m / 3.94 ft

Object at Close Focus

6 mm 458x 257 mm 9.5 mm 861x484 mm

16:9 Aspect Ratio

30 mm 92x 51 mm 114 mm 72x40 mm

Angular Field of View

6 mm 77°16' x 48°23' 9.5 mm 53°34'x 31°41'

16:9 Aspect Ratio

30 mm 18°10' x 10°16' 114 mm 4°49'x 2°43'

Focus Rotation 280° 280°

Zoom Rotation 160° 160°

Diameter x Length

ø 128 x 277 mm ø 156 x 433.5 mm

Weight 4.7 kg 10.34 lbs 10 kg / 22 lbs

Fujinon’s compact zoom lenses for 2/3” HD format Digital Cine-

matography. Three high performance lenses in this class, more com-

pact than the E Series in size and weight, yet with generous zoom

ranges and stunning images. The C Series are especially effective

when a portable, versatile, cost effective Cine-style zoom is required.

The 7.3-110mm,T 2.0, is the workhorse of the series, has a 15x

range without ramping or breathing. C Series stands for Compact...

not compromise.

LENS 4.5-59mm T 2-2.9 7.3-110mm T 2.0 7.6-137mm T 1.9-2.6

Model Number HAc13x4.5 HAc15x7.3 HAc18x7.6

Zoom Ratio 13X 15X 18X

Close Focus From Image Plane

0.59 m / 1.92 ft 1.18 m / 3.87 ft .87 m / 2.85 ft

T-No. T2 (4.5 ~ 39.2 mm) T2 (7.3 ~ 110 mm) T1.9 (7.6 ~ 105 mm)

T2.9 (59 mm) T2.6 (137 mm)

Object at Close Focus 4.5 mm 757x425 mm 7.3 mm 1222x687 mm 7.6 mm 738x415 mm

16:9 Aspect Ratio 59 mm 56x31 mm 110 mm 79x44 mm 137 mm 41x23 mm

Angular Field of View 4.5 mm 93°38'x61°50' 7.3 mm 66°36'x40°32' 7.6 mm 64°30'x39°03'

16:9 Aspect Ratio 59 mm 9°18'x5°14' 110 mm 5°00'x2°48' 137 mm 4°01'x2°15'

Focus Rotation 280° 280° 280°

Diameter x Length ø 95 x 238.5 mm ø 110 x 287.3 mm ø 85 x 204 mm

Weight 1.7 kg / 3.74 lbs 2.9 kg / 6.38 lbs 1.6 kg / 3.52 lbs

Fujinon’s premiere lens series for 2/3 HD format Digital Cine-

matography. Four zoom and nine prime lenses, designed to meet the

highest quality requirements of big screen, green screen, commercial

production, scripted feature and broadcast productions.

E Series are the fastest in the class, designed for top performance

wide open, enabling maximum depth-of-field control. No breathing,

no ramping, familiar focal ranges, and

top optical performance places the

E Series in a league of its own.

Fuji_PG_Inside_09.qxd 3/31/09 12:44 PM Page 6

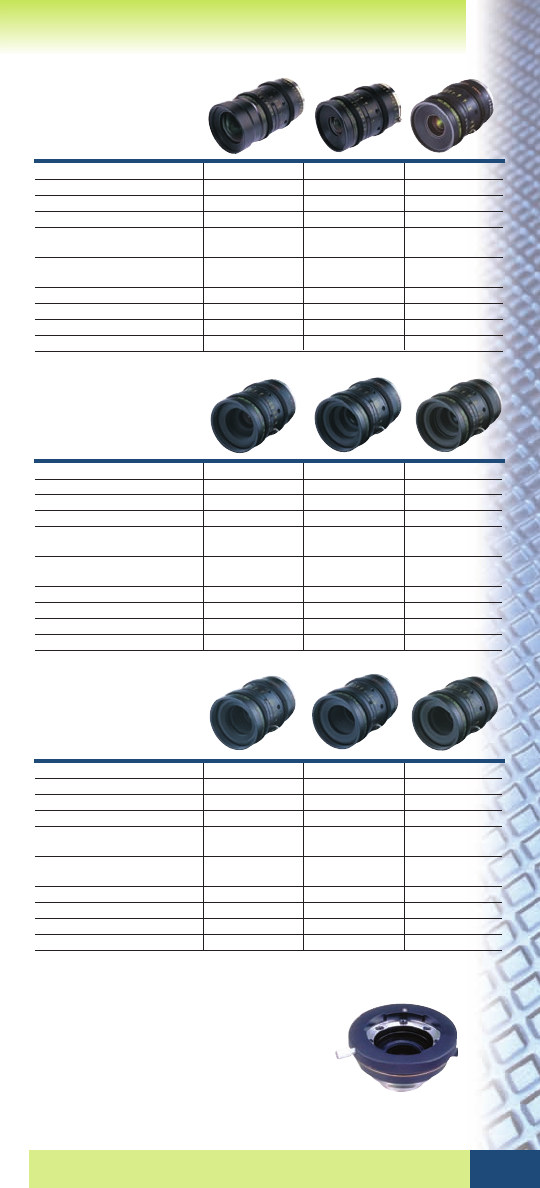

LENS 5mm T 1.7 8mm T 1.5 10mm T 1.5

Model Number HAeF5 HAeF8 HAeF10

Close Focus From Image Plane 0.5 m / 1.64 ft 0.4 m / 1.31 ft 0.5 m / 1.64 ft

T-No. T1.7 T 1.5 T 1.5

Object at Close Focus 591 x 332 mm 288 x 162 mm 335 x 188 mm

16:9 Aspect Ratio

Angular Field of View 87°36' x 56°39' 61°52' x 37°14' 51°14' x 30°10'

16:9 Aspect Ratio

Filter Size — M86x1 M86x1

Focus Rotation 280° 280° 280°

Diameter x Length ø 95 x 180.5 mm ø 95 x 144 mm ø 95 x 144 mm

Weight 2.2 kg / 4.84 lbs 1.6 kg / 3.52 lbs 1.62 kg / 3.56 lbs

LENS 12mm T 1.5 16mm T 1.5 20mm T 1.5

Model Number HAeF12 HAeF16 HAeF20

Close Focus From Image Plane 0.4 m / 1.31 ft 0.4 m / 1.31 ft 0.45 m / 1.48 ft

T-No. T1.5 T1.5 T 1.5

Object at Close Focus 220 x 124 mm 175 x 98 mm 165 x 93 mm

16:9 Aspect Ratio

Angular Field of View 43°34' x 25°19' 33°22' x 19°07' 26°58' x 15°21'

16:9 Aspect Ratio

Filter Size M86x1 M86x1 M86x1

Focus Rotation 280° 280° 280°

Diameter x Length ø 95 x 144 mm ø 95 x 144 mm ø 95 x 144 mm

Weight 1.65 kg / 3.63 lbs 1.6 kg / 3.52 lbs 1.6 kg / 3.52 lbs

LENS 34mm T 1.5 40mm T 1.5 54mm T 1.6

Model Number HAeF34 HAeF40 HAeF54

Close Focus From Image Plane 0.4 m / 1.31 ft 0.5 m / 1.64 ft 0.6 m / 1.97 ft

T-No. T1.5 T1.5 T1.6

Object at Close Focus 83 x 47 mm 99 x 56 mm 92 x 52 mm

16:9 Aspect Ratio

Angular Field of View 16°03' x 9°04' 13°40' x 7°42' 10°09' x 5°43'

16:9 Aspect Ratio

Filter Size M86x1 M86x1 M86x1

Focus Rotation 280° 280° 280°

Diameter x Length ø 95 x 144 mm ø 95 x 144 mm ø 95 x 144 mm

Weight 1.65 kg / 3.63 lbs 1.65 kg / 3.63 lbs 1.65 kg / 3.63 lbs

1.4X RANGE EXTENDER

HAeE14-1

E Series 1.4x Tele-Extender increases

focal range of zooms and primes by

1.4x, with a minimal 1 stop loss.

E SERIES CINE PRIME LENSES FOR 2/3" HD

For 2/3" HD

Fuji_PG_Inside_09.qxd 3/31/09 12:44 PM Page 7

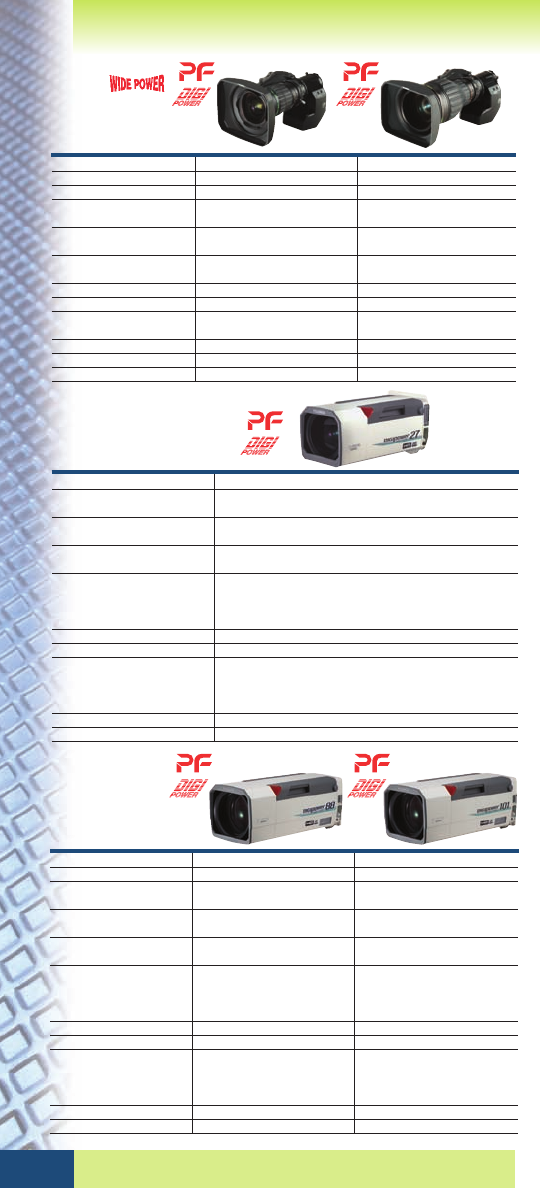

PRECISION FOCUS LENSES

PF-BUILT-IN LENSES

Fujinon’s Precision Focus Assist

enables camera operators the

ability to ensure fast accurate

focusing of high definition images

under varying conditions. The PF

system is the first to incorporate

Fujinon’s patented system which

utilizes a unique contrast method of

achieving precise focus.

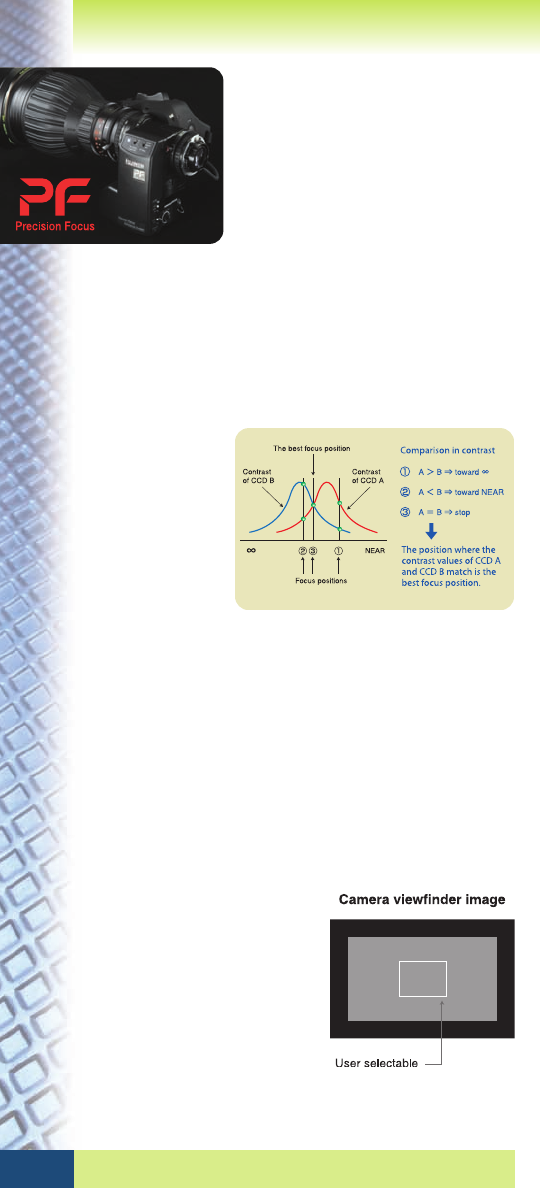

FEATURES AND FUNCTIONS

Contrast focusing method

The Precision Focus System adopts a contrast method that

utilizes differences in optical path length. It can instantly

focus the image without searching for focus and can maintain

precise focus even when following moving objects.

CCD A and CCD B

are built into the lens

barrel to detect the

focusing conditions

and are positioned

at equal distances

before and after the

camera image form-

ing plane.

CAN BE MOUNTED

ON ANY 2/3” CAMERA

The PF function is built into the lens and can be operational

with the lens mounted on a 2/3” camera with no additional

settings or optional devices. Camera software provides

additional viewfinder information on some cameras.

FOCUS MODE SELECTION

The momentary mode provides for PF function only when

pressing the button or the continuous mode may be selected

for continuous PF function. These two modes of operation

provide precise focusing according to the shooting situation,

whether a still or moving image.

FOCUS AREA SETTING

When the PF lens is mounted on a

camera, a focus area is shown on

the viewfinder. The size and the

position of the focus area can be

changed at the camera operator’s

discretion. This function allows

greater flexibility in the selection

of the focus area depending on the

type of production.

Fuji_PG_Inside_09.qxd 3/31/09 12:44 PM Page 8

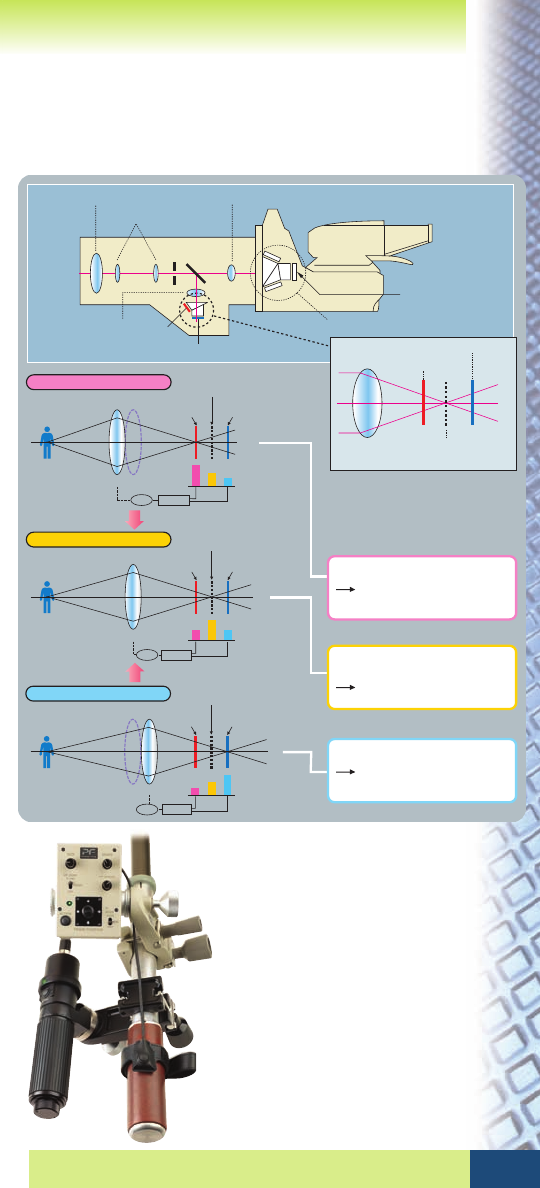

Focus Lens Group

Master Lens

Group for PF

CCD for Camera

The image-forming

plane of the camera

CCD for PF

CCD A for PF

CCD B for PF

Master Lens Group

Focus on the nearside (+)

Contrast

Motor Drive-unit

CCD B for PFCCD A for PF

Focus Lens Group

Move to infinity side

Stop

Move to nearside

Position equal to the image

plane of the camera.

Position equal to the image

plane of the camera.

Position equal to the

image plane of the camera.

Position equal to the image

plane of the camera.

CCD B for PFCCD A for PF

Contrast

Best focus (O)

Focus on the infinity side (-)

Zoom Lens Group

A half mirror located behind the iris

directs light to CCD A and CCD B.

The CCD's are spaced optically at

equal distance to the image plane of

the camera and are used to measure

image contrast.

Contrast value of CCD B is lower than

CCD A.

Focus on the nearside.

Lens focus will move toward infinity.

Contrast value of CCD A and CCD B is

equal.

Optimum focus

Contrast value of CCD A is lower than

CCD B.

Focus on the infinity side.

Lens focus will move toward the

nearside.

Fujinon’s exclusive Precision Focus Assist is now in the

fourth generation and features improved focusing

response, lower light loss and reduced size. The PF system

is the only focusing system that can maintain focus at any

zoom position from the narrowest to the widest angle.

USER FRIENDLY

PF CONTROLLER

The new focus controller for

Fujinon’s exclusive Precision

Focus Assist provides operators

with a simple to use yet powerful

tool to maintain precise focus in

the most demanding production

situations. The familiar manual

type focus controller has been

adapted to encompass all of the

precise servo features of the PF

lens.

PRECISION FOCUS LENSES

Fuji_PG_Inside_09.qxd 3/31/09 12:44 PM Page 9

LENS XA88x8.8BE SM XA101x8.9BE SM

Zoom Ratio / Format 88X / 2/3" 101X / 2/3"

Focal Length 8.8 ~ 777 mm 8.9 ~ 900 mm

(2X) 17.6 ~ 1554 mm (2X) 17.8 ~ 1800 mm

Maximum Relative 1:1.7 (8.8 ~ 348 mm) 1:1.7 (8.9 ~ 291 mm)

Aperture 1:3.8 (777 mm) 1:4.7 (900 mm)

Maximum Photometric 1:1.9 (8.8 ~ 348 mm) 1:2.1 (8.9 ~ 291 mm)

Aperture T-No. 1:4.2 (777 mm) 1:5.8 (900 mm)

Angular Field of View

(Hor. x Vert. in °)

16:9 Aspect Ratio

M.O.D. from Image Plane 3.56 m 3.65 m

M.O.D. from Front of Lens 2.9 m 2.9 m

Object Dimensions

at M.O.D.

(Hor. x Vert. in mm)

16:9 Aspect Ratio

Size (HxWxL) 265 x 270 x 625 mm 265 x 270 x 720 mm

Weight (w/o Hood) 26 kg 24.7 kg

8.9 mm 56° 38’ x 33° 42’

900 mm 0° 37’ x 0° 21’

(2X) 17.8 mm 30° 09’ x 17° 13’

1800 mm 0° 18’ x 0° 10’

8.9 mm 2865 x 1610 mm

900 mm 28 x 16 mm

(2X) 17.8 mm 1433 x 805 mm

1800 mm 14 x 8 mm

HA13x4.5BRD

HA22x7.3BRD

XA88x8.8BE SM

XA101x8.9BE SM

8.8 mm 57° 10’ x 34° 03’

777 mm 0° 42’ x 0° 24’

(2X) 17.6 mm 30° 29’ x 17° 25’

1554 mm 0° 21’ x 0° 12’

8.8 mm 3029 x 1703 mm

777 mm 34 x 19 mm

(2X) 17.6 mm 1515 x 851 mm

1554 mm 17 x 10 mm

Zoom Ratio / Format 27X / 2/3"

Focal Length 6.5 ~ 180 mm

(2X) 13 ~ 360 mm

Maximum Relative 1:1.5 (6.5 ~ 123 mm)

Aperture 1:2.2 (180 mm)

Maximum Photometric 1:1.8 (7.2 ~ 149 mm)

Aperture T-No. 1:2.6 (158 mm)

Angular Field of View

(Hor. x Vert. in °)

16:9 Aspect Ratio

M.O.D. from Image Plane 1.23 m

M.O.D. from Front of Lens 0.6 m

Object Dimensions

at M.O.D.

(Hor. x Vert. in mm)

16:9 Aspect Ratio

Size (HxWxL) 228 x 231 x 588 mm

Weight (w/o Hood) 21.5 kg

6.5 mm 72° 50’ x 45° 02’

180 mm 3° 03’ x 1° 43’

(2X) 13 mm 40° 30’ x 23° 25’

360 mm 1° 32’ x 0° 51’

6.5 mm 1053 x 592 mm

180 mm 39 x 22 mm

(2X) 13 mm 527 x 296 mm

360 mm 20 x 11 mm

HA27x6.5BE SM

LENS HA13x4.5BRD HA22x7.3BRD

Zoom Ratio / Format 13X / 2/3" 22X / 2/3"

Focal Length 4.5 to 59 mm 7.3 to 161 mm

Maximum Relative 1:1.8 (4.5 ~ 41 mm) 1:1.9 (7.3 ~ 113 mm)

Aperture 1:2.6 (59 mm) 1:2.7 (161 mm)

Maximum Photometric 1:2.3 (4.5 ~ 41 mm) 1:2.3 (7.3 ~ 113 mm)

Aperture T-No. 1:3.3 (59 mm) 1:3.3 (161 mm)

Angular Field of View

4.5 mm 93° 38’ x 61° 50’ 7.3 mm 66° 36’ x 40° 32’

16:9 Aspect Ratio

59 mm 9° 18’ x 5° 14’ 161 mm 3° 25’ x 1° 55’

M.O.D. from Image Plane 0.60 m 1.19 m

M.O.D. from Front of Lens 0.30 m 0.85 m

Object Dimensions

4.5 mm 757 x 425 mm 7.3 mm 1222 x 687 mm

at M.O.D.

59 mm 55 x 31 mm 161 mm 55 x 31 mm

Dia ø x Length (w/o Hood) ø95 x 256.1 mm ø110 x 300.2 mm

Weight (w/o Hood) 2.7 kg 3.9 kg

Features Inner Focus, Zoom Limit Inner Focus, Zoom Limit

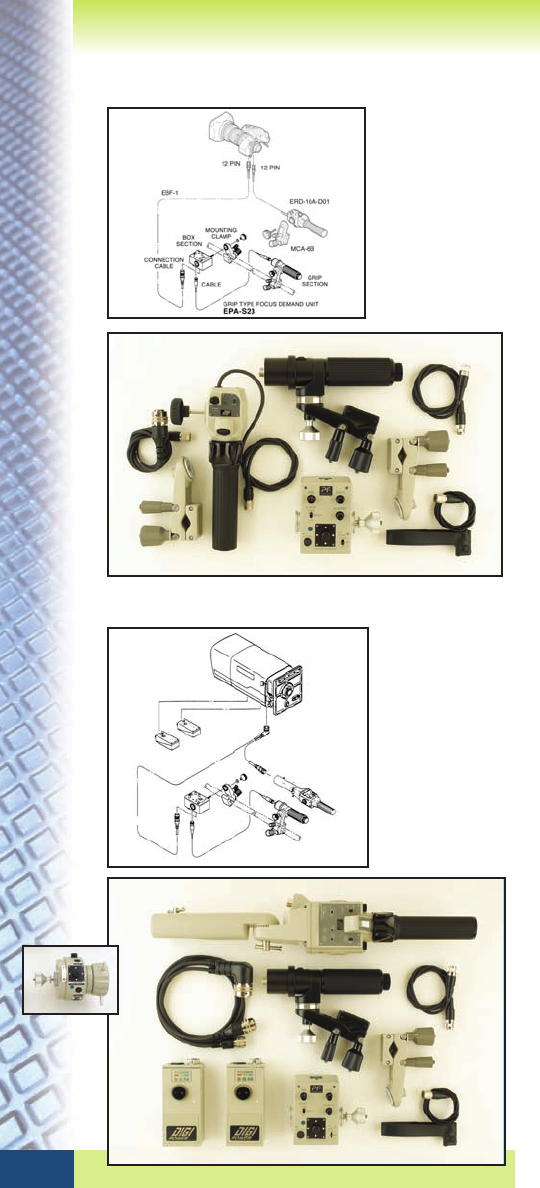

PF accessories shown on page 28.

Extender

PRECISION FOCUS LENSES

Fuji_PG_Inside_09.qxd 3/31/09 12:44 PM Page 10

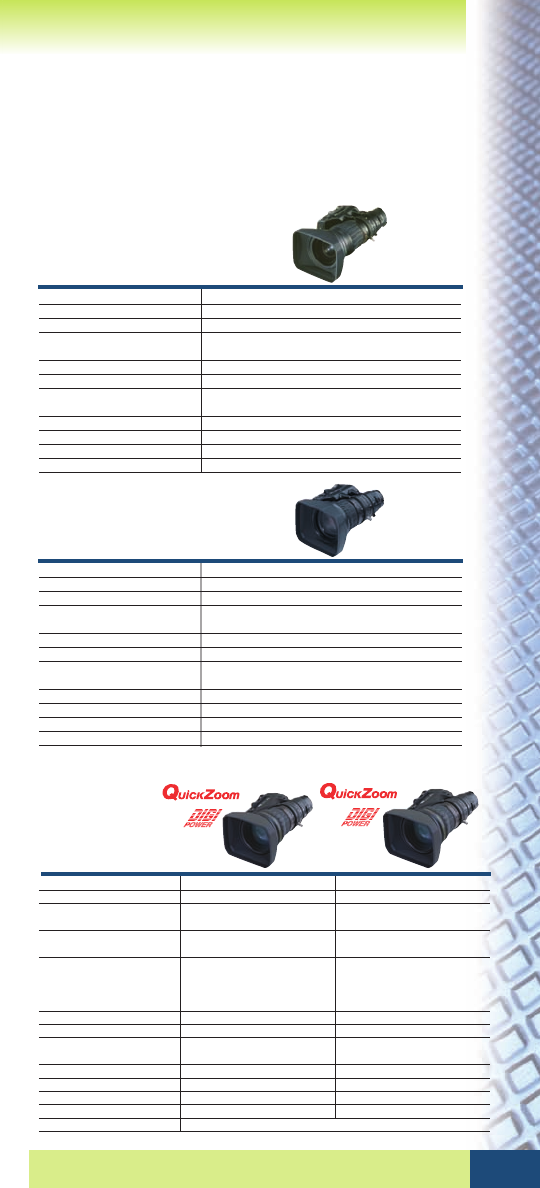

LENSES FOR 1/3" HD CAMERAS

Th13x3.5BRM

Maximize the performance of your 1/3 inch HD Camcorder

with Fujinon’s new Th13x3.5BRM wide angle lens and the

HTs18x4.2BRM high performance standard lens. Both feature

minimal chromatic aberration, high contrast and Fujinon’s

exclusive Digi Power servo with Quick Zoom, One Shot preset,

Cruise Zoom, zoom limit and zoom speed adjust.

Th17x5BRM is an economically priced lens featuring high

zoom range, close focusing and exceptional optical quality.

Th17x5BRM

Zoom Ratio / Format 17X / 1/3"

Focal Length 5 to 85 mm

Maximum Relative Aperture 1:1.4 (5 ~ 85 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 1.11 m

M.O.D. from Front of Lens 0.90 m

Object Dimensions

at M.O.D.

Filter Size ø 82 mm P=0.75

Dia ø x Length (w/o Hood) ø85 x 185.5 mm

Weight (w/o Hood) 1.25 kg

Features Inner Focus

5 mm 872 x 490 mm

85 mm 51 x 29 mm

5 mm 55° 13’ x 32° 46’

85 mm 3° 31’ x 1° 59’

Zoom Ratio / Format 13X / 1/3"

Focal Length 3.5 to 46 mm

Maximum Relative Aperture 1:1.4 (3.5 ~ 43 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 0.66 m

M.O.D. from Front of Lens 0.40 m

Object Dimensions

at M.O.D.

Filter Size ø 82 mm P=0.75

Dia ø x Length (w/o Hood) ø85 x 228 mm

Weight (w/o Hood) 1.68 kg

Features Inner Focus

3.5 mm 660 x 371 mm

46 mm 53 x 30 mm

3.5 mm 72° 32’ x 45° 34’

46 mm 6° 30’ x 3° 40’

HTs18x4.2BRM

HTs18x4.2BERM

LENS HTs18x4.2BRM HTs18x4.2BERM

Zoom Ratio / Format 18X / 1/3" 18X / 1/3"

Focal Length 4.2 to 76 mm 4.2 to 76 mm

(2X) 8.4 to 152 mm

Maximum Relative 1:1.4 (4.2 ~ 76 mm) 1:1.4 (4.2 ~ 76 mm)

Aperture (2X) 1:2.8 (152 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 0.83 m 0.84 m

M.O.D. from Front of Lens 0.60 m 0.60 m

Object Dimensions

at M.O.D.

Filter Size ø 82 mm P=0.75 ø 82 mm P=0.75

Dia ø x Length (w/o Hood) ø85 x 207 mm ø85 x 206.6 mm

Weight (w/o Hood) 1.53 kg 1.58 kg

Options 16 Bit Encoder 16 Bit Encoder

Features Inner Focus / Quick Zoom / Zoom Limit

4.2 mm 768 x 409 mm

76 mm 40 x 23 mm

4.2 mm 63° 49’ x 39° 35’

76 mm 4° 00’ x 2° 13’

4.2 mm 63° 49’ x 39° 35’

76 mm 3° 56’ x 2° 13’

(2X) 8.4 mm 34° 35’ x 19° 51’

152 mm 1° 52’ x 1° 6’

5.5 mm 741 x 417 mm

100 mm 43 x 24 mm

Extender

Accessories for Th13x3.5BRM and Th17x5BRM shown on page 31.

Accessories for HTs18x4.2BRM shown on pages 29 & 30.

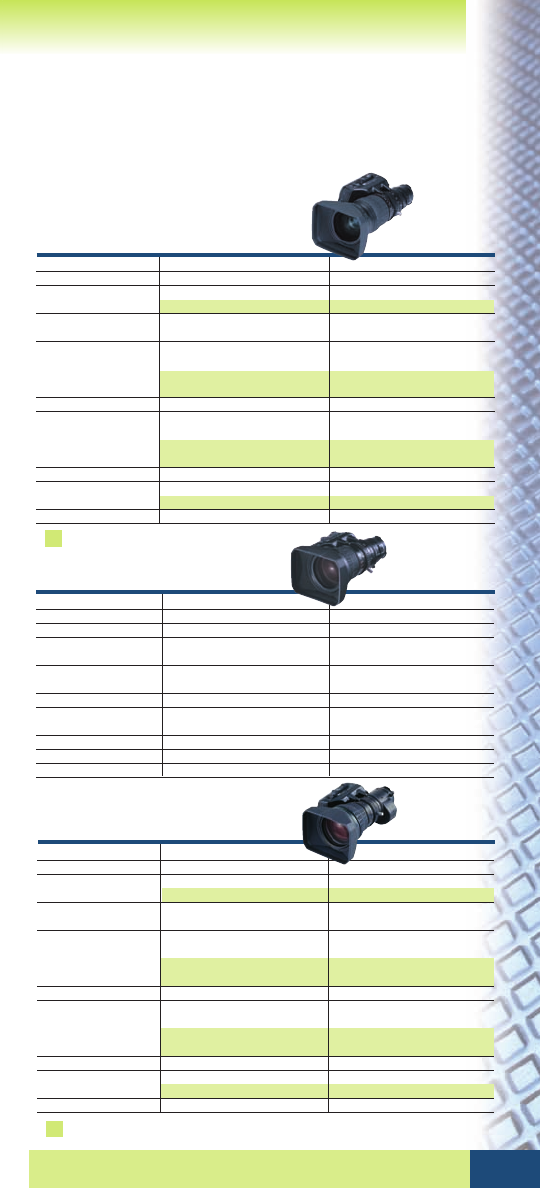

Fuji_PG_Inside_09.qxd 3/31/09 12:44 PM Page 11

HS16x4.6BERM

LENSES FOR 1/2" HD CAMERAS

Zoom Ratio / Format 16X / 1/2"

Focal Length 4.6 to 74 mm

(2X) 9.2 to 148 mm

Maximum Relative 1:1.4 (4.6 ~ 47 mm)

Aperture 1:2.2 (74 mm)

Maximum Photometric 1:1.5 (4.6 ~ 47 mm)

Aperture T-No. 1:2.4 (74 mm)

Angular Field of View 4.6 mm 74° 18’ x 46° 09’

16:9 Aspect Ratio 74 mm 5° 24’ x 3° 02’

M.O.D. from Image Plane 0.68 m

M.O.D. from Front of Lens 0.40 m

Object Dimensions 4.6 mm 710 x 399 mm

at M.O.D. 74 mm 44 x 25 mm

Filter Size ø 107 mm P=1 (In Hood)

Dia ø x Length (w/o Hood) ø95 x 240 mm

Weight (w/o Hood) 1.98 kg

Options 16 Bit Encoder

Features Inner Focus / Quick Zoom / Zoom Limit

The introduction of HD cameras utilizing the 1/2 inch imager

brought on the need for high quality 1/2 inch HD lenses for News

and Production applications. Fujinon offers a complete line includ-

ing the HS16x4.6BERM that combines wide angle and a 16 X

zoom range and the HS18x5.5BERM/BERD. Both feature an

integral 2x extender. The HSs18x5.5BRM/BRD standard lens,

wide angle XS13x3.3BRM and the economical XS17x5.5 round

out the complete line. All lenses utilize Fujinon’s exclusive

DigiPower servo system for precise control over zoom functions.

HS18x5.5BERM/RD*

HSs18x5.5B RM/RD*

Extender

LENS HS18x5.5BERM/ RD* HSs18x5.5B RM/RD*

Zoom Ratio / Format 18X / 1/2" 18X / 1/2"

Focal Length 5.5 to 100 mm 5.5 to 100 mm

(2X) 11 to 200 mm

Maximum Relative 1:1.4 (5.5 ~ 78 mm) 1:1.4 (5.5 ~ 77 mm)

Aperture 1:1.8 (100 mm) 1:1.8 (100 mm)

Maximum Photometric 1:1.5 (5.5 ~ 78 mm) 1:1.5 (5.5 ~ 77 mm)

Aperture T-No. 1:1.9 (100 mm) 1:1.9 (100 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 0.84 m 0.84 m

M.O.D. from Front of Lens 0.60 m 0.60 m

Object Dimensions

at M.O.D.

Filter Size ø 82 mm P=0.75 ø 82 mm P=0.75

Dia ø x Length (w/o Hood) ø85 x 206.6 mm ø85 x 206.6 mm

Weight (w/o Hood) 1.58 kg (RM) / 1.65 kg (RD) 1.53 kg (RM) / 1.60 kg (RD)

Options 16 Bit Encoder 16 Bit Encoder

Features Inner Focus / Quick Zoom / Zoom Limit

5.5 mm 741 x 417 mm

100 mm 41 x 23 mm

5.5 mm 64° 43’ x 39° 14’

100 mm 4° 00’ x 2° 15’

5.5 mm 64° 43’ x 39° 14’

100 mm 4° 00’ x 2° 15’

5.5 mm 741 x 417 mm

100 mm 43 x 24 mm

Extender

XS13x3.3BRM

XS17x5.5BRM

LENS XS13x3.3BRM XS17x5.5BRM

Zoom Ratio / Format 13X / 1/2" 17X / 1/2"

Focal Length 3.3 to 43 mm 5.5 to 94 mm

Maximum Relative 1:1.4 (3.3 ~ 32 mm) 1:1.4 (5.5 ~ 77 mm)

Aperture 1:1.9 (43 mm) 1:1.7 (94 mm)

Maximum Photometric 1:1.5 (3.3 ~ 32 mm) 1:1.5 (5.5 ~ 77 mm)

Aperture T-No. 1:2.1 (43 mm) 1:1.8 (94 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 0.58 m 0.84 m

M.O.D. from Front of Lens 0.30 m 0.60 m

Object Dimensions

at M.O.D.

Filter Size

ø 127 mm P=0.75 (In Hood) ø 82 mm P=0.75 (On Barrel)

Dia ø x Length (w/o Hood) ø95 x 240.5 mm ø85 x 206.6 mm

Weight (w/o Hood) 1.93 kg 1.53 kg

Options 16 Bit Encoder 16 Bit Encoder

Features Inner Focus Inner Focus

3.3 mm 752 x 406 mm

43 mm 58 x 31 mm

3.3 mm 93° 07’ x 61° 25’

43 mm 9° 16’ x 5° 13’

5.5 mm 64° 43’ x 39° 14’

94 mm 4° 15’ x 2° 23’

5.5 mm 741 x 417 mm

94 mm 41 x 23 mm

Accessories for above lenses shown on pages 29, 30 & 32.

*RD contain servos for zoom and focus.

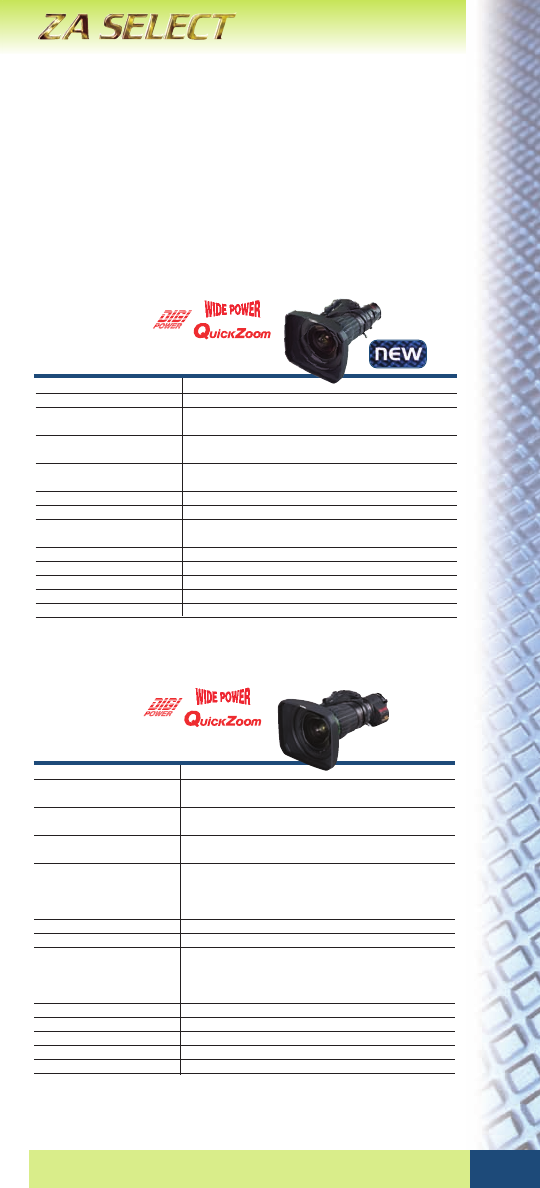

Fuji_PG_Inside_09.qxd 4/3/09 10:14 AM Page 12

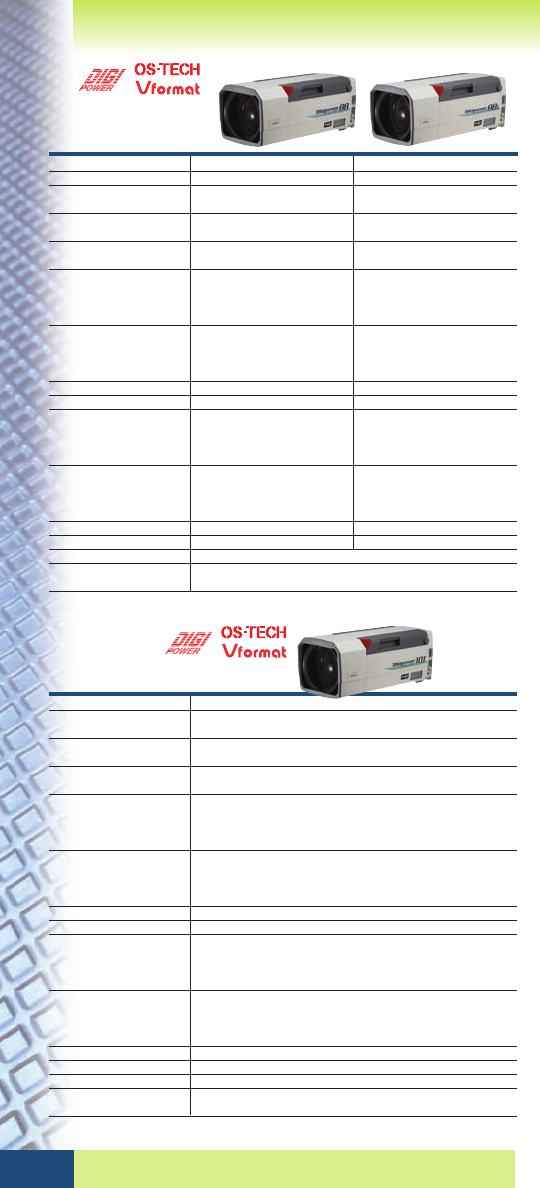

Zoom Ratio / Format 12X / 2/3"

Focal Length 4.5 to 54 mm

Maximum Relative 1:1.8 (4.5 ~ 41 mm)

Aperture 1:2.4 (59 mm)

Maximum Photometric 1:1.9 (4.5 ~ 41 mm)

Aperture T-No. 1:2.6 (59 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 0.59 m

M.O.D. from Front of Lens 0.3 m

Object Dimensions

at M.O.D.

Filter Size ø 127 mm P=0.75 (In Hood)

Dia ø x Length (w/o Hood) ø95 x 237.5 mm

Weight (w/o Hood) 1.83 kg (RM) / 1.9 kg (RD)*

Options 16 Bit Encoder / Videoconferencing

Features Inner Focus / Zoom Limit / Quick Zoom

4.5 mm 93° 38’ x 61° 50’

54 mm 10° 09’ x 5° 43’

4.5 mm 757 x 425 mm

54 mm 59 x 33 mm

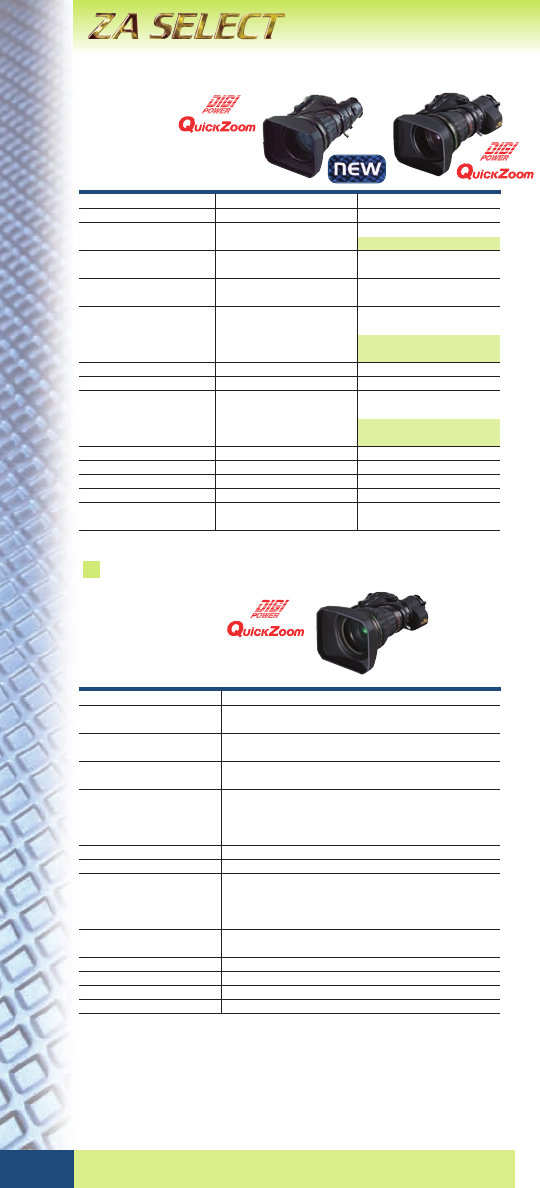

ZA12x4.5B RM/RD*

Zoom Ratio / Format 12X / 2/3"

Focal Length 4.5 to 54 mm

(2X) 9 to 108 mm

Maximum Relative 1:1.8 (4.5 ~ 41 mm)

Aperture 1:2.4 (59 mm)

Maximum Photometric 1:1.9 (4.5 ~ 41 mm)

Aperture T-No. 1:2.6 (59 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 0.59 m

M.O.D. from Front of Lens 0.3 m

Object Dimensions

at M.O.D.

Filter Size ø 127 mm P=0.75 (In Hood)

Dia ø x Length (w/o Hood) ø95 x 237.5 mm

Weight (w/o Hood) 1.93 kg (ERM) / 2.0 kg (ERD)*

Options 16 Bit Encoder / Videoconferencing

Features Inner Focus / Zoom Limit / Quick Zoom

4.5 mm 93° 38’ x 61° 50’

54 mm 10° 09’ x 5° 43’

(2X) 9 mm 56° 06’ x 33° 20’

108 mm 5° 05’ x 2° 52’

4.5 mm 757 x 425 mm

54 mm 59 x 33 mm

(2X) 9 mm 373 x 210 mm

108 mm 31 x 17 mm

ZA12x4.5BE RM/RD*

Extender

Fujinon’s Select Series is designed to meet the performance

needs of the next generation of cost-effective HD cameras.

Fujinon worked closely with all major camera manufacturers to

engineer true HD lenses that are designed specifically to enhance

the performance of lower cost HDTV cameras.

New for 2009 is the addition of the ZA12X4.5B RM/RD and

the ZA17X7.6B RM/RD without 2x range extenders. The "RD"

versions feature servo zoom and focus for full remote control.

These lenses are ideally suited for studio applications where the

use of an extender is not necessary.

Accessories for above lenses shown on pages 29, 30 & 32.

HD Series

*RD contain servos for zoom and focus.

Fuji_PG_Inside_09.qxd 3/31/09 12:44 PM Page 13

*RD contain servos for zoom and focus.

Zoom Ratio / Format 22X / 2/3"

Focal Length 7.6 to 167 mm

(2X) 15.2 to 334 mm

Maximum Relative 1:1.8 (7.6 ~ 120 mm)

Aperture 1:2.5 (167 mm)

Maximum Photometric 1:1.9 (7.6 ~ 120 mm)

Aperture T-No. 1:2.6 (167 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 1.07 m

M.O.D. from Front of Lens 0.8 m

Object Dimensions

at M.O.D.

Filter Size

ø 95 mm P=1.0 (On Barrel)

ø 107 mm P=1.0 (In Hood)

Dia ø x Length (w/o Hood) ø100 x 222.6 mm

Weight (w/o Hood) 1.75 kg (ERM) / 1.82 kg (ERD)*

Options 16 Bit Encoder / Videoconferencing

Features Inner Focus / Zoom Limit / Quick Zoom

ZA22x7.6BE RM/RD*

Extender

7.6 mm 64° 30’ x 39° 03’

167 mm 3° 17’ x 1° 51’

(2X) 15.2 mm 35° 01’ x 20° 07’

334 mm 1° 39’ x 0° 55’

7.6 mm 915 x 514 mm

167 mm 43 x 24 mm

(2X) 15.2 mm 473 x 266 mm

334 mm 22 x 12 mm

HD Series

Accessories for above lenses shown on pages 29, 30 & 32.

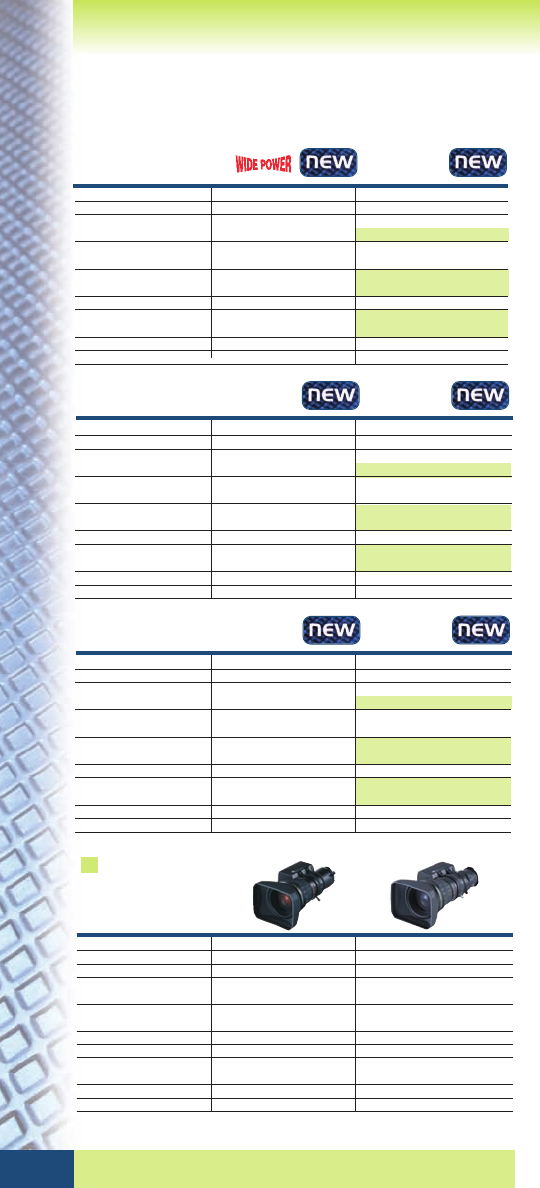

LENS ZA17x7.6B RM/RD* ZA17x7.6BE RM/RD*

Zoom Ratio / Format 17X / 2/3" 17X / 2/3"

Focal Length 7.6 to 130 mm 7.6 to 130 mm

(2X) 15.2 to 260 mm

Maximum Relative 1:1.8 (7.6 ~ 102 mm) 1:1.8 (7.6 ~ 102 mm)

Aperture 1:2.3 (130 mm) 1:2.3 (130 mm)

Maximum Photometric 1:1.9 (7.6 ~ 102 mm) 1:1.9 (7.6 ~ 102 mm)

Aperture T-No. 1:2.5 (130 mm) 1:2.5 (130 mm)

Angular Field of View

16:9 Aspect Ratio

(2X)

M.O.D. from Image Plane 0.84 m 0.84 m

M.O.D. from Front of Lens 0.6 m 0.6 m

Object Dimensions

at M.O.D.

(2X)

Filter Size

ø 82 mm P=0.75 (On Barrel) ø 82 mm P=0.75 (On Barrel)

Dia ø x Length (w/o Hood) ø 85 x 203 mm ø 85 x 203 mm

Weight (w/o Hood) 1.43 kg (RM) / 1.5 kg (RD)* 1.53 kg (ERM) / 1.6 kg (ERD)*

Options 16 Bit Encoder / Videoconf. 16 Bit Encoder / Videoconf.

Features Inner Focus / Zoom Limit Inner Focus / Zoom Limit

Quick Zoom Quick Zoom

7.6 mm 64° 30’ x 39° 03’

130 mm 4° 13’ x 2° 23’

7.6 mm 696 x 392 mm

130 mm 43 x 24 mm

ZA17x7.6B RM/RD*

ZA17x7.6BE RM/RD*

Extender

7.6 mm 64° 30’ x 39° 03’

130 mm 4° 13’ x 2° 23’

15.2 mm 35° 01’ x 20° 07’

260 mm 2° 07’ x 1° 11’

7.6 mm 696 x 392 mm

130 mm 43 x 24 mm

15.2 mm 362 x 204 mm

260 mm 21 x 12 mm

*RD contain servos for zoom and focus.

ERM version with extender

Fuji_PG_Inside_09.qxd 4/2/09 12:04 PM Page 14

Zoom Ratio / Format 13X / 2/3"

Focal Length 4.5 to 59 mm

(2X) 9 to 118 mm

Maximum Relative 1:1.8 (4.5 ~ 41 mm)

Aperture 1:2.6 (59 mm)

Maximum Photometric 1:2.0 (4.5 ~ 41 mm)

Aperture T-No. 1:2.9 (59 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 0.59 m

M.O.D. from Front of Lens 0.3 m

Object Dimensions

at M.O.D.

Filter Size ø 127 mm P=0.75 (In Hood)

Dia ø x Length (w/o Hood) ø95 x 238.5 mm

Weight (w/o Hood) 1.98 kg (RM) / 2.05 kg (RD)*

Options Ratio Converter / 16 Bit Encoder

Features Inner Focus / Zoom Limit / Quick Zoom

4.5 mm 93° 38’ x 61° 50’

59 mm 9° 18’ x 5° 14’

(2X) 9 mm 56° 06’ x 33° 20’

118 mm 4° 39’ x 2° 37’

4.5 mm 757 x 420 mm

59 mm 55 x 31 mm

(2X) 9 mm 373 x 210 mm

118 mm 28 x 16 mm

HA13x4.5BE RM/RD*

Zoom Ratio / Format 16X / 2/3"

Focal Length 6.3 to 101 mm

(2X) 12.6 to 202 mm

Maximum Relative 1:1.8 (6.3 ~ 63 mm)

Aperture 1:2.9 (101 mm)

Maximum Photometric 1:1.9 (6.3 ~ 63 mm)

Aperture T-No. 1:3.1 (101 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 0.69 m

M.O.D. from Front of Lens 0.4 m

Object Dimensions

at M.O.D.

Filter Size ø 107 mm P=1 (In Hood)

Dia ø x Length (w/o Hood) ø95 x 238.5 mm

Weight (w/o Hood) 1.98 kg / 2.05 kg*

Options 16 Bit Encoder

Features Inner Focus / Zoom Limit / Quick Zoom

6.3 mm 74° 33’ x 46° 19’

101 mm 4° 00’ x 3° 03’

(2X) 12.6 mm 41° 40’ x 24° 09’

202 mm 2° 43’ x 1° 32’

6.3 mm 712 x 400 mm

101 mm 45 x 25 mm

(2X) 12.6 mm 356 x 200 mm

202 mm 22 x 13 mm

HA16x6.3BE RM/RD*

*RD contain servos for zoom and focus.

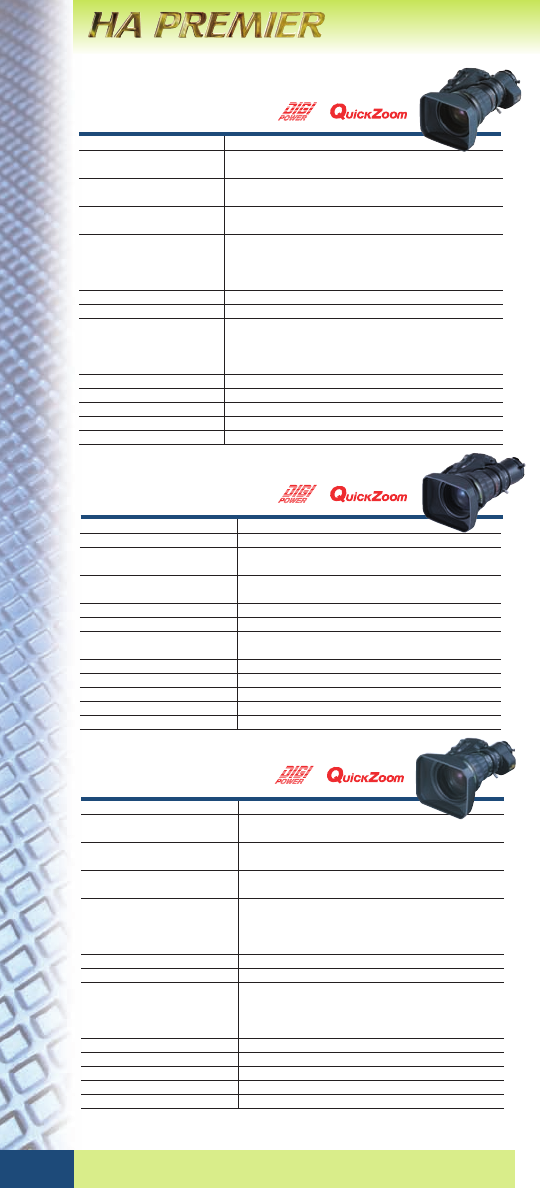

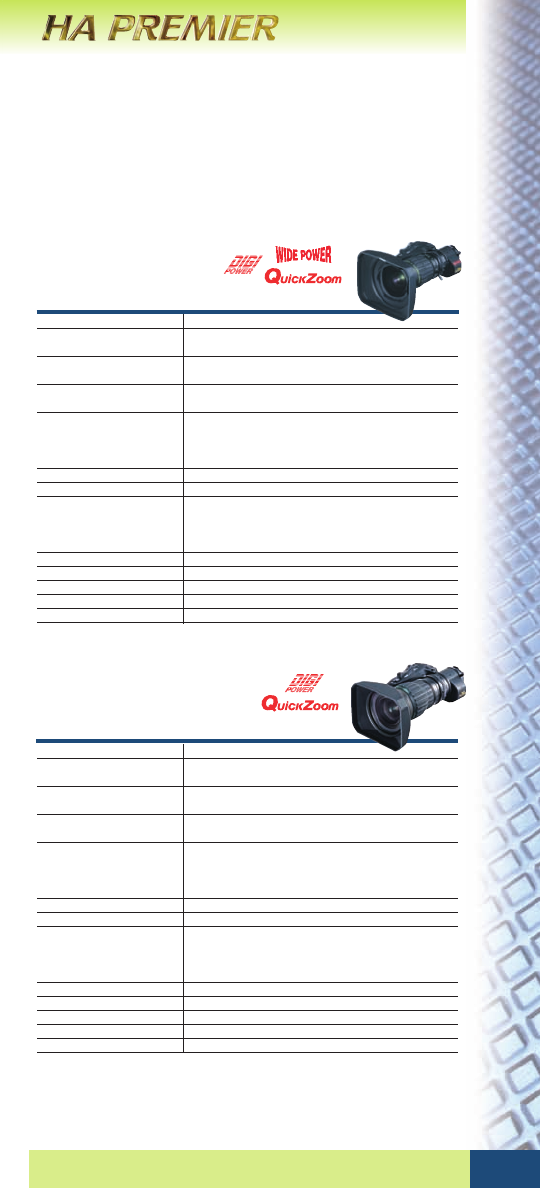

Fujinon’s Premier Series lenses are designed to complement

and enhance the quality of the worlds most advanced 2/3 inch

HDTV cameras.

Great consideration in the design and development of these

high-end HD lenses has been taken to incorporate the highest

optical and mechanical specifications while ensuring

unmatched performance in the most rugged of production

environments.

Extender

Accessories for above lenses shown on pages 29, 30 & 32.

HD Series

Fuji_PG_Inside_09.qxd 3/31/09 12:44 PM Page 15

Zoom Ratio / Format 23X / 2/3"

Focal Length 7.6 to 175 mm

(2X) 15.2 to 350 mm

Maximum Relative 1:1.8 (7.6 ~ 122 mm)

Aperture 1:2.65 (175 mm)

Maximum Photometric 1:1.9 (7.6 ~ 122 mm)

Aperture T-No. 1:2.8 (175 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 1.07m

M.O.D. from Front of Lens 0.8m

Object Dimensions

at M.O.D.

Filter Size ø 95m P=1 (On Barrel) / ø 107m P=1 (In Hood)

Dia ø x Length (w/o Hood) ø100 x 223.6 mm

Weight (w/o Hood) 1.88 kg (RM) / 1.95 kg (RD)

Options Ratio Converter / 16 Bit Encoder

Features Inner Focus / Zoom Limit / Quick Zoom

7.6 mm 64° 30’ x 39° 03’

175 mm 3° 08’ x 1° 46’

(2X) 15.2 mm 35° 01’ x 20° 07’

350 mm 1° 34’ x 0° 53’

7.6 mm 915 x 514 mm

175 mm 41 x 23 mm

(2X) 15.2 mm 473 x 266 mm

350 mm 21 x 12 mm

HA23x7.6BE RM/RD*

Extender

Zoom Ratio / Format 18X / 2/3"

Focal Length 7.6 to 137 mm

(2X) 15.2 to 274 mm

Maximum Relative 1:1.8 (7.6 ~ 103 mm)

Aperture 1:2.4 (137 mm)

Maximum Photometric 1:1.9 (7.6 ~ 105 mm)

Aperture T-No. 1:2.6 (137 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 0.87 m

M.O.D. from Front of Lens 0.6 m

Object Dimensions

at M.O.D.

Filter Size ø 82 mm P=0.75 (On Barrel)

Dia ø x Length (w/o Hood) ø85 x 204 mm

Weight (w/o Hood) 1.58 kg / 1.65 kg*

Options Ratio Converter / 16 Bit Encoder

Features Inner Focus / Zoom Limit / Quick Zoom

7.6 mm 64° 30’ x 39° 03’

137 mm 4° 01’ x 2° 15’

(2X) 15.2 mm 35° 01’ x 20° 07’

274 mm 2° 00’ x 1° 08’

7.6 mm 738 x 415 mm

137 mm 41 x 23 mm

(2X) 15.2 mm 362 x 204 mm

274 mm 21 x 12 mm

HA18x7.6BE RM/RD*

Zoom Ratio / Format 18X / 2/3"

Focal Length 7.6 to 137 mm

Maximum Relative 1:1.8 (7.6 ~ 103 mm)

Aperture 1:2.4 (137 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 0.84 m

M.O.D. from Front of Lens 0.6 m

Object Dimensions

at M.O.D.

Filter Size ø 82 mm P=0.75 (On Barrel)

Dia ø x Length (w/o Hood) ø85 x 204 mm

Weight (w/o Hood) 1.26 kg / 1.33 kg*

Options 16 Bit Encoder

Features Inner Focus / Zoom Limit / Quick Zoom

7.6 mm 64° 30’ x 39° 03’

137 mm 4° 01’ x 2° 15’

7.6 mm 738 x 415 mm

137 mm 41 x 23 mm

HAs18x7.6B RM/RD*

Extender

Accessories for above lenses shown on pages 29, 30 & 32.

HD Series

*RD contain servos for zoom and focus.

Fuji_PG_Inside_09.qxd 3/31/09 12:44 PM Page 16

*RD contain servos for zoom and focus.

Zoom Ratio / Format 25X / 2/3"

Focal Length 11.5 to 288 mm

(2X) 23 to 576 mm

Maximum Relative 1:2.0 (11.5 ~ 206 mm)

Aperture 1:2.8 (288 mm)

Maximum Photometric 1:2.1 (11.5 ~ 206 mm)

Aperture T-No. 1:2.9 (288 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 2.51 m

M.O.D. from Front of Lens 2.2 m

Object Dimensions

at M.O.D.

Filter Size ø 107m P=1 (On Barrel)

Dia ø x Length (w/o Hood) ø110 x 265 mm

Weight (w/o Hood) 2.8 kg

Features Inner Focus / Quick Zoom / Inner Focus

11.5 mm 45° 16’ x 26° 23’

288 mm 1° 54’ x 1° 04’

(2X) 23 mm 23° 33’ x 13° 22’

576 mm 0° 57’ x 0° 32’

11.5 mm 1740 x 978 mm

288 mm 70 x 39 mm

(2X) 23 mm 870 x 489 mm

576 mm 35 x 20 mm

HA25x11.5BE RD*

Zoom Ratio / Format 25X / 2/3"

Focal Length 16.5 to 413 mm

(2X) 33 to 826 mm

Maximum Relative 1:2.8 (16.5 ~ 289mm)

Aperture 1:4.0 (413 mm)

Maximum Photometric 1:2.9 (16.5 ~ 289 mm)

Aperture T-No. 1:4.2 (413 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 2.52 m

M.O.D. from Front of Lens 2.2 m

Object Dimensions

at M.O.D.

Filter Size ø 107m P=1 (On Barrel)

Dia ø x Length (w/o Hood) ø110 x 278 mm

Weight (w/o Hood) 2.9 kg

Features Quick Zoom / Zoom Limit

16.5 mm 32° 25’ x 18° 33’

413 mm 1° 20’ x 0° 45’

(2X) 33 mm 16° 32’ x 9° 20’

826 mm 0° 40’ x 0° 22’

16.5 mm 1213 x 682 mm

413 mm 49 x 27 mm

(2X) 33 mm 606 x 341 mm

826 mm 24 x 14 mm

HA25x16.5BE RD*

Extender

Accessories for above lenses shown on pages 29 & 30.

HD Series

Zoom Ratio / Format 22X / 2/3"

Focal Length 7.3 to 161 mm

(2X) 14.6 to 322 mm

Maximum Relative 1:1.9 (7.3 ~ 113 mm)

Aperture 1:2.7 (161 mm)

Maximum Photometric 1:2.0 (7.3 ~ 113 mm)

Aperture T-No. 1:2.9 (161 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 1.18 m

M.O.D. from Front of Lens 0.85 m

Object Dimensions

at M.O.D.

Filter Size ø 127 mm P=0.75 (On Hood)

Dia ø x Length (w/o Hood) ø110 x 287.3 mm

Weight (w/o Hood) 3.15 kg / 3.22 kg*

Options Ratio Converter / 16 Bit Encoder

Features Inner Focus / Quick Zoom / Zoom Limit

HA22x7.3BE RM/RD*

7.3 mm 66° 36’ x 40° 32’

161 mm 3° 25’ x 1° 55’

(2X) 14.6 mm 36° 22’ x 20° 55’

322 mm 1° 42’ x 0° 58’

7.3 mm 1222 x 687 mm

161 mm 55 x 31 mm

(2X) 14.6 mm 609 x 342 mm

322 mm 28 x 16 mm

Extender

Fuji_PG_Inside_09.qxd 3/31/09 12:44 PM Page 17

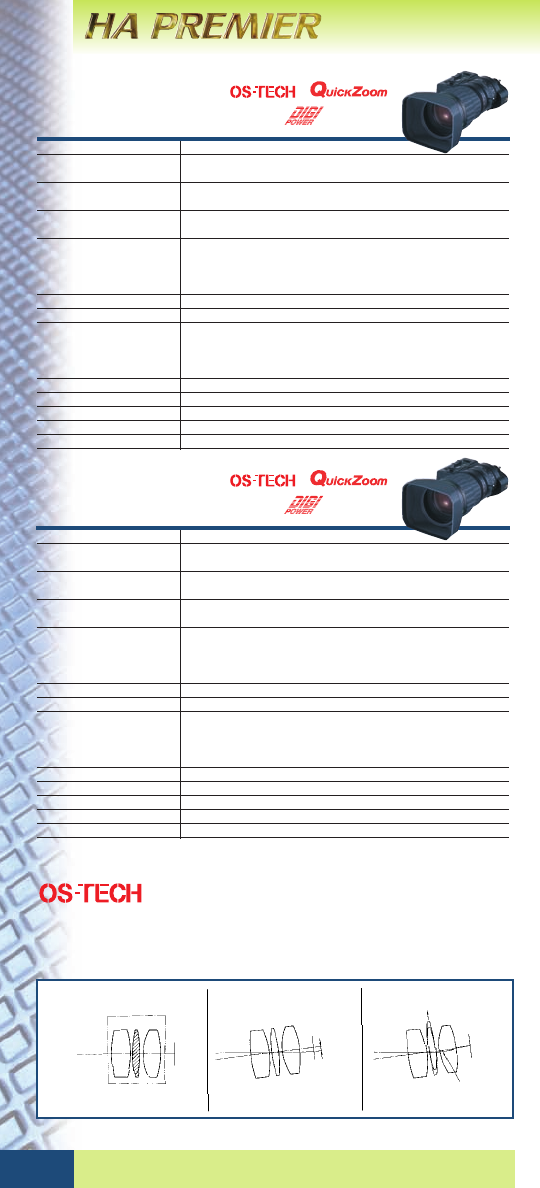

Zoom Ratio / Format 42X / 2/3"

Focal Length 9.7 ~ 410 mm

(2X) 19.4 ~ 820 mm

Maximum Relative 1:2.0 (9.7 ~ 225 mm)

Aperture 1:3.7 (410 mm)

Maximum Photometric 1:2.2 (9.7 ~ 225 mm)

Aperture T-No. 1:4.0 (410 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 3.18 m

M.O.D. from Front of Lens 2.8 m

Object Dimensions

at M.O.D.

Filter Size ø 127 mm P=0.75 (On Barrel)

Dia ø x Length (w/o Hood) ø130 x 338.5 mm

Weight (w/o Hood) 5.3 kg

Options Built In OS-TECH

Features Inner Focus / Zoom Limit / Built In OS-TECH / Quick Zoom

9.7 mm 52° 37’ x 31° 03’

410 mm 1° 20’ x 0° 45’

(2X) 19.4 mm 27° 46’ x 15° 49’

820 mm 0° 40’ x 0° 23’

9.7 mm 2619 x 1472 mm

410 mm 64 x 36 mm

(2X) 19.4 mm 1339 x 753 mm

820 mm 33 x 19 mm

HA42x9.7BE RD

The HA42x9.7 and HA42x13.5 are equipped with Fujinon’s

built-in optical stabilization technology (OS-TECH). This feature

optically compensates for image vibration as shown below.

HA42x13.5BE RD

*RD contain servos for zoom and focus.

Extender

Zoom Ratio / Format 42X / 2/3"

Focal Length 13.5 ~ 570 mm

(2X) 27 ~ 1140 mm

Maximum Relative 1:2.8 (13.5 ~ 307 mm)

Aperture 1:5.2 (570 mm)

Maximum Photometric 1:3.0 (13.5 ~ 307 mm)

Aperture T-No. 1:5.6 (570 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 3.2 m

M.O.D. from Front of Lens 2.8 m

Object Dimensions

at M.O.D.

Filter Size ø 127 mm P=0.75 (On Barrel)

Dia ø x Length (w/o Hood) ø130 x 358.5 mm

Weight (w/o Hood) 5.4 kg

Options Built In OS-TECH

Features Inner Focus / Zoom Limit / Built In OS-TECH / Quick Zoom

Accessories for above lenses shown on pages 29 & 30.

1. Without vibration

Object side Image

plane

Vibrated


Compensated

light ray

Moving direction of

the compensating optics

Anti-vibration

device

Compensating optics

2. With vibration 3. After compensation

HD Series

13.5 mm 39° 07’ x 22° 35’

570 mm 0° 58’ x 0° 33’

(2X) 27 mm 20° 08’ x 11° 24’

1140 mm 0° 29’ x 0° 16’

13.5 mm 1888 x 1061 mm

570 mm 45 x 25 mm

(2X) 27 mm 944 x 530 mm

1140 mm 22 x 13 mm

Fuji_PG_Inside_09.qxd 3/31/09 12:44 PM Page 18

LENS XA22x7BES HA22x7.2BE SM

Zoom Ratio / Format 22X / 2/3" 22X / 2/3"

Focal Length 7.0 ~ 154 mm 7.2 ~ 158 mm

(2X) 14 ~ 308 mm (2X) 14.4 ~ 316 mm

Maximum Relative 1:1.8 (7 ~ 116 mm) 1:1.7 (7.2 ~ 149 mm)

Aperture 1:2.4 (154 mm) 1:1.8 (158 mm)

Maximum Photometric 1:2.2 (7 ~ 116 mm) 1:1.9 (7.2 ~ 149 mm)

Aperture T-No. 1:2.9 (154 mm) 1:2.0 (158 mm)

Angular Field of View

(Hor. x Vert. in °)

16:9 Aspect Ratio

M.O.D. from Image Plane 1.17 m 1.20 m

M.O.D. from Front of Lens 0.8 m 0.6 m

Object Dimensions

at M.O.D.

(Hor. x Vert. in mm)

16:9 Aspect Ratio

Filter Size ø 127m P=0.75 –

Size (HxWxL) 179 x 187 x 340 mm 228 x 231 x 543 mm

Weight 6.6 kg 19.5 kg

Options FIND / 16 Bit Encoder Ratio Converter / FIND

Features Auto Compensation Floating System /

of Focus Breathing Auto Compensation

of Focus Breathing

7.2 mm 67° 20’ x 41° 03’

158 mm 3° 29’ x 1° 57’

(2X) 14.4 mm 36° 50’ x 21° 12’

316 mm 1° 44’ x 0° 59’

7.2 mm 1047 x 589 mm

158 mm 48 x 27 mm

(2X) 14.4 mm 524 x 294 mm

316 mm 24 x 13 mm

XA22x7BES

HA22x7.2BE SM

7.0 mm 68° 49’ x 42° 07’

154 mm 3° 34’ x 2° 00’

(2X) 14 mm 37° 49’ x 21° 48’

308 mm 1° 47’ x 1° 0’

7.0 mm 1197 x 673 mm

154 mm 54 x 31 mm

(2X) 14 mm 599 x 337 mm

308 mm 27 x 15 mm

HDTV STUDIO LENSES

Zoom Ratio / Format 27X / 2/3"

Focal Length 6.5 ~ 180 mm

(2X) 13 ~ 360 mm

Maximum Relative 1:1.5 (6.5 ~ 123 mm)

Aperture 1:2.2 (180 mm)

Maximum Photometric 1:1.6 (6.5 ~ 123 mm)

Aperture T-No. 1:2.4 (180 mm)

Angular Field of View

(Hor. x Vert. in °)

16:9 Aspect Ratio

M.O.D. from Image Plane 1.18 m

M.O.D. from Front of Lens 0.6 m

Object Dimensions

at M.O.D.

(Hor. x Vert. in mm)

16:9 Aspect Ratio

Size ( HxWxL) 233 x 231 x 537 mm

Weight (w/o Hood) 19.7 kg

Options Ratio Converter / FIND

Features Advanced Back Focus / Remote Macro

Focus Fader / Auto Compensation of Focus Breathing

Dust Proof & Anti Fogging

6.5 mm 72° 50’ x 45° 02’

180 mm 3° 03’ x 1° 43’

(2X) 13 mm 40° 30’ x 23° 25’

360 mm 1° 32’ x 0° 51’

6.5 mm 1053 x 592 mm

180 mm 39 x 22 mm

(2X) 13 mm 527 x 296 mm

360 mm 20 x 11 mm

HA27x6.5BE SM

Studio lenses are essential for applications requiring the

ultimate in control and optical quality. The Compact

XA22x7BES studio lens featuring sharp images and quite

precise servo zoom and focus in a compact package is designed

for mounting to 2/3 inch ENG style cameras.

Accessories for XA22x7BES shown on page 38.

Accessories for HA22x7.2BESM and HA27x6.5BESM shown on page 36 & 37.

Extender

Fuji_PG_Inside_09.qxd 3/31/09 12:44 PM Page 19

Zoom Ratio / Format 50X / 2/3"

Focal Length 9.5 ~ 475 mm

(2X) 19 ~ 950 mm

Maximum Relative 1:1.7 (9.5 ~ 311 mm)

Aperture 1:2.6 (475 mm)

Maximum Photometric 1:1.9 (9.5 ~ 311 mm)

Aperture T-No. 1:2.9 (475 mm)

Angular Field of View

(Hor. x Vert. in °)

4:3 Aspect Ratio

Angular Field of View

(Hor. x Vert. in °)

16:9 Aspect Ratio

M.O.D. from Image Plane 3.6 m

M.O.D. from Front of Lens 3.0 m

Object Dimensions

at M.O.D.

(Hor. x Vert. in mm)

4:3 Aspect Ratio

Object Dimensions

at M.O.D.

(Hor. x Vert. in mm)

16:9 Aspect Ratio

Size (HxWxL) 343 x 272 x 838 mm

Weight 20.5 kg

Options —

Features Built-In Supporter

Dust Proof & Anti Fogging

9.5 mm 53° 34’ x 31° 41’

475 mm 1° 09’ x 0° 39’

(2X) 19 mm 28° 20’ x 16° 09’

950 mm 0° 35’ x 0° 20’

9.5 mm 49° 42’ x 38° 19’

475 mm 1° 04’ x 0° 48’

(2X) 19 mm 26° 05’ x 19° 42’

950 mm 0° 32’ x 0° 24’

9.5 mm 2800 x 1575 mm

475 mm 56 x 31 mm

(2X) 19 mm 1400 x 787 mm

950 mm 28 x 16 mm

9.5 mm 2573 x 1930 mm

475 mm 51 x 39 mm

(2X) 19 mm 1287 x 965 mm

950 mm 26 x 19 mm

XA50x9.5BE SM

HDTV FIELD LENSES

New for 2009 is the XA50X9.5BESM featuring an integral

camera/ lens adaptor for easy mounting to most ENG style

cameras. The new XA50X9.5BESM is ideal for

smaller sports trucks, houses of worship, corporate

events and other budget conscious applications

requiring a high quality telephoto lens.

Accessories for above lenses shown on pages 36 & 37.

Extender

Zoom Ratio / Format 66X / 2/3"

Focal Length 9.3 ~ 615 mm

(2X) 18.6 ~ 1230 mm

Maximum Relative 1:1.7 (9.3 ~ 325 mm)

Aperture 1:3.2 (615 mm)

Maximum Photometric 1:1.8 (9.3 ~ 325 mm)

Aperture T-No. 1:3.4 (615 mm)

Angular Field of View

(Hor. x Vert. in °)

4:3 Aspect Ratio

Angular Field of View

(Hor. x Vert. in °)

16:9 Aspect Ratio

M.O.D. from Image Plane 3.37m

M.O.D. from Front of Lens 2.7 m

Object Dimensions

at M.O.D.

(Hor. x Vert. in mm)

4:3 Aspect Ratio

Object Dimensions

at M.O.D.

(Hor. x Vert. in mm)

16:9 Aspect Ratio

Size (HxWxL) 265 x 270 x 634 mm

Weight 21.5 kg

Options Ratio Converter/ FIND

Features Advanced Back Focus / Remote Macro

Focus Fader / Dust Proof & Anti Fogging

9.3 mm 54° 33’ x 32° 19’

615 mm 0° 54’ x 0° 30’

(2X) 18.6 mm 28° 55’ x 16° 29’

1350 mm 0° 27’ x 0° 15’

9.3 mm 50° 38’ x 39° 04’

615 mm 0° 49’ x 0° 37’

(2X) 18.6 mm 29° 37’ x 20° 07’

1230 mm 0° 25’ x 0° 18’

9.3 mm 2558 x 1438 mm

615 mm 39 x 22 mm

(2X) 18.6 mm 1279 x 719 mm

1230 mm 19 x 11 mm

9.3 mm 2346 x 1760 mm

615 mm 36 x 27 mm

(2X) 18.6 mm 1173 x 880 mm

1230 mm 18 x 13 mm

XA66x9.3BE SM

Extender

Fuji_PG_Inside_09.qxd 3/31/09 12:45 PM Page 20

HDTV FIELD LENSES

Accessories for above lenses shown on pages 36 & 37.

Zoom Ratio / Format 72X / 2/3"

Focal Length 9.3 ~ 675 mm

(2X) 18.6 ~ 1350 mm

Maximum Relative 1:1.7 (9.3 ~ 328 mm)

Aperture 1:3.5 (675 mm)

Maximum Photometric 1:1.8 (9.3 ~ 328 mm)

Aperture T-No. 1:3.7 (675 mm)

Angular Field of View

(Hor. x Vert. in °)

4:3 Aspect Ratio

Angular Field of View

(Hor. x Vert. in °)

16:9 Aspect Ratio

M.O.D. from Image Plane 3.37 m

M.O.D. from Front of Lens 2.7 m

Object Dimensions

at M.O.D.

(Hor. x Vert. in mm)

4:3 Aspect Ratio

Object Dimensions

at M.O.D.

(Hor. x Vert. in mm)

16:9 Aspect Ratio

Size (HxWxL) 265 x 270 x 634 mm

Weight 21 kg

Options Ratio Converter/ FIND

Features Advanced Back Focus / Remote Macro

Focus Fader / Dust Proof & Anti Fogging

9.3 mm 54° 33’ x 32° 19’

675 mm 0° 49’ x 0° 27’

(2X) 18.6 mm 28° 55’ x 16° 29’

1350 mm 0° 24’ x 0° 14’

9.3 mm 50° 38’ x 39° 04’

675 mm 0° 45’ x 0° 34’

(2X) 18.6 mm 26° 37’ x 20° 07’

1350 mm 0° 22’ x 0° 17’

9.3 mm 2346 x 1760 mm

675 mm 33 x 24 mm

(2X) 18.6 mm 1173 x 880 mm

1350 mm 16 x 12 mm

XA72x9.3BE SM

Extender

Zoom Ratio / Format 76X / 2/3"

Focal Length 9.3 ~ 710 mm

(2X) 18.6 ~ 1420 mm

Maximum Relative 1:1.7 (9.3 ~ 334 mm)

Aperture 1:3.6 (710 mm)

Maximum Photometric 1:1.8 (9.3 ~ 334 mm)

Aperture T-No. 1:3.8 (710 mm)

Angular Field of View

(Hor. x Vert. in °)

4:3 Aspect Ratio

Angular Field of View

(Hor. x Vert. in °)

16:9 Aspect Ratio

M.O.D. from Image Plane 3.37 m

M.O.D. from Front of Lens 2.7 m

Object Dimensions

at M.O.D.

(Hor. x Vert. in mm)

4:3 Aspect Ratio

Object Dimensions

at M.O.D.

(Hor. x Vert. in mm)

16:9 Aspect Ratio

Size (HxWxL) 265 x 270 x 634 mm

Weight 21.8 kg

Options Ratio Converter/ FIND

Features Advanced Back Focus / Remote Macro

Focus Fader / Dust Proof & Anti Fogging

Built-In OS-TECH

9.3 mm 54° 33’ x 32° 19’

710 mm 0° 46’ x 0° 26’

(2X) 18.6 mm 28° 55’ x 16° 29’

1420 mm 0° 23’ x 0° 13’

9.3 mm 50° 38’ x 39° 04’

710 mm 0° 43’ x 0° 32’

(2X) 18.6 mm 26° 37’ x 20° 07’

1420 mm 0° 21’ x 0° 16’

9.3 mm 2558 x 1438 mm

710 mm 34 x 19 mm

(2X) 18.6 mm 1279 x 719 mm

1420 mm 17 x 9 mm

9.3 mm 2347 x 1760 mm

710 mm 31 x 23 mm

(2X) 18.6 mm 1173 x 880 mm

1420 mm 15 x 12 mm

XA76x9.3BE SM

Extender

9.3 mm 2558 x 1438 mm

675 mm 36 x 20 mm

(2X) 18.6 mm 1279 x 719 mm

1350 mm 18 x 10 mm

Fuji_PG_Inside_09.qxd 3/31/09 12:45 PM Page 21

HDTV FIELD LENSES

XA101x 8.9BE SM

Zoom Ratio / Format 101X / 2/3"

Focal Length 8.9 ~ 900 mm

(2X) 17.8 ~ 1800 mm

Maximum Relative 1:1.7 (8.9 ~ 291 mm)

Aperture 1:4.7 (900 mm)

Maximum Photometric 1:1.8 (8.9 ~ 291 mm)

Aperture T-No. 1:5.0 (900 mm)

Angular Field of View

(Hor. x Vert. in °)

4:3 Aspect Ratio

Angular Field of View

(Hor. x Vert. in °)

16:9 Aspect Ratio

M.O.D. from Image Plane 3.59 m

M.O.D. from Front of Lens 2.9 m

Object Dimensions

at M.O.D.

(Hor. x Vert. in mm)

4:3 Aspect Ratio

Object Dimensions

at M.O.D.

(Hor. x Vert. in mm)

16:9 Aspect Ratio

Size (HxWxL) 265 x 270 x 660 mm

Weight 22.9 kg

Options Ratio Converter / FIND

Features Advanced Back Focus / Remote Macro / Focus Fader

Built-In OS-TECH / Dust Proof & Anti Fogging

8.9 mm 2865 x 1610 mm

900 mm 28 x 16 mm

(2X) 17.8 mm 1433 x 805 mm

1800 mm 14 x 8 mm

8.9 mm 2629 x 1972 mm

900 mm 26 x 20 mm

(2X) 17.8 mm 1315 x 986 mm

1800 mm 13 x 10 mm

8.9 mm 56° 38’ x 33° 42’

900 mm 0° 37’ x 0° 21’

(2X) 17.8 mm 30° 09’ x 17° 13’

1800 mm 0° 18’ x 0° 10’

8.9 mm 52° 37’ x 40° 41’

900 mm 0° 34’ x 0° 25’

(2X) 17.8 mm 27° 46’ x 21° 00’

1800 mm 0° 17’ x 0° 13’

XA88x 8.8BE SM

XA88x 12.5BE SM

Accessories for above lenses shown on pages 36 & 37.

Extender

LENS XA88X8.8BE SM XA88X12.5BE SM

Zoom Ratio / Format 88X / 2/3" 88X / 2/3"

Focal Length 8.8 ~ 777 mm 12.5 ~ 1100 mm

(2X) 17.6 ~ 1554 mm (2X) 25 ~ 2200 mm

Maximum Relative 1:1.7 (8.8 ~ 348 mm) 1:2.3 (12.5 ~ 477 mm)

Aperture 1:3.8 (777 mm) 1:5.3 (1100 mm)

Maximum Photometric 1:1.8 (8.8 ~ 348 mm) 1:2.4 (12.5 ~ 477 mm)

Aperture T-No. 1:3.6 (777 mm) 1:5.6 (1100 mm)

Angular Field of View

(Hor. x Vert. in °)

4:3 Aspect Ratio

Angular Field of View

(Hor. x Vert. in °)

16:9 Aspect Ratio

M.O.D. from Image Plane 3.51 m 3.53 m

M.O.D. from Front of Lens 2.9 m 2.9 m (12.5-200mm)

Object Dimensions

at M.O.D.

(Hor. x Vert. in mm)

4:3 Aspect Ratio

Object Dimensions

at M.O.D.

(Hor. x Vert. in mm)

16:9 Aspect Ratio

Size (HxWxL) 265 x 270 x 575 mm 265 x 270 x 593 mm

Weight 24.0 kg 24.5 kg

Options Ratio Converter / FIND

Features Advanced Back Focus / Remote Macro / Focus Fader

Built-In OS-TECH / Dust Proof & Anti Fogging

12.5 mm 2091 x 1175 mm

1100 mm 24 x 13 mm

(2X) 25 mm 1046 x 588 mm

2200 mm 12 x 7 mm

12.5 mm 1919 x 1439 mm

1100 mm 22 x 16 mm

(2X) 25 mm 959 x 720 mm

2200 mm 11 x 8 mm

12.5 mm 41° 58’ x 24° 20’

1100 mm 0° 30’ x 0° 17’

(2X) 25 mm 21° 43’ x 12° 18’

2200 mm 0° 15’ x 0° 08’

12.5 mm 38° 47’ x 29° 35’

1100 mm 0° 28’ x 0° 21’

(2X) 25 mm 19° 58’ x 15° 02’

2200 mm 0° 14’ x 0° 10’

8.8 mm 52° 10’ x 34° 03’

777 mm 0° 42’ x 0° 24’

(2X) 17.6 mm 30° 29’ x 17° 25’

1554 mm 0° 21’ x 0° 12’

8.8 mm 53° 08’ x 41° 07’

777 mm 0° 39’ x 0° 29’

(2X) 17.6 mm 28° 04’ x 21° 14’

1554 mm 0° 19’ x 0° 15’

8.8 mm 2971 x 1670 mm

777 mm 34 x 19 mm

(2X) 17.6 mm 1485 x 835 mm

1554 mm 17 x 9 mm

8.8 mm 2726 x 2044 mm

777 mm 31 x 23 mm

(2X) 17.6 mm 1363 x 1022 mm

1554 mm 15 x 12 mm

Extender

Fuji_PG_Inside_09.qxd 3/31/09 12:45 PM Page 22

SDTV ENG/EFP PROFESSIONAL LENSES

A13x6.3B / S13x4.6B RM/ERM*

Fujinon’s Professional grade lenses offer high optical quality and a

range of focal lengths for every professional production application.

Wide-angle lenses have become increasingly popular for profes-

sional videographers and Fujinon’s 13x series has set the pace with

the widest angle of 6.3mm (2/3”). The optional 2x-range extender

adds additional versatility with a maximum focal length of 164mm.

The 20x series features the longest focal

length and is available with optional

2x-range extender for telephoto shots.

LENS A13x6.3B RM/ERM* S13x4.6B RM/ERM*

Zoom Ratio / Format 13X / 2/3" 13X / 1/2"

Focal Length 6.3 to 82 mm 4.6 to 60 mm

(2X) 12.6 to 164 mm (2X) 9.2 to 120 mm

Maximum Relative F2 (to 61 mm) F1.5 (to 45 mm)

Aperture F2.7 (at 82 mm) F2.0 (at 60 mm)

Angular Field

6.3 mm 69° 52’ x 55° 18’ 4.6 mm 69° 39’ x 55° 06’

of View

82 mm 6° 09’ x 4° 37’ 60 mm 6° 06’ x 4° 35’

(Hor. x Vert. in °)

(2X) 12.6 mm 38° 30’ x 29° 21’ (2X) 9.2 mm 38° 21’ x 29° 15’

164 mm 3° 04’ x 2° 18’ 120 mm 3° 03’ x 2° 17’

M.O.D. from Image Plane

0.4 m 0.4 m

Object Area

6.3 mm 617mm x 463mm 4.6 mm 633mm x 475mm

at M.O.D

82 mm 47mm x 36mm 60 mm 49mm x 37mm

(2X) 12.6 mm 309mm x 231mm (2X) 9.2 mm 315mm x 236mm

164 mm 24mm x 18mm 120 mm 24mm x 18mm

Filter Size (on Barrel) ø 82 mm P=0.75 ø 82 mm P=0.75

Weight 1.68 kg 1.68 kg

1.78 kg 1.78 kg

Features Inner Focus Inner Focus

A17x9B / S17x6.6B RM

LENS A17x9B RM S17x6.6B RM

Zoom Ratio / Format 17X / 2/3" 17X / 1/2"

Focal Length 9 to 155 mm 6.6 to 114 mm

Maximum Relative F1.9 (to 115 mm) F1.5 (to 90 mm)

Aperture F2.6 (at 155 mm) F1.9 (at 114 mm)

Angular Field of View

9mm 52° 06’ x 40° 16’ 6.6mm 51° 44’ x 39° 58’

(Hor. x Vert. in °)

155mm 3° 15’ x 2° 26’ 114mm 3° 13’ x 2° 25’

M.O.D. from Image Plane

0.9m 0.9m

Object Area (at Wide)

9mm 815mm x 611mm 6.6mm 808mm x 606mm

at M.O.D (at Tele)

155mm 47mm x 36mm 114mm 47mm x 35mm

Filter Size (on Barrel) ø 82 mm P=0.75 ø 82 mm P=0.75

Weight w/o hood 1.25 kg 1.25 kg

Features Inner Focus Inner Focus

A20x8.6B / S20x6.4B RM/ERM*

LENS A20x8.6B RM/ERM* S20x6.4B RM/ERM*

Zoom Ratio / Format 20X / 2/3" 20X / 1/2"

Focal Length 8.6 to 172 mm 6.4 to 128 mm

(2X) 17.2 to 344 mm (2X) 12.8 to 256 mm

Maximum Relative F1.8 (to 115 mm) F1.4 (to 90 mm)

Aperture F2.7 (at 172 mm) F2.0 (at 128 mm)

Angular Field

8.6 mm 54° 11’ x 41° 59’ 6.4 mm 53° 08’ x 41° 07’

of View

172 mm 2° 56’ x 2° 12’ 128 mm 2° 52’ x 2° 09’

(Hor. x Vert. in °)

(2X) 17.2 mm 28° 42’ x 21° 43’ (2X) 12.8 mm 28° 04’ x 21° 14’

344 mm 1° 28’ x 1° 06’ 256 mm 1° 26’ x 1° 04’

M.O.D. from Image Plane

0.9 m 0.9 m

Object Area

8.6 mm 866mm x 650mm 6.4 mm 846mm x 635mm

at M.O.D

172 mm 43mm x 33mm 128 mm 42mm x 32mm

(2X) 17.2 mm 433mm x 325mm (2X) 12.8 mm 423mm x 317mm

344 mm 21mm x 16mm 256 mm 21mm x 16mm

Filter Size ø 82 mm P=0.75 ø 82 mm P=0.75

Weight 1.4 kg 1.4 kg

1.5 kg 1.5 kg

Features Inner Focus Inner Focus

*ERM version with extender

Accessories for above lenses shown on pages 31 & 33.

Extender

(at Wide)

(at Tele)

(at Wide)

(at Tele)

(at Wide)

(at Tele)

(at Wide)

(at Tele)

ERM

*ERM version with extender

Fuji_PG_Inside_09.qxd 3/31/09 12:45 PM Page 23

HDTV VIDEOCONFERENCING LENSES

Fujinon’s HD lenses for videoconferencing and other

remote control applications open new markets for

HDTV. New for 2009 is the addition of the ZA12x4.5B

MD, ZA17x7.6B MD and the ZA22x7.6B MD.

Accessories for above lenses shown on page 34.

*Optional Accessory Configuration SS-33A for model HAs18x7.6B MD only.

Refer to pg. 34 for Standard Videoconferencing Accessories.

LENS HAs18x7.6B MD* HSs18x5.5B MD

Zoom Ratio / Format 18X / 2/3" 18X / 1/2"

Focal Length

7.6 mm ~ 137 mm 5.5 mm ~ 100 mm

Maximum Relative 1.8 (to 103 mm) 1.4 (to 77 mm)

Aperture 2.4 (at 137 mm) 1.8 (at 100 mm)

Angular Field of View

7.6 mm 64° 30' x 39° 03' 5.5 mm 64° 43' x 39° 14'

(Hor. x Vert. in °)

137 mm 4° 01' x 2° 15' 100 mm 4° 00' x 2° 15'

M.O.D. from Image Plane 0.84 m 0.84 m

M.O.D. from Front of Lens 0.6 m 0.6 m

Object Area (at Wide)

7.6 mm 738 x 415 mm 5.5 mm 741 x 417 mm

at M.O.D. (at Tele)

137 mm 41 x 23 mm 100 mm 43 x 24 mm

Filter Size ø 82 x 0.75 ø 82 x 0.75

Weight w/o hood 1.55 kg 1.55 kg

HAs18x7.6B MD

HSs18x5.5B MD

LENS ZA12x4.5B MD ZA12x4.5BE MD

Zoom Ratio / Format 12X / 2/3" 12X / 2/3"

Focal Length 4.5 to 54 mm 4.5 to 54 mm

Extender (2X) 9 to 108 mm

Maximum Relative 1:1.8 (4.5 ~ 41 mm) 1:1.8 (4.5 ~ 41 mm)

Aperture 1:2.4 (59 mm) 1:2.4 (59 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 0.59 m 0.59 m

Object Dimensions

at M.O.D.

Filter Size

ø 127 mm P=0.75 (In Hood

)

ø 127 mm P=0.75 (In Hood)

Weight (w/o Hood) 1.9 kg 2.0 kg

4.5 mm 93° 38’ x 61° 50’

54 mm 10° 09’ x 5° 43’

(2X) 9 mm 56° 06’ x 33° 20’

108 mm 5° 05’ x 2° 52’

4.5 mm 757 x 425 mm

54 mm 59 x 33 mm

ZA12x4.5B MD

ZA12x4.5BE MD

(2X) 9 mm 373 x 210 mm

108 mm 31 x 17 mm

LENS ZA17x7.6B MD ZA17x7.6BE MD

Zoom Ratio / Format 17X / 2/3" 17X / 2/3"

Focal Length 7.6 to 130 mm 7.6 to 130 mm

Extender (2X) 15.2 to 260 mm

Maximum Relative 1:1.8 (7.6 ~ 102 mm) 1:1.8 (7.6 ~ 102 mm)

Aperture 1:2.3 (130 mm) 1:2.3 (130 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 0.84 m 0.84 m

Object Dimensions

at M.O.D.

Filter Size

ø 82 mm P=0.75 (On Barrel) ø 82 mm P=0.75 (On Barrel)

Weight (w/o Hood) 1.5 kg 1.6 kg

7.6 mm 64° 30’ x 39° 03’

130 mm 4° 13’ x 2° 23’

(2X) 15.2 mm 35° 01’ x 20° 07’

260 mm 2° 07’ x 1° 11’

7.6 mm 696 x 392 mm

130 mm 43 x 24 mm

ZA17x7.6B MD

ZA17x7.6BE MD

(2X) 15.2 mm 362 x 204 mm

260 mm 21 x 12 mm

LENS ZA22x7.6B MD ZA22x7.6BE MD

Zoom Ratio / Format 22X / 2/3" 22X / 2/3"

Focal Length 7.6 to 167 mm 7.6 to 167 mm

Extender (2X) 15.2 to 334 mm

Maximum Relative 1:1.8 (7.6 ~ 120 mm) 1:1.8 (7.6 ~ 120 mm)

Aperture 1:2.5 (167 mm) 1:2.5 (167 mm)

Angular Field of View

16:9 Aspect Ratio

M.O.D. from Image Plane 1.07 m 1.07 m

Object Dimensions

at M.O.D.

Filter Size

ø 95 mm P=1.0

(On Barrel)

ø 95 mm P=1.0

(On Barrel)

Weight (w/o Hood) 1.72 kg 1.82 kg

7.6 mm 64° 30’ x 39° 03’

167 mm 3° 17’ x 1° 51’

(2X) 15.2 mm 35° 01’ x 20° 07’

334 mm 1° 39’ x 0° 55’

7.6 mm 915 x 514 mm

167 mm 43 x 24 mm

ZA22x7.6B MD

ZA22x7.6BE MD

(2X) 15.2 mm 473 x 266 mm

334 mm 22 x 12 mm

Refer to full size charts on pages 15-16 for more information for all above lenses.

*EMD version with extender

Fuji_PG_Inside_09.qxd 3/31/09 12:45 PM Page 24

SDTV VIDEOCONFERENCING LENSES

LENS A20x8.6B MD S20x6.4B MD

Zoom Ratio / Format 20X / 2/3" 20X / 1/2"

Focal Length

8.6 mm ~ 172 mm 6.4 mm ~ 128 mm

Maximum Relative 1.8 (to 115 mm) 1.4 (to 90 mm)

Aperture 2.7 (at 172 mm) 2.0 (at 128 mm)

Angular Field of View

8.6 mm 54° 11' x 41° 59' 6.4 mm 53° 08' x 41° 07'

(Hor. x Vert. in °)

172 mm 2° 56' x 2° 12' 128 mm 2° 52' x 2° 09'

M.O.D. from Front of Lens 0.9 m 0.9 m

Object Area (at Wide)

8.6 mm 866 x 650 mm 6.4 mm 846 x 635 mm

at M.O.D. (at Tele)

172 mm 43 x 33 mm 128 mm 42 x 32 mm

Filter Size ø 82 x 0.75 ø 82 x 0.75

Weight 1.45 kg 1.45 kg

Features Inner Focus Inner Focus

A20x8.6B MD

S20x 6.4B MD

LENS A20x8.6BE MD

◊

S20x6.4BE MD

◊

Zoom Ratio / Format 20X / 2/3" 20X / 1/2"

Focal Length 8.6 to 172 mm 6.4 to 128 mm

w/ Built-in Extender (2X) 17.2 to 344 mm (2X) 12.8 to 256 mm

Maximum Relative F1.8 (to 115 mm) F1.4 (to 90 mm)

Aperture F2.7 (at 172 mm) F2.0 (at 128 mm)

Angular Field

8.6mm 54° 11’ x 41° 59’ 6.4mm 53° 08’ x 41° 07’

of View

172mm 2° 56’ x 2° 12’ 128mm 2° 52’ x 2° 09’

(Hor. x Vert. in °)

(2X) 17.2mm 28° 42’ x 21° 43’ (2X) 12.8mm 28° 04’x 21° 14’

344mm 1° 28’ x 1° 06’ 256mm 1° 26’ x 1° 04’

M.O.D. from Front of Lens

0.9 m 0.9 m

Object Area

8.6mm 866mm x 650mm 6.4mm 846mm x 635mm

at M.O.D

172mm 43mm x 33mm 128mm 42mm x 32mm

(2X) 17.2mm 433mm x 325mm (2X) 12.8mm 423mm x 317mm

344mm 21mm x 16mm 256mm 21mm x 16mm

Filter Size ø 82 mm P=0.75 ø 82 mm P=0.75

Weight 1.55 kg 1.55 kg

Features Inner Focus Inner Focus

A20x8.6BE MD

S20x6.4BE MD

Fujinon’s complete line of remote control lenses is ideal

for everything from graphics stands and videoconferencing

to tower cams. A wide array of accessories including wide

and telephoto converters, filters and remote controllers

are available.

Accessories for above lenses shown on page 34.

◊For remote application of extender, the ECU motorized extender unit is required.

A13x6.3B MD/EMD

S13x4.6B MD/EMD

*EMD version with extender

LENS A13x6.3B MD/EMD* S13x4.6B MD/EMD*

Zoom Ratio / Format 13X / 2/3" 13X / 1/2"

Focal Length 6.3 to 82 mm 4.6 to 60 mm

(2X) 12.6 to 164 mm (2X) 9.2 to 120 mm

Maximum Relative F2 (to 61 mm) F1.5 (to 45 mm)

Aperture F2.7 (at 82 mm) F2.0 (at 60 mm)

Angular Field

6.3mm 69° 52’ x 55° 18’ 4.6mm 69° 39’ x 55° 06’

of View

82mm 6° 09’ x 4° 37’ 60mm 6° 06’ x 4° 35’

(Hor. x Vert. in °)

(2X) 12.6mm 38° 30’ x 29° 21’ (2X) 9.2 mm 38° 21’x 29° 15’

164mm 3° 04’ x 2° 18’ 120 mm 3° 03’ x 2° 17’

M.O.D. from Front of Lens

0.4 m 0.4 m

Object Area

6.3mm 617mm x 463mm 4.6mm 633mm x 475mm

at M.O.D

82mm 47mm x 36mm 60mm 49mm x 37mm

(2X) 12.6mm 309mm x 231mm (2X) 9.2 mm 315mm x 236mm

164mm 24mm x 18mm 120 mm 24mm x 18mm

Filter Size (on Barrel) ø 82 mm P=0.75 ø 82 mm P=0.75

Weight 1.73 kg 1.73 kg

1.83 kg 1.83 kg

Features Inner Focus Inner Focus

Extender

(at Wide)

(at Tele)

(at Wide)

(at Tele)

(at Wide)

(at Tele)

(at Wide)

(at Tele)

ERM

*◊

◊

*◊

Fuji_PG_Inside_09.qxd 4/2/09 11:33 AM Page 25

ACCESSORIES: HD PF CONTROLS ENG/EFP

F.D.

SS-13PF Servo Focus/Servo Zoom

For use with PF ENG lenses.

SS-21PF Servo Focus/Servo Zoom

For use with PF EFP lenses

A. ERD-5A-D01

Digi Zoom Demand

B. EFZ-11E

Focus/Zoom Cable

C. ESM-D51B

Servo Module

D. EPA-S23 (Part of Kit)

Focus Grip Section

E. EPA-S23 (Part of Kit)

Focus Box Section

F. EPA-S23 (Part of Kit)

Focus Connection Cable

G. MCA-6B

Mounting Clamp

H. PF-19A-02A

PF Action Switch

EPD-4A-

S13E Digi

PF Focus

Demand also

available.

A. ERD-10A-D01

Digi Zoom Demand

B. EBF-1

Focus Cable

C. MCA-6B

Mounting Clamp

D. EPA-S23 (Part of Kit)

Focus Grip Section

E. EPA-S23 (Part of Kit)

Focus Box Section

F. EPA-S23 (Part of Kit)

Focus Connection Cable

G. PF-19A-02A

PF Action Switch

SERVO

MODULE

ESM-D51B

CONNECTION

CABLE

EFZ-11E

ERD-5A-D01

LENS

SERVO MODULE

ESM-

D51B/

D52B

GRIP TYPE FOCUS POSITION

DEMAND UNIT

EPA-S23

CABLE GRIP SECTION

MOUNTING CLAMP

CONNECTION CABLE

BOX SECTION

Fuji_PG_Inside_09.qxd 4/2/09 10:08 AM Page 26

G/EFP

mand

able

art of Kit)

ion

art of Kit)

n Cable

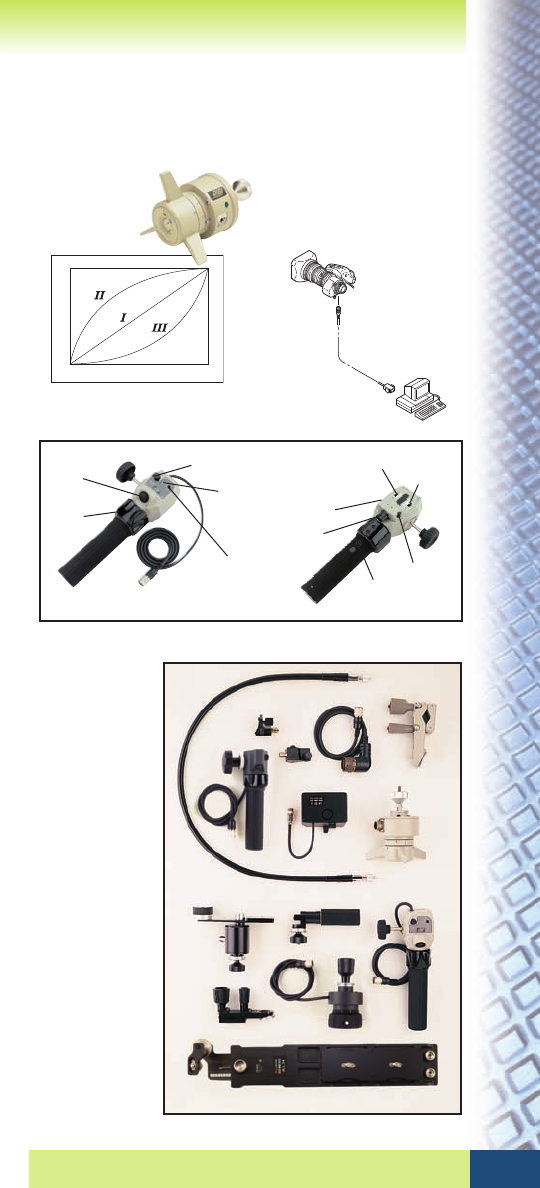

ACCESSORIES: HD & SD ENG/EFP

THREE-MODE FINE

FOCUS

By shifting the sensitivity from

the wide side to the telephoto

side of the focus range, this

control provides more precise

focusing

for studio

or sports

productions.

A. CFC-990

Flex Cable

B. FMM-3B/6B

Manual Module

C. ZMM-6

Manual Module

D. EBF-1 Focus Cable

E. MCA-6

F. ERD-20A-A02

Zoom Demand

G. FSP-13G

Focus Positional

Module

H. EPD-4A-E02

I. CZH-14

Focus Handle

J. CFH-11

Focus Handle

K. MCA-7

Mounting Clamp

EPD-21A-A02

Focus Demand

M. ERD-10A-D01

Zoom Demand

N. ALH-117C-01A

Support for

HA36x /A36x

HA42x

ROTATING CONTROL ANGLEMOD

INFINITY

CONVENTIONAL

TYPE

9 PIN CONNECTOR

SA-206-A-005

SERIAL DIGITAL

REMOTE CONTROL

BY PC

Remote control of zoom, focus

and iris for Digipower lenses is

possible via serial digital link,

providing accurate positioning

for virtual studio and other

applications requiring digital

precision.

A. B.

F. G.

I. J.

VTR

Switch

Zoom Speed

Control Knob

One Shot

Preset

Indicator

One Shot

Preset Switch

Quickzoom

Switch

Return

Switch

Quickzoom

Switch

Reverse

Switch

Focus/Iris

Control Select

Switch

Focus/Iris

Control Knob

Thumb

Ring

*New Digital features only available on ERM/ERD-M/S.

ERD-10A-D01

DIGI ZOOM DEMAND*

Note: ERD-20A-A02 (F) and EPD-20A-A02 (L) replace the ERD-T22 and EPD-2CA.

Fuji_PG_Inside_09.qxd 3/31/09 12:45 PM Page 27

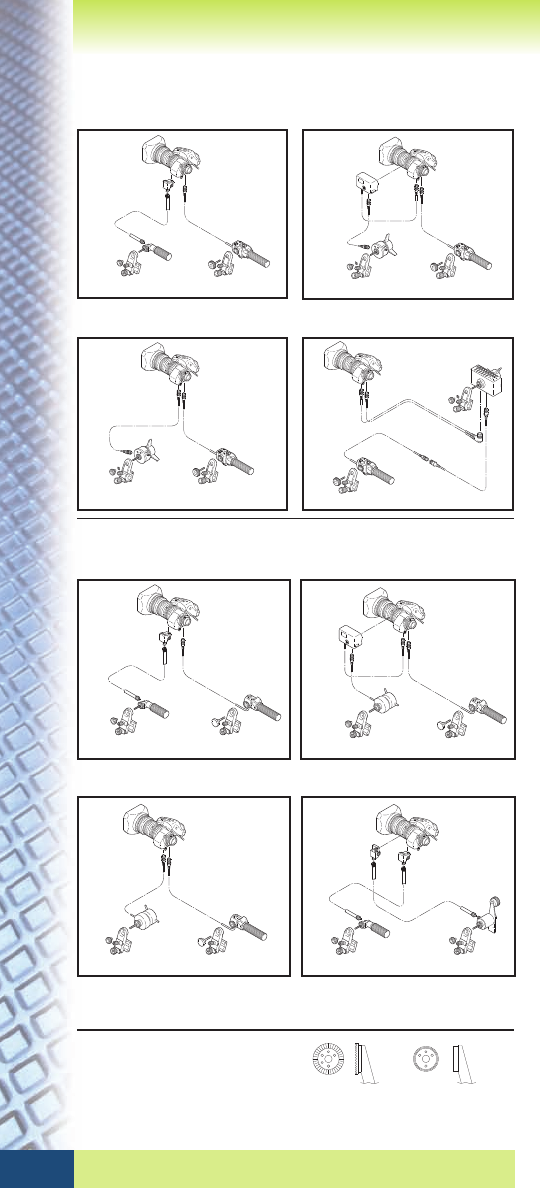

ACCESSORIES: HD & SD ENG/EFP

STANDARD REAR CONTROL KITS

FMM-6B

FMM-3B 12 PIN

ERD-10A-D01

MCA-7 MCA-6B

CFH-11

CFC-12-990

FMM-6B

FMM-3B

CFC-12-990

MCA-7 MCA-7

CZH-14

CFH-11

CFC-12-990

ZMM-6

SS-13A Servo Focus/Servo Zoom

For use with ERD type lenses.

*Specify camera type

**FMM-3C for use on HA42x and HA25x

FMM-6B

FMM-3B

12 PIN

ERD-20A-A02

MCA-7MCA-7

CFH-11

CFC-12-990

3 PIN

FSP-13G

12 PIN

ERD-20A-A02

MCA-7

EPD-21A-A02

MCA-7

12 PIN

ERD-20A-A02

MCA-7 MCA-7

EPD-21A-A02

MM-11 Manual Focus/Manual Zoom

Not available on HA42x, HA36x and A36x

MS-11 Manual Focus/Servo Zoom SS-11 Servo Focus/Servo Zoom

Not available on HA42x, HA36x and A36

12 PIN

ERD-10A-D01

MCA-6BMCA-6B

EPD-4A-E02

EBF-1

FSP-13G

EBF-1

12 PIN

3 PIN

ERD-10A-D01

EPD-4A-E02

MCA-6B MCA-6B

12 PIN

ERD-10A-D01

ESB-6A-D12

SE-210A-R15

MCA-6B

EEC-13

MS-11D Manual Focus /Servo Zoom

For use with RM/ZM type lenses.

SS-13D Servo Focus/Servo Zoom

For use with RD/ZD type lenses.

SS-11D Servo Focus/Servo Zoom

For use with RM/ZM type lenses.

SS-14S Servo Focus/Servo Zoom

For use with RD/ZD type lenses.

DIGI POWER REAR CONTROL KITS

MOUNTING SYSTEM

Fujinon has replaced the “cone”

shaped mounting system with the

“tooth” system. The cone type may

still be ordered as a special order.

New Style

MCA-7

Old Style

MCA-1A

(Discontinued)

** FMM-6B

FMM-3C

** FMM-6B

FMM-3C

** FMM-6B

FMM-3C

Fuji_PG_Inside_09.qxd 3/31/09 12:45 PM Page 28

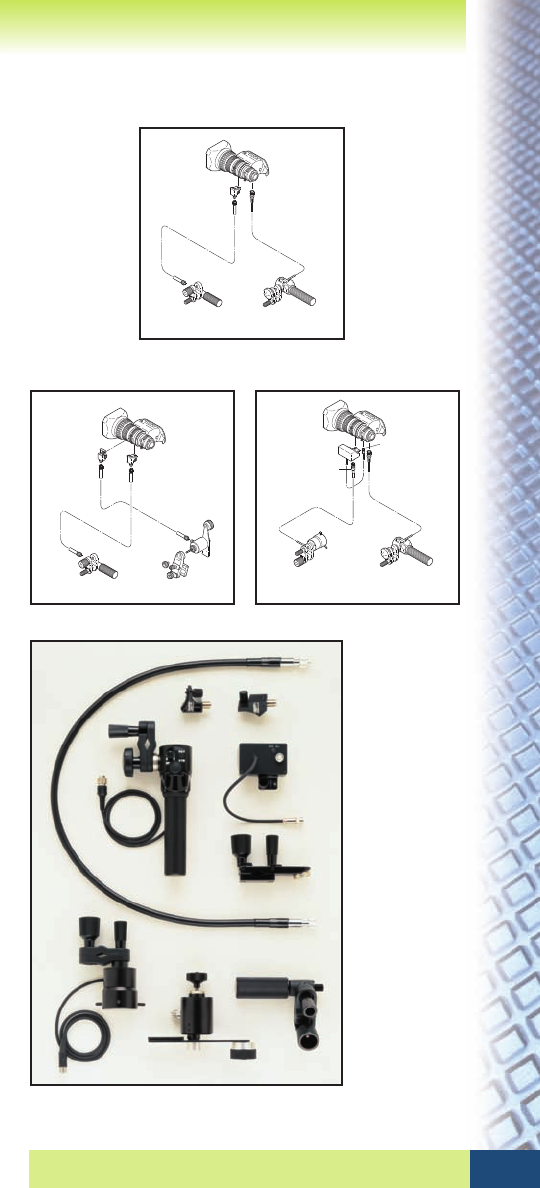

ACCESSORIES: HD & SD ENG/EFP

PROFESSIONAL REAR CONTROL KITS

A. B. C.

D. E.

G. H.

*Specify camera type.

*FMM-8 for use with S16x 7.3

A. CFC-990

Flex Cable

B. FMM-6B/FMM-8*

Focus Manual

Module

C. ZMM-6

Zoom Manual

Module

D. SRD-92B

Zoom Demand

E. FSM-30B

Focus Servo

Module

F. MCA-7

Mounting Clamp

G. FSD-11

Focus Demand

H. CZH-14

Zoom Handle

I. CFH-3

Focus Handle

ZMM-6

FMM-6B

CFC-12-990 CFH-12-990

CZH-14

CFH-3

MCA-7

8-PIN

Focus

Manual

Module

FMM-6B/

FMM-8

Flexible Cable

CFC-12-990

Focus Grip

CFH-3 Zoom Rate Demand Unit

SRD-92B

3-PIN

8-PIN

6-PIN

Focus Servo

Module

FSM-30B

Focus Servo

Demand Unit

FSD-11

Zoom Rate

Demand Unit

SRD-92B

MM-01 Manual Focus/Manual Zoom

Not available on S16x7.3

MS-01 Manual Focus/Servo Zoom

SS-01 Servo Focus/Servo Zoom

Not available on S16x7.3

Fuji_PG_Inside_09.qxd 3/31/09 12:45 PM Page 29

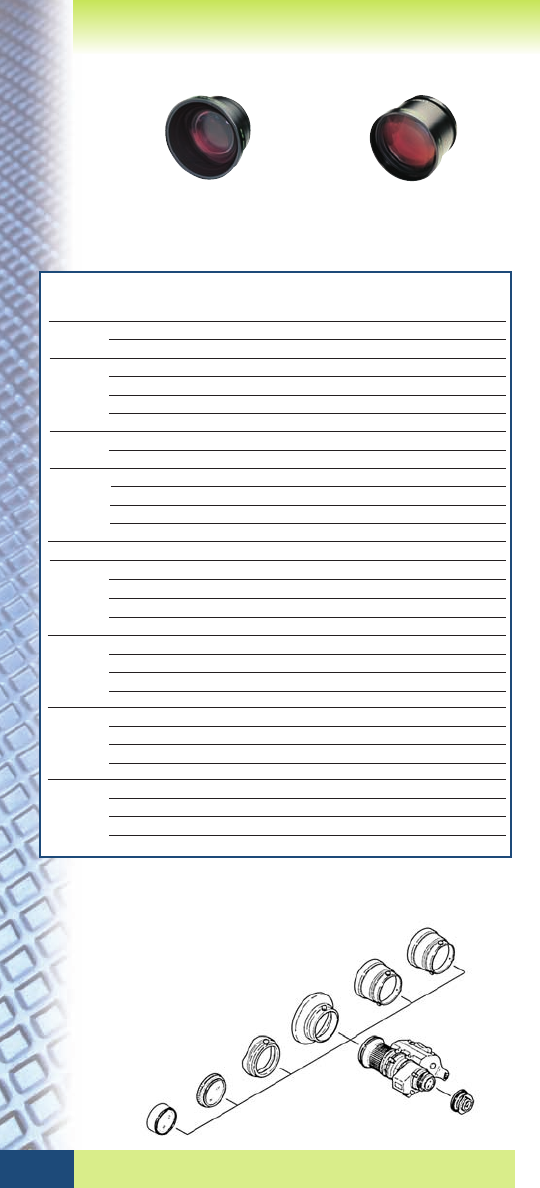

LENS CONVERTERS

Wide Converter

(WCV)

Tele Converter

(TCV)

ACCESSORIES: HD ENG/EFP

HD/ENG LENS CONVERTERS

Converted M.O.D. Weight

Model Type ø Size Converter* Mag. Focal (m) (kg)

Length (mm)

HS16x4.6 TELE 95 mm TCV-H95 1.5x 74.0



111.0 0.90 1.00

WIDE 95 mm WCV-H95 0.8x 4.6



3.9 0.29 1.00

HS18x5.5/ TELE 85 mm TCV-H85 1.5x 100.0



150.0 1.35 1.10

HSs18x5.5 WIDE 85 mm WCV-H85 0.8x 5.5



4.4 0.38 1.05

WIDE 85 mm WAT-H85 0.7x 5.5



3.9 0.29 0.36

FISHEYE 85 mm F-ATH85 0.57x 5.5



3.1 0.19 0.36

HA16x6.3 TELE 95 mm TCV-H955 1.5x 101.0



152.0 0.90 1.00

WIDE 95 mm WCV-H95 0.8x 6.3



5.4 0.29 1.00

HA18x7.6E/ TELE 85 mm TCV-H85 1.5x 137.0



205.5 1.35 1.10

HAs18x7.6 WIDE 85 mm WCV-H85 0.8x 7.6



6.1 0.38 1.05

WIDE 85 mm WAT-H85 0.7x 7.6



5.3 – 0.36

FISHEYE 85 mm F-ATH85 0.57x – – 0.36

HA22x7.3E TELE 110 mm TCV-H110 1.5x 161.0



242.0 1.90 1.10

HA23x7.6E TELE 100 mm TCV-H100 1.5x 175.0



262.5 1.80 1.00

WIDE 100 mm WCV-H100 0.8x 7.6



6.1 0.51 1.05

WIDE 100 mm WAT-H100 0.7x 7.6



5.3 0.39 0.53

FISHEYE 100 mm F-ATH100 0.57x 7.6



4.3 0.26 0.63

XS17x5.5 TELE 85 mm TCV-H85 1.5x 94.0



141.0 1.35 1.10

WIDE 85 mm WCV-H85 0.8x 5.5



4.4 0.38 1.05

WIDE 85 mm WAT-H85 0.7x 5.5



3.8 0.29 0.36

FISHEYE 85 mm F-ATH85 0.57x 5.5



3.1 0.19 0.36

ZA17x7.6 TELE 85 mm TCV-H85 1.5x 130.0



195.0 1.35 1.10

WIDE 85 mm WCV-H85 0.8x 7.6



6.1 0.38 1.05

WIDE 85 mm WAT-H85 0.7x 7.6



5.3 0.29 0.36

FISHEYE 85 mm F-ATH85 0.57x 7.6



4.3 0.19 0.36

ZA22x7.6 TELE 100 mm TCV-H100 1.5x 167.0



250.5 1.80 1.00

WIDE 100 mm WCV-H100 0.8x 7.6



6.1 0.51 1.05

WIDE 100 mm WAT-H100 0.7x 7.6



5.3 0.39 0.53

FISHEYE 100 mm F-ATH100 0.57x 7.6



4.3 0.26 0.63

TELE CONVERTER

WIDE CONVERTER

WIDE ATTACHMENT

FISH-EYE ATTACHMENT

ZOOM LENS

2X EXTENDER

RATIO

CONVERTER

FILTER

*TCV/WCV are zoom thru type **ø 95mm P-1 screw on type

Wide attachement and fisheye attachment can be used at WIDE END.

Number of M.O.D. is at wide end.

Fuji_PG_Inside_09.qxd 3/31/09 12:45 PM Page 30

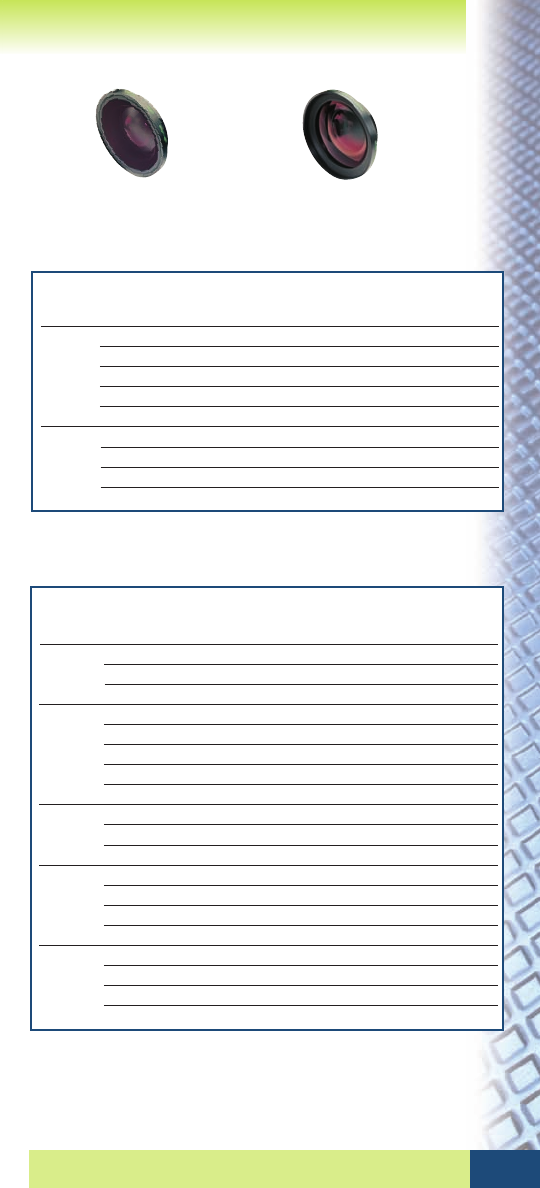

Wide Attachment

(WAT)

Fish-Eye Attachment

(F–AT)

ACCESSORIES: SD ENG/EFP

PROFESSIONAL LENS CONVERTERS

Converted M.O.D. Weight

Model Type ø Size Converter Mag. Focal (m) (kg)

Length (mm)

A13x6.3 TELE 85 mm TCV-85C 1.6x 82.0



131.2 1.02 1.15

RM/ERM WIDE 85 mm WCV-85C 0.8x 6.3



5.0 0.26 1.09

WIDE 85 mm WAT-85C 0.7x 6.3



4.4 – 0.55

A20x8.6 TELE 85 mm TCV-85C 1.6x 172.0



275.2 2.30 1.15

RM/ERM WIDE 85 mm WCV-85C/-L85 0.8x 8.6



6.9 0.58 1.09/.57

WIDE 85 mm WAT-85C 0.7x 8.6



6.0 – 0.55

FISHEYE 85 mm F-AT85C

Approx. 0.55x

– – 0.62

RATIO 82 mm RCV-82SC 0.82x 8.6



7.1 0.61 0.25

S13x4.6 TELE 85 mm TCV-85C 1.6x 60.0



96.0 1.02 1.03

RM/ERM WIDE 85 mm WCV-85C 0.8x 4.6



3.7 0.26 1.09

WIDE 85 mm WAT-85C 0.7x 4.6



3.2 – 0.55

S17x6.6 TELE 85 mm TCV-85C 1.6x 114



182.4 2.30 1.15

RM WIDE 85 mm WCV-85C 0.8x 6.6



5.3 0.58 1.09

WIDE 85 mm WAT-85C 0.7x 6.6



4.6 – 0.55

FISHEYE 85 mm F-AT85C

Approx. 0.55x

– – 0.62

S20x6.4 TELE 85 mm TCV-85C 1.6x 128.0



204.8 2.30 1.15

RM/ERM WIDE 85 mm WCV-85C/-L85 0.8x 6.4



5.1 0.58 1.09/.57

WIDE 85 mm WAT-85C 0.7x 6.4



4.5 – 0.55

FISHEYE 85 mm F-AT85C

Approx. 0.55x

– – 0.62

BROADCAST LENS CONVERTERS

Converted M.O.D. Weight

Model Type ø Size Converter* Mag. Focal (m) (kg)

Length (mm)

A18x7.6 TELE 85 mm TCV-85C 1.6x 137.0



219.0 1.54 1.15

ERM/ERD WIDE 85 mm WCV-85C/-L85 0.8x 7.6



6.1 0.38 1.09/0.57

WIDE 85 mm WAT-85C 0.7x 7.6



5.3 – 0.55

FISHEYE 85 mm F-AT85C

Approx. 0.55x

– – 0.62

RATIO 82 mm RCV-82SC 0.82x 7.60



6.20 0.40 0.25

A23x7.6 TELE 100 mm TCV-10C 1.6x 175.0



280.0 2.05 1.06

ERM/ERD WIDE 100 mm WCV-100D 0.8x 7.60



6.10 0.51 1.09

WIDE 100 mm WAT-100C 0.7x 7.60



5.30 0.39 0.00

FISHEYE 100 mm F-ATH100C 0.55x 7.60



4.20 0.24 0.55

*TCV/WCV are zoom thru type **ø 95mm P-1 screw on type

Wide attachement and fisheye attachment can be used at WIDE END.

Number of M.O.D. is at wide end.

Fuji_PG_Inside_09.qxd 3/31/09 12:45 PM Page 31

RMD-10

ECM-25F

ECM-50F

ECM-100F

Extension cables

To camera

RMD-20

RMD-30

ACCESSORIES: VIDEOCONFERENCING

LENS CONTROLLERS

Fujinon’s lens controllers all feature

control of zoom, focus, and iris. The

RMD-10 provides basic control of all

functions, while the RMD-20 features a

rocker-type zoom control. The RMD-30

provides for up to eight preset zoom and

focus positions. Accessory cables up to

100 m are available.

WIDE/TELE ADAPTERS

Fujinon’s wide and tele converters

attach easily to the front barrel of

the lens to achieve greater wide or

tele focal ranges. The 1.6X telecon-

verter increases the overall range 1.6 times, while the 0.8X

wide converter reduces the standard focal length by a factor of

0.8X. Rear-mounted 2X range extenders are available with and

without back focus adjustment.

ELECTRICAL INTERFACE OF 12-PIN

CONNECTOR FOR REMOTE CONTROL BOX

1. Focus Mode Select Signal

2. Zoom Mode Select Signal

3. OV (Ground)

4. Iris Local/Camera

Select Signal

5. Iris Control Signal

6. +12 V Out

7. Signal Com.

(Reference) +5v

8. Focus Control Signal

9. Zoom Control Signal

10. Iris Mode Select Signal

11. +V Out (7.5v)

12. -V Out (2.5v)

RMD-10

RMD-20

RMD-30

EPD-21A-A02

MCA-7

ERD-20A-A02

12PIN

6PIN

Cable

CONNECTOR

CONVERSION UNIT

EA-18A-01A

SS-33A OPTIONAL ACCESSORY CONFIGURATION

Uses Standard ENG Accessories (For model HAs18x7.6B MD only)

Fuji_PG_Inside_09.qxd 3/31/09 12:45 PM Page 32

nal

gnal

Signal

ACCESSORIES: HD & SD FIELD

Fujinon’s anti-vibration system optically compensates for image

vibration resulting in stable images even at extreme focal lengths.

Three types of OS-TECH systems are available: two external anti-

vibration adapters, TS for box-type lenses and TS-P for

barrel-type lenses, and an internal type for box-type lenses.

Image After-Shaking Reduced to a Minimum

The after-shaking phenomenon of images moving after the

pan/tilt operation is stopped is characteristic of an anti-vibration

device. Fujinon’s exclusive algorithm system has reduced the

phenomenon to a minimum for a natural-feeling operation.

Type TS and TS-P Adapt to Existing Lenses

OS-TECH adapters can be quickly attached between most

Fujinon lenses and the camera to provide the anti-vibration

function. A single adapter provides stabilization for any adaptable

lens. In addition to stabilization, the adapter increases the lens

magnification by 1.25 times making extreme close-up shots

possible with shorter focal length lenses.

The XA101X

with internal

OS-TECH.

TS-P58A

EA-12A-05BA

Stabilizer Control

with viewfinder

indication

TS-18A

Model TS-P58A TS-XXA*

Stabilization System Optical Shift Optical Shift

Magnification of Focal Length 1.25 1.25

Mount Bayonet Mount (2/3 in. B-type) Bracket

Direction of Compensation Vertical/Horizontal or Vertical Only Vertical/Horizontal or Vertical Only

Frequency of Compensation Approx. 1 to 10 Hz Approx. 1 to 10 Hz

Anti-vibration Range Approx. 20% of Vertical at Screen Approx. 20% of Vertical at Screen

Power Consumption DC12V, 4.2W DC12V, 6W

(from camera) (with battery or from camera)

Dimensions (L x W x H) 58 x 120 x 150 mm 277 x 260 x 47.5 mm

Mass 0.84kg 3.2kg

Adaptable Lenses

*For external type only. Specify camera model when ordering.

Approx. 20% of Image Height

Vertical and Horizontal or Vertical Only

ZA12x4.5B, ZA17x7.6B, ZA22x7.6B, HA13x4.5B,

HA16x6.3B, HS16x4.6B, HAs18x7.6B, HSs18x5.5B,

HA18x7.6B, HA23x7.6B, HA22x7.8B, HA22x7.3B,

HA25x16.5B, HA25x11.5B, HA36x10.5B,

HA42x9.7B, HA42x13.5B, A13x4.5B, A18x7.6B,

A23x7.6B, A22x7.8B, A36x10.5B, A36x14.5B,

A42x9.7B, A42x13.5B

XA101x, XA88x, XA87x, XA72x,

XA66x, Ah80x, Ah70x,

Ah66x, Ah60x, Ah55x

Amount of Compensation

At Telephoto End with 2X Extender



The Principal of Anti-vibration Device “Optical Stabilized Technology”

The EA-12A-05BA stabilizer controller provides for H or V

and H+V plus on/off in a compact controller. This new control

includes an LED to indicate on/off in the view finder.

1. Without vibration

Object side Image

plane

Vibrated


Compensated

light ray

Moving direction of

the compensating optics

Anti-vibration

device

Compensating optics

2. With vibration 3. After compensation

Fuji_PG_Inside_09.qxd 3/31/09 12:45 PM Page 33

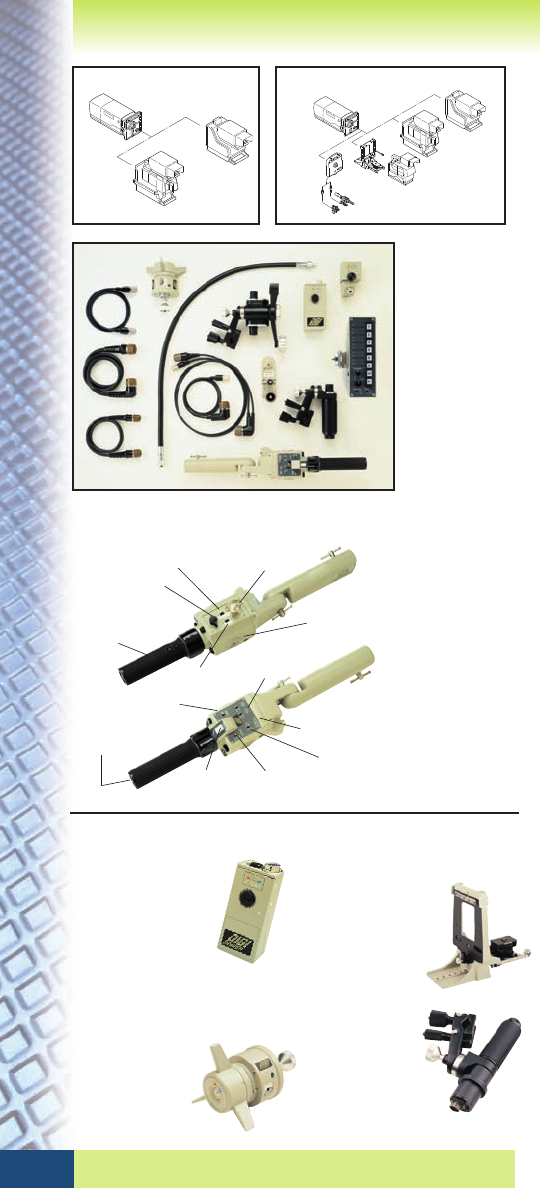

ACCESSORIES: HD & SD STUDIO/FIELD

DIGI ZOOM DEMAND

SERVOS

Digital servos provide

precise control of zoom

and focus for the

most demanding

productions.

ELH*

Fujinon’s convenient ELH

bracket allows studio/field

lenses to be used

with hand-held type

cameras.

*Additional power

may be required

for servos.

THREE-MODE

FINE FOCUS

By shifting the sensitivity

from the wide side to the

telephoto side of the focus

range, this control

provides more

precise focusing

for studio or

sports productions.

EPA-22

A unique servo

focus demand

with the look

and feel of a

manual control.

D. I.

F. K.

A. EPD-4A-E02

Focus Demand

B. ESZ-12

Zoom Demand Cable

C. ESL-1C

Shot Box Cable

D. ESF-1C

Focus Shot Box Cable

E. BFC-36

Flex Cable

F. BZH-2A

Zoom Handle

G. MCA-6B

Mounting Clamp

H. EFZ-11E

Focus / Zoom Cable

I. ELZ-11D

Zoom Demand Cable

J. ERD-5A-D01

Zoom Rate Demand

K. ESM-D51B/D52B

Servo Module

L. BFH-1A

Focus Grip

M. EMM-51B

Manual Module

N. ESB-6A-E12

Shot Box

EPA-22

Not shown - see below

One Shot

Preset SW

Aspect

Ratio Indicator

Extender

Select Switch

F. No. Hold

Switch

Intercom

Select SW

Torque

Control Lever

Return Switch

1& 2

Connector

HR10A-10R-10S

Hirose

Quick Zoom

Mode Select SW

Intercom Connector

RM 12BR-7P

Hirose

Reverse

Switch

Zoom Limit

Switch

Servo

Module Select

Switch

Studio Lens System Field Lens System

LENS

STUDIO

CAMERA

STUDIO CAMERA

BUILT UP SYSTEM

PORTABLE CAMERA

12 PIN

LENS

OS-TECH

Control Unit

EA-12A-05BA EA-12A-02B

ELH-112A-XXA

BUILT UP SYSTEM

Fuji_PG_Inside_09.qxd 4/2/09 10:43 AM Page 34

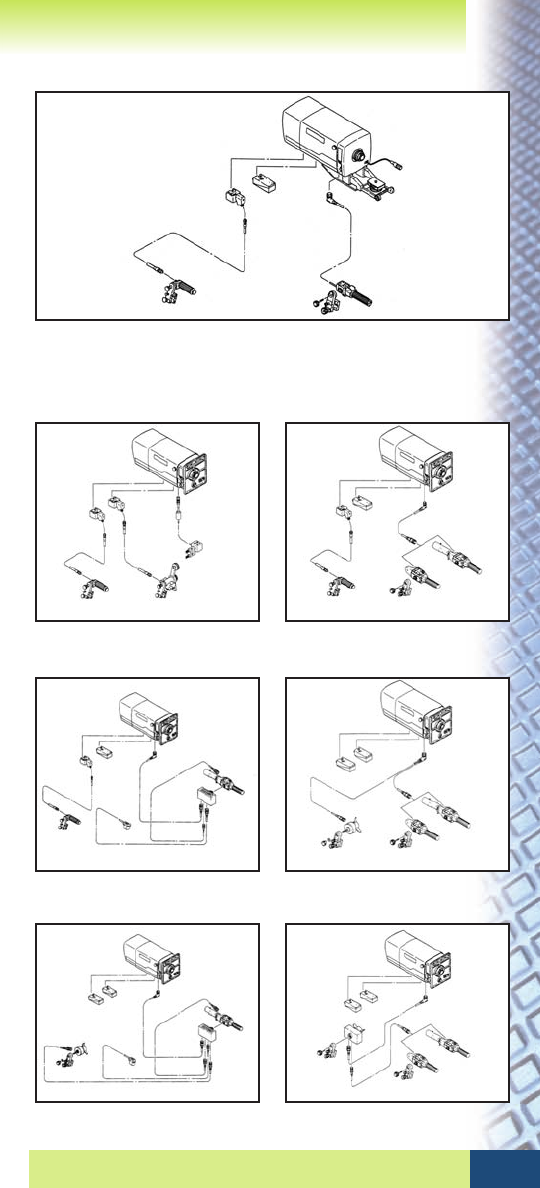

ACCESSORIES: HD & SD STUDIO/FIELD

DIGITAL LENS CONFIGURATION

MS-21A

Manual Focus/Servo Zoom

For XA50X Model Only

MANUAL

MODULE

EMM-51B

FLEXIBLE CABLE

BFC-36

FOCUS GRIP

BFH-1A

ZOOM RATE

DEMAND UNIT

ERD-10A-D11

MOUNTING CLAMP

MCA-6B

SERVO

MODULE

ESM-D51B

LENS

MS-22D (w/Shot Box)

Manual Focus/Servo Zoom

SS-22D (w/Shot Box)

Servo Focus/Servo Zoom

SS-21D

Servo Zoom/Servo Focus

SS-23D

(Shot Box w/Focus Demand)

MM-21

Manual Focus/Manual Zoom

MS-21D

Manual Focus/Servo Zoom

DIGITAL LENS CONFIGURATION

MANUAL

MODULE

EMM-51B

MANUAL

MODULE

EMM-51B

MANUAL

MODULE

EMM-51B

CONNECTION CABLE

ELZ-11D

CONNECTION

CABLE

ESZ-12

CONNECTION

CABLE

ESF-1C

CONNECTION

CABLE

ESZ-12

TAKE

CONTROL UNIT

EA-11A-D01

TAKE

CONTROL UNIT

EA-11A-D01

SHOT BOX

ESB-6A-DO1

SHOT BOX

ESB-6A-DO1

CONNECTION

CABLE

ESL-1C

CONNECTION

CABLE

ESL-1C

MANUAL

MODULE

EMM-51B

FLEXIBLE

CABLE

BFC-36 RANGE

SELECTOR

ERS-51B

ZOOM HANDLE

BZH-2A

FLEXIBLE CABLE

BFC-36

FLEXIBLE CABLE

BFC-36

FLEXIBLE CABLE

BFC-36

FOCUS GRIP

BFH-1A

FOCUS GRIP

BFH-1A

FOCUS GRIP

BFH-1A

ZOOM RATE

DEMAND UNIT

ERD-5A-D01

ZOOM RATE

DEMAND UNIT

ERD-5A-D01

ZOOM RATE

DEMAND UNIT

ERD-5A-D11

ZOOM RATE

DEMAND UNIT

ERD-5A-D11

ERD-5A-D01

ZOOM RATE

DEMAND UNIT

ERD-5A-D11

ERD-5A-D01

MOUNTING CLAMP

MCA-6B

MOUNTING CLAMP

MCA-6B

MOUNTING CLAMP

MCA-6B

MOUNTING

CLAMP

MCA-6B MOUNTING CLAMP

MCA-6B

MOUNTING CLAMP

MCA-6B

SERVO MODULE

ESM-D51B/

D52B

SERVO

MODULE

ESM-D51B/

D52B

SERVO

MODULE

ESM-

D51B /

D52B

SERVO MODULE

ESM-D51B/

D52B

SERVO

MODULE

ESM-D51B

SERVO

MODULE

ESM-D51B

FOCUS

POSITION

DEMAND UNIT

EPD-4A-E02

FOCUS POSITION

DEMAND UNIT

EPD-4A-E02

LENS

CONNECTION CABLE

EFZ-11E

CONNECTION CABLE

ESZ-11

SERVO

MODULE

ESM-D51B/

D52B

SERVO

MODULE

ESM-D51B

SHOT BOX

ESB-6A-E12

LENS

CONNECTION CABLE

ESL-1C

Fuji_PG_Inside_09.qxd 4/2/09 10:31 AM Page 35

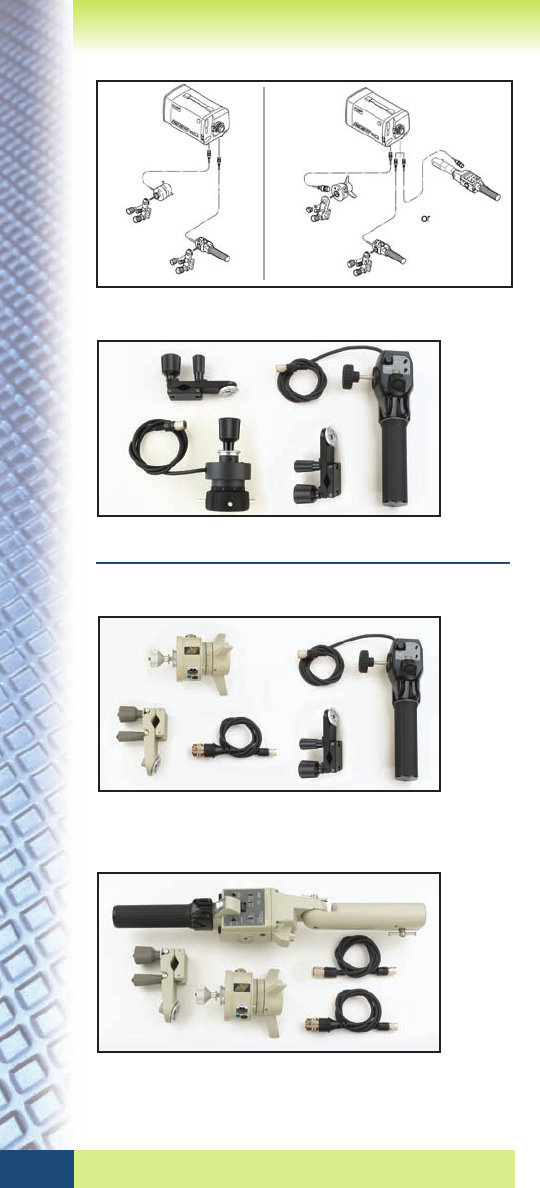

A. MCA-7

Mounting Clamp

B. EPD-21A-02A

Focus Demand

C. ERD-10A-DO5A

Zoom Demand

A. ERD-5A-DO1

Digi Zoom Demand

B. MCA-6B

Mounting Clamp

C. EPD-4A-EO2

Digi Focus Demand

D. EBZ-23

Zoom Cable

E. EBF-1

Focus Cable

ACCESSORIES: XA22x7 BES

DIGI ZOOM/ANALOG FOCUS

Studio Controls

DIGI ZOOM/DIGI FOCUS

Full Digital Production Controls

A. EPD-4A-EO2

Digi Focus Demand

B. MCA-6B

Mounting Clamp

C. EBF-1

Focus Cable

D. ERD-10A-DO5A

Digi Zoom Demand

E. MCA-7

Mounting

Clamp

Studio

Controls

Full Digital

Production

Controls

MOUNTING

CLAMP

MCA-7

MOUNTING

CLAMP

MCA-7

MOUNTING

CLAMP

MCA-7

MOUNTING

CLAMP

MCA-6B

ZOOM RATE

DEMAND UNIT

ERD-10A-D05A

ZOOM RATE

DEMAND UNIT

ERD-10A-D05A

ZOOM RATE

DEMAND UNIT

ERD-5A-D01

CONNECTION CABLE

EBZ-23

CONNECTION CABLE

EBF-1

FOCUS POSITION

DEMAND UNIT

EPD-21A-02A

FOCUS POSITION

DEMAND UNIT

EPD-4A-E02

LENS LENS

XA22x7BES ACCESSORY OPTIONS

Fuji_PG_Inside_09.qxd 4/2/09 11:33 AM Page 36

PAN & TILT

Printed in the USA 4/2009-5M

FUJINON HEADQUARTERS:

NEW JERSEY – SALES & SERVICE CENTER

10 High Point Drive, Wayne, NJ 07470-7434

(973) 633-5600 FAX: (973) 633-5216

E-mail: lens.sales@fujinon.com

www.fujinon.com

SOUTH EAST:

FLORIDA – SALES

4101 No. 48th Terrace, Hollywood, FL 33021

(954) 966-0484 FAX: (954) 966-1368

E-mail: kelly.n@fujinon.com

GEORGIA – SALES

12296 S. Main Street, Box 152, Trenton, GA 30752

(706) 657-8481 FAX: (706) 657-8438

E-mail: susan.t@fujinon.com

GEORGIA – SERVICE CENTER

1231 Collier Road, Suite G, Atlanta, GA 30318

(404) 351-1470 FAX: (404) 351-7035

E-mail: wzeferino@fujinon.com

LATIN AMERICA:

FLORIDA – SALES

2900 N.W. 112th Avenue, Suite 1, Miami, FL 33172

(305) 406-2910 FAX: (305) 406-9903

E-mail: mario@fujinon.com or yukio.ito@fujinon.com

MIDWEST:

ILLINOIS – SALES

655 Deerfield Road

Ste. 100, #206, Deerfield, IL 60015-3241

(847) 945-8923 FAX: (847) 945-8943

E-mail: atanielian@fujinon.com

SOUTH CENTRAL:

TEXAS – SALES & SERVICE CENTER

4951 Airport Parkway

Ste. 802-A, Addison, TX 75001-6617

(972) 385-8902 FAX: (972) 392-3251

E-mail: dave.w@fujinon.com

WEST:

CALIFORNIA – SALES & SERVICE CENTER

W. Bay Business Park, 2621 Manhattan Beach Blvd.

Redondo Beach, CA 90278-1604

(310) 536-0800 FAX: (310) 536-0022

E-mail: ndlt@fujinon.com

WASHINGTON – SALES

P.O. Box 36, Mercer Island, WA 98040

(206) 230-0237

E-mail: josh.ewing@fujinon.com

CANADA:

ONTARIO – SALES

16715 Yonge Street, Unit #12, Suite 203

Newmarket, ON, L3X 1X4, Canada

(905) 898-1382 FAX: (905) 898-3350

E-mail: stosh.durbacz@fujinon.com

FUJINON CORPORATION:

JAPAN

1-324 Uetake, Kita-Ku, Saitama City

Saitama 331-9624 Japan

Phone: 81-48-668-2142 FAX: 81-48-651-8517

E-mail: sales@msv.fujinon.co.jp

www.fujinon.co.jp

PAN & TILT

CONTROLLERS

EOP-102J-30E EOP-102J-60B EOP-102J-70B

Operation

RS-485 via twisted pair cable – E-connector/ RS-232 via DB-9 connector

Pan / Tilt

Variable-speed joystick

Zoom

Variable-speed rocker switch

Focus

Variable-speed potentiometer

Iris

Close, open, auto, remote

Shot Memory

32 32 per head 32 per head

Back-up

Reservable for more than 5 years (Lithium battery)

Qty of Head Control

144

Auxiliary Input

2 auxiliary relay contacts for controlling

accessory equipment at the pan and tilt head

Power Source

120 VAC via 12 VDC adapter (included)

Power Consumption

5 W

Camera Control

Camera On/Off

Shutter Speed

Gain Adjust, Color Bar

Auto White, Auto Black

Weight

Approximately 0.8 kg

PAN & TILT

HEAD SPECIFICATIONS

J. K.

Q. R.

MODEL CPT-70F-02A CPT-70D-02A** EPT-7G-H2A

Pan Range 300° 270° 300°

Pan Speed 25° / Sec. 9° / Sec. 25° / Sec.

Tilt Speed 20° / Sec. 9° / Sec. 20° / Sec.

Tilt Range +/- 95° +/- 95° +/- 95°

Stopping Accuracy +/- 5' +/- 15' +/- 10 '

Lens Type MD MD MD

Acoustic Noise NC40db NC40db NC40db

Load Capacity 4 kg / 8.8 lbs. 10 kg / 22 lbs. 4 kg / 8.8 lbs.

Power Consumption DC 15V / 10W (max) DC 15V / 10W (max) DC 15V / 30W (max)

Operating Temperature -10° C ~ +50° C -10° C ~ +50° C 0° C ~ +45° C

Power Source 15V DC 15V DC 15V DC

(ESC-103K-04A)

Drive System DC Servo DC Servo DC Servo

Weight 2.3 kg / 5.06 lbs. 7 kg / 15.4 lbs. 2.3 kg / 5.06 lbs.

Dimensions WxDxH (mm) 130 x 102 x 222 233 x 277 x 226 130 x 102 x 222

Max. Cable Length* 1350 m / 4430 ft. 1350 m / 4430 ft. 1350 m / 4430 ft.

* Max. cable length varies depending on multi-head controller options (see S2BA1/S2-CA1 on pg. 40)

** EOP-102J-60B not available on CPT-70D-02A

Broadcast & Communications Products Division

www.fujinon.com

A. EOP-102J-30E

B. EOP-102J-60B

C. EOP-102J-70B

D. ESC-103K-04A

E. PS-470A-01A

F. UTB-219A-03A

G. CLH-8B

H. UTB-219A-02A/04A

I. UHD-344A-XXX

J. Communication Cable

Between EOP & ESC

K. UHC-335J-XXX

L. MX-462E-01A

M. MX-462E-02A

N. FTA-C10D

O. FPA-C10D

P. CMA-200A-01A

Q. FHTA-10 Tripod

Adapter

R. FH-10–High Hat

Mount

Fuji_PG_6pg_Cvr_09 3/31/09 1:43 PM Page 1

40 41

EOP-102J-70B

Aux.

1 & 2

2 Ch

Alternate

Page Button

Page x 8 shot

= 32 preset

Head Select (1–4)

(Available on

EOP-102J-60B/70B)

4 pin E-conn

RS-485

DB9(M)

RS-232

12V DC

External P/S

Supplied

Preset Buttons

32 Preset

(4 page x 8 shot)

Iris Control

Auto/Manual

Pan/Tilt

Control

Focus

Control

Memo

Button

Zoom

Control

COMPATIBILITY WITH EXISTING SYSTEMS

Compatibility with existing CPT-1A and EPT-5E systems

is possible by the utilization of certain adaptors. The

diagrams below depict some common configuration

scenarios.

CPT-70F/70D CONFIGURATIONS

S1-BA1

Single-Head Control System

S2-BA1

Multi-Head

Control

System

S2-CA1

Multi-Head

Control

System

w/ Camera

Control Function

INTRODUCING…NEW 2009 LENSES

PAN & TILT PAN & TILT

EPT-7G-H2A CONFIGURATIONS

HD Series 2/3"

ZA12x4.5B RM/RD

Videoconferencing 2/3"

HD Series 2/3"

ZA17x7.6B RM/RD

PL Mount Cine Zoom

18-85mm T2.0

(more models to be released late 2009)

HDTV Field

XA50x9.5BE SM

ZA12x4.5B MD

ZA12x4.5BE MD

ZA17x7.6B MD

ZA17x7.6BE MD

ZA22x7.6B MD

ZA22x7.6BE MD

(photos not yet available)

Fuji_PG_6pg_Cvr_09 3/31/09 2:38 PM Page 2

40 41

EOP-102J-70B

Aux.

1 & 2

2 Ch

Alternate

Page Button

Page x 8 shot

= 32 preset

Head Select (1–4)

(Available on

EOP-102J-60B/70B)

4 pin E-conn

RS-485

DB9(M)

RS-232

12V DC

External P/S

Supplied

Preset Buttons

32 Preset

(4 page x 8 shot)

Iris Control

Auto/Manual

Pan/Tilt

Control

Focus

Control

Memo

Button

Zoom

Control

COMPATIBILITY WITH EXISTING SYSTEMS

Compatibility with existing CPT-1A and EPT-5E systems

is possible by the utilization of certain adaptors. The

diagrams below depict some common configuration

scenarios.

CPT-70F/70D CONFIGURATIONS

S1-BA1

Single-Head Control System

S2-BA1

Multi-Head

Control

System

S2-CA1

Multi-Head

Control

System

w/ Camera

Control Function

INTRODUCING…NEW 2009 LENSES

PAN & TILT PAN & TILT

EPT-7G-H2A CONFIGURATIONS

HD Series 2/3"

ZA12x4.5B RM/RD

Videoconferencing 2/3"

HD Series 2/3"

ZA17x7.6B RM/RD

PL Mount Cine Zoom

18-85mm T2.0

(more models to be released late 2009)

HDTV Field

XA50x9.5BE SM

ZA12x4.5B MD

ZA12x4.5BE MD

ZA17x7.6B MD

ZA17x7.6BE MD

ZA22x7.6B MD

ZA22x7.6BE MD

(photos not yet available)

Fuji_PG_6pg_Cvr_09 3/31/09 2:38 PM Page 2

PAN & TILT

Printed in the USA 4/2009-5M

FUJINON HEADQUARTERS:

NEW JERSEY – SALES & SERVICE CENTER

10 High Point Drive, Wayne, NJ 07470-7434

(973) 633-5600 FAX: (973) 633-5216

E-mail: lens.sales@fujinon.com

www.fujinon.com

SOUTH EAST:

FLORIDA – SALES

4101 No. 48th Terrace, Hollywood, FL 33021

(954) 966-0484 FAX: (954) 966-1368

E-mail: kelly.n@fujinon.com

GEORGIA – SALES

12296 S. Main Street, Box 152, Trenton, GA 30752

(706) 657-8481 FAX: (706) 657-8438

E-mail: susan.t@fujinon.com

GEORGIA – SERVICE CENTER

1231 Collier Road, Suite G, Atlanta, GA 30318

(404) 351-1470 FAX: (404) 351-7035

E-mail: wzeferino@fujinon.com

LATIN AMERICA:

FLORIDA – SALES

2900 N.W. 112th Avenue, Suite 1, Miami, FL 33172

(305) 406-2910 FAX: (305) 406-9903

E-mail: mario@fujinon.com or yukio.ito@fujinon.com

MIDWEST:

ILLINOIS – SALES

655 Deerfield Road

Ste. 100, #206, Deerfield, IL 60015-3241

(847) 945-8923 FAX: (847) 945-8943

E-mail: atanielian@fujinon.com

SOUTH CENTRAL:

TEXAS – SALES & SERVICE CENTER

4951 Airport Parkway

Ste. 802-A, Addison, TX 75001-6617

(972) 385-8902 FAX: (972) 392-3251

E-mail: dave.w@fujinon.com

WEST:

CALIFORNIA – SALES & SERVICE CENTER

W. Bay Business Park, 2621 Manhattan Beach Blvd.

Redondo Beach, CA 90278-1604

(310) 536-0800 FAX: (310) 536-0022

E-mail: ndlt@fujinon.com

WASHINGTON – SALES

P.O. Box 36, Mercer Island, WA 98040

(206) 230-0237

E-mail: josh.ewing@fujinon.com

CANADA:

ONTARIO – SALES

16715 Yonge Street, Unit #12, Suite 203

Newmarket, ON, L3X 1X4, Canada

(905) 898-1382 FAX: (905) 898-3350

E-mail: stosh.durbacz@fujinon.com

FUJINON CORPORATION:

JAPAN

1-324 Uetake, Kita-Ku, Saitama City

Saitama 331-9624 Japan

Phone: 81-48-668-2142 FAX: 81-48-651-8517

E-mail: sales@msv.fujinon.co.jp

www.fujinon.co.jp

PAN & TILT

CONTROLLERS

EOP-102J-30E EOP-102J-60B EOP-102J-70B

Operation

RS-485 via twisted pair cable – E-connector/ RS-232 via DB-9 connector

Pan / Tilt

Variable-speed joystick

Zoom

Variable-speed rocker switch

Focus

Variable-speed potentiometer

Iris

Close, open, auto, remote

Shot Memory

32 32 per head 32 per head

Back-up

Reservable for more than 5 years (Lithium battery)

Qty of Head Control

144

Auxiliary Input

2 auxiliary relay contacts for controlling

accessory equipment at the pan and tilt head

Power Source

120 VAC via 12 VDC adapter (included)

Power Consumption

5 W

Camera Control

Camera On/Off

Shutter Speed

Gain Adjust, Color Bar

Auto White, Auto Black

Weight

Approximately 0.8 kg

PAN & TILT

HEAD SPECIFICATIONS

J. K.

Q. R.

MODEL CPT-70F-02A CPT-70D-02A** EPT-7G-H2A

Pan Range 300° 270° 300°

Pan Speed 25° / Sec. 9° / Sec. 25° / Sec.

Tilt Speed 20° / Sec. 9° / Sec. 20° / Sec.

Tilt Range +/- 95° +/- 95° +/- 95°

Stopping Accuracy +/- 5' +/- 15' +/- 10 '

Lens Type MD MD MD

Acoustic Noise NC40db NC40db NC40db

Load Capacity 4 kg / 8.8 lbs. 10 kg / 22 lbs. 4 kg / 8.8 lbs.

Power Consumption DC 15V / 10W (max) DC 15V / 10W (max) DC 15V / 30W (max)

Operating Temperature -10° C ~ +50° C -10° C ~ +50° C 0° C ~ +45° C

Power Source 15V DC 15V DC 15V DC

(ESC-103K-04A)

Drive System DC Servo DC Servo DC Servo

Weight 2.3 kg / 5.06 lbs. 7 kg / 15.4 lbs. 2.3 kg / 5.06 lbs.

Dimensions WxDxH (mm) 130 x 102 x 222 233 x 277 x 226 130 x 102 x 222

Max. Cable Length* 1350 m / 4430 ft. 1350 m / 4430 ft. 1350 m / 4430 ft.

* Max. cable length varies depending on multi-head controller options (see S2BA1/S2-CA1 on pg. 40)

** EOP-102J-60B not available on CPT-70D-02A

Broadcast & Communications Products Division

www.fujinon.com

A. EOP-102J-30E

B. EOP-102J-60B

C. EOP-102J-70B

D. ESC-103K-04A

E. PS-470A-01A

F. UTB-219A-03A

G. CLH-8B

H. UTB-219A-02A/04A

I. UHD-344A-XXX

J. Communication Cable

Between EOP & ESC

K. UHC-335J-XXX

L. MX-462E-01A

M. MX-462E-02A

N. FTA-C10D

O. FPA-C10D

P. CMA-200A-01A

Q. FHTA-10 Tripod

Adapter

R. FH-10–High Hat

Mount

Fuji_PG_6pg_Cvr_09 3/31/09 1:43 PM Page 1

Fujifilm Fujinon Za12X4 5B Rm Rd Users Manual Fuji_PG_Inside_09

ZA12X4.5B RMRD to the manual 5ab63ec7-8f64-4b41-88ac-e46526d3f7ed

Navigation menu

Versions of this User Manual:

Views

Navigation
