Fujikon BT5122 Image ONE Bluetooth headset User Manual

Fujikon Industrial Co., Ltd. Image ONE Bluetooth headset

User Manual

OWNER’S MANUALIMAGE™ ONEBLUETOOTH®

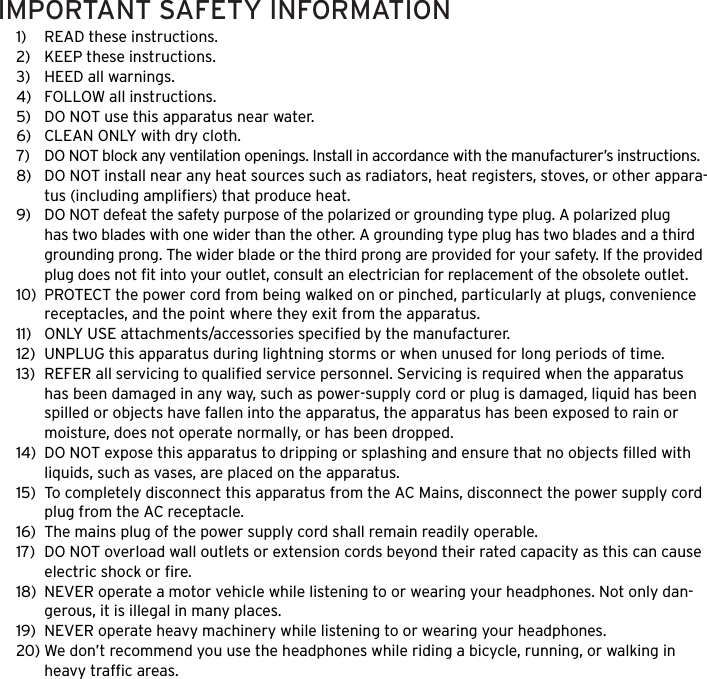

1) READ these instructions.2) KEEP these instructions.3) HEED all warnings.4) FOLLOW all instructions.5) DO NOT use this apparatus near water.6) CLEAN ONLY with dry cloth.7) DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions.8) DO NOT install near any heat sources such as radiators, heat registers, stoves, or other appara-tus (including amplifiers) that produce heat.9) DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10) PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11) ONLY USE attachments/accessories specified by the manufacturer.12) UNPLUG this apparatus during lightning storms or when unused for long periods of time.13) REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.14) DO NOT expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.15) To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle.16) The mains plug of the power supply cord shall remain readily operable.17) DO NOT overload wall outlets or extension cords beyond their rated capacity as this can cause electric shock or fire. 18) NEVER operate a motor vehicle while listening to or wearing your headphones. Not only dan-gerous, it is illegal in many places.19) NEVER operate heavy machinery while listening to or wearing your headphones.20) We don’t recommend you use the headphones while riding a bicycle, running, or walking in heavy traffic areas. IMPORTANT SAFETY INFORMATION

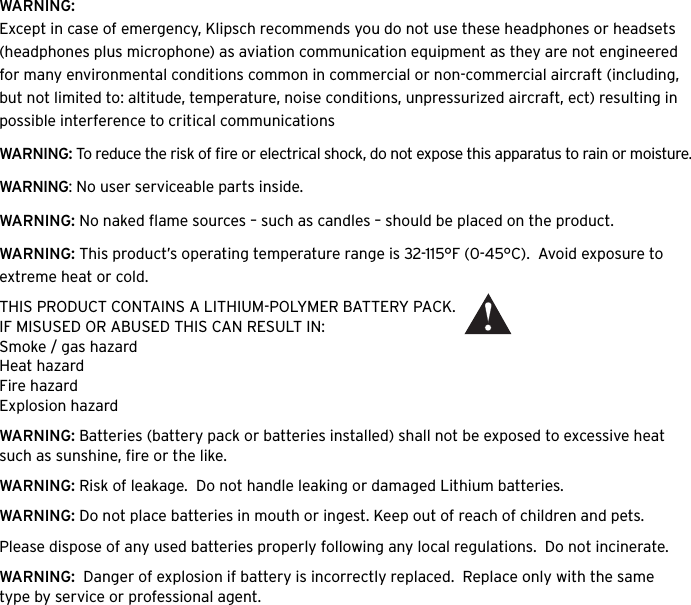

WARNING:Except in case of emergency, Klipsch recommends you do not use these headphones or headsets (headphones plus microphone) as aviation communication equipment as they are not engineered for many environmental conditions common in commercial or non-commercial aircraft (including, but not limited to: altitude, temperature, noise conditions, unpressurized aircraft, ect) resulting in possible interference to critical communicationsWARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture.WARNING: No user serviceable parts inside.WARNING: No naked flame sources – such as candles – should be placed on the product.WARNING: This product’s operating temperature range is 32-115°F (0-45°C). Avoid exposure to extreme heat or cold. THIS PRODUCT CONTAINS A LITHIUM-POLYMER BATTERY PACK. IF MISUSED OR ABUSED THIS CAN RESULT IN:Smoke / gas hazardHeat hazardFire hazardExplosion hazardWARNING: Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.WARNING: Risk of leakage. Do not handle leaking or damaged Lithium batteries. WARNING: Do not place batteries in mouth or ingest. Keep out of reach of children and pets. Please dispose of any used batteries properly following any local regulations. Do not incinerate.WARNING: Danger of explosion if battery is incorrectly replaced. Replace only with the same type by service or professional agent.

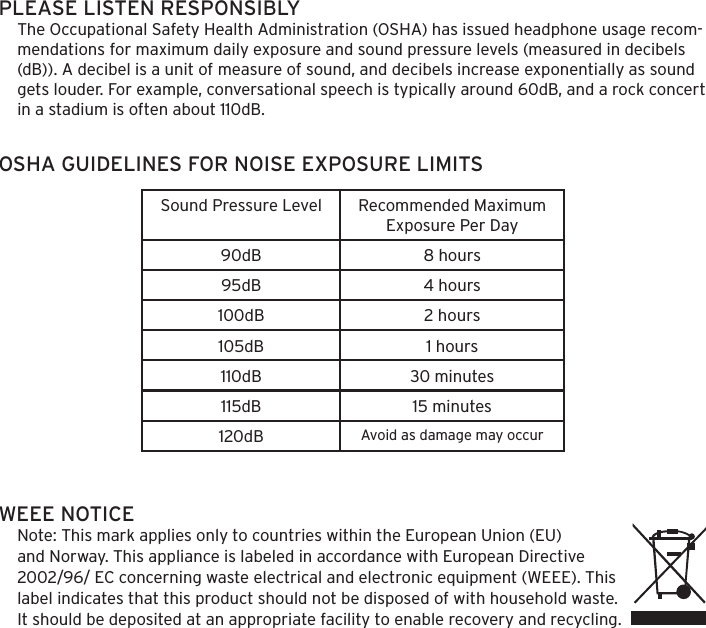

OSHA GUIDELINES FOR NOISE EXPOSURE LIMITSWEEE NOTICE Note: This mark applies only to countries within the European Union (EU) and Norway. This appliance is labeled in accordance with European Directive 2002/96/ EC concerning waste electrical and electronic equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.Sound Pressure Level Recommended Maximum Exposure Per Day 90dB 8 hours95dB 4 hours100dB 2 hours105dB 1 hours110dB 30 minutes115dB 15 minutes120dB Avoid as damage may occurPLEASE LISTEN RESPONSIBLYThe Occupational Safety Health Administration (OSHA) has issued headphone usage recom-mendations for maximum daily exposure and sound pressure levels (measured in decibels (dB)). A decibel is a unit of measure of sound, and decibels increase exponentially as sound gets louder. For example, conversational speech is typically around 60dB, and a rock concert in a stadium is often about 110dB.

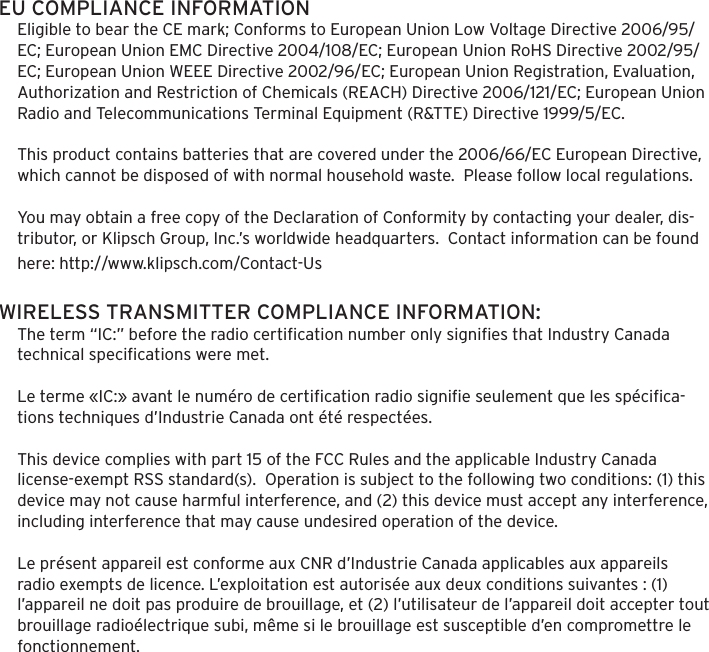

EU COMPLIANCE INFORMATIONEligible to bear the CE mark; Conforms to European Union Low Voltage Directive 2006/95/EC; European Union EMC Directive 2004/108/EC; European Union RoHS Directive 2002/95/EC; European Union WEEE Directive 2002/96/EC; European Union Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Directive 2006/121/EC; European Union Radio and Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC. This product contains batteries that are covered under the 2006/66/EC European Directive, which cannot be disposed of with normal household waste. Please follow local regulations. You may obtain a free copy of the Declaration of Conformity by contacting your dealer, dis-tributor, or Klipsch Group, Inc.’s worldwide headquarters. Contact information can be found here: http://www.klipsch.com/Contact-UsWIRELESS TRANSMITTER COMPLIANCE INFORMATION:The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. Le terme «IC:» avant le numéro de certification radio signifie seulement que les spécifica-tions techniques d’Industrie Canada ont été respectées. This device complies with part 15 of the FCC Rules and the applicable Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

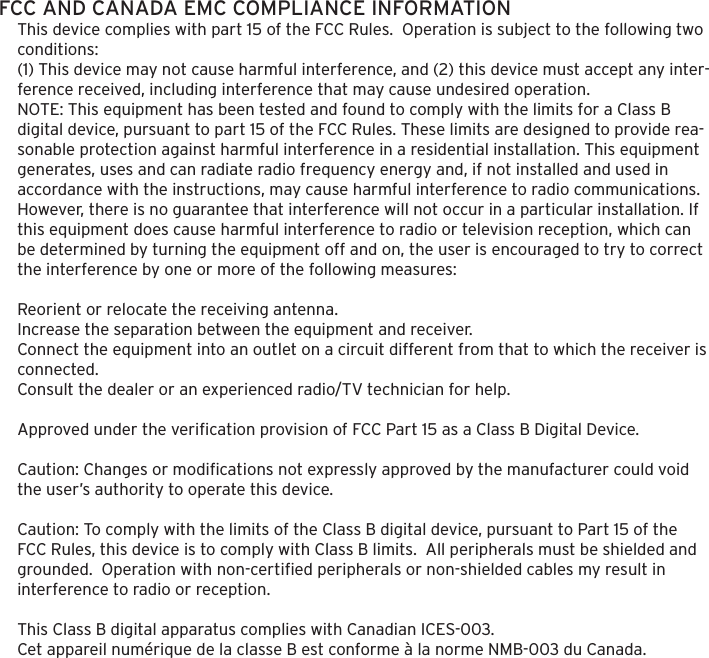

FCC AND CANADA EMC COMPLIANCE INFORMATIONThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any inter-ference received, including interference that may cause undesired operation.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-sonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help. Approved under the verification provision of FCC Part 15 as a Class B Digital Device. Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate this device. Caution: To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC Rules, this device is to comply with Class B limits. All peripherals must be shielded and grounded. Operation with non-certified peripherals or non-shielded cables my result in interference to radio or reception. This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

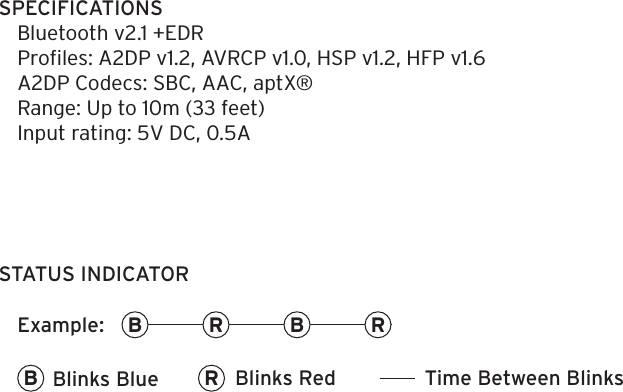

SPECIFICATIONS Bluetooth v2.1 +EDRProfiles: A2DP v1.2, AVRCP v1.0, HSP v1.2, HFP v1.6A2DP Codecs: SBC, AAC, aptX®Range: Up to 10m (33 feet)Input rating: 5V DC, 0.5ASTATUS INDICATORRRB BRB Blinks Blue Blinks Red Time Between BlinksExample:

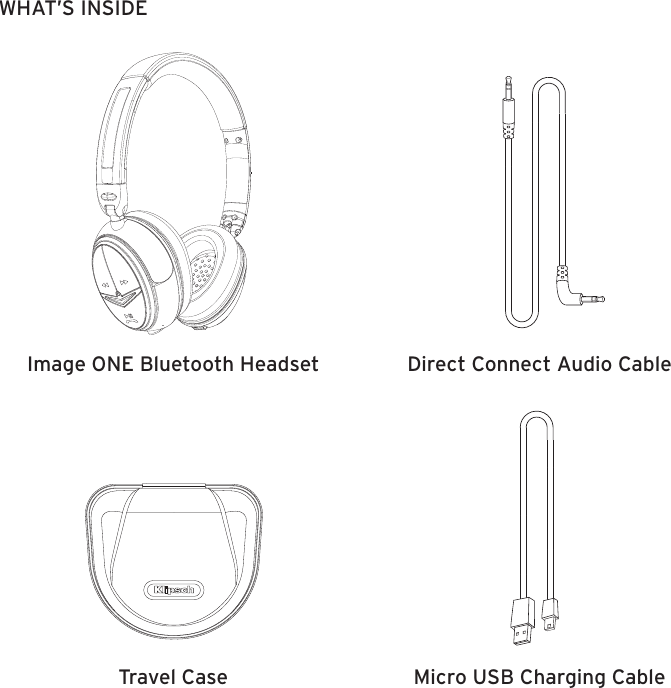

Image ONE Bluetooth Headset Direct Connect Audio CableTravel Case Micro USB Charging CableWHAT’S INSIDE

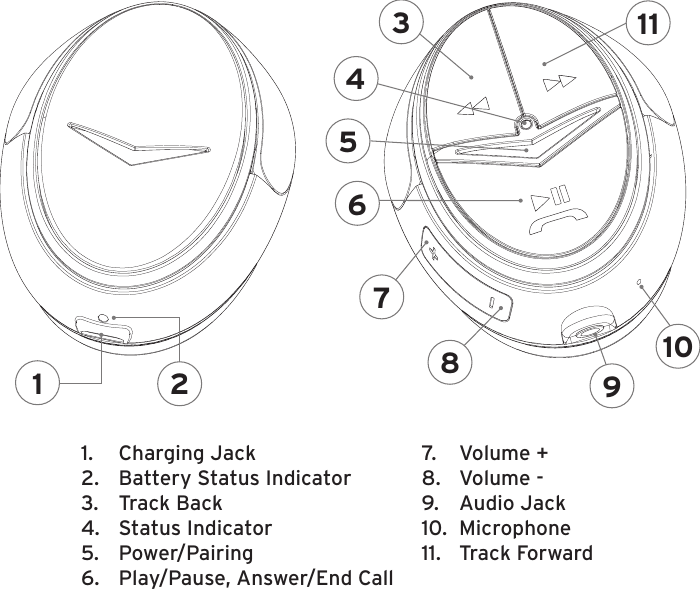

1. Charging Jack 2. Battery Status Indicator 3. Track Back4. Status Indicator5. Power/Pairing6. Play/Pause, Answer/End Call7. Volume +8. Volume -9. Audio Jack10. Microphone11. Track Forward1 234567891011

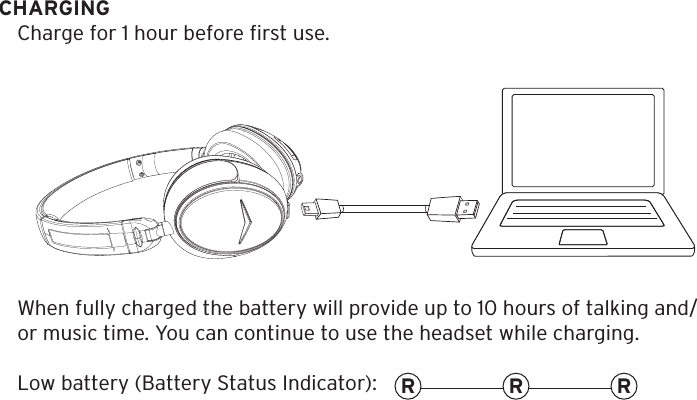

CHARGINGCharge for 1 hour before first use. When fully charged the battery will provide up to 10 hours of talking and/or music time. You can continue to use the headset while charging.Low battery (Battery Status Indicator): R RR

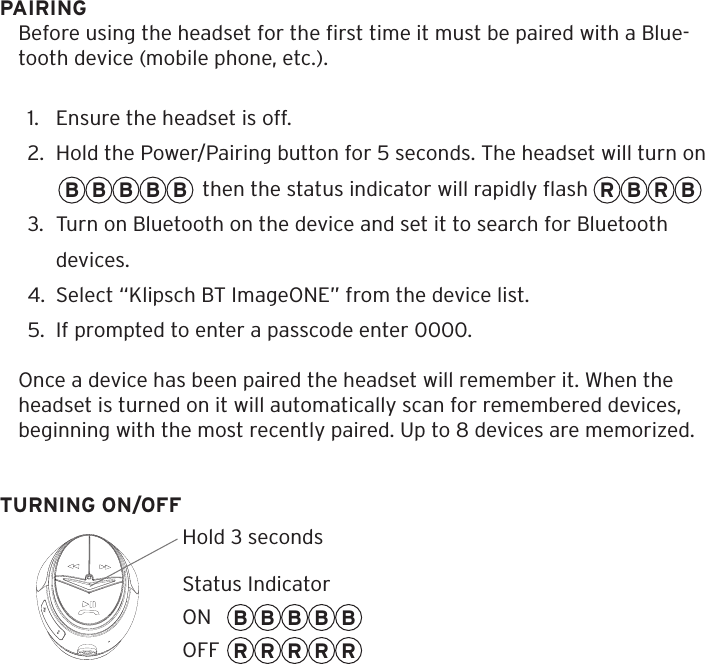

PAIRINGBefore using the headset for the first time it must be paired with a Blue-tooth device (mobile phone, etc.).1. Ensure the headset is off.2. Hold the Power/Pairing button for 5 seconds. The headset will turn on then the status indicator will rapidly flash 3. Turn on Bluetooth on the device and set it to search for Bluetooth devices.4. Select “Klipsch BT ImageONE” from the device list.5. If prompted to enter a passcode enter 0000.Once a device has been paired the headset will remember it. When the headset is turned on it will automatically scan for remembered devices, beginning with the most recently paired. Up to 8 devices are memorized.TURNING ON/OFFB B B B BB B B B BRRRRRR B R BHold 3 secondsStatus IndicatorONOFF

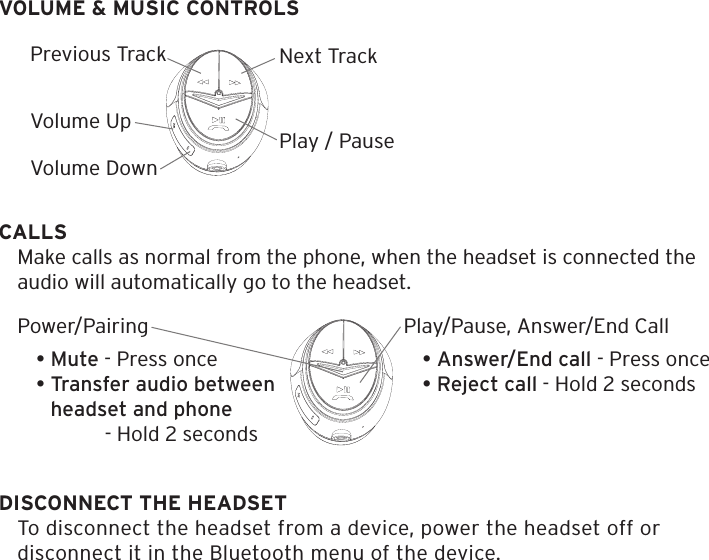

VOLUME & MUSIC CONTROLSCALLSMake calls as normal from the phone, when the headset is connected the audio will automatically go to the headset.Next TrackPlay / PauseVolume UpPrevious TrackVolume DownPlay/Pause, Answer/End Call • Answer/End call - Press once• Reject call - Hold 2 secondsPower/Pairing• Mute - Press once• Transfer audio between headset and phone - Hold 2 secondsDISCONNECT THE HEADSETTo disconnect the headset from a device, power the headset off or disconnect it in the Bluetooth menu of the device.

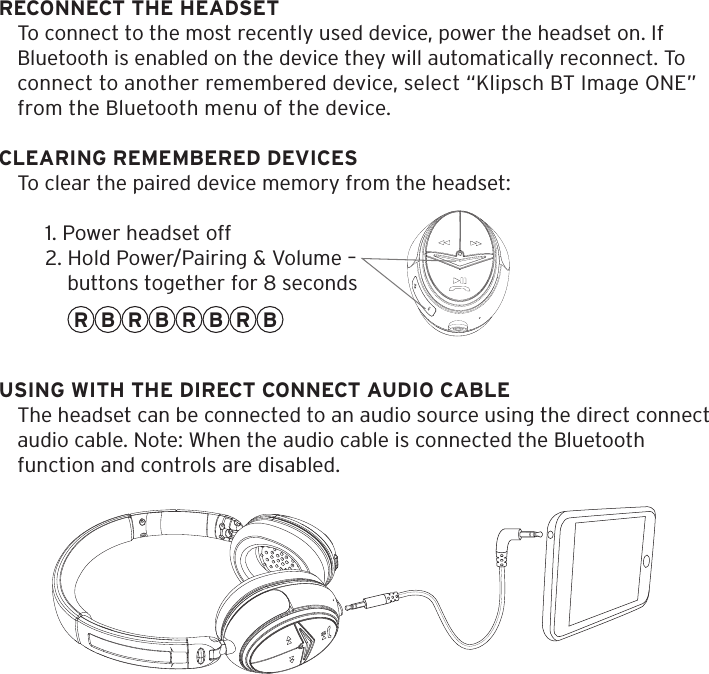

RECONNECT THE HEADSETTo connect to the most recently used device, power the headset on. If Bluetooth is enabled on the device they will automatically reconnect. To connect to another remembered device, select “Klipsch BT Image ONE” from the Bluetooth menu of the device. CLEARING REMEMBERED DEVICESTo clear the paired device memory from the headset:1. Power headset off2. Hold Power/Pairing & Volume – buttons together for 8 secondsR RR R BBB BUSING WITH THE DIRECT CONNECT AUDIO CABLEThe headset can be connected to an audio source using the direct connect audio cable. Note: When the audio cable is connected the Bluetooth function and controls are disabled.

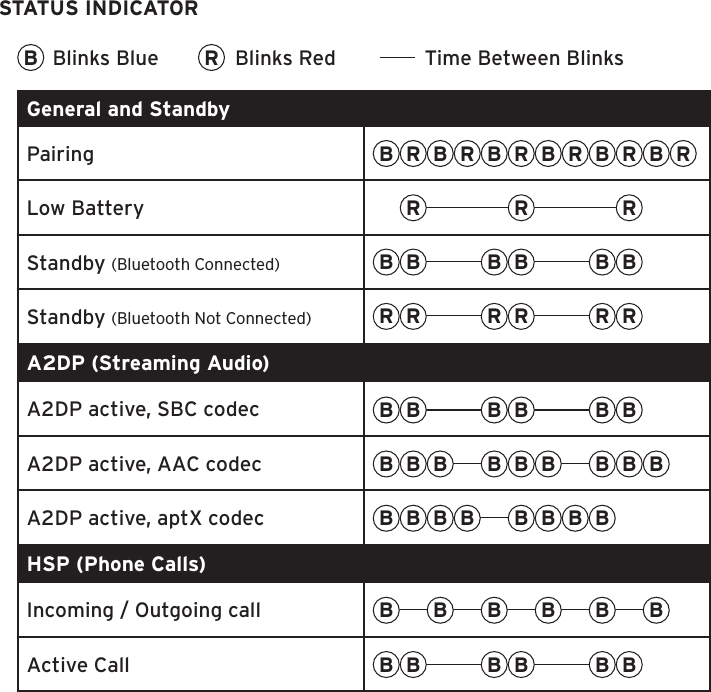

General and StandbyPairingLow BatteryStandby (Bluetooth Connected)Standby (Bluetooth Not Connected)A2DP (Streaming Audio)A2DP active, SBC codecA2DP active, AAC codecA2DP active, aptX codecHSP (Phone Calls)Incoming / Outgoing callActive CallSTATUS INDICATORR RRR RRB BBB BBRB Blinks Blue Blinks Red Time Between BlinksR RRB BBB BBB BBB BBB BB BB BB BB BBB BBB BBB BBB BBR RRR RRB BBB BB

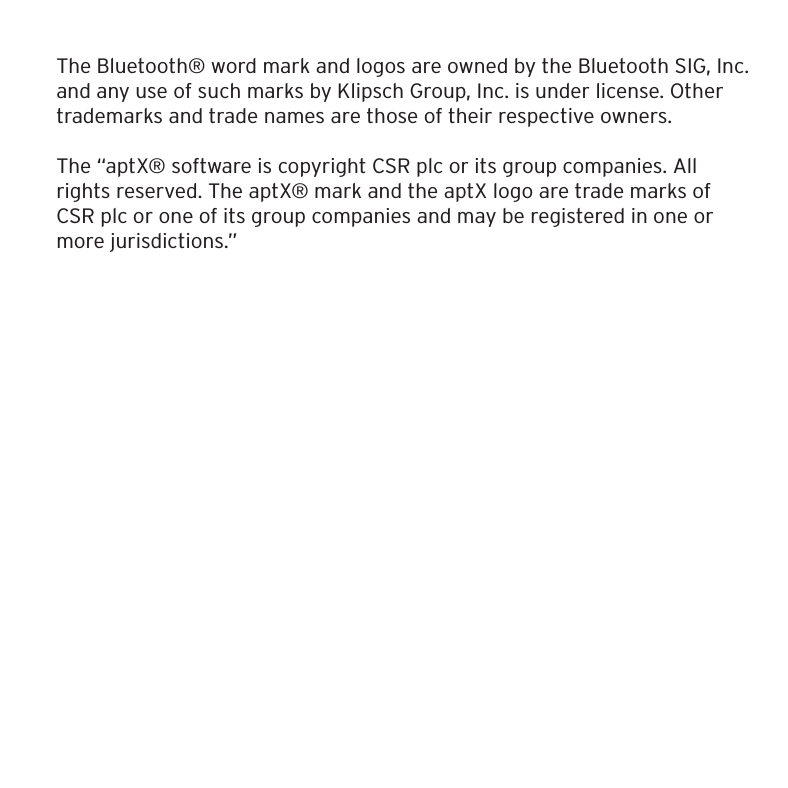

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Klipsch Group, Inc. is under license. Other trademarks and trade names are those of their respective owners.The “aptX® software is copyright CSR plc or its group companies. All rights reserved. The aptX® mark and the aptX logo are trade marks of CSR plc or one of its group companies and may be registered in one or more jurisdictions.”
3502 WOODVIEW TRACE, INDIANAPOLIS, IN, USAklipsch.com©2012, Klipsch Group, Inc.
