USERS MANUAL
![](/img.php?id=2258009&img=bg1.png)
System
Operating Manual
FUJITSU Tablet STYLISTIC Q584
![](/img.php?id=2258009&img=bg2.png)
Contact address in North America
FUJITSU AMERICA INC:
1250 East Arques Avenue Sunnyvale
CA 94085-3470, U.S.A.
Telephone: 800 831 3183 or 408 746 6000
"http://solutions.us.fujitsu.com"
"http://solutions.us.fujitsu.com/contact"
Have a question? Email us at: "AskFujitsu@us.fujitsu.com"
Copyright
©2014F
ujitsu America, Inc. All rights reserved.
B5FK-2441-01ENZ0
FUJITSU Tablet STYLISTIC Q584
Operating Manual
Fujitsu Contact Information 7
Notational conventions 8

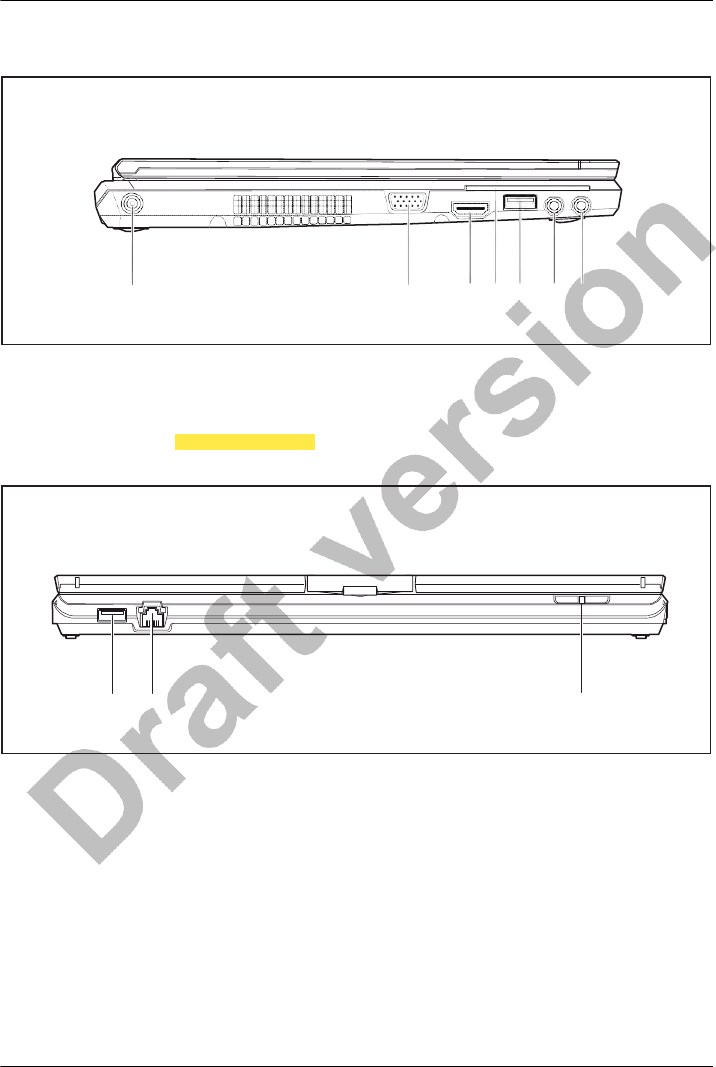

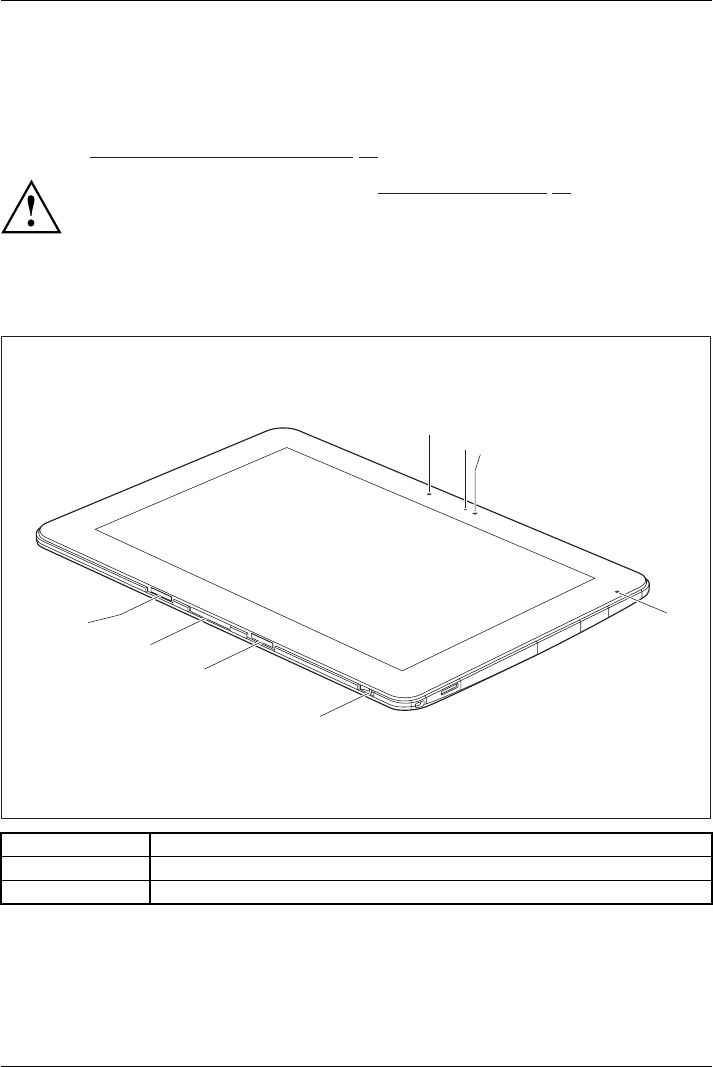

Ports and controls 9
Important notes 12
First-time setup of your device 17
WorkingwiththeTabletPC 21
Accessories for your Tablet PC
(optional) 43
Security functions 56
Connecting external devices 63
Settings in BIOS Setup Utility 67
Troubleshooting and tips 70
Technical data 78
Manufacturer’s notes 84
Appendix 89
Index 105
![](/img.php?id=2258009&img=bg4.png)
Copyright and Trademark Information
Fujitsu America, Incorporated has made every effort to ensure the accuracy and completeness
of this document; however, as ongoing development efforts are continually improving the
capabilities of our products, we cannot guarantee the accuracy of the contents of this
document. We disclaim liability for errors, omissions, or future changes.
Fujitsu, the Fujitsu logo and STYLISTIC are registered trademarks of Fujitsu Limited
or its subsidiaries in the United States and other countries.
Intel and Intel Core are trademarks or registered trademarks of Intel Corporation or
its subsidiaries in the United States and other countries.
Microsoft and Windows are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
The ExpressCard word mark and logo are owned by the Personal Computer
Memory Card International Association (PCMCIA) and any use of such marks by
Fujitsu America, Incorporated is under license.
Google is a trademark or registered trademark of Google Incorporated.
Bluetooth is a trademark of Bluetooth SIG, Inc., USA.
OmniPass is a trademark of Softex, Inc.
Roxio is a trademark of Roxio, a division of Sonic Solutions.
PowerDirector, PowerDVD, YouCam, and MakeDisc are trademarks of CyberLink Corp.
Adobe, Acrobat, and Adobe Reader are either registered trademarks or trademarks of Adobe
Systems Incorporated in the United States and/or other countries.
Made under license from DTS Licensing Limited. DTS and the symbol are registered trademarks and
& DTS Boost is a trademark of DTS, Inc. Product contains software. © DTS, Inc. All rights reserved.
The DVD player found in some models of the LIFEBOOK notebook incorporates copyright
protection technology that is protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and other rights users. Use
of this copyright protection technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
All other trademarks specified here are the property of their respective owners.
![](/img.php?id=2258009&img=bg5.png)
Contents
Contents
FujitsuContact Information ............................................................ 7
Notationalconventions ................................................................ 8

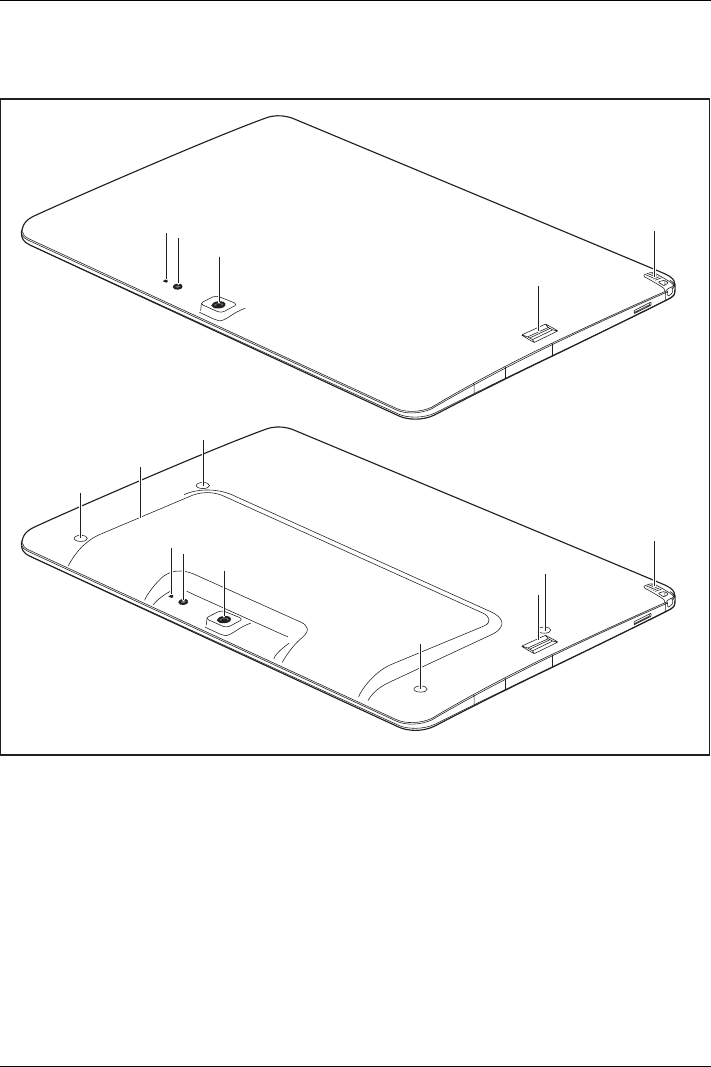

Portsandcontrols ..................................................................... 9
Important notes ........................................................................ 12
Safetyinstructions ...................................................................... 12
Additional safety notes for devices with radio components . . . . . ............................. 12
Protecting the display screen ............................................................ 13
Energysaving .......................................................................... 13
Energy saving under Windows ....................................................... 13

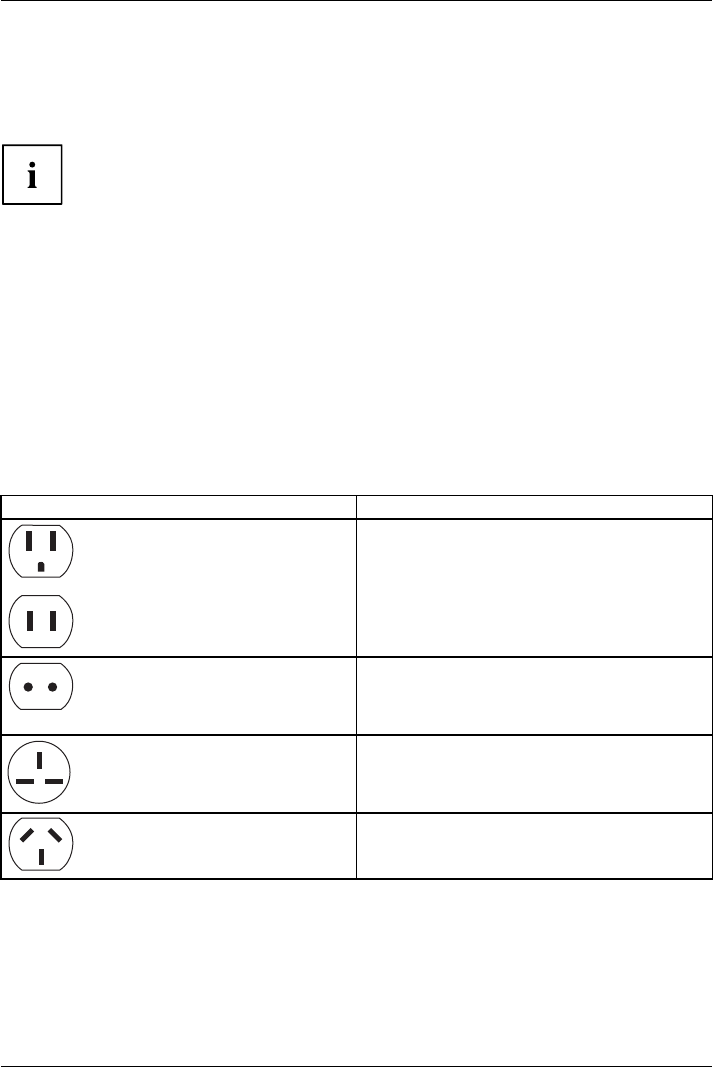

Traveling with your Tablet PC ............................................................ 13
Before youtravel ................................................................... 14
Transporting the Tablet PC ........................................................... 15
Storing your TabletPC .................................................................. 15
Cleaning the TabletPC .................................................................. 16
Further informationon cleaningthe Tablet PC ......................................... 16
Cleaning with disinfectant wipes .......................................................... 16
First-timesetup ofyour device ......................................................... 17
Unpacking and checking the device . . . ................................................... 17
Choose a location . ...................................................................... 18

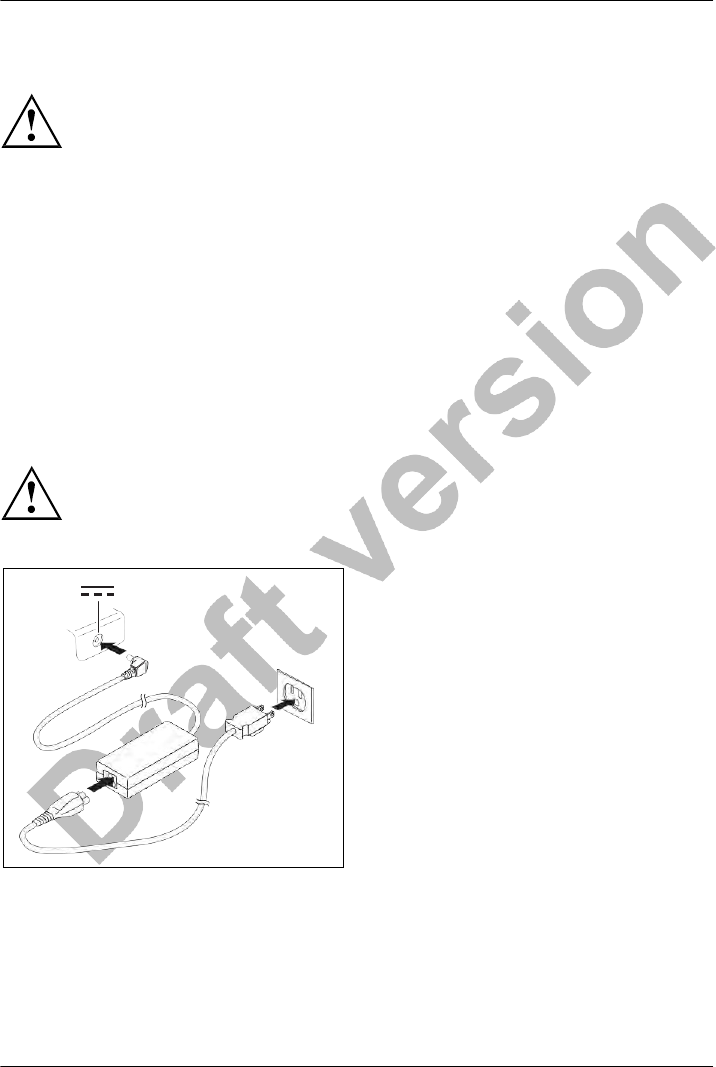

Connecting the AC adapter . . . ........................................................... 18
Switching on the device for the firsttime .................................................. 19
Installing Bonus Apps . . . . . ........................................................... 20
Working with theTabletPC ............................................................ 21
Battery charging indicator ................................................................ 21
Switching theTabletPCon .............................................................. 22
Programing the ON/OFF button ...................................................... 22
Switching theTabletPCoff .............................................................. 23
Handwriting recognition .................................................................. 23
Touchscreen ............................................................................ 24
Select display orientation (portraitorlandscape format) .................................... 25
Touch c o m mands ....................................................................... 25
Calibrate the Dual Digitizer for finger-based operation of the device. ..................... 25

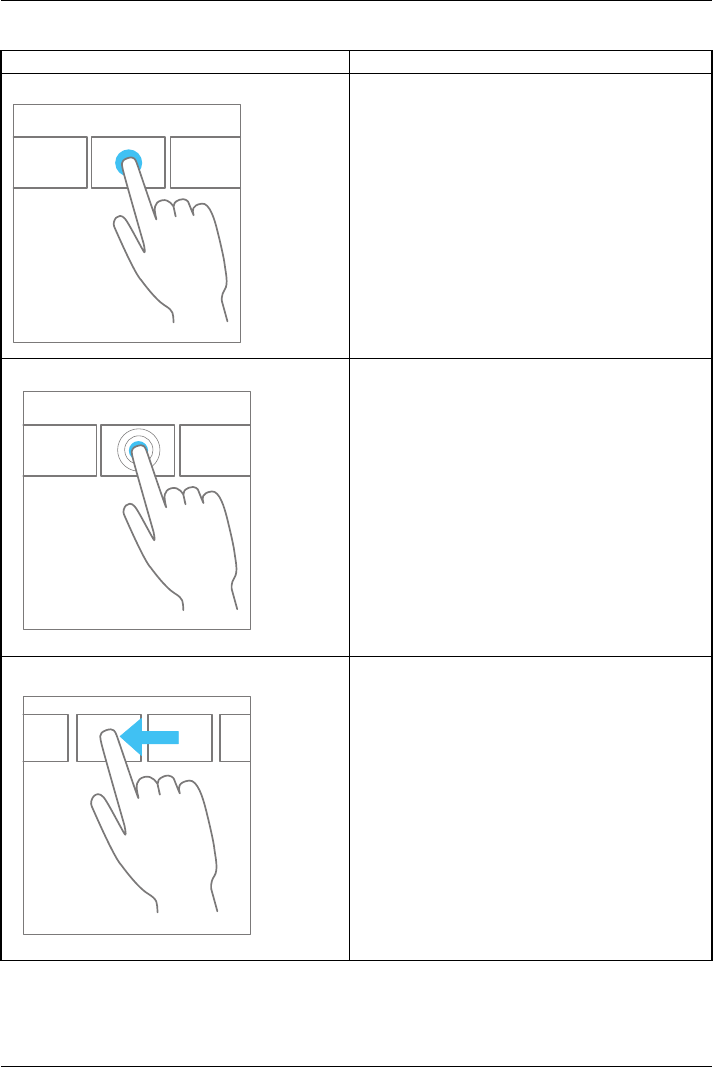

Actions with one finger (Windows 8.1 Modern) . ........................................ 26
Actions with one finger (Windows 8.1 Desktop) ........................................ 28
Actions with two fingers (Windows 8.1 Desktop) . . . .................................... 29
Using the stylus ......................................................................... 31
Stylus location ...................................................................... 32
Adjustingthe stylus .................................................................. 32
Calibrating thestylus ................................................................ 32
Replacingthe stylus tip .............................................................. 33

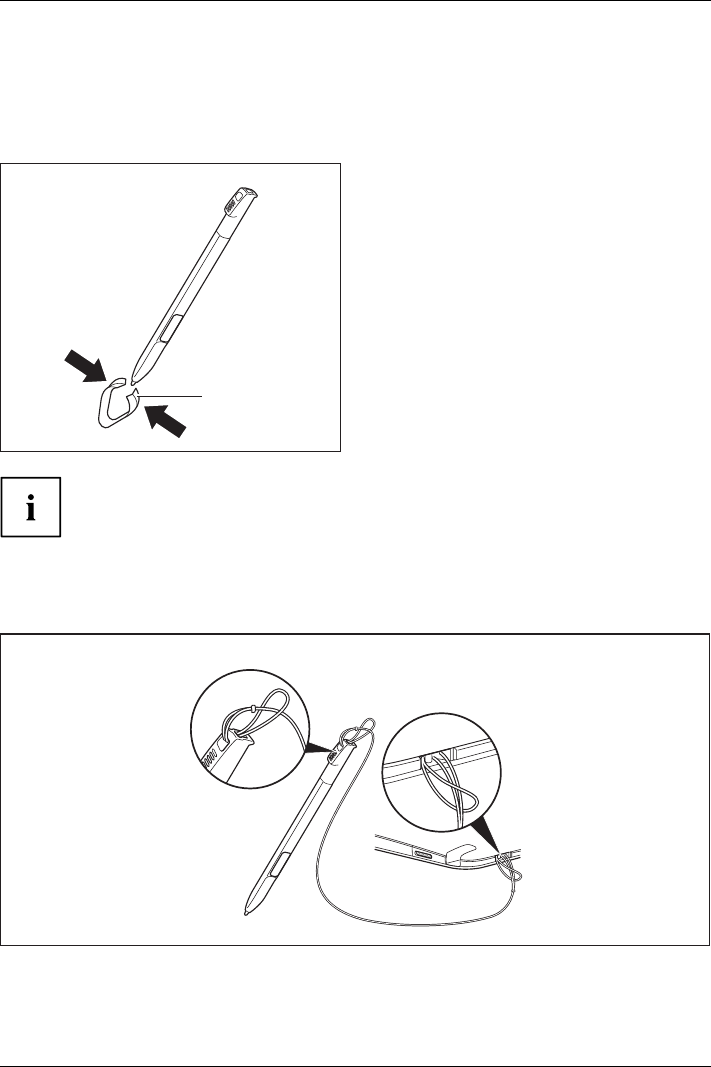

Installing a stylus tether .............................................................. 33
Tablet buttons .......................................................................... 34
Webcam ............................................................................... 35
Rechargeablebattery ................................................................... 35
Chargingand maintaining thebattery ................................................. 35
Using the energy saving functions . ....................................................... 36
Memorycards .......................................................................... 37
Fujitsu 3
![](/img.php?id=2258009&img=bg6.png)
Contents
Supported formats .................................................................. 37

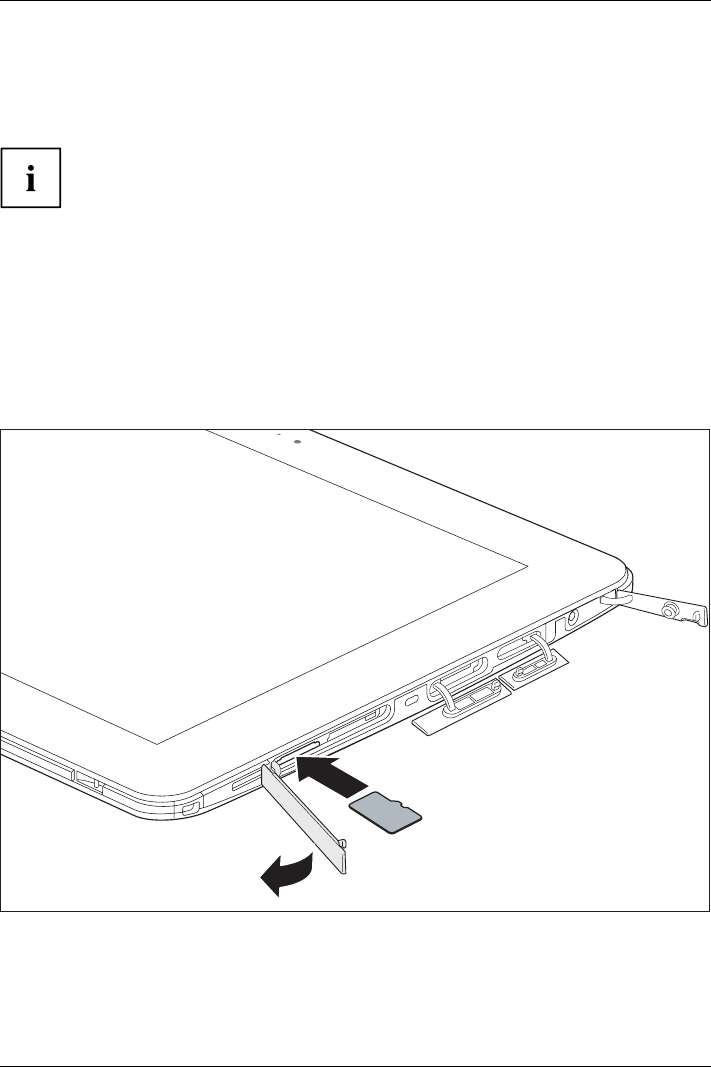

Inserting thememorycard ........................................................... 37
Removing the memory card .......................................................... 38
SIM card ............................................................................... 39

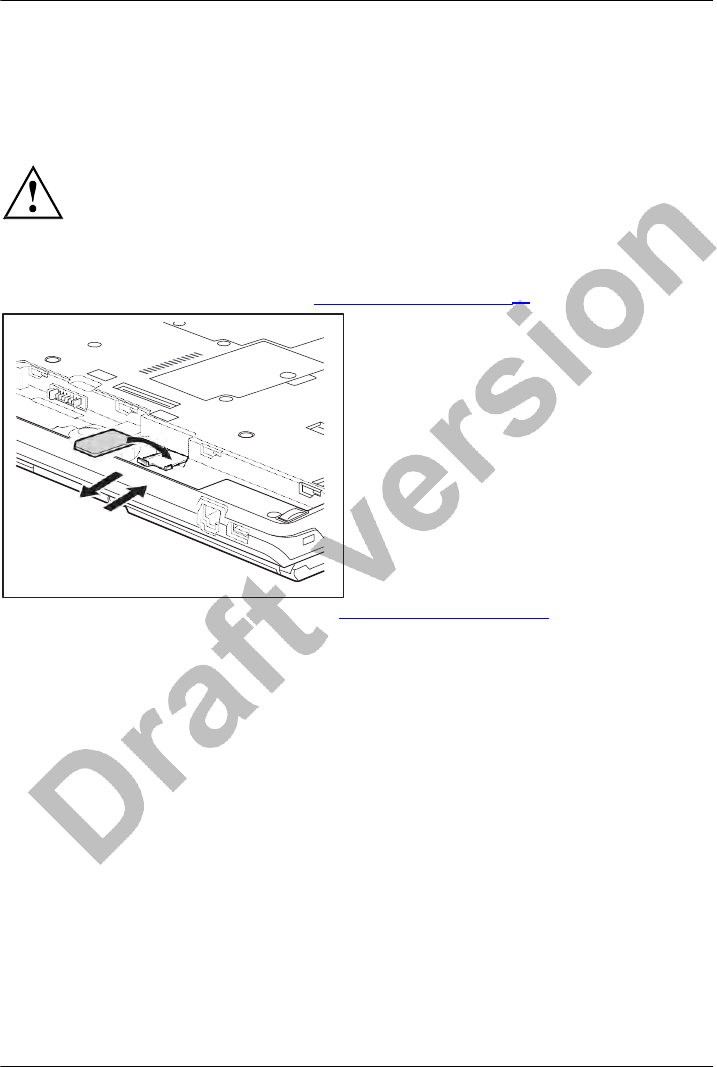

Inserting aSIM card ................................................................. 39
Removing a SIM card ............................................................... 40
Wireless LAN/Bluetooth/UMTS/4G radio components . . . . .................................. 40
Switching the wireless components on and off ......................................... 40
Setting up WLANaccess ............................................................ 41
Furtherinformation on WLANand Bluetooth ........................................... 41
Accessvia UMTS ................................................................... 41
Accessvia WirelessWAN ............................................................ 41

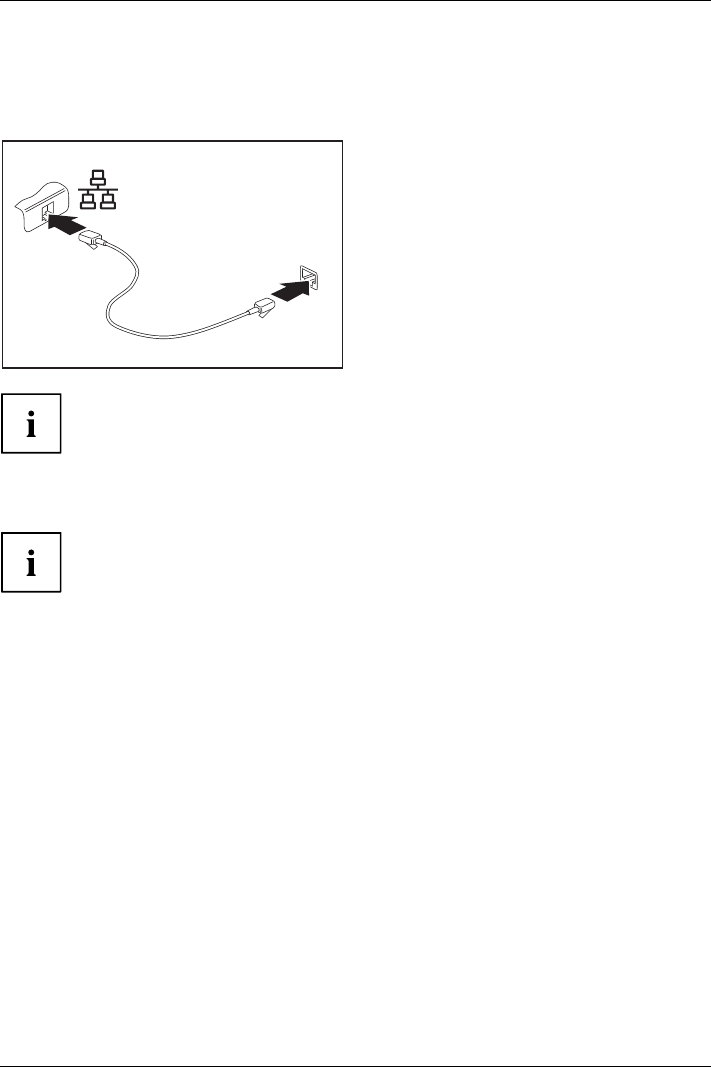

Ethernet andLAN (only withdocking cradle) .............................................. 42
GPS ................................................................................... 42
Accessories for your Tablet PC (optional) . ............................................. 43
Yourdocking cradle (optional) ............................................................ 43

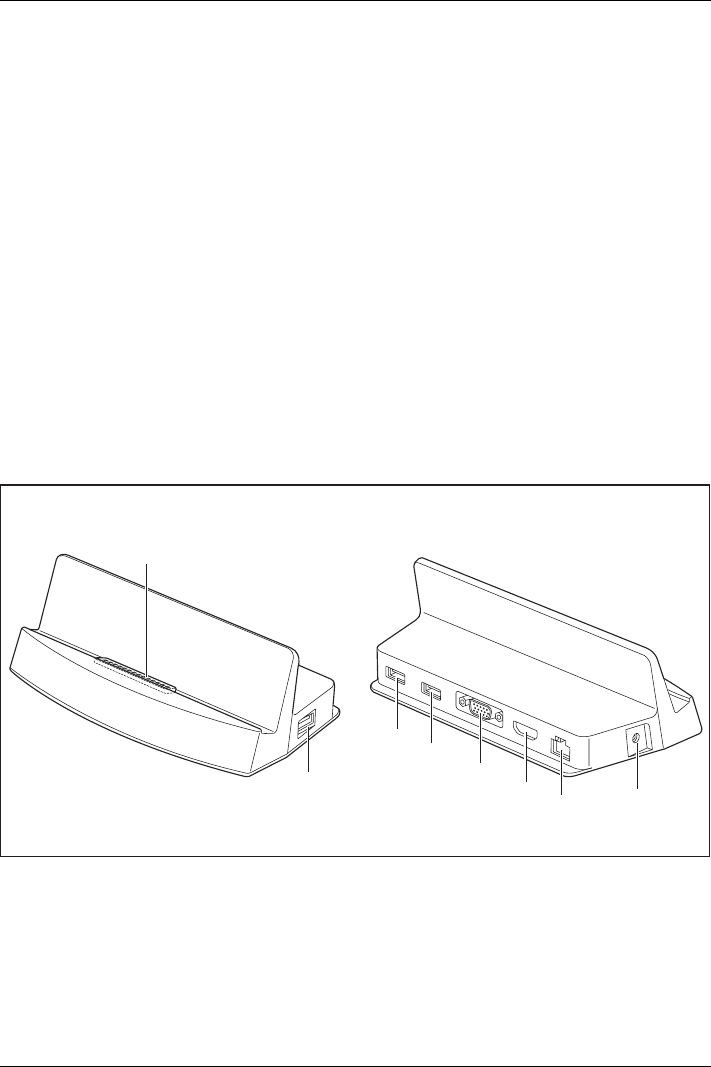

Docking cradle components . . ........................................................ 43
Setting up thecradle ................................................................ 44
Connecting the Tablet PC to the cradle . . ............................................. 44
Disconnecting the Tablet PC from the cradle . ......................................... 46
Keyboard cover (optional) . . . ............................................................ 47
Keyboard cover ports ................................................................ 47

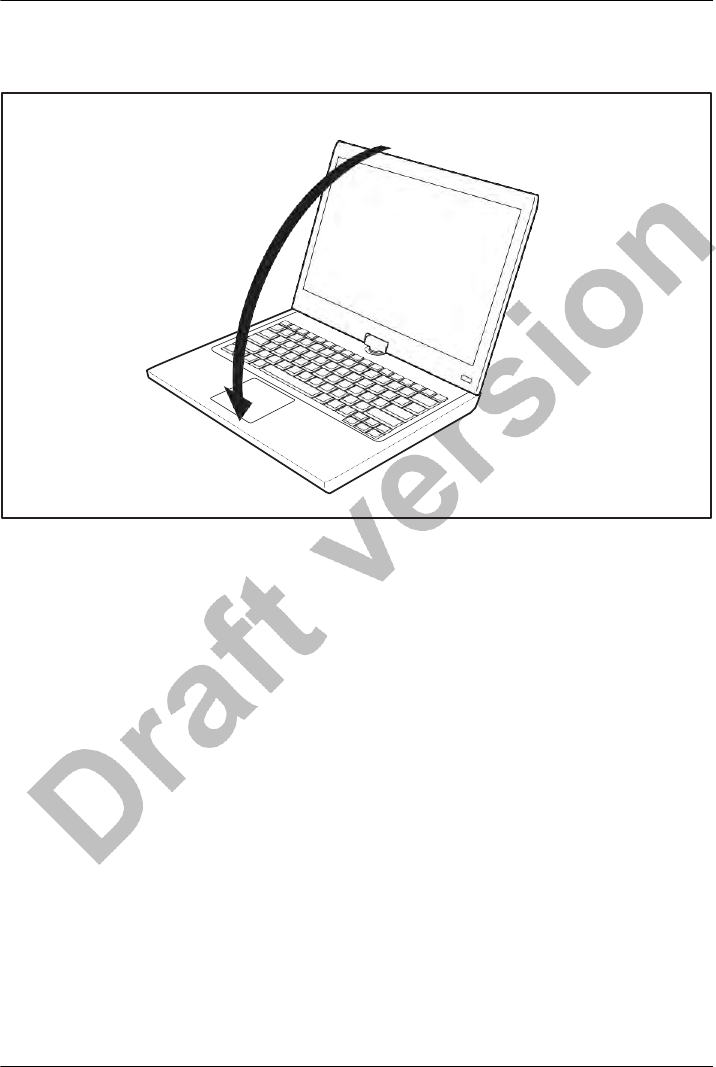

Connecting the Tablet PC to the keyboard cover . . . . . .................................. 48

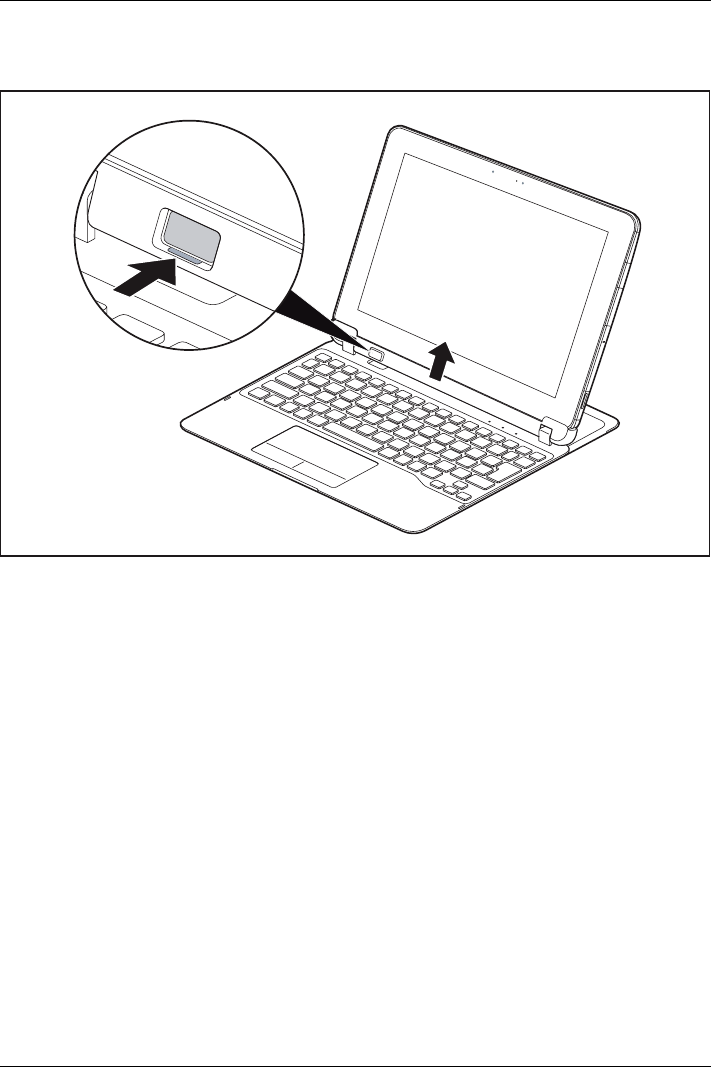

Separating the Tablet PC from the keyboard cover . . .................................. 49
VESA mount (optional) . . ................................................................ 50

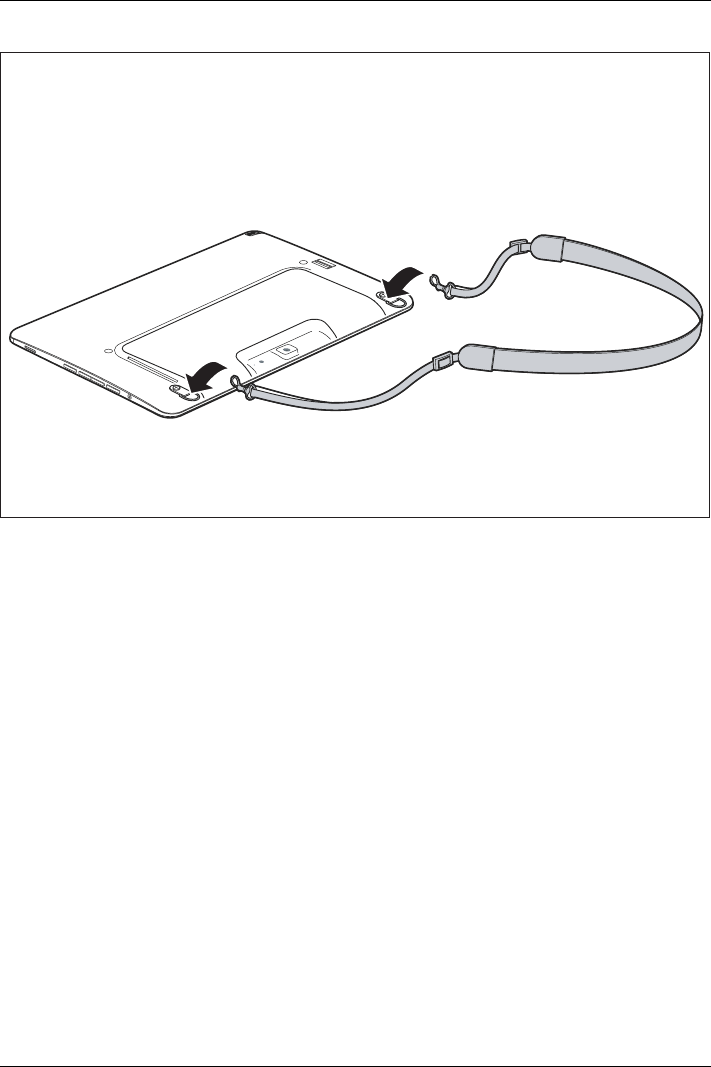

Shoulder strap (optional) ................................................................ 51

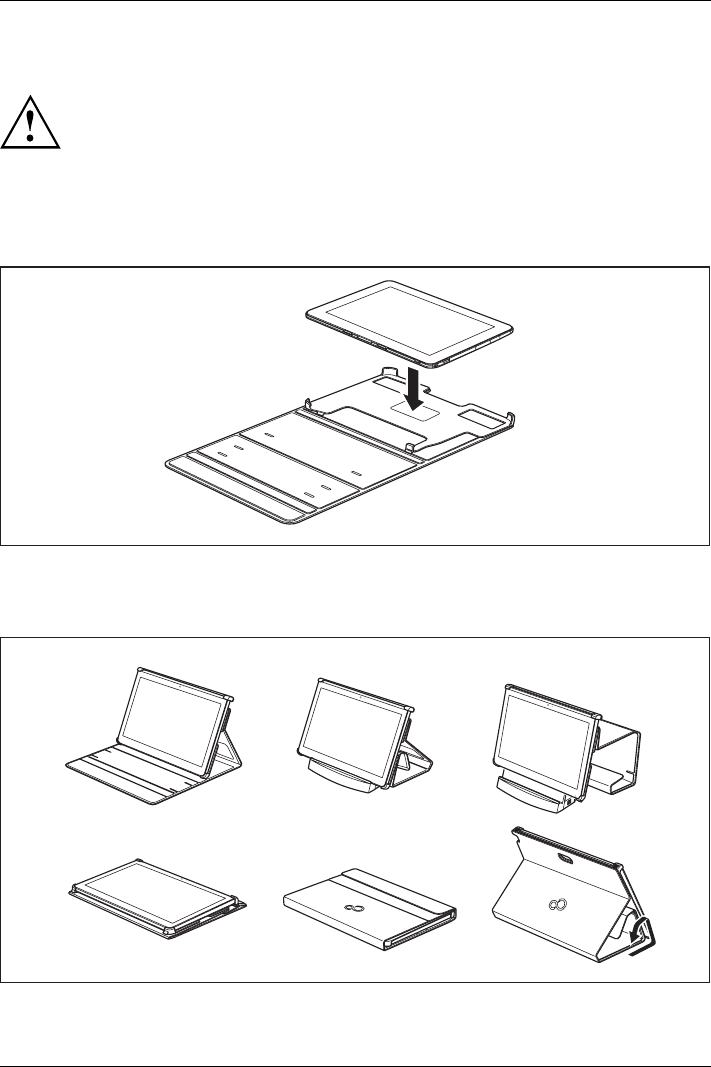

Folio case (optional) . . . . . ................................................................ 53

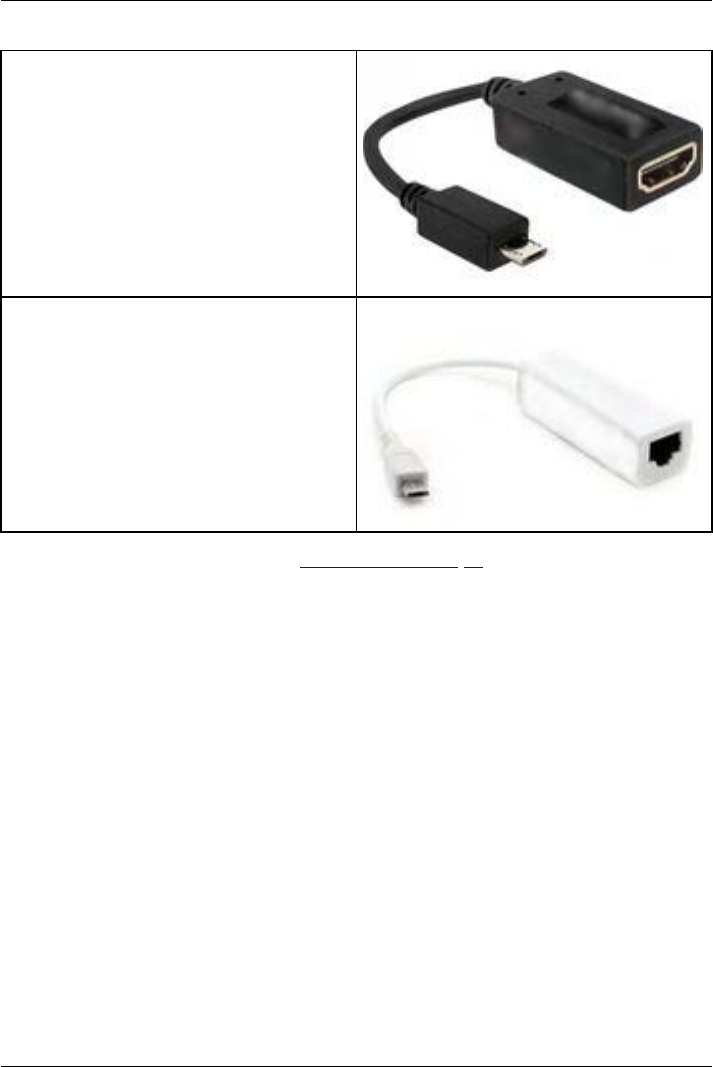

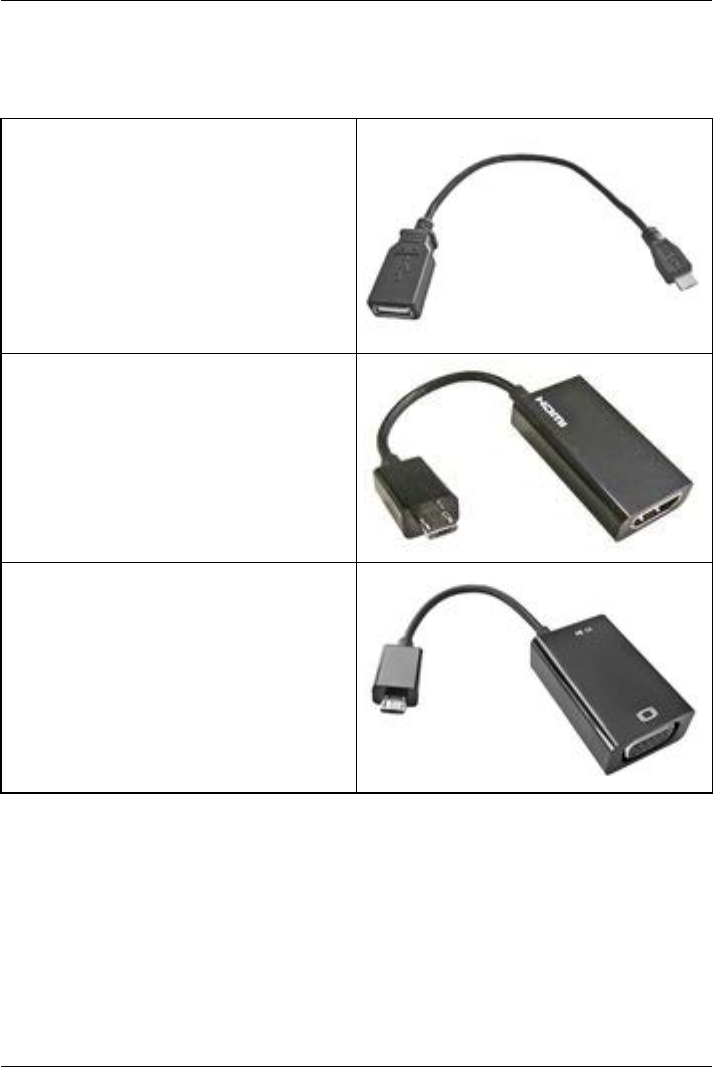

MicroUSB adapters ..................................................................... 54
Security functions ..................................................................... 56
Configuring the fingerprint sensor ........................................................ 57
Configuringpasswordprotectionin BIOSSetup Utility ...................................... 57
Protecting BIOS Setup Utility (supervisor HDD password and user HDD password) . . . .... 58
Password protection for booting the operating system .................................. 59
Passwordprotectionfor the harddisk ................................................. 59
SmartCard reader (optional) . ............................................................ 61
Inserting theSmartCard ............................................................. 61
Trusted Platform Module - TPM (device dependent) . . . . . . .................................. 62
Enabling TPM ....................................................................... 62
Disabling TPM ...................................................................... 62
Connecting externaldevices ........................................................... 63

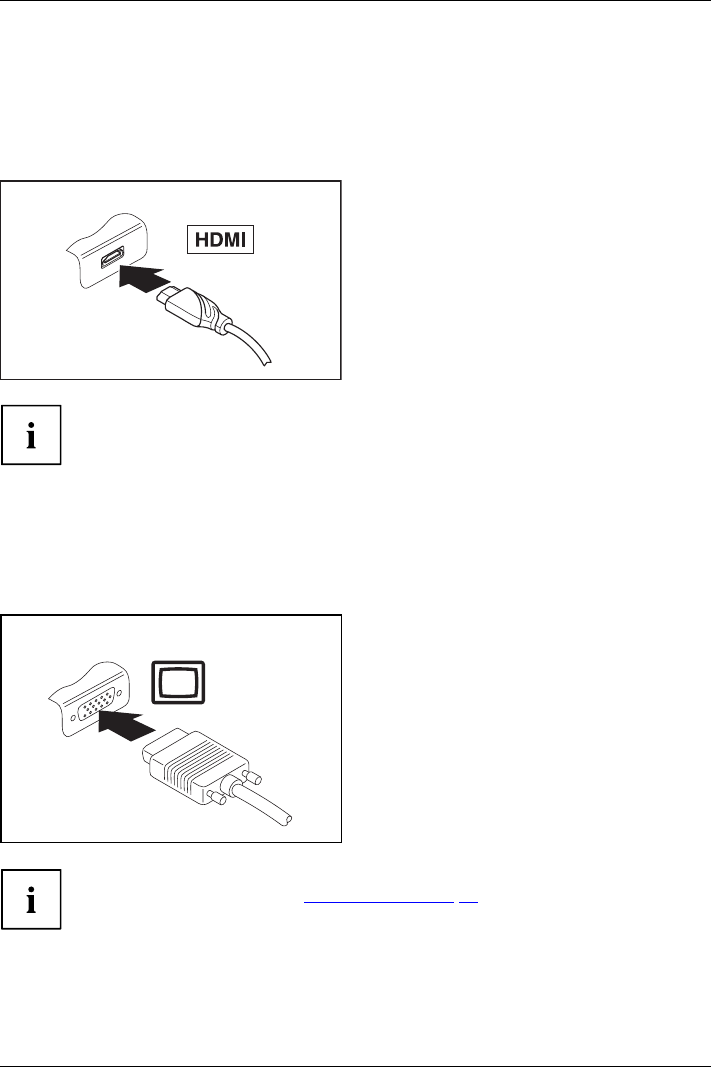

Connecting an external monitor . . ........................................................ 64
HDMI port(viaoptional dockingcradle) ............................................... 64
VGA monitor port (via optional docking cradle) ......................................... 64
Connecting USB devices ................................................................ 65
How toremove USBdevicescorrectly ................................................ 65
Headphones port ....................................................................... 66
Settings in BIOS Setup Utility . . ........................................................ 67
Starting theBIOS Setup Utility ........................................................... 67
BIOS Setup Utility operation . ............................................................ 68
Exiting BIOSSetupUtility ................................................................ 69
4Fujitsu
![](/img.php?id=2258009&img=bg7.png)
Contents
Exit Saving Changes - save changes and exit BIOS Setup Utility . . ..................... 69
Exit Discarding Changes - Reject changes and exit BIOS Setup Utility . . . . . .............. 69
Load Setup Defaults – load default values . ............................................ 69
Discard Changes - Discard Changes without exiting BIOS Setup Utility . . . . .............. 69
Save Changes - save changes without exiting the BIOS Setup Utility . . . . . . .............. 69
Save changesand poweroff ........................................................ 69
Troubleshooting andtips .............................................................. 70
Help ifproblems occur ................................................................... 70
Recoveringyour Factory Image ...................................................... 70
The Tablet PC’s date ortime isincorrect .................................................. 71
Battery indicator does not illuminate . . . ................................................... 71
The Tablet PC’s touchscreen remains dark ................................................ 71
The display on the Tablet PC’s touchscreen is difficult to read. . ............................. 71
The externalmonitorremains blank ...................................................... 72
The externalmonitoris blank orthe imageis unstable ..................................... 72
The cursor does not correctly follow the stylus movements . . . . ............................. 72
Stylusinputnot working ................................................................. 73
The Tablet PCdoesnotstartafterswitchon ............................................... 73
The Tablet PCstops working ............................................................. 73
The printer does not print . . . . . ........................................................... 73
The wireless connection to a network does not work . . . .................................... 74
The battery discharges tooquickly ........................................................ 74
SmartCard reader is not recognized . . . ................................................... 74
SmartCard PINforgotten ................................................................ 74
User and/or supervisor SmartCard lost ................................................... 75
SmartCard lost ......................................................................... 75
Acoustic warning ........................................................................ 75
Errormessageson thescreen ........................................................... 76
Technicaldata ......................................................................... 78
TabletPC .............................................................................. 78
WLAN specifications .................................................................... 80
Rechargeablebattery ................................................................... 81
AC adapter (36 W) ...................................................................... 81
Dockingcradle(optional) ................................................................ 81
Keyboard cover(optional) ............................................................... 82
VESA mount (optional) .................................................................. 82
Shoulder strap (optional) . . . . . ........................................................... 82
Foliocase (optional) ..................................................................... 82
USB adapters .......................................................................... 83
Manufacturer’snotes .................................................................. 84
Disposal andrecycling .................................................................. 84
Recycling your battery ............................................................... 84
ENERGY STARCompliance ............................................................. 85
Declarationsof Conformity ............................................................... 85
FCC and ICRegulatoryInformation ...................................................... 86
Regulatory Notes and Statements . ................................................... 86
Appendix .............................................................................. 89
Before Using the Optional Wireless LAN . . . . . . ............................................ 89
Wireless LANDevicesCoveredby this Document ...................................... 89
Characteristicsof theWLAN Device .................................................. 89
Fujitsu 5
![](/img.php?id=2258009&img=bg8.png)
Contents
Wireless LAN Modes Using this Device . . ............................................. 90
Deactivating/DisconnectingtheWLAN Device ......................................... 92
Configuringthe WirelessLAN ............................................................ 92
Connection to the network . . . ........................................................ 92
Troubleshooting the WLAN ........................................................... 93
Usingthe BluetoothDevice .............................................................. 95
Image Backup and Recovery Procedures ................................................. 96
Creating a Backup ofBootable Diskand Recovery Image .............................. 96
RECOVERYOUR SYSTEMWHENTHE HARDDRIVE ISSTILL ACCESSIBLE ............. 97
Usingthe Recovery andUtility Tools .................................................. 97
Restore the Recovery Image from Hidden Partition . . . .................................. 99
RECOVERYOUR SYSTEMWHENTHE HARDDRIVE ISNOT BOOTABLE ................ 100
RestoretheRecoveryImagefor FullHardDrive ....................................... 100
Recovering Your Recovery Image Using Recovery and Utility (for new hard drive or
non-bootableharddrive) ............................................................. 101
Installingthe Softwareafterthe RecoveryImage isRestored ............................ 102
Index .................................................................................. 105
6Fujitsu
![](/img.php?id=2258009&img=bg9.png)
Fujitsu Contact Information
Fujitsu Contact Information
Service and Support
You can contact Fujitsu Service and Support in the following ways:
• Toll free phone: 1-800-Fujitsu (1-800-838-5487)
• Website: "http://solutions.us.fujitsu.com/www/content/support/contact/index.php"
Before you place the call, have the following information ready so that the customer
support representative can provide you with the fastest possible solution:
• Product name
• Product configuration number
• Product serial number
• Purchase date
• Conditions under which the problem occurred
• Any error messages that have occurred
• Type of device connected, if any
Fujitsu Shopping Online
Please go to "http://www.shopfujitsu.com/store/ ".
Maintaining Latest Configuration
To ensure that you always have the most current driver updates related to your system, occasionally
access the Fujitsu Software Download Manager (FSDM) utility. The FSDM utility is available from
the Fujitsu Support site. FSDM will allow you to view a list of the most current drivers, utilities,
and applications to determine whether you have the latest versions. If you have a Windows 7
or Windows 8/8.1 operating system, you will need to go to the Support Site to download the
FSDM Utility: "http://support.fujitsupc.com/CS/Portal/support.do?srch=DOWNLOADS".
Limited Warranty
Your STYLISTIC Tablet PC is backed by a Fujitsu International Limited Warranty. Check the service
kit that came with your Tablet PC for the Limited Warranty period and terms and conditions.
Fujitsu 7
![](/img.php?id=2258009&img=bga.png)
Notational conventions
Notational conventions
Pay particular attention to text marked with this symbol. Failure to observe
these warnings could pose a risk to health, damage the device or lead
to loss of data. The warranty will be invalidated if the device becomes
defective through failure to observe these warnings.
Indicates important information for the proper use of the device.
►Indicates an activity that must be performed.
Indicates a result.
This font Indicates data entered using the keyboard in a program dialog or at the
command line, e.g. your password (Name123)oracommandusedtostart
a program (start.exe)
This font Indicates information that is displayed on the screen by a program, e.g.:
Installation is complete.
This font Indicates
• terms and texts used in a software interface, e.g.: Click on Save
• names of programsorfiles, e.g. Windows or setup.exe.
"This font" Indicates
• cross-references to another section, e.g. "Safety information"
• cross-references to an external source, e.g. a web address: For more
information, go to "http://solutions.us.fujitsu.com/"
• names of CDs, DVDs and titles or designations for other materials, e.g.:
"CD/DVD Drivers & Utilities" or "Safety/Regulations" manual
Key Indicates a key on the keyboard, e.g: F10 .
This font Indicates terms and texts that are emphasized or highlighted, e.g.: Do
not switch off the device.
8Fujitsu
![](/img.php?id=2258009&img=bgb.png)
Ports and controls
Ports and controls
This chapter presents the individual hardware components of your device. It gives an
overview of the indicators and connections of the device. Please familiarize yourself
with these items before you start to work with the device.
Front
1
23
5
6
4
7
8
1 = Ambient light sensor
2 = Webcam LED
3 = Webcam
4 = Battery charging indicator
5 = Stylus tether attachment point
6 = Recess forcradle
7 = Docking port for cradle or keyboard cover
8 = Recess forcradle
Fujitsu 9
![](/img.php?id=2258009&img=bgc.png)
Ports and controls

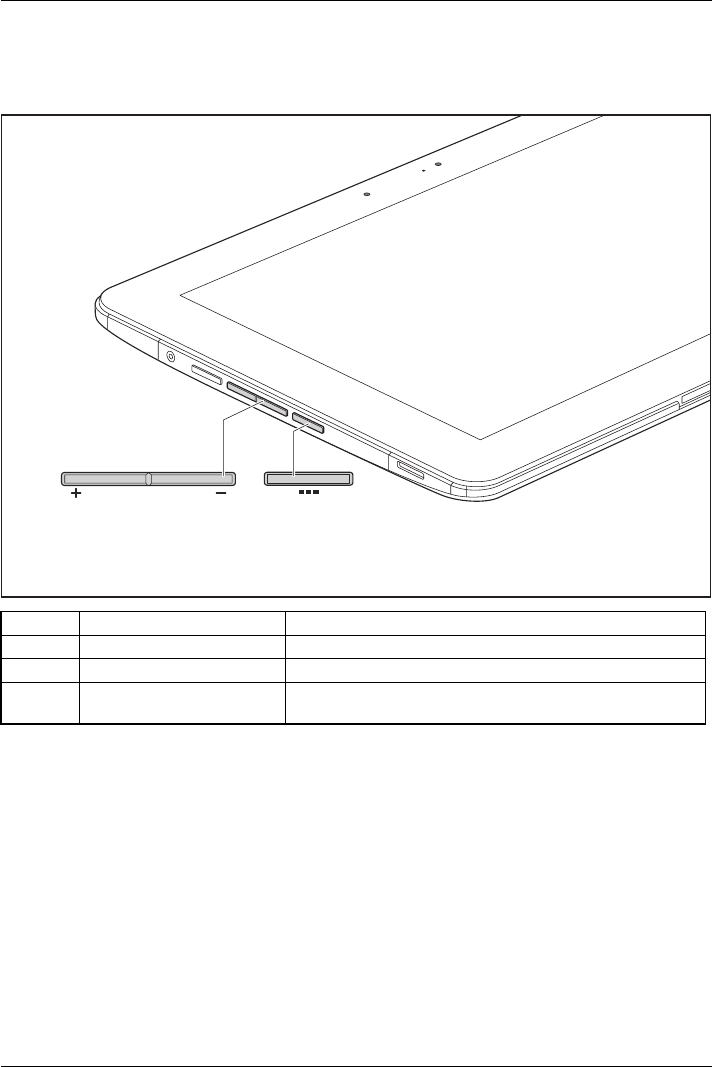

Left-hand side
1 2 3 4 5
1 = Headphones port
2 = ON/OFF button
3 = Volume buttons
4 = Shortcut button
5 = Speaker

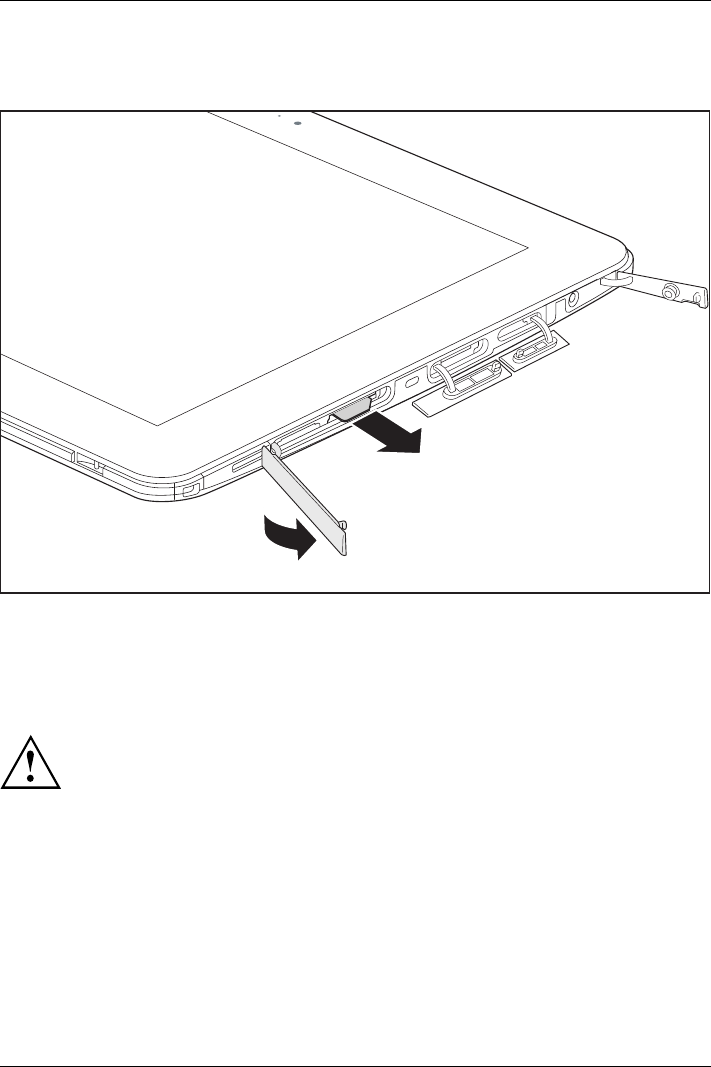

Right-hand side (with and without covers)
2 4 5 6
1
1
2 3 4 5 6
3
1 = Speaker
2=Sto
rage card slot (protected by cover)
3 = SIM card slot (protected by cover)
4 = USB port (USB 3.0, protected by cover)
5=Mic
ro USB port (protected by cover)
6 = DC jack (DC IN, protected by cover)
10 Fujitsu
![](/img.php?id=2258009&img=bgd.png)
Ports and controls
Back (2 options: Standard shell with flat back and no screw hole attachment points or Smart
Card shell with integrated Smart Card reader and screw hole attachment points.)
54
3
2
1
5
7
6
6
4
3
2
1
6
6
1 = Stylus holder
2 = Fingerprint sensor
3 = Webcam
4 = Camera light
5 = Webcam LED
6 = Screw holes (device-dependent) for
securing accessories
7 = SmartCard reader (device dependent)
Fujitsu 11
![](/img.php?id=2258009&img=bge.png)
Important notes
Important notes
ImportantnotesNotes
This chapter contains essential safety information which must be followed when working
with your Tablet PC. The other notes provide useful information on your Tablet PC.
Safety instructions
SafetyinformationInform ation,
Please follow the safety notes provided in the "Safety/Regulations" manual
as well as the safety notes given below.
Please pay special attention to the sections in the manual marked
with the symbol on the left.
When connecting and disconnecting cables, observe the relevant
notes in this operating manual.
Read the information on the ambient conditions in the "Technical data", Page 78 chapter
and the information in the "First-time setup of your device", Page 17 chapter before
preparing your Tablet PC for use and switching it on for the first time.
When cleaning the device, please observe the relevant notes in the section .
Pay attention to the additional safety notes for devices with radio components
provided in the "Safety/Regulations" manual.
When handling this device, you come into contact with lead, a chemical which in
California is held to be a possible cause of birth defects and other damage to fertility.
Wash your hands after using the device.
This Tablet PC complies with the relevant safety regulations for data processing equipment. If
you have questions as to whether you can set up the Tablet PC in the intended environment,
please contact your sales outlet or our hotline/service desk.
Additional safety notes for devices with
radio components
Radiocomponent sWirelessLANBluetooth,Safetynotes
If a radio component (Wireless LAN, Bluetooth, UMTS/4G) is integrated in your Tablet PC, you
must be sure to observe the following safety precautions when using your Tablet PC:
• Switch off the radio components when you are in an aircraft or driving in a car.
• Switch off the radio components when you are in a hospital, an operating room or near a medical
electronics system. The transmitted radio waves can impair the operation of medical devices.
• Switch off the radio components, when you let the device get near flammable gases
or into hazardous environments (e.g. gas station, paintshops), as the transmitted
radio waves can cause an explosion or a fire.
For further information on how to switch the radio components on and off, refer
to chapter "Switching the wireless components on and off", Page 40.
12 Fujitsu
![](/img.php?id=2258009&img=bgf.png)
Important notes
Protecting the display screen
Depending on your device configuration, where applicable your device is not waterproof.
In this event, do not pour liquids onto the device and do not wash it with a wet cloth.
Do not place items on the top of the display, or damage may occur.
During normal use of the device, small particles from the environment
can become embedded in the stylus tip and scratch the screen. The
warranty does not cover a scratched screen.
Energy saving
NotesEnergyPowersaving
If you will not be using your Tablet PC, switch it off. Switch off any connected external devices when
they are not in use. If you use the energy saving functions, the Tablet PC uses less power. If you do
this, you will be able to work longer with the Tablet PC before having to recharge the battery.
The energy efficiency is increased and environmental pollution is reduced.
You save money and help protect the environment.
Energy saving under Windows
►Make use of the available energy saving functions as described in chapter
"Using the energy saving functions", Page 36.
Traveling with your Tablet PC
MobileoperationNotesTranspo rtTabletPC
Please follow the instructions below when traveling with your Tablet PC.
Fujitsu 13
![](/img.php?id=2258009&img=bg10.png)
Important notes
Before you travel
►Switch off the radio component for data security reasons. With data traffic via a wireless
connection, it is also possible for unauthorized third parties to receive data.
Information on activating data encryption is provided in the documentation
for your radio component.
►If you want to use your Tablet PC during a flight, ask the flight attendants to see if it is safe to use it.
When traveling in other countries
►If you are traveling abroad, check that the AC adapter can be operated with the
local AC voltage. If this is not the case, obtain the appropriate AC adapter for
your Tablet PC. Do not use any other converter!
►Check whether the local AC voltage and the AC cable are compatible. If this is not
the case, buy an AC cable that suits the local conditions.
►Enquire with the appropriate government office of the country you will be travelling in as to
whether you may operate the radio component integrated in your Tablet PC there.

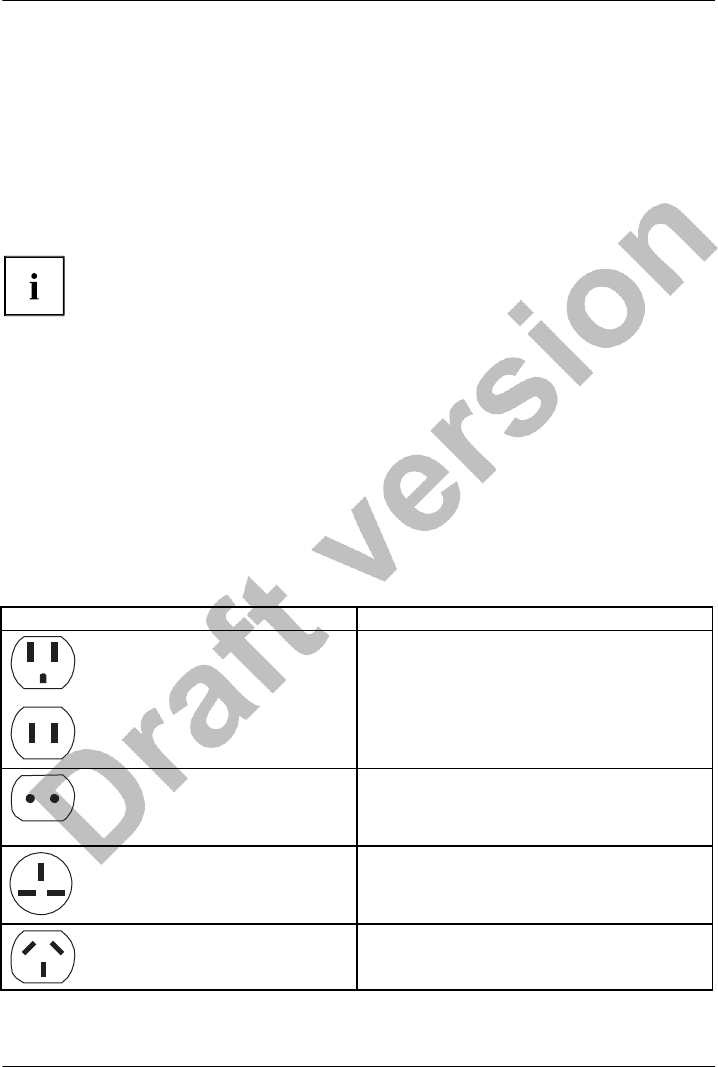

►Take the necessary travel adapters with you when traveling abroad. Check in the following
table for which travel adapters you will need, or ask your travel organizer.
Power connection Travel destination
United States, Canada, Mexico, parts of Latin
America, Japan, Korea, Philippines, Taiwan
Russia and the Commonwealth of Independent
States (CIS), much of Europe, parts of Latin
America, the Middle East, parts of Africa, Hong
Kong, India, much of south-east Asia
United Kingdom, Ireland, Malaya, Singapore,
parts of Africa
China, Australia, New Zealand
14 Fujitsu
![](/img.php?id=2258009&img=bg11.png)
Important notes
Transporting the Tablet PC
Protect the Tablet PC from severe shocks and extreme temperatures
(e.g. direct sunlight in a car).
• Do not transport your Tablet PC while it is turned on.
• Carry your Tablet PC with you while traveling, rather than checking it in as baggage.
• Never put your Tablet PC through a metal detector; have it hand-inspected by
security personnel. You can however, put your Tablet PC through a properly
tuned X-ray machine. To avoid problems, place it close to the entrance of
the machine and remove it as soon as possible or have it hand-inspected
by security personnel. Security officials may require you to turn your Tablet
PC on, so make sure you have a charged battery on hand.
►Switch the Tablet PC off.
►Unplug the AC plug of the AC adapter and all external devices from the power outlets.
►Disconnect the AC adapter cable and the data cables for all external devices.
►To protect the Tablet PC against damaging jolts and bumps, use a suitable Tablet
PC carrying case to transport your Tablet PC.
Storing your Tablet PC
• If storing your Tablet PC for a month or longer, turn it off, fully charge the battery,
then remove and store all Lithium Polymer batteries.
• Store your Tablet PC in a cool, dry location. Temperatures should remain
between 13ºF / -25ºC and 140ºF / 60ºC.
• Store your Tablet PC and batteries separately. If you store your Tablet PC with
a battery installed, the battery will discharge, and battery life will be reduced. In
addition, a faulty battery might damage your Tablet PC.
• Always power off the Tablet PC before transporting and/or packaging it.
After shutting down the Tablet PC, wait until the status led panel indicates
power off condition (i.e., no lights are illuminated).
• It is possible that the Tablet PC may not automatically go to power-off or hibernate
mode when you close the lid. This situation may occur due to pre-operating system
boot password security settings or some other application running on the Tablet PC.
• Attempting to transport the Tablet PC while power is on may damage
the Tablet PC due to shock or overheating.
Fujitsu 15
![](/img.php?id=2258009&img=bg12.png)
Important notes
Cleaning the Tablet PC
• Use of incorrect cleaners can result in optical impairment of the LCD and / or
damage to the computer. Always refer to the cleaner manufacturer’s guidelines and
material safety data sheets fo proper handling and use of the products.
• Never use ammonia, acidic, or alkaline cleaners or organic chemicals
such as paint thinner, acetone or kerosene. It may damage surface
finishes and the coating of the LCD screen.
• Never use compressed air for cleaning your computer.
• If your Tablet PC has a Smart Card slot, be very careful to avoid any
liquid entering the slot as this can damage the unit.
Further information on cleaning the Tablet PC
The Tablet PC does not float.
If the Tablet PC is exposed to water or other liquids with its connections open, liquid
can penetrate the Tablet PC and cause a malfunction. Do not continue to use the
Tablet PC. Switch it off and contact our hotline / our service desk (see enclosed list of
service desks or visit our website at: "http://www.fujitsu.com/us/support/").
Cleaning with disinfectant wipes
There are many ways of disinfecting surfaces. The following disinfectant wipes
have been tested successfully with the Tablet PC:
• MG Chemicals Multipurpose Alcohol Wipes (alcohol-based)
• PROSAT® Sterile™ PS-911EB/EtOH Life Sciences Wipes (alcohol-based)
• Clorox® Healthcare Bleach Germicidal Wipes (without alcohol)
Remember, if your Tablet PC is configured with the Smart Card shell, it does not
have a cover to close the port and liquid could enter and damage the device. Take
extra precautions when cleaning around the Smart Card reader.
For proper use of disinfectant wipes, please read the manufacturer’s instructions.
Before cleaning, please test the disinfectant wipe on a small area of the Tablet
PC. Some medical disinfectant wipes may leave residue on the Tablet PC which
is difficult to remove again, or they may dry out quickly. Therefore dispose of
the wipes after one single use and do not reuse them.
16 Fujitsu
![](/img.php?id=2258009&img=bg13.png)
First-time setup of your device
First-time setup of your device
First- timese tupGettingstarted
Please read the chapter "Important notes", Page 12.
If your device is equipped with a Windows operating system, the necessary
hardware drivers and supplied software are already pre-installed.
Before switching it on for the first time, connect the device to the AC voltage using
the AC adapter, see "Connecting the AC adapter", Page 18. The AC adapter must
remain connected during the whole of the installation process.
A system test is performed when your device is first switched on. Various messages
can appear. The display may remain dark for a short time or may flicker.
Please follow the instructions on the screen.
NEVER switch off your device during the first-time setup process.
The battery must be charged if you want to operate your device using the battery.
When used on the move, the built-in battery provides the device with the necessary power. You
can increase the operating time by using the available energy-saving functions.
For instructions on how to connect external devices (e.g. mouse, printer) to your Tablet
PC, please refer to the operating manual for your device.
Unpacking and checking the device
If you find that damage has occurred during transport, please notify
your local sales outlet immediately!
►Unpack all the individual parts.
PackagingTransport
►Check your device for any visible damage which may have occurred during transportation.
You may need to reuse the packaging in future, for example if you
need to transport your device.
Fujitsu 17
![](/img.php?id=2258009&img=bg14.png)
First-time setup of your device
Choose a location
ChoosealocationSetupACadapter
Choose a suitable location for the device before setting it up. In doing
so, please follow these instructions:
• Never place the device or the AC adapter on a heat-sensitive surface.
The surface could be damaged as a result.
• Never place the device on a soft surface (e.g. carpeting, upholstered furniture,
bed). This can result in damage caused by overheating.
• The underside of the device heats up during normal operation. Prolonged contact
with the skin can become unpleasant or even result in burns.
• Place the device on a stable, flat, non-slippery surface. Please note that the
rubber feet of the device may mark certain types of delicate surfaces.
• Keep other objects at least 100 mm / 4 inches away from the device
and its AC adapter to ensure adequate ventilation.
• Do not expose the device to extreme environmental conditions. Protect
the device against dust, humidity and heat.

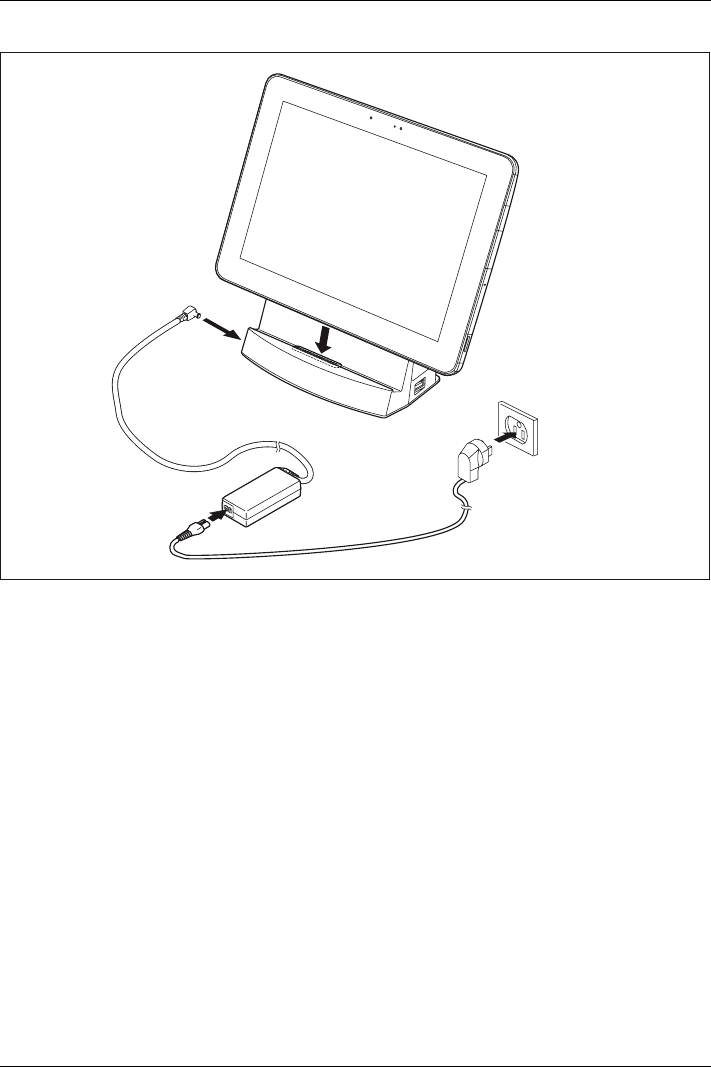

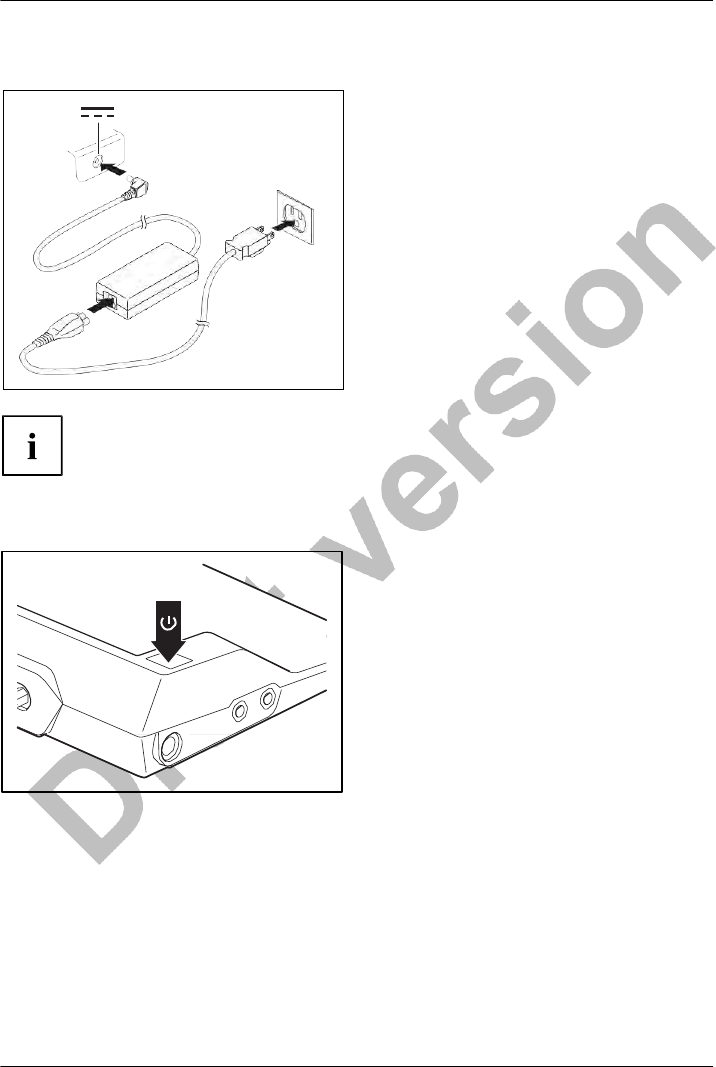

Connecting the AC adapter
MakingreadytouseACadapter
Observe the safety notes in the enclosed "Safety/Regulations" manual.
ThesuppliedACc
able conforms to the requirements of the country in which
you purchased your device. Make sure that the AC cable is approved for
use in the country in which you intend to use it.
2
►Open the cover of the DC jack
socket (DC IN).
►Connect the AC cable (1) to the AC adapter.
►Plug the AC cable (2) into a power outlet.
►Connect the AC adapter cable (3) to the
DC jack socket (DC IN) of the device.
18 Fujitsu
![](/img.php?id=2258009&img=bg15.png)
First-time setup of your device

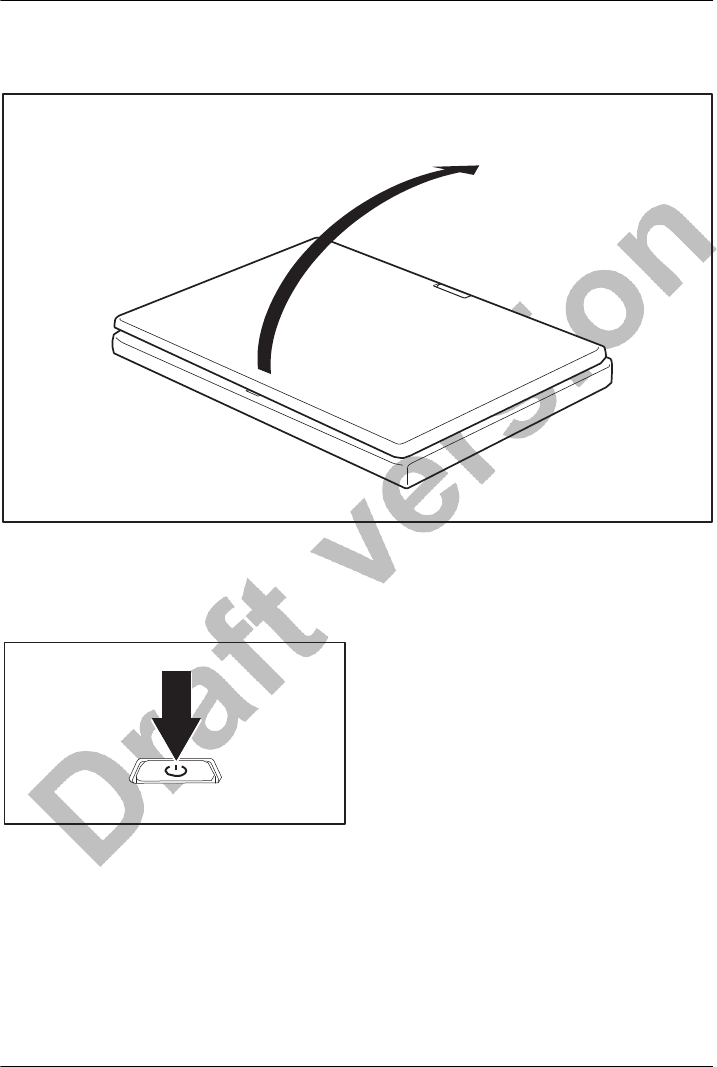

Switching on the device for the first time
Switchingonforthefirstt ime
To make it easier to use your device for the first time, the operating system
is pre-installed on the hard disk.
1
►Press the ON/OFF button (1) for about one second to switch the device on.
►During the installation process, follow the on-screen instructions.
You can find information and help on the Windows operating system functions
on the Internet at "http://windows.microsoft.com".
If a Windows 8.1 operating system is installed on your Tablet PC, a tutorial is
automatically started when a new user logs on for the first time, which shows
you how to use the new functions of Windows 8.1.
Fujitsu 19
![](/img.php?id=2258009&img=bg16.png)
First-time setup of your device
Installing Bonus Apps
After you have started your system the first time, you will see a Bonus Apps icon on your desktop.
►Click on the icon to see which additional applications are available for you to install.
Applications that are already installed appear in grey, those that are
available for installation appear in blue.
►Select the applications you wish to install by selecting the checkbox adjacent to your selection.
or
►Click Select All if you would like to install all available applications
►To confirm your selection click Install.
Note that in some cases (depending upon which application was selected for
installation) after installation completes, the system will prompt you to reboot.
There are also cases in which if multiple applications are selected to install
but one of them needs a reboot, the system will reboot and continue
installing the rest of the selected applications.
20 Fujitsu
![](/img.php?id=2258009&img=bg17.png)
Working with the Tablet PC
Working with the Tablet PC
Tablet,operationTablet
This chapter describes the basics for operating your Tablet PC. You can find instructions
on how to connect external devices (e.g. mouse, flash storage) to the Tablet PC in
the chapter "Connecting external devices", Page 63.
Please refer to the notes in the chapter "Important notes", Page 12.

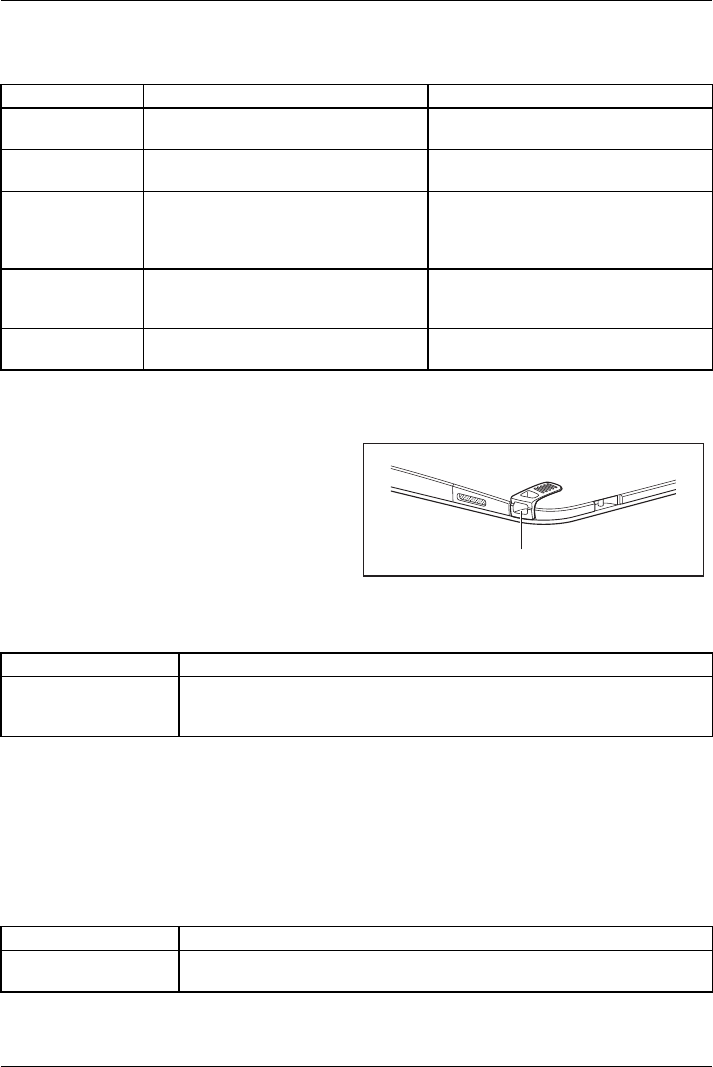

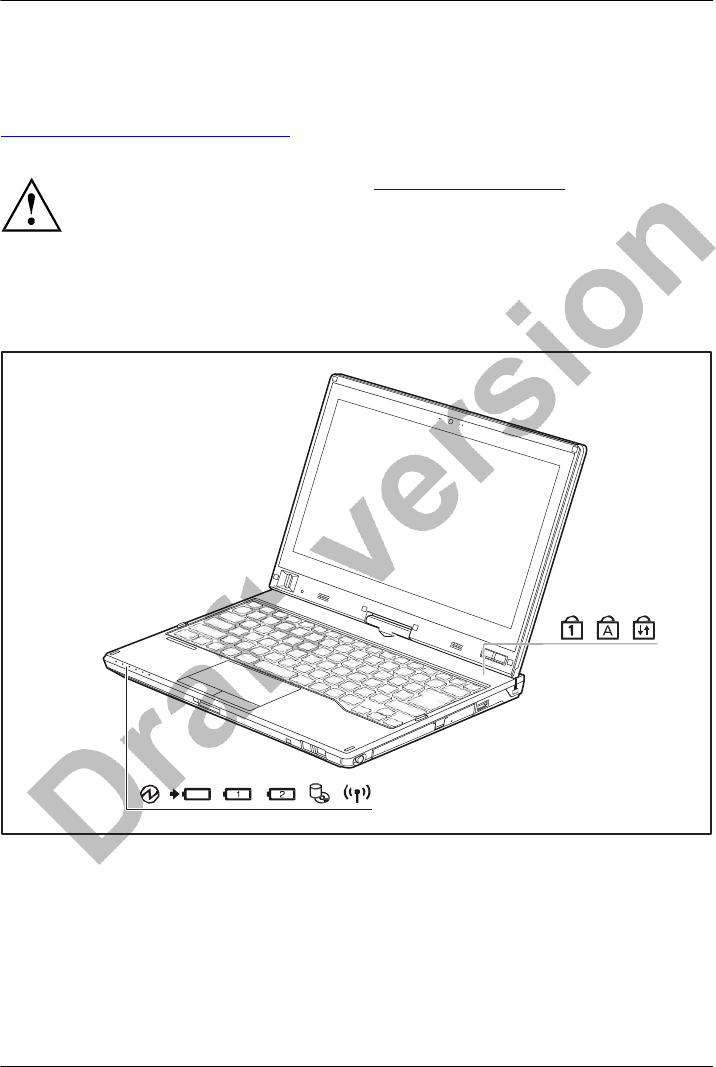

Battery charging indicator
StatusindicatorsSymbols
The battery charging indicator (4) provides information about the status of the power supply.
1
23
5
6
4
7
8
Status / color Description
On (Red) The battery is being charged.
Off The Tablet PC is switched off or in Save-to-Disk mode.
Fujitsu 21
![](/img.php?id=2258009&img=bg18.png)
Working with the Tablet PC
Switching the Tablet PC on
Tablet:SwitchingonPower-onPower-onindicatorSuspend/Resume button
1

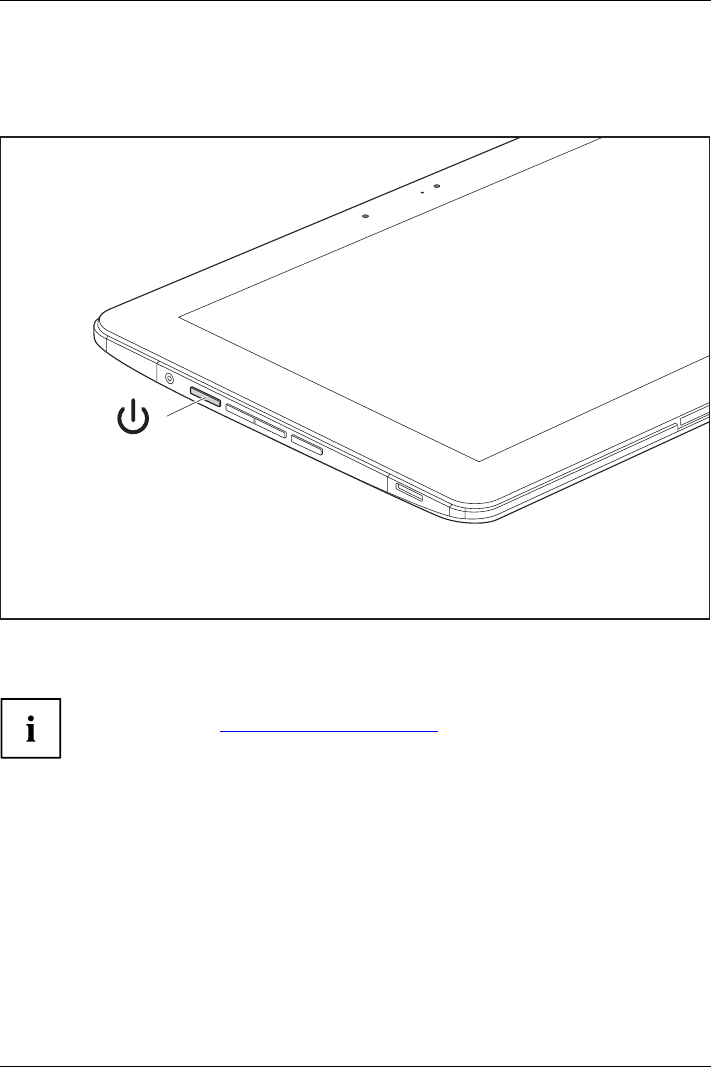

►Press the ON/OFF button (1) for about one second to switch the device on.
Programing the ON/OFF button
You can program the ON/OFF button:
Operating system Menu
Windows 8.1 Windows 8.1 Desktop - Control Panel - Hardware
and Sound - Power Options
If you have assigned a password, you must enter this when requested to
do so, in order to start the operating system. Detailed information can be
found in the chapter "Security functions", Page 56.
22 Fujitsu
![](/img.php?id=2258009&img=bg19.png)
Working with the Tablet PC
Switching the Tablet PC off
Back up your data and close all applications before you switch off your
device. Otherwise data might be lost.
►Shut down the operating system correctly.
Tab l e t P C
or
►Press the ON/OFF button for < 2 seconds to switch into connected standby mode.
or
►Press the ON/OFF button for > 2 seconds to < 10 seconds to display the
"Sweep downwards to switch off" popup.
or
►If the Tablet PC is not switched off automatically, press the ON/OFF button
for about 10 seconds (forced shutdown).
Handwriting recognition
For detailed information on handwriting recognition, see the documentation for your operating system.
Under Windows 8.1 you can set the required language under Control Panel –
Time, Language and Region – Language.
Fujitsu 23
![](/img.php?id=2258009&img=bg1a.png)
Working with the Tablet PC
Touchscreen
Tou ch s c re e nNotes
High-quality LCD screens (TFT) are installed in Fujitsu Tablet PCs. For technical reasons,
these screens are manufactured for a specific resolution. An optimal, clear picture can
only be ensured in the resolution intended for the particular screen. A screen resolution
which differs from the specification can result in an unclear picture.
The screen resolution of your Tablet PC’s touchscreen is optimally set at the factory.
Current production technology cannot guarantee an absolutely fault-free screen display. A few
isolated constantly lit or unlit pixels (picture elements) may be present. The maximum permitted
number of such faulty pixels is specified in the international standard ISO 9241-307 (Class II).
Example:
A screen with a resolution of 1280 x 800 has 1280 x 800 = 1024000 pixels. Each pixel consists of
three subpixels (red, green and blue), so there are almost 3 million subpixels in total. According to ISO
9241-307 (class II), a maximum of 2 light and 2 dark pixels and in addition 5 light or 10 dark subpixels
or an equivalent mix (1 light subpixel counts as 2 dark subpixels) are allowed to be defective.
Pixel A pixel consists of 3 subpixels, normally red, green and
blue. A pixel is the smallest element that can be generated
by complete functionality of the display.
Subpixel A subpixel is a separately addressable internal structure
within a pixel that enhances the pixel function.
Cluster A cluster contains two or more defective pixels or
subpixels in a 5 x 5 pixel block.
Background lighting
LCD screens are operated with background lighting. The luminosity of the background
lighting can decrease over the period of use of the Tablet PC. However, you can
set the brightness of your screen manually.
Ambient light sensor
If your Tablet PC was shipped with the Windows operating system, the screen brightness is
regulated by means of the ambient light sensor and depending on the respective light conditions.
This results in optimum readability and longer battery life at the same time.
If your Tablet PC was shipped with Windows 8.1, the adaptive brightness setting is deactivated. To
change the ambient light sensor settings, select Control Panel - System and Security - Power Options -
Change plan settings - Change advanced power settings - Display - Activate adaptive brightness setting..
Select On to activate the adaptive brightness setting with the help of the ambient light sensor.
Synchronizing the display on the touchscreen and an external monitor
In Windows 8.1 wipe your finger over the screen from the right-hand edge. The setting
Charms - Devices - Second monitor opens. Select the desired output type.
You can also use the Fujitsu Display Manager in the Windows Mobility Center to set the output type.
24 Fujitsu
![](/img.php?id=2258009&img=bg1b.png)
Working with the Tablet PC
Select display orientation (portrait or
landscape format)
Landscapeform atPortraitformatDisplayorientation
You can choose to use either portrait or landscape format for the display.
Windows 8.1
You can change these settings under Windows 8.1 Desktop - Control Panel -
Hardware and Sound - Windows Mobility Center / Rotate screen.
To switch off the automatic changing between portrait and landscape format, select Control
Panel - Appearance and Personalization - Display - Screen Resolution.
In the Fujitsu Tablet Controls settings, profiles are saved for operation
with different screen orientations. These profiles have preset standard
configurations that can be modified as desired.
These settings do not just affect the monitor settings on the Tablet PC,
but also on external monitors that are connected.
Touch commands
You can execute certain commands by using your finger tip on the touchscreen of your device.
Alternatively, everything which you can select or activate using your finger
tip can also be selected or activated using the stylus.
Calibrate the Dual Digitizer for finger-based
operation of the device.
If Windows 8.1 is installed on your Tablet PC, your Tablet PC is
already calibrated at initial setup.
If a different operating system is installed on your Tablet PC, you must calibrate it with
your fingers before first use, so that it recognizes your fingertips as accurately as possible.
As soon as you ascertain that the accuracy is deteriorating, you
must recalibrate the device.
Operating system Menu
Windows 8.1 Desktop To calibrate, run the Hardware and Sound / Tablet PC Settings function in the
Control Panel. You need to calibrate both portrait and landscape formats.
Fujitsu 25
![](/img.php?id=2258009&img=bg1c.png)
Working with the Tablet PC
Actions with one finger (Windows 8.1 Modern)
Action Description
Wipe your finger over the screen from the
right-hand edge.
►Open Charms with system commands
(equivalent to pressing the Windows button +
Cbutton).
►Working with the mouse: Position the mouse
pointer at the bottom right-hand edge of the
screen.
Wipe your finger over the screen from the
left-hand edge.
►Switch between the most recently used
applications (equivalent to pressing the
Windows button + Ctrl +Space).
►Working with the mouse: Position the mouse
pointer at the bottom left-hand edge of the
screen.
Wipe your finger over the screen from the top
or bottom edge.
►Open the App commands (equivalent to
pressing the Windows button + Zbutton).
Wipe from the top to the bottom of the screen
to dock or close the current App.
►Working with the mouse: Right-click on the
Apptod
isplay the App commands.
26 Fujitsu
![](/img.php?id=2258009&img=bg1d.png)
Working with the Tablet PC
Action Description
Press and hold ►Keep your finger pressed on an object on the
screen to display a menu with further options.
►Working with the mouse: Move the mouse
pointer over the object to display a menu with
further options.
Taponanobject ►Ta p y our finger on an object on the screen
to open an App or a link or to execute a
command.
►Working with the mouse: Left-click on the
object.

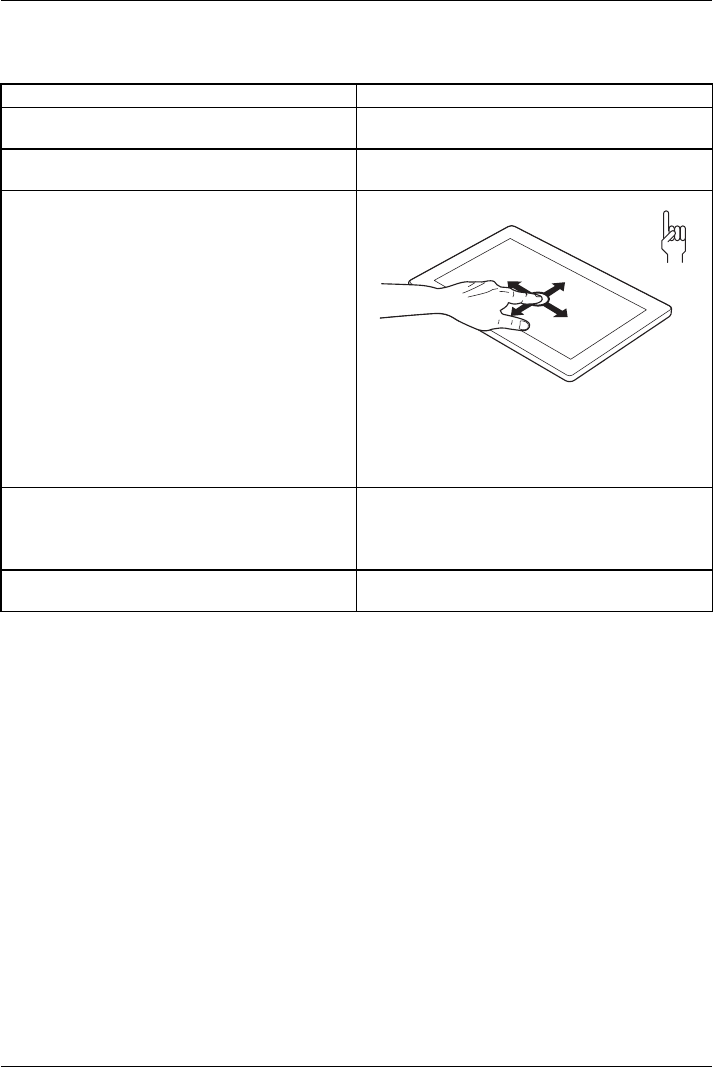

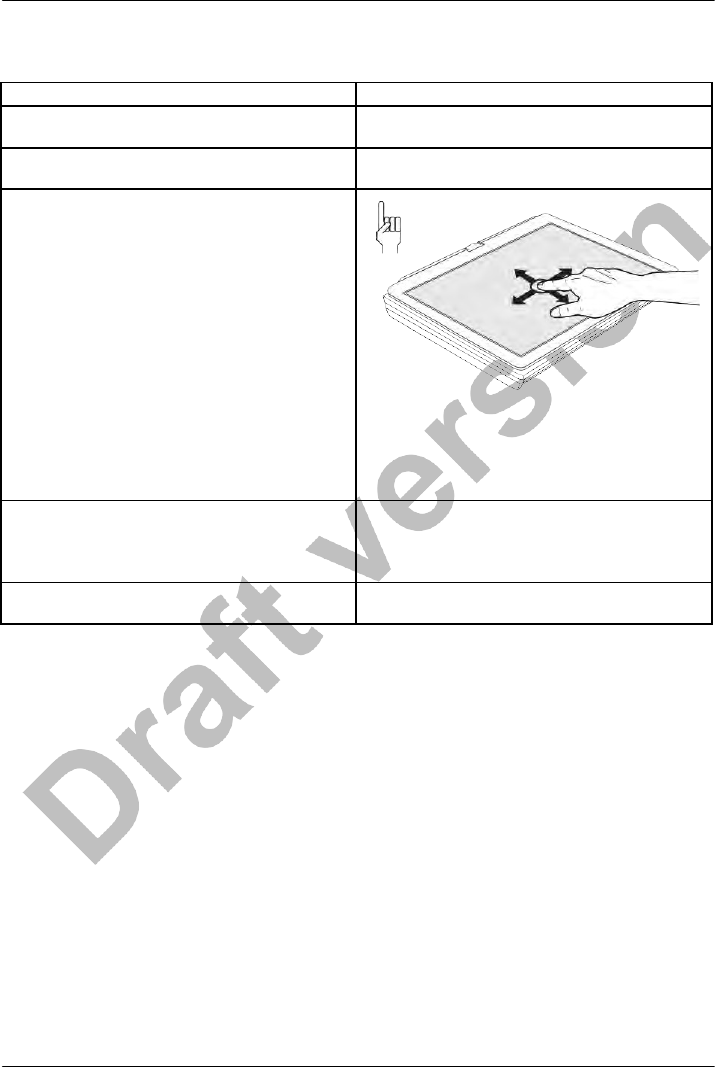

Scroll / Move object / Swivel object ►Use this function to scroll through lists or
websites or to swivel or move an object.
►Working with the mouse: Left-click on the
object, keep the mouse button pressed and
move / swivel the object or scroll.
Fujitsu 27
![](/img.php?id=2258009&img=bg1e.png)
Working with the Tablet PC
Actions with one finger (Windows 8.1 Desktop)
Action Description
Selecting objects (click with the left mouse
button)
►Tap once briefly with the finger on the object.
Starting programs (double-click with the left
mouse button)
►Use one finger to tap twice in quick
succession on the program symbol.
Moving objects/windows (while holding the left
mouse button pressed, drag & drop)
►Place your finger on the object/window,
keep your fingertip pressed against
the touchscreen and move the desired
object/window.
Opening a context menu (click with the right
mouse button)
►Tap your finger on the desired item.
Keep your fingertip pressed against the
touchscreen.
The context menu appears.
Moving the cursor ►Position one finger on the touchscreen and
move your fingers in the desired direction.
28 Fujitsu
![](/img.php?id=2258009&img=bg1f.png)
Working with the Tablet PC

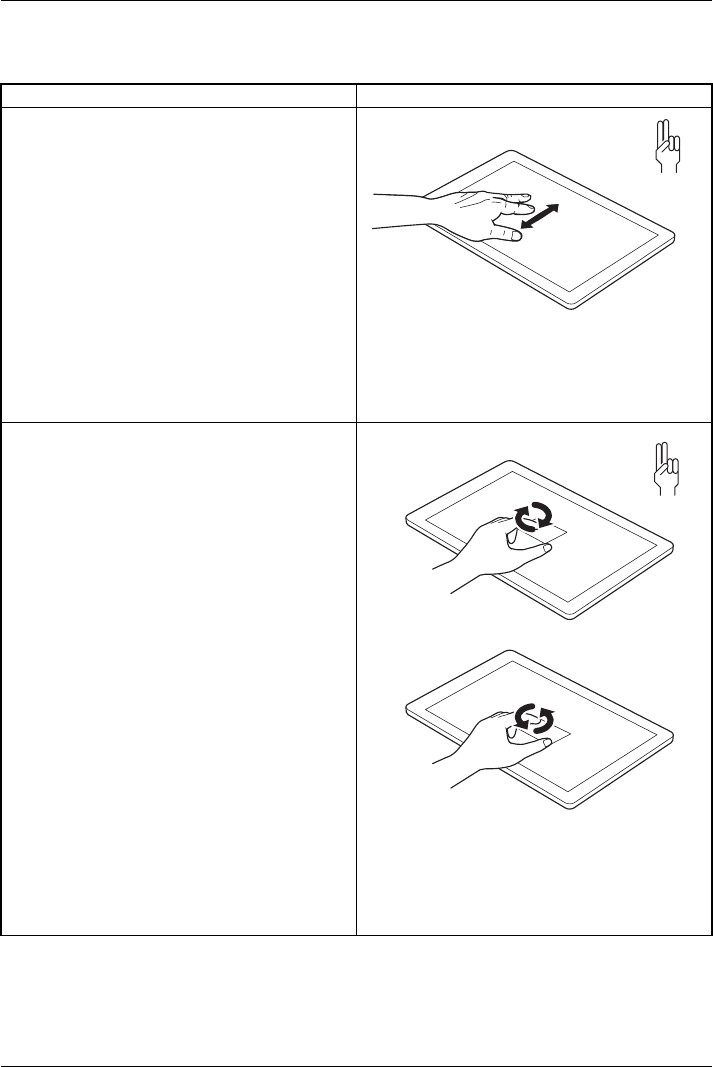

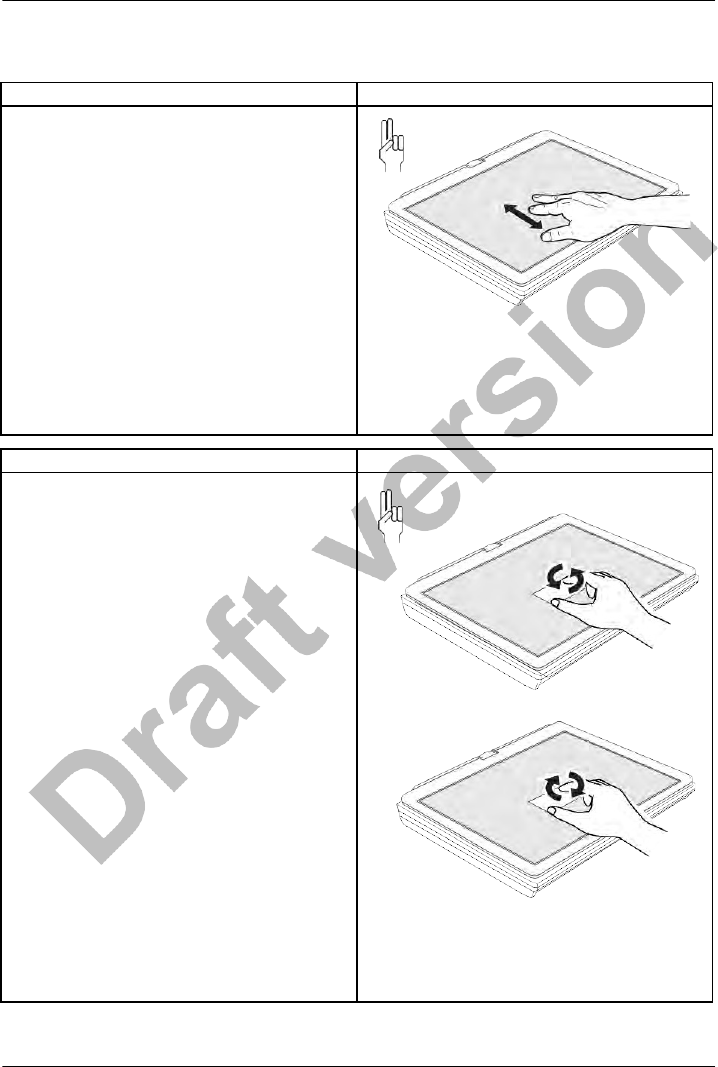

Actions with two fingers (Windows 8.1 Desktop)
Action Description
Scrolling
►Place two fingers on the touchscreen.
►Move the fingers up to scroll up.
or
►Move the fingers down to scroll down.
Rotating
►Position your thumb on the touchscreen and
rotate the image clockwise or anticlockwise
using your index finger.
Fujitsu 29
![](/img.php?id=2258009&img=bg20.png)
Working with the Tablet PC
Action Description

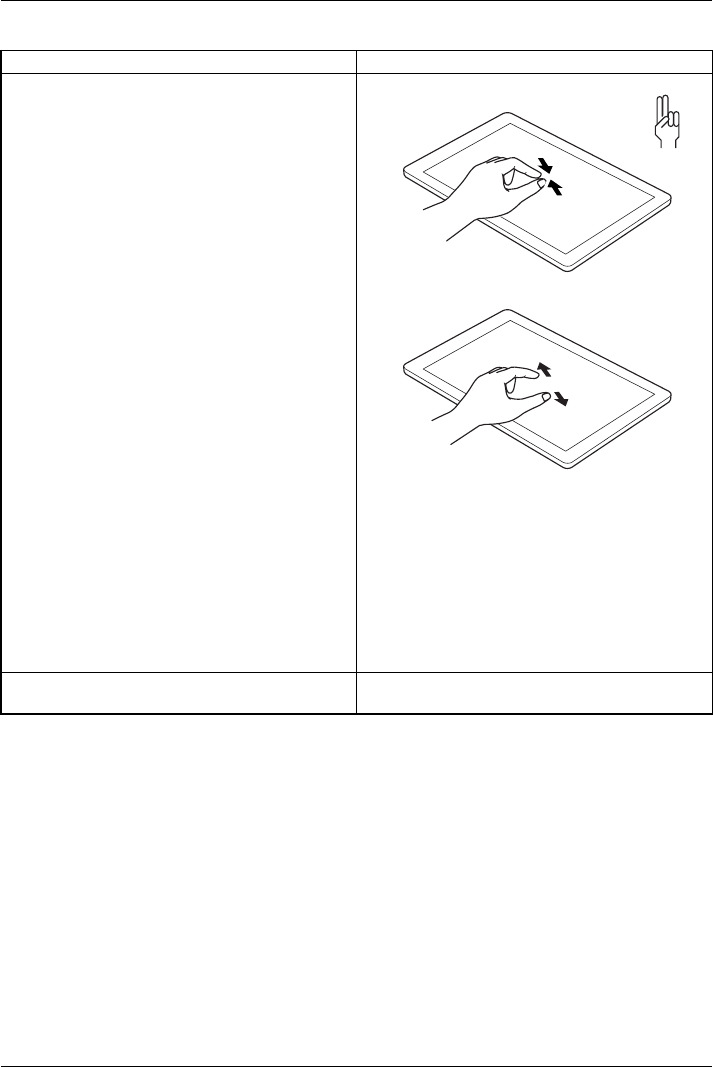

Increase or decrease zoom
►Put two fingers on the touchscreen and
move them apart to increase the size of the
zoom.
or
►Put two fingers on the touchscreen and
move them together to decrease the size
of the zoom/view.
Lock context-sensitive menus ►Use two fingers to tap twice in quick
succession on the touchscreen.
30 Fujitsu
![](/img.php?id=2258009&img=bg21.png)
Working with the Tablet PC

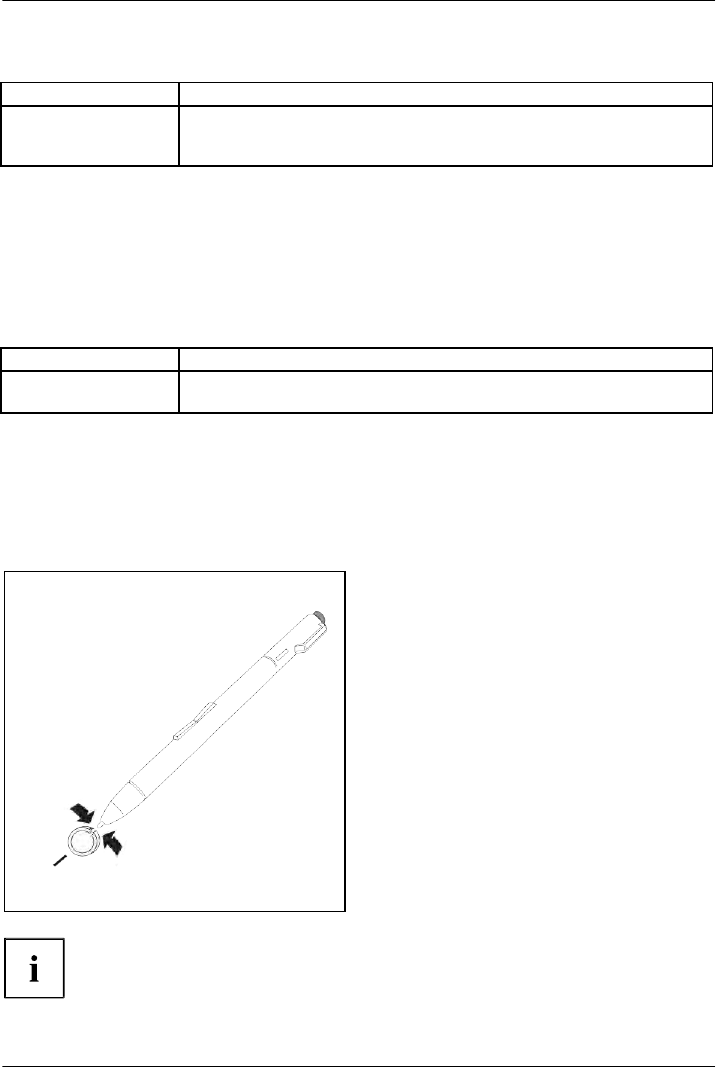

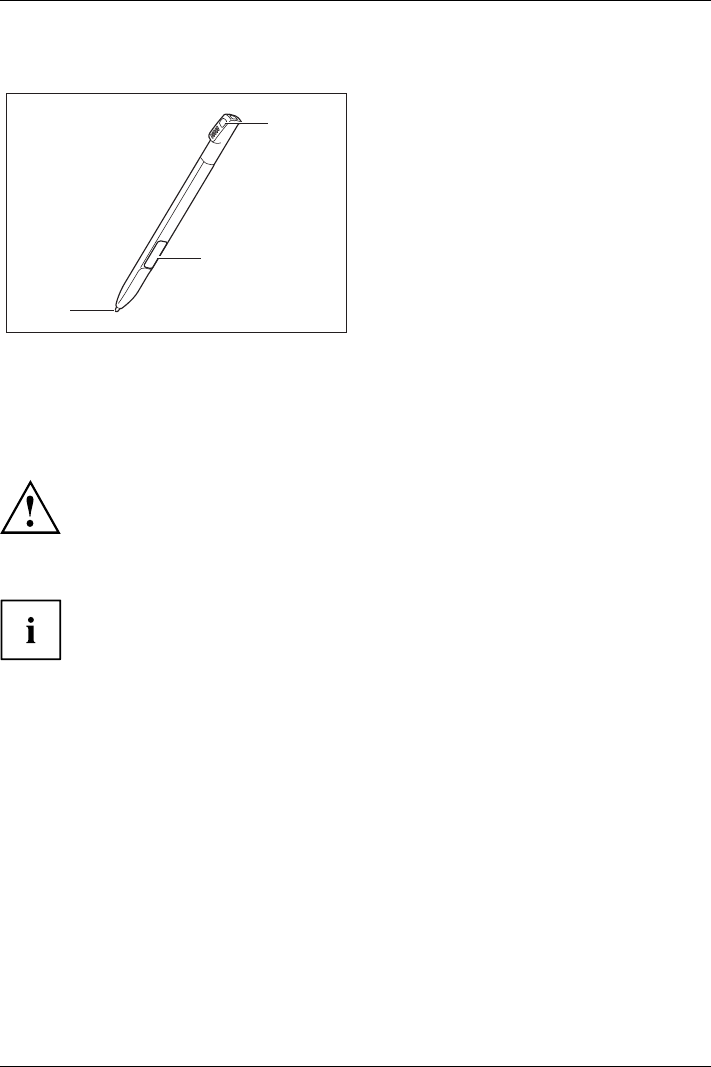

Using the stylus
Stylus
1
2
3
1 = stylus tip
2 = stylus button (= right mouse button)
3 = stylus tether attachment point
You can use the stylus on your Tablet PC as an electronic writing tool, to select menu items, and to
navigate through the programs. Programs that support handwriting recognition also allow you to
write directly on the screen with the stylus. You can also use the stylus as a drawing tool.
The Tablet PC is supplied with a stylus tether which you can attach to the attachment
points on the stylus and on the Tablet PC.
Use only the stylus that was provided with your Tablet PC. Do not use any other pointed
object as a substitute, that was not specially designed for your Tablet PC. Replace
the stylus tip if it is worn. The warranty does not cover a scratched screen.
While writing, take care that you do not scratch the surface of the
display (e.g. with a wristwatch or bracelet).
The stylus of the Tablet PC is an electronic instrument that can be damaged
if used improperly. Handle the stylus with care.
Our recommendations for proper handling of the stylus are as follows:
• Do not gesture with the stylus.
• Do not use the stylus as a pointer.
•Donotuseth
e stylus on surfaces other than the screen of the Tablet PC.
• Do not try to turn the grip of the stylus. The grip is used to put the
stylus into its slot and to take it out of its slot.
• Never store the stylus with its weight on the tip (e.g. with the tip down in a stylus
container). If the stylus is stored with the tip pointing down, this may have an
adverse effect on the stylus mechanism (particularly under high temperatures). In
this case the stylus tip may react as though it is constantly being pressed down. To
avoid damage, the stylus should be stored in the stylus slot when not in use.
The stylus can be influenced by electromagnetic fields (cursor quivers or
jumps). There may be a few areas on the screen where the cursor quivers
slightly in spite of pressing the stylus down firmly.
The screen responds to entries made with the tip of the finger or the stylus when the
tip of the finger or the stylus directly touches the screen.
You can use the stylus to perform almost all functions for which you would otherwise use a mouse.
Fujitsu 31
![](/img.php?id=2258009&img=bg22.png)
Working with the Tablet PC
Delete functions are not supported by the stylus.
Action Mouse Stylus
Selecting menu
items
Click with the left mouse button. Tap on the menu entry with the tip of
the stylus.
Starting programs Double-click with the left mouse
button.
Tap on the program symbol twice in
rapid succession using the stylus tip.
Moving an object
or window
Drag with the left mouse button
pressed.
Place the stylus tip directly on the
object or window. Keep the stylus tip
held against the screen. Drag the
desired object or window.
Opening a context
menu
Click with the right mouse button. Tap on the desired element with the
stylus and keep the stylus pressed
against the screen.
Moving the cursor Move the mouse Place the tip of the stylus directly on
the screen.
Stylus location
On delivery, the stylus is located in the stylus
holder:
1
Adjusting the stylus
Operating system Menu
Windows 8.1 Under Windows 8.1 Desktop - Control Panel - Hardware and Sound - Pen and
Touch Input you can make various settings for the stylus (assignment
and function of the stylus button).
Calibrating the stylus
If Windows 8.1 is installed on your Tablet PC, your Tablet PC is already calibrated at initial setup.
If a different operating system is installed on your Tablet PC, you must calibrate it with the
stylus before first use, so that it recognizes the stylus as accurately as possible.
You should also always repeat the calibration if the co-ordination between the
stylus and the cursor movement deteriorates.
Operating system Menu
Windows 8.1 Desktop To calibrate, run the Hardware and Sound / Tablet PC Settings function in the
Control Panel. You need to calibrate both portrait and landscape formats.
32 Fujitsu
![](/img.php?id=2258009&img=bg23.png)
Working with the Tablet PC
Replacing the stylus tip
With use, the stylus tip may become worn or may pick up foreign particles that can scratch the screen.
A damaged or worn tip may not move freely, causing unpredictable results when using the stylus.
If your stylus exhibits these problems, replace the stylus tip. To do this, use the supplied tool (1).
1
►To remove the tip, position it in the gap
between the two ends of the tool supplied.
►Pinch the two ends of the supplied tool
together so that the tip is firmly clasped,
then pull it from the barrel.
►Replace the tip with one of the new tips
that were supplied with your stylus. Insert
the flat end of the tip into the barrel
and exerting gentle pressure, push it
in until it is firmly in place.
If the tip is worn or damaged, discard it.
Installing a stylus tether
Attach the stylus with a stylus tether to prevent accidentally dropping it or losing it.
►Fasten the stylus tether to the attachment points on the stylus and the Tablet PC.
Fujitsu 33
![](/img.php?id=2258009&img=bg24.png)
Working with the Tablet PC

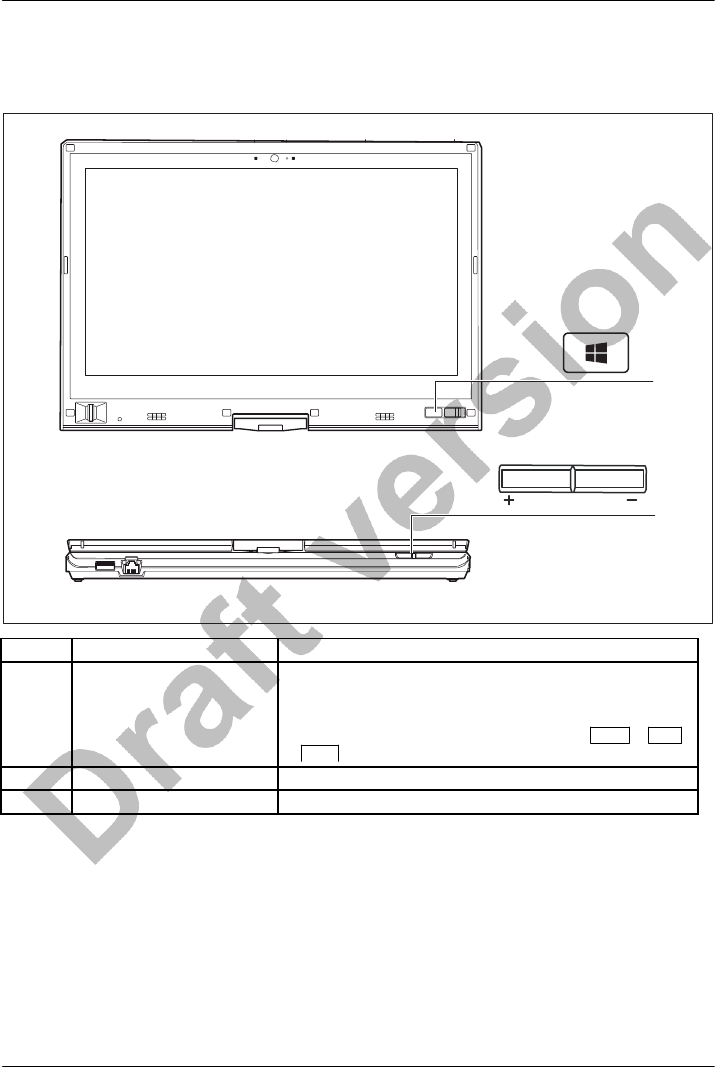

Tablet buttons
Your Tablet PC is fitted with three tablet buttons.
Symbol Description Functions
+Volume + button Increase volume
–Volume - button Decrease the volume
––– Shortcut button Call the status area by pressing or start a screenshot
function by a long press (depends on configuration)
34 Fujitsu
![](/img.php?id=2258009&img=bg25.png)
Working with the Tablet PC
Webcam
Webcam
Your device has two webcams: one on the front of the device and one on the rear.
The webcam has its own status indicator. The indicator lights up when the webcam is active.
Depending on the software used, you can use your webcam to take pictures,
record video clips or take part in web chats.
• The picture quality depends on the lighting conditions and the software being used.
• You can only operate the webcam with a particular application (e.g. an Internet telephony
program or a video conferencing program which supports a webcam).
• When using the webcam the support of the Tablet PC must not wobble.
• The webcam automatically adjusts itself to the current light level. For this reason,
the touchscreen may flicker while the light level is adjusted.
Further information on use of the webcam and additional settings for your webcam
can be found in the help function of the program using the webcam.
Rechargeable battery
BatteryBatteryServicelife,batteryRechargeablebatteryBattery
The built-in battery provides the Tablet PC with the necessary power for use on the move.
You can increase the service life of the battery by caring for the battery properly. The
average battery service life is around 500 charge/discharge cycles.
You can extend the battery service life by taking advantage of the available energy saving functions.
Charging and maintaining the battery
BatteryBattery
The Tablet PC battery can only be charged when the ambient temperature is
between 5°C / 41 °F and max. 35°C / 95°F.
You can charge the battery by connecting the Tablet PC to the AC adapter
(see "Connecting the AC adapter", Page 18).
If the battery is running low you will hear a warning alarm. If you do not connect the AC adapter
within five minutes of hearing the warning alarm, your Tablet PC will switch off automatically.
Monitoring the battery state of charge
Batterybatterychargemeter
A battery symbol for monitoring the battery capacity is displayed in the system bar /
status indicator. The battery symbol shows you the battery charge.
Fujitsu 35
![](/img.php?id=2258009&img=bg26.png)
Working with the Tablet PC
Using the energy saving functions
EnergyEnergyBattery
The Tablet PC uses less power when the power management features are enabled. You will
then be able to work longer when using the battery before having to recharge it.
The energy efficiency is increased and environmental pollution is reduced.
By choosing the best power options, you can make significant savings and
at the same time help protect the environment.
We recommend the following settings:
Function Operating on AC power Operating on battery power
Turn off display After 10 minutes After 5 minutes
Turn off hard disk(s) After 15 minutes After 10 minutes
Energy saving After 20 minutes After 15 minutes
►Set the energy saving functions in your Control Panel.
►Set the screen saver in your Control Panel.
or
►Keep a finger pressed on the desktop to display the context menu. Configure the screen
saver under Change screen saver.
If you need further information about an option, you can get help with most settings by
pressing the ?symbol in the upper right of the screen to open the Microsoft Help.
When the Tablet PC is in an energy saving mode, you must remember the following:
When the Tablet PC is in energy saving mode, open data is held in main
memory or in a swap file on the hard disk.
Never switch off the Tablet PC while it is in an energy saving mode. If the built-in battery
is nearly drained, close all open files and do not go into energy saving mode.
If you do not intend to use your Tablet PC for a long period of time:
►Exit the energy saving mode if necessary via touching the screen or by switching on the
Tablet PC.
►Close all opened programs and completely shut down the Tablet PC.
36 Fujitsu
![](/img.php?id=2258009&img=bg27.png)
Working with the Tablet PC
Memory cards
Slot
Your Tablet PC is equipped with an integrated storage card reader. Use storage
cards to enlarge the storage of your Tablet PC.
Follow the manufacturer’s instructions when handling the memory cards.
Memorycard
Supported formats
It supports the following formats:
• Micro Secure Digital (SDTM Card)
•MicroSDHC
•MicroSDXC

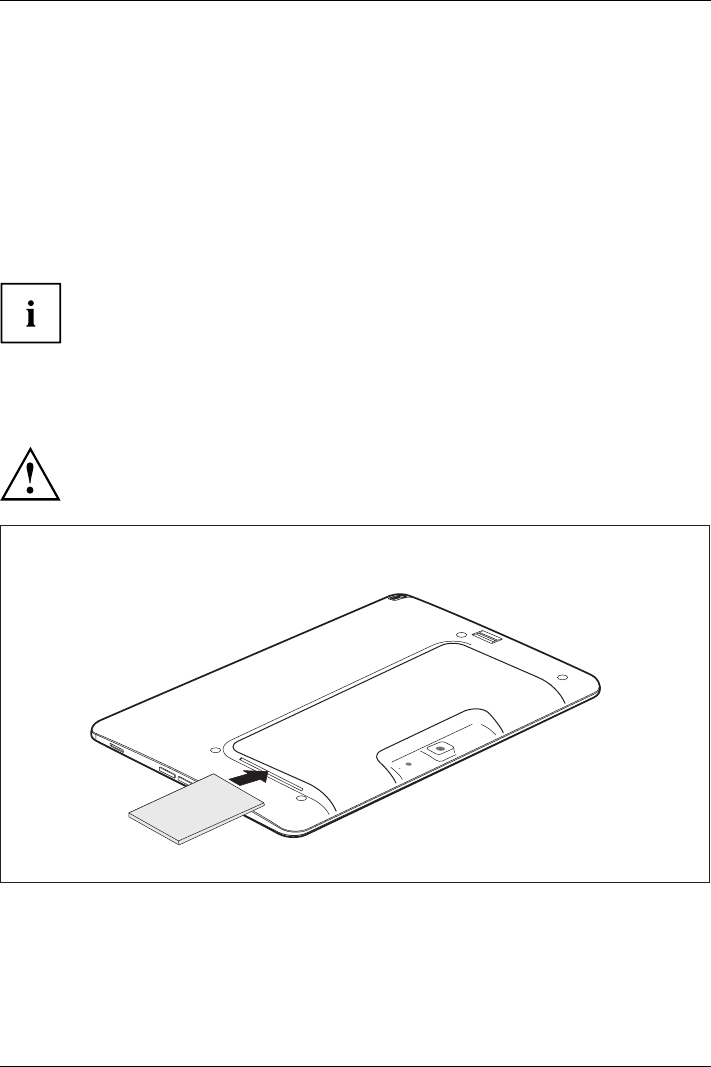

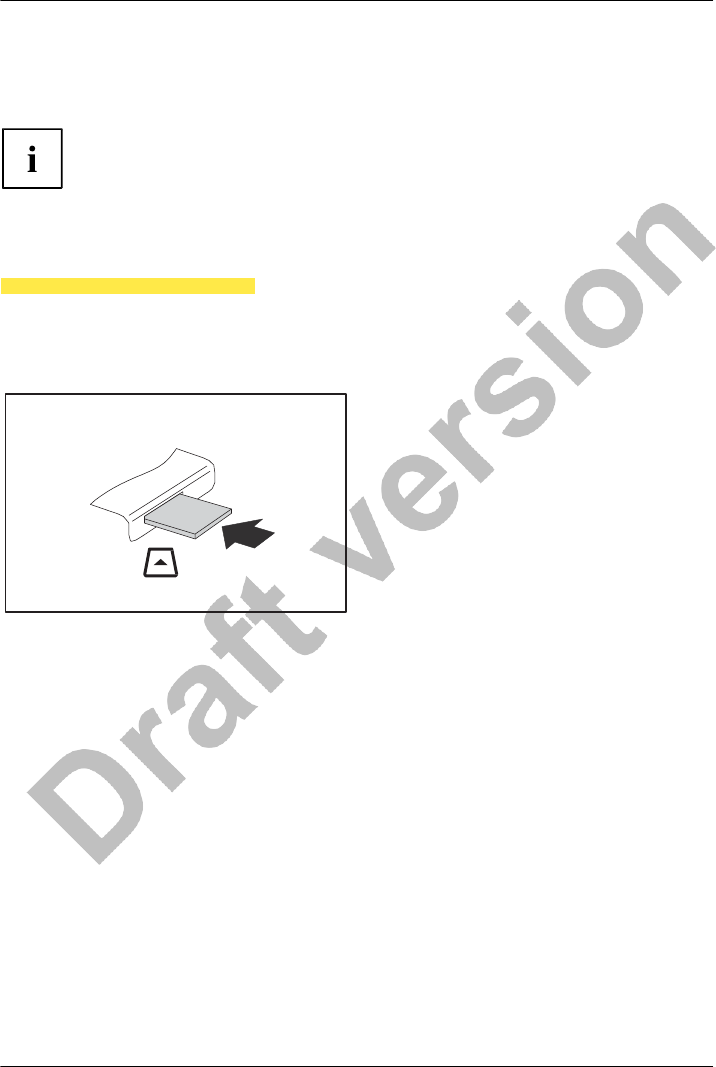

Inserting the memory card
2
1
►Open the slot cover (1).
►Carefully slide the storage card into the slot (2). The label area must be facing upward. Do
not apply any force, otherwise the delicate contact surfaces could be damaged.
Memorycard
►Close the slot cover.
Fujitsu 37
![](/img.php?id=2258009&img=bg28.png)
Working with the Tablet PC
Removing the memory card
Memorycard
To avoid any loss of data, always follow the correct procedure for removing the
card (see the documentation for your operating system).
►Open the slot cover.
1
2
►Pull the storage card out of the slot (1).
►Close the slot cover (2).
38 Fujitsu
![](/img.php?id=2258009&img=bg29.png)
Working with the Tablet PC
SIM card
A SIM Card (Subscriber Identity Module) is a chip card which is inserted in a cellular phone or Tablet
PC and, together with an integrated UMTS/4G module, enables access to a cellular radio network.
Follow the instructions supplied by the provider of the SIM card. If you do not feel the
the SIM card engage as you insert it, use a pointed object to insert the SIM card.
Please note that the SIM card format must be micro-SIM (3FF). Other SIM
card formats, such as full-size (1FF), mini-SIM (2FF) or nano-SIM (4FF) do
not fit in the SIM card slot of your Tablet PC.
Please do not insert any other format of SIM card as they may become
twisted, they could even damage the system.

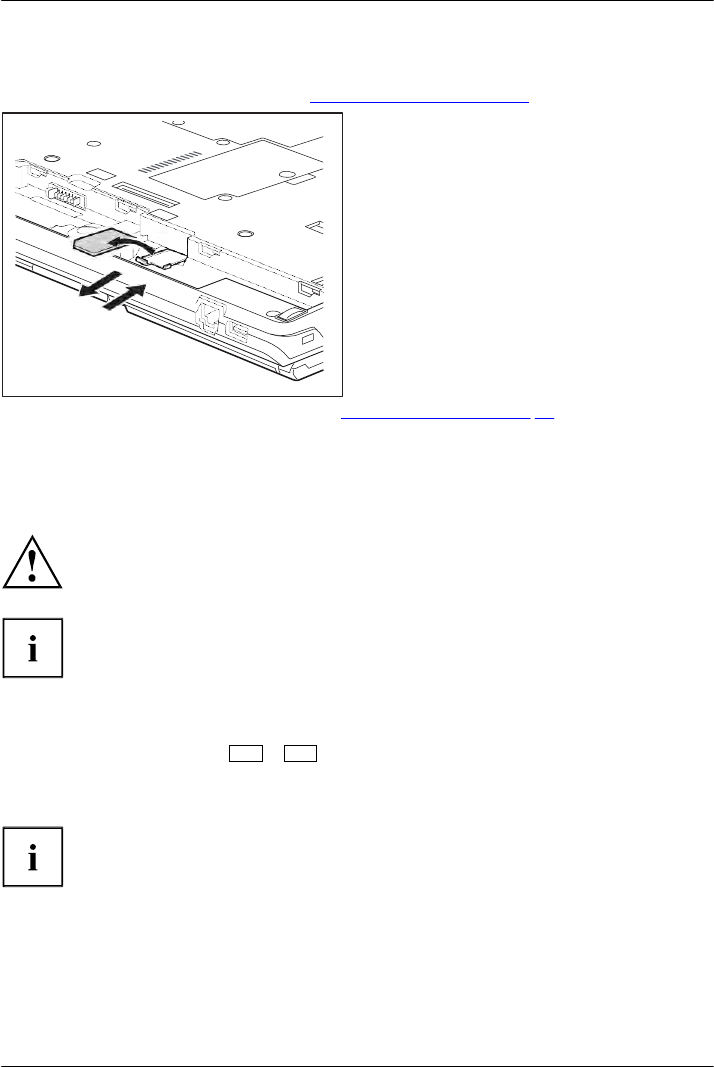

Inserting a SIM card
2
1
►Open the slot cover (1).
►Carefully push the SIM card into the slot (2) until the SIM card clicks into place.
The label area must be facing upward. Do not apply any force, otherwise the
delicate contact surfaces could be damaged.
►Close the slot cover.
Fujitsu 39
![](/img.php?id=2258009&img=bg2a.png)
Working with the Tablet PC

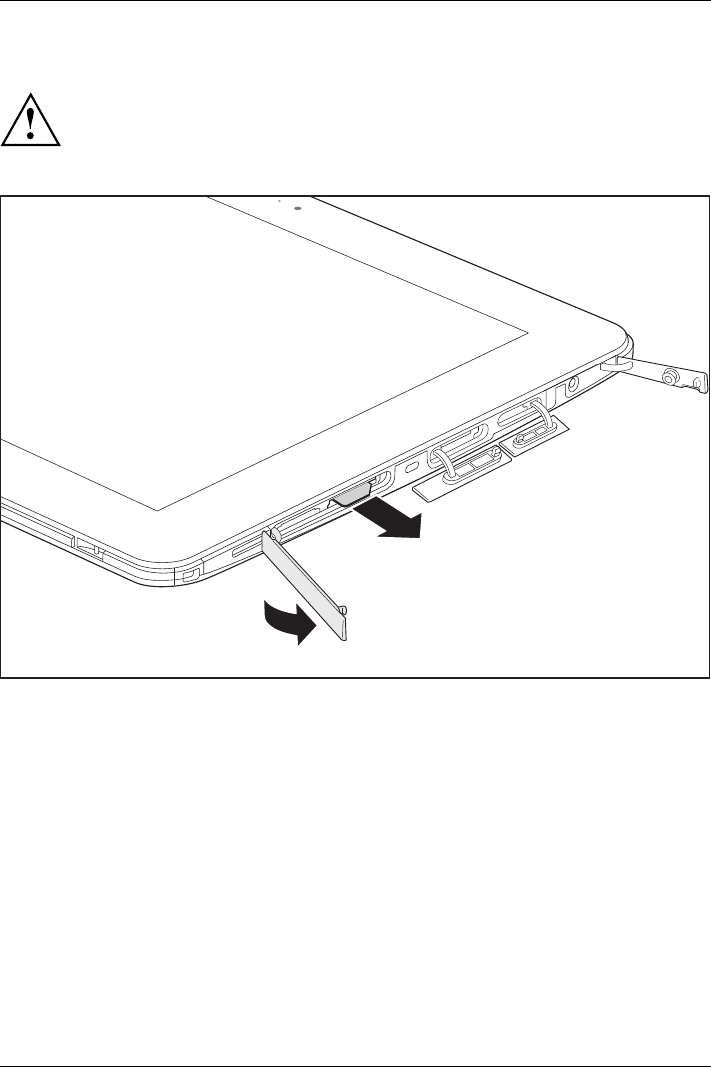

Removing a SIM card
►Open the slot cover.
1
2
►Pull the SIM card out of the slot (1).
►Close the slot cover (2).
Wireless LAN/Bluetooth/UMTS/4G radio components
The installation of radio components not approved by Fujitsu will invalidate
the certifications issued for this device.
Switching the wireless components on and off
The radio components are switched on and off using the appropriate functions of the operating system.
►To switch radio components on and off individually, select Settings – Change
PC settings – Wireless – Wireless devices – Off.
40 Fujitsu
![](/img.php?id=2258009&img=bg2b.png)
Working with the Tablet PC
Setting up WLAN access
• Requirement: A WLAN must be available and you must have the
corresponding access information.
Information on configuring the WLAN access can be found in the
documentation for your operating system.
Further information on WLAN and Bluetooth
For further information about WLAN or Bluetooth, see the Appendix of this manual.
For WLAN specifications, see chapter "WLAN specifications", Page 80.
Access via UMTS
If you ordered an integrated UMTS module with your system, you can enjoy optimum
reception and maximum energy efficiency without awkward cables or antennas. The
optional UMTS module is ready for use immediately.
You will find information on establishing the connection with the UMTS network
in the documentation for the hardware used.
Your device can connect to the Internet via UMTS. To do this, use one of
the following types of connection:
• Integrated UMTS module (availability dependent on your configuration)
• a USB dongle (a USB stick with your mobile phone provider’s SIM card)
• a mobile end-device (e.g. mobile phone with Bluetooth or cable connection)
Access via Wireless WAN
You can purchase the accessories for Wireless WAN reception from your Fujitsu dealer.
If you have ordered a Wireless WAN module, your device will already
be prepared when you receive it.
You will find information on establishing the connection with the Wireless WAN
network in the documentation for the hardware you plan to use.
Fujitsu 41
![](/img.php?id=2258009&img=bg2c.png)
Working with the Tablet PC
Ethernet and LAN (only with docking cradle)
EthernetLAN
The internal network module of your Tablet PC supports Ethernet LAN. You can use it to
establish a connection to a local network (LAN = Local Area Network).
2
1
►Connect the network cable to the LAN
port of the cradle (1).
►Connect the network cable to your
network connection (2).
Your network administrator can help you to configure and use the LAN connections.
The network cable is not included in the delivery scope. This type of
cable can be obtained from a specialist dealer.
GPS
GPS
Whether your device has this function depends on the chosen equipment level.
42 Fujitsu
![](/img.php?id=2258009&img=bg2d.png)
Accessories for your Tablet PC (optional)
Accessories for your Tablet PC (optional)
The following accessories are available for your Tablet PC:
• Docking cradle for charging the Tablet PC with additional ports

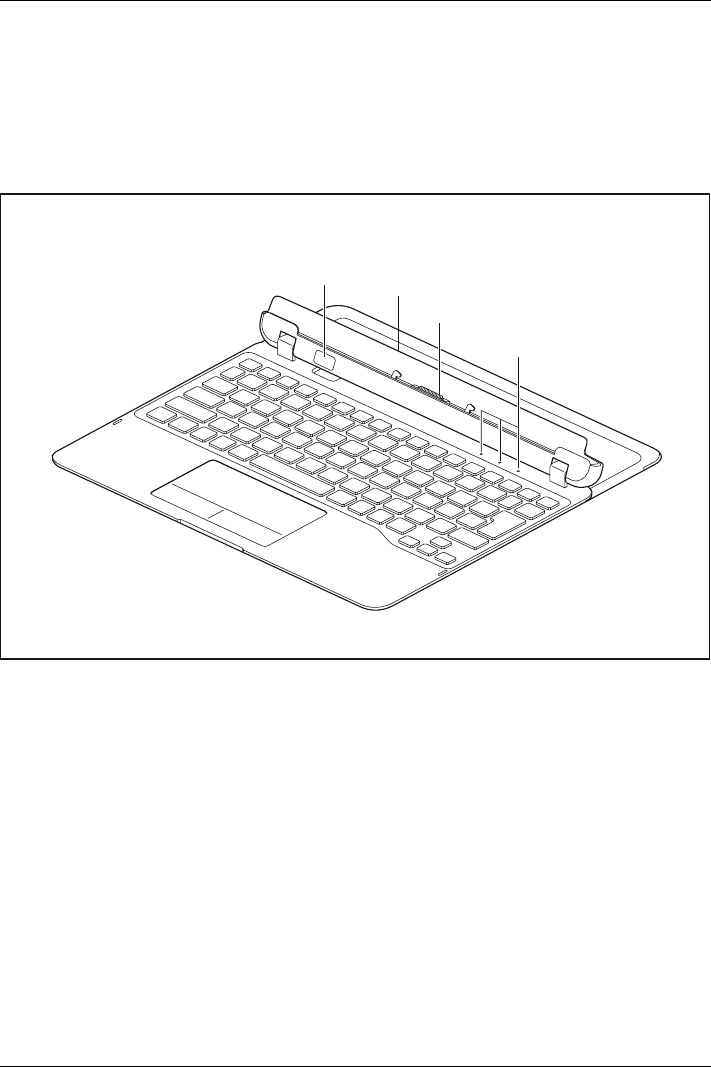

• Keyboard cover
• VESA mount
• Shoulder strap
• Folio case
• Micro USB adapter cables
The following sections provide more information on handling the accessories.
Your docking cradle (optional)
As well as fast charging, your docking cradle is a device that also allows you to quickly connect
your Tablet PC to your peripherals such as a monitor, keyboard, mouse, etc. You only need
to dock the Tablet PC to be able to work with your peripheral devices.
Docking cradle components
PortsPortsCradle
1
2
3
3
4
5
67
1 = Connector on the cradle for the docking
port of the Tablet PC
2=USBport2.0
3=USBport2.0
4 = VGA monitor port
5=HDMI
6 = LAN port
7 = DC jack socket (DC IN)
Fujitsu 43
![](/img.php?id=2258009&img=bg2e.png)
Accessories for your Tablet PC (optional)
Setting up the cradle
Select a suitable location for the cradle before setting it up. In doing
so, please follow these instructions:
• Placethecradleonaflat, stable, non-slippery surface.
• Never place the cradle or the AC adapter on a heat-sensitive surface.
• Do not expose the cradle to extreme environmental conditions.
Protect the cradle from dust, moisture and heat.
Connecting the Tablet PC to the cradle
It is possible to connect the Tablet PC to the cradle while it is running. To prevent
problems, we recommend that you switch the Tablet PC off first.
Disconnect the AC adapter from the Tablet PC before connecting
the Tablet PC to the cradle.
When the Tablet PC is connected to the cradle, you must connect
the AC adapter to the cradle.
Information for using the docking cradle:
• If your Tablet PC is connected to the docking cradle, the micro USB port of the
Tablet PC cannot be used. Use the alternative ports of the cradle.
• The HDMI and VGA ports of the docking cradle cannot be used at the same time. If
devices are connected to both ports, only the device at the HDMI port can be used.
• The maximum supported resolution for VGA/HDMI is 1920 x 1080 pixels.
Cradle
►Switch the Tablet PC off.
►Remove the AC plug of the AC adapter from the power outlet.
►Remove the AC adapter cable from the DC jack (DC IN) of the Tablet PC.
44 Fujitsu
![](/img.php?id=2258009&img=bg2f.png)
Accessories for your Tablet PC (optional)
1
2
3
4
►Position the Tablet PC so that it lies against the storage surface of the cradle.
►Push the Tablet PC on to the cradle in the direction of the arrow (1) until
you feel it engage on the connector.
►Plug the AC adapter cable into the DC jack (DC IN) on the cradle (2).
►Connect the AC cable to the AC adapter (3).
►Plug the AC cable into the power outlet (4).
Fujitsu 45
![](/img.php?id=2258009&img=bg30.png)
Accessories for your Tablet PC (optional)
Disconnecting the Tablet PC from the cradle
It is possible to separate the Tablet PC from the cradle while it is running. However,
to prevent any problems, we recommend that you switch the Tablet PC off first or that
you execute the appropriate undocking function provided by the operating system.
►Switch the Tablet PC off.
1
►While holding down the lower part of the cradle, lift the Tablet PC from
the cradle in the direction of the arrow (1).
46 Fujitsu
![](/img.php?id=2258009&img=bg31.png)
Accessories for your Tablet PC (optional)
Keyboard cover (optional)
The keyboard cover is an optimized device for the convenient input of text. It
only needs to be docked with the Tablet PC.
Keyboard cover ports
keyboardc overPorts
3
4
12
1=Releasebu
tton
2 = Sliding foot (pulled out)
3 = Connector for the docking port of
the Tablet PC
4 = Status indicators (Num Lock, Caps
Lock, Scroll Lock)
Fujitsu 47
![](/img.php?id=2258009&img=bg32.png)
Accessories for your Tablet PC (optional)

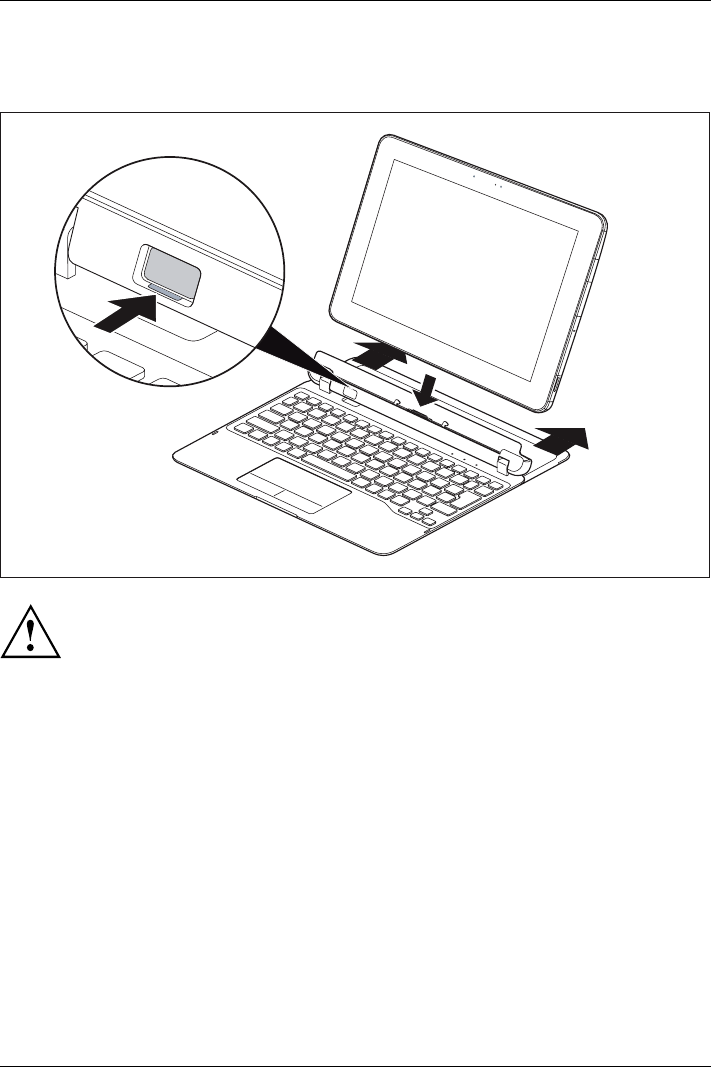

Connecting the Tablet PC to the keyboard cover
keyboardc over
►Position the keyboard cover on a flat, even surface.
1
1
3
2
To avoid toppling of the Tablet PC and resulting damage, always pull out
the sliding foot when using the keyboard cover.
►Fully pull out the sliding foot cover (1).
►Press the release button (2) until it firmly remains in pressed position (red marking visible).
►Push the Tablet PC on to the keyboard cover in the direction of the arrow
until you feel it engage on the connector (3).
48 Fujitsu
![](/img.php?id=2258009&img=bg33.png)
Accessories for your Tablet PC (optional)
Separating the Tablet PC from the keyboard cover
1
2
►Press and hold the release button on the keyboard cover (1).
►Lift the Tablet PC away from the keyboard cover in the direction of the arrow (2).
Fujitsu 49
![](/img.php?id=2258009&img=bg34.png)
Accessories for your Tablet PC (optional)
VESA mount (optional)
Use the VESA mount to secure the Tablet PC to a mount with the appropriate screw holes.
• When you attach the screws, use the correct tool and the correct tool size.
• Keep the screws out of the reach of children.
1
1
1
1
3
3
3
3
2
►Remove the four screws (1).
►Position the VESA mount on the Tablet PC (2). Make sure that the screw holes of the
VESA mount and of the Tablet PC lie exactly on top of each other.
►Secure the VESA mount using the screws (3).
50 Fujitsu
![](/img.php?id=2258009&img=bg35.png)
Accessories for your Tablet PC (optional)
Shoulder strap (optional)
• When you attach the screws, use the correct tool and the correct tool size.
• Keep the screws and mounts out of the reach of children.
• Do not use a motorized screw-driver so as to not damage the screws.
1
1
3
3
2
2
►Remove the screws (1).
►Position the fittings (2).
►Secure thefittings using the screws (3).
Fujitsu 51
![](/img.php?id=2258009&img=bg36.png)
Accessories for your Tablet PC (optional)
►Secure the shoulder strap to the fittings.
52 Fujitsu
![](/img.php?id=2258009&img=bg37.png)
Accessories for your Tablet PC (optional)
Folio case (optional)
• The folio case contains magnets. Keep away from objects that may be
easily affected by the influence of magnetism.
• LCD may be accidently turned on if the cover is not properly closed.
• Make sure the unit is firmly fitted into the folio case fasteners so it will not fall out.
• This folio case is only designed to contain and carry this unit.
Do not use it for any other purpose.
• Do not put the folio case in a direct sunlight or expose to high
temperature and humidity.
►Position the Tablet PC on the folio case as shown.
►Engage the top edge and then press it down.
The following illustration shows you the many ways in which the folio case can be used:
Fujitsu 53
![](/img.php?id=2258009&img=bg38.png)
Accessories for your Tablet PC (optional)

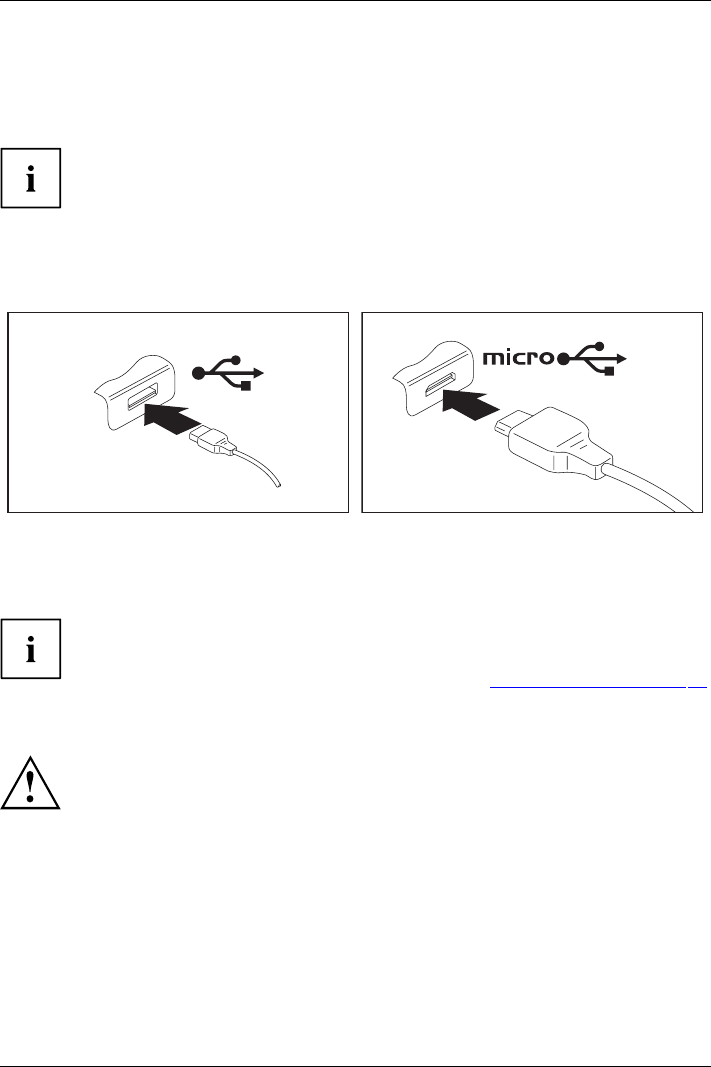

Micro USB adapters
5 USB adapters are available for the device:
Micro USB to USB adapter
Micro USB to HDMI adapter
Micro USB to VGA adapter
54 Fujitsu
![](/img.php?id=2258009&img=bg3a.png)
Security functions
Security functions
Securityfunctions
Your Tablet PC has several security features that you can use to secure your system
and your personal data from unauthorized access.
This chapter explains how to use these functions, and what the benefits are.
Please remember that in some cases, for example, forgetting your password,
you may be locked out of the system and unable to access your data.
Therefore, please note the following information:
• Back up your data on external data carriers at regular intervals.
• Some security functions need you to choose passwords. Make a note
of the passwords and keep them in a safe place.
If you forget your passwords you will need to contact our Service Desk.
Deletion or resetting of passwords are not covered by your warranty
and a charge will be made for assistance.
56 Fujitsu
![](/img.php?id=2258009&img=bg3b.png)
Security functions
Configuring the fingerprint sensor
Fingerprintsens orFinger printsensor
The fingerprint sensor can record the image of a fingerprint. With additional fingerprint
software, this image can be processed and used instead of a password.
1
1
►Install the fingerprint software to be able to use the fingerprint sensor (1).
Configuring password protection in BIOS Setup Utility
Before using the various options for password protection in the BIOS Setup
Utility, please proceed as follows to increase data security:
Make a note of the passwords and keep them in a safe place. If you forget your supervisor
HDD password you will not be able to access your Tablet PC. Deletion of passwords is
not covered by your warranty and a charge will therefore be made for assistance.
Password prote ction
Your password can be up to eight characters long and can contain letters and
numbers. No distinction is made between uppercase and lowercase.
Fujitsu 57
![](/img.php?id=2258009&img=bg3c.png)
Security functions
Protecting BIOS Setup Utility (supervisor HDD password
and user HDD password)
If you have opened these operating instructions on the screen, we recommend
that you print them out. You cannot call up the instructions on the screen
while you are setting up the password.
BIOSSetupUtility
The supervisor HDD password and the user HDD password both prevent unauthorized use of the
BIOS Setup Utility. The supervisor HDD password allows you to access all of the functions of the BIOS
Setup Utility, while the user HDD password will only give you access to some of the functions. You
can only set a user HDD password when a supervisor HDD password has already been assigned.
Calling and using the BIOS Setup Utility is described in the chapter
"Settings in BIOS Setup Utility", Page 67.
Assigning the supervisor and user passwords
►Start the BIOS Setup Utility and go to the Security menu.
►Select the Set Supervisor Password field and press the Enter key.
With Enter new Password: you are asked to enter a password.
►Enter the password and press the Enter key.
Confirm new Password requires you to confirm the password.
►Enter the password again and press the Enter key.
Changes have been saved is displayed as a confirmation that the new password has been saved.
►To set the user password, select Set User Password and proceed exactly as
when configuring the supervisor password.
If you do not want to change any other settings, you can exit BIOS Setup Utility.
►In the Exit menu, select the option Save Changes & Exit.
►Select Yes and press the Enter key.
PasswordSupervisor passwordUserpassword
The Tablet PC is rebooted and the new password is effective. It will now be necessary to
first enter your supervisor or user password in order to open the BIOS Setup Utility. Please
note that the user password only provides access to a few of the BIOS settings.
Changing the supervisor HDD password or user HDD password
You can only change the supervisor HDD password when you have logged into the
BIOS Setup Utility with the supervisor HDD password.
PasswordSupervisorHDDpasswordUserHDDpassword
►Start the BIOS Setup Utility and go to the Security menu.
►When changing the password, proceed exactly as when assigning a password.
58 Fujitsu
![](/img.php?id=2258009&img=bg3d.png)
Security functions
Removing passwords
To remove a password (without setting a new password) perform the following steps:
PasswordSupervisorpasswordUserpassword
►Start the BIOS Setup Utility and go to the Security menu.
►Highlight the Set Supervisor Password or Set User Password field and press the Enter key.
You will be requested to enter the current password by the Enter Current Password prompt.
Enter New Password will appear and you will be requested to enter a new password.
►Press the Enter key twice at this request.
►In the Exit menu, select the option Save Changes & Exit.
►Select Yes and press the Enter key.
The Tablet PC is rebooted and the password is removed.
Removing the supervisor password simultaneously deactivates the user password.
Password protection for booting the operating system
You can also prevent booting of the operating system with the supervisor
HDD password you have set in the BIOS Setup Utility (see section "Assigning
the supervisor and user passwords", Page 58).
Operating system
Activating system protection
►Start the BIOS Setup Utility and go to the Security menu.
Operatingsystem
►Select the PasswordonBootoption and press the Enter key.
►Select the option you require (Disabled,First Boot or Every Boot) and press the enter key
►Select the Save Changes & Exit option under Exit.
The Tablet PC reboots. You will be prompted to enter your password (the supervisor password).
Deactivating system protection
►Start the BIOS Setup Utility and go to the Security menu.
Operatingsystem
►Select the PasswordonBootoption and press the Enter key.
►Select the Disabled option and press the Enter key.
If you do not want to change any other settings, you can exit BIOS Setup Utility.
►Select the Save Changes & Exit option under Exit.
The Tablet PC reboots. The system is no longer password-protected.
Password protection for the hard disk
Passwordpr otection
The hard disk password prevents unauthorized access to the hard disk drives
and is checked internally each time the system is booted. The condition for this
is that you have assigned at least the supervisor HDD password.
Fujitsu 59
![](/img.php?id=2258009&img=bg3e.png)
Security functions
Activating hard disk protection
►Call up the BIOS Setup and select the Security menu.
If you have not assigned BIOS passwords yet, define the supervisor and the user
password now, if desired (see "Security functions", Page 56).
►Mark the Hard Disk Security field and press the Enter key.
►In the area Drive0, mark the field Set Master Password and press the Enter key.
Enter new Password then appears and you are asked to enter a password.
►Enter the password and press the Enter key.
Confirm new Password requires you to confirm the password.
►Enter the password again and press the Enter key.
With Setup Notice: Changes have been saved you receive confirmation that
the new password has been saved.
►If you wish to enter a password for a second hard disk (Drive1), in the area
Drive1 mark the field Set Master Password and proceed in exactly the same way
as for the set up of the first hard disk (Drive0).
The field Password Entry on Boot is set to Enabled by default. You can exit the BIOS
Setup once you have finished changing the settings.
►From the Exit menu, choose the option Exit Saving Changes.
►Press the Enter key and select Yes.
The Tablet PC reboots and your hard disk is now protected with a password. The
password prompt is enabled as soon as the Tablet PC has rebooted.
Deactivating hard disk protection
To cancel a password (without setting a new password) proceed as follows:
►Call up the BIOS Setup and select the Security menu.
►Mark the Hard Disk Security field and press the Enter key.
►In the area Drive0, mark the field Set Master Password and press the Enter key.
With the prompt Enter current Password you are first asked to enter the old password again.
With Enter new Password you are then prompted to enter a new password.
►After the request, press the Enter key three times.
►From the Exit menu, choose the option Exit Saving Changes.
►Press the Enter key and select Yes.
The Tablet PC reboots and there is no longer any password protection for this hard disk.
►If you wish to remove a password for a second hard disk (Drive1), in the area
Drive1 mark the field Set Master Password and proceed in exactly the same way
as for the removal of the first hard disk (Drive0).
60 Fujitsu
![](/img.php?id=2258009&img=bg3f.png)
Security functions
SmartCard reader (optional)
SecurityfunctionsSecurityfunctions
SmartCards are not supplied as standard equipment. You can use all SmartCards that comply with
the ISO standard 7816-1, -2 or -3. These SmartCards are available from various manufacturers.
With the appropriate software you can use your SmartCard as an alternative to password protection,
but also as a digital signature, for encrypting your e-mails or for home banking.
We recommend that you always use two SmartCards. Always keep one of the SmartCards
in a safe place if you are carrying the other SmartCard with you.
In order to be able to take advantage of all the security features of your Tablet
PC, you will need a CardOS SmartCard from Fujitsu.
The SmartCard can only be used with a PIN, so maximum protection is maintained
even when the SmartCard is lost. In order to maximize your security, the CardOS
SmartCard is disabled if three incorrect attempts are made to enter the PIN.
During first time use of your CardOS SmartCard, you must either enter the preset PIN
"12345678" or the PIN which has been notified to you by your system administrator.

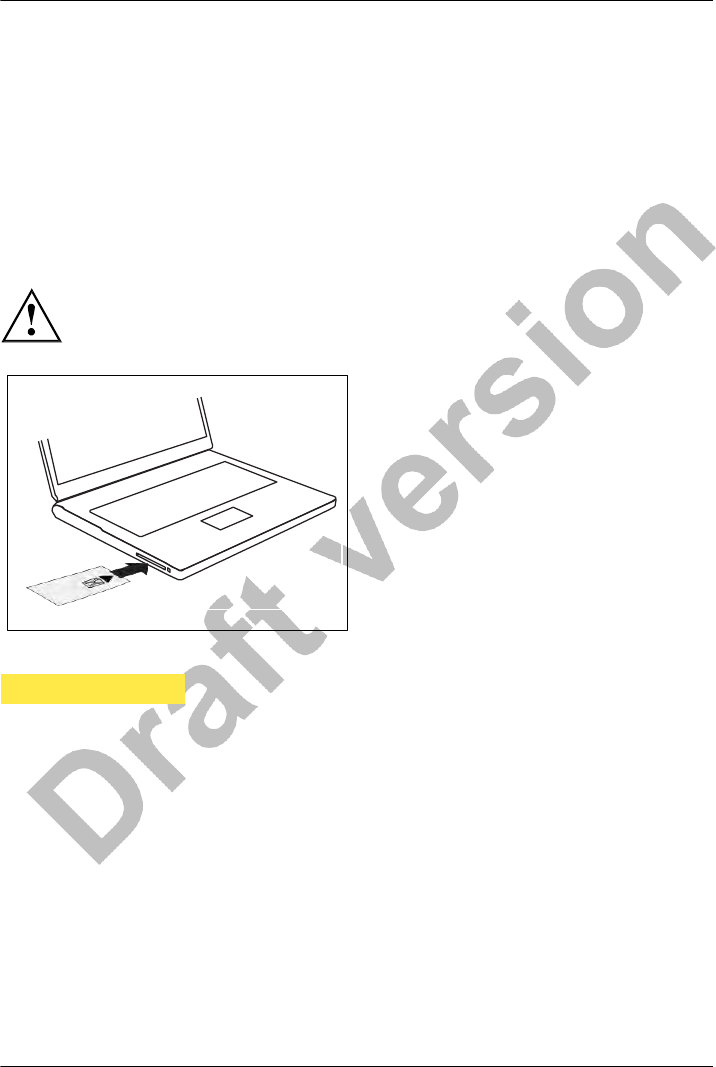

Inserting the SmartCard
Do not use force when inserting and removing the SmartCard.
Make sure that foreign objects do not fall into the SmartCard reader.
►Turn the Tablet PC over.
►Push the SmartCard into the SmartCard reader with the chip facing downwards.
Fujitsu 61
![](/img.php?id=2258009&img=bg40.png)
Security functions
Trusted Platform Module - TPM (device dependent)
TPMTrustedP latform Module
To use the TPM, you must enable the TPM in the BIOS Setup before the software is
installed. The requirement for this is that you have assigned at least the supervisor
HDD password (see "Security functions", Page 56).
Enabling TPM
• Requirement: You have assigned a supervisor HDD password (see "Security functions", Page 56).
►Call BIOS Setup and select the Security menu.
►Mark the TPM Security Chip Setting field and press the Enter key.
►Select the entry Enabled to enable the TPM
Once you have enabled the TPM the Clear Security Chip menu item appears.
You can clear the holder in the TPM using Clear Security Chip.WithEnabled,
all secret keys (e.g. SRK - Storage Root Keys, AIK - Attestation Identity Keys
etc.) generated by applications are deleted.
Take note that you can then no longer access the data you have
encrypted on the holder-based keys!
►Select the Exit Saving Changes option in the Exit menu.
►Press the Enter key and select Yes.
The Tablet PC restarts and the TPM is enabled after the reboot.
Disabling TPM
• Requirement: You have assigned a supervisor HDD password (see "Security functions", Page 56).
►Call BIOS Setup and select the Security menu.
►Mark the TPM Security Chip Setting field and press the Enter key.
►Select the entry Disabled to disable the TPM.
►From the Exit menu, choose the option Exit Saving Changes.
►Press the Enter key and select Yes.
The Tablet PC is rebooted and the TPM is disabled.
62 Fujitsu
![](/img.php?id=2258009&img=bg41.png)
Connecting external devices
Connecting external devices
Under all circumstances, please observe the safety notes provided in the
"Important notes", Page 12 chapter before connecting or disconnecting
any devices to or from your Tablet PC.
Always read the documentation supplied with the device you wish to connect.
Never connect or disconnect cables during a thunderstorm.
Never pull at a cable when disconnecting it. Always grasp the plug.
Follow the order described below when you connect external devices to
the Tablet PC or separate them from it:
With some devices, such as USB devices, it is not necessary to switch off
the Tablet PC and the device before connecting/disconnecting. For more
information about whether or not devices need to be switched off, please refer
to the documentation supplied with your external device.
Some of the external devices require special drivers (see the operating
system and external device documentation).
Connecting devices to the Tablet PC (or to the docking cradle)
1. Switch off the Tablet PC and all the external devices.
2. Disconnect the AC plugs for the Tablet PC and all the affected devices from the power outlets.
3. Connect the cables for all the external devices according to the instructions.
4. Plug all the AC plugs into the power outlets.
Devices,Peripherals,
Disconnecting devices from the Tablet PC (or from the docking cradle)
1. Switch off the Tablet PC and all the external devices.
2. Disconnect the AC plugs for the Tablet PC and all the affected devices from the power outlets.
3. Disconnect the cables for all the external devices following the instructions.
Devices,Peripherals,
Fujitsu 63
![](/img.php?id=2258009&img=bg42.png)
Connecting external devices
Connecting an external monitor
HDMI port (via optional docking cradle)
HDMIport
The HDMI port of the docking cradle can be used to connect an external amplifier,
LCD TV or a plasma TV with an HDMI connection.
►Connect the data cable to the
external device.
►Connect the data cable to the HDMI port.
Some LCD televisions have only two speakers/speaker ports and therefore
cannot reproduce Dolby Digital or DTS. To play back HDMI sound, you
must change the HDMI sound settings accordingly.
You can find the settings under Control Panel - Hardware and Sound. Deactivate the
settings for DTS Audio and Dolby Digital to enable playback of HDMI sound.
VGA monitor port (via optional docking cradle)
An analog monitor is connected to the analog VGA monitor port. Screen output is
limited to a maximum of two screens at the same time.
MonitorVGAportScreenc onnectionMonitorc onnection
►Switch off the Tablet PC and the
external monitor.
►Plug the data cable of the external
monitor into the monitor port.
►First switch on the external monitor and
then switchontheTabletPC.
You can also switch back and forth between the external monitor and the LCD
screen of the Tablet PC, see "Touchscreen", Page 24.
You can display the same image on the external monitor and on the LCD
screen of the Tablet PC at the same time.
64 Fujitsu
![](/img.php?id=2258009&img=bg43.png)
Connecting external devices
Connecting USB devices
USBports
With the USB ports you can connect external devices that also have a USB port
(e.g. a DVD drive, a printer, a scanner or a modem).
USB devices are hot-swappable. This means you can connect and disconnect the
cables of USB devices while the operating system is running.
USB 1.x has a maximum data transfer rate of 12 Mbps.
USB 2.0 has a data transfer rate of up to 480 Mbps.
USB 3.0 has a data transfer rate of up to 5 Gbps.
Additional information can be found in the documentation for the USB devices.
+

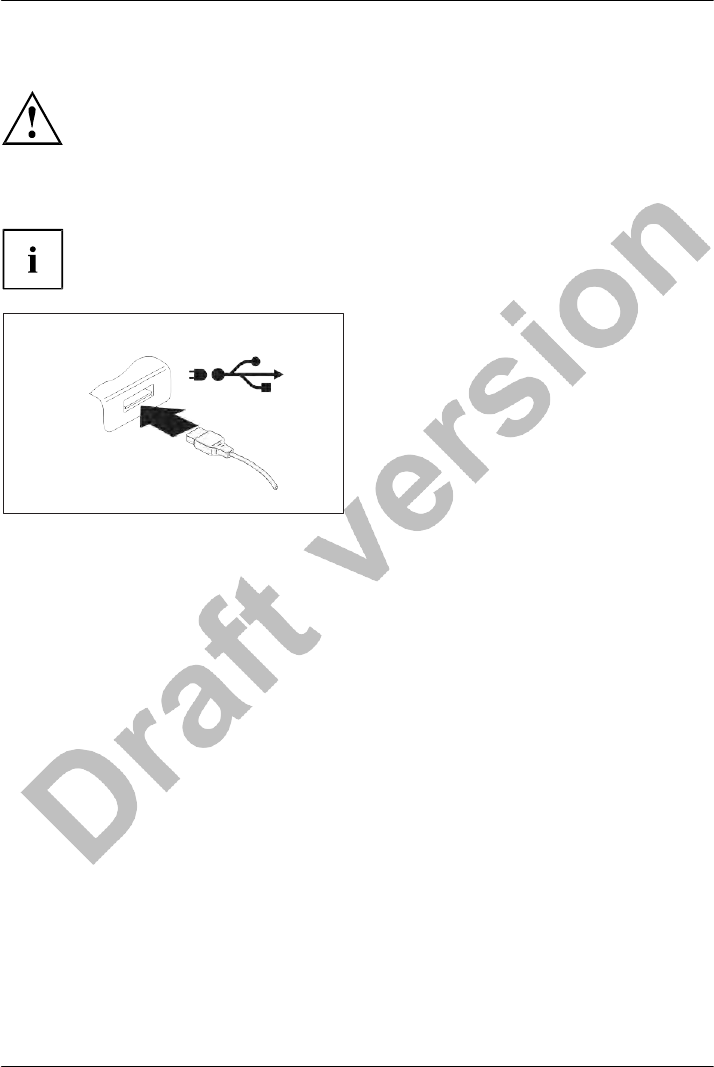

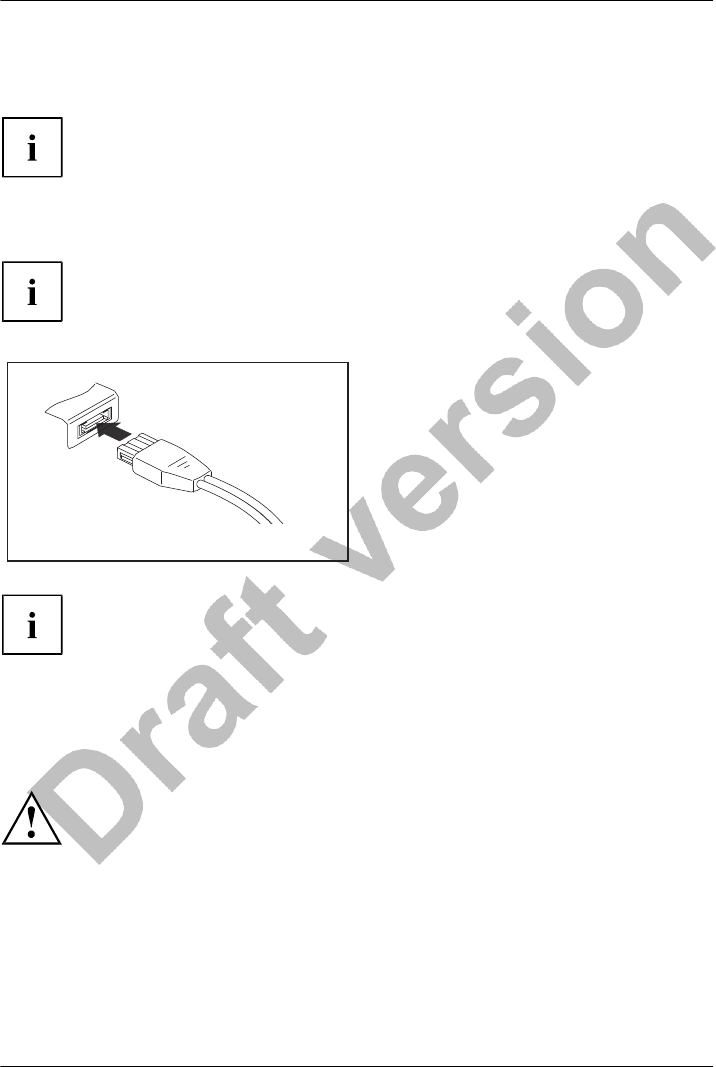

►Connect the data cable to the external device.
►Connect the data cable to a USB port (Tablet PC or docking cradle) or
micro USB port (only on Tablet PC).
Device drivers
USB devices will be automatically recognized and installed by your operating system.
For optional micro USB accessories (cables), see chapter "Micro USB adapters", Page 54.
How to remove USB devices correctly
Always correctly remove the device according to the rules described below,
to ensure that none of your data is lost.
►Tap the symbol for safe removal of the hardware.
►Select the device you wish to shut down and remove.
►Ta p OK.
Wait for the dialog box which tells you that it is now safe to remove the device.
Fujitsu 65
![](/img.php?id=2258009&img=bg44.png)
Connecting external devices
Headphones port
Connectingaudio dev icesAudioconnectionsConnectingheadphones
You can connect either headphones or external speakers to your Tablet PC via the headphone port.
►Connect the audio cable to the
external device.
►Connect the audio cable to the headphone
port of the Tablet PC.
The internal speakers are disabled.
If you buy a cable from a retailer, please note the following information:
The headphone port on your Tablet PC is a "3.5 mm jack socket".
If you want to connect headphones or speakers you will need a "3.5 mm jack plug".
66 Fujitsu
![](/img.php?id=2258009&img=bg45.png)
Settings in BIOS Setup Utility
Settings in BIOS Setup Utility
BIOSSetupUtilitySystemsettings,BIOSSetupUtilityConfiguration,BIOSS etupUtilitySetupConfiguring systemConfiguringhardware
To navigate more easily in the BIOS Setup Utility, you can use the optional
Keyboard Cover accessory, an external USB keyboard, and keep the
volume button pressed during the boot process.
The BIOS Setup Utility allows you to set the system functions and the hardware
configuration for the Tablet PC.
When the Tablet PC is delivered, the default settings are effective. You can change
these settings in the menus of the BIOS Setup Utility. Any changes you make take
effect as soon as you save and exit the BIOS Setup Utility.
The BIOS Setup Utility program contains the following menus:
About Displays information relating to the BIOS, processor and Tablet PC
System Advanced system settings
Advanced Configuration of various hardware components, such as mouse, keyboard,
processor
Security Password settings and security functions
Boot Configuration of the start-up sequence
Exit Exits the BIOS Setup Utility
Starting the BIOS Setup Utility
►Keep the "Lock screen orientation" tablet button pressed and switch the Tablet PC on.
BIOSSetupUtility
►If a password has been assigned, enter the password and press the Enter key.
If you have forgotten the password, contact your system administrator
or contact our customer service centre.
The BIOS Setup Utility starts.
Fujitsu 67
![](/img.php?id=2258009&img=bg46.png)
Settings in BIOS Setup Utility
BIOS Setup Utility operation
BIOSSetupUtility
Press the F1 key to display help about operation of the BIOS Setup Utility. The description
of the individual settings is shown in the right-hand window of the BIOS Setup Utility.
With the F9 key you can load the default settings of the BIOS Setup Utility.
►Use the cursor keys ←or →to select the menu you wish to access to make changes.
The menu is displayed on the screen.
►Select the option you want to change with the cursor keys ↑or ↓.
►Press the "Enter" key.
►Press the ESC key to exit the selected menu.
►For future reference, make a note of the changes you have made (for example, in this manual).
68 Fujitsu
![](/img.php?id=2258009&img=bg47.png)
Settings in BIOS Setup Utility
Exiting BIOS Setup Utility
BIOSSetupUtility
You need to select the desired option in the Exit menu and activate it by pressing the Enter key:
Exit Saving Changes - save changes and exit BIOS Setup Utility
►To save the current menu settings and exit the BIOS Setup Utility,selectExit Saving Changes and Yes.
The Tablet PC is rebooted and the new settings come into effect.
Exit Discarding Changes - Reject changes and
exit BIOS Setup Utility
►To discard the changes, select Exit Discarding Changes and Yes.
The settings which were valid when BIOS Setup Utility was called remain effective.
The BIOS Setup Utility ends and the Tablet PC is rebooted.
Load Setup Defaults – load default values
►To copy the standard entries for all menus of the BIOS Setup Utility,
choose Load Setup Defaults and Ye s.
Discard Changes - Discard Changes without
exiting BIOS Setup Utility
►To discard the changes you have made, select Discard Changes and Yes.
ThesettingsinplacewhenBIOS Setup Utility was called remain effective.
You can now make additional settings in the BIOS Setup Utility.
►If you want to exit the BIOS Setup Utility withthesesettings,selectExit Saving Changes and Yes.
Save Changes - save changes without exiting
the BIOS Setup Utility
►To save the changes, select Save Changes and Yes .
The changes are saved. You can now make additional settings in the BIOS Setup Utility.
►If you want to exit BIOS Setup Utility with these settings, choose Exit Saving Changes and Yes.
Save changes and power off
►To save the changes and switch off your device, select Save Changes and Power Off and Yes .
The changes are saved. Your device is shut down.
Fujitsu 69
![](/img.php?id=2258009&img=bg48.png)
Troubleshooting and tips
Troubleshooting and tips
TroubleshootingTipsFaultTroubleshoo ting
If a fault occurs, try to correct it as described. If you are unable to correct
the problem, proceed as follows:
►Make a note of the steps and the circumstances that led to the fault. Also
make a note of any error messages displayed.
►Switch the Tablet PC off.
►Please contact the Hotline/Service Desk.
You can contact Fujitsu Service and Support in the following ways:
• Toll free number: 1-800-Fujitsu (1-800-838-5487)
• Website: "http://solutions.us.fujitsu.com/www/content/support/contact/index.php"
Please have the following information ready when you call:
• The model name and serial number of the Tablet PC. The serial number
is located on a sticker on the underside of the Tablet PC.
• Notes of any messages that appear on the screen and information on acoustic signals.
• Any changes you have made to the hardware or software since
receiving the Tablet PC.
• Any changes you have made to the BIOS Setup settings since receiving the Tablet PC.
• Your system configuration and all peripheral devices connected to your system.
• Your sales contract.
Our Tablet PCs have been designed primarily with mobile applications in mind.
This means that considerable effort has been made to optimize components and
equipment in terms of weight, space and energy requirements. Depending on the
particular configuration you have purchased, it is possible that functionality may be
slightly reduced compared to a desktop PC if you are running processor-intensive
gaming software, e.g. games with intensive 3D graphics. Updating your hardware with
drivers which have not been approved by Fujitsu may result in performance losses,
data losses or malfunction of the equipment. A list of approved drivers and current
BIOS versions can be downloaded from: "http://solutions.us.fujitsu.com"
Help if problems occur
Should you encounter a problem with your computer that you cannot resolve yourself:
►Note the ID number of your device. The ID number is found on the type rating
plate on the back or underside of the casing.
►For further clarification of the problem, contact the Fujitsu Service Desk. When you do
this, please have ready the ID number and serial number of your system.
Recovering your Factory Image
Harddisk:
Operatingsystem,recovering
FactoryImage
In the event you need to restore your original Factory Image refer to the
steps in the Appendix of this manual..
70 Fujitsu
![](/img.php?id=2258009&img=bg49.png)
Troubleshooting and tips
The Tablet PC’s date or time is incorrect
SummertimeWintertim eIncorrecttim eTimenotcorr ectWrongdate/timeDatenotcorrectCharging back- up battery
Cause Troubleshooting
Time and date are wrongly set. ►With the BIOS-Setup-Utility, you can set the
date and time in the Main menu.
Date and time are still set incorrectly after
switchingontheTabletPC.
►Please contact your sales outlet or our
hotline/service desk.
Battery indicator does not illuminate
Cause Troubleshooting
The battery is discharged. ►Charge the battery.
or
►Connect the Tablet PC to a power outlet
using the AC adapter.
The Tablet PC’s touchscreen remains dark
Tou ch s c re e ndark touchscreen
Cause Troubleshooting
Touchscreen is switched off. ►Press a key (external keyboard) or tap on
the touchscreen.
External monitor or television set connected. ►Check whether the graphics driver settings
are correct or whether an external monitor
has been detected in "Intel Graphics Media
Accelerator Driver for mobile".
The display on the Tablet PC’s touchscreen
is difficult to read.
Tou ch s c re e nTo u c hs c re e n
Cause Troubleshooting
Reflected glare ►Move the Tablet PC into a different position.
►Increase the brightness of the screen.
Fujitsu 71
![](/img.php?id=2258009&img=bg4a.png)
Troubleshooting and tips
The external monitor remains blank
Monitor
Cause Troubleshooting
Monitor is switched off. ►Switch the external monitor on.
Power saving has been activated (monitor is
blank).
►Press a key (external keyboard) or tap on
the touchscreen.
Brightness is set to dark. ►Adjust the brightness of the monitor.
Screen output is set to the Tablet PC
touchscreen.
►Check whether the graphics driver settings
are correct or whether an external monitor
has been detected in "Intel Graphics Media
Accelerator Driver for mobile".
The external monitor’s AC cable or data cable is
not connected properly.
►Switch off the Tablet PC and the external
monitor.
►Check whether the AC cable is plugged
properly into the external monitor and into
the power outlet.
►Check that the data cable is properly
connected to the Tablet PC and the external
monitor (if it is plugged in with a connector).
►Switch on the external monitor and the
Tablet PC.
The external monitor is blank or the image is unstable
MonitorMonitor
Cause Troubleshooting
The wrong external monitor has been selected
or the wrong screen resolution has been set for
the application program.
►Terminate the application program in
Windows. If the error persists after
terminating the program, use the key
combination for switching the screen output
in order to switch to the touchscreen of the
Tablet PC. Change the following setting:
►Set the screen resolution: Set the screen
resolution as described in the documentation
foryouroperatingsystem.
►Select monitor: Select monitor 1 or 2 as
described in the documentation for your
operatingsystem.
The cursor does not correctly follow the
stylus movements
Cause Troubleshooting
Stylus incorrectly calibrated. ►Calibrate the stylus as described in chapters
"Adjusting the stylus", Page 32 and
"Calibrating the stylus", Page 32.
72 Fujitsu
![](/img.php?id=2258009&img=bg4b.png)
Troubleshooting and tips
Stylus input not working
Cause Troubleshooting
Incorrect driver installed. ►Reinstall the driver for the "Dual Digitizer".
The Tablet PC does not start after switch on
TabletPC
Cause Troubleshooting
The battery is discharged. ►Charge the battery.
or
►Connect the AC adapter to the Tablet
PC.
The AC adapter is not properly connected. ►Check whether the AC adapter is properly
connected to the Tablet PC.
►Switch the Tablet PC on.
The Tablet PC stops working
TabletPCEnding
Cause Troubleshooting
The Tablet PC is in energy saving mode. ►End energy saving mode.
An application program has caused the
malfunction.
►Close the application program or restart
the Tablet PC (by restarting the operating
system or switching the device off and back
on again).
The battery is discharged. ►Charge the battery.
or
►Connect the AC adapter to the Tablet
PC.
The printer does not print
Printerdoesnot print
Cause Troubleshooting
The printer is not switched on. ►Make sure that the printer is switched
on and ready for operation (refer to the
documentation supplied with the printer).
The printer is not connected correctly. ►Check that the data cable between the Tablet
PC and the printer is properly connected.
The printer driver is faulty or not correctly
installed, or it is the wrong printer driver.
►Check that the data cable between the Tablet
PC and the printer is properly connected.
►Check whether the correct printer driver is
loaded (refer to the printer documentation).
Fujitsu 73
![](/img.php?id=2258009&img=bg4c.png)
Troubleshooting and tips
The wireless connection to a network does not work
Thewireless connecti onto an etwork does not work
Cause Troubleshooting
The wireless component is switched off. ►Switch the wireless component on (see
"Switching the wireless components on and
off", Page 40).
The wireless component is switched on. Despite
this, the wireless connection to a network does
not work.
►Check whether the wireless connection is
enabled by the software.
►Further information on using the wireless
component can be found in the help files.
The battery discharges too quickly
Battery
Cause Troubleshooting
The battery is either too hot or too cold. In this
case the battery indicator flashes.
►Bring the Tablet PC up/down to a normal
operating temperature again.
►If the operating time of the battery life is
extremely short, the battery is probably too
old. Replace the battery if necessary.
You may have an application running that
consumes a great deal of power due to frequent
accessing of the hard disk or optical drive.
►Use the AC adapter whenever possible.
The maximum brightness may have been set
for the screen.
►Reduce the brightness of the screen to
lower energy consumption: You will find the
setting under Control Panel – Hardware and
Sounds – Windows Mobility Center.
SmartCard reader is not recognized
Cause Troubleshooting
Chip card inserted incorrectly. ►Make sure you have inserted your
SmartCard into the SmartCard reader with
thechipfa
cing upwards.
►Check whether the SmartCard you are using
is supported. Your SmartCard must comply
with the ISO standard 7816-1, -2, -3 and -4.
SmartCard PIN forgotten
Cause Troubleshooting
PIN forgotten ►If you work in a network, contact your
system administrator, who can unlock your
Tablet PC using a supervisor PIN.
74 Fujitsu
![](/img.php?id=2258009&img=bg4d.png)
Troubleshooting and tips
User and/or supervisor SmartCard lost
Cause Troubleshooting
User and/or supervisor SmartCard lost ►If you have lost your user SmartCard, you
can continue working with the supervisor
SmartCard and initialize a new user
SmartCard or deactivate the SystemLock
function.
►If you have lost the supervisor SmartCard,
you can also continue working, but you no
longer have all rights and cannot initialize
another supervisor SmartCard.
►If you have lost both SmartCards, you
cannot boot your system. Please contact our
customer service center. You must provide
proof of ownership for the device. The
customer service center will then refer you
to our service partner, who will unlock your
device (for a charge).
SmartCard lost
Cause Troubleshooting
SmartCard lost. ►If you work in a network, contact your
system administrator, who can boot your
Tablet PC with a supervisor SmartCard.
Acoustic warning
Acousticwarnings
Errors
Cause Troubleshooting
A beep sounds every few seconds.
The batteryisalmostflat.
►Charge the battery.
Fujitsu 75
![](/img.php?id=2258009&img=bg4e.png)
Troubleshooting and tips
Error messages on the screen
Errormessages on thes creenErrors
This section describes the error messages generated by the BIOS Setup. Error messages displayed
by the operating system or programs are described in the documentation for these programs.
If the error message appears repeatedly despite troubleshooting measures,
contact the place of purchase or our customer service center.
Error message/cause Troubleshooting
CMOS Battery Bad
If the error message occurs repeatedly, the
buffer battery in the Tablet PC is flat.
►Contact your sales outlet or our customer
service center.
System CMOS checksum bad - Default configuration
used
The system configuration information is
incorrect.
►Switch the Tablet PC off.
►Switch the Tablet PC on.
►Keep the volume button and the shortcut
button pressed and switch the Tablet PC
on. If you keep the volume button pressed
during the boot process, you can switch into
the BIOS Setup-
►In the BIOS Setup, select the Exit menu.
►Select the entry Load Setup Defaults.
►Select OK and press the Enter key.
Extended memory failed at offset: xxxx Failing Bits:
zzzz zzzz
When testing the extended memory. an error
has resulted at the address xxxx.
►Contact your sales outlet or our customer
service center.
Failure Fixed Disk n
The settings of the hard disk drive are incorrect.
►Start the BIOS Setup (Primary Master
submenu) and select the correct settings.
Keyboard controller error ►Switch your Tablet PC off with the ON/OFF
button.
►Wait 3 - 5 seconds and switch the Tablet PC
on again.
Keyboard error If you use an external keyboard:
►Check the connection and reboot the Tablet
PC.
nn Stuck key ►Make sure that no key is pressed.
Operating system not found ►CheckintheBIOS Setup whether your hard
disk has been set correctly.
►Make sure that the operating system is
installed on the corresponding drive.
76 Fujitsu
![](/img.php?id=2258009&img=bg4f.png)
Troubleshooting and tips
Error message/cause Troubleshooting
Press <F1> to resume, <F2> to SETUP
This error message appears if an error occurs
during the self-test before starting the operating
system.
►Press the Alt tablet button to boot the
operating system
►Keep the tablet button pressed
and switch on the Tablet PC to access BIOS
Setup.
Real time clock error ►Contact your sales outlet or our customer
service center.
nnnnK Shadow RAM failed at offset: xxxx Failing
Bits: zzzz
►Contact your sales outlet or our customer
service center.
System battery is dead - Replace and run SETUP ►Contact your sales outlet or our customer
service center.
System cache error - Cache disabled ►Contact your sales outlet or our customer
service center.
System timer error ►Contact your sales outlet or our customer
service center.
Fujitsu 77
![](/img.php?id=2258009&img=bg50.png)
Technical data
Technical data
Tablet PC
General
Processor Intel® BayTrail-T™ SoC, Quad Core Intel®
Atom™ Processor Z3770 (2.4 GHz)
Main memory (SO DIMM) 4GB DiMM onboard
Electrical data
Safety regulations complied with CE
Protection class II
Maximum power consumption (when the Tablet
PC is switched on, connected to the keyboard
cover and the battery is charged):
36 W
Touchscreen
Size 10.1" WQXGA Wide View TFT
Screen resolution 2560 x 1600 pixels/16 million colors
Pixel class II
Brightness control 12 levels
Technology Wide-View High-Bright Display with LED
background lighting
Digitizer and glass panel Dual digitizer with Glare touchscreen
Cameras • Front: HD camera
• Back: 8 megapixels, autofocus, mobile light
Graphics card
Chip Intel® HD graphics
Maximum resolution of external display: 1920 x 1080 (1080p)
Dimensions
Width x Depth x Height 10.51 in. x 7.12 in. x .51 in. (267.0 x 180.8 x 9.9
mm / 16.0 mm) (depending on the back shell)
Weight depending on configuration from 640 g / 1.31 lbs.
Input devices
Tablet buttons 3 keys
Stylus Active stylus with a pressure button
Slots
Storage card slot 1 x micro SD Card
SIM card slot 1 x micro SIM card
Ports
Headphones port 3.5 mm stereo mini jack
Docking port 1 x
USB (Universal Serial Bus) 1 x USB 3.0, 1 x micro USB 2.0
Ambient conditions
78 Fujitsu
![](/img.php?id=2258009&img=bg51.png)
Technical data
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 5 °C .... 35 °C / 41 °F .... 95 °F
Transport temperature (2K2) –15 °C .... 60 °C / 5 °F .... 140 °F
Fujitsu 79
![](/img.php?id=2258009&img=bg52.png)
Technical data
WLAN specifications
Type of network Integrated Dual-Band Wireless-N 7260 device
conforms to IEEE 802.11a, 802.11b/g, and
802.11n, Wi-Fi based*.
Transfer rate (Automatic switching) IEEE802.11 a and g: 54
Mbps max. data rate; IEEE802.11n: 300 Mbps
max. data rate
Active frequency • 802.11n: 2.4 GHz or 5 GHz
• 802.11b/g: 2400~2473 MHz
• 802.11a: 4900 ~ 5850 MHz
Typical operating distances** • 802.11a: 40 ft. (12 m) @ 54 Mbps; 300 ft.
(91m)@6Mbps
• 802.11b: 100 ft. (30 m) @ 11 Mbps; 300 ft.
(91m)@1Mbps
• 802.11g: 100 ft. (30 m) @ 54 Mbps; 300 ft.
(91m)@1Mbps
• 802.11n: Estimated double the operating
distance of 802.11g and 802.11a in their
respective frequencies.
Number of channels • 802.11a: 8 independent channels
• 802.11b/g: 11 channels, 3 non-overlapping
channels
• 802.11n: Channel bonding takes two of
the non-overlapping 20MHz channels and
combines it into one 40MHz channel. It is
actually 12 non-overlapping channels with
channel bonding and 24 without. Also, it is
1 non-overlapping channel in 2.4GHz when
channel bonding is used
Security Encryption Types - WEP, TKIP, AES***, WPA
1.0 and WPA 2.0 compliant
Encryption Key lengths Supported: 64 bits and
128 bits
Maximum recommended number of computers
to be connected over wireless LAN (during ad
hoc connection)
10 units or less ****
* “Wi-Fi based” indicates that the interconnectivity test of the organization which guarantees the
interconnectivity of wireless LAN (Wi-Fi Alliance) has been passed.
** The communication ranges shown above will increase or decrease depending on factors such
as number of walls, reflective material, or interference from external RF sources.
*** Encryption with network key (WEP) is performed using the above number of bits, however,
users can set 40 bits/ 104 bits after subtracting the fixed length of 24 bits.
**** Depending on practical environments, the allowable number of computers to be connected
may be decreased.
80 Fujitsu
![](/img.php?id=2258009&img=bg53.png)
Technical data
Rechargeable battery
You can find information on the batteries used in your device on the
Internet at "http://fujitsu.com/fts/support".
3-cell lithium polymer battery 9900 mAh
Rated voltage 7.2 V
Rated capacity 38 Wh
AC adapter (36 W)
Technicaldata
Rated voltage 12 V
Max. rated current 3 A
An additional AC adapter or AC cable can be ordered at any time.
Docking cradle (optional)
Electrical data
Safety regulations complied with CE
Protection class II
Ports
HDMI 1 x
USB (Universal Serial Bus) 3 x USB 2.0
Docking port 18-pin
VGA monitor port 1x
LAN port 1 x
Ambient conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 5°C..
.. 35 °C / 41 °F .... 95 °F
Transport temperature –15 °C .... 60 °C / 5 °F .... 140 °F
Fujitsu 81
![](/img.php?id=2258009&img=bg54.png)
Technical data
Keyboard cover (optional)
Electrical data
Safety regulations complied with CE
Protection class II
Ports
Docking port 18-pin
Touchpad Yes
Ambient conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 5 °C .... 35 °C / 41 °F .... 95 °F
Transport temperature –15 °C .... 60 °C / 5 °F .... 140 °F
VESA mount (optional)
Dimensions
Width x Depth x Height 230 mm x 138 mm x 14.1 mm / 9.06 in. x 5.43
in. x 0.56 in.
Weight 90 g / .198 bs.
Shoulder strap (optional)
Dimensions
Width x Depth x Height 49.80 in. x .98 in. x 0.189 in. (1265 mm x 25
mm x 4.8 mm)
Weight Approx. .074 lbs. (33.4 g)
Folio case (optional)
Dimensions
Width x Depth x Height 18.11 in. x 10.75 in. x 0.63 in. (460 mm x 273
mm x 16 mm)
Weight Approx. .86 lbs. (390 g)
82 Fujitsu
![](/img.php?id=2258009&img=bg55.png)
Technical data
USB adapters
Adapter Length Max. resolution
Micro USB to USB adapter 6 inches N/A
Micro USB to HDMI adapter 6 inches 1920 x 1080
Micro USB to VGA adapter 6 inches 1920 x 1080
Micro USB to Display Port
adapter
6 inches 1920 x 1080
Micro USB to LAN adapter 6 inches N/A
Fujitsu 83
![](/img.php?id=2258009&img=bg56.png)
Manufacturer’s notes
Manufacturer’s notes
Disposal and recycling
Notes
You can find information on this subject on your Tablet PC or on our website
("http://solutions.us.fujitsu.com/www/content/products/trade-in_program/").
Recycling your battery
Over time, the batteries that run your mobile computer will begin to hold a charge for a
shorter amount of time; this is a natural occurrence for all batteries. When this occurs,
you may want to replace the battery with a fresh one*. If you replace it, it is important
that you dispose of the old battery properly because batteries contain materials that
could cause environmental damage if disposed of improperly.
Fujitsu is very concerned with environmental protection, and has enlisted the services of the
Rechargeable Battery Recycling Corporation (RBRC)**, a nonprofit public service organization
dedicated to protecting our environment by recycling old batteries at no cost to you.
RBRC has drop-off points at tens of thousands of locations throughout the United States and
Canada. To find the location nearest you, go to "www.RBRC.org" or call 1-800-822-8837.
If there are no convenient RBRC locations near you, you can also go to the EIA Consumer
Education Initiative website "http://EIAE.org/ " and search for a convenient disposal location.
Remember – protecting the environment is a cooperative effort, and we must
make every effort to protect it for current and future generations.
* To order a new battery for your Fujitsu mobile computer, go to the Fujitsu shopping site
at "www.shopfujitsu.com" in the US or "www.fujitsu.ca/products/notebooks" in Canada.
** RBRC is an independent third party to which Fujitsu provides funding for
battery recycling; RBRC is in no way affiliated with Fujitsu.
84 Fujitsu
