Fujitsu Client Computing EM7355D1 LTE Module User Manual Host Users Manual
Fujitsu Limited LTE Module Host Users Manual
Contents
- 1. User Manual
- 2. Host Users Manual
Host Users Manual
System
Operating Manual
FUJITSU Tablet STYLISTIC Q736
Contact address in North America
FUJITSU AMERICA INC.
1250 East Arques Avenue, Sunnyvale,
CA 94085-3470, U.S.A.
Telephone: 800 831 3183 or 408 746 6000
"http://solutions.us.fujitsu.com"
"http://solutions.us.fujitsu.com/contact"
Have a question? Email us at: "AskFujitsu@us.fujitsu.com"
Copyright
©2015F
ujitsu America, Inc. All rights reserved
B5FK-5521-01ENZ0-00
FUJITSU Tablet STYLISTIC Q736
Operating Manual
Declarations of conformity 7
Fujitsu Contact Information 8
Ports and controls 10
Important notes 14
First-time setup of your device 18
WorkingwiththeTabletPC 23
Accessories for your Tablet PC
(optional) 46
Security functions 66
Connecting external devices 77
Settings in BIOS Setup Utility 81
Troubleshooting and tips 84
Technical data 93
Manufacturer’s notes 99
Declarations of conformity 102
FCC and IC Regulatory Information 103
Appendix 107
Index 122
Copyright and Trademark Information
Fujitsu America, Incorporated has made every effort to ensure the accuracy and completeness
of this document; however, as ongoing development efforts are continually improving the
capabilities of our products, we cannot guarantee the accuracy of the contents of this
document. We disclaim liability for errors, omissions, or future changes.
Fujitsu, the Fujitsu logo and STYLISTIC are registered trademarks of Fujitsu Limited
or its subsidiaries in the United States and other countries.
Intel and Intel Core are trademarks or registered trademarks of Intel Corporation or
its subsidiaries in the United States and other countries.
Microsoft and Windows are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
The ExpressCard word mark and logo are owned by the Personal Computer
Memory Card International Association (PCMCIA) and any use of such marks by
Fujitsu America, Incorporated is under license.
Google is a trademark or registered trademark of Google Incorporated.
Bluetooth is a trademark of Bluetooth SIG, Inc., USA.
OmniPass is a trademark of Softex, Inc.
Roxio is a trademark of Roxio, a division of Sonic Solutions.
PowerDirector, PowerDVD, YouCam, and MakeDisc are trademarks of CyberLink Corp.
Adobe, Acrobat, and Adobe Reader are either registered trademarks or trademarks of Adobe
Systems Incorporated in the United States and/or other countries.
Contents
Contents
Declarations of conformity ............................................................. 7
Fujitsu Contact Information ............................................................ 8
Notational conventions .................................................................. 9
Portsandcontrols ..................................................................... 10
Importantnotes ........................................................................ 14
Safetyinstructions ...................................................................... 14
Additional safety notes for devices with wireless components . . ............................. 15
Protecting the displayscreen ............................................................ 15
Energysaving .......................................................................... 15
Energy saving under Windows ....................................................... 15
Traveling with your TabletPC ............................................................ 16
Beforeyoutravel ................................................................... 16
Transporting the TabletPC ........................................................... 17
Cleaning the TabletPC .................................................................. 17
First-timesetup ofyourdevice ......................................................... 18
Unpacking and checking the device . . . ................................................... 18
Choose a location . ...................................................................... 19
Mounting rubber feet (only for device options with palm vein sensor) . . . ..................... 19
Connecting the AC adapter . . . ........................................................... 20
Switching on the device for the firsttime .................................................. 21
Installing Bonus Apps . . . . . ........................................................... 22
Working with theTabletPC ............................................................ 23
Status indicators ........................................................................ 23
Switching theTabletPCon .............................................................. 25
Programing theON/OFFbutton ...................................................... 26
Switching theTabletPCoff .............................................................. 26
Handwriting recognition .................................................................. 26
Touchscreen ............................................................................ 27
Select displayorientation(portraitorlandscapeformat) .................................... 28
Using fingers ........................................................................... 28
Calibrate the Dual Digitizer for finger-based operation of the device. ..................... 28
Actions with one finger (Windows 8.1 Modern) . ........................................ 29
Actions with one finger (Windows 7 / Windows 8.1 Desktop) . . . ......................... 31
Actions with two fingers (Windows 7 / Windows 8.1 Desktop) . . ......................... 32
Using thestylus ......................................................................... 34
Stylus location ...................................................................... 35
Adjustingthestylus .................................................................. 35
Calibratingthestylus ................................................................ 36
Securingthestylustether(optional) ................................................... 36
Tabletbuttons .......................................................................... 37
Webcam ............................................................................... 37
Rechargeablebattery ................................................................... 38
Chargingandmaintainingthebattery ................................................. 38
Using the energy saving functions . ....................................................... 39
Memorycards .......................................................................... 40
Supportedformats .................................................................. 40
Insertingthememorycard ........................................................... 40
Fujitsu 3
Contents

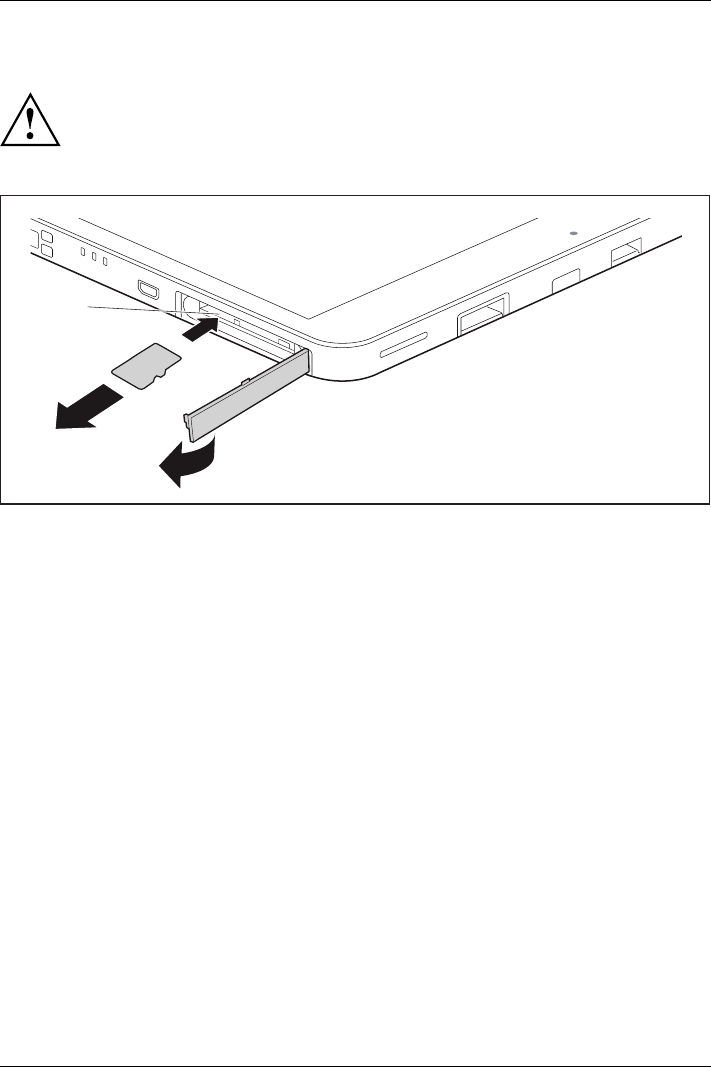

Removingthememorycard .......................................................... 41
SIMcard ............................................................................... 42
InsertingaSIMcard ................................................................. 42
Removinga SIMcard ............................................................... 43
WirelessLAN/Bluetooth/4G/LTE/NFCwirelesscomponents ................................. 43
Switching the wireless components on and off ......................................... 43
ConfiguringWLANaccess ........................................................... 43
FurtherinformationonWLANandBluetooth ........................................... 44
AccessviaUMTS ................................................................... 44
AccessviaWirelessWAN ............................................................ 44
Accessvia4G ...................................................................... 44
NFC (Near Field Communication, optional) . . . ......................................... 44
Ethernet and LAN (only with performance docking cradle, keyboard docking station or power
keyboard docking station) ................................................................ 45
GPS ................................................................................... 45
Accessories for your Tablet PC (optional) . ............................................. 46
Your performance docking cradle (optional) . . ............................................. 47
Performance docking cradle components . ............................................. 47
Settinguptheperformancedockingcradle ............................................ 47
Connecting the Tablet PC to the performance docking cradle . .......................... 48
Disconnecting the Tablet PC from the performance docking cradle . . . ................... 49
Keyboard docking station or power keyboard docking station (optional) . . . ................... 50

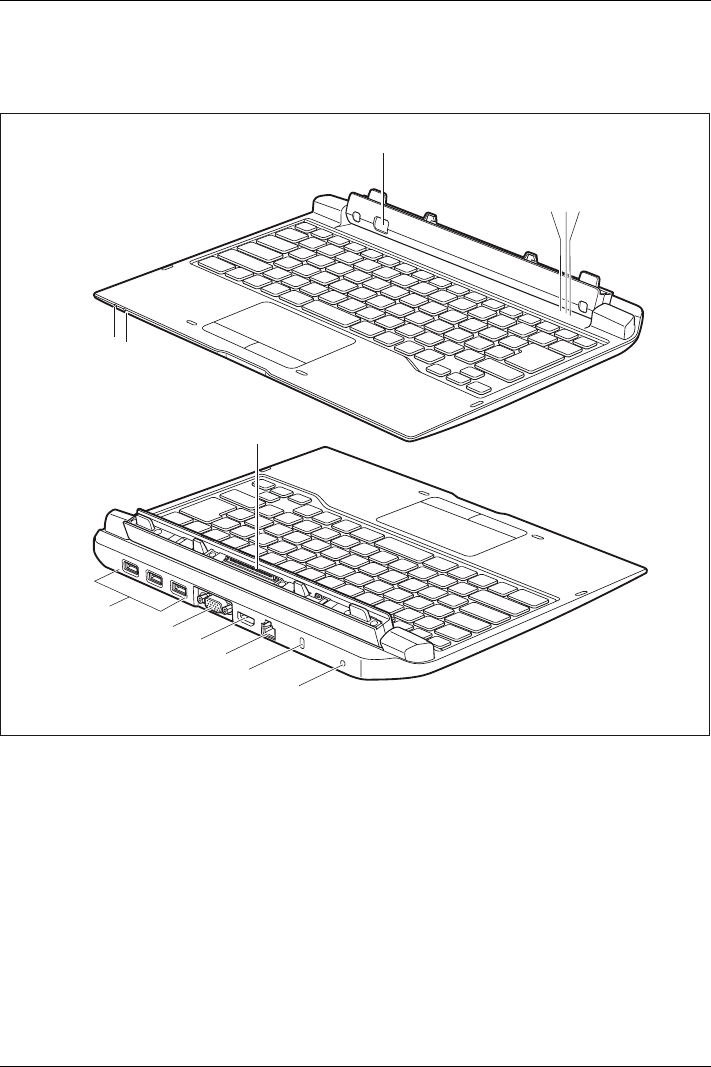

Ports on the keyboard docking station or power keyboard docking station . ............... 51
Connecting the Tablet PC to the keyboard docking station or power keyboard docking
station .............................................................................. 53
Separating the Tablet PC from the keyboard docking station or power keyboard docking
station .............................................................................. 54
Removable rechargeable battery for the power keyboard docking station (optional) . . . .... 55
Intermediary VESA Mount Plate (optional) . . . ............................................. 58

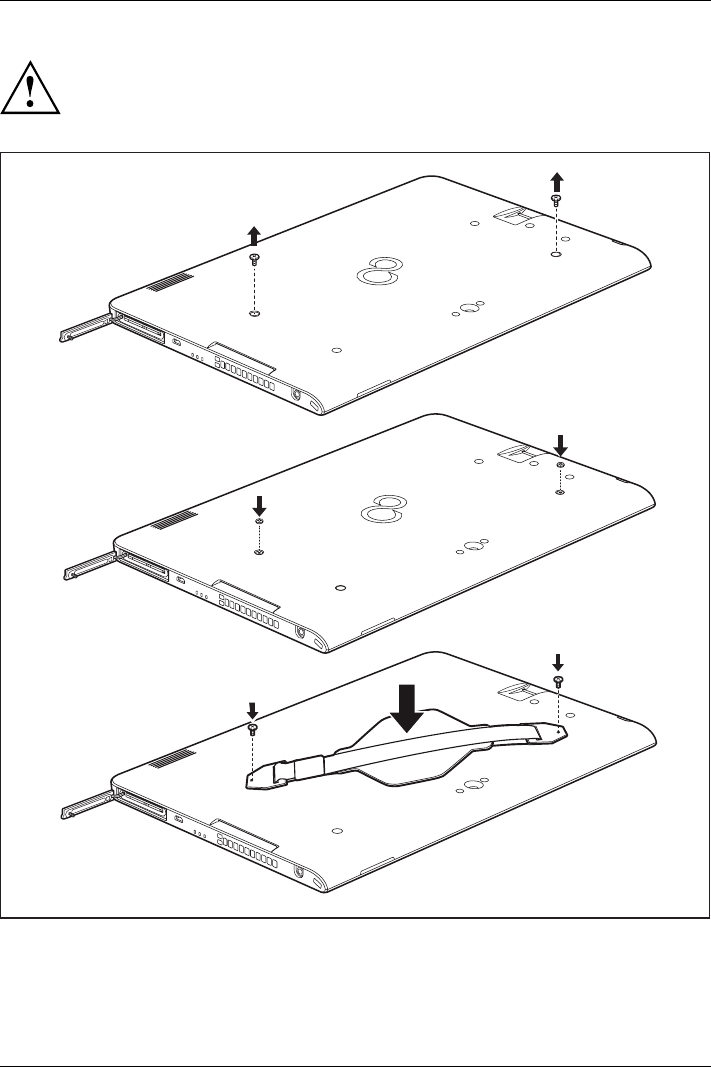

Hand strap (optional) . . . . ................................................................ 60
Shoulder strap (optional) ................................................................ 62
Folio case (optional) . . . . . ................................................................ 64
Securityfunctions ..................................................................... 66
Configuring the fingerprint sensor ........................................................ 67
Using the palm vein sensor (device-dependent) . . ......................................... 68
UsingtheSecurityLock ................................................................. 70
ConfiguringpasswordprotectioninBIOSSetupUtility ...................................... 70
Protecting BIOS Setup Utility (supervisor password and user password) . . ............... 71
Password protection for booting the operating system .................................. 72
Passwordprotectionfortheharddisk ................................................. 73
SmartCard reader (optional) . ............................................................ 74
InsertingtheSmartCard ............................................................. 75
Trusted Platform Module - TPM (device dependent) . . . . . . .................................. 76
EnablingTPM ....................................................................... 76
DisablingTPM ...................................................................... 76
Connectingexternaldevices ........................................................... 77
Connecting an external monitor . . ........................................................ 77
MicroHDMIport .................................................................... 77
HDMI port (only performance docking cradle, keyboard docking station or power keyboard
dockingstation) ..................................................................... 78
4Fujitsu
Contents
VGA monitor port (only performance docking cradle, keyboard docking station or power
keyboarddockingstation) ............................................................ 78

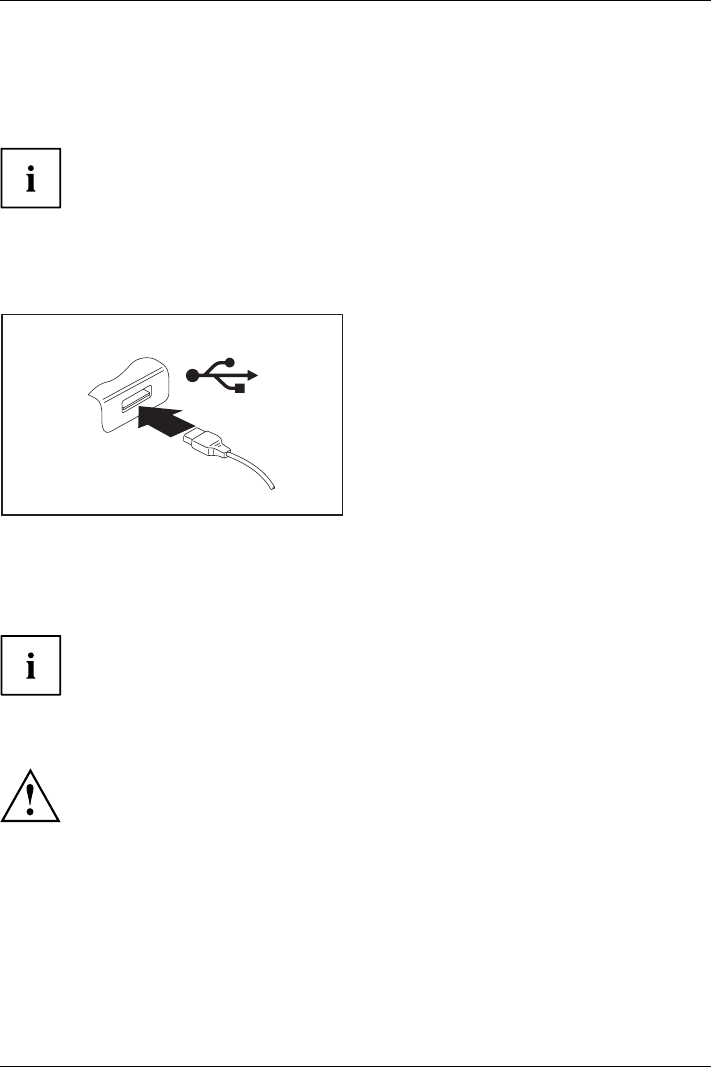

Connecting USB devices . . . . . ........................................................... 79
HowtoremoveUSBdevicescorrectly ................................................ 79
Connecting external audio devices ....................................................... 80
Connecting headphones or other audio output devices . . . . ............................. 80
Connecting a microphone or other audio input devices . . . . ............................. 80
Settings in BIOS Setup Utility . . . ....................................................... 81
StartingtheBIOSSetupUtility ........................................................... 81
BIOSSetupUtilityoperation ............................................................. 82
ExitingBIOSSetupUtility ................................................................ 83
Exit Saving Changes - save changes and exit BIOS Setup Utility . . ..................... 83
Exit Discarding Changes - Reject changes and exit BIOS Setup Utility . . . . . .............. 83
Load Setup Defaults – load default values . ............................................ 83
Discard Changes - Discard Changes without exiting BIOS Setup Utility . . . . .............. 83
Save Changes - save changes without exiting the BIOS Setup Utility . . . . . . .............. 83
Savechangesandpoweroff ........................................................ 83
Troubleshooting and tips .............................................................. 84
Executingareset ....................................................................... 85
Forcedshutdown .................................................................... 85
Resetting the rechargeable battery . ................................................... 85
Helpifproblemsoccur ................................................................... 85
RecoveringyourFactoryImage .......................................................... 85
TheTabletPC’sdateortimeisincorrect .................................................. 85
Battery indicator does not illuminate . . . ................................................... 86
TheTabletPC’stouchscreenremainsdark ................................................ 86
The display on the Tablet PC’s touchscreen is difficult to read. . ............................. 86
Theexternalmonitorremainsblank ...................................................... 87
Theexternalmonitorisblankortheimageisunstable ..................................... 87
The cursor does not correctly follow the stylus movements . . . . ............................. 87
Stylusinputnotworking ................................................................. 88
TheTabletPCdoesnotstartafterswitchon ............................................... 88
TheTabletPCstopsworking ............................................................. 88
The printer does not print . . . . . ........................................................... 89
The wireless connection to a network does not work . . . .................................... 89
Thebatterydischargestooquickly ........................................................ 89
Smart Card reader is not recognized . . . ................................................... 90
SmartCardPINforgotten ................................................................ 90
User and/or supervisor Smart Card lost . . . . . . ............................................ 90
SmartCardlost ......................................................................... 91
Acousticwarning ........................................................................ 91
Errormessagesonthescreen ........................................................... 91
Technicaldata ......................................................................... 93
TabletPC .............................................................................. 93
WLAN specifications .................................................................... 94
Rechargeablebattery ................................................................... 96
AC adapter 65 W for the Tablet PC ....................................................... 96
Performance docking cradle (optional) . ................................................... 96
AC adapter 65 W for the performance docking cradle (optional) ......................... 97
Keyboard docking station or power keyboard docking station (optional) . ..................... 97
Rechargeable battery for power keyboard docking station (device-dependent) . . .......... 97
Fujitsu 5
Contents
Intermediary VESA Mount Plate . . ........................................................ 98
Hand strap (optional) . . . . ................................................................ 98
Shoulder strap (optional) ................................................................ 98
Folio case (optional) . . . . . ................................................................ 98
Manufacturer’s notes .................................................................. 99
Disposalandrecycling .................................................................. 99
Recyclingyourbattery ............................................................... 99
DOC (Industry CANADA) Notices ........................................................ 99
ULNotice ........................................................................... 100
ENERGYSTARCompliance ............................................................. 101
Declarations of conformity ............................................................. 102
FCC and IC RegulatoryInformation .................................................... 103
RegulatoryNotesandStatements ........................................................ 103
WirelessLAN,HealthandAuthorizationforuse ........................................ 103
Regulatory Information/Disclaimers . . ................................................. 103
Federal Communications Commission and Industry Canada statement: . . . ............... 103
Déclaration d’Industrie Canada . . . . . . ................................................. 104
FCCInterferenceStatement ......................................................... 104
FCC Radio Frequency Exposure statement . . . ......................................... 104
Déclaration de la FCC/d’Industrie Canada sur l’exposition aux radiofréquences ........... 105
Exportrestrictions ................................................................... 105
Restrictions concernant l’exportation . ................................................. 105
Canadian Notice . ................................................................... 105
Avis pour le Canada . ................................................................ 106
Appendix .............................................................................. 107
Before Using the Optional Wireless LAN . ................................................. 107
WirelessLANDevicesCoveredbythisDocument ...................................... 107
CharacteristicsoftheWLANDevice .................................................. 107
Wireless LAN Modes Using this Device . . ............................................. 107
Deactivating/DisconnectingtheWLANDevice ......................................... 110
ConfiguringtheWirelessLAN ............................................................ 110
Connection to the network . . . ........................................................ 110
TroubleshootingtheWLAN ........................................................... 111
Image Backup and Recovery Procedures ................................................. 112
CreatingaBackupofBootableDiskandRecoveryImage .............................. 113
RECOVERYOUR SYSTEMWHENTHEHARDDRIVEISSTILLACCESSIBLE ............. 114
UsingtheRecoveryandUtilityTools .................................................. 114
Restore the Recovery Image from Hidden Partition . . . .................................. 116
RECOVERYOUR SYSTEMWHENTHEHARDDRIVEISNOTBOOTABLE ................ 117
RestoretheRecoveryImageforFullHardDrive ....................................... 117
Recovering Your Recovery Image Using Recovery and Utility (for new hard drive or
non-bootableharddrive) ............................................................. 118
InstallingtheSoftwareaftertheRecoveryImageisRestored ............................ 119
Index .................................................................................. 122
6Fujitsu
Declarations of conformity
Declarations of conformity
DECLARATION OF CONFORMITY
according to FCC Part 15
Responsible Party Name: Fujitsu America, Inc.
Address: 1250 E. Arques Avenue
Telephone:
Declares that product:
Sunnyvale, CA 94085
(408) 746-6000
Base Model Configuration: STYLISTIC Q736
Complies with Part 15 of the FCC Rules.
This device complies with Part 15 of the FCC rules. Operations are subject to the
following two conditions: (1) This device may not cause harmful interference. (2) This
device must accept any interference received, including interference that may cause
undesired operation.
Fujitsu 7
Fujitsu Contact Information
Fujitsu Contact Information
Service and Support
You can contact Fujitsu Service and Support in the following ways:
• Toll free phone: 1-800-8Fujitsu (1-800-838-5487)
• Website: "http://solutions.us.fujitsu.com/www/content/support/contact/index.php"
Before you place the call, have the following information ready so that the customer
support representative can provide you with the fastest possible solution:
• Product name
• Product configuration number
• Product serial number
• Purchase date
• Conditions under which the problem occurred
• Any error messages that have occurred
• Type of device connected, if any
Fujitsu Shopping Online
Please go to "http://www.shopfujitsu.com/store/ ".
Maintaining Latest Configuration
To ensure that you always have the most current driver updates related to your system, occasionally
access the Fujitsu Software Download Manager (FSDM) utility. The FSDM utility is available from
the Fujitsu Support site. FSDM will allow you to view a list of the most current drivers, utilities
and applications to determine whether you have the latest versions. If you have a Windows 7
or or Windows 8/8.1 operating system, you will need to go to the Support Site to download the
FSDM Utility: "http://support.fujitsupc.com/CS/Portal/support.do?srch=DOWNLOADS".
Limited Warranty
Your STYLISTIC Tablet PC is backed by a Fujitsu International Limited Warranty. Check the service
kit that came with your Tablet PC for the Limited Warranty period and terms and conditions.
8Fujitsu
Fujitsu Contact Information
Notational conventions
Pay particular attention to text marked with this symbol. Failure to observe
this warning will endanger your life, will damage the device or lead to loss
of data. The warranty will be invalidated if the device becomes defective
through failure to observe these warnings.
Indicates important information which is required to use the device properly.
►indicates an activity that must be performed
indicates a result
This style indicates data entered using the keyboard in a program dialogue or at
the command line, e.g. your password (Name123)oracommandusedto
start a program (start.exe)
This style indicates information that is displayed on the screen by a program, e.g.:
Installation is complete.
This style indicates
• terms and texts used in a software interface, e.g.: Click on Save.
• names of programs or files, e.g. Windows or setup.exe.
"This style" indicates
• Cross-references to another section, e.g. "Safety information"
• cross-references to an external source, e.g. a web address: For more
information, go to "http://solutions.us.fujitsu.com/"
• names of CDs, DVDs and titles or designations of other materials, e.g.:
"CD/DVD Drivers & Utilities" or "Safety/Regulations" manual
Key indicates a key on the keyboard, e.g: F10
This style indicates terms and text that are emphasized or highlighted, e.g.: Do not
switch off the device
Fujitsu 9
Ports and controls
Ports and controls
This chapter presents the individual hardware components of your device. It gives an
overview of the indicators and connections of the device. Please familiarize yourself
with these items before you start to work with the device.

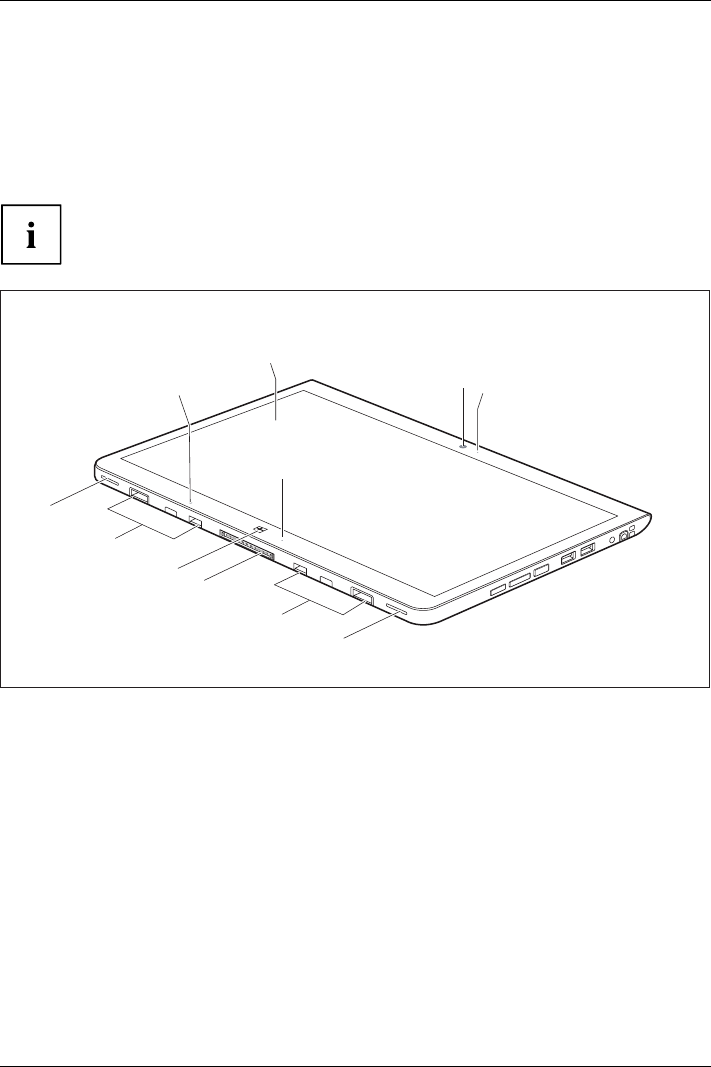

Front (device option without palm vein sensor)
Depending on your selected device option, the Tablet PC may be equipped with a palm
vein sensor on its right side, see “Right-hand side” subchapters on the following pages.
1
23
4
5
5
4
7
9
8
6
1 = Touchscreen
2 = Webcam
3 = Webcam LED
4 = Speaker
5 = Mechanical mounting for (power)
keyboard docking station / performance
docking cradle
6 = Power-on indicator
7 = Docking port
8 = Windows button
9 = Ambient light sensor
10 Fujitsu
Ports and controls
Left-hand side
1 2 3 9
7 84 56
1 = Security Lock device
2 = DC jack (DC IN)
3 = Tether eyelet for stylus tether
4 = Power-on indicator
5 = Battery charging indicator
6 = Wireless indicator
7 = Micro HDMI port
8 = Storage card slot (micro SD,
protected by cover)
9=SIMcardslot(micro
SIM, protected
by cover)

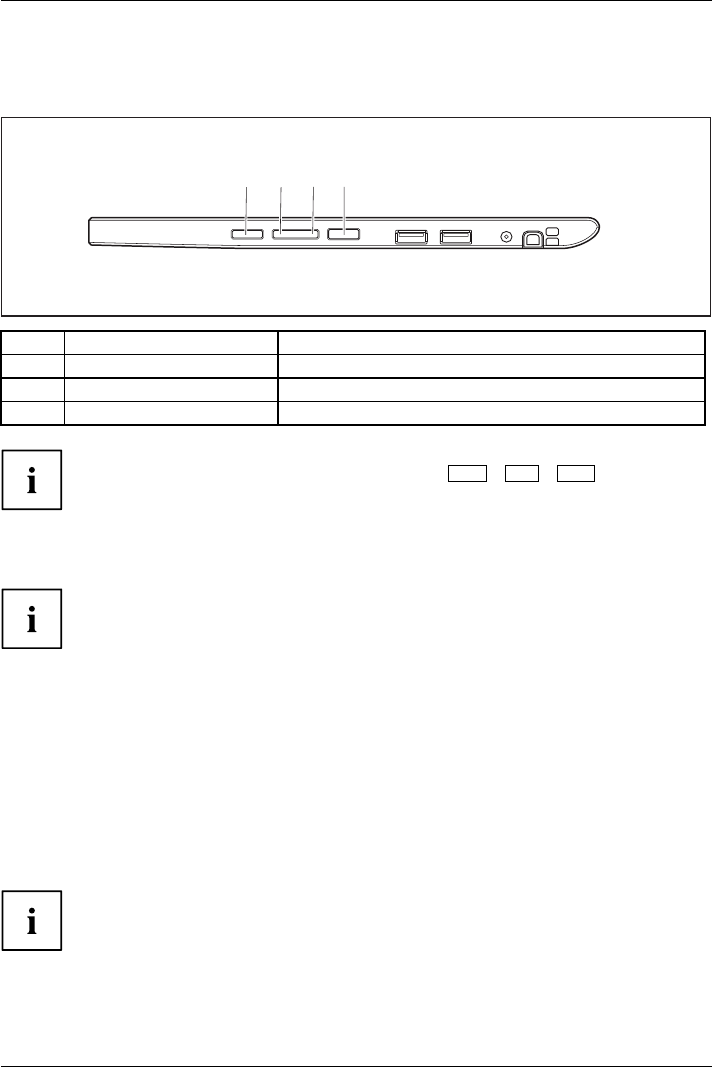

Right-hand side (device option without palm vein sensor)
1 2 6
4589
7
3
1 = Shortcut button
2 = Decrease volume button
3 = Increase volume button
4 = ON/OFF button
5=USBport(USB2.0)
6 = USB port (USB 3.0)
7 = Combined headphones and
microphone port
8 = Stylus slot
9 = Eyelet for stylus cord
Fujitsu 11
Ports and controls
Right-hand side (device option with palm vein sensor)
1
5
6
2
3
7
4
8
9
1 = Shortcut button
2 = Decrease volume button
3 = Increase volume button
4 = ON/OFF button
5 = USB port (USB 2.0)
6 = Palm vein sensor
7 = Combined headphones and microphone
port (not visible in the image)
8 = Stylus slot
9 = Eyelet for stylus cord
12 Fujitsu
Ports and controls
Rear (2 options: without screw holes or with screw holes and Smart Card reader)
432
1
6
432
1
55
5
5
5
7
7
1 = Fingerprint sensor
2 = Camera light
3 = Webcam
4 = Webcam LED
5 = Screw holes (device-dependent) for
securing accessories
6 = SmartCard reader (device dependent)
7 = NFC (Near Field Communication)
(device-dependent)
Fujitsu 13
Important notes
Important notes
ImportantnotesNotes
This chapter contains essential safety information which must be followed when working
with your Tablet PC. The other notes provide useful information about your Tablet PC.
Safety instructions
SafetyinformationInform ation,
Please follow the safety notes provided in the "Safety/Regulations" manual
as well as the safety notes given below.
Please pay special attention to the sections in the manual marked
with the symbol on the left.
When connecting and disconnecting cables, observe the relevant
notes in this operating manual.
Read the information on the ambient conditions in the "Technical data", Page 93 chapter
and the information in the "First-time setup of your device", Page 18 chapter before
preparing your Tablet PC for use and switching it on for the first time.
When cleaning the device, please observe the relevant notes in the
section "Cleaning the Tablet PC", Page 17.
Pay attention to the additional safety notes for devices with wireless components
provided in the "Safety/Regulations" manual.
When handling this device, you come into contact with lead, a chemical which in
California is held to be a possible cause of birth defects and other damage to fertility.
Wash your hands after using the device.
This Tablet PC complies with the relevant safety regulations for data processing equipment. If
you have questions as to whether you can set up the Tablet PC in the intended environment,
please contact your sales outlet or our hotline/service desk.
14 Fujitsu
Important notes
Additional safety notes for devices with
wireless components
Wirelesscom ponentsWirelessLANBluetooth,Safetynotes
If a wireless component (Wireless LAN, Bluetooth, 4G) is integrated in your Tablet PC, you must
be sure to observe the following safety precautions when using your Tablet PC:
• Switch off the wireless components when you are in an aircraft or driving in a car.
• Switch off the wireless components when you are in a hospital, an operating
room or near a medical electronics system. The transmitted radio waves
can impair the operation of medical devices.
• Switch off the wireless components, when you let the device get near flammable
gases or into hazardous environments (e.g. gas station, paint stores), as the
transmitted radio waves can cause an explosion or a fire.
For further information on how to switch the wireless components on and off, refer
to section "Switching the wireless components on and off", Page 43.
Protecting the display screen
Do not pour liquids on the system or wash it with a heavily soaked cloth. Do not place
itemsonthetopo
f the monitor in order to prevent it from being damaged.
During normal use of the device, small particles from the environment
can become embedded in the stylus tip and scratch the screen. The
warranty does not cover a scratched screen.
Energy saving
NotesEnergyPowersaving
If you will not be using your Tablet PC, switch it off. Switch off any connected external devices when
they are not in use. If you use the energy-saving functions, the Tablet PC uses less power. If you do
this, you will be able to work longer with the Tablet PC before having to recharge the battery.
The energy efficiency is increased and environmental pollution is reduced.
You save money and help protect the environment.
Energy saving under Windows
►Make use of the available energy-saving functions as described in chapter
"Using the energy saving functions", Page 39.
Fujitsu 15
Important notes
Traveling with your Tablet PC
MobileoperationNotesTrans portati onTabletPC
Please follow the instructions below when traveling with your Tablet PC.
Before you travel
►Back up important data stored on your hard disk.
beforeyou travelTravel
►Switch off the wireless component for data security reasons. With data traffic via a wireless
connection, it is also possible for unauthorized third parties to receive data.
Information on activating data encryption is provided in the documentation
for your wireless component.
►If you want to use your Tablet PC during a flight, ask the flight attendants to seeit is safe to use it.
When traveling in other countries
►If you are traveling abroad, check that the AC adapter can be operated with the
local AC voltage. If this is not the case, obtain the appropriate AC adapter for
your Tablet PC. Do not use any other voltage converter!
►Check whether the local AC voltage and the AC cable are compatible. If this is not
the case, buy an AC cable that suits the local conditions.
►Enquire with the appropriate government office of the country you will be traveling in as to
whether you may there operate the wireless component integrated in your Tablet PC.
►Take the necessary travel adapters with you when traveling abroad. Check in the following
table for which travel adapters you will need, or ask your travel organizer.
Power connection Travel destination
United States, Canada, Mexico, parts of Latin
America, Japan, Korea, Philippines, Taiwan
Russia and the Commonwealth of Independent
States (CIS), much of Europe, parts of Latin
America, the Middle East, parts of Africa, Hong
Kong, India, much of south-east Asia
United Kingdom, Ireland, Malaya, Singapore,
parts of Africa
China, Australia, New Zealand
16 Fujitsu
Important notes
Transporting the Tablet PC
Protect the Tablet PC from severe shocks and extreme temperatures
(e.g. direct sunlight in a car).
• Do not transport your Tablet PC while it is turned on.
• Carry your Tablet PC with you while traveling. Do not check it in as baggage.
• Never put your Tablet PC through a metal detector. Have it hand-inspected by
security personnel. You can however put your Tablet PC through a properly
tuned X-ray machine. To avoid problems, place it close to the entrance of
the machine and remove it as soon as possible or have it hand-inspected by
security personnel. Security officials may require you to turn your Tablet PC
on. So make sure you have a charged battery on hand for this.
►Switch the Tablet PC off.
►Unplug the AC plug of the AC adapter and all external devices from the power outlets.
►Disconnect the AC adapter cable and the data cables for all external devices.
►To protect against damaging jolts and bumps, use a suitable Tablet PC
carrying case to transport your Tablet PC.
Cleaning the Tablet PC
Do not clean any interior parts yourself; leave this job to a service technician.
Only use detergents designed for computers. Normal household cleaners
and polishes can damage the labels on the keyboard and the Tablet
PC, the paintwork or the Tablet PC itself.
Ensure that no liquid enters the Tablet PC.
The touchscreen is very sensitive to scratches! Only clean the display
surface with a very soft, slightly damp cloth.
►Switch the Tablet PC off.
CleaningInstructions
Tab l e t P CKeyboardTouchpadTouchscreen
CrystalView screen
►To prevent the device from being switched on unintentionally, remove the AC
plug of the AC adapter from the power outlet.
The surfaces may be cleaned with a dry cloth. If particularly dirty, use a cloth which has
been moistened in mild domestic detergent and then carefully wrung out.
Fujitsu 17
First-time setup of your device
First-time setup of your device
First- timese tupGettingstarted
Please read the chapter "Important notes", Page 14.
If your device is equipped with a Windows operating system, the necessary
hardware drivers and supplied software are already pre-installed.
Beforeswitchingitonforthefirst time, connect the device to the AC voltage using
the AC adapter, see "Connecting the AC adapter", Page 20. The AC adapter must
remain connected during the whole of the installation process.
A system test is performed when your device is first switched on. Various messages
can appear. The display may remain dark for a short time or may flicker.
Please follow the instructions on the screen.
NEVER switch off your device during the first-time setup process.
The battery must be charged if you want to operate your device using the battery.
When used on the move, the built-in battery provides the device with the necessary power. You
can increase the operating time by using the available energy-saving functions.
For instructions on how to connect external devices (e.g. mouse, printer) to your Tablet
PC, please refer to the operating manual for your device.
Unpacking and checking the device
If you find that damage has occurred during transport, please notify
your local sales outlet immediately!
►Unpack all the individual parts.
PackagingTransport
►Check your device for any visible damage which may have occurred during transportation.
You may need to reuse the packaging in the future, for example if
you need to ship your device.
18 Fujitsu
First-time setup of your device
Choosealocation
Choosealoc ationSetupAC adapter
Choose a suitable location for the device before setting it up. In doing
so, please follow these instructions:
• Never place the device or the AC adapter on a heat-sensitive surface.
The surface could be damaged as a result.
• Never place the device on a soft surface (e.g. carpeting, upholstered furniture,
bed). This can result in damage caused by overheating.
• The back of the device heats up during normal operation. Prolonged contact
with skin can become unpleasant or even result in burns.
• Place the device on a stable, flat, non-slippery surface. Please note that the
rubber feet of the device may mark certain types of delicate surfaces.
• Keep other objects at least 100 mm / 4 inches away from the device
and its AC adapter to ensure adequate ventilation.
• Do not expose the device to extreme environmental conditions. Protect
the device against dust, humidity and heat.
Mounting rubber feet (only for device options
with palm vein sensor)
Prior to using the device options mentioned above for the first time Fujitsu
recommends the installation of the provided rubber feet.
►Install the rubber feet, see section "Using the palm vein sensor (device-dependent)", Page 68.
Fujitsu 19
First-time setup of your device
Connecting the AC adapter
MakingreadytouseACadapter
Observe the safety notes in the enclosed "Safety/Regulations" manual.
The supplied AC cable conforms to the requirements of the country in which
you purchased your device. Make sure that the AC cable is approved for
use in the country in which you intend to use it.
3
1
2
►Connect the AC cable (1) to the AC adapter.
►Plug the AC cable (2) into a power outlet.
►Connect the AC adapter cable (3) to the
DC jack (DC IN) of the device.
20 Fujitsu
First-time setup of your device
Switching on the device for the first time
Switchingonforthefirstt ime
To make it easier to use your device for the first time, the operating system
is pre-installed on the hard disk.
2
1
2
►Press the ON/OFF button (1) for about one second to switch the device on.
The power-on indicators (2) light up whenever the system is switched on.
Fujitsu 21
First-time setup of your device
►During the installation process, follow the on-screen instructions.
You can find information and help on the Windows operating system
functions online at "http://windows.microsoft.com".
If a Windows 8.1 operating system is installed on your Tablet PC, a tutorial
is automatically started when a new user logs on for the firsttimetoshow
you how to use the new functions of Windows 8.1.
Installing Bonus Apps
BonusApps
After you have started your system the first time, you will see a Bonus Apps icon on your desktop.
►Click on the icon to see which additional applications are available for you to install.
Applications that are already installed appear in grey, those that are
available for installation appear in blue.
►Select the applications you wish to install by selecting the checkbox adjacent to your selection.
or
►Click Select All if you would like to install all available applications.
►To confirm your selection, click Install.
Note that in some cases (depending upon which application was selected for
installation) after installation completes, the system will prompt you to reboot.
There are also cases in which if multiple applications are selected to install
but one of them needs a reboot, the system will reboot and continue
installing the rest of the selected applications.
22 Fujitsu
Working with the Tablet PC
Working with the Tablet PC
Tablet,operationTablet
This chapter describes the basics for operating your Tablet PC. You can find instructions
on how to connect external devices (e.g. mouse, flash storage) to the Tablet PC in
the chapter "Connecting external devices", Page 77.
Please refer to the notes in the chapter "Important notes", Page 14.

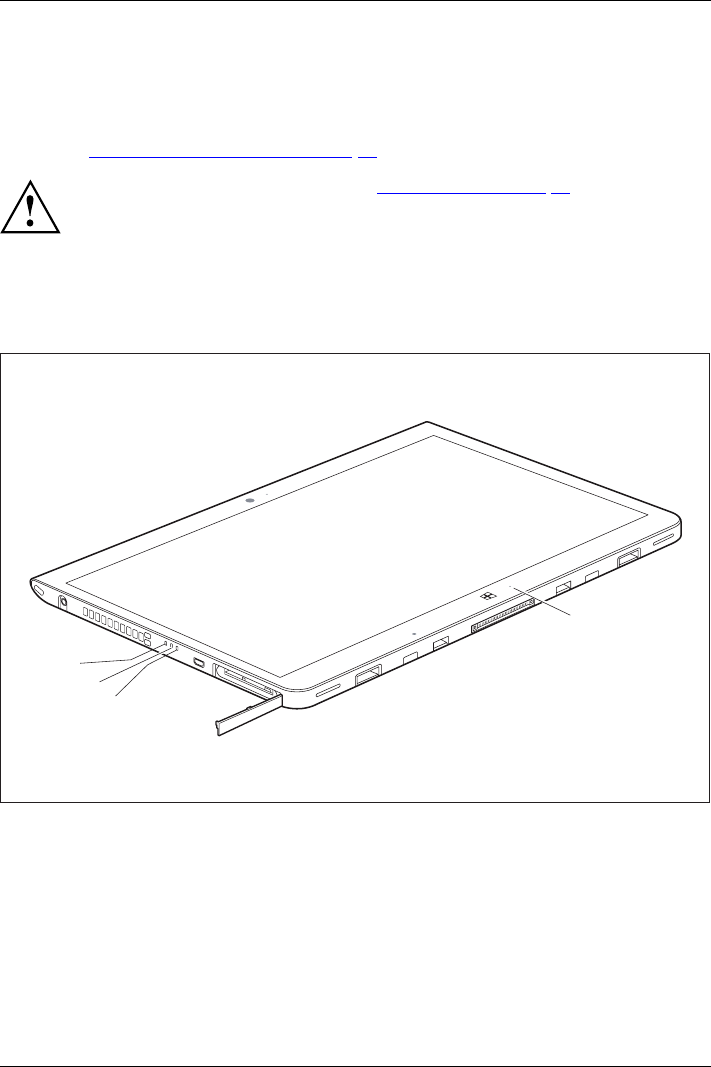

Status indicators
StatusindicatorsSymbols
The status indicators (1, 2, 3) provide information about the status of the power
supply, the drives and the keyboard functions, etc.
2
1
1
3
Fujitsu 23
Working with the Tablet PC
No. Status indicator Description
1Power-on indicator
• The indicator lights up white: The Tablet PC is
switched on.
• The indicator flashes: The Tablet PC is in sleep mode
(Save-to-RAM).
• The indicator is not lit: The Tablet PC is switched off
or in Save-to-Disk mode.
2Battery charging indicator
• The indicator light is orange: The battery is being
charged.
• The indicator is not illuminated: The battery is not
being charged (the battery is already fully charged or
the AC adapter is not connected).
3Wireless indicator
• The indicator lights up white: The wireless components
are switched on, while the Tablet PC is operating.
• The indicator is flashing: The wireless components
are switched on while the Tablet PC is in sleep mode,
Save-to-Disk mode or switched off.
• The indicator is not illuminated: The wireless
components are switched off.
24 Fujitsu
Working with the Tablet PC
Switching the Tablet PC on
Tablet:SwitchingonPower-onPower-onindicatorSuspend/Resume button
2
1
2
►Press the ON/OFF button (1) for about one second to switch the device on.
The power-on indicators (2) light up whenever the system is switched on.
Fujitsu 25
Working with the Tablet PC
Programing the ON/OFF button
You can program the ON/OFF button:
Operating system Menu
Windows 7 Start - (Settings) - Control Panel - System and
Security - Power Options
Windows 8.1 Windows 8.1 Desktop - Control Panel - Hardware
and Sound - Power Options
If you have assigned a password, you must enter this when requested to
do so in order to start the operating system. Detailed information can be
found in the chapter "Security functions", Page 66.
Switching the Tablet PC off
Back up your data and close all applications before you switch off your
device. Otherwise data might be lost.
►Shut down the operating system correctly.
Switchingoffthe
►If the Tablet PC does not switch itself off automatically, press the ON/OFF
button for approx. five seconds.
Handwriting recognition
For detailed information on handwriting recognition, see the documentation for your operating system.
At present, handwriting recognition under Windows 7 or Window 8.1 supports the following languages:
English, German, French, Italian, Japanese, Korean, Chinese (traditional and simplified), Dutch,
Portuguese, Spanish, Brazilian, Norwegian (Bokmål and Nynorsk), Swedish, Finnish, Danish,
Polish, Rumanian, Serbian (Cyrillic and Latin script), Catalan, Russian, Czech and Croatian.
Under Windows 8.1 you can set the required language under ControlPanel–
Time, Language and Region – Language.
26 Fujitsu
Working with the Tablet PC
Touchscreen
Tou ch s c re e nNotes
High-quality LCD screens (TFT) are installed in Fujitsu Tablet PCs. For technical reasons,
these screens are manufactured for a specific resolution. An optimal, clear picture can
only be ensured in the resolution intended for the particular screen. A screen resolution
which differs from the specification can result in an unclear picture.
The screen resolution of your Tablet PC’s touchscreen is optimally set at the factory.
Current production technology cannot guarantee an absolutely fault-free screen display. A few
isolated constantly lit or unlit pixels (picture elements) may be present. The maximum permitted
number of such faulty pixels is specified in the international standard ISO 9241-307 (Class 2).
Example:
A monitor with a resolution of 1,280 x 800 has 1,280 x 800 = 1,024,000 pixels. Each pixel consists of
three subpixels (red, green and blue), so there are almost 3 million subpixels in total. According to ISO
9241-307 (class 2), a maximum of 2 light and 2 dark pixels and in addition 5 light or 10 dark subpixels
or an equivalent mix (1 light subpixel counts as 2 dark subpixels) are allowed to be defective.
Pixel A pixel consists of 3 subpixels, normally red, green and
blue. A pixel is the smallest element that can be generated
by complete functionality of the display.
Subpixel A subpixel is a separately addressable internal structure
within a pixel that enhances the pixel function.
Cluster A cluster contains two or more defective pixels or
subpixels in a 5 x 5 pixel block.
Background lighting
LCD screens are operated with background lighting. The luminosity of the background
lighting can decrease over the period of use of the Tablet PC. However, you can
adjust the brightness of your monitor yourself.
Ambient light sensor
If your Tablet PC was shipped with the Windows operating system,the screen brightness
is regulated by the ambient light sensor and is dependent on the particular light conditions.
This results in optimum readability and longer battery life at the same time.
If your Tablet PC was shipped with Windows 8.1, the adaptive brightness setting is deactivated. To
change the ambient light sensor settings, select Control Panel - System and Security - Power Options -
Change plan settings - Change advanced power settings - Display - Activate adaptive brightness setting..
Select On to activate the adaptive brightness setting with the help of the ambient light sensor.
Synchronizing the display on the touchscreen and an external monitor
In Windows 7, you can switch between touchscreen and external monitor, if you open
Control Panel - Windows Mobility Center, section External Display.
In Windows 8.1 wipe your finger over the screen from the right-hand edge. The setting
Charms - Devices - Second monitor opens. Select the desired output type.
You can also use the Fujitsu Display Manager in the Windows Mobility Center to set the output type.
Fujitsu 27
Working with the Tablet PC
Select display orientation (portrait or
landscape format)
Landscapeform atPortraitformatDisplayorientation
You can choose to use either portrait or landscape format for the display.
Windows 7
You can change these settings in the Fujitsu menu or under Start -(Settings -)
Control Panel -Hardware and Sound -Display -Settings.
Windows 8.1
You can change these settings under Windows 8.1 Desktop - Control Panel -
Hardware and Sound - Windows Mobility Center / Rotate screen.
In the Fujitsu Tablet Controls settings, profiles are saved for operation
with different screen orientations. These profiles have preset standard
configurations that can be modified as desired.
These settings do not just affect the monitor settings on the Tablet PC,
but also on external monitors that are connected.
Using fingers
You can execute certain commands by using your finger tip on the touchscreen of your device.
Alternatively, everything which you can select or activate using your finger
tip can also be selected or activated using the stylus.
Calibrate the Dual Digitizer for finger-based
operation of the device.
You must calibrate your Tablet PC with your fingers before first use, so that
it recognizes your fingertips as accurately as possible.
As soon as you notice that the accuracy is becoming worse, you
must recalibrate the device.
Please note: There are separate calibration programs available for calibrating
the stylus and for calibrating finger-based operation. Do not use the calibration
tool for the pen to calibrate finger-based operation.
Operating system Menu
Windows 7 /
Windows 8.1 Desktop
To calibrate, run the Hardware and Sound / Tablet PC Settings function in the
Control Panel. You need to calibrate both portrait and landscape formats.
28 Fujitsu
Working with the Tablet PC
Actions with one finger (Windows 8.1 Modern)
Action Description
Wipe your finger over the screen from the
right-hand edge.
►Open Charms with system commands
(equivalent to pressing the Windows key +
Ckey on a keyboard).
►Working with the mouse: Position the mouse
pointer at the bottom right-hand edge of the
screen.
Wipe your finger over the screen from the
left-hand edge.
►Switch between the most recently used
applications (equivalent to pressing the
Windows key + Ctrl +Spaceona
keyboard).
►Working with the mouse: Position the mouse
pointer at the bottom left-hand edge of the
screen.
Wipe your finger over the screen from the top
or bottom edge.
►Open the App commands (equivalent to
pressing the Windows key + Zkey on a
keyboard). Wipe from the top to the bottom of
the screen to dock or close the current App.
►Working with the mouse: Right-click on the
Apptod
isplay the App commands.
Fujitsu 29
Working with the Tablet PC

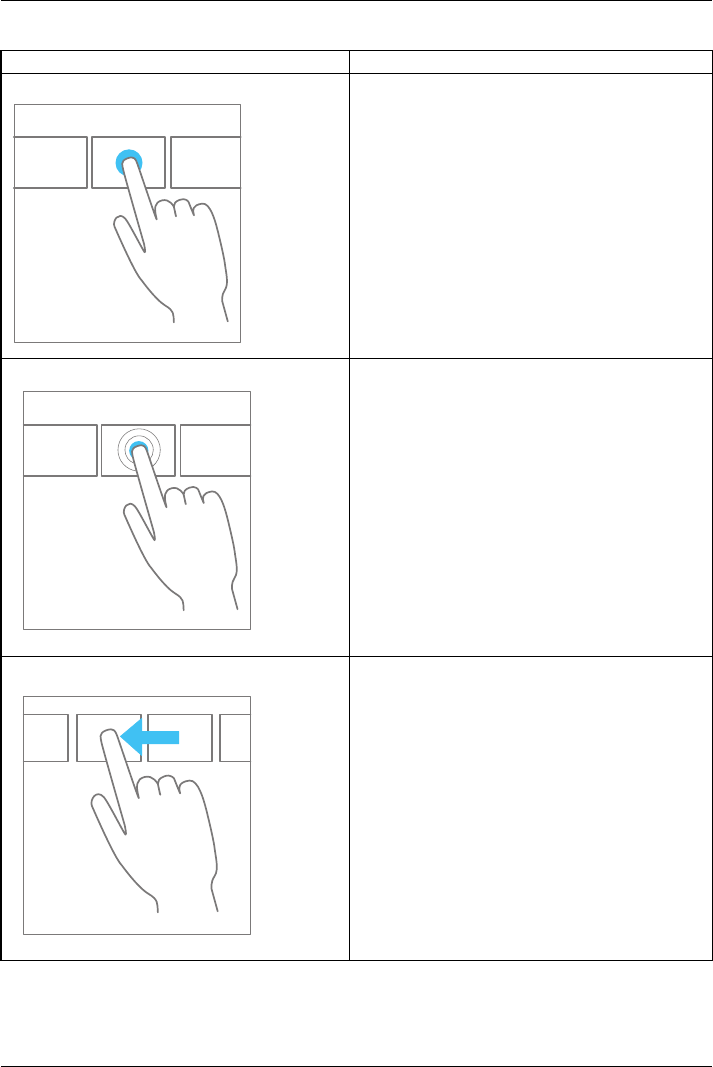

Action Description
Press and hold ►Keep your finger pressed on an object on the
screen to display a menu with further options.
►Workingwiththemouse:Movethemouse
pointer over the object to display a menu with
further options.
Taponanobject ►Tap your finger on an object on the screen
to open an App or a link or to execute a
command.
►Working with the mouse: Left-click on the
object.
Scroll / Move object / Swivel object ►Use this function to scroll through lists or
websites or to swivel or move an object.
►Working with the mouse: Left-click on the
object, keep the mouse button pressed and
move / swivel the object or scroll.
30 Fujitsu
Working with the Tablet PC
Actions with one finger (Windows 7 / Windows 8.1 Desktop)
Action Description
Selecting objects (click with the left mouse
button)
►Tap once briefly with the finger on the object.
Starting programs (double-click with the left
mouse button)
►Use one finger to tap twice in quick
succession on the program symbol.
Moving objects/windows (while holding the left
mouse button pressed, drag & drop)
►Place your finger on the object/window,
keep your fingertip pressed against
the touchscreen and move the desired
object/window.
Opening a context menu (click with the right
mouse button)
►Tap your finger on the desired item.
Keep your fingertip pressed against the
touchscreen.
The context menu appears.
Moving the cursor ►Position one finger on the touchscreen and
move your finger in the desired direction.
Fujitsu 31
Working with the Tablet PC
Actions with two fingers (Windows 7 / Windows 8.1 Desktop)
Action Description
Scrolling
►Place two fingers on the touchscreen.
►Move the fingers up to scroll up.
or
►Move the fingers down to scroll down.
Rotating
►Position your thumb on the touchscreen
and rotate the image clockwise or
counter-clockwise using your index finger.
32 Fujitsu
Working with the Tablet PC
Action Description
Increase or decrease view
►Put two fingers on the touch screen and
move them apart to increase the size of the
view.
or
►Put two fingers on the touch screen and
move them together to decrease the size
of the view.
Lock context-sensitive menus ►Use two fingers to tap twice in quick
succession on the touchscreen.
Fujitsu 33
Working with the Tablet PC
Using the stylus
Pen
1
2
3
1 = stylus tip
2 = stylus button (right mouse button)
3 = eyelet for optional stylus tether
You can use the stylus on your Tablet PC as an electronic writing tool, to select menu items and to
navigate through the programs. Programs that support handwriting recognition also allow you to
write directly on the screen with the stylus. You can also use the stylus as a drawing tool.
You can secure the optional stylus tether to the eyelet of the stylus and to the eyelet of the Tablet PC.
Use only the stylus that was provided with your Tablet PC. Do not use any other pointed
object as a substitute, that was not specially designed for your Tablet PC. Replace
the stylus tip if it is worn. The warranty does not cover a scratched screen.
While writing, take care that you do not scratch the surface of the
display (e.g. with a wristwatch or bracelet).
The stylus of the Tablet PC is an electronic instrument that can be damaged
if used improperly. Handle the stylus with care.
Our recommendations for proper handling of the stylus are as follows:
• Do not gesture with the stylus.
• Do not use the stylus as a pointer.
• Do not use the stylus on surfaces other than the screen of the Tablet PC.
• Do not try to turn the grip of the stylus. The grip is used to put the
stylus into its slot or to take it out of its slot.
• Never store the stylus with its weight on the tip (e.g. with the tip down in a stylus
container). If the stylus is stored with the tip pointing down, this may have an
adverse effect on the stylus mechanism (particularly in high temperatures). In this
case, the stylus tip may react as though it is constantly being pressed down. To
avoid damage, the stylus should be stored in the slot when not in use.
The stylus can be influenced by electromagnetic fields (cursor quivers or
jumps). There may be a few areas on the screen where the cursor quivers
slightly in spite of pressing the stylus down firmly.
The screen responds to entries made with the tip of the finger or the stylus when the
tip of the finger or the stylus directly touches the screen.
You can use the stylus to perform almost all functions for which you would otherwise use a mouse.
Delete functions are not supported by the stylus.
34 Fujitsu
Working with the Tablet PC
Action Mouse Stylus
Selecting menu
items
Click with the left mouse button.Tap on the menu entry with the tip of
the stylus.
Starting programs Double-click with the left mouse
button.
Tap on the program symbol twice in
rapid succession using the stylus tip.
Moving an object
or window
Drag with the left mouse button
pressed.
Place the stylus tip directly on the
object or window. Keep the stylus tip
held against the screen. Drag the
desired object or window.
Opening a context
menu
Click with the right mouse button. Tap on the desired element with the
stylus and keep the stylus pressed
against the screen.
Moving the cursor Move the mouse Place the tip of the stylus directly on
the screen.
Stylus location
To prevent the stylus from jamming in its slot, always make sure that you insert the stylus
correctly into its slot (flat part of the stylus points towards the bottom of the Tablet PC).
On delivery, the stylus is located in the stylus
slot (1):
1
Adjusting the stylus
Operating system Menu
Windows 7 Under Hardware and Sound - Pen and Input Devices, you can make various
settings for the stylus in the control panel (assignment and function of
the stylus button).
Windows 8.1 Under Windows 8.1 Desktop - Control Panel - Hardware and Sound - Pen and
Input Devices you can make various settings for the stylus (assignment
and function of the stylus button).
Fujitsu 35
Working with the Tablet PC
Calibrating the stylus
You must calibrate your Tablet PC with the stylus before first use, so that it
recognizes the stylus as accurately as possible.
You should also always repeat the calibration if the coordination between the
stylus and the cursor movement deteriorates.
Operating system Menu
Windows 7 /
Windows 8.1 Desktop
To calibrate, run the Hardware and Sound / Tablet PC Settings function in the
Control Panel. You need to calibrate both portrait and landscape formats.
Securing the stylus tether (optional)
To prevent accidentally dropping or losing the stylus, you should secure it
with the optional stylus tether.
►Secure one end of the stylus tether to the stylus and the other end to the Tablet PC.
36 Fujitsu
Working with the Tablet PC
Tablet buttons
In addition to an on/off switch (4), your Tablet PC is fitted with three tablet buttons.
1 2 4
3
No. Description Functions
1Shortcut button Start function manager or screen shot function
2 Decrease volume button Decrease volume
3 Increase volume button Increase volume
If the Windows key of the Tablet PC is pressed in combination with the ON/OFF switch (4),
the function corresponds with the key combination Ctrl +Alt +Del on a keyboard.
Webcam
Webcam
Your device has two webcams: one on the front of the device and one on the rear.
The webcam has its own status indicator. The indicator lights up when the webcam is active.
Depending on the software used, you can use your webcam to take pictures,
record video clips or take part in web chats.
• The picture quality depends on the lighting conditions and the software being used.
• You can only operate the webcam with a particular application (e.g. an Internet telephony
program or a video conferencing program which supports a webcam).
• When using the webcam the support of the Tablet PC must not wobble.
• The webcam automatically adjusts itself to the current light level. For this reason,
the touchscreen may flicker while the light level is adjusted.
Further information on use of the webcam and additional settings for your webcam
can be found in the help function of the program using the webcam.
Fujitsu 37
Working with the Tablet PC
Rechargeable battery
BatteryBatteryServicelife,batteryRechargeablebatteryBattery
The built-in battery provides the Tablet PC with the necessary power for use on the move.
You can increase the service life of the battery by caring for the battery properly. The
average battery service life is around 500 charge/discharge cycles.
You can extend the battery service life by taking advantage of the available energy-saving functions.
Charging and maintaining the battery
BatteryBattery
The Tablet PC battery can only be charged when the ambient temperature is
between 5°C / 41 °F and max. 35°C / 95°F.
You can charge the battery by connecting the Tablet PC to the AC adapter
(see "Connecting the AC adapter", Page 20).
If the battery is running low you will hear a warning alarm. If you do not connect the AC adapter
within five minutes of hearing the warning alarm, your Tablet PC will switch off automatically.
Monitoring the battery state of charge
Batterybatterychargemeter
A battery symbol for monitoring the battery capacity is displayed in the system bar /
status indicator. The battery symbol shows you the battery charge.
38 Fujitsu
Working with the Tablet PC
Using the energy saving functions
EnergyEnergyBattery
The Tablet PC uses less power when the energy saving features are enabled. You will then
be able to work longer when using the battery before having to recharge it.
The energy efficiency is increased and environmental pollution is reduced.
By choosing the best power options, you can make significant savings and
at the same time help protect the environment.
We recommend the following settings:
Function Operating on AC power Operating on battery power
Turn off monitor After 10 minutes After 5 minutes
Turn off hard disk(s) After 15 minutes After 10 minutes
Energy saving (S3) After 20 minutes After 15 minutes
Hibernate mode (S4)After 1 hour After 30 minutes
►Set the energy saving functions in your Control Panel.
►Set the screen saver in your Control Panel.
or
►Keep a finger pressed on the desktop to display the context menu. Configure the screen
saver under Change screen saver.
If you need further information about an option, you can get help with most settings by
pressing the ?symbol in the upper right of the screen to open the Microsoft Help.
When the Tablet PC is in a power-saving mode, you must remember the following:
During power-saving mode, open data is held in main memory or
in a swap file on the hard disk.
Never switch off the Tablet PC while it is in a power-saving mode. If the built-in battery
is nearly flat, close all open files and do not go into power-saving mode.
If you do not intend to use your Tablet PC for a long period of time:
►Exit the power-saving mode if necessary by touching the screen or by switching the Tablet
PC on.
►Close all opened programs and completely shut down the Tablet PC.
Fujitsu 39
Working with the Tablet PC
Memory cards
Slot
Your Tablet PC is equipped with an integrated storage card reader. Use storage
cards to enlarge the storage of your Tablet PC.
Follow the manufacturer’s instructions when handling the memory cards.
Memorycard
Supported formats
The following formats are supported:
• Micro Secure Digital (Micro SDTM Card)
• Micro SDHC
•MicroSDXC
Inserting the memory card
2
1
►Open the slot cover (1).
►Carefully slide the storage card into the slot (2). The label area must be facing upward. Do
not apply any force, otherwise the delicate contact surfaces could be damaged.
Memorycard
►Close the slot cover.
40 Fujitsu
Working with the Tablet PC
Removing the memory card
Memorycard
To avoid any loss of data, always follow the correct procedure for removing the
card (see the documentation for your operating system).
►Open the slot cover.
1
3
a
1
2
►Press the edge of the memory card so that the memory card jumps (1) slightly out of the slot (a).
►Pull the memory card out of the slot (a) in the direction of the arrow (2).
►Close the slot cover (3).
Fujitsu 41
Working with the Tablet PC
SIM card
A SIM Card (Subscriber Identity Module) is a chip card which is inserted in a cellular phone or Tablet
PC and, together with an integrated 4G module, enables access to a cellular radio network.
Follow the instructions supplied by the provider of the SIM card. If you do not feel the
the SIM card engage as you insert it, use a pointed object to insert the SIM card.
Please note that the SIM card format must be micro-SIM (3FF). Other SIM
card formats, such as full-size (1FF), mini-SIM (2FF) or nano-SIM (4FF) do
not fit in the SIM card slot of your Tablet PC.
Please do not insert any other format of SIM card as they may become
twisted, they could even damage the system.
Inserting a SIM card
2
1
a
►Open the slot cover (1).
►Carefully push the SIM card into the slot (a) in the direction of the arrow (2) until you
feel the SIM card engage. The label area must be facing upward. Do not apply any
force, otherwise the delicate contact surfaces could be damaged.
►Close the slot cover.
42 Fujitsu
Working with the Tablet PC
Removing a SIM card
►Open the slot cover.
3
a
2
1
►Press the edge of the SIM card so that the SIM card jumps slightly out of the slot (1).
►Pull the SIM card out of the slot (a) in the direction of the arrow (2).
►Close the slot cover (3).
Wireless LAN/Bluetooth/4G/LTE/NFC wireless
components
The installation of wireless components not approved by Fujitsu will
invalidate the certifications issued for this device.
Switching the wireless components on and off
The wireless components are switched on and off using the appropriate
functions of the operating system.
►To switch wireless components on and off individually, select Settings – Change
PC settings – Network – Airplane mode.
Configuring WLAN access
• Requirement: A WLAN is available and you have the necessary access data to hand.
Information on configuring WLAN access can be found in the
documentation for your operating system.
Fujitsu 43
Working with the Tablet PC
Further information on WLAN and Bluetooth
For further information about WLAN or Bluetooth, please refer to the
appendix of this Operating Manual.
For WLAN specifications, see chapter "WLAN specifications", Page 94.
Access via UMTS
If you ordered an integrated UMTS module with your system, you can enjoy optimum
reception and maximum energy efficiency without awkward cables or antennas. The
optional UMTS module is ready for use immediately.
You will find information on establishing the connection with the UMTS network
in the documentation for the hardware used.
Your device can connect to the Internet via UMTS. To do this, use one of
the following types of connection:
• Integrated UMTS module (availability dependent on your configuration)
• USB dongle (a USB stick containing a SIM card from your cellular phone network provider)
• A mobile end-device (e.g. cellular phone with Bluetooth or cable connection)
Access via Wireless WAN
You can purchase the accessories for Wireless WAN reception from your Fujitsu dealer.
If you have ordered a Wireless WAN module, your device will already
be prepared when you receive it.
You will find information on establishing the connection with the Wireless WAN
network in the documentation for the hardware you plan to use.
Access via 4G
You can order the accessories for 4G reception from your Fujitsu dealer.
If you have ordered an integrated 4G module with your system, the 4G
module is ready for use straight away.
You can find information on establishing the connection with the 4G network
in the documentation for the hardware used.
NFC (Near Field Communication, optional)
Your Tablet PC can be equipped with an optional built-in NFC chip. Near Field Communication is
used for contactless exchange of data via radio over short distances (a few centimeters).
44 Fujitsu
Working with the Tablet PC
Ethernet and LAN (only with performance
docking cradle, keyboard docking station or
power keyboard docking station)
EthernetLAN
The internal network module of your Tablet PC supports Ethernet LAN. You can use it to
establish a connection to a local network (LAN = Local Area Network).
2
1
►Connect the network cable to the LAN port
of the performance docking cradle (1).
or
►Connect the network cable to the LAN
port of the keyboard docking station or
power keyboard docking station (1).
►Connect the network cable to your
network connection (2).
Your network administrator can help you to configure and use the LAN connections.
The network cable is not included in the delivery scope. This type of
cable can be obtained from a specialist dealer.
GPS
GPS
Whether your device has this function depends on the chosen equipment level.
Fujitsu 45
Accessories for your Tablet PC (optional)
Accessories for your Tablet PC (optional)
The following accessories are available for your Tablet PC:
• Performance docking cradle for charging the Tablet PC and with additional ports
• Keyboard docking station with additional ports (without replaceable battery)
• Power keyboard docking station with additional ports (with replaceable battery)
• Intermediary VESA Mount Plate
• Hand strap
• Shoulder strap
• Folio case
The following sections provide more information on handling the accessories.
46 Fujitsu
Accessories for your Tablet PC (optional)
Your performance docking cradle (optional)
As well as fast charging, your performance docking cradle is a device that also allows you to
quickly connect your Tablet PC to your peripherals such as a monitor, keyboard, mouse, etc.
You only need to dock the Tablet PC to be able to work with your peripheral devices.
Performance docking cradle components
PortsPortsPerformancedockingcradle
1
2
34
56
12
78910
11
1 = Slide-out button
2 = Connector on the performance docking
cradle for the docking port of the Tablet PC
3=USBport3.0
4=USBport3.0
5=USBport3.0
6 = Microphone port
7 = Headphones port
8 = VGA monitor port
9=HDMIport
10 = LAN port
11 = Security Lock device
12 = DC jack socket (DC IN)
Setting up the performance docking cradle
Select a suitable location for the performance docking cradle before setting
it up. In doing so, please follow these instructions:
• Place the performance docking cradle on a flat, stable, non-slippery surface.
• Never place the performance docking cradle or the AC adapter on a heat-sensitive surface.
• Do not expose the performance docking cradle to extreme environmental conditions.
• Protect the performance docking cradle from dust, moisture and heat.
Fujitsu 47
Accessories for your Tablet PC (optional)
Connecting the Tablet PC to the performance docking cradle
It is possible to connect the Tablet PC to the performance docking cradle while it is running.
Disconnect the AC adapter from the Tablet PC before connecting the
Tablet PC to the performance docking cradle.
When the Tablet PC is connected to the performance docking cradle, you must
connect the AC adapter to the performance docking cradle.
Performancedockingcradle
►Remove the AC plug of the AC adapter from the power outlet.
►Remove the AC adapter cable from the DC jack (DC IN) of the Tablet PC.
1
2
4
3
Your performance docking cradle is supplied with a separate AC adapter (19 V, 3.42 A).
Make sure that you only use this AC adapter for the performance docking cradle.
►Position the Tablet PC so that it lies against the storage surface of the performance docking cradle.
48 Fujitsu
Accessories for your Tablet PC (optional)
►Push the Tablet PC onto the performance docking cradle in the direction of the arrow (1) until
you feel it engage on the connector and until the slide-out position returns to its original position.
►Plug the AC adapter cable into the DC jack (DC IN) on the performance docking cradle (2).
►Connect the AC cable to the AC adapter (3).
►Plug the AC cable into the power outlet (4).
Disconnecting the Tablet PC from the performance
docking cradle
It is possible to separate the Tablet PC from the performance docking
cradle while it is running.
2
1
►Press the slide-out button in the direction of the arrow (1) until it firmly
remains in pressed position (red marking visible).
►While holding down the lower part of the performance docking cradle, lift the Tablet PC
off the performance docking cradle in the direction of the arrow (2).
Fujitsu 49
Accessories for your Tablet PC (optional)
Keyboard docking station or power keyboard
docking station (optional)
The keyboard docking station is available in two options:
• normal keyboard docking station without replaceable battery
• power keyboard docking station with replaceable battery
The (power) keyboard docking station is a device which has been optimized for convenient input of
texts and allows external devices to be connected. It only needs to be docked with the Tablet PC.
50 Fujitsu
Accessories for your Tablet PC (optional)
Ports on the keyboard docking station or power
keyboard docking station
Keyboarddo ckingstationPorts
7
1
5
6
10
12 11
13
8
9
234
1=Releaseb
utton
2 = Num Lock indicator (switch virtual
keypad on and off)
3 = Caps Lock indicator (switch upper case
writing function on and off)
4 = Scroll indicator (Scroll Lock, function
depends on application program)
5 = Battery indicator of the battery in the
power keyboard docking station (optional)
6 = Battery charging indicator of the
battery in the power keyboard docking
station (optional)
7 = Docking port for the Tablet PC
8 = DC jack (DC IN)
9=Securit
y Lock device
10 = LAN port
11 = HDMI port
12 = VGA monitor port
13 = USB ports (3 x USB 3.0)
Fujitsu 51
Accessories for your Tablet PC (optional)
Status indicators for the power keyboard docking station
with additional replaceable battery
This section does not apply to the normal keyboard docking station
without replaceable battery!
Status indicator Description
Battery indicator The battery indicator shows the state of charge of the battery.
• The indicator lights up white: The battery is between 50% and
100% charged.
• The indicator lights up orange: The battery is between 13 %
and 49 % charged.
• The indicator lights up red: The battery is charged between 0
% and 12 %.
Battery charging indicator The battery charging indicator shows whether the battery is being
charged.
• The indicator lights up orange: The AC adapter has been
connected; the battery is charging.
• The indicator lights up white: The AC adapter is connected and
the battery is fully charged / is not being charged.
• The indicator is not lit up: The AC adapter is not connected.
52 Fujitsu
Accessories for your Tablet PC (optional)
Connecting the Tablet PC to the keyboard docking station
or power keyboard docking station
If the Tablet PC is connected to the keyboard docking station or power
keyboard docking station, you can connect the AC adapter either to the
keyboard docking station or to the Tablet PC.
Keyboarddo ckingstation
►Position the keyboard docking station as shown.
1
2
3
4
►Push the Tablet PC onto the keyboard docking station in the direction of the
arrow (1) until you notice it engage with the plug.
►Connect the AC adapter cable to the DC input connector (DC IN) of
the keyboard docking station (2).
►Connect the AC cable to the AC adapter (3).
►Plug the AC cable into the power outlet (4).
Fujitsu 53
Accessories for your Tablet PC (optional)
Separating the Tablet PC from the keyboard docking
station or power keyboard docking station
It is possible to separate the Tablet PC from the keyboard docking station
or power keyboard docking station while it is running. However, to prevent
any problems, we recommend that you execute the appropriate undocking
function provided by the operating system.
2
1
►Keep the unlocking button pressed (1) until it remains in the pressed
position (red marking becomes visible).
►Lift the Tablet PC away from the keyboard docking station in the direction of the arrow (2).
54 Fujitsu
Accessories for your Tablet PC (optional)
Removable rechargeable battery for the power keyboard
docking station (optional)
BatteryBatteryServicelife,batteryRechargeablebatteryBattery
This section does not apply to the normal keyboard docking station
without replaceable battery!
Removing and installing the battery
Only use rechargeable batteries approved by Fujitsu for your Tablet PC.
Never use force when fitting or removing a battery.
Make sure that no foreign bodies get into the battery connections.
Never store a battery for long periods in the discharged state. This
can make it impossible to recharge.
Removing the rechargeable battery
Please observe the safety information in chapter "Important notes", Page 14.
Remove the AC plug from the power outlet!
►Switch the TabletPCoff.
The device must not be in energy saving mode.
►Disconnect all cables from the keyboard docking station.
►Turn the keyboard docking station over and place it on a stable, flat and clean
surface. If necessary, lay an anti-slip cloth on this surface to prevent the
keyboard docking station from being scratched.
Fujitsu 55
Accessories for your Tablet PC (optional)
1
1
2
►Disconnect the catches of the battery compartment cover and open the
battery compartment cover (1).
►Lift the battery at the deep point in the middle of the battery compartment and
take the battery out of the battery compartment (2).
56 Fujitsu
Accessories for your Tablet PC (optional)
Installing a rechargeable battery
1
3
3
2
2
►Position the rechargeable battery on the edge of the battery compartment and insert
the rechargeable battery into the battery compartment (1).
►Insert the catches of the battery compartment cover in the openings on the device (2).
►Close the battery compartment cover (3).
Fujitsu 57
Accessories for your Tablet PC (optional)
Intermediary VESA Mount Plate (optional)
On models with screw holes, Smart Card reader option or palm vein sensor option, an
optional Intermediary VESA Mount Plate can be attached.
Use the Intermediary VESA Mount Plate to secure the Tablet PC to a monitor
with the corresponding screw holes, for example.
The Intermediary VESA Mount Plate cannot be used in conjunction
with the hand strap or shoulder strap.
The Intermediary VESA Mount Plate Kit includes the following components:
Intermediary VESA Mount Plate, two M2x8 screws and two spacers.
58 Fujitsu
Accessories for your Tablet PC (optional)
• Use the appropriate tool of the correct size when securing the screws.
• Keep the screws out of the reach of children.
4
4
4
4
3
1
1
1
1
2
2
2
2
►Remove the covers from the screw holes on the rear of the tablet PC (1).
►Position the spacers between the tablet PC and the Intermediary VESA Mount Plate (2).
Fujitsu 59
Accessories for your Tablet PC (optional)
►Position the Intermediary VESA Mount Plate on the tablet PC (3). Make sure that the screw holes
of the Intermediary VESA Mount Plate and of the tablet PC line up exactly above one another.
►Secure the Intermediary VESA Mount Plate with the screws (4).
Hand strap (optional)
On models with screw holes, Smart Card reader option or palm vein sensor
option, an optional hand strap can be attached.
The hand strap cannot be used in conjunction with the Intermediary
VESA Mount Plate or shoulder strap.
The hand strap accessory contains the following components: Hand straps,
two M2x6 screws, two M2x8 screws and two spacers.
60 Fujitsu
Accessories for your Tablet PC (optional)
• Use the appropriate tool of the correct size when securing the screws.
• Keep the screws out of the reach of children.
• Do not shake the device too much when you are holding it on the
hand strap, otherwise it may fall down.
1
1
2
2
4
4
3
►Remove the covers from the screw holes on the rear of the tablet PC (1).
►Position the spacers between the tablet PC and the hand strap (2).
►Put the hand strap in position on the tablet PC (3). Make sure that the screw holes of
the hand strap and the tablet PC line up exactly above one another.
Fujitsu 61
Accessories for your Tablet PC (optional)
Only use the M2x8 screws to secure the hand strap.
►Secure the hand strap with the screws (4).
Shoulder strap (optional)
On models with screw holes, Smart Card reader option or palm vein sensor option,
an optional shoulder strap can be attached.
The shoulder strap cannot be used in conjunction with the Intermediary
VESA Mount Plate or hand strap.
The shoulder strap accessory contains the following components: Shoulder strap,
two mountings, two M2x6 screws, two M2x8 screws and two spacers.
62 Fujitsu
Accessories for your Tablet PC (optional)
• Use the appropriate tool of the correct size when securing the screws.
• Keep the screws and mountings out of the reach of children.
• To prevent damaging the screws, do not use a motorized screwdriver.
1
1
2
3
3
2
►Remove the covers from the screw holes on the rear of the tablet PC (1).
Fujitsu 63
Accessories for your Tablet PC (optional)
Only use the M2x8 screws to secure the mountings.
►Position spacers under the mountings, position the mountings on the rear of the
tablet PC and secure the mountings with the screws (2).
►Secure the shoulder strap on the mountings (3).
Folio case (optional)
If you are using the folio case, we do not recommend that you connect the Tablet PC
to the keyboard docking station or power keyboard docking station. Note that the unit
cannot be closed in clamshell mode while the Tablet PC is attached to the folio case.
• This folio case contains magnets. Keep it away from objects that may be easily
affected by the influence of magnetism, e.g. pacemakers and magnetic cards.
• Make sure the device is firmly fitted into the folio case fasteners in
order to prevent it from falling out.
• The folio case is only designed to safely store and transport the device.
Do not use the folio case for any other purpose.
• Keep the folio case away from fire or heaters.
• Neither put the folio case in direct sunlight nor expose it to
high temperature or humidity.
►Position the Tablet PC on the cover as shown.
The following illustration shows you the many ways in which the cover can be used:
64 Fujitsu
Accessories for your Tablet PC (optional)
Fujitsu 65
Security functions
Security functions
Securityfunctions
Your Tablet PC has several security features that you can use to secure your system
and your personal data from unauthorized access.
This chapter explains how to use these functions, and what the benefits are.
Please remember that in some cases, for example, forgetting your password,
you may be locked out of the system and unable to access your data.
Therefore, please note the following information:
• Back up your data on external data carriers at regular intervals.
• Some security functions need you to choose passwords. Make a note
of the passwords and keep them in a safe place.
If you forget your passwords you will need to contact our Service Desk.
Deletion or resetting of passwords are not covered by your warranty
and a charge will be made for assistance.
66 Fujitsu
Security functions
Configuring the fingerprint sensor
Fingerprintsens orFinger printsensor
The fingerprint sensor can record the image of a fingerprint. With additional fingerprint
software, this image can be processed and used instead of a password.
1
1
►Install the fingerprint software to be able to use the fingerprint sensor (1).
Fujitsu 67
Security functions
Using the palm vein sensor (device-dependent)
PalmveinsensorPalmveinsensor
Whether your device has a palm vein sensor or not depends on the
device configuration which you ordered.
The palm vein sensor (1) can record the image of the veins on the palm of your hand. This
image is evaluated with additional software and can be used in place of a password.
1
Prior to using the palm vein sensor for the first time Fujitsu recommends the
installation of the provided rubber feet:
►Turn the device over and place it on a stable, flat and clean surface. If necessary, lay an
anti-slip cloth on this surface to prevent the device from being scratched.
68 Fujitsu
Security functions
2
2
►Fasten the rubber feet with the screws (2).
►Install the software to use the palm vein sensor.
You can obtain further information on the palm vein sensor in the
"Appendix: Miscellaneous Information".
Fujitsu 69
Security functions
Using the Security Lock
SecurityLockAnti-theftprotectionSecurityLock
Your device comes with a Security Lock device for the Kensington Lock Cable. With the
Kensington Lock Cable, a sturdy steel cable, you can protect your device and the port replicator
against theft. The Kensington Lock Cable is available as an accessory.
►Fit the Kensington Lock Cable to the
corresponding mechanism on your device.
Attach another Kensington Lock Cable to your performance docking
cradle, keyboard docking station or power keyboard docking station to
protect your port replicator from theft as well.
Configuring passwordprotectioninBIOSSetupUtility
Before using the various options for password protection in the BIOS Setup
Utility, please proceed as follows to increase data security:
Make a note of the passwords and keep them in a safe place. If you forget your
supervisor password you will not be able to access your Tablet PC. Passwords are
not covered by your warranty and a charge will be made for assistance.
Password protection
Your password can be up to eight characters long and can contain letters and
numbers. No distinction is made between uppercase and lowercase.
70 Fujitsu
Security functions
Protecting BIOS Setup Utility (supervisor password
and user password)
If you have opened these operating instructions on the screen, we recommend
that you print them out. You cannot call up the instructions on the screen
while you are setting up the password.
BIOSSetupUtility
The supervisor password and the user password both prevent unauthorized use of the BIOS
Setup Utility. The supervisor password allows you to access all of the functions of the BIOS Setup
Utility, while the user password will only give you access to some of the functions. You can
only set up a user password if a supervisor password has already been assigned.
Calling and using the BIOS Setup Utility is described in the chapter
"Settings in BIOS Setup Utility", Page 81.
Assigning the supervisor and user passwords
►Start the BIOS Setup Utility and go to the Security menu.
►Select the Set Supervisor Password field and press the Enter key.
With Enter new Password: you are asked to enter a password.
►Enter the password and press the Enter key.
Confirm new Password requires you to confirm the password.
►Enter the password again and press the Enter key.
Changes have been saved is displayed as a confirmation that the new password has been saved.
►To set the user password, select Set User Password and proceed exactly as
when configuring the supervisor password.
If you do not want to change any other settings, you can exit BIOS Setup Utility.
►In the Exit menu, select the option Save Changes & Exit.
►Select Yes and press the Enter key.
PasswordSupervisor passwordUserpassword
The Tablet PC is rebooted and the new password is effective. It will now be necessary to
first enter your supervisor or user password in order to open the BIOS Setup Utility. Please
note that the user password only provides access to a few of the BIOS settings.
Changing the supervisor password or user password
You can only change the supervisor password when you have logged into the
BIOS Setup Utility with the supervisor password.
PasswordSupervisorpasswordUserpassword
►Start the BIOS Setup Utility and go to the Security menu.
►When changing the password, proceed exactly as when assigning a password.
Fujitsu 71
Security functions
Removing passwords
To remove a password (without setting a new password) perform the following steps:
PasswordSupervisorpasswordUserpassword
►Start the BIOS Setup Utility and go to the Security menu.
►Highlight the Set Supervisor Password or Set User Password field and press the Enter key.
You will be requested to enter the current password by the Enter Current Password prompt.
Enter New Password will appear and you will be requested to enter a new password.
►Press the Enter key twice at this request.
►In the Exit menu, select the option Save Changes & Exit.
►Select Yes and press the Enter key.
The Tablet PC is rebooted and the password is removed.
Removing the supervisor password simultaneously deactivates the user password.
Password protection for booting the operating system
With the supervisor password you have set in the BIOS Setup Utility (see
section "Assigning the supervisor and user passwords", Page 71), you can
also prevent booting of the operating system.
Operating system
Activating system protection
►Start the BIOS Setup Utility and go to the Security menu.
Operatingsystem
►Select the Password on Boot option and press the Enter key.
►Select the option you require (First Boot or Every Boot) and press the enter key
►Select the Save Changes & Exit option under Exit.
The Tablet PC reboots. You will be prompted to enter your password (the supervisor password).
Deactivating system protection
►Start the BIOS Setup Utility and go to the Security menu.
Operatingsystem
►Select the Password on Boot option and press the Enter key.
►Select the Disabled option and press the Enter key.
If you do not want to change any other settings, you can exit BIOS Setup Utility.
►Select the Save Changes & Exit option under Exit.
The Tablet PC reboots. The system is no longer password-protected.
72 Fujitsu
Security functions
Password protection for the hard disk
Passwordprotect ion
The hard disk password prevents unauthorized access to the hard disk drives
and is checked internally each time the system is booted. The condition for this
is that you have assigned at least the supervisor password.
Activating hard disk protection
►Call up the BIOS Setup and select the Security menu.
If you have not assigned BIOS passwords yet, define the supervisor and the user
password now, if desired (see "Security functions", Page 66).
►Mark the Hard Disk Security field and press the Enter key.
►In the area Drive0, mark the field Set Master Password and press the Enter key.
Enter new Password then appears and you are asked to enter a password.
►Enter the password and press the Enter key.
Confirm new Password requires you to confirm the password.
►Enter the password again and press the Enter key.
With Setup Notice: Changes have been saved you receive confirmation that
the new password has been saved.
►If you wish to enter a password for a second hard disk (Drive1), in the area
Drive1 mark the field Set Master Password and proceed in exactly the same way
as for the set up of the first hard disk (Drive0).
The field Password Entry on Boot is set to Enabled by default. You can exit the BIOS
Setup once you have finished changing the settings.
►From the Exit menu, choose the option Exit Saving Changes.
►Press the Enter key and select Yes.
The Tablet PC reboots and your hard disk is now protected with a password. The
password prompt is enabled as soon as the Tablet PC has rebooted.
Deactivating hard disk protection
To cancel a password (without setting a new password) proceed as follows:
►Call up the BIOS Setup and select the Security menu.
►Mark the Hard Disk Security field and press the Enter key.
►In the area Drive0, mark the field Set Master Password and press the Enter key.
With the prompt Enter current Password you are first asked to enter the old password again.
With Enter new Password you are then prompted to enter a new password.
►After the request, press the Enter key three times.
►From the Exit menu, choose the option Exit Saving Changes.
►Press the Enter key and select Yes.
The Tablet PC reboots and there is no longer any password protection for this hard disk.
►If you wish to remove a password for a second hard disk (Drive1), in the area
Drive1 mark the field Set Master Password and proceed in exactly the same way
as for the removal of the first hard disk (Drive0).
Fujitsu 73
Security functions
SmartCard reader (optional)
SecurityfunctionsSecurityfunctions
Depending on the selected model, your device is equipped with a Smartcard reader
(only on models with screw hole and SmartCard reader option).
SmartCards are not supplied as standard equipment. You can use all SmartCards that comply with
the ISO standard 7816-1, -2 or -3. These SmartCards are available from various manufacturers.
With the appropriate software you can use your SmartCard as an alternative to password protection,
but also as a digital signature, for encrypting your e-mails or for home banking.
We recommend that you always use two SmartCards. Always keep one of the SmartCards
in a safe place if you are carrying the other SmartCard with you.
In order to be able to take advantage of all the security features of your Tablet
PC, you will need a CardOS SmartCard from Fujitsu.
The SmartCard can only be used with a PIN, so maximum protection is maintained
even when the SmartCard is lost. In order to maximize your security, the CardOS
SmartCard is disabled if three incorrect attempts are made to enter the PIN.
During first time use of your CardOS SmartCard, you must either enter the preset PIN
"12345678" or the PIN which has been notified to you by your system administrator.
74 Fujitsu
Security functions
Inserting the SmartCard
Depending on the selected model, your device is equipped with a Smartcard reader
(only on models with screw hole and SmartCard reader option).
Do not use force when inserting and removing the SmartCard.
Make sure that foreign objects do not fall into the SmartCard reader.
1
►Push the SmartCard into the SmartCard reader with the chip facing the rear of the Tablet PC.
Fujitsu 75
Security functions
Trusted Platform Module - TPM (device dependent)
TPMTrustedPlatform Module
To use the TPM, you must enable the TPM in the BIOS Setup before the software is
installed. The requirement for this is that you have assigned at least the supervisor
HDD password (see "Security functions", Page 66).
Enabling TPM
• Requirement: You have assigned a supervisor password (see "Security functions", Page 66).
►Call BIOS Setup and select the Security menu.
►Mark the TPM Security Chip Setting field and press the Enter key.
►Select the entry Enabled to enable the TPM
Once you have enabled the TPM the Clear Security Chip menu item appears.
You can clear the holder in the TPM using Clear Security Chip.WithEnabled,
all secret keys (e.g. SRK - Storage Root Keys, AIK - Attestation Identity Keys
etc.) generated by applications are deleted.
Take note that you can then no longer access the data you have
encrypted on the holder-based keys!
►Select the Exit Saving Changes option in the Exit menu.
►Press the Enter key and select Yes.
The Tablet PC restarts and the TPM is enabled after the reboot.
Disabling TPM
• Requirement: You have assigned a supervisor password (see "Security functions", Page 66).
►Call BIOS Setup and select the Security menu.
►Mark the TPM Security Chip Setting field and press the Enter key.
►Select the entry Disabled to disable the TPM.
►From the Exit menu, choose the option Exit Saving Changes.
►Press the Enter key and select Yes.
The Tablet PC is rebooted and the TPM is disabled.
76 Fujitsu
Connecting external devices
Connecting external devices
Under all circumstances, please observe the safety notes provided in the
"Important notes", Page 14 chapter before connecting or disconnecting
any devices to or from your Tablet PC.
Always read the documentation supplied with the device you wish to connect.
Never connect or disconnect cables during a thunderstorm.
Never pull at a cable when disconnecting it. Always grasp the plug.
With some devices, such as USB devices, it is not necessary to switch off
the Tablet PC and the device before connecting/disconnecting. For more
information about whether or not devices need to be switched off, please refer
to the documentation supplied with your external device.
Some of the external devices require special drivers (see the operating
system and external device documentation).
Connecting an external monitor
Micro HDMI port
HDMIport
The micro HDMI port on your device can be used to connect an external amplifier,
LCD TV or a plasma TV with an HDMI connection.
►Connect the data cable to the
external device.
►Connect the data cable to the micro
HDMI port.
Some LCD televisions have only two speakers/speaker ports and therefore
cannot reproduce Dolby Digital or DTS. To play back HDMI sound, you
must change the HDMI sound settings accordingly.
You can find the settings under Control Panel - Hardware and Sound. Deactivate the
settings for DTS Audio and Dolby Digital to enable playback of HDMI sound.
Fujitsu 77
Connecting external devices
HDMI port (only performance docking cradle, keyboard
docking station or power keyboard docking station)
HDMIport
The HDMI port can be used to connect an external amplifier, LCD TV or a
plasma TV with an HDMI connection.
►Connect the data cable to the
external device.
►Connect the data cable to the HDMI port.
Some LCD televisions have only two speakers/speaker ports and therefore
cannot reproduce Dolby Digital or DTS. To play back HDMI sound, you
must change the HDMI sound settings accordingly.
You can find the settings under Control Panel - Hardware and Sound. Deactivate the
settings for DTS Audio and Dolby Digital to enable playback of HDMI sound.
VGA monitor port (only performance docking cradle, keyboard
docking station or power keyboard docking station)
An analog monitor is connected to the analog VGA monitor port. Screen output is
limited to a maximum of two screens at the same time.
MonitorVGAportScreenconnectionMonito rconnection
►Switch off the Tablet PC and the
external monitor.
►Plug the data cable of the external
monitor into the monitor port.
►First switch on the external monitor and
then switch on the Tablet PC.
You can also switch back and forth between the external monitor and the LCD
screen of the Tablet PC, see "Touchscreen", Page 27.
You can display the same image on the external monitor and on the LCD
screen of the Tablet PC at the same time.
78 Fujitsu
Connecting external devices
Connecting USB devices
USBports
On the USB ports you can connect external devices that also have a USB port
(e.g. a DVD drive, a printer, a scanner or a modem).
USB devices are hot-pluggable. This means you can connect and disconnect the
cables of USB devices while the operating system is running.
USB 1.x has a maximum data transfer rate of 12 Mbps.
USB 2.0 has a data transfer rate of up to 480 Mbps.
USB 3.0 has a data transfer rate of up to 5 Gbps.
Additional information can be found in the documentation for the USB devices.
►Connect the data cable to the
external device.
►Connect the data cable to the USB
port on the Tablet PC.
or
►Connect the data cable to a USB port
of the performance docking cradle.
or
►Connect the data cable to a USB port
of the keyboard docking station.
or
►Connect the data cable to a USB port of
the power keyboard docking station.
Device drivers
USB devices will be automatically recognized and installed by your operating system.
How to remove USB devices correctly
Always correctly remove the device according to the rules described below,
to ensure that none of your data is lost.
►Tap the symbol for safe removal of the hardware.
►Select the device you wish to shut down and remove.
►Tap OK.
Wait for the dialog box which tells you that it is now safe to remove the device.
Fujitsu 79
Connecting external devices
Connecting external audio devices
Your tablet PC has a combined headphone and microphone port, your (optional) performance
docking cradle has separate ports for headphones and a microphone.
Connecting headphones or other audio output devices
Connectingaudio devicesAudioconnectionsConnectingheadphones
The combined headphone and microphone port of the Tablet PC or the headphone
port of the multifunctional cable (optional) allows you to connect output devices such
as headphones, external speakers, etc., to your tablet PC.
►Connect the audio cable to the
external device.
►Connect the audio cabletothecombined
headphone and microphone port of the
tablet PC or to the headphone port of the
performance docking cradle (optional).
The internal speakers are disabled.
If you buy a cable from a retailer, please note the following:
The combined headphone and microphone port on your Tablet PC
is a "3.5 mm jack socket".
If you want to connect headphones or speakers you will need a "3.5 mm jack plug".
Connecting a microphone or other audio input devices
Connectingaudio devicesAudioconnectionsConnectingmicrophone
The combined headphone and microphone port of the tablet PC or the microphone port of
the performance docking cradle (optional) allows you to connect an external microphone,
MiniDisc player, MP3 player, CD player or a tape deck to your tablet PC.
►Connect the audio cable to the
external device.
►Connect the audio cable to the combined
headphone and microphone port of the
tablet PC or to the microphones port of the
performance docking cradle (optional).
80 Fujitsu
Settings in BIOS Setup Utility
Settings in BIOS Setup Utility
BIOSSetupUtilitySystemsettings,BIOSSetupUtilityConfiguration,BIOSS etupUtilitySetupConfiguringsystemConfiguringhardware
To navigate more easily in the BIOS Setup Utility, you can use an external USB keyboard.
The BIOS Setup Utility allows you to set the system functions and the hardware
configuration for the Tablet PC.
When the Tablet PC is delivered, the default settings are effective. You can change
these settings in the menus of the BIOS Setup Utility. Any changes you make take
effect as soon as you save and exit the BIOS Setup Utility.
The BIOS Setup Utility program contains the following menus:
About Displays information relating to the BIOS, processor and Tablet PC
System Advanced system settings
Advanced Configuration of various hardware components, such as mouse, keyboard,
processor
Security Password settings and security functions
Boot Configuration of the start-up sequence
Exit Exits the BIOS Setup Utility
Starting the BIOS Setup Utility
►Keep the decrease volume button pressed down and switch the Tablet PC on.
BIOSSetupUtility
►If a password has been assigned, enter the password and press the Enter key.
If you have forgotten the password, contact your system administrator
or contact our customer service centre.
The BIOS Setup Utility starts.
Fujitsu 81
Settings in BIOS Setup Utility
BIOS Setup Utility operation
BIOSSetupUtility
Press the F1 key to display help about operation of the BIOS Setup Utility. The description
of the individual settings is shown in the right-hand window of the BIOS Setup Utility.
With the F9 key you can load the default settings of the BIOS Setup Utility.
►Use the cursor keys ←or →to select the menu you wish to access to make changes.
The menu is displayed on the screen.
►Select the option you want to change with the cursor keys ↑or ↓.
►Press the "Enter" key.
►Press the ESC key to exit the selected menu.
►For future reference, make a note of the changes you have made (for example, in this manual).
82 Fujitsu
Settings in BIOS Setup Utility
Exiting BIOS Setup Utility
BIOSSetupUtility
You need to select the desired option in the Exit menu and activate it by pressing the Enter key:
Exit Saving Changes - save changes and exit BIOS Setup Utility
►To save the current menu settings and exit the BIOS Setup Utility,selectExit Saving Changes and Yes.
The Tablet PC is rebooted and the new settings come into effect.
Exit Discarding Changes - Reject changes and
exit BIOS Setup Utility
►To discard the changes, select Exit Discarding Changes and Yes.
The settings which were valid when BIOS Setup Utility was called remain effective.
The BIOS Setup Utility ends and the Tablet PC is rebooted.
Load Setup Defaults – load default values
►To copy the standard entries for all menus of the BIOS Setup Utility,
choose Load Setup Defaults and Ye s .
Discard Changes - Discard Changes without
exiting BIOS Setup Utility
►To discard the changes you have made, select Discard Changes and Yes.
ThesettingsinplacewhenBIOS Setup Utility was called remain effective.
You can now make additional settings in the BIOS Setup Utility.
►If you want to exit the BIOS Setup Utility withthesesettings,selectExit Saving Changes and Yes.
Save Changes - save changes without exiting
the BIOS Setup Utility
►To save the changes, select Save Changes and Yes.
The changes are saved. You can now make additional settings in the BIOS Setup Utility.
►If you want to exit BIOS Setup Utility with these settings, choose Exit Saving Changes and Yes.
Save changes and power off
►To save the changes and switch off your device, select Save Changes and Power Off and Yes.
The changes are saved. Your device is shut down.
Fujitsu 83
Troubleshooting and tips
Troubleshooting and tips
TroubleshootingTipsFaultProblemsolving
If a fault occurs, try to correct it as described. If you fail to correct the problem, proceed as follows:
►Make a note of the steps and the circumstances that led to the fault. Also
make a note of any error messages displayed.
►Switch the Tablet PC off.
►Please contact the Hotline/Service Desk.
You can contact Fujitsu Service and Support in the following ways:
• Toll free phone: 1-800-8Fujitsu (1-800-838-5487)
• Website: "http://solutions.us.fujitsu.com/www/content/support/contact/index.php"
Before you place the call, have the following information ready so that the customer
support representative can provide you with the fastest possible solution:
• The model name and serial number of the Tablet PC. The serial number
is located on a sticker on the underside of the Tablet PC.
• Notes with the messages that appeared on the screen and
informationonaco
ustic signals.
• All changes you have made to the hardware or software after receiving the Tablet PC.
• All changes you have made to the BIOS Setup settings after receiving the Tablet PC.
• Your system configuration and all peripheral devices connected to your system.
• Your sales contract.
Our Tablet PCs have been designed primarily with mobile applications in mind.
This means that considerable effort has been made to optimize components and
equipment in terms of weight, space and energy requirements. Depending on the
particular configuration you have purchased, it is possible that functionality may be
slightly reduced compared to a desktop PC if you are running processor-intensive
gaming software, e.g. games with intensive 3D graphics. Updating your hardware with
drivers which have not been approved by Fujitsu may result in performance losses,
data losses or malfunction of the equipment. A list of approved drivers and current
BIOS versions can be downloaded from: "http://solutions.us.fujitsu.com"
84 Fujitsu
Troubleshooting and tips
Executing a reset
If the device no longer responds to your inputs, choose one of the following options:
Forced shutdown
►Press and hold the ON/OFF button for at least 4 seconds.
The device will be shut down. You can then restart it.
Resetting the rechargeable battery
►Shut down the device.
If the device does not respond, you may have to force the shutdown,
as described in the previous section.
►Disconnect the AC adapter from the device.
►Press the increase volume button and the shortcut button at the same time.
The device resets in a similar way to the removal of the rechargeable
battery. You can then restart it.
Help if problems occur
Should you encounter a problem with your computer that you cannot resolve yourself:
►Note the ID number of your device. The ID number is found on the type rating
plate on the back or underside of the casing.
►For further clarification of the problem, contact the Fujitsu Service Desk. When you do
this, please have ready the ID number and serial number of your system.
Recovering your Factory Image
In the event you need to restore your original Factory Image, please refer to
the appendix of this Operating Manual.
The Tablet PC’s date or time is incorrect
SummertimeWintertim eIncorrecttim eTimenotcorr ectWrongdate/timeDatenotcorrectCharging back-upbat tery
Cause Troubleshooting
Time and date are incorrect. ►With the BIOS-Setup-Utility, you can set the
date and time in the Main menu.
Date and time are still set incorrectly after
switchingontheTabletPC.
►Please contact your sales outlet or our
hotline/service desk.
Fujitsu 85
Troubleshooting and tips
Battery indicator does not illuminate
Cause Troubleshooting
The battery is discharged. ►Charge the battery.
or
►Connect the Tablet PC to a poweroutlet
using the AC adapter.
The Tablet PC’s touchscreen remains dark
Tou ch s c re e ndark touchscreen
Cause Troubleshooting
Touchscreen is switched off. ►Press a key (external keyboard) or tap on
the touchscreen.
External monitor or television set connected. ►Check whether the graphics driver settings
are correct or whether an external monitor
has been detected in "Intel Graphics Media
Accelerator Driver for mobile".
The display on the Tablet PC’s touchscreen
is difficult to read.
Tou ch s c re e nTo u ch s c re e n
Cause Troubleshooting
Reflected glare ►Move the Tablet PC into a different position.
►Increase the brightness of the screen.
86 Fujitsu
Troubleshooting and tips
The external monitor remains blank
Monitor
Cause Troubleshooting
Monitor is switched off. ►Switch the external monitor on.
Power saving has been activated (monitor is
blank).
►Press a key (external keyboard) or tap on
the touchscreen.
Brightness is set to dark. ►Adjust the brightness of the monitor.
Screen output is set to the Tablet PC
touchscreen.
►Check whether the graphics driver settings
are correct or whether an external monitor
has been detected in "Intel Graphics Media
Accelerator Driver for mobile".
The external monitor’s AC cable or data cable is
not connected properly.
►Switch off the Tablet PC and the external
monitor.
►Check whether the AC cable is plugged
properly into the external monitor and into
the power outlet.
►Check that the data cable is properly
connected to the Tablet PC and the external
monitor (if it is plugged in with a connector).
►Switch on the external monitor and the
Tablet PC.
The external monitor is blank or the image is unstable
MonitorM onitor
Cause Troubleshooting
The wrong external monitor has been selected
or the wrong screen resolution has been set for
the application program.
►Terminate the application program in
Windows. If the error persists after
terminating the program, use the key
combination for switching the screen output
in order to switch to the touchscreen of the
Tablet PC. Change the following setting:
►Set the screen resolution: Set the screen
resolution as described in the documentation
for your operating system.
►Select monitor: Select monitor 1 or 2 as
described in the documentation for your
operating system.
The cursor does not correctly follow the
stylus movements
Cause Troubleshooting
Stylus incorrectly calibrated. ►Calibrate the stylus as described in chapters
"Adjusting the stylus", Page 35 and
"Calibrating the stylus", Page 36.
Fujitsu 87
Troubleshooting and tips
Stylus input not working
Cause Troubleshooting
Incorrect driver installed. ►If your device is one which can only be
operated using the stylus, install the driver
for the standard model.
or
►If your device is one which can be
operated using the stylus and by finger,
install the driver for the "Dual Digitizer"
model.
The Tablet PC does not start after switch on
TabletPC
Cause Troubleshooting
The battery is dead. ►Charge the battery.
or
►Connect the AC adapter to the Tablet
PC.
The AC adapter is not connected properly. ►Check whether the AC adapter is properly
connected to the Tablet PC.
►Switch the Tablet PC on.
The Tablet PC stops working
TabletPCEnding
Cause Troubleshooting
The Tablet PC is in energy saving mode. ►End energy saving mode.
An application program has caused the
malfunction.
►Close the application program or restart
the Tablet PC (by restarting the operating
system or switching the device off and back
on again).
The battery is dead. ►Charge the battery.
or
►Connect the AC adapter to the Tablet
PC.
88 Fujitsu
Troubleshooting and tips
The printer does not print
Printerdoesnot print
Cause Troubleshooting
The printer is not switched on. ►Make sure that the printer is switched
on and ready for operation (refer to the
documentation supplied with the printer).
The printer is not connected correctly. ►Check that the data cable between the Tablet
PC and the printer is properly connected.
The printer driver is faulty or not correctly
installed, or it is the wrong printer driver.
►Check that the data cable between the Tablet
PC and the printer is properly connected.
►Check whether the correct printer driver is
loaded (refer to the printer documentation).
The wireless connection to a network does not work
Thewireless connectionto anetwork doesnotwor k
Cause Troubleshooting
The wireless component is switched off. ►Switch the wireless component on (see
"Switching the wireless components on and
off", Page 43).
The wireless component is switched on. Despite
this, the wireless connection to a network does
not work.
►Check whether the wireless connection is
enabled by the software.
►Further information on using the wireless
component can be found in the help files.
The battery discharges too quickly
Battery
Cause Troubleshooting
The battery is either too hot or too cold. In this
case the battery indicator flashes.
►Bring the Tablet PC up/down to a normal
operating temperature again.
►If the operating time of the battery life is
extremely short, the battery is probably too
old. Replace the battery if necessary.
You may have an application running that
consumes a great deal of power due to frequent
accessing of the hard disk or optical drive.
►Use the AC adapter whenever possible.
The maximum brightness may have been set
for the screen.
►Reduce the brightness of the screen to
lower energy consumption: You will find the
setting under Control Panel – Hardware and
Sounds – Windows Mobility Center.
Fujitsu 89
Troubleshooting and tips
Smart Card reader is not recognized
Cause Troubleshooting
Smart Card inserted incorrectly. ►Make sure you have inserted your Smart
Card into the Smart Card reader with
the chip facing upwards / downwards
(device-dependent).
►Check whether the Smart Card you are
using is supported. Your Smart Card must
comply with the ISO standard 7816-1, -2,
-3 and -4.
SmartCard PIN forgotten
Cause Troubleshooting
PIN forgotten ►If you work in a network, contact your
system administrator, who can unlock your
Tablet PC using a supervisor PIN.
User and/or supervisor Smart Card lost
Cause Troubleshooting
User and/or Supervisor Smart Card lost. ►If you have lost your user Smart Card, you
can continue working with the Supervisor
Smart Card and initialize a new user Smart
Card.
►If you have lost the Supervisor Smart Card,
you can also continue working, but you no
longer have all rights and cannot initialize
another Supervisor Smart Card.
►If you have lost both Smart Cards, you
cannot boot your system. Please contact our
customer service center. You must provide
proof of ownership for the device. The
customer service center will then refer you
to our service partner, who will unlock your
device (for a charge).
90 Fujitsu
Troubleshooting and tips
SmartCard lost
Cause Troubleshooting
SmartCard lost. ►If you work in a network, contact your
system administrator, who can boot your
Tablet PC with a supervisor SmartCard.
Acoustic warning
Acous tic wa rnin gsErrors
Cause Troubleshooting
A beep sounds every few seconds.
The battery is almost dead.
►Charge the battery.
Error messages on the screen
Errormessages onthes creenErrors
This section describes the error messages generated by the BIOS Setup. Error messages displayed
by the operating system or programs are described in the documentation for these programs.
If the error message appears repeatedly despite troubleshooting measures,
contact the place of purchase or our customer service center.
Fujitsu 91
Troubleshooting and tips
Error message/cause Troubleshooting
CMOS battery bad
If the error message occurs repeatedly, the
buffer battery in the Tablet PC is flat.
►Contact your sales outlet or our customer
service center.
System CMOS checksum bad - Default configuration
used
The system configuration information is
incorrect.
►Switch the Tablet PC off.
►Switch the Tablet PC on.
►In the BIOS Setup, select the Exit menu.
►Select the entry Load Setup Defaults.
►Select OK and press the Enter key.
Extended memory failed at offset: xxxx Failing Bits:
zzzz zzzz
When testing the extended memory. an error
has resulted at the address xxxx.
►Contact your sales outlet or our customer
service center.
Failure Fixed Disk n
The settings of theharddiskdriveareincorrect.
►Start the BIOS Setup (Primary Master
submenu) and select the correct settings.
Keyboard controller error ►Switch your Tablet PC off with the ON/OFF
button.
►Wait 3 - 5 seconds and switch the Tablet PC
on again.
Keyboard error If you use an external keyboard:
►Check the connection and reboot the Tablet
PC.
nn Stuck key ►Make sure that no key is pressed.
Operating system not found ►Check in the BIOS Setup whether your hard
disk has been set correctly.
►Make sure that the operating system is
installed on the corresponding drive.
Press <F1> to resume, <F2> to SETUP
This error message appears if an error occurs
during the self-test before starting the operating
system.
►Press theAlt tablet button to boot the
operating system
Real time clock error ►Contact your sales outlet or our customer
service center.
nnnnK Shadow RAM failed at offset: xxxx Failing
Bits: zzzz
►Contact your sales outlet or our customer
service center.
System battery is dead - Replace and run SETUP ►Contact your sales outlet or our customer
service center.
System cache error - Cache disabled ►Contact your sales outlet or our customer
service center.
System timer error ►Contact your sales outlet or our customer
service center.
92 Fujitsu
Technical data
Technical data
Tablet PC
General
Processor 5th Generation Intel® Core™ with vPro™
technology (vPro optional, dependent on
configuration)
Main memory (SO DIMM) 4 GByte / 8 GByte DIMM onboard
Electrical data
Safety regulations complied with CE
Protection class II
Maximum power consumption (when the
Tablet PC is switched on, connected to the
keyboard docking station and the battery is
being charged):
65 W
Touchscreen
Size 13.3" Full HD Wide View
Screen resolution 1920 x 1080 / 16 million colors
Pixel class II
Brightness control 12 levels
Technology Wide-View High-Bright Display with LED
background lighting
Digitizer and glass panel Dual digitizer with anti-glare touch screen
Cameras • Front: HD camera
• Back: 5 megapixels, autofocus, mobile light
Graphics card
Chip Intel (c) HD Graphics 5500
Maximum resolution of external display: 4096 x 2160
Dimensions
Width x Depth x Height •Sta
ndard Shell tablet only: 12.56 x 8.19 x
0.5 inches (319 x 208 x 12.7 mm)
• Standard Shell tablet with keyboard docking
station w/o battery: 12.56 x 9.76 x 1.1.7
inches (319 x 248 x 29.6 mm)
•S
tandard Shell tablet with power keyboard
docking station w/ battery: 12.56 x 9.76 x
1.33 inches (319 x 248 x 33.8 mm)
Fujitsu 93
Technical data
Weight depending on configuration • Standard Shell tablet only: 2.15 lbs / 0.98 kg
• Standard Shell tablet with keyboard docking
station w/o battery: 4.13 lbs / 1.87 kg
• Standard Shell tablet with power keyboard
docking station w/ battery: 4.56 lbs / 2.07 kg
Weight may vary depending on actual
configuration (including battery pack).
Input devices
Tablet buttons 3 keys
Stylus Stylus with a pressure button
Slots
Memory card slot 1 x Micro SD
SIM card slot 1 x Micro SIM
Smart Card slot (optional shell) 1x
Ports
Combined headphones and microphone port 3.5mmstereominijack
Docking port 1 x
Micro HDMI port 1 x
USB (Universal Serial Bus) 1 x USB 2.0, 1 x USB 3.0
Security Lock device 1x
Ambient conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 5 °C .... 35 °C / 41 °F .... 95 °F
Transport temperature (2K2) –15 °C .... 60 °C / 5 °F .... 140 °F
WLAN specifications
Type of network
Intel® Dual Band Wireless-AC 8260
(Snowfield Peak – 11ac/abgn), 8260NGW
Wi-Fi based*
Transfer rate (Automatic switching) IEEE802.11 a and g: 54
Mbps max. data rate; IEEE802.11n: 300 Mbps
max. data rate, IEEE802.11ac: 867 Mbps max.
data rate
Active frequency • 802.11n: 2.4 GHz or 5 GHz
• 802.11b/g: 2400~2473 MHz
• 802.11a: 4900~5850 MHz
• 802.11ac: 2.4 GHz / 5 GHz
94 Fujitsu
Technical data
Typical operating distances** • 802.11a: 40 ft. (12 m) @ 54 Mbps; 300 ft.
(91m)@6Mbps
• 802.11ac: 40 ft. (12 m) @ 54 Mbps; 300 ft.
(91m)@6Mbps
• 802.11b: 100 ft. (30 m) @ 11 Mbps; 300 ft.
(91m)@1Mbps
• 802.11g: 100 ft. (30 m) @ 54 Mbps; 300 ft.
(91m)@1Mbps
• 802.11n: Estimated double the operating
distance of 802.11g and 802.11a in their
respective frequencies
Number of channels • 802.11a: 8 independent channels
• 802.11b/g: 11 channels, 3 non-overlapping
channels
• 802.11n: Channel bonding takes two of
the non-overlapping 20MHz channels and
combines it into one 40MHz channel. It is
actually 12 non-overlapping channels with
channel bonding and 24 without. Also it is 1
non-overlapping channel in 2.4GHz when
channel bonding is used.
• 802.11ac: 5 independent channels
Security Encryption types: compatible with WEP, TKIP,
AES***, WPA 1.0 and WPA 2.0
Encryption key, lengths supported: 64 bits and
128 bits
Maximum recommended number of computers
to be connected over wireless LAN (during ad
hoc connection)
10 units or less ****
* “Wi-Fi based” indicates that the interconnectivity test of the organization which guarantees the
interconnectivity of wireless LANs (Wi-Fi Alliance) was passed.
** The operating distances given above increase or decrease depending on factors such as the
number of walls, reflecting material or interference by external RF sources.
*** Network key encryption (WEP) occurs with the number of bits given above, after deduction of
the fixed length of 24 bits the user may however also set 40 or 104 bits.
**** Depending on the particular practical application, the number of computers which can be
networked is reduced if necessary.
Fujitsu 95
Technical data
Rechargeable battery
You can find information on the batteries used in your device on the Internet at
"http://solutions.us.fujitsu.com/www/content/support/contact/index.php".
3-cell lithium polymer battery 4250 mAh
Rated voltage 10.8 V
Rated capacity 46 Wh
AC adapter 65 W for the Tablet PC
Technicaldata
Rated voltage 19 V
Max. rated current 3.42 A
An additional AC adapter or AC cable can be ordered at any time.
Performance docking cradle (optional)
Electrical data
Safety regulations complied with CE
Protection class III
Ports
Headphone port 3.5 mm stereo mini jack
Microphone port 3.5 mm stereo mini jack
Docking port 40-pin
HDMI port 1 x
VGA monitor port 1x
USB (Universal Serial Bus) 3xUSB3.
0
LAN port 1 x
Security Lock device 1x
Ambient conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 5 °C .... 35 °C / 41 °F .... 95 °F
Temperature in transit –15 °C .... 60 °C / 5 °F .... 140 °F
96 Fujitsu
Technical data
AC adapter 65 W for the performance docking cradle (optional)
Technicaldata
Rated voltage 19 V
Max. rated current 3.42 A
An additional AC adapter or AC cable can be ordered at any time.
Keyboard docking station or power keyboard
docking station (optional)
Electrical data
Safety regulations complied with CE
Protection class III
Ports
Docking port 16-pin
USB (Universal Serial Bus) 3xUSB3.0
VGA monitor port 1x
LAN port 1 x
HDMI port 1 x
Ambient conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 5 °C .... 35 °C / 41 °F .... 95 °F
Temperature in transit –15 °C .... 60 °C / 5 °F .... 140 °F
Rechargeable battery for power keyboard docking
station (device-dependent)
You can find information on the batteries used in your device on the Internet at
"http://solutions.us.fujitsu.com/www/content/support/contact/index.php".
3-cell lithium polymer battery 4170 mAh
Rated voltage 10.8 V
Rated capacity 45 Wh
Fujitsu 97
Technical data
Intermediary VESA Mount Plate
Dimensions
Width x Depth x Height 222 mm x 91 mm x 12.2 mm /
8.74 in x 3.58 in x 0.48 in
Weight 130 g / 0.29 lbs
Hand strap (optional)
Dimensions
Width x Depth x Height 478 mm x 77 mm x 13 mm /
18.8 in x 3.03 in x 0.51 in
Weight approx. 24 g / 0.053 lbs.
Shoulder strap (optional)
Dimensions
Width x Depth x Height 1265 mm x 25 mm x 4.8 mm /
49.80 in x 0.98 in x 0.189 in
Weight approx. 33.4 g / 0.074 lbs.
Folio case (optional)
Dimensions
Width x Depth x Height 460 mm x 273 mm x 16 mm /
18.11 in x 10.75 in x 0.63 in
Weight approx. 390 g / 0.86 lbs.
98 Fujitsu
Manufacturer’s notes
Manufacturer’s notes
Disposal and recycling
Notes
You can find information on this subject on your Tablet PC or on our website
("http://solutions.us.fujitsu.com/www/content/products/trade-in_program/").
Recycling your battery
Over time, the batteries that run your mobile computer will begin to hold a charge for a
shorter amount of time; this is a natural occurrence for all batteries. When this occurs,
you may want to replace the battery with a fresh one*. If you replace it, it is important
that you dispose of the old battery properly because batteries contain materials that
could cause environmental damage if disposed of improperly.
Fujitsu is very concerned with environmental protection, and has enlisted the services of the
Rechargeable Battery Recycling Corporation (RBRC)**, a nonprofit public service organization
dedicated to protecting our environment by recycling old batteries at no cost to you.
RBRC has drop-off points at tens of thousands of locations throughout the United States and
Canada. To find the location nearest you, go to "www.RBRC.org" or call 1-800-822-8837.
If there are no convenient RBRC locations near you, you can also go to the EIA Consumer
Education Initiative website "http://EIAE.org/ " and search for a convenient disposal location.
Remember – protecting the environment is a cooperative effort, and we must
make every effort to protect it for current and future generations.
* To order a new battery for your Fujitsu mobile computer, go to the Fujitsu shopping site
at "www.shopfujitsu.com" in the US or "www.fujitsu.ca/products/notebooks" in Canada.
** RBRC is an independent third party to which Fujitsu provides funding for
battery recycling; RBRC is in no way affiliated with Fujitsu.
DOC (Industry CANADA) Notices
DOC(INDUSTRYCANADA)NOTICES
Radios and Television
This Class B digital apparatus meets all requirements of Canadian Interference-Causing Equipment
Regulations.
CET appareil numérique de la class B respecte toutes les exigence du Réglement
sur le matérial brouilleur du Canada.
Fujitsu 99
Manufacturer’s notes
UL Notice
IMPORTANT SAFETY INSTRUCTIONS
This unit requires an AC adapter to operate. Only use UL Listed I.T.E. adapters with an output rating
of 19 VDC, with a minimum current of 3.42A (65W). The correct output rating is indicated on the
AC adapter label. Refer to the illustration below for the correct AC Adapter output polarity:
When using your Tablet PC equipment, basic safety precautions should always be followed to
reduce the risk of fire, electric shock and injury to persons, including the following:
• Do not use this product near water for example, near a bathtub, washbowl, kitchen
sink or laundry tub, in a wet basement or near a swimming pool.
• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a
fire. They may explode. Check with local codes for possible special disposal instructions.
SAVE THESE INSTRUCTIONS
For Authorized Repair Technicians Only
CAUTION:
For continued protection against risk of fire, replace only with the
same type and rating fuse.
WARNING:
Danger of explosion if Lithium (CMOS) battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instruction.
100 Fujitsu
Manufacturer’s notes
ENERGY STAR Compliance
Your Fujitsu system is an ENERGY STAR qualified mobile PC. By
choosing a computer with the latest energy-saving technology, you’re
helping to preserve our environment for future generations. ENERGY
STAR is a joint program of the U.S. Environmental Protection Agency,
U.S. Department of Energy, Natural Resources Canada, and other
governments around the world helping us save money while protecting
the environment through energy efficient products and practices. With
energy costs and global warming top-of-mind for consumers, Fujitsu is
committed to offering solutions that help consumers conserve energy
and improve the quality of our environment.
Sleep mode:
You will notice that your computer is initially set so that the display turns off after 10 minutes of
user inactivity, and the computer goes into Sleep mode after 20 minutes of user inactivity. When
going into Sleep mode, the computer also reduces the speed of any active Ethernet network
links. To “wake” the computer from Sleep mode, press the Suspend/Resume Button.
Energy saving benefits:
Fujitsu ENERGY STAR qualified mobile PCs use about half as much electricity as standard
equipment – saving half in utility costs. But more than that, ENERGY STAR also makes a difference
for the environment. Did you know that the average house can be responsible for twice the
greenhouse gas emissions as the average car? That’s because every time you flip on a light
switch, run your dishwasher, or turn on your PC, you use energy, which means more greenhouse
gas emissions from power plants. So the more energy we can save through energy efficiency,
the more we help to reduce greenhouse gases and the risks of global warming.
To learn more about the important ENERGY STAR program, visit:"www.energystar.gov".
To read about how Fujitsu is supporting Sustainable Management along with
several other environmental activities, visit the Fujitsu Corporate Citizenship page at:
"http://www.computers.us.fujitsu.com/www/content/aboutus/environmental/environment.php".
Fujitsu 101
Declarations of conformity
Declarations of conformity
Declarationsof conformity
This device complies with Part 15 of the FCC Rules. Operations are subject to the following two
conditions: (1) This device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation.
102 Fujitsu
FCC and IC Regulatory Information
FCC and IC Regulatory Information
Please note the following regulatory information related to the wireless LAN
device.
Regulatory Notes and Statements
Wireless LAN, Health and Authorization for use
Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of
these emissions, however, are far much less than the electromagnetic energy emissions from wireless
devices such as mobile phones. Wireless LAN devices are safe for use by consumers because they
operate within the guidelines found in radio frequency safety standards and recommendations. The
use of Wireless LAN devices may be restricted in some situations or environments, such as:
• On board an airplane, or
• In an explosive environment, or
• In situations where the interference risk to other devices or services is
perceived or identified as harmful.
In cases in which the policy regarding use of Wireless LAN devices in specific environments is
not clear (e.g., airports, hospitals, chemical/oil/gas industrial plants, private buildings), obtain
authorization to use these devices prior to operating the equipment.
Regulatory Information/Disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with the instructions
included in the user documentation provided with the product. Any changes or modifications made
to this device that are not expressly approved by the manufacturer may void the user’s authority to
operate the equipment. The manufacturer is not responsible for any radio or television interference
caused by unauthorized modification of this device, or the substitution or attachment of connecting
cables and equipment other than those specified by the manufacturer. It is the responsibility of the
user to correct any interference caused by such unauthorized modification, substitution or attachment.
The manufacturer and its authorized resellers or distributors will assume no liability for any damage
or violation of government regulations arising from failure to comply with these guidelines.
This device must not be co-located or operated in conjunction with any other antenna or transmitter.
For IEEE 802.11a Wireless LAN: For operation within 5.15~5.25 GHz frequency range, it is
restricted to indoor environments, and the antenna of this device must be integral.
Federal Communications Commission and Industry
Canada statement:
This device complies with Part 15 of FCC Rules and Industry Canada license exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not cause
interference, and, (2) This device must accept any interference, including interference
that may cause undesired operation of this device.
Fujitsu 103
FCC and IC Regulatory Information
Déclaration d’Industrie Canada
Cet appareil est conforme à la Section 15 des Règles de la FC C et à la ( aux) norme(s)
RSS concernant les appareils exempt s de licence par Industrie Canada. Son fonctionnement
est soumis aux deux condition s suivantes : (1) cet appareil ne doit pas causer d’interférence
nuisib le; (2) cet appareil doit accepter toutes les interférences reçues, y compris celles
pouvan t causer un mauvais fonctionnement de l’appareil.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy. If not installed and used in accordance with
the instructions, it may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try and
correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the distance between the equipment and the receiver.
3. Connect the equipment to an outlet on a circuit different from the one the receiver is connected to.
4. Consult the dealer or an experienced radio/TV technician for help.
FCC Radio Frequency Exposure statement
The available scientific evidence does not show that any health problems are associated with
using low power wireless devices. There is no proof, however, that these low power wireless
devices are absolutely safe. Low power wireless devices emit low levels of radio frequency
energy (RF) in the microwave range while being used. Whereas high levels of RF can produce
health effects (by heating tissue), exposure to low-level RF that does not produce heating
effects causes no known adverse health effects. Many studies of low-level RF exposure have
not found any biological effects. Some studies have suggested that some biological effects
might occur, but such findings have not been confirmed by additional research.
The wireless LAN radio device has been tested and found to comply with FCC radiation
exposure limits set forth for an uncontrolled equipment and meets the FCC radio frequency
(RF) Exposure Guidelines in Supplement C to OET65.
The exposure standard for wireless devices employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg, and 1.6W/kg by Industry Canada.
This device is compliant with SAR for general population /uncontrolled exposure limits in
ANSI/IEEE C95.1-1992 and Canada RSS 102, and had been tested in accordance with
the measurement methods and procedures specified in OET Bulletin 65 Supplement C,
and Canada RSS 102. This device has been tested, and meets the FCC, IC RF exposure
guidelines when tested with the device operating conditions.
104 Fujitsu
FCC and IC Regulatory Information
Déclaration de la FCC/d’Industrie Canada sur
l’exposition aux radiofréquences
La norme régissant l’exposition des appareils sans fil aux radiofréquences emploie une unité
de mesure dénommée Taux d’absorption spécifique, ou TAS. La FCC et Industrie Canada ont
défini la même limite de TAS : 1,6 W/kg. Cet appareil est conforme au TAS pour les limites
d’exposition générales de la population/non contrôlées définies par les règles C95.1-1992 de
l’ANSI/IEEE et RSS 102 d’Industrie Canada ; il a été testé en conformité avec les méthodes
et procédures de mesure spécifiées dans le supplément C du bulletin 65 de l’OET (Office
d’ingénierie et de technologie) et la règle RSS 102 d’Industrie Canada. Cet appareil a été testé
selon les directives de la FCC et d’IC concernant l’exposition aux radiofréquences et s’est révélé
conforme à ces dernières lorsqu’il a été testé en contact direct avec le corps.
Export restrictions
This product or software contains encryption code which may not be exported or transferred
from the US or Canada without an approved US Department of Commerce export license.
This device complies with Part 15 of FCC Rules., as well as ICES 003 B / NMB 003 B.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesirable operation. Modifications not expressly authorized by Fujitsu
America, Inc. may invalidate the user’s right to operate this equipment.
Restrictions concernant l’exportation
Ce produit ou logiciel contient du code de chiffrement qui ne peut être exporté ou transféré du
Canada ou des États-Unis sans un permis d’exportation du département du commerce des
États-Unis. Ce matériel est conforme à la Partie 15 des règlements de la FCC, ainsi qu’à la
norme ICES 003 B/NMB 003 B. Son fonctionnement est soumis aux deux conditions suivantes
: (1) cet appareil ne doit pas causer d’interférence nuisible; (2) cet appareil doit accepter
toutes les interférences reçues, y compris celles pouvant causer un mauvais fonctionnement
de l’appareil. Toute modification n’ayant pas été expressément approuvée par la société Fujitsu
America Incorporated peut annuler le droit de l’utilisateur de se servir du matériel.
Canadian Notice
The device for the 5150 - 5250 MHz band is only for indoor usage to reduce the potential
for harmful interference to co-channel mobile satellite systems.
In addition, users are cautioned to take note that high power radars are allocated as primary
users (meaning they have priority) of 5250 - 5350 MHz and 5650 - 5850 MHz and these
radars could cause interference and/or damage to LE-LAN devices.
Fujitsu 105
FCC and IC Regulatory Information
Avis pour le Canada
Le matériel destiné à un usage sur la bande 5 150 - 5 250 MHz doit être utilisé
uniquement à l’intérieur afin de réduire les risques de brouillage nuisible causé aux
systèmes mobiles par satellite fonctionnant sur un même canal.
En outre, les utilisateurs doivent prendre garde au fait que les radars de grande puissance
sont considérés comme des utilisateurs principaux (ce qui signifie qu’ils sont prioritaires) des
bandes 5 250 - 5 350 MHz et 5 650 - 5 850 MHz et qu’ils pourraient causer des interférences
et/ou des dommages aux appareils de réseau exempts de licence.
106 Fujitsu
Appendix
Appendix
Before Using the Optional Wireless LAN
This manual describes the procedures required to properly set up and configure the optional
integrated Wireless LAN Mini-PCI device (referred to as "WLAN device" in the rest of the
manual). Before using the WLAN device, read this manual carefully to ensure its correct
operation. Keep this manual in a safe place for future reference.
Wireless LAN Devices Covered by this Document
This document is applicable to systems containing the following device:
•Intel® Dual Band Wireless-AC 8260
Characteristics of the WLAN Device
• The WLAN devices are PCI Express Mini cards attached to the main board of the mobile computer.
• The WLAN devices operate in license-free RF bands, eliminating the need to procure
an FCC operating license. The WLAN operates in the 2.4GHz Industrial, Scientific,
and Medical (ISM) RF band and the lower, middle, and upper bands of the 5GHz
Unlicensed National Information Infrastructure (UNII) bands.
• The WLAN devices are capable of five operating modes: IEEE802.11a, IEEE802.11ac,
IEEE802.11b, IEEE802.11g, and IEEE802.11n.
• The WLAN device is Wi-Fi certified and operates (as applicable) at a the maximum
data rate of 450 Mbps in IEEE802.11n mode (300 Mbps in this configuration); 54 Mbps
in IEEE802.11g mode; and 11 Mbps in IEEE802.11b mode.
• The WLAN devices support the following encryption methods - WEP,
TKIP, CKIP, and AES encryption.
• The Wireless LAN devices are compliant with the following standards: WPA,
WPA2, CCX1.0, CCX2.0, CCX3.0, and CCX4.0.
Wireless LAN Modes Using this Device
Ad Hoc Mode
"Ad Hoc Mode" refers to a wireless network architecture where wireless network connectivity
between multiple computers is established without a central wireless network device, typically
known as Access Point(s). Connectivity is accomplished using only client devices in a peer-to-peer
fashion. That is why Ad Hoc networks are also known as peer-to-peer networks. Ad Hoc
networks are an easy and inexpensive method for establishing network connectivity between
multiple computers. Ad Hoc mode requires that the SSID, network authentication, and encryption
key settings are identically configured on all computers in the Ad Hoc network.
Fujitsu 107
Appendix
Access Point (Infrastructure) Mode
Infrastructure mode refers to a wireless network architecture in which devices communicate with
wireless or wired network devices by communicating through an Access Point. In infrastructure
mode, wireless devices can communicate with each other or with a wired network. Corporate
wireless networks operate in infrastructure mode because they require access to the WLAN in
order to access services, devices, and computers (e.g., file servers, printers, databases).
108 Fujitsu
Appendix
**
*
* = An optional hub for a wired LAN may
be required depending upon the type
of access point used.
** = ADSL modem, cable modem, or similar
How to Handle This Device
The WLAN device is an optional device that may come pre-installed in your mobile computer. Under
normal circumstances, it should not be necessary for you to remove or re-install it. The Operating
System that your mobile computer comes with has been pre-configured to support the WLAN device.
• Integrated Intel Centrino wireless LAN devices support IEEE802.11a,
IEEE802.11b, IEEE802.11g, and IEEE802.11n.
• The WLAN device operates in the 2.4 GHz ISM band and the 5 GHz
lower, middle, and upper UNII bands.
• Microwave ovens may interfere with the operation of WLAN devices since they operate in the
same 2.4 GHz frequency range as IEEE802.11b/g/n devices. Interference by microwaves
does not occur with IEEE802.11a radio which operates in the 5 GHz RF band.
• Wireless devices that transmit in the 2.4 GHz range may interfere with operation of WLAN
devices in IEEE802.11b/g/n modes. Symptoms of interference include reduced throughput,
intermittent disconnects, and many frame errors. It is HIGHLY recommended that these
interfering devices be powered off to ensure proper operation of the WLAN device.
Fujitsu 109
Appendix
Deactivating/Disconnecting the WLAN Device
Disconnecting the WLAN device may be desired in certain circumstances (to extend battery
life) or where certain environments require it (i.e. hospitals, clinics, airplanes, etc.). The
WLAN device can be disconnected in Windows using the WLAN icon in the system tray
(Note that disconnecting via the icon in the system tray does not turn off the radio; it
continues to transmit and receive even though it’s not connected.)
The radio components are switched on and off using the appropriate functions of the operating system.
►To switch radio components on and off individually, select Settings – Change
PC settings – Wireless – Wireless devices – Off.
Configuring the Wireless LAN
The optional WLAN device can be configured to establish wireless network connectivity
using the software that is built into Windows. Support for most industry standard
security solutions is contained in this software.
Pre-defined parameters will be required for this procedure. Please consult with
your network administrator for these parameters:
Connection to the network
After you have configured your computer, you can connect to an active network
by performing the following steps:
1. Click on the WLAN icon in the system tray.
2. Select Connecttoanetwork.
3. Select a network from the list that appears, and click the Connect button.
110 Fujitsu
Appendix
Troubleshooting the WLAN
Causes and countermeasures for troubles you may encounter while using your
wireless LAN are described in the following table.
Problem Possible Cause Possible Solution
Incorrect network name (SSID)
or network key
Ad hoc connection: verify that
the network names (SSID’s)
and network keys (WEP) of
all computers to be connected
have been configured correctly.
SSID’s and WEP key values
must be identical on each
machine.
Access Point (Infrastructure)
connection: set the network
name (SSID) and network key
to the same values as those of
the access point.
Set the Network Authentication
value identically to that of the
Access Point. Please consult
your network administrator for
this value, if necessary.
Unavailable network connection
Weak received signal strength
and/or link quality
Ad hoc connection: Retry
connection after shortening
the distance to the destination
computer or removing any
obstacles for better sight.
Access Point (Infrastructure)
connection: Retry connection
after shortening the distance to
the access point or removing
any obstacles for better sight.
Fujitsu 111
Appendix
Problem Possible Cause Possible Solution
The WLAN device was
deactivated or is disabled
Check if the wireless switch
is turned On. Go to Start >
Control Panel, and doubleclick
on Windows Mobility Center.If
the wireless network is off, click
the Turn wireless on button.
The computer to be connected
is turned off
Check if the computer to be
connected is turned ON.
Incorrectly configured network
settings
Recheck the configuration of
your network settings.
RF interference from Access
Points or other wireless
networks
The use of identical or
overlapping RF channelscan
cause interference with the
operation of the WLAN device.
Change the channel of your
Access Point to a channel
that does not overlap with the
interfering device.
Wireless network authentication
has failed
Re-check your Network
Authentication, Encryption,
and Security settings.
Incorrectly configured
security settings such as
an incorrectly typed WEP
key, a mis-configured LEAP
username, or anincorrectly
chosen authentication method
will cause theLANdeviceto
associate but not authenticate
to the wireless network.
Unavailable network connection
(continued)
Incorrect IP address
configuration
This only applies to networks
using static IP addresses.
Please contact your network
administrator for the correct
settings.
Image Backup and Recovery Procedures
Thank you for purchasing a Fujitsu computer. Fujitsu is committed to bringing you
the best computing experience with your new system.
It is very important that you create DVD copies of your Recovery Image and Bootable Disk
before beginning to use your system. To do so, follow the instructions in the “Creating a
Backup of Bootable Disk and Recovery Image” section of this document.
It is also important that you create a copy of the software that is essential for your system to access the
internet (hereafter called “essential access software”) to external writable media or an external drive.
To do so, follow the instructions in the “Creating a Backup of the System-Specific Software Drivers”.
112 Fujitsu
Appendix
Creating a Backup of Bootable Disk and Recovery Image
When you purchased your new system, a copy of the recovery image was loaded into a
hidden partition on your hard disk drive. Having a copy of the recovery image available to
you means that in the event of system failure, you will be able to restore it and re-install
the essential access software using Fujitsu Software Auto Installer.
To make a copy of the recovery image to DVD disks, you will need three or four blank
disks to create the copy. After creating the copy, be sure to label the disks and keep
them in a safe place to ensure they do not get damaged.
Note: If your system does not have an internal writable DVD drive, connect your
system to an external drive* before beginning the following steps.
1. Launch System Restore and Recovery from the desktop icon. It will allow you to create
the Bootable Disk and the Recovery Image Disk Set.
2. On “Step 1: Select the Bootable Disk from the list”:
a. Select a media type.
b. Notice the number of disks that are needed for the set.
c. Click Next to proceed.
3. On “Step 2: Confirm your Recovery Disk”, click Next.
4. On “Step 3:” follow the on-screen instructions to make the disk or disk set, then click
Start. It takes approximately 20 minutes to make one disk.
5. On “Step 4”, when the disk creation is completed, a message appears.
Click Finish to exit the program.
6. Repeat Step 1: Select Recovery Disk from the list and repeat the above
steps 2(a), 2(b), 2(c), 3, 4 and 5.
* DEPENDING UPON YOUR OPTICAL DRIVE AND MEDIA FORMAT USED, SOME MEDIA
TYPES MAY BE INCOMPATIBLE FOR CREATING IMAGE BACKUPS.
Fujitsu 113
Appendix
Creating a Backup of Essential Access Software
When you purchased your new system, a “Fujitsu Software Extractor” shortcut was loaded to
“C:\Fujitsu\Drivers\AutoInstaller\”. This shortcut allows you to save the software driver packages
along with the extracted Auto Installer software package to a selected location. It is recommended
that you save these packages to writable media or an external drive. This ensures that in the
event of system failure you will be able to re-install the essential access software.
1. Open the C:\Fujitsu\Drivers\AutoInstaller\ folder
2. Run “Fujitsu Software Extractor” as an Administrator
a. Right-click on Fujitsu Software Extractor.
b. Select the “Run as Administrator” option from the menu that is displayed.
3. The default save location is C:\Fujitsu\ AutoInstaller\ Drivers\. You can change the location
by clicking on the Browse button and selecting your preferred location.
Note: It is recommended that you change the default location and save the
software packages to the external writable media or drive.
4. Click on the Save Packages button.
5. Fujitsu Software Extractor copies the zipped software packages and Readme files,
and extracts the Auto Installer folder to the selected location.
Note: The extracted Auto Installer will later be used to install the software
automatically on the system in the event of generic image restoration when
the software is not pre-installed in the image.
RECOVER YOUR SYSTEM WHEN THE HARD
DRIVE IS STILL ACCESSIBLE
Using the Recovery and Utility Tools
The Recovery and Utility tools consist of a variety of tools that will help you recover your
recovery image and system images, and delete the data from your hard disk.
Methods for accessing the utilities
Recovery and Utility Tools are preinstalled in a hidden partition by the factory, or
they can be accessed by using the bootable disk.
Note: The Recovery and Utility tools may be deleted from your hard disk
drive if you modify the partitions. If that occurs, you will not be able to
use the hidden partition for booting to Recovery and Utility Tools, but you
will still be able to boot from the Bootable Disk.
114 Fujitsu
Appendix
Determining whether Recovery and Utility is pre-loaded
1. Turn on or reboot your system. When the Fujitsu logo appears, press the F12 key.
2. Use the Tab key to get to the Application Menu.
3. Check whether the Recovery and Utility option is present. If it is not present, it means
that the utility must be used from the Bootable Disk. Proceed to “Running Recovery and
Utility from the Bootable Disk” if Recovery and Utility is unavailable.
Running Recovery and Utility from hard disk
1. Turn on or reboot your system. When the Fujitsu logo appears, press the F12 key.
2. Use the Tab key to get to the Application Menu.
3. Cursor down to Recovery and Utility and press the Enter key.
4. Choose your language, if necessary. Select Recovery and Utility to proceed.
5. Three tool options appear: Diagnostics,Recovery, and Utility (refer to the Recovery and
Utility tools section below for instructions on how to use these tools).
6. If this was successful please skip the next step and go to “Recovery and Utility tools.”
7. If this was NOT successful, please go to the next step.
Running Recovery and Utility from the Bootable disk
To verify/change the boot-up priority (rather than booting-up from the hard drive or
an external media drive), perform the following steps:
1. Power on your system. When the Fujitsu logo appears on the screen, press the F12 key.
2. Insert the bootable disk into the drive tray.
3. Highlight the CD/DVD option from the Boot menu, then press Enter .
4. Click OK.
5. Select CD/DVD boot mode: UEFI Mode, if applicable, and then press Enter .
While the files are being loaded from the disk, the Fujitsu logo screen will appear
followed by a progress bar at the bottom of the screen.
Fujitsu 115
Appendix
Recovery and Utility tools
Note: Recovery and Utility tools may not be available on your system depending
on the region from which the system was shipped.
Diagnostics tool: The Diagnostics tool is designed for use by IT professionals. It is not likely you
will need to use this tool. If you should need to use this tool, perform the following steps:
1. Press the Diagnostics Tool button to start the Diagnostics tool.
2. Read the note, and then click OK.
3. Choose one or more of the following options for diagnostics on the Fujitsu Hardware Diagnostics
Tool window: CPU, Memory, Display, Hard Disk, CD/DVD/BD, Floppy Disk, Keyboard, and Mouse.
4. Click the Option button in the Tool menu to specify how many times the tool
should run diagnostics on each selected component.
5. Press Execute to start the Diagnostics tool.
6. After the execution is completed, the selected components are circled in red to indicate that they
have been diagnosed and the result dialog window opens. Click Close to close the window.
7. Click End to close the Diagnostics tool, and then click Yes to confirm the end of diagnostics session.
Recovery tool: The Recovery tool contains two options:
• Restore C Drive: Restore recovery image (only C: drive)
• Restore Full Hard Drive: Restore recovery image (full hard drive).
You can use these tools to restore the Recovery Image from the hidden partition, and perform a full
hard drive recovery. Please refer to instructions above for details on how to create a Recovery Image.
Restore the Recovery Image from Hidden Partition
1. Click [Restore C: drive] from Recovery and Utility tools
2. The progress bar is followed by “Restore Recovery image (only C: drive)” screen
confirming that the Image will be restored to the C: drive. Click Next.
3. Read the instruction screen and select Agree, then click Next.
4. Click OK to acknowledge the warning message to restore recovery image to the C: drive.
5. When the progress bar appears, wait for the process to complete.
6. Click Finish when the process completes; the computer will restart to Windows.
7. Follow the steps listed in the “Auto Installation support for software packages
from hidden partition” section.
8. Download FSDM (Fujitsu Software Download Manager) from the support site and download
all the software applicable to the model and OS using FSDM.
9. Follow the steps listed in “Auto Installation support for software packages
downloaded from support website” section.
116 Fujitsu
Appendix
RECOVER YOUR SYSTEM WHEN THE HARD
DRIVEISNOTBOOTABLE
Restore the Recovery Image for Full Hard Drive
Follow the steps in the “Recovering your Recovery Image using Recovery and
Utility (for new hard drive or non-bootable hard drive)” section. You will need the
Bootable Disk and the Recovery Disk Set for this task.
Utility tool: If applicable for your region, the Utility tool contains two options:
Hard Disk Data Delete and Partition Creation.
The Hard Disk Data Delete utility is used to delete all data on the hard disk
and prevent the data from being reused.
NOTE: Do not use the Hard Disk Data Delete utility unless you are absolutely certain
that you want to erase your entire hard disk, including all partitions.
To delete hard disk data:
1. Click the Hard Disk Data Delete button. The progress bar appears, followed by the EULA screen.
2. Agree to the EULA and click Next.
3. Choose the hard disk from which the data should be deleted in the list of hard disks and click Next.
The Partition Creation utility is used to change the C: and D: drive partition sizes.
To run this utility: (This is not an option when using Windows 7.)
1. Click the Partition Creation button.
2. A progress bar appears, followed by the EULA screen. Agree to the EULA.
3. On the Recovery Tool - Partition Creation screen, move the slider to set disk size, and then click OK.
4. Click Yes in the Partition Creation confirmation dialog.
WARNING: It is highly recommended that you send your product to Fujitsu
Service to replace a hard drive. A mistake could possibly destroy your
computer, your new hard drive or both.
Fujitsu 117
Appendix
Recovering Your Recovery Image Using Recovery and Utility
(for new hard drive or non-bootable hard drive)
If you have installed a new hard drive or your hard drive is not bootable, perform the following steps.
Note: You will need the Bootable disk and Recovery Image disk set for this recovery.
1. Power on your system. When the Fujitsu logo appears on the screen, press the Enter key.
2. Insert the bootable disk in your DVD drive, then click OK.
3. Highlight the CD/DVD option from the Boot Menu and press Enter .
4. Select CD/DVD boot mode: Select UEFI Mode, if applicable and press Enter .
While the files are being loaded from the disk, the Fujitsu logo screen appears
followed by a progress bar at the bottom of the screen.
5. Choose your language, if necessary.
6. Three tool options appear: Diagnostics,Recovery and Utility.SelectRecovery.
• For Windows 8.1: Select Restore full hard drive
• For Windows 7: Select Restoring the Factory Image (full hard drive recovery)
7. Click Next to confirm full hard drive restoration. All data on HDD will be deleted.
8. Agree to EULA by selecting Agree option and clicking Next.
9. Click Next on the Recovery Disk Check screen to verify that the bootable
disk has been inserted into the optical drive.
10. The Checking for Recovery Disk screen appears followed by the prompt to insert the
first disk. Click OK to continue. Repeat this step for all disks. After all recovery disks
have been checked and the check has been completed, click Next.
11. Follow the prompt to reinsert the first recovery disk and click Next.
12. Click OK when you receive the final warning informing you that all data on drive
C will be lost. This starts the recovery process.
13. Follow the prompts to insert the next recovery disks and click OK.
14. After the copying of the image to the HDD completes the restore process is
complete, click Finish to restart the system. The computer will restart automatically
and then go through the first boot process.
15. Follow the steps listed in “Auto Installation support for essential access
software from backup location” section.
16. Download FSDM (Fujitsu Software Download Manager) from support site and download
all the software applicable to the model and OS using FSDM.
17. Follow the steps listed in “Auto Installation support for essential access
software downloaded from support website.
118 Fujitsu
Appendix
Installing the Software after the Recovery Image is Restored
Auto-installation support for essential access software
from hidden partition
The below listed steps are applicable only in cases in which the recovery image restore
and hidden partition contents have not been wiped out.
1. After the recovery image is restored, launch the desktop icon “Fujitsu Software Auto Installer”.
2. Double-click on “Fujitsu Software Auto Installer” desktop icon.
3. Click Yes on User Account Control Dialog box. This will take some time to
process the software packages. A message will be displayed during this time,
“Please wait while the content is being processed”.
4. If EULA is displayed for Fujitsu Software Auto Installer, accept the EULA, otherwise continue.
5. Then Fujitsu Software Auto Installer user interface will be launched providing ability
to auto-install the essential access software on the system.
6. It is recommended that you install all the software in the listed order. You can
Select All, to install the software in the order listed.
7. Click Install to start the installation.
8. After installing all the selected drivers, Installation Results window will be displayed. Click OK.
9. “You must restart the system for the settings to take effect. Do you wish to
reboot now?” message appears. Select Yes.
10. The system will now reboot.
11. You can now connect to the internet and download FSDM (Fujitsu Software Download
Manager) from the support site and download all the software applicable to the
model and OS using FSDM if they are not downloaded yet.
Fujitsu 119
Appendix
Auto-installation support for essential access software
from backup location
The below listed steps are applicable in cases in which a backup copy was created as
mentioned in the section “Creating a Backup of essential access software”.
1. It is important to have the extracted Auto installer software package folder
and Readme file in the same location as other software folders. Otherwise
auto-installation of the software will not be supported.
2. Inside the Auto Installer software package, launch FjAutoinstall.exe as an Administrator.
3. Click Yes on the User Account Control dialog box. This will take some time to
process the software packages. A message will be displayed during this time stating,
“Please wait while the content is being processed”.
4. If EULA is displayed for Fujitsu Software Auto Installer, accept the EULA, otherwise continue.
5. The Fujitsu Software Auto Installer user interface will be launched providing ability
to auto install the essential access software on the system.
6. It is recommended that you install all the software in the listed order. You can
“Select All”, to install the software in the order listed.
7. Click the Install button to start the installation.
8. After installing all the selected drivers, Installation Results window is be displayed. Click OK.
9. “You must restart the system for the settings to take effect. Do you wish to
reboot now?” message appears. Select Yes.
10. The system will now reboot.
Auto Installation support for the software downloaded from support website
1. Download FSDM (Fujitsu Software Download Manager) from the support site and download all
the drivers applicable to the model and OS using FSDM if they are not downloaded yet.
2. When the software packages are downloaded from web, it is important to download
the Auto Installer Software package and the model/language- specific Readme
file if you prefer to auto install the software.
3. It is important to have the extracted Auto Installer software package folder
and Readme file in the same location as other software folders. Otherwise
auto-installation of the software will not be supported.
4. Inside the Auto Installer software package, launch FjAutoinstall.exe as administrator.
5. Click Yes on the User Account Control dialog box. This will take some time to
process the software packages. A message will be displayed during this time stating
“Please wait while the content is being processed”.
6. If EULA is displayed for Fujitsu Software Auto Installer, accept the EULA, otherwise continue.
7. The Fujitsu Software Auto Installer user interface will be launched providing the ability
to auto install the software downloaded from support site.
8. It is recommended that you install all the software in the listed order. You can
Select All, to install the software in the order listed.
9. Click the Install button to start the installation.
10. After installing all the selected drivers, the Installation Results window is displayed. Click OK.
11. “You must restart the system for the settings to take effect. Do you wish to
reboot now?” message appears. Select Yes.
12. The system will now reboot.
120 Fujitsu
Appendix
Downloading Driver Updates
To ensure that you always have the most current driver updates related to your system,
you should occasionally access the Fujitsu Software Download Manager (FSDM) utility.
The FSDM utility is available from the Fujitsu Support site. FSDM will allow you to view
and download a list of the most current drivers, utilities, and applications to determine
whether you have the latest versions. To download the FSDM Utility, go to the Support Site:
"http://support.fujitsupc.com/CS/Portal/support.do?srch=DOWNLOADS".
If you are planning on downgrading, upgrading or changing versions of your operating system during
this process please see the User’s Guide for more information at "http://solutions.us.fujitsu.com".
Fujitsu 121
Index
Index
A
AC adapter
connecting 20
Set up 19
Acoustic warnings 91
Anti-theft protection 70
Audio connections 80
B
Battery 38, 55
battery charge 39
Caring for and maintaining 38
charge level 38
Charging 38
Discharges too quickly 89
see Rechargeable battery 38, 55
Service life 38, 55
battery charge meter 38
before you travel 16
BIOS Setup Utility
, protecting with password 71
calling 81
exiting 83
operation 82
Settings 81
Bluetooth, Safety notes 15
Bonus Apps 22
C
Charging back-up battery 85
Choose a location 19
Cleaning 17
Configuration, BIOS Setup Utility 81
Configuring hardware 81
Configuring system 81
Connecting audio devices 80
Connecting headphones 80
Connecting microphone 80
CrystalViewscreen
cleaning 17
D
dark touchscreen 86
Date not correct 85
Declarations of conformity 102
Display orientation
select 28
DOC (INDUSTRY CANADA) NOTICES 99
E
Ending
energy saving mode 88
Energy
Energy consumption 39
Energy saving 15
Energy saving functions 39
Error messages on the screen 91
Errors
Acoustic warnings 91
Screen messages 91
Ethernet LAN 45
F
Fault
Elimination 84
Fingerprint sensor 67
configuring 67
First-time setup 18
G
Getting started 18
GPS 45
H
HDMI port 77–78
I
Important notes 14
Incorrect time 85
Information,
safety 14
Instructions
Cleaning 17
K
Keyboard
cleaning 17
Keyboard docking station
Connecting a Tablet PC 53
Ports 51
L
Landscape format
display 28
122 Fujitsu
