Fujitsu Client Computing MC8355D Multi-Band Radio Module User Manual Q572 Gobi3000 FCC FPC58 3177 01

Fujitsu Limited Multi-Band Radio Module Q572 Gobi3000 FCC FPC58 3177 01

Contents

Revised WWAN portion of User Manual

Please read this document carefully prior to using
the 3G Mini-Card Gobi 3000 modem in your Fujitsu
computer.
Important notice
Because of the nature of wireless communications,
transmission and reception of data can never be
guaranteed. Data may be delayed, corrupted (that
is, have errors) or be totally lost. Although signifi-
cant delays or losses of data are rare when wireless
devices such as the 3G Mini-Card modem are used in
a normal manner with a well-constructed network,
the card should not be used in situations where fail-
ure to transmit or receive data could result in dam-
age of any kind to the user or any other party,
including but not limited to personal injury, death,
or loss of property. Sierra Wireless and its affiliates
accept no responsibility for damages of any kind
resulting from delays or errors in data transmitted or
received using the 3G Mini-Card modem, or for fail-
ure of the modem to transmit or receive such data.
3G Mini-Card Gobi™ 3000
Regulatory and Safety Information
Fujitsu America, Inc.
Q572 Gobi3000-FCC-FPC58-3177-01.fm Page 1 Tuesday, January 8, 2013 11:20 AM
2
Safety and hazards
The 3G Mini-Card modem MUST BE POWERED OFF
in all areas that may be susceptible to radio interfer-
ence. In particular:
Prohibited Areas
Obey all signs and notices and follow all rules and
regulations. Power off the 3G Mini-Card modem
when instructed to do so or when you suspect that it
may cause interference or danger.
Where explosive atmospheres may be present
Areas with a potentially explosive atmosphere are
not always clearly marked. Such areas include gas
stations, fuel depots, chemical transfer or storage
facilities, areas where blasting is in progress, areas
where the air contains chemicals or particles such as
grain, dust, or metal powders, and any other area
where you would normally be advised to turn off
your cellular phone or vehicle engine.
Near medical or life-support equipment
In areas where medical equipment may be suscepti-
ble to any form of radio interference. In such areas
the 3G Mini-Card modem can transmit signals that
could interfere with this equipment.
On board aircraft
In addition to Federal Aviation Authority (FAA)
requirements, many airline regulations state that
you must suspend wireless operations before board-
ing an aircraft. The 3G Mini-Card modem is capable
of transmitting signals that could interfere with var-
Q572 Gobi3000-FCC-FPC58-3177-01.fm Page 2 Tuesday, January 8, 2013 11:20 AM
3
ious onboard systems and controls.
Failure to observe this instruction may lead to sus-
pension or denial of cellular telephone services to
the offender, legal action, or both.
Some airlines may permit the use of cellular phones
while the aircraft is on the ground and the door is
open. The 3G Mini-Card modem may be used nor-
mally at this time.
While operating a vehicle
The driver or operator of any vehicle should not use
a wireless data device while in control of a vehicle.
Doing so detracts from the driver or operator's abil-
ity to control and operate the vehicle. In some coun-
tries, using such communications devices while in
control of a vehicle is an offence.
Important safety/compliance
information for North American users
Caution:
Unauthorized modifications or changes
not expressly approved by Sierra Wireless, Inc. could
void compliance with regulatory rules, and thereby
your authority to use this equipment.
The design of the 3G Mini-Card modem complies
with U.S. Federal Communications Commission
(FCC) and Industry Canada (IC) guidelines respect-
ing safety levels of radio frequency (RF) exposure for
portable devices, which in turn are consistent with
the following safety standards previously set by
Canadian, U.S. and international standards bodies:
Q572 Gobi3000-FCC-FPC58-3177-01.fm Page 3 Tuesday, January 8, 2013 11:20 AM
4
• ANSI / IEEE C95.1-1999,
IEEE Standard for Safety
Levels with Respect to Human Exposure to Radio
Frequency Electromagnetic Fields, 3kHz to 300
GHz
• National Council on Radiation Protection and
Measurements (NCRP) Report 86, -1986,
Biologi-
cal Effects and Exposure Criteria for Radio Fre-
quency Electromagnetic Fields
• Health Canada, Safety Code 6, 1999,
Limits of
Human Exposure to Radio Frequency Electromag-
netic Fields in the Frequency Range from 3 kHz to
300 GHz
• International Commission on Non-Ionising Radia-
tion Protection (ICNIRP) 1998,
Guidelines for lim-
iting exposure to time-varying electric, magnetic,
and electromagnetic fields (up to 300 GHz)
Caution: The wireless WAN is designed to operate at
reduced output levels when the tilt angle of the tab-
let is less than approximately 45 degrees from the
horizontal (flat) position. When the tablet is used
undocked, although larger viewing angles are possi-
ble and the wireless WAN may operate at higher
output, it is recommended that the viewing angle
be less than 45 degrees.
(Reference Figures 1, 2, and 3)
3G Mini-Card Modem
Gobi 3000
FCC ID: EJE-MC8355D
IC: 337J-MC8355D
Q572 Gobi3000-FCC-FPC58-3177-01.fm Page 4 Tuesday, January 8, 2013 11:20 AM
5
Figure 1. Operating Angles
Q572 Gobi3000-FCC-FPC58-3177-01.fm Page 5 Tuesday, January 8, 2013 11:20 AM
6
Incorrect Sitting Positions
Figure 2. Sitting Positions to be Avoided
The three sitting
positions illus-
trated on the
right are to be
avoided for all
screen orienta-
tions.
Q572 Gobi3000-FCC-FPC58-3177-01.fm Page 6 Tuesday, January 8, 2013 11:20 AM
7
Correct Sitting Positions
Figure 3. Recommended Sitting Positions
The two sitting
positions illus-
trated on the
right are recom-
mended for all
screen orienta-
tions.
Q572 Gobi3000-FCC-FPC58-3177-01.fm Page 7 Tuesday, January 8, 2013 11:20 AM
8
Holding the Tablet
Orientation:
The tablet can be held in any of the
following orientations, as dictated by your
operating system:
• Primary Landscape: Functional in
Windows 7 and Windows 8
• Secondary Portrait: Functional in
Windows 7 and Windows 8
• Secondary Landscape:
Windows 7: No restriction with WiFi;
system non-functional when WWAN
device is on.
Windows 8: No restriction with WiFi;
system functional when WWAN
device is on, but WWAN transmitter is
off.
• Primary Portrait: Functional in
Windows 7 and Windows 8
(The orientation nomenclatures reflect
those used in the button utility). When you
rotate the system using the Rotation
button, the order in which it rotates is
illustrated on the next two pages .
Q572 Gobi3000-FCC-FPC58-3177-01.fm Page 8 Tuesday, January 8, 2013 11:20 AM
9

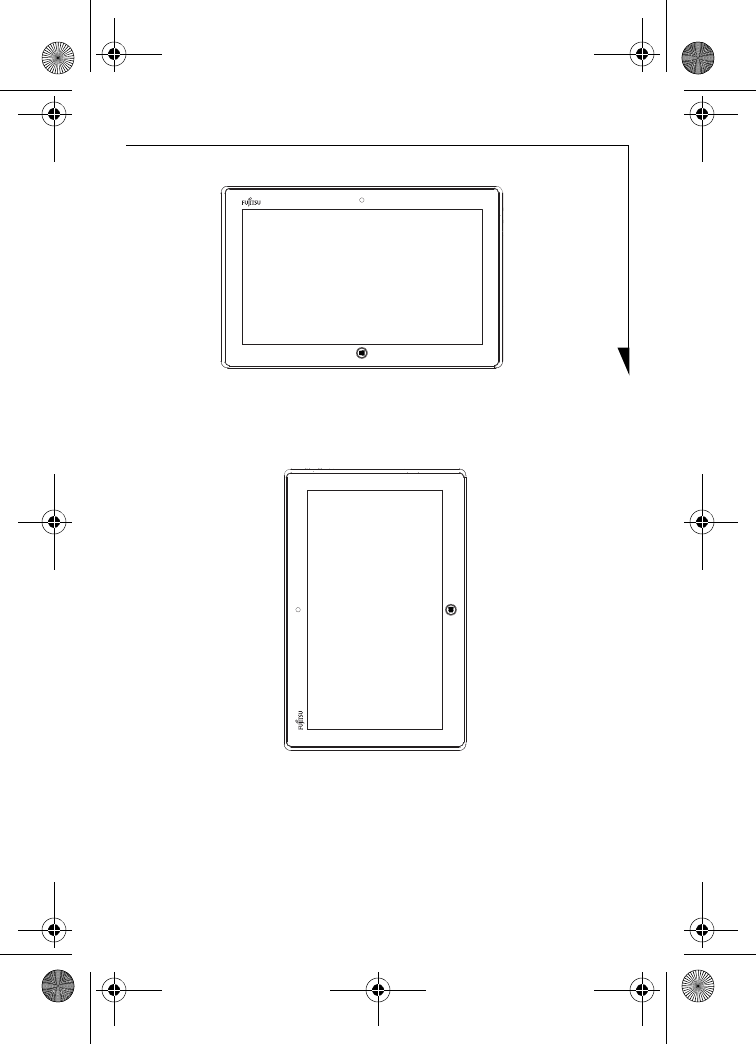

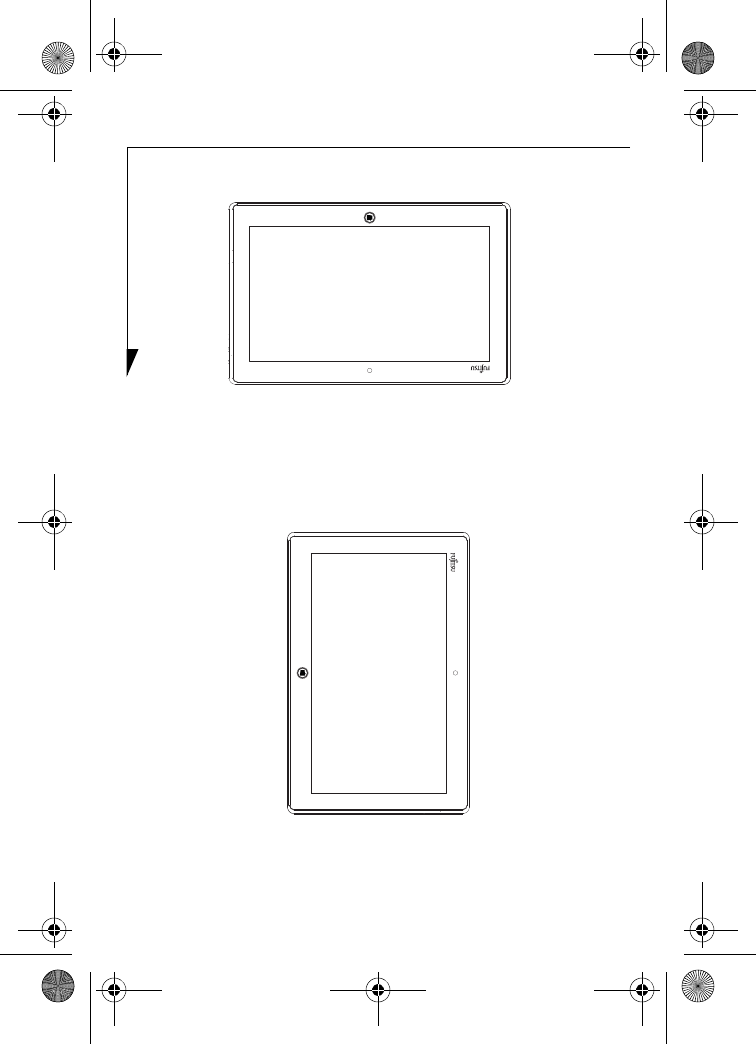

Primary Landscape Orientation
Secondary Portrait Orientation
Q572 Gobi3000-FCC-FPC58-3177-01.fm Page 9 Tuesday, January 8, 2013 11:20 AM
10
Secondary Landscape Orientation
(Windows 7: Non-functional;
Windows 8: Functional w/o WWAN/WWAN)
Primary Portrait Orientation
Q572 Gobi3000-FCC-FPC58-3177-01.fm Page 10 Tuesday, January 8, 2013 11:20 AM
11
Caution: The 3G Mini-Card modem has been evalu-
ated for compliance with FCC/IC RF exposure limits
in this laptop configuration. This 3G Mini-Card
modem must not be co-located or operated in con-
junction with any other antenna or transmitter
other than the transmitters that have been
approved with this laptop. Use of this device in any
other configuration may exceed the FCC RF Exposure
compliance limit.
FCC Radio Frequency Exposure statement
The available scientific evidence does not show that
any health problems are associated with using low
power wireless devices. There is no proof, however,
that these low power wireless devices are absolutely
safe. Low power wireless devices emit low levels of
radio frequency energy (RF) in the microwave range
while being used. Whereas high levels of RF can pro-
duce health effects (by heating tissue), exposure to
low-level RF that does not produce heating effects
causes no known adverse health effects. Many stud-
ies of low-level RF exposure have not found any bio-
logical effects. Some studies have suggested that
some biological effects might occur, but such find-
ings have not been confirmed by additional
research. The WWAN and the WLAN radio devices
have been tested and found to comply with FCC radi-
ation exposure limits set forth for an uncontrolled
equipment and meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement C to OET65.
Q572 Gobi3000-FCC-FPC58-3177-01.fm Page 11 Tuesday, January 8, 2013 11:20 AM
12
1250 E. Arques Avenue,
Sunnyvale, California 94085
For more information, call 1-877-372-3473 or visit our website at
www.shopfujitsu.com. For technical support call 1-800-8fujitsu
Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu,
Ltd. Gobi is a trademark of Qualcomm Inc. All other trademarks
mentioned herein are the property of their respective owners.
Product description data represents Fujitsu design objectives and
is provided for comparative purposes; actual results may vary
based upon a variety of factors. Specifications subject to change
without notice.
© 2012 Fujitsu America, Incorporated. All rights reserved.
FPC58-3177-01
