Appendix A

Integrated Wireless

LAN* User’s Guide

* Optional device

S7010.book Page 91 Wednesday, October 20, 2004 9:14 AM

LifeBook S7000 Notebook

S7010.book Page 92 Wednesday, October 20, 2004 9:14 AM

WIreless LAN User’s Guide

FCC REGULATORY INFORMATION

Please note the following regulatory information related to the

wireless LAN device.

Regulatory Notes and Statements

Wireless LAN, Health and Authorization for use

Radio frequency electromagnetic energy is emitted from Wire-

less LAN devices. The energy levels of these emissions, however,

are far much less than the electromagnetic energy emissions

from wireless devices such as mobile phones. Wireless LAN

devices are safe for use by consumers because they operate

within the guidelines found in radio frequency safety standards

and recommendations. The use of Wireless LAN devices may be

restricted in some situations or environments, such as:

On board an airplane, or

In an explosive environment, or

In situations where the interference risk to other devices or

services is perceived or identified as harmful.

In cases in which the policy regarding use of Wireless LAN

devices in specific environments is not clear (e.g., airports,

hospitals, chemical/oil/gas industrial plants, private buildings),

obtain authorization to use these devices prior to operating the

equipment.

Regulatory Information/Disclaimers

Installation and use of this Wireless LAN device must be in

strict accordance with the instructions included in the user

documentation provided with the product. Any changes or

modifications made to this device that are not expressly

approved by the manufacturer may void the user’s authority to

operate the equipment. The manufacturer is not responsible for

any radio or television interference caused by unauthorized

modification of this device, or the substitution or attachment of

connecting cables and equipment other than those specified by

the manufacturer. It is the responsibility of the user to correct

any interference caused by such unauthorized modification,

substitution or attachment. The manufacturer and its autho-

rized resellers or distributors will assume no liability for any

damage or violation of government regulations arising from

failure to comply with these guidelines.

This device must not be co-located or operated in conjunction

with any other antenna or transmitter.

For Atheros and Intel PRO Set Wireless LAN:

For operation within 5.15~5.25 GHz frequency range, it is

restricted to indoor environments, and the antenna of this

device must be integral.

Federal Communications Commission statement

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions: (1) This

device may not cause interference, and, (2) This device must

accept any interference, including interference that may cause

undesired operation of this device.

FCC Interference Statement

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installa-

tion. This equipment generates, uses, and can radiate radio

frequency energy. If not installed and used in accordance with

the instructions, it may cause harmful interference to radio

communications. However, there is no guarantee that interfer-

ence will not occur in a particular installation.

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try and correct

the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the distance between the equipment and the

receiver.

3. Connect the equipment to an outlet on a circuit different

from the one the receiver is connected to.

4. Consult the dealer or an experienced radio/TV technician

for help.

FCC Radio Frequency Exposure statement

This equipment complies with FCC radiation exposure limits

set forth for an uncontrolled environment. This equipment

should be installed and operated with a minimum distance of

20 cms from the WLAN antennas located on the top edge of

the LCD screen. The Bluetooth antenna is located on the left

side of the keyboard and is exempt from minimum distance

criteria due to its low power. The transmitters in this device

must not be co-located or operated in conjunction with any

other antenna or transmitter.

Export restrictions

This product or software contains encryption code which may

not be exported or transferred from the US or Canada without

an approved US Department of Commerce export license. This

device complies with Part 15 of FCC Rules., as well as ICES 003

B / NMB 003 B. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received,

including interference that may cause undesirable operation.

Modifications not expressly authorized by Fujitsu PC Corpora-

tion may invalidate the user's right to operate this equipment.

Canadian Notice

To prevent radio interference to the licensed service, this device

is intended to be operated indoors and away from windows to

provide maximum shielding. Equipment (or its transmit

antenna) that is installed outdoors is subject to licensing.

S Series.book Page 93 Wednesday, April 14, 2004 10:28 AM

High power radars are allocated as primary users of 5250 - 5350

MHz and 5650 - 5850 MHz and these radars cause interference

and/or damage to LELAN(license exempt LAN) devices operating

in these bands.

LifeBook S Series Notebook - Section Five

Before Using the Wireless LAN

This manual describes the procedures required to prop-

erly setup and configure the integrated Wireless LAN

Mini-PCI device (referred to as "WLAN device" in the

rest of the manual). Before using the WLAN device, read

this manual carefully to ensure it's correct operation.

Keep this manual in a safe place for future reference.

Wireless LAN Devices Covered by this Document

This document is applicable to systems containing one

of the following two devices. Most of the procedures are

identical. Sections that differ between the two devices

have been noted in the text:

Intel PROSet Wireless LAN (WM3B2915ABG and

Atheros Wireless LAN (WLL4070)

If your system is an S7020, your wireless module is the

Intel PROSet wireless LAN; if your system is an S7020D,

your wireless module is the Atheros wireless LAN.

Characteristics of the WLAN Device

The WLAN device is a Mini-PCI card attached to the

mainboard of the mobile computer.

It is a dual-band radio that operates in two license-free

RF bands, therefore eliminating the need to procure an

FCC license to operate. It operates in the 2.4GHz

Industrial, Scientific, and Medical (ISM) RF band.

Additionally, the Atheros device operates in the lower

and middle bands of the 5GHz Unlicensed National

Information Infrastructure (UNII) bands.

The Atheros WLAN is capable of three operating

modes, IEEE802.11a, IEEE802.11b and IEEE802.11g,

wireless LAN standards governed by the IEEE (Insti-

tute of Electronics and Electrical Engineers). The Intel

WLAN is capable of two operating modes,

IEEE802.11b and IEEE802.11g.

Encoding of data is modulated using Direct Sequence

Spread Spectrum (DSSS) and Complementary Code

Keying (CCK) when the WLAN device is operating in

IEEE 802.11b mode and Orthogonal Frequency Divi-

sion Multiplexing (OFDM) when operating in

IEEE802.11a or IEEE802.11g mode.

The WLAN device is Wi-Fi certified and operates at

the maximum data transfer rate of 54 Mbps in

IEEE802.11a or IEEE802.11g mode and 11 Mbps in

IEEE802.11b mode.

The maximum communication range indoors is

approximately 80 feet (25 meters). However, that

range will increase or decrease depending on factors

such as number of walls, reflective material, or inter-

ference from external RF sources.

The WLAN device supports the following encryption

methods - WEP, TKIP, and AES encryption.

WIRELESS LAN MODES USING THIS DEVICE

Ad Hoc Mode

(See Figure 5-1)

"Ad Hoc Mode" refers to a wireless network architecture

where wireless network connectivity between multiple

computers is established without a central wireless

network device, typically known as Access Point(s).

Connectivity is accomplished using only client devices in

a peer-to-peer fashion. That is why Ad Hoc networks are

also known as peer-to-peer networks. Ad Hoc networks

are an easy and inexpensive method for establishing

network connectivity between multiple computers.

Ad Hoc mode requires that the SSID, network authenti-

cation, and encryption key settings are identically

configured on all computers in the Ad Hoc network.

Figure 5-1. Ad Hoc Mode Network

S Series.book Page 94 Wednesday, April 14, 2004 10:28 AM

WM3B2200BG)

WIreless LAN User’s Guide

Access Point (Infrastructure) Mode

(See Figure A-2)

Infrastructure mode refers to a wireless network archi-

tecture in which devices communicate with wireless or

wired network devices by communicating through an

Access Point. In infrastructure mode, wireless devices

can communicate with each other or can communicate

with a wired network. Corporate wireless networks

operate in infrastructure mode because they require

access to the wired LAN in order to access computers,

devices, and services such as file servers, printers, and

databases.

How to Handle This Device

The WLAN device comes pre-installed in your mobile

computer. Under normal circumstances, it should not be

necessary for you to remove or re-install it. The Oper-

ating System that your mobile computer comes with has

been pre-configured to support the WLAN device.

WIRELESS NETWORK CONSIDERATIONS

The Intel PRO/Wireless 2200BG WLAN device sup-

ports IEEE802.11b and IEEE802.11g. The Intel PRO/

Wireless 2915ABG and Atheros AR5006X WLAN

devices support IEEE802.11a, IEEE802.11b and

IEEE802.11g.

The Intel PRO/Wireless 2200BG WLAN device oper-

ates in the 2.4GHz ISM band. The Intel PRO/Wireless

2915ABG and Atheros AR5006X WLAN devices oper-

ate in the 2.4GHz ISM band and the 5 GHz lower,

middle, and upper UNII bands.

The maximum range of the WLAN device indoors is

typically 80 feet (25 meters). Please note that the max-

imum range you achieve may be shorter or longer than

80 feet, depending on factors such as access point

transmit power, number and density of obstructions,

or external RF interference.

Microwave ovens will interfere with the operation of

WLAN device as microwave ovens operate in the same

2.4GHz frequency range that IEEE802.11b/g devices

operate in. Interference by microwaves does not occur

with IEEE802.11a radio which operates in the 5 GHz

RF band.

Wireless devices that transmit in the 2.4GHz fre-

quency range may interfere with the operation of

WLAN devices in IEEE802.11b/g modes. Symptoms of

interference include reduced throughput, intermittent

disconnects, and large amounts of frame errors. It is

HIGHLY recommended that these interfering devices

be powered off to ensure the proper operation of the

WLAN device.

DEACTIVATING THE WLAN DEVICE

Deactivation of the WLAN device may be desired in

certain circumstances (to extend battery life) or where

certain environments require it (i.e. hospitals, clinics,

airplanes, etc.). Fujitsu mobile computers employ two

methods with which to deactivate the WLAN device:

Using the Wireless On/Off Switch

In Windows, using the Intel PROSet Software or

Atheros Client Utility software.

Figure A-2. Access Point (Infrastructure) Mode Network

ADSL modem,

cable modem,

or similar

Internet

Wired LAN

Access Point*

Wireless LAN

*An optional hub for a wired

LAN may be required depending

upon the type of access point used.

S7010.book Page 95 Wednesday, October 20, 2004 9:14 AM

LifeBook S7000 Series Notebook - Appendix

Deactivation using the Wireless On/Off Switch

The WLAN device can be deactivated quickly and effi-

ciently by toggling the Wireless On/Off Switch to the Off

position. (Figure A-3)

The Wireless On/Off switch has no effect on non-Wire-

less LAN models.

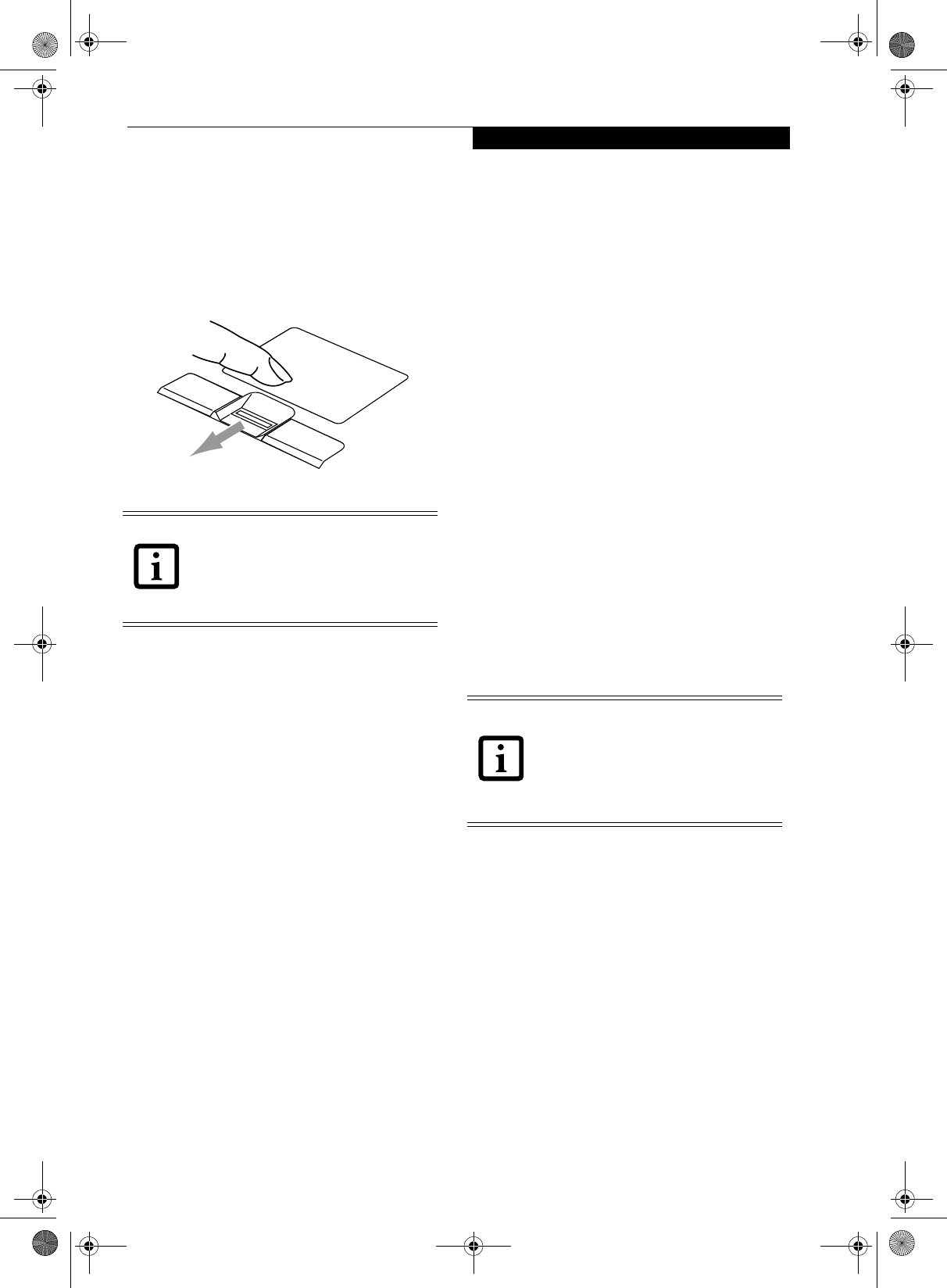

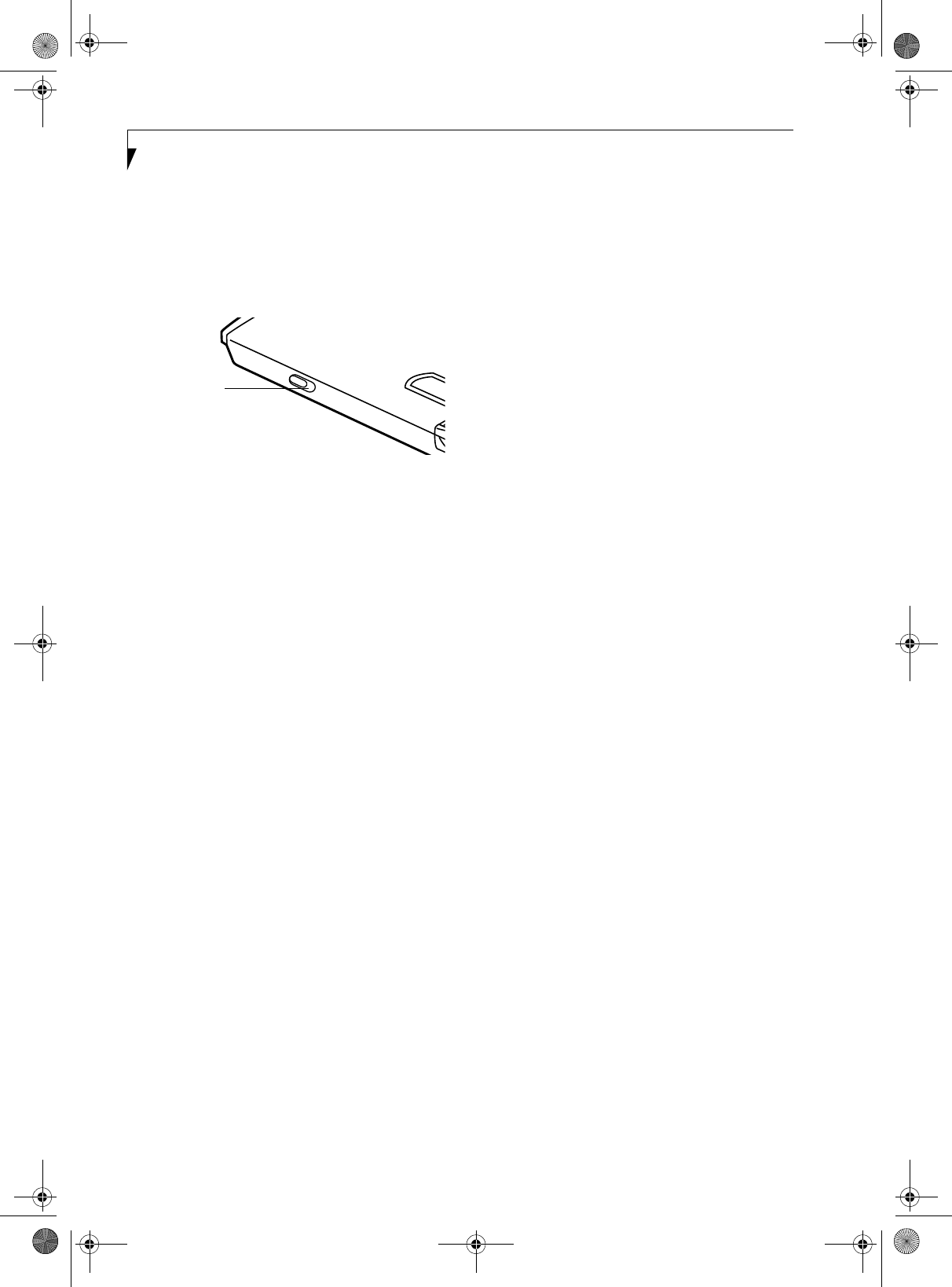

Figure A-3. Wireless LAN On/Off Switch Location

Deactivation using the Intel PROSet Software

The WLAN device can also be deactivated in Windows

using the Intel PROSet Software. The procedure to

accomplish this:

1. Click [Start]-> [All Programs].

2. Select Intel ProSet Wireless, then click on Intel

ProSet Wireless from the menu that appears. The

Intel ProSet Wireless utility will be displayed.

3. At the bottom left corner of the window, select

Wireless Off from the dropdown list.

Deactivation using Atheros Client Utility software

1. Right-click on Atheros Client Utility icon in the

system tray. Select “Open Atheros Client Utility”

from the menu.

2. Choose Action and click Disable Radio.

ACTIVATING THE WLAN DEVICE

Activation of the WLAN device can be accomplished

using the same methods as the deactivation process

■Using the Wireless On/Off Switch

■In Windows using the Intel PROSet Software or

Atheros Software

Wireless LAN

On/Off Switch

S7010.book Page 96 Wednesday, October 20, 2004 9:14 AM

WIreless LAN User’s Guide

Configuration of the WLAN Device

The WLAN Device can be configured to establish wire-

less network connectivity using one of the following

tools:

■Intel PROSet Software - The Intel PROSet Software

allows for multiple profile setup and supports auto-

matic profile switching. Support for most industry

standard security solutions is contained in this soft-

ware.

■Atheros Client Utility - The Atheros Client Utility soft-

ware allows for multiple profile setups and supports

automatic profile switching. Support for most indus-

try standard security solutions is contained in this

software.

FLOW OF OPERATIONS

1. Activate the WLAN Device (See Activating the

WLAN Device on page 96 for more information).

2. Configure the Wireless Network parameters.

■Enter the network name (SSID)

■Choose the appropriate WLAN architecture (Ad

Hoc or Infrastructure)

■Choose Authentication method: Open, Shared,

WPA-Enterprise, WPA2-Enterprise, WPA-

Personal, or WPA2-Personal

■If using static WEP keys, enter static WEP key and

choose key index.

3. Configure network settings (See Configure Net-

work Parameters on page 97 for more information)

■TCP/IP settings

■Workgroup or Domain settings.

CONFIGURATION USING

INTEL PROSET SOFTWARE

This section explains the procedure to properly

configure the WLAN device using the Intel PROSet Soft-

ware. Pre-defined parameters will be required for this

procedure. Please consult with your network adminis-

trator for these parameters:

Network Name - Also known as the SSID

Network Key (WEP) - Required if using static WEP

keys.

Authentication Type - Open, Shared, WPA, or WPA-

PSK

Procedure

1. Activate the WLAN device using either the Wireless

On/Off Switch or the Intel PROSet software.

2. Click the [Start] button first and then [All Pro-

grams].

3. Click the icon [Intel PROSet Wireless] to execute

the Intel PROSet Wireless software.

4. Click the [Add] button. The General Settings dialog

displays.

5. Enter a profile name in the Profile Name field.

6. Enter the network SSID, in the Network Name

(SSID) field.

7. Click Infrastructure or Ad Hoc for the operating

mode.

8. Click [Advanced].

9. The Mandatory Access Point option is only used if

Infrastructure mode is selected. Use this option to

connect to a specific access point. Enter the MAC

address for the access point. Click OK to save the

setting and return to the General Settings page.

10. Click [Next].

11. If you are using Cisco CCX, click Cisco Options to

enable Cisco CKIP data encryption on the Security

Settings page. Check the Cisco Compatible Exten-

sions Options. If you have checked the Cisco's

"Mixed-Cell" box in the Advanced Setting, this

option must also be checked.

12. Click [OK].

13. Click Next.

14. Select Open, Shared, WPA-Enterprise, WPA2-

Enterprise, WPA-Personal, or WPA2-Personal in

the Network Authentication options.

15. Select either None, WEP, CKIP (if Enable Cisco Cli-

ent eXtentions is enabled, use CKIP or WEP), or

TKIP for the data encryption.

16. If WEP is selected, select either 64 or 128-bit for the

Encryption Level.

17. Select the key index 1, 2, 3 or 4.

18. Enter the WEP key if required. If your network does

not employ a 802.1x/EAP security mechanism,

please skip to step 24.

S7010.book Page 97 Wednesday, October 20, 2004 9:14 AM

LifeBook S7000 Series Notebook - Appendix

19. Click the Enable 802.1x checkbox to enable the

802.1x security option. Please contact your network

administrator if configuration of this setting is

required.

20. Select the appropriate Authentication Type. Please

contact your network administrator if configura-

tion of this setting is required.

21. After selecting your authentication type, enter the

user name, domain, and password of the user you

have created on the authentication server. The user

name and password do not have to be the same as

name and password of your current Windows user

22. Click [OK] to save the settings.

23. From the Intel ProSet Wireless page, click the new

profile name shown in the Profile List. Use the up

and down arrows to position the priority of the

new profile in the priority list.

24. Click the Connect button to connect to the net-

work.

25. Click [Close] if you want to close the Intel(R)

PROSet for Wireless window.

CONFIGURATION USING

ATHEROS CLIENT UTILITY SOFTWARE

This section explains the procedure to properly

configure the WLAN device using the Atheros Client

Utility. Pre-defined parameters will be required for this

procedure. Please consult with your network adminis-

trator for these parameters:

Network Name - Also known as the SSID

Network Key (WEP) - Required if using static WEP

keys.

Authentication Type - Open, Shared, WPA, or WPA-

PSK

Procedure

1. Activate the WLAN device using either the Wireless

On/Off Switch or the Atheros Client Utility

2. Right-click on the “Atheros Client Utility” icon in

the system tray, and select “Open Atheros Client

Utility” from the menu.

3. From the Current Status page, click the Profile

Management tab.

4. If this is your first time using this utility, highlight

the profile [Default] and Click the [Modify] button,

otherwise Click the [New] button. The General Set-

tings dialog displays.

5. From the General page, enter a profile name in the

Profile Name field.

6. Enter the network SSID, in the SSID1 field. If you

wish to create a profile that can connect to up to 3

different wireless networks, SSID's can be entered

in the SSID2 and SSID3 fields as well.

7. Click the Security tab.

8. The Security tab allows for the configuration of the

Security modes listed in the table below. Please

select the radio button of the desired security

mode. If these settings are not known to you,

please consult with your network administrator for

the correct settings.

9. Click OK

10. Click the Advanced tab

11. The Advanced tab allows for the configuration of

the options detailed in the table below

Field Name Description

WPA Enables the use of Wi-Fi Protected

Access. Choosing WPA opens the

WPA EAP drop-down menu.

Options include TLS and PEAP. If

these settings are not known to you,

please consult with your network

administrator for the correct settings.

WPA-PSK Enables WPA-Pre-Shared Key. Click

on the Configure button to enter the

WPA Passphrase. If these settings

are not known to you, please consult

with your network administrator for

the correct settings.

802.1x Enables 802.1x security. If these

settings are not known to you,

please consult with your network

administrator for the correct settings.

Choosing this option opens the

802.1x EAP type drop-down menu.

Options include TLS, PEAP, and LEAP

Pre-Shared Key Enables the use of pre-shared keys

that are defined on both the access

point and the station. This is where

static WEP keys are entered. Click

the Configure button to fill in the

Define Pre-Shared Keys window.

None No security

S7010.book Page 98 Wednesday, October 20, 2004 9:14 AM

WIreless LAN User’s Guide

12. Click OK

13. If the profile you just created does not activate

immediately, click the Profile Management tab,

highlight the desired Profile, and click Activate.

14. Click [Close] if you want to close the Atheros Client

Utility.

CONNECTION TO THE NETWORK

This section explains connection to the network.

If there is an administrator of the network, contact the

network administrator for data settings.

Setting the network

Perform the “Setting TCP/IP” and “Confirming the

computer and work group names” operations required for

network connection.

Setting TCP/IP

1. Click the [Start] button first and then [Control

Panel].

2. If the Control Panel is in Category view, switch to

Classic view by clicking “Switch to Classic View”

under Control Panel the left frame. (If you are

already in Classic view, “Switch to Category View”

will be displayed.)

3. Double-click [Network Connections]. A list of cur-

rently installed networks will be displayed.

4. Right-click [Wireless Network Connection] in the

list, and then click [Properties] in the menu dis-

played. The [Wireless Network Connection Proper-

ties] window will be displayed.

5. Click the [General] tab if it is not already selected.

6. Click [Internet Protocol (TCP/IP] and then click

[Properties]. The [Internet Protocol (TCP/IP)

Properties] window will be displayed.

7. Set the IP address as follows:

■For ad hoc connection: Select [Use the following

IP address:] and then enter data for [IP address]

and [Subnet mask]. See page 106 for IP address

setting.

■For access point (infrastructure) connection: If

your network uses DHCP, select [Obtain an IP

address automatically] and [Obtain DNS server

address automatically]. If your network uses static

IP addresses, consult with your network adminis-

trator for the correct IP address settings.

8. Click the [OK] button. Processing will return to the

[Wireless Network Connection Properties] window.

9. Click the [OK] button.

10. Close the [Network Connection] window.

Following this operation, confirm the names of the

computer and the workgroup as follows.

Confirming the computer and work group names

1. Click the [Start] button, then [Control Panel].

2. If the Control Panel is in Category view, switch to

Classic view by clicking “Switch to Classic View”

under Control Panel the left frame. (If you are

already in Classic view, “Switch to Category View”

will be displayed.)

3. Double-click the [System] icon. The [System Prop-

erties] window will be displayed.

4. Click the [Computer Name] tab.

Field Name Description

Power Save

Mode

Options are Maximum, Normal, or

Off

Network Type Options are AP (Infrastructure) or Ad

Hoc

802.11b

Preamble

Specifies the preamble setting in

802.11b. The default setting is Short

and Long (Access Point mode),

which allows both short and long

headers in the 802.11b frames. Set

to Long Only to override allowing

short frames.

Transmit Power

Level

Options are 100%, 50%, 25%,

12.5% or Lowest transmit power

(0mW)

Wireless Mode Specifies 5 GHz 54 Mbps, 5 GHz 108

Mbps, 2.4 GHz 11 Mbps, or 2.4 GHz

54 Mbps operation in an access

point network.

Wireless Mode

when Starting

Ad Hoc

Network

Specifies 5GHz 54 Mbps, 5 GHz 108

Mbps, 2.4 GHz 11 Mbps, or 2.4 GHz

54 Mbps to start an Ad Hoc network

if no matching network name is

found after scanning all available

modes.

To change the setting of the IP address,

you need to be logged in from Windows

as an administrator.

To modify the computer name and/or the

work group name, you need to be logged

in from Windows as an administrator.

S7010.book Page 99 Wednesday, October 20, 2004 9:14 AM

100

LifeBook S7000 Series Notebook - Appendix

5. Confirm the settings of [Full computer name:] and

[Workgroup:].

a. The setting of [Full computer name:] denotes the

name for identifying the computer. Any name

can be assigned for each personal computer.

Enter the desired name in less than 15 ASCII

character code format. Identifiability can be

enhanced by entering the model number, the

user name, and other factors.

b. [Workgroup name] is the group name of the

network. Enter the desired name in less than 15

ASCII character code format.

For ad hoc connection: Assign the same network

name to all personal computers existing on the

network.

For access point (infrastructure) connection:

Assign the name of the work group to be

accessed.

6. Click the [OK] button. If a message is displayed

that requests you to restart the personal computer,

click [Yes] to restart the computer.

Setting the sharing function

Set the sharing function to make file and/or printer sharing

with other network-connected personal computers valid.

This operation is not required unless the sharing func-

tion is to be used.

The folder and printer for which the sharing function

has been set will be usable from any personal computer

present on the network.

Setting the Microsoft network-sharing service

1. Click the [Start] button first and then [Control

Panel].

2. If the Control Panel is in Category view, switch to

Classic view by clicking “Switch to Classic View”

under Control Panel the left frame. (If you are

already in Classic view, “Switch to Category View”

will be displayed.)

3. Double-click [Network Connections]. A list of cur-

rently installed networks will be displayed.

4. Right-click [Wireless Network Connection] in the

list, and then click [Properties] in the menu dis-

played. The [Wireless Network Connection Proper-

ties] window will be displayed.

5. If [File and Printer Sharing for Microsoft Net-

works] is displayed, proceed to step 6. If [File and

Printer Sharing for Microsoft Networks] is not dis-

played, skip to step 7.

6. Make sure that the [File and Printer Sharing for

Microsoft Networks] check box is checked, and

then click the [OK] button. Skip to “Setting file-

sharing function”.

7. Click [Install]. The [Select Network Component

Type] window will be displayed.

8. Click [Service], then click the [Add] button. The

[Select Network Service] window will be displayed.

9. Click [File and Printer Sharing for Microsoft Net-

works] and then click the [OK] button. Processing

will return to the [Wireless Network Connection

Properties] window, and [File and Printer Sharing

for Microsoft Networks] will be added to the list.

10. Click the [Close] button.

Setting the file-sharing function

The procedure for setting the file-sharing function

follows, with the “work” folder in drive C: as an

example.

1. Click the [Start] button first and then [My Com-

puter].

2. Double-click [Local disk (C:)].

3. Right-click the “work” folder (or whichever folder

you want to share), and then click [Sharing and

Security...] in the menu displayed. The [Folder

Name Properties] window will be displayed.

4. Click [Sharing] if it isn’t already selected.

To change the name, click [Change] and

then proceed in accordance with the

instruction messages displayed on the

screen.

To share a file and/or the connected

printer, you need to be logged in as an

administrator. Setting the file-sharing function for the file

which has been used to execute Network

Setup Wizard is suggested on the screen.

For the wireless LAN, however, since

security is guaranteed by entry of the

network name (SSID) and the network

key, the steps to be taken to set the file-

sharing function easily without using

Network Setup Wizard are given below.

S7010.book Page 100 Wednesday, October 20, 2004 9:14 AM

101

WIreless LAN User’s Guide

5. Click the link stating “If you understand the secu-

rity risks, but want to share files without running

the wizard, click here”.

6. Click “Just enable file sharing” and click [OK].

7. Check the [Share this folder on the network] check

box.

8. Click the [OK] button. The folder will be set as a

sharable folder, and the display of the icon for the

“work.” folder will change.

Setting the printer-sharing function

1. Click the [Start] button first and then [Printers and

FAX]. A list of connected printers will be displayed.

2. Right-click the printer for which the sharing func-

tion is to be set, and then click [Sharing] in the

menu displayed. The property window correspond-

ing to the selected printer will be displayed.

3. Click the [Sharing] tab.

4. Click [Share this printer].

5. Enter the sharing printer name in [Share name].

6. Click the [OK] button.

Confirming connection

After you have finished the network setup operations,

access the folder whose sharing has been set for other

personal computers. Also, confirm the status of the radio

waves in case of trouble such as a network connection

failure.

Connecting your personal computer to another

personal computer

1. Click [Start] first and then [My Computer]. The

[My Computer] window will be displayed in the left

frame.

2. Click [My Network Places] in the “Other Places”

list. The window [My Network Places] will be dis-

played.

3. Click [View workgroup computers] under Network

Tasks in the left frame.

4. Double-click the personal computer to which your

personal computer is to be connected. The folder

that was specified in “Setting the file-sharing func-

tion” on page 100 will be displayed.

5. Double-click the folder to be accessed.

Confirming the status of the radio

1. Right-click the Intel PRO Wireless icon in the lower

right corner of the screen.

2. Click [Open Intel PROSet for Wireless]. The Intel

PROSet for Wireless window opens.

3. Contained within the General tab and the Details

section (accessed by pressing the [Details] button),

you will find the current operating status of the

radio. (When the radio is turned off or the com-

puter is not yet connected, some of the conditions

will not be displayed.)

■Profile Name

The current configuration profile is displayed.

■Network Name (SSID)

Displays the Network Name (SSID) currently

used by the radio.

■IP Address

The IP address of the current profile.

■Signal Quality

Displays a message stating the current quality of

the signal.

■Signal Strength

Displays a graphic representation of the current

signal strength.

Additionally, in the lower section of the display, you

will see a variety of different measurements related

to the WLAN. For additional information about the

items, click on the “Help?” button:

■Adapter MAC Address

■Band

■Supported Data Rates

To specify the corresponding folder as a

read-only folder, select the [Read only]

checkbox under the General tab.

Setting the printer-sharing function when

Network Setup Wizard has been executed

is suggested on the screen. For the wireless

LAN, however, since security is guaranteed

by entry of the network name (SSID) and

the network key, the steps to be taken to

set the printer-sharing function without

using Network Setup Wizard are laid down

below.

In the case of access point (infrastructure)

connection, enter the necessary data for

the access point before confirming

connection. Refer to the manual of the

access point for the access point setup

procedure.

S7010.book Page 101 Wednesday, October 20, 2004 9:14 AM

102

LifeBook S7000 Series Notebook - Appendix

■Radio Frequency

■Channel Number

■Network Authentication

■Data Encryption

■802.1x Authentication Type

■802.1x Authentication Protocol

■CCX Version

■CCX TPC

■CCX Power Levels

■Access Point MAC Address

■Mandatory Access Point

S7010.book Page 102 Wednesday, October 20, 2004 9:14 AM

103

WIreless LAN User’s Guide

Troubleshooting the WLAN

TROUBLESHOOTING

Causes and countermeasures for troubles you may encounter while using your wireless LAN are described in the

following table.

Problem Possible Cause Possible Solution

Unavailable

network

connection

Incorrect network

name (SSID) or

network key

Ad hoc connection: verify that the network names (SSID’s) and network

keys (WEP) of all computers to be connected have been configured

correctly. SSID’s and WEP key values must be identical on each machine.

Access Point (Infrastructure) connection: set the network name (SSID)

and network key to the same values as those of the access point.

Set the Network Authentication value identically to that of the Access

Point. Please consult your network administrator for this value, if

necessary.

Weak received signal

strength and/or link

quality

Ad hoc connection: Retry connection after shortening the distance to

the destination computer or removing any obstacles for better sight.

Access Point (Infrastructure) connection: Retry connection after short-

ening the distance to the access point or removing any obstacles for

better sight.

To check the wave condition, refer to the following page:· “Confirming

the status of the radio waves” on page 101.

The WLAN device

has been deactivated

or disabled

Check if the wireless switch is turned ON. Also verify “Disable Radio” is

not checked in “Network setting” window. Refer to “Activating the

Wireless LAN” on page 96.

The computer to be

connected is turned

off

Check if the computer to be connected is turned ON.

RF interference from

Access Points or

other wireless

networks

The use of identical or overlapping RF channels can cause interference

with the operation of the WLAN device. Change the channel of your

Access Point to a channel that does not overlap with the interfering

device.

Wireless network

authentication has

failed

Re-check your Network Authentication, Encryption, and Security

settings. Incorrectly configured security settings such as an incorrectly

typed WEP key, a mis-configured LEAP username, or an incorrectly

chosen authentication method will cause the LAN device to associate

but not authenticate to the wireless network.

Incorrectly

configured network

settings

Recheck the configuration of your network settings.

For the method of checking, refer to the following page:·“Connection to

the Network” on page 99.

Incorrect IP address

configuration

This only applies to networks using static IP addresses. Please contact

your network administrator for the correct settings.

S7010.book Page 103 Wednesday, October 20, 2004 9:14 AM

104

LifeBook S7000 Series Notebook - Appendix

Wireless LAN Glossary

GLOSSARY

Access point

Wireless network device used to bridge wireless and

wired network traffic.

Ad Hoc Mode

Ad Hoc Mode refers to a wireless network architecture

where wireless network connectivity between multiple

computers is established without a central wireless

network device, typically known as Access Points.

Connectivity is accomplished using only client devices in

a peer-to-peer fashion. For details, refer to “Ad hoc

connection” on page 94.

CCX (Cisco Compatible Extensions)

Implementation that provides improved wireless data

security, ensuring certified compatibility with Cisco

wireless access points.

Channel

Range of narrow-band frequencies used by the WLAN

device to transmit data. IEEE802.11b/g - 11 channels, 22

MHz wide channels.

DHCP (Dynamic Host Configuration Protocol)

A protocol that provides a means to dynamically allocate

IP addresses to computers on a local area network.

DNS (Domain Name System)

A data query service that provides a mechanism with

which to translate host names into Internet addresses.

EAP

Extensible Authentication Protocol

A protocol implementation that provides a framework

to allow easier user authentication.

IEEE802.11a

Wireless LAN standard that supports a maximum data

rate of 54 Mbps. 802.11a devices operate in the 5 GHz

lower and middle UNII bands.

IEEE802.11b

Wireless LAN standard that supports a maximum data

rate of 11 Mbps. 802.11b devices operate in the 2.4 GHz

ISM band.

IP address

The logical 32-bit host address defined by the Internet

Protocol that uniquely identifies a computer on a

network. The IP address is usually expressed in dotted

decimal notation.

LAN (Local Area Network)

A LAN or Local Area Network is a computer network (or

data communications network) which is confined to a

limited geographical area.

MAC address (Media Access Control Address)

A MAC address (also called an Ethernet address or IEEE

MAC address) is the 48-bit address (typically written as

twelve hexadecimal digits, 0 through 9 and A through F,

or as six hexadecimal numbers separated by periods or

colons, e.g., 0080002012ef, 0:80:0:2:20:ef) which

uniquely identifies a computer that has an Ethernet

interface.

MTU (Maximum Transmission Unit)

The maximum size of data which can be transmitted at

one time in networks including the Internet. In an envi-

ronment whose maximum size of data is too large to

correctly receive data, normal communications can be

restored by setting the size of MTU to a smaller value.

Network key

Data that is used for encrypting data in data communi-

cation. The personal computer uses the same network

key both for data encryption and decryption, therefore,

it is necessary to set the same network key as the other

side of communication.

Network name (SSID: Security Set Identifier)

When a wireless LAN network is configured, grouping is

performed to avoid interference or data theft. This

grouping is performed with “Network name (SSID)”. In

order to improve security, the network key is set

allowing no communication unless “Network name

(SSID)” coincides with the network key.

Open system authentication

Null authentication method specified in the 802.11 stan-

dard that performs no authentication checks on a wire-

less client before allowing it to associate.

S7010.book Page 104 Wednesday, October 20, 2004 9:14 AM

105

WIreless LAN User’s Guide

PEAP (Protected Extensible Authentication Protocol)

An improvement over EAP, making authentication

much easier to achieve.

PPPoE (Point to Point Protocol over Ethernet)

A method of allowing the authentication protocol

adopted in telephone line connection (PPP) to be used

over an Ethernet.

Protocol

A procedure or rule of delivering data among

computers. Ordered data communication is allowed by

making all conditions required for communication

including the method of data transmission/reception

and actions upon communication errors into proce-

dures.

Shared key authentication

802.11 network authentication method in which the AP

sends the client device a challenge text packet that the

client must then encrypt with the correct WEP key and

return to the AP. If the client has the wrong key or no

key, authentication will fail and the client will not be

allowed to associate with the AP. Shared key authentica-

tion is not considered secure, because a hacker who

detects both the clear-text challenge and the same chal-

lenge encrypted with a WEP key can decipher the WEP

key.

SSID (Service Set Identifier)

Service Set Identifier, a 32-character unique identifier

attached to the header of packets sent over a WLAN that

acts as a password when a mobile device tries to connect

to the BSS. The SSID differentiates one WLAN from

another, so all access points and all devices attempting to

connect to a specific WLAN must use the same SSID. A

device will not be permitted to join the BSS unless it can

provide the unique SSID. Because the SSID is broadcast

in plain text, it does not supply any security to the

network.

Subnet mask

TCP-IP network is controlled by being divided into

multiple smaller networks (subnets). IP address consists

of the subnet address and the address of each computer.

Subnet mask defines how many bits of IP address

comprise the subnet address. The same value shall be set

among computers communicating with each other.

TCP/IP (Transmission Control Protocol/Internet

Protocol)

A standard protocol of the Internet.

TKIP (Temporal Key Integrity Protocol)

Security feature that is a WEP enhancement to defend

against known wireless data security issues.

WEP (Wired Equivalent Privacy)

Standard wireless security provided by the Wi-Fi stan-

dard, used for protecting wireless data.

Wi-Fi

Wi-Fi, or Wireless Fidelity, is a set of standards for wire-

less local area networks (WLAN) based on the IEEE

802.11 specifications. Certified products can use the

official Wi-Fi logo, which indicates that the product is

interoperable with any other product also showing that

logo.

WPA (Wi-Fi Protected Access)

Strong replacement for WEP, providing improved data

encryption and user authentication.

S7010.book Page 105 Wednesday, October 20, 2004 9:14 AM

106

LifeBook S7000 Series Notebook - Appendix

IP address information

ABOUT IP ADDRESSES

If IP address is unknown, set IP address as follows:

If you have an access point (DHCP server) on the

network, set the IP address as follows:

[Obtain an IP address automatically]

If the IP address is already assigned to the computer in

the network, ask the network administrator to check the

IP address to be set for the computer.

If no access point is found in the network:

An IP address is expressed with four values in the range

between 1 and 255.

Set the each computer as follows: The value in paren-

theses is a subnet mask.

Computer A: 192.168.100.2 (255.255.255.0)

Computer B: 192.168.100.3 (255.255.255.0)

Computer C: 192.168.100.4 (255.255.255.0)

Computer X: 192.168.100.254 (255.255.255.0)

IP addressing is much more complicated

than can be briefly explained in this

document. You are advised to consult with

your network administrator for additional

information.

A DHCP server is a server that

automatically assigns IP addresses to

computers or other devices in the network.

There is no DHCP server for the AdHoc

network.

S7010.book Page 106 Wednesday, October 20, 2004 9:14 AM

107

WIreless LAN User’s Guide

Specifications

* “Wi-Fi based” indicates that the interconnectivity test of the organization which guarantees the interconnectivity of

wireless LAN (Wi-Fi Alliance) has been passed.

** Encryption with network key (WEP) is performed using the above number of bits, however, users can set 40 bits/

104 bits after subtracting the fixed length of 24 bits.

*** Depending on practical environments, the allowable number of computers to be connected may be decreased.

Item Specification

Type of network The Atheros AR5006X and the Intel PRO/Wireless 2915ABG

Network Connections WLAN devices conform to IEEE 802.11a

and 802.11b/g (Wi-Fi based)*. The Intel PRO/Wireless 2200BG

Network Connections WLAN device conforms to 802.11b/g

(Wi-Fi based)

Transfer rate (Automatic switching)

IEEE 802.11a/g: 54 Mbps maximum data rate

IEEE 802.11b: 11 Mbps maximum data rate

Active frequency 802.11b/g: 2400~2473 MHz

802.11a: 4900 ~ 5850 MHz

Number of channels 802.11a: 8 independent channels

802.11b/g: 11 channels, 3 non-overlapping channels

Security Encryption Types - WEP, TKIP, AES**

WPA 1.0 compliant

Encryption Keylengths Supported: 64 bits, 128 bits, and 152 bits

(Atheros module using AES encryption only)

802.1x/EAP

Maximum recommended number of computers to

be connected over wireless LAN (during ad hoc

connection)

10 units or less ***

S7010.book Page 107 Wednesday, October 20, 2004 9:14 AM

108

WIreless LAN User’s Guide

Using the Bluetooth Device

The Integrated Bluetooth module (UGXZ5-102A) is an

optional device available for Fujitsu mobile computers.

WHAT IS BLUETOOTH

Bluetooth technology is designed as a short-range wire-

less link between mobile devices, such as laptop

computers, phones, printers, and cameras. Bluetooth

technology is used to create Personal Area Networks

(PANs) between devices in short-range of each other.

WHERE TO FIND INFORMATION

ABOUT BLUETOOTH

The Bluetooth module contains a robust Help user’s

guide to assist you in learning about operation of the

Bluetooth device.

To access the Help file, click [Start] -> All Programs, and

click on Toshiba. Select Bluetooth, then select User’s

Guide.

For additional information about Bluetooth Technology,

visit the Bluetooth Web site at: www.bluetooth.com.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment.

The transmitters in this device must not be co-located or

operated in conjunction with any other antenna or

transmitter.

Canadian Notice

To prevent radio interference to the licensed service, this

device is intended to be operated indoors and away from

windows to provide maximum shielding. Equipment (or

its transmit antenna) that is installed outdoors is subject

to licensing.

Warranty

Users are not authorized to modify this product. Any

modifications invalidate the warranty.

This equipment may not be modified, altered, or

changed in any way without signed written permission

from Fujitsu. Unauthorized modification will void the

equipment authorization from the FCC and Industry

Canada and the warranty.

S Series.book Page 108 Wednesday, April 14, 2004 10:28 AM

109

Appendix B

Using the

Fingerprint Sensor*

* Optional Device

S7010.book Page 109 Wednesday, October 20, 2004 9:14 AM

110

LifeBook S7000 Notebook – Appendix

S7010.book Page 110 Wednesday, October 20, 2004 9:14 AM

111

Using the Fingerprint Sensor

Fingerprint Sensor Device

INTRODUCING THE OPTIONAL

FINGERPRINT SENSOR DEVICE

Your system may have an optional fingerprint sensor

device in the location at which other models have a

scroll button. (Figure B-1)

Figure B-1 Fingerprint sensor

With a fingerprint sensor, you can avoid having to enter

a username and password every time you want to:

■Log onto Windows

■Recover from suspend mode

■Cancel a password-protected screen saver

■Log into homepages that require a username and pass-

word

After you have “enrolled” - or registered - your finger-

print, you can simply swipe your fingertip over the

sensor for the system recognize you.

The fingerprint sensor uses Softex OmniPass which

provides password management capabilities to

Microsoft Windows operating systems. OmniPass

enables you to use a "master password" for all Windows,

applications, and on-line passwords.

OmniPass requires users to authenticate themselves

using the fingerprint sensor before granting access to the

Windows desktop. This device results in a secure

authentication system for restricting access to your

computer, applications, web sites, and other password-

protected resources.

OmniPass presents a convenient graphical user interface,

through which you can securely manage passwords,

users, and multiple identities for each user.

GETTING STARTED

This section guides you through the preparation of your

system for the OmniPass fingerprint recognition

application. You will be led through the OmniPass

installation process. You will also be led through the

procedure of enrolling your first user into OmniPass.

INSTALLING OMNIPASS

If OmniPass has already been installed on your system,

skip this section and go directly to “User Enrollment” on

page 112. You can determine whether OmniPass has

already been installed by checking to see if the following

are present:

■The presence of the gold key-shaped OmniPass icon in

the system tray at the bottom right of the screen.

■The presence of the Softex program group in the

Programs group of the Start menu

System Requirements

The OmniPass application requires space on your hard

drive; it also requires specific Operating Systems (OS’s).

The minimum requirements are as follows:

■Windows XP Home Edition or Windows XP Profes-

sional operating system

■At least 35 MB available hard disk space

Installing the OmniPass Application

If OmniPass is already installed on your system, go to

“User Enrollment” on page 112. Otherwise continue

with this section on software installation.

To install OmniPass on your system you must:

1. Insert the installation media for the OmniPass appli-

cation into the appropriate drive. If you are

installing from CD-ROM or DVD-ROM, you must

find and launch the OmniPass installation program

(setup.exe) from the media.

2. Follow the directions provided in the OmniPass

installation program. Specify a location to which

you would like OmniPass installed. It is recom-

mended that you NOT install OmniPass in the root

directory (e.g. C:\).

3. Once OmniPass has completed installation you will

be prompted to restart you system. Once your

system has rebooted you will be able to use

OmniPass. If you choose not to restart immediately

after installation, OmniPass will not be available for

use until the next reboot.

Although the system may have a

fingerprint sensor in place of a scroll

button, the fingerprint sensor can be used

for scrolling. Simply move your fingerprint

over the sensor the same as you would use

a scroll button.

For installation, OmniPass requires that the

user installing OmniPass have

administrative privileges to the system. If

your current user does not have

administrative privileges, log out and then

proceeding with OmniPass installation.

S7010.book Page 111 Wednesday, October 20, 2004 9:14 AM

112

LifeBook S7000 Notebook – Appendix

The installation program automatically places an icon

(Softex OmniPass) in the Windows Control Panel as well

as a golden key shaped icon in the taskbar.

Verifying Information about OmniPass

After you have completed installing OmniPass and

restarted your system, you may wish to check the version

of OmniPass on your system.

To check the version information of OmniPass:

1. From the Windows Desktop, double-click the key-

shaped OmniPass icon in the taskbar (usually

located in the lower right corner of the screen),

or,

Click the Start button, select Settings, and click

Control Panel (if you are using Windows XP you

will see the Control Panel directly in the Start menu;

click it, then click Switch to Classic View). Double-

click Softex OmniPass in the Control Panel, and the

OmniPass Control Center will appear. If it does not

appear, then the program is not properly installed,

or,

Click the Start button, select Programs, and from

the submenu select the Softex program group, from

that submenu click OmniPass Control Center.

2. Select the About tab at the top of the OmniPass

Control Panel. The About tab window appears with

version information about OmniPass.

Uninstalling OmniPass

To remove the OmniPass application from your system:

1. Click Start on the Windows taskbar. Select Settings,

and then Control Panel.

2. Double-click Add/Remove Programs.

3. Select OmniPass, and then click Change/Remove.

4. Follow the directions to uninstall the OmniPass

application.

5. Once OmniPass has finished uninstalling, reboot

your system when prompted.

USER ENROLLMENT

Before you can use any OmniPass features you must first

enroll a user into OmniPass.

Master Password Concept

Computer resources are often protected with passwords.

Whether you are logging into your computer, accessing

your email, e-banking, paying bills online, or accessing

network resources, you often have to supply credentials

to gain access. This can result in dozens of sets of creden-

tials that you have to remember.

During OmniPass user enrollment a "master password”

is created for the enrolled user. This master password

“replaces” all other passwords for sites you register with

OmniPass.

Example: A user, John, installs OmniPass on his system

(his home computer) and enrolls an OmniPass user with

username “John_01” and password “freq14”. He then

goes to his webmail site to log onto his account. He

inputs his webmail credentials as usual (username

“John_02” and password “lifebook”), but instead of

clicking [Submit], he directs OmniPass to Remember

Password. Now whenever he returns to that site,

OmniPass will prompt him to supply access credentials.

John enters his OmniPass user credentials (“John_01”

and “freq14”) in the OmniPass authentication prompt,

and he is allowed into his webmail account. He can do

this with as many web sites or password protected

resources he likes, and he will gain access to all those

sites with his OmniPass user credentials (“John_01” and

“freq14”). This is assuming he is accessing those sites

with the system onto which he enrolled his OmniPass

user. OmniPass does not actually change the credentials

of the password protected resource. If John were to go to

an Internet cafe to access his webmail, he would need to

enter his original webmail credentials (“John_02” and

“lifebook”) to gain access. If he attempts his OmniPass

user credentials on a system other than where he

enrolled that OmniPass user, he will not gain access.

Basic Enrollment

The Enrollment Wizard will guide you through the

process of enrolling a user. Unless you specified other-

wise, after OmniPass installation the Enrollment Wizard

will launch on Windows login. If you do not see the

Enrollment Wizard, you can bring it up by clicking Start

on the Windows taskbar; select Programs; select Softex;

click OmniPass Enrollment Wizard.

1. Click Enroll to proceed to username and password

verification. By default, the OmniPass Enrollment

Wizard enters the credentials of the currently logged

in Windows user.

2. Enter the password you use to log in to Windows.

This will become the “master password” for this

OmniPass user. In most cases, the Domain: value

For uninstallation, OmniPass requires that

the user uninstalling OmniPass have

administrative privileges to the system. If

your current user does not have

administrative privileges, log out and then

proceeding with OmniPass uninstallation.

The enrollment procedure assumes you

have no hardware authentication devices

or alternate storage locations that you

wish to integrate with OmniPass. If you

desire such functionality, consult the

appropriate sections of this document.

S7010.book Page 112 Wednesday, October 20, 2004 9:14 AM

113

Using the Fingerprint Sensor

will be your Windows computer name. In a corpo-

rate environment, or when accessing corporate

resources, the Domain: may not be your Windows

computer name. Click [Next] to continue.

3. In this step OmniPass captures your fingerprint.

Refer to “Enrolling a Fingerprint” on page 113 for

additional information.

4. Next, choose how OmniPass notifies you of various

events. We recommend you keep Taskbar Tips on

Beginner mode taskbar tips and Audio Tips on at

least Prompt with system beeps only until you get

accustomed to how OmniPass operates. Click [Next]

to proceed with user enrollment. You will then see a

Congratulations screen indicating your completion

of user enrollment.

5. Click [Done] to exit the OmniPass Enrollment

Wizard. You will be asked if you’d like to log in to

OmniPass with your newly enrolled user; click [Yes].

Enrolling a Fingerprint

Enrolling a fingerprint will increase the security of your

system and streamline the authentication procedure.

You enroll fingerprints in the OmniPass Control Center.

With an OmniPass user logged in, double-click the

system tray OmniPass icon. Select the User Settings tab

and click Enrollment under the User Settings area. Click

Enroll Authentication Device and authenticate at the

authentication prompt to start device enrollment.

1. During initial user enrollment, you will be

prompted to select the finger you wish to enroll.

Fingers that have already been enrolled will be

marked by a green check. The finger you select to

enroll at this time will be marked by a red arrow.

OmniPass will allow you re-enroll a finger. If you

choose a finger that has already been enrolled and

continue enrollment, OmniPass will enroll the

fingerprint, overwriting the old fingerprint. Select a

finger to enroll and click [Next].

2. It is now time for OmniPass to capture your selected

fingerprint. It may take a several capture attempts

before OmniPass acquires your fingerprint. Should

OmniPass fail to acquire your fingerprint, or if the

capture screen times out, click [Back] to restart the

fingerprint enrollment process.

Your system has a “swipe” fingerprint sensor. A

swipe sensor is small and resembles a skinny elon-

gated rectangle. To capture a fingerprint, gently

swipe or pull your fingertip over the sensor (starting

at the second knuckle) towards yourself. Swiping

too fast or too slow will result in a failed capture.

The Choose Finger screen has a [Practice] button;

click it to practice capturing your fingerprint. When

you are comfortable with how your fingerprint is

captured, proceed to enroll a finger.

3. Once OmniPass has successfully acquired the finger-

print, the Ver if y F in ge rp ri nt screen will automati-

cally appear. To verify your enrolled fingerprint,

place your fingertip on the sensor and hold it there

as if you were having a fingerprint captured.

Successful fingerprint verification will show a green

fingerprint in the capture window and the text Ve r i -

fication Successful under the capture window.

USING OMNIPASS

You are now ready to begin using OmniPass. Used regu-

larly, OmniPass will streamline your authentications.

Password Replacement

You will often use the password replacement function.

When you go to a restricted access website (e.g., your

bank, your web-based email, online auction or payment

sites), you are always prompted to enter your login

credentials. OmniPass can detect these prompts and you

can teach OmniPass your login credentials. The next

time you go to that website, you can authenticate with

your fingerprint to gain access.

OmniPass Authentication Toolbar

After installing OmniPass and restarting, you will notice

a dialog you have not seen before at Windows Logon.

This is the OmniPass Authentication Toolbar, and it is

displayed whenever the OmniPass authentication system

is invoked. The OmniPass authentication system may be

invoked frequently: during Windows Logon, during

OmniPass Logon, when unlocking your workstation,

when resuming from standby or hibernate, when

unlocking a password-enabled screensaver, during pass-

word replacement for remembered site or application

logins, and more. When you see this toolbar, OmniPass

is prompting you to authenticate.

The Logon Authentication window indicates what

OmniPass-restricted function you are attempting. The

icons in the lower left (fingerprint and key) show what

authentication methods are available to you. Selected

authentication methods are highlighted while unselected

methods are not. When you click the icon for an unse-

lected authentication method, the authentication

prompt associated with that method is displayed.

When prompted to authenticate, you must supply the

appropriate credentials: an enrolled finger for the finger-

print capture window or your master password for the

master password prompt (the key icon).

Remembering a Password

OmniPass can remember any application, GUI, or pass-

word protected resource that has a password prompt.

Using the following procedure, you can store a set of

credentials into OmniPass. These credentials will then be

linked to your “master password” or fingerprint.

S7010.book Page 113 Wednesday, October 20, 2004 9:14 AM

114

LifeBook S7000 Notebook – Appendix

Go to a site that requires a login (username and pass-

word), but do not log in yet. At the site login prompt,

enter your username and password in the prompted

fields, but do not enter the site (do not hit [Enter],

[Submit], [OK], or Login). Right-click the OmniPass

system tray icon and select Remember Password from

the submenu. The Windows arrow cursor will change to

a golden key OmniPass cursor. Click this OmniPass

cursor in the login prompt area, but do not click the

[Login] or [Submit] button.

Associating a Friendly Name

After clicking the OmniPass key cursor near the login

prompt, OmniPass will prompt you to enter a “friendly

name” for this site. You should enter something that

reminds you of the website, the company, or the service

you are logging into. In its secure database, OmniPass

associates this friendly name with this website.

Additional Settings for Remembering a Site

When OmniPass prompts you to enter a “friendly name”

you also have the opportunity to set how OmniPass

authenticates you to this site. There are three effective

settings for how OmniPass handles a remembered site.

The default setting is Automatically click the “OK” or

“Submit” button for this password protected site once

the user is authenticated. With this setting, each time

you navigate to this site OmniPass will prompt you for

your master password or fingerprint authentication

device. Once you have authenticated with OmniPass,

you will automatically be logged into the site.

Less secure is the option to Automatically enter this

password protected site when it is activated. Do not

prompt for authentication. Check the upper box to get

this setting, and each time you navigate to this site

OmniPass will log you into the site without prompting

you to authenticate.

If you uncheck both boxes in Settings for this Password

Site, OmniPass will prompt you for your master pass-

word or fingerprint authentication device. Once you

have authenticated with OmniPass your credentials will

be filled in to the site login prompt, but you will have to

click the website [OK], [Submit], or [Login] button to

gain access to the site.

Click Finish to complete the remember password proce-

dure. The site location, the credentials to access the site,

and the OmniPass authentication settings for the site are

now stored in the OmniPass secure database. The

OmniPass authentication settings (Settings for this Pass-

word Site) can always be changed in Vault Management.

Logging in to a Remembered Site

Whether or not OmniPass prompts you to authenticate

when you return to a remembered site is determined by

Settings for this Password Site and can be changed in

Vault Management.

The following cases are applicable to using OmniPass to

password protected resources.

With Master Password

Once you return to a site you have remembered with

OmniPass, you may be presented with a master pass-

word prompt. Enter your master password and you will

be allowed into the site.

Logging into Windows with a Fingerprint Device

When logging into Windows with a fingerprint device,

the fingerprint capture window will now appear next to

the Windows Login screen. Place your enrolled fingertip

on the sensor to authenticate. You will be simultaneously

logged into Windows and OmniPass. The capture

window will also appear if you have used Ctrl-Alt-Del to

lock a system, and the fingerprint device can be used to

log back in as stated above.

In Windows XP, your login options must be set either for

classic login, or for fast user switching and logon screen

to be enabled to use your fingerprint to log on to

Windows. To change this go to Control Panel, select

User Accounts and then click Change the way users log

on or off. If your Windows screensaver is password

protected, the fingerprint capture window will now

appear next to screensaver password dialog during

resume. You can authenticate to your screensaver pass-

word prompt with your enrolled finger.

Password Management

OmniPass provides an interface that lets you manage

your passwords. To access this GUI, double-click the

OmniPass key in the system tray. Click Vaul t M an ag e-

ment; you will be prompted to authenticate. Once you

gain access to Vault Management, click Manage Pass-

words under Vault Settings. You will see the Manage

Passwords interface, with a list of friendly names.

This setting is more convenient in that

whenever you go to a site remembered

with this setting, you will bypass any

authentication procedure and gain instant

access to the site. But should you leave

your system unattended with your

OmniPass user logged in, anyone using

your system can browse to your password

protected sites and gain automatic access.

If a machine is locked and OmniPass

detects a different user logging back in

with a fingerprint, the first user will be

logged out and the second user logged in.

S7010.book Page 114 Wednesday, October 20, 2004 9:14 AM

115

Using the Fingerprint Sensor

You can view the credentials stored for any remembered

website by highlighting the desired resource under Pass-

word Protected Dialog and clicking Unmask Values.

Should a password be reset, or an account expire, you

can remove stored credentials from OmniPass. Highlight

the desired resource under Password Protected Dialog

and click Delete Page. You will be prompted to confirm

the password deletion.

The two check boxes in Manage Passwords govern

whether OmniPass prompts you to authenticate or

directly logs you into the remembered site.

OmniPass will overwrite an old set of credentials for a

website if you attempt to use Remember Password on an

already remembered site.

The exception to the above rule is the resetting of your

Windows password. If your password is reset in

Windows, then the next time you login to Windows,

OmniPass will detect the password change and prompt

you to “Update” or “Reconfirm” your password with

OmniPass. Enter your new Windows password in the

prompt(s) and click OK and your OmniPass "master

password" will still be your Windows password.

OmniPass User Identities

Identities allow OmniPass users to have multiple

accounts to the same site (e.g., bob@biblomail.com and

boballen@biblomail.com). If OmniPass did not provide

you identities, you would be limited to remembering

one account per site.

To create and manage identities, double-click the

OmniPass key in the system tray. Click Vau lt Ma nag e-

ment; OmniPass will prompt you to authenticate. Once

you gain access to Vault Management, click Manage

Identities under Vault Settings. You can only manage

the identities of the currently logged in OmniPass user

To add a new identity, click New Identity or double-click

Click here to add a new identity. Name the new identity

and click [OK], then click [Apply]. You can now switch

to the new identity and start remembering passwords.

To delete an identity, highlight the identity you want to

delete and click [Delete Identity], then click [Apply].

To set the default identity, highlight the identity you

want as default and click [Set as Default]; click [Apply]

to ensure the settings are saved. If you log in to

OmniPass with a fingerprint device, you will automati-

cally be logged in to the default identity for that

OmniPass user. You can choose the identity with which

you are logging in if you login using "master password".

Choosing User Identity during Login

To choose your identity during login, type your user-

name in the User Name: field. Press [Tab] and see that

the Domain: field self-populates. Click the Password:

field to bring the cursor to it, and you will see the pull-

down menu in the Identity: field. Select the identity you

wish to login as and then click OK to login.

Switch User Identity

To switch identities at any time, right-click the

OmniPass system tray icon and click Switch User Iden-

tity from the submenu. The Switch Identity dialog will

appear. Select the desired identity and then click OK.

Identities and Password Management

On the Manage Passwords interface of the Va u l t

Management tab of the OmniPass Control Center, there

is a pull-down selection box labeled, Identity. This field

lets you choose which identity you are managing pass-

words for. When you select an identity here, only those

password protected dialogs that are associated with that

identity are shown. You can perform all the functions

explained in “Password Management” on page 114.

CONFIGURING OMNIPASS

This section gives an overview of both the Export/

Import function and the OmniPass Control Center.

Exporting and Importing Users

Using the OmniPass Control Center, you can export and

import users in and out of OmniPass. The export

process backs up all remembered sites, credentials, and

any enrolled fingerprints for an OmniPass user. All

OmniPass data for a user is backed up to a single

encrypted database file. During the import process, the

Windows login of the exported user is required. If the

proper credentials cannot be supplied, the user profile

will not be imported.

When you delete an identity, all of its

associated remembered sites and password

protected dialogs are lost.

■You should periodically export your user

profile and store it in a safe place. If

anything happens to your system, you

can import your OmniPass profile to a

new system and have all your remem-

bered settings and fingerprints instantly.

■You don't forget the Windows login

credentials when exporting. When you

examine the importation, you are

prompted for authentication. The

credentials that will allow a user profile

to be imported are the Windows login

credentials of the exported user. They

are the credentials that had to be

submitted when the user profile was

exported. You will need User Name,

Password, and Domain.

S7010.book Page 115 Wednesday, October 20, 2004 9:14 AM

116

LifeBook S7000 Notebook – Appendix

Exporting an OmniPass User Profile

To export a user, open the OmniPass Control Center,

and click Import/Export User under Manage Users.

Click Exports an OmniPass user profile. OmniPass will

prompt you to authenticate. Upon successfully authenti-

cation, you must name the OmniPass user profile and

decide where to save it. An .opi file is generated, and you

should store a copy of it in a safe place.

This .opi file contains all your user specific OmniPass

data, and it is both encrypted and password protected.

This user profile does NOT contain any of your

encrypted data files.

Importing an OmniPass User Profile

To import an OmniPass user open the OmniPass

Control Center, and click Import/Export User under

Manage Users. Click Imports a new user into OmniPass

and then select OmniPass Import/Export File (*.opi)

and click Next. OmniPass will then prompt you to

browse for the file you had previously exported (.opi

file). When you select the .opi file for importation,

OmniPass will prompt you for authentication. The

credentials that will allow a user profile to be imported

are the Windows login credentials of the exported user.

They are the credentials that had to be submitted when

the user profile was exported. You will need User Name,

Password, and Domain. If you don’t remember the value

for Domain, in a PC or SOHO environment Domain

should be your computer name.

OmniPass will notify you if the user was successfully

imported.

Things to Know Regarding Import/Export

■Assume you export a local Windows User profile from

OmniPass. You want to import that profile to another

machine that has OmniPass. Before you can import

the profile, a Windows user with the same login cre-

dentials must be created on the machine importing the

profile.

Example: I have a Windows user with the username

“Tom” and the password “Sunshine” on my system. I

have enrolled Tom into OmniPass and remembered

passwords. I want to take all my passwords to new sys-

tem. I export Tom’s OmniPass user profile. I go to my

new system and using the Control Panel I create a user

with the username "Tom" and the password "Sun-

shine". I can now successfully import the OmniPass

user data to the new system.

■If you export an OmniPass-only user, you can import

that user to any computer running OmniPass, pro-

vided that a user with that name is not already

enrolled in OmniPass.

■If you attempt to import a user profile who has the

same name as a user already enrolled in OmniPass, the

OmniPass import function will fail.

OMNIPASS CONTROL CENTER

This section will serve to explain functions within the

OmniPass Control Center that weren’t explained earlier.

You can access the OmniPass Control Center any of

three ways:

■Double-click the golden OmniPass key shaped icon in

the Windows taskbar (typically in the lower-right cor-

ner of the desktop)

■Click the Start button; select the Programs group;

select the Softex program group; and click the

OmniPass Control Center selection.

■Open the Windows Control Panel (accessible via Start

button --> Settings --> Control Panel) and double-

click the Softex OmniPass icon.

User Management

The User Management tab has two major interfaces:

Add/Remove User and Import/Export User. Import/

Export User functionality is documented in “Exporting

and Importing Users” on page 115. Add/Remove User

functionality is straightforward.

If you click Adds a new user to OmniPass you will start

the OmniPass Enrollment Wizard. The Enrollment

Wizard is documented in “User Enrollment” on

page 112.

If you click Removes a user from OmniPass, OmniPass

will prompt you to authenticate. Authenticate with the

credentials (or enrolled fingerprint) of the user you wish

to remove. OmniPass will prompt you to confirm user

removal. Click OK to complete user removal.

User Settings

The User Settings tab has four interfaces: Audio Settings,

Tas kb ar Tip s, and Enrollment. User settings allow users

to customize OmniPass to suit their individual prefer-

ences. Under User Settings (Audio Settings and Ta sk b ar

Tips) you can set how OmniPass notifies the user of

OmniPass events (e.g., successful login, access denied,

You cannot import a user into OmniPass if

there already is a user with the same name

enrolled in OmniPass.

Removing a user will automatically destroy

all OmniPass data associated with that

user. All identities and credentials

associated with the user will be lost.

If you are sure about removing the user,

we recommend you export the user

profile.

S7010.book Page 116 Wednesday, October 20, 2004 9:14 AM

117

Using the Fingerprint Sensor

etc.). The details of each setting under the Audio

Settings and Tas kba r Ti ps interfaces are self-explana-

tory.

The Enrollment interface allows you to enroll finger-

prints. For the procedure to enroll and authentication

device refer to Chapter 2.3. To enroll additional finger-

prints, click Enroll Authentication Device, and authen-

ticate with OmniPass. Select the fingerprint recognition

device in the Select Authentication Device screen (it

should already be marked by a green check if you have a

finger enrolled) and click Next.

System Settings

The OmniPass Startup Options interface can be found

in the System Settings tab. With these options you can

specify how your OmniPass Logon is tied to your

Windows Logon.

The first option, Automatically log on to OmniPass as

the current user, will do just as it says; during Windows

Windows login credentials. If the user logging into

Windows was never enrolled into OmniPass, upon login

no one will be logged on to OmniPass. This setting is

appropriate for an office setting or any setting where

users must enter a username and password to log into a

computer. This is the default setting.

With the second option, Manually log on to OmniPass

at startup, OmniPass will prompt you to login once you

have logged on to Windows.

With the third option, Do not log on to OmniPass at

startup, OmniPass will not prompt for a user to be

logged on.

You can manually log on to OmniPass by right-clicking

the OmniPass taskbar icon and clicking Log in User

from the right-click menu.

TROUBLESHOOTING

You cannot use OmniPass to create Windows users. You

must first create the Windows user, and you will need

administrative privileges to do that. Once the Windows

user is created, you can add that user to OmniPass using

the same username and password

Cannot add Windows users to OmniPass

If you experience difficulties adding a Windows user

to OmniPass, you may need to adjust your local secu-

rity settings. You can do this by going to Start,

Control Panel, Administrative Tools, and Local

Security Settings. Expand Local Policies, expand

Security Options, and double-click Network Access:

Sharing and Security Model for Local Accounts. The

correct setting should be Classic - Local Users Authen-

ticate as Themselves.

Cannot add a User with a Blank Password to OmniPass

If you experience difficulties adding a user with a

blank password to OmniPass, you may need to adjust

your local security settings. First attempt the proce-

dure explained in the Cannot add Windows user to

OmniPass section. If the difficulties persist, then try

the following procedure.

Click Start, Control Panel, Administrative Tools,

and Local Security Settings. Expand Local Policies,

expand Security Options, and double-click

Accounts: Limit local account use of blank pass-

words to console login only. This setting should be

set to Disabled.

Dialog appears after OmniPass authentication during

Windows Logon

After installing OmniPass on your system, you can

choose to logon to Windows using OmniPass. You

authenticate with OmniPass (via master password, or

an enrolled security device) and OmniPass logs you

into Windows. You may, during this OmniPass

authentication, see a Login Error dialog box.

This dialog box occurs when OmniPass was unable to

log you into Windows with the credentials supplied

(username and password). This could happen for any

of the following reasons:

■Your Windows password has changed

■Your Windows account has been disabled

If you are having difficulties due to the first reason,

you will need to update OmniPass with your changed

Windows account password. Click Update Password

and you will be prompted with a dialog to reconfirm

your password.

Enter the new password to your Windows user

account and click OK. If the error persists, then it is

unlikely the problem is due to your Windows user

account password changing.

S7010.book Page 117 Wednesday, October 20, 2004 9:14 AM

118

LifeBook S7000 Notebook – Appendix

S7010.book Page 118 Wednesday, October 20, 2004 9:14 AM

119

Index

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

plug adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

ACPI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Active-Matrix Display . . . . . . . . . . . . . . . . . . . . . . . . . 83

Anti-theft lock slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Application Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Auto/Airline Adapter . . . . . . . . . . . . . . . . . . . . . . . 27, 83

Automatically Downloading Driver Updates . . . . . .67

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

bay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

charging indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 12

cold-swapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

conserving power . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

dead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

faulty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

increasing life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

level indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

lithium ion battery . . . . . . . . . . . . . . . . . . . . . . . 40, 85

low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60, 61

recharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

shorted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

suspend mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

setup utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29, 83

Built-in Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Cache Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

CapsLock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

CardBus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37, 83

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56, 57

Centrino . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

CMOS RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Cold-swap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18, 41

COMM Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Configuration Label . . . . . . . . . . . . . . . . . . . . . . . . 10, 77

Controls and Connectors . . . . . . . . . . . . . . . . . . . . . . . 6

Conventions Used in the Guide . . . . . . . . . . . . . . . . . . 1

CRT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Cursor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

DC Power Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Default Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50, 78

DIMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45, 84

Disk care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 28

adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

latch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

DMA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

DMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Docking Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Dolby Headphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Double-Clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Dragging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Drivers and Application Restore CD . . . . . . . . . . . . . 66

DVD drive

access indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

tray release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

DVD/CD-RW combo . . . . . . . . . . . . . . . . . . . . . . . . . 37

DVD/CD-RW/CD-ROM

access indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

DVD/CD-RW/CD-ROM drive

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56, 57

DVD-RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

S7010.book Page 119 Wednesday, October 20, 2004 9:14 AM

120

LifeBook S7000 Notebook

ECP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Emergency tray release . . . . . . . . . . . . . . . . . . . . . . . . . 8

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Extended Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

External Floppy Disk Drive . . . . . . . . . . . . . . . . . . . . 42

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

External Monitor Port . . . . . . . . . . . . . . . . . . . . . . 7, 52

FDU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Fingerprint Sensor Device . . . . . . . . . . . . . . . . . . . . 111

enrolling a fingerprint . . . . . . . . . . . . . . . . . . . . . 113

getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

installing OmniPass . . . . . . . . . . . . . . . . . . . . . . . 111

logging into a remembered site . . . . . . . . . . . . . . 114

OmniPass authentication toolbar . . . . . . . . . . . . 113

password replacement . . . . . . . . . . . . . . . . . . . . . 113

remembering a password . . . . . . . . . . . . . . . . . . . 113

uninstalling OmniPass . . . . . . . . . . . . . . . . . . . . . 112

user enrollment . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

using OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Flexible Bay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 18

cold-swapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

eject lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Floppy Disk

ejecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

initializing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

preparing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

write protect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Fujitsu Contact Information . . . . . . . . . . . . . . . . . . . . 1

Fujitsu Driver Update utility . . . . . . . . . . . . . . . . . . . 67

Fujitsu LifeBook

storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

traveling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Function Key

F3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

F4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

F6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

F7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

F8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 17

F9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 17

FN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Hard Disk Drive

access indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 52

Hibernation Feature . . . . . . . . . . . . . . . . . . . . . . . . . . .33

disable/enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

IDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Infrared Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9, 51

Internal LAN Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

IrDA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51, 85

IRQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6, 13

cursor keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

function keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

windows keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

LAN (RJ-45) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

LifeBook Security Application Panel . . . . . . . . . . . . . . .6

buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

configuring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

deactivating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

deactivating and activating . . . . . . . . . . . . . . . . . . .23

launching applications . . . . . . . . . . . . . . . . . . . . . . .22

operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

uninstalling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Media Player

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37, 38

using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Memory

capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

compartment . . . . . . . . . . . . . . . . . . . . . . . . . . .10, 45

installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

S7010.book Page 120 Wednesday, October 20, 2004 9:14 AM

121

Index

removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45, 46

upgrade module . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Microphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 52

MIDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Modem Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Modem Result Codes . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Modular Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Mouse

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

MPU-401 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Multi-Format DVD Writer . . . . . . . . . . . . . . . . . . . . . 37

NTSC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

NumLk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Optical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Parallel Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50, 86

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58, 59

PC Card

access indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

PCMCIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Pointing Device

See Touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Port Replicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

attaching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

back panel components . . . . . . . . . . . . . . . . . . . . . .47

connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

detaching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

POST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Power

AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Auto/Airline adapter . . . . . . . . . . . . . . . . . . . . . . . . 27

failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59, 60

indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Power Management . . . . . . . . . . . . . . . . . . . . . . . . 32, 33

Power On Self Test . . . . . . . . . . . . . . . . . . . . . . . . . 29, 64

Power/Suspend/Resume Button . . . . . . . . . . . . . . . 6, 32

Pre-Installed Software . . . . . . . . . . . . . . . . . . . . . . . . . 79

Adobe Acrobat Reader . . . . . . . . . . . . . . . . . . . . . . 79

Fujitsu HotKey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

LifeBook Application Panel . . . . . . . . . . . . . . . . . . 80

manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Norton AntiVirus 2004 . . . . . . . . . . . . . . . . . . . . . . 80

Quicken New User Edition . . . . . . . . . . . . . . . . . . . 80

PS/2 Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30, 31

Restarting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

RJ-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

RJ-45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

ScrLk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

SDRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 45

Security Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Security Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51, 87

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58, 59

SMART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . 79

Environmental Requirements . . . . . . . . . . . . . . . . 79

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

SRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Status Indicator Panel . . . . . . . . . . . . . . . . . . . . . . . 6, 11

Stereo Line-in Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Stereo Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

S7010.book Page 121 Wednesday, October 20, 2004 9:14 AM

122

LifeBook S7000 Notebook

Suspend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32, 87

S-Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 15

buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Universal Serial Bus Ports . . . . . . . . . . . . . . . . . . . . . . 51

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 9, 51, 58

problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58, 59

Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

WFM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Windows

Windows XP Home . . . . . . . . . . . . . . . . . . . . . . . . . 1

Windows XP Professional . . . . . . . . . . . . . . . . . . . . 1

Windows keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Application key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Start keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Wireless LAN

access point (infrastructure) mode . . . . . . . . . . . . 95

activating the WLAN device . . . . . . . . . . . . . . . . . 96

ad hoc mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

before using the wireless LAN . . . . . . . . . . . . . . . . 94

configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

deactivating the WLAN device . . . . . . . . . . . . . . . 95

Devices covered by this document . . . . . . . . . . . . 94

IP address information . . . . . . . . . . . . . . . . . . . . . 106

modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

using Atheros Client Utility software . . . . . . . . . . 98

using Intel PROSet software . . . . . . . . . . . . . . . . . 97

wireless LAN glossary . . . . . . . . . . . . . . . . . . . . . . 104

wireless network considerations . . . . . . . . . . . . . . 95

S7010.book Page 122 Wednesday, October 20, 2004 9:14 AM

Fujitsu Client Computing WB0020 Lifebook S series w/ WM3B2200BG 11BG WLAN & BT User Manual Appendix I 3

Fujitsu Limited Lifebook S series w/ WM3B2200BG 11BG WLAN & BT Appendix I 3

Contents

USERS MANUAL 3

Navigation menu

Namespaces

Views

Navigation
