Fujitsu Client Computing WB0050 Notebook Computer with WiFi and Bluetooth User Manual Eagle E8310
Fujitsu Limited Notebook Computer with WiFi and Bluetooth Eagle E8310
users manual
Fujitsu LifeBook®
E8310 Notebook
User’s Guide
Eagle E8310.book Page 1 Tuesday, May 8, 2007 11:40 AM
Eagle E8310.book Page 2 Tuesday, May 8, 2007 11:40 AM
Copyright
Copyright and Trademark Information
Fujitsu Computer Systems Corporation has made every
effort to ensure the accuracy and completeness of this
document; however, as ongoing development efforts are
continually improving the capabilities of our products,
we cannot guarantee the accuracy of the contents of this
document. We disclaim liability for errors, omissions, or
future changes.
Fujitsu, the Fujitsu logo, and LifeBook are registered
trademarks of Fujitsu Limited.
Intel, Intel Core, Centrino, and Intel Centrino Pro are
trademarks or registered trademarks of Intel Corporation
or its subsidiaries in the United States and other countries.
Microsoft, Windows, and Windows Vista are either
registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
The ExpressCard word mark and logo are owned by the
Personal Computer Memory Card International Associ-
ation (PCMCIA) and any use of such marks by Fujitsu
Computer Systems Corporation is under license.
PCMCIA is a trademark of the Personal Computer
Memory Card International Association.
Bluetooth is a trademark of Bluetooth SIG, Inc., USA.
OmniPass is a trademark of Softex, Inc.
Atheros and Super AG are registered trademarks of
Atheros Communications, Inc.
Roxio is a trademark of Roxio, a division of Sonic Solu-
tions.
Adobe, Acrobat, and Acrobat Reader are either a regis-
tered trademarks or trademarks of Adobe Systems Inc.
in the United States and/or other countries.
Norton and Norton Internet Security are trademarks or
registered trademarks of Symantec Corporation in the
United States and other countries.
PowerProducer is a trademark of CyberLink Corp.
The DVD player found in some models of the LifeBook
notebook incorporates copyright protection technology
that is protected by method claims of certain U.S.
patents and other intellectual property rights owned by
Macrovision Corporation and other rights users. Use of
this copyright protection technology must be authorized
by Macrovision Corporation, and is intended for home
and other limited viewing uses only unless authorized by
Macrovision Corporation. Reverse engineering or disas-
sembly is prohibited.
All other trademarks mentioned herein are the property
of their respective owners.
© Copyright 2007 Fujitsu Computer Systems
Corporation. All rights reserved.
No part of this publication may be copied, reproduced,
or translated, without prior written consent of Fujitsu.
No part of this publication may be stored or transmitted
in any electronic form without the written consent of
Fujitsu. B5FJ-3971-01EN-00
Warning
Handling the cord on this product will expose you
to lead, a chemical known to the State of
California to cause birth defects or other
reproductive harm.
Wash hands after handling.
DECLARATION OF CONFORMITY
according to FCC Part 15
Responsible Party Name: Fujitsu Computer Systems Corporation
Address: 1250 E. Arques Avenue, M/S 122
Sunnyvale, CA 94085
Telephone: (408) 746-6000
Declares that product: Base Model Configuration:
LifeBook E8310 notebook
Complies with Part 15 of the FCC Rules.
This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions:
(1) This device may not cause harmful interference, (2) This device must accept any interference received,
including interference that may cause undesired operation.
Eagle E8310.book Page 3 Tuesday, May 8, 2007 11:40 AM
LifeBook E8000 Notebook
IMPORTANT SAFETY INSTRUCTIONS
This unit requires an AC adapter to operate. Use only
UL Listed Class II Adapters with an output rating of 19
VDC, with a current of 5.27 A (100W).
AC adapter output polarity:
When using your notebook equipment, basic safety
precautions should always be followed to reduce the risk
of fire, electric shock and injury to persons, including
the following:
■Do not use this product near water for example,
near a bathtub, washbowl, kitchen sink or laundry
tub, in a wet basement or near a swimming pool.
■Avoid using the modem during an electrical
storm. There may be a remote risk of electric
shock from lightning.
■Do not use the modem to report a gas leak in the
vicinity of the leak.
■Use only the power cord and batteries indicated in
this manual. Do not dispose of batteries in a fire.
They may explode. Check with local codes for
possible special disposal instructions.
■To reduce the risk of fire, use only No. 26 AWG or
larger UL Listed or CSA Certified Telecommuni-
cation Line Cord.
For TV tuner use: To protect from overvoltages and
transients on the Cable Distribution System, make sure
that the outer shield of the coaxial cable is connected to
earth (grounded) at the building premise as close to the
point of cable entrance as practicable, as required per
NEC Article 820.93, ANSI/NFPA 70: 2005. If you have
questions about your CATV installation, contact your
service provider.
SAVE THESE INSTRUCTIONS
For Authorized Repair Technicians Only
System Disposal
+
Danger of explosion if Lithium (clock) bat-
tery is incorrectly replaced. Replace only
with the same or equivalent type recom-
mended by the manufacturer. Dispose of
used batteries according to the manufac-
turer’s instruction.
For continued protection against risk of
fire, replace only with the same type and
rating fuse.
Hg
LAMP(S) INSIDE THIS PRODUCT
CONTAIN MERCURY AND MUST
BE RECYCLED OR DISPOSED OF
ACCORDING TO LOCAL, STATE, OR
FEDERAL LAWS.
Eagle E8310.book Page 4 Tuesday, May 8, 2007 11:40 AM
Table of Contents
Fujitsu LifeBook® E8310 Notebook
Table of Contents
1
PREFACE
Conventions Used in the Guide . . . . . . . . . . . . . .1
Fujitsu Contact Information . . . . . . . . . . . . . . . . .1
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . .1
2
GETTING TO KNOW
YOUR LIFEBOOK NOTEBOOK
Overview
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Locating the Controls/Connectors
Top Components . . . . . . . . . . . . . . . . . . . . . . . . .6
Left-Side Panel Components . . . . . . . . . . . . . . . .8
Right-Side Panel Components . . . . . . . . . . . . . . .9
Back Panel Components. . . . . . . . . . . . . . . . . . .10
Bottom Components . . . . . . . . . . . . . . . . . . . . .11
Status Indicator Panel
Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . .12
AC Adapter Indicator . . . . . . . . . . . . . . . . . . . . .12
Battery Level Indicators . . . . . . . . . . . . . . . . . . .12
Battery Charging Indicators . . . . . . . . . . . . . . . .13
WLAN Access Power Indicator . . . . . . . . . . . . . . 13
Optical Drive Access Indicator . . . . . . . . . . . . . .13
Hard Drive Access Indicator . . . . . . . . . . . . . . . .13
PC Card Access Indicator . . . . . . . . . . . . . . . . . .13
NumLk Indicator. . . . . . . . . . . . . . . . . . . . . . . . .13
CapsLock Indicator. . . . . . . . . . . . . . . . . . . . . . .13
ScrLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . .13
Security Indicator . . . . . . . . . . . . . . . . . . . . . . . .13
Keyboard
Using the Keyboard . . . . . . . . . . . . . . . . . . . . . .14
Numeric Keypad. . . . . . . . . . . . . . . . . . . . . . . . .14
Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . .14
Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Function Keys. . . . . . . . . . . . . . . . . . . . . . . . . . .15
Touchpad Pointing Device
Clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Double-Clicking . . . . . . . . . . . . . . . . . . . . . . . . .16
Dragging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Touchpad Control Adjustment . . . . . . . . . . . . . .17
Scrolling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Optional Quick Point Feature . . . . . . . . . . . . . . .17
Volume Control
Controlling the Volume . . . . . . . . . . . . . . . . . . .18
Flexible Bay Devices
Removing and Installing Modular Devices . . . . .19
LifeBook Security/Application Panel
Setting up Your LifeBook Security Panel . . . . . . .20
Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Operating Your Security/Application Panel. . . . .21
Uninstalling the Security Panel Application . . . . .21
Launching Applications with the Panel . . . . . . . .22
3
GETTING STARTED
Power Sources
Connecting the Power Adapters . . . . . . . . . . . . .27
Display Panel
Opening the Display Panel . . . . . . . . . . . . . . . . .28
Adjusting Display Panel Brightness . . . . . . . . . . .28
Closing the Display Panel . . . . . . . . . . . . . . . . . .28
Starting Your LifeBook Notebook
Power On. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . .29
Hard Disk Drive Passwords . . . . . . . . . . . . . . . . .29
BIOS Setup Utility. . . . . . . . . . . . . . . . . . . . . . . .29
Booting the System . . . . . . . . . . . . . . . . . . . . . .30
Starting Windows Vista the first time . . . . . . . . .30
Starting Windows XP the First Time . . . . . . . . . .31
Registering Your LifeBook notebook. . . . . . . . . .31
Installing Click Me! . . . . . . . . . . . . . . . . . . . . . .31
Fujitsu Driver Update Utility . . . . . . . . . . . . . . . .31
Eagle E8310.book Page 1 Tuesday, May 8, 2007 11:40 AM
LifeBook E8000 Notebook
Power Management
Power/Suspend/Resume Button. . . . . . . . . . . . . 32
Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Hibernation (Save-to-Disk) Feature . . . . . . . . . . 32
Windows Power Management . . . . . . . . . . . . . . 33
Restarting the System. . . . . . . . . . . . . . . . . . . . . 33
Powering Off . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4
USER-INSTALLABLE FEATURES
Lithium ion Battery
Recharging the Batteries. . . . . . . . . . . . . . . . . . . 37
Replacing the Battery . . . . . . . . . . . . . . . . . . . . . 38
Optical Drive
Media Player Software . . . . . . . . . . . . . . . . . . . . 39
Loading Media on Your Drive . . . . . . . . . . . . . . 39
Removing Media . . . . . . . . . . . . . . . . . . . . . . . . 40
Emergency Optical Drive Tray Release . . . . . . . . 40
Using the Media Player Software . . . . . . . . . . . . 40
Memory Stick/Secure Digital Cards
Installing Memory Stick/SD Cards . . . . . . . . . . . 41
Removing A Memory Stick/SD Card . . . . . . . . . 41
PC Cards/ExpressCards™
Inserting PC Cards . . . . . . . . . . . . . . . . . . . . . . . 42
Removing PC Cards . . . . . . . . . . . . . . . . . . . . . . 42
Inserting ExpressCards . . . . . . . . . . . . . . . . . . . . 43
Removing ExpressCards . . . . . . . . . . . . . . . . . . . 43
Smart Card Reader. . . . . . . . . . . . . . . . . . . . . . . 43
Memory Upgrade Module
Installing Memory Upgrade Modules . . . . . . . . . 44
Removing a Memory Upgrade Module . . . . . . . 44
Checking the Memory Capacity . . . . . . . . . . . . . 45
Device Ports
Modem (RJ-11) Telephone Jack . . . . . . . . . . . . . 46
Internal LAN (RJ-45) Jack. . . . . . . . . . . . . . . . . . 46
Parallel Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Serial Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Port Replicator Connector . . . . . . . . . . . . . . . . . 47
Universal Serial Bus Ports . . . . . . . . . . . . . . . . . . 47
Infrared Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Headphone Jack. . . . . . . . . . . . . . . . . . . . . . . . . 47
Microphone Jack . . . . . . . . . . . . . . . . . . . . . . . . 48
External Video Port . . . . . . . . . . . . . . . . . . . . . . 48
5
TROUBLESHOOTING
Identifying the Problem . . . . . . . . . . . . . . . . . . . 51
Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . 51
Troubleshooting Table . . . . . . . . . . . . . . . . . . . . 52
Power On Self Test Messages . . . . . . . . . . . . . . 59
Emergency Media Player Drive Tray Release . . . 60
Modem Result Codes. . . . . . . . . . . . . . . . . . . . . 60
Restoring Your Pre-installed Software . . . . . . . . 61
Restoring the Factory Image . . . . . . . . . . . . . . . 61
Automatically Downloading Driver Updates. . . . 62
6
CARE AND MAINTENANCE
Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Floppy Disks and Drives . . . . . . . . . . . . . . . . . . . 66
Media Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

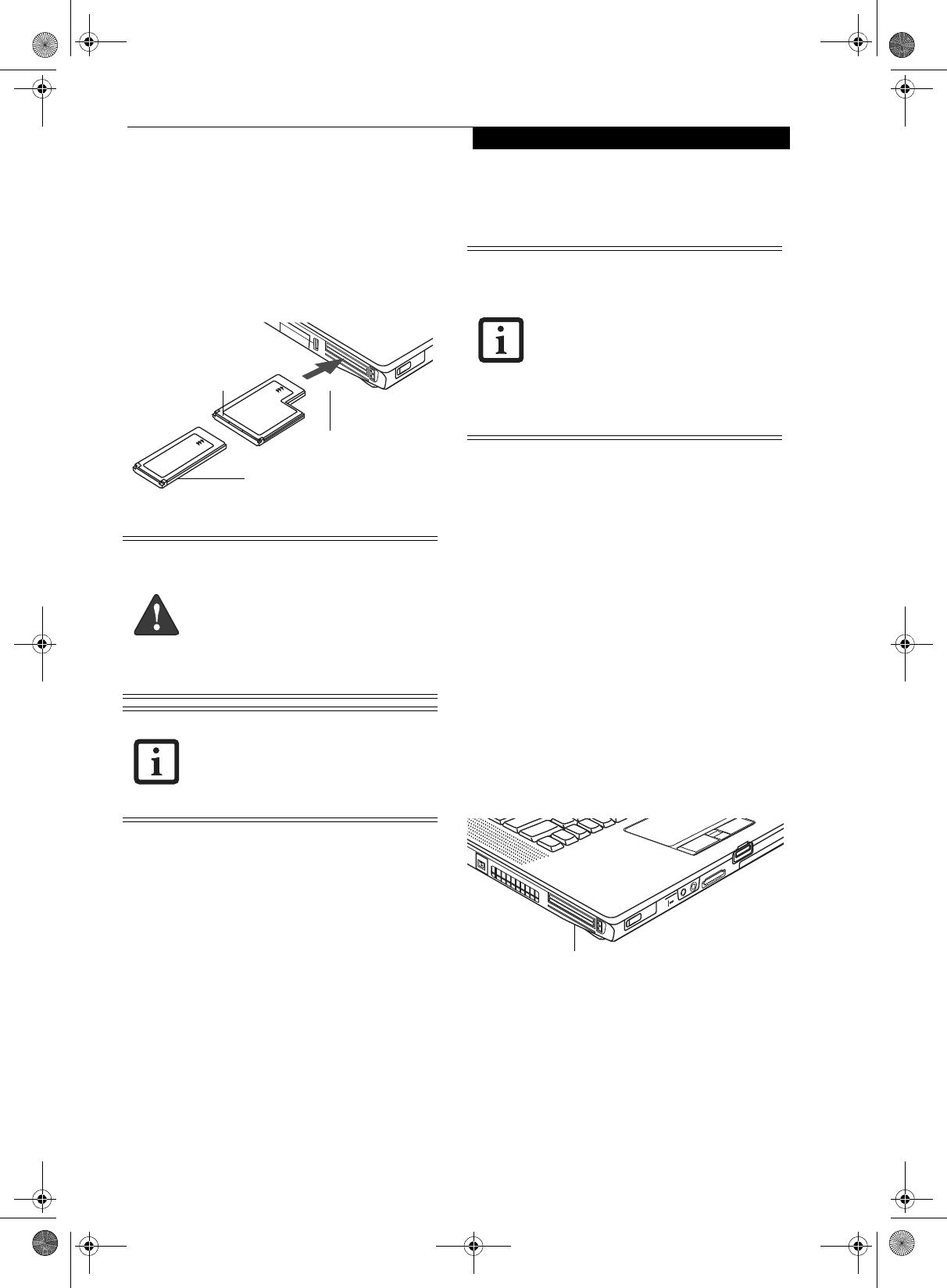

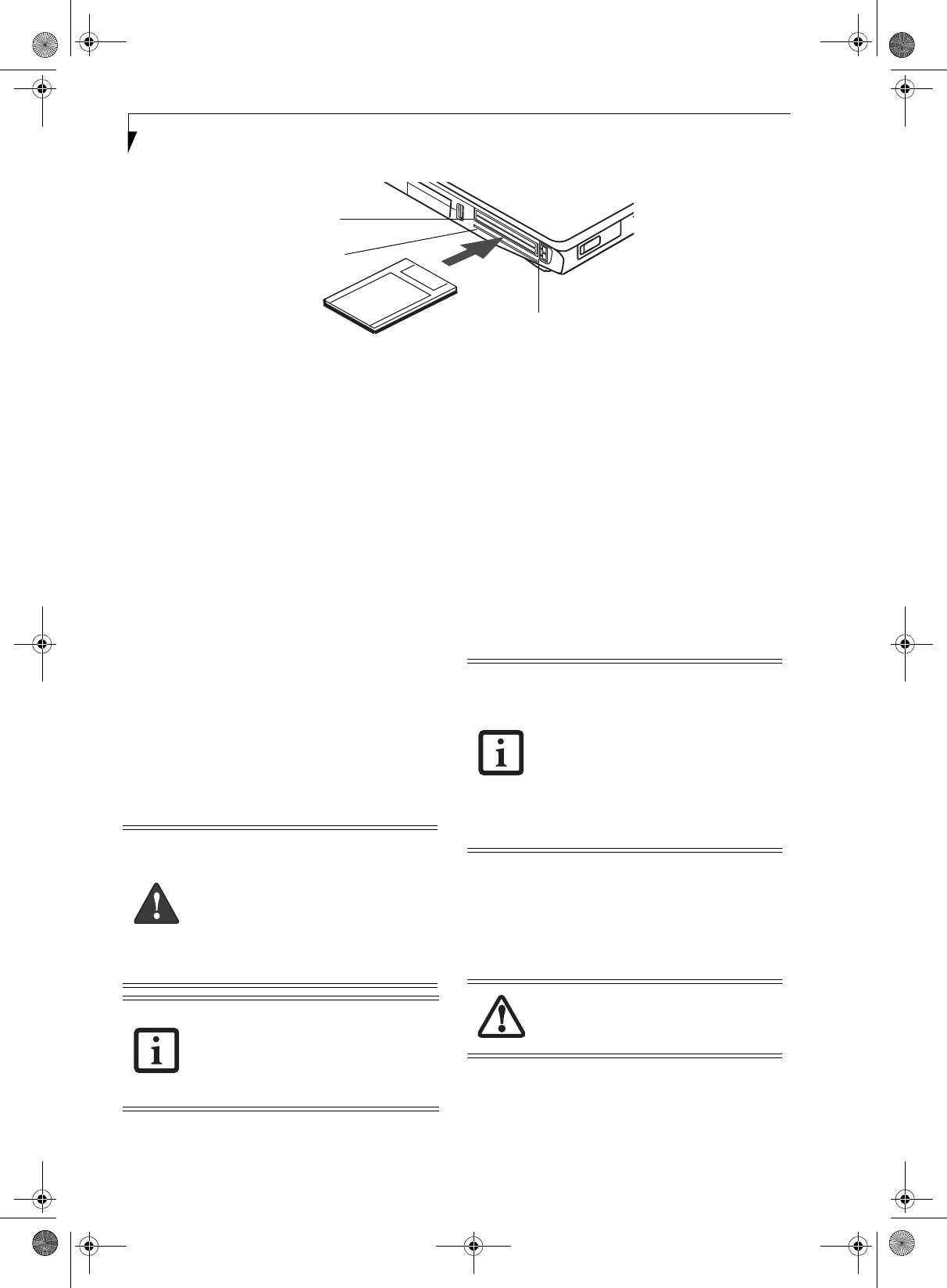

PC Cards/ExpressCards . . . . . . . . . . . . . . . . . . . 67
7
SYSTEM SPECIFICATIONS
Configuration Label . . . . . . . . . . . . . . . . . . . . . . 71
Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . 71
Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Video. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Mass Storage Device Options . . . . . . . . . . . . . . 71
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Device Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Dimensions and Weight. . . . . . . . . . . . . . . . . . . 72
Environmental Requirements . . . . . . . . . . . . . . . 73
Popular Accessories . . . . . . . . . . . . . . . . . . . . . . 73
Pre-Installed Software . . . . . . . . . . . . . . . . . . . . 73
8
GLOSSARY/REGULATORY
Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Regulatory Information . . . . . . . . . . . . . . . . . . . 83
Eagle E8310.book Page 2 Tuesday, May 8, 2007 11:40 AM
Table of Contents
APPENDIX A: INTEGRATED
WIRELESS LAN USER’S GUIDE
Before Using the Wireless LAN
Wireless LAN Modes Using this Device. . . . . . . .88
Wireless Network Considerations . . . . . . . . . . . .89
Deactivating the WLAN Device . . . . . . . . . . . . .89
Activating the WLAN Device . . . . . . . . . . . . . . .90
Configuration of the WLAN Device
Configuring the WLAN with Windows Vista. . . . 91
Connecting to a Network with Windows Vista . . 91
Configuring the WLAN Using Windows XP . . . . 91
Connection to the Network . . . . . . . . . . . . . . . .94
Troubleshooting the WLAN
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . .97
WLAN Specifications
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .98
Using the Bluetooth Device
What is Bluetooth. . . . . . . . . . . . . . . . . . . . . . . .99
Where to Find Information About Bluetooth . . .99
APPENDIX B: USING THE
FINGERPRINT SENSOR
Fingerprint Sensor Device
Introducing the Fingerprint Sensor Device . . . .103
Getting Started. . . . . . . . . . . . . . . . . . . . . . . . .103
Installing OmniPass . . . . . . . . . . . . . . . . . . . . .103
User Enrollment . . . . . . . . . . . . . . . . . . . . . . . .104
Using OmniPass . . . . . . . . . . . . . . . . . . . . . . . .105
Configuring OmniPass . . . . . . . . . . . . . . . . . . .107
OmniPass Control Center. . . . . . . . . . . . . . . . .108
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . .109
Index
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111
Eagle E8310.book Page 3 Tuesday, May 8, 2007 11:40 AM
LifeBook E8000 Notebook
Eagle E8310.book Page 4 Tuesday, May 8, 2007 11:40 AM
1
Preface
Eagle E8310.book Page 1 Tuesday, May 8, 2007 11:40 AM
LifeBook E8000 Notebook
Eagle E8310.book Page 2 Tuesday, May 8, 2007 11:40 AM
1
Preface
Preface
ABOUT THIS GUIDE
The LifeBook E8310 notebook from Fujitsu Computer
Systems Corporation provides desktop performance
with a fast, Intel® Core™ 2 Duo processor. Depending
upon the configuration, your notebook has either a
built-in 15.4” TFT XGA or SXGA+ color display. This
system brings the computing power of desktop personal
computers (PCs) to a portable environment.
Your computer comes with Microsoft Windows® XP
Professional or Windows Vista Business operating
system pre-installed.
This manual explains how to operate your LifeBook
notebook’s hardware and built-in system software.
CONVENTIONS USED IN THE GUIDE
Keyboard keys appear in brackets.
Example: [Fn], [F1], [ESC], [ENTER] and [CTRL].
Pages with additional information about a specific topic
are cross-referenced within the text.
For example: (See page xx.)
On screen buttons or menu items appear in bold
Example: Click OK to restart your LifeBook notebook.
FUJITSU CONTACT INFORMATION
Service and Support
You can contact Fujitsu Service and Support in the
following ways:
■Toll free: 1-800-8Fujitsu (1-800-838-5487)
■E-mail: 8fujitsu@us.fujitsu.com
■Website: us.fujitsu.com/computers
Before you place the call, you should have the following
information ready so that the customer support
representative can provide you with the fastest possible
solution:
■Product name
■Product configuration number
■Product serial number
■Purchase date
■Conditions under which the problem occurred
■Any error messages that have occurred
■Type of device connected, if any
Fujitsu Shopping Online
You can go directly online to the Fujitsu Product catalog
for your LifeBook notebook by going to the website at
www.shopfujitsu.com.
You can also reach Fujitsu Service and Support online by
clicking on Start -> Fujitsu Weblinks -> Fujitsu Service
and Support.
LIMITED WARRANTY
Your LifeBook notebook is backed by a Fujitsu Interna-
tional Limited Warranty. Check the service kit that came
with your notebook for the Limited Warranty period
and terms and conditions.
The information icon highlights
information that will enhance your
understanding of the subject material.
The caution icon highlights information
that is important to the safe operation of
your computer, or to the integrity of your
files. Please read all caution information
carefully.
The warning icon highlights information
that can be hazardous to either you, your
LifeBook notebook, or your files. Please
read all warning information carefully.
You must have an active internet
connection to use the online URL links.
Eagle E8310.book Page 1 Tuesday, May 8, 2007 11:40 AM
2
LifeBook E8000 Notebook
Eagle E8310.book Page 2 Tuesday, May 8, 2007 11:40 AM
3
2
Getting to Know
Your LifeBook Notebook
Eagle E8310.book Page 3 Tuesday, May 8, 2007 11:40 AM
4
LifeBook E8000 Notebook
Eagle E8310.book Page 4 Tuesday, May 8, 2007 11:40 AM
5
Getting to Know Your LifeBook

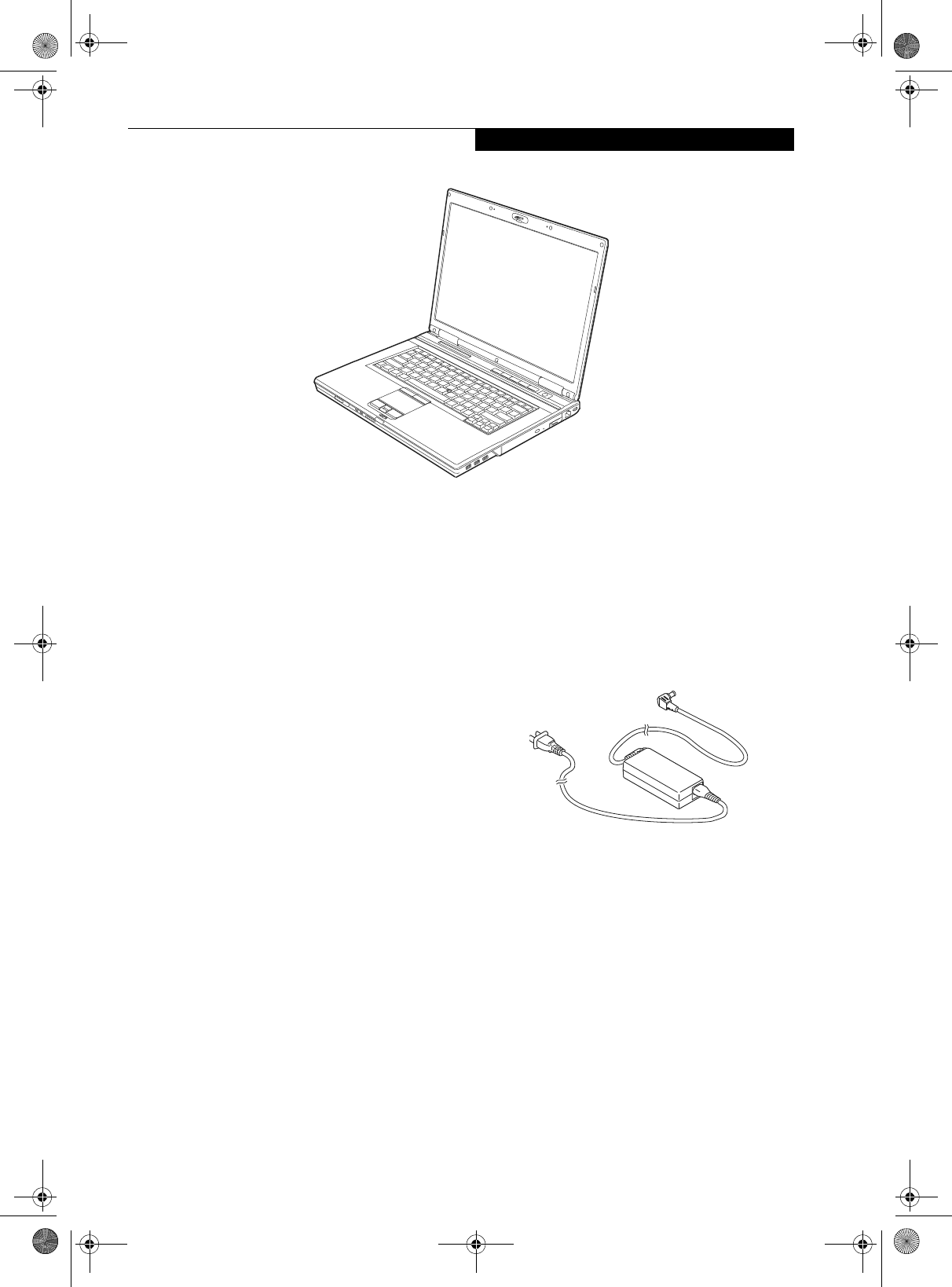

Figure 2-1. Fujitsu LifeBook E8310 notebook
Overview
This section describes the components of your Fujitsu
LifeBook E8310 notebook. We strongly recommend that
you read it before using your notebook – even if you are
already familiar with notebook computers.
UNPACKING
When you receive your LifeBook notebook, unpack it
carefully, and compare the parts you have received with
the items listed below.
For a pre-configured model you should have:
■LifeBook E8310 notebook (Figure 2-1)
■AC adapter with AC power cord (Figure 2-2)
■Lithium ion Battery, pre-installed
■Weigh t Saver
■Phone/Modem (RJ-11) telephone cable
■Driver and Application Restore (DAR) Disc
■Recovery DVD
■Getting Started Guide
■User’s Guide (this document)
■International Limited Warranty Brochure
■Microsoft®-associated product materials
Depending on your system configuration, one of the
following devices will be pre-installed in the Flexible
Bay:
■Weigh t Saver
■Modular Dual-Layer Multi-Format DVD Writer
■Modular DVD/CD-RW combo drive
■Modular DVD-ROM drive
Depending on your system configuration, the following
optional items may be included with your system:
■Modular 2nd bay battery
■External USB floppy disk drive
■Application CDs for third-party software
Once you have checked and confirmed that your Life-
Book system is complete, read through the following
pages to learn about all of your notebook’s components.
Figure 2-2 AC Adapter
Eagle E8310.book Page 5 Tuesday, May 8, 2007 11:40 AM
6
LifeBook E8000 Notebook

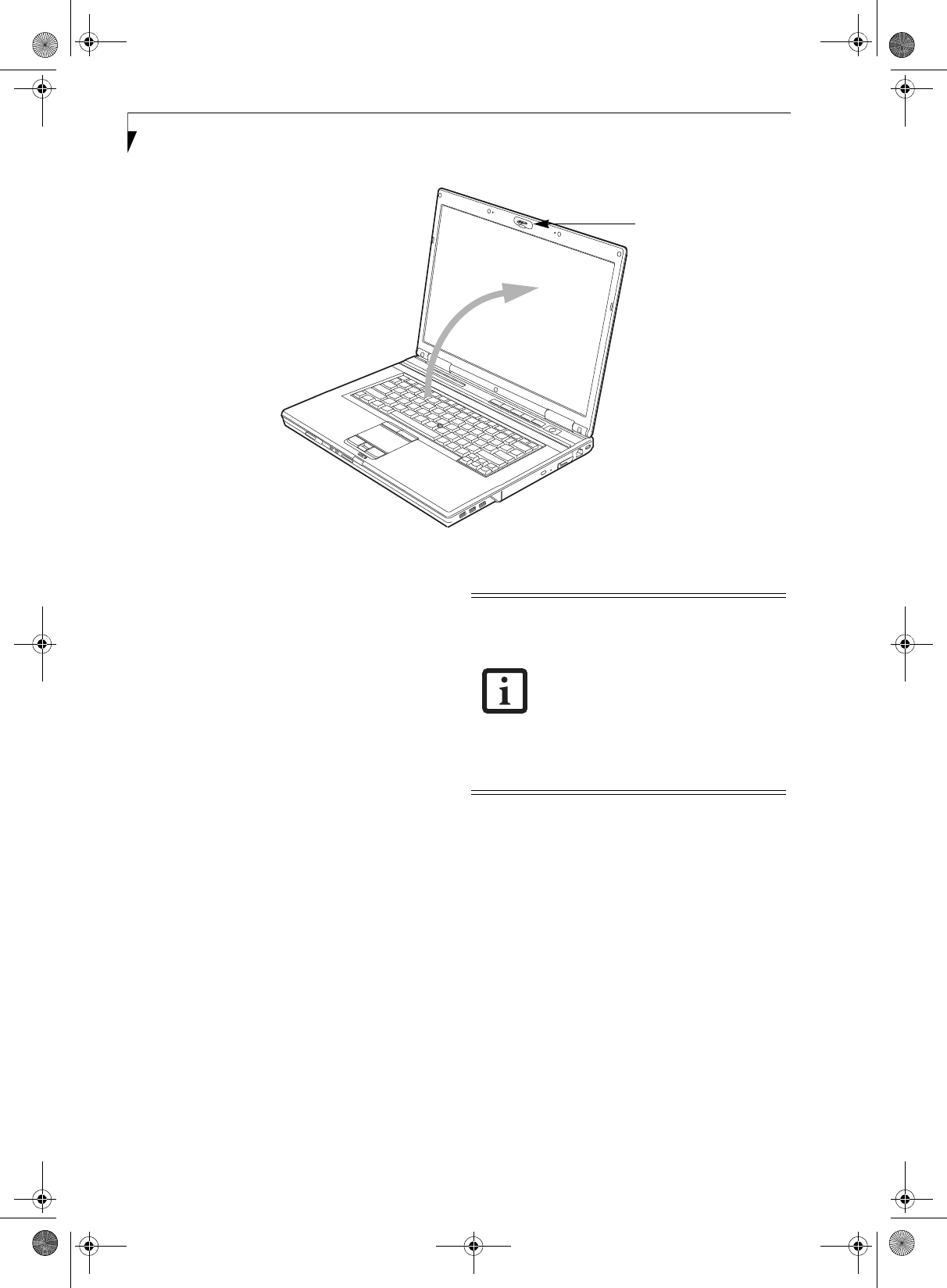

Figure 2-3. LifeBook notebook with display open
Locating the Controls
and Connectors
TOP COMPONENTS
The following is a brief description of your LifeBook
notebook’s top components.
Display Panel
The display panel is a color LCD panel with back
lighting for the display of text and graphics.

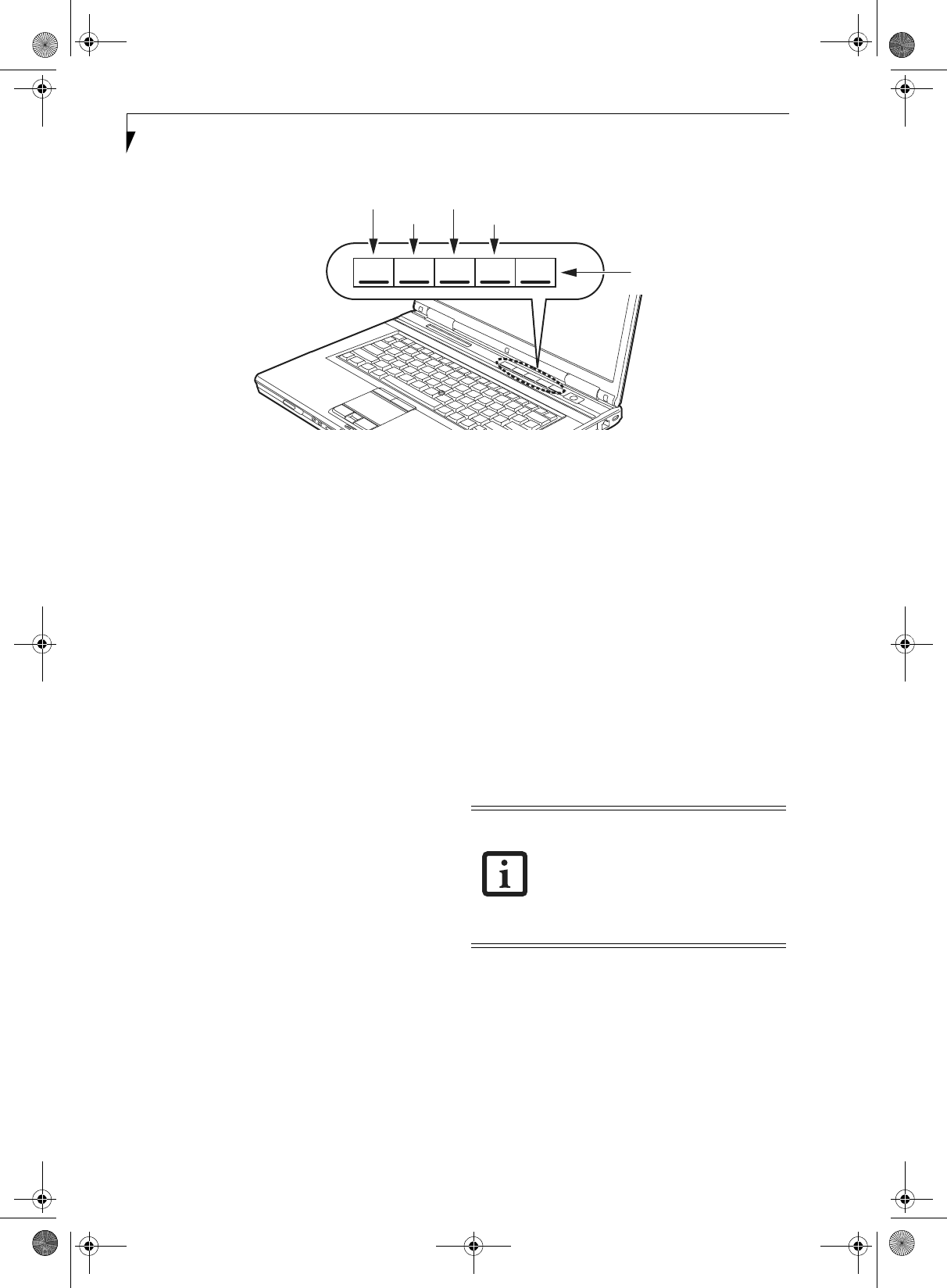

Status Indicator Panel
The Status Indicator Panel displays symbols that corre-
spond with a specific component of your LifeBook note-
book. (See Status Indicator Panel on page 12 for more
information)
LifeBook Security/Application Panel
The LifeBook Security/Application Panel provides hard-
ware security and one-touch application launch capa-
bility. (See LifeBook Security/Application Panel on page 20
for more information)
Power/Suspend/Resume Button
The Power/Suspend/Resume button allows you to
suspend notebook activity without powering off, resume
your notebook from standby mode, and power on your
notebook when it has been shut down from Windows.
(See Power/Suspend/Resume Button on page 29 for more
information)
Stereo Speakers
The built-in dual speakers allow for stereo sound.

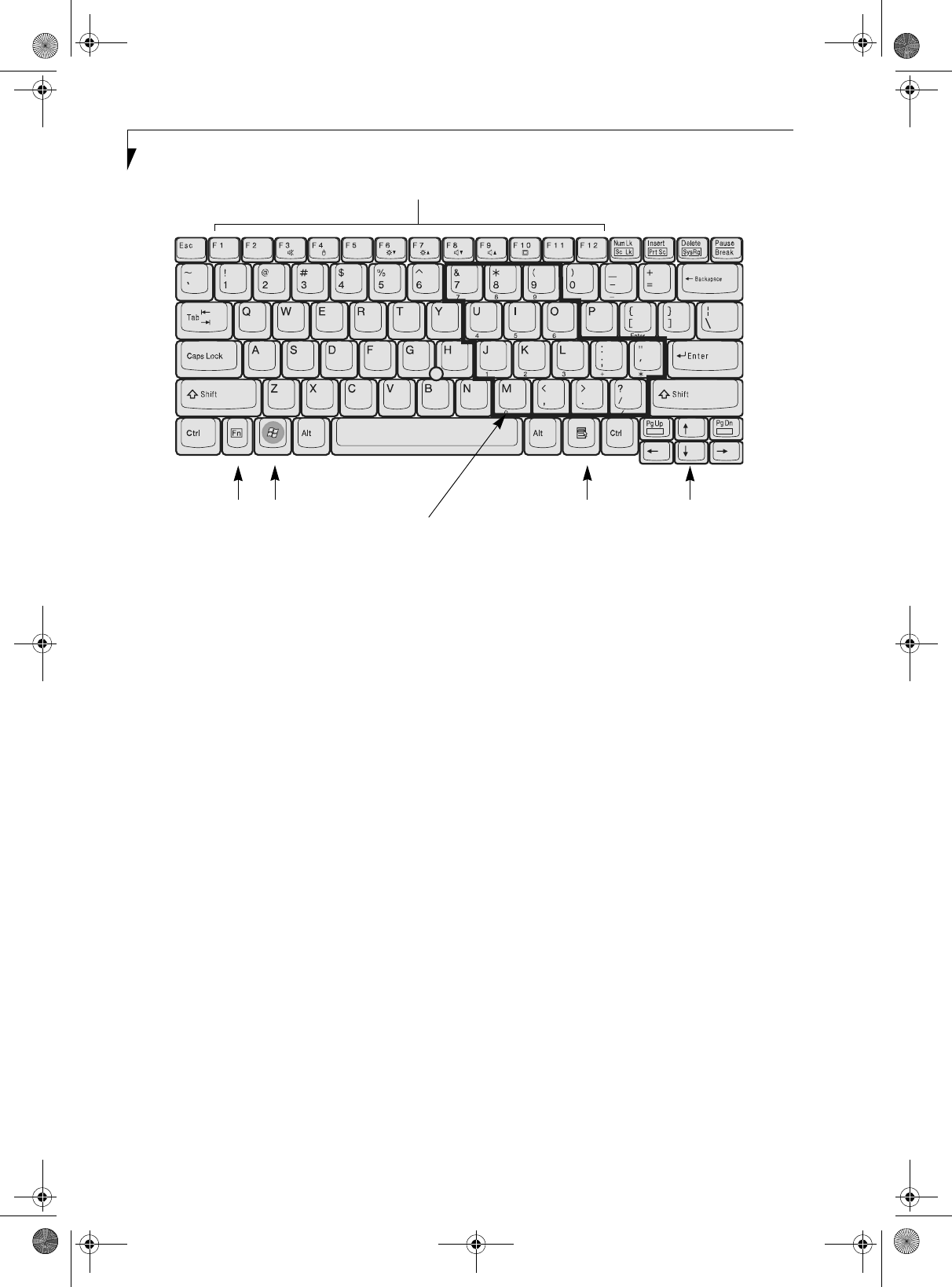

Keyboard
A full-size keyboard with dedicated Windows keys. (See
Keyboard on page 14 for more information)

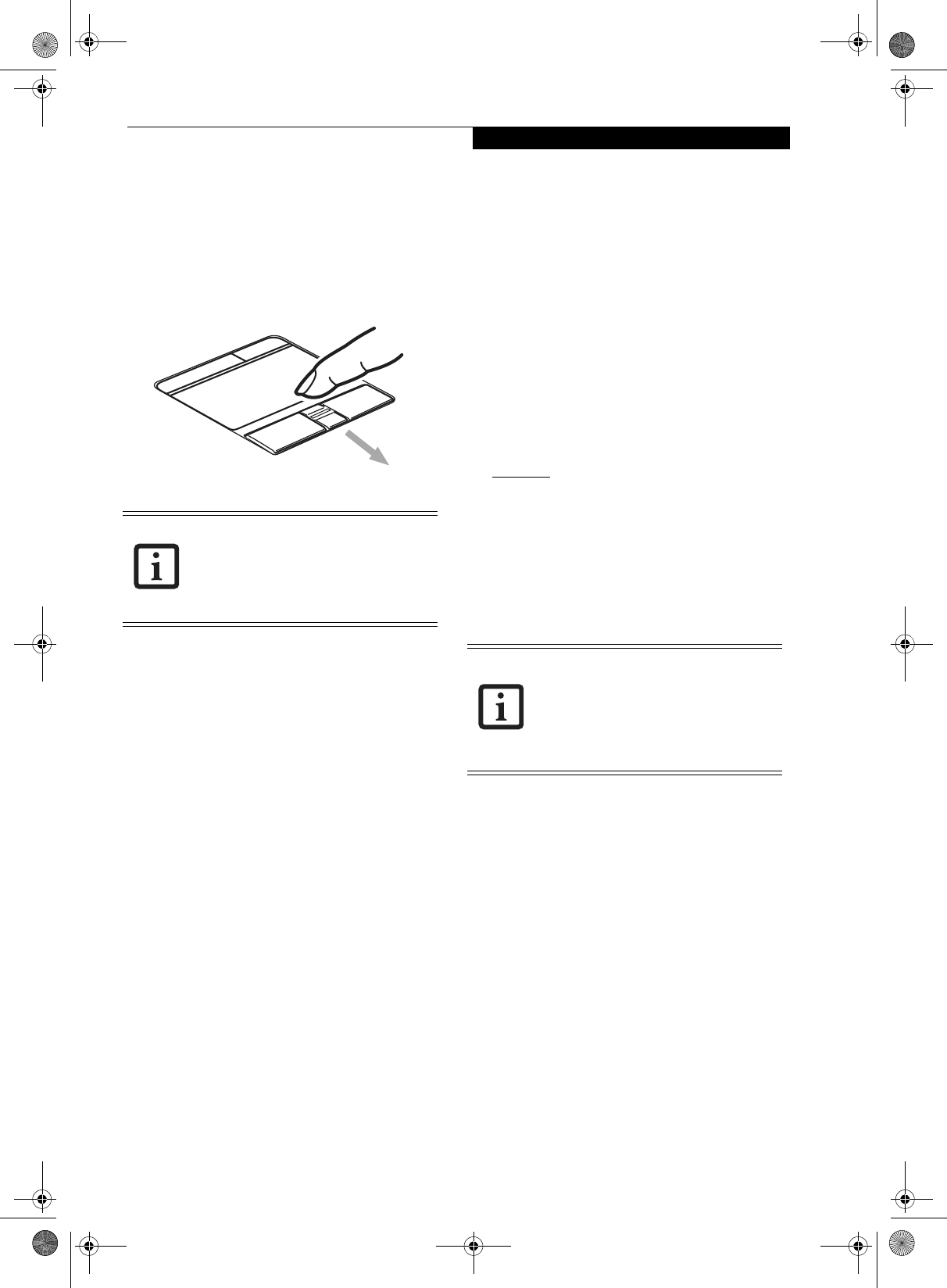

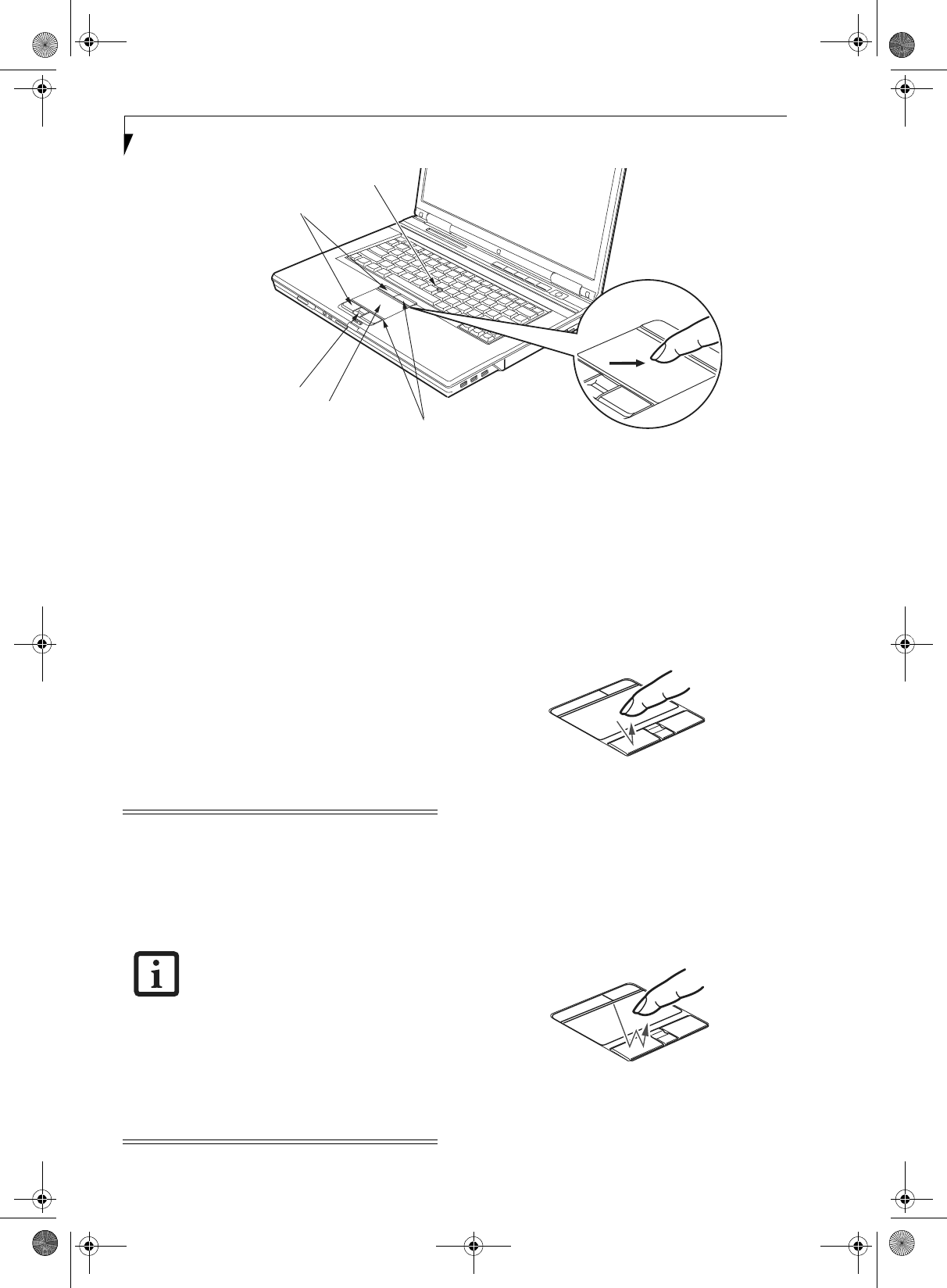

Touchpad Pointing Device
The Touchpad pointing device is a mouse-like cursor
control with five buttons: two right mouse-like buttons,
two left mouse-like buttons, and a scroll button. The
upper left and right buttons are for use with the Quick
Point cursor control. (See Touchpad Pointing Device on
page 16 for more information) Depending upon the
configuration of your system, the scroll button may be
configured as a fingerprint sensor device. (See Finger-
print Sensor Device on page 103 for more information)
Display Panel Latch Button
The display panel latch button is used to latch and
unlatch the display. (See Opening the Display Panel on
page 28 for more information)

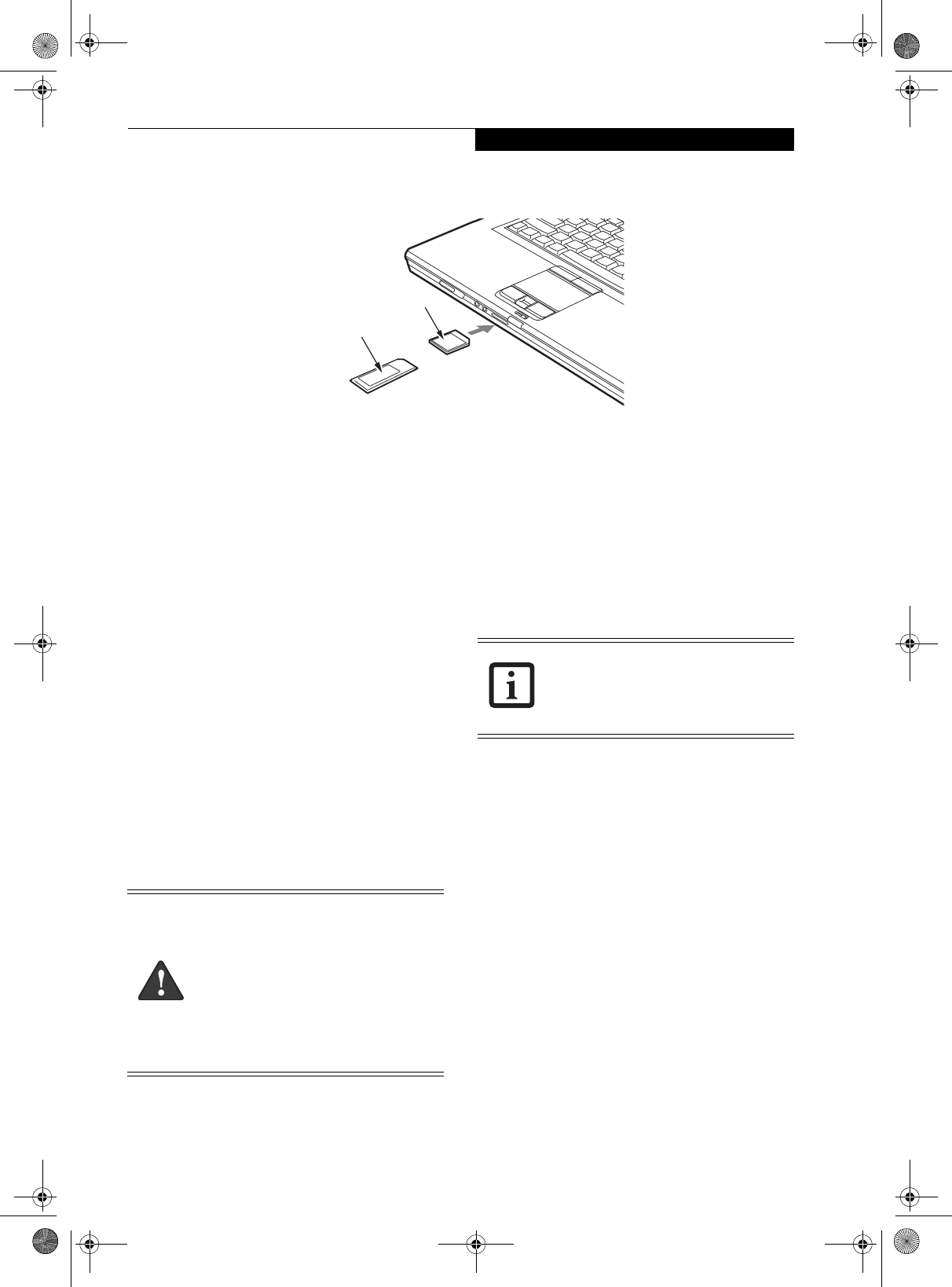

Memory Stick/SD Card Slot
The Memory Stick/SD card slot allows you to install a
Memory Stick or a Secure Digital (SD) card for data
storage. This architecture allows you to transfer data
Display Panel
Status Indicator Panel
Stereo Speaker
Keyboard
LifeBook Security/
Touchpad Pointing Device
Stereo Speaker
Power/Suspend/
Application Panel
Resume Button
Quick Point
Cursor Control (optional)
Wireless LAN/Bluetooth
On/Off Switch
Infrared (IrDA) Sensor
Headphone/Optical
Digital Audio Out Jack
Microphone Jack
Memory Stick/SD Card Slot
Display Panel Latch Button
Eagle E8310.book Page 6 Tuesday, May 8, 2007 11:40 AM
7
Getting to Know Your LifeBook
from a variety of different digital devices. (See Installing
Memory Stick/SD Cards on page 41 for more information)
Microphone Jack
The microphone jack allows you to connect an external
mono microphone.
Headphone Jack
The headphone jack allows you to connect headphones
to listen to audio files.
Infrared (IrDA) Sensor
Provides an infrared interface for communication with
devices IrDA Standard Rev.1.1-compliant.
Wireless LAN/Bluetooth On/Off Switch
The wireless LAN/Bluetooth on/off switch is used to
turn on and off the optional WLAN and Bluetooth
devices. Switching the device off when not in use will
help to extend battery life. (See Activating the WLAN
Device on page 90 for more information)
Quick Point Cursor Control
The optional Quick Point control offers an additional
method for moving the cursor. (See Optional Quick
Point Feature on page 17 for more information)
Eagle E8310.book Page 7 Tuesday, May 8, 2007 11:40 AM
8
LifeBook E8000 Notebook
Figure 2-4. LifeBook notebook left-side panel
LEFT-SIDE PANEL COMPONENTS
The following is a brief description of your LifeBook
notebook’s left-side components.
Serial Port
The serial port allows you to connect serial RS-232
devices, such as serial printers or serial scanners. (See
Serial Port on page 48 for more information)
S-Video Out Port
The S-Video output is used to transmit a higher resolu-
tion video signal to a compatible TV or VCR.
USB 2.0 Ports
The USB 2.0 ports allow you to connect Universal Serial
Bus devices. USB 2.0 transfers data at up to 480 Mbps
and is backward-compatible with USB 1.1 devices,
which transfer data at up to 12 Mbps. (See Universal
Serial Bus Ports on page 47 for more information)
ExpressCard Slot/Eject Button
The ExpressCard slot allows you to install an Express-
Card. (See PC Cards/ExpressCards™ on page 42 for more
information) The ExpressCard eject button is used for
removing an ExpressCard from the slot.
PC Card Slot/Eject Button
The PC Card slot is for installing a Type I or Type II PC
Card. (See PC Cards/ExpressCards™ on page 42 for more
information) The PC Card eject button is used for
removing a PC Card from the slot.
Smart Card Slot
A dedicated Smart Card slot is provided on your note-
book. Smart Cards are the same size and shape as credit
cards, but they contain an integrated microprocessor
chip. (See Smart Card Reader on page 43 for more infor-
mation) In order to use the embedded Smart Card
Reader, you must purchase optional third-party software
for installation.
External Video Port
The external monitor port allows you to connect an
external monitor or LCD projector. (See External Video
Port on page 48 for more information)
Air Vents
The air vents are used to cool the system to prevent over-
heating.

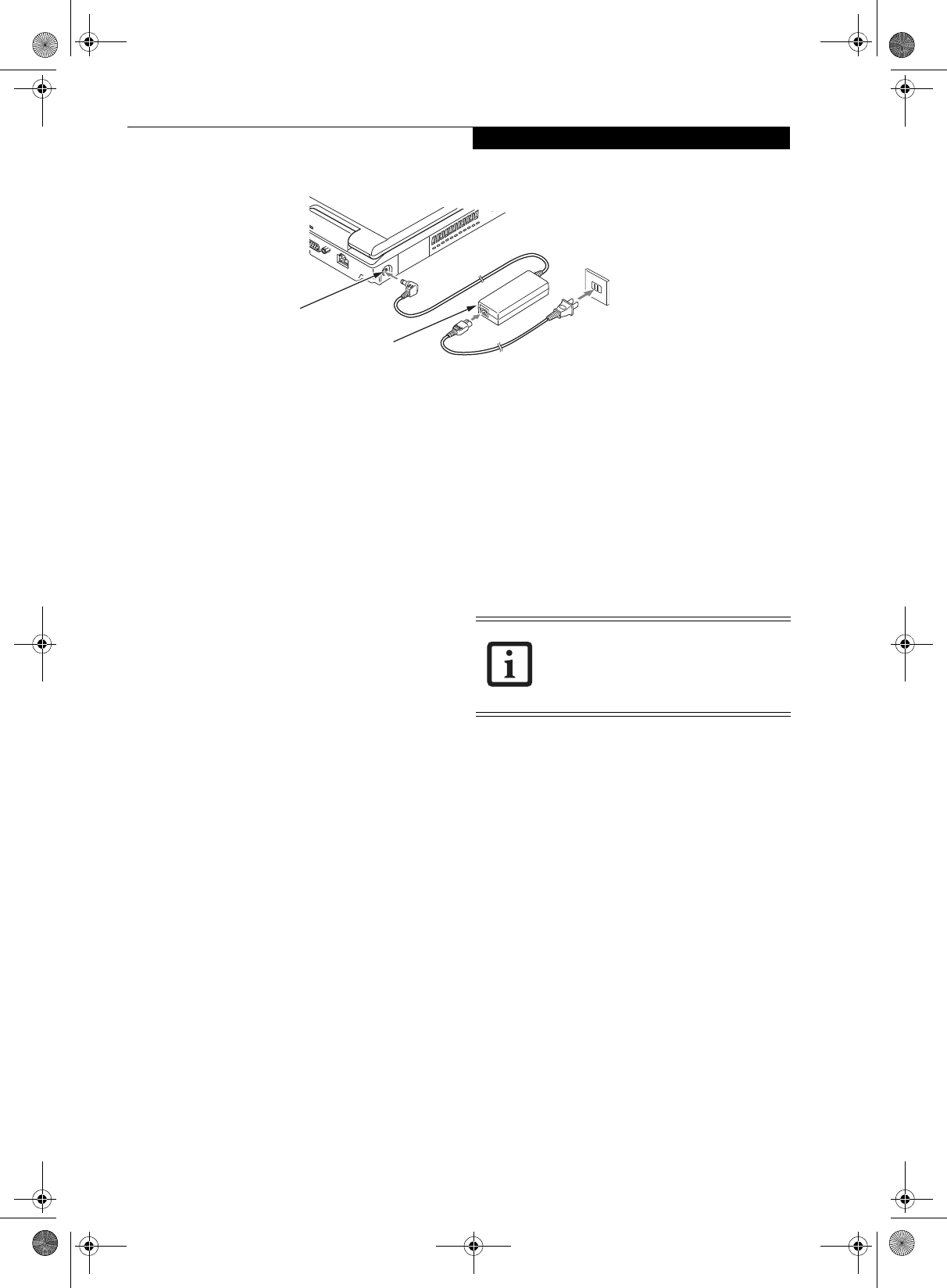

DC Power Jack
The DC power jack allows you to plug in the AC adapter
to power your LifeBook notebook and charge the
internal Lithium ion battery.
Serial Port (behind cover) S-Video Out Port
USB 2.0 Port
ExpressCard Slot (top slot)
ExpressCard Eject Button
DC Power Jack Air Vents External Video
Port (behind cover)
Smart Card Slot
PC Card Slot (bottom slot)
PC Card Eject Button
To protect your notebook from damage
and to optimize system performance, be
sure to keep all air all vents unobstructed,
clean, and clear of debris. This may
require periodic cleaning, depending upon
the environment in which the system is
used.
Do not operate the notebook in areas
where the air vents can be obstructed,
such as in tight enclosures or on soft
surfaces like a bed or cushion.
Eagle E8310.book Page 8 Tuesday, May 8, 2007 11:40 AM
9
Getting to Know Your LifeBook

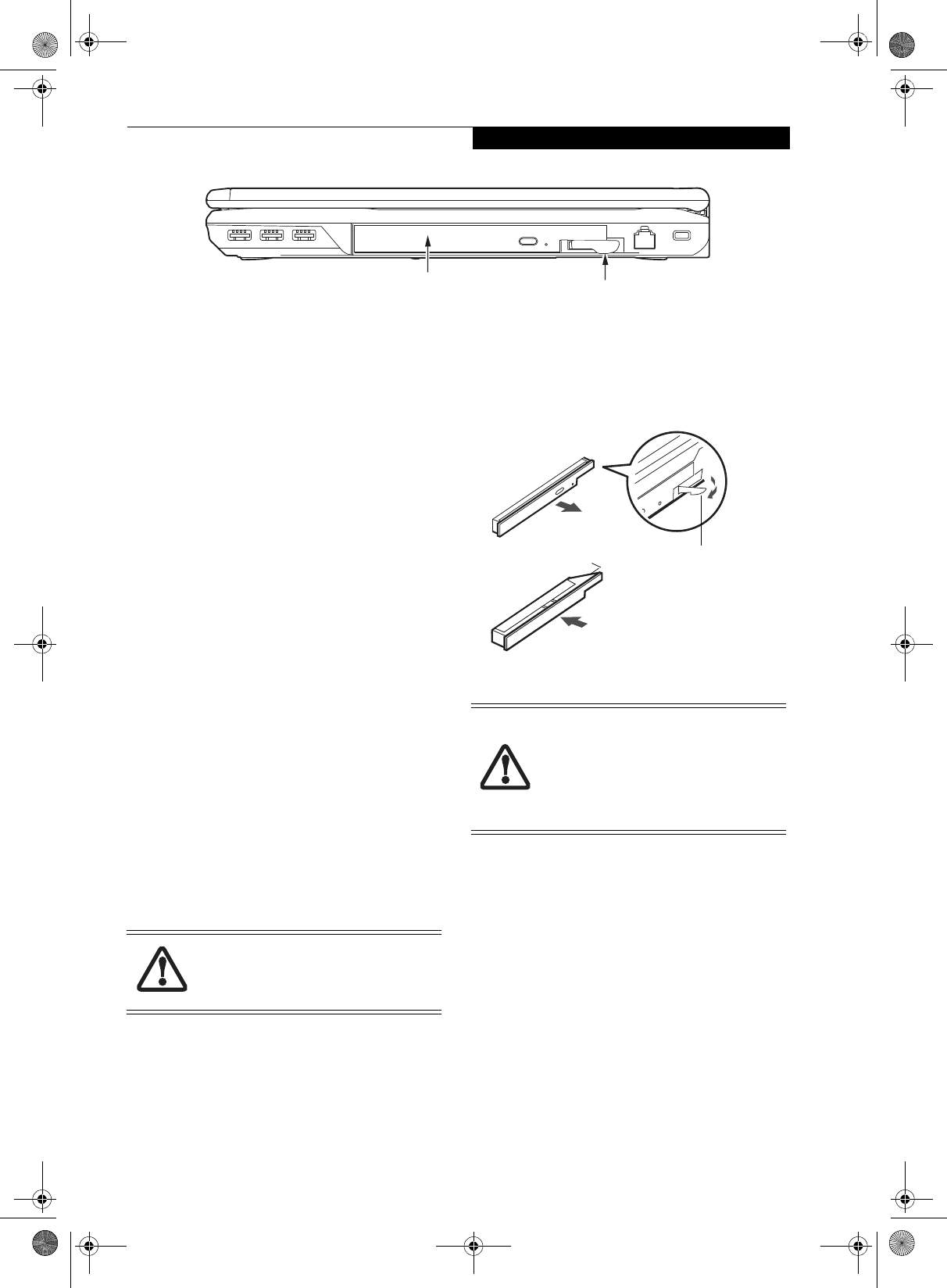

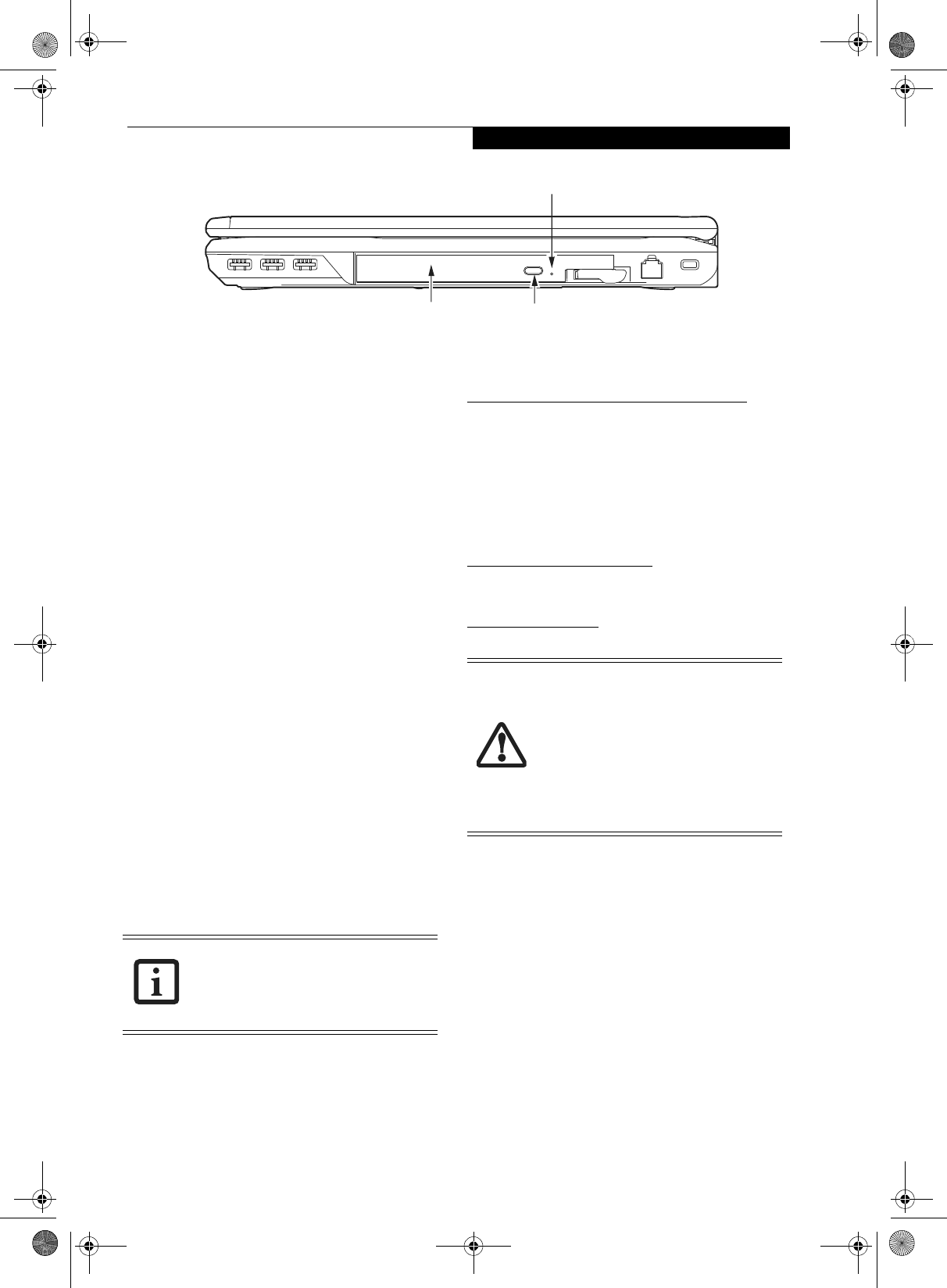

Figure 2-5. LifeBook notebook right-side panel
RIGHT-SIDE PANEL COMPONENTS
The following is a brief description of your LifeBook
notebook’s right-side components.
USB 2.0 Ports
The USB 2.0 ports allow you to connect Universal Serial
Bus devices. USB 2.0 transfers data at up to 480Mbps
and is backward-compatible with USB 1.1 devices,
which transfer data at up to 12Mbps. (See Universal
Serial Bus Ports on page 47 for more information)
Modem (RJ-11) Telephone Jack
The Modem (RJ-11) telephone jack is for attaching a
telephone line to the internal multinational 56K
modem. (See Modem (RJ-11) Telephone Jack on page 46
for more information)
Anti-theft Lock Slot
The anti-theft lock slot allows you to attach an optional
physical lock down device.
Flexible Bay Release Latch
The Flexible Bay release latch releases the Flexible Bay
device.
Flexible Bay
The Flexible Bay can accommodate one of the following
devices. (See Flexible Bay Devices on page 19 for more
information)
■Modular DVD-ROM drive
■Modular DVD/CD-RW combo drive
■Modular Dual-Layer Multi-Format DVD Writer
■Modular Lithium ion battery
■Modular second hard disk drive
■Weigh t Save r
Anti-Theft Lock Slot
Modem (RJ-11) Jack
Flexible Bay
Flexible Bay Release Latch
USB 2.0 Ports
The internal modem is not intended for
use with Digital PBX systems. Do not
connect the internal modem to a Digital
PBX as it may cause serious damage to the
internal modem or your entire notebook.
Consult your PBX manufacturer’s
documentation for details. Some hotels
have Digital PBX systems. Be sure to find
out BEFORE you connect your modem.
The internal multinational modem is
designed to the ITU-T V.90/v.92 standard.
Its maximum speed of 53000 bps is the
highest allowed by FCC, and its actual
connection rate depends on the line
conditions. The maximum speed is 33600
bps at upload, in accordance with FCC
regulations.
For additional information about the
modem, refer to the Fujitsu website at:
us.fujitsu.com/computers.
Eagle E8310.book Page 9 Tuesday, May 8, 2007 11:40 AM
10
LifeBook E8000 Notebook
Figure 2-6. LifeBook notebook back panel
BACK PANEL COMPONENTS
Following is a brief description of your LifeBook note-
book’s back panel components.
Parallel Port
The parallel port allows you to connect parallel devices,
such as a printer. (This is also sometimes referred to as
an LPT port.) (See Parallel Port on page 48 for more infor-
mation)
Gigabit LAN (RJ-45) Jack
The internal LAN (RJ-45) jack is used for an internal
Gigabit (10Base-T/100Base-Tx/1000Base-T) Ethernet
LAN connection. (See Internal LAN (RJ-45) Jack on
page 46 for more information)
Gigabit LAN (RJ-45) Jack
Parallel Port
Eagle E8310.book Page 10 Tuesday, May 8, 2007 11:40 AM
11
Getting to Know Your LifeBook
Figure 2-7. LifeBook notebook bottom panel
BOTTOM COMPONENTS
The following is a brief description of your LifeBook
notebook’s bottom panel components.
Lithium ion Battery Bay
The battery bay contains the internal Lithium ion
battery. It can be opened for the removal of the battery
when stored over a long period of time or for swapping a
discharged battery with a charged Lithium ion battery.
(See Lithium ion Battery on page 37 for more information)
Battery Bay Lock/Release Button
The battery bay lock and release button are used
together to secure or remove the Lithium ion battery.
(See Replacing the Battery on page 38 for more informa-
tion)
Port Replicator Connector
This connector allows you to connect the optional Port
Replicator to your notebook.

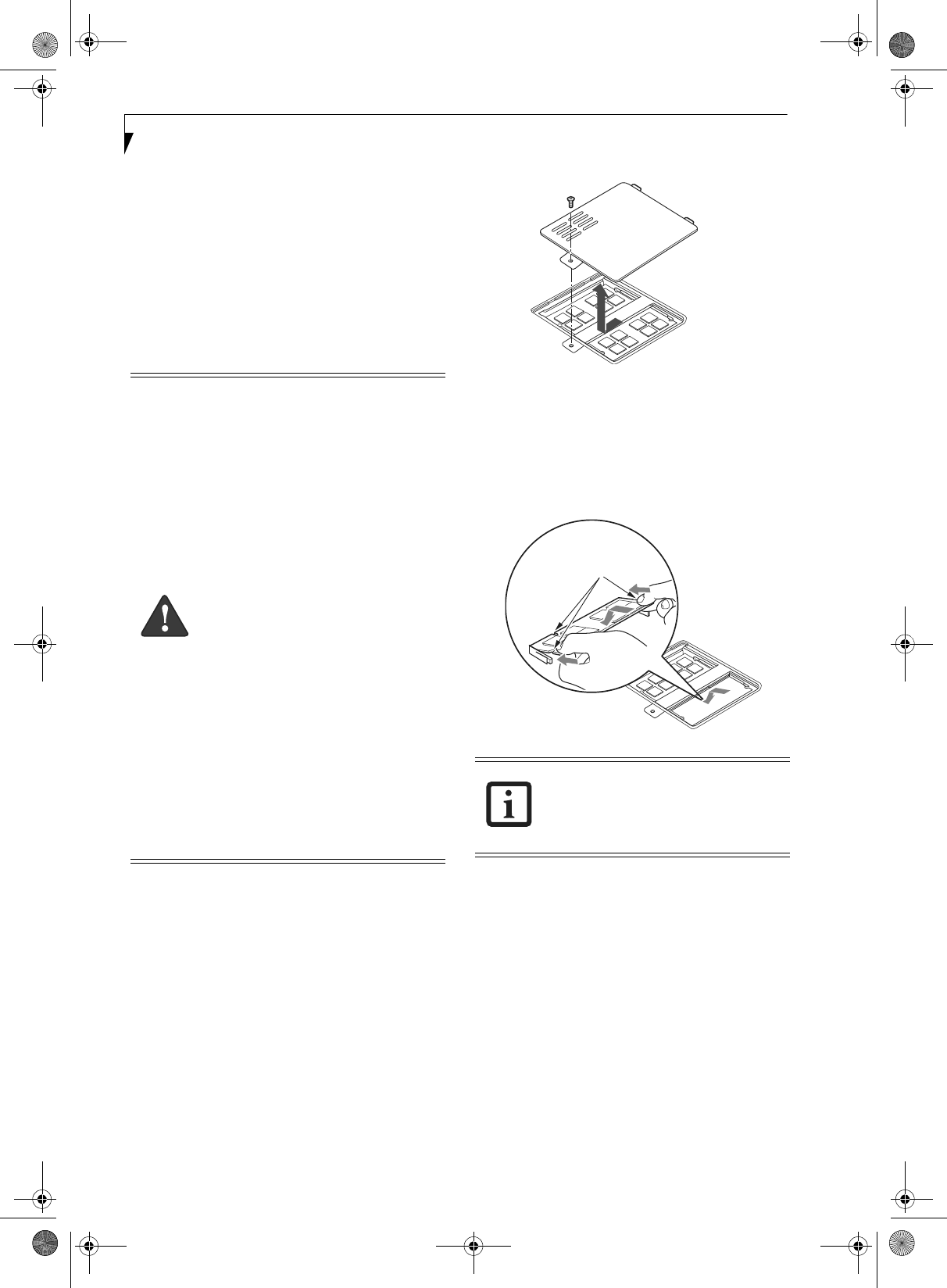

Memory Upgrade Compartment
Your notebook comes with high speed Double Data Rate
2 Synchronous Dynamic RAM (DDR2 SDRAM). The
memory upgrade compartment allows you to expand
the system memory capacity of your notebook, thus
improving overall performance. (See Memory Upgrade
Module on page 44 for more information) Under normal
circumstances, it should not be necessary to open this
compartment.
Air Vents
The air vents allow air to circulate through the system to
cool down the components.
Hard Disk Drive Compartment
The hard disk drive compartment contains the hard disk
drive. Under normal circumstances, it should not be
necessary to open this compartment.
Memory Upgrade
Lithium ion Battery Bay
Port Replicator Connector
Air Vents
Compartment
Battery Bay
Release Button
Hard Disk Drive
Compartment
Battery Bay Lock
(various locations)
To protect your notebook from damage
and to optimize system performance, be
sure to keep all air all vents unobstructed,
clean, and clear of debris. This may
require periodic cleaning, depending upon
the environment in which the system is
used.
Do not operate the notebook in areas
where the air vents can be obstructed,
such as in tight enclosures or on soft
surfaces like a bed or cushion.
Eagle E8310.book Page 11 Tuesday, May 8, 2007 11:40 AM
12
LifeBook E8000 Notebook
Figure 2-8. Status Indicator Panel
Status Indicator Panel
The Status Indicator displays symbols that correspond
with a specific component of your Fujitsu LifeBook
notebook. These symbols tell you how each of those
components are operating.
POWER INDICATOR
The Power indicator symbol states whether your system
is operational. It has several different states, each of
which tells you the mode your notebook is in.
■Steady On: This means that there is power to your
LifeBook notebook and that it is ready for use.
■Flashing: This means that your notebook is in Standby
mode.
■Steady Off: This means that your notebook is either in
Save-to-Disk mode, or it has been turned off.
If you are charging your battery, the Power indicator will
remain on even if your notebook is shut off. The Power
indicator will also remain on if you have either adapter
connected and are shut down from Windows.
AC ADAPTER INDICATOR
The AC Adapter indicator shows whether your notebook
is operating from the AC adapter, Auto/Airline adapter
or battery(s). This icon has two different states that can
tell you what power source your notebook is using.
■On: This means that either of the adapters are cur-
rently in use.
■Off: Power is only coming from the batteries, and you
do not have an adapter connected.
BATTERY LEVEL INDICATORS
The two Battery Level indicators state whether or not the
primary Lithium ion battery and/or the optional second
Lithium ion battery are installed (Battery 1 refers to the
primary Lithium ion battery, while Battery 2 refers to the
Flexible Bay optional second battery). In addition, this
symbol states how much charge is available within each
installed battery. The symbol will only be displayed for a
battery that is currently installed in your LifeBook note-
book.
Figure 2-9 Battery Level Indicator
Power
AC Adapter Battery
Battery
Identifier
Level Optical
Drive Access
Hard Drive
Access
Battery
PC Card
Access (PC Card Slot)
NumLk
CapsLk
ScrLk
Security
Charging WLAN/
Bluetooth
Power
A shorted battery is damaged and must be
replaced. (Figure 2-9)
76%–100% Charging
76%–100%
51%–75%
26%–50%
11%–25%
Low Warning <11%
Critical Low or
Dead Battery
Shorted Battery
Eagle E8310.book Page 12 Tuesday, May 8, 2007 11:40 AM
13
Getting to Know Your LifeBook
BATTERY CHARGING INDICATORS
Located to the left of each Battery Level indicator is a
small arrow symbol. This symbol states whether that
specific battery is charging. This indicator will flash if
the battery is too hot or cold to charge.
WLAN ACCESS POWER INDICATOR
The WLAN power indicator appears when the Wireless
LAN or Bluetooth power is applied.
OPTICAL DRIVE ACCESS INDICATOR
The Optical Drive Access indicator tells you that the
DVD/CD-RW/CD-ROM drive is being accessed. If the
Auto Insert Notification function is active, the indicator
will flash periodically when your system is checking the
DVD/CD-RW/CD-ROM drive. If the Auto Insert Notifi-
cation function is not active, the indicator will only flash
when you access the DVD/CD-RW/CD-ROM drive. The
default setting is the Auto Insert Notification function
active.
HARD DRIVE ACCESS INDICATOR
The Hard Drive Access indicator shows whether your
internal hard drive is being accessed.
PC CARD ACCESS INDICATOR
The PC Card Access indicator shows whether or not
your notebook is accessing a PC Card. The indicator will
flash if your software tries to access a PC Card even if
there is no card installed. (See PC Cards/ExpressCards™
on page 42 for more information)
NUMLK INDICATOR
The NumLk indicator states that the integral keyboard is
set in ten-key numeric keypad mode.
CAPSLOCK INDICATOR
The CapsLock indicator states that your keyboard is set
to type in all capital letters.
SCRLK INDICATOR
The ScrLk indicator states that your scroll lock is active.
SECURITY INDICATOR
The Security Indicator flashes (if a password was set)
when the system resumes from Off or Standby modes.
You must enter the password that was set in the Security
Panel before your system will resume operation.
Batteries subjected to shocks, vibration or
extreme temperatures can be permanently
damaged.
The DVD/CD-RW/CD-ROM Auto Insert
Notification function will periodically check
for a DVD/CD-RW/CD-ROM installed in
the drive, causing the DVD/CD-RW/CD-
ROM Access indicator to flash. The DVD/
CD-RW/CD-ROM Auto Insert Notification
function allows your system to start a
DVD/CD-RW/CD-ROM automatically as
soon as it is inserted in the drive and the
tray is closed. It will begin playing an audio
DVD/CD or will start an application if the
DVD/CD has an auto-run file
The Hard Drive Access indicator does not
show which hard drive is being accessed.
Eagle E8310.book Page 13 Tuesday, May 8, 2007 11:40 AM
14
LifeBook E8000 Notebook
Figure 2-10 Keyboard
Keyboard
USING THE KEYBOARD
Your Fujitsu LifeBook notebook has an integral 84-key
keyboard. The keys perform all the standard functions of
a 101-key keyboard, including the Windows keys and
other special function keys. This section describes the
following keys. (Figure 2-10)
■Numeric keypad: Your notebook allows certain keys to
serve dual purposes, both as standard characters and
as numeric and mathematical keys. The ability to tog-
gle between the standard character and numerical keys
is controlled through the [NumLk] key.
■Cursor keys: Your keyboard contains four arrow
keys for moving the cursor or insertion point to the
right, left, up, or down within windows, applications
and documents.
■Function keys: The keys labeled [F1] through [F12],
are used in conjunction with the [Fn] key to produce
special actions that vary depending on what program
is running.
■Windows keys: These keys work with your Windows
operating system and function the same as the
onscreen Start menu button, or the right button
on your pointing device.
NUMERIC KEYPAD
Certain keys on the keyboard perform dual functions as
both standard character keys and numeric keypad keys.
NumLk can be activated by pressing the [NumLk] keys.
Turning off the NumLk feature is done the same way.
Once this feature is activated you can enter numerals 0
through 9, perform addition ( + ), subtraction ( - ),
multiplication ( * ), or division ( / ), and enter decimal
points ( . ) using the keys designated as ten-key function
keys. The keys in the numeric keypad are marked on the
front edge of the key to indicate their secondary functions.
(Figure 2-10)
WINDOWS KEYS
Your LifeBook notebook has two Windows keys,
consisting of a Start key and an Application key. The
Start key displays the Start menu. This button functions
the same as your onscreen Start menu button. The
Application key functions the same as your right mouse
button and displays shortcut menus for the selected
item. (Please refer to your Windows documentation for
additional information regarding the Windows keys.)
(Figure 2-10)
CURSOR KEYS
The cursor keys are the four arrow keys on the keyboard
which allow you to move the cursor up, down, left and
right in applications. In programs such as Windows
Explorer, it moves the “focus” (selects the next item up,
down, left, or right). (Figure 2-10)
End
Home
Fn Key Start Key
Function Keys
Numeric Keypad
Application Key Cursor Keys
(surrounded by heavy line)
Eagle E8310.book Page 14 Tuesday, May 8, 2007 11:40 AM
15
Getting to Know Your LifeBook
FUNCTION KEYS
Your LifeBook notebook has 12 function keys, F1
through F12. The functions assigned to these keys differ
for each application. You should refer to your software
documentation to find out how these keys are used.
(Figure 2-10)
The [Fn] key provides extended functions for the
notebook and is always used in conjunction with
another key.
■[Fn+F3]: Pressing [F3] while holding [Fn] will toggle
the Audio Mute on and off.
■[Fn+F4]: Pressing [F4] while holding [Fn] will toggle
the Quick Point feature on and off. Note that the
[Fn+F4] combination only works if Manual Setting is
selected in the BIOS. (See Entering the BIOS Setup
Utility on page 29 for more information))
■[Fn+F6]: Pressing [F6] repeatedly while holding [Fn]
will lower the brightness of your display.
■[Fn+F7]: Pressing [F7] repeatedly while holding [Fn]
will increase the brightness of the display.
■[Fn+F8]: Pressing [F8] repeatedly while holding [Fn]
will decrease the volume of your LifeBook notebook.
■[Fn+F9]: Pressing [F9] repeatedly while holding [Fn]
will increase the volume of your LifeBook notebook.
■[Fn+F10]: Pressing [F10] while holding [Fn] allows
you to change your selection of where to send your
display video. Each time you press the combination of
keys you will step to the next choice. The choices, in
order, are: built-in display panel only, both built-in
display panel and external monitor or external
monitor only.
Eagle E8310.book Page 15 Tuesday, May 8, 2007 11:40 AM
16
LifeBook E8000 Notebook
Figure 2-11. Touchpad pointing device
Touchpad Pointing Device
The Touchpad pointing device built into your Fujitsu
LifeBook is used to control the movement of the pointer
to select items on your display panel. The Touchpad is
composed of a cursor control, two left and right buttons,
and a scrolling button. The cursor control works the
same as a mouse, and moves the cursor around the
display. It only requires light pressure with the tip of
your finger. The left and right buttons function the same
as mouse buttons. The left and right buttons that are
located at the top of the Touchpad are designed for use
with the optional Quick Point Control, and they func-
tion the same as the lower buttons. The actual function-
ality of the buttons may vary depending on the
application that is being used. The scrolling button
allows you to navigate quickly through pages, without
having to use the scroll bars.
CLICKING
Clicking means pushing and releasing a button. To left-
click, move the cursor to the item you wish to select,
press the left button once, and then immediately release
it. To right-click, move the mouse cursor to the item you
wish to select, press the right button once, and then
immediately release it. You also have the option to
perform the clicking operation by tapping lightly on the
Touchpad once. (Figure 2-12)
Figure 2-12 Clicking
DOUBLE-CLICKING
Double-clicking means pushing and releasing the left
button twice in rapid succession. This procedure does
not function with the right button. To double-click,
move the cursor to the item you wish to select, press the
left button twice, and immediately release it. You can
also perform the double-click operation by tapping
lightly on the Touchpad twice. (Figure 2-13)
Figure 2-13 Double-clicking
Cursor Control
Left Buttons
Right Buttons
Scroll Button or
Optional Quick Point Control
Optional Fingerprint
Sensor
■Certain E8310 LifeBooks are equipped
with an optional “Quick Point” button
for moving the cursor. For more about
Quick Point, see “Optional Quick Point
Feature” on page 17.
■The scrolling button may be replaced by
an optional fingerprint sensor. To read
about the fingerprint sensor, see “Fin-
gerprint Sensor Device” on page 99.
■An external mouse can be connected to
either USB or PS/2 ports on your Life-
Book or the optional port replicator, and
used simultaneously with the Touchpad.
Note: If you boot the system with an
external mouse connected the Touchpad
will be disabled or enabled depending
on your BIOS settings. (See Entering the
BIOS Setup Utility on page 29 for more
information)
Eagle E8310.book Page 16 Tuesday, May 8, 2007 11:40 AM
17
Getting to Know Your LifeBook

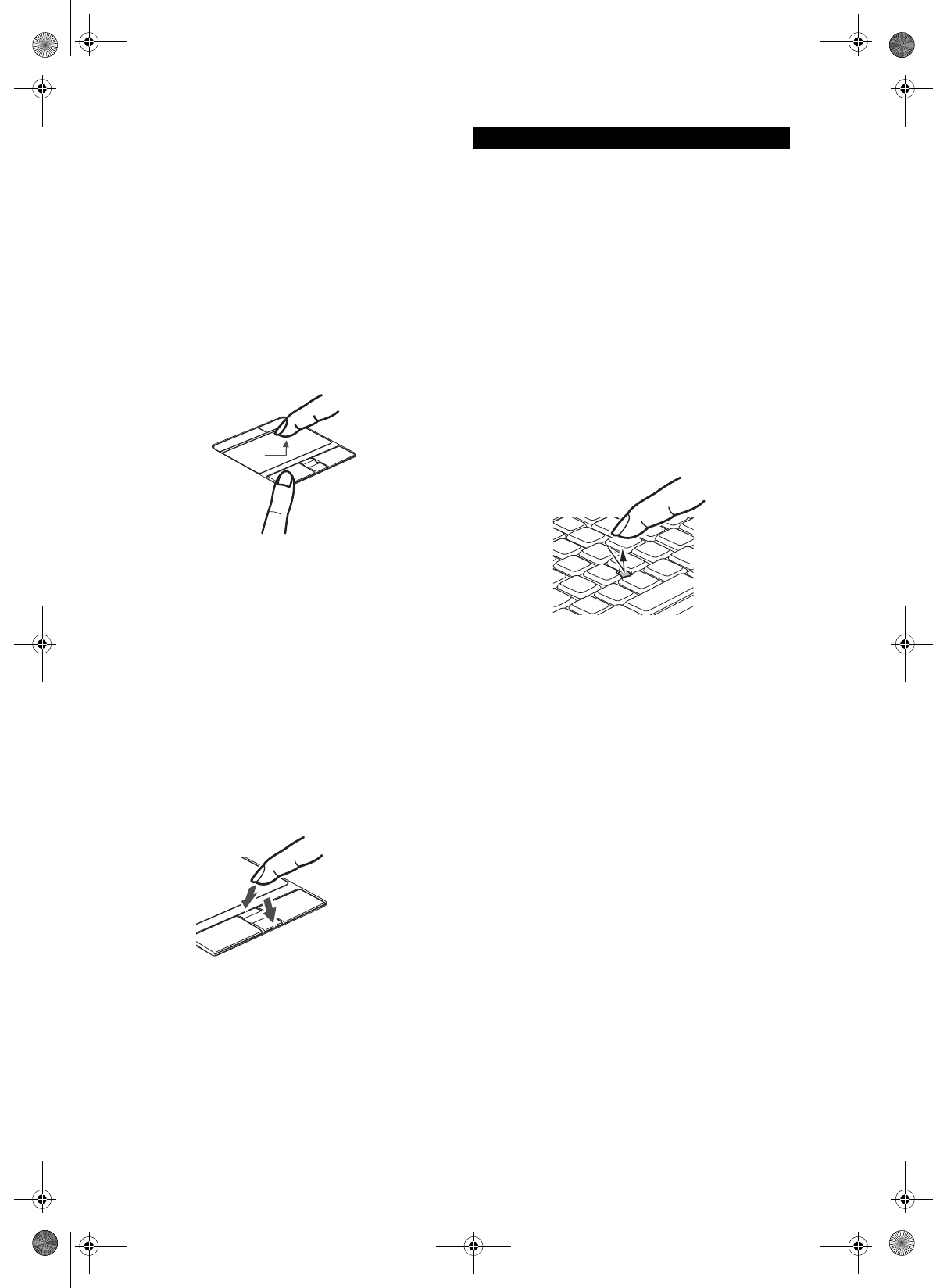

DRAGGING
Dragging means pressing and holding the left button,
while moving the cursor. To drag, move the cursor to
the item you wish to move. Press and hold the left
button while moving the item to its new location
and then release it. Dragging can also be done using the
Touchpad. First, tap the Touchpad twice over the item
you wish to move making sure to leave your finger on
the pad after the final tap. Next, move the object to its
new location by moving your finger across the
Touchpad, and then release your finger. (Figure 2-14)
Figure 2-14 Dragging
TOUCHPAD CONTROL ADJUSTMENT
The Windows Control Panel allows you to customize your
Touchpad with selections made from within the Mouse
Properties dialog box.
SCROLLING
Using the Scrolling button allows you to navigate
through a document quickly without using the window’s
scroll bars. This is particularly useful when you are navi-
gating through on-line pages. To use the Scrolling
button, press the crescent shape at the top or bottom of
the button to scroll up or down a page. When you have
reached the desired section of the page, release the
button. (Figure 2-15)
Figure 2-15 Scrolling
OPTIONAL QUICK POINT FEATURE
The optional Quick Point device consists of a cursor
control button at the lower center of the keyboard. It is
roughly the same size and shape as a pencil eraser. The
cursor control works the same way a mouse ball does,
and moves the cursor around the display. It only requires
light pressure to move; the more pressure you use, the
faster the cursor will move.
The left and right buttons that are located at the top of
the Touchpad are designed for use with the Quick Point
control, and they function in the same manner as the
lower buttons.
When used with the Quick Point button, the middle
Touchpad button allows you to scroll up and down a
screen.
Figure 2-16 Using Quick Point
Eagle E8310.book Page 17 Tuesday, May 8, 2007 11:40 AM
18
LifeBook E8000 Notebook
Volume Control
Your Fujitsu LifeBook notebook has multiple volume
controls which interact with each other.
CONTROLLING THE VOLUME
The volume can be controlled in several different ways:
■Volume can be changed or muted from within the Vol-
ume Control on the Taskbar.
■Volume can be controlled with the F8 and F9 func-
tions keys. Pressing [F8] repeatedly while holding [Fn]
will decrease the volume of your notebook. Pressing
[F9] repeatedly while holding [Fn] will increase the
volume of your notebook.
■Volume can be muted by pressing the [F3] key while
holding down the [Fn] key. To restore audio, repeat
the [Fn+F3] procedure.
■Volume can be controlled by many volume controls
that are set within individual applications.
■Certain external audio devices you might connect to
your system may have hardware volume controls.
Each source discussed above puts an upper limit on the
volume level that must then be followed by the other
sources.
We recommend that you experiment with the various
volume controls to discover the optimal sound level.
Any software that contains audio files will
also contain a volume control of its own. If
you install an external audio device that
has an independent volume control, the
hardware volume control and the software
volume control will interact with each
other. It should be noted that if you set
your software volume to Off, you will
override the external volume control
setting.
Eagle E8310.book Page 18 Tuesday, May 8, 2007 11:40 AM
19
Getting to Know Your LifeBook
Figure 2-17 Flexible Bay
Flexible Bay Devices
Your notebook has a Flexible Bay that can house one of
several devices. Your Flexible Bay will have one of the
following devices installed.
■Modular Dual-Layer Multi-Format DVD Writer: This
allows you to access movies, software, and audio
DVD/CDs and record to DVD, CD, and DVD-RAM
discs.
■Modular DVD/CD-RW combo drive: This allows you
to access movies, software, and audio DVD/CDs as
well as to write to CDs.
■Modular DVD-ROM drive: This allows you to access
software, data, video, or audio discs.
■Modular Lithium ion battery: This is a rechargeable
battery that can be used to power your LifeBook note-
book when an adapter is not connected.
■Modular Second Hard Disk Drive: This allows you to
store additional data and applications.
■Weight Saver: This is used to fill the bay when no
device is needed.
REMOVING AND INSTALLING
MODULAR DEVICES
There are two ways to remove and install modular
devices in the Flexible Bay:
■Cold-swapping: swapping devices while your LifeBook
notebook is powered off.
■Hot-swapping: swapping devices while your system is
active using the Safely Remove Hardware icon from
your system tray.
Cold-swapping
To cold-swap modular devices in your Flexible Bay
follow these easy steps: (Figure 2-18)
1. Close any open files.
2. Shut down your LifeBook notebook.
3. Pull out the Flexible Bay release latch. This will push
your device out slightly, allowing you to remove it.
4. Slide your device out until it is clear of the bay. This
will require light force.
Figure 2-18 Removing/Installing a device in the Flexible Bay
5. Slide the device you are installing into your
notebook until it clicks into place.
6. It is now safe to turn your notebook back on.
7. You can now access and use the device.
Your LifeBook notebook will automatically detect the
new device and activate it within your system. The drive
letters associated with the device will be created and
listed under My Computer and Windows Explorer.
Hot-swapping
Under Windows XP, hot-swapping is provided through
the Safely Remove Hardware utility.
The icon for the utility appears on the taskbar. Click on
the icon and follow the on-screen instructions.
Flexible Bay Flexible Bay Release Latch
You should never leave your Flexible Bay
empty when the notebook is in operation.
If left empty, dust or foreign matter may
accumulate inside the notebook.
Be careful when aligning and seating
devices in the bay. If the fit is incorrect,
you may damage the bay or the device. If
the device does not move easily in the bay,
remove it, and check for dirt or foreign
objects. It will require a firm push to latch
the device in place.
Flexible Bay Release Latch
Eagle E8310.book Page 19 Tuesday, May 8, 2007 11:40 AM
20
LifeBook E8000 Notebook
Figure 2-19. LifeBook Security/Application Panel
LifeBook Security/
Application Panel
A unique feature of your LifeBook notebook is the
Security/Application Panel that allows you to secure your
notebook from unauthorized use. The Security/Applica-
tion Panel also allows you to launch applications with the
touch of a button when your system is on.
If the security system is activated, upon starting your
notebook or resuming from suspend mode the security
system requires you to enter a password code using the
buttons on the Security/Application Panel. After entering
a correct password, your notebook resumes system
operation. (Figure 2-19)
SETTING UP YOUR
LIFEBOOK SECURITY PANEL
When you receive your LifeBook notebook, the security
panel application is pre-installed without any passwords.
The following sections provide detailed information on
your security panel, and how to set, change or remove
passwords.
Numbered Buttons
Use these buttons to enter your password.
Enter Button
After entering the button strokes, push this button to
enter the password into the LifeBook notebook.
PASSWORDS
The user and supervisor password may be set on this
notebook. A supervisor password is typically the same
for all LifeBook notebooks in a working group, office, or
company to allow for system management. Individual
LifeBook notebooks in a group environment should not
use a common password. A password consists of one to
five button strokes plus the [Enter] button. A valid
stroke consists of pushing one or up to four buttons
simultaneously. The following are valid button strokes:
■Pushing [4] by itself
■Pushing [2] and [3] at the same time
■Pushing [1], [2], and [4] at the same time
■Pushing [1], [2], [3], and [4] at the same time
The following are valid passwords. The numbers
within braces ({ }) are button strokes using more
than one button.
■{[2]+[3]}, [1], [enter]
■[4], [enter]
■{[1]+[3]}, {[2]+[3]+[4]}, [1], [4], [2], [enter]
Setting Passwords
When shipped from the factory, no passwords are set.
You have a choice of having no password or setting a
supervisor and user password. You must set the super-
visor password before the user password.
Setting Supervisor Password
You must have set a supervisor password before setting
any user passwords. The supervisor password can bypass
the user password. Depending upon your operating
system, use the appropriate procedure below.
Windows XP:
1. Go to the Start menu.
2. Click on Run.
1 2 3 4 Enter
Enter button
Button 1
Button 2
Button 3
Button 4
The purpose of supervisor password is to
be able to bypass the user password in
case the user password is forgotten. The
supervisor password alone will not lock the
system.
You must set both the supervisor and user
passwords for the security panel to work.
Eagle E8310.book Page 20 Tuesday, May 8, 2007 11:40 AM
21
Getting to Know Your LifeBook
3. Type in:
C:\Program Files\Fujitsu\Security Panel Applica-
tion\Supervisor\FJSECS.EXE, then press [Enter]
4. Follow the on-screen instructions to set the Super-
visor password.
Windows Vista:
1. Go to the Start menu.
2. Select All Programs.
3. Select Accessories, then select Run.
4. Type in:
C:\Program Files\Fujitsu\Security Panel Applica-
tion\Supervisor\FJSECS.EXE, then press [Enter]
5. Follow the on-screen instructions to set the Super-
visor password.
Setting User Password
Windows XP:
1. Go to the Start menu.
2. Click on Programs.
3. Click on Security Panel Application and Set User
Password.
4. Follow the on-screen instructions to set the user
password
Windows Vista:
1. Go to the Start menu.
2. Select All Programs.
3. Select Security Panel Application and Set User Pass-
word.
4. Follow instructions to set the user password.
OPERATING YOUR LIFEBOOK
SECURITY/APPLICATION PANEL
The security lock feature is in effect both when the
system resumes from Off or suspend state. You will need
to enter the user password right after pressing the
Suspend/Resume button. Your system will not boot or
resume from Standby without entering your supervisor/
user password.
From Off State
1. Turn on your system.
2. When the Security Indicator flashes, enter the pass-
word and press [Enter] button.
For example, if the password is 22222, press button
number [2] five times and press [Enter] button.
The notebook will boot to normal operation.
From Standby State
1. Press your Power/Suspend/Resume button.
2. When the Security Indicator flashes, enter the pass-
word and press [Enter] button.
3. The notebook should resume normal operation.
Incorrect Password Entry
If an invalid supervisor or user password is entered three
times in succession, the system will “beep” for about one
minute. If a valid password is entered within a minute
(while system beeps), the beeping will stop and the note-
book will resume normal operation. If no password (or
an invalid one) is entered while the system beeps, the
system will return to its previous locked state (Standby
or off) and the Security Indicator will go off. To reacti-
vate the notebook after a password failure, you must
press the Power/Suspend/Resume button, then enter a
correct password.
PRECAUTIONS
Opening and Closing the Cover
Closing the cover automatically places the notebook into
standby mode. Opening the cover does not automati-
cally place the notebook into normal operation. Instead,
you must enter the proper security password after
pushing the Power/Suspend/Resume button. This
setting can be changed in the Power Options Control
Panel.
Low Battery Operations
If your LifeBook notebook has a low battery, pushing the
Power/Suspend/Resume button only turns on the Secu-
rity Indicator, your notebook does not unlock. The
Security Indicator turns off after one minute. To resume
normal operation, first attach a power supply to the
notebook. Then you may unlock the notebook.
UNINSTALLING THE SECURITY
PANEL APPLICATION
You have two options when uninstalling the security
panel application:
■Uninstall the security panel application software.
This will disable all security features.
■Uninstall the security panel application with password
still active. This will not allow any changes to the
password.
Uninstalling the Security Panel Application
Remove passwords when User wants no password
protection whatsoever and doesn’t want to give anybody
You may change or remove the supervisor
or user password by repeating the steps
defined above.
Remember the user password you
specified on the Security Panel Application.
If you forget the password you will not be
able to use your computer. The supervisor
password can override the user password.
Eagle E8310.book Page 21 Tuesday, May 8, 2007 11:40 AM
22
LifeBook E8000 Notebook
the utility to set a password on their computer. In this
case, if passwords (supervisor, user, or both) are set, the
passwords must first be cleared BEFORE removing the
application. To clear passwords, follow same procedure
in “Setting Passwords” except this time, select [Remove],
enter current password then click [Next]. When asked to
confirm, select [Yes].
Removing Security Panel Application with
Passwords Still Active
Using this feature will not allow any changes to the
password.
User:
1. Go to Start Menu, Click on Control Panel.
2. Open Add or Remove Programs (In Vista: Programs
and Features) in the Control Panel.
3. Select the Security Panel Application (In Vista:
Security Panel) in the list, and click Add/Remove.
4. When the Confirm File Deletion box appears, click
Ye s .
Supervisor:
1. Go to Start Menu, Click on Control Panel.
2. Open Add or Remove Programs (In Vista: Programs
and Features) in the Control Panel.
3. Select the Security Panel Application for Supervisor
(In Vista: Security Panel for Supervisor) in the list,
and click Add/Remove (In Vista: Uninstall).
4. When the Confirm File Deletion box appears, click
Ye s .
Reinstalling the Security/Application Panel
To reinstall supervisor or user security application, you
will need your Drivers and Applications CD. The Utili-
ties/Security Application Panel folder contains two
separate folders: Supervisor and User. The setup files for
supervisor and user security applications are contained
in those folders.
1. Go to the Utilities/Security Application Pane/
Supervisor folder on the CD and double-click the
setupS.exe file. (In Vista, the path is: Utilities/SAP/
Vista/Supervisor/SetupS.exe). The Installing Secu-
rity Panel Application window will appear. Follow
the instructions on the screen.
2. Go to the Utilities/Security Application Panel/User
folder on the CD and double-click the setup.exe
file.(In Vista, the path is: Utilities/SAP/Vista/
Setup.exe) The Installing Security Panel Application
window will appear. Follow the instructions on the
screen.
Supervisor and user passwords can be set via Windows
software using the FJSECS.exe and FJSECU.exe files,
respectively. FJSECU.exe for the user password cannot
run without first setting a supervisor password. You
need to run FJSECS.exe first to set the supervisor pass-
word. Follow instructions under Setting Passwords on
page 20.
If you forget both passwords, contact Fujitsu Computer
Systems Corporation Service and Support at 1-800-
8FUJITSU (1-800-838-5487). Fujitsu Computer Systems
Corporation charges a service fee for unlocking a pass-
word restricted LifeBook notebook. When calling please
have a valid credit card and provide proof of ownership.
You will then be given instructions on where to ship
your notebook.
LAUNCHING APPLICATIONS WITH
THE SECURITY/APPLICATION PANEL
When you start Windows, the LifeBook Application
Panel is automatically activated. As an application
launcher, the LifeBook Application Panel is very flexible,
giving you a variety of options. To set up the Panel to
best suit your needs, we have provided the Application
Panel Setup utility that quickly and easily helps you
make the most of this valuable feature.
Configuring your LifeBook Application Panel
When you start Windows, the LifeBook Application
Panel is automatically activated. An icon resembling a
finger pressing a button will appear on the system tray
(the indented portion of the status bar where the clock is
displayed). When you see this icon you will know that
LifeBook Application Panel is active.
As an application launcher, the LifeBook Application
Panel is very flexible, giving you a variety of options. To
set up the Panel to best suit your needs, we have
provided the Application Panel Setup utility that quickly
and easily helps you make the most of this valuable
feature.
To configure your LifeBook Application Panel with
Application Panel Setup:
1. Click on [Start].
2. Click on Programs.
3. Click on LifeBook Application Panel.
4. Click on Application Panel Setup. The Application
Panel Setup utility will appear. There are tabs that
correspond to the application buttons on the Life-
Book Application Panel. When you receive your
notebook, these buttons are pre-configured to
launch specific programs, as referenced in the speci-
fications section of this document.
Removing the applications does not
remove the password. It simply removes
the utility to change/add/remove
passwords. To change your password you
must reinstall the application.
Eagle E8310.book Page 22 Tuesday, May 8, 2007 11:40 AM
23
Getting to Know Your LifeBook
To change an application associated with the Application
buttons, click on the tab for the button you would like to
reconfigure – for example, Application A. Click on
Browse from Start Menu, scroll down the list of applica-
tions, click on the application you wish to launch with
this button, and then click OK. The button will now
launch the new application.
The Internet tab is different. It comes set to launch your
Windows default Internet browser (Internet Explorer),
unless you have changed this in Windows. In order to
reconfigure it to launch another program follow these
easy steps:
1. Click on Other from the Internet browser box.
2. Click on Browse from Start Menu.
3. Scroll down the list of applications, and then click
on the application you wish to launch with this
button.
4. Click OK.
The button will now launch the new application. If you
want to return to launching your Windows default
Internet browser with this button, you need only click
on “Default Internet Browser” from the Internet browser
box. Be aware that you will erase the settings for the
“other application”. If you wish to go back to launching
the “other application” from this button, you will need
to reconfigure it as described above.
When you have finished with Application Panel Setup
click OK, and the new settings will take effect. You can
reconfigure your LifeBook Application Panel as often as
you like.
Deactivating and Activating the LifeBook
Application Panel
To deactivate the LifeBook Application Panel, follow
these easy steps:
1. Click on Start.
2. Click on Programs.
3. Click on LifeBook Application Panel.
4. Click on Stop Application Panel.
To reactivate, follow the same procedure, except for step
4. Click on Activate Panel instead.
The tabs in Application Panel Setup may
not be in the same order as the buttons on
your LifeBook notebook, please select the
tab you wish to change carefully.
If your system has dedicated one of the
application launcher buttons to be an
Internet launcher, the button can still be
configured to launch any application you
wish, not just an Internet browser.
Every time you start Windows the
LifeBook Application Panel is activated,
even if you deactivated it before you shut
down.
Eagle E8310.book Page 23 Tuesday, May 8, 2007 11:40 AM
24
LifeBook E8000 Notebook
Eagle E8310.book Page 24 Tuesday, May 8, 2007 11:40 AM
25
3
Getting Started
Eagle E8310.book Page 25 Tuesday, May 8, 2007 11:40 AM
26
LifeBook E8000 Notebook
Eagle E8310.book Page 26 Tuesday, May 8, 2007 11:40 AM
27
Getting Started
Figure 3-1 Connecting the AC Adapter
Power Sources
Your Fujitsu LifeBook notebook has three possible
power sources: a primary Lithium ion battery, an AC
adapter or an optional Auto/Airline adapter.
CONNECTING THE POWER ADAPTERS
The AC adapter or optional Auto/Airline adapter
provides power for operating your notebook and
charging the batteries.
Connecting the AC Adapter
1. Plug the DC output cable into the DC power jack
of your LifeBook notebook.
2. Plug the AC adapter into an AC electrical outlet.
(Figure 3-1)
Connecting the Optional Auto/Airline Adapter
1. Plug the DC output cable into the DC power jack
on your notebook.
2. Plug the Auto/Airline adapter into the cigarette
lighter of an automobile with the ignition key in
the On or Accessories position.
OR
3. Plug the Auto/Airline adapter into the DC power
jack on an airplane seat.
Switching from AC Adapter Power or the
Auto/Airline Adapter to Battery Power
1. Be sure that you have at least one charged
battery installed.
2. Remove the AC adapter or the Auto/Airline adapter.
DC Power Jack
AC Adapter
The Lithium ion battery is not charged
upon purchase. Initially, you will need to
connect either the AC adapter or the
Auto/Airline adapter to use your
notebook.
Eagle E8310.book Page 27 Tuesday, May 8, 2007 11:40 AM
28
LifeBook E8000 Notebook
Figure 3-2 Opening the Display Panel
Display Panel
Your Fujitsu LifeBook notebook contains a display panel
that is backlit for easier viewing in bright environments
and maintains top resolution through the use of active-
matrix technology.
OPENING THE DISPLAY PANEL
1. Press the Display Panel latch in. This releases the
locking mechanism, allowing you to raise the
display.
2. Lift the display backwards, being careful not to
touch the screen, until it is at a comfortable
viewing angle. (Figure 3-2)
ADJUSTING DISPLAY PANEL BRIGHTNESS
Once you have turned on your LifeBook notebook, you
may want to adjust the brightness level of the screen to a
more comfortable viewing level. There are two ways to
adjust the brightness, by using the keyboard or the
power management utility.
Using the Keyboard
Adjusting the brightness using the keyboard changes the
setting only temporarily.
■[Fn+F6]: Pressing repeatedly will lower the brightness
of your display.
■[Fn+F7]: Pressing repeatedly will increase the
brightness of the display.
CLOSING THE DISPLAY PANEL
1. Holding the edge of your display panel, pull it
forward until it is flush with the body of your Life-
Book notebook.
2. Push down until you hear a click. This will engage
the locking mechanism and prevent your display
panel from opening unexpectedly.
Display Panel Latch
■When using AC power your brightness
setting is set to its highest level by
default. When using battery power your
brightness setting is set to approximately
mid-level by default.
■The higher the brightness level, the
more power the notebook will consume
and the faster your batteries will dis-
charge. For maximum battery life, make
sure that the brightness is set as low as
possible.
Eagle E8310.book Page 28 Tuesday, May 8, 2007 11:40 AM
29
Getting Started
Starting Your
LifeBook Notebook
POWER ON
Power/Suspend/Resume Button
The Power/Suspend/Resume button is used to turn on
your LifeBook notebook from its off state. Once you
have connected your AC adapter or charged the internal
Lithium ion battery, you can power on your LifeBook
notebook.
To turn on your LifeBook notebook from its off state,
press the Power/Suspend/Resume button, located above
the keyboard to the right. When you are done working
you can either leave your notebook in Standby mode,
(See Standby Mode on page 32 for more information), or
you can turn it off (See Powering Off on page 33 for more
information)
When you power on your LifeBook, it will perform a
Power On Self Test (POST) to check the internal parts
and configuration for correct functionality. If a fault is
found, your LifeBook notebook will emit an audio
warning and/or an error message will be displayed. (See
Power On Self Test Messages on page 59 for more informa-
tion) Depending on the nature of the problem, you may
be able to continue by starting the operating system or
by entering the BIOS setup utility and revising the
settings.
After satisfactory completion of the POST, your note-
book will load your operating system.
BOOT SEQUENCE
The procedure for starting-up your notebook is termed
the Bootup sequence and involves your notebook’s
BIOS. When your LifeBook notebook is first turned on,
the main system memory is empty, and it needs to find
instructions to start up your notebook. This information
is in the BIOS program. Each time you power up or
restart your notebook, it goes through a boot sequence
which displays a Fujitsu logo until your operating system
is loaded. During booting, your notebook is performing
a standard boot sequence including a Power On Self Test
(POST). When the boot sequence is completed without
a failure and without a request for the BIOS Setup
Utility, the system displays the operating system’s
opening screen.
The boot sequence is executed when:
■You turn on the power to your LifeBook notebook.
■You restart your notebook from the Windows Shut
Down dialog box.
■The software initiates a system restart.
Example: When you install a new application.
HARD DISK DRIVE PASSWORDS
To provide additional security for your data, you can
assign passwords to your hard disk drive(s). This feature
is managed in the system BIOS Setup Utility. See BIOS
Setup Utility below for information about accessing the
utility.
BIOS SETUP UTILITY
The BIOS Setup Utility is a program that sets up the
operating environment for your LifeBook notebook.
Your BIOS is set at the factory for normal operating
conditions, therefore there is no need to set or change
the BIOS’ environment to operate your notebook.
The BIOS Setup Utility configures:
■Device control feature parameters, such as changing
I/O addresses and boot devices.
■System Data Security feature parameters, such as
passwords.
Entering the BIOS Setup Utility
To enter the BIOS Setup Utility do the following (or use
the TrustedCore Menu, as detailed in the next section):
1. Turn on or restart your LifeBook notebook.
When you turn on your LifeBook
notebook be sure you have a power
source. This means that at least one
battery is installed and charged, or that the
AC or Auto/Airline adapter is connected
and has power.
Do not carry your LifeBook notebook
around with the power on or subject it to
shocks or vibration, as you risk damaging
your notebook.
Never turn off your LifeBook notebook
during the Power On Self Test (POST) or it
will cause an error message to be displayed
when you turn your LifeBook notebook on
the next time. (See Power On Self Test
Messages on page 59 for more
information)
Remember your passwords. If you set and
forget your User and Master hard disk
passwords, Fujitsu Computer Systems
Corporation will not be able to reset it. You
may lose data and have to replace your
system board or hard disk drive.
Eagle E8310.book Page 29 Tuesday, May 8, 2007 11:40 AM
30
LifeBook E8000 Notebook
2. To enter the BIOS Setup Utility, press the [F2] key
once the Fujitsu logo appears on the screen. This will
open the main menu of the BIOS Setup Utility with
the current settings displayed.
3. Press the [RIGHT ARROW] or [LEFT ARROW] key
to scroll through the other setup menus to review or
alter the current settings.
Using the TrustedCore Menu
When the Fujitsu logo appears on the screen. press the
[Enter] key or click on the left mouse or touchpad
button; the TrustedCore Menu will appear.
The TrustedCore Menu provides shortcuts to the
following menus and information screens:
■BIOS Setup
■Diagnostic Screen
■Boot Menu
■Patent Information
■System Information
■Continue Booting
Clicking on any of the fields will invoke the screen,
information, or action described.
The Boot Menu can also be invoked by pressing the
[F12] key when the Fujitsu logo appears on the screen.
BIOS Guide
A guide to your notebook’s BIOS is available online.
Please visit our service and support website at http://
www.computers.us.fujitsu.com/support, then select
Users Guides under Online Support. Select your
product, series, and model, then press [Go].
BOOTING THE SYSTEM
We strongly recommend that you not attach any external
devices and do not put a DVD/CD in your drive until
you have gone through the initial power on sequence.
When you turn on your notebook for the first time, it
will display a Fujitsu logo on the screen. If you do
nothing the system will load the operating system, and
then the Windows Welcome will begin.
Depending upon your operating system (Windows Vista
or XP edition), there is a different procedure for starting
your system for the first time, as outlined below.
STARTING WINDOWS VISTA THE FIRST TIME
In order to ensure that you receive the most benefits
from the Windows Vista operating system, it should be
registered the first time you use it.
1. First of all, you will need to read and accept the End
User License Agreements (EULAs).
2. You will be prompted to enter your User Name and
Password and you will be given a chance to select an
icon for your account.
3. The next screen asks for a Computer Name and
allows you to choose a desktop background.
4. You will next see a "Help protect Windows automat-
ically" screen in which the default choice is "Use
recommended settings”. The other two choices are
"Install important updates only" and "Ask me later".
Select from the three choices.
5. On the next screen set your time and date settings.
6. You will next see the "Select your computer's current
location" screen. Make your selection from Home,
Work (Default), and Public location.
7. The "Thank you" screen follows and an offer for free
Norton Internet Security is extended. Following are
several screens while Windows checks the system
performance.
8. Windows will then boot up for the first time. As
noted above, the first time you initialize your
Windows Vista system, the screen will be blank for
approximately two minutes. This is normal. During
this period, do not disconnect the power supply,
The bottom of this notebook computer
can become hot when used for long
periods of time. When using the
notebook, take caution to limit long term
or continuous use while resting it on
exposed skin, such as the lap.
The first time you initialize your Windows
Vista system, the screen will be blank for
approximately two minutes. This is
normal. After initialization, a “Set Up
Windows” dialog box will appear.
Important: During the setup procedure, do
not disconnect the power supply, press any
buttons, or use any peripheral devices such
as a mouse, keyboard, or remote control.
■If you reject the terms of the license
agreement you will be asked to review
the license agreement for information
on returning Windows or to shut down
your LifeBook notebook.
■You cannot use your notebook until you
have accepted the License Agreement. If
you stop the process your notebook will
return to the beginning of the Windows
Welcome Process, even if you shut your
notebook down and start it up again.
Eagle E8310.book Page 30 Tuesday, May 8, 2007 11:40 AM
31
Getting Started
press any buttons, or use any peripheral devices such
as mouse, keyboard, or remote control.
Registering Windows Vista with Microsoft
1. After Windows has booted up for the first time, the
Control Panel Welcome Center will appear. If the
Register Windows Online icon is not seen in the
window, click on “Show all 14 items”.
2. Click on Register Windows Online and follow the
instructions that appear to register your copy of
Windows.
STARTING WINDOWS XP THE FIRST TIME
Registering Windows XP with Microsoft
In order to ensure that you receive the most benefits
from the Windows operating system, it should be
registered the first time you use it.
After you receive the Windows Welcome screen, you will
be prompted to enter registration information in the
following order.
First of all, you will need to read and accept the End User
License Agreements (EULAs). After accepting the
EULAs, you will be asked if you want to enable the Auto-
matic Updates feature. Acceptance of this feature is
recommended because it allows your system to be
updated automatically whenever an important change
becomes available for your notebook.
Several additional windows will appear, prompting you
to enter a name and description for your computer, an
Administrator password, and a domain name. Read the
instructions on the screens carefully and fill in the infor-
mation as directed.
You will then be automatically connected to the Internet,
if you have an appropriate connection available. If an
automatic connection is not possible, you will be asked
about how you dial out from where you will be using
your LifeBook notebook. If you are not connected to a
phone line and plan to register at a later time, you may
click the Skip button.
Once you are connected to the Internet, you will be
asked if you wish to continue with the registration. If
you select Ye s you will then enter your name and
address, and email address if desired. Click Next to
complete registration.
REGISTERING YOUR LIFEBOOK NOTEBOOK
You can register your LifeBook by going to our website
at: us.fujitsu.com/computers
You will need to be set up with an Internet Service
Provider (ISP) to register online.
INSTALLING CLICK ME!
Windows Vista Systems
The first time you boot up your system, you will see a
“Primary Settings for the PC” window. This window
explains the installations which will be performed by the
Click Me! utility. If you click [Execute], Click Me! will
begin installing. If after clicking the button you receive a
“User Account Control” window, you will be asked for
your permission to continue. Click [Yes] to continue. If
you cancel the operation, the Click Me! icon will appear
on your desktop for later installation.
Windows XP Systems
The first time you boot up your system, you will see an
icon called Click Me! in the Start menu. We hig hly
recommend that you install the ClickMe! utility the first
time you boot up. When you click the Click Me! icon,
your system will automatically create the related icons in
the system tray in the bottom right of the screen. These
icons provide links to utilities that you will frequently
access, such as wireless LAN software provided by the
wireless LAN manufacturer.
FUJITSU DRIVER UPDATE UTILITY
Your system has a convenient tool called the Fujitsu
Driver Update (FDU) utility. With FDU, you can choose
to automatically or manually go to the Fujitsu site to
check for new updates for your system. For more infor-
mation about the FDU utility, refer to “Automatically
Downloading Driver Updates” on page 83.
■If you reject the terms of the license
agreement you will be asked to review
the license agreement for information
on returning Windows or to shut down
your LifeBook notebook.
■You cannot use your notebook until you
have accepted the License Agreement. If
you stop the process your notebook will
return to the beginning of the Windows
Welcome Process, even if you shut your
notebook down and start it up again.
Before installing the ClickMe! utility, be
sure the wireless LAN switch is turned on.
There may be additional third-party
applications that are installed by the
ClickMe! utility. For more information,
refer to your Getting Started Guide.
Eagle E8310.book Page 31 Tuesday, May 8, 2007 11:40 AM
32
LifeBook E8000 Notebook
Power Management
Your Fujitsu LifeBook notebook has many options and
features for conserving battery power. Some of these
features are automatic and need no user intervention,
such as those for the internal modem. However, others
depend on the parameters you set to best suit your oper-
ating conditions, such as those for the display bright-
ness. Internal power management for your notebook
may be controlled from settings made in your operating
system, pre-bundled power management application, or
from settings made in BIOS setup utility.
Besides the options available for conserving battery
power, there are also some things that you can do to
prevent your battery from running down as quickly. For
example, you can create an appropriate power saving
profile, put your notebook into Standby mode when it is
not performing an operation, and you can limit the use
of high power devices. As with all mobile, battery
powered computers, there is a trade-off between perfor-
mance and power savings.
POWER/SUSPEND/RESUME BUTTON
When your notebook is active, the Power/Suspend/
Resume button can be used to manually put the note-
book into Standby mode. Push the Power/Suspend/
Resume button when the notebook is active, but not
actively accessing anything, and immediately release the
button. You will hear two short beeps and the system
will enter Standby mode.
If your notebook is suspended, pushing the Power/
Suspend/Resume button returns your notebook to active
operation. You can tell whether the system is suspended
by looking at the Power indicator. If the indicator is
visible and not flashing, your notebook is fully opera-
tional. If the indicator is visible and flashing, your note-
book is in Standby mode. If the indicator is not visible,
the power is off or your notebook is in Hibernation
mode. (See Hibernation Feature)
STANDBY MODE
Standby (or Suspend) mode in Windows saves the
contents of your system memory during periods of inac-
tivity by maintaining power to critical parts. This mode
turns off the CPU, display, hard drive, and all other
internal components except those necessary to maintain
system memory and for restarting.
■Your notebook can be put in Standby mode by:
■Pressing the Power/Suspend/Resume button when
your system is turned on.
■Selecting Standby from the Windows Shut Down
menu.
■Timing out from lack of activity.
■Allowing the battery to reach the Dead Battery Warn-
ing condition.
Your notebook’s system memory typically stores the file
on which you are working, open application informa-
tion, and any other data required to support operations
in progress. When you resume operation from Standby
mode, your notebook will return to the point where it
left off. You must use the Power/Suspend/Resume
button to resume operation, and there must be an
adequate power source available, or your notebook will
not resume.
HIBERNATION (SAVE-TO-DISK) FEATURE
The Hibernation feature saves your system’s memory
contents to the hard drive as a part of the Suspend/
Resume mode. You can enable or disable this feature.
■If you are running your notebook on
battery power, be aware that the battery
continues to discharge while your note-
book is in Suspend mode, though not as
fast as when fully operational.
■Disabling the Power/Suspend/Resume
button prevents it from being used to
put the notebook into Standby or Hiber-
nation (Save-to-Disk) mode. The button
resume function cannot be disabled.
■The Standby or Hibernation (Save-to-
Disk) mode should not be used with cer-
tain PC Cards. Check your PC Card doc-
umentation for more information. When
PC Cards or external devices are in use,
Hibernation (Save-to-Disk) mode cannot
return to the exact state prior to suspen-
sion, because all of the peripheral
devices will be re-initialized when the
system restarts.
■If your notebook is actively accessing
information when you enter the Standby
or Hibernation (Save-to-Disk) mode,
changes to open files are not lost. The
files are left open and memory is kept
active during Standby mode or the
memory is transferred to the internal
hard drive during Hibernation mode.
The main advantage of using
Hibernation (Save-to-Disk) is that
power is not required to maintain your
data. This is particularly important if you
will be leaving your notebook in a
suspended state for a prolonged period
of time. The drawback of using
Hibernation mode is that it lengthens
the power down and power up
sequences and resets peripheral devices.
Eagle E8310.book Page 32 Tuesday, May 8, 2007 11:40 AM
33
Getting Started
Enable or Disable the Hibernation Feature
Windows Vista:
The default settings are not enabled. To enable or disable
the Hibernation feature follow these steps:
1. From the Start menu, select Control Panel, then
select Power Options.
2. Select “Choose what the power button does” or
“Choose what closing the lid does”, then make your
selections (Do Nothing, Sleep, Hibernate, or Shut
Down).
Windows XP:
The default settings are not enabled. To enable or disable
the Hibernation feature follow these steps:
1. From the Start menu, select Settings, and then select
Control Panel.
2. From the Control Panel select Power Options.
3. Select the Hibernate tab. Select the box to enable or
disable this feature.
WINDOWS POWER MANAGEMENT
The Power Options icon located in the Windows
Control Panel allows you to configure some of the power
management settings. For example, you can use the
Power Options to set timeout values to turn off the
display and hard disks whether you are running the
notebook on battery power or on an adapter.
RESTARTING THE SYSTEM
If your system is on and you need to restart it, be sure
that you use the following procedure.
Windows Vista:
1. Click the Start button, and then move the mouse
over the right arrow.
2. Select Restart from the list.
Windows XP:
1. Click the Start button, and then click Shut Down.
2. Select the Restart option from within the Windows
Shut Down dialog box.
3. Click OK to restart your notebook. Your notebook
will shut down and then reboot.
POWERING OFF
Before turning off the power, check that the hard drive/
optical drive access indicator is off. If you turn off the
power while accessing a disk there is a risk of data loss.
To ensure that your notebook shuts down without error,
use the Windows shut down procedure.
Using the correct procedure to shut down from Windows
allows your notebook to complete its operations and turn
off power in the proper sequence to avoid errors. The
proper sequence is:
1. Click the [Start] button, and then click [Shut
Down].
2. Select the Shut Down option from within the
Windows Shut Down dialog box. (In Vista, select the
small arrow at the bottom right of the menu, then
select Shut Down.)
3. Click [OK] to shut down your notebook.
If you are going to store your notebook for a month or
more see Care and Maintenance Section.
Turning off your notebook without exiting
Windows, or turning it on within 10
seconds of being shut off may cause an
error when you start the next time.
Be sure to close all files, exit all applica-
tions, and shut down your operating
system prior to turning off the power. If
files are open when you turn the power
off, you will lose any changes that have
not been saved, and may cause disk errors.
Eagle E8310.book Page 33 Tuesday, May 8, 2007 11:40 AM
34
LifeBook E8000 Notebook
Eagle E8310.book Page 34 Tuesday, May 8, 2007 11:40 AM
35
4
User-Installable
Features
Eagle E8310.book Page 35 Tuesday, May 8, 2007 11:40 AM
36
LifeBook E8000 Notebook
Eagle E8310.book Page 36 Tuesday, May 8, 2007 11:40 AM
37
User Installable Features
Lithium ion Battery
Your LifeBook notebook has a Lithium ion battery that
provides power for operating your notebook when no
external power source is available. The battery is durable
and long lasting, but should not be exposed to extreme
temperatures, high voltages, chemicals or other hazards.
The Lithium ion battery operating time may become
shorter if it is used under the following conditions:
■When used at temperatures that exceeds a low of 5°C
or a high of 35°C. Extreme temperatures not only
reduce charging efficiency, but can also cause battery
deterioration. The Charging icon on the Status Indi-
cator panel will flash when you try to charge a battery
that is outside its operating temperature range.
(See Battery Charging Indicators on page 13 for more
information)
■When using a high current device such as a modem,
Multi-Format DVD Writer, CD-ROM drive, DVD/
CD-RW combo drive, or the hard drive, using the AC
adapter will conserve your battery life.
RECHARGING THE BATTERIES
If you want to know the condition of the primary
Lithium ion battery, check the Battery Level indicator
located on the Status Indicator panel. The indicator
changes as the battery level changes.
The Lithium ion battery is recharged internally using the
AC adapter or Auto/Airline adapter. To recharge the
battery make sure the battery that needs to be charged is
installed in your LifeBook notebook and connect the AC
or Auto/Airline adapter.
There is no memory effect on the Lithium ion battery
therefore you do not need to discharge the battery
completely before recharging. The charge times will be
significantly longer if your notebook is in use while the
battery is charging. If you want to charge the battery
more quickly, put your notebook into Suspend mode, or
turn it off while the adapter is charging the battery. (See
Power Management on page 32 for more information on
Standby mode and shutdown procedure)
Low Battery State
When the battery is running low, a low battery notifica-
tion message will appear. If you do not respond to the
low battery message, the batteries will continue to
discharge until they are too low to operate. When this
happens, your notebook will go into Standby mode.
There is no guarantee that your data will be saved once
the notebook reaches this point.
Do not leave a faulty battery in your
LifeBook notebook. It may damage your
AC adapter, optional Auto/Airline adapter,
another battery or your notebook itself. It
may also prevent operation of your
notebook by draining all available current
into the bad battery.
■Actual battery life will vary based on
screen brightness, applications,
features, power management settings,
battery condition and other customer
preferences. CD-ROM drive, Multi-
Format DVD Writer, DVD/CD-RW drive
combo, or hard drive usage may also
have a significant impact on battery life.
The battery charging capacity is reduced
as the battery ages. If your battery is
running low quickly, you should replace
it with a new one.
■Under federal, state, or local law it may
be illegal to dispose of batteries by put-
ting them in the trash. Please take care
of our environment and dispose of bat-
teries properly. Check with your local
government authority for details regard-
ing recycling or disposing of old batter-
ies. If you cannot find this information
elsewhere, contact your support repre-
sentative at 1-800-8FUJITSU (1-800-
838-5487)
Make sure that the Battery Charging
indicator and the percentage charge is
shown inside the Battery Level icon on the
Status Indicator Panel.
Using heavy current devices such as the
modem or frequent DVD/CD-RW/CD-
ROM accesses may prevent charging
completely.
■Once the low battery notification mes-
sage appears, you need to save all your
active data and put your LifeBook note-
book into Standby mode until you can
provide a new power source. You should
provide a charged battery, an AC power
adapter, or Auto/Airline adapter as soon
as possible.
■ When you are in Standby mode there
must always be at least one power
source active. If you remove all power
sources while your LifeBook notebook is
in Standby mode, any data that has not
been saved to the hard drive will be lost.
Eagle E8310.book Page 37 Tuesday, May 8, 2007 11:40 AM
38
LifeBook E8000 Notebook
Dead Battery Suspend mode shows on the Status indi-
cator just like the normal Standby mode. Once your
notebook goes into Dead Battery Suspend mode you will
be unable to resume operation until you provide a
source of power either from an adapter, or a charged
battery. Once you have provided power, you will need to
press the Power/Suspend/Resume button to resume
operation.
In the Dead Battery Suspend mode, your data can be
maintained for some time, but if a power source is not
provided promptly, the Power indicator will stop
flashing and go out, meaning that you have lost the data
that was not stored. Once you provide power, you can
continue to use your notebook while an adapter is
charging the battery.
Shorted Batteries
The Status Indicator panel uses a symbol inside the
battery outline of the Battery Level indicator to display
the operating level available in that battery. If this display
shows a Shorted Battery, it means the battery is damaged
and must be replaced so it does not damage other parts
of your LifeBook notebook.
REPLACING THE BATTERY
With the purchase of an additional battery, you can have
a fully charged spare to swap with one that is not
charged. There are two ways to swap batteries, cold-
swapping and hot-swapping:
Cold-swapping Batteries
To cold-swap batteries in your battery bay follow these
easy steps: (Figure 4-1)
1. Have a charged battery ready to install.
2. Shut down your notebook and disconnect the AC
adapter.
3. While pushing the battery lock away from the
battery pack, slide the battery release button towards
the battery lock. While holding the battery lock
button, lift the battery out of the bay using the
orange notch next to the battery release button.
4. Insert a new battery into the bay, and press it down
so that the latches click into place.
5. Plug in the AC adapter and turn the power on.
Hot-swapping Batteries
To hot-swap batteries in your battery bay follow these
easy steps: (Figure 4-1)
1. Plug an AC Adapter into the system and connect it
to a power outlet.

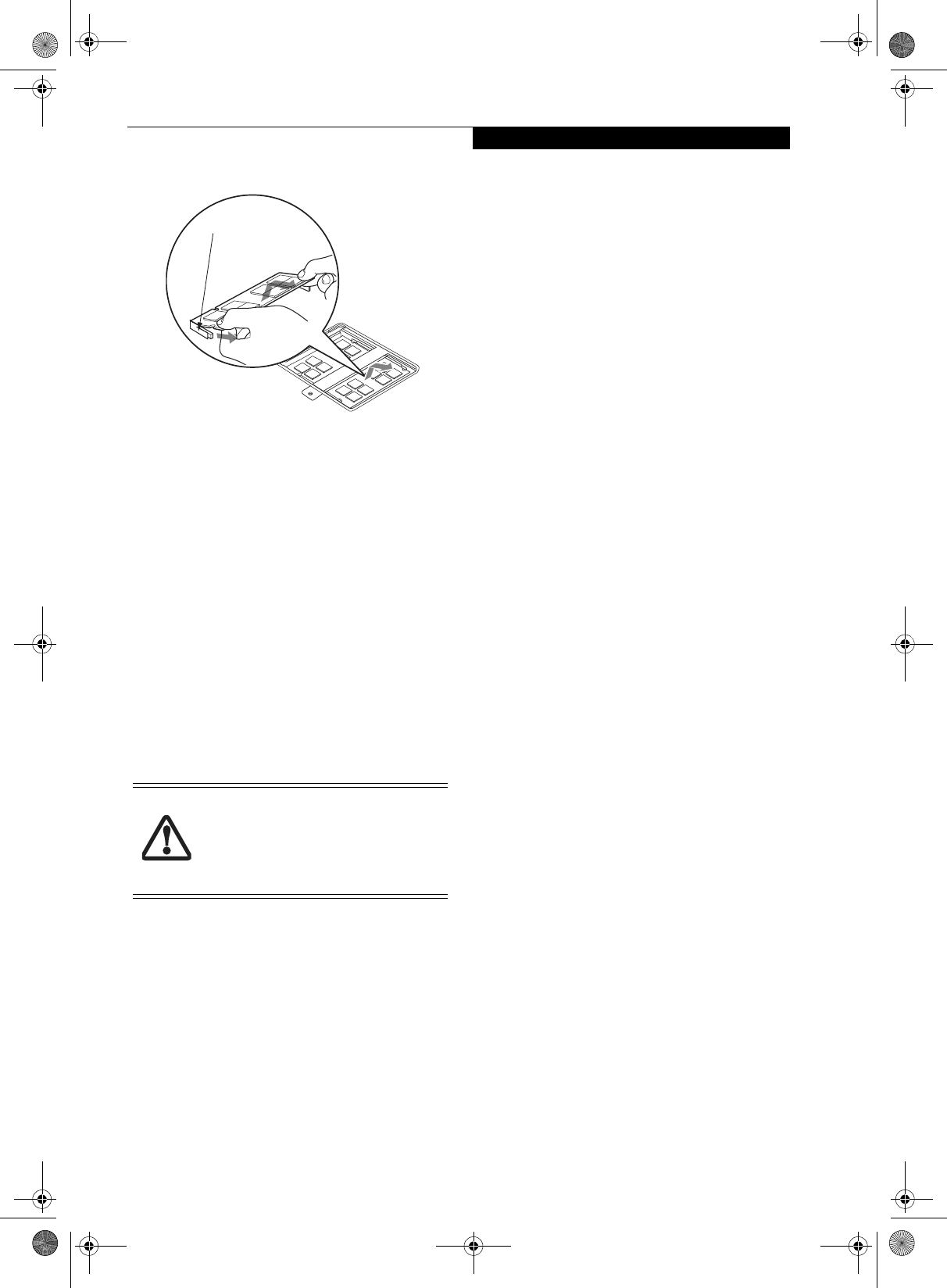

Figure 4-1. Removing a Battery
2. Follow steps 3 through 6 in “Cold Swapping
Batteries”.
Be sure to plug in an AC Adapter prior to
removing the battery. There is no bridge
battery present to support the system
while the battery is being replaced. If you
do not use an AC Adapter you will lose
any unsaved files.
If the Lithium ion battery connector is not
fully seated, you may not be able to use
your notebook or charge your battery.
12
3
Battery Pack Battery Release
Button
Battery Lock
Eagle E8310.book Page 38 Tuesday, May 8, 2007 11:40 AM
39
User Installable Features
Figure 4-2. Optical Drive
Optical Drive
There is a variety of media available to use with your
system, depending upon the system configuration you
have selected. Multi-Format DVD Writers, DVD/CD-
RW Combo drives, and DVD-ROM drives are collec-
tively known as “optical drives”.
DVD-R and DVD-RW discs hold up to 4.7 GB of data
(DVD-R discs used with Multi-Format Dual-Layer DVD
writer hold up to 8.5 GB). A DVD-R disc can only be
written to once; DVD-RW discs can be written to over
and over. DVD-R and DVD-RW discs can be played on
most standard players.
CD-R and CD-RW discs hold up to 640 MB of data. A
CD-R disc can only be written to once; CD-RW discs
can be written to over and over.
Depending upon your notebook configuration, you may
have one of the following optical drives:
■DVD/CD-RW combo: A DVD/CD-RW combo drive
allows you to access movie, software, data, or audio
DVD/CDs, and to write data onto recordable CD-R
and CD-RW discs.
■Dual-Layer Multi-Format DVD Writer: Allows you to
access movies, software, and audio DVD/CDs as well
as read and write to CD-R, CD-RW, DVD-R, DVD+R,
DVD-RW, DVD+RW, and DVD RAM discs. Dual-
layer architecture allows you to record up to 8.5 GB on
DVD+R discs.
■DVD-ROM: A DVD-ROM drive allows you to access
software, data, or audio from CDs or DVDs.
MEDIA PLAYER SOFTWARE
Dual-Layer Multi-Format DVD Writer model only: With
the Dual-Layer Multi-Format DVD Writer and media
player software you can play DVD movies and music
CDs on your LifeBook notebook. The media player
includes controls which allow you to take full advantage
of the features of a DVD movie, as well as standard
features such as fast forward, fast reverse, pause, etc.
With this drive you can also burn onto recordable DVD-
R/RW, DVD+R/RW, or CD-R/RW discs.
DVD/CD-RW Combo model only: With the combo drive,
you can play DVD movies, read audio CDs, and write
data onto recordable CD-R or CD-RW discs.
DVD-ROM model only: With the DVD-ROM drive, you
can read software, audio, or data from CD or DVD discs.
LOADING MEDIA ON YOUR DRIVE
To load a disc into your optical drive:
1. Push and release the eject button on the front of the
optical drive to open the holder tray. The tray will
come out of the LifeBook notebook a short distance.
2. Gently pull the tray out until a media disc can easily
be placed in the tray.
3. Place the media into the tray, label side up, with the
hole in the center of the disc. Snap the disc onto the
raised circle in the center of the tray.
4. Gently push the holder tray back in until you hear a
click. (Figure 4-3)
Media Holder Tray Media Tray Eject Button
Emergency Tray Release
Install your media player software before
first using the DVD, DVD/CD-RW, or CD-
ROM media drives. Refer to the applicable
readme file on the Driver Applications CD-
ROM.
■Do not operate your optical drive
unless your LifeBook notebook is
sitting on a flat surface. Using a drive
when the system is not level may
damage the drive or prevent proper
operation.
■Prolonged use of the optical drive,
such as watching a DVD movie, will
substantially reduce your battery life if
no other power source is attached.
Eagle E8310.book Page 39 Tuesday, May 8, 2007 11:40 AM
40
LifeBook E8000 Notebook

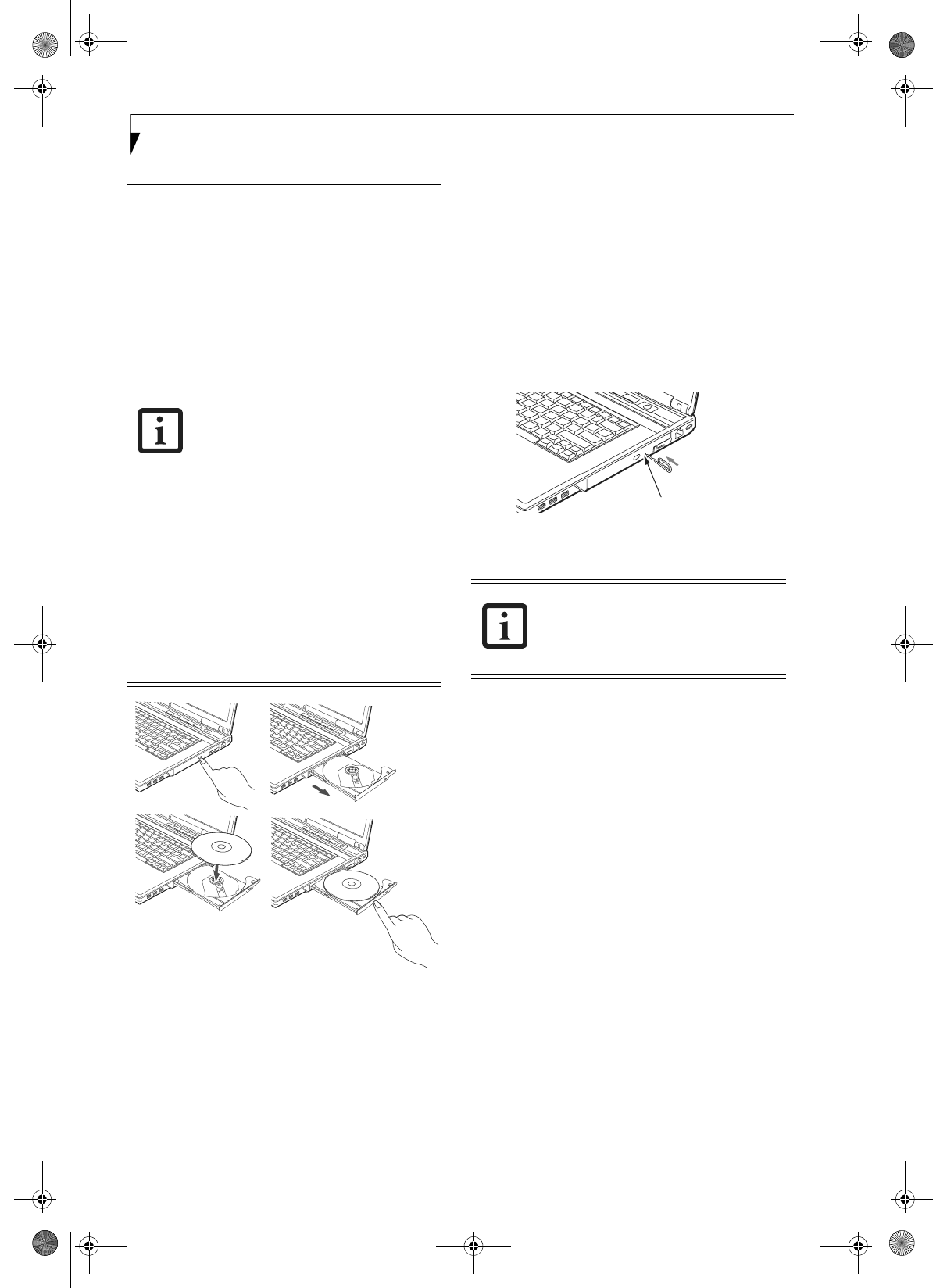

Figure 4-3. Loading/Ejecting Media
REMOVING MEDIA
1. Push and release the eject button on the front of
the optical drive. This will stop the drive and the
holder tray will come out of the LifeBook notebook
a short distance.
2. Gently pull the tray out until the disc can easily be
removed from the tray.
3. Carefully remove the media disc from the holder
tray.
4. Gently push the holder tray back in until you
hear a click.
EMERGENCY OPTICAL DRIVE TRAY RELEASE
If for some reason the eject button fails, you can open
the media tray with a paper clip or similar tool inserted
into the eject hole in the right side of the front of the tray
(Figure 4-4). Straighten one side of a paper clip and push
it gently into the hole. The tray will pop out.
Figure 4-4 Emergency Tray Release
USING THE MEDIA PLAYER SOFTWARE
Starting a DVD Movie (DVD Models only)
1. Insert the DVD into the optical drive of the notebook.
If the CD AutoRun feature activates, skip Step 2.
2. The first time you insert a movie into the DVD/CD-
RW tray, you will be prompted to select what you
want the system to do when discs are inserted (e.g.,
start automatically or wait for a prompt). Until you
make a selection, you will receive the same prompt
whenever you insert a disc.
3. Click OK to close the About DVD Player
Performance dialog box and the movie will begin.
Opening the Media Player Control Panel
With most DVD-ROMs, you have the option of altering
how the movie should play and what you wish to view.
You can do this by using the media player control panel
and the mouse.
1. Right-click on the movie screen to open a dropdown
menu for options.
■If you have disabled the Auto Insert
Notification Function, you will have to
start the drive from your desktop,
since your LifeBook notebook will not
automatically recognize that media
has been loaded.
■You should periodically check the
Fujitsu website at
us.fujitsu.com/computers for the most
current drivers.
■All LifeBook DVD players are set to
play DVD titles with region code
number 1 which is specified for the
North American market. The region
number is a regional restriction code
defined by the DVD Forum acting on
Hollywood requirements. Different
region codes are recorded on video
DVD titles for publication in different
areas of the world. If the regional code
of the DVD player does not match the
regional codes on the titles, then play-
back is impossible.
■You can change the region code on
the DVD player using the Properties
menu of the DVD software. Note,
however, that you can only change
the region code up to four times.
After the fourth change, the last
region code entered becomes perma-
nent, and cannot be changed.
Depending upon its configuration, your
system may not have the media player
software pre-installed. If it is not installed,
reference the documentation that
accompanies the media application.
Eagle E8310.book Page 40 Tuesday, May 8, 2007 11:40 AM
41
Memory Stick/SD Card
Figure 4-5. Inserting a Memory Stick/SD Card
Memory Stick/
Secure Digital Cards
Your LifeBook notebook supports Memory Sticks and
Secure Digital (SD) cards, on which you can store and
transfer data to and from a variety of digital devices.
These cards use flash memory architecture, which means
they don’t need a power source to retain data.
Memory Stick is a flash memory technology that allows
you to record, transfer and share digital content, such as
digital pictures, movies, music, voice, and computer data
and applications.
Secure Digital (SD) Cards are very similar to Memory
Sticks. Like Memory Sticks, SD Cards allow portable
storage among a variety of devices, such as cell phones,
GPS systems, digital cameras, and PDAs. SD Cards
transfer data quickly, with low battery consumption. Like
the memory stick, it uses flash memory architecture.
INSTALLING MEMORY STICK/SD CARDS
Memory Stick and SD Cards are inserted in the Memory
Stick/SD Card slot (Figure 4-5). To insert a Memory Stick
or SD Card, follow these steps:
1. See your specific card manual for instructions on the
insertion of your card. Some cards may require that
your notebook is off while inserting them.
2. Make sure there is no card currently in the slot. If
there is, see Removing a Memory Stick/SD Card.
3. Insert your card into the slot with the product label
facing up.
4. Push the card firmly into the slot until it is seated in
the connector.
REMOVING A MEMORY STICK/SD CARD
To remove a Memory Stick or SD Card, follow these easy
steps:
Push the Memory Stick or SD Card in until it unlatches.
It will then eject from the slot for removal.
Memory Stick
SD Card
■Installing or removing a Memory Stick or
SD Card during your LifeBook note-
book’s shutdown or bootup process may
damage the card and/or your LifeBook
notebook.
■Do not insert a card into a slot if there is
water or any other substance on the
card as you may permanently damage
the card, your LifeBook notebook, or
both.
See your card manual for specific
instructions on the removal of your card.
Some cards may require your LifeBook
notebook to be in Suspend Mode or Off
while removing them.
Eagle E8310.book Page 41 Tuesday, May 8, 2007 11:40 AM
42
LifeBook E8000 Notebook
Figure 4-6. Inserting/Removing PC Card
PC Cards/ExpressCards™
Your LifeBook notebook supports Type I and Type II PC
Cards and ExpressCardsTM, which can perform a variety
of functions depending on which type of card you insert.
You can insert one or two cards at a time, depending on
its type. PC Cards should be inserted in the bottom slot,
and ExpressCards in the top slot.
Some available PC/ExpressCards:
■Gigabit Ethernet Local area network (LAN) cards
■IEEE1394 cards
■S-ATA II cards
■IEEE802.11n WLAN cards
■Other PC Cards that conform to PCMCIA 2.1 or
CardBus standards
For further information, refer to the instructions
supplied with your card(s).
INSERTING PC CARDS
PC Cards are inserted in the PC Card slot (the lower of
the two slots). To insert a PC Card, follow these steps:
1. See your PC Card manual for instructions on the
insertion of your card. Some cards may require that
your notebook is off while inserting them.
2. Make sure there is no PC Card currently in the slot.
If there is, see Removing PC Cards.
3. If the eject button is extended, press it until it clicks.
4. Insert the card into the slot with the label facing up.
5. Push the card firmly into the slot until it is seated in
the connector.
REMOVING PC CARDS
See your PC Card manual for specific instructions on
removing your card. Some cards may require your note-
book to be in Suspend Mode or Off during removal.
1. Unlock the card from the slot by pressing the eject
button associated with the slot in which the card is
located. When pressed, the button will pop out.
2. Firmly press the button again until it is flush with
the notebook. This will eject the card slightly out of
the slot allowing you to remove the card.
Eject Buttons
PC Card Slot
ExpressCard Slot
(top slot only)
(bottom slot only)
■Inserting or removing a PC Card during
your LifeBook notebook’s shutdown or
bootup process may damage the card
and/or your LifeBook notebook.
■Do not insert a PC Card into a slot if
there is water or any other substance on
the card as you may permanently
damage the card, your LifeBook note-
book, or both.
You may be required to log on as an
Administrator or member of the Adminis-
trator’s Group to complete this procedure.
If the computer is connected to a network,
network policy settings may also prevent
you from completing this procedure.
■Windows has a shutdown procedure for
PC Cards that must be followed before
removing a card. (Review your operating
system manual for the correct proce-
dure.) It is good practice to remove
devices using the Safely Remove Hard-
ware icon in the system tray.
■If the dialog box states that the device
cannot be removed, you must save all of
your open files, close any open applica-
tions and shut down your notebook.
If the PC Card has an external connector
and cable, do not pull the cable when
removing the card.
Eagle E8310.book Page 42 Tuesday, May 8, 2007 11:40 AM
43
User Installable Features
INSERTING EXPRESSCARDS
There are two different width ExpressCards: 34 mm and
54 mm. The connector inside the slot is located on the
left-hand side of the slot. If you insert a 34 mm card, be
sure to align it with the left side of the slot when
inserting it.
ExpressCards are inserted in the ExpressCard slot (the
top slot). (Figure 4-7).
Figure 4-7. Inserting/Removing ExpressCards
See your ExpressCard manual for instructions on the
insertion of your card. Some cards may require that your
notebook is off while inserting them.
To insert an ExpressCard, follow these steps:
1. Make sure there is no ExpressCard currently in the
slot. If there is, see Removing ExpressCards.
2. If the eject button is extended, press it in until it
clicks.
3. Insert your ExpressCard into the slot with the
product label facing up. If you are inserting a 34 mm
card, be sure to align it with the left side of the slot
when inserting it.
4. Push the card firmly into the slot until it is seated in
the connector.
REMOVING EXPRESSCARDS
See your ExpressCard manual for specific instructions
on removing your card. Some cards may require your
notebook to be in Suspend Mode or Off during removal.
To remove an ExpressCard, follow these steps:
2. Unlock the card from the slot by pressing the eject
button associated with the slot in which the card is
located. When pressed, the button will pop out.
3. Firmly press the button again until it is flush with
the notebook. This will eject the card slightly out of
the slot allowing you to remove the card.
SMART CARD READER
A dedicated Smart Card Reader is provided on your
notebook (Figure 4-8). Smart Cards are the same size
and shape as credit cards, but they contain an integrated
microprocessor chip. The chip can hold a variety of
information, and provides you with many possible
options, such as allowing you to make secure purchases,
pay for phone calls, store security information, and
provide personal identification and information.
In order to use the Smart Card Reader, you must
purchase optional Smart Card third-party software.
Figure 4-8. Smart Card Slot
■Inserting or removing an ExpressCard
during your notebook’s shutdown or
bootup process may damage the card
and/or your notebook.
■Do not insert an ExpressCard into a slot
if there is water or any other substance
on the card as you may permanently
damage the card, your notebook, or
both.
You may be required to log on as Adminis-
trator or a member of the Administrator’s
Group to complete this procedure. If your
computer is connected to a network, net-
work policy settings may also prevent you
from completing this procedure.
54 mm ExpressCard
34 mm ExpressCard
ExpressCard Slot
(top slot)
■Windows has a shutdown procedure for
ExpressCards that must be followed
before removing a card. (Review your
operating system manual for the correct
procedure.) It is good practice to remove
devices using the Safely Remove Hard-
ware icon in the system tray.
■If the dialog box states that the device
cannot be removed, you must save all of
your open files, close any open applica-
tions and shut down your notebook.
Dedicated Smart Card slot
Eagle E8310.book Page 43 Tuesday, May 8, 2007 11:40 AM
44
LifeBook E8000 Notebook
Memory Upgrade Module
Your Fujitsu LifeBook notebook comes with a minimum
of 256 MB of high speed Double Data Rate Synchronous
Dynamic RAM (DDR2-667 SDRAM) factory installed. To
increase your notebook’s memory capacity, you may
install an additional memory upgrade module. The
memory upgrade must be a dual-in-line (DIMM)
SDRAM module. To ensure 100% compatibility,
purchase the SDRAM module only from the Fujitsu web
store at www.shopfujitsu.com.
INSTALLING MEMORY UPGRADE MODULES
1. Turn off power to your notebook, remove any power
adapter (AC or auto/airline). Remove the battery.
2. Make sure that all the connector covers are closed.
3. Turn the notebook bottom side up, and remove the
screw from the memory upgrade module compart-
ment.
4. Remove the cover.
5. Remove the memory upgrade module from the
static guarded sleeve.
6. Align the memory upgrade module with the part
side up. Align the connector edge of the memory
upgrade module with the connector slot in the
compartment.
Figure 4-9. Opening the Memory Upgrade Compartment
7. Insert the memory upgrade module at a 45° angle.
Press the connector edge of the module firmly down
and into the connector until it lodges under the
retaining clip. You’ll hear a click when it is properly
in place.
8. Replace the cover and reinstall the screws.
Figure 4-10. Installing a Second Memory Module
REMOVING A MEMORY UPGRADE MODULE
1. Perform steps 1 through 4 of Installing a Memory
Upgrade Module.
2. Pull the clips sideways away from each side of the
memory upgrade module at the same time.
3. While holding the clips out, remove the module
from the slot by lifting it up and pulling it away from
your notebook.
4. Store the memory upgrade module in a static
guarded sleeve.
5. Replace the cover and reinstall the screws.
■Do not remove any screws from the
memory upgrade module compartment
except the ones specifically shown in the
directions for installing and removing the
memory upgrade module.
■The memory upgrade module can be
severely damaged by electrostatic dis-
charge (ESD). To minimize risk to the
module, observe the following precau-
tions:
■Before handling a memory module,
touch a grounded metal object to
discharge static electricity built up in
your body.
■When installing or removing a
memory module, hold it by the edge
so as not to touch any contacts or
chips. Be careful not to touch any
internal computer terminals or
components; the oil from your
fingers could cause a short to the
components.
■Be sure to power down your system
before adding or removing memory
modules. Even if the system is in
hibernate or standby states, data
could be lost or the memory could be
damaged if power is still available to
the system.
The memory upgrade module is not
something you routinely remove from
your notebook. Once it is installed, you
can leave it in place unless you want to
change system memory capacity.
Retaining clips
Eagle E8310.book Page 44 Tuesday, May 8, 2007 11:40 AM
45
User Installable Features
Figure 4-11. Removing a Memory Upgrade Module
CHECKING THE MEMORY CAPACITY
Once you have changed the system memory capacity by
replacing the installed module with a larger one, be sure
to check that your notebook has recognized the change.
Windows XP: Check the memory capacity by clicking
[Start] -> Settings -> Control Panel, then double-
clicking the System icon. Select the General tab and
check the amount of memory under “Computer:”
Windows Vista: Check the memory capacity by clicking
[Start] -> Control Panel -> System and Maintenance ->
System. The amount of memory is displayed next to
“Memory - RAM:”
There may be a variation between the actual memory
size and what is displayed. This is possible if your system
is configured with an integrated Intel Graphics Media
Accelerator X3100 which dynamically allocates system
memory to accelerate graphics performance.
If the total memory displayed is incorrect,
check that your memory upgrade module
is properly installed. (If the module is prop-
erly installed and the capacity is still not
correctly recognized, see Troubleshooting
on page 51.
Memory Clip
Eagle E8310.book Page 45 Tuesday, May 8, 2007 11:40 AM
46
LifeBook E8000 Notebook
Device Ports
Your Fujitsu LifeBook notebook and the optional Port
Replicator come equipped with multiple ports to which
you can connect external devices including: disk drives,
keyboards, modems, printers, etc.
MODEM (RJ-11) TELEPHONE JACK
The modem (RJ-11) telephone jack is used for an
internal modem. To connect the telephone cable follow
these easy steps:
1. Align the connector with the port opening.
2. Push the connector into the port until it is seated.
3. Plug the other end of the telephone cable into a
telephone outlet. (Figure 4-12)
Figure 4-12. Connecting a Modem
The modem sound may initially be deactivated. To acti-
vate modem sound follow these easy steps.
Windows XP:
1. Right click on the Speaker icon in your system tray.
2. Select Open Volume.
3. Select Option/Properties.
4. Under “Show the following volume controls”, click
on Phone and click OK.
5. Uncheck the Mute box under Phone Balance.
Windows Vista:
1. Select [Start] -> Control Panel.
2. Select Classic View in the left pane.
3. Double-click Phone and Modems.
4. You may initially need to enter your area code in
order to open the Phone and Modem Options
window.
5. Select the Modems tab, and click the [Properties]
button.
6. Select the Modem tab and adjust the volume as
necessary
INTERNAL LAN (RJ-45) JACK
The internal LAN (RJ-45) jack is used for a Gigabit
(10Base-T/100Base-Tx/1000Base-T) Ethernet LAN
connection. You may need to configure your notebook
to work with your particular network. (Please refer to
your network administrator for information on your
network configuration.) To connect the LAN cable
follow these easy steps:
1. Align the connector with the port opening.
2. Push the connector into the port until it is
seated.(Figure 4-13)
3. Plug the other end of the cable into a LAN outlet.
Figure 4-13. Connecting the LAN
PARALLEL PORT
The parallel port, or LPT port, located on the system and
on the optional Port Replicator allows you to connect
parallel devices, such as a printer to your notebook. In
order to connect a parallel interface device follow these
easy steps:
The internal modem is not intended for
use with Digital PBX systems. Do not con-
nect the internal modem to a Digital PBX
as it may cause serious damage to the
internal modem or your entire LifeBook
notebook. Consult your PBX manufac-
turer’s documentation for details. Some
hotels have Digital PBX systems. Be sure to
find out BEFORE you connect your
modem.
■The internal modem is designed to the
ITU-T V.90 standard. Its maximum
speed of 53000bps is the highest
allowed by FCC, and its actual connec-
tion rate depends on the line conditions.
The maximum speed is 33600bps at
upload.
■The internal modem on all Fujitsu Life-
Book notebooks from Fujitsu are certi-
fied for use in the United States and
Canada. The modem may be certified in
other countries.
Eagle E8310.book Page 46 Tuesday, May 8, 2007 11:40 AM
47
User Installable Features
1. Align the connector with the port opening.
2. Push the connector into the port until it is
seated.(Figure 4-14)
3. Tighten the two hold-down screws, located on each
side of the connector.
Figure 4-14. Connecting a Parallel Device
SERIAL PORT
The serial port, or COM port, located on the system and
on the optional Port Replicator allows you to connect
serial devices, such as printers or scanners. In order to
connect a serial interface device follow these easy steps:
1. Open the plastic cover that is over the port, then
align the connector with the port opening.
2. Push the connector into the port until it is seated
(Figure 4-15).
3. Tighten the two hold-down screws, located on each
side of the connector.
Figure 4-15. Connecting a Serial Device
PORT REPLICATOR CONNECTOR
The port replicator connector is used for the connection
of your notebook to an optional port replicator. In order
to connect your notebook to this device, follow the
instructions that came with your port replicator. (See
Figure 2-7 on page 11 for location)
UNIVERSAL SERIAL BUS PORTS
The Universal Serial Bus 2.0 ports (USB) allow you to
connect USB devices such as external game pads,
pointing devices, keyboards and/or speakers. There are
four USB 2.0 ports on your notebook: one on the left
side and three on the right.
In order to connect a USB device follow these steps:
1. Align the connector with the port opening.(Figure 4-
16)
2. Push the connector into the port until it is seated.
Figure 4-16. Connecting a USB Device
INFRARED PORT
The Infrared IrDA (4Mbps) port allows for wireless data
transfer between your notebook and other IrDA-
compatible devices, such as another computer or a
printer, without the use of a cable. The infrared port is
located adjacent to the wireless LAN switch (See
Figure 2-3 on page 6 for location)
It is important to keep in mind that while carrying out
this form of communication, both devices must be
placed so their infrared ports are directly facing each
other without obstruction. The devices must also be
separated by at least 6" but no more than 36" for
maximum performance.
The following conditions may interfere with infrared
communications:
■A television, radio remote control unit, or a wireless
headphone is being used nearby.
■Direct sunlight, fluorescent light, or incandescent light
shines directly on the port.
HEADPHONE JACK
The headphone jack allows you to connect headphones
or powered external speakers to your notebook. Your
headphones or speakers must be equipped with a 1/8”
(3.5 mm) stereo mini-plug. In order to connect head-
phones or speakers follow these easy steps:
1. Align the connector with the port opening.
2. Push the connector into the port until it is seated.
Due to the ongoing changes in USB tech-
nology and standards, not all USB devices
and/or drivers are guaranteed to work.
■Do not move either device while com-
munication is active as it may interrupt
data transmission.
■Be careful not to scratch the infrared
port lens. Dirt, scratches, or other sur-
face marks can degrade operation.
Eagle E8310.book Page 47 Tuesday, May 8, 2007 11:40 AM
48
LifeBook E8000 Notebook
MICROPHONE JACK
The microphone jack allows you to connect an external
mono microphone. Your microphone must be equipped
with a 1/8”(3.5 mm) mono mini-plug in order to fit into
the microphone jack of your notebook. In order to
connect a microphone follow these easy steps:
1. Align the connector with the port opening.
2. Push the connector into the port until it is seated.
EXTERNAL VIDEO PORT
The external video port allows you to connect an external
monitor or LCD projector. In order to connect an
external video device, follow these easy steps: (See
Figure 2-4 on page 8 for location)
1. Open the plastic cover that is over the port, then
align the connector with the port opening.
2. Push the connector into the port until it is seated.
3. Tighten the two hold-down screws, located on
each end of the connector.
■Depending upon your system configura-
tion, the headphone jack may serve dif-
ferent purposes. On some
configurations, the jack serves as a ste-
reo headphone/Optical Digital Audio
Out jack. On other configurations, the
jack serves as a stereo headphone/Line-
Out/Optical Digital Audio Out jack.
■If you plug headphones into the head-
phone jack, built-in stereo speakers will
be disabled.
Depending upon your system
configuration, the microphone jack may
serve single or dual purposes. On some
configurations, the jack serves as a mono
microphone jack. On other configurations,
the jack serves as a stereo microphone/
Line-In jack.
Pressing the [Fn] + [F10] keys allows you
to change your selection of where to send
your display video. Each time you press the
key combination, you will step to the next
choice, starting with the built-in display
panel only, moving to both the built-in dis-
play panel and the external monitor, finally
moving to external monitor only.
Eagle E8310.book Page 48 Tuesday, May 8, 2007 11:40 AM
49
5
Troubleshooting
Eagle E8310.book Page 49 Tuesday, May 8, 2007 11:40 AM
50
LifeBook E8000 Notebook
Eagle E8310.book Page 50 Tuesday, May 8, 2007 11:40 AM
51
Troubleshooting
Troubleshooting
There may be occasions when you encounter simple
setup or operating problems that you can solve on the
spot, or problems with peripheral devices that can be
solved by replacing the device. The information in this
section helps you isolate and resolve some of these
straightforward issues and identify failures that require
service.
IDENTIFYING THE PROBLEM
If you encounter a problem, go through the following
procedure before pursuing complex troubleshooting:
1. Turn off your LifeBook notebook.
2. Make sure the AC adapter is plugged into your note-
book and to an active AC power source.
3. Make sure that any card inserted in the PC Card slot
is seated properly. You can also remove the card
from the slot, thus eliminating it as a possible cause
of failure.
4. Make sure that any devices connected to the external
connectors are plugged in properly. You can also
disconnect such devices, thus eliminating them as
possible causes of failure.
5. Turn on your notebook. Make sure it has been off at
least 10 seconds before you turn it back on.
6. Go through the boot sequence.
7. If the problem has not been resolved, refer to the
Troubleshooting Table, that follows, for more
detailed troubleshooting information.
8. If you have tried the solutions suggested in the Trou-
bleshooting Table without success, contact your
support representative:
Toll free: 1-800-8Fujitsu (1-800-838-5487)
E-mail: 8fujitsu@us.fujitsu.com
Website:
http://www.computers.us.fujitsu.com/support.
Before you place the call, you should have the following
information ready so that the customer support represen-
tative can provide you with the fastest possible solution:
■Product name
■Product configuration number
■Product serial number
■Purchase date
■Conditions under which the problem occurred
■Any error messages that have occurred
■Type of device connected, if any
See the Configuration Label on the bottom of your
notebook for configuration and serial numbers.
SPECIFIC PROBLEMS
Using the Troubleshooting Table
When you have problems with your LifeBook notebook,
try to find the symptoms under the Problem column of
the troubleshooting table for the feature giving you
difficulty. You will find a description of common causes
for that symptom under the column Possible Cause and
what, if anything, you can do to correct the condition
under Possible Solutions. All possible causes or solutions
may not apply to your notebook.
If you keep notes about what you have
tried, your support representative may be
able to help you more quickly by giving
additional suggestions over the phone.
Eagle E8310.book Page 51 Tuesday, May 8, 2007 11:40 AM
52
LifeBook E8000 Notebook
TROUBLESHOOTING TABLE
Problem Page
Audio Problems . . . . . . . . . . . . . . . . . . . . . . . . . . page 52
DVD/CD-ROM Drive Problems. . . . . . . . . . . . . page 52
Port Replicator Problems. . . . . . . . . . . . . . . . . . . page 53
Floppy Disk Drive Problems . . . . . . . . . . . . . . . . page 53
Hard Drive Problems . . . . . . . . . . . . . . . . . . . . . . page 53
Keyboard or Mouse Problems. . . . . . . . . . . . . . . page 53
Memory Problems . . . . . . . . . . . . . . . . . . . . . . . . page 54
Problem Page
Modem Problems. . . . . . . . . . . . . . . . . . . . . . . . . page 54
Parallel, Serial and USB Device Problems . . . . . page 54
PC Card Problems . . . . . . . . . . . . . . . . . . . . . . . . page 54
Power Failures . . . . . . . . . . . . . . . . . . . . . . . . . . . page 55
Shutdown and Startup Problems . . . . . . . . . . . . page 56
Video Problems . . . . . . . . . . . . . . . . . . . . . . . . . . page 57
Miscellaneous Problems . . . . . . . . . . . . . . . . . . . page 58
Problem Possible Cause Possible Solutions
Audio Problems
There is no sound coming
from the built-in speakers.
The volume is turned too low. Adjust the volume control on your notebook and
operating system.Use the [Fn+F9] key combination
on your LifeBook keyboard. Pressing [F9] repeat-
edly while holding [Fn] will increase the volume of
your notebook.
The software volume control is
set too low.
Manually adjusting the volume (i.e. keyboard "hot
keys") should dynamically adjust the volume of the
operating (see above). If that doesn’t work, adjust
the sound volume control settings in your software
or application.
Headphones are plugged into
your notebook.
Plugging in headphones disables the built-in
speakers, remove the headphones.
BIOS audio settings are
incorrect.
Set the BIOS setup utility to the default values within
the Multimedia Device Configuration menu. (See
BIOS Setup Utility on page 29 for more information)
Software driver is not
configured correctly.
The Audio Driver may be installed or reinstalled by
using the Drivers and Applications CD that came
with your Fujitsu LifeBook. Refer to your applica-
tion and operating system documentation for help.
The speakers have been muted
using the Volume icon in the
system tray.
Click on the Volume icon in the tool tray on the
bottom right of the screen. (It looks like a speaker).
If the Mute box is checked, click on it to uncheck it.
You can also use the [Fn+F3] key combination to
toggle the volume on and off.Pressing [F3] while
holding [Fn] will toggle the audio mute.
DVD/CD-RW/CD-ROM Drive Problems
LifeBook notebook fails to
recognize DVD/CD-RW/
CD-ROM’s.
The disc is not pushed down
onto raised center circle of the
drive.
Open the optical drive tray and re-install the disc
properly.
Optical drive tray is not
latched shut.
Push on the front of the optical drive tray until it
latches. If that doesn’t work, pull out the modular
drive latch to remove the device from the bay, then
re-insert the drive until it latched; this ensures that
the drive is properly seated.
Incorrect DVD Player or no
DVD Player software is
installed.
Install DVD Player software. (See “Media Player
Software” on page 39 for more information.)
Eagle E8310.book Page 52 Tuesday, May 8, 2007 11:40 AM
53
Troubleshooting
LifeBook notebook fails to
recognize DVD/CD-RW/
CD-ROM’s.
(continued)
Wrong drive designator was
used for the disc in the applica-
tion.
Verify the drive designator used by the application is
the same as the one used by the operating system.
When the operating system is booted from a DVD/
CD, drive designations are automatically adjusted.
Note that the drive designation can be changed with
the Disk Management tool located in the Control
Panel under Administrative Tools -> Computer
Management.
Disc is dirty or defective. Wipe the disc with a non-abrasive CD cleaning cloth
and reinsert. It if still will not work try another disc
in the drive.
The optical drive access
indicator on the Status
Indicator Panel blinks at
regular intervals when no
disc is in the tray or the
drive is not installed.
The Windows auto insertion
function is active and is
checking to see if a disc is ready
to run.
This is normal. However, you may disable this
feature.
Port Replicator Problems
Note: Be sure to power down your LifeBook notebook before adding a printer to the Port Replicator parallel port.
LifeBook notebook does
not turn on when installed
in the optional Port
Replicator
Port Replicator AC adapter is
not plugged in.
Provide power to the Port Replicator.
Notebook is not properly
seated in the Port Replicator.
Remove and re-dock your LifeBook notebook.
Floppy Disk Drive Problems
You cannot access your
optional external floppy
disk.
You tried to write to a write
protected floppy disk.
Eject the floppy disk and set it to write enable.
Floppy disk is not loaded
correctly.
Eject floppy disk, check orientation and re-insert.
The floppy disk drive may not
be properly installed.
Remove and re-install your floppy disk drive.
Security is set to protect access
to floppy disk data.
Verify your password and security settings.
Hard Drive Problems
You cannot access your
hard drive.
The wrong drive designator
was used by an application
when a bootable CD-ROM was
used to start the notebook.
Verify drive designator used by application is in
use by the operating system. When the operating
system is booted from a CD, drive designations
are automatically adjusted.
Security is set so your oper-
ating system cannot be started
without a password.
Verify your password and security settings.
Keyboard or Mouse Problems
The built-in keyboard does
not seem to work.
The notebook has gone into
Standby mode.
Push the Power/Suspend/Resume button.
Your application has locked
out your keyboard.
Try to use your integrated pointing device to restart
your system.
Problem Possible Cause Possible Solutions
Eagle E8310.book Page 53 Tuesday, May 8, 2007 11:40 AM
54
LifeBook E8000 Notebook
You have installed an
external keyboard or
mouse, and it does not
seem to work.
Your external device is not
properly installed.
Re-install your device. (See Device Ports on page 46
for more information)
Your operating system soft-
ware is not set up with correct
software driver for that device.
Check your device and operating system docu-
mentation and activate the proper driver.
You have connected an
external keyboard or a
mouse and it seems to be
locking up the system.
Your operating system soft-
ware is not setup with correct
software driver for that device.
Check your device and operating system
documentation and activate the proper driver.
Your system has crashed. Try to restart your notebook.
Memory Problems
Your Power On screen does
not show the correct
amount of installed
memory.
Your memory upgrade module
is not properly installed.
Remove and re-install your memory upgrade
module. (See Memory Upgrade Module on page 44
for more information)
You have a memory failure. Check for Power On Self Test (POST) messages.
(See Power On Self Test Messages on page 59 for more
information)
Modem Problems
Messages about modem
operation.
Messages about modem
operation are generated by
whichever modem application
is in use.
See your application software documentation for
additional information.
Parallel, Serial, and USB Device Problems
You have installed a parallel
port device, a serial port
device or a USB device.
Your LifeBook notebook
does not recognize the
device, or the device does
not seem to work properly.
The device is not properly
installed.
Remove and re-install the device. (See Device Ports
on page 46 for more information)
The device may have been
installed while an application
was running, so your notebook
is not aware of its installation.
Close the application and restart your notebook.
Your device may not have the
correct software driver active.
See your software documentation and activate the
correct driver.
You may have the wrong I/O
address selected for your
device.
See your device documentation and software docu-
mentation to determine the required I/O address.
Change the settings in the BIOS setup utility. (See
BIOS Setup Utility on page 29 for more information)
Your device and another device
are assigned the same I/O
address.
Check all I/O addresses located within the BIOS
setup utility and any other installed hardware or
software to make sure there are no duplications.
Parallel port is set to output
only.
Check parallel port setting in the BIOS and set to
bi-directional or ECP.
PC Card/ExpressCard Problems
A card inserted in the PC
Card or ExpressCard slot
does not work or is locking
up the system.
The card is not properly
installed.
Remove and re-install the card. (See PC Cards/
ExpressCards™ on page 42 for more information)
Problem Possible Cause Possible Solutions
Eagle E8310.book Page 54 Tuesday, May 8, 2007 11:40 AM
55
Troubleshooting
A card inserted in the PC
Card or ExpressCard slot
does not work or is locking
up the system.
(continued)
The card may have been
installed while an application
was running, so your notebook
is not aware of its installation.
Close the application and restart your notebook.
Your software may not have
the correct software driver
active.
See your software documentation and activate the
correct driver via the Device Manager
You may have the wrong I/O
address selected for your card
device.
See your PC Card/ExpressCard documentation to
determine the required I/O address. Change the
settings in the Device Manager.
Your card device and another
device are assigned the same
I/O address.
Check all I/O addresses located within the BIOS
setup utility and any other installed hardware or
software to make sure there are no duplications.
Power Failures
You turn on your
LifeBook notebook and
nothing seems to happen.
The installed primary battery
is completely discharged, there
is no optional second battery
installed or there is no Power
adapter (AC or Auto/Airline)
installed.
Check the Status Indicator Panel to determine the
presence and condition of the batteries. (See Status
Indicator Panel on page 12 for more information)
Install a charged battery or a Power adapter.
The primary battery is
installed but is faulty.
Use the Status Indicator panel to verify the presence
and condition of the batteries. (See Status Indicator
Panel on page 12 for more information) If a battery is
indicating a short, remove that battery and operate
from another power source or replace that battery.
The battery or batteries are low. Check the Status Indicator Panel to determine the
presence and condition of the batteries. (See Status
Indicator Panel on page 12 for more information) Use
a Power adapter to operate until a battery is charged
or install a charged battery.
The power adapter (AC or
auto/airline) is not plugged
in properly.
Verify that your adapter is connected correctly. (See
Power Sources on page 27 for more information)
The Power adapter (AC or
auto/airline) has no power
from the AC outlet, airplane
seat jack, or the car’s cigarette
lighter.
Move the AC cord to a different outlet, check for
a line switch or tripped circuit breaker for the AC
outlet. If you are using an auto/airline adapter in
a car make sure the ignition switch is in the On or
Accessories position.
The Power adapter (AC or
auto/airline) is faulty.
Try a different Power adapter or install a charged
optional second battery.
Your LifeBook notebook
turns off all by itself.
The power management
parameters are set for auto
timeouts which are too short
for your operating needs.
Press any button on the keyboard, or move the
mouse to restore operation. If that fails, push the
Power/Suspend/Resume button. Check your power
management settings, or close your applications and
go to the Power Options Properties located in the
Control Panel to adjust the timeout values to better
suit your needs.
Problem Possible Cause Possible Solutions
Eagle E8310.book Page 55 Tuesday, May 8, 2007 11:40 AM
56
LifeBook E8000 Notebook
Your LifeBook notebook
turns off all by itself.
(continued)
You are operating on battery
power and ignored a low batt-
ery alarm until the batteries are
at the dead battery state and
the system has gone into Dead
Battery Suspend mode.
Install a power adapter and then push the Power/
Suspend/Resume button. (See Power Sources on
page 27 for more information)
You have a battery failure. Verify the condition of the batteries using the
Status Indicator panel, and replace or remove
any batteries that are shorted. (See Status Indicator
Panel on page 12 for more information)
Your power adapter has failed
or lost its power source.
Make sure the adapter is plugged in and the outlet
has power.
Your LifeBook notebook
will not work on battery
alone.
The installed batteries
are dead.
Replace the battery with a charged one or install
a power adapter.
No batteries are installed. Install a charged battery.
The batteries are improperly
installed.
Verify that the batteries are properly connected
by re-installing them.
Your installed batteries
are faulty.
Verify the condition of the batteries using the Status
Indicator panel and replace or remove any batteries
that are shorted. (See Status Indicator Panel on
page 12 for more information)
The batteries seem to
discharge too quickly.
You are running an application
that uses a lot of power due to
frequent hard drive access or
optical drive access, or use of a
modem, LAN PC card, Wire-
less LAN, or Bluetooth device.
Use both the primary battery and an optional
second battery and/or use a power adapter for this
application when at all possible.
The power savings features
may be disabled.
Check the Power Options menu settings and adjust
according to your operating needs.
The brightness is turned all
the way up.
Turn down the brightness adjustment. The higher
the brightness the more power your display uses.
The batteries are very old. Replace the batteries.
The batteries have been
exposed to high temperatures.
Replace the batteries.
The batteries are too hot
or too cold.
Restore the notebook to normal operating tempera-
ture. Charging icon on the Status Indicator panel
will flash when battery is outside of operating range.
Shutdown and Startup Problems
The Suspend/Resume
button does not work.
Suspend/Resume button is
disabled.
In Windows XP, enable the button by going to the
Control Panel -> Power Options Properties and
clicking on the Advanced tab. In the Power buttons
area, select the option that best suits your needs. In
Windows Vista, select the Change what the power
button does” option.
There may be a conflict with
the software.
Close all applications and try the button again.
Problem Possible Cause Possible Solutions
Eagle E8310.book Page 56 Tuesday, May 8, 2007 11:40 AM
57
Troubleshooting
The system powers up, and
displays power on informa-
tion, but fails to load the
operating system.
The boot sequence settings
of the setup utility are not
compatible with your
configuration.
Set the operating source by pressing the [ESC] key
while the Fujitsu logo is on screen or use the [F2]
key and enter the setup utility and adjust the source
settings from the Boot menu. (See BIOS Setup
Utility on page 29 for more information)
You have a secured system
requiring a password to load
your operating system.
Make sure you have the right password. Enter the
setup utility and verify the Security settings and
modify them as accordingly. (See BIOS Setup Utility
on page 29 for more information)
Internal hard drive was
not detected.
Use the BIOS setup utility or Primary Master
submenu, located within the Main menu, to try to
auto detect the internal hard drive.
An error message is
displayed on the screen
during the notebook
(boot) sequence.
Power On Self Test (POST) has
detected a problem.
See the Power On Self Test (POST) messages to
determine the meaning and severity of the problem.
Not all messages are errors; some are simply status
indicators. (See Power On Self Test Messages on
page 59 for more information)
Your notebook appears to
change setup parameters
when you start it.
BIOS setup changes were not
saved when you made them
and exited the setup utility
returning it to earlier settings.
Make sure you select Save Changes And Exit when
exiting the BIOS setup utility.
The BIOS CMOS hold-up
battery has failed.
Contact your support representative for repairs.
This is not a user serviceable part but has a normal
life of 3 to 5 years.
Your system display won’t
turn on when the system is
turned on or has resumed.
You have installed the Life-
Book/Security Application
panel.
Check the Status Indicator Panel for presence of the
Security icon. If it is visible, enter your password
((See Security Indicator on page 13 for more informa-
tion)
Video Problems
The built-in display is
blank when you turn on
your LifeBook notebook.
The notebook is set for an
external monitor only.
Pressing [F10] while holding down the [Fn] key
allows you to change your selection of where to send
your display video. Each time you press the keys you
will step to the next choice. The choices, in order
are: built-in display only, external monitor only,
both built-in display and external monitor.
The display angle and bright-
ness settings are not adequate
for your lighting conditions.
Move the display and the brightness control until
you have adequate visibility. Pressing either the [F6]
or [F7] keys while holding down the [Fn] key also
allows you to change the brightness level of the
display.
The power management time-
outs may be set for very short
intervals and you failed to
notice the display come on
and go off again.
Press a keyboard button or move the mouse to
restore operation. If that fails, push the Power/
Suspend/Resume button. (The display may be shut
off by Standby mode, Auto Suspend or Video
Timeout)
The LifeBook notebook
turned on with a series of
beeps and your built-in
display is blank.
Power On Self Test (POST)
has detected a failure which
does not allow the display
to operate.
Contact your support representative.
Problem Possible Cause Possible Solutions
Eagle E8310.book Page 57 Tuesday, May 8, 2007 11:40 AM
58
LifeBook E8000 Notebook
The display goes blank by
itself after you have been
using it.
The notebook has gone into
Video timeout, Standby mode,
Suspend mode or Save-to-Disk
mode because you have not
used it for a period of time.
Press any button on the keyboard, or move the
mouse to restore operation. If that fails, push the
Power/Suspend/Resume button. Check your power
management settings, or close your applications
and go to the Power Options control panel.
The power management time-
outs may be set for very short
intervals and you failed to
notice the display come on
and go off again.
Press any button on the keyboard, or move the mouse
to restore operation. If that fails, push the Power/
Suspend/Resume button. (The display may be shut
off by Standby Mode, Auto Suspend or Video
Timeout)
Your system display won’t
turn on when the system is
turned on or when the
system has resumed.
The system may be password-
protected.
Check the status indicator panel to verify that the
Security icon is blinking. If it is blinking, enter your
password.
The display does not close. A foreign object, such as a
paper clip, is stuck between the
display and the keyboard.
Remove all foreign objects from the keyboard.
The display has bright or
dark spots.
If the spots are very tiny and
few in number, this is normal
for a large LCD display.
This is normal; do nothing.
If the spots are numerous or
large enough to interfere with
your operation needs.
Display is faulty; contact your support representative.
The display is dark when on
battery power.
The Power Management utility
default is set on low brightness
to conserve power.
Press [Fn] + [F7] to increase brightness or right-
click on the battery gauge and adjust Power Proper-
ties (In Vista: Power Options).
You have connected an
external monitor and it
does not display any
information.
Your BIOS setup is not set to
enable your external monitor.
Toggle the video destination by pressing [Fn]+ [F10]
together, or check your BIOS setup and enable your
external monitor. (See the Video Features submenu,
located within the Advanced Menu of the BIOS. (See
BIOS Setup Utility on page 29 for more information)
You have connected an
external monitor and it
does not display any
information.
Your external monitor is not
properly installed.
Reinstall your device. (See External Video Port on
page 48 for more information)
Your operating system is not
setup with the correct soft-
ware driver for that device.
Check your device and operating system
documentation and activate the proper driver.
You have connected an
external monitor and it
does not come on.
Your external monitor is not
compatible with your LifeBook
notebook.
See your monitor documentation and the
External Monitor Support portions of the
Specifications section. (See Specifications on page 71
for more information)
Miscellaneous Problems
An error message is
displayed on the screen
during the operation of
an application.
Application software often
has its own set of error
message displays.
See your application manual and help displays
screens for more information. Not all messages are
errors some may simply be status.
Problem Possible Cause Possible Solutions
Eagle E8310.book Page 58 Tuesday, May 8, 2007 11:40 AM
59
Troubleshooting
POWER ON SELF TEST MESSAGES
The following is an alphabetic list of error-and-status
messages that Phoenix BIOS and/or your operating
system can generate and an explanation of each message.
Error messages are marked with an *. If an error message
is displayed that is not in this list, write it down and
check your operating system documentation both on
screen and in the manual. If you can find no reference
to the message and its meaning is not clear, contact
your support representative for assistance.
nnnn Cache SRAM Passed
Where nnnn is the amount of system cache in kilobytes
success-fully tested by the Power On Self Test. (This can
only appear if you have an SRAM PC Card installed.)
*Diskette drive A error or Diskette drive B error
Drive A: or B: is present but fails the BIOS Power On Self
Test diskette tests. Check to see that the drive is defined
with the proper diskette type in the Setup Utility, (See
BIOS Setup Utility on page 29 for more information) and
that the diskette drive is installed correctly. If the disk
drive is properly defined and installed, avoid using it and
contact your support representative.
*Extended RAM Failed at offset: nnnn
Extended memory not working or not configured prop-
erly. If you have an installed memory upgrade module,
verify that the module is properly installed. If it is prop-
erly installed, you may want to check your Windows
Setup to be sure it is not using unavailable memory
until you can contact your support representative.
nnnn Extended RAM Passed
Where nnnn is the amount of memory in kilobytes
successfully tested.
*Failing Bits: nnnn The hex number nnnn
This is a map of the bits at the memory address (in
System, Extended, or Shadow memory) which failed the
memory test. Each 1 (one) in the map indicates a failed
bit. This is a serious fault that may cause you to lose data
if you continue. Contact your support representative.
*Fixed Disk x Failure or Fixed Disk Controller
Failure (where x = 1-4)
The fixed disk is not working or not configured properly.
This may mean that the hard drive type identified in
your setup utility does not agree with the type detected
by the Power On Self Test. Run the setup utility to check
for the hard drive type settings and correct them if
necessary. If the settings are OK and the message appears
when you restart the system, there may be a serious fault
which might cause you to lose data if you continue.
Contact your support representative.
*Incorrect Drive A type – run SETUP
Type of floppy drive A: not correctly identified in Setup.
This means that the floppy disk drive type identified in
your setup utility does not agree with the type detected
by the Power On Self Test. Run the setup utility to
correct the inconsistency.
*Incorrect Drive B type – run SETUP
Type of floppy drive B: not correctly identified in Setup.
This means that the floppy disk drive type identified in
your setup utility does not agree with the type detected
by the Power On Self Test. Run the setup utility to
correct the inconsistency.
*Invalid NVRAM media type
Problem with NVRAM access. In the unlikely case that
you see this message you may have some display prob-
lems. You can continue operating but should contact
your support representative for more information.
*Keyboard controller error
The keyboard controller test failed. You may have to
replace your keyboard or keyboard controller but may
be able to use an external keyboard until then. Contact
your support representative.
*Keyboard error
Keyboard not working. You may have to replace your
keyboard or keyboard controller but may be able to
use an external keyboard until then. Contact your
support representative.
*Keyboard error nn
BIOS discovered a stuck key and displays the scan code
for the stuck key. You may have to replace your keyboard
but may be able to use an external keyboard until then.
Contact your support representative.
*Monitor type does not match CMOS – Run SETUP
Monitor type not correctly identified in Setup. This error
probably means your BIOS is corrupted, run the setup
utility and set all settings to the default conditions. If you
still get this error, contact your support representative.
*Operating system not found
Operating system cannot be located on either drive A: or
drive C: Enter the setup utility and see if both the fixed
disk, and drive A: are properly identified and that the
boot sequence is set correctly. Unless you have changed
your installation greatly, the operating system should be
on drive C:. If the setup utility is correctly set, your hard
drive may be corrupted.
*Parity Check 1 nnnn
Parity error found in the system bus. BIOS attempts
to locate the address and display it on the screen. If it
cannot locate the address, it displays ????. This is a
potentially data destroying failure. Contact your
support representative.
Eagle E8310.book Page 59 Tuesday, May 8, 2007 11:40 AM
60
LifeBook E8000 Notebook
*Parity Check 2 nnnn
Parity error found in the I/O bus. BIOS attempts to
locate the address and display it on the screen. If it
cannot locate the address, it displays ????. This is a
potentially data-destroying failure. Contact your
support representative.
*Press <F1> to resume, <F2> to SETUP
Displayed after any recoverable error message. Press
the [F1] key to continue the boot process or the [F2]
key to enter Setup and change any settings.
*Previous boot incomplete –
Default configuration used
Previous Power On Self Test did not complete success-
fully. The Power On Self Test will load default values and
offer to run Setup. If the previous failure was caused by
incorrect values and they are not corrected, the next
boot will likely fail also. If using the default settings does
not allow you to complete a successful boot sequence,
you should turn off the power and contact your support
representative.
*Real time clock error
Real-time clock fails BIOS test. May require board repair.
Contact your support representative.
*Shadow RAM Failed at offset: nnnn
Shadow RAM failed at offset nnnn of the 64k block at
which the error was detected. You are risking data corrup-
tion if you continue. Contact your support representative.
nnnn Shadow RAM Passed
Where nnnn is the amount of shadow RAM in kilobytes
successfully tested.
*System battery is dead – Replace and run SETUP
The BIOS CMOS RAM memory hold up battery is dead.
This is part of your BIOS and is a board mounted
battery which requires a support representative to
change. You can continue operating but you will have to
use setup utility default values or reconfigure your setup
utility every time you turn off your notebook. This
battery has an expected life of 2 to 3 years.
System BIOS shadowed
System BIOS copied to shadow RAM.
*System CMOS checksum bad – run SETUP
BIOS CMOS RAM has been corrupted or modified
incorrectly, perhaps by an application program that
changes data stored in BIOS memory. Run Setup and
reconfigure the system.
*System RAM Failed at offset: nnnn
System memory failed at offset nnnn of in the 64k block
at which the error was detected. This means that there is
a fault in your built-in memory. If you continue to
operate, you risk corrupting your data. Contact your
support representative for repairs.
nnnn System RAM Passed
Where nnnn is the amount of system memory in
kilobytes successfully tested.
*System timer error
The timer test failed. The main clock that operates the
computer is faulty. Requires repair of system board.
Contact your support representative for repairs.
UMB upper limit segment address: nnnn
Displays the address of the upper limit of Upper
Memory Blocks, indicating released segments of the
BIOS memory which may be reclaimed by a virtual
memory manager.
Video BIOS shadowed
Video BIOS successfully copied to shadow RAM.
EMERGENCY MEDIA PLAYER
DRIVE TRAY RELEASE
If for some reason the eject button fails, you can open
the DVD/CD-ROM tray with a paper clip or similar tool
inserted into the eject hole in the far right side of the
front of the tray. Straighten one side of a paper clip
and push it gently into the hole. The tray will pop out
a short distance.
MODEM RESULT CODES
The operating system and application software that is
factory installed detects the modem characteristics and
provides the necessary command strings to operate the
modem. The internal modem operation is controlled by
generic AT commands from the operating system and
application software. The standard long form result
codes may, in some cases, be displayed on your screen to
keep you informed of the actions of your modem. The
operating system and application software may suppress
display of the result codes.
Examples of result codes are:
■OK
■NO CARRIER
■NO DIALTONE
■CONNECT 53000 (Connection complete
at 53,000 bps.)
■ERROR
■FAX
■RING (This means an incoming call.)
■BUSY
■NO ANSWER
When using the internal modem with applications
that are not factory installed refer to the
application documentation.
Eagle E8310.book Page 60 Tuesday, May 8, 2007 11:40 AM
61
Troubleshooting
RESTORING YOUR
PRE-INSTALLED SOFTWARE
The Drivers and Applications Restore (DAR) DVD
contains sets of device drivers and Fujitsu utilities (in
specific directories) that are unique to your computer
configuration for use as documented below.
Re-Installing Individual Drivers and Applications
The Drivers and Applications CD can be used to selec-
tively re-install drivers and/or applications that may have
been un-installed or corrupted.
To re-install drivers and/or applications:
1. Boot up the system and insert the DAR CD after
Windows has started. A Fujitsu Installer screen is
displayed after the CD is inserted.
2. After reading the License Agreement, click [I agree].
3. A window will appear containing a list of applica-
tions, drivers, and utilities that you can install from
the Drivers and Applications CD.
4. In the list, check off all the components you want to
install. If you want to install all components, click
[Select All]. Clicking [Select All] will select all of the
blue-coded components; you must select grey and
green components separately.
5. Once you have selected the components you wish to
install, click [Install Selected Subsystems]; the
components will be installed.
6. After the components are installed, click [OK], then
click [Yes] when asked if you want to reboot the
system.
RESTORING THE FACTORY IMAGE
The Restore Disc that came with your system contains
two utilities:
■The Recovery utility allows you to restore the original
contents of the C: drive.
■The Hard Disk Data Delete utility on this disc is used
to delete all data on your hard disk and prevent it from
being reused. Do not use the Hard Disk Data Delete
utility unless you are absolutely certain that you want
to erase your entire hard disk, including all partitions.
BOOT Priority Change
Before restoring an image, you must first verify that your
system is set up to boot from the DVD drive. To verify/
change the boot-up priority (rather than booting-up
from the hard drive or an external floppy disk drive),
perform one of the following procedures:
Changing priority from BIOS Setup utility:
1. Start your system and press the [F2] key when the
Fujitsu logo appears. You will enter the BIOS Setup
Utility.
Or..., press the [Enter] key or the left mouse button
when the Fujitsu logo appears. The TrustedCore
Menu will appear. Select BIOS Setup from the Trust-
edCore Menu.
2. Using the arrow keys, go to the Boot menu.
3. Arrow down to the Boot Device Priority submenu.
Press [Enter].
4. If “Optical Media Drive” or “CD-ROM Drive” is not
at the top of the list, arrow down to the drive in the
list, and press the space bar (or the + key) to move it
to the top of the list (the system attempts to boot
from the devices in the order in which they are
listed). Note that the BIOS for some systems will
In order to install applications and/or
drivers from the DAR DVD, you will need to
use a DVD drive either in your system or
attached externally.
If you have access to the internet, visit the
Fujitsu Support website at http://
www.computers.us.fujitsu.com/support to
check for the most current information,
drivers and hints on how to perform
recovery and system updates.
There may be certain free third-party
applications pre-installed on your system
that are not on the DAR CD. The latest
versions of the applications can be
downloaded from the third-party’s website.
The components listed are color-coded in
terms of their install status. Blue indicates
that the component can be installed. Green
indicates that the component needs to be
installed separately. Grey indicates a
component that is already installed; grey
items can be reinstalled, but prior to
installation you will receive a reminder that
the component is already installed.
• The use of this disc requires that you
have a device capable of reading DVDs
attached to your system. If you do not
have a built-in DVD player, you will need
to attach an external player. For more
information on available external devices,
visit our website at: us.fujitsu.com/
computers.
• This disc can only be used with the
system with which it was purchased.
Eagle E8310.book Page 61 Tuesday, May 8, 2007 11:40 AM
62
LifeBook E8000 Notebook
indicate “CD-ROM Drive”, even when a DVD drive
is connected.
5. If you have an external DVD drive connected,
proceed to the next step; otherwise, proceed to
step 7.
6. If you have an external DVD drive connected:
• Select the Advanced menu in the BIOS window.
• Scroll down to the USB Features submenu and
press the Enter key to open it.
• If Legacy USB Support is disabled, press the space
bar to enable it.
• Scroll down to SCSI SubClass Support and press
the space bar to enable it.
7. Press [F10], then click on [Yes] to exit the BIOS
Setup Utility and return to the boot process.
Changing priority from BOOT Menu:
1. Start your system and press the [F12] key when the
Fujitsu logo appears. You will open the Boot Menu
window.
2. Using the arrow keys, select the device from which
you want to boot.
3. Press [Enter]. Note that this is a one-time boot
priority. To change the boot priority for a longer
period, perform the steps above in “Changing
priority from BIOS Setup utility”.
After you have changed the boot priority, you can restore
a backup image when you are booting up.
Procedure
1. Turn on the power to your system.
2. Ensure that you have a device that can read DVDs
either installed in your system or attached exter-
nally to it.
3. Insert the Restore Disc into the drive tray.
4. Reboot your system.
5. After the system reboots, follow the instructions
that appear to either restore your system image or
erase all data from your hard disk.
AUTOMATICALLY DOWNLOADING
DRIVER UPDATES
Your system has a convenient tool called the Fujitsu
Driver Update (FDU) utility. With FDU, you can choose
to automatically or manually go to the Fujitsu site to
check for new updates for your system.
The FDU icon should appear in the system tray at the
bottom right of your screen (roll the cursor over the
icons to find the correct one). If the FDU icon does not
appear in the system tray, it can be started by going to
[Start] -> All Programs, and clicking on Fujitsu Driver
Update; this will create the icon automatically.
To invoke the FDU menu, right-click on the FDU icon.
The menu contains the following items:
■Check for updates now
Allows for manual driver update search. The first
time it is used, you are prompted to agree to a user
agreement. After clicking on the icon, the FDU auto-
matically connects with the Fujitsu site to check for
updates and downloads them. While downloading,
the icon has a red bar through it, indicating that it
cannot be used while the download is in process.
When the update is complete, a message appears
informing you of the fact.
■Enable Automatic Update Notifications
Automatically searches for new updates on a regular
basis (approximately every 3 days).
■Show update history
Brings up a screen that displays a history of updates
that have been made via the FDU.
■About Fujitsu Driver Update
Displays the FDU version number and copyright
information
■Fujitsu Driver Update Readme
Displays the FDU readme.
Eagle E8310.book Page 62 Tuesday, May 8, 2007 11:40 AM
63
6
Care and Maintenance
Eagle E8310.book Page 63 Tuesday, May 8, 2007 11:40 AM
64
LifeBook E8000 Notebook
Eagle E8310.book Page 64 Tuesday, May 8, 2007 11:40 AM
65
Care and Maintenance
Care and Maintenance
If you use your Fujitsu LifeBook notebook carefully, you
will increase its life and reliability. This section provides
some tips for looking after the notebook and its devices.
Caring for your LifeBook notebook
■Your LifeBook notebook is a durable but sensitive elec-
tronic device. Treat it with respect and care.
■Make a habit of transporting it in a suitable carrying
case.
■Do not attempt to service the computer yourself.
■ Always follow installation instructions closely.
■Keep it away from food and beverages.
■To protect your notebook from damage and to opti-
mize system performance, be sure to keep all air all
vents unobstructed, clean, and clear of debris. This
may require periodic cleaning, depending upon the
environment in which the system is used.
■Do not operate the notebook in areas where the air
vents can be obstructed, such as in tight enclosures or
on soft surfaces like a bed or cushion.
■If you accidentally spill liquid on your LifeBook note-
book:
1. Turn it off.
2. Position it so that the liquid can run out.
3. Let it dry out for 24 hours, or longer if needed.
4. If your notebook will not boot after it has dried
out, call your support representative.
■Do not use your Fujitsu LifeBook notebook in a wet
environment (near a bathtub, swimming pool).
■Always use the AC adapter and batteries that are
approved for your notebook.
■Avoid exposure to sand, dust and other
environmental hazards.
■Do not expose your notebook to direct sunlight for long
periods of time as temperatures above 140° F (60° C)
may damage your notebook.
■Keep the covers closed on the connectors and slots when
they are not in use.
■Do not put heavy or sharp objects on the computer.
■If you are carrying your LifeBook notebook in a brief-
case, or any other carrying case, make sure that there are
no objects in the case pressing on the lid.
■Never position your notebook such that the optical
drive is supporting the weight of the notebook.
■Do not drop your notebook.
■Do not touch the screen with any sharp objects.
Cleaning your LifeBook notebook
■Always disconnect the power plug. (Pull the plug, not
the cord.)
■Clean your LifeBook notebook with a damp, lint-free
cloth. Do not use abrasives or solvents.
■Use a soft cloth to remove dust from the screen.
Never use glass cleaners.
Storing your LifeBook notebook
■If storing your notebook for a month or longer, turn
your LifeBook notebook off, fully charge the battery(s),
then remove and store all Lithium ion batteries.
■Store your notebook and batteries separately. If you
store your LifeBook with a battery installed, the battery
will discharge, and battery life will be reduced. In addi-
tion, a faulty battery might damage your LifeBook.
■The system contains components that
can be severely damaged by electro-
static discharge (ESD). To minimize risk
to the components, observe the
following precautions:
■Before docking or undocking your
LifeBook notebook (when using a port
replicator), it is a good practice to
always touch a grounded metal object
to discharge static electricity built up
in your body.
■Be sure to power down your system
before adding or removing system
components. Even if the system is in
hibernate or standby states, data
could be lost or memory could be
damaged if power is still available to
the system.
■When installing or removing a
memory module, hold it by the edge
so as not to touch any contacts or
chips. Be careful not to touch any
internal computer terminals or compo-
nents; the oil from your fingers could
cause a short to the components.
■Electrical equipment may be hazardous if
misused. Operations of this product or
similar products, must always be super-
vised by an adult. Do not allow children
access to the interior of any electrical
products and do not permit them to
handle any cables.
Eagle E8310.book Page 65 Tuesday, May 8, 2007 11:40 AM
66
LifeBook E8000 Notebook
■Store your Fujitsu LifeBook in a cool, dry location.
Temperatures should remain between 13ºF (-25ºC) and
140ºF (60ºC).
Traveling with your LifeBook notebook
■Do not transport your notebook while it is turned on.
■You should carry your notebook with you while travel-
ing, rather than checking it in as baggage.
■Always bring your System Recovery CD that came with
your notebook when you travel. If you experience sys-
tem software problems while traveling, you may need it
to correct any problems.
■Never put your notebook through a metal detector.
Have your notebook hand-inspected by security per-
sonnel. You can however, put your notebook through a
properly tuned X-ray machine. To avoid problems,
place your notebook close to the entrance of the
machine and remove it as soon as possible or have your
notebook hand-inspected by security personnel. Secu-
rity officials may require you to turn your notebook
On. Make sure you have a charged battery on hand.
■When traveling with the hard drive removed, wrap the
drive in a non-conducting materials (cloth or paper). If
you have the drive checked by hand, be ready to install
the drive if needed. Never put your hard drive through a
metal detector. Have your hard drive hand-inspected by
security personnel. You can however, put your hard
drive through a properly tuned X-ray machine.
■Take the necessary plug adapters if you're traveling over-
seas. Check the following diagram to determine which
plug adapter you'll need or ask your travel agent.
BATTERIES
Caring for your Batteries
■Always handle batteries carefully.
■Do not short-circuit the battery terminals (that is, do
not touch both terminals with a metal object). Do not
carry lose batteries in a pocket or purse where they may
mix with coins, keys, or other metal objects. Doing so
may cause an explosion or fire.
■Do not drop, puncture, disassemble, mutilate or incin-
erate the battery.
■Recharge batteries only as described in this manual and
only in ventilated areas.
■Do not leave batteries in hot locations for more than a
day or two. Intense heat can shorten battery life.
■Do not leave a battery in storage for longer than 6
months without recharging it.
Increasing Battery Life
■Power your LifeBook notebook through the AC or
optional auto/airline adapter whenever possible.
■If your notebook is running on battery power all day,
connect it to the AC adapter overnight to recharge the
battery.
■Keep brightness to the lowest level comfortable.
■Set the power management for maximum battery life.
■Put your notebook in Suspend mode when it is turned
on and you are not actually using it.
■Limit your media drive access.
■Disable the Media Player auto insert notification
function.
■Always use fully charged batteries.
■Eject PCMCIATM Cards when not in use.
FLOPPY DISKS AND DRIVES
Caring for your Floppy Disks
If you have an optional external floppy disk drive:
■Avoid using the floppy disks in damp and dusty
locations.
■Never store a floppy disk near a magnet or magnetic
field.
■Do not use a pencil or an eraser on a disk or disk label.
■Avoid storing the floppy disks in extremely hot or cold
locations, or in locations subject to severe temperature
changes. Store at temperatures between 50º F (10ºC)
and 125ºF (52ºC).

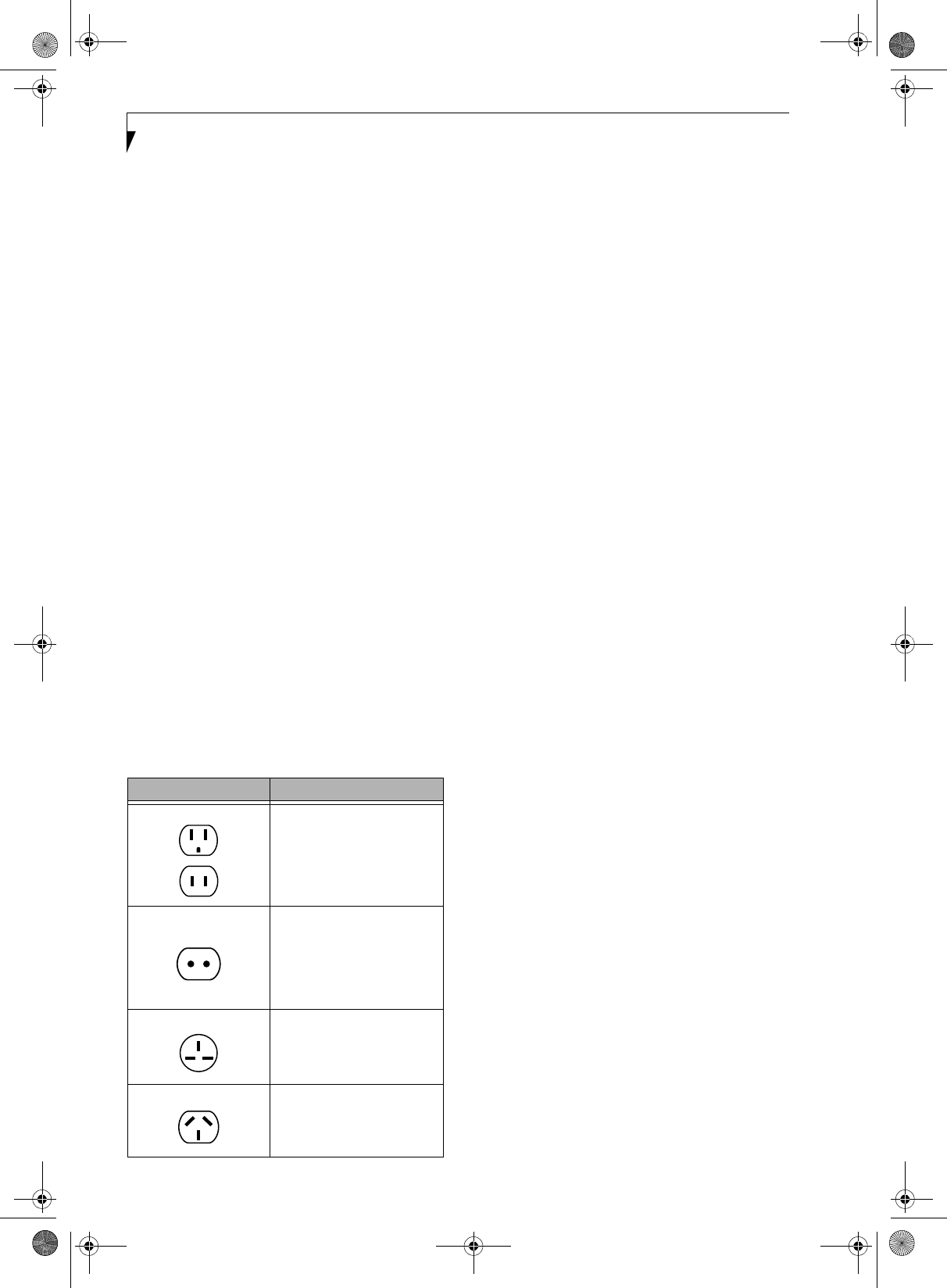

Outlet Type Location
United States, Canada,
parts of Latin America,
Mexico, Japan, Korea,
the Philippines, Taiwan
Russia and the Commonwealth
of Independent States (CIS),
most of Europe, parts of Latin
America, the Middle East, parts
of Africa, Hong Kong, India,
most of South Asia
United Kingdom,
Ireland, Malaysia, Singapore,
parts of Africa
China, Australia,
New Zealand
Eagle E8310.book Page 66 Tuesday, May 8, 2007 11:40 AM
67
Care and Maintenance
■Do not touch the exposed part of the disk behind the
metal shutter.
■Never use the floppy disk drive with any liquid, metal,
or other foreign matter inside the floppy disk drive
or disk.
■Never disassemble your floppy disk drive.
MEDIA CARE
Caring for your Media (DVD/CD/CD-R)
Media discs are precision devices and will function reli-
ably if given reasonable care.
■Always store your media disc in its case when it is not in
use.
■Always handle discs by the edges and avoid touching the
surface.
■Avoid storing any media discs in extreme temperatures.
■Do not bend media discs or set heavy objects on them.
■Do not spill liquids on media discs.
■Do not scratch media discs.
■Do not get dust on media discs.
■Never write on the label surface with a ballpoint pen or
pencil. Always use a felt pen.
■If a media disc is subjected to a sudden change in tem-
perature, cold to warm condensation may form on the
surface. Wipe the moisture off with a clean, soft, lint
free cloth and let it dry at room temperature. DO NOT
use a hair dryer or heater to dry media discs.
■If a disc is dirty, use only a DVD/CD cleaner or wipe it
with a clean, soft, lint free cloth starting from the inner
edge and wiping to the outer edge.
Caring for your Optical Drive
Your optical drive is durable but you must treat it with
care. Please pay attention to the following points:
■The drive rotates the compact disc at a very high speed.
Do not carry it around or subject it to shock
or vibration with the power on.
■Avoid using or storing the drive where it will be exposed
to extreme temperatures.
■Avoid using or storing the drive where it is damp or
dusty.
■Avoid using or storing the drive near magnets or devices
that generate strong magnetic fields.
■Avoid using or storing the drive where it will be
subjected to shock or vibration.
■Do not disassemble or dismantle the optical drive.
■Use of a commercially available lens cleaner is
recommended for regular maintenance of your drive.
PC CARDS/EXPRESSCARDS
Caring for your Cards
PC Cards and ExpressCards are durable, but you must
treat them with care. The documentation supplied with
your card will provide specific information, but you
should pay attention to the following points:
■To keep out dust and dirt, store cards in their protective
sleeves when they are not installed in your LifeBook
notebook.
■Avoid prolonged exposure to direct sunlight or
excessive heat.
■Keep the cards dry.
■Do not flex or bend the cards, and do not place heavy
objects on top of them.
■Do not force cards into the slot.
■Avoid dropping cards, or subjecting them to excessive
vibration.
/
Eagle E8310.book Page 67 Tuesday, May 8, 2007 11:40 AM
68
LifeBook E8000 Notebook
Eagle E8310.book Page 68 Tuesday, May 8, 2007 11:40 AM
69
7
System
Specifications
Eagle E8310.book Page 69 Tuesday, May 8, 2007 11:40 AM
70
LifeBook E8000 Notebook
Eagle E8310.book Page 70 Tuesday, May 8, 2007 11:40 AM
71
Specifications
Specifications
This section provides the hardware and environmental
specifications for your Fujitsu LifeBook notebook.
Specifications of particular configurations will vary.
CONFIGURATION LABEL
There is a configuration label located on the bottom of
your LifeBook notebook. This label contains specific
information regarding the options you’ve chosen for your
notebook. Following is an example label and information
on how to read your own configuration label.
Figure 7-1 Configuration Label
MICROPROCESSOR
Intel® Core™ 2 Duo processors (Refer to the system
label to determine the speed of your processor).
CHIPSET
■Intel GM965
■I/O Controller Hub 8 Mobile (ICH8-M)
MEMORY
System Memory
■DDR2-667 MHz SDRAM dual-channel memory
module.
■Two DIMM slots; upgradeable to 4 GB of total
memory (2 GB x 2). Note that when 4 MB of memory
is installed in a Windows Vista system, approximately
3.3 GB is addressable memory; the upper memory is
reserved by Vista for hardware usage.
Cache Memory
2 MB or 4 MB L2 cache on-die, depending upon
processor type
VIDEO
Built-in color flat-panel TFT active matrix LCD display
with simultaneous display capability.
Video Color and Resolution
15" XGA model:
■Internal: 1024 x 768 pixel resolution, 16M colors
■External: 1600 x 1200 pixel resolution, 16M colors
■Simultaneous: 1024 x 768, 16M colors
15” TFT SXGA+ model:
■Internal: 1400 x 1050 pixel resolution, 16M colors
■External: 1600 x 1200 pixel resolution, 16M colors
■Simultaneous: 1400 x 1050, 16M colors
Video RAM
■Intel® Graphics Media Accelerator X3100 video
graphics. Up to 384 MB shared video memory using
Dynamic Video Memory Technology (DVMT)
AUDIO
■Realtek codec ALC262 with 2-channel High Definition
(HD) audio.
■Headphones
Stereo headphone/line-out jack, 3.5 mm, 1 Vrms or
less, minimum impedance 32 Ohms
■Microphone
Stereo microphone/line-in jack, 3.5 mm, 100 mVp-p or
less, minimum impedance 10K Ohms
■Two built-in stereo speakers, 20 mm diameter
MASS STORAGE DEVICE OPTIONS
Hard Drive
■Serial ATA, 150 Mbps data buffer, 5400 rpm, 2.5”, 9.5
mm
■Choice of 40 GB, 60 GB, 80 GB, 100 GB, or 120 GB
Media Player
Depending upon the configuration of your system, one
of the following is installed.
■DVD-ROM Drive: 8x maximum read, or,
■Combo DVD/CD-RW Drive: 24x CD-ROM, 24x CD-
R, 10x CD-RW, 8x DVD-ROM, or,
■Dual-Layer Multi-Format DVD Writer: 24x CD-ROM,
24x CD-R, 10x CD-RW, 8x DVD-ROM, 5x DVD-
RAM, 8x DVD-R, 4x DVD-R (DL), 6x DVD-RW, 8x
DVD-R, 4x DVD-R (DL), 8x DVD-RW
AH2xxxxxxxxxxx
E8310, 15.4WXGA, T7100, XPP, DL S-MULTI, 512M, 80G, MDM/LAN, WLAN
No:
Part No: FPC0xxxxxxxxxxxxx
Hard Drive
Configuration ID
Part Number
Processor
Model #
Screen Size Memory Communications
Media Drive
Operating System
Eagle E8310.book Page 71 Tuesday, May 8, 2007 11:40 AM
72
LifeBook E8000 Notebook
FEATURES
Integrated Pointing Device
■Touchpad pointing device with scroll button
■Optional Quick Point cursor control button
Communications
■Modem: Internal V.90 standard 56K fax/modem (ITU
V.90, 56K data, 14.4K fax)
■Gigabit LAN: Internal wired 10/100/1000 Gigabit
Ethernet LAN
Wireless LAN:
■Optional Integrated Intel PRO/Wireless 3945ABG
Network Connection (802.11a+b/g)
■Optional Atheros AR5006EXS Mini-Card Wireless
network card (802.11a+b/g)
■Optional Bluetooth device for wireless personal area
network communication
Trusted Platform Module
The LifeBook E8310 has a Trusted Platform Module
(TPM) installed for added system security.
LifeBook Security/Application Panel
The Application Launcher buttons on your LifeBook
notebook default to the following applications:
Theft Prevention Lock
Two lock slots for use with security restraint systems.
DEVICE PORTS
On the LifeBook notebook:
■PC Card slot for one Type I or Type II card: PCMCIA
Standard 2.1 with CardBus support
■ExpressCard slot for one ExpressCard
■Memory Stick/SD Card slot
■One 15-pin D-SUB connector for VGA external
monitor (see Display specifications)
■Four USB 2.0 (Universal Serial Bus) connectors for
input/output devices
■One DC In connector
■One serial port (RS-232, D-Sub 9-pin)
■One parallel port (ECP, D-Sub 25-pin)
■Infrared port (IrDA1.1, 4 Mbps max.)
■One 7-pin S-Video out jack
■One modular modem (RJ-11) connector
■One LAN (RJ-45) connector
■Docking port (100-pin, to dock with port replicator)
■One stereo headphone jack
■One mono microphone jack
■Dedicated Smart Card slot (requires third-party appli-
cation)
On the Optional Port Replicator:
■One 6-pin mini DIN PS/2 compatible connectors for
external keyboard or mouse
■One 25-pin D-SUB connector for parallel input/
output devices; Bi-directional, output only or ECP
■One 15-pin D-SUB connector for VGA external
monitor (see Display specifications)
■One 9-pin D-SUB connector for RS-232C serial input/
output devices
■Four USB 2.0 connectors for input/output devices
■One LAN (RJ-45) connector
■One DC-in connector
■One microphone in jack
■One headphone jack
■One power/suspend/resume button with LED
KEYBOARD
Built-in keyboard with all functions of 101 key PS/2
compatible keyboards.
■Total number of keys: 84
■Function keys: F1 through F12
■Feature extension key: Fn
■Two Windows keys: one Start key, one Application key
■Key pitch: 19 mm
■Key stroke: 2.7 mm
■Built-in Touchpad pointing device with two left and
two right buttons and scroll button.
■Optional Quick Point cursor control button
■Built-in Palm Rest
External Keyboard and/or Mouse Support
USB or PS/2-compatible (PS/2 compatible with Port
Replicator only)
POWER
Batteries
■Standard Lithium ion battery, rechargeable, 6-cell
10.8V, 5200 mAh, 56.1 Wh, or,
■Optional Flexible Bay battery: 6-cell Lithium ion
battery, rechargeable, 10.8V, 3800 mAh, 41 Wh
AC Adapter
Autosensing 100-240V AC, supplying 19V DC, 5.27A,
100W to the LifeBook notebook, including an AC cable.
Power Management
Conforms to ACPI (Advanced Configuration and Power
Interface).
DIMENSIONS AND WEIGHT
Overall Dimensions
Approximately 14.06"(w) x 10.12"(d) x 1.40”/1.44”(h)
(357 mm x 257 mm x 35.5/36.5 mm)
Button Label Button Function Default Application
1 Application A Notepad
2 Application B Calculator
3 Internet Internet Explorer
4 E-Mail Outlook
Table 7-1 Application Launcher Defaults
Eagle E8310.book Page 72 Tuesday, May 8, 2007 11:40 AM
73
Specifications
Weight
15.0" XGA model: Approximately 5.93 lbs. (2.69 kg)
with battery and optical drive
15.0” TFT SXGA+ model: Approximately 6.11 lbs. (2.77
9kg) with battery and optical drive
ENVIRONMENTAL REQUIREMENTS
Temperature
Operating: 41° to 95° F (5° to 35° C)
Non-operating: 5° to 140° F (–15° to 60° C)
Humidity
Operating: 20% to 85%, relative, non-condensing
Non-operating; 8% to 85%, relative, non-condensing
Altitude
Operating: 10,000 feet (3,048 m) maximum
POPULAR ACCESSORIES
For ordering or additional information on Fujitsu
accessories please visit our website at:
www.shopfujitsu.com or call 1-800-FUJITSU.
PRE-INSTALLED SOFTWARE
Depending on your pre-installed operating system, your
notebook comes with pre-installed software for playing
audio and video files of various formats. In addition
there is file transfer software, virus protection software
and Power Management software. The following list
indicates the pre-installed software on your system.
■Adobe Acrobat Reader
■Norton Internet Security™ 2007 (90-day free trial)
■Roxio Easy Media Creator (on select models)
■CyberLink PowerProducer
■Google Desktop
■Google Picasa
■OmniPass Fingerprint application
■Fujitsu Driver Update utility
■Microsoft Office Small Business Edition 2007 (60-day
free trial)
■Microsoft Works 8.5
■Evernote
LEARNING ABOUT YOUR SOFTWARE
Tutorials
All operating systems and most application software
have tutorials built into them upon installation. We
highly recommend that you step through the tutorial
before you use an application.
Manuals
Included with your notebook you will find manuals for
your installed operating system and other pre-installed
software. We recommend that you review these manuals
for general information on the use of these applications.
Adobe Acrobat Reader
Adobe Acrobat Reader allows you to view, navigate, and
print PDF files from across all of the major computing
platforms.
Norton Internet Security 2007
Your system is preinstalled with a free 90-day trial
version of Symantec’s Norton Internet Security™ 2007.
Norton Internet Security is a suite of tools designed to
protect your LifeBook notebook from computer viruses,
hackers, spyware, and spam. It assists in the protection
of data currently on your hard disk from destruction or
contamination. The trial version is activated upon your
acceptance of software license agreement. After 90 days,
you will need to purchase a subscription from Symantec
to download latest virus, spyware, and spam definitions.
Roxio Easy Media Creator
Easy Media Creator allows you to easily burn CDs and
organize, edit and share digital photos, music, data, and
videos.
CyberLink PowerProducer
CyberLink PowerProducer allows you to produce and
edit home movies and slideshows on discs.
OmniPass Fingerprint application
The fingerprint sensor uses Softex OmniPass which
provides password management capabilities to
Microsoft Windows operating systems. OmniPass lets
you use a "master password" for all Windows, applica-
tions, and on-line passwords, and presents a convenient
user interface through which you can securely manage
passwords, users, and multiple identities for each user.
Google Desktop
Google Desktop lets you to search the contents of your
computer for emails, web history, and files. It also allows
you to view news and photos from anywhere on your
desktop.
Google Picasa
Google Picasa lets you to search for, locate, move and
label all of the photos on your computer.
Fujitsu Driver Update Utility
The Fujitsu Driver Update (FDU) utility is pre-installed
on your system. With FDU, you can choose to automati-
cally or manually go to the Fujitsu site to check for new
updates for your system. (See Automatically Down-
loading Driver Updates on page 117 for more information)
EverNote
EverNote allows you to easily capture, store and access a
variety of documents, such as typed and handwritten
memos, webpage excerpts, emails, phone messages,
addresses, passwords, sketches, and documents.
Operating System Options
Depending upon your system, one of the following
operating system configurations will be installed:
Eagle E8310.book Page 73 Tuesday, May 8, 2007 11:40 AM
74
LifeBook E8000 Notebook
Microsoft Windows XP Professional Edition
With Microsoft Works 8.5 and Microsoft Office 60-day
trial (Small Business Edition 2007)
Microsoft Windows Vista Business Edition
With Microsoft Works 8.5 and Microsoft Office 60-day
trial (Small Business Edition 2007)
Microsoft Works 8.5
Microsoft Works 8.5 is a software suite containing the
basic tools to write letters and reports, track family and
friends with address books, manage home finances, and
create a home inventory.
Microsoft Office 2007 Small Business Edition
Microsoft Office 2007 Small Business Edition is easy-to-
use software to help you manage business opportunities
more effectively, create marketing materials, manage e-
mail, and share information. Microsoft SBE includes
Microsoft Word, Excel, Outlook, PowerPoint, Publisher,
and Business Contact Manager.
Eagle E8310.book Page 74 Tuesday, May 8, 2007 11:40 AM
75
8
Glossary
Eagle E8310.book Page 75 Tuesday, May 8, 2007 11:40 AM
76
LifeBook E8000 Notebook
Eagle E8310.book Page 76 Tuesday, May 8, 2007 11:40 AM
77
Glossary
Glossary
AC Adapter
A device which converts the AC voltage from a
wall outlet to the DC voltage needed to power
your LifeBook notebook.
ACPI
Advanced Configuration and Power Interface
Active-Matrix Display
A type of technology for making flat-panel displays
which has a transistor or similar device for every pixel
on the screen.
AdHoc
A name of a wireless LAN configuration.
It is a type of communication using wireless cards only.
Another type of communication is called Infrastructure
(using a wireless card and an access point).
ADSL
Asymmetric Digital Subscriber Line
Technology for transporting high bit-rate services over
ordinary phone lines.
AGP
Accelerated Graphics Port
Graphics port specifically designed for graphics-inten-
sive devices, such as video cards and 3D accelerators.
Auto/Airline Adapter
A device which converts the DC voltage from an auto-
mobile cigarette lighter or aircraft DC power outlet to
the DC voltage needed to power your LifeBook note-
book.
BIOS
Basic Input-Output System. A program and set of
default parameters stored in ROM which tests and
operates your LifeBook notebook when you turn it on
until it loads your installed operating system from disk.
Information from the BIOS is transferred to the installed
operating system to provide it with information on the
configuration and status of the hardware.
Bit
An abbreviation for binary digit. A single piece of
information which is either a one (1) or a zero (0).
bps
An abbreviation for bits per second. Used to describe
data transfer rates.
Boot
To start-up a computer and load its operating system
from disk, ROM or other storage media into RAM.
Bus
An electrical circuit which passes data between the CPU
and the sub-assemblies inside your LifeBook notebook.
Byte
8 bits of parallel binary information.
Cache Memory
A block of memory built into the micro-processor which
is much faster to access than your system RAM and used
in specially structured ways to make your overall data
handling time faster.
CardBus
A faster, 32-bit version of the PC Card interface which
offers performance similar to the 32-bit PCI
architecture.
CD-ROM
Compact disk read only memory. This is a form of
digital data storage which is read optically with a laser
rather than a magnetic head. A typical CD-ROM can
contain about 600MB of data and is not subject to heads
crashing into the surface and destroying the data when
there is a failure nor to wear from reading.
Channel
A radio frequency band used for communication
between wireless cards and access points.
CMOS RAM
Complementary metal oxide semiconductor random
access memory. This is a technology for manufacturing
random access memory which requires very low levels of
power to operate.
COM Port
Abbreviation for communication port. This is your
serial interface connection.
Command
An instruction which you give your operating system.
Example: run a particular application or format a floppy
disk.
Configuration
The combination of hardware and software that makes
up your system and how it is allocated for use.
CRT
Cathode Ray Tube. A display device which uses a beam
of electronic particles striking a luminescent screen. It
Eagle E8310.book Page 77 Tuesday, May 8, 2007 11:40 AM
78
LifeBook E8000 Notebook
produces a visual image by varying the position and
intensity of the beam.
Data
The information a system stores and processes.
DC
Direct current. A voltage or current that does not
fluctuate periodically with time.
Default Value
A pre programmed value to be used if you fail to set your
own.
DHCP
Dynamic Host Configuration Protocol
A protocol used to automatically acquire parameters
required for the communication, such as IP address.
The sender of IP address is called a DHCP server, and
the receiver is called a DHCP client.
DIMM
Dual-in-line memory module.
Disk
A spinning platter of magnetic data storage media. If the
platter is very stiff it is a hard drive, if it is highly flexible
it is a floppy disk, if it is a floppy disk in a hard housing
with a shutter it is commonly called a diskette.
Disk Drive
The hardware which spins the disk and has the heads
and control circuitry for reading and writing the data
on the disk.
Diskette
A floppy disk in a hard housing with a shutter.
DMA
Direct Memory Access. Special circuitry for memory
to memory transfers of data which do not require
CPU action.
DMI
Desktop Management Interface. A standard that
provides PC management applications with a common
method of locally or remotely querying and configuring
PC computer systems, hardware and software compo-
nents, and peripherals.
DNS
Domain Name System
A function to control the association between the IP
address and the name assigned to the computer.
If you do not know the IP address but if you know the
computer name, you can still communicate to that
computer.
DOS
Disk Operating System (MS-DOS is a Microsoft Disk
Operating System).
Driver
A computer program which converts application and
operating system commands to external devices into the
exact form required by a specific brand and model of
device in order to produce the desired results from that
particular equipment.
DVMT
Dynamic Video Memory Technology
A video memory architecture that increases the
efficiency of the motherboard by using innovative
memory utilization and direct AGP.
ECP
Extended Capability Port. A set of standards for high
speed data communication and interconnection
between electronic devices.
Encryption Key (Network Key)
Data encryption key used to encrypt message text and
for computing message integrity checks. Data encryp-
tion protects data from unauthorized viewing.
This device uses the same encryption key to encode and
decode the data, and the identical encryption key is
required between the sender and receiver.
ESD
Electrostatic Discharge. The sudden discharge of elec-
tricity from a static charge which has built up slowly.
Example: the shock you get from a doorknob on a dry
day or the sparks you get from brushing hair on a dry
day.
Extended Memory
All memory more than the 640KB recognized by
MS-DOS as system memory.
FCC
Federal Communication Commission.
Floppy Disk
A spinning platter of magnetic data storage media which
is highly flexible.
GB
Gigabyte.
Eagle E8310.book Page 78 Tuesday, May 8, 2007 11:40 AM
79
Glossary
Hard drive
A spinning platter of magnetic data storage media where
the platter is very stiff.
I/O
Input/Output. Data entering and leaving your notebook
in electronic form.
I/O Port
The connector and associated control circuits for data
entering and leaving your notebook in electronic form.
IDE
Intelligent Drive Electronics. A type of control interface
for a hard drive which is inside the hard drive unit.
Infrared
Light just beyond the red portion of the visible light
spectrum which is invisible to humans.
Infrastructure
A name of a wireless LAN configuration. This type of
communication uses an access point.
Another type of communication is called AdHoc.
IP Address
An identifier for a computer or device on a TCP/IP
network. Networks using the TCP/IP protocol route
messages based on the IP address of the destination. The
format of an IP address is a 32-bit numeric address
written as four numbers separated by periods. Each
number can be zero to 255. For example, 1.160.10.240
could be an IP address.
Within an isolated network, you can assign IP addresses
at random as long as each one is unique. However,
connecting a private network to the Internet requires
using registered IP addresses (called Internet addresses)
to avoid duplicates.
The four numbers in an IP address are used in different
ways to identify a particular network and a host on that
network. Three regional Internet registries -- ARIN,
RIPE NCC and APNIC -- assign Internet addresses from
the following three classes.
Class A - supports 16 million hosts on each of 126
networks
Class B - supports 65,000 hosts on each of 16,000
networks
Class C - supports 254 hosts on each of 2 million
networks
The number of unassigned Internet addresses is running
out, so a new classless scheme called CIDR is gradually
replacing the system based on classes A, B, and C and is
tied to adoption of IPv6. (credit: webopedia.com)
IR
An abbreviation for infrared.
IrDA
Infrared Data Association. An organization which
produces standards for communication using infrared
as the carrier.
IRQ
Interrupt Request. An acronym for the hardware signal
to the CPU that an external event has occurred which
needs to be processed.
KB
Kilobyte.
LAN
Local Area Network. An interconnection of computers
and peripherals within a single limited geographic
location which can pass programs and data amongst
themselves.
LCD
Liquid Crystal Display. A type of display which makes
images by controlling the orientation of crystals in a
crystalline liquid.
Lithium ion Battery
A type of rechargeable battery which has a high power-
time life for its size and is not subject to the memory
effect as Nickel Cadmium batteries.
LPT Port
Line Printer Port. A way of referring to parallel interface
ports because historically line printers were the first and
latter the most common device connected to parallel
ports.
MAC Address
Media Access Control Address
A unique physical address of a network card. For
Ethernet, the first three bytes are used as the vendor
code, controlled and assigned by IEEE. The remaining
three bytes are controlled by each vendor (preventing
overlap), therefore, every Ethernet card is given a unique
physical address in the world, being assigned with a
different address from other cards. For Ethernet, frames
are sent and received based on this address.
MB
Megabyte.
Eagle E8310.book Page 79 Tuesday, May 8, 2007 11:40 AM
80
LifeBook E8000 Notebook
Megahertz
1,000,000 cycles per second.
Memory
A repository for data and applications which is readily
accessible to your LifeBook notebook’s CPU.
MHz
Megahertz.
MIDI
Musical Instrument Digital Interface. A standard
communication protocol for exchange of information
between computers and sound producers such
as synthesizers.
Modem
A contraction for MOdulator-DEModulator. The
equipment which connects a computer or other data
terminal to a communication line.
Monaural
A system using one channel to process sound from all
sources.
MPU-401
A standard for MIDI interfaces and connectors.
MTU
Maximum Transmission Unit
The maximum data size that can be transferred at a time
through the Internet or other networks. You can set a
smaller MTU size to obtain successful communication,
if you have difficulty transferring data due to the fact
that the maximum size is too large.
Norton AntiVirus
Web-based software that protects you email, instant
messages, and other files by removing viruses, worms,
and Trojan horses.
NTSC
National TV Standards Commission. The standard for
TV broadcast and reception for the USA.
Operating System
A group of control programs that convert application
commands, including driver programs, into the exact
form required by a specific brand and model of micro-
processor in order to produce the desired results from
that particular equipment.
Partition
A block of space on a hard drive which is set aside and
made to appear to the operating system as if it were a
separate disk, and addressed by the operating system
accordingly.
PCI
Peripheral Component Interconnect
Self-configuring PC local bus. Designed by Intel, PCI has
gained wide acceptance as a standard bus design.
PCMCIA
PCMCIA is a trademark of the Personal Computer
Memory Card International Association. The Personal
Computer Memory Card International Association is an
organization that sets standards for add-in cards for
personal computers.
Peripheral Device
A piece of equipment which performs a specific
function associated with but not integral to a computer.
Examples: a printer, a modem, a CD-ROM.
Pitch (keyboard)
The distance between the centers of the letter keys of a
keyboard.
Pixel
The smallest element of a display, a dot of color on your
display screen. The more pixels per area the clearer your
image will appear.
POST
Power On Self Test. A program which is part of the BIOS
which checks the configuration and operating condition
of your hardware whenever power is applied to your
notebook. Status and error messages may be displayed
before the operating system is loaded. If the self test
detects failures that are so serious that operation can not
continue, the operating system will not be loaded.
PPP
Point to Point Protocol
A protocol for Ethernet which is used for connection on
the phone line.
Program
An integrated set of coded commands to your
computers telling your hardware what to do and how
and when to do it.
Protocol
Procedures and rules use to send and receive data
between computers.
Eagle E8310.book Page 80 Tuesday, May 8, 2007 11:40 AM
81
Glossary
- Method of sending and receiving data
- Process used to handle communication errors
Conditions required for communication are organized
in procedures for correct transfer of information.
RAM
Random Access Memory. A hardware component of
your LifeBook notebook that holds binary information
(both program and data) as long as it has the proper
power applied to it.
RAM Module
A printed circuit card with memory and associated
circuitry which allows the user to add additional
memory to the computer without special tools.
Reset
The act of reloading the operating system. A reset erases
all information stored in RAM.
Restart
See Reset.
Resume
To proceed after interruption. In your notebook this
refers to returning to active operation after having been
in one of the suspension states.
ROM
Read Only Memory. A form of memory in which infor-
mation is stored by physically altering the material. Data
stored in this way can not be changed by your notebook
and does not require power to maintain it.
SDRAM
Synchronous Dynamic Random Access Memory.
Serial Port
A connection to another device through which data is
transferred one bit at a time on a single wire with any
other wires only for control of the device not for transfer
of data.
SMART
Self-Monitoring, Analysis and Reporting Technology
(SMART) is an emerging technology that provides near-
term failure predictions for hard drives. When SMART is
enabled the hard drive monitors pre-determined drive
attributes that are susceptible to degradation over time.
If a failure is likely to occur, SMART makes a status
report available so that the LifeBook notebook can
prompt the user to back up the data on the drive. Natu-
rally not all failures are predictable. SMART predict-
ability is limited to those attributes which the drive can
self-monitor. In those cases where SMART can give
advance warning, a considerable amount of precious
data can be saved.
SRAM
Static random access memory. A specific technology of
making RAM which does not require periodic data
refreshing.
SSID
Service Set Identifier
Specifies which network you are joining. Some systems
allow you to specify any SSID as an option so you can
join any network.
Standby
To make inoperative for a period of time. Your LifeBook
notebook uses various suspension states to reduce power
consumption and prolong the charge of your battery.
Status Indicator
A display which reports the condition of some portion
of your hardware. On your LifeBook notebook this is an
LCD screen just above the keyboard.
Stereo (audio)
A system using two channels to process sound from two
different sources.
SVGA
Super VGA.
S-Video
Super Video. A component video system for driving a
TV or computer monitor.
System Clock
An oscillator of fixed precise frequency which synchro-
nizes the operation of the system and is counted to
provide time of day and date.
TCP/IP
Transmission Control Protocol/Internet Protocol.
A standard Internet protocol that is most widely used.
TFT
Thin Film Transistor – A technology for flat display
panels which uses a thin film matrix of transistors to
control each pixel of the display screen individually.
UL
Underwriters Laboratories – An independent organiza-
tion that tests and certifies the electrical safety of devices.
Eagle E8310.book Page 81 Tuesday, May 8, 2007 11:40 AM
82
LifeBook E8000 Notebook
USB
Universal Serial Bus.
Standard that allows you to simultaneously connect up
to 127 USB devices such as game pads, pointing devices,
printers, and keyboards to your computer.
VGA
Video Graphics Array. A video display standard
originally introduced by IBM with the PS/2 series of
personal computers.
VRAM
Video Random Access Memory. A memory dedicated to
video display data and control.
WFM
Wired for Management is Intel’s broad-based initiative
to reduce the total cost of ownership (TCO) of business
computing without sacrificing power and flexibility.
Wi-Fi Compatible
Wi-Fi (Wireless Fidelity) Identifies that the product has
passed the interoperability test, supplied by the WECA
(Wireless Ethernet Compatibility Alliance), which guar-
antees the interoperability of wireless IEEE 802.11 LAN
products. For more information on the Wi-Fi standard,
go to the WECA website at: www.wirelessethernet.com.
WLAN
Wireless Local Area Network. A wireless interconnection
of computers and peripherals within a single limited
geographic location which can pass programs and data
amongst themselves.
Write Protect
Prevent alteration of the binary state of all bits in a
storage media. Example: all information on a device
such as a floppy diskette; a block of space in a storage
media such as a partition of a hard drive; a file or direc-
tory of floppy diskette or hard drive.
XGA
Extended VGA.
Zip Drive
A 100MB or 250MB read/write removable media disk
drive.
Eagle E8310.book Page 82 Tuesday, May 8, 2007 11:40 AM
83
Regulatory Information
Regulatory Information
NOTICE
Changes or modifications not expressly approved by
Fujitsu could void this user’s authority to operate the
equipment.
FCC NOTICES
Notice to Users of Radios and Television
This equipment has been tested and found to comply
with the limit for class B digital devices, pursuant to
parts 15 of the FCC Rules.
These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installa-
tion. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a partic-
ular installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
nReorient or relocate the receiving antenna.
nIncrease the separation between the equipment and
receiver.
nConnect the equipment into an outlet that is on a
different circuit than the receiver.
nConsult the dealer or an experienced radio/TV
technician for help.
Shielded interconnect cables must be employed with this
equipment to ensure compliance with the pertinent RF
emission limits governing this device.
Notice to Users of the US Telephone Network
This equipment complies with Part 68 of the FCC rules,
and the requirements adopted by ACTA. On the bottom
of this equipment is a label that contains, among other
information, the FCC registration number and ringer
equivalence number (REN) for this equipment; or a
product identifier in the format US:AAAEQ##TXXXX.
If requested, this information or number must be
provided to the telephone company.
This equipment is designed to be connected to the tele-
phone network or premises wiring using a standard jack
type USOC RJ11C. A plug and jack used to connect this
equipment to the premises wiring and telephone
network must comply with the applicable FCC Part 68
rules and requirements adopted by the ACTA. A
compliant telephone cord and modular plug is provided
with this product. It is designed to be connected to a
compatible modular jack that is also compliant.
The ringer equivalent number (REN) of this equipment
is 0.1B as shown on the label. The REN is used to deter-
mine the number of devices that may be connected to a
telephone line. Excessive RENs on a telephone may
result in the devices not ringing in response to an
incoming call. In most but not all areas, the sum of
RENs should not exceed five (5.0). To be certain of the
number of devices that may be connected to a line, as
determined by the total RENs, contact the local tele-
phone company.
If this equipment causes harm to the telephone network,
the telephone company will notify you in advance that
temporary discontinuance of service may be required.
But if advance notice isn’t practical, the telephone
company will notify the customer as soon as possible.
Also, you will be advised of your right to file a complaint
with the FCC if you believe it is necessary.
The telephone company may make changes in its facili-
ties, equipment, operations or procedures that could
effect the operation of the equipment. If this happens
the telephone company will provide advance notice in
order for you to make necessary modifications to main-
tain uninterrupted service.
If trouble is experienced with this equipment, for repair
or warranty information, please refer to the manual or
contact Fujitsu Computer Systems Corporation,
Customer Service. If the equipment is causing harm to
the telephone network, the telephone company may
request that you disconnect the equipment until the
problem is resolved.
The equipment cannot be used on public coin service
provided by the telephone company. Connection to
party line service is subject to state tariffs. (Contact the
state public utility commission, public service commis-
sion or corporation commission for information).
If your home has specially wired alarm equipment
connected to the telephone line, ensure the installation
of this computer does not disable your alarm equip-
ment. If you have any questions about what will disable
alarm equipment, consult your telephone company or a
qualified installer.
The Telephone Consumer Protection Act of 1991 makes
it unlawful for any person to use a computer or other
electronic device to send any message via a telephone fax
machine unless such message clearly contains in a
margin at the top or bottom of each transmitted page or
on the first page of the transmission, the date an time it
is sent and an identification of the business or other
entity, or other individual sending the message and the
telephone number of the sending machine or such busi-
ness, other entity, or individual.
Eagle E8310.book Page 83 Tuesday, May 8, 2007 11:40 AM
84
LifeBook E8000 Notebook
DOC (INDUSTRY CANADA) NOTICES
Notice to Users of Radios and Television
This Class B digital apparatus meets all requirements of
Canadian Interference-Causing Equipment Regulations.
CET appareil numérique de la class B respecte toutes les
exigence du Réglement sur le matérial brouilleur du
Canada.
Notice to Users of the Canadian Telephone Network
NOTICE: This equipment meets the applicable Industry
Canada Terminal Equipment Technical Specifications.
This is confirmed by the registration number. The
abbreviation, IC, before the registration number signi-
fies that registration was performed based on a Declara-
tion of Conformity indicating that Industry Canada
technical specifications were met. It does not imply that
Industry Canada approved the equipment.
Before connecting this equipment to a telephone line the
user should ensure that it is permissible to connect this
equipment to the local telecommunication facilities.
The user should be aware that compliance with the
certification standards does not prevent service
degradation in some situations.
Repairs to telecommunication equipment should be
made by a Canadian authorized maintenance facility.
Any repairs or alterations not expressly approved by
Fujitsu or any equipment failures may give the
telecommunication company cause to request the user
to disconnect the equipment from the telephone line.
NOTICE: The Ringer Equivalence Number (REN) for
this terminal equipment is 0.1B. The REN assigned to
each terminal equipment provides an indication of the
maximum number of terminals allowed to be connected
to a telephone interface. The termination on an interface
may consist of any combination of devices subject only
to the requirement that the sum of the Ringer Equiva-
lence Numbers of all the devices does not exceed five.
Avis Aux Utilisateurs Du Réseau
Téléphonique Canadien
AVIS: Le présent matériel est conforme aux spécifica-
tions techniques d’Industrie Canada applicables au
matériel terminal. Cette conformité est confirmée par le
numéro d’enregistrement. Le sigle IC, placé devant le
numéro d’enregistrement, signifie que l’enregistrement
s’est effectué conformément à une déclaration de
conformité et indique que les spécifications techniques
d’Industrie Canada ont été respectées. Il n’implique pas
qu’Industrie Canada a approuvé le matériel.
Avant de connecter cet équipement à une ligne télépho-
nique, l’utilisateur doit vérifier s’il est permis de
connecter cet équipement aux installations de télécom-
munications locales. L’utilisateur est averti que même la
conformité aux normes de certification ne peut dans
certains cas empêcher la dégradation du service.
Les réparations de l’équipement de télécommunications
doivent être effectuées par un service de maintenance
agréé au Canada. Toute réparation ou modification, qui
n’est pas expressément approuvée par Fujitsu, ou toute
défaillance de l’équipement peut entraîner la compagnie
de télécommunications à exiger que l’utilisateur décon-
necte l’équipement de la ligne téléphonique.
AVIS: L’indice d’équivalence de la sonnerie (IES) du
présent matériel est de 0.1B. L’IES assigné à chaque
dispositif terminal indique le nombre maximal de
terminaux qui peuvent être raccordés à une interface
téléphonique. La terminaison d’une interface peut
consister en une combinaison quelconque de dispositifs,
à la seule condition que la somme d’indices d’équiva-
lence de la sonnerie de tous les dispositifs n’excède pas 5.
For safety, users should ensure that the
electrical ground of the power utility, the
telephone lines and the metallic water
pipes are connected together. Users should
NOT attempt to make such connections
themselves but should contact the appro-
priate electric inspection authority or elec-
trician. This may be particularly important
in rural areas.
Pour assurer la sécurité, les utilisateurs
doivent vérifier que la prise de terre du
service d’électricité, les lignes télphoniques
et les conduites d’eau métalliques sont
connectées ensemble. Les utilisateurs NE
doivent PAS tenter d’établir ces connex-
ions eux-mêmes, mais doivent contacter
les services d’inspection d’installations
électriques appropriés ou un électricien.
Ceci peut être particulièrement important
en régions rurales.
Eagle E8310.book Page 84 Tuesday, May 8, 2007 11:40 AM
85
Appendix A
Integrated Wireless
LAN* User’s Guide
* Optional device
Eagle E8310.book Page 85 Tuesday, May 8, 2007 11:40 AM
86
LifeBook E8000 Notebook
Eagle E8310.book Page 86 Tuesday, May 8, 2007 11:40 AM
87
WIreless LAN User’s Guide
FCC REGULATORY INFORMATION
Please note the following regulatory information related to the
wireless LAN device.
Regulatory Notes and Statements
Wireless LAN, Health and Authorization for use
Radio frequency electromagnetic energy is emitted from Wire-
less LAN devices. The energy levels of these emissions, however,
are far much less than the electromagnetic energy emissions
from wireless devices such as mobile phones. Wireless LAN
devices are safe for use by consumers because they operate
within the guidelines found in radio frequency safety standards
and recommendations. The use of Wireless LAN devices may
be restricted in some situations or environments, such as:
■On board an airplane, or
■In an explosive environment, or
■In situations where the interference risk to other devices or
services is perceived or identified as harmful.
In cases in which the policy regarding use of Wireless LAN
devices in specific environments is not clear (e.g., airports,
hospitals, chemical/oil/gas industrial plants, private buildings),
obtain authorization to use these devices prior to operating the
equipment.
Regulatory Information/Disclaimers
Installation and use of this Wireless LAN device must be in
strict accordance with the instructions included in the user
documentation provided with the product. Any changes or
modifications made to this device that are not expressly
approved by the manufacturer may void the user’s authority to
operate the equipment. The manufacturer is not responsible for
any radio or television interference caused by unauthorized
modification of this device, or the substitution or attachment of
connecting cables and equipment other than those specified by
the manufacturer. It is the responsibility of the user to correct
any interference caused by such unauthorized modification,
substitution or attachment. The manufacturer and its autho-
rized resellers or distributors will assume no liability for any
damage or violation of government regulations arising from
failure to comply with these guidelines.
This device must not be co-located or operated in conjunction
with any other antenna or transmitter.
For IEEE 802.11a Wireless LAN:
For operation within 5.15~5.25 GHz frequency range, it is
restricted to indoor environments, and the antenna of this
device must be integral.
Federal Communications Commission statement
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause interference, and, (2) This device must
accept any interference, including interference that may cause
undesired operation of this device.
FCC Interference Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installa-
tion. This equipment generates, uses, and can radiate radio
frequency energy. If not installed and used in accordance with
the instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try and correct
the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the distance between the equipment and the
receiver.
3. Connect the equipment to an outlet on a circuit different
from the one the receiver is connected to.
4. Consult the dealer or an experienced radio/TV technician
for help.
FCC Radio Frequency Exposure statement
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. This equipment
should be installed and operated with a minimum distance of
20 centimeters between the Wireless LAN antenna (located on
the top edge of the LCD screen) and your body. The transmit-
ters in this device must not be co-located or operated in
conjunction with any other antenna or transmitter.
Export restrictions
This product or software contains encryption code which may
not be exported or transferred from the US or Canada without
an approved US Department of Commerce export license. This
device complies with Part 15 of FCC Rules., as well as ICES 003
B / NMB 003 B. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received,
including interference that may cause undesirable operation.
Modifications not expressly authorized by Fujitsu Computer
Systems Corporation may invalidate the user's right to operate
this equipment.
Canadian Notice
The device for the 5150 - 5250 MHz band is only for
indoor usage to reduce the potential for harmful inter-
ference to co-channel mobile satellite systems.
The maximum antenna gain of 6 dBi permitted (for
devices in the 5250 - 5350 MHz, 5470 - 5725 MHz and
5725 - 5825 MHz bands) to comply with the e.i.r.p. limit
as stated in A9.2 of RSS210.
In addition, users are cautioned to take note that high
power radars are allocated as primary users (meaning
they have priority) of 5250 - 5350 MHz and 5650 - 5850
MHz and these radars could cause interference and/or
damage to LE-LAN devices.
Eagle E8310.book Page 87 Tuesday, May 8, 2007 11:40 AM
88
LifeBook E Series Notebook - Appendix A
Before Using the Wireless LAN
This manual describes the procedures required to prop-
erly set up and configure the integrated Wireless LAN
Mini-PCI device (referred to as "WLAN device" in the
rest of the manual). Before using the WLAN device, read
this manual carefully to ensure it's correct operation.
Keep this manual in a safe place for future reference.
Wireless LAN Device Covered by this Document
This document is applicable to systems containing one
of the following two devices. Most of the procedures are
identical. Sections that differ between the two devices
have been noted in the text:
■Intel® PRO/Wireless 3945ABG (WM3945ABG)
Network Connection (802.11a+b/g)
■Atheros® AR5006EXS (AR5BXB6) Mini-Card
Wireless network card (802.11a+b/g)
Characteristics of the WLAN Device
■The WLAN device is a Mini-PCI card attached to
the main board of the mobile computer.
■It operates in two license-free RF bands, therefore
eliminating the need to procure an FCC license to
operate. It operates in the 2.4GHz Industrial,
Scientific, and Medical (ISM) RF band and in the
lower and middle bands of the 5GHz Unlicensed
National Information Infrastructure (UNII)
bands.
■The WLANs are capable of three operating
modes, IEEE802.11a, IEEE802.11b and
IEEE802.11g, wireless LAN standards governed
by the IEEE (Institute of Electronics and Elec-
trical Engineers).
■Encoding of data is modulated using Direct
Sequence Spread Spectrum (DSSS) and Comple-
mentary Code Keying (CCK) when the WLAN
device is operating in IEEE 802.11b mode and
Orthogonal Frequency Division Multiplexing
(OFDM) when operating in IEEE802.11a or
IEEE802.11g mode.
■The WLAN device is Wi-Fi certified and operates
at the maximum data transfer rate of 54 Mbps in
IEEE802.11a or IEEE802.11g mode and 11 Mbps
in IEEE802.11b mode.
■The WLAN device supports the following
encryption methods - WEP, TKIP, and AES
encryption.
WIRELESS LAN MODES USING THIS DEVICE
Ad Hoc Mode
(See Figure A-1) "Ad Hoc Mode" refers to a wireless
network architecture where wireless network connec-
tivity between multiple computers is established without
a central wireless network device, typically known as
Access Point(s). Connectivity is accomplished using only
client devices in a peer-to-peer fashion. That is why Ad
Hoc networks are also known as peer-to-peer networks.
Ad Hoc networks are an easy and inexpensive method
for establishing network connectivity between multiple
computers.
Ad Hoc mode requires that the SSID, network authenti-
cation, and encryption key settings are identically
configured on all computers in the Ad Hoc network.
Access Point (Infrastructure) Mode
(See Figure A-2) Infrastructure mode refers to a wireless
network architecture in which devices communicate
with wireless or wired network devices by communi-
cating through an Access Point. In infrastructure mode,
wireless devices can communicate with each other or
with a wired network. Corporate wireless networks
operate in infrastructure mode because they require
access to the WLAN in order to access services, devices,
and computers (e.g., file servers, printers, databases).
Figure A-1. Ad Hoc Mode Network
Eagle E8310.book Page 88 Tuesday, May 8, 2007 11:40 AM
89
WIreless LAN User’s Guide
How to Handle This Device
The WLAN device is an optional device that may come
pre-installed in your mobile computer. Under normal
circumstances, it should not be necessary for you to
remove or re-install it. The Operating System that your
mobile computer comes with has been pre-configured to
support the WLAN device.
WIRELESS NETWORK CONSIDERATIONS
■The WLAN devices support IEEE802.11a+b/g.
■The devices operate in the 2.4GHz ISM band the
5 GHz lower and middle UNII bands.
■The maximum range of the WLAN device
indoors is typically 80 feet (25 meters). Please
note that the maximum range you achieve may be
shorter or longer than 80 feet, depending on
factors such as access point transmit power,
number and density of obstructions, or external
RF interference.
■Microwave ovens will interfere with the operation
of WLAN device as microwave ovens operate in
the same 2.4GHz frequency range that
IEEE802.11b/g devices operate in. Interference by
microwaves does not occur with IEEE802.11a
radio which operates in the 5 GHz RF band.
■Wireless devices that transmit in the 2.4 GHz
frequency range may interfere with the operation
of WLAN devices in IEEE802.11b/g modes. Inter-
ference symptoms include reduced throughput,
intermittent disconnects, and large amounts of
frame errors. It is HIGHLY recommended that
interfering devices be powered off to ensure
proper operation of the WLAN.
DEACTIVATING THE WLAN DEVICE
Deactivation of the WLAN device may be desired in
certain circumstances (to extend battery life) or where
certain environments require it (i.e. hospitals, clinics,
airplanes, etc.). Fujitsu mobile computers employ two
methods with which to deactivate the WLAN device:
■Using the Wireless On/Off Switch, or,
■In Windows XP, using the Intel PROSet Software or
Atheros Client Utility software.
Deactivation using the Wireless On/Off Switch
The WLAN device can be deactivated quickly and effi-
ciently by toggling the Wireless On/Off Switch to the Off
position. (Figure A-3)
The Wireless On/Off switch has no effect on non-Wire-
less LAN models.
Figure A-3. Wireless LAN On/Off Switch
Before using the wireless LAN device, you
must first install ClickMe! to ensure that
the correct software for your device is
installed. (See Installing Click Me! on
page 28 for more information)
WLAN Switch
Figure A-2. Access Point
ADSL modem,
cable modem,
or similar
Internet Wired LAN
Access Point*
Wireless LAN *An optional hub for a wired
LAN may be required depending
upon the type of access point used.
(Infrastructure) Mode Network
Eagle E8310.book Page 89 Tuesday, May 8, 2007 11:40 AM
90
LifeBook E Series Notebook - Appendix A
Windows XP: Deactivation using the Intel PROSet
Software
The WLAN device can also be deactivated in Windows
using the Intel PROSet Software. The procedure to
accomplish this:
1. Click [Start]-> [All Programs].
2. Select Intel ProSet Wireless, then click on Intel
ProSet Wireless from the menu that appears. The
Intel ProSet Wireless utility will be displayed.
3. At the bottom left corner of the window, select
Wireless Off from the dropdown list.
Windows XP: Deactivation using Atheros Client
Utility software
1. Click [Start] -> [Program Files] -> [Atheros] ->
Atheros Client Utility.
2. Choose Action and click Disable Radio.
ACTIVATING THE WLAN DEVICE
Activation of the WLAN device can be accomplished
using the same methods as the deactivation process.
■Using the Wireless On/Off Switch
■In Windows XP, using the Intel PROSet Software
or Atheros Software.
The Wireless LAN/Bluetooth On/
Off Switch will power off both the
optional wireless LAN and Bluetooth
devices at the same time. To enable
or disable either one of the devices
individually, perform the following
steps:
1. Slide the Wireless LAN/Blue-
tooth on/off switch to On posi-
tion.
2. XP: In the Control Panel, dou-
ble-click the Fujitsu Radio Con-
trol icon.Vista: Use the
Bluetooth icon in the system
tray to disable Bluetooth radio.
3. In the window that appears,
click the button associated with
Bluetooth and/or Wireless LAN
Status to enable or disable the
individual devices.
4. Click [OK].
Eagle E8310.book Page 90 Tuesday, May 8, 2007 11:40 AM
91
WIreless LAN User’s Guide
Configuration of the WLAN Device
The optional WLAN Device can be configured to estab-
lish wireless network connectivity using one of the
following tools:
■Intel PROSet Software - The Intel PROSet Soft-
ware allows for multiple profile setup and
supports automatic profile switching. Support for
most industry standard security solutions is
contained in this software.
■Atheros Client Utility - The Atheros Client Utility
software allows for multiple profile setups and
supports automatic profile switching. Support for
most industry standard security solutions is
contained in this software.
There are two procedures outlines below. The first one is
for use with the Windows Vista operating system, and
the other is used with the Windows XP operating
system.
CONFIGURING THE WLAN WITH WINDOWS
VISTA
The WLAN device can be configured to establish wire-
less network connectivity using the software that is built
into Windows Vista. Support for most industry standard
security solutions is contained in this software.
Pre-defined parameters will be required for this proce-
dure. Please consult with your network administrator
for these parameters:
1. Click the Start button, then select Control Panel.
2. If the Control Panel is not in Classic View, select
Classic View from the left panel. Double-click the
Network and Sharing Center icon.
3. Select “Manage wireless networks” from the left
panel.
4. Click on the [Add] button.
5. Depending upon what type of connection you
would like to make, make a selection. For an infra-
structure network, select “Manually create a net-
work profile. For ad hoc network, select “Create an
ad hoc network”.
6. Enter the required information. It may be necessary
to consult with your network administrator for
some of the information.
7. In the event you require assistance, go to the Net-
work and Sharing Center window (Start -> Control
Panel -> Network and Sharing Center), and type in
relevant keywords in the Search box.
CONNECTING TO A NETWORK WITH
WINDOWS VISTA
After you have configured your computer, you can
connect to an active network by performing the
following steps:
1. Click on the WLAN icon in the system tray.
2. Select “connect to a network”.
3. Select a network from the list that appears, and
click the [Connect] button.
CONFIGURING THE WLAN USING
WINDOWS XP
Configuring Using Intel PROSet Software
This section explains the procedure to properly
configure the WLAN device in a system using Windows
XP using the Intel PROSet Software. Pre-defined param-
eters will be required for this procedure. Please consult
with your network administrator for these parameters:
Network Name - Also known as the SSID
Network Key (WEP) - Required if using static WEP
keys.
Authentication Type - Open, Shared, WPA, or WPA-
PSK
Procedure
1. Activate the WLAN device using either the Wireless
On/Off Switch or the Intel PROSet software.
2. Click the [Start] button first and then [All Pro-
grams].
3. Click the icon [Intel PROSet Wireless] to execute
the Intel PROSet Wireless software.
4. Click the [Add] button. The General Settings dialog
displays.
5. Enter a profile name in the Profile Name field.
6. Enter the network SSID, in the Network Name
(SSID) field.
7. Click Infrastructure or Ad Hoc for the operating
mode.
8. Click [Advanced].
9. The Mandatory Access Point option is only used if
Infrastructure mode is selected. Use this option to
connect to a specific access point. Enter the MAC
Eagle E8310.book Page 91 Tuesday, May 8, 2007 11:40 AM
92
LifeBook E Series Notebook - Appendix A
address for the access point. Click OK to save the
setting and return to the General Settings page.
10. Click [Next].
11. If you are using Cisco CCX, click Cisco Options to
enable Cisco CKIP data encryption on the Security
Settings page. Check the Cisco Compatible Exten-
sions Options. If you have checked the Cisco's
"Mixed-Cell" box in the Advanced Setting, this
option must also be checked.
12. Click [OK].
13. Click Next.
14. Select Open, Shared, WPA-Enterprise, WPA2-
Enterprise, WPA-Personal, or WPA2-Personal in
the Network Authentication options.
15. Select either None, WEP, CKIP (if Enable Cisco Cli-
ent eXtentions is enabled, use CKIP or WEP), or
TKIP for the data encryption.
16. If WEP is selected, select either 64 or 128-bit for the
Encryption Level.
17. Select the key index 1, 2, 3 or 4.
18. Enter the WEP key if required. If your network does
not employ a 802.1x/EAP security mechanism,
please skip to step 24.
19. Click the Enable 802.1x checkbox to enable the
802.1x security option. Please contact your network
administrator if configuration of this setting is
required.
20. Select the appropriate Authentication Type. Please
contact your network administrator if configura-
tion of this setting is required.
21. After selecting your authentication type, enter the
user name, domain, and password of the user you
have created on the authentication server. The user
name and password do not have to be the same as
name and password of your current Windows user
login.
22. Click [OK] to save the settings.
23. From the Intel ProSet Wireless page, click the new
profile name shown in the Profile List. Use the up
and down arrows to position the priority of the
new profile in the priority list.
24. Click the Connect button to connect to the net-
work.
25. Click [Close] if you want to close the Intel PROSet
for Wireless window.
Configuring Using Atheros Client Utility Software
This section explains the procedure to properly
configure the WLAN device using the Atheros Client
Utility. Pre-defined parameters will be required for this
procedure. Please consult with your network adminis-
trator for these parameters:
Network Name - Also known as the SSID
Network Key (WEP) - Required if using static WEP
keys.
Authentication Type - Open, Shared, WPA, or WPA-
PSK
Procedure
1. Activate the WLAN device using either the Wireless
On/Off Switch or the Atheros Client Utility
2. Right-click the “Atheros Client Utility” icon in the
system tray, and select “Open Atheros Client Util-
ity” from menu.
3. From the Current Status page, click the Profile
Management tab.
4. If this is your first time using this utility, highlight
the profile [Default] and Click the [Modify] button,
otherwise Click the [New] button. The General Set-
tings dialog displays.
5. From the General page, enter a profile name in the
Profile Name field.
6. Enter the network SSID, in the SSID1 field. If you
wish to create a profile that can connect to up to 3
different wireless networks, SSID's can be entered
in the SSID2 and SSID3 fields as well.
7. Click the Security tab.
8. The Security tab allows for the configuration of the
Security modes listed in the table below. Please
select the radio button of the desired security
mode. If these settings are not known to you,
please consult with your network administrator for
the correct settings.
Eagle E8310.book Page 92 Tuesday, May 8, 2007 11:40 AM
93
WIreless LAN User’s Guide
9. Click OK, then click the Advanced tab 10. The Advanced tab allows for the configuration of
the options detailed in the table below.
11. Click OK
12. If the profile you just created does not activate
immediately, click the Profile Management tab,
highlight the desired Profile, and click Activate.
13. Click OK to close the Atheros Client Utility.
Field Name Description
WPA
Enables the use of Wi-Fi Protected Access. Choosing WPA opens the WPA EAP
drop-down menu. Options include TLS and PEAP. If these settings are not known
to you, please consult with your network administrator for the correct settings.
WPA-PSK
Enables WPA-Pre-Shared Key. Click on the Configure button to enter the WPA
Passphrase. If these settings are not known to you, please consult with your
network administrator for the correct settings.
802.1x
Enables 802.1x security. If these settings are not known to you, please consult
with your network administrator for the correct settings. Choosing this option
opens the 802.1x EAP type drop-down menu. Options include TLS, PEAP, and
LEAP
Pre-Shared
Key
Enables the use of pre-shared keys defined on both the access point and the
station. This is where static WEP keys are entered. Click the Configure button to
fill in the Define Pre-Shared Keys window.
None No security
Field Name Description
Power Save
Mode
Options are Maximum, Normal, or Off
Network Type Options are AP (Infrastructure) or Ad Hoc
802.11b
Preamble
Specifies the preamble setting in 802.11b. The default setting is Short and Long
(Access Point mode), which allows both short and long headers in the 802.11b
frames. Set to Long Only to override allowing short frames.
Transmit Power
Level
Options are selectable, depending upon whether 802.11b/g or 802.11a is used.
Wireless Mode Specifies 5 GHz 54 Mbps, 2.4 GHz 11 Mbps, or 2.4 GHz 54 Mbps operation in an
access point network.
Wireless Mode
when Starting Ad
Hoc Network
Specifies 5GHz 54 Mbps, 2.4 GHz 11 Mbps, or 2.4 GHz 54 Mbps to start an Ad
Hoc network if no matching network name is found after scanning all available
modes.
Eagle E8310.book Page 93 Tuesday, May 8, 2007 11:40 AM
94
LifeBook E Series Notebook - Appendix A
CONNECTION TO THE NETWORK
This section explains connection to the network.
If there is an administrator of the network, contact the
network administrator for data settings.
Setting the network
Perform the “Setting TCP/IP” and “Confirming the
computer and work group names” operations required
for network connection.
Setting TCP/IP
1. Click the [Start] button first and then [Control
Panel].
2. If the Control Panel is in Category view, switch to
Classic view by clicking “Switch to Classic View”
under Control Panel the left frame. (If you are
already in Classic view, “Switch to Category View”
will be displayed.)
3. Double-click [Network Connections]. A list of cur-
rently installed networks will be displayed.
4. Right-click [Wireless Network Connection] in the
list, and then click [Properties] in the menu dis-
played. The [Wireless Network Connection Proper-
ties] window will be displayed.
5. Click the [General] tab if it is not already selected.
6. Click [Internet Protocol (TCP/IP] and then click
[Properties]. The [Internet Protocol (TCP/IP)
Properties] window will be displayed.
7. Set the IP address as follows:
■For ad hoc connection: Select [Use the following
IP address:] and then enter data for [IP address]
and [Subnet mask].
■For access point (infrastructure) connection: If
your network uses DHCP, select [Obtain an IP
address automatically] and [Obtain DNS server
address automatically]. If your network uses
static IP addresses, consult with your network
administrator for the correct IP address settings.
8. Click the [OK] button. Processing will return to the
[Wireless Network Connection Properties] win-
dow.
9. Click the [OK] button.
10. Close the [Network Connection] window.
Following this operation, confirm the names of the
computer and the workgroup as follows.
Confirming the computer and work group names
1. Click the [Start] button, then [Control Panel].
2. If the Control Panel is in Category view, switch to
Classic view by clicking “Switch to Classic View”
under Control Panel in the left frame. (If you are
already in Classic view, “Switch to Category View”
will be displayed.)
3. Double-click the [System] icon. The [System Prop-
erties] window will be displayed.
4. Click the [Computer Name] tab.
5. Confirm the settings of [Full computer name:] and
[Workgroup:].
a. The setting of [Full computer name:] denotes
the name for identifying the computer. Any
name can be assigned for each personal com-
puter.
Enter the desired name in less than 15 ASCII
character code format. Identifiability can be
enhanced by entering the model number, the
user name, and other factors.
b. [Workgroup name] is the group name of the
network. Enter the desired name in less than
15 ASCII character code format.
For ad hoc connection: Assign the same network
name to all personal computers existing on the
network.
For access point (infrastructure) connection:
Assign the name of the work group to be
accessed.
6. Click the [OK] button. If a message is displayed
that requests you to restart the personal computer,
click [Yes] to restart the computer.
To change the setting of the IP
address, you need to be logged in
from Windows as an administrator.
To modify the computer name and/
or the work group name, you need
to be logged in from Windows as an
administrator.
To change the name, click [Change]
and then proceed in accordance
with the instruction messages
displayed on the screen.
Eagle E8310.book Page 94 Tuesday, May 8, 2007 11:40 AM
95
WIreless LAN User’s Guide
Setting the sharing function
Set the sharing function to make file and/or printer
sharing with other network-connected personal
computers valid.
This operation is not required unless the sharing func-
tion is to be used.
The folder and printer for which the sharing function
has been set will be usable from any personal computer
present on the network.
Setting the Microsoft network-sharing service
1. Click the [Start] button first and then [Control
Panel].
2. If the Control Panel is in Category view, switch to
Classic view by clicking “Switch to Classic View”
under Control Panel the left frame. (If you are
already in Classic view, “Switch to Category View”
will be displayed.)
3. Double-click [Network Connections]. A list of cur-
rently installed networks will be displayed.
4. Right-click [Wireless Network Connection] in the
list, and then click [Properties] in the menu dis-
played. The [Wireless Network Connection Proper-
ties] window will be displayed.
5. If [File and Printer Sharing for Microsoft Net-
works] is displayed, proceed to step 6. If [File and
Printer Sharing for Microsoft Networks] is not dis-
played, skip to step 7.
6. Make sure that the [File and Printer Sharing for
Microsoft Networks] check box is checked, and
then click the [OK] button. Skip to “Setting file-
sharing function”.
7. Click [Install]. The [Select Network Component
Type] window will be displayed.
8. Click [Service], then click the [Add] button. The
[Select Network Service] window will be displayed.
9. Click [File and Printer Sharing for Microsoft Net-
works] and then click the [OK] button. Processing
will return to the [Wireless Network Connection
Properties] window, and [File and Printer Sharing
for Microsoft Networks] will be added to the list.
10. Click the [Close] button.
Setting the file-sharing function
The procedure for setting the file-sharing function
follows, with the “work” folder in drive C: as an
example.
1. Click the [Start] button first and then [My Com-
puter].
2. Double-click [Local disk (C:)].
3. Right-click the “work” folder (or whichever folder
you want to share), and then click [Sharing and
Security...] in the menu displayed. The [Folder
Name Properties] window will be displayed
4. Click [Sharing] if it isn’t already selected.
5. Click the link stating “If you understand the secu-
rity risks, but want to share files without running
the wizard, click here”.
6. Click “Just enable file sharing” and click [OK].
7. Check the [Share this folder on the network] check
box.
8. Click the [OK] button. The folder will be set as a
sharable folder, and the display of the icon for the
“work.” folder will change.
Setting the printer-sharing function
1. Click the [Start] button first and then [Printers and
FAX] (In Vista: Printers control panel). A list of
connected printers will be displayed.
2. Right-click the printer for which the sharing func-
tion is to be set, and then click [Sharing] in the
To share a file and/or the connected
printer, you need to be logged in as
an administrator. Setting the file-sharing function for
the file which has been used to
execute Network Setup Wizard is
suggested on the screen. For the
wireless LAN, however, since
security is guaranteed by entry of
the network name (SSID) and the
network key, the steps to be taken
to set the file-sharing function easily
without using Network Setup
Wizard are given below.
To specify the corresponding folder
as a read-only folder, select the
[Read only] checkbox under the
General tab.
Eagle E8310.book Page 95 Tuesday, May 8, 2007 11:40 AM
96
LifeBook E Series Notebook - Appendix A
menu displayed. The property window correspond-
ing to the selected printer will be displayed.
3. Click the [Sharing] tab.
4. Click [Share this printer].
5. Enter the sharing printer name in [Share name].
6. Click the [OK] button.
Confirming connection
After you have finished the network setup operations,
access the folder whose sharing has been set for other
personal computers. Also, confirm the status of the radio
waves in case of trouble such as a network connection
failure.
Connecting your personal computer to another
personal computer
1. Click [Start] first and then [My Computer]. The
[My Computer] window will be displayed in the
left frame.
2. Click [My Network Places] in the “Other Places”
list. The window [My Network Places] will be dis-
played.
3. Click [View workgroup computers] under Network
Tasks in the left frame.
4. Double-click the personal computer to which your
personal computer is to be connected. The folder
that was specified in “Setting the file-sharing func-
tion” on page 95 will be displayed.
5. Double-click the folder to be accessed.
Confirming the status of the radio
1. Right-click the Intel PRO Wireless icon in the lower
right corner of the screen.
2. Click [Open Intel PROSet for Wireless]. The Intel
PROSet for Wireless window opens.
3. Contained within the General tab and the Details
section (accessed by pressing the [Details] button),
you will find the current operating status of the
radio. (When the radio is turned off or the com-
puter is not yet connected, some of the conditions
will not be displayed.)
■Network Name (SSID)
Displays the Network Name (SSID) currently
used by the radio.
■Profile Name
The current configuration profile is displayed.
■Mode
Displays the current operating mode. [Infrastruc-
ture (AP)] or [Ad Hoc] will be displayed.
■Security
Displays the current security status of the profile
being used:
None: No encryption used.
WEP: WEP encryption algorithm used.
CKIP: WEP encryption algorithm used.
TKIP: WEP encryption algorithm used.
■Speed
Displays the highest data rate of the associated
access point in mega-bits-per-second (Mbps)
until data transfer occurs.
802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, or 54.
802.11b: 1, 2, 5.5, or 11.
■Band (Frequency)
Displays the current band and frequency being
used. Displays Out of Range if no band and
frequency is displayed. Displays:
802.11g (2.4 GHz) or 802.11b (2.4 GHz)
■Channel
Displays the current transmit and receive channel
being used.
■802.1x Protocol
Displays Enabled if the profile uses 802.1x
authentication. Default is Disabled.
Setting the printer-sharing function
when Network Setup Wizard has
been executed is suggested on the
screen. For the wireless LAN,
however, since security is
guaranteed by entry of the network
name (SSID) and the network key,
the steps to be taken to set the
printer-sharing function without
using Network Setup Wizard are laid
down below.
In the case of access point
(infrastructure) connection, enter
the necessary data for the access
point before confirming connection.
Refer to the manual of the access
point for the access point setup
procedure.
Eagle E8310.book Page 96 Tuesday, May 8, 2007 11:40 AM
97
WIreless LAN User’s Guide
Troubleshooting the WLAN
TROUBLESHOOTING
Causes and countermeasures for troubles you may encounter while using your wireless LAN are described in the
following table.
Problem Possible Cause Possible Solution
Unavailable
network
connection
Incorrect network
name (SSID) or
network key
Ad hoc connection: verify that the network names (SSID’s) and network
keys (WEP) of all computers to be connected have been configured
correctly. SSID’s and WEP key values must be identical on each machine.
Access Point (Infrastructure) connection: set the network name (SSID)
and network key to the same values as those of the access point.
Set the Network Authentication value identically to that of the Access
Point (See Configuring the WLAN Using Windows XP on page 91 for
more information). Please consult your network administrator for this
value, if necessary.
Weak received signal
strength and/or link
quality
Ad hoc connection: Retry connection after shortening the distance to
the destination computer or removing any obstacles for better sight.
Access Point (Infrastructure) connection: Retry connection after short-
ening the distance to the access point or removing any obstacles for
better sight.
To check the wave condition, refer to the following page: “Confirming
the status of the radio waves” on page 96.
The WLAN device
has been deactivated
or disabled
Check if the wireless switch is turned ON. Also verify “Disable Radio” is
not checked in “Network setting” window.
The computer to be
connected is turned
off
Check if the computer to be connected is turned ON.
RF interference from
Access Points or
other wireless
networks
The use of identical or overlapping RF channels can cause interference
with the operation of the WLAN device. Change the channel of your
Access Point to a channel that does not overlap with the interfering
device.
Wireless network
authentication has
failed
Re-check your Network Authentication, Encryption, and Security
settings. Incorrectly configured security settings such as an incorrectly
typed WEP key, a mis-configured LEAP username, or an incorrectly
chosen authentication method will cause the LAN device to associate
but not authenticate to the wireless network.
Incorrectly
configured network
settings
Recheck the configuration of your network settings.
For the method of checking, refer to the following page:·“Connection to
the Network” on page 94.
Incorrect IP address
configuration
This only applies to networks using static IP addresses. Please contact
your network administrator for the correct settings.
Eagle E8310.book Page 97 Tuesday, May 8, 2007 11:40 AM
98
LifeBook E Series Notebook - Appendix A
WLAN Specifications
SPECIFICATIONS
* “Wi-Fi based” indicates that the interconnectivity test of the organization which guarantees the interconnectivity
of wireless LAN (Wi-Fi Alliance) has been passed.
** The communication ranges shown above will increase or decrease depending on factors such as number of walls,
reflective material, or interference from external RF sources.
*** Encryption with network key (WEP) is performed using the above number of bits, however, users can set 40 bits/
104 bits after subtracting the fixed length of 24 bits.
**** Depending on practical environments, the allowable number of computers to be connected may be decreased.
Item Specification
Type of network Conforms to IEEE 802.11a/802.11b/g (Wi-Fi based)*
Transfer rate (Automatic switching)
IEEE 802.11a/g: 54 Mbps maximum data rate
IEEE 802.11b: 11 Mbps maximum data rate
Active frequency 802.11b/g: 2400~2473 MHz
802.11a: 4900 ~ 5850 MHz
Typical operating distances** 802.11a: 40 ft. (12 m) @ 54 Mbps; 300 ft. (91 m) @ 6 Mbps
802.11b: 100 ft. (30 m) @ 11 Mbps; 300 ft. (91 m) @ 1 Mbps
802.11g: 100 ft. (30 m) @ 54 Mbps; 300 ft. (91 m) @ 1 Mbps
Number of channels 802.11a: 8 independent channels
802.11b/g: 11 channels, 3 non-overlapping channels
Security Encryption Types - WEP, TKIP, AES***
WPA 1.0 compliant
Encryption Keylengths Supported: 64 bits, 128 bits, and 152 bits
(Using AES encryption only)
802.1x/EAP
CCX 1.0 compliant
Maximum recommended number of computers
to be connected over wireless LAN (during ad hoc
connection)
10 units or less ****
Eagle E8310.book Page 98 Tuesday, May 8, 2007 11:40 AM
99
WIreless LAN User’s Guide
Using the Bluetooth Device
The Integrated Bluetooth module (EYTF3CSFT) is an
optional device available for Fujitsu mobile computers.
WHAT IS BLUETOOTH
Bluetooth technology is designed as a short-range wire-
less link between mobile devices, such as laptop
computers, phones, printers, and cameras. Bluetooth
technology is used to create Personal Area Networks
(PANs) between devices in short-range of each other.
WHERE TO FIND INFORMATION ABOUT
BLUETOOTH
The Bluetooth module contains a robust Help user’s
guide to assist you in learning about operation of the
Bluetooth device.
Windows XP: To access the Help file, click [Start] -> All
Programs, and click on Toshiba. Select Bluetooth, then
select User’s Guide.
Windows Vista: To access the Help file, click [Start] ->
All Programs, and click on Bluetooth, then select User’s
Guide.
For additional information about Bluetooth Technology,
visit the Bluetooth Web site at: www.bluetooth.com.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. The
Bluetooth antenna is located on the right of the palm
rest and is exempt from minimum distance criteria due
to its low power.
The transmitters in this device must not be co-located or
operated in conjunction with any other antenna or
transmitter.
Canadian Notice
To prevent radio interference to the licensed service, this
device is intended to be operated indoors and away from
windows to provide maximum shielding. Equipment (or
its transmit antenna) that is installed outdoors is subject
to licensing.
Warranty
Users are not authorized to modify this product. Any
modifications invalidate the warranty.
This equipment may not be modified, altered, or
changed in any way without signed written permission
from Fujitsu. Unauthorized modification will void the
equipment authorization from the FCC and Industry
Canada and the warranty.
You may need to install the Bluetooth
application on your system using the
Bluetooth disc that came with the
notebook.
Eagle E8310.book Page 99 Tuesday, May 8, 2007 11:40 AM
100
LifeBook E Series Notebook - Appendix A
Eagle E8310.book Page 100 Tuesday, May 8, 2007 11:40 AM
101
Appendix B
Using the
Fingerprint Sensor*
*Optional device
Eagle E8310.book Page 101 Tuesday, May 8, 2007 11:40 AM
102
LifeBook E8000 Notebook – Appendix B
Eagle E8310.book Page 102 Tuesday, May 8, 2007 11:40 AM
103
Using the Fingerprint Sensor
Fingerprint Sensor Device
INTRODUCING THE FINGERPRINT
SENSOR DEVICE
Your system has an optional fingerprint sensor device
below the Touchpad, between the left and right buttons.
This also serves as a scroll button. (Figure 1)
Figure A-1 Fingerprint sensor
With a fingerprint sensor, you can avoid having to enter
a username and password every time you want to:
■Log onto Windows
■Recover from Standby mode
■Cancel a password-protected screen saver
■Log into homepages that require a username and pass-
word
After you have “enrolled” - or registered - your finger-
print, you can simply swipe your fingertip over the
sensor for the system recognize you.
The fingerprint sensor uses Softex OmniPass which
provides password management capabilities to
Microsoft Windows operating systems. OmniPass
enables you to use a "master password" for all Windows,
applications, and on-line passwords.
The use of OmniPass results in a secure authentication
system for restricting access to your computer, applica-
tions, websites, and other password-protected resources.
OmniPass presents a convenient graphical user interface,
through which you can securely manage passwords,
users, and multiple identities for each user.
GETTING STARTED
This section guides you through the preparation of your
system for the OmniPass fingerprint recognition
application. You will be led through the OmniPass
installation process. You will also be led through the
procedure of enrolling your first user into OmniPass.
INSTALLING OMNIPASS
If OmniPass has already been installed on your system,
skip this section and go directly to “User Enrollment” on
page 104. You can determine whether OmniPass has
already been installed by checking to see if the following
are present:
■The presence of the gold key-shaped OmniPass icon in
the system tray at the bottom right of the screen.
■The presence of the Softex program group in the
Programs group of the Start menu
System Requirements
The OmniPass application requires space on your hard
drive; it also requires specific Operating Systems (OS’s).
The minimum requirements are as follows:
■Windows XP Professional operating system
■At least 35 MB available hard disk space
Installing the OmniPass Application
If OmniPass is already installed on your system, go to
“User Enrollment” on page 104. (If you have run the
ClickMe! utility, it is likely that OmniPass has already
been installed on your system.) Otherwise continue with
this section on software installation.
To install OmniPass on your system you must:
1. Insert the installation media for the OmniPass appli-
cation into the appropriate drive. If you are
installing from CD-ROM or DVD-ROM, you must
find and launch the OmniPass installation program
(setup.exe) from the media.
2. Follow the directions provided in the OmniPass
installation program. Specify a location to which
you would like OmniPass installed. It is recom-
mended that you NOT install OmniPass in the root
directory (e.g. C:\).
3. Once OmniPass has completed installation you will
be prompted to restart you system. Once your
system has rebooted you will be able to use
OmniPass. If you choose not to restart immediately
after installation, OmniPass will not be available for
use until the next reboot.
The installation program automatically places an icon
(Softex OmniPass) in the Windows Control Panel as well
as a golden key shaped icon in the taskbar.
Although the system may have a
fingerprint sensor in place of a scroll
button, the fingerprint sensor can be used
for scrolling. Simply move your fingerprint
over the sensor the same as you would use
a scroll button.
For installation, OmniPass requires that the
user installing OmniPass have
administrative privileges to the system. If
your current user does not have
administrative privileges, log out and then
log in with an administrator user before
proceeding with OmniPass installation.
Eagle E8310.book Page 103 Tuesday, May 8, 2007 11:40 AM
104
LifeBook E8000 Notebook – Appendix B
Verifying Information about OmniPass
After you have completed installing OmniPass and
restarted your system, you may wish to check the version
of OmniPass on your system.
To check the version information of OmniPass:
1. From the Windows Desktop, double-click the key-
shaped OmniPass icon in the taskbar (usually
located in the lower right corner of the screen),
or,
Click the Start button, select Settings, and click
Control Panel (if you are using Windows XP you
will see the Control Panel directly in the Start menu;
click it, then click Switch to Classic View). Double-
click Softex OmniPass in the Control Panel, and the
OmniPass Control Center will appear. If it does not
appear, then the program is not properly installed,
or,
Click the Start button, select Programs, and from
the submenu select the Softex program group, from
that submenu click OmniPass Control Center.
2. Select the About tab at the top of the OmniPass
Control Panel. The About tab window appears with
version information about OmniPass.
Uninstalling OmniPass
To remove the OmniPass application from your system:
1. Click Start on the Windows taskbar. Select Settings,
and then Control Panel.
2. Double-click Add/Remove Programs.
3. Select OmniPass, and then click Change/Remove.
4. Follow the directions to uninstall the OmniPass
application.
5. Once OmniPass has finished uninstalling, reboot
your system when prompted.
USER ENROLLMENT
Before you can use any OmniPass features you must first
enroll a user into OmniPass.
Master Password Concept
Computer resources are often protected with passwords.
Whether you are logging into your computer, accessing
your email, e-banking, paying bills online, or accessing
network resources, you often have to supply credentials
to gain access. This can result in dozens of sets of creden-
tials that you have to remember.
During OmniPass user enrollment a "master password”
is created for the enrolled user. This master password
“replaces” all other passwords for sites you register with
OmniPass.
Example: A user, John, installs OmniPass on his system
(his home computer) and enrolls an OmniPass user with
username “John_01” and password “freq14”. He then
goes to his webmail site to log onto his account. He
inputs his webmail credentials as usual (username
“John_02” and password “lifebook”), but instead of
clicking [Submit], he directs OmniPass to Remember
Password. Now whenever he returns to that site,
OmniPass will prompt him to supply access credentials.
John enters his OmniPass user credentials (“John_01”
and “freq14”) in the OmniPass authentication prompt,
and he is allowed into his webmail account. He can do
this with as many websites or password protected
resources he likes, and he will gain access to all those
sites with his OmniPass user credentials (“John_01” and
“freq14”). This is assuming he is accessing those sites
with the system onto which he enrolled his OmniPass
user. OmniPass does not actually change the credentials
of the password protected resource. If John were to go to
an Internet cafe to access his webmail, he would need to
enter his original webmail credentials (“John_02” and
“lifebook”) to gain access. If he attempts his OmniPass
user credentials on a system other than where he
enrolled that OmniPass user, he will not gain access.
Basic Enrollment
The Enrollment Wizard will guide you through the
process of enrolling a user. Unless you specified other-
wise, after OmniPass installation the Enrollment Wizard
will launch on Windows login. If you do not see the
Enrollment Wizard, you can bring it up by clicking Start
on the Windows taskbar; select Programs; select Softex;
click OmniPass Enrollment Wizard.
Before you uninstall the software, decrypt
all OmniPass encrypted files and export all
OmniPass User Profiles. Failure to do so
may result in permanent loss of encrypted
file data, and permanent loss of all
remembered passwords and associated
information (see Chapter 5 of the
OmniPass help document:: Exporting and
Importing Users).
For uninstallation, OmniPass requires that
the user uninstalling OmniPass have
administrative privileges to the system. If
your current user does not have
administrative privileges, log out and then
log in with an administrator user before
proceeding with OmniPass uninstallation.
The enrollment procedure assumes you
have no hardware authentication devices
or alternate storage locations that you
wish to integrate with OmniPass. If you
desire such functionality, consult the
appropriate sections of this document.
Eagle E8310.book Page 104 Tuesday, May 8, 2007 11:40 AM
105
Using the Fingerprint Sensor
1. Click Enroll to proceed to username and password
verification. By default, the OmniPass Enrollment
Wizard enters the credentials of the currently logged
in Windows user.
2. Enter the password you use to log in to Windows.
This will become the “master password” for this
OmniPass user. In most cases, the Domain: value
will be your Windows computer name. In a corpo-
rate environment, or when accessing corporate
resources, the Domain: may not be your Windows
computer name. Click [Next] to continue.
3. In this step OmniPass captures your fingerprint.
Refer to “Enrolling a Fingerprint” on page 105 for
additional information.
4. Next, choose how OmniPass notifies you of various
events. We recommend you keep Taskbar Tips on
Beginner mode taskbar tips and Audio Tips on at
least Prompt with system beeps only until you get
accustomed to how OmniPass operates. Click [Next]
to proceed with user enrollment. You will then see a
Congratulations screen indicating your completion
of user enrollment.
5. Click [Done] to exit the OmniPass Enrollment
Wizard. You will be asked if you’d like to log in to
OmniPass with your newly enrolled user; click [Yes].
Enrolling a Fingerprint
Enrolling a fingerprint will increase the security of your
system and streamline the authentication procedure.
You enroll fingerprints in the OmniPass Control Center.
With an OmniPass user logged in, double-click the
system tray OmniPass icon. Select the User Settings tab
and click Enrollment under the User Settings area. Click
Enroll Authentication Device and authenticate at the
authentication prompt to start device enrollment.
1. During initial user enrollment, you will be
prompted to select the finger you wish to enroll.
Fingers that have already been enrolled will be
marked by a green check. The finger you select to
enroll at this time will be marked by a red arrow.
OmniPass will allow you re-enroll a finger. If you
choose a finger that has already been enrolled and
continue enrollment, OmniPass will enroll the
fingerprint, overwriting the old fingerprint. Select a
finger to enroll and click [Next].
2. It is now time for OmniPass to capture your selected
fingerprint. It may take a several capture attempts
before OmniPass acquires your fingerprint. Should
OmniPass fail to acquire your fingerprint, or if the
capture screen times out, click [Back] to restart the
fingerprint enrollment process.
Your system has a “swipe” fingerprint sensor. A
swipe sensor is small and resembles a skinny elon-
gated rectangle. To capture a fingerprint, gently
swipe or pull your fingertip over the sensor (starting
at the second knuckle) towards yourself. Swiping
too fast or too slow will result in a failed capture.
The Choose Finger screen has a [Practice] button;
click it to practice capturing your fingerprint. When
you are comfortable with how your fingerprint is
captured, proceed to enroll a finger.
3. Once OmniPass has successfully acquired the finger-
print, the Ver i f y Fi n ge r p r i nt screen will automati-
cally appear. To verify your enrolled fingerprint,
place your fingertip on the sensor and hold it there
as if you were having a fingerprint captured.
Successful fingerprint verification will show a green
fingerprint in the capture window and the text Ver i -
fication Successful under the capture window.
USING OMNIPASS
You are now ready to begin using OmniPass. Used regu-
larly, OmniPass will streamline your authentications.
Password Replacement
You will often use the password replacement function.
When you go to a restricted access website (e.g., your
bank, your web-based email, online auction or payment
sites), you are always prompted to enter your login
credentials. OmniPass can detect these prompts and you
can teach OmniPass your login credentials. The next
time you go to that website, you can authenticate with
your fingerprint to gain access.
OmniPass Authentication Toolbar
After installing OmniPass and restarting, you will notice
a dialog you have not seen before at Windows Logon.
This is the OmniPass Authentication Toolbar, and it is
displayed whenever the OmniPass authentication system
is invoked. The OmniPass authentication system may be
invoked frequently: during Windows Logon, during
OmniPass Logon, when unlocking your workstation,
when resuming from standby or hibernate, when
unlocking a password-enabled screensaver, during pass-
word replacement for remembered site or application
logins, and more. When you see this toolbar, OmniPass
is prompting you to authenticate.
The Logon Authentication window indicates what
OmniPass-restricted function you are attempting. The
icons in the lower left (fingerprint and key) show what
authentication methods are available to you. Selected
authentication methods are highlighted while unselected
methods are not. When you click the icon for an unse-
lected authentication method, the authentication
prompt associated with that method is displayed.
When prompted to authenticate, you must supply the
appropriate credentials: an enrolled finger for the finger-
print capture window or your master password for the
master password prompt (the key icon).
Eagle E8310.book Page 105 Tuesday, May 8, 2007 11:40 AM
106
LifeBook E8000 Notebook – Appendix B
Remembering a Password
OmniPass can remember any application, GUI, or pass-
word protected resource that has a password prompt.
Using the following procedure, you can store a set of
credentials into OmniPass. These credentials will then be
linked to your “master password” or fingerprint.
Go to a site that requires a login (username and pass-
word), but do not log in yet. At the site login prompt,
enter your username and password in the prompted
fields, but do not enter the site (do not hit [Enter],
[Submit], [OK], or Login). Right-click the OmniPass
system tray icon and select Remember Password from
the submenu. The Windows arrow cursor will change to
a golden key OmniPass cursor. Click this OmniPass
cursor in the login prompt area, but do not click the
[Login] or [Submit] button.
Associating a Friendly Name
After clicking the OmniPass key cursor near the login
prompt, OmniPass will prompt you to enter a “friendly
name” for this site. You should enter something that
reminds you of the website, the company, or the service
you are logging into. In its secure database, OmniPass
associates this friendly name with this website.
Additional Settings for Remembering a Site
When OmniPass prompts you to enter a “friendly name”
you also have the opportunity to set how OmniPass
authenticates you to this site. There are three effective
settings for how OmniPass handles a remembered site.
The default setting is Automatically click the “OK” or
“Submit” button for this password protected site once
the user is authenticated. With this setting, each time
you navigate to this site OmniPass will prompt you for
your master password or fingerprint authentication
device. Once you have authenticated with OmniPass,
you will automatically be logged into the site.
Less secure is the option to Automatically enter this
password protected site when it is activated. Do not
prompt for authentication. Check the upper box to get
this setting, and each time you navigate to this site
OmniPass will log you into the site without prompting
you to authenticate.
If you uncheck both boxes in Settings for this Password
Site, OmniPass will prompt you for your master pass-
word or fingerprint authentication device. Once you
have authenticated with OmniPass your credentials will
be filled in to the site login prompt, but you will have to
click the website [OK], [Submit], or [Login] button to
gain access to the site.
Click Finish to complete the remember password proce-
dure. The site location, the credentials to access the site,
and the OmniPass authentication settings for the site are
now stored in the OmniPass secure database. The
OmniPass authentication settings (Settings for this Pass-
word Site) can always be changed in Vault Management.
Logging in to a Remembered Site
Whether or not OmniPass prompts you to authenticate
when you return to a remembered site is determined by
Settings for this Password Site and can be changed in
Vault Management.
The following cases are applicable to using OmniPass to
login to: Windows, remembered websites, and all other
password protected resources.
With Master Password
Once you return to a site you have remembered with
OmniPass, you may be presented with a master pass-
word prompt. Enter your master password and you will
be allowed into the site.
Logging into Windows with a Fingerprint Device
When logging into Windows with a fingerprint device,
the fingerprint capture window will now appear next to
the Windows Login screen. Place your enrolled fingertip
on the sensor to authenticate. You will be simultaneously
logged into Windows and OmniPass. The capture
window will also appear if you have used Ctrl-Alt-Del to
lock a system, and the fingerprint device can be used to
log back in as stated above.
In Windows XP, your login options must be set either for
classic login, or for fast user switching and logon screen
to be enabled to use your fingerprint to log on to
Windows. To change this go to Control Panel, select
User Accounts and then click Change the way users log
on or off. If your Windows screensaver is password
protected, the fingerprint capture window will now
appear next to screensaver password dialog during
resume. You can authenticate to your screensaver pass-
word prompt with your enrolled finger.
This setting is more convenient in that
whenever you go to a site remembered
with this setting, you will bypass any
authentication procedure and gain instant
access to the site. But should you leave
your system unattended with your
OmniPass user logged in, anyone using
your system can browse to your password
protected sites and gain automatic access.
If a machine is locked and OmniPass
detects a different user logging back in
with a fingerprint, the first user will be
logged out and the second user logged in.
Eagle E8310.book Page 106 Tuesday, May 8, 2007 11:40 AM
107
Using the Fingerprint Sensor
Password Management
OmniPass provides an interface that lets you manage
your passwords. To access this GUI, double-click the
OmniPass key in the system tray. Click Vau lt Ma nage -
ment; you will be prompted to authenticate. Once you
gain access to Vault Management, click Manage Pass-
words under Vault Settings. You will see the Manage
Passwords interface, with a list of friendly names.
You can view the credentials stored for any remembered
website by highlighting the desired resource under Pass-
word Protected Dialog and clicking Unmask Values.
Should a password be reset, or an account expire, you
can remove stored credentials from OmniPass. Highlight
the desired resource under Password Protected Dialog
and click Delete Page. You will be prompted to confirm
the password deletion.
The two check boxes in Manage Passwords govern
whether OmniPass prompts you to authenticate or
directly logs you into the remembered site.
OmniPass will overwrite an old set of credentials for a
website if you attempt to use Remember Password on an
already remembered site.
The exception to the above rule is the resetting of your
Windows password. If your password is reset in
Windows, then the next time you login to Windows,
OmniPass will detect the password change and prompt
you to “Update” or “Reconfirm” your password with
OmniPass. Enter your new Windows password in the
prompt(s) and click OK and your OmniPass "master
password" will still be your Windows password.
OmniPass User Identities
Identities allow OmniPass users to have multiple
accounts to the same site (e.g., bob@biblomail.com and
boballen@biblomail.com). If OmniPass did not provide
you identities, you would be limited to remembering
one account per site.
To create and manage identities, double-click the
OmniPass key in the system tray. Click Vau lt Ma nage -
ment; OmniPass will prompt you to authenticate. Once
you gain access to Vault Management, click Manage
Identities under Vault Settings. You can only manage
the identities of the currently logged in OmniPass user
To add a new identity, click New Identity or double-click
Click here to add a new identity. Name the new identity
and click [OK], then click [Apply]. You can now switch
to the new identity and start remembering passwords.
To delete an identity, highlight the identity you want to
delete and click [Delete Identity], then click [Apply].
To set the default identity, highlight the identity you
want as default and click [Set as Default]; click [Apply]
to ensure the settings are saved. If you log in to
OmniPass with a fingerprint device, you will automati-
cally be logged in to the default identity for that
OmniPass user. You can choose the identity with which
you are logging in if you login using "master password".
Choosing User Identity during Login
To choose your identity during login, type your user-
name in the User Name: field. Press [Tab] and see that
the Domain: field self-populates. Click the Password:
field to bring the cursor to it, and you will see the pull-
down menu in the Identity: field. Select the identity you
wish to login as and then click OK to login.
Switch User Identity
To switch identities at any time, right-click the
OmniPass system tray icon and click Switch User Iden-
tity from the submenu. The Switch Identity dialog will
appear. Select the desired identity and then click OK.
Identities and Password Management
On the Manage Passwords interface of the Va u l t
Management tab of the OmniPass Control Center, there
is a pull-down selection box labeled, Identity. This field
lets you choose which identity you are managing pass-
words for. When you select an identity here, only those
password protected dialogs that are associated with that
identity are shown. You can perform all the functions
explained in “Password Management” on page 107.
CONFIGURING OMNIPASS
This section gives an overview of both the Export/
Import function and the OmniPass Control Center.
Exporting and Importing Users
Using the OmniPass Control Center, you can export and
import users in and out of OmniPass. The export
process backs up all remembered sites, credentials, and
any enrolled fingerprints for an OmniPass user. All
OmniPass data for a user is backed up to a single
encrypted database file. During the import process, the
Windows login of the exported user is required. If the
proper credentials cannot be supplied, the user profile
will not be imported.
When you delete an identity, all of its
associated remembered sites and password
protected dialogs are lost.
Eagle E8310.book Page 107 Tuesday, May 8, 2007 11:40 AM
108
LifeBook E8000 Notebook – Appendix B
Exporting an OmniPass User Profile
To export a user, open the OmniPass Control Center,
and click Import/Export User under Manage Users.
Click Exports an OmniPass user profile. OmniPass will
prompt you to authenticate. Upon successfully authenti-
cation, you must name the OmniPass user profile and
decide where to save it. An .opi file is generated, and you
should store a copy of it in a safe place.
This .opi file contains all your user specific OmniPass
data, and it is both encrypted and password protected.
This user profile does NOT contain any of your
encrypted data files.
Importing an OmniPass User Profile
To import an OmniPass user open the OmniPass
Control Center, and click Import/Export User under
Manage Users. Click Imports a new user into OmniPass
and then select OmniPass Import/Export File (*.opi)
and click Next. OmniPass will then prompt you to
browse for the file you had previously exported (.opi
file). When you select the .opi file for importation,
OmniPass will prompt you for authentication. The
credentials that will allow a user profile to be imported
are the Windows login credentials of the exported user.
They are the credentials that had to be submitted when
the user profile was exported. You will need User Name,
Password, and Domain. If you don’t remember the value
for Domain, in a PC or SOHO environment Domain
should be your computer name.
OmniPass will notify you if the user was successfully
imported.
Things to Know Regarding Import/Export
■Assume you export a local Windows User profile from
OmniPass. You want to import that profile to another
machine that has OmniPass. Before you can import
the profile, a Windows user with the same login cre-
dentials must be created on the machine importing the
profile.
Example: I have a Windows user with the username
“Tom” and the password “Sunshine” on my system. I
have enrolled Tom into OmniPass and remembered
passwords. I want to take all my passwords to new sys-
tem. I export Tom’s OmniPass user profile. I go to my
new system and using the Control Panel I create a user
with the username "Tom" and the password "Sun-
shine". I can now successfully import the OmniPass
user data to the new system.
■If you export an OmniPass-only user, you can import
that user to any computer running OmniPass, pro-
vided that a user with that name is not already
enrolled in OmniPass.
■If you attempt to import a user profile who has the
same name as a user already enrolled in OmniPass, the
OmniPass import function will fail.
OMNIPASS CONTROL CENTER
This section will serve to explain functions within the
OmniPass Control Center that weren’t explained earlier.
You can access the OmniPass Control Center any of
three ways:
■Double-click the golden OmniPass key shaped icon in
the Windows system tray (typically in the lower-right
corner of the desktop)
■Click the Start button; select the Programs group;
select the Softex program group; and click the
OmniPass Control Center selection.
■Open the Windows Control Panel (accessible via Start
button --> Settings --> Control Panel) and double-
click the Softex OmniPass icon.
User Management
The User Management tab has two major interfaces:
Add/Remove User and Import/Export User. Import/
Export User functionality is documented in “Exporting
and Importing Users” on page 107. Add/Remove User
functionality is straightforward.
If you click Adds a new user to OmniPass you will start
the OmniPass Enrollment Wizard. The Enrollment
Wizard is documented in “User Enrollment” on
page 104.
If you click Removes a user from OmniPass, OmniPass
will prompt you to authenticate. Authenticate with the
credentials (or enrolled fingerprint) of the user you wish
to remove. OmniPass will prompt you to confirm user
removal. Click OK to complete user removal.
■You should periodically export your user
profile and store it in a safe place. If
anything happens to your system, you
can import your OmniPass profile to a
new system and have all your remem-
bered settings and fingerprints instantly.
■You don't forget the Windows login
credentials when exporting. When you
examine the importation, you are
prompted for authentication. The
credentials that will allow a user profile
to be imported are the Windows login
credentials of the exported user. They
are the credentials that had to be
submitted when the user profile was
exported. You will need User Name,
Password, and Domain.
You cannot import a user into OmniPass if
there already is a user with the same name
enrolled in OmniPass.
Eagle E8310.book Page 108 Tuesday, May 8, 2007 11:40 AM
109
Using the Fingerprint Sensor
User Settings
The User Settings tab has four interfaces: Audio Settings,
Tas kb ar Tip s, and Enrollment. User settings allow users
to customize OmniPass to suit their individual prefer-
ences. Under User Settings (Audio Settings and Ta s k b a r
Tips) you can set how OmniPass notifies the user of
OmniPass events (e.g., successful login, access denied,
etc.). The details of each setting under the Audio
Settings and Task ba r Ti ps interfaces are self-explana-
tory.
The Enrollment interface allows you to enroll finger-
prints. To enroll additional fingerprints, click Enroll
Authentication Device, and authenticate with
OmniPass. Select the fingerprint recognition device in
the Select Authentication Device screen (it should
already be marked by a green check if you have a finger
enrolled) and click Next.
System Settings
The OmniPass Startup Options interface can be found
in the System Settings tab. With these options you can
specify how your OmniPass Logon is tied to your
Windows Logon.
The first option, Automatically log on to OmniPass as
the current user, will do just as it says; during Windows
login, you will be logged on to OmniPass using your
Windows login credentials. If the user logging into
Windows was never enrolled into OmniPass, upon login
no one will be logged on to OmniPass. This setting is
appropriate for an office setting or any setting where
users must enter a username and password to log into a
computer. This is the default setting.
With the second option, Manually log on to OmniPass
at startup, OmniPass will prompt you to login once you
have logged on to Windows.
With the third option, Do not log on to OmniPass at
startup, OmniPass will not prompt for a user to be
logged on.
You can manually log on to OmniPass by right-clicking
the OmniPass system tray icon and clicking Log in User
from the right-click menu.
TROUBLESHOOTING
You cannot use OmniPass to create Windows users. You
must first create the Windows user, and you will need
administrative privileges to do that. Once the Windows
user is created, you can add that user to OmniPass using
the same username and password
Cannot add Windows users to OmniPass
If you experience difficulties adding a Windows user
to OmniPass, you may need to adjust your local secu-
rity settings. You can do this by going to Start,
Control Panel, Administrative Tools, and Local
Security Settings. Expand Local Policies, expand
Security Options, and double-click Network Access:
Sharing and Security Model for Local Accounts. The
correct setting should be Classic - Local Users Authen-
ticate as Themselves.
Cannot add a User with a Blank Password to OmniPass
If you experience difficulties adding a user with a
blank password to OmniPass, you may need to adjust
your local security settings. First attempt the proce-
dure explained in the Cannot add Windows user to
OmniPass section. If the difficulties persist, then try
the following procedure.
Click Start, Control Panel, Administrative Tools,
and Local Security Settings. Expand Local Policies,
expand Security Options, and double-click
Accounts: Limit local account use of blank pass-
words to console login only. This setting should be
set to Disabled.
Dialog appears after OmniPass authentication during
Windows Logon
After installing OmniPass on your system, you can
choose to logon to Windows using OmniPass. You
authenticate with OmniPass (via master password, or
an enrolled security device) and OmniPass logs you
into Windows. You may, during this OmniPass
authentication, see a Login Error dialog box.
This dialog box occurs when OmniPass was unable to
log you into Windows with the credentials supplied
(username and password). This could happen if your
Windows password has changed or your Windows
account has been disabled
If you are having difficulties due to the first reason,
you will need to update OmniPass with your changed
Windows account password. Click Update Password
and you will be prompted with a dialog to reconfirm
your password.
Enter the new password to your Windows user
account and click OK. If the error persists, then it is
unlikely the problem is due to your Windows user
account password changing.
Removing a user will automatically destroy
all OmniPass data associated with that
user. All identities and credentials
associated with the user will be lost.
If you are sure about removing the user,
we recommend you export the user
profile.
Eagle E8310.book Page 109 Tuesday, May 8, 2007 11:40 AM
110
LifeBook E8000 Notebook – Appendix B
Eagle E8310.book Page 110 Tuesday, May 8, 2007 11:40 AM
111
Index
Index
A
About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
AC
adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
plug adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Anti-theft lock slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Application Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Auto/Airline Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Automatically Downloading Driver Updates . . . . . . 62
B
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
charging indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 13
cold-swapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
conserving power . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
dead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
faulty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
increasing life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
level indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
lithium ion battery . . . . . . . . . . . . . . . . . . . . . . . . . . 37
low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
recharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
shorted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
suspend mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
BIOS
guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
setup utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Bluetooth, where to find information . . . . . . . . . . . . 99
Built-in Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
C
CapsLock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52, 53
Click Me! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cold-swapping . . . . . . . . . . . . . . . . . . . . . . . . . . . .19, 38
Configuration Label . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Controls and Connectors . . . . . . . . . . . . . . . . . . . . . . . 6
Cursor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
D
DC Power Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46, 72
DIMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Disk care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 28
adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
latch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57, 58
Display Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Docking Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Double-Clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Dragging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Drivers and Application Restore CD . . . . . . . . . . . . . 61
DVD drive
access indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52, 53
tray release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40, 60
E
Emergency tray release . . . . . . . . . . . . . . . . . . . . . . . . 10
Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
ExpressCards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
External Floppy Disk Drive problems . . . . . . . . . . . . 53
External Video Port . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
F
FDU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31, 62, 73
Fingerprint Sensor Device . . . . . . . . . . . . . . . . . . . . . 103
enrolling a fingerprint . . . . . . . . . . . . . . . . . . . . . . 105
getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
installing OmniPass . . . . . . . . . . . . . . . . . . . . . . . . 103
logging into a remembered site . . . . . . . . . . . . . . 106
OmniPass authentication toolbar . . . . . . . . . . . . 105
password replacement . . . . . . . . . . . . . . . . . . . . . . 105
remembering a password . . . . . . . . . . . . . . . . . . . 106
uninstalling OmniPass . . . . . . . . . . . . . . . . . . . . . 104
user enrollment . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
using OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Flexible Bay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 19
cold-swapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
eject lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Modular Multi-Format DVD Writer . . . . . . . . . . . 39
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Eagle E8310.book Page 111 Tuesday, May 8, 2007 11:40 AM
112
LifeBook E8000 Notebook
Fujitsu Contact Information . . . . . . . . . . . . . . . . . . . . 1
Fujitsu Driver Update utility . . . . . . . . . . . . . 31, 62, 73
Fujitsu LifeBook
storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
traveling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Function Key
F10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
F3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
F4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
F6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
F7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
F8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 18
F9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 18
FN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
H
Hard Disk Drive
access indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 47
Hibernation Feature . . . . . . . . . . . . . . . . . . . . . . . 32, 33
I
Infrared Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Internal LAN Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
IrDA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 47
K
Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 14
cursor keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
function keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
windows keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
L
LAN (RJ-45) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
LifeBook Security Application Panel
configuring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
deactivating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
deactivating and activating . . . . . . . . . . . . . . . . . . . 23
launching applications . . . . . . . . . . . . . . . . . . . . . . 22
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
uninstalling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
LifeBook Security/Application Panel . . . . . . . . . . . . . 6
M
Media Player
care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39, 40
Memory
capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
compartment . . . . . . . . . . . . . . . . . . . . . . . . . . .11, 44
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44, 45
upgrade module . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Memory Stick
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Microphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 48
Microsoft Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9, 54
Modem Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Modem Result Codes . . . . . . . . . . . . . . . . . . . . . . . . . .60
Modular Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Mouse problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
N
Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
NumLk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
O
Optical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
P
Parallel Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
PC Card
access indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54, 55
slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42, 43
Pointing Device
See Touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Port Replicator
connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Eagle E8310.book Page 112 Tuesday, May 8, 2007 11:40 AM
113
Index
Power
AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Auto/Airline adapter . . . . . . . . . . . . . . . . . . . . . . . . 27
failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Power Management . . . . . . . . . . . . . . . . . . . . . . . .32, 33
Power On Self Test . . . . . . . . . . . . . . . . . . . . . . . . . 29, 59
Power/Suspend/Resume Button . . . . . . . . . . . . . . .6, 32
Pre-Installed Software . . . . . . . . . . . . . . . . . . . . . . . . . 73
Adobe Acrobat Reader . . . . . . . . . . . . . . . . . . . . . . . 73
Google Toolbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
R
Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Restarting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Restoring Your Pre-installed Software . . . . . . . . . . . . 61
RJ-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
RJ-45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
S
ScrLk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
SD (Secure Digital) Card
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
SDRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11, 44
Security Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Security Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Dimensions and Weight . . . . . . . . . . . . . . . . . . . . .72
Environmental Requirements . . . . . . . . . . . . . . . . .73
Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Status Indicator Panel . . . . . . . . . . . . . . . . . . . . . . . 6, 12
Stereo Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
T
Touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Touchpad Pointing Device . . . . . . . . . . . . . . . . . . . . . . 7
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
U
Universal Serial Bus Ports . . . . . . . . . . . . . . . . . . . . . . 47
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 10, 47, 54
V
Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
W
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Windows keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Application key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Start keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Wireless LAN
Before Using the Wireless LAN . . . . . . . . . . . . . . . 88
IP address information . . . . . . . . . . . . . . . . . . . . . . 98
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Using Atheros Client Utility software . . . . . . . . . . 92
Using Intel PROSet software . . . . . . . . . . . . . . . . . 91
Wireless LAN Glossary . . . . . . . . . . . . . . . . . . . . . . 98
