Manual

User’s Guide
Learn how to use
your Fujitsu LifeBook

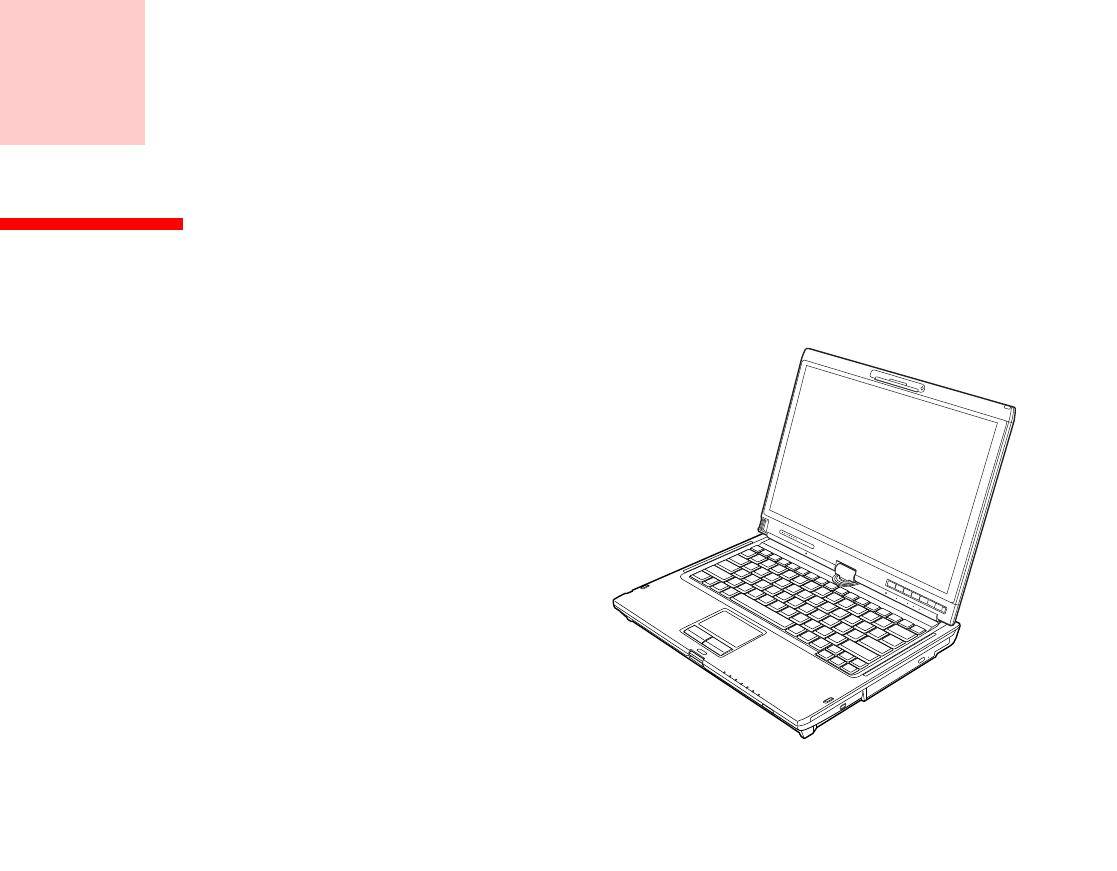

T900 Tablet PC
Copyright and Trademark Information
Fujitsu America, Inc. has made every effort to ensure the accuracy and completeness of this document; however, as ongoing development
efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We
disclaim liability for errors, omissions, or future changes.
Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of Fujitsu Limited.
Intel, Intel Core, Centrino, and Intel Centrino Pro are trademarks or registered trademarks of Intel Corporation or its subsidiaries in
the United States and other countries.
Microsoft, Windows, Windows Vista, and OneNote are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
PCMCIA is a trademark of the Personal Computer Memory Card International Association.
Bluetooth is a trademark of Bluetooth SIG, Inc., USA.
OmniPass is a trademark of Softex, Inc.
PowerDirector, PowerDVD, MakeDisc, and YouCam are trademarks of CyberLink Corp.
Roxio is a trademark of Sonic Solutions.
Wacom is a registered trademark of Wacom Company Limited.
Adobe, Acrobat, and Acrobat Reader are either a registered trademarks or trademarks of Adobe Systems Incorporated in the United States
and/or other countries.
Norton and Norton Internet Security are trademarks or registered trademarks of Symantec Corporation in the United States and other
countries.
All other trademarks mentioned herein are the property of their respective owners.
© Copyright 2009 Fujitsu America, Incorporated. All rights reserved.
No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu. No part of this publication may
be stored or transmitted in any electronic form without the written consent of Fujitsu. B6FJ-3801-01ENZ0-00
WARNING
HANDLING THE CORD ON THIS PRODUCT WILL EXPOSE YOU TO LEAD, A CHEMICAL KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.
WASH HANDS AFTER HANDLING.
DECLARATION OF CONFORMITY
according to FCC Part 15
Responsible Party Name: Fujitsu America, Incorporated
Address: 1250 E. Arques Avenue,
Sunnyvale, CA 94085
Telephone: (408) 746-6000
Declares that product: Base Model Configuration:
LifeBook T900 Tablet PC
Complies with Part 15 of the FCC Rules.
This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions:
(1) This device may not cause harmful interference, (2) This device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT SAFETY INSTRUCTIONS
This unit requires an AC adapter to operate. Use only UL Listed I.T.E. Class II Adapters with an output rating of 19 VDC, with a current of
4.22 A (80 W).
When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury
to persons, including the following:
•CAUTION - HOT SURFACE: The bottom of this notebook computer can become hot when used for long periods of time. When using
this notebook, take caution to limit long term or continuous use while resting it on exposed skin, such as the lap.
•Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a
swimming pool.
•Avoid using a modem during an electrical storm. There may be a remote risk of electric shock from lightning.
•Do not use a modem to report a gas leak in the vicinity of the leak.
•Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local
codes for possible special disposal instructions.
•To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord.
•For TV tuner use: To protect from overvoltages and transients on the Cable Distribution System, make sure that the outer shield of the
coaxial cable is connected to earth (grounded) at the building premise as close to the point of cable entrance as practicable, as required
per NEC Article 820.93, ANSI/NFPA 70: 2005. If you have questions about your CATV installation, contact your service provider.
SAVE THESE INSTRUCTIONS
For Authorized Repair Technicians Only
DANGER OF EXPLOSION IF LITHIUM (CLOCK) BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY
WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISPOSE OF USED
BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTION.
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH THE SAME TYPE AND
RATING FUSE.
+
AC adapter output polarity:
Recycling your battery
Over time, the batteries that run your mobile computer will begin to hold a charge for a shorter amount of time; this is a natural occurrence
for all batteries. When this occurs, you may want to replace the battery with a fresh one*. If you replace it, it is important that you dispose of
the old battery properly because batteries contain materials that could cause environmental damage if disposed of improperly.
Fujitsu is very concerned with environmental protection, and has enlisted the services of the Rechargeable Battery
Recycling Corporation (RBRC)**, a non-profit public service organization dedicated to protecting our environment by
recycling old batteries at no cost to you.
RBRC has drop-off points at tens of thousands of locations throughout the United States and Canada. To find the location
nearest you, go to www.RBRC.org or call 1-800-822-8837.
If there are no convenient RBRC locations near you, you can also go to the EIA Consumer Education Initiative website (http://EIAE.org/)
and search for a convenient disposal location.
Remember – protecting the environment is a cooperative effort, and you should make every effort to protect it for current and future
generations.
* To order a new battery for your Fujitsu mobile computer, go to the Fujitsu shopping site at www.shopfujitsu.com in the US or
www.fujitsu.ca/products/notebooks in Canada.
** RBRC is an independent third party to which Fujitsu provides funding for battery recycling; RBRC is in no way affiliated with
Fujitsu.
Contents
Preface
About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Conventions Used in the Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Fujitsu Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Chapter 1 Getting to Know Your LifeBook
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Locating the Controls and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Top Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Left-Side Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Right-Side Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Back Panel Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Bottom Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Status Indicator Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
External Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Battery Charging Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Battery Level Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7
Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Opening the Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

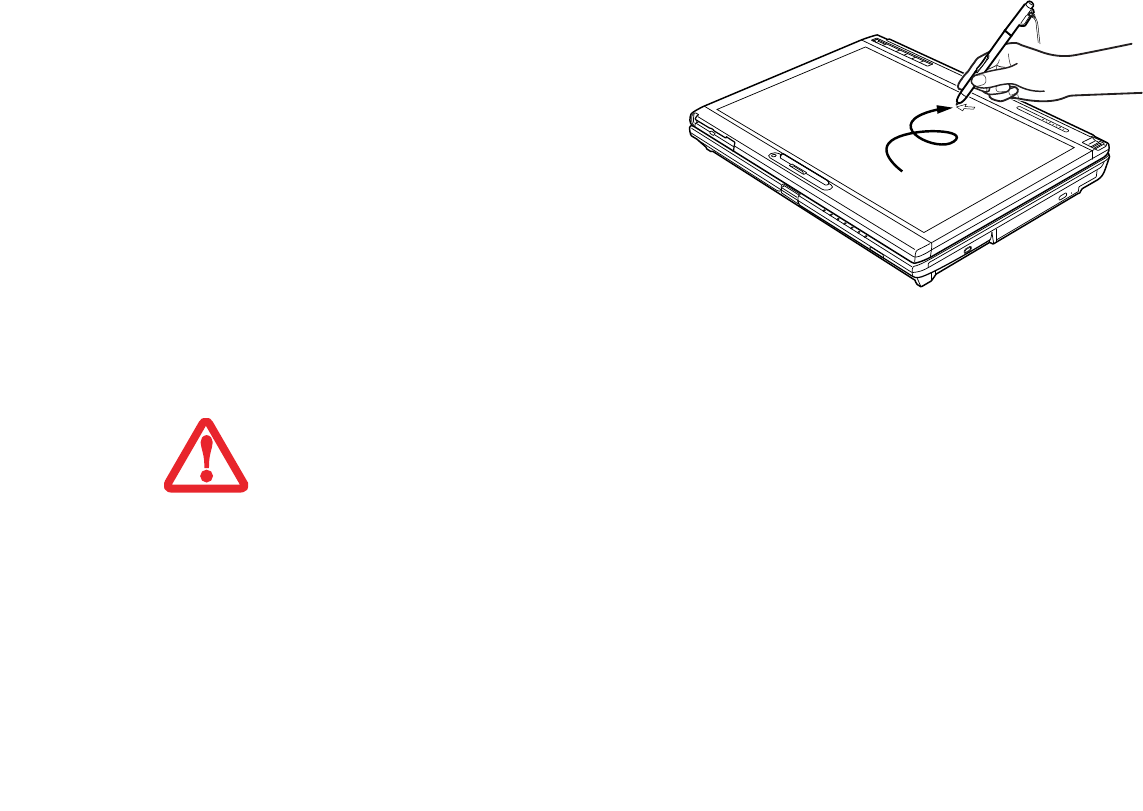

Using the System as a Tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Adjusting Display Panel Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

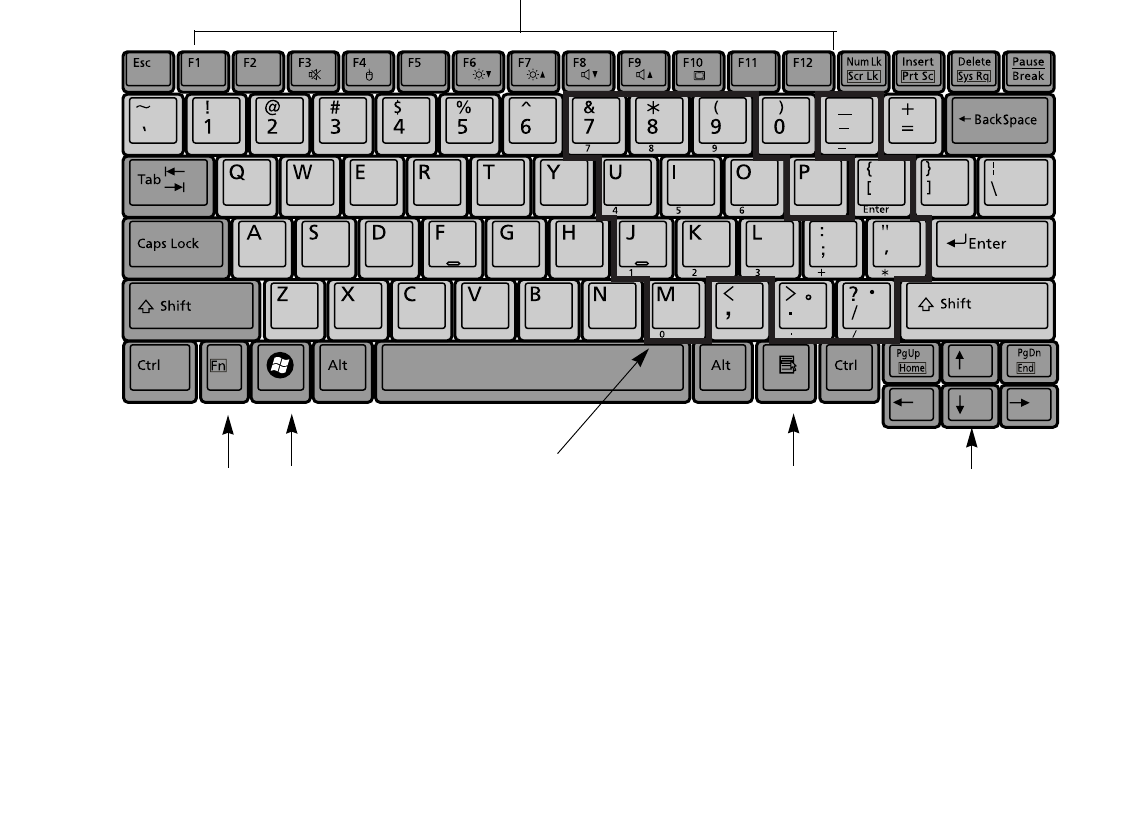

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Touchpad/Active Digitizer/Touchscreen. . . . . . . . . . . . . . . . . . . . . . . . . . . 41

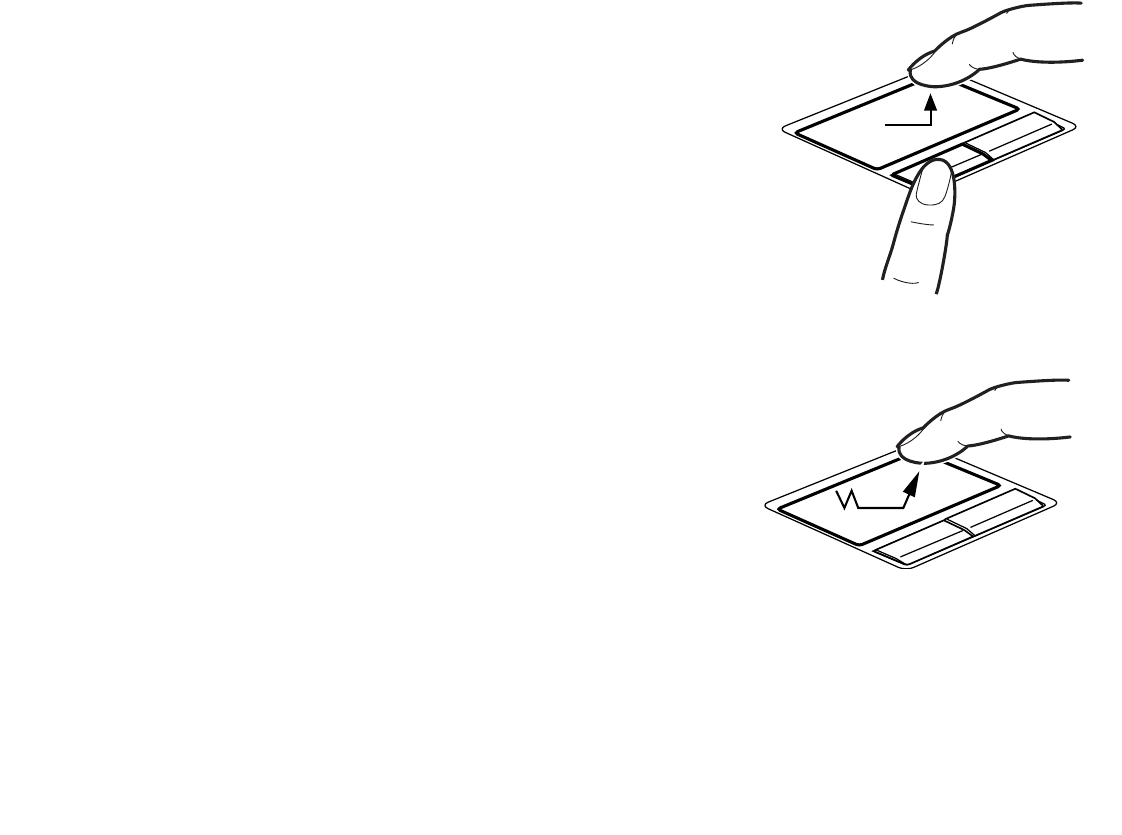

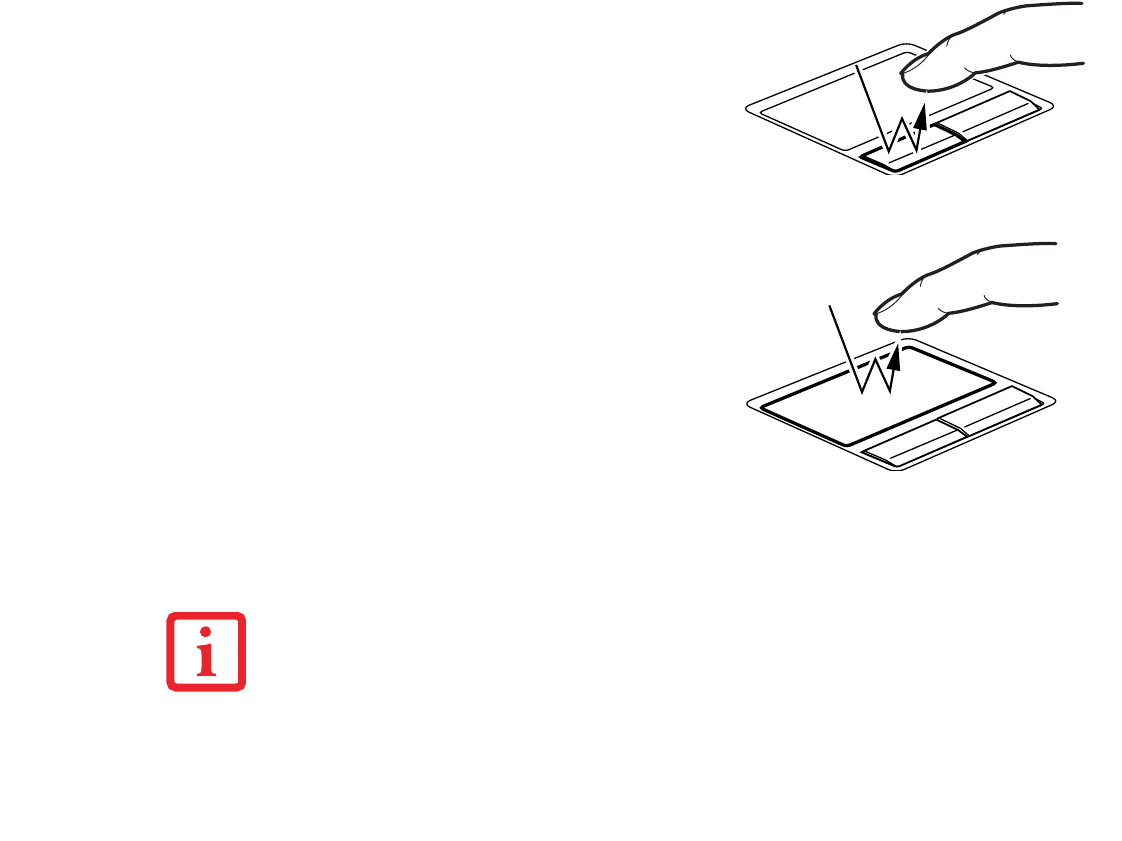

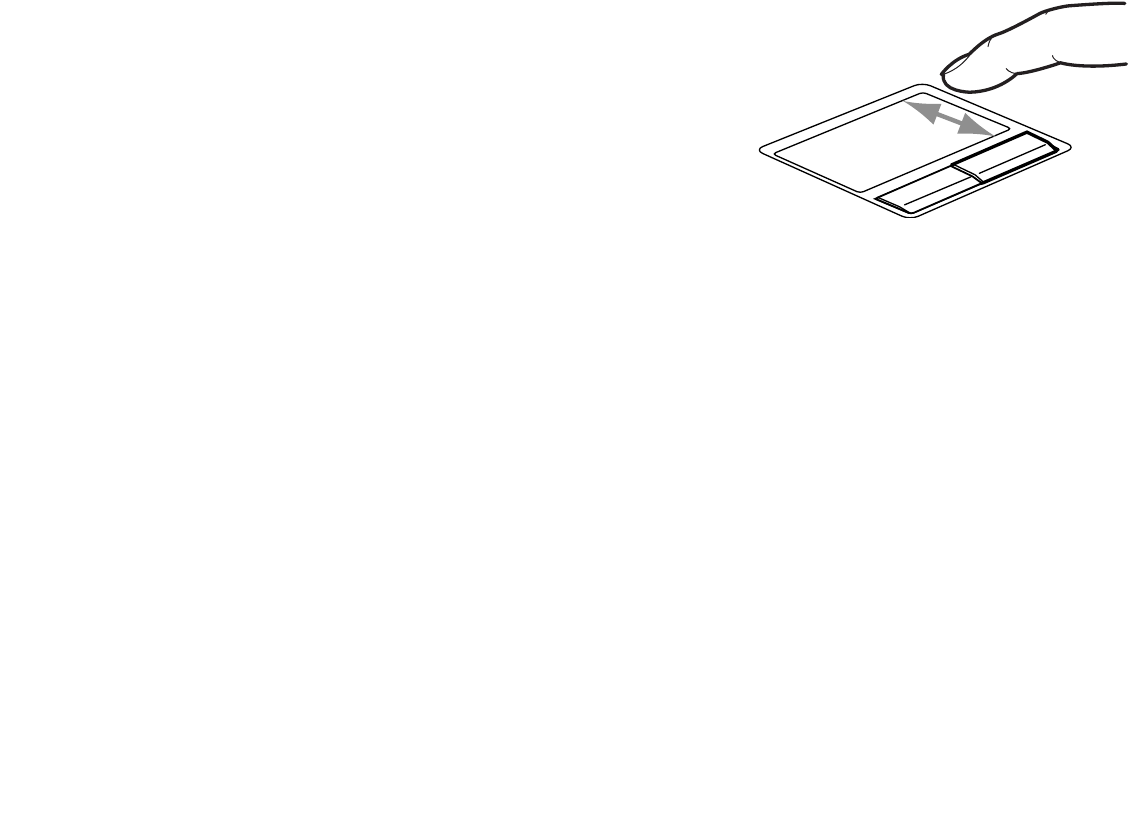

Using the Touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Active Digitizer Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Using the Optional Capacitive Touchscreen . . . . . . . . . . . . . . . . . . . . . . . 50

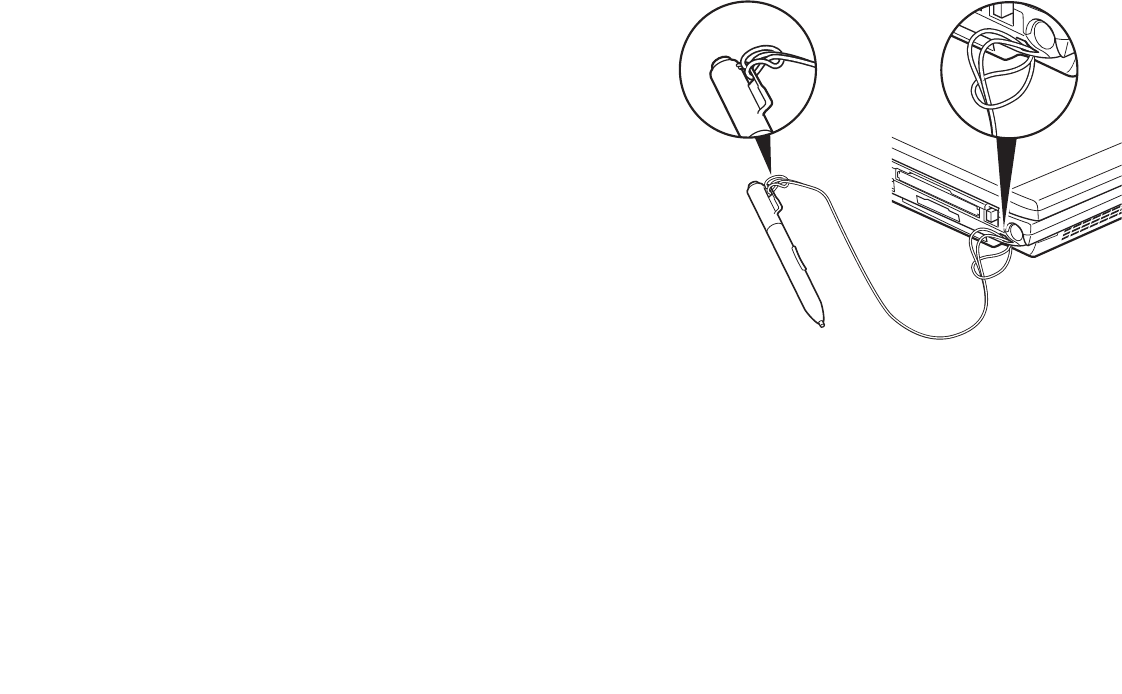

Installing a Pen Tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Controlling the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Modular Bay Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

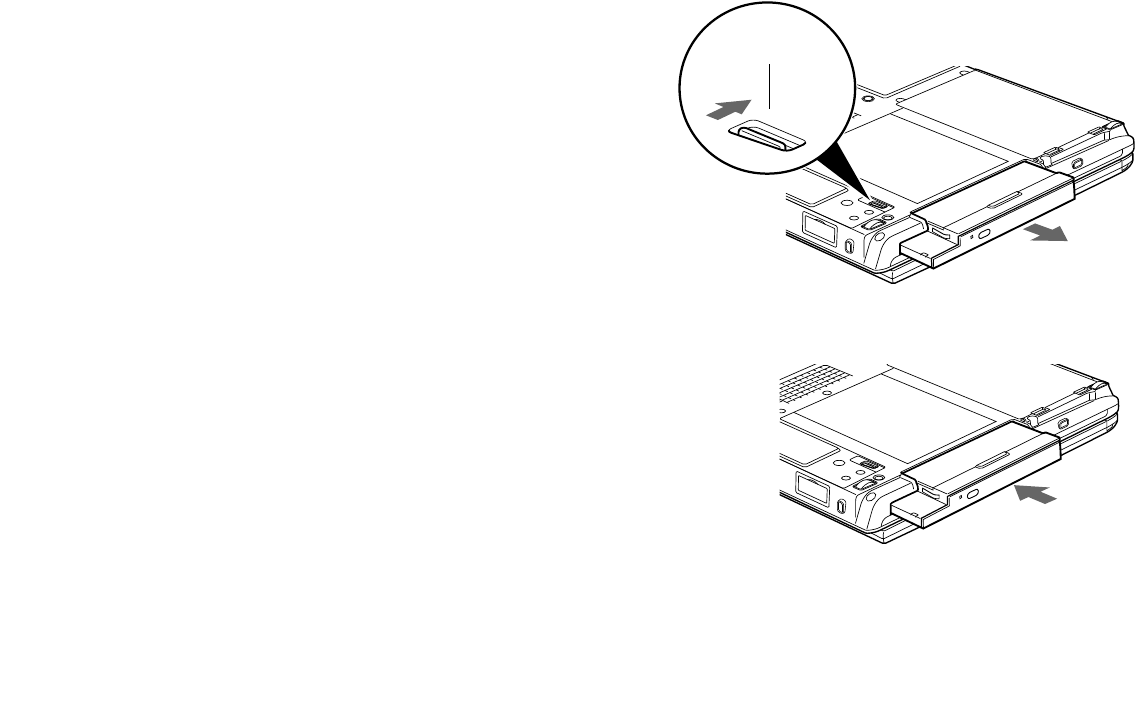

Removing and Installing Modular Devices . . . . . . . . . . . . . . . . . . . . . . . . 54
LifeBook Security/Tablet PC Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Security Button Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Pre-logon button functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Post-logon button functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Changing Tablet PC Button Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Setting up LifeBook Security Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Using Your LifeBook Security Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Uninstalling/Re-installing the Security Panel Application. . . . . . . . . . . . . 64
8
Chapter 2 Getting Started with Your LifeBook
Power Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Connecting the Power Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Starting Your LifeBook Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Hard Disk Drive Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Booting the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Starting Windows the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Registering Your LifeBook Tablet PC with Fujitsu. . . . . . . . . . . . . . . . . . 73
Installing ClickMe!. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Fujitsu Driver Update Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Power/Suspend/Resume Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Sleep Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Hibernation (Save-to-Disk) Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Windows Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Restarting the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Powering Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
ENERGY STAR® Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Chapter 3 User-Installable Features
Lithium ion Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Recharging the Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

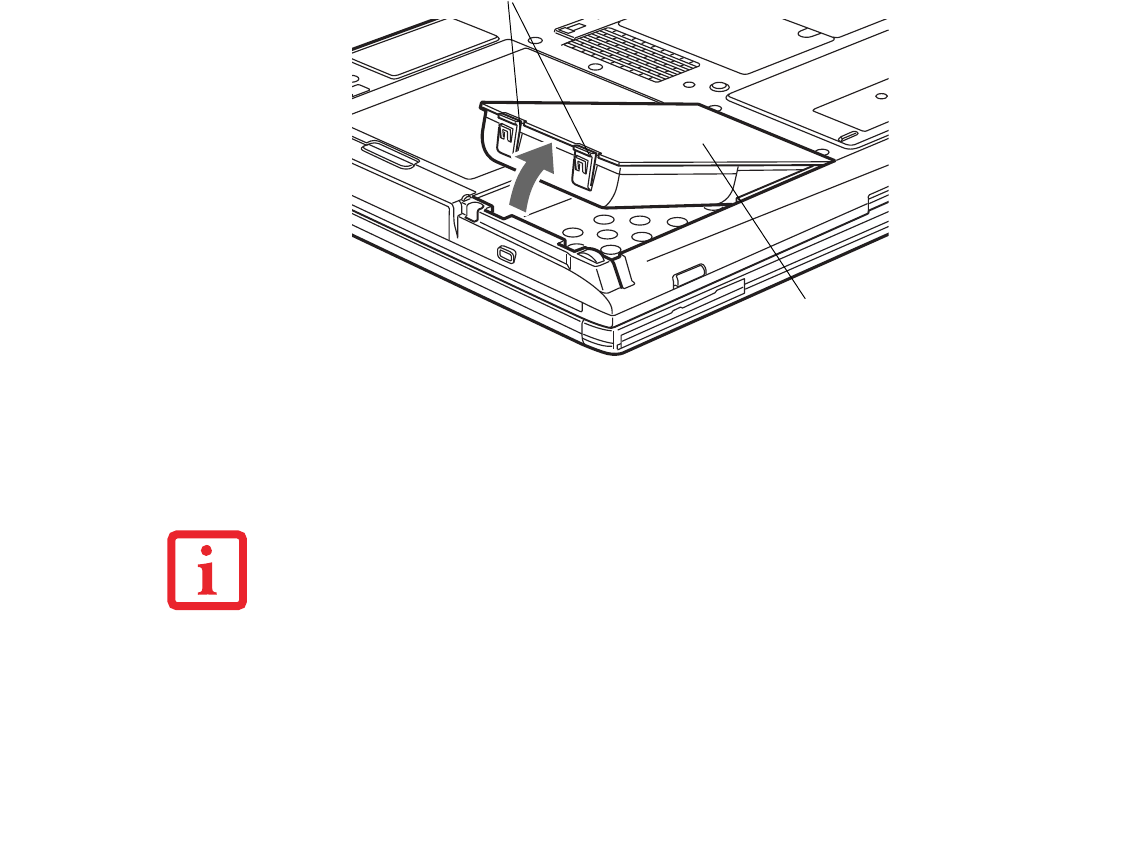

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Memory Stick/Secure Digital Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

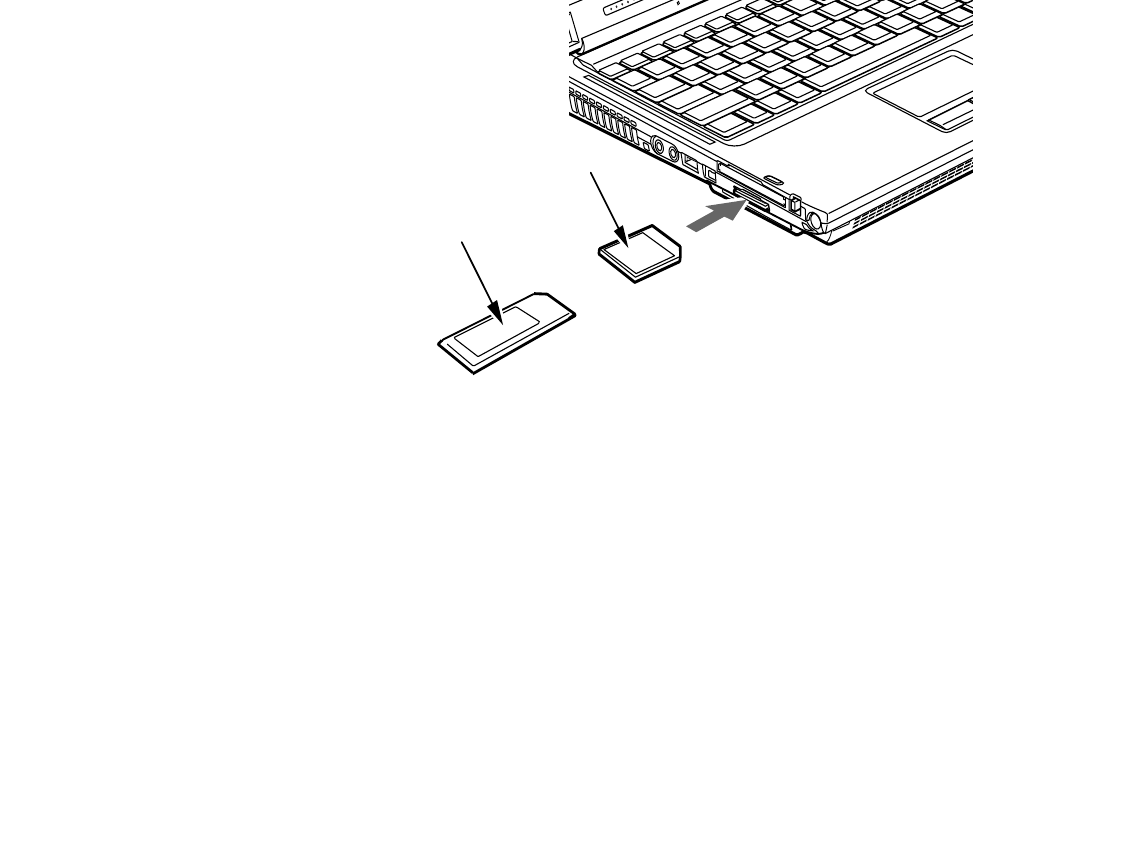

Installing Memory Stick/SD Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Removing A Memory Stick/SD Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
9
PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

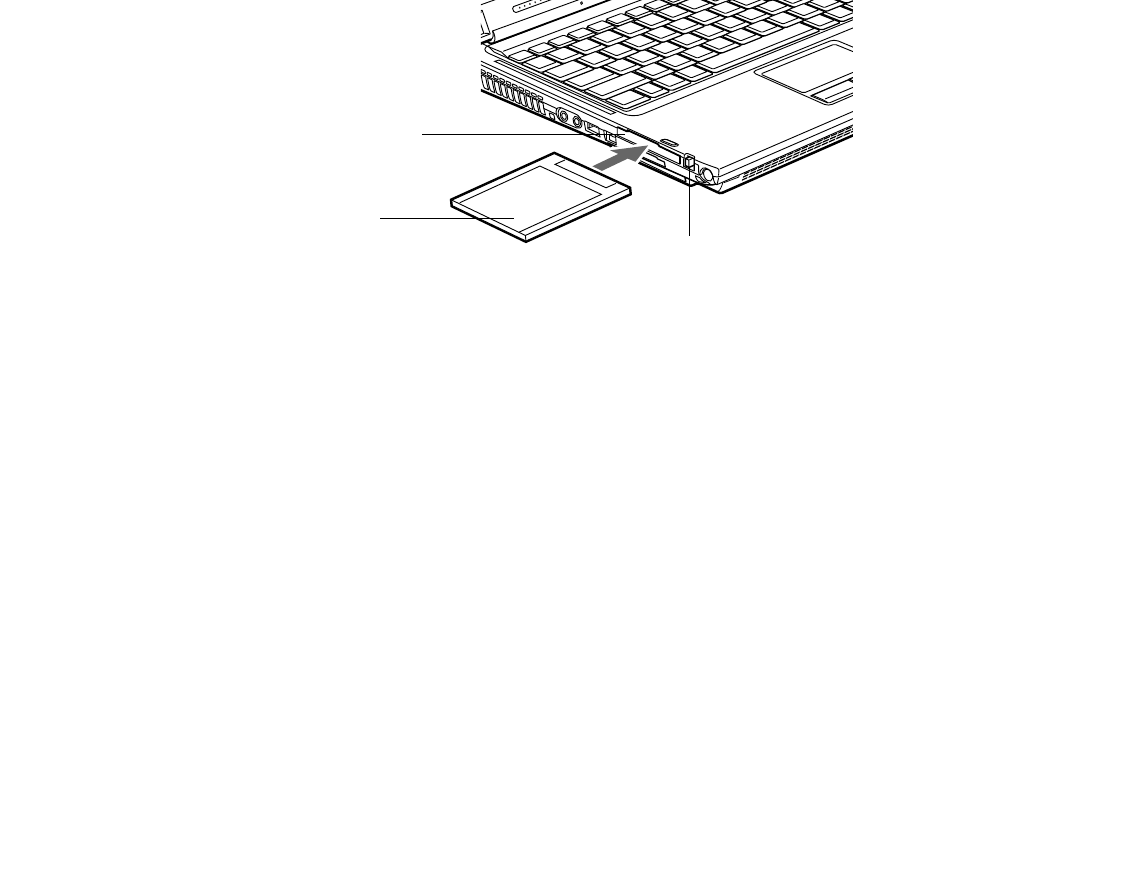

Installing PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Removing PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Smart Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Memory Upgrade Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Installing Memory Upgrade Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

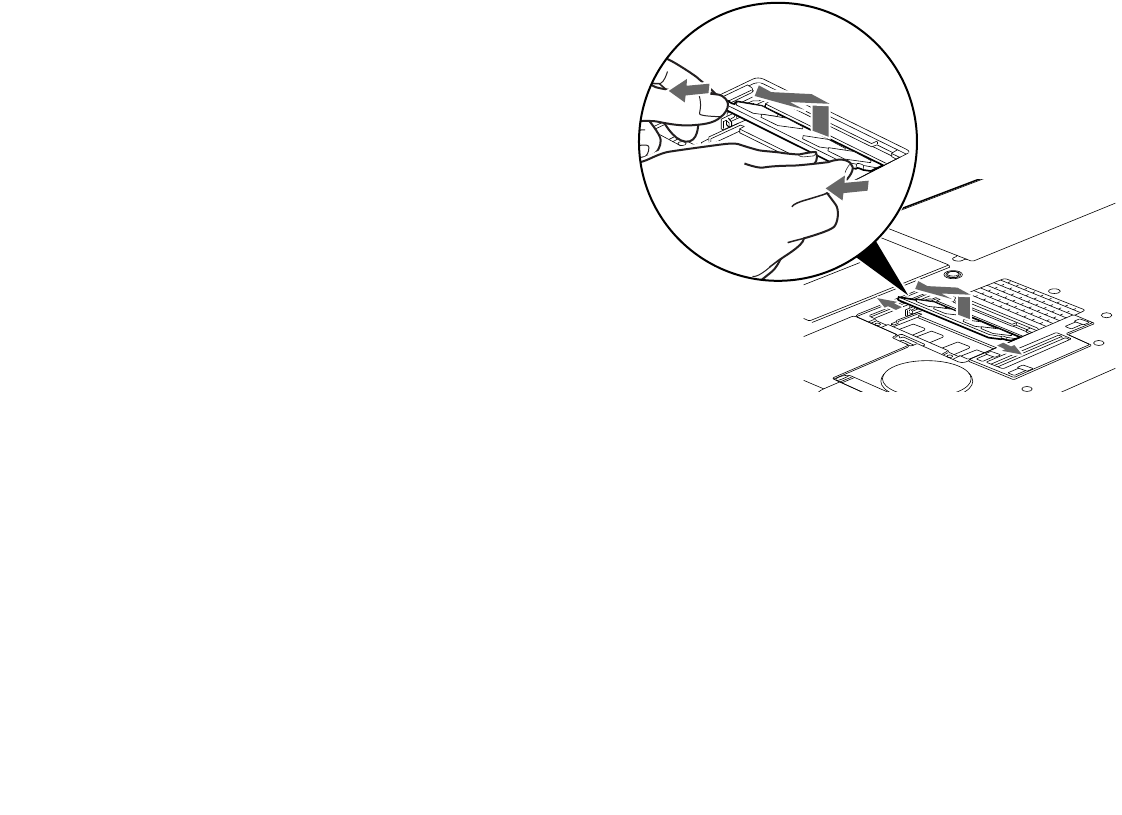

Removing a Memory Upgrade Module . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Checking the Memory Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

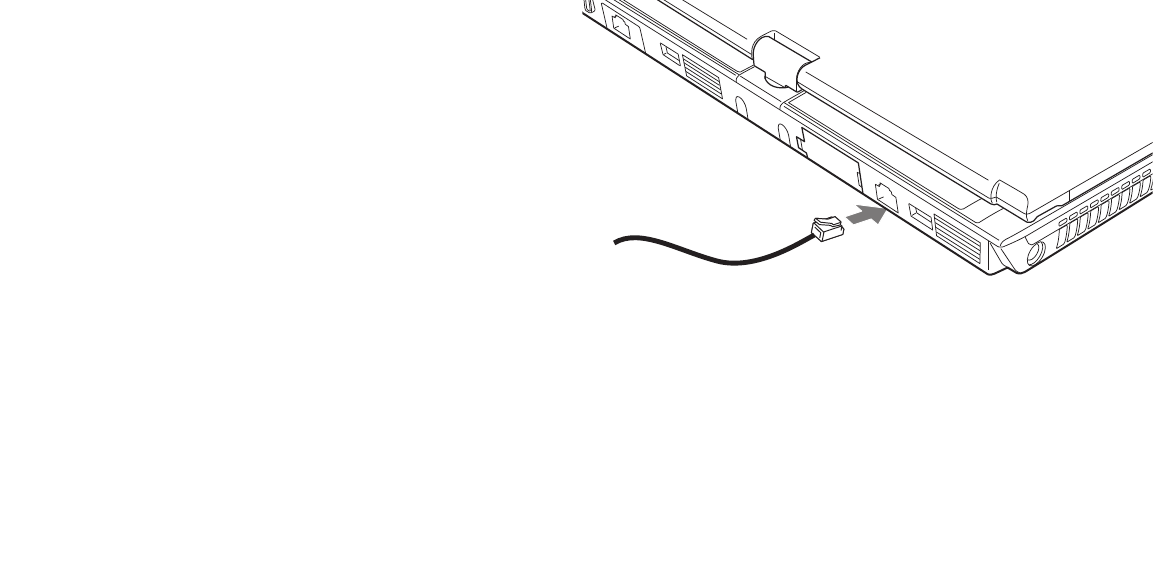

Internal LAN (RJ-45) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Modem (RJ-11) Jack*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Port Replicator Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

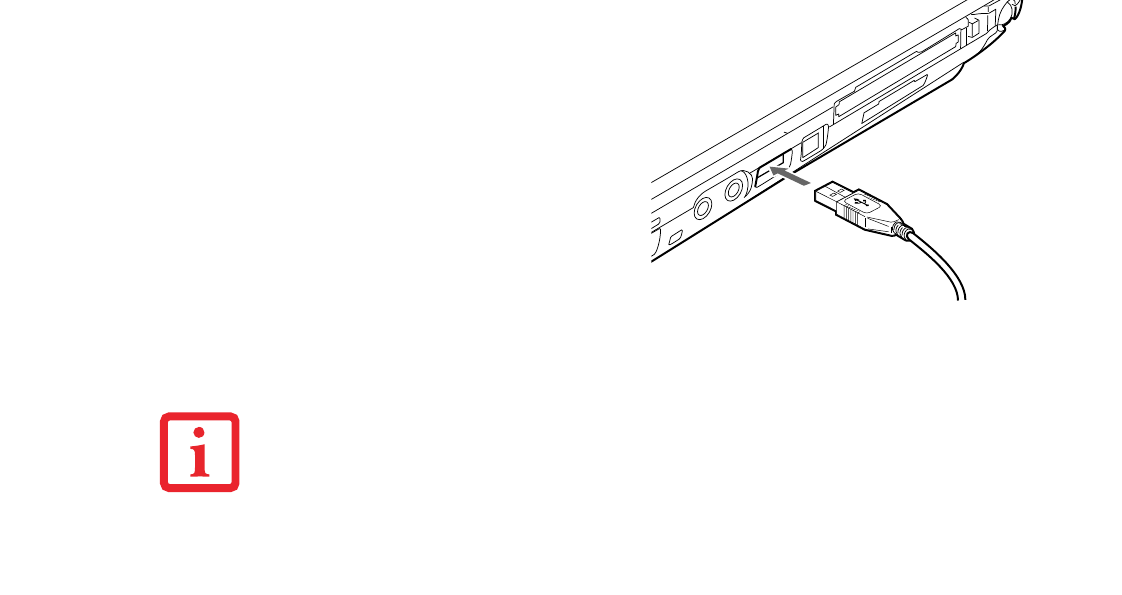

Universal Serial Bus Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

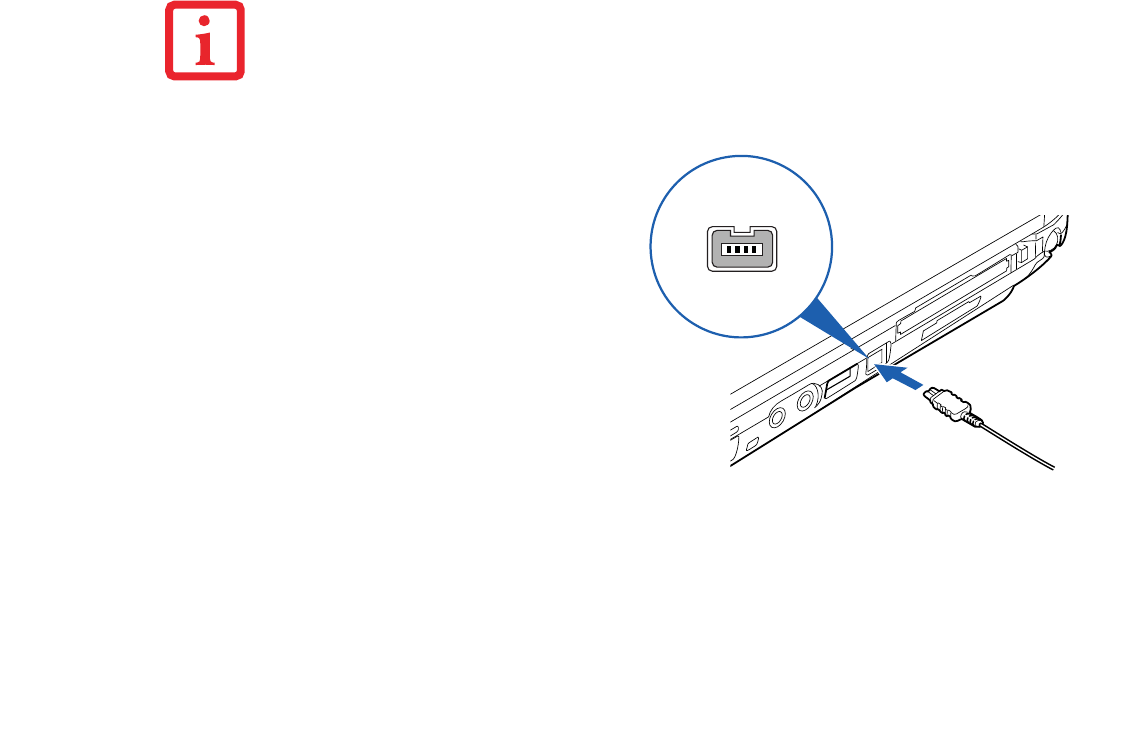

IEEE 1394 Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Microphone Jack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

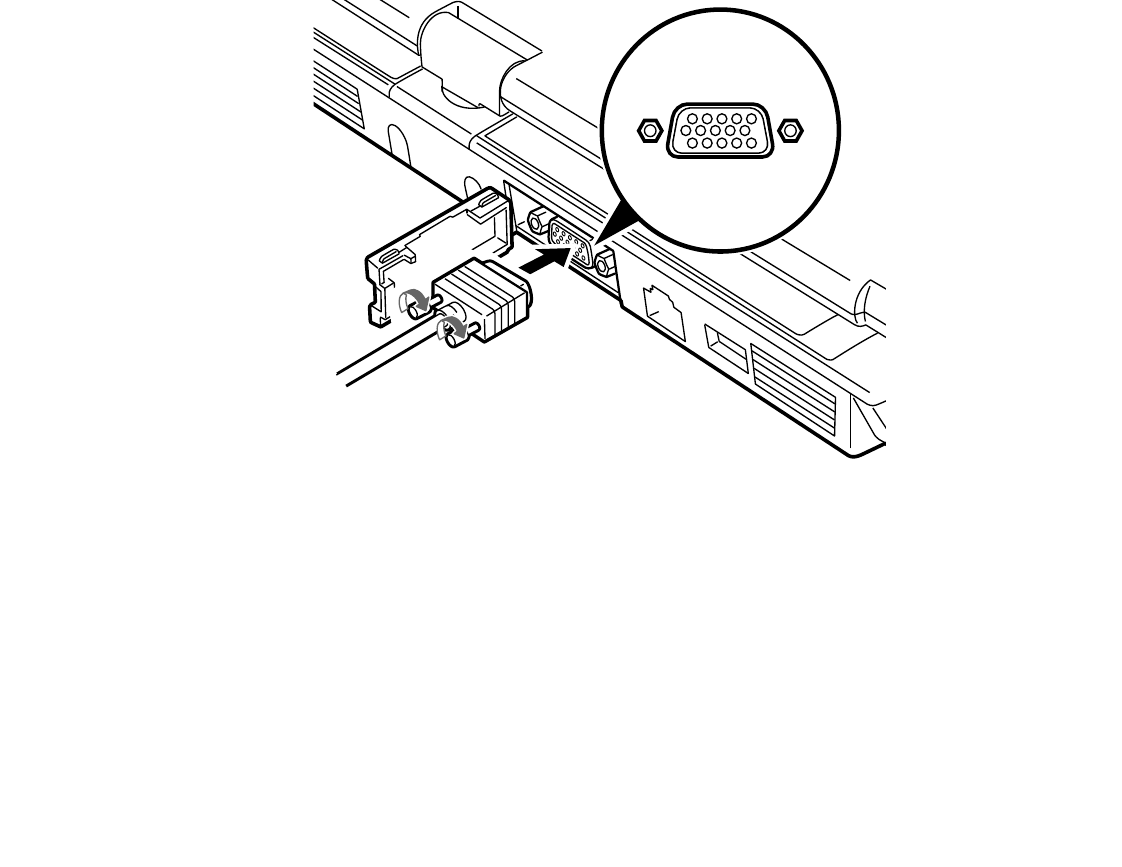

External Video Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Chapter 4 Troubleshooting Your LifeBook
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Identifying the Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Power On Self Test Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Restoring Your Pre-installed Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Re-installing Individual Drivers and Applications . . . . . . . . . . . . . . . . . . . 117
Restoring the Operating System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Automatically Downloading Driver Updates . . . . . . . . . . . . . . . . . . . . . . . 121
10
Chapter 5 Care and Maintenance
Caring for your LifeBook Tablet PC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Cleaning your LifeBook Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Cleaning the dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Storing your LifeBook Tablet PC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Traveling with your LifeBook Tablet PC. . . . . . . . . . . . . . . . . . . . . . . . . . 128
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Media Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Chapter 6 System Specifications
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Configuration Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Video. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Digitizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Mass Storage Device Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Modular Bay Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Popular Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Pre-Installed Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Learning About Your Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
11
Glossary/Regulatory
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Appendix A: WLAN User’s Guide
Before Using the Optional Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Wireless LAN Device Covered by this Document. . . . . . . . . . . . . . . . . . . 169
Characteristics of the WLAN Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Wireless LAN Modes Using this Device . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Deactivating/Disconnecting the WLAN Device . . . . . . . . . . . . . . . . . . . . 172
Deactivation Using the Wireless On/Off Switch . . . . . . . . . . . . . . . . . . . . 173
Disconnection Using the Icon in the Taskbar. . . . . . . . . . . . . . . . . . . . . . . 173
Activating the WLAN Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Configuring the Wireless LAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Configuring the WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Connection to the network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Troubleshooting the WLAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
WLAN Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Using the Bluetooth Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
What is Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Where to Find Information About Bluetooth . . . . . . . . . . . . . . . . . . . . . . . 179
12
Appendix B: Fingerprint Sensor Device
Introducing the Fingerprint Sensor Device . . . . . . . . . . . . . . . . . . . . . . . . 181
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Installing OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
User Enrollment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Using OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Configuring OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
OmniPass Control Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
13
Preface
About This Guide
The LifeBook T900 Tablet PC from Fujitsu America is a powerful convertible computer. It can be used
either as a standard notebook using keyboard input, or in tablet configuration using pen input. It is
powered by a fast, Intel® Core™ 2 Duo processor, has a built-in color display with either an active
digitizer or optional dual digitizer, and brings the computing power of desktop personal computers
(PCs) to a portable and versatile environment.
This manual explains how to operate your LifeBook T900 Tablet PC’s hardware and pre-installed
system software.
Conventions Used in the Guide
Keyboard and on-screen keys appear in brackets. Example: [Fn], [F1], [ESC], [ENTER] and [CTRL].
Pages with additional information about a specific topic are cross-referenced within the text.
For example: (“See Installation Procedure on page 43”.) Note that all cross-references are linked to the
referenced items, so by clicking the link, you will automatically go to the referenced item or page.
On-screen menu items appear in bold. Example: “Click Fujitsu Menu, and select your choice”.
14
- About This Guide
Fujitsu Contact Information
Service and Support
You can contact Fujitsu Service and Support in the following ways:
•Toll free: 1-800-8Fujitsu (1-800-838-5487)
•Website: http://www.computers.us.fujitsu.com/support
Before you place the call, you should have the following information ready so that the customer
support representative can provide you with the fastest possible solution:
•Product name
•Product configuration number
•Product serial number
•Purchase date
THE INFORMATION ICON HIGHLIGHTS INFORMATION THAT WILL ENHANCE YOUR UNDERSTANDING OF
THE SUBJECT MATERIAL.
THE CAUTION ICON HIGHLIGHTS INFORMATION THAT IS IMPORTANT TO THE SAFE OPERATION OF YOUR
COMPUTER, OR TO THE INTEGRITY OF YOUR FILES. PLEASE READ ALL CAUTION INFORMATION
CAREFULLY.
THE WARNING ICON HIGHLIGHTS INFORMATION THAT CAN BE HAZARDOUS TO EITHER YOU, YOUR
LIFEBOOK TABLET PC, OR YOUR FILES. PLEASE READ ALL WARNING INFORMATION CAREFULLY.
15
- About This Guide
•Conditions under which the problem occurred
•Any error messages that have occurred
•Type of device connected, if any
Fujitsu Shopping Online
You can go directly to the online by going to the website at: www.shopfujitsu.com.
Limited Warranty
Your LifeBook T900 Tablet PC is backed by a Fujitsu International Limited Warranty. Check the
service kit that came with your Tablet PC for the Limited Warranty period and terms and conditions.
YOU MUST HAVE AN ACTIVE INTERNET CONNECTION TO USE THE ONLINE URL LINKS.
16
Chapter 1
Getting to Know Your LifeBook
Overview
This section describes the
components of your Fujitsu
LifeBook T900 Tablet PC. We
strongly recommend that you read
it before using your Tablet PC –
even if you are already familiar
with notebook computers.
Figure 1. Fujitsu LifeBook T900 Tablet PC
17
- Locating the Controls and Connectors
Locating the Controls and Connectors
Connectors and peripheral interfaces on the LifeBook T900 Tablet PC and the optional port replicator
allow you to connect a variety of devices. Specific locations are illustrated in Figures 2 through 6. The
table below provides a short description of each icon on the LifeBook T900 Tablet PC and/or optional port
replicator. Each of the icons is either molded into or printed on the Tablet PC or port replicator chassis.
Connection Tablet PC
Icon
Purpose
DC in connector Connect an external power source such as the AC adapter or auto/airline
adapter.
SD Card/
Memory Stick Slot
The Secure Digital (SD) card/Memory Stick slot allows you to insert a flash
memory card for data storage. Flash memory cards allow you to transfer
data to and from a variety of different digital devices.
Smart Card Slot A dedicated Smart Card slot allows you to insert a Smart Card on which
you can store such data as medical information or electronic “cash”.
USB Port Connect Universal Serial Bus 2.0 or 1.1 compliant devices to the
Tabl et PC.
PCMCIA
Card slot
Insert Type I or Type II PC Cards.
Microphone Jack Connect an external microphone. The internal microphone is disabled
when you plug in an external microphone.
Headphone Jack Connect stereo headphones or powered external speakers. The internal
speaker is disabled when you plug in external headphones or powered
speakers.
18
- Locating the Controls and Connectors
Dock port Connect the Tablet PC port replicator or other approved docking device.
Refer to documentation accompanying the dock for more information.
Security lock slot The security slot allows you to secure the Tablet PC using compatible
locking devices.
Suspend/
Resume button
The Suspend/Resume button allows you to suspend Tablet PC activity
without powering off, resume your Tablet PC from suspend mode, and
power on the system when it has been shut down from Windows.
Local Area
Network (LAN)
The LAN (RJ-45) jack is used to connect the internal 10/100/1000* Base-
T/Tx Ethernet to a Local Area Network (LAN) in your office or home, or
broadband devices such as a cable modem, DSL, or satellite Internet.
*1000 Mbps, commonly referred to as Gigabit Ethernet.
Wireless LAN/
Bluetooth/WWAN
On-Off Switch
The WLAN/Bluetooth/WWAN switch allows you to turn power to the
optional wireless devices on and off.
Modem Connect a telephone line to the internal modem using a standard RJ-11
telephone plug.
External Video
port
The external video port allows you to connect an external monitor or LCD
projector to your computer.
Digital Video
Interface
The DVI-D port on the optional port replicator allows you to connect a flat-
panel LCD monitor or television that is equipped with a DVI-D port for ultra-
crisp digital images and graphics.
IEEE1394 port The IEEE 1394 jack allows you to connect IEEE 1394 (Firewire) devices
such as digital video cameras and external hard drives to your Tablet PC.
Connection Tablet PC
Icon
Purpose
19
- Locating the Controls and Connectors
Figure 2. LifeBook Tablet PC with display open
Display Panel
Status
Keyboard
LifeBook Security/
Power/Suspend/
Tablet PC Buttons
Resume Switch
Touchpad
Indicator Panel
Right Button
Scroll Sensor
Built-in
Microphones
Fingerprint Sensor
Left Button
Status
Indicator Panel
Wireless LAN/Bluetooth/WWAN On/Off Switch
Scroll Sensor
(for Tablet Mode)
Cursor Control
Optional Web Cam
Display Latch
20
- Locating the Controls and Connectors
Top Components
The following is a brief description of your LifeBook Tablet PC’s top components.
Display Panel
The display panel is a color LED panel with backlighting for the display of text and graphics. There are
two different displays available: an active digitizer that is used with a stylus, and a dual digitizer that can
be used with either a stylus or your fingers.
LifeBook Security/Tablet PC Buttons
The LifeBook Security/Tablet PC Buttons provide password security for your system, as well as one-touch
application launch capability. See “LifeBook Security/Tablet PC Buttons” on page 55.
Power/Suspend/Resume Switch
The Power/Suspend/Resume button allows you to suspend Tablet PC activity without powering off,
resume your LifeBook Tablet PC from sleep mode, and power on your Tablet PC when it has been shut
down from Windows. See “Power/Suspend/Resume Button” on page 75.
Status Indicator Panels
The Status Indicator Panels display symbols that correspond to specific components of your Tablet PC.
Status indicators are located in two locations: on the front edge of the system (system status indicators)
and below the application buttons (button status indicators). See “Status Indicator Panel” on page 30.
Keyboard
A full-size keyboard with dedicated Windows keys. See “Keyboard” on page 38.
Wireless LAN/Bluetooth/Wireless WAN On/Off Switch
The wireless LAN/Bluetooth/WWAN on/off switch is used to turn on and off the optional wireless
devices. Switching the device off when not in use will help to extend battery life. See “Activating the
WLAN Device” on page 173. Note that there is no wireless WAN available for systems with the optional
dual digitizer.
21
- Locating the Controls and Connectors
Scroll Sensors
The scroll sensors are used to navigate through pages quickly and easily. Note that there is one on the
touchpad (for use when the system is in notebook mode), and one below the display (for use when the
system is in tablet mode).
Right Button
This button acts the same as the right button on a mouse.
Left Button
This button acts the same as the left button on a mouse.
Touchpad Cursor Control
The touchpad cursor control offers an additional method for moving the cursor. See “Touchpad/Active
Digitizer/Touchscreen” on page 41.
Dual Built-in Microphones
The built-in microphones allows you to record voice and annotations.
Fingerprint Sensor
The fingerprint sensor device allows you to log onto your system and password-protected websites and
applications by swiping your finger over the sensor. See “Introducing the Fingerprint Sensor Device” on
page 181.
Web Camera
The optional 1.3 megapixel web cam can be used to take pictures of yourself to send over the internet
22
- Locating the Controls and Connectors
Figure 3. LifeBook Tablet PC left-side panel
Left-Side Panel Components
The following is a brief description of your LifeBook Tablet PC’s left-side components.
Air Vents
The air vents are used to cool the system to prevent overheating.
Air Vents PC Card Slot
Smart Card Slot
PC Card Eject Button
DC Power Jack Microphone
Headphone Jack
USB 2.0 Port
IEEE 1394 Jack
Pen Garage
Memory Stick/
SD Card SlotJack
Pen tether
Attachment Point
TO PROTECT YOUR TABLET PC FROM DAMAGE AND TO OPTIMIZE PERFORMANCE, BE SURE TO KEEP ALL
AIR ALL VENTS UNOBSTRUCTED, CLEAN, AND CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC
CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.
DO NOT OPERATE THE TABLET PC IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN
TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION.
23
- Locating the Controls and Connectors
Headphone Jack
The headphone jack allows you to connect headphones. See “Headphone Jack” on page 98.
USB 2.0 Ports
The USB 2.0 ports (one on the left side, two on the rear) allow you to connect Universal Serial Bus
devices. USB 2.0 transfers data at up to 480 Mbps and is backward-compatible with USB 1.1 devices,
which transfer data at up to 12 Mbps. See “Universal Serial Bus Ports” on page 96.
PC Card Slot
The PC Card Slot allows you to install a Type I or Type II PC Card. See “PC Cards” on page 87.
PC Card Eject Button
The PC Card eject button is used for removing a PC Card from the slot.
Pen Garage
The pen garage is used to store the pen (also called a “stylus”) when not in use.The pen is used as the
interface with the active digitizer display.
Pen Tether Attachment Point
The pen tether attachment point is designed to securely hold a pen tether to prevent loss of the pen. See
“Installing a Pen Tether” on page 51 for additional information.
Smart Card Slot
A dedicated Smart Card slot is provided on your Tablet PC. Smart Cards are the same size and shape as a
credit card, but they contain embedded integrated circuits. See “Smart Card Reader” on page 89. To use
the embedded Smart Card Reader, you must purchase optional third-party software for installation.
24
- Locating the Controls and Connectors
Memory Stick/SD Card Slot
The Memory Stick/SD card slot allows you to install a Memory Stick or a Secure Digital (SD) card for
data storage. This architecture allows you to transfer data from a variety of different digital devices. See
“Installing Memory Stick/SD Cards” on page 86.
IEEE 1394 (4-pin) Jack
The 4-pin 1394 jack is used to connect between your Tablet PC and an IEEE 1394 peripheral such as a
digital video camera for fast file transfer. See “IEEE 1394 Port” on page 97.
Microphone Jack
The microphone jack allows you to connect an external mono microphone. See “Microphone Jack” on
page 98.
DC Power Jack
The DC power jack allows you to plug in the AC adapter to power your LifeBook Tablet PC and charge
the internal Lithium ion battery.
25
- Locating the Controls and Connectors
Figure 4. LifeBook Tablet PC right-side panel
Right-Side Panel Components
The following is a brief description of your LifeBook Tablet PC’s right-side components.
Anti-theft Lock Slot
The anti-theft lock slot allows you to attach an optional physical lock down device.
Modular Bay
The Modular Bay can accommodate one of the following devices. See “Modular Bay Devices” on
page 53.
•Modular DVD/CD-RW combo drive
•Modular Dual-Layer Multi-Format DVD Writer
•Modular DVD-ROM drive
•Modular 2nd hard disk drive
•Modular Lithium ion battery
•Weight Saver
Anti-Theft Lock Slot Modular Bay
26
- Locating the Controls and Connectors
Figure 5. LifeBook Tablet PC back panel
Back Panel Components
Following is a brief description of your LifeBook Tablet PC’s back panel components.
Anti-theft Lock Slot
The anti-theft lock slot allows you to attach an optional physical lock down device.
Modem (RJ-11) Telephone Jack
The Modem (RJ-11) jack is for attaching a telephone line to the internal multinational 56K modem. (There
is no modem on systems with WWAN device.) See “Modem (RJ-11) Jack*” on page 95.
THE INTERNAL MODEM IS NOT INTENDED FOR USE WITH DIGITAL PBX SYSTEMS. DO NOT CONNECT THE
INTERNAL MODEM TO A DIGITAL PBX AS IT MAY CAUSE SERIOUS DAMAGE TO THE INTERNAL MODEM OR
YOUR ENTIRE TABLET PC. CONSULT YOUR PBX MANUFACTURER’S DOCUMENTATION FOR DETAILS.
SOME HOTELS HAVE DIGITAL PBX SYSTEMS. BE SURE TO FIND OUT BEFORE YOU CONNECT YOUR
MODEM.
27
- Locating the Controls and Connectors
USB 2.0 Ports
The USB 2.0 ports allow you to connect Universal Serial Bus devices. USB 2.0 transfers data at up to
480Mbps and is backward-compatible with USB 1.1 devices, which transfer data at up to 12Mbps. See
“Universal Serial Bus Ports” on page 96.
Air Vents
The air vents allow air to circulate through the system to cool down the components.
Gigabit LAN (RJ-45) Jack
The internal LAN (RJ-45) jack is used for an internal Gigabit (10Base-T/100Base-Tx/1000Base-T)
Ethernet LAN connection. See “Internal LAN (RJ-45) Jack” on page 94.
External Video Port
The external monitor port allows you to connect an external monitor or LCD projector. See “External
Video Port” on page 98.
THE INTERNAL MULTINATIONAL MODEM IS DESIGNED TO THE ITU-T V.90/V.92 STANDARD. ITS MAXIMUM
SPEED OF 53000 BPS IS THE HIGHEST ALLOWED BY FCC, AND ITS ACTUAL CONNECTION RATE DEPENDS
ON THE LINE CONDITIONS. THE MAXIMUM SPEED IS 33600 BPS AT UPLOAD, IN ACCORDANCE WITH FCC
REGULATIONS.
FOR ADDITIONAL INFORMATION ABOUT THE MODEM, REFER TO THE FUJITSU WEBSITE AT:
HTTP://SOLUTIONS.US.FUJITSU.COM/.
TO PROTECT YOUR TABLET PC FROM DAMAGE AND TO OPTIMIZE PERFORMANCE, BE SURE TO KEEP ALL
AIR ALL VENTS UNOBSTRUCTED, CLEAN, AND CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC
CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.
DO NOT OPERATE THE TABLET PC IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN
TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION.
28
- Locating the Controls and Connectors
Figure 6. LifeBook Tablet PC bottom panel
Bottom Components
The following is a brief description of your LifeBook Tablet PC’s bottom panel components.
Battery Latches
The battery latches are used to secure the Lithium ion battery in the battery bay.
Lithium ion Battery Bay
The battery bay contains the internal Lithium ion battery. It can be opened for the removal of the battery
when stored over a long period of time or for swapping a discharged battery with a charged Lithium ion
battery. See “Lithium ion Battery” on page 80.
Memory Upgrade
Lithium ion
Port Replicator
Battery Bay
Air Vents
Battery Latch
Battery Latch
Connector
Compartment
Modular Bay Release Latch
Dust Filter
29
- Locating the Controls and Connectors
Air Vents
The air vents allow air to circulate through the system to cool down the components.
Modular Bay Release Latch
The modular bay release latch is used to release the modular bay device from the modular bay.
Memory Upgrade Compartment
Your Tablet PC comes with high speed Double Data Rate 3 Synchronous Dynamic RAM (DDR3 1066
MHz SDRAM). The memory upgrade compartment allows you to expand the system memory capacity of
your Tablet PC, thus improving overall performance. See “Memory Upgrade Module” on page 90. Under
normal circumstances, it should not be necessary to open this compartment.
Port Replicator Connector
This connector allows you to connect the optional Port Replicator to your Tablet PC.
Dust Filter
The dust filter is used to help remove dust and dirt fin your system. See “Cleaning the dust filter” on
page 126.
TO PROTECT YOUR TABLET PC FROM DAMAGE AND TO OPTIMIZE SYSTEM PERFORMANCE, BE SURE TO
KEEP ALL AIR ALL VENTS UNOBSTRUCTED, CLEAN, AND CLEAR OF DEBRIS. THIS MAY REQUIRE
PERIODIC CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.
DO NOT OPERATE THE TABLET PC IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN
TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A BED OR CUSHION.
30
- Status Indicator Panel
Figure 7. Status Indicator Panel
Status Indicator Panel
The Status Indicator Panel displays symbols and associated LEDs that correspond to specific components
of your Tablet PC. These symbols tell you how each of those components is operating.(Figure 7)
Power Indicator
•The Power indicator symbol shows whether your system is operational. It has several different
states, each of which tells you what mode your Tablet PC is in at that time.
•Steady On: This means that there is power to your Tablet PC and that it is ready for use.
•Flashing: This means that your Tablet PC is in Sleep mode.
12
12
1A
Optical/Hard Drive Access
NumLk
CapsLk
ScrLk
Battery 1 Level Battery 2 Level
Batt. 1 Charging Batt. 2 Charging
Power
External
Power
Security
31
- Status Indicator Panel
•Steady Off: This means that your system is either in Hibernate mode, or that your Tablet PC has
been turned off.
If you are charging your battery, the Power indicator symbol will remain on even if your LifeBook Tablet
PC is shut off. Even if the system was shut down from Windows, the Power indicator symbol will remain
on if you have an adapter connected
External Power Indicator
The external power indicator shows whether your tablet is operating from the AC adapter, the auto/airline
adapter or the batteries. This icon has two different states that can tell you what power source your
LifeBook Tablet PC is using.
•On: This means that either of the adapters are currently in use.
•Off: Power is only coming from the batteries, and you do not have an adapter connected.
Hard Drive/Optical Drive Access Indicator
The Hard Drive/Optical Drive Access indicator shows whether your internal hard drive or optical drive
are being accessed is being accessed.
Battery Charging Indicators
The Battery Charging and Battery Level indicators state whether the Lithium ion battery (Battery 1) or the
optional modular battery (Battery 2) are installed and charging.
Battery Level Indicator
The Battery Level indicators display the charge level of the indicated battery pack, as follows:
•Blue, solid: Battery is between 50% and 100% charged.
•Orange, solid: Battery is between 13% and 49% charged.
1
1
32
- Status Indicator Panel
•Red, solid: Battery is between 0% and 12% charged.
•Orange, blinking: Blinks during battery status measurement (Four seconds after the battery is
installed).
•Red, blinking: There is a problem with the battery.
•Off: There is no battery installed.
Security Indicator
The Security Indicator flashes (if a password was set) when the system resumes from Off or Sleep modes.
You must enter the password that was set in the Security Panel before your system will resume operation.
NumLk Indicator
The NumLk indicator states that the integral keyboard is set in ten-key numeric keypad mode.
CapsLock Indicator
The CapsLock indicator states that your keyboard is set to type in all capital letters.
ScrLk Indicator
The ScrLk indicator states that your scroll lock is active.
• If the battery pack is installed while the power is turned off, the battery level indicator will display
the charge level for five seconds after it blinks orange.
•If the AC adapter is not connected or the battery pack is not fully charged when the computer is
switched to sleep mode, the indicator will blink. The LED blinks at the rate of one second on/five
seconds off.
•Batteries subjected to shocks, vibration or extreme temperatures can be permanently
damaged.
•A shorted battery is damaged and must be replaced.
33
- Display Panel
Figure 8. Opening the Display Panel
Display Panel
Your LifeBook T900 Tablet PC contains an LED display panel that is backlit for easier viewing in bright
environments. The convertible design of your Tablet PC allows you to open the display fully, rotate it in
either direction 180 degrees, and lay it face up on the keyboard. This allows you to use the system as a
tablet, much as you would a pad of paper.
Opening the Display Panel
Lift the display backwards, being careful not to touch the screen with your fingers, until it is at a
comfortable viewing angle. (Figure 8)
34
- Display Panel
Using the System as a Tablet
If you would like to use the system as a tablet, perform the following steps.
1Press the latch button and lift the display until it is perpendicular to the keyboard. (Figure 10).
2When the display is perpendicular to the keyboard, rotate it 180 degrees in either direction (Figure 11) so that
it is facing backwards.
3Holding the top edge of the display panel, pull it forward until it is lying nearly atop the keyboard.
To return the system to notebook configuration, repeat steps 3 and 2.
•The display can be rotated in either direction, but when returning the system to notebook mode,
be sure to turn it back to its original position (i.e., the reverse of how you turned it when you
opened it. Turning the display in the incorrect direction could cause hinge damage.
•In the following step, be sure to position the display perpendicular to the keyboard, otherwise
the keyboard or display cover could get scratched.
4Push the latch towards the display (See “A” in
Figure 9). The latch will pivot so the top latch
disappears, and the bottom latch appears
(See “B” in Figure 9). Holding the latch down,
lay the display flush against the system so
that the latch engages. You can now use your
system as a tablet.
5Lay the display flush against the system so
that the latch engages. You can now use your
system as a tablet. (Figure 12) Figure 9. Latching/unlatching
Top latch
Bottom latch
Display Side
A
B
35
- Display Panel
Holding the Tablet PC
Your computer can be used in tablet configuration in three different orientations (Figure 12).
•Portrait Orientation: Hold the system with the display positioned vertically with the latch on the
left.
•2nd Portrait Orientation: Hold the system with the display positioned vertically with the latch on
the right.
•Landscape Orientation: Hold the system with the display positioned horizontally with the latch on
the top.
Note: Holding the system horizontally with the latch at the bottom is not a functional orientation.
Figure 10. Fully Open Display Figure 11. Rotating Display Figure 12. Tablet Mode
Landscape
Orientation
2nd Portrait
Orientation
Portrait
Orientation
Non-functional
Orientation
36
- Display Panel
Adjusting Display Panel Brightness
Once you have turned on your Tablet PC, you may want to adjust the brightness level of the screen to a
more comfortable viewing level. There are three ways to adjust the brightness: keyboard, power
management utility, and Fujitsu Menu.
Using Keyboard to Adjust Brightness
Adjusting the brightness using the keyboard changes the system setting (i.e., the settings you make via the
function keys automatically changes the brightness settings in the system’s Pen and Tablet Settings).
•[Fn+F6]: Pressing repeatedly will lower the brightness of your display.
•[Fn+F7]: Pressing repeatedly will increase the brightness of the display.
Using Power Management to Adjust Brightness
Windows XP/Vista:
To adjust brightness with the power management utility in Windows Vista or Windows XP:
Click Start -> Control Panel. If you are not in Classic View, select it in the left panel. Double-click the
Windows Mobility Center icon, then double-click the icon adjacent to Display brightness. Set the screen
brightness sliders for On battery and Plugged in scenarios.
Windows 7:
To adjust brightness with the power management utility in Windows 7:
Click Start -> Control Panel. In View by:, select one of the icon views. Select Display, then click Adjust
brightness in the left pane. Drag the Screen brightness: slider to the left or right, depending upon your
preference.
37
- Display Panel
Using the Fujitsu Menu to Adjust Brightness
To adjust brightness using the Fujitsu menu, click on the Fujitsu Menu icon in the system tray in the lower
right corner of the screen. (You can also open the Fujitsu menu by clicking the [Fn] button twice in
succession.) Double-click Windows Mobility Center, then double-click the icon adjacent to Display
brightness. Set the screen brightness sliders for On battery and Plugged in scenarios.
IF USING AC POWER, YOUR BRIGHTNESS SETTING IS SET TO ITS HIGHEST LEVEL BY DEFAULT. IF USING
BATTERY POWER, YOUR BRIGHTNESS SETTINGS IS SET TO APPROXIMATELY MID-LEVEL BY DEFAULT.
THE HIGHER THE BRIGHTNESS LEVEL, THE MORE POWER THE TABLET PC WILL CONSUME AND THE
FASTER YOUR BATTERIES WILL DISCHARGE. FOR MAXIMUM BATTERY LIFE, MAKE SURE THAT THE
BRIGHTNESS IS SET AS LOW AS POSSIBLE.
38
- Keyboard
Keyboard
Figure 13. Keyboard
Using the Keyboard
Your Fujitsu LifeBook Tablet PC has an integral 84-key keyboard. The keys perform all the standard
functions of a 101-key keyboard, including the Windows keys and other special function keys. This
section describes the following keys (Figure 13):
•Numeric keypad: Your Tablet PC allows certain keys to serve dual purposes, both as standard
characters and as numeric and mathematical keys. The ability to toggle between the standard
character and numerical keys is controlled through the [NumLk] key.
Fn Key Start Key
Function Keys
Numeric Keypad Application Key Cursor Keys
(surrounded by heavy line)
39
- Keyboard
•Cursor keys: Your keyboard contains four arrow keys for moving the cursor or insertion point to
the right, left, up, or down within windows, applications and documents.
•Function keys: The keys labeled [F1] through [F12], are used in conjunction with the [Fn] key to
produce special actions that vary depending on what program is running.
•Windows keys: These keys work with your Windows operating system and function the same as
the onscreen Start menu button, or the right button on your pointing device.
Numeric Keypad
Certain keys on the keyboard perform dual functions as both standard character keys and numeric keypad
keys. NumLk can be activated by pressing the [NumLk] keys. Turning off the NumLk feature is done the
same way. Once this feature is activated you can enter numerals 0 through 9, perform addition ( + ),
subtraction ( - ), multiplication ( * ), or division ( / ), and enter decimal points ( . ) using the keys designated
as ten-key function keys. The keys in the numeric keypad are marked on the front edge of the key to
indicate their secondary functions.
Windows Keys
Your LifeBook Tablet PC has two Windows keys, consisting of a Start key and an Application key. The
Start key displays the Start menu. This button functions the same as your onscreen Start menu button. The
Application key functions the same as your right mouse button and displays shortcut menus for the
selected item. (Please refer to your Windows Help and Support documentation in the Start menu for
additional information regarding the Windows keys.)
Cursor Keys
The cursor keys are the four arrow keys on the keyboard which allow you to move the cursor up, down,
left and right in applications. In programs such as Windows Explorer, it moves the “focus” (selects the
next item up, down, left, or right).
40
- Keyboard
Function Keys
Your LifeBook Tablet PC has 12 function keys, F1 through F12. Functions assigned to these keys differ
for each application. You should refer to your software documentation to find out how these keys are used.
•The [Fn] key provides extended functions for the Tablet PC and is always used in conjunction with
another key.
•[Fn+F3]: Pressing [F3] while holding [Fn] will toggle the Audio Mute on and off.
•[Fn+F4]: Pressing [F4] while holding [Fn] will toggle the Quick Point feature on and off. Note that
the [Fn+F4] combination only works if Manual Setting is selected in the BIOS. (See “BIOS Setup
Utility” on page 71)
•[Fn+F6]: Pressing [F6] repeatedly while holding [Fn] will lower the brightness of your display.
•[Fn+F7]: Pressing [F7] repeatedly while holding [Fn] will increase the brightness of the display.
•[Fn+F8]: Pressing [F8] repeatedly while holding [Fn] will decrease the volume of your LifeBook
Tablet PC.
•[Fn+F9]: Pressing [F9] repeatedly while holding [Fn] will increase the volume of your LifeBook
Tablet PC.
•[Fn+F10]: Pressing [F10] while holding [Fn] allows you to change your selection of where to send
your display video. Each time you press the combination of keys you will step to the next choice.
The choices, in order, are: built-in display panel only, external monitor only, and both built-in
display panel and external monitor.
41
- Touchpad/Active Digitizer/Touchscreen
Touchpad/Active Digitizer/Touchscreen
Figure 14. Touchpad pointing device
Using the Touchpad
The touchpad is built into your LifeBook Tablet PC. It is used to control the movement of the cursor to
select items on your display panel. The touchpad is composed of a cursor control below the center of the
keyboard, two buttons below it, and a scroll sensor on the right edge of the cursor control. The left button
functions the same as a left mouse button while the right button has the same function as a right mouse
button. When used with the cursor control, the scroll sensor allows you to scroll up and down a screen.
The actual functionality of the buttons may vary depending on the application that is being used.
Left Button
Right Button
Quick Point Control
Scroll
Sensor
42
- Touchpad/Active Digitizer/Touchscreen
Clicking
Clicking means pushing and releasing a button. To
left-click, move the cursor to the item you wish to
select, press the left button once, and then
immediately release it. To right-click, move the
mouse cursor to the item you wish to select, press
the right button once, and then immediately release
it. You also have the option to perform the clicking
operation by tapping lightly on the touchpad once.
Figure 15. Clicking with button
Figure 16. Clicking with Touchpad
Figure 17. Right-clicking with button
43
- Touchpad/Active Digitizer/Touchscreen
Double-Clicking
Double-clicking means pushing and releasing the left
button twice in rapid succession. This procedure does
not function with the right button. To double-click, move
the cursor to the item you wish to select, press the left
button twice, and immediately release it. You can also
perform the double-click operation by tapping lightly on
the Touchpad twice.
Figure 18. Double-clicking with button
Figure 19. Double-clicking with Touchpad
•IF THE INTERVAL BETWEEN CLICKS IS TOO LONG, THE DOUBLE-CLICK WILL NOT BE EXECUTED.
•PARAMETERS FOR THE QUICK POINT CAN BE ADJUSTED FROM THE MOUSE DIALOG BOX LOCATED IN
THE WINDOWS CONTROL PANEL.
44
- Touchpad/Active Digitizer/Touchscreen
Dragging
Dragging means pressing and holding the left button,
while moving the cursor. To drag, move the cursor to
the item you wish to move. Press and hold the left
button while moving the item to its new location and
then release it. Dragging can also be done using the
Touchpad. First, tap the Touchpad twice over the item
you wish to move making sure to leave your finger on
the pad after the final tap. Next, move the object to its
new location by moving your finger across the
Touchpad, and then release your finger.
Figure 20. Dragging with button
Figure 21. Dragging with Touchpad
45
- Touchpad/Active Digitizer/Touchscreen
Touchpad Control Adjustment
The Windows Control Panel allows you to customize your touchpad with selections made from within the
Mouse Properties dialog box. There are three aspects of operation which you can adjust:
•Buttons: This tab lets you set up the buttons for right or left handed operation, in addition to setting
up the time interval allowed between clicks in double-clicking.
•Pointers: This tab lets you set up the scheme for the cursor depending on its functionality.
•Pointer Options: This tab lets you set up a relation between the speed of your finger motion and
the speed of the cursor. It also allows you to enable a Pointer Trail for the cursor arrow.
Scrolling
Using the scrolling strip allows you to navigate through a
document quickly without using the window’s scroll bars.
This is particularly useful when you are navigating
through on-line pages. To scroll, slide your finger up and
down the scroll strip on the right side of the cursor control
pad. Note that when you are working in tablet mode, a
second scroll strip is located adjacent to the display.
Figure 22. Scrolling with the Scroll Strip
46
- Touchpad/Active Digitizer/Touchscreen
Active Digitizer Display
NOTE: Depending upon your system
configuration, in addition to the active digitizer,
you may also have a capacitive touch panel that
responds to finger touch and gestures. (This
configuration is called a “Dual Digitizer”.) For
more information about the touchscreen, refer to
“Using the Optional Capacitive Touchscreen” on
page 50.
The integrated active digitizer allows you to use the
included stylus as a pointing device. You can use the
stylus to click, double-click, drag items and icons,
write text, or to draw like a pen or pencil in
applications that support this behavior, such as
drawing or painting programs. See your application
documentation for details.
Figure 23. Using the Active Digitizer Display
•DO NOT USE EXCESSIVE FORCE WHEN TAPPING OR WRITING ON THE SCREEN WITH THE STYLUS.
EXCESSIVE FORCE COULD RESULT IN DAMAGE TO THE LED AND/OR ACTIVE DIGITIZER.
•TO PURCHASE ADDITIONAL OR REPLACEMENT STYLUSES, VISIT FUJITSU’S ACCESSORIES WEBSITE AT:
WWW.SHOPFUJITSU.COM.
47
- Touchpad/Active Digitizer/Touchscreen
Clicking on Active Digitizer Display
To left-click, touch the object you wish to select and then
lift the stylus tip immediately.
Figure 24. Clicking on the Active Digitizer Display
Figure 25. Right-clicking Active Digitizer
Right-Clicking on Active Digitizer
Right-click can be accomplished by holding
the front of the toggle button down while
tapping on the screen. To change the settings
for the right-click feature, go to Start ->
Control Panel -> Pen and Input Devices. In
the Pen Options tab, select “Press and Hold”
then click the [Settings] button.
48
- Touchpad/Active Digitizer/Touchscreen
Double-Clicking
To double-click, touch the item twice, and then
immediately remove the stylus tip.
Figure 26. Double-clicking the Display
Dragging
Dragging means moving an item with the stylus by
touching the screen, moving and then lifting the stylus.
To drag, touch the Active Digitizer Display with your
stylus on the item you wish to move. While continuing
to touch the screen with the stylus, drag the item to its
new location by moving the stylus across the screen,
and then lifting the stylus to release it.
Figure 27. Dragging on the Display
49
- Touchpad/Active Digitizer/Touchscreen
Calibrating the Active Digitizer Display
In order to ensure accurate tracking between the stylus and cursor, you must run the Calibration Utility
before you use the system for the first time, or after you change the display resolution.
To run the calibration utility:
1Go to Start -> Control Panel. (On Windows Vista systems, If you are not in Classic View, select “Switch to
Classic View” in the left panel.)
2Double-click the Tablet PC Settings icon and select the General tab
3Click the [Calibrate] button.
4Adjust the display of your Tablet PC to a comfortable angle and find the (+) symbol in the upper-left corner of
the display.
5Using the stylus, firmly touch the screen directly on the (+) symbol. Lift the stylus from the screen and the target
will move to a different location on the screen.
6Repeat step 4 until you have selected all of the (+) symbols.
7Once you have selected all the symbols, press the [OK] button.
8Touch the stylus to various points on the screen to verify that the screen is correctly calibrated. If you are not
satisfied with the screen’s calibration, press the [Calibrate]) button to begin again.
•THE FIRST TIME YOU PERFORM A CALIBRATION, THE SYSTEM DISPLAY SHOULD BE IN LANDSCAPE
MODE. SUBSEQUENT CALIBRATIONS CAN BE PERFORMED IN LANDSCAPE OR PORTRAIT MODE.
•THE FIRST TIME YOU CALIBRATE, THERE WILL BE 16 CALIBRATION POINTS; SUBSEQUENT CALIBRATIONS
WILL REQUIRE ONLY FOUR CALIBRATION POINTS.
DO NOT USE EXCESSIVE FORCE WHEN TAPPING ON THE SCREEN DURING CALIBRATION. USE OF
EXCESSIVE FORCE COULD RESULT IN DAMAGE TO THE LED AND/OR TOUCH PANEL.
50
- Touchpad/Active Digitizer/Touchscreen
Using the Optional Capacitive Touchscreen
Certain configurations of this Tablet PC have an optional dual digitizer that allows you to use either the
stylus or your finger(s) as a pointing device. This type of display also allows you to use “gestures” to
perform such actions as scroll, zoom, and rotate.
Right-clicking the touchscreen
To perform a right-click action using two fingers, press the first finger at the location you want to perform
a right-click, then quickly tap and release the second finger on the screen.
Gesture Mode
To initiate gesture mode, two fingers must touch the screen within one 10th of a second of each other. If
the second finger touches the screen after one 10th of a second has elapsed, the second finger is ignored.
Gesture mode ends when both fingers are removed from the screen. Note that if a gesture can’t be
recognized, no action is taken. In that case, remove both fingers from the screen and try again.
Scrolling Gesture
To scroll through long documents or on a web page, place both fingers on the screen (one finger quickly
followed by the second) and move them in parallel in the same direction; if only one finger moves, no
scrolling will occur. You can scroll vertically or horizontally, depending upon the direction of the gesture.
Zoom Gesture
The zoom gesture is especially helpful when viewing pictures. To zoom in, place two fingers on the item
you want to enlarge (one finger quickly followed by the second), then spread them away from each other.
To zoom out, place two fingers on the item you want to reduce (one finger quickly followed by the
second), then move them towards each other.
•GESTURE SUPPORT IS DETERMINED BY THE APPLICATION IN USE.
•THE STYLUS TAKES PRECEDENCE OVER FINGER TOUCH. IF THE STYLUS IS WITHIN ACTIVE RANGE OF
THE SCREEN, FINGER TOUCH WILL BE DISABLED.
•WHEN ONE FINGER IS USED ON THE TOUCHSCREEN, IT BEHAVES IN THE SAME MANNER AS A STYLUS.
51
- Touchpad/Active Digitizer/Touchscreen
Rotate Gesture
To change the orientation of an object on the screen, place two fingers on the image you want to rotate
(one finger quickly followed by the second), then move them in opposite directions (as if you were turning
a knob). The direction the item turns is dependant upon the direction you move your fingers.
Installing a Pen Tether
To prevent dropping or losing your pen, you should
attach it to your system using the pen tether that is
included with the system.
To attach the pen tether to your Tablet PC, perform
the following steps:
1Attach the end of the pen tether with the smaller loop
to your pen. To do so, push the end of the tether
through the hole in the pen, then thread the opposite
end of the tether through the loop.
2Attach the end of the pen tether with the larger loop to
the attachment point on your tablet. To do so, insert
the end of the pen tether through the attachment
point, then feed the pen through the large loop in the
tether. Figure 28. Installing a Pen Tether
52
- Volume Control
Volume Control
Your Fujitsu LifeBook Tablet PC has multiple volume controls which interact with each other.
Controlling the Volume
The volume can be controlled in several different ways:
•Volume can be changed or muted from within the Volume Control in the system tray.
•Volume can be controlled with the F8 and F9 functions keys. Pressing [F8] repeatedly while holding
[Fn] will decrease the volume of your Tablet PC. Pressing [F9] repeatedly while holding [Fn] will
increase the volume of your Tablet PC.
•Volume can be changed by opening the Control Panel and selecting Windows Mobility Center.
From there, you can either mute or adjust the sound in the Volume area.
•Volume can be muted by pressing the [F3] key while holding down the [Fn] key. To restore audio,
repeat the [Fn+F3] procedure.
•Volume can be controlled by many volume controls that are set within individual applications.
•Certain external audio devices you might connect to your system may have hardware volume
controls.
Each source discussed above puts an upper limit on the volume level that must then be followed by the
other sources. We recommend that you experiment with the various volume controls to discover the
optimal sound level.
ANY SOFTWARE THAT CONTAINS AUDIO FILES WILL ALSO CONTAIN A VOLUME CONTROL OF ITS OWN. IF
YOU INSTALL AN EXTERNAL AUDIO DEVICE THAT HAS AN INDEPENDENT VOLUME CONTROL, THE
HARDWARE VOLUME CONTROL AND THE SOFTWARE VOLUME CONTROL WILL INTERACT WITH EACH
OTHER. IT SHOULD BE NOTED THAT IF YOU SET YOUR SOFTWARE VOLUME TO OFF, YOU WILL OVERRIDE
THE EXTERNAL VOLUME CONTROL SETTING.
53
- Modular Bay Devices
Figure 29. Modular Bay
Modular Bay Devices
Your Fujitsu LifeBook Tablet PC contains a Modular Bay. The Modular Bay can house an optical drive,
a Lithium ion battery, a modular second hard disk drive and a weight saver.
Your Modular Bay will have one of the following devices installed.
•Modular Dual-Layer Multi-Format DVD Writer: This allows you to access movies, software, and
audio DVD/CDs and record to DVD, CD, and DVD-RAM discs.
•Modular DVD/CD-RW combo drive: This allows you to access movies, software, and audio
DVD/CDs as well as to write to CDs.
•Modular DVD-ROM drive: This allows you to access software, data, video, or audio discs.
•Modular Lithium ion battery: This is a rechargeable battery that can be used to power your
LifeBook Tablet PC when an adapter is not connected.
•Modular hard drive: This allows you to increase the storage capacity of your Tablet PC.
•Weight Saver: This is used to fill the bay when no device is needed.
Modular Bay
YOU SHOULD NEVER LEAVE YOUR MODULAR BAY EMPTY WHEN THE TABLET PC IS IN OPERATION. IF
LEFT EMPTY, DUST OR FOREIGN MATTER MAY ACCUMULATE INSIDE THE TABLET PC.
54
- Modular Bay Devices
Removing and Installing Modular Devices
There are two ways to remove and install modular devices in the Modular Bay:
•Cold-swapping: swapping devices while your LifeBook Tablet PC is powered off.
•Hot-swapping: swapping devices while your system is active using the Safely Remove Hardware
icon from your system tray.
Hot-swapping
Hot-swapping is provided through the Safely Remove Hardware utility. The icon for the utility appears in
the system tray. Click on the icon and follow the on-screen instructions.
Cold-swapping
To cold-swap modular devices in your Modular
Bay follow these easy steps:
1Close any open files.
2Shut down your LifeBook Tablet PC.
3Turn the system upside down and press the Modular
Bay release latch in the direction shown in Figure
30.
4While holding the latch, slide your device out until it
is clear of the bay. This will require light force.
5Slide the device you are installing into your Tablet
PC until it clicks into place.
6It is now safe to turn your Tablet PC back on.
7You can now access and use the device.
Your Tablet PC will automatically detect the device
and activate it within your system. The drive letters
associated with the device will be created and listed
under My Computer and Windows Explorer.
Figure 30. Removing/Installing Modular Bay Device
Modular Bay
Release Latch
55
- LifeBook Security/Tablet PC Buttons
Figure 31. LifeBook T900 Tablet PC Security/Tablet PC Buttons
LifeBook Security/Tablet PC Buttons
A unique feature of your LifeBook T900 Tablet PC is the array of Security and Tablet PC buttons. These
buttons allow you to secure your Tablet PC from unauthorized use and to launch specific applications and
functions with the touch of a button.
Security Button Functions
If the security system is activated, upon starting your Tablet PC or resuming from Sleep, Hibernate, or
shutdown mode, the security system will require you to enter a password code using the security buttons.
After you enter the correct password, your system will resume operation.
The five security/Tablet PC buttons are located on the bottom right-hand side of the display when it is
configured to be used as a notebook.
All five buttons are used when implementing security functions. Four of the buttons are used to enter the
password, and the fifth is used as an Enter button. See Table 1 for information about each of the Security
buttons.
1
2
3
4
ENT
B
n
A
56
- LifeBook Security/Tablet PC Buttons
Table 1. Security Panel Button Functions
Pre-logon button functions
All five buttons can be used before logging on to Windows (i.e., when the Windows logon screen is
displayed). Three of the buttons have secondary functions. See Table 2 for information about the pre-
logon functions.
<Tab>/<Shift><Tab>
When you press the [Page Down] button when the system is pre-logon, each press of the button will act
as if you had pressed the [Tab] key.
When you press the [Fn] button then press and release the [Page Down] button, each press of the button
will act as if you had pressed the [Shift]+[Tab] key combination.
<Enter>/<Escape>
When you press the [Page Up] button when the system is pre-logon, each press of the button will act as if
you had pressed the [Enter] key.
Button Icon System State Security Panel Function
System is pre-boot or resuming
from suspend
Security Button 1
Security Button 2
Security Button 3
Security Button 4
Security Enter Button
57
- LifeBook Security/Tablet PC Buttons
Table 2. Pre-logon Tablet PC Button Functions
When you press the [Fn] button then press and release the [Page Up] button, each press of the button will
act as if you had pressed the [Escape] key.
Screen Rotation
The screen rotation feature would normally be used when the system is configured as a tablet. When you
would like to use the tablet as an eBook, for example, you would use the portrait orientation; when
accessing spreadsheets or using the system as a notebook, you would more typically use landscape
orientation.
When the system is changed to tablet configuration, the orientation automatically changes to portrait mode
by default.
Button
Icon System State Tablet PC Function Secondary Functions
(Fn + Button)
System is pre-
logon (Windows
logon screen is
displayed)
<Tab> <Shift><Tab>
<Enter> <Escape>
Rotate screen None
Used to invoke
secondary function
None
Ctl+Alt+Del Button None
58
- LifeBook Security/Tablet PC Buttons
When you press the [Screen Rotation] button when the system is in pre-boot, the system screen orientation
changes from portrait (vertical) to landscape (horizontal) or from landscape to portrait.
Function / Fujitsu Menu Utility Button
The [Function] button works in conjunction with the other application buttons to provide additional
functionality for the buttons. Refer to specific details above.
Post-logon button functions
All five buttons can be used after logging on to Windows. Four of the buttons have secondary functions.
See Table 3 for information about each of the post-logon functions.
Page Down / Application A Button
When you press the [Page Down] button when the system is running, each press of the button will scroll
the screen down one frame. This allows you to navigate quickly through large documents.
When you press the [Fn] button then press and release the [Page Down/Application A] button, you will
automatically start whichever program is assigned to the button. The default application for this button is
Calculator. See “Changing Tablet PC Button Functions” on page 60 to select a different application for
this button.
Page Up / Application B Button
When you press the [Page Up] button when the system is running, each press of the button will scroll the
screen up one frame. This allows you to navigate quickly through large documents.
THE SCREEN ORIENTATION DEFAULT CAN BE CHANGED BY GOING TO THE CONTROL PANEL AND
DOUBLE-CLICKING ON THE FUJITSU TABLET CONTROLS ICON AND SELECTING THE DESIRED SETTINGS IN
THE DISPLAY PROPERTIES. AFTER CHANGING THE SETTINGS, SAVE THEM IN FUJITSU TABLET
CONTROLS.
59
- LifeBook Security/Tablet PC Buttons
When you press the [Fn] button then press and release the [Page Up/Application B] button, you will
automatically start whichever program is assigned to the button. The default application for this button is
Microsoft Journal. See “Changing Tablet PC Button Functions” on page 60 to select a different
application for this button.
Table 3. Post-logon Tablet PC Button Functions
Screen Rotation /Display Switching Button
The screen rotation feature would normally be used only when the system is configured as a tablet. When
you would like to use the tablet as an eBook, for example, you would use the portrait orientation; when
accessing spreadsheets or using the system as a notebook, you would more typically use landscape
orientation.
When the system is changed to tablet configuration, the orientation automatically changes to portrait mode
by default.
Button Icon System State Primary Tablet PC
Function
Secondary Functions
(Fn + Button)
System is post-
logon (Windows
desktop is
displayed)
Page Down User-defined Application A
(Default = Calculator)
Page Up User-Defined Application B
(Default = MS Journal)
Screen Rotation Display Switching:
1. LED only
2. CRT only
3. Dual Display
Secondary
Function Selection
Fujitsu Menu Utility
Ctl+Alt+Del Button None
60
- LifeBook Security/Tablet PC Buttons
When you press the [Screen Rotation /Display Switching] button, the system screen orientation changes
from portrait (vertical) to landscape (horizontal) or from landscape to portrait.
Pressing the [Fn] button while pressing the [Screen Rotation] button will switch the display output in the
following order: built-in display only, external display only, dual display.
Function / Fujitsu Menu Utility Button
The [Function] button works in conjunction with the other application buttons to provide additional
functionality for the buttons. Refer to specific details above.
Pressing the [Fn] button twice in succession causes the Fujitsu Menu Utility to appear on your screen,
allowing you to modify certain system settings.
Ctl+Alt+Del Button
Pressing and holding the [Ctl-Alt-Del] button for up to 8 seconds launches the Logon screen or the
Windows Task Manager.
Changing Tablet PC Button Functions
The Application A and B buttons can be changed to launch a program or perform an action you select. By
default, the Application A button launches the Calculator, and the Application B button launches MS
Journal.
To launch different applications or cause the Application A or B buttons to perform a specific action:
1Double-click on the Tablet PC Settings icon in the Control Panel.
THE SCREEN ORIENTATION DEFAULT CAN BE CHANGED BY GOING TO THE CONTROL PANEL AND
DOUBLE-CLICKING ON THE TABLET PC SETTINGS ICON AND SELECTING THE DESIRED SETTINGS IN THE
DISPLAY TAB. AFTER CHANGING THE SETTINGS, SAVE THEM IN FUJITSU TABLET CONTROLS.
61
- LifeBook Security/Tablet PC Buttons
2Select the Buttons tab and select the button you would like to change from the list.
3Click [Change] and open the drop down list in the Press: field.
4Select the action you would like the button to perform. If you want to launch a program, click on Start a
Program, then browse to the location of the program.
5Click [OK], then click [OK] again. The buttons will now perform the actions you have assigned to them.
Setting up LifeBook Security Panel
When you receive your Tablet PC, the security panel application is pre-installed without any passwords.
The following sections provide detailed information on your security panel, how to set, change or remove
passwords.
Numbered Buttons
Use these buttons to enter your password.
Enter Button
After entering the button strokes, push this button to enter the password into the Tablet PC.
Passwords
The user and supervisor password may be set on this Tablet PC. A supervisor password is typically the
same for all tablets and notebooks in a work group, office, or company to allow for system management.
Individual computers in a group environment should not use a common password. A password consists
of one to five button strokes plus the enter button. A valid stroke consists of pushing one or up to four
buttons simultaneously.
The following are valid button strokes:
•Pushing [4] by itself
•Pushing [2] and [3] at the same time
•Pushing [1], [2], and [4] at the same time
•Pushing [1], [2], [3], and [4] at the same time
62
- LifeBook Security/Tablet PC Buttons
The following are valid passwords. The numbers within braces ({ }) are button strokes using more than
one button.
•{[2]+[3]}, [1], [Enter]
•[4], [enter]
•{[1]+[3]}, {[2]+[3]+[4]}, [1], [4], [2], [Enter]
Setting Passwords
When shipped from the factory, no passwords are set. You have a choice of having no password or setting
a supervisor and user password. You must set the supervisor password before the user password.
Setting Supervisor Password
You must have set a supervisor password before setting any user passwords. The supervisor password can
bypass the user password.
1Go to the Start menu.
2Click on Run.
3Type in: C:\Program Files\Fujitsu\Security Panel Application\Supervisor\ FJSECS.EXE, then press [Enter]
4Follow the on-screen instructions to set the Supervisor password.
Setting User Password
1Go to the Start menu.
2Click on All Programs.
3Click on Security Panel Application -> Security Panel Application.
4Follow the on-screen instructions to set the user password.
•THE PURPOSE OF SUPERVISOR PASSWORD IS TO BE ABLE TO BYPASS THE USER PASSWORD IN CASE THE USER
PASSWORD IS FORGOTTEN. THE SUPERVISOR PASSWORD ALONE WILL NOT LOCK THE SYSTEM.
•YOU MUST SET THE SUPERVISOR AND USER PASSWORDS FOR THE SECURITY PANEL TO WORK.
63
- LifeBook Security/Tablet PC Buttons
Using Your LifeBook Security Panel
The security lock feature is in effect both when the system resumes from Off, Sleep, or Hibernation state.
You always need to push the Security Panel buttons to input the user password. Your system will not begin
the boot sequence until you enter your supervisor/user password.
From Off State
1Turn on your system.
2When the Security Indicator flashes, enter the password and press Enter button (e.g., if the password is 22222,
first press Button 2 five times, then press the Enter button). The Tablet PC will boot to normal operation.
From Sleep/Hibernation State
1Press your Suspend/Resume button.
2When the Security Indicator flashes, enter the password and press Enter button.The Tablet PC should resume
normal operation.
Incorrect Password Entry
If an invalid supervisor or user password is entered three times in succession, the system will “beep” for
about one minute. If a valid password is entered within a minute (while system beeps), the beeping will
stop and the Tablet PC will resume normal operation. If no password is entered or an invalid password is
entered while the system beeps, the system will return to its previous locked state (sleep or off) and the
Security Indicator will go off. To reactivate the Tablet PC after a password failure, you must press the
Suspend/Resume button, then enter a correct password.
YOU MAY CHANGE OR REMOVE THE SUPERVISOR OR USER PASSWORD BY REPEATING THE STEPS
DEFINED ABOVE.
64
- LifeBook Security/Tablet PC Buttons
Precautions
Opening and Closing the Cover
By default, closing the cover automatically places your system into Sleep mode.
To change the default when the cover is closed:
1Open the system Control Panel and select Power Options. In Windows Vista, if the display is in Category view,
click Change battery settings under the Mobile PC category (or Performance and Maintenance category in
Windows XP). If it is in Classic view, click Power Options.
2Click Choose what closing the lid does in the left pane.
3Select the desired action for When I close the lid, then click the [Save changes] button.
Low Battery Operations
If your Tablet PC has a low battery, pushing the suspend/resume button only turns on the Security
Indicator. Your Tablet PC does not unlock, the Security Indicator turns off after one minute. To resume
normal operation, first attach a power supply to the Tablet PC. Then you may unlock the Tablet PC.
Uninstalling/Re-installing the Security Panel Application
You have two options when uninstalling the security panel application:
•Remove passwords and uninstall the security panel application software. This will disable all
security features.
•Uninstall the security panel application with password still active. This will not allow any changes
to the password.
REMEMBER THE USER PASSWORD YOU SPECIFIED ON THE SECURITY PANEL APPLICATION. IF YOU
FORGET THE PASSWORD YOU WILL NOT BE ABLE TO USE YOUR COMPUTER. THE SUPERVISOR
PASSWORD CAN OVERRIDE THE USER PASSWORD.
65
- LifeBook Security/Tablet PC Buttons
Uninstalling the Security Panel Application Software
Remove passwords when User wants no password protection whatsoever and doesn’t want to give
anybody the utility to set a password on their computer. In this case, if passwords (supervisor, user, or
both) are set, the passwords must first be cleared BEFORE removing the application. To clear passwords,
follow same procedure in SETTING PASSWORD CODES except this time, select REMOVE, enter
current password then click Next. When asked to confirm select Ye s .
Removing Security Panel Application with Passwords Still Active
Using this feature will not allow any changes to the password.
User:
1Go to Start -> Control Panel.
2Open Programs and Features in the Control Panel.
3Select Security Panel for User in the list, and click Uninstall/Change.
4When User Account Control box appears, click Continue.
Supervisor:
1Go to Start -> Control Panel.
2Open Add or Remove Programs Properties in the Control Panel.
3Select the Security Panel for Supervisor in the list, and click Uninstall/Change.
4When User Account Control box appears, click Continue.
REMOVING THE APPLICATIONS DOES NOT REMOVE THE PASSWORD. IT SIMPLY REMOVES THE ABILITY
TO CHANGE/ADD/REMOVE PASSWORDS. TO CHANGE YOUR PASSWORD YOU MUST REINSTALL THE
APPLICATION.
66
- LifeBook Security/Tablet PC Buttons
Reinstalling the Security Panel Application
To reinstall supervisor or user security application, you will need your Drivers and Applications CD. The
Utilities\Security Panel Application folder contains two separate folders: Supervisor and User. The
setup files for supervisor and user security applications are contained in those folders.
1Go to the Utilities\Security Panel Application\ Supervisor folder on the CD and double-click the setup.exe
file. The Installing Security Panel Application window will appear. Follow the instructions on the screen.
2Go to the Utilities\Security Panel Application\User folder on the CD and double-click the setup.exe file. The
Installing Security Panel Application window will appear. Follow the instructions on the screen.
Supervisor and user passwords can be set via Windows software using the FJSECS.exe and FJSECU.exe
files, respectively. FJSECU.exe for the user password cannot run without first setting a supervisor
password. You need to run FJSECS.exe first to set the supervisor password. Follow instructions under
Setting Passwords on page 62.
If you forget both passwords, please contact Fujitsu America Service and Support at 1-800-8FUJITSU (1-
800-838-5487). Fujitsu America charges a service fee for unlocking a password-restricted Tablet PC.
When calling please have a valid credit card and provide proof of ownership. You will then be given
instructions on where to ship your Tablet PC.
67
Chapter 2
Getting Started with Your LifeBook
Power Sources
Your Fujitsu LifeBook Tablet PC has three possible power sources: a primary Lithium ion battery, an AC
adapter or an optional Auto/Airline adapter.
Connecting the Power Adapters
The AC adapter or optional Auto/Airline adapter provides power for operating your Tablet PC and
charging the batteries.
Connecting the AC Adapter
1Plug the DC output cable into the DC power jack of your LifeBook Tablet PC.
2Plug the AC adapter into an AC electrical outlet.
Connecting the Optional Auto/Airline Adapter
1Plug the DC output cable into the DC power jack on your Tablet PC.
2Plug the Auto/Airline adapter into the cigarette lighter of an automobile, or,
3Plug the Auto/Airline adapter into the DC power jack on an airplane seat.
68
- Power Sources
Figure 32. Connecting the AC Adapter
Switching from AC Adapter Power or the Auto/Airline Adapter to Battery Power
1Be sure that you have at least one charged battery installed.
2Remove the AC adapter or the Auto/Airline adapter.
DC Power Jack
AC Adapter
Power/Suspend/Resume Switch
THE LITHIUM ION BATTERY IS NOT CHARGED UPON PURCHASE. INITIALLY, YOU WILL NEED TO CONNECT
EITHER THE AC ADAPTER OR THE AUTO/AIRLINE ADAPTER TO USE YOUR TABLET PC.
69
- Starting Your LifeBook Tablet PC
Starting Your LifeBook Tablet PC
Power On
Power/Suspend/Resume Button
The Power/Suspend/Resume button is used to turn on your LifeBook Tablet PC from its off state. Once
you have connected your AC adapter or charged the internal Lithium ion battery, you can power on your
LifeBook Tablet PC.
To turn on your LifeBook Tablet PC from its off state, slide the Power/Suspend/Resume switch, located
above the keyboard to the right. When you are done working you can either leave your Tablet PC in
Suspend mode, you can turn it off. See “Sleep Mode” on page 75 and “Powering Off” on page 78
When you power on your LifeBook, it will perform a Power On Self Test (POST) to check the internal
parts and configuration for correct functionality. If a fault is found, your LifeBook Tablet PC will emit an
audio warning and/or an error message will be displayed. See “Power On Self Test Messages” on
page 113. Depending on the nature of the problem, you may be able to continue by starting the operating
system or by entering the BIOS setup utility and revising the settings.
After satisfactory completion of the POST, your Tablet PC will load your operating system.
WHEN YOU TURN ON YOUR LIFEBOOK TABLET PC BE SURE YOU HAVE A POWER SOURCE. THIS MEANS
THAT AT LEAST ONE BATTERY IS INSTALLED AND CHARGED, OR THAT THE AC OR AUTO/AIRLINE
ADAPTER IS CONNECTED AND HAS POWER.
DO NOT CARRY YOUR LIFEBOOK TABLET PC AROUND WITH THE POWER ON OR SUBJECT IT TO SHOCKS
OR VIBRATION, AS YOU RISK DAMAGING YOUR TABLET PC.
70
- Starting Your LifeBook Tablet PC
Boot Sequence
The procedure for starting-up your Tablet PC is termed the Bootup sequence and involves your Tablet
PC’s BIOS. When your LifeBook Tablet PC is first turned on, the main system memory is empty, and it
needs to find instructions to start up your Tablet PC. This information is in the BIOS program. Each time
you power up or restart your Tablet PC, it goes through a boot sequence which displays a Fujitsu logo until
your operating system is loaded. During booting, your Tablet PC is performing a standard boot sequence
including a Power On Self Test (POST). When the boot sequence is completed without a failure and
without a request for the BIOS Setup Utility, the system displays the operating system’s opening screen.
The boot sequence is executed when:
•You turn on the power to your LifeBook Tablet PC.
•You restart your Tablet PC from the Windows Shut Down dialog box.
•The software initiates a system restart. Example: When you install a new application.
Hard Disk Drive Passwords
To provide additional security for your data, you can assign passwords to your hard disk drive(s). This
feature is managed in the system BIOS Setup Utility. See BIOS Setup Utility below for information about
accessing the utility.
NEVER TURN OFF YOUR LIFEBOOK TABLET PC DURING THE POWER ON SELF TEST (POST) OR IT WILL
CAUSE AN ERROR MESSAGE TO BE DISPLAYED WHEN YOU TURN YOUR LIFEBOOK TABLET PC ON THE
NEXT TIME. See “Power On Self Test Messages” on page 113.
REMEMBER YOUR PASSWORDS. IF YOU SET AND FORGET YOUR USER AND MASTER HARD DISK
PASSWORDS, FUJITSU WILL NOT BE ABLE TO RESET IT. YOU MAY LOSE DATA AND HAVE TO REPLACE
YOUR SYSTEM BOARD OR HARD DISK DRIVE.
71
- Starting Your LifeBook Tablet PC
BIOS Setup Utility
The BIOS Setup Utility is a program that sets up the operating environment for your LifeBook Tablet PC.
Your BIOS is set at the factory for normal operating conditions, therefore there is no need to set or change
the BIOS’ environment to operate your Tablet PC.
The BIOS Setup Utility configures:
•Device control feature parameters, such as changing I/O addresses and boot devices.
•System Data Security feature parameters, such as passwords.
Entering the BIOS Setup Utility
To enter the BIOS Setup Utility do the following (or use the TrustedCore Menu, as detailed in the next
section):
1Turn on or restart your LifeBook Tablet PC.
2To enter the BIOS Setup Utility, press the [F2] key once the Fujitsu logo appears on the screen. This will open
the main menu of the BIOS Setup Utility with the current settings displayed.
3Press the [RIGHT ARROW] or [LEFT ARROW] key to scroll through the other setup menus to review or alter
the current settings.
Using the TrustedCore Menu
When the Fujitsu logo appears on the screen. press the [Enter] key or click on the left mouse or touchpad
button; the TrustedCore Menu will appear.
The TrustedCore Menu provides shortcuts to the following menus and information screens:
•BIOS Setup
•Diagnostic Screen
•Boot Menu
•Patent Information
•System Information
•Continue Booting
72
- Starting Your LifeBook Tablet PC
Clicking on any of the fields will invoke the screen, information, or action described.
The Boot Menu can also be invoked by pressing the [F12] key when the Fujitsu logo appears on the screen.
BIOS Guide
A guide to your Tablet PC’s BIOS is available online. Please visit our service and support website at
http://www.computers.us.fujitsu.com/support, then select User’s Guides under Online Support. Select
your Product, Series, and Model, then click [Go]. Under the Manuals tab, select the BIOS Guide.
Booting the System
We strongly recommend that you not attach any external devices until you have gone through the initial
power on sequence.
When you turn on your Tablet PC for the first time, it will display a Fujitsu logo on the screen. If you do
nothing the system will load the operating system, and then the Windows Welcome will begin.
Starting Windows the first time
In order to ensure that you receive the most benefits from the Windows operating system, it should be
registered the first time you use it.
1First of all, you will need to select your language.
2Next you will be prompted to enter your country and area.
3You will be prompted to enter your user name and computer name.
4Enter a Password and you will be given a chance to select an icon for your account.
THE FIRST TIME YOU INITIALIZE YOUR WINDOWS SYSTEM, THE SCREEN WILL BE BLANK FOR
APPROXIMATELY TWO MINUTES. THIS IS NORMAL. AFTER INITIALIZATION, A “SET UP WINDOWS” DIALOG
BOX WILL APPEAR.
IMPORTANT: DURING THE SETUP PROCEDURE, DO NOT DISCONNECT THE POWER SUPPLY, PRESS ANY
BUTTONS, OR USE ANY PERIPHERAL DEVICES SUCH AS A MOUSE, KEYBOARD, OR REMOTE CONTROL.
73
- Starting Your LifeBook Tablet PC
5Read and accept the End User License Agreements (EULAs).
6You will next see windows for Security Center settings and Time and Date settings.
7If you have a wireless LAN device in your system, a window for wireless LAN settings now appears.
8The "Thank you" screen follows and an offer for free Norton Internet Security is extended. Following are several
screens while Windows checks the system performance.
9Windows will then boot up for the first time. As noted above, the first time you initialize your system, the screen
will be blank for approximately two minutes. This is normal. During this period, do not disconnect the power
supply, press any buttons, or use any peripheral devices such as mouse, keyboard, or remote control.
Registering Windows with Microsoft
1After Windows has booted up for the first time, click on Register Windows Online and follow the instructions that
appear to register your copy of Windows.
Registering Your LifeBook Tablet PC with Fujitsu
You can register your LifeBook by going to our website at: http://solutions.us.fujitsu.com/
You will need to be set up with an Internet Service Provider (ISP) to register online.
•IF YOU REJECT THE TERMS OF THE LICENSE AGREEMENTS YOU WILL BE ASKED TO REVIEW THE
LICENSE AGREEMENTS FOR INFORMATION ON RETURNING WINDOWS OR TO SHUT DOWN YOUR
LIFEBOOK TABLET PC.
•YOU CANNOT USE YOUR TABLET PC UNTIL YOU HAVE ACCEPTED THE LICENSE AGREEMENTS. IF YOU
STOP THE PROCESS YOUR TABLET PC WILL RETURN TO THE BEGINNING OF THE WINDOWS WELCOME
PROCESS, EVEN IF YOU SHUT YOUR TABLET PC DOWN AND START IT UP AGAIN.
74
- Starting Your LifeBook Tablet PC
Installing ClickMe!
The first time you boot up your system, you will see a “Primary Settings for the PC” window. This window
explains the installations which will be performed by the Click Me! utility. If you click [Execute],
ClickMe! will begin installing. If after clicking the button you receive a “User Account Control” window,
you will be asked for your permission to continue. Click [Continue] to continue. If you cancel the
operation, the ClickMe! icon will appear on your desktop for later installation.
Fujitsu Driver Update Utility
Your system has a convenient tool called the Fujitsu Driver Update (FDU) utility. With FDU, you can
choose to automatically or manually go to the Fujitsu site to check for new updates for your system. For
more information about the FDU utility, refer to “Automatically Downloading Driver Updates” on
page 121.
BEFORE INSTALLING THE CLICKME! UTILITY, BE SURE THE WIRELESS LAN SWITCH IS TURNED ON.
THERE MAY BE SOME THIRD-PARTY APPLICATIONS THAT DO NOT GET INSTALLED USING THE CLICKME!
UTILITY. FOR MORE INFORMATION, REFER TO YOUR GETTING STARTED GUIDE.
ClickMe!
75
- Power Management
Power Management
Your Fujitsu LifeBook Tablet PC has many options and features for conserving battery power. Some of
these features are automatic and need no user intervention. However, others depend on the parameters you
set to best suit your operating conditions, such as those for the display brightness. Internal power
management for your Tablet PC may be controlled from settings made in your operating system, pre-
bundled power management application, or from settings made in BIOS setup utility.
Besides the options available for conserving battery power, there are also some things that you can do to
prevent your battery from running down as quickly. For example, you can create an appropriate power
saving profile, put your Tablet PC into Sleep mode when it is not performing an operation, and you can
limit the use of high power devices. As with all mobile, battery powered computers, there is a trade-off
between performance and power savings.
Power/Suspend/Resume Button
When your Tablet PC is active, the Power/Suspend/Resume button can be used to manually put the Tablet
PC into Sleep mode. Push the Power/Suspend/Resume button when the Tablet PC is active, but not
actively accessing anything, and immediately release the button.
If your Tablet PC is suspended, pushing the Power/Suspend/Resume button returns your Tablet PC to
active operation. You can tell whether the system is Suspended by looking at the Power indicator. If the
indicator is visible and not flashing, your Tablet PC is fully operational. If the indicator is visible and
flashing, your Tablet PC is in Sleep mode. If the indicator is not visible, the power is off or your Tablet
PC is in Hibernation mode.
Sleep Mode
Sleep mode in Windows saves the contents of your system memory during periods of inactivity by
maintaining power to critical parts. This mode turns off the CPU, display, hard drive, and all other internal
components except those necessary to maintain system memory and for restarting.
Your Tablet PC can be put in sleep mode by:
76
- Power Management
•Pressing the Power/Suspend/Resume button when your system is turned on.
•Selecting “Sleep” after clicking [Start] then clicking the small arrow at the bottom right of the
window.
•Timing out from lack of activity.
•Allowing the battery to reach the Dead Battery Warning condition.
Your Tablet PC’s system memory typically stores the file on which you are working, open application
information, and any other data required to support operations in progress. When you resume operation
from Sleep mode, your Tablet PC will return to the point where it left off. You must use the
Power/Suspend/Resume button to resume operation, and there must be an adequate power source
available, or your Tablet PC will not resume.
■IF RUNNING YOUR TABLET PC ON BATTERY POWER, BE AWARE THAT THE BATTERY CONTINUES TO
DISCHARGE WHILE YOUR TABLET PC IS IN SLEEP MODE, THOUGH NOT AS QUICKLY AS WHEN FULLY
OPERATIONAL.
■DISABLING THE POWER/SUSPEND/RESUME BUTTON PREVENTS IT FROM BEING USED TO PUT THE
TABLET PC INTO SLEEP OR HIBERNATION (SAVE-TO-DISK) MODE. THE BUTTON RESUME FUNCTION
CANNOT BE DISABLED.
■THE SLEEP OR HIBERNATION MODE SHOULD NOT BE USED WITH CERTAIN PC CARDS. CHECK YOUR
PC CARD DOCUMENTATION FOR MORE INFORMATION. WHEN PC CARDS OR EXTERNAL DEVICES ARE
IN USE, HIBERNATION MODE CANNOT RETURN TO THE EXACT STATE PRIOR TO SUSPENSION, BECAUSE
ALL OF THE PERIPHERAL DEVICES WILL BE RE-INITIALIZED WHEN THE SYSTEM RESTARTS.
■IF YOUR TABLET PC IS ACTIVELY ACCESSING INFORMATION WHEN YOU ENTER THE SLEEP OR HIBER-
NATION MODE, CHANGES TO OPEN FILES ARE NOT LOST. THE FILES ARE LEFT OPEN AND MEMORY IS
KEPT ACTIVE DURING SLEEP MODE OR THE MEMORY IS TRANSFERRED TO THE INTERNAL HARD DRIVE
DURING HIBERNATION MODE.
THE MAIN ADVANTAGE OF USING HIBERNATION IS THAT POWER IS NOT REQUIRED TO MAINTAIN YOUR
DATA. THIS IS PARTICULARLY IMPORTANT IF YOU WILL BE LEAVING YOUR TABLET PC IN A SUSPENDED
STATE FOR A PROLONGED PERIOD OF TIME. THE DRAWBACK OF USING HIBERNATION MODE IS THAT IT
LENGTHENS THE POWER DOWN AND POWER UP SEQUENCES AND RESETS PERIPHERAL DEVICES.
77
- Power Management
Hibernation (Save-to-Disk) Feature
The Hibernation feature saves the contents of your Tablet PC’s system memory to the hard drive as a part
of the Suspend/Resume mode. You can enable or disable this feature.
Enable or Disable the Hibernation Feature
The default settings are not enabled. To enable or disable the Hibernation feature follow these steps:
1From the Start menu, select Control Panel, then select the Power Options icon.
2Select “Choose what the power button does” or “Choose what closing the lid does”, then make your selections
(Do Nothing, Sleep, Hibernate, or Shut Down).
Windows Power Management
The Power Options icon located in the Windows Control Panel allows you to configure some of the power
management settings. For example, you can use the Power Options to set the timeout values for turning
off the display and hard disks whether you are running the Tablet PC on battery power or one of the
adapters.
Restarting the System
If your system is on and you need to restart it, be sure that you use the following procedure.
1Click the [Start] button, and then move the mouse over the small arrow at the bottom right of the right-hand
pane.
2Select Restart from the list.
TURNING OFF YOUR LIFEBOOK TABLET PC WITHOUT EXITING WINDOWS OR TURNING ON YOUR TABLET
PC WITHIN 10 SECONDS OF THE SYSTEM BEING SHUT OFF MAY CAUSE AN ERROR WHEN YOU START
THE NEXT TIME.
78
- Power Management
Powering Off
Before turning off the power, check that the hard drive/optical drive access indicator is off. If you turn off
the power while accessing a disk there is a risk of data loss. To ensure that your Tablet PC shuts down
without error, use the Windows shut down procedure.
Using the correct procedure to shut down from Windows allows your Tablet PC to complete its operations
and turn off power in the proper sequence to avoid errors. The proper sequence is:
1Click the [Start] button, and then move the mouse over the small arrow at the bottom right of the right-hand
pane.
2Select Shut Down from the list.
If you are going to store your Tablet PC for a month or more, see Care and Maintenance Section.
BE SURE TO CLOSE ALL FILES, EXIT ALL APPLICATIONS, AND SHUT DOWN YOUR OPERATING SYSTEM
PRIOR TO TURNING OFF THE POWER. IF FILES ARE OPEN WHEN YOU TURN THE POWER OFF, YOU WILL
LOSE ANY CHANGES THAT HAVE NOT BEEN SAVED, AND MAY CAUSE DISK ERRORS.
79
- Power Management
80
Chapter 3
User-Installable Features
Lithium ion Battery
Your LifeBook Tablet PC has a Lithium ion battery that provides power for operating your Tablet PC when
no external power source is available. The battery is durable and long lasting, but should not be exposed
to extreme temperatures, high voltages, chemicals or other hazards.
The Lithium ion battery operating time may become shorter if it is used under the following conditions:
•When used at temperatures that exceed a low of 5°C or a high of 35°C (41° to 95° F). Extreme
temperatures not only reduce charging efficiency, but can also cause battery deterioration. The
Charging icon on the Status Indicator panel will flash when you try to charge a battery that is outside
its operating temperature range.
•When using a high current device such as a modem, external optical drive, or the hard drive, using
the AC adapter will conserve your battery life.
DO NOT LEAVE A FAULTY BATTERY IN YOUR TABLET PC. IT MAY DAMAGE YOUR AC ADAPTER, OPTIONAL
AUTO/AIRLINE ADAPTER, ANOTHER BATTERY OR YOUR TABLET PC ITSELF. IT MAY ALSO PREVENT
OPERATION OF YOUR TABLET PC BY DRAINING ALL AVAILABLE CURRENT INTO THE BAD BATTERY.
81
- Lithium ion Battery
Recharging the Batteries
If you want to know the condition of the primary Lithium ion battery, check the Battery Level indicator
located on the Status Indicator panel. The indicator changes as the battery level changes.
The Lithium ion battery is recharged internally using the AC adapter or Auto/Airline adapter. To recharge
the battery make sure the battery that needs to be charged is installed in your LifeBook Tablet PC and
connect the AC or Auto/Airline adapter.
There is no memory effect on the Lithium ion battery therefore you do not need to discharge the battery
completely before recharging. The charge times will be significantly longer if your Tablet PC is in use
while the battery is charging. If you want to charge the battery more quickly, put your Tablet PC into Sleep
mode, or turn it off while the adapter is charging the battery. (See Power Management on page 75 for more
information on Sleep mode and shutdown procedure)
•ACTUAL BATTERY LIFE WILL VARY BASED ON SCREEN BRIGHTNESS, APPLICATIONS, FEATURES, POWER
MANAGEMENT SETTINGS, BATTERY CONDITION AND OTHER CUSTOMER PREFERENCES. OPTICAL DRIVE
OR HARD DRIVE USAGE MAY ALSO HAVE A SIGNIFICANT IMPACT ON BATTERY LIFE. THE BATTERY
CHARGING CAPACITY IS REDUCED AS THE BATTERY AGES. IF YOUR BATTERY IS RUNNING LOW QUICKLY,
YOU SHOULD REPLACE IT WITH A NEW ONE.
•UNDER FEDERAL, STATE, OR LOCAL LAW IT MAY BE ILLEGAL TO DISPOSE OF BATTERIES BY PUTTING
THEM IN THE TRASH. PLEASE TAKE CARE OF OUR ENVIRONMENT AND DISPOSE OF BATTERIES
PROPERLY. CHECK WITH YOUR LOCAL GOVERNMENT AUTHORITY FOR DETAILS REGARDING RECYCLING
OR DISPOSING OF OLD BATTERIES. IF YOU CANNOT FIND THIS INFORMATION ELSEWHERE, CONTACT
YOUR SUPPORT REPRESENTATIVE AT 1-800-8FUJITSU (1-800-838-5487)
MAKE SURE THAT THE PERCENTAGE CHARGE IS INDICATED BY THE BATTERY CHARGING INDICATOR ON
THE STATUS INDICATOR PANEL.
82
- Lithium ion Battery
Low Battery State
When the battery is running low, a low battery notification message will appear. If you do not respond to
the low battery message, the batteries will continue to discharge until they are too low to operate. When
this happens, your Tablet PC will go into Sleep mode. There is no guarantee that your data will be saved
once the Tablet PC reaches this point.
Dead Battery Suspend mode shows on the Status indicator just like the normal Sleep mode. Once your
Tablet PC goes into Dead Battery Suspend mode you will be unable to resume operation until you provide
a source of power either from an adapter, or a charged battery. Once you have provided power, you will
need to press the Power/Suspend/Resume button to resume operation.
In the Dead Battery Suspend mode, your data can be maintained for some time, but if a power source is
not provided promptly, the Power indicator will stop flashing and go out, meaning that you have lost the
data that was not stored. Once you provide power, you can continue to use your Tablet PC while an adapter
is charging the battery.
USING HEAVY CURRENT DEVICES OR FREQUENT EXTERNAL OPTICAL DRIVE ACCESSES MAY PREVENT
CHARGING COMPLETELY.
■ONCE THE LOW BATTERY NOTIFICATION MESSAGE APPEARS, YOU NEED TO SAVE ALL YOUR ACTIVE
DATA AND PUT YOUR LIFEBOOK TABLET PC INTO SLEEP MODE UNTIL YOU CAN PROVIDE A NEW
POWER SOURCE. YOU SHOULD PROVIDE A CHARGED BATTERY, AN AC POWER ADAPTER, OR
AUTO/AIRLINE ADAPTER AS SOON AS POSSIBLE.
■ WHEN YOU ARE IN SLEEP MODE THERE MUST ALWAYS BE AT LEAST ONE POWER SOURCE ACTIVE. IF
YOU REMOVE ALL POWER SOURCES WHILE YOUR LIFEBOOK TABLET PC IS IN SLEEP MODE, ANY DATA
THAT HAS NOT BEEN SAVED TO THE HARD DRIVE WILL BE LOST.
83
- Lithium ion Battery
Shorted Batteries
The Status Indicator panel indicator associated with the Battery Level indicator displays the operating
level available in that battery. If this display shows a flashing red LED, it means the battery is damaged
and must be replaced so it does not damage other parts of your LifeBook Tablet PC.
Replacing the Battery
With the purchase of an additional battery, you can have a fully charged spare to swap with one that is not
charged. There are two ways to swap batteries, cold-swapping and hot-swapping:
Cold-swapping Batteries
To cold-swap batteries in your battery bay, follow these easy steps (Figure 33):
1Have a charged battery ready to install.
2Shut down your Tablet PC and disconnect the AC adapter.
3While pushing the battery bay release latches towards each other, slide the battery out of the bay.
4Insert a new battery into the bay, and press it in firmly so that the latches click into place.
5Plug in the AC adapter and turn the power on.
Hot-swapping Batteries
To hot-swap batteries in your battery bay follow these easy steps:
1Plug an AC Adapter into the system and connect it to a power outlet.
BE SURE TO PLUG IN AN AC ADAPTER PRIOR TO REMOVING THE BATTERY. THERE IS NO BRIDGE
BATTERY PRESENT TO SUPPORT THE SYSTEM WHILE THE BATTERY IS BEING REPLACED. IF YOU DO NOT
USE AN AC ADAPTER YOU WILL LOSE ANY UNSAVED FILES.
84
- Lithium ion Battery
Figure 33. Removing a Battery
2Follow steps 3 through 5 in “Cold Swapping Batteries”.
Battery Bay Release Latches
Battery Pack
IF THE LITHIUM ION BATTERY CONNECTOR IS NOT FULLY SEATED, YOU MAY NOT BE ABLE TO USE YOUR
TABLET PC OR CHARGE YOUR BATTERY.
85
- Memory Stick/Secure Digital Cards
Figure 34. Installing a Memory Stick or SD Card
Memory Stick/Secure Digital Cards
Your LifeBook Tablet PC supports Memory Sticks and Secure Digital (SD) cards, on which you can store
and transfer data to and from a variety of digital devices. These cards use flash memory architecture,
which means they don’t need a power source to retain data.
Memory Stick is a flash memory technology that allows you to record, transfer and share digital content,
such as digital pictures, movies, music, voice, and computer data and applications.
Secure Digital (SD) Cards are very similar to Memory Sticks. Like Memory Sticks, SD Cards allow
portable storage among a variety of devices, such as cell phones, GPS systems, digital cameras, and PDAs.
SD Cards transfer data quickly, with low battery consumption. Like the memory stick, it uses flash
memory architecture.
Memory Stick
SD Card
86
- Memory Stick/Secure Digital Cards
Installing Memory Stick/SD Cards
Memory Stick and SD Cards are installed in the Memory Stick/SD Card slot. To install a Memory Stick
or SD Card, follow these steps:
1See your specific card manual for instructions on the installation of your card. Some cards may require that your
Tablet PC is off while installing them.
2Make sure there is no card currently in the slot. If there is, see Removing a Memory Stick/SD Card.
3Insert your card into the slot with the product label facing up.
4Push the card firmly into the slot until it is seated in the connector.
Removing A Memory Stick/SD Card
To remove a Memory Stick or SD Card, follow these easy steps:
1Select Safely Remove Hardware from the System Tray. Highlight the card in the list, then click [Stop].
2Push the Memory Stick or SD Card in until it unlatches. It will then eject from the slot for removal.
INSTALLING OR REMOVING A MEMORY STICK OR SD CARD DURING YOUR LIFEBOOK TABLET PC’S
SHUTDOWN OR BOOTUP PROCESS MAY DAMAGE THE CARD AND/OR YOUR LIFEBOOK TABLET PC.
DO NOT INSERT A CARD INTO A SLOT IF THERE IS WATER OR ANY OTHER SUBSTANCE ON THE CARD AS
YOU MAY PERMANENTLY DAMAGE THE CARD, YOUR LIFEBOOK TABLET PC, OR BOTH.
SEE YOUR CARD MANUAL FOR SPECIFIC INSTRUCTIONS ON THE REMOVAL OF YOUR CARD. SOME
CARDS MAY REQUIRE YOUR LIFEBOOK TABLET PC TO BE IN SLEEP MODE OR OFF WHILE REMOVING
THEM.
87
- PC Cards
Figure 35. Installing/Removing PC Card
PC Cards
Your LifeBook Tablet PC supports Type I and Type II PC Cards which can perform a variety of functions
depending on which type of card you install.
Some available PC Cards:
•Gigabit Ethernet Local area network (LAN) cards
•Wireless WAN (WWAN) cards
•S-ATA II cards
•IEEE802.11n WLAN cards
•Other PC Cards that conform to PCMCIA 2.1 or CardBus standards
For further information, refer to the instructions supplied with your card(s).
Eject Button
PC Card Slot
PC Card
88
- PC Cards
Installing PC Cards
To install a PC Card in the PC Card slot, follow these steps:
1See your PC Card manual for instructions on the installation of your card. Some cards may require that your
Tablet PC is off while installing them.
2Make sure there is no PC Card currently in the slot. If there is, see Removing PC Cards.
3If the eject button is extended, press it until it clicks.
4Insert the card into the slot with the label facing up.
5Push the card firmly into the slot until it is seated in the connector.
Removing PC Cards
See your PC Card manual for specific instructions on removing your card. Some cards may require your
Tablet PC to be in Sleep Mode or Off during removal.
•INSTALLING OR REMOVING A PC CARD DURING YOUR LIFEBOOK TABLET PC’S SHUTDOWN OR BOOTUP
PROCESS MAY DAMAGE THE CARD AND/OR YOUR LIFEBOOK TABLET PC.
•DO NOT INSERT A PC CARD INTO A SLOT IF THERE IS WATER OR ANY OTHER SUBSTANCE ON THE
CARD AS YOU MAY PERMANENTLY DAMAGE THE CARD, YOUR LIFEBOOK TABLET PC, OR BOTH.
YOU MAY BE REQUIRED TO LOG ON AS AN ADMINISTRATOR OR MEMBER OF THE ADMINISTRATOR’S
GROUP TO COMPLETE THIS PROCEDURE. IF THE COMPUTER IS CONNECTED TO A NETWORK, NETWORK
POLICY SETTINGS MAY ALSO PREVENT YOU FROM COMPLETING THIS PROCEDURE.
•WINDOWS HAS A SHUTDOWN PROCEDURE FOR PC CARDS THAT MUST BE FOLLOWED BEFORE
REMOVING A CARD. (REVIEW YOUR OPERATING SYSTEM MANUAL FOR THE CORRECT PROCEDURE.) IT
IS GOOD PRACTICE TO REMOVE DEVICES USING SAFELY REMOVE HARDWARE IN THE SYSTEM TRAY.
•IF THE DIALOG BOX STATES THAT THE DEVICE CANNOT BE REMOVED, YOU MUST SAVE ALL OF YOUR
OPEN FILES, CLOSE ANY OPEN APPLICATIONS AND SHUT DOWN YOUR TABLET PC.
89
- PC Cards
1Unlock the card from the slot by pressing the eject button associated with the slot in which the card is located.
When pressed, the button will pop out.
2Firmly press the button again until it is flush with the Tablet PC. This will eject the card slightly out of the slot
allowing you to remove the card.
Smart Card Reader
A dedicated Smart Card Reader is provided on your Tablet PC. Smart Cards are the same size and shape
as credit cards, but they contain embedded integrated circuits. The chip can hold a variety of information,
and provides you with many possible options, such as allowing you to make secure purchases, pay for
phone calls, store security information, and provide personal identification and information.
In order to use the Smart Card Reader, you must purchase optional Smart Card third-party software.
Figure 36. Smart Card Slot
IF THE PC CARD HAS AN EXTERNAL CONNECTOR AND CABLE, DO NOT PULL THE CABLE WHEN
REMOVING THE CARD.
Smart Card Slot
90
- Memory Upgrade Module
Memory Upgrade Module
Your Fujitsu LifeBook Tablet PC comes with a minimum of 1GB of high speed Double Data Rate
Synchronous Dynamic RAM (DDR3-1066 SDRAM) factory installed. To increase your Tablet PC’s
memory capacity, you may install an additional memory upgrade module. The memory upgrade must be a
dual-in-line (DIMM) SDRAM module. To ensure 100% compatibility, purchase the SDRAM module only
from the Fujitsu web store at www.shopfujitsu.com.
Installing Memory Upgrade Modules
1Turn off power to your Tablet PC, remove any power adapter (AC or auto/airline). Remove the battery.
2Make sure that all the connector covers are closed.
3Turn the Tablet PC bottom side up, and remove the screws from the memory upgrade module compartment.
4Slide the cover towards the battery compartment slightly, then lift it and remove it (Figure 37).
5Remove the memory upgrade module from the static guarded sleeve.
6Align the memory upgrade module with the part side up. Align the connector edge of the memory upgrade
module with the connector slot in the compartment.(Figure 38)
•DO NOT REMOVE ANY SCREWS FROM THE MEMORY UPGRADE MODULE COMPARTMENT EXCEPT THE
ONES SPECIFICALLY SHOWN IN THE DIRECTIONS FOR INSTALLING AND REMOVING THE MEMORY
UPGRADE MODULE.
•THE MEMORY UPGRADE MODULE CAN BE SEVERELY DAMAGED BY ELECTROSTATIC DISCHARGE
(ESD). TO MINIMIZE RISK TO THE MODULE, OBSERVE THE FOLLOWING PRECAUTIONS:
•BEFORE HANDLING A MEMORY MODULE, TOUCH A GROUNDED METAL OBJECT TO DISCHARGE
STATIC ELECTRICITY BUILT UP IN YOUR BODY.
•WHEN INSTALLING OR REMOVING A MEMORY MODULE, HOLD IT BY THE EDGE SO AS NOT TO
TOUCH ANY CONTACTS OR CHIPS. BE CAREFUL NOT TO TOUCH ANY INTERNAL COMPUTER
TERMINALS OR COMPONENTS; THE OIL FROM YOUR FINGERS COULD CAUSE A SHORT TO THE
COMPONENTS.
•BE SURE TO POWER DOWN YOUR SYSTEM BEFORE ADDING OR REMOVING MEMORY MODULES.
EVEN IF THE SYSTEM IS IN HIBERNATE OR SLEEP STATES, DATA COULD BE LOST OR THE MEMORY
COULD BE DAMAGED IF POWER IS STILL AVAILABLE TO THE SYSTEM.
91
- Memory Upgrade Module
7Insert the memory upgrade module at a 45° angle. Press the connector edge of the module firmly down and
into the connector until it lodges under the retaining clip. You’ll hear a click when it is properly in place.
8Replace the cover and reinstall the screws.
Figure 37. Opening Memory Compartment Figure 38. Installing a Second Memory Module
THE MEMORY UPGRADE MODULE IS NOT SOMETHING YOU ROUTINELY REMOVE FROM YOUR TABLET PC.
ONCE IT IS INSTALLED, YOU CAN LEAVE IT IN PLACE UNLESS YOU WANT TO CHANGE SYSTEM MEMORY
CAPACITY.
92
- Memory Upgrade Module
Checking the Memory Capacity
Once you have changed the system memory capacity by replacing the installed module with a larger one,
be sure to check that your Tablet PC has recognized the change.
•If you are in Control Panel Home view, check the memory capacity by clicking [Start] -> Control
Panel -> System and Maintenance -> System. The amount of memory is displayed next to “Memory
- RAM:”
•If you are in Classic view, check the memory capacity by clicking [Start] -> Control Panel ->
System. The amount of memory is displayed next to “Memory - RAM:”
Removing a Memory Upgrade Module
1Perform steps 1 through 4 of Installing a
Memory Upgrade Module.
2Pull the clips sideways away from each side of
the memory upgrade module at the same time.
3While holding the clips out, remove the module
by lifting it up and pulling it away from your
Tabl et PC.
4Store the memory upgrade module in a static
guarded sleeve.
5Replace the cover and reinstall the screws.
Figure 39. Removing a Memory Module
93
- Memory Upgrade Module
There may be a variation between the actual memory size and what is displayed. This is possible if your
system is configured with an integrated Intel Graphics Media Accelerator which dynamically allocates
system memory to accelerate graphics performance.
IF THE TOTAL MEMORY DISPLAYED IS INCORRECT, CHECK THAT YOUR MEMORY UPGRADE MODULE IS
PROPERLY INSTALLED. (IF THE MODULE IS PROPERLY INSTALLED AND THE CAPACITY IS STILL NOT
CORRECTLY RECOGNIZED, SEE TROUBLESHOOTING ON PAGE 100.
94
- Device Ports
Device Ports
Your Fujitsu LifeBook Tablet PC and the optional Port Replicator come equipped with multiple ports to
which you can connect external devices including: disk drives, keyboards, printers, etc.
Internal LAN (RJ-45) Jack
The internal LAN (RJ-45) jack is used for a Gigabit (10Base-T/100Base-Tx/1000Base-T) Ethernet LAN
connection. You may need to configure your Tablet PC to work with your particular network. (Please refer
to your network administrator for information on your network configuration.) To connect the LAN cable
follow these easy steps:
1Align the connector with the port
opening.
2Push the connector into the port until it
is seated.
3Plug the other end of the cable into a
LAN outlet.
Figure 40. Connecting the LAN
95
- Device Ports
Modem (RJ-11) Jack*
The modem (RJ-11) jack is used for an
internal modem. To connect the telephone
cable follow these easy steps:
1Align the connector with the jack opening.
2Push the connector into the jack until it is
seated.
3Plug the other end of the telephone cable into a
telephone outlet.
* Note that the modem device is present
only in non-WWAN models
Figure 41. Connecting a Modem
THE INTERNAL MODEM IS NOT INTENDED FOR USE WITH DIGITAL PBX SYSTEMS. DO NOT CONNECT
THE INTERNAL MODEM TO A DIGITAL PBX AS IT MAY CAUSE SERIOUS DAMAGE TO THE INTERNAL
MODEM OR YOUR ENTIRE LIFEBOOK T900 SERIES TABLET PC. CONSULT YOUR PBX
MANUFACTURER’S DOCUMENTATION FOR DETAILS. SOME HOTELS HAVE DIGITAL PBX SYSTEMS. BE
SURE TO FIND OUT BEFORE YOU CONNECT YOUR MODEM.
•THE INTERNAL MODEM IS DESIGNED TO THE ITU V.90 STANDARD. ITS MAXIMUM SPEED OF 53000
BPS IS THE HIGHEST ALLOWED BY FCC, AND ITS ACTUAL CONNECTION RATE DEPENDS ON THE LINE
CONDITIONS. THE MAXIMUM SPEED IS 33600 BPS AT UPLOAD.
•THE INTERNAL MODEM ON ALL LIFEBOOK T900 SERIES TABLET PC’S FROM FUJITSU AMERICA ARE
CERTIFIED FOR USE IN THE UNITED STATES AND CANADA.
96
- Device Ports
Port Replicator Connector
The port replicator connector is used for the connection of your Tablet PC to an optional port replicator.
In order to connect your Tablet PC to this device, follow the instructions that came with your port
replicator.
Universal Serial Bus Ports
The Universal Serial Bus 2.0 ports (USB) allow you to connect USB devices such as external game pads,
pointing devices, keyboards and/or speakers. There are three USB 2.0 ports on your Tablet PC: one on the
left side and two on the rear..
In order to connect a USB device follow
these steps:
1Align the connector with the port opening.
2Push the connector into the port until it is
seated.
Figure 42. Connecting a USB Device
DUE TO THE ONGOING CHANGES IN USB TECHNOLOGY AND STANDARDS, NOT ALL USB DEVICES
AND/OR DRIVERS ARE GUARANTEED TO WORK.
97
- Device Ports
IEEE 1394 Port
The 4-pin 1394 port allows you to connect digital devices that are compliant with IEEE 1394 standard.
The IEEE 1394 standard is easy to use, connect, and disconnect. This port can allow up to 400 Mbps
transfer rate. A third-party application may be required to operate your device with the 1394 port.
THE 1394 PORT USED IN THIS SYSTEM USES A FOUR-PIN CONFIGURATION. IF YOU INTEND TO
INTERFACE WITH DEVICES WHICH USE A SIX-PIN CONFIGURATION, YOU WILL NEED TO PURCHASE AN
ADAPTER.
In order to connect a 1394 device, follow these
steps:
1Align the connector with the port opening.
2Push the connector into the port until it is
seated.
Figure 43. Connecting an IEEE1394 Device
98
- Device Ports
Headphone Jack
The headphone jack allows you to connect headphones or powered external speakers to your Tablet PC.
Your headphones or speakers must be equipped with a 1/8” (3.5 mm) stereo mini-plug. In order to connect
headphones or speakers follow these easy steps:
1Align the connector with the port opening.
2Push the connector into the port until it is seated.
Microphone Jack
The microphone jack allows you to connect an external microphone. Your microphone must be equipped
with a 1/8”(3.5 mm) mono mini-plug in order to fit into the microphone jack of your Tablet PC. In order
to connect a microphone follow these easy steps:
1Align the connector with the port opening.
2Push the connector into the port until it is seated.
External Video Port
The external video port allows you to connect an external monitor or LCD projector. In order to connect an
external video device, follow these easy steps:
1Align the connector with the port opening.
2Push the connector into the port until it is seated.
3Tighten the two hold-down screws, located on each end of the connector.
PRESSING THE [FN] + [F10] KEYS ALLOWS YOU TO CHANGE YOUR SELECTION OF WHERE TO SEND
YOUR DISPLAY VIDEO. EACH TIME YOU PRESS THE KEY COMBINATION, YOU WILL STEP TO THE NEXT
CHOICE, STARTING WITH THE BUILT-IN DISPLAY PANEL ONLY, MOVING TO THE EXTERNAL MONITOR
ONLY, FINALLY MOVING TO BOTH THE BUILT-IN DISPLAY PANEL AND AN EXTERNAL MONITOR.
99
- Device Ports
Figure 44. Connecting an External Video Device
100
Chapter 4
Troubleshooting Your LifeBook
Troubleshooting
There may be occasions when you encounter simple setup or operating problems that you can solve on the
spot, or problems with peripheral devices that can be solved by replacing the device. The information in this
section helps you isolate and resolve some of these straightforward issues and identify failures that require
service.
Identifying the Problem
If you encounter a problem, go through the following procedure before pursuing complex troubleshooting:
1Turn off your LifeBook Tablet PC.
2Make sure the AC adapter is plugged into your Tablet PC and to an active AC power source.
3Make sure that any card installed in the PC Card slot is seated properly. You can also remove the card from the
slot, thus eliminating it as a possible cause of failure.
4Make sure that any devices connected to the external connectors are plugged in properly. You can also
disconnect such devices, thus eliminating them as possible causes of failure.
5Turn on your Tablet PC. Make sure it has been off at least 10 seconds before you turn it back on.
6Go through the boot sequence.
101
- Troubleshooting
7If the problem has not been resolved, refer to the Troubleshooting Table, that follows, for more detailed
troubleshooting information.
8If you have tried the solutions suggested in the Troubleshooting Table without success, contact your support
representative:
Toll free: 1-800-8Fujitsu (1-800-838-5487)
E-mail: 8fujitsu@us.fujitsu.com
Web site: http://www.computers.us.fujitsu.com/support.
Before you place the call, you should have the following information ready so that the customer support
representative can provide you with the fastest possible solution:
•Product name
•Product configuration number
•Product serial number
•Purchase date
•Conditions under which the problem occurred
•Any error messages that have occurred
•Type of device connected, if any
See the Configuration Label on the bottom of your Tablet PC for configuration and serial numbers.
IF YOU KEEP NOTES ABOUT WHAT YOU HAVE TRIED, YOUR SUPPORT REPRESENTATIVE MAY BE
ABLE TO HELP YOU MORE QUICKLY BY GIVING ADDITIONAL SUGGESTIONS OVER THE PHONE.
102
- Troubleshooting
Specific Problems
Using the Troubleshooting Table
When you have problems with your LifeBook Tablet PC, try to find the symptoms under the Problem
column of the troubleshooting table for the feature giving you difficulty. You will find a description of
common causes for that symptom under the column Possible Cause and what, if anything, you can do to
correct the condition under Possible Solutions. All possible causes or solutions may not apply to your Tablet
PC.
Troubleshooting Table
ProblemPage
Audio Problems . . . . . . . . . . . . . page 103
Optical Drive Problems. . . . . . . . page 103
Port Replicator Problems . . . . . . page 104
Floppy Disk Drive Problems. . . . page 105
Hard Drive Problems . . . . . . . . . page 105
Keyboard or Mouse Problems . . page 105
Memory Problems . . . . . . . . . . . page 106
ProblemPage
Modem Problems page 106
USB Device Problems . . . . . . . . . page 106
PC Card Problems. . . . . . . . . . . . page 106
Power Failures . . . . . . . . . . . . . . . page 107
Shutdown and Startup Problems. page 109
Video Problems . . . . . . . . . . . . . . page 110
Miscellaneous Problems . . . . . . . page 112
103
- Troubleshooting
Problem Possible Cause Possible Solutions
Audio Problems
There is no sound coming
from the built-in speaker.
The volume is turned too low. Adjust the volume control on your Tablet PC and operating
system. Use the [Fn+F9] key combination on your keyboard.
Pressing [F9] repeatedly while holding [Fn] will increase the
volume of your Tablet PC.
The software volume control
is set too low.
Manually adjusting the volume (i.e., keyboard "hot keys")
should dynamically adjust the volume of the operating sys-
tem (see above). If that doesn’t work, adjust the sound vol-
ume control settings in your software or application.
Headphones are plugged into
your Tablet PC.
Plugging in headphones disables the built-in speakers.
Remove the headphones.
BIOS audio settings are incor-
rect.
Set the BIOS setup utility to the default values within the Mul-
timedia Device Configuration menu. See “BIOS Setup Utility”
on page 71.
Software driver is not
configured correctly.
The audio driver may be installed or reinstalled using the
Drivers and Applications CD that came with your Fujitsu Life-
Book. Refer to your application and operating system docu-
mentation for help.
The speakers have been
muted using the Volume icon
in the system tray.
Click on the Volume icon in the system tray on the bottom
right of the screen. (It looks like a speaker). If the Mute box
has a red circle on it, click on it to unselect it. You can also
use the [Fn+F3] key combination to toggle the volume on and
off. Pressing [F3] while holding [Fn] will toggle the audio
mute.
Optical Drive Problems (optional external device)
LifeBook Tablet PC fails to
recognize DVD/CD-
RW/CD-ROM’s.
The disc is not pushed down
onto raised center circle of the
drive.
Open optical drive tray and re-install the disc properly.
104
- Troubleshooting
LifeBook Tablet PC fails to
recognize DVD/CD-
RW/CD-ROM’s.
(continued)
Optical drive tray is not
latched shut.
Push on the front of the optical drive tray until it latches. If
that doesn’t work, pull out the modular drive latch to remove
the device from the bay, then re-insert the drive until it
latched; this ensures that the drive is properly seated.
Incorrect DVD Player or no
DVD Player software is
installed.
Install DVD Player software. (See “Media Player Software” on
page 73 for more information.)
Wrong drive designator was
used for the disc in the appli-
cation.
Verify the drive designator used by the application is the
same as the one used by the operating system. When the
operating system is booted from a DVD/CD, drive designa-
tions are automatically adjusted. Note that the drive designa-
tion can be changed with the Disk Management tool located
at Control Panel -> Administrative Tools -> Computer Man-
agement.
DVD/CD-RW/CD-ROM is dirty
or defective.
Wipe the disc with a non-abrasive CD cleaning cloth and
reinsert. If it still will not work try another DVD/CD-RW/CD-
ROM in the drive.
The drive access indicator
on the Status Indicator
Panel blinks at regular
intervals with no disc in the
tray or the drive is not
installed.
The Windows auto insertion
function is active and is
checking to see if a disc is
ready to run.
This is normal. However, you may disable this feature.
Port Replicator Problems
Note: Be sure to power down your LifeBook Tablet PC before adding a printer to the Port Replicator parallel port.
Tablet PC does not turn on
when installed in the
optional Port Replicator
Port Replicator AC adapter is
not plugged in.
Provide power to the Port Replicator.
Tablet PC is not properly
seated in the Port Replicator.
Remove and re-dock your LifeBook Tablet PC.
Problem Possible Cause Possible Solutions
105
- Troubleshooting
Floppy Disk Drive Problems
You cannot access your
optional external floppy
disk.
You tried to write to a write
protected floppy disk.
Eject the disk and set it to write enable.
Disk is not loaded correctly. Eject floppy disk, check orientation and re-insert.
The floppy disk drive may not
be properly installed.
Remove and re-install your floppy disk drive.
Security is set to protect
access to floppy disk data.
Verify your password and security settings.
Hard Drive Problems
You cannot access your
hard drive.
The wrong drive designator
was used by an application
when a bootable disc was
used to start the Tablet PC.
Verify drive designator used by application is in use by the
operating system. When the operating system is booted from
a CD, drive designations are automatically adjusted.
Security is set so your operat-
ing system cannot be started
without a password.
Verify your password and security settings.
Keyboard or Mouse Problems
The built-in keyboard does
not seem to work.
The Tablet PC has gone into
Sleep mode.
Push the Power/Suspend/Resume button.
Your application has locked
out your keyboard.
Try to use your integrated pointing device to restart your sys-
tem.
You have installed an
external keyboard or
mouse, and it does not
seem to work.
Your external device is not
properly installed.
Re-install your device. See “Device Ports” on page 94.
Your operating system is not
set up with correct software
driver for that device.
Check your device and operating system documentation and
activate the proper driver.
Problem Possible Cause Possible Solutions
106
- Troubleshooting
You have connected an
external keyboard or a
mouse and it seems to be
locking up the system.
Your operating system is not
setup with correct software
driver for that device.
Check your device and operating system documentation and
activate the proper driver.
Your system has crashed. Try to restart your Tablet PC.
Memory Problems
Your System screen in the
Control Panel does not
show the correct amount
of installed memory.
Your memory upgrade mod-
ule is not properly installed.
Remove and re-install your memory upgrade module. See
“Memory Upgrade Module” on page 90.
You have a memory
failure.
Check for Power On Self Test (POST) messages. See
“Power On Self Test Messages” on page 113.
Modem Problems (optional device)
Messages about modem
operation.
Messages about modem
operation are generated by
whichever modem applica-
tion is in use.
See your application software documentation for additional
information.
USB Device Problems
You have installed a USB
device. Your LifeBook Tab-
let PC does not recognize
the device, or the device
does not seem to work
properly.
The device is not properly
installed.
Remove and re-install the device. See “Device Ports” on
page 94.
The device may have been
installed while an application
was running, so your Tablet
PC is not aware of its installa-
tion.
Close the application and restart your Tablet PC.
Your device may not have the
correct software driver active.
See your software documentation and activate the correct
driver.
PC Card Problems
A card inserted in the PC
Card slot does not work or
is locking up the system.
Card is not properly installed. Remove and re-install the card. See “PC Cards” on page 87.
Problem Possible Cause Possible Solutions
107
- Troubleshooting
A card inserted in the PC
Card slot does not work or
is locking up the system.
(continued)
Card may have been installed
while an application was run-
ning, so your Tablet PC is not
aware of its installation.
Close the application and restart your Tablet PC.
Your software may not have
the correct driver active.
See your software documentation and activate the correct
driver.
Power Failures
You turn on your LifeBook
Tablet PC and nothing
seems to happen.
The installed battery is com-
pletely discharged or there is
no Power adapter (AC or
Auto/Airline) installed.
Check the Status Indicator Panel to determine the presence
and condition of the battery. See “Status Indicator Panel” on
page 30. Install a charged battery or a Power adapter.
The battery is installed but is
faulty.
Use the Status Indicator panel to verify the presence and
condition of the battery. See “Status Indicator Panel” on
page 30. If the battery indicates a short, remove it and
operate from another power source or replace that battery.
The battery is low. Check the Status Indicator Panel to determine the presence
and condition of the battery. See “Status Indicator Panel” on
page 30. Use a Power adapter to operate until a battery is
charged or install a charged battery.
The power adapter (AC or
auto/airline) is not plugged in
properly.
Verify that your adapter is connected correctly. See “Power
Sources” on page 67.
The power adapter (AC or
auto/airline) has no power
from the AC outlet, airplane
jack, or car cigarette lighter.
Move the AC cord to a different outlet, check for a line switch
or tripped circuit breaker for the AC outlet. If you are using an
auto/airline adapter in a car make sure the ignition switch is
in the On or Accessories position.
The power adapter (AC or
auto/airline) is faulty.
Try a different power adapter.
Problem Possible Cause Possible Solutions
108
- Troubleshooting
Your LifeBook Tablet PC
turns off all by itself.
The power management
parameters are set for auto
timeouts which are too short
for your operating needs.
Press any button on the keyboard, or move the mouse to
restore operation. If that fails, push the Power/Sus-
pend/Resume button. Check your power management set-
tings, or close your applications and go to the Power Options
located in the Control Panel to adjust the timeout values to
better suit your needs.
You are operating on battery
power and ignored a low bat-
tery alarm until the battery
was at the dead battery state
and the system has entered
Dead Battery Suspend mode.
Install a power adapter, then push the Power/Sus-
pend/Resume button. See “Power Sources” on page 67.
You have a battery failure. Verify the condition of the battery using the Status Indicator
panel. If the battery is shorted, replace or remove it. See
“Status Indicator Panel” on page 30.
Your power adapter has failed
or lost its power source.
Make sure the adapter is plugged in and the outlet has
power.
Your LifeBook Tablet PC
will not work on battery
alone.
The installed battery is dead. Replace the battery with a charged one or install a power
adapter.
No battery is installed. Install a charged battery.
The battery is improperly
installed.
Verify that the battery is properly connected by re-installing it.
Your installed battery is faulty. Verify the condition of the battery using the Status Indicator
panel and replace or remove any batteries that are shorted.
See “Status Indicator Panel” on page 30.
The battery seems to
discharge too quickly.
The power savings features
may be disabled.
Check the Power Options menu settings and adjust accord-
ing to your operating needs.
Problem Possible Cause Possible Solutions
109
- Troubleshooting
The battery seems to
discharge too quickly.
(continued)
You are running an applica-
tion that uses a lot of power
due to frequent hard drive
access or optical drive
access, or use of a modem,
LAN PC card, Wireless LAN,
or Bluetooth device.
Use a power adapter for this application when at all possible.
The brightness is turned all
the way up.
Turn down the brightness adjustment. The higher the bright-
ness the more power your display uses.
The battery is very old. Replace the battery.
The battery has been
exposed to high tempera-
tures.
Replace the battery.
The battery is too hot or too
cold.
Restore the Tablet PC to normal operating temperature.
Charging icon on the Status Indicator panel will flash when
battery is outside of operating range.
Shutdown and Startup Problems
The Suspend/Resume
button does not work.
Suspend/Resume
button is disabled.
Enable the button by going to the Control Panel -> Power
Options Properties and clicking on the Advanced tab. In the
Power buttons area, select the “Change what the power but-
ton does” option.
There may be application
software. conflict
Close all applications and try the button again.
The system powers up,
and displays power on
information, but fails to
load the operating system.
The boot sequence settings
of the setup utility are not
compatible with your configu-
ration.
Set the operating source by pressing the [ESC] key while the
Fujitsu logo is on screen or use the [F2] key and enter the
setup utility and adjust the source settings from the Boot
menu. See “BIOS Setup Utility” on page 71.
Problem Possible Cause Possible Solutions
110
- Troubleshooting
The system powers up,
and displays power on
information, but fails to
load the operating system.
(continued)
You have a secured system
requiring a password to load
your operating system.
Make sure you have the right password. Enter the setup util-
ity and verify the Security settings and modify them as
accordingly. See “BIOS Setup Utility” on page 71.
Internal hard drive was
not detected.
Use the BIOS setup utility or Primary Master submenu,
located within the Main menu, to try to auto detect the inter-
nal hard drive.
An error message is dis-
played on the screen dur-
ing the Tablet PC (boot)
sequence.
Power On Self Test (POST)
has detected a problem.
See the Power On Self Test (POST) messages to determine
the meaning and severity of the problem. Not all messages
are errors; some are simply status indicators. See “Power On
Self Test Messages” on page 113.
Your Tablet PC appears to
change setup parameters
when you start it.
BIOS setup changes were not
saved when made and you
exited the setup utility.
Make sure you select Save Changes And Exit when exiting
the BIOS setup utility.
The BIOS CMOS hold-up bat-
tery has failed.
Contact your support representative for repairs. This is not a
user serviceable part but has a normal life of 3 to 5 years.
Your system display won’t
turn on when the system is
turned on or has resumed.
You have installed the Life-
Book/Security Application
panel.
Check the Status Indicator Panel for presence of the Security
icon. If it is visible, enter your password See “Status Indicator
Panel” on page 30.
Video Problems
The built-in display is blank
when you turn on your
LifeBook Tablet PC.
The Tablet PC is set for an
external monitor only.
Pressing [F10] while holding down the [Fn] key allows you to
change your selection of where to send your display video.
Each time you press the keys you will step to the next choice.
The choices, in order are: built-in display only, external moni-
tor only, both built-in display and external monitor.
Display angle and brightness
settings are not adequate for
your lighting conditions.
Move the display and the brightness control until you have
adequate visibility. Pressing either the [F6] or [F7] keys while
holding down the [Fn] key also allows you to change the
brightness level of the display.
Problem Possible Cause Possible Solutions
111
- Troubleshooting
The built-in display is blank
when you turn on your
LifeBook Tablet PC.
(continued)
Power management timeouts
are set for short intervals and
you didn’t see the display go
on and off again.
Press a keyboard button or move the mouse to restore oper-
ation. If that fails, push the Power/Suspend/Resume button.
(The display may be shut off by Sleep mode, Auto Suspend
or Video Timeout)
The Tablet PC turned on
with a series of beeps and
the built-in display is blank.
Power On Self Test (POST)
has detected a failure which
does not allow the display to
operate.
Contact your support representative.
The display goes blank by
itself after you have been
using it.
The Tablet PC has gone into
Video timeout, Sleep mode,
or Save-to-Disk mode
because you have not used it
for a period of time.
Press any button on the keyboard, or move the mouse to
restore operation. If that fails, push the Power/Sus-
pend/Resume button. Check your power management set-
tings, or close your applications and go to the Power Savings
menu of the setup utility to adjust the timeout values to better
suit your operation needs. See “BIOS Setup Utility” on
page 71.
The power management time-
outs may be set for very short
intervals and you failed to
notice the display come on
and go off again.
Press any button on the keyboard, or move the mouse to
restore operation. If that fails, push the Power/Sus-
pend/Resume button. (The display may be shut off by Sleep
Mode, Auto Suspend or Video Timeout)
Your display won’t turn on
when the system is turned
on or when it has
resumed.
The system may be pass-
word-protected.
Check the status indicator panel to verify that the Security
icon is blinking. If it is blinking, enter your password.
The display does not
close.
A foreign object, such as a
paper clip, is stuck between
the display and keyboard.
Remove all foreign objects from the keyboard.
The display has bright or
dark spots.
If the spots are very tiny and
few in number, this is normal
for a large LCD display.
This is normal; do nothing.
Problem Possible Cause Possible Solutions
112
- Troubleshooting
The display has bright or
dark spots.
(continued)
If the spots are numerous or
large enough to interfere with
your operation needs.
Display is faulty; contact your support representative.
The Display is dark when
on battery power.
The Power Management util-
ity default is set on low bright-
ness to conserve power.
Press [Fn] + [F7] to increase brightness or click the battery
gauge, click on More power options, and select Adjust the
display brightness.
You have connected an
external monitor and it
does not display any infor-
mation.
Your BIOS setup is not set to
enable your external monitor.
Toggle the video destination by pressing [Fn]+ [F10] together,
or check your BIOS setup and enable your external monitor.
(See the Video Features submenu, located within the
Advanced Menu of the BIOS. See “BIOS Setup Utility” on
page 71.
Your external monitor is not
properly installed.
Reinstall your device. See “External Video Port” on page 98.
Your operating system is not
setup with the correct soft-
ware driver for that device.
Check your device and operating system documentation and
activate the proper driver.
You have connected an
external monitor and it
does not come on.
Your external monitor is not
compatible with your LifeBook
Tablet P C.
See your monitor documentation and the External Monitor
Support portions of the Specifications section. See “Specifi-
cations” on page 133.
Miscellaneous Problems
Error message is dis-
played on the screen dur-
ing the operation of an
application.
Application software often has
its own set of error message
displays.
See your application manual and help displays screens for
more information. Not all messages are errors some may
simply be status.
Problem Possible Cause Possible Solutions
113
- Troubleshooting
Power On Self Test Messages
The following is an alphabetic list of error-and-status messages that Phoenix BIOS and/or your operating
system can generate and an explanation of each message. Error messages are marked with an *. If an error
message is displayed that is not in this list, write it down and check your operating system documentation
both on screen and in the manual. If you can find no reference to the message and its meaning is not clear,
contact your support representative for assistance.
nnnn Memory Cache Passed
Where nnnn is the amount of system cache in kilobytes successfully tested by the Power On Self
Test. (This can only appear if you have an SRAM PC Card installed.)
*Extended Memory Failed at address line: xx
Extended memory not working or not configured properly. If you have installed a memory upgrade module,
verify that it is properly installed. If it is properly installed, check your Windows Setup to be sure it is not
using unavailable memory until you can contact your support representative.
nnnn Extended RAM Passed
Where nnnn is the amount of memory in kilobytes successfully tested.
*Failure Fixed Disk n (where x=1-4)
The fixed disk is not working or not configured properly. This may mean that the hard drive type identified
in your setup utility does not agree with the type detected by the Power On Self Test. Run the setup utility
to check for the hard drive type settings and correct them if necessary. If the settings are OK and the
message appears when you restart the system, there may be a serious fault which might cause you to lose
data if you continue. Contact your support representative.
*Incorrect Drive A type – run SETUP
Type of floppy drive A: not correctly identified in Setup. This means that the floppy disk drive type
identified in your setup utility does not agree with the type detected by the Power On Self Test. Run the
setup utility to correct the inconsistency.
114
- Troubleshooting
*Incorrect Drive B type – run SETUP
Type of floppy drive B: not correctly identified in Setup. This means that the floppy disk drive type
identified in your setup utility does not agree with the type detected by the Power On Self Test. Run the
setup utility to correct the inconsistency.
*Invalid NVRAM Data
Problem with NVRAM access. In the unlikely case that you see this message you may have some display
problems. You can continue operating but should contact your support representative for more information.
*Keyboard controller error
The keyboard controller test failed. You may have to replace your keyboard or keyboard controller but may
be able to use an external keyboard until then. Contact your support representative.
*Keyboard error
Keyboard not working. You may have to replace your keyboard or keyboard controller but may be able to
use an external keyboard until then. Contact your support representative.
*Stuck Key
BIOS discovered a stuck key and displays the scan code for the stuck key. You may have to replace your
keyboard but may be able to use an external keyboard until then. Contact your support representative.
*Monitor type does not match CMOS – Run SETUP
Monitor type not correctly identified in Setup. This error probably means your BIOS is corrupted, run the
setup utility and set all settings to the default conditions. If you still get this error, contact your support
representative.
*Operating system not found
Operating system cannot be located on either drive A: or drive C: Enter the setup utility and see if both the
fixed disk, and drive A: are properly identified and that the boot sequence is set correctly. Unless you have
changed your installation greatly, the operating system should be on drive C:. If the setup utility is correctly
set, your hard drive may be corrupted.
115
- Troubleshooting
*Parity Check 1 nnnn
Parity error found in the system bus. BIOS attempts to locate the address and display it on the screen. If it
cannot locate the address, it displays ????. This is a potentially data destroying failure. Contact your support
representative.
*Parity Check 2 nnnn
Parity error found in the I/O bus. BIOS attempts to locate the address and display it on the screen. If it
cannot locate the address, it displays ????. This is a potentially data-destroying failure. Contact
your support representative.
*Press <F1> to resume, <F2> to SETUP
Displayed after any recoverable error message. Press the [F1] key to continue the boot process or the [F2]
key to enter Setup and change any settings.
*Previous boot incomplete – Default configuration used
Previous Power On Self Test did not complete successfully. The Power On Self Test will load default values
and offer to run Setup. If the previous failure was caused by incorrect values and they are not corrected, the
next boot will likely fail also. If using the default settings does not allow you to complete a successful boot
sequence, you should turn off the power and contact your support representative.
*Real time clock error
Real-time clock fails BIOS test. May require board repair. Contact your support representative.
*Shadow RAM Failed at offset: nnnn
Shadow RAM failed at offset nnnn of the 64k block at which the error was detected. You are risking data
corruption if you continue. Contact your support representative.
nnnn Shadow RAM Passed
Where nnnn is the amount of shadow RAM in kilobytes successfully tested.
116
- Troubleshooting
*System battery is dead – Replace and run SETUP
The BIOS CMOS RAM memory hold up battery is dead. This is part of your BIOS and is a board mounted
battery which requires a support representative to change. You can continue operating but you will have to
use setup utility default values or reconfigure your setup utility every time you turn off your Tablet PC. This
battery has an expected life of 2 to 3 years.
System BIOS shadowed
System BIOS copied to shadow RAM.
*System CMOS checksum bad – Default Configuration Used
BIOS CMOS RAM has been corrupted or modified incorrectly, perhaps by an application program that
changes data stored in BIOS memory. Run Setup and reconfigure the system.
*System RAM Failed at offset: nnnn
System memory failed at offset nnnn of in the 64k block at which the error was detected. This means that
there is a fault in your built-in memory. If you continue to operate, you risk corrupting your data. Contact
your support representative for repairs.
nnnn System Memory Passed
Where nnnn is the amount of system memory in kilobytes successfully tested.
*System timer error
The timer test failed. The main clock that operates the computer is faulty. Requires repair of system board.
Contact your support representative for repairs.
Video BIOS shadowed
Video BIOS successfully copied to shadow RAM.
.
117
- Restoring Your Pre-installed Software
Restoring Your Pre-installed Software
The location of your applications, drivers, and utilities is determined by the operating system you are
running.
Microsoft Windows 7 Professional: Please use the information contained in the “Saving and Recovering
Your Factory and System Images” booklet that was packed with your system.
Microsoft Windows Vista or Windows XP Editions: Please use the following instructions.
The Drivers and Applications Restore (DAR) CD contains sets of device drivers and Fujitsu utilities (in
specific directories) that are unique to your computer configuration for use as documented below.
Re-installing Individual Drivers and Applications
The Drivers and Applications CD can be used to selectively re-install drivers and/or applications that may
have been un-installed or corrupted.
To re-install drivers and/or applications:
1Boot up the system and insert the DAR CD after Windows has started. A Fujitsu Installer screen is displayed
after the CD is inserted.
2After reading the License Agreement, click [I agree].
IF YOU HAVE ACCESS TO THE INTERNET, VISIT THE FUJITSU SUPPORT WEBSITE AT
HTTP://WWW.COMPUTERS.US.FUJITSU.COM/SUPPORT TO CHECK FOR THE MOST CURRENT
INFORMATION, DRIVERS AND HINTS ON HOW TO PERFORM RECOVERY AND SYSTEM UPDATES.
THERE MAY BE CERTAIN FREE THIRD-PARTY APPLICATIONS PRE-INSTALLED ON YOUR SYSTEM THAT
ARE NOT ON THE DAR CD. THE LATEST VERSIONS OF THE APPLICATIONS CAN BE DOWNLOADED FROM
THE THIRD-PARTY’S WEBSITE.
118
- Restoring Your Pre-installed Software
3A window will appear containing a list of applications, drivers, and utilities that you can install from the Drivers
and Applications CD.
4In the list, check off all the components you want to install. If you want to install all components, click [Select
All]. Clicking [Select All] will select all of the blue-coded components; you must select grey and green
components separately.
5Once you have selected the components you wish to install, click [Install Selected Subsystems]; the
components will be installed.
6After the components are installed, click [OK], then click [Yes] when asked if you want to reboot the system.
Restoring the Operating System for Windows
The Recovery and Utility disc contains four utilities:
•The Recovery utility allows you to restore the system operating system (OS). The restored OS is
the same one that was originally installed on the hard disk drive. After the OS is restored, you will
need to reinstall the drivers and applications from the Drivers and Applications Restore disc and
from any application discs that were bundled with the system when you purchased it.
•The Hard Disk Data Delete utility on this disc is used to delete all data on your hard disk
and prevent it from being reused. Do not use the Hard Disk Data Delete utility unless you are
absolutely certain that you want to erase your entire hard disk, including all partitions.
•The Partition Creation utility allows you to create a new D: partition or resize existing
partitions on your hard disk. NOTE: Creating or resizing partitions with this utility will cause
all data on the hard disk to be completely erased.
•The Diagnostics utility allows the IT professional to determine device status/condition by
executing diagnostics tests on selected system components.
THE COMPONENTS LISTED ARE COLOR-CODED IN TERMS OF THEIR INSTALL STATUS. BLUE INDICATES
THAT THE COMPONENT CAN BE INSTALLED. GREEN INDICATES THAT THE COMPONENT NEEDS TO BE
INSTALLED SEPARATELY. GREY INDICATES A COMPONENT THAT IS ALREADY INSTALLED; GREY ITEMS
CAN BE REINSTALLED, BUT PRIOR TO INSTALLATION YOU WILL RECEIVE A REMINDER THAT THE
COMPONENT IS ALREADY INSTALLED.
119
- Restoring Your Pre-installed Software
Methods for accessing the utilities
Certain LifeBook models have the Recovery and Utility applets pre-installed. Other systems require that
the Recovery and Utility disc be used (or in the event the hard disk has been reformatted).
In order to determine the method for accessing the Recovery and Utility applet, perform the
following procedures in order.
Determining whether Recovery and Utility is pre-loaded
1Turn on or reboot your system. When the Fujitsu logo appears, press [F12] key.
2From the Boot Menu that appears, check whether the <Recovery and Utility> option is present. If it is not
present, it means that the utility must be used from the disc. Proceed to “Running Recovery and Utility from the
disc” if <Recovery and Utility> is unavailable.
3You can also use the TrustedCore menu to determine whether the utility is pre-loaded by powering on your
system then pressing the {Enter] key when the Fujitsu logo appears on the screen. The TrustedCore Menu will
appear and the Recovery and Utility option will appear in the menu.
Running Recovery and Utility from hard disk
1Cursor down to <Recovery and Utility> and press the [Enter] key.
2While the files are being loaded from the disc, a progress bar will appear at the bottom of the screen.
3When the System Recovery Options dialog opens, select a new keyboard layout, if necessary, then click [Next].
4When the Operating System dialog appears, click [Next].
5If necessary, enter your password, then click [OK].
6When System Recovery Options window appears, click on Recovery and Utility.
7The Recovery and Utility screen appears on the screen with three tabs: Diagnostics,
Recovery and Utility. Please note that Diagnostics tab is not supported on certain LifeBook/Stylistic models
when running Recovery and Utility from the hard disk. In order to restore the operating system, please insert
the “Recovery and Utility” disc in the CD/DVD drive and use the Start Recovery function under the Recovery
tab. For more information about the tabs, go to “Recovery and Utility tabs” on page 120.
120
- Restoring Your Pre-installed Software
Running Recovery and Utility from the disc
Procedure
To verify/change the boot-up priority (rather than booting-up from the hard drive or an external floppy
disk drive), perform the following steps:
1Power on your system. When the Fujitsu logo appears on the screen. press the [Enter] key or click on the left
mouse or touchpad button; the TrustedCore Menu will appear.
2Select the Boot Menu from the TrustedCore Menu.
3Highlight the CD/DVD option.
4Insert the Recovery and Utility Disc into the drive tray.
5Click [OK]. While the files are being loaded from the disc, a progress bar will appear at the bottom of the screen.
6When the Recovery and Utility screen appears, three tabs will be present: Diagnostics, Recovery, and Utility.
Recovery and Utility tabs
Diagnostics tab: The Diagnostics tool is designed for use by IT professionals. It is not likely you will
need to use this tool. When you select devices from the Diagnosis window then click [Execute], several
tests are performed on the selected components.
Recovery tab: The Recovery tab contains the Start Recovery tool. Note that the recovery process erases
all data from the C: drive. If you decide to use the recovery tool, be sure to back up all data that you don’t
want to lose. Also note that you must run the system using your AC adapter while running the recovery
tool. To use the Recovery tool, select the Start Recovery function, click on the [Execute] button, then
follow the instructions on the screen.
•THE USE OF THIS DISC REQUIRES THAT YOU HAVE A DEVICE CAPABLE OF READING CDS ATTACHED TO YOUR
SYSTEM. YOU WILL NEED TO ATTACH AN EXTERNAL PLAYER. FOR MORE INFORMATION ON AVAILABLE EXTERNAL
DEVICES, VISIT OUR WEB SITE AT: HTTP://SOLUTIONS.US.FUJITSU.COM/.
•THIS DISC CAN ONLY BE USED WITH THE SYSTEM WITH WHICH IT WAS PURCHASED.
121
- Restoring Your Pre-installed Software
Utility tab: The Utility tab contains three tools: System Restore, Hard Disk Data Delete and Partition
Creation.
•System Restore can help fix problems that might be making your computer run slowly or stop
responding. System Restore enables you in rolling back the system to an earlier restore point, and
does not affect any of your documents, pictures, or other personal data.
•The Hard Disk Data Delete utility is used to delete all data on the hard disk and prevent the data
from being reused. NOTE: Do not use the Hard Disk Data Delete utility unless you are
absolutely certain that you want to erase your entire hard disk, including all partitions.
•The Partition Creation utility allows you to create a D: partition or resize existing partitions on
your hard disk. NOTE: Creating or resizing partitions with this utility will cause all data on
the hard disk to be completely erased.
Automatically Downloading Driver Updates
Your system has a convenient tool called the Fujitsu Driver Update (FDU) utility. With FDU, you can
choose to automatically or manually go to the Fujitsu site to check for new updates for your system.
The FDU icon should appear in the system tray at the bottom right of your screen (roll the cursor over the
icons to find the correct one). If the icon does not appear in the system tray, go to [Start] -> All Programs,
and click on Fujitsu Driver Update; this will create the icon automatically.
To invoke the FDU menu, you can either right-click on the FDU icon or hold the pen on the icon for a
couple of seconds until the menu appears. The menu contains the following items:
Check for updates now
Allows for manual driver update search. The first time it is used, you are prompted to agree to a user
agreement. After clicking on the icon, the FDU automatically connects with the Fujitsu site to check for
updates and downloads them. While downloading, the icon has a red bar through it, indicating that it
cannot be used while the download is in process. When the update is complete, a message appears
informing you of the fact.
122
- Restoring Your Pre-installed Software
Enable Automatic Update Notifications
Automatically searches for new updates on a regular basis (approximately every 3 days).
Show update history
Brings up a screen that displays a history of updates that have been made via the FDU.
About Fujitsu Driver Update
Displays the FDU version number and copyright information
Fujitsu Driver Update Readme
Displays the FDU readme.
123
Chapter 5
Care and Maintenance
Caring for your LifeBook Tablet PC
If you use your Fujitsu LifeBook Tablet PC carefully, you will increase its life and reliability. This section
provides some tips for looking after the Tablet PC and its devices.
THE SYSTEM CONTAINS COMPONENTS THAT CAN BE SEVERELY DAMAGED BY ELECTROSTATIC DISCHARGE
(ESD). TO MINIMIZE RISK TO THE COMPONENTS, OBSERVE THE FOLLOWING PRECAUTIONS:
•BEFORE DOCKING OR UNDOCKING YOUR LIFEBOOK TABLET PC (WHEN USING A PORT REPLICATOR),
IT IS A GOOD PRACTICE TO ALWAYS TOUCH A GROUNDED METAL OBJECT TO DISCHARGE STATIC
ELECTRICITY BUILT UP IN YOUR BODY.
•BE SURE TO POWER DOWN YOUR SYSTEM BEFORE ADDING OR REMOVING SYSTEM COMPONENTS.
EVEN IF THE SYSTEM IS IN HIBERNATE OR SLEEP STATES, DATA COULD BE LOST OR MEMORY COULD
BE DAMAGED IF POWER IS STILL AVAILABLE TO THE SYSTEM.
•WHEN INSTALLING OR REMOVING A MEMORY MODULE, HOLD IT BY THE EDGE SO AS NOT TO TOUCH
ANY CONTACTS OR CHIPS. BE CAREFUL NOT TO TOUCH ANY INTERNAL COMPUTER TERMINALS OR
COMPONENTS; THE OIL FROM YOUR FINGERS COULD CAUSE A SHORT TO THE COMPONENTS.
•ELECTRICAL EQUIPMENT MAY BE HAZARDOUS IF MISUSED. OPERATIONS OF THIS PRODUCT OR SIMILAR
PRODUCTS, MUST ALWAYS BE SUPERVISED BY AN ADULT. DO NOT ALLOW CHILDREN ACCESS TO THE
INTERIOR OF ANY ELECTRICAL PRODUCTS AND DO NOT PERMIT THEM TO HANDLE ANY CABLES.
124
- Care and Maintenance
•Your LifeBook Tablet PC is a durable but sensitive electronic device. Treat it with respect and care.
•Make a habit of transporting it in a suitable carrying case.
•Do not attempt to service the computer yourself. Always follow installation instructions closely.
•Keep it away from food and beverages.
•To protect your Tablet PC from damage and to optimize system performance, be sure to keep all
air vents unobstructed, clean, and clear of debris. This may require periodic cleaning, depending
upon the environment in which the system is used.
•Do not operate the Tablet PC in areas where the air vents can be obstructed, such as in tight
enclosures or on soft surfaces like a bed or cushion.
•If you accidentally spill liquid on your LifeBook Tablet PC:
1Tur n it o ff.
2Position it so that the liquid can run out.
3Let it dry out for 24 hours, or longer if needed.
4If your Tablet PC will not boot after it has dried out, call your support representative.
•Do not use your Fujitsu LifeBook Tablet PC in a wet environment (near a bathtub, swimming pool).
•Always use the AC adapter and batteries that are approved for your Tablet PC.
•Avoid exposure to sand, dust and other environmental hazards.
•Do not expose your Tablet PC to direct sunlight for long periods of time as temperatures above 140°
F (60° C) may damage your Tablet PC.
•Keep the covers closed on the connectors and slots when they are not in use.
•Do not put heavy or sharp objects on the computer.
•If you are carrying your LifeBook Tablet PC in a briefcase, or any other carrying case, make sure
that there are no objects in the case pressing on the lid.
•Never position your Tablet PC such that the optical drive is supporting the weight of the Tablet PC.
125
- Care and Maintenance
Cleaning your LifeBook Tablet PC
•Always disconnect the power plug. (Pull the plug, not the cord.)
•Clean your LifeBook Tablet PC with a damp, lint-free cloth. Do not use abrasives or solvents.
•Use a soft cloth to remove dust from the screen. Never use glass cleaners.
•Always shut down the computer, unplug the power adapter, and remove the battery when cleaning
or disinfecting the computer exterior, keyboard or LCD display.
NOTE: Avoid wetting the thermal suede in all cases.
Cleaning guidelines using recommended off-the-shelf cleaners
Computer exterior, computer keyboard
To clean the exterior and keyboard, use one of the following off-the-shelf products:
•Office Depot® #154-616 Notebook Cleaning Kit
•Meridrew Enterprises Klear Screen® Wipes
•3M CL563 Cleaner Wipes
Note: After cleaning with one of these products, gently polish with a dry, soft, lint-free cloth until the
solution is no longer visible.
LCD display
To clean the LCD display, use one of the following off-the-shelf products:
•Office Depot® #154-616 Notebook Cleaning Kit
•Meridrew Enterprises Klear Screen® Wipes
Applies to Tablet PC, convertible PC with LCD shield, and standard notebook LCD displays.
Wipe the LCD surface gently, allowing it to dry before turning on the computer.
/
126
- Care and Maintenance
Disinfecting LifeBook computers
•Wipe the surface with a soft cloth wipe and a 50% ethanol solution or use another ethanol-based
germicide which has been registered as a hospital disinfectant by the EPA.
Cleaning the dust filter
Your LifeBook is equipped with fans to make air flow inside by pulling in outside air to cool the inside of
the system. Depending on the environment in which the system is used, dust and dirt may be pulled in
along with the air. Accumulated dust and dirt could impair the function of the system.
•USE OF INCORRECT CLEANERS CAN RESULT IN OPTICAL IMPAIRMENT OF THE LCD AND/OR DAMAGE TO THE
COMPUTER. ALWAYS REFER TO THE CLEANER MANUFACTURER'S GUIDELINES AND MATERIAL SAFETY DATA SHEETS
FOR PROPER HANDLING AND USE OF THE PRODUCTS.
•NEVER USE AMMONIA, ACIDIC, OR ALKALINE CLEANERS OR ORGANIC CHEMICALS SUCH AS PAINT THINNER,
ACETONE, PROPYL OR ISOPROPYL ALCOHOL, OR KEROSENE. IT MAY DAMAGE SURFACE FINISHES AND THE COATING
OF THE LCD SCREEN.
•NEVER USE COMPRESSED AIR FOR CLEANING STYLISTIC AND LIFEBOOK PCS.
•REMOVE AC ADAPTER: BEFORE REMOVING THE FILTER, TURN OFF THE SYSTEM AND PERIPHERALS AND
DISCONNECT THE AC ADAPTER.
•CLEANING THE FILTER:
- DO NOT USE DETERGENT
- AVOID DAMAGING THE FILTER; DAMAGE TO THE FILTER IS NOT COVERED BY WARRANTY.
- USE PLASTIC TOOLS TO CLEAN THE FILTER. METAL OR WOODEN TOOLS COULD DAMAGE THE FILTER.
•ESD: BEFORE CLEANING THE FILTER, TOUCH A METAL OBJECT TO DISCHARGE STATIC ELECTRICITY.
127
- Care and Maintenance
Storing your LifeBook Tablet PC
•If storing your Tablet PC for a month or longer, turn your LifeBook Tablet PC off, fully charge the
battery, then remove and store all Lithium ion batteries.
•Store your Tablet PC and batteries separately. If you store your LifeBook with a battery installed,
the battery will discharge, and battery life will be reduced. In addition, a faulty battery might
damage your LifeBook.
•Store your Fujitsu LifeBook in a cool, dry location. Temperatures should remain between 13ºF
(-25ºC) and 140ºF (60ºC).
1Turn off your computer and disconnect the AC
adapter.
2Close the display panel and turn the system upside
down.
3Remove the dust filter by pressing the latch
towards the filter and lifting it out (Figure 45).
4Carefully clean the dust filter and the air-cooling
duct.
5Put back the dust filter by inserting the end without
latch first and pushing in the filter until it latches.
Figure 45. Removing/installing the dust filter
ALWAYS BE SURE THE DUST FILTER IS
INSTALLED WHEN RUNNING YOUR
SYSTEM. NOT USING THE FILTER COULD
CAUSE CONTAMINATION AND POSSIBLE
DAMAGE TO THE SYSTEM.
128
- Care and Maintenance
Traveling with your LifeBook Tablet PC
•Do not transport your Tablet PC while it is turned on.
•It is recommended that you carry your Tablet PC with you while traveling, rather than checking it
in as baggage.
•Always bring your System Recovery CD that came with your Tablet PC when you travel. If you
experience system software problems while traveling, you may need it to correct any problems.
•Never put your Tablet PC through a metal detector. Have your Tablet PC hand-inspected by security
personnel. You can however, put your Tablet PC through a properly tuned X-ray machine. To avoid
problems, place your Tablet PC close to the entrance of the machine and remove it as soon as
possible or have your Tablet PC hand-inspected by security personnel. Security officials may
require you to turn your Tablet PC on, so make sure you have a charged battery on hand.
•ALWAYS POWER OFF THE COMPUTER BEFORE TRANSPORTING AND/OR PACKAGING IT. AFTER SHUTTING DOWN
THE SYSTEM, WAIT UNTIL THE STATUS LED PANEL INDICATES POWER OFF CONDITION (I.E., NO LIGHTS ARE
ILLUMINATED).
•IT IS POSSIBLE THAT THE UNIT MAY NOT AUTOMATICALLY GO TO POWER OFF OR HIBERNATE MODE WHEN YOU
CLOSE THE LID. THIS SITUATION MAY OCCUR DUE TO PRE-OS BOOT PASSWORD SECURITY SETTINGS OR SOME
OTHER APPLICATION RUNNING ON THE COMPUTER.
•ATTEMPTING TO TRANSPORT THE COMPUTER WHILE POWER IS ON MAY DAMAGE THE TABLET PC DUE TO SHOCK
OR OVERHEATING SINCE THE AIR VENTS MAY BE BLOCKED OR RESTRICTED.
129
- Care and Maintenance
•Take the necessary plug adapters if you're traveling overseas. Check the following diagram to
determine which plug adapter you'll need or ask your travel agent.
Batteries
Caring for your Batteries
•Always handle batteries carefully.
•Do not short-circuit the battery terminals (that is, do not touch both terminals with a metal object).
Do not carry lose batteries in a pocket or purse where they may mix with coins, keys, or other metal
objects. Doing so may cause an explosion or fire.
•Do not drop, puncture, disassemble, mutilate or incinerate the battery.
•Recharge batteries only as described in this manual and only in ventilated areas.
Outlet Type Location Outlet Type Location
United States, Canada, parts of Latin Amer-
ica, Mexico, Japan, Korea, the Philippines,
Tai wan
United Kingdom, Ire-
land, Malaysia, Sin-
gapore, parts of Africa
Russia and the Commonwealth of Independent
States (CIS), most of Europe, parts of Latin
America, the Middle East, parts of Africa, Hong
Kong, India, most of South Asia
China, Australia, New
Zealand
130
- Care and Maintenance
•Do not leave batteries in hot locations for more than a day or two. Intense heat can shorten the life
of your battery.
•Do not leave a battery in storage for longer than 6 months without recharging it.
Increasing Battery Life
•Power your LifeBook Tablet PC through the AC or optional auto/airline adapter whenever possible.
•If your Tablet PC is running on battery power all day, connect it to the AC adapter overnight to
recharge the battery.
•Keep brightness to the lowest level comfortable.
•Set the power management for maximum battery life.
•Put your Tablet PC in Sleep mode when it is turned on and you are not actually using it.
•Limit your media drive access.
•Disable the Media Player auto insert notification function.
•Always use fully charged batteries.
•Eject PC Cards when not in use.
Media Care
Caring for your Media (DVD/CD/CD-R)
Media discs are precision devices and will function reliably if given reasonable care.
•Always store your media disc in its case when it is not in use.
•Always handle discs by the edges and avoid touching the surface.
•Avoid storing any media discs in extreme temperatures.
•Do not bend media discs or set heavy objects on them.
•Do not spill liquids on media discs.
131
- Care and Maintenance
•Do not scratch media discs.
•Do not get dust on media discs.
•Never write on the label surface with a ballpoint pen or pencil. Always use a felt pen.
•If a media disc is subjected to a sudden change in temperature, cold to warm condensation may form
on the surface. Wipe the moisture off with a clean, soft, lint free cloth and let it dry at room
temperature. DO NOT use a hair dryer or heater to dry media discs.
•If a disc is dirty, use only a DVD/CD cleaner or wipe it with a clean, soft, lint free cloth starting
from the inner edge and wiping to the outer edge.
Caring for your Optical Drive
Your optical drive is durable but you must treat it with care. Please pay attention to the following points:
•The drive rotates the compact disc at a very high speed. Do not carry it around or subject it to shock
or vibration with the power on.
•Avoid using or storing the drive where it will be exposed to extreme temperatures.
•Avoid using or storing the drive where it is damp or dusty.
•Avoid using or storing the drive near magnets or devices that generate strong magnetic fields.
•Avoid using or storing the drive where it will be subjected to shock or vibration.
•Do not disassemble or dismantle the optical drive.
•Use of a commercially available lens cleaner is recommended for regular maintenance of your
drive.
132
- Care and Maintenance
PC Cards
Caring for your Cards
PC Cards are durable, but you must treat them with care. The documentation supplied with your card will
provide specific information, but you should pay attention to the following points:
•To keep out dust and dirt, store cards in their protective sleeves when they are not installed in your
LifeBook Tablet PC.
•Avoid prolonged exposure to direct sunlight or excessive heat.
•Keep the cards dry.
•Do not flex or bend the cards, and do not place heavy objects on top of them.
•Do not force cards into the slot.
•Avoid dropping cards, or subjecting them to excessive vibration.
133
Chapter 6
System Specifications
Specifications
This section provides the hardware and environmental specifications for your Fujitsu LifeBook Tablet PC.
Specifications of particular configurations will vary.
Configuration Label
The configuration label located on the bottom of your Tablet PC contains specific information regarding the
options you’ve chosen for your Tablet PC. Following is an example configuration label.
T5010, P8400, 13.3 WXGA, VB, 80G, 1GB
Configuration P/N: A2QXXXXXXXXXXXX
FPC P/N: FPCXXXXXX
Hard Drive
Part Number
Processor
Model # Memory
Operating System
Screen Size/Type
Configuration ID
134
- Specifications
Microprocessor
Intel® Core™ 2 Duo processors (Refer to the system label to determine the speed of your processor).
Chipset
•Mobile Intel® GM45 Express
•I/O Controller Hub 9 Mobile (ICH9-ME)
Memory
System Memory
•DDR3-1066 MHz SDRAM dual-channel memory module.
•Two DIMM slots; upgradeable to 4 GB of total memory (2 GB x 2). Note that when 4 GB of memory
is installed, approximately 3.3 GB is addressable memory; the upper memory is reserved for
hardware usage.
Cache Memory
3 MB or 6 MB L2 cache on-die (depending upon CPU)
Video
Built-in color flat-panel TFT active matrix LED backlit display with simultaneous display capability.
Video Color and Resolution
13.3" Wide XGA display
•Internal: 1280 x 800 pixel resolution, 16M colors
•External: 1920 x 1200 pixel resolution, 16M colors
•Simultaneous: 1280 x 768, 16M colors
•Indoor or indoor/outdoor display options (not available on systems with dual digitizer option)
135
- Specifications
Video RAM
Mobile Intel® Graphics Media Accelerator 4500 MHD video graphics. Up to 384 MB shared video
memory using Dynamic Video Memory Technology (DVMT), depending upon the amount of installed
system memory.
Digitizer
Depending upon the configuration of your system, one of two digitizer options is included:
•Active digitizer (uses active stylus input), or,
•Dual Digitizer, consisting of active digitizer and capacitive touch panel (uses active stylus input and
two finger touch input).
Audio
•Realtek codec ALC269 with High Definition (HD) audio.
•Headphones: Stereo headphone jack, 3.5 mm, 1 Vrms or less, minimum impedance 32 Ohms
•Microphone: Stereo microphone jack, 3.5 mm, 100 mVp-p or less, minimum impedance 10K Ohms
•Two built-in speakers, 25 mm x 16 mm
•Two built-in digital microphones
Mass Storage Device Options
Hard Drive
Serial ATA, 150 Mbps data buffer, 2.5”, 9.5 mm, shock-mounted with Shock Sensor utility. Capacity and
speed of the hard drive are determined by system configuration.
136
- Specifications
Modular Bay Devices
One of the following devices is pre-installed:
•Dual-Layer Multi-Format DVD Writer: 24x CD-ROM, 24x CD-R, 10x CD-RW, 8x DVD-ROM,
5x DVD-RAM, 8x DVD+/-R, 4x DVD+/-R(DL), 6x DVD-RW, 8x DVD+RW
•DVD-ROM Drive: 8x DVD-ROM
•DVD/CD RW Combo Drive: 8x DVD-ROM, 24x CD-R, 10x CD-RW, 24x CD-ROM
•Modular Bay Battery
•Modular Hard Drive
•Weight Saver
Features
Integrated Pointing Device
Touchpad cursor control buttons, with scroll strip built-in
Communications
•Gigabit LAN: Intel wired 10/100/1000 Gigabit Ethernet LAN
•WLAN: Optional Integrated Intel Centrino Advanced-N 6200 (802.11abgn 2x2), or,
Atheros HB92 WLAN (802.11abgn)
•WWAN: Optional Wireless Wide Area Network device (WWAN not available in systems with the
dual digitizer option)
•Bluetooth: Bluetooth V2.1 device for wireless personal area network communication
137
- Specifications
LifeBook Security/Application Panel
Trusted Platform Module
The LifeBook T900 has a Trusted Platform Module (TPM) installed for added system security.
Theft Prevention Lock
Two lock slots for use with security restraint systems.
Web Camera
Built-in 1.3 megapixel web camera.
Device Ports
On the LifeBook Tablet PC:
•PC Card slot for one Type I or Type II card: PCMCIA Standard 2.1 with CardBus support
•Memory Stick/SD Card slot
•One 15-pin D-SUB connector for VGA external monitor (see Display specifications)
•Three USB 2.0 (Universal Serial Bus) connectors for input/output devices
•One DC In connector
•One IEEE 1394 (4-pin type) jack
•One LAN (RJ-45) connector
Button Label Button Function Default Application
1Application A Notepad
2Application B Calculator
3Internet Internet Explorer
4E-Mail Outlook
Figure 46. Application Launcher Defaults
138
- Specifications
•One modem (RJ-11) connector (on certain configurations)
•Docking port (100-pin, to dock with port replicator)
•One stereo headphone jack
•One stereo microphone/line-in jack
•Dedicated Smart Card slot (requires third-party application)
On the Optional Port Replicator:
•One 15-pin D-SUB connector for VGA external monitor
•Four USB 2.0 connectors for input/output devices
•One LAN (RJ-45) connector
•One DC-in connector
•One DVI-D connector
•One Line-Out connector
•One HDMI connector
Keyboard
Built-in keyboard with all functions of 101 key PS/2 compatible keyboards.
•Total number of keys: 84
•Function keys: F1 through F12, plus Fn extension key
•Two Windows keys: one Start key, one application key
•Key pitch: 19 mm; key stroke: 3.0 mm
•Built-in Touchpad pointing device with two left and two right buttons and scroll strip.
•Built-in Palm Rest
•Spill-resistant
•External USB keyboard/mouse support
139
- Specifications
Power
Batteries
•Standard Lithium ion battery, rechargeable, 6-cell 10.8V, 5200 mAh, or,
•Lithium ion battery, rechargeable, 6-cell 10.8V, 5800 mAh
•Optional 6-cell Lithium ion modular bay battery, rechargeable, 10.8V, 3800 mAh
AC Adapter
Autosensing 100-240V AC, supplying 19V DC, 4.22A, 80W to the LifeBook; includes an AC cable
Power Management
Conforms to ACPI (Advanced Configuration and Power Interface).
Dimensions and Weight
Overall Dimensions
Active Digitizer model: 12.56"(w) x 9.61"(d) x 1.44/1.52”(h) (319 mm x 244 mm x 36.5/38.5 mm)
Dual Digitizer model: 12.56"(w) x 9.61"(d) x 1.45/1.54”(h) (319 mm x 244 mm x 37/39 mm)
Weight
Active Digitizer model:
With weight saver - 4.42 lbs. (2.05 kg)
With optical drive: 4.89 lbs. (2.22 kg)
With bay battery: 5.14 lbs. (2.33 kg)
Dual Digitizer model:
With weight saver - 4.72 lbs. (2.14 kg)
With optical drive: 5.09 lbs. (2.31 kg)
With bay battery: 5.33 lbs. (2.42 kg)
140
- Specifications
Environmental Requirements
Temperature
Operating: 41° to 95° F (5° to 35° C). Non-operating: 5° to 140° F (–15° to 60° C)
Humidity
Operating: 20% to 85%, relative, non-condensing. Non-operating: 8% to 85%, relative, non-condensing
Altitude
Operating: 10,000 feet (3,048 m) maximum
Popular Accessories
For ordering or additional information on Fujitsu accessories please visit our Web site at
www.shopfujitsu.com or call 1-800-FUJITSU.
Pre-Installed Software
Depending on your pre-installed operating system, your Tablet PC comes with pre-installed software for
playing audio and video files of various formats. In addition there is file transfer software and virus
protection software.
•Adobe Reader
•Norton Internet Security™ 2009 (60-day free trial)
•CyberLink PowerDirector
•CyberLink PowerDVD
THE FOLLOWING LIST CONSTITUTES THE SOFTWARE THAT MAY BE INSTALLED ON YOUR COMPUTER. THE
PRE-INSTALLED SOFTWARE MAY VARY, AND IS DETERMINED BY YOUR OPERATING SYSTEM AND
CONFIGURATION.
141
- Specifications
•CyberLink MakeDisc (Windows 7 systems only)
•CyberLink YouCam (Windows 7 systems only)
•Google Desktop
•Google Picasa
•Google Toolbar
•OmniPass Fingerprint application
•Fujitsu Driver Update utility
•Evernote (Windows Vista systems only)
•Microsoft Office Ready with Office Assistant
•Microsoft Office OneNote 2007
Learning About Your Software
Tutorials
All operating systems and most application software have tutorials built into them upon installation. We
highly recommend that you step through the tutorial before you use an application.
Manuals
Included with your Tablet PC you will find manuals for your installed operating system and other pre-
installed software. Any manuals that are not included are available online through the software’s “Help”
menu. We recommend that you review these manuals for information on the use of these applications.
Adobe Reader
Adobe Reader allows you to view, navigate, and print PDF files across all major computing platforms.
142
- Specifications
Google Desktop
Google Desktop lets you search the contents of your computer for emails, web history, and files. It also
allows you to view news and photos from anywhere on your desktop.
Google Picasa
Google Picasa lets you search for, locate, move and label all of the photos on your computer.
Google Toolbar
Google Toolbar lets you search the Internet quickly, block pop-ups, and perform a variety of other tasks
to make your Internet experience easier and more pleasant.
Norton Internet Security 2009
Your system is preinstalled with a free 60-day trial version of Symantec’s Norton Internet Security™
2009. Internet Security is a suite of tools designed to protect your LifeBook from viruses, hackers, spam,
and spyware. It helps you protect data currently on your hard disk from destruction or contamination. The
trial version is activated upon your acceptance of software license agreement. After 60 days, you will need
to purchase a subscription from Symantec to download latest virus, spyware, and spam definitions.
CyberLink PowerProducer
(Available with some configurations of the optional port replicator). CyberLink PowerProducer allows
you to produce and edit home movies and slideshows on discs.
CyberLink MakeDisc
(Windows 7 systems only) CyberLink MakeDisc allows you to burn data, videos and photographs to CDs
or DVDs.
CyberLink PowerDVD
CyberLink PowerDVD allows you to produce and edit home movies and slideshows on discs.
143
- Specifications
CyberLink YouCam
(Windows 7 systems only.) CyberLink YouCam allows you to capture photos or movies on the embedded
webcam, add special effects to them, and share them in a variety of formats or via social networks.
CyberLink PowerDirector
(Windows 7 systems only) CyberLink PowerDirector allows you to edit and enhance your videos, and add
special effects to them.
OmniPass Fingerprint application
The fingerprint sensor uses Softex OmniPass which provides password management capabilities to
Microsoft Windows operating systems. OmniPass lets you use a "master password" for all Windows,
applications, and on-line passwords, and presents a convenient user interface through which you can
securely manage passwords, users, and multiple identities for each user.
Fujitsu Driver Update Utility
The Fujitsu Driver Update (FDU) utility is pre-installed on your system. With FDU, you can choose to
automatically or manually go to the Fujitsu site to check for new updates for your system. See
“Automatically Downloading Driver Updates” on page 121.
EverNote
(Windows Vista systems only) EverNote allows you to easily capture, store and access a variety of
documents, such as typed and handwritten memos, webpage excerpts, emails, phone messages, addresses,
passwords, sketches, and documents.
Microsoft OneNote
Microsoft® Office OneNote® 2007 is a digital notebook that provides a flexible way to gather and
organize your notes and information, powerful search capabilities so you can find what you're looking for
quickly, and easy-to-use shared notebooks for teams to work together more effectively. Unlike paper-
based systems, word processing programs, e-mail systems, or other productivity programs, Office
OneNote® 2007 delivers the flexibility to gather and organize text, pictures, digital handwriting, audio and
144
- Specifications
video recordings, and more — all in one digital notebook on your computer. Office OneNote® 2007 can
help you become more productive by keeping the information you need at your fingertips and reducing
time spent searching for information across e-mail messages, paper notebooks, file folders, and printouts.
Microsoft Office Ready with Office Assistant
With Office Ready PCs it's now even easier to take advantage of Microsoft® Office 2007. The full
versions of Microsoft® Office Basic, Small Business and Professional 2007 are already preinstalled on
your PC, so there’s nothing to install, and all Office Ready PCs give you the option to activate a 60 day
trial of Microsoft® Office Professional 2007! All you need to do is purchase the appropriate Office 2007
license kit which allows you to "un-lock" the full version of Office that you want.
Fujitsu offers a Media License Kit for Microsoft® Office Small Business 2007. Simply enter your product
key and you’re ready to go!
Another option is to purchase a Microsoft® Office 2007 media-less license kit (MLK) from either your
computer reseller or online from Microsoft within 90 days of the purchase of your computer.
Operating System Options
Microsoft Windows 7
With Microsoft OneNote and Microsoft OfficeReady with Office Assistant
Microsoft Windows Vista Business Edition
With Microsoft OneNote and Microsoft OfficeReady with Office Assistant
Microsoft Windows XP Tablet PC Downgrade Edition
Available by special order only.
145
Glossary
AC Adapter
A device which converts the AC voltage from a wall outlet to the DC voltage needed to power your
LifeBook Tablet PC.
Access point
Wireless network device used to bridge wireless and wired network traffic.
ACPI
Advanced Configuration and Power Interface
Active-Matrix Display
A type of technology for making flat-panel displays which has a transistor or similar device for every
pixel on the screen.
Ad Hoc Mode
Ad Hoc Mode refers to a wireless network architecture where wireless network connectivity between
multiple computers is established without a central wireless network device, typically known as Access
Points. Connectivity is accomplished using only client devices in a peer-to-peer fashion.
146
- Glossary
ADSL
Asymmetric Digital Subscriber Line. Technology for transporting high bit-rate services over ordinary
phone lines.
AGP
Accelerated Graphics Port. Graphics port specifically designed for graphics-intensive devices, such as
video cards and 3D accelerators.
Auto/Airline Adapter
A device which converts the DC voltage from an automobile cigarette lighter or aircraft DC power
outlet to the DC voltage needed to power your LifeBook Tablet PC.
BIOS
Basic Input-Output System. A program and set of default parameters stored in ROM which tests and
operates your LifeBook Tablet PC when you turn it on until it loads your installed operating system
from disk. Information from the BIOS is transferred to the installed operating system to provide it with
information on the configuration and status of the hardware.
Bit
An abbreviation for binary digit. A single piece of information which is either a one (1) or a zero (0).
bps
An abbreviation for bits per second. Used to describe data transfer rates.
Boot
To start-up a computer and load its operating system from disk, ROM or other storage media into
RAM.
147
- Glossary
Bus
An electrical circuit which passes data between the CPU and the sub-assemblies inside your LifeBook
Tablet PC.
Byte
8 bits of parallel binary information.
Cache Memory
A block of memory built into the micro-processor which is much faster to access than your system
RAM and used in specially structured ways to make your overall data handling time faster.
CardBus
A faster, 32-bit version of the PC Card interface which offers performance similar to the 32-bit PCI
architecture.
CD-ROM
Compact disk read only memory. This is a form of digital data storage which is read optically with a
laser rather than a magnetic head. A typical CD-ROM can contain about 600MB of data and is not
subject to heads crashing into the surface and destroying the data when there is a failure nor to wear
from reading.
Channel
Range of narrow-band frequencies used by the WLAN device to transmit data. IEEE802.11b/g - 11
channels, 22 MHz wide channels.
CMOS RAM
Complementary metal oxide semiconductor random access memory. This is a technology for
manufacturing random access memory which requires very low levels of power to operate.
148
- Glossary
COM Port
Abbreviation for communication port. This is your serial interface connection.
Command
An instruction which you give your operating system. Example: run a particular application or format
a floppy disk.
Configuration
The combination of hardware and software that makes up your system and how it is allocated for use.
CRT
Cathode Ray Tube. A display device which uses a beam of electronic particles striking a luminescent
screen. It produces a visual image by varying the position and intensity of the beam.
Data
The information a system stores and processes.
DC
Direct current. A voltage or current that does not fluctuate periodically with time.
Default Value
A pre-programmed value to be used if you fail to set your own.
DHCP
Dynamic Host Configuration Protocol. A protocol used to automatically acquire parameters required
for the communication, such as IP address. The sender of IP address is called a DHCP server, and the
receiver is called a DHCP client.
149
- Glossary
DIMM
Dual-in-line memory module.
Disk
A spinning platter of magnetic data storage media. If the platter is very stiff it is a hard drive, if it is
highly flexible it is a floppy disk, if it is a floppy disk in a hard housing with a shutter it is commonly
called a diskette.
Disk Drive
The hardware which spins the disk and has the heads and control circuitry for reading and writing the
data on the disk.
Diskette
A floppy disk in a hard housing with a shutter.
DMA
Direct Memory Access. Special circuitry for memory to memory transfers of data which do not require
CPU action.
DMI
Desktop Management Interface. A standard that provides PC management applications with a
common method of locally or remotely querying and configuring PC computer systems, hardware and
software components, and peripherals.
DNS
Domain Name System. A function to control the association between the IP address and the name
assigned to the computer. If you do not know the IP address but if you know the computer name, you
can still communicate to that computer.
150
- Glossary
DOS
Disk Operating System (MS-DOS is a Microsoft Disk Operating System).
Driver
A computer program which converts application and operating system commands to external devices
into the exact form required by a specific brand and model of device in order to produce the desired
results from that particular equipment.
DVMT
Dynamic Video Memory Technology. A video memory architecture that increases the efficiency of the
motherboard by using innovative memory utilization and direct AGP.
ECP
Extended Capability Port. A set of standards for high speed data communication and interconnection
between electronic devices.
Encryption Key (Network Key)
Data encryption key used to encrypt message text and for computing message integrity checks. Data
encryption protects data from unauthorized viewing.
This device uses the same encryption key to encode and decode the data, and the identical encryption
key is required between the sender and receiver.
ESD
Electro-Static Discharge. The sudden discharge of electricity from a static charge which has built-up
slowly. Example: the shock you get from a doorknob on a dry day or the sparks you get from brushing
hair on a dry day.
FCC
Federal Communications Commission.
151
- Glossary
Floppy Disk
A spinning platter of magnetic data storage media which is highly flexible.
GB
Gigabyte. One billion bytes.
Hard drive
A spinning platter of magnetic data storage media where the platter is very stiff.
I/O
Input/Output. Data entering and leaving your Tablet PC in electronic form.
I/O Port
The connector and associated control circuits for data entering and leaving your Tablet PC in
electronic form.
IDE
Intelligent Drive Electronics. A type of control interface for a hard drive which is inside the hard drive
unit.
IEEE802.11a
Wireless LAN standard that supports a maximum data rate of 54 Mbps. 802.11a devices operate in the
5 GHz lower and middle UNII bands.
IEEE802.11b
Wireless LAN standard that supports a maximum data rate of 11 Mbps. 802.11b devices operate in the
2.4 GHz ISM band.
152
- Glossary
IEEE802.11g
Wireless LAN standard that supports a maximum data rate of 54 Mbps. 802.11g devices operate in the
2.4 GHz ISM band.
Infrared
Light just beyond the red portion of the visible light spectrum which is invisible to humans.
Infrastructure
A name of a wireless LAN configuration. This type of communication uses an access point. Another
type of communication is called Ad Hoc.
IP Address
An identifier for a computer or device on a TCP/IP network. Networks using the TCP/IP protocol
route messages based on the IP address of the destination. The format of an IP address is a 32-bit
numeric address written as four numbers separated by periods. Each number can be zero to 255. For
example, 1.160.10.240 could be an IP address.
Within an isolated network, you can assign IP addresses at random as long as each one is unique.
However, connecting a private network to the Internet requires using registered IP addresses (called
Internet addresses) to avoid duplicates.
The four numbers in an IP address are used in different ways to identify a particular network and a
host on that network. Three regional Internet registries -- ARIN, RIPE NCC and APNIC -- assign
Internet addresses from the following three classes.
Class A - supports 16 million hosts on each of 126 networks
Class B - supports 65,000 hosts on each of 16,000 networks
Class C - supports 254 hosts on each of 2 million networks
The number of unassigned Internet addresses is running out, so a new classless scheme called CIDR
is gradually replacing the system based on classes A, B, and C and is tied to adoption of IPv6.
153
- Glossary
IR
An abbreviation for infrared.
IrDA
Infrared Data Association. An organization which produces standards for communication using
infrared as the carrier.
IRQ
Interrupt Request. An acronym for the hardware signal to the CPU that an external event has occurred
which needs to be processed.
KB
Kilobyte. One thousand bytes.
LAN
Local Area Network. An interconnection of computers and peripherals within a single limited
geographic location which can pass programs and data amongst themselves.
LCD
Liquid Crystal Display. A type of display which makes images by controlling the orientation of
crystals in a crystalline liquid.
Lithium ion Battery
A type of rechargeable battery which has a high power-time life for its size and is not subject to the
memory effect as Nickel Cadmium batteries.
LPT Port
Line Printer Port. A way of referring to parallel interface ports because historically line printers were
the first and latter the most common device connected to parallel ports.
154
- Glossary
MAC Address
Media Access Control Address. A unique physical address of a network card. For Ethernet, the first
three bytes are used as the vendor code, controlled and assigned by IEEE. The remaining three bytes
are controlled by each vendor (preventing overlap), therefore, every Ethernet card is given a unique
physical address in the world, being assigned with a different address from other cards. For Ethernet,
frames are sent and received based on this address.
MB
Megabyte. One million bytes.
Megahertz
1,000,000 cycles per second.
Memory
A repository for data and applications which is readily accessible to your LifeBook Tablet PC’s CPU.
MHz
Megahertz.
MIDI
Musical Instrument Digital Interface. A standard communication protocol for exchange of
information between computers and sound producers such as synthesizers.
Modem
A contraction for MOdulator-DEModulator. The equipment which connects a computer or other data
terminal to a communication line.
Monaural
A system using one channel to process sound from all sources.
155
- Glossary
MTU
Maximum Transmission Unit
The maximum data size that can be transferred at a time through the Internet or other networks. You
can set a smaller MTU size to obtain successful communication, if you have difficulty transferring
data due to the fact that the maximum size is too large.
Network key
Data that is used for encrypting data in data communication. The personal computer uses the same
network key both for data encryption and decryption, therefore, it is necessary to set the same network
key as the other side of communication.
Network name (SSID: Service Set Identifier )
When a wireless LAN network is configured, grouping is performed to avoid interference or data theft.
This grouping is performed with “Network name (SSID)”. In order to improve security, the network
key is set allowing no communication unless “Network name (SSID)” coincides with the network key.
NTSC
National TV Standards Commission. The standard for TV broadcast and reception for the USA.
Open system authentication
Null authentication method specified in the 802.11 standard that performs no authentication checks on
a wireless client before allowing it to associate.
Operating System
A group of control programs that convert application commands, including driver programs, into the
exact form required by a specific brand and model of microprocessor in order to produce the desired
results from that particular equipment.
156
- Glossary
Partition
A block of space on a hard drive which is set aside and made to appear to the operating system as if it
were a separate disk, and addressed by the operating system accordingly.
PCMCIA
PCMCIA is a trademark of the Personal Computer Memory Card International Association. The
Personal Computer Memory Card International Association is an organization that sets standards for
add-in cards for personal computers.
Peripheral Device
A piece of equipment which performs a specific function associated with but not integral to a
computer. Examples: a printer, a modem, a CD-ROM.
Pitch (keyboard)
The distance between the centers of the letter keys of a keyboard.
Pixel
The smallest element of a display, a dot of color on your display screen. The more pixels per area the
clearer your image will appear.
POST
Power On Self Test. A program which is part of the BIOS which checks the configuration and
operating condition of your hardware whenever power is applied to your Tablet PC. Status and error
messages may be displayed before the operating system is loaded. If the self test detects failures that
are so serious that operation cannot continue, the operating system will not be loaded.
PPPoE
Point to Point Protocol over Ethernet. A protocol for Ethernet, using a Point-to-Point Protocol (PPP),
which is used for connection on the phone line.
157
- Glossary
Program
An integrated set of coded commands to your computers telling your hardware what to do and how
and when to do it.
Protocol
Procedures and rules use to send and receive data between computers.
- Method of sending and receiving data
- Process used to handle communication errors
Conditions required for communication are organized in procedures for correct transfer of
information.
RAM
Random Access Memory. A hardware component of your LifeBook Tablet PC that holds binary
information (both program and data) as long as it has the proper power applied to it.
RAM Module
A printed circuit card with memory and associated circuitry which allows the user to add additional
memory to the computer without special tools.
Reset
The act of reloading the operating system. A reset erases all information stored in RAM.
Restart
See Reset.
Resume
To proceed after interruption. In your Tablet PC this refers to returning to active operation after having
been in one of the suspension states.
158
- Glossary
ROM
Read Only Memory. A form of memory in which information is stored by physically altering the
material. Data stored in this way cannot be changed by your Tablet PC and does not require power to
maintain it.
SDRAM
Synchronous Dynamic Random Access Memory.
Serial Port
A connection to another device through which data is transferred one bit at a time on a single wire with
any other wires only for control of the device not for transfer of data.
Shared key authentication
802.11 network authentication method in which the AP sends the client device a challenge text packet
that the client must then encrypt with the correct WEP key and return to the AP. If the client has the
wrong key or no key, authentication will fail and the client will not be allowed to associate with the
AP. Shared key authentication is not considered secure, because a hacker who detects both the clear-
text challenge and the same challenge encrypted with a WEP key can decipher the key.
Sleep
To make inoperative for a period of time. Your LifeBook Tablet PC uses various suspension states to
reduce power consumption and prolong the charge of your battery.
SSID
Service Set Identifier, a 32-character unique identifier attached to the header of packets sent over a
WLAN that acts as a password when a mobile device tries to connect to the BSS. The SSID
differentiates one WLAN from another, so all access points and all devices attempting to connect to a
specific WLAN must use the same SSID. A device will not be permitted to join the BSS unless it can
provide the unique SSID. Because the SSID is broadcast in plain text, it does not supply any security
to the network.
159
- Glossary
Status Indicator
A display which reports the condition of some portion of your hardware. On your LifeBook Tablet PC
this is an LCD screen just above the keyboard.
Stereo (audio)
A system using two channels to process sound from two different sources.
Subnet mask
TCP-IP network is controlled by being divided into multiple smaller networks (subnets). IP address
consists of the subnet address and the address of each computer. Subnet mask defines how many bits
of IP address comprise the subnet address. The same value shall be set among computers
communicating with each other.
SVGA
Super VGA.
S-Video
Super Video. A component video system for driving a TV or computer monitor.
System Clock
An oscillator of fixed precise frequency which synchronizes the operation of the system and is counted
to provide time of day and date.
TCP/IP
Transmission Control Protocol/Internet Protocol. A standard Internet protocol that is most widely
used.
160
- Glossary
TFT
Thin Film Transistor – A technology for flat display panels which uses a thin film matrix of transistors
to control each pixel of the display screen individually.
UL
Underwriters Laboratories – An independent organization that tests and certifies the electrical safety
of devices.
USB
Universal Serial Bus. Standard that allows you to simultaneously connect up to 127 USB devices such
as game pads, pointing devices, printers, and keyboards to your computer.
VRAM
Video Random Access Memory. A memory dedicated to video display data and control.
WFM
Wired for Management is Intel’s broad-based initiative to reduce the total cost of ownership (TCO) of
business computing without sacrificing power and flexibility.
Wi-Fi Compatible
Wi-Fi (Wireless Fidelity) Identifies that the product has passed the interoperability test, supplied by
the WECA (Wireless Ethernet Compatibility Alliance), which guarantees the interoperability of
wireless IEEE 802.11 LAN products. For more information on the Wi-Fi standard, go to the WECA
Web site at: www.wirelessethernet.com.
WLAN
Wireless Local Area Network. A wireless interconnection of computers and peripherals within a
single limited geographic location which can pass programs and data amongst themselves.
161
- Regulatory Information
Regulatory Information
Notice
Changes or modifications not expressly approved by Fujitsu could void this user’s authority to operate the
equipment.
FCC NOTICES
Notice to Users of Radios and Television
This equipment has been tested and found to comply with the limit for class B digital devices, pursuant to
parts 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet that is on a different circuit than the receiver.
•Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables must be employed with this equipment to ensure compliance with the
pertinent RF emission limits governing this device.
162
- Regulatory Information
Notice to Users of the US Telephone Network
This equipment complies with Part 68 of the FCC rules, and the requirements adopted by ACTA. On the
bottom of this equipment is a label that contains, among other information, the FCC registration number
and ringer equivalence number (REN) for this equipment; or a product identifier in the format
US:AAAEQ##TXXXX. If requested, this information or number must be provided to the telephone
company.
This equipment is designed to be connected to the telephone network or premises wiring using a standard
jack type USOC RJ11C. A plug and jack used to connect this equipment to the premises wiring and
telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the
ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be
connected to a compatible modular jack that is also compliant.
The ringer equivalent number (REN) of this equipment is 0.1B as shown on the label. The REN is used
to determine the number of devices that may be connected to a telephone line. Excessive RENs on a
telephone may result in the devices not ringing in response to an incoming call. In most but not all areas,
the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be
connected to a line, as determined by the total RENs, contact the local telephone company.
If this equipment causes harm to the telephone network, the telephone company will notify you in advance
that temporary discontinuance of service may be required. But if advance notice isn’t practical, the
telephone company will notify the customer as soon as possible. Also, you will be advised of your right
to file a complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations or procedures that
could affect the operation of the equipment. If this happens the telephone company will provide advance
notice in order for you to make necessary modifications to maintain uninterrupted service.
If trouble is experienced with this equipment, for repair or warranty information, please refer to the
manual or contact Fujitsu America, Inc. Customer Service. If the equipment is causing harm to the
telephone network, the telephone company may request that you disconnect the equipment until the
problem is resolved.
163
- Regulatory Information
The equipment cannot be used on public coin service provided by the telephone company. Connection to
party line service is subject to state tariffs. (Contact the state public utility commission, public service
commission or corporation commission for information).
If your home has specially wired alarm equipment connected to the telephone line, ensure the installation
of this computer does not disable your alarm equipment. If you have any questions about what will disable
alarm equipment, consult your telephone company or a qualified installer.
The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or
other electronic device to send any message via a telephone fax machine unless such message clearly
contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission,
the date an time it is sent and an identification of the business or other entity, or other individual sending
the message and the telephone number of the sending machine or such business, other entity, or individual.
DOC (INDUSTRY CANADA) NOTICES
Notice to Users of Radios and Television
This Class B digital apparatus meets all requirements of Canadian Interference-Causing Equipment
Regulations.
CET appareil numérique de la class B respecte toutes les exigence du Réglement sur le matérial brouilleur
du Canada.
Notice to Users of the Canadian Telephone Network
NOTICE: This equipment meets the applicable Industry Canada Terminal Equipment Technical
Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration
number signifies that registration was performed based on a Declaration of Conformity indicating that
Industry Canada technical specifications were met. It does not imply that Industry Canada approved the
equipment.
164
- Regulatory Information
Before connecting this equipment to a telephone line the user should ensure that it is permissible to
connect this equipment to the local telecommunication facilities. The user should be aware that
compliance with the certification standards does not prevent service degradation in some situations.
Repairs to telecommunication equipment should be made by a Canadian authorized maintenance facility.
Any repairs or alterations not expressly approved by Fujitsu or any equipment failures may give the
telecommunication company cause to request the user to disconnect the equipment from the telephone
line.
NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is 0.1B. The REN assigned
to each terminal equipment provides an indication of the maximum number of terminals allowed to be
connected to a telephone interface. The termination on an interface may consist of any combination of
devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices
does not exceed five.
Avis Aux Utilisateurs Du Réseau Téléphonique Canadien
AVIS: Le présent matériel est conforme aux spécifications techniques d’Industrie Canada applicables au
matériel terminal. Cette conformité est confirmée par le numéro d’enregistrement. Le sigle IC, placé
devant le numéro d’enregistrement, signifie que l’enregistrement s’est effectué conformément à une
déclaration de conformité et indique que les spécifications techniques d’Industrie Canada ont été
respectées. Il n’implique pas qu’Industrie Canada a approuvé le matériel.
FOR SAFETY, USERS SHOULD ENSURE THAT THE ELECTRICAL GROUND OF THE POWER UTILITY, THE
TELEPHONE LINES AND THE METALLIC WATER PIPES ARE CONNECTED TOGETHER. USERS SHOULD
NOT ATTEMPT TO MAKE SUCH CONNECTIONS THEMSELVES BUT SHOULD CONTACT THE APPROPRIATE
ELECTRIC INSPECTION AUTHORITY OR ELECTRICIAN. THIS MAY BE PARTICULARLY IMPORTANT IN RURAL
AREAS.
165
- Regulatory Information
Avant de connecter cet équipement à une ligne téléphonique, l’utilisateur doit vérifier s’il est permis de
connecter cet équipement aux installations de télécommunications locales. L’utilisateur est averti que
même la conformité aux normes de certification ne peut dans certains cas empêcher la dégradation du
service.
Les réparations de l’équipement de télécommunications doivent être effectuées par un service de
maintenance agréé au Canada. Toute réparation ou modification, qui n’est pas expressément approuvée
par Fujitsu, ou toute défaillance de l’équipement peut entraîner la compagnie de télécommunications à
exiger que l’utilisateur déconnecte l’équipement de la ligne téléphonique.
AVIS: L’indice d’équivalence de la sonnerie (IES) du présent matériel est de 0.1B. L’IES assigné à chaque
dispositif terminal indique le nombre maximal de terminaux qui peuvent être raccordés à une interface
téléphonique. La terminaison d’une interface peut consister en une combinaison quelconque de
dispositifs, à la seule condition que la somme d’indices d’équivalence de la sonnerie de tous les dispositifs
n’excède pas 5.
POUR ASSURER LA SÉCURITÉ, LES UTILISATEURS DOIVENT VÉRIFIER QUE LA PRISE DE TERRE DU
SERVICE D’ÉLECTRICITÉ, LES LIGNES TÉLPHONIQUES ET LES CONDUITES D’EAU MÉTALLIQUES SONT
CONNECTÉES ENSEMBLE. LES UTILISATEURS NE DOIVENT PAS TENTER D’ÉTABLIR CES CONNEXIONS
EUX-MÊMES, MAIS DOIVENT CONTACTER LES SERVICES D’INSPECTION D’INSTALLATIONS ÉLECTRIQUES
APPROPRIÉS OU UN ÉLECTRICIEN. CECI PEUT ÊTRE PARTICULIÈREMENT IMPORTANT EN RÉGIONS
RURALES.
166
Appendix A: WLAN User’s Guide
FCC Regulatory Information
Please note the following regulatory information related to the optional wireless LAN device.
Regulatory Notes and Statements
Wireless LAN, Health and Authorization for use
Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of these emissions, however,
are far much less than the electromagnetic energy emissions from wireless devices such as mobile phones. Wireless LAN
devices are safe for use by consumers because they operate within the guidelines found in radio frequency safety standards and
recommendations. The use of Wireless LAN devices may be restricted in some situations or environments, such as:
•On board an airplane, or
•In an explosive environment, or
•In situations where the interference risk to other devices or services is perceived or identified as harmful.
In cases in which the policy regarding use of Wireless LAN devices in specific environments is not clear (e.g., airports,
hospitals, chemical/oil/gas industrial plants, private buildings), obtain authorization to use these devices prior to operating the
equipment.
167
Regulatory Information/Disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user
documentation provided with the product. Any changes or modifications made to this device that are not expressly approved
by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio
or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting
cables and equipment other than those specified by the manufacturer. It is the responsibility of the user to correct any
interference caused by such unauthorized modification, substitution or attachment. The manufacturer and its authorized
resellers or distributors will assume no liability for any damage or violation of government regulations arising from failure to
comply with these guidelines.
This device must not be co-located or operated in conjunction with any other antenna or transmitter.
For IEEE 802.11a Wireless LAN: For operation within 5.15~5.25 GHz frequency range, it is restricted to indoor
environments, and the antenna of this device must be integral.
Federal Communications Commission statement
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause interference, and, (2) This device must
accept any interference, including interference that may cause undesired operation of this device.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions,
it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:
1Reorient or relocate the receiving antenna.
2Increase the distance between the equipment and the receiver.
3Connect the equipment to an outlet on a circuit different from the one the receiver is connected to.
4Consult the dealer or an experienced radio/TV technician for help.
Figure A-1. Ad Hoc Mode Network
168
FCC Radio Frequency Exposure statement
The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no
proof, however, that these low power wireless devices are absolutely safe. Low power wireless devices emit low levels of radio frequency
energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure to
low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposure have not
found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been
confirmed by additional research.
The wireless LAN radio device has been tested and found to comply with FCC radiation exposure limits set forth for an uncontrolled
equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65.
Export restrictions
This product or software contains encryption code which may not be exported or transferred from the US or Canada without
an approved US Department of Commerce export license. This device complies with Part 15 of FCC Rules., as well as ICES
003 B / NMB 003 B. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesirable operation.
Modifications not expressly authorized by Fujitsu America, Inc. may invalidate the user's right to operate this equipment.
Canadian Notice
The device for the 5150 - 5250 MHz band is only for indoor usage to reduce the potential for harmful interference to co-channel
mobile satellite systems.
The maximum antenna gain of 6 dBi permitted (for devices in the 5250 - 5350 MHz, 5470 - 5725 MHz and 5725 - 5825 MHz
bands) to comply with the e.i.r.p. limit as stated in A9.2 of RSS210.
In addition, users are cautioned to take note that high power radars are allocated as primary users (meaning they have priority)
of 5250 - 5350 MHz and 5650 - 5850 MHz and these radars could cause interference and/or damage to LE-LAN devices.
169
Before Using the Optional Wireless LAN
Before Using the Optional Wireless LAN
This manual describes the procedures required to properly set up and configure the optional integrated
Wireless LAN Mini-PCI device (referred to as "WLAN device" in the rest of the manual). Before using
the WLAN device, read this manual carefully to ensure its correct operation. Keep this manual in a safe
place for future reference.
Wireless LAN Device Covered by this Document
This document is applicable to systems containing one of the following optional devices:
•Integrated Intel Centrino Advanced-N 6200 (622ANHMW) (802.11a/b/g/n)
•Atheros HB92 (802.11a/b/g/n)
Characteristics of the WLAN Device
•The WLAN device is a Mini-PCI card attached to the main board of the mobile computer.
•The WLAN device operates in license-free RF bands, eliminating the need to procure an FCC operating
license. The WLAN operates in the 2.4GHz Industrial, Scientific, and Medical (ISM) RF band and the lower,
middle, and upper bands of the 5GHz Unlicensed National Information Infrastructure (UNII) bands.
•The WLAN devices are capable of four operating modes, IEEE802.11a, IEEE802.11b, IEEE802.11g, and
IEEE802.11n
•The WLAN devices are Wi-Fi certified and operate (as applicable) at a the maximum data rate of 540 Mbps
(theoretical) in IEEE802.11n mode; 54 Mbps in IEEE802.11a or IEEE802.11g mode; and 11 Mbps in
IEEE802.11b mode.
•The WLAN devices support the following encryption methods - WEP, TKIP, CKIP, and AES encryption.
•The Wireless LAN devices are compliant with the following standards: WPA, WPA2, CCX1.0, CCX2.0,
CCX3.0, and CCX4.0.
170
Before Using the Optional Wireless LAN
Wireless LAN Modes Using this Device
Ad Hoc Mode
"Ad Hoc Mode" refers to a wireless network architecture where wireless network connectivity between
multiple computers is established without a central wireless network device, typically known as Access
Point(s). Connectivity is accomplished using only client devices in a peer-to-peer fashion. That is why Ad
Hoc networks are also known as peer-to-peer networks. Ad Hoc networks are an easy and inexpensive
method for establishing network connectivity between multiple computers. Ad Hoc mode requires that the
SSID, network authentication, and encryption key settings are identically configured on all computers in
the Ad Hoc network.
Figure 47. Ad Hoc Mode Network
171
Before Using the Optional Wireless LAN
Access Point (Infrastructure) Mode
Infrastructure mode refers to a wireless network architecture in which devices communicate with wireless
or wired network devices by communicating through an Access Point. In infrastructure mode, wireless
devices can communicate with each other or with a wired network. Corporate wireless networks operate
in infrastructure mode because they require access to the WLAN in order to access services, devices, and
computers (e.g., file servers, printers, databases).
Figure 48. Access Point (Infrastructure) Mode Network
ADSL modem,
cable modem,
or similar
Internet Wired LAN
Access Point*
Wireless LAN *An optional hub for a wired
LAN may be required depending
upon the type of access point used.
172
Before Using the Optional Wireless LAN
How to Handle This Device
The WLAN device is an optional device that may come pre-installed in your mobile computer. Under
normal circumstances, it should not be necessary for you to remove or re-install it. The operating system
that your mobile computer comes with has been pre-configured to support the WLAN device.
•The Wireless LAN devices support IEEE802.11a, IEEE802.11b, IEEE802.11g, and IEEE802.11n.
•The WLAN devices operate in the 2.4 GHz ISM band and the 5 GHz lower, middle, and upper UNII bands.
•Microwave ovens may interfere with the operation of WLAN devices since they operate in the same 2.4 GHz
frequency range as IEEE802.11b/g/n devices. Interference by microwaves does not occur with IEEE802.11a
radio which operates in the 5 GHz RF band.
•Wireless devices that transmit in the 2.4 GHz range may interfere with operation of WLAN devices in
IEEE802.11b/g/n modes. Symptoms of interference include reduced throughput, intermittent disconnects,
and many frame errors. It is HIGHLY recommended that these interfering devices be powered off to ensure
proper operation of the WLAN device.
Deactivating/Disconnecting the WLAN Device
Disconnecting the WLAN device may be desired in certain circumstances (to extend battery life) or where
certain environments require it (i.e. hospitals, clinics, airplanes, etc.). The WLAN device can be
deactivated by using the Wireless On/Off Switch, and it can be disconnected in Windows using the WLAN
icon in the system tray (Note that disconnecting via the icon in the system tray does not turn off the radio;
it continues to transmit and receive even though it’s not connected.).
BEFORE USING THE WIRELESS LAN DEVICE, YOU MUST FIRST INSTALL CLICKME! TO ENSURE THAT THE
CORRECT SOFTWARE FOR YOUR DEVICE IS INSTALLED. SEE “INSTALLING CLICKME!” ON PAGE 74.
173
Before Using the Optional Wireless LAN
Deactivation Using the Wireless On/Off Switch
The WLAN device can be deactivated quickly and efficiently by toggling the Wireless
LAN/Bluetooth/WWAN On/Off Switch to the Off position. The switch has no effect on non-Wireless
LAN models.
Figure 49. Wireless LAN/Bluetooth/WWAN On/Off Switch Location
Disconnection Using the Icon in the Taskbar
Note that disconnecting via the icon in the system tray does not turn off the radio; it continues to transmit
and receive even though it’s not connected.
1Right-click the WLAN icon in the taskbar at the bottom right of your screen.
2Choose Disconnect from a network.
Activating the WLAN Device
Activation of the WLAN device can be accomplished using the same methods as the deactivation process
•Using the Wireless On/Off Switch
•In Windows, by right-clicking the WLAN icon then clicking “Connect to a network”
WLAN/Bluetooth/WWAN Switch
174
Configuring the Wireless LAN
Configuring the Wireless LAN
The optional WLAN device can be configured to establish wireless network connectivity using the
software that is built into Windows. Support for most industry standard security solutions is contained in
this software.
Pre-defined parameters will be required for this procedure. Please consult with your network
administrator for these parameters:
Configuring the WLAN
1Click the Start button, then select Control Panel. (If you are in Windows Vista and the Control Panel is not in
Classic View, select Classic View from the left panel.)
2Double-click the Network and Sharing Center icon.
3Select “Manage wireless networks” from the left panel.
4Click on the [Add] button.
5Depending upon what type of connection you would like to make, make a selection. For an infrastructure
network, select “Manually create a network profile. For ad hoc network, select “Create an ad hoc network”.
6Enter the required information. If necessary, consult with your network administrator for some of the information.
7In the event you require assistance, go to the Network and Sharing Center window (Start -> Control Panel ->
Network and Sharing Center), and type in relevant keywords in the Search box.
Connecting to a Network
After you have configured your computer, you can connect to an active network by performing the
following steps:
1Click on the WLAN icon in the system tray.
2Select “Connect to a network”.
3Select a network from the list that appears, and click the [Connect] button.
Connection to the network
After you have configured your computer, you can connect to an active network by clicking on the
Wireless Network icon in the system tray:
175
Troubleshooting the WLAN
Troubleshooting the WLAN
Troubleshooting
Causes and countermeasures for troubles you may encounter while using your wireless LAN are described
in the following table. If you are unfamiliar with the steps required, consult your System Administrator or
go to [Start] -> Help and Support -> Networking and the Web
Problem Possible Cause Possible Solution
Unavailable
network
connection
Incorrect network
name (SSID) or
network key
Ad hoc connection: verify that the network names (SSID’s) and network keys
(WEP) of all computers to be connected have been configured correctly. SSID’s
and WEP key values must be identical on each machine.
Access Point (Infrastructure) connection: set network name (SSID) and
network key to the same values as those of the access point.
Set the Network Authentication value identically to that of the Access Point.
Please consult your network administrator for this value, if necessary.
Weak received
signal strength
and/or link quality
Ad hoc connection: Retry connection after shortening the distance to the
destination computer or removing any obstacles for better sight.
Access Point (Infrastructure) connection: Retry connection after shortening the
distance to the access point or removing any obstacles for better transmission.
The WLAN device
has been
deactivated or
disabled
Check if the wireless switch is turned On. Go to Start -> Control Panel, and
double-click on Windows Mobility Center. If the wireless network is off, click the
[Turn wireless on] button.
The computer to be
connected is turned
off
Check if the computer to be connected is turned ON.
176
Troubleshooting the WLAN
Unavailable
network
connection
(continued)
RF interference from
Access Points or
other wireless
networks
The use of identical or overlapping RF channels can cause interference with the
operation of the WLAN device. Change the channel of your Access Point to a
channel that does not overlap with the interfering device.
Wireless network
authentication has
failed
Re-check your Network Authentication, Encryption, and Security settings.
Incorrectly configured security settings such as an incorrectly typed WEP key,
a misconfigured LEAP username, or an incorrectly chosen authentication
method will cause the LAN device to associate but not authenticate to the
wireless network.
Incorrectly
configured network
settings
Recheck the configuration of your network settings.
Incorrect IP address
configuration
This only applies to networks using static IP addresses. Please contact your
network administrator for the correct settings.
Problem Possible Cause Possible Solution
177
WLAN Specifications
WLAN Specifications
Specifications
Item Specification
Type of network The integrated Intel Centrino Advanced-N 6200 (B22ANHMW) (802.11abgn 2x2) and
Atheros HB92 (802.11a/b/g/n) WLAN devices conform to IEEE 802.11a, 802.11b/g,
and 802.11n, Wi-Fi based*.
Transfer rate (Automatic switching) 54 Mbps maximum data rate (IEEE802.11n to be determined)
Active frequency •802.11n: 2.4 GHz or 5 GHz
•802.11b/g: 2400~2473 MHz
•802.11a: 4900 ~ 5850 MHz
Typical operating distances** •802.11a: 40 ft. (12 m) @ 54 Mbps; 300 ft. (91 m) @ 6 Mbps
•802.11b: 100 ft. (30 m) @ 11 Mbps; 300 ft. (91 m) @ 1 Mbps
•802.11g: 100 ft. (30 m) @ 54 Mbps; 300 ft. (91 m) @ 1 Mbps
•802.11n: Estimated double the operating distance of 802.11g and 802.11a in
their respective frequencies.
Number of channels •802.11a: 8 independent channels
•802.11b/g: 11 channels, 3 non-overlapping channels
•802.11n: 2.4 GHz - 3 non-overlapping channels when Channel Bonding is not
used; 2 non-overlapping channels when Channel Bonding is used.
5 GHz - 12 non-overlapping UNII channels with or without Channel Bonding
Security Encryption Types - WEP, TKIP, AES***, WPA 1.0 compliant
Encryption Key lengths Supported: 64 bits and 128 bits 802.1x/EAP
Maximum recommended number
of computers to be connected
over wireless LAN (during ad hoc
connection)
10 units or less ****
178
WLAN Specifications
* “Wi-Fi based” indicates that the interconnectivity test of the organization which guarantees the interconnectivity of
wireless LAN (Wi-Fi Alliance) has been passed.
** The communication ranges shown above will increase or decrease depending on factors such as number of walls, reflective
material, or interference from external RF sources.
*** Encryption with network key (WEP) is performed using the above number of bits, however, users can set 40 bits/ 104
bits after subtracting the fixed length of 24 bits.
**** Depending on practical environments, the allowable number of computers to be connected may be decreased.
179
Using the Bluetooth Device
Using the Bluetooth Device
The Integrated Bluetooth module (EYSMJCS) is a wireless device installed in selected Fujitsu mobile
computers.
What is Bluetooth
Bluetooth technology is designed as a short-range wireless link between mobile devices, such as laptop
computers, phones, printers, and cameras. Bluetooth technology is used to create Personal Area Networks
(PANs) between devices in short-range of each other.
Where to Find Information About Bluetooth
The Bluetooth module contains a robust Help user’s guide to assist you in learning about operation of the
Bluetooth device.
To access the Help file, click [Start] -> All Programs, and click on Bluetooth, then select User’s Guide.
For additional information about Bluetooth Technology, visit the Bluetooth Web site at:
www.bluetooth.com.
THE WIRELESS LAN/BLUETOOTH ON/OFF SWITCH WILL POWER OFF BOTH THE OPTIONAL WIRELESS
LAN AND BLUETOOTH DEVICES AT THE SAME TIME. TO ENABLE OR DISABLE EITHER ONE OF THE
DEVICES INDIVIDUALLY, PERFORM THE FOLLOWING STEPS:
1Slide the Wireless LAN/Bluetooth on/off switch to On position.
2Go to Start > All Programs > Bluetooth.
3Click on Options under the Bluetooth menu and click on the Bluetooth Radio Power
button.
4Click [OK].
180
Using the Bluetooth Device
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
The Bluetooth antenna is located on the front edge of the right palm rest and is exempt from minimum
distance criteria due to its low power.
The transmitters in this device must not be co-located or operated in conjunction with any other antenna
or transmitter.
Canadian Notice
To prevent radio interference to the licensed service, this device is intended to be operated indoors and
away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed
outdoors is subject to licensing.
Warranty
Users are not authorized to modify this product. Any modifications invalidate the warranty.
This equipment may not be modified, altered, or changed in any way without signed written permission
from Fujitsu. Unauthorized modification will void the equipment authorization from the FCC and
Industry Canada and the warranty.
181
Appendix B: Fingerprint Sensor Device
Introducing the Fingerprint Sensor Device
Your system has a fingerprint sensor device at the bottom left below the display screen.
Figure 50. Fingerprint sensor
With a fingerprint sensor, you can avoid having to enter a username and password every time you want to:
•Log onto Windows
•Resume from sleep mode
•Cancel a password-protected screen saver
•Log into homepages that require a username and password
Fingerprint
Sensor Device
182
- Introducing the Fingerprint Sensor Device
After you have “enrolled” - or registered - your fingerprint, you can simply swipe your fingertip over the
sensor for the system recognize you.
The fingerprint sensor uses Softex OmniPass which provides password management capabilities to
Microsoft Windows operating systems. OmniPass enables you to use a "master password" for all
Windows, applications, and on-line passwords.
OmniPass requires users to authenticate themselves using the fingerprint sensor before granting access to
the Windows desktop. This device results in a secure authentication system for restricting access to your
computer, applications, web sites, and other password-protected resources.
OmniPass presents a convenient graphical user interface, through which you can securely manage
passwords, users, and multiple identities for each user.
Getting Started
This section guides you through the preparation of your system for the OmniPass fingerprint recognition
application. You will be led through the OmniPass installation process. You will also be led through the
procedure of enrolling your first user into OmniPass.
Installing OmniPass
If OmniPass has already been installed on your system, skip this section and go directly to “User
Enrollment” on page 185. You can determine whether OmniPass has already been installed by checking
to see if the following are present:
•The gold key-shaped OmniPass icon in the system tray at the bottom right of the screen.
•The Softex program group in the Programs group of the Start menu
System Requirements
The OmniPass application requires space on your hard drive; it also requires specific Operating Systems
(OS’s). The minimum requirements are as follows:
183
- Introducing the Fingerprint Sensor Device
•Windows XP Professional operating system
•At least 35 MB available hard disk space
Installing the OmniPass Application
If OmniPass is already installed on your system, go to “User Enrollment” on page 185. Otherwise
continue with this section on software installation.
To install OmniPass on your system you must:
1Insert the installation media for the OmniPass application into the appropriate drive. If you are installing from
CD-ROM or DVD-ROM, you must find and launch the OmniPass installation program (setup.exe) from the
media.
2Follow the directions provided in the OmniPass installation program. Specify a location to which you would like
OmniPass installed. It is recommended that you NOT install OmniPass in the root directory (e.g. C:\).
3Once OmniPass has completed installation you will be prompted to restart you system. Once your system has
rebooted you will be able to use OmniPass. If you choose not to restart immediately after installation, OmniPass
will not be available for use until the next reboot.
4The installation program automatically places an icon (Softex OmniPass) in the Windows Control Panel as well
as a golden key shaped icon in the taskbar.
Verifying Information about OmniPass
After you have completed installing OmniPass and restarted your system, you may wish to check the
version of OmniPass on your system.
To check the version information of OmniPass:
•INSTALLATION OF THE APPLICATION REQUIRES THAT YOU HAVE AN EXTERNAL OPTICAL DRIVE ATTACHED TO
YOUR SYSTEM.
•FOR INSTALLATION, OMNIPASS REQUIRES THAT THE USER INSTALLING OMNIPASS HAVE ADMINISTRATIVE
PRIVILEGES TO THE SYSTEM. IF YOUR CURRENT USER DOES NOT HAVE ADMINISTRATIVE PRIVILEGES, LOG OUT
AND THEN LOG IN WITH AN ADMINISTRATOR USER BEFORE PROCEEDING WITH OMNIPASS INSTALLATION.
184
- Introducing the Fingerprint Sensor Device
1From the Windows Desktop, double-click the key-shaped OmniPass icon in the taskbar (usually located in the
lower right corner of the screen),
or,
Click the Start button and click Control Panel. Double-click Softex OmniPass in the Control Panel, and the
OmniPass Control Center will appear. If it does not appear, then the program is not properly installed,
or,
Click the Start button, select Programs, and from the submenu select the Softex program group, from that
submenu click OmniPass Control Center.
2Select the About tab at the top of the OmniPass Control Center. The About tab window appears with version
information about OmniPass.
Uninstalling OmniPass
To remove the OmniPass application from your system:
1Click Start on the Windows taskbar. Select Settings, and then Control Panel.
2Double-click Add/Remove Programs (In Windows 7: Programs and Features).
3Select OmniPass, and then click Change/Remove.
4Follow the directions to uninstall the OmniPass application.
5Once OmniPass has finished uninstalling, reboot your system when prompted.
FOR UNINSTALLATION, OMNIPASS REQUIRES THAT THE USER UNINSTALLING OMNIPASS HAVE
ADMINISTRATIVE PRIVILEGES TO THE SYSTEM. IF YOUR CURRENT USER DOES NOT HAVE
ADMINISTRATIVE PRIVILEGES, LOG OUT AND THEN LOG IN WITH AN ADMINISTRATOR USER BEFORE
PROCEEDING WITH OMNIPASS UNINSTALLATION.
185
- Introducing the Fingerprint Sensor Device
User Enrollment
Before you can use any OmniPass features you must first enroll a user into OmniPass.
Master Password Concept
Computer resources are often protected with passwords. Whether you are logging into your computer,
accessing your email, e-banking, paying bills online, or accessing network resources, you often have to
supply credentials to gain access. This can result in dozens of sets of credentials that you have to
remember.
During user enrollment a "master password” is created for the enrolled user. This master password
“replaces” all other passwords for sites you register with OmniPass.
Example: A user, John, installs OmniPass on his system (his home computer) and enrolls an OmniPass
user with username “John_01” and password “freq14”. He then goes to his webmail site to log onto his
account. He inputs his webmail credentials as usual (username “John_02” and password “lifebook”), but
instead of clicking [Submit], he directs OmniPass to Remember Password. Now whenever he returns to
that site, OmniPass will prompt him to supply access credentials.
John enters his OmniPass user credentials (“John_01” and “freq14”) in the OmniPass authentication
prompt, and he is allowed into his webmail account. He can do this with as many web sites or password
protected resources he likes, and he will gain access to all those sites with his OmniPass user credentials
(“John_01” and “freq14”). This is assuming he is accessing those sites with the system onto which he
enrolled his OmniPass user. OmniPass does not actually change the credentials of the password protected
resource. If John goes to another computer without he OmniPass account to access his webmail, he would
need to enter his original webmail credentials (“John_02” and “lifebook”) to gain access. If he attempts
his OmniPass user credentials on a system other than a system he’s enrolled on, he will not gain access.
THE ENROLLMENT PROCEDURE ASSUMES YOU HAVE NO HARDWARE AUTHENTICATION DEVICES OR
ALTERNATE STORAGE LOCATIONS THAT YOU WISH TO INTEGRATE WITH OMNIPASS. IF YOU DESIRE
SUCH FUNCTIONALITY, CONSULT THE APPROPRIATE SECTIONS OF THIS DOCUMENT.
186
- Introducing the Fingerprint Sensor Device
Basic Enrollment
The Enrollment Wizard will guide you through the process of enrolling a user. Unless you specified
otherwise, after OmniPass installation the Enrollment Wizard will launch on Windows login. If you do
not see the Enrollment Wizard, you can bring it up by clicking Start on the Windows taskbar; select
Programs; select Softex; click OmniPass Enrollment Wizard.
1Click Enroll to proceed to username and password verification. By default, the OmniPass Enrollment Wizard
enters the credentials of the currently logged in Windows user.
2Enter the password you use to log in to Windows. This will become the “master password” for this OmniPass
user. In most cases, the Domain: value will be your Windows computer name. In a corporate environment, or
when accessing corporate resources, the Domain: may not be your Windows computer name. Click [Next] to
continue.
3In this step OmniPass captures your fingerprint. Refer to “Enrolling a Fingerprint” on page 186 for additional
information.
4Next, choose how OmniPass notifies you of various events. We recommend you keep Taskbar Tips on
Beginner mode taskbar tips and Audio Tips on at least Prompt with system beeps only until you get
accustomed to how OmniPass operates. Click [Next] to proceed with user enrollment. You will then see a
Congratulations screen indicating your completion of user enrollment.
5Click [Done] to exit the OmniPass Enrollment Wizard. You will be asked if you’d like to log in to OmniPass with
your newly enrolled user; click [Yes].
Enrolling a Fingerprint
Enrolling a fingerprint will increase the security of your system and streamline the authentication
procedure.
You enroll fingerprints in the OmniPass Control Center. With an OmniPass user logged in, double-click
the system tray OmniPass icon. Select the User Settings tab and click Enrollment under the User
Settings area. Click Enroll Authentication Device and authenticate at the authentication prompt to start
device enrollment.
187
- Introducing the Fingerprint Sensor Device
1During initial user enrollment, you will be prompted to select the finger you wish to enroll. Fingers that have
already been enrolled will be marked by a green check. The finger you select to enroll at this time will be marked
by a red arrow. OmniPass will allow you re-enroll a finger. If you choose a finger that has already been enrolled
and continue enrollment, OmniPass will enroll the fingerprint, overwriting the old fingerprint. Select a finger to
enroll and click [Next].
2It is now time for OmniPass to capture your selected fingerprint. It may take a several capture attempts before
OmniPass acquires your fingerprint. Should OmniPass fail to acquire your fingerprint, or if the capture screen
times out, click [Back] to restart the fingerprint enrollment process.
Your system has a “swipe” fingerprint sensor. A swipe sensor is small and resembles a skinny elongated
rectangle. To capture a fingerprint, gently swipe or pull your fingertip over the sensor (starting at the second
knuckle) towards yourself. Swiping too fast or too slow will result in a failed capture. The Choose Finger
screen has a [Practice] button; click it to practice capturing your fingerprint. When you are comfortable with how
your fingerprint is captured, proceed to enroll a finger.
3Once OmniPass has successfully acquired the fingerprint, the Verify Fingerprint screen will automatically
appear. To verify your enrolled fingerprint, place your fingertip on the sensor and hold it there as if you were
having a fingerprint captured. Successful fingerprint verification will show a green fingerprint in the capture
window and the text Verification Successful under the capture window.
Using OmniPass
You are now ready to begin using OmniPass. Used regularly, OmniPass will streamline your
authentications.
Password Replacement
You will often use the password replacement function. When you go to a restricted access website (e.g.,
your bank, your web-based email, online auction or payment sites), you are always prompted to enter your
login credentials. OmniPass can detect these prompts and you can teach OmniPass your login credentials.
The next time you go to that website, you can authenticate with your fingerprint to gain access.
188
- Introducing the Fingerprint Sensor Device
OmniPass Authentication Toolbar
After installing OmniPass and restarting, you will notice a dialog you have not seen before at Windows
Logon. This is the OmniPass Authentication Toolbar, and it is displayed whenever the OmniPass
authentication system is invoked. The OmniPass authentication system may be invoked frequently: during
Windows Logon, during OmniPass Logon, when unlocking your workstation, when resuming from sleep
or hibernate, when unlocking a password-enabled screensaver, during password replacement for
remembered site or application logins, and more. When you see this toolbar, OmniPass is prompting you
to authenticate.
The Logon Authentication window indicates what OmniPass-restricted function you are attempting. The
icons in the lower left (fingerprint and key) show what authentication methods are available to you.
Selected authentication methods are highlighted while unselected methods are not. When you click the
icon for an unselected authentication method, the authentication prompt associated with that method is
displayed.
When prompted to authenticate, you must supply the appropriate credentials: an enrolled finger for the
fingerprint capture window or your master password for the master password prompt (the key icon).
Remembering a Password
OmniPass can remember any application, GUI, or password protected resource that has a password
prompt.
Using the following procedure, you can store a set of credentials into OmniPass. These credentials will
then be linked to your “master password” or fingerprint.
Go to a site that requires a login (username and password), but do not log in yet. At the site login prompt,
enter your username and password in the prompted fields, but do not enter the site (do not hit [Enter],
[Submit], [OK], or Login). Right-click the OmniPass system tray icon and select Remember Password
from the submenu. The Windows arrow cursor will change to a golden key OmniPass cursor. Click the
OmniPass cursor in the login prompt area, but don’t click [Login] or [Submit].
189
- Introducing the Fingerprint Sensor Device
Associating a Friendly Name
After clicking the OmniPass key cursor near the login prompt, OmniPass will prompt you to enter a
“friendly name” for this site. You should enter something that reminds you of the website, the company,
or the service you are logging into. In its secure database, OmniPass associates this friendly name with
this website.
Additional Settings for Remembering a Site
When OmniPass prompts you to enter a “friendly name” you also have the opportunity to set how
OmniPass authenticates you to this site. There are three effective settings for how OmniPass handles a
remembered site.
The default setting is Automatically click the “OK” or “Submit” button for this password protected
site once the user is authenticated. With this setting, each time you navigate to this site OmniPass will
prompt you for your master password or fingerprint authentication device. Once you have authenticated
with OmniPass, you will automatically be logged into the site.
Less secure is the option to Automatically enter this password protected site when it is activated. Do
not prompt for authentication. Check the upper box to get this setting, and each time you navigate to
this site OmniPass will log you into the site without prompting you to authenticate.
If you uncheck both boxes in Settings for this Password Site, OmniPass will prompt you for your master
password or fingerprint authentication device. Once you have authenticated with OmniPass your
credentials will be filled in to the site login prompt, but you will have to click the website [OK], [Submit],
or [Login] button to gain access to the site.
THIS SETTING IS MORE CONVENIENT IN THAT WHENEVER YOU GO TO A SITE REMEMBERED WITH THIS
SETTING, YOU WILL BYPASS ANY AUTHENTICATION PROCEDURE AND GAIN INSTANT ACCESS TO THE
SITE. BUT SHOULD YOU LEAVE YOUR SYSTEM UNATTENDED WITH YOUR OMNIPASS USER LOGGED IN,
ANYONE USING YOUR SYSTEM CAN BROWSE TO YOUR PASSWORD PROTECTED SITES AND GAIN
AUTOMATIC ACCESS.
190
- Introducing the Fingerprint Sensor Device
Click Finish to complete the remember password procedure. The site location, the credentials to access
the site, and the OmniPass authentication settings for the site are now stored in the OmniPass secure
database. The OmniPass authentication settings (Settings for this Password Site) can always be changed
in Vault Management.
Logging in to a Remembered Site
Whether or not OmniPass prompts you to authenticate when you return to a remembered site is determined
by Settings for this Password Site and can be changed in Vault Management.
The following cases are applicable to using OmniPass to login to: Windows, remembered web sites, and
all other password protected resources.
With Master Password
Once you return to a site you have remembered with OmniPass, you may be presented with a master
password prompt. Enter your master password and you will be allowed into the site.
Logging into Windows with a Fingerprint Device
When logging into Windows with a fingerprint device, the fingerprint capture window will now appear
next to the Windows Login screen. Place your enrolled fingertip on the sensor to authenticate. You will
be simultaneously logged into Windows and OmniPass. The capture window will also appear if you have
used Ctrl-Alt-Del to lock a system, and the fingerprint device can be used to log back in as stated above.
IF A MACHINE IS LOCKED AND OMNIPASS DETECTS A DIFFERENT USER LOGGING BACK IN WITH A
FINGERPRINT, THE FIRST USER WILL BE LOGGED OUT AND THE SECOND USER LOGGED IN.
191
- Introducing the Fingerprint Sensor Device
Password Management
OmniPass provides an interface that lets you manage your passwords. To access this GUI, double-click
the OmniPass key in the system tray. Click Vault Management; you will be prompted to authenticate.
Once you gain access to Vault Management, click Manage Passwords under Vault Settings. You will
see the Manage Passwords interface, with a list of friendly names.
You can view the credentials stored for any remembered website by highlighting the desired resource
under Password Protected Dialog and clicking Unmask Values. Should a password be reset, or an
account expire, you can remove stored credentials from OmniPass. Highlight the desired resource under
Password Protected Dialog and click Delete Page. You will be prompted to confirm the password
deletion.
The two check boxes in Manage Passwords govern whether OmniPass prompts you to authenticate or
directly logs you into the remembered site.
OmniPass will overwrite an old set of credentials for a website if you attempt to use Remember
Password on an already remembered site.
The exception to the above rule is when resetting the Windows password. If your password is reset in
Windows, the next time you login to Windows, OmniPass will detect the password change and prompt
you to “Update” or “Reconfirm” the password with OmniPass. Enter your new Windows password in the
prompt and click OK. Your OmniPass "master password" will still be your Windows password.
OmniPass User Identities
Identities allow OmniPass users to have multiple accounts to the same site (e.g., bob@biblomail.com and
boballen@biblomail.com). If OmniPass did not provide you identities, you would be limited to
remembering one account per site.
To create and manage identities, double-click the OmniPass key in the system tray. Click Vault
Management; OmniPass will prompt you to authenticate. Once you gain access to Vault Management,
click Manage Identities under Vault Settings. You can only manage the identities of the currently logged
in OmniPass user
192
- Introducing the Fingerprint Sensor Device
To add a new identity, click New Identity or double-click Click here to add a new identity. Name the
new identity and click [OK], then click [Apply]. You can now switch to the new identity and start
remembering passwords.
To delete an identity, highlight the identity you want to delete and click [Delete Identity], then [Apply].
To set the default identity, highlight the identity you want as default and click [Set as Default]; click
[Apply] to ensure the settings are saved. If you log in to OmniPass with a fingerprint device, you will
automatically be logged in to the default identity for that OmniPass user. You can choose the identity with
which you are logging in if you login using "master password".
Choosing User Identity during Login
To choose your identity during login, type your username in the User Name: field. Press [Tab] and see
that the Domain: field self-populates. Click the Password: field to bring the cursor to it, and you will see
the pull-down menu in the Identity: field. Select the identity to login as, then click OK.
Switch User Identity
To switch identities at any time, right-click the OmniPass system tray icon and click Switch User Identity
from the submenu. The Switch Identity dialog will appear. Select the desired identity and then click OK.
Identities and Password Management
On the Manage Passwords interface of the Vault Management tab of the OmniPass Control Center,
there is a pull-down selection box labeled, Identity. This field lets you choose which identity you are
managing passwords for. When you select an identity here, only those password protected dialogs that are
associated with that identity are shown. You can perform all the functions explained in “Password
Management” on page 191.
WHEN YOU DELETE AN IDENTITY, ALL OF ITS ASSOCIATED REMEMBERED SITES AND PASSWORD
PROTECTED DIALOGS ARE LOST.
193
- Introducing the Fingerprint Sensor Device
Configuring OmniPass
This section gives an overview of both the Export/Import function and the OmniPass Control Center.
Exporting and Importing Users
Using OmniPass Control Center, you can export and import users in and out of OmniPass. The export
process backs up all remembered sites, credentials, and enrolled fingerprints for an OmniPass user. All
OmniPass data for a user is backed up to a single encrypted database file. During the import process, the
Windows login of the exported user is required. If the proper credentials cannot be supplied, the user
profile will not be imported.
Exporting an OmniPass User Profile
To export a user, open the OmniPass Control Center, and click Import/Export User under Manage
Users.
Click Exports an OmniPass user profile. OmniPass will prompt you to authenticate. Upon successfully
authentication, you must name the OmniPass user profile and decide where to save it. An .opi file is
generated, and you should store a copy of it in a safe place.
YOU CANNOT IMPORT A USER INTO OMNIPASS IF THERE ALREADY IS A USER WITH THE SAME NAME
ENROLLED IN OMNIPASS.
•YOU SHOULD PERIODICALLY EXPORT YOUR USER PROFILE AND STORE IT IN A SAFE PLACE. IF
ANYTHING HAPPENS TO YOUR SYSTEM, YOU CAN IMPORT YOUR OMNIPASS PROFILE TO A NEW
SYSTEM AND HAVE ALL YOUR REMEMBERED SETTINGS AND FINGERPRINTS INSTANTLY.
•YOU DON'T FORGET THE WINDOWS LOGIN CREDENTIALS WHEN EXPORTING. WHEN YOU EXAMINE
THE IMPORTATION, YOU ARE PROMPTED FOR AUTHENTICATION. THE CREDENTIALS THAT WILL
ALLOW A USER PROFILE TO BE IMPORTED ARE THE WINDOWS LOGIN CREDENTIALS OF THE
EXPORTED USER. THEY ARE THE CREDENTIALS THAT HAD TO BE SUBMITTED WHEN THE USER
PROFILE WAS EXPORTED. YOU WILL NEED USER NAME, PASSWORD, AND DOMAIN.
194
- Introducing the Fingerprint Sensor Device
This .opi file contains all your user specific OmniPass data, and it is both encrypted and password
protected. This user profile does NOT contain any of your encrypted data files.
Importing an OmniPass User Profile
To import an OmniPass user open the OmniPass Control Center, and click Import/Export User under
Manage Users. Click Imports a new user into OmniPass and then select OmniPass Import/Export File
(*.opi) and click Next. OmniPass will then prompt you to browse for the file you had previously exported
(.opi file). When you select the .opi file for importation, OmniPass will prompt you for authentication.
The credentials that will allow a user profile to be imported are the Windows login credentials of the
exported user. They are the credentials that had to be submitted when the user profile was exported. You
will need User Name, Password, and Domain. If you don’t remember the value for Domain, in a PC or
SOHO environment Domain should be your computer name.
OmniPass will notify you if the user was successfully imported.
Things to Know Regarding Import/Export
•Assume you export a local Windows User profile from OmniPass. You want to import that profile
to another machine that has OmniPass. Before you can import the profile, a Windows user with the
same login credentials must be created on the machine importing the profile.
Example: I have a Windows user with the username “Tom” and the password “Sunshine” on my
system. I have enrolled Tom into OmniPass and remembered passwords. I want to take all my
passwords to new system. I export Tom’s OmniPass user profile. I go to my new system and using
the Control Panel I create a user with the username "Tom" and the password "Sunshine". I can now
successfully import the OmniPass user data to the new system.
•If you export an OmniPass-only user, you can import that user to any computer running OmniPass,
provided that a user with that name is not already enrolled in OmniPass.
•If you attempt to import a user profile who has the same name as a user already enrolled in
OmniPass, the OmniPass import function will fail.
195
- Introducing the Fingerprint Sensor Device
OmniPass Control Center
This section will serve to explain functions within the OmniPass Control Center that weren’t explained
earlier.
You can access the OmniPass Control Center any of three ways:
•Double-click the golden OmniPass key shaped icon in the Windows taskbar (typically in the lower-
right corner of the desktop)
•Click the Start button; select the Programs group; select the Softex program group; and click the
OmniPass Control Center selection.
•Open the Windows Control Panel (accessible via Start button --> Settings --> Control Panel) and
double-click the Softex OmniPass icon.
User Management
The User Management tab has two major interfaces: Add/Remove User and Import/Export User.
Import/Export User functionality is documented in “Exporting and Importing Users” on page 193.
Add/Remove User functionality is straightforward.
If you click Adds a new user to OmniPass you will start the OmniPass Enrollment Wizard. The
Enrollment Wizard is documented in “User Enrollment” on page 185.
If you click Removes a user from OmniPass, OmniPass will prompt you to authenticate. Authenticate
with the credentials (or enrolled fingerprint) of the user you wish to remove. OmniPass will prompt you
to confirm user removal. Click OK to complete user removal.
REMOVING A USER WILL AUTOMATICALLY DESTROY ALL OMNIPASS DATA ASSOCIATED WITH THAT USER.
ALL IDENTITIES AND CREDENTIALS ASSOCIATED WITH THE USER WILL BE LOST.
IF YOU’RE SURE YOU WANT TO REMOVE THE USER, WE RECOMMEND YOU EXPORT THE USER PROFILE.
196
- Introducing the Fingerprint Sensor Device
User Settings
The User Settings tab has four interfaces: Audio Settings, Taskbar Tips, and Enrollment. User settings
allow users to customize OmniPass to suit their individual preferences. Under User Settings (Audio
Settings and Taskbar Tips) you can set how OmniPass notifies the user of OmniPass events (e.g.,
successful login, access denied, etc.). The details of each setting under the Audio Settings and Taskbar
Tips interfaces are self-explanatory.
The Enrollment interface allows you to enroll fingerprints. For the procedure to enroll and authentication
device refer to Chapter 2.3. To enroll additional fingerprints, click Enroll Authentication Device, and
authenticate with OmniPass. Select the fingerprint recognition device in the Select Authentication
Device screen (it should already be marked by a green check if you have a finger enrolled) and click Next.
System Settings
The OmniPass Startup Options interface can be found in the System Settings tab. With these options you
can specify how your OmniPass Logon is tied to your Windows Logon.
The first option, Automatically log on to OmniPass as the current user, will do just as it says; during
Windows login, you will be logged on to OmniPass using your Windows login credentials. If the user
logging into Windows was never enrolled into OmniPass, upon login no one will be logged on to
OmniPass. This setting is appropriate for an office setting or any setting where users must enter a
username and password to log into a computer. This is the default setting.
With the second option, Manually log on to OmniPass at startup, OmniPass will prompt you to login
once you have logged on to Windows.
With the third option, Do not log on to OmniPass at startup, OmniPass will not prompt for a user to be
logged on.
You can manually log on to OmniPass by right-clicking the OmniPass taskbar icon and clicking Log in
User from the right-click menu.
197
- Introducing the Fingerprint Sensor Device
Troubleshooting
You cannot use OmniPass to create Windows users. You must first create the Windows user, and you will
need administrative privileges to do that. Once the Windows user is created, you can add that user to
OmniPass using the same username and password
Cannot add Windows users to OmniPass
If you experience difficulties adding a Windows user to OmniPass, you may need to adjust your local
security settings. You can do this by going to Start, Control Panel, Administrative Tools, and Local
Security Settings. Expand Local Policies, expand Security Options, and double-click Network
Access: Sharing and Security Model for Local Accounts. The correct setting should be Classic -
Local Users Authenticate as Themselves.
Cannot add a User with a Blank Password to OmniPass
If you experience difficulties adding a user with a blank password to OmniPass, you may need to adjust
your local security settings. First attempt the procedure explained in the Cannot add Windows user to
OmniPass section. If the difficulties persist, then try the following procedure.
Click Start, Control Panel, Administrative Tools, and Local Security Settings. Expand Local
Policies, expand Security Options, and double-click Accounts: Limit local account use of blank
passwords to console login only. This setting should be set to Disabled.
Dialog appears after OmniPass authentication during Windows Logon
After installing OmniPass on your system, you can choose to logon to Windows using OmniPass. You
authenticate with OmniPass (via master password, or an enrolled security device) and OmniPass logs
you into Windows. You may, during this OmniPass authentication, see a Login Error dialog box.
This dialog box occurs when OmniPass was unable to log you into Windows with the credentials
supplied (username and password). This could happen for any of the following reasons:
•Your Windows password has changed
•Your Windows account has been disabled
198
- Introducing the Fingerprint Sensor Device
If you are having difficulties due to the first reason, you will need to update OmniPass with your
changed Windows account password. Click Update Password and you will be prompted with a dialog
to reconfirm your password.
Enter the new password to your Windows user account and click OK. If the error persists, then it is
unlikely the problem is due to your Windows user account password changing.
199
Index
A
About This Guide 1, 13
AC
adapter 67
indicator 31
plug adapters 129
Active Digitizer 46
Air Vents 27, 29
Anti-theft lock slot 25, 26
Auto/Airline Adapter 67, 68
Automatically Downloading Driver Updates 121
B
Battery 80
care 129
cold-swapping 83
conserving power 75
dead 108
faulty 108
hot-swapping 83
increasing life 130
level indicator 31
level indicators 31
lithium ion battery 80
low 82
problems 108, 109
recharging 81
replacing 83
shorted 83
Standby mode 82
Battery Latches 28
BIOS
guide 72
setup utility 71
Bluetooth
Where to Find Information 179
Boot Sequence 70
Booting the System 72
Built-in Speakers 103
Button Icons 56, 59
C
Capacitive Touchscreen 50
CapsLock 32
CD-ROM 103, 104
Click Me! 74
Cold-swapping 54
Configuration Label 133
Contact Information 14
Controls and Connectors 17
Conventions Used in the Guide 13
Cursor Keys 39
D
DC in connector 17
DC Output Cable 67
200
DC Power Jack 67
Device Ports 94
DIMM 90
Display Panel 20, 33
brightness 36
opening 33
problems 110, 111
Dock port 18
Docking Port 96
Double-Clicking 42
Dragging 42, 44
Drivers and Application Restore CD 117
Dual Built-in Microphones 21
DVD drive, problems 103, 104
E
Error Messages 113
External Floppy Disk Drive
problems 105
External Monitor Port 98
External Video Port 27
External Video port 18
F
FDU 74, 121, 143
Fingerprint Sensor Device 21, 181
enrolling a fingerprint 186
getting started 182
installing OmniPass 182
logging into a remembered site 190
OmniPass authentication toolbar 188
password replacement 187
remembering a password 188
uninstalling OmniPass 184
user enrollment 185
using OmniPass 187
Fujitsu Contact Information 14
Fujitsu Driver Update utility 74, 121, 143
Fujitsu LifeBook
storing 126
traveling 128
Fujitsu Shopping Online 15
Function Key
F10 40
F3 40
F4 40
F6 40
F7 40
F8 40, 52
F9 40, 52
FN 40
G
Gestures 50
Gigabit LAN (RJ-45) Jack 27
Glossary 145
H
Hard Disk Drive
access indicator 31
problems 105
Hard Disk Drive Passwords 70
Headphone Jack 17, 23, 98
Hibernation Feature 77
disable/enable 77
I
IEEE 1394 Port 24, 97
Internal LAN Jack 94, 95
201
K
Keyboard 20, 38
cursor keys 39
function keys 39
numeric keypad 38
problems 105
windows keys 39
L
LifeBook Security Panel
operating 63
passwords 61
setting up 61
uninstalling 64
LifeBook Security/Tablet PC Buttons 55
LifeBook SecurityTablet PC Buttons 20
Lithium ion Battery Bay 28
Local Area Network (LAN) 18
M
Media Player
care 131
Memory
capacity 92
checking capacity 92
compartment 29, 90
installing 90
problems 106
removing 92
upgrade module 90
Memory Stick/Secure Digital Cards 85
installing 86
removing 86
Microphone Jack 17, 24, 98
Microsoft Works 144
Modem 26
problems 106
Modem (RJ-11) Jack 95
Modular Bay 53
cold-swapping 54
devices 53
installing 54
removing 54
Modular Devices 54
installing 54
removing 54
Mouse problems 105
N
NumLk 32
P
PC Card Eject Button 23
PC Cards 87
icon 17
installing 88
problems 106, 107
removing 88
slot 23
PCMCIA Card slot 17
Pen tether 51
Pen Tether Attachment Point 23
Pointing Device 41
Port Replicator
connector 29
problems 104
Post-logon button functions 58
202
Power
AC adapter 67
Auto/Airline adapter 67
failure 107
indicator 30
management 75
off 78
on 69
problems 109
sources 67
Power Management 75
Power On Self Test 69, 113
Power/Suspend/Resume Button 20, 75
Pre-Installed Software 140
Adobe Acrobat Reader 141
Google Toolbar 142, 143
manuals 141
Pre-logon button functions 56
Q
Quick Point Pointing Device 41
R
Registration 73
Regulatory Information 161
Restarting 77
Restoring the Operating System 118
Restoring Your Pre-installed Software 117
Right Button 21
RJ-11 95
RJ-45 94
S
ScrLk 32
Scrolling 45
SD Card
installing 86
removing 86
SD/Memory Stick Slot 17
SDRAM 29, 90
Security Buttons
Functions 55
Security lock slot 18
Smart Card Reader 89
Smart Card Slot 17
Specifications 133
Audio 135
Chipset 134
Device Ports 137
Dimensions and Weight 139
Environmental Requirements 140
Keyboard 138
mass storage device options 135
Memory 134
Microprocessor 134
Power 139
Video 134
Starting the first time 72
Status Indicator Panel 20, 30
Suspend/ Resume button 18
T
Tablet Configuration 34
Tablet PC Button Functions
changing 60
Touch Screen
calibrating 49
clicking 47
dragging 48
Touchpad Control Adjustment 45
Troubleshooting 100
203
U
Universal Serial Bus Ports 96
USB 2.0 Ports 17, 23, 26, 27, 96
problems 106
V
Volume control 52
W
Warranty 15
Windows keys 39
Application key 39
Start keys 39
Windows Power Management 77
Wireless LAN
Before Using the Wireless LAN 169
configuring 169
connection to the network 174
deactivating/disconnecting 172
modes 170
Specifications 177
Troubleshooting 175
Wireless LAN/Bluetooth On/Off Switch 18, 23

Navigation menu
