System
Operating Manual
FUJITSU Tablet STYLISTIC Q Series
Model: MQ10A
Contact address in North America
FUJITSU AMERICA INC.
1250 East Arques Avenue, Sunnyvale,
CA 94085-3470, U.S.A.
Telephone: 800 831 3183 or 408 746 6000
"http://solutions.us.fujitsu.com"
"http://solutions.us.fujitsu.com/contact"
Have a question? Email us at: "AskFujitsu@us.fujitsu.com"
Copyright
©2018Fujitsu America, Inc.. All rights reserved
FPC65-7889-01
FUJITSU Tablet STYLISTIC Q508
Operating Manual
Declarations of conformity 7
Fujitsu Contact Information 8
Notational conventions 9

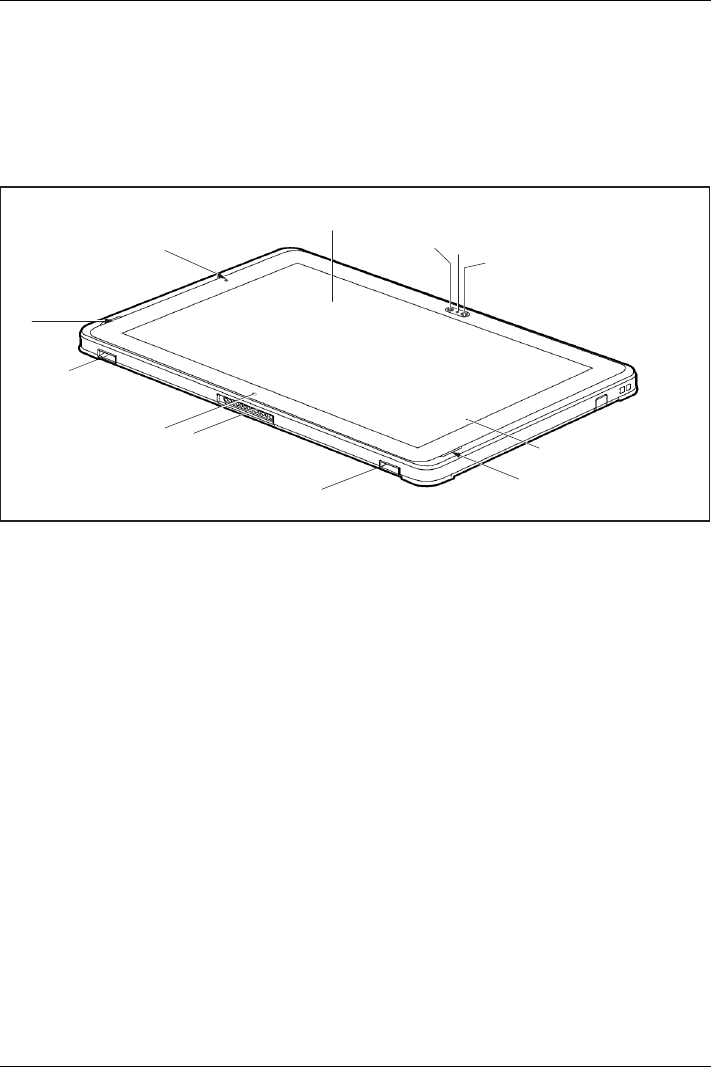

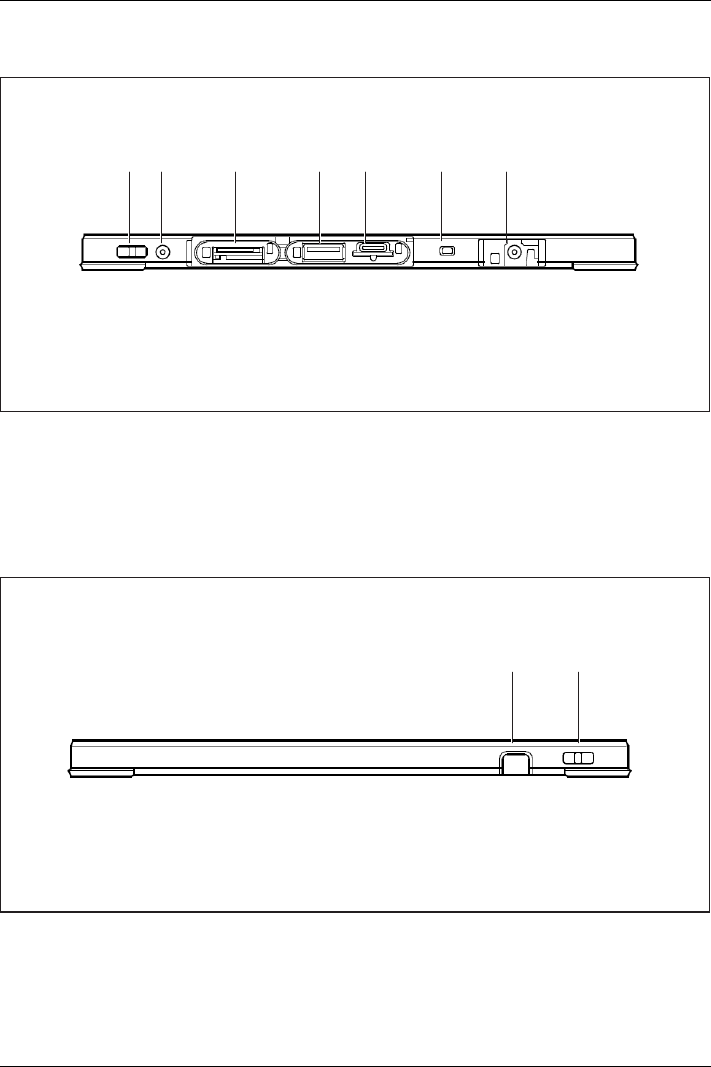

Ports and controls 10
Important notes 13
First-time setup of your device 18
WorkingwiththeTabletPC 22
Accessories for your Tablet PC
(optional) 38
Security functions 55
Connecting external devices 60
Settings in BIOS Setup Utility 64
Troubleshooting and tips 67
Technical data 74
Manufacturer’s notes 80
Appendix 88
Index 100
Copyright and Trademark Information
Fujitsu America, Incorporated has made every effort to ensure the accuracy and completeness
of this document; however, as ongoing development efforts are continually improving the
capabilities of our products, we cannot guarantee the accuracy of the contents of this
document. We disclaim liability for errors, omissions, or future changes.
Fujitsu, the Fujitsu logo and STYLISTIC are registered trademarks of Fujitsu Limited
or its subsidiaries in the United States and other countries.
Intel and Intel Core are trademarks or registered trademarks of Intel Corporation or
its subsidiaries in the United States and other countries.
Microsoft and Windows are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks
or registered trademarks of HDMI Licensing, LLC in the United States and other countries.
The ExpressCard word mark and logo are owned by the Personal Computer
Memory Card International Association (PCMCIA) and any use of such marks by
Fujitsu America, Incorporated is under license.
Google is a trademark or registered trademark of Google Incorporated.
Bluetooth is a trademark of Bluetooth SIG, Inc., USA.
Adobe, Acrobat, and Adobe Reader are either registered trademarks or trademarks of Adobe
Systems Incorporated in the United States and/or other countries.
All other trademarks specified here are the property of their respective owners.
Contents
Contents
Declarations of conformity ............................................................. 7
Fujitsu Contact Information ............................................................ 8
Notationalconventions ................................................................ 9
Portsandcontrols ..................................................................... 10
Importantnotes ........................................................................ 13
Safetyinstructions ...................................................................... 13
Additional safety notes for devices with wireless components . . ............................. 14
Protectingthedisplayscreen ............................................................ 14
Energysaving .......................................................................... 14
Energy saving under Windows ....................................................... 14
TravelingwithyourTabletPC ............................................................ 15
Beforeyoutravel ................................................................... 15
TransportingtheTabletPC ........................................................... 16
CleaningtheTabletPC .................................................................. 17
FurtherinformationoncleaningtheTabletPC ......................................... 17
First-time setup of yourdevice ......................................................... 18
Unpacking and checkingthedevice ...................................................... 18
Choose a location ....................................................................... 19

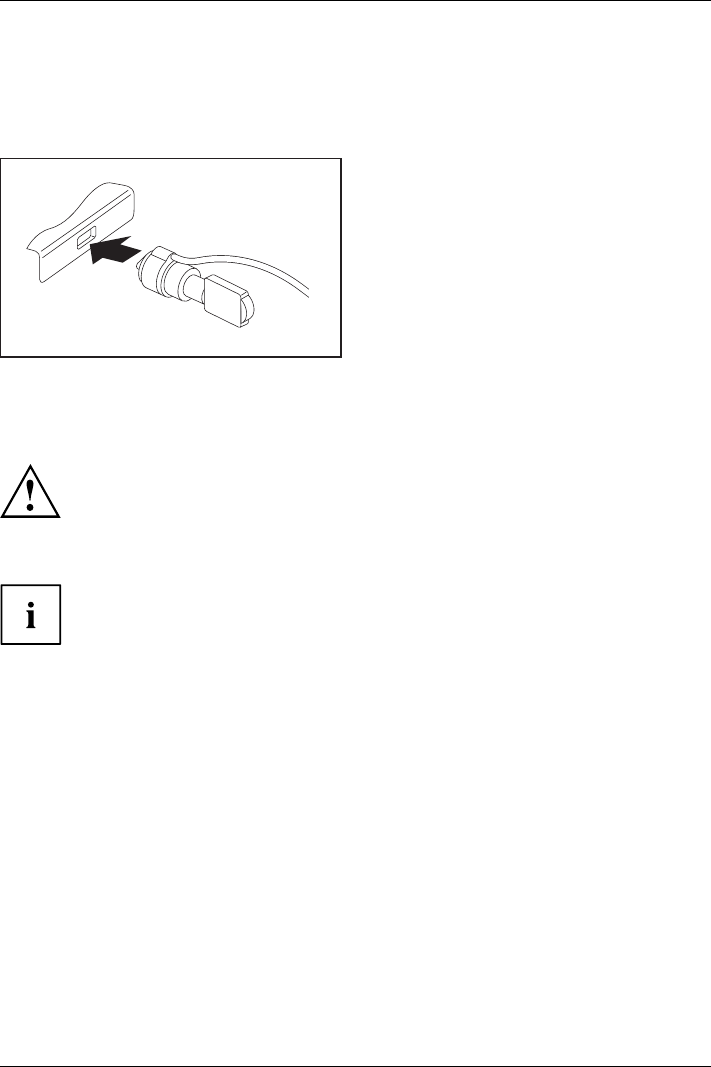

Connecting the AC adapter . . . ........................................................... 19
Switchingont
he device for the firsttime .................................................. 20
Installing BonusApps ................................................................ 21
Working withthe TabletPC ............................................................ 22
Statusindicators ........................................................................ 23

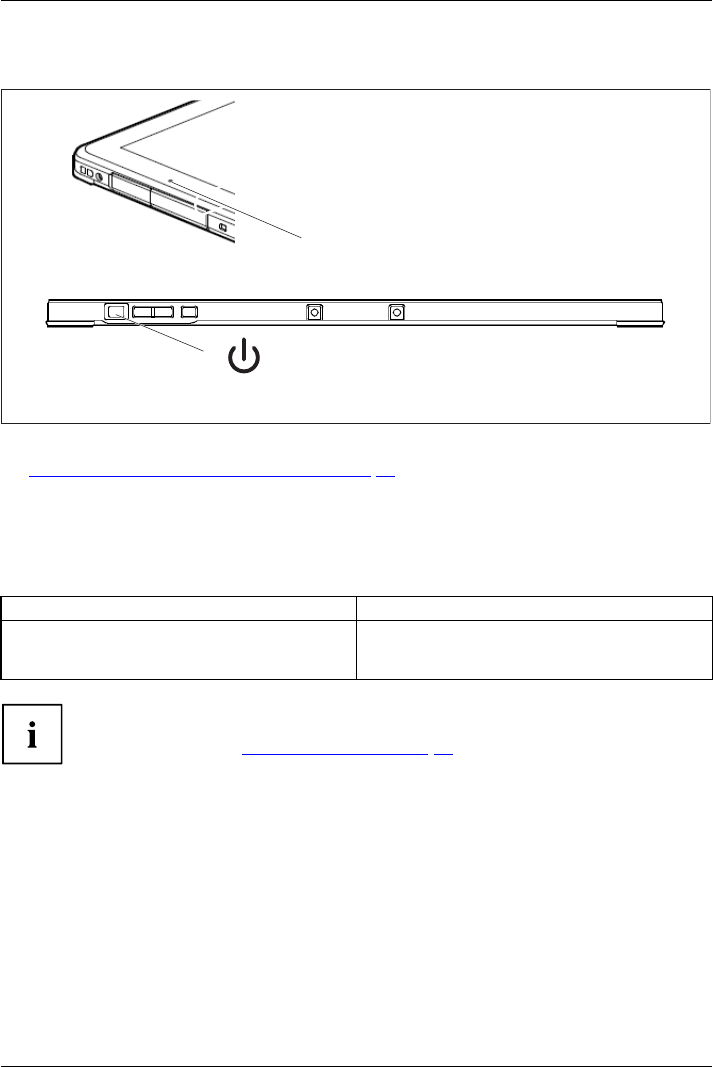

SwitchingtheTabletPCon .............................................................. 24
ProgramingtheON/OFFbutton ...................................................... 24
SwitchingtheTabletPCoff .............................................................. 25
Handwriting recognition .................................................................. 25
Touchscreen ............................................................................ 26
Selectdisplayorientation(portraitorlandscapeformat) .................................... 26
Touchcommands ....................................................................... 27
Calibrate the Digitizer for finger-based operation of the device. . ......................... 27

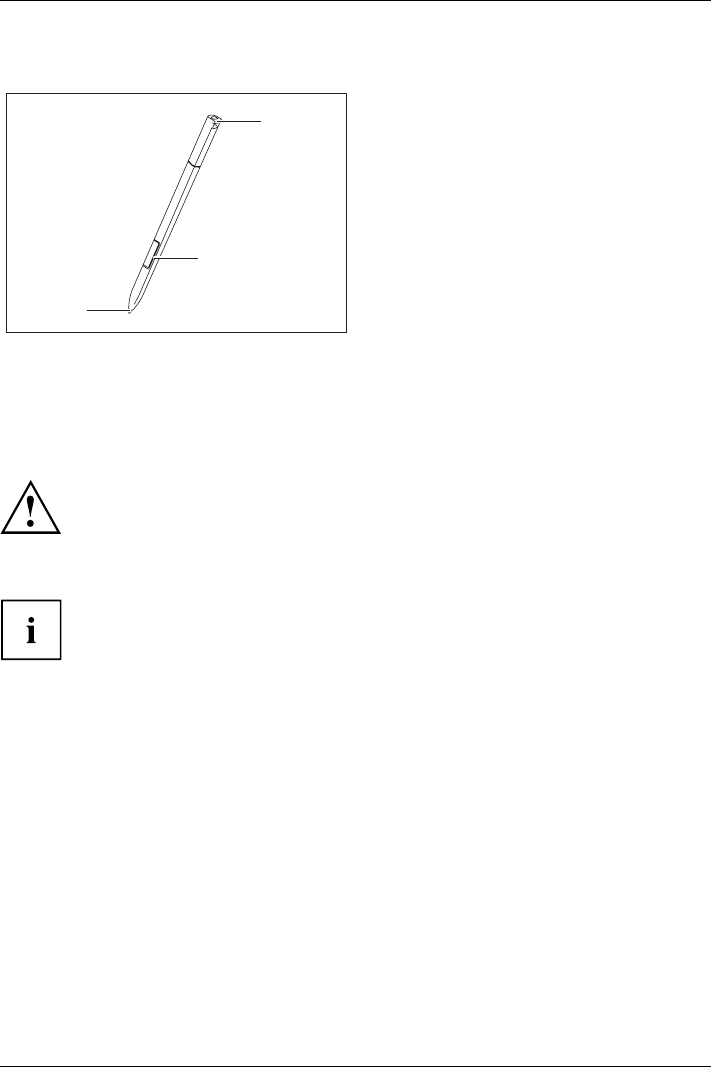

Usingthestylus ......................................................................... 28
Styluslocation ...................................................................... 29
Adjustingthestylus .................................................................. 29
Replacingthestylustip .............................................................. 30
Calibratingthestylus ................................................................ 30

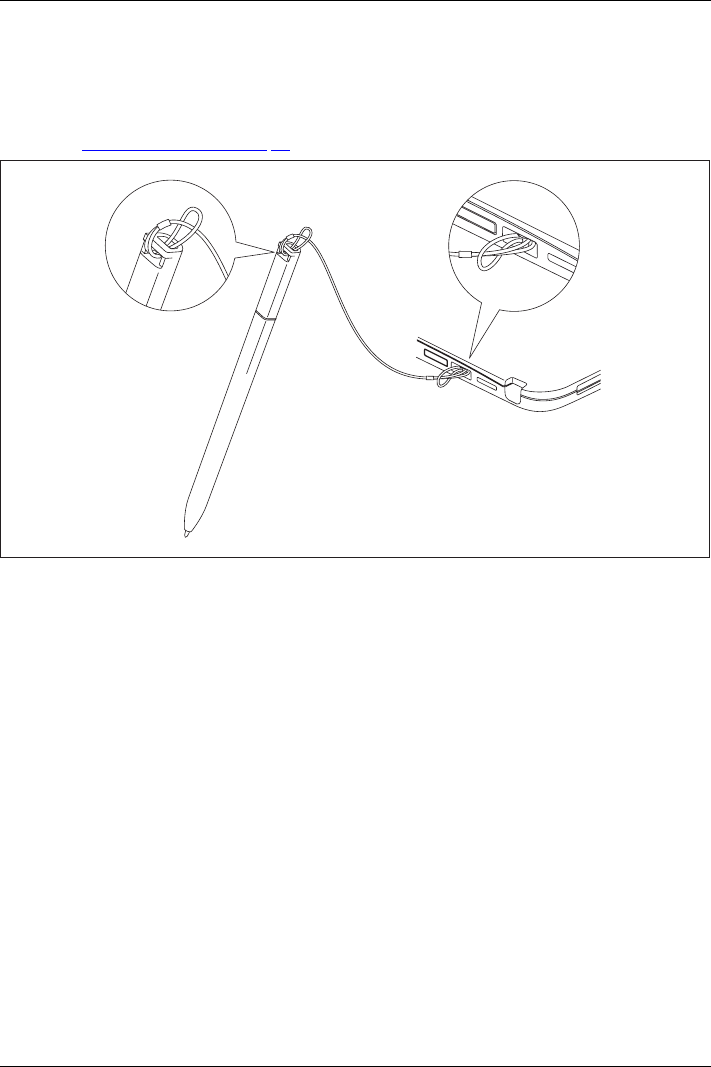

Securingthestylus .................................................................. 31

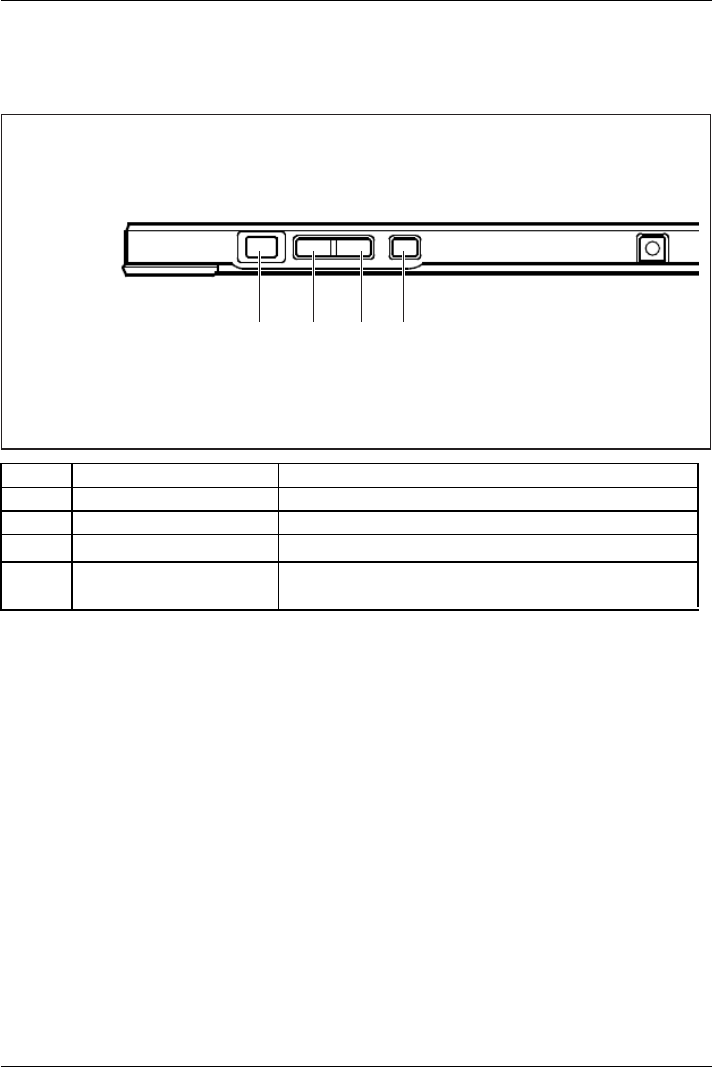

Tabletbuttons .......................................................................... 32
Webcam ............................................................................... 33
Rechargeablebattery ................................................................... 33
Chargingandmaintainingthebattery ................................................. 33
Usingthepower-savingfunctions ......................................................... 34
Memorycards .......................................................................... 34
Supported formats .................................................................. 34

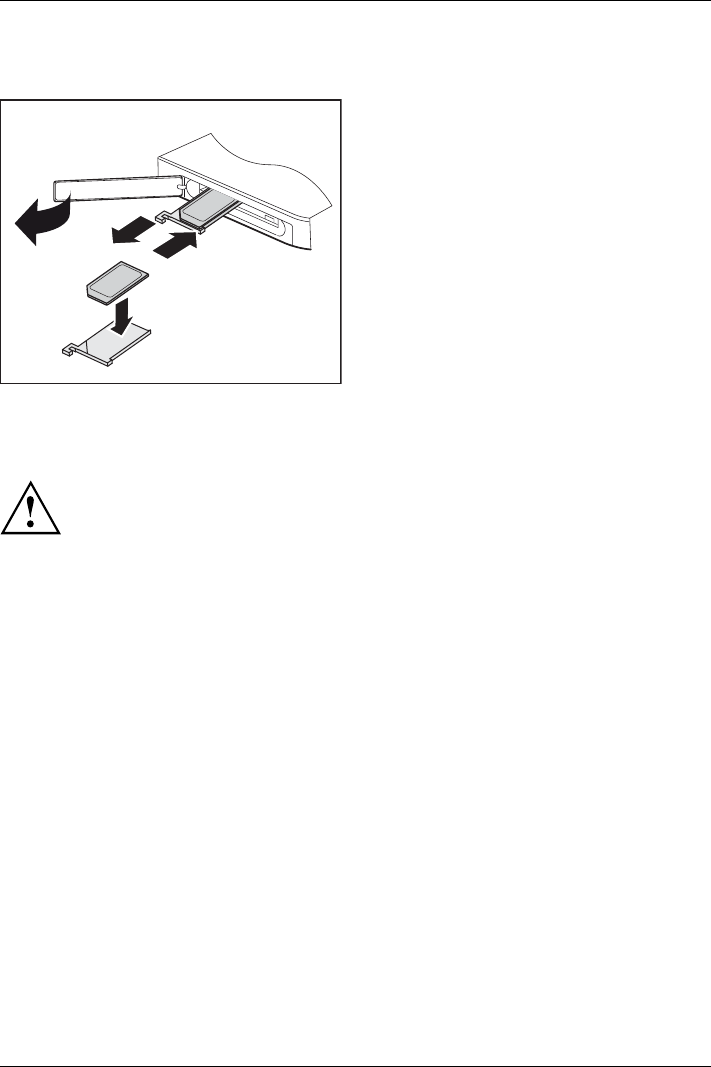

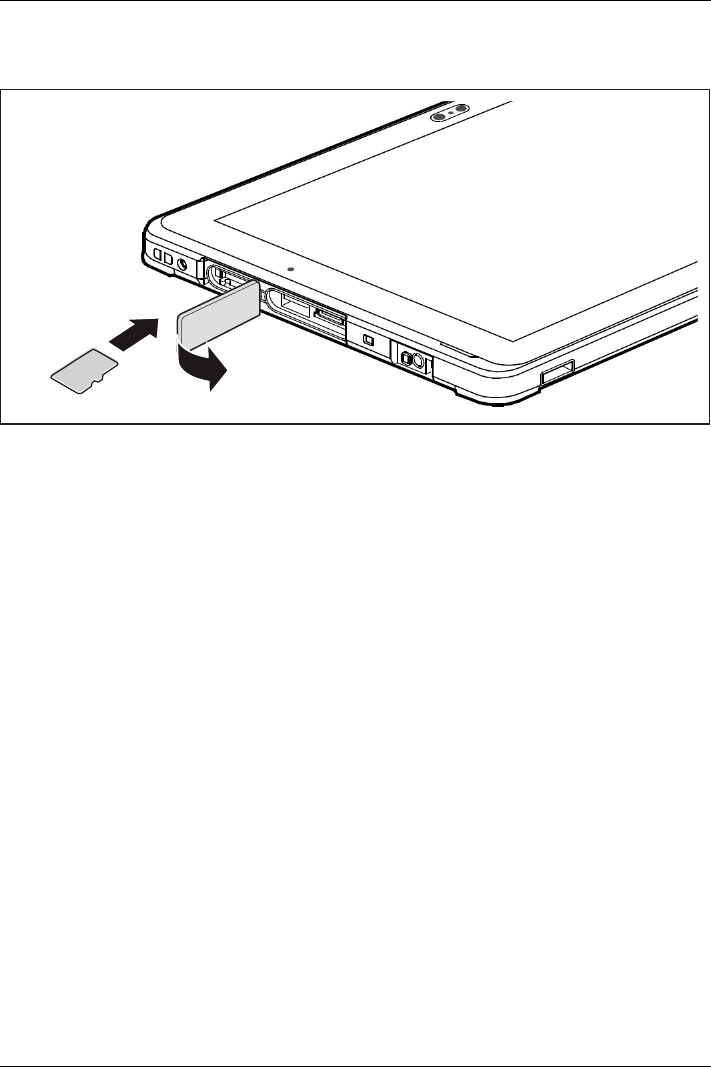

Insertingthememorycard ........................................................... 35

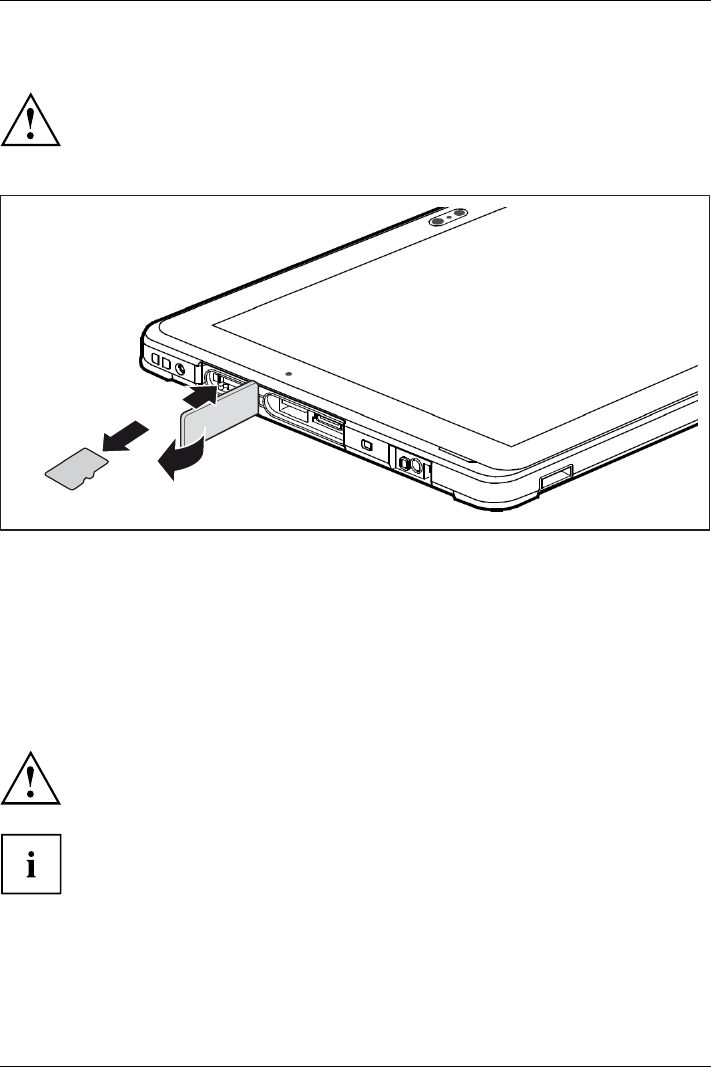

Removingthememorycard .......................................................... 36
Fujitsu 3
Contents

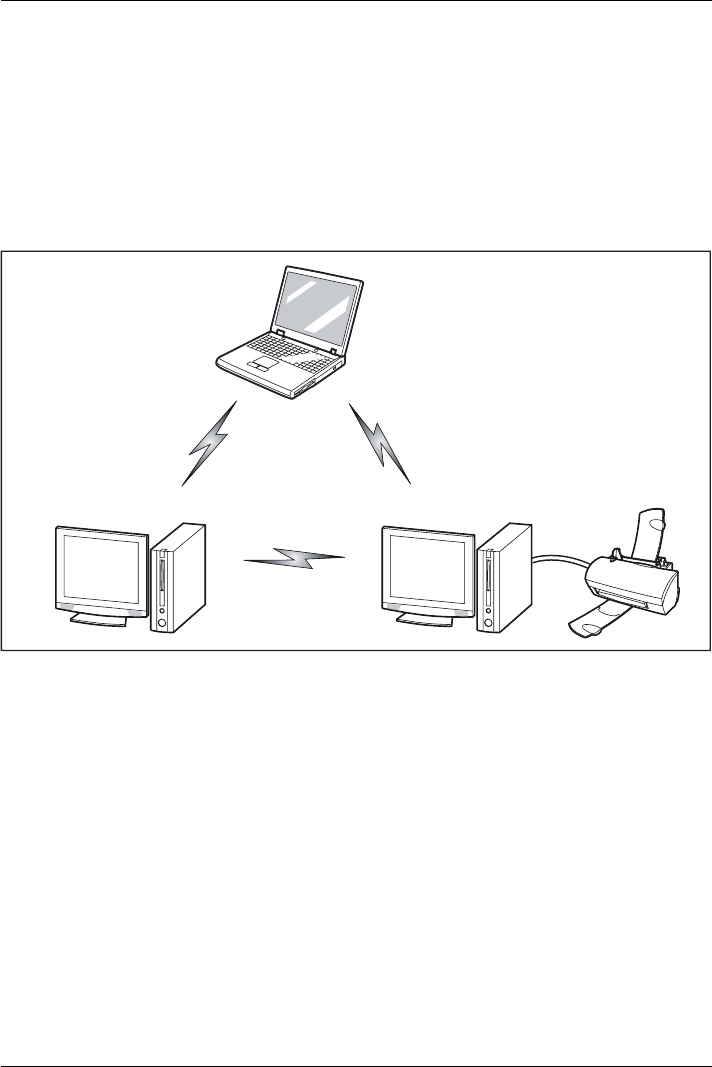

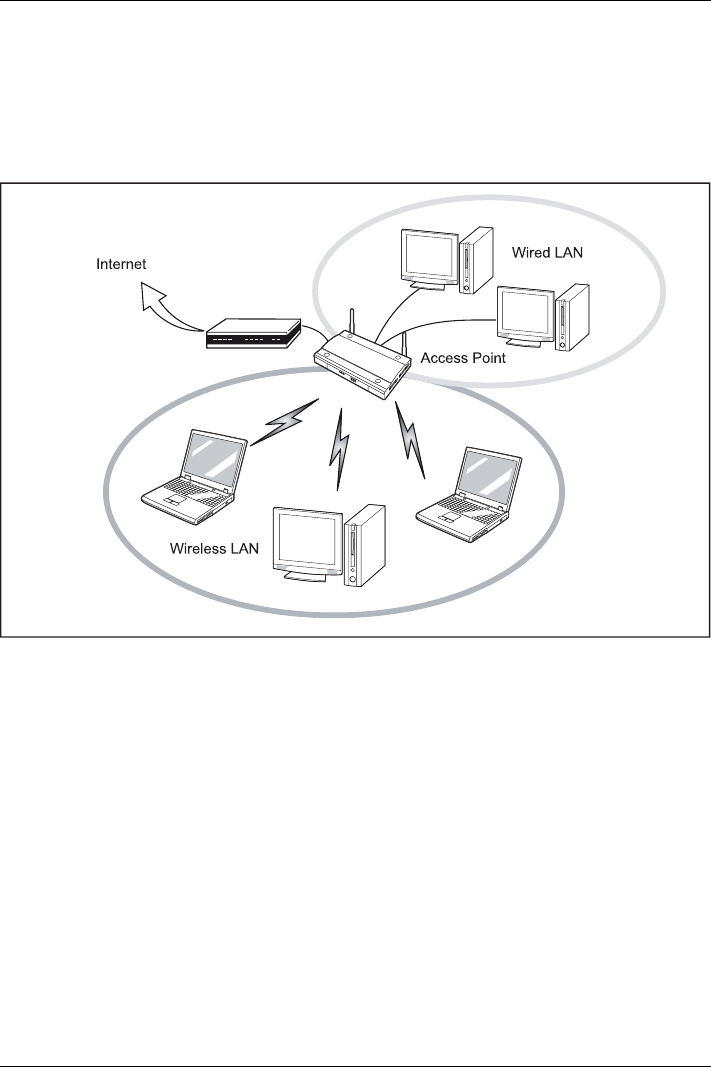

Wireless LAN/Bluetooth wireless components ............................................. 36
Switching the wireless components on and off ......................................... 36
ConfiguringWLANaccess ........................................................... 37
FurtherinformationonWLANandBluetooth ........................................... 37
EthernetandLAN(dockingcradleonly) ................................................... 37
Accessories for your Tablet PC (optional) . ............................................. 38
Yourdockingcradle(optional) ............................................................ 39
Cradle components . . ................................................................ 39
Settingupthecradle ................................................................ 40

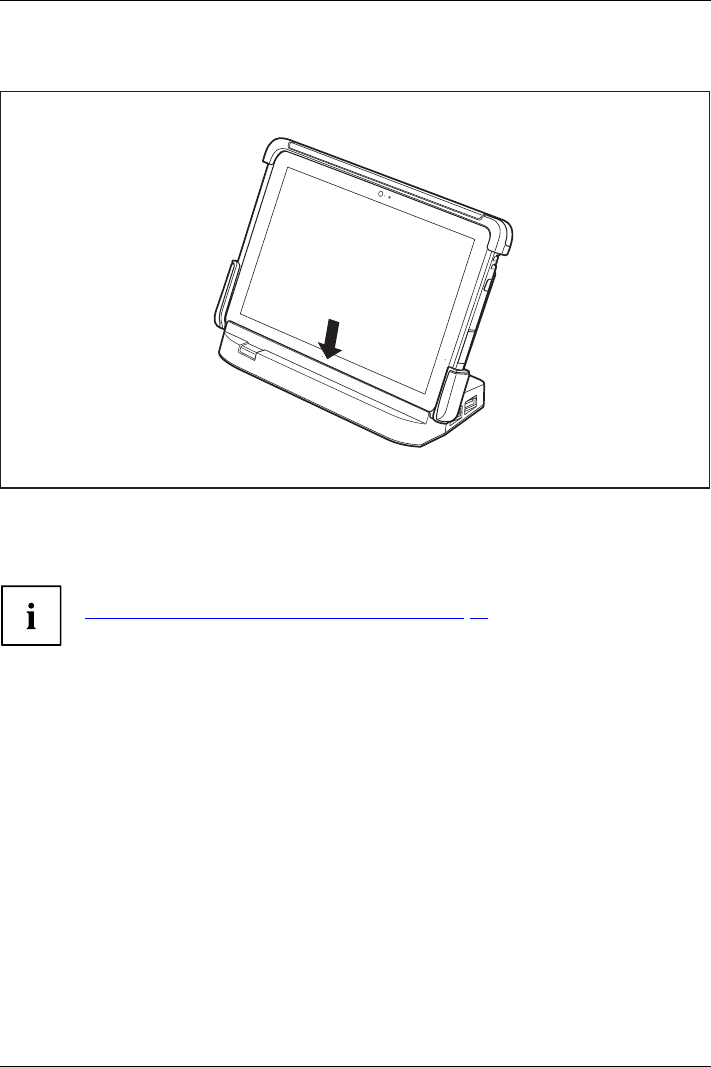

Connecting the Tablet PC to the cradle . . ............................................. 40
Disconnecting the Tablet PC from the cradle . ......................................... 42
Keyboard cover (optional) . . . ............................................................ 43

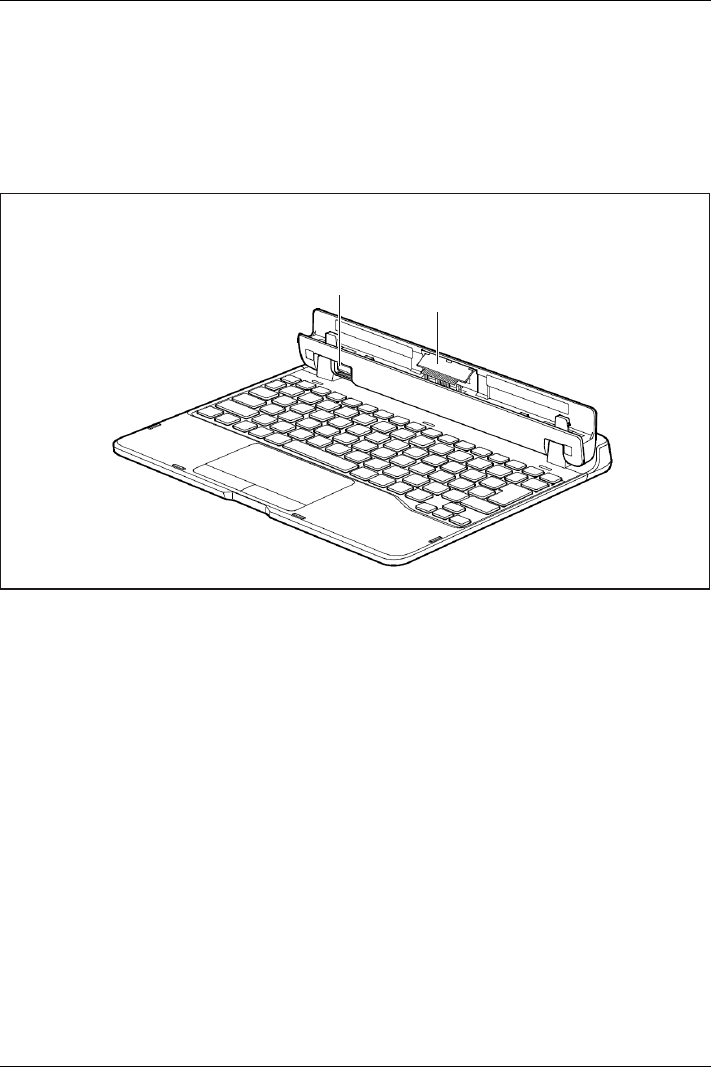

Components of the keyboard cover . . ................................................. 43
Connecting the Tablet PC to the keyboard cover . . . . . .................................. 44

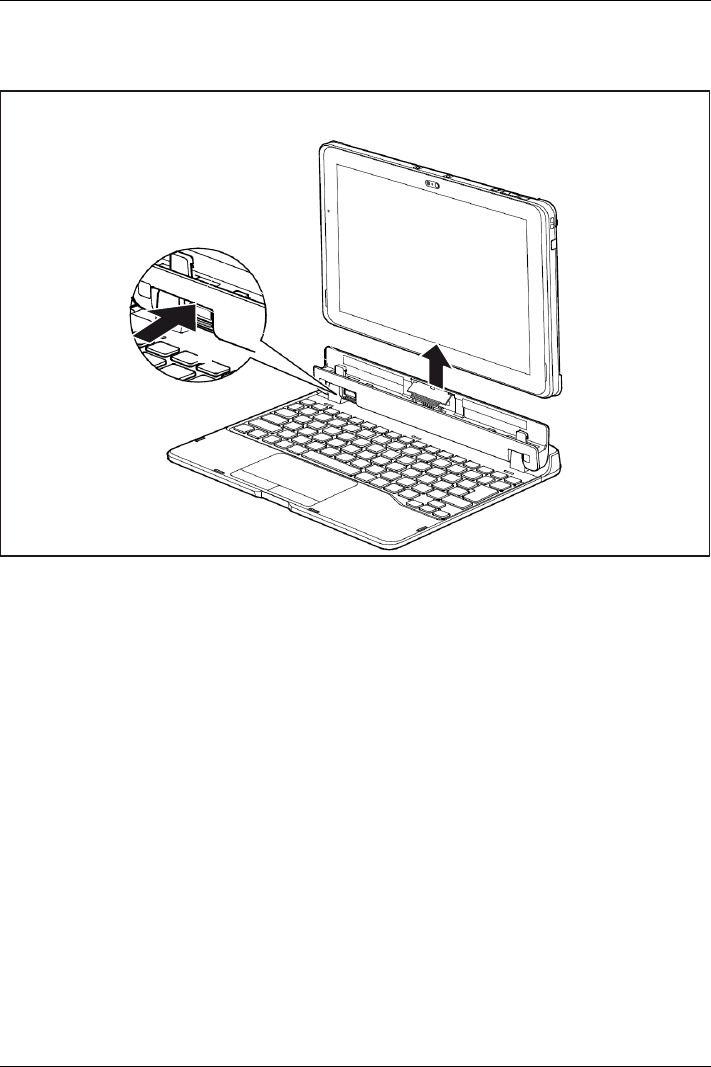

Disconnecting the Tablet PC from the keyboard cover . . . .............................. 45

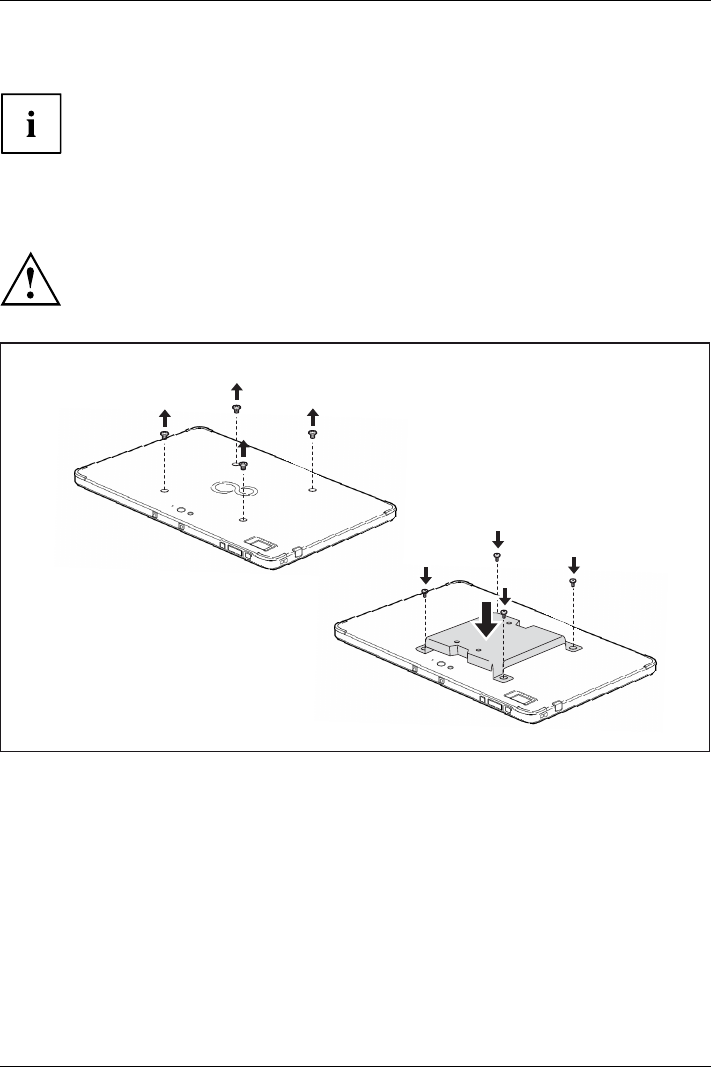

Intermediary VESA Mount Plate (optional) . . . ............................................. 46

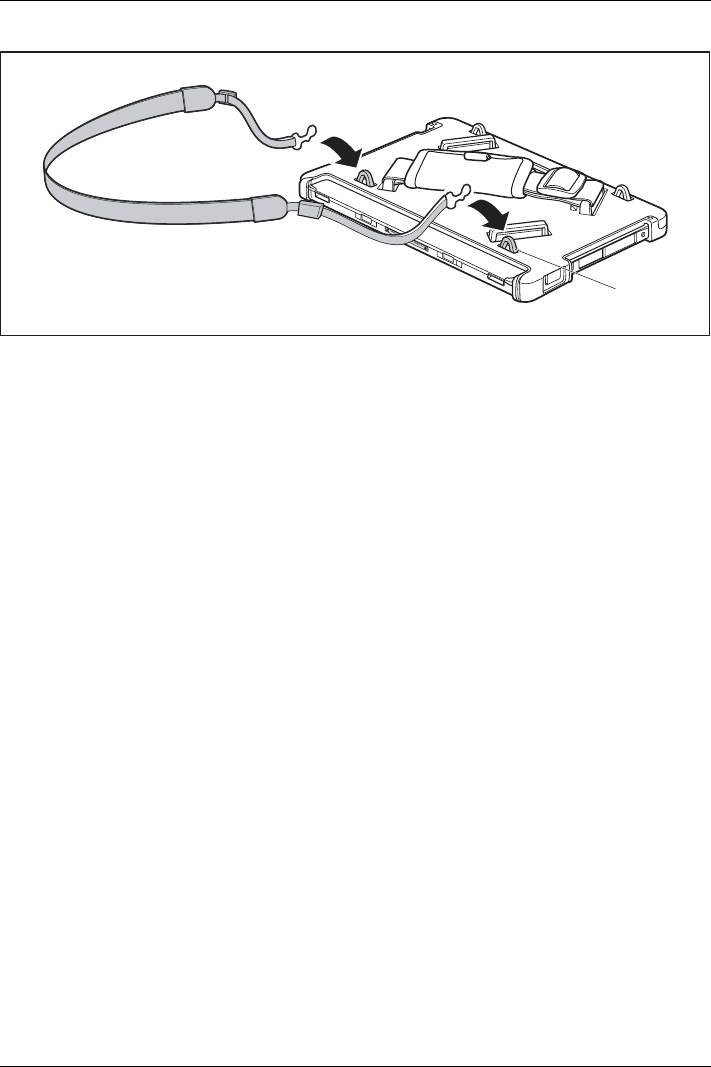

TPU cover with shoulder strap (optional) . ................................................. 47
Components of the TPU cover . . . . . . ................................................. 47
InsertingtheTabletPCintheprotectiveTPUcover .................................... 47

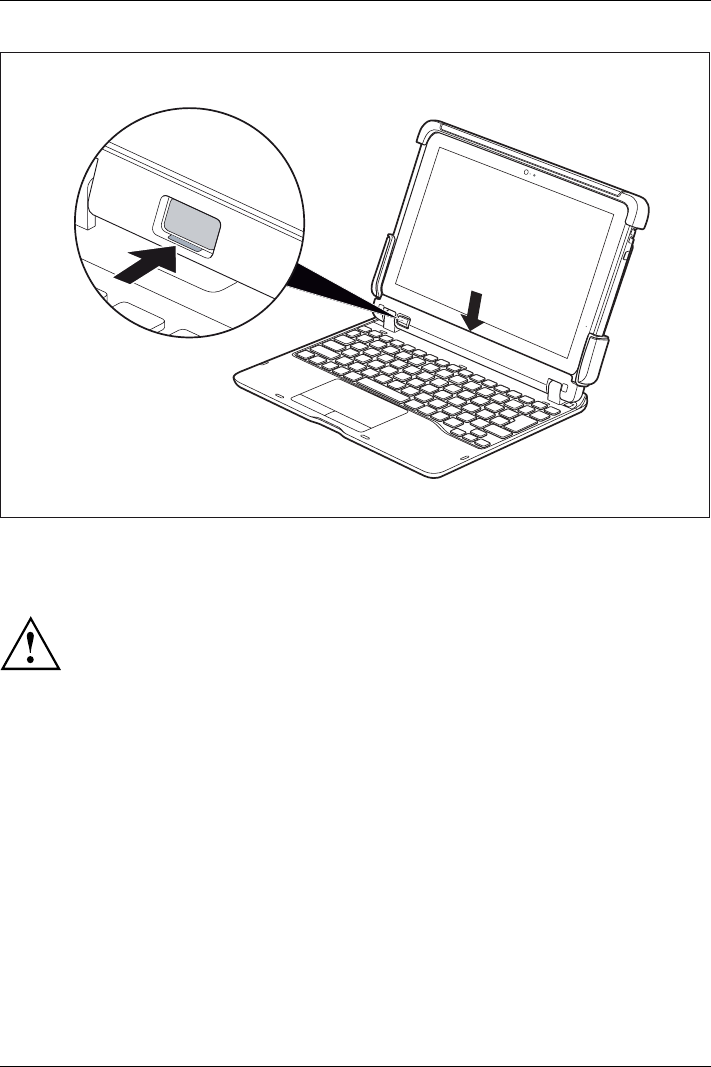

Connecting the Tablet PC/TPU cover to the keyboard cover . . .......................... 49
Connecting the Tablet PC/TPU cover unit to the docking cradle . . . . . . ................... 52

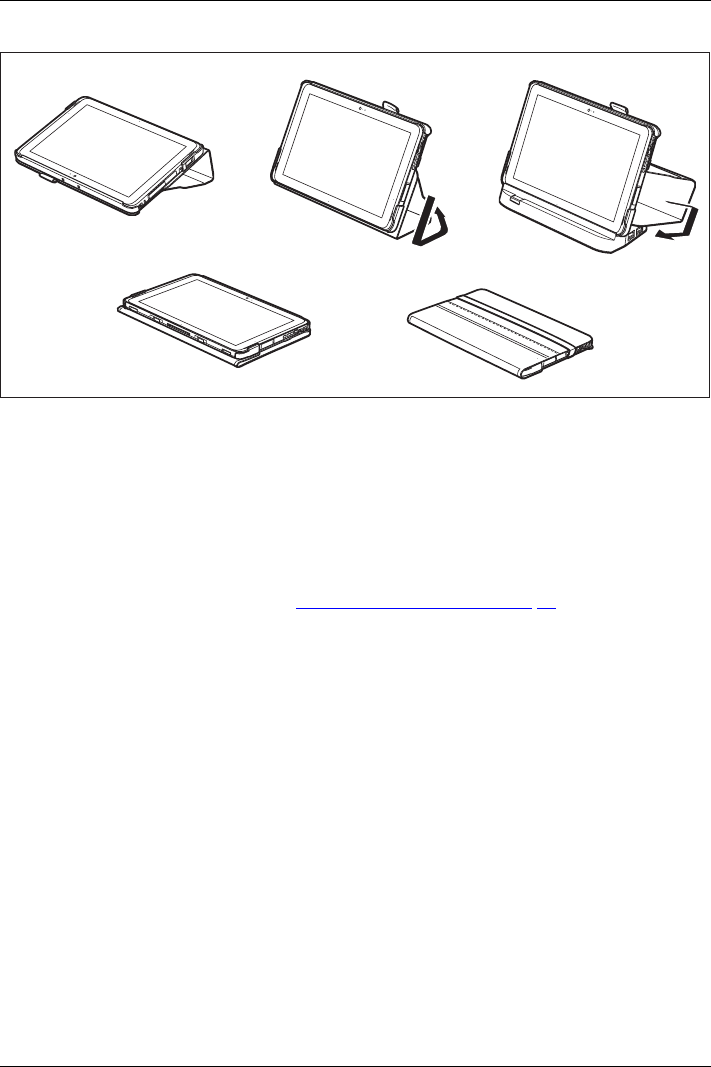

Foliocover(optional) .................................................................... 53
Adapter cables . . ....................................................................... 54
Securityfunctions ..................................................................... 55
UsingtheSecurityLock(dockingcradleonly) ............................................. 55
ConfiguringpasswordprotectioninBIOSSetupUtility ...................................... 55
Protecting BIOS Setup Utility (supervisor password and user password) . . ............... 56
Password protection for booting the operating system .................................. 58
Passwordprotectionfortheharddisk ..................................................... 59
Activatingharddiskprotection ........................................................ 59
Deactivatingharddiskprotection ..................................................... 59
Connectingexternaldevices ........................................................... 60

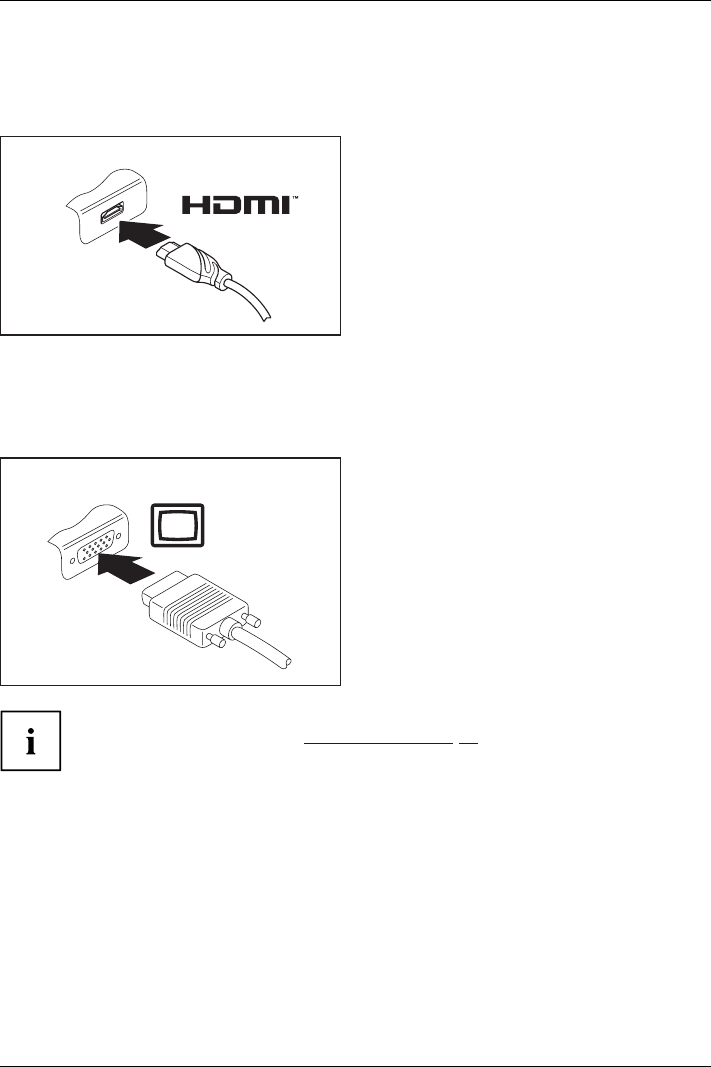

MicroHDMIport .................................................................... 60
HDM
IPort(dockingcradleonly) ...................................................... 61
VGAmonitorport(dockingcradleonly) ............................................... 61
Connecting USB devices ................................................................ 62
HowtoremoveUSBdevicescorrectly ................................................ 62
Connecting external audio devices . . . . . . ................................................. 63
Connecting headphones or other audio output devices . . . .............................. 63
Connecting a microphone or other audio input devices . . . .............................. 63
Settings in BIOS Setup Utility . . ........................................................ 64
StartingtheBIOSSetupUtility ........................................................... 64
BIOS Setup Utility operation . ............................................................ 65
ExitingBIOSSetupUtility ................................................................ 66
Exit Saving Changes - save changes and exit BIOS Setup Utility . . . . ................... 66
Exit Discarding Changes - Reject changes and exit BIOS Setup Utility ................... 66
LoadSetupDefaults–loaddefaultvalues ............................................. 66
Discard Changes - Discard Changes without exiting BIOS Setup Utility . . . ............... 66
Save Changes - save changes without exiting the BIOS Setup Utility . ................... 66
4Fujitsu
Contents
Savechangesandpoweroff ........................................................ 66
Troubleshooting and tips .............................................................. 67
Executingareset ....................................................................... 68
Forcedshutdown .................................................................... 68
Execute a complete reset: Reset BIOS Setup to the standard values . . . . . . .............. 68
Helpifproblemsoccur ................................................................... 68
RecoveringyourFactoryImage .......................................................... 68
TheTabletPC’sdateortimeisincorrect .................................................. 68
Battery charging indicator does not illuminate . ............................................ 69
TheTabletPC’stouchscreenremainsdark ................................................ 69
The display on the Tablet PC’s touchscreen is difficult to read. . ............................. 69
Theexternalmonitorremainsblank ...................................................... 70
Theexternalmonitorisblankortheimageisunstable ..................................... 70
The cursor does not correctly follow the stylus movements . . . . ............................. 71
Stylusinputnotworking ................................................................. 71
TheTabletPCdoesnotstartafterswitchon ............................................... 71
TheTabletPCstopsworking ............................................................. 71
The printer does not print . . . . . ........................................................... 72
The wireless connection to a network does not work . . . .................................... 72
Thebatterydischargestooquickly ........................................................ 72
Errormessagesonthescreen ........................................................... 73
Technicaldata ......................................................................... 74
TabletPC .............................................................................. 74
Screenresolutionsforintegratedscreenandexternalscreens .............................. 75
WLAN specifications .................................................................... 76
Rechargeablebattery ................................................................... 77
AC adapter (36 W) for the Tablet PC only (without cradle) . . . . . ............................. 77
Dockingcradle(optional) ................................................................ 77
AC adapter (65 W) for the docking cradle (optional) . . . . . . ............................. 78
Keyboardcover(optional) ............................................................... 78
Intermediary VESA Mount Plate (optional) . . . . ............................................ 78
TPU cover with shoulder strap (optional) . . . . . . ............................................ 78
Folio cover (optional) . . .................................................................. 78
Adapter cables (optional) . . . . . ........................................................... 79
Manufacturer’snotes .................................................................. 80
Disposalandrecycling .................................................................. 80
Recyclingyourbattery ............................................................... 80
DOC(IndustryCANADA)Notices ........................................................ 81
ULNotice ........................................................................... 81
ENERGYSTARCompliance ............................................................. 82
FCCandICRegulatoryInformation ...................................................... 83
Regulatory Notes and Statements . ................................................... 83
Canada, Industry Canada (IC) ........................................................... 86
Canadian Notice . . .................................................................. 86
Avis pour le Canada . . . . . . ........................................................... 87
Appendix .............................................................................. 88
Before Using the Optional Wireless LAN . . . . . . ............................................ 88
WirelessLANDevicesCoveredbythisDocument ...................................... 88
CharacteristicsoftheWLANDevice .................................................. 88
WirelessLANModesUsingthisDevice ............................................... 89
Fujitsu 5
Contents
Deactivating/DisconnectingtheWLANDevice ......................................... 91
ConfiguringtheWirelessLAN ............................................................ 92
Connection to the network . . . ........................................................ 92
TroubleshootingtheWLAN ........................................................... 93
UsingtheBluetoothDevice .............................................................. 95
Image Backup and Recovery Procedures ................................................. 96
Windows 10 Procedures . ................................................................ 96
Creatingarecoverydrive ................................................................ 96
RecoveryoptionsinWindows10 ......................................................... 96
Downloading driver updates . ............................................................ 99
Index .................................................................................. 100
6Fujitsu
Declarations of conformity
Declarations of conformity

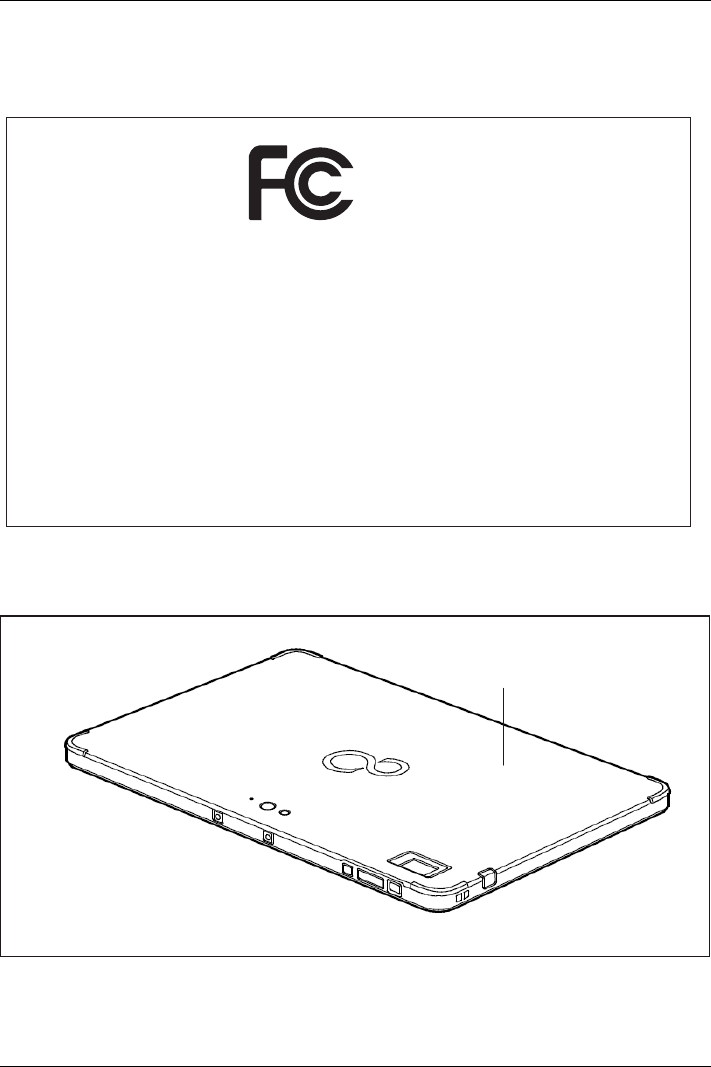

DECLARATION OF CONFORMITY
according to FCC Part 15
Responsible Party Name:
Address:
Telephone:
Declares that product:
Fujitsu America, Inc.
1250 E. Arques Avenue
Sunnyvale, CA 94085
(408) 746-6000
Base Model Configuration: STYLISTIC Q508 Tablet PC
Complies with Part 15 of the FCC Rules.
This device complies with Part 15 of the FCC rules. Operations are subject to the
following two conditions: (1) This device may not cause harmful interference. (2) This
device must accept any interference received, including interference that may cause
undesired operation.Model ref. of certification: MQ10A
Declarationsof conformity
This device complies with Part 15 of the FCC Rules. Operations are subject to the following two
conditions: (1) This device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation.
1=Dec
laration of conformity
Fujitsu 7
1
Fujitsu Contact Information
Fujitsu Contact Information
Service and Support
You can contact Fujitsu Service and Support in the following ways:
• Toll free phone: 1-800-8Fujitsu (1-800-838-5487)
• Website: "http://solutions.us.fujitsu.com/www/content/support/contact/index.php"
Before you place the call, have the following information ready so that the customer
support representative can provide you with the fastest possible solution:
• Product name
• Product configuration number
• Product serial number
• Purchase date
• Conditions under which the problem occurred
• Any error messages that have occurred
• Type of device connected, if any
Fujitsu Shopping Online
Please go to "http://www.shopfujitsu.com/store/ ".
Maintaining Latest Confguration
To ensure that you always have the most current driver updates related to your system,
occasionally access the Fujitsu Software Download Manager (FSDM) utility. The FSDM utility is
available from the Fujitsu Support site. FSDM will allow you to view a list of the most current
drivers, utilities and applications to determine whether you have the latest versions. If you have
a Windows operating system, you will need to go to the Support Site to download the FSDM
Utility: "http://support.fujitsupc.com/CS/Portal/support.do?srch=DOWNLOADS".
Limited Warranty
Your STYLISTIC Tablet PC is backed by a Fujitsu International Limited Warranty. Check the
Limited Warranty Terms and Conditions Booklet that came with your Tablet PC.
8Fujitsu
Notational conventions
Notational conventions
Pay particular attention to text marked with this symbol. Failure to observe
this warning will endanger your life, will damage the device or lead to loss
of data. The warranty will be invalidated if the device becomes defective
through failure to observe these warnings.
Indicates important information which is required to use the device properly.
►indicates an activity that must be performed
indicates a result
This style indicates data entered using the keyboard in a program dialogue or at
the command line, e.g. your password (Name123)oracommandusedto
start a program (start.exe)
This style indicates information that is displayed on the screen by a program, e.g.:
Installation is complete.
This style indicates
• terms and texts used in a software interface, e.g.: Click on Save.
• names of programsorfiles, e.g. Windows or setup.exe.
"This style" indicates
• Cross-references to another section, e.g. "Safety information"
•cross-references to an external source, e.g. a web address: For more
information, go to "http://solutions.us.fujitsu.com/"
•names of CDs, DVDs and titles or designations of other materials, e.g.:
"CD/DVD Drivers & Utilities"
Key indicates a key on the keyboard, e.g: F10
This styleindicates terms and text that are emphasized or highlighted, e.g.: Do not
switch off the device
Fujitsu 9
Ports and controls
Ports and controls
This chapter presents the individual hardware components of your device. It gives an
overview of the indicators and connections of the device. Please familiarize yourself
with these items before you start to work with the device.
Front
1 = Touchscreen
2 = Front webcam
3 = Ambient light sensor
4 = Webcam status LED (blue)
5 = Battery charging indicator
6 = Speakers (internal, not visible)

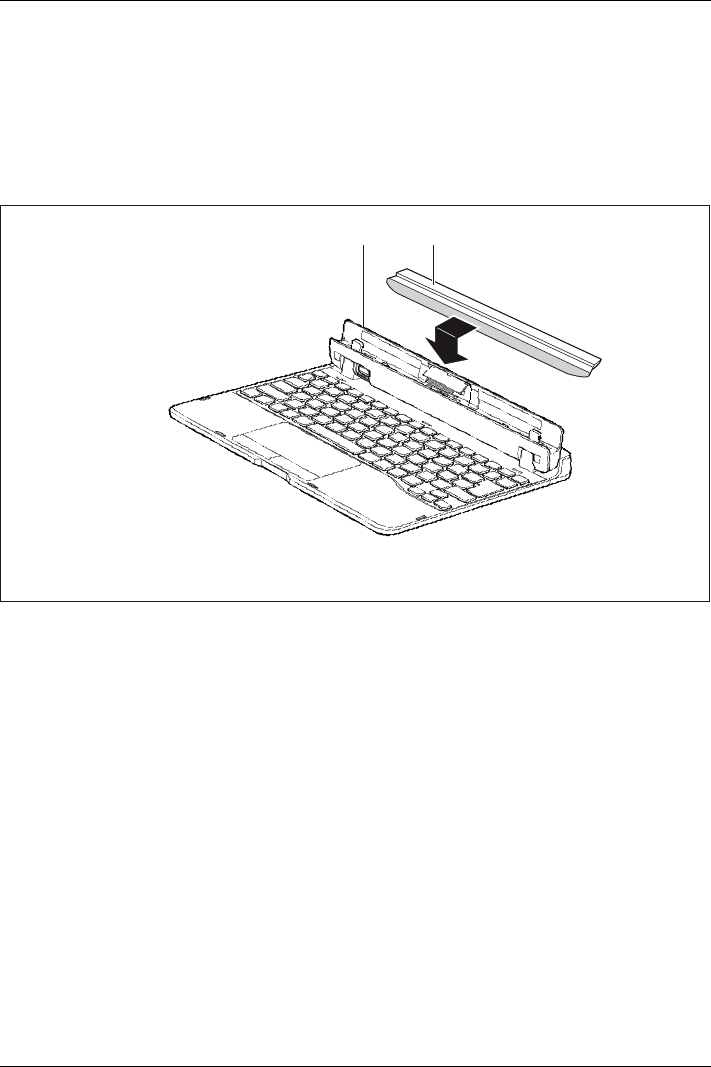

7 = Mechanical mount for keyboard
cover / cradle
8 = Docking port
9 = Power-on indicator
10 Fujitsu
1
2
3
4
7
7
8
6
5
5
6
9
Ports and controls
Left-hand side
2 3 4 5 6 71
1 = Tether eyelet
2 = Combined headphones and microphone
port (audio combo jack)
3 = USB 3.0 port (protected by cover)
4 = microHDMI port (protected by cover)
5 = microSD card slot (protected by cover)
6 = Battery charging indicator (orange)
7 = DC input connector (DC IN)
(protected by cover)
Right side
1 2
1 = Stylus garage
2 = Tether eyelet
Fujitsu 11
Ports and controls
Rear
9
10
8
2
1
1
1 = Dual microphones
2 = Webcam status LED
3 = Rear webcam
4 = Webcam flash
5 = Shortcut button
6 = Volume +/-
7 = On/off button
8 = Fingerprint sensor
9 = Pen tether
10 = Pen garage
12 Fujitsu
3 4
567
Important notes
Important notes
ImportantnotesNotes
This chapter contains essential safety information which must be followed when working
with your Tablet PC. The other notes provide useful information about your Tablet PC.
Safety instructions
SafetyinformationInform ation,
Please observe the following safety information.
Please pay special attention to the sections in the manual marked with the symbol on
the left.
When connecting and disconnecting cables, observe the relevant notes in this operating
manual.
Read the information on the ambient conditions in the "Technical data", Page 74
chapter and the "First-time setup of your device", Page 18 chapter before preparing
your tablet PC for use and switching it on for the first time.
When cleaning the device, please observe the relevant notes in the section "Cleaning
the tablet PC", Page 17.
Please refer to the notes in the chapter "Removing and installing components during
servicing", Page 77.
When handling this device, you will come into contact with lead, a chemical which in
California is held to be a possible cause of birth defects and other damage to fertility.
Wash your hands after using the device.
Do not place objects or apply heavy pressure on your computer
Do not apply too much force to the display corners
Do not rotate display with excessive force
Do not pick up or hold the computer by display only
Do not shake or bump the display
Avoid excessive vibration and shocks
Avoid excess force when tapping or writing on the screen
Do not block the air vents
Do not leave the computer turned on when enclosed in a briefcase or backpack
In the event you drop your tablet PC or damage the housing in any way, immediately
turn off power and disconnect the power plug. Failure to do so could result in a short
circuit, smoke, and/or fire. Contact Fujitsu Service and Support to learn how to get the
computer repaired.
This Tablet PC complies with the relevant safety regulations for data processing
equipment. If you have any questions about setting up your tablet PC in the intended
environment, please contact your sales outlet or our Hotline/Service Desk.
Fujitsu 13
Important notes
Additional safety notes for devices with
wireless components
Wirelesscom ponentsWirelessLANBluetooth,Safetynotes
If a wireless component (Wireless LAN, Bluetooth) is integrated in your Tablet PC, you must be
sure to observe the following safety precautions when using your Tablet PC:
• Switch off the wireless components when you are in an aircraft or driving in a car.
• Switch off the wireless components when you are in a hospital, an operating
room or near a medical electronics system. The transmitted radio waves
can impair the operation of medical devices.
• Switch off the wireless components, when you let the device get near flammable
gases or into hazardous environments (e.g. gas station, paint stores), as the
transmitted radio waves can cause an explosion or a fire.
For further information on how to switch the wireless components on and off, refer
to section "Switching the wireless components on and off", Page 36.
Protecting the display screen
Do not pour liquids on the system or wash it with a heavily soaked cloth. Do not place
items on the top of the monitor in order to prevent it from being damaged.
During normal use of the device, small particles from the environment
can become embedded in the stylus tip and scratch the screen. The
warranty does not cover a scratched screen.
Energy saving
NotesEnergyPowersaving
If you will not be using your Tablet PC, switch it off. Switch off any connected external devices when
they are not in use. If you use the energy-saving functions, the Tablet PC uses less power. If you do
this, you will be able to work longer with the Tablet PC before having to recharge the battery.
The energy efficiency is increased and environmental pollution is reduced.
You save money and help protect the environment.
Energy saving under Windows
►Make use of the available energy-saving functions as described in chapter
"Using the power-saving functions", Page 34.
14 Fujitsu
CAUTION: Do Not Lift or hold the computer by display/LCD panel. It can damage
LCD panel due to excessive flex. Always lift/carry computer by holding the
keyboard base with both hands
Important notes
Traveling with your Tablet PC
MobileoperationNotesTrans portati onTabletPC
Please follow the instructions below when traveling with your Tablet PC.
Before you travel
►Back up the important data of your internal storage.
Tab l e tTraveling,tablet
►Switch off the wireless component for data security reasons. With data trafficviaawireless
connection, it is also possible for unauthorized third parties to receive data.
Information on activating data encryption is provided in the documentation
for your wireless component.
►If you want to use your Tablet PC during a flight, ask the flight attendants to see if it is safe to use it.
When traveling in other countries
►If you are traveling abroad, check that the AC adapter can be operated with the
local AC voltage. If this is not the case, obtain the appropriate AC adapter for
your Tablet PC. Do not use any other converter!
►Check whether the local AC voltage and the AC cable are compatible. If this is not
the case, buy an AC cable that suits the local conditions.
►Enquire with the appropriate government office of the country you will be travelling in as to
whether you may operate the wireless component integrated in your Tablet PC there.

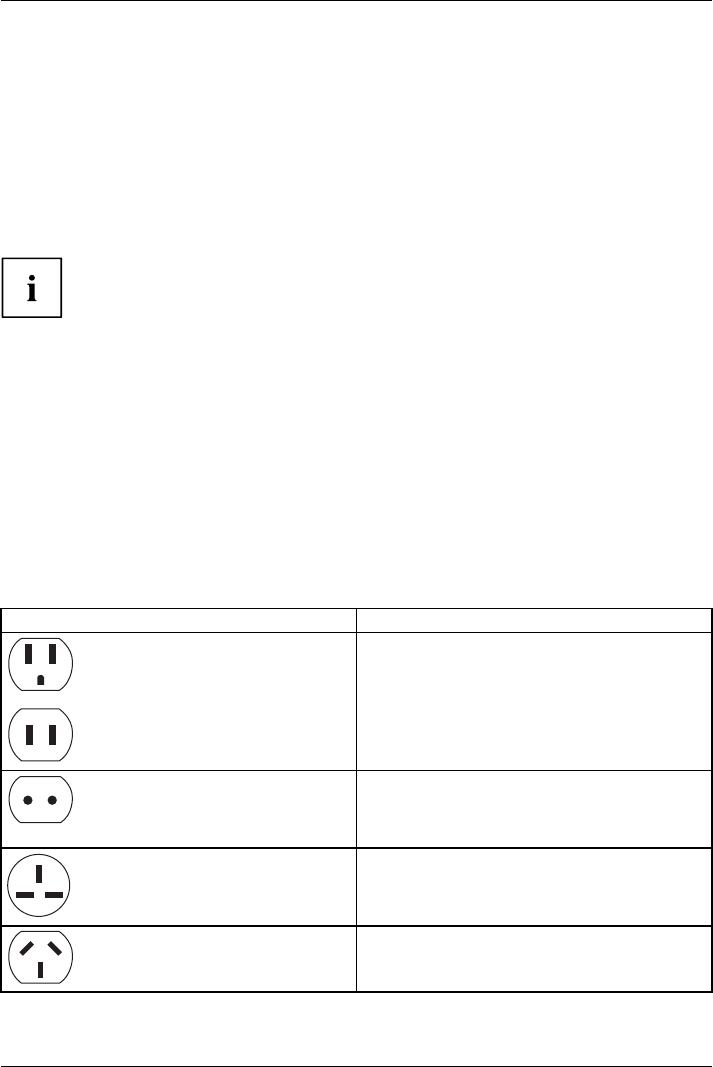

►Take the necessary travel adapters with you when traveling abroad. Check in the following
table for which travel adapters you will need, or ask your travel organizer.
Power connection Travel destination
United States, Canada, Mexico, parts of Latin
America, Japan, Korea, Philippines, Taiwan
Russia and the Commonwealth of Independent
States (CIS), much of Europe, parts of Latin
America, the Middle East, parts of Africa, Hong
Kong, India, much of south-east Asia
United Kingdom, Ireland, Malaya, Singapore,
parts of Africa
China, Australia, New Zealand
Fujitsu 15
Important notes
Transporting the Tablet PC
Protect the Tablet PC from severe shocks and extreme temperatures
(e.g. direct sunlight in a car).
• Do not transport your Tablet PC while it is turned on.
• Carry your Tablet PC with you while traveling. Do not check it in as baggage.
• Never put your Tablet PC through a metal detector. Have it hand-inspected by
security personnel. You can however put your Tablet PC through a properly
tuned X-ray machine. To avoid problems, place it close to the entrance of
the machine and remove it as soon as possible or have it hand-inspected by
security personnel. Security officials may require you to turn your Tablet PC
on. So make sure you have a charged battery on hand for this.
►Switch the Tablet PC off.
►Unplug the AC plug of the AC adapter and all external devices from the power outlets.
►Disconnect the AC adapter cable and the data cables for all external devices.
►To protect against damaging jolts and bumps, use a suitable Tablet PC
carrying case to transport your Tablet PC.
16 Fujitsu
Important notes
Cleaning the Tablet PC
• Do not clean any interior parts yourself; leave this job to a service technician.
• Only use detergents designed for computers. Normal household cleaners
and polishes can damage the labels on the keyboard and the Tablet
PC, the paintwork or the Tablet PC itself.
• Never use ammonia, acidic, or alkaline cleaners or organic chemicals
such as paint thinner, acetone or kerosene. It may damage surface
finishes and the coating of the LCD screen.
• Use of incorrect cleaners can result in optical impairment of the LCD and / or
damage to the computer. Always refer to the cleaner manufacturer’s guidelines and
material safety data sheets for proper handling and use of the products.
• Never use compressed air for cleaning your computer.
• Be very careful to avoid any liquid entering the ports or slots
as this can damage the unit.
Further information on cleaning the Tablet PC
The touchscreen is very sensitive to scratches! Only clean the display surface
with a very soft, slightly damp cloth.
►Switch the Tablet PC off.
ReinigungHinweiseTa b le t P CTa s t at u rTouchpadTouchscreen
►To prevent the device from being switched on unintentionally, remove the AC
plug of the AC adapter from the power outlet.
►The surfaces may be cleaned with a dry cloth. If particularly dirty, use a cloth which has
been moistened in mild domestic detergent and then carefully wrung out.
If the Tablet PC is exposed to water or other liquids, liquid can penetrate the
Tablet PC and cause a malfunction. Do not continue to use the Tablet PC. Switch
it off and contact our hotline / service desk (see enclosed list of service desks
or visit our website at:."http://www.fujitsu.com/us/support/").
Fujitsu 17
First-time setup of your device
First-time setup of your device
First- timese tupGettingstarted
Please read the chapter "Important notes", Page 13.
If your device is equipped with a Windows operating system, the necessary
hardware drivers and supplied software are already pre-installed.
Beforeswitchingitonforthefirst time, connect the device to the AC voltage using
the AC adapter, see "Connecting the AC adapter", Page 19. The AC adapter must
remain connected during the whole of the installation process.
A system test is performed when your device is first switched on. Various messages
can appear. The display may remain dark for a short time or may flicker.
Please follow the instructions on the screen.
NEVER switch off your device during the first-time setup process.
The battery must be charged if you want to operate your device using the battery.
When used on the move, the built-in battery provides the device with the necessary power. You
can increase the operating time by using the available energy-saving functions.
For instructions on how to connect external devices (e.g. mouse, printer) to your Tablet
PC, please refer to the operating manual for your device.
Unpacking and checking the device
If you find that damage has occurred during transport, please notify
your local sales outlet immediately!
►Unpack all the individual parts.
PackagingTransport
►Check your device for any visible damage which may have occurred during transportation.
You may need to reuse the packaging in the future, for example if
you need to ship your device.
18 Fujitsu
First-time setup of your device
Choosealocation
Choosealoc ationSetupACadapter
Choose a suitable location for the device before setting it up. In doing
so, please follow these instructions:
• Never place the device or the AC adapter on a heat-sensitive surface.
The surface could be damaged as a result.
• Never place the device on a soft surface (e.g. carpeting, upholstered furniture,
bed). This can result in damage caused by overheating.
• The back of the device heats up during normal operation. Prolonged contact
with skin can become unpleasant or even result in burns.
• Place the device on a stable, flat, non-slippery surface. Please note that the
rubber feet of the device may mark certain types of delicate surfaces.
• Keep other objects at least 100 mm / 4 inches away from the device
and its AC adapter to ensure adequate ventilation.
• Do not expose the device to extreme environmental conditions. Protect
the device against dust, humidity and heat.
Connecting the AC adapter
MakingreadytouseACadapter
Observe the safety notes in the Safety section of this User's Guide.
The supplied AC cable conforms to the requirements of the country in which
you purchased your device. Make sure that the AC cable is approved for
use in the country in which you intend to use it.
3
1
2
►Connect the AC cable (1) to the AC adapter.
►Plug the AC cable (2) into a power outlet.
►Connect the AC adapter cable (3) to the
DC jack (DC IN) of the device.
Fujitsu 19
First-time setup of your device
Switching on the device for the frst time
Switchingonforthefirst time
To make it easier to use your device for the first time, the operating system
is pre-installed on the hard disk.
2
►Press the ON/OFF button (2) for about one second to switch the device on.
The power-on indicator (1) lights up whenever the system is switched on.
►During the installation process, follow the on-screen instructions.
You can find information and help on the Windows operating system functions
on the Internet at "http://windows.microsoft.com".
20 Fujitsu
1
First-time setup of your device
Installing Bonus Apps
BonusApps
The Fujitsu Bonus Apps utility can be accessed via the Start menu.
►In the Start menu, click on Fujitsu Extras.
►Double-click on the Application folder.
►Double-click on the shortcut Fujitsu BonusApps.
►In the dialog box User Account Control by clicking Yes confirm you wish to enter Fujitsu Bonus Apps.
►Select the applications you wish to install by selecting the checkbox adjacent to your selection.
or
►Click Select All if you would like to install all available applications.
Applications that are already installed appear in grey, those that are
available for installation appear in blue.
►To confirm your selection, click Install.
Note that in some cases (depending upon which application was selected for
installation) after installation completes, the system will prompt you to reboot.
There are also cases in which if multiple applications are selected to install
but one of them needs a reboot, the system will reboot and continue
installing the rest of the selected applications.
Fujitsu 21
Working with the Tablet PC
Working with the Tablet PC
Tablet,operationTablet
This chapter describes the basics for operating your Tablet PC. You can find instructions
on how to connect external devices (e.g. mouse, flash storage) to the Tablet PC in
the chapter "Connecting external devices", Page 60.
Please refer to the notes in the chapter "Important notes", Page 13.
22 Fujitsu
Working with the Tablet PC
Status indicators
StatusindicatorsSymbols
The status indicators (1, 2, 3, 4) provide information about the statuses of the power
supply and the rechargeable battery and the webcam.
1
4
2
3
No. Status indicatorDescription
1Battery charging indicator
Please note: If the AC adapter is connected when the
state of charge of the battery is more than 95 %, charging
will not be started. When the state of charge of the battery
is less than 95 %, the battery will be charged to 100 % as
soon as the AC adapter is connected.
• The indicator lights up orange: The rechargeable
battery is charging.
• The indicator is not lit up: The battery is not charging
(the battery is already fully charged or the AC adapter
is not connected).
2, 3 Webcam status LED (for front and rear webcam)
• The indicator lights up blue: The webcam is switched
on while the Tablet PC is switched on.
• The indicator is not lit up: The webcam is switched off.
4Power-on indicator
• The indicator lights up white: The Tablet PC is
switched on or in sleep mode.
• The indicator is not lit up: The Tablet PC is switched
off.
Fujitsu 23
Working with the Tablet PC

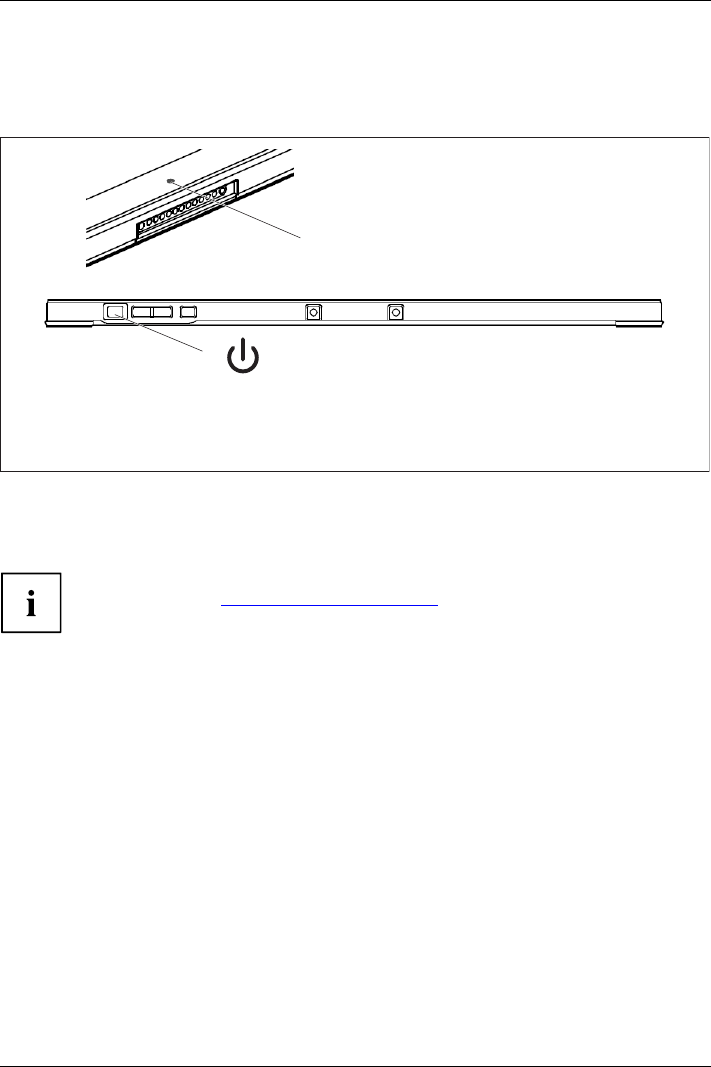

Switching the Tablet PC on
Tablet:SwitchingonPower-onPower-onindicatorSuspend/Resume button
►Press the ON/OFF button (2) for about one second to switch the device on. Refer to chapter
"Switching on the device for the first time", Page 20 for more information.
The power-on indicator (1) lights up whenever the system is switched on.
Programing the ON/OFF button
You can program the ON/OFF button:
Operating system Menu
Windows 10 Windows 10 Start - Control Panel - (Search Control
Panel -) Power Options -Choose what the ON/OFF
button does
If you have assigned a password, you must enter this when requested to
do so, in order to start the operating system. Detailed information can be
found in the chapter "Security functions", Page 55.
24 Fujitsu
2
1
Working with the Tablet PC
Switching the Tablet PC off
Back up your data and close all applications before you switch off your
device. Otherwise data might be lost.
►Shut down the operating system correctly.
►If the Tablet PC does not switch itself off automatically, press the ON/OFF
button for approx. five seconds.
Notebook
or
►A forced shutdown (reset) button is located on the left side of the system located next to the
USB 3.0 port. To achieve the same effect as removing the battery, press the reset button.
Handwriting recognition
For detailed information on handwriting recognition, see the documentation for your operating system.
At present, handwriting recognition on Windows supports the following languages:
English, German, French, Italian, Japanese, Korean, Chinese (traditional and simplified), Dutch,
Portuguese, Spanish, Brazilian, Norwegian (Bokmål and Nynorsk), Swedish, Finnish, Danish,
Polish, Rumanian, Serbian (Cyrillic and Latin script), Catalan, Russian, Czech and Croatian.
On Windows you can set the required language under Control Panel – Time,
Language and Region – Language..
Fujitsu 25
Working with the Tablet PC
Background lighting
LCD screens are operated with background lighting. The luminosity of the background lighting
can decrease over the period of use of the Tablet PC. However, you
can set the brightness of your screen yourself.
Ambient light sensor
If your Tablet PC was shipped with the Windows operating system, the screen brightness is
regulated by means of the ambient light sensor and depending on the respective light conditions.
This results in optimum readability and longer battery life at the same time.
If your Tablet PC was shipped with Windows 10, the adaptive brightness setting is activated. To
change the ambient light sensor settings, select Control Panel - System and Security - Power Options
-Change plan settings - Change advanced power settings - Display - Enable adaptive brightness.
Synchronizing the display on the touchscreen and an external monitor
In Windows 10 you can proceed as follows to set the output type:
►Look for the keyword "project". Swipe your finger across the screen starting from the
right-hand edge.
►Select All settings...
►Look for the keyword "project".
►Select the required function.
Select display orientation (portrait or
landscape format)
You can choose to use either portrait or landscape for the display, and the screen orientation
should automatically adjust to the orientation of the tablet PC.
26 Fujitsu
You can change these settings underControl Panel - Hardware and Sound
-Windows Mobility Center / Rotate screen.
In the settings there are profiles saved for operation with different screen orientations.
These profiles have preset standard configurations that can be modified as desired
These settings do not just affect the screen settings on the Tablet PC, but
also on external monitors that are connected.
Touchscreen
CAUTION: Do not lift or hold the computer by display/LCD panel. It can damage the
LCD panel due to excessive flex. Always lift/carry computer by holding the keyboard
base with both hands .
Working with the Tablet PC
Touch commands
You can execute certain commands by using your finger tip on the touchscreen of your device.
Alternatively, everything which you can select or activate using your finger
tip can also be selected or activated using the stylus.
Calibrate the Digitizer for fnger-based operation of the device.
You must calibrate your Tablet PC with your fingers before first usage, so that
it recognises your fingertips as accurately as possible.
As soon as you notice that the accuracy is deteriorating, you must recalibrate the device.
Please note: There are separate calibration programs available for calibrating the
stylus (device dependent) and for calibrating finger-based operation. Do not use
the calibration tool for the stylus to calibrate finger-based operation.
Operating system Menu
Windows 10 To calibrate, run the Hardware and Sound / Tablet PC Settings function in the
Control Panel. You need to calibrate both portrait and landscape formats.
Fujitsu 27
Working with the Tablet PC
Using the stylus
Stylus
1
2
3
1 = stylus tip
2 = stylus button (right mouse button)
3 = eyelet for stylus tether
You can use the stylus on your Tablet PC as an electronic writing tool, to select menu items and to
navigate through the programs. Programs that support handwriting recognition also allow you to
write directly on the screen with the stylus. You can also use the stylus as a drawing tool.
The Tablet PC is supplied with a stylus tether which you can attach to the
eyelets on the stylus and on the Tablet PC.
Use only the stylus that was provided with your Tablet PC. Do not use any other pointed
object as a substitute, that was not specially designed for your Tablet PC. Replace
the stylus tip if it is worn. The warranty does not cover a scratched screen.
While writing, take care that you do not scratch the surface of the
display (e.g. with a wristwatch or bracelet).
The stylus of the Tablet PC is an electronic instrument that can be damaged
if used improperly. Handle the stylus with care.
Our recommendations for proper handling of the stylus are as follows:
• Do not gesture with the stylus.
• Do not use the stylus as a pointer.
• Do not use the stylus on surfaces other than the screen of the Tablet PC.
• Do not try to turn the grip of the stylus. The grip is used to put the
stylus into its slot and to take it out of its slot.
• Never store the stylus with its weight on the tip (e.g. with the tip down in a stylus
container). If the stylus is stored with the tip pointing down, this may have an
adverse effect on the stylus mechanism (particularly under high temperatures). In
this case the stylus tip may react as though it is constantly being pressed down. To
avoid damage, the stylus should be stored in the stylus slot when not in use.
The stylus can be influenced by electromagnetic fields (cursor quivers or
jumps). There may be a few areas on the screen where the cursor quivers
slightly in spite of pressing the stylus down firmly.
28 Fujitsu
Working with the Tablet PC
The screen responds to entries made with the tip of the finger or the stylus when the
tip of the finger or the stylus directly touches the screen.
You can use the stylus to perform almost all functions for which you would otherwise use a mouse.
Delete functions are not supported by the stylus.

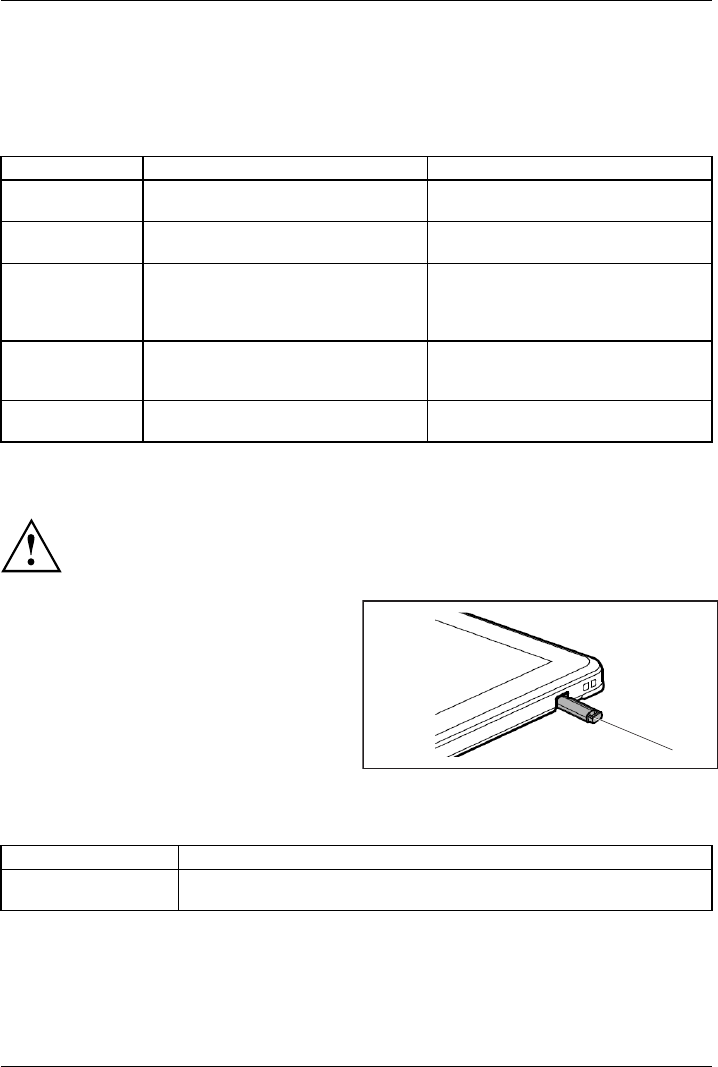

Action Mouse Stylus
Selecting menu
items
Click with the left mouse button. Tap on the menu entry with the tip of
the stylus.
Starting programs Double-click with the left mouse
button.
Tap on the program symbol twice in
rapid succession using the stylus tip.
Moving an object
or window
Drag with the left mouse button
pressed.
Place the stylus tip directly on the
object or window. Keep the stylus tip
held against the screen. Drag the
desired object or window.
Opening a context
menu
Click with the right mouse button. Tap on the desired element with the
stylus and keep the stylus pressed
against the screen.
Moving the cursor Move the mouse Place the tip of the stylus directly on
the screen.
Stylus location
To prevent the stylus from getting stuck in the stylus garage, always make
sure to insert the stylus into the stylus garage in the correct direction (wide
side of the stylus parallel with the Tablet display).
On delivery, the stylus is located in the stylus
garage:
1
Adjusting the stylus
Operating system Menu
Windows 10 Under Control Panel - Hardware and Sound - Pen and Touch you can make
various settings for the stylus.
Fujitsu 29
Working with the Tablet PC
Calibrating the stylus
You must calibrate your Tablet PC with the stylus before first use, so that it
recognizes the stylus as accurately as possible.
You should also always repeat the calibration if the co-ordination between the
stylus and the cursor movement deteriorates.
Operating system Menu
Windows 10 To calibrate, run the Hardware and Sound / Tablet PC Settings function in the
Control Panel. You need to calibrate both portrait and landscape formats.
30 Fujitsu
Working with the Tablet PC
Securing the stylus
Attach the stylus with a stylus tether to prevent accidentally dropping it or losing it.
Your device has one eyelet on the left side and one eyelet on the right side for securing the stylus
tether (see "Ports and controls", Page 10). The tether eyelet on the right side is shown below.
►Fasten the stylus tether to the stylus eyelet and to the eyelet on the Tablet PC.
Fujitsu 31
Working with the Tablet PC
Tablet buttons
Your Tablet PC is fitted with three tablet buttons.
Symbol Description Functions
1On/Off button Increase volume
2
Volume down button Decrease the volume
3
Shortcut button Call the status area by pressing or start a screenshot
function by a long press (depends on configuration)
32 Fujitsu
1234
Volume up button Increase the volume
Working with the Tablet PC
Webcam
Webcam
Your device has two webcams: one on the front of the device and one on the rear.
The webcam has its own status indicator. The indicator lights up when the webcam is active.
Depending on the software used, you can use your webcam to take pictures,
record video clips or take part in web chats.
• The picture quality depends on the lighting conditions and the software being used.
• You can only operate the webcam with a particular application (e.g. an Internet telephony
program or a video conferencing program which supports a webcam).
• When using the webcam the support of the Tablet PC must not wobble.
• The webcam automatically adjusts itself to the current light level. For this reason,
the touchscreen may flicker while the light level is adjusted.
Further information on use of the webcam and additional settings for your webcam
can be found in the help function of the program using the webcam.
Rechargeable battery
BatteryBatteryServicelife,batteryRechargeablebatteryBattery
The built-in battery provides the Tablet PC with the necessary power for use on the move.
You can increase the service life of the battery by caring for the battery properly. The
average battery service life is around 500 charge/discharge cycles.
You can extend the battery service life by taking advantage of the available energy-saving functions.
Charging and maintaining the battery
BatteryBattery
The Tablet PC battery can only be charged when the ambient temperature is
between 5°C / 41 °F and max. 35°C / 95°F.
You can charge the battery by connecting the Tablet PC to the AC adapter
(see "Connecting the AC adapter", Page 19).
If the battery is running low you will hear a warning alarm. If you do not connect the AC adapter
within five minutes of hearing the warning alarm, your Tablet PC will switch off automatically.
Monitoring the battery state of charge
Batterybatterychargemeter
A battery symbol for monitoring the battery capacity is displayed in the system bar /
status indicator. The battery symbol shows you the battery charge.
Fujitsu 33
Working with the Tablet PC
Using the power-saving functions
EnergyEnergyBattery
The Tablet PC uses less power when the power-saving features are enabled. You will then
be able to work longer when using the battery before having to recharge it.
The energy efficiency is increased and environmental pollution is reduced.
By choosing the best power options, you can make significant savings and
at the same time help protect the environment.
►Set the power-saving functions in your Control Panel.
When the Tablet PC is in an power saving mode, you must remember the following:
During power-saving mode, open data is held in main memory or
in a swap file on the hard disk.
Never switch off the Tablet PC while it is in an energy saving mode. If the built-in battery
is nearly drained, close all open files and do not go into power-saving mode.
If you do not intend to use your Tablet PC for a long period of time:
►Exit the power-saving mode if necessary via touching the screen or by switching on the
Tablet PC.
►Close all opened programs and completely shut down the Tablet PC.
Memory cards
Slot
Your Tablet PC is equipped with an integrated storage card reader. Use storage
cards to enlarge the storage of your Tablet PC.
Follow the manufacturer’s instructions when handling the memory cards.
Memorycard
Supported formats
It supports the following formats:
• Micro Secure Digital (SDTM Card)
• Micro SDHC
•MicroSDXC
34 Fujitsu
Working with the Tablet PC
Inserting the memory card
1
2
►Open the slot cover (1).
►Carefully slide the storage card into the slot (2). The label area must be facing downward.
Do not apply any force, otherwise the delicate contact surfaces could be damaged.
Memorycard
►Close the slot cover.
Fujitsu 35
Working with the Tablet PC
Removing the memory card
Memorycard
To avoid any loss of data, always follow the correct procedure for removing the
card (see the documentation for your operating system).
►Open the slot cover.
3
2
1
►Press the edge of the memory card so that the memory card jumps slightly out of the slot (1).
►Pull the memory card out of the slot (2).
►Close the slot cover (3).
36 Fujitsu
SIM card
A SIM Card (Subscriber Identity Module) is a chip card which is inserted in a cellular phone or Tablet
PC and, together with an integrated 4G module, enables access to a cellular radio network.
Follow the instructions supplied by the provider of the SIM card. If you do not feel the
the SIM card engage as you insert it, use a pointed object to insert the SIM card.
Please note that the SIM card format must be micro-SIM (3FF). Other SIM
card formats, such as full-size (1FF), mini-SIM (2FF) or nano-SIM (4FF) do
not fit in the SIM card slot of your Tablet PC.
Please do not insert any other format of SIM card as they may become
twisted, they could even damage the system.
Working with the Tablet PC
Inserting a SIM card
124
3
►Open the slot cover (1).
►Remove the SIM card carrier from
its location (2).
►Insert the SIM card (3) as shown on
the SIM card carrier.
►Push the SIM card carrier back into
its location (4).
►Close the slot cover.
36.1 Fujitsu
Wireless LAN/Bluetooth/4G/LTE wireless components
The installation of wireless components not approved by Fujitsu will
invalidate the certifications issued for this device.
Switching the wireless components on and off
The wireless components are switched on and off using the appropriate
functions of the operating system.
►To switch wireless components on and off individually, select Settings
-Network & Internet - Airplane mode.
Working with the Tablet PC
Confguring WLAN access
• Requirement: A WLAN is available and you have the necessary access data on hand.
Information on configuring WLAN access can be found in the
documentation for your operating system.
Further information on WLAN and Bluetooth
For further information about WLAN or Bluetooth, please refer to the
appendix of this Operating Manual.
For WLAN specifications, see chapter "WLAN specifications", Page 76.
-Access via UMTS
-Access via Wireless
-WAN
-Access via 4G
Ethernet and LAN (docking cradle only)
EthernetLAN
The internal network module of your Tablet PC supports Ethernet LAN. You can use it to
establish a connection to a local network (LAN = Local Area Network).
2
1
►Connect the network cable to the LAN
port of the cradle (1).
►Connect the network cable to your
network connection (2).
Your network administrator can help you to configure and use the LAN connections.
The network cable is not included in the delivery scope. This type of
cable can be obtained from a specialist dealer.
Fujitsu 37
Accessories for your Tablet PC (optional)
Accessories for your Tablet PC (optional)
The following accessories are available for your Tablet PC:
• Docking cradle for charging the Tablet PC with additional ports
•Keyboard cover with LAN port
•Intermediary VESA Mount Plate
•TPU cover with shoulder strap
•Folio cover
• Adapter cables (USB Type-C to HDMI, USB Type-C to microHDMI, Full USB to LAN)
The following sections provide more information on handling the accessories.
38 Fujitsu
(For Tablet PC models with VESA Shell (screw holes), an
optional VESA mounting attachment, the Intermediary VESA Mount
Plate, can be attached to the rear.)
Accessories for your Tablet PC (optional)
Your docking cradle (optional)
As well as fast charging, your docking cradle is a device that also allows you to quickly connect
your Tablet PC to your peripherals such as a monitor, keyboard, mouse, etc. You only need
to dock the Tablet PC to be able to work with your peripheral devices.
Cradle components
PortsPortsCradle
1
2
34
5
10
6
89
7
1 = Dock release button
2 = Docking port
3=USBport 3.0
4=USBport 3.0
5=USBport 3.0
6 = VGA monitor port
7 = HDMI Port
8 = LAN port
9 = Security Lock device
10 = DC jack socket (DC IN)
With STYLISTIC Q508 the LAN port of the cradle supports Wake-on-LAN (G3 only).
With STYLISTIC Q508 two additional external monitors can be connected
either to the VGA monitor port or to the HDMI Port of the docking cradle. The
simultaneous use of two external monitors is supported. (see "Screen resolutions
for integrated screen and external screens", Page 75)
Fujitsu 39
Accessories for your Tablet PC (optional)
Setting up the cradle
Select a suitable location for the cradle before setting it up. In doing
so, please follow these instructions:
• Placethecradleonaflat, stable, non-slippery surface.
• Never place the cradle or the AC adapter on a heat-sensitive surface.
• Do not expose the cradle to extreme environmental conditions.
Protect the cradle from dust, moisture and heat.
Connecting the Tablet PC to the cradle
It is possible to connect the Tablet PC to the cradle while it is running. However, to
prevent problems, we recommend that you switch the Tablet PC off first.
Disconnect the AC adapter from the Tablet PC before connecting
the Tablet PC to the cradle.
When the Tablet PC is connected to the cradle, you must connect the AC adapter
to the cradle, to be able to use all the cradle’s functions.
Cradle
►Remove the AC plug of the AC adapter from the power outlet.
►Remove the AC adapter cable from the DC jack (DC IN) of the Tablet PC.
40 Fujitsu
Accessories for your Tablet PC (optional)
1
2
3
4
►Position the Tablet PC so that it lies against the storage surface of the cradle.
►Push the Tablet PC onto the cradle in the direction of the arrow (1) until you feel it engage
on the connector and until the slide-out position returns to its original position.
Your cradle is supplied with a separate AC adapter (19 V, 4.74 A). Make
sure that you only use this AC adapter for the cradle.
►Plug the AC adapter cable into the DC jack (DC IN) on the cradle (2).
►Connect the AC cable to the AC adapter (3).
►Plug the AC cable into the power outlet (4).
Fujitsu 41
Accessories for your Tablet PC (optional)
Disconnecting the Tablet PC from the cradle
It is possible to separate the Tablet PC from the cradle while it is running.
2
1
►Press the slide-out button in the direction of the arrow (1) until it firmly
remains in pressed position (red marking visible).
►While holding down the lower part of the cradle, lift the Tablet PC off the
cradle in the direction of the arrow (2).
42 Fujitsu
Accessories for your Tablet PC (optional)
Keyboard cover (optional)
The keyboard cover is an optimized device for the convenient input of text. It
only needs to be docked with the Tablet PC.
Components of the keyboard cover
Keyboardco verPorts
1
2
1 = Release button
2 = Docking port for the Tablet PC
Fujitsu 43
Accessories for your Tablet PC (optional)

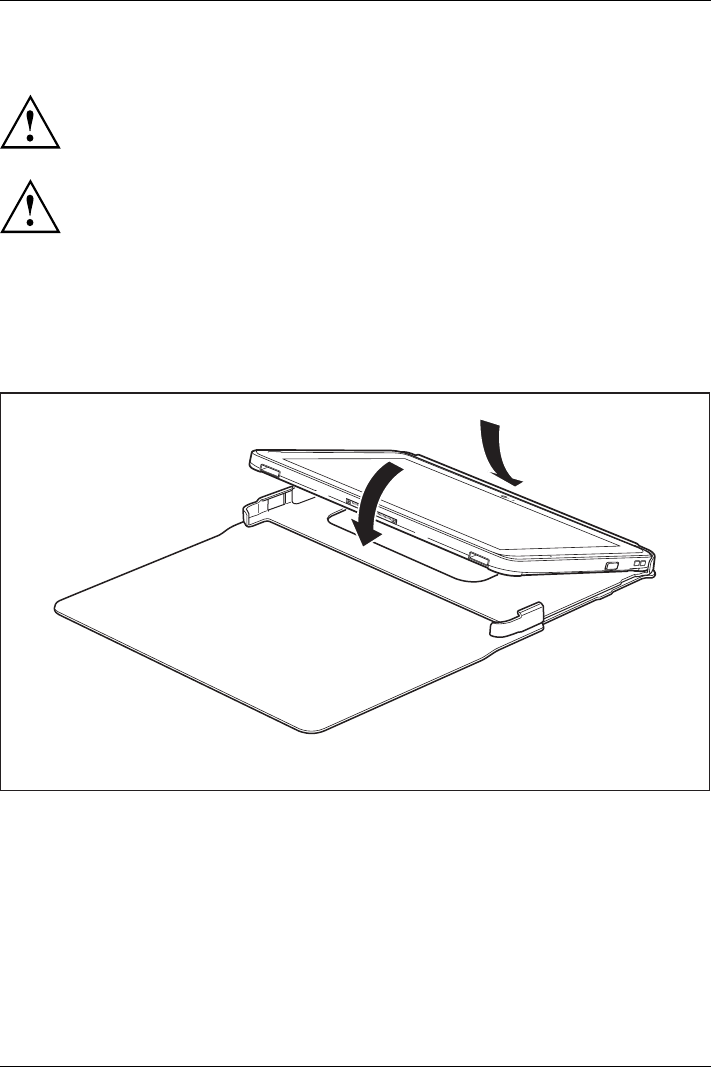

Connecting the Tablet PC to the keyboard cover
Keyboardco ver
To prevent damage to the system, never fold the Tablet PC on the keyboard
cover if the Tablet PC is in the TPU cover.
Do not attach the optional keyboard cover to the tablet and carry both using the
TPU cover. The keyboard cover and/or tablet could be damaged.
12
►Press the release button (1) until it remains in the pressed position (red marking becomes visible).
►Push the Tablet PC onto the keyboard cover in the direction of the arrow, until you feel it
engage on the connector (2) and until the release button returns to its original position.
44 Fujitsu
Accessories for your Tablet PC (optional)
Disconnecting the Tablet PC from the keyboard cover
1
2
►Press the release button (1) until it remains in the pressed position (red marking becomes visible).
►Lift the Tablet PC away from the keyboard cover in the direction of the arrow (2).
Fujitsu 45
Accessories for your Tablet PC (optional)
Intermediary VESA Mount Plate (optional)
The VESA mount kit includes the following parts: VESA mount
and four M2.5XL5-1 screws.
For Tablet PC models with VESA Shell (screw holes), an optional VESA mounting
attachment, the Intermediary VESA Mount Plate, can be attached to the rear.
Use the Intermediary VESA Mount Plate to secure the Tablet PC to a cart, counter,
or stand with the corresponding screw holes, for example.
• The Intermediary VESA Mount Plate cannot be used in combination
with the TPU cover with shoulder strap.
• Use the appropriate tool of the correct size when securing the screws.
• Keep the screws out of the reach of children.
2
1
1
1
1
3
3
3
3
►Remove the covers from the screw holes on the rear of the Tablet PC (1).
►Position the Intermediary VESA Mount Plate on the Tablet PC (2). Make sure that the screw
holes of the Intermediary VESA Mount Plate and of the Tablet PC lie exactly on top of each other.
►Secure the Intermediary VESA Mount Plate with the screws (3).
46 Fujitsu
Accessories for your Tablet PC (optional)
TPU cover with shoulder strap (optional)
Components of the TPU cover
The contents of the TPU cover with shoulder strap accessory option package are:
1. TPU Cover
2. Shoulder strap
3. Rubber stopper in plastic bag for use in combination with keyboard cover
4. Fujitsu warranty
5. Accessory User Guide
Inserting the Tablet PC in the protective TPU cover
►Lay the TPU cover on the table.
1
2
►Place the Tablet PC with the display side face up (1) and with the dock connection
side forward into the corners of the TPU cover.
►Allow the Tablet PC to click into place in the TPU cover (2).
Fujitsu 47
Accessories for your Tablet PC (optional)
a
3
3
►If required, secure the shoulder strap (3) at two of the four holders (a) of the TPU cover.
►Adjust the length of the shoulder strap.
48 Fujitsu
Accessories for your Tablet PC (optional)

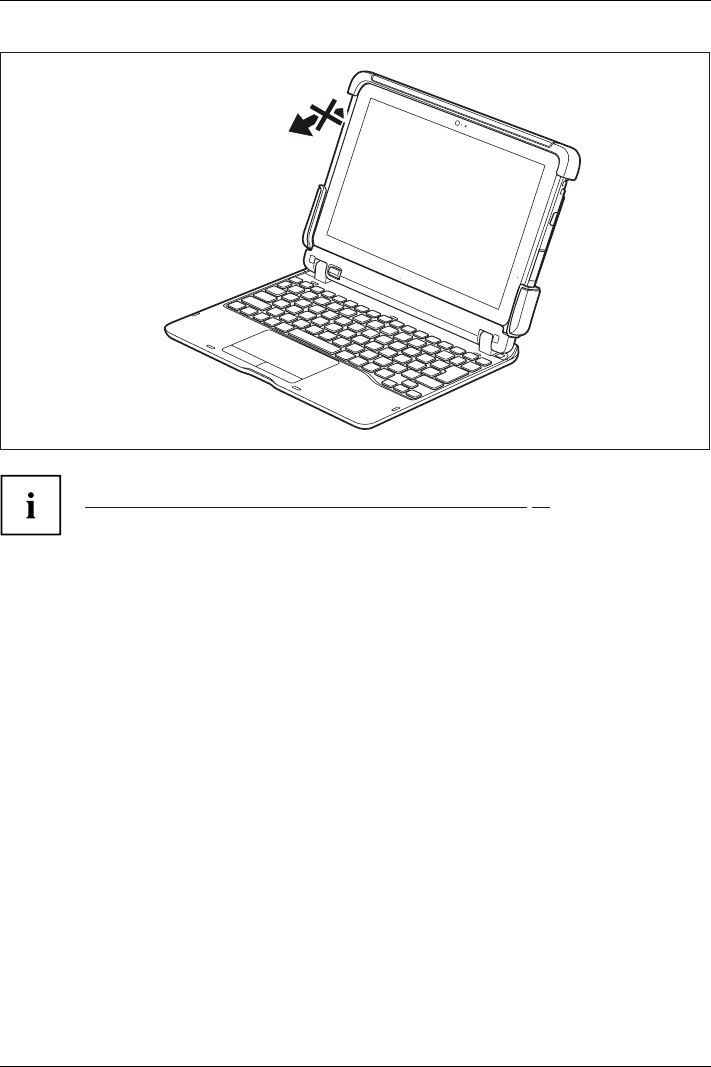

Connecting the Tablet PC/TPU cover to the keyboard cover
The rubber stopper prevents the unit (with TPU cover installed) from tipping over
when the unit is docked on the keyboard cover.
To install the rubber stopper:
►Fold in the connector side of the keyboard cover.
►Remove backing paper from the adhesive strip on the rubber stopper.
21
3
►Carefully align the rubber stopper (2) and apply rubber stopper into the support
cavity (1) in the direction of the arrow (3).
►Apply finger pressure along the stopper to activate adhesive bonding process.
►Fold out the connector side of the keyboard cover.
Fujitsu 49
Accessories for your Tablet PC (optional)
4
5
►Press the release button (4) until it remains in the pressed position (red marking becomes visible).
►Push the Tablet PC/TPU cover unit onto the keyboard cover in the direction of the arrow, until
you feel it engage on the connector (5) and until the release button returns to its original position.
To prevent damage to the system, never fold the Tablet PC on the keyboard
cover if the Tablet PC is in the TPU cover.
Do not attach the optional keyboard to the Tablet PC and do not carry both using
the TPU cover. The keyboard cover and/or Tablet PC could be damaged.
50 Fujitsu
Accessories for your Tablet PC (optional)
To disconnect the unit from the keyboard cover, proceed as described in section
"Disconnecting the Tablet PC from the keyboard cover ", Page 45.
Fujitsu 51
Accessories for your Tablet PC (optional)
Connecting the Tablet PC/TPU cover unit to the docking cradle
1
1
►Position the Tablet PC/TPU cover unit so that it lies against the storage surface of the cradle.
►Carefully push the unit onto the cradle in the direction of the arrow (1) until you feel it engage
on the connector and until the slide-out position returns to its original position.
To disconnect the unit from the docking cradle, proceed as described in section
"Disconnecting the Tablet PC from the cradle ", Page 42.
52 Fujitsu
Accessories for your Tablet PC (optional)
Folio cover (optional)
Do not attach the keyboard cover to your Tablet PC when using the folio cover.
• This folio cover contains magnets. Keep away any objects whose operation could
be affected by magnets, such as heart pacemakers, swipe cards, etc.
• Note that the LCD screen may switch on unnoticed when touched
if the device is in the folio cover.
• To prevent the device from falling out, make sure that the device is secured
in the corresponding retainers of the folio cover.
• The folio cover is only designed for the safe storage and secure transportation
of the device. Do not use the folio cover for other purposes.
• Keep the folio cover away from fire or heaters.
• Do not expose the folio cover to direct sunlight, high temperatures or moisture.
1
2
►Place the Tablet PC with the display side face up (1) and with the dock connection
side forward into the corners of the folio cover.
►Allow the Tablet PC to click into place in the folio cover (2).
The following illustration shows you the many ways in which the folio cover can be used:
Fujitsu 53
Accessories for your Tablet PC (optional)
Adapter cables
3 adapter cables are available for the device:
* USB Type-C to HDMI
* USB Type-C to microHDM
For technical specifications, see chapter "Adapter cables (optional)", Page 79.
54 Fujitsu
Security functions
Security functions
Securityfunctions
Your Tablet PC has several security features that you can use to secure your system
and your personal data from unauthorized access.
This chapter explains how to use these functions, and what the benefits are.
Please remember that in some cases, for example, forgetting your password,
you may be locked out of the system and unable to access your data.
Therefore, please note the following information:
• Back up your data on external data carriers at regular intervals.
• Some security functions need you to choose passwords. Make a note
of the passwords and keeptheminasafeplace.
If you forget your passwords you will need to contact our Service Desk.
Deletion or resetting of passwords are not covered by your warranty
and a charge will be made for assistance.
Fujitsu 55
Confguring the fngerprint sensor
FFiingerngerprpriinn ttss ensensoror

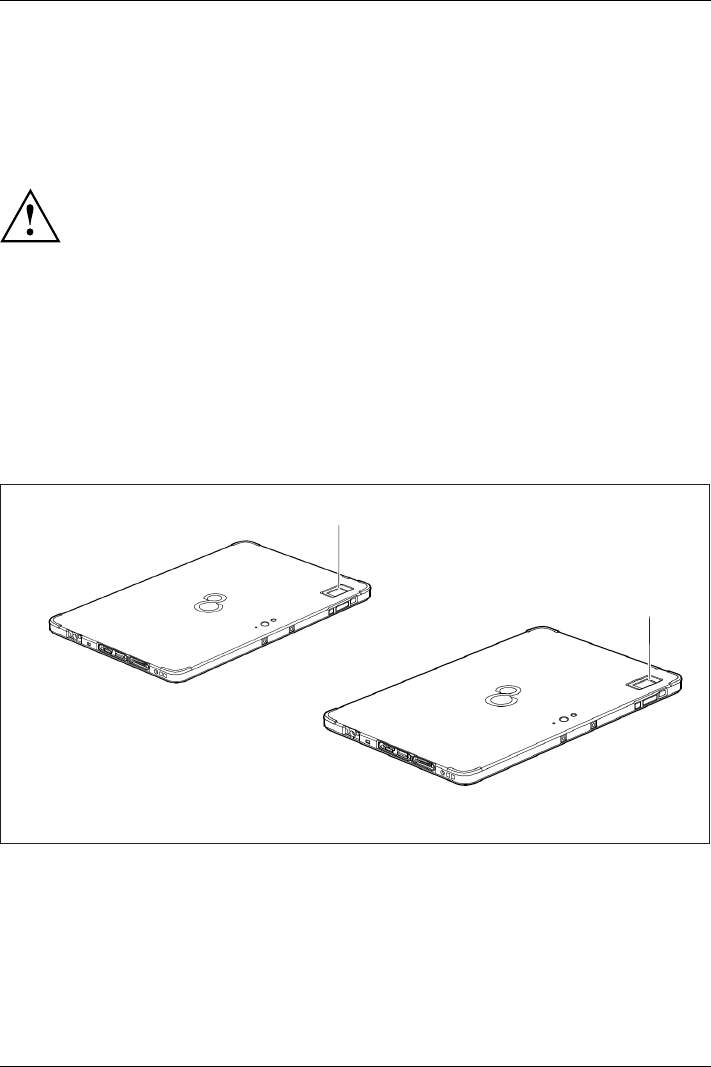

The fingerprint sensor can record the image of a fingerprint. With additional fingerprint
software, this image can be processed and used instead of a password.
1
1
►Install the fingerprint software to be able to use the fingerprint sensor (1).
Using the Security Lock (docking cradle only)
ASeSenccti-uu rrthiitteyyLLftpoorccokktection
Your docking cradle (optional) is equipped with a Security Lock device for a Kensington Lock
Cable. You can use the Kensington Lock Cable, a sturdy steel cable, to protect your docking
cradle against theft. The Kensington Lock Cable is available as an accessory.
►Fit the Kensington Lock Cable to the
fixture on your docking cradle.
Confguring password protection in BIOS Setup Utility
Before using the various options for password protection in the BIOS Setup
Utility, please proceed as follows to increase data security:
Make a note of the passwords and keep them in a safe place. If you forget your
supervisor password you will not be able to access your Tablet PC. Passwords are
not covered by your warranty and a charge will be made for assistance.
Password protection
Your password can be up to 32 characters long and can contain letters and
numbers. No distinction is made between uppercase and lowercase.
Fujitsu 55.1
Security functions
Security functions
Protecting BIOS Setup Utility (supervisor password
and user password)
If you have opened these operating instructions on the screen, we recommend
that you print them out. You cannot call up the instructions on the screen
while you are setting up the password.
BIOSSetupUtility
The supervisor password and the user password both prevent unauthorized use of the BIOS
Setup Utility. The supervisor password allows you to access all of the functions of the BIOS Setup
Utility, while the user password will only give you access to some of the functions. You can
only set up a user password if a supervisor password has already been assigned.
Calling and using the BIOS Setup Utility is described in the chapter
"Settings in BIOS Setup Utility", Page 64.
Assigning the supervisor and user passwords
►Start the BIOS Setup Utility and go to the Security menu.
►Select the Set Supervisor Password field and press the Enter key.
With Enter new Password: you are asked to enter a password.
►Enter the password and press the Enter key.
Confirm new Password requires you to confirm the password.
►Enter the password again and press the Enter key.
Changes have been saved is displayed as a confirmation that the new password has been saved.
►To set the user password, select Set User Password and proceed exactly as
when configuring the supervisor password.
If you do not want to change any other settings, you can exit BIOS Setup Utility.
►In the Exit menu, select the option Save Changes & Exit.
►Select Yes and press the Enter key.
PasswordSupervisorpas swordUserpassword
The Tablet PC is rebooted and the new password is effective. It will now be necessary to
first enter your supervisor or user password in order to open the BIOS Setup Utility. Please
note that the user password only provides access to a few of the BIOS settings.
Changing the supervisor password or user password
You can only change the supervisor password when you have logged into the
BIOS Setup Utility with the supervisor password.
PasswordSupervisorpasswordUserpassword
►Start the BIOS Setup Utility and go to the Security menu.
►When changing the password, proceed exactly as when assigning a password.
56 Fujitsu
Security functions
Removing passwords
To remove a password (without setting a new password) perform the following steps:
PasswordSupervisorpasswordUserpassword
►Start the BIOS Setup Utility and go to the Security menu.
►Highlight the Set Supervisor Password or Set User Password field and press the Enter key.
You will be requested to enter the current password by the Enter Current Password prompt.
Enter New Password will appear and you will be requested to enter a new password.
►Press the Enter key twice at this request.
►In the Exit menu, select the option Save Changes & Exit.
►Select Yes and press the Enter key.
The Tablet PC is rebooted and the password is removed.
Removing the supervisor password simultaneously deactivates the user password.
Fujitsu 57
Security functions
Password protection for booting the operating system
With the supervisor password you have set in the BIOS Setup Utility (see
section "Assigning the supervisor and user passwords", Page 56), you can
also prevent booting of the operating system.
Operating system
Activating system protection
►Start the BIOS Setup Utility and go to the Security menu.
Operatingsystem
►Select the Password on Boot option and press the Enter key.
►Select the option you require (Disabled,First Boot or Every Boot) and press the enter key
If Disabled is selected, a password is not required, and you cannot protect
the system (deactivates system protection).
►Select the Save Changes & Exit option under Exit.
The Tablet PC reboots. You will be prompted to enter your password (the supervisor password).
Deactivating system protection
►Start the BIOS Setup Utility and go to the Security menu.
Operatingsystem
►Select the Password on Boot option and press the Enter key.
►Select the Disabled option and press the Enter key.
Ifyoudonotwan
t to change any other settings, you can exit BIOS Setup Utility.
►Select the Save Changes & Exit option under Exit.
The Tablet PC reboots. The system is no longer password-protected.
58 Fujitsu
Security functions
Password protection for the hard disk
Passwordprotect ion
The hard disk password prevents unauthorized access to the hard disk drives
and is checked internally each time the system is booted. The condition for this
is that you have assigned at least the supervisor password.
Activating hard disk protection
►Call up the BIOS Setup and select the Security menu.
If you have not assigned BIOS passwords yet, define the supervisor and the user
password now, if desired(see"Security functions", Page 55).
►Mark the Hard Disk Security field and press the Enter key.
►In the area Drive0,mar
kthefield Set Master Password and press the Enter key.
Enter new Password then appears and you are asked to enter a password.
►Enter the password and press the Enter key.
Confirm new Password requires you to confirm the password.
►Enter the password again and press the Enter key.
With Setup Notice: Changes have been saved you receive confirmation that
the new password has been saved.
►Ifyouwishtoent
er a password for a second hard disk (Drive1), in the area
Drive1 mark the field Set Master Password and proceed in exactly the same way
as for the set up of the first hard disk (Drive0).
The field Password Entry on Boot is set to Enabled by default. You can exit the BIOS
Setup once you have finished changing the settings.
►From the Exit menu, choose the option Exit Saving Changes.
►Press the Enter key and select Yes.
The Tablet PC reboots and your hard disk is now protected with a password. The
password prompt is enabled as soon as the Tablet PC has rebooted.
Deactivating hard disk protection
To cancel a password (without setting a new password) proceed as follows:
►Call up the BIOS Setup and select the Security menu.
►Mark the Hard Disk Security field and press the Enter key.
►In the area Drive0, mark the field Set Master Password and press the Enter key.
With the prompt Enter current Password you are first asked to enter the old password again.
With Enter new Password you are then prompted to enter a new password.
►After the request, press the Enter key three times.
►From the Exit menu, choose the option Exit Saving Changes.
►Press the Enter key and select Yes.
The Tablet PC reboots and there is no longer any password protection for this hard disk.
►If you wish to remove a password for a second hard disk (Drive1), in the area
Drive1 mark the field Set Master Password and proceed in exactly the same way
as for the removal of the first hard disk (Drive0).
Fujitsu 59
Connecting external devices
Connecting external devices
Under all circumstances, please observe the safety notes provided in the
"Important notes", Page 13 chapter before connecting or disconnecting
any devices to or from your Tablet PC.
Always read the documentation supplied with the device you wish to connect.
Never connect or disconnect cables during a thunderstorm.
Never pull at a cable when disconnecting it. Always grasp the plug.
With some devices, such as USB devices, it is not necessary to switch off
the Tablet PC and the device before connecting/disconnecting. For more
information about whether or not devices need to be switched off, please refer
to the documentation supplied with your external device.
Some of the external devices require special drivers (see the operating
system and external device documentation).
60 Fujitsu
Connecting external devices
HDMI Port (docking cradle only)
DisplayPort
The HDMI Port of the docking cradle can be used to connect a monitor, an LCD
TV or a plasma TV with a corresponding connection.
►Connect the data cable to the
external device.
►Connect the data cable to the HDMI
Port of the cradle.
VGA monitor port (docking cradle only)
An analog monitor is connected to the analog VGA monitor port. Screen output is
limited to a maximum of two screens at the same time.
MonitorVGA portScr eenconnectionM onitorconnection
►Switch off the Tablet PC and the
external monitor.
►Plug the data cable of the external
monitor into the monitor port.
►First switch on the external monitor and
then switch on the Tablet PC.
You can also switch back and forth between the external monitor and the LCD
screen of the Tablet PC, see "Touchscreen", Page 26.
You can display the same image on the external monitor and on the LCD
screen of the Tablet PC at the same time.
Fujitsu 61
Connecting external devices

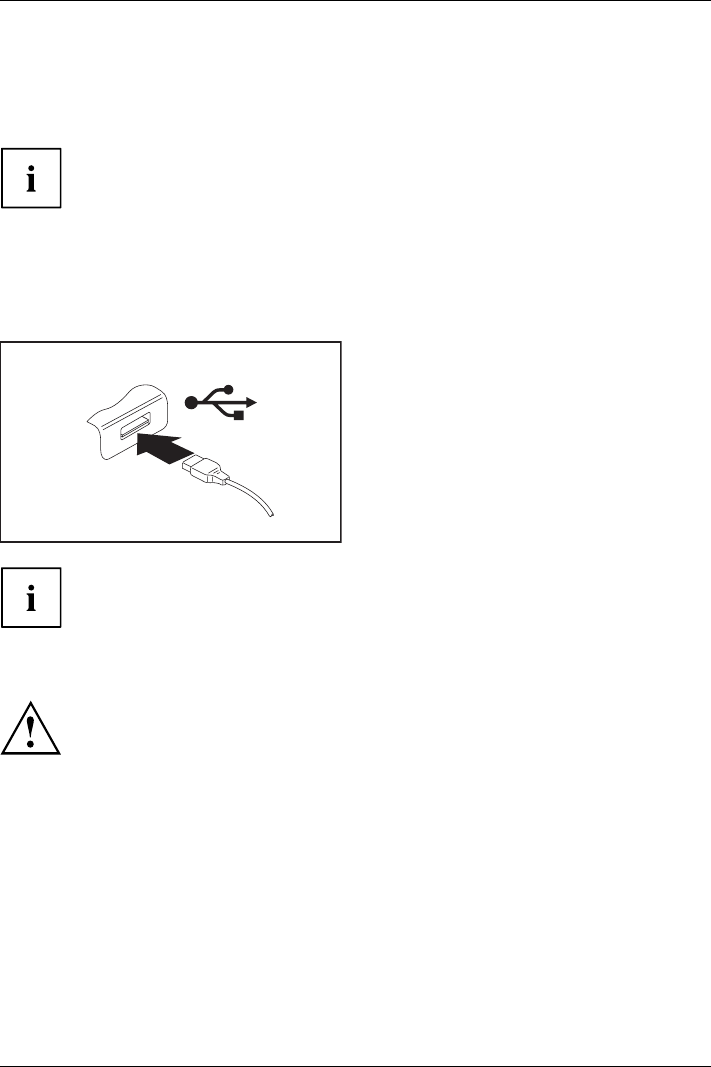

Connecting USB devices
USBports
On the USB ports you can connect external devices that also have a USB port
(e.g. a DVD drive, a printer, a scanner or a modem).
USB devices are hot-pluggable. This means you can connect and disconnect the
cables of USB devices while the operating system is running.
USB 1.x has a maximum data transfer rate of 12 Mbps.
USB 2.0 has a data transfer rate of up to 480 Mbps.
USB 3.0 has a data transfer rate of up to 5 Gbps.
USB 3.1 has a data transfer rate of up to 10 Gbps.
Additional information can be found in the documentation for the USB devices.
►Connect the data cable to the
external device.
►Connect the data cable to a USB port
on the Tablet PC or cradle.
►USB Type C 3.1 is a charging port with
its own USB charging icon (USB +
Battery)
Device drivers
USB devices will be automatically recognized and installed by your operating system.
How to remove USB devices correctly
Always correctly remove the device according to the rules described below,
to ensure that none of your data is lost.
►Tap the symbol for safe removal of the hardware.
►Select the device you wish to shut down and remove.
►Tap OK.
Wait for the dialog box which tells you that it is now safe to remove the device.
62 Fujitsu
Connecting external devices
Connecting external audio devices
Your Tablet PC is equipped with one combined headphones and microphone port, while your
docking cradle (optional) has separate ports for connecting headphones and microphone.
Connecting headphones or other audio output devices
Connectingaudio devicesAudioportsConnectingheadphones
The combined headphones and microphone port of your Tablet PC or the headphones
port of your docking cradle (optional), allows you to connect output devices such as.,
headphones, external speakesr etc., to your Tablet PC.
►Connect the audio cable to the
external device.
►Connect the audio cable to the combined
headphones and microphone port of the
Tablet PC or to the headphones port of
your docking cradle (optional).
The internal speakers are disabled.
If you purchase a cable from a retailer, please note the following information:
The combined headphones and microphone port on your Tablet
PC is a "3.5 mm jack socket".
If you want to connect headphones or a speaker you will need a "3.5 mm jack plug".
Connecting a microphone or other audio input devices
Audiodevices, connectingAudioportsMicrophone,conn ecting
The combined headphones and microphone port of the Tablet PC or the microphone port
of the docking cradle (optional) allows you to connect an external microphone, a MiniDisc
player, MP3 player, CD player or a tape deck to your Tablet PC.
►Connect the audio cable to the
external device.
►Connect the audio cable to the combined
headphones and microphone port of the
Tablet PC or to the microphone port of
your docking cradle (optional).
Fujitsu 63
Settings in BIOS Setup Utility
Settings in BIOS Setup Utility
BIOSSetupUtilitySystemsettings,BIOSSetupUtilityConfiguration,BIOSSetupUtilitySetupConfiguring systemConfiguringhardware
To navigate more easily in the BIOS Setup Utility, you can use an external USB keyboard.
The BIOS Setup Utility allows you to set the system functions and the hardware
configuration for the Tablet PC.
When the Tablet PC is delivered, the default settings are effective. You can change
these settings in the menus of the BIOS Setup Utility. Any changes you make take
effect as soon as you save and exit the BIOS Setup Utility.
The BIOS Setup Utility program contains the following menus:
Info Displays information relating to the BIOS, processor and Tablet PC
System Advanced system settings
Advanced Configuration of various hardware components, such as mouse, keyboard,
processor
Security Password settings and security functions
Boot Configuration of the start-up sequence
Exit Exits the BIOS Setup Utility
Starting the BIOS Setup Utility
►Press the Volume Down button before switching on the Tablet PC.
BIOSSetupUtility
►If a password has been assigned, enter the password and press the Enter key.
If you have forgotten the password, contact your system administrator
or contact our customer service center.
The BIOS Setup Utility starts.
64 Fujitsu
Settings in BIOS Setup Utility
BIOS Setup Utility operation
BIOSSetupUtility
Press the F1 key to display help about operation of the BIOS Setup Utility. The description
of the individual settings is shown in the right-hand window of the BIOS Setup Utility.
With the F9 key you can load the default settings of the BIOS Setup Utility.
►Use the cursor keys ←or →to select the menu you wish to access to make changes.
The menu is displayed on the screen.
►Select the option you want to change with the cursor keys ↑or ↓.
►Press the "Enter" key.
►Press the ESC key to exit the selected menu.
►For future reference, make a note of the changes you have made (for example, in this manual).
Fujitsu 65
Settings in BIOS Setup Utility
Exiting BIOS Setup Utility
BIOSSetupUtility
You need to select the desired option in the Exit menu and activate it by pressing the Enter key:
Exit Saving Changes - save changes and exit BIOS Setup Utility
►To save the current menu settings and exit the BIOS Setup Utility, select Exit Saving Changes and Yes.
The Tablet PC is rebooted and the new settings come into effect.
Exit Discarding Changes - Reject changes and
exit BIOS Setup Utility
►To discard the changes, select Exit Discarding Changes and Yes.
The settings which were valid when BIOS Setup Utility was called remain effective.
The BIOS Setup Utility ends and the Tablet PC is rebooted.
Load Setup Defaults – load default values
►To copy the standard entries for all menus of the BIOS Setup Utility,
choose Load Setup Defaults and Yes.
Discard Changes - Discard Changes without
exiting BIOS Setup Utility
►To discard the changes you have made, select Discard Changes and Yes.
The settings in place when BIOS Setup Utility was called remain effective.
You can now make additional settings in the BIOS Setup Utility.
►IfyouwanttoexittheBIOS Setup Utility with these settings, select Exit Saving Changes and Yes.
Save Changes - save changes without exiting
the BIOS Setup Utility
►To save the changes, select Save Changes and Yes.
The changes are saved. You can now make additional settings in the BIOS Setup Utility.
►If you want to exit BIOS Setup Utility with these settings, choose Exit Saving Changes and Yes.
Save changes and power off
►To save the changes and switch off your device, select Save Changes and Power Off and Yes.
The changes are saved. Your device is shut down.
66 Fujitsu
Troubleshooting and tips
Troubleshooting and tips
TroubleshootingTi psFaultProblemsol ving
If a fault occurs, try to correct it as described. If you fail to correct the problem, proceed as follows:
►Make a note of the steps and the circumstances that led to the fault. Also
make a note of any error messages displayed.
►Switch the Tablet PC off.
►Please contact the Hotline/Service Desk.
You can contact Fujitsu Service and Support in the following ways:
• Toll free phone: 1-800-8Fujitsu (1-800-838-5487)
• Website: "http://solutions.us.fujitsu.com/www/content/support/contact/index.php"
Before you place the call, have the following information ready so that the customer
support representative can provide you with the fastest possible solution:
• The model name and serial number of the Tablet PC. The serial number
is located on a sticker on the underside of the Tablet PC.
• Notes with the messages that appeared on the screen and
informationonaco
ustic signals.
• All changes you have made to the hardware or software after receiving the Tablet PC.
• All changes you have made to the BIOS Setup settings after receiving the Tablet PC.
• Your system configuration and all peripheral devices connected to your system.
• Your sales contract.
Our Tablet PCs have been designed primarily with mobile applications in mind.
This means that considerable effort has been made to optimize components and
equipment in terms of weight, space and energy requirements. Depending on the
particular configuration you have purchased, it is possible that functionality may be
slightly reduced compared to a desktop PC if you are running processor-intensive
gaming software, e.g. games with intensive 3D graphics. Updating your hardware with
drivers which have not been approved by Fujitsu may result in performance losses,
data losses or malfunction of the equipment. A list of approved drivers and current
BIOS versions can be downloaded from: "http://solutions.us.fujitsu.com"
Fujitsu 67
Troubleshooting and tips
Executing a reset
If the device no longer responds to your inputs, choose one of the following options:
Forced shutdown
►Press and hold the ON/OFF button for at least 10 seconds.
or
►Press and hold the button on the left side of the system located next to the USB
port. It will have the same effect as removing the battery.
The device will be shut down. You can then restart it.
Execute a complete reset: Reset BIOS Setup
to the standard values
►Shut down the device.
►If the device does not respond, you may have to force the shutdown, as described above.
►Simultaneously press the Volume Down button and the Shortcut button until the OS starts up.
The device will restart when you release the buttons.
Help if problems occur
Should you encounter a problem with your computer that you cannot resolve yourself:
►Note the ID number of your device. The ID number is found on the type rating
plate on the back or underside of the casing.
►For further clarification of the problem, contact the Fujitsu Service Desk. When you do
this, please have ready the ID number and serial number of your system.
Recovering your Factory Image
In the event you need to recover your system, please refer to the appendix of this Operating Manual.
TheTabletPC’sdateortimeisincorrect
Summertime
Winterti me
Incorrecttime
Time notcorrect
Wrongdate/time
Datenotcorrect
Chargingback-up battery
Cause Troubleshooting
Time and date are incorrect. ►With the BIOS-Setup-Utility, you can set the
date and time in the System menu.
Date and time are still set incorrectly after
switching on the Tablet PC.
►Please contact your sales outlet or our
hotline/service desk.
68 Fujitsu
Troubleshooting and tips
Battery charging indicator does not illuminate
Cause Troubleshooting
The battery is discharged. ►Connect the Tablet PC to a power outlet
using the AC adapter.
Note: The battery will only be charged again
when the battery capacity is less than 90%.
The Tablet PC’s touchscreen remains dark
Tou ch s c re e ndarktouc hscreen
Cause Troubleshooting
Touchscreen is switched off. ►Press a key (external keyboard) or tap on
the touchscreen.
External monitor or television set connected. ►Check whether the graphics driver settings
are correct or whether an external monitor
has been detected in "Intel Graphics Media
Accelerator Driver for mobile".
The display on the Tablet PC’s touchscreen
is diffcult to read.
Tou ch s c re e nTou c h sc r e en
Cause Troubleshooting
Reflected glare ►Move the Tablet PC into a different position.
►Increase the brightness of the screen.
Fujitsu 69
Troubleshooting and tips
The external monitor remains blank
Monitor
Cause Troubleshooting
Monitor is switched off. ►Switch the external monitor on.
Power saving has been activated (monitor is
blank).
►Press a key (external keyboard) or tap on
the touchscreen.
Brightness is set to dark. ►Adjust the brightness of the monitor.
Screen output is set to the Tablet PC
touchscreen.
►Check whether the graphics driver settings
are correct or whether an external monitor
has been detected in "Intel Graphics Media
Accelerator Driver for mobile".
The external monitor’s AC cable or data cable is
not connected properly.
►Switch off the Tablet PC and the external
monitor.
or
►A forced shutdown (reset) button is
located on the left side of the system
located next to the USB port. To achieve
the same effect as removing the battery,
press the reset button.
►Check whether the AC cable is plugged
properly into the external monitor and into
the power outlet.
►Check that the data cable is properly
connected to the Tablet PC and the external
monitor (if it is plugged in with a connector).
►Switch on the external monitor and the
Tablet PC.
The external monitor is blank or the image is unstable
MonitorMonitor
Cause Troubleshooting
The wrong external monitor has been selected
or the wrong screen resolution has been set for
the application program.
►Shut down the application program in
Windows. If the error persists after shutting
down the program, use the key combination
for switching the screen output in order to
switch to the touchscreen of the Tablet PC.
Change the following setting:
►Set the screen resolution: Set the screen
resolution as described in the documentation
foryouroperatingsystem.
►Select monitor: Select monitor 1 or 2 as
described in the documentation for your
operating system.
70 Fujitsu
Troubleshooting and tips
The cursor does not correctly follow the
stylus movements
Cause Troubleshooting
Stylus incorrectly calibrated. ►Calibrate the stylus as described in chapters
"Adjusting the stylus", Page 29 and
"Calibrating the stylus", Page 30.
Stylus input not working
Cause Troubleshooting
Incorrect driver installed. ►Reinstall the driver for the "dual digitizer".
The Tablet PC does not start after switch on
TabletPC
Cause Troubleshooting
The battery is dead. ►Charge the battery.
or
►Connect the AC adapter to the Tablet
PC.
The AC adapter is not connected properly. ►Check whether the AC adapter is properly
connected to the Tablet PC.
►Switch the Tablet PC on.
The Tablet PC stops working
TabletPCEnding
Cause Troubleshooting
The Tablet PC is in energy saving mode. ►End energy saving mode.
An application program has caused the
malfunction.
►Close the application program or restart
the Tablet PC (by restarting the operating
system or switching the device off and back
on again).
The battery is dead. ►Charge the battery.
or
►Connect the AC adapter to the Tablet
PC.
Fujitsu 71
Troubleshooting and tips
The printer does not print
Printerdoesnot print
Cause Troubleshooting
The printer is not switched on. ►Make sure that the printer is switched
on and ready for operation (refer to the
documentation supplied with the printer).
The printer is not connected correctly. ►Check that the data cable between the Tablet
PC and the printer is properly connected.
The printer driver is faulty or not correctly
installed, or it is the wrong printer driver.
►Check that the data cable between the Tablet
PC and the printer is properly connected.
►Check whether the correct printer driver is
loaded (refer to the printer documentation).
The wireless connection to a network does not work
Thewireless connectionto anetwork doesnotwor k
Cause Troubleshooting
The wireless component is switched off. ►Switch the wireless component on (see
"Switching the wireless components on and
off", Page 36).
The wireless component is switched on. Despite
this, the wireless connection to a network does
not work.
►Check whether the wireless connection is
enabled by the software.
►Further information on using the wireless
component can be found in the help files.
The battery discharges too quickly
Battery
Cause Troubleshooting
The battery is either too hot or too cold. In this
case the battery charging indicator flashes
►Bring the Tablet PC up/down to a normal
operating temperature again.
►If the operating time of the battery life is
extremely short, the battery is probably too
old. Replace the battery if necessary.
You may have an application running that
consumes a great deal of power due to frequent
accessing of the hard disk or optical drive.
►Use the AC adapter whenever possible.
The maximum brightness may have been set
for the screen.
►Reduce the brightness of the screen to
lower energy consumption: You will find the
setting under Control Panel – Hardware and
Sounds – Windows Mobility Center.
72 Fujitsu
Troubleshooting and tips
Error messages on the screen
Errormessages onthes creenErrormessage:
This section describes the error messages generated by the BIOS Setup. Error messages displayed
by the operating system or programmes are described in the relevant documentation.
If the error message appears repeatedly, despite troubleshooting measures, please
contact the place of purchase or our customer service center.
Error message/cause Resolution
Keyboard error If you are using an external keyboard:
►Check the connection and reboot the Tablet
PC.
Bootable device was not found ►Check in the BIOS Setup whether your hard
disk has been set correctly.
►Make sure that the operating system is
installed on the corresponding drive.
Press <F1> to resume, <F2> to SETUP
This error message appears if an error occurs
during the self-test before starting the operating
system.
►To continue, press F1 / Windows button.
or
►To enter the BIOS-Setup-Utility,press
F2 / Decrease volume button.
Real time clock error ►Check date and time settings.
Fujitsu 73
Technical data
Technical data
Tablet PC -- Q508 (Model: MQ10A)
General
Processor Intel® CherryTrail-T™ SoC, Quad Core, Intel
Atom® x5-Z8550 Processor (1.44 GHz, 2M
Cache, up to 2.40 GHz)
Main memory (SO DIMM) 4GB DiMM onboard
Electrical data
Safety regulations complied with IEC60950-1
Protection class III
Maximum power consumption (when the Tablet
PC is switched on, connected to the keyboard
cover and the battery is charged):
36 W
Touchscreen
Size 10.1" WUXGA Wide View TFT, Anti-Glare
Display with LED backlit
Screen resolution 1920 x 1200 pixels/16 million colors
Brightness control Software control, 101 levels
Technology Wide-View High-Bright Display with LED
background lighting
Digitizer and glass panel Dual Digitizer (stylus and touch)
Cameras • Front-facing Webcam: 2MP resolution with
status LED indicator
• Rear-facing Webcam: 8MP resolution with
auto-focus and status LED indicator
Graphics card
Chip Intel® HD graphics
Maximum resolution of external display: 1920 x 1080 (1080p)
Dimensions
Width x Depth x Height 10.4”(w)x6.7”(d)x0.6”(h)
264.16mm (w) x 107.18mm (d) x 15.24mm (h)
Weight depending on configuration Tablet weight: approximately 1.5 lbs.
Keyboard Cover weight: 1.5 lbs.
Input devices
Tablet buttons 3 keys
Stylus Stylus with a pressure button
Slots
Storage card slot 1 x microSD card
Ports
Combined headphones and microphone port 3.5mmstereominijack
74 Fujitsu
Technical data
Docking port 1 x
USB (Universal Serial Bus) 1 x USB 3.0, 1 x USB 2.0
HDMI port 1 x micro HDMI
Ambient conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 5 °C .... 35 °C / 41 °F .... 95 °F
Transport temperature (2K2) –15°C....60°C/5°F..
.. 140 °F
Screen resolutions for integrated screen
and external screens
Fujitsu 75
Max.
number
of screens
Number of
external
screens
Integrated
screen
System Interface Ports on the cradle
USB Type-C HDMI VGA
Only tablet PC 2 1 1920 x 1200 1920 x 1080p
60Hz - -
With docking
cradle
2 1 1920 x 1200 - 1920 x 1080p
60Hz -
2 1 1920 x 1200 - - 1920 x 1080
@60Hz
Technical data
WLAN specifcations
Type of network Intel® Dual Band Wireless-AC 7265 2x2
ac/a/b/g/b/n with integrated Bluetooth 4.1, Wi-Fi
based*
2.4 GHz min. 2412, max. 2472 5.8 GHz
min. 5180, max. 5825
Transfer rate (Automatic switching) IEEE802.11 a and g: 54
Mbps max. data rate; IEEE802.11n: 300 Mbps max. data
rate, IEEE802.11ac: 867 Mbps max. data rate
Typical operating distances**
Number of channels •802.11a: 8 independent channels
• 802.11b/g: 11 channels, 3 non-overlapping
channels
• 802.11n: Channel bonding takes two of
the non-overlapping 20MHz channels and
combines it into one 40MHz channel. It is
actually 12 non-overlapping channels with
channel bonding and 24 without. Also it is 1
non-overlapping channel in 2.4GHz when
channel bonding is used.
•802.11ac: 5 independent channels
Security Encryption types: compatible with WEP, TKIP,
AES***, WPA 1.0 and WPA 2.0
Encryption key, lengths supported: 64 bits and
128 bits
Maximum recommended number of computers to be
connected over wireless LAN (during ad hoc connection)
10 units or less ****
*“Wi-Fi based” indicates that the interconnectivity test of the organization which guarantees the interconnectivity of wireless
LANs (Wi-Fi Alliance) was passed.
** The operating distances given above increase or decrease depending on factors such as the number of walls, reflecting material
or interference by external RF sources.
*** Network key encryption (WEP) occurs with the number of bits given above, after deduction of the fixed length of 24 bits the user
may however also set 40 or 104 bits.
**** Depending on the particular practical application, the number of computers which can be networked is reduced if
necessary.
76 Fujitsu
Active frequency • 802.11n: 2.4 GHz or 5 GHz
• 802.11b/g: 2400~2473 MHz
• 802.11a: 4900~5850 MHz
• 802.11ac: 2.4 GHz / 5 GHz
• 802.11a: 40 ft. (12 m) @ 54 Mbps; 300 ft.
(91 m) @ 6 Mbps
• 802.11ac: 40 ft. (12 m) @ 54 Mbps; 300 ft.
(91 m) @ 6 Mbps
• 802.11b: 100 ft. (30 m) @ 11 Mbps; 300 ft.
(91 m) @ 1 Mbps
• 802.11g: 100 ft. (30 m) @ 54 Mbps; 300 ft.
(91 m) @ 1 Mbps
• 802.11n: Estimated double the operating
distance of 802.11g and 802.11a in their
respective frequencies
Technical data
Rechargeable battery
For information on the batteries used in your device, please see
"http://solutions.us.fujitsu.com/www/content/support/".
3-cell lithium polymer battery 9030 mAh
Rated voltage 3.75 V
Rated capacity 34 Wh

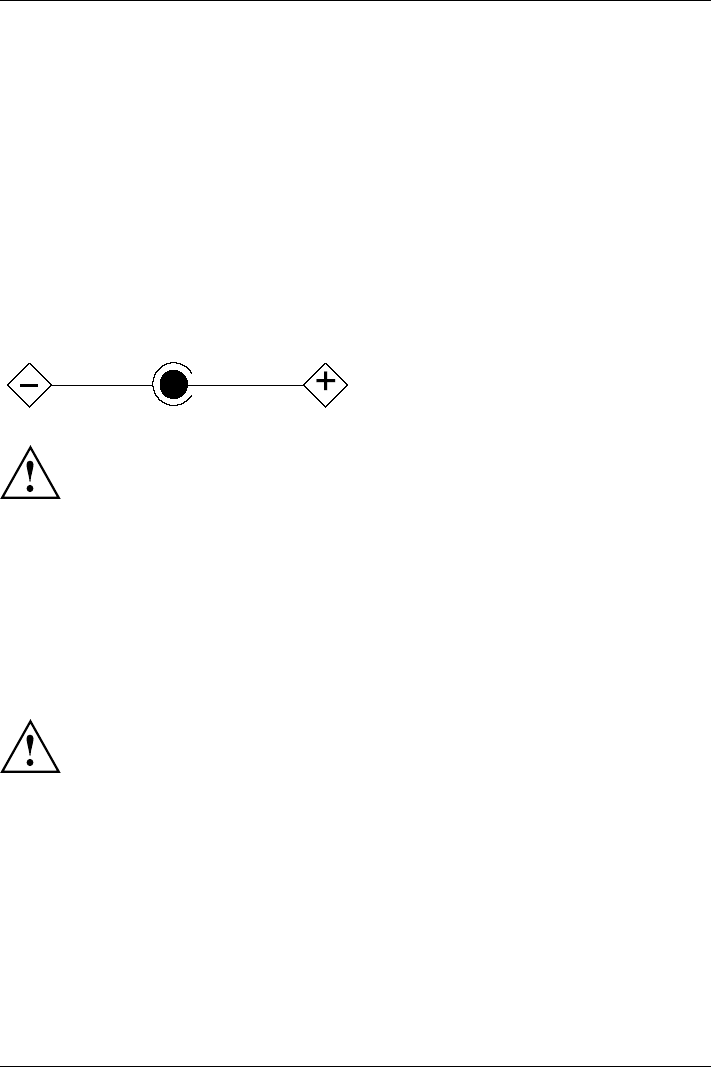

AC adapter (36 W) for the Tablet PC only
(without cradle)
Technicaldata
Rated voltage 12 V
Max. rated current 3 A
An additional AC adapter or AC cable can be ordered at any time.
Docking cradle (optional)
Electrical data
Safety regulations complied with IEC60950-1
Protection class III
Ports
Headphones port 3.5 mm stereo mini jack
Microphone port 3.5 mm stereominijack
Docking port 40-pin
HDMI Port 1 x
VGA monitor port 1x
USB (Universal Serial Bus) 3 x USB 3.0
LAN port 1 x
Security Lock device 1x
Ambient conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 5°
C .... 35 °C / 41 °F .... 95 °F
Temperature in transit –15 °C .... 60 °C / 5 °F .... 140 °F
Fujitsu 77
Technical data
AC adapter (90 W) for the docking cradle (optional)
Technicaldata
Rated voltage 19 V
Max. rated current 4.74 A
An additional AC adapter or power cable can be ordered at any time.
Keyboard cover (optional)
Electrical data
Safety regulations complied with IEC60950-1
Protection class III
Ports
Docking port 40-pin
Touchpad
Yes
Ambient conditions
Environment class DIN IEC 721 7K1
Mechanism class DIN IEC 721 7M2
Operating temperature 5 °C .... 35 °C / 41 °F .... 95 °F
Temperature in transit –15 °C .... 60 °C / 5 °F .... 140 °F
Intermediary VESA Mount Plate (optional)
Dimensions
Width x Depth x Height 3.54 in x 3.58-2.95 in. x 0.24 in
90mm x 91mm-75mm x 60mm
TPU cover with shoulder strap (optional)
Dimensions
Width x Depth x Height 10.63 in. x 6.02 in. x. 0.75 in
270 mm x 153 mm x 19 mm
Folio cover (optional)
Dimensions
Width x Depth x Height 18.11 in. x 10.75 in. x 0.63 in
460 mm x 273 mm x 16 mm
78 Fujitsu
LAN port
Yes
Technical data
Adapter cables (optional)
USB to HDMI: USB Type-C to HDMI
USB Type-C to microHDMI
Full USB to LAN: LAN Conversion Cable Kit: 1x Full USB to LAN
(GbE, limited performance)
Fujitsu 79
Manufacturer’s notes
Manufacturer’s notes
Disposal and recycling
Notes
You can find information on this subject on your Tablet PC or on our website
("http://solutions.us.fujitsu.com/www/content/products/trade-in_program/").
Recycling your battery
Over time, the batteries that run your mobile computer will begin to hold a charge for a
shorter amount of time; this is a natural occurrence for all batteries. When this occurs,
you may want to replace the battery with a fresh one*. If you replace it, it is important
that you dispose of the old battery properly because batteries contain materials that
could cause environmental damage if disposed of improperly.
Fujitsu is very concerned with environmental protection, and has enlisted the services of the
Rechargeable Battery Recycling Corporation (RBRC)**, a nonprofit public service organization
dedicated to protecting our environment by recycling old batteries at no cost to you.
RBRC has drop-off points at tens of thousands of locations throughout the United States and
Canada. To find the location nearest you, go to "www.RBRC.org" or call 1-800-822-8837.
If there are no convenient RBRC locations near you, you can also go to the EIA Consumer
Education Initiative website "http://EIAE.org/ " and search for a convenient disposal location.
Remember – protecting the environment is a cooperative effort, and we must
make every effort to protect it for current and future generations.
* To order a new battery for your Fujitsu mobile computer, go to the Fujitsu shopping site
at "www.shopfujitsu.com" in the US or "www.fujitsu.ca/products/notebooks" in Canada.
** RBRC is an independent third party to which Fujitsu provides funding for
battery recycling; RBRC is in no way affiliated with Fujitsu.
80 Fujitsu
Manufacturer’s notes
DOC (Industry CANADA) Notices
DOC(INDUSTRYCANADA)NOTICES
Radios and Television
This Class B digital apparatus meets all requirements of Canadian Interference-Causing Equipment
Regulations.
CET appareil numérique de la class B respecte toutes les exigence du Réglement
sur le matérial brouilleur du Canada.
UL Notice
IMPORTANT SAFETY INSTRUCTIONS
This unit requires an AC adapter to operate. Only use UL Listed I.T.E. adapters with an output rating
of 12 VDC, with a minimum current of 3.0A (36W). The correct output rating is indicated on the
AC adapter label. Refer to the illustration below for the correct AC adapter output polarity:
CAUTION:
Hazardous optical radiation may be emitted from the camera flash. Do not
operate the flash within 11 in. (284mm) of a person.
When using your STYLISTIC tablet equipment, basic safety precautions should always be followed
to reduce the risk of fire, electric shock and injury to persons, including the following:
• Do not use this product near water for example, near a bathtub, washbowl, kitchen
sink or laundry tub, in a wet basement or near a swimming pool.
•Useonlythe
power cord and batteries indicated in this manual. Do not dispose of batteries in a
fire. They may explode. Check with local codes for possible special disposal instructions.
SAVE THESE INSTRUCTIONS
For Authorized Repair Technicians Only
CAUTION:
For continued protection against risk of fire, replace only with the
same type and rating fuse.
Fujitsu 81
Manufacturer’s notes
ENERGY STAR Compliance
Your Fujitsu system is an ENERGY STAR qualified mobile PC. By
choosing a computer with the latest energy-saving technology, you’re
helping to preserve our environment for future generations. ENERGY
STAR is a joint program of the U.S. Environmental Protection Agency,
U.S. Department of Energy, Natural Resources Canada, and other
governments around the world helping us save money while protecting
the environment through energy efficient products and practices. With
energy costs and global warming top-of-mind for consumers, Fujitsu is
committed to offering solutions that help consumers conserve energy
and improve the quality of our environment.
Display sleep mode:
When the AC adapter is connected, the display turns off after 10 minutes. When the AC
adapter is not connected (on battery), the display turns off after 4 minutes.
Energy saving benefts:
Fujitsu ENERGY STAR qualified mobile PCs use about half as much electricity as standard
equipment – saving half in utility costs. But more than that, ENERGY STAR also makes a difference
for the environment. Did you know that the average house can be responsible for twice the
greenhouse gas emissions as the average car? That’s because every time you flip on a light
switch, run your dishwasher, or turn on your PC, you use energy, which means more greenhouse
gas emissions from power plants. So the more energy we can save through energy efficiency,
the more we help to reduce greenhouse gases and the risks of global warming.
To learn more about the important ENERGY STAR program, visit:"www.energystar.gov".
To read about how Fujitsu is supporting Sustainable Management along with
several other environmental activities, visit the Fujitsu Corporate Citizenship page at:
"http://www.computers.us.fujitsu.com/www/content/aboutus/environmental/environment.php".
82 Fujitsu
FCC and IC Regulatory Information
FCC and IC Regulatory Information
Please note the following regulatory information related to the wireless LAN
device.
Fujitsu 83
Regulatory Notes and Statements
Wireless LAN, Health and Authorization for use
Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of
these emissions, however, are far much less than the electromagnetic energy emissions from wireless
devices such as mobile phones. Wireless LAN devices are safe for use by consumers because they
operate within the guidelines found in radio frequency safety standards and recommendations. The
use of Wireless LAN devices may be restricted in some situations or environments, such as:
• On board an airplane, or
• In an explosive environment, or
• In situations where the interference risk to other devices or services is
perceived or identified as harmful.
In cases in which the policy regarding use of Wireless LAN devices in specific environments is not
clear (e.g., airports, hospitals, chemical/oil/gas industrial plants, private buildings), obtain
authorization to use these devices prior to operating the equipment.
WARNING: The Fujitsu Tablet when used in dock mode in the cradle will communicate
via RF. The device radiates radio frequency energy at a level below the United States
FCC and Canada’s ISED radio frequency exposure limits. However, the Tablet in
docked mode shall not be used in body worn positions. Human contact during normal
operation should be minimized and a body to Tablet distance of >20cms shall be
maintained. Use of other accessories may not ensure compliance with FCC RF
exposure guidelines. Details of the authorized configurations can be found on FCC
website by entering the FCC ID number that is shown on this device.
FCC and IC Regulatory Information
84 Fujitsu
Regulatory Information/Disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with the instructions
included in the user documentation provided with the product. Any changes or modifications made to
this device that are not expressly approved by the manufacturer may void the user’s authority to
operate the equipment. The manufacturer is not responsible for any radio or television interference
caused by unauthorized modification of this device, or the substitution or attachment of connecting
cables and equipment other than those specified by the manufacturer. It is the responsibility of the
user to correct any interference caused by such unauthorized modification, substitution or
attachment. The manufacturer and its authorized resellers or distributors will assume no liability for
any damage or violation of government regulations arising from failure to comply with these
guidelines.
This device must not be co-located or operated in conjunction with any other antenna or transmitter.
Federal Communications Commission and Industry
Canada statement:
This device complies with Part 15 of FCC Rules and Industry Canada license exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not cause
interference, and, (2) This device must accept any interference, including interference
that may cause undesired operation of this device.
Déclaration d’Industrie Canada
Cet appareil est conforme à la RSS concernant les appareils exempt s de licence par Industrie Canada.
Son fonctionnement
est soumis aux deux condition s suivantes : (1) cet appareil ne doit pas causer d’interférence
nuisib le; (2) cet appareil doit accepter toutes les interférences reçues, y compris celles
pouvan t causer un mauvais fonctionnement de l’appareil.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy. If not installed and used in accordance with
the instructions, it may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try and
correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the distance between the equipment and the receiver.
3. Connect the equipment to an outlet on a circuit different from the one the receiver is connected to.
4. Consult the dealer or an experienced radio/TV technician for help.
FCC and IC Regulatory Information
Fujitsu 85
FCC Radio Frequency Exposure statement
The available scientific evidence does not show that any health problems are associated with
using low power wireless devices. There is no proof, however, that these low power wireless
devices are absolutely safe. Low power wireless devices emit low levels of radio frequency
energy (RF) in the microwave range while being used. Whereas high levels of RF can produce
health effects (by heating tissue), exposure to low-level RF that does not produce heating
effects causes no known adverse health effects. Many studies of low-level RF exposure have
not found any biological effects. Some studies have suggested that some biological effects
might occur, but such findings have not been confirmed by additional research.
The wireless LAN radio device has been tested and found to comply with FCC radiation
exposure limits set forth for an uncontrolled equipment and meets the FCC radio frequency
(RF) Exposure Guidelines.
The exposure standard for wireless devices employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg, and 1.6W/kg by Industry Canada.
This device is compliant with SAR for general population /uncontrolled exposure limits in
ANSI/IEEE C95.1-1992 and Canada RSS 102, and had been tested in accordance with
the measurement methods and procedures specified in OET Bulletin 65 Supplement C,
and Canada RSS 102. This device has been tested, and meets the FCC, IC RF exposure
guidelines when tested with the device operating conditions.
Déclaration de la FCC/d’Industrie Canada sur
l’exposition aux radiofréquences
La norme régissant l’exposition des appareils sans fil aux radiofréquences emploie une unité
de mesure dénommée Taux d’absorption spécifique, ou TAS. La FCC et Industrie Canada ont
défini la même limite de TAS : 1,6 W/kg. Cet appareil est conforme au TAS pour les limites
d’exposition générales de la population/non contrôlées définies par les règles C95.1-1992 de
l’ANSI/IEEE et RSS 102 d’Industrie Canada ; il a été testé en conformité avec les méthodes
et procédures de mesure spécifiées dans le supplément C du bulletin 65 de l’OET (Office
d’ingénierie et de technologie) et la règle RSS 102 d’Industrie Canada. Cet appareil a été testé
selon les directives de la FCC et d’IC concernant l’exposition aux radiofréquences et s’est révélé
conforme à ces dernières lorsqu’il a été testé en contact direct avec le corps.
Export restrictions
This product or software contains encryption code which may not be exported or transferred
from the US or Canada without an approved US Department of Commerce export license.
This device complies with Part 15 of FCC Rules., as well as ICES 003 B / NMB 003 B.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesirable operation. Modifications not expressly authorized by Fujitsu
America, Inc. may invalidate the user’s right to operate this equipment.
FCC and IC Regulatory Information
86 Fujitsu
Restrictions concernant l’exportation
Ce produit ou logiciel contient du code de chiffrement qui ne peut être exporté ou transféré du
Canada ou des États-Unis sans un permis d’exportation du département du commerce des
États-Unis. Ce matériel est conforme à la Partie 15 des règlements de la FCC, ainsi qu’à la
norme ICES 003 B/NMB 003 B. Son fonctionnement est soumis aux deux conditions suivantes
: (1) cet appareil ne doit pas causer d’interférence nuisible; (2) cet appareil doit accepter
toutes les interférences reçues, y compris celles pouvant causer un mauvais fonctionnement
de l’appareil. Toute modification n’ayant pas été expressément approuvée par la société Fujitsu
America Incorporated peut annuler le droit de l’utilisateur de se servir du matériel.
Canadian Notice
The device for the 5150 - 5250 MHz band is only for indoor usage to reduce the potential
for harmful interference to co-channel mobile satellite systems.
The maximum antenna gain of 6 dBi permitted (for devices in the 5250 - 5350 MHz, 5470 - 5725
MHz and 5725 - 5825 MHz bands) to comply with the e.i.r.p. limit as stated in A9.2 of RSS210.
In addition, users are cautioned to take note that high power radars are allocated as primary
users (meaning they have priority) of 5250 - 5350 MHz and 5650 - 5850 MHz and these
radars could cause interference and/or damage to LE-LAN devices.
Avis pour le Canada
Le matériel destiné à un usage sur la bande 5 150 - 5 250 MHz doit être utilisé
uniquement à l’intérieur afin de réduire les risques de brouillage nuisible causé aux
systèmes mobiles par satellite fonctionnant sur un même canal.
Un gain d’antenne de 6 dBi est autorisé (pour le matériel utilisant les bandes 5 250 - 5 350
MHz, 5 470 - 5 725 MHz et 5 725 - 5 825 MHz), conformément à la limite p.i.r.e. maximale
permise selon l’annexe A9.2 afférent aux périphériques RSS210.
En outre, les utilisateurs doivent prendre garde au fait que les radars de grande puissance
sont considérés comme des utilisateurs principaux (ce qui signifie qu’ils sont prioritaires) des
bandes 5 250 - 5 350 MHz et 5 650 - 5 850 MHz et qu’ils pourraient causer des interférences
et/ou des dommages aux appareils de réseau exempts de licence.
FCC and IC Regulatory Information
Fujitsu 87
AVERTISSEMENT – La tablette Fujitsu communiquera par radiofréquences (RF)
lorsqu’elle est utilisée en mode station d’accueil dans le socle. L’appareil émet de
l’énergie radiofréquence d’une intensité inférieure aux limites d’exposition humaine
aux radiofréquences établies par la FCC aux États-Unis et par ISDE au Canada.
Toutefois, en mode station d’accueil, la tablette ne doit pas toucher le corps. Les
contacts avec le corps pendant le fonctionnement normal de l’appareil doivent être
minimisés et une distance de plus de 20 cm doit être maintenue entre le corps et la
tablette. L’utilisation d’autres accessoires peut conduire à un usage non conforme
aux limites d’exposition aux radiofréquences de la FCC. Des détails au sujet des
configurations autorisées sont fournis sur le site Web de la FCC. Entrez alors le
numéro d’identification FCC qui apparaît sur cet appareil.
Appendix
Appendix
Before Using the Optional Wireless LAN
This manual describes the procedures required to properly set up and configure the optional
integrated Wireless LAN Mini-PCI device (referred to as "WLAN device" in the rest of the
manual). Before using the WLAN device, read this manual carefully to ensure its correct
operation. Keep this manual in a safe place for future reference.
Wireless LAN Devices Covered by this Document
This document is applicable to systems containing the following device:
• Intel® Dual Band Wireless-AC 7265 (802.11ac/a/b/g/n WLAN) with Bluetooth
v4.1
Characteristics of the WLAN Device
• The WLAN devices are PCI Express Mini cards attached to the main board of the mobile computer.
• The WLAN devices operate in license-free RF bands, eliminating the need to procure
an FCC operating license. The WLAN operates in the 2.4GHz Industrial, Scientific,
and Medical (ISM) RF band and the lower, middle, and upper bands of the 5GHz
Unlicensed National Information Infrastructure (UNII) bands.
• The WLAN devices are capable of five operating modes: IEEE802.11a, IEEE802.11b,
IEEE802.11g, IEEE802.11n, and IEEE802.11AC.
• The WLAN device is Wi-Fi certified and operates (as applicable) at a the maximum
data rate of 450 Mbps in IEEE802.11n mode (300 Mbps in this configuration); 54 Mbps
in IEEE802.11g mode; and 11 Mbps in IEEE802.11b mode.
• The WLAN devices support the following encryption methods - WEP,
TKIP, CKIP, and AES encryption.
• The Wireless LAN devices are compliant with the following standards: WPA,
WPA2, CCX1.0, CCX2.0, CCX3.0, and CCX4.0.
88 Fujitsu
Appendix
Wireless LAN Modes Using this Device
Ad Hoc Mode
"Ad Hoc Mode" refers to a wireless network architecture where wireless network connectivity
between multiple computers is established without a central wireless network device, typically
known as Access Point(s). Connectivity is accomplished using only client devices in a peer-to-peer
fashion. That is why Ad Hoc networks are also known as peer-to-peer networks. Ad Hoc
networks are an easy and inexpensive method for establishing network connectivity between
multiple computers. Ad Hoc mode requires that the SSID, network authentication, and encryption
key settings are identically configured on all computers in the Ad Hoc network.
Fujitsu 89
Appendix
Access Point (Infrastructure) Mode
Infrastructure mode refers to a wireless network architecture in which devices communicate with
wireless or wired network devices by communicating through an Access Point. In infrastructure
mode, wireless devices can communicate with each other or with a wired network. Corporate
wireless networks operate in infrastructure mode because they require access to the WLAN in
order to access services, devices, and computers (e.g., file servers, printers, databases).
**
*
* = An optional hub for a wired LAN may
be required depending upon the type
of access point used.
** = ADSL modem, cable modem, or similar
90 Fujitsu
Appendix
How to Handle This Device
The WLAN device is an optional device that may come pre-installed in your mobile computer. Under
normal circumstances, it should not be necessary for you to remove or re-install it. The Operating
System that your mobile computer comes with has been pre-configured to support the WLAN device.
•Integrated Intel Centrino wireless LAN devices support IEEE802.11a, IEEE802.11ac,
•IEEE802.11b, IEEE802.11g, and IEEE802.11n.
•The WLAN device operates in the 2.4 GHz ISM band and the 5 GHz
lower, middle, and upper UNII bands.
• Microwave ovens may interfere with the operation of WLAN devices since they operate in the
same 2.4 GHz frequency range as IEEE802.11b/g/n devices. Interference by microwaves
does not occur with IEEE802.11a radio which operates in the 5 GHz RF band.
• Wireless devices that transmit in the 2.4 GHz range may interfere with operation of WLAN
devices in IEEE802.11b/g/n modes. Symptoms of interference include reduced throughput,
intermittent disconnects, and many frame errors. It is HIGHLY recommended that these
interfering devices be powered off to ensure proper operation of the WLAN device.
Deactivating/Disconnecting the WLAN Device
Disconnecting the WLAN device may be desired in certain circumstances (to extend battery
life) or where certain environments require it (i.e. hospitals, clinics, airplanes, etc.). The
WLAN device can be disconnected in Windows using the WLAN icon in the system tray
(Note that disconnecting via the icon in the system tray does not turn off the radio; it
continues to transmit and receive even though it’s not connected.)
The wireless components are switched on and off using the appropriate
functions of the operating system.
►To switch wireless components on and off individually, selectSettings Network
& Internet - WiFi - On / Off.
Fujitsu 91
Appendix
Confguring the Wireless LAN
The optional WLAN device can be configured to establish wireless network connectivity
using the software that is built into Windows. Support for most industry standard
security solutions is contained in this software.
Pre-defined parameters will be required for this procedure. Please consult with
your network administrator for these parameters:
Connection to the network
After you have configured your computer, you can connect to an active network
by performing the following steps:
1. Click on the WLAN icon in the system tray.
2. Select Connect to a network.
3. Select a network from the list that appears, and click the Connect button.
92 Fujitsu
Appendix
Troubleshooting the WLAN
Causes and countermeasures for troubles you may encounter while using your
wireless LAN are described in the following table.
Problem Possible Cause Possible Solution
Incorrect network name (SSID)
or network key
Ad hoc connection: verify that
the network names (SSID’s)
and network keys (WEP) of
all computers to be connected
have been configured correctly.
SSID’s and WEP key values
must be identical on each
machine.
Access Point (Infrastructure)
connection: set the network
name (SSID) and network key
to the same values as those of
the access point.
Set the Network Authentication
value identically to that of the
Access Point. Please consult
your network administrator for
this value, if necessary.
Unavailable network connection
Weak received signal strength
and/or link quality
Ad hoc connection: Retry
connection after shortening
the distance to the destination
computer or removing any
obstacles for better sight.
Access Point (Infrastructure)
connection: Retry connection
after shortening the distance to
the access point or removing
any obstacles for better sight.
Fujitsu 93
Appendix
Problem Possible Cause Possible Solution
The WLAN device was
deactivated or is disabled
Check if the wireless switch
is turned On. Go to Start >
Control Panel, and doubleclick
on Windows Mobility Center.If
the wireless network is off, click
the Turn wireless on button.
The computer to be connected
is turned off
Check if the computer to be
connected is turned ON.
Incorrectly configured network
settings
Recheck the configuration of
your network settings.
RF interference from Access
Points or other wireless
networks
The use of identical or
overlapping RF channelscan
cause interference with the
operation of the WLAN device.
Change the channel of your
Access Point to a channel
that does not overlap with the
interfering device.
Wireless network authentication
has failed
Re-check your Network
Authentication, Encryption,
and Security settings.
Incorrectly configured
security settings such as
an incorrectly typed WEP
key, a mis-configured LEAP
username, or anincorrectly
chosen authentication method
will cause theLANdeviceto
associate but not authenticate
to the wireless network.
Unavailable network connection
(continued)
Incorrect IP address
configuration
This only applies to networks
using static IP addresses.
Please contact your network
administrator for the correct
settings.
94 Fujitsu
Appendix
Using the Bluetooth Device
Bluetooth is integrated into the Wireless LAN module. The Bluetooth capabilities are Bluetooth
Basic, EDR and Bluetooth Low Energy (BT v4.0) operational modes.
What is Bluetooth?
Bluetooth technology is designed as a short-range wireless link between mobile devices, such
as laptop computers, phones, printers, and cameras. Bluetooth technology is used to create
Personal Area Networks (PANs) between devices in short-range of each other.
Proceed as follows to change Bluetooth settings:
1. In the Start menu search field, search for "Bluetooth".
2. Select the Bluetooth settings option (dependent on the operating system).
3. In the Bluetooth settings window, make the desired settings.
Where to Find Information About Bluetooth
For additional information about Bluetooth Technology, visit the Bluetooth
Web site at: "www.bluetooth.com".
FCC Radiation Exposure Statement
This system complies with the FCC limit values for radio frequency radiation in an uncontrolled
environment. The Bluetooth antenna is located at the top edge of the LCD screen and is exempt
from the criteria for minimum distance because of its low power consumption.
The transmitter used in this system must not be operated together with other antennas or transmitters.
Canadian Notice
To prevent radio interference to licensed services, this system is designed for use in indoor
spaces / in buildings and not directly at window openings, to allow a maximum shielding.
Warranty
Users are not authorized to modify this product. Any modifications invalidate the warranty.
This equipment may not be modified, altered, or changed in any way without signed
written permission from Fujitsu. Unauthorized modification will void the equipment
authorization from the FCC and Industry Canada and the warranty.
Fujitsu 95
Appendix
Image Backup and Recovery Procedures
Windows 10 Procedures
It is very important that you create your Recovery Drive before beginning to use your system.
It is also important that you create a backup of the content of the C:\Drivers folder on
your system to writable media or an external drive. System-specifc software drivers
are also available for download through the Fujitsu support site.
Note: Most of the information below comes from the Microsoft® page
"http://windows.microsoft.com/en-us/windows-10/windows-10-recovery-options".
Please refer to it for more details.
Creating a recovery drive
A recovery drive can help you troubleshoot and fix problems with your PC, even if it
won’t start. To create one, all you need is a USB flash drive. Windows will inform you
ofthesizetheUSBflash drive needed to hold the required data.
1. From the taskbar, search for Create a recovery drive and then select it. You may be
asked to enter an administrator password or confirm your selection.
2. When the tool opens, make sure Backup system files to the recovery drive
is selected and then select Next.
3. Connect a USB drive to your PC, select it, and then select Next - Create. A large number of
files need to be copied to the recovery drive, so this could take some time.
4. When it’s done, select Finish.
Note:
If you chose not to back up the system files when you created your recovery drive on
Windows 10, you won’t be able to use it to reinstall Windows.
Recovery options in Windows 10
If your PC isn’t running as quickly or reliably as it used to, try one of these recovery
options. The following table can help you decide which one to use.
Problem Try this
Your PC isn’t working well and you recently
installed an app, driver, or update.
Restore from a system restore point
Your PC isn’t working well and it’s been a while
since you installed anything new.
Reset your PC
Your PC won’t start and you’ve created a
recovery drive.
Use a recovery drive to reinstall Windows
Your PC won’t start and you haven’t created a
recovery drive.
Use installation media to reinstall Windows
96 Fujitsu
Appendix
Restore from a system restore point
This option takes your PC back to an earlier point in time, called a system restore point. Restore
points are generated when you install a new app, driver, or Windows update, and when you
create a restore point manually. Restoring won’t affect your personal files, but it will remove
apps, drivers, and updates installed after the restore point was made.
1. After updating to RS2, right-click (or press and hold) the Start button and
search Control Panel.Control Panel.
2. Search Control Panel for Recovery.
3. Select Recovery - Open System Restore - Next.
4. Choose the restore point related to the problematic app, driver, or update,
and then select Next - Finish.
Note: If you don’t see any restore points, it could be because the system protection isn’t turned
on. To check, go to the Control Panel, search for Recovery, and then select Recovery - Configure
System Restore - Configure and make sure that Turn On System Protection is selected.
Reset your PC
Resetting lets you choose whether to keep your files or remove them, and then reinstalls Windows.
1. Select Settings - Update & security - Reset this PC - Get started
2. Choose an option:
Option What it does
Keep my files This reinstalls Windows 10, but keeps your personal files and any
apps that came with your PC. It removes:
• Changes you made to settings
• Apps and drivers you installed
Remove everything This reinstalls Windows 10 and any apps that came with your PC.
It removes:
• Personal files
• Changes you made to settings
• Apps and drivers you installed
If you’re planning to donate, recycle, or sell your PC, use this option
and choose to fully clean the drive. This might take an hour or
two, but it makes it harder for other people to recover files you’ve
removed.
Use a recovery drive to reinstall Windows
Note: This process utilizes the USB Recovery Drive that you created in the
previous section "Create a Recovery Drive".
1. To reset your PC, select Settings - Update & security - Recovery - Advanced startup - Restart now.
If that doesn’t fix the problem, try Troubleshoot - Recover from a drive. This will remove your personal
files, apps and drivers you installed, and changes you made to settings. If you repartitioned the
drive Windows is installed on, note that this will restore the drive’s default partitions.
Fujitsu 97
Appendix
Use installation media to reinstall Windows
If you have installation media, like a Recovery DVD that you purchased from
Fujitsu, you can use it to reinstall Windows. You will need to install additional
drivers and applications after reinstalling Windows.
To reinstall Windows, follow the steps below:
1. Power on your system. When the Fujitsu logo appears on the screen, press the F12 key.
2. Insert the bootable disc in your DVD drive.
3. Highlight the CD/DVD option from the Boot Menu and press Enter .
4. Follow the on-screen instructions to restore the image.
• Select the language.
• At the Windows Setup dialog window, enter your OS, language and other
preferences and click Next to continue.
•ClickInstall now to proceed with reinstalling Windows.
• At License terms, check on I accept the license terms and click Next.
•AtWhich type of installation do you want,clickonCustom: Install Windows only (advanced).
• Delete all partitions on the drive and click Next. Installation of Windows will start. This will
take some time so please wait until the installation is finished and the system restarts.
5. When the system restarts, perform all set-up steps to arrive at the Desktop.
6. Connect to the Internet.
7. Use the Backup of the contents of the C:\Drivers folder to install needed drivers and
applications to your system. If it is not available, download the software from the
Fujitsu Support Site, as described below in the "Auto Installation support for the
software downloaded from support website" section below.
Auto Installation support for the software downloaded from support website
1. Download FSDM (Fujitsu Software Download Manager) from the support site and download all
the drivers applicable to the model and OS using FSDM if they are not downloaded yet.
2. When the software packages are downloaded from the web, it is important to
download the Auto Installer Software package and the model/language-specific
Readme file if you prefer to auto install the software.
3. It is important to have the extracted Auto Installer software package folder and
Readme file in the same location as the other software folders. Otherwise
auto-installation of the software will not be supported.
4. Inside the Auto Installer software package, launch FjAutoinstall.exe as administrator.
5. Click Yes on the User Account Control dialog box. This will take some time to
process the software packages. A message will be displayed during this time
stating Please wait while the content is being processed.
6. If the EULA is displayed for Fujitsu Software Auto Installer, accept the EULA, otherwise continue.
7. The Fujitsu Software Auto Installer user interface will be launched providing the ability
to auto install the software downloaded from the support site.
8. It is recommended that you install all the software in the listed order. You can
Select All, to install the software in the order listed.
9. Click the Install button to start the installation.
10. After installing all the selected drivers, the Installation Results window is displayed. Click OK.
98 Fujitsu
Appendix
11. You must restart the system for the settings to take effect. Do you wish to reboot
now? message appears. Select Yes.
12. The system will now reboot.
Downloading driver updates
To ensure that you always have the most current driver updates related to your system,
you should occasionally access the Fujitsu Software Download Manager (FSDM) utility.
The FSDM utility is available from the Fujitsu Support site. FSDM will allow you to view
and download the most current drivers, utilities and applications to determine whether
you have the latest versions. To download the FSDM Utility, go to the Support Site:
"http://support.fujitsupc.com/CS/Portal/support.do?srch=DOWNLOADS".
Fujitsu 99
Index
Index
A
AC adapter
connecting 19
Set up 19
Anti-theft protection 55
Audio devices, connecting 63
Audio ports 63
B
Battery 33
battery charge 34
Caring for and maintaining 33
charge level 33
Charging 33
Discharges too quickly 72
see Rechargeable battery 33
Service life 33
battery charge meter 33
BIOS Setup Utility
, protecting with password 56
calling 64
exiting 66
operation 65
Settings 64
Bluetooth, Safety notes 14
Bonus Apps 21
C
Charging back-up battery 68
Choose a location 19
Configuration, BIOS Setup Utility 64
Configuring hardware 64
Configuring system 64
Connecting audio devices 63
Connecting headphones 63
Cradle 39
Connecting a Tablet PC 40
D
dark touchscreen 69
Date not correct 68
Declarations of conformity 7
Display Port 61
DOC (INDUSTRY CANADA) NOTICES 81
E
Ending
energy saving mode 71
Energy
Energy consumption 34
Energy saving 14
Energy saving functions 34
Error message:
on the screen 73
Error messages on the screen 73
Ethernet LAN 37
F
Fault
Elimination 67
First-time setup 18
G
Getting started 18
H
HDMI port 60
Hinweise
Reinigung 17
I
Important notes 13
Incorrect time 68
Information,
safety 13
K
Keyboard cover
Connecting a Tablet PC 44
Ports 43
M
Making ready to use 19
Memory card
handling 34
inserting 35
removing 36
Microphone, connecting 63
Mobile operation 15
Monitor
connection 61
no image 70
remains blank 70
unstable image 70
Monitor connection
see VGA port 61
100 Fujitsu
Index
N
Notebook
switching off 25
Notes 13
disposal / recycling 80
Energy saving 14
Transport 15
O
Operating system
activating system protection 58
cancel system protection 58
Protecting with password 58
P
Packaging 18
Password
changing 56
entering 56
removing 57
Password protection 55
hard disk 59
Ports 39
Keyboard cover 43
Power saving 14
Power-on Power-on indicator 24
Printer does not print 72
Problem solving 67
R
Rechargeable battery
see battery 33
Reinigung 17
S
Safety information 13
Screen connection
see VGA port 61
Security functions 55
Security Lock
Anti-theft protection 55
using 55
Service life, battery 33
Set up
Device 19
Setup
see BIOS Setup Utility 64
Slot
Memory cards 34
Status indicators 23
Stylus 28
Summer time 68
Supervisor password
change 56
entering 56
removing 57
Suspend/Resume button 24
Switchingonforthefirst time 20
Symbols
Indicators 23
System settings, BIOS Setup Utility 64
T
Tablet
before traveling 15
operating 22
Tablet PC
cannot be started 71
doesn’t work 71
reinigen 17
transporting 15
Tablet, operation 22
Tablet: Switching on 24
Tastatur
reinigen 17
Technical data 78
AC adapter 77
The wireless connection to a network
does not work 72
Time not correct 68
Tips 67
Touchpad
reinigen 17
Touchscreen
difficult to read 69
reflected glare 69
reinigen 17
remains dark 69
Transport
Damage during transportation 18
Transportation 15
Traveling, tablet 15
Troubleshooting 67
U
USB ports 62
User password
change 56
entering 56
removing 57
V
VGA port 61
Fujitsu 101
Index
