USERS MANUAL
1
-
User’s Guide
Learn how to use your
Fujitsu LIFEBOOK T902
Tablet PC
1
Copyright and Trademark Information
Fujitsu America, Inc. has made every effort to ensure the accuracy and completeness of this document; however, as ongoing development efforts are
continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors,
omissions, or future changes.
Fujitsu, the Fujitsu logo, and LIFEBOOK are registered trademarks of Fujitsu Limited.
Intel, Intel Core, and Centrino are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Atheros is a registered trademark of Atheros Communications, Inc.
Bluetooth is a trademark of Bluetooth SIG, Inc., USA.
OmniPass is a trademark of Softex, Inc.
PowerDirector, PowerDVD, MakeDisc, and YouCam are trademarks of CyberLink Corp.
Adobe and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Norton and Norton Internet Security are trademarks or registered trademarks of Symantec Corporation in the United States and other countries.
Manufactured under license from DTS Licensing Limited. DTS, the Symbol, and DTS and the Symbol together are registered trademarks,
and DTS Boost is a trademark of DTS (BVI) Limited (in Hong Kong and China) and DTS, Inc. (outside of Hong Kong and China). © DTS, Inc.
All Rights Reserved.
All other trademarks mentioned herein are the property of their respective owners.
© Copyright 2012 Fujitsu America, Inc. All rights reserved.
No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu. No part of this publication may be stored or
transmitted in any electronic form without the written consent of Fujitsu. B6FJ-8321-01ENZ0-00
2
WARNING: HANDLING THE CORD ON THIS PRODUCT WILL EXPOSE YOU TO LEAD, A CHEMICAL KNOWN TO THE STATE OF CALIFORNIA TO CAUSE BIRTH
DEFECTS OR OTHER REPRODUCTIVE HARM.
WASH HANDS AFTER HANDLING.
USER GUIDE FOR WIRELESS BROADBAND CONNECTION
IF YOU HAVE THE OPTIONAL WIRELESS WAN (WWAN) DEVICE INSTALLED IN YOUR NOTEBOOK, THE WWAN USER’S GUIDE IS LOCATED AT:
HTTP://SOLUTIONS.US.FUJITSU.COM/WWW/CONTENT/SUPPORT/MOBILE/SUPPORT_NOTICES
PLEASE CLICK “3G MINI-CARD GOBI3000 REGULATORY AND SAFETY INFORMATION” TO OPEN THE FULL USER GUIDE CONTAINING WARNINGS AND
PRECAUTIONS ASSOCIATED WITH RF SAFETY WHEN USING THE WWAN DEVICE.
DECLARATION OF CONFORMITY
according to FCC Part 15
Responsible Party Name: Fujitsu America, Inc.
Address: 1250 E. Arques Avenue
Sunnyvale, CA 94085
Telephone: (408) 746-6000
Declares that product: Base Model Configuration: LIFEBOOK T902 Tablet PC
Complies with Part 15 of the FCC Rules.
This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions:
(1) This device may not cause harmful interference, (2) This device must accept any interference received,
including interference that may cause undesired operation.
3
IMPORTANT SAFETY INSTRUCTIONS
This unit requires an AC adapter to operate. Use only UL Listed I.T.E. Adapters with an output rating of 19 VDC, with a current of 4.22 A (80 W).
When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons,
including the following:
•The bottom of this notebook computer can become hot when used for long periods of time. When using this notebook, take caution to limit long term
or continuous use while resting it on exposed skin, such as the lap.
•Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
•Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible
special disposal instructions.
•CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions on the next page.
SAVE THESE INSTRUCTIONS
For Authorized Repair Technicians Only
DANGER OF EXPLOSION IF LITHIUM (CLOCK) BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE
RECOMMENDED BY THE MANUFACTURER. DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTION.
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH THE SAME TYPE AND RATING FUSE.
+

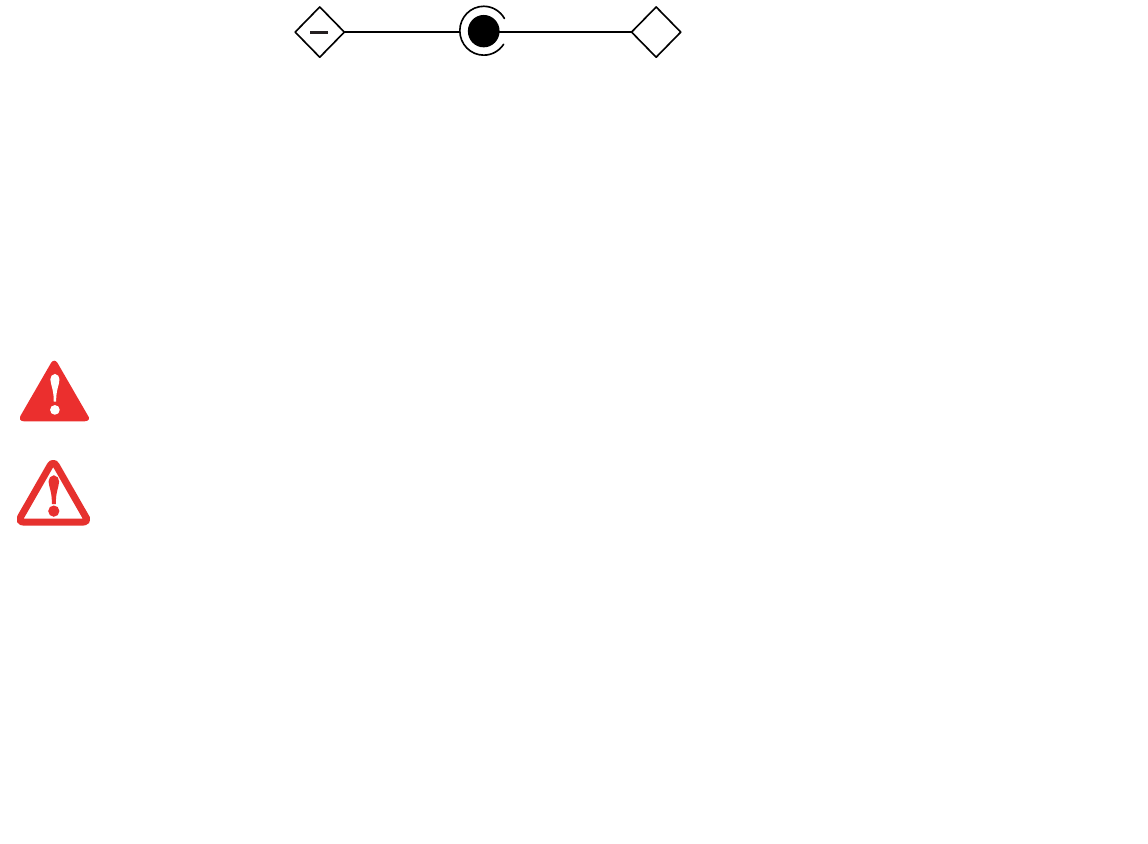

AC adapter output polarity:
4
Recycling your battery
Over time, the batteries that run your mobile computer will begin to hold a charge for a shorter amount of time; this is a natural occurrence for all batteries.
When this occurs, you may want to replace the battery with a fresh one*. If you replace it, it is important that you dispose of the old battery properly because
batteries contain materials that could cause environmental damage if disposed of improperly.
Fujitsu is very concerned with environmental protection, and has enlisted the services of the Rechargeable Battery Recycling Corporation
(RBRC)**, a non-profit public service organization dedicated to protecting our environment by recycling old batteries at no cost to you.
RBRC has drop-off points at tens of thousands of locations throughout the United States and Canada. To find the location nearest you, go
to www.RBRC.org or call 1-800-822-8837.
If there are no convenient RBRC locations near you, you can also go to the EIA Consumer Education Initiative website (http://EIAE.org/)
and search for a convenient disposal location.
Remember – protecting the environment is a cooperative effort, and you should make every effort to protect it for current and future generations.
* To order a new battery for your Fujitsu mobile computer, go to the Fujitsu shopping site at www.shopfujitsu.com in the US or
www.fujitsu.ca/products/notebooks in Canada.
** RBRC is an independent third party to which Fujitsu provides funding for battery recycling; RBRC is in no way affiliated with Fujitsu.
1
Contents
About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Conventions Used in the Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Fujitsu Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Chapter 1 Getting to Know Your LIFEBOOK
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

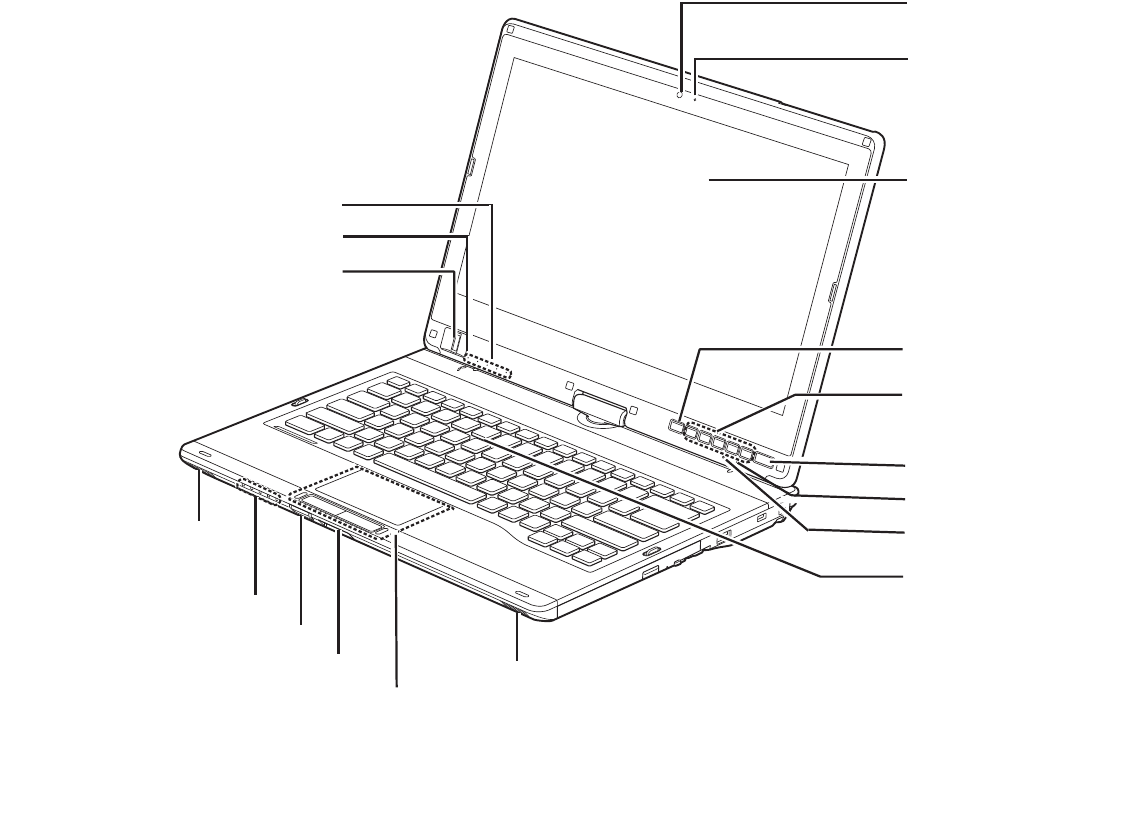

Locating the Controls and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Top Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Left-Side Panel Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

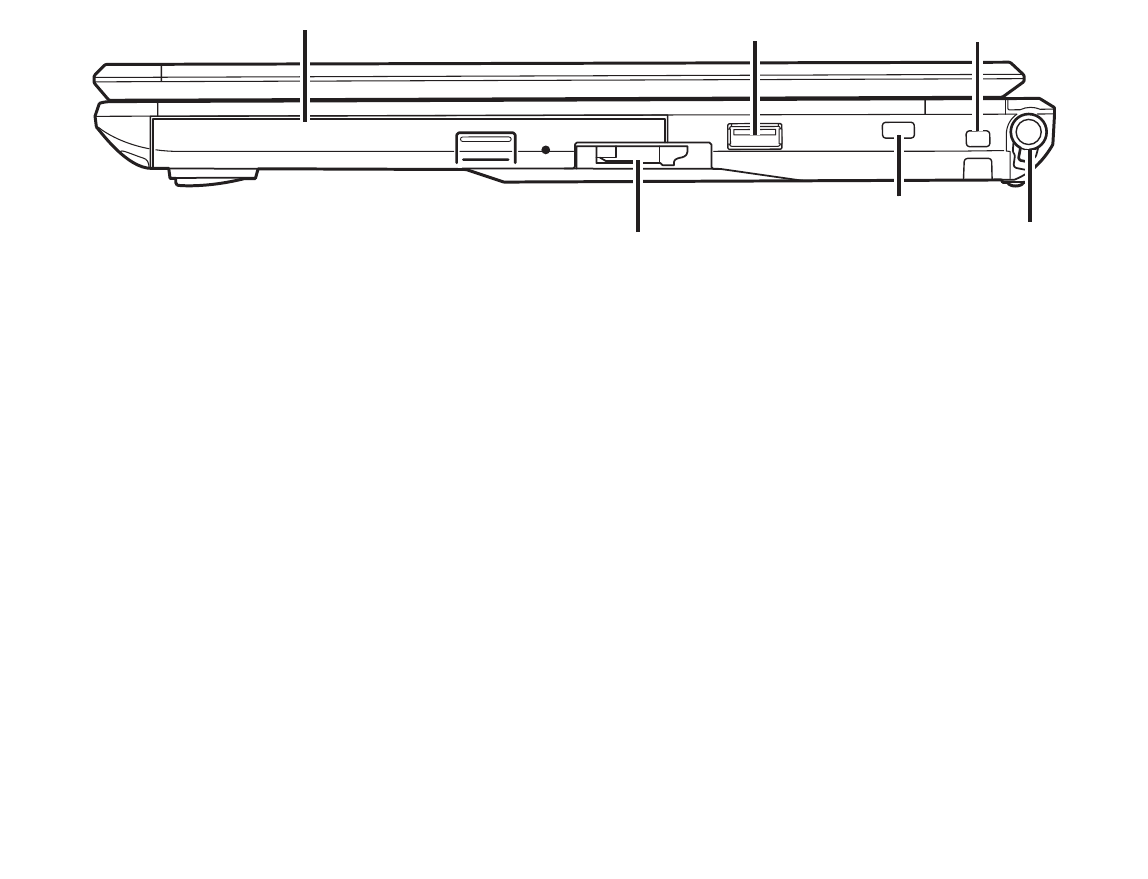

Right-Side Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Back Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Bottom Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

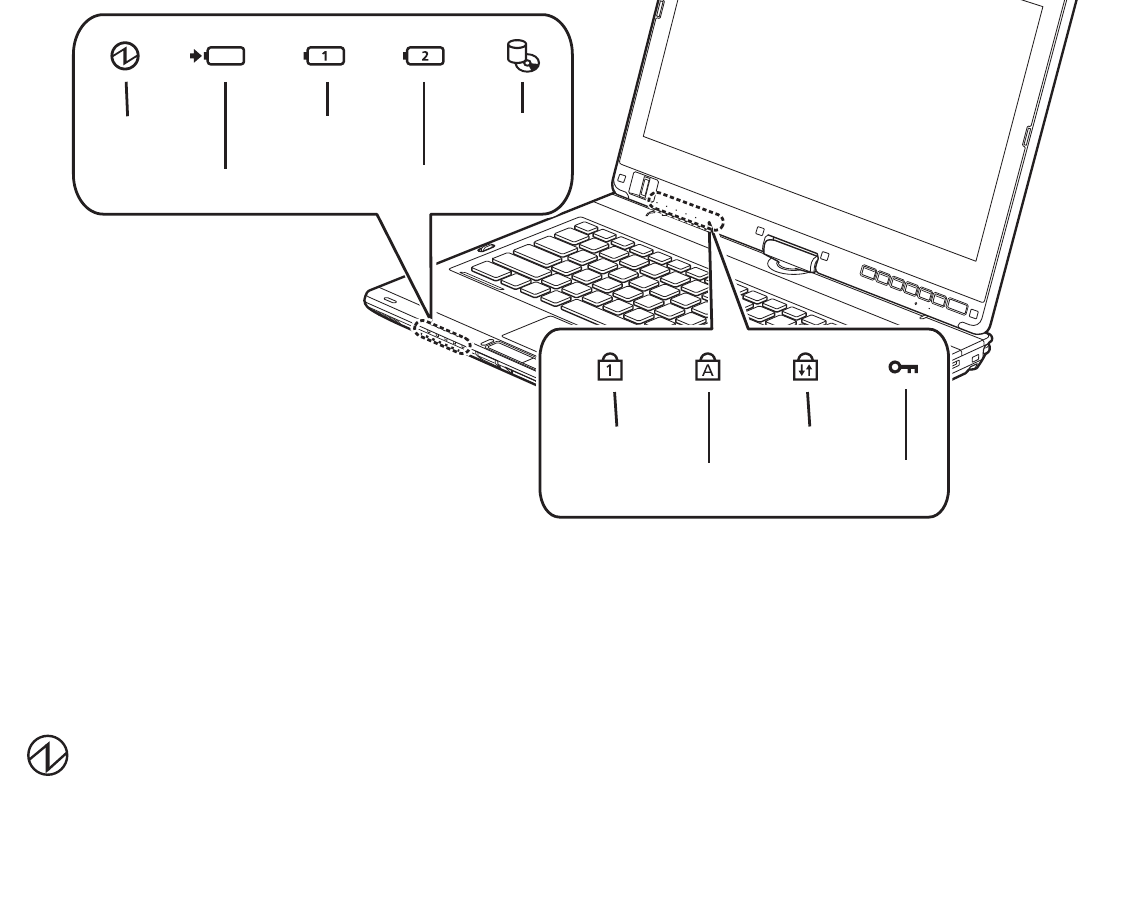

Status Indicator Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Battery Charging Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Battery Level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Opening the Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Using the System as a Tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Changing Auto Rotation Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Adjusting Display Panel Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Enabling/Disabling Ambient Light Sensor . . . . . . . . . . . . . . . . . . . . . . . . 31
2
-
Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Using the Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Touchpad/Active Digitizer/Touchscreen. . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Using the Touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Active Digitizer Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Using the Capacitive Touchscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
General Gesture Mode: One- and Two-Finger Gestures. . . . . . . . . . . . . . 42
Installing a Pen Tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Volume Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Controlling the Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Modular Bay Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Removing and Installing Modular Devices . . . . . . . . . . . . . . . . . . . . . . . 46
LIFEBOOK Security/Tablet PC/Windows Buttons. . . . . . . . . . . . . . . . . . . . 48
Security Button Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Post-logon button functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Changing Tablet PC Button Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Setting up LIFEBOOK Security Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Using Your LIFEBOOK Security Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Uninstalling/Re-installing the Security Panel Application . . . . . . . . . . . 55
Chapter 2 Getting Started with Your LIFEBOOK
Power Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Connecting the Power Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Starting Your LIFEBOOK Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Hard Disk Drive Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
3
-
Booting the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Starting Windows the First Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Power/Suspend/Resume Slide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Sleep Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Hibernation (Save-to-Disk) Feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Windows Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Restarting the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Powering Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
ENERGY STAR® Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Chapter 3 User-Installable Features
Lithium ion Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Recharging the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Secure Digital Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Installing SD Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Removing an SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Memory Upgrade Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Installing Memory Upgrade Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Removing a Memory Upgrade Module . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Checking the Memory Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Internal LAN (RJ-45) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Port Replicator Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

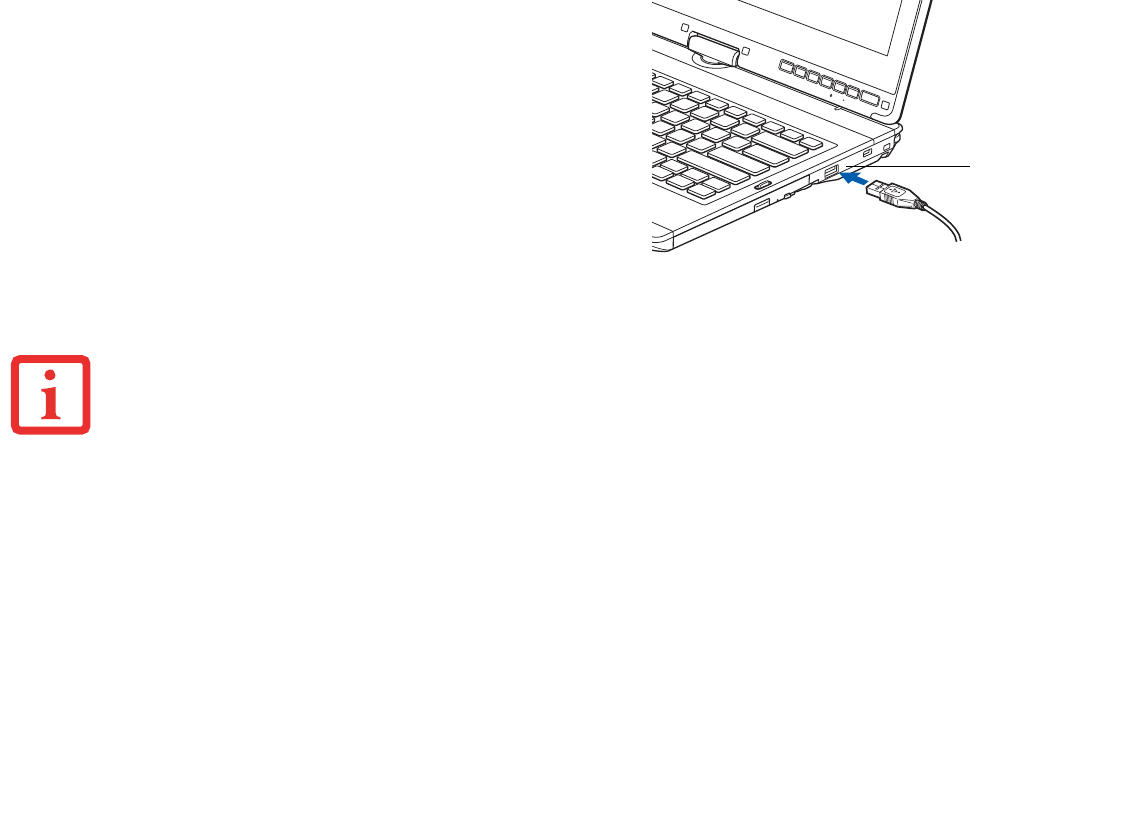

Universal Serial Bus Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

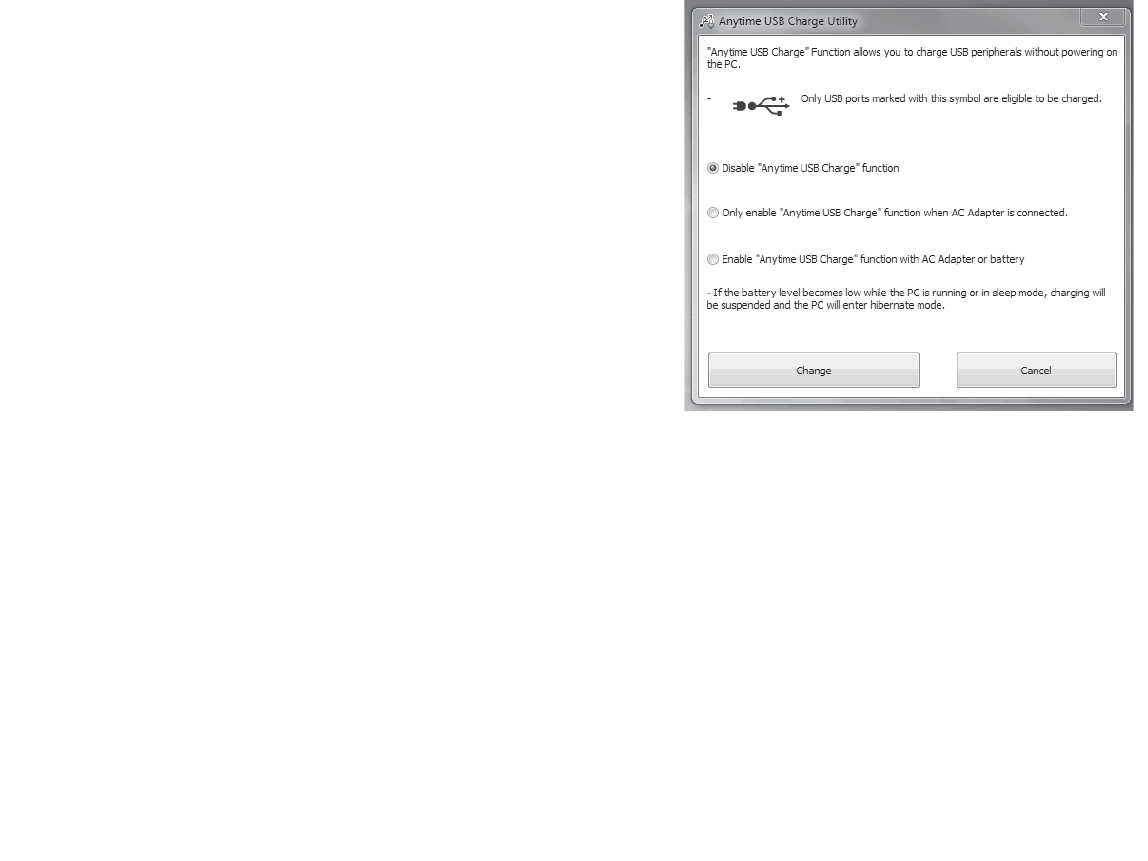

Information About Anytime USB Charge Utility. . . . . . . . . . . . . . . . . . . . 81
Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Microphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

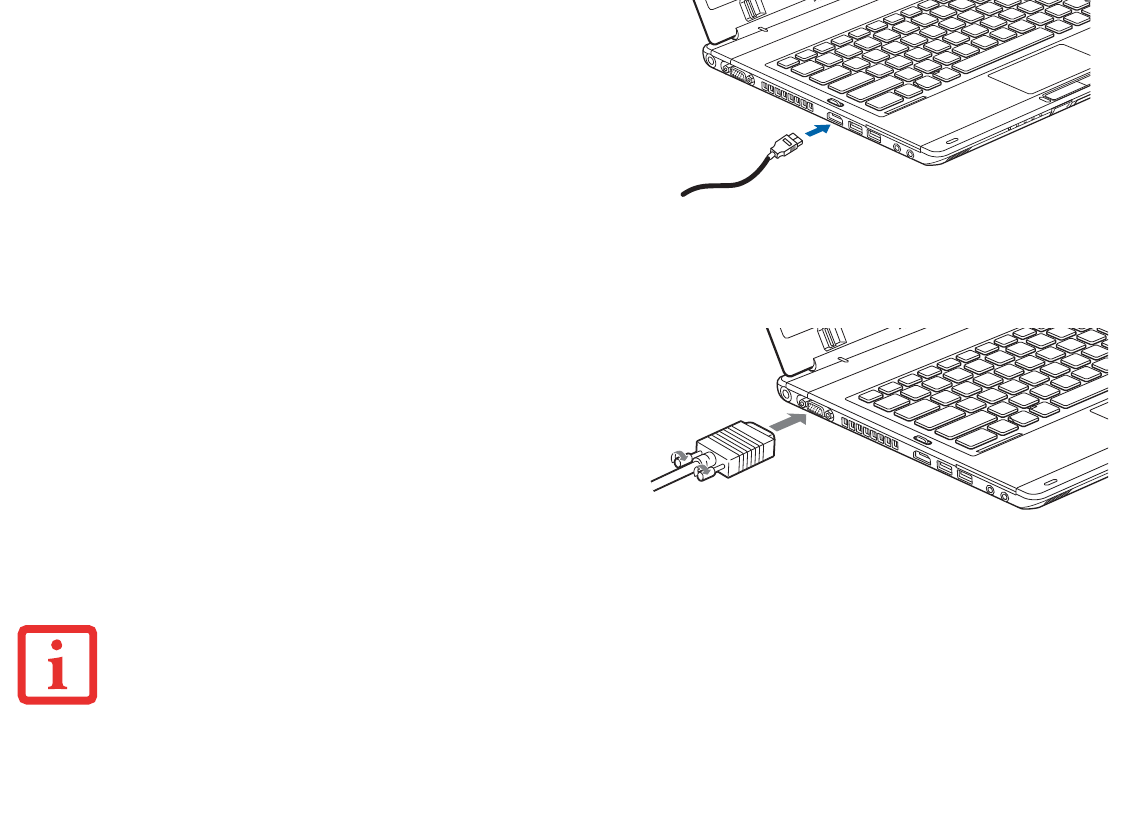

HDMI Port.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
External Video Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
4
-
Port Replicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Port Replicator Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Attaching the Port Replicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Detaching Port Replicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Chapter 4 Troubleshooting Your LIFEBOOK
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Identifying the Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Power On Self Test Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Restoring Your System Image and Software. . . . . . . . . . . . . . . . . . . . . . . 99
Saving and Recovering Your Factory and System Images . . . . . . . . . . . . 99
Backing Up a System Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Recovery and Utility tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Recovering your Factory Image using Recovery and Utility . . . . . . . . . . 106
Downloading Driver Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Chapter 5 Care and Maintenance
Caring for your LIFEBOOK Tablet PC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Cleaning your LIFEBOOK Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Cleaning the dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Storing your LIFEBOOK Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Traveling with your LIFEBOOK Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . 112
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Media Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
5
-
Chapter 6 System Specifications
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Chipset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Digitizer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Mass Storage Device Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Modular Bay Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Device Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Environmental Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Popular Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Pre-Installed Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Learning About Your Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Glossary/Regulatory
Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
6
-
Appendix A: WLAN User’s Guide
Before Using the Optional Wireless LAN. . . . . . . . . . . . . . . . . . . . . . . . . . 142
Wireless LAN Device Covered by this Document . . . . . . . . . . . . . . . . . . . 142
Characteristics of the WLAN Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Wireless LAN Modes Using this Device. . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Deactivating/Disconnecting the WLAN Device. . . . . . . . . . . . . . . . . . . . . 145
Deactivation Using the Wireless On/Off Switch . . . . . . . . . . . . . . . . . . . . 146
Disconnection Using the Icon in the Taskbar. . . . . . . . . . . . . . . . . . . . . . 146
Activating the WLAN Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Configuring the Wireless LAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Configuring the WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Connection to the network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Troubleshooting the WLAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
WLAN Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Using the Bluetooth Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
What is Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Where to Find Information About Bluetooth . . . . . . . . . . . . . . . . . . . . . . 151
Appendix B: Fingerprint Sensor Device
Introducing the Fingerprint Sensor Device . . . . . . . . . . . . . . . . . . . . . . . . 153
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Installing OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
User Enrollment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Using OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Configuring OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
OmniPass Control Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
7
-
Appendix C: Using Intel® Wireless Display
Using the Wireless Display technology . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Starting the WiDi application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
8
Preface
About This Guide
The LIFEBOOK T902 Tablet PC from Fujitsu America is a powerful convertible computer. It can be used either as a
standard notebook using keyboard input, or in tablet configuration using pen input. It is powered by the new 3rd
Generation Intel® Core™ Processor, has a built-in color display with a dual digitizer, and brings the computing power
of desktop personal computers (PCs) to a portable and versatile environment.
This manual explains how to operate your LIFEBOOK T902 Tablet PC’s hardware and pre-installed system software.
Conventions Used in the Guide
Keyboard and on-screen keys appear in brackets. Example: [Fn], [F1], [ESC], [ENTER] and [CTRL].
Pages with additional information about a specific topic are cross-referenced within the text.
For example: (“See Installation Procedure on page 43”.) Note that all cross-references are linked to the referenced
items, so by clicking the link, you will automatically go to the referenced item or page.
On-screen menu items appear in bold. Example: “Click Fujitsu Menu, and select your choice”.
THE INFORMATION ICON HIGHLIGHTS INFORMATION THAT WILL ENHANCE YOUR UNDERSTANDING OF THE SUBJECT MATERIAL.
9
- About This Guide
Fujitsu Contact Information
Service and Support
Service and Support
You can contact Fujitsu Service and Support in the following ways:
•Toll free: 1-800-8FUJITSU (1-800-838-5487)
•Website:
U.S.A. - us.fujitsu.com/solutions
Canada - www.fujitsu.ca
Before you place the call, you should have the following information ready so that the customer support
representative can provide you with the fastest possible solution:
•Product name
•Product configuration number
•Product serial number
•Purchase date
•Conditions under which the problem occurred
•Any error messages that have occurred
•Type of device connected, if any
THE CAUTION ICON HIGHLIGHTS INFORMATION THAT IS IMPORTANT TO THE SAFE OPERATION OF YOUR COMPUTER, OR TO THE INTEGRITY OF YOUR
FILES. PLEASE READ ALL CAUTION INFORMATION CAREFULLY.
THE WARNING ICON HIGHLIGHTS INFORMATION THAT CAN BE HAZARDOUS TO EITHER YOU, YOUR LIFEBOOK TABLET PC, OR YOUR FILES. PLEASE
READ ALL WARNING INFORMATION CAREFULLY.
10
- About This Guide
Fujitsu Shopping Online
You can go directly to the online by going to the website at: www.shopfujitsu.com.
Maintaining Latest Configuration
To ensure that you always have the most current driver updates related to your system, you should occasionally access
the Fujitsu Software Download Manager (FSDM) utility. The FSDM utility is available to allow you to download the
latest drivers, utilities, and applications from the Fujitsu Support site. If you have a Windows 7 operating system, you
will need to go to the Support Site (http://support.fujitsupc.com/CS/Portal/support.do?srch=DOWNLOADS).
Limited Warranty
Your LIFEBOOK notebook is backed by a Fujitsu International Limited Warranty. Check the service kit that came with
your notebook for the Limited Warranty period and terms and conditions.
11
Chapter 1
Getting to Know Your LIFEBOOK
Overview
This section describes the
components of your Fujitsu
LIFEBOOK T902 Tablet PC. We
strongly recommend that you read
it before using your Tablet PC –
even if you are already familiar with
notebook computers.
Figure 1. Fujitsu LIFEBOOK T902 Tablet PC
12
- Locating the Controls and Connectors
Locating the Controls and Connectors

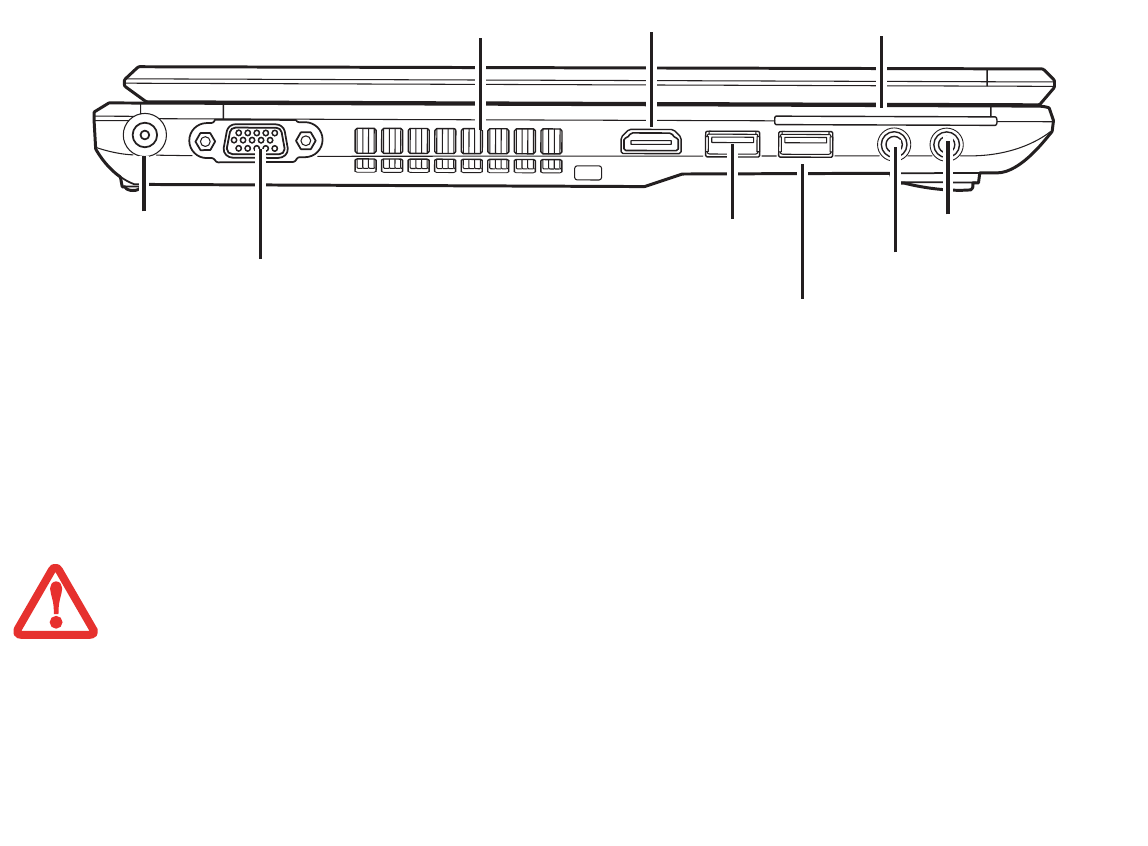

Connectors and peripheral interfaces on the LIFEBOOK T902 Tablet PC and the optional port replicator allow you to
connect a variety of devices. Specific locations are illustrated in Figures 2 through 6. The table below provides a short
description of each icon on the LIFEBOOK T902 Tablet PC and/or optional port replicator. Each of the icons is either
molded into or printed on the Tablet PC or port replicator chassis.

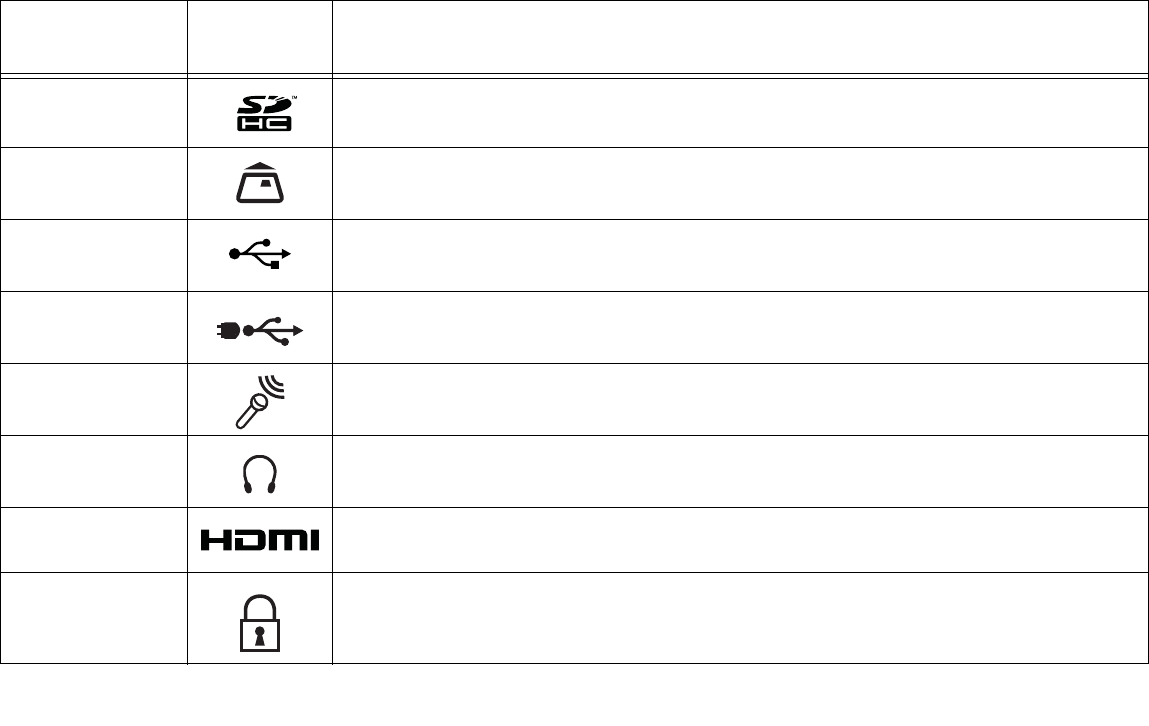

Connection Tablet PC
Icon
Purpose
SD/SDHC slot The Secure Digital (SD)/SHDC card slot allows you to insert a flash memory card for data storage.
Flash memory cards allow you to transfer data to and from a variety of different digital devices.
Smart Card Slot A dedicated Smart Card slot allows you to insert a Smart Card on which you can store such data as
medical information or electronic “cash”.
USB Port Connect Universal Serial Bus devices to the Tablet PC. Note that USB ports with a black tab in the
center are for 2.0 or 1.1 compliant USB devices; those with a blue tab are for USB 3.0 devices.
USB Port with
Anytime USB Charge
Connect Universal Serial Bus 2.0 or 1.1 compliant USB devices. This port can also be used to charge
USB devices whether the system is powered on or not.
Microphone Jack Connect an external microphone. The internal microphone is disabled when you plug in an
external microphone.
Headphone Jack Connect stereo headphones or powered external speakers. The internal speaker is disabled when
you plug in external headphones or powered speakers.
HDMI Port The HDMI port allows you to connect compatible digital devices with your computer (such as a
high-definition television or AV receiver).
Security lock slot The security slot allows you to secure the Tablet PC using compatible locking devices.
+
13
- Locating the Controls and Connectors
Suspend/
Resume slide
The Suspend/Resume slide allows you to suspend Tablet PC activity without powering off, resume
your Tablet PC from suspend mode, and power on the system when it has been shut down from
Windows.
Local Area Network
(LAN)
The LAN (RJ-45) jack is used to connect the internal 10/100/1000* Base-T/Tx Ethernet to a Local
Area Network (LAN) in your office or home, or broadband devices such as a cable modem, DSL, or
satellite Internet.
*1000 Mbps, commonly referred to as Gigabit Ethernet.
Wireless Device On-
Off Switch
The Wireless Device switch allows you to turn power to the optional wireless devices on and off.
External Video port The external video port allows you to connect an external monitor or LCD projector to your
computer.
Digital Video
Interface
The DVI-D port on the optional port replicator allows you to connect a flat-panel LCD monitor or
television that is equipped with a DVI-D port for ultra-crisp digital images and graphics.
DisplayPort The DisplayPort on the optional port replicator lets you to connect DisplayPort-compatible digital
display devices such flat panel displays and digital projectors using a DisplayPort cable.
Connection Tablet PC
Icon
Purpose
14
- Locating the Controls and Connectors

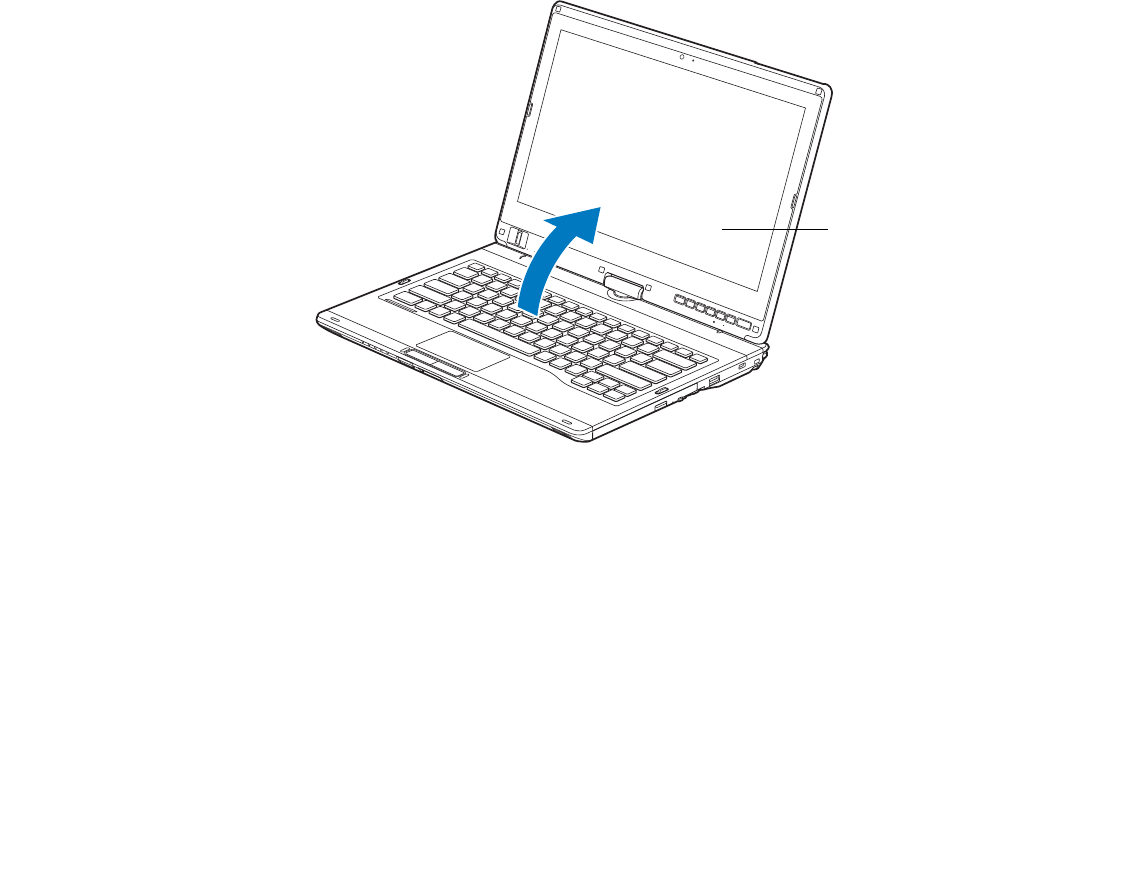

Figure 2. LIFEBOOK Tablet PC with display open
Display Panel
Status Indicator Panel
Keyboard
LIFEBOOK Security/
Power/Suspend/
Tablet PC Buttons
Resume Slide
Touchpad Cursor Control
Built-in Microphone
Fingerprint Sensor
Status Indicator Panel
Wireless Device On/Off Switch
Web Cam Access LED
Stereo Speaker
Built-in Microphone
Ambient Light Sensor
Optional Web Cam
Windows Button
Stereo Speaker
SD/SDHC Card Slot
15
- Locating the Controls and Connectors
Top Components
The following is a brief description of your LIFEBOOK Tablet PC’s top components.
Web Camera
The optional FHD (1920 x 1080 pixel) digital web camera can be used to take pictures of yourself to send over the
internet.
Web Cam Access LED
The web cam access LED indicates when the web camera is activated.
Display Panel
The display panel is a color LED panel with backlighting for the display of text and graphics. The display has an active
digitizer that is used with a stylus, and a dual digitizer that can be used with either a stylus or your fingers.
Windows Button
After you log on, the Windows button can be used to perform two functions. When pressed alone, it opens up the
Start menu. When pressed at the same time as the power button, it acts the same as if pressing [Ctl] + [Alt] + [Del].

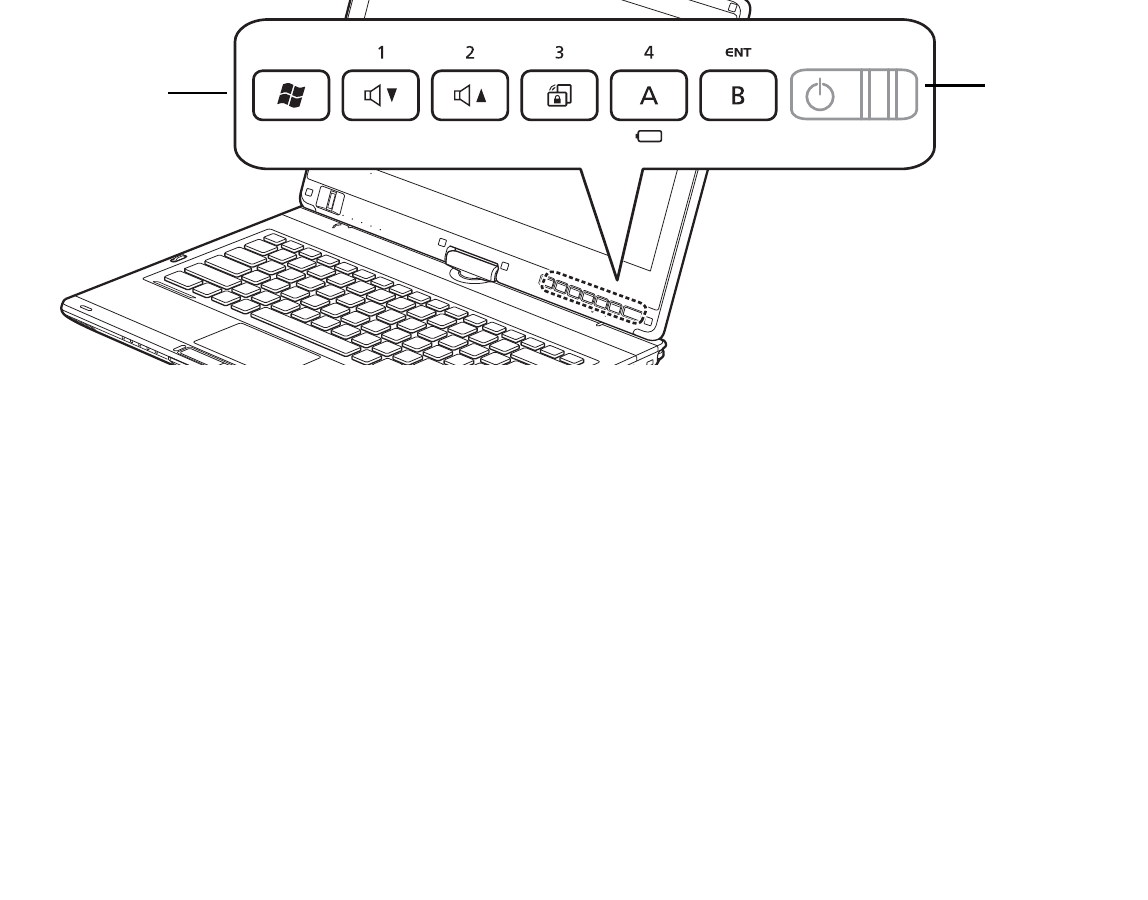

LIFEBOOK Security/Tablet PC Buttons
The LIFEBOOK Security/Tablet PC Buttons provide password security for your system, as well as one-touch application
launch capability. See “LIFEBOOK Security/Tablet PC/Windows Buttons” on page 48.
Power/Suspend/Resume Slide
The Power/Suspend/Resume slide allows you to suspend Tablet PC activity without powering off, resume your
LIFEBOOK Tablet PC from sleep mode, and power on your Tablet PC when it has been shut down from Windows. See
“Power/Suspend/Resume Slide” on page 64.
Dual Built-in Microphones
The built-in microphones allows you to record voice and annotations.
Keyboard
A full-size keyboard with dedicated Windows keys. See “Keyboard” on page 32.
16
- Locating the Controls and Connectors
Dual Stereo Speakers
The built-in dual speakers provide stereo sound.
Touchpad Cursor Control
The touchpad cursor control offers an additional method for moving the cursor. See “Touchpad/Active
Digitizer/Touchscreen” on page 35.
SD/SDHC Card Slot
The SD/SDHC card slot allows you to install a Secure Digital (SD) card for data storage. This architecture allows you to
transfer data from a variety of different digital devices. See “Installing SD Cards” on page 74.
Wireless Device On/Off Switch
The wireless device on/off switch is used to turn on and off the optional wireless devices. Switching it off when not in
use will help to extend battery life. See “Activating the WLAN Device” on page 146.
Status Indicator Panels
The Status Indicator Panels display symbols that correspond to specific components of your Tablet PC. Status
indicators are located in two locations: on the front edge of the system (system status indicators) and below the
application buttons (button status indicators). See “Status Indicator Panel” on page 24.
Fingerprint Sensor
The fingerprint sensor device allows you to log onto your system and password-protected websites and applications
by swiping your finger over the sensor. See “Introducing the Fingerprint Sensor Device” on page 153.
Ambient Light Sensor
The ambient light sensor measures the light in which the computer is operating and automatically adjusts the
brightness of the display to suit the lighting conditions. See “Enabling/Disabling Ambient Light Sensor” on page 31.
17
- Locating the Controls and Connectors
Figure 3. LIFEBOOK Tablet PC left-side panel
Left-Side Panel Components
The following is a brief description of your LIFEBOOK Tablet PC’s left-side components.
Air Vents
The air vents are used to cool the system to prevent overheating.
HDMI Port
The HDMI port is used to connect compatible digital devices with your computer (such as a high-definition television
or AV receiver). See “HDMI Port.” on page 82.
TO PROTECT YOUR TABLET PC FROM DAMAGE AND TO OPTIMIZE PERFORMANCE, BE SURE TO KEEP ALL AIR VENTS UNOBSTRUCTED, CLEAN, AND
CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.
DO NOT OPERATE THE TABLET PC IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE
A BED OR CUSHION.
Air Vents Smart Card Slot
DC Power Jack
USB 3.0 Port
HDMI Port
USB 3.0 Port with
External Video Port Microphone Jack
Headphone Jack
Anytime USB Charge
18
- Locating the Controls and Connectors
Smart Card Slot
A dedicated Smart Card slot is provided on your Tablet PC. Smart Cards are the same size and shape as a credit card,
but they contain embedded integrated circuits. To use the embedded Smart Card Reader, you must purchase optional
third-party software for installation.
Headphone Jack
The headphone jack allows you to connect headphones. See “Headphone Jack” on page 81.
Microphone Jack
The microphone jack allows you to connect an external stereo microphone. See “Microphone Jack” on page 81.
USB 3.0 Port with Anytime USB Charge
The USB 3.0 port allows you to connect Universal Serial Bus devices. USB 3.0 transfers data at up to 5Gbps and is
backward-compatible with USB 1.1 and 2.0 devices, which transfer data at up to 12 Mbps and 480 Mbps, respectively.
See “Universal Serial Bus Ports” on page 80. Note that this USB 3.0 port has Anytime USB Charge capability, which
allows you to charge a USB device whether or not the system is powered on.
USB 3.0 Port
The USB 3.0 port allows you to connect Universal Serial Bus devices. USB 3.0 transfers data at up to 5Gbps and is
backward-compatible with USB 1.1 and 2.0 devices, which transfer data at up to 12 Mbps and 480 Mbps, respectively.
See “Universal Serial Bus Ports” on page 80.
External Video Port
The external monitor port allows you to connect an external monitor or LCD projector. See “External Video Port” on
page 82.
DC Power Jack
The DC power jack allows you to plug in the AC adapter to power your LIFEBOOK Tablet PC and charge the internal
Lithium ion battery.
19
- Locating the Controls and Connectors

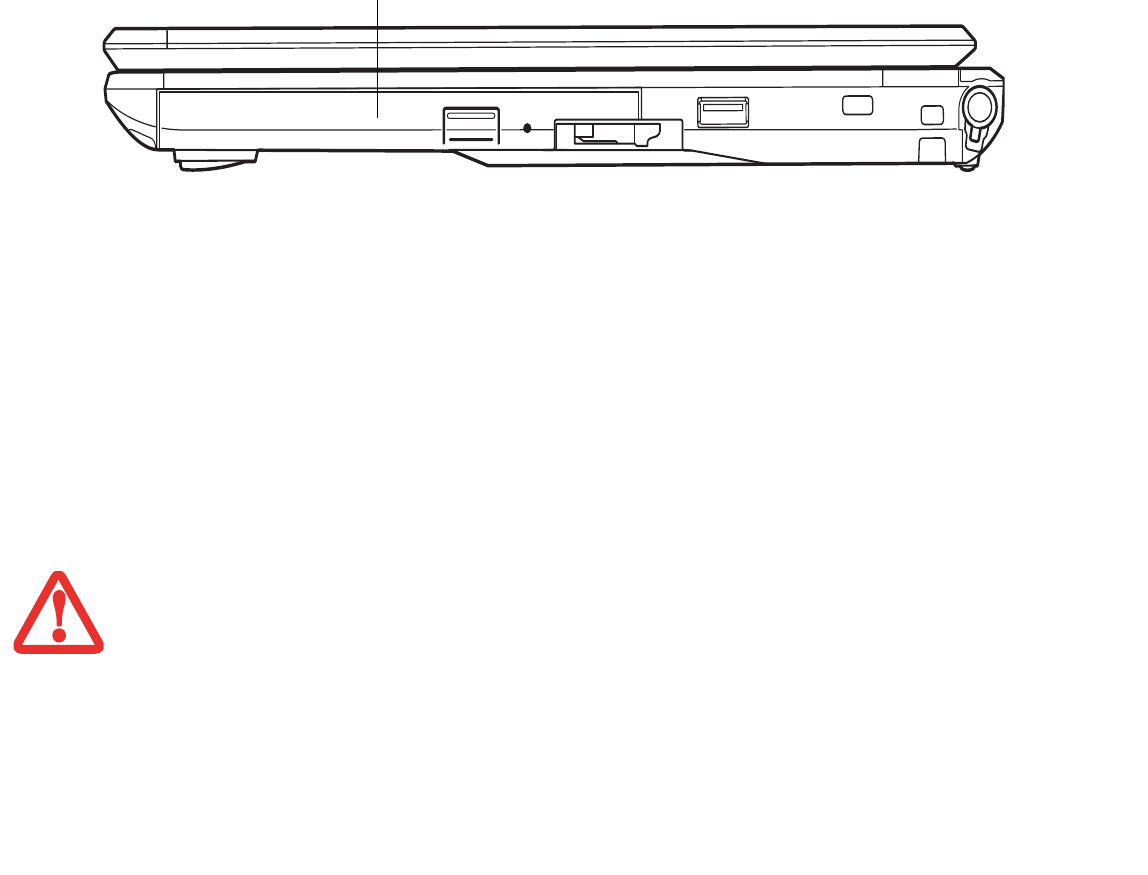

Figure 4. LIFEBOOK Tablet PC right-side panel
Right-Side Panel Components
The following is a brief description of your LIFEBOOK Tablet PC’s right-side components.
Modular Bay
The Modular Bay can accommodate one of the following devices. See “Modular Bay Devices” on page 46.
•Modular Blu-ray™ RW Drive.
•Modular Dual-Layer Multi-Format DVD Writer
•Modular Lithium ion battery
•Weight Saver
USB 2.0 Port
The USB 2.0 port allows you to connect Universal Serial Bus devices. USB 2.0 transfers data at up to 480 Mbps and is
backward-compatible with USB 1.1 devices, which transfer data at up to 1 2Mbps. See “Universal Serial Bus Ports” on
page 80.

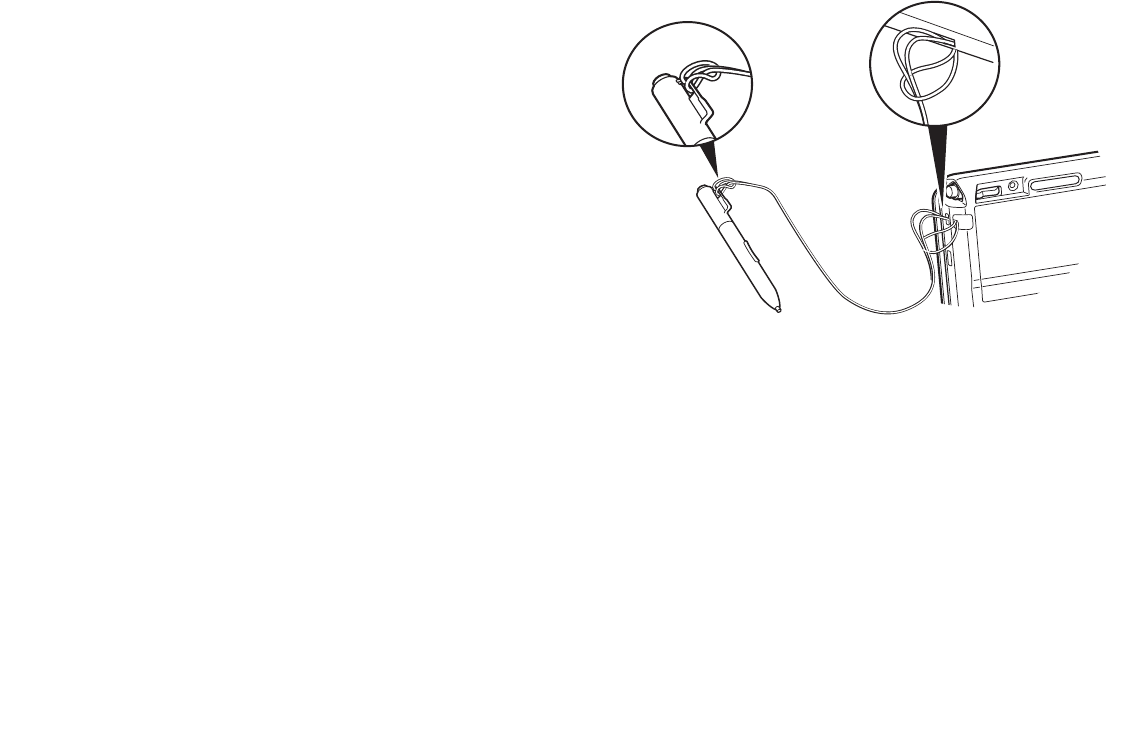

Pen Tether Attachment Point
The pen tether attachment point is designed to securely hold a pen tether to prevent loss of the pen. See “Installing
a Pen Tether” on page 44 for additional information.
Modular Bay Device Pen Tether Attachment Point
Pen Garage
Modular Bay Eject Lever
USB 2.0 Port
Anti-theft Lock Slot
20
- Locating the Controls and Connectors
Pen Garage
The pen garage is used to store the pen (also called a “stylus”) when not in use.The pen is used as the interface with
the active digitizer display.
Anti-theft Lock Slot
The anti-theft lock slot allows you to attach an optional physical lock down device.
Modular Bay Eject Lever
The Modular Bay Eject Lever allows you to release the modular bay device so that it can be removed. See “Modular
Bay Devices” on page 46.
21
- Locating the Controls and Connectors

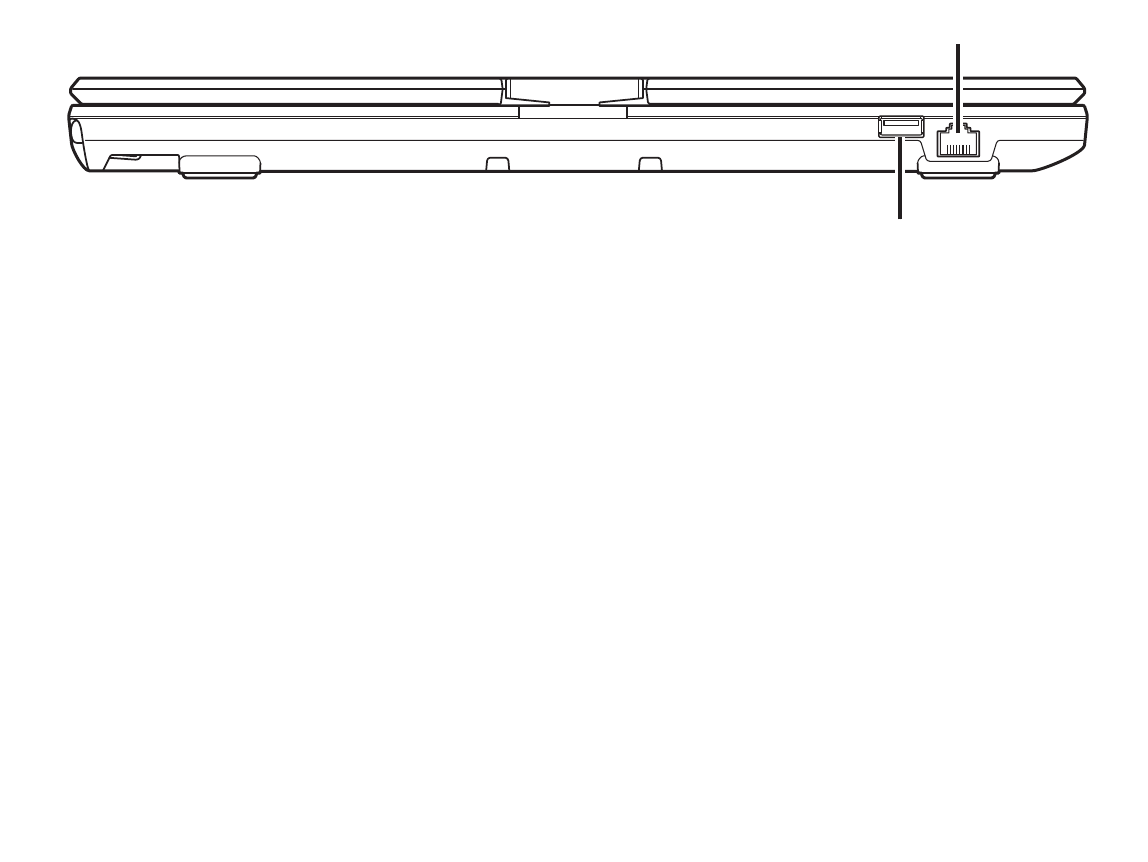

Figure 5. LIFEBOOK Tablet PC back panel
Back Panel Components
Following is a brief description of your LIFEBOOK Tablet PC’s back panel components.
Gigabit LAN (RJ-45) Jack
The internal LAN (RJ-45) jack is used for an internal Gigabit (10Base-T/100Base-Tx/1000Base-T) Ethernet LAN
connection. See “Internal LAN (RJ-45) Jack” on page 79.
USB 2.0 Port
The USB 2.0 port allows you to connect Universal Serial Bus devices. USB 2.0 transfers data at up to 480 Mbps and is
backward-compatible with USB 1.1 devices, which transfer data at up to 1 2Mbps. See “Universal Serial Bus Ports” on
page 80.
Gigabit LAN (RJ-45) Jack
USB 2.0 Port
22
- Locating the Controls and Connectors

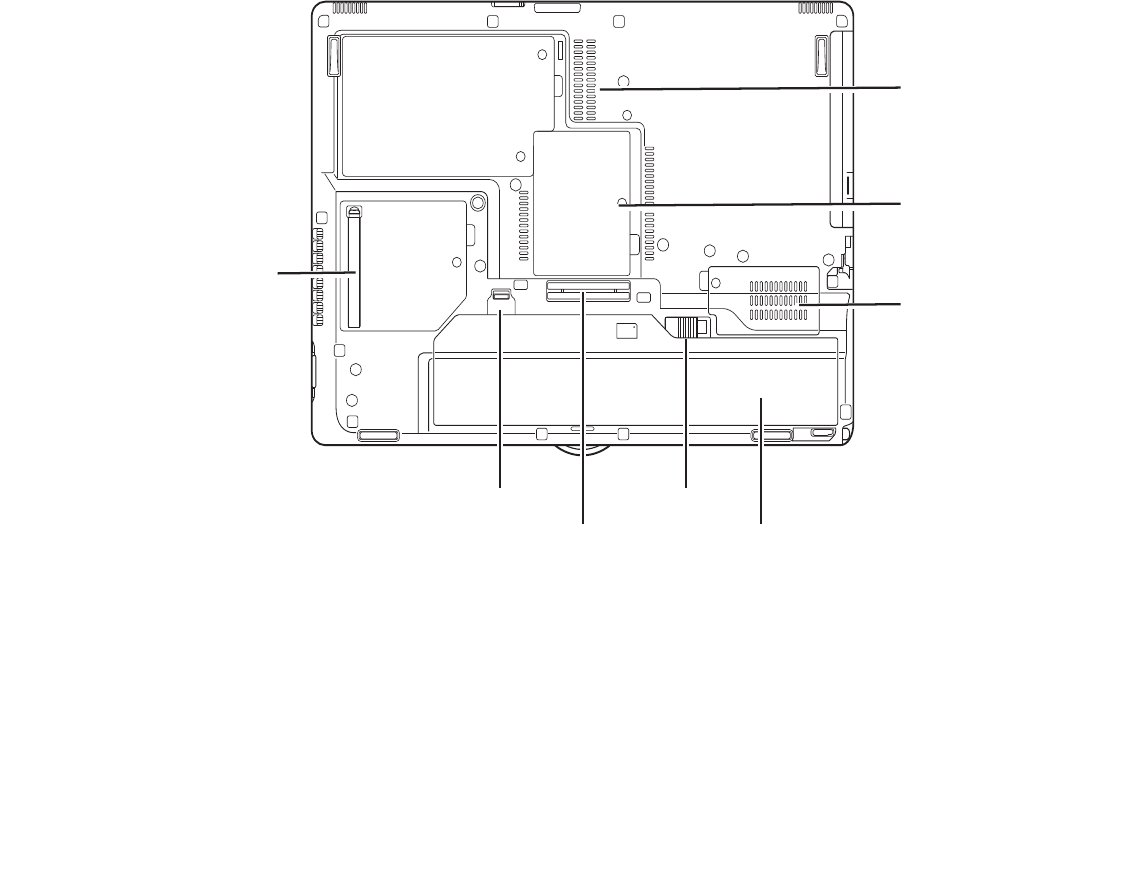

Figure 6. LIFEBOOK Tablet PC bottom panel
Bottom Components
The following is a brief description of your LIFEBOOK Tablet PC’s bottom panel components.
Memory Upgrade Compartment
Your Tablet PC comes with high speed Double Data Rate 3 Synchronous Dynamic RAM (DDR3 1600 MHz SDRAM). The
memory upgrade compartment allows you to expand the system memory capacity of your Tablet PC, thus improving
overall performance. See “Memory Upgrade Module” on page 75. Under normal circumstances, it should not be
necessary to open this compartment.
Memory Upgrade
Lithium ion Battery
Port Replicator Connector
Air Vents
Battery Latch
Cleanable Dust Filter
Compartment
Battery Latch
(multiple locations)
Wireless WAN Module
ompartment
23
- Locating the Controls and Connectors
Air Vents
The air vents allow air to circulate through the system to cool down the components.
Wireless WAN Module Compartment
The Wireless WAN module compartment contains the WWAN device. Under normal circumstances, it should not be
necessary to open this compartment.
Battery Latches
The battery latches are used to secure the Lithium ion battery in the battery bay.
Lithium ion Battery Bay
The battery bay contains the internal Lithium ion battery. It can be opened for the removal of the battery when stored
over a long period of time or for swapping a discharged battery with a charged Lithium ion battery. See “Lithium ion
Battery” on page 68.

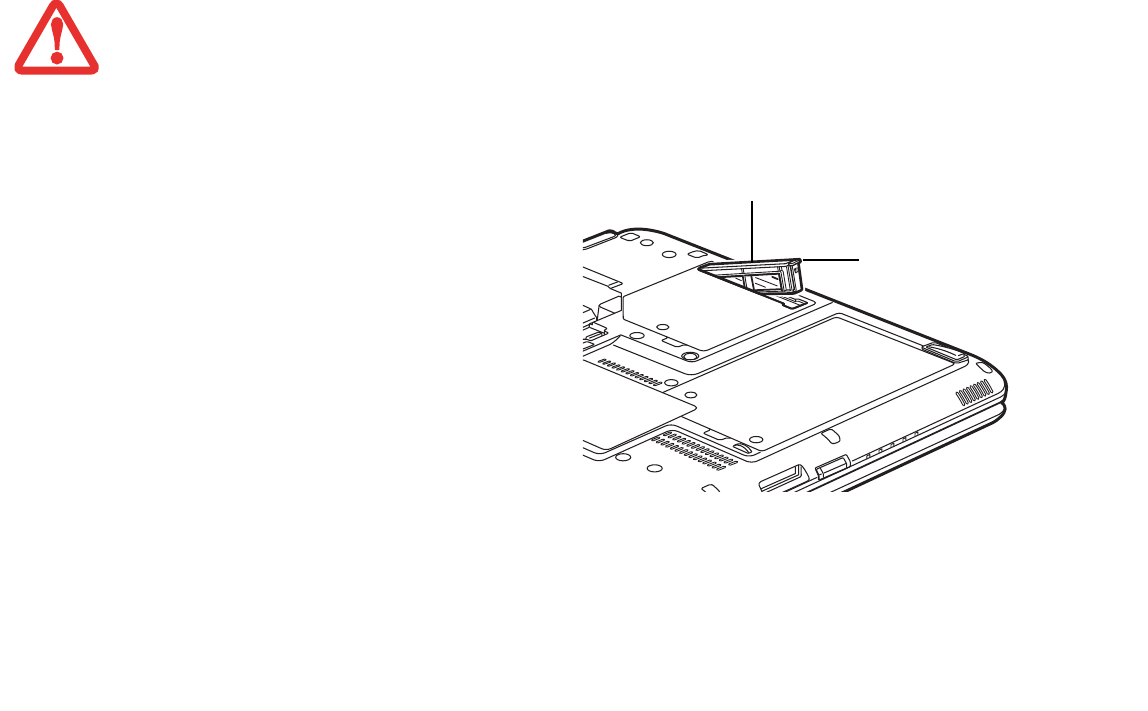

Cleanable Dust Filter
The dust filter is used to help remove dust and dirt fin your system. See “Cleaning the dust filter” on page 111.
Port Replicator Connector
This connector allows you to connect the optional Port Replicator to your Tablet PC.
TO PROTECT YOUR TABLET PC FROM DAMAGE AND TO OPTIMIZE SYSTEM PERFORMANCE, BE SURE TO KEEP ALL AIR VENTS UNOBSTRUCTED, CLEAN,
AND CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.
DO NOT OPERATE THE TABLET PC IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE
A BED OR CUSHION.
24
- Status Indicator Panel
Figure 7. Status Indicator Panel
Status Indicator Panel
There are two Status Indicator Panels on your notebook: on the left front and under the display. The Status Indicator
Panels display symbols and associated LEDs that correspond to specific components of your Tablet PC. These symbols
tell you how each of those components is operating.(Figure 7)
Power Indicator
The Power indicator symbol shows whether your system is operational. It has several different states, each of which
tells you what mode your Tablet PC is in at that time.
Optical/Hard
NumLk
CapsLk
ScrLk
Battery 1 Level
Battery 2 Level
Battery Charging
Power Indicator
Security
Drive Access
25
- Status Indicator Panel
•Steady On (Blue): This means that there is power to your Tablet PC and that it is ready for use.
•Flashing: This means that your Tablet PC is in Sleep mode.
•Steady Off: This means that your system is either in Hibernate mode, or that your tablet has been turned off.
If you are charging your battery, the Power indicator symbol will remain on even if your LIFEBOOK Tablet PC is shut
off. Even if the system was shut down from Windows, the Power indicator symbol will remain on if you have an
adapter connected.
Battery Charging Indicators
The Battery Charging and Battery Level indicators state whether the Lithium ion battery (Battery 1) or the optional
modular battery (Battery 2) are installed and charging.
Battery Level Indicator
The Battery Level indicators display the charge level of the indicated battery pack, as follows:
•Green, solid: Battery is between 51% and 100% charged.
•Orange, solid: Battery is between 13% and 50% charged.
•Red, solid: Battery is between 0% and 12% charged.
•Orange, blinking: Blinks during battery status measurement (Four seconds after the battery is installed).
•Red, blinking: There is a problem with the battery.
•Off: There is no battery installed.
• IF THE BATTERY PACK IS INSTALLED WHILE THE POWER IS TURNED OFF, THE BATTERY LEVEL INDICATOR WILL DISPLAY THE CHARGE LEVEL FOR FIVE
SECONDS AFTER IT BLINKS ORANGE.
•IF THE AC ADAPTER IS NOT CONNECTED OR THE BATTERY PACK IS NOT FULLY CHARGED WHEN THE COMPUTER IS SWITCHED TO SLEEP MODE, THE
INDICATOR WILL BLINK. THE LED BLINKS AT THE RATE OF ONE SECOND ON/FIVE SECONDS OFF.
•BATTERIES SUBJECTED TO SHOCKS, VIBRATION OR EXTREME TEMPERATURES CAN BE PERMANENTLY DAMAGED.
•A SHORTED BATTERY IS DAMAGED AND MUST BE REPLACED.
111 2
26
- Status Indicator Panel
Hard Drive/Optical Drive Access Indicator
The Hard Drive/Optical Drive Access indicator shows whether your internal hard drive or optical drive are being
accessed is being accessed.
Security Indicator
The Security Indicator flashes (if a password was set) when the system resumes from Off or Sleep modes. You must
enter the password that was set in the Security Panel before your system will resume operation.
NumLk Indicator
The NumLk indicator states that the integral keyboard is set in ten-key numeric keypad mode.
CapsLock Indicator
The CapsLock indicator states that your keyboard is set to type in all capital letters.
ScrLk Indicator
The ScrLk indicator states that your scroll lock is active.
27
- Display Panel
Figure 8. Opening the Display Panel
Display Panel
Your LIFEBOOK T902 Tablet PC contains an LED display panel that is backlit for easier viewing in bright environments.
The convertible design of your Tablet PC allows you to open the display fully, rotate it in either direction 180 degrees,
and lay it face up on the keyboard. This allows you to use the system as a tablet, much as you would a pad of paper.
Opening the Display Panel
Simply lift the display up and backwards, (being careful not to touch the screen with your fingers), until it is at a
comfortable viewing angle. (Figure 8)
Display Panel
28
- Display Panel
Using the System as a Tablet
If you would like to use the system as a tablet, perform the following steps.

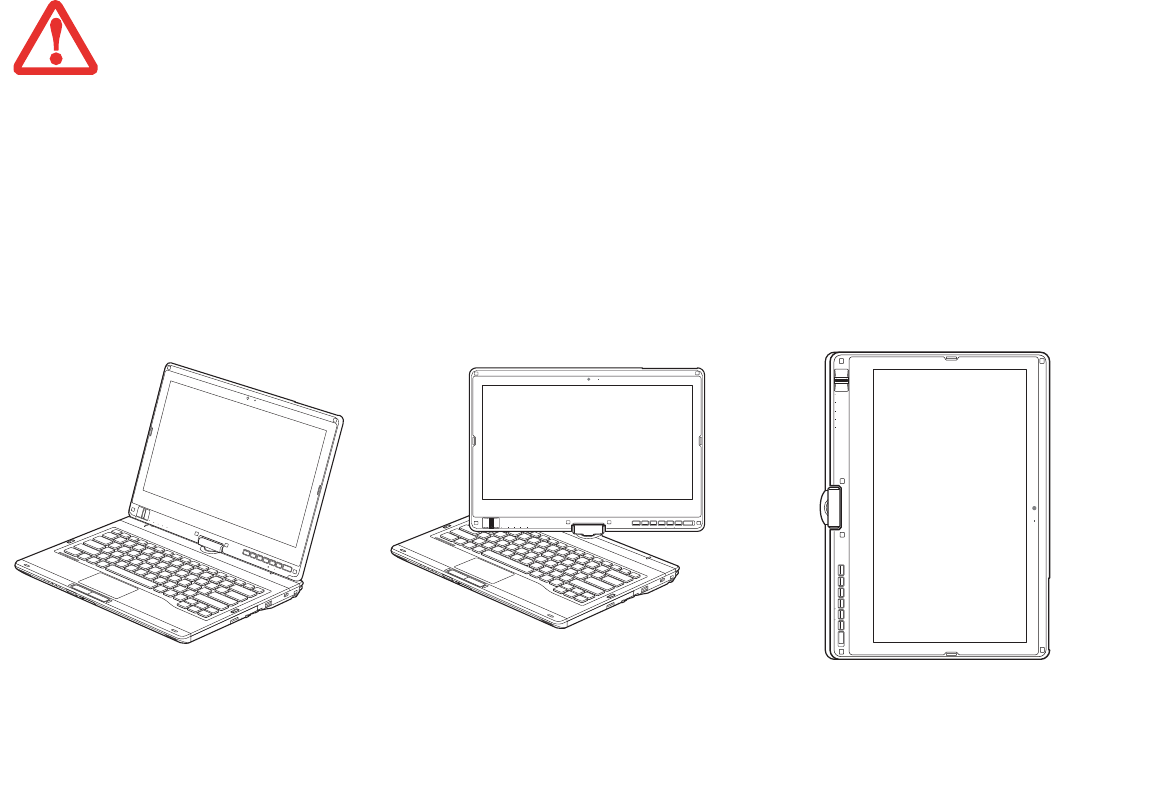

1Lift the display until it is perpendicular to the keyboard. (Figure 9).
2When the display is perpendicular to the keyboard, rotate it 180 degrees in either direction (Figure 10) so that it
is facing backwards.
3Holding the top edge of the display panel, pull it forward until it is lying nearly atop the keyboard.
4To return the system to notebook configuration, repeat steps 3 and 2.
•THE DISPLAY CAN BE ROTATED IN EITHER DIRECTION, BUT WHEN RETURNING THE SYSTEM TO NOTEBOOK MODE, BE SURE TO TURN IT BACK TO ITS
ORIGINAL POSITION (I.E., THE REVERSE OF HOW YOU TURNED IT WHEN YOU OPENED IT. TURNING THE DISPLAY IN THE INCORRECT DIRECTION
COULD CAUSE HINGE DAMAGE.
•IN THE FOLLOWING STEP, BE SURE TO POSITION THE DISPLAY PERPENDICULAR TO THE KEYBOARD, OTHERWISE THE KEYBOARD OR DISPLAY COVER
COULD GET SCRATCHED.
Figure 9. Fully Open Display Figure 10. Rotating Display Figure 11. Tablet Mode
A
B
CD
29
- Display Panel
Holding the Tablet PC
•Your computer can be used in tablet configuration in four different orientations: 0o, 90o, 180o, and 270o.
(Figure ). Letters associated with each orientation refer to the position of the system when the arrow is facing
up.
•(A) Portrait Orientation: Hold the system with the display positioned vertically with the web camera on the
left.
•(B) 2nd Portrait Orientation: Hold the system with the display positioned vertically with the web camera on
the right.
•(C) Landscape Orientation: Hold the system with the display positioned horizontally with the web camera on
the top.
•(D) 2nd Landscape Orientation: Hold the system with the display positioned horizontally with the web
camera on the bottom.
Changing Auto Rotation Feature
Your Tablet PC has an Auto Rotation utility that allows you to determine how you would like the display to act when
the tablet is rotated. When Auto Rotation is enabled, the display will automatically rotate in the same direction as
the screen.
When you receive your Tablet PC, Pause and Automatic Pause are set as the defaults for the Auto Rotation utility.
When Pause is enabled, the system will not enter Auto Rotate until it is enabled. When Automatic Pause state is
enabled, the screen will not rotate automatically if it has been rotated by a means other than Auto Rotation (such as
when using the rotate button on the tablet).
If the system is in Automatic Pause state, there are several ways to resume Auto Rotate:
•Position the display and screen in the same orientation.
•When the system wakes from standby or hibernate mode.
IF YOU HAVE A SYSTEM WITH A WIRELESS WAN MODULE INSTALLED, PLEASE NOTE THE FOLLOWING: WHILE HOLDING THE SYSTEM HORIZONTALLY
WITH THE WEB CAMERA AT THE BOTTOM (2ND LANDSCAPE ORIENTATION, AS NOTED BELOW) WWAN MUST NOT BE OPERATED WITH THE
ANTENNA OPEN. OPERATING IN THIS POSITION COULD RESULT IN DAMAGE TO THE WWAN ANTENNA.
30
- Display Panel
•When the system is rebooted or a logoff/logon is performed.
When the system is in Pause state, there are several ways to enable it:
•Go to the Start menu > All Programs > Auto Rotation Utility, and click Resume.
•Right-click on the Auto Rotation Utility icon in the system tray and click Resume.
•Open the Fujitsu Menu by pressing the [A] button or by clicking the Fujitsu Menu icon in the system tray, then
clicking the [AutoRotation Resume] button on the second page of the Fujitsu Menu.
Adjusting Display Panel Brightness
Once you have turned on your Tablet PC, you may want to adjust the brightness level of the screen to a more
comfortable viewing level. There are three ways to adjust the brightness: keyboard, power management utility, and
Fujitsu Menu.
Using Keyboard to Adjust Brightness
Adjusting the brightness using the keyboard changes the system setting (i.e., the settings you make via the function
keys automatically changes the brightness settings in the system’s Pen and Tablet Settings).
•[Fn+F6]: Pressing repeatedly will lower the brightness of your display.
•[Fn+F7]: Pressing repeatedly will increase the brightness of the display.
Using Power Management to Adjust Brightness
To adjust brightness with the power management utility:
Click Start -> Control Panel. In View by:, select one of the icon views. Select Display, then click Adjust brightness in
the left pane. Drag the Screen brightness: slider to the left or right, depending upon your preference.
Using the Fujitsu Menu to Adjust Brightness
To adjust brightness using the Fujitsu menu, click on the Fujitsu Menu icon in the system tray in the lower right corner
of the screen. (You can also open the Fujitsu menu by pressing the [A] button.) Scroll down to the Windows Mobility
Center and double-click it, then double-click the icon adjacent to Display brightness. Set the screen brightness
sliders for On battery and Plugged in scenarios.
You can also use the Fujitsu Menu as a quick way to reduce the brightness to a minimum or increase it to a maximum.
This is done by clicking the corresponding button in the Fujitsu Menu: LCD Brightness Min or LCD Brightness Max.
31
- Display Panel
Enabling/Disabling Ambient Light Sensor
This system has an ambient light sensor (just below the Tablet buttons) that automatically senses the light
conditions in which the computer is operating. If the lighting is very bright, the brightness of the LCD will increase to
make it easier to see the display. Conversely, if it is used in a darkened room, the display will automatically dim.
The light sensor can be enabled or disabled from the Control Panel as follows:
1Open the system Control Panel and click in the View by: field, select either large or small icons.
2Click on the Location and Other Sensors icon.
3To enable or disable the Light Sensor utility, check or uncheck the box in the Enabled column.
4For more information about the light sensor, click on Light Sensor in the Sensor column to open the Sensor
Properties window.
5From the Sensor Properties window, you can change the sensor’s description, uninstall the sensor, or enable or
disable selected users.
•To change the sensor’s description, click the [Change description] button, enter the new description, and click
the [OK] button.
•To limit who can access the sensors, click Change who can access sensors, then check or uncheck the box
adjacent to the individual you would like to grant or prohibit access.
•To uninstall the sensor, click Uninstall this sensor.
IF USING AC POWER, YOUR BRIGHTNESS SETTING IS SET TO ITS HIGHEST LEVEL BY DEFAULT. IF USING BATTERY POWER, YOUR BRIGHTNESS SETTINGS
IS SET TO APPROXIMATELY MID-LEVEL BY DEFAULT.
THE HIGHER THE BRIGHTNESS LEVEL, THE MORE POWER THE TABLET PC WILL CONSUME AND THE FASTER YOUR BATTERIES WILL DISCHARGE. FOR
MAXIMUM BATTERY LIFE, MAKE SURE THAT THE BRIGHTNESS IS SET AS LOW AS POSSIBLE.
NOTE THAT WHEN YOU FIRST START YOUR SYSTEM, THE AMBIENT LIGHT SENSOR IS DISABLED. YOU WILL INITIALLY NEED TO ENABLE IT USING THE
FOLLOWING STEPS.
32
- Keyboard
Keyboard

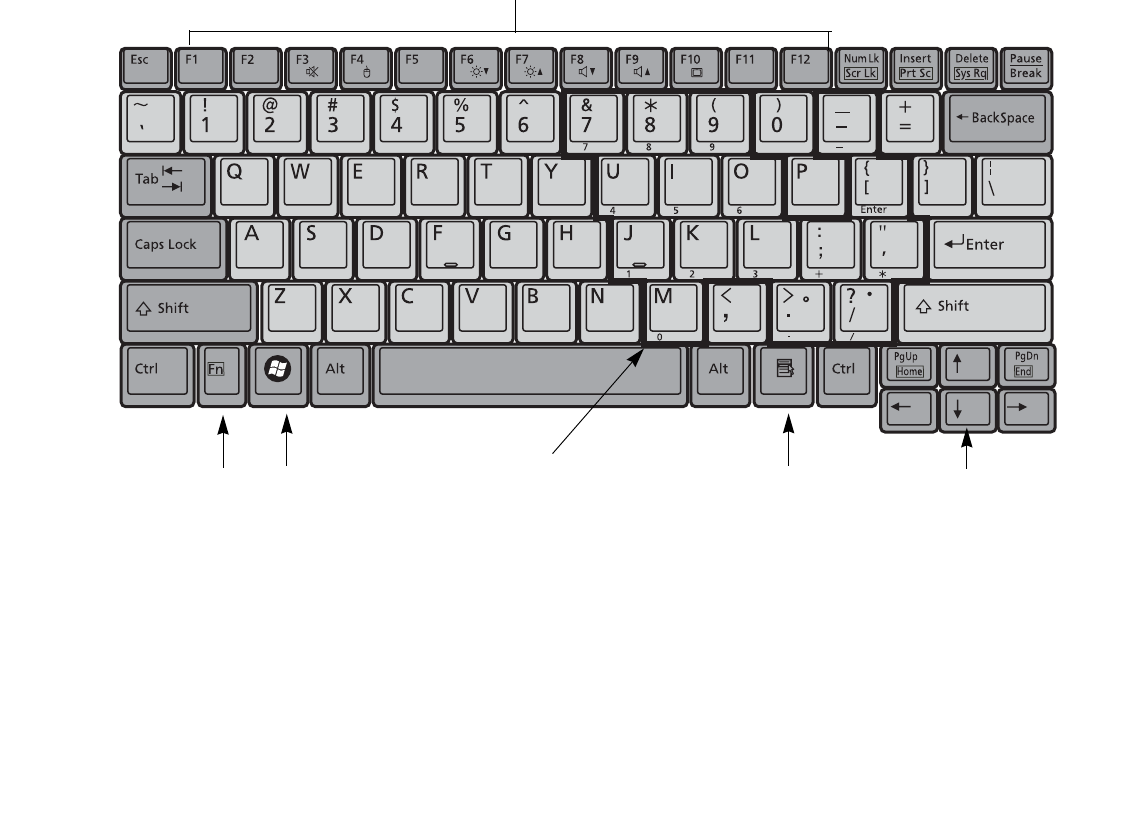

Figure 12. Keyboard
Using the Keyboard
Your Fujitsu LIFEBOOK Tablet PC has an integral 84-key keyboard. The keys perform all the standard functions of a
101-key keyboard, including the Windows keys and other special function keys. This section describes the following
keys (Figure 12):
•Numeric keypad: Your Tablet PC allows certain keys to serve dual purposes, both as standard characters and as
numeric and mathematical keys. The ability to toggle between the standard character and numeric keys is
controlled through the [NumLk] key.
Fn Key Start Key
Function Keys
Numeric Keypad Application Key Cursor Keys
(surrounded by heavy line)
33
- Keyboard
•Cursor keys: Your keyboard contains four arrow keys for moving the cursor or insertion point to the right, left,
up, or down within windows, applications and documents.
•Function keys: The keys labeled [F1] through [F12], are used in conjunction with the [Fn] key to produce
special actions that vary depending on what program is running.
•Windows keys: These keys work with your Windows operating system and function the same as the onscreen
Start menu button, or the right button on your pointing device.
Numeric Keypad
Certain keys on the keyboard perform dual functions as both standard character keys and numeric keypad keys.
NumLk can be activated by pressing the [NumLk] keys. Turning off the NumLk feature is done the same way. Once
this feature is activated you can enter numerals 0 through 9, perform addition ( + ), subtraction ( - ), multiplication
( * ), or division ( / ), and enter decimal points ( . ) using the keys designated as ten-key function keys. The keys in
the numeric keypad are marked on the front edge of the key to indicate their secondary functions.
Windows Keys
Your LIFEBOOK Tablet PC has two Windows keys, consisting of a Start key and an Application key. The Start key displays
the Start menu. This button functions the same as your onscreen Start menu button. The Application key functions
the same as your right mouse button and displays shortcut menus for the selected item. (Please refer to your
Windows Help and Support documentation in the Start menu for additional information regarding the Windows
keys.)
Cursor Keys
The cursor keys are the four arrow keys on the keyboard which allow you to move the cursor up, down, left and right
in applications. In programs such as Windows Explorer, it moves the “focus” (selects the next item up, down, left, or
right).
34
- Keyboard
Function Keys
Your LIFEBOOK Tablet PC has 12 function keys, F1 through F12. Functions assigned to these keys differ for each
application. You should refer to your software documentation to find out how these keys are used.
•The [Fn] key provides extended functions for the Tablet PC and is always used in conjunction with another key.
•[Fn+F2]: On backlit computers, pressing [F2] while holding [Fn] will toggle the backlight on (brighter) and off
(darker).
•[Fn+F3]: Pressing [F3] while holding [Fn] will toggle the Audio Mute on and off.
•[Fn+F4]: Pressing [F4] while holding [Fn] will toggle the Quick Point feature on and off. Note that the [Fn+F4]
combination only works if Manual Setting is selected in the BIOS. (See “BIOS Setup Utility” on page 61)
•[Fn+F6]: Pressing [F6] repeatedly while holding [Fn] will lower the brightness of your display.
•[Fn+F7]: Pressing [F7] repeatedly while holding [Fn] will increase the brightness of the display.
•[Fn+F8]: Pressing [F8] repeatedly while holding [Fn] will decrease the volume of your LIFEBOOK Tablet PC.
•[Fn+F9]: Pressing [F9] repeatedly while holding [Fn] will increase the volume of your LIFEBOOK Tablet PC.
•[Fn+F10]: Pressing [F10] while holding [Fn] allows you to change your selection of where to send your display
video. Each time you press the combination of keys you will step to the next choice. The choices, in order, are:
built-in display panel only, external monitor only, and both built-in display panel and external monitor.
35
- Touchpad/Active Digitizer/Touchscreen
Touchpad/Active Digitizer/Touchscreen

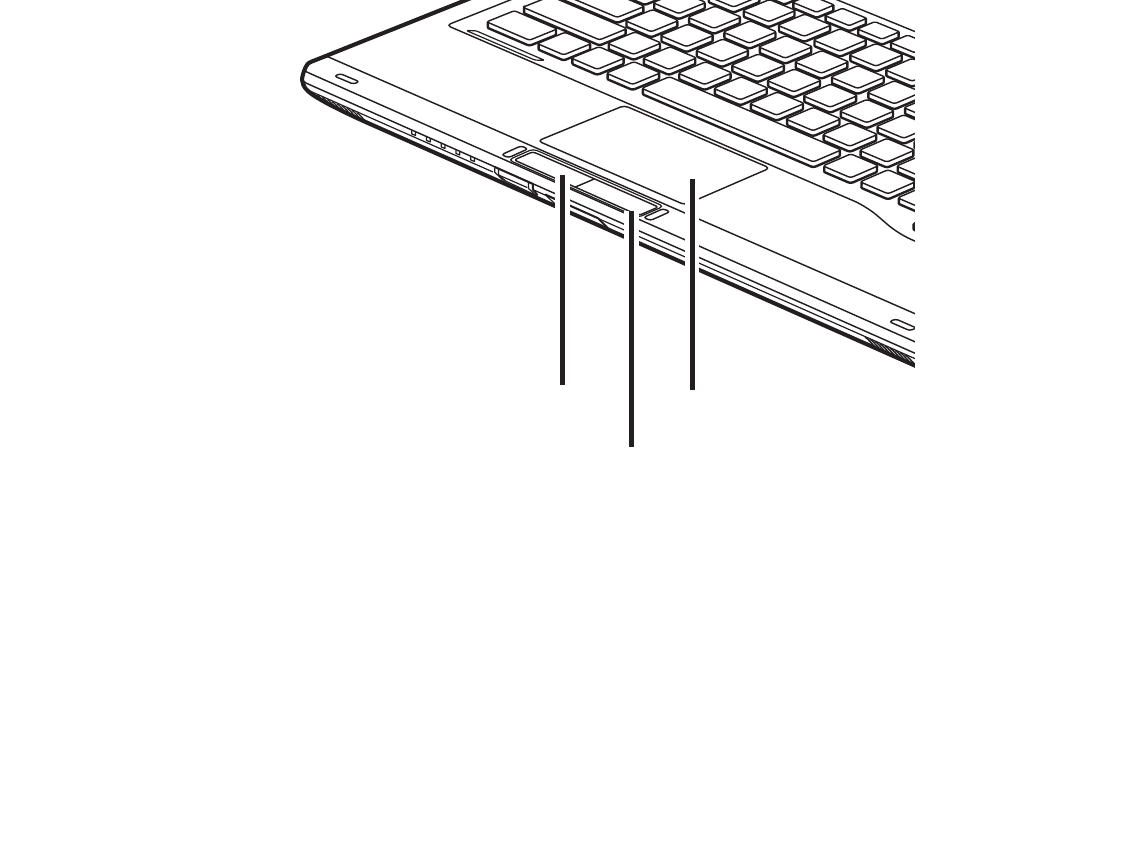

Figure 13. Touchpad pointing device
Using the Touchpad
The touchpad is built into your LIFEBOOK Tablet PC. It is used to control the movement of the cursor to select items
on your display panel. The touchpad is composed of a cursor control below the center of the keyboard and two buttons
below it. The left button functions the same as a left mouse button while the right button has the same function as
a right mouse button. The actual functionality of the buttons may vary depending on the application that is being
used.
Left Button
Right Button
Cursor Control
36
- Touchpad/Active Digitizer/Touchscreen
Clicking
Clicking means pushing and releasing a button. To left-click, move the cursor to the item you wish to select, press the
left button once, and then immediately release it. To right-click, move the mouse cursor to the item you wish to select,
press the right button once, and then immediately release it. You also have the option to perform the clicking
operation by tapping lightly on the touchpad once.
Double-Clicking
Double-clicking means pushing and releasing the left button twice in rapid succession. This procedure does not
function with the right button. To double-click, move the cursor to the item you wish to select, press the left button
twice, and immediately release it. You can also perform a double-click operation by tapping lightly on the pad twice.

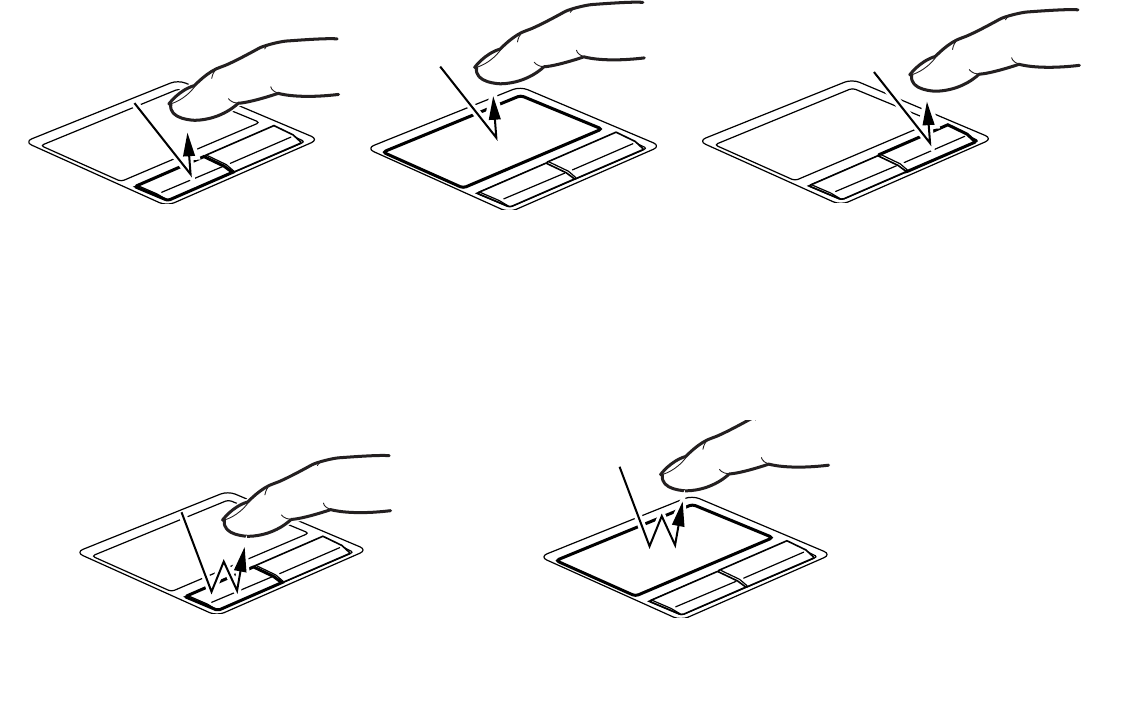

Figure 14. Clicking with button Figure 15. Clicking with Touchpad Figure 16. Right-clicking with button
Figure 17. Double-clicking with button Figure 18. Double-clicking with Touchpad
37
- Touchpad/Active Digitizer/Touchscreen
Dragging
Dragging means pressing and holding the left button, while moving the cursor. To drag, move the cursor to the item
you wish to move. Press and hold the left button while moving the item to its new location and then release it.
Dragging can also be done using the Touchpad. First, tap the Touchpad twice over the item you wish to move making
sure to leave your finger on the pad after the final tap. Next, move the object to its new location by moving your finger
across the Touchpad, and then release your finger.
Touchpad Control Adjustment
The Windows Control Panel allows you to customize your touchpad with selections made from within the Mouse
Properties dialog box. There are three aspects of operation which you can adjust:
•Buttons: This tab lets you set up the buttons for right or left handed operation, in addition to setting up the
time interval allowed between clicks in double-clicking.
•IF THE INTERVAL BETWEEN CLICKS IS TOO LONG, THE DOUBLE-CLICK WILL NOT BE EXECUTED.
•PARAMETERS FOR THE QUICK POINT CAN BE ADJUSTED FROM THE MOUSE DIALOG BOX LOCATED IN THE WINDOWS CONTROL PANEL.
Figure 19. Dragging with button Figure 20. Dragging with Touchpad
38
- Touchpad/Active Digitizer/Touchscreen
•Pointers: This tab lets you set up the scheme for the cursor depending on its functionality.
•Pointer Options: This tab lets you set up a relation between the speed of your finger motion and the speed of
the cursor. It also allows you to enable a Pointer Trail for the cursor arrow.
Active Digitizer Display
NOTE: Your system has a capacitive touch panel that
responds to finger touch and gestures. (This configuration
is called a “Dual Digitizer”.) For more information about the
touchscreen, refer to “Using the Capacitive Touchscreen” on
page 42.
The integrated active digitizer allows you to use the included
stylus as a pointing device. You can use the stylus to click,
double-click, right-click, drag items and icons, write text, or to
draw and erase like a pen or pencil in applications that support
this behavior, such as drawing or painting programs. The front
half of the barrel button works the same as a right-click
button. The back half of the barrel button and the eraser
button on the end of the pen both act as erasers. If using the
eraser button, be sure to depress it by pressing it on the display
in order to activate the eraser function.

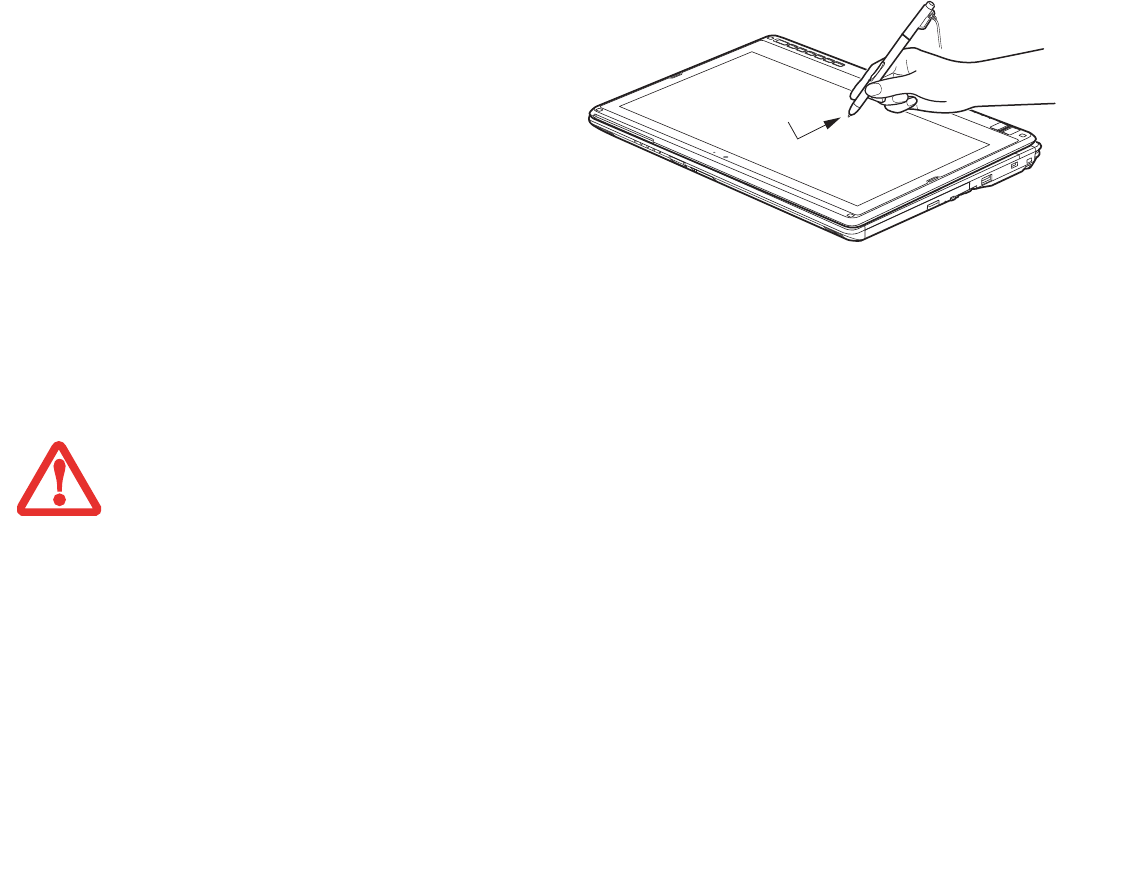

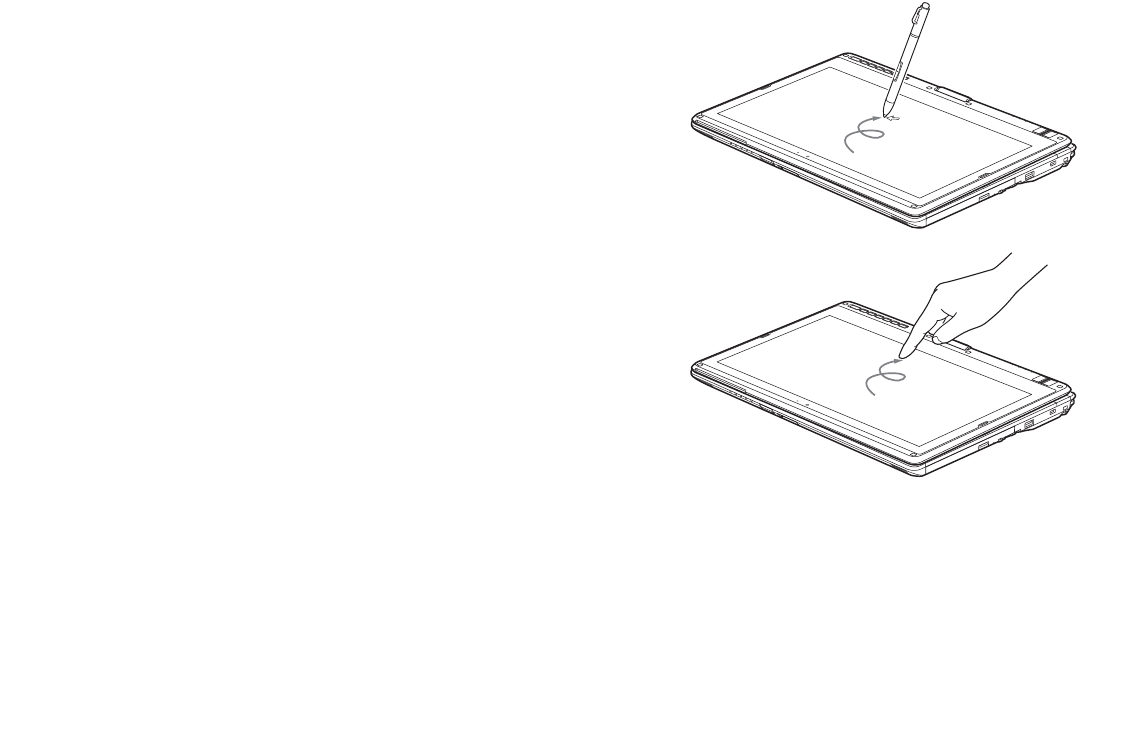

Figure 21. Using Active Digitizer Display
39
- Touchpad/Active Digitizer/Touchscreen

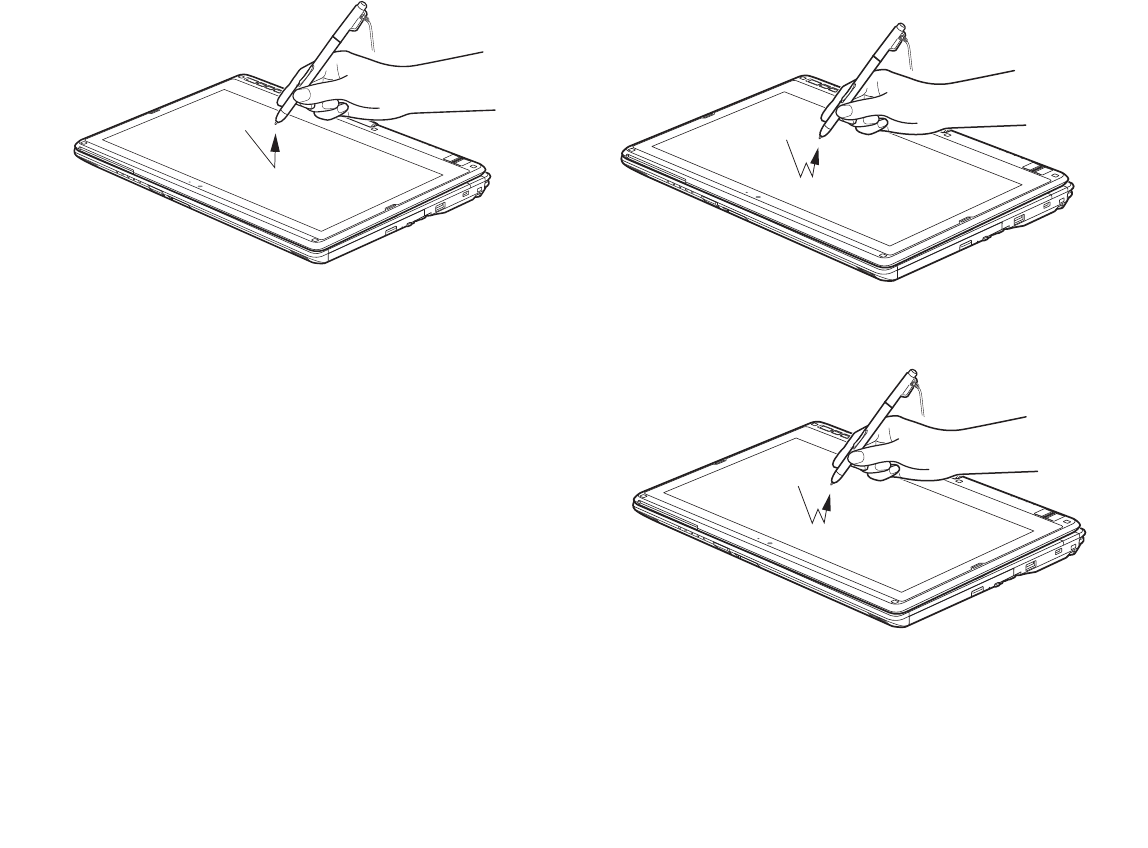

Clicking on Active Digitizer Display
To left-click, touch the object you wish to select and then lift the stylus tip immediately (Figure 23).
Right-Clicking on Active Digitizer
Right-click can be accomplished by holding the front of the toggle button down while tapping on the screen
(Figure 24). To turn off the right-click feature, go to Start -> Control Panel -> Hardware and Sound -> Pen and Touch.

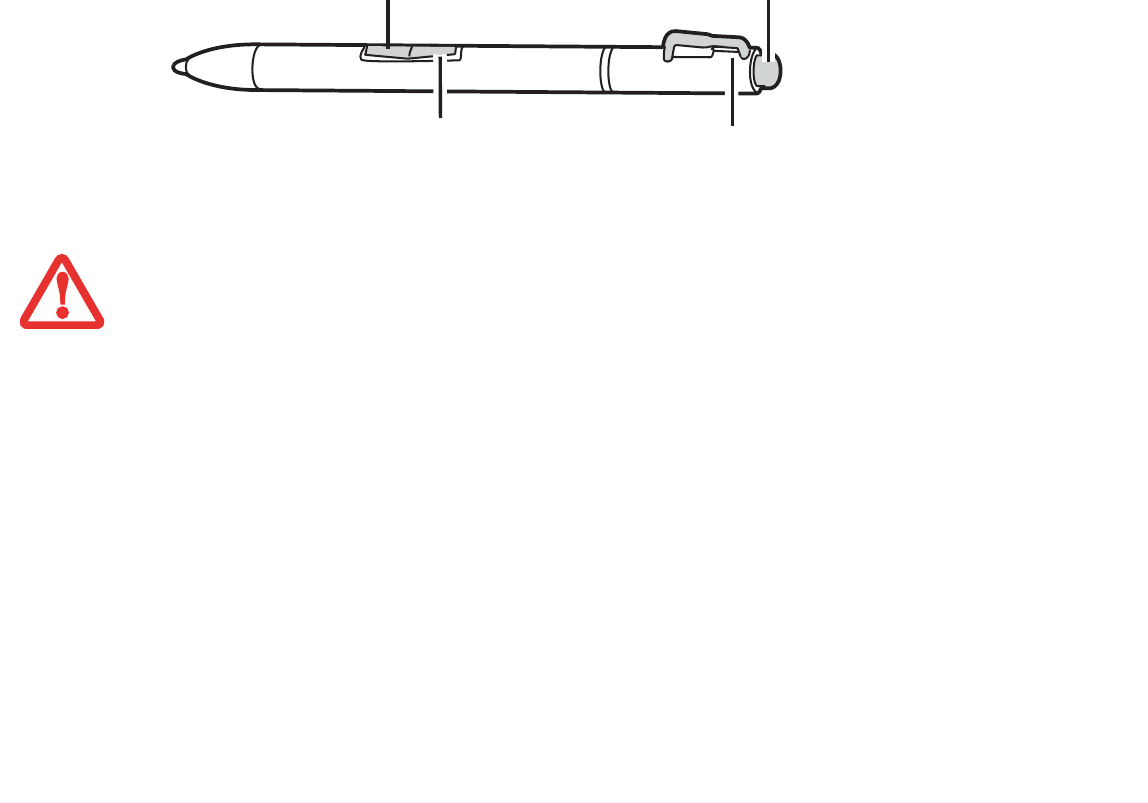

Figure 22. Stylus Features
•DO NOT USE EXCESSIVE FORCE WHEN TAPPING OR WRITING ON THE SCREEN WITH THE STYLUS. EXCESSIVE FORCE COULD RESULT IN DAMAGE TO
THE LED AND/OR ACTIVE DIGITIZER.
•TO PURCHASE ADDITIONAL OR REPLACEMENT STYLUSES, VISIT THE FUJITSU ACCESSORIES WEBSITE AT: WWW.SHOPFUJITSU.COM.
Right-Click Toggle
Eraser Toggle
Eraser Button
Pen Tether Attachment Point
41
- Touchpad/Active Digitizer/Touchscreen
Calibrating the Active Digitizer Display
In order to ensure accurate tracking between the stylus and cursor, you must run the Calibration Utility before you use
the system for the first time, or after you change the display resolution.
To run the calibration utility:
1Go to Start -> Control Panel.
2Click Hardware and Sound, then select Tablet PC Settings
3Under the Display tab, click the [Calibrate] button.(Note: If you have the optional capacitive touchscreen, you will
need to click on either Pen input or Touch input, depending upon which method you want to calibrate.)
4Adjust the display of your Tablet PC to a comfortable angle and find the (+) symbol in the upper-left corner of the
display.
Dragging
Dragging means moving an item with the stylus by
touching the screen, moving and then lifting the
stylus. To drag, touch the Active Digitizer Display
with your stylus on the item you wish to move. While
continuing to touch the screen with the stylus, drag
the item to its new location by moving the stylus
across the screen, and then lifting the stylus to
release it (Figure 26).
Figure 26. Dragging on the Display
•THE FIRST TIME YOU PERFORM A CALIBRATION, THE SYSTEM DISPLAY SHOULD BE IN LANDSCAPE MODE. SUBSEQUENT CALIBRATIONS CAN BE
PERFORMED IN LANDSCAPE OR PORTRAIT MODE.
•THE FIRST TIME YOU CALIBRATE, THERE WILL BE 16 CALIBRATION POINTS; SUBSEQUENT CALIBRATIONS WILL REQUIRE ONLY FOUR CALIBRATION
POINTS.
42
- Touchpad/Active Digitizer/Touchscreen
5Depending upon whether you are calibrating pen input or touch input, firmly touch the screen with the stylus or
your finger directly on the (+) symbol. Lift the stylus or your finger from the screen and the target will move to a
different location on the screen.
6Repeat step 4 until you have selected all of the (+) symbols.
7Once you have selected all the symbols, press the [OK] button.
8Touch the stylus or your finger to various points on the screen to verify that the screen is correctly calibrated. If you
are not satisfied with the screen’s calibration, press the [Calibrate]) button to begin again.
Using the Capacitive Touchscreen
This Tablet PC has a dual digitizer that allows you to use either the stylus or your finger(s) as a pointing device. This
type of display also allows you to use “gestures” to perform such actions as scroll, zoom, and rotate.
General Gesture Mode: One- and Two-Finger Gestures
Right-clicking the touchscreen
To perform a right-click action using two fingers, press the first finger at the location you want to perform a right-click,
then quickly tap and release the second finger on the screen.
DO NOT USE EXCESSIVE FORCE WHEN TAPPING ON THE SCREEN DURING CALIBRATION. USE OF EXCESSIVE FORCE COULD RESULT IN DAMAGE TO THE
LED AND/OR TOUCH PANEL.
•GESTURE SUPPORT IS DETERMINED BY THE APPLICATION IN USE.
•THE STYLUS TAKES PRECEDENCE OVER FINGER TOUCH. IF THE STYLUS IS WITHIN ACTIVE RANGE OF THE SCREEN, FINGER TOUCH WILL BE DISABLED.
•WHEN ONE FINGER IS USED ON THE TOUCHSCREEN, IT BEHAVES IN THE SAME MANNER AS A STYLUS.
43
- Touchpad/Active Digitizer/Touchscreen
Gesture Mode
To initiate gesture mode, two fingers must touch the screen within 200 ms of each other. If the second finger touches
the screen after 200 ms has elapsed, the second finger is ignored. If more than two fingers touch the screen in that
time, Advanced Gesture Mode is activated instead. When Gesture Mode is activated, no cursor movement is sent to
the system.
When both fingers are removed, Gesture mode ends. When a third finger is added, gesture mode ends and Advanced
gesture mode is activated. Note that if a gesture can’t be recognized, no action is taken. In that case, remove both
fingers from the screen and try again.
Scrolling Gesture
To scroll through long documents or on a web page, place both fingers on the screen (one finger quickly followed by
the second). If at least one finger has moved at least 3 mm, a scroll is considered. If both fingers are moving in the
same direction and parallel (given a tolerance of 5 mm), Scroll Mode is activated. If one finger is stationary, it is not
considered a scroll. If either finger is lifted, Scroll Mode is canceled.
Zoom Gesture
The zoom gesture is especially helpful when viewing pictures. To zoom in, place two fingers on the item you want to
enlarge (one finger quickly followed by the second), then spread them away from each other.
If at least one finger has moved at least 10 mm, a zoom event is considered. If the distance between the fingers has
changed by at least 10 mm, and both fingers have stayed on approximately the same line, Zoom Mode is entered. If
either finger strays more than 10 mm from the "zoom line" created when the fingers first made contact, the zoom is
canceled.
To zoom out, place two fingers on the item you want to reduce (one finger quickly followed by the second), then move
them towards each other.
Rotate Gesture
To change the orientation of an object on the screen, place two fingers on the image you want to rotate (one finger
quickly followed by the second), then move them in opposite directions (as if you were turning a knob). The direction
the item turns is dependant upon the direction you move your fingers.
44
- Touchpad/Active Digitizer/Touchscreen
If at least one finger moves at least 12 mm, a rotate is considered. If one finger is stationary (moving less than 5 mm
in any direction), and the other is moving, a rotate is considered. If the fingers begin moving in the same direction,
the rotation is canceled. If the distance between the fingers changes by more than 10 mm, the rotation is canceled.
Installing a Pen Tether
To prevent dropping or losing your pen, you should attach it
to your system using the pen tether that is included with the
system.
To attach the pen tether to your Tablet PC, perform the
following steps:
1Attach the end of the pen tether with the smaller loop to
your pen. To do so, push the end of the tether through
the hole in the pen, then thread the opposite end of the
tether through the loop.
2Attach the end of the pen tether with the larger loop to
the attachment point on your tablet. To do so, insert the
end of the pen tether through the attachment point,
then feed the pen through the large loop in the tether.
Figure 27. Installing a Pen Tether
45
- Volume Control
Volume Control
Your Fujitsu LIFEBOOK Tablet PC has multiple volume controls which interact with each other.
Controlling the Volume
The volume can be controlled in several different ways:
•Volume can be changed or muted from within the Volume Control in the system tray.
•Volume can be controlled using the Volume Up and Volume Down buttons on the button panel
•Volume can be controlled with the F8 and F9 functions keys. Pressing [F8] repeatedly while holding [Fn] will
decrease the volume of your Tablet PC. Pressing [F9] repeatedly while holding [Fn] will increase the volume of
your Tablet PC.
•Volume can be changed by opening the Control Panel and selecting Windows Mobility Center. From there, you
can either mute or adjust the sound in the Volume area.
•Volume can be muted by pressing the [F3] key while holding down the [Fn] key. To restore audio, repeat the
[Fn+F3] procedure.
•Volume can be controlled by many volume controls that are set within individual applications.
•Certain external audio devices you might connect to your system may have hardware volume controls.
Each source discussed above puts an upper limit on the volume level that must then be followed by the other sources.
We recommend that you experiment with the various volume controls to discover the optimal sound level.
ANY SOFTWARE THAT CONTAINS AUDIO FILES WILL ALSO CONTAIN A VOLUME CONTROL OF ITS OWN. IF YOU INSTALL AN EXTERNAL AUDIO DEVICE
THAT HAS AN INDEPENDENT VOLUME CONTROL, THE HARDWARE VOLUME CONTROL AND THE SOFTWARE VOLUME CONTROL WILL INTERACT WITH
EACH OTHER. IT SHOULD BE NOTED THAT IF YOU SET YOUR SOFTWARE VOLUME TO OFF, YOU WILL OVERRIDE THE EXTERNAL VOLUME CONTROL
SETTING.
46
- Modular Bay Devices
Figure 28. Modular Bay
Modular Bay Devices
Your Fujitsu LIFEBOOK Tablet PC contains a Modular Bay. The Modular Bay can house an optical drive, a Lithium ion
battery, and a weight saver.
Your Modular Bay will have one of the following devices installed.
•Modular Dual-Layer Multi-Format DVD Writer: This allows you to access movies, software, and audio DVD/CDs
and record to DVD, CD, and DVD-RAM discs
.
•Modular Blu-ray™ RW Drive. This drive allows you to read from and write to Blu-ray discs.
•Modular Lithium ion battery: This is a rechargeable battery that can be used to power your LIFEBOOK Tablet PC
when an adapter is not connected.
•Weight Saver: This is used to fill the bay when no device is needed.
Removing and Installing Modular Devices
There are two ways to remove and install modular devices in the Modular Bay:
•Cold-swapping: swapping devices while your LIFEBOOK Tablet PC is powered off.
•Hot-swapping: swapping devices while your system is active using the Safely Remove Hardware icon from your
system tray.
YOU SHOULD NEVER LEAVE YOUR MODULAR BAY EMPTY WHEN THE TABLET PC IS IN OPERATION. IF LEFT EMPTY, DUST OR FOREIGN MATTER MAY
ACCUMULATE INSIDE THE TABLET PC.
Modular Bay
47
- Modular Bay Devices
Cold-swapping
To cold-swap modular devices in your Modular Bay follow these
easy steps:
1Close any open files and shut down your LifeBook notebook.
2Pull out the Flexible Bay release latch. This will push your
device out slightly, allowing you to remove it.
3Slide your device out until it is clear of the bay. This will require
light force.
4Slide the device you are installing into your notebook until it
clicks into place.
5It is now safe to turn your notebook back on.
6You can now access and use the device.
Your Tablet PC will automatically detect the device and activate it
within your system. The drive letters associated with the device
will be created and listed under My Computer and Windows
Explorer.
Hot-swapping
Hot-swapping is provided through the Safely Remove Hardware
utility. The icon for the utility appears in the system tray. Click on
the icon and follow the on-screen instructions.

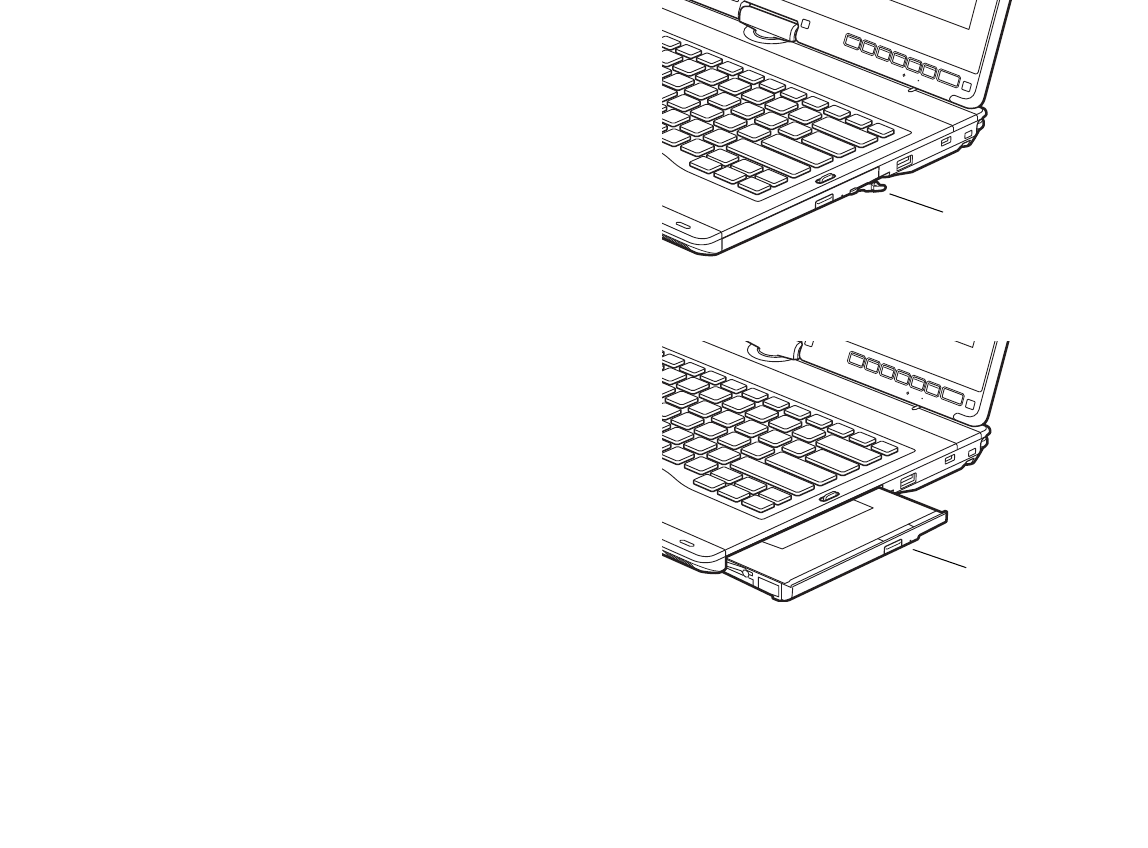

Figure 29. Removing/Installing Modular Device
Modular Bay
Release Latch
Modular Bay
Device
48
- LIFEBOOK Security/Tablet PC/Windows Buttons

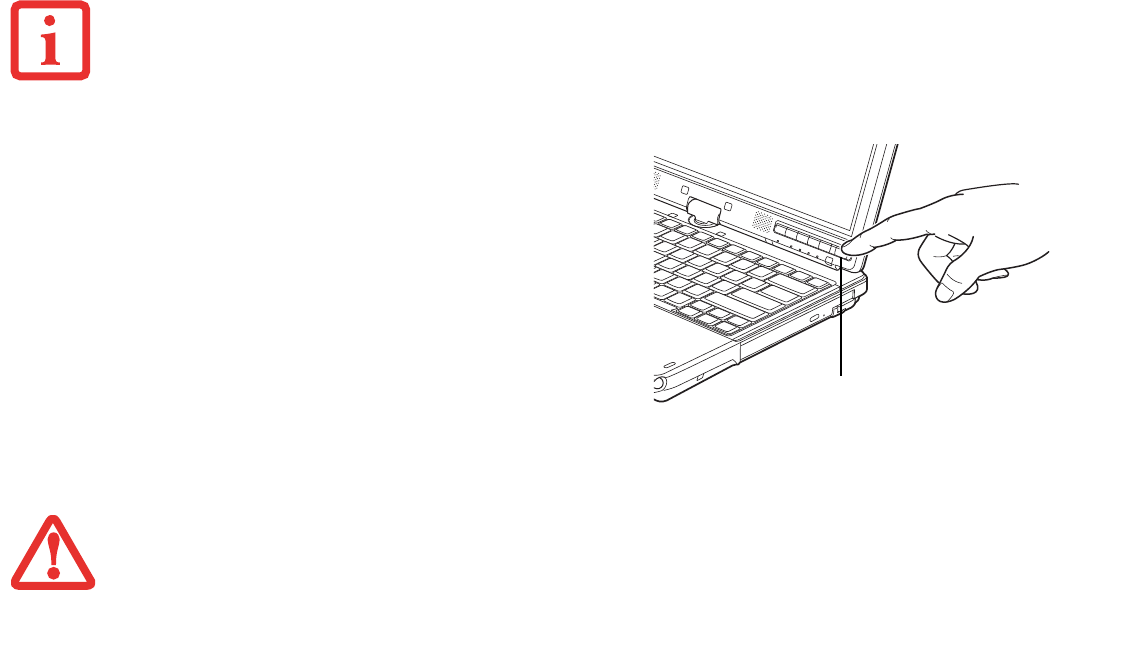

Figure 30. LIFEBOOK T902 Tablet PC Security/Tablet PC Buttons
LIFEBOOK Security/Tablet PC/Windows Buttons
A unique feature of your LIFEBOOK T902 Tablet PC is the array of Security and Tablet PC buttons as well as a standalone
Windows button. These buttons allow you to secure your Tablet PC from unauthorized use and to launch specific
applications and functions with the touch of a button.
Security Button Functions
If the security system is activated, upon starting your Tablet PC or resuming from Hibernate or shutdown mode, the
security system will require you to enter a password code using the security buttons. After you enter the correct
password, your system will resume operation.
The five security/Tablet PC buttons are located on the bottom right-hand side of the display when it is configured to
be used as a notebook.
All five buttons are used when implementing security functions. Four of the buttons are used to enter the password;
the fifth is used as an Enter button. See Table 3 for information about each Security button.
Power
Button
shown for
reference only)
Windows
Button
49
- LIFEBOOK Security/Tablet PC/Windows Buttons
Table 3. Security Panel Button Functions
Button Icon System State Security Panel Function
System is pre-boot or resuming from suspend Security Button 1
Security Button 2
Security Button 3
Security Button 4
Security Enter Button
50
- LIFEBOOK Security/Tablet PC/Windows Buttons
Post-logon button functions
All six buttons can be used after logging on. See Table 3 for information about each of the post-logon functions.

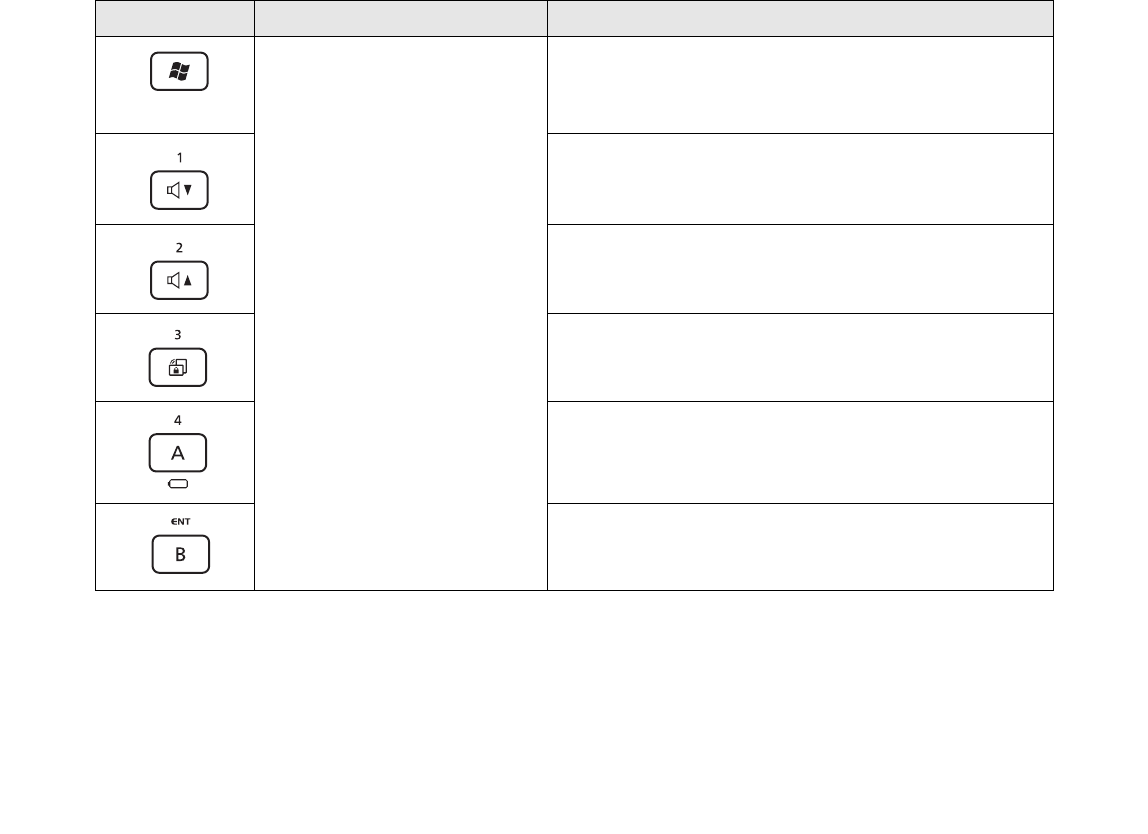

Table 3. Post-logon Tablet PC Button Functions
Windows Button
In post-logon, the Windows button can be used to perform two functions. When pressed alone, it opens up the Start
menu. When pressed at the same time as the power button, it acts the same as if pressing [Ctl] + [Alt] + [Del].
Button Icon System State Tablet PC Function
System is post-logon (Windows
desktop is displayed)
Windows Button has two functions.
Primary action: opens up the Start menu
[Windows] button + [Power] button: Opens up CTRL+ALT+DEL
screen
Volume Down
Volume Up
Pauses and resumes the rotation lock feature.
Opens the Fujitsu Menu utility
Opens the Windows Journal application.
51
- LIFEBOOK Security/Tablet PC/Windows Buttons
Volume Down/Volume Up Buttons
The Volume Down and Volume Up buttons allow you to decrease and increase the volume.
Rotation Lock
The rotation lock feature is used to Pause or Resume the auto rotation feature. When the system is in tablet mode, if
the auto rotation feature is resumed, the display rotates automatically when the system is rotated. When the auto
rotation feature is paused, the display doesn't rotate automatically when the tablet is rotated.
Button A
When Button A is pressed post-logon, the Fujitsu Menu utility opens.
When Button A is pressed, the Battery LED shows the remaining capacity of the battery (See “Status Indicator Panel”
on page 24.) Five seconds after releasing the button, the LED will turn off automatically.
Button B
When Button B is pressed post-logon, the Windows Journal opens.
Changing Tablet PC Button Functions
The Application A and B buttons can be changed to launch a program or perform an action you select. By default, the
Application A button launches the Calculator, and the Application B button launches MS Journal.
To launch different applications or cause the Application A or B buttons to perform a specific action:
1Double-click on the Tablet PC Settings icon in the Control Panel.
2Select the Buttons tab and select the button you would like to change from the list.
3Click [Change] and open the drop down list in the Press: field.
4Select the action you would like the button to perform. If you want to launch a program, click on Start a Program,
then browse to the location of the program.
5Click [OK], then click [OK] again. The buttons will now perform the actions you have assigned to them.
52
- LIFEBOOK Security/Tablet PC/Windows Buttons
Setting up LIFEBOOK Security Panel
When you receive your Tablet PC, the security panel application is pre-installed without any passwords. The following
sections provide detailed information on your security panel, how to set, change or remove passwords.
Numbered Buttons
Use these buttons to enter your password.
Enter Button
After entering the button strokes, push this button to enter the password into the Tablet PC.
Passwords
The user and supervisor password may be set on this Tablet PC. A supervisor password is typically the same for all
tablets and notebooks in a work group, office, or company to allow for system management. Individual computers in
a group environment should not use a common password. A password consists of one to five button strokes plus the
enter button. A valid stroke consists of pushing one or up to four buttons simultaneously.
The following are valid button strokes:
•Pushing [4] by itself
•Pushing [2] and [3] at the same time
•Pushing [1], [2], and [4] at the same time
•Pushing [1], [2], [3], and [4] at the same time
The following are valid passwords. The numbers within braces ({ }) are button strokes using more than one button.
•{[2]+[3]}, [1], [Enter]
•[4], [enter]
•{[1]+[3]}, {[2]+[3]+[4]}, [1], [4], [2], [Enter]
Setting Passwords
When shipped from the factory, no passwords are set. You have a choice of having no password or setting a supervisor
and user password. You must set the supervisor password before the user password.
53
- LIFEBOOK Security/Tablet PC/Windows Buttons
Setting Supervisor Password
You must have set a supervisor password before setting any user passwords. The supervisor password can bypass the
user password.
1Go to the Start menu.
2Click on Run.
3Type in: C:\Program Files\Fujitsu\Security Panel Application\Supervisor\ FJSECS.EXE, then press [Enter]
4Follow the on-screen instructions to set the Supervisor password.
Setting User Password
1Go to the Start menu.
2Click on All Programs.
3Click on Security Panel Application -> Security Panel Application.
4Follow the on-screen instructions to set the user password.
•THE PURPOSE OF SUPERVISOR PASSWORD IS TO BE ABLE TO BYPASS THE USER PASSWORD IN CASE THE USER PASSWORD IS FORGOTTEN. THE
SUPERVISOR PASSWORD ALONE WILL NOT LOCK THE SYSTEM.
•YOU MUST SET THE SUPERVISOR AND USER PASSWORDS FOR THE SECURITY PANEL TO WORK.
YOU MAY CHANGE OR REMOVE THE SUPERVISOR OR USER PASSWORD BY REPEATING THE STEPS DEFINED ABOVE.
54
- LIFEBOOK Security/Tablet PC/Windows Buttons
Using Your LIFEBOOK Security Panel
The security lock feature is in effect both when the system resumes from Off or Hibernation state. You always need to
push the Security Panel buttons to input the user password. Your system will not begin the boot sequence until you
enter your supervisor/user password.
From Off State
1Turn on your system.
2When the Security Indicator flashes, enter the password and press Enter button (e.g., if the password is 22222,
first press Button 2 five times, then press the Enter button). The Tablet PC will boot to normal operation.
From Hibernation State
1Press your Suspend/Resume slide.
2When the Security Indicator flashes, enter the password and press Enter button.The Tablet PC should resume
normal operation.
Incorrect Password Entry
If an invalid supervisor or user password is entered three times in succession, the system will “beep” for about one
minute. If a valid password is entered within a minute (while system beeps), the beeping will stop and the Tablet PC
will resume normal operation. If no password is entered or an invalid password is entered while the system beeps,
the system will return to its previous locked state (off) and the Security Indicator will go off. To reactivate the Tablet
PC after a password failure, you must press the Suspend/Resume slide, then enter a correct password.
Precautions
Opening and Closing the Cover
To change what the system does when the cover is closed:
REMEMBER THE USER PASSWORD YOU SPECIFIED ON THE SECURITY PANEL APPLICATION. IF YOU FORGET THE PASSWORD YOU WILL NOT BE ABLE TO
USE YOUR COMPUTER. THE SUPERVISOR PASSWORD CAN OVERRIDE THE USER PASSWORD.
55
- LIFEBOOK Security/Tablet PC/Windows Buttons
1Open the system Control Panel. If the display is in Category view, click one of the icon selections in the View by:
field. Click on Power Options.
2Click Choose what closing the lid does in the left pane.
3Select the desired action for When I close the lid, then click the [Save changes] button.
Low Battery Operations
If your Tablet PC has a low battery, pushing the suspend/resume slide only turns on the Security Indicator. Your Tablet
PC does not unlock, the Security Indicator turns off after one minute. To resume normal operation, first attach a power
supply to the Tablet PC. Then you may unlock the Tablet PC.
Uninstalling/Re-installing the Security Panel Application
You have two options when uninstalling the security panel application:
•Remove passwords and uninstall the security panel application software. This will disable all security features.
•Uninstall the security panel application with password still active. This will not allow any changes to the
password.
Uninstalling the Security Panel Application Software
Remove passwords when User wants no password protection whatsoever and doesn’t want to give anybody the utility
to set a password on their computer. In this case, if passwords (supervisor, user, or both) are set, the passwords must
first be cleared BEFORE removing the application. To clear passwords, follow same procedure in SETTING PASSWORD
CODES except this time, select REMOVE, enter current password then click Next. When asked to confirm select Yes.
Removing Security Panel Application with Passwords Still Active
Using this feature will not allow any changes to the password.
REMOVING THE APPLICATIONS DOES NOT REMOVE THE PASSWORD. IT SIMPLY REMOVES THE ABILITY TO CHANGE/ADD/REMOVE PASSWORDS. TO
CHANGE YOUR PASSWORD YOU MUST REINSTALL THE APPLICATION.
56
- LIFEBOOK Security/Tablet PC/Windows Buttons
User:
1Go to Start -> Control Panel.
2Open Programs and Features in the Control Panel.
3Select Security Panel for User in the list, and click Uninstall/Change.
4When User Account Control box appears, click Continue.
Supervisor:
1Go to Start -> Control Panel.
2Open Add or Remove Programs Properties in the Control Panel.
3Select the Security Panel for Supervisor in the list, and click Uninstall/Change.
4When User Account Control box appears, click Continue.
Reinstalling the Security Panel Application
To reinstall the supervisor or user security application, you will need to access the Fujitsu Software Download
Manager (FSDM) utility. The FSDM utility allows you to download the latest drivers, utilities, and applications from
the Fujitsu Support site. To access the FSDM utility, you will need to go to the Support Site at
<http://support.fujitsupc.com/CS/Portal/support.do?srch=DOWNLOADS>tal/support.do?srch=DOWNLOADS.
The Security/Application Panel software consists of two software packages: Security Application Panel/Supervisor
and Security Application Panel/User.
1Download both software packages to your system from the support website.
2Double-click setupS.exe in the Security Application Panel\Supervisor package. The Installing Security Panel
Application window will appear. Follow the instructions on the screen.
3Double-click setup.exe from Security Application Panel\User package. The Installing Security Panel Application
window will appear. Follow the instructions on the screen.
57
Chapter 2
Getting Started with Your LIFEBOOK
Power Sources
Your Fujitsu LIFEBOOK Tablet PC has four possible power sources: a primary Lithium ion battery, a secondary modular
bay battery, an AC adapter or an optional Auto/Airline adapter.
Connecting the Power Adapters
The AC adapter or optional Auto/Airline adapter provides power for operating your Tablet PC and charging the
batteries.
Connecting the AC Adapter
1Plug the DC output cable into the DC power jack of your LIFEBOOK Tablet PC.
2Plug the AC adapter into an AC electrical outlet.
Connecting the Optional Auto/Airline Adapter
1Plug the DC output cable into the DC power jack on your Tablet PC.
2Plug the Auto/Airline adapter into the cigarette lighter of an automobile, or,
3Plug the Auto/Airline adapter into the DC power jack on an airplane seat.
58
- Power Sources

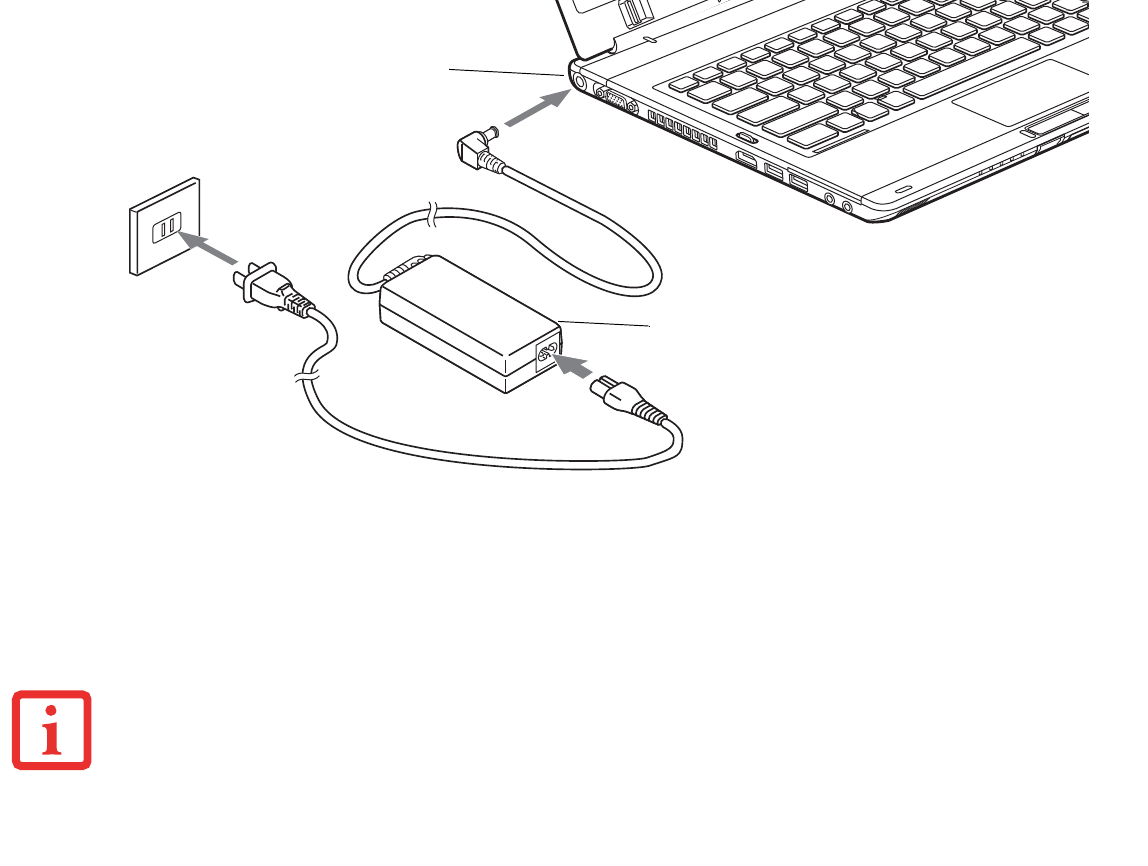

Figure 31. Connecting the AC Adapter
Switching from AC Adapter Power or the Auto/Airline Adapter to Battery Power
1Be sure that you have at least one charged battery installed.
2Remove the AC adapter or the Auto/Airline adapter.
THE LITHIUM ION BATTERY IS NOT CHARGED UPON PURCHASE. INITIALLY, YOU WILL NEED TO CONNECT EITHER THE AC ADAPTER OR THE
AUTO/AIRLINE ADAPTER TO USE YOUR TABLET PC.
DC Power Jack
AC Adapter
59
- Starting Your LIFEBOOK Tablet PC
Starting Your LIFEBOOK Tablet PC
Power On
Power/Suspend/Resume Slide
The Power/Suspend/Resume slide is used to turn on your LIFEBOOK Tablet PC from its off state. Once you have
connected your AC adapter or charged the internal Lithium ion battery, you can power on your LIFEBOOK Tablet PC.
WHEN YOU TURN ON YOUR LIFEBOOK TABLET PC BE SURE YOU HAVE A POWER SOURCE. THIS MEANS THAT AT LEAST ONE BATTERY IS INSTALLED
AND CHARGED, OR THAT THE AC OR AUTO/AIRLINE ADAPTER IS CONNECTED AND HAS POWER.
To turn on your LIFEBOOK Tablet PC from its off state,
slide the Power/Suspend/Resume slide, located above
the keyboard to the right. When you are done working
you can either leave your Tablet PC in Suspend mode,
you can turn it off. See “Sleep Mode” on page 64 and
“Powering Off” on page 66
Figure 32. Starting the Tablet PC
DO NOT CARRY YOUR LIFEBOOK TABLET PC AROUND WITH THE POWER ON OR SUBJECT IT TO SHOCKS OR VIBRATION, AS YOU RISK DAMAGING YOUR
TABLET PC.
Power/Suspend/Resume Slide
60
- Starting Your LIFEBOOK Tablet PC
When you power on your LIFEBOOK, it will perform a Power On Self Test (POST) to check the internal parts and
configuration for correct functionality. If a fault is found, your LIFEBOOK Tablet PC will emit an audio warning and/or
an error message will be displayed. See “Power On Self Test Messages” on page 98. Depending on the nature of the
problem, you may be able to continue by starting the operating system or by entering the BIOS setup utility and
revising the settings.
After satisfactory completion of the POST, your Tablet PC will load your operating system.
Boot Sequence
The procedure for starting-up your Tablet PC is termed the Bootup sequence and involves your Tablet PC’s BIOS. When
your Tablet PC is first turned on, the main system memory is empty, and it needs to find instructions to start up your
Tablet PC. This information is in the BIOS program. Each time you power up or restart your Tablet PC, it goes through
a boot sequence which displays a Fujitsu logo until the operating system is found. During booting, your Tablet PC is
performing a standard boot sequence including a Power On Self Test (POST). When the boot sequence is completed
without a failure and without a request for the BIOS Setup Utility, the system displays the operating system’s opening
screen.
The boot sequence is executed when:
•You turn on the power to your LIFEBOOK Tablet PC.
•You restart your LIFEBOOK Tablet PC from the Windows Shut Down dialog box.
•The software initiates a system restart; for example, when you install a new application.
NEVER TURN OFF YOUR LIFEBOOK TABLET PC DURING THE POWER ON SELF TEST (POST) OR IT WILL CAUSE AN ERROR MESSAGE TO BE
DISPLAYED WHEN YOU TURN YOUR LIFEBOOK TABLET PC ON THE NEXT TIME.
See “Power On Self Test Messages” on page 98.
61
- Starting Your LIFEBOOK Tablet PC
Hard Disk Drive Passwords
To provide additional security for your data, you can assign passwords to your hard disk drive(s). This feature is
managed in the system BIOS Setup Utility. See
BIOS Setup Utility
below for information about accessing the utility.
BIOS Setup Utility
The BIOS Setup Utility sets up the operating environment for your Tablet PC. Your BIOS is set at the factory for normal
operating conditions, therefore there is no need to set or change the BIOS’ environment to operate your Tablet PC.
The BIOS Setup Utility also allows you to configure such features as the System Data Security feature parameters, such
as passwords.
Entering the BIOS Setup Utility
To enter the BIOS Setup Utility do the following:
1Turn on or restart your LIFEBOOK Tablet PC.
2To enter the BIOS Setup Utility, press the [F2] key once the Fujitsu logo appears on the screen. This will open the
main menu of the BIOS Setup Utility with the current settings displayed.
Press the right or left arrow keys key to scroll through the other setup menus to review or alter the current settings.
BIOS Guide
A guide to your Tablet PC’s BIOS is available online at our service and support Website at:
http://solutions.us.fujitsu.com/www/content/support/contact/index.php. Once there, select User’s Guides under
Online Support. Select your Product, Series, and Model, then click [Go].
REMEMBER YOUR PASSWORDS. IF YOU SET AND FORGET YOUR USER AND MASTER HARD DISK PASSWORDS, FUJITSU AMERICA WILL NOT BE ABLE
TO RESET IT. YOU MAY LOSE DATA AND HAVE TO REPLACE YOUR SYSTEM BOARD OR HARD DISK DRIVE.
IF YOUR DATA SECURITY SETTINGS REQUIRE IT, YOU MAY BE ASKED FOR A PASSWORD BEFORE THE BIOS MAIN MENU WILL APPEAR.
62
- Starting Your LIFEBOOK Tablet PC
Booting the System
We strongly recommend that you not attach any external devices or put a DVD/CD in your drive until you have gone
through the initial power on sequence.
When you turn on your LIFEBOOK Tablet PC for the first time, it will display a Fujitsu logo on the screen. If you do
nothing the system will load the operating system, and then the Windows Welcome will begin.
Starting Windows the First Time
After you boot up the system the first time and follow the instructions on the screen, you will eventually come to the
Welcome window. After the Welcome window appears, the screen will black out for up to several minutes. This is
normal. DO NOT ATTEMPT TO POWER DOWN THE SYSTEM AT THIS POINT. While the screen is blacked out, your
system configuration is being set up and the necessary files are being installed.
During the course of the first start up, you will need to read and accept the End User License Agreements (EULAs) for
Microsoft and Fujitsu.
Several additional windows will appear, prompting you to enter a name and description for your computer, an
Administrator password, and a domain name. Read the instructions on the screens carefully and fill in the
information as directed.
Installing Bonus Apps
After you have started your system the first time, you will see a Bonus Apps icon on your desktop. Click on
the icon to see which additional applications are available for you to install. Applications that are already
installed appear in grey; those that are available for installation appear in blue.
Select the applications you wish to install by selecting the checkbox adjacent to your selection, or click [Select All] if
you would like to install all available applications. Once you have made your selections, click [Install].
•IF YOU REJECT THE TERMS OF THE LICENSE AGREEMENT YOU WILL BE ASKED TO REVIEW THE LICENSE AGREEMENT FOR INFORMATION ON
RETURNING WINDOWS OR TO SHUT DOWN YOUR TABLET PC.
•YOU CANNOT USE YOUR TABLET PC UNTIL YOU HAVE ACCEPTED THE LICENSE AGREEMENT. IF YOU STOP THE PROCESS YOUR TABLET PC WILL
RETURN TO THE BEGINNING OF THE WINDOWS WELCOME PROCESS, EVEN IF YOU SHUT YOUR TABLET PC DOWN AND START IT UP AGAIN.
63
- Starting Your LIFEBOOK Tablet PC
Note that in some cases (depending upon which application was selected for installation) after installation
completes, the system will prompt you to reboot. There are also cases in which if multiple applications are selected
to install but one of them needs a reboot, the system will reboot and continue installing the rest of the selected
applications.
Registering your LIFEBOOK with Fujitsu
You can register your Tablet PC by going to our website at: https://store.shopfujitsu.com/fpc/Ecommerce/Service.jsp.
You will need to be set up with an Internet Service Provider (ISP) to register online.
64
- Power Management
Power Management
Your Fujitsu LIFEBOOK Tablet PC has many options and features for conserving battery power. Some of these features
are automatic and need no user intervention. However, others depend on the parameters you set to best suit your
operating conditions, such as those for the display brightness. Internal power management for your Tablet PC may
be controlled from settings made in your operating system, pre-bundled power management application, or from
settings made in BIOS setup utility.
Besides the options available for conserving battery power, there are also some things that you can do to prevent
your battery from running down as quickly. For example, you can create an appropriate power saving profile, put your
Tablet PC into Sleep mode when it is not performing an operation, and you can limit the use of high power devices.
As with all mobile, battery powered computers, there is a trade-off between performance and power savings.
Power/Suspend/Resume Slide
When your Tablet PC is active, the Power/Suspend/Resume slide can be used to manually put the Tablet PC into Sleep
mode. Push the Power/Suspend/Resume slide when the Tablet PC is active, but not actively accessing anything, and
immediately release the button.
If your Tablet PC is suspended, pushing the Power/Suspend/Resume slide returns your Tablet PC to active operation.
You can tell whether the system is Suspended by looking at the Power indicator. If the indicator is visible and not
flashing, your Tablet PC is fully operational. If the indicator is visible
and
flashing, your Tablet PC is in Sleep mode. If
the indicator is not visible, the power is off or your Tablet PC is in Hibernation mode.
Sleep Mode
Sleep mode in Windows saves the contents of your system memory during periods of inactivity by maintaining power
to critical parts. This mode turns off the CPU, display, hard drive, and all other internal components except those
necessary to maintain system memory and for restarting.
Your Tablet PC can be put in sleep mode by:
•Pressing the Power/Suspend/Resume slide when your system is turned on.
•Selecting “Sleep” after clicking [Start] then clicking the small arrow at the bottom right of the window.
•Timing out from lack of activity.
•Allowing the battery to reach the Dead Battery Warning condition.
65
- Power Management
Your Tablet PC’s system memory typically stores the file on which you are working, open application information, and
any other data required to support operations in progress. When you resume operation from Sleep mode, your Tablet
PC will return to the point where it left off. You must use the Power/Suspend/Resume slide to resume operation, and
there must be an adequate power source available, or your Tablet PC will not resume.
Hibernation (Save-to-Disk) Feature
The Hibernation feature saves the contents of your Tablet PC’s system memory to the hard drive as a part of the
Suspend/Resume mode. You can enable or disable this feature.
Enable or Disable the Hibernation Feature
The default settings are not enabled. To enable or disable the Hibernation feature follow these steps:
1From the Start menu, select Control Panel, then select the Power Options icon.
2Select “Choose what the power button does” or “Choose what closing the lid does”, then make your selections (Do
Nothing, Sleep, Hibernate, or Shut Down).
Windows Power Management
The Power Options icon located in the Windows Control Panel allows you to configure some of the power
management settings. For example, you can use the Power Options to set the timeout values for turning off the
display and hard disks whether you are running the Tablet PC on battery power or one of the adapters.
•IF RUNNING YOUR TABLET PC ON BATTERY POWER, BE AWARE THAT THE BATTERY CONTINUES TO DISCHARGE WHILE YOUR TABLET PC IS IN SLEEP
MODE, THOUGH NOT AS QUICKLY AS WHEN FULLY OPERATIONAL.
•DISABLING THE POWER/SUSPEND/RESUME SLIDE PREVENTS IT FROM BEING USED TO PUT THE TABLET PC INTO SLEEP OR HIBERNATION (SAVE-
TO-DISK) MODE. THE BUTTON RESUME FUNCTION CANNOT BE DISABLED.
•IF YOUR TABLET PC IS ACTIVELY ACCESSING INFORMATION WHEN YOU ENTER THE SLEEP OR HIBERNATION MODE, CHANGES TO OPEN FILES ARE
NOT LOST. THE FILES ARE LEFT OPEN AND MEMORY IS KEPT ACTIVE DURING SLEEP MODE OR THE MEMORY IS TRANSFERRED TO THE INTERNAL
HARD DRIVE DURING HIBERNATION MODE.
•THE MAIN ADVANTAGE OF USING HIBERNATION IS THAT POWER IS NOT REQUIRED TO MAINTAIN YOUR DATA. THIS IS PARTICULARLY IMPORTANT IF
YOU WILL BE LEAVING YOUR TABLET PC IN A SUSPENDED STATE FOR A PROLONGED PERIOD OF TIME. THE DRAWBACK OF USING HIBERNATION
MODE IS THAT IT LENGTHENS THE POWER DOWN AND POWER UP SEQUENCES AND RESETS PERIPHERAL DEVICES.
66
- Power Management
Restarting the System
If your system is on and you need to restart it, be sure that you use the following procedure.
1Click the [Start] button, and then move the mouse over the small arrow at the bottom right of the right-hand
pane.
2Select Restart from the list.
Powering Off
Before turning off the power, check that the hard drive/optical drive access indicator is off. If you turn off the power
while accessing a disk there is a risk of data loss. To ensure that your Tablet PC shuts down without error, use the
Windows shut down procedure.
Using the correct procedure to shut down from Windows allows your Tablet PC to complete its operations and turn off
power in the proper sequence to avoid errors. The proper sequence is:
1Click the [Start] button, and then move the mouse over the small arrow at the bottom right of the right-hand
pane.
2Select Shut Down from the list.
If you are going to store your Tablet PC for a month or more, see Care and Maintenance Section.
TURNING OFF YOUR LIFEBOOK TABLET PC WITHOUT EXITING WINDOWS OR TURNING ON YOUR TABLET PC WITHIN 10 SECONDS OF THE SYSTEM
BEING SHUT OFF MAY CAUSE AN ERROR WHEN YOU START THE NEXT TIME.
BE SURE TO CLOSE ALL FILES, EXIT ALL APPLICATIONS, AND SHUT DOWN YOUR OPERATING SYSTEM PRIOR TO TURNING OFF THE POWER. IF FILES ARE
OPEN WHEN YOU TURN THE POWER OFF, YOU WILL LOSE ANY CHANGES THAT HAVE NOT BEEN SAVED, AND MAY CAUSE DISK ERRORS.
67
- Power Management
ENERGY STAR® Compliance
Your Fujitsu system is an ENERGY STAR qualified mobile PC. By choosing a computer with the latest
energy-saving technology, you’re helping to preserve our environment for future generations.
ENERGY STAR is a joint program of the U.S. Environmental Protection Agency, U.S. Department of Energy,
Natural Resources Canada, and other governments around the world helping us save money while
protecting the environment through energy efficient products and practices. With energy costs and
global warming top-of-mind for consumers, Fujitsu is committed to offering solutions that help consumers conserve
energy and improve the quality of our environment.
Sleep Mode:
You will notice that your computer is initially set so that the display turns off after 15 minutes of user inactivity, and the
computer goes into Sleep mode after 20 minutes of user inactivity. When going into Sleep mode, the computer also
reduces the speed of any active Ethernet network links. To “wake” the computer from Sleep mode, press the
Suspend/Resume Button.
Energy saving benefits:
Fujitsu ENERGY STAR qualified mobile PCs use about half as much electricity as standard equipment – saving half in
utility costs. But more than that, ENERGY STAR also makes a difference for the environment. Did you know that the
average house can be responsible for twice the greenhouse gas emissions as the average car? That’s because every
time you flip on a light switch, run your dishwasher, or turn on your PC, you use energy, which means more
greenhouse gas emissions from power plants. So the more energy we can save through energy efficiency, the more
we help to reduce greenhouse gases and the risks of global warming.
To learn more about the important ENERGY STAR program, visit: www.energystar.gov.
To read about how Fujitsu is supporting Sustainable Management along with several other environmental activities,
visit the Fujitsu Corporate Citizenship page at:
http://www.computers.us.fujitsu.com/www/content/aboutus/environmental/environment.php
68
Chapter 3
User-Installable Features
Lithium ion Battery
Your LIFEBOOK Tablet PC has a Lithium ion battery that provides power for operating your Tablet PC when no external
power source is available. The battery is durable and long lasting, but should not be exposed to extreme
temperatures, high voltages, chemicals or other hazards.
The Lithium ion battery operating time may become shorter if it is used under the following conditions:
•When used at temperatures that exceed a low of 5°C or a high of 35°C (41° to 95° F). Extreme temperatures not
only reduce charging efficiency, but can also cause battery deterioration. The Charging icon on the Status
Indicator panel will flash when you try to charge a battery that is outside its operating temperature range.
•When using a high current device such as a modem, external optical drive, or the hard drive, using the AC
adapter will conserve your battery life.
DO NOT LEAVE A FAULTY BATTERY IN YOUR TABLET PC. IT MAY DAMAGE YOUR AC ADAPTER, OPTIONAL AUTO/AIRLINE ADAPTER, ANOTHER BATTERY
OR YOUR TABLET PC ITSELF. IT MAY ALSO PREVENT OPERATION OF YOUR TABLET PC BY DRAINING ALL AVAILABLE CURRENT INTO THE BAD BATTERY.
69
- Lithium ion Battery
Recharging the Batteries
If you want to know the condition of the primary Lithium ion battery, check the Battery Level indicator located on the
Status Indicator panel. The indicator changes as the battery level changes.
The Lithium ion battery is recharged internally using the AC adapter or Auto/Airline adapter. To recharge the battery
make sure the battery that needs to be charged is installed in your LIFEBOOK Tablet PC and connect the AC or
Auto/Airline adapter.
There is no memory effect on the Lithium ion battery therefore you do not need to discharge the battery completely
before recharging. The charge times will be significantly longer if your Tablet PC is in use while the battery is charging.
If you want to charge the battery more quickly, put your Tablet PC into Sleep mode, or turn it off while the adapter is
charging the battery. (See Power Management on page 64 for more information on Sleep mode and shutdown procedure)
•ACTUAL BATTERY LIFE WILL VARY BASED ON SCREEN BRIGHTNESS, APPLICATIONS, FEATURES, POWER MANAGEMENT SETTINGS, BATTERY CONDITION
AND OTHER CUSTOMER PREFERENCES. OPTICAL DRIVE OR HARD DRIVE USAGE MAY ALSO HAVE A SIGNIFICANT IMPACT ON BATTERY LIFE. THE BATTERY
CHARGING CAPACITY IS REDUCED AS THE BATTERY AGES. IF YOUR BATTERY IS RUNNING LOW QUICKLY, YOU SHOULD REPLACE IT WITH A NEW ONE.
•UNDER FEDERAL, STATE, OR LOCAL LAW IT MAY BE ILLEGAL TO DISPOSE OF BATTERIES BY PUTTING THEM IN THE TRASH. PLEASE TAKE CARE OF OUR
ENVIRONMENT AND DISPOSE OF BATTERIES PROPERLY. CHECK WITH YOUR LOCAL GOVERNMENT AUTHORITY FOR DETAILS REGARDING RECYCLING OR
DISPOSING OF OLD BATTERIES. IF YOU CANNOT FIND THIS INFORMATION ELSEWHERE, CONTACT YOUR SUPPORT REPRESENTATIVE AT 1-800-
8FUJITSU (1-800-838-5487)
MAKE SURE THAT THE PERCENTAGE CHARGE IS INDICATED BY THE BATTERY CHARGING INDICATOR ON THE STATUS INDICATOR PANEL.
70
- Lithium ion Battery
Low Battery State
When the battery is running low, a low battery notification message will appear. If you do not respond to the low
battery message, the batteries will continue to discharge until they are too low to operate. When this happens, your
Tablet PC will go into Sleep mode. There is no guarantee that your data will be saved once the Tablet PC reaches this
point.
Dead Battery Suspend mode shows on the Status indicator just like the normal Sleep mode. Once your Tablet PC goes
into Dead Battery Suspend mode you will be unable to resume operation until you provide a source of power either
from an adapter, or a charged battery. Once you have provided power, you will need to press the
Power/Suspend/Resume slide to resume operation.
In the Dead Battery Suspend mode, your data can be maintained for some time, but if a power source is not provided
promptly, the Power indicator will stop flashing and go out, meaning that you have lost the data that was not stored.
Once you provide power, you can continue to use your Tablet PC while an adapter is charging the battery.
Shorted Batteries
The Status Indicator panel indicator associated with the Battery Level indicator displays the operating level available
in that battery. If this display shows a flashing red LED, it means the battery is damaged and must be replaced so it
does not damage other parts of your LIFEBOOK Tablet PC.
USING HEAVY CURRENT DEVICES OR FREQUENT EXTERNAL OPTICAL DRIVE ACCESSES MAY PREVENT CHARGING COMPLETELY.
•ONCE THE LOW BATTERY NOTIFICATION MESSAGE APPEARS, YOU NEED TO SAVE ALL YOUR ACTIVE DATA AND PUT YOUR LIFEBOOK TABLET PC INTO
SLEEP MODE UNTIL YOU CAN PROVIDE A NEW POWER SOURCE. YOU SHOULD PROVIDE A CHARGED BATTERY, AN AC POWER ADAPTER, OR
AUTO/AIRLINE ADAPTER AS SOON AS POSSIBLE.
• WHEN YOU ARE IN SLEEP MODE THERE MUST ALWAYS BE AT LEAST ONE POWER SOURCE ACTIVE. IF YOU REMOVE ALL POWER SOURCES WHILE YOUR
LIFEBOOK TABLET PC IS IN SLEEP MODE, ANY DATA THAT HAS NOT BEEN SAVED TO THE HARD DRIVE WILL BE LOST.
71
- Lithium ion Battery
Replacing the Battery
With the purchase of an additional battery, you can have a fully charged spare to swap with one that is not charged.
There are two ways to swap batteries, cold-swapping and hot-swapping:
Cold-swapping Batteries
To cold-swap batteries in your battery bay, follow these easy steps:
1Have a charged battery ready to install.
2Shut down your Tablet PC and disconnect the AC adapter.
3Turn the system upside down and orient it as shown in Figure 33.
4While pushing the battery lock towards the battery, slide the batter release latch to the right, then lift the battery
out of the bay as in Figure 34.
5Insert a new battery into the bay, and press it in firmly so that the latches click into place.
6Plug in the AC adapter and turn the power on.
Hot-swapping Batteries
To hot-swap batteries in your battery bay follow these easy steps:
1Plug an AC Adapter into the system and connect it to a power outlet.
2Follow steps 3 through 6 in “Cold Swapping Batteries”.
BE SURE TO PLUG IN AN AC ADAPTER PRIOR TO REMOVING THE BATTERY. THERE IS NO BRIDGE BATTERY PRESENT TO SUPPORT THE SYSTEM
WHILE THE BATTERY IS BEING REPLACED. IF YOU DO NOT USE AN AC ADAPTER YOU WILL LOSE ANY UNSAVED FILES.
IF THE LITHIUM ION BATTERY CONNECTOR IS NOT FULLY SEATED, YOU MAY NOT BE ABLE TO USE YOUR TABLET PC OR CHARGE YOUR BATTERY.
72
- Lithium ion Battery
s

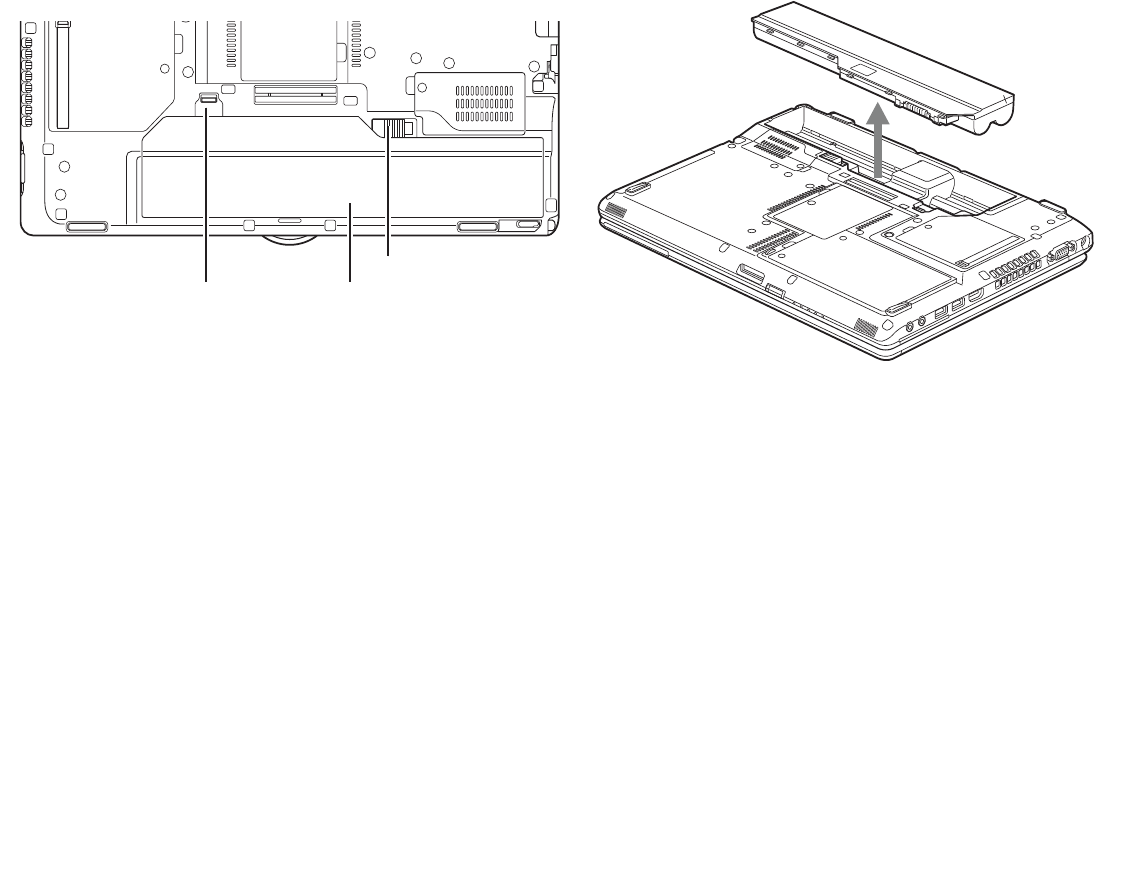

Figure 33. Unlatching a Battery Figure 34. Removing a Battery
Battery release latch
Battery lock Battery pack
73
- Secure Digital Cards

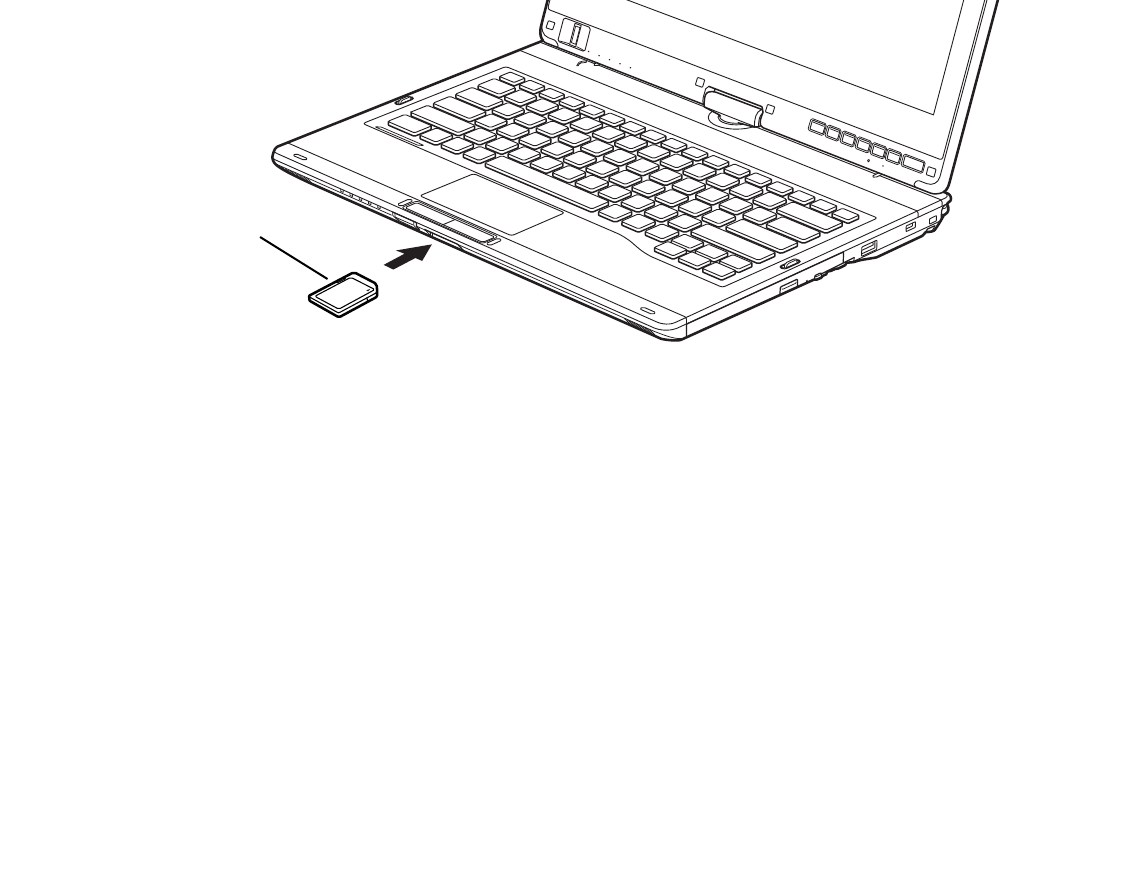

Figure 35. Installing an SD Card
Secure Digital Cards
Your LIFEBOOK Tablet PC supports Secure Digital (SD), Secure Digital High Capacity (SDHC), and Secure Digital
eXtended Capacity (SDXC) cards, on which you can store and transfer data to and from a variety of digital devices.
These cards use flash memory architecture, which means they don’t need a power source to retain data.
Secure Digital (SD) Cards are flash memory technology that allows you to record, transfer and share digital content,
such as digital pictures, movies, music, voice, and computer data and applications. SD Cards allow portable storage
among a variety of devices, such as cell phones, GPS systems, digital cameras, and PDAs. SD Cards transfer data
quickly, with low battery consumption. SD cards use flash memory architecture.
SD Card
74
- Secure Digital Cards
Installing SD Cards
SD Cards are installed in the SD Card slot. To install an SD Card, follow these steps:
1See your specific card manual for instructions on the installation of your card. Some cards may require that your
Tablet PC is off while installing them.
2Make sure there is no card currently in the slot. If there is, see Removing an SD Card below.
3Insert your card into the slot with the product label facing up.
4Push the card firmly into the slot until it is seated in the connector.
Removing an SD Card
To remove an SD Card, follow these easy steps:
1Select Safely Remove Hardware from the System Tray. Highlight the card in the list, then click [Stop].
2Push the SD Card in until it unlatches. It will then eject from the slot for removal.
INSTALLING OR REMOVING AN SD CARD DURING YOUR LIFEBOOK TABLET PC’S SHUTDOWN OR BOOTUP PROCESS MAY DAMAGE THE CARD AND/OR
YOUR LIFEBOOK TABLET PC.
DO NOT INSERT A CARD INTO A SLOT IF THERE IS WATER OR ANY OTHER SUBSTANCE ON THE CARD AS YOU MAY PERMANENTLY DAMAGE THE CARD,
YOUR LIFEBOOK TABLET PC, OR BOTH.
SEE YOUR CARD MANUAL FOR SPECIFIC INSTRUCTIONS ON THE REMOVAL OF YOUR CARD. SOME CARDS MAY REQUIRE YOUR LIFEBOOK TABLET PC
TO BE IN SLEEP MODE OR OFF WHILE REMOVING THEM.
75
- Memory Upgrade Module
Memory Upgrade Module
Your Fujitsu LIFEBOOK Tablet PC comes with a minimum of 2GB of high speed Double Data Rate Synchronous Dynamic
RAM (DDR3-1600 SDRAM) factory installed. To increase your Tablet PC’s memory capacity, you may install an additional
memory upgrade module. The memory upgrade must be a dual-in-line (DIMM) SDRAM module. To ensure 100%
compatibility, purchase the SDRAM module only from the Fujitsu web store at www.shopfujitsu.com.
Installing Memory Upgrade Modules
1Turn off power to your Tablet PC, remove any power adapter (AC or auto/airline). Remove the battery.
2Make sure that all the connector covers are closed.
3Turn the Tablet PC bottom side up, and remove the screw from the memory upgrade module compartment.
4Lift and remove the cover from the memory module compartment (Figure 36).
5Remove the memory upgrade module from the static guarded sleeve.
6Align the memory upgrade module with the part side up. Align the connector edge of the memory upgrade
module with the connector slot in the compartment.(Figure 37)
•DO NOT REMOVE ANY SCREWS FROM THE MEMORY UPGRADE MODULE COMPARTMENT EXCEPT THE ONES SPECIFICALLY SHOWN IN THE DIRECTIONS
FOR INSTALLING AND REMOVING THE MEMORY UPGRADE MODULE.
•THE MEMORY UPGRADE MODULE CAN BE SEVERELY DAMAGED BY ELECTROSTATIC DISCHARGE (ESD). TO MINIMIZE RISK TO THE MODULE, OBSERVE
THE FOLLOWING PRECAUTIONS:
•BEFORE HANDLING A MEMORY MODULE, TOUCH A GROUNDED METAL OBJECT TO DISCHARGE STATIC ELECTRICITY BUILT UP IN YOUR BODY.
•WHEN INSTALLING OR REMOVING A MEMORY MODULE, HOLD IT BY THE EDGE SO AS NOT TO TOUCH ANY CONTACTS OR CHIPS. BE CAREFUL
NOT TO TOUCH ANY INTERNAL COMPUTER TERMINALS OR COMPONENTS; THE OIL FROM YOUR FINGERS COULD CAUSE A SHORT TO THE
COMPONENTS.
•BE SURE TO POWER DOWN YOUR SYSTEM BEFORE ADDING OR REMOVING MEMORY MODULES. EVEN IF THE SYSTEM IS IN HIBERNATE OR
SLEEP STATES, DATA COULD BE LOST OR THE MEMORY COULD BE DAMAGED IF POWER IS STILL AVAILABLE TO THE SYSTEM.
76
- Memory Upgrade Module

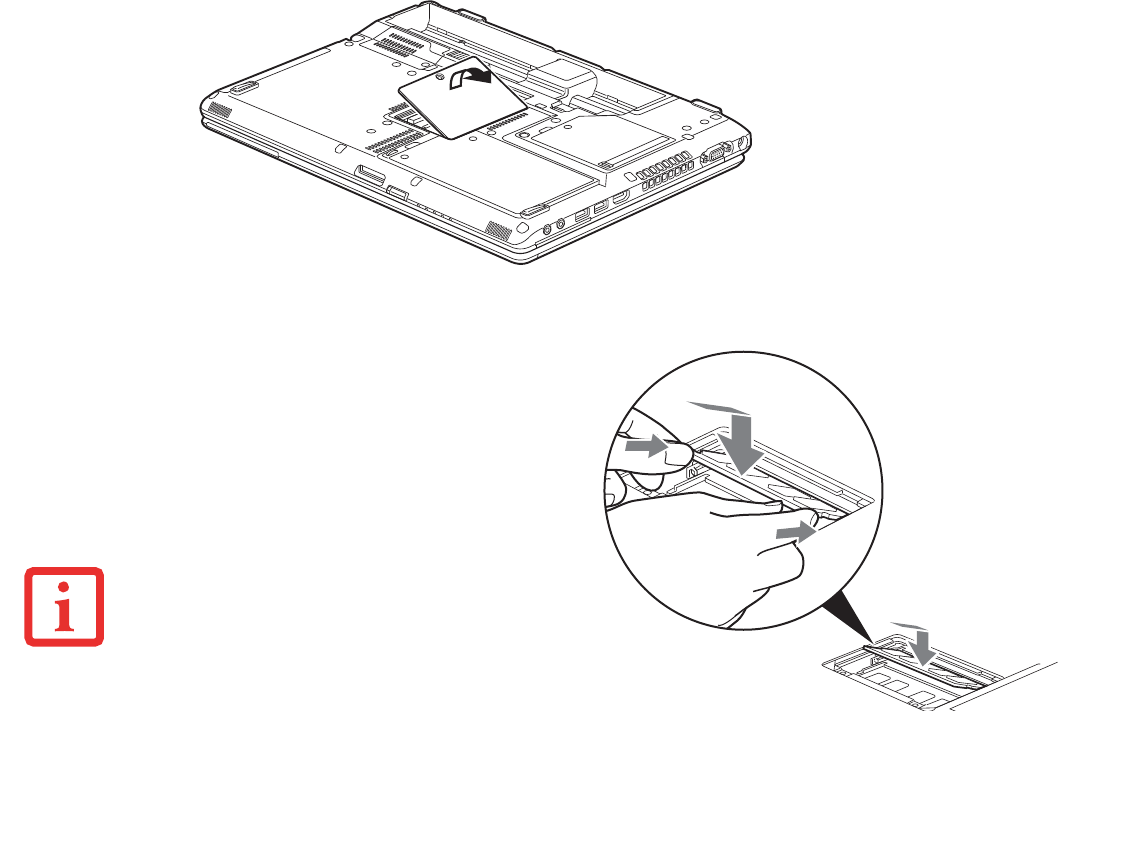

Figure 36. Opening Memory Compartment
7Insert the memory upgrade module at a 45° angle.
Press the connector edge of the module firmly down
and into the connector until it lodges under the
retaining clip. You’ll hear a click when it is properly in
place.
8Replace the cover and reinstall the screws.
THE MEMORY UPGRADE MODULE IS NOT SOMETHING YOU ROUTINELY REMOVE
FROM YOUR TABLET PC. ONCE IT IS INSTALLED, YOU CAN LEAVE IT IN PLACE
UNLESS YOU WANT TO CHANGE SYSTEM MEMORY CAPACITY.Figure 37. Installing a Memory Module
77
- Memory Upgrade Module
Checking the Memory Capacity
Once you have changed the system memory capacity by replacing the installed module with a larger one, be sure to
check that your notebook has recognized the change.
Check the memory capacity by clicking [Start] -> Settings -> Control Panel, then clicking the System icon. Check the
amount of memory next to “Installed memory (RAM):”.
Removing a Memory Upgrade Module
1Perform steps 1 through 4 of Installing a
Memory Upgrade Module.
2Pull the clips sideways away from each side of
the memory upgrade module at the same
time.
3While holding the clips out, remove the module
by lifting it up and pulling it away from your
Tablet PC.
4Store the memory upgrade module in a static
guarded sleeve.
5Replace the cover and reinstall the screws.

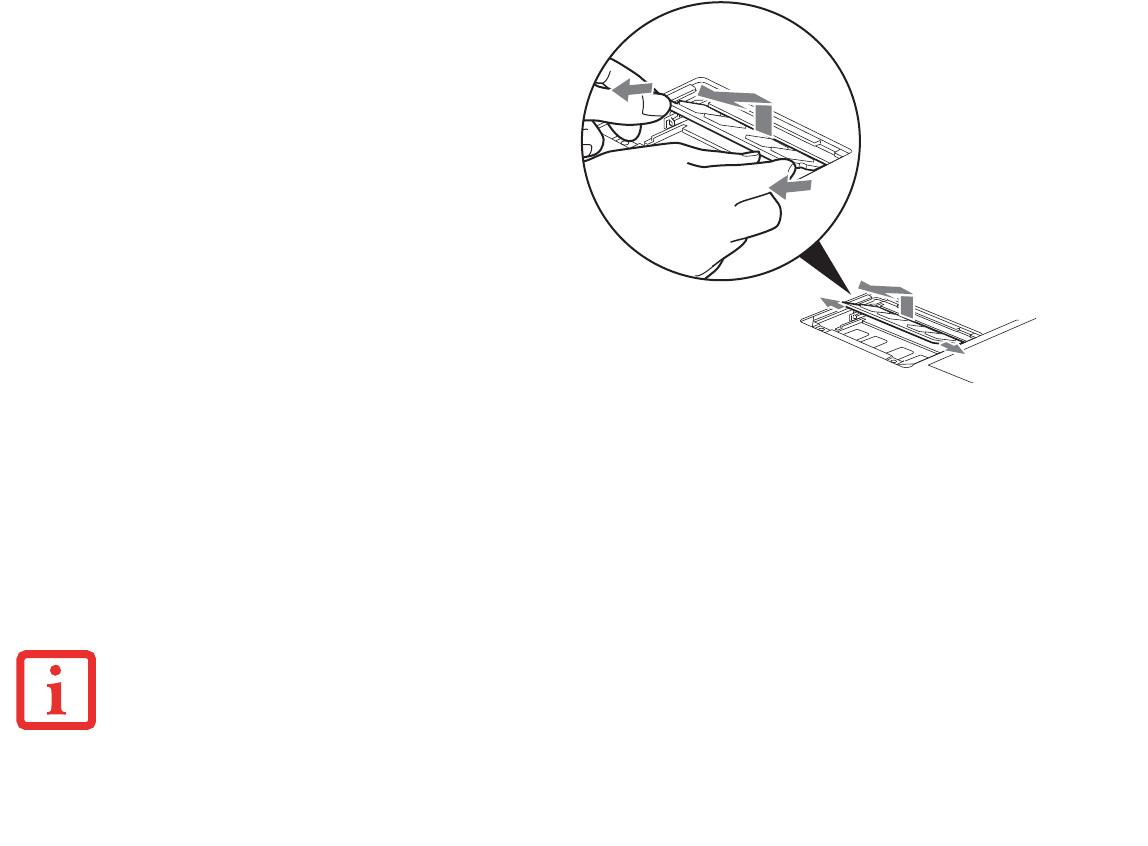

Figure 38. Removing a Memory Module
IF THE TOTAL MEMORY DISPLAYED IS INCORRECT, CHECK THAT YOUR MEMORY UPGRADE MODULE IS PROPERLY INSTALLED. (IF THE MODULE IS
PROPERLY INSTALLED AND THE CAPACITY IS STILL NOT CORRECTLY RECOGNIZED, SEE TROUBLESHOOTING ON PAGE 83
.
78
- Memory Upgrade Module
There may be a variation between the actual memory size and what is displayed. This is possible if your system is
configured with an integrated Intel Graphics Media Accelerator which dynamically allocates system memory to
accelerate graphics performance.
IF THE TOTAL MEMORY DISPLAYED IS INCORRECT, CHECK THAT YOUR MEMORY UPGRADE MODULE IS PROPERLY INSTALLED. (IF THE MODULE IS
PROPERLY INSTALLED AND THE CAPACITY IS STILL NOT CORRECTLY RECOGNIZED, SEE TROUBLESHOOTING ON PAGE 87
.
79
- Device Ports
Device Ports
Your Fujitsu LIFEBOOK Tablet PC and the optional Port Replicator come equipped with multiple ports to which you can
connect external devices including: disk drives, keyboards, printers, etc.
Internal LAN (RJ-45) Jack
Port Replicator Connector
The port replicator connector is used for the connection of your Tablet PC to an optional port replicator. In order to
connect your Tablet PC to this device, refer to “Port Replicator” on page 83.
The internal LAN (RJ-45) jack is used for a Gigabit (10Base-
T/100Base-Tx/1000Base-T) Ethernet LAN connection. You may
need to configure your Tablet PC to work with your particular
network. (Please refer to your network administrator for
information on your network configuration.) To connect the
LAN cable follow these easy steps:
1Align the connector with the port opening.
2Push the connector into the port until it is seated.
3Plug the other end of the cable into a LAN outlet.

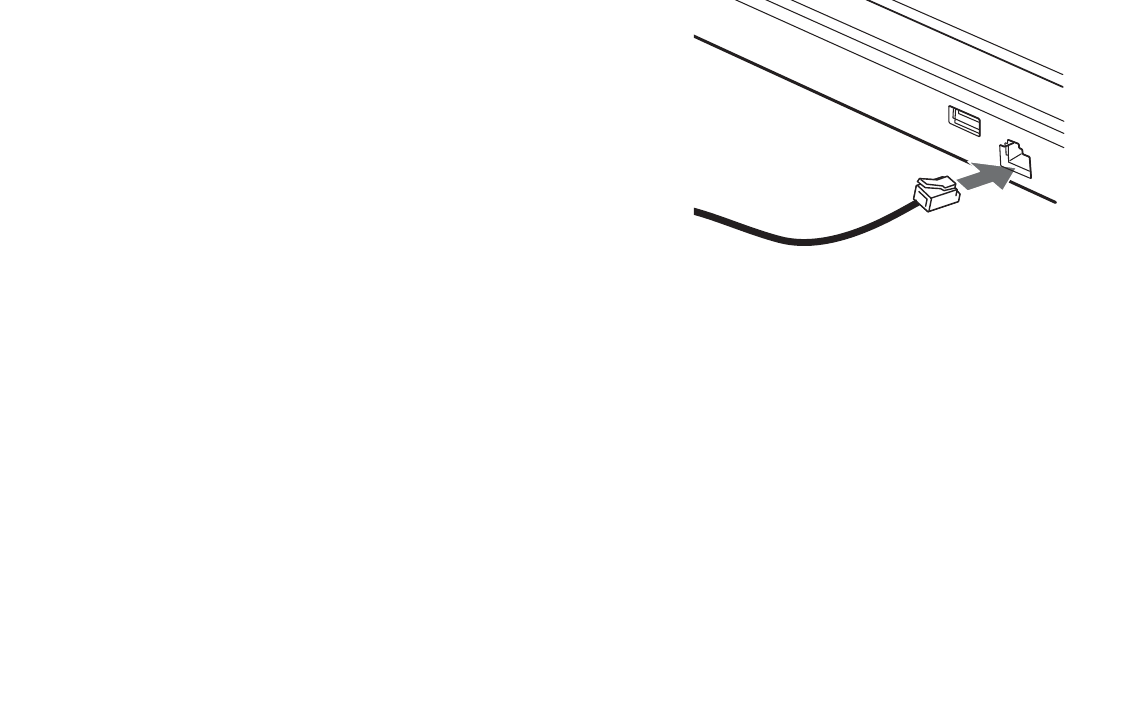

Figure 39. Connecting the LAN
80
- Device Ports
Universal Serial Bus Ports
The Universal Serial Bus ports (USB) allow you to
connect USB devices such as external game pads,
pointing devices, keyboards and/or speakers. There are
four USB ports on your Tablet PC; on the left-hand side
are two USB 3.0 ports, one of which is an Anytime USB
Charge port (See “Information About Anytime USB
Charge Utility.” on page 81) and there are USB 2.0 ports
on the right side and rear.
In order to connect a USB device follow these steps:
1Align the connector with the port opening.
2Push the connector into the port until it is seated. Figure 40. Connecting a USB Device
DUE TO THE ONGOING CHANGES IN USB TECHNOLOGY AND STANDARDS, NOT ALL USB DEVICES AND/OR DRIVERS ARE GUARANTEED TO WORK.
USB 2.0 Port
81
- Device Ports
Information About Anytime USB Charge Utility.
Headphone Jack
The headphone jack allows you to connect headphones or powered external speakers to your Tablet PC. Your
headphones or speakers must be equipped with a 1/8” (3.5 mm) stereo mini-plug. In order to connect headphones
or speakers follow these easy steps:
1Align the connector with the port opening, then push the connector into the port until it is seated.
Microphone Jack
The microphone jack allows you to connect an external stereo microphone. Your microphone must be equipped with
a 1/8”(3.5 mm) mini-plug in order to fit into the microphone jack of your Tablet PC. In order to connect a microphone
follow these easy steps:
1Align the connector with the port opening, then push the connector into the port until it is seated.
The Anytime USB Charge feature can be disabled and enabled
from the BIOS Setup Utility; the feature is enabled by default.
The settings for the Anytime USB Charge feature can be changed
by going to Start > All Programs > Anytime USB Charge Utility
and clicking on Settings. There are three possible settings for
this feature: “Disable Anytime USB Charge function”, “Only
enable Anytime USB Charge function with AC Adapter”, and
“Enable Anytime USB Charge function with AC Adapter or
battery”. Note that if the setting is selected, the function will
eventually drain the battery if the AC Adapter is not plugged in.
Certain USB devices may require that a driver be installed in
order for this feature to work.
Please check the documentation for your USB device to ensure
proper charging with the Anytime USB Charge utility.
82
- Device Ports
HDMI Port.
External Video Port
The High-Definition Multimedia Interface (HDMI) port is a
digital audio/video interface over which uncompressed
streams can be transmitted. HDMI is used to connect
compatible digital devices with your computer (such as big-
screen TVs and video recorders).
To connect an HDMI device:
1Align the connector with the port opening.
2Push the connector into the port until it is seated. Figure 41. Connecting an HDMI Device
The external video port allows you to connect an external
monitor or LCD projector. In order to connect an external
video device, follow these easy steps:
1Align the connector with the port opening.
2Push the connector into the port until it is seated.
3Tighten the two hold-down screws, located on each end
of the connector.
Figure 42. Connecting an External Video Device
PRESSING THE [FN] + [F10] KEYS ALLOWS YOU TO CHANGE YOUR SELECTION OF WHERE TO SEND YOUR DISPLAY VIDEO. EACH TIME YOU PRESS THE
KEY COMBINATION, YOU WILL STEP TO THE NEXT CHOICE, STARTING WITH THE BUILT-IN DISPLAY PANEL ONLY, MOVING TO THE EXTERNAL MONITOR
ONLY, FINALLY MOVING TO BOTH THE BUILT-IN DISPLAY PANEL AND AN EXTERNAL MONITOR.
83
- Port Replicator
Port Replicator
The port replicator extends the functionality of your LIFEBOOK® Tablet PC by providing ports to connect an external
VGA monitor, a LAN (RJ-45) cable, four USB 3.0 devices, a DVI device, a DisplayPort device, headphones, and DC
power.
The port replicator connects to the bottom of your LIFEBOOK Tablet PC.

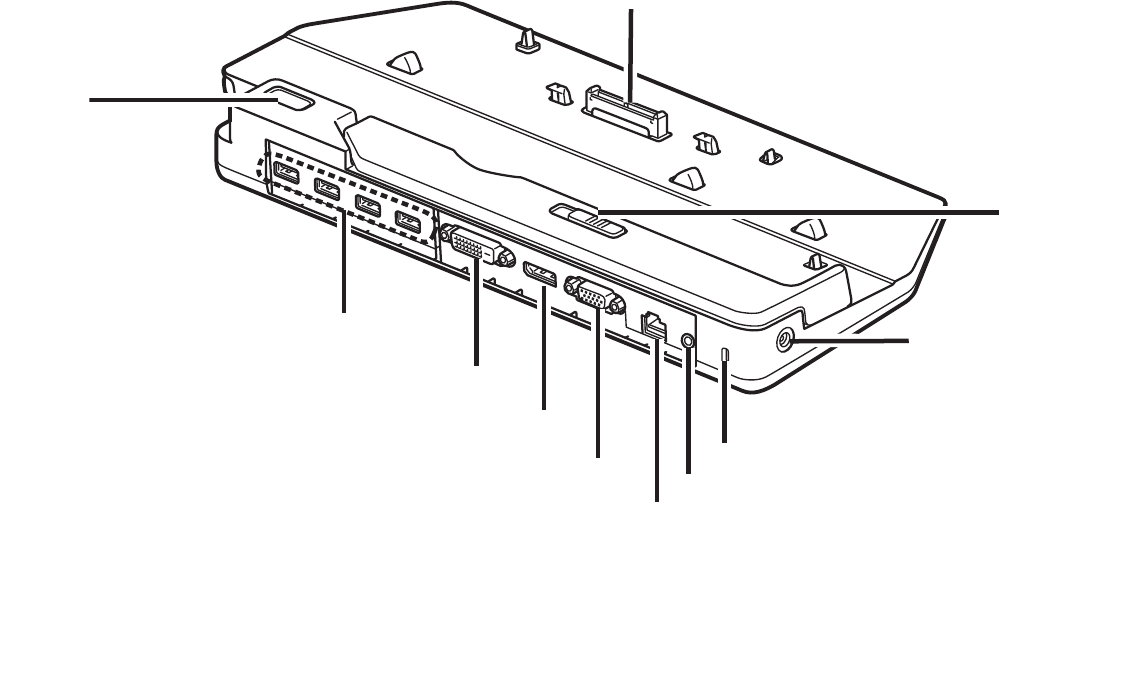

Figure 43. Port Replicator - Rear
Docking Connector
DC Power Jack
Security Lock Slot
Headphone Jack
LAN (RJ-45)
Power
DVI-D Port
USB 3.0 Ports (Qty. 4)
DisplayPort
External VGA Port
Button
Moveable Bar
Latch/Unlatch
Button
84
- Port Replicator
Port Replicator Components
The following is a brief description of the port replicator’s back panel components. (Figure 43)
Power Button
The power button allows you to power the port replicator on and off.
Docking Connector
The docking connector allows you to connect the Port Replicator to your LIFEBOOK Tablet PC.
DVI-D Port
The DVI-D port lets you to connect digital display devices such flat panel displays and digital projectors using a DVI-
D cable. DVI-D is primarily used to connect a computer with a home theater system.
DisplayPort
The DisplayPort lets you to connect DisplayPort-compatible digital display devices such flat panel displays and digital
projectors using a DisplayPort cable.
THE SYSTEM CONTAINS COMPONENTS THAT CAN BE SEVERELY DAMAGED BY ELECTROSTATIC DISCHARGE (ESD). TO MINIMIZE RISK TO THE
COMPONENTS, OBSERVE THE FOLLOWING PRECAUTIONS:
•BEFORE DOCKING OR UNDOCKING YOUR LIFEBOOK WHEN USING A PORT REPLICATOR, YOU SHOULD TOUCH A GROUNDED METAL OBJECT TO
DISCHARGE STATIC ELECTRICITY BUILT UP IN YOUR BODY.
•BE SURE TO POWER DOWN YOUR SYSTEM BEFORE ADDING OR REMOVING SYSTEM COMPONENTS. EVEN IF THE SYSTEM IS IN HIBERNATE OR SLEEP
STATES, DATA COULD BE LOST OR MEMORY COULD BE DAMAGED IF POWER IS STILL AVAILABLE TO THE SYSTEM.
•ALTHOUGH DISPLAYPORT AND DVI-D DEVICES ARE SUPPORTED BY THE PORT REPLICATOR, ONLY ONE CAN BE USED AT ANY TIME. AN INTERNAL
SWITCH RECOGNIZES WHICH TYPE OF DEVICE IS CONNECTED. IF BOTH ARE CONNECTED AT THE SAME TIME, DISPLAYPORT HAS THE HIGHER PRIORITY.
•A DISPLAYPORT OR DVI-D DEVICE CAN BE USED CONCURRENTLY WITH AN EXTERNAL VIDEO DEVICE THAT IS CONNECTED TO THE ANALOG EXTERNAL
VGA PORT.
•HOT PLUG IS NOT SUPPORTED BY THE DISPLAYPORT OR DVI-D PORTS.
•IF A DISPLAYPORT-TO-HDMI CONVERTER IS CONNECTED TO THE DISPLAYPORT, SOUND WILL NOT BE OUTPUT FROM THE HDMI DEVICE. TO USE
AN HDMI DEVICE, PLUG IT INTO THE HDMI PORT ON THE SYSTEM’S LEFT SIDE.
85
- Port Replicator
USB 3.0 Ports (Qty. 4)
Universal Serial Bus (USB) 3.0 ports allow you to connect USB devices. USB 3.0 ports are backward-compatible with
USB 2.0 and 1.1 devices.
Moveable Bar Latch/Unlatch Button
The moveable bar latch/unlatch button allows you to adjust the moveable bar in order to align your system so that it
aligns properly with the port replicator connector. Viewing the port replicator from the front, the moveable bar should
be moved as far to the left side of the port replicator as possible.
External VGA Port
The external VGA port lets you connect an external monitor or projector. Note that if a Port Replicator is attached, you
must use the external VGA port on the Port Replicator, not the one on your system.
Headphone Jack
The headphone jack allows you to listen to stereo sound from your Tablet PC with portable headphones.
LAN (RJ-45) Jack
The LAN jack allows you to connect a LAN to the Port Replicator. Note that when the system is attached to the Port
Replicator, the LAN Jack on the Port Replicator should be used, not the one on the system.
Security Lock Slot
The security lock slot allows you to attach an optional physical lock down device.
DC Power Jack
The DC power jack allows you to plug in the AC adapter to power your Tablet PC and charge the internal Lithium ion
battery.
86
-
Attaching the Port Replicator
To attach the Port Replicator, align the Port Replicator
connector on the bottom of your Tablet PC with the
connector on the Port Replicator and push the corners
down simultaneously. (Figure 44)
Detaching Port Replicator
To detach the Port Replicator:
1Pull the Port Replicator’s release latch away from the
Port Replicator to release it from your Tablet PC.
(Figure 45)
2Lift the Tablet PC away from the Port Replicator to

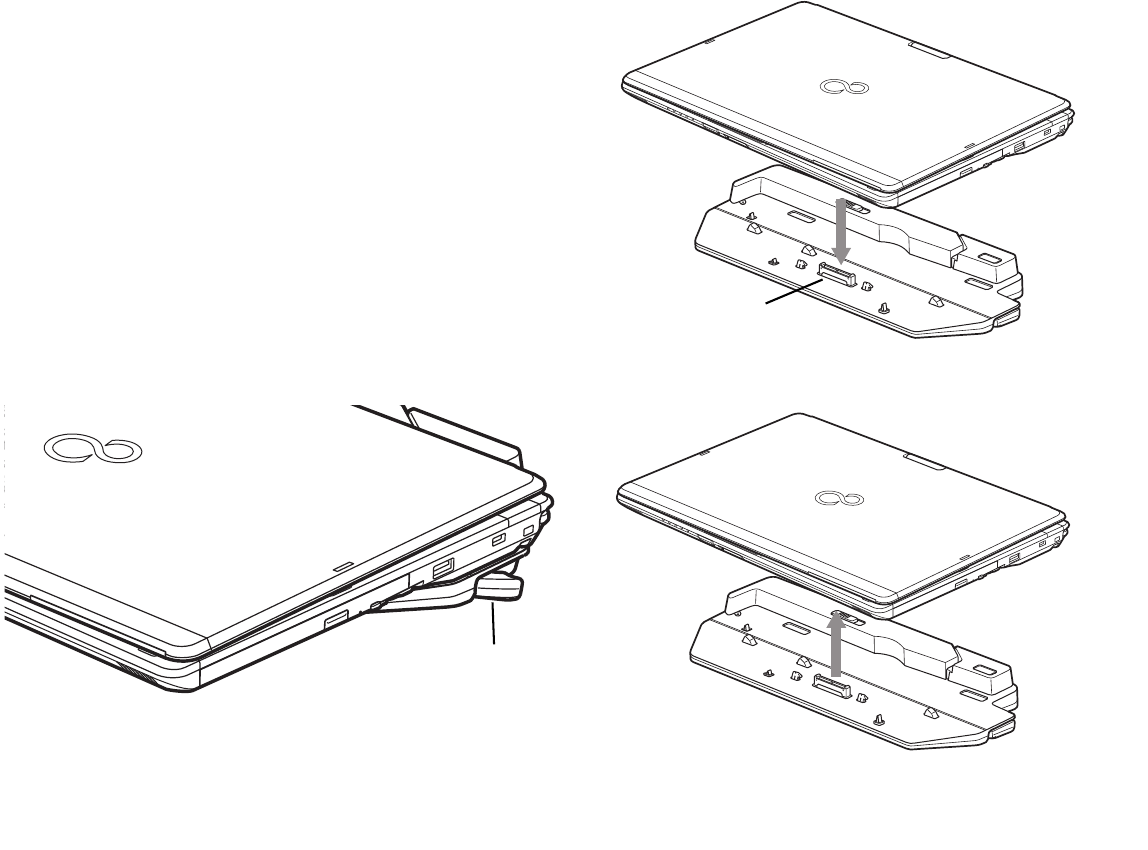

detach it. (Figure 46) Figure 44. Attaching the Port Replicator
Figure 45. Unlatching the Port Replicator Figure 46. Removing the System
Docking Connector
Release Latch
87
Chapter 4
Troubleshooting Your LIFEBOOK
Troubleshooting
There may be occasions when you encounter simple setup or operating problems that you can solve on the spot, or
problems with peripheral devices that can be solved by replacing the device. The information in this section helps you
isolate and resolve some of these straightforward issues and identify failures that require service.
Identifying the Problem
If you encounter a problem, go through the following procedure before pursuing complex troubleshooting:
1Turn off your LIFEBOOK notebook.
2Make sure the AC adapter is plugged into your notebook and to an active AC power source.
3Make sure that any card installed in the PC Card slot is seated properly. You can also remove the card from the slot,
thus eliminating it as a possible cause of failure.
4Make sure that any devices connected to the external connectors are plugged in properly. You can also disconnect
such devices, thus eliminating them as possible causes of failure.
5Turn on your notebook. Make sure it has been off at least 10 seconds before you turn it back on.
6Go through the boot sequence.
7If the problem has not been resolved, refer to the Troubleshooting Table, that follows, for more detailed
troubleshooting information.
88
- Troubleshooting
8If you have tried the solutions suggested in the Troubleshooting Table without success, contact your support
representative:
Toll free: 1-800-8FUJITSU (1-800-838-5487)
Web site: http://solutions.us.fujitsu.com/www/content/support/contact/index.php.
Before you place the call, you should have the following information ready so that the customer support representative
can provide you with the fastest possible solution:
•Product name
•Product configuration number
•Product serial number
•Purchase date
•Conditions under which the problem occurred
•Any error messages that have occurred
•Type of device connected, if any
See the Configuration Label on the bottom of your notebook for configuration and serial numbers.
IF YOU KEEP NOTES ABOUT WHAT YOU HAVE TRIED, YOUR SUPPORT REPRESENTATIVE MAY BE ABLE TO HELP YOU MORE QUICKLY BY GIVING
ADDITIONAL SUGGESTIONS OVER THE PHONE.
89
- Troubleshooting
Specific Problems
Using the Troubleshooting Table
When you have problems with your LIFEBOOK Tablet PC, try to find the symptoms under the Problem column of the
troubleshooting table for the feature giving you difficulty. You will find a description of common causes for that
symptom under the column Possible Cause and what, if anything, you can do to correct the condition under Possible
Solutions. All possible causes or solutions may not apply to your Tablet PC.
Troubleshooting Table
ProblemPage
Audio Problems . . . . . . . . . . . . . . page 90
Optical Drive Problems . . . . . . . . page 90
Port Replicator Problems . . . . . . . page 91
Hard Drive Problems . . . . . . . . . . page 91
Keyboard or Mouse Problems . . . page 91
Memory Problems . . . . . . . . . . . . page 92
ProblemPage
USB Device Problems. . . . . . . . . . page 92
Power Failures . . . . . . . . . . . . . . . page 93
Shutdown and Startup Problems. . page 95
Video Problems. . . . . . . . . . . . . . . page 96
Miscellaneous Problems . . . . . . . . page 97
90
- Troubleshooting
Problem Possible Cause Possible Solutions
Audio Problems
There is no sound coming
from the built-in speaker.
The volume is turned too low. Adjust the volume control on your Tablet PC and operating system. Use the
[Fn+F9] key combination on your keyboard. Pressing [F9] repeatedly while
holding [Fn] will increase the volume of your Tablet PC.
The software volume control
is set too low.
Manually adjusting the volume (i.e., keyboard "hot keys") should dynamically
adjust the volume of the operating system (see above). If that doesn’t work,
adjust the sound volume control settings in your software or application.
Headphones are plugged into
your Tablet PC.
Plugging in headphones disables the built-in speakers. Remove the head-
phones.
Software driver is not
configured correctly.
The audio driver may be installed or reinstalled using the Drivers and Applica-
tions CD that came with your Fujitsu LIFEBOOK. Refer to your application and
operating system documentation for help.
The speakers have been
muted using the Volume icon
in the system tray.
Click the Volume icon in the system tray on the bottom right of the screen. (It
looks like a speaker). If the Mute box has a red circle on it, click on it to unselect
it. You can also use the [Fn+F3] key combination to toggle the volume on and
off. Pressing [F3] while holding [Fn] will toggle the audio mute.
Optical Drive Problems
LIFEBOOK Tablet PC fails
to recognize DVD/CD-
RW/CD-ROM’s.
The disc is not pushed down
onto raised center circle of the
drive.
Open optical drive tray and re-install the disc properly.
Optical drive tray is not
latched shut.
Push on the front of the optical drive tray until it latches. If that doesn’t work,
pull out the modular drive latch to remove the device from the bay, then re-
insert the drive until it latched; this ensures that the drive is properly seated.
Incorrect DVD Player or
player software is installed.
Install DVD Player software.
DVD/CD-RW/CD-ROM is
dirty or defective.
Wipe the disc with a non-abrasive CD cleaning cloth and reinsert. If it still will
not work try another DVD/CD-RW/CD-ROM in the drive.
91
- Troubleshooting
LIFEBOOK Tablet PC fails
to recognize DVD/CD-
RW/CD-ROM’s.
(continued)
Wrong drive designator was
used for the disc in the appli-
cation.
Verify the drive designator used by the application is the same as the one used
by the operating system. When the operating system is booted from a DVD/CD,
drive designations are automatically adjusted. Note that the drive designation
can be changed with the Disk Management tool located at Control Panel ->
Administrative Tools -> Computer Management.
Drive access indicator on
the Status Indicator Panel
blinks at regular intervals
with no disc in the tray or
the drive is not installed.
The Windows auto insertion
function is active and is
checking to see if a disc is
ready to run.
This is normal. However, you may disable this feature.
Port Replicator Problems
Note: Be sure to power down your LIFEBOOK Tablet PC before adding a printer to the Port Replicator parallel port.
Tablet PC does not turn on
when installed in the
optional Port Replicator
Port Replicator AC adapter is
not plugged in.
Provide power to the Port Replicator.
Tablet PC is not properly
seated in the Port Replicator.
Remove and re-dock your LIFEBOOK Tablet PC.
Hard Drive Problems
You cannot access your
hard drive.
The wrong drive designator
was used by an application
when a bootable disc was
used to start the Tablet PC.
Verify drive designator used by application is in use by the operating system.
When the operating system is booted from a CD, drive designations are auto-
matically adjusted.
Security is set so your operat-
ing system cannot be started
without a password.
Verify your password and security settings.
Keyboard or Mouse Problems
The built-in keyboard does
not seem to work.
The Tablet PC has gone into
Sleep mode.
Push the Power/Suspend/Resume slide.
Problem Possible Cause Possible Solutions
92
- Troubleshooting
You have installed an
external keyboard or
mouse, and it does not
seem to work.
Your application has locked
out your keyboard.
Try to use your integrated pointing device to restart your system.
Your external device is not
properly installed.
Re-install your device. See “Device Ports” on page 79.
Your operating system is not
set up with correct software
driver for that device.
Check your device and operating system documentation and activate the
proper driver.
You have connected an
external keyboard or a
mouse and it seems to be
locking up the system.
Your OS is not setup with cor-
rect driver for that device.
Check your device and operating system documentation and activate the
proper driver.
Your system has crashed. Try to restart your Tablet PC.
Memory Problems
Your System screen in the
Control Panel does not
show the correct amount
of installed memory.
Your memory upgrade mod-
ule is not properly installed.
Remove and re-install your memory upgrade module. See “Memory Upgrade
Module” on page 75.
You have a memory
failure.
Check for Power On Self Test (POST) messages. See “Power On Self Test
Messages” on page 98.
USB Device Problems
Your LIFEBOOK doesn’t
recognize an installed
USB device, or it doesn’t
work.
The device is not properly
installed.
Remove and re-install the device. See “Device Ports” on page 79.
Your device may not have the
correct software driver active.
See your software documentation and activate the correct driver.
The device may have been
installed while an application
was running, so your system
is not aware of its installation.
Close the application and restart your Tablet PC.
Problem Possible Cause Possible Solutions
93
- Troubleshooting
Power Failures
You turn on your LIFE-
BOOK Tablet PC and
nothing seems to happen.
The installed battery is com-
pletely discharged or there is
no power adapter installed.
Check the Status Indicator Panel to determine the presence and condition of
the battery. See “Status Indicator Panel” on page 24. Install a charged battery
or a Power adapter.
The battery is installed but is
faulty.
Use the Status Indicator panel to verify the presence and condition of the bat-
tery. See “Status Indicator Panel” on page 24. If the battery indicates a short,
remove it and
operate from another power source or replace that battery.
The battery is low. Check the Status Indicator Panel to determine the presence and condition of
the battery. See “Status Indicator Panel” on page 24. Use a Power adapter to
operate until a battery is charged or install a charged battery.
The power adapter is not
plugged in properly.
Verify that your adapter is connected correctly. See “Power Sources” on
page 57.
The power adapter (AC or
auto/airline) has no power
from the AC outlet, airplane
jack, or car cigarette lighter.
Move the AC cord to a different outlet, check for a line switch or tripped circuit
breaker for the AC outlet. If you are using an auto/airline adapter in a car make
sure the ignition switch is in the On or Accessories position.
The power adapter (AC or
auto/airline) is faulty.
Try a different power adapter.
Your LIFEBOOK Tablet PC
turns off all by itself.
The power management
parameters are set for auto
timeouts which are too short
for your operating needs.
Press any button on the keyboard, or move the mouse. If that fails, push the
Power/Suspend/Resume slide. Check your power management settings, or
close your applications and go to the Power Options located in the Control
Panel to adjust the timeout values to better suit your needs.
You are operating on battery
power and ignored a low bat-
tery alarm until the battery
was at the dead battery state
and the system has entered
Dead Battery Suspend mode.
Install a power adapter, then push the Power/Suspend/Resume slide. See
“Power Sources” on page 57.
Problem Possible Cause Possible Solutions
94
- Troubleshooting
Your LIFEBOOK Tablet PC
turns off all by itself.
(continued)
You have a battery failure. Verify the condition of the battery using the Status Indicator panel. If the battery
is shorted, replace or remove it. See “Status Indicator Panel” on page 24.
Your power adapter has failed
or lost its power source.
Make sure the adapter is plugged in and the outlet has power.
Your LIFEBOOK Tablet PC
will not work on battery
alone.
The installed battery is dead. Replace the battery with a charged one or install a power adapter.
Battery is improperly installed. Verify that the battery is properly connected by re-installing it.
Your installed battery is faulty. Verify the condition of the battery using the Status Indicator panel and replace
or remove any batteries that are shorted. See “Status Indicator Panel” on
page 24.
The battery seems to
discharge too quickly.
The power savings features
may be disabled.
Check the Power Options menu settings and adjust according to your operating
needs.
The brightness is turned all
the way up.
Turn down the brightness adjustment. The higher the brightness the more
power your display uses.
The battery is very old. Replace the battery.
You are running an applica-
tion that uses a lot of power
due to frequent hard drive
access or optical drive
access, or use of a Wireless
LAN, or Bluetooth device.
Use a power adapter for this application when at all possible.
The battery has been ex-
posed to high temperatures.
Replace the battery.
The battery is too hot or too
cold.
Restore the Tablet PC to normal operating temperature. Charging icon on the
Status Indicator panel will flash when battery is outside of operating range.
Problem Possible Cause Possible Solutions
95
- Troubleshooting
Shutdown and Startup Problems
The Suspend/Resume
slide does not work.
Suspend/Resume
slide is disabled.
To enable the button, go to the Control Panel -> Power Options Properties and
click the Advanced tab. In the Power buttons area, select “Change what the
power button does” .
There may be application
software. conflict
Close all applications and try the button again.
The system powers up,
and displays power on
information, but fails to
load the operating system.
The boot sequence settings
of the setup utility are not
compatible with your configu-
ration.
Set the operating source by pressing the [ESC] key while the Fujitsu logo is on
screen or use the [F2] key and enter the setup utility and adjust the source set-
tings from the Boot menu. See “BIOS Setup Utility” on page 61.
You have a secured system
requiring a password to load
your operating system.
Make sure you have the right password. Enter the setup utility and verify the
Security settings and modify them as accordingly. See “BIOS Setup Utility” on
page 61.
Internal hard drive was
not detected.
Use the BIOS setup utility or Primary Master submenu, located within the Main
menu, to try to auto detect the internal hard drive.
An error message is dis-
played on the screen dur-
ing the Boot sequence.
Power On Self Test (POST)
has detected a problem.
See the POST messages to determine the meaning and severity of the prob-
lem. Not all messages are errors; some are simply status indicators. See
“Power On Self Test Messages” on page 98.
Your Tablet PC appears to
change setup parameters
when you start it.
BIOS setup changes were not
saved when made and you
exited the setup utility.
Make sure you select Save Changes And Exit when exiting the BIOS setup
utility.
The BIOS CMOS hold-up bat-
tery has failed.
Contact your support representative for repairs. This is not a user serviceable
part but has a normal life of 3 to 5 years.
Your system display won’t
turn on when the system is
turned on or has resumed.
You have installed the LIFE-
BOOK/Security Application
panel.
Check the Status Indicator Panel for presence of the Security icon. If it is visi-
ble, enter your password See “Status Indicator Panel” on page 24.
Problem Possible Cause Possible Solutions
96
- Troubleshooting
Video Problems
The built-in display is
blank when you turn on
your LIFEBOOK Tablet
PC.
The Tablet PC is set for an
external monitor only.
Pressing [F10] while holding down the [Fn] key allows you to change your
selection of where to send your display video. Each time you press the keys
you will step to the next choice. The choices, in order are: built-in display only,
external monitor only, both built-in display and external monitor.
Display angle and brightness
settings are not adequate for
your lighting conditions.
Move the display and the brightness control until you have adequate visibility.
Pressing either the [F6] or [F7] keys while holding down the [Fn] key also allows
you to change the brightness level of the display.
Power management time-
outs are set for short intervals
and you didn’t see the display
go on and off again.
Press a keyboard button or move the mouse to restore operation. If that fails,
push the Power/Suspend/Resume slide. (The display may be shut off by Sleep
mode, Auto Suspend or Video Timeout)
The Tablet PC turned on
with a series of beeps and
the built-in display is blank.
Power On Self Test has
detected a failurethat doesn’t
allow the display to operate.
Contact your support representative.
The display goes blank by
itself after you have been
using it.
The Tablet PC has gone into
Video timeout, Sleep mode,
or Save-to-Disk mode
because you have not used it
for a period of time.
Press any keyboard button, or move the mouse to restore operation. If that
fails, push the Power/Suspend/Resume slide. Check your power management
settings, or close your applications and go to the Power Savings menu of the
setup utility to adjust the timeout values to better suit your operation needs.
See “BIOS Setup Utility” on page 61.
The power management time-
outs may be set for very short
intervals and you failed to
notice the display come on
and go off again.
Press any button on the keyboard, or move the mouse to restore operation. If
that fails, push the Power/Suspend/Resume slide. (The display may be shut off
by Sleep Mode, Auto Suspend or Video Timeout)
Your display won’t turn on
when the system is turned
on or when it has
resumed.
The system may be pass-
word-protected.
Check the status indicator panel to verify that the Security icon is blinking. If it is
blinking, enter your password.
Problem Possible Cause Possible Solutions
97
- Troubleshooting
The display does not
close.
A foreign object, such as a
paper clip, is stuck between
the display and keyboard.
Remove all foreign objects from the keyboard.
The display has bright or
dark spots.
If the spots are very tiny and
few in number, this is normal
for a large LCD display.
This is normal; do nothing.
If the spots are numerous or
large enough to interfere with
your operation needs.
Display is faulty; contact your support representative.
The display is dark when
on battery power.
The Power Management util-
ity default is set on low bright-
ness to conserve power.
Press [Fn] + [F7] to increase brightness or click the battery gauge, click on
More power options, and select Adjust the display brightness.
You have connected an
external monitor but it
does not display anything.
Your operating system is not
setup with the correct soft-
ware driver for that device.
Check your device and operating system documentation and activate the
proper driver.
Your BIOS setup is not set to
enable your external monitor.
Toggle the video destination by pressing [Fn]+ [F10] together, or check your
BIOS setup and enable your external monitor. (See the Video Features sub-
menu, located in the Advanced Menu of the BIOS. See “BIOS Setup Utility” on
page 61.
Your external monitor is not
properly installed.
Reinstall your device. See “External Video Port” on page 82.
You have connected an
external monitor and it
does not come on.
Your external monitor is not
compatible with your LIFE-
BOOK Tablet PC.
See your monitor documentation and the External Monitor Support portions of
the Specifications section. See “Specifications” on page 116.
Miscellaneous Problems
Error message is dis-
played on the screen dur-
ing the operation of an
application.
Application software often has
its own set of error message
displays.
See your application manual and help displays screens for more information.
Not all messages are errors some may simply be status.
Problem Possible Cause Possible Solutions
98
- Troubleshooting
Power On Self Test Messages
The following is a list of error-and-status messages that the Phoenix BIOS and/or your operating system can generate
and an explanation of each message. Error messages are marked with an *. If an error message is displayed that is
not in this list, write it down and check the operating system documentation on screen and in the manual. If you can
find no reference to the message, contact a support representative.
*Invalid NVRAM Data
Problem with NVRAM access. In the unlikely case that you see this message you may have a display problem. You can
continue operating but should contact your support representative for more information.
*Keyboard controller error
The keyboard controller test failed. You may have to replace your keyboard or keyboard controller but may be able to
use an external keyboard until then. Contact your support representative.
*Keyboard not detected
Keyboard not working. You may have to replace your keyboard or keyboard controller but may be able to use an
external keyboard until then. Contact your support representative.
*Operating system not found
Operating system cannot be located on either drive A: or drive C: Enter the setup utility and see if both the fixed disk,
and drive A: are properly identified and that the boot sequence is set correctly. Unless you have changed your
installation greatly, the operating system should be on drive C:. If the setup utility is correctly set, your hard drive may
be corrupted.
*Press <F1> to resume, <F2> to SETUP
Displayed after any recoverable error message. Press [F1] key to Continue or [F2] key to Enter Setup.
*Real time clock error - Check date and time settings
Real-time clock fails BIOS test. May require board repair. Contact your support representative.
*Fan error, system shutdown in 30s. Contact Fujitsu tech support
Fan error occurred. Please contact your sales representative.
*Fan error occurred during previous boot.
Fan error occurred during previous boot. Please contact your sales representative.
99
- Restoring Your System Image and Software
Restoring Your System Image and Software
It is very important that you create DVD copies of your Factory Image and Bootable Disc (along with other
applicable media such as application discs) before beginning to use your system. To do so, follow the
instructions in the “Saving Your Factory Image” and “Creating Backup Images of Factory Image and Discs”
sections of this chapter.
Saving and Recovering Your Factory and System Images
Along with instructions on saving your Factory Image, this document outlines several other important procedures,
such as making a system image, restoring your Factory Image and system images, managing your images, and
restoring the partitions on a hard drive.
Saving your Factory Image
When you purchased your new system, a copy of the pre-installed Factory Image was loaded into a hidden partition
on your hard disk drive. Having a copy of the original Factory Image available to you means that in the event of system
failure, you will be able to restore it to its original state.
•IN ORDER TO INSTALL APPLICATIONS, MAKE COPIES OF FACTORY AND SYSTEM IMAGES, AND BURN APPLICATION MEDIA AND BOOTABLE DISCS YOU
MUST HAVE AN INTERNAL OR EXTERNALLY CONNECTED WRITABLE DVD DRIVE.
•IT IS EXTREMELY IMPORTANT THAT YOU COPY YOUR FACTORY IMAGE TO REMOVABLE MEDIA (E.G., DVD DISCS). FAILURE TO DO SO COULD RESULT
IN AN INABILITY TO RESTORE THE IMAGE AT A FUTURE DATE.
•WE RECOMMEND THAT YOU USE DVD-R OR DVD+R DISCS FOR YOUR BACKUP, BUT SUPPORTED MEDIA* FOR IMAGE BACKUPS INCLUDE:
FOR FACTORY IMAGE, APPLICATION DATA, AND BOOTABLE DISC: DVD-R/+R.
FOR USER-CREATED BACKUP IMAGE: DVD-R/+R, DVD-RW/+RW, DVD-DL.
* DEPENDING UPON YOUR OPTICAL DRIVE AND MEDIA FORMAT USED, SOME MEDIA TYPES MAY BE INCOMPATIBLE FOR CREATING IMAGE BACKUPS.
DUE TO CERTAIN LICENSING REQUIREMENTS, SOME THIRD-PARTY APPLICATIONS WILL NEED TO BE INSTALLED SEPARATELY USING THE APPLICATION
MEDIA BUNDLED WITH YOUR SYSTEM.
100
- Restoring Your System Image and Software
To make a copy of the Factory Image to DVD discs, you will need several blank discs (DVD-R or DVD+R discs are
recommended) to create the copy. After creating the copy, be sure to label the discs and keep them in a safe place to
ensure they do not get damaged.
Creating Backup Images of Factory Image and Discs
Using the [Manage/Change] button, you can create backup images of the Factory Image, Application Disc(s), or
Bootable Disc.
1Launch My Recovery from desktop icon
2Select [Manage/Create]-> [Manage Backup Images].
The Backup Images menu displays a list from which you can choose which type of disc you want to burn: Bootable
Disc, Application Discs, or Recovery Disc.
3Select
Recovery Disc
, then click [Make DVD].
4Confirm that the # box has “2” (Note that in some cases the box may display a larger number for the factory image,
depending upon its size.)
5The message “Recovery Disc #1 will be created. Enter your comments and the number of media on the DVD”. Click
[YES] to burn the Factory Image.
6While the copy is being made, a “Writing to the media screen displays a progress bar. When the copy is complete,
a dialog will appear informing you of the successful completion of the backup.
7Repeat the process for the remaining images on disc (Bootable Disc and Application Discs). The number of images
available may vary depending on your system model; some models do not have the applications loaded on the
hard drive.
•SOME CONFIGURATIONS OF CERTAIN LIFEBOOK MODELS DO NOT HAVE APPLICATIONS LOADED ON THE HARD DRIVE; RATHER, THEY ARE AVAILABLE
AT THE FUJITSU SUPPORT SITE FOR DOWNLOAD. PLEASE TAKE THAT INTO ACCOUNT WHEN READING THE FOLLOWING PROCEDURES.
•ALL USER-CREATED DATA WILL BE DELETED FROM YOUR SYSTEM WHEN THE FACTORY IMAGE IS RESTORED.
101
- Restoring Your System Image and Software
Recovering Your Factory Image
In the event you need to restore your original Factory Image, perform the following steps. Note that there may be
some third-party applications that need to be installed from the application media bundled with your system.
In order to recover your Factory Image, perform the steps outlined in “Running Recovery and Utility from hard disk”.
Backing Up a System Image
Optional Step: Launch the Fujitsu Bonus Apps utility from your desktop, and select the components you wish to
install.
User-Configured System Backups: On your desktop, there is a [MyRecovery] icon that allows you to
make backups of your current system image either to another location on your hard drive or on
removable media. A system image is the configuration of your C: drive at a particular point of time. You
may want to make system image backups occasionally in order to have points to which you can return
without having to go all the way back to the Factory Image.
By default, system images are saved in the MyRecovery folder (either on D:\ or external hard drive, depending on your
hardware type).
1Click the [MyRecovery] icon on your desktop. The My Recovery screen will appear (See Figure 47). Note that the
screen illustrated may vary, depending upon your system configuration.)
2Click the [Backup] button on the MyRecovery screen.
3On the next screen that appears, you can enter up to 200 characters of information about the backup file. This
information will help you to identify the image at a later date.
ALL USER-CREATED DATA WILL BE DELETED FROM YOUR SYSTEM WHEN THE FACTORY IMAGE IS RESTORED.
My Recovery
102
- Restoring Your System Image and Software

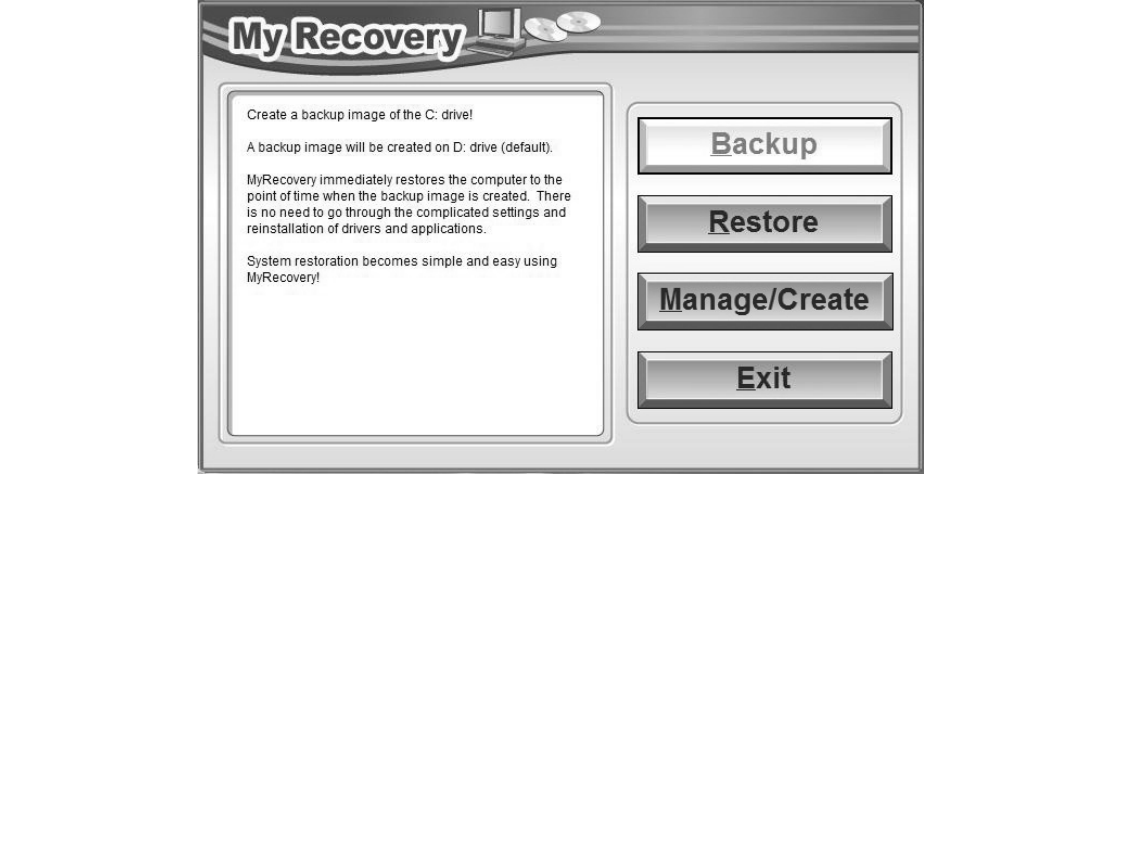

Figure 47. MyRecovery screen
4Click the [Next] button and the system will reboot.
5After rebooting, the “Creating of the backup image” window appears, in which you can either click [Create the
image on D drive] or [Select the drive] if you want to save to an external hard disk drive. (Note that the [Create
the image on D drive may not be available on all configurations.)
6An image appears showing you graphically how the image will be stored. Click the [Next] button.
7Click [Execute] to start the backup.
103
- Restoring Your System Image and Software
Managing Your Backup Images
With the MyRecovery tool you can also make copies of backup images, archive them on DVD, or delete them from
your hard drive.
1To begin, click the [MyRecovery] icon on your desktop.
2Click the [Manage/Create] button in the MyRecovery window.
3When the MyRecovery Manager window appears, click [Manage Backup Images].
4In the next window, a list of your backup images appears. Below the list are three buttons allowing you to [Make
DVD], [Copy], or [Delete] your backup images.
5Select an image title from the list, then click the action button you would like to perform.
6Note that you need to have an external disk drive connected for the [Copy] button to be enabled. If you elect to
copy the image, you will be prompted to enter the destination. If you are ready to copy, click [OK] to proceed. A
progress screen appears while the backup copy is being made.
7Note that if you copy an image to an external hard drive, both the original and the copy will appear in the [Backup
Images] window with identical names, dates, and file sizes, but with the different drive letter to distinguish them.
Before you select [Make DVD], make sure you have a recordable DVD drive connected and blank DVDs available.
Using the Recovery and Utility Tools
The Recovery and Utility tools consist of a variety of tools that will help you recover your Factory Image, recover system
images, and delete the data from your hard disk.
Methods for accessing the utilities
Recovery and Utility Tools are preinstalled in a hidden partition by the factory, or they can be accessed by using the
bootable disc. Please note that you can delete Recovery and Utility tools from your hard disk drive if you modify the
partitions. In this case you will not be able to use the hidden partition for booting to Recovery and Utility Tools, but
you will still be able to boot from the Bootable Disc.
104
- Restoring Your System Image and Software
Determining whether Recovery and Utility is pre-loaded
1Turn on or reboot your system. When the Fujitsu logo appears, press [F12] key. The Boot Menu will appear.
2Press the Tab key to select Application menu.
3Check whether the <Recovery and Utility> option is present. If it is not present, it means that the utility must be
used from the disc. Proceed to “Running Recovery and Utility from the Bootable Disc” if <Recovery and Utility> is
unavailable.
Running Recovery and Utility from hard disk
1Turn on or reboot your system. When the Fujitsu logo appears, press [F12] key. The Boot Menu will appear.
2Press the Tab key to select Application menu.
3Cursor down to <Recovery and Utility> and press the [Enter] key.
4While the files are being loaded from the disc, a progress bar will appear at the bottom of the screen.
5When the System Recovery Options dialog opens, select a new keyboard layout, if necessary, then click [Next].
6When the Operating System dialog appears, select “Use recovery tools...”, then click [Next].
7If necessary, enter your password, then click [OK].
8When System Recovery Options window appears, click on Recovery and Utility.
9The Recovery and Utility screen appears on the screen with three tabs: Diagnostics, Recovery and Utility. Please
note that Diagnostics tab is not supported on certain LIFEBOOK/STYLISTIC models when running Recovery and
Utility from the hard disk. In order to restore the operating system, please use the middle icon “Restoring the
Factory Image (only C:\drive)” under the Recovery tab.
Running Recovery and Utility from the Bootable disc
To verify/change the boot-up priority (rather than booting-up from the hard drive or an external floppy disk drive),
perform the following steps:
1Power on your system. When the Fujitsu logo appears on the screen. press the [F12] key to get to the Boot Menu.
2Highlight the CD/DVD option.
3Insert the bootable disc into the drive tray.
105
- Restoring Your System Image and Software
4Click [OK]. While the files are being loaded from the disc, a progress bar will appear at the bottom of the screen.
5When the System Recovery Options dialog opens, select a new keyboard layout, if necessary, then click [Next].
6When the Operating System dialog appears, click [Next].
7If necessary, enter your password, then click [OK].
8When System Recovery Options window appears, click on Recovery and Utility.
9When the Recovery and Utility screen appears, three tabs will be present: Diagnostics, Recovery, and Utility.
Recovery and Utility tabs
Diagnostics tab: The Diagnostics tool is designed for use by IT professionals. It is not likely you will need to use this
tool. When you select devices from the Diagnosis window then click [Execute], several tests are performed on the
selected components.
Recovery tab: The Recovery tab contains three tools: Recovering User-Configured System Backups, Restoring the
Factory Image (only C: drive), and Restoring the Factory Image (full hard drive recovery). You can use these tools to
restore the Factory Image from the hidden partition, restore backup image(s) created by you or images stored on DVD
discs, and perform a full hard drive recovery. Please refer to instructions above for details on how to create Factory
Image Recovery DVDs, user backup DVDs and system image backup.
Utility tab: The Utility tab contains three tools: Hard Disk Data Delete, Restore Recovery and Utility, and Windows
Complete PC Restore.
•The Hard Disk Data Delete utility is used to delete all data on the hard disk and prevent the data from being
reused. NOTE: Do not use the Hard Disk Data Delete utility unless you are absolutely certain that you want
to erase your entire hard disk, including all partitions.
•Restore Recovery and Utility allows you to restore the first hidden partition.
•Windows Complete PC Restore utility allows you to restore an image created with Windows Backup and
Restore Center. Complete PC Restore will overwrite the data on your hard disk drive.
106
- Restoring Your System Image and Software
Recovering your Factory Image using Recovery and Utility (for new hard drive or non-bootable hard drive)
If you have installed a new hard drive or your hard drive is not bootable, perform the following steps. Note that first
you will need to create new partitions on the hard drive, then restore the Factory Image:
1Power on your system. When the Fujitsu logo appears on the screen. press the [F12] key.
2Highlight the CD/DVD option.
3Insert the bootable disc in your DVD drive, then click [OK].
4When System Recovery Options window appears, click on <Recovery and Utility>.
5When the System Recovery Options dialog opens, select a new keyboard layout, if necessary, then click [Next].
6When the Operating System dialog appears, click [Next].
7If necessary, enter your password, then click [OK].
8When System Recovery Options window appears, click on Recovery and Utility.
9Click the Recovery tab in the Recovery and Utility window, then click
Restoring the Factory Image
icon.
10 Click [Execute].
11 Read the precautions, then select “I Agree”.
12 Click [Next], then click [Execute] to start the recovery process.
13 “1. Recovery Disc Check” will be in bold and the rest will be grayed out. Follow the instructions and “Insert the
Recovery Disc #1”. In some cases, you may prompted to “Insert the Recovery Disc #2”, depending upon the size of
the Recovery Image
14 Click [Next] to begin the check. Click [Next] again when the check is complete.
15 “2. Initializing hard disk drive” will be in bold with the message “Please insert the Bootable Disc into your optical
drive”. Insert the bootable disc. Click [Next] to proceed. A dialog box appears, with a checking disc message.
16 “Warning All DATA on the Hard Disk will be completely erased!!!” will appear. Select [OK]. The partition creation
process will begin.
17 “3. Restoring Factory Image to hidden partition” will be in bold with the message “Please insert the Recovery
Disk#1 into the optical drive”. Click [Next] to proceed.
107
- Restoring Your System Image and Software
After completion, the tool will automatically go back to "3.Restoring Factory Image to hidden partition" but will
include the note “Please insert your Third Party Applications Disc or CyberLink DVD, then click [OK]. After installation
of each disc, insert the next and continue until all have been installed. If you don't have your Third Party Applications
Disc and/or CyberLink DVD, or you have already inserted these discs, please click [Skip] to continue. NOTE: In some
cases (products without an optical drive) you will not have a CyberLink DVD".
At this point, you can either:
•Insert Application Disc(s) to restore back to hidden partition, or,
•Click [Skip] to skip restoring Application disc(s) and continue with restore.
18 If you select to insert Application Disc, after copying of application disc(s) to hidden partition is completed, the
message will appear again. Repeat inserting application disc(s) until all discs have been copied, then click [Skip]
to continue with Restore.
19 After clicking [Skip], a confirmation message will appear "If you want to skip copying or you have finished copying,
click [OK]. Click [Cancel] to go back to Restoring Factory Image to hidden partition.”
20 Click [OK] and Restoring Factory Image will begin.
21 When restoration is complete, you will see the message “Restoration has been completed. Click [OK] to reboot the
computer.” Click [OK].
Downloading Driver Updates
To ensure that you always have the most current driver updates related to your system, you should occasionally
access the Fujitsu Software Download Manager (FSDM) utility. The FSDM utility is available from the Fujitsu Support
site. FSDM will allow you to view a list of the most current drivers, utilities, and applications to determine whether
you have the latest versions. If you have a Windows 7 operating system, you will need to go to the Support Site to
download the FSDM Utility: http://support.fujitsupc.com/CS/Portal/support.do?srch=DOWNLOADS.
108
Chapter 5
Care and Maintenance
Caring for your LIFEBOOK Tablet PC
If you use your Fujitsu LIFEBOOK Tablet PC carefully, you will increase its life and reliability. This section provides some
tips for looking after the Tablet PC and its devices.
•Your LIFEBOOK Tablet PC is a durable but sensitive electronic device. Treat it with care.
•Make a habit of transporting it in a suitable carrying case.
•Do not attempt to service the computer yourself. Always follow installation instructions closely.
THE SYSTEM CONTAINS COMPONENTS THAT CAN BE SEVERELY DAMAGED BY ELECTROSTATIC DISCHARGE (ESD). TO MINIMIZE RISK TO THE COMPONENTS,
OBSERVE THE FOLLOWING PRECAUTIONS:
•BEFORE DOCKING OR UNDOCKING YOUR LIFEBOOK TABLET PC (WHEN USING A PORT REPLICATOR), IT IS A GOOD PRACTICE TO ALWAYS TOUCH A
GROUNDED METAL OBJECT TO DISCHARGE STATIC ELECTRICITY BUILT UP IN YOUR BODY.
•BE SURE TO POWER DOWN YOUR SYSTEM BEFORE ADDING OR REMOVING SYSTEM COMPONENTS. EVEN IF THE SYSTEM IS IN HIBERNATE OR SLEEP
STATES, DATA COULD BE LOST OR MEMORY COULD BE DAMAGED IF POWER IS STILL AVAILABLE TO THE SYSTEM.
•WHEN INSTALLING OR REMOVING A MEMORY MODULE, HOLD IT BY THE EDGE SO AS NOT TO TOUCH ANY CONTACTS OR CHIPS. BE CAREFUL NOT TO
TOUCH ANY INTERNAL COMPUTER TERMINALS OR COMPONENTS; THE OIL FROM YOUR FINGERS COULD CAUSE A SHORT TO THE COMPONENTS.
•ELECTRICAL EQUIPMENT MAY BE HAZARDOUS IF MISUSED. OPERATIONS OF THIS PRODUCT OR SIMILAR PRODUCTS, MUST ALWAYS BE SUPERVISED BY AN
ADULT. DO NOT ALLOW CHILDREN ACCESS TO THE INTERIOR OF ANY ELECTRICAL PRODUCTS AND DO NOT PERMIT THEM TO HANDLE ANY CABLES.
109
- Caring for your LIFEBOOK Tablet PC
•Keep it away from food and beverages.
•To protect your Tablet PC from damage and to optimize system performance, be sure to keep all air vents
unobstructed, clean, and clear of debris. This may require periodic cleaning, depending upon the
environment in which the system is used.
•Do not operate the Tablet PC in areas where the air vents can be obstructed, such as in tight enclosures or on
soft surfaces like a bed or cushion.
•If you accidentally spill liquid on your LIFEBOOK Tablet PC:
1Turn it off.
2Position it so that the liquid can run out.
3Let it dry out for 24 hours, or longer if needed.
4If your Tablet PC will not boot after it has dried out, call your support representative.
•Do not use your Fujitsu LIFEBOOK Tablet PC in a wet environment (near a bathtub, swimming pool).
•Always use the AC adapter and batteries that are approved for your Tablet PC.
•Avoid exposure to sand, dust and other environmental hazards.
•Do not expose your Tablet PC to direct sunlight for long periods of time as temperatures above 140° F (60° C)
may damage your Tablet PC.
•Keep the covers closed on the connectors and slots when they are not in use.
•Do not put heavy or sharp objects on the computer.
•If you are carrying your LIFEBOOK Tablet PC in a briefcase, or any other carrying case, make sure that there are
no objects in the case pressing on the lid.
•Never position your Tablet PC such that the optical drive is supporting the weight of the Tablet PC.
Cleaning your LIFEBOOK Tablet PC
•Always disconnect the power plug. (Pull the plug, not the cord.)
•Clean your LIFEBOOK Tablet PC with a damp, lint-free cloth. Do not use abrasives or solvents.
•Use a soft cloth to remove dust from the screen. Never use glass cleaners.
•Always shut down the computer, unplug the power adapter, and remove the battery when cleaning or
disinfecting the computer exterior, keyboard or LCD display.
110
- Caring for your LIFEBOOK Tablet PC
Cleaning guidelines using recommended off-the-shelf cleaners
Computer exterior, computer keyboard
To clean the exterior and keyboard, use one of the following off-the-shelf products:
•Office Depot® #154-616 Notebook Cleaning Kit
•Meridrew Enterprises Klear Screen® Wipes
•3M CL563 Cleaner Wipes
Note: After cleaning with one of these products, gently polish with a dry, soft, lint-free cloth until the solution is no
longer visible.
LCD display
To clean the LCD display, use one of the following off-the-shelf products:
•Office Depot® #154-616 Notebook Cleaning Kit
•Meridrew Enterprises Klear Screen® Wipes
Applies to Tablet PC, convertible PC with LCD shield, and standard notebook LCD displays.
Wipe the LCD surface gently, allowing it to dry before turning on the computer.
Disinfecting LIFEBOOK computers
•Wipe the surface with a soft cloth wipe and a 50% ethanol solution or use another ethanol-based germicide
which has been registered as a hospital disinfectant by the EPA.
•USE OF INCORRECT CLEANERS CAN RESULT IN OPTICAL IMPAIRMENT OF THE LCD AND/OR DAMAGE TO THE COMPUTER. ALWAYS REFER TO THE
CLEANER MANUFACTURER'S GUIDELINES AND MATERIAL SAFETY DATA SHEETS FOR PROPER HANDLING AND USE OF THE PRODUCTS.
•NEVER USE AMMONIA, ACIDIC, OR ALKALINE CLEANERS OR ORGANIC CHEMICALS SUCH AS PAINT THINNER, ACETONE, PROPYL OR ISOPROPYL
ALCOHOL, OR KEROSENE. IT MAY DAMAGE SURFACE FINISHES AND THE COATING OF THE LCD SCREEN.
•NEVER USE COMPRESSED AIR FOR CLEANING STYLISTIC AND LIFEBOOK PCS.
/
111
- Caring for your LIFEBOOK Tablet PC
Cleaning the dust filter
Your LIFEBOOK is equipped with fans to make air flow inside by pulling in outside air to cool the inside of the system.
Depending on the environment in which the system is used, dust and dirt may be pulled in along with the air.
Accumulated dust and dirt could impair the function of the system.
•REMOVE AC ADAPTER: BEFORE REMOVING THE FILTER, TURN OFF THE SYSTEM AND PERIPHERALS AND DISCONNECT THE AC ADAPTER.
•CLEANING THE FILTER:
- DO NOT USE DETERGENT
- AVOID DAMAGING THE FILTER; DAMAGE TO THE FILTER IS NOT COVERED BY WARRANTY.
- USE PLASTIC TOOLS TO CLEAN THE FILTER. METAL OR WOODEN TOOLS COULD DAMAGE THE FILTER.
•ESD: BEFORE CLEANING THE FILTER, TOUCH A METAL OBJECT TO DISCHARGE STATIC ELECTRICITY.
1Turn off your computer and disconnect the AC
adapter.
2Close the display panel and turn the system upside
down.
3Remove the dust filter by pressing the latch towards
the filter and lifting it out (Figure 48).
4Carefully clean the dust filter and the air-cooling
duct.
5Put back the dust filter by inserting the end without
latch first and pushing in the filter until it latches.
Figure 48. Removing the Dust Filter Cover
Dust Filter Cover
Filter Cover Latch
112
- Caring for your LIFEBOOK Tablet PC
Storing your LIFEBOOK Tablet PC
•If storing your Tablet PC for a month or longer, turn it off, fully charge the battery, then remove and store all
Lithium ion batteries.
•Store the Tablet PC and batteries separately. If you store your tablet with a battery installed, the battery will
discharge, and battery life will be reduced. In addition, a bad battery might damage the system.
•Store your Fujitsu LIFEBOOK in a cool, dry location. Temperatures should remain between 13ºF
(-25ºC) and 140ºF (60ºC).
Traveling with your LIFEBOOK Tablet PC
•Do not transport your Tablet PC while it is turned on.
•It is recommended that you carry your Tablet PC with you while traveling, rather than checking it in as baggage.
•Always bring your System Recovery CD that came with your Tablet PC when you travel. If you experience system
software problems while traveling, you may need it to correct any problems.
•Never put your Tablet PC through a metal detector. Have your Tablet PC hand-inspected by security personnel.
You can however, put your Tablet PC through a properly tuned X-ray machine. To avoid problems, place your
Tablet PC close to the entrance of the machine and remove it as soon as possible or have your Tablet PC hand-
inspected by security personnel. Security officials may require you to turn your Tablet PC on, so make sure you
have a charged battery on hand.
ALWAYS BE SURE THE DUST FILTER IS INSTALLED WHEN RUNNING YOUR SYSTEM. NOT USING THE FILTER COULD CAUSE CONTAMINATION AND
POSSIBLE DAMAGE TO THE SYSTEM.
•ALWAYS POWER OFF THE COMPUTER BEFORE TRANSPORTING AND/OR PACKAGING IT. AFTER SHUTTING DOWN THE SYSTEM, WAIT UNTIL THE STATUS
LED PANEL INDICATES POWER OFF CONDITION (I.E., NO LIGHTS ARE ILLUMINATED).
•IT IS POSSIBLE THAT THE UNIT MAY NOT AUTOMATICALLY GO TO POWER OFF OR HIBERNATE MODE WHEN YOU CLOSE THE LID. THIS SITUATION MAY
OCCUR DUE TO PRE-OS BOOT PASSWORD SECURITY SETTINGS OR SOME OTHER APPLICATION RUNNING ON THE COMPUTER.
•ATTEMPTING TO TRANSPORT THE COMPUTER WHILE POWER IS ON MAY DAMAGE THE TABLET PC DUE TO SHOCK OR OVERHEATING SINCE THE AIR
VENTS MAY BE BLOCKED OR RESTRICTED.
113
- Caring for your LIFEBOOK Tablet PC
•Take the necessary plug adapters if you're traveling overseas. Check the following diagram to
determine which plug adapter you'll need or ask your travel agent.
Batteries
Caring for your Batteries
•Always handle batteries carefully.
•Do not short-circuit the battery terminals (that is, do not touch both terminals with a metal object). Do not
carry lose batteries in a pocket or purse where they may mix with coins, keys, or other metal objects. Doing so
may cause an explosion or fire.
•Do not drop, puncture, disassemble, mutilate or incinerate the battery.
•Recharge batteries only as described in this manual and only in ventilated areas.
•Do not leave batteries in hot locations for more than a day or two. Intense heat can shorten battery life.
•Do not leave a battery in storage for longer than 6 months without recharging it.

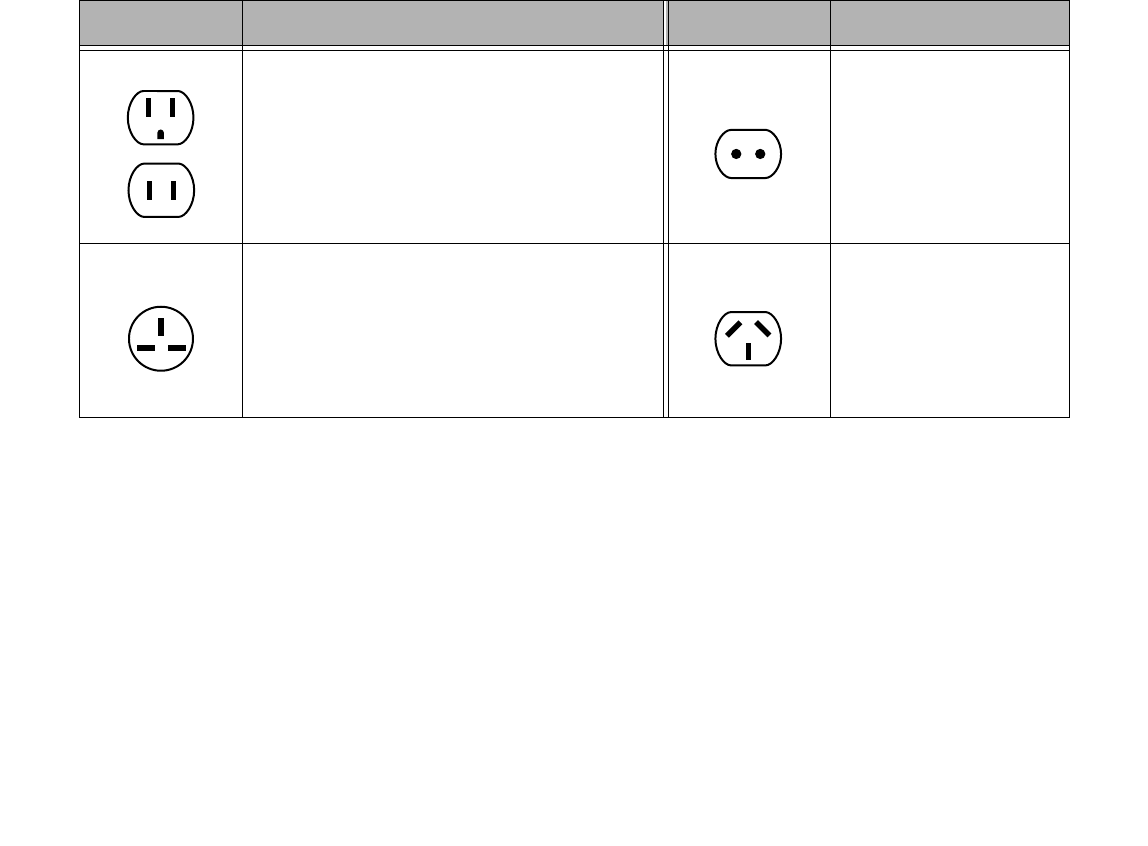

Outlet Type Location Outlet Type Location
United States, Canada, parts of Latin Amer-
ica, Mexico, Japan, Korea, the Philippines,
Taiwan
United Kingdom, Ire-
land, Malaysia, Singa-
pore, parts of Africa
Russia and the Commonwealth of Independent
States (CIS), most of Europe, parts of Latin
America, the Middle East, parts of Africa, Hong
Kong, India, most of South Asia
China, Australia, New
Zealand
114
- Caring for your LIFEBOOK Tablet PC
Increasing Battery Life
•Power your Tablet PC through the AC or optional auto/airline adapter whenever possible.
•If your Tablet PC is running on battery power all day, connect it to the AC adapter overnight to recharge the
battery.
•Keep brightness to the lowest level comfortable.
•Set the power management for maximum battery life.
•Put your Tablet PC in Sleep mode when it is turned on and you are not actually using it.
•Limit your media drive access.
•Disable the Media Player auto insert notification function.
•Always use fully charged batteries.
Media Care
Caring for your Media (DVD/CD/CD-R)
Media discs are precision devices and will function reliably if given reasonable care.
•Always store your media disc in its case when it is not in use.
•Always handle discs by the edges and avoid touching the surface.
•Avoid storing any media discs in extreme temperatures.
•Do not bend media discs or set heavy objects on them.
•Do not spill liquids on media discs.
•Do not scratch or get dust on media discs.
•Never write on the label surface with a ballpoint pen or pencil. Always use a felt pen.
•If a media disc is dirty, use only a DVD/CD cleaner or wipe it with a clean, soft, lint free cloth starting from the
inner edge and wiping to the outer edge.
•If a media disc is subjected to a sudden change in temperature, cold to warm condensation may form on the
surface. Wipe the moisture off with a clean, soft, lint free cloth and let it dry at room temperature. DO NOT use
a hair dryer or heater to dry media discs.
115
- Caring for your LIFEBOOK Tablet PC
Caring for your Optical Drive
Your optical drive is durable but you must treat it with care. Please pay attention to the following
points:
•The drive rotates the compact disc at a very high speed. Do not carry it around or subject it to shock
or vibration with the power on.
•Avoid using or storing the drive where it will be exposed to extreme temperatures.
•Avoid using or storing the drive where it is damp or dusty.
•Avoid using or storing the drive near magnets or devices that generate strong magnetic fields.
•Avoid using or storing the drive where it will be subjected to shock or vibration.
•Do not disassemble or dismantle the optical drive.
•Use of a commercially available lens cleaner is recommended for regular maintenance of your drive.
116
Chapter 6
System Specifications
Specifications
This section provides the hardware and environmental specifications for your Fujitsu LIFEBOOK Tablet PC.
Specifications of particular configurations will vary.
Microprocessor
New 3rd Generation Intel® Core™ Processor family. (Refer to system label to determine your processor.)
Chipset
•Mobile Intel® QM77 Express
•Platform Control Hub (PCH)
Memory
System Memory
•DDR3-1600 MHz SDRAM dual-channel memory module.
•Two DIMM slots; upgradeable to 16 GB of total memory (8 GB x 2).
Cache Memory
Up to 4 MB L3 cache on-die (depending upon CPU)
117
- Specifications
Video
Built-in color flat-panel TFT active matrix LED backlit display with simultaneous display capability.
Video Color and Resolution
13.3" HD+ anti-glare display
•Internal: 1600 x 900 pixel resolution, 16M colors
•External (CRT, HDMI, DVI): 1920 x 1200 pixel resolution, 16M colors
•DisplayPort (on port replicator): 2560 x 1600 pixel resolution, 16M colors
•Simultaneous: 1600 x 900, 16M colors
•Screen Orientations Supported: 0o, 90o, 180o, 270o
Graphics Controller
•Intel® HD 4000 integrated graphics
Digitizer
•Dual Digitizer, consisting of active digitizer and capacitive touch panel (uses active stylus input and ten finger
touch input)
Audio
•Realtek codec ALC269 VB6 with High Definition (HD) audio.
•Headphones: Stereo headphone jack, 3.5 mm, 1 Vrms or less, minimum impedance 32 Ohms
•Microphone: Stereo microphone jack, 3.5 mm, 100 mVp-p or less, minimum impedance 10K Ohms
•Two built-in speakers, 20 mm x 12 mm
•Two built-in digital microphones
Mass Storage Device Options
Hard Drive
Serial ATA II, 3.0Gb/s, 2.5”, 9.5 mm or 7 mm, shock-mounted with Shock Sensor utility. Capacity, depth, and speed of
the hard drive are determined by system configuration. 32 GB m-SATA SSD cache for fast boot.
118
- Specifications
•BTO 2.5" 7mmH/9.5mmH SATA
•HDD 5400rpm: 320, 500GB
•HDD 7200rpm: 320, 500GB
•TCG Opal-compliant Self-Encrypted Drive (SED) HDD 7200rpm: 320GB
•TCG Opal-compliant Self-Encrypted Drive (SED) SSD: 128GB
•non-FDE SSD(MLC): 128, 256GB
Modular Bay Devices
One of the following devices is pre-installed:
•Modular Blu-ray™ RW drive
•Dual-Layer Multi-Format DVD Writer
•Modular Bay Battery
•Weight Saver
Features
Integrated Pointing Device
Touchpad cursor control buttons
Communications
•Gigabit LAN: Intel wired 10/100/1000 Gigabit Ethernet LAN
•WLAN: Optional Integrated Intel Centrino Advanced-N 6205 (802.11abgn 2x2), or,
Atheros XSPAN HB116 802.11abgn
•Bluetooth: Bluetooth V4+LE device for wireless personal area network communication
119
- Specifications
LIFEBOOK Security/Tablet PC Panel
See “LIFEBOOK Security/Tablet PC/Windows Buttons” on page 48.
Trusted Platform Module
The LIFEBOOK T902 has a Trusted Platform Module (TPM) installed for added system security.
Theft Prevention Lock
Lock slots for use with security restraint systems.
Web Camera
Optional FHD (1920 x 1080 pixel) digital web camera with access indicator LED
Device Ports
On the LIFEBOOK Tablet PC:
•Secure Digital Card slot
•HDMI Port
•One 15-pin D-SUB connector for VGA external monitor (see Display specifications)
•Two USB 2.0 connectors for input/output devices
•Two USB 3.0 connectors for input/output devices (one of which features Anytime USB Charge support)
•One DC In connector
•One LAN (RJ-45) connector
•Docking port (100-pin, to dock with port replicator)
•One stereo headphone/line-out jack
•One stereo microphone/line-in jack
•Dedicated Smart Card slot (requires third-party application)
On the Optional Port Replicator:
•One 15-pin D-SUB connector for VGA external monitor
•Four USB 3.0 connectors for input/output devices
•One LAN (RJ-45) connector
120
- Specifications
•One DC-in connector
•One DVI-D connector
•One DisplayPort connector
•One Headphone connector
•Docking connector (100-pin, to dock with system)
Keyboard
Built-in keyboard with all functions of 101 key keyboard.
•Total number of keys: 84
•Function keys: F1 through F12, plus Fn extension key
•Two Windows keys: one Start key, one application key
•Key pitch: 19 mm; key stroke: 1.7 mm
•Built-in Touchpad pointing device with left and right buttons
•Built-in Palm Rest
•Spill-resistant
•External USB keyboard/mouse support
•Optional anti-microbial keyboard
Power
Batteries
•Lithium ion battery, rechargeable, 6-cell, 72Wh, or,
•Optional Lithium ion modular bay battery, rechargeable, 6-cell, 28 Wh
AC Adapter
Autosensing 100-240V AC, supplying 19V DC, 4.22A, 80W to the LIFEBOOK; includes an AC cable
Power Management
Conforms to ACPI (Advanced Configuration and Power Interface).
121
- Specifications
Dimensions and Weight
Overall Dimensions
With foot and 6-cell main battery: 13.15"(w) x 9.60"(d) x 1.28” (h) (334 mm x 244 mm x 32.6 mm)
Without foot, with 6-cell main battery: 13.15"(w) x 9.60"(d) x 1.06/1.22”(h) (334 mm x 244 mm x 26.8/31.0 mm)
Weight
With weight saver: Approximately 4.69 lbs. (2.13 kg)
With optical drive: Approximately 5.05 lbs. (2.29 kg)
With bay battery: Approximately 5.31 lbs. (2.41 kg)
Environmental Requirements
Temperature
Operating: 41° to 95° F (5° to 35° C). Non-operating: 5° to 140° F (–15° to 60° C)
Humidity
Operating: 20% to 85%, relative, non-condensing. Non-operating: 8% to 85%, relative, non-condensing
Altitude
Operating: 10,000 feet (3,048 m) maximum
Popular Accessories
For ordering or additional information on Fujitsu accessories please visit our Web site at
www.shopfujitsu.com or call 1-800-FUJITSU.
122
- Specifications
Pre-Installed Software
Depending on your operating system, your Tablet PC comes with pre-installed software for playing audio and video
files of various formats. In addition, there is virus protection software and applications that can bring additional value
during your daily use of the system. Some software is pre-installed while other apps are a part of Fujitsu Bonus Apps
•Adobe Reader
•Norton Internet Security™ 2012 (60-day free trial)
•CyberLink PowerDirector
•CyberLink PowerDVD
•CyberLink MakeDisc
•CyberLink YouCam
•Google Toolbar
•Fujitsu Touch Launcher
•DTS® Boost™
•OmniPass Fingerprint application
•Microsoft Windows Live Essentials
•Microsoft Office 2010 Starter Edition
Learning About Your Software
Tutorials
All operating systems and most application software have tutorials built into them upon installation. We highly
recommend that you step through the tutorial before you use an application.
THE FOLLOWING LIST CONSTITUTES THE SOFTWARE THAT MAY BE INSTALLED ON YOUR COMPUTER. THE PRE-INSTALLED SOFTWARE MAY VARY, AND IS
DETERMINED BY YOUR OPERATING SYSTEM AND CONFIGURATION.
123
- Specifications
Manuals
Included with your Tablet PC you will find manuals for your installed operating system and other pre-installed
software. Any manuals that are not included are available online through the software’s “Help” menu. We
recommend that you review these manuals for information on the use of these applications.
Adobe Reader
Adobe Reader allows you to view, navigate, and print PDF files across all major computing platforms.
Norton Internet Security 2012
Your system is preinstalled with a free 60-day trial version of Symantec’s Norton Internet Security™ 2012. Internet
Security is a suite of tools designed to protect your LIFEBOOK from viruses, hackers, spam, and spyware. It helps you
protect data currently on your hard disk from destruction or contamination. The trial version is activated upon your
acceptance of software license agreement. After 60 days, you will need to purchase a subscription from Symantec to
download latest virus, spyware, and spam definitions.
CyberLink MakeDisc
CyberLink MakeDisc allows you to burn data, videos and photographs to CDs or DVDs.
CyberLink PowerDVD
CyberLink PowerDVD allows you to produce and edit home movies and slideshows on discs.
CyberLink YouCam
CyberLink YouCam allows you to capture photos or movies on the embedded webcam, add special effects to them,
and share them in a variety of formats or via social networks.
CyberLink PowerDirector
CyberLink PowerDirector allows you to edit and enhance your videos, and add special effects to them.
Google Toolbar
Google Toolbar lets you to search the Internet quickly, block pop-ups, and perform a variety of other tasks to make
your Internet experience easier and more pleasant.
124
- Specifications
OmniPass Fingerprint application
The fingerprint sensor uses Softex OmniPass which provides password management capabilities to Microsoft
Windows operating systems. OmniPass lets you use a "master password" for all Windows, applications, and on-line
passwords, and presents a convenient user interface through which you can securely manage passwords, users, and
multiple identities for each user.
Fujitsu Touch Launcher
The Touch Launcher is a handy on-screen method for quickly launching commonly-used applications and performing
Internet tasks.
DTS® Boost™
DTS Boost maximizes acoustic power beyond the volume limits of PC hardware, allowing users to create an overall
louder or fuller master by limiting the dynamic range and boosting the perceived overall level of the mix.
Microsoft Windows Live Essentials
Windows Live Essentials is a suite of programs that make it easier and more enjoyable to use your notebook. Live
Essentials consists of four Live applications: Messenger, Photo Gallery, Writer, and Mail. Messenger lets you
communicate and interact with individuals and groups. Photo Gallery lets you organize, edit, and share your photos.
Writer can be used to generate blog entries, upload videos and photos to your blogs, and publish entries online. Mail
makes it easy for you to manage your email.
Microsoft Office Starter 2010 Edition
Office Starter 2010 Edition is a software suite containing basic tools for writing letters and reports, tracking family
and friends with address books, managing home finances, and creating a home inventory.
Microsoft Office Starter 2010 Edition contains Office Word Starter 2010 for writing, editing, and viewing documents,
and Office Excel Starter 2010 for creating and viewing spreadsheets. Office Starter 2010 edition also contains full
versions of Office Home & Student 2010, Office Home & Business 2010, and Office Professional 2010. These full-
featured suites can be accessed by purchasing a Product Key Card.
Operating System
Microsoft Windows 7 Professional Edition (32- or 64-bit)
125
Glossary
AC Adapter
A device which converts the AC voltage from a wall outlet to the DC voltage needed to power your system.
Access point
Wireless network device used to bridge wireless and wired network traffic.
ACPI
Advanced Configuration and Power Interface
Active-Matrix Display
A type of technology for making flat-panel displays which has a transistor or similar device for every pixel on the
screen.
Ad Hoc Mode
Ad Hoc Mode refers to a wireless network architecture where wireless network connectivity between multiple
computers is established without a central wireless network device, typically known as Access Points. Connectivity is
accomplished using only client devices in a peer-to-peer fashion.
AGP
Accelerated Graphics Port. Graphics port specifically designed for graphics-intensive devices, such as video cards and
3D accelerators.
126
-
Auto/Airline Adapter
A device which converts the DC voltage from an automobile cigarette lighter or aircraft DC power outlet to the DC
voltage needed to power your LIFEBOOK Tablet PC.
BIOS
Basic Input-Output System. A program and set of default parameters stored in ROM which tests and operates your
LIFEBOOK Tablet PC when you turn it on until it loads your installed operating system from disk. Information from the
BIOS is transferred to the installed operating system to provide it with information on the configuration and status of
the hardware.
Bit
An abbreviation for binary digit. A single piece of information which is either a one (1) or a zero (0).
b/s or bps
An abbreviation for bits per second. Used to describe data transfer rates.
Boot
To start-up a computer and load its operating system from disk, ROM or other storage media into RAM.
Bus
An electrical circuit which passes data between the CPU and the sub-assemblies inside your LIFEBOOK Tablet PC.
Byte
8 bits of parallel binary information.
Cache Memory
A block of memory built into the micro-processor which is much faster to access than your system RAM and used in
specially structured ways to make your overall data handling time faster.
127
-
CD-ROM
Compact disk read only memory. This is a form of digital data storage which is read optically with a laser rather than
a magnetic head. A typical CD-ROM can contain about 600MB of data and is not subject to heads crashing into the
surface and destroying the data when there is a failure nor to wear from reading.
Channel
Range of narrow-band frequencies used by the WLAN device to transmit data. IEEE802.11b/g - 11 channels, 22 MHz
wide channels.
CMOS RAM
Complementary metal oxide semiconductor random access memory. This is a technology for manufacturing random
access memory which requires very low levels of power to operate.
Command
An instruction which you give your operating system. Example: run a particular application or format a floppy disk.
Configuration
The combination of hardware and software that makes up your system and how it is allocated for use.
CRT
Cathode Ray Tube. A display device which uses a beam of electronic particles striking a luminescent screen. It
produces a visual image by varying the position and intensity of the beam.
Data
The information a system stores and processes.
DC
Direct current. A voltage or current that does not fluctuate periodically with time.
Default Value
A pre-programmed value to be used if you fail to set your own.
128
-
DHCP
Dynamic Host Configuration Protocol. A protocol used to automatically acquire parameters required for the
communication, such as IP address. The sender of IP address is called a DHCP server, and the receiver is called a DHCP
client.
DIMM
Dual-in-line memory module.
Disk
A spinning platter of magnetic data storage media.
Disk Drive
The hardware which spins the disk and has the heads and control circuitry for reading and writing the data.
DMA
Direct Memory Access. Special circuitry for memory to memory transfers of data which do not require CPU action.
DMI
Desktop Management Interface. A standard that provides PC management applications with a common method of
locally or remotely querying and configuring PC computer systems, hardware and software components, and
peripherals.
DNS
Domain Name System. A function to control the association between the IP address and the name assigned to the
computer. If you do not know the IP address but if you know the computer name, you can still communicate to that
computer.
DOS
Disk Operating System (MS-DOS is a Microsoft Disk Operating System).
129
-
Driver
A computer program which converts application and operating system commands to external devices into the exact
form required by a specific brand and model of device in order to produce the desired results from that particular
equipment.
ECP
Extended Capability Port. A set of standards for high speed data communication and interconnection between
electronic devices.
Encryption Key (Network Key)
Data encryption key used to encrypt message text and for computing message integrity checks. Data encryption
protects data from unauthorized viewing.
This device uses the same encryption key to encode and decode the data, and the identical encryption key is required
between the sender and receiver.
ESD
Electro-Static Discharge. The sudden discharge of electricity from a static charge which has built-up slowly. Example:
the shock you get from a doorknob on a dry day or the sparks you get from brushing hair on a dry day.
FCC
Federal Communications Commission.
GB
Gigabyte. One billion bytes.
Hard drive
A spinning platter of magnetic data storage media where the platter is stiff.
I/O
Input/Output. Data entering and leaving your Tablet PC in electronic form.
130
-
I/O Port
The connector and associated circuits for data entering and leaving your computer in electronic form.
IDE
Intelligent Drive Electronics. A type of control interface for a hard drive that is inside the hard drive unit.
IEEE802.11a
Wireless LAN standard that supports a maximum data rate of 54 Mbps. 802.11a devices operate in the 5 GHz lower
and middle UNII bands.
IEEE802.11b
Wireless LAN standard that supports a maximum data rate of 11 Mbps. 802.11b devices operate in the 2.4 GHz ISM
band.
IEEE802.11g
Wireless LAN standard that supports a maximum data rate of 54 Mbps. 802.11g devices operate in the 2.4 GHz ISM
band.
IEEE802.11n
Wireless LAN standard using multiple data streams supporting a maximum data rate of 450 Mbps. 802.11n devices
operate in both the 2.4 GHz and 5 GHz UNII bands and are backward compatible with 802.11g and 802.11a.
Infrastructure
A name of a wireless LAN configuration. This type of communication uses an access point. Another type of
communication is called Ad Hoc.
IP Address
An identifier for a computer or device on a TCP/IP network. Networks using the TCP/IP protocol route messages based
on the IP address of the destination. The format of an IP address is a 32-bit numeric address written as four numbers
separated by periods. Each number can be zero to 255. For example, 1.160.10.240 could be an IP address.
131
-
Within an isolated network, you can assign IP addresses at random as long as each one is unique. However,
connecting a private network to the Internet requires using registered IP addresses (called Internet addresses) to
avoid duplicates.
The four numbers in an IP address are used in different ways to identify a particular network and a host on that
network. Three regional Internet registries -- ARIN, RIPE NCC and APNIC -- assign Internet addresses from the following
three classes.
Class A - supports 16 million hosts on each of 126 networks
Class B - supports 65,000 hosts on each of 16,000 networks
Class C - supports 254 hosts on each of 2 million networks
The number of unassigned Internet addresses is running out, so a new classless scheme called CIDR is gradually
replacing the system based on classes A, B, and C and is tied to adoption of IPv6.
IRQ
Interrupt Request. An acronym for the hardware signal to the CPU that an external event has occurred which needs
to be processed.
KB
Kilobyte. One thousand bytes.
LAN
Local Area Network. An interconnection of computers and peripherals within a single limited geographic location
which can pass programs and data amongst themselves.
LCD
Liquid Crystal Display. A type of display which makes images by controlling the orientation of crystals in a crystalline
liquid.
Lithium ion Battery
A type of rechargeable battery which has a high power-time life for its size and is not subject to the memory effect
as Nickel Cadmium batteries.
132
-
MAC Address
Media Access Control Address. A unique physical address of a network card. For Ethernet, the first three bytes are used
as the vendor code, controlled and assigned by IEEE. The remaining three bytes are controlled by each vendor
(preventing overlap), therefore, every Ethernet card is given a unique physical address in the world, being assigned
with a different address from other cards. For Ethernet, frames are sent and received based on this address.
MB
Megabyte. One million bytes.
Megahertz
1,000,000 cycles per second.
Memory
A repository for data and applications which is readily accessible to your LIFEBOOK Tablet PC’s CPU.
MHz
Megahertz.
MIDI
Musical Instrument Digital Interface. A standard communication protocol for exchange of information between
computers and sound producers such as synthesizers.
Modem
A contraction for MOdulator-DEModulator. The equipment which connects a computer or other data terminal to a
communication line.
Monaural
A system using one channel to process sound from all sources.
133
-
MTU
Maximum Transmission Unit
The maximum data size that can be transferred at a time through the Internet or other networks. You can set a
smaller MTU size to obtain successful communication, if you have difficulty transferring data due to the fact that the
maximum size is too large.
Network key
Data that is used for encrypting data in data communication. The personal computer uses the same network key both
for data encryption and decryption, therefore, it is necessary to set the same network key as the other side of
communication.
Network name (SSID: Service Set Identifier )
When a wireless LAN network is configured, grouping is performed to avoid interference or data theft. This grouping
is performed with “Network name (SSID)”.
NTSC
National TV Standards Commission. The standard for TV broadcast and reception for the USA.
Open system authentication
Null authentication method specified in the 802.11 standard that performs no authentication checks on a wireless
client before allowing it to associate.
Operating System
A group of control programs that convert application commands, including driver programs, into the exact form
required by a specific brand and model of microprocessor in order to produce the desired results from that particular
equipment.
Partition
A block of space on a hard drive which is set aside and made to appear to the operating system as if it were a separate
disk, and addressed by the operating system accordingly.
134
-
Peripheral Device
A piece of equipment which performs a specific function associated with but not integral to a computer. Examples: a
printer, a modem, a CD-ROM.
Pitch (keyboard)
The distance between the centers of the letter keys of a keyboard.
Pixel
The smallest element of a display, a dot of color on your display screen. The more pixels per area the clearer your
image will appear.
POST
Power On Self Test. A program which is part of the BIOS which checks the configuration and operating condition of
your hardware whenever power is applied to your Tablet PC. Status and error messages may be displayed before the
operating system is loaded. If the self test detects failures that are so serious that operation cannot continue, the
operating system will not be loaded.
PPPoE
Point to Point Protocol over Ethernet. A protocol for Ethernet, using a Point-to-Point Protocol (PPP), which is used for
connection on the phone line.
Program
Set of coded commands to your computers telling your hardware what to do and how and when to do it.
Protocol
Procedures and rules use to send and receive data between computers.
- Method of sending and receiving data
- Process used to handle communication errors
Conditions required for communication are organized in procedures for correct transfer of information.
135
-
RAM
Random Access Memory. A hardware component of your LIFEBOOK Tablet PC that holds binary information (both
program and data) as long as it has the proper power applied to it.
RAM Module
A printed circuit card with memory and associated circuitry which allows the user to add additional memory to the
computer without special tools.
Reset
The act of reloading the operating system. A reset erases all information stored in RAM.
Resume
To proceed after interruption. In your Tablet PC this refers to returning to active operation after having been in one of
the suspension states.
ROM
Read Only Memory. A form of memory in which information is stored by physically altering the material. Data stored
in this way cannot be changed by your Tablet PC and does not require power to maintain it.
SDRAM
Synchronous Dynamic Random Access Memory.
Shared key authentication
802.11 network authentication method in which the AP sends the client device a challenge text packet that the client
must then encrypt with the correct WEP key and return to the AP. If the client has the wrong key or no key,
authentication will fail and the client will not be allowed to associate with the AP. Shared key authentication is not
considered secure, because a hacker who detects both the clear-text challenge and the same challenge encrypted
with a WEP key can decipher the key.
136
-
SSID
Service Set Identifier, a 32-character unique identifier attached to the header of packets sent over a WLAN that acts
as a password when a mobile device tries to connect to the BSS. The SSID differentiates one WLAN from another, so
all access points and all devices attempting to connect to a specific WLAN must use the same SSID. A device will not
be permitted to join the BSS unless it can provide the unique SSID. Because the SSID is broadcast in plain text, it does
not supply any security to the network.
Status Indicator
A display which reports the condition of some portion of your hardware. On your LIFEBOOK Tablet PC this is an LCD
screen just above the keyboard.
Stereo (audio)
A system using two channels to process sound from two different sources.
Subnet mask
TCP-IP network is controlled by being divided into multiple smaller networks (subnets). IP address consists of the
subnet address and the address of each computer. Subnet mask defines how many bits of IP address comprise the
subnet address. The same value shall be set among computers communicating with each other.
SVGA
Super VGA.
S-Video
Super Video. A component video system for driving a TV or computer monitor.
System Clock
An oscillator of fixed precise frequency which synchronizes the operation of the system and is counted to provide time
of day and date.
TCP/IP
Transmission Control Protocol/Internet Protocol. A standard Internet protocol that is most widely used.
137
-
TFT
Thin Film Transistor – A technology for flat display panels which uses a thin film matrix of transistors to control each
pixel of the display screen individually.
UL
Underwriters Laboratories – An independent organization that tests and certifies the electrical safety of devices.
USB
Universal Serial Bus. Standard that allows you to simultaneously connect up to 127 USB devices such as game pads,
pointing devices, printers, and keyboards to your computer.
VRAM
Video Random Access Memory. A memory dedicated to video display data and control.
WFM
Wired for Management is Intel’s broad-based initiative to reduce the total cost of ownership (TCO) of business
computing without sacrificing power and flexibility.
Wi-Fi Compatible
Wi-Fi (Wireless Fidelity). Identifies that a product has passed an interoperability test supplied by WECA (Wireless
Ethernet Compatibility Alliance), which guarantees the interoperability of wireless IEEE 802.11 LAN products.
WLAN
Wireless Local Area Network. A wireless interconnection of computers and peripherals within a single limited
geographic location which can pass programs and data amongst themselves.
138
- Regulatory Information
Regulatory Information
Notice
Changes or modifications not expressly approved by Fujitsu could void this user’s authority to operate the equipment.
FCC NOTICES
Notice to Users of Radios and Television
This equipment has been tested and found to comply with the limit for class B digital devices, pursuant to parts 15
of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet that is on a different circuit than the receiver.
•Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables must be employed with this equipment to ensure compliance with the pertinent RF
emission limits governing this device.
DOC (INDUSTRY CANADA) NOTICES
Notice to Users of Radios and Television
This Class B digital apparatus meets all requirements of Canadian Interference-Causing Equipment
Regulations.
CET appareil numérique de la class B respecte toutes les exigence du Réglement sur le matérial brouilleur du Canada.
139
Appendix A: WLAN User’s Guide
FCC Regulatory Information
Please note the following regulatory information related to the optional wireless LAN device.
Regulatory Notes and Statements
Wireless LAN, Health and Authorization for use
Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of these emissions, however, are far much
less than the electromagnetic energy emissions from wireless devices such as mobile phones. Wireless LAN devices are safe for use by
consumers because they operate within the guidelines found in radio frequency safety standards and recommendations. The use of Wireless
LAN devices may be restricted in some situations or environments, such as:
•On board an airplane, or
•In an explosive environment, or
•In situations where the interference risk to other devices or services is perceived or identified as harmful.
In cases in which the policy regarding use of Wireless LAN devices in specific environments is not clear (e.g., airports, hospitals,
chemical/oil/gas industrial plants, private buildings), obtain authorization to use these devices prior to operating the equipment.
Regulatory Information/Disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation
provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void
the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by
unauthorized modification of this device, or the substitution or attachment of connecting cables and equipment other than those specified
by the manufacturer. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or
attachment. The manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government
regulations arising from failure to comply with these guidelines.
140
-
This device must not be co-located or operated in conjunction with any other antenna or transmitter.
For IEEE 802.11a Wireless LAN: For operation within 5.15~5.25 GHz frequency range, it is restricted to indoor environments, and the
antenna of this device must be integral.
Federal Communications Commission statement
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause interference, and, (2) This device must accept any
interference, including interference that may cause undesired operation of this device.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try and correct the interference by one or more of the following measures:
1Reorient or relocate the receiving antenna.
2Increase the distance between the equipment and the receiver.
3Connect the equipment to an outlet on a circuit different from the one the receiver is connected to.
4Consult the dealer or an experienced radio/TV technician for help.
FCC Radio Frequency Exposure statement
The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no
proof, however, that these low power wireless devices are absolutely safe. Low power wireless devices emit low levels of radio frequency
energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure to
low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposure have not
found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been
confirmed by additional research.
The wireless LAN radio device has been tested and found to comply with FCC radiation exposure limits set forth for an uncontrolled equipment
and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65.
Figure A-1. Ad Hoc Mode Network
141
-
Export restrictions
This product or software contains encryption code which may not be exported or transferred from the US or Canada without an approved US
Department of Commerce export license. This device complies with Part 15 of FCC Rules., as well as ICES 003 B / NMB 003 B. Operation is
subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesirable operation. Modifications not expressly authorized by Fujitsu America, Inc. may
invalidate the user's right to operate this equipment.
Canadian Notice
The device for the 5150 - 5250 MHz band is only for indoor usage to reduce the potential for harmful interference to co-channel mobile
satellite systems.
The maximum antenna gain of 6 dBi permitted (for devices in the 5250 - 5350 MHz, 5470 - 5725 MHz and 5725 - 5825 MHz bands) to comply
with the e.i.r.p. limit as stated in A9.2 of RSS210.
In addition, users are cautioned to take note that high power radars are allocated as primary users (meaning they have priority) of 5250 -
5350 MHz and 5650 - 5850 MHz and these radars could cause interference and/or damage to LE-LAN devices.
142
- Before Using the Optional Wireless LAN
Before Using the Optional Wireless LAN
This manual describes the procedures required to properly set up and configure the optional integrated Wireless LAN
Mini-PCI device (referred to as "WLAN device" in the rest of the manual). Before using the WLAN device, read this
manual carefully to ensure its correct operation. Keep this manual in a safe place for future reference.
Wireless LAN Device Covered by this Document
This document is applicable to systems containing one of the following optional devices:
•Integrated Intel Centrino Advanced-N 6205 (802.11a/b/g/n)
•Atheros XSPAN 802.11abgn
Characteristics of the WLAN Device
•The WLAN device is a Mini-PCI card attached to the main board of the mobile computer.
•The WLAN device operates in license-free RF bands, eliminating the need to procure an FCC operating license.
The WLAN operates in the 2.4GHz Industrial, Scientific, and Medical (ISM) RF band and the lower, middle, and
upper bands of the 5GHz Unlicensed National Information Infrastructure (UNII) bands.
•The WLAN devices are capable of four operating modes, IEEE802.11a, IEEE802.11b, IEEE802.11g, and
IEEE802.11n
•The WLAN devices are Wi-Fi certified and operate (as applicable) at a the maximum data rate of 450 Mbps
(theoretical) in IEEE802.11n mode; 54 Mbps in IEEE802.11a or IEEE802.11g mode; and 11 Mbps in
IEEE802.11b mode.
•The WLAN devices support the following encryption methods - WEP, TKIP, CKIP, and AES encryption.
•The Wireless LAN devices are compliant with the following standards: WPA, WPA2, CCX1.0, CCX2.0, CCX3.0, and
CCX4.0.
143
- Before Using the Optional Wireless LAN
Wireless LAN Modes Using this Device
Ad Hoc Mode
"Ad Hoc Mode" refers to a wireless network architecture where wireless network connectivity between multiple
computers is established without a central wireless network device, typically known as Access Point(s). Connectivity
is accomplished using only client devices in a peer-to-peer fashion. That is why Ad Hoc networks are also known as
peer-to-peer networks. Ad Hoc networks are an easy and inexpensive method for establishing network connectivity
between multiple computers. Ad Hoc mode requires that the SSID, network authentication, and encryption key
settings are identically configured on all computers in the Ad Hoc network.

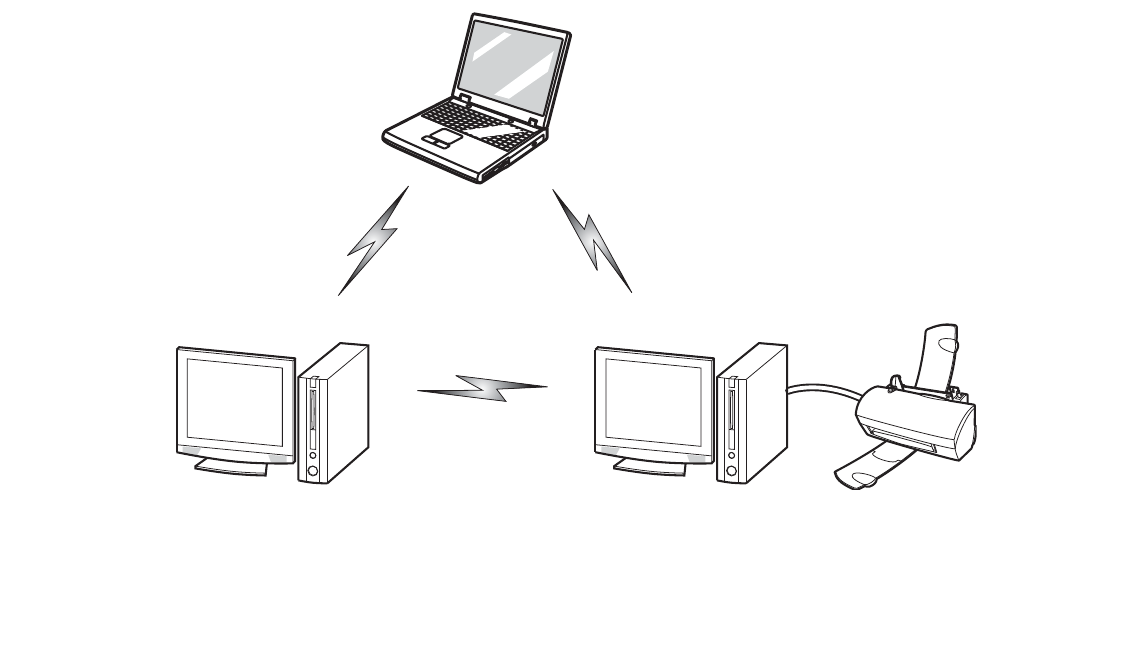

Figure 49. Ad Hoc Mode Network
144
- Before Using the Optional Wireless LAN
Access Point (Infrastructure) Mode
Infrastructure mode refers to a wireless network architecture in which devices communicate with wireless or wired
network devices by communicating through an Access Point. In infrastructure mode, wireless devices can
communicate with each other or with a wired network. Corporate wireless networks operate in infrastructure mode
because they require access to the WLAN in order to access services, devices, and computers (e.g., file servers,
printers, databases).
Figure 50. Access Point (Infrastructure) Mode Network
ADSL modem,
cable modem,
or similar
Internet Wired LAN
Access Point*
Wireless LAN *An optional hub for a wired
LAN may be required depending
upon the type of access point used.
145
- Before Using the Optional Wireless LAN
How to Handle This Device
The WLAN device is an optional device that may come pre-installed in your mobile computer. Under normal
circumstances, it should not be necessary for you to remove or re-install it. The operating system that your mobile
computer comes with has been pre-configured to support the WLAN device.
•The Wireless LAN devices support IEEE802.11a, IEEE802.11b, IEEE802.11g, and IEEE802.11n.
•The WLAN devices operate in the 2.4 GHz ISM band and the 5 GHz lower, middle, and upper UNII bands.
•Microwave ovens may interfere with the operation of WLAN devices since they operate in the same 2.4 GHz
frequency range as IEEE802.11b/g/n devices. Interference by microwaves does not occur with IEEE802.11a
radio which operates in the 5 GHz RF band.
•Wireless devices that transmit in the 2.4 GHz range may interfere with operation of WLAN devices in
IEEE802.11b/g/n modes. Symptoms of interference include reduced throughput, intermittent disconnects, and
many frame errors. It is HIGHLY recommended that these interfering devices be powered off to ensure proper
operation of the WLAN device.
Deactivating/Disconnecting the WLAN Device
Disconnecting the WLAN device may be desired in certain circumstances (to extend battery life) or where certain
environments require it (i.e. hospitals, clinics, airplanes, etc.). The WLAN device can be deactivated by using the
Wireless On/Off Switch, and it can be disconnected in Windows using the WLAN icon in the system tray (Note that
disconnecting via the icon in the system tray does not turn off the radio; it continues to transmit and receive even
though it’s not connected.).
146
- Before Using the Optional Wireless LAN
Deactivation Using the Wireless On/Off Switch
The WLAN device can be deactivated quickly and efficiently by toggling the Wireless Device On/Off Switch to the Off
position.
The switch has no effect on non-Wireless LAN models.
Figure 51. Wireless Device On/Off Switch Location
Disconnection Using the Icon in the Taskbar
Note that disconnecting via the icon in the system tray does not turn off the radio; it continues to transmit and receive
even though it’s not connected.
1Right-click the WLAN icon in the taskbar at the bottom right of your screen.
2Choose Disconnect from a network.
Activating the WLAN Device
Activation of the WLAN device can be accomplished using the same methods as the deactivation process
•Using the Wireless On/Off Switch
•In Windows, by right-clicking the WLAN icon then clicking “Connect to a network”
Wireless Device Switch
147
- Configuring the Wireless LAN
Configuring the Wireless LAN
The optional WLAN device can be configured to establish wireless network connectivity using the software that is built
into Windows. Support for most industry standard security solutions is contained in this software.
Pre-defined parameters will be required for this procedure. Please consult with your network administrator for these
parameters:
Configuring the WLAN
1Click the Start button, then select Control Panel. (If you are in Windows Vista and the Control Panel is not in Classic
View, select Classic View from the left panel.)
2Double-click the Network and Sharing Center icon.
3Select “Manage wireless networks” from the left panel.
4Click on the [Add] button.
5Depending upon what type of connection you would like to make, make a selection. For an infrastructure network,
select “Manually create a network profile. For ad hoc network, select “Create an ad hoc network”.
6Enter the required information. If necessary, consult with your network administrator for some of the information.
7In the event you require assistance, go to the Network and Sharing Center window (Start -> Control Panel ->
Network and Sharing Center), and type in relevant keywords in the Search box.
Connecting to a Network
After you have configured your computer, you can connect to an active network by performing the following steps:
1Click on the WLAN icon in the system tray.
2Select “Connect to a network”.
3Select a network from the list that appears, and click the [Connect] button.
Connection to the network
After you have configured your computer, you can connect to an active network by clicking on the Wireless Network
icon in the system tray:
148
- Troubleshooting the WLAN
Troubleshooting the WLAN
Troubleshooting
Causes and countermeasures for troubles you may encounter while using your wireless LAN are described in the
following table. If you are unfamiliar with the steps required, consult your System Administrator or go to [Start] ->
Help and Support -> Networking and the Web
Problem Possible Cause Possible Solution
Unavailable
network
connection
Incorrect network
name (SSID) or
network key
Ad hoc connection: verify that the network names (SSID’s) and network keys (WEP) of all
computers to be connected have been configured correctly. SSID’s and WEP or WPA/WPA2 Pre-
Shared key values must be identical on each machine.
Access Point (Infrastructure) connection: set network name (SSID) and network key to the
same values as those of the access point.
Set the Network Authentication value identically to that of the Access Point. Please consult your
network administrator for this value, if necessary.
Weak received
signal strength
and/or link quality
Ad hoc connection: Retry connection after shortening the distance to the destination computer or
removing any obstacles for better sight.
Access Point (Infrastructure) connection: Retry connection after shortening the distance to the
access point or removing any obstacles for better transmission.
The WLAN device
has been
deactivated or
disabled
Check if the wireless switch is turned On. Go to Start -> Control Panel, and double-click on
Windows Mobility Center. If the wireless network is off, click the [Turn wireless on] button.
The computer to be
connected is turned
off
Check if the computer to be connected is turned ON.
149
- Troubleshooting the WLAN
Unavailable
network
connection
(continued)
RF interference from
Access Points or
other wireless
networks
The use of identical or overlapping RF channels can cause interference with the operation of the
WLAN device. Change the channel of your Access Point to a channel that does not overlap with
the interfering device.
Wireless network
authentication has
failed
Re-check your Network Authentication, Encryption, and Security settings. Incorrectly configured
security settings such as an incorrectly typed WEP key, a misconfigured LEAP
username/password, or an incorrectly chosen authentication method will cause the LAN device
to associate but not authenticate to the wireless network.
Incorrectly
configured network
settings
Recheck the configuration of your network settings.
Incorrect IP address
configuration
This only applies to networks using static IP addresses. Please contact your network
administrator for the correct settings.
Problem Possible Cause Possible Solution
150
- WLAN Specifications
WLAN Specifications
Specifications
* “Wi-Fi based” indicates that the interconnectivity test of the organization which guarantees the interconnectivity of wireless LAN (Wi-Fi
Alliance) has been passed.
** The communication ranges shown above will increase or decrease depending on factors such as number of walls, reflective material, or
interference from external RF sources.
*** Encryption with network key (WEP) is performed using the above number of bits, however, users can set 40 bits/ 104 bits after
subtracting the fixed length of 24 bits.
**** Depending on practical environments, the allowable number of computers to be connected may be decreased.
Item Specification
Type of network The integrated Intel Centrino Advanced-N 6205 (802.11abgn 2x2) and Atheros XSPAN 802.11a/b/g/n WLAN
devices conform to IEEE 802.11a, 802.11b/g, and 802.11n, Wi-Fi based*.
Transfer rate (Automatic switching) 54 Mbps maximum data rate (IEEE802.11n to be determined)
Active frequency •802.11n: 2.4 GHz or 5 GHz
•802.11b/g: 2400~2473 MHz
•802.11a: 4900 ~ 5850 MHz
Typical operating distances** •802.11a: 40 ft. (12 m) @ 54 Mbps; 300 ft. (91 m) @ 6 Mbps
•802.11b: 100 ft. (30 m) @ 11 Mbps; 300 ft. (91 m) @ 1 Mbps
•802.11g: 100 ft. (30 m) @ 54 Mbps; 300 ft. (91 m) @ 1 Mbps
•802.11n: Estimated double the operating distance of 802.11g and 802.11a in their respective frequencies.
Number of channels •802.11a: 8 independent channels
•802.11b/g: 11 channels, 3 non-overlapping channels
•802.11n: 2.4 GHz - 3 non-overlapping channels when Channel Bonding is not used; 2 non-overlapping
channels when Channel Bonding is used.
5 GHz - 12 non-overlapping UNII channels with or without Channel Bonding
Security Encryption Types - WEP, TKIP, AES***, CKIP, WPA 1.0 and WPA 2.0 compliant
Maximum recommended number of
computers to be connected over
wireless LAN (during ad hoc
connection)
10 units or less ****
151
- Using the Bluetooth Device
Using the Bluetooth Device
The Integrated Bluetooth module is a wireless device installed in selected Fujitsu mobile computers.
What is Bluetooth
Bluetooth technology is designed as a short-range wireless link between mobile devices, such as laptop computers,
phones, printers, and cameras. Bluetooth technology is used to create Personal Area Networks (PANs) between
devices in short-range of each other.
Where to Find Information About Bluetooth
The Bluetooth module contains a robust Help user’s guide to assist you in learning about operation of the Bluetooth
device.
To access the Help file:
1Click on the Bluetooth icon in notification area.
2Select Open Settings. The "Bluetooth Settings" dialog will be opened.
3Select the Share tab.
4Click on "Learn more about Bluetooth sharing" link. The Bluetooth User Guide will open.
For additional information about Bluetooth Technology, visit the Bluetooth Web site at: www.bluetooth.com.
SLIDING THE WIRELESS DEVICE SWITCH ON THE FRONT OF THE SYSTEM WILL TURN BOTH THE OPTIONAL WIRELESS LAN AND BLUETOOTH DEVICES ON
AND OFF AT THE SAME TIME. TO ENABLE OR DISABLE BLUETOOTH INDIVIDUALLY, PERFORM THE FOLLOWING STEPS:
•CLICK ON THE BLUETOOTH ICON IN THE SYSTEM NOTIFICATION AREA LOCATED IN THE LOWER RIGHT CORNER OF THE SCREEN.
•SELECT TURN ADAPTER OFF.
152
- Using the Bluetooth Device
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The Bluetooth
antenna is exempt from minimum distance criteria due to its low power.
The transmitters in this device must not be co-located or operated in conjunction with any other antenna or
transmitter.
Canadian Notice
To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from
windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to
licensing.
Warranty
Users are not authorized to modify this product. Any modifications invalidate the warranty.
This equipment may not be modified, altered, or changed in any way without signed written permission from Fujitsu.
Unauthorized modification will void the equipment authorization from the FCC and Industry Canada and the
warranty.
153
Appendix B: Fingerprint Sensor Device
Introducing the Fingerprint Sensor Device
Your system has a fingerprint sensor device at the bottom left below the display screen.
Figure 52. Fingerprint sensor
With a fingerprint sensor, you can avoid having to enter a username and password every time you want to:
•Log onto Windows
•Cancel a password-protected screen saver
•Log into homepages that require a username and password
After you have “enrolled” - or registered - your fingerprint, you can simply swipe your fingertip over the sensor for the
system recognize you.
Fingerprint
Sensor Device
154
- Introducing the Fingerprint Sensor Device
The fingerprint sensor uses Softex OmniPass which provides password management capabilities to Microsoft
Windows operating systems. OmniPass enables you to use a "master password" for all Windows, applications, and on-
line passwords.
OmniPass requires users to authenticate themselves using the fingerprint sensor before granting access to the
Windows desktop. This device results in a secure authentication system for restricting access to your computer,
applications, web sites, and other password-protected resources.
OmniPass presents a convenient graphical user interface, through which you can securely manage passwords, users,
and multiple identities for each user.
Getting Started
This section guides you through the preparation of your system for the OmniPass fingerprint recognition application.
You will be led through the OmniPass installation process. You will also be led through the procedure of enrolling your
first user into OmniPass.
Installing OmniPass
If OmniPass has already been installed on your system, skip this section and go directly to “User Enrollment” on
page 156. You can determine whether OmniPass has already been installed by checking to see if the following are
present:
•The gold key-shaped OmniPass icon in the system tray at the bottom right of the screen.
•The Softex program group in the Programs group of the Start menu
System Requirements
The OmniPass application requires space on your hard drive; it also requires specific Operating Systems (OS’s). The
minimum requirements are as follows:
CERTAIN MODELS SUPPORT PRE-BOOT AUTHENTICATION OR PBA. PBA ALLOWS THE USER TO LOG IN PRIOR TO WINDOWS' OWN AUTHENTICATION
MECHANISM. A PBA ENVIRONMENT SERVES AS AN EXTENSION OF THE BIOS OR BOOT FIRMWARE AND ALLOWS FOR A MORE SECURE ENVIRONMENT
EXTERNAL TO THE OPERATING SYSTEM.
155
- Introducing the Fingerprint Sensor Device
•Windows XP Professional operating system or later
•At least 35 MB available hard disk space
Installing the OmniPass Application
If OmniPass is already installed on your system, go to “User Enrollment” on page 156
.
Otherwise continue with this
section on software installation.
To install OmniPass on your system you must:
1Omnipass is included in the Fujitsu Bonus Apps. To install Omnipass, start the Fujitsu Bonus Apps application from
the desktop icon, select Softex Omnipass and click [Install].
2Once OmniPass has completed installation you will be prompted to restart you system. Once your system has
rebooted you will be able to use OmniPass. If you choose not to restart immediately after installation, OmniPass
will not be available for use until the next reboot.
3The installation program automatically places an icon (Softex OmniPass) in the Windows Control Panel as well as
a golden key shaped icon in the taskbar.
Verifying Information about OmniPass
After you have completed installing OmniPass and restarted your system, you may wish to check the version of
OmniPass on your system.
•INSTALLATION OF THE APPLICATION REQUIRES THAT YOU HAVE AN EXTERNAL OPTICAL DRIVE ATTACHED TO YOUR SYSTEM.
•FOR INSTALLATION, OMNIPASS REQUIRES THAT THE USER INSTALLING OMNIPASS HAVE ADMINISTRATIVE PRIVILEGES TO THE SYSTEM. IF YOUR
CURRENT USER DOES NOT HAVE ADMINISTRATIVE PRIVILEGES, LOG OUT AND THEN LOG IN WITH AN ADMINISTRATOR USER BEFORE PROCEEDING
WITH OMNIPASS INSTALLATION.
156
- Introducing the Fingerprint Sensor Device
To check the version information of OmniPass:
1From the Windows Desktop, double-click the key-shaped OmniPass icon in the taskbar (usually located in the
lower right corner of the screen),
or,
Click the Start button and click Control Panel. Double-click Softex OmniPass in the Control Panel,
and the OmniPass Control Center will appear. If it does not appear, then the program is not properly installed,
or,
Click the Start button, select Programs, and from the submenu select the Softex program group, from that
submenu click OmniPass Control Center.
2Version information is listed on the left side of OmniPass Control center window.
Uninstalling OmniPass
To remove the OmniPass application from your system:
1Click Start on the Windows taskbar. Select Control Panel.
2Double-click Add/Remove Programs (In Windows 7: Programs and Features).
3Select OmniPass, and then click Change/Remove.
4Follow the directions to uninstall the OmniPass application.
5Once OmniPass has finished uninstalling, reboot your system when prompted.
User Enrollment
Before you can use any OmniPass features you must first enroll a user into OmniPass.
Master Password Concept
FOR UNINSTALLATION, OMNIPASS REQUIRES THAT THE USER UNINSTALLING OMNIPASS HAVE ADMINISTRATIVE PRIVILEGES TO THE SYSTEM. IF YOUR
CURRENT USER DOES NOT HAVE ADMINISTRATIVE PRIVILEGES, LOG OUT AND THEN LOG IN WITH AN ADMINISTRATOR USER BEFORE PROCEEDING WITH
OMNIPASS UNINSTALLATION.
157
- Introducing the Fingerprint Sensor Device
Computer resources are often protected with passwords. Whether you are logging into your computer, accessing
email, e-banking, paying bills online, or accessing network resources, you often have to supply credentials to gain
access. This can result in dozens of sets of credentials that you have to remember.
During user enrollment a "master password” is created for the enrolled user. This master password “replaces” all other
passwords for sites you register with OmniPass.
Example: A user, John, installs OmniPass on his system (his home computer) and enrolls an OmniPass user with
username “John_01” and password “freq14”. He then goes to his webmail site to log onto his account. He inputs his
webmail credentials as usual (username “John_02” and password “lifebook”), but instead of clicking [Submit], he
directs OmniPass to Remember Password. Now whenever he returns to that site, OmniPass will prompt him to supply
access credentials.
John enters his OmniPass user credentials (“John_01” and “freq14”) in the OmniPass authentication prompt, and he
is allowed into his webmail account. He can do this with as many web sites or password protected resources he likes,
and he will gain access to all those sites with his OmniPass user credentials (“John_01” and “freq14”). This is assuming
he is accessing those sites with the system onto which he enrolled his OmniPass user. OmniPass does not actually
change the credentials of the password protected resource. If John goes to another computer without he OmniPass
account to access his webmail, he would need to enter his original webmail credentials (“John_02” and “lifebook”) to
gain access. If he attempts his OmniPass user credentials on a system other than a system he’s enrolled on, he will
not gain access.
THE ENROLLMENT PROCEDURE ASSUMES YOU HAVE NO HARDWARE AUTHENTICATION DEVICES OR ALTERNATE STORAGE LOCATIONS THAT YOU WISH
TO INTEGRATE WITH OMNIPASS. IF YOU DESIRE SUCH FUNCTIONALITY, CONSULT THE APPROPRIATE SECTIONS OF THIS DOCUMENT.
158
- Introducing the Fingerprint Sensor Device
Basic Enrollment
The Enrollment Wizard will guide you through the process of enrolling a user. Unless you specified otherwise, after
OmniPass installation the Enrollment Wizard will launch on Windows login. If you do not see the Enrollment Wizard,
you can bring it up by clicking Start on the Windows taskbar; select Programs; select Softex; click Enroll a new user.
1Click Enroll to proceed to username and password verification. By default, the OmniPass Enrollment Wizard enters
the credentials of the currently logged in Windows user.
2Enter the password you use to log in to Windows. This becomes the “master password” for this OmniPass user. In
most cases, the Domain: value will be your Windows computer name. In a corporate environment, or when
accessing corporate resources, Domain: may not be your Windows computer name. Click [Next] to continue.
3In this step OmniPass captures your fingerprint. See “Enrolling a Fingerprint” on page 158 for more information.
4You will then see a Congratulations screen indicating your completion of user enrollment.
5Click [OK] to exit the OmniPass Enrollment Wizard. You will be asked if you’d like to log in to OmniPass with your
newly enrolled user; click [Yes].
Enrolling a Fingerprint
Enrolling a fingerprint increases the security of your system and streamlines the authentication procedure.
You enroll fingerprints in the OmniPass Control Center. With an OmniPass user logged in, click the Start button >
Select Programs > Select Softex > Select Enroll a new user.
1During initial user enrollment, you will be prompted to select the finger you wish to enroll. Fingers that have
already been enrolled will be marked by a green check. The finger you select to enroll at this time will be marked
by a red arrow. OmniPass will allow you re-enroll a finger. If you choose a finger that has already been enrolled
and continue enrollment, OmniPass will enroll the fingerprint, overwriting the old fingerprint. Select a finger to
enroll and click [Next].
2It is now time for OmniPass to capture your selected fingerprint. It may take a several capture attempts before
OmniPass acquires your fingerprint. Should OmniPass fail to acquire your fingerprint, or if the capture screen
times out, click [Back] to restart the fingerprint enrollment process.
159
- Introducing the Fingerprint Sensor Device
Your system has a “swipe” fingerprint sensor. A swipe sensor is small and resembles a skinny elongated rectangle.
To capture a fingerprint, gently swipe or pull your fingertip over the sensor (starting at the second knuckle)
towards yourself. Swiping too fast or too slow will result in a failed capture. The Choose Finger screen has a
[Practice] button; click it to practice capturing your fingerprint. When you are comfortable with how your
fingerprint is captured, proceed to enroll a finger.
3Once OmniPass has successfully acquired the fingerprint, the Verify Fingerprint screen will automatically appear.
To verify your enrolled fingerprint, place your fingertip on the sensor and hold it there as if you were having a
fingerprint captured. Successful fingerprint verification will show a green fingerprint in the capture window and
the text Verification Successful under the capture window.
4After you finish enrolling and verifying your fingerprints, you have the option to Enable PBA with
enrolled finger. If you enable this option, then you must choose two fingers to save in PBA. If you have
enrolled successfully, the Finger Enrollment Status in PBA screen will state Finger saved in PBA
successfully.
Using OmniPass
You are ready to begin using OmniPass. Used regularly, OmniPass will streamline your authentications.
Password Replacement
You will often use the password replacement function. When you go to a restricted access website (e.g., your bank,
your web-based email, online auction or payment sites), you are always prompted to enter your login credentials.
OmniPass can detect these prompts and you can teach OmniPass your login credentials. The next time you go to that
website, you can authenticate with your fingerprint to gain access.
IF YOU ENABLE PBA ON YOUR SYSTEM, YOU MUST SET THE SUPERVISOR PASSWORD AND PASSWORD ON BOOT SETTINGS. SEE “HARD DISK DRIVE
PASSWORDS” ON PAGE 61 FOR ADDITIONAL INFORMATION.
160
- Introducing the Fingerprint Sensor Device
OmniPass Authentication Toolbar
After installing OmniPass and restarting, you will notice a dialog you have not seen before at Windows Logon. This is
the OmniPass Authentication Toolbar, and it is displayed whenever the OmniPass authentication system is invoked.
The OmniPass authentication system may be invoked frequently: during Windows Logon, during OmniPass Logon,
when unlocking your workstation, when resuming from hibernate, when unlocking a password-enabled screensaver,
during password replacement for remembered site or application logins, and more. When you see this toolbar,
OmniPass is prompting you to authenticate.
The Logon Authentication window indicates what OmniPass-restricted function you are attempting. The icons in the
lower left (fingerprint and key) show what authentication methods are available to you. Selected authentication
methods are highlighted while unselected methods are not. When you click the icon for an unselected authentication
method, the authentication prompt associated with that method is displayed.
When prompted to authenticate, you must supply the appropriate credentials: an enrolled finger for the fingerprint
capture window or your master password for the master password prompt (the key icon).
Remembering a Password
OmniPass can remember any application, GUI, or password protected resource that has a password prompt.
Using the following procedure, you can store a set of credentials into OmniPass. These credentials will then be linked
to your “master password” or fingerprint.
Go to a site that requires a login (username and password), but
do not log in yet.
At the site login prompt, enter your
username and password in the prompted fields, but
do not enter the site
(do not hit [Enter], [Submit], [OK], or
Login). Right-click the OmniPass system tray icon and select Remember Password from the submenu. The Windows
arrow cursor will change to a golden key OmniPass cursor. Click the OmniPass cursor in the login prompt area, but
don’t click [Login] or [Submit].
Associating a Friendly Name
After clicking the OmniPass key cursor near the login prompt, OmniPass will prompt you to enter a “friendly name”
for this site. You should enter something that reminds you of the website, the company, or the service you are logging
into. In its secure database, OmniPass associates this friendly name with this website.
161
- Introducing the Fingerprint Sensor Device
Additional Settings for Remembering a Site
When OmniPass prompts you to enter a “friendly name” you have the opportunity to set how OmniPass authenticates
you to this site. There are three settings for how OmniPass handles a remembered site.
The default setting is Automatically click the “OK” or “Submit” button for this password protected site once the
user is authenticated. With this setting, each time you navigate to this site OmniPass will prompt you for your master
password or fingerprint authentication device. Once you have authenticated with OmniPass, you will automatically
be logged into the site.
Less secure is the option to Automatically enter this password protected site when it is activated. Do not prompt
for authentication. Check the upper box to get this setting, and each time you navigate to this site OmniPass will log
you into the site without prompting you to authenticate.
If you uncheck both boxes in Settings for this Password Site, OmniPass will prompt you for your master password or
fingerprint authentication device. Once you have authenticated with OmniPass your credentials will be filled in to the
site login prompt, but you will have to click the website [OK], [Submit], or [Login] button to gain access to the site.
Click Finish to complete the remember password procedure. The site location, the credentials to access the site, and
the OmniPass authentication settings for the site are now stored in the OmniPass secure database. The OmniPass
authentication settings (Settings for this Password Site) can always be changed in Vault Management.
Logging in to a Remembered Site
Whether or not OmniPass prompts you to authenticate when you return to a remembered site is determined by
Settings for this Password Site and can be changed in Vault Management.
The following cases are applicable to using OmniPass to login to: Windows, remembered web sites, and all other
password protected resources.
THIS SETTING IS MORE CONVENIENT IN THAT WHENEVER YOU GO TO A SITE REMEMBERED WITH THIS SETTING, YOU WILL BYPASS ANY
AUTHENTICATION PROCEDURE AND GAIN INSTANT ACCESS TO THE SITE. BUT SHOULD YOU LEAVE YOUR SYSTEM UNATTENDED WITH YOUR OMNIPASS
USER LOGGED IN, ANYONE USING YOUR SYSTEM CAN BROWSE TO YOUR PASSWORD PROTECTED SITES AND GAIN AUTOMATIC ACCESS.
162
- Introducing the Fingerprint Sensor Device
With Master Password
Once you return to a site you have remembered with OmniPass, you may be presented with a master password
prompt. Enter your master password and you will be allowed into the site.
Logging into Windows with a Fingerprint Device
When logging into Windows with a fingerprint device, the fingerprint capture window will now appear next to the
Windows Login screen. Place your enrolled fingertip on the sensor to authenticate. You will be simultaneously logged
into Windows and OmniPass. The capture window will also appear if you have used Ctrl-Alt-Del to lock a system, and
the fingerprint device can be used to log back in as stated above.
Password Management
OmniPass provides an interface that lets you manage your passwords. To access this GUI, double-click the OmniPass
key in the system tray. Click Vault Management; you will be prompted to authenticate. Once you gain access to Vault
Management, click Manage Passwords under Vault Settings. You will see the Manage Passwords interface, with a
list of friendly names.
You can view credentials stored for any remembered website by highlighting the desired resource under Password
Protected Dialog and clicking Unmask Values. Should a password be reset, or an account expire, you can remove
stored credentials from OmniPass. Highlight the desired resource under Password Protected Dialog and click Delete
Page. You will be prompted to confirm the password deletion.
The two check boxes in Manage Passwords govern whether OmniPass prompts you to authenticate or directly logs
you into the remembered site.
OmniPass will overwrite an old set of credentials for a website if you attempt to use Remember Password on an
already remembered site.
IF A MACHINE IS LOCKED AND OMNIPASS DETECTS A DIFFERENT USER LOGGING BACK IN WITH A FINGERPRINT, THE FIRST USER WILL BE LOGGED OUT
AND THE SECOND USER LOGGED IN.
163
- Introducing the Fingerprint Sensor Device
The exception to the above rule is when resetting the Windows password. If your password is reset in Windows, the
next time you login to Windows, OmniPass will detect the password change and prompt you to “Update” or
“Reconfirm” the password with OmniPass. Enter your new Windows password in the prompt and click OK. Your
OmniPass "master password" will still be your Windows password.
OmniPass User Identities
Identities allow OmniPass users to have multiple accounts to the same site (e.g.,
bob@biblomail.com
and
boballen@biblomail.com
). If OmniPass did not provide you identities, you would be limited to remembering one
account per site.
To create and manage identities, double-click the OmniPass key in the system tray. Click Vault Management;
OmniPass will prompt you to authenticate. Once you gain access to Vault Management, click Manage Identities
under Vault Settings. You can only manage the identities of the currently logged in OmniPass user
To add a new identity, click New Identity or double-click Click here to add a new identity. Name the new identity
and click [OK], then click [Apply]. You can now switch to the new identity and start remembering passwords.
To delete an identity, highlight the identity you want to delete and click [Delete Identity], then [Apply].
To set the default identity, highlight the identity you want as default and click [Set as Default]; click [Apply] to ensure
the settings are saved. If you log in to OmniPass with a fingerprint device, you will automatically be logged in to the
default identity for that OmniPass user. You can choose the identity with which you are logging in if you login using
"master password".
Choosing User Identity during Login
To choose your identity during login, type your username in the User Name: field. Press [Tab] and see that the
Domain: field self-populates. Click the Password: field to bring the cursor to it, and you will see the pull-down menu
in the Identity: field. Select the identity to login as, then click OK.
WHEN YOU DELETE AN IDENTITY, ALL OF ITS ASSOCIATED REMEMBERED SITES AND PASSWORD PROTECTED DIALOGS ARE LOST.
164
- Introducing the Fingerprint Sensor Device
Switch User Identity
To switch identities at any time, right-click the OmniPass system tray icon and click Switch User Identity from the
submenu. The Switch Identity dialog will appear. Select the desired identity and then click OK.
Identities and Password Management
On the Manage Passwords interface of the Vault Management tab of the OmniPass Control Center, there is a pull-
down selection box labeled, Identity. This field lets you choose which identity you are managing passwords for. When
you select an identity here, only those password protected dialogs that are associated with that identity are shown.
You can perform all the functions explained in “Password Management” on page 162.
Configuring OmniPass
This section gives an overview of both the Export/Import function and the OmniPass Control Center.
Exporting and Importing Users
Using OmniPass Control Center, you can export and import users in and out of OmniPass. The export process backs
up all remembered sites, credentials, and enrolled fingerprints for an OmniPass user. All OmniPass data for a user is
backed up to a single encrypted database file. During the import process, the Windows login of the exported user is
required. If the proper credentials cannot be supplied, the user profile will not be imported.
YOU CANNOT IMPORT A USER INTO OMNIPASS IF THERE ALREADY IS A USER WITH THE SAME NAME ENROLLED IN OMNIPASS.
•YOU SHOULD PERIODICALLY EXPORT YOUR USER PROFILE AND STORE IT IN A SAFE PLACE. IF ANYTHING HAPPENS TO YOUR SYSTEM, YOU CAN IMPORT
YOUR OMNIPASS PROFILE TO A NEW SYSTEM AND HAVE ALL YOUR REMEMBERED SETTINGS AND FINGERPRINTS INSTANTLY.
•YOU DON'T FORGET THE WINDOWS LOGIN CREDENTIALS WHEN EXPORTING. WHEN YOU EXAMINE THE IMPORTATION, YOU ARE PROMPTED FOR
AUTHENTICATION. THE CREDENTIALS THAT WILL ALLOW A USER PROFILE TO BE IMPORTED ARE THE WINDOWS LOGIN CREDENTIALS OF THE
EXPORTED USER. THEY ARE THE CREDENTIALS THAT HAD TO BE SUBMITTED WHEN THE USER PROFILE WAS EXPORTED. YOU WILL NEED USER NAME,
PASSWORD, AND DOMAIN.
165
- Introducing the Fingerprint Sensor Device
Exporting an OmniPass User Profile
To export a user, open OmniPass Control Center, and click Run User Management Wizard.
Click Backup a user's OmniPass profile. OmniPass will prompt you to authenticate. Upon successfully authentication,
you must name the OmniPass user profile and decide where to save it. An .opi file is generated, and you should store
a copy of it in a safe place.
This .opi file contains all your user specific OmniPass data, and it is both encrypted and password protected. This user
profile does NOT contain any of your encrypted data files.
Importing an OmniPass User Profile
To import an OmniPass user open the OmniPass Control Center, and click Run User Management Wizard. Click
Restore a user's OmniPass profile. OmniPass will then prompt you to browse for the file you had previously exported
(.opi file). When you select the .opi file for importation, OmniPass will prompt you for authentication. The credentials
that will allow a user profile to be imported are the Windows login credentials of the exported user. They are the
credentials that had to be submitted when the user profile was exported. You will need User Name, Password, and
Domain. If you don’t remember the value for Domain, in a PC or SOHO environment Domain should be your computer
name.
OmniPass will notify you if the user was successfully imported.
Things to Know Regarding Import/Export
•Assume you export a local Windows User profile from OmniPass. You want to import that profile to another
machine that has OmniPass. Before you can import the profile, a Windows user with the same login credentials
must be created on the machine importing the profile.
Example: I have a Windows user with the username “Tom” and the password “Sunshine” on my system. I have
enrolled Tom into OmniPass and remembered passwords. I want to take all my passwords to new system. I
export Tom’s OmniPass user profile. I go to my new system and using the Control Panel I create a user with the
username "Tom" and the password "Sunshine". I can now successfully import the OmniPass user data to the new
system.
•If you export an OmniPass-only user, you can import that user to any computer running OmniPass, provided
that a user with that name is not already enrolled in OmniPass.
166
- Introducing the Fingerprint Sensor Device
•If you attempt to import a user profile who has the same name as a user already enrolled in OmniPass, the
OmniPass import function will fail.
OmniPass Control Center
The Omnipass Control Center allows you to perform a variety of Omnipass "housekeeping" tasks. For details about the
features offered by the Control Center:
1Go to Start > All Programs > Softex > Omnipass Control Center.
2When the Omnipass Control Center opens, click the Help link on the left side of the Control Center window.
Troubleshooting
You cannot use OmniPass to create Windows users. You must first create the Windows user, and you will need
administrative privileges to do that. Once the Windows user is created, you can add that user to OmniPass using the
same username and password
Cannot add Windows users to OmniPass
If you experience difficulties adding a Windows user to OmniPass, you may need to adjust your local security
settings. You can do this by going to Start, Control Panel, Administrative Tools, and Local Security Settings.
Expand Local Policies, expand Security Options, and double-click Network Access: Sharing and Security Model
for Local Accounts. The correct setting should be
Classic - Local Users Authenticate as Themselves
.
Cannot add a User with a Blank Password to OmniPass
If you experience difficulties adding a user with a blank password to OmniPass, you may need to adjust your local
security settings. First attempt the procedure explained in the
Cannot add Windows user to OmniPass
section. If
the difficulties persist, then try the following procedure.
Click Start, Control Panel, Administrative Tools, and Local Security Settings. Expand Local Policies, expand
Security Options, and double-click Accounts: Limit local account use of blank passwords to console login only.
This setting should be set to Disabled.
167
- Introducing the Fingerprint Sensor Device
Dialog appears after OmniPass authentication during Windows Logon
After installing OmniPass on your system, you can choose to logon to Windows using OmniPass. You authenticate
with OmniPass (via master password, or an enrolled security device) and OmniPass logs you into Windows. You
may, during this OmniPass authentication, see a Login Error dialog box.
This dialog box occurs when OmniPass was unable to log you into Windows with the credentials supplied
(username and password). This could happen for any of the following reasons:
•Your Windows password has changed
•Your Windows account has been disabled
If you are having difficulties due to the first reason, you will need to update OmniPass with your changed Windows
account password. Click Update Password and you will be prompted with a dialog to reconfirm your password.
Enter the new password to your Windows user account and click OK. If the error persists, then it is unlikely the
problem is due to your Windows user account password changing.
168
Appendix C: Using Intel® Wireless Display
Using the Wireless Display technology
Intel® Wireless Display (WiDi) is a new technology that is available as an option on selected Fujitsu LIFEBOOK
computers. If you have Intel WiDi on your system, please read these instructions and information regarding its use.
Intel WiDi lets users enjoy and share PC content from an Intel® Core™ processor-based notebook with their big screen
TV. With Intel WiDi, you can use your big screen TV to view data and applications from your hard drive, home network,
or the Internet. It’s no longer necessary for friends and families to crowd around the PC to enjoy content stored or
accessed there.
As its name implies, Intel WiDi is a wireless technology. Note, however, that it requires a third-party display adapter
in order to be used. The display adapter is attached to the TV via HDMI (preferred) or composite A/V cables.
FIRST GENERATION DISPLAY ADAPTERS ARE AVAILABLE FROM ELECTRONICS RETAILERS. ANY DISPLAY ADAPTER THAT IS COMPATIBLE WITH INTEL
WIRELESS DISPLAY CAN BE USED WITH THIS TECHNOLOGY. IF YOUR TELEVISION HAS HDMI PORTS, THAT IS THE PREFERRED METHOD OF
CONNECTION AS OPPOSED TO COMPOSITE CABLE CONNECTION.
169
- Using the Wireless Display technology
Starting the WiDi application
To launch Intel® Wireless Display, perform the following steps:
1Verify that you have a display adapter connected to the television on which you want to use WiDi and turn on the
television.
2If you haven’t yet turned on the wireless device switch on your notebook, do so now.
3Click on the WiDi icon on your desktop or the Start menu shortcut.
4The PC content is displayed on the big screen TV.
After the initial set-up between the laptop and a compatible display adapter, you can set the adapter as the default
to auto-connect. In the future, simply opening the application will automatically connect the two.
For detailed information about using and troubleshooting the WiDi technology, click on the WiDi icon then click the
[Help] button in the upper right-hand corner to open the Wireless Display Help file.
•IF YOU PURCHASED A SYSTEM WITH AN INTEL WIRELESS LAN AND OPTIONAL INTEL WIDI TECHNOLOGY, THE WIDI APPLICATION MAY OR MAY
NOT BE PRE-INSTALLED (DEPENDING UPOON YOUR SYSTEM CONFIGURATION). SYSTEMS WITH INTEL WIDI PRE-INSTALLED WILL HAVE A WIDI ICON
LOCATED ON THEIR DESKTOP. IF THE ICON IS NOT PRESENT, INTEL WIDI WILL BE INSTALLED AS SOON AS YOU RUN CLICKME.
•THE INTEL WIDI TECHNOLOGY WILL ONLY WORK IN COMBINATION WITH AN INTEL WIRELESS LAN.
•ONLY WINDOWS MEDIA PLAYER CAN BE USED AS THE MEIA PLAYER FOR WIDI 2.0.
•BEFORE USING INTEL WIDI, BE SURE THAT THE SYSTEM’S WIRELESS DEVICE SWITCH IS TURNED ON.
•NOTE THAT SECURE CONTENTS ARE NOT SUPPORTED BY INTEL WIDI 2.0. CONTENT REQUIRING OUTPUT PROTECTION SUCH AS BLU-RAY® AND
DVD MOVIE PLAYBACK IS NOT SUPPORTED BY WIDI.
•THERE MAY BE A SLIGHT TIME LAG WHEN USING WIDI WHEN YOU MOVE THE MOUSE OR TYPE IN CHARACTERS.
•THE FIRST TIME YOU USE WIDI, THE DEFAULT DISPLAY RESOLUTION IS 1280X720. IF YOU WOULD LIKE TO CHANGE THE RESOLUTION, GO TO THE
CONTROL PANEL -> DISPLAY PROPERTIES UNDER THE SETTINGS TAB. ONCE YOU HAVE SET THE RESOLUTION, IT WILL BECOME THE DEFAULT UNLESS
YOU CHANGE IT AGAIN.
Figure A-1. Ad Hoc Mode Network
170
Index
A
About This Guide 1, 8
AC
adapter 57
plug adapters 113
Active Digitizer 38
Air Vents 23
Anti-theft lock slot 21
Auto/Airline Adapter 57, 58
B
Battery 68
care 113
cold-swapping 71
conserving power 64
dead 94
faulty 94
hot-swapping 71
increasing life 114
level indicator 25
level indicators 25
lithium ion battery 68
low 70
problems 94
recharging 69
replacing 71
shorted 70
Standby mode 70
Battery Latches 23
BIOS
Guide 61
setup utility 61
Bluetooth 151
Built-in Speakers 90
Button Icons 49
C
Capacitive Touchscreen 42
CapsLock 26
CD-ROM 90, 91
Cold-swapping 47
Configuration Label 116
Contact Information 9
Controls and Connectors 12
Conventions Used in the Guide 8
Cursor Keys 33
D
DC Output Cable 57
DC Power Jack 57
Device Ports 79
DIMM 75
Display Panel 15, 27
brightness 30
opening 27
problems 96
Docking Port 79
171
Double-Clicking 36
Dragging 36, 37
Dual Built-in Microphones 17
DVD drive 90, 91
E
Error Messages 98
External Video Port 13, 82
F
Fingerprint Sensor Device 17, 153
enrolling a fingerprint 158
getting started 154
installing OmniPass 154
logging into a remembered site 161
OmniPass authentication toolbar 160
password replacement 159
remembering a password 160
uninstalling OmniPass 156
user enrollment 156
using OmniPass 159
Fujitsu Contact Information 9
Fujitsu LifeBook
storing 111
traveling 112
Function Key
F10 34
F3 34
F4 34
F6 34
F7 34
F8 34, 45
F9 34, 45
FN 34
G
Gestures 42
Gigabit LAN (RJ-45) Jack 21
Glossary 125
H
Hard Disk Drive
access indicator 26
problems 91
HDMI Port 17
Headphone Jack 12, 18, 81
Hibernation Feature 65
disable/enable 65
I
IEEE 1394 Port 19, 81, 82
Internal LAN Jack 79
K
Keyboard 16, 32
cursor keys 33
function keys 33
numeric keypad 32
problems 91
windows keys 33
L
LifeBook Security Panel 15, 48
operating 54
passwords 52
setting up 52
uninstalling 55
Local Area Network (LAN) 13
172
M
Memory
capacity 77
checking capacity 77
compartment 22, 75
installing 75
problems 92
removing 77
upgrade module 75
Microphone Jack 12, 19, 81
Modular Bay 46
cold-swapping 47
devices 46
installing 46
removing 46
Mouse problems 91
N
NumLk 26
P
Pen tether 44
Pen Tether Attachment Point 19
Pointing Device 35
Port Replicator 84
attaching 86
back panel components 84
connector 23
detaching 86
problems 91
Post-logon button functions 50
Power
AC adapter 57
Auto/Airline adapter 57
failure 93
indicator 24
management 64
off 66
on 59
problems 95
sources 57
Power Management 64
Power On Self Test 60, 98
Power/Suspend/Resume Slide 15, 64
Pre-Installed Software 122
Q
Quick Point Pointing Device 35
R
Registration 63
Regulatory Information 138
Restarting 66
Restoring Your Pre-installed Software 99
Right Button 17
RJ-45 79
S
ScrLk 26
SD Card Slot 12
SDRAM 22, 75
Secure Digital Cards 73
Security Buttons 48
Security lock slot 12
Smart Card Slot 12
173
Specifications 116
Audio 117
Chipset 116
Device Ports 119
Dimensions and Weight 121
Environmental Requirements 121
Keyboard 120
mass storage device options 117
Memory 116
Microprocessor 116
Power 120
Video 117
Status Indicator Panel 15, 24
Suspend/ Resume button 13
T
Tablet Configuration 28
Touch Screen
calibrating 41
clicking 40
dragging 41
Touchpad Control Adjustment 37
Troubleshooting 87
U
USB Ports 12, 18, 21, 80, 92
V
Volume control 45
W
Warranty 10
Web Cam Access LED 15
Windows keys 33
Application key 33
Start keys 33
Windows Power Management 65
Wireless Device On/Off Switch 13
Wireless LAN
Before Using the Wireless LAN 142
configuring 142
connection to the network 147
deactivating/disconnecting 145
modes 143
Specifications 150
Troubleshooting 148
