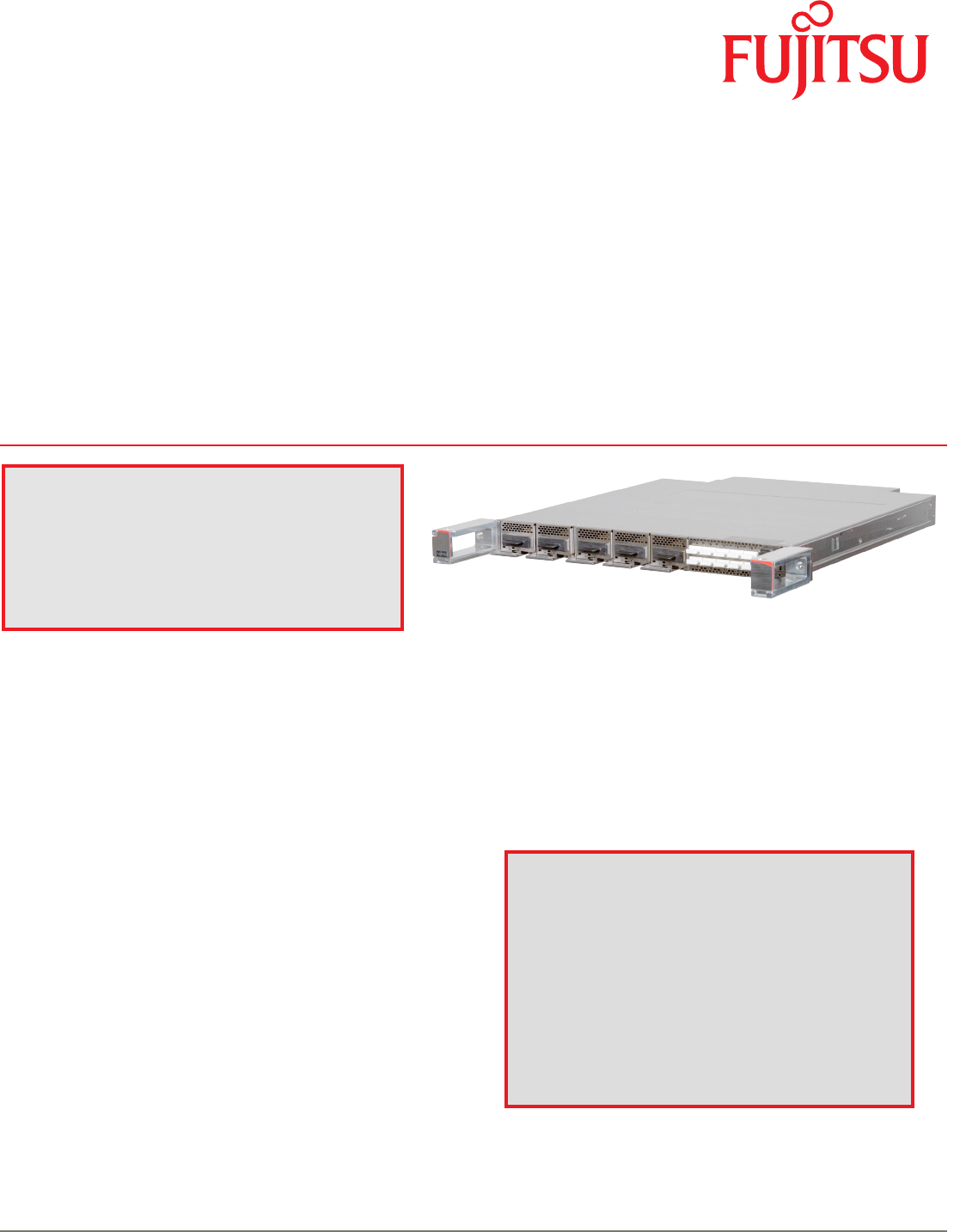

1FINITY™ T300 Transport

Carrier-grade platform delivers dense 100 Gbps to 1 Tbps transponding

Product Overview

Service providers, data center operators, and large enterprises

continually look for ways to better utilize their networks. The 1FINITY

T300 transport blade, a universal 1Tbps transponder with

multimodulation capabilities, offers a scalable solution for providing up

to 1Tbps transport. With high-density 100G integration and advanced

DSP support, you can scale 100 Gbps services up to 1Tbps, resulting in

higher line capacity. And, by using super-channels, you gain added

spectral efficiency, providing better cost per bit transport, added

network life, and future expansion capabilities.

Designed to meet both central office and data center requirements, the

T300 provides coherent optical transport and supports dual power feeds,

redundant replaceable fans, and integrated virtual management control

unit (vMCU) software for control and monitoring.

Modular Blade Design

The modular 1RU design of the T300 optimizes the use of rack space

and provides an open, simple, and scalable network architecture that

easily accommodates rapid bandwidth growth.

To minimize cost-per-bit transport and optimize operational efficiency,

the T300 supports pluggable optical units—ten 100G QSFP28 client ports

and five 100G/200G network plug-in unit (PIU) channels.

Flexible, feature-Rich Transport

The T300 is equipped with software-selectable multimodulation modes

that make it possible to select the appropriate density and optical span

performance per wavelength for specific applications. Based on your

metro or long-haul optical network, DP-QPSK or DP-16QAM modes can

be selected, allowing a trade-off in optical reach versus capacity.

Additionally, pluggable network optics support full C-band operation.

1FINITY: A Revolutionary, Disaggregated Platform

For network operators seeking an open, simple, scalable

architecture to meet escalating bandwidth demand, Fujitsu

provides 1FINITY, a revolutionary disaggregated platform

that delivers unprecedented flexibility, scalability, and

efficiency. Unlike the traditional converged systems other

vendors provide, the programmable, blade-centric design of

1FINITY offers operators a pay-as-you grow approach with

low initial investment. Additional benefits include high rack

space utilization, evergreen technology design, operational

convergence, open pluggable optics, open APIs, and open

protocols.

T300 Transport Blade at a Glance

• Modular 1RU blade design

• 10 × 100 GbE client interfaces and 5 × 100G/200G

network plug-in units

• DP-QPSK and DP-16QAM modulation modes

• Web-based GUI, CLI script, or NETCONF API management

Page 2 of 3 us.fujitsu.com/telecom

Data Sheet 1FINITY™ T300 Transport

Scalable 100 GbE Support

For Metro to Long-haul Applications

The universal T300 supports multiple transport network configurations.

Applications include selecting 100G DP-QPSK or 200G DP-16QAM

network provisioning per port and enhanced soft decision forward error

correction (FEC). Distances greater than 3000 km for DP-QPSK

configurations and 2300 km for DP-16QAM configurations, can be

achieved over SMF-28 fiber without regeneration.

Versatile Configurations

The versatile T300 can be deployed in different equipment scenarios:

■As a point-to-point stand-alone transponder

■ As a stackable transponder for adding wavelengths beyond 100G to

existing FLASHWAVE® 9500 or FLASHWAVE 7500 ROADM systems— or

as alien wavelengths on other ROADM networks

■ As a stackable transponder in an open ROADM platform, including the

1FINITY Lambda blade series

Simplified Network Operations

The T300 employs a Linux-based operating system and can be

managed with a Web-based GUI, a CLI script, or a NETCONF API. The GUI

or CLI script can provision numerous service options. The NETCONF

management API makes it easy to use the T300 with SDN network

controllers, including the Fujitsu Virtuora® NC.

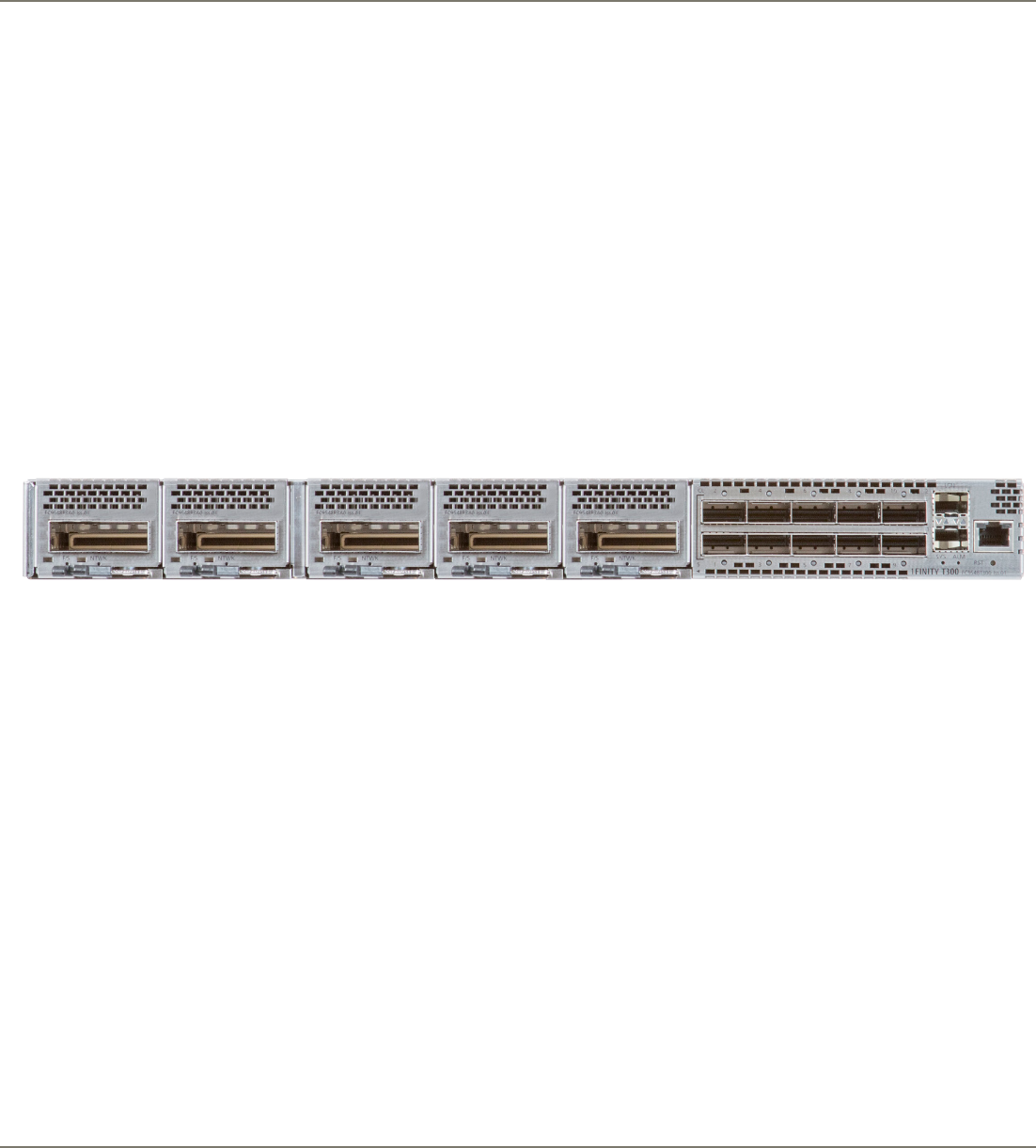

Up to 5 x CFP2-ACO 100G/200G line ports 10 x QSFP28 100GbE client ports

Page 3 of 3 us.fujitsu.com/telecom

Data Sheet 1FINITY™ T300 Transport

Base System

System Configuration Modular 1RU blade

PIU/FRU per Blade 2 line side

Local Management Port

(LMP)

10/100 Mbps Ethernet RJ-45 x 1

Management Port (LCN) 2 x Gigabit Ethernet SFP (T, SX, LX, EX, ZX)

Front LEDs System Status, Severity, and Port

Fans 3 replaceable fans

Power Supply Dual feed, fixed power supply

Software OS Linux

Line Optics

Line Ports per Blade 5

Line Rate 100 Gbps, 200 Gbps

Optical Module CFP2-ACO

Optical Interface 96/128 C-band, 6.25 GHz flex-grid tunable ITU

channels (50/37.5 GHz)

Modulation DP-QPSK DP-16QAM

Chromatic Dispersion ±55,000 ps/nm ± 55,000 ps/nm

Minimum Required OSNR 11 dB 19 dB

Tx Wavelength 1528.72 – 1566.77 nm

Rx Wavelength 1528.72 – 1566.77 nm

Tx Output Power Range Min: –5dBm, Max: 0dBm

Rx Input Power Range Min: –18.0dBm, Max: 0dBm

PMD Tolerance 150 ps (Outage Prabability 1.0e-5)

AVG Reach w/ SMF-28 ULL

Fiber (terrestrial)

3000 km 2300 km

Client Optics

Client Ports per Blade/PIU 10

Optical/Electrical Interface QSFP28

Supported Interfaces LR, ER, CWDM, DWDM, SR

Performance Monitoring

Service PMs 24-hour, 15-minute, untimed bins

OTN PMs Support (Section, Path, etc.)

Thresholds and TCA Support (user assignable)

Management

Virtuora NC Yes

Web GUI Yes

CLI Yes

NETCONF/YANG Yes

SNMP SNMP v2 - Alarm and TCA

Communications

Timing Telnet, SSH, FTP, SFTP, SFTP R1.1, NTP

In-band Management GCC0

OSMINE Support CLEI

Physical Characteristics

Dimensions

H x W x D

1.75 x 19 x 17.72“ (44.45 x 483 x 450 mm)

W = 19” or 23” with mounting rails

D<23.6” (600 mm) with fiber management

Rack Compatibility 19 and 23”

Weight T300 chassis: 10.944 lb (4.964 kg)

1-port PIU w/o CPF2-ACO: 1.290 lb (0.585 kg)

F3A1: 0.443 lb (0.201 kg)

F031: 0.529 lb(0.24 kg)

Operating Environment

Operating Temperature 5 to +40 °C

Short-Term Temperature –5 to +50 °C

Humidity – Normal Operating 5% to 85%

Humidity – Short Term 5% to 93%

Power

Power Supply Dual feed, fixed power supply

120 V AC No

–48 V DC –40 V DC to –57 V DC

Power Consumption 365.6 W (typical)

Regulatory and Compliance

FCC FCC Part 15, Class A

NEBS NEBS Level 3

UL/CSA UL/CSA 60950-1

CE CE

RoHS RoHS

IEC/EN IEC/EN 60825-1, 60825-2

WEEE WEEE

RCM RCM

CDRH FDA CDRH

Technical Specifications
