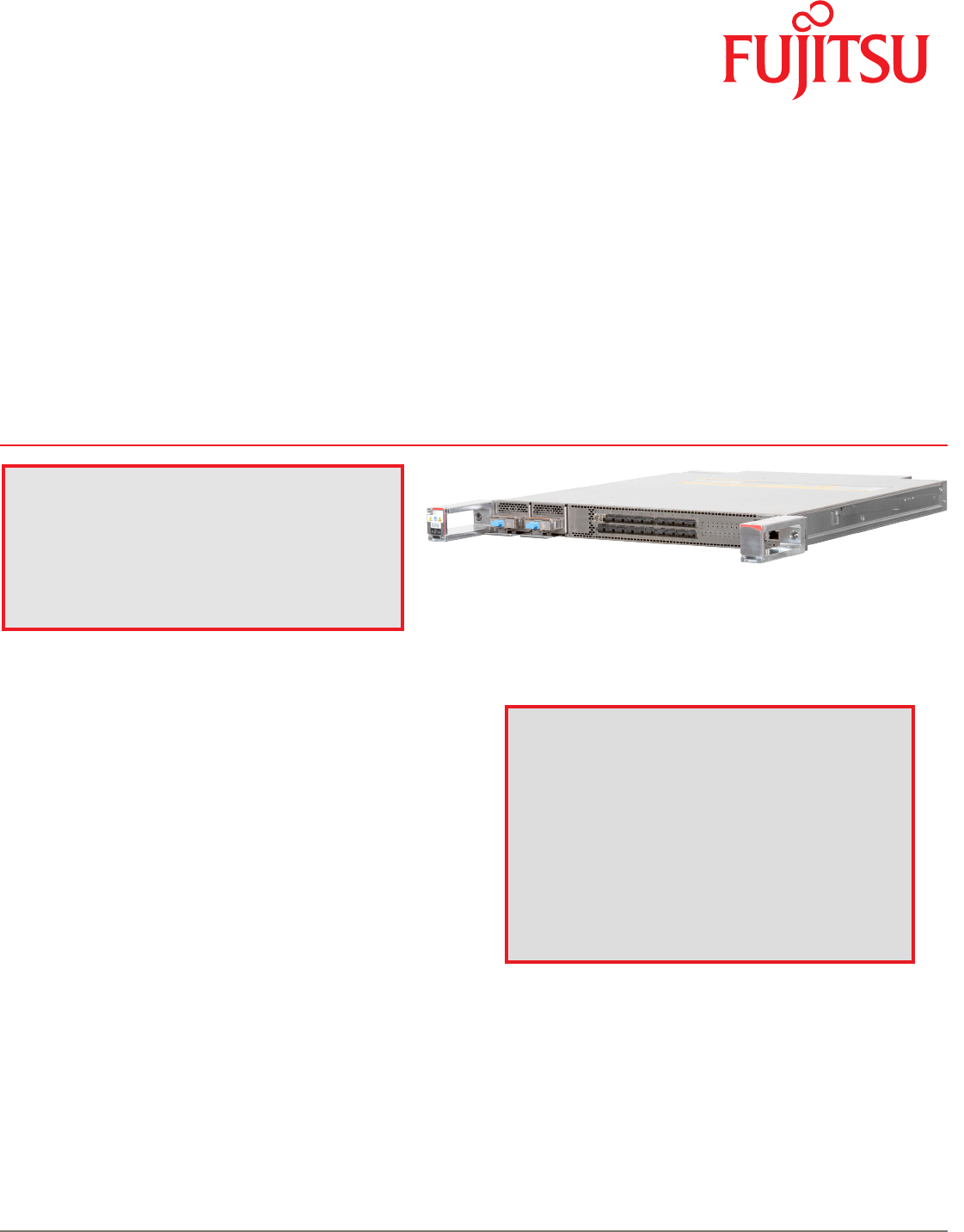

1FINITY™ T310 Transport

Carrier-grade platform delivers dense 10 Gbps to 400 Gbps muxponding

Product Overview

The 10 Gbps transport rate has been widely used for Ethernet and

SONET services. With recent emphasis and growth in 100G services,

many service providers find that there plenty of 10 Gbps services that

need to be aggregated on to the new 100G paths.

The 1FINITY T310 transport blade, a universal 200G transponder with

multimodulation capabilities, offers a scalable solution for providing

aggregation to 100G or 200G transport wavelengths. With the high-

density 10G integration and pluggable line side PIUs, 10 Gbps services

can be aggregated and scale up to 200G.

Designed to meet both central office and data center requirements, the

T310 provides coherent optical transport and supports dual power feeds,

redundant replaceable fans, and integrated virtual management control

unit (vMCU) software for control and monitoring.

Modular Blade Design

The modular 1RU design of the T310 optimizes the use of rack space

and provides an open, simple, and scalable network architecture that

easily accommodates rapid bandwidth growth.

To minimize cost-per-bit transport and optimize operational efficiency,

the T310 supports pluggable optical units—twenty 10G SFP+ client ports

and two 100G/200G network plug-in unit (PIU) channels.

1FINITY: A Revolutionary, Disaggregated Platform

For network operators seeking an open, simple, scalable

architecture to meet escalating bandwidth demand, Fujitsu

provides 1FINITY, a revolutionary disaggregated platform

that delivers unprecedented flexibility, scalability, and

efficiency. Unlike the traditional converged systems other

vendors provide, the programmable, blade-centric design of

1FINITY offers operators a pay-as-you grow approach with

low initial investment. Additional benefits include high rack

space utilization, evergreen technology design, operational

convergence, open pluggable optics, open APIs, and open

protocols.

T310 Transport Blade at a Glance

• Modular 1RU blade design

• 20 × 10 GbE client interfaces and 2 × 100G/200G

network plug-in units

• DP-QPSK and DP-16QAM modulation modes

• Web-based GUI, CLI script, or NETCONF API management

Page 2 of 3 us.fujitsu.com/telecom

Data Sheet 1FINITY™ T310 Transport

10 GbE Client-Side

Connectivity

Flexible, feature-Rich Transport

The T310 is equipped with software-selectable multimodulation modes

that make it possible to select the appropriate density and optical span

performance per wavelength for specific applications. Based on your

metro or long-haul optical network, DP-QPSK or DP-16QAM modes can

be selected, allowing a trade-off in optical reach versus capacity.

Additionally, pluggable network optics support full C-band operation.

For Metro to Long-Haul Applications

The universal T310 supports multiple transport network configurations

including 100G DP-QPSK or 200G DP-16QAM network provisioning per

port and enhanced soft decision forward error correction (FEC).

Distances greater than 3000 km for DP-QPSK configurations and 2300 km

for DP-16QAM configurations can be achieved over SMF-28 fiber

without regeneration.

Versatile Configurations

The versatile T310 can be deployed in different equipment scenarios:

■As a point-to-point stand-alone muxponder

■ As a stackable muxponder for adding wavelengths beyond 100G to

existing FLASHWAVE® 9500 or FLASHWAVE 7500 ROADM systems— or

as alien wavelengths on other ROADM networks

■ As a stackable muxponder in an open ROADM platform, including the

1FINITY Lambda blade series

Simplified Network Operations

The T310 employs a Linux-based operating system and can be

managed with a Web-based GUI, a CLI script, or a NETCONF API. The GUI

or CLI script can provision numerous service options. The NETCONF

management API makes it easy to use the T310 with SDN network

controllers, including the Fujitsu Virtuora® NC.

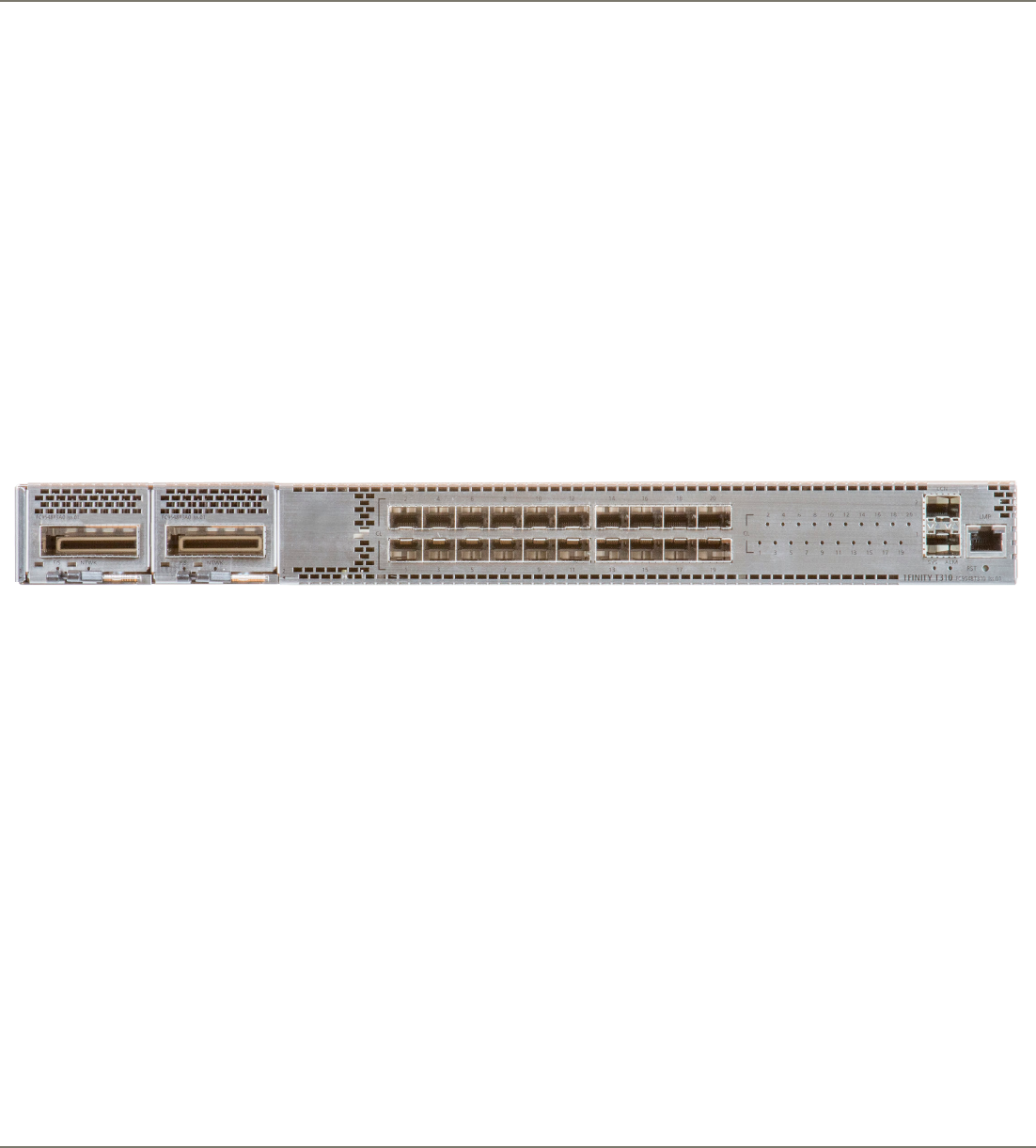

Up to 2 x CFP2-ACO 100G/200G line ports 20 x SFP+ 10GbE client ports

Page 3 of 3 us.fujitsu.com/telecom

Data Sheet 1FINITY™ T310 Transport

Base System

System Configuration Modular 1RU blade

PIU/FRU per Blade 2 line side

Local Management Port

(LMP)

10/100 Mbps Ethernet RJ-45 x 1

Management Port (LCN) 2 x Gigabit Ethernet SFP (T, SX, LX, EX, ZX)

Front LEDs System Status, Severity, and Port

Fans 3 replaceable fans

Power Supply Dual feed, fixed power supply

Software OS Linux

Line Optics

Line Ports per Blade 2

Line Rate 100 Gbps, 200 Gbps

Optical Module CFP2-ACO

Optical Interface 96/128 C-band, 6.25 GHz flex-grid tunable ITU

channels (50/37.5 GHz)

Modulation DP-QPSK DP-16QAM

Chromatic Dispersion ±120,000 ps/nm ± 55,000 ps/nm

Minimum Required OSNR 11 dB 19 dB

Tx Wavelength 1528.72 – 1566.77 nm

Rx Wavelength 1528.72 – 1566.77 nm

Tx Output Power Range Min: –5dBm, Max: 0dBm

Rx Input Power Range Min: –18.0dBm, Max: 0dBm

PMD Tolerance 150ps (Outage Prabability 1.0e-5)

AVG Reach w/ SMF-28 ULL

Fiber (terrestrial)

3000 km 2300 km

Client Optics

Client Ports per Blade/PIU 20

Optical/Electrical Interface SFP+

Supported Interfaces LR, ER, ZR, CWDM, DWDM, SR

Performance Monitoring

Service PMs 24-hour, 15-minute, untimed bins

OTN PMs Support (Section, Path, etc.)

Thresholds and TCA Support (user assignable)

Management

Virtuora NC Yes

Web GUI Yes

CLI Yes

NETCONF/YANG Yes

SNMP SNMP v2 - Alarm and TCA

Communications

Timing Telnet, SSH, FTP, SFTP, SFTP R1.1, NTP

In-band Management GCC0

OSMINE Support CLEI

Physical Characteristics

Dimensions

H x W x D

1.75 x 19 x 17.72“ (44.45 x 483 x 450 mm)

W = 19” or 23” with mounting rails

D<23.6” (600 mm) with fiber management

Rack Compatibility 19 and 23”

Weight T310 Chassis: 12.399 lb (5.624 kg)

1-port PIU w/o CPF2-ACO: 1.290 lb (0.585 kg)

F3A1: 0.443 lb (0.201 kg)

F031: 0.529 lb (0.24 kg)

Operating Environment

Operating Temperature 5 to +40 °C

Short-Term Temperature –5 to +50 °C

Humidity – Normal Operating 5% to 85%

Humidity – Short Term 5% to 93%

Power

Power Supply Dual feed, fixed power supply

120 V AC No

–48 V DC –40 V DC to –57 V DC

Power Consumption 376.6 W (typical)

Regulatory and Compliance

FCC FCC Part 15, Class A

NEBS NEBS Level 3

UL/CSA UL/CSA 60950-1

CE CE

RoHS RoHS

IEC/EN IEC/EN 60825-1, 60825-2

WEEE WEEE

RCM RCM

CDRH FDA CDRH

Technical Specifications
