user manual
INSTRUCTION MANUAL ’10.10
F-01C
F-01C_EN_ninshou
DOCOMO W-CDMA, GSM/GPRS, Wireless LAN System
Thank you for purchasing "docomo PRIME series F-01C" mobile terminal.
Before using F-01C, read this manual to ensure safe use and handling.
Instruction manuals for F-01C
The operations of F-01C are described in this manual, "
使いかたガイド
(Guide)” (installed in FOMA terminal) and "Instruction manual (detailed version)"
(in pdf format).
･
In this "F-01C INSTRUCTION MANUAL", "F-01C" mobile terminal is usually referred to as "FOMA terminal".
･
The images or illustration used in this manual are examples. They may differ from the actual displays.
･
The images used in this manual assume that Kisekae Tool is set to "White" and Color theme setting is set to "White".
･
In this manual, "authenticate" indicates the operating procedure for entering the terminal security code in 4-8 digits (
⇒
P38) or performing fingerprint
authentication (
⇒
P39).
Basic package
･
Unauthorized copying of parts of or this entire manual is prohibited.
･
The contents in this manual, URL and contents are subject to change without prior notice.
Instruction manual (this
manual)
This manual provides information about screens and operations of basic functions.
*
is index term for "
使いかたガイド
(Guide)".
"
使いかたガイド
(Guide)"
(installed in FOMA terminal)
This guide provides overviews and operations of frequently-used functions. (In Japanese only)
In F-01C Stand-by display,
mef
Tool
e#
Guide
e
Select a search method
"Instruction manual
(detailed version)" (in pdf
format)
This manual provides detailed information and operations of all the functions. (In Japanese only)
<From a PC> This manual can be downloaded from NTT DOCOMO website.
http://www.nttdocomo.co.jp/support/trouble/manual/download/index.html
*
The URL and contents are subject to change without prior notice.
Desktop Holder F30 is
made of recycled ABS
from used products.
F-01C
(including
Back Cover
F53 and
warranty)
Compatible options
⇒
PXX
Instruction manualCD-ROM for
F-01C
電子辞書データ
DVD F02
(Electronic dictionary
data DVD F02)
Battery Pack F18 Desktop Holder F30
F-01C_EN_ninshouF-01C_EN_ninshouF-01C_EN_ninshou
1
Introduction
Basic
Operation
Connect
Search
Enjoy
More
Convenient
Others
Contents
Introduction
FOMA terminal ...............................................................
2
What you can do with F-01C .........................................
3
Part names and functions..............................................
4
Usage styles....................................................................
6
Precautions (ALWAYS FOLLOW THESE DIRECTIONS)
7
Handling precautions .....................................................
14
Waterproofness/Dustproofness....................................
18
Basic Operation
Before Using...................................
23
Screen Explanation........................
26
Character Entry ..............................
30
Sound/Screen Setting...................
32
Lock/Security .................................
38
Connect
Call Telephone................................
42
Mail..................................................
51
Phonebook......................................
55
Search
i-mode/Full Browser ......................
61
i-Channel .........................................
65
Map/GPS.........................................
66
Enjoy
Camera ............................................
72
1Seg.................................................
74
Music ...............................................
76
i-
α
ppli ..............................................
78
i-motion/Movie...............................
80
More Convenient
Osaifu-Keitai ...................................
85
i-concier...........................................
86
Convenient tools ............................
88
Data Management..........................
94
Others
Support ............................................................................
101
Appendix..........................................................................
110
Index.................................................................................
127
F-01C_EN_ninshou
2
Introduction
FOMA terminal
･
Because your FOMA terminal uses wireless transmission, it may
not function in locations where it is difficult for radio waves to
penetrate, such as tunnels, underground passages and some
buildings, in areas where radio waves are weak, or out of service
area. Even when you are high up in a tall building or condominium
and nothing blocks your view outside, your FOMA terminal may
not be able to receive or transmit signals. Also, communication
may be interrupted even when the signal meter on your FOMA
terminal indicates there are strong radio waves and you are not
moving (traveling).
･
Use your FOMA terminal in a way that does not disturb others in
public spaces, crowded locations or quiet places.
･
Because your FOMA terminal uses radio waves to communicate,
it is possible that a third party may attempt to tap your calls.
However, the W-CDMA, GSM/GPRS, Wireless LAN system
automatically applies a confidential communication function to all
calls, so even if a third party could somehow tap a call, they only
hear noise.
･
Your FOMA terminal encodes voice communication as digital
data. When you are operating your FOMA terminal while moving
to a location subject to weaker radio wave conditions, the
transmitted digital data may not be correctly decoded and as a
result the decoded voice may differ somewhat from the actual
voice.
･
Maintain a separate record of the data (Phonebook, Schedule,
Note, Recorded messages, Voice memos, Moving picture memos,
etc.) you registered in your FOMA terminal. Note that DOCOMO
assumes no responsibility for any loss of saved contents of data
resulting from malfunction, repair, changing of the model or other
handling of FOMA terminal.
･
You are recommended to save important data to microSD card.
Using DOCOMO keitai datalink, you can transfer and save
phonebook, mail, schedule and other data to a PC.
･
The user hereby agrees that the user shall be solely responsible
for the result of the use of SSL/TLS.
Neither DOCOMO nor the certifier as listed herein makes any
representation and warranty as for the security in the use of SSL/
TLS. If the data should be erased, DOCOMO assumes no
responsibility for the loss of any data.
Certifier : VeriSign Japan K.K., Cybertrust Japan Co., Ltd.,
GlobalSign K.K., RSA Security Japan Ltd., SECOM Trust Systems
Co., Ltd., Comodo CA Ltd., Entrust, Inc., Go Daddy, Inc.
･
This FOMA terminal supports FOMA Plus-Area and FOMA HIGH-
SPEED Area.
･
FOMA terminal can be used only via the FOMA network provided
by DOCOMO and DOCOMO's roaming area.
F-01C_EN_ninshou
3
Introduction
What you can do with F-01C
AUTO-GPS
67
The AUTO-GPS function allows for useful services that deliver
information about the weather or shops around where you are, or
sightseeing information.(In Japanese only)
使いかたガイド
(Guide)
This function allows you to learn operations you want to use on the
FOMA terminal. Without the instruction manual at your hand, you can
check the operations readily. (In Japanese only)
mef
Tool
e#
Guide
e
Select a search method
i-concier
86
i-concier is a service to use the FOMA terminal conveniently in which a
character on the stand-by display (Machi-chara) notifies you of useful
information (Information) and schedules (i-schedule) can be
downloaded automatically from a site.(In Japanese only)
International Roaming (WORLD WING)
49
While staying overseas, you can use the same FOMA terminal, phone
number and mail address as those used in Japan (3G/GSM area
supported).
Waterproofness/Dustproofness
18
Waterproofness of IPX5 and IPX8 (which exceeds IPX7) and
dustproofness of IP5X are provided by firmly closing the external
connection jack cap and HDMI connection jack cap and installing the
back cover in a locked state.
High functionality camera
71
Camera offers approximately 13,2 million pixels (effective pixels) and
a lot of high functionality like digital camera.
Full-fledged electronic dictionary
90
Full-fledged electronic dictionary is proveided supporting collective-
search from multiple dictionaries by search key and handwriting input.
Wi-Fi
92
You can perform comfortable data communication in Public wireless
LAN area, enjoy versus games by connecting Wi-Fi device or view
websites.
F-01C_EN_ninshou
4
Introduction

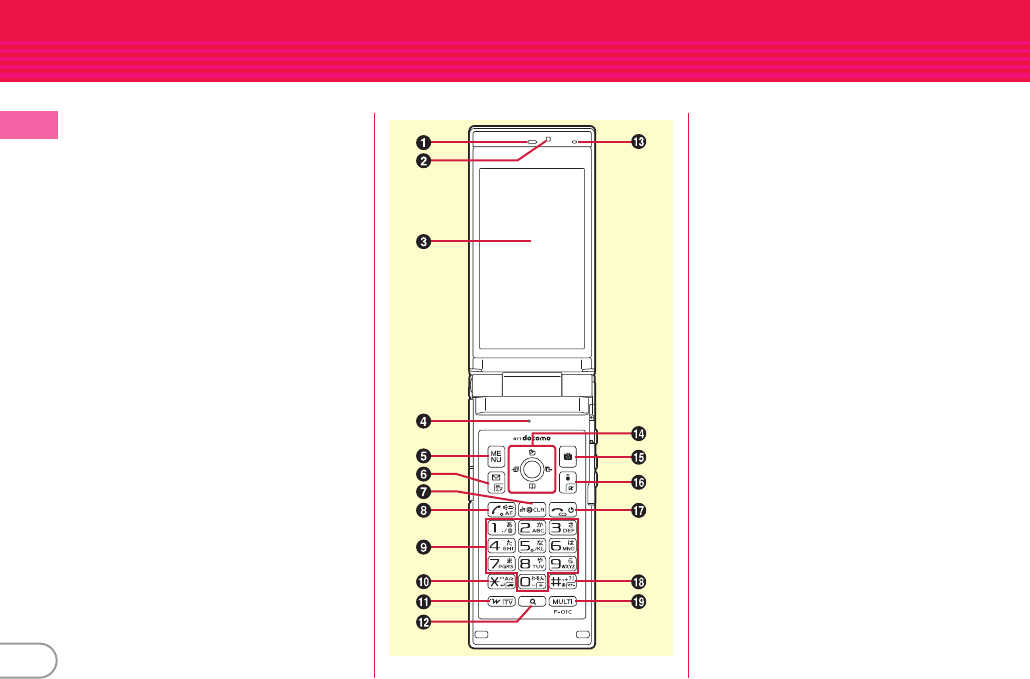

Part names and functions
Part names of F-01C and major functions assigned to each part are as follows.
a
Earpiece
b
Light sensor
*
Sense the ambient luminance to automatically
adjust the brightness of the display. Do not
cover the sensor with your hand or a sticker.
c
Display (Touch panel)
⇒
P26, 28
d
Microphone
*
Do not cover the microphone during a call or
recording. (Microphone on the back side is
used for noise reduction)
em
MENU key
Display the menu
fa
Mail/Character key
Display the mail menu, or switch text input
modes
gc
ch/Clear key
Display i-Channel, or return to the previous
screen
hn
Start a voice call key
Start a voice call
i0
-
9
Keypads
Enter phone number or characters, or
select menu item
j*
*/Public mode (Drive mode) key
Enter "*" or voiced/semi-voiced sound, or
start/cancel Public mode (Drive mode)
kT
i-Widget/TV key
Start/Exit i-Widget, or watch 1Seg
lU
Search key
Activate Quick search
m
Temperature/Humidity sensor
*
To measure accurately, do not cover it.
nk
Multi-cursor key
Move the cursor, or operate menu
g
:
Perform an operation.
u
:
Display Schedule, or adjust sound
volume
d
:
Display Phonebook, or adjust sound
volume
l
:
Display Received calls.
r
:
Display Redial.
*
8-direction operations are available depending
on functions.
oC
Camera key
Start the still camera/movie camera
shooting
pI
i-mode/i-
α
ppli key
Display iMenu or i-
α
ppli folder
qf
Power/End key
Turn ON/OFF FOMA terminal, or exit a
running function
r#
#/Silent mode key
Enter "#" or punctuation, or start/cancel
Silent mode
ss
Multitask key
Perform another function during a call or
operation, or activate/deactivate Privacy view.
F-01C_EN_ninshou
5
Introduction
t
Charging light
u
Sub-display
v
Indicator light
Turn on/blink to notify various status such
as incoming call or mail, shooting still
image/moving picture, etc.
w
FOMA antenna (built-in)
*
For a call in better conditions, do not cover the
antenna with your hand.
x
Back side microphone
Microphone for shooting moving picture or
the sound recorder
*
Do not cover it during operation.
y
Fingerprint sensor
Register fingerprint and authenticate
z
Camera
Shoot still image/moving picture, or send
an image via videophone
A
Speaker
Hear ring alert or voice of the caller with the
handsfree function ON
B
Infrared data port
Infrared communication, infrared remote
control function
C
Mark
Use Osaifu-Keitai, or send/receive data via
iC transmission
D
Light/Shooting light
Camera light
E
Back cover
*
To access docomo UIM slot and the microSD
card slot, remove the back cover and the
battery pack.
F
Charging jack
G
Back cover lever
*
Firmly install the back cover and lock it with
the lever before using to avoid water seepage.
H
Strap opening
I
External connection jack
Connect optional AC adapter, DC adapter,
FOMA USB Cable with Charge Function,
Earphone Plug Adapter for External
connector terminal etc.
J
HDMI connection jack
K
1Seg antenna
*
Pull out for better signal reception when
watching 1Seg.
LZ
Side camera key
Activate Still image shooting, record a
video during 1Seg watching, or stop ring
alert, alarm sound or vibrator
SD
Side up/down keys
Adjust the volume, turn on the sub-display
backlight, switch views
S
for activate Record message/Voice
memo,
D
for checking i-mode Center, etc.
External connection jack
Plug for the terminal
Flat-plug earphone jack
Connecting plug of Flat-Plug Earphone/
Microphone with Switch
Example of connecting Flat-Plug Earphone/
Microphone with Switch (optional)
F-01C_EN_ninshou
6
Introduction
Usage styles
You can use functions by key operation and touch operation on the
FOMA terminal.
Closed style
You can check missed calls,
unread mail, Pedometer/ACT
monitor, i-Channel information
with the sub-display. Press the
side key when nothing is
displayed, the clock appears.
Normal style
This style supports key operation
and touch operation.
*
To talk over the videophone call seeing
each other's image, rotate the display in
180-degree to face the camera to
yourself.
Flip style
The display is turned outward. This style supports touch operation.
Point
･
Be careful not to close the terminal on your finger for switching to flip
style.
･
Do not rotate the display clockwise more than 180-degree, or
counterclockwise more than 90-degree.
･
Do not let the corner of the display hit to the terminal body (keypad face)
when rotating or closing the display.
･
Do not close the FOMA terminal or switching to flip style with clipping the
strap. Doing so may cause malfunction or damage.
･
For opening, closing or rotating the FOMA terminal, do not touch the
touch panel with your fingers to avoid erroneous operation.
･
In flip style, do not place the terminal with the face of display downward
on a desk etc. The surface of the display may be scratched.
･
For carrying the FOMA terminal, activate Side key hold to avoid erroneous
operation when it closed or activate Display off lock setting to avoid
erroneous operation of the touch panel or to save battery consumption in
flip style.
Rotate the display
clockwise 180-degree
Precautions on rotating the display
F-01C_EN_ninshou
7
Introduction
Precautions (ALWAYS FOLLOW THESE DIRECTIONS)
・
Before using your FOMA terminal, or when necessary, read the
precautions below to ensure safe use and handling. After reading
this manual, keep it carefully.
・
These precautions are intended to protect you and others around
you. Read and follow them carefully to avoid injury, damage to the
product or damage to property.
・
The signs below differentiate between the levels of danger that can
occur if the product is not used within the specified guidelines.
・
The symbols below show specific directions.
■
Precautions contain the description below.
Handling FOMA terminal, battery pack, adapter, desktop holder and docomo
UIM (common) .................................................................................................. 8
Handling FOMA terminal...................................................................................... 9
Handling battery pack ......................................................................................... 10
Handling adapter and desktop holder ............................................................... 11
Handling docomo UIM........................................................................................ 12
Handling mobile phones near electronic medical equipment ........................ 12
DANGER
This sign denotes that death or serious
injury may directly result from improper use.
WARNING
This sign denotes that death or serious
injury may result from improper use.
CAUTION
This sign denotes that minor injury or
damage to property may result from
improper use.
This symbol denotes that the action is prohibited.
This symbol denotes that disassembling the phone or its
components is not allowed.
This symbol denotes that using the phone or its
components with wet hands is not allowed.
This symbol denotes that using the phone or its
components in a bathroom or other highly humid area is
not allowed.
This symbol denotes that an instruction must be obeyed at
all times.
This symbol denotes that the equipment should be
unplugged.
Don’t
No disassembly
No wet hands
No liquids
Do
Unplug
F-01C_EN_ninshou
8
Introduction
DANGER
Do not use, store, or leave the
equipment in hot areas such as near
flames or in areas under strong direct
sunlight such as inside a vehicle.
May cause fire, burns or injuries.
Do not put the terminal into heating
cooking device such as microwave
oven or high-pressure container.
May cause fire, burns, injuries, electric shock.
Do not disassemble or remodel the
equipment.
May cause fire, burns, injuries, electric shock.
Do not let the terminal get wet with
water, drinking water, urine of pet
animals, etc.
May cause fire, burns, injuries, electric shock.
Use the battery pack and adapter
specified by NTT DOCOMO for your
FOMA terminal.
May cause fire, burns, injuries, electric shock.
WARNING
Do not throw the equipment or give
hard shock to it.
May cause fire, burns, injuries, electric shock.
Keep conductive materials (metal
pieces, pencil lead, etc.) from coming
in contact with the charging jack or
external connection jack. Do not put
those materials inside the terminal.
May cause fire, burns, injuries, electric shock.
Do not cover or wrap the terminal
with a blanket, etc while using or
charging.
May cause fire or burns.
Turn FOMA terminal OFF and stop
charging before entering a place such
as a gas station where flammable
gases are generated.
The gas may catch fire.
When using Osaifu-Keitai in a place as a gas
station, turn OFF the terminal before using it.
(When IC card lock is activated, deactivate it
before turning OFF the terminal.)
If the equipment starts giving off a
strange smell, overheats, becomes
discolored or deformed during use,
charging or in storage, immediately
perform the following operations.
･
Remove the power plug from the wall
outlet or cigarette lighter socket.
･
Turn FOMA terminal OFF.
･
Remove the battery pack from FOMA
terminal.
Failure to do so may cause fire, burns,
injuries, electric shock.
CAUTION
Do not leave the equipment on
unstable or sloping surfaces.
May cause injuries.
Do not store the equipment in
extremely humid, dusty or hot areas.
May cause fire, burns, electric shock.
Children using the equipment should
be instructed in proper operation by
an adult. Do not allow them to use the
equipment without adult supervision.
May cause injuries.
Store the equipment out of reach of
small children.
May be accidentally swallowed or cause
injuries.
Be careful especially when using
FOMA terminal connected to the
adapter continuously for a long time.
If you use i-
α
ppli, a videophone call or 1Seg
watching while charging the battery for a
long time, FOMA terminal, battery pack and
adapter may be heated.
Directly touching a hot part for a long time,
you may have redness, itching or rash on
your skin, or it may result in low-temperature
burns depending on your constitution and/or
health condition.
Handling FOMA terminal,
battery pack, adapter, desktop
holder and docomo UIM
(common)
Don’t
Don’t
No disassembly
No liquids
Do
Don’t
Don’t
Don’t
Do
Do
Don’t
Don’t
Do
Do
Do
F-01C_EN_ninshou
9
Introduction
WARNING
Do not direct the infrared data port
toward your eye and transmit signals.
May cause harmful effect on eyes.
Do not direct the infrared data port
toward home electric appliances etc.
equipped with infrared device when
using infrared communication.
May cause an accident because of
malfunction of infrared device.
Do not turn on the light by getting the
lighting part closer to other person's
eyes.
May impair eyesight. And may cause
accidents like injury etc., by dazzling or
astounding other people.
Do not put foreign objects such as
liquid like water, metal pieces or
burnable things into docomo UIM or
microSD card slot.
May cause fire, burns, injuries, electric shock.
Do not turn on the light aiming
directly at the driver of the car etc.
May disturb driving and cause an accident.
Turn FOMA terminal OFF in areas
where use is prohibited, such as in
airplanes and hospitals.
Failure to do so may cause electronic
equipment or electronic medical equipment
to fail or malfunction. If the function which
automatically turns the power ON is set,
cancel the setting before turning the power
OFF.
When using the phone in a medical facility, be
sure to observe the regulations of the facility.
If you do prohibited act such as using the
phone in an airplane, you will be punished
according to law.
When you talk by setting handsfree or
ring alert is sounding, keep FOMA
terminal away from your ear.
And, when connecting the earphone/
microphone etc. to the FOMA terminal
and play a game or music, adjust the
volume moderately.
Too loud volume may cause a hearing loss.
And, if you cannot hear the sound around you
clearly, it may cause an accident.
If you have weak heart, be careful
when setting the Vibrate alert
(vibration) or alert volume setting.
May cause harmful effect on heart.
When you use electronic medical
equipment, check with the equipment
manufacturer to determine how the
device is affected by radio waves
before using.
May cause harmful effect on electronic
medical equipment etc.
Turn FOMA terminal OFF near high-
precision electronic control
equipment or electronic equipment
using low-power signals.
Failure to do so may cause the equipment to
fail or malfunction.
*
Examples of electronic equipment to avoid.
Hearing aids, implanted pacemakers or
defibrillators, other electronic medical equipment,
fire alarms, automatic doors and other automatic
control equipment.
Users wearing implanted pacemakers or
defibrillators or other electronic medical
equipment should check with the manufacturer or
sales outlet about the effect of radio frequencies
on the equipment.
When the display or camera lens is
accidentally broken, be careful of
broken glass or exposed internal parts
of FOMA terminal.
Surfaces of display and camera lens are made
of plastic panels and they are structured for
the glass not to scatter, however, if you
mistakenly touch broken or exposed parts,
you may be injured.
To sound the high-pitched alarm,
always keep FOMA terminal away
from your ears.
Failure to do so may cause hearing defect.
Handling FOMA terminal
Don’t
Don’t
Don’t
Don’t
Don’t
Do
Do
Do
Do
Do
Do
Do
F-01C_EN_ninshou
10
Introduction
CAUTION
Do not swing FOMA terminal by
antenna or its strap.
May cause accident such as injury to yourself
or others by hitting.
Do not use damaged FOMA terminal.
May cause fire, burns, injuries, electric shock.
When using the motion tracking or
motion sensor, check the safety
around you, hold FOMA terminal
firmly, and do not shake it
unnecessarily.
May cause accident such as injuries.
If the display part is accidentally
broken and the substance leaks out,
do not make the substance contact
with your skin of face or hands.
May cause loss of sight or skin problems.
If the substance gets into your eyes or mouth,
rinse it with clean water and see a doctor
immediately.
And, if the liquid adheres to skin or clothing,
use alcohol etc. to wipe it off, then wash with
soap.
To use the terminal in car, check with
automobile manufacturer or dealer to
determine how the device is affected
by radio waves before using.
In rare cases, using the phone in some vehicle
models can cause the vehicle's electronic
equipment to malfunction. In that case, stop
using the terminal immediately.
Mobile phones can give some users
skin problems such as itching, allergic
reactions or rashes. If you develop skin
problems, stop using the phone
immediately, and see a doctor.
⇒
"Material list (P13)"
When opening or closing FOMA
terminal, take care not to have your
fingers or strap caught by the
terminal.
May cause accident such as injuries.
When watching the display, take a
certain distance from the display in a
fully bright place.
May reduce visual acuity.
■
Check that the battery type matches the
type displayed on the battery pack label.
DANGER
Do not connect a wire or other metal
objects to the jack. And, do not carry
or store FOMA terminal with objects
like a metal necklace.
May cause the battery pack to ignite, burst,
heat or leak.
Check the orientation of battery pack
to install it to FOMA terminal, and do
not try to force the battery pack onto
FOMA terminal if you are having
trouble installing it.
May cause battery pack to ignite, burst, heat
or leak.
Do not throw the battery pack into the
fire.
May cause battery pack to ignite, burst, heat
or leak.
Do not nail the battery pack, hit with a
hammer or step on it.
May cause battery pack to ignite, burst, heat
or leak.
If the battery pack's fluid etc. contacts
eyes, immediately flush the eyes with
clean water and see a doctor right
away. Do not rub the eyes.
May cause loss of sight.
WARNING
If the battery pack seems to have
abnormalities such as deformation or
scratches due to falling, never use it.
May cause battery pack to ignite, burst, heat
or leak.
If the battery pack leaks or gives off a
strange smell, immediately remove it
from the vicinity of open flames.
The vapors from leaking battery pack fluid
may ignite or explode.
Don’t
Don’t
Don’t
Don’t
Do
Handling battery pack
Display Battery type
Li-ion 00 Li-ion battery
Do
Do
Do
Don’t
Don’t
Don’t
Don’t
Do
Don’t
Do
F-01C_EN_ninshou
11
Introduction
Be careful not to let your pet bite the
battery pack.
May cause battery pack to ignite, burst, heat
or leak.
CAUTION
Do not discard old battery packs
together with other garbage.
May cause igniting or environmental
destruction. Tape the terminals of old battery
packs to insulate them, and then bring them
into a sales outlet such as docomo Shop. If
your local municipality has a battery recycling
program, dispose of them as provided for.
Do not use or charge a wet battery
pack.
May cause battery pack to ignite, burst, heat
or leak.
If fluid etc. leaks out from the battery
pack, do not make the fluid contact
with your skin of face or hands.
May cause loss of sight or skin problems.
If the fluid etc. put into your eyes or mouth, or
contacts skin or clothes, immediately flush
the contacted area with clean water.
If the fluid put into the eyes or mouth,
immediately see a doctor after flushing.
WARNING
Do not use the adapter cord if it gets
damaged.
May cause fire, burns, electric shock.
Do not use the AC adapter or desktop
holder in a bathroom or other highly
humid area.
May cause fire, burns, electric shock.
Always use the DC adapter with a
negative-ground vehicle. Do not plug
it into a positive-ground vehicle.
May cause fire, burns, electric shock.
When it starts to thunder, do not
touch adapter.
May cause electric shock.
Do not short the charging jack while it
is connected to the outlet or cigarette
lighter socket. Do not touch the
charging jack with a part of your body
such as your hand or finger.
May cause fire, burns, electric shock.
Do not place heavy objects on the
adapter cord.
May cause fire, burns, electric shock.
When you insert and remove AC
adapter from power outlet, do not
contact a metal strap or other metal
objects with the jack.
May cause fire, burns, electric shock.
Do not touch the adapter cord,
desktop holder or outlet with wet
hands.
May cause fire, burns, electric shock.
Only use with the specified power
source and voltage.
When charging FOMA terminal
overseas, use AC Adapter for global
use.
If incorrect voltage is used, this may cause
fire, burns or electric shock.
AC adapter : AC100V
DC adapter : 12 or 24V DC (specific for
negative ground vehicle)
AC adapter for global use : Between 100V and
240V AC (Connect to the AC outlet for
internal household use)
If the DC adapter's fuse blows, replace
it only with the specified fuse.
May cause fire, burns, electric shock. For the
specified fuse, see the instructions that come
with the DC adapter.
Wipe off any dust that accumulates on
the power plug.
Failure to do so may cause fire, burns, electric
shock.
When you connect the AC adapter to
an outlet, firmly connect to the outlet.
Failure to do so may cause fire, burns, electric
shock.
Do
Don’t
Don’t
Do
Handling adapter and desktop
holder
Don’t
Don’t
Don’t
Don’t
Don’t
Don’t
Don’t
No wet hands
Do
Do
Do
Do
F-01C_EN_ninshou
12
Introduction
When you disconnect the adapter
from the outlet or cigarette lighter
socket, do not pull the adapter cord
with excessive force. Instead, hold the
power plug to disconnect.
May cause fire, burns, electric shock.
Always remove the power plug from
the outlet or cigarette lighter when
not using the adapter for an extended
period.
Failure to do so may cause fire, burns, electric
shock.
Immediately remove the power plug
from the outlet or cigarette lighter
socket if water or other fluids get into
the adapter.
Failure to do so may cause fire, burns, electric
shock.
Always remove the power plug from
the cigarette lighter socket when
cleaning the equipment.
Failure to do so may cause fire, burns, electric
shock.
CAUTION
Be careful of the cut surface when
removing docomo UIM.
May cause injuries.
■
These precautions are based on the
guidelines produced at the Electromagnetic
Compatibility Conference Japan, regarding
the protection of electronic medical
equipment from radio waves emitted by
mobile phone units.
WARNING
Obey the following rules inside
medical facilities.
･
Do not bring FOMA terminal into operating
rooms (ORs), intensive care units (ICUs) or
coronary care units (CCUs).
･
Turn FOMA terminal OFF in hospital wards.
･
Turn FOMA terminal OFF in hospital
lobbies and corridors if electronic medical
equipment could be nearby.
･
If the medical facility has specified zones
where use or possession of mobile devices
is prohibited, obey those instructions.
･
If the function to automatically turn ON the
power is set, cancel the setting before
turning the power OFF.
Turn FOMA terminal OFF in crowded
trains or other public places where
pacemaker or defibrillator wearers
could be nearby.
FOMA terminal's signals may affect the
operation of implanted pacemakers or
defibrillators, and other devices.
Wearers of implanted pacemakers or
defibrillators must carry and use
FOMA terminal at least 22 cm away
from the implanted device.
FOMA terminal's signals may affect the
operation of implanted pacemakers or
defibrillators, and other devices.
When electronic medical equipment
other than implanted pacemakers or
defibrillators are in use outside of
medical facilities (such as in home care
settings), check with the device
manufacturer to determine how the
device is affected by electrical signals.
FOMA terminal's signals may affect the
performance of electronic medical
equipment.
Handling docomo UIM
Do
Unplug
Unplug
Unplug
Do
Handling mobile phones near
electronic medical equipment
Do
Do
Do
Do
F-01C_EN_ninshou
13
Introduction
Material list
Part Material Surface
treatment
Exterior
case
Movable
part
Display
PC+ABS
resin
UV hard
coating
Movable
part Rear
surface
Acrylate
resin
UV hard
coating
Fixed part
Keypad
PA-GF resin UV hard
coating
Fixed part
Battery
PC+ABS
resin
UV hard
coating
Back
cover
PC+ABS
resin
UV hard
coating
Back
cover lock
lever
POM resin None
Back
cover
inside
lock plate
Stainless
steel
None
Back
cover
(body)
Stainless
steel
None
Back
cover
(gasket)
Silicon
rubber
(VMQ)
None
Main display panel Hardened
glass
Shatterproof
film
Camera
lens
Camera
panel
Acrylate
resin
UV hard
coating
Camera
ring
ABS resin Chrome-
plating
Light lens PC resin None
Side keys Volume
key
PC resin UV hard
coating
Camera
key
ABS resin Chrome-
plating
Keypad PC resin UV hard
coating
External
connection
jack cap,
HDMI
connection
jack cap
Cap body,
water
stop
PC+ABS
resin
UV hard
coating
Flexure Elastomer
resin (TPE)
None
O ring Synthetic
rubber
(EPDM)
None
Charging
jack
Contacts Stainless
steel
Gold
plating
Attaching
holder
section
LCP resin None
External connection
jack
Stainless
steel
Tin plating
Facing sheet around
keypad
PET resin UV hard
coating
Case pad
Polyethylene
resin
None
Part Material Surface
treatment
Hinge pad Elastomer
resin (TPEE)
None
1Seg
antenna
Top
section
PC+ABS
resin
Coating
Middle
section
Stainless
steel
None
Bottom
section
Stainless
steel
None
Screw (battery install
recess)
Stainless
steel
None
Screw (hinge rotation
section)
Stainless
steel
None
Battery install recess
face
PC board Gold
plating
Battery
contacts
Battery
contacts
connector
PPS resin None
Battery
contacts
Beryllium
copper
Gold
plating
(base : Ni-
Pd plating)
Battery
pack
Battery
pack
PC resin None
Contacts Beryllium
copper
Gold
plating
Fingerprint sensor Flexible PC
board
None
docomo UIM tray POM resin None
Part Material Surface
treatment
F-01C_EN_ninshou
14
Introduction
Handling precautions
・
F-01C is waterproof/dustproof, however, do not allow water or dust to seep
into FOMA terminal and do not allow accessories or optional devices to get wet
or let dust attach.
- Battery pack, adapter, docomo UIM are not waterproof/dustproof. Do not use in
a bathroom or other highly humid area or do not let rain attached. Or putting the
terminal on your body, humidity of sweat may cause internal corrosion and
malfunction. Note that malfunctions, which are determined to be caused by
water as result of inspections, are not covered by the warranty. Since these
conditions are outside the scope of the warranty, a repair, if at all possible, is
charged.
・
Clean FOMA terminal with a dry soft cloth (such as a cloth for eyeglasses).
- Rubbing it roughly with a dry cloth may scratch the display.
- Drops of water or dirt left on the display may cause stains.
- If FOMA terminal is wiped with alcohol, paint thinner, benzine or detergent, the
printing may disappear or color may fade.
・
Clean the jack occasionally with a dry cotton swab etc.
- If the jack is soiled, connection gets worse and it may cause power to be turned
off or insufficient battery charge, so clean the jack with a dry cotton swab etc.
Also, be careful never to damage the jack when cleaning it.
・
Do not place FOMA terminal near an air-conditioner outlet.
- The rapid change in temperature may cause condensation, causing internal
corrosion and malfunction.
・
When using, be careful not to subject excessive force to FOMA terminal or the
battery.
- If FOMA terminal is crammed into a brimming bag or placed in a pocket and sat
on, display, internal PCBs or battery pack may be damaged or malfunction. And,
if external devices are plugged into the external connection jack (earphone/
microphone jack), the breakage of the connector or malfunction may result.
・
Do not rub or scrape the display with a metal piece etc.
- It may scratch the display, causing malfunction or damage.
・
Carefully read the separate instructions that come with the adapter.
・
Do not press the surface of the touch panel strongly or operate it with sharp
objects such as a nail, a ballpoint pen and a pin.
- It may damage the touch panel.
・
Avoid extreme temperature.
- Use FOMA terminal where the temperature ranges between 5 and 40
℃
(limited
to the temporary use in a bathroom etc. when temperature is above 36
℃
) and
humidity ranges between 45 and 85%.
・
FOMA terminal may affect land-line phones, TVs or radios in use nearby, so use
it as far as possible from these appliances.
・
Maintain a separate record of the data you saved in your FOMA terminal.
- If the data is deleted, DOCOMO assumes no responsibility for the loss of any
data.
・
Do not drop FOMA terminal or subject it to shocks.
- May cause malfunction or damage.
・
Do not plug external devices into the external connection jack (earphone/
microphone jack) at a slant, or do not pull it forcibly while it is plugged.
- May cause malfunction or damage.
・
Do not close FOMA terminal with the strap etc. held inside.
- May cause malfunction or damage.
・
It is normal for FOMA terminal to become warm during use or charging.
Continue to use it.
・
Do not leave FOMA terminal with the camera in areas under strong direct
sunlight.
- May cause discoloring or burn-in of materials.
・
Use FOMA terminal with the external connection jack cap and HDMI connection
jack cap closed.
- Dust and/or water brought into FOMA terminal cause troubles.
・
Do not use FOMA terminal with the back cover removed.
- May cause removal of battery pack, malfunction or damage.
・
Do not put extreme thick sticker on the display or keypad face.
- May cause malfunction, damage or erroneous operation.
General FOMA terminal
F-01C_EN_ninshou
15
Introduction
・
Do not put strong impact on the fingerprint sensor or scratch its surface.
- It may cause malfunction of fingerprint sensor and disable authentication
operation.
・
Clean the fingerprint sensor with a dry soft cloth (such as a cloth for eyeglasses).
- If the fingerprint sensor is dirty or water is sit on its surface, the sensor cannot
read fingerprints, and it may cause decrease authentication performance or
malfunction.
・
While microSD card is being used, do not take the card out and do not turn off
FOMA terminal.
- May cause data loss or malfunction.
・
Do not bring magnetic cards etc. close to FOMA terminal nor clip it by FOMA
terminal.
- Magnetic data in cash cards, credit cards, telephone cards, floppy disks, etc. may
be erased.
・
Do not bring magnetized objects close to FOMA terminal.
- Bringing strong magnetism close may cause a malfunction.
・
The battery pack is a consumable part.
- Replace the battery pack if FOMA terminal has extremely short operation time
on a full charge, though it may vary by operating conditions. Purchase a new
battery pack of the specified type.
・
Charge the battery in an area within the proper ambient temperature range (5-
35
℃
).
・
The operation time provided by the battery pack varies by the operating
environment and battery pack's deterioration.
・
The battery pack may swell out as it comes to near the end of its lifetime
depending on the usage conditions, but it is not a problem.
・
Be careful especially about the following points when preserving the battery
pack.
- Keeping under the state of the full charge (right after charging ends)
- Keeping under the state of the empty charge (too exhausted to turn on FOMA
terminal)
They may cause the battery pack performance to be degraded or its lifetime to be
shortened.
A recommended battery level to keep the battery pack is the battery icon in 2 cells
or in 40 % of remaining battery level as a guide.
・
Charge the battery in an area within the proper ambient temperature range (5-
35
℃
).
・
Do not charge the battery in the areas below.
- In areas of excessive humidity, dust or vibrations
- Near land-line phones or TVs/radios
・
It is normal for the adapter to become hot while charging. Continue to use it.
・
When using the DC adapter for charging, keep the vehicle engine running.
- The vehicle's battery could become flat.
・
When using an outlet with a mechanism preventing unplugging, follow the
handling instructions for that outlet.
・
Do not give strong shock. Do not deform the charging jack.
- Doing so may cause malfunction.
・
Do not use excessive force to install/remove docomo UIM.
・
Note that DOCOMO assumes no responsibility for malfunctions occurring as the
result of inserting and using docomo UIM with another IC card reader/writer.
・
Always keep UIM ICs clean.
・
Clean UIM with a soft, dry cloth (such as a cloth for eyeglasses).
・
Maintain a separate record of the data you saved in docomo UIM.
- If the data is deleted, DOCOMO assumes no responsibility for the loss of any
data.
・
To preserve the environment, bring the old docomo UIM to a sales outlet such
as docomo Shop.
・
Take care not to scratch, touch accidentally or short IC.
- May cause data loss or malfunction.
・
Do not drop docomo UIM or subject it to shocks.
- May cause malfunction.
・
Do not bend docomo UIM or place heavy objects on it.
- May cause malfunction.
・
Do not install docomo UIM into FOMA terminal with a label or sticker put on.
- May cause malfunction.
Battery pack
Adapter
docomo UIM
F-01C_EN_ninshou
16
Introduction
・
This FOMA terminal is equipped with the security features, that are compliant
with Bluetooth standards for communication via Bluetooth. However,
depending on the settings, there may not be enough security. Be aware of
security risks when using Bluetooth.
・
DOCOMO assumes no responsibility for any information which may be leaked
during communication via Bluetooth.
・
You can use headset, handsfree, audio, keyboard, dial-up connection, data
transfer, serial port, image transfer or health devices with FOMA terminal. An
audio/video remote control may be available with an audio device (only
Bluetooth compatible devices).
・
Frequency bands
Frequency bands used by FOMA terminal Bluetooth function are as below.
a
2.4 : Radio equipment that uses the 2400 MHz band.
b
FH : The modulation is the FH-SS method.
c
1 : The expected interference distance is 10 m or shorter.
d
: All bandwidths between 2400 MHz and 2483.5 MHz are used,
and the bandwidth used by mobile object identification devices cannot be
avoided.
Cautions on using Bluetooth devices
In the bandwidth used by this terminal, in addition to home electric appliances
such as a microwave oven and industrial/scientific/medical devices, in-plant
radio stations used to identify mobile objects used in production lines of a
factory that require a license, specified low power radio stations, or amateur
radio stations that do not require a license (hereafter "other radio stations") can
be in operation.
1. Before using this terminal, check whether other radio stations are in
operation in your neighborhood.
2. If radio wave interference occurs between the terminal and "other radio
stations", use the terminal in a different location or "Turn the power OFF" to
avoid the radio wave interference.
3. For details, contact "General Inquiries" on the last page of this manual.
・
Wireless LAN
Do not use Wireless LAN in a place where magnetized by electric products, AV, OA
equipment, etc. or where electromagnetic wave is generated.
- If magnetism or electrostatic noise affects FOMA terminal, noise may be
increased or communication may not be available (especially when using
microwave oven, it may affect the terminal).
- Using near TV or radio may cause poor reception or TV screen may be blurred.
- When multiple wireless LAN access points exist near FOMA terminal and they
use the same channel, search may not be performed correctly.
・
Frequency bands
Frequency bands for WLAN devices are written on battery pack insert section of
phone. Label description are as follows.
a
2.4 : Radio equipment that uses the 2400 MHz band.
b
DS : The modulation is the DS-SS method.
c
OF : The modulation is the OFDM method.
d
4 : The expected interference distance is 40 m or shorter.
e
: All bandwidths between 2400 MHz and 2483.5 MHz are used,
and the bandwidth used by mobile object identification devices can be
avoided.
Available channel varies by countries. To use WLAN overseas, check the
conditions such as available frequency, regulation, etc. for the country.
To use in airplane, confirm with airline company in advance.
Bluetooth
®
devices
ab
d
c
2.4FH1
Wireless LAN (WLAN)
2.4DS/OF4
abc
e
d
F-01C_EN_ninshou
17
Introduction
Cautions on using 2.4GHz devices
In the bandwidth used by WLAN devices, in addition to home electric
appliances such as a microwave oven and industrial/scientific/medical devices,
in-plant radio stations for identification of mobile objects used in production
lines of a factory (a license is required), specified low power radio stations (a
license is not required), or amateur radio stations (a license is required) can be
in operation.
1. Before using this device, confirm that in-plant radio stations for
identification of mobile objects, specified low power radio stations or
amateur radio stations are not in operation in your neighborhood.
2. If this device generates harmful radio wave interference against in-plant
radio stations for identification of mobile objects, change the using
frequency promptly or stop using wireless LAN function, and contact
"General Inquiries" on the last page of this manual, then consult about
treatment for prevention of the interference (for example, installation of
partitions etc.).
3. If this device generates harmful radio wave interference against in-plant
radio stations for identification of mobile objects or amateur radio stations,
or if any trouble, contact "General Inquiries" on the last page of this manual.
・
FeliCa reader/writer function of FOMA terminal uses weak waves requiring no
licenses for radio stations.
・
It uses 13.56 MHz frequency band. When using other reader/writers in your
surroundings, keep FOMA terminal away sufficiently from them. Before using
the FeliCa reader/writer, confirm that there are no radio stations using the same
frequency band nearby.
・
FM transmitter of FOMA terminal uses weak waves requiring no licenses for
radio stations.
・
It uses 77.4 - 85.0MHz frequency band. To use it, set frequency not to common
to FM radio station of the area you use to avoid affecting FM radio users in
neighborhood.
・
Do not use a remodeled FOMA terminal. Using a remodeled terminal violates
the Radio Law.
FOMA terminal is certified according to technical standard conformance of
specified wireless equipment based on the Radio Law, and as a proof of it, the
"Technical Compliance Mark " is depicted on the engraved sticker of FOMA
terminal.
If you remodel FOMA terminal by removing its screws, your certification of
technical standard conformance becomes invalid.
Do not use FOMA terminal with its certification of technical standard conformance
invalid as it violates the Radio Law.
・
Be careful when you use FOMA terminal while driving a car etc.
Using a mobile phone while driving is subject to penal regulations.
However, absolutely necessary cases such as rescue of a sick person or
maintaining public's safety are exempted.
・
Use the Bluetooth function only in Japan.
The Bluetooth function of the FOMA terminal is compliant with wireless standards
and is authorized for use only in Japan.
If you use this function overseas, you may be punished.
・
Use the Wireless LAN (WLAN) function only in Japan.
The Wireless LAN function of FOMA terminal is compliant with wireless standards
and is authorized for use only in Japan.
If you use this function overseas, you may be punished.
・
Use FeliCa reader/writer function only in Japan.
FeliCa reader/writer function of FOMA terminal conforms to Japanese radio
standards.
If you use this function overseas, you may be punished.
・
Use FM transmitter only in Japan.
FM transmitter of FOMA terminal is compliant with wireless standards and is
authorized for use only in Japan.
If you use this function overseas, you may be punished.
FeliCa reader/writer
FM transmitter
CAUTION
F-01C_EN_ninshou
18
Introduction
Waterproofness/Dustproofness
F-01C provides waterproofness of IPX8
*3
which exceeds IPX5
(former JIS protection code 5)
*1
, IPX7 (former JIS protection code
7)
*2
and dustproofness of IP5X (JIS protection code 5)
*4
with firmly
closing the external connection jack cap and HDMI connection jack
cap and installing the back cover in a locked state.
*1
IPX5 means that a phone keeps functioning after applying a jet flow of 12.5
L/min. from every direction from a distance of approximately 3 m for at
least 3 minutes using water nozzle in 6.3 mm inner diameter.
*2
IPX7 means that a phone keeps functioning after F-01C is slowly submerged
to depth of 1 m in static tap water at room temperature, left there for 30
minutes and then taken out.
*3
IPX8 means that it provides waterproofness of which exceeds of IPX7
standard.
*4
IPX5 means a protection degree that a phone keeps functioning and safety
after it is placed in a device with dust in diameter 75
μ
or less for 8 hours,
agitated and then taken out.
F-01C provides the following waterproof performances of IPX8.
･
F-01C keeps functioning after it is slowly submerged to depth of 1.5
m in static tap water at room temperature, left there for
approximately 30 minutes and then taken out.
･
The mobile phone keeps shooting still images or moving pictures in
approximately 30 minutes in static tap water at room temperature.
✜
What you can do with waterproofness/dustproofness
of F-01C
・
You can talk or watch 1Seg programs without using an umbrella in
the rain (for rainfall of 20 mm or less per hour).
- When your hands or FOMA terminal are wet, avoid installing/
removing the back cover or opening/closing the external
connection jack cap.
・
You can also shoot still images and moving pictures in the pool
depth of 1.5 m.
- Do not perform other operations underwater than shooting still
images and moving pictures.
- If you put the terminal in water of swimming pool, be sure to have
it within 30 minutes.
- If FOMA terminal gets wet with water from the swimming pool,
wash it in specified procedure (
⇒
P20).
・
You can use FOMA terminal in a bathroom.
- Do not put the terminal in the bathtub. Do not use the terminal in
hot water. May cause malfunction.
- Never put FOMA terminal in hot spring water or water containing
soap, detergent or bath powder.
To ensure waterproofness/dustproofness
To avoid water/dust ingress, be sure to observe the following points.
・
Do not throw any liquid other than room-temperature tap water on
FOMA terminal, or soak it in such liquid.
・
Open/close the external connection jack cap and HDMI connection
jack cap as described below.
<Opening the external connection jack cap>
Pull the cap up with your finger by the groove.
Grooves
F-01C_EN_ninshou
19
Introduction
<Closing the external connection jack cap/HDMI connection jack
cap>
Close the external connection jack cap/HDMI connection jack cap not
giving any gap with FOMA terminal by firmly pressing in the
direction of arrow mark. Make sure that the cap is completely closed
without slack.
・
Install the back cover as described below.
<Installing the back cover>
Align 8 tabs of the back cover with concaves of FOMA terminal.
While pressing the back cover in the direction of
a
so that there is
no gap between FOMA terminal and back cover, slide the back cover
in the direction of
b
to install, then slide the back cover lever in the
direction of
c
to lock.
*
Make sure that the back cover is completely closed without slack. Slide the
back cover in the direction of the arrow shown on the lever, and then make
sure the cover is securely locked before using.
・
Securely lock the back cover and firmly close the external connection
jack cap/HDMI connection jack cap. Even a fine obstacle (one hair,
one grain of sand, tiny fiber, etc.) put between contact surfaces may
allow water to enter.
・
Do not poke the microphone, earpiece or speaker with a swab or
sharp object.
・
Do not let FOMA terminal fall. It may become scratched causing the
waterproof/dustproof performance to degrade.
・
The external connection jack cap, HDMI connection jack cap and the
rubber packing of the rear side of the back cover play an important
role for keeping waterproof performance. Do not remove or scratch
it. Also, prevent dust from adhering to it.
To keep FOMA terminal waterproofness/dustproofness, replacement
of parts is required every 2 years regardless of whether FOMA
terminal appears normal or abnormal. DOCOMO replaces the parts as
a chargeable service. Bring FOMA terminal to a sales outlet such as a
DOCOMO-specified repair office.
Important precautions
Do not perform actions shown in the illustrations below.
Back cover
b
a
Lever
c
<Example>
Using Soap/Detergent/
Bath power
Soaking in
ocean water
Applying strong
water flow
Using in hot spring
Machine-washing
Washing with
brush/sponge
F-01C_EN_ninshou
20
Introduction
Observe the following precautions to use FOMA terminal properly.
・
Accessories and optional devices are not waterproof/dustproof.
When watching 1Seg etc. with FOMA terminal installed in the
included desktop holder, do not use it in a bathroom, shower room,
kitchen or lavatory even if it is not connected to the AC adapter.
・
Do not apply water flow stronger than allowed (
⇒
P18) (e.g., such
water flow that gives you pain when applied to your skin directly
from a faucet or shower). F-01C provides IPX5 waterproof
performances. However, it causes malfunction.
・
If FOMA terminal gets wet with salt water, sea water, refreshing
beverage or mud or soil adhered, wash it immediately. If they dry
out, it is hard to remove the dirt and it may cause damage or
malfunction.
・
Do not put FOMA terminal in hot water, use it in a sauna or apply hot
airflow (from a hair dryer etc.) to it.
・
Do not move in water or slam the terminal against the surface of
water with FOMA terminal opened.
・
If you put the terminal in tap water or in water of swimming pool, be
sure to have it within 30 minutes.
・
When you use the terminal in swimming pool, obey rules of the
facility.
・
FOMA terminal does not float on water.
・
Do not leave water on FOMA terminal. May short-circuit the power
jacks, or in a cold region, water may freeze causing malfunction.
・
Do not leave water on the microphone, earpiece or speaker. Such
water may interfere with talking.
・
If the back cover is damaged, replace it. Water may enter inside from
a damaged section causing troubles such as electric shocks or
corrosion of the battery.
・
If FOMA terminal gets wet with water or other liquids with the
external connection jack cap/HDMI connection jack cap or the back
cover open, the liquid may get inside the terminal causing electric
shocks or malfunction. Stop using FOMA terminal, turn the power
OFF, remove the battery pack and contact a DOCOMO-specified
repair office.
・
If the external connection jack cap or HDMI connection jack cap, or
the rubber gasket on the rear side of the back cover is damaged or
deformed, replace it at DOCOMO-specified repair office.
DOCOMO does not guarantee actual operations under all states.
Malfunctions deemed to be caused by inappropriate operation by the
customer are not covered by the warranty.
With pressing and holding the external connection jack cap and HDMI
connection jack cap not to open, wash the terminal in tap water
without rubbing hard.
Washing FOMA terminal
Press here
F-01C_EN_ninshou
21
Introduction
・
Do not apply water flow stronger than allowed (
⇒
P18) (e.g., such
water flow that gives you pain when applied to your skin directly
from a faucet or shower).
・
In locked state with the back cover attached, with pressing and
holding the external connection jack cap and HDMI connection jack
cap not to open, wash the terminal in tap water in room temperature
without rubbing hard.
・
Do not use brush, sponge, soap, detergent, etc.
・
If mud or soil is adhered to the terminal, do not open, close or rotate
the terminal. Eliminate the dirt first by shaking several times in tap
water of wash-basin and then wash the terminal with running water.
・
After washing, wipe the surface with dry cloth well, drain water by
the following procedure and let the terminal dry naturally.
When FOMA terminal is wet, water may flow out after wiping it off;
drain the water in the following steps.
a
Wipe moisture on FOMA terminal surface off with dry, clean cloth
etc.
b
Shake FOMA terminal approximately 20 times, firmly holding its
hinge section, until there is no more water splattering.
c
To drain water in the microphone, earpiece, speaker, gap between
keys, hinge section, charging jack, etc., press FOMA terminal into
dry, clean cloth etc. lightly and wipe it off.
d
Wipe off water drained from FOMA terminal with dry, clean cloth
etc., and dry naturally.
･
Water, if any, remaining in FOMA terminal may ooze up after
wiping off.
･
Do not wipe off water remaining in gaps directly with a cotton
swab etc.
Draining water from FOMA terminal
To drain water off the speaker, shake
FOMA terminal with the speaker upward
F-01C_EN_ninshou
22
Introduction
Check the following before and after charging.
・
Check if FOMA terminal is not wet. Never try to charge the battery
pack when FOMA terminal is wet.
・
Accessories and optional devices are not waterproof/dustproof.
・
When charging the battery when or after FOMA terminal is wet,
adequately drain it and wipe off water with a dry, clean cloth etc.,
before connecting the accessory desktop holder or opening the
external connection jack cap.
・
When the external connection jack cap is opened for charging, close
the cap firmly after charging. It is recommended to use the desktop
holder for charging to prevent water from seeping inside from the
external connection jack.
・
Do not use the AC adapter or desktop holder in a bathroom, shower
room, kitchen, lavatory or other highly humid area. May cause fire or
electric shock.
・
Do not touch the AC adapter or desktop holder with wet hands. May
cause electric shock.
Charging
F-01C_EN_ninshou
23
Basic Operation
Before Using
Attaching docomo UIM/battery pack
After turning power OFF, close FOMA terminal and hold it in your
hand so that you can properly attach UIM/battery pack.
✜
Removing back cover
Slide the lever in the direction
a
to unlock, hold the FOMA terminal
firmly with your hand not to slide, and then slide the back cover in the
direction
b
by 2 mm with a thumb of the other hand to remove it.
✜
Attaching docomo UIM
Pull the tab with your nail and pull out the tray until it clicks (
a
). Hold
docomo UIM with the IC side down, align the corner cut with the tray
(
b
) and push into the tray until it stops (
c
).
Point
･
docomo UIM (blue) is not available for this FOMA terminal. If you have the
docomo UIM (blue), bring it to a docomo Shop to replace.
✜
Installing battery pack
With the label side of the battery pack upward, align convex parts of
the battery pack with the concave parts of the FOMA terminal and
slide the battery pack in the direction
a
, press the battery pack in the
direction
b
to set it in.
✜
Installing back cover
Place the 8 tabs of back cover to the notches, press back cover in the
direction of
a
to avoid forming any clearance between FOMA
terminal and back cover, then slide it in the direction of
b
to install it.
Finally, slide the lever in the direction of
c
to lock.
Point
･
Firmly attach the back cover and lock it with the lever to avoid water or
dust ingress.
･
The rubber packing of the rear side of the back cover play an important
role for keeping waterproofness/dustproofness. Do not remove or scratch
it. Also, prevent dust from adhering to it.
Press here with your thumb
Back cover
Lever
Tray
Tab
IC
Corner cut
docomo UIM
Convex parts
Concave parts
Battery pack
a
Back cover
b
Lever
c
F-01C_EN_ninshou
24
Basic Operation
Before Using
Charging
The battery pack does not have a full charge at time of purchase.
Use AC adapter for FOMA terminal to charge the battery before
using FOMA terminal.
a
Insert the connector of AC adapter horizontally to the
accessory desktop holder, with the arrow mark side upward
b
Unfold the AC adapters power plug and insert it into a
100V AC outlet
c
With FOMA terminal closed, insert it into the desktop holder
*
Check that the indicator light turns on.
d
After charging is completed, remove FOMA terminal
from the desktop holder
a
Open jack cap (
a
) of FOMA terminal, hold the
connector horizontally with the arrow side upward and
insert it to the jack (
b
)
b
Unfold the power plug and insert it into a 100V AC
outlet
*
Check that the indicator light turns on.
c
When charging is over, pull out the power plug from
the outlet, and pull out from FOMA terminal
horizontally while pressing the release buttons on both
sides of the connector
✜
Operations for charging
When charging starts, a charge start alert sounds. While charging, the
light turns on and the battery icon on the display blinks. When
charging is over, a charge completion alert sounds.
Using desktop holder and AC adapter in
combination for charging
100V AC outlet
Light
Release
buttons
Connector
Desktop holder
Insert at the back side
AC adapter
Power plug
Charging using AC adapter
100V AC outlet
Connector
Release
buttons External
connection jackJack cap
Power plug
AC adapter
Light
F-01C_EN_ninshou
25
F-01C_EN_ninshouF-01C_EN_ninshou
Basic Operation
Before Using
Turning power ON - Configuring default setting
Initial setting is an operation when FOMA terminal is turned ON
for the first time.
af
(2 sec. or more)
The screen shown to the right appears.
b
Set required items
eC
[Complete]
Always set Change security code and
Request permit/deny. If you exit without
setting, Initial setting screen reappears
when the power is turned ON the next
time.
c
On a confirmation screen of software update function,
g
The stand-by display appears.
Point
･
If no operation is performed, the display light is automatically turned off
according to the settings in Light time-out or eco mode setting. The
display light turns on again if there is any operation or incoming call.
･
The battery usage state is automatically recorded while using the FOMA
terminal. The record is used only for repair diagnosis.
Turning power off :
f
(2 sec. or more)
Changing the initial setting :
mehib
Changing screen display to English :
mehdde
Select "English"
<Initial setting screen>
Before Using
Checking Profile
Check a model name or own phone number.
For details of checking/changing a mail address, refer to "Mobile
Phone User's Guide [i-mode] FOMA version".
ame0
Profile
The screen shown to the right appears.
Point
Editing the profile :
On User information screen,
Ce
Authenticate
e
Set
required items
eC
Checking a phone number during a call :
se0
<User information screen>
F-01C_EN_ninshou
26
Basic Operation
Screen Explanation
Viewing display
The current state can be checked by the icon appearing on the screen. Major icons are as follows.
■
Top of the display
Battery level (Battery icon)
Signal strength (Antenna icon)
:
Self mode ON
:
In data transfer mode
:
Connecting to i-mode
:
Connecting Wi-Fi
:
Wi-Fi mode ON and out of service area
:
Infrared communication in operation
:
Bluetooth ON
:
The total calls cost exceeds the limit
:
Communication using handsfree-
compatible device in progress
:
Handsfree ON
:
Femtocell available
:
eco mode ON
:
Touch operation OFF
:
Positioning with GPS
:
Location request setting
:
Unread Area Mail exists
:
Unread i-mode mail exists
:
Arrival i-concier information exists
:
Unreceived i-mode mail exists in i-
mode Center
:
A phonebook entry or schedule has
secret attribute
:
Displaying SSL/TLS page etc.
:
In-area auto-send mail exists
:
Music&Video Channel program
obtaining reservation exists
:
High-pitched alarm is "ON"
:
Kid-safe mode ON
:
During i-
α
ppli operation
:
i-
α
ppli call exists
:
Lock on close or Display off lock
setting set
:
Alarm is set
:
1Seg watching/recording reserved or
Schedule alarm ON
:
Inside OFFICEED area
:
Manner mode ON
:
Call alert volume OFF
:
Vibration mode for voice call ON
:
In Public mode (Drive mode)
:
Record message setting ON
:
Keypad dial lock ON
:
GPS Request failed
:
Personal data lock ON
:
Music&Video Channel program
obtaining failure
:
Loading docomo UIM
:
IC card lock ON
:
Available multi-cursor key
:
Recording 1Seg in the FOMA terminal
:
i-
α
ppli Auto start failed
:
microSD card installed during
Communication mode
:
Connected to external device using
USB cable
:
Pedometer/ACT monitor is set
:
Software update rewrite notice
:
Auto-update of latest pattern
definition failure
■
Bottom of the display
Arrival information icons (Starting from
the left, missed call, recorded message,
voice mail service, unread message,
unread ToruCa, i-
α
ppli call)
Ample
charge
Almost exhausted
(Charge the battery)
Strong Out of service area or where
radio waves do not reach
Weak
F-01C_EN_ninshou
27
Basic Operation
Screen Explanation
Menu operation
On the stand-by display, press
m
and then perform the
functions from the menu. You can select a menu item with
shortcut operations, which use the keypad,
*
and
#
, or with
multi-cursor operation, which uses the multi-cursor key to move
the cursor.
<Example> Selecting "Calculator"
Shortcut operations
ame6e2
Multi-cursor key operations
ame
Move the cursor to "
f
Tool"
eg
[Select]
e
Move the cursor to "
b
Calculator"
eg
[OK]
Point
･
Even when a function is running, you can perform the same operation if
"Submenu" is displayed on the guide area.
･
To return to the previous screen, press
c
. To return to the stand-by
display, press
f
.
Operations that can be performed
by pressing
m
,
a
,
g
,
C
and
I
are displayed in the
guide area.
in the guide area corresponds to
k
of multicursor key.
Stand-by launcher is always displayed on the stand-by display.
You can activate menu display, call, mail or Quick search by
selecting the icon. You can extend Stand-by launcher by moving
the cursor, touching the stand-by display, sliding Stand-by
launcher etc, to use the shortcut icons.
On the stand-by display with arrival information or i-concier
information displayed, or with Info/calendar layout set, press
g
to change the display to the focus mode that allows you to quickly
display the corresponding information.
Point
･
In focus mode, menu cannot be displayed even if pressing
m
.
Guide area and key operation
Guide area
Stand-by launcher and focus mode
<Displaying all of
Stand-by launcher>
<Stand-by screen with
Info/calendar layout and
Arrival information icons>
<Select Status display area
and display Status menu>
F-01C_EN_ninshou
28
Basic Operation
Screen Explanation
Using touch panel
Operate by touching the display directly.
Notes for using the touch panel
･
Do not put excessive force when opening, closing or rotating the
FOMA terminal. Doing so may cause malfunction or damage of
the keys or the display.
･
The touch panel is designed for being touched lightly with
fingers. Do not push it forcibly with a finger or press it with sharp
objects such as nail, ballpoint pen, pin, etc.
･
Touching the touch panel may not work in the following cases.
Note that it may cause malfunction.
- Operation with gloved hands
- Operation with tip of fingernail
- Operation with a foreign object on the display
- Operation with protective sheet or seal on the display
- Operation with wet hand
- Operation under water
･
Do not press forcibly the frame part around the display. The
touch panel may malfunction.
Point
･
Although the effective area of the touch panel is whole of the display, it
varies by the operation or function.
Basic touch operation
Touch
Touch the display lightly once and release the finger. The
operation becomes effective when you release your finger
from the display. This operation is mainly for selecting
menus, items, etc.
Touch
(1 sec. or
more)
Touch the display for 1 sec. or more and release the finger.
The operation becomes effective when you release your
finger from the display.
Slide
Keep touching the display, move your finger up, down,
right or left. This operation is used for scrolling screen,
entering hand-writing characters, etc.
Slide
quickly
Touch the display lightly and flick your finger up, down,
right or left. This operation is for switching pages or
images, or moving to a different chapter or tune, etc.
Pinch
While touching the display with the two fingers, widen and
narrow the spacing between the two fingers. This operation
is mainly for zooming in/out the display.
Example: SlideExample: TouchExample: Pinch
･
You can disable touch operation.
【 タッチ
ON
／
OFF
設定
(Touch ON/OFF setting)
】
Information
F-01C_EN_ninshou
29
Basic Operation
You can notify your phone number (caller ID) to the other party's
terminal when making a voice call.
ameg
TEL function
ed
Dial/Receive call setting
e
c
Caller ID notification
eb
Setting
ea
ON
Select "
b
OFF" if you do not want to notify.
Point
･
Caller ID is your important personal information. Carefully consider
whether you want to include caller ID information when making a call.
･
If you hear an announcement of requesting caller ID when making a call,
set Caller ID notification or add prefix "186" to the phone number to call
again.
Caller ID notification
(At subscription : Notify)
F-01C_EN_ninshou
117
Others
Appendix
Specific absorption rate (SAR) of mobile phone
This model phone FOMA F-01C meets the MIC's
*1
technical regulation
governing exposure to radio waves.
The technical regulation established permitted levels of radio frequency
energy, based on standards that were developed by independent scientific
organizations through periodic and thorough evaluation of scientific studies.
The regulation employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit is 2 watts/kilogram (W/kg)
*2
averaged
over 10 grams of tissue. The limit includes a substantial safety margin designed
to assure the safety of all persons, regardless of age and health. The value of
the limit is equal to the international guidelines recommended by ICNIRP.
*3
All phone models should be confirmed to comply with the regulation, before
they are available for sale to the public. The highest SAR value for this FOMA
F-01C is 0.465 W/kg. It was taken by the Telecom Engineering Center (TELEC).
The test for SAR was conducted according to the MIC testing procedure using
standard operating positions with the phone transmitting at its highest
permitted power level in all tested frequency bands. While there may be
differences between the SAR levels of various phones and at various positions,
they all meet the MIC's technical regulation. Although the SAR is determined at
the highest certified power level, the actual SAR of the phone during operation
can be well below the maximum value.
For further information about SAR, please see the websites below.
World Health Organization (WHO) :
http://www.who.int/peh-emf/en/
ICNIRP :
http://www.icnirp.de/
MIC :
http://www.tele.soumu.go.jp/e/sys/ele/index.htm
TELEC :
http://www.telec.or.jp/ENG/Index_e.htm
NTT DOCOMO :
http://www.nttdocomo.co.jp/english/product/sar/
FUJITSU LIMITED :
http://www.fmworld.net/product/phone/sar/
*1
Ministry of Internal Affairs and Communications.
*2
The technical regulation is provided in Article 14-2 of the Ministry Ordinance
Regulating Radio Equipment.
*3
International Commission on Non-Ionizing Radiation Protection.
The product "F-01C" is declared to conform with the essential requirements of
European Union Directive 1999/5/EC Radio and Telecommunications Terminal
Equipment Directive 3.1(a), 3.1(b) and 3.2. The Declaration of Conformity can
be found on http://www.fmworld.net/product/phone/doc/.
This mobile phone complies with the EU requirements for exposure to radio
waves.
Your mobile phone is a radio transceiver, designed and manufactured not to
exceed the SAR
*
limits
**
for exposure to radio-frequency(RF) energy, which
SAR
*
value, when tested for compliance against the standard was 0.517W/Kg.
While there may be differences between the SAR
*
levels of various phones and
at various positions, they all meet
***
the EU requirements for RF exposure.
* The exposure standard for mobile phones employs a unit of measurement
known as the Specific Absorption Rate, or SAR.
** The SAR limit for mobile phones used by the public is 2.0 watts/kilogram (W/
Kg) averaged over ten grams of tissue, recommended by The Council of the
European Union. The limit incorporates a substantial margin of safety to give
additional protection for the public and to account for any variations in
measurements.
*** Tests for SAR have been conducted using standard operation positions with
the phone transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the highest certified
power level, the actual SAR level of the phone while operating can be well
below the maximum value. This is because the phone is designed to operate
at multiple power levels so as to use only the power required to reach the
network. In general, the closer you are to a base station antenna, the lower the
power output.
Declaration of Conformity
F-01C_EN_ninshou
118
Others
･
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions :
a
this device may not cause harmful interference, and
b
this device must accept any interference received, including interference
that may cause undesired operation.
･
Changes or modifications made in or to the radio phone, not expressly
approved by the manufacturer, will void the user's authority to operate the
equipment.
This model phone meets the U.S. Government's requirements for exposure to
radio waves.
This model phone contains a radio transmitter and receiver. This model phone
is designed and manufactured not to exceed the emission limits for exposure
to radio frequency (RF) energy as set by the FCC of the U.S. Government. These
limits are part of comprehensive guidelines and establish permitted levels of RF
energy for the general population. The guidelines are based on standards that
were developed by independent scientific organizations through periodic and
thorough evaluation of scientific studies.
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate (SAR). The SAR limit set
by the FCC is 1.6 W/kg. Tests for SAR are conducted using standard operating
positions as accepted by the FCC with the phone transmitting at its highest
certified power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR level of the
phone while operating can be well below the maximum value. This is because
the phone is designed to operate at multiple power levels so as to use only the
power required to reach the network. In general, the closer you are to a wireless
base station antenna, the lower the power output level of the phone.
Before a phone model is available for sale to the public, it must be tested and
certified to prove to the FCC that it does not exceed the limit established by the
U.S. government-adopted requirement for safe exposure. The tests are
performed on position and locations (for example, at the ear and worn on the
body) as required by FCC for each model. The highest SAR value for this model
phone as reported to the FCC, when tested for use at the ear, is 0.492W/kg, and
when worn on the body, is 0.453W/kg. (Body-worn measurements differ
among phone models, depending upon available accessories and FCC
requirements).
While there may be differences between the SAR levels of various phones and
at various positions, they all meet the U.S. government requirements.
The FCC has granted an Equipment Authorization for this model phone with all
reported SAR levels evaluated as in compliance with the FCC RF exposure
guidelines. SAR information on this model phone is on file with the FCC and
can be found under the Equipment Authorization Search section at http://
www.fcc.gov/oet/ea/fccid/ (please search on FCC ID VQK-F01C).
For body worn operation, this phone has been tested and meets the FCC RF
exposure guidelines when used with an accessory designated for this product
or when used with an accessory that contains no metal and which positions the
handset at a minimum distance of 1.5 cm from the body.
*
In the United States, the SAR limit for wireless mobile phones used by the general public
is 1.6 Watts/kg (W/kg), averaged over one gram of tissue. SAR values may vary
depending upon national reporting requirements and the network band.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation.
Federal Communications Commission
(FCC) Notice
FCC RF Exposure Information
F-01C_EN_ninshou
119
Others
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
AIRCRAFT
Switch off your wireless device when boarding an aircraft or whenever you are
instructed to do so by airline staff. If your device offers flight mode or similar
feature consult airline staff as to whether it can be used on board.
DRIVING
Full attention should be given to driving at all times and local laws and
regulations restricting the use of wireless devices while driving must be
observed.
HOSPITALS
Mobile phones should be switched off wherever you are requested to do so in
hospitals, clinics or health care facilities. These requests are designed to
prevent possible interference with sensitive medical equipment.
PETROL STATIONS
Obey all posted signs with respect to the use of wireless devices or other radio
equipment in locations with flammable material and chemicals. Switch off your
wireless device whenever you are instructed to do so by authorized staff.
INTERFERENCE
Care must be taken when using the phone in close proximity to personal
medical devices, such as pacemakers and hearing aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of 15 cm be
maintained between a mobile phone and a pace maker to avoid potential
interference with the pacemaker. To achieve this use the phone on the opposite
ear to your pacemaker and does not carry it in a breast pocket.
Hearing Aids
Some digital wireless phones may interfere with some hearing aids. In the
event of such interference, you may want to consult your hearing aid
manufacturer to discuss alternatives.
For other Medical Devices :
Please consult your physician and the device manufacturer to determine if
operation of your phone may interfere with the operation of your medical
device.
Important Safety Information
F-01C_EN_ninshou
120
Others
Appendix
Export Administration Regulations/Intellectual Property Right
This product and its accessories may be under coverage of the Export
Administration Regulations of Japan ("Foreign Exchange and Foreign Trade
Control Laws" and the related laws and regulations). When exporting this
product and its accessories, take necessary procedures on your responsibility
and expense. For details, contact Ministry of Economy, Trade and Industry of
Japan.
Copyrights and portrait rights
Except for the case protected by copyright laws such as personal use, use of
FOMA terminal to reproduce, alter, or publicly transmit recorded pictures or
sounds, or copyrighted text, images, music or software downloaded from
websites without the copyright holder's authorization is prohibited.
Note that taking photos or recordings at some demonstrations, performances
or exhibitions may be prohibited even when only for personal use.
Avoid taking pictures of others with FOMA terminal without their consent or
disclosing recorded pictures of others without their consent to general public
through Internet websites etc., because they may infringe on portrait rights.
Trademarks
Company and product names mentioned in this manual are trademarks or
registered trademarks of their respective holders.
･
"FOMA", "i-mode", "i-
α
ppli", "i-motion", "Deco-mail", "Chara-den", "ToruCa",
"mopera", "WORLD CALL", "DCMX", "iD", "WORLD WING", "OFFICEED",
"2in1", "docomo PRIME series", "docomo web mail" and logos of "FOMA", "i-
mode", "i-
α
ppli", "Music&Video Channel", "DCMX", "iD", "iC" are trademarks
or registered trademarks of NTT DOCOMO.
･
Free Dial logo mark is a registered trademark of NTT Communications
Corporation.
･
"Catch Phone (Call Waiting Service)" is a registered trademark of Nippon
Telegraph and Telephone Corporation.
･
McAfee
®
is registered trademarks or trademarks of McAfee, Inc. and/or its
affiliates in the US and/or other countries.
･
G-GUIDE, G-GUIDE MOBILE and their logos are registered
trademarks in Japan of U.S. Gemstar-TV Guide International, Inc.
and/or its affiliates.
･
Contains Adobe
®
Flash
®
Lite
®
and Adobe Reader
®
Mobile technology by
Adobe Systems Incorporated.
Adobe Flash Lite Copyright
©
2003-2010 Adobe Systems Incorporated. All
rights reserved.
Adobe Reader Mobile Copyright
©
1993-2010 Adobe Systems Incorporated.
All rights reserved.
Adobe, Adobe Reader, Flash and Flash Lite are either
registered trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
･
This product contains NetFront Browser,
NetFront Document Viewer and NetFront Sync
Client of ACCESS CO., LTD.
ACCESS, the ACCESS logo and NetFront are registered trademarks or
trademarks of ACCESS CO., LTD. in the United States, Japan and/or other
countries.
Copyright
©
2010 ACCESS CO., LTD. All rights reserved.
･
Powered by JBlend
™
Copyright 2002-2009 Aplix Corporation. All
rights reserved.
JBlend and JBlend-related trademarks are trademarks or registered
trademarks of Aplix Corporation in Japan and other countries.
･
is a registered trademark of FeliCa Networks, Inc.
･
FeliCa is a contactless IC card technology developed by Sony Corporation.
FeliCa is a registered trademark of Sony Corporation.
･
QR code is a registered trademark of Denso Wave Inc.
･
microSDHC Logo is a trademark of SD-3C, LLC.
･
"Multitask" is a registered trademark of NEC Corporation.
Export Administration Regulations
Intellectual Property Right
F-01C_EN_ninshou
121
Others
･
QuickTime is a registered trademark of Apple Inc., in the US and other
countries.
･
Microsoft
®
, Windows
®
, Windows Vista
®
, Windows Media
®
and
PowerPoint
®
are trademarks or registered trademarks of "Microsoft
Corporation" in the US and other countries.
･
Microsoft Excel and Microsoft Word are product names of Microsoft
Corporation in the U.S.A. In this manual, they may be described as Excel and
Word.
･
The abbreviations of operating systems (Japanese versions) below are used
in this manual.
- Windows 7 stands for Microsoft
®
Windows
®
7 (Starter, Home Basic, Home
Premium, Professional, Enterprise and Ultimate).
- Windows Vista stands for Windows Vista
®
(Home Basic, Home Premium,
Business, Enterprise and Ultimate).
- Windows XP indicates the Microsoft
®
Windows
®
XP Professional
operating system or Microsoft
®
Windows
®
XP Home Edition operating
system.
･
Google and Google Map for Mobile are trademarks of Google Inc.
･
Bluetooth
®
and its logo are registered trademarks of Bluetooth SIG, Inc., and
NTT DOCOMO uses them under license. Other trademarks and names inhere
to their respective owners.
･
"CROSS YOU" is a trademark of Sony Corporation.
･
Manufactured under license from Dolby Laboratories. Dolby and the double-
D symbol are trademarks of Dolby Laboratories.
･
iWnn of OMRON SOFTWARE Co., Ltd. is used for conversion methods for
Japanese language.
iWnn
©
OMRON SOFTWARE Co., Ltd. 2008-2010 All Rights Reserved.
･
"AXIS Font" is a trademark of AXIS Inc.,
and the "AXIS" font is a font developed by Type Project Inc.
･
This product contains software licensed by Symbian Foundation Limited.
Symbian is a registered trademark of Symbian Foundation Limited.
･
"Privacy mode" is a registered trademark of FUJITSU LIMITED.
･
"Uni-Type" is a universal designed font jointly-developed by LIM Corp., Ltd.
and Faculty of Engineering, Chiba University.
Uni-Type is a registered trademark of LIM Corp., Ltd.
･
Wi-Fi
®
, Wi-Fi Alliance
®
, and logos of Wi-Fi and Wi-Fi CERTIFIED are
registered trademarks of Wi-Fi Alliance.
･
Wi-Fi CERTIFIED
™
, WMM
™
, WPA
™
, WPA2
™
and Wi-Fi Protected Setup
™
are trademarks of Wi-Fi Alliance.
･
AOSS
™
is a trademark of BUFFALO INC.
･
IrSimple
™
, IrSS
™
and IrSimpleShot
™
are trademarks of Infrared
Data Association
®
.
･
Blu-ray Disc and its logo are trademarks.
･
HDMI and HDMI logo are trademarks and registered trademarks of HDMI
Licensing, LLC.
･
Other company and product names mentioned in this manual are
trademarks or registered trademarks of their respective holders.
F-01C_EN_ninshou
122
Others
Others
･
This product contains a module developed by the Independent JPEG Group.
･
FeliCa is a contactless IC card technology developed by Sony Corporation.
･
This product is equipped with the technologies of GestureTek, Inc.
Copyright
©
2006-2010, GestureTek, Inc. All Rights Reserved.
･
OMRON Corporation's Mobile OmCR is used for a character recognition
engine.
･
This product contains software licensed based on Apache License V2.0. For
details of the license, refer to "Apache_License_Version_2.0.txt" in "GPL
・
LGPL
等について
(About GPL/LGPL)" in attached CD-ROM.
･
This product is licensed based on MPEG-4 Visual Patent Portfolio License.
The use of MPEG-4 Video Codec function is allowed for personal and
nonprofit use only in the cases below.
- Recording moving pictures and i-motion that conform to MPEG-4 Visual
Standard (hereinafter referred to as MPEG-4 Video)
- Playing MPEG-4 Videos recorded personally by consumers not engaged in
profit activities
- Playing MPEG-4 Video supplied from the provider licensed from MPEG-LA
For further utilizing such as promotion, in-house use or profit-making
business, please contact MPEG LA, LLC in U.S.
･
Content owners use Windows Media digital rights management technology
(WMDRM) to protect their intellectual property, including copyrights. This
device uses WMDRM software to access WMDRM-protected content. If the
WMDRM software fails to protect the content, content owners may ask
Microsoft to revoke the software's ability to use WMDRM to play or copy
protected content. Revocation does not affect unprotected content. When
downloading licenses for protected content, you agree that Microsoft may
include a "Revocation List" with the licenses. Content owners may require
you to upgrade WMDRM to access their content. If you decline an upgrade,
you cannot access a content that requires the upgrade.
･
Attached
電子辞書データ
DVD F02 (Electronic dictionary data DVD F02)
contains following dictionary data (22 dictionaries
＋
6 searches by
category).
<
岩波書店
(Iwanami Shoten, Publishers)>
広辞苑
第六版
DVD-ROM
版
+6
分野別検索（慣用句・漢字・人名・地名・作品
名・季語）（新村出編）
(KOJIEN 6th edition, DVD-ROM version + 6-category
search)
<
研究社
(KENKYUSYA)>
リーダーズ英和辞典
第
2
版（松田徳一郎編）
(Reader's English-Japanese
dictionary 2nd edition)
新和英中辞典
第
5
版（
Martin Collick
、
David P. Dutcher
、田辺宗一、金子稔編）
(New Japanese-English-Chinese dictionary 5th edition)
<
自由国民社
(Jiyukokuminsya)>
現代用語の基礎知識
2010
年版（自由国民社編）
(Basic knowledge of modern
term for 2010)
<
大修館書店
(Daisyukan Shoten)>
新漢語林
MX
（鎌田正、米山寅太郎著）
(New Chinese origin words MX)
みんなで国語辞典
b
あふれる新語（北原保雄編著／「もっと明鏡」委員会編
集）
(Minna de Kokugo jiten
b
Afureru shingo)
KY
式日本語（北原保雄編著／「もっと明鏡」委員会編集）
(KY style Japanese)
問題な日本語（北原保雄編（北原保雄、小林賢次、砂川有里子、鳥飼浩二、矢
澤真人執筆））
(Problematic Japanese)
築地魚河岸ことばの話（生田與克、冨岡一成著）
(TSUKIJI fish market word
stories)
<
三省堂
(SANSEIDO)>
デイリー日仏英・仏日英辞典（村松定史監修／三省堂編修所編）
(Daily
Japanese-French-English/French-Japanese-English dictionary)
デイリー日独英・独日英辞典（渡辺学監修／三省堂編修所編）
(Daily Japanese-
German-English/German-Japanese-English dictionary)
デイリー日中英・中日英辞典（池田巧監修／三省堂編修所編）
(Daily Japanese-
Chinese-English/Chinese-Japanese-English dictionary)
デイリー日西英・西日英辞典（上田博人、アントニオ・ルイズ・ティノコ監修
／三省堂編修所編）
(Daily Japanese-Spanish-English/Spanish-Japanese-
English dictionary)
デイリー日伊英・伊日英辞典（藤村昌昭監修／三省堂編修所
編）
(Daily
Japanese-Italian-English/Italian-Japanese-English dictionary)
デイリー日仏英
3
か国語会話辞典（村松定史監修／三省堂編修所編）
(Daily
Japanese-French-English conversation dictionary)
デイリー日独英
3
か国語会話辞典（渡辺学監修／三省堂編修所編）
(Daily
Japanese-German-English conversation dictionary)
デイリー日中英
3
か国語会話辞典（池田巧・胡興智監修／三省堂編修所編）
(Daily Japanese-Chinese-English conversation dictionary)
Repairs
■
From DOCOMO mobile phones
(In Japanese only)
■
From land-line phones
(In Japanese only)
(No prefix)
151
(toll free)
●
Please confirm the phone number before you dial.
●
For Applications or Repairs and After-Sales Service, please contact the above-mentioned information center or the docomo shop etc. near you on the NTT DOCOMO website or the i-mode site.
NTT DOCOMO website http://www.nttdocomo.co.jp/english/ i-mode site iMenu⇒お客様サポート (user support)⇒ドコモショップ (docomo Shop) * In Japanese only
* Service available in: English, Portuguese, Chinese, Spanish, Korean.
* Unavailable from part of IP phones.
General Inquiries <docomo Information Center>
* You are charged a call fee to Japan when calling from a land-line phone, etc.
※If you use F-01C, you should dial the number ＋81-3-6832-6600 (to enter '＋',
press and hold the '0' key for at least one second).
* You are charged a call fee to Japan when calling from a land-line phone, etc.
※If you use F-01C, you should dial the number ＋81-3-6718-1414 (to enter '＋',
press and hold the '0' key for at least one second).
Loss or theft of FOMA terminal or payment of cumulative cost overseas
<docomo Information Center>
(available 24 hours a day)
■
From DOCOMO mobile phones
(available 24 hours a day)
■
From DOCOMO mobile phones
International call access code
for the country you stay
■
From land-line phones <Universal number> ■
From land-line phones <Universal number>
-81-3-6832-6600* (toll free) International call access code
for the country you stay -81-3-6718-1414* (toll free)
Don't forget your mobile phone ･･･ or your manners!
When using your mobile phone in a public place, don't forget to
show common courtesy and consideration for others around you.
* Unavailable from land-line phones, etc.
* Unavailable from part of IP phones.
●
If you lose your FOMA terminal or have it stolen, immediately take the steps necessary for suspending the use of the FOMA terminal.
●
If the FOMA terminal you purchased is damaged, bring your FOMA terminal to a repair counter specified by DOCOMO after returning to Japan.
*
You might be charged a domestic call fee according to the call rate for the country you stay.
※
For international call access codes for major countries and universal number
international prefix, refer to DOCOMO International Services website.
*
You might be charged a domestic call fee according to the call rate for the country you stay.
※
For international call access codes for major countries and universal number
international prefix, refer to DOCOMO International Services website.
Failures encountered overseas
<Network Support and Operation Center>
CA92002-6162
2010.10 (1st Edition)
To prevent damage to the environment,
bring used battery packs to a docomo
service counter, a docomo agent or a
recycle center.
(Business hours : 9:00 a.m. to 8:00 p.m.)
Universal number
international prefix -8000120-0151*Universal number
international prefix -8005931-8600*
(Business hours : 9:00 a.m. to 8:00 p.m. (open all year round))
0120-005-250 (toll free)
0120-800-000 (toll free)
■
From DOCOMO mobile phones
(In Japanese only)
■
From land-line phones
(In Japanese only)
(No prefix)
113
(toll free)
* Unavailable from land-line phones, etc.
* Unavailable from part of IP phones.
(Business hours : 24 hours (open all year round))
0120-800-000 (toll free)
