Fujitsu F022 Mobile Phone User Manual

Fujitsu Limited Mobile Phone

Contents

user manual

FUJITSU
F-022
User Guide
Hyo1.fm 0 ページ 2011年1月7日 金曜日 午前11時26分
F-022_E2kou
FUJITSU WCDMA/HSDPA (3G (WCDMA)) 850/2100,
GSM/GPRS/EDGE (2G) 900/1800/1900 System
Thank you for purchasing FUJITSU mobile terminal.
Both before and during use of your F-022 mobile terminal, be sure to thoroughly
read this manual to ensure you are able to correctly use your F-022 mobile
terminal. For more information, you may contact D-PHONE Customer Service.
Treated with care, your F-022 mobile terminal will be your able partner.
Before using your terminal
Some of the services described in this manual may not be supported by all
networks. Please contact your network operator to confirm whether you can use
or not a particular service.
Your phone supports emergency numbers, such as 110, which allow to make
emergency calls with or without a SIM/USIM card inserted, if a 3G (WCDMA) or
GSM network is within range. However emergency calls may not be possible on
all mobile phone networks, or when certain network services or phone features
are in use. You should therefore never rely solely upon any mobile phone for
essential communications, such as medical emergencies.
Because your terminal uses wireless transmission, it may not function in
locations where it is difficult for radio waves to penetrate, such as tunnels,
underground passages and some buildings, in areas where radio wave signals
are weak, or out of service area. Even when you are high up in a tall building or
condominium and nothing blocks your view outside, your terminal may not be
able to receive or transmit signals. Also, communication may be interrupted
even when the signal meter on your terminal indicates there is a strong signal.
Your terminal encodes voice communication as digital data. When you are
operating your terminal while moving to a location subject to weaker radio
wave signals, the transmitted digital data may not be correctly decoded and as
a result the decoded voice may differ somewhat from the actual voice.
Use your terminal in a way that does not disturb others in public spaces,
crowded locations or quiet places.
Maintain a separate record of the data (Phonebook, Schedule, Notepad, Saved
messages, Voice memos, Movie Files, etc.) you registered in your terminal. You
are recommended to save important data to microSD/microSDHC card (If you
have none, purchase it in Electronic stores).
Using Mobile data link tool contained in F-022 CD-ROM, you can also transfer
and save phonebook and some other data to a PC.
Note that we assume no responsibility for any loss of saved contents or data
resulting from malfunction, repair, changing of the model or other handling of
the F-022 terminal. In addition, FUJITSU assumes no responsibility for third-
party applications and for contents or data downloaded from the network.
The user hereby agrees that the user shall be solely responsible for the result of
the use of SSL/TLS. Neither FUJITSU nor the certifier as listed herein makes any
representation and warranty as for the security in the use of SSL/TLS and any
damage that may result from the use of SSL/TLS.
Unauthorized copying of parts of or this entire manual is prohibited.
The images or illustrations provided in this manual are for information purposes
only and may differ from the actual displays. The contents of this manual and
product specifications are subject to change without prior notice.
F-022.book 0 ページ 2011年2月24日 木曜日 午後2時42
1
Contents
F-022_E2kou
Contents
Chapter 1
Introduction ...........3
1.1 Use the Fragrance rear cover............. 3
1.2 Waterproofness/Dustproofness .........4
1.3 Use the open assist button................. 9
1.4 Precautions (ALWAYS FOLLOW
THESE DIRECTIONS) ........................ 10
1.5 Handling precautions........................15
Chapter 2
Get started ...........19
2.1 Keys and parts...................................19
2.2 Attach SIM/USIM/battery.................. 21
2.3 Use microSD card ............................. 22
2.4 Use earphone ....................................22
2.5 Use desktop holder and AC adapter in
combination for charging.................23
2.6 Charge using AC adapter ................. 23
2.7 Attach the wrist strap........................24
2.8 Switch the mobile terminal on or off
................................................................
24
2.9 Interactive standby mode elements ....
25
2.10 Write text ......................................... 25
2.11 Display indicators............................ 27
2.12 Search in your mobile terminal .....27
2.13 Change the volume of a call, song, or
video................................................. 27
2.14 Use your mobile terminal offline... 28
2.15 Prolong battery life ......................... 28
Chapter 3
Personalisation.... 29
3.1 Profiles ............................................... 29
3.2 Change your theme .......................... 29
3.3 Home screen ..................................... 30
3.4 Light alert........................................... 31
Chapter 4
Telephone ............ 32
4.1 Call a phone number ........................ 32
4.2 Call a contact ..................................... 32
4.3 Voice clear and Voice slowing ......... 32
4.4 Make a video call .............................. 33
4.5 Make a conference call ..................... 33
4.6 Use speed dial................................... 34
4.7 Call the last dialled number ............. 34
4.8 Record a phone conversation .......... 34
4.9 Turn to silence................................... 35
4.10 View your missed calls................... 35
4.11 Call your voice mailbox.................. 36
4.12 Divert calls to your voice mailbox or
another phone number................... 36
4.13 Prevent making or receiving calls
.................................................................. 36
4.14 Allow calls only to certain numbers
.................................................................. 37
Chapter 5
Contacts............... 38
5.1 Save phone numbers and mail
addresses .......................................... 38
5.2 Save a number from a received call or
message ............................................ 38
5.3 Contact your most important people
quickly................................................ 39
5.4 Set a ringing tone for a specific contact
.................................................................. 39
5.5 Send your contact information using
My Card ............................................. 40
5.6 Create a contact group ..................... 40
5.7 Send a message to a group of people
.................................................................. 40
5.8 Contacts stored on the SIM card ..... 40
Chapter 6
Messaging............ 41
6.1 Send a message................................ 41
6.2 Send an audio message ................... 41
6.3 Receive messages............................. 41
6.4 Change language.............................. 42
F-022.book 1 ページ 2011年2月24日 木曜日 午後2時42
2Contents
F-022_E2kou
Chapter 7
Mail ......................43
7.1 Mail ....................................................43
7.2 Open mail from the home screen.... 43
Chapter 8
Internet.................44
8.1 Browse the web................................. 44
8.2 Add a bookmark ................................ 44
8.3 Subscribe to a web feed ................... 44
Chapter 9
Camera .................45
9.1 Take a picture ....................................45
9.2 Take a picture with smooth skin and
enhanced eyes .................................. 45
9.3 Take a picture in the dark ................. 45
9.4 Take a picture of a moving object ...45
9.5 Picture tips.........................................46
9.6 Record a video................................... 46
9.7 Send a picture ...................................46
Chapter 10
Your pictures and
videos......................................47
10.1 View pictures and videos ............... 47
Chapter 11
Videos ................48
11.1 Play a video ..................................... 48
Chapter 12
Music and audio 49
12.1 Music player .................................... 49
12.2 Record sounds ................................ 50
Chapter 13
Time management
............................................... 51
13.1 Clock................................................. 51
13.2 Calendar........................................... 52
Chapter 14
Office................. 55
14.1 Make a calculation .......................... 55
14.2 Write notes ...................................... 55
Chapter 15
Useful tools ....... 56
15.1 Pedometer ....................................... 56
15.2 Mirror ............................................... 57
Chapter 16
Connectivity ...... 58
16.1 Connection safety ........................... 58
16.2 Bluetooth ......................................... 58
16.3 Close a network connection........... 60
16.4 Store your files on a remote drive
.................................................................. 61
Chapter 17
Mobile terminal
management........................... 62
17.1 Manage files .................................... 62
17.2 Increase available memory for more
content ............................................. 62
17.3 Manage applications ...................... 62
17.4 Synchronise content....................... 63
17.5 Protect your mobile terminal ......... 63
Chapter 18
Access codes ..... 65
Chapter 19
Q & A ................. 66
Chapter 20
Appendix............ 68
20.1 SAR and Certification Information
.................................................................. 68
20.2 Export Administration Regulations
.................................................................. 70
20.3 Intellectual Property Right.............. 71
20.4 End User License Agreement ........ 71
20.5 F-022 package.................................. 72

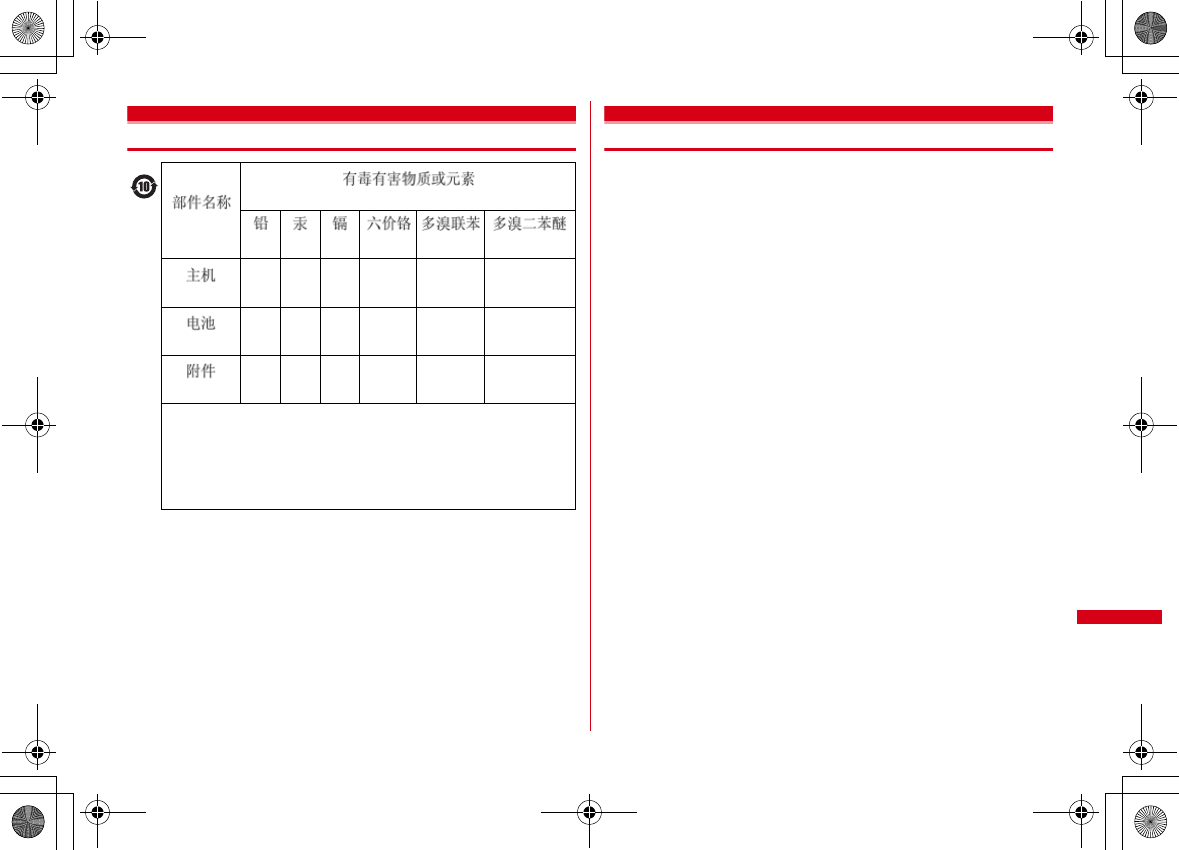

20.6 China RoHS Instruction .................. 73
20.7 Limited warranty............................. 73
20.8 Trademarks...................................... 75
Index ....................................... 76
F-022.book 2 ページ 2011年2月24日 木曜日 午後2時42
3
F-022_E2kou
Chapter 1
Introduction
1.1 Use the Fragrance rear cover
You can use F-022 terminal with your favorite aroma. Put perfume
on in the following steps.
Use perfume only.
Check precautions about the perfume before putting it on the
fragrance chip.
In the instruction below, the Fragrance rear cover has been
installed. You can install the Fragrance rear cover in the same
way as the rear cover.
1
Move the fragrance piece by raising its tab in the direction of
the arrow.
2
Put perfume on the fragrance chip on the rear side of the
fragrance piece.
3
Wipe off perfume on the area other than the fragrance chip.
4
Turn the rear side of the fragrance piece down, align either tab
with the groove on the rear cover, and then push the piece into
the cover.
Maintenance
Wash the Fragrance rear cover and piece with running water,
wipe them with a dry cloth, and then dry them naturally.
To keep the Fragrance rear cover clean, do not leave the cover
with perfume uncared; be sure to maintain it on a regular
basis.
When changing the aroma, maintain it in the same way. After
washing the fragrance piece, the aroma gets weak, but is not
removed completely.
Fragrance piece
Tab
Fragrance chip
Rear side
Tab
Rear side
Groove
F-022.book 3 ページ 2011年2月24日 木曜日 午後2時42
Chapter 1Introduction
4
F-022_E2kou
Important precautions
Be sure to remove the fragrance piece and put perfume on the
chip on rear side of the piece. Putting perfume on directly
without removing the fragrance piece causes discoloration or
deformation.
Be careful of the amount of perfume that you put on the
fragrance chip. Wipe perfume on the area other than the
fragrance chip immediately.
Do not put strong impact on the fragrance piece or apply
excessive it when installing it.
Some types of perfume may discolor the Fragrance rear cover
or peel the paint off. When discoloration occurs or the paint is
peeled off, stop using the perfume immediately.
The strength or duration of aroma varies by the type or
amount of perfume.
Do not remove the fragrance chip. If the chip is removed,
check where the cuts on the chip are and then put the chip into
the fragrance piece in the direction of the arrow before using.
1.2 Waterproofness/Dustproofness
F-022 is provided with the following waterproofness by firmly
closing the external connection jack cap, installing the rear cover
and locking the cover.
IPX5*
1
IPX8*
3
that is a higher standard than IPX7*
2
Also, F-022 is dustproof to IP5X*
4
if the external connection jack
cap is strictly closed as well as the rear cover is mounted and
locked.
*1 Code IPX5 means that a phone keeps functioning after directly
applying a jet flow of 12.5 L/min. for at least 3 minutes from a
distance of 2.5-3 m on a rotating turntable.
*2 Code IPX7 means that a phone keeps functioning after it is slowly
submerged to depth of 1 m in static tap water at room temperature,
left there for 30 minutes and then taken out.
*3 Code IPX8 means that it provides waterproofness of which exceeds
of IPX7 standard.
F-022.book 4 ページ 2011年2月24日 木曜日 午後2時42
5
Chapter 1Introduction
F-022_E2kou
*4 Code IP5X means that a device is protected against the ingress of
dust specific to dustproof test (25
µ
m or smaller in diameter), so
that the ingress will not interfere with predefined operation and
safety of the device.
F-022 provides the following waterproof performances of IPX8.
F-022 keeps functioning after it is slowly submerged to depth
of 1.5m in static tap water at room temperature, left there for
30 minutes and then taken out.
The mobile phone keeps shooting still images or moving
pictures in 30 minutes in static tap water at room temperature.
What you can do with waterproofness and
dustproofness of F-022
You can talk without using an umbrella in the rain (for rainfall of
20 mm or less per hour).
- When your hands or F-022 terminal are wet, avoid installing/
removing the rear cover or opening/closing the external
connection jack cap.
You can also shoot still images and moving pictures in the pool
depth of 1.5 m.
- Do not perform other operations underwater than shooting still
images and moving pictures.
- If you put the terminal in water of swimming pool, be sure to
have it within 30 minutes.
- If F-022 terminal gets wet with water from the swimming pool,
wash it as predefined.
You can use F-022 terminal in a bathroom.
- Do not put the terminal in the bathtub. Do not use the terminal
in hot water. Doing so may cause malfunction.
- Never put F-022 terminal in hot spring water or water containing
soap, detergent or bath powder.
To ensure waterproofness/dustproofness
To avoid water and dust ingress, be sure to observe the following
points.
Do not throw any liquid other than room-temperature tap water
on F-022 terminal, or soak it in such liquid.
Open/close the external connection jack cap as described below.
<Opening the external connection jack cap>
Place your finger at groove on the hinge side to open the cap.
<Closing the external connection jack cap>
Close with the tab for the rear cover at the rear side of the cap fitted
into the concave of this terminal. Make sure that the cap is
completely closed without slack.
Install the rear cover as described below.
Groove on the hinge side
Tab on the rear
cover side
F-022.book 5 ページ 2011年2月24日 木曜日 午後2時42
Chapter 1Introduction
6
F-022_E2kou
<Installing the rear cover>
Align 8 tabs of the rear cover with concaves of F-022 terminal.
While pressing the rear cover in the direction of
a
so that there is
no gap between F-022 terminal and rear cover, slide the rear cover
in the direction of
b
to install, then slide the rear cover lever in the
direction of
c
to lock.
* Make sure that the rear cover is completely closed without slack.
Slide the rear cover in the direction of the arrow shown on the lever,
and then make sure the cover is securely locked before using.
Securely lock the rear cover and firmly close the external
connection jack cap. Even a fine obstacle (one hair, one grain of
sand, tiny fiber, etc.) put between contact surfaces may allow
water to enter.
Do not poke the microphone, earpiece or speaker with a swab or
sharp object.
Do not let F-022 terminal fall. It may become scratched causing
the waterproof/dustproof performance to degrade.
The external connection jack cap and the rubber packing of the
inner lid play an important role for keeping waterproof/dustproof
performance. Do not remove or scratch it. Also, prevent dust
from adhering to it.
Important precautions
Do not perform actions shown in the illustrations below.
Observe the following precautions to use F-022 terminal properly.
Accessories and optional devices are not waterproof/dustproof.
When watching moving pictures etc. with F-022 terminal installed
in the desktop holder, do not use it in a bath room, shower room,
kitchen or lavatory even if it is not connected to the AC adapter.
Do not apply water flow stronger than allowed (e.g., such water
flow that gives you pain when applied to your skin directly from
a faucet or shower).
If F-022 terminal should get wet with salt water, seawater, soft
drink or with mud or soil, flush away immediately. When it dries
out, it becomes harder to get rid of, causing scratch or
malfunction.
Back cover
Lever
Using soap/detergent/
bath powder
Applying strong
water flow
<Example>
Soaking in
ocean water
Washing by
laundry machine
Washing with
brush/sponge
Using in
hot spring
F-022.book 6 ページ 2011年2月24日 木曜日 午後2時42
7
Chapter 1Introduction
F-022_E2kou
Do not put F-022 terminal in hot water, use it in a sauna or apply
hot airflow (from a hair dryer etc.) to it.
Do not move in water or slam the terminal against the surface of
water with F-022 terminal opened.
If you put the terminal in tap water or in water of swimming pool,
be sure to have it within 30 minutes.
When you use the terminal in swimming pool, obey rules of the
facility.
F-022 terminal does not float on water.
Do not leave water on F-022 terminal. May short-circuit the power
jacks, or in a cold region, water may freeze causing malfunction.
Do not leave water on the microphone, earpiece or speaker. Such
water may interfere with talking.
If the rear cover is damaged, replace it. Water may enter inside
from a damaged section causing troubles such as electric shocks
or corrosion of the battery.
If F-022 terminal gets wet with water or other liquids with the
external connection jack cap or rear cover open, the liquid may
get inside the terminal causing electric shocks or malfunction.
Stop using F-022 terminal, turn the power OFF, remove the
battery and contact a D-PHONE-specified repair office.
If rubber gasket on the external connection jack cap or inner lid is
damaged or deformed, replace it at D-PHONE-specified repair
office.
FUJITSU does not guarantee actual operations under all states.
Malfunctions deemed to be caused by inappropriate operation by
the customer are not covered by the warranty.
Wash F-022 terminal
Wash the terminal with tap water while holding the external
connection cap. Do not rub the terminal.
Do not apply water flow stronger than allowed (e.g., such water
flow that gives you pain when applied to your skin directly from
a faucet or shower).
Wash it using room-temperature tap water with your hand, the
rear cover of F-022 terminal installed and locked, and the external
connection jack cap held in position.
Do not use any brush, sponge, soap, cleaning material, etc.
When mud or soil is attached to F-022 terminal, do not open or
close the terminal. Instead, rinse the terminal clean by shaking it
several times in tap water in a bucket and then flush away with
running water.
After flushing away, wipe off water with a dry cloth, drain, and
dry naturally as described below.
Press here
F-022.book 7 ページ 2011年2月24日 木曜日 午後2時42
Chapter 1Introduction
8
F-022_E2kou
Drain the water from F-022 terminal
When F-022 terminal is wet, water may flow out after wiping it off;
drain the water in the following steps.
a
Wipe F-022 terminal surface with dry, clean cloth etc.
b
Shake F-022 terminal approximately 20 times, firmly holding its
hinge section, until there is no more water splattering.
c
Softly press dry, clean cloth etc., against F-022 terminal to wipe
off water remaining in the microphone, earpiece, speaker, keys,
hinges or charging jack.
d
Remove the rear cover and wipe off any drops of water around
the inner lid and the rear side of the rear cover. Never open the
inner lid. After wiping off the water, install and lock the rear
cover.
To drain water off the speaker, shake F-022
terminal with the speaker upward
Around the inner lid
Rear side of the rear cover
F-022.book 8 ページ 2011年2月24日 木曜日 午後2時42
9
Chapter 1Introduction
F-022_E2kou
e
Wipe off water drained from F-022 terminal with dry, clean cloth
etc, and dry naturally.
Water, if any, remaining in F-022 terminal may ooze up after
wiping off.
Do not wipe off water remaining in concaves directly with a
cotton swab etc.
Charge
Check the followings before and after charging.
Check that F-022 terminal is not wet. Never try to charge the
battery when F-022 terminal is wet.
Accessories and optional devices are not waterproof/dustproof.
When charging the battery when or after F-022 terminal is wet,
adequately drain it and wipe off water with a dry, clean cloth etc.,
before connecting the desktop holder or opening the external
connection jack cap.
When the external connection jack cap is opened for charging,
close the cap firmly after charging. It is recommended that the
desktop holder be used for charging to prevent water from
seeping inside from the external connection jack.
Do not use the AC adapter or desktop holder in a bathroom,
shower room, kitchen, lavatory or other highly humid area. May
cause fire or electric shock.
Do not touch the AC adapter or desktop holder with wet hands.
May cause electric shock.
1.3 Use the open assist button
You can open F-022 terminal just by pressing the dedicated button.
Even without using the button, you can easily open F-022
terminal.
Point
When pressing the button, it is recommended that you hold F-022
terminal. Be careful not to hit your face, people or objects around
you with F-022 terminal, or drop F-022 terminal on the floor due
to the momentum of opening it.
Pressing the button may not completely open F-022 terminal,
depending on its direction.
Close F-022 terminal with your hand. If F-022 terminal is not
completely closed, open it completely, and then try again.
F-022.book 9 ページ 2011年2月24日 木曜日 午後2時42
Chapter 1Introduction
10
F-022_E2kou
1.4 Precautions (ALWAYS FOLLOW THESE
DIRECTIONS)
Precautions contain the description below.
Handling F-022 terminal, battery, AC adapter, desktop holder and
SIM/USIM (common) ................................................................... 10
Handling F-022 terminal.................................................................. 11
Handling battery .............................................................................. 13
Handling AC adapter and desktop holder ..................................... 14
Handling SIM/USIM......................................................................... 14
Handling mobile phones near electronic medical equipment..... 15
Handling F-022 terminal, battery, AC adapter,
desktop holder and SIM/USIM (common)
DANGER
Do not use, store, or leave the equipment in hot areas such as
near flames or in areas under strong direct sunlight such as
inside a vehicle.
May cause the equipment to be deformed or malfunction, and
battery to leak, heat, burst or ignite, and the capability or life to
be reduced or shortened. Overheating on parts of the case may
cause burns or injuries.
Do not disassemble or remodel the equipment. Do not solder
items onto the equipment.
May cause fire, injuries, electric shock, or malfunction. It may
also cause the battery to leak, heat, burst or ignite.
Do not let the equipment get wet.
Contact with water or other liquids can cause heating, electric
shock, fire, malfunctions or injuries. Take care of the place for use
and treatment of the equipment.
Use the battery and AC adapter specified by FUJITSU for your F-
022 terminal.
Use of equipment not specified by FUJITSU can cause F-022
terminal, battery and other parts to leak, heat, burst, catch fire or
malfunction.
WARNING
Do not put the battery, F-022 terminal, AC adapter or SIM/USIM
in microwave ovens or other heating appliances or high-
pressure containers.
It may cause the battery to leak, heat, burst or ignite, may cause
F-022 terminal or AC adapter to heat, smoke, ignite, or may
damage circuits.
Do not throw the equipment or give hard shock to it.
May cause the battery to leak, heat, burst or ignite, and the
equipment to malfunction or catch fire.
Keep conductive materials (metal pieces, pencil lead, etc.) from
coming in contact with the charging jack or external connection
jack. Do not put those materials inside the terminal.
May be subject to electrical short and could cause fire or
malfunction.
Turn F-022 terminal OFF before entering a place such as a gas
station where flammable gases are generated. Do not charge the
battery. The gas may catch fire.
F-022.book 10 ページ 2011年2月24日 木曜日 午後2時42
11
Chapter 1Introduction
F-022_E2kou
If the equipment starts giving off a strange smell, overheats,
becomes discolored or deformed during use, charging or in
storage, immediately perform the following operations.
1. Remove the power plug from the wall outlet.
2. Turn F-022 terminal OFF.
3. Remove the battery from F-022 terminal.
May cause the equipment to heat, burst or ignite or the battery to
leak if you keep using the equipment.
CAUTION
Do not leave the equipment on unstable or sloping surfaces.
May cause malfunction or injuries.
Do not store the equipment in extremely humid, dusty or hot
areas.
May cause malfunction.
Children using the equipment should be instructed in proper
operation by an adult. Do not allow them to use the equipment
without adult supervision.
May cause injuries.
Store the equipment out of reach of small children.
May be accidentally swallowed or cause injuries.
Be careful especially when using F-022 terminal connected to the
AC adapter continuously for a long time.
If you use a video call while charging the battery for a long time,
F-022 terminal, battery and AC adapter may be heated.
Directly touching a hot part for a long time, you may have
redness, itching or rash on your skin, or it may result in low-
temperature burns depending on your constitution or health
condition.
Handling F-022 terminal
WARNING
Do not put F-022 terminal in the place such as the dashboard
near the airbag, where the influence of air-bag explosion is
expected.
When the air-bag explodes, F-022 terminal may hit yourself or
others and could cause injury, equipment malfunction or
damage.
When you use electronic medical equipment, do not keep the
terminal in your chest pocket or inside pocket.
Using your F-022 terminal near medical electronic equipment
could cause equipment failure.
Do not put foreign objects such as liquid like water, metal pieces
or burnable things into SIM/USIM or microSD card slot.
May cause fire, electric shock or malfunction.
Turn F-022 terminal OFF in areas where use is prohibited, such
as in airplanes and hospitals.
May cause electronic equipment or electronic medical equipment
to fail or malfunction. If the function which automatically turns
the power ON is set, cancel the setting before turning the power
OFF. When using the phone in a medical facility, be sure to
observe the regulations of the facility. If you do prohibited act
such as using the phone in an airplane, you may be punished
according to law.
When you talk by setting handsfree, always keep F-022 terminal
away from your ear. And, when connecting the earphone/
microphone to F-022 terminal and play a game or music, adjust
the volume moderately.
Too loud volume may cause a hearing loss. And, if you cannot
hear the sound around you clearly, it may cause an accident.
F-022.book 11 ページ 2011年2月24日 木曜日 午後2時42
Chapter 1Introduction
12
F-022_E2kou
If you have weak heart, be careful when setting the Vibrate alert
(vibration) or alert volume setting.
Could affect heart function.
If it starts thunder while using the terminal outdoors, turn the
power OFF immediately, and move to a safe location.
May be subject to lightning strike and could cause electric shock.
Turn F-022 terminal OFF near high-precision electronic control
equipment or electronic equipment using low-power signals.
May cause the equipment to fail or malfunction.
* Examples of electronic equipment to avoid.
Hearing aids, implanted pacemakers or defibrillators, other
electronic medical equipment, fire alarms, automatic doors and
other automatic control equipment.
Users wearing implanted pacemakers or defibrillators or other
electronic medical equipment should check with the
manufacturer or sales outlet about the effect of radio frequencies
on the equipment.
When the display or camera lens is accidentally broken, be
careful of broken glass or exposed internal parts of F-022
terminal.
Surfaces of display and camera lens are made of plastic panels
and they are structured for the glass not to scatter, however, if
you mistakenly touch broken or exposed parts, you may be
injured.
When you sound a high-pitched alarm, always keep F-022
terminal away from your ear.
May cause hearing loss.
CAUTION
Do not swing F-022 terminal by its strap.
May cause the terminal damage or failure, or injury to yourself or
others.
When using the motion tracking or motion sensor, check the
safety around you, hold F-022 terminal firmly, and do not shake
it unnecessarily.
The motion tracking and motion sensor are functions to operate
by tilting or shaking F-022 terminal. There is a risk that F-022
terminal hits people or objects around you by shaking it too
much, causing a serious accident or damage.
If you put a metal strap or the like to F-022 terminal, be careful
not to let the strap hit people or objects around you when
performing motion tracking or using motion sensor.
Accidents such as injury, malfunction or damage may result.
If the display part is accidentally broken and liquid crystal leaks
out, do not put the liquid in your mouth, inhale, or make contact
with your skin.
If the liquid gets into your eyes or mouth, rinse it with clean
water and see a doctor immediately. And, if the liquid adheres to
skin or clothing, use alcohol etc. to wipe it off, then wash with
soap.
May cause loss of sight or skin problems.
Do not bring the speaker close to your ear when the ring alert is
sounding or you are playing a melody with F-022 terminal.
May cause hearing loss.
In rare cases, using the phone in some vehicle models can cause
the vehicle's electronic equipment to malfunction or fail.
In this case, do not use the phone because it may hamper safe
driving.
F-022.book 12 ページ 2011年2月24日 木曜日 午後2時42
13
Chapter 1Introduction
F-022_E2kou
Mobile phones can give some users skin problems such as
itching, allergic reactions or rashes. If you develop skin
problems, stop using the phone immediately, and see a doctor.
When opening or closing F-022 terminal, take care not to have
your fingers or strap caught by the terminal.
May cause injuries or damages.
Handling battery
Check that the battery type matches the type displayed on the
battery label.
DANGER
Do not connect a wire or other metal objects to the jack. And, do
not carry or store F-022 terminal with objects like a metal
necklace.
May cause the battery to leak, heat, burst or ignite.
Do not try to force the battery onto F-022 terminal if you are
having trouble installing it. Always install it after checking that
it is correctly oriented.
May cause the battery to leak, heat, burst or ignite.
Do not throw the battery into the fire.
May cause the battery to leak, heat, burst or ignite.
Do not give hard shock to the battery or place heavy objects on
it.
May cause the battery to leak, heat, burst or ignite.
If the battery's fluid contacts eyes, immediately flush the eyes
with clean water and see a doctor right away. Do not rub the
eyes.
May cause loss of sight.
WARNING
If the battery seems to have abnormalities such as deformation
or scratches due to an external impact or falling, stop using it
immediately.
May cause the battery to leak, heat, burst or ignite, and the
equipment to malfunction or catch fire.
If the battery does not have a full charge after being charged for
the specified time, stop charging it.
May cause the battery to leak, heat, burst or ignite.
If the battery leaks or gives off a strange smell, immediately
remove it from the vicinity of open flames.
The vapors from leaking battery fluid may ignite or explode.
Be careful not to let your pet bite the battery.
May cause the battery to leak, heat, burst or ignite, and the
equipment to malfunction or catch fire.
CAUTION
Do not discard old batteries together with other garbage.
May cause igniting or environmental destruction. Tape the
terminals of old batteries to insulate them, and then bring them
into a sales outlet such as D-PHONE Shop. If your local
municipality has a battery recycling program, dispose of them as
provided for.
Do not charge a wet battery.
May cause heat generation, ignition or rupture of the battery.
If the battery's fluid contacts skin or clothes, immediately flush
the contacted area thoroughly with clean water.
May hurt the skin.
S/N Battery type
CA54310-0019 Li-ion battery
F-022.book 13 ページ 2011年2月24日 木曜日 午後2時42
Chapter 1Introduction
14
F-022_E2kou
Handling AC adapter and desktop holder
WARNING
Do not use the USB cable if it gets damaged.
May cause electric shock, heat or fire.
Do not use the AC adapter or desktop holder in a bathroom or
other highly humid area.
May cause electric shock.
When it starts to thunder, do not touch F-022 terminal and AC
adapter.
May be subject to lightning strike and could cause electric shock.
Do not short the charging jack while it is connected to the outlet.
Do not touch the charging jack with a part of your body such as
your hand or finger.
May cause fire, malfunction, electric shock or injuries.
Place the AC adapter and desktop holder in a stable location
while charging.
Do not cover or wrap the AC adapter and desktop holder with a
cloth or blanket.
May cause F-022 terminal to be removed or the optional devices
to be heated, resulting in fire or troubles.
Do not place heavy objects on the USB cable.
May cause electric shock or fire.
Do not touch the USB cable, desktop holder or outlet with wet
hands.
May cause electric shock.
Only use with the specified power source and voltage.
If incorrect voltage is used, this may cause fire or failure.
Do not charge F-022 terminal connecting to a PC with the USB
cable.
Charging may not be normally performed.
Do not use desktop holder overseas.
May cause malfunctions.
Wipe off any dust that accumulates on the power plug.
May cause fire.
When you connect the AC adapter to an outlet, make sure not to
touch with metal such as metal straps and firmly connect to the
outlet.
May cause electric shock, electrical short or fire.
When you disconnect the AC adapter from the outlet, do not try
to pull the USB cable with excessive force. Instead, hold the AC
adapter's power plug to disconnect.
Pulling the cord could damage it, possibly leading to electric
shock or fire.
Always remove the power plug from the outlet when not using
the AC adapter for an extended period.
May cause electric shock, fire or malfunction.
Immediately remove the power plug from the outlet if water or
other fluids get into the AC adapter.
May cause electric shock, smoke or fire.
Handling SIM/USIM
CAUTION
Be careful of the cut surface when removing SIM/USIM.
May hurt hands or fingers.
01_Safety.fm 14 ページ 2011年2月25日 金曜日 午後4時19分
15
Chapter 1Introduction
F-022_E2kou
Handling mobile phones near electronic medical
equipment
WARNING
Obey the following rules inside medical facilities.
- Do not bring F-022 terminal into operating rooms (ORs),
intensive care units (ICUs) or coronary care units (CCUs).
- Turn F-022 terminal OFF in hospital wards.
- Turn F-022 terminal OFF in hospital lobbies and corridors if
electronic medical equipment could be nearby.
- If the medical facility has specified zones where use or
possession of mobile devices is prohibited, obey those
instructions.
- If the function to automatically turn ON the power is set, cancel
the setting before turning the power OFF.
Turn F-022 terminal OFF in crowded trains or other public places
where pacemaker or defibrillator wearers could be nearby.
F-022 terminal's signals may affect the operation of implanted
pacemakers or defibrillators, and other devices.
Wearers of implanted pacemakers or defibrillators must carry
and use F-022 terminal at least 22 cm away from the implanted
device.
F-022 terminal's signals may affect the operation of implanted
pacemakers or defibrillators, and other devices.
When electronic medical equipment other than implanted
pacemakers or defibrillators are in use outside of medical
facilities (such as in home care settings), check with the device
manufacturer to determine how the device is affected by
electrical signals.
F-022 terminal's signals may affect the performance of electronic
medical equipment.
1.5 Handling precautions
General
F-022 is waterproof/dustproof, however, do not allow water or
dust to seep into F-022 terminal and do not allow accessories or
optional devices to get wet or let dust attach.
- F-022 terminal is provided with waterproofness of IPX5 and
IPX8 (which exceeds IPX7) and dustproofness of IP5X by firmly
closing the external connection jack cap and installing the rear
cover in a locked state, however, it is not complete
waterproofness/dustproofness. Do not install/remove the
battery or do not open/close the external connection jack cap
and rear cover in the rain or with waterdrop or dirt adhered to
them. Water may seep inside and cause corrosion or
malfunction. Also, accessories and optional devices are not
waterproof/dustproof. Malfunctions, which are determined to
be caused by water or dust as result of inspections, are not
covered by the warranty. Since these conditions are outside the
scope of the warranty, a repair, if at all possible, is charged.
Clean F-022 terminal with a dry soft cloth (such as a cloth for
eyeglasses).
- The display of F-022 terminal may have been applied special
coating to improve clearness of the color LCD. When cleaning F-
022 terminal, rubbing it roughly with a dry cloth can scratch the
display. Take care when handling the unit, and clean it with a
dry soft cloth (such as a cloth for eyeglasses). Drops of water or
dirt left on the display can cause stains or remove the coating.
- If F-022 terminal is wiped with alcohol, paint thinner, benzine or
detergent, the printing may disappear or color may fade.
F-022.book 15 ページ 2011年2月24日 木曜日 午後2時42
Chapter 1Introduction
16
F-022_E2kou
Clean the jack occasionally with a dry cotton swab etc.
- If the jack is soiled, connection gets worse and it may cause
power to be turned off or insufficient battery charge, so clean
the jack with a dry cotton swab etc. Also, be careful never to
damage the jack when cleaning it.
Do not place F-022 terminal near an air-conditioner outlet.
- The rapid change in temperature may cause condensation,
causing internal corrosion and malfunction.
When using, be careful not to subject excessive force to F-022
terminal or the battery.
- If F-022 terminal is crammed into a brimming bag or placed in a
pocket and sat on, display, internal PCBs or battery may be
damaged or malfunction. And, if external devices are plugged
into the external connection jack, the breakage of the connector
or malfunction may result.
Do not rub or scrape the display with a metal piece etc.
- It may scratch the display, causing malfunction or damage.
F-022 terminal
Avoid extreme temperature.
- Use F-022 terminal where the temperature ranges between 5
and 40
°
C (limited to the temporary use in a bathroom etc. when
temperature is above 36
°
C) and humidity ranges between 45
and 85%.
F-022 terminal may affect land-line phones, TVs or radios in use
nearby, so use it as far as possible from these appliances.
Maintain a separate record of the data you saved in your F-022
terminal.
- If the data is deleted, FUJITSU assumes no responsibility for the
loss of any data.
Do not drop F-022 terminal or subject it to shocks.
- May cause malfunction or damage.
Do not plug external devices into the external connection jack at
a slant, or do not pull it forcibly while it is plugged.
- May cause malfunction or damage.
Do not close F-022 terminal with the strap etc. held inside.
- May cause malfunction or damage.
It is normal for F-022 terminal to become warm during use or
charging. Continue to use it.
Do not leave F-022 terminal with the camera in areas under
strong direct sunlight.
- May cause discoloring or burn-in of materials.
F-022 terminal should normally be used with the external
connection jack cap closed.
- Dust and/or water brought into F-022 terminal cause troubles.
Do not use F-022 terminal with the rear cover removed.
- It may cause the battery to come off, or may cause a
malfunction or damage.
Do not put extremely thick stickers on the display or the key
side.
- Doing so may cause malfunction.
While microSD card is being used, do not take the card out and
do not turn off F-022 terminal.
- May cause data loss or malfunction.
Do not bring magnetic cards etc. close to F-022 terminal.
- Magnetic data in cash cards, credit cards, telephone cards,
floppy disks, etc. may be erased.
Do not bring magnetized objects close to F-022 terminal.
- Bringing strong magnetism close may cause a malfunction.
F-022.book 16 ページ 2011年2月24日 木曜日 午後2時42
17
Chapter 1Introduction
F-022_E2kou
Battery
The battery is a consumable part.
- Replace the battery if F-022 terminal has extremely short
operation time on a full charge, though it may vary by operating
conditions. Purchase a new battery of the specified type.
Charge the battery in an area within the proper ambient
temperature range (5-35
°
C).
Always charge before using it for the first time or after extended
disuse.
The operation time provided by the battery varies by the
operating environment and battery's deterioration.
The battery may swell out as it comes to near the end of its
lifetime depending on the usage conditions, but it is not a
problem.
Be careful especially about the following points when preserving
or leaving the battery for a long time.
- Keeping under the state of the full charge (right after charging
ends)
- Keeping under the state of the empty charge (too exhausted to
turn on F-022 terminal)
They may cause the battery performance to be degraded or its
lifetime to be shortened.
For necessary battery level to keep for a long time, the display
of battery icon is a state of approximately 2 or 3 cells.
AC Adapter
Do not charge the battery in the areas below.
- In areas of excessive humidity, dust or vibrations
- Near land-line phones or TVs/radios
It is normal for the AC adapter to become hot while charging.
Continue to use it.
When using an outlet with a mechanism preventing unplugging,
follow the handling instructions for that outlet.
Do not give strong shock. Do not deform the charging jack.
- Doing so may cause malfunction.
SIM/USIM
Do not use excessive force to install/remove SIM/USIM.
It is normal for SIM/USIM to become warm during use. Continue
to use it.
Note that FUJITSU assumes no responsibility for malfunctions
occurring as the result of inserting and using a SIM/USIM with
another IC card reader/writer.
Always keep SIM/USIM ICs clean.
Clean SIM/USIM with a soft, dry cloth (such as a cloth for
eyeglasses).
Maintain a separate record of the data you saved in SIM/USIM.
- If the data is deleted, FUJITSU assumes no responsibility for the
loss of any data.
Avoid extreme temperature.
Take care not to scratch, touch accidentally or short IC.
- May cause data loss or malfunction.
Do not drop SIM/USIM or subject it to shocks.
- May cause malfunction.
Do not bend SIM/USIM or place heavy objects on it.
- May cause malfunction.
Do not install SIM/USIM into F-022 terminal with a label or
sticker put on SIM/USIM.
- May cause malfunction.
F-022.book 17 ページ 2011年2月24日 木曜日 午後2時42
Chapter 1Introduction
18
F-022_E2kou
CAUTION
Do not use a remodeled F-022 terminal. Using a remodeled
terminal violates the law.
Never open the terminal by removing its screws, or try to modify
or repair your terminal yourself. This will void your authority to
operate this equipment and invalidate the terminal's certification
of technical standard compliance. Repair shall be performed by
authorized personnel only.
Do not tamper or remove the inscription stickers attached to this
terminal, since these stickers certify that the terminal satisfy
specific technical standards.
Do not use F-022 terminal while driving a car etc.
F-022.book 18 ページ 2011年2月24日 木曜日 午後2時42
19
F-022_E2kou
Chapter 2
Get started
2.1 Keys and parts
Keys and Parts
a
Earpiece
b
Display
c
Secondary camera
Shoot yourself or send your image during
video call.
d
Microphone
Do not cover the microphone during a call or
sound recording.
e
I
Left selection key
Access to functions displayed on the
bottom left of the screen such as Options.
f
m
Menu key
Open the Main menu.
g
c
Clear key
Delete a previously entered character during text
entry.
h
n
Call key
Make a phone call. Display the call logs in the
standby mode.
i
0
9
Number keys
Refer to "Number keys (
P20)".
j
*
*Key
Refer to "Number keys (
P20)".
k
T
Edit Key
Display text input options such as changing
input mode and language in the text input screen.
l
Light sensor
m
k
Navigation keys
Move the cursor to select an item.
g
: Perform an operation.
u
/
d
: Move the cursor upward/ downward or adjust volume.
l
/
r
: Move the cursor to the left/ right or switch the home screen.
n
a
Right selection key
Access to functions displayed on the
bottom right of the screen.
o
C
Camera key
Start Main camera.
p
f
Power/End key
End a call. Press and hold to switch the
mobile terminal OFF.
q
#
# key
Refer to "Number keys (
P20)".
r
s
Profile key
Display the Profile switching list.
s
U
Pedometer key
Start Pedometer.
F-022.book 19 ページ 2011年2月24日 木曜日 午後2時42
Chapter 2Get started
20
F-022_E2kou
t
Light
Turn on/blink while receiving a call or closing the mobile
terminal. You can set the pattern or color definitions.
u
Call light
Blink while receiving a call.
v
Sub-display
Display time and phone number, etc. Display
animation when you close the mobile terminal.
w
Message light
Blink while receiving a message.
x
Antenna
y
Main camera
Shoot photos and videos.
z
Speaker
A
Rear cover
B
Charging jack
C
Rear cover lever
D
Open assist button
You can easily open the mobile terminal
by pressing this button.
E
External connection jack
F
M
Music/shutter key
Operate Music player and camera.
G
S
/
D
Volume/zoom key
Adjust the volume, turn on the light
on the sub-display. You can use it as a zoom in/out key when the
camera or Mirror is activated.
Number keys
Key Stroke / Alphabet / Function
1
/ One-byte symbol / Voice Mail (press and hold)
2
/ ABC
3
/ DEF
4
/ GHI
5
/ JKL
6
? / MNO
7
PQRS
8
TUV
9
WXYZ
0
Space
*
(press once) , + (press twice) , P (press 3 times),
W (press 4 times)
#
(Switch characters *Available only for character input)
F-022.book 20 ページ 2011年2月24日 木曜日 午後2時42
21
Chapter 2Get started
F-022_E2kou
2.2 Attach SIM/USIM/battery
After turning power OFF, close F-022 terminal and hold it in your
hand so that you can properly attach SIM/USIM/battery.
Remove rear cover
Slide the rear cover lever in the direction of
a
to unlock, and then
slide the cover in the direction of
b
by 2 mm with a thumb to
remove it. Pinch the tab of the inner cover and open the cover in
the direction of
c
.
Install SIM/USIM
Pull the tab with your nail and pull out the tray until it clicks
a
.
Hold SIM/USIM with the IC side down, align the beveled corner
with the tray and push into the tray
b
. Then push the tray into the
slot until it stops
c
.
Install battery
With the label side of the battery upward, align convex parts of the
battery with concave parts of F-022 terminal and slide the battery
in the direction of
a
, press the battery in the direction of
b
to set
it in, and then close the inner cover.
Install rear cover
Place the 8 tabs of rear cover to the notches, press rear cover in the
direction of
a
to avoid forming any clearance between F-022
terminal and rear cover, then slide it in the direction of
b
to install
it.
Finally, slide the lever in the direction of
c
to lock.
Point
The inner cover shall be firmly closed for maintaining
waterproofness/dustproofness. Opening the cover forcibly may
injure your nails or fingers.
Tab
Lever Press here with your thumb
Rear cover
Tab
Tray
SIM/USIM
IC
Beveled corner
Convex part
Concave part
Battery
Rear cover
Lever
F-022.book 21 ページ 2011年2月24日 木曜日 午後2時42
Chapter 2Get started
22
F-022_E2kou
To prevent damage due to excessive force, the hinge of the inner
cover (the section where F-022 terminal makes contacts) is
designed to be removed. If it is detached, align metal pins on the
inner cover with the slots on F-022 terminal, and then press the
cover until it clicks.
2.3 Use microSD card
F-022 supports microSD card of up to 2 Gbytes, and microSDHC
card of up to 16 Gbytes.
Inserting
1
Turn the mobile terminal OFF, then remove the battery.
2
Insert the microSD card slowly into the slot with metal
connectors side down (as shown right), and insert it further
until it clicks.
* To remove the microSD card, push it lightly to pop it out, and
then pull it out.
2.4 Use earphone
1
Connect cable to remote controller (
a
).
2
Open jack cap (
b
) of F-022 terminal.
3
Hold the connector horizontally with the arrow side up and
insert it to the jack (
c
).
External connection jack
Plug for the
terminal
Connecting plug of Stereo earphone
and microphone
Connecting Stereo earphone and microphone
F-022.book 22 ページ 2011年2月24日 木曜日 午後2時42
23
Chapter 2Get started
F-022_E2kou
2.5 Use desktop holder and AC adapter in
combination for charging
The battery does not have a full charge at time of purchase. Use AC
adapter for F-022 terminal to charge the battery before using F-022
terminal.
1
Insert the USB cable's connector to the AC adapter, and the
other connector to the desktop holder.
2
Insert the AC adapter's power plug into AC outlet.
3
With F-022 terminal closed, insert it into the desktop holder.
* Check that the light turns on.
4
After charging is completed, remove F-022 terminal from the
desktop holder.
Point
Use desktop holder only in the People's Republic of China.
2.6 Charge using AC adapter
1
Insert the USB cable's connector to the AC adapter.
Open jack cap (
a
) of F-022 terminal, hold the connector
horizontally with the arrow side upward and insert it to the jack
(
b
).
2
Insert the power plug into AC outlet.
3
When charging is over, pull out the power plug from the outlet,
and pull out the connector from F-022 terminal horizontally
while pressing the release buttons on both sides of the
connector.
AC outlet
Light
Release
button
Connector
Desktop holder
Insert at the back side
AC adapter
Power plug
Connector
USB cable
AC outlet
Connector
Release button
External
connection
jack Jack cap
Power
plug
AC adapter
Light
USB cable
Connector
02_Get_Started.fm 23 ページ 2011年2月25日 金曜日 午後4時21分
Chapter 2Get started
24
F-022_E2kou
Note that this mobile terminal does not support charge
function using USB connection with a PC.
Even if you do not have the AC adapter when battery is low, do
not connect this mobile terminal to a PC or other devices with
the included USB cable.
The connector may be damaged when connecting/
disconnecting the USB cable.
If you connect to a USB device not power outlet, the charging
indicator may be displayed on the screen. The actual charging
performance is not guaranteed, or charging may not be
performed.
Connect the AC adapter to the power outlet shown on the
previous page to charge the mobile terminal quickly.
Operations for charging
When charging starts, a charge start alert sounds. While charging,
the light turns on and the battery icons on the display and the sub-
display blink.
2.7 Attach the wrist strap
Thread the wrist strap as shown, and tighten it.
2.8 Switch the mobile terminal on or off
Press and hold
f
.
02_Get_Started.fm 24 ページ 2011年2月24日 木曜日 午後4時29分
25
Chapter 2Get started
F-022_E2kou
2.9 Interactive standby mode elements
The standby mode elements are interactive. For example, you can
change the date and time, set alarms, write calendar entries, or edit
the profiles directly in the standby mode.
Set an alarm
Select the clock (
a
).
Activate or edit profiles
Select the profile (
b
).
View or edit your schedule
Select the date (
c
).
2.10 Write text
Enter Simplified Chinese characters
XT9 Pinyin mode
Press
T
, and select
XT9 Pinyin
.
1
Press a corresponding numeric key (
1
-
9
) once at a
Pinyin stroke you want to enter.
2
Press
h
to select an appropriate Pinyin combination if needed.
3
Press
j
>
g
to select the desired character(s).
To enter " " in XT9 Pinyin mode
1
Press
74364
.
2
Select ' ' from the candidates.
3
Repeat steps 1 and 2 to complete the word.
Point
You can use JianPin to enter Chinese text as well.
JianPin is a method that combines key entries by only the
consonants in Pinyin and suggests Chinese characters that match
the combination of word's combination of consonants. You can
then select from the suggestions to enter a character.
To enter " " using JianPin method.
1
In XT9 Pinyin mode, press
7755
.
2
Press
l
or
r
to move the cursor to .
3
Select " " from the list.
ac
b
F-022.book 25 ページ 2011年2月24日 木曜日 午後2時42
Chapter 2Get started
26
F-022_E2kou
XT9 Stroke mode
Press
T
, and select
XT9 Stroke
.
Each key represents the following strokes;
1
Press a corresponding numeric key (
1
-
5
) in the order in
writing. If the stroke is unknown, press
6
.
2
Press
j
>
g
to select the desired character.
To enter " " in XT9 Stroke mode
1
Press
31121
.
2
Select " " from the candidates.
3
Repeat steps 1 and 2 to complete the word.
Entering English text
Activate traditional text input
Enter a character
1
Press a number key (
1
-
9
) repeatedly, until the desired
character is displayed. There are more characters available than
are visible on the key.
2
If the next letter is located on the same key, Press
r
to move
the cursor forward and press the key again.
Insert a space
Press
0
.
Move the cursor to the next line
Quickly press
0
three times.
Activate predictive text input
1
To write the desired word, use the keys
2
-
9
. Press each
key once for each letter. For example, to write Fujitsu, press
3
for F,
8
for u,
5
for j,
4
for i,
8
for t,
7
for s,
and
8
for u.
The word suggestion changes after each key selection.
2
If the word is not correct, press
*
repeatedly, until the
correct match is displayed. If
?
is displayed after the word, the
word is not in the dictionary.
3
To insert a space, press
0
. To insert a common punctuation
mark, press
1
, and then press
*
repeatedly, until the
correct punctuation mark is displayed.
4
Start writing the next word.
Define the writing language
Press
m
>
Settings
>
Phone
>
Language
>
Writing language
.
key
12345 6
stroke
一丿
?
(wildcard)
F-022.book 26 ページ 2011年2月24日 木曜日 午後2時42
27
Chapter 2Get started
F-022_E2kou
2.11 Display indicators
* Other indicators may be shown.
2.12 Search in your mobile terminal
With the Search application, you can find any item in your mobile
terminal.
1
Press
m
>
Applications
>
Search
.
2
Enter a search word in the search field.
2.13 Change the volume of a call, song, or video
Use
S
/
D
.
The built-in loudspeaker allows you to speak and listen from a
short distance without having to hold the mobile terminal to your
ear.
Activate or deactivate the loudspeaker during a call
Select
Loudsp.
, or select
Options
>
Activate loudspeaker
.
The mobile terminal alerts silently for incoming calls or
messages.
You have set a clock alarm.
You have missed calls.
You have set your mobile terminal to divert incoming
calls to another number (network service). If you have
two phone lines, a number indicates the active line.
You have unread messages. If the indicator is blinking,
the SIM card memory for messages may be full.
You have received new mail.
You have messages waiting to be sent in the Outbox
folder.
Your mobile terminal is in the offline mode and not
connected to a cellular network.
Your mobile terminal is connected to a GSM network
(network service).
Your mobile terminal is connected to a 3G(WCDMA)
network (network service).
You have a GPRS packet data connection (network
service). indicates that the connection is on hold and
that a connection is being established.
You have a 3G(WCDMA) packet data connection (network
service). indicates that the connection is suspended
and that a connection is being established.
You have an HSDPA packet data connection (network
service). indicates that the connection is suspended
and that a connection is being established.
Bluetooth is active. indicates that your mobile
terminal is sending data. If the indicator is blinking, your
mobile terminal is trying to connect to another device.
You have connected a USB cable to your mobile terminal.
The mobile terminal is synchronising.
You have connected a compatible headset to the mobile
terminal.
F-022.book 27 ページ 2011年2月24日 木曜日 午後2時42
Chapter 2Get started
28
F-022_E2kou
2.14 Use your mobile terminal offline
In radio sensitive environments, where you are not allowed to
make or receive calls, you may still be allowed to access your
calendar, contacts list, and offline games if you activate the offline
profile.
In the home screen, select the profile and
Offline
.
When the offline profile is activated, your connection to the cellular
network is closed. All radio frequency signals between the mobile
terminal and the cellular network are prevented. If you try to send
a message, it is placed in the Outbox folder, and is sent only when
another profile is activated.
You can also use your mobile terminal without a SIM card. If you
remove the SIM card, the offline profile is activated.
Point
In the offline profile you cannot make or receive any calls, or use
other features that require cellular network coverage. You may
be able to call the official emergency number programmed into
your mobile terminal.To make calls, you must first change to
another profile.
2.15 Prolong battery life
Many features in your mobile terminal increase the demand on
battery power and reduce the battery lifetime. To save battery
power, note the following:
Always charge the battery fully.
Activate power saving mode. Press
s
, and select
Activate power
saving
. The device settings, such as Network mode, are optimised.
To deactivate power saving mode, press
s
, and select
Deactivate power saving
.
Set your mobile terminal to retrieve mail less frequently. Press
m
>
Applications
>
Mail
>
Settings
, your mailbox, and
Synchronisation
>
Retrieval frequency
. If you have additional
mailboxes, you may need to set the retrieval frequency
separately for each mailbox.
Mute unnecessary tones, such as key tones.
Use wired headphones, rather than the loudspeaker.
Deactivate the background animation effects. Press
m
>
Settings
>
Themes
>
General
and select
Options
>
Theme effects
>
Off
.
Activate a dark theme. Press
m
>
Settings
>
Themes
>
General
.
Change the length of the time-out period after which the device
display switches off. Press
m
>
Settings
>
Phone
>
Display
>
Light time-out
.
If the signal strength of the cellular network varies in your area, it
increases the demand on battery power.
If the network mode is set to use both GSM and 3G(WCDMA) (dual
mode) networks, the mobile terminal searches for the
3G(WCDMA) network. To set your mobile terminal to use only the
GSM network,
Press
m
>
Settings
>
Connectivity
>
Network
>
Network mode
>
GSM
.
Deactivate Bluetooth when not needed. Press
m
>
Settings
>
Connectivity
>
Bluetooth
>
Bluetooth
>
Off
.
Set the packet data connection to be established only when
needed. Press
m
>
Settings
>
Connectivity
>
Admin. settings
>
Packet data
>
Packet data connection
>
When needed
.
When you are listening to music, and do not want to make or
receive calls, activate the offline profile.
Close the applications you are not using.
F-022.book 28 ページ 2011年2月24日 木曜日 午後2時42
29
F-022_E2kou
Chapter 3
Personalisation
3.1 Profiles
Press
m
>
Settings
>
Profiles
.
You can personalise the profiles in the following ways:
Change the ringing and message alert tones.
Adjust the volume of ringing and key tones.
Mute key tones and warning tones.
Activate vibrating alerts.
Set the mobile terminal to say the name of the contact who is
calling.
Personalise your tones
You can personalise your mobile terminal tones for each profile.
Press
m
>
Settings
>
Profiles
.
1
Select the desired profile.
2
Select
Personalise
and the desired option.
Silence your mobile terminal
When the silent profile is activated, all ringing and alert tones are
muted. Activate this profile when you are at the cinema or in a
meeting.
In the home screen, select the profile and
Silent
.
Change your profile for meetings or outdoor use
When the meeting profile is activated, your mobile terminal
discreetly beeps once instead of ringing. When the outdoor profile
is activated, the ringing tone is louder, so you won't miss a call in
a noisy environment.
In the home screen, select the profile and Meeting or Outdoor.
Create a new profile
1
Press
m
>
Settings
>
Profiles
>
Options
>
Create new
.
2
Define your profile settings, and select
Profile name
.
3
Enter a name for the profile.
3.2 Change your theme
With themes, you can change the colours and look of your display.
Press
m
>
Settings
>
Themes
.
Select
General
and a theme.
Some themes include background animation effects. To save
battery power, select
General
>
Options
>
Theme effects
>
Off
.
F-022.book 29 ページ 2011年2月24日 木曜日 午後2時42
Chapter 3Personalisation
30
F-022_E2kou
3.3 Home screen
In the home screen, you can quickly access your most frequently
used applications and create shortcuts for different features. You
can view your favourite contacts, and quickly call, or send
messages to them. You can also control applications, such as
Music.
You can have more than one home screen page, for example,
separate home screens for work and private life.
The home screen elements are interactive. For example, if you
select the clock, the
Clock
application opens.
Switch between home screens
You can have more than one home screen.
To switch to another home screen, press
h
.
indicates which home screen you are in.
F-022.book 30 ページ 2011年2月24日 木曜日 午後2時42
31
Chapter 3Personalisation
F-022_E2kou
Personalise the home screen
You can change this wallpaper, and rearrange items in the home
screen.
Change the wallpaper
1
In the standby mode, select
Options
>
Edit content
.
2
Select
Options
>
Change wallpaper
.
3
Select the desired picture.
4
Select
Done
.
Add items to the home screen
You can create shortcuts to your most used features.
Add a shortcut to the home screen
You can add shortcuts to applications, web bookmarks, or actions,
such as writing a message.
1
In the standby mode, select
Options
>
Edit content
.
2
Select the shortcut widget and
Settings
.
3
Select the shortcut you want to define, and select
Application
or
Bookmark
and the desired item.
Point
To remove a shortcut, replace it with another one.
Add a widget to the home screen
1
In the standby mode, select
Options
>
Edit content
.
2
Select and the desired widget from the list.
Remove a widget from the home screen
1
In the standby mode, select
Options
>
Edit content
.
2
Select the widget, and select
Options
>
Remove content
.
3.4 Light alert
You can set a light alert for incoming call, while talking, and for
alarm, opening/closing the mobile terminal.
Press
m
>
Settings
>
Phone
>
Illumination
Set a light alert for incoming call
Select
Incoming call
, and choose
Illumination pattern
and
Illumination color
.
When selecting Illumination color, corresponding Call light turns
on, and you can check the color.
Set a light alert for keypad
Press
Keypad illumination
, select
Keypad illumination
,
Illumination color
, and
Light alert
.
When selecting Illumination color, keypad lights on in the
corresponding color, and you can check the color.
Set
Light alert
to ON and the light alert blinks in the set color while
receiving a call. Turning the setting OFF lights the light alert in the
color of the Keypad light.
F-022.book 31 ページ 2011年2月24日 木曜日 午後2時42
F-022_E2kou
32
Chapter 4
Telephone
4.1 Call a phone number
1
In the home screen, enter the phone number. To enter the +
character, used for international calls, select
*
twice.
2
To make the call, press
n
.
3
To end the call, press
f
.
4.2 Call a contact
Press
m
>
Contacts
.
1
To search for a contact, scroll to the desired name. You can also
enter the first characters of the first or second name in the
search field.
2
Select the contact.
3
In the contact card, select
Voice call
.
4
If the contact has more than one phone number, select
Voice
call
, and select the desired number.
4.3 Voice clear and Voice slowing
Voice clear
This function detects ambient noise and optimizes the other party's
voice during a voice call by limited voice vocal range to make the
voice be heard clearly. And, the volume is automatically increased
also when your or other party's voice is small.
Deactivate Voice clear
During a voice call, select
Options
>
Voice clear OFF
.
Point
This function does not operate while using speakerphone
function.
This function operates only in 3G(WCDMA) network.
The settings are retained after a call.
This function is set to ON as default.
Voice slowing
During a voice call, adjust the other party's voice to be heard slowly
by using the silence at intervals, to make it easier to be heard.
When the other party speaks without intervals, the voice is heard
at the normal speed.
Activate Voice slowing
During a voice call, select
Options
>
Voice slowing ON
.
Point
If you set Voice slowing to ON, the quality of the other party's
voice or music tone may change. In this case, set Voice slowing
to OFF.
This function operates only in 3G(WCDMA) network.
The settings are canceled after a call.
This function is set to OFF as default.
F-022.book 32 ページ 2011年2月24日 木曜日 午後2時42
33
Chapter 4Telephone
F-022_E2kou
4.4 Make a video call
When you make a video call (network service), you can see a live,
two-way video between you and the recipient of the call.
To make a video call, you need to be in a 3G(WCDMA) network.
For information on availability and costs, contact your service
provider.
Video calls can only be made between two parties. Video calls
cannot be made while another voice, video, or data call is active.
1
Press
m
>
Contacts
, and search for a contact.
2
Select the contact, and in the contact card, select
Video call
.
The secondary camera on the front of your mobile terminal is
used by default for video calls. Starting a video call may take a
while. If the call is not successful (for example, video calls are
not supported by the network, or the receiving mobile terminal
is not compatible), you are asked if you want to try a normal call
or send a message instead.
The video call is active when you see two videos, and hear the
sound through the loudspeaker. The call recipient may deny
video sending, and you only hear the voice of the caller, and
may see an image or a grey screen.
3
To end the video call, press
f
.
Send an image rather than live video
Press
m
>
Settings
>
Calling
>
Call
>
Image in video call
.
4.5 Make a conference call
Your mobile terminal supports conference calls between a
maximum of six participants, including yourself. Video conference
calls are not supported.
1
Make a call to the first participant.
2
To make a call to another participant, select
Options
>
New call
.
The first call is put on hold.
3
When the new call is answered, to add the first participant to the
conference call, select
Options
>
Conference
.
Add a new participant to a conference call
Make a call to another participant, and add the new call to the
conference call.
Have a private conversation with a conference call participant
1
Select
Options
>
Conference
>
Private
.
2
Move the cursor to the participant you desire to have a private
conversation with.
3
Select
Private
.
The other participants continue the conference call.
To return to the conference call, select
Options
>
Conference
.
Drop a participant from a conference call
Select
Options
>
Show participants
. Go to the participant, and
select
Options
>
Drop participant
.
End an active conference call
Select
Options
>
End all calls
.
04_Telephone.fm 33 ページ 2011年2月28日 月曜日 午後6時46分
Chapter 4Telephone
34
F-022_E2kou
4.6 Use speed dial
You can quickly call your friends and family when you assign your
most-used phone numbers to the number keys of your mobile
terminal.
Press
m
>
Settings
>
Calling
>
Speed dialling
.
Assign a phone number to a number key
1
Select the number key to which you want to assign the phone
number. 1 is reserved for the voice mailbox.
2
Select the phone number from your contacts list.
Remove or change a phone number assigned to a number key
Select the key you want to remove, and select
Options
>
Remove
or Change.
Make a call
In the standby mode, press and hold the assigned number key.
4.7 Call the last dialled number
In the home screen, press
n
.
4.8 Record a phone conversation
With the Recorder application, you can record phone
conversations.
1
During an active voice call, press
m
>
Applications
>
Recorder
.
2
To start recording, select .
3
To stop recording, select . The sound clip is automatically
saved to the Sound files folder in the File manager application.
Both parties hear a tone at regular intervals during the recording.
04_Telephone.fm 34 ページ 2011年2月28日 月曜日 午後6時46分
35
Chapter 4Telephone
F-022_E2kou
4.9 Turn to silence
If your mobile terminal rings in a situation where you do not want
to be disturbed, you can silence the ringing tone.
Activate the turn to silence feature
1
Press
m
>
Settings
>
Phone
>
Sensor interactions
>
Sensors
>
On
.
2
Select
Turning control
>
Silence calls
.
When your mobile terminal rings, turn your mobile terminal
display down.
4.10 View your missed calls
In the home screen, you can see when you have missed calls. To
view the phone number, select
Show
. The caller's name is
displayed if stored in the contacts list.
Missed and received calls are logged only if supported by the
network, and the mobile terminal is switched on and within the
network service area.
Call back the contact or number
Select the contact or number.
To view the missed calls list later, in the home screen, select
Call
to
open the dialler, press
n
, and open the missed calls tab .
Point
To view missed calls quickly, in the home screen, press
n
, and
open the missed calls tab .
F-022.book 35 ページ 2011年2月24日 木曜日 午後2時42
Chapter 4Telephone
36
F-022_E2kou
4.11 Call your voice mailbox
You can divert your incoming calls to your voice mailbox (network
service).
In the home screen, press and hold
1
.
Change the phone number of your voice mailbox
1
Press
m
>
Settings
>
Calling
>
Call mailbox
.
2
Select and hold a mailbox, and from the pop-up menu, select
Options
>
Change number
.
3
Enter the number (obtained from your network service
provider), and select
OK
.
4.12 Divert calls to your voice mailbox or
another phone number
If you cannot answer your calls, you can divert incoming calls to
your voice mailbox or another phone number.
Press
m
>
Settings
>
Calling
>
Call divert
>
Voice calls
.
Call divert is a network service. For details, contact your service
provider.
Divert all voice calls to your voice mailbox
Select
All voice calls
>
Activate
>
To voice mailbox
.
Divert all voice calls to another phone number
1
Select
All voice calls
>
Activate
>
To other number
.
2
Enter the number, or select
Find
to use a number saved in your
contacts list.
Several diverting options, such as
If busy
and
If not answered
can
be active at the same time.
In the home screen, indicates that all calls are diverted.
Call barring and call diverting cannot be active at the same time.
4.13 Prevent making or receiving calls
Sometimes you may want to restrict the calls that can be made or
received with your mobile terminal. With call barring (network
service), you can, for example, restrict all outgoing international
calls or incoming calls when you are abroad.
Press
m
>
Settings
>
Calling
>
Call barring
.
To modify the settings, you need the barring password from your
service provider.
Prevent making calls
1
To prevent making any calls or international calls, select
Outgoing calls
or
International calls
. To prevent making
international calls, but allow calls to your home country, select
International calls except to home country
.
2
Select
Activate
. Call barring affects all calls.
F-022.book 36 ページ 2011年2月24日 木曜日 午後2時42
37
Chapter 4Telephone
F-022_E2kou
Prevent receiving calls
1
To prevent receiving any calls or international calls when you
are abroad, select
Incoming calls
or
Incoming calls when
roaming
.
2
Select
Activate
.
4.14 Allow calls only to certain numbers
With the fixed dialling service, you can restrict calls, and only allow
calls to certain phone numbers.
Press
m
>
Contacts
and select
Options
>
SIM numbers
>
Fixed
dial contacts
.
Not all SIM cards support the fixed dialling service. You need your
PIN2 code from your service provider.
Activate fixed dialling
Select
Options
>
Activate fixed dialling
. Enter the PIN2 code.
Select the people to whom calls are allowed
1
Select
Options
>
New SIM contact
.
2
Enter the PIN2 code.
3
Enter the contact name and phone number to which calls are
allowed, and select
Done
. To add a contact from the contacts
list to the fixed dialling list, select
Add from Contacts
and a
contact.
To send a text message to a SIM contact while the fixed dialling
service is active, you need to add the text message centre number
to the fixed dialling list.
F-022.book 37 ページ 2011年2月24日 木曜日 午後2時42
F-022_E2kou
38
Chapter 5
Contacts
5.1 Save phone numbers and mail addresses
Press
m
>
Contacts
.
Add a contact to the contacts list
1
Select
Options
>
New contact
.
2
Select a field, and enter the details. Select
Done
.
Edit contact information
1
Select a contact.
2
Open the contact card, and select
Options
>
Edit
.
3
Select a contact detail.
Add details about a contact
Select a contact and
Options
>
Edit
>
Options
>
Add detail
.
5.2 Save a number from a received call or
message
You can easily save the number in a new or existing contact list
entry.
Save a number from a received call
1
Press
m
>
Log
.
2
Select
Recent calls
>
Received calls
.
3
Select a phone number, and select
Options
>
Save to Contacts
.
4
Select whether you want to create a new contact list entry or
update an existing one.
Save a number from a received message
1
Press
m
>
Messaging
.
2
Select
Inbox
and a message.
3
Select the phone number and press
g
>
Save to Contacts
.
4
Select whether you want to create a new contact list entry or
update an existing one.
F-022.book 38 ページ 2011年2月24日 木曜日 午後2時42
39
Chapter 5Contacts
F-022_E2kou
5.3 Contact your most important people quickly
You can set your most important contacts as favourites. Your
favourites are at the top of the contacts list.
Press
m
>
Contacts
.
Set a contact as a favourite
Select a contact, and select
Options
>
Add to favourites
.
Remove a contact from favourites
Select a contact, and select
Options
>
Remove from favourites
. The
contact is not deleted from your standard contacts list.
5.4 Set a ringing tone for a specific contact
Press
m
>
Contacts
.
Set a ringing tone for a contact
1
Open a contact and
Options
>
Edit
.
2
Select the Ringing tone field and a ringing tone.
Set a ringing tone for a contact group
1
Open the Groups tab.
2
Select a group, and select
Options
>
Ringing tone
.
3
Select a ringing tone from the list.
The ringing tone only applies to the members of the group at the
time that the ringing tone is set.
F-022.book 39 ページ 2011年2月24日 木曜日 午後2時42
Chapter 5Contacts
40
F-022_E2kou
5.5 Send your contact information using My
Card
Press
m
>
Contacts
.
Create My card
Select
Create my card
, and enter the details.
Send your contact information as a business card
Select My card, and select
Options
>
Send as business card
.
Edit your contact information in My Card
Open My card, and select
Options
>
Edit
.
5.6 Create a contact group
Press
m
>
Contacts
.
1
Open the Groups tab.
2
Select
Options
>
New group
.
3
Enter a name for the group, and select
OK
.
4
Select the group and
Options
>
Add members
.
5
To mark the contacts you want to add to the group, select them.
5.7 Send a message to a group of people
Press
m
>
Contacts
.
1
Open the Groups tab.
2
Select a group, and select
Options
>
Create message
.
5.8 Contacts stored on the SIM card
If you have contacts stored on your SIM card, you can copy them
to your mobile terminal. You can add more details to contacts that
are stored on your mobile terminal.
Press
m
>
Contacts
.
View contacts stored on your SIM card
Select
Options
>
Settings
>
Contacts to display
>
SIM memory
.
Contacts stored on a SIM card are indicated with .
If you copy the contacts to your mobile terminal, you can add
further details to the entries, such as alternative phone numbers,
addresses, or a picture.
Copy all SIM contacts to your mobile terminal
Select
Options
>
SIM numbers
>
Copy all to phone
.
F-022.book 40 ページ 2011年2月24日 木曜日 午後2時42
41
F-022_E2kou
Chapter 6
Messaging
You can send and receive various kinds of messages:
Text messages
Audio messages
Multimedia messages that contain pictures and videos
Group messages
Messaging requires network support.
You can send text messages that are longer than the character limit
for a single message. Longer messages are sent as two or more
messages. Your service provider may charge accordingly.
6.1 Send a message
Press
m
>
Messaging
.
1
Select
New message
.
2
Enter the phone number. To add a recipient from your contacts
list, select
To
field.
3
To add an attachment, select
Options
>
Insert content
.
4
To send the message, select
Options
>
Send
, or press
n
.
Sending a message with an attachment may be more expensive
than sending a normal text message. For more information,
contact your service provider.
If the item you inserted in a multimedia message is too large for the
network, the mobile terminal may automatically reduce the size.
Only compatible devices can receive and display multimedia
messages. Messages may look different in different devices.
6.2 Send an audio message
Press
m
>
Messaging
.
1
Select
Options
>
Create message
>
Audio message
.
2
Enter the phone number. To add a recipient from your contacts
list, select
To
field.
3
To send the message, select
Options
>
Send
, or press
n
.
6.3 Receive messages
Press
m
>
Messaging
.
When you receive a message, and
1 new message
are displayed
in the home screen.
To open the message, select
Show
.
Open a message
Select Inbox and a message.
Reply to a received message
Open a message, and select
Options
>
Reply.
Select either
Via message
or
Via audio message
.
Forward a message
Open a message, and select
Options
>
Forward
.
Save a received multimedia item
Select the item, and select
Options
>
Objects
. From the objects list,
select save object, and select
Options
>
Save
. Select
Options
>
Open
, the item can be viewed in the corresponding application. For
example, to view saved pictures, open
Photos
.
F-022.book 41 ページ 2011年2月24日 木曜日 午後2時42
Chapter 6Messaging
42
F-022_E2kou
6.4 Change language
You can change the mobile terminal language and the language in
which you write your messages and mails. You can also activate
predictive text input.
Press
m
>
Settings
>
Phone
>
Language
.
Change the mobile terminal language
Select
Phone language
.
Change the writing language
Select
Writing language
.
F-022.book 42 ページ 2011年2月24日 木曜日 午後2時42
43
F-022_E2kou
Chapter 7
Mail
7.1 Mail
Add a mailbox
You can add several mailboxes to your mobile terminal.
Press
m
>
Applications
>
Mail
.
Add a mailbox
Select
New
, and follow the instructions.
Delete a mailbox
Select
Options
>
Delete mailbox
and the mailbox.
Read mail
You can use your mobile terminal to read and reply to mail.
Press
m
>
Applications
>
Mail
. Select a desired mailbox and a
mail.
Reply to a mail
Select
Options
>
Reply
.
Forward a mail
Select
Options
>
Forward
.
Point
To open the next or previous mail, press
j
.
Send a mail
You can use your mobile terminal to write and send mail, and
attach files to your mail.
Press
m
>
Applications
>
Mail
. Select a mailbox.
1
Select
Options
>
New mail
.
2
To add a recipient from your contacts list, select the
To
,
Cc
, or
Bcc
field. To enter a mail address manually, simply type it in the
To
,
Cc
, or
Bcc
field.
3
To add an attachment to the mail, select
Options
>
Add
attachment
.
4
To send the mail, select
Options
>
Send
.
7.2 Open mail from the home screen
You can have several mail widgets in the home screen, depending
on your mobile terminal. Each mail widget contains one mailbox.
In the widget, you can see if you have received new mail and the
number of unread mails.
Add a mail widget to the home screen
1
In the home screen, select
Options
>
Edit content
.
2
Choose the desired slot.
3
Select
Cmail widget
and a mailbox.
4
Select
Done
.
Open a mail
Open the mailbox and select a mail.
F-022.book 43 ページ 2011年2月24日 木曜日 午後2時42
F-022_E2kou
44
Chapter 8
Internet
8.1 Browse the web
Press
m
>
Internet
>
Web
.
Go to a web page
Select
Options
>
Go to
>
New web page
, and enter a web address.
Zoom in or out
Press
*
or
#
to zoom the page in or out.
Empty the cache
Select
Options
>
Clear privacy data
>
Cache
.
To browse the web, you must have an internet access point
configured in your mobile terminal and be connected to a network.
8.2 Add a bookmark
If you visit the same websites all the time, add them to your
Bookmarks view, so you can easily access them.
Press
m
>
Internet
>
Web.
While browsing, select
Options
>
Web page options
>
Save as
bookmark
.
Go to a bookmarked website while browsing
Select
Options
>
Go to
>
Bookmarks
, and select a bookmark.
8.3 Subscribe to a web feed
You don't have to visit your favourite websites regularly to keep up
with what's new on them. You can subscribe to web feeds and get
links to latest content automatically.
Press
m
>
Internet
>
Web.
Web feeds on web pages are usually indicated with . They are
used to share, for example, the latest news headlines or blog
entries.
Subscribe to a feed
Go to a blog or web page that contains a web feed, and select
Options
>
Subscribe to web feeds
.
Manually update a feed
In the Web feeds view, select the feed.
Set a feed to automatically update
In the Web feeds view, select and hold the feed, and from the pop-
up menu, select
Edit
>
Automatic updates
.
F-022.book 44 ページ 2011年2月24日 木曜日 午後2時42
45
F-022_E2kou
Chapter 9
Camera
9.1 Take a picture
Press
C
or press
m
>
Applications
>
Camera
.
Press
g
. Do not move the mobile terminal before the picture is
saved and the final picture is displayed.
To change the default memory to save pictures to, select
Options
>
Settings
>
Memory in use
and the desired memory location.
9.2 Take a picture with smooth skin and
enhanced eyes
The Skin tone enhance mode and Eye enhance mode help you to
take portraits with smooth skin and enhanced eyes.
Press
C
.
Activate skin + Eye enhance-Hi
Press
l
and select
Scene modes
>
Skin + Eye enhance-Hi
.
9.3 Take a picture in the dark
If you activate night mode, you can take pictures even when light
levels are low.
Press
C
.
Activate night mode
1
Press
l
and select
Scene modes
.
2
To use the flash, select
Night port.
If you do not want to use the
flash, select
Night
.
9.4 Take a picture of a moving object
Use sport mode to take a sharp picture of moving people.
Press
C
.
Activate sport mode
Press
l
and select
Scene modes
>
Sport
.
F-022.book 45 ページ 2011年2月24日 木曜日 午後2時42
Chapter 9Camera
46
F-022_E2kou
9.5 Picture tips
Press
C
.
When taking a picture, note the following:
Use both hands to keep the camera steady.
When you zoom in, the image quality may decrease.
The camera activates battery saving mode after about a minute
of inactivity. To activate the camera again, press
C
briefly.
You can set the user defined scene to be used as the default
scene every time you open the Camera application. Press
l
>
Scene modes
>
User defin.
>
Edit
. Modify the settings, and select
Set as default scene mode
>
Yes
.
Keep a safe distance when using the flash. Do not use the flash
on people or animals at close range. Do not cover the flash while
taking a picture.
9.6 Record a video
Press
C
, and select
Options
>
Video mode
.
1
To switch from image mode to video mode, if necessary, press
l
>
Switch to video mode
.
2
To start recording, press
g
. A red record icon is displayed.
3
To zoom in or out, use
S
/
D
or press
j
.
4
To stop recording, press
g
. The video is automatically saved
in
Videos
.
9.7 Send a picture
You can send pictures to your friends as a multimedia message or
mail, or through Bluetooth connectivity.
1
Take a picture.
2
Select
Options
>
Send
.
3
Select the desired sending method.
F-022.book 46 ページ 2011年2月24日 木曜日 午後2時42
47
F-022_E2kou
Chapter 10
Your pictures and videos
The Photos application is the place from where you can view all
pictures and videos on your mobile terminal.
10.1 View pictures and videos
Press
m
>
Photos
.
Browse the pictures and videos
Press
k
to select the file you desire and press
g
.
View your pictures as a slide show
Select a picture and
Options
>
Slide show
>
Play
. The slide show
starts from the selected picture.
Pictures and videos can also be sent to you from a compatible
device. To be able to view a received picture or video in Photos,
you must first save it.
F-022.book 47 ページ 2011年2月24日 木曜日 午後2時42
F-022_E2kou
48
Chapter 11
Videos
11.1 Play a video
With the Videos application, you can watch videos on your mobile
terminal.
Press
m
>
Videos
> select the video you want to play.
Use the video player controls
Press
g
.
F-022.book 48 ページ 2011年2月24日 木曜日 午後2時42
49
F-022_E2kou
Chapter 12
Music and audio
12.1 Music player
Play music
Press
m
>
Music player
.
1
Select
Options
and the desired view. You can browse songs by
song or album.
2
Select a song or album.
Pause and resume playback
To pause playback, press
g
; to resume, press
g
again.
Fast-forward or rewind a song
Press
r
or
l
.
Point
When listening to music, you can return to the home screen,
leaving Music player application playing in the background.
Create a playlist
Want to listen to different music for different moods? With
playlists, you can create selections of songs to play in a specific
order.
Press
m
>
Music player
.
1
Select
Options
>
Playlists
.
2
Select
Options
>
New playlist
.
3
Enter a name for the playlist, and press
OK
.
Add a song to a playlist
1
Select the song, and select
Options
>
Add to playlist
>
Saved
playlist
.
2
Select the playlist you want to add to.
Remove a song from playlist
In the playlist view, select the song. Select
Options
>
Remove
.
This does not delete the song from the mobile terminal; it only
removes it from the playlist.
Play a playlist
Select
Options
>
Playlists
and the playlist.
Point
Music player automatically creates a playlist for the most played
songs, recently played songs, and recently added songs.
F-022.book 49 ページ 2011年2月24日 木曜日 午後2時42
Chapter 12Music and audio
50
F-022_E2kou
12.2 Record sounds
You can use Recorder to record sounds. You can send the recorded
sound clips to your friends.
Press
m
>
Applications
>
Recorder
.
Record a sound clip
Select .
Stop recording
Select . The sound clip is automatically saved to the Sound files
folder in the File manager application.
Send a recorded sound clip as an audio message
Select
Options
>
Send
.
F-022.book 50 ページ 2011年2月24日 木曜日 午後2時42
51
F-022_E2kou
Chapter 13
Time management
13.1 Clock
Press
m
>
Clock
.
Set and manage alarms, and check local times in different
countries and cities.
Set the time and date
In the home screen, open the clock. Select
Options
>
Settings
.
Set an alarm
You can use your mobile terminal as an alarm clock.
In the home screen, open the clock.
1
Select
Options
>
New alarm
.
2
Set the alarm time, and enter a description.
3
To set the alarm to sound, for example, at the same time every
day, select
Repeat
.
Remove an alarm
Select the alarm you want to remove, and select
Options
>
Delete
alarm
.
Snooze an alarm
When an alarm sounds, you can snooze the alarm. This pauses the
alarm for a defined length of time.
When the alarm sounds, select
Snooze
.
Set the length of the snooze time
In the home screen, open the clock and select
Options
>
Settings
>
Alarm snooze time
, and set the length of time.
You can snooze alarms also by turning your mobile terminal
display down. To use this feature, you must first activate the
sensors.
Activate the sensors
Press
m
>
Settings
>
Phone
>
Sensor interaction
>
Sensors
>
On
.
Activate turning control for snoozing
Press
m
>
Settings
>
Phone
>
Sensor interaction
>
Turning
control
>
Snoozing alarms
.
Update the time and date automatically
You can set your mobile terminal to update the time, date, and time
zone automatically.
In the home screen, open the clock and select
Options
>
Settings
>
Automatic time update
>
On
.
Automatic update is a network service.
F-022.book 51 ページ 2011年2月24日 木曜日 午後2時42
Chapter 13Time management
52
F-022_E2kou
Change the time zone when travelling
You can set the clock to the local time when travelling abroad.
In the home screen, open the clock, and open the world clock tab.
Add a location
Select
Options
>
Add location
and a location.
Set your current location
Select a location, and select
Options
>
Set as current location
. The
time in your mobile terminal is changed according to the selected
location. Make sure the time is correct.
Check the time in different cities
To view the time in different locations, add them to your world
clock tab. You can also add pictures for the locations.
In the home screen, open the clock, and open the world clock tab.
Add a location
Select
Options
>
Add location
and a location. You can add up to 15
locations.
Add a picture for a location
Select a location, and select
Options
>
Change image
and a picture.
13.2 Calendar
Press
m
>
Calendar
.
With your mobile terminal calendar, you can do the following:
Keep your schedules organised
Add reminders for anniversaries and other important dates
Keep your to-do list up to date
You can have separate calendars for free time and work.
View your schedule for the week
You can browse your calendar entries in different views. To easily
check all the entries for a particular week, use the week view.
In the home screen, open the date.
Select
Options
>
Change view
>
Week
.
Add a task to your to-do list
You can add tasks (to-do notes) to your calendar. If you have a
particular deadline, set a reminder.
In the home screen, open the date.
1
Go to the desired date, and select
Options
>
New entry
.
2
Select the entry type field and To-do note.
3
Fill in the fields.
4
To add a reminder for the task, select
Alarm
>
On
.
F-022.book 52 ページ 2011年2月24日 木曜日 午後2時42
53
Chapter 13Time management
F-022_E2kou
Add an appointment
Save your important appointments to your calendar as meeting
entries.
In the home screen, open the date.
1
Go to the desired date, and select
Options
>
New entry
. The
meeting entry is selected as default.
2
Fill in the fields.
3
To repeat the meeting entry at regular intervals, select
Repeat
and the interval.
Remember a birthday
You can add a reminder for birthdays and other special dates. The
reminders are repeated annually.
In the home screen, open the date.
1
Go to the desired date, and select
Options
>
New entry
>
Calendar entry type
>
Anniversary
.
2
Fill in all the fields.
Use separate calendars for work and free time
You can have more than one calendar. Create one for work and
another for your free time.
In the home screen, open the date.
Create a new calendar
1
Select
Options
>
Manage calendars
.
2
Select
Options
>
Create new calendar
.
3
Enter a name, and set a colour code for the calendar.
4
Define the visibility for the calendar. When a calendar is hidden,
the calendar entries and reminders are not displayed in
different calendar views or in the home screen.
Modify calendar settings
In the Manage calendars view, select the desired calendar.
Add an entry to a particular calendar
1
Go to the desired date, and select
Options
>
New entry
.
2
Select the desired entry type.
3
Select
Calendar entry saved to
and the calendar you want to
save the entry to.
In different calendar views, the colour codes indicate to which
calendar an entry is saved.
F-022.book 53 ページ 2011年2月24日 木曜日 午後2時42
Chapter 13Time management
54
F-022_E2kou
Chinese calendar
In the standby mode, open the date.
Note that Chinese calendar is available only if Phone language is
set to .
Open Chinese calendar
Press > > > .
View detailed information on a particular date
Select a date, and press > .
F-022.book 54 ページ 2011年2月24日 木曜日 午後2時42
55
F-022_E2kou
Chapter 14
Office
14.1 Make a calculation
Press
m
>
Applications
>
Calculator
.
1
Enter the first number of the calculation.
2
Select a function, such as add or subtract.
3
Enter the second number of the calculation.
4
Select
=
.
Save or retrieve the result of a calculation
Select
Options
>
Memory
>
Save
or
Recall
.
14.2 Write notes
Press
m
>
Applications
>
Notes
.
1
Select
Options
>
New note
.
2
Enter text in the note field.
Send the list
Open the note, and select
Options
>
Send
and the sending method.
F-022.book 55 ページ 2011年2月24日 木曜日 午後2時42
F-022_E2kou
56
Chapter 15
Useful tools
15.1 Pedometer
You can check the number of steps, walked distance, consumed
calories with Pedometer.
Press
m
>
Applications
>
Pedometer log
.
Before using Pedometer
Activate the sensors
Press
m
>
Settings
>
Phone
>
Sensor interactions
>
Sensors
>
On
.
Activate turning control for Pedometer
Press
m
>
Settings
>
Phone
>
Sensor interactions
>
Turning
control
>
Pedometer
.
Set your height and weight
Press
m
>
Applications
>
Pedometer log
, and select
Options
>
Settings
. Enter your height and weight.
Check steps, walked distance and burned calories
Press
m
>
Applications
>
Pedometer log
.
To open other tabs, press
h
.
Precautions on using Pedometer
To count steps accurately, it is recommended that you wear the
pedometer correctly (put it in a pocket or between partitions
when putting the mobile terminal in a bag), and walk at the speed
of 100-120 steps per minute.
Steps may not be counted accurately in the following cases;
- When F-022 moves randomly as the bag you put the mobile
terminal in hits your legs or hip, or when hanging it down from
your hip or bag.
- When shuffling, walking randomly, wearing sandals, or when
your walking pace was slowed down because of walking in the
crowded area etc.
- When you had a lot of up-and-down motion, shaking or
horizontal movement like repeating standing and sitting,
climbing up and down steep stair or sloped, or getting on
vehicles (bicycle, car, train, bus, etc.).
- When you jogged or did some sports other than walking, or
walked extremely slowly.
When opening/closing F-022, performing key operation or adding
shake or swing to the mobile terminal, counting steps or
measuring activity amount may not be performed accurately.
F-022.book 56 ページ 2011年2月24日 木曜日 午後2時42
57
Chapter 15Useful tools
F-022_E2kou
15.2 Mirror
You can use the display as a mirror with the secondary camera.
Press
m
>
Applications
>
Mirror
.
To zoom in or out, press
j
or
S
/
D
.
Using Mirror consumes much power of battery.
F-022.book 57 ページ 2011年2月24日 木曜日 午後2時42
F-022_E2kou
58
Chapter 16
Connectivity
16.1 Connection safety
FUJITSU is aware of the importance of safety and reliability for
your mobile terminal.
Since information from unknown sources via any forms (e.g.
Bluetooth, MMS, data cable) may affect your PC or mobile terminal
in an adverse way, FUJITSU recommends you the followings for
safety of your mobile terminal:
Set Bluetooth function to OFF. Turn it ON when you actually use
it.
Files sent from unknown sources, such as files received via
Bluetooth or MMS, are supposed to be treated with discretion.
Do not install program files from unknown sources.
16.2 Bluetooth
Press
m
>
Settings
>
Connectivity
>
Bluetooth
.
With Bluetooth connectivity, you can make a wireless connection
to other compatible devices, such as mobile terminals, computers,
headsets, and car kits.
You can use the connection to send items from your mobile
terminal, transfer files from your compatible PC, and print files with
a compatible printer.
Since devices with Bluetooth wireless technology communicate
using radio waves, they do not need to be in direct line-of-sight.
However, they must be within 10 metres (33 feet) of each other,
although the connection may be subject to interference from
obstructions such as walls or from other electronic devices.
Connect to a wireless headset
1
Press
m
>
Settings
>
Connectivity
>
Bluetooth
>
On
.
2
Switch the headset on.
3
To pair your mobile terminal and the headset, open the
Paired
devices
tab.
4
Select the headset.
If the headset is not displayed in the list, to search for it, select
Options
>
New paired device
.
5
You may need to enter a passcode.
For details, see the user guide of the headset.
F-022.book 58 ページ 2011年2月24日 木曜日 午後2時42
59
Chapter 16Connectivity
F-022_E2kou
Send a picture or other content to another device
You can use Bluetooth to send pictures, videos, business cards,
calendar entries, and other content to your friend's compatible
devices and to your computer.
You can have several Bluetooth connections active at a time.
1
Select the item, for example, a picture. Select
Options
>
Send
>
Via Bluetooth
.
2
Select the device to connect to. If the desired device is not
displayed, to search for it, select
More devices
. When
searching, Bluetooth devices within range are displayed.
3
If the other device requires a passcode, enter the passcode. The
passcode, which you can define yourself, must be entered in
both devices.
The passcode is valid only for the current connection.
4
If you connect to a device frequently, to set it as authorised,
accept the authorisation query
Authorise device to make
connections automatically?
when pairing. When a device is
authorised, you do not have to enter the passcode every time.
Connect to a car kit using remote SIM mode
With remote SIM mode, a compatible car kit can use the SIM card
of your mobile terminal.
Press
m
>
Settings
>
Connectivity
>
Bluetooth
.
Before remote SIM mode can be activated, your mobile terminal
and accessory must be paired. Initiate the pairing from the car kit
accessory.
1
To activate Bluetooth, select
Bluetooth
>
On
.
2
To activate remote SIM mode in your mobile terminal, select
Remote SIM mode
>
On
.
3
Activate Bluetooth in the car kit accessory.
When remote SIM mode is activated,
Remote SIM mode
is
displayed in the home screen. The connection to the wireless
network is closed, and you cannot use SIM card services or
features that require cellular network coverage.
To make or receive calls when in remote SIM mode, you need to
have a compatible accessory, such as a car kit, connected to your
mobile terminal.
Your mobile terminal will only allow emergency calls in this mode.
Deactivate remote SIM mode
Press the power key, and select
Exit remote SIM mode
.
F-022.book 59 ページ 2011年2月24日 木曜日 午後2時42
Chapter 16Connectivity
60
F-022_E2kou
Protect your mobile terminal
When Bluetooth is activated in your mobile terminal, you can
control who can find and connect to your mobile terminal.
Press
m
>
Settings
>
Connectivity
>
Bluetooth
.
Prevent others from detecting your mobile terminal
Select
My phone's visibility
>
Hidden
.
When your mobile terminal is hidden, others cannot detect it.
However, paired devices can still connect to your mobile terminal.
Deactivate Bluetooth
Select
Bluetooth
>
Off
.
Do not pair with or accept connection requests from an unknown
device. This helps to protect your device from harmful content.
16.3 Close a network connection
If several applications are using an internet connection, you can
use the Connection manager application to close some or all
network connections.
Press
m
>
Settings
>
Connectivity
>
Connection manager
.
To disconnect a connection, select the connection and select
Options
>
Disconnect
.
In the active data connections view, you can see your current
network connections.
View details for a connection
Press
g
, or select
Options
>
Details
.
Details, such as the amount of transferred data and connection
duration, are displayed.
F-022.book 60 ページ 2011年2月24日 木曜日 午後2時42
61
Chapter 16Connectivity
F-022_E2kou
16.4 Store your files on a remote drive
Press
m
>
Settings
>
Connectivity
>
Remote drives
.
Connect to a remote drive
Select the remote drive, and select
Options
>
Connect
.
Add a new remote drive
1
Select
Options
>
New drive
.
2
Enter the name of the remote drive.
3
Enter the web address of the remote drive, including the port
number.
4
To select the access point to use to connect to the remote drive,
select
Access point
>
User defined
. If you select
Ask when
needed
, you are prompted for the destination or access point
every time the application connects to the network.
5
Enter your user name and password, if required by the remote
drive service.
Modify the settings of an existing remote drive
Select Remote drives and the desired drive.
Use the File manager application to access your remote drives and
manage stored files.
F-022.book 61 ページ 2011年2月24日 木曜日 午後2時42
F-022_E2kou
62
Chapter 17
Mobile terminal management
17.1 Manage files
Press
m
>
Applications
>
File mgr
.
With File manager, you can browse, manage, and open files on
your mobile terminal.
View the files stored in your mobile terminal
Press
m
>
Applications
>
File mgr
. and the desired memory.
The folders on the root of the memory are displayed.
Organise files
You can use the File manager application to delete, move, copy, or
create new files and folders.
Press
m
>
Applications
>
File mgr
.
Create a new folder
In the folder where you want to create a sub-folder, select
Options
>
Organise
>
New folder
.
Copy or move a file to a folder
Select
Options
, and select the appropriate option.
Back up files
You can back up the device memory to a memory card.
Press
m
>
Applications
>
File mgr
. >
Backup
.
It is recommended that you back up the device memory regularly
to a memory card.
17.2 Increase available memory for more
content
When saving a large amount of data (e.g., multimedia data), store
it in a microSD/microSDHC card.
17.3 Manage applications
Press
m
>
Settings
>
Application manager
.
With Application manager you can view details of installed
applications, remove applications, and define installation settings.
You can install the following types of applications:
Java
ME applications that have the .jad or .jar file extension
Applications, compatible with the Symbian operating system,
that have the .sis or .sisx file extension
Widgets that have the .wgz file extension
Only install applications that are compatible with your mobile
terminal.
Remove an application from your mobile terminal
You can remove installed applications that you no longer need or
use, to increase the amount of available memory.
Press
m
>
Settings
>
Application manager
.
1
Select
Installed apps.
2
Select the application you want to remove, and select
Options
>
Uninstall
.
F-022.book 62 ページ 2011年2月24日 木曜日 午後2時42
63
Chapter 17Mobile terminal management
F-022_E2kou
17.4 Synchronise content
Press
m
>
Settings
>
Connectivity
>
Data transfer
>
Sync
.
With the Sync application, you can synchronise your contacts,
notes, and bookmarks between your mobile terminal and a remote
server. After the synchronisation, you have a backup of your
important data on the server.
Synchronise content between your mobile
terminal and a remote server
Would you like to have your calendar, notes, and bookmarks
backed up and at hand, whether you are sitting by your computer
or on the go with your mobile terminal? With the Sync application,
you can synchronise the important content between your mobile
terminal and a remote server.
Press
m
>
Settings
>
Connectivity
>
Data transfer
>
Sync
.
The synchronisation settings are saved as a synchronisation
profile. When you open the application, the default or previously
used synchronisation profile is displayed.
Include or exclude content types
Select a content type.
Synchronise data
Select
Options
>
Synchronise
.
17.5 Protect your mobile terminal
Set your mobile terminal to lock automatically
Want to protect your mobile terminal against unauthorised use?
Define a lock code, and set your mobile terminal to lock itself
automatically when you're not using it.
1
Press
m
>
Settings
>
Phone
>
Phone management
>
Security
settings
>
Phone and SIM card
.
2
Select
Lock code
, and enter a lock code. A minimum of 4
characters is required, and numbers, symbols, and upper and
lower case letters can be used.
Keep the lock code secret and in a safe place separate from your
mobile terminal. If you forget the lock code and your mobile
terminal is locked, your mobile terminal will require service.
Additional charges may apply, and all the personal data in your
mobile terminal may be deleted. For more information, please
contact D-PHONE Customer Service.
3
Select
Phone autolock period
, and define the length of time
after which the mobile terminal is locked automatically. If you
want to lock your phone on closing, set
Lock on close
to
On
.
Lock your mobile terminal manually
Press
s
>
Lock phone
, and enter the lock code.
Unlock your mobile terminal
Press
Unlock
. Enter the lock code and select
OK
.
F-022.book 63 ページ 2011年2月24日 木曜日 午後2時42
Chapter 17Mobile terminal management
64
F-022_E2kou
Lock your mobile terminal remotely
You can lock your mobile terminal remotely using a predefined text
message. You can also lock the memory card remotely.
Enable remote locking
1
Press
m
>
Settings
>
Phone
>
Phone management
>
Security
settings
>
Phone and SIM card
>
Remote phone locking
>
Enabled
.
2
Enter the text message content. It can be 5-20 characters, and
both upper and lower case letters can be used.
3
Enter the same text again to verify it.
4
Enter the lock code.
Send the lock message
To lock the mobile terminal remotely, write the predefined text,
and send it to your mobile terminal as a text message.
To unlock your mobile terminal, you need the lock code.
F-022.book 64 ページ 2011年2月24日 木曜日 午後2時42
65
F-022_E2kou
Chapter 18
Access codes
PIN code
-
This code protects your SIM card against unauthorised
use. The PIN code (4 - 8 digits) is usually supplied with the SIM
card.
PIN2 code
-
This code (4 - 8 digits) is supplied with some SIM
cards, and is required to access some functions in your mobile
terminal.
If you forget an access code, contact the network service provider
whose SIM card is in your mobile terminal. After three consecutive
incorrect PIN or PIN2 code entries, the code is blocked, and you
need the PUK code to unblock it.
PUK code and PUK2 code
-
These codes (8 digits) are required to
change a blocked PIN code or PIN2 code, respectively. If the codes
are not supplied with the SIM card, contact the network service
provider whose SIM card is in your mobile terminal.
IMEI number
-
This number (15 or 17 digits) is used to identify
valid devices in the GSM network. Devices that are, for example,
stolen, can be blocked from accessing the network. To view the
IMEI number for your mobile terminal, in the home screen, enter
*#06#
.
Lock code (also known as security code)
-
The lock code helps you
to protect your mobile terminal against unauthorised use. You can
create and change the code, and set the mobile terminal to request
the code. Keep the new code secret and in a safe place separate
from your mobile terminal. If you forget the code and your device
is locked, your mobile terminal will require service. Additional
charges may apply, and all the personal data in your mobile
terminal may be deleted.
F-022.book 65 ページ 2011年2月24日 木曜日 午後2時42
F-022_E2kou
66
Chapter 19
Q & A
My mobile terminal is not working properly. What should
I do?
You can reboot your mobile terminal or reset some settings to their
original values.
To reboot your mobile terminal
Press and hold
f
to switch your mobile terminal off, and then
press and hold
f
again to restart.
To restore your mobile terminal to its factory settings
If rebooting your mobile terminal does not solve your problem,
you can reset your mobile terminal to factory default. Press
m
>
Settings
>
Phone
>
Phone management
>
Factory settings
>
Restore
.
These operations do not affect documents or files stored on your
mobile terminal.
What should I do when the memory is full?
First, delete unnecessary data. If your mobile terminal still has
insufficient memory, then move contents you want to keep to a
compatible memory card or to a compatible computer.
How can I unlock my mobile terminal?
Enter the lock code and select OK. The default lock code is "12345".
For details, refer to "Access codes (
P65)".
I don't know the PIN / PIN2 codes. Where can I find them?
Please contact your network service provider since these codes are
supplied with the SIM card.
I entered a wrong PIN code three times. What should I
do?
After three consecutive incorrect PIN or PIN2 code entries, the code
is blocked, and you need the PUK or PUK2 code to unblock it.
Why cannot I make a call using a prepaid SIM/USIM?
If you are using a prepaid SIM/USIM card, you cannot make a call
unless you have enough money left in the account.
How can I change display language?
Press
m
>
Settings
>
Phone
>
Language
>
Phone language
, and
select the language you want.
After rebooting, the set language displays.
The illumination does not lit. Why does it happen?
Check whether the illumination setting is set to off.
To check the setting, press
m
>
Settings
>
Phone
>
Illumination.
The lights above and below the sub-display are blinking.
Is there any problem?
The lights blink while receiving a call or message. Also, the light
turns on while you are calling. For details on the lights, refer to
"Keys and parts (
P19)"
F-022.book 66 ページ 2011年2月24日 木曜日 午後2時42
67
Chapter 19Q & A
F-022_E2kou
Nothing is shown in the sub-display. What should I do?
Is the power of your mobile terminal turned on? If the power is on,
press the side key to display time. The display shows information
for approximately 10 seconds and then turns off. While charging, a
charging icon is displayed.
My mobile terminal is dropped into water. What should I
do?
Wipe off water with a clean dry cloth. For details, refer to "Drain the
water from F-022 terminal (
P8)"
Can the mobile terminal be used under water?
Your mobile terminal can shoot still images and moving pictures at
a depth of 1.5 meters of a swimming pool. You can talk without
using an umbrella in the rain (for rainfall of 20 mm or less per hour)
or use in a bathroom. For details, refer to "What you can do with
waterproofness and dustproofness of F-022 (
P5)"
F-022.book 67 ページ 2011年2月24日 木曜日 午後2時42
F-022_E2kou
68
Chapter 20
Appendix
20.1 SAR and Certification Information
For further information about Specific Absorption Rate (SAR),
please see the website below:
World Health Organization (WHO): http://www.who.int/peh-emf/
Declaration of Conformity
The product "F-022" is declared to conform with the essential
requirements of European Union Directive 1999/5/EC Radio and
Telecommunications Terminal Equipment Directive 3.1(a), 3.1(b)
and 3.2. The Declaration of Conformity can be found in this
manual.
This mobile phone complies with the EU requirements for
exposure to radio waves.
Your mobile phone is a radio transceiver, designed and
manufactured not to exceed the SAR* limits** for exposure to
radio-frequency(RF) energy, which SAR* value, when tested for
compliance against the standard was x.xxxW/Kg. While there may
be differences between the SAR* levels of various phones and at
various positions, they all meet*** the EU requirements for RF
exposure.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
* The exposure standard for mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR.
** The SAR limit for mobile phones used by the public is 2.0 watts/
kilogram (W/ Kg) averaged over ten grams of tissue, recommended
by The Council of the European Union. The limit incorporates a
substantial margin of safety to give additional protection for the
public and to account for any variations in measurements.
*** Tests for SAR have been conducted using standard operation
positions with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the maximum
value. This is because the phone is designed to operate at multiple
power levels so as to use only the power required to reach the
network. In general, the closer you are to a base station antenna,
the lower the power output.
Federal Communications Commission (FCC)
Notice
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions :
a
this device may not cause harmful interference, and
b
this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications made in or to the radio phone, not
expressly approved by the manufacturer, will void the user's
authority to operate the equipment.
F-022.book 68 ページ 2011年2月24日 木曜日 午後2時42
69
Chapter 20Appendix
F-022_E2kou
FCC RF Exposure Information
This model phone meets the U.S. Government's requirements for
exposure to radio waves.
This model phone contains a radio transmitter and receiver. This
model phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy as set
by the FCC of the U.S. Government. These limits are part of
comprehensive guidelines and establish permitted levels of RF
energy for the general population. The guidelines are based on
standards that were developed by independent scientific
organizations through periodic and thorough evaluation of
scientific studies.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate (SAR). The
SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are conducted
using standard operating positions as accepted by the FCC with the
phone transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the highest
certified power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is because
the phone is designed to operate at multiple power levels so as to
use only the power required to reach the network. In general, the
closer you are to a wireless base station antenna, the lower the
power output level of the phone.
Before a phone model is available for sale to the public, it must be
tested and certified to prove to the FCC that it does not exceed the
limit established by the U.S. government-adopted requirement for
safe exposure. The tests are performed on position and locations
(for example, at the ear and worn on the body) as required by FCC
for each model. The highest SAR value for this model phone as
reported to the FCC, when tested for use at the ear, is x.xxxW/kg,
and when worn on the body, is x.xxxW/kg. (Body-worn
measurements differ among phone models, depending upon
available accessories and FCC requirements).
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the U.S. government
requirements.
The FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance with
the FCC RF exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the
Equipment Authorization Search section at http:// www.fcc.gov/
oet/ea/fccid/ (please search on FCC ID
●●●●
-
●●
).
For body worn operation, this phone has been tested and meets
the FCC RF exposure guidelines when used with an accessory
designated for this product or when used with an accessory that
contains no metal and which positions the handset at a minimum
distance of 1.5 cm from the body.
* In the United States, the SAR limit for wireless mobile phones
used by the general public is 1.6 Watts/kg (W/kg), averaged over
one gram of tissue. SAR values may vary depending upon national
reporting requirements and the network band.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation.
F-022.book 69 ページ 2011年2月24日 木曜日 午後2時42
Chapter 20Appendix
70
F-022_E2kou
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
Important Safety Information
AIRCRAFT
Switch off your wireless device when boarding an aircraft or
whenever you are instructed to do so by airline staff. If your device
offers flight mode or similar feature consult airline staff as to
whether it can be used on board.
DRIVING
Full attention should be given to driving at all times and local laws
and regulations restricting the use of wireless devices while
driving must be observed.
HOSPITALS
Mobile phones should be switched off wherever you are requested
to do so in hospitals, clinics or health care facilities. These requests
are designed to prevent possible interference with sensitive
medical equipment.
PETROL STATIONS
Obey all posted signs with respect to the use of wireless devices or
other radio equipment in locations with flammable material and
chemicals. Switch off your wireless device whenever you are
instructed to do so by authorized staff.
INTERFERENCE
Care must be taken when using the phone in close proximity to
personal medical devices, such as pacemakers and hearing aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum separation
of 15 cm be maintained between a mobile phone and a pace maker
to avoid potential interference with the pacemaker. To achieve this
use the phone on the opposite ear to your pacemaker and does not
carry it in a breast pocket.
Hearing Aids
Some digital wireless phones may interfere with some hearing
aids. In the event of such interference, you may want to consult
your hearing aid manufacturer to discuss alternatives.
For other Medical Devices :
Please consult your physician and the device manufacturer to
determine if operation of your phone may interfere with the
operation of your medical device.
20.2 Export Administration Regulations
This product and its accessories are under coverage of the Export
Administration Regulations of the U.S. and may be subject to
export regulations in other countries.
When exporting or reexporting this product and its accessories,
take necessary procedures on your responsibility and expense.
F-022.book 70 ページ 2011年2月24日 木曜日 午後2時42
71
Chapter 20Appendix
F-022_E2kou
20.3 Intellectual Property Right
Copyrights and portrait rights
Except for the case protected by copyright laws such as personal
use, use of F-022 terminal to reproduce, alter, or publicly transmit
recorded pictures or sounds, or copyrighted text, images, music or
software downloaded from websites without the copyright
holder's authorization is prohibited.
Note that taking photos or recordings at some demonstrations,
performances or exhibitions may be prohibited even when only for
personal use.
Avoid taking pictures of others with F-022 terminal without their
consent or disclosing recorded pictures of others without their
consent to general public through Internet websites etc., because
they may infringe on portrait rights.
20.4 End User License Agreement
Please read thoroughly this End User License Agreement before
using the software installed on your mobile phone product
("Installed Software") and the software bundled with the product
("Bundled Software", together with Installed Software, "Software").
By using this mobile phone product or the media delivered with the
product, you are agreeing to be bound by the terms of this license.
Article 1. Copyright
The copyright for the Software belongs to FUJITSU LIMITED
("FUJITSU") and its third party suppliers and licensors.
Article 2. Grant of License
Subject to this license, FUJITSU grants you nonexclusive and non-
transferable rights, which only permit you to use the Installed
Software and to install the Bundled Software on your personal
computer for private use only.
Article 3. Restricted Activities
(1) The Software is protected by patent, copyright, and other
intellectual property rights. You must not perform any act that
infringes any of these rights.
(2) You must not modify, decompile, disassemble, or otherwise
reverse engineer the Software.
(3) You must not reproduce all or any part of the Installed Software.
(4) You are permitted to make a single copy of the Bundled
Software, solely for backup purpose. If the Bundled Software is
copied in accordance with this clause, the copyright statement
must not be changed, deleted or hidden.
(5) You are not permitted to sell, distribute, lend, or transfer to a
third party all or any part of the Software, including its backup
copy.
F-022.book 71 ページ 2011年2月24日 木曜日 午後2時42
Chapter 20Appendix
72
F-022_E2kou
Article 4. No Warranty
YOU UNDERSTAND THAT ANY SOFTWARE HEREUNDER IS
BEING PROVIDED TO YOU ON AN "AS IS" BASIS, AND FUJITSU
EXPRESSLY DISCLAIMS ALL WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING, WITHOUT LIMITATION, ALL WARRANTIES
OF NON-INFRINGEMENT, MERCHANTABILITY AND/OR FITNESS
FOR A PARTICULAR PURPOSE.
FUJITSU does not warrant that any Software hereunder will
operate in combination with your hardware, software, systems or
data. You hereby waive any claim against FUJITSU for any loss or
damage that you may incur related to the Software. In no event will
FUJITSU be liable for any direct, indirect, incidental or
consequential damages (including, but not limited to, loss of
profits, interruption of business, loss of business information and
other pecuniary damage) resulting from or arising out of the use or
inability to use the Software even if FUJITSU has been advised of
the possibility of such damages.
Article 5. Termination of License
(1) If you violate the terms of this license or perform unlawful or
unreasonable acts, this license will terminate with immediate
effect.
(2) If this license is terminated as a result of the clause (1) above,
you must immediately stop using the Software, return the F-
022 mobile phone product to FUJITSU or any party specifically
designated by FUJITSU, as the liquidated damages for such a
violation, return the Bundled Software and its backup copy to
FUJITSU or any party specifically designated by FUJITSU, and
delete the Bundled Software from your personal computer in a
non-recoverable manner.
Article 6. Others
The specifications of the Software are subject to change without
notice.
20.5 F-022 package
F-022 package contents
Mobile terminal
Li-ion battery
AC adapter
USB cable
Stereo earphone and microphone
Earphone and microphone cable
Rear cover
Fragrance rear cover
Desktop holder
Strap
User guide
CD-ROM
Waterproofness/Dustproofness user guide
Fragrance rear cover user guide
Warranty card
Use only battery, AC adapter and accessories specified and
approved by FUJITSU for this particular model, as listed above.
The use of any other type would invalidate any warranty and
approval, may damage the equipment, and may be dangerous.
F-022.book 72 ページ 2011年2月24日 木曜日 午後2時42
73
Chapter 20Appendix
F-022_E2kou
20.6 China RoHS Instruction 20.7 Limited warranty
A limited warranty is provided for the F-022 mobile phone terminal
and the original accessories delivered with the mobile phone
(hereafter referred to as "Product"). Make sure that you received
the related warranty pamphlet from D-PHONE and refer to it, in
case your Product needs warranty service. Warranty service can be
obtained only in the People's Republic of China.
Please note that the data, applications or settings you created,
imported or downloaded may be changed or lost when your
Product is repaired or replaced.
We assume no liability or responsibility whatsoever for any change
or loss of information. You should therefore always maintain a
separate record of all the information registered in your mobile
phone (such as phonebook contents, etc.).
Note that repair or replacement may involve the use of functionally
equivalent reconditioned or new parts, accessories or units.
The following is excluded from the limited warranty:
1 Deterioration due to normal wear and tear, including all
externally exposed parts and surfaces that are scratched or
damaged due to customer use.
2 Defect or damage resulting from improper operation, misuse,
accident, neglect, rough handling or any use in contradiction
with the instructions of the User Guide.
3 Damage or malfunction due to an external cause of the
Product, such as shock, lightning, fire, unsuitable electric
current, contact with liquid, water, rain, chemical product or
any harmful agent, exposure to moisture, condensation,
perspiration or dampness, contact with sand, dirt or food,
contact with magnetic cards or devices, etc.
(Parts)
(Hazardous Substance)
(Pb) (Hg) (Cd) (Cr
6+
) (PBB) (PBDE)
(Phone)
×○○ ○
(Battery)
×○○ ○
(Accessories)
×○○ ○
:
Indicates that this toxic or hazardous substance contained in
all of the homogeneous materials for this part is below the
below the limit requirement in SJ/T 11363-2006.
×
: Indicates that this toxic or hazardous substance contained in at
least one of the homogeneous materials used for this part is
above the limit requirement in SJ/T 11363-2006.
F-022.book 73 ページ 2011年2月24日 木曜日 午後2時42
Chapter 20Appendix
74
F-022_E2kou
4 Defect or damage resulting from poor environmental
conditions, such as extreme temperature or humidity,
variations in electric voltage, forces of nature, etc. or resulting
from any other acts beyond FUJITSU's reasonable control.
5 Damage or malfunction due to a defective function of the
cellular network, or due to any communication service or
signal you may subscribe to or use with the Product. Defect or
need of software upgrade due to change of parameters of the
cellular network after the Product has been purchased, are also
not covered by the warranty.
6 Failure or damage resulting from the use of or connection to
any equipment, accessory, software or other peripheral device
which is not FUJITSU-branded original Product, officially
specified and approved for use with F-022 mobile phone
terminal.
7 Failure or damage resulting from installation, adjustment,
repair, modification or opening of the Product performed by a
non-authorized person.
8 Product with any inscription sticker that has been removed,
altered, obliterated or made illegible, or that shows evidence of
tampering.
9 Defect caused by the fact that the battery was short-circuited or
was used in equipment other than the one for which it has been
specified.
10 Malfunction or damage caused by any downloaded contents,
data or application, and loss or deterioration of the said
downloaded contents, data or application.
11 Software embodied in physical media, such as CD-ROM, is
provided "as is", and no warranty is made that the software will
meet your requirements or will work in combination with any
equipment or application provided by third parties and that the
operation of the software will be uninterrupted or error free.
12 The display may have some dots always lit or unlit, and minor
variations in display brightness and color may occur between
mobile phones: this shows characteristics of liquid crystal
displays and not defects in the mobile phone terminal. Repair
of the display or external connector if broken after purchase is
also not covered by the warranty.
13 IN NO EVENT SHALL WE BE LIABLE, WHETHER IN CONTRACT
OR TORT(INCLUDING NEGLIGENCE) FORDAMAGES IN
EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, OR FOR
ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS,
LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA,
SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS
ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR
INABILITY TO USE THE PRODUCT TO THE FULL EXTENT
THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the exclusion or
limitation of incidental or consequential damages to its fullest
extent under certain circumstances, so the preceding
limitations or exclusions may not apply to you.
F-022.book 74 ページ 2011年2月24日 木曜日 午後2時42
75
Chapter 20Appendix
F-022_E2kou
20.8 Trademarks
Company and product names mentioned in this manual are
trademarks or registered trademarks of their respective holders.
Microsoft
®
, Windows
®
, Windows Vista
®
, Windows Media
®
are
trademarks or registered trademarks of "Microsoft Corporation"
in the US and other countries.
Java and all Java-related trademarks and logos are trademarks or
registered trademarks of Sun Microsystems, Inc. in the US and
other countries.
Powered by JBlend
Copyright 2002- 2008 Aplix
Corporation. All rights reserved.
JBlend and JBlend-related trademarks are trademarks or
registered trademarks of Aplix Corporation in Japan and
other countries.
Adobe and Flash Lite are either registered
trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or
other countries.
This equipment is provided with the software licensed by
Symbian Software Ltd. or the licensor. and Symbian OS are
trademarks of Symbian Ltd. or the licensor.
microSDHC Logo is a trademark.
Other company and product names mentioned in this
manual are trademarks or registered trademarks of their
respective holders.
- Windows Vista
®
stands for Windows Vista
®
(Home Basic,
Home Premium, Business, Enterprise and Ultimate).
- Windows XP
®
indicates the Microsoft
®
Windows
®
XP
Professional operating system or Microsoft
®
Windows
®
XP
Home Edition operating system.
XT9 is a registered trademark of Nuance Communications, Inc. or
its subsidiaries in the United States of America and/or other
countries.
Portions of this software are included under license from
RealNetworks, Inc. Copyright 1995-2009, RealNetworks, Inc. All
rights reserved.
Founder
Copyright
©
Beijing Founder Electronics Co., Ltd
Others
This product contains a module developed by the Independent
JPEG Group.
MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson.
This product is licensed based on MPEG-4 Visual Patent Portfolio
License.
The use of MPEG-4 Video Codec function is allowed for personal
and nonprofit use only in the cases below.
- Recording movies that conform to MPEG-4 Visual Standard
(hereinafter referred to as MPEG-4 Video)
- Playing MPEG-4 Videos recorded personally by consumers not
engaged in profit activities
- Playing MPEG-4 Video supplied from the provider licensed from
MPEG-LA
For further utilizing such as promotion, in-house use or profit-
making business, please contact MPEG LA, LLC in U.S.
F-022.book 75 ページ 2011年2月24日 木曜日 午後2時42
76 Index
F-022_E2kou
Index
A
AC adapter ................................................................... 23
Access code ................................................................. 65
Alarm............................................................................ 51
Audio ............................................................................ 49
Audio message ............................................................ 41
B
Battery.......................................................................... 21
Battery life.................................................................... 28
Bluetooth ..................................................................... 58
Bookmark..................................................................... 44
C
Calculator..................................................................... 55
Calendar ....................................................................... 52
Call barring................................................................... 36
Camera ......................................................................... 45
Change language......................................................... 42
Change volume............................................................ 27
Charging....................................................................... 23
China RoHS Instruction .............................................. 73
Clock............................................................................. 51
Conference call ............................................................ 33
Connectivity................................................................. 58
Contacts ................................................................. 32, 38
Copyrights and portrait right ..................................... 71
D
Desktop holder ............................................................ 23
Display indicators........................................................ 27
Dustproofness ............................................................... 4
E
Earphone ...................................................................... 22
End User License Agreement..................................... 71
Export Administration Regulations........................... 70
F
Fragrance rear cover ..................................................... 3
H
Home screen ................................................................ 30
I
Indicators ..................................................................... 27
Intellectual Property Right ......................................... 71
Internet......................................................................... 44
L
License Agreement ..................................................... 71
Light alert..................................................................... 31
Limited warranty......................................................... 73
Lock code ..................................................................... 63
M
Mail ............................................................................... 43
Make a call ................................................................... 32
Make a conference call ............................................... 33
Make a video call......................................................... 33
Messaging.................................................................... 41
microSD card ............................................................... 22
Mirror............................................................................ 57
Missed call ................................................................... 35
Music ............................................................................ 49
Music player................................................................. 49
My card......................................................................... 40
O
Office ............................................................................ 55
Offline mode ................................................................ 28
Open assist button........................................................ 9
P
Pedometer.................................................................... 56
Personalisation ............................................................ 29
Play a video.................................................................. 48
Playlist .......................................................................... 49
Precautions .................................................................. 10
Profiles.......................................................................... 29
Q
Q & A ............................................................................ 66
R
Rear cover .................................................................... 21
Receive messages ....................................................... 41
Record a video ............................................................. 46
Ringtone....................................................................... 39
S
SAR ............................................................................... 68
Search in your mobile terminal ................................. 27
Send a message .......................................................... 41
Send a picture.............................................................. 46
Silent mode.................................................................. 29
SIM................................................................................ 21
Simplified Chinese characters.................................... 25
Snooze alarm............................................................... 51
Speed dial .................................................................... 34
Standby mode elements ............................................ 25
T
Telephone .................................................................... 32
Theme........................................................................... 29
Time and date.............................................................. 51
Trademarks .................................................................. 75
F-022.book 76 ページ 2011年2月24日 木曜日 午後2時42
77
Index
F-022_E2kou
U
USIM .............................................................................21
V
Video call ......................................................................33
View pictures and videos............................................47
Voice clear ....................................................................32
Voice slowing...............................................................32
Volume .........................................................................27
W
Waterproofness..............................................................4
Wrist strap....................................................................24
Write text......................................................................25
F-022.book 77 ページ 2011年2月24日 木曜日 午後2時42

Navigation menu
