Introduction

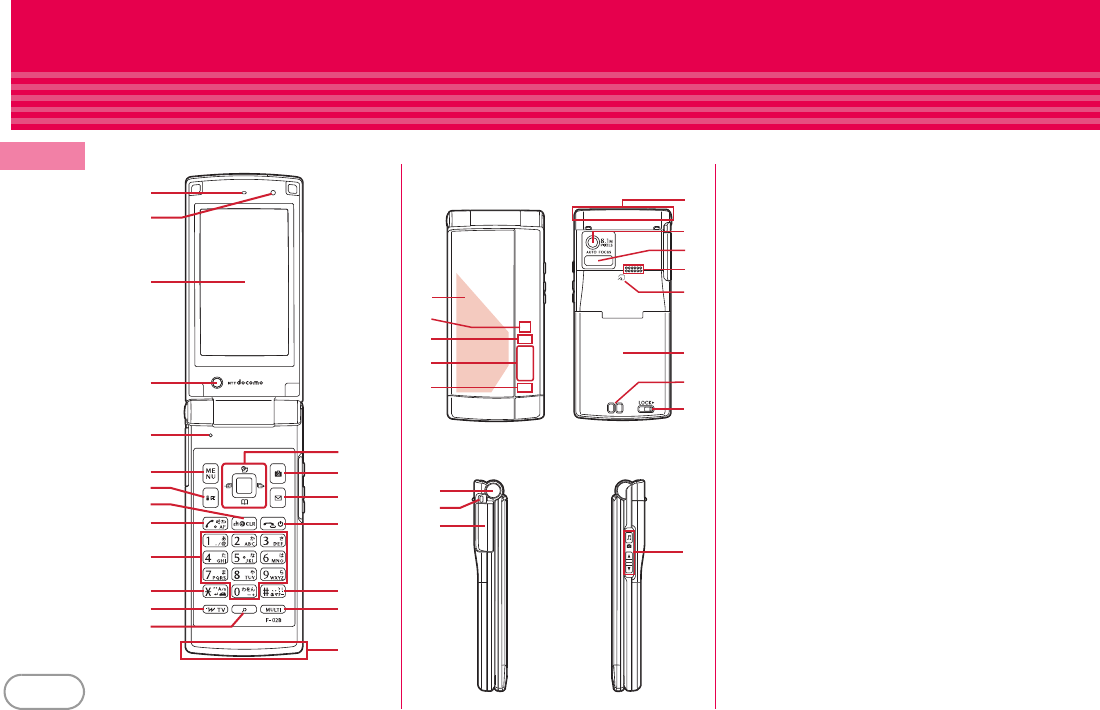

Part names and functions
Part names of F-02B and major functions assigned to each part are as follows.
a
Earpiece
Hear other party's voice from here.
b
Light sensor
Sense the ambient luminance to
automatically adjust the brightness of the
display. Do not cover the sensor with your
hand.
c
Display
⇒
P28, 31
d
In-camera
Shoot your own image, or send your image
via videophone.
e
Microphone
Send your voice from here. Do not cover
the microphone during a call or sound
recording.
f
1Seg antenna (built into FOMA
terminal)
For better signal reception, do not cover
the antenna with your hand.
g
Light
*
●
area turns on or blinks when
operating MUSIC Player with FOMA
terminal closed, when receiving mails/
voice calls, making a voice call, or
closing FOMA terminal.
h
Call light
i
Sub-display
⇒
P29
j
Mail light
c
a
b
C
v
w
x
y
A
B
z
e
d
D
F
G
H
E
I
f
r
k
l
o
n
m
q
p
J
u
t
s
g
i
j
h
g
F-02B_EN_ninshou
5
Introduction
k
FOMA antenna (built into FOMA
terminal)
For a call in better conditions, do not cover
the antenna with your hand.
l
Out-camera
Shoot still images or moving pictures, or
send image via videophone.
m
Infrared data port
Use this port for infrared communication or
infrared remote control function.
n
Speaker
Hear ring alert or voice of the caller using
the handsfree function.
o
Mark
Use Osaifu-Keitai or send/receive data by
iC transmission.
p
Back cover

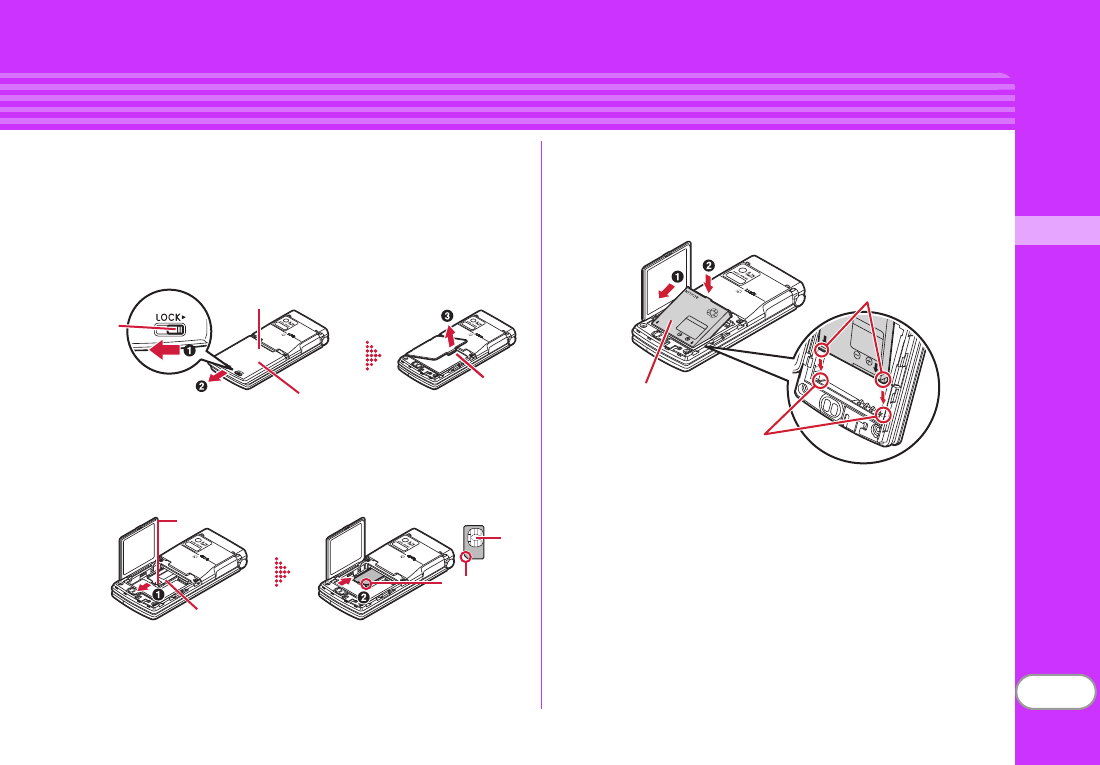

* To access the microSD card slot,
remove the back cover, open the inner
cover, and then remove the battery
pack.
q
Charging jack
r
Back cover lever
s
Open assist button
t
Strap opening
u
External connection jack
Available to connect an optional AC
adapter, DC adapter, FOMA USB Cable
with Charge Function, Earphone Plug
Adapter for External connector terminal
etc.
v
m
MENU key
Display a menu, perform the operation
displayed at upper left of the guide area, or
activate/deactivate HOLD.
w
I
i-mode/i-
α
ppli/Character/
▲
(Scroll) key
Switch i-mode views, i-
α
ppli folder views,
character entry modes, scroll the mail
screen up, or perform the operation
displayed at lower left of the guide area.
x
c
Ch/
α
/Clear key
Display i-Channel, switch displaying the i-
α
ppli standby screen or starting i-
α
ppli,
return to the previous screen, or clear an
entered character.
y
n
Start a voice call/
●
/Handsfree/AF
key
Make/answer a voice call, return to the
previous character when entering
characters, activate the handsfree function,
activate/deactivate auto focus.
z
Keypads
1
-
9
Enter phone number or characters, select
an item, perform a function registered to
My shortcut
0
Enter phone number or characters, select
an item, use Auto switch of Int’l call assist
when making international calls.
A
*
*/
A/a/Line feed/Public mode
(Drive mode) key
Enter "*" , voiced/semi-voiced sound,
switch upper or lower case, start/cancel
Public mode (Drive mode).
B
T
i-Widget/TV key
Start/Exit i-Widget or start 1Seg.
C
U
Search key
Start Quick search.
D
k
Multi-cursor key
Move the cursor, or operate a menu.
g
: Perform an operation.
u
: Display Scheduler, or adjust the
volume.
d
: Display Phonebook, or adjust the
volume.
l
:
Display Received calls.
r
:
Display Redial.
E
C
Camera key
Shoot still images or moving pictures, or
perform the operation displayed at upper
right of the guide area.
F-02B_EN_ninshou
6
Introduction
F
a
Mail key/
▼
(Scroll) key
Display a menu, perform the operation
displayed at lower right of the guide area,
scroll the main screen down, move to the
next page on Browser screen, or check new
message (by pressing the key twice)
G
f
Power/End key
Put a call on hold, exit a function, display/
hide Info/calendar layout, or turn on/off
FOMA terminal (by holding the key for 2
sec. or more)
H
#
#/Macro shooting/Silent mode
key
Enter "#" or punctuation, switch Macro
mode on/off, or start/cancel Silent mode.
I
s
Multitask key
Perform a different function when making a
call or operating the terminal, or activate/
deactivate Privacy view.
J
Side keys
M
:
Use for operating MUSIC Player or
Music&Video Channel.
S
:
Stop the ring tone, alarm sound,
vibration, or adjust the volume.
D
:
Adjust the volume, turn on the light on
the sub-display or switch the views.
External connection jack
Plug for the terminal
Flat-plug earphone jack
Connecting plug of Flat-Plug
Earphone/Microphone with Switch
Example of connecting Flat-Plug Earphone/
Microphone with Switch (optional)
F-02B_EN_ninshou
7
Introduction
About FOMA Terminal
･
Because your FOMA terminal uses wireless transmission, it may
not function in locations where it is difficult for radio waves to
penetrate, such as tunnels, underground passages and some
buildings, in areas where radio waves are weak, or out of service
area. Even when you are high up in a tall building or condominium
and nothing blocks your view outside, your FOMA terminal may
not be able to receive or transmit signals. Also, communication
may be interrupted even when the signal meter on your FOMA
terminal indicates there are strong radio waves and you are not
moving (traveling).
･
Use your FOMA terminal in a way that does not disturb others in
public spaces, crowded locations or quiet places.
･
Because your FOMA terminal uses radio waves to communicate,
it is possible that a third party may attempt to tap your calls.
However, the W-CDMA, GSM/GPRS system automatically applies
a confidential communication function to all calls, so even if a third
party could somehow tap a call, they only hear noise.
･
Your FOMA terminal encodes voice communication as digital
data. When you are operating your FOMA terminal while moving
to a location subject to weaker radio wave conditions, the
transmitted digital data may not be correctly decoded and as a
result the decoded voice may differ somewhat from the actual
voice.
･
Maintain a separate record of the data (Phonebook, Schedule,
Notepad, Recorded messages, Voice memos, Moving picture
memos, etc.) you registered in your FOMA terminal. Note that
DOCOMO assumes no responsibility for any loss of saved
contents of data resulting from malfunction, repair, changing of
the model or other handling of FOMA terminal.
･
You are recommended to save important data to microSD card.
Using DOCOMO keitai datalink, you can transfer and save
phonebook, mail, schedule and other data to a PC.
･
The user hereby agrees that the user shall be solely responsible
for the result of the use of SSL/TLS.
Neither DOCOMO nor the certifier as listed herein makes any
representation and warranty as for the security in the use of SSL/
TLS. If the data should be erased, DOCOMO assumes no
responsibility for the loss of any data.
Certifier : VeriSign Japan K.K., Cybertrust Japan Co., Ltd.,
GlobalSign K.K., RSA Security Japan Ltd., SECOM Trust Systems
Co., Ltd., Comodo CA Ltd.
･
This FOMA terminal supports FOMA Plus-Area and FOMA HIGH-
SPEED Area.
･
FOMA terminal can be used only via the FOMA network provided
by DOCOMO and DOCOMO's roaming area.
The FOMA terminal can be used only via the FOMA network
provided by DOCOMO and DOCOMO's roaming area.
F-02B_EN_ninshou
8
Introduction
Precautions (ALWAYS FOLLOW THESE DIRECTIONS)
・
Before using your FOMA terminal, or when necessary, read the
precautions below to ensure safe use and handling. After reading
this manual, keep it carefully.
・
These precautions are intended to protect you and others around
you. Read and follow them carefully to avoid injury, damage to the
product or damage to property.
・
The signs below differentiate between the levels of danger that can
occur if the product is not used within the specified guidelines.
・
The symbols below show specific directions.
■
Precautions contain the description below.
Handling FOMA terminal, battery pack, adapter and UIM (common)
...........................................................................................................................
9
Handling FOMA terminal ...................................................................................
10
Handling battery pack ........................................................................................
12
Handling adapter ................................................................................................
13
Handling UIM ......................................................................................................
14
Handling mobile phones near electronic medical equipment........................
14
DANGER
This sign denotes that death or serious
injury may directly result from improper use.
WARNING
This sign denotes that death or serious
injury may result from improper use.
CAUTION
This sign denotes that bodily injury or
damage to property may result from
improper use.
This symbol denotes that the action is prohibited.
This symbol denotes that disassembling the phone or its
components is not allowed.
Don’t
No disassembly
This symbol denotes that using the phone or its
components with wet hands is not allowed.
This symbol denotes that using the phone or its
components in a bathroom or other highly humid area is
not allowed.
This symbol denotes that an instruction must be obeyed at
all times.
This symbol denotes that the equipment should be
unplugged.
No wet hands
No liquids
Do
Unplug
F-02B_EN_ninshou
9
Introduction
DANGER
Do not use, store, or leave the
equipment in hot areas such as
near flames or in areas under
strong direct sunlight such as
inside a vehicle.
May cause the equipment to be deformed or
malfunction, and battery pack to leak, heat,
burst or ignite, and the capability or life to be
reduced or shortened. Overheating on parts
of the case may cause burns or injuries.
Do not disassemble or remodel
the equipment. Do not solder
items onto the equipment.
May cause fire, injuries, electric shock, or
malfunction. It may also cause the battery
pack to leak, heat, burst or ignite.
Do not let the equipment get wet.
Contact with water or other liquids can cause
heating, electric shock, fire, malfunctions or
injuries. Take care of the place for use and
treatment of the equipment.
Use the battery pack and adapter
specified by NTT DOCOMO for
your FOMA terminal.
Use of equipment not specified by DOCOMO
can cause FOMA terminal, battery pack and
other parts to leak, heat, burst, catch fire or
malfunction.
WARNING
Do not put the battery pack,
FOMA terminal, adapter or UIM in
microwave ovens or other heating
appliances or high-pressure
containers.
It may cause the battery pack to leak, heat,
burst or ignite, may cause FOMA terminal or
adapter to heat, smoke, ignite, or may
damage circuits.
Do not throw the equipment or
give hard shock to it.
May cause the battery pack to leak, heat, burst
or ignite, and the equipment to malfunction
or catch fire.
Keep conductive materials (metal
pieces, pencil lead, etc.) from
coming in contact with the
charging jack or external
connection jack. Do not put those
materials inside the terminal.
May be subject to electrical short and could
cause fire or malfunction.
Turn FOMA terminal OFF before
entering a place such as a gas
station where flammable gases
are generated.
Do not charge the battery. The gas
may catch fire.
When using Osaifu-Keitai in a place as a gas
station, turn OFF the terminal before using it.
(When IC card lock is activated, deactivate it
before turning OFF the terminal.)
If the equipment starts giving off
a strange smell, overheats,
becomes discolored or deformed
during use, charging or in storage,
immediately perform the
following operations.
1. Remove the power plug from the wall
outlet or cigarette lighter socket.
2. Turn FOMA terminal OFF.
3. Remove the battery pack from FOMA
terminal.
May cause the equipment to heat, burst or
ignite or the battery pack to leak if you keep
using the equipment.
CAUTION
Do not leave the equipment on
unstable or sloping surfaces.
May cause malfunction or injuries.
Do not store the equipment in
extremely humid, dusty or hot
areas.
Doing so may cause malfunction.
Handling FOMA terminal,
battery pack, adapter and UIM
(common)
Don’t
No disassembly
No liquids
Do
Don’t
Don’t
Don’t
Do
Do
Don’t
Don’t
F-02B_EN_ninshou
10
Introduction
Children using the equipment
should be instructed in proper
operation by an adult. Do not
allow them to use the equipment
without adult supervision.
May cause injuries.
Store the equipment out of reach
of small children.
May be accidentally swallowed or cause
injuries.
Be careful especially when using
FOMA terminal connected to the
adapter continuously for a long
time.
If you use i-
α
ppli, a videophone call or 1Seg
watching while charging the battery for a
long time, FOMA terminal, battery pack and
adapter may be heated.
Directly touching a hot part for a long time,
you may have redness, itching or rash on
your skin, or it may result in low-temperature
burns depending on your constitution and/or
health condition.
WARNING
Do not direct the infrared data
port toward your eye and transmit
signals.
May affect your eyes. Faulty operation could
result from directing the infrared data port
toward other infrared equipment and
transmitting signals.
Do not put FOMA terminal in the
place such as the dashboard near
the air-bag, where the influence of
air-bag explosion is expected.
When the air-bag explodes, FOMA terminal
may hit yourself or others and could cause
injury, equipment malfunction or damage.
When you use electronic medical
equipment, do not keep the
terminal in your chest pocket or
inside pocket.
Using your FOMA terminal near medical
electronic equipment could cause equipment
failure.
Do not put foreign objects such as
liquid like water, metal pieces or
burnable things into UIM or
microSD card slot.
May cause fire, electric shock or malfunction.
Turn FOMA terminal OFF in areas
where use is prohibited, such as in
airplanes and hospitals.
May cause electronic equipment or electronic
medical equipment to fail or malfunction. If
the function which automatically turns the
power ON is set, cancel the setting before
turning the power OFF.
When using the phone in a medical facility, be
sure to observe the regulations of the facility.
If you do prohibited act such as using the
phone in an airplane, you may be punished
according to law.
When you talk by setting
handsfree, always keep FOMA
terminal away from your ear.
And, when connecting the
earphone/microphone to FOMA
terminal and play a game or
music, adjust the volume
moderately.
Too loud volume may cause a hearing loss.
And, if you cannot hear the sound around you
clearly, it may cause an accident.
If you have weak heart, be careful
when setting the Vibrate alert
(vibration) or alert volume setting.
Could affect heart function.
If it starts thunder while using the
terminal outdoors, turn the power
OFF immediately, and move to a
safe location.
May be subject to lightning strike and could
cause electric shock.
Turn FOMA terminal OFF near
high-precision electronic control
equipment or electronic
equipment using low-power
signals.
Handling FOMA terminal
Do
Do
Do
Don’t
Don’t
Don’t
Don’t
Do
Do
Do
Do
Do
F-02B_EN_ninshou
11
Introduction
May cause the equipment to fail or
malfunction.
* Examples of electronic equipment to
avoid.
Hearing aids, implanted pacemakers or
defibrillators, other electronic medical
equipment, fire alarms, automatic doors
and other automatic control equipment.
Users wearing implanted pacemakers or
defibrillators or other electronic medical
equipment should check with the
manufacturer or sales outlet about the
effect of radio frequencies on the
equipment.
When the display or camera lens is
accidentally broken, be careful of
broken glass or exposed internal
parts of FOMA terminal.
Surfaces of display and camera lens are made
of plastic panels and they are structured for
the glass not to scatter, however, if you
mistakenly touch broken or exposed parts,
you may be injured.
CAUTION
Do not swing FOMA terminal by
its strap.
May cause the terminal damage or failure, or
injury to yourself or others.
When using the motion tracking or
motion sensor, check the safety
around you, hold FOMA terminal
firmly, and do not shake it
unnecessarily.
The motion tracking and motion sensor are
functions to operate by tilting or shaking
FOMA terminal. There is a risk that FOMA
terminal hits people or objects around you by
shaking it too much, causing a serious
accident or damage.
If you put a metal strap or the like
to FOMA terminal, be careful not
to let the strap hit people or
objects around you when
performing motion tracking or
using motion sensor.
Accidents such as injury, malfunction or
damage may result.
If the display part is accidentally
broken and liquid crystal leaks
out, do not put the liquid in your
mouth, inhale, or make contact
with your skin.
If the liquid gets into your eyes or
mouth, rinse it with clean water
and see a doctor immediately.
And, if the liquid adheres to skin
or clothing, use alcohol etc. to
wipe it off, then wash with soap.
May cause loss of sight or skin problems.
Do not bring the speaker close to
your ear when the ring alert is
sounding or you are playing a
melody with FOMA terminal.
May cause hearing loss.
In rare cases, using the phone in
some vehicle models can cause
the vehicle's electronic equipment
to malfunction or fail.
In this case, do not use the phone because it
may hamper safe driving.
Mobile phones can give some
users skin problems such as
itching, allergic reactions or
rashes. If you develop skin
problems, stop using the phone
immediately, and see a doctor.
FOMA terminal contains metal in
the parts below.
Do
Don’t
Don’t
Don’t
Don’t
Don’t
Part Material Surface
treatment
Back cover plate SUS None
Rear side of back
cover
SUS None
Screw SUS None
Charging jack SUS Gold plating
External
connection jack
SUS Gold plating
Nameplate attach
place
PC board Gold plating
Do
Do
F-02B_EN_ninshou
12
Introduction
When opening or closing FOMA
terminal, take care not to have
your fingers or strap caught by the
terminal.
May cause injuries or damages.
When watching 1Seg, take a
certain distance from the display
in a fully bright place.
May cause your eyesight to be impaired.
■
Check that the battery type matches
the type displayed on the battery pack
label.
DANGER
Do not connect a wire or other
metal objects to the jack. And, do
not carry or store FOMA terminal
with objects like a metal necklace.
May cause the battery pack to leak, heat, burst
or ignite.
Do not try to force the battery
pack onto FOMA terminal if you
are having trouble installing it.
Always install it after checking
that it is correctly oriented.
May cause the battery pack to leak, heat, burst
or ignite.
Do not throw the battery pack
into the fire.
May cause the battery pack to leak, heat, burst
or ignite.
Do not nail the battery pack, hit
with a hammer or step on it.
May cause the battery pack to leak, heat, burst
or ignite.
If the battery pack's fluid contacts
eyes, immediately flush the eyes
with clean water and see a doctor
right away. Do not rub the eyes.
May cause loss of sight.
WARNING
If the battery pack seems to have
abnormalities such as
deformation or scratches due to
an external impact or falling, stop
using it immediately.
May cause the battery pack to leak, heat, burst
or ignite, and the equipment to malfunction
or catch fire.
If the battery pack does not have a
full charge after being charged for
the specified time, stop charging
it.
May cause the battery pack to leak, heat, burst
or ignite.
If the battery pack leaks or gives
off a strange smell, immediately
remove it from the vicinity of
open flames.
The vapors from leaking battery pack fluid
may ignite or explode.
Be careful not to let your pet bite
the battery pack.
May cause the battery pack to leak, heat, burst
or ignite, and the equipment to malfunction
or catch fire.
CAUTION
Do not discard old battery packs
together with other garbage.
May cause igniting or environmental
destruction. Tape the terminals of old battery
packs to insulate them, and then bring them
into a sales outlet such as docomo Shop. If
your local municipality has a battery recycling
program, dispose of them as provided for.
Do not charge a wet battery pack.
May cause heat generation, ignition or
rupture of the battery pack.
Battery pack
connector jack
Beryllium
copper
Gold plating
Handling battery pack
Display Battery type
Li-ion 00 Li-ion battery
Part Material Surface
treatment
Do
Do
Don’t
Don’t
Don’t
Don’t
Do
Don’t
Do
Do
Do
Don’t
Don’t
F-02B_EN_ninshou
13
Introduction
If the battery pack's fluid contacts
skin or clothes, immediately flush
the contacted area thoroughly
with clean water.
May hurt the skin.
WARNING
Do not use the adapter cord or
power cord if it gets damaged.
May cause electric shock, heat or fire.
Do not use the AC adapter or
desktop holder in a bathroom or
other highly humid area.
May cause electric shock.
Always use the DC adapter with a
negative-ground vehicle. Do not
plug it into a positive-ground
vehicle.
May cause fire.
When it starts to thunder, do not
touch FOMA terminal and adapter.
May be subject to lightning strike and could
cause electric shock.
Do not short the charging jack
while it is connected to the outlet
or cigarette lighter socket. Do not
touch the charging jack with a
part of your body such as your
hand or finger.
May cause fire, malfunction, electric shock or
injuries.
Place the adapter and desktop
holder in a stable location while
charging. Do not cover or wrap
the adapter and desktop holder
with a cloth or blanket.
May cause FOMA terminal to be removed or
the optional devices to be heated, resulting in
fire or troubles.
Do not place heavy objects on the
adapter cord or power cord.
May cause electric shock or fire.
Do not touch the adapter cord or
outlet with wet hands.
May cause electric shock.
Only use with the specified power
source and voltage.
If incorrect voltage is used, this may cause fire
or failure. When using FOMA terminal
overseas, use AC Adapter for global use.
AC adapter : AC100V
DC adapter : 12 or 24V DC (specific for
negative ground vehicle)
AC adapter for global use : Between 100V and
240V AC (Connect to the AC outlet for
internal household use)
If the DC adapter's fuse blows,
replace it only with the specified
fuse.
Using other fuses may cause fire or
equipment failure. For the specified fuse, see
the instructions that come with the DC
adapter.
Wipe off any dust that
accumulates on the power plug.
May cause fire.
When you connect the AC adapter
to an outlet, make sure not to
touch with metal such as metal
straps and firmly connect to the
outlet.
May cause electric shock, electrical short or
fire.
Handling adapter
Do
Don’t
Don’t
Don’t
Don’t
Don’t
Don’t
Don’t
No wet hands
Do
Do
Do
Do
F-02B_EN_ninshou
14
Introduction
When you disconnect the adapter
from the outlet or cigarette lighter
socket, do not pull the adapter
cord or power cord with excessive
force. Instead, hold the power
plug to disconnect.
Pulling the cord could damage it, possibly
leading to electric shock or fire.
Always remove the power plug
from the outlet when not using
the adapter for an extended
period.
May cause electric shock, fire or malfunction.
Immediately remove the power
plug from the outlet or cigarette
lighter socket if water or other
fluids get into the adapter.
May cause electric shock, smoke or fire.
Always remove the power plug
from the cigarette lighter socket
when cleaning the equipment.
May cause electric shock.
CAUTION
Be careful of the cut surface when
removing UIM (ICs).
May hurt hands or fingers.
■
These precautions are based on the
guidelines produced at the
Electromagnetic Compatibility
Conference Japan, regarding the
protection of electronic medical
equipment from radio waves emitted
by mobile phone units.
WARNING
Obey the following rules inside
medical facilities.
･
Do not bring FOMA terminal into operating
rooms (ORs), intensive care units (ICUs) or
coronary care units (CCUs).
･
Turn FOMA terminal OFF in hospital
wards.
･
Turn FOMA terminal OFF in hospital
lobbies and corridors if electronic medical
equipment could be nearby.
･
If the medical facility has specified zones
where use or possession of mobile devices
is prohibited, obey those instructions.
･
If the function to automatically turn ON the
power is set, cancel the setting before
turning the power OFF.
Turn FOMA terminal OFF in
crowded trains or other public
places where pacemaker or
defibrillator wearers could be
nearby.
FOMA terminal's signals may affect the
operation of implanted pacemakers or
defibrillators, and other devices.
Wearers of implanted pacemakers
or defibrillators must carry and
use FOMA terminal at least 22 cm
away from the implanted device.
FOMA terminal's signals may affect the
operation of implanted pacemakers or
defibrillators, and other devices.
When electronic medical
equipment other than implanted
pacemakers or defibrillators are in
use outside of medical facilities
(such as in home care settings),
check with the device
manufacturer to determine how
the device is affected by electrical
signals.
FOMA terminal's signals may affect the
performance of electronic medical
equipment.
Handling UIM
Do
Unplug
Unplug
Unplug
Do
Handling mobile phones near
electronic medical equipment
Do
Do
Do
Do
F-02B_EN_ninshou
15
Introduction
Handling precautions
・
F-02B is waterproof/dustproof, however, do not allow water or dust to
seep into FOMA terminal and do not allow accessories or optional
devices to get wet or let dust attach.
- FOMA terminal is provided with waterproofness/dustproofness of IPX5 and IPX8
(which exceeds IPX7) by firmly closing the external connection jack cap and
installing the back cover in a locked state, however, it is not complete
waterproofness/dustproofness. Do not install/remove the battery pack or do not
open/close the external connection jack cap and back cover in the rain or with
waterdrop adhered to them. Water may seep inside and cause corrosion or
malfunction. Also, accessories and optional devices are not waterproof/
dustproof. Malfunctions, which are determined to be caused by water or dust as
result of inspections, are not covered by the warranty. Since these conditions are
outside the scope of the warranty, a repair, if at all possible, is charged.
・
Clean FOMA terminal with a dry soft cloth (such as a cloth for
eyeglasses).
- The display of FOMA terminal may have been applied special coating to improve
clearness of the color LCD. When cleaning FOMA terminal, rubbing it roughly
with a dry cloth can scratch the display. Take care when handling the unit, and
clean it with a dry soft cloth (such as a cloth for eyeglasses). Drops of water or
dirt left on the display can cause stains or remove the coating.
- If FOMA terminal is wiped with alcohol, paint thinner, benzine or detergent, the
printing may disappear or color may fade.
・
Clean the jack occasionally with a dry cotton swab etc.
- If the jack is soiled, connection gets worse and it may cause power to be turned
off or insufficient battery charge, so clean the jack with a dry cotton swab etc.
Also, be careful never to damage the jack when cleaning it.
・
Do not place FOMA terminal near an air-conditioner outlet.
- The rapid change in temperature may cause condensation, causing internal
corrosion and malfunction.
・
When using, be careful not to subject excessive force to FOMA terminal
or the battery.
- If FOMA terminal is crammed into a brimming bag or placed in a pocket and sat
on, display, internal PCBs or battery pack may be damaged or malfunction. And,
if external devices are plugged into the external connection jack (earphone/
microphone jack), the breakage of the connector or malfunction may result.
・
Carefully read the separate instructions that come with FOMA
terminal, adapter and desktop holder.
・
Do not rub or scrape the display with a metal piece etc.
- It may scratch the display, causing malfunction or damage.
・
Avoid extreme temperature.
- Use FOMA terminal where the temperature ranges between 5 and 40
℃
(limited
to the temporary use in a bathroom etc. when temperature is above 36
℃
) and
humidity ranges between 45 and 85%.
・
FOMA terminal may affect land-line phones, TVs or radios in use
nearby, so use it as far as possible from these appliances.
・
Maintain a separate record of the data you saved in your FOMA
terminal.
- If the data is deleted, DOCOMO assumes no responsibility for the loss of any
data.
・
Do not drop FOMA terminal or subject it to shocks.
- May cause malfunction or damage.
・
Do not plug external devices into the external connection jack
(earphone/microphone jack) at a slant, or do not pull it forcibly while it
is plugged.
- May cause malfunction or damage.
・
Do not close FOMA terminal with the strap etc. held inside.
- May cause malfunction or damage.
・
It is normal for FOMA terminal to become warm during use or charging.
Continue to use it.
・
Do not leave FOMA terminal with the camera in areas under strong
direct sunlight.
General
FOMA terminal
F-02B_EN_ninshou
16
Introduction
- May cause discoloring or burn-in of materials.
・
FOMA terminal should normally be used with the external connection
jack cap closed.
- Dust and/or water brought into FOMA terminal cause troubles.
・
Do not use FOMA terminal with the back cover removed.
- It may cause the battery to come off, or may cause a malfunction or damage.
・
Do not put extremely thick stickers on the display or the key side.
- Doing so may cause malfunction.
・
While microSD card is being used, do not take the card out and do not
turn off FOMA terminal.
- May cause data loss or malfunction.
・
Do not bring magnetic cards etc. close to FOMA terminal.
- Magnetic data in cash cards, credit cards, telephone cards, floppy disks, etc. may
be erased.
・
Do not bring magnetized objects close to FOMA terminal.
- Bringing strong magnetism close may cause a malfunction.
・
The battery pack is a consumable part.
- Replace the battery pack if FOMA terminal has extremely short operation time
on a full charge, though it may vary by operating conditions. Purchase a new
battery pack of the specified type.
・
Charge the battery in an area within the proper ambient temperature
range (5-35
℃
).
・
Always charge before using it for the first time or after extended
disuse.
・
The operation time provided by the battery pack varies by the operating
environment and battery pack's deterioration.
・
The battery pack may swell out as it comes to near the end of its
lifetime depending on the usage conditions, but it is not a problem.
・
Be careful especially about the following points when preserving or
leaving the battery pack for a long time.
- Keeping under the state of the full charge (right after charging ends)
- Keeping under the state of the empty charge (too exhausted to turn on FOMA
terminal)
They may cause the battery pack performance to be degraded or its lifetime to be
shortened.
For necessary battery level to keep for a long time, the display of battery icon is a
state of approximately 2 or 3 cells.
・
Charge the battery in an area within the proper ambient temperature
range (5-35
℃
).
・
Do not charge the battery in the areas below.
- In areas of excessive humidity, dust or vibrations
- Near land-line phones or TVs/radios
・
It is normal for the adapter to become hot while charging. Continue to
use it.
・
When using the DC adapter for charging, keep the vehicle engine
running.
- The vehicle's battery could become flat.
・
When using an outlet with a mechanism preventing unplugging, follow
the handling instructions for that outlet.
・
Do not give strong shock. Do not deform the charging jack.
- Doing so may cause malfunction.
・
Do not use excessive force to install/remove UIM.
・
It is normal for UIM to become warm during use. Continue to use it.
・
Note that DOCOMO assumes no responsibility for malfunctions
occurring as the result of inserting and using a UIM with another IC
card reader/writer.
・
Always keep UIM ICs clean.
・
Clean UIM with a soft, dry cloth (such as a cloth for eyeglasses).
・
Maintain a separate record of the data you saved in UIM.
Battery pack
Adapter
UIM
F-02B_EN_ninshou
17
Introduction
- If the data is deleted, DOCOMO assumes no responsibility for the loss of any
data.
・
To preserve the environment, bring the old UIM to a sales outlet such
as docomo Shop.
・
Avoid extreme temperature.
・
Take care not to scratch, touch accidentally or short IC.
- May cause data loss or malfunction.
・
Do not drop UIM or subject it to shocks.
- Doing so may cause malfunction.
・
Do not bend UIM or place heavy objects on it.
- Doing so may cause malfunction.
・
Do not install UIM into FOMA terminal with a label or sticker put on
UIM.
- Doing so may cause malfunction.
・
FeliCa reader/writer function of FOMA terminal uses weak waves
requiring no licenses for radio stations.
・
It uses 13.56 MHz frequency band. When using other reader/writers in
your surroundings, keep FOMA terminal away sufficiently from them.
Before using the FeliCa reader/writer, confirm that there are no radio
stations using the same frequency band nearby.
・
Do not use a remodeled FOMA terminal. Using a remodeled terminal
violates the Radio Law.
FOMA terminal is certified according to technical standard conformance of
specified wireless equipment based on the Radio Law, and as a proof of it, the
"Technical Compliance Mark " is depicted on the engraved sticker of FOMA
terminal.
If you remodel FOMA terminal by removing its screws, your certification of
technical standard conformance becomes invalid.
Do not use FOMA terminal with its certification of technical standard conformance
invalid as it violates the Radio Law.
・
Be careful when you use FOMA terminal while driving a car etc.
Using a mobile phone while driving is subject to penal regulations.
If you inevitably receive a call, tell the caller that you will "call back" by handsfree,
then park in a safe place and call back.
・
Use FeliCa reader/writer function only in Japan.
FeliCa reader/writer function of FOMA terminal conforms to Japanese radio
standards.
If you use this function overseas, you may be punished.
FeliCa reader/writer
CAUTION
F-02B_EN_ninshou
18
Introduction
Waterproofness/Dustproofness
F-02B is provided with the following waterproofness by firmly closing the
external connection jack cap, installing the back cover and locking the
cover.
・
IPX5 (Former JIS protection code 5)
*1
・
IPX8
*3
that is a higher standard than IPX7 (former JIS protection code
7)
*2
Also, F-02B is dustproof to IP5X (former JIS protection code 5)
*4
if the
external connection jack cap is strictly closed as well as the back cover is
mounted and locked.
*1 Code IPX5 means that a phone keeps functioning after directly applying a jet
flow of 12.5 L/min. for at least 3 minutes from a distance of 2.5-3 m on a
rotating turntable.
*2 Code IPX7 means that a phone keeps functioning after it is slowly submerged
to depth of 1 m in static tap water at room temperature, left there for 30
minutes and then taken out.
*3 Code IPX8 means that it provides waterproofness of which exceeds of IPX7
standard.
*4 Code IP5X means that a device is protected against the ingress of dust specific
to dustproof test (25
μ
m or smaller in diameter), so that the ingress will not
interfere with predefined operation and safety of the device.
F-02B provides the following waterproof performances of IPX8.
･
F-02B keeps functioning after it is slowly submerged to depth of 1.5 m in
static tap water at room temperature, left there for 30 minutes and then taken
out.
･
The mobile phone keeps shooting still images or moving pictures in 30
minutes in static tap water at room temperature.
✜
What you can do with waterproofness and
dustproofness of F-02B
・
You can talk or watch 1Seg programs without using an umbrella in the
rain (for rainfall of 20 mm or less per hour).
- When your hands or FOMA terminal are wet, avoid installing/removing the back
cover or opening/closing the external connection jack cap.
・
You can wash mud or dirt away.
- Do not apply water flow stronger than allowed (e.g., such water flow that gives
you pain when applied to your skin directly from a faucet or shower).
- Wash it using room-temperature tap water with your hand, with FOMA terminal
locked, the back cover installed and the external connection jack cap held in
position.
- Do not use any brush, sponge, soap, cleaning material, etc.
- After flushing away, wipe off water with a dry cloth, drain, and dry naturally.
・
You can touch the terminal with your hand that is wet with salt water
or seawater.
- Do not operate the terminal.
- If you touch the terminal with your wet hand, flush away immediately as
predefined.
・
You can also shoot still images and moving pictures in the pool depth
of 1.5 m.
- Do not perform other operations underwater than shooting still images and
moving pictures.
- If you put the terminal in water of swimming pool, be sure to have it within 30
minutes.
- If FOMA terminal gets wet with water from the swimming pool, wash it as
predefined.
・
You can use FOMA terminal in a bathroom.
- Do not put the terminal in the bathtub. Do not use the terminal in hot water.
Doing so may cause malfunction.
- Never put FOMA terminal in hot spring water or water containing soap,
detergent or bath powder.
To ensure waterproofness/dustproofness
To keep the FOMA terminal waterproof/dustproof, be sure to observe the
points below.
・
If FOMA terminal should get wet with salt water, sea water or soft drink, you can
flush away. However, do not let the terminal get wet with liquids other than tap
water at room temperature.
F-02B_EN_ninshou
19
Introduction
・

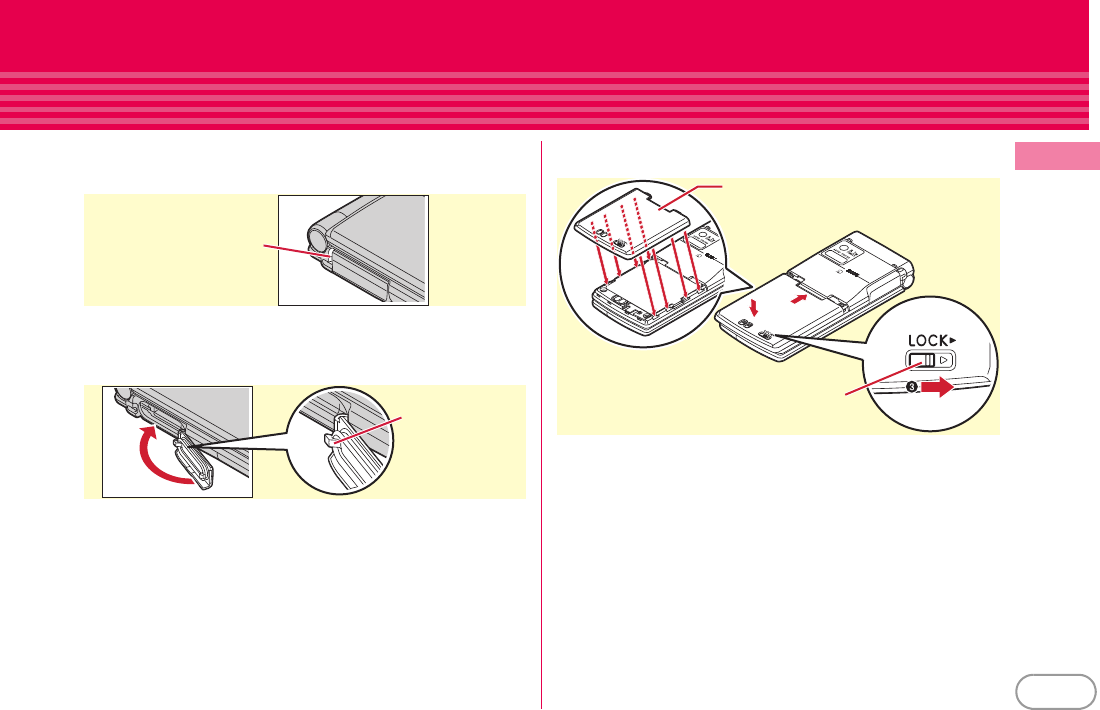

Open/close the external connection jack cap as described below.
<Opening the external connection jack cap>
Place your finger at groove on the hinge side to open the cap.
<Closing the external connection jack cap>
Close with the tab for the back cover at the rear side of the cap fitted into the
concave of this terminal. Make sure that the cap is completely closed without
slack.
・
Install the back cover as described below.
<Installing the back cover>

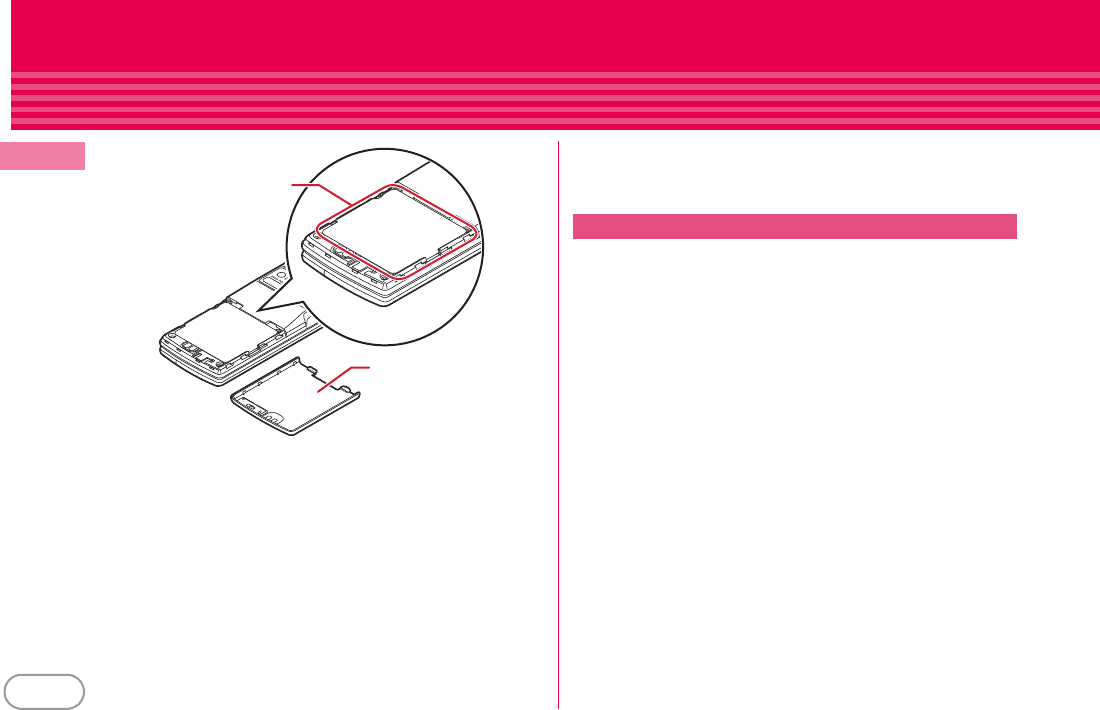

Align 8 tabs of the back cover with concaves of FOMA terminal. While pressing the
back cover in the direction of
a
so that there is no gap between FOMA terminal
and back cover, slide the back cover in the direction of
b
to install, then slide the
back cover lever in the direction of
c
to lock.
* Make sure that the back cover is completely closed without slack. Slide the
back cover in the direction of the arrow shown on the lever, and then make
sure the cover is securely locked before using.
・
Securely lock the back cover and firmly close the external connection jack cap.
Even a fine obstacle (one hair, one grain of sand, tiny fiber, etc.) put between
contact surfaces may allow water to enter.
・
Do not poke the microphone, earpiece or speaker with a swab or sharp object.
・
Do not let FOMA terminal fall. It may become scratched causing the waterproof/
dustproof performance to degrade.
・
The external connection jack cap and the rubber packing of the inner lid play an
important role for keeping waterproof/dustproof performance. Do not remove or
scratch it. Also, prevent dust from adhering to it.
Groove on the hinge side
Tab on the back
cover side
ab
Back cover
Lever
F-02B_EN_ninshou
20
Introduction
To keep the FOMA terminal waterproof/dustproof, replacement of parts is
required every 2 years regardless of whether FOMA terminal appears normal
or abnormal. DOCOMO replaces the parts as a chargeable service. Bring FOMA
terminal to a sales outlet such as a DOCOMO-specified repair office.
Important precautions
Do not perform actions shown in the illustrations below.
Observe the following precautions to use FOMA terminal properly.
・
Accessories and optional devices are not waterproof/dustproof. When watching
1Seg etc. with FOMA terminal installed in the desktop holder, do not use it in a
bath room, shower room, kitchen or lavatory even if it is not connected to the AC
adapter.
・
Do not apply water flow stronger than allowed (e.g., such water flow that gives
you pain when applied to your skin directly from a faucet or shower). F-02B
provides the following waterproof performances of IPX5. However, it causes
malfunction.
・
If FOMA terminal gets wet with salt water, seawater, water from the swimming
pool or soft drink, or with mud or soil, flush away immediately. When it dries out,
it becomes harder to get rid of, causing malfunction.
・
Do not use FOMA terminal before flushing mud or soil away. This damages FOMA
terminal.
・
Do not put FOMA terminal in hot water, use it in a sauna or apply hot airflow (from
a hair dryer etc.) to it.
・
Do not move in water or slam the terminal against the surface of water with FOMA
terminal opened.
・
If you put the terminal in tap water or in water of swimming pool, be sure to have
it within 30 minutes.
・
When you use the terminal in swimming pool, obey rules of the facility.
・
FOMA terminal does not float on water.
・
Do not leave water on FOMA terminal. May short-circuit the power jacks, or in a
cold region, water may freeze causing malfunction.
・
Do not leave water on the microphone, earpiece or speaker. Such water may
interfere with talking.
・
If the back cover is damaged, replace it. Water may enter inside from a damaged
section causing troubles such as electric shocks or corrosion of the battery.
・
If FOMA terminal gets wet with water or other liquids with the external connection
jack cap or back cover open, the liquid may get inside the terminal causing electric
shocks or malfunction. Stop using FOMA terminal, turn the power OFF, remove
the battery pack and contact a DOCOMO-specified repair office.
・
If rubber gasket on the external connection jack cap or inner lid is damaged or
deformed, replace it at DOCOMO-specified repair office.
DOCOMO does not guarantee actual operations under all states. Malfunctions
deemed to be caused by inappropriate operation by the customer are not
covered by the warranty.
F-02B_EN_ninshou
21
Introduction

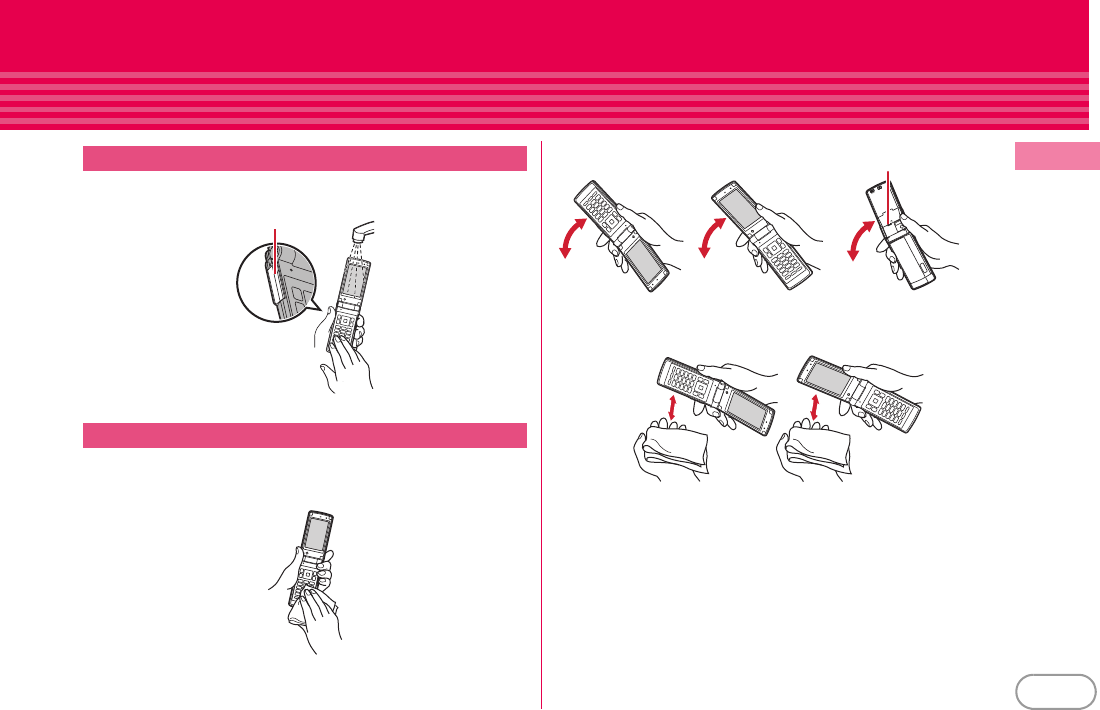

Wash the terminal with tap water while holding the external connection
cap. Do not rub the terminal.
* After washing FOMA terminal, drain in the following steps, and dry naturally.
When FOMA terminal is wet, water may flow out after wiping it off; drain the water
in the following steps.
a
Wipe FOMA terminal surface with dry, clean cloth etc.
b
Shake FOMA terminal approximately 20 times, firmly holding its
hinge section, until there is no more water splattering.
c
Softly press dry, clean cloth etc., against FOMA terminal to wipe off
water remaining in the microphone, earpiece, speaker, keys or
hinges.
d
Remove the back cover and wipe off any drops of water around the
inner lid and the rear side of the back cover. Never open the inner lid.
After wiping off the water, install and lock the back cover.
Removing back cover
⇒P25
Washing FOMA terminal
Draining water when the FOMA terminal gets wet
Press here
To drain water off the speaker, shake
FOMA terminal with the speaker upward
F-02B_EN_ninshou
22
Introduction
e
Wipe off water drained from FOMA terminal with dry, clean cloth etc.
･
Water, if any, remaining in FOMA terminal may ooze up after wiping off.
･
Do not wipe off water remaining in concaves directly with a cotton swab etc.
･
After wiping off water, dry naturally.
Check the following before and after charging.
・
Check that FOMA terminal is not wet. Never try to charge the battery pack when
FOMA terminal is wet.
・
Accessories and optional devices are not waterproof/dustproof.
・
When charging the battery when or after FOMA terminal is wet, adequately drain
it and wipe off water with a dry, clean cloth etc., before connecting a desktop
holder or opening the external connection jack cap.
・

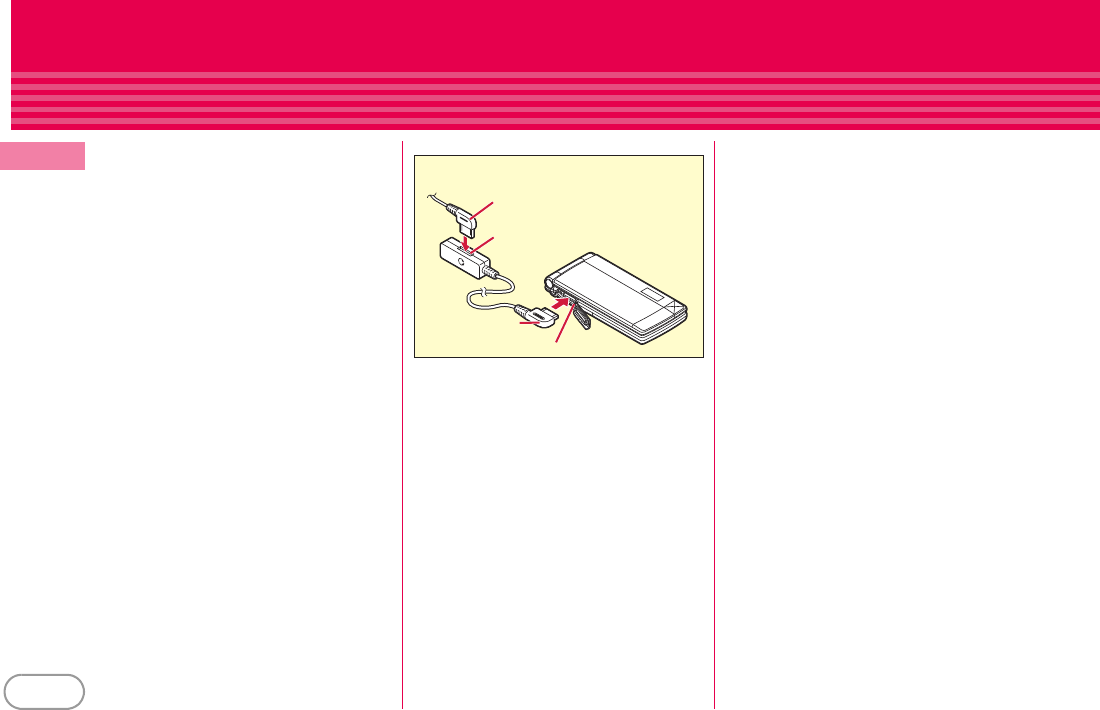

When the external connection jack cap is opened for charging, close the cap firmly
after charging. It is recommended that the desktop holder be used for charging to
prevent water from seeping inside from the external connection jack.
・
Do not use the AC adapter or desktop holder in a bathroom, shower room, kitchen,
lavatory or other highly humid area. May cause fire or electric shock.
・
Do not touch the AC adapter or desktop holder with wet hands. May cause electric
shock.
Around the inner lid
Rear side of the back cover
Charging
F-02B_EN_ninshou
25
Basic Operation
Before Using
Attaching UIM (FOMA card)/battery pack
After turning power OFF, close FOMA terminal and hold it in your
hand so that you can properly attach the card/pack.
✜
Removing the Back Cover
Slide the back cover lever in the direction of
a
to unlock, and then
slide the cover in the direction of
b
by 2 mm with a thumb to remove
it. Pinch the tab of the inner cover and open the cover in the direction
of
c
until it stops.
✜
Installing UIM
Pull the tab with your nail and pull out the tray until it clicks. (
a
). Hold
UIM with the IC side down, align the beveled corner with the tray and
push into the tray until it stops (
b
).
✜
Installing battery pack
With the label side of the battery pack upward, align convex parts of
the battery pack with concave parts of FOMA terminal and slide the
battery pack in the direction of
a
, press the battery pack in the
direction of
b
to set it in, and then close the inner cover.
Tab
Lever
Press here with your thumb
Back Cover
IC
Corner cut
UIM
Tray
Tab
Battery Pack
Concave Part
Convex Part

Navigation menu
