manual1
![](/img.php?id=1437534&img=bg1.png)
INSTRUCTION MANUAL
INSTRUCTION MANUAL ’11.5
F-09C
![](/img.php?id=1437534&img=bg2.png)
F-09C_EN_ninshou
DOCOMO W-CDMA, GSM/GPRS, Wireless LAN System
Thank you for purchasing "docomo PRIME series F-09C" mobile terminal.
Before using F-09C, read this manual to ensure safe use and handling.
About manuals for F-09C
The operations of F-09C are described in this manual, "
使いかたガイド
(Guide)” (installed in FOMA
terminal) and "Instruction manual (detailed version)" (in pdf format).
・
In this "F-09C INSTRUCTION MANUAL", "F-09C" mobile terminal is usually referred to as "FOMA terminal".
・
The images or illustration used in this manual are examples. They may differ from the actual displays.
・
The images used in this manual assume that Kisekae Tool is set to "White" and Color theme setting is set to
"White".
・
In this manual, "authenticate" indicates the operating procedure for entering the terminal security code in 4-
8 digits (
⇒
P42) or performing fingerprint authentication.

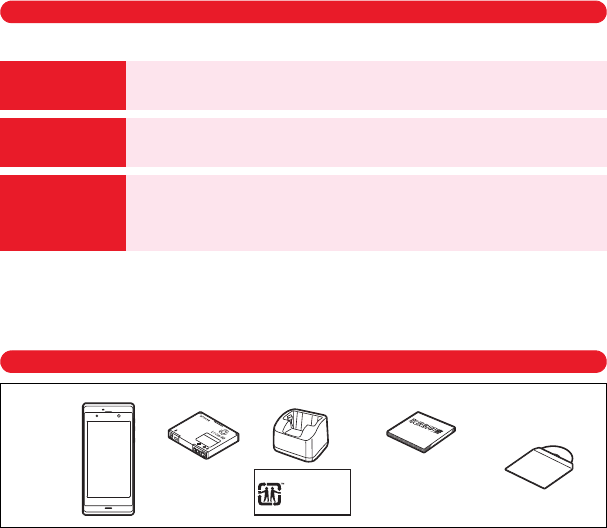

Basic package
・
Unauthorized copying of parts of or this entire manual is prohibited.
・
The contents in this manual, URL and contents are subject to change without prior notice.
Instruction
manual (this
manual)
This manual provides information about screens and operations of basic
functions.
"
使いかたガイド
(Guide) "(installed
in FOMA terminal)
This guide provides overviews and operations of frequently-used functions. (In
Japanese only)
In F-09C Stand-by display,
mef
Tool
e#
Guide
e
Select a search method
"Instruction
manual (detailed
version)" (in pdf
format)
This manual provides detailed information and operations of all the functions.
(In Japanese only)
<From a PC> This manual can be downloaded from NTT DOCOMO website.
http://www.nttdocomo.co.jp/support/trouble/manual/download/index.html
*
The URL and contents are subject to change without prior notice.
Desktop Holder F33
is made of recycled
ABS from used
products.
F-09C
(including Back
Cover F60 and
warranty)
Compatible options
⇒
PXX
Instruction manual
電子辞書データ
DVD
(Electronic dictionary
data DVD) (Sample)
Battery Pack F18 Desktop Holder F33
![](/img.php?id=1437534&img=bg3.png)
F-09C_EN_ninshouF-09C_EN_ninshouF-09C_EN_ninshou
1
Connect
Basic
Operation
Introduction
Search
Enjoy
Others
More
Convenient
Contents
FOMA terminal ...........................
2
What you can do with F-09C.....
3
Part names and functions .........
4
Usage styles ...............................
6
Precautions (Always follow these
directions)...............................
7
Handling precautions ................
16
Waterproof/Dustproof function
21
Before Using ...............................
26
Screen Explanation ....................
29
Character Entry ..........................
34
Sound/Screen Setting ..............
37
Lock/Security.............................
42
Call Telephone............................
47
Mail..............................................
56
Phonebook ..................................
60
i-mode/Full Browser/Smart
Browser ...................................
62
i-Channel .....................................
64
Map/GPS ....................................
65
Camera ........................................
67
1Seg.............................................
69
Music ...........................................
71
i-αppli..........................................
73
i-motion/Movie..........................
74
Osaifu-Keitai ...............................
75
i-concier.......................................
76
Convenient tools ........................
77
Data Management.....................
81
Support .......................................
87
Appendix .....................................
94
Index............................................
112
![](/img.php?id=1437534&img=bg4.png)
F-09C_EN_ninshou
2
Introduction
FOMA terminal
・
Because your FOMA terminal uses wireless transmission, it may not function in locations where it is
difficult for radio waves to penetrate, such as tunnels, underground passages and some buildings, in areas
where radio waves are weak, or out of service area. Even when you are high up in a tall building or
condominium and nothing blocks your view outside, your FOMA terminal may not be able to receive or
transmit signals. Also, communication may be interrupted even when the signal meter on your FOMA
terminal indicates there are strong radio waves and you are not moving (traveling).
・
Use your FOMA terminal in a way that does not disturb others in public spaces, crowded locations or quiet
places.
・
Because your FOMA terminal uses radio waves to communicate, it is possible that a third party may
attempt to tap your calls. However, the W-CDMA, GSM/GPRS, Wireless LAN system automatically applies
a confidential communication function to all calls, so even if a third party could somehow tap a call, they
only hear noise.
・
Your FOMA terminal encodes voice communication as digital data. When you are operating your FOMA
terminal while moving to a location subject to weaker radio wave conditions, the transmitted digital data
may not be correctly decoded and as a result the decoded voice may differ somewhat from the actual voice.
・
Maintain a separate record of the data (Phonebook, Schedule, Memo, Recorded messages, Voice memos,
Moving picture memos, etc.) you registered in your FOMA terminal. Note that DOCOMO assumes no
responsibility for any loss of saved contents of data resulting from malfunction, repair, changing of the
model or other handling of FOMA terminal.
・
You are recommended to save important data to microSD card. Using DOCOMO keitai datalink, you can
transfer and save phonebook, mail, schedule and other data to a PC.
・
The user hereby agrees that the user shall be solely responsible for the result of the use of SSL/TLS.
Neither DOCOMO nor the certifier as listed herein makes any representation and warranty as for the
security in the use of SSL/TLS. If the data should be erased, DOCOMO assumes no responsibility for the
loss of any data.
Certifier : VeriSign Japan K.K., Cybertrust Japan Co., Ltd., GlobalSign K.K., RSA Security Japan Ltd.,
SECOM Trust Systems Co., Ltd., Comodo CA Ltd., Entrust, Inc., Go Daddy, Inc.
・
This FOMA terminal supports FOMA Plus-Area and FOMA HIGH-SPEED Area.
・
FOMA terminal can be used only via the FOMA network provided by DOCOMO and DOCOMO's roaming
area.
![](/img.php?id=1437534&img=bg5.png)
F-09C_EN_ninshou
3
Introduction
What you can do with F-09C
Waterproofness/Dustproofness
21
Waterproofness of IPX5 and IPX8 and
dustproofness of IP5X are provided by firmly
closing the external/HDMI connection jack cap and
installing the back cover in a locked state.
Quick voice activation
33
Just speaking a keyword of function you want to
use activates the function. It is useful when you do
not know where is a desired function in the menu
or when you want to activate the function
immediately.
使いかたガイド
(Guide)
33
Without the instruction manual at your hand, you
can check readily the operations of function you
want to use. By searching from the function list or
entering a keyword, you can view the outline or
operation for the function and also activate the
function. (In Japanese only)
Smart Browser
62
WebKit, adopted by Smartphone etc., enables to
view contents on the Internet comfortably by
touch operation.
AUTO-GPS
66
The AUTO-GPS function allows for useful services
that deliver information about the weather or shops
around where you are, or sightseeing information.
(In Japanese only) You can also enjoy a game using
your location or the distance you moved.
High functionality camera
67
Camera offers approximately 16,3 million pixels
(effective pixels) and high functionality such as
HDR (High Dynamic Range) synthesis, Art camera
function, etc., which enable to shoot 3D still
images and Full HD moving pictures. You can also
view images on wide-screen by connecting the
FOMA terminal to a TV with HDMI cable.
i-concier
76
It is a service that Machi-chara (a character on the
stand-by display) supports your life like a butler or
concierge. It stores your various information (area
of residence, memo, schedule, ToruCa,
phonebook, etc.) and offers you information that
matches contents of Memo or Schedule, your
living area or current location, or preferences and
interest at the right time. (In Japanese only)
Wi-Fi
79
You can perform Internet connection with
connecting the access point for home network or
Public wireless LAN service (Client mode), and
use the FOMA terminal as access point (Base unit)
of Wi-Fi to enjoy a versus game etc. on Wi-Fi
device (Sub unit).
![](/img.php?id=1437534&img=bg6.png)
F-09C_EN_ninshou
4
Introduction
Part names and functions

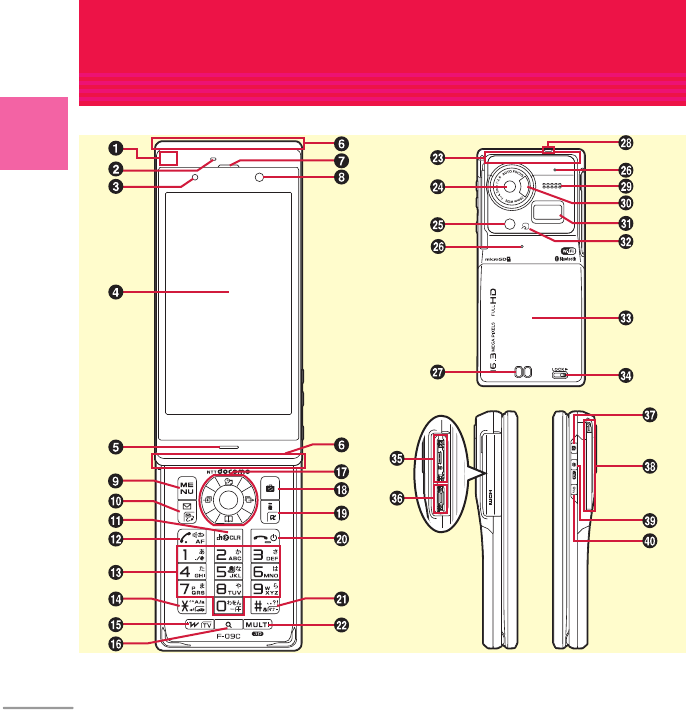

Part names of F-09C and major functions assigned to each part are as follows.
![](/img.php?id=1437534&img=bg7.png)
F-09C_EN_ninshou
5
Introduction
To use the function with *, press the key for 1
second or more.
a
GPS antenna is built-in
b
Temperature/Humidity sensor
c
Light sensor for sensing the ambient
lightness to adjust the brightness of the
display
d
Display (Touch panel)
e
Microphone for calling and recording
f
Light for indicating charging
g
Earpiece
h
In-camera
im
Display the menu
ja
Display the mail menu, switch text
input modes or check new mail/message
*
kc
Display i-Channel or return to the
previous screen
ln
Start voice call, switch to hands-free
call or perform quick voice activation
*
m0
-
9
Enter phone number or
characters, or select menu item
n*
Enter "*" or voiced/semi-voiced
sound, or start/cancel Public mode (Drive
mode)
*
oT
Start/Exit i-Widget, or watch 1Seg
*
pU
(Search key) Activate Quick search/i-
mode voice search
*
qk
Multi-cursor key for moving the cursor
g :
Perform an operation.
u :
Display Schedule, or adjust sound
volume
d :
Display Phonebook, adjust sound volume
or add a phonebook entry
*
l :
Display Received calls.
r :
Display Redial or start/cancel IC card lock
*
rC
Start the still camera shooting
sI
Display iMenu or i-
α
ppli folder
*
tf
Exit a running function, or turn ON/
OFF the FOMA terminal by pressing for 2
seconds or more
u#
Enter "#" or punctuation, or start/
cancel Silent mode.
vs
Multitask key for starting another
function during a call or operation, or
switching 3D/2D
*
w
FOMA antenna is built-in
x
Out-camera
y
Light/Shooting light
z
Back side microphone for Movie shooting
or Voice recorder
A
Charging jack
B
Strap opening
C
Speaker
D
Infrared data port for infrared
communication or infrared remote control
function
E
Fingerprint sensor for registering
fingerprint and authentication
F
mark for placing over IC card reader for
Osaifu-Keitai and iC transmission
G
Back cover
H
Back cover lever
I
Jack for charger, earphone, etc.
J
HDMI jack (type D)
KZ
Stop the ring alert, record video during
1Seg watching
*
or start the still camera
shooting
*
L
1Seg antenna used for 1Seg watching
MN
Side multi key for starting another
function during a call or operation, or
switching 3D/2D
*
![](/img.php?id=1437534&img=bg8.png)
F-09C_EN_ninshou
6
Introduction
Nz
Lock key for starting Operation lock or
starting/canceling Privacy view
*
External
connection jack

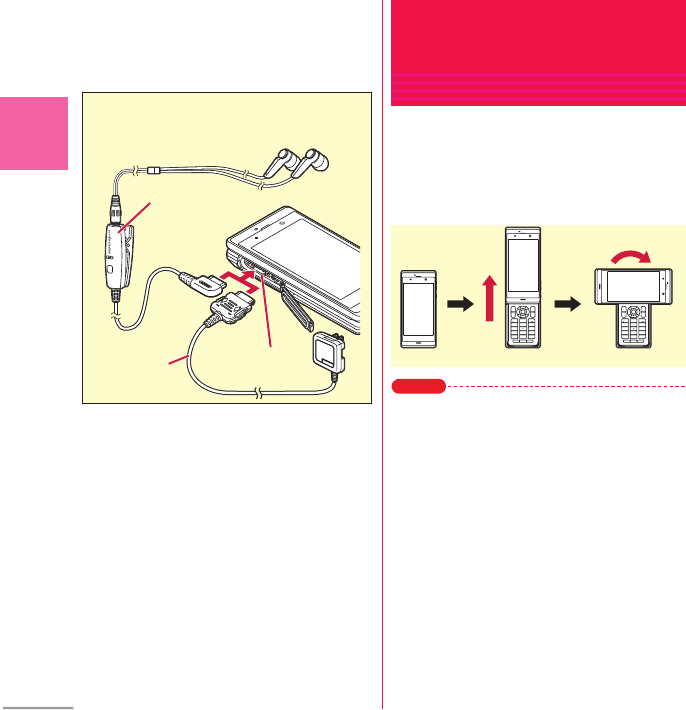

Stereo Earphone Set 01
* AC adapter uses a common jack.
Connection of Stereo Earphone Set 01 (Optional)
for external connection jack
AC adapter
Usage styles
You can use functions of F-09C with three styles:
"closed style (closed state)", "slide style (opened
state)", "YOKO-MOTION style (opened state)".
In closed style, vertical and horizontal views can
be switched according to tilt of the FOMA terminal
by the auto rotation in Motion sensor.
Point
・
When you use the slide style or YOKO-MOTION style,
do not rotate the display counterclockwise nor more
than 90 degrees clockwise.
・
The sliding operation of the FOMA terminal may be
felt hard, but it is not malfunction. When opening/
closing or rotating, hold the display lightly with your
hand and move it until it clicks.
・
Microphone is below the display. When making a call
in YOKO-MOTION style, change the holding hand
etc. to get close to the microphone.
・
When you carry the FOMA terminal, close the FOMA
terminal and activate Operation lock by pressing
z
to avoid erroneous touch panel operation and save
battery consumption. For opening, closing or
rotating the FOMA terminal, do not touch the touch
panel with your fingers to avoid erroneous
operation.
Slide style YOKO-MOTION
Closed style
![](/img.php?id=1437534&img=bg9.png)
F-09C_EN_ninshou
7
Introduction
Precautions (Always follow these directions)
・
Before using your FOMA terminal, or when
necessary, read the precautions below to
ensure safe use and handling. After reading this
manual, keep it carefully.
・
These precautions are intended to protect you
and others around you. Read and follow them
carefully to avoid injury, damage to the product
or damage to property.
・
The signs below differentiate between the
levels of danger that can occur if the product is
not used within the specified guidelines.
・
The symbols below show specific directions.
■
Precautions contain the description below.
Handling FOMA terminal, battery pack, adapter,
desktop holder and UIM (common) .........................8
Handling FOMA terminal ..............................................9
Handling battery pack .................................................11
Handling adapter and desktop holder .......................12
Handling UIM...............................................................13
Handling mobile phones near electronic medical
equipment.................................................................13
DANGER
This sign denotes that
death or serious injury
may directly result from
improper use.
WARNING
This sign denotes that
death or serious injury
may result from
improper use.
CAUTION
This sign denotes that
minor injury or damage
to property may result
from improper use.
This symbol denotes that the action
is prohibited.
This symbol denotes that
disassembling the phone or its
components is not allowed.
Don’t
No disassembly
This symbol denotes that using the
phone or its components with wet
hands is not allowed.
This symbol denotes that using the
phone or its components in a
bathroom or other highly humid
area is not allowed.
This symbol denotes that an
instruction must be obeyed at all
times.
This symbol denotes that the
equipment should be unplugged.
No wet hands
No liquids
Do
Unplug
![](/img.php?id=1437534&img=bga.png)
F-09C_EN_ninshou
8
Introduction
DANGER
Do not use, store, or leave the
equipment in hot areas such as near
flames or in areas under strong direct
sunlight such as inside a vehicle.
May cause fire, burns or injuries.
Do not put the terminal into heating
cooking device such as microwave oven
or high-pressure container.
May cause fire, burns, injuries, electric shock.
Do not disassemble or remodel the
equipment.
May cause fire, burns, injuries, electric shock.
Do not let the terminal get wet with
water, drinking water, urine of pet
animals, etc.
May cause fire, burns, injuries, electric shock.
For waterproofness, refer to
⇒
P21
Use the battery pack and adapter
specified by NTT DOCOMO for your
FOMA terminal.
May cause fire, burns, injuries, electric shock.
WARNING
Do not throw the equipment or give
hard shock to it.
May cause fire, burns, injuries, electric shock.
Keep conductive materials (metal
pieces, pencil lead, etc.) from coming in
contact with the charging jack or
external connection jack. Do not put
those materials inside the terminal.
May cause fire, burns, injuries, electric shock.
Do not cover or wrap the terminal with
a blanket, etc while using or charging.
May cause fire or burns.
Turn FOMA terminal OFF and stop
charging before entering a place such as
a gas station where flammable gases
are generated.
The gas may catch fire.
When using Osaifu-Keitai in a place as a gas
station, turn OFF the terminal before using it.
(When IC card lock is activated, deactivate it
before turning OFF the terminal.)
If the equipment starts giving off a
strange smell, overheats, becomes
discolored or deformed during use,
charging or in storage, immediately
perform the following operations.
・
Remove the power plug from the wall
outlet or cigarette lighter socket.
・
Turn FOMA terminal OFF.
・
Remove the battery pack from FOMA
terminal.
Failure to do so may cause fire, burns, injuries,
electric shock.
CAUTION
Do not leave the equipment on unstable
or sloping surfaces.
May cause injuries.
Do not store the equipment in
extremely humid, dusty or hot areas.
May cause fire, burns, electric shock.
Handling FOMA terminal, battery
pack, adapter, desktop holder and
UIM (common)
Don’t
Don’t
No disassembly
No liquids
Do
Don’t
Don’t
Don’t
Do
Do
Don’t
Don’t
