1

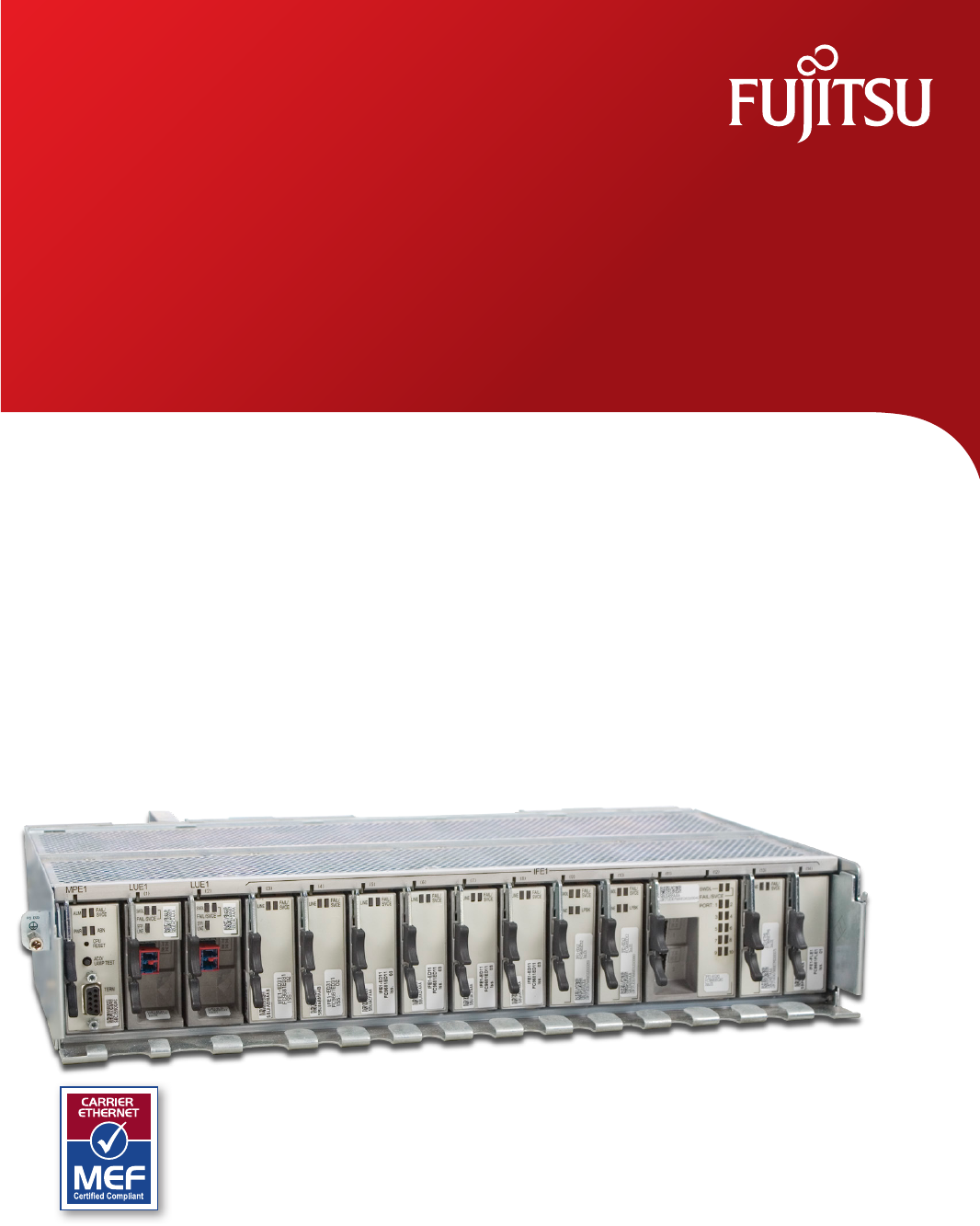

FLASHWAVE® 4100 ES
Micro Packet Optical Networking Platform
shaping tomorrow with you
The FLASHWAVE 4100 ES Micro Packet Optical Networking
Platform (Packet ONP) is ideal for Ethernet and TDM access
service delivery and aggregation over networks up to OC-192
using full band tunable optics. Offering high reliability in
extreme environments, its modular, 2RU chassis provides pay-
as-you-grow exibility, minimizing capital outlay.
2
FLASHWAVE® 4100 platforms are in service across tens of thousands of
locations, such as central ofces, cell sites, outside-plant cabinets and
cable distribution networks. The platform is also widely deployed on
customer premises in rack, cabinet and wall-mount congurations.
Congured in conjunction with a FLASHWAVE 4000 series Multiservice
Provisioning Platform (MSPP) or FLASHWAVE 7000 series Wavelength
Division Multiplexing (WDM) system, the FLASHWAVE 4100 ES
platform improves slot cost-to-value ratio. Used with the FLASHWAVE
9500 Packet ONP EoX Gateway conguration, the platform provides a
complete backhaul, aggregation and service delivery solution over
Ethernet or SONET network facilities.
Key Platform Features
The FLASHWAVE 4100 ES Micro Packet Optical Networking Platform
(Packet ONP) is the optimal solution for the network edge or customer
premises, offering:
• 10G access network element using OC-192 with full band tunable
optics
• Smooth, economical migration from legacy SONET to next-
generation packet optical networking
• Service delivery for high concentrations of 100FX and GE Connection-
Oriented Ethernet (COE), DS1, DS3, EC1, OC-3, OC-12 and OC-48
services
• Flexible COE over Ethernet and SONET resulting in long-term
investment protection
• Complete solution for high-performance 2G/3G/4G cell site access
and aggregation deployments, mobile/business backhaul and utility
telecom applications
• Environmentally hardened 2RU all industrial-grade platform with
modular exibility that cost-effectively addresses a broad range of
demanding applications
• Metro Ethernet Forum (MEF)-compliant Ethernet Private Line (EPL)
and Ethernet Virtual Private Line (EVPL) services
One Platform Combines COE, TDM Access, Self-Healing Resilient
Hardware, and Aggregation
The COE and TDM capabilities of the FLASHWAVE 4100 ES system are
optimized for 2G/3G/4G mobile backhaul, wholesale Ethernet access,
high-density metro Ethernet business services, and backhaul of triple
play services, including broadband Internet access from DSLAM, PON
or CMTS equipment, ensuring the highest standards of reliability and
service transport.
COE Service Unit
The COE service unit combines SONET attributes such as extremely
low-latency, jitter and frame loss with the exibility, scalability and
dynamic bandwidth allocation of Ethernet. The unit provides:
• Guaranteed bandwidth (CIR) per Ethernet Virtual Connection (EVC)
• Four classes of service with dynamic bandwidth allocation between
services
• Integrated Y.1731 fault management and performance
measurement responder eliminates external NIDs at remote
locations
• Ethernet service multiplexing (aggregation) with resilient hardware
• VLAN ID mapping/translation
• COE network operation on any port with optional 1:1 LAG facility
protection
• Metro Ethernet Forum (MEF)-certied Ethernet Private Line (EPL)
and Ethernet Virtual Private Line (EVPL) services
FLASHWAVE® 4100 ES
Micro Packet Optical Networking Platform
Optimal for the Network Edge or Customer Premises
ALM
PWR ABN
TERM
CPU
RESET
ACO/
LAMP TEST
FAIL/
SVCE SWDL
FAIL/SVCE
SFP/
LINE
ALM
LINE LPBK
FAIL/
SVCE
ALM
LINE LPBK
FAIL/
SVCE
SWDL
FAIL/SVCE
SFP/
LINE
SFP/
LINE
SFP/
LINE
SFP/
LINE
SFP/
LINE
SFP/
LINE
SFP/
LINE
SWDL
FAIL/SVCE
PORT: 1
3
5
7
9
2
4
6
8
10
SWDL
FAIL/SVCE
PORT: 1
3
5
7
9
2
4
6
8
10

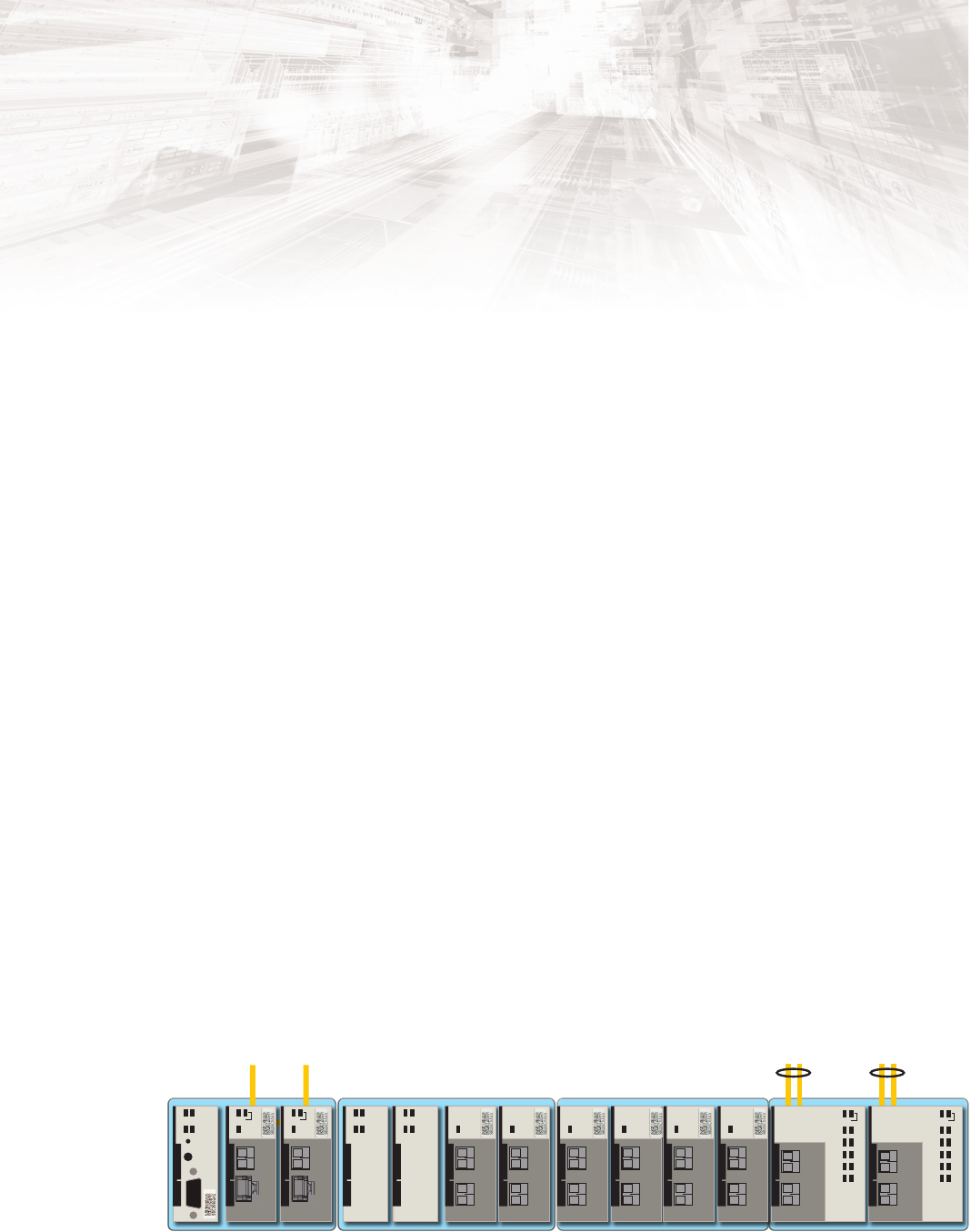

CPU
Network
SONET Line Units
with integrated
Switch Fabric
Dual OC-3
OC-12
OC-48
OC-192
OC-3/OC-12/OC-48/OC-192 SONET Fast/Gigabit Ethernet
1:1 LAG 1:1 LAG
TDM Service Units
DS1s
DS3s
EC1s
Transmux
SONET Service Units
OC-3/OC-12
OC-12/OC-48
High-Density Ethernet
Service Units
100FX
GE
COE Service Units
10/100/1000 Ethernet over SONET
10/100/1000 Native Ethernet
Priority Queue/VLAN Tagging/EVC
Port Mapping
FLASHWAVE 4100 ES
Micro Packet ONP
with multiple
service options
3
Cost-Effective, Smooth Migration to Packet Optical Networking
The FLASHWAVE 4100 ES platform controls costs with exible options
to reuse existing resources. This strategy maintains TDM service
performance, while offering dynamic bandwidth allocation resulting in
optimal efciency for differentiated services over existing SONET
equipment. As SONET bandwidth becomes exhausted, COE services
can be scaled over new Ethernet network facilities using an available
port on the existing COE service unit, without adding shelves or
common equipment.
COE: Ethernet with Advanced Trafc Engineering
Ethernet, fundamentally a connectionless technology, is now the
method of choice for delivering high-bandwidth data services.
However, next-generation mobile backhaul, high-denition video
distribution and mission-critical enterprise services require
deterministic, high-performance, high-availability connections. These
kinds of connections are only possible in a connection-oriented
environment. The frame delay, packet loss and service protection
performance of connectionless networks are unacceptable for critical
voice, video and storage applications. The answer: COE, the basis for
carrier-class high-reliability, simple-to-manage integrated networks
that support packet, optical, and TDM networks.
Multiple Levels of Fault Tolerance and Management
The FLASHWAVE 4100 ES platform provides multiple levels of fault
tolerance and management, including resilient hardware and
redundant power, Ethernet facility protection using IEEE 802.3ad link
aggregation, card and network protection using SONET 50 ms path
protection. Integrated Y.1731 fault management and performance
measurement offers early warning of service impairments to ensure
non-stop operation. The Fujitsu NETSMART® 1500 Management System
simplies service assurance, leveraging the product’s integrated
802.3ah link OAM and connection admission control for EVC CIR
bandwidth reservation.
FLASHWAVE® 4100 ES
Micro Packet Optical Networking Platform
Optimized for Efficiency

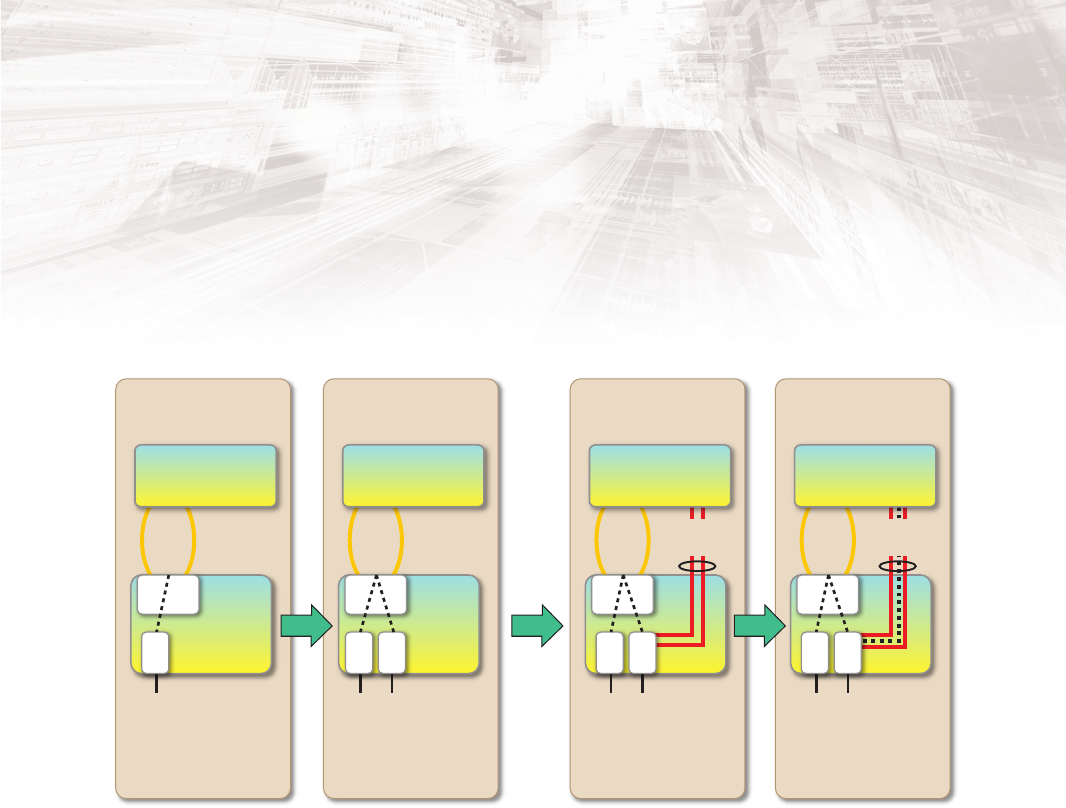

SONET SONET
Present
Mode of Operation
2G/3G Service
Backhaul using
DS1s/DS3s
DS1s/DS3s
FLASHWAVE
9500 or
4100 ES
TDM & Ethernet
over SONET
Leverage Existing SONET
Investment Adding 4G
Service Backhaul
Using COE to Increase
Bandwidth Efficiency
DS1s/DS3s COE Service
FLASHWAVE
9500 or
4100 ES
FLASHWAVE
4100 ES
FLASHWAVE
4100 ES
FLASHWAVE
4100 ES
FLASHWAVE
4100 ES
SONET
OR
SONET Bandwidth
Exhausted, Begin
Migration to COE
Ethernet Facility Turn-up & Test
2G/3G/4G Service Unaffected
FE/GE 1:1
LAG Facility
Protection
FE/GE 1:1
LAG Facility
Protection
DS1s/DS3s COE Service
FLASHWAVE
9500 or
4100 ES
SONET
Independent TDM &
Native Ethernet
Near-Seamless Transition
2G/3G Services Over SONET
4G Service Over
SONET & Ethernet
DS1s/DS3s COE Service
FLASHWAVE
9500 or
4100 ES
A smooth migration path to next-generation services
4
Integrated DS1 Network Interface Unit (NIU) Functionality
The FLASHWAVE 4100 ES DS1 service card with integrated NIU condenses trouble ticket resolution time and expedites installation. Its extensive
loopback capabilities, NPRM, 30-day PM binning, CI alarm recognition and integrated multi-pattern Bit Error-Rate Testing (BERT) provide a
powerful tool set to expedite installation, mitigate service issues and reduce truck rolls. As a result, operational expenses are reduced.
Integrated In-Service Y.1731 OA&M
The FLASHWAVE 4100 ES system eliminates the need for an external Ethernet NID, shrinking both footprint and cost when using the
FLASHWAVE 4100 ES integrated Y.1731 responder along with a test head such as the FLASHWAVE 9410 system or equivalent. Network operators
provision in-service performance measurements including delay, delay variation and frame loss, without affecting production data.

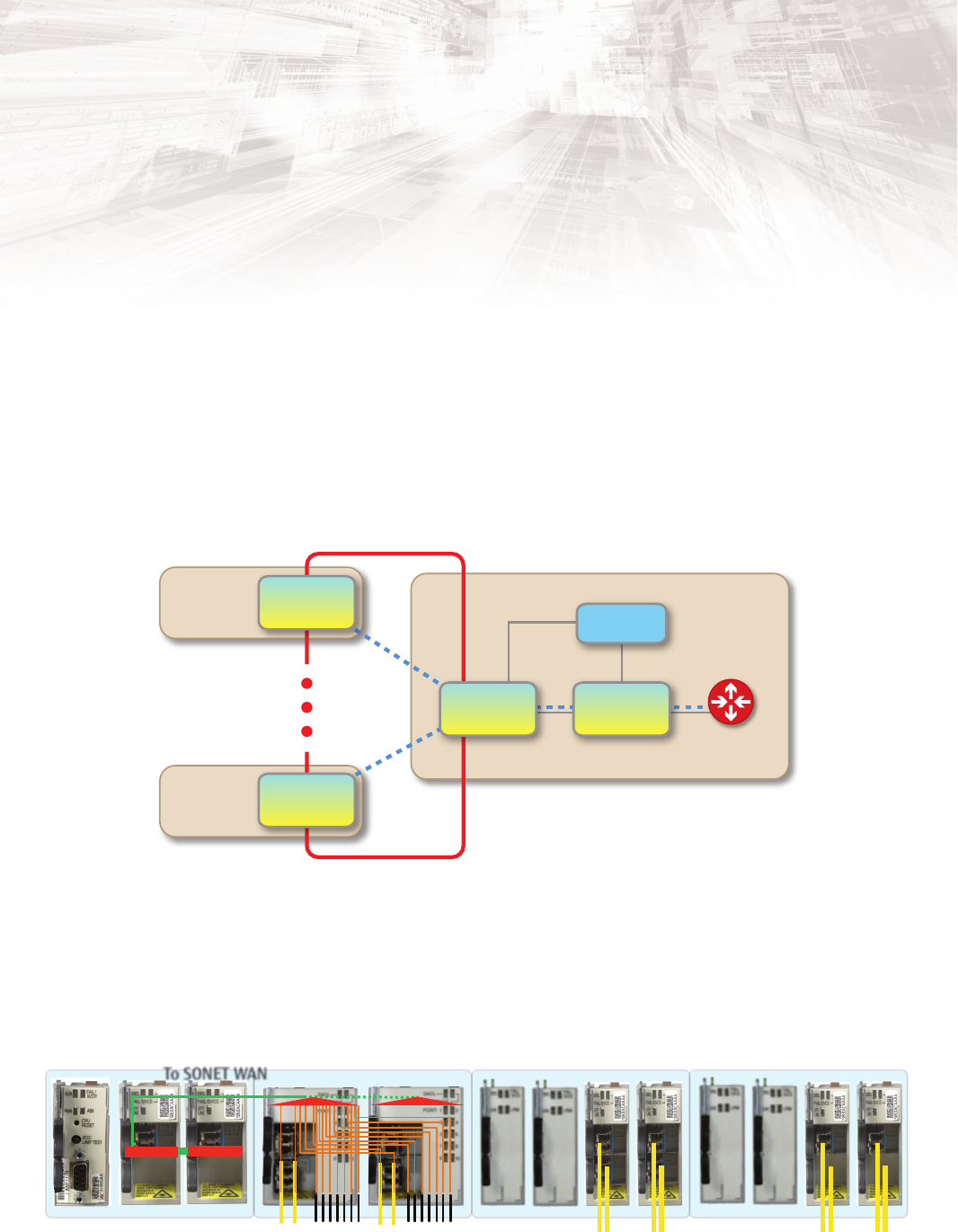

NETSMART
1500
FLASHWAVE
9410
Site 1
Site 128
GbE
Hub Site
OC-192
FLASHWAVE
4100 ES
FLASHWAVE
4100 ES
FLASHWAVE
4100 ES
High Availability Resilient Card Pair
Carrier-class networks require high availability with no single point of failure. The COE Ethernet service unit offers multiple provisioning options
for self-healing resilient hardware operation. Client interfacing options include IEEE 802.3ad link aggregation (LAG), optical Y-cable and dual
Ethernet. The LAG option splits working and protect Ethernet segments across the resilient card pair, offering both facility and hardware
resiliency. The optical Y-cable option provides high-availability hardware resiliency by interfacing optical ports to early model devices not
supporting IEEE 802.3ad LAG. Dual Ethernet mode operates with client ports active on both cards where EVCs automatically fail over to one card
in the event of hardware impact.
Resilient Pair of
COE Ethernet
Service Units
OC-3/OC-12/OC-48/OC-192
DS1s with
integrated
NID
Dual OC-3
DS3s
Transmux Dual OC-12
OC-48
To SONET WAN
FLASHWAVE® 4100 ES
Micro Packet Optical Networking Platform
Convergence and Resiliency
Integrated in-service Y.1731 OAM reduces
footprint and cost
A wide range of exible interface options
5
COE Over SONET with Network
Element VCG Sharing
In contrast to traditional EoS
implementations where each
port is transported over a single
SONET VCG, the FLASHWAVE
4100 ES platform offers the
option to multiplex multiple
ports and EVCs over a single
SONET VCG. This advanced
technology signicantly
improves SONET bandwidth
efciency within the shelf.
Network element VCG sharing
enables more exible Ethernet
bandwidth options when two or
more ports are transported to
the same destination, which
overcomes the limitations of
xed 50Mbps bandwidth
increments per-port. For
example, if a customer wants to lease three Ethernet service
ports each at 20 Mbps, 10 Mbps and 20 Mbps respectively, the service
provider would have to allocate three STS1-1v VCGs each by stranding
30 Mbps, 40Mbps and 30 Mbps
respectively. Instead, all three ports
can share a single STS1-1v VCG.
FLASHWAVE 4100 ES COE over SONET
with network-element VCG sharing.
This increases bandwidth utilization
up to 100%, in comparison to the
traditional method at 33% using
three STS1-1v VCGs. The maximum
shared VCG capacity is STS1-24v.
Optical Hubbing
For aggregation sites, the
FLASHWAVE 4100 ES Micro Packet
ONP supports optical hubbing of
multiple OC-48 rings. This enables
trafc aggregation and grooming
across multiple networks in a
DCS-type application. Integrated
transmux units allow M13
multiplexing, providing DS1 to DS3
trafc grooming.
FLASHWAVE® 4100 ES
Micro Packet Optical Networking Platform
A Wide Array of Applications

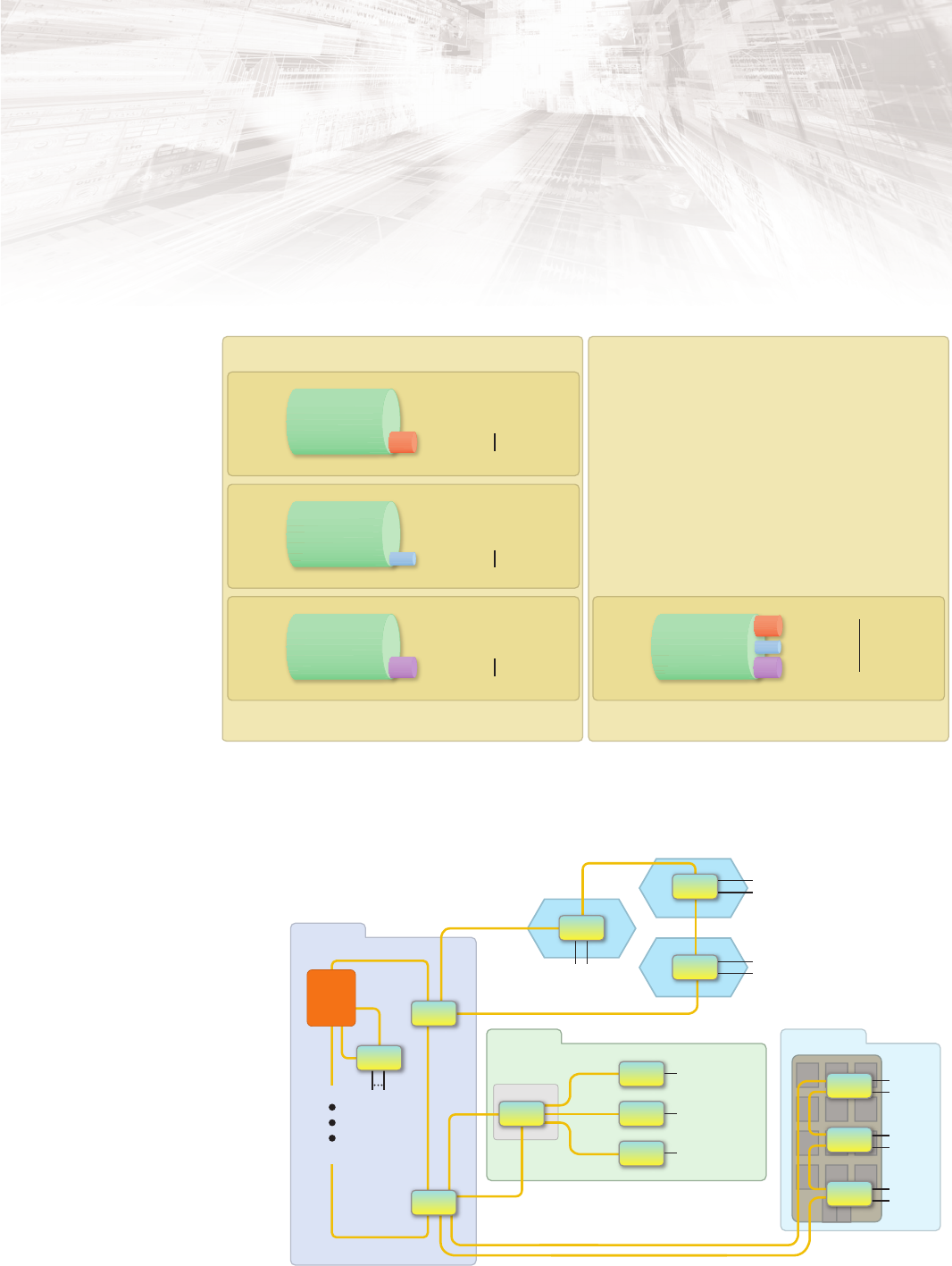

Improve bandwidth utilization with COE
50 Mbps
Service
Port
#3
SONET STS1-1v VCG
40% Utilization
33% Utilization
20 Mbps EVC
100 Mbps
Stranded BW 3x STS1-1v
VCGs 100% Utilization 0 Stranded BW 1x STS1-1v
VCGs
1 Revenue
Generating Service
per VCG
30 Mbps Stranded 50 Mbps
Service
Ports
#1, #2, #3
SONET STS1-1v VCG
100% Utilization
20 Mbps EVC
3 Revenue
Generating Services
per VCG
50 Mbps
Service
Port
#2
SONET STS1-1v VCG
20% Utilization
10 Mbps EVC
10 Mbps EVC
40 Mbps Stranded
50 Mbps
Service
Port
#1
SONET STS1-1v VCG
40% Utilization
PMO: Ethernet over SONET FMO: COE over SONET
with Network Element VCG Sharing
20 Mbps EVC
20 Mbps EVC
30 Mbps Stranded
1 Revenue
Generating Service
per VCG
1 Revenue
Generating Service
per VCG
Optical hubbing with the FLASHWAVE 4100 ES
Business Access
Business Park
Central Office
DS1 w/NIU
Ethernet
DS1 w/NIU
Ethernet
GigE
GigE
GigE
10/100/1000 Ethernet
10/100/1000 Ethernet
10/100/1000 Ethernet
DS1 w/NIU
Ethernet
DS1 w/NIU
Ethernet
DS1 w/NIU
Ethernet
DS1 w/NIU
Ethernet
Remote
Terminal
Cabinet
OC-48
OC-48
OC-48
OC-192
Cell Sites
48 DS3 PORTS
FLASHWAVE
4500/
9500
FLASHWAVE
4100 ES
FLASHWAVE
9410
FLASHWAVE
9410
FLASHWAVE
9410
FLASHWAVE
4100 ES
FLASHWAVE
4100 ES
FLASHWAVE
4100 ES
FLASHWAVE
4100 ES
FLASHWAVE
4100 ES
FLASHWAVE
4100 ES
FLASHWAVE
4100 ES
FLASHWAVE
4100 ES
FLASHWAVE
4100 ES
6
FLASHWAVE® 4100 ES
Micro Packet Optical Networking Platform
Demand for higher speed wireless data services continues to surge as
new applications proliferate. To tap into this revenue opportunity,
wireless service providers are deploying 3G and 4G wireless
technologies, increasing the number of cell sites and boosting the
bandwidth capacity of the backhaul network.
While these new technologies are expanding, there are still
approximately 190,000 existing cell sites in the US that require T1 TDM
backhaul. This large installed base will remain in operation for many
years, resulting in a continued need to provide T1 mobile backhaul
transport.
Complete Backhaul Support
The compact 2RU FLASHWAVE 4100 ES Micro Packet ONP is ideal for
mobile backhaul applications due to its integral support for T1 and
Ethernet service delivery. Existing FLASHWAVE 4100 ES cell site
deployments currently providing T1 backhaul for legacy 2G/3G services
can be upgraded to deliver the high-performance COE capabilities
required for Ethernet-based 3G and 4G wireless services. The platform
is environmentally hardened to operate within the harsh environment
of a cell site outside plant (OSP) cabinet, and can operate over
standard –48 V DC or +24 V DC through its auto-sensing on-board
power system.
The FLASHWAVE 4100 ES Micro Packet ONP provides a complete
end-to-end solution at the cell tower, aggregation site, or MSC where
backhaul providers can:
• Provision core rings up to OC-192
• Integrate seamlessly with existing 2G/3G TDM backhaul networks
• Provision 3G/4G backhaul with COE service units
• Increase SONET backhaul bandwidth efciency by leveraging COE
over SONET with network element VCG sharing
• Transition from Ethernet over SONET to native Ethernet at their own
pace while maintaining their original capital equipment investment
• Integrate line-of-sight microwave cell sites at DS3, EC1, 100Base-T/X
Ethernet, OC-3, OC-12 and OC-48
• Aggregate 2G/3G TDM trafc onto OC-3/OC-12 facilities for DCS
interconnection
• Service multiplex (aggregate) and map 3G/4G services from odd and
even EVCs onto separate GbE facilities for redundant router
Interconnection
Each COE service unit supports up to 10x SONET HO-VCGs for service
multiplexing aggregation. Up to six non-redundant and three
redundant pair COE service units are supported per chassis. Once
HO-VCGs are translated, Ethernet VLANs are mapped to any COE
Ethernet service unit port or card with optional resiliency. This feature
set is ideal for small-scale aggregation
sites. For larger scale aggregation sites,
the FLASHWAVE 4500 MSPP or FLASHWAVE
9500 Packet ONP offer an ideal network
solution for backhaul of mobile trafc.
.
Ideal for Mobile Backhaul

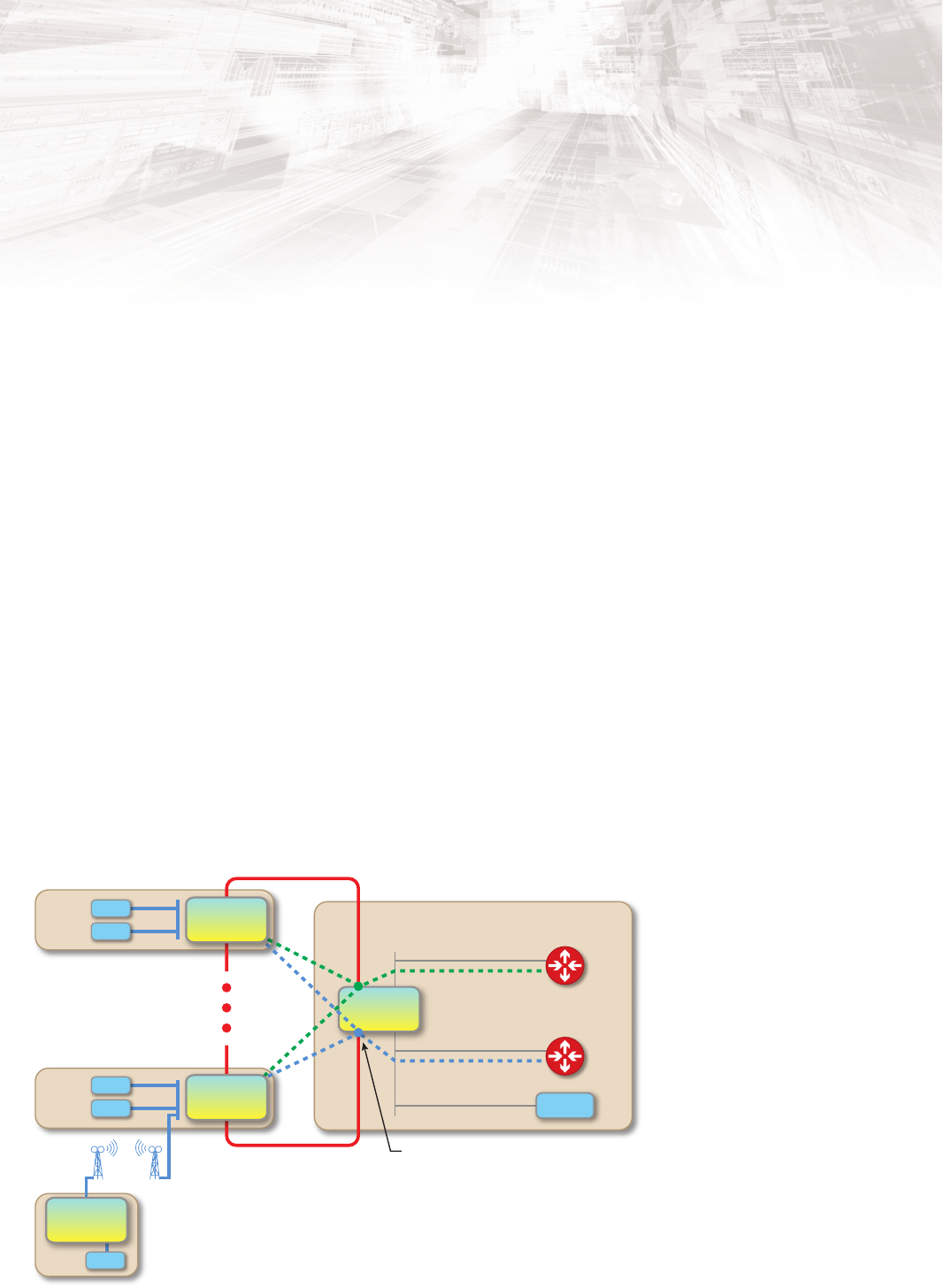

FLASHWAVE 4100 ES COE service units used at both cell and MSC sites
FLASHWAVE
4100 ES
FLASHWAVE
4100 ES
DCS
Router 2
Router 1
Cell Site 1Cell Site n
Cell Site
All Cell Sites Have
Two EVCs: “a” and “b”
Sourced from a
Single UNI
Service Multiplexed Aggregation
via COE Service Unit
All EVC-a Traffic
Core
Ring
2 EVCs
EVC-a
EVC-a
EVC-b
EVC-b
All EVC-b Traffic
OC-12
Wireless Operator’s
Routers & DCS
Wireless
Service Provider
Aggregation Site or MSC
OC-192
Line-of-Sight
Microwave
DS1s
COE
DS1s
COE FLASHWAVE
4100 ES
FLASHWAVE
4100 ES
7
FLASHWAVE® 4100 ES
Micro Packet Optical Networking Platform
Architectures
• Terminal (1+1)
• Linear ADM (1+1)
• Unidirectional Path Switched Ring (UPSR)
• 0:2 Both line cards working and unprotected
• Ethernet with 1:1 LAG facility protection
WAN Interfaces
• 10/100 Base-T and FE/GE Base-X
• OC-3, OC-12 OC-48 and OC-192 line interfaces
• Optical SFP- and XFP-based with LC connectors
• 1310 or 1550 nm wideband
• OC-3, OC-12, OC-48, OC-192 and GigE CWDM SFP and XFP optics
• OC-3, OC-12, OC-48, 100FX and GigE Bi-Di SFP optics
• OC-48 and OC-192 DWDM SFP and XFP optics
• OC-192 full band tunable DWDM optics
Service (Client) Interfaces
• 10/100Base-T with RJ-45 connectors
• 100Base-X (SFP) with LC connectors
• 1000Base-X (SFP) with LC connectors
• DS1 with 64-pin Amphenol® connectors
• DS3/EC1 with BNC connectors
• DS3 Transmux with BNC connectors
• OC-3, OC-12 and OC-48 (SFP) with LC connectors
• 1310 or 1550 nm wideband
• OC-3, OC-12, OC-48 and GigE CWDM SFP optics
• OC-3, OC-12, OC-48, 100FX and GigE Bi-Di SFP optics
Maximum Number of Service Interfaces
Ports/Card Unprotected
Ports/Shelf
Protected Ports/
Shelf
DS1 28 168 168
DS3 3 18 18
High-density DS3/EC1 8 48 48
DS3 Transmux 3 18 18
OC-3 2 24 12
OC-12 2 24 12
OC-48 1 12 6
10/100Base-T 8 48 -
100Base-X 2 24 -
1000Base-X 2 24 -
COE 10/100Base-T 7 42 21
COE 100Base-X 2 12 6
COE 1000Base-X 2 12 6
Protection Options
DS1 1:1 or unprotected
DS3/EC1 1:1 or unprotected
DS3 Transmux 1:1 or unprotected
SONET 1+1, UPSR or 0:2 dual working
COE Ethernet 1+1 EoS protection with 802.3ad (inter-card) LAG,
optical Y-cable or dual Ethernet provisioning options
BITS Output 1+1 redundant output
SONET Switching
STS-1 TSI VT1.5 TSI
OC-3 Dual Line Interface 48 x 48 1344 x 1344
OC-12 Line Interface 168 x 168 4704 x 4704
OC-48 Line Interface 240 x 240 6720 x 6720
OC-192 Line Interface 960 x 960 6720 x 6720
COE Service Unit Ethernet Features
• MEFCertiedEthernetPrivateLine(EPL)andEthernetVirtualPrivateLine
(EVPL) services
• Ethernet tag switching implementation of Connection-Oriented Ethernet
(COE)
• Y.1731 responder for in-service fault management and performance
measurement
• Supports VLAN ID push/pop/swap with multiple tag stacking options for
maximalexibility
• Unlimited scalability through reuse of VLAN IDs across a COE domain
• Ingressclassicationonport,VLANIDorIEEE802.1pprioritycodepoints
• IngressbandwidthprolesperEVCorEVCperCoS
• 4ClassofServicequeuesdenedvia16uniqueCoSproles
• Connection Admission Control (CAC) to guarantee CIR bandwidth for each EVC
• Supports RFC 2698 and MEF 10.1 TCM policers
• IEEE 802.3ah Link OAM
• IEEE 802.3ad Link Aggregation
• SupportsLACPorstaticLAGcongurations
• Up to 250 EVCs per card
• Synchronization
• DS1 Building Integrated Timing Supply (BITS) primary and secondary clock
input and output ports
• Line timing
• Synchronization Status Messaging (SSM)
• Internal Stratum 3 timing source
Synchronization
• DS1 Building Integrated Timing Supply (BITS) primary and secondary clock
input and output ports
• Line timing
• Synchronization Status Messaging (SSM)
• Internal Stratum 3 timing source
Features and Specifications
FLASHWAVE® 4100 ES
Micro Packet Optical Networking Platform
Operations
• TL1 protocol over OSI/Ethernet or IP/Ethernet
• SNMP Monitoring
• SSH/SFTP
• NETSMART® 500 Element Manager
• NETSMART 1500 Management System
• TCP/IP gateway functionality
• Software download and remote memory backup/restore
• Interoperable with all Fujitsu transmission products
• Telcordia™ OSMINE supported
• NEBSLevel3certied
• UL listed
Operating Environment
Temperature –40 to +65 °C (–40 to +149 °F)
Humidity 5 to 95% (non-condensing)
Power Consumption
Maximum Power Consumption 281 W
Heat Dissipation 959 BTU/hr
Power Input +24 V DC or –48 V DC
Physical Characteristics
Shelf Dimensions (H x W x D) 3.5 x 17.5 x 13.5”
(8.9 x 44.5 x 34.3 cm)
Weight (fully-loaded) 22.4 lb (10.2 kg)
Features and Specifications
4.0/R10.1/08.14
Fujitsu Network Communications Inc.
2801 Telecom Parkway, Richardson, TX 75082
Tel: 888.362.7763
us.fujitsu.com/telecom
© Copyright 2014 Fujitsu Network Communications, Inc. FLASHWAVE® and NETSMART® are trademarks of Fujitsu Network Communications Inc. (USA).
FUJITSU (and design)® and “shaping tomorrow with you” are trademarks of Fujitsu Limited in the United States and other countries. All Rights Reserved. All other trademarks are the
propertyoftheirrespectiveowners.Congurationrequirementsforcertainusesaredescribedintheproductdocumentation.Featuresandspecicationssubjecttochangewithoutnotice.

Navigation menu
