P3PC-1422-03EN

fi-5900C Image Scanner Getting Started i

CONTENTS

■ Regulatory Information ........................................................ ii

■ Note, Liability ....................................................................... iii

■ Safety Precautions ................................................................ v

Chapter1 PREPARING THE SCANNER.................................. 1

1.1 Checking the Contents of the Scanner Package............. 1

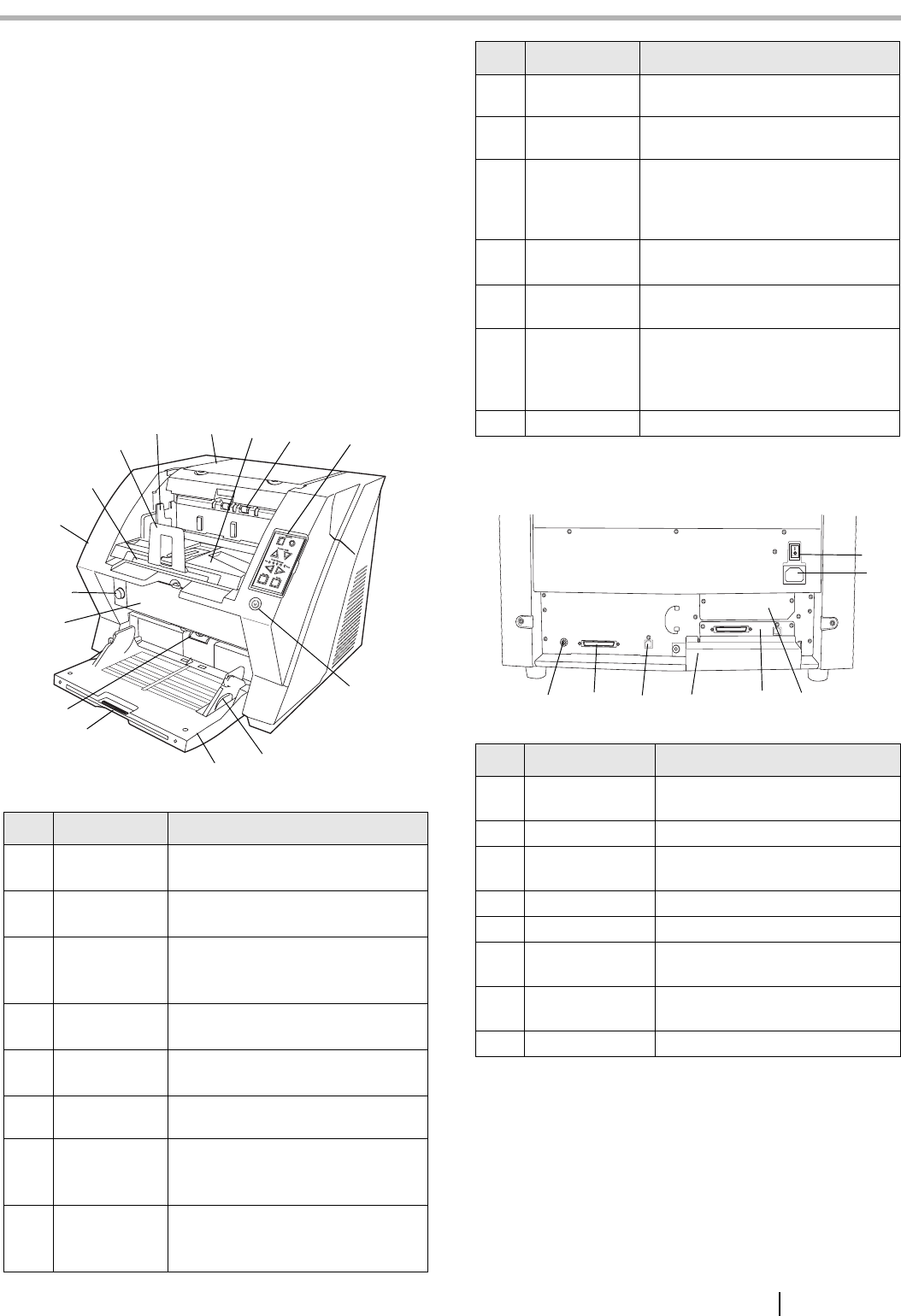

1.2 Names of Parts ................................................................... 1

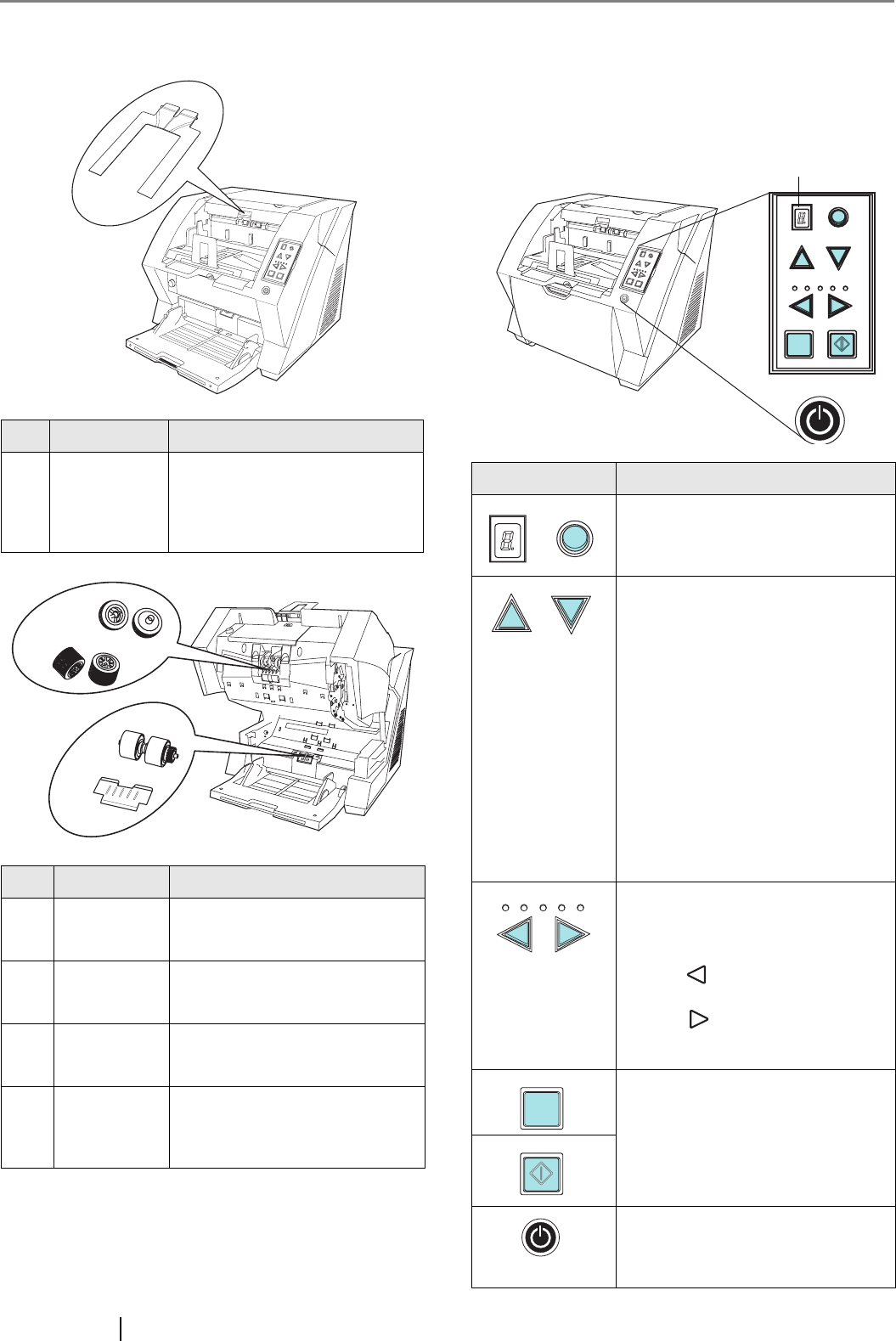

1.3 Operator panel.................................................................... 2

Chapter2 INSTALLATION OF THE SCANNER...................... 4

2.1 Installing the Scanner ........................................................ 4

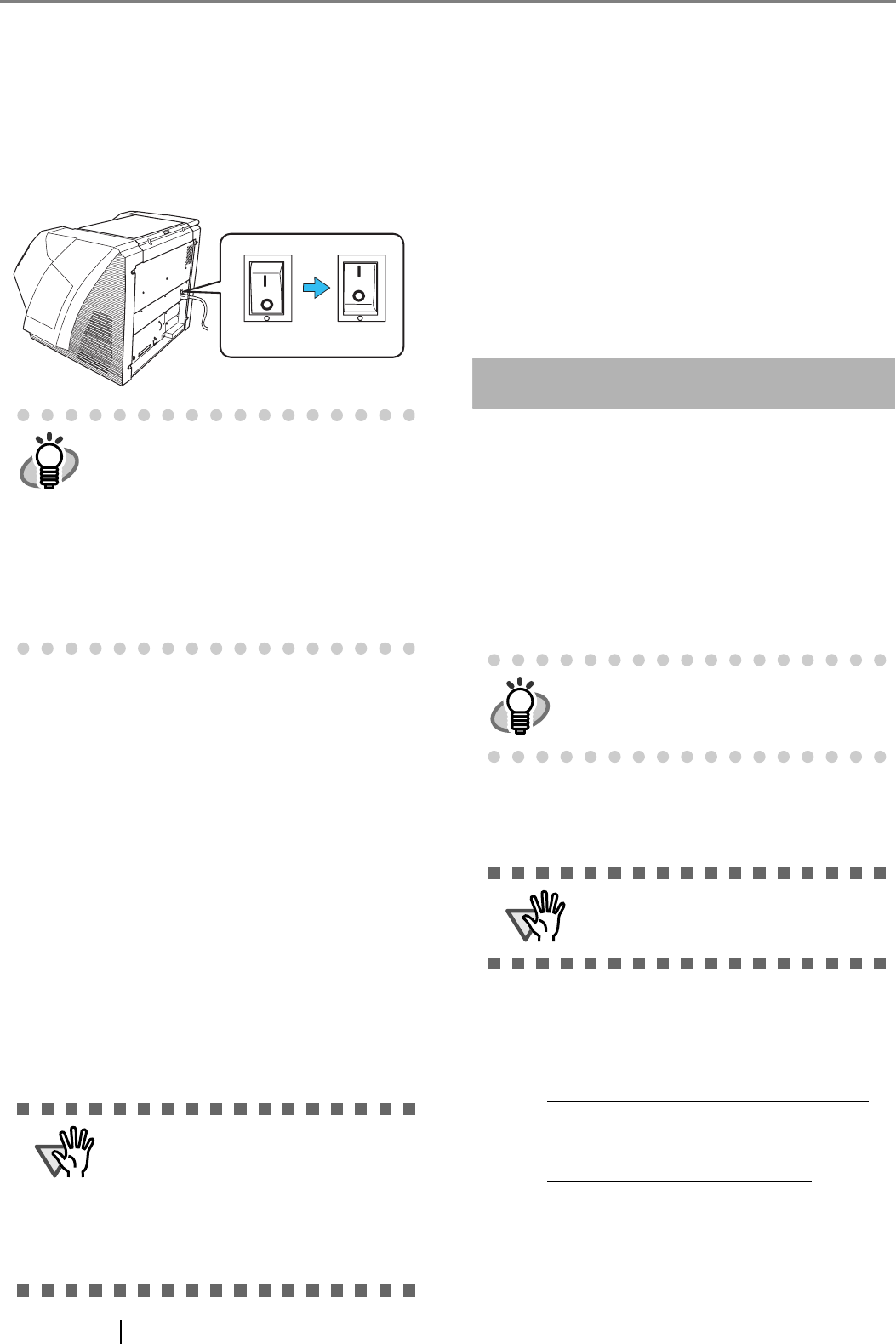

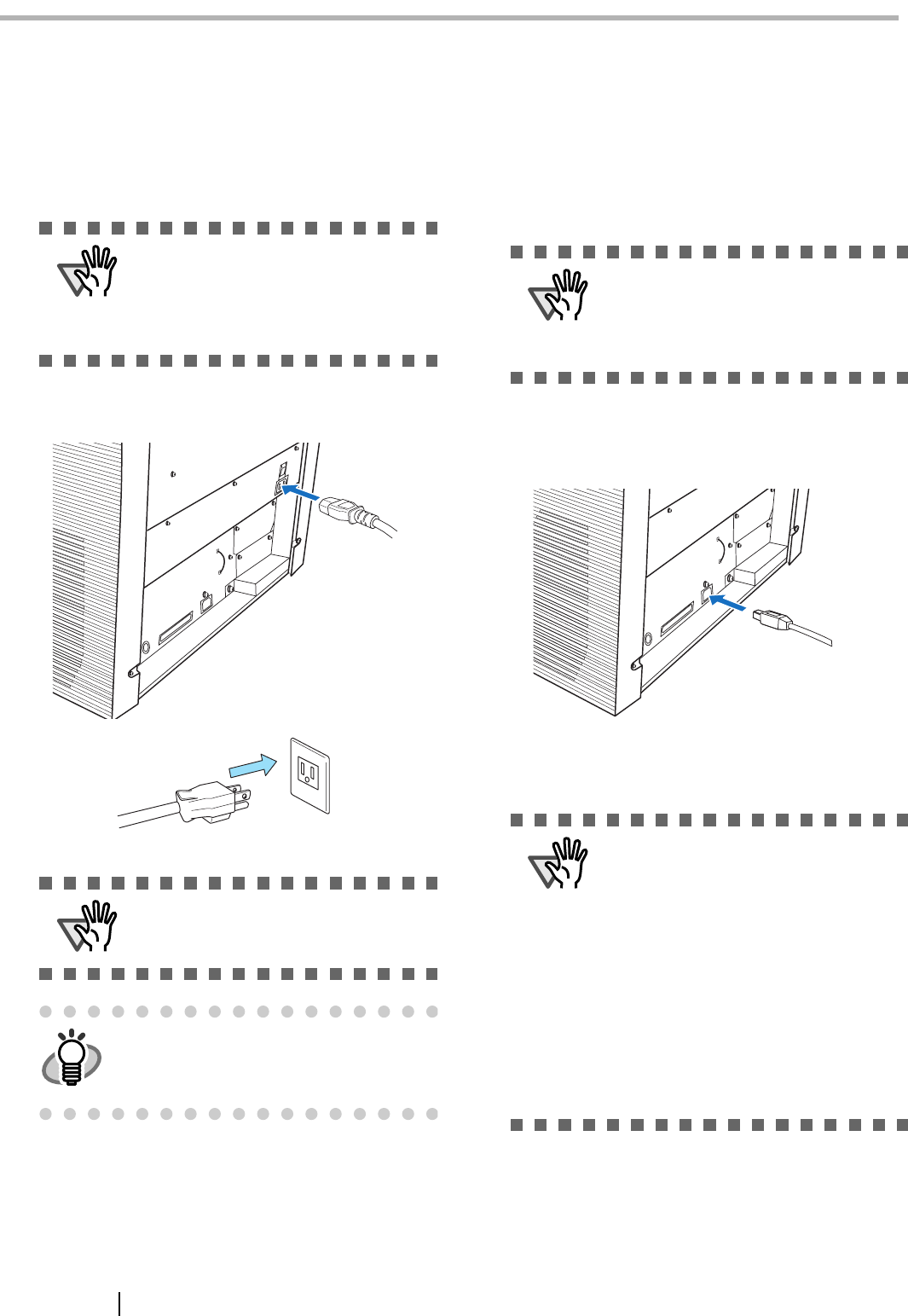

2.2 Connecting the Scanner to Your PC................................. 4

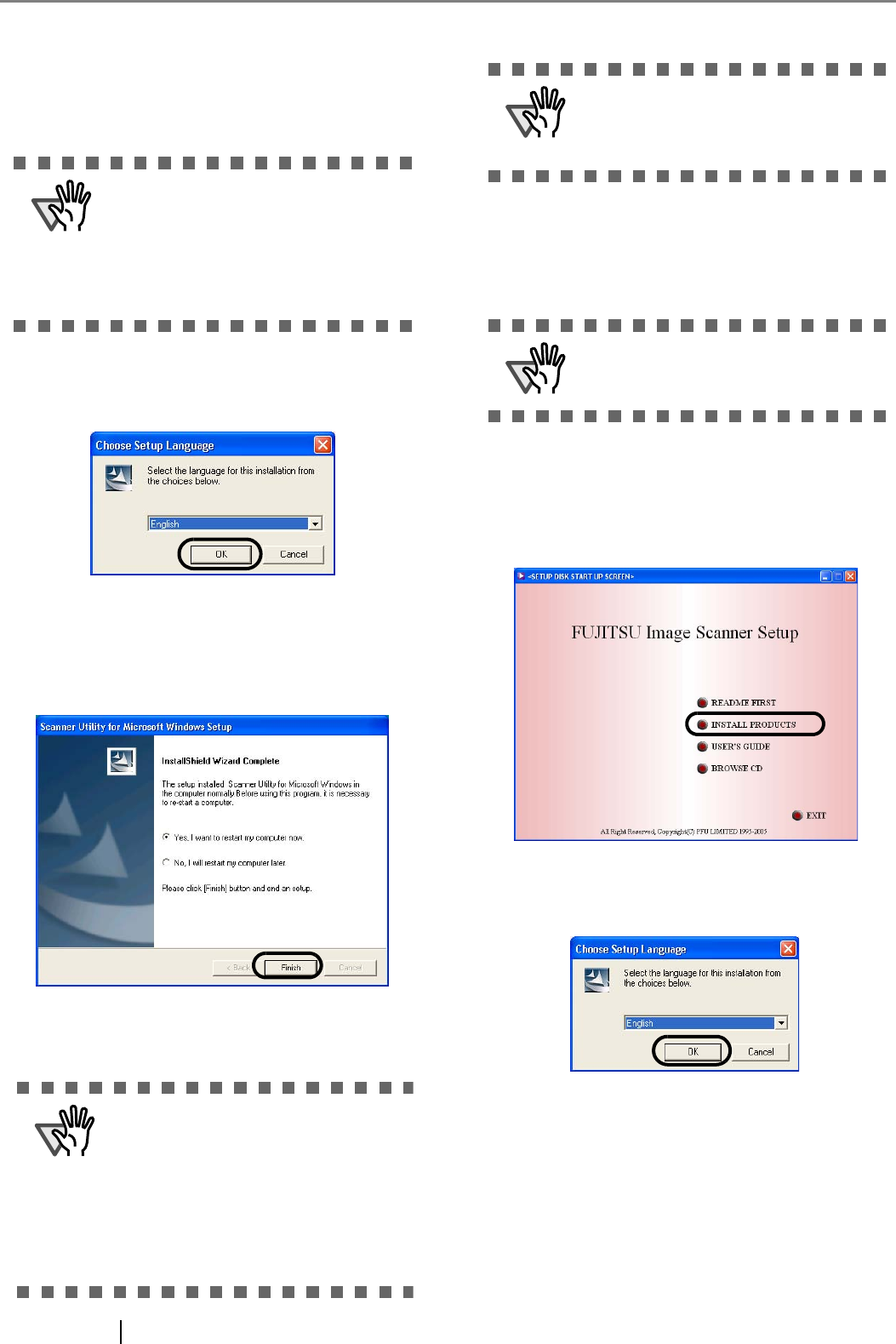

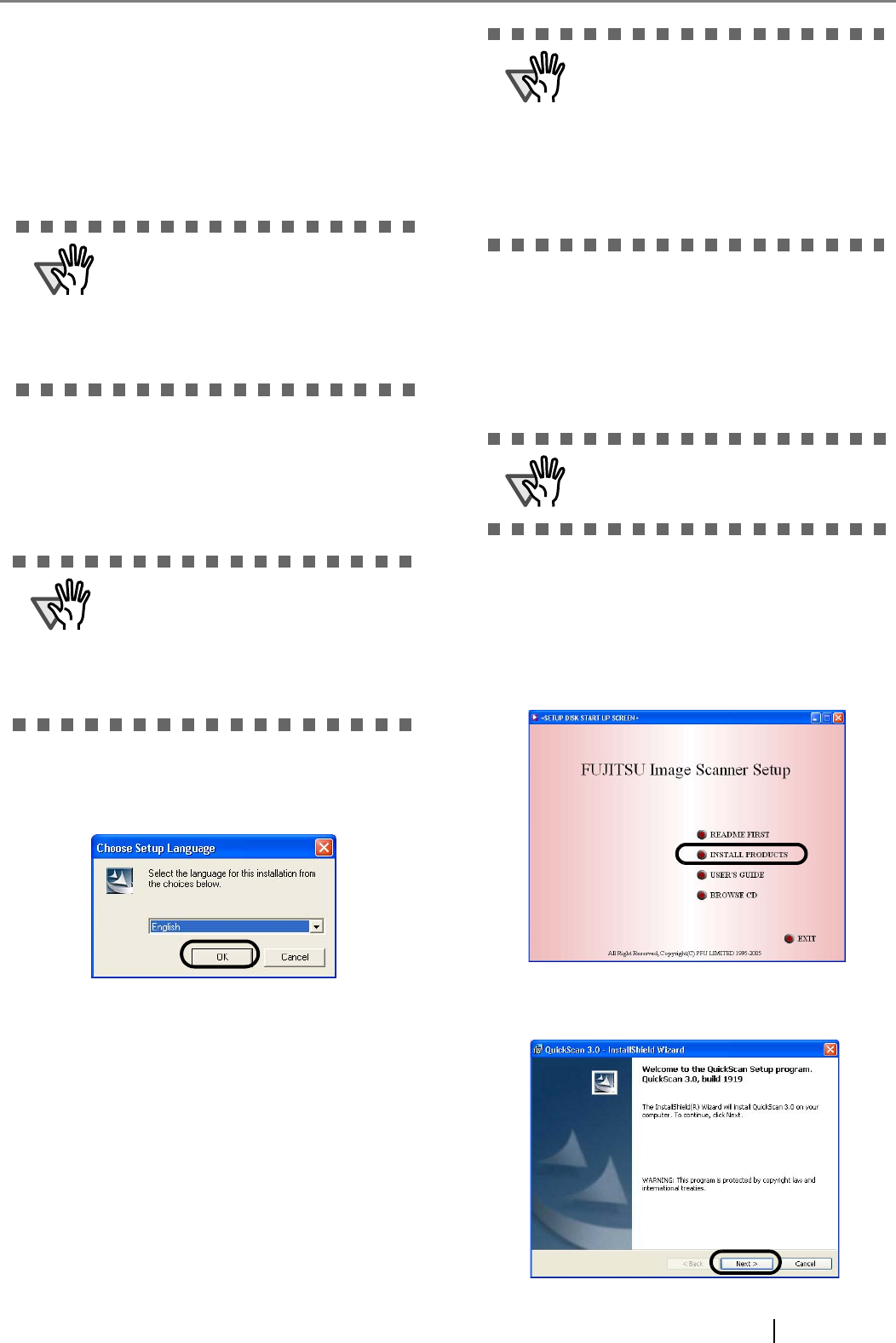

2.3 Installing the Scanner Application ................................... 6

Appendix 1 TROUBLESHOOTING........................................ AP-1

Appendix 2 DAILY CARE ...................................................... AP-4

Appendix 3 REPLACING CONSUMABLES.......................... AP-5

ii

INTRODUCTION

Thank you for purchasing the fi-5900C Duplex Color

Scanner.

This document describes how to use fi-5900C and basic

operation methods. Before you start using fi-5900C be

sure to thoroughly read this manual to ensure correct

use.

The "Operator’s Guide" stored on the Setup CD-ROM

provides useful and detailed information on Operations

when you would like to use advanced features, Daily

Care for maintenance of the scanner, and Replacing

Consumables to maintain conditions for smooth scan-

ning. Please also read the Operator’s Guide for further

information.

■ Regulatory Information

FCC declaration

This equipment has been tested and found to

comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference in a

residential installation. This equipment generates,

uses, and can radiate radio frequency energy and,

if not installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications. However,

there is no guarantee that interference will not

occur in a particular installation. If this equipment

does cause harmful interference to radio or

television reception, which can be determined by

turning the equipment off and on, the user is

encouraged to try to correct the interference by

one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment

and receiver.

•Connect the equipment into an outlet on a circuit

different from that to which the receiver is

located.

•Consult your dealer or an experienced radio/TV

technician.

FCC warning: Changes or modifications not

expressly approved by the party responsible for

compliance could void the user’s authority to

operate the equipment.

Canadian DOC Regulations

This digital apparatus does not exceed the Class B

limit for radio noise emissions from digital

apparatus set out in the Radio interference

Regulations of the Canadian Department of

Communications.

This Class B digital apparatus complies with

Canadian ICES-003.

Le présent appareil numérique n'émet pas de

parasites radioélectriques dépassant les limites

applicables aux appareils numériques de la classe

B et prescrites dans le Règlement sur le brouillage

radioélectrique dictées par le Ministère des

Communications du Canada.

Cet appareil numérique de la classe B est

conforme à la norme NMB-003 du Canada.

Bescheimigung des Herstellers /

Importeurs

Für den fi-5900C wird folgendes bescheinigt:

•In Übereinsstimmung mit den Bestimmungen

der EN45014(CE) funkentstört

•Maschinenlärminformationsverordnung

3.GPSGV: Der höchste Schalldruckpegel beträgt

70 dB (A) oder weniger, gemäß EN ISO 7779.

International ENERGY STAR® Program

As an ENERGY STAR®

Partner, PFU LIMITED

has determined that this

product meets the

ENERGY STAR®

guidelines for energy

efficiency.

The International

ENERGY STAR® Office

Equipment Program is an international program

that promotes energy saving through the

penetration of energy efficient computers and

other office equipment. The program backs the

development and dissemination of products with

functions that effectively reduce energy

NOTICE •The use of a shielded interface cable

is required to comply with the Class B

limits of Part 15 of FCC rules. The

length of the SCSI interface cable

must be 1.5 meters (5 feet) or less..

•The length of the AC cable must be 3

meters (10 feet) or less.

fi-5900C Image Scanner Getting Started iii

consumption. It is an open system in which

business proprietors can participate voluntarily.

The targeted products are office equipment such

as computers, monitors, printers, facsimiles,

copiers, scanners, and multifunction devices.

Their standards and logos are uniform among

participating nations.

■ Note, Liability

READ ALL OF THIS MANUAL CAREFULLY

BEFORE USING THIS PRODUCT. IF THIS

PRODUCT IS NOT USED CORRECTLY,

UNEXPECTED INJURY MAY BE CAUSED TO

USERS OR BYSTANDERS.

Also, keep this manual in a safe place so that it

can be easily referred to during use of this

product.

While all efforts have been made to ensure the

accuracy of all information in this manual, PFU

assumes no liability to any party for any damage

caused by errors or omissions or by statements of

any kind in this manual, its updates or

supplements, whether such errors are omissions or

statements resulting from negligence, accidents,

or any other cause. PFU further assumes no

liability arising from the application or use of any

product or system described herein; nor any

liability for incidental or consequential damages

arising from the use of this manual. PFU disclaims

all warranties regarding the information contained

herein, whether expressed, implied, or statutory.

Use in High-safety Applications

This product has been designed and manufactured

on the assumption that it will be used in office,

personal, domestic, regular industrial, and

general-purpose applications. It has not been

designed and manufactured for use in applications

(simply called "high-safety applications" from

here on) that directly involve danger to life and

health when a high degree of safety is required,

for example, in the control of nuclear reactions at

nuclear power facilities, automatic flight control

of aircraft, air traffic control, operation control in

mass-transport systems, medical equipment for

sustaining life, and missile firing control in

weapons systems, and when provisionally the

safety in question is not ensured. The user should

use this product with adopting measures for

ensuring safety in such high-safety applications.

PFU LIMITED assumes no liability whatsoever

for damages arising from use of this product by

the user in high-safety applications, and for any

claims or compensation for damages by the user

or a third party.

About the use of mercury

To avoid unexpected injuries;

•Do not put the substance contained in the lamp

in your mouth as it has mercury.

•Do not breathe the chemical liquid contained in

the scanner lamps.

•Do not incinerate, crush, or shred the lamps or

scanner parts.

Trademarks

Microsoft, Windows, and Windows NT are

registered trademarks of Microsoft Corporation in

the United States and/or other countries.

ISIS and QuickScan are trademarks or

registered trademarks of EMC Corporation

in the United States.

Adobe, the Adobe logo, and Acrobat are either

registered trademarks of Adobe Systems

Incorporated in the United States and/or other

countries.

Other product names are the trademarks or

registered trademarks of the respective companies.

How Trademarks Are Indicated In

This Manual

References to operating systems (OS) are

indicated as follows:

Lamp(s) inside this product contain

mercury and must be recycled or

disposed of according to local, state, or

federal laws.

Windows 95 Microsoft® Windows® 95

operating system

Windows

98/98SE

Microsoft® Windows® 98 /98 Second

Edition operating system.

Windows

Me

Microsoft® Windows®

Millennium Edition operating system.

Windows

NT 4.0

Microsoft® Windows NT® 4.0

Server operating system,

Microsoft® Windows NT® 4.0

Workstation operating system.

Windows

2000

Microsoft® Windows® 2000

Professional operating system.

Windows XP Microsoft® Windows® XP

Professional operating system,

Microsoft® Windows® XP

Home Edition operating system.

H

g

iv

Where there is no distinction between the different

versions of the above operating system, the

general term "Windows " is used.

All the descriptions in this manual assume the

usage of Adobe Acrobat bundled with this

product. However, Adobe Acrobat may be

upgraded without notice. If the descriptions differ

from the screens actually displayed, refer to the

Acrobat’s “Help”.

Manufacturer

PFU LIMITED

International Sales Dept., Imaging Business

Division, Products Group

Solid Square East Tower, 580 Horikawa-cho,

Saiwai-ku, Kawasaki-shi Kanagawa 212-8563,

Japan

Phone : (81-44) 540-4538

All Rights Reserved, Copyright© PFU LIMITED 2006

About Maintenance

The user must not perform repairs on this scanner.

Contact the store where you purchased the scanner

or an authorized FUJITSU Image Scanner service

provider to make repairs to this product.

Warning Indications Used In This

Manual

Symbols Used In This Manual

Warning Label

Screen Examples In This Manual

The screen examples in this manual are subject to

change without notice in the interest of product

improvement. If the actual displayed screen

differs from the screen examples in this manual,

operate by following the actual displayed screen

while referring to the User's Manual of the scanner

application you are using.

The screenshots in this manual were captured

from FUJITSU TWAIN32 scanner driver,

ScandAll 21 Image Capturing Utility Software,

FUJITSU ISIS scanner driver, QuickScan Pro™

image capturing software and Adobe® Acrobat®.

Adobe Acrobat Adobe® Acrobat®

This indication alerts operators to an

operation that, if not strictly

observed, may result in severe injury

or death.

This indication alerts operators to an

operation that, if not strictly

observed, may result in safety

hazards to personnel or damage to

equipment.

ATTENTION This symbol alerts operators to particularly

important information. Be sure to read this

information.

HINT

This symbol alerts operators to helpful

advice regarding operation.

A TRIANGLE symbol indicates that special care

and attention is required.

The drawing inside the triangle shows the

specific caution.

A CIRCLE with a diagonal line inside shows

action which users may not perform.

The drawing inside or under the circle shows the

specific action that is not allowed.

R

Outline characters on a colored background

show instructions users should follow.

It may also include the drawing that shows the

specific instruction.

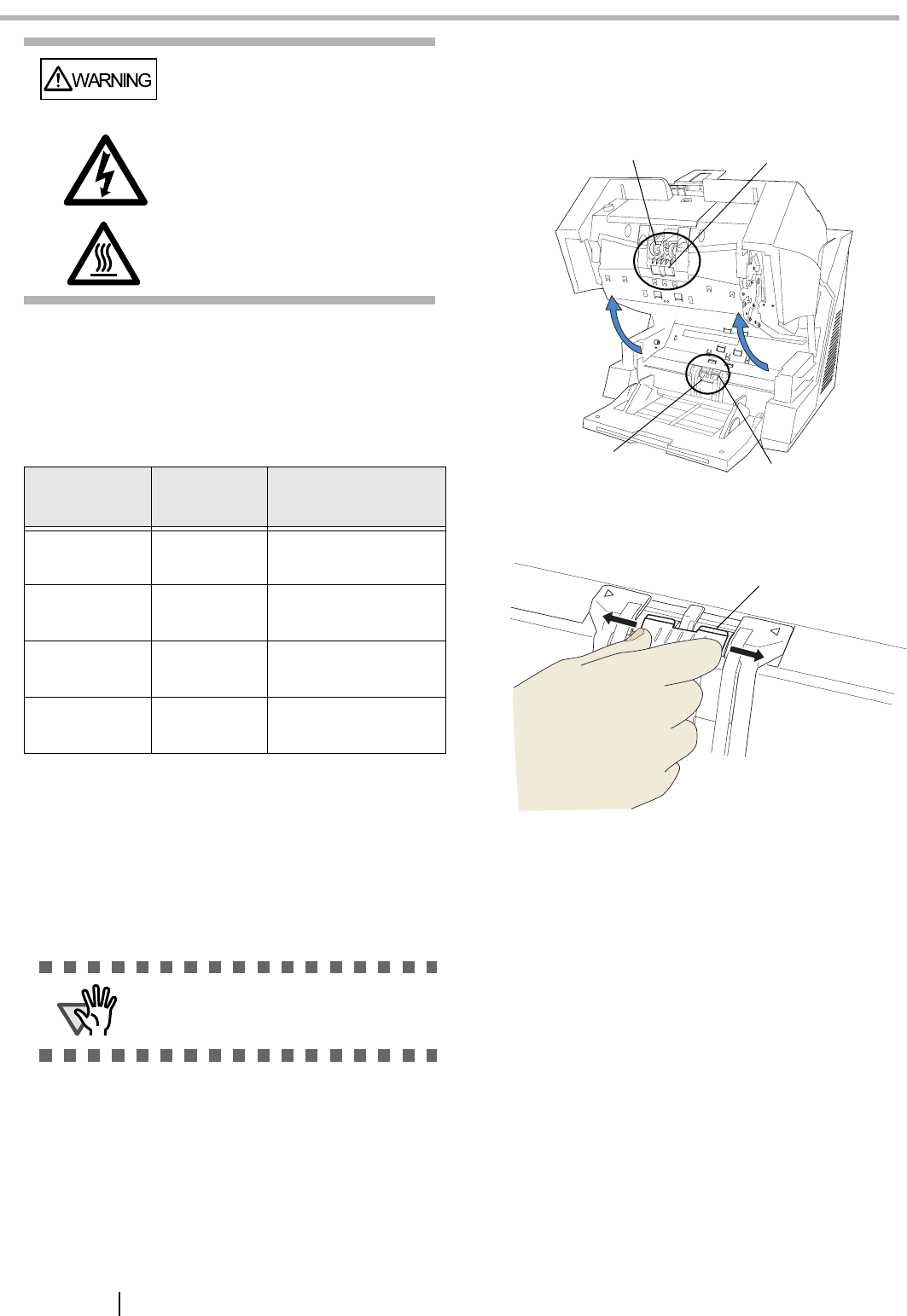

The glass surface inside the ADF becomes hot

during the operation. Be careful not to touch the

glass surface inside the ADF.

ATTENTION Do NOT remove, stain or scratch the

warning labels from the scanner.

fi-5900C Image Scanner Getting Started v

■ Safety Precautions

Do not damage the AC cable.

Use only specified AC cables and

connector cables

Use this scanner only at the indicated

power voltage. Do not connect to multiple-

power strips.

Do not touch the AC cable with wet hands.

Wipe any dust from the power plug.

Do not install the device in locations that

has oil smoke, steam, humidity, and dust.

Turn the scanner OFF if it is damaged.

Do not put liquids inside the scanner.

Do not touch the inside of the scanner

unless necessary.

Do not use the scanner if there is a strange

odor.

A damaged AC cable may cause fire or electric

shock. Do not place heavy objects on AC

cables, or pull, bend, twist, heat, damage or

modify AC cables.

Do not use damaged AC cables or power

plugs, or install any cables or power plugs to

loose wall sockets.

Use only specified AC cables and connector

cables. Failure to use the correct cables might

cause electric shock and/or equipment failure.

Please don’t use the AC cable provided with

this scanner for other devices, since this might

cause equipment failure and other troubles or

an electric shock.

Use this scanner only at the indicated power

voltage and current. Improper power voltage

and current might cause fire or electric shock.

Do not connect to multiple-power strips.

Do not touch the power plug with wet hands.

Doing so might cause electric shock.

Wipe off any dust from metal parts on the

power plug or metal fittings with a soft, dry

cloth. Accumulated dust might cause fire or

electric shock.

Do not install the scanner in locations subject

to oil smoke, steam, humidity, and dust. Doing

so might cause a fire or electric shock.

If the scanner is damaged for any reason, turn

off the scanner and unplug the AD cable before

contacting the store you purchased the

scanner.

Do not insert or drop metal objects in to the

scanner. Do not scan wet documents or

documents with paper clips or staples. Do not

splash or allow the scanner to get wet.

If foreign objects (water, small metal objects,

liquids, etc.) get inside the scanner, immediately

turn off the scanner and disconnect the power

plug from the power outlet, then contact the store

where you bought the scanner or the

Maintenance Service Center. Pay particular

attention to this warning in households where

there are small children.

Do not take apart or modify the scanner. The

inside of the scanner contains high-voltage

components. Touching these components might

cause fire or electric shock.

If you detect excessive heat coming from the

device or detect other problems such as smoke,

strange smells or noises, disconnect immediately

the power plug in order to turn out the scanner.

Make sure that any smoke coming from it has

stopped, before contacting the store where you

bought the scanner or an authorized FUJITSU

scanner service provider.

vi

Do not install the scanner on unstable

surfaces.

Do not block the ventilation ports.

Do not place heavy objects or stand on top

of the scanner.

Firmly insert the power plug.

Avoid any contact when scanner is in use.

Do not use the scanner immediately after

moving it from a cold place into a warm

room.

Before moving the scanner, disconnect the

power plug from the power outlet.

Protect the scanner from static electricity.

Do not use aerosol sprays near the

scanner.

Disconnect the power plug from the power

outlet when the scanner is not used for a

long period of time.

Do not install the scanner in the direct

sunlight.

Do not carry the scanner alone.

Make sure that the scanner is installed on a

flat, level surface and that none of its parts

extend beyond the surface top, such as a desk

or table. Do not install the scanner on

unstable surfaces. Install the scanner on a level

surface that is free of vibration to prevent it

from falling.

Install the scanner on a strong surface that will

support the weight of the scanner and other

devices.

Do not block the ventilation ports. Blocking the

ventilation ports generates heat inside of

scanner, which may results in fire or scanner

failure.

Do not place heavy objects on the scanner or

use the scanner's surface top to perform other

work. Improper installation might cause injuries

and equipment failure.

Firmly insert the power plug as far it can go into

the power outlet.

Avoid touching any scanner mechanism during

scanning since this may cause injuries.

Do not use the device immediately after

moving it from a cold place into a warm room.

This may cause condensation, which might

lead to scanning errors. Let the device dry

about one or two hours before you use it.

Do not move the scanner with the power and

interface cables connected as this might

damage the cables, causing fire, electric shock

or injuries. Before moving the scanner, be sure

to disconnect the power plug from the power

outlet, and all other data cables. Make sure that

the floor is free of any obstruction.

Install the scanner away from strong magnetic

fields and other sources of electronic noise.

Also, protect the scanner from any static

electricity as this might cause the scanner to

malfunction.

Do not use aerosol sprays to clean the

scanner. Aerosol sprays cause dirt and dust to

enter the scanner, resulting scanner failure and

malfunction.

When the scanner is not going to be used for a

long period of time, be sure to disconnect the

power plug from the power outlet for safety.

Do not install the scanner under direct sunlight

or near heating apparatus. Doing so might

cause excessive heat to build up inside the

scanner, which can cause scanner trouble or

even fire. Install the scanner in a well-ventilated

location.

When transporting the scanner, never carry it

alone. The scanner is heavy.

fi-5900C Image Scanner Getting Started 1

Chapter1 PREPARING THE SCANNER

1.1 Checking the Contents of

the Scanner Package

When you unpack the scanner package, make sure that

the package contains all the parts on the list included in

the package.

If any parts are missing or defective, contact your scan-

ner dealer or an authorized FUJITSU scanner service

provider. Handle the scanner and accessories with care.

1.2 Names of Parts

This section describes the names of parts.

■Front side

■Rear side

No. Name Function

1 Stopper Prevents ejected documents from

dropping off the scanner.

2 Stacker side

guide

For aligning ejected documents to

a certain width.

3 Top cover Cover to access the consumables

storage box and Post Imprinter

option (sold separately).

4 Stacker Area where ejected paper collects

after scanning.

5Ejector For ejecting the documents after

scanning.

6 Operator

panel

For operating the scanner.

7 Stacker

extension

For scanning long documents. Pull

the extension out according to the

document’s length.

8 ADF cover Opens the cover for cleaning the

inner parts of the ADF or for

replacing consumables.

123456

7

8

9

10

11

12

13 14

15

9 ADF cover

open button

Button used to open the ADF

10 Pre-imprinter

cover

For the Pre-Imprinter option

11 ADF

(Automatic

document

feeder)

The documents loaded onto the

Hopper will be fed sheet by sheet

for scanning.

12 Hopper

extension

Pulls the Hopper extension out for

loading long documents.

13 Hopper Documents to be scanned are

loaded onto the Hopper.

14 Hopper side

guides

Sheet Guides used to make sure

that the paper to be scanned is fed

into the scanner straight, avoiding

skew.

15 Power button Switches the scanner ON&OFF.

No. Name Function

1 Main power

switch

For switching the power support

ON/OFF.

2 Power inlet For connecting the AC cable.

3 SCSI ID Switch Sets the scanner’s SCSI ID with

this switch.

4 SCSI connector For connecting the SCSI cable.

5 USB connector For connecting the USB cable.

6 Extended mem-

ory slot

For connecting an extension

memory (sold separately).

7VRS slot The VRS board has been

installed

8 Extended slot A spare slot for an option board

No. Name Function

1

2

345678

2

■Removable Parts

1.3 Operator panel

The operator panel is located on the right side of the

scanner. The panel consists of a Function Number Dis-

play, buttons and a LED.

No. Name Description

1 Document

smoother

Attached when the stacker posi-

tion is set to align the ejected doc-

ument by the leading edge, or

when scanning documents with

different widths.

No. Name Description

2 Pick rollers Rollers that pick the paper from

the hopper into the ADF. This is a

consumable item.

3 Separator

rollers

Rollers used to help separate the

paper as the feeding begins. This

is a consumable item.

4 Brake roller Roller used to help separate the

paper as the feeding begins. This

is a consumable item.

5Pad Separation Pad used to help sepa-

rate the paper as the feeding

begins. This is a consumable

item.

S

end

to Scan

P

ower

Thicknes

s

Hopper Heig

ht

Function

Thic

k

Thin

1

2

3

4

5

Name Function

Shows the status of the scanner.

For details, refer to "Indications on

the Function Number Display" (page

3).

Use these buttons to adjust the height

of the Hopper to the Upper/Middle/

Lower Positions.

The hopper moves automatically to

the right position after giving a scan-

ning command. However, this may

cause a delay before the actual scan-

ning starts. To avoid unnecessary

waiting time, it is recommended to set

the hopper height prior to scanning.

The approximate loading capacities

are as follows (* these numbers differ

depending on the document thickness)

Upper: 100 sheets

Middle: 300 sheets

Lower: 500 sheets

Use these buttons to adjust the paper

thickness for the papers to be scanned.

When picking errors or paper jams

occur:

Press the (Thin) button.

When multifeed occurs:

Press the (Thick) button.

(Normally no need to change from the

default setting)

Use this button to start linked applica-

tions (*About the settings, refer to the

"fi-5900C Operator’s Guide" on the

Setup CD-ROM).

Use this button to turn the power ON/

OFF.

When the power is turned on, the but-

ton is illuminated in blue.

Function

Hopper Height

Paper Thickness

Thin

Send to Scan

Thick

Sen d to Scan

Power Th ic

knes

s

Hopper Heig

ht

Function

Thic

k

Thin

Function number display

Function

Hopper Height

Paper Thickness

Thin Thic

k

Send to

Scan

fi-5900C Image Scanner Getting Started 3

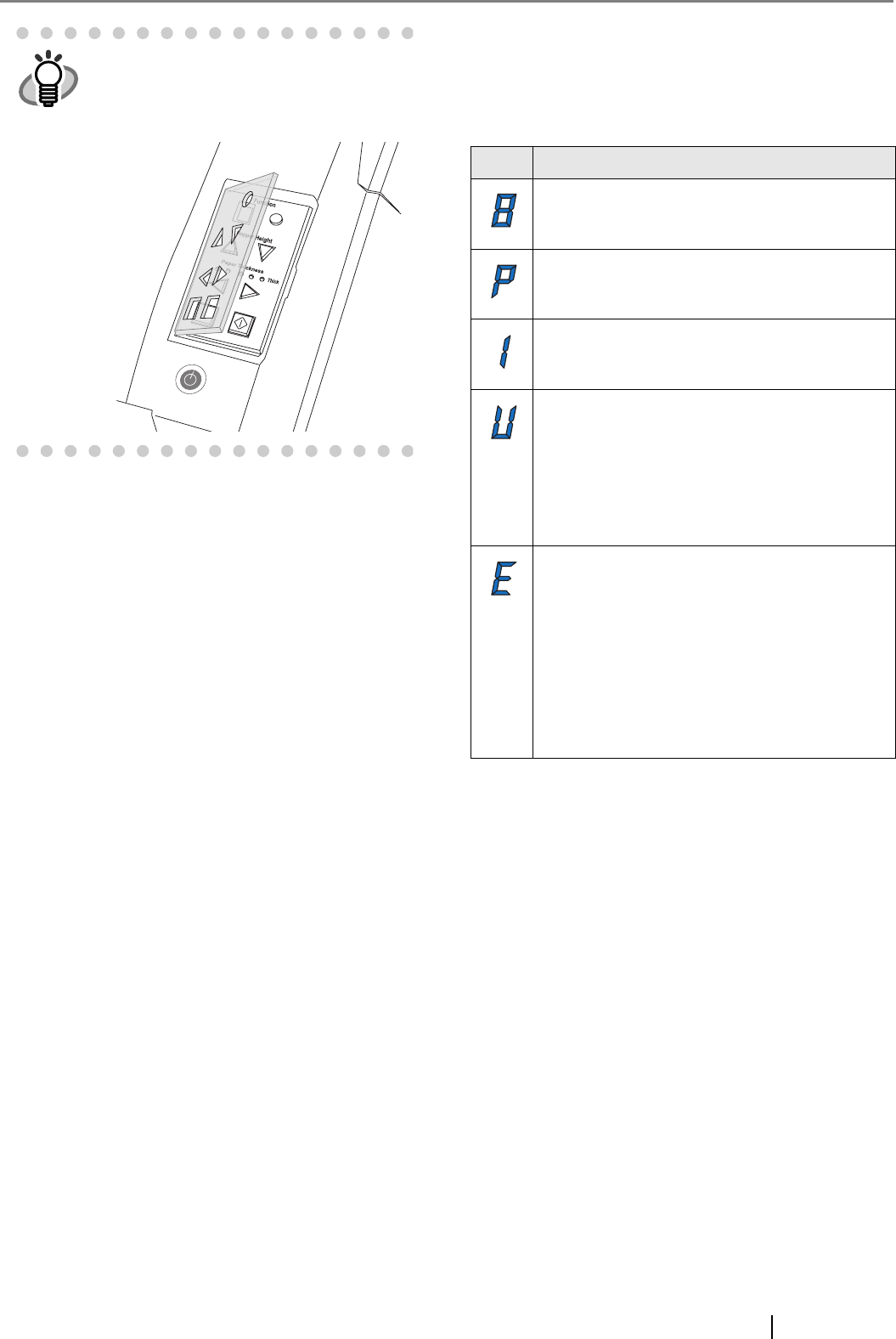

■Indications on the Function

Number Display

The following shows the indications on the Function

Number Display.

HINT

Operator Panel Overlays are available in

French, German, Italian, Spanish, Chinese,

Russian and Korean. To change the over-

lay, open the plastic cover.

nd t

Thin

Send to

Scan

No. Descriptions

Lights only one time upon turning on the scanner.

Indicates that the scanner has been turned ON

and is being initialized.

Indicates that initialization has been completed

successfully.

This status is called "Ready Status".

Indicates that a temporary error (that users can

solve) has occurred during the initialization or

scanning of documents.

"U" and an error number (1, 2, 4, 6, 8) are dis-

played alternately.

To return the scanner to the ready status ("1"),

press the "Scan" or "Send to" button while the

error is indicated.

Indicates that a device alarm (that users can not

solve) has occurred during the initialization or

scanning of documents.

"E" and an alarm number (0, 2 to 9, and A, c, d,

F, 10 to 12, 15 to 19, 1A) are indicated alter-

nately.

To return the scanner to the ready status ("1"),

press "Scan" or "Send to" button.

If this alarm occurs, turn the power off and then

on again. If the alarm is indicated after turning on

the power again, contact your service engineer.

4

Chapter2

INSTALLATION OF THE SCANNER

2.1 Installing the Scanner

1. Place the scanner at its installation site.

For details on the scanner's dimensions and

required installation space, refer to the fi-5900C

Operator’s Guide, chapter "10. Scanner Specifi-

cations".

2. Connect the AC cable to the Power inlet of the

scanner and plug it into an outlet.

2.2 Connecting the Scanner to

Your PC

When running Windows 95 or Windows NT 4.0, con-

nect the scanner using the SCSI interface.

When running Windows 98, Windows Me, Windows

2000, or Windows XP, connect either using the USB or

SCSI interface.

■Connecting the USB Interface

1. Connect the USB cable to the USB connector.

2. Connect the other end of the USB cable to

your PC.

ATTENTION •The scanner weight is 50 kg (110 lb).

Make sure two persons are available

when moving the scanner.

•When carrying the scanner, only grip the

bottom side.

ATTENTION Use only the power cable provided by the

manufacturer.

HINT

The Function Number Display and the LED

may flash for an instant when plugging the

AC cable into the outlet. This is not a mal-

function.

ATTENTION This scanner is provided with two inter-

faces: Ultra SCSI and USB 2.0 /1.1. Con-

nect only one of the USB or SCSI cable.

Windows 95 and Windows NT 4.0 do not

support USB interface.

ATTENTION •Be sure to use the USB cable which

comes with this scanner. Correct opera-

tion with commercially available cables

is not guaranteed.

•When connecting to a USB hub, use the

first stage USB hub that is closest to the

computer. If you use the second or later

hub stages, the scanner may not oper-

ate correctly.

•If you connect the scanner with USB 2.0,

it is required that the USB port and Hub

are compliant with USB 2.0. The scan-

ning speed may slow down if it is con-

nected with USB1.1.

fi-5900C Image Scanner Getting Started 5

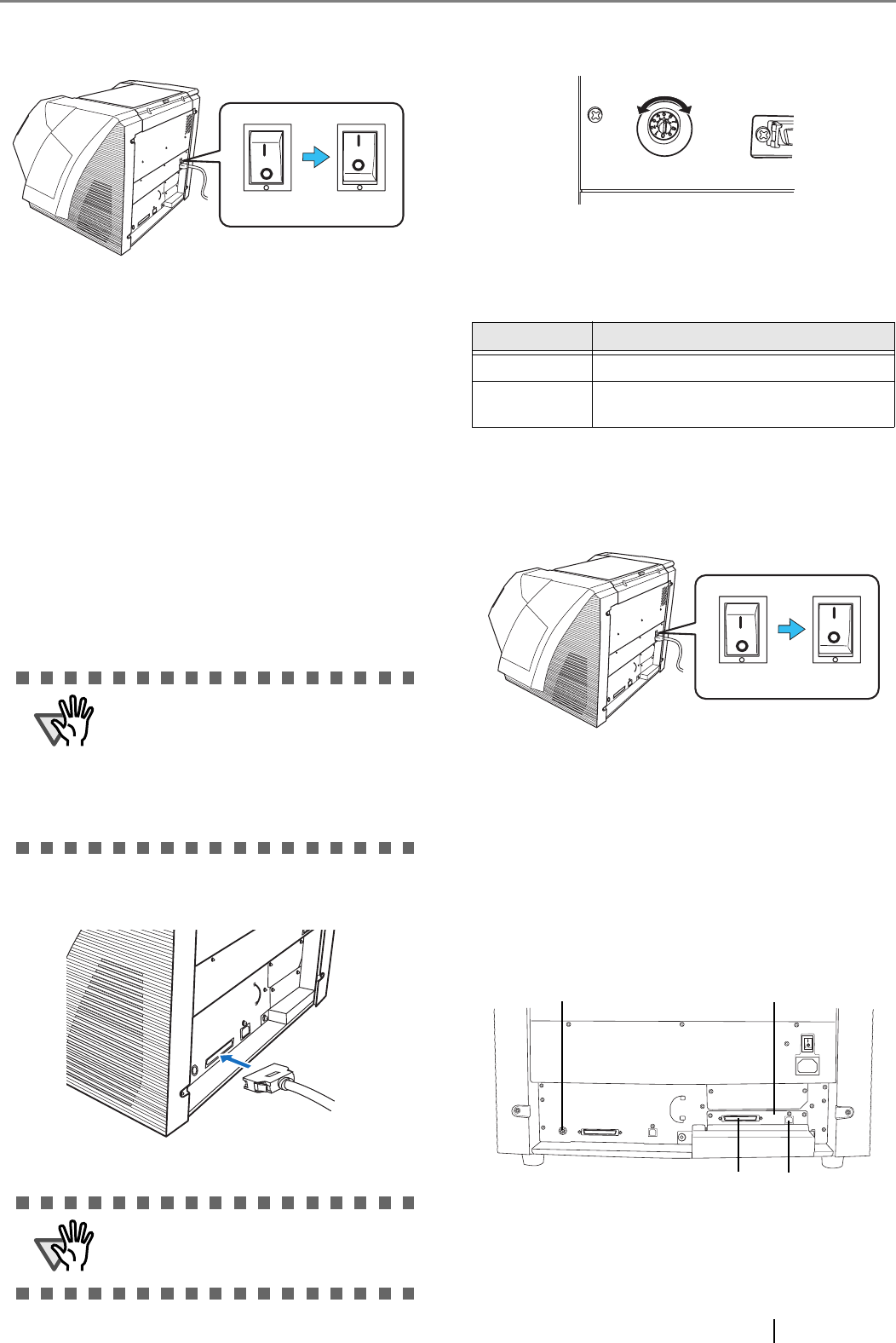

3. Press the "I" side of the main power switch to

turn on the scanner.

■Connecting the SCSI interface

When using the scanner with a SCSI interface, the fol-

lowing SCSI cable and SCSI card must be purchased.

•SCSI cable:

Use a SCSI cable whose connector on the scan-

ner side is the 68-pin high-density shielded-type

and whose connector on the PC side fits the con-

nector of the SCSI card to use.

It is recommended to use a cable of length 1.5m

or shorter.

•SCSI card

Find the recommended SCSI card information

on the Fujitsu web site (FAQ).

http://www.fujitsu.com/global/support/

computing/peripheral/scanners/scsi/

1. Insert the SCSI cable into the interface connec-

tor of the scanner until both sides click.

2. Connect the other end of the cable to your PC.

3. Set the SCSI ID using the SCSI ID switch on

the back of the scanner.

The SCSI ID is initially set to "5" at the factory.

If the SCSI ID of another SCSI device is set to the

same ID, either change the scanner's SCSI ID or

SCSI ID of the other SCSI device.

When the scanner is turned on, the SCSI ID set is

enabled.

4. Press the "I" side of the main power switch to

turn on the scanner.

■ When using VRS

When using the Kofax® VRS, you need to connect it to

the exclusive VRS board with either the USB cable or

SCSI cable.

1. If you use the USB cable, insert it into the inter-

face connector (1) shown below.

If you use the SCSI cable, insert it into the

interface connector (2) shown below.

2. Connect the other end of the cable to your PC.

ATTENTION •When connecting the SCSI cable, turn

the scanner off. Be sure to connect the

SCSI cable first, and then turn on the

power of the scanner and PC.

•In a SCSI daisy chain configuration,

connect the scanner so that it is the ter-

minated device.

ATTENTION Be careful not to bend the pins of the SCSI

cable when connecting to the scanner.

ONOFF

ID No. Description

0 to 7 Can be set as the ID

8, 9 Works with the factory default value

(SCSI ID = 5).

ONOFF

SCSI ID Switch VRS board

1

2

6

3. When using the SCSI cable, set the SCSI ID

using the SCSI ID switch on the back of the

scanner.

(Refer to step 3 in "Connecting the SCSI interface"

on page 5.)

4. Press the "I" side of the main power switch to

turn on the scanner.

2.3 Installing the Scanner

Application

For scanning documents with this scanner, both scanner

driver and image capturing application software (called

"application" hereafter) must be installed on your PC.

The following scanner drivers and applications are pro-

vided:

•Scanner Driver:

FUJITSU TWAIN 32 Scanner Driver

FUJITSU ISIS Scanner Driver

•Scanning application:

ScandAll 21 (for FUJITSU TWAIN 32)

QuickScan Pro™ (for FUJITSU ISIS)

Install the appropriate scanner driver for the application

you will use.

The following applications also come with fi-5900C.

They will provide you more convenient and advanced

usage.

•Error Recovery Guide

The Error Recovery Guide is a software that dis-

plays troubleshooting information on screen if

any scanner error occurs.

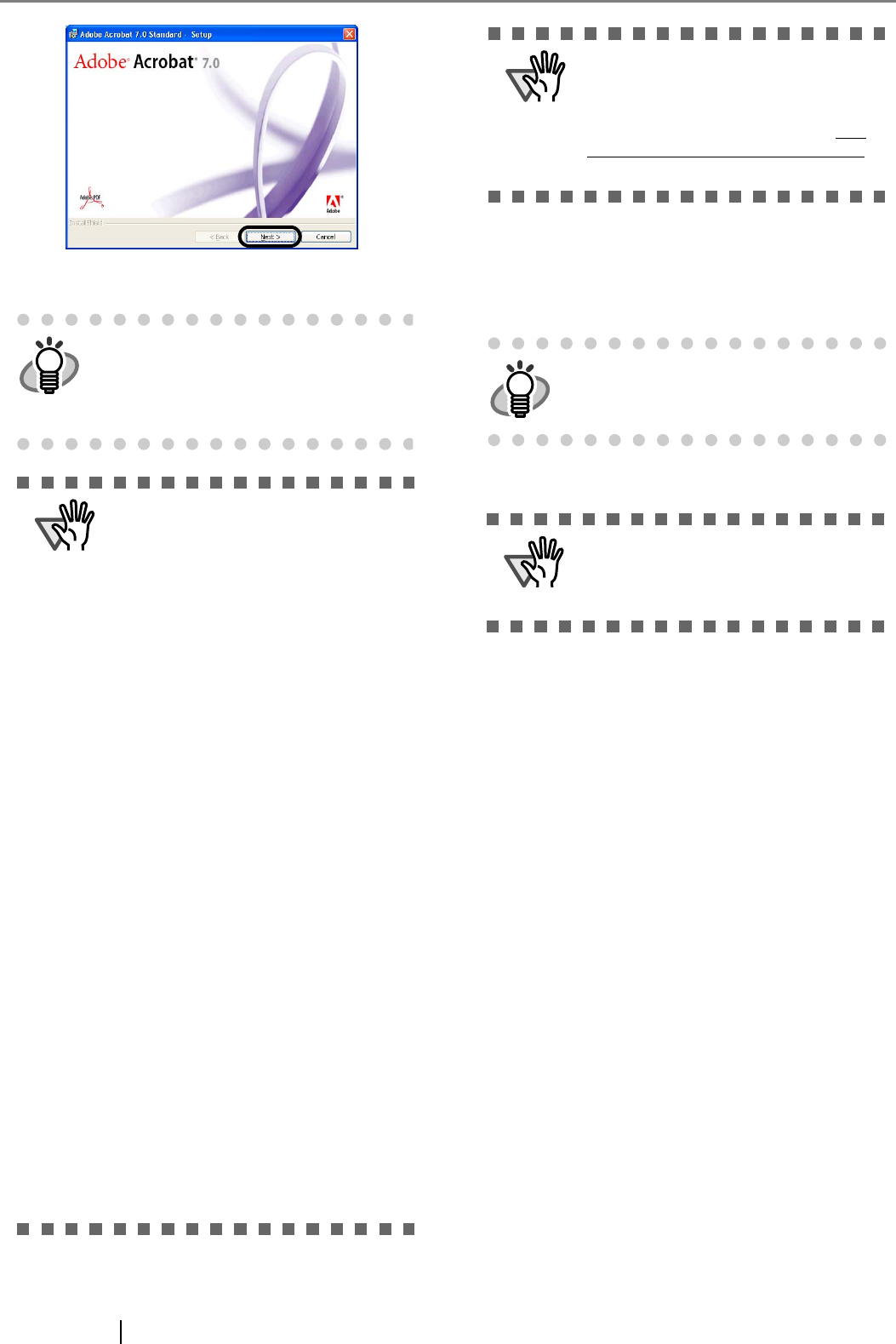

•Adobe Acrobat

De facto standard software for generating and

manipulating PDF format electronic document.

The following sections describe installation of each

driver and application.

For FUJITSU TWAIN32 Scanner Driver

■Preparation

Confirm the following items before installing the appli-

cation.

•Take out the Setup CD-ROM from its pack-

age, but do not insert the Setup CD-ROM

into the CD driver yet.

•Connect the scanner correctly to your PC.

•Uninstall any older versions of the FUJITSU

TWAIN32 driver if it has already been

installed.

•There are two types of FUJITSU TWAIN32:

One of the following driver software will be

automatically installed according to your Oper-

ating System (OS).

For Windows 98, Windows Me, Windows

2000, and Windows XP:

FUJITSU TWAIN32 V9

For Windows 95, Windows NT 4.0:

FUJITSU TWAIN32 V8

•When using Windows 95 or Windows NT

4.0:

HINT

VRS (VirtualReScan®) is the image process-

ing software manufactured by Kofax Image

Products, Inc.

It enables to correct image defects, such as

document skew when scanned by the scan-

ner, or "jitter" generated by colors or half-tone

dot meshing, and so on.

You need to install the software in the VRS

Installation CD enclosed with this scanner.

For how to use the VRS, refer to the User's

Guide attached to the VRS Installation CD.

ATTENTION When using VRS, please be sure to install

either the FUJITSU TWAIN 32 or the

FUJITSU ISIS scanner driver. The Soft-

ware Operation Panel will automatically be

installed together with the driver (TWAIN

or ISIS).

The Software Operation Panel is neces-

sary for changing the scanner settings.

ONOFF

HINT

For details on how to connect the scanner,

refer to "2.2 Connecting the Scanner to Your

PC" on page 4.

ATTENTION Uninstall [Scanner Utility for Microsoft Win-

dows] from [Add/Remove Programs] on

the control panel.

fi-5900C Image Scanner Getting Started 7

ASPI Manager V4.01 or later is required (the

generally comes with SCSI board products).

■Installing the FUJITSU TWAIN32

Scanner Driver

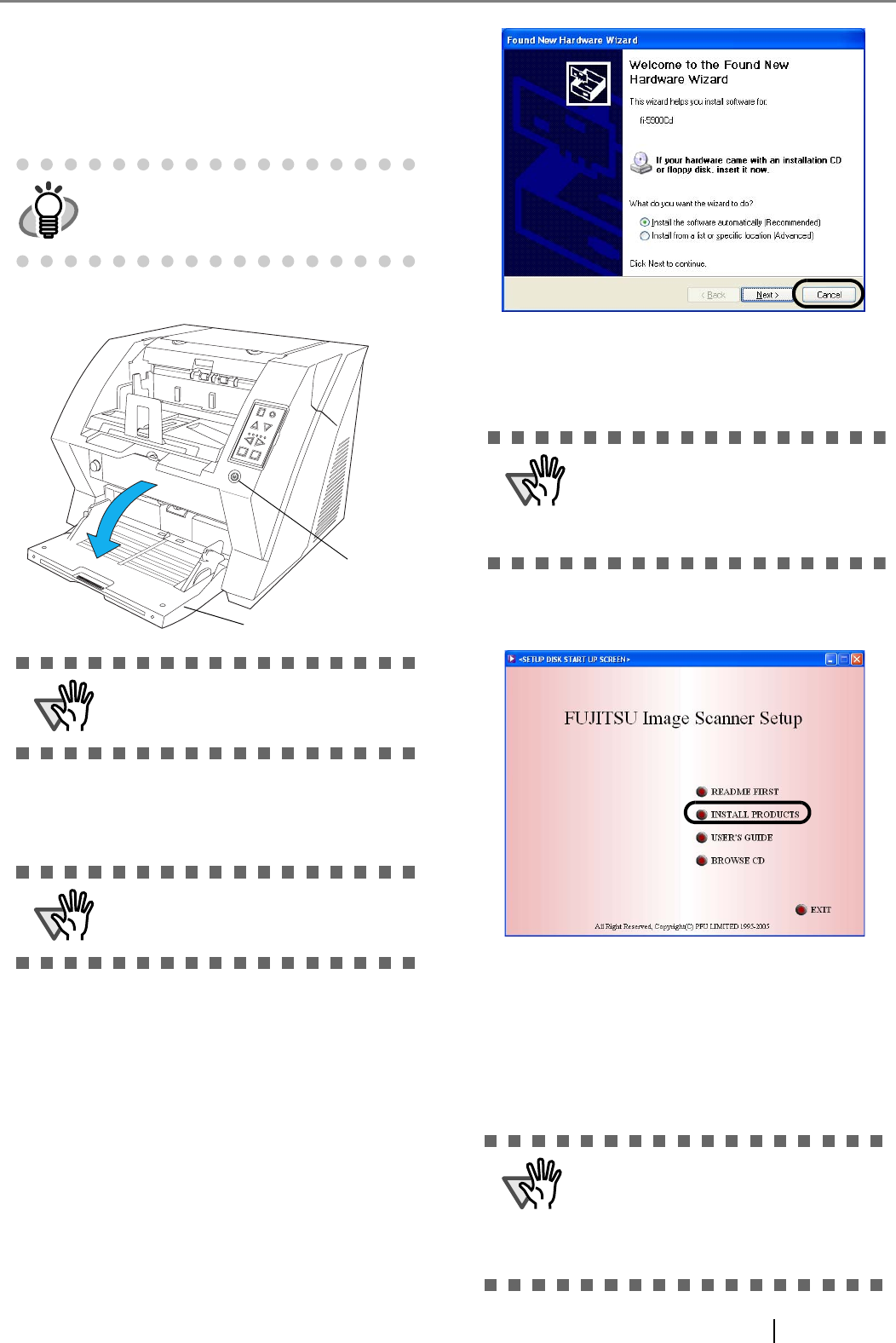

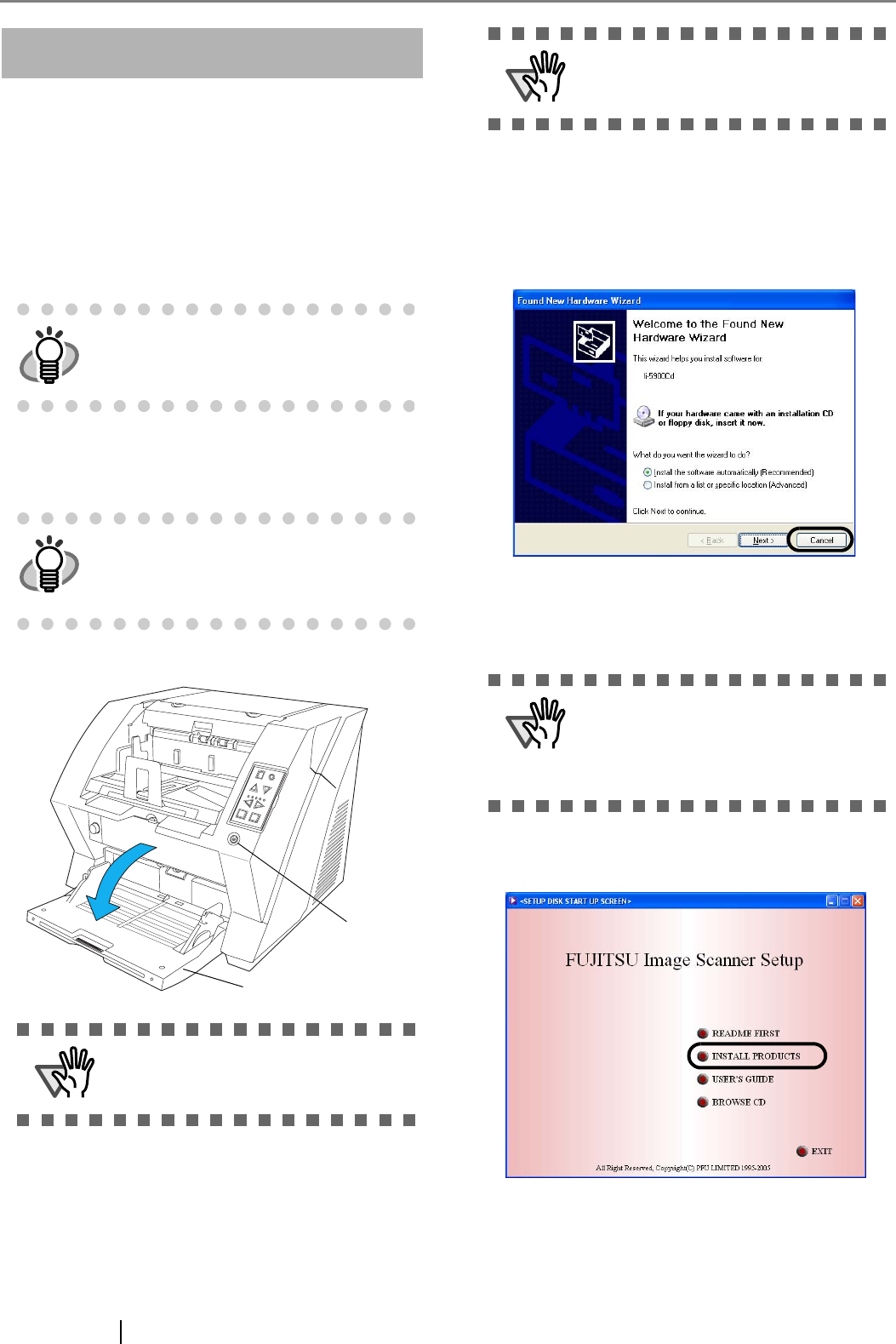

1. Open the hopper.

2. Press the power button to turn the scanner ON.

3. Turn on your PC and log on to Windows.

⇒ The scanner is automatically detected and a

"Welcome to the Found New Wizard" (or

"Welcone to Add Hardware Wizard") screen

appears.

4. Click the [Cancel] button and close the wizard

screen at the moment.

5. Insert the Setup CD-ROM into the CD drive.

⇒ <SETUP DISK START UP SCREEN>

appears.

6. Click [INSTALL PRODUCTS] J [TWAIN

driver].

7. The Error Recovery Guide Installation window

appears.

The Error Recovery Guide is a software that dis-

plays troubleshooting information on screen when

any scanner error occurs. Although this soft-

ware’s installation is highly recommended, it can

be installed later if you do not install it now.

HINT

Windows XP screenshots are used in this

section. The windows and operations may

vary slightly depending on your OS.

ATTENTION Be sure to open the hopper before turning

on the power with the Power button.

ATTENTION When using Windows NT 4.0, Windows

2000 or Windows XP, log on as a user with

"Administrator" privileges.

Send to Scan

Power Thickness

Hopper Height

Function

Thick

Thin

Power button

Hopper

ATTENTION This screen may not appear when the

"Autoplay" setting of your CD drive is off.

In this case, run "Install.exe" in this CD-

ROM directly from "Explorer" or "My Com-

puter".

ATTENTION When you select [Yes] for installing the

Error Recovery Guide, [Choose Setup Lan-

guage] window appears. Select a language

and follow the instructions in the window.

Error Recovery Guide will automatically

continue finishing its installation.

8

8. Image Processing Software Option installation

windows appears.

The Image Processing software is an optional

software that provides advanced binarization

image processing to the scanner dirver.

9. Select a language used for installation on

[Choose Setup Language] window and click

[OK].

10. Install the TWAIN driver following the instruc-

tions in the window.

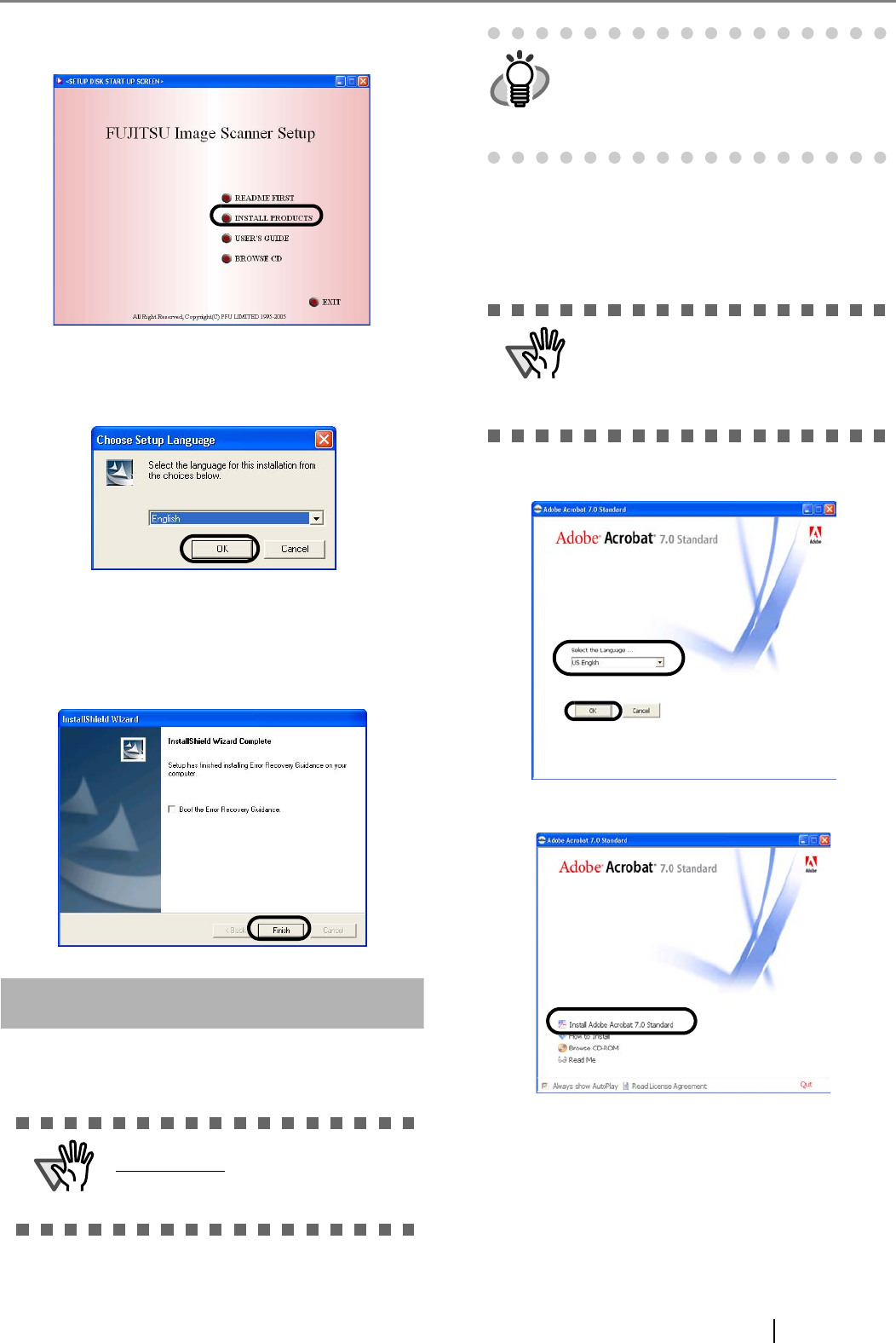

11. When the [InstallShield Wizard Complete] win-

dow appears, click [Finish].

Your computer will be restarted and the scanner will be

detected. Do not remove the Setup CD-ROM from the

CD drive until your PC has completely restarted.

Installation of the scanner driver is completed.

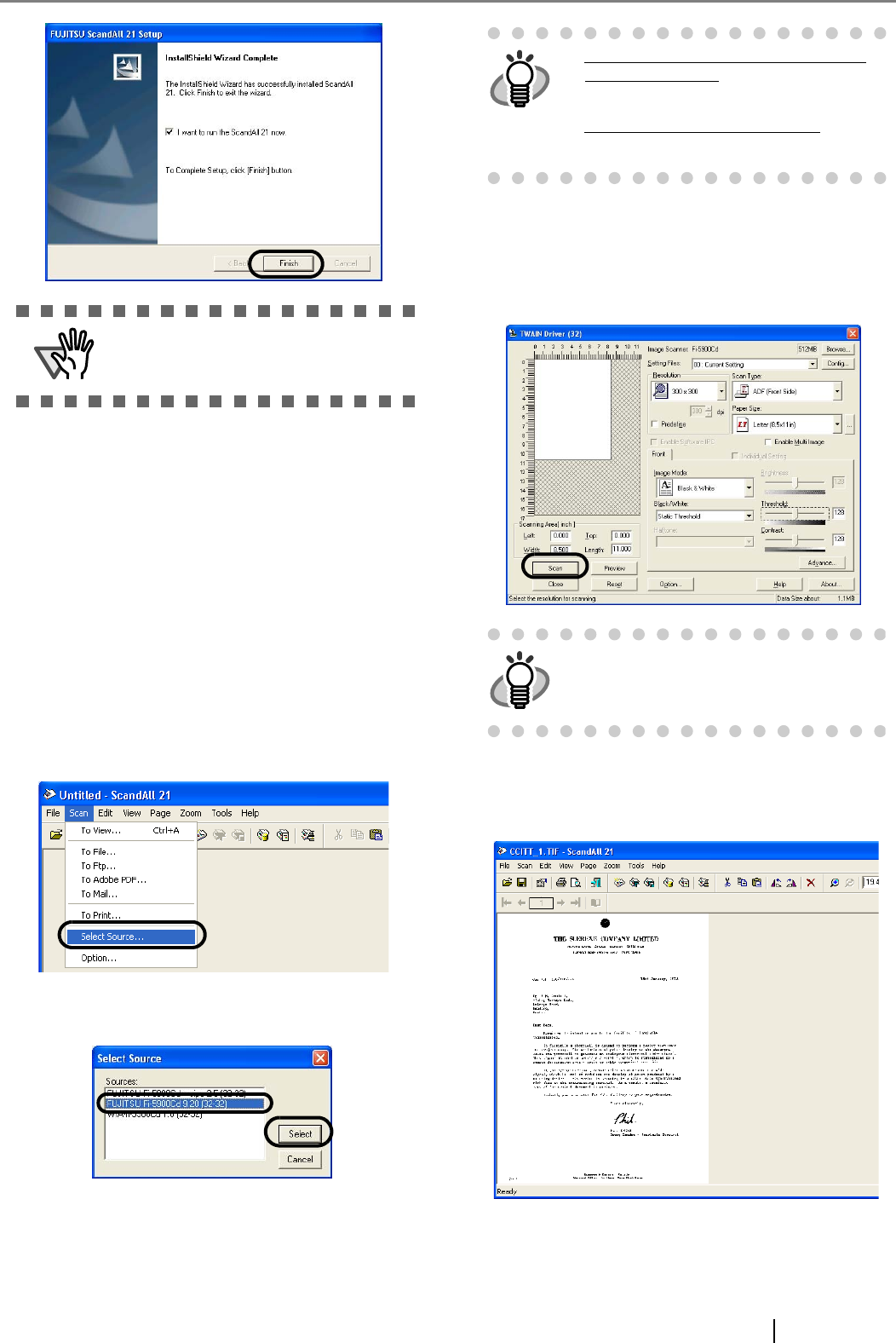

■Installing ScandAll 21

"Scandall 21" is an image capturing software that com-

plies with the TWAIN standard.

1. Insert the Setup CD-ROM into a CD drive.

⇒ <SETUP DISK START UP SCREEN>

appears.

2. Click [INSTALL PRODUCTS] J [ScandAll 21].

3. Select a language used for installation on

[Choose Setup Language] window and click

[OK].

4. Continue to install the application following the

instructions in the window.

5. When the [InstallShield Wizard Complete] win-

dow appears, click [Finish]

ATTENTION Selecting [Yes] in the Image Processing

Software Option installation window will

automatically execute the installation. Clic

the [OK] button on the confirmation mes-

sage that appears when the installation is

complete. After that the TWAIN driver

installation is started.

ATTENTION Depending on the OS, the following oper-

ations may be necessary.

For Windows 98:

When a request for inserting the CD-ROM

of Windows 98 appears, insert it into the

CD drive and click [OK].

For Windows 2000:

When [Digital Signature not Found]

appears, click [Yes].

ATTENTION To confirm whether the installation was

successful, perform a scanning operation

with an application that complies with the

TWAIN standards such as ScandAll 21.

ATTENTION When using Windows NT 4.0, Windows

2000 or Windows XP, log on as a user with

"Administrator" privileges

fi-5900C Image Scanner Getting Started 9

■ Confirming Installation

1. Load documents on the scanner.

For details on how to set documents, refer to the

"2.6 Loading Documents on the Hopper" in the fi-

5900C Operator’s Guide provided in the CD-

ROM.

2. Start ScandAll21.

Select [Start] - [Programs] - [Scanner Utility for

Microsoft Windows] - [ScandAll 21].

3. Specify the scanner to use.

Select [Select Source...]from the [Scan] menu of

ScandAll 21.

4. Select "FUJITSU Fi-5900Cd" or "FUJITSU

TWAIN32" on the dialog box appeared.

5. Select [To View...] from the [Scan] menu.

6. Select scanning resolution, document size, etc.

on the [TWAIN driver] window and click the

[Scan] button.

7. Documents are scanned, and the generated

images are displayed in the [ScandAll 21] win-

dow.

If scanning is completed without trouble, the installation

was performed successfully.

For details on various types of scanning, refer to the

"fi-5900C Operator’s Guide" on the Setup CD-ROM.

ATTENTION For finishing the installation, it may be nec-

essary to restart your computer. Follow the

instructions in the Window.

HINT

For Windows 98, Windows Me, Windows

2000, Windows XP:

[FUJITSU Fi-5900Cd]

For Windows 95, Windows NT 4.0:

[FUJITSU TWAIN 32]

HINT

For details on [TWAIN driver], refer to the

"FUJITSU TWAIN32 Scanner Driver Help"

provided in the Setup CD-ROM

10

For FUJITSU ISIS Scanner Driver

■Preparation

Confirm the following items before installing the appli-

cation.

•Take out the Setup CD-ROM from its pack-

age, but do not insert the Setup CD-ROM

into the CD driver yet.

•Connect the scanner correctly to your PC.

■Installing the FUJITSU ISIS

Scanner Driver

1. Open the hopper.

2. Press the power button to turn the scanner ON.

3. Turn on your PC and log on to Windows.

⇒ If the scanner is automatically detected,

[Found New Hardware Wizard] or [Add/

Remove Hardware Wizard] dialog box will

appear.

4. Click [Cancel] to close the Wizard window.

5. Insert the "Setup CD-ROM" into the CD drive.

⇒ <SETUP DISK START UP SCREEN>

appears.

6. Click [INSTALL PRODUCTS] and then click

[ISIS Driver].

HINT

For details on how to connect the scanner,

refer to "2.2 Connecting the Scanner to

Your PC" on page 4.

HINT

Windows XP screenshots are used in this

section as examples. The windows and

operations may vary slightly depending on

your OS.

ATTENTION Be sure to open the hopper before turning

on the power with the Power button.

Send to Scan

Power Thickness

Hopper Height

Function

Thick

Thin

Power button

Hopper

ATTENTION When using Windows NT 4.0, Windows

2000 or Windows XP, log on as a user with

"Administrator" privileges.

ATTENTION This screen may not appear when the

"Autoplay" setting of your CD drive is off.

In this case, run "Install.exe" in this CD-

ROM directly from "Explorer" or "My Com-

puter".

fi-5900C Image Scanner Getting Started 11

7. The Error Recovery Guide Installation window

appears.

The Error Recovery Guide is a software that dis-

plays troubleshooting information on screen if

any scanner error occurs. Although this soft-

ware’s installation is highly recommended, it can

be installed later if you do not install it in this

step.

8. Image Processing Software Option installation

windows appears.

The Image Processing software is an optional

software that provides advanced binarization

image processing to the scanner dirver.

9. Select a language used for installation on

[Choose Setup Language] window and click

[OK].

10. Install the application following the instructions

in the window.

11. When the [InstallShield Wizard Complete] win-

dow appears, click [Finish].

Your computer will be restarted and the scanner will be

detected. Do not remove the Setup CD-ROM from the

CD drive until your PC has completely restarted.

The installation of the scanner driver is completed.

■Installing QuickScan ProTM

"QuickScan ProTM" is an image capturing software that

complies with the ISIS standard.

1. Insert the Setup CD-ROM into a CD drive.

⇒ <SETUP DISK STARTUP SCREEN>

appears.

2. Click [INSTALL PRODUCTS] J [QuickScan

PRO (Trial)].

.

3. Continue to install the application following the

instructions in the window.

ATTENTION When you select [Yes] for installing Error

Recovery Guide, the [Choose Setup Lan-

guage] window appears. Select a lan-

guage and follow the instructions in the

Window. The Error Recovery Guide will

automatically continue finishing its installa-

tion.

ATTENTION Selecting [Yes] in the Image Processing

Software Option installation window will

automatically execute the installation. Clic

the [OK] button on the confirmation mes-

sage that appears when the installation is

complete. After that the TWAIN driver

installation is started.

ATTENTION Depending on the OS, the following oper-

ations may be necessary.

For Windows 98:

When a request for inserting the CD-ROM

of Windows 98 appears, insert it into the

CD drive and click [OK].

For Windows 2000:

When [Digital Signature not Found]

appears, click [Yes].

ATTENTION When using Windows NT 4.0, Windows

2000 or Windows XP, log on as a user with

"Administrator" privileges.

12

4. Enter required information, then click [Next >].

5. Install the application following the instructions

in the window.

■Confirming Installation

1. Load documents on the scanner.

For details on loading documents, refer to "2.6

Loading Documents on the Hopper" in the fi-

5900C Operator's Guide on the Setup CD-ROM.

2. Start QuickScan ProTM.

From [Start] menu select [Programs]-[Quick-

Scan]-[QuickScan].

3. Select [Select Scanner...] from [Scan] menu in

QuickScan ProTM.

4. And select fi-5900C from the list of [Scanner:],

and then click [OK] button.

5. Select [Preview Settings...] from the [Scan]

menu. Set the scan resolution, paper size and

other scanning parameter, and then click [OK].

6. Select [Preview Scan] from the [Scan] menu.

And then the document is scanned.

If the scanning completes without any trouble, the

installation was performed successfully.

Error Recovery Guide

The Error Recovery Guide is a software that displays

troubleshooting information on screen if any scanner

error occurs.

If you did not install the Error Recovery Guide when

installing the scanner driver, install it following the pro-

cedure below.

1. Insert the Setup CD-ROM into the CD drive.

⇒ <SETUP DISK STARTUP SCREEN>

appears.

ATTENTION "QuickScan ProTM" included in the Setup

CD-ROM is an trial version. For further use

after expiration of the trial period (up to 30

launches), it is necessary to purchase a

fully functional version of QuickScanTM

Pro. (When you install the trial version, do

not change the Serial Number already dis-

played.)

HINT

Refer to "QuickScan Overview" or "Quick-

Scan Help" for information about Quick-

Scan functions and operations. On the

[Start] menu, point to [Programs]-[Quick-

Scan] and click the file.

fi-5900C Image Scanner Getting Started 13

2. Click [INSTALL PRODUCTS] and then click

[Error Recovery Guide].

3. Select a language used for the installation in

the "Choose Setup Language" window and

click [OK].

4. Install the application following the instructions

in the window.

5. When the [InstallShield Wizard Complete] win-

dow appears, click [Finish].

Adobe® Acrobat®

Install Adobe Acrobat from the "Adobe Acrobat

CD-ROM" provided with this scanner.

1. Insert the Adobe Acrobat CD-ROM into the

CD-ROM drive.

⇒ The CD-ROM is automatically detected and

the "Adobe Acrobat" window appears.

2. Select a language and Click [OK] button.

3. Select "Install Adobe Acrobat".

4. Click the [Next] button. The set up window

appears.

ATTENTION Adobe Acrobat bundled with this scanner

is not supported by Windows 95, Win-

dows 98 /98 Second Edition, Windows

NT4.0, Microsoft Windows Me.

HINT

Adobe Acrobat is required for displaying the

manuals stored in the CD-ROM.

* Installation of Adobe Acrobat is not neces-

sary if it has already been installed in your

PC.

ATTENTION This screen may not appear when the

"Autoplay" setting of your CD drive is off.

In this case, run "AutoPlay.exe" in this CD-

ROM directly from "Explorer" or "My Com-

puter".

14

5. Follow the instructions to install the software.

■

Uninstalling Supplied Programs

Follow the procedure below to uninstall supplied pro-

grams.

1. Start up your PC.

2. Exit all currently running programs.

3. Select [Control Panel] - [Add or remove Pro-

grams] from the [Start] menu.

⇒ This displays the "Add or remove Programs"

screen which displays a list of the currently

installed applications.

4. Select the application to uninstall.

•When uninstalling FUJITSU TWAIN 32

scanner driver,

select "Scanner Utility for Microsoft Win-

dows".

•When uninstalling Scandall 21,

select "ScandAll 21".

•When uninstalling FUJITSU ISIS scanner

driver,

select "Fujitsu ISIS Drivers".

•When uninstalling QuickScan ProTM,

select "QuickScan 3.0".

•When uninstalling Error Recovery Guide,

select "Error Recovery Guide".

•When uninstalling Image Processing Soft-

ware Option,

select "Image Processing Software Option"

HINT

Select "How to install" on the "Adobe

Acrobat" window to learn more about

Adobe Acrobat installation. Refer to

"Adobe Acrobat Help" about how to use

Adobe Acrobat.

ATTENTION Notes for using Adobe Acrobat:

When scanning a document and convert-

ing the image to PDF using Adobe Acro-

bat, unexpected images may be output

when:

1. Setting "Edge Shadow Removal" in Acro-

bat, and setting "Digital Endorser" or

"Black Background" options in the

TWAIN driver at the same time. Letter

strings embedded in the image or the

background may be missed.

Solution 1: Set "Edge shadow removal"

to "OFF" or set any option other than

"Adaptive" for "Color/Grayscale" and/or

"Monochrome" under "Compression" by

selecting [File]->[Create PDF]-> [From

Scanner...]-> [Image Settings...] in Acro-

bat.

Solution 2: Adjust the scanning density

in the TWAIN driver.

2. Setting "Adaptive" for "Color/Grayscale"

and/or "Monochrome" under "Compres-

sion" in Acrobat and scanning in a reso-

lution lower than the resolution

recommended for Acrobat.

Solution: Set OPTION to something

other than "Adaptive" under "Compres-

sion."

3. Scanning a document longer than the

double letter (11x17) or A3 size, when

setting "Overscan" in the TWAIN driver,

the scan may fail.

Solution: When scanning a double letter

(11x17) or A3 size of document, do not

set "Overscan" in TWAIN driver.

*As for detailed usage and information of

Acrobat, refer to "Create a PDF file from a

scanned document" in Acrobat Help.

ATTENTION Support and User registration for Adobe

products:

Refer to the technical support information

stored in the [Customer Support] folder on

Adobe Acrobat CD-ROM. (Note that free

person-to-person support is not available

for this is bundled product.)

HINT

Windows XP screenshots are used in this

section. The windows and operations may

slightly vary depending on your OS.

ATTENTION When using Windows NT 4.0, Windows

2000 or Windows XP, log on as a user with

"Administrator" privileges (privileges of the

administrator of your PC).

fi-5900C Image Scanner Getting Started 15

•When uninstalling Software Operation

Panel,

select "Software Operation Panel".

5. Click the [Change/Remove] or [Remove] but-

ton.

6. When the confirmation dialogbox appears,

Click the [OK] or [Yes] button.

⇒ This executes the uninstallation.

ATTENTION When uninstalling Adobe Acrobat, refer to

the installation procedure described in the

Adobe Acrobat CD-ROM.

ATTENTION Screen displays may vary slightly accord-

ing to the operation system (OS) you are

using. Follow the on screen instructions of

the OS.

Example: When the OS Windows 2000

•"Add or Remove Programs" - "Add/

Remove Applications"

•[Changel/Remove] button - [Add/

Remove] button.

AP-1

Appendix 1 TROUBLESHOOTING

■Troubleshooting checklist

Symptom Check this item Remedy

Scanner does not turn on. Have you pushed the power button on

the front of the scanner?

Push the power button.

Have you pushed the main power switch

at the back of the scanner?

Push the Main power switch of the scanner. Then

push the power button.

Is the AC power cable properly con-

nected to the scanner?

Correctly connect the AC power able to the scan-

ner adapter.

Disconnect the AC power cable, then connect it

again.

If this does not restore the power supply, contact

the store where you purchased the scanner or an

authorized FUJITSU scanner service provider.

Scanning does not start. Are documents loaded correctly on the

hopper?

Load documents correctly on the hopper.

Is the ADF closed completely? Close the ADF completely.

Is the USB cable or SCSI cable properly

connected?

Correctly connect the cable. (When a USB hub is

used, check the hub's power supply.)

(When using the SCSI interface) Is SCSI

ID set correctly?

Set SCSI ID correctly by SCSI ID switch on rear

of scanner.

Does the Function Number Display indi-

cate an alarm or an error?

When the Function Number Display indicates an

alarm or an error, refer to the "Chapter 6. TROU-

BLESHOOTING" in the fi-5900C Operator’s

Guide for removing the alarm or the error.

Does the alarm state remain displayed

even after the scanner has been turned

off and back on again?

Turn off and on the power button.

If this does not eliminate the alarm state, contact

the store where you purchased the scanner or an

authorized FUJITSU scanner service provider.

Vertical lines appear in the

scanned image.

Is the glass dirty? Clean the glass following the instructions in the

Operator's Guide "4. Daily Care".

The scanned image shifts or

is distorted.

Are the documents loaded correctly? Load the documents correctly.

Quality of generated image

is unsatisfactory.

Are the glass or sheet guides (Black/

White reference area) clean?

Clean the dirty locations.

Multifeed* frequently

occurs.

*"Multifeed" is a phenome-

non when two or more

sheets of paper are fed

simultaneously into the

scanner.

Do the documents satisfy the "Docu-

ment Quality" and the "Multifeed Detec-

tion Conditions" in the chapter 7 of the

fi-5900C Operator’s Guide?

Scan the documents that satisfy the "Document

Quality" and the "Multifeed Detection Condi-

tions" in the chapter 7 of the fi-5900C Operator’s

Guide.

Are the documents set properly in the

hopper?

Fan the documents before scanning. Correctly

align the document stack and load them on the

hopper. Refer to " 2.6 Loading Document on Hop-

per" in the Operator’s Guide for details.

Is the document stack loaded on the hop-

per thicker than 50mm (2 inch)?

Reduce the number of sheets in the document

stack to 50 mm (2 inch) thick or less.

Are the Brake roller, the Separator

roller or the Pad dirty?

Clean the Brake roller, the Separator roller or the

Pad. Refer to the Operator's Guide "4. Daily

Care".

Are the Brake roller, the Separator roller

or the Pad worn out?

Replace the Brake roller, Separator roller or the

Pad. Refer to the Operator's Guide "5. Replacing

the Pad".

Have you set the document thickness on

the Operator panel?

Set the document thickness thicker.

fi-5900C Image Scanner Getting Started AP-2

Paper is not fed (pick error

occurs frequently, or docu-

ment stops midway).

Do the documents satisfy the "Docu-

ment Quality" and the "Multifeed Detec-

tion Conditions" in the chapter 5 of the

fi-5900C Operator’s Guide?

Use the documents that satisfy the "Document

Quality" and the "Multifeed Detection Condi-

tions" in chapter 5 of the fi-5900C Operator’s

Guide.

Are the Separator roller or the Pick roll-

ers dirty?

Clean the Separator roller or the Pick rollers.

Refer to the Operator's Guide "4. Daily Care".

Are the Separator roller or the Pick roll-

ers worn out?

Replace the Separator roller or the Pick rollers.

Refer to the Operator's Guide "5. Replacing of

Consumables".

Is there any debris on the document feed

path?

Remove any debris from the document feed path.

Have you set the document thickness on

the Operator panel?

Set the document thickness thinner.

The generated images are

elongated.

Are the Feed rollers or the Pinch rollers

dirty?

Clean the Feed rollers or the Pinch rollers. Refer

to the Operator's Guide "4. The Daily Care".

Have you adjusted the Vertical Magnifi-

cation?

For Windows 98, Windows Me, Windows 2000,

Windows XP, select "Scanners and Cameras" in

the control panel. Right-click on fi-5900C and

select Properties. Click on the [Device Set] tab

and then click on the [Offset] button. Adjust the

Vertical Magnifcation.

For Windows 95, Windows NT 4.0, right-click the

Scanner Control Center in the task tray, select

[Options] and adjust the Vertical Magnification.

There is a shadow on the

leading edge of the gener-

ated image.

Have you adjusted the offset (the scan-

ning starting position)?

For Windows 98, Windows Me, Windows 2000,

Windows XP, adjust the [Sub-scan Setting] on

[Scanners and Cameras] in the control panel.

For Windows 95, Windows NT 4.0, right-click the

Scanner Control Center, select [Options]-[Sub-

scan Setting] and adjust the offset.

Symptom Check this item Remedy

AP-3

■Temporary error

The following shows the procedure for releasing of each

of the temporary errors.

•"U1" error

1. Remove the jammed documents.

(Refer to the fi-5900C Operator’s Guide "6.1

Clearing Document Jams" on the Setup CD-

ROM.)

2. Confirm that the documents meet the paper

specifications for scanning.

(Refer to fi-5900C Operator’s Guide "7.2 Doc-

ument Quality" on the Setup CD-ROM.)

•"U2" error

Press the [Send to] button on the Operator Panel.

The documents that were multi fed will be

ejected.

•"U4" error

Close the ADF cover or pre-imprinter cover.

•"U6" error

This is a temporary error related to the Imprinter

option (sold separately). For details, refer to the

"fi-590PRF/ fi-590PRB Operator's Guide, "5

Error Message".

•"U8" error

1. Clean the document sensors

For details refer to fi-5900C Operator’s Guide

“4.5 Cleaning the Transport path and the sen-

sors”.

2. Verify that the number of sheets ejected to the

stacker is below stacker’s capacity, and that

the Pick roller is not set for manual feeding.

3. Verify that the both rollers are installed prop-

erly. For details, refer to fi-5900C Operator’s

Guide "5.5 Replacing the Separator Rollers"

and "5.6 Replacing the Brake roller".

■Device alarm (Permanent error)

When you encounter any alarm, turn off and on the

scanner. If the alarm is still displayed on the Function

Number Display, contact the store where you purchased

the scanner or an authorized FUJITSU scanner service

provider.

Indication Meaning

U1 A paper feed error occurred.

U2 A multi feed error occurred.

U4 The ADF cover or the pre-imprinter

cover is opened.

U6 The print cartridge is not set.

U8 One of the following error occurred:

1. The document sensors are dirty.

2. The stacker is full.

3. The Brake roller or Separator rollers

are not installed properly.

Indication Meaning

E0 Hopper or Stacker error

E2 Optical system error (front)

E3 Optical system error (back)

E4 The motor fuse has blown out.

E5 The lamp fuse has blown out.

E6 Operator panel error

E7 Trouble occurred in the internal memory

(EEPROM).

E8 SCSI fuse has blown out

E9 Image memory error

EA Imprinter error

Ec Image memory error

Ed SCSI interface or USB interface

controller error

EF Background switching mechanism error

E10 ROM error

E11 Cooling fan error

E12 Heater error

E15 Extended memory error

E16 Option board error

E17 The imprinter fuse has blown out.

E18 Sensor error

E19 LSI error

E1A Troubles occurred in the communication

inside of the scanner.

fi-5900C Image Scanner Getting Started AP-4

Appendix 2 DAILY CARE

■Cleaning Materials

For details about the cleaning materials, contact the

FUJITSU scanner dealer where you purchased the scan-

ner.

■Cleaning Method

The ADF must be cleaned with a lint-free cloth moist-

ened with the Cleaner F1.

The Feed roller must be cleaned with a lint-free cloth

moistened with the Cleaner F2.

■Locations and Cycle for Cleaning

For details on the cleaning the ADF, refer to "4.Daily

Care" in the fi-5900C Operator’s Guide on the Setup

CD-ROM".

During its operation, the inside

glass of the ADF becomes very hot.

Before you clean inside the scan-

ner, turn off its power and unplug

the AC adapter from the outlet. Wait

for at least 15 minutes.

Do not turn off the scanner when

you clean the Feed rollers or Eject

rollers.

Cleaning

Materials Parts No. Remarks

Cleaning sheet CA99501-

0016

20 sheets/pack

For the cleaning method,

refer to "4 Daily Care in

the fi-5900C Operator"s

Guide.

Cleaner F1

(or isopropyl

alcohol)

CA99501-

0013

1 bottle

Moisten a cloth with this

fluid and wipe the scan-

ner to clean.

Cleaner F2 CA99501-

0014

1 bottle

Moisten a cloth with this

fluid and clean metal

rollers only.(Do not use

for any other parts.)

Cotton swab Commercially available

Lint-free dry

cloth

Part to clean Standard Cleaning Cycle

Pad Clean these parts after every

10,000 scans.

Pick rollers

Brake roller

Separator rollers

Feed rollers

Pinch rollers

Transport path

Glass

Skew-detection sensor

Document sensor

ATTENTION The scanner must be cleaned more fre-

quently if you scan any of the following

type of sheets:

•Documents of coated paper

•Documents that are almost completely

covered with printed text or graphics

•Chemically treated documents such

as carbonless paper

•Documents containing a large amount

of calcium carbonate

•Documents written with pencil

AP-5

Appendix 3 REPLACING CONSUMABLES

■Consumables and Replacement

Cycle

The followings are the specifications of consumables

and their recommended replacement cycles.

To purchase consumables, contact the store where you

purchased the scanner or an authorized FUJITSU scanner

service provider.

The replacement cycles above are rough guidelines

when scanning A4/Letter sized, 20lb paper. This clean-

ing cycle varies according to the type of papers scanned

and how frequently the scanner is used and cleaned.

The following illustrations show the locations of the

consumables. Refer to "Chapter 5 Replacing Consum-

ables" fi-5900C Operator’s Guide on the Setup

CD-ROM.

■Pad

During its operation, the inside

glass of the ADF becomes very

hot.

Before replacing the

consumables, turn its power off

and unplug the AC adapter from

the outlet. Wait at least

15 minutes.

Description Parts No. Standard

Replacement Cycle

Pad PA03450-

K014

After 600,000 scans or

one year

Pick rollers PA03450-

K011

After 600,000 scans or

one year

Brake roller PA03450-

K013

After 600,000 scans or

one year

Separator

rollers

PA03450-

K012

After 600,000 scans or

one year

ATTENTION Use only the specified consumables.

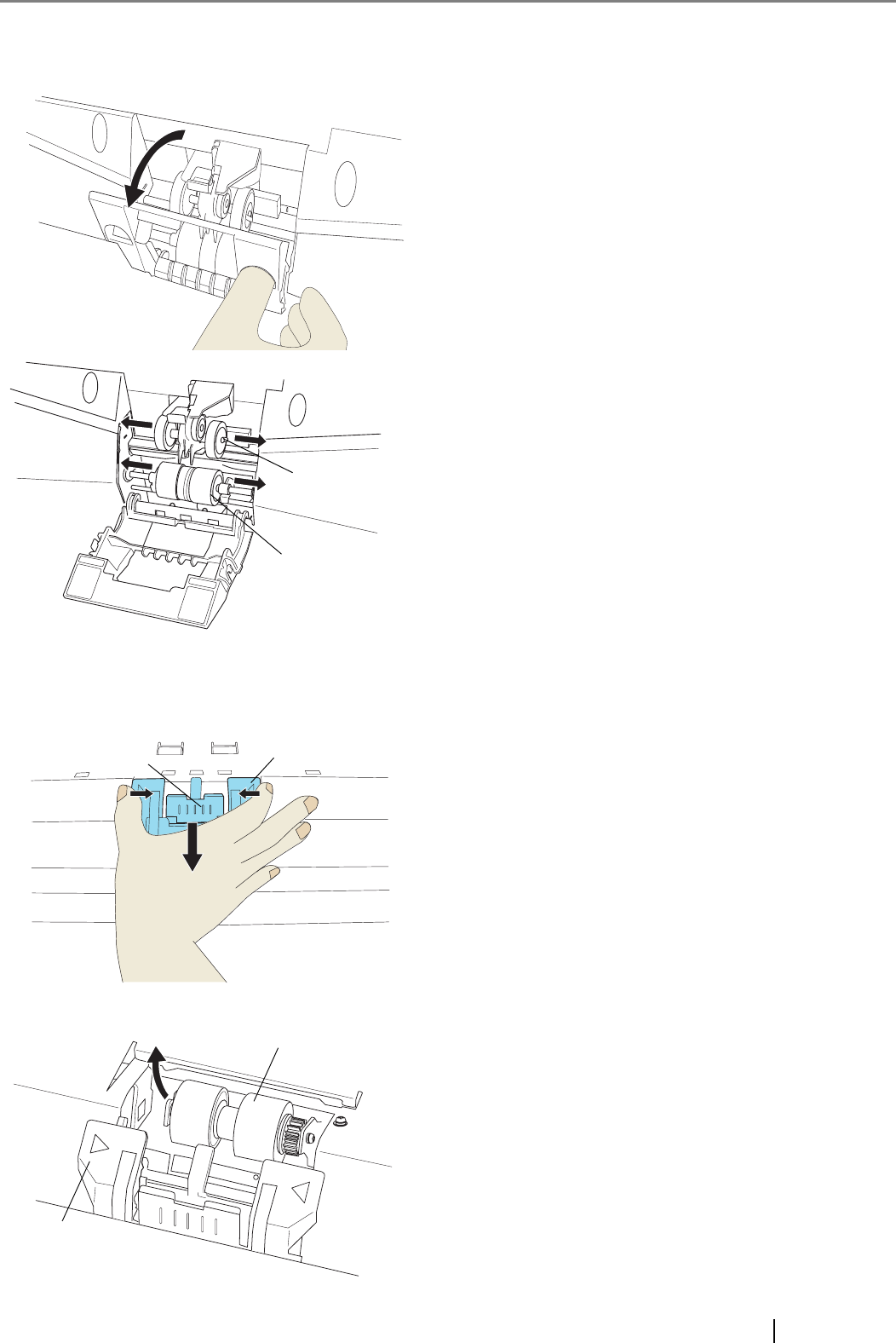

Separator roller

Pick roller

Pad Brake roller

Pad

To remove

To install

fi-5900C Image Scanner Getting Started AP-6

■Pick roller

■Separator roller

■Brake roller

Pick roller

Separator

roller

Pad Cover

Brake roller

Cover

zCopying of the contents of this manual in whole or in part and

copying of the scanner application is forbidden under the

copyright law.

zThe contents of this manual are subject to change without notice.

zPFU LIMITED is not liable whatsoever for any damages resulting

from use of this scanner and procedures described in this manual,

profit loss due to defects, and any claims by a third party.

fi-5900C Image Scanner Getting Started

P3PC-1422-03EN

Date of issuance: June, 2006

Issuance responsibility: PFU LIMITED
