Mobile Backhaul/Business Access Cabinet
Equipment View
20" Deep
25" Wide
39.8"
High
Lockable
Front
Cover
Isometric View
Left
Right
VRLA
Battery
Chamber
GFCI
Outlet
FLASHWAVE
4100 ES
and Fan Unit
Valere
Rectifier
Shelf
Door
Alarm
Heat
Exchanger
24-Position
Fiber Tray
Alarm
Pin Block
Front
Exterior Views
Rear
FLASHWAVE® 4100 ES
Mobile Backhaul Cabinet Solutions
FLASHWAVE 4100 ES
Micro Packet Optical Networking Platform
Hybrid SONET/Ethernet platform—protects your network
investment
Flexible—mix-and-match service interfaces
Supports existing legacy services (DS1, DS3,
OC-3/OC-12) and next-generation Ethernet services
(100Base-T, 100Base-FX, GigE, EoS, native Ethernet
Temperature-hardened
Eliminates costly heating/cooling requirements
Integrated DS1 NIU
Customer-required demarcation point
Eliminates cost of external NIU devices
AC or DC (+24/+48 V) operation
Rack-mount, pad, pole and H-frame options
© Copyright 2009 Fujitsu Network Communications Inc. FLASHWAVE® is a trademark of Fujitsu Network Communications Inc. (USA).
FUJITSU (and design) ® are trademarks of Fujitsu Limited. All Rights Reserved. Configuration requirements for certain uses are described in the product
documentation. Features and specifications subject to change without notice.

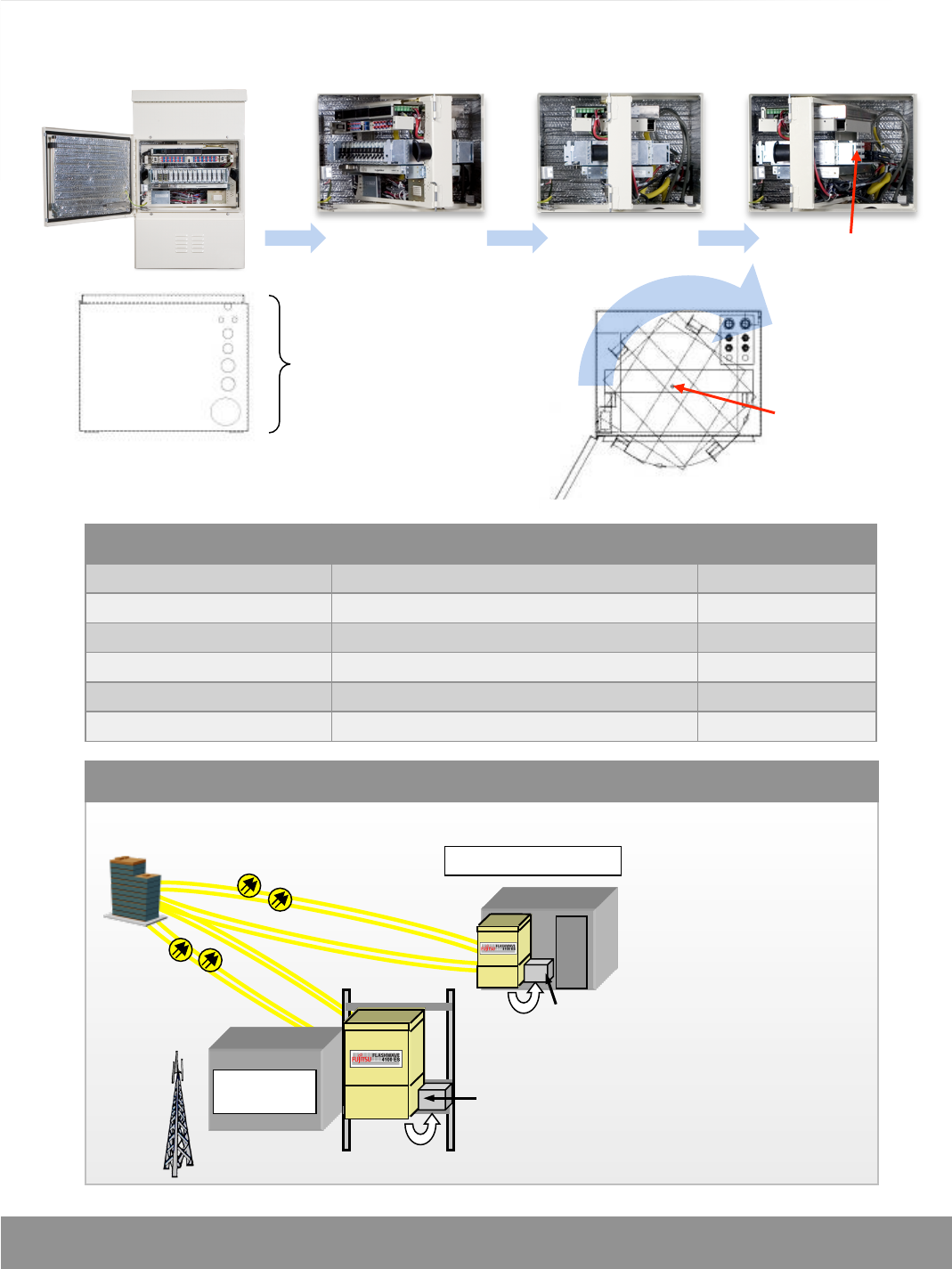

Application Detail
Interior Frame Pivot Detail
Part Number Description Ordering Notes
PC01B-0040-A322 FLASHWAVE 4100 ES AC FAB Cabinet
PC15L-S-C082-08 12 Amp Rectifier Modules (CLEI: PBP3A01AAA) Two needed
FC9681ECD1-I02 56 DS1 Interface Adapter One supplied w/cabinet
FC9681ECD2-I03 28 DS1; 3 DS3 Interface Adapter
FC9681ECD3-I03 6 DS3 Interface Adapter One supplied w/cabinet
Recommended: EnerSys SBS B14 62 Ah VRLA Battery Four needed
Cabinet Underside View
Pivot Point
Top View
28 DS1s/3 DS3s
Cell Provider
Hut
A322
FLASHWAVE SHELF
@ CO Cell Provider Hut
Single or
Dual OC-3s
H-Frame Mountable
Drop Support: 10 ft. to NIU
NIU
A322
NIU
3.0/10.09
1 – 4" conduit entrances
2 – 2" conduit entrances
2 – 1.5" conduit entrances
2 – .75" conduit entrances
All Interface Groups
Rear Accessible
(DS1, DS3 and L1/L2
Ethernet all allow for
In-Service Growth)
Cell sites and
customer premises
28 standard DS1s (4-wire)
3 DS3s
Additional interface growth
supported
Remote-powered NIU support
(Up to 5 remote-powered NIUs)
Wall Mountable
Single or Dual
OC-3s
