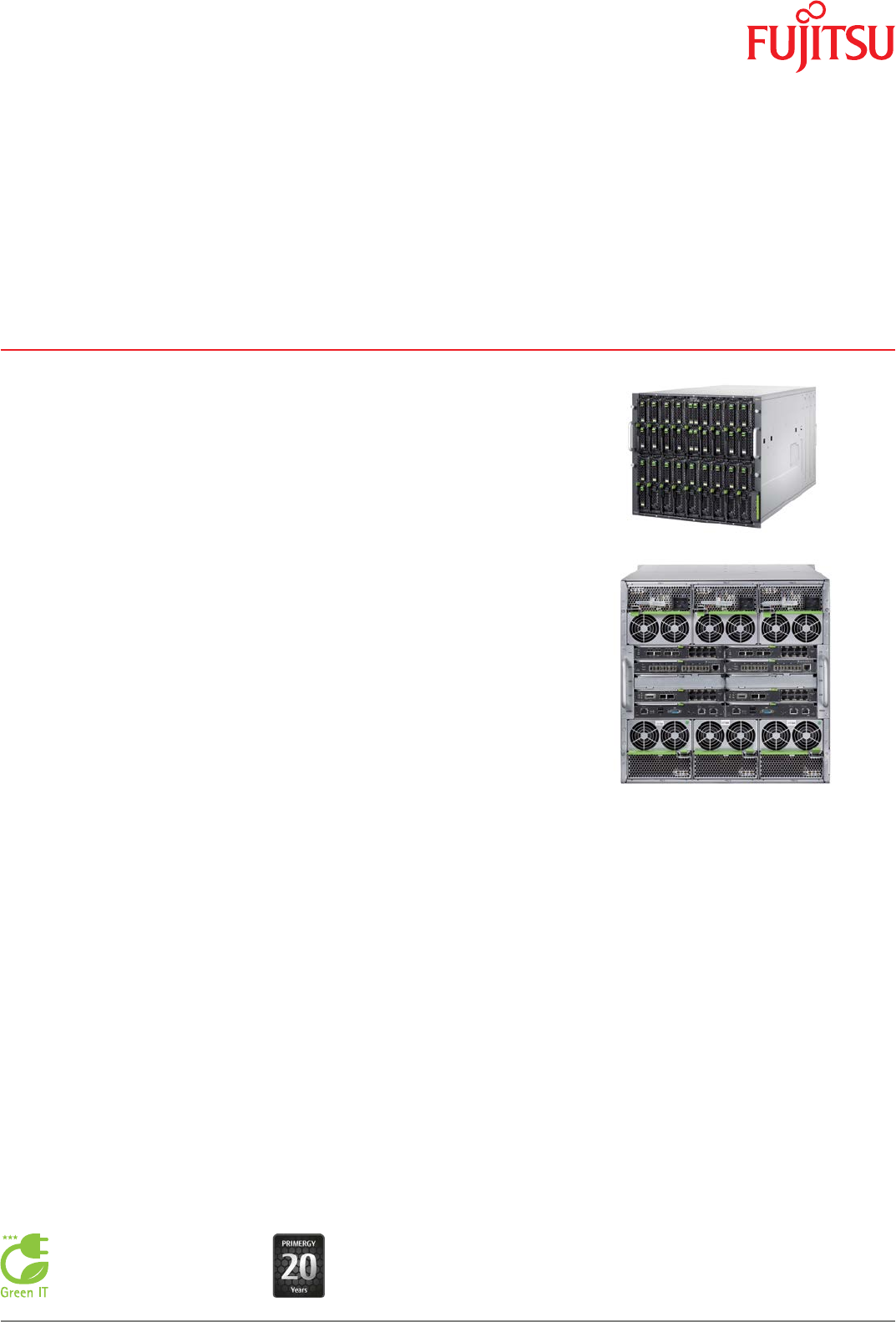

Data Sheet FUJITSU Server PRIMERGY BX900 S2 Blade System
Page 1 / 6 http://www.fujitsu.com/fts/products/computing/servers/primergy/blades/bx900s2/index.html
Data Sheet
FUJITSU Server PRIMERGY BX900 S2 Blade System
For data centers with dynamic environments
FUJITSU Server PRIMERGY will give you the servers
you need to power any workload and changing
business requirements. As business processes
expand so does the need for applications. Each
has its own resource footprint, so you need
a way to optimize your computing to better
serve your users. PRIMERGY systems will help
you match your computing capabilities to your
business priorities with our complete portfolio of
expandable PRIMERGY tower servers for remote
and branch ofces, versatile rack-mount servers,
compact and scalable blade systems, as well as
hyper-converged scale-out servers. They convince
by business proven quality with a wide range of
innovations, highest efciency cutting operational
cost and complexity, provide more agility in daily
operations, and integrate seamlessly to let help
you concentrate on core business functions.
Fujitsu Server PRIMERGY BX blade systems
are the perfect platform to build a converged
infrastructure designed to reduce IT costs, time
and efforts. PRIMERGY Blade Servers utilizes a
modular architecture and contain in addition to
the compute power, all required infrastructure and
network components, storage capacity as well as
management modules that helps companies to
simplify their infrastructure, achieve signicant
cost reductions and increase exibility.
PRIMERGY BX900 S2
The Fujitsu Server PRIMERGY BX900 S2 chassis
is the rock-solid foundation for Fujitsu’s blade
ecosystem, providing a reliable, exible and
efcient platform for building a converged
infrastructure. The PRIMERGY BX900 blade server
takes advantage of Fujitsu’s more than 20 years’
experience in the development of x86 servers.
The system provides a modular approach to create
an IT infrastructure. The chassis includes all needed
infrastructure elements such as power supplies and
fans, networking, and management. The Fujitsu
blade server is easy to upgrade, maintain and
customize. Inside, you can mix and match almost
any combination of server, storage and connection
blades to run your choice of operating systems
and applications. The PRIMERGY BX900 S2 can be
equipped with up to 18 of these blades in a 10U
chassis. Thus it’s the leader in its class for density in
a compact form factor. Fujitsu‘s Cool-safe® cooling
concept, combined with efcient power supply
units and holistic power management, reduce your
costs and ensures a more efcient use of energy
and cooling capacity. Centralized management
of physical and virtualized environments and
comprehensive I/O virtualization capabilities,
combined with a fully redundant system design,
supports business agility. Furthermore it is possible
to interchange the same blades and network
options between other Fujitsu blade chassis, e.g.
the PRIMERGY BX400, and manage the entire
system with the same tools.
Data Sheet FUJITSU Server PRIMERGY BX900 S2 Blade System
Page 2 / 6 http://www.fujitsu.com/fts/products/computing/servers/primergy/blades/bx900s2/index.html
Features & Benefits
Main Features Benefits
Reliable architecture
Modular design for computing, storage, switching, power supply
and cooling.
Fully redundant and hot-pluggable components to enable seamless
switchover.
Passive midplane to prevent single point of failures.
The PRIMERGY BX900 S2 provides the server reliability, exibility,
and performance you need to achieve your key business objectives.
Individually adaptable
Optimum combination of up to 18 server blades and/or storage
blades per enclosure.
Combines server, storage, and networking as well as infrastructure
components into a single chassis in order to convert it into a small
data center.
Modular infrastructure, designed to share components throughout
the family making it easy to create, customize and grow.
Complete investment protection and exible growth scenarios.
Flexible scalability
Choice of different server blades using latest Intel® Xeon®
processors, adaptable memory congurations and a versatile
Universal Converged Network Adapter to provide a common
infrastructure for LAN and SAN with the ability to partition
the bandwidth, making it ideal to suit the needs of individual
applications.
Plus, ServerView Virtual-IO Manager that radically eases data center
tasks and greatly simplies the management in LAN and SAN
environments while providing highest exibility at their deployment
and operation.
Its smart design makes the PRIMERGY BX900 S2 more exible
than other server solutions, offering easy scalability to protect your
investments.
Easily deploy more or larger virtual and physical machines than
ever before and in this way increase your IT performance and
consolidation ratio.
Leading energy efciency
PRIMERGY BX900 S2 takes advantage of its world-class design.
It contains efcient power supplies with large fan modules and
optimized airow channels to effectively cool the entire chassis
while using less power.
More efcient use of power and cooling to save energy costs as
never before.
Data Sheet FUJITSU Server PRIMERGY BX900 S2 Blade System
Page 3 / 6 http://www.fujitsu.com/fts/products/computing/servers/primergy/blades/bx900s2/index.html
Technical details
PRIMERGY BX900 S2
Base unit PRIMERGY BX900 S2
Housing types Rack
Enclosure
System unit type 10 U chassis for 19-inch rack
Front bays 18 half height for server and/or storage blades
Midplane High speed midplane with 4 redundant fabrics
Rear bays 8 x for Connection Blades (2 Connection Blades per fabric)
6 x for PSU modules
Management Blades 1x hot-plug Management Blade as standard, redundant Management Blade as option
Fan conguration Up to 3 additional hot plug, redundant fan modules
Fan notes 2 fan units per module, 2 x 2 fans per unit; modules either part of PSU modules or independent components
Power supply conguration Up to 6x hot-plug power supply module, 3x as minimum
(4th to 6th power supply module neccessary for redundancy, and depending on system conguration)
Operating panel
Operating buttons On/off switch
ID button
Status LEDs Power (amber / green)
System status (orange)
Identication (blue)
Service display ServerView Local Service Display for Blade (LSB)
Management Blade
Type of Unit BX900 MMB S1
LAN / Ethernet (RJ-45) 2 x 1Gbit/s Ethernet
Management LAN (RJ45) Dedicated Service LAN port for MMB (1Gb Ethernet)
Serial 1 (9-pin) 1 x RS-232-C
USB 2.0 ports 2 x (at rear side of the system)
Dimensions / Weight
Dimensions (W x D x H) 482.6 mm (Bezel) / 445mm (Body) x 778 x 438
Height Unit Rack 10 U
19” rackmount Yes
Weight Up to 191 kg
Weight notes Fully assembled
Actual weight may vary depending on conguration
Rack integration kit Included
Electrical values
Max. input of single power supply 3200 W / 1600 W (240 V / 100 V)
Max. output of single power supply 2880 W / 1360 W (240 V / 100 V)
Rated voltage range 100 V - 240 V
Rated frequency range 47 Hz - 63 Hz
Rated current max. 65A / 29A (100 V / 240 V)
Active power (max. conguration) 11,200 W
Heat emission (max. conguration) 40320.0 kJ/h (38216.0 BTU/h)
Electrical value notes To estimate the power consumption of different congurations use the Power Calculator of the System Architect:
http://congurator.ts.fujitsu.com/public/
Suitable power supply cables have to be ordered separately.
Data Sheet FUJITSU Server PRIMERGY BX900 S2 Blade System
Page 4 / 6 http://www.fujitsu.com/fts/products/computing/servers/primergy/blades/bx900s2/index.html
Environment
Operating ambient temperature 5 - 30 °C
Operating relative humidity 10 - 85 % (non condensing)
Operating environment FTS 04230 – Guideline for Data Center (installation specication)
Operating environment link http://docs.ts.fujitsu.com/dl.aspx?id=e4813edf-4a27-461a-8184-983092c12dbe
Noise emission Measured according to ISO 7779 and declared according to ISO 9296
Sound pressure (LpAm) < 79 dB(A) (operating) < 64 db(A) (standby)
Sound power (LWAd; 1B = 10dB) < 8,6 B
Compliance
Global CB
RoHS
WEEE
Germany GS
Europe CE Class A *
USA/Canada CSAc/us
ULc/us
FCC Class A
Japan VCCI:V3 Class A + JIS 61000-3-2
Australia/New Zealand C-Tick
Taiwan BSMI
Compliance link https://sp.ts.fujitsu.com/sites/certicates
Compliance notes There is general compliance with the safety requirements of all European countries and North America. National
approvals required in order to satisfy statutory regulations or for other reasons can be applied for on request.
* Warning:
This is a class A product. In a domestic environment this product may cause radio interference in which case the user
may be required to take adequate measures.
Server and Storage Blades pluggable into system unit front side
Product Model
name
Processor type
support
Processor quantity
support
Max. number per
BX900
Memory slots total Supported capacity RAM
(max.)
PRIMERGY BX2560
M2
Intel® Xeon®
processor E5-2600
v4 product family
1 - 2 18 16 1,024 GB
http://docs.ts.fujitsu.com/dl.aspx?id=f804afd7-dcb0-4763-9d75-a7c9c97ef832
PRIMERGY BX2580
M2
Intel® Xeon®
processor E5-2600
v4 product family
1 - 2 18 24 1,536 GB
http://docs.ts.fujitsu.com/dl.aspx?id=d711b6a2-7466-4b9c-9ea5-7b0daf8b1384
PRIMERGY SX960 S1 2
http://docs.ts.fujitsu.com/dl.aspx?id=a6f875b7-e6f8-474f-95ca-48040820c54c
PRIMERGY SX980 S2 max. 6, (for the
US market max. 3x
SX980 S2 can be
installed)
http://docs.ts.fujitsu.com/dl.aspx?id=c7b36166-3908-4d82-b187-3db4c90e4cef
Connection Blades (CB) pluggable into system unit rear side
Connection type Down-link ports Up-link ports Max. number per BX unit
Eth FEX 10Gb 16/8 16 x 10 Gbit/s Eth 8 x 10 Gbit/s (SFP+) 6
(CB Slot 1/2 3/4 5/6)
Eth Switch/IBP/EHM 10/40Gb 18/8 + 2 18 x 1/10 Gbit/s Eth 8 x 10 Gbit/s (SFP+), 2 x 40Gbit/s
(QSFP+)
6
(CB Slot 1/2 3/4 5/6)
Eth Switch/IBP/EHM 1Gb 18/6 18 x 1 Gbit/s Eth 6 x 1 Gbit/s (RJ45) 8
(CB Slot 1/2 3/4 5/6 7/8)
Eth Switch/IBP/EHM 1Gb 36/12 36 x 1 Gbit/s Eth 8 x 1 Gbit/s (RJ45), 4 x 1 Gbit/s (SFP) 8
(CB Slot 1/2 3/4 5/6 7/8)
Eth Switch/IBP/EHM 1Gb 36/8+2 36 x 1 Gbit/s Eth 8 x 1 Gbit/s (RJ45) , 2 x 10 Gbit/s
(SFP+)
8
(CB Slot 1/2 3/4 5/6 7/8)
Data Sheet FUJITSU Server PRIMERGY BX900 S2 Blade System
Page 5 / 6 http://www.fujitsu.com/fts/products/computing/servers/primergy/blades/bx900s2/index.html
Connection Blades (CB) pluggable into system unit rear side
Connection type Down-link ports Up-link ports Max. number per BX unit
FC Pass Thru 8Gb 18/18 18 x 8 Gbit/s FC 18 x 8 Gbit/s (SFP/SFP+) 4
(CB Slot 3/4 5/6)
FC Switch 16Gb Brocade 14 Port 18 x 8/16 Gbit/s FC 8 x 8/16 Gbit/s (SFP+) 4
(CB Slot 3/4 5/6)
FC Switch 16Gb Brocade 26 Port 18 x 8/16 Gbit/s FC 8 x 8/16 Gbit/s (SFP+) 4
(CB Slot 3/4 5/6)
FC Switch 16Gb Brocade 26 Port
Enterprise
18 x 8/16 Gbit/s FC 8 x 8/16 Gbit/s (SFP+) 4
(CB Slot 3/4 5/6)
SAS Switch 6Gb 18/6 18 x 6 Gbit/s SAS 6 x 6 Gbit/s SAS 2
(CB Slots 5+6)
Warranty
Warranty period 3 years
Warranty type Onsite warranty
Warranty Terms & Conditions www.fujitsu.com/support
Product Related Services - the perfect extension
Support Pack Options X - Globally available in major business areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
Recommended Service X - 24x7 Onsite Service with 4h Onsite Response Time
Spare Parts availability 5 years
Service Lifecycle 5 years after end of product life
Service Weblink http://www.fujitsu.com/fts/products/product-support-services/
Data Sheet FUJITSU Server PRIMERGY BX900 S2 Blade System
Page 6 / 6 http://www.fujitsu.com/fts/products/computing/servers/primergy/blades/bx900s2/index.html
Contact
FUJITSU LIMITED
Website: www.fujitsu.com
2017-12-01 INT-EN
Fujitsu OPTIMIZATION Services
In addition to Fujitsu PRIMERGY BX900 S2,
Fujitsu provides a range of platform solutions.
They combine reliable Fujitsu products with
the best in services, know-how and worldwide
partnerships.
Fujitsu Portfolio
Built on industry standards, Fujitsu offers a full
portfolio of IT hardware and software products,
services, solutions and cloud offering, ranging
from clients to datacenter solutions and
includes the broad stack of Business Solutions,
as well as the full stack of Cloud offerings. This
allows customers to select from alternative
sourcing and delivery models to increase
their business agility and to improve their IT
operation’s reliability.
Computing Products
www.fujitsu.com/global/products/computing/
Software
www.fujitsu.com/software/
More information
Learn more about Fujitsu PRIMERGY BX900
S2, please contact your Fujitsu sales
representative or Fujitsu Business partner, or
visit our website.
http://www.fujitsu.com/primergy
Fujitsu green policy innovation
Fujitsu Green Policy Innovation is our
worldwide project for reducing burdens on the
environment.
Using our global know-how, we aim to
contribute to the creation of a sustainable
environment for future generations through IT.
Please nd further information at http://www.
fujitsu.com/global/about/environment
Copyrights
All rights reserved, including intellectual
property rights. Changes to technical data
reserved. Delivery subject to availability. Any
liability that the data and illustrations are
complete, actual or correct is excluded.
Designations may be trademarks and/or
copyrights of the respective manufacturer,
the use of which by third parties for their
own purposes may infringe the rights of such
owner.
For further information see http://www.fujitsu.
com/fts/resources/navigation/terms-of-use.
html
Copyright 2017 FUJITSU LIMITED
Disclaimer
Technical data is subject to modication and
delivery subject to availability. Any liability
that the data and illustrations are complete,
actual or correct is excluded. Designations
may be trademarks and/or copyrights of the
respective manufacturer, the use of which
by third parties for their own purposes may
infringe the rights of such owner.
More information
All rights reserved, including intellectual property rights. Changes to technical data reserved. Delivery subject to availability.
Any liability that the data and illustrations are complete, actual or correct is excluded.
Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their
own purposes may infringe the rights of such owner.
For further information see http://www.fujitsu.com/fts/resources/navigation/terms-of-use.html
Copyright 2017 FUJITSU LIMITED
