1
FLASHWAVE® 4500
Multiservice Provisioning Platform
shaping tomorrow with you
The Fujitsu FLASHWAVE 4500 MSPP is a unifying
platform for Carrier Ethernet and SONET derived
services from DS1 to OC-192. The platform
allows the convergence of data, synchronous
and asynchronous networks, while simplifying
network management.
2
Today’s optical transport networks are increasingly dened by the
unpredictable convergence of voice, data and video technologies. They
are shaped by accelerating service demands and shifting business
models that aim to reduce overall operational expenditures. To
succeed, national, local and multiservice providers need extremely
exible and scalable infrastructure equipment that will adapt to
emerging bandwidth uctuations.
Transition to packet services
The Fujitsu FLASHWAVE® 4500 Multiservice Provisioning Platform
(MSPP) provides a unied platform for both packet and SONET-derived
services. The FLASHWAVE 4500 MSPP solves major business and
network problems by reducing transport costs and power
requirements, conserving valuable space and simplifying network
management. The system allows convergence of data, synchronous
and asynchronous networks, increasing revenue without the expense
of overlay networks.
Converged Ethernet services
The MEF-certied FLASHWAVE 4500 platform supports a wide range of
Ethernet interfaces and features. Utilized as a hybrid TDM/packet
device, the inherent bandwidth granularity within a single system can
realize further savings.
A quantumleap in efciency and scalability
The FLASHWAVE 4500 MSPP provides a quantum leap in network
efciency. It delivers a exible, carrier-class multiservice optical
transport solution for a comprehensive range of applications. This
highly scalable system easily expands to become a Multiservice
Switching Platform (MSSP), supporting
ultra high-capacity grooming applications.
Such scalable expansion previously
required an expensive Digital Cross-
connect System (DCS).
Optical exibility and eensity
The FLASHWAVE 4500 system offers an extremely cost- and space-
effective solution for traditional SONET Add/Drop Multiplexer (ADM)
applications. Its architecture supports advanced functionality, such as
high-density Ethernet transport, data aggregation, versatile multirate
optical interfaces and optional integrated DS1/DS3 grooming.
The FLASHWAVE 4500 platform enables you to:
•  Migrate TDM to packet with efcient Gigabit Ethernet (GbE) streams
within the SONET layer.
•  Unify service delivery and applications with a single, exible
multirate card (OC-3 to OC-48).
Trusted to deliver with proven reliability
Fujitsu has deployed more than 400,000 Network Elements (NEs)
throughout every sector of the communications market in North
America. Our platforms have also been
proven via rigorous independent
assessment. One example is testing of
the FLASHWAVE 4500 system by the U.S.
Defense Information Systems Agency
(DISA)-sanctioned Joint Interoperability
Test Command (JITC) for use in the DISA
Defense Information System Network
(DISN).
FLASHWAVE® 4500
Multiservice Provisioning Platform

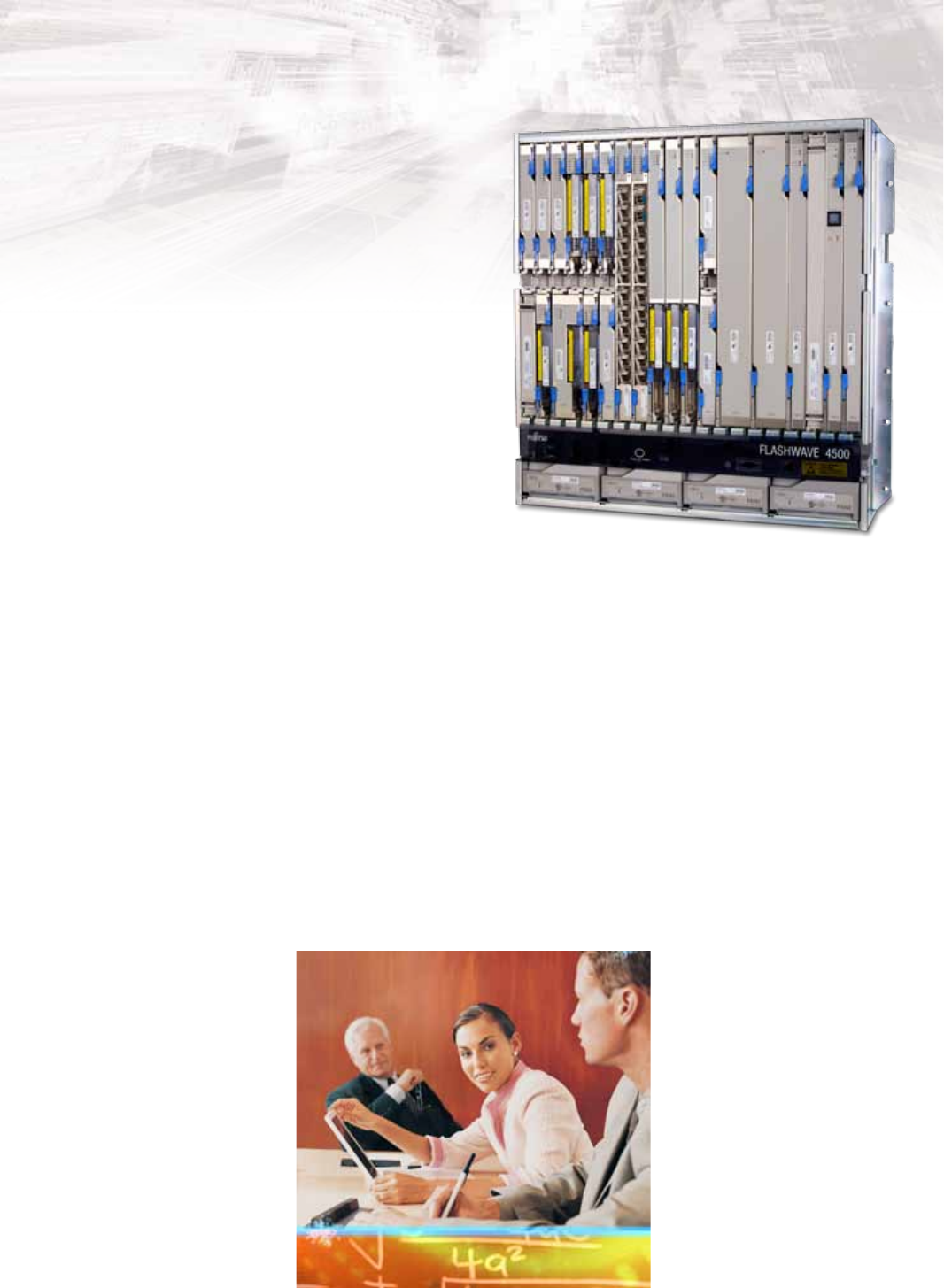

FLASHWAVE 4500 single-shelf conguration
Migration to Ethernet
3

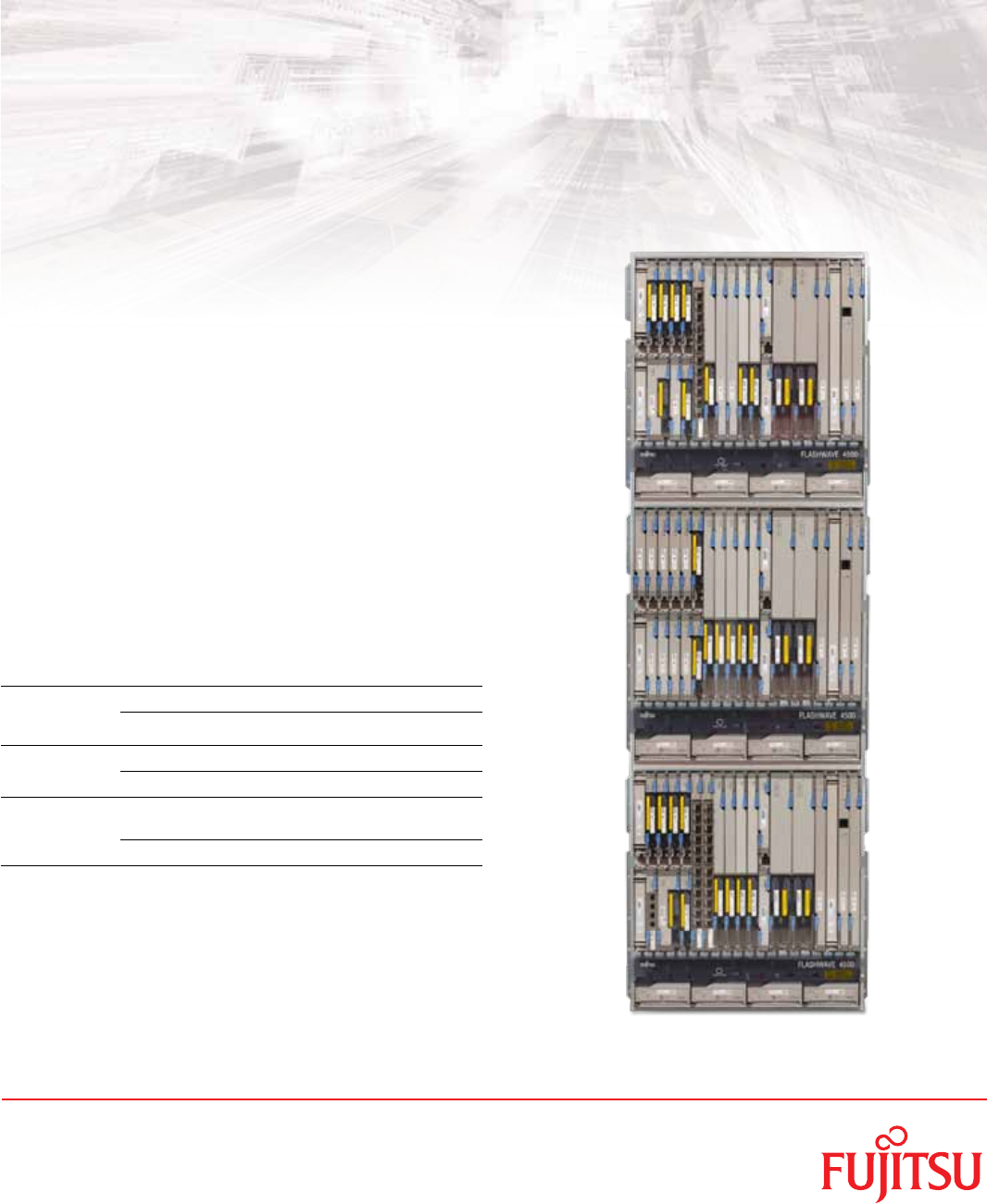

Future-proof strategy, scalability
The FLASHWAVE 4500 system’s switch fabric units match system
capacity to that of the network, helping to control capital outlay. The
platform enables an elegant scalable solution, allowing grooming
capacity to be added as needed. This architecture scales from MSPP
(70 Gbps) to MSSP (300 Gpbs) single-rack congurations, protecting
initial capital investments. The system integrates multiple service,
transport and grooming elements into a single NE. A centralized
non-blocking STS-1 switching architecture, combined with an optional
40 Gbps VT1.5 switching fabric, provides exible grooming within the
STS-1 to ensure maximum use of available bandwidth.
Ethernet exibility, aggregation
The FLASHWAVE 4500 system enables exible management and
cost-effective transport of Ethernet services. Packet transport efciency
is optimized by utilizing features such as VCAT, LCAS, & RPR. The
platform’s Trunking Port (TPORT) function can efciently aggregate
multiple VLAN and EoS WAN services onto a single GbE LAN facility.
This capability is ideal for applications that require Ethernet
aggregation, such as wireless backhaul. TPORT functionality also
reduces routers/switch ports, external cabling and FLASHWAVE 4500
system interface ports. Optional redundant GbE hand-offs provide
facility and module protection for mission-critical applications.
Key technical advantages
The FLASHWAVE 4500 platform supports a wide range of services,
while improving the bottom line:
• Integrated MSPP and high-density MSSP on a single platform
•  Modular and exible multirate service interface to conserve shelf
real estate
• Tunable optics for reduced sparing inventories
•  Next-Generation data, video and voice services, plus operational
continuity with existing networks
•  Diverse MEF-9 and MEF-14 certied E-Line and E-LAN services over a
reliable SONET platform
Key network benets
The FLASHWAVE 4500 platform delivers a full range of services and
architectures utilizing SONET and Ethernet technologies:
•  Full Line-Rate Gigabit Ethernet provisioning over all SONET/DWDM
backbones
•  Advanced service aggregation and grooming
(DS1, DS3, STS-1, optical and Ethernet)
• Simplied network management and visibility
(performance monitoring data)
•  Converged data, synchronous and asynchronous networks without
expensive overlay networks
FLASHWAVE® 4500
Multiservice Provisioning Platform
THE WINNING
COMBINATION
KEY NETWORK
BENEFITS
ADVANCED SERVICE
AGGREGATION & GROOMING
OVERLAY
NETWORKS
MODULAR/FLEXIBLE
MULTIRATE SERVICE
INTEGRATED
MSPP/MSSP
DIVERSE
SONET SERVICES
NEXT-GENERATION
SERVICES
INVENTORY
REDUCTION
FULL LINE-RAT E
GIGABIT ETHERNET
SIMPLIFIED
NETWORK MANAGEMENT
Optimized for Efficiency
4
Wireless backhaul
For wireless-carrier backhaul services, the FLASHWAVE 4500 is the
transport platform of choice, delivering Ethernet aggregation and TDM
grooming. The platform enables a smooth migration in supporting an
increasing amount of data over the wireless infrastructure at
optimized cost.
Core and dedicated rings
Optical exibility and density, dependability and cost efciency make
the FLASHWAVE 4500 platform ideal for incumbent national carriers
deploying core, dedicated ring and path-protected mesh topologies.
Multiservice transport
With a single multirate card, the FLASHWAVE 4500 platform provides
the ultimate in optical exibility, easy sparing and low maintenance
costs.
Transition to broadband
The FLASHWAVE 4500 system is the ideal migration platform to assure
a smooth transition to a more packet-centric network. The platform
simultaneously maintains important revenue-bearing OC-n/TDM
services.
DCS and optical hubbing
The FLASHWAVE 4500 system supports optical hubbing of OC-
3/12/48/192 rings. This enables trafc aggregation and grooming
across multiple networks when utilized with the inherent DCS
functionality.
FLASHWAVE® 4500
Multiservice Provisioning Platform

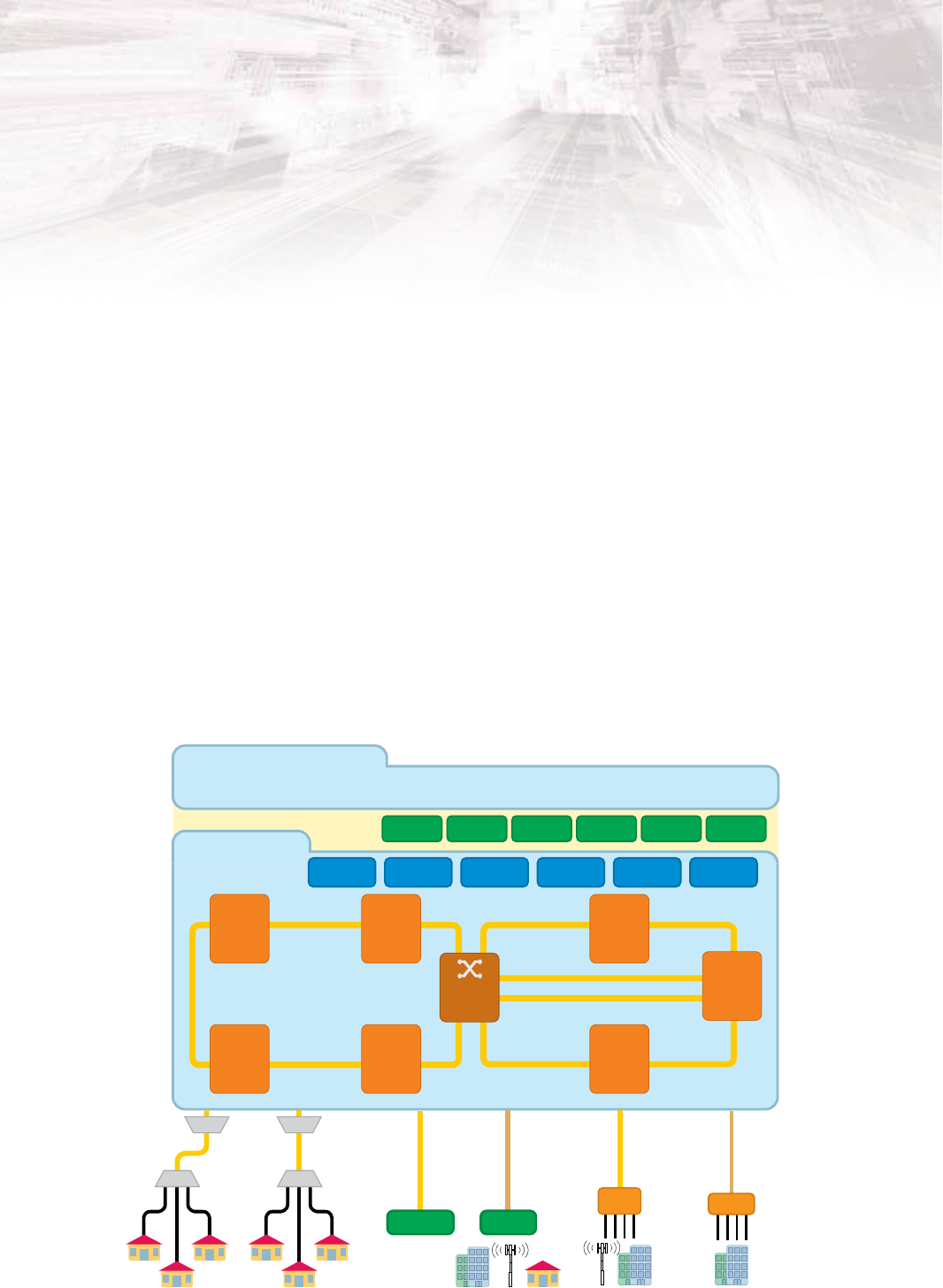

Critical network applications
Metro Network
Transport Network
DWDM/SONET
Edge
MSPP
IP/EoTDM
ATM
VOIP
Softswitch
Ethernet
Switch
Video Hub
Office
CO/HUB/
DCS Mesh/DPPM
Optical
Hub
Transparent
LAN
VOD
Applications
IPTV
Video VPN PSTN
EoCu
OC-192
BLSR
OC-48
Ring
OC-3/12
UPSR
Ethernet,
TDM, WiMAX
Data, Voice
and Video
Ethernet
Services
DSn
xWDM
Ethernet
DSL/
PON
Broadband/TV
PON
OC-n
T1
IAD
FLASHWAVE
4500
MSPP
FLASHWAVE
4500
MSPP
FLASHWAVE
4500
MSPP
FLASHWAVE
4500
MSPP
FLASHWAVE
4500
MSPP
FLASHWAVE
4500
MSPP
FLASHWAVE
4500
MSPP
FLASHWAVE
4500
MSSP
Scalable, dependable, cost-effective
5
Fujitsu offers a broad selection of professional services to assist at
every stage in a network’s evolution and operation. From planning
through deployment and ongoing maintenance to future
enhancements, Fujitsu Network Life Cycle Services are available
whenever needed. Our comprehensive range of services includes
network and system design, training, customized deployment, craft
interface software, migration planning and more. Your Fujitsu sales
representative can guide you in selecting the right service options for
your business.
Popular planning and deployment services for the FLASHWAVE 4500
platform include:
•  NETSMART® 1500 Network Management System (NMS) –
Simplify Operations, Administration, Maintenance and Provisioning
(OAM&P) through a secure point-and-click interface.
•  Advance Hardware Replacement – Ensure uninterrupted operation
with spares supplied within four hours or by the next business day.
•  Remote Technical Assistance – Our Technical Assistance Center is
your central point of contact for resolving network issues in
collaboration with highly trained Fujitsu engineers—24 x 7 x 365.
Fujitsu Maintenance and Support Program
For a complete professional maintenance solution, the Fujitsu
Maintenance and Support Program has the right combination of
exibility and comprehensive assurance. Choose the level and types of
service you need to supplement your own resources. The Maintenance
and Support Program helps keep your network running smoothly,
provides critical care and protects the longevity of your investment.
Network Operations Center
With a full range of vendor-independent network fault and
performance monitoring features, the Fujitsu Network Operations
Center (NOC) offers guaranteed, round-the-clock system protection.
Our reliable NOC facility is available as a primary or supplemental
operations resource. This service not only helps you control costs and
maintain high levels of customer satisfaction, it also provides
trustworthy and reliable after-hours and emergency coverage.
FLASHWAVE® 4500
Multiservice Provisioning Platform
Network life cycle services
6
FLASHWAVE® 4500
Multiservice Provisioning Platform
Architectures • Terminal
• Linear ADM (1+1)
• Unidirectional Path Switched Ring (UPSR)
•  Two Fiber-Bidirectional Line Switched Ring (2F-BLSR)
•  Four Fiber-Bidirectional Line Switched Ring (4F-BLSR)
• Dedicated Path Protected Mesh (DPPM)
• Resilient Packet Ring (RPR)
Interfaces DS1 64-pin AMP® CHAMP connectors
DS3/EC1 BNC connectors
OC-3/STM-1 SC for dual unit; LC for quad unit,
MPO connector for 8-port unit
1310 nm wideband
OC-12/STM-4 LC, FC, SC or ST for single unit;
LC for quad unit;
MPO connector for 8-port unit
1310 nm wideband
1550 nm wideband (single unit only)
OC-48/STM-16 LC, FC, SC or ST connectors
1310 nm wideband
1550 nm tunable narrowband
(8 λ @ 50 GHz)
OC-192/STM-64 LC, FC, SC or ST connectors
1310 nm wideband; 1550 nm wideband
1550 nm tunable narrowband
(4 λ @ 100 GHz)
1550 nm full band tunable to 88 λ
(@ 50 GHz spacing) G.709 compliant
Ethernet (EoS) RJ-45 connectors for 10/100Base-T Ethernet;
LC or SC connectors for Gigabit Ethernet
Ethernet
Aggregation
(trunking port,
RPR)
LC connectors for dual port unit 850 nm
wideband; 1310 nm wideband
High/Low Order Aggregation
Switching
Maximum Switching Capacity
Specication Single
MSPP
Main Shelf
MSSP/MSPP
Double Shelf
MSSP
Triple Shelf
MSSP
Switch
Capacity 70 Gbps 140 Gbps 220 Gbps 300 Gbps
STS-1
Cross-
Connects
1344 x
1344
2688 x 2688*
5760 x 5760** 5760 x 5760 5760 x 5760
VT1.5
Cross-
Connects
5376 x 5376
(10 Gbps)
21,504 x 21,504
(40 Gbps)
21,504 x 21,504
(40 Gbps)
21,504 x 21,504
(40 Gbps)
* Requires 140 Gbps switch fabric
** Requires 300 Gbps switch fabric
.
Protection DS1 1+1 or unprotected
DS3/EC1 1:n (n=1 to 6) or unprotected
DS3 Transmux 1+1 or 1:n (n=1 to 6)
OC-3/STM-1 1+1, UPSR, DPPM or unprotected
OC-12/STM-4 1+1, UPSR, DPPM or unprotected
OC-48/STM-16 1+1, UPSR, 2F-BLSR, DPPM
or unprotected
OC-192/STM-64 1+1, UPSR, 2F-BLSR, 4F-BLSR,
DPPM or unprotected
Ethernet RPR or unprotected
Port Link Aggregation or
Unit Link Aggregation
Switch matrices 1+1
Synchronization 1+1
Synchronization • Internal Stratum 3 timing source
• Synchronization Status Messaging (SSM)
•  DS1 Building Integrated Timing Supply (BITS) primary
and secondary clock output/input
• Line timing
Maximum Number of Unprotected (Protected) Service Interfaces
Type Ports/
Card
Single Shelf
MSPP/MSSP
Double
Shelf
MSSP
Triple
Shelf
MSSP
DS1 (Integrated) 28 84 (84) 168 (168) 252 (252)
DS1 (High-Density) 168 6720 13,440 20,160
DS3/EC1 8 96 (96) 192 (192) 288 (288)
DS3 Transmux 12 144 288 432
OC-3/3c/STM-1 8 160 (80) 320 (160) 480 (240)
OC-12/12c/STM-4 8 160 (80) 320 (160) 480 (240)
OC-48/48c/STM-16 2 40 (20) 80 (40) 120 (60)
OC-192/192c/STM-64 1 10 (5) 20 (10) 30 (15)
10/100Base-T Ethernet 4 (8) 80 160 240
Gigabit Ethernet 2 40 80 120
Features and specifications
7
FLASHWAVE® 4500
Multiservice Provisioning Platform
Operations •  In-service expansion from MSPP to MSSP with common
operations benets
• Standard RPR embedded management plane
• TL1 protocol over X.25, OSI/LCN or IP/LCN
• Simple Network Management Protocol (SNMP)
• TCP/IP and X.25 gateway functionality
• Software download and remote memory backup/restore
•  Managed via NETSMART 500 Element Management
System (EMS) and NETSMART 1500 NMS
• DS1, DS3, OC-3 and OC-12 digital test access
• PM Threshold Provisioning on a per facility basis
•  G.709 compliant digital wrapper for narrowband OC-192
optical channel adaptation
• Automatic equipment protection group creation
• Interoperable with all Fujitsu transmission products
• Full suite of in-service hardware and software upgrades
• NEBS Level 3 compliant
• Telcordia OSMINE compliant
Power
Consumption/
Heat Dissipation
Per shelf (typical) 400 W (1364 BTU/hr)
Power Input –48 V DC (A and B)
Operating
Environment
Temperature 0 to 50 °C (32 to 122 °F)
Humidity 5 to 95% (non-condensing)
Physical
Characteristics
Dimensions (H x W x D) 22.75 x 21.5 x 12”
(578 x 546 x 305 mm)
Weight (fully loaded) 137 lb (62 kg)
Features and specifications
FLASHWAVE 4500 multishelf conguration
Fujitsu Network Communications Inc.
2801 Telecom Parkway, Richardson, TX 75082
Tel: 800.777.FAST (3278) Fax: 972.479.6900
us.fujitsu.com/telecom
© Copyright 2010 Fujitsu Network Communications Inc.
FLASHWAVE® is a trademark of Fujitsu Network Communications Inc. (USA).
FUJITSU (and design)® and “shaping tomorrow with you” are trademarks of Fujitsu Limited.
All Rights Reserved. All other trademarks are the property of their respective owners.
Conguration requirements for certain uses are described in the product documentation. 
Features and specications subject to change without notice.
12.0/R11.1/07.10

Navigation menu
