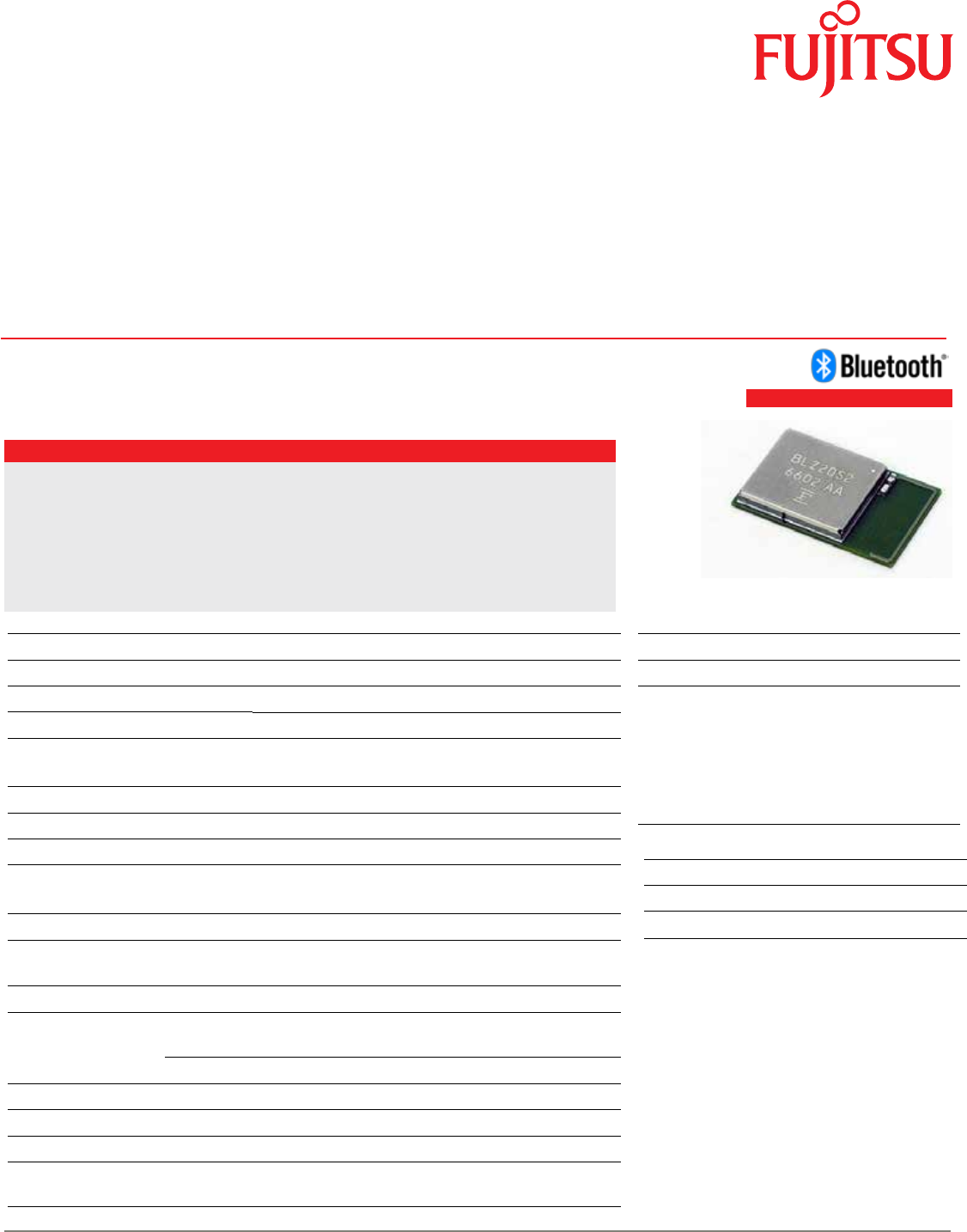

Data Sheet FUJITSU Component Wireless Modules FWM7BLZ20-109049 / FWM7BLZ20-109062
FUJITSU Component Wireless Modules
Bluetooth¬ Version 4.2 (low energy)
(Blank Version & Central/Peripheral)
FWM7BLZ20-1090xx
Page 1 of 2 ASIA PACIFIC: www.fujitsu.com/sg/products/devices/components EMEA: www.fujitsu.com/uk/components AMERICAS: http://us.fujitsu.com/components
Overview
Compact Bluetooth Low energy module with high performance processor, half the power
consumption than its predecessor and double the transmission distance.
Features
■Bluetooth specification Version 4.2 (LE single mode) compliant
■Based on Nordic Semiconductor nRF52832
(ARM Cortex-M4F, 512KB flash, and 64KB RAM embedded)
■Complete Bluetooth protocol stack provided by Nordic Semiconductor
■External interface: 30 GPIO pins for NFC, SPI, TWI, UART, and ADC
■Out-of-Band pairing by use of NFC-A Tag interface FWM7BLZ20-109049
RoHS compliant
Note: Bluetooth SIG registration is required to use this module’s QDID.
Item 
 FWM7BLZ20-1090xx
 
Softdevice S132 (ver. 3.0.0 or later)
Bluetooth Bluetooth

RAM 
 
 
 

 
-

C to +85C
 

Tx mode 

Rx mode 
 30

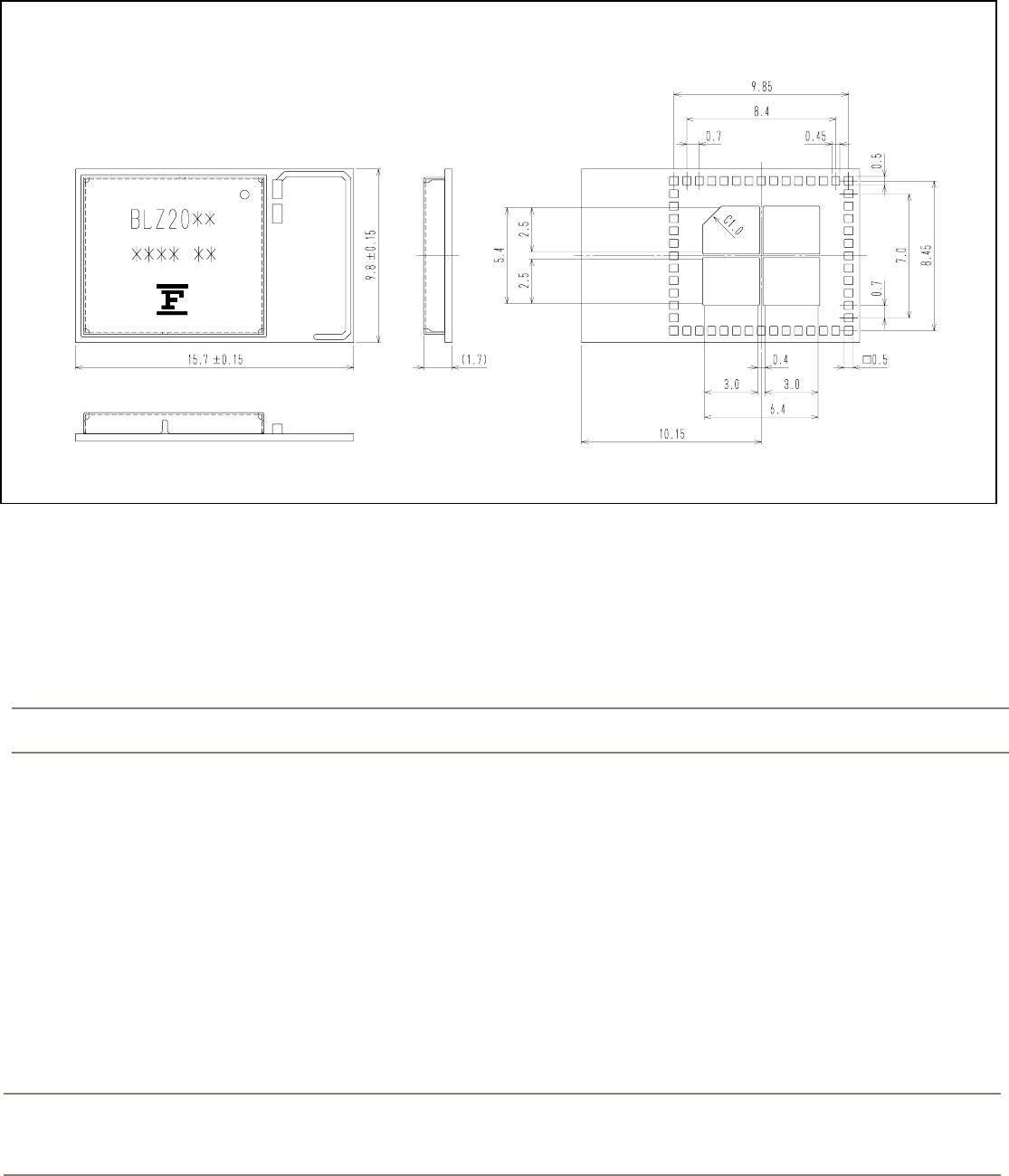

 15.7 x 9.3 x 1.7 mm
 
 


 
 
Contains:
- MBH-FUJI2-E1
(USB cable is included)
Evaluation board
- FWM7BLZ20-DAU2-EB2 Module mounted on
daughter board
 
 S132 ver. 3.0.0
FWM7BLZ20-109062 S132 ver. 3.1.0
Data Sheet FUJITSU Component Wireless Modules FWM7BLZ20-109049 / FWM7BLZ20-109062
Page 2 of 2 ASIA PACIFIC: www.fujitsu.com/sg/products/devices/components EMEA: www.fujitsu.com/uk/components AMERICAS: http://us.fujitsu.com/components
Note: The Bluetooth¬ word mark and logos are registered trademarks owened by Bluetooth SIG, Inc. and any use of such marks by Fujitsu Component is under license. Other
trademarks and trade names are those of their respective oweners.
