Furrion FOC48TA-BL Digital Wireless Observation System. User Manual instruction manual
Furrion Ltd. Digital Wireless Observation System. instruction manual
Furrion >
instruction manual
Digital Wireless Observation System
Furrion FOS48TA-BL
Digital Wireless Observation System
Furrion FOS48TAPK-BL
Digital Wireless Observation System
With FRCBRKT-BL Mounting Bracket pre-installed.
This manual is for use with
Operating and Installation
Instructions
2
Welcome
Furrion FOS48TAPK-BL Digital Wireless Observation System
Includes FRCBRKT-BL Mounting Bracket
Furrion FRCBRKT-BL Digital Wireless Observation System
For vehicles with FRCBRKT-BL Mounting Bracket pre-installed.
Thank you for purchasing a Furrion Digital Wireless Observation System.
Furrion’s digital wireless observation system is one of the easiest rear view camera
systems to install in your trailer, truck or RV. All that is required is a connection of a
single DC power supply to the rear camera from a running light power source.
The Furrion digital wireless observation system uses digital wireless technology
giving the major benet of superior signal transmission with low interference on
a single bandwidth channel. This means the Furrion camera unit eliminates the
interferences which other analogue signal systems are subject to, meaning the
Furrion digital system gives you a clearer picture of what is behind you no matter
where you are.
This Furrion system with integrated antenna attached to the camera has been
specically designed for use on trailers, trucks, 5th wheels, caravans and RV’s.
This system has been designed for extended range applications or security
monitoring.
Before installation and use, please read all instructions carefully. This will ensure
safe use and reduce the risk of injury to persons.
3
IMPORTANT SAFETY INSTRUCTIONS.................................................................4
System Parts............................................................................................................5
Installation Mounting Bracket...................................................................................6-7
Installation Camera Wiring..........................................................................................7
Installation Mounting Bracket cont..............................................................................8
Camera Installation..................................................................................................9
Camera Positioning...............................................................................................10
Monitor Installation................................................................................................11
Pairing..............................................................................................................12
Picture Control.......................................................................................................13
Trouble Shooting....................................................................................................14
Specications....................................................................................................15
Contents
4
IMPORTANT SAFETY INSTRUCTIONS
READ THESE INSTRUCTIONS CAREFULLY BEFORE
INSTALLING OR USING THE SYSTEM
Caution
There are no user serviceable parts
in the Furrion Digital Wireless Obser-
vation System. Do not disassemble or
attempt any repairs.
There are no fuses or disconnects
in the Furrion Digital Wireless Obser-
vation System. Install external fuses/
breakers as required.
Electrical Safety
Insulate unconnected wires with vinyl
tape or similar.
A battery or 12 or 24V DC electrical-
system presents a risk of electrical
shock or burn hazard. Ensure all power
sources are isolated before installa-
tion.
Use insulated tools when working
with a power supply.
camera only to a circuit provided with
a maximum branch-circuit over current
protection device.
Installation
Ensure correct polarity of DC power
supply to the camera
Installation & wiring of this product
require specialist skill. To ensure prop-
er installation and to ensure safety,
please seek a specialist technician.
Only use parts supplied or recom-
mended.
Use watertight connectors for
camera power supply cable to power
source.
Use 16AWG or larger cables to sup-
ply power to the camera unit.
Connect rear the camera to a 8-
30V DC circuit only.
Don’t route wiring in areas that may
get hot.
Take necessary precautions when
working at elevated levels.
Do not wash the vehicle with an
automatic car wash or high pressure
water. This may damage the camera.
Care
Use a wet cloth to clean the cam-
era lens. A dry cloth may scratch the
camera lens.
-
bre cloth, do not use course or abras-
sive materials.
Do not use alcohol or amonia based
products to clean the LCD screen.
Only use specialist screen cleaning
products.
5

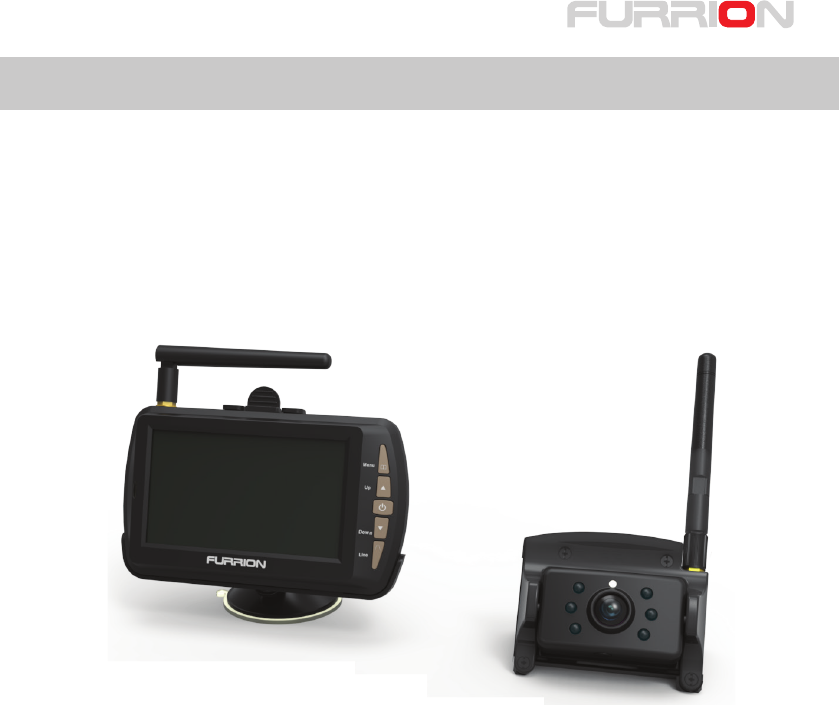

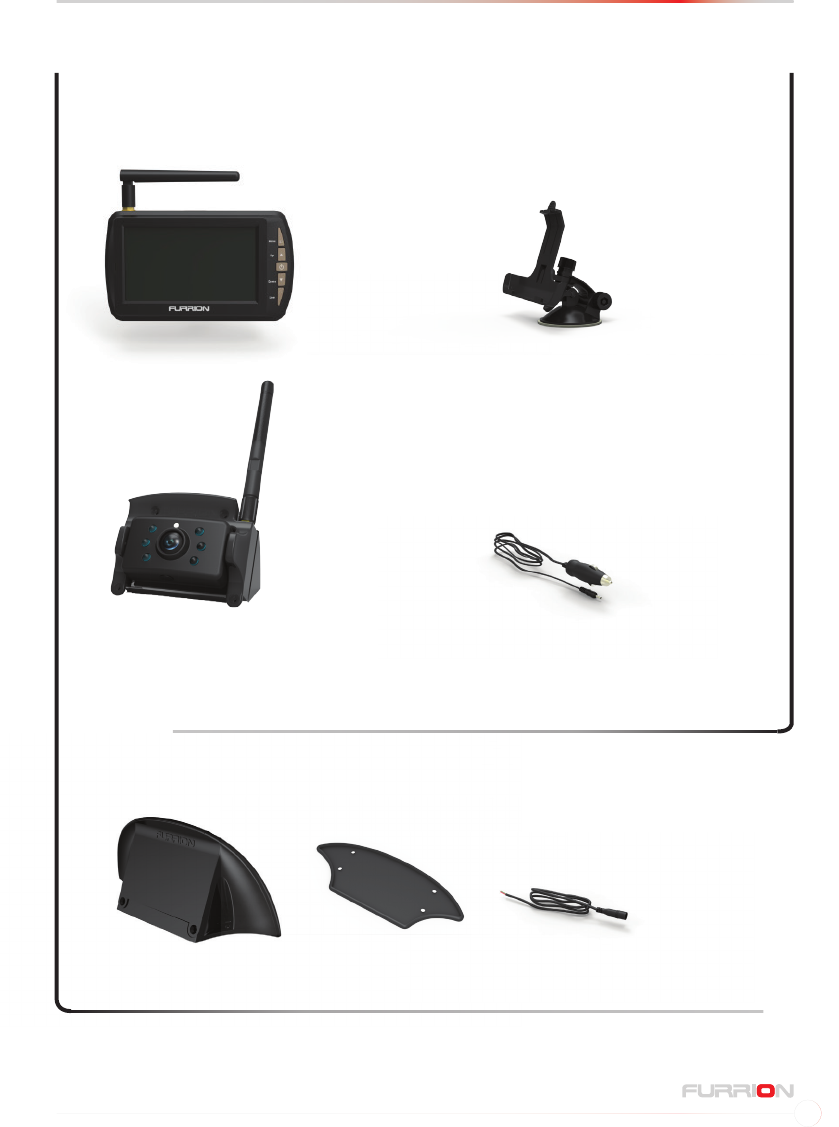

System Parts
LCD Monitor Monitor Stand
Monitor Power Cable
Camera
Camera Bracket Camera Bracket
Gasket
Camera Power
Cable
FOS48TAPK-BL
Digital Wireless
Observation System
FRCBRKT-BL
Digital Wireless
Observation System
6
Installation
Mounting Bracket
(If the FRCBRKT-BL Mounting is pre-installed please go to page 9)

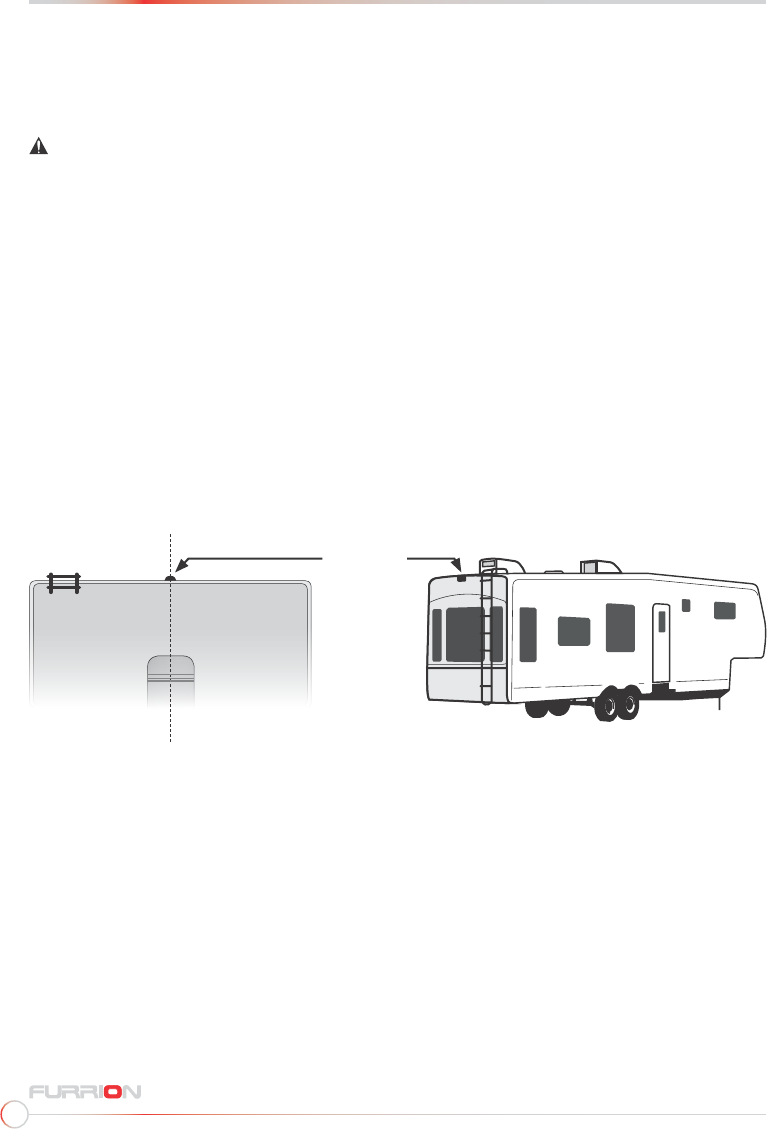

Suitable installation position
• Where practical, as high as possible
at the rear of the vehicle.
• In the horizontal centre of the vehi-
cle or as close as.
Caution
• Ensure there are no electrical
cables, gas lines, pipes or other im-
portant parts behind where the drill
holes will be.
• During installation, remove the key
from the ignition & isolate the 12v or
24v power source.
Suitable installation position..
• Mount the camera directly above
the red running lights.
• At least 2” away from any lighting.
Close proximity to lights may cause
image blooming, blurring and re-
duced night vision performance.
• The area should be at with enough
surface area to accommodate the
bracket.
• The surface area should be clean &
dry for a watertight installation.
• Ensure that power can be fed to
the installation area from within the
vehicle.
Camera
Bracket
Vehicle Centre
Vehicle Roof
7

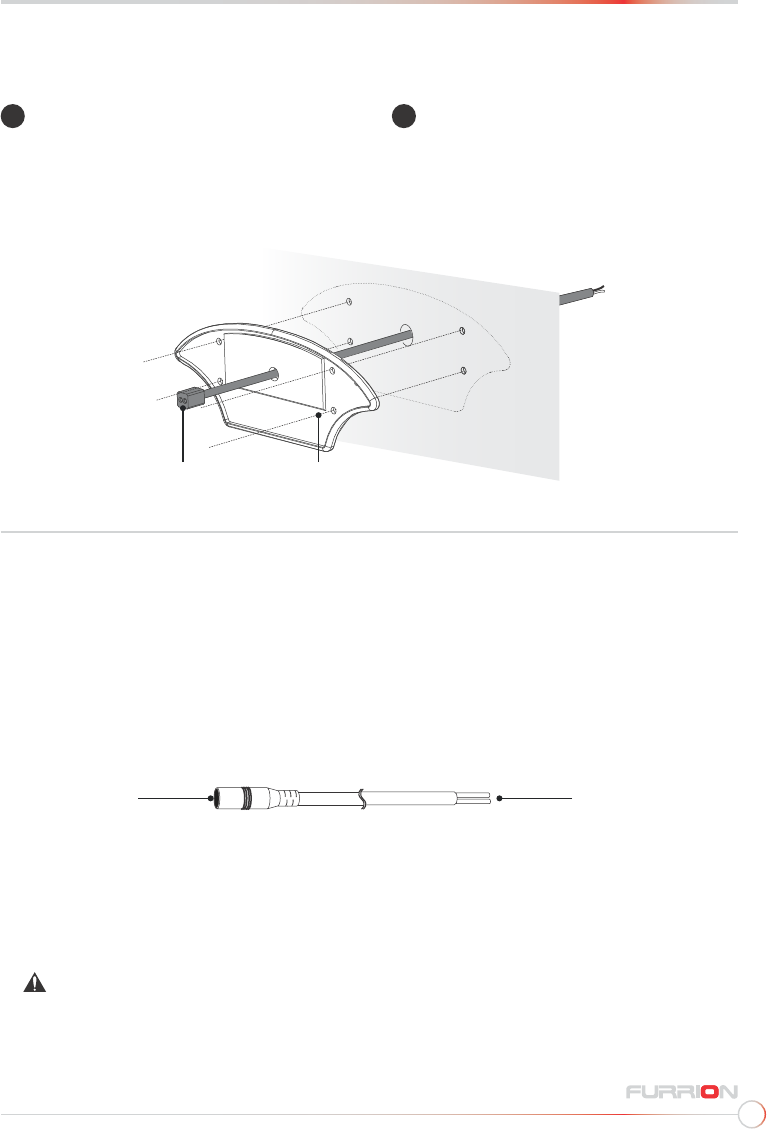

Installation
1 Use the Bracket Gasket to
mark and outline where the centre
hole will be drilled then drill a 5/8th”
hole.
2 Feed the supplied 6ft Camera
Power Cable through the gasket.
Ensure the bare wire end of the cable
goes into the vehicle and the at side
of the gasket faces inward.
Bracket
Gasket
Vehicle
Wall
Camera Power
Cable
Mounting Bracket
Wiring the Camera
Electrical Power
• To use the Digital Wireless Observation System for observation purposes, it
needs to be wired to a constant 12V/ 24V power source. e.g If connected to run-
nig lights, the running lights must be on for the system to operate.
• To use it as a reversing camera, it can be wired to a circuit that comes on when
the vehicle is reversing.e.g reversing lights
Connects to
Camera
Connects to
12V/ 24V
Power Supply
• Ensure correct polarity when wiring
the cables. RED + BLACK -
• Wire connections & terminals must
be sealed to be waterproof.
• When connecting wires, ensure
the circuit is isolated by disconnect-
ing the - negative terminal on the
battery.
8

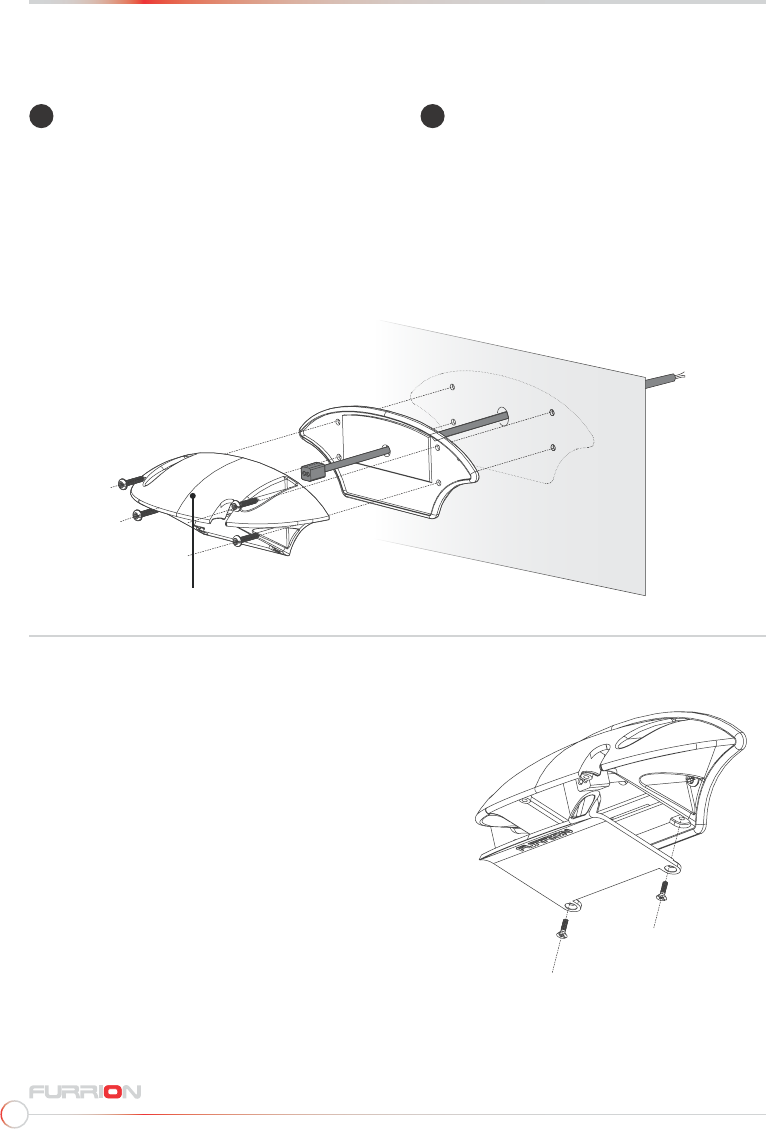

3 Mount the gasket & bracket to the
rear of the vehicle. Ensure that the
Camera Power Cable does not get
caught between the vehicle wall &
gasket or the Bracket & Gasket.
3 Fix the Gasket & Bracket to the
rear of the vehicle using 4 x #2 head
3/4” self tapping screws. (other screws
can be used depending on side wall
material.) Ensure the sealing lip
around the edge of the gasket is seat-
ed over the edge of the bracket before
fully tightening the screws.
Vehicle
Wall
Bracket
Installation
Mounting Bracket
Mounting Bracket
If only installing the FRCBRKT-BL
Mounting Bracket, secure the Camera
Power Cable inside the mounting and
attach the cover.
9
Installation

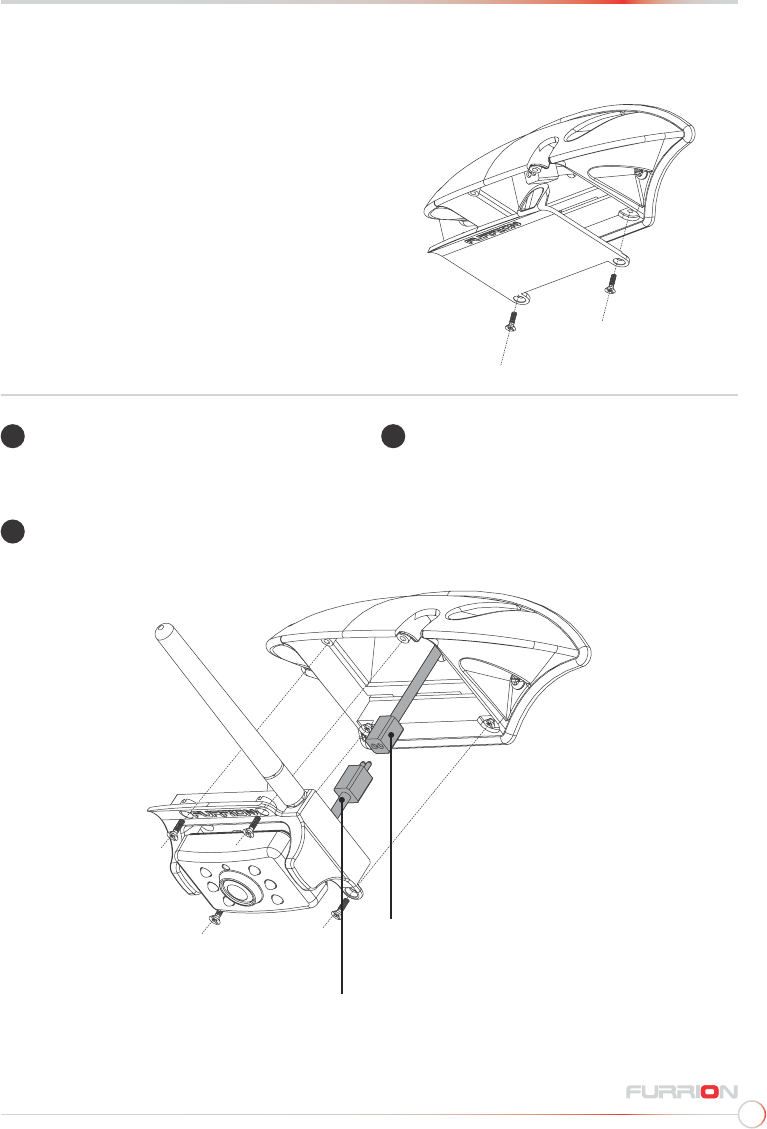

Camera Installation
FRCBRKT-BL Pre-install only
If installing to a pre-installed
FRCBRKT-BL Mounting Bracket,
remove the cover by unscrewing the 2
screws.
1 Locate the Camera Power Con-
nector from within the Bracket and
connect it to the Camera Plug.
2 Secure the camera to the Bracket
using the 4 screws.
Camera
Plug
Camera
Power
Connector
2 Ensure the camera antenna is
secured tight.
10
Installation
Camera Positioning

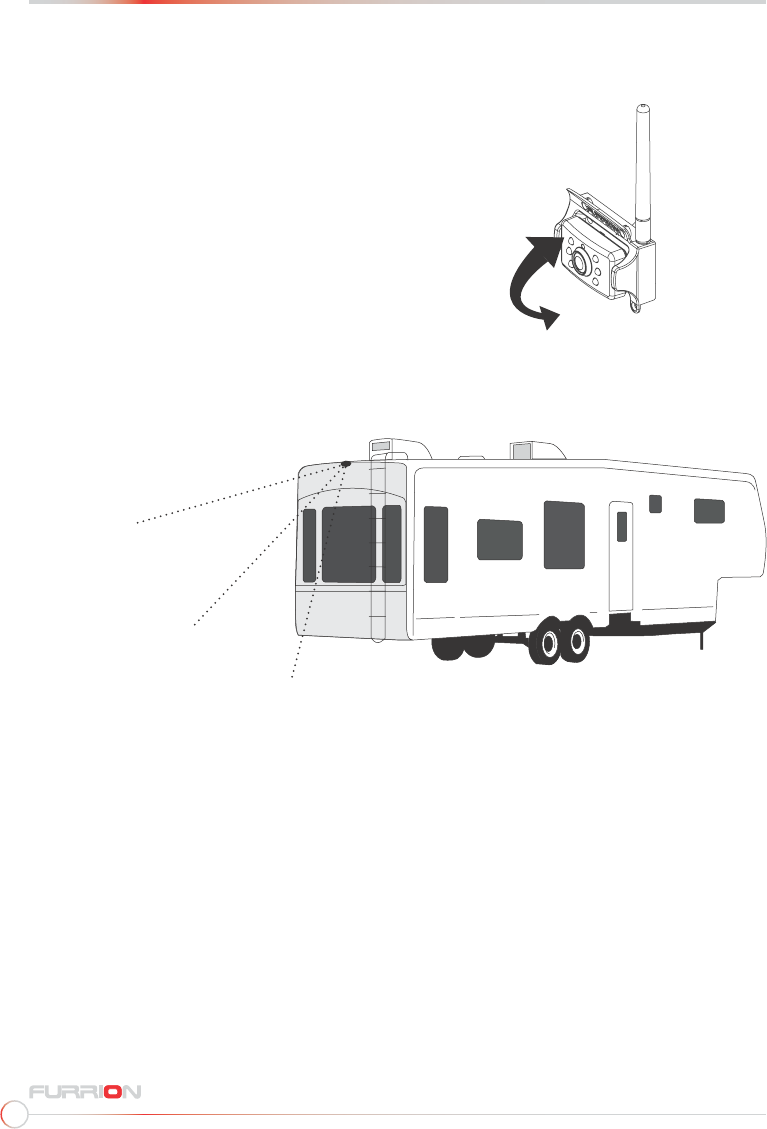

Positioning the Camera
• Adjust the camera up or down then
check the view via the monitor.
• If the camera is to be used as park-
ing camera, part of the vehicle, such
as the bumper, should be visible on
the monitor.
The camera can be tilted up & down to
obtain the best viewing angle.
11
Installation
Monitor Installation
Positioning the Monitor
• Ensure the the is placed so that it does not obstruct vision when driving.
• Do not place in an area where it might interfere with driving.
• The surface area should be clean, smooth & at.
Connecting the Monitor
• Route the power cable to the vehicle’s cigarette lighter socket/12/24V power
outlet. The cable must not interfere with the safe operation of the vehicle.\
• Insert the small 12/24 Volt DC plug of the power cable into the right side of the
monitor.
• Plug the 12/24 Volt cigarette lighter plug into the vehicle’s cigarette lighter
socket.

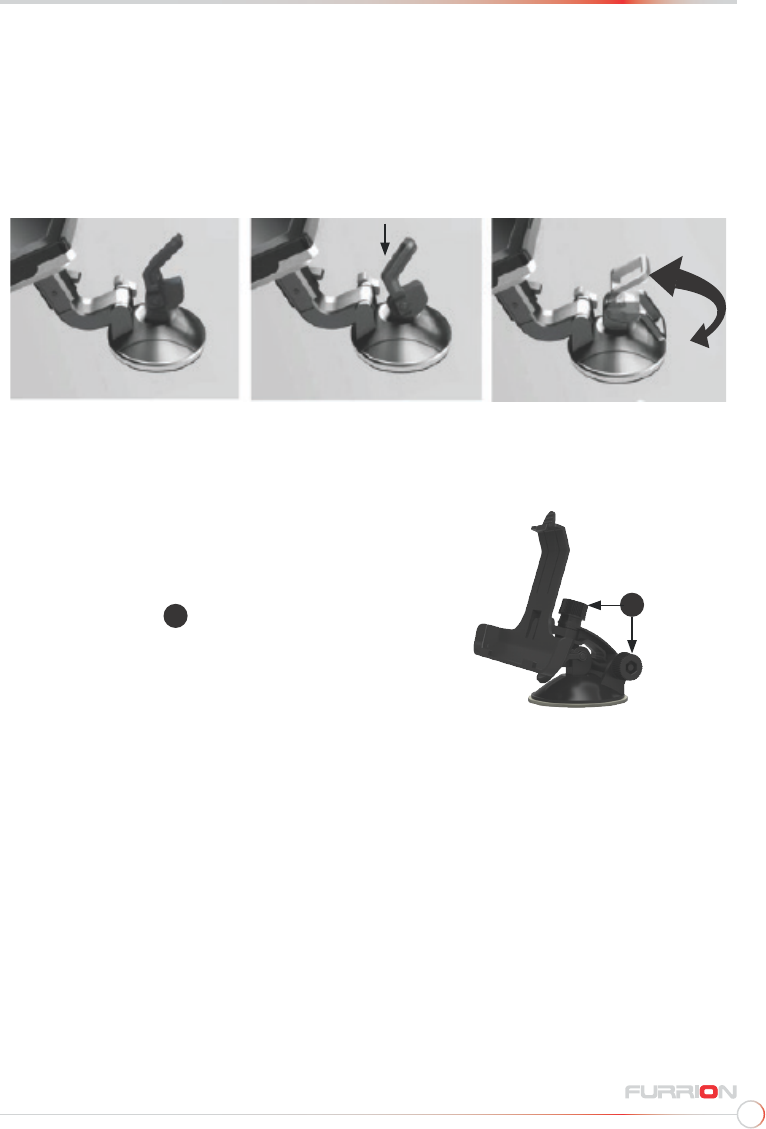

With the lock open,
position the mount.
Press mount down
against the surface.
Push the mount lock
down.
Adjusting the View Angle
• Swivel & Tilt the mount to set the
optimum viewing angle.
• Lock the position by tightening the
locking screws. 11
12
Operation

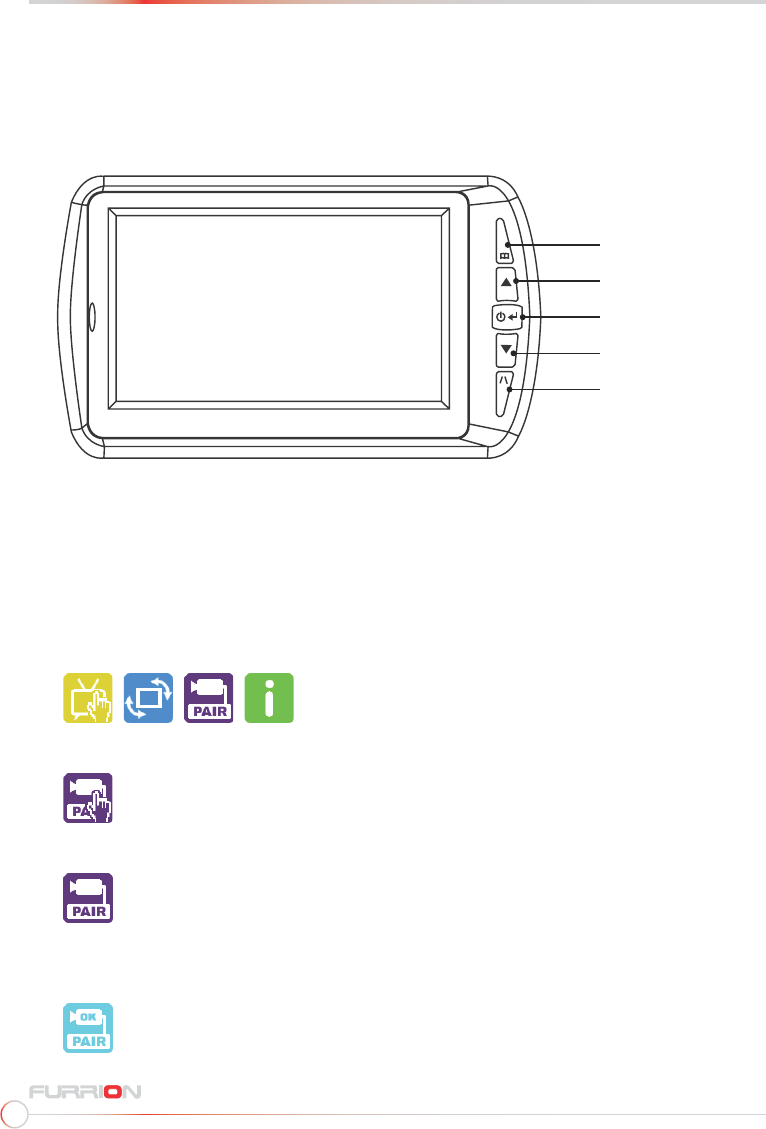

Pairing
Menu
Up
Down
Line
Menu/ Return
Up
Down
Line
Power/ Conrm
After installation, the camera & monitor need to be paired.
This only needs to be done once.
Pairing procedure
Ensure both the camera and monitor have power supplied.
The vehicle may need to be running
1. Bring the monitor to within close proximity for pairing.
2. Press the Power button to turn on the monitor.
3. Press the Menu button, this will bring up 4 icons on the screen.
4. Use the Up & Down buttons to scroll across to the Pair icon.
5. Press the Power/ Conrm button to start pairing. A Pair icon will be displayed.
6. Press the small button on the underside of the camera for 2 seconds.
7. An OK Pair icon will be displayed once pairing is complete.
13
Operation
Picture Control
Using the Up & Down buttons to navigate and adjust and the Power/ Conrm but-
ton to conrm selections, the monitors view settings can be adjusted to suit various
viewing preferences.
Picture Settings
Picture Rotation
Brightness
Contrast
Color
Pairing
PAIRING FAILED will appear on the monitor after 13 seconds if the pairing proce-
dure has been unsuccessful.
*For better pairing results, bring the monitor closer to the camera.
Unpairing
To unpair the camera from the monitor, exit the menu, press & hold Down for 5
seconds.
14
Troubleshooting
Problem Solution / Issue
Monitor won’t turn on -Check that power cable is connected
-Check the cigarette lighter has 12-14V DC Output
-Check the fuse in the cigarette socket adaptor
Camera & Monitor won’t
pair
-Check if the camera is receiving power
-Reduce the distance between the camera & moni
tor during pairing.
-Make sure to hold the camera pairing button for 2
seconds.
Intermittent/ Weak signal
icon appears correctly - it should be vertical.
Distance between camera & monitor is too great.
Interference from overhead power lines may be
affecting the signal.
Try unpairing and pairing.
15
Camera Monitor
Voltage DC8-30V DC8-30V
Current ≤300mA ≤200mA
Standby Current ≤1mA
Wireless Range ≤300M (outdoors) ≤300M (outdoors)
Wireless Frequency 2.4Ghz
Image Sensor 1/4” Color CMOS VGA
LCD Display 4.3” 480*272
Camera Max 25frames/sec VGA
f1.7mm, F2.0
IR
View Distance ≥1.5m
Brightness ≥ 2Lux
Receiver Sensitivity -78±3dBm
Working Temperature -10/+50 -10/+50
Furrion reserve the right to alter the information in this document without prior notice.
Furrion shall not be liable for technical or editorial errors or omissions contained herein.
16
Product: Digital Wireless Observation System(FOS48TA-BL)
Trade Name: FURRION
Model Name: FOS48TA-BL
Serial Model: FOD43TA-BL, FOC48TA-BL
This product is backed by Furrions 12 month product warranty
See warranty card for terms & conditions.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any
other antenna or transmitter.
This equipment should be installed and operated with minimum distance 20cm between the
radiator and your body.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the followingmeasures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
