User Manual
Designed for 5th Wheel, RV, Caravan and Trailer applications
Furrion’s new easy install wireless camera kit comes in two parts,
1. Furrion mount bracket prep kit. Part No. FRCBRKT-BL
2. Furrion Camera and Monitor Kit. Part No. FRC12TA-BL
Check if your RV or Trailer has been pre installed with the mounting bracket
prep kit.
Furrion Digital Wireless Camera System
Contents:
1. Safety Information
2. General Information
3. Installation instructions
4. Operation
5. Trouble shooting
6. Warranty
7. Technical Specification
1
WARNING: Indicates a potentially dangerous
condition. Use extreme caution when
performing this task.
CAUTION: Indicates a critical procedure for
safe and proper operation of the controller.
NOTE: Indicates a procedure or function that
is important for the safe and proper operation of
the controller.
General Safety Information
• Read all of the instructions and cautions in the manual
before beginning installation.
• There are no user serviceable parts inside the Furrion
Rear camera system Do not disassemble or attempt to
repair any part of the camera system.
• Disconnect all sources of power to the camera before
installing.
• There are no fuses or disconnects on the Furrion reversing
camera unit. Install external fuses/breakers as required.
• Do not allow water to enter the LCD Display.
•
Excessive heat can be caused from a loose connection.
Safety Instructions
Please Read these instructions carefully before installation and operating your
Furrion reversing camera unit.
The following symbols are used throughout this manual to indicate potentially
dangerous situations or mark important safety instructions.
Connect 12V power cable to the camera unit using waterproof
connectors.
2
Caution:
A battery or 12V DC electrical system presents a risk
of electrical shock or burn hazard. Ensure all power
sources are isolated before installation.
Warning:
These installation instructions are for the use by
qualified personnel only. To reduce the risk of electric
shock, do not perform any servicing other than that
specified in the operating instructions.
Caution:
To reduce the risk of fire, connect the camera only
to a circuit provided with a maximum branch-circuit
over current protection device.
Note:
Ensure to watertight connectors which connecting
camera power supply cable to power source.
Warning:
Use 16AWG or larger cables to supply power to
camera unit.
Warning:
Ensure to connect the rear camera to the correct
polarity 12V DC power supply. Red = Positive.
3
Installation Safety Precautions
Use correct size cable and connectors for suppling power
to your rear camera
Ensure the power supply circuit has circuit protection
Connect rear camera to a 12-14V DC circuit only
Use insulated tools when working with power supply
Use correct safety equipment when working at elevated levels
Ensure camera prep bracket gasket is correctly sealed and
weatherproof.
Ensure correct polarity of DC power supply to camera
4
General information
Overview:
Thank you for purchasing a Furrion reversing camera system.
Furrion’s reversing camera system is one of the easiest rear view camera
systems to install in your trailer, truck or RV. All that is required is a connection
of a single DC power supply to the rear camera from a reversing power
source.
The Furrion reversing camera system is using digital wireless technology
giving the major benefit of superior signal transmission with low interference
on a single bandwidth channel. This means the Furrion camera unit eliminates
the interferences which other analogue signal systems are subject to, meaning
the Furrion digital system gives you a clearer picture of what is behind you no
matter where you are.
This Furrion system with integrated antenna attached to the camera has been
specifically designed for use on trailers, trucks, 5th wheels, caravans and RV’s.
This system has been designed for extended range applications or security
monitoring.
Features:
This unit can be used as a reversing camera, tow hitch monitor or security
monitor.
This unit features:
Wide angle viewing lens
Night vision LED lights
Camera mounting bracket to reduce glare
Digital wireless signal for clear picture quality
Easy installation
Adjustable camera angle
5
Installation
FRCBRKT-BL
Furrion reversing camera mounting bracket installation:
The Furrion reversing camera prep kit includes:
1 x Reversing camera mounting bracket
1 x Mounting bracket gasket
1 x 6ft power cable
1 x Removable Bracket cover
When wiring the Furrion camera system as a reversing camera,
the power supply for the camera must come from a reversing
indication power source (backup lights) or transmission wiring.
The power source can also be from the 7 way connection on your
trailer using the green wire from the center pin for the back up light
power source or from directly at the back up tail light circuit which
feeds to the reversing bulbs.
For reversing camera use, mount the camera bracket on a elevated
position at the rear of the trailer or RV.
Camera viewing
Furrion camera mounted correctly
Connect camera power cable to reversing backup lights or 7 way cable
This means the camera will only turn on when reverse gear is selected.
Do not mount camera in a low position..
For reversing camera function, do not connect camera to a constant power
source.
For best results, mount the camera in a high position to increase the
viewing angle.
6
Mounting and wiring the camera prep bracket kit
Wiring:
For using your camera kit as a reversing camera system:
1. Isolate the 12V power system
2. To provide power to the wireless camera for use as a reversing camera,
run a 2 core 16AWG internal cable from your reversing (back up) light on
the rear of your trailer, truck or RV, or from your 7 way cable reversing
power supply.
(7way reversing connections.. center pin #7 positive + Ground pin #1 negative).
3. Connect the camera prep kit power cable to the reversing wire from
step 2. Supplied 6 ft power cable for the camera:
Red = Positive
Black = Negative
4. Find a suitable position to mount your camera mounting bracket on the
rear of your trailer or RV. Make sure the mounting position is at the
center line of the RV and is positioned as high as possible.
Ensure the mounting surface is flat and has enough surface area for the
entire mounting bracket to fit.
5. Drill a 5/8” through hole on the rear of the trailer or RV in the position
where the camera is to be mounted. Use a grommit to protect cable.
6. Feed the power cable through the hole and gasket, before mounting the
camera bracket with 4 screws

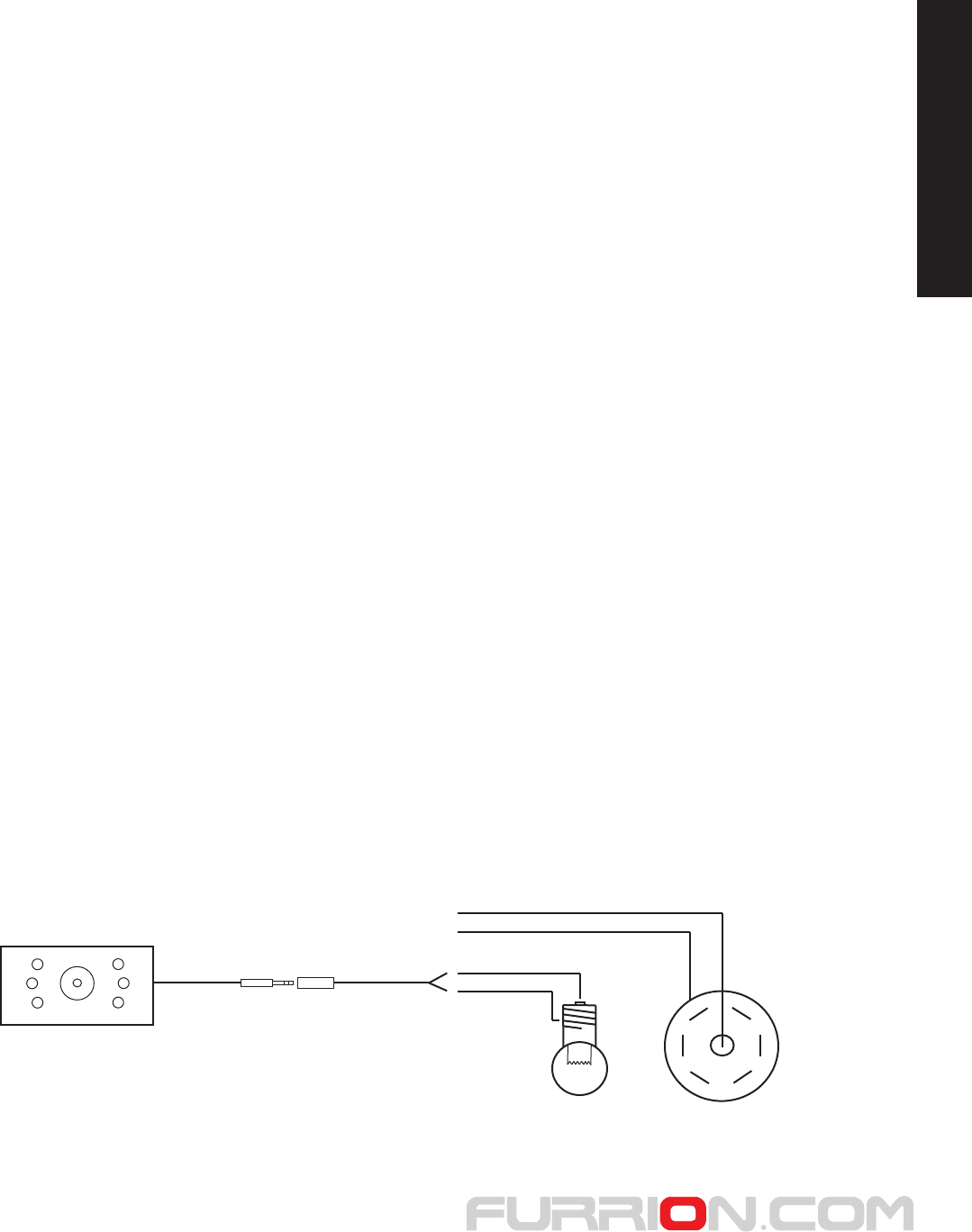

12V DC from 7 Way connection
12V DC from backup lamp
Use one of these power sources to supply 12V DC when the system is applied as a reversing camera
Furrion camera
Connection cable supplied with prep kit
7

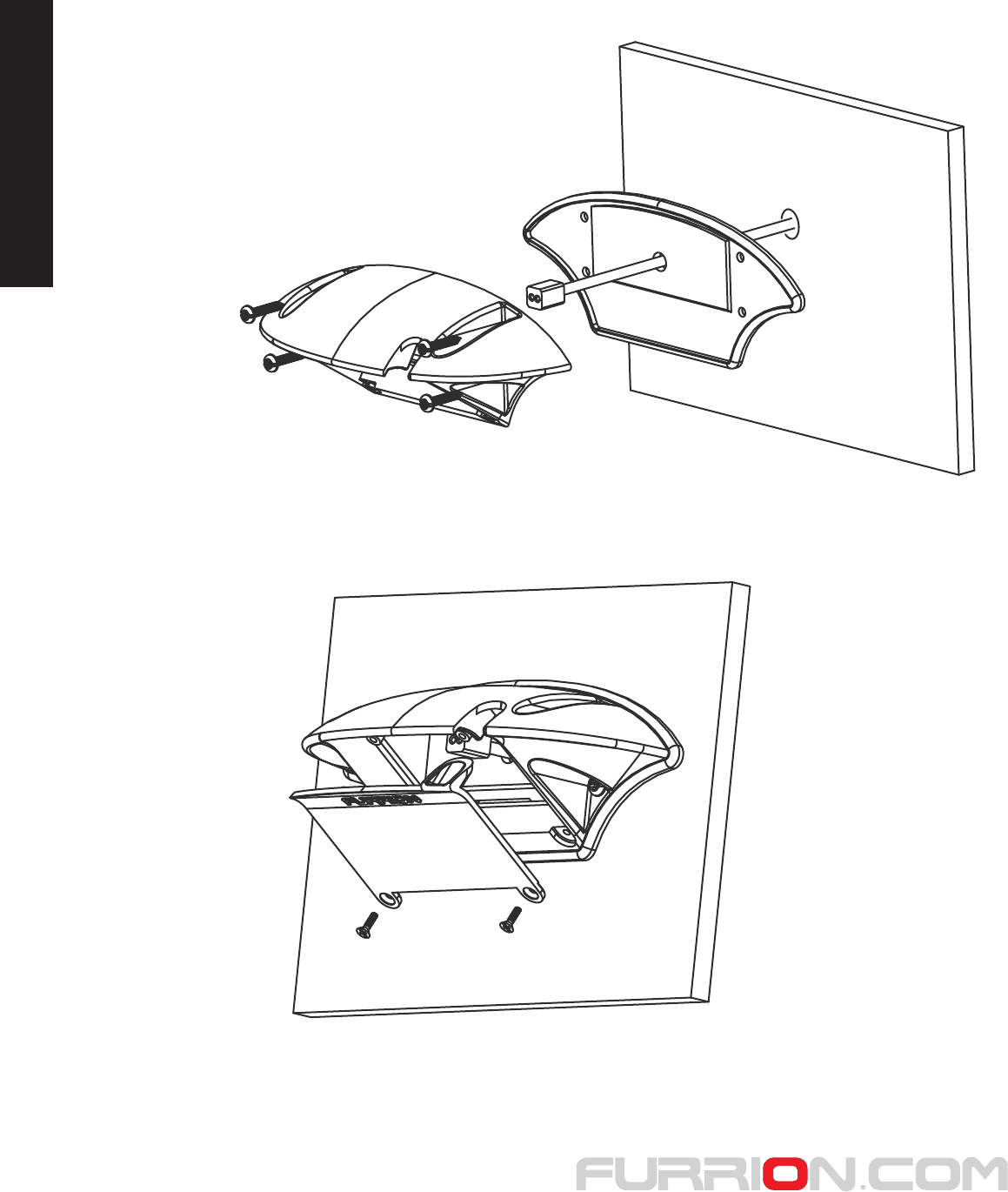

5/8” Hole
Feed connector through PVC gasket
Use 4 screws to fix mounting bracket to back of trailer or RV
Mounting bracket installation
Ensure the bracket is mounted securely and the gasket is watertight.
* If the camera bracket is being mounted as a prep kit without the camera.
secure the wire connector inside the bracket and attached the cover. (as above)
Affix cover if only prep kit is being installed
8
Installation of camera
If your RV or trailer has a Furrion reversing camera prep kit pre installed by
the OEM manufacturer. You will need to contact your local dealer or go to
furrion.com to purchase a Furrion FRC12TA-BL Camera and monitor installation
kit.

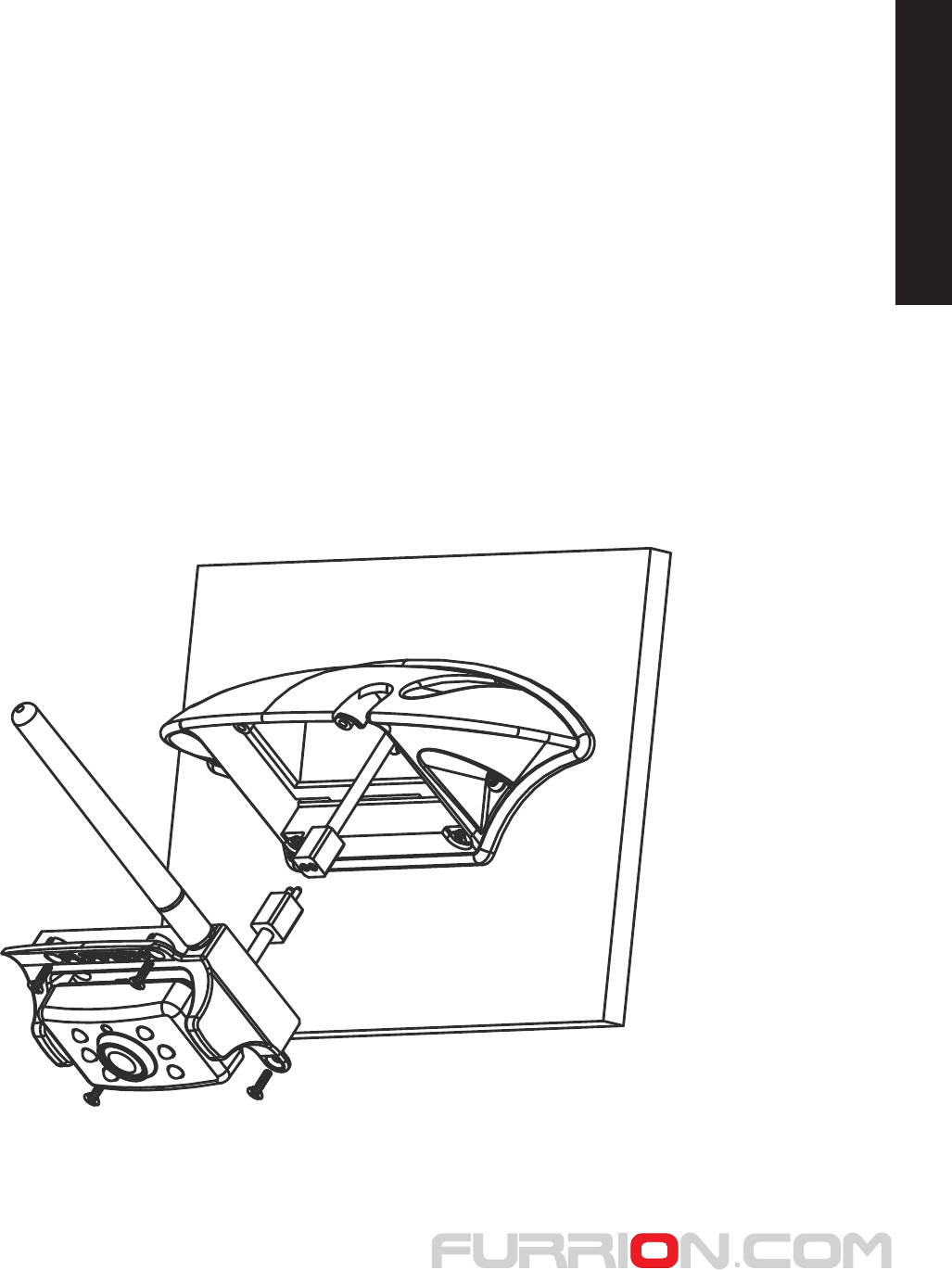

To install the camera onto a pre installed mounting bracket:
1. Remove the cable cover which is held by 4 screws on the underside of the
bracket
2. Locate the connector inside the prep kit mounting bracket
3. Connect the camera plug and socket together and install the camera with
the 4 screws
See below:
Camera viewing angle can be adjusted after camera is mounted
9
Monitor Installation
When choosing a location to mount the monitor, make sure the monitor is in
an area that will not obstruct your vision while driving.
1. Before mounting the monitor, clean the mounting surface well.

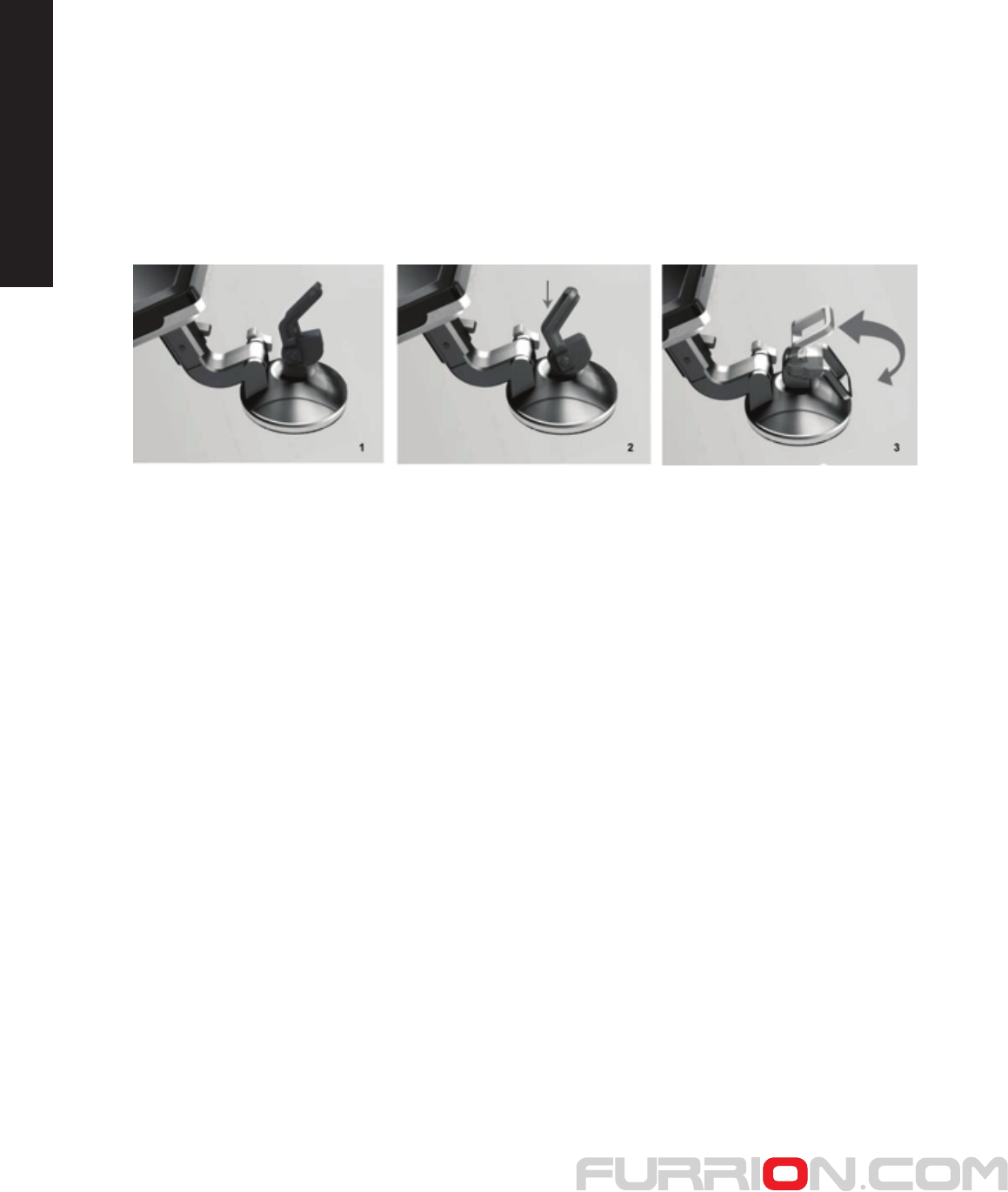

2. Position the suction mount to the smooth surface which suits your
requirement.
3. Press the suction cap against the smooth surface and press the lock
down to attach and fix the mount to the surface.
Snap in the monitor to the suction mount.
4. Adjust the mounting arms to suit your view angle to the monitor and
tighten the screws on the mount to fix the position.
5. Route the power cable to the vehicle’s cigarette lighter socket/12/24 V
power outlet. The cable must not interfere with the safe operation of the
vehicle.
6. Insert the small 12/24 Volt DC plug of the power cable into the right side
of the monitor.
7. Plug the 12/24 Volt cigarette lighter plug into the vehicle’s cigarette lighter
socket.
To maximize the effectiveness of the suction mount, it is recommended that the
application be performed under the following conditions:
• Surface temperature should be between 21 and 38 degrees Celsius.
• Application below 10 degrees should be avoided.
• Application should not occur in direct sunlight.
Mounting should be protected from exposure to direct sunlight for a period
of 24 hours.
NOTE: UNDER EXTREME BRIGHT LIGHT CONDITIONS, THE SCREEN
IMAGE MAY TAKE A FEW SECONDS TO STABLIZE. PLEASE WAIT UNTIL
THE IMAGE HAS STABLIZED BEFORE BACKING UP.
10
Operation
Once you have fitted the camera to your trailer, RV, truck or caravan you will
need to pair the wireless camera with the LCD monitor before use.
(This is only required at initial system comissioning to pair the camera with
the LCD screen.)
To connect camera unit and screen together:
1. Ensure both rear camera and LCD display have 12V DC power supplied
(Vehicle may need to be running and in reverse gear to supply power to camera)
2. Press the power button on the LCD display to turn on
3. Press the MENU button on the display (this will bring up 4 icons on the screen)
4. Using the up and down buttons scroll across to PAIR icon
5. Press power/confirm button (short press) (”pairing” icon will be displayed)
6. Press the small button on the underside of the camera unit for 2 seconds
7. On sucessful pairing OK will be displayed on the LCD display.

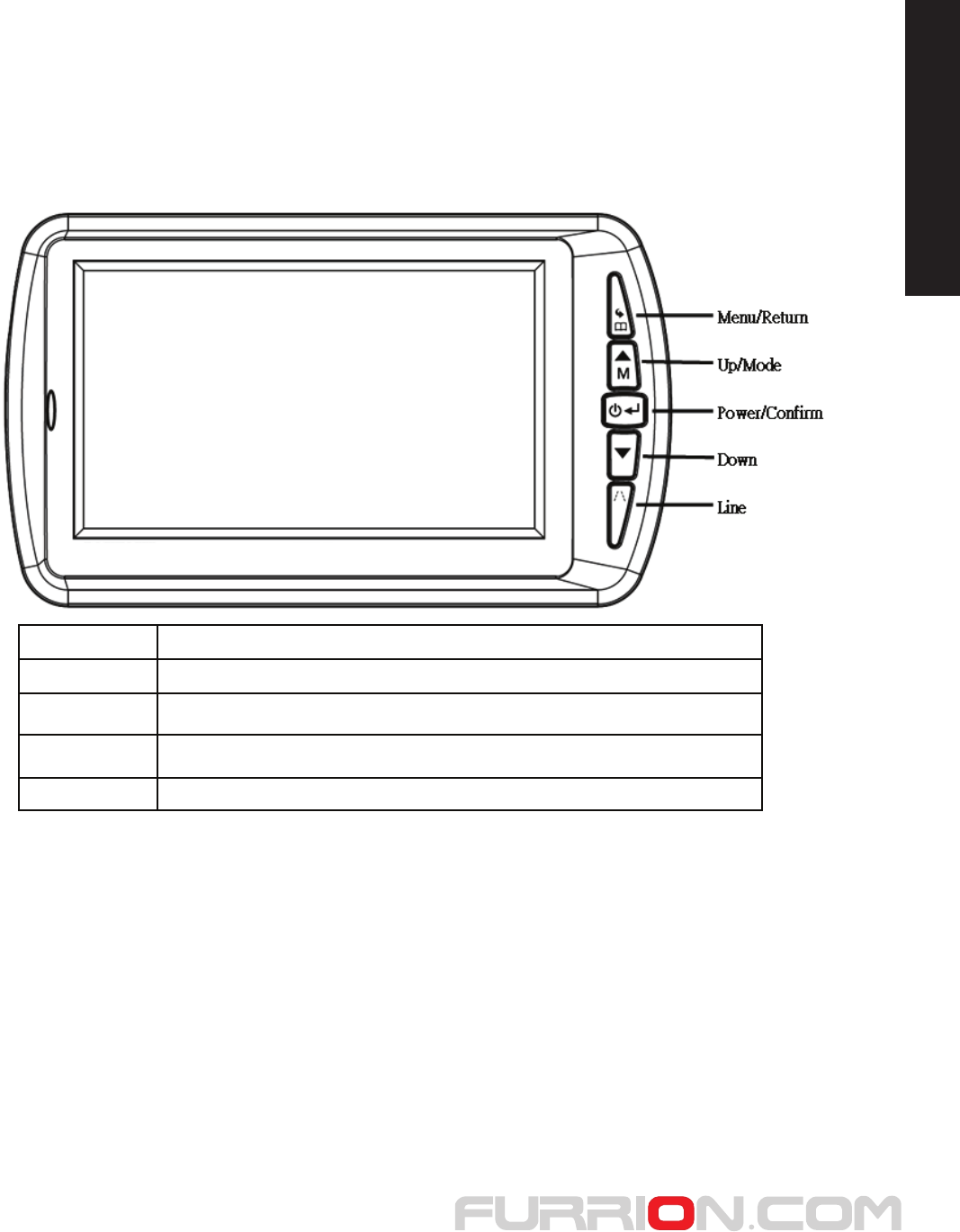

Menu/Return Press to show OSD or return to the previous menu
Up/Channel Select forward in OSD operation
Power/Confirm
Confirm or enter in OSD operation, press and hold for 2S to turn off and press to
turn on
Down
Select backward in OSD operation, press and hold for 5S to clear pairing when
there is no OSD
Line Guideline display selection
11
If there is no operation of the camera displayed on the LCD display within
30 seconds of pairing. Repeat pairing process.
Note:
If you are having trouble pairing the devices, reduce the distance
between the camera unit and the LCD display for the pairing
process.
To remove or replace a paired camera from the LCD display memory,
Exit the menu icons on the LCD display, then press and hold down
the DOWN key for 5 seconds. This will erase all pairing memory stored
on the LCD display. The pairing process must be completed again for
the system to function.

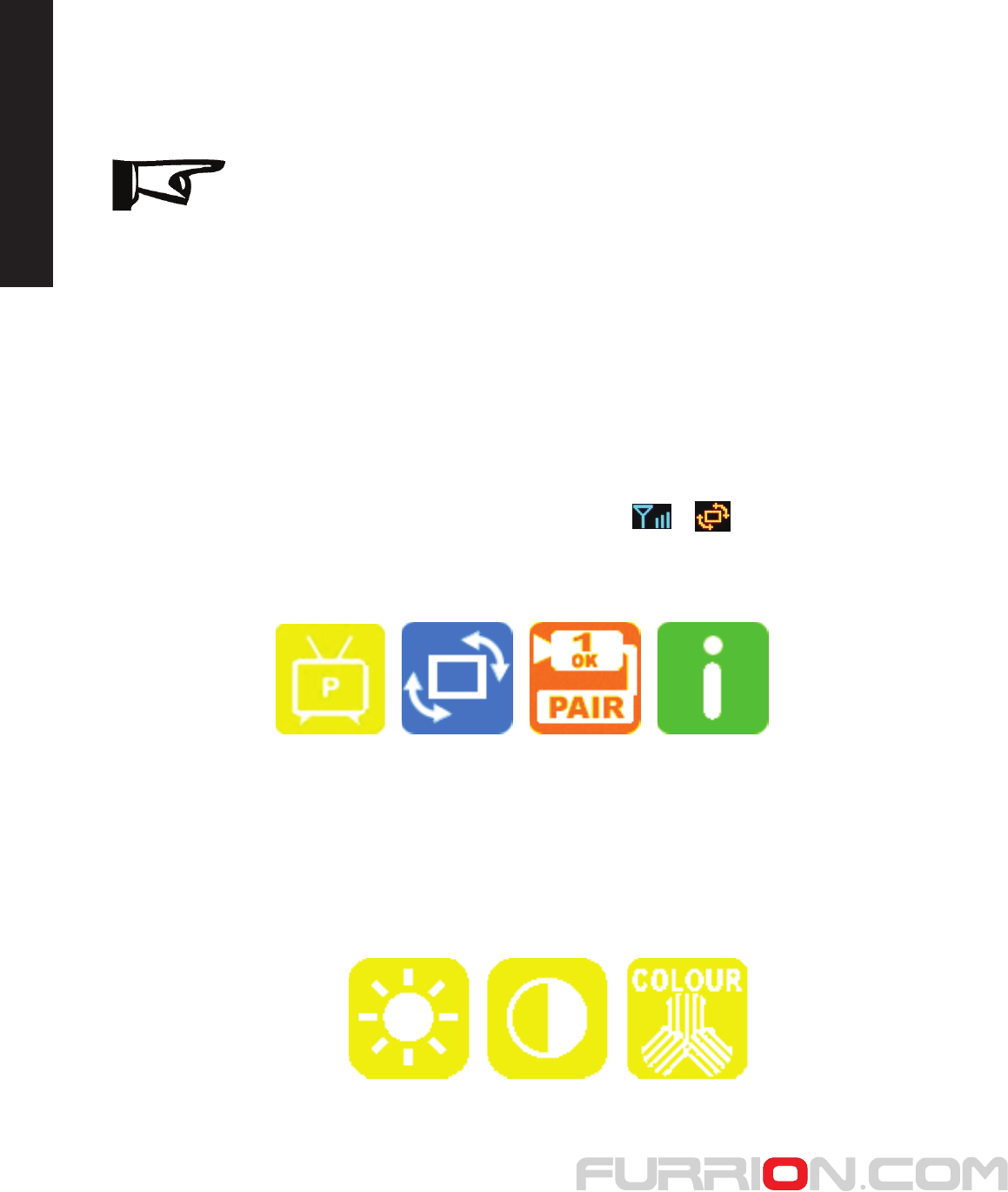

LCD Display Menu Icons:
Settings
Mirror/ rotated
image indicator
Signal strength indicator
Rotate
Camera
Connect
Camera
Software
Information
LCD Picture Settings Sub Menu Icons:
Brightness
Adjust
Contrast
Adjust
Color
Adjust
12
Trouble Shooting
Monitor will not turn on Ensure power cord is connected to the
display correctly
Make sure the cigarette socket has power
output of 12 - 14V DC
Check fuse in cigarette socket adapter
Camera and display Check if camera unit is recieving power
will not pair
Reduce the distance between camera and
monitor while pairing
Ensure to hold the pairing button on the
camera for 2 seconds
This icon flashes on Check antenna is installed correctly on
the display: camera unit. Ensure it faces vertically.
(intermittent / weak
signal) Distance between camera and display is
too great.
Delete camera from LCD display memory
then re pair camera to display
System testing:
1. Disconnect and reattach the vehicle’s negative battery cable.
2. Turn the ignition key to the accessory position, do not start the vehicle.
3. Engage the parking brake, and then put the shifter in the reverse
position. This will engage the camera unit and picture will be displayed.
4. After testing the unit and you are satisfied with the route you have chosen
for the cabling, you must permanently install it.
5. Route all wires behind interior panels or under carpeting so they are hidden.
13
1. Working voltage: DC12/24V
1. Working voltage: DC12/24V
Technical specification of LCD Display:
2. Working current: ≤180mA
3. Standby current: ≤5mA
4. Wireless communication distance: ≥100M (open area outdoors)
5. Working frequency: 2.4G
6. Size of LCD display: 4.3’
7. Effective pixels of LCD: 480*272
8. Sensitivity of receiver: -87±3dBm
9. Working temperature: -10/+50
Technical specification of Camera unit:
2. Working current: ≤220mA
3. Transmitting distance: ≥100M (open area outdoors)
4. Size of image sensor 1/4 inch Color CMOS VGA
5. Quality of image: Max.25frame/sec @ QVGA
(frame rate adjusts dynamically according to the image)
6. Specification of camera:
Focal length f1.7mm, aperture F2.0, IR filter 850nm
7. IR emission wavelength: 850nm
8. IR view distance: ≥1.5M
9. IR LED lit condition: Brightness ≤2Lux
10. Working temperature: -10/+50
14
FCC Information and Copyright
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment .This equipment should be installed and operated with minimum distance 20cm
between the radiator& your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
