op manual
![](/img.php?id=1456603&img=bg1.png)
MARINE RADAR
FR-8062
FR-8122
FR-8252
OPERATOR'S MANUAL
www.furuno.co.jp
MODEL
![](/img.php?id=1456603&img=bg2.png)
9-52, Ashihara-cho,
Nishinomiya, 662-8580, JAPAN
Telephone: +81-(0)798-65-2111
Fax: +81-(0)798-65-4200
FURUNO Authorized Distributor Dealer
All ri
g
hts reserved.
Pub. No. OME-35390-H
FR-8062/8122/8252
(
AKMU
)
A
:SEP. 2005
H :MAR. 31, 2011
Printed in Japan
(Elemental Chlorine Free)
The paper used in this manual
is
elemental chlorine free.
![](/img.php?id=1456603&img=bg3.png)
i
IMPORTANT NOTICES
General
• The operator of this equipment must read and follow the descriptions in this manual. Wrong op-
eration or maintenance can cancel the warranty or cause injury.
• Do not copy any part of this manual without written permission from FURUNO.
• If this manual is lost or worn, contact your dealer about replacement.
• The contents of this manual and equipment specifications can change without notice.
• The example screens (or illustrations) shown in this manual can be different from the screens
you see on your display. The screens you see depend on your system configuration and equip-
ment settings.
• Save this manual for future reference.
• Any modification of the equipment (including software) by persons not authorized by FURUNO
will cancel the warranty.
• All brand and product names are trademarks, registered trademarks or service marks of their
respective holders.
How to discard this product
Discard this product according to local regulations for the disposal of industrial waste. For disposal
in the USA, see the homepage of the Electronics Industries Alliance (http://www.eiae.org/) for the
correct method of disposal.
How to discard a used battery
Some FURUNO products have a battery(ies). To see if your product has a battery, see the chapter
on Maintenance. Follow the instructions below if a battery is used. Tape the + and - terminals of
battery before disposal to prevent fire, heat generation caused by short circuit.
In the European Union
The crossed-out trash can symbol indicates that all types of batteries
must not be discarded in standard trash, or at a trash site. Take the
used batteries to a battery collection site according to your national
legislation and the Batteries Directive 2006/66/EU.
In the USA
The Mobius loop symbol (three chasing arrows) indicates that Ni-Cd
and lead-acid rechargeable batteries must be recycled. Take the used
batteries to a battery collection site according to local laws.
In the other countries
There are no international standards for the battery recycle symbol. The number of symbols can
increase when the other countries make their own recycle symbols in the future.
Cd
Ni-Cd Pb
![](/img.php?id=1456603&img=bg4.png)
ii
SAFETY INSTRUCTIONS
Indicates a condition that can cause death or serious
injury if not avoided.
Indicates a condition that can cause minor or moderate
injury if not avoided.
Read these safety instructions before you operate the equipment.
WARNING
CAUTION
Warning, Caution Prohibitive Action Mandatory Action
WARNING
Radio Frequency Radiation Hazard
The radar antenna emits electromagnetic radio frequency (RF) energy which can be
harmful, particularly to your eyes. Never look directly into the antenna aperture from a
close distance while the radar is in operation or expose yourself to the transmitting
antenna at a close distance.
Distances at which RF radiation levels of 100 W/m
2
and 10 W/m
2
exist are given in the
table below.
Note: If the antenna unit is installed at a close distance in front of the wheel house, it may
be necessary to prevent transmission in that area to protect passengers and crew from
microwave radiation. This can be done with Sector Blank in the System menu.
Model Antenna Distance to
100 W/m
2
point
Distance to
10 W/m
2
point
FR-8062 XN-12A Nil 0.90 m
XN-13A Nil 0.70 m
FR-8122 XN-12A 2.10 m
XN-13A 1.90 m
FR-8252 XN-12A 0.40 m 4.60 m
XN-13A 0.40 m 3.10 m
Nil
Nil
![](/img.php?id=1456603&img=bg5.png)
SAFETY INSTRUCTIONS
iii
WARNING
ELECTRICAL SHOCK HAZARD
Do not open the equipment.
Only qualified personnel
should work inside the
equipment.
Turn off the radar power
switch before servicing the
antenna unit. Post a warn-
ing sign near the switch
indicating it should not be
turned on while the antenna
unit is being serviced.
Prevent the potential risk of
being struck by the rotating
antenna and exposure to
RF radiation hazard.
Wear a safety belt and hard
hat when working on the
antenna unit.
Serious injury or death can
result if someone falls from
the radar antenna mast.
Do not disassemble or modify the
equipment.
Fire, electrical shock or serious injury can
result.
Turn off the power immediately if water
leaks into the equipment or the equip-
ment is emitting smoke or fire.
Continued use of the equipment can cause
fire or electrical shock.
WARNING
Use the proper fuse.
Fuse rating is shown on the equipment.
Use of a wrong fuse can result in damage
to the equipment.
Keep heater away from equipment.
Heat can alter equipment shape and melt
the power cord, which can cause fire or
electrical shock.
Do not place liquid-filled containers on
the top of the equipment.
Fire or electrical shock can result if a liquid
spills into the equipment.
Do not operate the equipment with wet
hands.
Electrical shock can result.
![](/img.php?id=1456603&img=bg6.png)
SAFETY INSTRUCTIONS
iv
WARNING
WARNING
No one navigational aid should be relied
upon for the safety of vessel and crew.
The navigator has the responsibility to
check all aids available to confirm
position. Electronic aids are not
a substitute for basic navigational
principles and common sense.
• The ARP automatically tracks
automatically or manually acquired radar
targets and calculates their courses and
speeds, indicating them by vectors. Since
the data generated by the auto plotter
are based on what radar targets are
selected, the radar must always be
optimally tuned for use with the ARP to
ensure required targets will not be lost or
unwanted targets such as sea returns
and noise will not be acquired and
tracked.
• A target does not always mean a land-
mass, reef, ships or other surface vessels
but can imply returns from sea surface
and clutter. As the level of clutter changes
with environment, the operator should
properly adjust the A/C SEA, A/C RAIN
and GAIN controls to be sure target
echoes are not eliminated from the
radar screen.
CAUTION
CAUTION
The plotting accuracy and response of
this ARP meets IMO standards.
Tracking accuracy is affected by the
following:
• Tracking accuracy is affected by course
change. One to two minutes is required to
restore vectors to full accuracy after an
abrupt course change. (The actual
amount depends on gyrocompass
specifications.)
• The amount of tracking delay is inversely
proportional to the relative speed of the
target. Delay is on the order of 15-30
seconds for high relative speed; 30-60
seconds for low relative speed.
The data generated by ARP and AIS are
intended for reference purposes only.
Check all available navigation aids to
determine target movement.
WARNING
To avoid electrical shock, do not
remove cover. No user-serviceable
parts inside.
WARNING
Radiation hazard. Only qualified
personnel should work inside scanner.
Confirm that TX has stopped before
opening scanner.
WARNING LABELS
Warning labels are attached to the
equipment. Do not remove any label.
If a label is missing or damaged,
contact a FURUNO agent or dealer
about replacement.
DISPLAY UNIT
Name: Warning Label 1
Type: 86-003-1011-1
Code No.: 100-236-231
ANTENNA UNIT
Name: Warning Sticker
Type: 03-142-3201-0
Code No.: 100-266-890
TFT LCD
The high quality TFT (Thin Film Transistor)
LCD displays 99.999% of its picture
elements. The remaining 0.001% may
drop out or light, however this is an
inherent property of the LCD; it is not a
sign of malfunction.
![](/img.php?id=1456603&img=bg7.png)
TABLE OF CONTENTS
v
TABLE OF CONTENTS
FOREWORD...............................................................................................ix

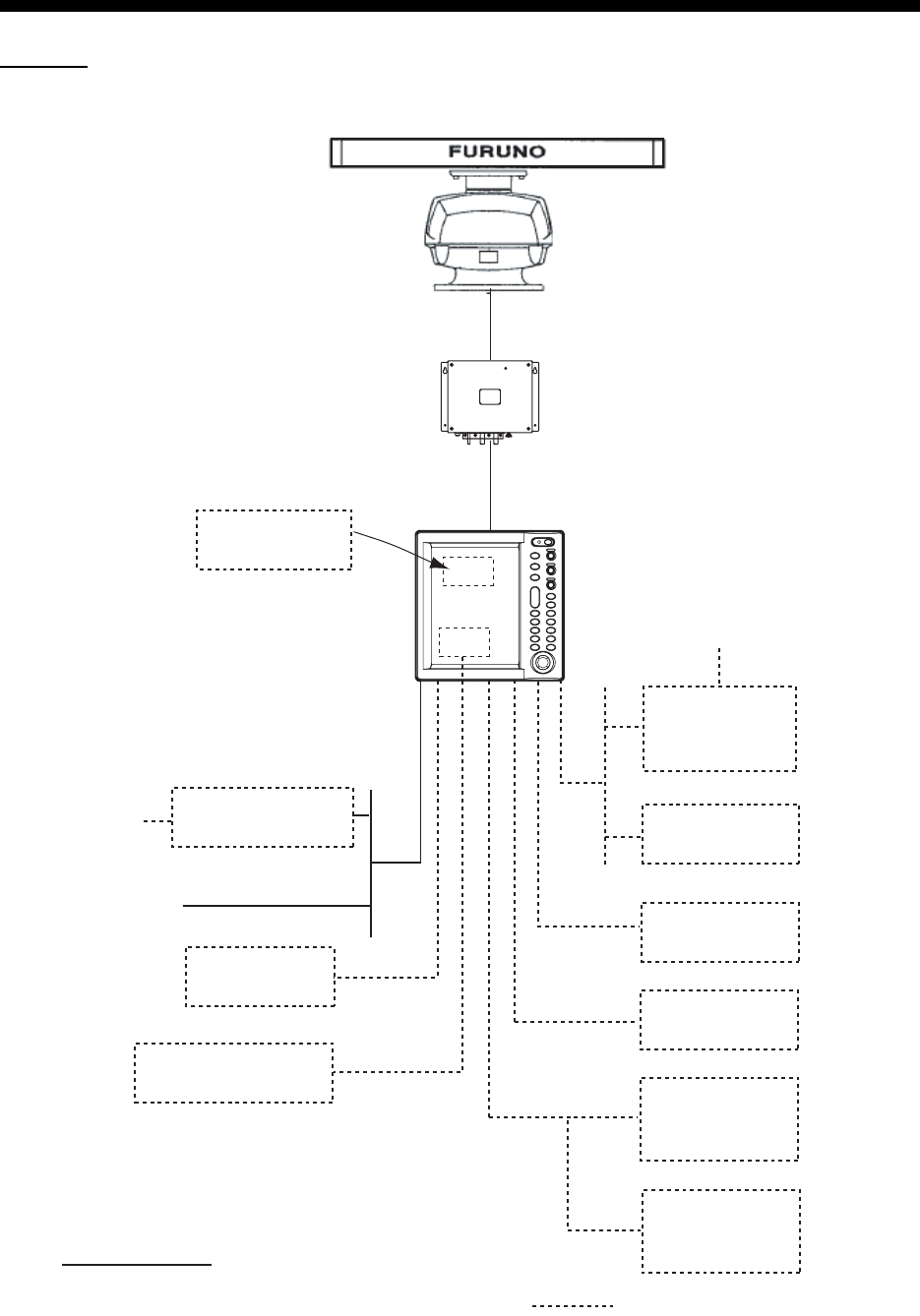

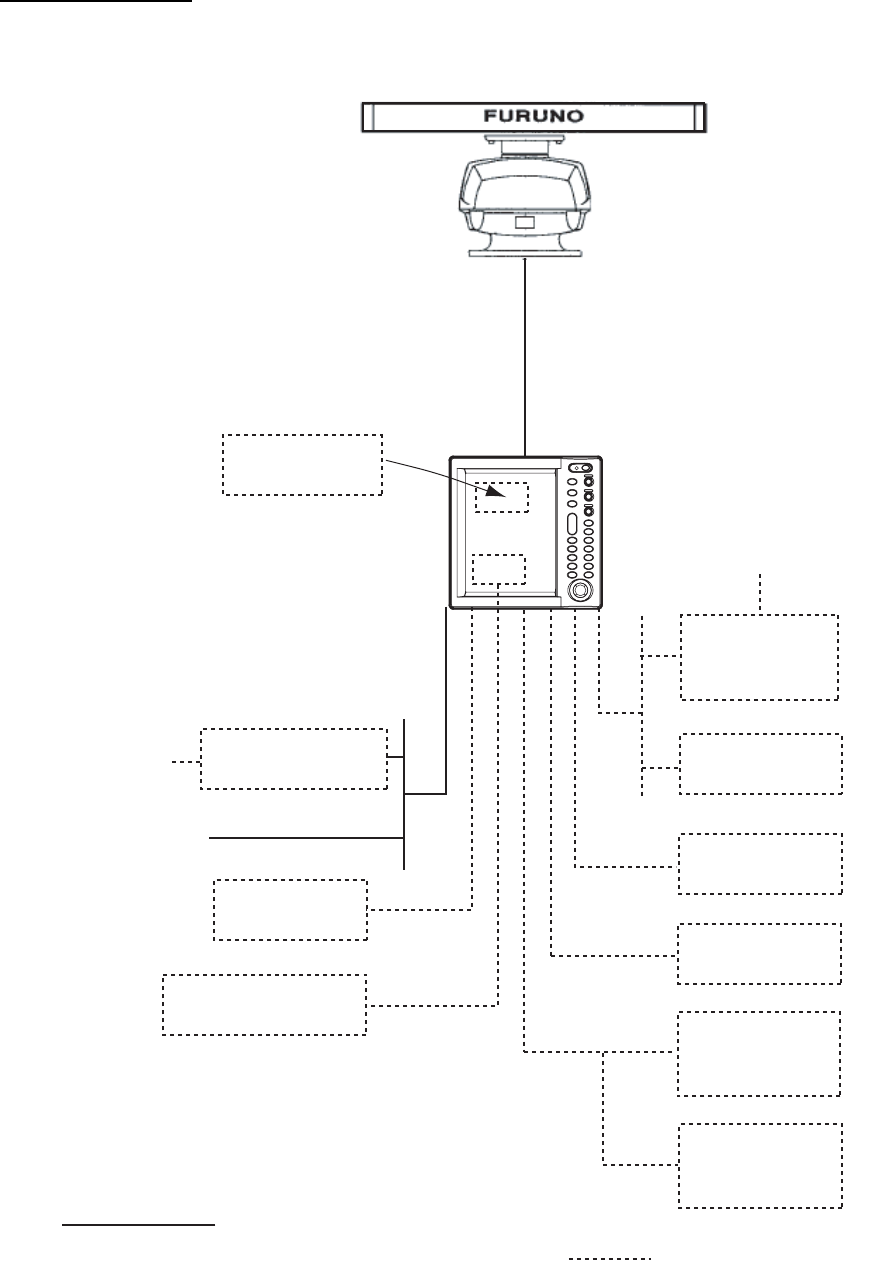

SYSTEM CONFIGURATION ......................................................................xi
1. OPERATIONAL OVERVIEW..............................................................1-1

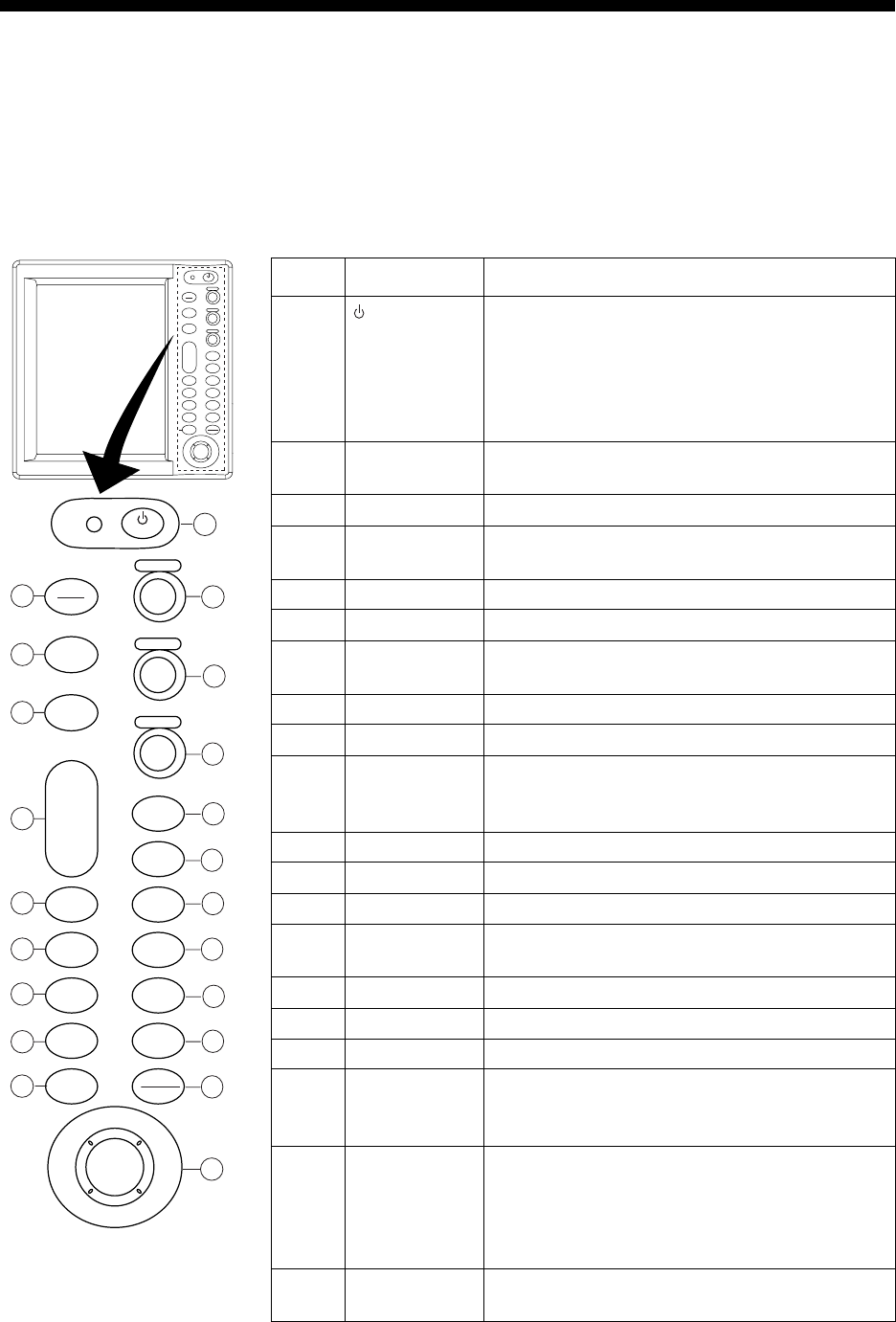

1.1 Controls .....................................................................................................................1-1

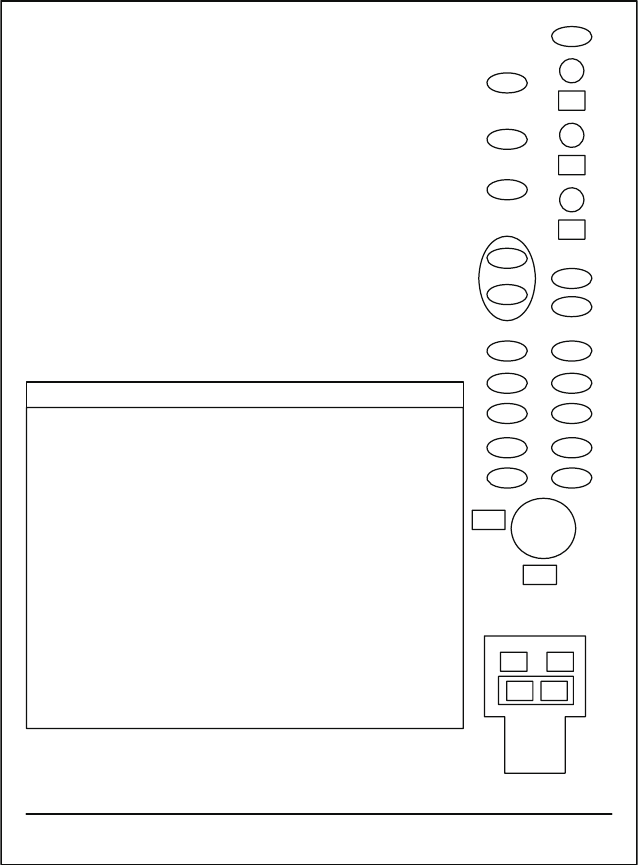

1.1.1 Display unit ..................................................................................................1-1

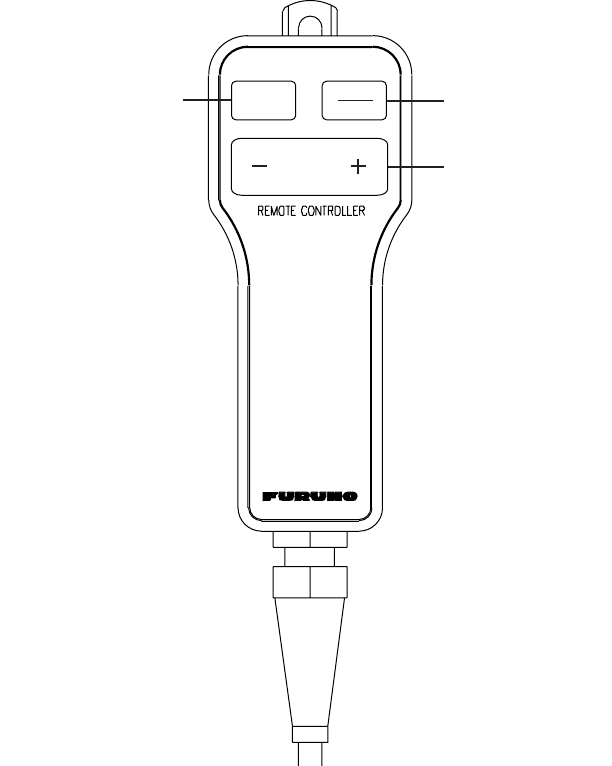

1.1.2 Remote controller ........................................................................................1-2
1.2 Turning the Radar On/Off, Transmitting ....................................................................1-3
1.3 Display Indications.....................................................................................................1-4
1.4 Adjusting Display Brilliance, Panel Dimmer...............................................................1-5

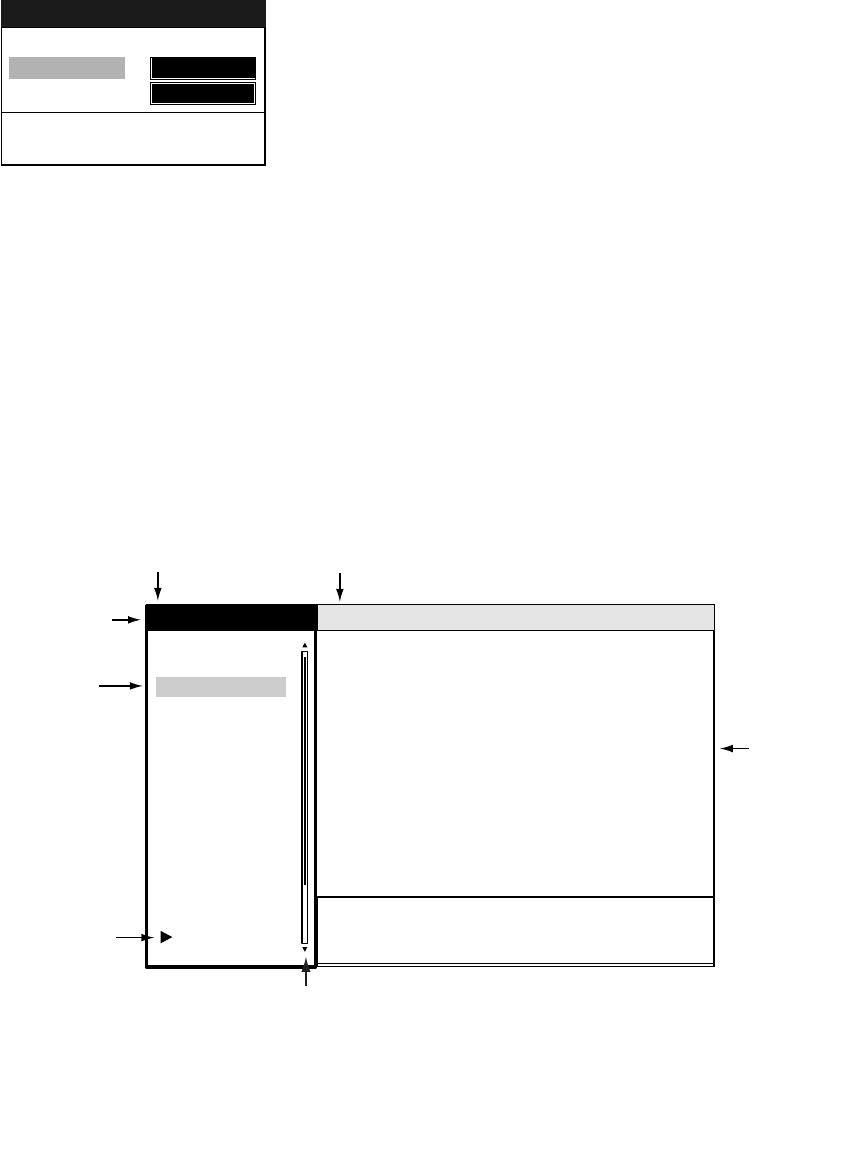

1.5 Menu Overview..........................................................................................................1-5
1.6 Tuning........................................................................................................................1-7
1.7 Presentation Modes...................................................................................................1-8
1.7.1 Choosing presentation mode........................................................................1-8
1.7.2 Description of presentation modes ..............................................................1-8
1.8 Choosing a Range Scale.........................................................................................1-10
1.9 Choosing a Pulse Length ........................................................................................1-11
1.10 Adjusting the Gain (sensitivity) ................................................................................1-12
1.10.1 Choosing gain adjustment method ............................................................1-12
1.10.2 Setting automatic gain level....................................................................... 1-12
1.10.3 Manual gain adjustment ............................................................................1-12

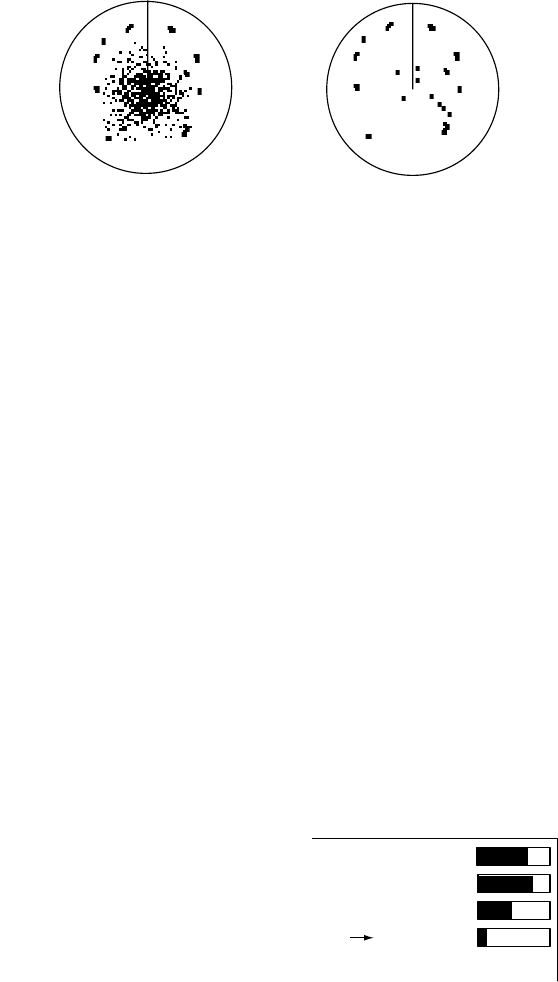

1.11 Suppressing Sea Clutter..........................................................................................1-13
1.11.1 Choosing sea clutter adjustment method ..................................................1-13
1.11.2 Setting automatic sea clutter suppression level ........................................1-13
1.11.3 Manual sea clutter adjustment ...................................................................1-14
1.12 Suppressing Rain Clutter.........................................................................................1-14
1.12.1 Choosing rain clutter adjustment method ..................................................1-14
1.12.2 Setting automatic rain clutter suppression level ........................................1-15
1.12.3 Manual rain clutter adjustment ..................................................................1-15
1.13 Automatic Suppression of Sea and Rain Clutters ...................................................1-16
1.14 Cursor......................................................................................................................1-17
1.15 Interference Rejector...............................................................................................1-18
1.16 Measuring the Range to a Target............................................................................1-19
1.16.1 Measuring range by the variable range marker (VRM) .............................1-19
1.16.2 Choosing VRM unit ....................................................................................1-20
1.17 Turning Range Rings On/Off, Adjusting Range Ring Brilliance...............................1-21
1.18 Measuring the Bearing to a Target..........................................................................1-22
1.18.1 Measuring the bearing with an EBL ...........................................................1-22
1.18.2 EBL reference ............................................................................................1-23
1.19 Measuring the Range and Bearing Between Two Targets......................................1-23
1.20 Target Alarm............................................................................................................1-24
1.20.1 Setting a target alarm ................................................................................1-24
1.20.2 Silencing the audio alarm ..........................................................................1-24
1.20.3 Choosing alarm type ..................................................................................1-25
1.20.4 Temporarily deactivating a target alarm ....................................................1-25
1.20.5 Deactivating a target alarm ........................................................................1-25
1.20.6 Choosing target strength which triggers target alarm ................................1-26

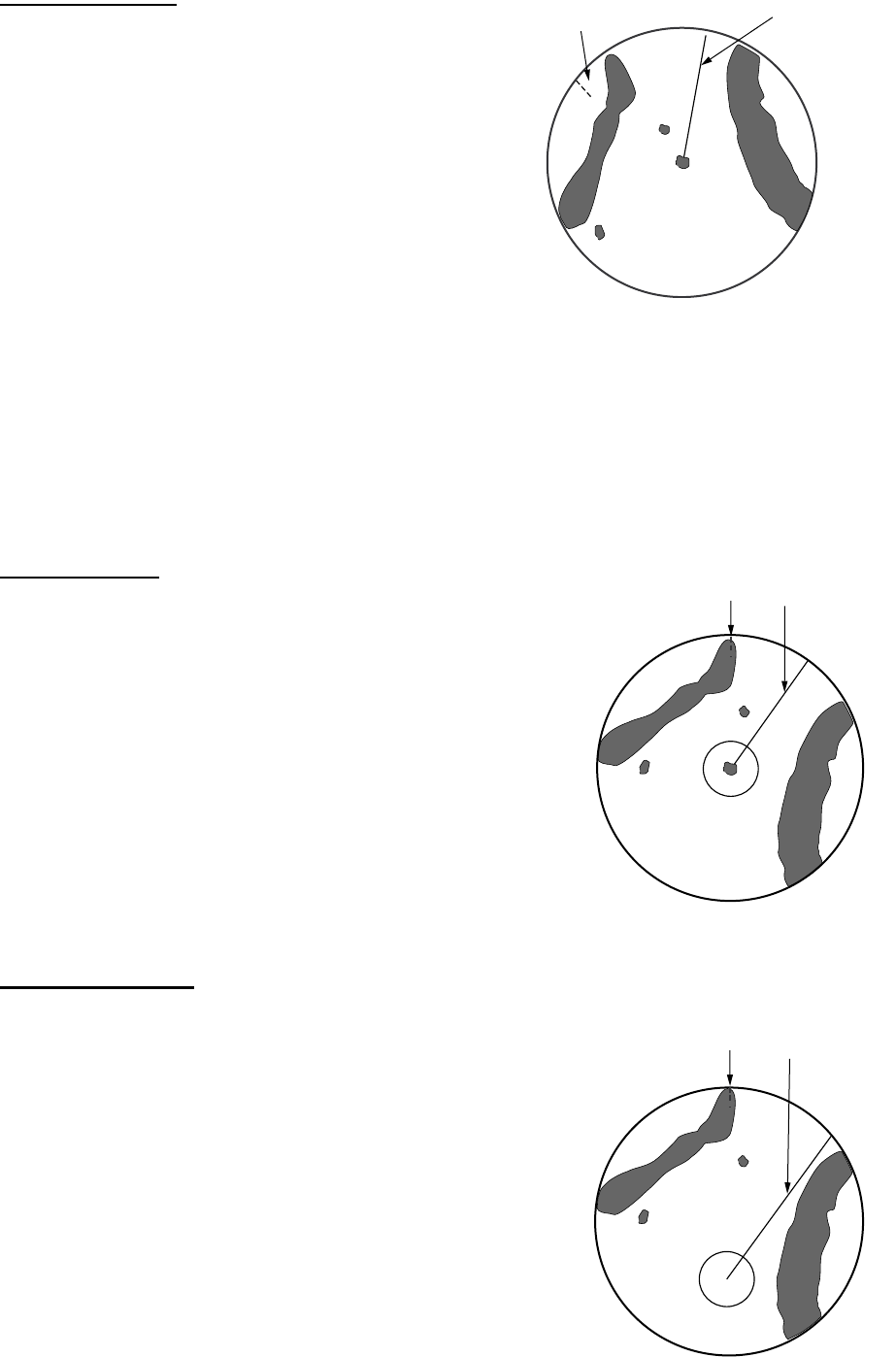

1.21 Off Centering the Display ........................................................................................1-26
1.21.1 Automatic off center ...................................................................................1-26
1.21.2 Manual off center .......................................................................................1-27
TABLE OF CONTENTS
vi
1.22 Zoom .......................................................................................................................1-27
1.22.1 How to zoom .............................................................................................1-27
1.22.2 Zoom mode ............................................................................................... 1-28
1.23 Echo Stretch............................................................................................................1-29
1.24 Echo Averaging....................................................................................................... 1-30

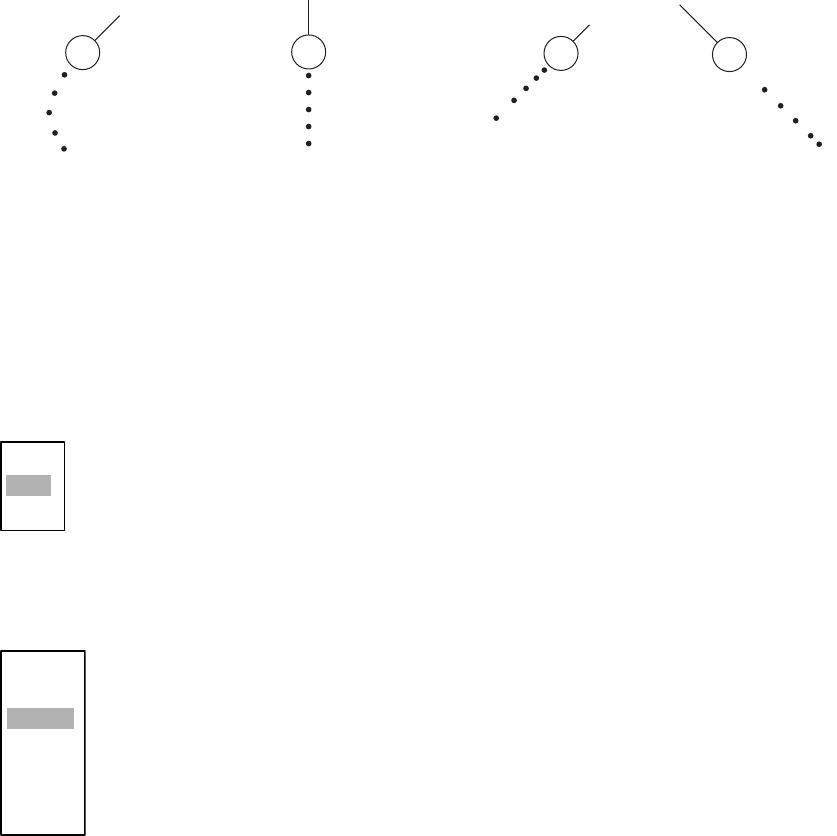

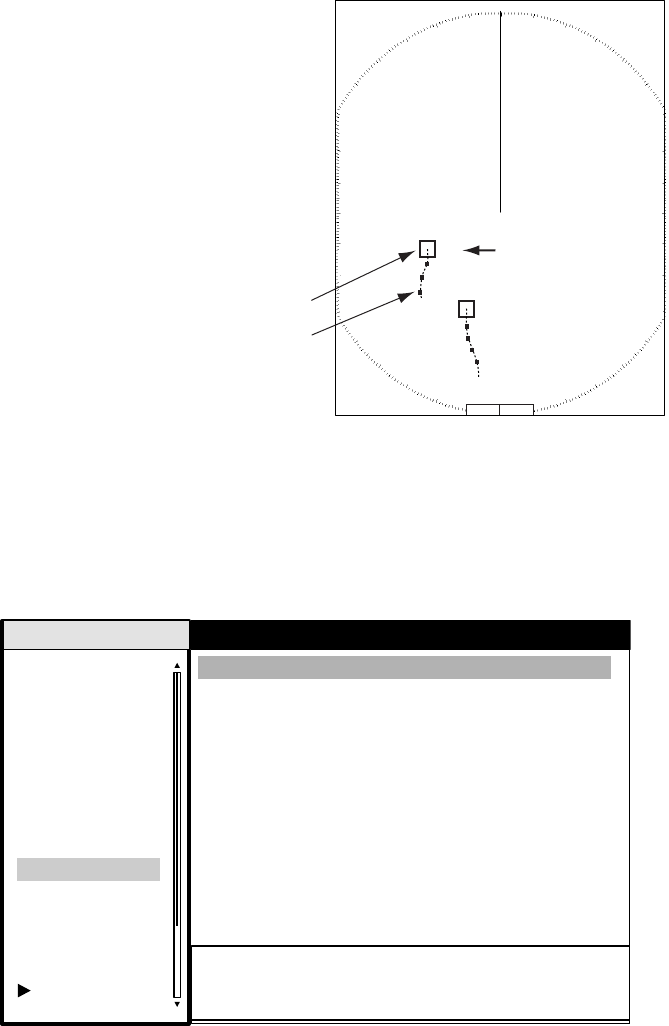

1.25 Target Trails............................................................................................................1-31
1.25.1 Starting, stopping trails...............................................................................1-31
1.25.2 Trail mode .................................................................................................1-32
1.25.3 Trail gradation ...........................................................................................1-33
1.25.4 Trail color ..................................................................................................1-33
1.25.5 Trail level ...................................................................................................1-33
1.25.6 Trail copy ...................................................................................................1-34
1.25.7 Narrow trails ..............................................................................................1-34
1.25.8 Own ship trail ............................................................................................1-34
1.25.9 Restarting trails .........................................................................................1-35
1.25.10 Trail length ................................................................................................1-35
1.26 Parallel Index Lines.................................................................................................1-36
1.26.1 Turning parallel index lines on or off .........................................................1-36
1.26.2 Adjusting parallel index line orientation and interval .................................1-36
1.26.3 Parallel index lines mode ..........................................................................1-37
1.27 Outputting Target Position, Inscribing Origin Mark .................................................1-37
1.27.1 TLL key mode ...........................................................................................1-37
1.27.2 Origin mark mode ......................................................................................1-38
1.28 Temporarily Hiding the Heading Line......................................................................1-38
1.29 Custom Setup .........................................................................................................1-38
1.29.1 About custom setup ..................................................................................1-38
1.29.2 Description of custom setup items ............................................................1-39
1.29.3 Setting custom setups ...............................................................................1-40
1.30 Programming Function Keys (F1 and F2 keys).......................................................1-41

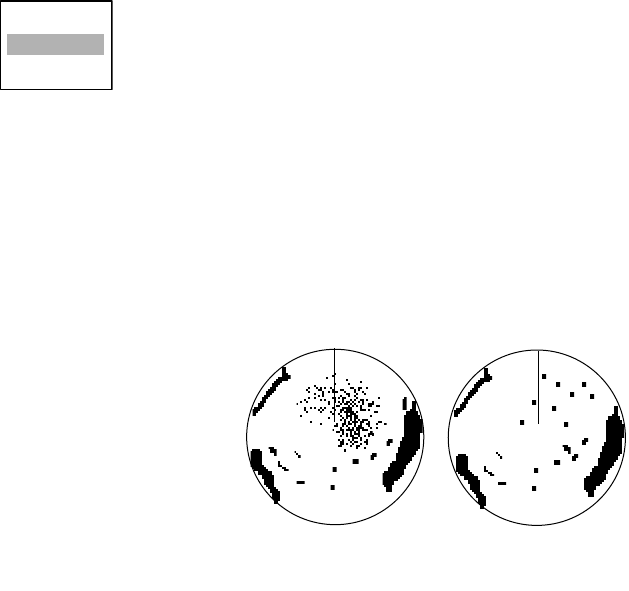

1.31 Noise Rejector.........................................................................................................1-42
1.32 Suppressing Second-trace Echoes.........................................................................1-42

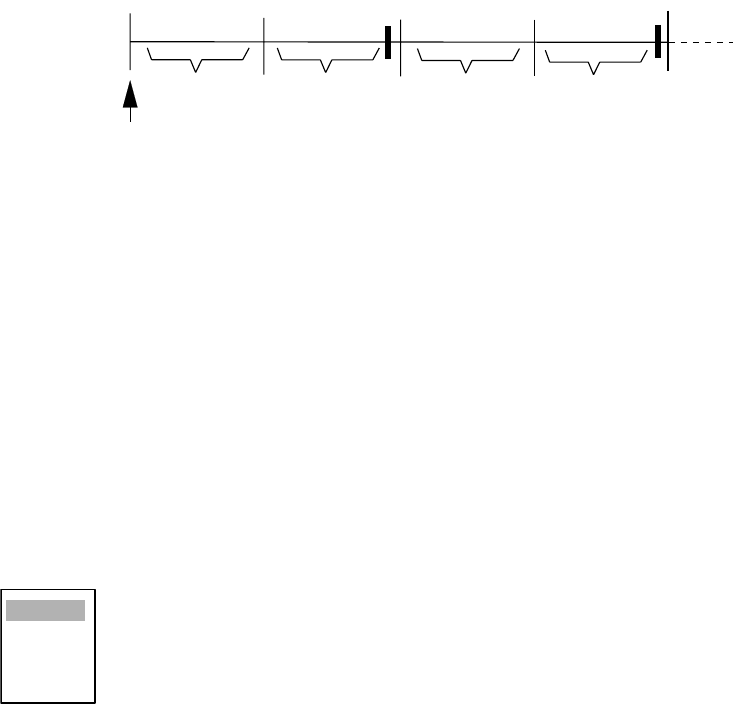

1.33 Watchman...............................................................................................................1-43
1.34 Color Schemes........................................................................................................1-44
1.34.1 Preset color schemes ................................................................................1-44
1.34.2 User color scheme ....................................................................................1-44
1.35 Navigation Data.......................................................................................................1-45
1.35.1 Navigation data during standby .................................................................1-45
1.35.2 Navigation data at the bottom of the screen ............................................. 1-46
1.36 Dynamic Range.......................................................................................................1-47

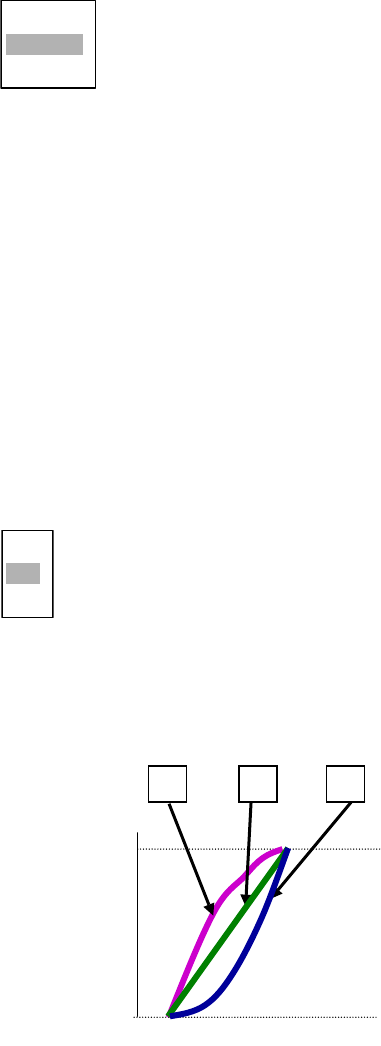

1.37 Characteristics Curve..............................................................................................1-47
1.38 Antenna Speed .......................................................................................................1-48
1.39 Waypoint Marker ..................................................................................................... 1-49
1.40 Alarm Message Display ..........................................................................................1-50
1.41 Echo Area ...............................................................................................................1-52
1.42 Customizing (Initial Menu).......................................................................................1-53
1.42.1 Opening the Initial menu ...........................................................................1-53
1.42.2 Description of Initial sub menu .................................................................. 1-53

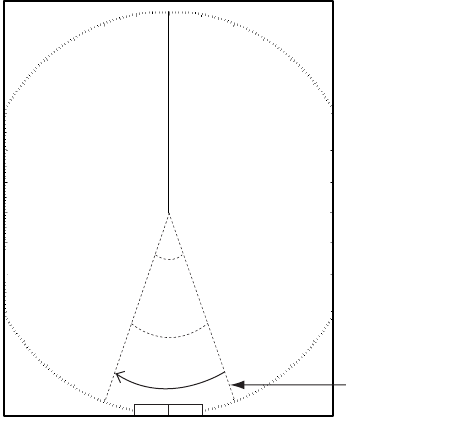

1.43 Sector Blank............................................................................................................1-55
1.44 GPS Buoy ...............................................................................................................1-57
1.44.1 Displaying GPS buoys ..............................................................................1-57
1.44.2 Choosing symbol color ..............................................................................1-58
1.44.3 History display ...........................................................................................1-58
1.44.4 Erasing GPS buoy symbols ......................................................................1-59
1.45 Remote Display.......................................................................................................1-60
TABLE OF CONTENTS
vii
2. RADAR OBSERVATION....................................................................2-1
2.1 General......................................................................................................................2-1
2.1.1 Minimum and maximum ranges ..................................................................2-1
2.1.2 Radar resolution ..........................................................................................2-2
2.1.3 Bearing accuracy .........................................................................................2-2
2.1.4 Range measurement ...................................................................................2-2
2.2 False Echoes.............................................................................................................2-3

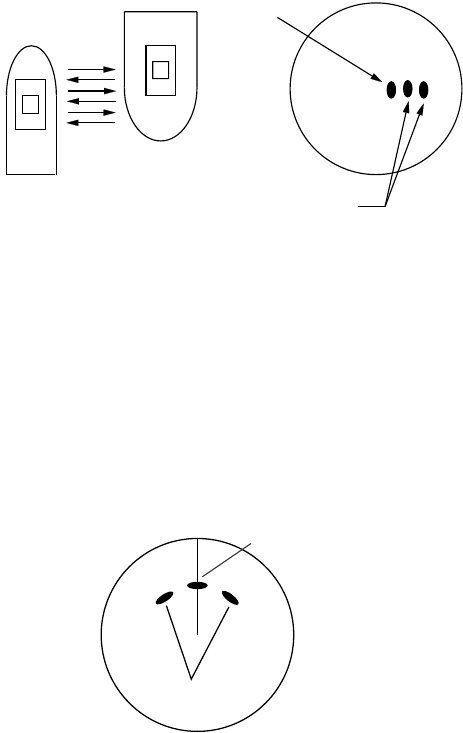

2.2.1 Multiple echoes ............................................................................................2-3
2.2.2 Sidelobe echoes ..........................................................................................2-3
2.2.3 Virtual image ................................................................................................2-4
2.2.4 Shadow sector .............................................................................................2-4
2.3 SART (Search and Rescue Transponder).................................................................2-5
2.3.1 SART description..........................................................................................2-5
2.3.2 General remarks on receiving SART ...........................................................2-6
2.4 RACON......................................................................................................................2-6
3. ARP OPERATION ..............................................................................3-1
3.1 Usage Precautions ....................................................................................................3-1
3.2 Controls for Use with ARP.........................................................................................3-2
3.3 ARP Display On/Off...................................................................................................3-2
3.4 Acquiring and Tracking Targets.................................................................................3-3
3.4.1 Manual acquisition .......................................................................................3-3
3.4.2 Automatic acquisition ...................................................................................3-3
3.5 Terminating Tracking of ARP Targets .......................................................................3-4
3.5.1 Terminating tracking of selected targets ......................................................3-4
3.5.2 Terminating tracking of all targets ...............................................................3-4
3.6 Vector Attributes........................................................................................................3-5
3.7 History Display (target past position).........................................................................3-6
3.8 ARP Target Data .......................................................................................................3-7
3.9 CPA/TCPA Alarm ......................................................................................................3-8
3.10 Proximity Alarm .........................................................................................................3-9
3.11 Lost Target ................................................................................................................3-9
3.12 Symbol Color...........................................................................................................3-10
4. AIS OPERATION ................................................................................4-1
4.1 Controls for Use with AIS .........................................................................................4-1
4.2 Turning the AIS Display On or Off.............................................................................4-1
4.3 AIS Symbols ..............................................................................................................4-2
4.4 Activating, Sleeping Targets......................................................................................4-2
4.5 Displaying AIS Target Data .......................................................................................4-3
4.6 Display Range ...........................................................................................................4-4
4.7 Sorting Targets..........................................................................................................4-4
4.8 Displaying Targets Within a Specific Sector..............................................................4-5
4.9 Number of Targets to Display....................................................................................4-5
4.10 Vector Attributes........................................................................................................4-6
4.11 History Display (target past position).........................................................................4-7
4.12 CPA/TCPA Alarm ......................................................................................................4-8
4.13 Proximity Alarm .........................................................................................................4-9
4.14 Lost Target ..............................................................................................................4-10
4.14.1 Removing all lost AIS targets from the display ..........................................4-10
4.15 Symbol Color...........................................................................................................4-10
TABLE OF CONTENTS
viii
5. GPS OPERATION .............................................................................. 5-1
5.1 Navigator Type..........................................................................................................5-1
5.2 Datum........................................................................................................................5-2
5.3 WAAS Setup .............................................................................................................5-2
5.4 Satellite Monitor ........................................................................................................5-3
5.5 Weather Information.................................................................................................5-4
5.6 GPS Sensor Installation Position Offset....................................................................5-5
5.7 Cold Start ..................................................................................................................5-6
6. MAINTENANCE & TROUBLESHOOTING ........................................ 6-1
6.1 Preventive Maintenance............................................................................................6-2
6.2 Fuse Replacement ....................................................................................................6-3
6.3 Magnetron Life ..........................................................................................................6-3
6.4 LCD Backlight Life.....................................................................................................6-3
6.5 Trackball Maintenance..............................................................................................6-4
6.6 Simple Troubleshooting ............................................................................................6-5
6.7 Advanced-level Troubleshooting...............................................................................6-6
6.8 Diagnostic Test .........................................................................................................6-8
6.9 LCD Test .................................................................................................................6-10
6.10 GPS Test.................................................................................................................6-10
APPENDIX................................................................................................A-1
SPECIFICATIONS................................................................................. SP-1
INDEX......................................................................................................IN-1
![](/img.php?id=1456603&img=bgb.png)
ix
FOREWORD
A Word to the Owner of the FR-8xx2 Marine Radar
FURUNO Electric Company thanks you for purchasing the FR-8xx2 series Color LCD Marine
Radar. We are confident you will discover why the FURUNO name has become synonymous with
quality and reliability.
For over 60 years FURUNO Electric Company has enjoyed an enviable reputation for quality and
reliability throughout the world. This dedication to excellence is furthered by our extensive global
network of agents and dealers.
Your equipment is designed and constructed to meet the rigorous demands of the marine envi-
ronment. However, no machine can perform its intended function unless properly installed and
maintained. Please carefully read and follow the operation and maintenance procedures set forth
in this manual.
We would appreciate feedback from you, the end-user, about whether we are achieving our pur-
poses.
Thank you for considering and purchasing FURUNO.
Features
The FR-8xx2 series display radar targets on a bright 12.1" color LCD. Operation is simplified with
the combination of discrete keys and trackball.
The main features are
• The FR-8xx2 series consist of the following models:
• Bright 12.1" LCD visible even under direct sunlight
• User-friendly operation with combination of discrete keys and trackball
• Antenna speed may be automatically selected according to range (48 rpm motor only)
• Built-in Auto Plotter (ARP-11) optionally available
• AIS data shown with connection of FURUNO AIS Transponder FA-150
• User programmable function keys
• One touch setup of major controls with custom setup feature
• Echoes in yellow or green, or colors of red, yellow or green in order of descending strength
Model, output, range, antenna
Model Output Range Radar Antenna
(Radiator Length)
FR-8252 25 kW 96 nm XN-12A (4 ft) or
XN-13A (6 ft)
FR-8122 12 kW 72 nm XN-12A (4 ft) or
XN-13A (6 ft)
FR-8062 6 kW 72 nm XN-12A (4 ft) or
XN-13A (6 ft)
![](/img.php?id=1456603&img=bgc.png)
FOREWORD
x
Radar Specifications and Function Availability
This radar series is available in three specification types (river, sea and IEC), and function avail-
ability depends on specification type. The table below shows specification type and function avail-
ability.
River: For river-going vessels
Sea: For sea-going vessels
IEC: IEC compliant radar
Note on Chinese font: The Chinese font used in this equipment is Ricoh Company Ltd.’s Ricoh
bitmap font. Ricoh bitmap font is trademarks or registered trademarks of Richo Company, Ltd.
Specification and function availability
Item Description Specification Ref.
page
River Sea IEC
Automatic
close
Menus automati-
cally close if not
operated for 10
seconds
No No Yes 1-6
AIS symbol
color
Colors for AIS
symbol
Green, Red,
Blue, White,
Black
Green, Red,
Blue, White,
Black
Green, Blue,
White, Black
4-10
Effective radius
dot count
Number of dots in
radius of echo
display range
300 dots 300 dots 270 dots -
Echo color Choose echo
display color
Yellow
Green
Multicolor
Yellow
Green
Multicolor
Yellow
Green
1-44
Echo area
configuration
Choose shape of
echo display area
Ellipse
Square
Ellipse
Square
Circle 1-52
Range preset Choose ranges to
use
Yes Yes No 1-54
Unit defaults Choose unit of
measurement for
(1) range and (2)
speed.
1) km, m
2) km/h, mph
1) nm
2) kt
1) nm
2) kt
1-20, 1-53:
Range
1-54:
Speed
Bearing scale How bearing is
indicated on the
bearing scale
Graduation
every 1, 5,
10, no
numeric indica-
tion
Graduation
every 1, 5,
10, no
numeric indica-
tion
Graduation
every 1, 5,
10, 30,
numeric indica-
tion every 30.
1-4
VRM unit Choose VRM unit VRM unit may
be set indepen-
dently from
Range unit
VRM unit may
be set indepen-
dently from
Range unit
VRM unit inter-
linked with
Range unit
1-20
![](/img.php?id=1456603&img=bgd.png)
xi
SYSTEM CONFIGURATION
FR-8252
ANTENNA UNIT
RSB-0073-087A-XN12A/XN13A
POWER SUPPLY UNIT
PSU-008
AC-DC Power Supply
PR-240
12-24 VDC
Remote
Display
Gyro
Converter
AD-100
Heading Sensor
PG-1000
NMEA
Device
NMEA
Device
External
Buzzer
OP03-136
: Optional equipment
100/110/
115/220/
230 VAC, 1
φ
Category of units
A
ntenna unit: Exposed to weather
A
ll other units: Protected from weather
DISPLAY UNIT
RDP-150
Remote
Controller
RCU-019
OR
Auto Plotter
ARP-11
(built into display unit)
RGB Gyrocompass
Commercial Monitor
(SVGA or better)
![](/img.php?id=1456603&img=bge.png)
SYSTEM CONFIGURATION
xii
FR-8122, FR-8062
ANTENNA UNIT
RSB-0073-085A-XN12A/XN13A: FR-8062
RSB-0073-086A-XN12A/XN13A: FR-8122
DISPLAY UNIT
RDP-150
12-24 VDC
Remote
Display
Commercial Monitor
(SVGA or better)
Gyro
Converter
AD-100
Heading Sensor
PG-1000
NMEA
Device
NMEA
Device
External
Buzzer
OP03-136
: Optional equipment
Gyrocompass
Remote
Controller
RCU-019
OR
Auto Plotter
ARP-11
(built into
display unit)
RGB
Category of units
A
ntenna unit: Exposed to weather
A
ll other units: Protected from weather
AC-DC Power Supply
PR-240
100/110/
115/220/
230 VAC, 1
φ
![](/img.php?id=1456603&img=bgf.png)
1-1
1. OPERATIONAL OVERVIEW
1.1 Controls
1.1.1 Display unit
This radar is operated with the controls of the display unit (and the remote controller), which
includes 18 keys that are labeled with their functions, three knob controls and a trackball. When
you correctly execute an operation, the unit generates a beep. Invalid operation causes the unit
to emit several beeps.
No. Control Description
1Momentary press: Turns power on; adjusts
brilliance.
Long press: Turns power off.
Note: Hereafter this control is referred to as
“POWER/BRILL”.
2 STBY/TX Transmits radar pulses and places radar in
stand-by alternately.
3 MODE Chooses presentation mode.
4 CUSTOM Presets radar controls for one-touch set up of
radar.
5 RANGE Chooses radar range.
6 ZOOM Zooms chosen location (or target).
7TARGET
ALARM
Sets target alarm, which watches for targets
entering (or exiting) an alarm zone.
8 EBL Measures bearing to a target.
9 MENU Opens/closes menu.
10 ENTER Saves chosen menu option; acquires ARP tar-
get; chooses ARP or AIS target to display its
data.
11 GAIN Adjusts the sensitivity of the radar receiver.
12 A/C SEA Suppress sea clutter.
13 A/C RAIN Suppresses rain clutter.
14, 15 F1, F2 Function keys providing instant call up of
desired function.
16 OFF CENTER Shifts display.
17 TRAILS Plot radar echo movement.
18 VRM Measures range to a target.
19 TLL Outputs latitude and longitude position of a tar-
get to a navigation plotter or inscribes mark at
cursor location, or both the above.
20 CANCEL/
HL OFF
Temporarily erases heading line; cancels last
entry in menu operation; cancels tracking of
ARP target; removes data of selected ARP or
AIS target from data box; goes back one layer
in multilayer menu.
21 Trackball Chooses menu items and options; shifts
cursor.
ENTER
TARGET
ALARM
CANCEL
HL OFF
TLL
MENU
EBL
ZOOM
TRAILS
VRM
F1
F2
PUSH AUTO/MAN
PUSH AUTO/MAN
PUSH AUTO/MAN
STBY
TX
MODE
CUSTOM
+
RANGE
-
GAIN
A/C SEA
A/C RAIN
BRILL
OFF
CENTER
ENTER
TARGET
ALARM
CANCEL
HL OFF
TLL
MENU
EBL
ZOOM
TRAILS
VRM
F1
F2
PUSH AUTO/MAN
PUSH AUTO/MAN
PUSH AUTO/MAN
STBY
TX
MODE
CUSTOM
+
RANGE
-
GAIN
A/C SEA
A/C RAIN
BRILL
OFF
CENTER
1
2
3
4
5
1
0
6
7
8
9
11
12
13
14
15
16
17
18
19
20
21
/
BRILL
![](/img.php?id=1456603&img=bg10.png)
1. OPERATIONAL OVERVIEW
1-2
1.1.2 Remote controller
The optional remote controller provides armchair control over transmit, standby, range and display
offcentering (30% in stern direction).
Remote controller
Chooses range.
OFF
CENTER STBY
TX
RANGE
Toggles STBY/TX.
Offcenters display.
![](/img.php?id=1456603&img=bg11.png)
1. OPERATIONAL OVERVIEW
1-3
1.2 Turning the Radar On/Off, Transmitting
Press the POWER/BRILL key at the top of the control panel to turn the radar on, and the lamp to
its left lights. To turn the radar off, press and hold down the key until the screen turns black.
At power-up, the start-up screen appears, showing the model name, program number and the
results of the ROM and RAM check, OK or NG (No Good). If an NG appears, try pressing any key
other than the power key to proceed. If normal operation is not possible, contact your dealer for
advice.
Start-up screen
After the tests are completed, the bearing scale and a digital timer appear. The digital timer counts
down the time remaining to warm up the magnetron, which transmits the radar pulses. This warm-
up takes 180 sec. (FR-8252) or 90 sec. (FR-8062, FR-8122).
After the timer has counted down to 0:00, the STBY screen appears, the appearance of which you
may choose according to your needs. (For further details, see paragraph 1.41.2.) The radar is now
ready to transmit radar pulses. Press the STBY/TX key to transmit radar pulses.
The STBY/TX key toggles between stand-by and transmit status. The antenna rotates in transmit
condition and is stopped in standby. Because the magnetron ages with use it is highly recom-
mended to set the radar in standby when it will not be required, to extend the life of the magnetron.
Quick start
Provided that the radar was once in use with the transmitter tube (magnetron) still warm, you can
get the radar into TRANSMIT condition without the warm-up. If the POWER/BRILL key was
turned off by mistake or the like and you wish to restart the radar promptly, turn on the POWER/
BRILL key not later than 10 seconds after power-off. This feature is not available with the
FR-8252.
Model name appears here.
FR-8xx2
12.1" COLOR LCD
MARINE RADAR
ROM: OK RAM: OK
Program No. 0359226-xx.xx
FURUNO ELECTRIC CO., LTD.
![](/img.php?id=1456603&img=bg12.png)
1. OPERATIONAL OVERVIEW
1-4

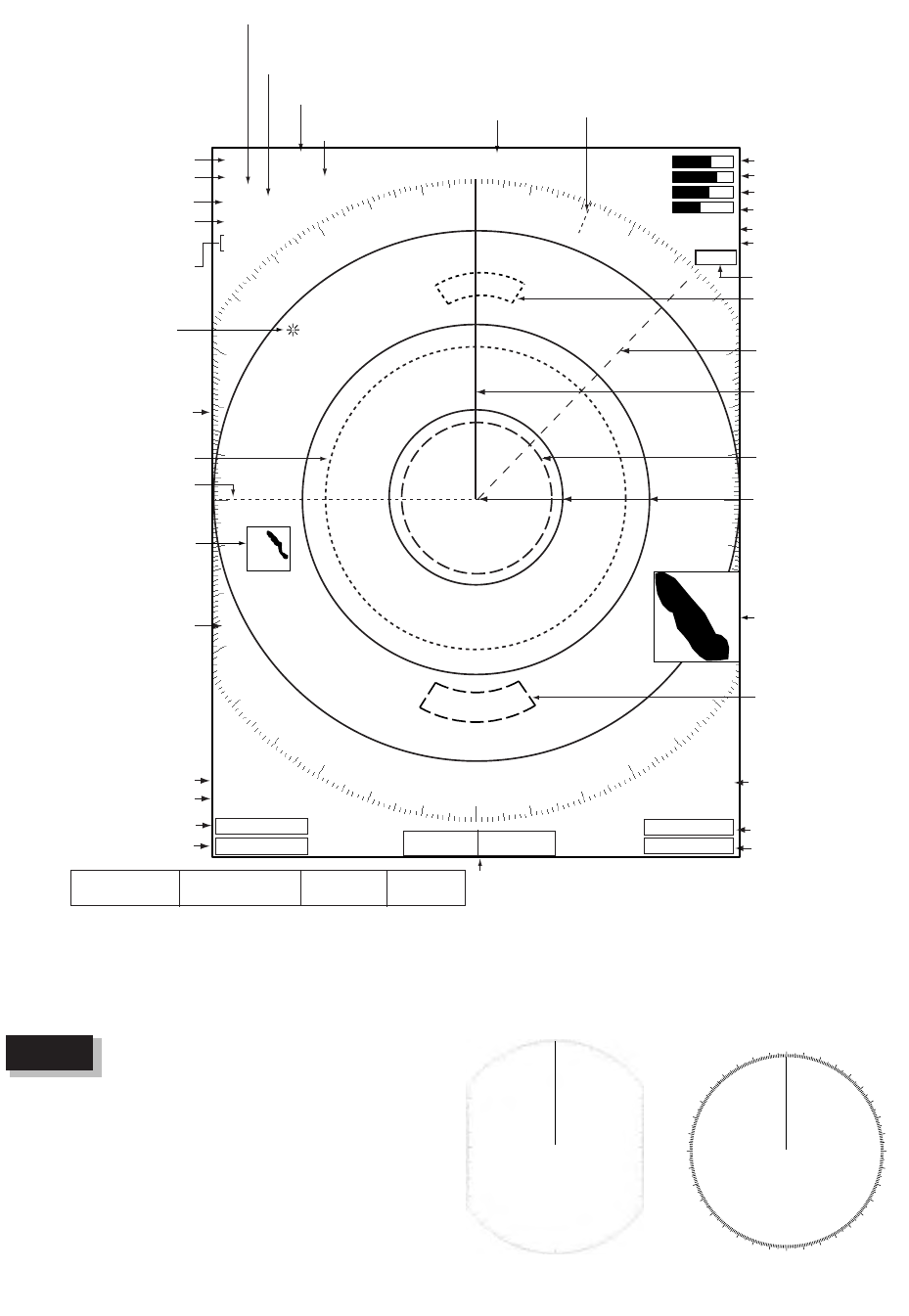

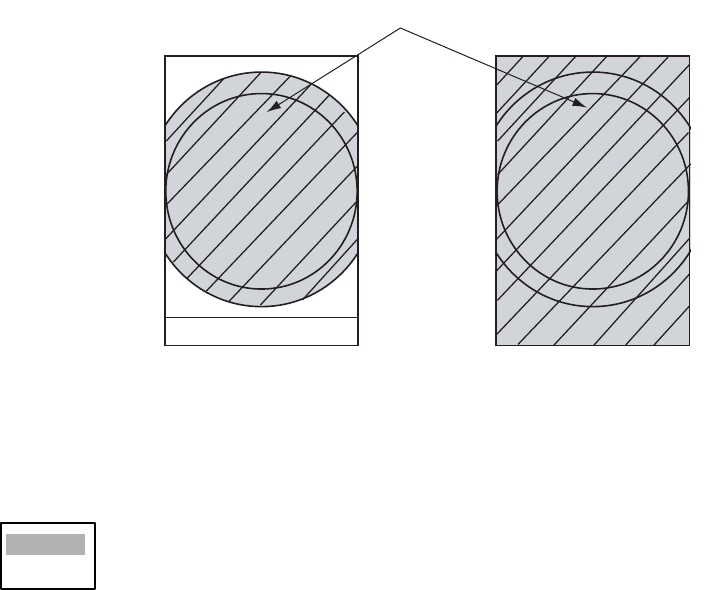

1.3 Display Indications
Display indications
The screen configuration, chosen
during the installation, is available
in three types, “Sea”, “River” and
“IEC”, and the default configuration
is “Sea”. The majority of the
descriptions in this manual use the
“Sea” configuration. The major dif-
ference between the Sea, River
and IEC configurations is the effec-
tive display area - it is elliptical on
the Sea and River types and cir-
cular on the IEC type.
Heading
OWN LAT: 34
°
56.123 N
SHIP LON: 135
°
34.567 E
SPEED 12.3 kt
CURSOR LAT: 34
°
56.123 N
LON: 135
°
34.567 E
TTG: 01:00
TEMP 12.3
°
C
DEPTH 56.7 m
WAY 14.90 NM
POINT 202.4
°
TTG: 00:20
Nav data:
Appears at screen bottom when Data Box in the
Display sub menu is set to "Nav" or "All". Appropriate sensors
required to display nav data.
Cursor data
(Range and bearing or L/L position)
Presentation mode
Range ring interval
Custom setting name
Range
Pulse length
Echo stretch (ES),
Echo averaging (EAV)
Noise rejector (NR),
Interference rejector (IR)
Zoom
Trail reference
Trail time
No.1 EBL bearing
Offcenter
(M: Manual, A: Auto)
Auto adjustment of
rain and sea clutters
North Marker
TUNE indicator
GAIN indicator
A/C SEA indicator
A/C RAIN indicator
2nd echo rejector
Target alarm
indications
No. 1 VRM range
No. 2 VRM range
WATCHMAN
Target alarm zone 1
Target alarm zone 2
359.9°
M
+ 242.8°R 2.782 NM
ALARM1_IN
ALARM2_OUT
VRM2 0.220NM
VRM1>0.425<NM
TRAILS (T)
15S
EBL2 45.0°R
EBL1>270.0°R<
+
0.75
NM
SP
H UP OFFCENTER(M)
ES 1 EAV1
NR LOW
IR LOW
HARBOR A/C AUTO
0.25
TUNE AUTO
GAIN AUTO
SEA AUTO
RAIN AUTO
2ND ECHO
ZOOM
WATCH
Heading line
Range ring
No. 2 VRM
No. 2 EBL
Zoom window
No. 2 EBL bearing
Zoom cursor
No. 1 EBL
No. 1 VRM
Cursor
Origin mark
Dashed: relative
Solid: true
Bearing scale
Note
B
earing scale for Sea and
R
iver configurations
Bearing scale for
IEC configuration
000 030
060
09
0
120
150
180
210
240
270
300
330
![](/img.php?id=1456603&img=bg13.png)
1. OPERATIONAL OVERVIEW
1-5
1.4 Adjusting Display Brilliance, Panel Dimmer
The display brilliance and panel dimmer may be adjusted as follows:
1. Press the POWER/BRILL key momentarily to show the Brill/Panel dialog box.
Brill/Panel dialog box
2. Press the ENTER key to choose Brill or Panel, whichever you wish to adjust.
3. Roll the trackball rightward or leftward to adjust. (For brilliance, you may also use the POWER/
BRILL key.)
4. Press the CANCEL/HL OFF key to close the window.

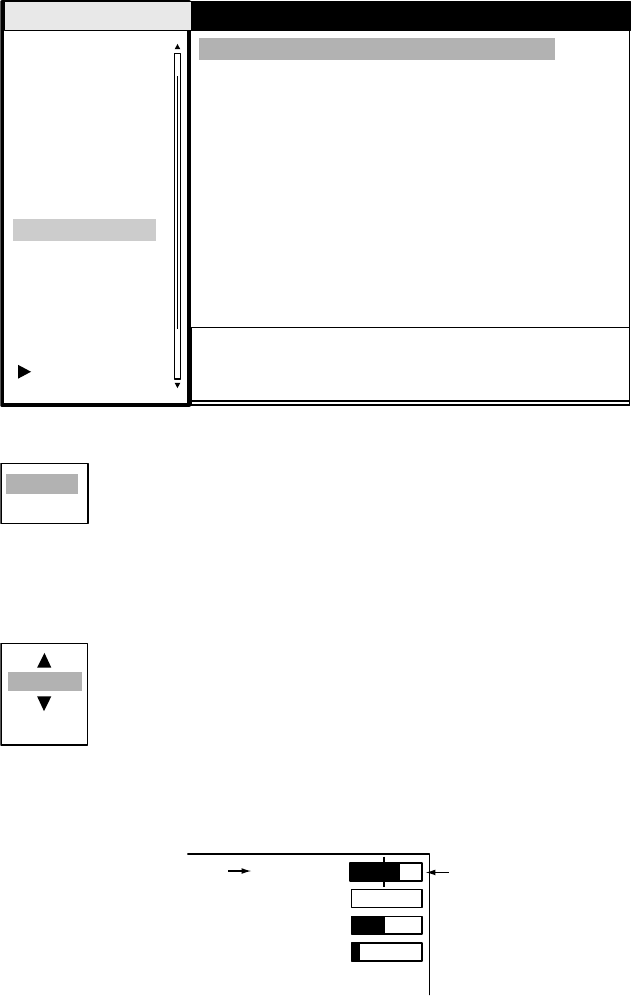

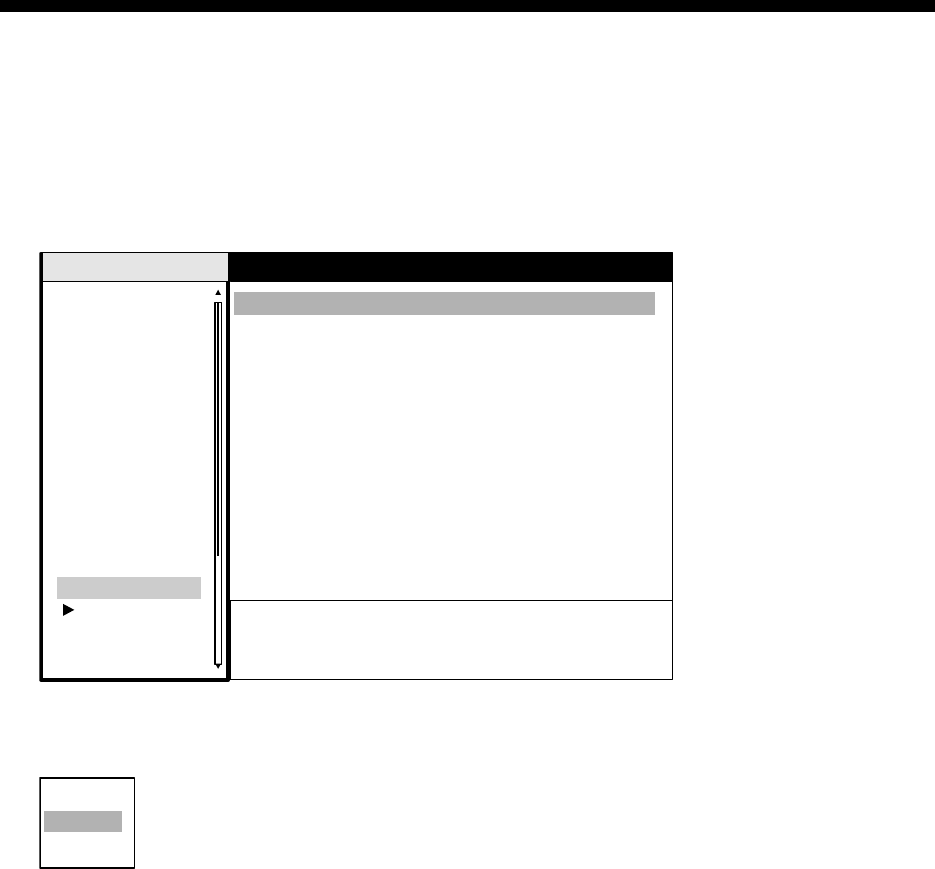

1.5 Menu Overview
Less-often used functions are controlled through the menu, which consists of 15 menus and 5 sub
menus. Below is the basic procedure for menu operation.
1. Press the MENU key to display the menu.

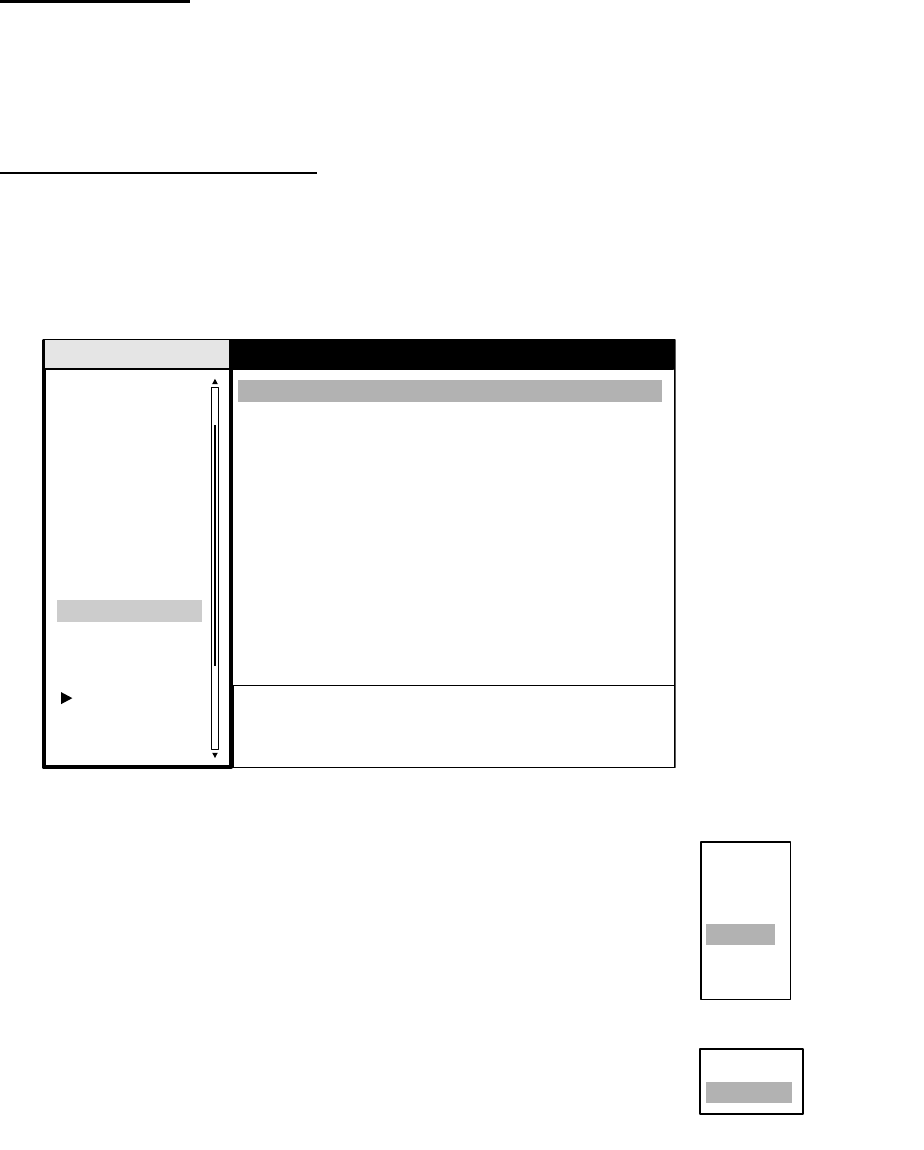

Menu
2. Roll the trackball to choose a menu or sub menu. As you roll the trackball, the yellow (highlight)
cursor in the Menu column indicates the menu currently selected and the menu items change
according to the menu selected.
W Min Max X
Brill/Panel
Brill (1 - 15) 15
Panel (1 - 15) 15
[ENTER]: Select
[CANCEL/HL OFF]: Close
Brill/Color
Echo
Mark
Target Trails
Custom 1
Display
Custom 2
Custom 3
GPS Buoy
Target
ARP*1
AIS*2
GPS*3
System
Tuning
Auto Rain
Pulse Length
Auto Gain
Auto Sea
Echo Stretch
Echo Average
:Long
:Off
:Off
:Moderate
:Moderate
:Moderate
Display-Dynamic
Auto Anti Clutter
Display-Curve
Noise Rejector
Interference Rejector
2nd Echo Rejector
:Normal
:2
:Off
:Off
:Off
:Med

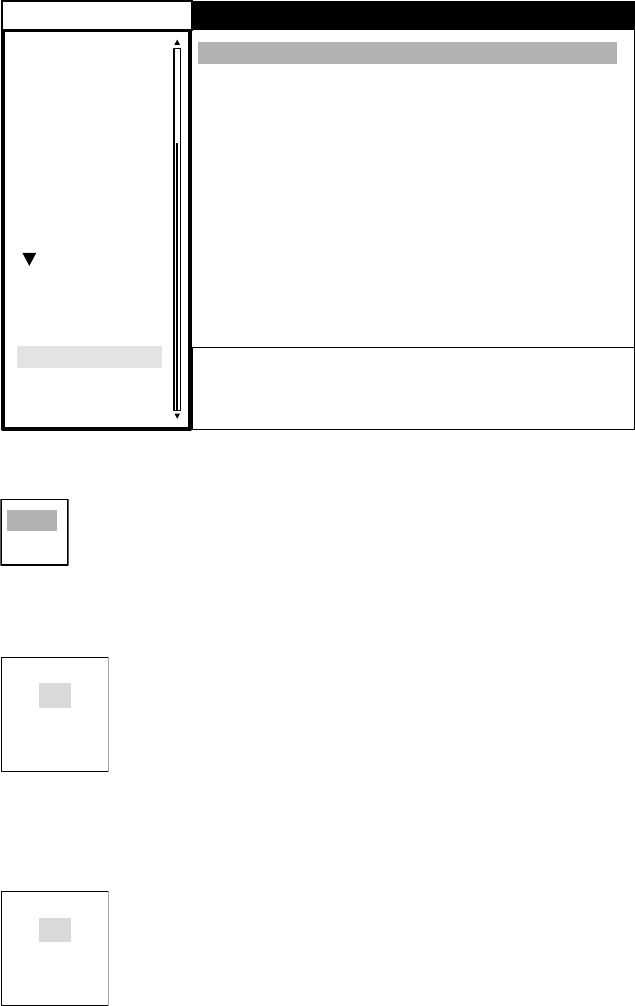

Menu Echo
Cursor*4
Menu items
and current
settings
Currently selected menu
Scroll bar
(Indicates menus not currently shown in menu window.
Black vertical line indicates location in menu.)
[ENTER]: Enter [CANCEL/HL OFF]: Back
[MENU]: Exit
*1 Displayed if equipped with ARP Board.
*2 Displayed if radar is interfaced with AIS transponder.
*3 Dipslayed if radar is interfaced with GPS receiver.
*4 Title bar is currently controllable column is blue; selected cursor is
yellow. Title bar of inactive column is gray.
Menu
Antenna Speed :48rpm
Title bar*4
Arrow means
sub menus
present
![](/img.php?id=1456603&img=bg14.png)
1. OPERATIONAL OVERVIEW
1-6
Menu description
Brill/Color: Choose colors; adjust range ring brilliance.
DIsplay: Control display functions.
Echo: Adjust radar echo.
Target Trails: Process target trails.
Mark: Process markers such as VRM and EBL.
Custom 1-Custom 3: One-touch set up for given navigation situation.
Tuning: Adjust radar tuning.
GPS Buoy: Set up GPS buoy display.
Target: Set up ARP and AIS targets.
ARP: Set up ARP display.
AIS: Set up AIS display.
GPS: Set up FURUNO GPS receiver interfaced with this radar.
System:
Initial: Initial settings.
Factory: System diagnostic and LCD test.
Installation: Items for installation. Not accessible by user.
Sector Blank 1, Sector Blank 2: Set up for preventing transmission in a certain area.
3. Press the ENTER key to switch control to the menu items column. At this time the cursor in the
menu column turns gray and the cursor in the menu items column is yellow, indicating that con-
trol is now with the menu items column.
To switch control between the menu column and menu items column, use the CANCEL/HL
OFF key. The color of the title bar of the active column is blue and the color of the title bar of
the inactive column is gray.
4. Roll the trackball to choose the menu item desired and press the ENTER key. A window with
options for the corresponding menu item appears. For example, the window below shows the
options for Color in the Target Trails menu.
5. Roll the trackball upward or downward to choose appropriate option.
6. Press the ENTER key to save your selection. To close the window without saving, press the
CANCEL/HL OFF key (instead of the ENTER key).
7. Press the MENU key to close the menu.
The menus on the IEC-type radar close automatically when there is no menu opera-
tion for 10 seconds, as per IEC regulations. The following menus and screens how-
ever are exempt from this rule: Alarm message, GPS self test, Satellite monitor,
Diagnostic, LCD pattern, tuning initial adjust and auto installation setup.
Menus do not close automatically in the “River” or “Sea” configuration.
Green
Red
Blue
White
Black
Note
![](/img.php?id=1456603&img=bg15.png)
1. OPERATIONAL OVERVIEW
1-7
1.6 Tuning
The radar receiver can be tuned automatically or manually, and the default tuning method is auto-
matic. If you require manual tuning, do the following:
1. Use the RANGE key to choose the 48-mile range.
2. Press the MENU key to display the main menu.
3. Use the trackball to choose Tuning and press the ENTER key.
4. Use the trackball to choose Tuning Mode and press the ENTER key.

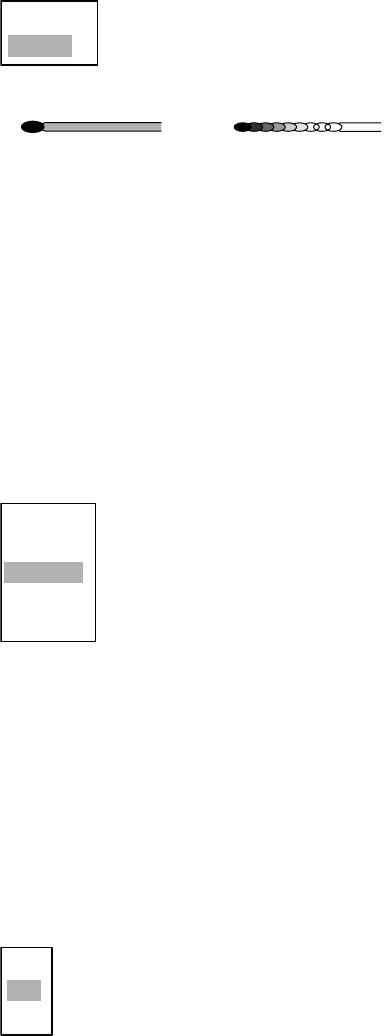

Tuning options
5. Choose Manual and press the ENTER key.

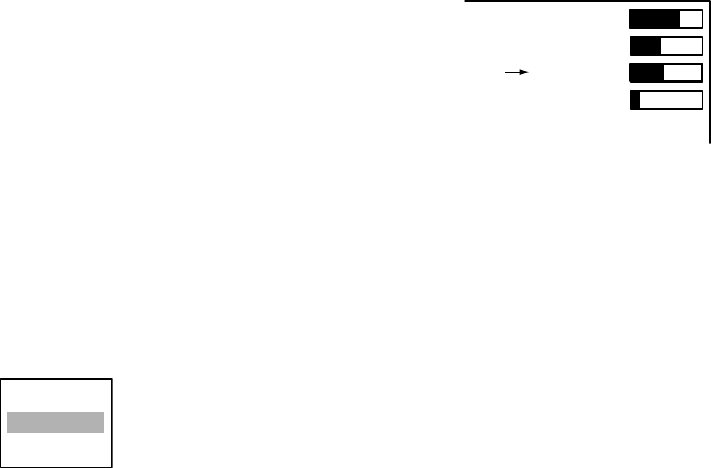

6. Choose Manual Tuning and push the ENTER key. The window shown below appears.
7. Roll the trackball upward or downward to adjust the tuning, watching the tuning bar at the top
right corner. The best tuning point is where the tuning bar swings maximum. The vertical bar
on the tuning bar shows tuning control position; not the tuning condition.

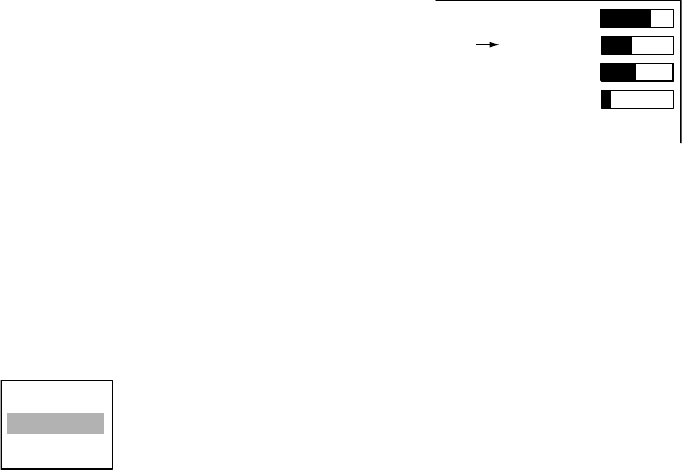

Tuning indicator
8. Push the ENTER key.
9. Press the MENU key to close the menu.
Brill/Color
Echo
Mark
Target Trails
Custom 1
Display
Custom 2
Custom 3
GPS Buoy
Target
ARP
AIS
GPS
System
Tuning
Tuning Mode
Manual Tuning
:Auto
Menu
Tuning
[ENTER]: Enter [CANCEL/HL OFF]: Back
[MENU]: Exit
:2048
Auto
Manual
2048
(0-4095)

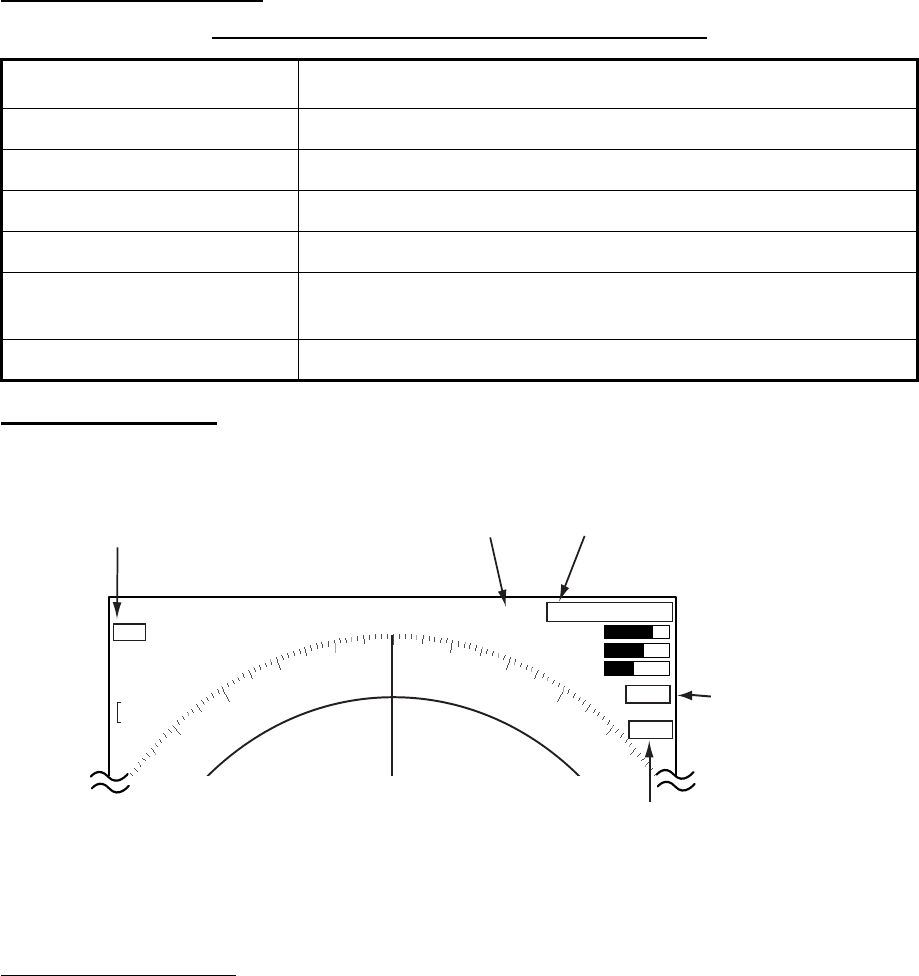

Tuning method (Manual) Tuning ba
r
TUNE MAN
GAIN AUTO
SEA AUTO
RAIN AUTO
![](/img.php?id=1456603&img=bg16.png)
1. OPERATIONAL OVERVIEW
1-8
1.7 Presentation Modes
This radar has the following presentation modes:
Relative Motion (RM)
Head-up: Unstabilized display. Heading is at the top of the screen.
Course-up: Compass-stabilized relative to ship's orientation. The bearing scale rotates to place
ship’s heading (course set) at the screen top at the moment the course-up mode is selected.
North-up: Compass-stabilized with reference to north. Bearing scale is fixed.
True Motion (TM)
North-up: Ground or sea stabilized with compass and speed inputs. Own ship moves on the dis-
play. Landmasses and sea are fixed.
1.7.1 Choosing presentation mode
Press the MODE key consecutively to choose presentation mode desired. The presentation mode
in use appears at the top left corner on the screen.
All modes except head-up require a heading signal, in AD-10 format or NMEA
format. If the heading signal is lost, the mode is changed to head-up and the north
marker disappears. Further, the heading readout shows XXX.X and the message
“GYRO” (AD-10 format data) or “NMEA-HEAD” (NMEA format data) appears in the
alarm message display. Restore gyro input and confirm bearing.

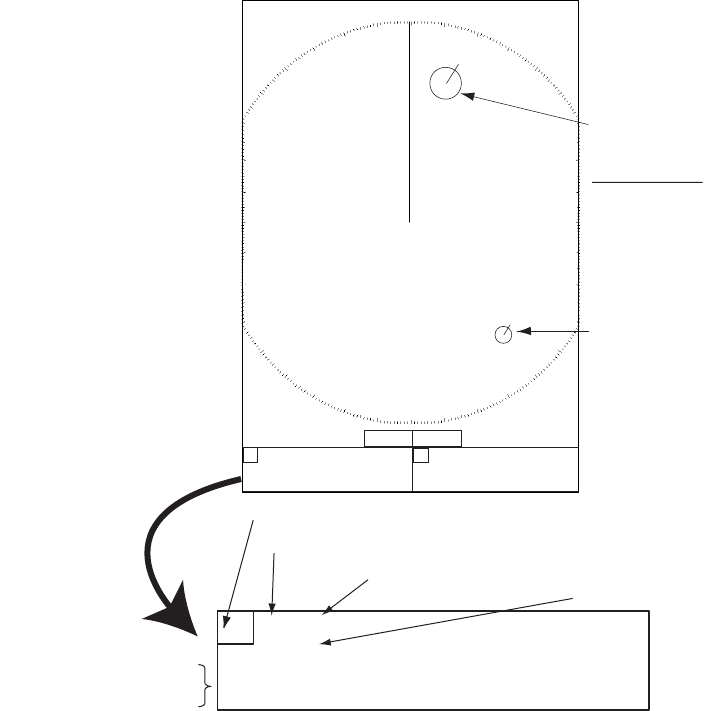

1.7.2 Description of presentation modes

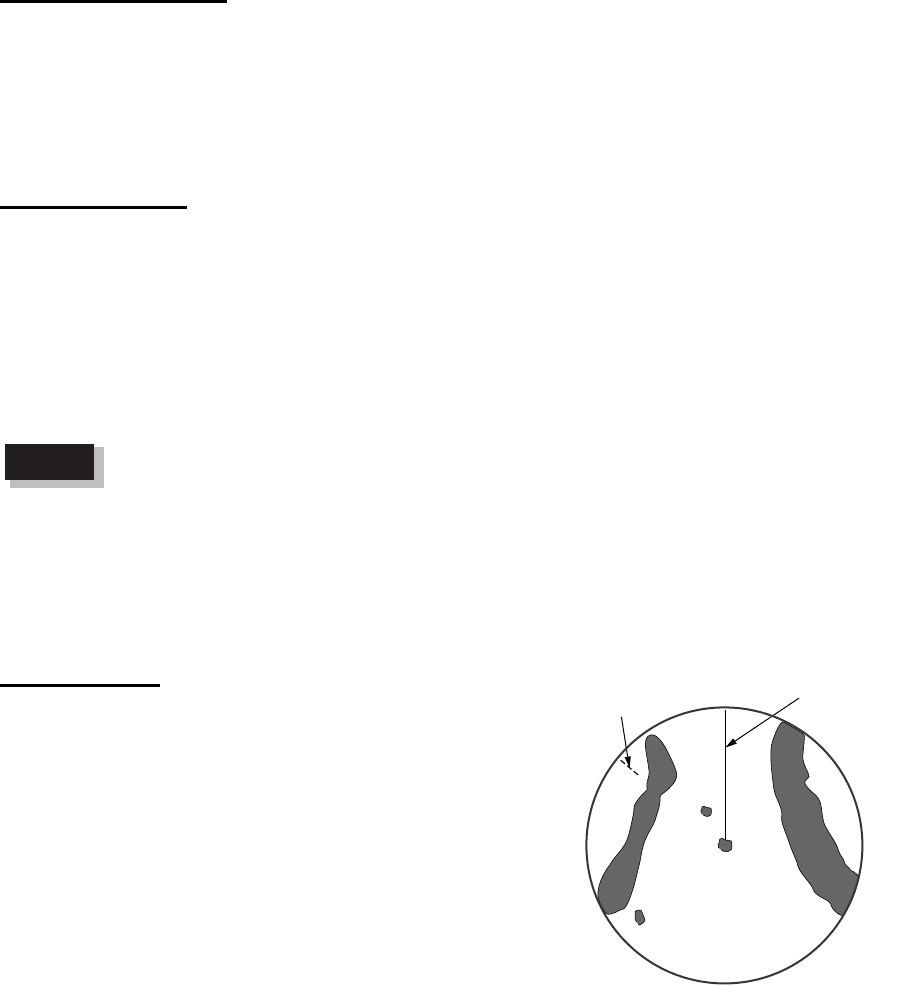

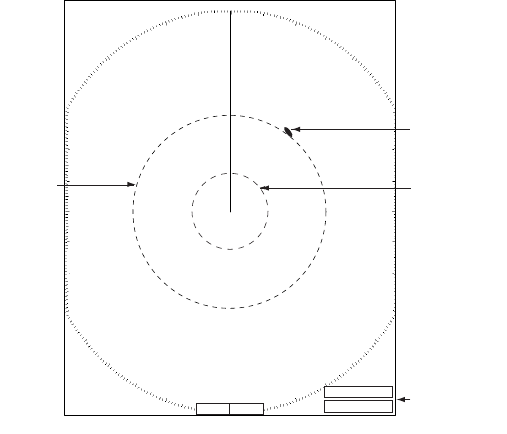

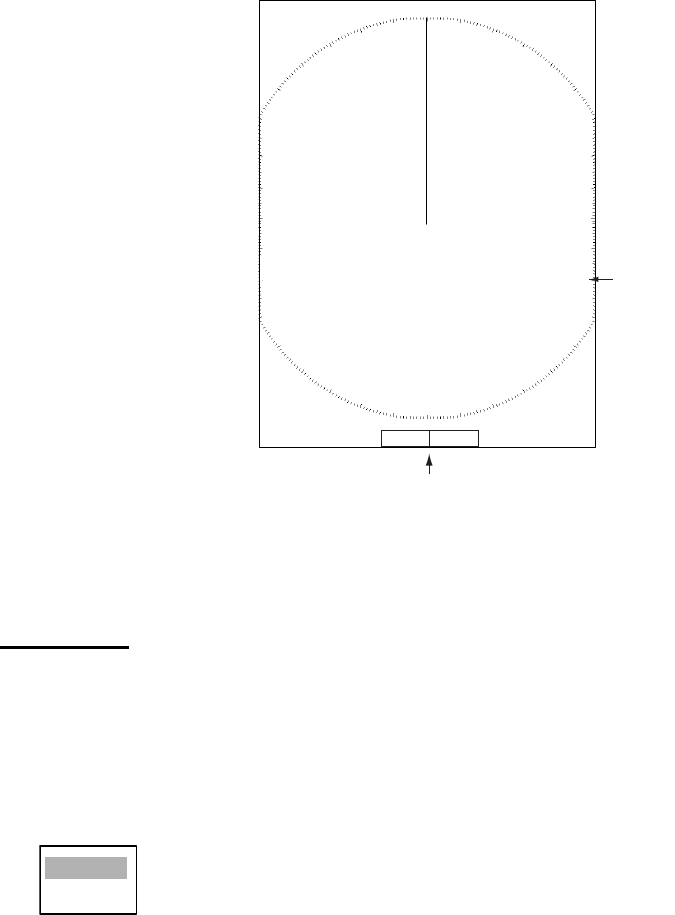

Head-up mode
The head-up mode is a display in which the line con-
necting own ship and the top of the display indicates own
ship's heading.
The target pips are painted at their measured distances
and in their directions relative to own ship's heading.
Echoes may be unstable in severe yawing and turning.
A short line on the bearing scale is the north marker, indi-
cating heading sensor north.
Note
Heading Line
N
orth Marker
![](/img.php?id=1456603&img=bg17.png)
1. OPERATIONAL OVERVIEW
1-9

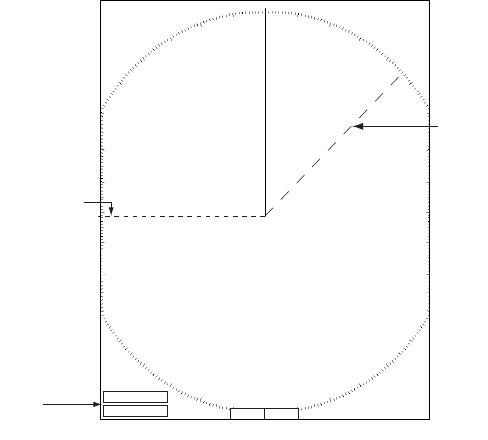

Course-up mode
The course-up mode is an azimuth stabilized dis-
play in which a line connecting the center with the
top of the display indicates own ship's intended
course (namely, own ship's previous heading just
before this mode has been selected).
Target pips are painted at their measured dis-
tances and in their directions relative to the
intended course, which is maintained at the 0-
degree position. The heading line moves in accor-
dance with ship's yawing and course change. This
mode is useful to avoid smearing of picture during
course change.
North-up mode
The north-up mode paints target pips at their measured dis-
tances and in their true (heading sensor) directions from own
ship, north bearing maintained at the top of the screen. The
heading line changes its direction according to the ship's
heading.
True motion mode
Own ship and other moving objects move in accordance with
their true courses and speed. In ground stabilized TM, all
fixed targets, such as landmasses, appear as stationary
echoes.
When own ship reaches a point corresponding to 75% of the
radius of the display, own ship position is automatically reset
to a point of 75% radius opposite to the extension of the
heading line passing through the display center. You may
also reset the own ship symbol manually by pressing the OFF
CENTER key. The method of resetting is the same as men-
tioned above.
Heading Line
North Marker
Heading Line
North Marker
Heading Line
North Marker
![](/img.php?id=1456603&img=bg18.png)
1. OPERATIONAL OVERVIEW
1-10

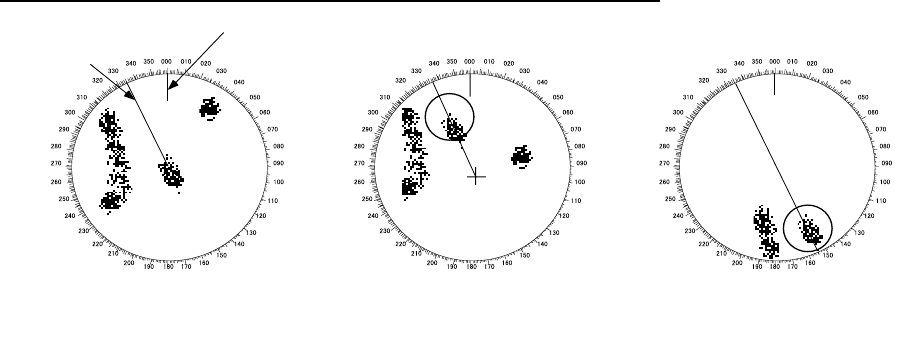

Automatic resetting of own ship marker in true motion mode
1.8 Choosing a Range Scale
The selected range scale, range ring interval and pulse length are shown at the upper left corner
on the screen. When a target of interest comes closer, reduce the range scale so that it appears
in 50-90% of the display radius.
Use the RANGE key to choose range desired. Hit the "+" part of the key to raise the range;
the "-" part to lower the range.
Heading
line
North
marker
(a) True motion
is selected (b) Own ship has reached a
point 75% of display radius (c) Own ship is automatically
reset to 75% of radius
![](/img.php?id=1456603&img=bg19.png)
1. OPERATIONAL OVERVIEW
1-11
1.9 Choosing a Pulse Length
The pulse length in use appears at the top left position on the screen. Appropriate pulse lengths
are preset to individual range scales and custom setups. If you are not satisfied with the pulse
length setting on the 1.5 nm or 3 nm range, you may change it as below. (Pulse length cannot be
changed on any other ranges.) Use a longer pulse when your objective is long range detection, a
shorter pulse when resolution is important.
1. Press the MENU key to open the menu.
2. Use the trackball to choose the Echo menu and press the ENTER key.
3. Use the trackball to choose Pulse Length and press the ENTER key.
4. Choose Short or Long as appropriate and press the ENTER key.
5. Press the MENU key to close the menu.
Brill/Color
Echo
Mark
Target Trails
Custom 1
Display
Custom 2
Custom 3
GPS Buoy
Target
ARP
AIS
GPS
System
Tuning
Auto Rain
Pulse Length
Auto Gain
Auto Sea
Echo Stretch
:Short
:1
:Off
:Calm
:Moderate
:Calm
Noise Rejector
Echo Average
Interference Rejector
DIsplay-Dynamic
DIsplay-Curve
Antenna Speed
2nd Echo Rejector
:Normal
:1
:Off
:Off
:Off
:Off
Menu Echo
[ENTER]: Enter [CANCEL/HL OFF]: Back
[MENU]: Exit
Auto Anti Clutter
:48rpm
Short
Long
![](/img.php?id=1456603&img=bg1a.png)
1. OPERATIONAL OVERVIEW
1-12
1.10 Adjusting the Gain (sensitivity)
The gain functions to adjust the receiver sensitivity for the best reception of signals of widely
varying amplitudes.
1.10.1 Choosing gain adjustment method
Gain may be adjusted automatically or manually. Push the GAIN control to choose automatic or
manual adjustment alternately. The adjustment method currently chosen is show at the top right
corner of the screen. In the example below the gain adjustment method is “AUTO”.
Gain adjustment method indicator
1.10.2 Setting automatic gain level
1. Press the MENU key to open the menu.
2. Choose the Echo menu and press the ENTER key.
3. Choose Auto Gain and press the ENTER key.
4. Choose the option which best matches current sea condition and press the ENTER key.
5. Press the MENU key to close the menu. Gain is automatically adjusted according to the level
selected.
1.10.3 Manual gain adjustment

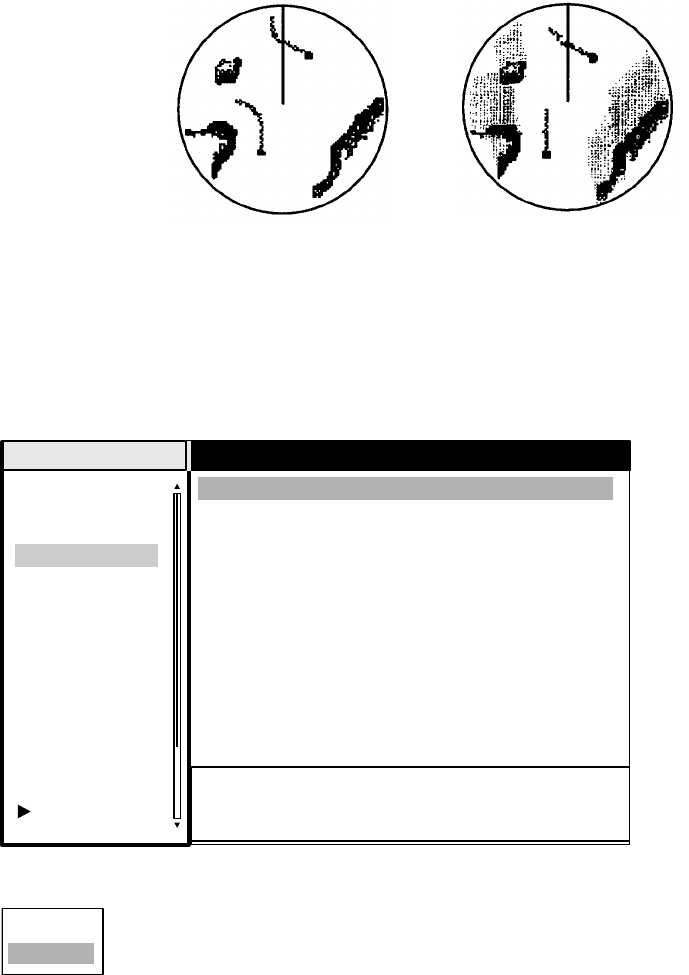

Adjust the gain such that noise faintly appears over the entire screen. If the gain is too low weak
echoes will not be displayed and if the gain is too high, weak echoes will be hidden in background
noise.
1. Push the GAIN control to show “GAIN MAN” as the gain adjustment method.
2. Rotate the GAIN control to adjust the gain. Adjust the control so background noise is just visible
on the screen.
TUNE AUTO
GAIN AUTO
SEA AUTO
RAIN AUTO
Gain adjustment method (AUTO)
Rough
Moderate
Calm
![](/img.php?id=1456603&img=bg1b.png)
1. OPERATIONAL OVERVIEW
1-13

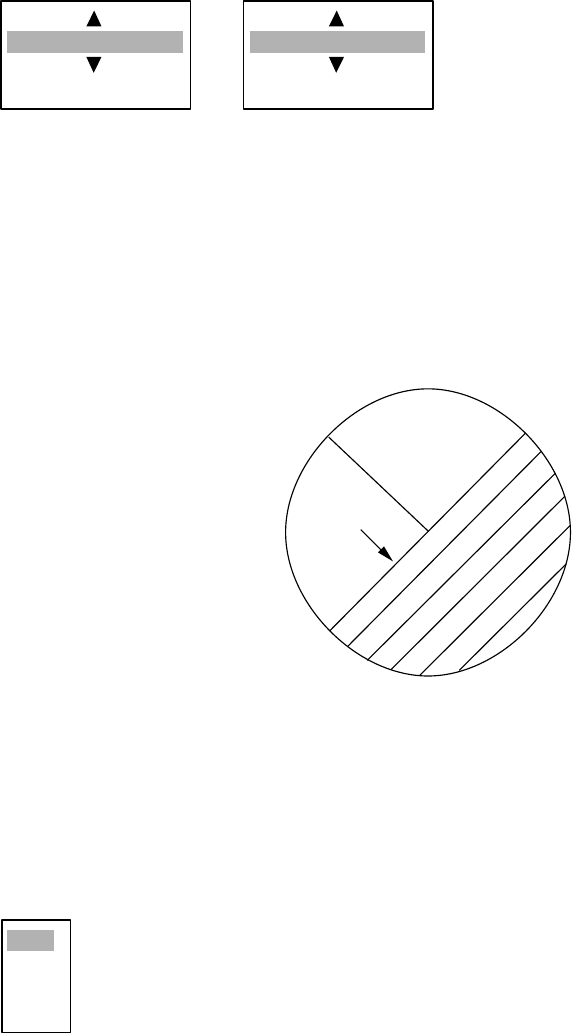

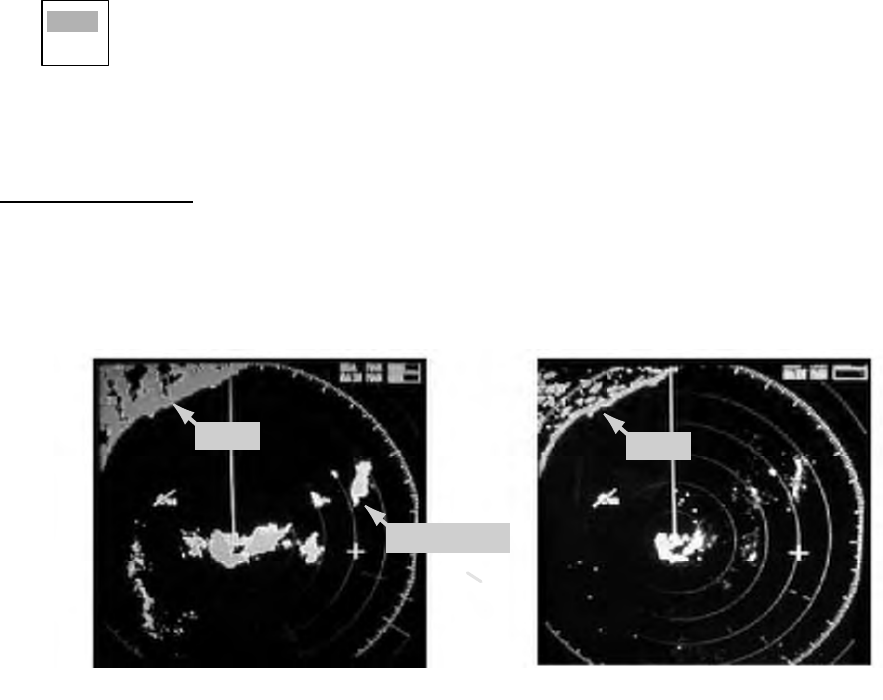

1.11 Suppressing Sea Clutter
Echoes from waves cover the central part of the display with random signals known as sea clutter.
The higher the waves, and the higher the antenna above the water, the further the clutter will
extend. When sea clutter masks the picture, use the A/C SEA control to suppress the clutter,
either manually or automatically.

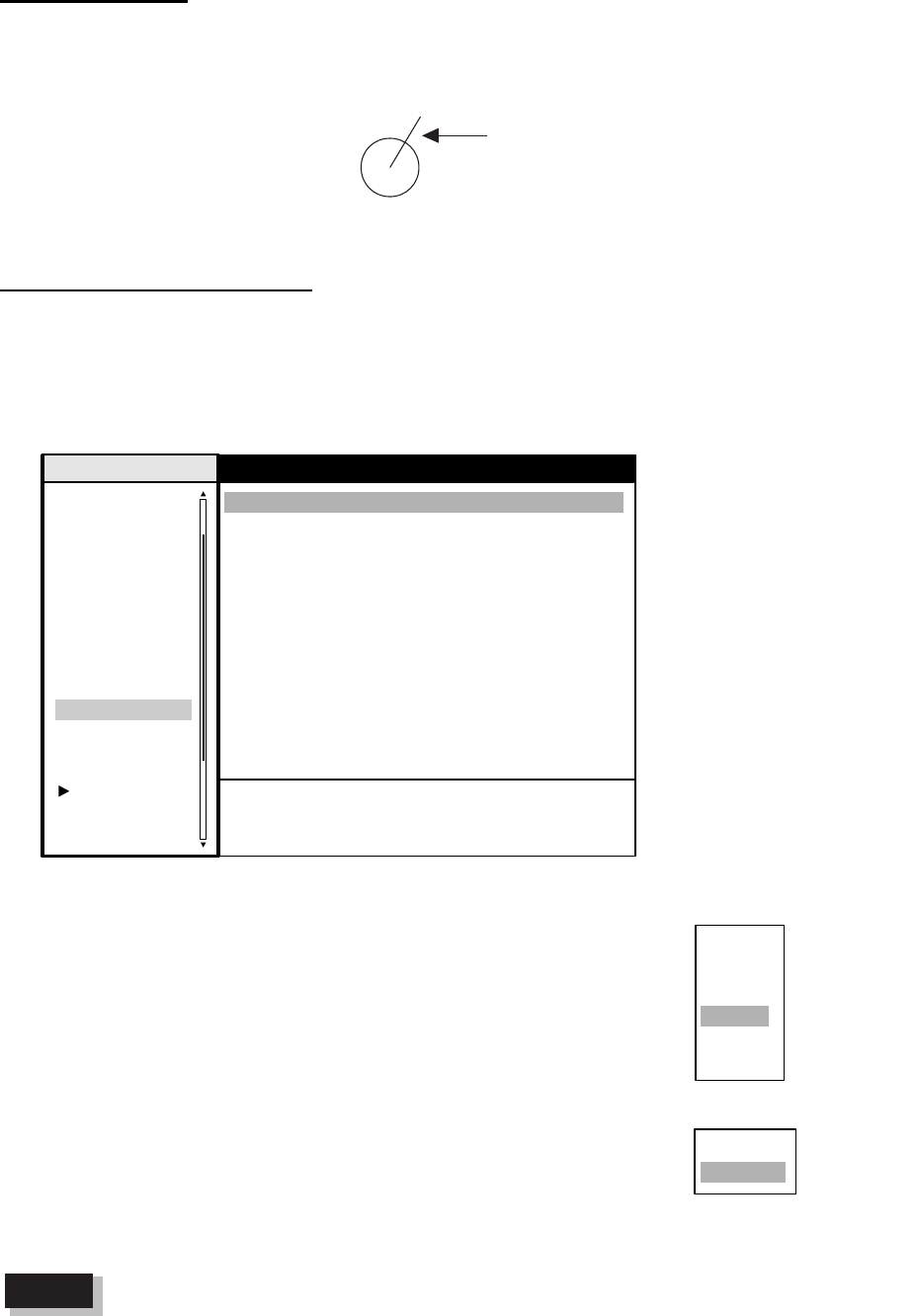

1.11.1 Choosing sea clutter adjustment method
Push the A/C SEA control to choose automatic or manual adjustment alternately. The adjustment
method currently chosen is show at the top right corner of the screen. In the example below the
sea clutter adjustment method is “AUTO”.
A/C SEA indicator
1.11.2 Setting automatic sea clutter suppression level
1. Press the MENU key to open the menu.
2. Choose the Echo menu and press the ENTER key.
3. Choose Auto Sea and press the ENTER key.
4. Choose the option which best matches current sea condition and press the ENTER key.
5. Press the MENU key to close the menu. Sea clutter is automatically adjusted according to the
level selected.
TUNE AUTO
GAIN AUTO
SEA AUTO
RAIN AUTO
A/C SEA adjustment method (AUTO)
Rough
Moderate
Calm
![](/img.php?id=1456603&img=bg1c.png)
1. OPERATIONAL OVERVIEW
1-14
1.11.3 Manual sea clutter adjustment
1. Push the A/C SEA control to show “SEA MAN” as the A/C SEA adjustment method.
2. Rotate the A/C SEA control to suppress sea clutter.
The proper setting of the A/C SEA control is such that the clutter is broken up into small dots, and
small targets become distinguishable. If the setting is set too low, targets will be hidden in the
clutter, while if the setting is too high, both sea clutter and targets will disappear from the display.
In most cases adjust the control until clutter has disappeared to leeward, but a little is still visible
windward.
Appearance of sea clutter
1.12 Suppressing Rain Clutter
The vertical beamwidth of the antenna is designed to see surface targets even when the ship is
rolling. However, by this design the unit will also detect rain clutter (rain, snow, or hail) in the same
manner as normal targets.
The A/C RAIN control adjusts the receiver sensitivity as the A/C SEA control does but rather in a
longer time period (longer range). The higher the setting the greater the anti-clutter effect. When
echoes from precipitation mask solid targets, adjust the control to split up these unwanted echoes
into a speckled pattern, making recognition of solid targets easier.
1.12.1 Choosing rain clutter adjustment method
Rain clutter may be adjusted automatically or manually. Push the A/C RAIN control to choose
automatic or manual adjustment alternately. The adjustment method currently chosen is show at
the top right corner of the screen. In the example below the rain clutter adjustment method is
“AUTO.”
A/C RAIN indicator
A/C SEA control adjusted;
sea clutter suppressed
Sea clutter at
screen center
A/C RAIN adjustment method (AUTO)
TUNE AUTO
GAIN AUTO
SEA AUTO
RAIN AUTO
![](/img.php?id=1456603&img=bg1d.png)
1. OPERATIONAL OVERVIEW
1-15
1.12.2 Setting automatic rain clutter suppression level
1. Press the MENU key to open the menu.
2. Choose the Echo menu and press the ENTER key.
3. Choose Auto Rain and press the ENTER key.
4. Choose the option which best matches current sea condition and press the ENTER key.
5. Press the MENU key to close the menu. Rain clutter is automatically adjusted according to the
level selected.
1.12.3 Manual rain clutter adjustment
1. Push the A/C RAIN control to show “RAIN MAN” as the A/C RAIN adjustment method.
2. Rotate the A/C RAIN control to suppress the rain clutter.
Appearance of rain clutter
Rough
Moderate
Calm
Rain clutter at A/C RAIN control
screen center adjusted
![](/img.php?id=1456603&img=bg1e.png)
1. OPERATIONAL OVERVIEW
1-16
1.13 Automatic Suppression of Sea and Rain Clutters
If neither sea clutter or rain clutter are sufficiently suppressed in spite of adjustment of respective
controls, turn on the automatic anti clutter feature to suppress them. A/C AUTO appears at the top
left corner when this feature is turned on.
1. Press the MENU key to open the menu.
2. Choose the Echo menu and press the ENTER key.
3. Choose Auto Anti Clutter and press the ENTER key.
4. Choose Off or On as appropriate and press the ENTER key.
Press the MENU key to close the menu.
Caution on usage
• A/C auto may erase an echo covering a wide area, such as land or island. See the example
below.
• With A/C auto active, the level of a target obscured by sea clutter or rain clutter may be further
lowered. In this case switch to manual A/C Sea and manual A/C Rain and adjust the picture.
Off
On
:£:¸:Å:»:£:¸:Å:»
:©:¸
Rain Clutter
Land Land
A/C Auto: OFF A/C Auto: ON
![](/img.php?id=1456603&img=bg1f.png)
1. OPERATIONAL OVERVIEW
1-17
1.14 Cursor
The cursor functions to find the range and bearing (default function) to a target or the latitude and
longitude position of a target. Roll the trackball to position the cursor and read the cursor data at
the screen bottom.
Cursor data
Cursor data
Cursor data can be shown as latitude and longitude or range and bearing from own ship to the
cursor. Position and heading bearing signal are required.
1. Press the MENU key to open the menu.
2. Choose the Mark menu and press the ENTER key
3. Choose Cursor Position and press the ENTER key.
4. Choose Brg/Rng or Lat/Long as appropriate and press the ENTER key. (Note that cursor lati-
tude and longitude position cannot be displayed when nav data is displayed.)
5. Press the MENU key to close the menu.
Cursor data
(latitutde and longitude
or range and bearing)

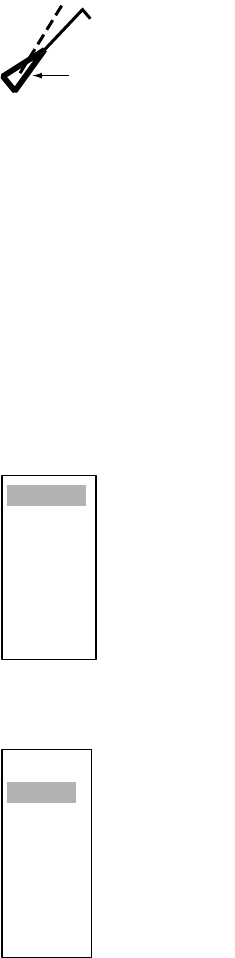

+ 110.1°R 2.525 NM
3
NM
0.5
Curs
or
+
Rng/Brg
Lat/Lon
![](/img.php?id=1456603&img=bg20.png)
1. OPERATIONAL OVERVIEW
1-18
1.15 Interference Rejector
Mutual radar interference may occur in the vicinity of another shipborne radar operating in the
same frequency band (9 GHz). It is seen on the screen as a number of bright spikes either in irreg-
ular patterns or in the form of usually curved spoke-like dotted lines extending from the center to
the edge of the picture. Activating the interference rejector circuit can reduce this type of interfer-
ence.

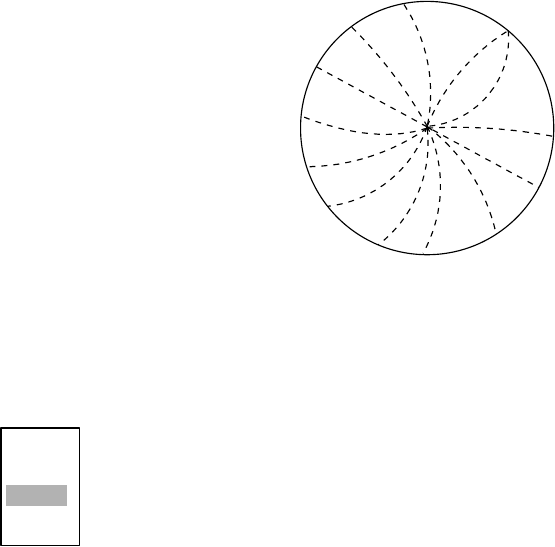

Interference
1. Press the MENU key to open the menu.
2. Choose the Echo menu and press the ENTER key.
3. Choose Interference Rejector and press the ENTER key.
4. Choose Off, Low, Med or High as appropriate and press the ENTER key. High provides the
highest degree of interference rejection.
5. Press the MENU key to close the menu.
Be sure to turn off the interference rejector when no interference exists, so as not to miss small
targets.
Off
Low
Med
High
![](/img.php?id=1456603&img=bg21.png)
1. OPERATIONAL OVERVIEW
1-19
1.16 Measuring the Range to a Target
The range to a target may be measured three ways: with the fixed range rings, with the cursor (if
set to measure range and bearing), and with the VRM.
Use the fixed range rings to obtain a rough estimate of the range to a target. They are the concen-
tric solid circles about own ship, or the sweep origin. The number of rings is automatically deter-
mined by the selected range scale and their interval is displayed at the upper-left position of the
screen. Count the number of rings between the center of the display and the target. Check the
range ring interval and judge the distance of the echo from the inner edge of the nearest ring.
1.16.1 Measuring range by the variable range marker (VRM)
There are two VRMs, No. 1 and No. 2, which appear as dashed rings so that you can discriminate
them from the fixed range rings. The two VRMs can be distinguished from each other by different
lengths of dashes.
1. Press the VRM key to display either of the VRMs. Successively pressing the VRM key toggles
the active VRM between No. 1 and No. 2. The currently active marker is enclosed with >.....<
in the VRM indication box.
2. Operate the Trackball to align the variable range marker with the inner edge of the target of
interest and read its distance at the lower-right corner of the screen. Each VRM remains at the
same geographical distance when you operate the RANGE key. This means that the apparent
radius of the VRM ring changes in proportion to the selected range scale.
3. You may “anchor” the VRM by choosing it and pressing the ENTER key.
4. To erase a VRM, make it active and press the CANCEL/HL OFF key.
Measuring range and bearing between two targets with the EBL
No. 1
VRM
+ 37.4°R 0.007 NM
VRM2 0.140
NM
VRM
indications
VRM1>0.007
NM
<
No. 2
VRM
Target
+
![](/img.php?id=1456603&img=bg22.png)
1. OPERATIONAL OVERVIEW
1-20
1.16.2 Choosing VRM unit
The unit of measurement used by the VRM can be selected to nautical miles, kilometers, statute
miles or kiloyard. Note that the cursor range unit is also changed when the VRM unit is changed.
1. Press the MENU key to open the menu.
2. Choose the Mark menu and press the ENTER key.
3. Choose VRM Unit and press the ENTER key.
4. Choose desired unit and press the ENTER key.
5. Press the MENU key to close the menu.
nm
km
sm
kyd
nm&yd
![](/img.php?id=1456603&img=bg23.png)
1. OPERATIONAL OVERVIEW
1-21
1.17 Turning Range Rings On/Off, Adjusting Range
Ring Brilliance
1. Press the MENU key to open the menu.
2. Choose the Brill/Color menu and press the ENTER key.
3. Choose Range Rings Brill and press the ENTER key.
4. Choose appropriate brilliance and press the ENTER key. “Off” turns off the range rings.
5. Press the MENU key to close the menu.
Brill/Color
Echo
Mark
Target Trails
Custom 1
Display
Custom 2
Custom 3
GPS Buoy
Target
ARP
AIS
GPS
System
Tuning
Display Color
Background Color
Range Rings Brill
Echo Color
:Black/Green
:Night
:High
Menu
Brill/Color
[ENTER]: Enter [CANCEL/HL OFF]: Back
[MENU]: Exit
:Yellow
Off
Low
Med
High
![](/img.php?id=1456603&img=bg24.png)
1. OPERATIONAL OVERVIEW
1-22
1.18 Measuring the Bearing to a Target
Use the Electronic Bearing Lines (EBLs) to take bearings of targets. There are two EBLs, No. 1
and No. 2. Each EBL is a straight dashed line extending out from the own ship position up to the
circumference of the radar picture. The fine dashed line is the No. 1 EBL and the coarse dashed
one is the No. 2 EBL.
1.18.1 Measuring the bearing with an EBL
1. Press the EBL key to display either of the EBLs. Successively pressing the EBL key toggles
the active EBL between No. 1 and No. 2. The currently active marker is enclosed with >.....< in
the EBL indication box.
2. Operate the Trackball to bisect the target of interest with the EBL and read its bearing at the
lower-left corner of the screen.
3. You may “anchor” an EBL by choosing it and pressing the ENTER key.
4. To erase an EBL, make it active and press the CANCEL/HL OFF key.
How to measure the bearing to a target with the EBL
No. 1
EBL
EBL
indications
EBL1>270.0°
R
<
No. 2
EBL
EBL2 0.45.0°
R
+ 45.0°R 0.338 NM
+
![](/img.php?id=1456603&img=bg25.png)
1. OPERATIONAL OVERVIEW
1-23
1.18.2 EBL reference
The EBL readout is affixed by "R" (relative) if it is relative to own ship's heading, "T" (true) if it is
referenced to the north. You may choose relative or true in the head-up modes; in all other modes
it is always TRUE. True bearing requires a heading sensor.
1. Press the MENU key to open the menu.
2. Choose the Mark menu and press the ENTER key.
3. Choose EBL Reference and press the ENTER key.
4. Choose Relative or True as appropriate and press the ENTER key.
5. Press the MENU key to close the menu.
1.19 Measuring the Range and Bearing Between Two
Targets
You may shift the origin of the EBL to measure the range and bearing between two targets.
1. Press the EBL key to choose the
bearing indication of No. 1 EBL or No.
2 EBL (whichever you want to use).
(The currently active marker is
enclosed with >.....<).
2. Place the cursor on target A.
3. Press the OFFCENTER key to shift
the EBL origin to the location chosen
at step 2. Use the trackball to bisect
target B with the EBL.
4. Use the VRM key to display the VRM
having the same number as the EBL
activated at step 1.
5. Roll the trackball to set the VRM on
the inner edge of target B.
6. Read the bearing and range indica-
tions at the bottom of the screen.
To return the origin of an EBL to the
screen center, choose appropriate
EBL with the EBL key, press the OFF-
CENTER key followed by the ENTER
key. Pressing the OFFCENTER key
alone places the EBL origin at the
screen center and cursor location alter-
nately.
Relative
True
No. 1
EBL
No. 2
EBL
EBL1
EBL2
>140.0
°
R<
335.2
°
R
VRM1
VRM2
>0.500NM<
0.980NM
Tgt D
EBL origin
+
+
Tgt B
Range/bearing
between targets A and B
N
o. 1
V
RM
Tgt A
Tgt C
No. 2
VRM
Range/bearing
between targets C and D
![](/img.php?id=1456603&img=bg26.png)
1. OPERATIONAL OVERVIEW
1-24
1.20 Target Alarm
The target alarm serves to alert the navigator to
targets (ships, landmasses, etc.) entering a set
area, with audio and visual alarms.
The alarm may be set to sound against targets
entering or exiting the zone. See paragraph 1.20.3.

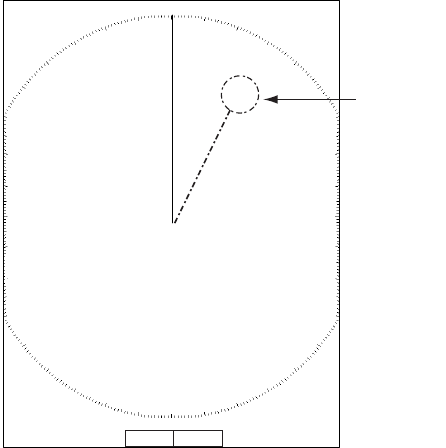

1.20.1 Setting a target alarm
The procedure which follows shows you how to set
a target alarm, using the illustration below as an
example.
1. Press the TARGET ALARM key to activate ALARM 1 or ALARM 2 as appropriate.
2. Use the trackball to drag the cursor to the location “A” and press the ENTER key.
3. Drag the cursor to the location “B” and press the ENTER key.
How to set a target alarm zone
•If you wish to create a target alarm zone having a 360-degree coverage around own
ship, set point "B" in almost the same direction as point "A."
•When the target alarm zone is not within the range in use, the indication OUTRNG
replaces ALARM1(or 2)_IN(or OUT) in the alarm status area. In this case choose a
range which will display the target alarm zone.
1.20.2 Silencing the audio alarm
A target in the target alarm zone produces both visual (flashing) and audio (beep) alarms. To
silence the audio alarm, press any key. This will deactivate the audio alarm but will not stop the
flashing of the offending target.
CAUTION
• The alarm should not be relied upon as
the sole means for detecting possible
collision situations.
• A/C SEA, A/C RAIN and GAIN controls
should be properly adjusted to be sure
the alarm system does not overlook
target echoes.
+ 110.1°R 2.525 NM
+
3
NM
0.5
Cursor
+
Target alarm zone
1
(Length of dash
and interval longe
r
on alarm zone 2)
AB
ALARM1_IN
Alarm status
Note
![](/img.php?id=1456603&img=bg27.png)
1. OPERATIONAL OVERVIEW
1-25
1.20.3 Choosing alarm type
As noted earlier the target alarm may be set sound against targets entering or exiting the alarm.
Choose desired type as below.
In and Out alarms
1. Press the MENU key to shown the menu.
2. Choose the Mark menu and press the ENTER key.
3. Choose Target Alarm 1 Mode or Target Alarm 2 Mode as appropriate and press the ENTER
key.
4. Choose “In” to get the alarm on targets entering a target alarm zone or “Out” to alert you to tar-
gets exiting a target alarm zone.
5. Press the ENTER key followed by the MENU key.
1.20.4 Temporarily deactivating a target alarm
You may temporarily deactivate a target alarm when its use is not immediately required. The alarm
zone remains on the screen, however any targets entering (or exiting) it will not trigger the audio
and visual alarms.
1. Press the TARGET ALARM key to choose the ALARM1 or ALARM2 indication at the bottom
right corner on the screen. The selected indication is circumscribed with a rectangle.
2. Press the CANCEL/HL OFF key. The alarm indication now shows ALARM1(or 2)_ACK.
To reactivate a temporarily deactivated target alarm, press the ENTER key with the alarm
zone displayed on the screen. The alarm indication then changes to ALARM1(or 2)_IN(or
OUT).
1.20.5 Deactivating a target alarm
1. Press the TARGET ALARM key to choose ALARM1 or ALARM2 indication at the bottom right
corner on the screen. The selected indication is circumscribed with a rectangle.
2. Press the CANCEL/HL OFF key.
3. Press the TARGET ALARM key again, and a dashed rectangle circumscribes the alarm indi-
cation which now reads ALARM1(or 2)_ACK.
4. Press the CANCEL/HL OFF key again. The target alarm zone and the alarm indication are
erased from the screen.

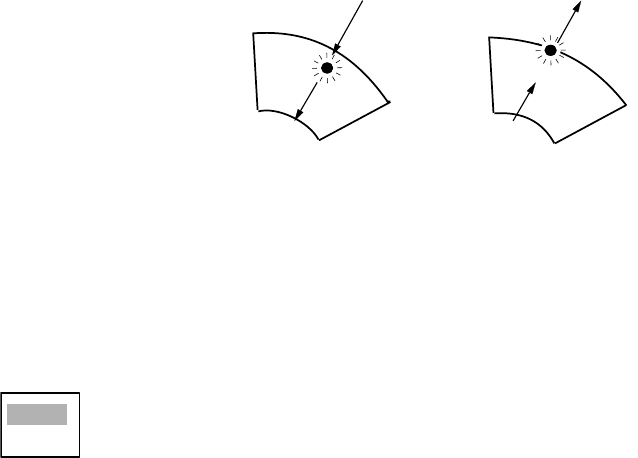

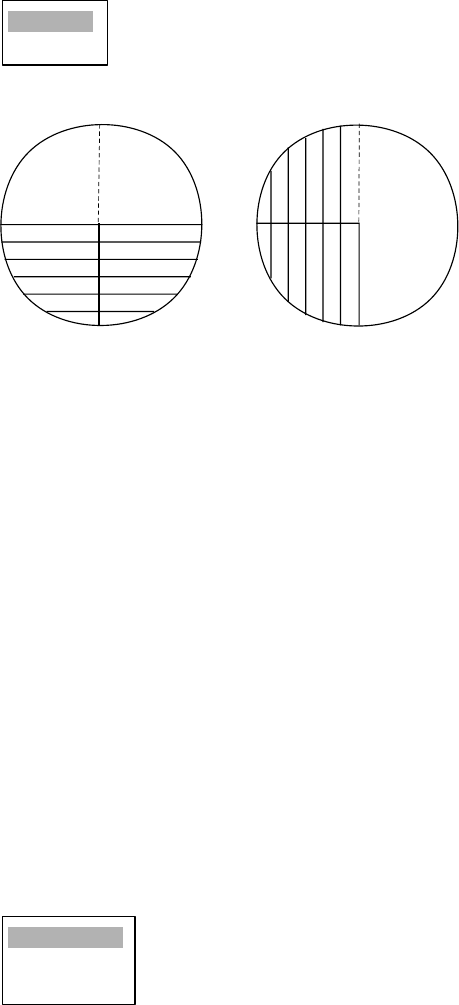

Inward target alarm Outward target alarm
In
Out
![](/img.php?id=1456603&img=bg28.png)
1. OPERATIONAL OVERVIEW
1-26
1.20.6 Choosing target strength which triggers target alarm
You may choose the target strength level which triggers the alarm as follows:
1. Press the MENU key to open the menu.
2. Choose the Initial sub menu from the System menu and the press the ENTER key.
3. Choose Alarm Level and press the ENTER key.
4. Choose the echo strength level which you want to trigger the target alarm.
5. Press the ENTER key.
6. Press the MENU key to close the menu.
1.21 Off Centering the Display
Own ship position, or sweep origin, can be displaced to expand the view field without switching to
a larger range scale.
The display may be off centered manually, or automatically according to ship’s speed. Press the
OFF CENTER key successively to choose desired off centering method or turn off centering, in
the sequence of manual, automatic, off. OFF CENTER(M) or OFFCENTER(A) appears at the top
left corner on the display when off centering is enabled. Note that off center is not available on the
96 nm range scale.
1.21.1 Automatic off center
The amount of automatic shift is calculated according to ship's speed, and the amount is limited
to 75% of the range in use. The formula for calculating automatic shift is shown below.
For example, if you set the shift speed setting for 15 knots and the ship is running at 10 knots the
amount of shift will be 50% of the effective display area.
Choosing speed to use
1. Press the MENU key to open the menu.
2. Choose the Initial sub menu from the System menu and press the ENTER key.
3. Choose Shift Speed and press the ENTER key.
4. Choose the speed to use and press the ENTER key.
5. Press the MENU key to close the menu.
Low
Med
High
Ship's speed
Shift speed settin
g
X 0.75 = Amount of shift(%)
(1kt-99kt)
15kt
![](/img.php?id=1456603&img=bg29.png)
1. OPERATIONAL OVERVIEW
1-27
Activating automatic off center
Press the OFF CENTER key to display OFF CENTER (A) at the top of the screen. Own ship posi-
tion is placed at stern position and shifts according to own ship’s speed. To cancel automatic shift
press the key again.
1.21.2 Manual off center
The own ship position may be shifted to the cursor position on any mode, within 75% of the effec-
tive display area.
1. Place the cursor where you want to locate sweep origin.
2. Press the OFF CENTER key to show OFF CENTER (M) at the top of the screen.
3. To cancel shift, press the OFF CENTER key again.
1.22 Zoom
The zoom function enlarges an area of interest as large as twice the normal viewing size, in the
zoom window. You choose the target of interest to zoom with the zoom cursor and that target is
zoomed in the zoom window.
Three types of zoom are available: Relative, True and Target.
Relative: The zoom cursor moves relative to own ship.
True: The zoom cursor is fixed at set geographical position.
Target: The zoom cursor is fixed to the zoomed AIS or ARP target.

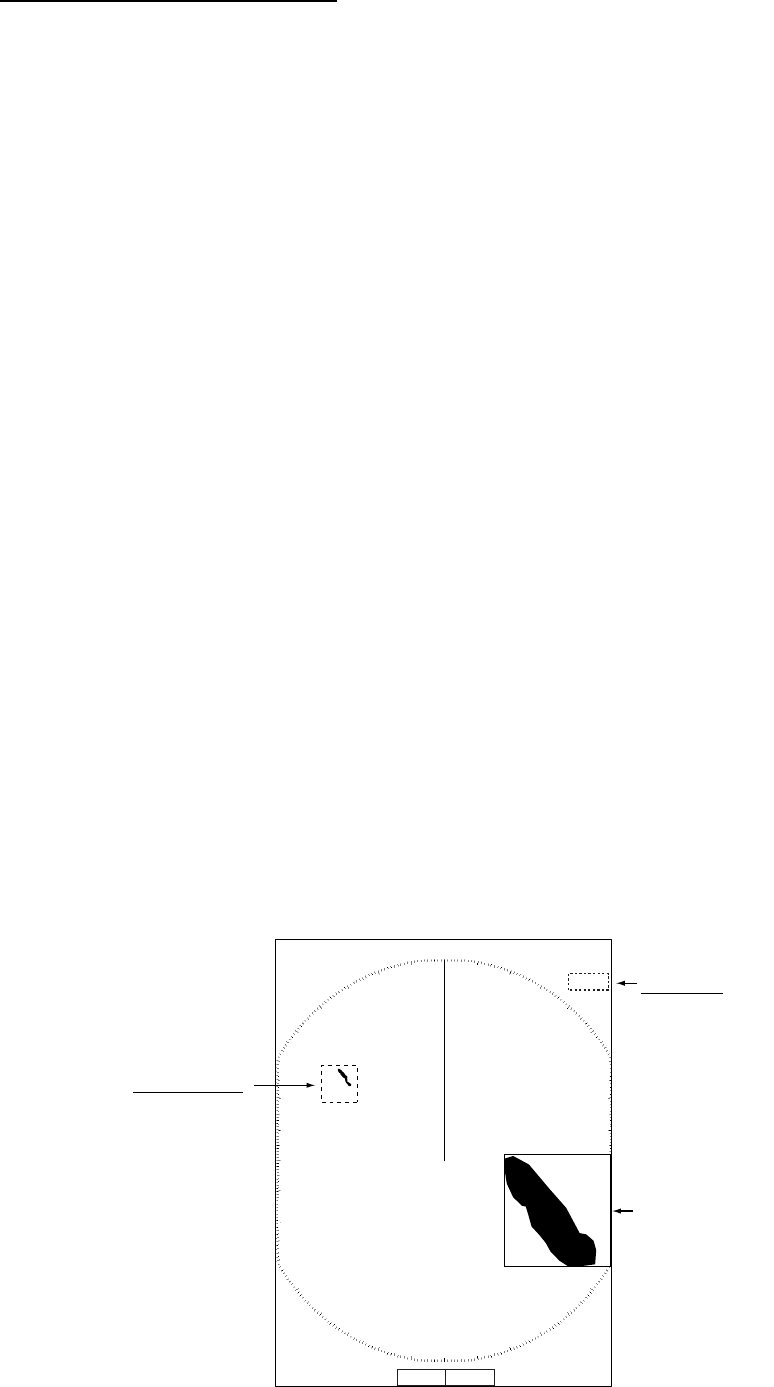

1.22.1 How to zoom
1. Press the ZOOM key to turn on the zoom feature.
ZOOM appears at the top right hand corner of the screen and the zoom window and zoom
cursor in the effective display area. The zoom cursor is a dashed line square in case of true or
relative zoom mode or a solid line square in case of target zoom mode. The location of the
zoom window depends on the location of the zoom cursor. If the zoom cursor is on the left-half
of the screen, the zoom window is located at the right side of the screen and vice versa.
Zoom
+ 180.1°R 2.121 NM
+
3
NM
0.5
+
Z
oom cursor
(
Dashed line
i
n True or
R
elative mode)
Zoom
window
ZOOM Zoom ON
(Dashed line
in True or
Relative mod
e)
![](/img.php?id=1456603&img=bg2a.png)
1. OPERATIONAL OVERVIEW
1-28
2. Do one of the following depending on the zoom mode in use.
Relative or true zoom mode
1. Use the trackball to place the cursor where you want to zoom and press the ENTER key. The
zoom cursor is shown with solid lines and is fixed at the location chosen. Each press of the
ZOOM key enables or disables the zoom cursor. The zoom cursor is shown with dashed lines
when it is active and solid lines when it is inactive.
2. To quit zoom, press the ZOOM key to show the zoom cursor with dashed lines and press the
CANCEL/HL OFF key.
Target zoom mode
The zoom cursor is interlinked with zoomed ARP or AIS target. The zoomed ARP or AIS target
will be the one last-displayed in the data box at the bottom of the display. To quit target zoom,
press the ZOOM key again.
If neither ARP nor AIS target exists, the message NO TARGET appears. Press any
key to erase the message.
1.22.2 Zoom mode
You may choose the zoom mode from among Relative, True or Target.
1. Press the MENU key to open the menu.
2. Choose the Display menu and press the ENTER key.
3. Choose Zoom Mode and press the ENTER key.
4. Choose the appropriate option and press the ENTER key.
5. Press the MENU key to close the menu.
Note
Relative
True
Target
![](/img.php?id=1456603&img=bg2b.png)
1. OPERATIONAL OVERVIEW
1-29
1.23 Echo Stretch
The echo stretch feature enlarges targets in the range and bearing directions to make them easier
to see, and is available on any range. There are three levels of echo stretch as shown in the table
below.
The echo stretch magnifies not only small target pips but also returns (clutter) from
sea surface, rain and radar interference. For this reason, make sure those types of
interference have been sufficiently suppressed before activating the echo stretch.
1. Press the MENU key to open the menu.
2. Choose the Echo menu and press the ENTER key.
3. Choose Echo Stretch and press the ENTER key.
4. Choose the appropriate echo stretch option and press the ENTER key.
5. Press the MENU key to close the menu.
Echo stretch settings
ES
Setting Stretch in range direction Stretch in bearing direction
1 Stretched +2 dots An echo is stretched to three dots in size in
bearing direction if it is less than three dots in
bearing direction. If its size is larger than three
dots it is not stretched.
2 Stretched +3 dots An echo is stretched to four dots in size in
bearing direction if it is less than four dots in
bearing direction. If its size is larger than four
dots it is not stretched.
3 Stretched +3 dots An echo is stretched to five dots in size in
bearing direction if it is less than five dots in
bearing direction. If its size is larger than five
dots it is not stretched.
Note
Off
1
2
3
![](/img.php?id=1456603&img=bg2c.png)
1. OPERATIONAL OVERVIEW
1-30
1.24 Echo Averaging
To distinguish real target echoes from sea clutter, echoes are averaged over successive picture
frames. If an echo is solid and stable, it is presented in its normal intensity. Sea clutter is averaged
over successive scans resulting in reduced brilliance, making it easier to discriminate real targets
from sea clutter.
•Do not use the echo average function under heavy pitching and rolling; loss of target
detection can result.
•This feature requires a heading signal. When the signal becomes lost, echo average
is automatically disabled.
To properly use the echo average function, it is recommended to first suppress sea clutter with
the A/C SEA control. Then, do as follows:
1. Press the MENU key to open the menu.
2. Choose the Echo menu and press the ENTER key.
3. Choose Echo Average and press the ENTER key.
4. Choose the appropriate echo averaging option and press the ENTER key.
Off: Disable echo average.
1: Distinguish targets from sea clutter and suppress brilliance of unstable echoes.
2: Distinguish targets from sea clutter which cannot be done with setting 1.
3: Detect distant, unstable targets.
5. Press the MENU key to close the menu. The chosen echo average (EAV1, EAV2 or EAV3)
appears at the top left corner of the display.
Note
Off
1
2
3
![](/img.php?id=1456603&img=bg2d.png)
1. OPERATIONAL OVERVIEW
1-31

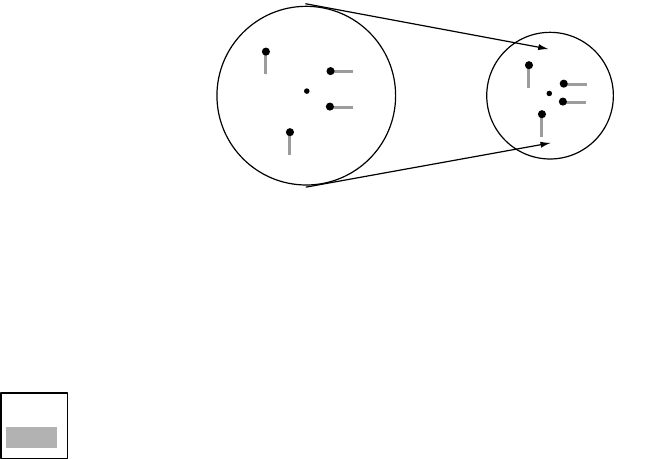

1.25 Target Trails
The trails of the radar targets may be displayed in the form of synthetic afterglow. Target trails are
chosen either relative or true. True motion trails require a heading bearing signal and position
data.
1.25.1 Starting, stopping trails
1. Press the TRAILS key to start trails and choose trail time. The chosen time, along with trail
mode, is shown at the bottom left corner as shown in the figure below. Trail time is available
among 15 s, 30 s, 1 min., 3 min., 6 min., 15 min., and 30 min., and CONTINUOUS. (If 12 H or
24 is selected for Length on the Target Trails menu, one of those times plus CONTINUOUS are
the choices.)
Trail indications
2. To change trail time, press the TRAILS key to choose desired trail time. The longer the trail
time, the longer the trail itself. The trial time selectable with the TRAILS key changes according
to trail length setting on the menu. For further details, see paragraph 1.24.10.
•To erase trails, press and hold down the TRAILS key until a beep sounds. Alterna-
tively, execute All Cancel on the Trails menu.
•To disable trails, press and hold down the TRAILS key several times until the trail
indications and trails are erased from the display.
TRAILS (T)
15S
Trail Mode (T, True, R, Relative)
Trail Time
Note
![](/img.php?id=1456603&img=bg2e.png)
1. OPERATIONAL OVERVIEW
1-32
1.25.2 Trail mode
You may display echo trails in true or relative motion. Relative trails show relative movements
between targets and own ship. True motion trails present true target movements in accordance
with their over-the-ground speeds and course, and require a gyrocompass signal and own ship
speed input.
To choose trail mode, do the following:
1. Press the MENU key to open the menu.
2. Choose the Target Trails menu and press the ENTER key.
3. Choose Mode and press the ENTER key.
4. Choose the appropriate mode and press the ENTER key.
5. Press the MENU key to close the menu.

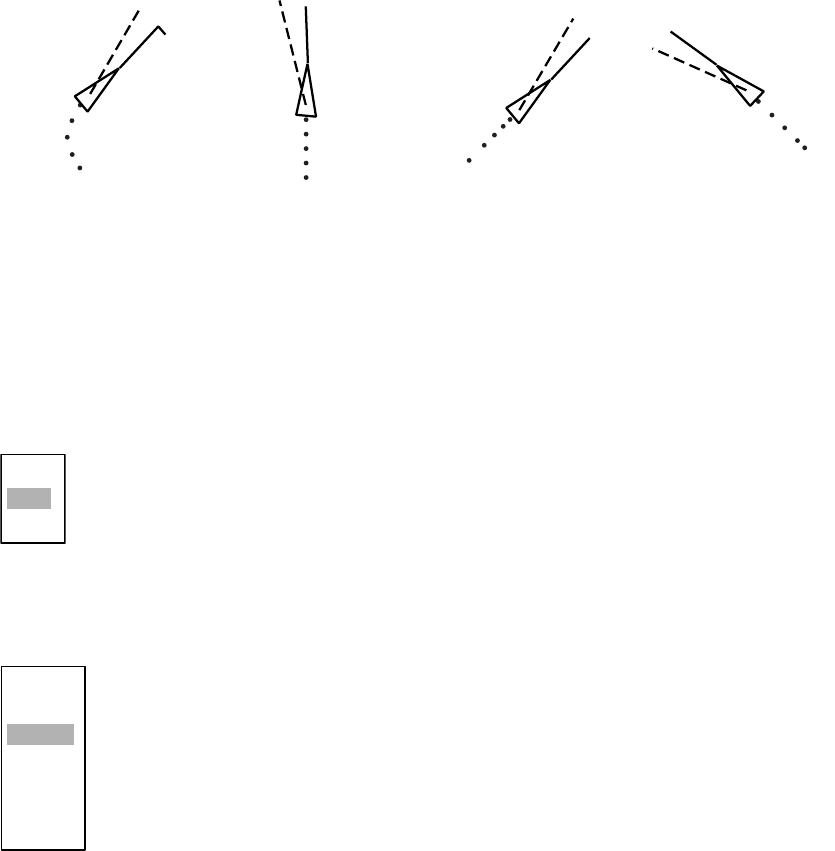

(a) True target trails
(No smearing of
stationary targets)
(b) Relative target trails
(Targets moving relative
to own ship)
Brill/Color
Echo
Mark
Target Trails
Custom 1
Display
Custom 2
Custom 3
GPS Buoy
Target
ARP
AIS
GPS
System
Tuning
Mode
Level
Gradation
Color
Length
Time
:2
:24H
:12h:00m
:Relative
:Multi
Own Ship
Narrow
All Cancel
Copy
Restart :Off
:Off
:Off
:Off
Menu
Target Trails
[ENTER]: Enter [CANCEL/HL OFF]: Back
[MENU]: Exit
:Green
Relative
True
![](/img.php?id=1456603&img=bg2f.png)
1. OPERATIONAL OVERVIEW
1-33
1.25.3 Trail gradation
Trails may be shown in single or multiple gradation. Multiple gradation provides gradual shading
over time. This feature is available when Length on the Target Trails menu is set to Normal.
1. Press the MENU key to open the menu.
2. Choose the Target Trails menu and press the ENTER key.
3. Choose Trail Gradation and press the ENTER key.
4. Choose Single or Multi and press the ENTER key.
5. Press the MENU key to close the menu.
1.25.4 Trail color
You may choose the color in which to paint trails. This feature is available when Length on the
Target Trails menu is set to Normal.
1. Press the MENU key to open the menu.
2. Choose the Target Trails menu and press the ENTER key.
3. Choose Color and press the ENTER key.
4. Choose the appropriate color and press the ENTER key.
5. Press the MENU key to close the menu.
1.25.5 Trail level
You may choose which target strength for which to generate trails.
1. Press the MENU key to open the menu.
2. Choose the Target Trails menu and press the ENTER key.
3. Choose Level and press the ENTER key.
4. Choose 1, 2 or 3 as appropriate and press the ENTER key.
1: Trails generated for all targets (including weak ones), 2: Normal usage, 3: Trails generated
for strong targets only
5. Press the MENU key to close the menu.
Single
Multi
Multiple
(Gradual shading)
Single
(Monotone shading)
Green
Red
Blue
White
Black
1
2
3
![](/img.php?id=1456603&img=bg30.png)
1. OPERATIONAL OVERVIEW
1-34
1.25.6 Trail copy
The trail copy feature, which is turned on in the default setting, lets you continue tracing target
trails when switching the range. However, if the newly selected range is less than 1/4 of the pre-
vious range, trails are erased. When this feature is turned off, trails are erased and restarted
whenever the range is changed. Note that the restart trails feature (see paragraph 1.24.9) must
be turned on to use trail copy.
How trail copy works
1. Press the MENU key to open the menu.
2. Choose the Target Trails menu and press the ENTER key.
3. Choose Copy and press the ENTER key.
4. Choose Off or On as appropriate and press the ENTER key.
5. Press the MENU key to close the menu.
1.25.7 Narrow trails
Target trails may be painted in thinner trails if desired. This can be useful when there are a lot of
targets on the screen.
1. Press the MENU key to open the menu.
2. Choose the Target Trails menu and press the ENTER key.
3. Choose Narrow and press the ENTER key.
4. Choose Off or On as appropriate and press the ENTER key.
5. Press the MENU key to close the menu.
1.25.8 Own ship trail
You may show own ship’s trail as follows:
1. Press the MENU key to open the menu.
2. Choose Own Ship and press the ENTER key.
3. Choose Off or On as appropriate and press the ENTER key.
4. Press the MENU key to close the menu.
Before changing range After changing range
Copied trail picture
Off
On
![](/img.php?id=1456603&img=bg31.png)
1. OPERATIONAL OVERVIEW
1-35
1.25.9 Restarting trails
When the range is changed while the trail feature is active, trails within the former range scale may
stopped and restarted. The relationship between trail restart and trail copy is shown in the table
below.
1. Press the MENU key to open the menu.
2. Choose Restart and press the ENTER key.
3. Choose Off or On as appropriate and press the ENTER key.
4. Press the MENU key to close the menu.
1.25.10 Trail length
Several preset trail lengths (times) are programmed for the TRAILS key for your convenience.
Standard trail times: 15 s, 30 s, 1 min, 3 min, 6 min, 15 min, 30 min, continuous
12H and 24 times: Long trail settings, continuous
If you prefer a different time you may set it as below.
1. Press the MENU key to open the menu.
2. Choose Target Trails and press the ENTER key.
3. Choose Length and press the ENTER key.
4. Choose Normal, 12H or 24H as appropriate and press the ENTER key.
Normal: Use times programmed for the TRAILS key.
12H: Continuous trail from 30 minutes to 12 hours, in increments of 30 minutes.
24H: Continuous trail from one hour to 24 hours, in increments of one hour.
For Normal, go to step 7. For 12H or 24H, go to the next step.
Restart feature Trail copy feature Action
Off On or Off Range switched to adjacent range scale
All trails are erased when range is changed. Trails are
not restarted.
Return to previous range scale
Previous trails are displayed and are continued.
On On Range switched to adjacent range scale
Previous trails remain on the display and are con-
tinued.
Return to previous range scale
Previous trails are displayed and are continued.
Off Range switched to adjacent range scale
Trails are restarted.
Return to previous range scale
Trails are restarted.
Normal
12H
24H
![](/img.php?id=1456603&img=bg32.png)
1. OPERATIONAL OVERVIEW
1-36
5. Choose Time and press the ENTER key.
6. Roll the trackball upward or downward as appropriate to set time and press the ENTER key.
7. Press the MENU key to close the menu.
1.26 Parallel Index Lines
Parallel index lines are useful for keeping a constant distance between own ship and a coastline
or a partner ship when navigating. You may control the orientation and line interval.
Parallel index lines
1.26.1 Turning parallel index lines on or off
1. Press the MENU key to show the menu.
2. Choose Mark and press the ENTER key.
3. Choose Parallel Line and press the ENTER key.
4. Choose the number of parallel index lines to show (2, 3 or 6) or choose Off to turn off the lines.
(The actual number of lines visible may be less depending on line interval.)
5. Press the ENTER key.
6. Press the MENU key to close the menu.
1.26.2 Adjusting parallel index line orientation and interval
1. Press the EBL key to activate the No. 2 EBL.
2. Roll the trackball to adjust the orientation of the lines.
3. Press the VRM key to activate the No. 2 VRM.
4. Roll the trackball to adjust the interval between lines.
12h:00m
(00h:30m-12h:00m)
12h:00m
(01h:00m-24h:00m)
12 hour 24 hour
Index
lines
Off
2
3
6
![](/img.php?id=1456603&img=bg33.png)
1. OPERATIONAL OVERVIEW
1-37
1.26.3 Parallel index lines mode
You may choose the index line orientation against the No. 2 EBL (dashed line) for parallel or ver-
tical as follows:
1. Press the MENU key to open the menu.
2. Choose Mark and press the ENTER key.
3. Choose Parallel Line Mode and press the ENTER key.
4. Choose Parallel or Vertical as appropriate and press the ENTER key.
5. Press the MENU key to close the menu.
1.27 Outputting Target Position, Inscribing Origin
Mark
The TLL key functions to both output cursor position to external equipment such as a navigation
plotter (where it is marked on its screen) and inscribe an asterisk (*) at cursor position on the radar.
Twenty marks may be inscribed on the screen. When you enter a 21st mark, the eldest mark is
erased to make room for the latest. To erase a mark, place the cursor on it and press the
CANCEL/HL OFF key.
1.27.1 TLL key mode
The TLL key can be preset to output target position, inscribe the origin mark or do both.
1. Press the MENU key to open the menu.
2. Choose Mark and press the ENTER key.
3. Choose TLL Key Mode and press the ENTER key.
4. Choose TLL Output, Origin Mark or Both as appropriate and press the ENTER key.
TLL Output: Cursor Lat/Lon output to plotter (heading bearing signal and position data
required)
Origin Mark: Origin mark is inscribed at cursor position.
Both: Origin mark is entered and that position is output to a navigator.
5. Press the MENU key to close the menu.
Parallel
Vertical
Vertical Parallel
TLL Output
Origin Mark
Both
![](/img.php?id=1456603&img=bg34.png)
1. OPERATIONAL OVERVIEW
1-38
1.27.2 Origin mark mode
You may choose how the origin mark moves on the screen, from True (mark fixed against land-
mass) or Relative (marked fixed against own ship position). The True requires heading bearing
signal and position data.
1. Press the MENU key to open the menu.
2. Choose Mark and press the ENTER key.
3. Choose Origin Mark Mode and press the ENTER key.
4. Choose Relative or True as appropriate and press the ENTER key.
5. Press the MENU key to close the menu.
The asterisk mark is dashed in relative motion; solid in true motion.
1.28 Temporarily Hiding the Heading Line
The heading line indicates the ship's heading in all presentation modes. The heading line is a line
from the own ship position to the outer edge of the radar display area and appears at zero degrees
on the bearing scale in head-up mode; it changes the orientation depending on the ship orientation
in north-up and true motion modes and when course is changed in the course-up mode.
To temporarily hide the heading line (and any other marker present) to look at targets existing
dead ahead of own ship, press and hold down the CANCEL/HL OFF key. To re-display the
heading line, release the key.
1.29 Custom Setup
1.29.1 About custom setup
Every time your navigating environment or task changes, you must adjust the radar, which can be
a nuisance in a busy situation. Instead of changing radar settings case by case, it is possible to
assign the CUSTOM key to provide optimum settings for often encountered situations.
The radar's internal computer offers three default custom setups (see the table below). However,
you may customize these settings to meet your navigation needs, on the Custom 1, Custom 2 and
Custom 3 menus.
To enable a custom setup, press the CUSTOM key. Each press of the key enables Custom1,
Custom2 or Custom3 cyclically. (Custom setup numbers which are turned off will be skipped.) The
chosen custom setup name is shown at the top left corner. To escape from custom setup, operate
any control.
Relative
True
![](/img.php?id=1456603&img=bg35.png)
1. OPERATIONAL OVERVIEW
1-39
1.29.2 Description of custom setup items
Description of custom setup items
Menu item Available settings See para., page
Custom 1, 2 or 3 Turn respective custom program on/off.
Copy Copy settings from the Echo menu.
Name Choose name of custom setup among harbor, long, sea,
rain, buoy, and bird.
Gain Rough, Moderate, Calm: Automatic gain adjustment
according to sea state.
Manual: Manual adjustment
1.10, 1-12
Sea Rough, Moderate, Calm: Automatic sea clutter adjust-
ment according to sea state.
Manual: Manual adjustment
1.11, 1-13
Rain Rough, Moderate, Calm: Automatic rain clutter adjust-
ment according to sea state.
Manual: Manual adjustment
1.12, 1-14
Pulse length Short or Long, selectable on 1.5 and 3 nm ranges. 1.9, 1-11
Echo stretch Off, 1, 2, 3 1.23, 1-29
Echo average Off, 1, 2, 3 1.24, 1-30
Noise rejector Off, Low, Med, High 1.31, 1-42
Interference rejector Off, Low, Med, High 1.15, 1-18
Auto anti-clutter Off, On 1.13, 1-16
Display-dynamic Narrow: See small targets on distant ranges
Normal: Normal use
Wide: Suppress unwanted reflections
1.36, 1-47
Display-curve 1: Suppress unwanted reflections
2: Normal use
3: See small targets on distant ranges
1.37, 1-47
Antenna speed 24 rpm, 36 rpm, 48 rpm, Auto/Range 1.38, 1-48
![](/img.php?id=1456603&img=bg36.png)
1. OPERATIONAL OVERVIEW
1-40
1.29.3 Setting custom setups
1. Press the MENU key to show the menu.
2. Choose Custom 1, Custom 2 or Custom 3 as appropriate and press the ENTER key.
3. Choose Name and press the ENTER key to display the options shown right.
4. Choose the name which best matches your desired objective and press the
ENTER key.
5. Set other menu items as appropriate.
Note: For easy set up, you can copy the settings of the Echo menu (to Custom
1, Custom 2, Custom 3). Choose Copy and press the ENTER key. The message
"Complete" appears upon completion of copying.
6. Press the MENU key to close the menu.
Sample custom setups
Menu item Application
Name Harbor Long Sea Rain Buoy Bird
Gain Moderate Rough Calm Calm Moderate Rough
Sea Calm Calm Moderate Moderate Calm Calm
Rain Calm Calm Moderate Moderate Calm Calm
Pulse length Short Long Short Short Short Long
Echo stretch Off 2 Off Off 1 2
Echo average Off 3 1 1 or 2 1 or 2 3
Noise rejector Off Low Off Off Off Low
Int. rejector High High High Medium Medium Medium
Auto anti-clutter Off Off On On Off Off
Display-dynamic Narrow Narrow Wide Wide Normal Narrow
Display-curve222222
Antenna speed 48 rpm 24 rpm 24 rpm 24 rpm 24 rpm 24 rpm
Brill/Color
Echo
Mark
Target Trails
Custom 1
Display
Custom 2
Custom 3
GPS Buoy
Target
ARP
AIS
GPS
System
Tuning
Name
Gain
Custom 1
Copy
Sea
Rain
:Moderate
:Calm
:Calm
:Harbor
:On
Noise Rejector
Echo Average
Interference Rejector
Pulse Length
Echo Stretch
DIsplay-Dynamic
:Off
:Off
:Normal
:Off
:Short
:1
Menu Custom 1
[ENTER]: Enter [CANCEL/HL OFF]: Back
[MENU]: Exit
Auto Anti Clutter :Off
Harbor
Long
Sea
Rain
Buoy
Bird
![](/img.php?id=1456603&img=bg37.png)
1. OPERATIONAL OVERVIEW
1-41
1.30 Programming Function Keys (F1 and F2 keys)
Many functions are provided in the menu. To avoid opening the menus to set up the radar for a
particular situation, you may program a function key, F1 and F2, to provide one-touch access to
a desired function.
Function key operation
To activate a function, simply press the appropriate function key, F1 or F2. Push the same function
key again to display appropriate option and press the ENTER key.
The default programs are F1, Echo Average, F2, Auto Anti Clutter.
Changing function key program
To change function key program, do the following:
1. Press the MENU key to show the menu.
2. Choose Display and press the ENTER key.
3. Choose Function 1 Setup or Function 2 Setup as appropriate and press the ENTER key.
4. Choose desired function from the list and press the ENTER key. Below are the functions avail-
able.
Function list
5. Press the MENU key to close the menu.
Range Rings Brill
Echo Color
Display Color
Background Color
Echo Area
Watchman Time
Data Box
Zoom Mode
STBY Mode Display
Auto Gain
Auto Sea
Auto Rain
Tuning Mode
Pulse Length
Echo Stretch
Echo Average
Noise Rejector
Interference Rejector
Auto Anti Clutter
Display-Dynamic
Display-Curve
Antenna Speed
2nd Echo Rejector
Trails-Gradation
Trails-Color
Trails-Mode
Trails-Level
Trails-Length
Trails-Copy
Trails-Restart
Trails-Narrow
Trails-Own Ship
Waypoint Mark Display
Origin Mark Mode
TLL Key Mode
Parallel Line
Parallel Line Mode
EBL Reference
VRM Unit
Cursor Position
Target Alarm 1 Mode
Target Alarm 2 Mode
GPS Buoy-Display
GPS Buoy-Symbol Color
GPS Buoy-History Dots
Vector Time
Vector Reference
History Dots
History Intervals
CPA
TCPA
Proximity Alarm
ARP-Display
ARP-Symbol Color
ARP-Auto Acquire
AIS-Display
AIS-Symbol Color
AIS-Sort By
GPS-Mode
GPS-Datum
GPS-WAAS
![](/img.php?id=1456603&img=bg38.png)
1. OPERATIONAL OVERVIEW
1-42
1.31 Noise Rejector
White noise may show itself on the screen as random "speckles" spread over the entire display.
You can suppress this noise as follows:
1. Press the MENU key to show the menu.
2. Choose Echo and press the ENTER key.
3. Choose Noise Rejector and press the ENTER key.
4. Choose Off, Low, Med or High as appropriate and press the ENTER key.
5. Press the MENU key to close the menu.
1.32 Suppressing Second-trace Echoes
In certain situations, echoes from very distance targets may appear as false echoes (second-trace
echoes) on the screen. This occurs when the return echo is received one transmission cycle later,
or after a next radar pulse has been transmitted.

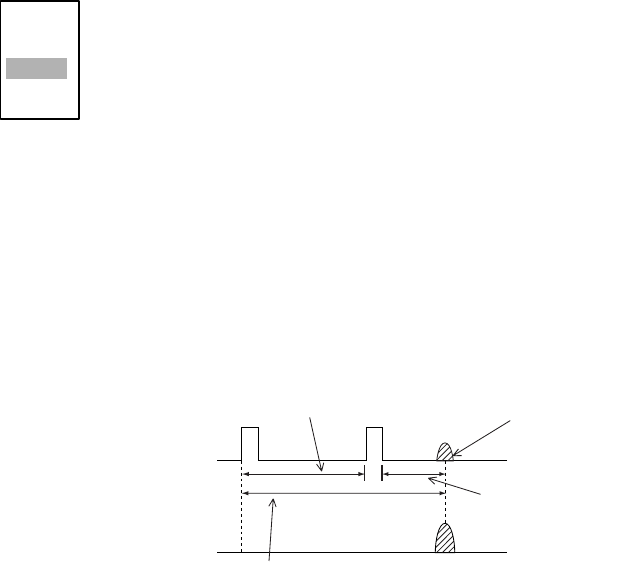

How 2nd trace echoes are produced
1. Press the MENU key to show the menu.
2. Choose Echo and press the ENTER key.
3. Choose 2nd Echo Rejector and press the ENTER key.
4. Choose On or Off as appropriate and press the ENTER key.
5. Press the MENU key to close the menu.
Off
Low
Med
High
Second-trace
echo
Tx repetition
Actual range
False echo
range
![](/img.php?id=1456603&img=bg39.png)
1. OPERATIONAL OVERVIEW
1-43
1.33 Watchman
The Watchman feature transmits for one minute at the elapse of the chosen time interval to help
you keep regular watch of the radar picture for safety or other purposes.
How watchman works
In standby condition, the timer below the WATCH label at the upper right corner of the screen
counts down the time remaining until transmission. When the preset time interval has elapsed, the
audio alarm sounds, the timer disappears and the radar transmits for one minute. After one
minute, the watch alarm timer begins the countdown sequence again.
If you press the STBY/TX key before the preset time interval has elapsed, the radar goes into
standby.
Do the following to activate Watchman:
1. Press the MENU key to show the menu.
2. Choose DIsplay and press the ENTER key.
3. Choose Watchman and press the ENTER key.
4. Choose Off or appropriate time (5, 10 or 20 min) and press the ENTER key.
5. Press the MENU key to close the menu.
ST-BY
5,10 or 20 min. 1 min. 5,10 or 20 min.
Tx Tx
1 min
Watchman
starts
ST-BY
**
* Beep emitted just before radar transmits.
Off
5 min
10 min
20 min
![](/img.php?id=1456603&img=bg3a.png)
1. OPERATIONAL OVERVIEW
1-44
1.34 Color Schemes
1.34.1 Preset color schemes
Preset color schemes are provided for optimum viewing in daytime, nighttime and twilight. Below
are the default color settings for each preset color scheme.
1. Press the MENU key to show the menu.
2. Choose Brill/Color and press the ENTER key.
3. Choose Display Color and press the ENTER key.
4. Choose a color scheme and press the ENTER key.
5. Press the MENU key to close the menu.
1.34.2 User color scheme
The user color scheme lets you choose desired echo color and background color. The display
color must be set for “User” (see paragraph 1.34.1) to use user chosen echo and background
colors.
1. Press the MENU key to show the menu.
2. Choose Brill/Color and press the ENTER key.
3. Choose Echo Color and press the ENTER key.
4. Choose appropriate option and press the ENTER key. “Multi” displays echoes in colors of red,
yellow and green according to echo strength, and it is not available in the IEC mode.
5. Choose Background Color and press the ENTER key.
6. Choose background color desired and press the ENTER key.
7. Press the MENU key to close the menu.
Display item, color scheme and color
DIsplay item Day Night Twilight User
Text Black Red Green Green
Range rings Green Red Green Green
Echo Yellow Green Green Yellow
Background White Black Blue Black
Day
Night
Twilight
User
Yellow
Green
Multi
Black/Green
Black/Red
Blue/White
DK Blue/White
White/Green
![](/img.php?id=1456603&img=bg3b.png)
1. OPERATIONAL OVERVIEW
1-45
1.35 Navigation Data
1.35.1 Navigation data during standby
Navigation data is shown in standby when STBY Mode Display in the Initial Menu is set to “Nav”.
Appropriate sensors required to display data.

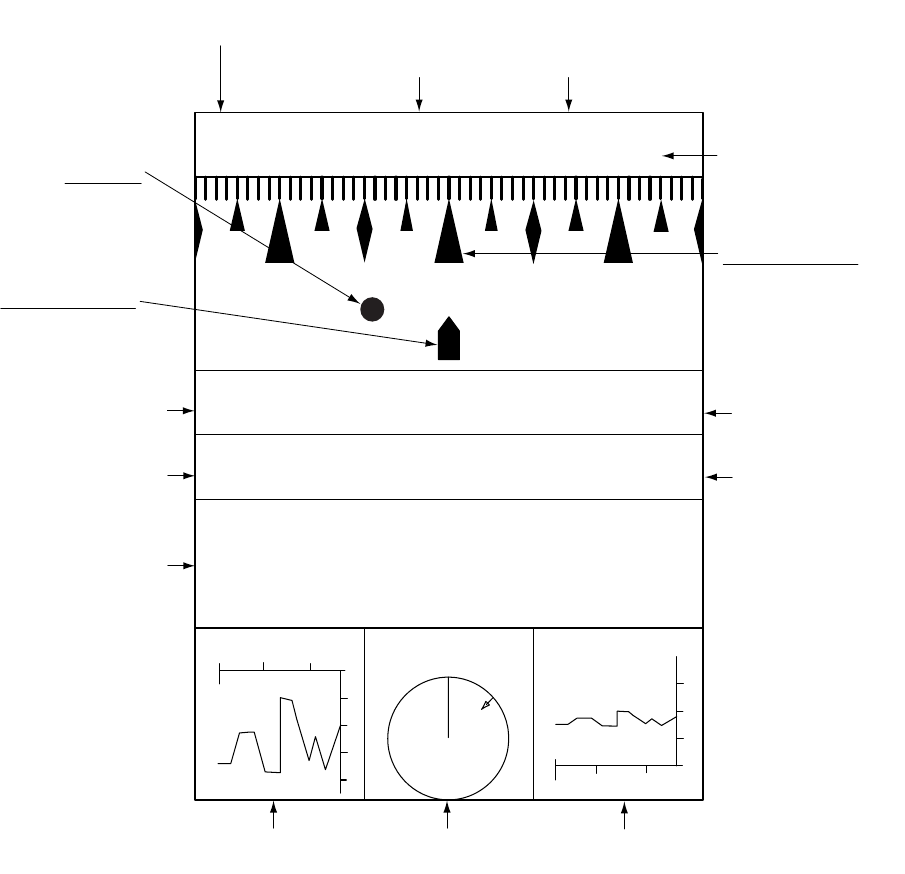

Navigation data display at standby
Time until Tx in watchman
(Displayed when watchman is active.)
Heading indicator
Graphic appears eve
n
if bearing signal is los
t,
however the compas
s
point indications do n
ot
appear.
Standby indication
O
wn ship marker
F
ixed regardless
o
f ship's movement.
Heading
Cross-track
error
Waypoint
Flashes if
vessel goes
outside display
bearing.
Speed
Date
Position
Depth Wind speed
and direction
Water
temperature
Time
24/JAN/2006
DATE
SPEED COURSE
POSITION
NNNE NE ENNW
NW W
HEADING
LAT
LON
90° 00.000 N
180° 00.000 E
12.9 kts 359.9°
TIME
23 : 59 : 59
XTE
←9.99nm 359.9° STBY
20
40
80
60
DEPTH (m)
30
30
20
0
10
TEMP 18.3
(°C)
40.3
20 10
20 10
WIND 65.3
(kt)
45.0°
(R)
N
<WATCH> 19:59
(min)
30
0
(min)
Course
![](/img.php?id=1456603&img=bg3c.png)
1. OPERATIONAL OVERVIEW
1-46
Depth and water temperature graphs
These graphs display the latest 30 minutes of respective data. The horizontal axis scale is fixed
and data is plotted at intervals of 10 seconds. The vertical axis scale is adjusted automatically for
every 30 minutes of data. The unit of measurement may be chosen on the Initial sub menu in the
System menu.
Wind graph
WInd direction reference may be chosen (on the Initial sub menu) from True or Apparent.
Apparent wind is the direction (in relation to ship’s bow) and speed of the wind as it appears to
those on board, relative to the speed and direction of the boat; combination of the true wind and
the wind caused by the boat's movement. True wind is the speed and direction (in relation to
ship’s bow) of the wind felt or measured when stationary.
1.35.2 Navigation data at the bottom of the screen
Navigation data may be displayed at the bottom of the screen.

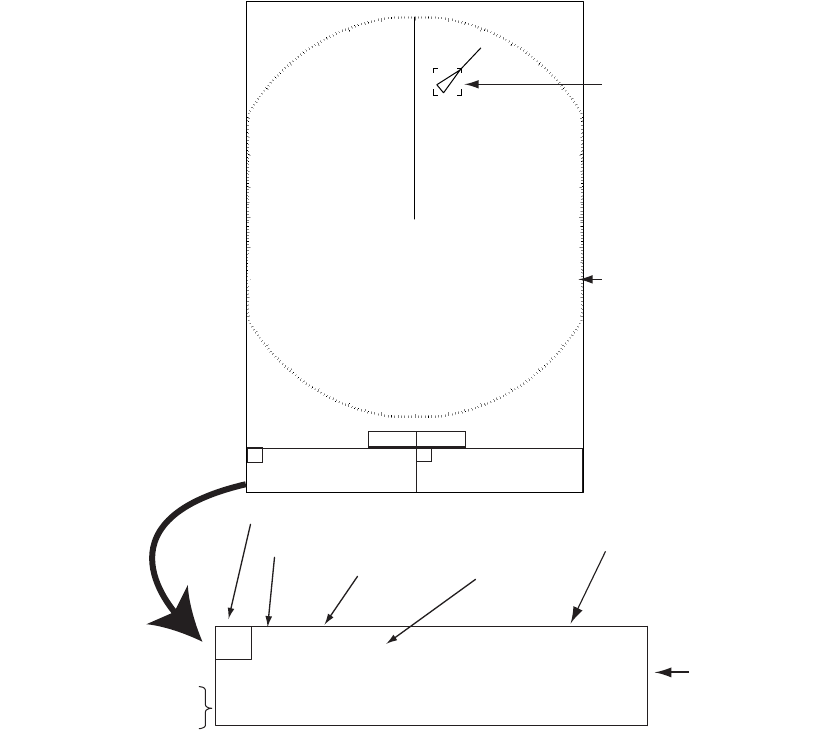

Navigation data
To show navigation data at the bottom of the screen, do the following:
1. Press the MENU key to open the menu.
2. Choose the Display menu and press the ENTER key.
3. Choose Data Box and press the ENTER key.
4. Choose appropriate option and press the ENTER key.
Off: Turn data display off.
Nav: Navigation data
Target: ARP and AIS target data
All: Navigation data plus ARP and AIS target data
5. Press the MENU key to close the menu.
OWN LAT: 34°56.123 N
SHIP LON: 135°34.567 E
SPEED 12.3 kt
CURSOR LAT: 34°56.123 N
LON: 135°34.567 E
TTG: 01:00
TEMP 12.3
°
C
DEPTH 56.7 m
WAY 14.80 NM
POINT 202.2°
TTG: 00:20
Own ship
position and
speed
Cursor latitude position
Cursor longitude position
Time to go to cursor position
Range from own ship to waypoint
Bearing from own ship to waypoint
Time to go from own ship position to waypoint
Water temperature,
Depth
Off
Nav
Target
All
![](/img.php?id=1456603&img=bg3d.png)
1. OPERATIONAL OVERVIEW
1-47
1.36 Dynamic Range
You may change the dynamic range to cope with sea conditions or get a better view at a certain
target.
1. Press the MENU key to open the menu.
2. Choose the Echo menu and press the ENTER key.
3. Choose Display-Dynamic and press the ENTER key.
4. Choose Narrow, Normal or Wide as appropriate and press the ENTER key.
Narrow: See small targets on distant ranges
Normal: Normal use
Wide: Suppress unwanted reflections
5. Press the MENU key to close the menu.
1.37 Characteristics Curve
The characteristics curve of this radar may be changed to cope with sea conditions or get a better
view at a certain target.
1. Press the MENU key to open the menu.
2. Choose the Echo menu and press the ENTER key.
3. Choose Display-Curve and press the ENTER key.
4. Choose 1, 2 or 3 as appropriate and press the ENTER key.
1: Suppress unwanted reflections
2: Normal use
3: See small targets on distant ranges
Display curve
5. Press the MENU key to close the menu.
Narrow
Normal
Wide
1
2
3
3 2 1
Input level
D
isplay echo
l
evel
![](/img.php?id=1456603&img=bg3e.png)
1. OPERATIONAL OVERVIEW
1-48
1.38 Antenna Speed
The antenna speed may be changed to meet operating requirements. Choose a high speed when
cruising at high speed to ensure timely update of radar targets. Note that the speed cannot be
changed on the 24 rpm motor; it is fixed at 24 rpm.
1. Press the MENU key to open the menu.
2. Choose the Echo menu and press the ENTER key.
3. Choose Antenna Speed and press the ENTER key.
4. Choose appropriate antenna speed.
The Auto/Range option automatically changes antenna rotation speed and pulselength
according to range in use. For details about the relationship among range, pulselength and
antenna rotation speed, see the table at the top of page SP-2.
5. Press the ENTER key.
6. Press the MENU key to close the menu.
24rpm
36rpm
48rpm
Auto/Range
![](/img.php?id=1456603&img=bg3f.png)
1. OPERATIONAL OVERVIEW
1-49
1.39 Waypoint Marker
The waypoint marker shows the location of the destination waypoint set on a navigation plotter.
You can turn this mark on or off as follows:
Waypoint mark
1. Press the MENU key to open the menu.
2. Choose Mark and press the ENTER key.
3. Choose Waypoint Mark Display and press the ENTER key.
4. Choose On or Off as appropriate and press the ENTER key.
5. Press the MENU key to close the menu.
+ 110.1°R 2.525 NM
+
3
NM
0.5
Waypoi
nt
marker
![](/img.php?id=1456603&img=bg40.png)
1. OPERATIONAL OVERVIEW
1-50
1.40 Alarm Message Display
When trouble occurs the radar generates audio and/or visual alarms (See Note on next page) to
alert you. The alarm message display shows all alarms currently violated. You may show this dis-
play as follows:
1. Press the MENU key to open the menu.
2. Choose the Display menu and press the ENTER key.
3. Choose Alarm Message and press the ENTER key.
Alarm message display
To close the alarm message display, press any key.
List of alarm messages
List of alarm messages
Alarm category Alarm name
Signal missing
BEARING Bearing signal lost
GYRO AD-10 format gyro signal lost
HEADING Heading signal lost
NMEA-HEAD NMEA format heading signal lost
POSITION NMEA format position data lost
TRIGGER Trigger signal lost
VIDEO Video signal lost
Target alarm
IN An echo has entered a target alarm zone.
OUT An echo has exited a target alarm zone.
ARP alarm
COLLISION CPA and TCPA of an ARP target is less than CPA and TCPA alarm
settings.
LOST Acquired ARP target becomes lost.
PROXIMITY The range to an ARP target is less than the user-set proximity
alarm range.
Alarm Message
[SIGNAL MISSING] TRIGGER HEADING BEARING GYRO VIDEO POSITION NMEA-HEAD
[TARGET ALARM1] IN OUT [TARGET ALARM2] IN OUT
[ARP ALARM] COLLISION LOST TARGET-FULL PROXIMITY
[AIS ALARM] COLLISION PROXIMITY
[AIS SYSTEM] TX ANT CH1 CH2 CH70 FAIL MKD
EPFS L/L SOG COG HDG ROT
<PLEASE PUSH ANY KEY - - TO STOP ALARM AND CLOSE THIS WINDOW>
![](/img.php?id=1456603&img=bg41.png)
1. OPERATIONAL OVERVIEW
1-51
.
The system generates both audio and visual (alarm message) alarms or audio alarm
alone in the following situations:
Audio and visual alarms: Signal missing and AIS system.
Audio alarm alone: Target alarm 1 and 2, ARP alarm, AIS alarm
AIS alarm
COLLISION CPA and TCPA of an AIS target is less than CPA and TCPA alarm
settings.
PROXIMITY The range to an AIS target is less than the user-set proximity
alarm range.
AIS system
ANT Antenna VSWR trouble
CH1 TDM2 RX1 board trouble
CH2 TDM2 RX2 board trouble
CH70 X channel 70 trouble
COG Course data lost
FAIL System failure
EPFS Navigator (GPS, etc.) trouble
HDG Heading data lost
L/L Position data lost
MKD Minimum input device lost
ROT Rate of turn data lost
SOG Speed data lost
TX TX stopped or TX error
List of alarm messages
Alarm category Alarm name
Note
![](/img.php?id=1456603&img=bg42.png)
1. OPERATIONAL OVERVIEW
1-52
1.41 Echo Area
The effective display area can be either ellipsis or square shaped.
1. Press the MENU key to open the menu.
2. Choose the Display menu and press the ENTER key.
3. Choose Echo Area and press the ENTER key.
4. Choose appropriate configuration and press the ENTER key.
5. Press the MENU key to close the menu.
Ellipse
Data Display
Square
Data Display
Area in which echoes are displayed
Ellipse
Square
![](/img.php?id=1456603&img=bg43.png)
1. OPERATIONAL OVERVIEW
1-53
1.42 Customizing (Initial Menu)
The Initial sub menu in the System menu contains items which allow you to customize your radar
to meet your operational needs.
1.42.1 Opening the Initial menu
1. Press the MENU key to open the menu.
2. Roll the trackball to choose System followed by Initial and press the ENTER key.
Initial menu
1.42.2 Description of Initial sub menu
Key Beep: A beep sounds when a key are pressed. You may turn this beep on or off.
Range Unit: Range may be shown in nm, km or sm.
Alarm Level: The target alarm may be set to sound against weak, medium or strong echoes.
Shift Speed: Set the ship’s speed to use calculate amount of display shift. The setting range is 1-
99 (kts).
STBY Mode Display: Set the function of the radar in standby.
Normal: Display “STBY” at the screen center.
Nav: Display navigation data.
Economy: Extinguish the backlight of the LCD. The radar must be switched from TX to ST-BY
to activate this mode.
Bearing Source: Choose the type of bearing sensor connected to the radar; True (gyrocompass,
satellite compass) or Magnetic (magnetic compass).
[ENTER]: Enter [CANCEL/HL OFF]: Back
[MENU]: Exit
GPS
Mark
Target Trails
Custom 1
Custom 2
Custom 3
Target
ARP
AIS
Tuning
Menu
Initial
System
Initial
Factory
Key Beep : On
Range Unit : nm
Alarm Level : Med
Shift Speed : 15 kt
STBY Mode Display : Normal
Bearing Source : True
Range Preset
Ship Speed Unit : kt
Depth Unit : ft
Temperature Unit : °F
Wind Direction : Apparent
Wind Speed Unit : kt
Port1 : Auto
GPS Buoy
Installation
![](/img.php?id=1456603&img=bg44.png)
1. OPERATIONAL OVERVIEW
1-54
Range Preset: You may choose the radar ranges you wish to use. Choose a range and press the
ENTER key to turn that range on or off alternately. At least two ranges must be turned on. The
maximum range available depends on radar model. Note that 0.125 is not available in kilometers.
Available ranges
Ship Speed Unit: The ship’s speed unit may be selected to knots (kts), kilometers/hour (km/h) or
miles per hour (mph).
Depth Unit: The depth unit is available in meters (m), feet (ft), fathoms (fa), passi/braza (p/b) or
Hiro (hr).
Temperature Unit: Temperature may be displayed in °C (Celsius) or °F (Fahrenheit).
Wind Direction: Wind direction may be shown as True or Apparent. For further details, see para-
graph 1.35.1.
Wind Speed Unit: Wind speed may be shown in knots (kts), kilometers per hour (km/h), miles per
hour (mph) or meters/second (m/s).
Port 1: Set the baud rate of the equipment connected to Port1. “Auto” provides automatic detec-
tion of baud rate, for external equipment’s whose baud rate is 4800 or 38400 (bps).
Port 2: Same function as Port1 but for Port2.
Through Output: Data input to port 1 may be output from port 2. Choose “On” to use this feature.
* FR-8252 onl
y
0.125 On
0.25 On
0.5 On
0.75 On
1Off
1.5 On
2Off
3On
4Off
6On
8Off
12 On
16 Off
24 On
36 Off
48 On
64 Off
72 On
96* On
Exit? Yes
0.125 On
0.25 On
0.5 On
0.75 On
1Off
1.5 On
2Off
3On
4Off
6On
8Off
12 On
16 Off
24 On
36 Off
48 On
64 Off
72 On
96 On
Exit? Yes
0.125 On
0.25 On
0.5 On
0.75 On
1Off
1.5 On
2Off
3On
4Off
6On
8Off
12 On
16 Off
24 On
36 Off
48 On
64 Off
72 On
96* On
Exit? Yes
nautical miles kilometers statute miles
![](/img.php?id=1456603&img=bg45.png)
1. OPERATIONAL OVERVIEW
1-55
1.43 Sector Blank
It may be necessary to prevent transmission in a certain area to protect passengers and crew from
microwave radiation. For example, if the antenna unit is installed at a close distance in front of the
wheel house you would want to prevent transmission in that area. Two sectors can be set.
1. Press the MENU key to open the menu.
2. Choose Sector Blank 1 or Sector Blank 2 from the System menu and press the ENTER key.
3. Choose Sector Status and press the ENTER key.
4. Choose On and press the ENTER key.
5. Choose Sector Start and press the ENTER key.
6. Roll the trackball upward or downward to set the starting point of the sector and press the
ENTER key.
7. Choose Sector Area and press the ENTER key.
Custom 1
Custom 2
Custom 3
Sector Status : Off
Sector Start : 0°
Sector Area : 0°
Menu
Sector Blank 1
[ENTER]: Enter [CANCEL/HL OFF]: Back
[MENU]: Exit
Tuning
GPS
Target
ARP
AIS
System
Initial
Factory
Installation
Sector Blank 1
Sector Blank 2
GPS Buoy
Off
On
S
0°
T
(0° - 359°
)
S
0°
T
(0° - 180°
)
![](/img.php?id=1456603&img=bg46.png)
1. OPERATIONAL OVERVIEW
1-56
8. Roll the trackball upward or downward to set the width of the sector and press the ENTER key.
Note: The combined width of sector 1 and sector 2 may not exceed 270 degrees.
9. Press the MENU key to close the menu.
As shown in the illustration below, dashed lines mark the starting and ending points of the
sector and two dashed arcs run the width of the sector.
Appearance of sector blank
+
+ 96.8°R 0.338 NM
Area of no
transmission
Start bearing
of area
![](/img.php?id=1456603&img=bg47.png)
1. OPERATIONAL OVERVIEW
1-57
1.44 GPS Buoy
With connection of a GPS radio buoy locator, GPS buoy position can be monitored on the radar
screen. One application of a GPS buoy is to tether it to a fishing net to monitor net position on the
radar screen. Up to five buoys may be shown.
GPS buoy symbols
1.44.1 Displaying GPS buoys
1. Press the MENU key to show the menu.
2. Choose GPS Buoy and press the ENTER key.
GPS buoy menu
3. Choose Display and press the ENTER key.
4. Choose Off or On as appropriate and press the ENTER key.
5. Press the MENU key to close the menu.
+
+ 96.8°R 0.338 NM
GPS buoy
01
02
GPS buoy no.
GPS buoy's
track
Brill/Color
Echo
Mark
Target Trails
Custom 1
Display
Custom 2
Custom 3
GPS Buoy
Target
ARP
AIS
GPS
System
Tuning
History Dots
All Cancel
Display
Symbol Color
:Off
:Off
Menu
GPS Buoy
[ENTER]: Enter [CANCEL/HL OFF]: Back
[MENU]: Exit
:Green
![](/img.php?id=1456603&img=bg48.png)
1. OPERATIONAL OVERVIEW
1-58
1.44.2 Choosing symbol color
1. Press the MENU key to open the menu.
2. Choose GPS Buoy and press the ENTER key.
3. Choose Symbol Color and press the ENTER key.
4. Choose appropriate color and press the ENTER key.
5. Press the MENU key to close the menu.
1.44.3 History display
This radar can display time-spaced dots (maximum 20 dots) marking the past positions of any
GPS buoy being tracked. You can choose the number of dots to display as follows:
1. Press the MENU key to open the menu.
2. Choose Target and press the ENTER key.
3. Choose History Dots and press the ENTER key.
4. Choose number of history dots to display (5, 10 or 20), or choose Off to turn off the history dis-
play.
5. Press the ENTER key.
6. Press the MENU key to close the menu.
Green
Red
Blue
White
Black
Off
5
10
20
![](/img.php?id=1456603&img=bg49.png)
1. OPERATIONAL OVERVIEW
1-59
1.44.4 Erasing GPS buoy symbols
When the screen becomes cluttered with GPS buoy symbols and their tracks you can erase them
individually or collectively as shown below. The symbols will be erased, however GPS buoys will
again be displayed whenever they are received by the GPS radio buoy locator.
Erasing individual GPS buoy symbols
Place the cursor on the GPS buoy symbol you wish to erase and press the HL OFF/CANCEL key.
Two beeps sounds and the symbol is erased.
Erasing all GPS buoys symbols
1. Press the MENU key to open the menu.
2. Choose GPS Buoy and press the ENTER key.
3. Choose All Cancel and press the ENTER key.
4. You are asked if you are sure to erase all buoy symbols. Choose Yes and press the ENTER
key. A beep sounds while the GPS buoys symbols are being erased.
5. Press the MENU key to close the menu.
Are you sure?
Yes
No
![](/img.php?id=1456603&img=bg4a.png)
1. OPERATIONAL OVERVIEW
1-60
1.45 Remote Display
This radar may be used as a remote display by setting Input Source to Sub on the Installation
menu. When this is done, the menu and display change as described below. To display the radar
image on the remote display, transmit from the main radar.
Unavailable menu items
Display appearance
The display changes as shown in the illustration below.
Display indications for remote display
Stand-by display modes
• The Total TX Time indication (TX TIME XXXXXX.XH) does not appear on the Normal stand-by
display.
• The “SUB” indication also appears on the Nav data stand-by display.
• The Nav data stand-by display shows the “SUB” indication but not the “WATCH” indication
(including time remaining).
Menu items not available with the remote display
Menu Unavailable menu item(s)
DIsplay Watchman
Echo Pulse Length, Antenna Speed, 2nd Echo Rejector
Custom 1, 2, 3 Pulse Length, Antenna Speed
Tuning All menu items inoperative
System - Installation Tuning Initial Adjust, Auto Installation Setup, Total TX Time,
Manual MBS Adjust, Antenna Rotation
System - Sector Blank 1, 2 All menu items inoperative
359.9°
M
0.75
NM
H UP OFFCENTER(M)
ES 1 EAV1
NR LOW
IR LOW
HARBOR A/C AUTO
0.25
GAIN AUTO
SEA AUTO
RAIN AUTO
ZOOM
SUB
Shown when display
unit functions as
remote display.
Neither tuning indicator
nor tuning bar is displayed.
Pulse length
is not displayed.
WATCH (incl. time
remaining) is not
displayed.
2ND ECHO
is not displayed.
![](/img.php?id=1456603&img=bg4b.png)
1. OPERATIONAL OVERVIEW
1-61
Items unavailable with Function key F1, F2
• Watchman
• Tuning Mode
• Pulse Length
• Antenna Speed
• 2nd Echo Rejector
Total TX time indication
Total TX time (TX TIME XXXXXX.XH) does not appear on the diagnostic test or on the Normal
stand-by display.
1. OPERATIONAL OVERVIEW
1-62
This page intentionally left blank.
![](/img.php?id=1456603&img=bg4d.png)
2-1
2. RADAR OBSERVATION
2.1 General

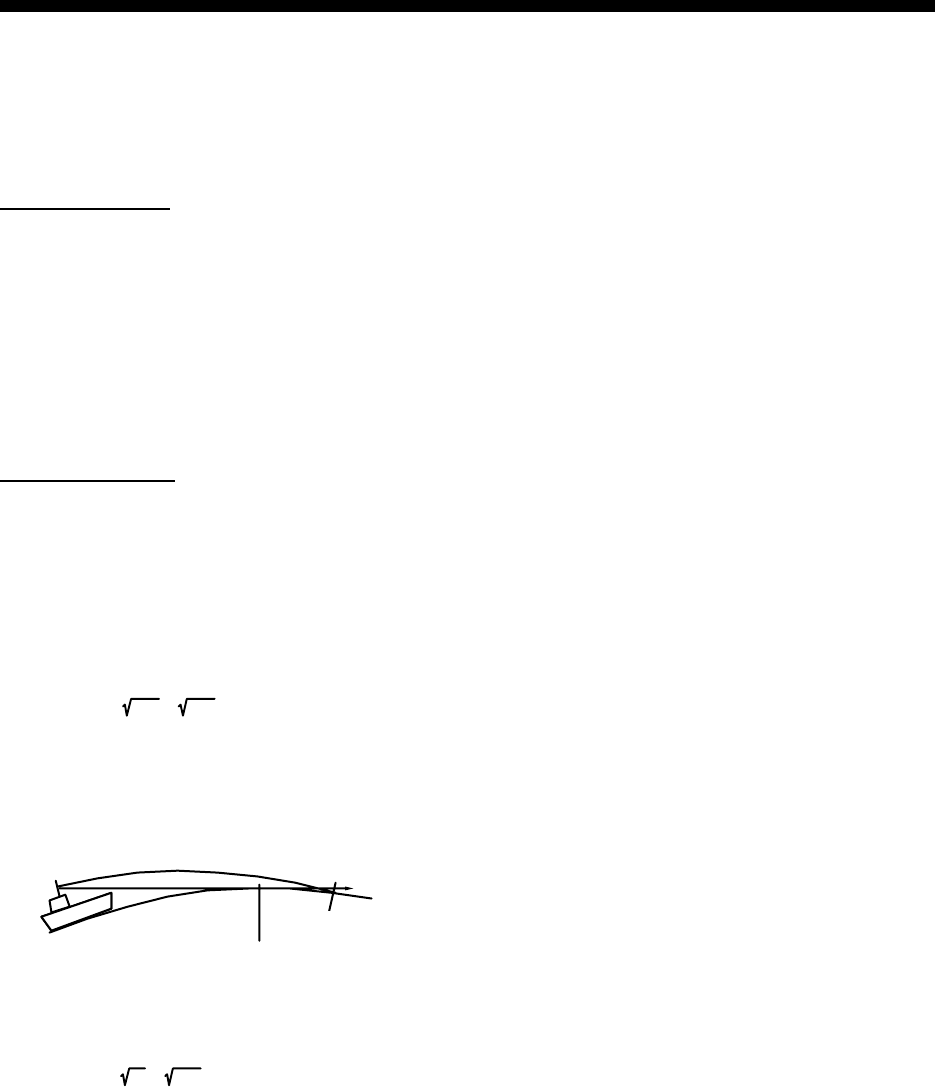

2.1.1 Minimum and maximum ranges
Minimum range
The minimum range is defined by the shortest distance at which, using a scale of 1.5 or 0.75 nm,
a target having an echoing area of 10 m2 is still shown separate from the point representing the
antenna position.
It is mainly dependent on the pulse length, antenna height, and signal processing such as main
bang suppression and digital quantization. It is a good practice to use a shorter range scale as far
as it gives favorable definition or clarity of picture. This series of radars satisfy the requirement of
IEC 62252 5.14.1 (Class A).
Maximum range
The maximum detecting range of the radar, Rmax, varies considerably depending on several fac-
tors such as the height of the antenna above the waterline, the height of the target above the sea,
the size, shape and material of the target, and the atmospheric conditions.
Under normal atmospheric conditions, the maximum range is equal to the radar horizon or a little
shorter. The radar horizon is longer than the optical one by about 6% because of the diffraction
property of the radar signal. The Rmax is given in the following equation.
where Rmax: radar horizon (nautical miles)
h1: antenna height (m)
h2: target height (m)
For example, if the height of the antenna above the waterline is 9 meters and the height of the
target is 16 meters, the maximum radar range is;
It should be noted that the detection range is reduced by precipitation (which absorbs the radar
signal).
R
max
= 2.2 x ( h1 +h2 )
Radar horizon
Optical horizon
R
m
ax
= 2.2 x ( 9 +
16 ) = 2.2 x (3 + 4) = 15.4 nm
![](/img.php?id=1456603&img=bg4e.png)
2. RADAR OBSERVATION
2-2
2.1.2 Radar resolution
There are two important factors in radar resolution (discrimination): bearing resolution and range
resolution.
Bearing resolution
Bearing resolution is the ability of the radar to display as separate pips the echoes received from
two targets which are at the same range and close together. It is proportional to the antenna length
and reciprocally proportional to the wavelength. The length of the antenna radiator should be
chosen for a bearing resolution better than 4.5 degrees (IEC 62252 Class A). This condition is nor-
mally satisfied with a radiator of 1.2 m (4 ft) or longer in the X-band.
Range resolution
Range resolution is the ability to display as separate pips the echoes received from two targets
which are on the same bearing and close to each other. This is determined by pulse length only.
Test targets for determining the range and bearing resolution are radar reflectors having an
echoing area of 10 m2.
2.1.3 Bearing accuracy
One of the most important features of the radar is how accurately the bearing of a target can be
measured. The accuracy of bearing measurement basically depends on the narrowness of the
radar beam. However, the bearing is usually taken relative to the ship's heading, and thus, proper
adjustment of the heading line at installation is an important factor in ensuring bearing accuracy.
To minimize error when measuring the bearing of a target, put the target echo at the extreme posi-
tion on the screen by selecting a suitable range.
2.1.4 Range measurement
Measurement of the range to a target is also a very important function of the radar. Generally,
there are two means of measuring range: the fixed range rings and the variable range marker
(VRM). The fixed range rings appear on the screen with a predetermined interval and provide a
rough estimate of the range to a target. The variable range marker's diameter is increased or
decreased so that the marker touches the inner edge of the target, allowing the operator to obtain
more accurate range measurements.
![](/img.php?id=1456603&img=bg4f.png)
2. RADAR OBSERVATION
2-3
2.2 False Echoes
Occasionally echo signals appear on the screen at positions where there is no target or disappear
even if there are targets. They are, however, recognized if you understand the reason why they
are displayed. Typical false echoes are shown below.
2.2.1 Multiple echoes
Multiple echoes occur when a transmitted pulse returns from a solid object like a large ship, bridge,
or breakwater. A second, a third or more echoes may be observed on the display at double, triple
or other multiples of the actual range of the target as shown below. Multiple reflection echoes can
be reduced and often removed by decreasing the gain (sensitivity) or properly adjusting the A/C
SEA control.
Multiple echoes
2.2.2 Sidelobe echoes
Every time the radar pulse is transmitted, some radiation escapes on each side of the beam,
called “sidelobes.” If a target exists where it can be detected by the sidelobes as well as the main
lobe, the side echoes may be represented on both sides of the true echo at the same range. Side
lobes show usually only on short ranges and from strong targets. They can be reduced through
careful reduction of the gain or proper adjustment of the A/C SEA control.
Sidelobe echoes
Own ship
Target
True
echo
Multiple
echo
Sidelobe
True target
![](/img.php?id=1456603&img=bg50.png)
2. RADAR OBSERVATION
2-4

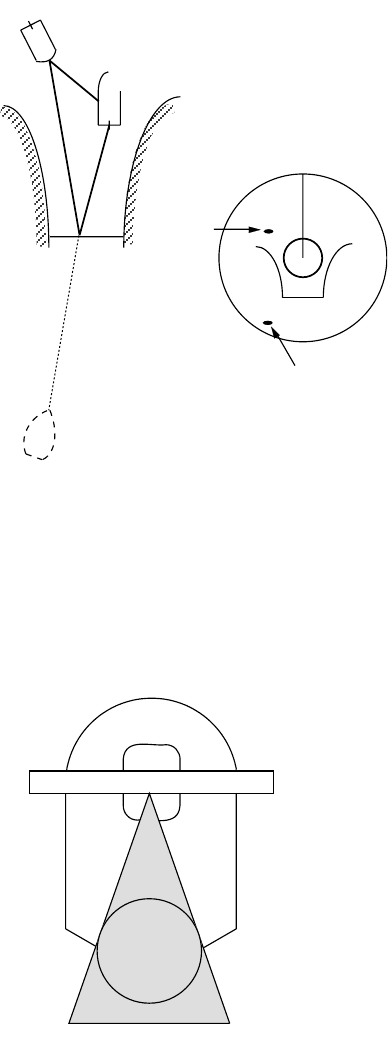

2.2.3 Virtual image
A relatively large target close to your ship may be represented at two positions on the screen. One
of them is the true echo directly reflected by the target and the other is a false echo which is
caused by the mirror effect of a large object on or close to your ship as shown in the figure below.
If your ship comes close to a large metal bridge, for example, such a false echo may temporarily
be seen on the screen.
Virtual image
2.2.4 Shadow sector
Funnels, stacks, masts, or derricks in the path of the antenna block the radar beam. If the angle
subtended at the antenna is more than a few degrees, a non-detecting sector may be produced.
Within this sector targets can not be detected.
Shadow sectors
True
echo
False
echo
Own ship
Target ship
Mirror image
of target ship
Radar
antenna
Radar
mast
Shadow sector
![](/img.php?id=1456603&img=bg51.png)
2. RADAR OBSERVATION
2-5
2.3 SART (Search and Rescue Transponder)
2.3.1 SART description
A Search and Rescue Transponder (SART) may be triggered by any X-band (3 cm wavelength)
radar within a range of approximately 8 nm. Each radar pulse received causes it to transmit a
response which is swept repetitively across the complete radar frequency band. When interro-
gated, it first sweeps rapidly (0.4 µs) through the band before beginning a relatively slow sweep
(7.5 µs) through the band back to the starting frequency. This process is repeated for a total of
twelve complete cycles. At some point in each sweep, the SART frequency will match that of the
interrogating radar and be within the pass band of the radar receiver. If the SART is within range,
the frequency match during each of the 12 slow sweeps will produce a response on the radar dis-
play, thus a line of 12 dots equally spaced by about 0.64 nautical miles will be shown.
When the radar to the SART is reduced to about 1 nm, the radar display my show also the 12
responses generated during the fast sweeps. These additional dot responses, which also are
equally spaced by 0.64 nautical miles, will be interspersed with the original line of 12 dots. They
will appear slightly weaker and smaller than the original dots.

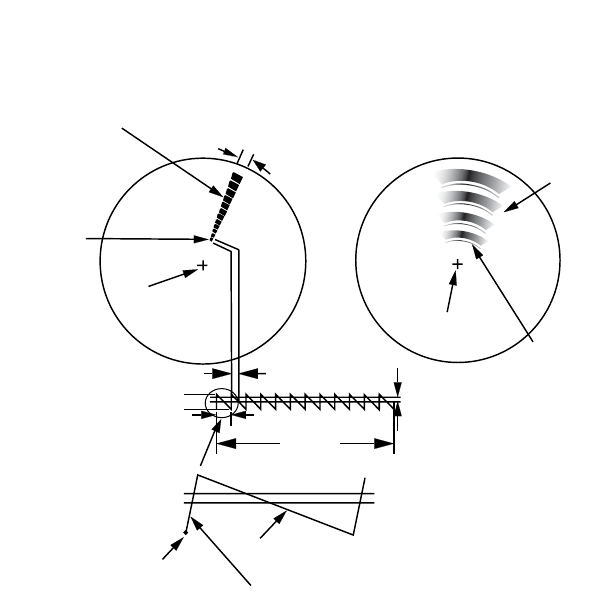

Appearance of SART echo
9500 MHz
9200 MHz
Radar antenna
beamwidth
Screen A: When SART
is distant Screen B: When SART
is close
Lines of 12 dots
are displayed in
concentric arcs.
Echo from SART
Position of
SART
Own ship
position Own ship
position
SART mark
length Radar receiver
bandwidth
Sweep time
7.5 μs 95 μs
Sweep start High speed sweep signal
Low speed sweep signal
24 NM 1.5 NM
Position of
SART
Echo from
SART
![](/img.php?id=1456603&img=bg52.png)
2. RADAR OBSERVATION
2-6
2.3.2 General remarks on receiving SART
SART range errors
When responses from only the 12 low frequency sweeps are visible (when the SART is at a range
greater than about 1 nm), the position at which the first dot is displayed may be as much as 0.64
nm beyond the true position of the SART. When the range closes so that the fast sweep responses
are seen also, the first of these will be no more than 150 meters beyond the true position.
Radar bandwidth
This is normally matched to the radar pulse length and is usually switched with the range scale
and the associated pulse length. Narrow bandwidths of 3-5 MHz are used with long pulses on long
range scales and wide bandwidths of 10-25 MHz with short pulses on short ranges.
A radar bandwidth of less than 5 MHz will attenuate the SART signal slightly, so it is preferable to
use a medium bandwidth to ensure optimum detection of the SART.
Radar side lobes
As the SART is approached, side lobes from the radar antenna may show the SART responses
as a series of arcs or concentric rings. These can be removed by the use of the anti-clutter sea
control although it may be operationally useful to observe the side lobes as they may be easier to
detect in clutter conditions and also they will confirm that the SART is near to own ship.
Note: SART information excerpted from IMO SN/Circ 197 OPERATION OF MARINE RADAR
FOR SART DETECTION.

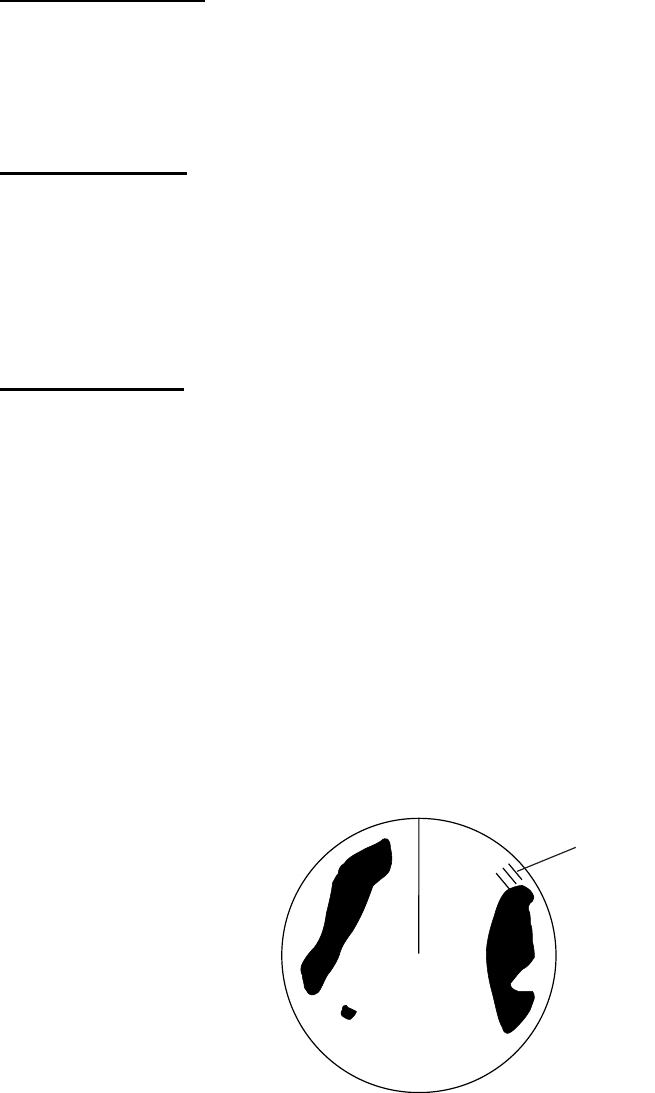

2.4 RACON
A RACON is a radar beacon which emits radar receivable signals in the radar frequency spectrum
(X- or S-band). There are several signal formats; in general, the RACON signal appears on the
radar screen as a rectangular echo originating at a point just beyond the position of the radar
beacon. It has a Morse coded pattern. Note that the position on the radar display is not accurate.
RACON
RACON
![](/img.php?id=1456603&img=bg53.png)
3-1
3. ARP OPERATION
The Automatic Radar Plotter ARP-11 (option) manually or automatically acquires and tracks ten
targets. Once a target is acquired automatically or manually it is automatically tracked within 0.1
to 16 nm.
3.1 Usage Precautions
No one navigational aid should be relied
upon for the safety of vessel and crew.
The navigator has the responsibility to
check all aids available to confirm
position. Electronic aids are not
a substitute for basic navigational
principles and common sense.
• This auto plotter automatically tracks an
automatically or manually acquired radar
target and calculates its course and
speed, indicating them by a vector. Since
the data generated by the auto plotter
are based on what radar targets are
selected, the radar must always be
optimally tuned for use with the auto
plotter, to ensure required targets will not
be lost or unwanted targets such as sea
returns and noise will not be acquired
and tracked.
• A target does not always mean a land-
mass, reef, ships or other surface vessels
but can imply returns from sea surface
and clutter. As the level of clutter changes
with environment, the operator should
properly adjust the A/C SEA, A/C RAIN
and GAIN controls to be sure target
echoes are not eliminated from the
radar screen.
CAUTION
The plotting accuracy and response of
this auto plotter meets IMO standards.
Tracking accuracy is affected by the
following:
• Tracking accuracy is affected by course
change. One to two minutes is required to
restore vectors to full accuracy after an
abrupt course change. (The actual
amount depends on gyrocompass
specifications.)
• The amount of tracking delay is inversely
proportional to the relative speed of the
target. Delay is on the order of 15-30
seconds for high relative speed; 30-60
seconds for low relative speed.
Display accuracy is affected by the
following:
• Echo intensity
• Radar transmission pulsewidth
• Radar bearing error
• Gyrocompass error
• Course change (own ship or target)
CAUTION
![](/img.php?id=1456603&img=bg54.png)
3. ARP OPERATION
3-2
3.2 Controls for Use with ARP
ENTER: Acquire cursor-selected target; displays data for tracked target (in the data box at the
bottom of the screen).
CANCEL/HL OFF: Remove data of cursor-selected tracked target from the data box; stops
tracking cursor-selected target (when its data is not displayed in the data box).
MENU: Access the Target and ARP menus for ARP operations.
Trackball: Choose target to acquire, cancel tracking or show target data.
3.3 ARP Display On/Off
You may turn off the ARP display as shown below.
1. Press the MENU key to display the main menu.
2. Use the trackball to choose ARP and press the ENTER key.
ARP menu
3. Use the trackball to choose Display and press the ENTER key.
4. Choose Off or On as appropriate and press the ENTER key.
5. Press the MENU key to close the menu.
Brill/Color
Echo
Mark
Target Trails
Custom 1
Display
Custom 2
Custom 3
Tuning
Menu
ARP
System
Display : Off
Symbol Color : Green
Auto Acquire : Off
All Cancel
[ENTER]: Enter [CANCEL/HL OFF]: Back
[MENU]: Exit
GPS
Target
ARP
AIS
GPS Buoy
Off
On
![](/img.php?id=1456603&img=bg55.png)
3. ARP OPERATION
3-3
3.4 Acquiring and Tracking Targets
Ten targets may be acquired and tracked manually and automatically. When you attempt to
acquire an 11th target, the message "ARP FULL - ALREADY TRACKING 10 TARGETS!" appears
for five seconds. To acquire another target, terminate tracking of an unnecessary target, as shown
in the paragraph 3.5.
3.4.1 Manual acquisition
When the automatic acquisition (AUTO ACQ. AREA) is set to on, up to five targets may be
acquired manually. If you attempt to acquire a sixth target, the alert message appears.
1. Place the cursor on the target to acquire.
2. Press the ENTER key twice.

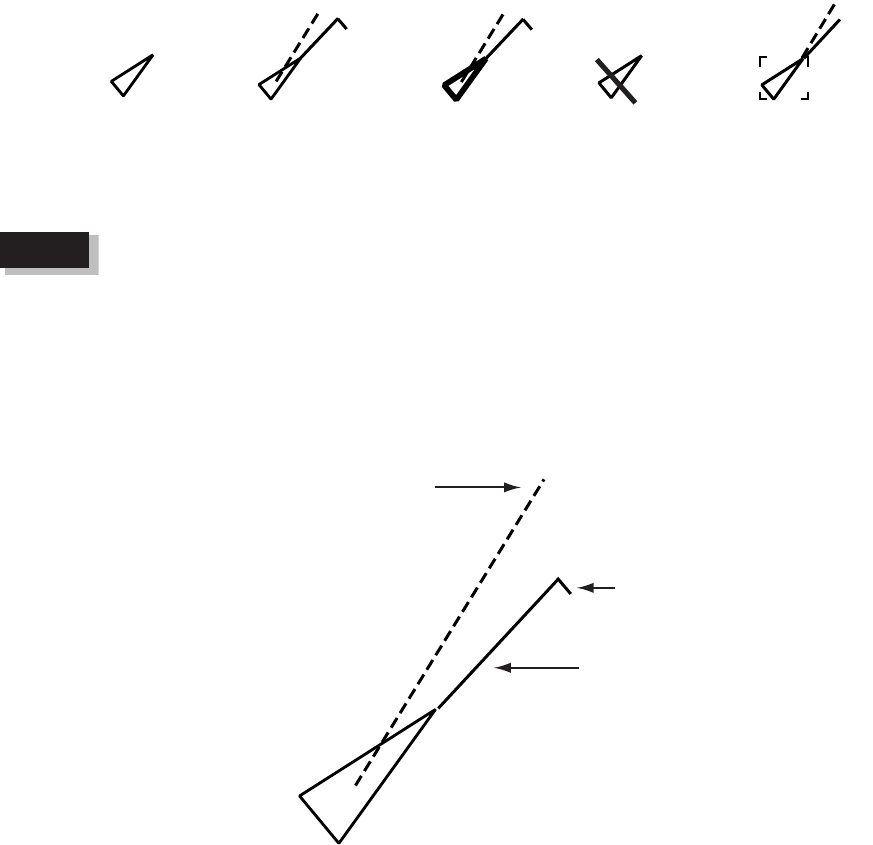

The plot symbol changes over time as below. A vector appears about one minute after acquisition,
indicating the target's motion trend. The target number is the youngest empty number.

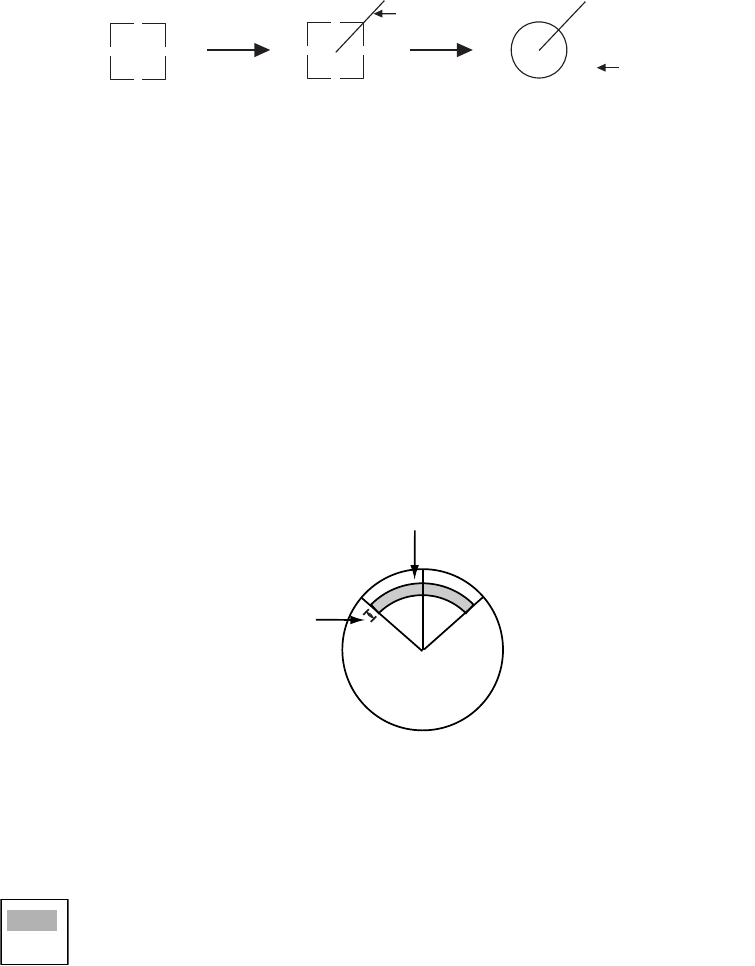

ARP target mark
3.4.2 Automatic acquisition
The ARP can acquire up to ten targets automatically by setting an automatic acquisition area.
When automatic acquisition is selected after acquiring targets manually, only the remaining
capacity for targets may be automatically acquired. For example, if seven targets have been man-
ually acquired, three targets may be automatically acquired.
The automatic acquisition area is 2.0 to 2.5 miles in range and ±45° on either side of the heading
line in bearing. Targets being tracked in automatic acquisition are continuously tracked when
switching to manual acquisition.
Automatic acquisition area
1. Press the MENU key to show the main menu.
2. Choose ARP and press the ENTER key
3. Choose Auto Acquire and press the ENTER key.
At acquisition 1 min. after
acquisition 3 min. after
acquisition
01 01 Target numbe
r
01
Vector
Automatic acquisition area
45° port 45° starboard
2.0 - 2.5 nm
Off
On
![](/img.php?id=1456603&img=bg56.png)
3. ARP OPERATION
3-4
4. Choose On to enable automatic acquisition.
5. Press the ENTER key.
6. Press the MENU key to close the menu.
3.5 Terminating Tracking of ARP Targets
When ten targets have been acquired, no more acquisition occurs unless targets are cancelled. If
you need to acquire additional targets, you must first cancel one or more individual targets, or all
targets, using one of the procedures below.
3.5.1 Terminating tracking of selected targets
1. Place the cursor on the target to terminate tracking.
2. Press the CANCEL/HL OFF key to terminate tracking and erase the ARP symbol. A few
beeps sound and the symbol is erased from the display.
3.5.2 Terminating tracking of all targets
1. Press the MENU key to open the menu.
2. Choose ARP and press the ENTER key.
3. Choose All Cancel and press the ENTER key. The prompt shown below appears.
4. Choose Yes and press the ENTER key to terminate tracking on all ARP targets.
5. Press the MENU key to close the menu.
Are you sure?
Yes
No
![](/img.php?id=1456603&img=bg57.png)
3. ARP OPERATION
3-5
3.6 Vector Attributes
What is a vector?
A vector is a line extending from a tracked target which shows speed and course of the target. The
vector tip shows estimated position of the target after the selected vector time elapses. It can be
useful to extend the vector length (time) in order to evaluate the risk of collision with any target.
Vector
Vector time, vector reference
Vector time can be set to 30 seconds, 1, 3, 6, 15 or 30 minutes. You may reference the vectors to
North (True, requires heading and speed data) or ship's heading (relative) as desired.
1. Press the MENU key to open the menu.
2. Choose Target and press the ENTER key.
Target menu
3. Choose Vector Time and press the ENTER key.
4. Choose desired vector time and press the ENTER key.
5. Choose Vector Reference and press the ENTER key.
6. Choose Relative or True as appropriate and press the ENTER
key.
Relative: Other ships move relative to own ship. This mode is
useful as an anti-collision aid. If a vessel is on a collision course
with own ship its vector will be pointing toward own ship position.
True: Own ship and other ships move at their true motions. This
mode is useful for discriminating between moving and stationary
targets.
7. Press the MENU key to close the menu.
The functions of the Target menu are commonly shared by ARP and AIS.
Vecto
r
Brill/Color
Echo
Mark
Target Trails
Custom 1
Display
Custom 2
Custom 3
Tuning
Menu
Target
Vector Time : 6min
Vector Reference : Relative
History Dots : 5
History Intervals : 1min
CPA : Off
TCPA : 1min
Proximity Alarm : Off
[ENTER]: Enter [CANCEL/HL OFF]: Back
[MENU]: Exit
GPS
Target
ARP
AIS
System
GPS Buoy
30sec
1min
3min
6min
15min
30min
Relative
True
Vector time choices
Vector reference choice
s
Note
![](/img.php?id=1456603&img=bg58.png)
3. ARP OPERATION
3-6
3.7 History Display (target past position)
This radar can display time-spaced dots (maximum ten dots) marking the past positions of any
ARP or AIS target being tracked. You can evaluate a target's actions by the spacing between dots.
Below are examples of dot spacing and target movement.
Target movement and history display
You may choose the number of history dots to display and the time interval to display them.
1. Press the MENU key to open the menu.
2. Choose Target and press the ENTER key.
3. Choose History Dots and press the ENTER key.
4. Choose number of history dots to display (5 or 10) or choose Off to turn off the history display.
5. Press the ENTER key.
6. Choose History Intervals and press the ENTER key.
7. Choose appropriate time interval and press the ENTER key.
8. Press the MENU key to close the menu.
(a) Ship turning (b) Ship running
straight (c) Ship reduced
speed
(d) Ship increased
speed
Off
5
10
15sec
30sec
1min
2min
3min
6min
12min
![](/img.php?id=1456603&img=bg59.png)
3. ARP OPERATION
3-7
3.8 ARP Target Data
You can show target data (range, bearing, course, speed, CPA and TCPA) for two tracked ARP
targets, in the data box at the bottom of the screen. To display ARP target data, the ARP display
must be activated and the menu item Data Box in the Display menu must be set for Target or All.
1. Place the cursor on the ARP target for which you want to know its data.
2. Press the ENTER key to show the target’s data.

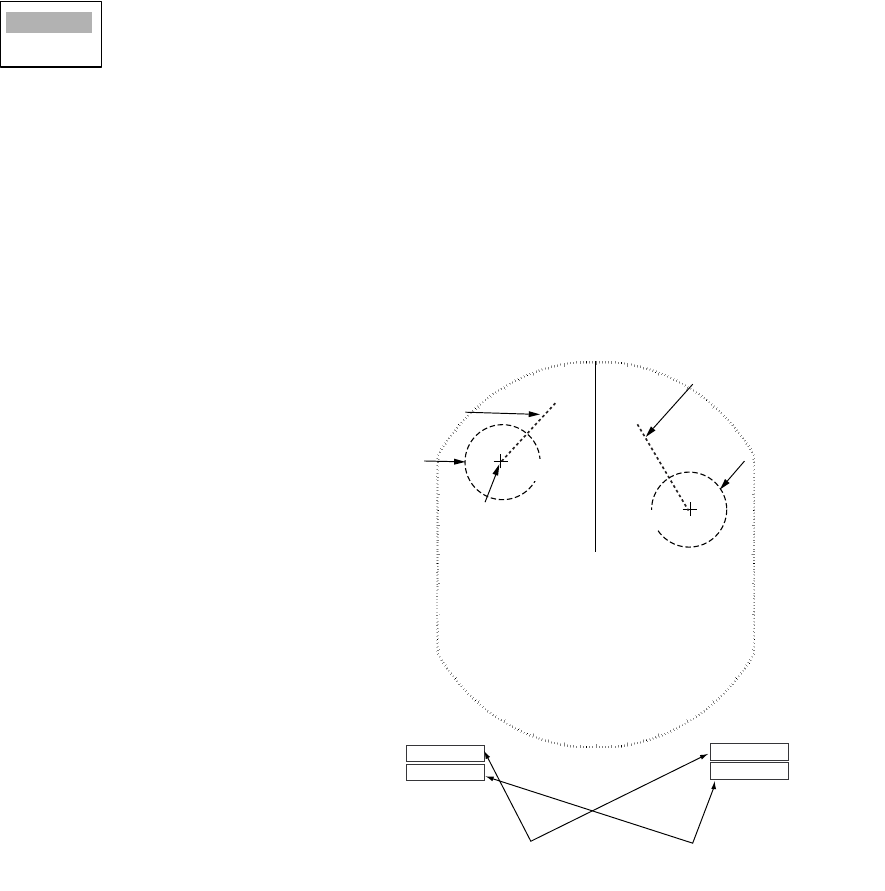

ARP target data
The target is enlarged and its target number is prefixed with (A) or (B) to show which data box its
data appears in. The box is automatically chosen on a first-in, first-out basis. For example, if both
data box A and data box B are currently showing data and target A was selected before target B,
the data in data box A will be erased and replaced with the data of the newly selected target.
To remove a target’s data from a data box, place the cursor on its target symbol and press the
CANCEL/HL OFF key.
AB
A
TRUE 5 min
Data box (A or B)
Vector reference
Vector time
Target no.
No.01
Data box A Data box B
Bearing, range, CPA
Course, speed, TCPA
+ 110.1°R 2.525 NM
3
NM
0.5
+
ARP target
selected for
data display
A(or B)
denotes data
box location.
(A)01
BRG 236.5
°
T RNG 1.850NM CPA 1.84NM
CSE 33.7
°
SPD 12.34kt TCPA 12:00
02 ARP target
![](/img.php?id=1456603&img=bg5a.png)
3. ARP OPERATION
3-8
3.9 CPA/TCPA Alarm
When the predicted CPA of any ARP target or AIS target becomes smaller than the preset CPA
alarm range and its predicted TCPA less than the preset TCPA alarm limit, the audio alarm sounds
and the target plot symbol of the offending target changes to a triangle and flashes together with
its vector. You may silence the audio alarm with the CANCEL/HL OFF key. The flashing of the
triangle plot stops when the vessel’s CPA and TCPA are out of the CPA and TCPA alarm setting.
The ARP continuously monitors the predicted range at the Closest Point of Approach (CPA) and
predicted time to CPA (TCPA) of each track to own ship.
This feature helps alert you to targets which may be on a collision course with own ship. However,
it is important that GAIN, A/C SEA, A/C RAIN and other radar controls are properly adjusted and
the ARP is set up so that it can track targets effectively.
1. Press the MENU key to open the menu.
2. Choose Target and press the ENTER key.
3. Choose CPA and press the ENTER key.
4. Choose appropriate CPA distance and press the ENTER key.
5. Choose TCPA and press the ENTER key.
6. Choose appropriate TCPA and press the ENTER key.
7. Press the MENU key to close the menu.
CAUTION
The CPA/TCPA alarm should never be
relied upon as the sole means for detect-
ing the risk of collision. The navigator is
not relieved of the responsibility to keep
visual lookout for avoiding collisions,
whether or not the radar or other plotting
aid is in use.
Off
0.5nm
1nm
2nm
3nm
5nm
6nm
30sec
1min
2min
3min
4min
5min
6min
12min
![](/img.php?id=1456603&img=bg5b.png)
3. ARP OPERATION
3-9
3.10 Proximity Alarm
The proximity alarm alerts you when an ARP target (or AIS target) is within the range you specify,
by the audio alarm and flashing the offending target.
1. Press the MENU key to open the menu.
2. Choose Target and press the ENTER key.
3. Choose Proximity Alarm and press the ENTER key.
4. Choose appropriate range and press the ENTER key.
5. Press the MENU key to close the menu.
When an ARP target comes within the range set here its symbol becomes a flashing triangle
and the audio alarm sounds. Press the CANCEL/HL OFF key to silence the audio alarm. The
flashing continues until the target is no longer within the range set, the alarm range is changed
to exclude the offending target or the proximity alarm is disabled.
3.11 Lost Target
When the system detects a lost target, the audio alarm sounds, the target symbol becomes a
flashing diamond and tracking is discontinued after one minute.
Lost target mark
Canceling a lost target
Place the cursor on the target and press the CANCEL/HL OFF key. The audio alarm sounds and
the target symbol (and its data if displayed) is erased.
Off
0.5nm
1nm
2nm
3nm
5nm
6nm
12nm
24nm
01
![](/img.php?id=1456603&img=bg5c.png)
3. ARP OPERATION
3-10
3.12 Symbol Color
You may choose the ARP symbol color from among Green, Red, Blue, White or Black.
1. Press the MENU key to open the menu.
2. Choose ARP and press the ENTER key.
3. Choose Symbol Color and press the ENTER key.
4. Choose appropriate color and press the ENTER key.
5. Press the MENU key to close the menu.
Green
Red
Blue
White
Black
![](/img.php?id=1456603&img=bg5d.png)
4-1
4. AIS OPERATION
Connected to the FURUNO AIS Transponder FA-150, the FR-8xx2 series can show the name,
position and other nav data of the nearest 100 AIS transponder-equipped ships. (For connection
of other makes of AIS transponders, AIS Interface IF-1500AIS (option) is required.)
This radar accepts position data fixed by WGS-84 geodetic datum. Set the datum to WGS-84 on
the GPS navigator connected to this radar. If this radar is interfaced with the FURUNO GPS Nav-
igator GP-320B, see paragraph 5.2 for the procedure. Additionally, confirm that Mode on the GPS
menu is set to GPS or WAAS, referring to page 5-1. The AIS function is inoperative if the mode is
DGPS.
4.1 Controls for Use with AIS
ENTER: Press, after choosing target with the trackball, to display data for selected active AIS
target (in the data box at the bottom of the screen).
CANCEL/HL OFF: Remove data of cursor-selected AIS target from the data box.
MENU: Access the Target and AIS menus for AIS operations.
Trackball: Choose active target to display its data.
4.2 Turning the AIS Display On or Off
You may turn the AIS display on or off. The system continues processing AIS targets regardless
of whether the AIS display is on or off, provided the AIS transponder is turned on.
1. Press the MENU key to display the main menu.
2. Choose AIS and press the ENTER key.
AIS menu
3. Choose DIsplay and press the ENTER key.
4. Choose Off (all AIS symbols are erased) or On (all AIS-received targets are displayed) as
appropriate and press the ENTER key.
5. Press the MENU key to close the menu.
Brill/Color
Echo
Mark
Target Trails
Custom 1
Display
Custom 2
Custom 3
Menu
AIS
Display : Off
Symbol Color : Green
Range : 24.0nm
Sector Start : 340°
Sector End : 20°
Sort By : Range
Number of Targets : 30
ACK Lost Target
[ENTER]: Enter [CANCEL/HL OFF]: Back
[MENU]: Exit
Tuning
GPS
Target
ARP
AIS
System
GPS Buoy
![](/img.php?id=1456603&img=bg5e.png)
4. AIS OPERATION
4-2
4.3 AIS Symbols
When the AIS is turned on, AIS targets are marked with appropriate AIS symbol as below.
AIS symbols
AIS symbols are momentarily erased after the screen is redrawn when the heading
is changed while using the head-up mode.
4.4 Activating, Sleeping Targets
When you convert a sleeping target to an activated target, that target's course and speed are
shown with a vector. You can easily judge target movement by monitoring the vector.
Appearance of an activated target
To activate a target: Place the cursor on the target and press the ENTER key.
To sleep a target: Place the cursor on the target and press the CANCEL HL/OFF key.
Sleeping target Activated target Dangerous
target
Lost target Target selected
for data displa
y
Note
Heading line
SOG (Speed Over Ground) and
COG (Course over Ground) vector
(If there is no heading data,
the line points in direction of COG.)
ROT
(Rate of Turn)
![](/img.php?id=1456603&img=bg5f.png)
4. AIS OPERATION
4-3
4.5 Displaying AIS Target Data
The data box at the bottom of the screen can show the data (MMSI No., ship name, bearing,
course, range, CPA and TCPA) for up to two AIS targets. (Set Data Box in the Display menu to
Target or All to show AIS target data.)
To show AIS target data, place the cursor on the activated target that you want to know its data
and press the ENTER key.
AIS data
The AIS target chosen is marked with MMSI no. and the alphabet A or B, which corresponds to
the data box in which the target’s data appears. The box is automatically chosen on a first-in, last-
out basis. For example, if both data box A and data box B are currently showing data and target
A was selected before target B, the data in data box A will be erased and replaced with the data
of the newly selected AIS target.
To remove a target’s data from a data box, place the cursor on its target symbol and press the
CANCEL/HL OFF key.
AB
Data box A Data box B
+ 110.1°R 2.525 NM
3
NM
0.5
+
AIS target selected for
data display
(A or B: Data box locatio
n
9-digit no.: MMSI)
ATRUE 5 min MMSI: 000000026
Data box (A or B)
Vector reference
Vector time
MMSI of vessel
Length, Beam
of vessel
NAME: PEGASUS
LENGTH: 100M BEAM: 45M
Name of
vessel
B
earing, range, CPA
C
ourse, speed, TCPA
BRG 236.5°T RNG 1.850NM CPA 1.84NM
CSE 33.7°SPD 12.34kt TCPA 12:00
(A)
000000026
+
Cursor
![](/img.php?id=1456603&img=bg60.png)
4. AIS OPERATION
4-4
4.6 Display Range
You may set the AIS target display range as below to view only those AIS targets within the range
you specify. The setting range is 0.1-72 miles (96 miles for FR-8252) but actual range depends
on the AIS Transponder. If the target sorting method is selected to “Range,” the target data within
the range set here is transmitted to this radar.
1. Press the MENU key to open the menu.
2. Choose AIS and press the ENTER key.
3. Choose Range and press the ENTER key.
4. Use the trackball to set the display range and press the ENTER key.
5. Press the MENU key to close the menu.
4.7 Sorting Targets
You may sort the data of AIS targets received from the AIS transponder by range from own ship,
by sector, by CPA or TCPA.
1. Press the MENU key to open the menu.
2. Choose AIS and press the ENTER key.
3. Choose Sort By and press the ENTER key.
4. Use the trackball to choose desired sorting method and press the ENTER key.
Range: Sort targets within the display range set (see paragraph 4.6), from nearest to furthest.
Sector: Sort targets within the display sector set (see paragraph 4.8) and within 24 nm, from
nearest to furthest.
CPA: Sort by CPA, from closest to furthest.
TCPA: Sort by TCPA, from earliest time to latest time.
5. Press the MENU key to close the menu.
24nm
(0.1nm-96.0nm)
Range
Sector
CPA
TCPA
![](/img.php?id=1456603&img=bg61.png)
4. AIS OPERATION
4-5
4.8 Displaying Targets Within a Specific Sector
You may choose to display AIS targets only within a specific sector. If the target sorting method
is selected to “Range,” the target data within the sector set here is transmitted to this radar.
1. Press the MENU key to open the menu.
2. Choose AIS and press the ENTER key.
3. Choose Sector Start and press the ENTER key.
4. Use the trackball to set the start point for the sector and press the ENTER key.
5. Choose Sector End and press the ENTER key.
6. Use the trackball to set the end point for the sector and press the ENTER key.
7. Press the MENU key to close the menu.
4.9 Number of Targets to Display
You may choose the number of AIS targets to display, from 10-100. This feature is useful when
the screen becomes cluttered with AIS targets. Targets are selected and displayed according to
sort method. (See paragraph 4.7.)
1. Press the MENU key to open the menu.
2. Choose AIS and press the ENTER key.
3. Choose Number of Targets and press the ENTER key.
4. Use the trackball to choose the number of targets to display and press the ENTER key.
Press the MENU key to close the menu.
340
°
(0
°
-359
°
)
20
°
(0
°
-359
°
)
30
(0-100)
![](/img.php?id=1456603&img=bg62.png)
4. AIS OPERATION
4-6
4.10 Vector Attributes
What is a vector?
A vector is a line extending from a tracked target which shows course of the AIS target. The vector
tip shows estimated position of the target after the selected vector time elapses. It can be useful
to extend the vector length (time) in order to evaluate the risk of collision with any target. (See the
illustration on page 4-2 for the appearance of a vector.)
Vector time, vector reference
Vector time can be set to 30 seconds, 1, 3, 6, 15 or 30 minutes. Vectors may be displayed in True
or Relative motion.
1. Press the MENU key to open the menu.
2. Choose Target and press the ENTER key.
Target menu
3. Choose Vector Time and press the ENTER key.
4. Choose desired vector time and press the ENTER key.
5. Choose Vector Reference and press the ENTER key.
6. Choose Relative or True as appropriate and press the ENTER key.
Relative: Other ships move relative to own ship. This mode is
useful as an anti-collision aid. If a vessel is on a collision course
with own ship its vector will be pointing toward own ship position.
True: Own ship and other ships move at their true motions. This
mode is useful for discriminating between moving and stationary
targets.
7. Press the MENU key to close the menu.
8. Press the MENU key to close the menu.
Brill/Color
Echo
Mark
Target Trails
Custom 1
Display
Custom 2
Custom 3
Tuning
Menu
Target
Vector Time : 6min
Vector Reference : Relative
History Dots : 5
History Intervals : 1min
CPA : Off
TCPA : 1min
Proximity Alarm : Off
[ENTER]: Enter [CANCEL/HL OFF]: Back
[MENU]: Exit
GPS
Target
ARP
AIS
System
GPS Buoy
30sec
1min
3min
6min
15min
30min
Relative
True
Vector time choices
Vector reference choice
s
![](/img.php?id=1456603&img=bg63.png)
4. AIS OPERATION
4-7
4.11 History Display (target past position)
This radar can display time-spaced dots (maximum ten dots) marking the past positions of any
AIS target being tracked. You can evaluate a target's actions by the spacing between dots. Below
are examples of dot spacing and target movement.
Target movement and history display
You may choose the number of history dots to display and the time interval to display them.
1. Press the MENU key to open the menu.
2. Choose Target and press the ENTER key.
3. Choose History Dots and press the ENTER key.
4. Choose number of history dots to display (5 or 10) or choose Off to turn off the history display.
5. Press the ENTER key.
6. Choose History Intervals and press the ENTER key.
7. Choose appropriate time interval and press the ENTER key.
8. Press the MENU key to close the menu.
(a) Ship turning (b) Ship running
straight (c) Ship reduced
speed
(d) Ship increased
speed
Off
5
10
15sec
30sec
1min
2min
3min
6min
12min
![](/img.php?id=1456603&img=bg64.png)
4. AIS OPERATION
4-8
4.12 CPA/TCPA Alarm
When the predicted CPA of any AIS target or ARP target becomes smaller than the preset CPA
alarm range and its predicted TCPA less than the preset TCPA alarm limit, an audio alarm sounds
and the symbol of the offending AIS target changes to the dangerous target symbol.
Dangerous target symbol
You may silence the audio alarm with the CANCEL/HL OFF key. The flashing of the symbol stops
when the target’s CPA and TCPA become greater than the CPA and TCPA alarm setting. Pre-
dicted range at the Closest Point of Approach (CPA) and predicted time to CPA (TCPA) of each
AIS target are monitored.
This feature helps alert you to targets which may be on a collision course with own ship.
1. Press the MENU key to open the menu.
2. Choose Target and press the ENTER key.
3. Choose CPA and press the ENTER key.
4. Choose appropriate CPA distance and press the ENTER key.
5. Choose TCPA and press the ENTER key.
6. Choose appropriate TCPA and press the ENTER key.
7. Press the MENU key to close the menu.
Triangle is thicker
than that of active
target
Off
0.5nm
1nm
2nm
3nm
5nm
6nm
30sec
1min
2min
3min
4min
5min
6min
12min
![](/img.php?id=1456603&img=bg65.png)
4. AIS OPERATION
4-9
4.13 Proximity Alarm
The proximity alarm alerts you when an AIS target (or ARP target) is within the range you specify,
by the audio alarm and flashing the offending target.
1. Press the MENU key to open the menu.
2. Choose Target and press the ENTER key.
3. Choose Proximity Alarm and press the ENTER key.
4. Choose appropriate range and press the ENTER key.
5. Press the MENU key to close the menu.
When an AIS target comes within the range set here its symbol flashes and the audio alarm
sounds. Press the CANCEL/HL OFF key to silence the audio alarm. The flashing continues
until the target is no longer within the range set, the alarm range is changed to exclude the
offending target or the proximity alarm is disabled.
Off
0.5nm
1nm
2nm
3nm
5nm
6nm
12nm
24nm
![](/img.php?id=1456603&img=bg66.png)
4. AIS OPERATION
4-10
4.14 Lost Target
When AIS data is not received from a target at prescribed interval (3-5* report intervals), the audio
alarm sounds and the target symbol (flashing) appears as below.
Lost target symbol
* The interval at which AIS data is sent depends on speed of AIS transponder equipped vessel,
and it is shown in the table below. For further details, consult the operator’s manual for the AIS
transponder.
4.14.1 Removing all lost AIS targets from the display
All lost AIS targets may be removed from the display as follows:
1. Press the MENU key to open the menu.
2. Choose AIS and press the ENTER key.
3. Choose ACK Lost Target and press the ENTER key. The confirmation window appears.
4. Choose Yes and press the ENTER key.
5. Press the MENU key to close the menu.
4.15 Symbol Color
You may choose the AIS symbol color from among Green, Red (not available with IEC specifica-
tion), Blue, White or Black.
1. Press the MENU key to open the menu.
2. Choose ARP and press the ENTER key.
3. Choose Symbol Color and press the ENTER key.
4. Choose appropriate color and press the ENTER key.
5. Press the MENU key to close the menu.
Ship speed and reporting interval
Ship speed Reporting interval
0-14 kts Every 10 seconds
23 kts or higher Every two seconds
Are you sure?
Yes
No
Green
Red
Blue
White
Black
![](/img.php?id=1456603&img=bg67.png)
5-1
5. GPS OPERATION
If you are using the FURUNO GPS Navigator GP-320B, you may set it up from this radar.
5.1 Navigator Type
1. Press the MENU key to show the menu.
2. Choose GPS and press the ENTER key.
GPS menu
3. Choose Type and press the ENTER key.
4. Choose type of navigator connected to this radar and press the ENTER key. Note that GPS or
WAAS should be selected if this radar is interfaced with an AIS Transponder. The AIS Tran-
sponder will be inoperative if DPGS is selected.
GPS: GPS Navigator GP-320B connected
WAAS: GPS Navigator GP-320B connected
DGPS: DPGS Beacon Receiver GR-80 connected.
5. Press the MENU key to close the menu.
Brill/Color
Echo
Mark
Target Trails
Custom 1
Display
Custom 2
Custom 3
Menu
GPS
Type : WAAS
Datum : WGS-84
Datum Number : 001
WAAS : Auto
WAAS Number : 120
GPS Self Test
Satellite Monitor
Type 16 Message
Forward Offset : 0
Right Offset : 0
Cold Start
[ENTER]: Enter [CANCEL/HL OFF]: Back
[MENU]: Exit
Tuning
GPS
Target
ARP
AIS
System
GPS Buoy
GPS
WAAS
DGPS
![](/img.php?id=1456603&img=bg68.png)
5. GPS OPERATION
5-2
5.2 Datum
Choose the datum type which matches the paper nautical charts you are using. Choose WGS-84
if the radar is connected to an AIS Transponder.
1. Press the MENU key to show the menu.
2. Choose GPS and press the ENTER key.
3. Choose Datum and press the ENTER key.
4. Choose appropriate datum type and press the ENTER key. For Other, do steps 5 and 6. For
other choices, go to step 7.
5. Choose Datum Number and press the ENTER key.
6. Use the trackball to choose datum number and press the ENTER key. (The setting range is
001-192 and 201-254.)
7. Press the MENU key to close the menu.
5.3 WAAS Setup
Geostationary satellites, the type used with WAAS, provide more accurate position data when
compared to GPS or DGPS. These satellites may be tracked automatically or manually. Auto
tracking automatically searches for the best geostationary satellite based on your current position.
1. Press the MENU key to show the menu.
2. Choose GPS and press the ENTER key.
3. Choose WAAS and press the ENTER key.
4. Choose Auto or Manual as appropriate and press the ENTER key. For Manual, do steps 5 and
6. For Auto, go to step 7.
5. Choose WAAS Number and press the ENTER key.
6. Use the trackball to choose appropriate WAAS satellite number and press the ENTER key.
7. Press the MENU key to close the menu.
WGS-84
Tokyo
Other
001
Auto
Manual
120
![](/img.php?id=1456603&img=bg69.png)
5. GPS OPERATION
5-3
5.4 Satellite Monitor
The Satellite Monitor provides comprehensive information about GPS and WAAS satellites. For
more detailed information, see your GPS navigator’s owner’s manual.
1. Press the MENU key to show the menu.
2. Choose GPS and press the ENTER key.
3. Choose Satellite Monitor and press the ENTER key.
Satellite monitor
To close only the satellite monitor display, press the ENTER key.
06
D3D DOP
1.5
85m
DGPS Status
Station Health
DGPS Data
Signal Strength
Signal SNR
OK
OK
10dB
11dB
13
Altitude
01GPS
WAAS
12
24
16
SNRSatellite No
30 40 50
122
01
31
18
19
06
07
09
08
13
North
marker
DOP (Dilution of Precision, 0-99.0)
SNR of tracked GPS satellites
Satellites whose SNR is above
40 are used to fix position.
GPS mode
2D, 3D, D2D
D3D, W2D
W3D, DOP
GPS satellite
no.
WAAS
satellite*
Satellites in ring
have elevation
angle of 5°
Satellites in ring
have elevation
angle of 45°
O
K or NG (No Good) displayed
O
K or NG (No Good) displayed
0-99 db, higher the better
0-99 db, higher the better
Altitude of
GPS antena
from sea
surface
WAAS satellite
W
N
[MENU]: Close MENU [ENTER]: Close this window
* Satellites used to fix
position are shown in red.
Satellite Monitor
01
09
24
12
19
18
07
13
16
![](/img.php?id=1456603&img=bg6a.png)
5. GPS OPERATION
5-4
5.5 Weather Information
This radar can receive weather information from a japanese DPGS reference station if it is inter-
faced with a DGPS beacon receiver (FURUNO GR-80, etc.) and your vessel is within the broad-
casting range of a japanese DGPS reference station.
The figure below shows an example of a weather information broadcast. This information is trans-
mitted every five minutes, and two reports are provided for each observation point.
This feature is valid only with japanese DGPS reference stations. No display or garbled characters
appear if it is used elsewhere.
1. Press the MENU key to show the menu.
2. Choose GPS and press the ENTER key.
3. Choose Type 16 Message and press the ENTER key. (If no messages are present you cannot
choose this menu item.)
Type 16 message
Weather messages from as many as six DPGS reference stations are shown and the latest is
at the top.The oldest message is erased when a new message arrives.
4. To close only the message board, press the ENTER key.
Type 16 Message
Point Name Time Wind Pressure Wave
Direction/Speed
Murotasaki
Kobe
Osakako
Oseki
Tomgashima
Shinomisaki
13:25
13:55
13:45
13:15
13:50
13:55
13:35
13:05
13:30
13:00
ENE
NE
NW
N
N
NW
SSW
S
NW
W
5m
10m
5m
10m
5m
10m
5m
10m
5m
10m
1015hPa
1016hPa
1015hPa
1017hPa
1017hPa
1017hPa
1013hPa
1015hPa
1015hPa
1016hPa
10m
13m
11m
10m
9m
10m
8m
9m
5m
10m
13:30
13:00 NW
W5m
10m 1015hPa
1016hPa 5m
10m
[MENU]: Close MENU [ENTER]: Close this window
N
ame of DGPS
r
eference station
Time
Wind direction
and speed
(16 compass pts.)
Atmospheric
pressure (0-9999 hPa)
Wave heig
ht
(0-99 m)
Latest six
messages
![](/img.php?id=1456603&img=bg6b.png)
5. GPS OPERATION
5-5
5.6 GPS Sensor Installation Position Offset
The installation position of the GPS sensor antenna and the radar antenna must be the same in
order to get accurate position information on the radar. If they are different, measure the distance
from the radar antenna to the GPS antenna and enter that data in the menu as follows:
1. Press the MENU key to show the menu.
2. Choose GPS and press the ENTER key.
3. Choose Forward Offset (bow or stern offset) or Right Offset (port or starboard offset), the direc-
tion of the offset, and press the ENTER key.
4. Measure the distance from the radar antenna to the GPS sensor antenna and use the trackball
to set value.
“+” value: For bow direction or port direction
“-” value: For stern direction or starboard direction
5. Press the ENTER key
6. Press the MENU key to close the menu.
+ 0m
(-999m-+999m)
![](/img.php?id=1456603&img=bg6c.png)
5. GPS OPERATION
5-6
5.7 Cold Start
Cold start, which clears the Almanac from the GPS receiver, may be necessary in the following
conditions:
• If the GPS receiver has been powered off for a long period of time.
• The vessel has moved far away from the previous fixing position (e.g., more than 500 km).
• Other reason that prevents the receiver from finding its position within five minutes after power
on.
To perform cold start, do the following:
1. Press the MENU key to show the menu.
2. Choose GPS and press the ENTER key.
3. Choose Cold Start and press the ENTER key.
4. Choose Yes and press the ENTER key. (To stop cold start, press CANCEL/HL OFF key instead
of the ENTER key.
5. Press the MENU key to close the menu.
Are you sure?
Yes
No
![](/img.php?id=1456603&img=bg6d.png)
6-1
6. MAINTENANCE &
TROUBLESHOOTING
This chapter provides the necessary procedures for maintenance and troubleshooting. Follow the
recommended procedures to keep your radar in good working order.
WARNING
Do not open the equipment.
Hazardous voltage which can
cause electrical shock exists
inside the equipment. Only
qualified personnel should
work inside the equipment.
Turn off the radar power
switch before servicing the
antenna unit. Post a warn-
ing sign near the switch
indicating it should not be
turned on while the antenna
unit is being serviced.
Prevent the potential risk of
being struck by the rotating
antenna and exposure to
RF radiation hazard.
Wear a safety belt and hard
hat when working on the
antenna unit.
Serious injury or death can
result if someone falls from
the radar antenna mast.
NOTICE
Do not apply paint, anti-corrosive
sealant or contact spray to coating
or plastic parts of the equipment.
Those items contain organic solvents
that can damage coating and plastic
parts, especially plastic connectors.
![](/img.php?id=1456603&img=bg6e.png)
6. MAINTENANCE & TROUBLESHOOTING
6-2
6.1 Preventive Maintenance
Regular maintenance is important for optimum performance. A maintenance program should be
established and should at least include the items shown in the table below.
Maintenance
Interval Item Check point Remedy
When
necessary
LCD The LCD will, in time,
accumulate a coating of
dust which tends to dim
the picture.
Wipe the LCD carefully to prevent
scratching, using tissue paper and an
LCD cleaner. To remove dirt or salt
deposits, use an LCD cleaner, wiping
slowly with tissue paper so as to dissolve
the dirt or salt. Change paper frequently
so the salt or dirt will not scratch the
LCD. Do not use solvents such as
thinner, acetone or benzene for
cleaning. Also, do not use degreaser or
antifog solution, as they can strip the
coating from the LCD.
3 to 6
months
Ground terminal
on display unit
Check for tight
connection and rust.
Tighten or replace as necessary.
Display unit
connectors
Check for tight
connection.
Tighten if loosened.
Exposed nuts
and bolts on
antenna unit
Check for corroded or
loosened bolts.
Clean and repaint as necessary. Sealing
compound may be used in place of paint.
Antenna
radiator
Check for dirt and cracks
on radiator
surface.
Clean radiator surface with freshwater-
moistened cloth. Do not use plastic sol-
vents for cleaning.
![](/img.php?id=1456603&img=bg6f.png)
6. MAINTENANCE & TROUBLESHOOTING
6-3
6.2 Fuse Replacement
A fuse is in the fuse holder on the power cable and inside the power supply unit, and they protect
the equipment from reverse polarity of the ship's mains and equipment fault. If a fuse blows, find
out the cause before replacing it. Use the correct fuse. Using the wrong fuse will damage the
equipment and void the warranty.
6.3 Magnetron Life
When the magnetron (generates microwaves) has expired, distant targets cannot be seen on the
display. When you feel that long range performance has decreased, contact a FURUNO agent or
dealer about replacement of the magnetron.
6.4 LCD Backlight Life
The life of the LCD backlight, which provides illumination for the LCD, is approximately 4,300
hours. The display brilliance cannot be raised when the backlight has worn out. Have a qualified
technician replace the backlight when brilliance cannot be raised.
Unit and fuses
Unit Type Code No. Remarks
Display unit
(fitted on power
cable)
FGBO 15A AC125V 000-549-014 12 VDC
FGBO 10A AC125V 000-549-065 24 VDC
Power supply unit
(for FR-8252)
FGBO 15A AC125V 000-549-014 12 VDC
FGBO 7A AC125V 000-549-013 24 VDC
Model and magnetron
Model Magnetron type Code no. Estimated life
FR-8062 MAF1422B 000-146-871 Approx. 3,000 hours
000-158-788-10
FR-8122 MAF1565N 000-174-559-10
FR-8252 M1458F 000-158-780-10 Approx. 2,000 hours
Part Type Code No.
Lamp holder complete set 121LHS18 000-158-827-10
WARNING
Use the proper fuse.
Use of a wrong fuse can result in damage
to the equipment or cause fire.
![](/img.php?id=1456603&img=bg70.png)
6. MAINTENANCE & TROUBLESHOOTING
6-4
6.5 Trackball Maintenance
If the cursor skips or moves abnormally, you may need to clean the trackball.
1. Turn the retainer ring counterclockwise 45° to unlock it.
2. Remove the retainer ring and ball.
3. Clean the ball with a soft lint-free cloth, and blow carefully into the ball-cage to dislodge dust
and lint.
4. Look for a build-up of dirt on the metal rollers. If dirty, clean the rollers with a cotton swab moist-
ened lightly with isopropyl-rubbing alcohol.
5. Make sure that fluff from the swab is not left on the rollers.
6. Replace the ball and retainer ring. Be sure the retainer ring is not inserted reversely.
Display unit
Trackball maintenance parts are available as below.
Part Type Code No.
Retainer ring and ball MU3721 000-144-645
Trackball
ENTER
TARGET
ALARM
CANCEL
HL OFF
TLLMENU
EBL
ZOOM OFF
CENTER
TRAILS
VRM
F1
F2
PUSH AUTO/MAN
PUSH AUTO/MAN
PUSH AUTO/MAN
STBY
TX
MODE
CUSTOM
+
RANGE
-
BRILL
GAIN
A/C SEA
A/C RAIN
Retainer ring
![](/img.php?id=1456603&img=bg71.png)
6. MAINTENANCE & TROUBLESHOOTING
6-5
6.6 Simple Troubleshooting
This section provides simple troubleshooting procedures which the user can follow to restore
normal operation. If you cannot restore normal operation do not attempt to check inside the unit.
Any trouble should be referred to a qualified technician.
Simple troubleshooting
If... But... Then...
you cannot turn on
the power
• check for blown fuse.
• check that the power connector is firmly
fastened.
• check for corrosion on the power cable
connector.
• check for damaged power cable.
• check battery for proper voltage output
(10.8-31.2 V).
there is no response
when a key is
pressed
turn off and on the power. If there still is no
response the key may be faulty. Contact your
dealer for advice.
the power is on and
you operated the
STBY/TX key to
transmit and marks
and legends appear
no echo appears check that the antenna cable is firmly fastened.
tuning is properly
adjusted
sensitivity is poor the magnetron may need to be replaced.
Contact your dealer.
the range is changed but radar picture does not
change
• try to hit the RANGE key again.
• turn the display unit off and on.
poor discrimination
in range
try to adjust A/C SEA control.
the true motion
presentation is not
working properly
• Poor contact of MODE
key.
• TM display is inaccurate
• try to press the key a little harder.
• check if heading and speed are input and
accurate.
the range rings are
not displayed
check that the setting of Range Rings Brill in the
Brill/Color sub menu is set to other than Off.
target not tracked
correctly
Poor definition of targets in
sea clutter
adjust A/C SEA and A/C RAIN controls.
![](/img.php?id=1456603&img=bg72.png)
6. MAINTENANCE & TROUBLESHOOTING
6-6
6.7 Advanced-level Troubleshooting
This paragraph describes how to cure hardware and software troubles which should be carried
out by qualified service personnel.
This radar equipment contains complex modules in which fault diagnosis and repair
down to component level are not practical by users.
Advanced-level troubleshooting
Problem Probable cause or
check points Remedy
Power cannot be
turned on
1) Blown fuse.
2) Mains voltage/polarity
3) Power supply board
1) Replace blown fuse.
2) Correct wiring and input voltage.
3) Replace power supply board.
Brilliance adjusted
but no picture
1) SPU Board 1) Replace SPU board.
Antenna not rotating 1) Antenna drive mechanism 1) Replace antenna drive mechanism.
Data and marks not
displayed in Transmit
status
1) SPU board 1) Replace SPU board.
Adjust GAIN with A/C
SEA set at minimum.
Marks and indications
appear but no noise
or echo
1) Signal cable between
antenna and display unit
2) IF amplifier
3) Video amplifier board
1) Check continuity and isolation of coaxial
cable.
2) Replace IF amplifier.
3) Check coax line for secure connection. If
connection is good, replace SPU board.
Marks, indications
and noise appear but
no echo (Transmis-
sion leak repre-
senting own ship
position is absent)
1) Magnetron
2) Modulator board
3) SPU board
1) Check magnetron current.
2) Replace modulator board.
3) Replace SPU board.
Picture not updated
or picture freeze-up
1) Bearing signal generator
2) SPU board
3) Video freeze-up
1) Check that signal cables are fastened
securely.
2) Replace SPU board.
3) Turn the radar off and on.
Radar is properly
tuned but sensitivity is
poor
1) 2nd trace echo rejector is
ON.
2) Dirt on radiator face
3) Deteriorated magnetron
4) Detuned MIC
1) Turn off the 2nd-trace echo rejector, from
the Echo menu.
2) Clean radiator.
3) With the radar transmitting on 48 nm
range, check magnetron current. If cur-
rent is below normal, magnetron may be
defective. Replace the magnetron.
4) Check MIC detecting current. If it is below
normal value, MIC may have become
detuned.
Range changed but
radar picture does not
change
1) Defective range key
2) SPU board
3) Video freeze-up
1) Try to operate the RANGE key. If unsuc-
cessful, replacement of the keypad may
be necessary.
2) Replace SPU board.
3) Turn radar off and on.
Note
![](/img.php?id=1456603&img=bg73.png)
6. MAINTENANCE & TROUBLESHOOTING
6-7
Interference rejector
is not working (inter-
ference rejection
level not displayed)
1) SPU Board 1) Replace SPU Board.
Echo stretch is not
working (Neither
ES1, ES2 or ES3 is
displayed)
1) SPU Board 1) Replace SPU Board.
Range rings are not
displayed
1) Adjust their brilliance on the
Brill/Color menu.
2) SPU Board
1) Replace associated circuit board if unsuc-
cessful.
2) Replace SPU Board.
Advanced-level troubleshooting
Problem Probable cause or
check points Remedy
![](/img.php?id=1456603&img=bg74.png)
6. MAINTENANCE & TROUBLESHOOTING
6-8
6.8 Diagnostic Test
The diagnostic test checks the system for proper operation. It is primarily intended for use by ser-
vice technicians, however the user may execute it to provide the service technician with informa-
tion.
1. Press the MENU key to open the menu.
2. Use the trackball to choose Factory from the System menu and press the ENTER key.
Factory menu
3. Use the trackball to choose Test and press the ENTER key.
Mark
Target Trails
Custom 1
Custom 2
Custom 3
Test
LCD Pattern
Menu
Factory
[ENTER]: Enter [CANCEL/HL OFF]: Back
[MENU]: Exit
Tuning
GPS
Target
ARP
AIS
System
Initial
Factory
Installation
GPS Buoy
![](/img.php?id=1456603&img=bg75.png)
6. MAINTENANCE & TROUBLESHOOTING
6-9
DIagnostics screen
• At the top of the screen the results of the ROM, RAM and data ports NMEA1, NMEA2
and RS232C are displayed as OK or NG (No Good). For any NG contact your dealer for
advice. (Ports NMEA1, NMEA2 and RS-232C require a special test connector in order
to test them. “- -” is shown when no test connector is connected.) PROGRAM NUMBER
and FPGA VERSION show respective program number and program version number
(XXXX).
• Heading and bearing signals are checked for proper input and the result displayed as
OK or NG. Tune and indicator voltages, antenna rotation speed, antenna motor voltage,
echo level and trigger frequency are measured and shown. TOTAL ON TIME and
TOTAL TX TIME show the total number of hours the radar has been powered and trans-
mitted, respectively.
• The INPUT NMEA window shows all the NMEA sentences being input to this radar. Sen-
tences are updated every second.
INPUT NMEA
ROM : OK
RAM : OK
NMEA1 : - -
NMEA2 : - -
RS-232C : - -
PROGRAM NUMBER : 0359226-XX.XX
FPGA VERSION :
㪇㪊㪌㪐㪉㪉㪐㪄㪯㪯㪅㪯㪯
HEADING : OK GYRO (AD-10) 245.2
°
BEARING : OK
TUNE VOLTAGE : 10.1 V
INDICATOR VOLTAGE : 4.2 V
ANTENNA ROTATION : 48.1 rpm
MOTOR VOLTAGE : 23.4 V
ECHO LEVEL : -40 dBm
TRIGGER FREQUENCY : 2100 Hz
TOTAL ON TIME : 123456.7 h
TOTAL TX TIME : 987654.3 h
ARP-11 PROGRAM NUMBER: 1859127XXX
ARP-11 : OK
[MENU] x 3: Exit [F1]: Alarm Test
<REMOTE CONTROLLER>
+000
+000
000
000
000
BWC: GPBWC, 151130. 00, 3448. 50, N, 13510. 30, E, 40. 0, T, 47. 2, M, 3. 05, N, , A*7F
BWR:
DBT:
DPT:
GGA:
GLL:
GNS:
HDG:
HDM:
HDT:
MTW:
MWV:
RMB:
RMC:
VHW:
VTG:
VWT:
VWR:
XTE:
ZDA:
![](/img.php?id=1456603&img=bg76.png)
6. MAINTENANCE & TROUBLESHOOTING
6-10
• If the optional ARP board is installed, its program number and test results (OK or NG)
are shown below the INPUT NMEA window. “--” shown with no ARP board. The radar
must be transmitting in order to test ARP function.
• The lamp to the left of the POWER/BRILL key and the panel backlight flash if the panel
backlight is working properly.
4. At the right side of the display there are squares, circles and ovals, and they are for checking
the controls of the display unit and remote controller.
Key check: Press each key one by one. The key’s on-screen location fills in green if the key is
functioning normally and returns to background color when the key is released. The F1 key
tests the buzzer. Press it again to silence the buzzer.
Control check: The three digits below the on-screen location for the GAIN, A/C SEA and A/C
RAIN controls show control position, and the range of indication is 0-255.
Trackball check: The three digits below the trackball’s on-screen location show the trackball’s
X-Y position, and the range of indication is -127 to +127.
5. Press the MENU key three times on the display unit or remote controller to escape from the
test.
6.9 LCD Test
The LCD pattern test checks the LCD for proper display of colors.
1. Press the MENU key to open the menu.
2. Use the trackball to choose Factory from the System menu and press the ENTER key.
3. Use the trackball to choose LCD Pattern and press the ENTER key. The screen is initially all
red. Hit the MENU key to change the color of the display, in the following sequence.
LCD test screens
4. Press the MENU key several times to close the menu.
• You may cancel the test at anytime by pressing the CANCEL/HL OFF key.
• You may adjust screen brilliance during the test with the brilliance control.
6.10 GPS Test
The FURUNO GPS receiver interfaced with this radar can be checked for proper operation as
follows:
1. Press the MENU key to open the menu.
2. Use the trackball to choose GPS and press the ENTER key.
3. Use the trackball to choose GPS Self Test and press the
ENTER key. The program no. and results of the test are
shown, as OK or NG (No Good). For NG, check the GPS
receiver.
4. Press the MENU key to close the menu.
RED MENU
key GREEN MENU
key
BLUE MENU
key
WHITE MENU
key
BLACK MENU
key
7 tones
of gray
GPS Self Test
Program No. : 48502380XX
Result : OK
XX = Program version no.
![](/img.php?id=1456603&img=bg77.png)
A-1
APPENDIX
Range Ring Brill (Off, Low,
Med
, High)
Echo Color (
Yellow
, Green, Multi)
Display Color (Day,
Night
, Twilight, User)
Background Color (
Black/Green
, Black/Red, Blue/White, DK Blue/White, White/Green)
MENU key
Brill/Color
Display Alarm Message
Echo Area (
Ellipse
, Square)
Watchman (
Off
, 5min, 10min, 20min)
Data Box (
Off
, Nav, Target, All)
Zoom Mode (
Relative
, True, Target)
Function 1 Setup (See the list below; default setting is "Echo Average")
Function 2 Setup (Same choices as above; default setting is "Auto Anti Clutter")
Gradation (Single,
Multi
)
Color (Green, Red,
Blue
, White, Black)
Mode (Relative,
True
)
Level (1,
2
, 3)
Length (
Normal
, 12H, 24H)
Time (12h, 00h:30m -
12h:00m
; 24H, 01h00m - 24h:00m)
Copy (Off,
On
)
Restart (Off,
On
)
Narrow (
Off
, On)
Own Ship (
Off
, On)
All Cancel
Auto Gain (Rough,
Moderate
, Calm)
Auto Sea (Rough,
Moderate
, Calm)
Auto Rain (Rough,
Moderate
, Calm)
Pulse Length (Short,
Long
)
Echo Stretch (
Off
, 1, 2, 3)
Echo Average (
Off
, 1, 2, 3)
Noise Rejector (
Off
, Low, Med, High)
Interference Rejector (Off, Low,
Med
, High)
Auto Anti Clutter (
Off
, On)
Display-Dynamic (Narrow,
Normal
, Wide)
Display-Curve (1,
2
, 3)
Antenna Speed (24rpm, 36rpm, 48rpm, Auto/Range)
2nd Echo Rejector (
Off
, On)
(Continued on next page)
Echo
Target
Trails
Choices for Function 1 Setup, Function 2 Setup
Range Rings Brill
Echo Color
Display Color
Background Color
Echo Area
Watchman Time
Data Box
Zoom Mode
STBY Mode Display
Auto Gain
Auto Sea
Auto Rain
Tuning Mode
Pulse Length
Echo Stretch
Echo Average
Noise Rejector
Interference Rejector
Auto Anti Clutter
Display-Dynamic
Display-Curve
Antenna Speed
2nd Echo Rejector
Trails-Gradation
Trails-Color
Trails-Mode
Trails-Level
Trails-Length
Trails-Copy
Trails-Restart
Trails-Narrow
Trails-Own Ship
Waypoint Mark Display
Origin Mark Mode
TLL Key Mode
Parallel Line
Parallel Line Mode
EBL Reference
VRM Unit
Cursor Position
Target Alarm 1 Mode
Target Alarm 2 Mode
GPS Buoy-Display
GPS Buoy-Symbol Color
GPS Buoy-History Dots
Vector Time
Vector Reference
History Dots
History Intervals
CPA
TCPA
Proximity Alarm
ARP-Display
ARP-Symbol Color
ARP-Auto Acquire
AIS-Display
AIS-Symbol Color
AIS-Sort By
GPS-Mode
GPS-Datum
GPS-WAAS
![](/img.php?id=1456603&img=bg78.png)
APPENDIX
A-2
Waypoint Mark Display (
Off
, On)
Origin Mark Mode (
Relative
, True)
TLL Key Mode (
TLL Output
, Origin Mark, Both)
Parallel Line (
Off
, 2, 3, 6)
Parallel Line Mode (
Parallel
, Vertical)
EBL Reference (
Relative
, True)
VRM Unit (
nm
, km, sm, kyd, *nm & yd)
Cursor Position (
Rng/Brg
, Lat/Lon)
Target Alarm1 Mode (
In
, Out)
Target Alarm2 Mode (
In
, Out)
(Continued from previous page)
Mark
Custom 1
Custom 2
Custom 1 (Off,
On
)
Copy
Name (
Harbor
, Long, Sea, Rain, Buoy, Bird)
Gain (Manual, Rough,
Moderate
, Calm)
Sea (Manual, Rough, Moderate,
Calm
)
Rain (Manual, Rough, Moderate,
Calm
)
Pulse Length (
Short
, Long)
Echo Stretch (
Off
, 1, 2, 3)
Echo Average (
Off
, 1, 2, 3)
Noise Rejector (
Off
, Low, Med, High)
Interference Rejector (Off, Low, Med,
High
)
Auto Anti Clutter (
Off
, On)
Display-Dynamic (
Narrow
, Normal, Wide)
Display-Curve (1,
2
, 3)
Antenna Speed (24rpm, 36rpm,
48rpm
, Auto/Range)
Custom 2 (Off,
On
)
Copy
Name (Harbor,
Long
, Sea, Rain, Buoy, Bird)
Gain (Manual, Rough, Moderate,
Calm
)
Sea (Manual, Rough, Moderate,
Calm
)
Rain (Manual, Rough, Moderate,
Calm
)
Pulse Length (Short,
Long
)
Echo Stretch (Off, 1,
2
, 3)
Echo Average (Off, 1, 2,
3
)
Noise Rejector (Off,
Low
, Med, High)
Interference Rejector (Off, Low, Med,
High
)
Auto Anti Clutter (
Off
, On)
Display-Dynamic (
Narrow
, Normal, Wide)
Display-Curve (1,
2
, 3)
Antenna Speed (
24rpm
, 36rpm, 48rpm, Auto/Range)
(Continued on next page)
*
nm for distance 0.1 nm or greater
;
yd for distance less than 0.1 nm.
![](/img.php?id=1456603&img=bg79.png)
APPENDIX
A-3
(Continued from previous page)
Tuning Mode (
Auto
, Manual)
Manual Tuning (0-4095,
2048
)
Tuning
Vector Time (30sec, 1min, 3min,
6min
, 15min, 30min)
Vector Reference (Relative,
True
)
History Dots (Off,
5
, 10)
History Intervals (15sec, 30sec,
1min
, 2min, 3min, 6min, 12min)
CPA (
Off
, 0.5nm, 1nm, 2nm, 3nm, 5nm, 6nm)
TCPA (30sec,
1min
, 2min, 3min, 4min, 5min, 6min, 12min)
Proximity Alarm (
Off
, 0.5nm, 1nm, 2nm, 3nm, 5nm, 6nm, 12nm, 24nm)
Display (
Off
, On)
Symbol Color (
Green
, Red, Blue, White, Black)
Auto Acquire (
Off
, On)
All Cancel
Display (
Off
, On)
Symbol Color (
Green
, Red, Blue, White, Black)
Range (0.1-96(nm),
24.0
)
Sector Start (0-359(deg),
340
)
Sector End (0-359(deg),
020
)
Sort By (
Range
, Sector, CPA, TCPA)
Number of Targets (10-100,
30
)
ACK Lost Target
Target
ARP*
1
AIS*
2
(Continued on next page)
Custom 3 Custom 3 (Off,
On
)
Save
Name (Harbor, Long,
Sea
, Rain, Buoy, Bird)
Gain (Manual,
Rough
, Moderate, Calm)
Sea (Manual, Rough,
Moderate
, Calm)
Rain (Manual, Rough,
Moderate
, Calm)
Pulse Length (
Short
, Long)
Echo Stretch (
Off
, 1, 2, 3)
Echo Average (Off,
1
, 2, 3)
Noise Rejector (
Off
, Low, Med, High)
Interference Rejector (Off, Low, Med,
High
)
Auto Anti Clutter (Off,
On
)
Display-Dynamic (Narrow, Normal,
Wide
)
Display-Curve (1,
2
, 3)
Antenna Speed (
24rpm
, 36rpm, 48rpm, Auto/Range)
*
1
Requires ARP board (built in)
*2
Requires AIS transponder
GPS Buoy
Display (
Off
, On)
Symbol Color (
Green
, Red, Blue, White, Black)
History Dots (Off, 5, 10,
20
(min))
All Cancel
![](/img.php?id=1456603&img=bg7a.png)
APPENDIX
A-4
Initial
Factory
Installation (For use by the installer. Not accessible by user.)
Sector
Blank 1,
Sector
Blank 2
Key Beep (Off,
On
)
Range Unit (
nm
, km, sm)
Alarm Level (Low,
Med
, High)
Shift Speed (1-99(kt),
15
)
STBY Mode Display (
Normal
, Nav, Economy)
Bearing Source (Magnetic,
True
)
Range Preset (
0.125
,
0.25
,
0.5
,
0.75
, 1,
1.5
, 2,
3
, 4,
6
, 8,
12
, 16,
24
, 36,
48
, 64,
72
,
96*
2
(nm))
Ship Speed Unit (
kt
, km/h, mph)
Depth Unit (m,
ft
, fa, pb, HR)
Temperature Unit (°C, °
F
)
Wind Direction (
Apparent
, True)
Wind Speed Unit (
kt
, km/h, mph, m/s)
Port1 (
Auto
, 4800bps, 38400bps)
Port2 (
Auto
, 4800bps, 38400bps)
Through Output (
Off
, On)
Test
LCD Pattern
Sector Status (
Off
, On)
Sector Start (0-359(deg),
0
)
Sector Area (0-180(deg),
0
)
System
Mode (GPS,
WAAS
, DGPS)
Datum (
WGS-84
, Tokyo, Other)
Datum Number (001-254,
001
)
WAAS (
Auto
, Manual)
WAAS Number (120-150,
120
)
GPS Self Test
Satellite Monitor
Type 16 Message
Forward Offset (-999 - +999(m),
0
)
Right Offset (-999 - +999(m),
0
)
Cold Start
GPS*1
(Continued from previous page)
*1 Requires GPS receiver.
*2 FR-8252 only
![](/img.php?id=1456603&img=bg7b.png)
FURUNO
FR-8xx2 Series
SP - 1 E3539S01G
SPECIFICATIONS OF MARINE RADAR
FR-8062/FR-8122/FR-8252
1. GENERAL
1.1 Range, Pulse length & Pulse repetition rate (PRR)
Range (nm) Pulse length (μs) PRR (Hz approx.)
0.125 to 1.5 0.08 2100
1.5 to 3 0.3 1200
3 to 96 0.8 600
1.2 Maximum Range 96 nm (FR-8252), 72 nm (FR-8122 and FR-8062)
1.3 Range Resolution 20 m
1.4 Bearing Resolution 1.9° (4 ft), 1.2° (6 ft)
1.5 Minimum Range 20 m
1.6 Bearing Accuracy ±1.0°
1.7 Range, Range Ring Accuracy 1.0% of range or 8 m, whichever is the greater
2. ANTENNA UNIT
2.1 XN-12A (4 ft)
2.1.1 Radiator Slotted array
2.1.2 Polarization Horizontal
2.1.3 Antenna Rotation 24 rpm, 36 rpm, 48 rpm. Range dependent or manual
selection
2.1.4 Radiator Length 120 cm (4 ft)
2.1.5 Horizontal Beamwidth 1.9°
2.1.6 Vertical Beamwidth 22°
2.1.7 Sidelobe Attenuation -24 dB or less (within ±10° of main-lobe)
-30 dB or less (±10° of main-lobe or more)
2.2 XN-13A (6 ft)
2.2.1 Radiator Slotted array
2.2.2 Polarization Horizontal
2.2.3 Antenna Rotation 24 rpm, 36 rpm, 48 rpm. Range dependent or manual
selection.
2.2.4 Radiator Length 180 cm (6 ft)
2.2.5 Horizontal Beamwidth 1.35°
2.2.6 Vertical Beamwidth 22°
2.2.7 Sidelobe Attenuation -28 dB or less (within ±10° of main-lobe)
-35 dB or less (±10° of main-lobe or more)
![](/img.php?id=1456603&img=bg7c.png)
FURUNO
FR-8xx2 Series
SP - 2 E3539S01G
2.3 Auto Antenna Rotation Speed
Automatic selection of antenna rotation speed and pulse
length according to range are available. The table below
shows antenna rotation speed and pulse length selected
according to range.
Range, Antenna Rotation Speed and Pulselength
0.125 0.25 0.5 0.75 1.0 1.5 2 3 4 6 8 12 16 24 36 48 64 72 96
48 rpm (SP)
36 rpm (MP)
24 rpm (LP)
SP=Short Pulse (0.08 µs), MP=Medium Pulse (0.3 µs), LP=Long Pulse (0.8 µs)
Max. range: FR-8252, 96 nm, FR-8062, FR-8122, 72 nm
For the 1.5 nm and 3.0 nm ranges, the antenna rotation speed is also changed depending on the
setting of Pulse Length in the Echo menu.
3. RF TRANSCEIVER
3.1 Frequency and Modulation 9410 MHz ±30MHz (X band), P0N
3.2 Peak Output Power FR-8062: 6 kW, FR-8122: 12 kW, FR-8052: 25 kW
3.3 Intermediate Frequency 60 MHz
3.4 Tuning Automatic or manual
3.5 Noise figure 5 dB (typical)
4. DISPLAY UNIT
4.1 Display 12.1-inch rectangular TFT color LCD, 600 x 800 dots,
Effective radar display 300 dots
4.2 Range, Range Ring Interval, Number of Rings
Range 0.125 0.25 0.5 0.75 1 1.5 2 3 4 6 8
12
16 24 36 48 64 72 96
Ring
Interval 0.025 0.05 0.1 0.25 0.25 0.25 0.5 0.5 1 1 2 2 4 4 6 8 8
12 16
No. of
rings 5 5 5 3 4 6 4 6 4646 4 6 6 6466
Max. range: FR-8252: 96 nm, FR-8062, FR-8122, 72 nm
4.3 Markers Heading Line, Bearing Scale, Range Rings, Variable Range
Marker (VRM), Electronic Bearing Line (EBL), Target Alarm
Zone, Waypoint Mark (navigation input required), Zoom Win-
dow
FURUNO
FR-8xx2 Series
SP - 3 E3539S01G
4.4 Alphanumeric Indications Range, Range Ring Interval, Interference Rejection (IR), Vari-
able Range Marker (VRM), Electronic Bearing Line (EBL),
Stand-by (ST-BY), Echo Averaging (EAV), TX Pulse width,
Guard Alarm (G(IN), G(OUT)), Echo Stretch (ES), Range and
Bearing to Cursor or Cursor Position, Echo Trail Reference,
Echo Trail Time, Nav Data (Position, Speed, Course, etc.),
ARP/AIS Target Data
4.5 Audio Alarm Volume 72 dB (A)
5. POWER SUPPLY
5.1 Rated Voltage/Current FR-8062 - 12-24 VDC: 3.2 A (24 V, no wind)
FR-8122 - 12-24 VDC: 3.8 A (24 V, no wind)
FR-8252 - 12-24 VDC: 5.0 A (24 V, no wind)
5.2 AC-DC Power Supply (option) 100-115/220-230 VAC, 1 phase, 50/60 Hz
6. ENVIRONMENTAL CONDITIONS
6.1 Ambient Temperature Antenna Unit: -25°C to +55°C
Display Unit: -15°C to +55°C
Remote Controller: +5°C to +45°C
Power Supply Unit for Antenna Unit: -15°C to +55°C
6.2 Relative Humidity 93% or less at +40°C
6.3 Waterproofing Antenna Unit: IP26
Display Unit: IP25 for front panel, IP22 for rear panel
Remote Controller: IPX4
Power Supply Unit for Antenna Unit: Not waterproof
6.4 Vibration IEC 60945-4th - 2Hz to 5 Hz and up to 13.2 Hz with a deviation of ±1 mm
±10% (7 m/s2 maximum acceleration at 13.2 Hz);
- above 13.2 Hz and up to 100 Hz with a constant maximum
acceleration of 7 m/s2 .
7. COATING COLOR
7.1 Display Unit N3.0
7.2 Antenna Unit N9.5
FURUNO
FR-8xx2 Series
SP - 4 E3539S01G
This page intentionally left blank.
![](/img.php?id=1456603&img=bg7f.png)
IN-1
INDEX
A
A/C RAIN control
adjustment method, 1-14
automatic adjustment, 1-15
manual adjustment, 1-15
A/C SEA control
adjustment method, 1-13
automatic adjustment, 1-13, 1-15
manual adjustment, 1-14
Advanced-level troubleshooting, 6-6
AISactivating targets, 4-2
controls for, 4-1
CPA/TCPA alarm, 4-8
display on/off, 4-1
display range, 4-4
display sector, 4-5
history display, 4-7
lost target, 4-10
number of targets, 4-5
proximity alarm, 4-9
sleeping targets, 4-2
sorting targets, 4-4
symbol color, 4-10
target data, 4-3
vector, 4-6
Alarm message, 1-50
Antenna speed, 1-48
Anti-clutter, 1-16
ARP
acquiring targets, 3-3
activating, deactivating, 3-2
controls for, 3-2
CPA/TCPA alarm, 3-8
history display, 3-6
lost target, 3-9
proximity alarm, 3-9
symbol color, 3-10
terminating tracking of target, 3-4
usage precautions, 3-1
vector, 3-5
B
Background color, 1-44
C
CANCEL/HL OFF key, 1-38
Characteristics curve, 1-47
Color schemes, 1-44
Controls, 1-1
Course-up mode, 1-9
CPA/TCPA alarm, 4-8
AIS, 4-8
ARP, 3-8
Cursor, 1-17
CUSTOM key, 1-38
Custom setup
description, 1-38
setting, 1-40
D
Depth unit, 1-54
Dynamic range, 1-47
E
EBL
measuring bearing by, 1-22
reference, 1-23
EBL key, 1-23
Echo area, 1-52
Echo averaging, 1-30
Echo stretch, 1-29
F
F1, F2 key, 1-41
False echoes, 2-3
Function keys, 1-41
Fuse replacement, 6-3
G
GAIN control
adjustment method, 1-12
automatic adjustment, 1-12
manual adjustment, 1-12
GPS
cold start, 5-6
datum, 5-2
navigator type, 5-1
satellite monitor, 5-3
sensor installation offset, 5-5
test, 6-10
type 16 message, 5-4
WAAS, 5-2
GPS buoy
displaying, 1-57
erasing, 1-59
history display, 1-58
symbol color, 1-58
GPS test, 6-10
H
Heading line, 1-38
Head-up mode, 1-8
History display
AIS, 4-7
ARP, 3-6
I
Indications, 1-4
Initial menu, 1-53
Interference rejector, 1-18
INDEX
IN-2
K
Key beep, 1-50
L
LCD backlight life, 6-3
Lost target
AIS, 4-10
ARP, 3-9
M
Magnetron life, 6-3
Magnetron replacement, 6-3
Maintenance
fuse replacement, 6-3
LCD backlight life, 6-3
magnetron life, 6-3
preventive, 6-2
trackball, 6-4
Menu, 1-5
MENU key, 1-5
MODE key, 1-8
Multiple echoes, 2-3
N
Navigation data
at screen bottom, 1-44
standby, 1-43
Noise rejector, 1-40
North-up mode, 1-9
O
OFF CENTER key, 1-24
Offcentering the display, 1-24
Origin mark, 1-36
P
Parallel index lines
mode, 1-35
turning on/off, 1-34
POWER/BRILL key, 1-3, 1-5
Presentation mode
course-up, 1-9
heading, 1-8
north-up, 1-9
true motion, 1-9
Preventive maintenance, 6-2
Proximity alarm
AIS, 4-9
ARP, 3-9
Pulse length, 1-11
Q
Quick start, 1-3
R
RACON, 2-6
Range and bearing between two targets, 1-21
RANGE key, 1-10
Range measurement, 1-18
Range preset, 1-51
Range ring brilliance, 1-18
Range unit, 1-50
Remote display, 1-57
S
SART, 2-5
Second-trace echoes, 1-40
Sector blank, 1-52
Ship speed unit, 1-51
Sidelobe echoes, 2-3
STBY/TX key, 1-3
System configuration, xi
System test, 6-8
T
Target alarm
alarm type, 1-23
deactivating, 1-23
sensitivity, 1-24
setting, 1-22
silencing, 1-22
TARGET ALARM key, 1-22
Target trails
color, 1-31
gradation, 1-31
level, 1-31
long trails, 1-33
mode, 1-30
narrow trails, 1-32
own ship trail, 1-32
restarting, 1-33
starting, 1-29
stopping, 1-29
trail copy, 1-32
Temperature unit, 1-51
Tests
GPS test, 6-10
LCD test, 6-10
system, 6-8
TLL key, 1-35
Trackball maintenance, 6-4
TRAILS key, 1-29
Troubleshooting
advanced, 6-6
simple, 6-5
True motion mode, 1-9
Tuning, 1-7
V
Virtual image, 2-4
VRM
measuring range by, 1-18
unit of range measurement, 1-20
VRM key, 1-19
W
Watchman, 1-41
Waypoint marker, 1-46
Wind direction, 1-51
Wind speed unit, 1-51
Z
ZOOM key, 1-25
![](/img.php?id=1456603&img=bg81.png)
FURUNO ELECTRIC CO., LTD.
9-52 Ashihara-Cho, Nishinomiya City, 662-8580, Hyogo, Japan
Tel: +81 798-65-2111 Fax: +81 798-65-4200
Pub NO. DOC-858
0560
Declaration of Conformity
We FURUNO ELECTRIC CO., LTD.
------------------------------------------------------------------------------------------------------------------
(Manufacturer)
9-52 Ashihara-Cho, Nishinomiya City, 662-8580, Hyogo, Japan
-------------------------------------------------------------------------------------------------------------------
(Address)
declare under our sole responsibility that the product
Marine radar Type FR-8XX2 series (FR-8062, FR-8122 and FR-8252)
------------------------------------------------------------------------------------------------------------------
(Model name, serial number)
are in conformity with the essential requirements as described in the Directive 1999/5/EC of the
European Parliament and of the Council of 9 March 1999 on radio equipment and
telecommunications terminal equipment (R&TTE Directive) and satisfies all the technical regulations
applicable to the product within this Directive
EN 60945: 1997-01 (IEC 60945 Third edition: 1996-11) – Clauses 10.2 and 10.3
IEC 60945 Fourth edition: 2002-08 – Clauses 9.2, 9.3, 10.3, 10.4, 10,5 and 10.8
EN 60950 Third edition: 2000 (IEC 60950: 1999-04)
ITU Radio Regulations (R.R.) Appendix S3. table 2
ITU-R M.1177-3, SM.1539, SM.1541 and SM.329-9
-------------------------------------------------------------------------------------------------------------------
(title and/or number and date of issue of the standard(s) or other normative document(s))
For assessment, see
• Statement of Opinion No: 06214004/AA/00 of 19 January 2006 issued by Telefication BV, The
Netherlands
• EMC Test Reports FLI 12-05-048, FLI 12-05-049 and FLI 12-05-050 of 31 October 2005, FLI
12-05-065 of 12 December 2005 and Safety Test Report FLI 12-05-064 of 20 December 2005
prepared by Furuno Labotech International Co., Ltd., Japan
• Test reports of unwanted emissions measurements K03-17-176, K03-17-177, K03-17-191,
K03-17-193 and K03-17-194 of 5 January 2004 prepared by Furuno Electric Co., Ltd., Japan
Nishinomiya City, Japan
January 23, 2006
---------------------------------------------------
(Place and date of issue)
On behalf of Furuno Electric Co., Ltd.
Hiroaki Komatsu
Manager,
International Rules and Regulations
---------------------------------------------------
(name and signature or equivalent marking of authorized person)
