NETWORK SOUNDER

ETR-30N

Back

i

SAFETY INSTRUCTIONS

WARNING

Turn off the power at the switchboard

before beginning the installation.

Fire or electrical shock can result if the

power is left on.

Do not install the equipment where it

may get wet from rain or water splash.

Water in the equipment can result in fire,

electrical shock or damage to the equipment.

Be sure no water leaks in at the trans-

ducer mounting location.

Water leakage can sink the vessel. Also,

confirm that the transducer will not loosen

by ship's vibration. The installer of the

equipment is solely responsible for the

proper installation of the equipment.

FURUNO will assume no responsibility for

any damage associated with improper

installation.

Be sure that the power supply is

compatible with the voltage rating of

the equipment.

Connection of an incorrect power supply

can cause fire or damage the equipment.

Do not diassemble or modify the

equipment.

Electrical shock, damage to the equipment

or injury may result.

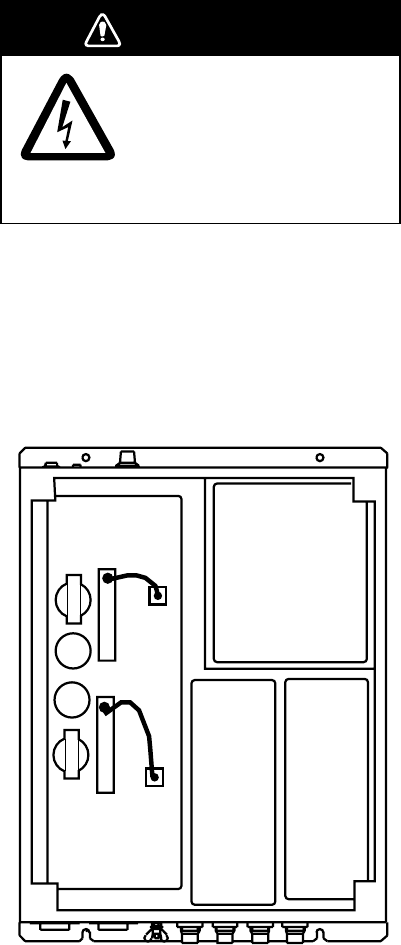

ELECTRICAL SHOCK HAZARD

Do not open the equipment

unless totally familiar with

electrical circuits and

service manual.

Only qualified personnel

should work inside the

equipment.

WARNING

Install the transducer tank according

to the installation instructions.

Failure to install the tank correctly may

result in water leakage and damage to

the ship's hull.

ii

The transducer cable must be handled

carefully, following the guidelines

below.

•Keep fuels and oils away from the

cable.

•Locate the cable where it will not be

damaged.

•The cable sheath is made of chloro-

phrene or polychloride vinyl, which

is easily damaged by plastic solvents

such as toulene. Locate the cable

well away from plastic solvents.

Use the correct fuse.

Use of a wrong fuse can cause serious

damage to the equipment.

Be sure to enter transducer model

correctly.

Incorrect setting may damage the

transducer.

Do not enter transducer type manually

if the transducer type is programmed

into the equipment.

Damage to the transducer may result.

WARNING LABEL

A warning label is attached to the equip-

ment. Do not remove the label. If the

label is missing or illegible, contact

a FURUNO agent or dealer about

replacement.

WARNING

To avoid electrical shock, do not

remove cover. No user-serviceable

parts inside.

Name: Warning Label (1)

Type: 86-003-1011-1

Code No.: 100-236-231

Observe the following compass safe

distances to prevent interference to a

magnetic compass:

Ground the equipment to

prevent mutual interference.

Do not allow warm water or any liquid

other than seawater or freshwater to

contact the transducer.

Damage to the transducer may result.

Do not install the transducer where

noise or air bubbles is present.

Performance will be affected.

Standard

compass

Steering

compass

ETR-30N

1.7 m 1.1 m

CAUTION CAUTION

iii

TABLE OF CONTENTS

SYSTEM CONFIGURATION................................................................................ iv

EQUIPMENT LISTS............................................................................................. vi

1. MOUNTING ...................................................................................................... 1

1.1 Network Sounder.............................................................................................................1

1.2 Transducer......................................................................................................................2

2. WIRING, SETUP............................................................................................... 3

2.1 Wiring..............................................................................................................................3

2.2 Settings for Single Network Sounder...............................................................................6

2.3 Settings for Two Network Sounders...............................................................................12

2.4 Erasing Transducer Setting ...........................................................................................15

3. OPERATION, MAINTENANCE...................................................................... 16

3.1 Controls.........................................................................................................................16

3.2 Additions to NavNet Series Operator’s Manual..............................................................17

3.3 Replacing Fuses ...........................................................................................................18

3.4 All Clear.........................................................................................................................19

APPENDIX NEW BLT TRANSDUCERS ........................................................AP-1

SPECIFICATIONS........................................................................................... SP-1

PACKING LIST ................................................................................................. A-1

OUTLINE DRAWINGS...................................................................................... D-1

INTERCONNECTION DIAGRAM ......................................................................S-1

iv

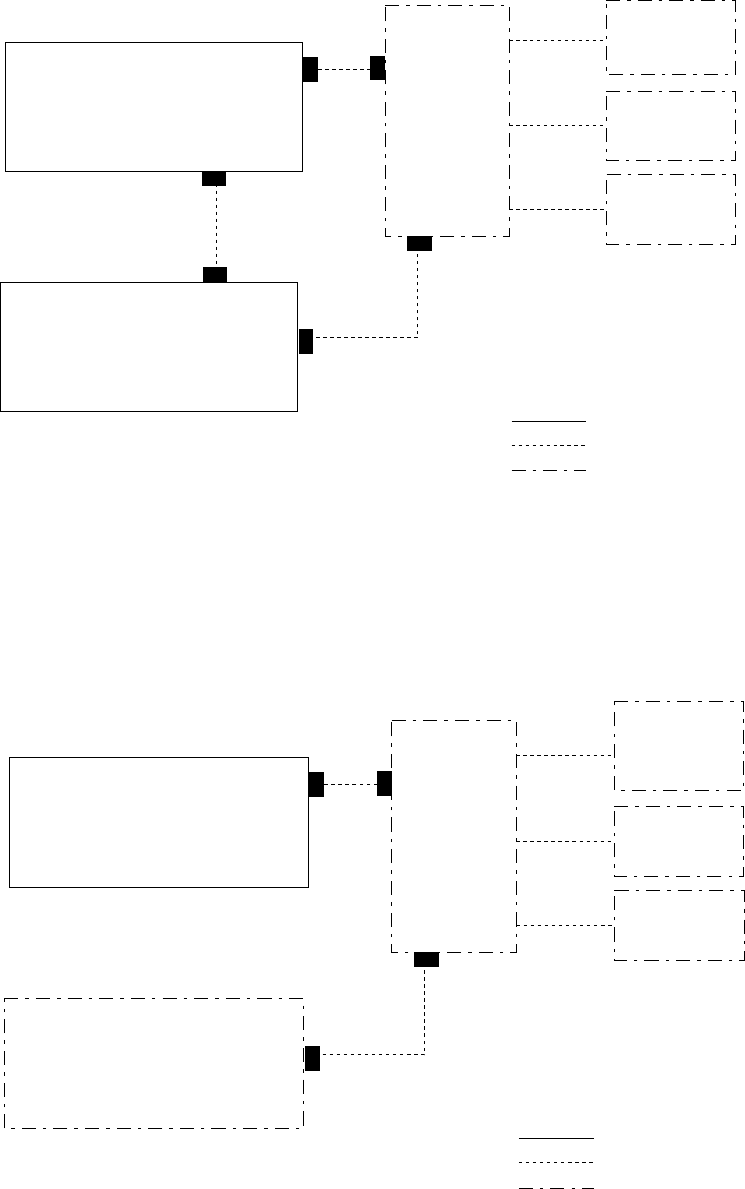

SYSTEM CONFIGURATION

Single network sounder

: Standard

: Option

: Local Supply

Transducer Transducer

High

Freq.

* = By using a hub, one NavNet series radar and three NavNet display units may be connected.

Low

Freq.

Network Sounder

ETR-30N

NavNet

Radar

Display Unit

NavNet

Radar

Display Unit

NavNet

Display Unit

Ship’s Mains

12-24 VDC

Rectifier

PR-62

100/110/115/220/230 VAC,

1

φ,

50/60 Hz

HUB*

NavNet Series

NavNet Series

NavNet

Display Unit

NavNet

Display Unit

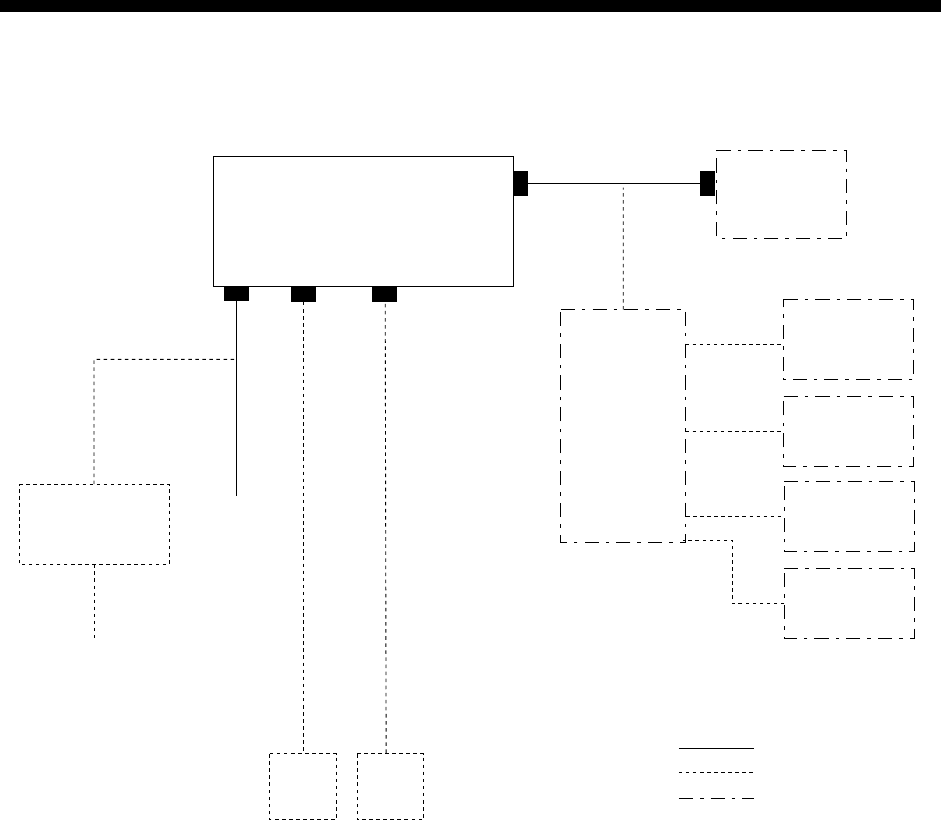

System configuration, single network sounder

v

Multiple network sounders

Network Sounder

ETR-30N

NavNet

Radar

Display Unit

NavNet

Display Unit

: Standard

: Optional Supply

: Local Supply

HUB*1

NavNet Series

*1 = By using a hub, one NavNet series radar and two NavNet display units may be connected.

*2 = Maximum two network sounders may be installed.

*3 = Connect to NET KP.

NavNet

Display Unit

Network Sounder

ETR-6/10N*2

*3

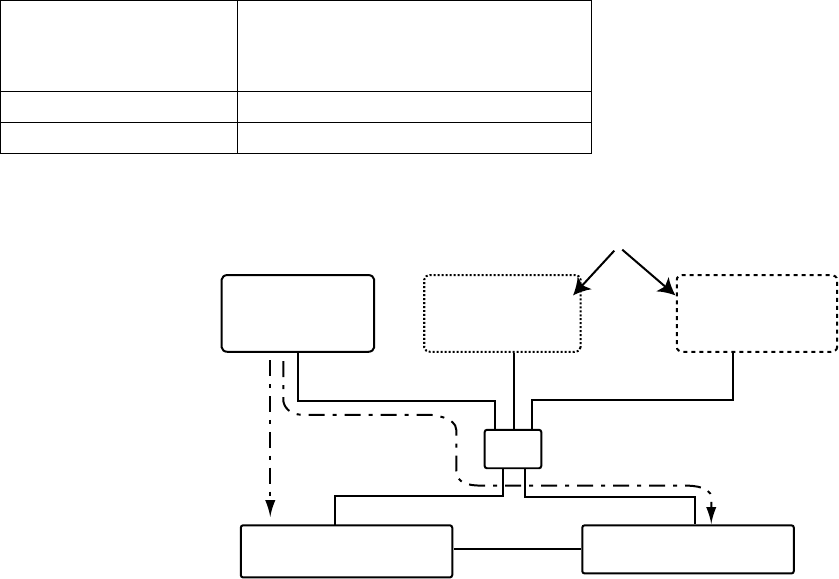

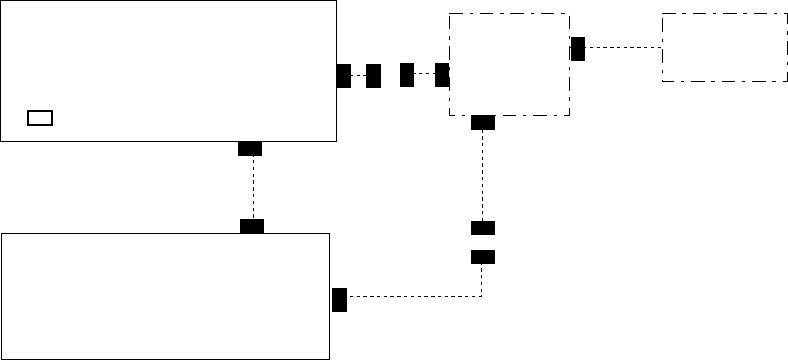

System configuration, two ETR-30N

Network Sounder

ETR-30N

NavNet

Radar

Display Unit

NavNet

Display Unit

: Standard

: Optional Supply

: Local Supply

HUB*

NavNet Series

* = By using a hub, one NavNet series radar and two NavNet display units may be connected.

NavNet

Display Unit

Network Sounder

ETR-6/10N

System configuration, ETR-30N + ETR-6/10N

vi

EQUIPMENT LISTS

Standard supply

Name Type Code No. Qty Remarks

Network

Sounder

ETR-30N —

1

Spare Parts* SP02-04601 002-180-150 1 set

CP02-07100

(

w/NavNet

connection

cable)

— • Power Cable

MJ-A3SPF0013-035

• NavNet connection cable

MJ-A6SPF0014-050 (5 m)

• CP02-07101

Installation

Materials*

CP02-07110

(No NavNet

connection

cable)

—

1 set

• Power Cable

MJ-A3SPF0013-035

• CP02-07101

* = See packing list at end of manual.

Optional supply

Name Type Code No. Remarks

Piggyback

Mount Kit

OP02-84 002-186-170 For mounting two network

sounders piggyback style

MJ-A6SPF0014-010 000-144-421 6P-6P, 1 m, For NavNet

MJ-A6SPF0014-050 000-144-422 6P-6P, 5 m, For NavNet

MJ-A6SPF0014-100 000-144-423 6P-6P, 10 m, For NavNet

MJ-A6SPF0014-200 000-144-424 6P-6P, 20 m, For NavNet

MJ-A6SPF0014-300 000-144-425 6P-6P, 30 m, For NavNet

MJ-A6SRMD/TM11AP8-005 000-144-463 For HUB

NCS255AD-254P-L500 000-142-518 For connection of

combination transducers

Cable Assy.

MJ-A7SPF0002-050 000-127-656 For connecting ETRs

000-013-484 100 VAC

000-013-485 110 VAC

000-013-486 220 VAC

Rectifier PR-62

000-013-487 230 VAC

Transducer See the next several pages for transducer and recommended thru-hull pipe

and tank.

vii

Available transducers

1kW transducer

Freq.

(kHz) Ship Transducer Thru-hull pipe Tank

Steel — —

FRP

28F-8 (000-015-003)

50B-6 (000-015-042)

50B-6B (000-015-043, 15M)

(000-015-018, 30M)

(000-015-255, 40M) — —

Steel TWB-6000 (2)

(000-015-207)

T-656

(000-015-982)

FRP

28F-8 (000-015-003)

50B-9 (000-138-574)

50B-9B (000-015-065) — —

Steel — —

28/50

FRP

28F-8 (000-015-003)

50F-8G (000-015-066) — —

Steel — —

28/68 FRP

28F-8 (000-015-003)

68F-8H (000-015-067) — —

Steel TWB-6000 (2)

(000-015-207)

T-657

(000-015-983)

28/88

FRP

28F-8 (000-015-003)

88B-8 (000-015-024) — —

Steel — —

28/200 FRP

28F-8 (000-015-003)

200B-5S (000-015-029) — —

Steel — —

FRP

50B-6 (000-015-042)

50B-6B (000-015-043, 15M)

(000-015-018, 30M)

(000-015-255, 40M)

88B-8 (000-015-024) — —

Steel TWB-6000 (2)

(000-015-207)

T-658

(000-015-984)

FRP

50B-9 (000-138-574)

50B-9B (000-015-065)

88B-8 (000-015-024) — —

Steel — —

50/88

FRP

50F-8G (000-015-066)

88B-8 (000-015-024) — —

viii

1kW transducer (con’t)

Freq.

(kHz) Ship Transducer Thru-hull pipe Tank

Steel — —

FRP

50B-6 (000-015-042)

50B-6B (000-015-043, 15M)

(000-015-018, 30M)

(000-015-255, 40M)

200B-5S

(

000-015-029

)

— —

Steel — —

FRP

50B-9 (000-138-574)

50B-9B (000-015-065)

200B-5S (000-015-029) — —

Steel — —

FRP

50F-8G (000-015-066)

200B-5S (000-015-029) — —

Steel — —

FRP 50/200-1T (000-015-170) — —

Steel — —

50/200

FRP 50/200-1ST (000-015-110) — —

Steel — —

68/200 FRP

68F-8H (000-015-067)

200B-5S (000-015-029) — —

Steel — —

88/200 FRP

88B-8 (000-015-024)

200B-5S (000-015-029) — —

ix

2kW transducer

Freq.

(kHz) Ship Transducer Thru-hull pipe Tank

Steel TFB-7000 (2)

(000-015-209)

T-634

(000-015-810)

28/50

FRP

28F-18 (000-015-004, 15M)

(000-138-573, 30M)

50B-12 (000-015-020) — —

Steel — —

28/68 FRP

28F-18 (000-015-004, 15M)

(000-138-573, 30M)

68F-30H (000-015-073) TRB-1100 (2)

(000-015-218)

T-634-F

(000-015-811)

Steel TFB-7000 (2)

(000-015-209)

T-636

(000-015-813)

28/88

FRP

28F-18 (000-015-004, 15M)

(000-138-573, 30M)

88B-10 (000-015-025) TRB-1100 (2)

(000-015-218)

T-636-F

(000-015-814)

Steel TFB-7000 (2)

(000-015-209)

T-638

(000-015-818)

28/200

FRP

28F-18 (000-015-004, 15M)

(000-138-573, 30M)

200B-8 (000-015-030)

200B-8B (000-015-032)

200B-8N (000-015-045)

TRB-1100 (2)

(000-015-218)

T-638-F

(000-015-819)

Steel TFB-7000 (2)

(000-015-209)

T-643

(000-015-821)

50/88

FRP

50B-12 (000-015-020)

88B-10 (000-015-025) TRB-1100 (2)

(000-015-218)

T-643-F

(000-015-822)

Steel TFB-7000 (2)

(000-015-209)

T-645

(000-015-826)

FRP

50B-12 (000-015-020)

200B-8 (000-015-030)

200B-8B (000-015-032)

200B-8N (000-015-045) — —

Steel TWB-6000 (2)

(000-015-207)

T-693

(000-015-044)

50/200

FRP

50BL-12 (000-015-246)

200B-8B (000-015-032) TRB-1100 (2)

(000-015-218)

T-693-F

(000-015-241)

Steel TFB-7000 (2)

(000-015-209)

T-647

(000-015-831)

68/200

FRP

68F-30H (000-015-073)

200B-8 (000-015-030)

200B-8B (000-015-032)

200B-8N (000-015-045) TRB-1100 (2)

(000-015-218)

T-647-F

(000-015-832)

Steel TFB-7000 (2)

(000-015-209)

T-649

(000-015-833)

88/200

FRP

88B-10 (000-015-025)

200B-8 (000-015-030)

200B-8B (000-015-032)

200B-8N (000-015-045) TRB-1100 (2)

(000-015-218)

T-649-F

(000-015-834)

x

3kW transducer

Freq.

(kHz) Ship Transducer Thru-hull pipe Tank

Steel — —

28/45 FRP

28F-24H (000-015-075)

45F-12H (000-015-076) — —

Steel TFB-7000 (2)

(000-015-209)

T-681

(000-015-849)

FRP

28F-24H (000-015-075)

50F-24H (000-138-582) TRB-1100 (2)

(000-015-218)

T-681-F

(000-015-850)

Steel TWB-6000 (2)

(000-015-207)

T-696

(000-015-048)

28/50

FRP

28F-24H (000-015-075)

50BL-24H (000-015-247) TRB-1100 (2)

(000-015-218)

T-696-F

(000-015-244)

Steel — —

28/68 FRP

28F-24H (000-015-075)

68F-30H (000-015-073) — —

Steel TFB-7000 (2)

(000-015-209)

T-682

(000-015-851)

28/88

FRP

28F-24H (000-015-075)

88F-126H (000-015-068) TRB-1100 (2)

(000-015-218)

T-682-F

(000-015-852)

Steel TFB-7000 (2)

(000-015-209)

T-683

(000-015-853)

28/150

FRP

28F-24H (000-015-075)

150B-12H (000-015-074) TRB-1100 (2)

(000-015-218)

T-683-F

(000-015-854)

Steel TFB-7000 (2)

(000-015-209)

T-683

(000-015-853)

28/200

FRP

28F-24H (000-015-075)

200B-12H (000-015-069) TRB-1100 (2)

(000-015-218)

T-683-F

(000-015-854)

Steel — —

45/88 FRP

45F-12H (000-015-076)

88F-126H (000-015-068) — —

Steel — —

45/150 FRP

45F-12H (000-015-076)

150B-12H (000-015-074) — —

Steel — —

45/200 FRP

45F-12H (000-015-076)

200B-12H (000-015-069) — —

Steel TFB-7000 (2)

(000-015-209)

T-682

(000-015-851)

FRP

50F-24H (000-138-582)

88F-126H (000-015-068) TRB-1100 (2)

(000-015-218)

T-682-F

(000-015-852)

Steel TWB-6000 (2)

(000-015-207)

T-697

(000-015-239)

50/88

FRP

50BL-24H (000-015-247)

88F-126H (000-015-068) TRB-1100 (2)

(000-015-218)

T-697-F

(000-015-245)

xi

3kW transducer (con’t)

Freq.

(kHz) Ship Transducer Thru-hull pipe Tank

Steel TFB-7000 (2)

(000-015-209)

T-683

(000-015-853)

50/150

FRP

50F-24H (000-138-582)

150B-12H (000-015-074) TRB-1100 (2)

(

000-015-218

)

T-683-F

(

000-015-854

)

Steel TFB-7000 (2)

(000-015-209)

T-683

(000-015-853)

FRP

50F-24H (000-138-582)

200B-12H (000-015-069) TRB-1100 (2)

(000-015-218)

T-683-F

(000-015-854)

Steel TWB-6000 (2)

(000-015-207)

T-695

(000-015-047)

50/200

FRP

50BL-24H (000-015-247)

200B-12H (000-015-069) TRB-1100 (2)

(000-015-218)

T-695-F

(000-015-243)

Steel TFB-7000 (2)

(000-015-209)

T-646

(000-015-829)

68/150

FRP

68F-30H (000-015-073)

150B-12H (000-015-074) TRB-1100 (2)

(000-015-218)

T-646-F

(000-015-830)

Steel TFB-7000 (2)

(000-015-209)

T-646

(000-015-829)

68/200

FRP

68F-30H (000-015-073)

200B-12H (000-015-069) TRB-1100 (2)

(000-015-218)

T-646-F

(000-015-830)

Steel — —

88/150 FRP

88F-126H (000-015-068)

150B-12H (000-015-074) — —

Steel TFB-7000 (2)

(000-015-209)

T-685

(000-015-855)

88/200

FRP

88F-126H (000-015-068)

200B-12H (000-015-069) TRB-1100 (2)

(000-015-218)

T-685-F

(000-015-856)

xii

1kW/2kW transducer

Output

(W)

Freq.

(kHz) Ship Transducer Thru-hull pipe Tank

Steel — —

28/50 FRP

28F-8 (000-015-003)

50B-12 (000-015-020) — —

Steel — —

28/68 FRP

28F-8 (000-015-003)

68F-30H (000-015-073) — —

Steel — —

28/88 FRP

28F-8 (000-015-003)

88B-10 (000-015-025) — —

Steel TWB-6000 (2)

(

000-015-207

)

T-657

(

000-015-983

)

28/200

FRP

28F-8 (000-015-003)

200B-8 (000-015-030)

200B-8B (000-015-032)

200B-8N (000-015-045) — —

Steel — —

45/88 FRP

45F-3H

88B-10 (000-015-025) — —

Steel — —

45/200 FRP

45F-3H

200B-8 (000-015-030)

200B-8B (000-015-032)

200B-8N

(

000-015-045

)

— —

Steel — —

FRP

50B-6 (000-015-042)

50B-6B (000-015-043, 15M)

(000-015-018, 30M)

(000-015-255, 40M)

88B-10

(

000-015-025

)

— —

Steel — —

50/88

FRP

50B-9 (000-138-574)

50B-9B (000-015-065)

88B

-

10 (000

-

015

-

025)

— —

Steel TFB-7000 (2)

(000-015-209)

T-636

(000-015-813)

50/88

FRP

50F-8G (000-015-066)

88B-10 (000-015-025) TRB-1100 (2)

(000-015-218)

T-636-F

(000-015-814)

Steel — —

FRP

50B-6 (000-015-042)

50B-6B (000-015-043, 15M)

(000-015-018, 30M)

(000-015-255, 40M)

200B-8 (000-015-030)

200B-8B (000-015-032)

200B-8N (000-015-045)

— —

Steel TWB-6000 (2)

(000-015-207)

T-658

(000-015-984)

1 k/2 k

50/200

FRP

50B-9 (000-138-574)

50B-9B (000-015-065)

200B-8 (000-015-030)

200B-8B (000-015-032)

200B-8N (000-015-045) — —

xiii

1kW/2kW transducer (con’t)

Output

(W)

Freq.

(kHz) Ship Transducer Thru-hull pipe Tank

Steel TFB-7000 (2)

(000-015-209)

T-638

(000-015-818)

50/200

FRP

50F-8G (000-015-066)

200B-8 (000-015-030)

200B-8B (000-015-032)

200B-8N (000-015-045) TRB-1100 (2)

(000-015-218)

T-638-F

(000-015-819)

Steel — —

68/200

FRP

68F-8H (000-015-067)

200B-8 (000-015-030)

200B-8B (000-015-032)

200B-8N (000-015-045) — —

Steel TWB-6000 (2)

(000-015-207)

T-659

(000-015-985)

88/200

FRP

88B-8 (000-015-024)

200B-8 (000-015-030)

200B-8B (000-015-032)

200B-8N (000-015-045) — —

1kW/3kW transducer

Output

(W)

Freq.

(kHz) Ship Transducer Thru-hull pipe Tank

Steel — —

28/45 FRP

28F-8 (000-015-003)

45F-12H (000-015-076) — —

Steel — —

28/50 FRP

28F-8 (000-015-003)

50F-24H (000-138-582) — —

Steel — —

28/68 FRP

28F-8 (000-015-003)

68F-30H (000-015-073) — —

Steel — —

28/88 FRP

28F-8 (000-015-003)

88F-126H (000-015-068) — —

Steel — —

28/107 FRP

28F-8 (000-015-003)

100B-10R (000-027-438) — —

Steel — —

28/150 FRP

28F-8 (000-015-003)

150B-12H (000-015-074) — —

Steel — —

28/200 FRP

28F-8 (000-015-003)

200B-12H (000-015-069) — —

Steel — —

FRP

50B-6 (000-015-042)

50B-6B (000-015-043, 15M)

(000-015-018, 30M)

(000-015-255, 40M)

88F-126H (000-015-068) — —

Steel — —

1 k/3 k

50/88

FRP

50B-9B (000-015-065)

88F-126H (000-015-068) — —

xiv

1kW/3kW transducer (con’t)

Output

(W)

Freq.

(kHz) Ship Transducer Thru-hull pipe Tank

Steel — —

50/88 FRP

50F-8G (000-015-066)

88F-126H (000-015-068) — —

Steel — —

FRP

50B-6 (000-015-042)

50B-6B (000-015-043, 15M)

(000-015-018, 30M)

(000-015-255, 40M)

150B-12H (000-015-074)

— —

Steel — —

FRP

50B-9 (000-138-574)

50B-9B (000-015-065)

150B-12H (000-015-074) — —

Steel — —

50/150

FRP

50F-8G (000-015-066)

150B-12H (000-015-074) — —

Steel — —

FRP

50B-6 (000-015-042)

50B-6B (000-015-043, 15M)

(000-015-018, 30M)

(000-015-255, 40M)

200B-12H (000-015-069) — —

Steel — —

50/200

FRP

50B-9 (000-138-574)

50B-9B (000-015-065)

200B-12H (000-015-069) — —

Steel — —

50/200 FRP

50F-8G (000-015-066)

200B-12H (000-015-069) — —

Steel — —

68/107 FRP

68F-8H (000-015-067)

100B-10R (000-027-438) — —

Steel — —

68/150 FRP

68F-8H (000-015-067)

150B-12H (000-015-074) — —

Steel — —

68/200 FRP

68F-8H (000-015-067)

200B-12H (000-015-069) — —

Steel — —

88/150 FRP

88B-8 (000-015-024)

150B-12H (000-015-074) — —

Steel — —

50/200 FRP

50F-8G (000-015-066)

200B-12H (000-015-069) — —

Steel — —

1 k/3 k

68/150 FRP

68F-8H (000-015-067)

150B-12H (000-015-074) — —

xv

1kW/3kW transducer (con’t)

Output

(W)

Freq.

(kHz) Ship Transducer Thru-hull pipe Tank

Steel — —

68/200 FRP

68F-8H (000-015-067)

200B-12H (000-015-069) — —

Steel — —

88/150 FRP

88B-8 (000-015-024)

150B-12H (000-015-074) — —

Steel — —

1 k/3 k

88/200 FRP

88B-8 (000-015-024)

200B-12H (000-015-069) — —

xvi

2kW/3kW transducer

Output

(W)

Freq.

(kHz) Ship Transducer Thru-hull pipe Tank

Steel — —

28/45 FRP

28F-18 (000-015-004, 15M)

(000-138-573, 30M)

45F-12H (000-015-076) — —

Steel — —

28/50 FRP

28F-18 (000-015-004, 15M)

(000-138-573, 30M)

50F-24H (000-015-077) — —

Steel — —

28/68 FRP

28F-18 (000-015-004, 15M)

(000-138-573, 30M)

68F-30H (000-015-073) — —

Steel — —

28/88 FRP

28F-18 (000-015-004, 15M)

(000-138-573, 30M)

88F-126H

(

000-015-068

)

— —

Steel TFB-7000 (2)

(000-015-209)

T-637

(000-015-816)

28/150

FRP

28F-18 (000-015-004, 15M)

(000-138-573, 30M)

150B-12H (000-015-074) TRB-1100 (2)

(000-015-218)

T-637-F

(000-015-817)

Steel — —

28/200 FRP

28F-18 (000-015-004, 15M)

(000-138-573, 30M)

200B-12H

(

000-015-069

)

— —

Steel — —

50/88 FRP

50B-12 (000-015-020)

88F-126H (000-015-068) — —

Steel TFB-7000 (2)

(000-015-209)

T-644

(000-015-824)

50/150

FRP

50B-12 (000-015-020)

150B-12H (000-015-074) TRB-1100 (2)

(000-015-218)

T-644-F

(000-015-825)

Steel — —

50/200 FRP

50B-12 (000-015-020)

200B-12H (000-015-069) — —

Steel — —

68/150 FRP

68F-30H (000-015-073)

150B-12H (000-015-074) — —

Steel — —

68/200 FRP

68F-30H (000-015-073)

200B-12H (000-015-069) — —

Steel — —

88/150 FRP

88B-10 (000-015-025)

150B-12H (000-015-074) — —

Steel — —

2k/3k

88/200 FRP

88B-10 (000-015-025)

200B-12H (000-015-069) — —

xvii

3kW/2kW transducer (con’t)

Output

(W)

Freq.

(kHz) Ship Transducer Thru-hull pipe Tank

Steel — —

28/50 FRP

28F-24H (000-015-075)

50B-12 (000-015-020) — —

Steel — —

28/68 FRP

28F-24H (000-015-075)

68F-30H (000-015-073) — —

Steel — —

28/88 FRP

28F-24H (000-015-075)

88B-10 (000-015-025) — —

Steel — —

28/200

FRP

28F-24H (000-015-075)

200B-8 (000-015-030)

200B-8B (000-015-032)

200B-8N (000-015-045) — —

Steel — —

45/88 FRP

45F-12H (000-015-076)

88B-10 (000-015-025) — —

Steel — —

45/200

FRP

45F-12H (000-015-076)

200B-8 (000-015-030)

200B-8B (000-015-032)

200B-8N

(

000-015-045

)

— —

Steel — —

50/88 FRP

50F-24H (000-015-077)

88B-10 (000-015-025) — —

Steel — —

50/200

FRP

50F-24H (000-015-077)

200B-8 (000-015-030)

200B-8B (000-015-032)

200B-8N

(

000-015-045

)

— —

Steel TFB-7000 (2)

(

000-015-209

)

T-647

(

000-015-831

)

68/200

FRP

68F-30H (000-015-073)

200B-8 (000-015-030)

200B-8B (000-015-032)

200B-8N (000-015-045)

TRB-1100 (2)

(000-015-218)

T-647-F

(000-015-832)

Steel — —

3k/2k

88/200

FRP

88F-126H (000-015-068)

200B-8 (000-015-030)

200B-8B (000-015-032)

200B-8N (000-015-045) — —

1

1. MOUNTING

1.1 Network Sounder

1.1.1 Mounting considerations

The network sounder can be installed on the deck or on the bulkhead. When selecting a

mounting location, keep the following points in mind:

•

The temperature and humidity of the mounting location should be moderate and stable.

•

Locate the unit away from exhaust pipes and vents.

•

The mounting location should be well ventilated.

•

Do not install the equipment where it may get wet from rain or water splash.

•

Mount the unit where shock and vibration are minimal.

•

Keep the unit away from electromagnetic field-generating equipment such as motors and

generators.

•

Leave slack in cables for maintenance and servicing ease.

•

For mounting on a bulkhead, be sure the mounting location is strong enough to support

the weight of the unit (5.6 kg, 12.3 lbs) under the continued vibration normally

experienced onboard the vessel.

•

Observe the following compass safe distances to prevent disturbance to a magnetic

compass: standard compass, 1.7 m, steering compass, 1.1 m.

1.1.2 Mounting procedure

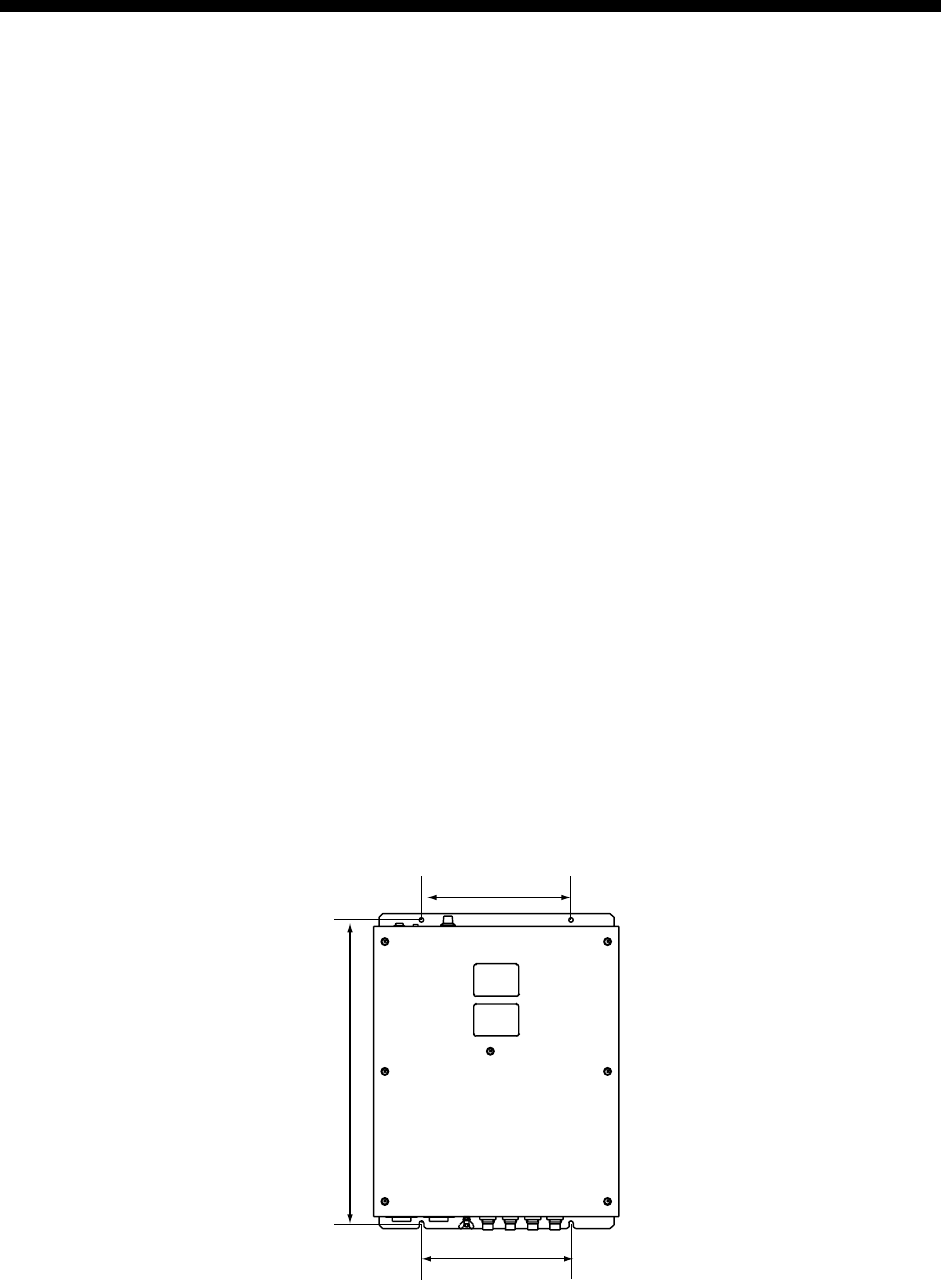

Fix the network sounder to the mounting location with four tapping screws (5 × 25,

supplied).

200 ±0.5

404 ±1

200 ±0.5

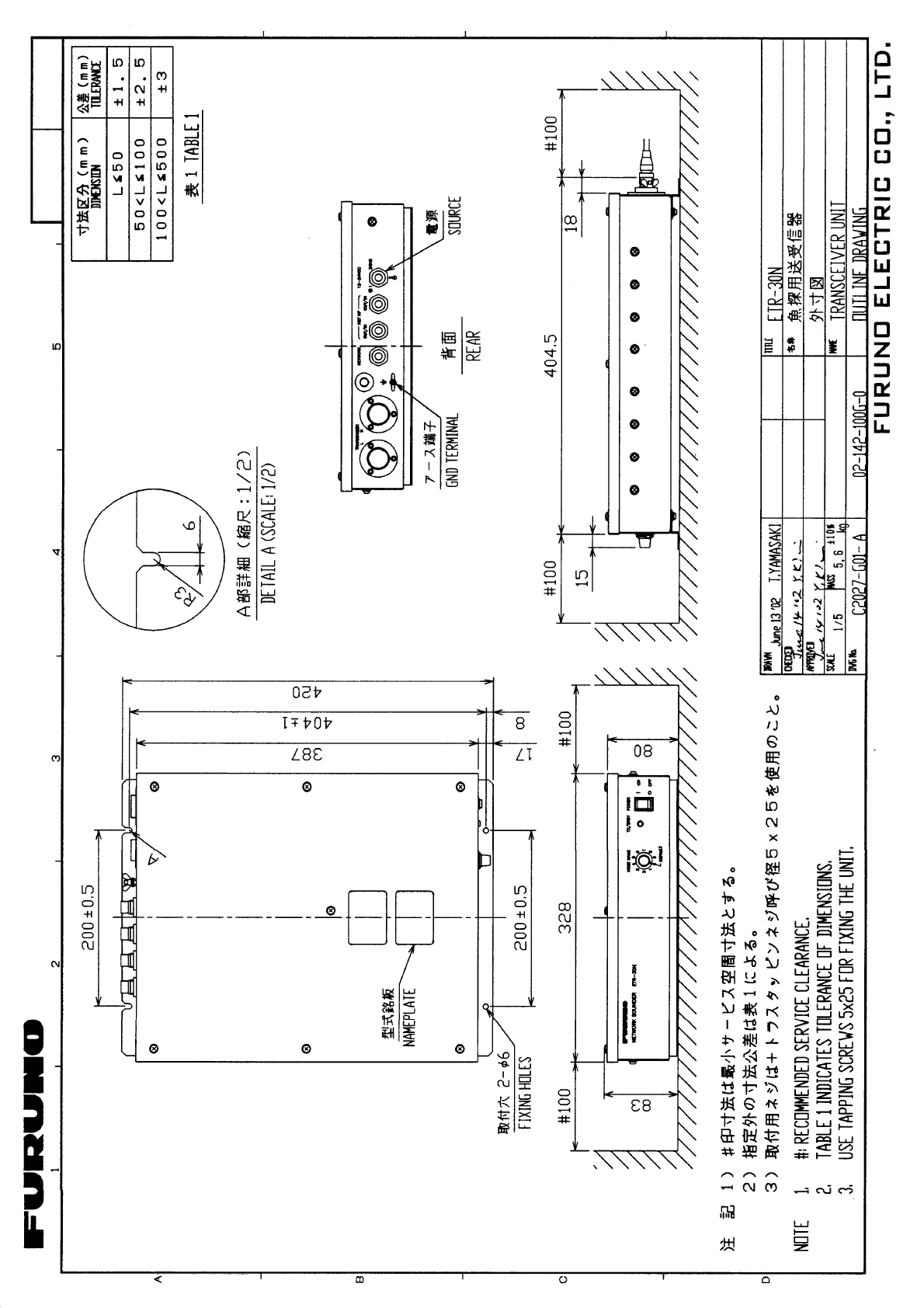

Mounting dimensions for the network sounder

2

1.1.3 Stacking units

You may stack two network sounders by using the optional piggyback mount kit (Type

OP02-84, Code No. 002-186-170) as below.

Note: Change the tap setting on the lower unit before installing the upper unit. See

paragraph 2.2 for how to change tap setting.

Contents of piggyback mount kit

Name Type Code No. Qty Remarks

Jointing Fixture (LWR) 02-142-1131 100-300-211 1

Jointing Fixture (UPR) 02-142-1132 100-300-221 1

Hexagon Head Bolt B M5 x 12 000-803-147 2

Pan Head Screw B M4 x 8 000-881-445 15

FURUNO

NETWORK SOUNDER ETR-30N

HOST NAME TX/STBY POWER

ON

OFF

I

O

0

1

2

3456

8

7

9

DEFAULT

FURUNO

NETWORK SOUNDER ETR-30N

HOST NAME TX/STBY POWER

ON

OFF

I

O

0

1

2

3456

8

7

9

DEFAULT

#

#

#

#

#

#

#

#

#

#

#

#

#

# = Screw location (15)

#

#

Jointing Fixture (UPR)

Hexagon

Head

Bolt B

Pan Head Screw B

Jointing Fixture (LWR)

SIDE VIEW

Remove mounting feet.

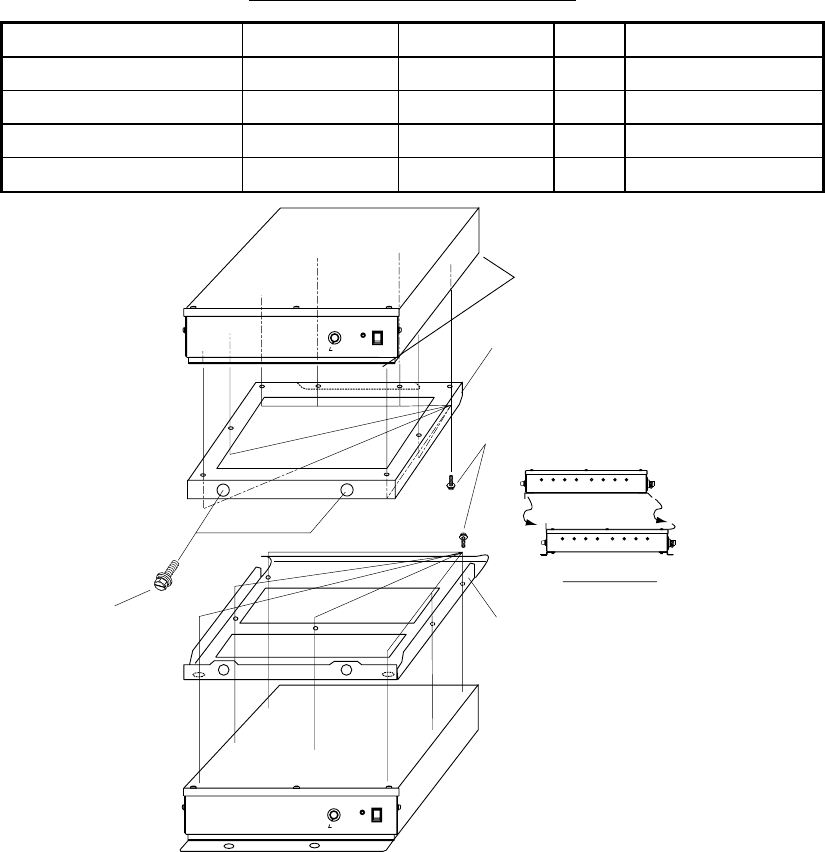

How to assemble the piggyback mount kit

1.2 Transducer

The performance of this sounder is directly related to the mounting location of the

transducer. When selecting a mounting location keep in mind the following points:

•

Select a location not influenced by air bubbles and engine noise.

•

As a general rule the position between 1/3 and 1/2 of ship’s length from the bow is

usually a good location.

•

The face of the transducer must be facing the sea bottom under normal cruising

conditions.

3

2. WIRING, SETUP

2.1 Wiring

2.1.1 Standard installation

Connect NavNet series display unit or HUB, transducer, power cable and ground wire as

below.

TRANSDUCER

LHNETWORK

OUT/IN OUT/IN

NET KP 12-24VDC

GND

3

1

2

+

-

NETWORK

SOUNDER

NavNet Series display unit or HUB

Battery

Ground

Ground

Terminal

White (+)

Black (-)

Shield

MJ-A6SPF0014-050, 5 m

MJ-A3SPF0013-035,

3.5m

Ground Wire

KIV 2.0SQ, black, 2 m

Low Freq.

TransducerTransducer

High Freq.

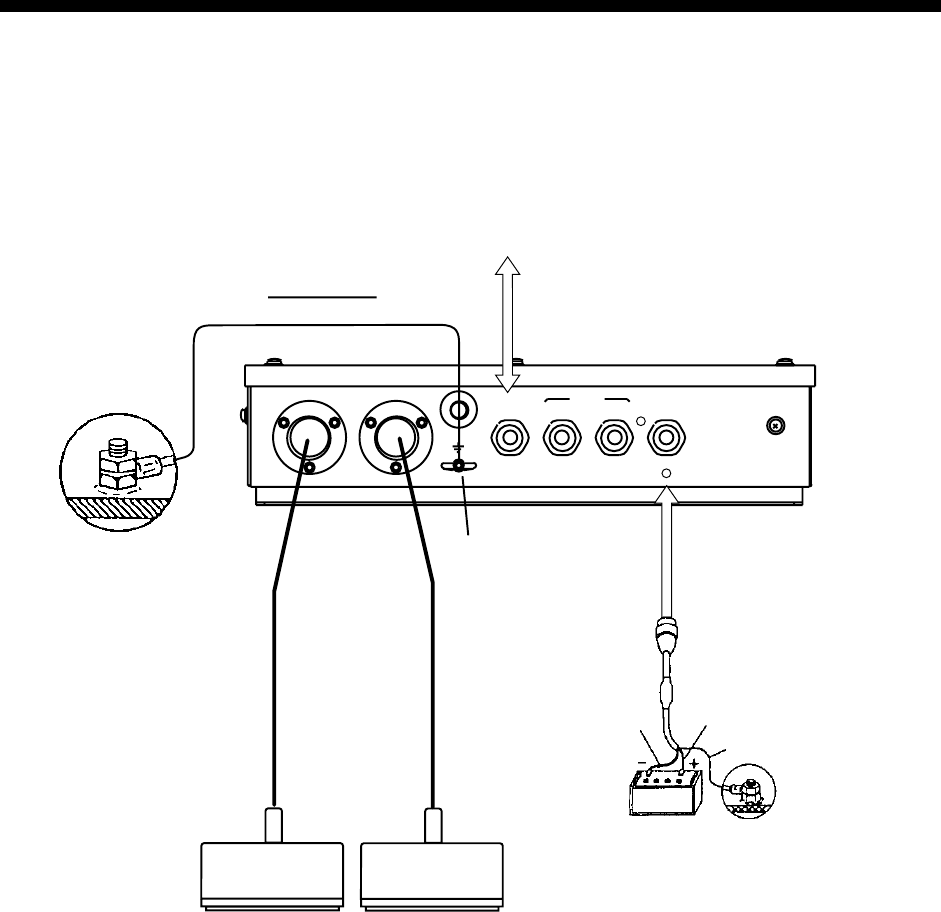

Connection of network sounder

4

Transducer

Route the transducer cable well away from power cables, televisions and CRTs to prevent

interference to the network sounder. Attach the NCS connector to the transducer cable as

below and connect it to the appropriate TRANSDUCER connector on the front of the

network sounder.

Shield

NCS Connector

NCS-254-P Cable Clamp Cable

Shield Foam 71TS-10-1

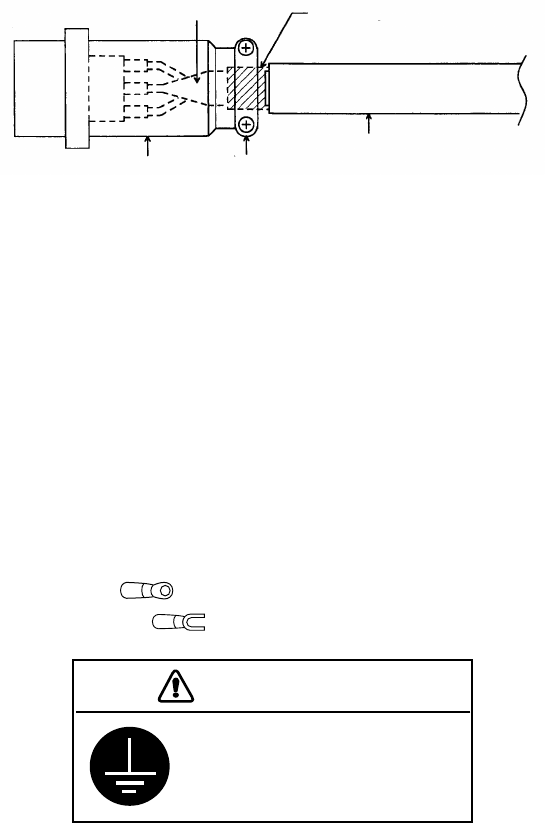

How to attach connector to transducer cable

Note: For dual-frequency transducer, use the optional cable assy. NCS255AD-254P-L500.

Ground

To prevent interference to the picture and radio equipment, connect a ground wire (KIV 2.0

sq, black) between the ground terminal and ship’s grounding bus. The length of the wire

should be as short as possible.

To obtain a good ground on an FRP vessel, a 20 × 30 cm copper plate can be welded on

the outside of the ship’s hull. Connect the ground wire to the copper plate.

Note: Use a "closed-type" lug ( ) to make the connection at the network sounder. Do

not use an "open-type" lug ( ).

Ground the equipment to

prevent mutual interference.

CAUTION

5

Multiple network sounders

Network Sounder

ETR-30N NavNet

Display Unit

HUB

NavNet Series

*1 = By using a hub, one NavNet series radar and two NavNet display units may be connected.

*2 = Two ETR-30N may be connected.

*3 = MJ-A6SPF0014-010/050/100/200/300 (1, 5, 10, 20, 30 m)

*4 = MJ-A6SRMD/TM11AP8-005

*5 = Connect to NET KP to get best performance.

*6 = If an external KP (Keying Pulse) is required, contact a FURUNO dealer.

Network Sounder

ETR-30N *2

NET KP

OUT/IN

NET KP OUT/IN

NETWORK

NETWORK

*4

*4

*2

*3

MJ-A7SPF0002-050

*5

*1

EXT KP

*6

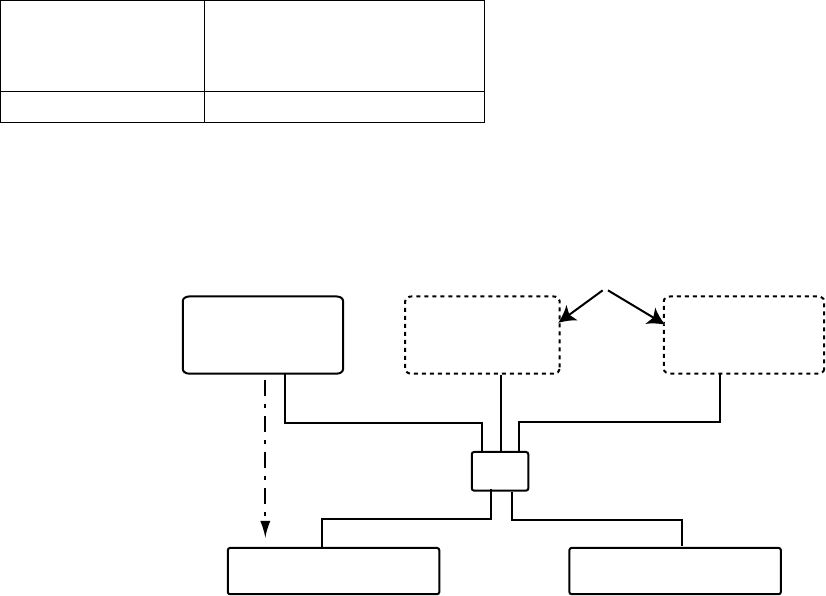

Connection of multiple network sounders

6

2.2 Settings for Single Network Sounder

WARNING

ELECTRICAL SHOCK HAZARD

Do not open the equipment.

Only qualified personnel

should work inside the

equipment.

2.2.1 Internal settings

Set the tap inside the network sounder to match transducer output power.

1. Disconnect the power cable from the network sounder.

2. Remove the cover of the network sounder.

. . . . .

A B C D E A B C D E

TAP

H

TAP

L

. . . . .

J2

J9

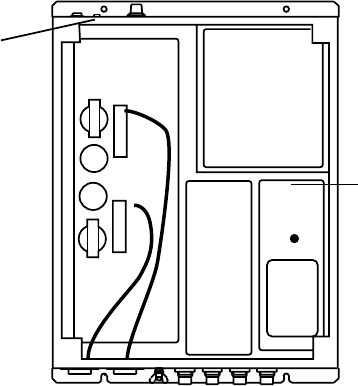

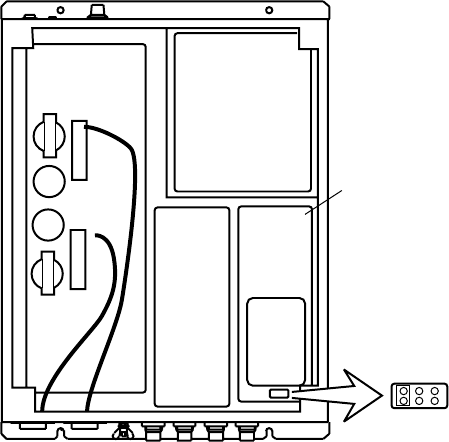

Network sounder ETR-30N, top view, cover removed

3. Using a pincers, set jumper block of TAP H (High) referring to the transducer label on

the cover. Jot down the tap position. When the NavNet display unit is powered you can

confirm setting (see page 10).

Note 1: The transducer model recorded on the label is in the unit’s memory. Therefore,

you can set transducer type following “Transducer connected to the ETR-30N is

programmed in the ETR-30N” (page 9.)

Note 2: To connect other make of transducer contact your FURUNO dealer for details.

4. If a low frequency transducer is installed, set TAP L.

5. Close the cover and connect the power cable to the network sounder.

6. Confirm that the HOST NAME control is in the “0” position.

7

FURUNO

NETWORK SOUNDER ETR-30N

HOST NAME TX/STBY POWER

ON

OFF

I

O

0

1

2

3456

8

7

9

DEFAULT

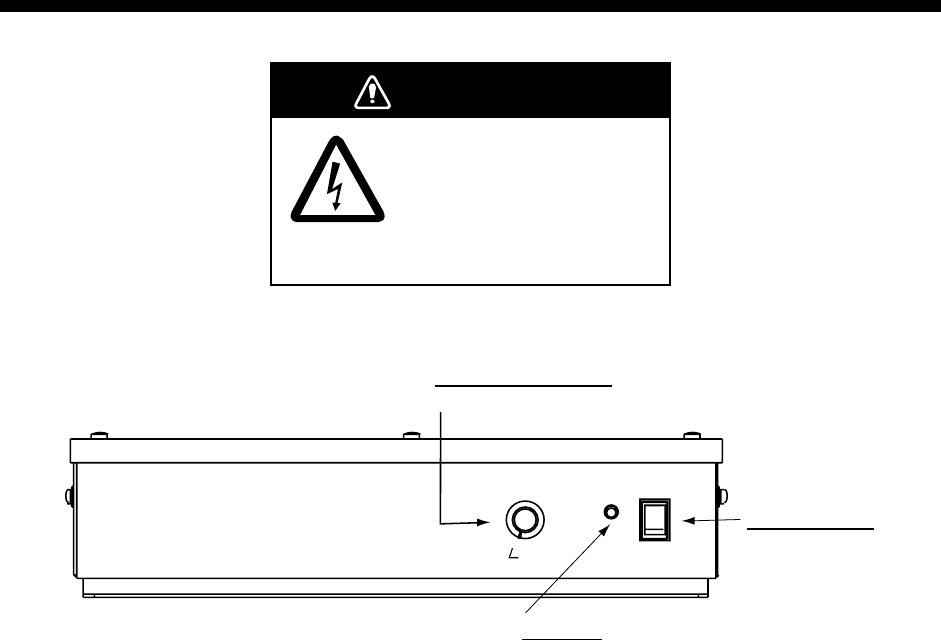

LED lamp

The lamp flashes when the NavNet display unit

is powered and communicating with the network

sounder.

POWER switch

Turns power

On and off.

HOST NAME Control

Sets host name.

ETR-30N

7. Turn on the ETR-30N and the NavNet display unit.

8. Confirm that the LED lamp flashes.

2.2.2 Sounder source setting

1. Press the [POWER/BRILL] key on the NavNet series unit while pressing and holding

down the [MENU] key. Release the [POWER/BRILL] key when you hear a beep.

2. Release the [MENU] key when the message “STARTING INSTALLATION MODE”

appears.

3. After the radar screen appears, press the [MENU] key.

4. Press the SYSTEM CONFIGURATION soft key.

5. Press the INSTALLATION SETUP soft key.

SYSTEM

CONFIG

GENERAL SETUP

NAV OPTION

SYSTEM SETUP

INSTALLATION SETUP

RETURN

RADAR

MENU

RADAR DISPLAY SETUP

RADAR RANGE SETUP

ARP SETUP

FUNCTION KEY SETUP

SYSTEM CONFIGURATION

Radar menu System configuration menu

INSTALL

SETUP

RETURN

Install setup menu

NETWORK SETUP

RADAR SETUP

NETWORK SOUNDER SETUP

NETWORK SETUP FOR AUX#

# =Shown on Model 1833C only

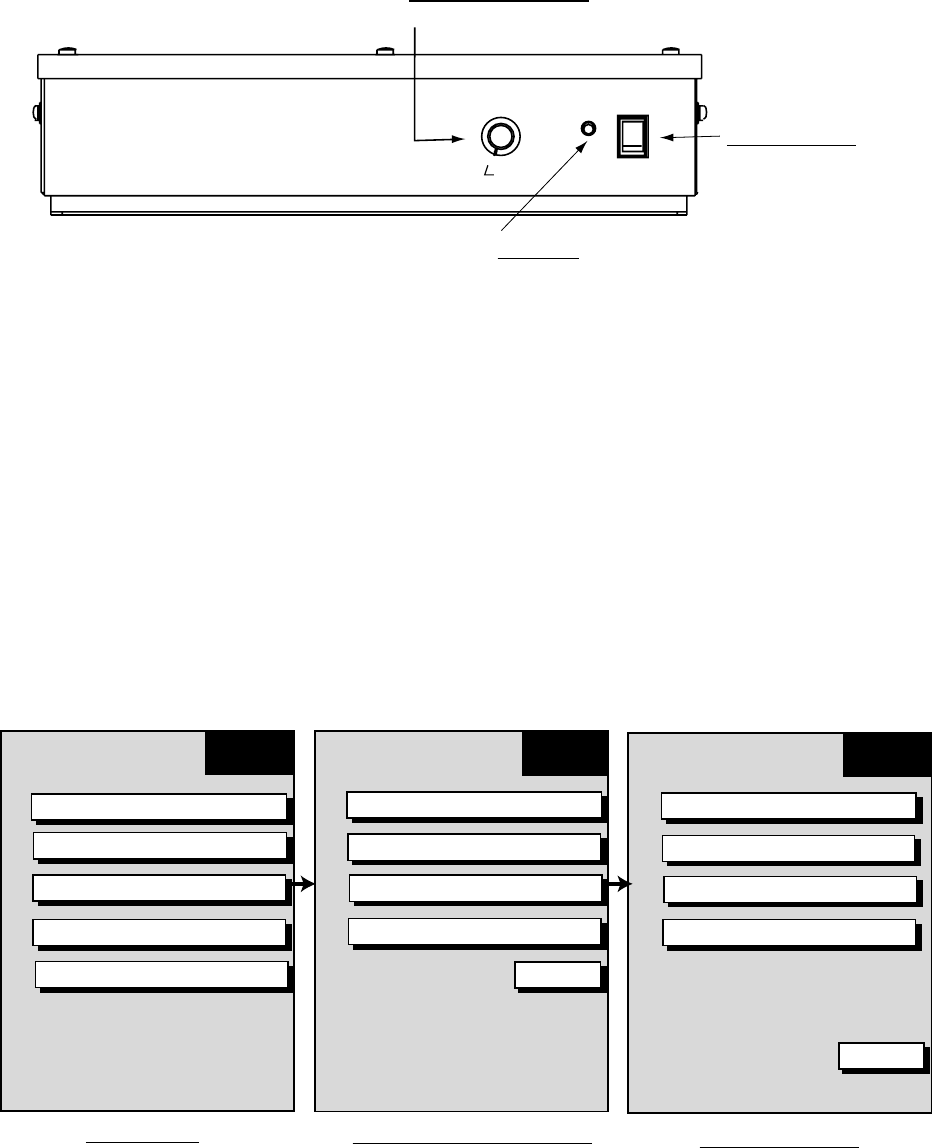

How to access the installation setup menu (example: radar NavNet unit)

8

Note: The very first time the system is powered you are asked if you want to start the

simulation mode, which provides simulated operation of the equipment. Press the

[CLEAR] key to start normal operation to set up the transducer. For further details

about the simulation mode, see your NavNet series operator’s manual.

START

SIMULATION MODE?

YES ... PUSH ENTER KNOB

NO ... PUSH CLEAR KEY

TO SKIP.

Simulation mode window

6. Press the NETWORK SETUP soft key.

NETWORK

SETUP

EDIT

RETURN

IP ADDRESS 172.031.092.001

HOST NAME RADAR________

RADAR SOURCE RADAR________

CHART SOURCE ______________

______________

______________

SOUNDER SOURCE SOUNDER

AUX* WFAX

SUBNET MASK 255.255.000.000

GATEWAY ADDRESS 000.000.000.000

OFFSET PORT NUMBER 10000

* = Model 1833C only.

Network setup menu

7. Confirm that the “SOUNDER SOURCE” is SOUNDER.

9

2.2.3 Transducer setup

Enter transducer setting correctly.

A wrong transducer setting can damage the

transducer.

CAUTION

Transducer connected to the ETR-30N is programmed in the ETR-30N

1. At the installation menu, press the NETWORK SOUNDER SETUP soft key.

SNDR

SETUP

EDIT

RETURN

IP ADDRESS 172.031.092.001

HOST NAME SOUNDER____

Note: Do not change IP address or host

name from this display. FREQ

SETUP

Sounder setup

2. Press the FREQ SETUP soft key. (If the FREQ SETUP soft key is not shown, check that

the ETR-30N is powered.) Confirm that sounder source (shown on the network setup

menu, see page 8) and the HOST NAME control setting are the same.

HOST NAME

Control Setting Host Name

0 (Default Setting) SOUNDER

1 SOUNDER1

2 SOUNDER2

3 SOUNDER3

4 SOUNDER4

5 SOUNDER5

6 SOUNDER6

7 SOUNDER7

8 SOUNDER8

9 SOUNDER9

10

SNDR

SETUP

EDIT

RETURN

TRANSDUCER SETUP MANUAL

HIGH FREQUENCY --kHz

(0kW TAP:-)

LOW FREQUENCY --kHz

(0kW TAP:-)

TAP SETTINGS MUST BE MADE ON

ETR UNIT.

AFTER SETUP, DISPLAY MUST BE

TURNED OFF & ON TO ALLOW

NEW SETTINGS TO TAKE EFFECT.

Frequency setup screen

3. TRANSDUCER SETUP is selected; press the EDIT soft key.

MODEL NUMBER

MANUAL

TRANSDUCER SETUP

Transducer type setting method options

4. Use the [ENTER] knob to choose MODEL NUMBER and then push the [ENTER] knob.

5. Use the [ENTER] knob to choose HIGH FREQUENCY and then push the [ENTER]

knob.

HIGH FREQUENCY

28kHz 28F-8

28kHz 28F-18

28kHz 28F-24H

38kHz 38E-9-18S1

45kHz 45F-12H

50kHz 50B-6/6B

50kHz 50B-9/9B

50kHz 50F-8G

50kHz 50/200-1ST

50kHz 50/200-1T

Frequency options

6. Rotate the [ENTER] knob to choose transducer and then push the [ENTER] knob.

7. Confirm tap position at the SNDR SETUP screen.

8. If a low-frequency transducer is installed, set it following this procedure.

9. Turn off the NavNet display unit.

10. Turn on the NavNet display unit. Confirm that the echo sounder picture advances.

11

Transducer connected to the ETR-30N is not programmed in the ETR-30N

For the transducer not programmed in the ETR-30N, enter its frequency manually as below.

Do not enter transducer specifications

manually if the transducer is programmed

in the equipment.

The transducer may become damaged.

CAUTION

1. Follow the procedure on page 7 to shown the INSTALLATION SETUP menu.

2. Press the NETWORK SOUNDER SETUP soft key.

3. Press the FREQ SETUP soft key.

4. Press the EDIT soft key.

MODEL NUMBER

MANUAL

TRANSDUCER SETUP

Transducer type setting options

5. Use the [ENTER] knob to select MANUAL and then push the [ENTER] knob.

6. Use the [ENTER] knob to choose HIGH FREQUENCY and then push the [ENTER]

knob.

12.0kHz

HIGH FREQUENCY

Frequency input screen

7. Use the [ENTER] knob to choose frequency (setting range: 25 kHz-220 kHz) and then

push the [ENTER] knob. Currently, 12-24.8 kHz and 221-420 kHz cannot be set. These

frequencies are for future use.

8. If a low-frequency transducer is installed, set it similarly.

9. Turn off the NavNet display unit.

10. Turn on the Navnet display unit. Confirm that the echo sounder picture advances.

12

2.3 Settings for Two Network Sounders

2.3.1 Two ETR-30N network sounders

When installing two ETR-30N set the HOST NAME control to “0” for the No. 1 ETR-30N and

“1” for the No. 2 ETR-30 N. Turn the ETR-30N off and on again after setting the HOST

NAME control to register settings. When connecting NET KP, the ETR-30N having the

lowest IP address outputs the KP and other ETR-30N receives it. The ETR-30N having high

output power and low frequency should be set as the “Master” (HOST NAME control setting

“0”).

1. Set tap settings of the No. 1 and No. 2 ETR-30N as in paragraph 2.2.1.

2. Following the procedure in paragraph 2.2.2, confirm that the sounder source for the No.1

ETR-30N is “SOUNDER.” (HOST NAME control is set to “0.”)

3. Set up the No. 1 ETR-30 as shown in paragraph 2.2.3.

4. Set the HOST NAME control of the No. 2 ETR-30N to “1” and then turn on the power.

5. As shown in paragraph 2.2.2, set sounder source for “SOUNDER1” on the NavNet

display unit as below.

a) Rotate the [ENTER] knob to choose SOUNDER SOURCE.

b) Press the EDIT soft key.

c) Enter SOUNDER1 with the numeric keys.

d) Press the RETURN soft key.

Note: The HOST NAME control setting and sounder source name (numeric) must agree.

(See the table below.) If not, the equipment cannot function.

6. Set the No. 2 ETR-30N as shown in paragraph 2.2.3.

HOST NAME

control setting

SOUNDER SOURCE set on

NETWORK SETUP screen of

NavNet display unit

No. 1 ETR-30N: 0 SOUNDER_

No. 2 ETR-30N: 1 SOUNDER1

HUB

NavNet

Display Unit 1

NavNet

Display Unit 2

NavNet

Display Unit 3

NET KP

ETR-30N No.1

HOST NAME: 0

ETR-30N No. 2

HOST NAME: 1

Turn off

power to set.

Master side

Set No.1

ETR-30N first.

Set No.2

ETR-30N

second.

SOUNDER SOURCE Setting:

No.1 ETR-30N: SOUNDER

No.2 ETR-30N: SOUNDER1

Connection of two ETR-30Ns

13

Note: The same IP address cannot be used when installing two ETR-30N or ETR-6/10N. To

change IP address and host name, set a different number (1-9) for each network

sounder with the HOST NAME switch on the ETR-30N. Note however that the

ETR-6/10N’s host name and IP address are “SOUNDER” and “172.31.92.1,”

respectively, and they cannot be changed.

HOST NAME control setting and resulting host name and IP address

HOST NAME

Control Setting Host Name IP Address

0 (Default Setting) SOUNDER 172.31.92.1

1 SOUNDER1 172.31.92.11

2 SOUNDER2 172.31.92.12

3 SOUNDER3 172.31.92.13

4 SOUNDER4 172.31.92.14

5 SOUNDER5 172.31.92.15

6 SOUNDER6 172.31.92.16

7 SOUNDER7 172.31.92.17

8 SOUNDER8 172.31.92.18

9 SOUNDER9 172.31.92.19

NET KP

If installing two ETR-30Ns, connect cable MJ-A7SPF0002-050 between NET KP OUT/IN

ports to prevent interference. Maximum two ETR-30N units may be installed; however,

there are two ports. One is for future use.

14

2.3.2 ETR-30N and ETR-6/10N

When installing an ETR-30N and an ETR-6/10N, the ETR-6/10N’s host name of SOUNDER

cannot be changed. For this reason, the set the HOST NAME control of the ETR-30N to “1”

and its host name to “SOUNDER1.” Turn the ETR-30N off and on again after setting the

HOST NAME control to register settings.

1. Set tappings of ETR-30N as in paragraph 2.2.1.

2. Set the HOST NAME control of the ETR-30N to “1” and turn on the power.

3. As shown in paragraph 2.2.2, set sounder source for “SOUNDER1” on the NavNet

display unit as below.

a) Rotate the [ENTER] knob to choose SOUNDER SOURCE.

b) Press the EDIT soft key.

c) Enter SOUNDER1 with the numeric keys.

d) Press the RETURN soft key.

Note: The HOST NAME control setting and sounder source name (numeric) must agree.

(See the table below.) If not, the equipment cannot function.

4. Set the ETR-30N as shown in paragraph 2.2.3.

HOST NAME

control setting

on ETR-30N

SOUNDER SOURCE set

on NavNet display unit

1 SOUNDER1

Note: The host name and frequency on the ETR-6/10N are fixed to SOUNDER and 50/200

kHz, respectively.

HUB

NavNet

Display Unit 1

NavNet

Display Unit 2

NavNet

Display Unit 3

Change sounder

source to "SOUNDER1."

ETR-30N

HOST NAME: 1 ETR-6/10N

Turn power

off to set.

Set up

transducer.

Installation with ETR-30N and ETR-6/10N

If the ETR-6/10N is generating interference, use the interference rejector on the NavNet

display unit to reject it. If that does not work, contact your dealer for advice.

15

2.4 Erasing Transducer Setting

When changing transducer(s), erase previous transducer setting(s) as shown below and

then enter new transducer settings as in paragraph 2.2. (The set cannot transmit unless

transducer settings are entered.)

To erase transducer settings, do the following:

1. Turn on the power while pressing and holding down switch S1 (TDCLR) on the CPU

board.

2. Release S1 when the TX/STBY LED flashes slowly.

S1

02P6307

CPU

Board

TX/STBY

LED lamp

ETR-30N, cover removed

16

3. OPERATION, MAINTENANCE

WARNING

ELECTRICAL SHOCK HAZARD

Do not open the equipment.

Only qualified personnel

should work inside the

equipment.

3.1 Controls

FURUNO

NETWORK SOUNDER ETR-30N

HOST NAME TX/STBY POWER

ON

OFF

I

O

0

1

2

3456

8

7

9

DEFAULT

LED lamp

Flashing:

The NavNet display unit is powered and

communicating with the network sounder.

Lighting (after flashing three minutes):

The NavNet connection cable is

disconnected or damaged.

POWER switch

Turns power

on and off.

HOST NAME Control

Sets host name.

Network sounder ETR-30N

17

3.2 Additions to NavNet Series Operator’s Manual

Depending on the version number of your NavNet series operator’s manual, its echo

sounder descriptions may not match the screens you see. Please add the following

descriptions to your manual if they are not already present.

Choosing pulse repetition rate (PRR)

Pulse repetition rate can be changed to reduce second reflection echoes. Normally, the

highest rate (20) is used. When in shallow waters, second reflection echoes may appear

between surface and actual bottom echo. In this case lower the pulse repetition rate. If the

setting is too small, it may not be possible to search fish schools effectively. Select “20”

unless second reflection echoes appear on the display. The option “S” means the ship’s

speed dependent mode, where the PRR automatically changes with ship’s speed (requires

speed input).

1. Press the [MENU] key to open the menu.

2. Press the SOUNDER MENU soft key.

3. Select PRR LEVEL.

4. Press the EDIT soft key to open the setting window.

5. Use the trackball or cursor pad

to select pulse repetition rate desired.

6. Press the ENTER soft key followed by the [MENU] key to close the menu.

Sounder system setup menu

Menu items for adjustment of STC and frequencies and selection of fishing objective have

been added to the SOUNDER SYSTEM SETUP menu. Press the [MENU] key, choose

SOUNDER SYSTEM SETUP menu and then press the NEXT PAGE soft key.

SYSTEM

SETUP 2

EDIT

PREV

PAGE

STC - HF 00

STC - LF 00

FREQ. ADJ. - HF +00.0

FREQ. ADJ. - LF +00.0

TARGET ECHO NORMAL

Page 2 of sounder system setup menu

STC-HF, LF

Adjusts STC level for the high and low frequencies, and is useful for suppressing surface

noise. The setting range is 0-10; the higher the setting the greater the degree of

suppression. Setting 10 suppresses noise up to about several meters from own ship. Turn

off the STC when there is no noise on the screen, otherwise weak echoes may be missed.

18

FREQ. ADJ

Adjusts transmitting frequency to suppress interference when it cannot be suppressed with

the interference rejector alone.

TARGET ECHO

Sets fishing objective. Choose NORMAL for general fishing; SURFACE for detecting

surface fish. Pulse repetition rate for “SURFACE” is higher than “NORMAL.”

Transducer frequency

The ETR-30N offers various transducer frequencies. Therefore, the descriptions “50 kHz”

and “200 kHz” should read as “LF (Low Frequency)” and “HF (High Frequency),”

respectively.

3.3 Replacing Fuses

The ETR-30N has two fuses to protect against overcurrent: a 5A fuse in the snap-in fuse

holder in the power cable and a 7A fuse inside the network sounder. If a fuse blows, find the

cause before replacing it. If it blows again after replacement, contact a FURUNO agent or

dealer for advice. If the LED lamp is off and the fuse in the power cable is normal, the fuse

inside the network sounder may have blown. If this occurs, contact a FURUNO agent or

dealer.

NOTICE

Use the correct fuse.

Use of a wrong fuse can cause serious

damage to the equipment.

19

3.4 All Clear

When the sounder picture appears to be abnormal, execute the “all clear” function from the

ETR-30N to try to restore normal operation. All clear erases all transducer settings, so

reenter them referring to paragraph 2.2.

1. Turn off the ETR-30N.

2. Remove the cover.

3. Short between #5 and #6 of J9 on the CPU Board and then turn on the power.

02P6307

CPU Board

1 3 5

2 4 6

J9

ETR-30N, cover removed

4. After the TX/STBY LED flashes, turn off the power.

20

This page is intentionally left blank.

A

P-1

APPENDIX NEW BLT TRANSDUCERS

A new type BLT transducer (Bolt-clamp Langevin Transducer) has been developed for this

echo sounder. The BLT transducer has large bandwidth, good sound efficiency, compact

structure and is reinforced for protection against slamming.

Transducer, thru-hull pipe and tank list

Frequency

(kHz) Transducer Hull

Material Tank

(Code No.) Fasten inside

hull (Code No.) Fasten outside

hull (Code No.)

Steel T-693

(000-015-044) TWB-6000 (2)

(000-015-207) TFB-7000 (2)

(000-015-209)

28/200 28BL-6HR/200B-8B

FRP T-693F

(000-015-241) TRB-1100 (2)

(000-015-219) -

Steel T-693

(000-015-044) TWB-6000 (2)

(000-015-207) TFB-7000 (2)

(000-015-209)

38/200 38BL-9HR/200B-8B

FRP T-693F

(000-015-241) TRB-1100 (2)

(000-015-219) -

Steel T-693

(000-015-044) TWB-6000 (2)

(000-015-207) TFB-7000 (2)

(000-015-209)

50/200 50BL-12HR/200B-8B

FRP T-693F

(000-015-241) TRB-1100 (2)

(000-015-219) -

Steel T-681

(000-015-849) TWB-6000 (2)

(000-015-207) TFB-7000 (2)

(000-015-209)

28/38 28BL-12HR/38BL-15HR

FRP T-681F

(000-015-850) TRB-1100 (2)

(000-015-219) -

Steel T-681

(000-015-849) TWB-6000 (2)

(000-015-207) TFB-7000 (2)

(000-015-209)

28/50 28BL-12HR/50BL-24HR

FRP T-681F

(000-015-850) TRB-1100 (2)

(000-015-219) -

Steel T-681

(000-015-849) TWB-6000 (2)

(000-015-207) TFB-7000 (2)

(000-015-209)

38/50 38BL-15HR/50BL-24HR

FRP T-681F

(000-015-850) TRB-1100 (2)

(000-015-219) -

Steel T-682

(000-015-851) TWB-6000 (2)

(000-015-207) TFB-7000 (2)

(000-015-209)

28/88 28BL-12HR/88F-126H

FRP T-682F

(000-015-852) TRB-1100 (2)

(000-015-219) -

Steel T-682

(000-015-851)

TWB-6000 (2)

(000-015-207)

TFB-7000 (2)

(000-015-209)

38/88 38BL-15HR/88F-126H

FRP T-682F

(000-015-852)

TRB-1100 (2)

(000-015-219) -

A

P-2

Steel T-682

(000-015-851) TWB-6000 (2)

(000-015-207) TFB-7000 (2)

(000-015-209)

50/88 50BL-24HR/88-126H

FRP T-682F

(000-015-852) TRB-1100 (2)

(000-015-219) -

Steel T-683

(000-015-853) TWB-6000 (2)

(000-015-207) TFB-7000 (2)

(000-015-209)

28/200 28BL-12HR/200B-12H

FRP T-683F

(000-015-854) TRB-1100 (2)

(000-015-219) -

Steel T-683

(000-015-853) TWB-6000 (2)

(000-015-207) TFB-7000 (2)

(000-015-209)

38/200 38BL-15HR/200B-12H

FRP T-683F

(000-015-854) TRB-1100 (2)

(000-015-219) -

Steel T-683

(000-015-853) TWB-6000 (2)

(000-015-207) TFB-7000 (2)

(000-015-209)

50/200 50BL-24HR/200B-12H

FRP T-683F

(000-015-854) TRB-1100 (2)

(000-015-219) -

Steel T-683

(000-015-853) TWB-6000 (2)

(000-015-207) TFB-7000 (2)

(000-015-209)

28/150 28BL-12HR/150B-12H

FRP T-683F

(000-015-854) TRB-1100 (2)

(000-015-219) -

Steel T-683

(000-015-853) TWB-6000 (2)

(000-015-207) TFB-7000 (2)

(000-015-209)

38/150 38BL-15HR/150-12H

FRP T-683F

(000-015-854) TRB-1100 (2)

(000-015-219) -

Steel T-683

(000-015-853) TWB-6000 (2)

(000-015-207) TFB-7000 (2)

(000-015-209)

38/150 50BL-24HR/156-12H

FRP T-683F

(000-015-854) TRB-1100 (2)

(000-015-219) -

Settings

1. Referring page 6, set the tap as follows.

Transducer Output Tap

28BL-6HR C

38BL-9HR C

50BL-12HR

2

C

28BL-12HR E

38BL-15HR E

50BL-24HR

3

E

2. Referring page 11, set the menu as below.

TRANSDUCER SETUP: MANUAL

FREQUENCY: 28/38/50 kHz

SP - 1 E2027S01A

SPECIFICATIONS OF NETWORK SOUNDER

ETR-30N

1 GENERAL

1.1 Transmit Method Dual frequencies transmitting

1.2 Output Power 1/2/3 kWrms, selectable

1.3 Frequency 28.8-200 kHz, automatic synthesizer

1.4 Gain 0 dBµV, S/N 10 dB or more

1.5 Amplifier Double super linear amplifier

1.6 Dynamic Range 100 dB or more

1.7 Band Width 0.2-5 kHz, variable

1.8 Network Protocol Ethernet 10 base-T

2 POWER SUPPLY

2.1 Transceiver Unit 12-24 VDC: 2.5-1.25 A (TX), 30 VA max.

2.2 Rectifier (PR-62, option) 100/110/115/220/230 VAC, 1 phase, 50/60Hz

3 ENVIRONMENTAL CONDITION

3.1 Ambient Temperature -15°C to +55°C

3.2 Relative Humidity 95% at 40°C

3.3 Waterproof IPX0

3.4 Vibration IEC 60945

4 COATING COLOR

2.5GY5/1.5

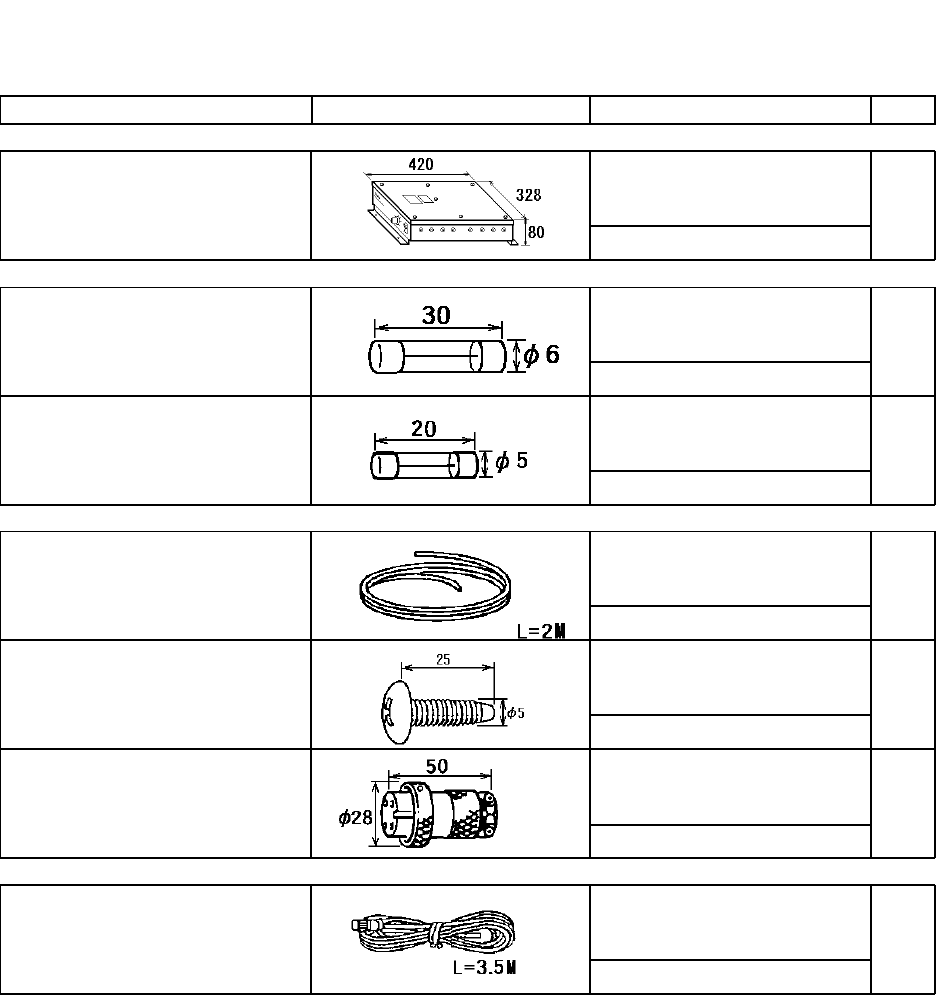

ＰＡＣＫＩＮＧ　ＬＩＳＴ

ＰＡＣＫＩＮＧ　ＬＩＳＴＰＡＣＫＩＮＧ　ＬＩＳＴ

ＰＡＣＫＩＮＧ　ＬＩＳＴ

02FR-X-9852 -2

ETR-30N-E/J－N

ETR-30N-E/J－NETR-30N-E/J－N

ETR-30N-E/J－N

N A M E O U T L I N E DESCRIPTION/CODE №Q'TY

1/1

ユニット

ユニットユニット

ユニット UNIT

UNITUNIT

UNIT

魚探用送受信器

NETWORK SOUNDER

ETR-30N

002-180-070

1

予備品

予備品予備品

予備品 SPARE PARTS

SPARE PARTSSPARE PARTS

SPARE PARTS SP02-04601

SP02-04601SP02-04601

SP02-04601

ﾋｭｰｽﾞ

FUSE

FGBO-A 5A AC125V

000-549-064

3

ﾋｭｰｽﾞ

FUSE

FGMB 7A 125V

000-105-868

3

工事材料

工事材料工事材料

工事材料 INSTALLATION MATERIALS

INSTALLATION MATERIALSINSTALLATION MATERIALS

INSTALLATION MATERIALS CP02-07101

CP02-07101CP02-07101

CP02-07101

ﾋﾞﾆｰﾙ線

VINYL WIRE

KIV 2.0SQ ｸﾛ　*2M*

000-554-516

1

+ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ　1種

TAPPING SCREW

5X25 SUS304

000-802-082

4

ｺﾈｸﾀ(NCS)

CONNECTOR

NCS-254-P

000-506-505

2

その他工材

その他工材その他工材

その他工材 OTHER INSTALLATION MATERIALS

OTHER INSTALLATION MATERIALSOTHER INSTALLATION MATERIALS

OTHER INSTALLATION MATERIALS

ｹｰﾌﾞﾙ組品MJ

CABLE ASSY.

MJ-A3SPF0013-035

000-129-613

1

（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）

（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）

（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）

C2027-Z02-B

A - 1

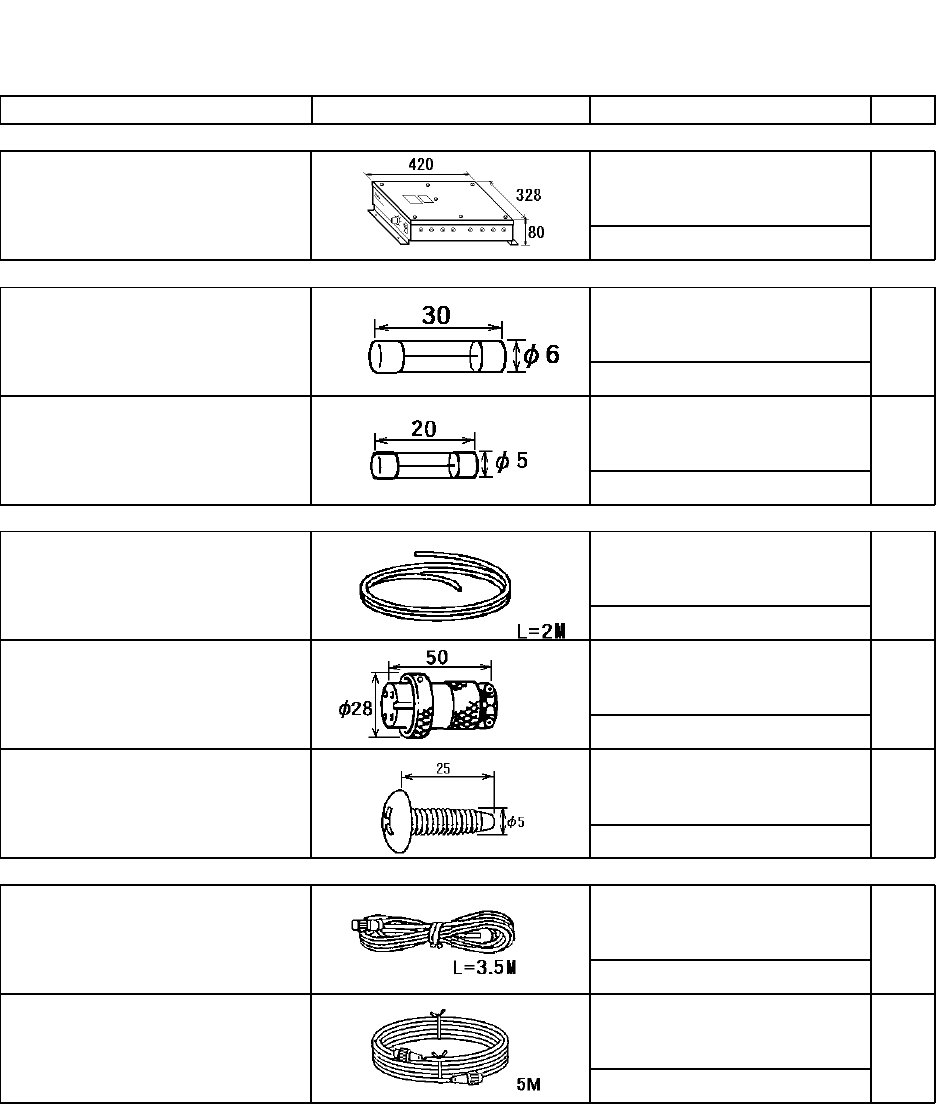

ＰＡＣＫＩＮＧ　ＬＩＳＴ

ＰＡＣＫＩＮＧ　ＬＩＳＴＰＡＣＫＩＮＧ　ＬＩＳＴ

ＰＡＣＫＩＮＧ　ＬＩＳＴ

02FR-X-9851-3

ETR-30N-E/J-A

ETR-30N-E/J-AETR-30N-E/J-A

ETR-30N-E/J-A

N A M E O U T L I N E DESCRIPTION/CODE №Q'TY

1/1

ユニット

ユニットユニット

ユニット UNIT

UNITUNIT

UNIT

魚探用送受信器

NETWORK SOUNDER

ETR-30N

002-180-070

1

予備品

予備品予備品

予備品 SPARE PARTS

SPARE PARTSSPARE PARTS

SPARE PARTS SP02-04601

SP02-04601SP02-04601

SP02-04601

ﾋｭｰｽﾞ

FUSE

FGBO-A 5A AC125V

000-549-064

3

ﾋｭｰｽﾞ

FUSE

FGMB 7A 125V

000-105-868

3

工事材料

工事材料工事材料

工事材料 INSTALLATION MATERIALS

INSTALLATION MATERIALSINSTALLATION MATERIALS

INSTALLATION MATERIALS CP02-07101

CP02-07101CP02-07101

CP02-07101

ﾋﾞﾆｰﾙ線

VINYL WIRE

KIV 2.0SQ ｸﾛ　*2M*

000-554-516

1

ｺﾈｸﾀ(NCS)

CONNECTOR

NCS-254-P

000-506-505

2

+ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ　1種

TAPPING SCREW

5X25 SUS304

000-802-082

4

その他工材

その他工材その他工材

その他工材 OTHER INSTALLATION MATERIALS

OTHER INSTALLATION MATERIALSOTHER INSTALLATION MATERIALS

OTHER INSTALLATION MATERIALS

ｹｰﾌﾞﾙ組品MJ

CABLE ASSY.

MJ-A3SPF0013-035

000-129-613

1

ｹｰﾌﾞﾙ組品MJ

CABLE ASSY.

MJ-A6SPF0014-050 *5M*

000-144-422

1

（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）

（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）

（略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）

C2027-Z01-C

A - 2

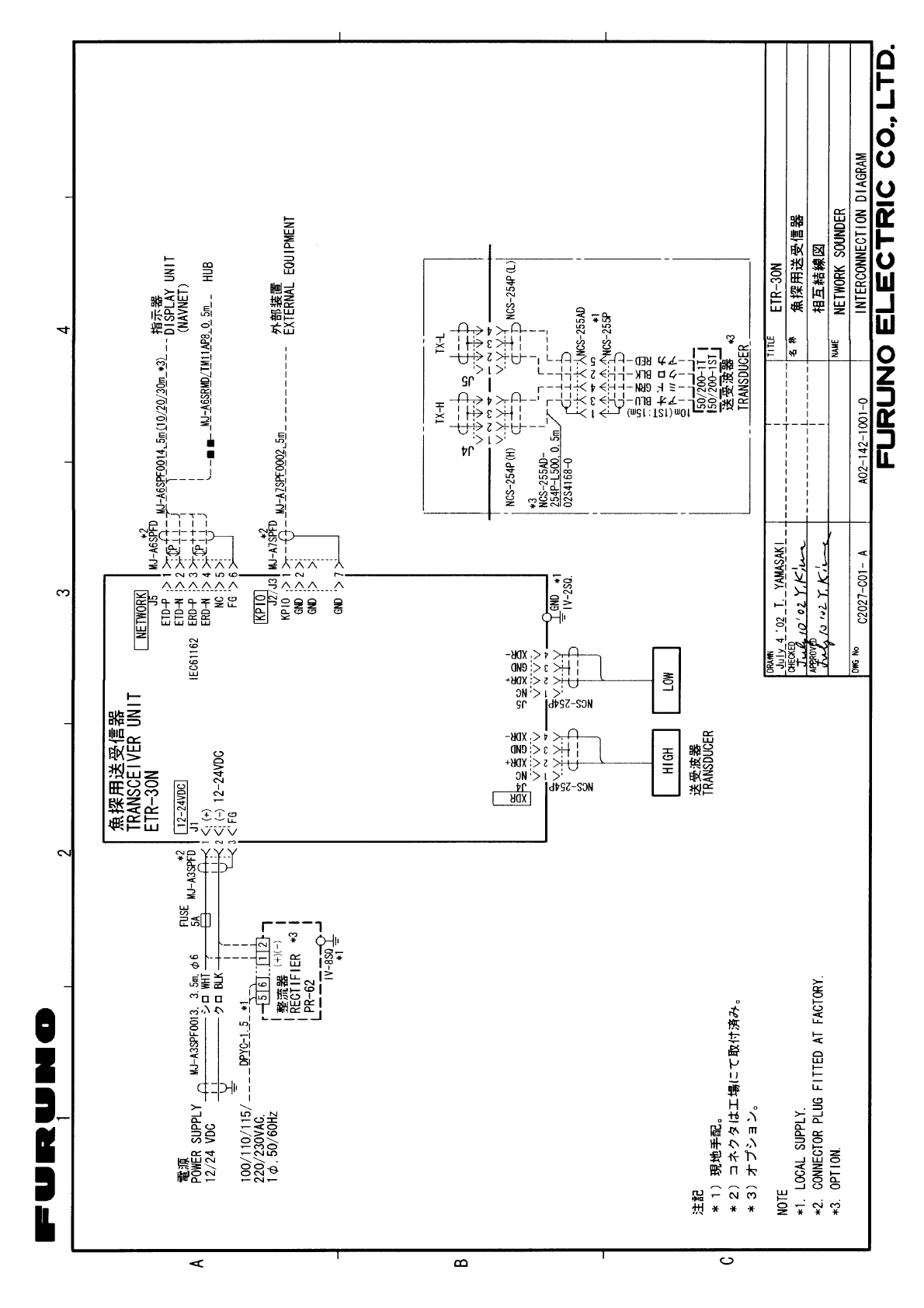

D - 1

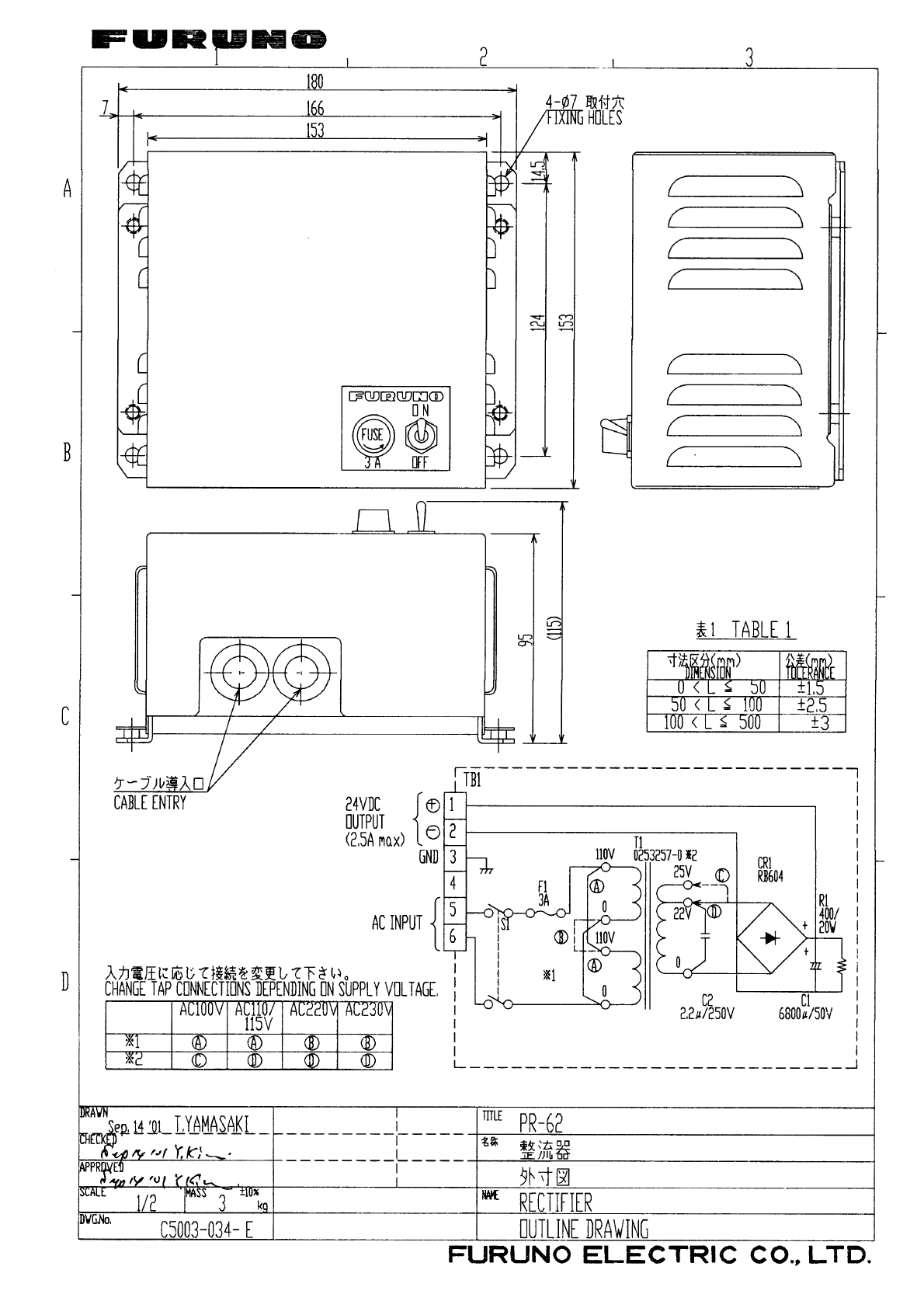

D - 2

S - 1

Your Local Agent/DealerYour Local Agent/Dealer

9-52 Ashihara-cho,9-52 Ashihara-cho,

Nishinomi

y

a, Ja

p

anNishinomi

y

a, Ja

p

an

Tele

p

hone :Tele

p

hone : 0798-65-21110798-65-2111

fa

x

fa

x

0798-65-42000798-65-4200

::

F

IRST EDITION :

F

IRST EDITION :

A

UG.

A

UG. 20022002

Printed in JapanPrinted in Japan

A

ll ri

g

hts reserved.

A

ll ri

g

hts reserved.

B1B1 :: MAR.MAR. 23,200423,2004

PUB.No.PUB.No. OME-20270OME-20270

*00080932900**00080932900*

*00080932900**00080932900*

(( YOSHYOSH )) ETR-30NETR-30N

* 0 0 0 8 0 9 3 2 9 0 0 ** 0 0 0 8 0 9 3 2 9 0 0 *

*OME20270B10**OME20270B10*

*OME20270B10**OME20270B10*

* O M E 2 0 2 7 0 B 1 0 ** O M E 2 0 2 7 0 B 1 0 *
