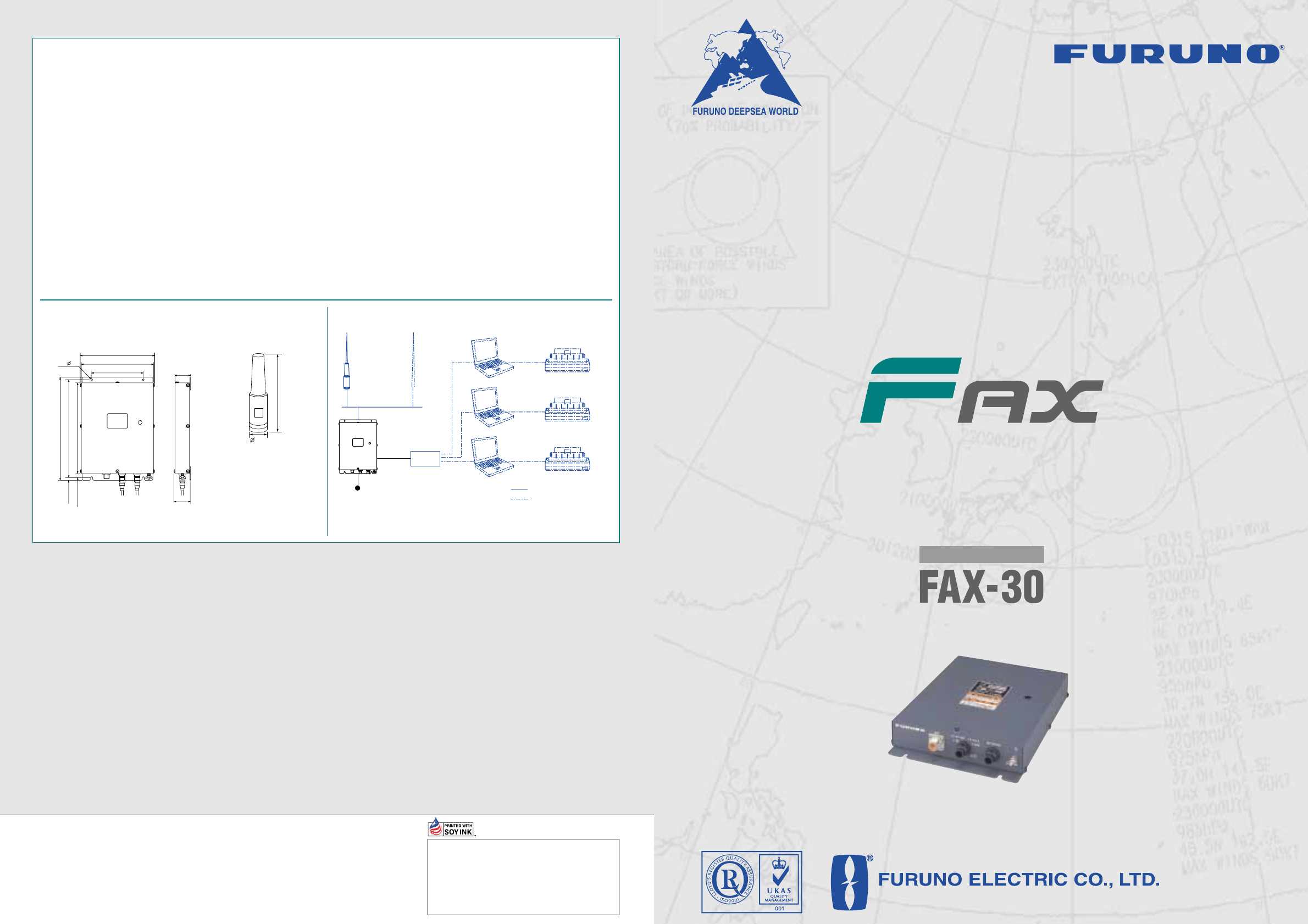

FAX

SPECIFICATIONS

INTERCONNECTION DIAGRAM

GENERAL

Frequency

FAX: LF 80-160 kHz

MF/HF 2-25 MHz

NAVTEX: 490 kHz, 518 kHz

Class of Emission

FAX: F3C/J3C

NAVTEX: F1B

Receiving System Double superheterodyne

Number of Channels 1000 channels

Scanning Speed 60, 90, 120, 180 or 240 r.p.m.,

automatic or manual selection

IOC 576 or 288

automatic or manual selection

Display Color Monochrome, 8 shades of gray,

Blue shades, Pink and Black,

Red and blue

Networking Interface Ethernet 10 BASE-T TCP/IP

POWER SUPPLY 12-24 VDC, 1.0-0.5 A

MINIMUM SYSTEM REQUIREMENTS FOR PC

OS: Windows 98, 2000, ME, XP

CPU: 600 MHz or faster

RAM: 128 MB or more

Resolution: 1024 x 768 pixels

Network Facility: Ethernet network facility required

Browser:

Internet Explorer Ver. 5.01 SP2/5.5 SP2/6.0 SP1

Netscape® Communicator Ver. 4.78/6.2/7.0

Environment

Temperature -15°C to +55°C

Waterproof IPX2

EQUIPMENT LIST

Standard

1. Receiver Unit FAX-30 1 unit

2. Installation Materials and Spare Parts 1 set

(including 5 m Power Cable)

Option

1. Preamp Unit FAX-5 with 15 m cable

2. Whip Antenna for FAX-5 04S4176

3. Antenna Fixing Clamp OP08-11

4. Extension Kit for Antenna Cable OP-04-2 10/20/30/40/50 m

5. PC Adapter Cable MJ-A6SPF/TM11AP8C050

6. HUB Adapter Cable MJ-A6SRMD/TM11AP8-005

Receiver Unit

FAX-30 2.0 kg 4.4 lb

Preamp Unit (option)

FAX-5 1.3 kg 2.9 lb

Facsimile Receiver

212 8.4"

64

150 5.9"

210 8.3"

217 8.5"

4- 6

300 11.8"

285 11.2"

264 10.4"

8 0.3"

12 0.5"

45 1.8"

48 1.9"

Receiver

Unit

12-24 VDC

15 m Printer

PC

Printer

PC

Printer

PC

Locally arranged

Option

Whip Antenna

5 m

NOTE: FAX-30 cannot be accessed by more than one PC at a time.

* Not required to connect single PC.

HUB*

Preamp Unit

FAX-5

Catalogue No. FX-618b

FURUNO U.S.A., INC.

Camas, Washington, U.S.A.

Phone: +1 360-834-9300

Fax: +1 360-834-9400

FURUNO (UK) LIMITED

Denmead, Hampshire, U.K.

Phone: +44 2392-230303

Fax: +44 2392-230101

FURUNO FRANCE S.A.

Bordeaux-Mérignac, France

Phone: +33 5 56 13 48 00

Fax: +33 5 56 13 48 01

FURUNO ESPAÑA S.A.

Madrid, Spain

Phone: +34 91-725-90-88

Fax: +34 91-725-98-97

FURUNO DANMARK AS

Hvidovre, Denmark

Phone: +45 36 77 45 00

Fax: +45 36 77 45 01

FURUNO NORGE A/S

Ålesund, Norway

Phone: +47 70 102950

Fax: +47 70 127021

FURUNO SVERIGE AB

Västra Frölunda, Sweden

Phone: +46 31-7098940

Fax: +46 31-497093

FURUNO FINLAND OY

Espoo, Finland

Phone: +358 9 4355 670

Fax: +358 9 4355 6710

FURUNO POLSKA

Sp. Z o.o.

Gdynia, Poland

Phone: +48 58 669 02 20

Fax: +48 58 669 02 21

FURUNO

DEUTSCHLAND GmbH

Rellingen, Germany

Phone: +49 4101 838 0

Fax: +49 4101 838 111

FURUNO EURUS LLC

Petersburg, Russia

Phone: +7 812 767 15 92

Fax: +7 812 766 55 52

05085U Printed in Japan

The future today with FURUNO's electronics technology.

9-52 Ashihara-cho, Nishinomiya City, Japan Phone: +81 (0)798 65-2111

Fax: +81 (0)798 65-4200, 66-4622 URL: www.furuno.co.jp TRADE MARK REGISTERED

MARCA REGISTRADA

TRADE MARK REGISTERED MARCA REGISTRADA

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

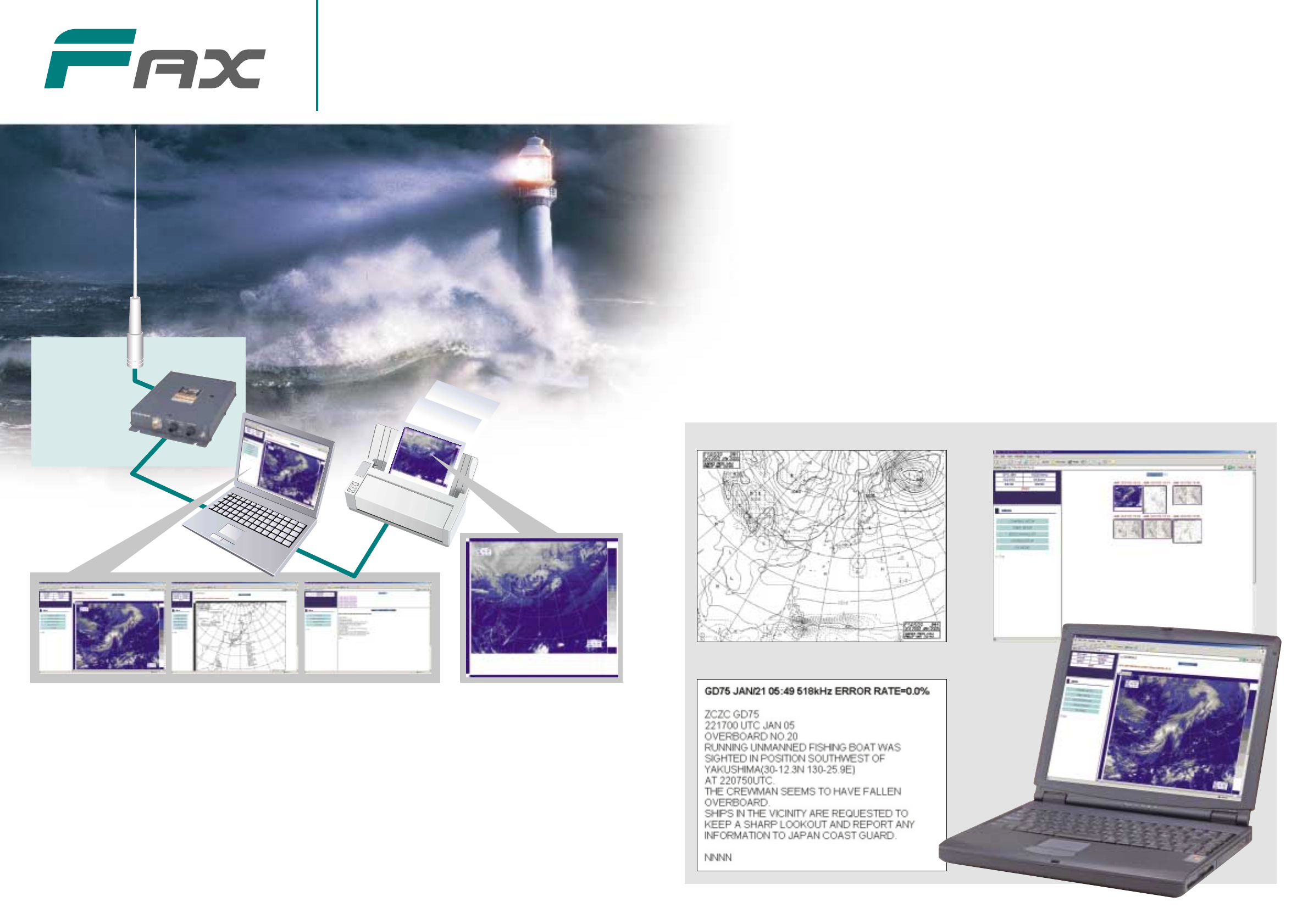

The FURUNO FAX-30 can turn any commercial PC into

a weather fax and NAVTEX receiver. This "BlackBox"

receiver unit allows direct connection with a single

Ethernet cable to a commercial PC showing weather

charts and satellite images.

The standard package includes the receiver unit and

installation materials. An optional antenna and Windows®

based PC are required for basic operation.

The information can be viewed simply by using an Internet

browser, there is no complicated software to learn.

Print out the weather and NAVTEX information by using

a printer interfaced with a PC. In addition, the FAX-30 has

no mechanical moving parts, which provides maintenance-

free and cost-effective solutions for safety information

gathering.

The FAX-30 receives weather map broadcasts from a fax

transmitting station working under World Meteorological

Organization (WMO) standards. Up to twelve received

pictures can be stored on the internal memory.

Drum speeds, Index of Cooperation (IOC), and other

essential parameters are manually or automatically

selected to ensure quality reception. The fax station,

which provides optimum image quality, can be searched

utilizing the auto channel mode. The station is selected

according to the quality of the signal reception. Phase and

synchronization can be adjusted even after the reception

is completed.

The stored pictures can be freely rotated or zoomed in/out

on the screen. Display colors are selectable from three

patterns of color, eight tones of gray scale and

monochrome.

With a built-in NAVTEX receiver, you can view up to 130

recently received NAVTEX messages. The NAVTEX

messages cannot be received while receiving FAX images.

Facsimile Receiver

FAX-30

Satellite


Weather Chart Browsing Screen

Navtex Message

FURUNO’s cost effective solution

for gathering crucial Weather/Navigation information on a PC

Facsimile Receiver

sBlackBox unit connects directly to a PC with

a printer through a single Ethernet cable.

sPresents weather charts, satellite images and

NAVTEX messages on a PC screen

sSelected images/messages can be printed out

from a printer interfaced with a PC

sNoise Rejection for clearer images

sStraightforward operation by using web

browser such as Internet Explorer or Netscape®

s

Thumbnail view for easy selection of stored images

sBuilt-in NAVTEX receiver

(The receiver does not conform to GMDSS regulations.)

sStorage of up to twelve images and 130

NAVTEX messages on internal memory

sFully automatic facsimile operation with

a built-in schedule timer

sFacsimile images available in color, gray scale

or monochrome

Receiver Unit

FAX-30

Preamp Unit (option)

FAX-5

Printer
