COLOR GPS/PLOTTER
GP-3500
Back
The paper used in this manual
is elemental chlorine free.
Your Local Agent/Dealer Your Local Agent/Dealer
9-52 Ashihara-cho,9-52 Ashihara-cho,
Nishinomi
y
a 662-8580, JAPANNishinomi
y
a 662-8580, JAPAN
Tele
p
hone :Tele
p
hone : 0798-65-21110798-65-2111
FaxFax 0798-65-42000798-65-4200
::
F
IRST EDITION :
F
IRST EDITION : JULJUL.. 20032003
Printed in JapanPrinted in Japan
A
ll ri
g
hts reserved.
A
ll ri
g
hts reserved.
F4F4 :: APRAPR.. 13, 200513, 2005
Pub. No.Pub. No. OME-44210OME-44210
*
00014677602
*
*
00014677602
*
*
00014677602
*
*
00014677602
*
(( TATATATA )) GP-3500GP-3500 * 0 0 0 1 4 6 7 7 6 0 2 ** 0 0 0 1 4 6 7 7 6 0 2 *
*
44210
F
40
*
*
44210
F
40
*
*
44210
F
40
*
*
44210
F
40
*
* O M E 4 4 2 1 0 F 4 0 ** O M E 4 4 2 1 0 F 4 0 *
i
SAFETY INSTRUCTIONS
WARNING
Do not disassemble or modify the
equipment.
Fire, electrical shock or serious injury can
result.
Immediately turn off the power at the
switchboard if the equipment is emitting
smoke or fire.
Continued use of the equipment can cause
fire or electrical shock. Contact a FURUNO
agent for service.
Keep heater away from equipment.
A heater can melt the equipment's power
cord, which can cause fire or electrical
shock.
Use the proper fuse.
Fuse rating is shown on the power cable.
Use of a wrong fuse can result in damage
to the equipment.
Do not operate the unit with wet hands.
Erectlic shock can result.
ELECTRICAL SHOCK HAZARD
Do not open the equipment.
Only qualified personnel
should work inside the
equipment.
The TFT LCD is constructed using the
latest LCD techniques, and displays
99.99% of its pixels. The remaining 0.01%
of the pixels may drop out or blink,
however this is not an indication of
malfunction.
About the TFT LCD
CAUTION
No one navigation device should ever be
solely replied upon for the navigation of
a vessel.
Always confirm position against all available
aids to navigation, for safety of vessel and
crew.
A warning label is attached to the equip-
ment. Do not remove the label. If the
label is missing or damaged, contact
a FURUNO agent or dealer about
replacement.
WARNING
To avoid electrical shock, do not
remove cover. No user-serviceable
parts inside.
Name: Warning Label (1)
Type: 86-003-1011-1
Code No.: 100-236-231
WARNING LABEL
No single navigation aid should even be
relied upon as the exclusive means for
navigating your vessel.
The navigator is responsible for checking
all aids (including nautical charts) available
to confirm his position. Electronic aids are
intended to assist, not replace, the
navigator.
Do not use the equipment for other than
its intended purpose.
ii
FOREWORD
Congratulation on your choice of the FURUNO GPS COLOR PLOTTER
GP-3500. For over 50 years FURUNO Electric Company has enjoyed an
enviable reputation for innovative and dependable marine electronics equipment.
This dedication to excellence is furthered by our extensive global network of
agents and dealers.
The equipment is designed and constructed to meet the rigorous demands of
the marine environment. However, no machine can perform its intended function
unless installed, operated and maintained properly. Please carefully read and
follow the recommended procedures for operation and maintenance.
Feature
The GP-3500 consists of the display unit and antenna unit. The display unit is
totally integrated GPS receiver and color video plotter.
The GPS receiver tracks up to thirteen satellites (GPS: 12, WAAS: 1)
simultaneously, and an 8-state Kalman filter ensures optimum accuracy in
determination of vessel position, course and speed.
Main features of the GP-3500
• Bright 10.4-inch color TFT LCD with
temperature compensated tone and
brilliance control
• Simplified operation using individual keys,
ENTER knob and trackball
• Three lines, main and sub of own ship’s
track, and other ship’s track can be
displayed simultaneously.
• Accepts FURUNO and NavCharts
(NAVIONICS) charts, or C-MAP NT charts
(C-MAP), depending on specification. All
names mentioned are registered
trademarks of their respective companies.
• Fast chart redraw.
• Built-in backup memory stores 80,000
points total of own ship’s tracks and marks
• Stores 3500 waypoints and 200 routes with
up to 35 waypoints.
• Man overboard feature records latitude and
longitude coordinates at time of man
overboard.
• Alarms: Arrival, Anchor Watch, Cross-track
Error, Proximity, Speed, Trip, Temperature,
Current and Depth.
• User programmable PROG key
• Own ship and cursor positions may be
shown in latitude and longitude, Loran A,
Loran C or Decca LOPs.
• Data storage on memory cards.
• Improved position accuracy with optional
DGPS beacon receiver.
iii
TABLE OF CONTENTS

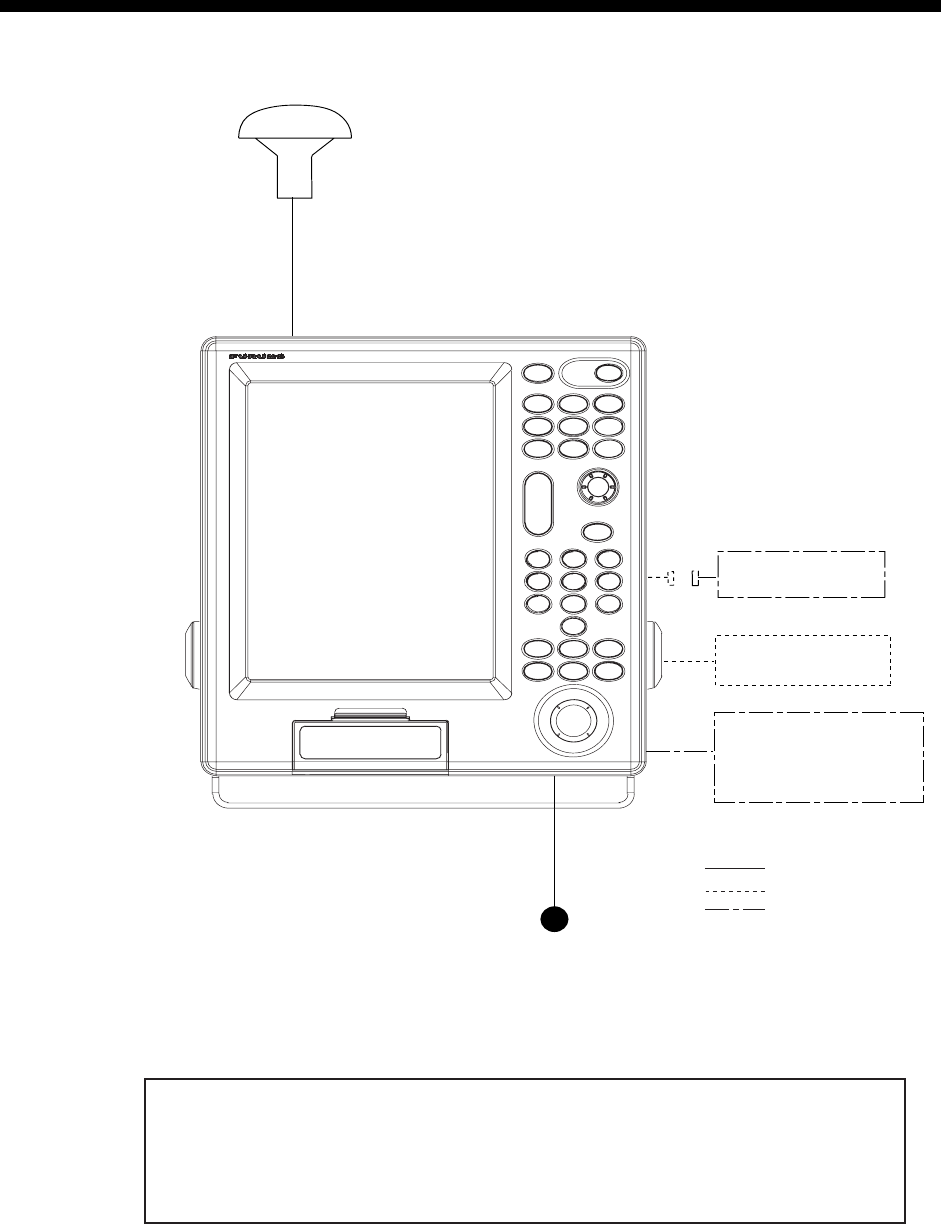

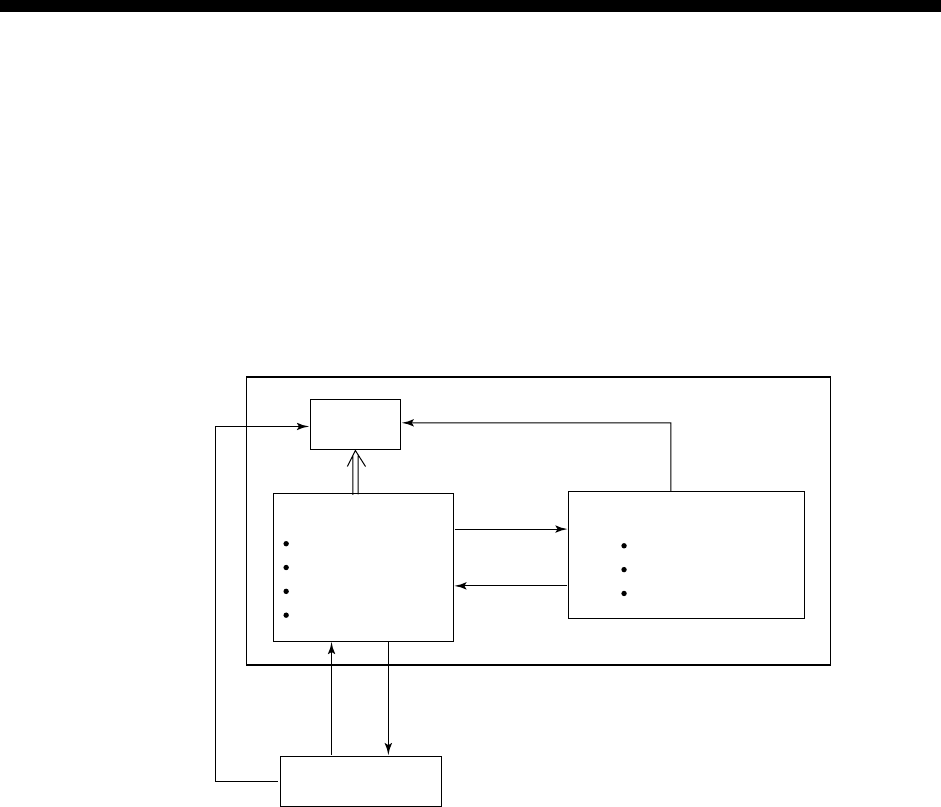

SYSTEM CONFIGURATIONS ............................................................................ vii
1. BASIC OPERATION ......................................................................................1-1

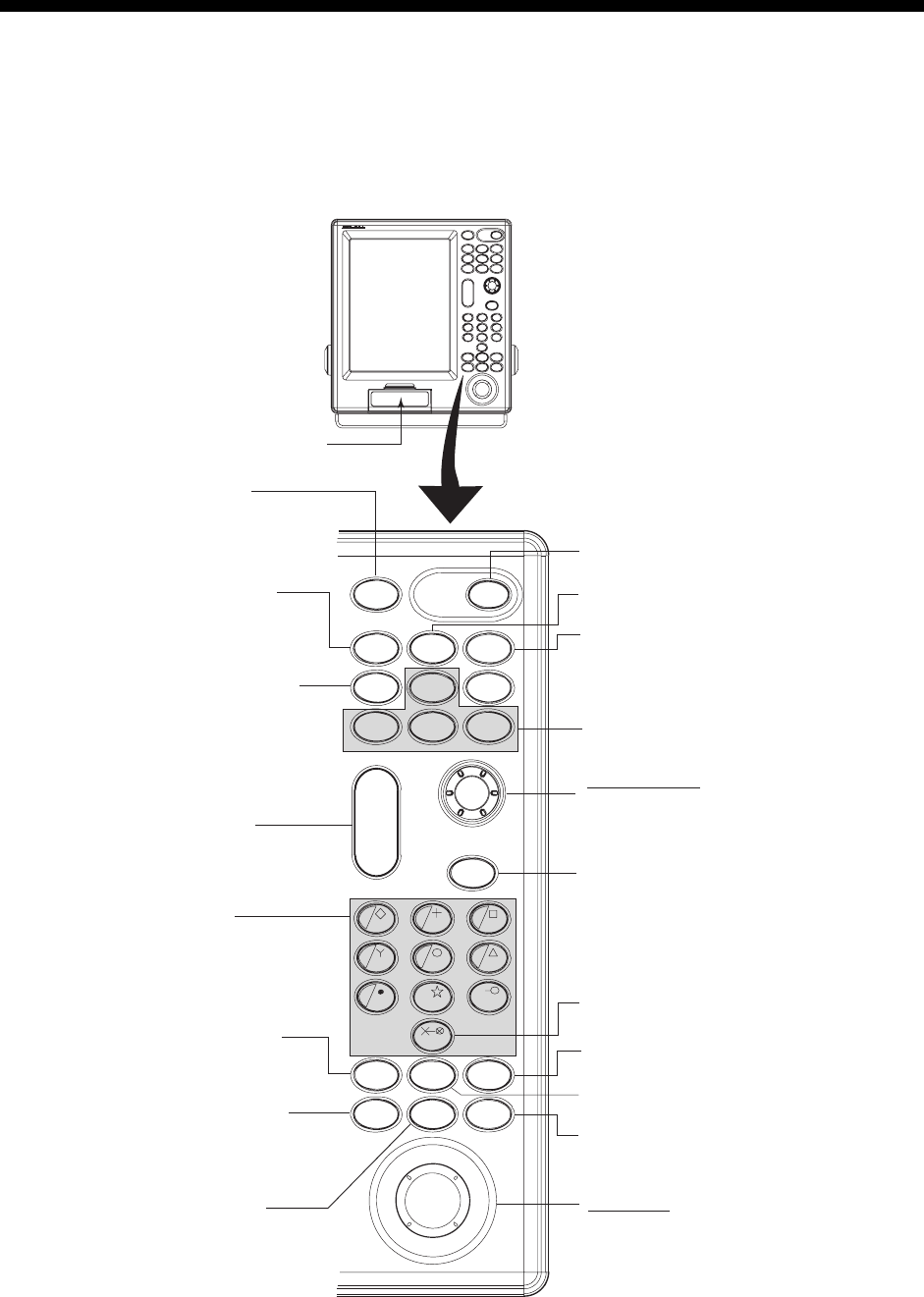

1.1 Controls Description ..................................................................................................1-1

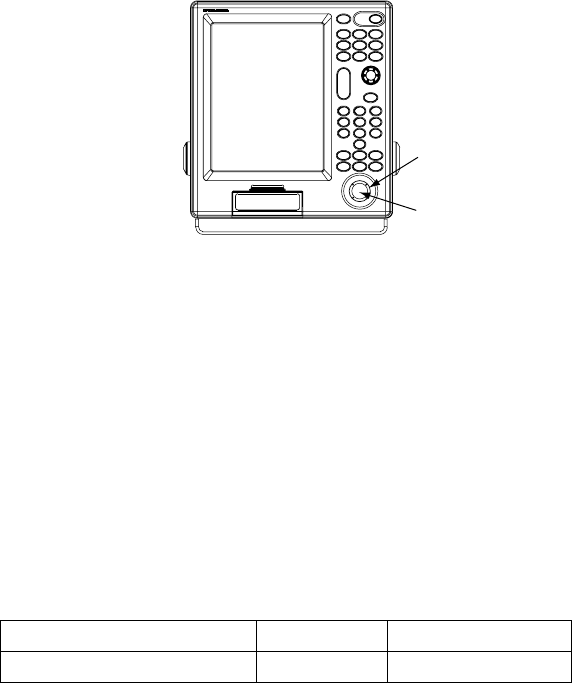

1.1.1 Display unit ..................................................................................................... 1-1

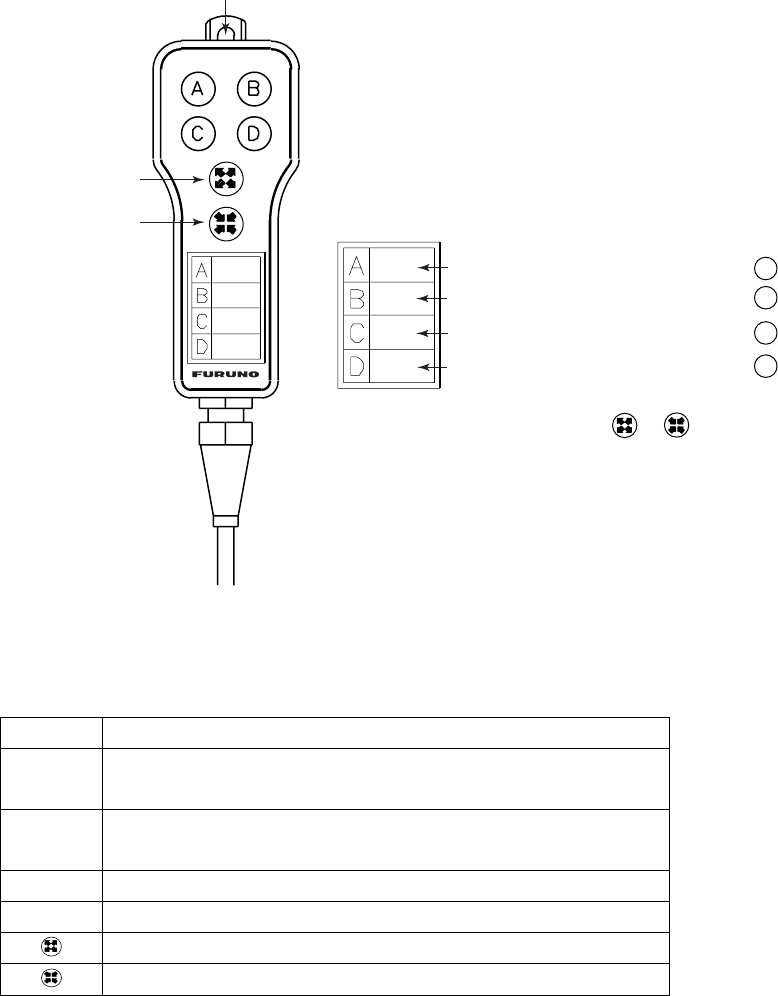

1.1.2 Remote controller............................................................................................1-2
1.2 Loading a Mini Chart Card......................................................................................... 1-3
1.3 Turning the Power On/Off .......................................................................................... 1-4
1.4 Adjusting Brilliance and Hue...................................................................................... 1-6
1.4.1 Adjusting display brilliance ..............................................................................1-6
1.4.2 Adjusting control panel dimmer ....................................................................... 1-7
1.4.3 Selecting hue ..................................................................................................1-9

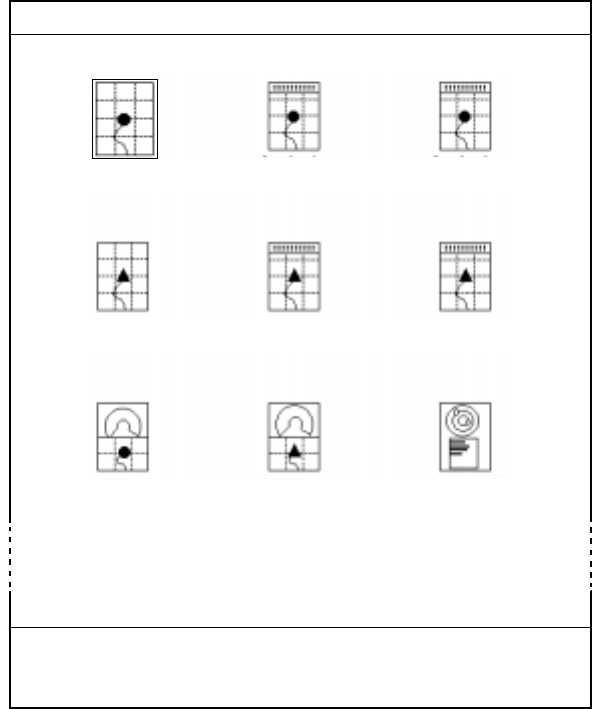

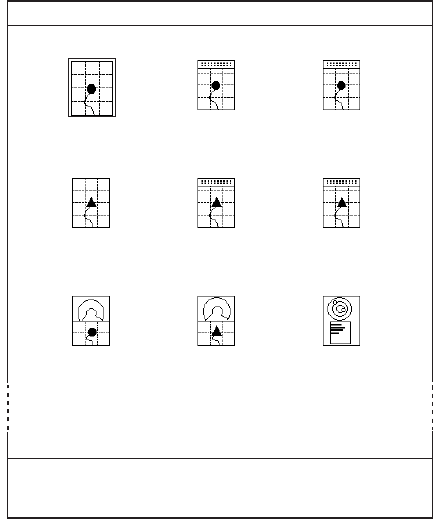

1.5 Selecting a Display .................................................................................................. 1-10

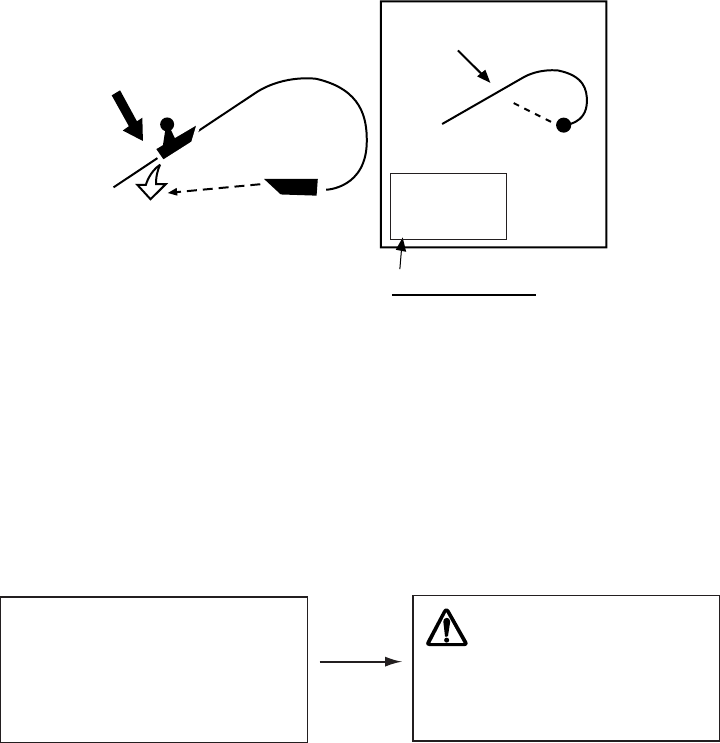

1.6 MOB Mark ............................................................................................................... 1-11
1.7 Using PROG Key..................................................................................................... 1-12
1.8 Simulation Mode......................................................................................................1-13

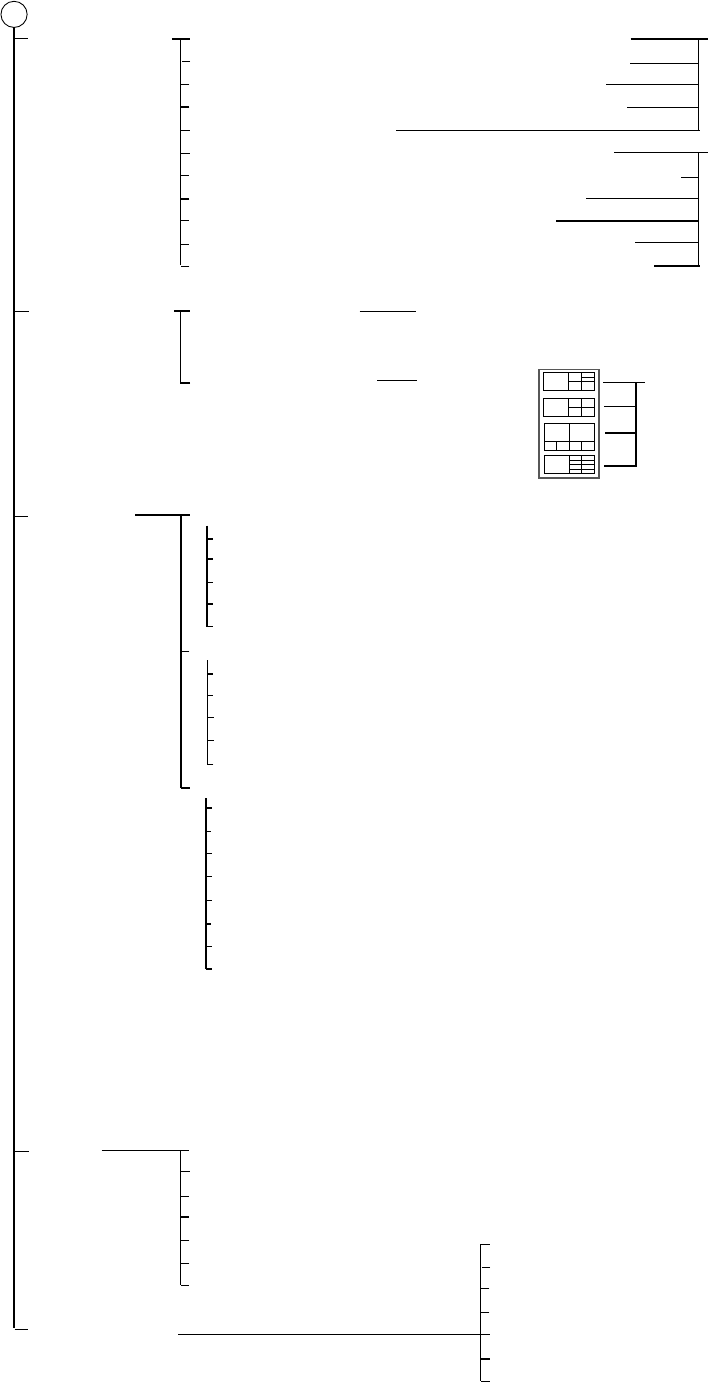

1.9 Menu Overview........................................................................................................ 1-15
2. PLOTTER AND PILOT DISPLAY DESCRIPTION.........................................2-1
2.1 Plotter and Pilot Displays...........................................................................................2-1
2.1.1 Plotter display.................................................................................................. 2-1
2.1.2 Pilot display..................................................................................................... 2-2
2.1.3 NAV INFO 1 display ........................................................................................ 2-3
2.1.4 Compass plotter (or pilot) display .................................................................... 2-4

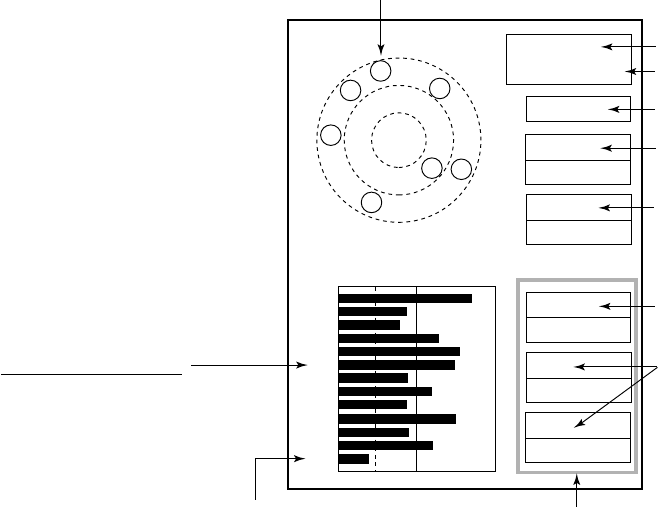

2.1.5 GPS status display..........................................................................................2-6
2.2 Operating the Cursor ................................................................................................. 2-7
2.3 Shifting the Display.................................................................................................... 2-8
2.4 Changing Chart Scale................................................................................................ 2-8
2.5 Measuring Range and Bearing Between two Points ..................................................2-9
2.6 Using the VRM (Variable Range Marker)................................................................. 2-11
2.7 Mini Chart Cards...................................................................................................... 2-12
3. TRACK ...........................................................................................................3-1

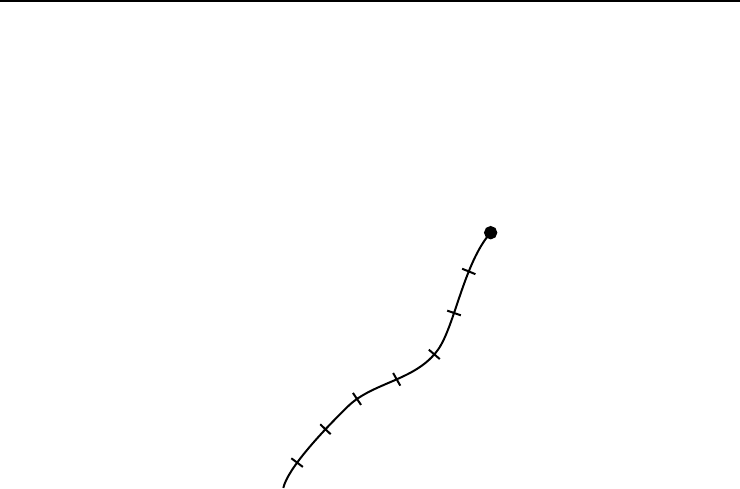

3.1 Displaying Track ........................................................................................................3-1
3.1.1 Own ship’s track.............................................................................................. 3-1
3.1.2 Sub track......................................................................................................... 3-3
3.1.3 Other ship’s track ............................................................................................3-4
3.2 Stopping, Restarting Plotting of Own Ship Track........................................................ 3-5
3.2.1 Displaying own ship’s track while track plotting is stopped .............................. 3-6
3.2.2 Connecting own ship’s track when resuming plotting....................................... 3-7

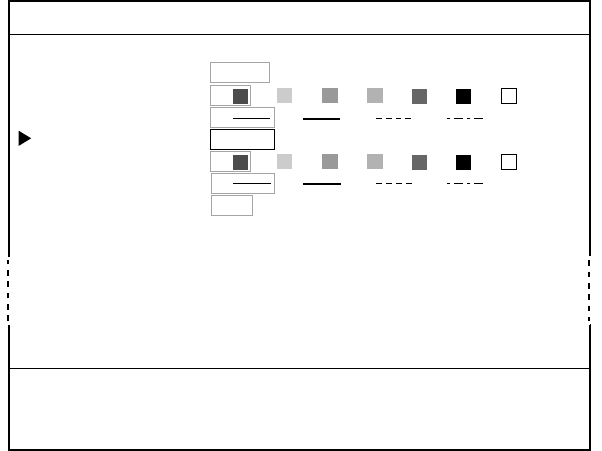

3.3 Changing Track Color................................................................................................3-8
3.3.1 Changing own ship’s track color...................................................................... 3-8
3.3.2 Changing sub track color................................................................................. 3-8
3.3.3 Changing target track color .............................................................................3-8
i
v
3.3.3 Changing target track color............................................................................. 3-8
3.3.4 Automatically changing own ship’s track color by water temperature.............. 3-9
3.3.5 Changing own ship’s track color according to depth.......................................3-11
3.4 Changing Track Line Type....................................................................................... 3-13
3.5 Track Plotting Method, Interval................................................................................ 3-13
3.5.1 Track plotting method.................................................................................... 3-13
3.5.2 Track plotting interval.................................................................................... 3-14
3.6 Erasing Tracks ........................................................................................................ 3-15
3.6.1 Erasing tracks by color.................................................................................. 3-15
3.6.2 Erasing tracks by line type............................................................................ 3-18

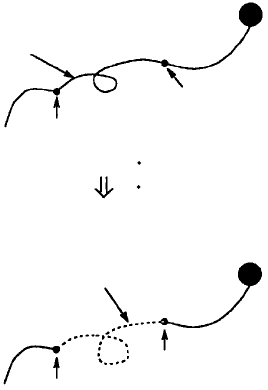

3.7 Editing Tracks.......................................................................................................... 3-19
3.8 Changing Track Memory Capacity........................................................................... 3-20
4. MARKS & LINES ...........................................................................................4-1
4.1 Entering Marks.......................................................................................................... 4-1

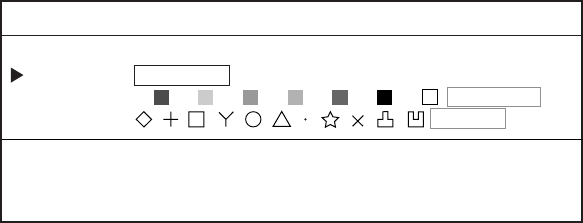

4.2 Changing Mark Color ................................................................................................ 4-3
4.3 Changing Mark Size.................................................................................................. 4-4
4.4 Entering Lines ........................................................................................................... 4-5
4.5 Selecting Line Type................................................................................................... 4-5
4.6 Erasing Marks, Lines................................................................................................. 4-6
4.7 Editing Marks, Lines.................................................................................................. 4-9
4.8 Displaying Mark Data .............................................................................................. 4-10
4.9 Target Mark (TLL).................................................................................................... 4-10
5. WAYPOINT.....................................................................................................5-1
5.1 Entering Waypoints ................................................................................................... 5-1
5.1.1 Entering waypoints at own ship’s position....................................................... 5-1
5.1.2 Entering waypoints by the cursor .................................................................... 5-2
5.1.3 Entering waypoints by latitude and longitude position ..................................... 5-3
5.1.4 Entering waypoints by range and bearing ....................................................... 5-6
5.1.5 Entering waypoints by Loran A or Loran C LOPs............................................. 5-7
5.1.6 Entering waypoints by Decca LOPs................................................................ 5-8
5.2 Editing Waypoint Data............................................................................................... 5-9
5.3 Erasing Individual Waypoints................................................................................... 5-10
5.4 Searching Waypoints................................................................................................5-11
5.5 Setting Ship’s Speed for TTG .................................................................................. 5-12
5.6 Displaying Waypoint Data........................................................................................ 5-13
5.7 Changing Waypoint Mark Size (NAVchart TM/FURUNO only)................................... 5-14
6. ROUTE ..........................................................................................................6-1

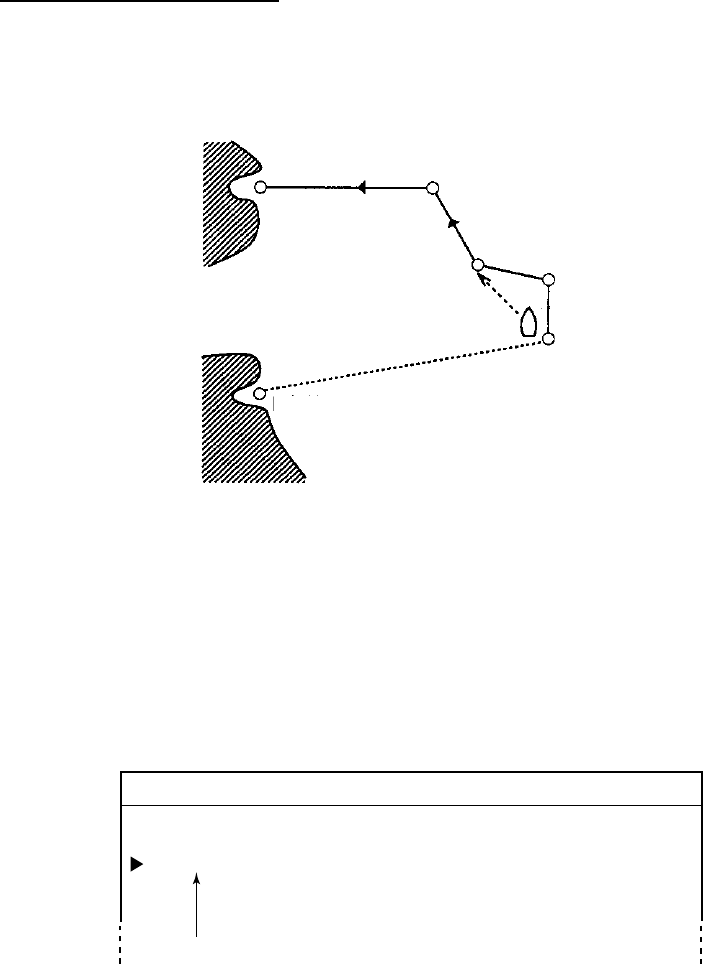

6.1 Entering Routes ........................................................................................................ 6-1
6.1.1 Entering routes using existing waypoints ........................................................ 6-1
6.1.2 Creating track-based routes............................................................................ 6-4
6.2 Editing Routes........................................................................................................... 6-5
6.2.1 Inserting waypoints......................................................................................... 6-5
6.2.2 Removing waypoints from routes.................................................................... 6-5
6.3 Erasing Routes.......................................................................................................... 6-6
6.4 Setting Ship’s Speed for TTG .................................................................................... 6-6
v
7. NAVIGATION..................................................................................................7-1
7.1 Navigating to Quick Points......................................................................................... 7-1
7.2 Navigating to a Waypoint...........................................................................................7-7
7.3 Following a Route.................................................................................................... 7-10
7.4 Canceling Navigation............................................................................................... 7-12
8. ALARMS ........................................................................................................8-1
8.1 Audio Alarm On/Off.................................................................................................... 8-2

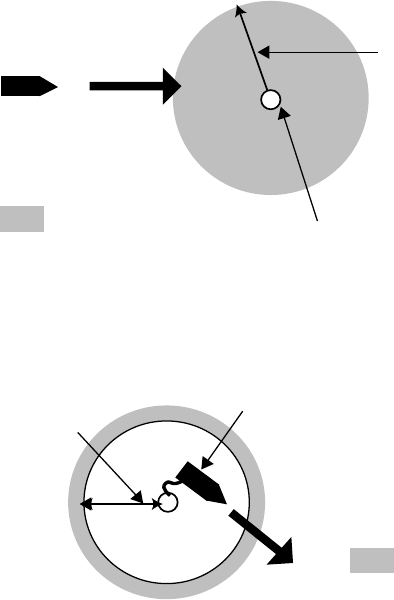

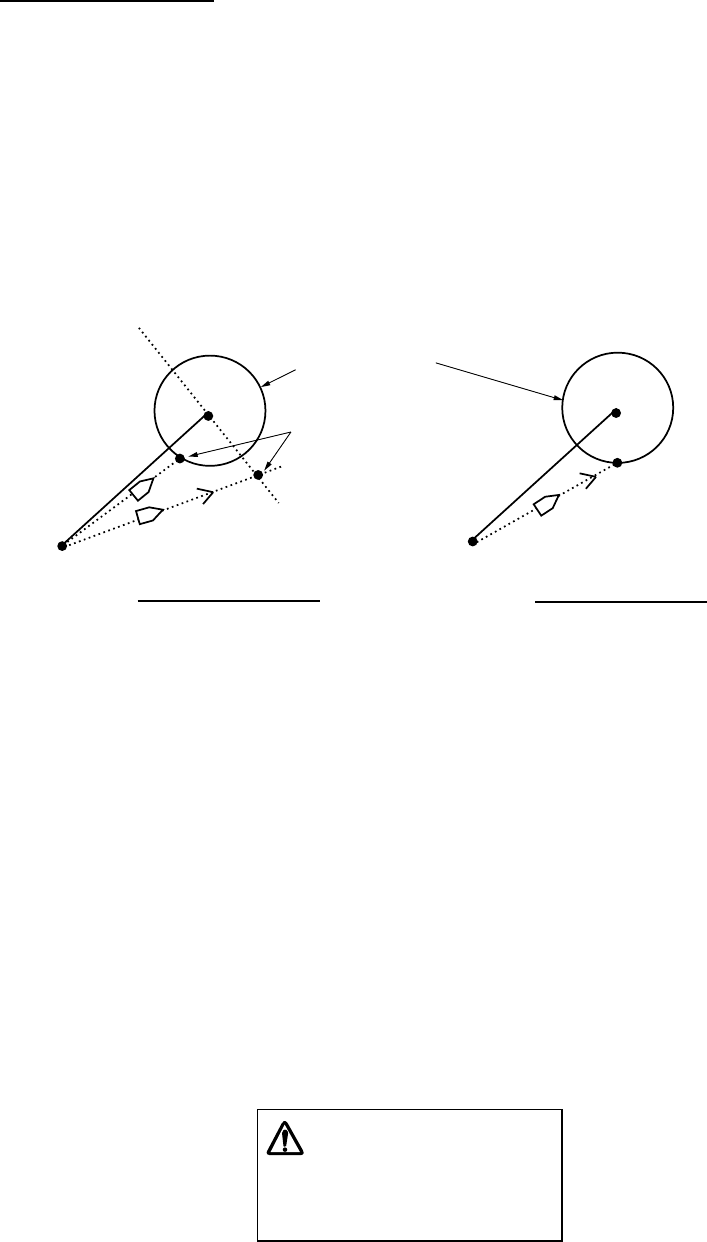

8.2 Arrival Alarm/Anchor Watch Alarm ............................................................................. 8-3
8.3 XTE (Cross Track Error) Alarm/Border Alarm............................................................. 8-4
8.4 Proximity Alarm.......................................................................................................... 8-5
8.5 Speed Alarm .............................................................................................................. 8-6
8.6 Trip Log Alarm ........................................................................................................... 8-6
8.7 Temperature Alarm .................................................................................................... 8-7
8.8 Shear Alarm............................................................................................................... 8-7
8.9 Bottom Alarm.............................................................................................................8-8
9. CUSTOMIZING YOUR UNIT..........................................................................9-1
9.1 CHART SETUP Menu................................................................................................ 9-1
9.1.1 Offsetting the chart.......................................................................................... 9-1
9.1.2 CHART SETUP menu items description.......................................................... 9-4
9.1.3 CONTOUR LINES SETUP menu ....................................................................9-7
9.2 PLOTTER SETUP Menu ...........................................................................................9-8
9.2.1 Setting TD display ........................................................................................... 9-8
9.2.2 Resetting trip distance................................................................................... 9-10
9.2.3 Selecting range of PLOTTER (PILOT) display...............................................9-10
9.3 DISPLAY SETUP Menu........................................................................................... 9-12
9.4 NAVIGATOR SETUP Menu ..................................................................................... 9-17
9.5 PROGRAMMABLE KEYS & REMOTE CONTROLLER SETUP Menu..................... 9-22
9.5.1 Programmable key setup...............................................................................9-22
9.5.2 Remote controller (option) setup ................................................................... 9-25
9.6 DISPLAY MODES & NAV DATA WINDOW SETUP Menu........................................ 9-27
9.6.1 Setting the DISPLAY MODE screen .............................................................. 9-27
9.6.2 Setting the navigation data window ............................................................... 9-30
9.7 I/O PORT SETUP Menu .......................................................................................... 9-34
9.8 TEST & MEMORY CLEAR Menu............................................................................. 9-37
9.8.1 Setting the password..................................................................................... 9-37
9.8.2 Removing the password................................................................................9-38
10. RECORDING & PLAYING BACK DATA ...................................................10-1
10.1 Recording Data........................................................................................................ 10-1
10.2 Memory Card Operation .......................................................................................... 10-2
10.2.1 Formatting the memory card ......................................................................... 10-2
10.2.2 Saving data to a memory card....................................................................... 10-4
10.2.3 Displaying data from a memory card............................................................. 10-6
10.2.4 Playing back data from a memory card ......................................................... 10-7
10.2.5 Deleting files.................................................................................................. 10-8
vi
10.3 Automatic Backup Function......................................................................................10-9
10.3.1 Backup to a memory card ..............................................................................10-9
10.3.2 Backup to internal memory ..........................................................................10-10
10.4 Internal Memory .....................................................................................................10-11
10.4.1 Saving data to internal memory....................................................................10-11
10.4.2 Displaying tracks and marks stored in the internal memory..........................10-12
10.4.3 Playing back data from the internal memory ................................................10-14
10.5 Uploading, Downloading Data................................................................................10-15
10.5.1 Downloading data........................................................................................10-15
10.5.2 Uploading data.............................................................................................10-17
11. MAINTENANCE & TROUBLESHOOTING................................................ 11-1
11.1 Maintenance.............................................................................................................11-1
11.2 Replacement of Fuse ...............................................................................................11-2
11.3 Replacement of Battery............................................................................................11-2
11.4 Trackball Maintenance .............................................................................................11-3
11.5 Simple Troubleshooting............................................................................................11-4
11.6 Diagnostics ..............................................................................................................11-5
11.6.1 Memory I/O test .............................................................................................11-5
11.6.2 Keyboard test.................................................................................................11-7
11.6.3 Test pattern....................................................................................................11-8
11.7 Clearing the Working Memory..................................................................................11-9
11.8 Cold Start ...............................................................................................................11-10

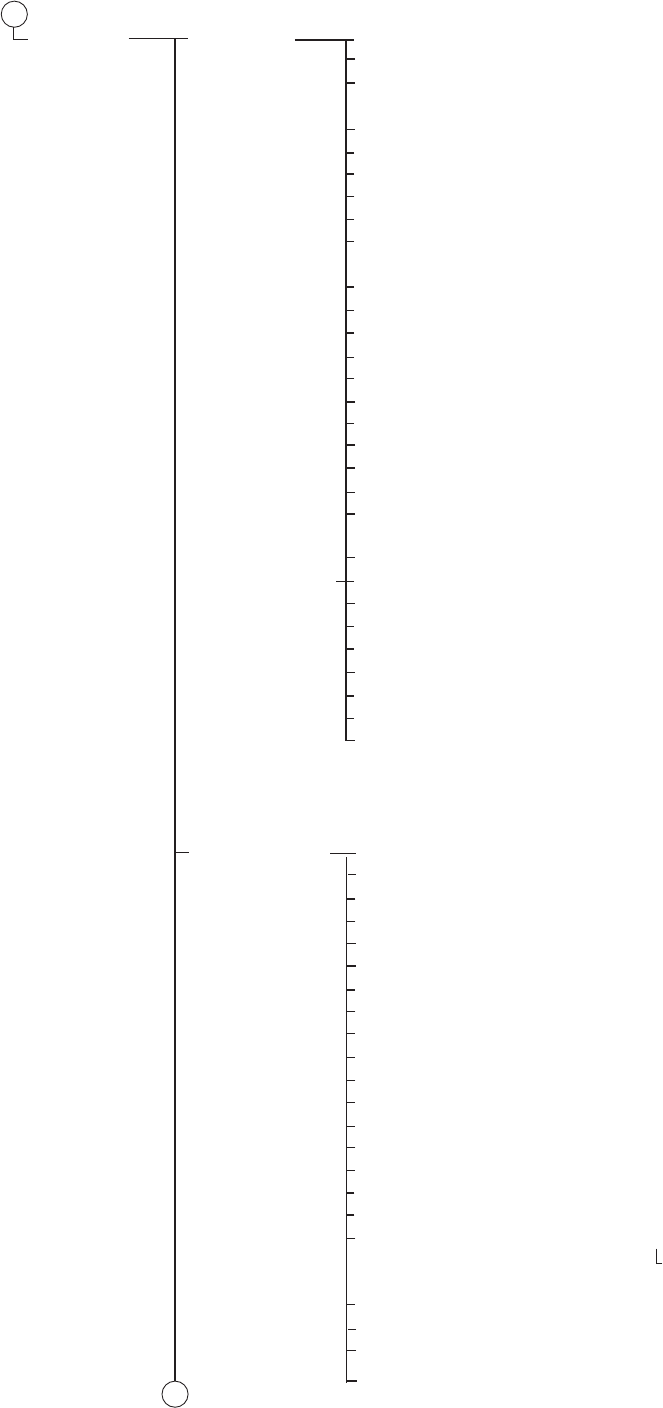

MENU TREE....................................................................................................AP-1
WORLD TIME CHART....................................................................................AP-6
GEODETIC CHART LIST ...............................................................................AP-7

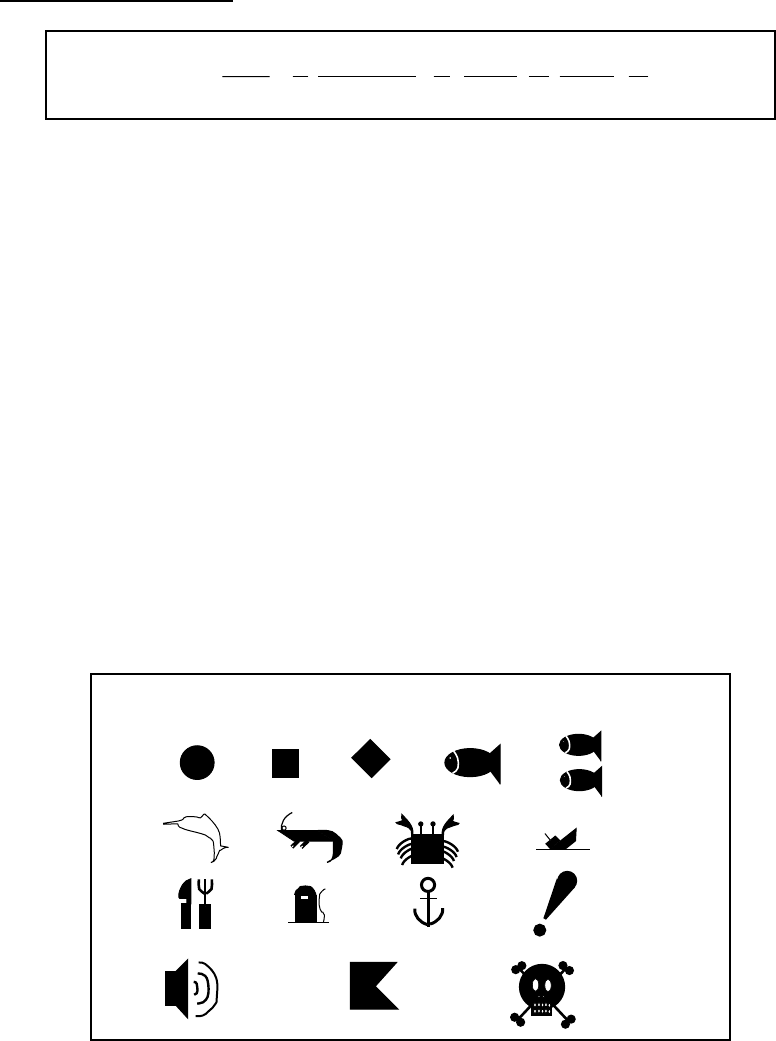

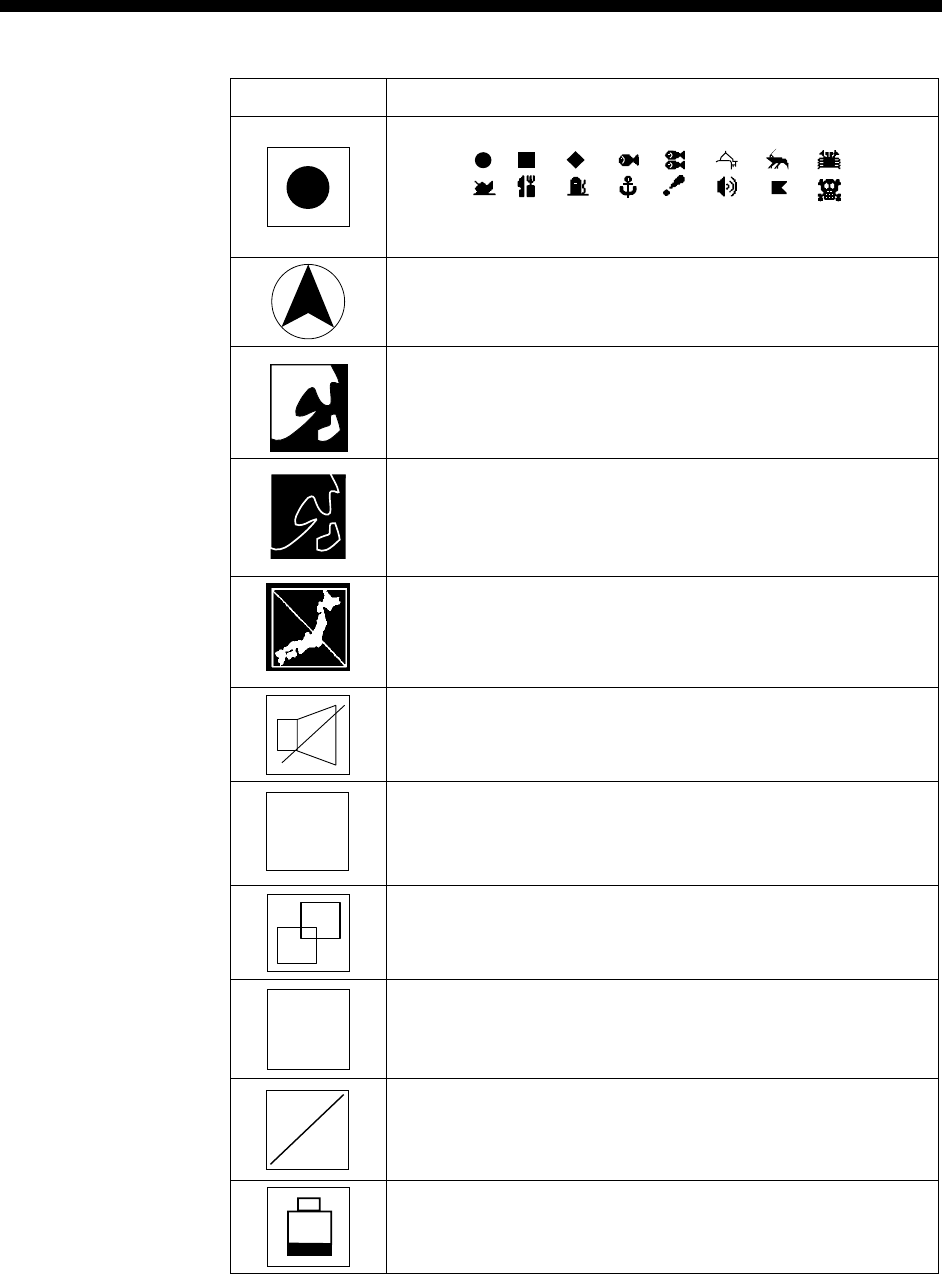

ICONS .............................................................................................................AP-8
WHAT IS WAAS?............................................................................................AP-9
SPECIFICATIONS........................................................................................... SP-1

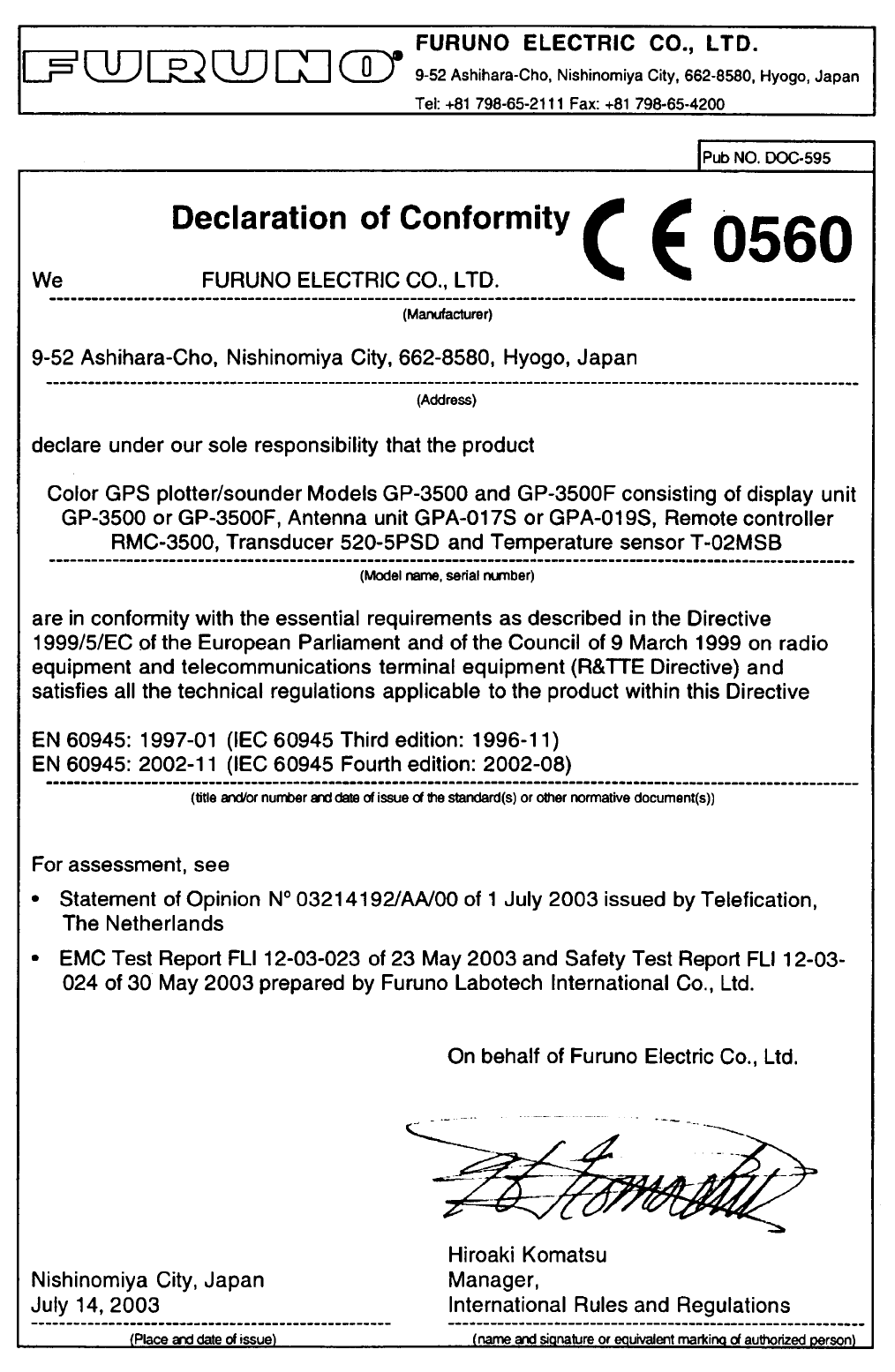

DECLARATION OF CONFORMITY
vii
SYSTEM CONFIGURATIONS
Display unit
GP-3500
GPA-017S/GPA-019S* (option)
12-24 VDC
External equipment
(Autopilot, radar, etc.)
Remote controller
: Standard supply
: Option
: User supply
External monitor
*: Only when the optional beacon
receiver kit is installed.
This GPS receiver complies with Canadian standard RSS-210 (Low Power
License-Exempt Radio communication Devices).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
viii
This page is intentionally left blank.
1-1
1. BASIC OPERATION
1.1 Controls Description

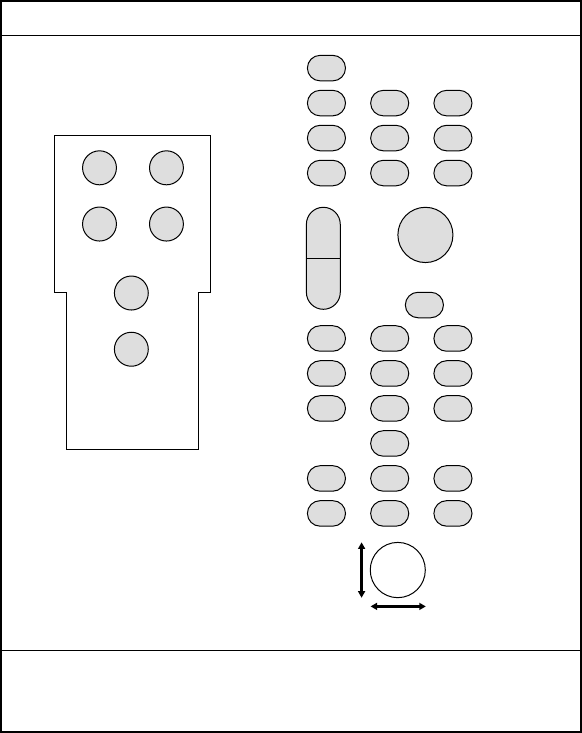

1.1.1 Display unit
When you correctly execute an operation, the unit generates a beep. Invalid
operation causes the unit to emit three beeps.
Turns power on/off.
Sets/releases the destination.
Card slot
Opens the BRILLIANCE
window.
Opens the SAVE WPT window.
Displays the DISPLAY MODE
screen.
Enlarges/shrinks display.
ENTER knob
Push: Registers numeric data
or operation.
Rotate: Selects menu items.
• Silences the alarm.
• Erases marks and waypoints.
• Clears alpnanumeric data.
• Enters numeric data.
• Enters mark.
• Selects menu item.
Mesures the bearing and range
between two points.
Opens the CHANGE SHIP'S
TRACK COLOR window.
Shows the VRM.
Changes the track plotting method
and plotting interval.
Opens the CHANGE MARK
COLOR window.
• Displays/erases the cursor.
• Switches + to - and vice vevsa.
• Switches N to S, E to W and
vice vevsa.
Moves own ship's position
or cursor position to center.
Trackball
• Moves the cursor.
• Selects the menu item.
POWER
BRILL
SAVE
MOB WPT GOTO
DISP
ZOOM
IN
ZOOM
OUT
PROG1
MENU
TD
5
789
0
MARK
COLOR
CURSOR
ON/OFF
VRM
TRACK
COLOR
CENTER
PLOT
INTVL
CLEAR
6
4
132
PROG4
PROG3
PROG2
Executes program assigned.
Momentary press: Registers
own ship's
positions.
Marks man
overboard
position.
Long press:
(more than
3 seconds)
Control panel
1. BASIC OPERATION
1-2
1.1.2 Remote controller
The remote controller provides for armchair control of the display unit. It has six
keys, all of which may be programmed by the user.
Hole for hooking.
Record the function registered to key.
ZOOM IN
ZOOM OUT Label
A
Record the function registered to key.
B
Record the function registered to key.
C
Record the function registered to key.
D
Note: When proqramming the or key,
make a mental note of their programs,
as there is no space on the remote
confroller for recordings its program.
Remote controller
The default key functions are as below.
Key Function
A Enter a waypoint with the next consecutive waypoint
number at the own ship (or cursor) position.
B Same as pressing the [ENTER] knob on the control
panel.
C Same as [CLEAR] key function.
D Same as [1] key function.
Same as [ZOOM IN] key function.
Same as [ZOOM OUT] key function.
For how to program the remote controller, see paragraph 9.5.2.You can program
other function to each key (See paragraph 9.5.2.) Record the function name on
the label on the remote controller, using an oil-based felt-tip pen.
1. BASIC OPERATION
1-3
1.2 Loading a Mini Chart Card
Your unit reads FURUNO and NavCharts (NAVIONICS) chart cards, or C-MAP
chart cards, depending on the type of display unit you have. Insert the
appropriate chart card for your area before turning the power on to show chart
data automatically.
Note: Static electricity can be passed through your fingers to a card and destroy
the contents of the card. To prevent this, always touch a metallic object,
such as a steel desk, before handling a memory card.

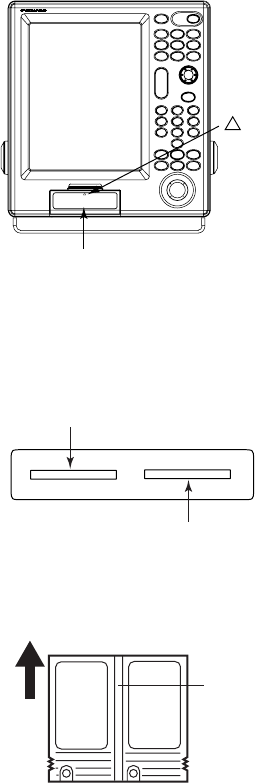

1. Push down the lid catch to open the mini chart card slot cover.
Card slot
COLOR GPS PLOTTER/SOUNDER
GP-3500F
(triangle) mark
Card slot cover
2. Insert appropriate mini chart card groove side up to the right side slot.
Left-side: Memory card or Mini chart card
Right-side: Mini chart card only
Card slot
Mini chart card
Inside chart card
groove side up.
Chart card
3. Close the slot cover to protect the chart drive. (Keep the slot cover closed at
all times.)
Press the center of the lid catch to close it.
1. BASIC OPERATION
1-4
1.3 Turning the Power On/Off
Turning the power on
Press the [POWER] key until you hear a click and two beeps sound.

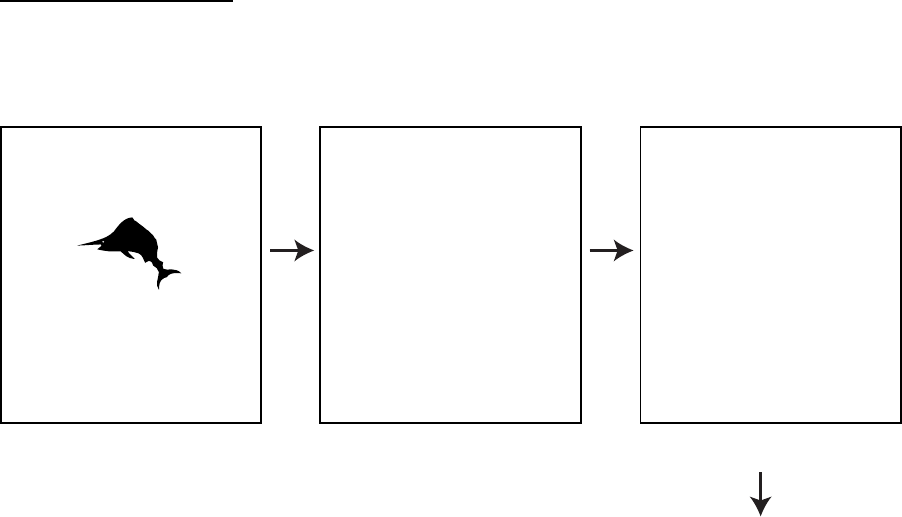

When the unit is turned on, it proceeds in the sequence shown in the figure in
below.
START UP TEST
PLOTTER
ROM : OK
RAM : OK
BACKUP DATA : OK
INTERNAL BATTERY : OK
INTERNAL GPS : OK
ECHO SOUNDER
ROM : OK
RAM : OK
--- CAUTION ---
NO NATIONAL HYDROGRAPHIC
OFFICE HAS VERIFIED THE
INFORMATION IN THIS
COASTLINE DATA CARD AND NONE
ACCEPT LIABILITY FOR THE
ACCURACY OF REPRODUCTION OR
ANY MODIFICATIONS MADE
THEREAFTER. THIS PRODUCT WITH
THIS COASTLINE DATA CARD
DOES NOT REPLACE THE
REQUIREMENT TO USE THE
APPROPRIATE PRODUCTS FOR
NAVIGATION ACCORDING TO
NATIONAL AND INTERNATIONAL
REGULATIONS.
CHART CARD. US603S32, US223S32
PROGRAM NO.
PLOTTER :
1451712-XX.XX
GPS :
48502640XX
GP-3500
GPS PLOTTER
FURUNO ELECTRIC CO. LTD.,
XX: Program Version No.
In about 30 seconds the last-
used display appears. You
can go the last-used display
faster by pressing any key.
C-MAP NT: 1451714-XX.XX
Start-up sequence
Note 1: The example screens shown in this manual may not match the screens
you see on your display. The screen you see depends on your system
configuration and equipment settings.
Note 2: If the message "SYSTEM HAS FAILED START UP TEST. PLEASE
CONTACT A LOCAL FURUNO REPRESENTATIVE FOR REPAIR.
PRESS ANY KEY TO CONTINUE." appears, contact your dealer for
advice.
This equipment takes about 90 seconds to find its position when turned on for
the very first time. Thereafter it takes about 12 seconds to find position each time
the power is turned on. The message "NO FIX", which means the equipment is
mow findings its position, appears at the bottom of the Plotter (or Pilot) display
immediately after turning the power on. When the GPS receiver finds its position,
"NO FIX" changes to "2D" or "3D" to show that position data is now accurate.
1. BASIC OPERATION
1-5
Position-fixing indications and their meanings
Indication Meaning Indication Meaning
2D 2D (dimension)
GPS position fix D2D* 2D (dimension)
DGPS position fix
2D 3D (dimension)
GPS position fix D3D* 3D (dimension)
DGPS position fix
W2D 2D (dimension)
WAAS position fix DEMO Simulation mode
W3D 3D (dimension)
WAAS position fix
*: The internal beacon receiver board (option) is necessary.
Note: If the password window appears, follow the procedure in paragraph 9.8.1.
Turning the power off
Press the [POWER] key.
After the turning power off, attach the LCD cover to prevent it.
1. BASIC OPERATION
1-6
1.4 Adjusting Brilliance and Hue
You can adjust display brilliance, panel dimmer and hue as shown below.
1.4.1 Adjusting display brilliance
1. Press the [BRILL] key.
The brilliance adjustment window appears.
TURN KNOB TO ADJUST DISPLAY BRILLIANCE.
BRILLIANCE 8
Brilliance adjustment window
Note: The adjustment window disappears when there is no operation for three
seconds.
2. Rotate the [ENTER] knob to adjust the brilliance.
Rotate clockwise to raise the setting or counterclockwise to decrease it (8 steps).
Also you can adjust brilliance by pressing the [BRILL] key. In this case brilliance
is changed cyclically 1→2…→8→7→ …1→2….
3. Press the [ENTER] knob to manually close the adjustment window, or wait
three seconds to let the equipment close it automatically.
Note: The brilliance of an external monitor cannot be adjusted from the display
unit. Adjust it at the external monitor.
1. BASIC OPERATION
1-7
1.4.2 Adjusting control panel dimmer
1. Press the [MENU] key to open the main menu.
MENU
1. WAYPOINT LIST
2. ROUTES LIST
3. MEMORY CARD OPERATIONS & DATA TRANSFER
4. MARKS/SHIP'S TRACKS SETUP
5. MARKS/SHIP'S TRACKS EDITION
6. ALARM SETUP
7. CHART SETUP
8. PLOTTER SETUP
9.
0. SYSTEM SETUP
TURN KNOB TO SELECT MENU AND PRESS KNOB TO ENTER.
OR PRESS APPROPRIATE NUMERIC KEY TO SELECT MENU.
Main menu
2. Press the [8] key to display the PLOTTER SETUP menu.
1. BASIC OPERATION
1-8
8. PLOTTER SETUP
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
LORAN-A GRI 00-01
CORRECTION 1 +000.0 µs
CORRECTION 2 +000.0 µs
LORAN-C GRI 00:11-29
CORRECTION 1 +000.0 µs
CORRECTION 2 +000.0 µs
DECCA CHAIN 01 R-G
CORRECTION 1 +00.00 LANE
CORRECTION 2 +00.00 LANE
TD DISPLAY 1. LORAN-A 2. LORAN-C 3. DECCA
RESET TRIP LOG 1. YES 2. NO
PLOTTER RANGE SETUP
1. YES 2. NO
PANEL-DIMMER 1 2 3 4 5 6 7 8
HUE 1. DAY 2. NIGHT 3. TWILI 4. MANUAL
00:1L0 01:1L1 02:1L4 03:1L5 04:1L6
05:1L7 06:1S1 07:1S2 08:1S3 09:1S4
10:1S6 11:2H3 12:2H4 13:2H5 14:2H6
15:2S0 16:2S1 17:2S2 18:2S3 19:2S4
20:2S5 21:2S6 22:2S7
Plotter setup menu
3. Rotate the [ENTER] knob to choose PANEL DIMMER.
4. Roll the trackball in the right-left direction to choose the illumination desired.
You may also choose the setting by pressing the appropriate numeric key.
The larger the number the greater the illumination.
5. Press the [MENU] key several times to close the menu.
1. BASIC OPERATION
1-9
1.4.3 Selecting hue
1. Press the [MENU] key to display the main menu.
2. Press the [8] key to display the PLOTTER SETUP menu.
3. Rotate the [ENTER] knob to choose HUE.
4. Roll the trackball in the right-left direction to choose the hue desired. You may
also choose the hue by pressing the appropriate numeric key.
Refer to the table shown below the choose appropriate hue settings.
Hue setting and item color
Day Night Twilight Manual
Landmass Yellow Yellow Yellow
Land edge Black Yellow Black
Background White Black Gray
Depending on
the setting of
CHART SETUP
menu
Menu
background White Black Gray White
Character Black White Black Black
5. Press the [MENU] key for several times to close the menu.
1. BASIC OPERATION
1-10

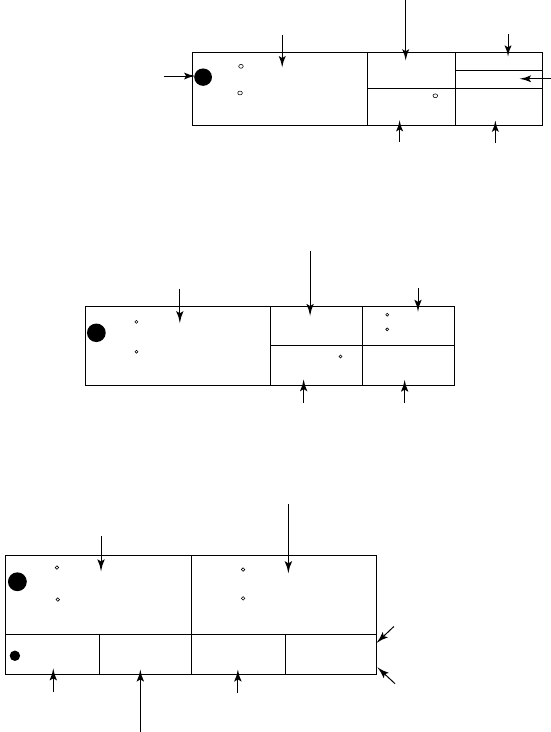

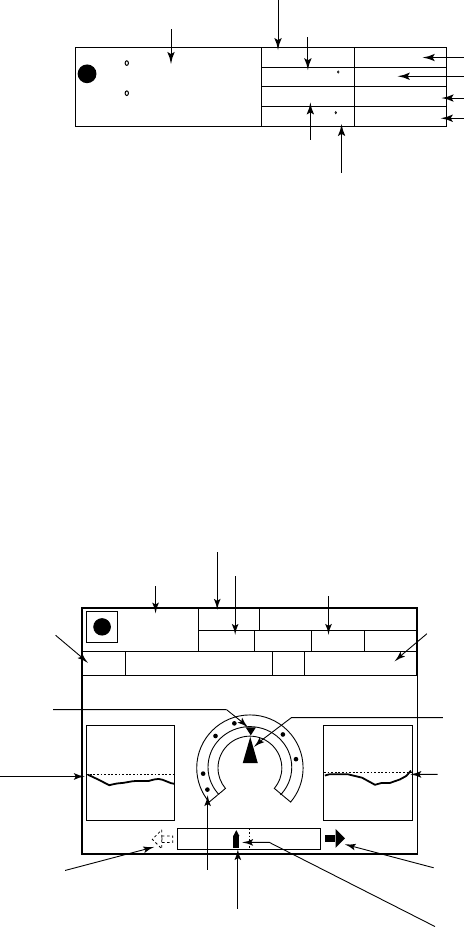

1.5 Selecting a Display
Five screen displays are available: Plotter, Pilot, Navigation, Compass and
Sounder. In addition to the full-screen display, you can divide the screen into
half-screen combination displays.
1. Press the [DISP] key.
A DISPLAY MODE screen appears. There are four pages for the DISPLAY
MODE screen.
DISPLAY MODE
TURN KNOB TO SELECT DISPLAY MODE AND PRESS KNOB TO ENTER.
OR PRESS APPROPRIATE NUMERIC KEY TO SELECT DISPLAY MODE.
2. PLOTTER
NAV INFO 1
3. PLOTTER
NAV INFO 2
4. PILOT 5. PILOT
NAV INFO 1
6. PILOT
NAV INFO 2
7. COMPASS
PLOTTER
8. COMPASS
PILOT
9. GPS STATUS
1. PLOTTER
DISPLAY MODE screen
2. Press appropriate numeric key to choose a display.
Selected display replaces display made page
Note: The DISPLAY MODE screen can store a total of nine displays. You may
program the DISPLAY MODE screen as desired. See paragraph 9.6.1.
1. BASIC OPERATION
1-11
1.6 MOB Mark
The MOB (Man Overboard) mark functions to mark man overboard position. You
can inscribe this mark from any mode, except while playing back, recording data
or conducting a self-test.
Man
overboard
Range, bearing
Current
position
MOB
mark
MOB data box
Bearing and range
to MOB position.
M
(MOB)
M
O
B
162.5°
M
0.49
nm

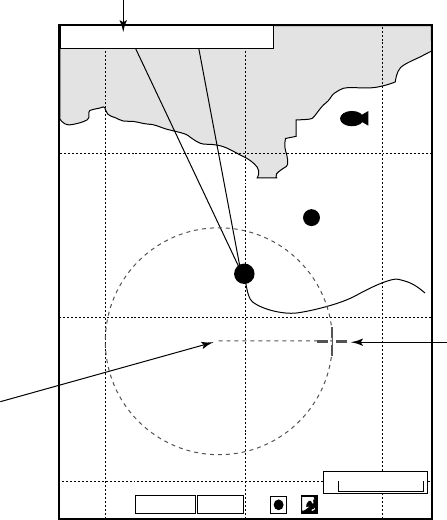

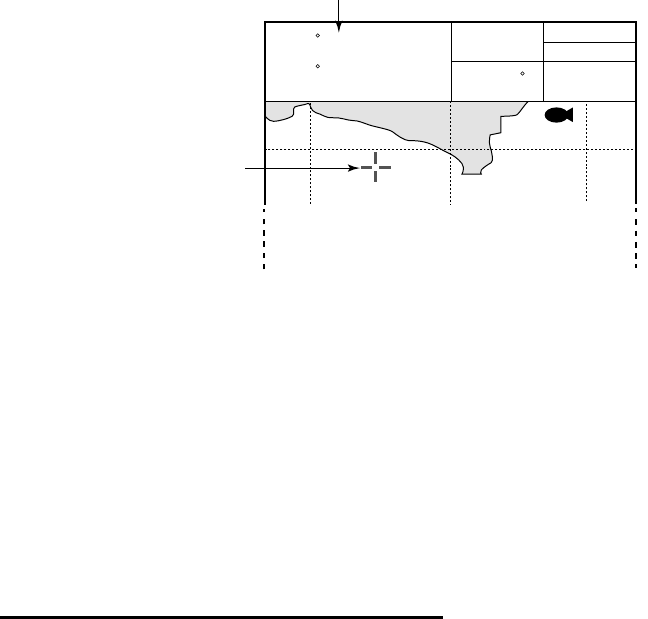

MOB concept
1. Press and hold down the [SAVE/MOB] key immediately for about three
seconds when someone falls onboard.
The display shows the waypoint number being saved (youngest empty waypoint
number) the MOB position is being saved under followed by the MOB
confirmation window.
WAYPOINT XXXXXX
IS SAVED.
CONTINUE PRESSING
FOR MOB!
MAN OVER BOARD!
SET (MOB) AS
DESITINATION?
YES … PRESS KNOB
NO … PRESS CLEAR KEY
After
several
seconds.
MOB mark messages
2. Push the [ENTER] knob to select the MOB position as the destination, or
press the [CLEAR] key to only mark current ship's position as a waypoint.
If you select the MOB position as the destination;
1) A full-screen PLOTTER NAV INFO 1 display replaces the display in use.
2) The MOB mark "M" appears at the MOB position and a dashed line runs
between it and current position. This line shows the shortest course to the
MOB position.
3) Range and bearing to the MOB position are shown in the MOB data box.
1. BASIC OPERATION
1-12
Note: The MOB mark can be deleted as follows.
c Press the [CURSOR ON/OFF] key to show the cursor.
d Operate the trackball to place the cursor on the MOB mark.
e Press the [CLEAR] key.
The following message will appear is on the screen:
WAYPOINT NAME XXXXXX
WILL BE DELETED.
ARE YOU SURE?
YES … PRESS KNOB
NO … PRESS CLEAR KEY
Confirmation message
f Press the [ENTER] knob.
Then, the waypoint entered at step 1 on the previous page is erased.
g Operate the trackball to place the cursor on the MOB mark.
h Press the [CLEAR] key.
A new message will appear on the screen:
WAYPOINT NAME (MOB)
WILL BE DELETED.
ARE YOU SURE?
YES … PRESS KNOB
NO … PRESS CLEAR KEY
When MOB is not set as destination
THIS WAYPOINT (MOB)
IS USED FOR NAVIGATION.
ILL IT BE DELETED?
YES … PRESS KNOB
NO … PRESS CLEAR KEY
When MOB is set as destination
Confirmation message
i Press the [ENTER] knob to erase the MOB mark.
1.7 Using PROG Key
The [PROG 1] through [PROG 4] keys provide for instant display of a
user-programmed options window (screen). Note that, the function for [VRM] key
can also be. The default program of the [PROG] keys are as shown in the table
below.
Key Functions
PROG 1 Displays the WAYPOINT LIST.
PROG 2 Displays DELETE SHIP’S TRACKS window.
PROG 3 Each press changes the line style.
PROG 4 Reset the trip distance to zero.
•Note 1: To program plotter functions to the [PROG] keys or [VRM] keys, see
paragraph 9.5.1.
1. BASIC OPERATION
1-13
1.8 Simulation Mode
The simulation mode, which is for use by service technicians for demonstration
purposes, provides simulated operation to help acquaint you with the many
features your unit has to offer. All keys are operative.
“DEMO” appears at the bottom of the plotter (pilot) display (top of the sounder
display) when any simulation mode is active.
Plotter
Own ship's mark moves from the default position at the speed set.
1. Press the [MENU] key to display main menu.
2. Press the [0] key to display SYSTEM SETUP menu.
0. SYSTEM SETUP
1. DISPLAY SETUP
2. NAVIGATOR SETUP
3. PROGRAMMABLE KEYS & REMOTE CONTROLLER SETUP
4. DISPLAY MODES & NAV DATA WINDOW SETUP
5. I/O PORT SETUP
6. TEST & MEMORY CLEAR
7. SIMULATION MODE
8.
TURN KNOB. TO SELECT MENU AND PRESS KNOB TO ENTER.
OR PRESS APPROPRIATE NUMERIC KEY SELECT MENU.
System setup menu
1. BASIC OPERATION
1-14
3. Press the [7] key to display the SIMULATION MODE menu.
0-7. SIMULATION MODE SETUP
PLOTTER 1. SIM 2. LIVE
SPEED 09.9 kt
COURSE 1. DIRECTION 2. 8 FIGURE
DIRECTION 000.0°
LATITUDE 45°35.000'N
LONGITUDE 125°00.000'W
DATE & TIME 03.01.01 00:00
TURN KNOB TO SELECT MENU.
SETUP SIMULATION MODE BY TRACKBALL.
Simulation mode setup menu
4. Rotate the [ENTER] knob to choose PLOTTER.
5. Roll the trackball in the left direction to choose "1. SIM." You may choose it
by pressing the [1] key.
6. Rotate the [ENTER] knob to choose SPEED.
7. Enter speed (setting range: 0.0 to 99.9 kt) with the numeric keys, then press
the [ENTER] knob.
8. Rotate the [ENTER] knob to choose COURSE.
9. Roll the trackball in the right-left direction to choose "1. DIRECTION" or "2. 8
FIGURE" as appropriate. You may choose the setting by pressing the
numeric key.
DIRECTION: Track is traced according to course set. Go to step 10.
8 FIGURE: Track is traced in a figure-eight course. Go to step 12.
10. Rotate the [ENTER] knob to choose DIRECTION.
11. Enter course (setting range: 0.0 to 359.9) with the numeric keys, then press
the [ENTER] knob.
12. Rotate the [ENTER] knob to choose LATITUDE.
13. Enter latitude with the numeric keys, and press the [ENTER] knob.
Press the [CURSOR ON/OFF] key to switch from north to south and vice
versa.
14. Rotate the [ENTER] knob to choose LONGITUDE.
15. Enter longitude with the numeric keys, and then press the [ENTER] knob.
Press the [CURSOR ON/OFF] key to switch from east to west and vice
versa.
16. Rotate the [ENTER] knob to choose DATE & TIME.
1. BASIC OPERATION
1-15
17. Enter start date and time with the numeric keys, in 24-hour notation and then
press the [ENTER] knob.
Use 24-hour notation to enter time.
18. Press the [MENU] key several times to close the menu.
Note: To terminate the simulation mode, select "2. LIVE" at step 5.
1.9 Menu Overview
Secondary operations are carried out through the menu. This section provides
basic menu operating information.
1. Press the [MENU] key to display the main menu.
MENU
1. WAYPOINT LIST
2. ROUTES LIST
3. MEMORY CARD OPERATIONS & DATA TRANSFER
4. MARKS/SHIP'S TRACKS SETUP
5. MARKS/SHIP'S TRACKS EDITION
6. ALARM SETUP
7. CHART SETUP
8. PLOTTER SETUP
9.
0. SYSTEM SETUP
TURN KNOB TO SELECT MENU AND PRESS KNOB TO ENTER.
OR PRESS APPROPRIATE NUMERIC KEY TO SELECT MENU.

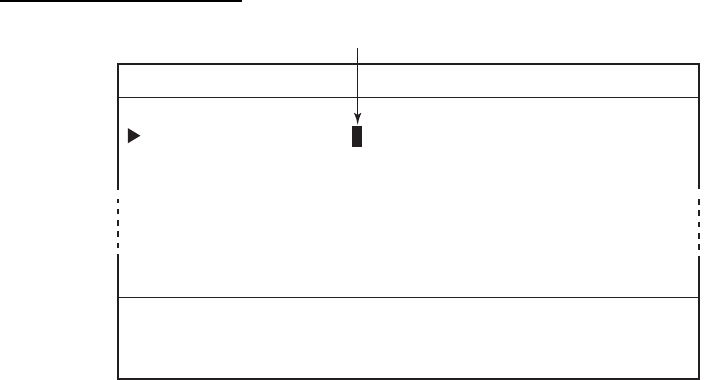

Red cursor
Main menu
1. BASIC OPERATION
1-16
2. Select a menu item.
There are three ways to select a menu item. This manual uses method a).
a) Press the appropriate numeric key.
b) Rotate the [ENTER] knob to select the menu item desired, and then press the
[ENTER] knob.
The red cursor appears at left side of the item selected. Rotate the [ENTER]
knob clockwise to move the red cursor upward; counterclockwise for
downward.
c) Roll the trackball in up-down direction to select item, and then press the
[ENTER] knob.
For example, press the [8] key to display the PLOTTER SETUP menu.
8. PLOTTER SETUP
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
LORAN-A GRI 00-01
CORRECTION 1 +000.0 µs
CORRECTION 2 +000.0 µs
LORAN-C GRI 00:11-29
CORRECTION 1 +000.0 µs
CORRECTION 2 +000.0 µs
DECCA CHAIN 01 R-G
CORRECTION 1 +00.00 LANE
CORRECTION 2 +00.00 LANE
TD DISPLAY 1. LORAN-A 2. LORAN-C 3. DECCA
RESET TRIP LOG 1. YES 2. NO
PLOTTER RANGE SETUP
1. YES 2. NO
PANEL-DIMMER 1 2 3 4 5 6 7 8
HUE 1. DAY 2. NIGHT 3. TWILI 4. MANUAL
00:1L0 01:1L1 02:1L4 03:1L5 04:1L6
05:1L7 06:1S1 07:1S2 08:1S3 09:1S4
10:1S6 11:2H3 12:2H4 13:2H5 14:2H6
15:2S0 16:2S1 17:2S2 18:2S3 19:2S4
20:2S5 21:2S6 22:2S7
Cursor (red rectangle)
Plotter setup menu
3. Rotate the [ENTER] knob to select item which you want to change the setting.
You can also select item by rolling the trackball in up-down direction.
4. Roll the trackball in left-right direction to select option (with the red rectangle).
When the option is a numeral, you can select it by pressing the appropriate
numeric key.
5. Press the [MENU] key several times to close the menu.
1. BASIC OPERATION
1-17
Entering numeric data
8. PLOTTER SETUP
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
LORAN-A GRI 00-01
CORRECTION 1 +000.0 µs
CORRECTION 2 +000.0 µs
Cursor
Plotter setup menu
1. Press the appropriate numeric key.
2. Press the [ENTER] knob.
You may also enter a value rotating the by [ENTER] knob.
Note: If you make a value mistake, move the cursor to the error position and
then re-enter the proper value. The cursor for entering value is moved by
rolling the trackball in left-right direction.
Press the [CLEAR] key to erase the all value on the line selected with the
red cursor.
1. BASIC OPERATION
1-18
Entering character
SELECT ALPHANUMERIC CHARACTER BY TRACKBALL AND PRESS KNOB
TO ENTER. OR PRESS NUMERIC KEY TO NAME WAYPOINT.
MOVE THE CURSOR TO "END" ONCE THE EDITION IS FINISHED.
END
ABCDE FGHIJ KLMNO PQRST UVWXY
Z,-!? /&^=# 12345 67890 _____
abcde fghij klmno pqrst uvwxy
z____ _____ _____ ______ _ _ _
PASSWORD ENT AGAIN
Digit cursor Cursor
Ex. Set password, entering characters
1. Roll the trackball in up-down direction to select the first alphanumeric
character with the cursor (red square).
Numeric may also be entered by pressing numeric key.
2. Press the [ENTER] knob.
Note: If you make a characteristic mistake, move the cursor to the error position
and then re-enter the proper character. To move the digit cursor, select ◄
and then press the [ENTER] knob for left direction, or select ► and then
press the [ENTER] knob for right direction.
Press the [CLEAR] key to erase the all characters.
3. Repeat steps 1 and 2 to complete the naming.
4. Finally, select "END" and then press the [ENTER] knob.
2-1
2. PLOTTER AND PILOT DISPLAY
DESCRIPTION
2.1 Plotter and Pilot Displays

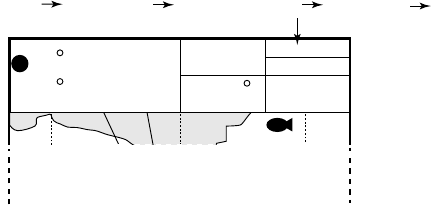

The plotter and pilot displays can be shown with full-screen or in a half screen
combined with the nav information window, compass or echo sounder display.
Press the [DISP] key, and then press the appropriate numeric key to show the
display desired.

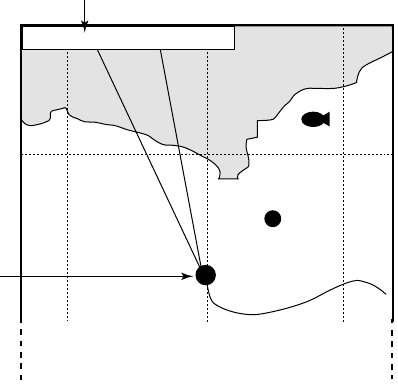

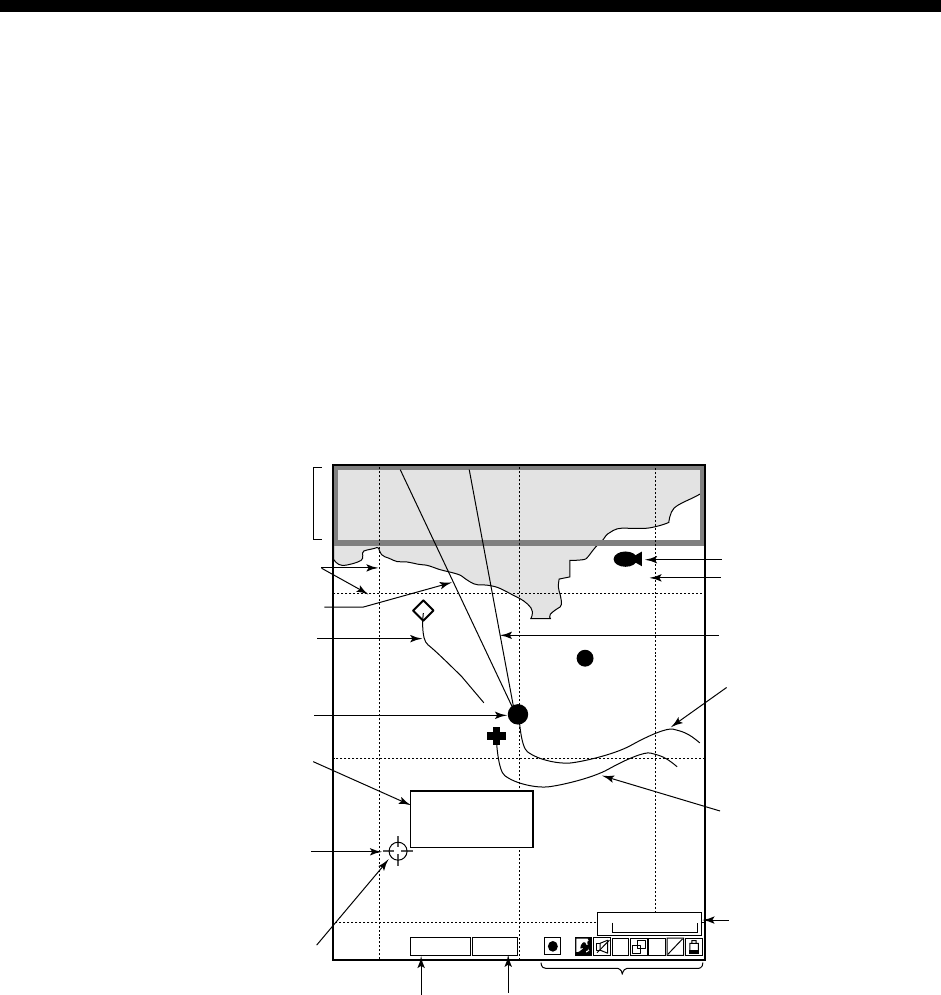

2.1.1 Plotter display
The plotter display shows chart data, tracks, waypoints and marks on the display.
The plotter display orientation is always north-up. North (zero degree) is at the
top of the display and own ship (filled circle) is at the center of the screen.
LL
S A
V E
H
Icons
Scale
Own ship's track (sub)
Mark
Cursor
FISH
000001
43
20 21 22
42
41
Own ship's track (main)
Waypoint mark
Waypoint name
Course bar (light-blue)
Own ship's mark
Heading marker (white)
0.3nm
GPS2D
GPS/DGPS
status
37˚04.640'N
135˚21.047'E
+ 4.5˚C 13.7m
Mark information
(appears when
the cursor is on
a mark)
Other ship's track
Grid
When selecting PLOTTER
NAV INFO 1 (or 2),
NAV INFO window appears here.
WGS84
Geodetic
datum
PLOTTER display
2. PLOTTER AND PILOT DISPLAY DESCRIPTION
2-2
2.1.2 Pilot display
The pilot display is similar to the plotter display, with the following differences.
1) The pilot display orientation is always auto course-up. The course is at the
top of screen at the moment the pilot display is selected. A filled triangle
marks own ship’s position. When own ship is off its intended course by 22.5°
or more, it is automatically brought back to perpendicular.
2) The north mark ( ) appears at the bottom of the screen and points to north.
3) The grid lines denote the distance from own ship, not longitude/latitude.
Note: When north is not at the top of screen, the distance error may be larger
than on the plotter display since the Mercator projection is used.
LL
S A
V E
H
Icons
Scale
Own ship's track (sub)
Mark
Cursor
FISH
000001
Own ship's track (main)
Waypoint mark
Waypoint name
Course bar (light-blue)
Own ship's mark
Heading marker (white)
0.2nm
37˚03.640'N
135˚20.047'E
+ 4.5˚C 13.7m
Mark information
Other ship's track
Grid
When selecting
PILOT NAV INFO 1 (or 2),
the NAV INFO window
appears here.
0.5
0.5
1
0.5 0.5
GPS2D
WGS84
Geodetic datum
GPS/DGPS status
Pilot display
2. PLOTTER AND PILOT DISPLAY DESCRIPTION
2-3
2.1.3 NAV INFO 1 display
Select “PLOTTER (or PILOT) NAV INFO 1 (or 2)” from the DISPLAY MODE
screen to show the NAV INFO 1(or 2) window at the top of the screen. When
setting a destination, the NAV INFO 1 (2) window changes to the WPT INFO 1
(2) window.
TRKS 00M01s
2003. 4. 12
34 44.1447'N
135 21.0758'E 350.2
T
9.9
kt
00:01
Latitude, Longitude
Speed over ground
Track plottings interval
Date
TimeCourse
This color shows the
selected mark color.
Black means the selection
of "KEY'S COLOR."
(See paragraph 4.2.)
NAV INFO 1 window (Default data)
34 44.1447'N
135 21.0758'E 350.2
T
9.9
kt
00:01
Latitude, Logitude
Speed over ground L/L of
cursor position
TimeCourse
34 43.1447'N
135 21.0758'E
+
NAV INFO 2 window (Default setting)
34
44.1447'N
135
21.0758'E
0.60
nm
Latitude, Longitude
34 43.1447'N
135 21.0758'E
L/L of cursor position
＋
000001
Time-to-Go to destination
Waypoint Name
Range to Waypoint
Bearing to Waypoint
Estimated time of arrival
at Waypoint
284.2
T
ETA 1, 3:19
TTG 0D 0H 4M
NAV INFO 1 window on setting a destination (default data)
2. PLOTTER AND PILOT DISPLAY DESCRIPTION
2-4
TRKS 00M01s
2003. 4. 13
34 44.1447'N
135 21.0758'E
Latitude, longitude
Speed over ground
Trip distance
Date
Time
Course
SOG 9.9kt
COG 350.2 T
DPT 16.2 m
TEMP 5.3 C
00:01
TRIP 0nm
Depth
Water temp.
Tracking interval
NAV INFO 2 window on setting a destination (default data)
Note: You can choose the data to display in the NAV. INFO windows. For
further details, see paragraph 9.6.2.
2.1.4
Compass plotter (or pilot) display
The compass display, displayed at the top of the screen in a combination display,
provides steering information.
Bearing scale
XTE monitor
Depth graph
(Required depth data.)
Time-to-go
to destination
Ship's course (red)
Destination waypoint
Range to destination waypoint
Speed over ground
Bearing to destination
waypoint (black)
5
25
10
0
BRG TO WPT
DEPTH TEMP
359.9˚M
14. 9 m
0D 9H 59M
TTG
1st 23 : 59
ETA
SOG
9. 9
kt
STW
RANGE
0.43
nm
N
E
Speed through water
COG
Direction to steer (green)
Shown in red when
direction to steer
is left. Own ship mark
(Black when the ship is within
XTE range, yellow when over.)
000001
10. 5
kt
4. 9˚C
w
359.9˚M
Estimated time of
arrival at destination
Water temperature graph
(Required water temperature data.)
Compass display
2. PLOTTER AND PILOT DISPLAY DESCRIPTION
2-5
Compass indicator
The black inverted triangle shows the bearing to the destination waypoint, and
the red triangle shows own ship’s course.
Note: The course means the direction of own ship’s movement, it is not the
direction of heading. The cursor includes the affect of current and wind.

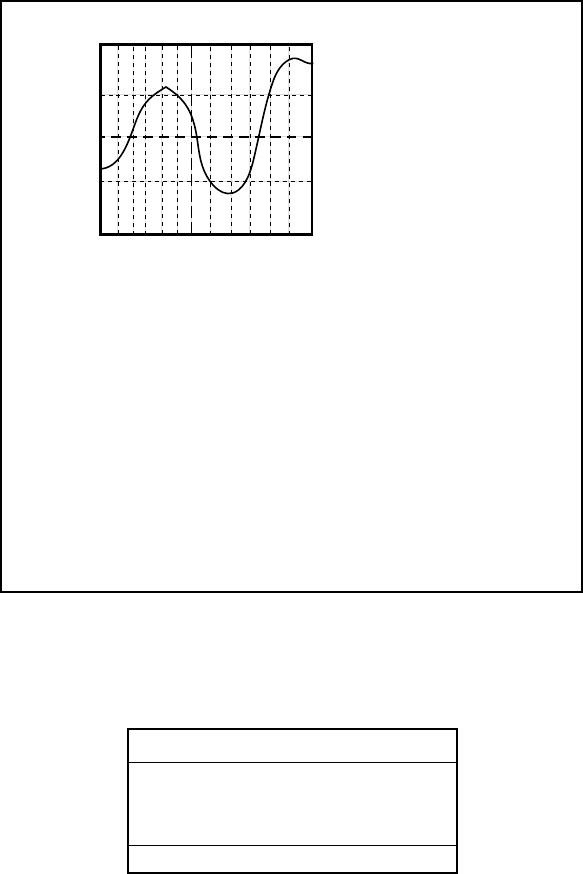

Depth and water temperature graphs
The depth and water temperature graphs, which require appropriate sensors,
show the latest 10 minutes of depth and water temperature data. The range of
the depth graph is 50 feet and it is automatically adjusted with depth.
XTE (cross-track error) monitor
The black boat-shaped (own ship mark) mark shows ship’s cross-track from the
intended course and direction, and amount to steer to return to course. It is
shown in black when the amount of cross-track error is within the XTE monitor
range and yellow when it is over. An arrow appears at the right or left side of the
XTE monitor and it shows the direction to steer to return to the intended course.
The arrow is shown in red when you should steer left, and green when you
should steer right. In the example on the previous page you would steer right to
return to course set. To maintain course, steer the vessel so the own ship marker
stays at the center of the XTE monitor.
2. PLOTTER AND PILOT DISPLAY DESCRIPTION
2-6
2.1.5
GPS status display
The GPS status display provides data about the GPS satellites and GEO
satellite (for WAAS).
30 40 50
21
07
06
11
03
05
12
08
SAT
No. SNR
21
07
11
06
12
08
05
N
S
EW 20
20
W
28
30
01
123
30
01 : 00 : 15
APR 1 2003
GPS 2D
DOP
1. 2
ALT
12 m
FREQ
310.0 kHz
SS
75.0 dB
SN
22.0 dB
Time
Date
GPS fix status
DOP value
GPS antenna height
Appears when the
internal DGPS beacon
receiver is installed.
DGPS beacon frequency
Signal strength
03
28
01
WAAS satellite (GEO)
Receiving signal level
Bars show satellite
signal levels. Satellites
whose signal level
extends 40 are used
to fix position.
Estimated position of satellite in the sky.
Satellites used for fixing position are circled.
GPS status display
DOP value: DOP stands for Dilution of Precision and is an indication of the
quality of the satellite constellation. The smaller value means the
higher accuracy. (For your reference, the positioning accuracy is
approx. 10 m when the value is less than “4”.)
SS: SS (Signal Strength) displays a numeric representation of electrical field
strength of the received signal on the selected frequency. The higher the
number the stronger the received signal, and a figure above 60 is normal.
SN: SN (Signal-to-Noise) ratio displays the ratio between the desired signal
and unwanted noise on the selected frequency. The higher the SN ratio the
better the quality of the signal, and a figure above 21 is normal.
2. PLOTTER AND PILOT DISPLAY DESCRIPTION
2-7
2.2 Operating the Cursor
1. Press the [CURSOR ON/OFF] key.
The cursor is turned on, and the cursor appears at the own ship’s position. To
hide the cursor, press the [CURSOR ON/OFF] key again.
FISH
000001
43
20 21 22
TRKS HOLD
2003. 4. 1
34 43.1447'N
135 21.0758'E 350.2
T
9.9
kt
00:01
Cursor
Cursor position in L/L
＋
PLOTTER NAV INFO 1 display (appearing the cursor)
2. Operate the trackball.
The cursor moves in the direction the trackball is operated and the cursor
position is indicated at the top of the screen.
Note: The chart display moves in the opposite direction when it reaches an edge
of the screen.
To return the cursor to the screen center
▪ Press the [CENTER] key to return the cursor to the screen center.
2. PLOTTER AND PILOT DISPLAY DESCRIPTION
2-8
2.3 Shifting the Display
The display can be shifted on the plotter display and pilot display.
1. If the cursor is turned on, press the [CURSOR ON/OFF] key to turn it off.
2. Operate the trackball.
The display shifts in the direction which the trackball is rolled.
3. Press the [CENTER] key to return the own ship position to the screen center.
(On the pilot display, the own ship’s mark is positioned slightly below the
center of the screen.)
Note: When own ship reaches an edge of the screen, it is returned to the
center of the screen automatically.
2.4 Changing Chart Scale
It is useful to change chart scale to
• Show destination on the display
• Find how close you are to your destination
• View ship’s tracks around a fishing ground
When cursor is off
Own ship is at the screen center. The display is enlarge or shrunk from the
screen center.
When cursor is on
The range scale is enlarged or shrunk with the cursor position as center.
• Press the [ZOOM IN] key to enlarge the scale, or [ZOOM OUT] key to shrink.
After pressing the [ZOOM IN] or [ZOOM OUT] key, the current range appears
at the center of the screen for a second. The range value shows the distance
between the left-side and right-side edges of the screen.
Ranges (default setting)
0.125 0.25 0.50 0.75 1.00 1.50 2.00 3.00 4.00 6.00
8.00 12.0 16.0 24.0 32.0 48.0 72.0 96.0 128 256
512 1024
(The larger value may be different from the above depending on latitude of own
ship.)
Note 1: When the display is expanded or shrunk beyond the range of the chart
card in use warning icon appears, along with the appropriate chart icon.
See paragraph 2.7.
Note 2: You can choose the ranges to use. See paragraph 9.2.3.
Note 3: The width of the screen can be shown with scales instead of the
distance. See paragraph 9.3.
2. PLOTTER AND PILOT DISPLAY DESCRIPTION
2-9
2.5 Measuring Range and Bearing Between two
Points
You can measure the range and bearing between two points as follows.
1. If the cursor is turned on, press the [CURSOR ON/OFF] key to turn it off.
2. Press the [0] key.
The “X” mark is entered at the own ship’s position at the moment the [0] key is
pressed, and a data box appears at the top of the display.
FISH
000001
43
20 21 22
"X" mark
RULER 0.00nm 0.0 T
Data box
×
Data box
3. Use the trackball to place the cursor on the starting point.
When the cursor is moved, a dashed circle appears, with the “X” mark at its
center and a dashed line intending from the “X” mark to the cursor.
4. Press the [ENTER] knob, and the “+” mark moves to the cursor position.
5. Use the trackball to place the cursor on the ending point.
The data box shows range and bearing between the starting and ending points.
2. PLOTTER AND PILOT DISPLAY DESCRIPTION
2-10
FISH
000001
43
20 21 22
41
Starting point
(X mark)
RULER 0.61nm 90.1 T
Range and bearing
between starting and ending points
XEnding point
(Cursor)
0.3nm
GPS2D
GPS2D
WGS84

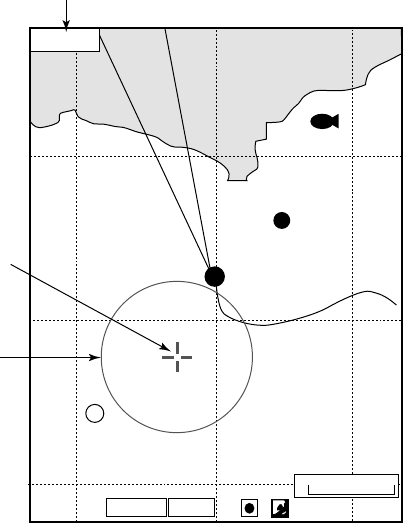

Range and bearing between two points
6. Press the [0] key to terminate the measurement and erase the dashed circle
and line, and data.
2. PLOTTER AND PILOT DISPLAY DESCRIPTION
2-11
2.6 Using the VRM (Variable Range Marker)
The VRM function to measure the distance between two points, like using
dividers to measure distance on a nautical chart.
1. Press the [VRM] key to show the VRM.
Each pressing this key makes the sequence shown below.
VRM off → VRM (floating VRM) → VRM (fixed VRM) → VRM off …
VRM off: VRM is turned off.
VRM (floating VRM): You can adjust its position and radius.
VRM (fixed VRM): VRM is fixed at position selected with floating VRM. Its radius
is also fixed.
When cursor is turned on, VRM appears around it. When cursor is turned off,
VRM appears around own ship’s position. Also, a data box appears at the top of
the display to show the radius of VRM.
FISH
000001
43
20 21 22
42
41
VRM
(Yellow)
Cursor
0.3nm
0.27nm
Radius of VRM
GPS2D WGS84
VRM
2. Use the trackball to place the VRM where desired.
3. Rotate the [ENTER] knob to adjust the radius of VRM.
Clockwise rotation: Increase radius.
Counterclockwise rotation: Decrease radius.
2. PLOTTER AND PILOT DISPLAY DESCRIPTION
2-12
4. When it is not necessary to change the VRM’s location and size, simply
press the [ENTER] knob.
VRM is fixed at the selected position.
5. To turn off the VRM, press the [VRM] key to hide VRM.
The data box disappears immediately.
Note: The [VRM] key’s default function is to turn the VRM on and off. Its function
can be changed as desired. For details, see paragraph 9.5.1.
2.7 Mini Chart Cards
This equipment uses both FURUNO and NAVIONICS chart cards or C-MAP NT
mini chart cards depending on its specifications. When you insert a suitable
chart card in the right side slot and turn on the power, a chart appears. If a
wrong card is inserted or a wrong chart scale is selected, landmasses will be
hollow. Insert the proper card and select a suitable chart scale. Chart icons
appear at the bottom of the plotter (or pilot) display to help you select a suitable
chart size. The table below shows the chart icons and their meanings.

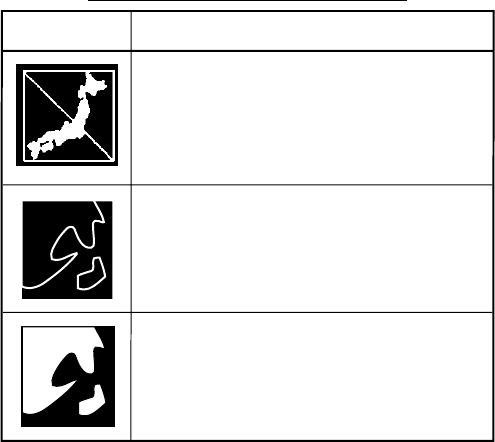

Chart icons and their meanings
Icon Meaning
Proper card is not inserted or
chart scale is too small.
Operate the [ZOOM IN] key to
adjust chart scale.
Suitable chart scale is selected.
Chart scale is too large.
Operate the [ZOOM OUT] key to
adjust chart scale.
2. PLOTTER AND PILOT DISPLAY DESCRIPTION
2-13

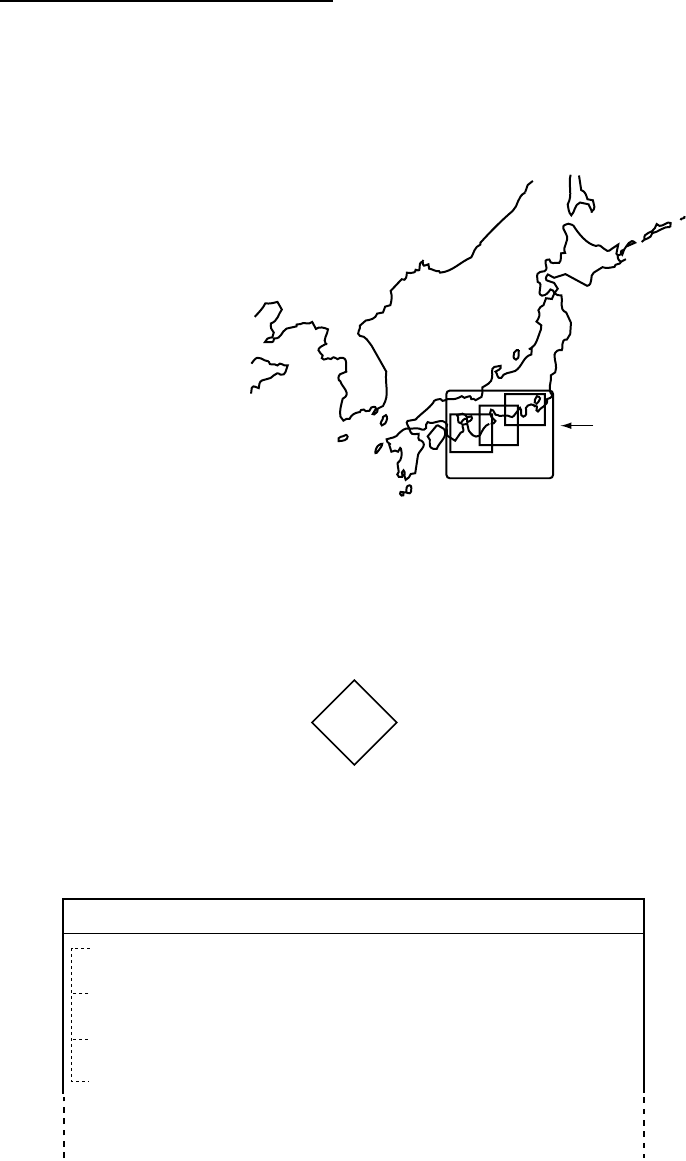

Indices and chart enlargement
When the [ZOOM OUT] key is used, you will see several frames appear on the
chart. These frames are called indices and they show you what parts of the chart
can be zoomed. The areas circumscribed with smaller frames can show more
detailed information.
Indices
Tide information
The C-MAP NT chart card provides for calculation of the tide heights for any
date. Additionally it displays the times of sunrise and sunset.

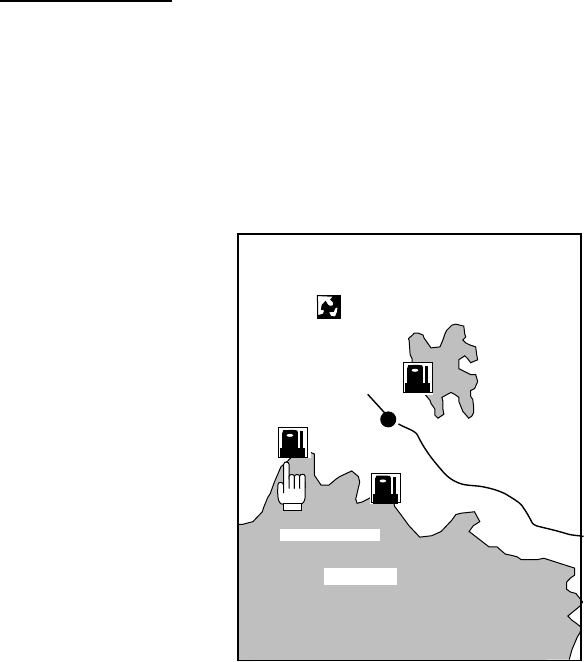

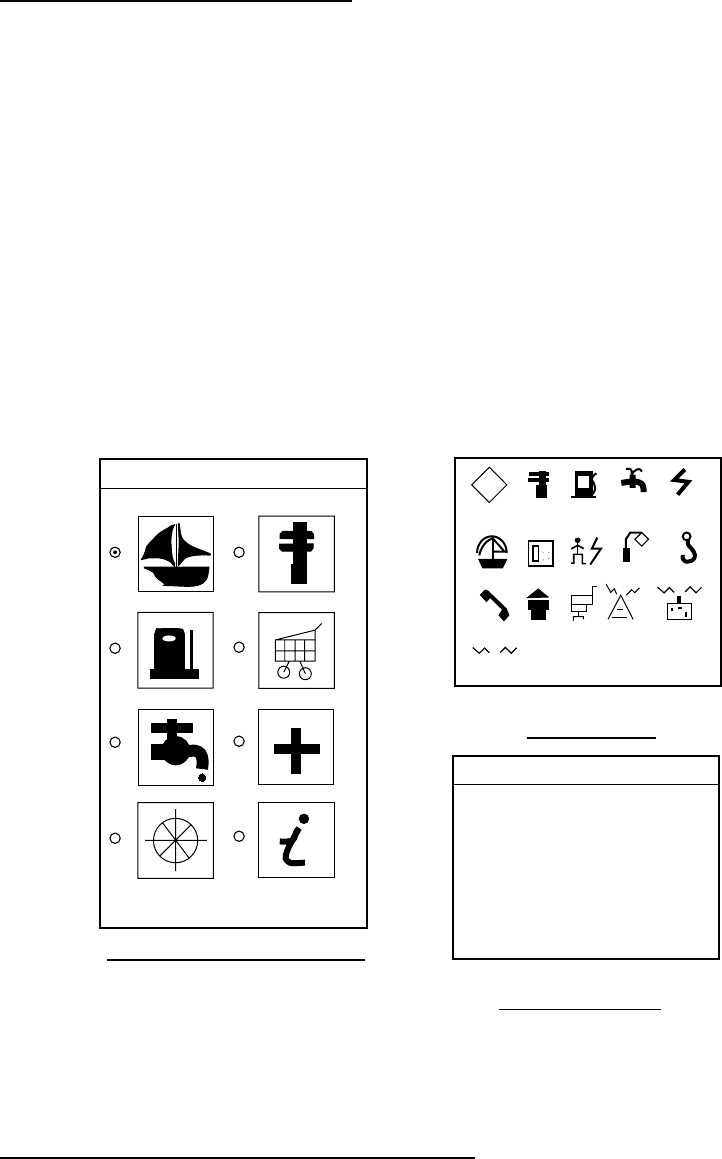

1. Operate the trackball to place the cursor on a Tide icon.
T
Tide icon
2. Press the [ENTER] knob to open the OBJECT window.

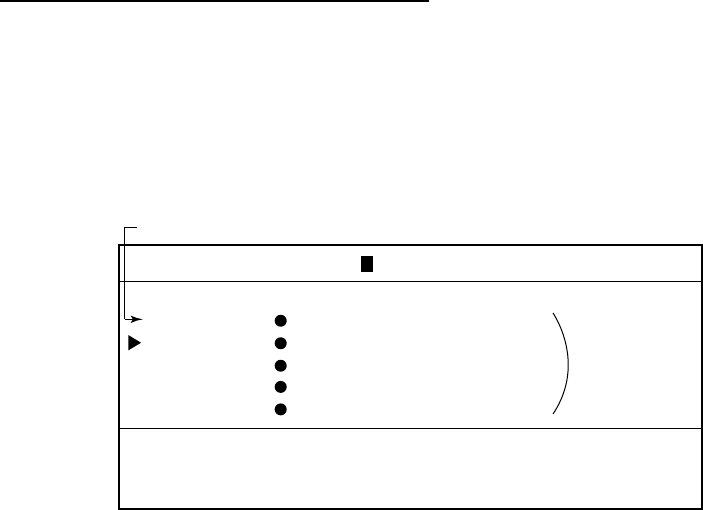

OBJECT
Tide height
Depth area
Harbour area
(administrative)
Source of data
Object window
3. Rotate the [ENTER] knob to select “Tide height.”
4. Press the [ENTER] knob to open the tide window.
2. PLOTTER AND PILOT DISPLAY DESCRIPTION
2-14
TIME: 12:00
HEIGHT: 2.23 ft
DRAUGHT:3.28 ft
04/11/03 +09
34 38. 913' N
135 26. 051' E
PORT INFORMATION
OSAKA KO
HIGH WATER (MAX)
4.66 ft (17:07)
LOW WATER (MIN)
1.91 ft (10:15)
SUNRISE 06:21L
SUNSET 17:01L
4.66
3.97
3.28
2.60
1.91
0 4 8 12 16 20 24
TIDE window
5. Press the [ENTER] knob to show the CHANGE DATE window.
CHANGE DATE
(DD. MM. YYYY.)
04. 11. 2003
LIMIT: 31. 12. 2099
DATE window
6. Operate the trackball to position the cursor to the digit to change, and then
press the numeric keys to enter a date.
7. Press the [ENTER] knob to show the tidal graph for entered date.
8. Roll the trackball in left-right direction to locate the vertical cursor on the time
desired. Time and height are shown below the graph.
9. Roll the trackball in upward-downward direction to shift the level cursor.
Draught is shown to the left of the graph.
10. Press the [MENU] key to close the TIDE window.
3-1
3. TRACK
Your ship’s track (main and sub tracks) is plotted on the screen using navigation
data fed from the built-in GPS navigator. When connecting with an
ARPA-equipped radar, other ship’s track can also be plotted. This chapter shows
you how to turn track on or off, and change its color and plotting interval. Own
ship’s track is displayed in red in the default setting.

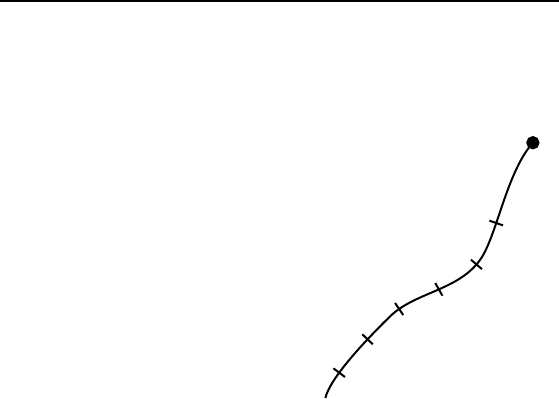

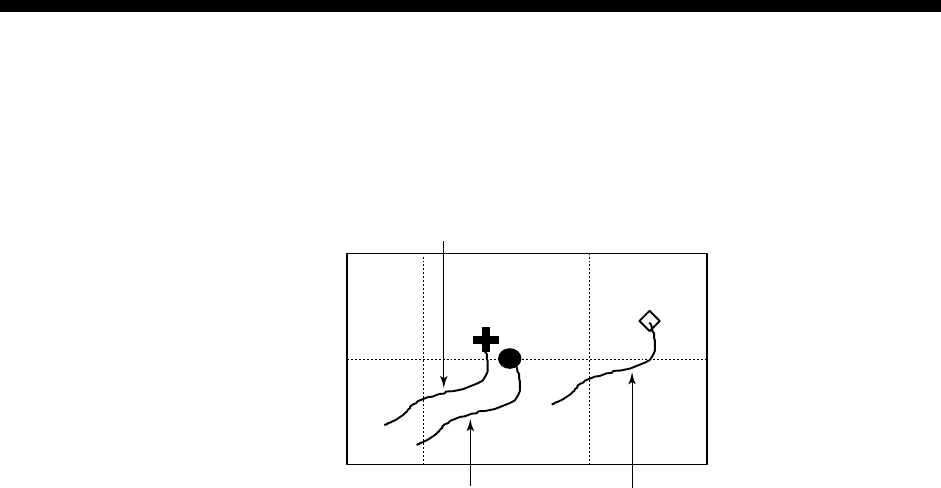

Own ship's track (main)
Own ship's track (sub)
Other ship's track
Tracks
3.1 Displaying Track
3.1.1 Own ship’s track
Own ship’s track can be turned on or off as follows.
1. Press the [MENU] key to display the main menu.
2. Press the [4] key to open the 4. MARKS/SHIP’S TRACKS SETUP menu.
This menu has two pages. If PAGE 2/2 appears, rotate the [ENTER] knob
clockwise to select “PREVIOUS PAGE.”
3. Rotate the [ENTER] knob to choose “SHIP’S TRACKS DISP.”
3. TRACKS
3-2
NEXT PAGE
MARKS SIZE 1. L 2. L+ 3. S
LINES STYLE 1. 2. 3. 4.
TRACK INTERVAL 1 TIME (00M10s) DIST (0.10nm)
TRACK INTERVAL 2 TIME (00M10s) DIST (0.10nm)
SHIP'S TRACKS DISP 1. ON 2. OFF
DISP TRACKS (HOLD) 1. ON 2. OFF
PLOT TRACKS (HOLD) 1. ON 2. OFF
TRACKS COLOR 1. 2. 3. 4.
TRACKS BY TEMP RANGE GRDNT (0.2˚F 2.0˚F)
WHITE: 005.0˚F BELOW
BLUE: 005.0˚F ~
PURPLE 010.0˚F ~
LIGHT BLUE: 012.5˚F ~
GREEN: 015.0˚F ~
YELLOW: 017.5˚F ~
RED: 020.0˚F ABOVE
TRACKS BY DEPTH RANGE GRDNT (2ft 20ft 200ft)
WHITE: 0032.8 ft SHALLOWER
BLUE: 0032.8 ft ~
PURPLE 0164.0 ft ~
GREEN: 0656.2 ft ~
YELLOW: 0984.3 ft ~
RED: 1312.3 ft DEEPER
SHIP'S TRACKS 12,000
MARKS 04,000/16,000
4. MARKS/SHIP'S TRACKS SETUP PAGE 1/2
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.

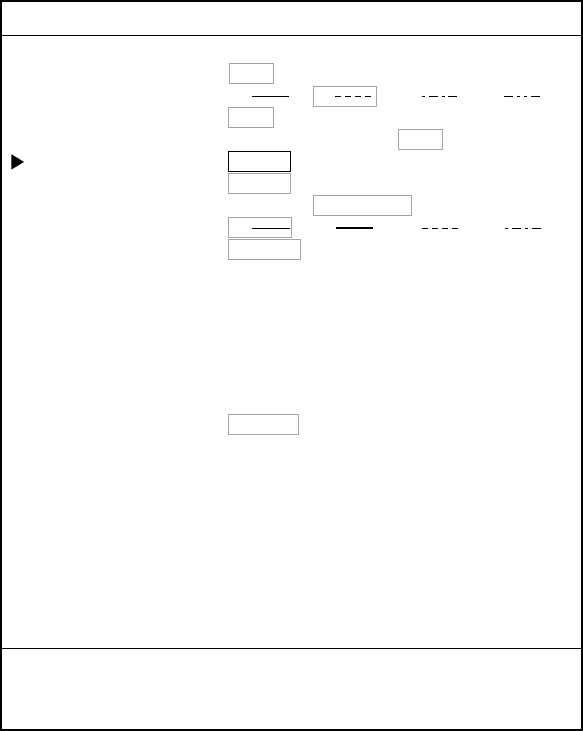

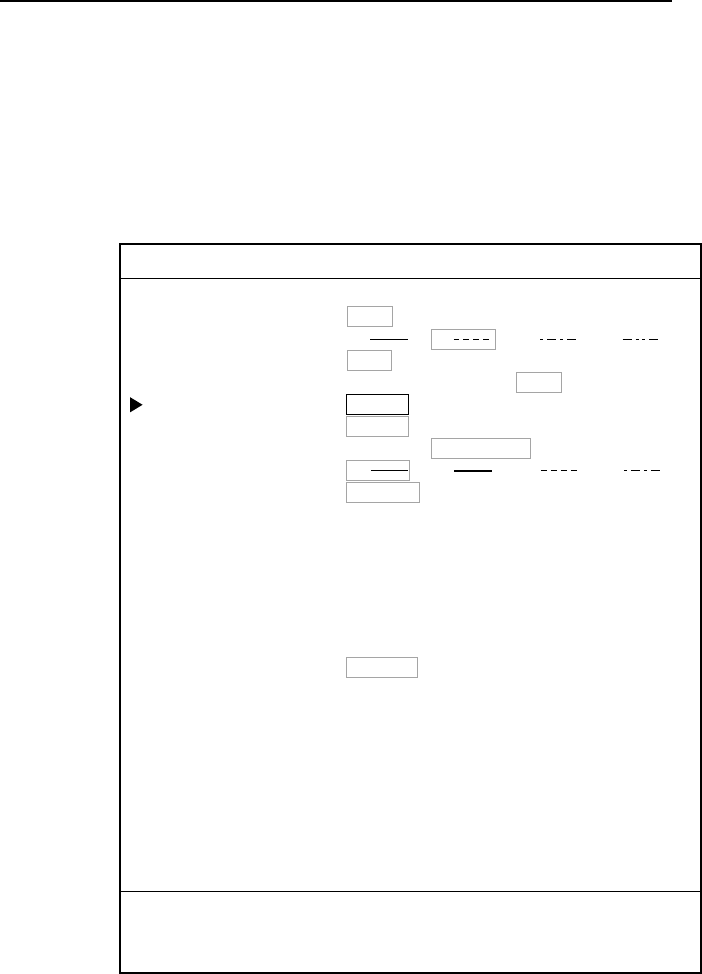

Marks/ship’s tracks setup menu (page 1)
4. Press the [1] key to choose ON or the [2] key to choose OFF as appropriate.
5. Press the [MENU] key several times to close the menu.
Note: The number of track points used appears at the bottom of the
MARKS/SHIP’S TRACKS EDITION menu. (See page 3-16.)
3. TRACKS
3-3
3.1.2 Sub track
A second track of own ship’s track, called sub track, may be shown, using data
from a second navigator.
Note that the sub track is not stored in the memory; it is erased when it goes off
the screen or when the power is turned off.
1. Press the [MENU] key to display the main menu.
2. Press the [4] key to show the MARKS/SHIPS TRACKS SETUP menu.
3. If PAGE 1/1 appears, rotate the [ENTER] knob clockwise to select “NEXT
PAGE to show page 2/2.”
4. Rotate the [ENTER] knob to choose “DISP SUB TRACKS.”

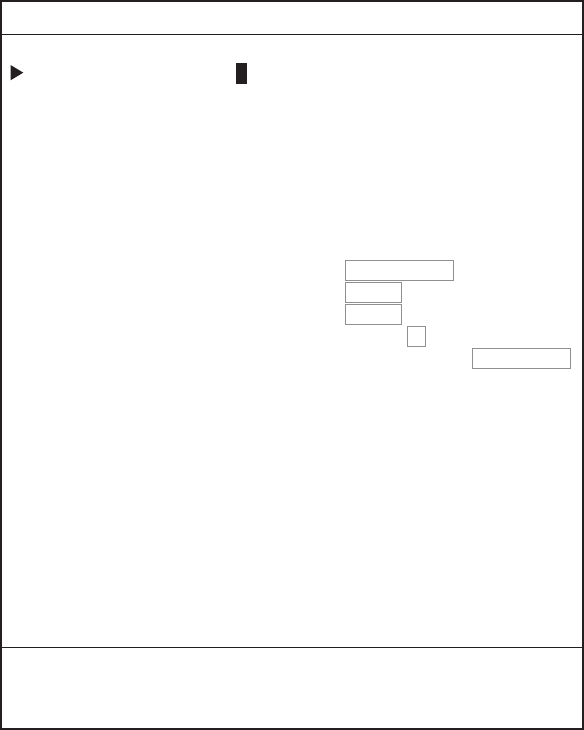

4. MARKS/SHIP'S TRACKS SETUP PAGE 2/2
PREVIOUS PAGE
DISP TARGET TRACKS
1. ON 2. OFF
TARGET TRACK COLOR 1. 2. 3. 4. 5. 6. 7.
TARGET TRACK STYLE
1. 2. 3. 4.
DISP SUB TRACKS 1. ON 2. OFF
SUB TRACK COLOR 1. 2. 3. 4. 5. 6. 7.
SUB TRACK STYLE 1. 2. 3. 4.
SUB TRACK TALKER 1.GP 2.II 3.IN 4.SN 5.TR
6.LA 7.LC 8.DE 9.EC
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.

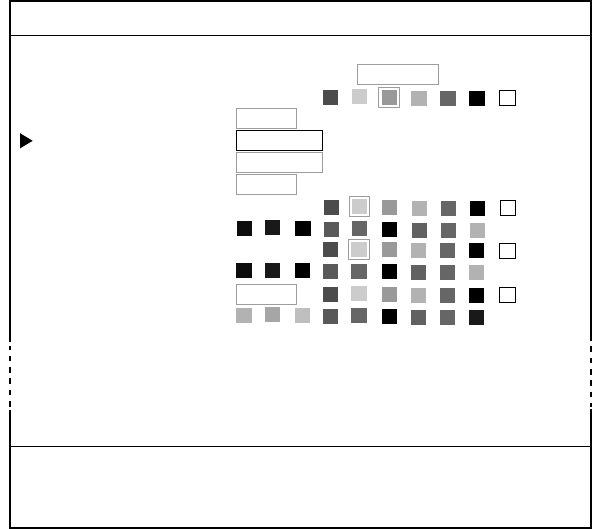

Marks/ship’s tracks setup menu (page 2)
5. Press the [1] key to choose ON or the [2] key to choose OFF as appropriate.
6. Press the [MENU] key several times to close the menu.
Note: The position data used to trace the sub track may be chosen with “SUB
TRACK TALKER” on page 2 of the MARKS/SHIP’S TRACKS SETUP
menu. For further details, refer to the installation manual.
3. TRACKS
3-4
3.1.3 Other ship’s track
You may show the tracks of ARPA targets tracked in auto tracking. Note that this
track is not stored in the memory; it is erased when it goes off the screen a when
the power is trued off
1. Press the [MENU] key to display the main menu.
2. Press the [4] key to show the MARKS/SHIP’S TRACKS SETUP menu.
3. If PAGE 1/1 appears, rotate the [ENTER] knob clockwise to select “NEXT
PAGE.”
4. Rotate the [ENTER] knob to choose “DISP TARGET TRACKS.”
5. Press the [1] to choose ON or the [2] key to choose OFF as appropriate.
6. Press the [MENU] key several times to close the menu.
3. TRACKS
3-5
3.2 Stopping, Restarting Plotting of Own Ship Track
When your boat is at anchor or returning to port, you probably won’t need to
record its track. You can stop recording the track, to conserve the track memory,
as follows.
1. Press the [PLOT INTVL] key several times to show the “H” (Hold) icon (at the
bottom of the screen). Each time the key is pressed the track function
available changes in the sequence shown below.
TRACK INTERVAL 1 -> TRACK INTERVAL 2 -> HOLD -> TRACK INTERVAL 1
Track plotting interval or “HOLD” appears at the top right corner of the NAV INFO
1 (or 2) display. When plotting is stopped, own ship’s mark changes from a solid
circle to a hollow one and track is not stored in the memory.
HOLD icon
FISH
000001
43
20 21 22
42
41
TRKS HOLD
2003. 1. 1
34
°
44.1447'N
135
°
21.0758'E 350.2
°
T
9.9
kt
00:01
Own ship's mark
Current interval
or "TRKS HOLD"
H
0.3nm
GPS2D
WGS84

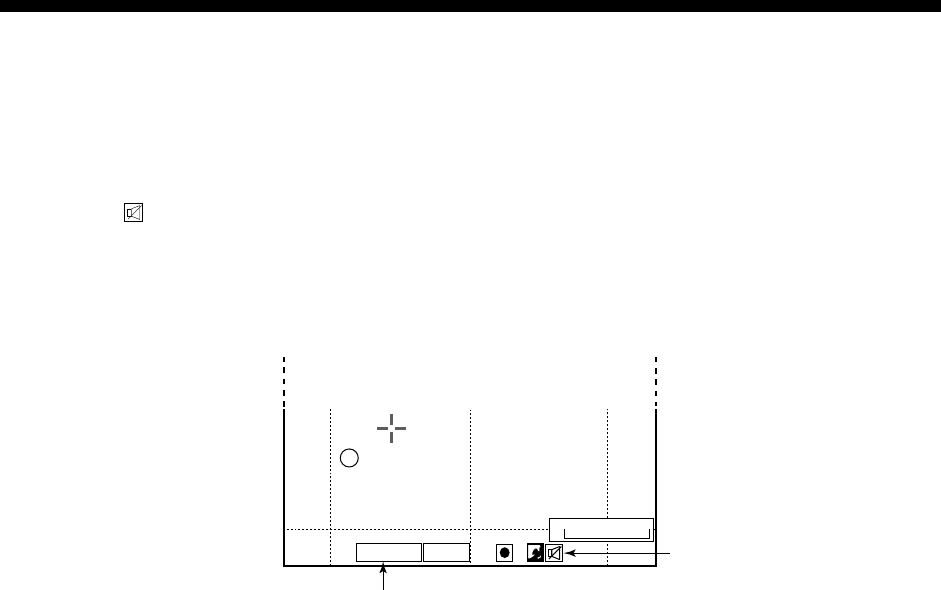

Stopping plotting track (ex. PLOTTER NAV INFO 1 display)
Note: If the track plotting interval is not shown in the NAV INFO window, see
paragraph 9.6.2.
2. To restart plotting, press the [PLOT INTVL] key.
Note: Plotting can also be stopped or restarted from the full screen echo
sounder display.
3. TRACKS
3-6
3.2.1 Displaying own ship’s track while track plotting is stopped
You can show or hide own ship’s track on the PLOTTER (or PILOT) display
while track plotting is stopped.
1. Press the [MENU] key to show the main menu.
2. Press the [4] key to show the MARKS/SHIP’S TRACKS SETUP menu.
3. If PAGE 2/2 appears, rotate the [ENTER] knob clockwise to select
“PREVIOUS PAGE.”
4. Rotate the [ENTER] knob to choose “DISP TRACKS (HOLD).”
5. Press the [1] key to choose ON or the [2] key to choose OFF as appropriate
ON: Own ship’s track is displayed while recording is stopped. In this case own
ship’s track is not recorded; it is erased when it goes off screen or when the
power is turned off.
OFF: Own ship’s track is not displayed while recording is stopped.
Set to "ON"
Stopping
Resumed
Own Ship
Display enlarged
Display shrunk
Track
disappears.
Own Ship
Resumed
Stopped
Display while stopping recording of track
(When “ON” is selected at step 5 above)
5. Press the [MENU] key several times to close the menu.
3. TRACKS
3-7
3.2.2 Connecting own ship’s track when resuming plotting
When you resume plotting of own ship’s track, the point where plotting was
stopped and restarted can be connected with a straight line.
1. Press the [MENU] key to show the main menu.
2. Press the [4] key to display the MARKS/SHIP’S TRACKS SETUP menu.
3. If PAGE 2/2 appears, rotate the [ENTER] knob clockwise to select
“PREVIOUS PAGE.”
4. Rotate the [ENTER] knob to choose the “PLOT TRACKS (HOLD).”
5. Press the [1] key to choose ON or the [2] key to choose OFF as appropriate
ON: Stopping and resuming points are connected with a straight line.
OFF: Stopping and resuming points are not connected.
Track shown by
dashed lines
not displayed.
Actual Track
Plotting
Restarted
Own Ship
Plotting
Suspended
Track points where plotting was suspended
and restarted are not connected.
Track points where track plotting was
stopped and restarted are connected
with a straight line.
Own Ship
Track connected
Display after stopping
5. Press the [MENU] key several times to close the menu.
3. TRACKS
3-8
3.3 Changing Track Color
Track can be displayed in red, yellow, green, light-blue, purple, blue or white. It
can be useful to change track color on a regular basis to discriminate between
previous day’s track, etc. For own ship’s track, track color can be changed
automatically according to water temperature or depth.
3.3.1 Changing own ship’s track color
1. Press the [TRACK COLOR] key to show the CHANGE SHIP’S TRACK
COLOR window.
PRESS APPROPRIATE NUMERIC KEY TO SELECT COLOR.
PRESS "0" KEY TO DELETE SHIP'S TRACK.
CHANGE SHIP'S TRACK COLOR
1. 2. 3. 4. 5. 6. 7. 8. TMP 9. DEPTH
Change ship’s track color window
Note: This window disappears if there is no operation in ten seconds.
2. Press the appropriate numeric key to choose color.
1 through 7 keys: Own ship’s track is colored accordingly.
8: Own ship’s track color changes with water temperature. (Requires water
temperature sensor.)
9: Own ship’s track color changes with depth.
Own ship’s track color changes from the moment.
3.3.2 Changing sub track color
1. Press the [MENU] key to show the main menu.
2. Press the [4] key to show the MARKS/SHIP’S TRACKS SETUP menu.
3. If PAGE 1/2 appears, rotate the [ENTER] knob to select NEXT PAGE.
4. Rotate the [ENTER] knob to select SUB TRACKS COLOR.
5. Press the appropriate numeric key to choose color.
6. Press the [MENU] key several times to close the menu.
3.3.3 Changing target track color
1. Press the [MENU] key to show the main menu.
2. Press the [4] key to show the MARKS/SHIP’S TRACKS SETUP menu.
3. If PAGE 1/2 appears, rotate the [ENTER] knob to select NEXT PAGE.
4. Rotate the [ENTER] knob to select TARGET TRACK COLOR.
5. Press the appropriate numeric key to choose color.
6. Press the [MENU] key several times to close the menu.
3. TRACKS
3-9
3.3.4 Automatically changing own ship’s track color by water
temperature
There are two methods by which own ship’s track color may be changed
according to water temperature: by preset temperature range or temperature
variation.
Changing own ship’s track color by preset temperature range
This method changes the color of track when the water temperature is within a
preset range. For example, you can set up to paint the track yellow when the
water temperature is between 17 and 20°C.
1. Press the [MENU] key to show the main menu.
2. Press the [4] key to show the MARKS/SHIP’S TRACKS SETUP menu.
3. If PAGE 2/2 appears, rotate the [ENTER] knob to select PREVIOUS PAGE.
NEXT PAGE
MARKS SIZE 1. L 2. L+ 3. S
LINES STYLE 1. 2. 3. 4.
TRACK INTERVAL 1 TIME (00M10s) DIST (0.10nm)
TRACK INTERVAL 2 TIME (00M10s) DIST (0.10nm)
SHIP'S TRACKS DISP 1. ON 2. OFF
DISP TRACKS (HOLD) 1. ON 2. OFF
PLOT TRACKS (HOLD) 1. ON 2. OFF
TRACKS COLOR 1. 2. 3. 4.
TRACKS BY TEMP RANGE GRDNT (0.2˚F 2.0˚F)
WHITE: 005.0˚F BELOW
BLUE: 005.0˚F ~
PURPLE 010.0˚F ~
LIGHT BLUE: 012.5˚F ~
GREEN: 015.0˚F ~
YELLOW: 017.5˚F ~
RED: 020.0˚F ABOVE
TRACKS BY DEPTH RANGE GRDNT (2ft 20ft 200ft)
WHITE: 0032.8 ft SHALLOWER
BLUE: 0032.8 ft ~
PURPLE 0164.0 ft ~
GREEN: 0656.2 ft ~
YELLOW: 0984.3 ft ~
RED: 1312.3 ft DEEPER
SHIP'S TRACKS 12,000
MARKS 04,000/16,000
4. MARKS/SHIP'S TRACKS SETUP PAGE 1/2
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.

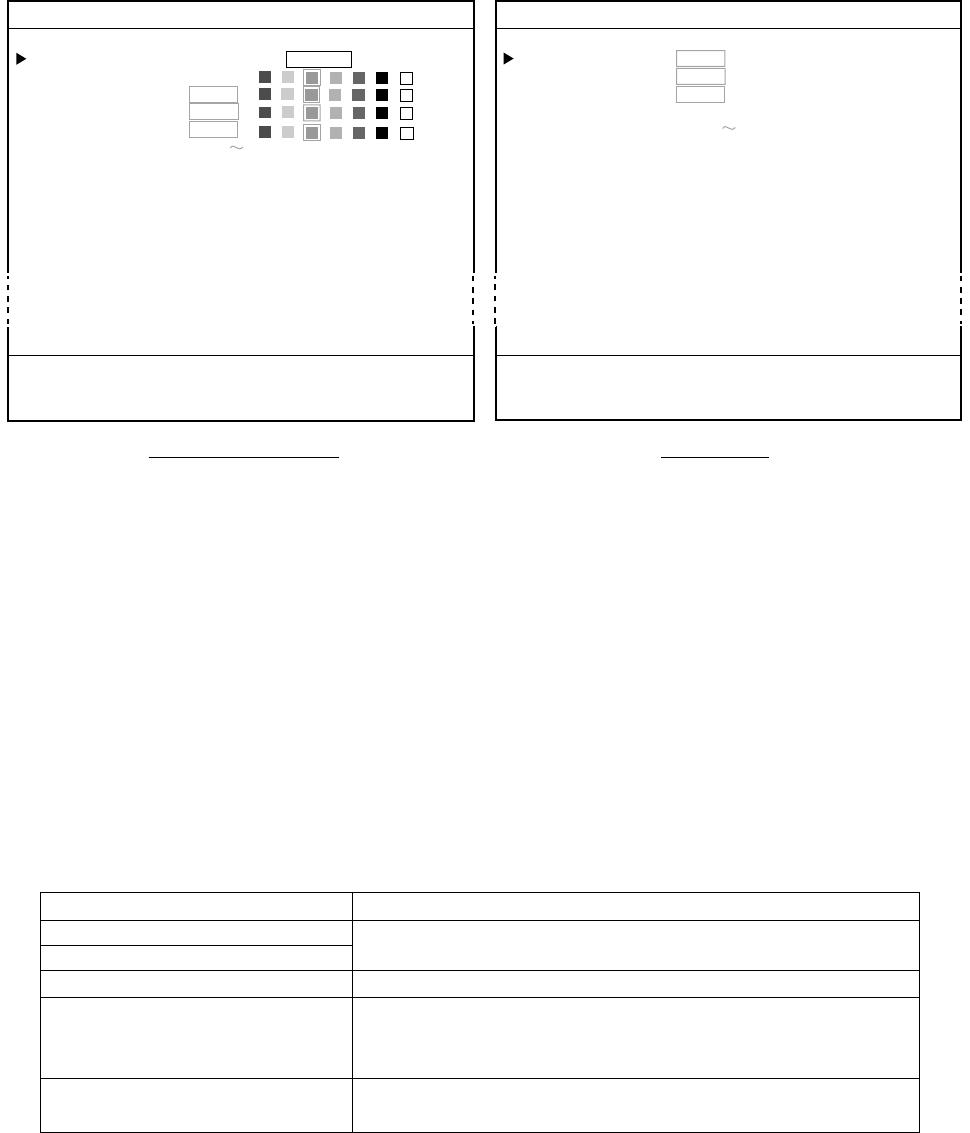

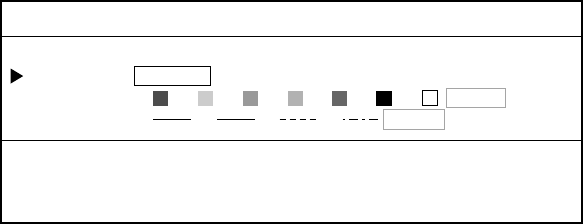

Marks/ship’s tracks setup menu (Page 1/1)
3. TRACKS
3-10
4. Rotate the [ENTER] knob to select TRACKS BY TEMP.
5. Roll the trackball leftward to select “RANGE.”
6. Set the temperature range desired for each color. For example, if you want to
paint the track red when the water temperature is higher than 18°C, do the
following:
a) Rotate the [ENTER] knob to select “RED: xxx.x°C ABOVE.”
b) Press the [0], [1], [8], [0] in that order, and then press the [ENTER] knob.
Note: To erase, press the [CLEAR] key.
c) Set ranges for other colors similarly. You cannot enter the range for WHITE. It
becomes the same range as BLUE automatically.
7. Press the [MENU] key several times to close the menu.
Changing own ship’s track color according to temperature variation
This setting paints the track in up to five colors according to temperature
variation. When you select “0.2ºF”, for example, the track is painted red when
the water temperature is between 17.0 and 17.2 degrees; yellow when the water
temperature is between 17.2 and 17.3 degrees. Thus, the track color changes
green, blue and purple in 0.2 degree steps. When the water temperature
becomes 18.0 degrees, the track color returns to red.
Own Ship
YEL
RED
PPL
BLU
GRN
YEL
RED
18.2
18.0
17.8
17.6
17.4
17.2
17.0˚C
Example, presetting unit 0.2°
1. Press the [MENU] key to show the main menu.
2. Press the [4] key to show the MARKS/SHIP’S TRACKS SETUP menu.
3. If PAGE 2/2 appears, rotate the [ENTER] knob to select PREVIOUS PAGE.
4. Rotate the [ENTER] knob to select TRACKS BY TEMP.
5. Roll the trackball rightward to select 0.2ºF or 2.0ºF of “GRDNT.”
6. Press the [ENTER] knob.
7. Press the [MENU] key several times to close the menu.
3. TRACKS
3-11
3.3.5 Changing own ship’s track color according to depth
The color of the own ship’s track can be changed according to depth range or
depth variation.
Changing track color by preset depth range
This method changes the color of track when the depth is within a preset range.
For example, you can set up to paint the track yellow when the depth is between
200 and 300 feet.
1. Press the [MENU] key to show the main menu.
2. Press [4] key to show the MARKS/SHIP’S TRACKS SETUP menu.
3. If the PAGE 2/2 appears, rotate the [ENTER] knob to select PREVIOUS
PAGE.
NEXT PAGE
MARKS SIZE 1. L 2. L+ 3. S
LINES STYLE 1. 2. 3. 4.
TRACK INTERVAL 1 TIME (00M10s) DIST (0.10nm)
TRACK INTERVAL 2 TIME (00M10s) DIST (0.10nm)
SHIP'S TRACKS DISP 1. ON 2. OFF
DISP TRACKS (HOLD) 1. ON 2. OFF
PLOT TRACKS (HOLD) 1. ON 2. OFF
TRACKS COLOR 1. 2. 3. 4.
TRACKS BY TEMP RANGE GRDNT (0.2˚F 2.0˚F)
WHITE: 005.0˚F BELOW
BLUE: 005.0˚F ~
PURPLE 010.0˚F ~
LIGHT BLUE: 012.5˚F ~
GREEN: 015.0˚F ~
YELLOW: 017.5˚F ~
RED: 020.0˚F ABOVE
TRACKS BY DEPTH RANGE GRDNT (2ft 20ft 200ft)
WHITE: 0032.8 ft SHALLOWER
BLUE: 0032.8 ft ~
PURPLE 0164.0 ft ~
GREEN: 0656.2 ft ~
YELLOW: 0984.3 ft ~
RED: 1312.3 ft DEEPER
SHIP'S TRACKS 12,000
MARKS 04,000/16,000
4. MARKS/SHIP'S TRACKS SETUP PAGE 1/2
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
Marks/ship’s tracks setup menu (Page 1/2)
3. TRACKS
3-12
4. Rotate the [ENTER] knob to select “TRACKS BY DEPTH”.
5. Roll the trackball leftward to select “RANGE.”
6. Set the depths as desired. For example, to change track color to red when
the depth is more than 500 feet:;
a) Rotate the [ENTER] knob to select “RED xxxx.xx ft DEEPER.”
b) Press the [0], [5], [0], [0], [0], [0] keys in that order, and then press the
[ENTER] knob.
Note: To erase, press the [CLEAR] key.
c) Set depths for other colors similarly. You cannot enter the depth for WHITE:
it is automatically set for the same depth as BLUE.
7. Press the [MENU] key several times to close the menu.
Changing own ship’s track color by depth variation
This setting paints the track in up to seven colors according to depth variation
selected. For example, you could set up to change the track color for every 20
feet of depth change.
Own Ship
Red
Purple
Light-blue
Green
Yellow
Red
200
180
160
140
120
100 ft
Depth steadily
increasing.
Example, track color changes with every 20 ft of depth change
1. Press the [MENU] key to show the main menu.
2. Press the [4] key to show the MARKS/SHIP’S TRACKS SETUP menu.
3. If PAGE 2/2 appears, rotate the [ENTER] knob to select PREVIOUS PAGE.
4. Rotate the [ENTER] knob to select TRACKS BY DEPTH.
5. Roll the trackball rightward to select 2 ft, 20 ft or 200 ft of “GRDNT.”
6. Press the [MENU] key several times to close the menu.
3. TRACKS
3-13
3.4 Changing Track Line Type
Tracks may be traced on the display with a solid line, dashed line, dotted line or
dot-dash line. Choose line type desired as follows:
1. Press the [MENU] key to show the main menu.
2. Press the [4] key to show the MARKS/SHIP’S TRACKS SETUP menu.
3. To set own ship’s track line, select LINE STYLE on PAGE 1/2.
For the sub track or target track lines, select the appropriate item on the PAGE
2/2.
4. Press appropriate numeric key to select the line type desired.
5. Press the [MENU] key several times to close the menu.
3.5 Track Plotting Method, Interval
In drawing the track, the ship’s position is stored into the unit’s memory at an
interval of time or distance. A shorter interval provides better reconstruction of
the track, but the storage time of the track is reduced. When the track memory
becomes full, the oldest track is erased to make room for the latest.
3.5.1 Track plotting method
● Press the [PLOT INTVL] key to select the track plotting method.
Each time the key is pressed the plotting method changes in the sequence
shown below.
Track interval 1→Track interval 2→Hold→Track interval 1 …
The PLOTTER (or PILOT) NAV INFO 1 display shows the current plotting
method.
Distance is useful for conserving track memory, since no track is recorded when
the boat is stationary.
To change the track plotting method (for time and distance) and interval, see the
next paragraph.
FISH
43
TRKS 00M01s
2003. 1. 1
34 44.1447'N
135 21.0758'E 350.2 T
9.9
kt
00:01
"00M10s" "0.10nm" "TRKS HOLD" "00M10s" ...
Plotter display showing location of track plotting interval indication
Note: If the plotting method does not appear, see paragraph 9.6.2.
3. TRACKS
3-14
3.5.2 Track plotting interval
The track plotting interval can be changed as you like.
1. Press the [MENU] key to show the main menu.
2. Press the [4] key to show the MARKS/SHIP’S TRACKS SETUP menu.
3. If PAGE 2/2 appears, rotate the [ENTER] knob to select PREVIOUS PAGE.
4. Rotate the [ENTER] knob to select “TRACK INTERVAL 1” or “TRACK
INTERVAL 2”.
5. Roll the trackball in left-right direction to select “TIME” or “DIST (distance)” as
appropriate.
6. Press the numeric keys to enter value.
Setting range is 00M00S to 99M59S (Time), 0.00 nm to 9.99 nm (Distance).
Note 1: To clear data, press the [CLEAR] key.
Note 2:You may remove a plotting interval from the [PLOT INTVL] key’s
selection sequence by entering all zeroes as the plotting interval. For
example, if TRACK INTERVAL 2 is set as 00M00S (or 0.00 nm), the
sequence [PLOT INTVL] key’s sequence is as shown below.
TRACK INTERVAL 1 → Hold → TRACK INTERVAL 1 → Hold
7. Press the [ENTER] knob.
8. Press the [MENU] key several times to close the menu.
3. TRACKS
3-15
3.6 Erasing Tracks
There are two methods to erase tracks: by color and by line type. Be absolutely
sure you want to erase track; erased track cannot be restored.
Note 1: Files set to “YES” on the DISPLAY DATA FROM MEMORY CARD menu
cannot be erased. (See paragraph 10.2.3.)
Also, files set to “YES” on the DISPLAY DATA FROM INTERNAL
MEMORY menu cannot be erased. (See paragraph 10.4.2.)
Note 2: Tracks set to change according to water temperature or depth cannot be
erased. (See paragraph 3.3.1.)
3.6.1 Erasing tracks by color
You may erase tracks according to color, within an area or all same color track.
Erasing all track
1. Press the [TRACK COLOR] key to show the CHANGE SHIP’S TRACK
COLOR window.
2. Press the [0] key within 10 seconds to show the DELETE SHIP’S TRACK
window.

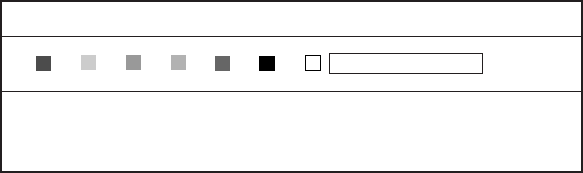

PRESS APPROPRIATE NUMERIC KEY TO DELETE SHIP'S TRACK.
DELETE SHIP'S TRACK
1. 2. 3. 4. 5. 6. 7.
Delete ship’s track window
3. Press the appropriate numeric key to choose the color to erase.
The following message appears.
DELETE ALL SHIP'S TRKS
IN XXXX (type of color).
ARE YOU SURE?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
4. Press the [ENTER] knob to clear all tracks of the color chosen.
3. TRACKS
3-16
Erasing tracks by area
You can erase tracks within an area you specify.
1. Press the [MENU] key to show the main menu.
2. Press the [5] key to show the MARKS/SHIP’S TRACKS EDITION menu.
5. MARKS/SHIP'S TRACKS EDITION
1. EDIT MARKS
2. DELETE MARKS
3. ENTER MARKS
4. EDIT SHIP'S TRACKS
5. DELETE SHIP'S TRACKS
NUMBER OF TRACKS 6,886/12,000
NUMBER OF MARKS 3/4,000
TURN KNOB TO SELECT MENU AND PRESS KNOB TO ENTER.
OR PRESS APPROPRIATE NUMERIC KEY TO SELECT MENU.
Used points
Points available
Marks/ship’s track edition menu
3. Press the [5] key to show the DELETE SHIP’S TRACKS window.
ENTER
SELECT 1. 2PTS 2. AREA 3. INSIDE 4. OUTSIDE 5. ALL
COLOR
STYLE 1. 2. 3. 4. 5. ALL
SET "SELECT", "COLOR" AND "STYLE".
PLACE CURSOR ON "ENTER".
5-5. DELETE SHIP'S TRACKS
1. 2. 3. 4. 5. 6. 7. 8. ALL
Delete ship’s tracks window
4. Rotate the [ENTER] knob to select COLOR.
5. Roll the trackball in left-right direction to select the color to erase.
6. Rotate the [ENTER] knob to choose SELECT.
7. Roll the trackball in left-right direction to select a method.
2 PTS: All tracks between two points entered on the plotter screen are erased.
AREA: All tracks within an area you set are erased.
INSIDE: All tracks currently displayed are erased.
OUTSIDE: All tracks other than currently displayed ones are erased.
ALL: All tracks in the memory are erased.
8. Rotate the [ENTER] knob to select ENTER.
3. TRACKS
3-17
9. Do the follows depending on selection made at step 7.

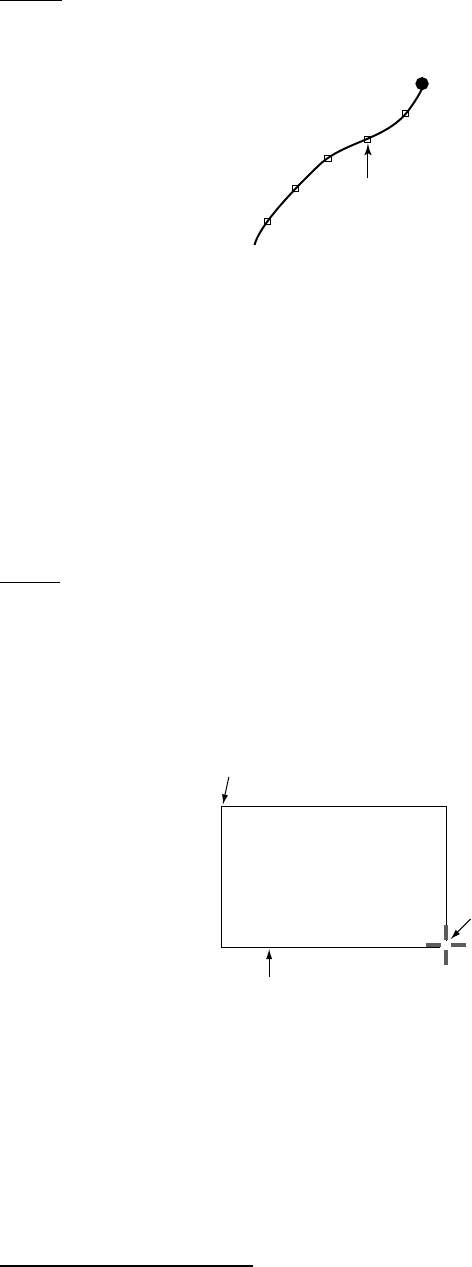

2 PTS
Squares (memory points) appear on the track.
Own Ship
Memory point
Track
a) Operate the trackball to place the cursor on the starting memory point to
erase.
b) Press the [ENTER] knob. A green dot appears on the starting point.
c) Operate the trackball to place the square on the ending memory point to
erase.
d) Press the [ENTER] knob twice.
e) Press the [MENU] key several times to close the menu.
AREA
a) Operate the trackball to move the cursor to the starting point of the area to
erase.
b) Press the [ENTER] knob.
c) Operate the trackball to move the cursor to the ending point of the area to
erase. A green rectangle appears.

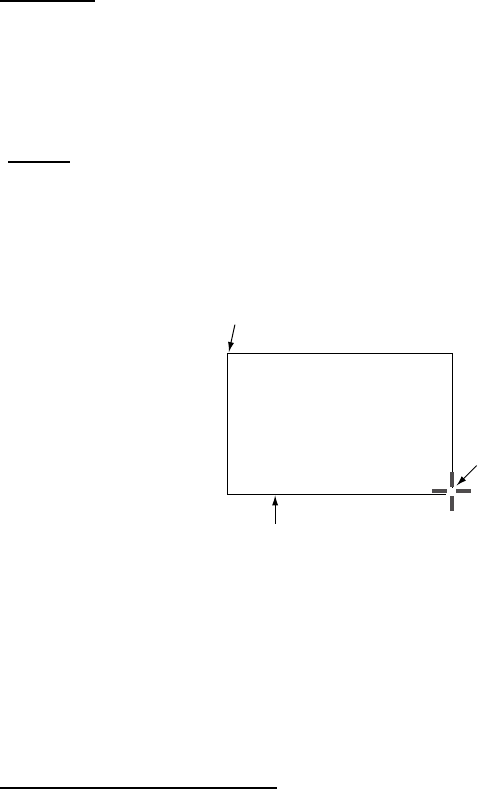

Green rectangle
(All tracks in this area are erased.)
Starting point
Cursor
Erasing area
d) Press the [ENTER] knob to change the color of rectangle from green to
white.
e) Press the [ENTER] knob again.
f) Press the [ENTER] knob several times to close the menu.
INSIDE, OUTSIDE or ALL
a) Press the [ENTER] knob.
b) Press the [MENU] key several times to close the menu.
3. TRACKS
3-18
3.6.2 Erasing tracks by line type
You can erase tracks by line type as follows:
1. Press the [MENU] key to show the main menu.
2. Press the [5] key to show the MARKS/SHIP’S TRACKS EDITION menu.
3. Press the [5] key to show the DELETE SHIP’S TRACKS window.
5-5. DELETE SHIP'S TRACKS
ENTER
SELECT 1. 2PTS 2. AREA 3. INSIDE 4. OUTSDE 5. ALL
COLOR 1. 2. 3. 4. 5. 6. 7. 8. ALL
STYLE 1. 2. 3. 4. 5. ALL
SET "SELECT", "COLOR" AND "STYLE".
PLACE CURSOR ON "ENTER".
Delete ship’s tracks window
4. Rotate the [ENTER] knob to select STYLE.
5. Press appropriate number key to chose line type to erase ALL erases all
track.
6. Rotate the [ENTER] knob to choose SELECT.
7. Press appropriate numeric key to select a method.
2 PTS: All tracks between two points entered on the plotter screen are
erased.
AREA: All tracks within an area you set are erased.
INSIDE: All tracks currently displayed are erased.
OUTSIDE: All tracks other than those currently displayed are erased.
ALL: All tracks in the memory are erased.
8. Rotate the [ENTER] knob to select ENTER.
9. Follow step 9 in paragraph 3.6.1.
3. TRACKS
3-19
3.7 Editing Tracks
The color and style of tracks may be edited as desired.
Note 1: Files set to “YES” on the DISPLAY DATA FROM MEMORY CARD menu
cannot be edited. (See paragraph 10.2.3.)
Also, files set to “YES” on the DISPLAY DATA FROM INTERNAL
MEMORY menu cannot be edited. (See paragraph 10.4.2.)
Note 2: Tracks set to change according to water temperature or depth cannot be
erased. (See paragraph 3.3.1.)
1. Press the [MENU] key to show the main menu.
2. Press the [5] key to show the MARKS/SHIP’S TRACKS EDITION menu.
3. Press the [4] key to show the EDIT SHIP’S TRACKS window.
5-4. EDIT SHIP'S TRACKS
ENTER
SELECT 1. PTS 2. AREA 3. INSIDE 4. OUTSIDE
COLOR 1. 2. 3. 4. 5. 6. 7. 8. NONE
STYLE 1. 2. 3. 4. 5. NONE
SET "SELECT", "COLOR" AND "SHAPE".
PLACE CURSOR ON "ENTER".
Edit ship’s tracks window
4. Rotate the [ENTER] knob to choose SELECT.
5. Press appropriate numeric key to select the method.
6. Rotate the [ENTER] knob to select COLOR.
7. Press appropriate numeric key to select the color to be changed.
8. Rotate the [ENTER] knob to select STYLE.
9. Press appropriate numeric key to select the line type.
10. Rotate the [ENTER] knob to select ENTER.
11. Do the follows depending on your selection at step 5. For details, see
paragraph 3.6.2.
3. TRACKS
3-20
3.8 Changing Track Memory Capacity
The equipment stores a total of 16,000 points of track and marks, and the default
setting allocates 12,000 points for track and 4,000 points for marks and lines. If
you require a different apportion you may change it as shown in the procedure
below. Note that when the track memory capacity is changed, all tracks and
marks in the memory are erased. Save them to a memory card (See paragraph
10.2.2) or internal memory (See paragraph 10.4.1) if necessary. The internal
memory which has five memory brocks can store maximum 80,000 points of
track and marks.
1. Press the [MENU] key to show the main menu.
2. Press the [4] key to show the MARKS/SHIP’S TRACKS SETUP menu.
3. If the PAGE 2/2 appears, rotate the [ENTER] knob to select PREVIOUS
PAGE.
4. Rotate the [ENTER] knob to select SHIP’S TRACKS.
5. Press the numeric keys to enter the track memory points.
Note: To clear entry, press the [CLEAR] key.
6. Press the [ENTER] knob, and the following window appears.
ALL TRACKS, MARKS &
LINES WILL BE DELETED.
ARE YOU SURE?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
Note: If the number more than 16,000 or “_ “ is entered at step 5, an error
beep sounds and the [ENTER] knob is inoperative.
7. Press the [ENTER] knob.
At this time all tracks, marks and lines in the memory are erased.
Note: To cancel, press the [CLEAR] key.
8. Press the [MENU] key several times to close the menu.
4-1
4. MARKS & LINES
Marks are useful for denoting important points such as a good fishing spot. The
default setting allows you to enter 4,000 marks and line points. Marks can be
inscribed in 11 shapes and seven colors of red, yellow, green, light-blue, purple,
blue and white.
4.1 Entering Marks
You can enter marks three ways:
• Enter a mark at own ship position
• Enter a mark at the cursor position
• Enter mark by latitude and longitude position
Note: The number of marks and lines used appears at the bottom of the
MARKS/SHIP’S TRACKS EDITION menu. (See page 4-2.)
Entering a mark at own ship position
1. Press the [CURSOR ON/OFF] key to turn off the cursor.
2. Press the numeric key corresponding to the mark you wish to enter.
[1] key: [2] key: [3] key: [4] key: Y
[5] key: [6] key: [7] key: [8] key:
The water temperature and depth at the mark position are memorized
automatically when the appropriate sensors are connected.
Entering a mark at the cursor position
1. Press the [CURSOR ON/OFF] key to show the cursor.
2. Operate the trackball to place the cursor at the location where you want to
enter a mark.
3. Press the numeric key corresponding to the mark you wish to enter.
4. MARKS & LINES
4-2
Entering a mark by manual input of latitude and longitude position
1. Press the MENU key to display main menu.
2. Press the [5] key to display the MARKS/SHIP’S TRACKS EDITION menu.
5. MARKS/SHIP'S TRACKS EDITION
1. EDIT MARKS
2. DELETE MARKS
3. ENTER MARKS
4. EDIT SHIP'S TRACKS
5. DELETE SHIP'S TRACKS
NUMBER OF TRACKS 6,886/12,000
NUMBER OF MARKS 3/4,000
TURN KNOB TO SELECT MENU AND PRESS KNOB TO ENTER.
OR PRESS APPROPRIATE NUMERIC KEY TO SELECT MENU.
Used points
Points available
Marks/ship’s tracks edition menu
3. Press the [3] key to choose “ENTER MARKS.”

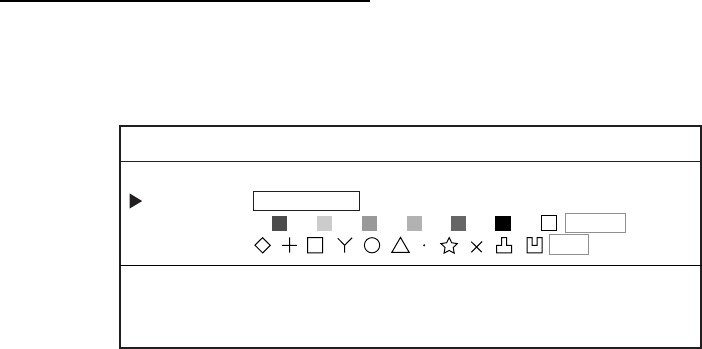

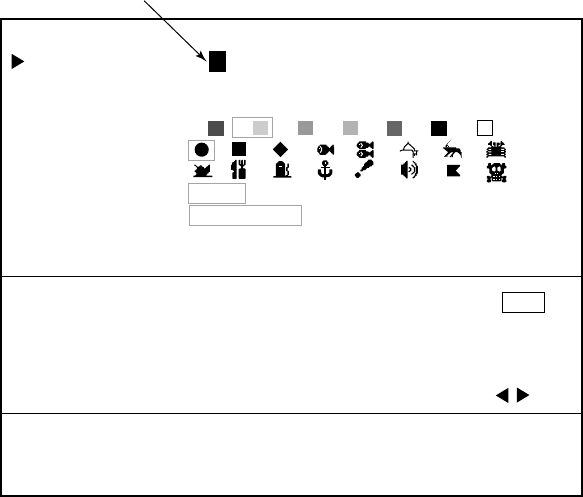

5-3. ENTER MARKS
LAT/LON 00°00.000'N 000°00.000'E
COLOR 1. 2. 3. 4. 5. 6. 7.
SHAPE
LINE 1.YES 2. NO
TURN KNOB TO SELECT MENU.
PRESS APPROPRIATE NUMERIC KEY TO ENTER LAT/LON OF A MARK.
CURSOR ON/OFF KEY: SWITCH N/S AND E/W
Enter marks menu
4. Rotate the [ENTER] knob to choose “COLOR.”
5. Press appropriate numeric key to choose a color.
6. Rotate the [ENTER] knob to choose SHAPE.
7. Roll the trackball in the right-left direction to choose the shape desired.
8. Rotate the [ENTER] knob to choose LINE.
9. Press the [1] key to connect marks with lines; [2] key to inscribe marks
without interconnection lines.
10. Rotate the [ENTER] knob to choose “LAT/LON.”
11. Press the numeric keys to enter latitude of mark position.
To enter 34º 38.838 latitude, for example, press [3], [4], [3], [8], [8], [3], [8] keys in
that order. You can switch co-ordinates (N <-> S) by pressing the [CURSOR
ON/OFF] key before entering latitude.
12. Press the numeric key to enter longitude of mark position.
To enter 135º 34.638 longitude, for example, press [1], [3], [5], [3], [4], [6], [3], [8]
keys in that order. You can switch co-ordinates (E <-> W) by pressing the
[CURSOR ON/OFF] key before entering longitude.
13. Press the [ENTER] knob to inscribe the mark at the location entered.
14. Press the [MENU] key several times to close the menu.
4. MARKS & LINES
4-3
4.2 Changing Mark Color
Mark can be displayed in red, yellow, green, light-blue, purple, blue, or white.
1. Press the [MARK COLOR] key to show the CHANGE MARK COLOR
window.
PRESS APPROPRIATE NUMERIC KEY TO SELECT COLOR.
CHANGE MARK COLOR
1. 2. 3. 4. 5. 6. 7. 8. KEY'S COLOR
Change mark color window
2. Press the appropriate numeric key to choose a color.
[1] through [7]: The mark or line is entered at own ship’s position (or cursor
position) in the color selected.
[8]: The mark is entered at own ship’s position (or cursor position) in the color
and shape shown on the label of the numeric key.
You may show marks in one color or the colors shown on the numeric key.
4. MARKS & LINES
4-4
4.3 Changing Mark Size
You may choose mark size as follows:
1. Press the [MENU] key to display main menu.
2. Press the [4] key to display the MARKS/SHIP’S TRACKS SETUP menu.
3. If PAGE 2/2 appears, rotate the [ENTER] knob clockwise to select
“PREVIOUS PAGE.”
NEXT PAGE
MARKS SIZE 1. L 2. L+ 3. S
LINES STYLE 1. 2. 3. 4.
TRACK INTERVAL 1 TIME (00M10s) DIST (0.10nm)
TRACK INTERVAL 2 TIME (00M10s) DIST (0.10nm)
SHIP'S TRACKS DISP 1. ON 2. OFF
DISP TRACKS (HOLD) 1. ON 2. OFF
PLOT TRACKS (HOLD) 1. ON 2. OFF
TRACKS COLOR 1. 2. 3. 4.
TRACKS BY TEMP RANGE GRDNT (0.2˚F 2.0˚F)
WHITE: 041.0˚F BELOW
BLUE: 041.0˚F ~
PURPLE 050.0˚F ~
LIGHT BLUE: 054.5˚F ~
GREEN: 059.0˚F ~
YELLOW: 063.5˚F ~
RED: 068.3˚F ABOVE
TRACKS BY DEPTH RANGE GRDNT (2 ft 20 ft 200 ft)
WHITE: 0032.8 ft SHALLOWER
BLUE: 0032.8 ft ~
PURPLE 0164.0 ft ~
GREEN: 0656.2 ft ~
YELLOW: 0984.3 ft ~
RED: 1312.3 ft DEEPER
SHIP'S TRACKS 15,000
MARKS 1,000/16,000
4. MARKS/SHIP'S TRACKS SETUP PAGE 1/2
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
Marks/ship’s tracks setup menu (page 1)
4. Rotate the [ENTER] knob to choose “MARKS SIZE.”
5. Press appropriate numeric key to choose size.
1. L: Large
2. L+: Large with dot at center of mark
3. S: Small
6. Press the [MENU] key several times to close the menu.
4. MARKS & LINES
4-5
4.4 Entering Lines
Lines can be drawn on the screen to depict important locations such as fishing
spots and danger areas.
1. Press the [CURSOR ON/OFF] key to show the cursor.
2. Operate the trackball to move the cursor to the starting point of the line.
3. Press appropriate numeric key (1 to 8) to choose the mark you wish to show
between line points.
[1] key: [2] key: [3] key: [4] key: Y
[5] key: [6] key: [7] key: [8] key:
4. Operate the trackball to move the cursor to the next point for the line.
5. Press the [9] key.
6. Repeat steps 4 and 5 to complete the line.

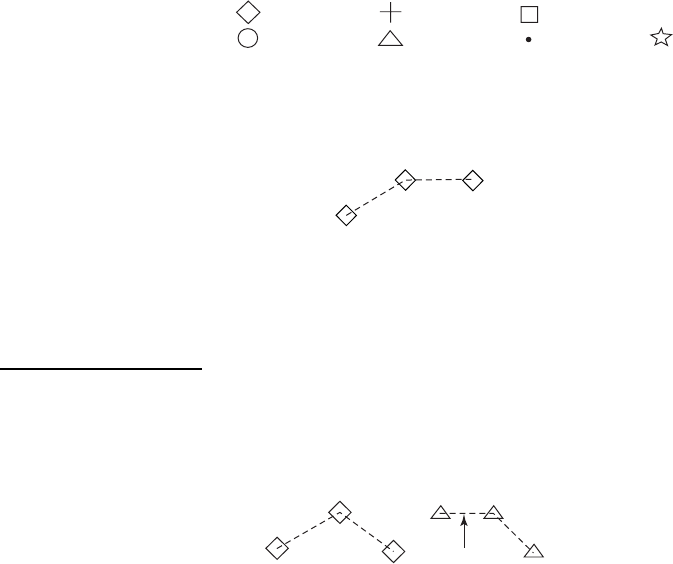

Starting point
Ending point
Line
Starting a new line
To start a new line, appropriate numeric key (1 to 8) at the start point. For
example, press one of numeric keys (1 to 8) at point D and the [9] key for points
E and F.
A
B
C
DE
F
New line
Two lines
4.5 Selecting Line Type
Lines are available in four styles: solid, dashed, dash-dot and dash-double dot
line.
1. Press the [MENU] key to show the main menu.
2. Press the [4] key to show the MARKS/SHIP’S TRACKS SETUP menu.
3. If PAGE 2/2 appears, rotate the [ENTER] knob to select PREVIOUS PAGE.
4. Rotate the [ENTER] knob to select LINE STYLE.
5. Press appropriate numeric key to choose line style.
6. Press the [MENU] key several times to close the menu.
4. MARKS & LINES
4-6
4.6 Erasing Marks, Lines
Marks and lines can be erased individually, by color and by type.
Note that the erased marks and lines cannot be returned.
Note : Files set to “YES” on the DISPLAY DATA FROM MEMORY CARD menu
cannot be erased. (See paragraph 10.2.3.)
Also, files set to “YES” on the DISPLAY DATA FROM INTERNAL
MEMORY menu cannot be erased. (See paragraph 10.4.2.)
Erasing marks and lines individually
1. Press the [CURSOR ON/OFF] key to show the cursor.
2. Operate the trackball to place the cursor on the mark (or line) to erase.
The flashing diamond appears. When erasing lines, place the cursor on the mark
of line.
3. Press the [CLEAR] key.
If the selected mark or line is not erased, press the [CLEAR] key several times;
multiple marks may occupy the same location.
Erasing marks and lines by color
1. Press the [MENU] key to show the main menu.
2. Press the [5] key to show the MARKS/SHIP’S TRACKS EDITION menu.
3. Press the [2] key to show the DELETE MARKS window.

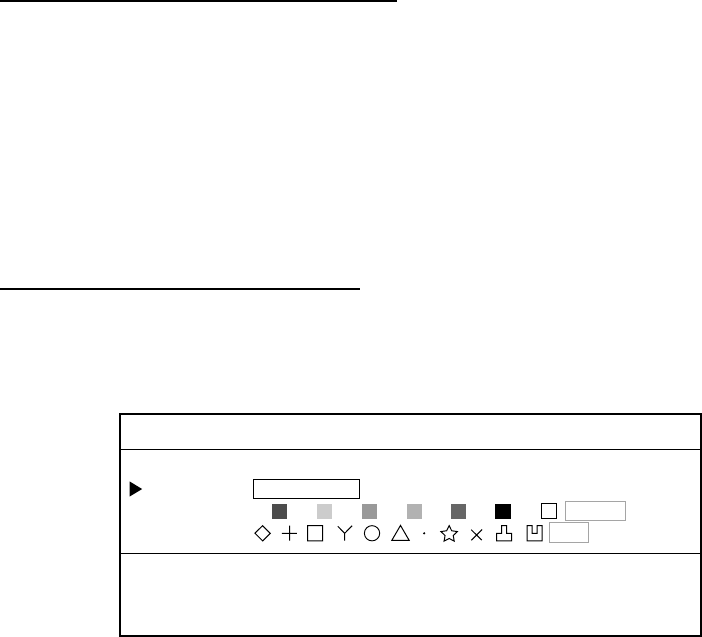

5-2. DELETE MARKS
ENTER
SELECT 1. CURSOR 2. AREA 3. INSIDE 4. OUTSDE 5. ALL
COLOR 1. 2. 3. 4. 5. 6. 7. 8. ALL
SHAPE ALL
SET "SELECT", "CURSOR" AND "SHAPE".
PLACE CURSOR ON "ENTER".
Delete marks window
4. Rotate the [ENTER] knob to select COLOR.
5. Roll the trackball in left-right direction to select the color to erase.
6. Rotate the [ENTER] knob to choose SELECT.
7. Press the appropriate numeric key to choose how to erase.
CURSOR: The mark selected by the cursor is erased.
AREA: Marks and lines in the area you set are erased.
INSIDE: All marks and lines currently displayed are erased.
OUTSIDE: All marks and lines which are not currently displayed are erased.
ALL: All marks and lines stored in the memory are erased.
8. Rotate the [ENTER] knob to select ENTER.
9. Do one of the following depending on the selection you made at step 7.
4. MARKS & LINES
4-7
CURSOR
a) Operate the trackball to place the cursor on the mark you want to erase.
b) Press the [ENTER] knob.
c) Press the [MENU] key several times to close the menu.
AREA
a) Operate the trackball to move the cursor to the starting point of the area.
b) Press the [ENTER] knob.
c) Operate the trackball to move the cursor to the ending point of the area.
A green rectangle appears.
Area (green)
Starting point
Cursor
Erased area
d) Press the [ENTER] knob. The color of the rectangle changes from green to
white.
e) Press the [ENTER] knob again.
f) Press the [MENU] key several times to close the menu.
INSIDE, OUTSIDE and ALL
a) Press the [ENTER] knob.
b) Press the [MENU] key several times to close the menu.
4. MARKS & LINES
4-8
Erasing marks and lines by shape
1. Press the [MENU] key to show the main menu.
2. Press the [5] key to show the MARKS/SHIP’S TRACKS EDITION menu.
3. Press the [2] key to show the DELETE MARKS window.
5-2. DELETE MARKS
ENTER
SELECT 1. CURSOR 2. AREA 3. INSIDE 4. OUTSDE 5. ALL
COLOR 1. 2. 3. 4. 5. 6. 7. 8. ALL
SHAPE ALL
SET "SELECT", "CURSOR" AND "SHAPE".
PLACE CURSOR ON "ENTER".
Delete marks menu
4. Rotate the [ENTER] knob to select SHAPE.
5. Roll the trackball in left-right direction to select the shape.
6. Rotate the [ENTER] knob to choose SELECT.
7. Press the appropriate numeric key to select the method.
8. Rotate the [ENTER] knob to select ENTER.
9. Do step 9 in the “Erasing marks and lines by color” on page 4-6.
4. MARKS & LINES
4-9
4.7 Editing Marks, Lines
You can edit the shape and color of marks and lines.
Note: Files set to “YES” on the DISPLAY DATA FROM MEMORY CARD menu
cannot be erased. (See paragraph 10.2.3.)
Also, files set to “YES” on the DISPLAY DATA FROM INTERNAL
MEMORY menu cannot be erased. (See paragraph 10.4.2.)
1. Press the [MENU] key to show the main menu.
2. Press the [5] key to show the MRKS/SHIP’S TRACKS EDITION menu.
3. Press the [1] key to show the EDIT MARKS window.
5-1 EDIT MARKS
ENTER
SELECT 1. CURSOR 2. AREA 3. INSIDE 4. OUTSIDE
COLOR 1. 2. 3. 4. 5. 6. 7. 8. ALL
SHAPE NONE
SET "SELECT", "COLOR" AND "SHAPE"
PLACE CURSOR ON "ENTER".
Edit marks window
4. Rotate the [ENTER] knob to choose SELECT.
5. Press the appropriate numeric key to select the method.
CURSOR: Use the cursor to choose mark to edit.
AREA: Edit marks and lines in the area you set.
INSIDE: Edit marks and lines currently displayed.
OUTSIDE: Edit marks and lines which are not currently displayed.
6. Rotate the [ENTER] knob to select COLOR.
7. Press the appropriate numeric key to select the color to be changed.

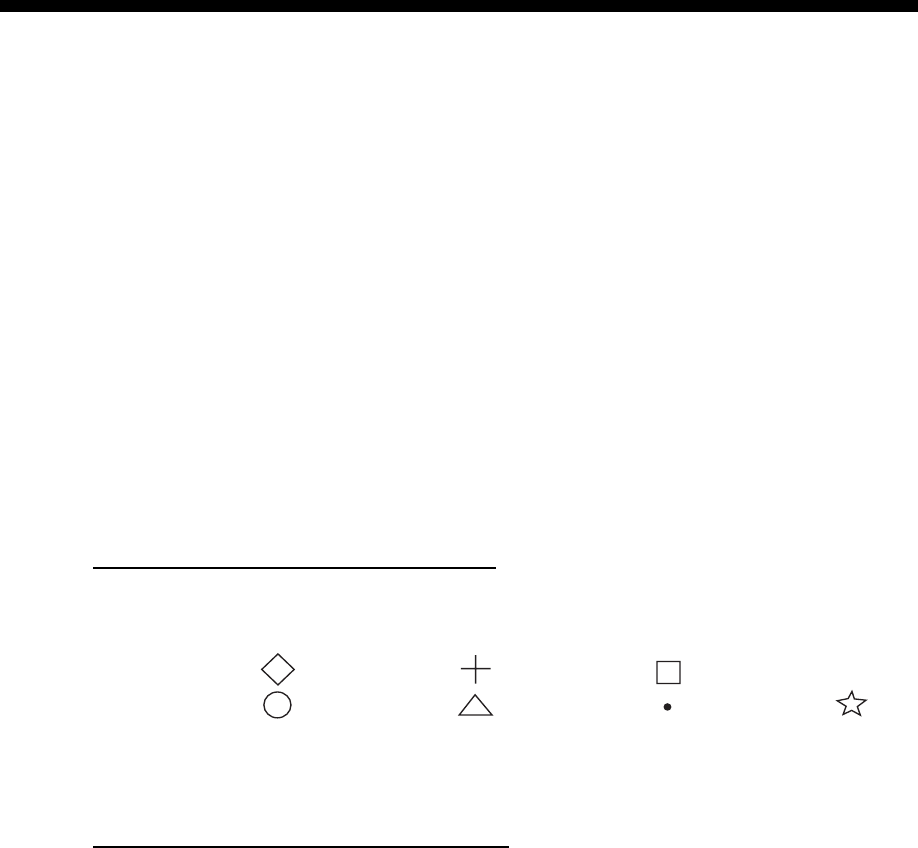

8. Rotate the [ENTER] knob to select SHAPE.
9. Roll the trackball in left-right direction to select the shape to edit.
10. Rotate the [ENTER] knob to select ENTER.
11. Refer to page 4-7 to edit.
4. MARKS & LINES
4-10
4.8 Displaying Mark Data
You can display mark data as follows;
Note: Files set to “YES” on the DISPLAY DATA FROM MEMORY CARD menu
cannot be displayed. (See paragraph 10.2.3.)
Also, files set to “YES” on the DISPLAY DATA FROM INTERNAL MEMORY
menu cannot be displayed. (See paragraph 10.4.2.)
1. Press the [CURSOR ON/OFF] key to show the cursor.
2. Operate the trackball to place the cursor on the mark for which you want to
display its data. Water temperature and depth data requires an appropriate
sensoer.
37˚04.640'N
135˚21.047'E
+ 4.5˚C 13.7m
Mark
Cursor
Water
temperature*
Depth*
Latitude
Longitude
*: For own ship's position
Mark data
Note: If mark data does not appear, press [MENU], [0], [1] in that order, and then
turn on MARK STATUS on PAGE 2/2 of the DISPLAY SETUP menu.
4.9 Target Mark (TLL)
Target position data can be output from certain radars and shown on your plotter
with the TLL mark (x). For details, see the Operator’s Manual for your radar.
5-1
5. WAYPOINT
In navigation terminology, a waypoint is a particular location on a voyage
whether it be a starting, intermediate or destination point. A waypoint is the
simplest piece of information your equipment requires to get you a destination, in
the shortest distance possible.
5.1 Entering Waypoints
This unit has 3500 waypoints into which you can enter position information.
There are seven methods by which you can enter a waypoint: at own ship’s
position, by cursor, by latitude and longitude, by range and bearing, by Loran-C,
by Loran-A LOP and by Decca LOP.
5.1.1 Entering waypoints at own ship’s position
• Press the [SAVE/MOB] key momentarily.
The message “WAYPOINT XXXXXX IS SAVED! CONTINUE PRESSING FOR
MOB!” appears for three seconds to let you know that ship’s position is saved as
a waypoint. The default waypoint mark is a yellow solid circle. You can know
shape and color of the selected waypoint by the icon ( ) at the bottom of the
plotter (or pilot) display. This new waypoint will automatically be saved in the
waypoint list under the next consecutive waypoint number.
Note: If the waypoint icon does not appear at the bottom of the plotter (or pilot)
display, do the following.
a) Press the [MENU], [0], [1] in that order to show the DISPLAY SETUP menu.
b) Select “1. ON” at “WAYPOINT STATUS” from page 2/2.
5. WAYPOINT
5-2
5.1.2 Entering waypoints by the cursor
1. When the cursor is off, press the [CURSOR ON/OFF] key to display the cursor.
2. Operate the trackball to position the cursor where desired.
3. Press the [WPT] key.
The SAVE WAYPOINT window appears.
PRESS NUMERIC KEY TO ENTER WAYPOINT NAME.
PRESS KNOB TO SAVE WAYPOINT.
Cursor
SAVE WAYPOINT
WAYPOINT NAME 0 0 0 0 0 1
Save waypoint window
Note: The SAVE WAYPOINT WINDOW will be erased automatically if there is
no operation within 10 seconds.
4. If desired, press the numeric keys to change the waypoint number (max. six
digits).
The waypoint is named automatically under the next consecutive waypoint
number. If you do not need to change the waypoint name, go to step 5.
To reset the waypoint name to 000000, press the [CLEAR] key.
Each time a number key is pressed the cursor jumps one place leftward.
5. Press the [ENTER] knob.
The message “WAYPOINT XXXXXX IS SAVED!” appears on the screen for three
seconds The waypoint icon ( default setting) at the bottom of the plotter (or
pilot) display shows current waypoint shape and color.
Note 1: If waypoint does not appear at the bottom of the plotter (or pilot) display,
do the following.
a) Press the [MENU], [0], [1] in that order to show the DISPLAY SETUP menu.
b) Select “1. ON” at “WAYPOINT STATUS” on page 2/2.
Note 2: If the above operation is done when the cursor is off, the waypoint is
entered at own ship’s position.
Note 3: If the waypoint name entered at step 4 already exists, the sequence
changes depending on the setting of OVERWRITE WAYPOINT on the
NAVIGATOR SETUP menu, as shown below.
DIALOG: The message “WAYPOINT XXXXXX ALREADY EXISTS.
OVERWRITE?” appears. Press the [ENTER] knob to overwrite, or
[CLEAR] key to cancel.
NO DIALOG: The waypoint name is overwritten without any message.
5. WAYPOINT
5-3
5.1.3 Entering waypoints by latitude and longitude position
1. Press the [MENU] key to show the main menu.
2. Press the [1] key to show the WAYPOINTS LIST.
1. WAYPOINTS LIST 1/1
NAME LATITUDE LONGITUDE PRXMTY COMMENT
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
------ --˚--.---'N ---˚--.---'E -.--nm -------------
SORT 1.ALPHA 2. DIST 3. MARK
SPD TO CALC TTG 1.ACTUAL SPD SIM SPD 00.0kt
SEARCH
ETA: --D--:-- TTG: ----H--M
TURN KNOB TO SELECT WAYPOINT.
KNOB: EDIT WPT WPT: ADD WPT GOTO: SET WPT TO NAVIGATE
ZOOM IN: PREVIOUS PAGE ZOOM OUT: NEXT PAGE CLEAR: DEL
Total page
Current page
ETA and TTG for the waypoint selected with the red cursor
Red cursor
Waypoints list
The number of pages in the WAYPOINTS LIST depends on the number of
waypoints entered. The current and total number of pages are shown at the top
of the list. When the total is more than two pages, press the [ZOOM OUT] key to
go to the next page. To go to the previous page, press the [ZOOM IN] key.
5. WAYPOINT
5-4
3. Press the [WPT] key to show the waypoint edit window.
END
A B C D E F G H I J K L M N O P Q R S T U V W X Y
Z , - ! ? / & = # _ 1 2 3 4 5 6 7 8 9 0 _ _ _ _ _
a b c d e f g h i j k l m n o p q r s t u v w x y
z _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Character cursor
WAYPOINT NAME 000001
LATITUDE 3 4 43.483'N
LONGITUDE 135 24.759'E
MARK COLOR 1. 2. 3. 4. 5. 6. 7.
MARK SHAPE
MARK DISPLAY 1. ON 2. OFF
COORDINATE 1. LAT/LON 2. RNG/BRG 3. TD
PRXMTY RADIUS 0.00 nm
COMMENT _ _ _ _ _ _ _ _ _ _ _ _ _
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
Waypoint edit list
4. Rotate the [ENTER] knob to select COORDINATE.
5. Press the [1] key to select “1. LAT/LON”.
You can select it by pressing the numeric key.
6. Rotate the [ENTER] knob to select LATITUDE.
7. Use the numeric key to enter the latitude of waypoint.
To switch the North and South to vice verse, press the [CURSOR ON/OFF] key.
8. Rotate the [ENTER] knob to select LONGITUDE.
9. Use the numeric keys to enter longitude of waypoint.
To switch from to East and West and vice versa, press the [CURSOR ON/OFF]
key.
To change waypoint name, mark color, mark display, mark shape, proximity
radius and comment, do the following:
5. WAYPOINT
5-5
10. Rotate the [ENTER] knob to select WAYPOINT NAME.
11. Operate the trackball to enter the waypoint name. (Max. six characters)
a) Operate the trackball to select the first character. You can enter numeric
data with the numeric keys.
b) Press the [ENTER] knob.
Note: If you enter a wrong character, re-enter the correct character after
placing the moving the character cursor on the wrong character. To
move the character cursor, select ◄ or ► and then press the [ENTER]
knob.
To erase all character press the [CLEAR] key.
c) Repeat steps a) and b) to complete the waypoint name.
12. Select “END” by operating the trackball, and then press the [ENTER] knob.
13. Rotate the [ENTER] knob to select MARK COLOR.
14. Roll the trackball in left-right direction to select a color.
You can select color by pressing the appropriate numeric key.
Note: Waypoint mark color and shape cannot be selected when PRXMTY
RADIUS is other than 0.00.
15. Rotate the [ENTER] knob to select MARK SHAPE.
16. Roll the trackball in left-right direction to select a shape.
17. Rotate the [ENTER] knob to select MARK DISPLAY.
18. Press appropriate numeric key to select “1. ON” or “2. OFF”
ON: The waypoint is show waypoints on the plotter (or pilot) display.
OFF: The waypoint is not shown on the plotter (or pilot) display.
Also, waypoint mark is gray in the WAYPOINT LIST.
19. Rotate the [ENTER] knob to select PRXMTY RADIUS.
20. Use the numeric keys to enter the proximity radius.
This is the alarm range that will be used for this waypoint when the proximity
alarm is active. When the proximity radius is other than 0.00, the waypoint mark
becomes automatically. For how to set the proximity alarm, see paragraph
8.4.
21. Rotate the [ENTER] knob to select COMMENT.
22. Operate the trackball to enter the comment (max. 13 characters).
23. Select “END,” and then press the [ENTER] knob to finish.
24. Press the [ENTER] knob again.
The waypoint edit window disappears, and the waypoint is registered in the
WAYPOINTS LIST.
25. To enter another waypoint, repeat steps 3 through 24.
26. Press the [MENU] key several times to close the menu.
5. WAYPOINT
5-6
5.1.4 Entering waypoints by range and bearing
This method is useful when you want to enter a waypoint using range and
bearing to a target found on a radar.
1. Press the [MENU] key to show the main menu.
2. Press the [1] key to show the WAYPOINTS LIST.
3. Press the [WPT] key to show the waypoint edit window.
4. Rotate the [ENTER] knob to select COORDINATE.
5. Press the [2] key to select “2. RNG/BRG”.
6. Rotate the [ENTER] knob to select “RANGE.”
WAYPOINT NAME 000001
RANGE 001.3 nm
BEARING 182.5
Waypoint edit window (Range/Bearing)
7. Use the numeric keys to enter the range from own ship to the waypoint.
8. Rotate the [ENTER] knob to select “BEARING.”
9. Use the numeric keys to enter the bearing from own ship to the waypoint.
10. Follow from step 10 in “5.1.3 Entering waypoints by longitude and latitude
position.”
5. WAYPOINT
5-7
5.1.5 Entering waypoints by Loran A or Loran C LOPs
1. Press the [MENU] key to show the main menu.
2. Press the [8] key to show the PLOTTER SETUP menu.
3. Rotate the [ENTER] knob to select TD DISPLAY.
LORAN-A GRI 81-01
CORRECTION 1 +000.0µs
CORRECTION 2 +000.0µs
LORAN-C GRI 00:19-29
CORRECTION 1 +000.0µs
CORRECTION 2 +000.0µs
DECCA CHAIN 01 R-G
CORRECTION 1 +00.00 LANE
CORRECTION 2 +00.00 LANE
TD DISPLAY 1. LORAN-A 2. LORAN-C 3. DECCA
RESET TRP LOG 1. YES 2. NO
PLOTTER RANGE SETUP 1. YES 2. NO
PANEL DIMMER 1 2 3 4 5 6 7 8
HUE 1. DAY 2. NIGHT 3. TWILI 4. MANUAL
8. PLOTTER SETUP
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
Plotter setup menu
4. Press the [1] or [2] key as appropriate to select “1. LORAN-A” or “2.
LORAN-C.”
5. Press the [MENU] key to return to the main menu.
6. Press the [1] key to show the WAYPOINTS LIST.
7. Press the [WPT] key to show the waypoint edit window.
8. Rotate the [ENTER] knob to select “COORDINATE.”
9. Press the [3] key to select “3. TD.”
10. Rotate the [ENTER] knob to select TD1 LORAN-C (or A).
WAYPOINT NAME 0000001
TD1 LORAN-C 14512.3
TD2 LORAN-C 29348.1
GRI 9970 11-30
Waypoint edit window (Loran-C TD)
WAYPOINT NAME 000001
TD1 LORAN-A 1825.3
TD2 LORAN-A 3631.5
STATION 2S3-2S4
Waypoint edit window (Loran-A TD)
5. WAYPOINT
5-8
11. Use the numeric keys to enter the TD1 LORAN-C (or A).
12. Rotate the [ENTER] knob to select TD2 LORAN-C (or A).
13. Use the numeric keys to enter the TD2 LORAN-C (or A).
14. Follow step 10 in of “5.1.3 Entering waypoints by longitude and latitude
position.”
5.1.6 Entering waypoints by Decca LOPs
1. Press the [MENU] key to show the main menu.
2. Press the [8] key to show the PLOTTER SETUP menu.
3. Rotate the [ENTER] knob to select “TD DISPLAY.”
4. Press the [3] key to select “3. DECCA.”
5. Press the [MENU] key to return to the main menu.
6. Press the [1] key to show the WAYPOINTS LIST.
7. Press the [WPT] key to show the waypoint edit window.
8. Rotate the [ENTER] knob to select “COORDINATE”.
9. Press the [3] key “3. TD.”
WAYPOINT NAME 000001
LANE1 1A:06.68
LANE2 2A:41.90
CHAIN 01 S BALTIC R-G
Waypoint edit window (DECCA)
10. Rotate the [ENTER] knob to select “LANE 1”.
11. Use the numeric keys to enter the LANE 1 value.
Enter the alphabet of the lane by pressing the appropriate numeric key referring
to the table below.
Numeric key Alphabet Numeric key Alphabet
[1] key A [6] key F
[2] key B [7] key G
[3] key C [8] key H
[4] key D [9] key I
[5] key E [0] key J
To enter “1F22.01”, for example, press [1], [6] (F), [2], [2], [0], [1] in that order.
12. Rotate the [ENTER] knob to select LANE 2.
13. Use the numeric keys to enter the LANE 2 value.
14. Follow from step 10 in “5.1.3 Entering waypoints by longitude and latitude
position.”
5. WAYPOINT
5-9
5.2 Editing Waypoint Data
You can edit waypoint data through the WAYPOINTS LIST.
1. Press the [MENU] key to show the main menu.
2. Press the [1] key to show the WAYPOINTS LIST.
3. Rotate the [ENTER] knob to select the waypoint you want to edit.
4. Press the [ENTER] knob.
5. Edit the waypoint data on the waypoint edit window as appropriate.
Note 1: The color and shape of a waypoint whose PRXMTY RADIUS is other
than 0.00 cannot be changed.
Note 2: After changing the color and shape of waypoint, these settings are used
for waypoint entered at own ship’s position.
6. Press the [ENTER] knob. The waypoint edit window disappears, and the
waypoint data is changed.
7. Press the [MENU] key to close the menu.
5. WAYPOINT
5-10
5.3 Erasing Individual Waypoints
Individual waypoints can be erased by the cursor or through the WAYPOINTS
LIST.
Erasing waypoints by the cursor
1. Press the [CURSOR ON/OFF] key to show the cursor.
2. Operate the trackball to place the cursor on the waypoint you want to erase.
A flashing diamond mark appears over the waypoint when it is correctly selected.
3. Press the [CLEAR] key.
You are asked if you are sure to erase the waypoint.
WAYPOINT NAME XXXXXX
WIL BE DELETED.
ARE YOU SURE?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
Normal waypoint
THIS WAYPOINT XXXXXX
USED FOR NAVIGATION.
WILL IT BE DELETED?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
Destination waypoint
Erasing message
4. Press the [ENTER] knob.
The waypoint is erased from both the plotter screen and the WAYPOINTS LIST.
To cancel, press the [CLEAR] key.
Erasing waypoints through the WAYPOINTS LIST
1. Press the [ENTER] knob to show the main menu.
2. Press the [1] key to show the WAYPOINTS LIST.
3. Rotate the [ENTER] knob to select the waypoint you want to erase.
You can waypoints in alphabetical or distance order, or by mark shape. (See
paragraph 5.4.)
4. Press the [ERASE] key.
5. Press the [ENTER] knob.
The waypoint is erased from both the WAYPOINTS LIST and the plotter screen.
To cancel, press the [CLEAR] key.
6. Press the [MENU] key several times to close the menu.
5. WAYPOINT
5-11
5.4 Searching Waypoints
You can search for a waypoint through the WAYPOINTS LIST.
Searching by sorting
1. Press the [MENU] key to show the main menu.
2. Pres the [1] key to show the WAYPOINTS LIST.
3. Rotate the [ENTER] knob to select “SORT”.
4. Press the appropriate key among 1, 2 and 3 to select the sorting method.
ALPHA: Sorting waypoints and MOB in order alphanumeric.
DIST: Sorting waypoints in order of decreasing distance to own ship.
MARK: Sorting waypoints in order of MOB mark, PRXMTY RDIUS mark and
other marks shapes.
5. Press the [MENU] key several times to close the menu.
Searching by waypoint name
1. Press the [MENU] key to show the main menu.
2. Press the [1] key to show the WAYPOINTS LIST.
3. Rotate the [ENTER] knob to select SORT.
4. Press the [1] key to select “1. ALPHA.”
5. Rotate the [ENTER] knob to select SEARCH to show the character window.
6. Operate the trackball to enter the first 1 to 3 characters.
7. Operate the trackball to select “END”, and then press the [ENTER] knob.
Matching waypoint name appears at the top of the list.
8. Press the [MENU] key several times to close the menu.
5. WAYPOINT
5-12
5.5 Setting Ship’s Speed for TTG
Calculation of TTG is based on ship’s speed data. This data can be set manually
or automatically.
1. Press the [MENU] key to show the main menu.
2. Press the [1] key to show the WAYPOINTS LIST.
3. Rotate the [ENTER] knob to select “SPD TO CALC TTG”.
4. Roll the trackball in left-right direction to select “ACTUAL SPD” or “SIM SPD.”
ACTUAL SPD: Calculating with the actual ship’s speed.
SIM SPD: Calculating with the simulated value.
5. Press the numeric keys to enter a ship’s speed value.
TTG for the waypoint selected with the red cursor is calculated by using the
speed value entered.
6. Press the [MENU] key several times to close the menu.
5. WAYPOINT
5-13
5.6 Displaying Waypoint Data
You can show waypoint data on the plotter screen as follows;.
1. Press the [CURSOR ON/OFF] key to show the cursor.
2. Operate the trackball to place the cursor on the waypoint for which you want
to know its data.
The data (L/L and comment) window for the selected waypoint appears next to
the waypoint mark.
37˚04.640'N
135˚21.047'E
01:51 0301.01
Waypoint
Cursor
Comment
Latitude
Longitude
000001
Waypoint data window
Note: If the data window does not appear, do the following steps.
a) Press the [MENU], [0], [1] key in that order.
b) Rotate the [ENTER] knob to select WAYPOINT INFO on page 2/2 of
DISPLAY SETUP menu.
c) Press the [1] key to select “1. ON, ” and then press the [MENU] key several
times to close the menu.
5. WAYPOINT
5-14
5.7 Changing Waypoint Mark Size
(NavChartTM/FURUNO only)
You may change the size of all waypoint marks to small or large, or turn them off.
1. Press the [MENU] key to show the main menu.
2. Press the [7] key to show the CHART SETUP menu.
If the CHART SETUP menu does not appear, rotate the [ENTER] knob
clockwise.
3. Rotate the [ENTER] knob to select “WAYPOINTS.”
7. CHART SETUP
GOTO CONTOUR LINES SETUP
OFFSET CHART POS 1. YES 2. NO
LAT/LON GRID 0. OFF
TEXT INFORMATION 1. YES 2. NO
WAYPOINTS 1. LARGE 2. SMALL 3. OFF
WAYPOINT NAME 1. LARGE 2. SMALL 3. OFF
CHART BORDER LINE 1. YES 2. NO
LANDMASS 0. OFF
TRIMMING BORDER LINE 0. OFF
BACKGROUND 0. OFF
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
Chart setup menu
4. Press the appropriate numeric key to select “1. LARGE”, “2. SMALL” or “3.
OFF.”
LARGE: Waypoints are shown in actual mark shape
SMALL: Waypoints are displayed with an “x” regardless of mark shape
selected.
OFF: All waypoints are off except the waypoint destination and route.
5. Press the [MENU] key several times to close the menu.
6-1
6. ROUTE
Often a trip from one place to another involves several course changes,
requiring a series of route points (waypoints) which you navigate to, one after
another. The sequence of waypoints leading to the ultimate destination is called
a route.
6.1 Entering Routes
You can store up to 200 routes and a route may consist of 35 points. There are
two methods to enter a route:
• Using existing waypoints
• Track based route using own ship positions recorded at preset intervals
6.1.1 Entering routes using existing waypoints
1. Press the [MENU] key to show the main menu.
2. Press the [2] key to show the ROUTES LIST.
6. ROUTE
6-2
2. ROUTES LIST DIR: FOLLOW 1/1
ROUTE NAME COMMENT GO TO (FOLLOW)
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
BACK TRACK 1. YES 2. NO
RECORD TYPE DISTANCE 00.1nm TIME 00H01M
SPD TO CALC TTG ACTUAL SPD SIM SPD 00.0kt
TOTAL DIST 0.00nm
ETA: 1D 0: 1 TTG: 0H 1M
PRESS KNOB: EDIT ROUTE WPT: ADD ROUTE
GOTO: SET RTE TO NAVI CLEAR: DEL COURSE: SWITCH
FLLW/RVRS
No. of pages
Current page
Total distance, ETA and TTG for the route
selected with the red cursor
Red cursor
Routes list
The current page no. and total number of pages are shown at the top of the list.
When the list has more than two pages, press the [ZOOM OUT] key to go to the
next page, [ZOOM IN] key to return to the previous page.
3. Press the [WPT] key to show the route name entry window.
4. Operate the trackball to enter the route name. (Max. 6 characters)
5. Operate the trackball to select “END”, and then press the [ENTER] knob.
6. Operate the trackball to enter a comment. (Max. 13 characters)
7. Operate the trackball to select “END, ” and then press the [ENTER] knob.
The waypoints window appears.
6. ROUTE
6-3
Route name
000002 ROUTE LIST PAGE 1/2
NO. WPT NAME LATITUDE LONGITUDE DISTANCE TTG
1 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
2 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
3 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
4 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
5 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
6 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
7 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
8 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
9 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
10 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
11 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
12 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
13 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
14 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
15 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
16 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
17 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
18 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-
RNG=---.--nm BRG=---.-˚
WPT NAME LATITUDE LONGITUDE COMMENT
000001 34˚44.041'N 135˚21.255'E 00:29 0301.01
000002 34˚44.237'N 135˚20.936'E POINT A
000003 33˚43.878'N 134˚20.049'E 00:20 0301.02
000004 32˚33.678'N 133˚21.029'E 03:29 0301.02
000005 33˚40.591'N 134˚20.628'E POINT B
PRESS KNOB: ADD WPT CLEAR KEY: DELETE WPT
CURSOR ON/OFF KEY: SKIP MENU KEY: RETURN
ZOOM IN: PREVIOUS PAGE ZOOM OUT: NEXT PAGE
Waypoints in the route
Waypoints window
Distance and bearing
between the waypoint
selected with the red
cursor and preceding
waypoint.
When the first waypoint
is selected, distance and
bearing between own
ship's position and it are
shown.
Waypoints window
8. Roll the trackball in up-down direction to select the starting waypoint.
When more than five waypoints are entered, press the [ZOOM IN] or [ZOOM
OUT] key to change the page.
9. Press the [ENTER] knob. The selected waypoint is entered in the route as
start point.
10. Repeat steps 8 and 9 to complete the route.
11. Press the [WPT] or [MENU] key.
The ROUTE LIST shows total distance, ETA and TTG of the route.
12. Press the [MENU] key several times to close the menu.
6. ROUTE
6-4
6.1.2 Creating track-based routes
You can create routes based on your ship’s track by entering waypoints at own
ship’s position, manually or automatically. For automatic entry, you will or need to
set interval of tune or distance. This feature is useful when you wish to retrace a
track. The SAVE icon (
S A
V E
) appears at the bottom of the screen when creating a
track based route.
1. Press the [MENU] key to show the main menu.
2. Press the [2] key to show the ROUTES LIST.
3. Rotate the [ENTER] knob to select RECORD TYPE.
4. Roll the trackball in left-right direction to select “DISTANCE” or “TIME.”
5. Press the numeric keys to enter value for distance (or time).
Note: If you enter a wrong value, press the [CLEAR] key, and then re-enter
the correct value.
6. Press the [ENTER] knob.
7. Rotate the [ENTER] knob to select BACK TRACK.
8. Press the [1] key to select “1. YES. ”
The route creation starts, and it is named automatically.
9. Press the [MENU] key several times to close the menu.
10. To create a track-based route manually, follow the steps shown below.
a) Press the [SAVE/MOB] momentarily to enter a waypoint at own ship’s position.
b) Repeat the step a) whenever you change course.
Stopping the creating track-based routes
To manually stop creating a track-based route, follow the procedure below.
When 35 waypoints have been entered, the creation is stopped automatically.
1. Press the [MENU] key to show the main menu.
2. Press the [2] key to show the ROUTES LIST.
3. Rotate the [ENTER] knob to select BACK TRACK.
4. Press the [1] key to select “2. NO.”
You can select it by pressing the [2] key.
5. Press the [MENU] key several times to close the menu.
6. ROUTE
6-5
6.2 Editing Routes
6.2.1 Inserting waypoints
Waypoints can be inserted in routes as follows:
1. Press the [MENU] key to show the main menu.
2. Press the [2] key to show the ROUTES LIST.
3. Rotate the [ENTER] knob to select the route in which you want to insert a
waypoint.
4. Press the [ENTER] knob three times to show the waypoints window.
5. Rotate the [ENTER] knob to place the red cursor at the location where you
want to insert a waypoint.
6. Roll the trackball in up-down direction to select the waypoint you want to
insert.
7. Press the [ENTER] knob.
Note: If a wrong waypoint is inserted, press the [CLEAR] key to delete.
8. Press the [MENU] key several times to close the menu.
6.2.2 Removing waypoints from routes
1. Press the [MENU] key to show the main menu.
2. Press the [2] key to show the ROUTES LIST.
3. Rotate the [ENTER] knob to select the route in which you want to remove a
waypoint.
4. Press the [ENTER] knob three times to show the waypoints window.
5. Rotate the [ENTER] knob to select the waypoint you want to remove.
6. Press the [CLEAR] key to remove the waypoint.
7. Press the [MENU] key several times to close the menu.
6. ROUTE
6-6
6.3 Erasing Routes
1. Press the [MENU] key to show the main menu.
2. Press the [2] key to show the ROUTES LIST.
3. Rotate the [ENTER] knob to select the route you want to erase.
4. Press the [CLEAR] key to show the following message.
ROUTE NAME XXXXXX
IS USED FOR NAVIGATION
WILL IT BE DELETED?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
ROUTE NAME XXXXXX
WILL BE DELETED.
ARE YOU SURE?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
Normal route Destination route
Erasing message
5. Press the [ENTER] knob.
6. Press the [MENU] key several times to close the menu.
6.4 Setting Ship’s Speed for TTG
Calculation of TTG is based on ship’s speed data. Normally speed data from the
GPS navigator is used. If the speed data appears to be wrong enter speed
manually.
1. Press the [MENU] key to show the main menu.
2. Press the [2] key to show the ROUTES LIST.
3. Rotate the [ENTER] knob to select SPD TO CALC TTG.
4. Roll the trackball in left-right direction to select “ACTUAL SPD” or SIM SPD.”
ACTUAL SPD: The actual ship’s speed is used.
SIM SPD: The simulated speed is used.
5. Press the numeric keys to enter the speed value, and then pres the [ENTER]
knob.
6. Press the [MENU] key several times to close the menu.
7-1
7. NAVIGATION
This section shows you how to get to a desired destination by using “quick
points,’ waypoints, port services and routes.
7.1 Navigating to Quick Points
The quick point feature allows you to navigate to point (s) without retaining the
date indefinitely in your unit’s memory. Each time a quick point is entered,
previous quick points having the same numbers as newly entered ones are
written over.
Selecting quick point entry method
You need to tell your unit how to set the quick point: 1 POINT or 35 POINTS (up
to 35 points), NEAR SERVICE or PORT SERVICE. (For NEAR SERVICE and
PORT SERVICE, see page 7-5.) The PORT SERVICE is available for
NavChartTM/FURUNO specification.
1. Press the [MENU] key to show the main menu.
2. Press the [0] key to show the SYSTEM SETUP menu.
3. Press the [1] key to show the DISPLAY SETUP menu.
4. If page 2/2 appears, rotate the [ENTER] knob to select NEXT PAGE to show
page 1/1.
7. NAVIGATION
7-2
5. Rotate the [ENTER] knob to select SET GOTO METHOD.
0-1 DISPLAY SETUP 1/2
NEXT PAGE
LANGUAGE 1. ENGLISH
KEY BEEP 1. ON 2. OFF
SPEED SOURCE 1. INT GPS 2. NMEA SOG 3. NMEA STW
4. INTERNAL E/S
NMEA SPEED CALIB +00% (-50 ∼ +50%)
TEMPERATURE SOURCE1. NMEA 2. INTERNAL E/S
NMEA TEMP CALIB +00.0°F (-40 ∼ +40°F)
DEPTH SOURTH 1. NMEA 2. INTERNAL E/S
NMEA DEPTH CALIB +000.0 ft (-15 ∼ +100ft)
LAT/LON DISPLAY 1.DD˚MM.MM' 2.DD˚MM.MMM'
3.DD˚MM.MMMM' 4.DD˚MM'SS.S
RANGE & SPEED UNITS 1.nm,kt 2.km,km/h 3.sm,mph
DEPTH UNIT 1.m 2.ft 3.fa 4.pb
TEMPERATURE UNIT 1.˚C 2.˚F
TIME DISPLAY 1. 12 HOURS 2. 24 HOURS
BEARING READOUT 1. TRUE 2. MAGNETIC
MAGNETIC VARIATION 1. AUTO 2. MANUAL 07.0°W
HEADING MARKER 1. ON 2. OFF
COURSE VECTOR 1. LINE 2. VECTOR 3. OFF
WAYPOINT SWITCHING 1. PERPENDICULAR 2. ARRIVAL CIRCLE
RNG & BRG MODE 1. RHUMB LINE 2. GREAT CIRCLE
SET GOTO METHOD 1. 1 POINT 2. 35 POINTS
3. NEAR SERVICE 4. PORT SERVICE*
RANGE/SCALE 1. RANGE 2. SCALE
SCALE DISPLAY 1. ON 2. OFF
GPS STATUS 1. ON 2. OFF
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
*: NavChart /FURUNO specification only
TM
Display setup menu
6. Press the appropriate numeric key to select the method
1 POINT: Setting a single quick point as waypoint.
35 POINTS: Setting multiple quick points (up to 35) as a route.
NEAR SERVICE, PORT SERVICE (NavChartTM/FURUNO only) : See page 7-5.
7. Press the [MENU] key several times to close the menu.
7. NAVIGATION
7-3
Navigating to a single quick waypoint
1. Referring to page 7-1 for the procedure, set GO TO METHOD to
“1. 1POINT”.
2. Press the [DISP] key, and then select the PLOTTER NAV INFO 1 or PILOT
NAV INFO 1 display.
3. Press the [DISP] key. If the cursor is not displayed, press the [CURSOR
ON/OFF] key to display it.
4. Operate the trackball to place the cursor on the location where you want to
enter the quick point.
5. Press the [GOTO] key.
A light-blue line connects between own ship and destination, marked “QP<01>,”
and it shows the shortest course to the destination.
Arrows on the line show the direction to follow to get quick point. Range and
bearing from own ship to the destination appear at the top of screen. This
location is saved to the WAYPOINT LIST as waypoint “QP01.”
Note 1: Each time a quick point is entered previous quick points having the
same numbers as newly entered ones are written over.
Note 2: If range and bearing from own ship to the destination do not appear on
the screen, refer to paragraph 9.6.2.
7. NAVIGATION
7-4
Navigating to quick route
1. Referring to page 7-1 for the procedure, set SET GO TO METHOD to “2. 35
POINT.”
2. Press the [DISP] key, and then select the PLOTTER NAV INFO 1 or PILOT
NAV INFO 1 display.
3. Press the [DISP] key. If the cursor is not displayed, press the [CURSOR
ON/OFF] key to display it.
4. Press the [GOTO] key to show the following window.
PRESS KNOB TO SET QUICK POINT IN QUICK ROUTE. PRESS KNOB
TWICE TO START NAVIGATION.
PRESS CLEAR KEY TO DELETE THE PREVIOUS QUICK POINT.
Waypoint name appears here.
Operation guidance
5. Operate the trackball to place the cursor on an existing waypoint or a new
location.
6. Press the [ENTER] knob.
When selecting a new location, “QP<01>” appears at the cursor position.
7. Repeat steps 5 and 6 to complete the route.
Maximum 35 points can be entered. To erase last-entered waypoint, press the
[CLEAR] key.
8. After entering all waypoints, press the [ENTER] knob twice.
A light-blue line connects between own ship and the first quick point of the route,
and green lines connect between other quick points. They show the shortest
course to destination. Arrows on the line show the direction to follow the route.
Range and bearing from own ship to the first destination appear at the top of
screen. The unit saves the points as a route, under the name “Q<RTE (Quick
Route).”
Note 1: Each time a quick route is entered, previous quick route is written over.
When entering a new quick waypoint, QP<01> are removed from the
Q<RTE.
Note 2: If range and bearing from own ship to the first destination do not appear
on the screen, refer to paragraph 9.6.2.
7. NAVIGATION
7-5
Navigating to ports, port service
Some NavChart™ and C-MAP NT chart cards have a port service list which
shows services available at ports or harbors. You can use the list to set
destination as follows.
1. Referring to page 7-1 for the procedure, set SET TO GOTO METHOD to “3.
NEAR SERVICE” or “4. PORT SERVICE” (NavChartTM only)
NEAR SERVICE displays the port service list.
PORT SERVICE shows a list of ports in your area.
2. Press the [DISP] key, and then select PLOTTER NAV INFO 1 or PILOT NAV
INFO 1 display.
3. Press the [DISP] key. If the cursor disappears, press the [CURSOR ON/OFF]
key.
4. Press the [GOTO] key.
A list of ports or port services appear depending on what you selected at step 1.
▼
PORT SERVICE
Near service list (NavChart )
▼
TM
PORT SERVICE
ACCIAROLI
ACQUAMORTA
AGNONE S. NICOLA
AGROPOLI
AMALFI
BAIA
CAPRI
CASA MICCIOLA-ISCHIA
▲
Port service list
(NavChart , Italy)
TM
+
+
RT
Near service list
(C-MAP NT)
Port service lists
5. Do one of the following depending on selection mode at step 1.
PORT SERVICE (NavChartTM/FURUNO only)
Rotate the [ENTER] knob to select port and then press the [ENTER] knob. Make
a route using the trackball and [ENTER] key. (If you want to go directly to that
port, simply press the [ENTER] knob twice.
7. NAVIGATION
7-6
NEAR SERVICE
Select service mark desired with the [ENTER] knob, and then press the [ENTER]
knob. Then, the display shows the locations of those services nearest you. (The
figure below shows the location of a fitting station in an area in southern Italy.)
Use the cursor pad to place the “hand cursor” on the port service icon desired
and press the [ENTER] knob. Make a route using the trackball and [ENTER]
knob. (If you want to go directly to location desired, simply press the [ENTER]
knob twice.)
PUNTA CORNACCHIA
ACCO AMENO
I. ISCHIA
CASAMICCIOLA
ISCHIA
PORTO
Sample fitting station locations (southern Italy)
7. NAVIGATION
7-7
7.2 Navigating to a Waypoint
The existing waypoints can be set as destination using the following four
methods:
• Selecting a waypoint on the PLOTTER (or PILOT) NAV INFO 1 display
• Selecting a waypoint from the WAYPOINT LIST
• Selecting a waypoint from the history list
• Entering the waypoint name (only the waypoint having numeric name)
Selecting waypoint on PLOTTER (PILOT) NAV INFO 1 display
1. Referring to page 7-1 for the procedure, set SET GOTO METHOD to “2. 35
POINT.”
2. Press the [DISP] key, and then select the PLOTTER NAV INFO 1 or PILOT
NAV INFO 1 display.
3. Press the [DISP] key. If the cursor is not displayed, press the [CURSOR
ON/OFF] key to display it.
4. Operate the trackball to place the cursor on a waypoint.
5. Press the [GOTO] key.
A light-blue line runs between destination selected and own ship’s position.
Arrows on the line show the direction to follow. Range and bearing from own
ship’s position to destination appear at the top of the screen.
Selecting waypoint from WAYPOINT LIST
1. Press the [MENU] key to show the main menu.
2. Press the [1] key to show the WAYPOINTS LIST.
3. Rotate the [ENTER] knob to select a waypoint
Waypoints can be sorted in order of alphanumerically, by distance or mark type.
(Refer to paragraph 5.4.)
4. Press the [GOTO] key.
The message “NAVIGATING: XXXXXX (XXXXXX = waypoint name)” appears at
the top of the waypoints list.
1. WAYPOINTS LIST NAVIGATING: 000000
NAME LATITUDE LONGITUDE PRXMTY COMMENT
000001 34˚44.041'N 135˚21.255'E 0.00nm 00:29 0301.01
000002 34˚44.237'N 135˚20.936'E 0.00nm POINT A
000003 33˚43.878'N 134˚20.049'E 0.00nm 00:20 0301.02
Selected wapoint as destination
Waypoints list (upper)
7. NAVIGATION
7-8
5. Press the [MENU] key several times to close the menu.
A light-blue line runs between destination selected and own ship’s position.
Arrows on the line show the direction to follow. Range and bearing from own
ship’s position to destination appear at the top of the screen.
Selecting waypoint from the history list
The latest five waypoints entered are saved to the history list. You may choose a
waypoint from this list to set it as destination. If five waypoints have been saved,
the oldest one is erased automatically and a new one is saved.
1. Press the [CURSOR ON/OFF] key to turn off the cursor.
2. Press the [GOTO] knob to show the following window.
ENTER APPROPRIATE WAYPOINT NUMBER BY NUMERIC KEYS TO SET
THE DESTINATION. OR TURN KNOB TO SELECT THE WAYPOINT ON
THE HISTORY LIST AND PRESS KNOB TO SETUP.
WAYPOINT COMMENT
000005 POINT B
000004 03:29 0301.02
000003 00:20 0301.02
000002 POINT A
000001 00:29 0301.02
GOTO WAYPOINT 00000
0
History list
Last-entered waypoint
Destination window
Note: This window will disappear automatically if there is no key operation
within10 seconds.
3. Rotate the [ENTER] knob to select a waypoint.
4. Press the [ENTER] knob.
A light-blue line runs between destination selected and own ship’s position.
Arrows on the line show the direction to follow. Range and bearing from own
ship’s position to destination appear at the top of the screen.
7. NAVIGATION
7-9
Entering waypoint name
This method is available only for waypoints having numeric names.
1. Press the [CURSOR ON/OFF] key to turn off the cursor.
2. Press the [GOTO] knob to show the following window.
ENTER APPROPRIATE WAYPOINT NUMBER BY NUMERIC KEYS TO SET
THE DESTINATION. OR TURN KNOB TO SELECT THE WAYPOINT ON
THE HISTORY LIST AND PRESS KNOB TO SETUP.
WAYPOINT COMMENT
000005 POINT B
000004 03:29 0301.02
000003 00:20 0301.02
000002 POINT A
000001 00:29 0301.02
GOTO WAYPOINT 00000
0
History list
Last-entered waypoint
Destination window
Note: This window will disappear automatically if there is no key operation
within 10 seconds.
3. Press the numeric keys to enter a waypoint name at the GOTO WAYPOINT
line.
Each press of a numeric key changes the cursor to the left digit.
Note: Press the [CLEAR] knob to change the waypoint name to “000000.”
4. Press the [ENTER] knob.
A light-blue line runs between destination selected and own ship’s position.
Arrows on the line show the direction to follow. Range and bearing from own
ship’s position to destination appear at the top of the screen.
7. NAVIGATION
7-10
7.3 Following a Route
Setting a route as destination
1. Press the [MENU] key to show the main menu.
2. Press the [2] key to show the ROUTES LIST.
3. Rotate the [ENTER] knob to select a route.
4. Press the [CURSOR ON/OFF] key to switch the direction to follow if
necessary.
FOLLOW: Follow a route in normal order.
REVERSE: Follow a route in reverse order.
Each press of the [CURSOR ON/OFF] key switches “FOLLOW” and “REVERSE”
at the top of the list.
5. Press the [GOTO] key.
The selected route is set as destination, and "FOLLOW" or "REVERSE" appears
in the far right-hand column.
Destination route
2. ROUTE LIST DIR: REVERSE 1/1
ROUTE NAME COMMENT GOTO
000001
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Use the [CURSOR ON/OFF] key
to choose direction to follow route,
REVERSE and FOLLOW.
Route list
6. Press the [MENU] key several times to close the menu.
A light-blue line runs between the first waypoint and own ship’s position, and
green lines connect other route waypoints. Arrows on the line show the direction
to follow. Range and bearing from own ship’s position to destination appear at
the top of the screen.
7. NAVIGATION
7-11
Skipping route waypoints
In some instances you may want to “skip” waypoints while following a route. In
the figure below, for example, the vessel has decided to navigate from waypoint
05 to 03, skipping waypoint 04.
PORT 1
PORT 2
Waypoint 1 Waypoint 2
Waypoint 3
Waypoint 4
Waypoint 5
Waypoint 6
New course line
1. Press the [MENU] key to show the main menu.
2. Press the [2] key to show the ROUTES LIST.
3. Rotate the [ENTER] knob to select a route.
4. Press the [ENTER] knob three times to show the waypoints list.
5. Rotate the [ENTER] knob to select the waypoint you want to skip.
6. Press the [CURSOR ON/OFF] key to show “-“ next to the waypoint selected
at step 5.
000002 ROUTE LIST PAGE 1/2
NO. WPT LATITUDE LONGITUDE DISTANCE TTG
1 000001 34˚44.041'N 135˚21.255'E 0.00nm 0.0H
2 -000002 34˚44.237'N 135˚20.936'E ---.--nm -----.-H
3 000003 33˚43.878'N 134˚20.049'E 1.00nm 0.1H
4 ------ --˚--.---'N ---˚--.---'E ---.--nm -----.-H
Skipped waypoint
Waypoints window
Note: To restore the waypoint, press the [CURSOR ON/OFF] key again to
erase the “-“.
7. Press the [MENU] key several times to close the menu.
7. NAVIGATION
7-12
Switching waypoint
When you arrive to a waypoint on a route, you can switch to the next waypoint
two ways: PERPENDICULAR or ARRIVAL CIRCLE.
PERPENDICULAR: Automatically switches the TO waypoint when the boat
enters the arrival alarm range or the boat passes an
imaginary perpendicular line passing through the center of
the destination waypoint.
ARRIVAL ALARM: Automatically switches the TO waypoint when your boat is
within the arrival alarm area. For how to set the arrival
alarm area, see chapter 8.
Waypoint 1
Waypoint
2
PERPENDICULAR
Switches to the
next waypoint here.
Waypoint 1
Waypoint 2
ARRIVAL CIRCLE
Arrival
alarm range
Switches to the
next waypoint here.
Switching waypoint
To select waypoint switching method, do the following.
1. Press the [MENU] key to show the main menu.
2. Press the [0] key to show the SYSTEM SETUP menu.
3. Press the [1] key to show the DISPLAY SETUP menu.
4. If page 2/2 appears, rotate the [ENTER] knob to select “PREVIOUS PAGE.”
5. Rotate the [ENTER] knob to select “WAYPOINT SWITCHING.”
6. Press the [1] or [2] key to select “1. PERPENDICULAR” or “2. ARRIVAL
CIRCLE” as appropriate.
7. Press the [MENU] key several times to close the menu.
7.4 Canceling Navigation
1. Press the [GOTO] key to show the following message.
XXXXXX IS NOW SET TO
DESTINATION.
CANCEL ROUTE NAVIGATION?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
Cancel message
2. Press the [ENTER] knob to cancel destinations or the [CLEAR] key to
escape.
8-1
8. ALARMS
There are 10 alarms which generate both audible and visual alarms: Arrival
alarm, Anchor Watch Alarm, XTE Alarm, Border Alarm, Proximity Alarm, Speed
Alarm, Trip Log Alarm, Temperature Alarm, Shear Alarm, Bottom Alarm.
When an alarm setting is violated, the buzzer sounds and the speaker icon
()and type of alarm appear. You may silence the buzzer by pressing the
[CLEAR] key. The icon remains on the screen until the cause of the alarm is
removed or the alarm is deactivated. When an alarm setting is occurred again,
the buzzer sounds and the speaker icon appears.
Alarm icon
42
41
Status abbreviation and alarm type appears alternately.
ARRIVAL: Arrival alarm
ANCHOR: Anchor watch alarm
XTE: XTE alarm
BORDER: Border alarm
PRXMTY: Proximity alarm
SPEED: Speed alarm
TRIP: Trip log alarm
TMP: Temperature alarm
SHEAR: Shear alarm
BOTTOM: Bottom alarm
0.3nm
WGS84
ARRIVAL
Plotter display, showing location of violated alarm indication
Note: When multiple alarms are violated, the last-violated alarm is shown at the
bottom of the screen.
8. ALARMS
8-2
8.1 Audio Alarm On/Off
The audio alarm sounds whenever an alarm setting is violated. You can enable
or disable the audio alarm as follows:
1. Press the [MENU] key to show the main menu.
2. Press the [6] key to show the ALARMS SETUP menu.
AUDIO ALARM 1. SHORT 2. LONG 3. CONT 4. OFF
ARRIVAL/ANCHOR WATCH 1. ARRIVAL 2. ANCHOR 3. OFF
RANGE TO MONITOR 0.001 nm
XTE/BORDER ALARM 1. XTE 2. BORD 3.OFF
RANGE TO MONITOR 0.050nm
PROXIMITY ALARM 1. ON 2. OFF
SPEED ALARM 1. INSIDE 2. OUT 3. OFF
MINIMUM SPEED 000.0kt
MAXIMUM SPEED 030.0kt
TRIP LOG ALARM 1. ON 2. OFF
DIST TO MONITOR 0000.1nm
TEMPERATURE ALARM 1. INSIDE 2. OUT 3. OFF
MINIMUM TEMPERATURE +00.0°C
MAXIMUM TEMPERATURE +30.0°C
SHEAR ALARM 1. ON 2. OFF
GRADIENT OF TEMP 00.1°C 0.1∼10.0
INTERVAL 010 s 10∼120 s
BOTTOM ALARM 1. ON 2. OFF
DEPTH 0000.0ft
RANGE 00.0ft
6. ALARMS SETUP
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
Alarm setup menu
3. Rotate the [ENTER] knob to select AUDIO ALARM.
4. Roll the trackball in left-right direction to select an beep type
SHORT: Short beeps sound.
LONG: Long beeps sound.
CONT: Continuous beep sounds.
OFF: Audio alarm off.
5. Press the [MENU] key several times to close the menu.
8. ALARMS
8-3
8.2 Arrival Alarm/Anchor Watch Alarm
The arrival alarm informs you that your boat is approaching a destination
waypoint. The area that defines an arrival zone is that of a circle which you
approach from the outside of the circle. The alarm will be released if your boat
enters the circle. When the arrival alarm is active, a red dashed circle marks the
arrival alarm area.
Alarm
Own ship's
position
Setting range
Destination waypoint
How the arrival alarm works
The anchor watch alarm informs you that your boat is moving when it should be
at rest. When the anchor watch is active, a red dashed circle marks the anchor
watch area.
: Alarm
Own ship's
position
Setting range
How the anchor watch alarm works
Note: The arrival and anchor watch alarms cannot be turned on together.
1. Press the [MENU] key to show the main menu.
2. Press the [6] key to show the ALARMS SETUP menu.
3. Rotate the [ENTER] knob to select ARRIVAL/ANCHOR WATCH.
4. Press the [1] or [2] key to select “1. ARRIVAL” or “2. ANCHR” as appropriate.
5. Rotate the [ENTER] knob to select RANGE TO MONITOR below
ARRIVAL/ANCHOR WATCH.
6. Press the numeric keys to enter the range value. (Setting range: 0.001 to
9.999 nm)
7. Press the [ENTER] knob.
8. Press the [MENU] key several times to close the menu.
9. For the anchor watch alarm, place the cursor on own ship’s position and then
press the [GOTO] key.
The anchor watch alarm range is shown with a red dashed circle, its center own
ship’s position at the moment you completed step 9. If own ship goes out this
range, the audio and visual alarms are released.
Note : To deactivate the alarm, select “3. OFF” at step 4.
8. ALARMS
8-4
8.3 XTE (Cross Track Error) Alarm/Border Alarm
The XTE alarm warns you when your boat is off its intended course. When the
XTE alarm is active, two red dashed lines mark the XTE alarm area.
: Alarm
Destination
waypoint
Own ship's
position Alarm setting
Start
point
XTE alarm
The border alarm defines an area, defined by two waypoints, which you do not
want to cross. The audio and visual alarms will be released when your ship
crosses the are defined by the two waypoints.
: Alarm
Setting line
Own ship's position
Alarm
setting
Border alarm
Note: The XTE and border alarms cannot be turned on together.
1. Press the [MENU] key to show the main menu.
2. Press the [6] key to show the ALARMS SETUP menu.
3. Rotate the [ENTER] knob to select XTE/BORDER ALARM.
4. Press the [1] or [2] key to select “1. XTE” or “2. BORD” as appropriate.
5. Rotate the [ENTER] knob to select RANGE TO MONITOR below
XTE/BORDER ALARM.
6. Press the numeric key to enter the range value. (Setting range: 0.001 to
9.999 nm)
7. Press the [ENTER] knob.
8. Press the [MENU] key several times to close the menu.
Note: To deactivate the alarm, select “3. OFF” at step 4.
8. ALARMS
8-5
8.4 Proximity Alarm
The proximity alarm alerts you when your vessel nears a waypoint by the
distance set for that waypoint on the waypoints list. The distance is called the
proximity alarm radius. You can globally activate or deactivate the proximity
alarm here.
Alarm range (Radius depends on
the setting of "PRXMTY RADIUS"
in the waypoint editing window.)
000001
Proximity alarm
1. Press the [MENU] key to show the main menu.
2. Press the [6] key to show the ALARMS SETUP menu.
3. Rotate the [ENTER] knob to select PROXIMITY ALARM.
4. Press the [1] key to select “1. ON.”
5. Press the [MENU] key several times to close the menu.
Note: To deactivate the alarm, select “2. OFF” at step 4.
8. ALARMS
8-6
8.5 Speed Alarm
The speed alarm warns you when your boat’s speed is within or over the speed
range set.
1. Press the [MENU] key to show the main menu.
2. Press the [6] key to show the ALARMS SETUP menu.
3. Rotate the [ENTER] knob to select SPEED ALARM.
4. Press the [1] or [2] key to select “1. INSIDE” or “2. OUT” as appropriate.
5. Rotate the [ENTER] knob to select MINIMUM SPEED.
6. Press the numeric keys to enter the minimum speed value, and then press
the [ENTER] knob.
7. Rotate the [ENTER] knob to select MAXIMUM SPEED.
8. Press the numeric keys to enter the maximum speed value, and then press
the [ENTER] knob.
9. Press the [MENU] key several times to close the menu.
Note: To deactivate the alarm, select “3. OFF” at step 4.
8.6 Trip Log Alarm
The trip log alarm informs you when you have traveled a certain distance.
1. Press the [MENU] key to show the main menu.
2. Press the [6] key to select ALARMS SETUP menu.
3. Rotate the [ENTER] knob to select TRIP LOG ALARM.
4. Press the [1] key to select “1. ON.”
5. Press the numeric keys to enter the trip log value, and then press the
[ENTER] knob.
6. Press the [MENU] key several times to close the menu.
Note: To deactivate the alarm, select “2. OFF” at step 4.
8. ALARMS
8-7
8.7 Temperature Alarm
Note: This alarm requires water temperature data.
There are two types of water temperature alarms: INSIDE and OUT. The INSIDE
alarms sounds when the water temperature is within the range set, and the OUT
alarm sounds when the water temperature is higher or lower than the range set.
1. Press the [MENU] key to show the main menu.
2. Press the [6] key to show the ALARMS SETUP menu.
3. Rotate the [ENTER] knob to select TEMPERATURE ALARM.
4. Press the [1] or [2] key to select “1. INSIDE” or “2. OUT” as appropriate.
5. Rotate the [ENTER] knob to select MINIMUM TEMPERATURE.
6. Press the numeric keys to enter the minimum temperature value, and then
pres the [ENTER] knob.
To switch “+” and “-” press the [CURSOR ON/OFF] key.
7. Rotate the [ENTER] knob to select MAXIMUM TEMPERATURE.
8. Press the numeric keys to enter the maximum temperature value, and then
press the [ENTER] knob.
9. Press the [MENU] key several times to close the menu.
Note: To deactivate the alarm, select “3. OFF” at step 4.
8.8 Shear Alarm
Note: This alarm requires water temperature data.
The shear alarm sounds when the water temperature changes more or less than
the preset value within the interval time set.
1. Press the [MENU] key to show the main menu.
2. Press the [6] key to show the ALARMS SETUP menu.
3. Rotate the [ENTER] knob to select SHEAR ALARM.
4. Press the [1] key to select “1. ON.”
5. Rotate the [ENTER] knob to select GRADIENT OF TEMP.
6. Press the numeric keys to enter the gradient of temp value, and then press
the [ENTER] knob. (Setting range: 0.1 to 10.0°C)
7. Rotate the [ENTER] knob to select INTERVAL.
8. Press the numeric keys to enter the interval value, and then press the
[ENTER] knob. (Setting range: 10 to 12 seconds)
9. Press the [MENU] key several times to close the menu.
Note: To deactivate the alarm, select “2. OFF” at step 4.
8. ALARMS
8-8
8.9 Bottom Alarm
Note: This alarm requires depth data.
The bottom alarm sounds when the bottom echo is within the alarm range set.
To activate the bottom alarm the depth must be displayed.
1. Press the [MENU] key to show the main menu.
2. Press the [6] key to show the ALARMS SETUP menu.
3. Rotate the [ENTER] knob to select BOTTOM ALARM.
4. Press the [1] key to select “1. ON.”
5. Rotate the [ENTER] knob to select DEPTH.
6. Press numeric keys to enter the starting point of the alarm range.
7. Rotate the [ENTER] knob to select RANGE.
8. Press numeric key to set the alarm range, and then press the [ENTER] knob.
9. Press the [MENU] key several times to close the menu.
Note: To deactivate the alarm, select “2. OFF” at step 4.
9-1
9. CUSTOMIZING YOUR UNIT
This chapter describes the various options which allow you to set up your unit to
suit your needs.
9.1 CHART SETUP Menu
The CHART SETUP menu provides for chart offset, track controls and chart
details.
9.1.1 Offsetting the chart
In some instances position may be off by a few minutes. For example, the
position of the ship is shown to be at sea while it is in fact moored at a pier. You
can compensate for the error by offsetting chart position as follows:
1. Press the [MENU] key to show the main menu.
2. Press the [7] key to show the CHART SETUP menu.
If the CHART SETUP menu does not appear, rotate the [ENTER] knob clockwise
to show it.
7. CHART SETUP
GOTO CONTOUR LINES SETUP
OFFSET CHART POSITION
1. YES 2. NO
LAT/LON GRID 0. OFF
TEXT INFORMATION 1. YES 2. NO
WAYPOINTS 1. LARGE 2. SMALL 3. OFF
WAYPOINT NAME 1. LARGE 2. SMALL 3. OFF
CHART BORDER LINES
1. YES 2. NO
LANDMASS 0. OFF
TRIMMING BORDER LINE
0. OFF
BACKGROUND 0. OFF
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
7. CHART SETUP
GOTO CONTOUR LINES SETUP
OFFSET CHART POSITION
1. YES 2. NO
WAYPOINTS 1. ON 2. OFF
WAYPOINT NAME 1. ON 2. OFF
LAND NAME 1. ON 2. OFF
LAT/LON GRID 1. ON 2. OFF
CHART BORDER LINES1. ON 2. OFF
BACKGROUD 1. WHITE 2. BLACK
PORT SERVICES 1. ON 2. OFF
ATTENTION AREAS 1. SHADE 2. LINE 3. OFF
ALL SYMBOLS 1. ON 2. OFF
NAV LANES 1. ON 2. OFF
LIGHTHOUSE 1. SECTOR ON 2. SECTOR OFF 3. OFF
BUOYS & BEACONS 1. ON 2. OFF
SIGNALS 1. ON 2. OFF
CARTOGRAPHIC OBJECTS
1. ON 2. OFF
COMPASSES 1. ON 2. OFF
TIDE & CURRENT 1. ON 2. OFF
NATURAL FEATURES
1.ON 2. OFF
RIVERS & LAKES 1. ON 2. OFF
BUILDING/FACILITY 1. ON 2. OFF
LANDMARKS 1. ON 2. OFF
CHART CARD INFO 1. ON 2. OFF
OTHER SYMBOLS 1. ON 2. OFF
COMPLEX OBJECT ICONS
1. MULTIPLE 2. SINGLE
INFORMATION LEVEL
1. BASIC 2. DETAILED
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
NavChart /FURUNO
C-MAP NT
NT
Chart setup menu
3. Rotate the [ENTER] knob to select OFFSET CHART POSIITION.
9. CUSTOMIZING YOUR UNIT
9-2
4. Press the [1] key to select “1. YES.”
The plotter screen appears with the following window.
OFFSET METHOD 1. CURSOR 2. LAT/LON 3. DELTA L/L 4. CANCEL
TURN KNOB TO SELECT OFFSET METHOD.
PRESS KNOB TO CANCEL CHART POSITION OFFSET.
Position offset window
5. Press the [1] key to select “1. CURSOR”, “2. LAT/LON” or “3. DELTA L/L.”
6. Do one of the following depending on the choice of step 5.
1. CURSOR
The position offset window changes as below.
OFFSET METHOD 1. CURSOR 2. LAT/LON 3. DELTA L/L 4. CANCEL
TURN KNOB TO SELECT OFFSET METHOD.
PLACE CURSOR ON CORRECT LAT/LON POSITION AND PRESS
KNOB TO ENTER.
Position offset window (1. Cursor)
a) Operate the trackball to place the cursor where to offset chart position.
b) Press the [ENTER] knob to return to the CHART SETUP menu.
2. LAT/LON
The position offset window changes as below.
TURN KNOB TO SELECT OFFSET METHOD.
ENTER CORRECT LAT/LON POSITION AND PRESS KNOB TO ENTER.
CURSOR ON/OFF: SWITCH NOUTH/SOUTH & EAST/WEST
OFFSET METHOD 1. CURSOR 2. LAT/LON 3. DELTA L/L 4. CANCEL
LATITUDE 00°00.000' N
LONGITUDE 000°00.000' E
Position offset window (2. LAT/LON)
a) Press the numeric keys to enter the latitude for own ship’s position on the
chart.
b) Press the [CURSOR ON/OFF] key to switch from North to South and vice
versa.
c) Roll the trackball to downward to place the cursor on the LONGITUDE line.
d) Press the numeric keys to enter the longitude.
e) Press the [CURSOR ON/OFF] key to switch from East to West and vice
versa.
f) Press the [ENTER] knob to return to the CHART SETUP menu.
9. CUSTOMIZING YOUR UNIT
9-3
3. DELTA L/L
For this method, pre-calculate the error on a nautical chart.
The position offset window changes as below.
TURN KNOB TO SELECT OFFSET METHOD.
ENTER CORRECT LAT/LON POSITION AND PRESS KNOB TO ENTER.
CURSOR ON/OFF: SWITCH NOUTH/SOUTH & EAST/WEST
OFFSET METHOD 1. CURSOR 2. LAT/LON 3. DELTA L/L 4. CANCEL
LATITUDE 00°00.000' N
LONGITUDE 000°00.000' E
Position offset window (3. Delta L/L)
a) Use the numeric keys to enter the correction value for latitude.
b) Press the [CURSOR ON/OFF] key to switch from North to South and vice
versa.
c) Roll the trackball downward to place the cursor on the LONGITUDE line.
d) Press the numeric keys to enter the correction value for longitude.
e) Press the [CURSOR ON/OFF] key to switch from East to West and vice
versa.
f) Press the [ENTER] knob to return to the CHART SETUP menu.
7. Press the [MENU] key several times to close the menu.
The offsetting icon ( ) appears at the bottom of the PLOTTER (or PILOT) NAV
INFO 1 display.
Note: To cancel chart offset, select “4. CANCEL” at step 5.
9. CUSTOMIZING YOUR UNIT
9-4
9.1.2 CHART SETUP menu items description
This paragraph shows items of CHART SETUP menu lets you turn chart
features on or off and choose colors. In this paragraph, the operation procedure
for NavCharts
TM
is described.
1. Press the [MENU] key to show the main menu.
2. Press the [7] key to show the CHART SETUP menu.
If the CHART SETUP menu does not appear, rotate the [ENTER] knob clockwise
to show it.
7. CHART SETUP
GOTO CONTOUR LINES SETUP
OFFSET CHART POSITION
1. YES 2. NO
LAT/LON GRID 0. OFF
TEXT INFORMATION 1. YES 2. NO
WAYPOINTS 1. LARGE 2. SMALL 3. OFF
WAYPOINT NAME 1. LARGE 2. SMALL 3. OFF
CHART BORDER LINES
1. YES 2. NO
LANDMASS 0. OFF
TRIMMING BORDER LINE
0. OFF
BACKGROUND 0. OFF
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
7. CHART SETUP
GOTO CONTOUR LINES SETUP
OFFSET CHART POSITION
1. YES 2. NO
WAYPOINTS 1. ON 2. OFF
WAYPOINT NAME 1. ON 2. OFF
LAND NAME 1. ON 2. OFF
LAT/LON GRID 1. ON 2. OFF
CHART BORDER LINES1. ON 2. OFF
BACKGROUD 1. WHITE 2. BLACK
PORT SERVICES 1. ON 2. OFF
ATTENTION AREAS 1. SHADE 2. LINE 3. OFF
ALL SYMBOLS 1. ON 2. OFF
NAV LANES 1. ON 2. OFF
LIGHTHOUSE 1. SECTOR ON 2. SECTOR OFF 3. OFF
BUOYS & BEACONS 1. ON 2. OFF
SIGNALS 1. ON 2. OFF
CARTOGRAPHIC OBJECTS
1. ON 2. OFF
COMPASSES 1. ON 2. OFF
TIDE & CURRENT 1. ON 2. OFF
NATURAL FEATURES
1.ON 2. OFF
RIVERS & LAKES 1. ON 2. OFF
BUILDING/FACILITY 1. ON 2. OFF
LANDMARKS 1. ON 2. OFF
CHART CARD INFO 1. ON 2. OFF
OTHER SYMBOLS 1. ON 2. OFF
COMPLEX OBJECT ICONS
1. MULTIPLE 2. SINGLE
INFORMATION LEVEL
1. BASIC 2. DETAILED
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
NavChart /FURUNO
C-MAP NT
NT
Chart setup menu
3. Rotate the [ENTER] knob to select the desired item.
4. Roll the trackball in left-right direction to select option.
5. Press the [MENU] key several times to close the menu.
9. CUSTOMIZING YOUR UNIT
9-5
NavChart/FURUNO specification
For color selection of red, yellow, green, light-blue, purple, blue and white, you
can select one of them by pressing the appropriate numeric key.
[1] key: red, [2] key: yellow, [3] key: green, [4] key: light-blue, [5] key: purple,
[6] key: blue, [7] key: white
OFFSET CHART POSITION
See paragraph 9.1.
LAT/LON GRID
Turns lat/lon grid on/off and changes its color.
This can be selected from among seven colors.
TEXT INFORMATION
Turns geographic name display on/off.
WAYPOINTS
Turns waypoint on or off and selects size to large or small. For details, see
section 5.7.
WAYPOINT NAME
Turns waypoint name on or off and selects size to large or small on the
PLOTTER (or PILOT) NAV INFO 1 display. For details, see page 5-2.
CHART BORDER LINES
Turns chart indices on/off.
LANDMASS
Turns landmass on or off and selects a color for land from among 16 colors.
TRIMING BORDER LINE
Turns edge of landmass on or off and selects a color for edge from among 16
colors.
BACKGROUND
Turns background on or off and selects a color for background from among 16
colors.
NAV AIDS
Turns navigation data on NavChart™, lighthouse data on FURUNO charts on or
off.
LIGHTHOUSES
Turns lighthouse viewing sector on or off.
OTHER SYMBOLS
Turns other map symbols on or off.
9. CUSTOMIZING YOUR UNIT
9-6
C-MAP NT specification
OFFSET CHART POSITION
See paragraph 9.1.
WAYPOINTS
Turns waypoints on/off.
WAYPOINTS NAME
Turns waypoint name on/off on the PLOTTER (or PILOT) NAV INFO 1 display.
LAND NAME
Turns place names on/off.
LAT/LON GRID
Turns lat/lon grid on/off.
CHART BORDER LINES
Turns chart indices on/off.
BACKGROUND
Selects background color between WHITE and BLACK.
PORT SERVICE
Turns port services on/off.
ATTENTION AREA
Turns attention area on/off and selects the displaying method SHADE or LINE.
ALL SYMBOLS
Turns the following symbols on/off. When selecting ON, a symbol is displayed or
is not displayed depending on its setting.
NAV LANES, LIGHT HOUSE (SECTOR ON/OFF), BUOYS & BEACONS,
SIGNALS, CARTOGRAPHIC OBJECTS, COMPASSES, TIDE & CURRENT,
NATURAL FEATURES, RIVERS & LAKES, BUILDING/FACILITY, LANDMARKS,
CHART CARD INFO, OTHER SYMBOLS
COMPLEX OBJECT ICONS
Shows the multiple or a mark (s) at a position.
INFORMATION LEVEL
Selects how much data to show for marks, BASIC or DETAILED..
9. CUSTOMIZING YOUR UNIT
9-7
9.1.3 CONTOUR LINES SETUP menu
You can select the color of contour lines, which are lines colored according to
depth. In this paragraph, the operating procedure for setting up contour lines on
NavChartsTM is described.
1. Press the [MENU] key to show the main menu.
2. Press the [7] key.
3. If the CHART SETUP menu appears, rotate the [ENTER] knob clockwise to
show the CONTOUR LINES SETUP menu.
7. CHART SETUP
GOTO CHART DETAILS SETUP
CONTOUR LINES
1. ON 2. OFF
DEPTH < 10 m 0. OFF
DEPTH = 10 m 0. OFF
DEPTH > 10 m 0. OFF
DEPTH INFORMATION 0. OFF
CONTOUR LINES AREA 11100 00328 ft
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
7. CHART SETUP
GOTO CHART DETAILS SETUP
CONTOUR LINES
1. ON 2. OFF
DEPTH 1. ON 2. OFF
BOTTOM TYPE 1. ON 2. OFF
DEPTH SHADE AREA 00020, 00164 ft
CONTOUR LINES AREA
00000 00033 ft
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
NavChart /FURUNO C-MAP NT
NT
Chart setup menu
4. Rotate the [ENTER] knob to select CONTOUR LINES, and then press the [1]
key to select “1. ON.”
5. Rotate the [ENTER] knob to select DEPTH<10 m, and then press an
appropriate numeric key to select a color.
6. Set the colors for DEPTH=10 m and DEPTH>10 m also.
7. Rotate the [ENTER] knob to select DEPTH INFORMATION, and then press
an appropriate numeric key to select a color for depth information.
8. Rotate the [ENTER] knob to select CONTOUR LINES AREA, and then use
the numeric keys to enter the depth area for which you want to show contour
lines.
9. Press the [MENU] key several times to close the menu.
C-MAP NT attributes
Item Description
GOTO CHART DETAILS SETUP
CONTOUR LINES Same as NavChartNT attribute.
BOTTOM TYPE Select ON to show the bottom composition.
DEPTH SHADE AREA
Sets two values to show the depth areas in three
colors. (0 to left value: Blue, between left and right
values: L-blue, deeper than right value: Gray)
CONTOUR LINES AREA Sets two depths for which to show contour lines
between them.
9. CUSTOMIZING YOUR UNIT
9-8
9.2 PLOTTER SETUP Menu
The PLOTTER SETUP menu mainly sets up the Loran (Decca) TD display. (For
panel dimmer and hue, see section 1.4.)
9.2.1 Setting TD display
To display own ship’s position in data window in TDs, follow the procedure below.
For how to set the data window, see paragraph 9.6.2.
Displaying position in Loran A
1. Press the [MENU] key to show the main menu.
2. Press the [8] key to show the PLOTTER SETUP menu.
LORAN-A GRI 00-00
CORRECTION 1 +000.0 ms
CORRECTION 1 +000.0 ms
LORAN-C GRI 00-00
CORRECTION 1 +000.0 ms
CORRECTION 1 +000.0 ms
DECCA CHAIN 00 R-G
CORRECTION 1 +000.0 ms
CORRECTION 1 +000.0 ms
TD DISPLAY 1. LORAN-A 2. LORAN-C 3. DECCA
RESET TRIP LOG 1. YES 2. NO
PLOTTER RANGE SETUP 1. YES 2. NO
PANEL DIMMER 1 2 3 4 5 6 7 8
HUE 1. DAY 2. NIGHT 3. TWILI 4. MANUAL
00:1L0 01:1L1 02:1L4 03:1L5 04:1L6
05:1L7 06:1S1 07:1S2 08:1S3 09:1S4
10:1S6 11:2H3 12:2H4 13:2H5 14:2H6
15:2S0 16:2S1 17:2S2 18:2S3 19:2S4
20:2S5 21:2S6 22:2S7
8. PLOTTER SETUP
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
Plotter setup menu
3. Rotate the [ENTER] knob to select LORAN-A GRI to show the station codes
in the menu.
4. Use the numeric keys to enter GRI code.
9. CUSTOMIZING YOUR UNIT
9-9
5. If necessary, rotate the [ENTER] knob to select CORRECTION 1 to enter
offset.
Use the numeric keys to enter position offset, and then press the [ENTER] knob.
Use the [CURSOR ON/OFF] key to switch from “+” to “-“ and vice versa.
6. If necessary, enter offset t CORRECTION 2.
7. Rotate the [ENTER] knob to select TD DISPLAY.
8. Press the [1] key to select “1. LORAN-A”.
9. Press the [MENU] key several times to close the menu.
Displaying position in Loran C
1. Press the [MENU] key to show the main menu.
2. Press the [8] key to show the PLOTTER SETUP menu.
3. Rotate the [ENTER] knob to select LORAN-C GRI to show the GRI code in
the menu.
4. Use the numeric keys to enter GRI code.
For GRI9970, for example, press the [1] and [0] keys to show the chain list.
5. Use the numeric keys to enter station pair, and then press the [ENTER] knob.
6. If necessary, rotate the [ENTER] knob to select CORRECTION 1 below
LORAN-C GRI to enter offset.
Use the numeric keys to enter position offset, and then press the [ENTER] knob.
Use the [CURSOR ON/OFF] key to switch from “+” to “-” and vice versa.
7. If necessary, offset at CORRECTION 2.
8. Rotate the [ENTER] knob to select TD DISPLAY.
9. Press the [2] key to select “2. LORAN-C”.
10. Press the [MENU] key several times to close the menu.
Displaying position in DECCA TDs
1. Press the [MENU] key to show the main menu.
2. Press the [8] key to show the PLOTTER SETUP menu.
3. Rotate the [ENTER] knob to select DECCA CHAIN.
4. Use the numeric keys to enter Decca chain number. (Selecting range: 01 to
48)
Available lanes appear.
5. Use the numeric keys to enter lane pair, and then press the [ENTER] knob.
6. If necessary, rotate the [ENTER] knob to select CORRECTION 1 below
DECCA CHAIN.
7. Use the numeric keys to enter position offset and then press the [ENTER]
knob.
Use the [CURSOR ON/OFF] key to switch from “+” to “-” and vice versa.
8. If necessary, enter offset at CORRECTION 2.
9. Rotate the [ENTER] knob to select TD DISPLAY.
10. Press the [3] key to select “3. DECCA.”
11. Press the [MENU] key several times to close the menu.
9. CUSTOMIZING YOUR UNIT
9-10
9.2.2 Resetting trip distance
You can reset trip distance to “0.” The trip distance is shown in the NAV INFO
window. (See paragraph 9.6.2.)
1. Press the [MENU] key to show the main menu.
2. Pres the [8] key to show the PLOTTER SETUP menu.
3. Rotate the [ENTER] knob to select RESET TRIP LOG.
4. Press the [1] key to select “1. YES”.
The trip distance becomes “0.”
5. Press the [MENU] key several times to close the menu.
9.2.3 Selecting range of PLOTTER (PILOT) display
You may choose the PLOTTER (or PILOT) display ranges you wish to use. After
choosing the ranges desired, change the range with the [ZOOM IN] or [ZOOM
OUT] keys to activate range settings.
Note: At least two ranges must be turned on.
1. Press the [MENU] key to show the main menu.
2. Press the [8] key to show the PLOTTER SETUP menu.
3. Rotate the [ENTER] knob to select “PLOTTER RANGE SETUP.”
4. Press the [1] key to select “1. YES.”
The PLOTTER RANGE SETUP menu appears.
9. CUSTOMIZING YOUR UNIT
9-11
PLOTTER RANGE SETUP
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
0.125 1. ON 2. OFF
0.25 1.ON 2. OFF
0.50 1. ON 2. OFF
0.75 1. ON 2. OFF
1.00 1. ON 2. OFF
1.50 1. ON 2. OFF
2.00 1. ON 2. OFF
3.00 1. ON 2. OFF
4.00 1. ON 2. OFF
6.00 1. ON 2. OFF
8.00 1. ON 2. OFF
12.0 1. ON 2. OFF
16.0 1. ON 2. OFF
24.0 1. ON 2. OFF
32.0 1. ON 2. OFF
48.0 1. ON 2. OFF
72.0 1. ON 2. OFF
96.0 1. ON 2. OFF
128 1. ON 2. OFF
256 1. ON 2. OFF
512 1. ON 2. OFF
1024 1. ON 2. OFF
Plotter range setup menu
5. Rotate the [ENTER] knob to select the range which you want to turn on or
off.
6. Press the [1] or [2] key to select “1. ON” or “2. OFF” as appropriate.
7. Press the [MENU] key several times to close the menu.
9. CUSTOMIZING YOUR UNIT
9-12
9.3 DISPLAY SETUP Menu
The DISPLAY SETUP menu contains items for setting up the display.
1. Press the [MENU] key to show the main menu.
2. Press the [0] key to show the SYSTEM SETUP menu.
0. SYSTEM SETUP
1. DISPLAY SETUP
2. NAVIGATOR SETUP
3. PROGRAMMABLE KEYS & REMOTE CONTROLLER SETUP
4. DISPLAY MODES & NAV DATA WINDOW SETUP
5. I/O PORT SETUP
6. TEST & MEMORY CLEAR
7. SIMULATION MODE
8.
TURN KNOB TO SELECT MENU AND PRESS KNOB TO ENTER.
OR PRESS APPROPRIATE NUMERIC KEY TO SELECT MENU.
System setup menu
3. Press the [1] key to show the DISPLAY SETUP menu.
The DISPLAY SETUP menu has two pages, the last-used page appears.
4. If page 2/2 appears, rotate the [ENTER] knob clockwise to select PREVIOUS
PAGE.
9. CUSTOMIZING YOUR UNIT
9-13
0-1. DISPLAY SETUP 1/2
NEXT PAGE
LANGUAGE ENGLISH Others
KEY BEEP 1. ON 2. OFF
SPEED SOURCE 1. INT GPS 2. NMEA SOG 3. NMEA STW
NMEA SPEED CALIB +00% (-50 +50%)
NMEA SETUP CALIB +000.00 ft (-15 +100 ft)
DEPTH SOURCE 1. NMEA2. INTERNAL E/S
NMEA DEPTH CALIB +000.0 ft (-15 +100 ft)
LAT/LON DISPLAY 1.DD˚MM.MM' 2.DD˚MM.MMM'
3.DD˚MM.MMMM' 4.DD˚MM'SS.S
RANGE & SPEED UNITS
1.nm,kt 2.km,km/h 3.sm,mph
DEPTH UNIT 1. m 2. ft 3. fa 4. pb
TEMPERATURE UNIT 1.˚C 2.˚F
TIME DISPLAY 1. 12 HOURS 2. 24 HOURS
BEARING READOUT 1. TRUE 2. MAGNETIC
MAGNETIC VARIATION1. AUTO 2. MANUAL 07.0˚W
HEADING MARKER 1. ON 2. OFF
COURSE VECTOR 1. LINE 2. VECTOR 3. OFF
WAYPOINT SWITCHING
1. PERPENDICULAR2. ARRIVAL CIRCLE
RNG & BRG MODE 1. RHUMB LINE 2. GREAT CIRCLE
SET GOTO METHOD 1. 1 POINT 2. 35 POINTS
3. NEAR SERVICE 4. PORT SERVICE*
RANGE/SCALE 1. RANGE 2. SCALE
SCALE DISPLAY 1. ON 2. OFF
GPS STATUS 1. ON 2. OFF
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
*: NavChart /FURUNO specification only.
TM
Display setup menu (page 1)
Page 1
LANGUAGE
Selects the language to use, from among English and several European
languages.
KEY BEEP
Turns key beep on/off.
SPEED SOURCE
Selects source of speed data from among INT GPS (internal GPS), NMEA SOG,
NMEA STW and INTERNAL E/S. For details, see the installation manual.
NMEA SPEED CALIB
An offset may be applied to NMEA speed data (NMEA SOG or NMEA STW at
SPEED SOURCE). For details, see the installation manual.)
9. CUSTOMIZING YOUR UNIT
9-14
NMEA TEMP CALIB
You may apply an offset to NMEA water temperature data. For details, see the
installation manual.
DEPTH SOURCE
Selects source of depth from NMEA or INTERNAL E/S. For details, see the
installation manual.
NMEA DEPTH CALIB
You can apply an offset to NMEA depth data. For details, see the installation
manual.
LAT/LON DISPLAY
Chooses how many digits (or seconds) to display after decimal point in latitude
and longitude position. The choices are DD°MM.MM’, DD°MM.MMM’ and
DD°MM.MMMM’ DD°MM’SS.S.
RANGE & SPEED UNITS
Chooses unit of range and speed measurement from among nm, kt; km, km/h
and sm, mph)
DEPTH UNIT
Chooses unit of depth measurement from among m, ft, fa and pb.
TEMPERATURE UNIT
Chooses unit of water temperature measurement from °C and °F.
TIME DISPLAY
Chooses time notation; 12 hours or 24 hours.
BEARING READOUT
Chooses how to calculate range and bearing, TRUE or MAGNETIC.
True bearing is a bearing measured using true North as the reference direction,
and it is calculated by the formula True Bearing =Magnetic Bearing +Magnetic
Variation. Magnetic bearings are measured with magnetic north as the reference
direction.
Select MAGNETIC when using a magnetic compass, TRUE for using the
gyrocompass.
9. CUSTOMIZING YOUR UNIT
9-15
MAGNETIC VARIATION
The location of the magnetic north pole is different from the geographical north
pole. This causes a difference between the true and magnetic north location.
This difference is called magnetic variation, and varies with respect to the
observation point on earth. Your unit is preprogrammed with all the earth’s
magnetic variation. However, you may wish to enter variation manually to refine
accuracy.
1. Rotate the [ENTER] knob to select MAGNETIC VARIATION.
2. Press the [2] key to select “2. MANUAL.”
3. Key in the magnetic variation referring to a nautical chart.
4. Press the [CURSOR ON/OFF] key to switch from East to West and vice
versa.
5. Press the [ENTER] knob.
HEADING MARKER
You may extend a line from the own ship position to show ship’s heading.
(Heading data is required.) The length of line depends on the setting of
COURSE VECTOR below.
COURSE VECTOR
The course display, which may be a vector or bar, may be turned on or off as
appropriate.
Vector: Length varies with speed. (The length is not affected by display scale.)
Bar: Shows course.
WAYPOINT SWITCHING
Chooses waypoint switching method, PERPENDICULAR or ARRIVAL CIRCLE.
(See page 7-10.)
RNG & BRG MODE
When you set a destination, the equipment displays the range, bearing and
course to that destination. Range and bearing are calculated by the Great Circle
or Rhumb Line method. Route total distance is also calculated. Cross-track error
is only calculated in the Great Circle method.
Rhumb line: This method calculates the range and bearing between two points
drawn on a nautical chart. Since the bearing is kept constant it is ideal for
short-range navigation.
Great circle: This course line is the shortest course between two points on the
surface of the earth, like stretching a piece of string between two points on earth.
Because frequent course changes are required it is most suitable for long-range
navigation.
9. CUSTOMIZING YOUR UNIT
9-16
SET GOTO METHOD
Selects the method by which to navigate to a quick point from among 1 POINT,
35 POINTS, NEAR SERVICE and PORT SERVICE. (NavChartTM/FURUNO only,
see paragraph 7.1.)
RANGE/SCALE
Selects the method how to show the display width, RANGE or SCALE.
SCALE DISPLAY
Turns the scale on or off in the PLOTTER (or PILOT) display.
GPS STATUS
Turns GPS status abbreviations on or off in the PLOTTER (or PILOT) display.
Page 2
▪ On page 1 of the DISPLAY SETUP menu, rotate the [ENTER] knob to select
NEXT PAGE to show the page 2.

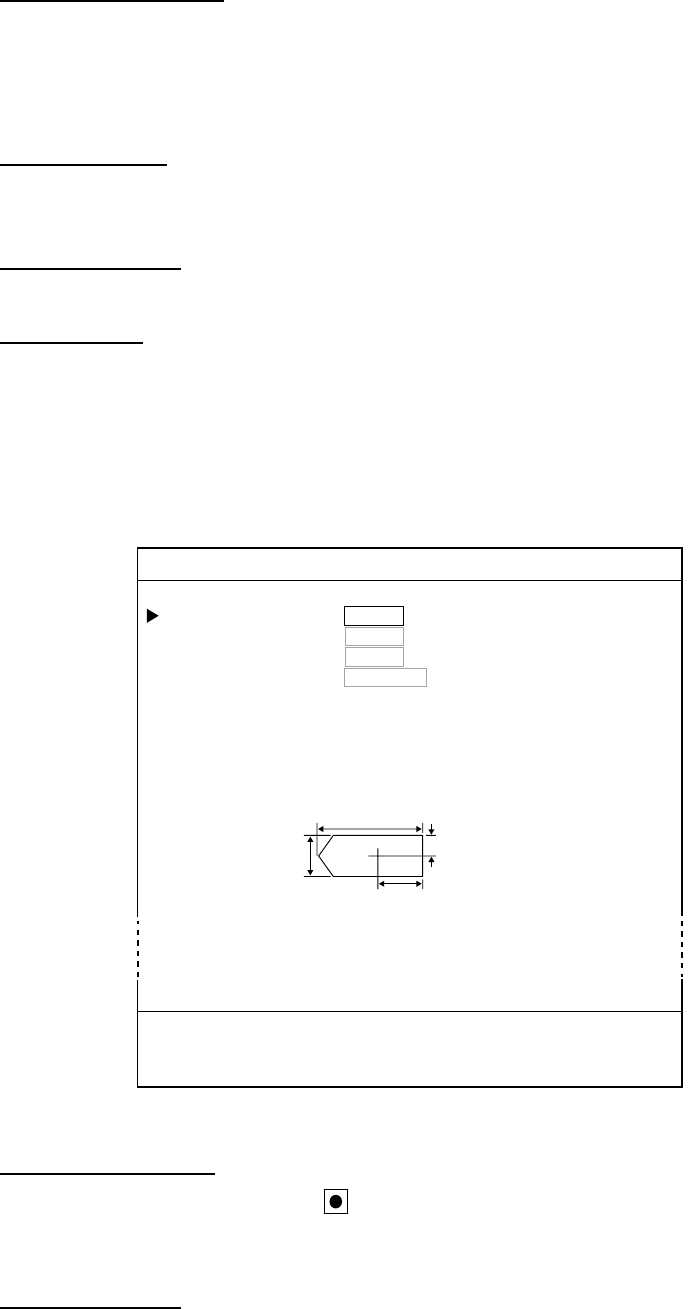

0-1. DISPLAY SETUP 2/2
PREVIOUS PAGE
WAYPOINT STATUS 1. ON 2. OFF
WAYPOINT INFO 1. ON 2. OFF
MARK STATUS 1. ON 2. OFF
OWN SHIP'S MARK 1. LARGE 2. SMALL 3. SHIP
SHIP'S LENGTH 10.0 m (0.1 99.9 m)
SHIP'S WIDTH 02.0 m (0.1 99.9 m)
ANTENNA POSITION Va 05.0 m (0.1 99.9 m)
ANTENNA POSITION Hb 01.0 m (0.1 99.9 m)
TURN KNOB TO SELECT MENU.
SELECT ITEM OF EACH MENU BY TRACKBALL.
L
b
a
W
Display setup menu (Page 2)
WAYPOINT STATUS
Turns the waypoint status icon ( ) on or off in the PLOTTER (or PILOT) display.
This icon shows the current shape and color of waypoints.
WAYPOINT INFO
Turns the waypoint data on or off. When ON is selected, the waypoint data box
appears by placing the cursor on a waypoint.
9. CUSTOMIZING YOUR UNIT
9-17
MARK STATUS
Turns the mark data on or off. When ON is selected, the mark data box appears
by placing the cursor on a mark.
OWN SHIP’S MARK
Selects own ship’s mark size from among LARGE, SMALL or SHIP.
“SHIP” is selected to indicate the length and width of your vessel, with SHIP’S
LENGTH, SHIP’S WIDTH, ANTENNA POSITION Va and ANTENNA POSITION
Hb below.
SHIP’S LENGTH, SHIP’S WIDTH
Sets the ship’s length and width. (See the installation manual.)
ANTENNA POSITION Va, ANTENNA POSITION Hb
Sets the antenna unit position. (See the installation manual.)
9.4 NAVIGATOR SETUP Menu
The NAVIGATOR SETUP menu sets up GPS receiver.
1. Press the [MENU] key to show the main menu.
2. Press the [0] key to show the SYSTEM SETUP menu.
3. Press the [2] key to show the NAVIGATOR SETUP menu.
0-2. NAVIGATOR SETUP
SELECT NAV SOURCE 1. INT 2. EXT 3. EXT LORAN-C
4. ALL
LOCAL TIME (INT GPS) +00:00
LOCAL TIME (EXT NAV) +00:00
GEODETIC DATUM WGS-84
POSITION SMOOTHING 000
SPEED SMOOTHING 000
SPEED AVERAGING (INT) 060
SPEED AVERAGING (EXT)060
LATITUDE OFFSET 0.000' N
LONGITUDE OFFSET 0.000' E
DISABLE SATELLITE _ _ _ _ _ _
DEFAULT LATITUDE 45˚ 35.000' N
DEFAULT LONGITUDE 125˚00.000'W
ANTENNA HEIGHT 05 m
GPS FIX MODE 1. 2D 2. 2D/3D
DGPS/WAAS 1. DGPS 2. WAAS 3. AUTO 4. OFF
DGPS/WAAS ALARM 1. YES 2. NO
DGPS BEACON STATION 1. AUTO 2. MANUAL
SELECT FREQUENCY 286.0 kHz
DGPS BAUD RATE 1.50 2. 100 3. 200
WAAS SEARCH 1. AUTO 2. MAN 134
CORRECTIONS DATA SET 00
OVERWRITE WAYPOINT 1. DIALOG 2. NO DIALOG
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
Navigator setup menu
9. CUSTOMIZING YOUR UNIT
9-18
SELECT NAV SOURCE
Selects the source of position data from among INT (internal), EXT (external),
EXT (external) LORAN-C and ALL. For details, see the installation manual.
When selecting EXT, EXT LORAN-C or ALL, “EXT” appears at the bottom of the
PLOTTER (PILOT) display.

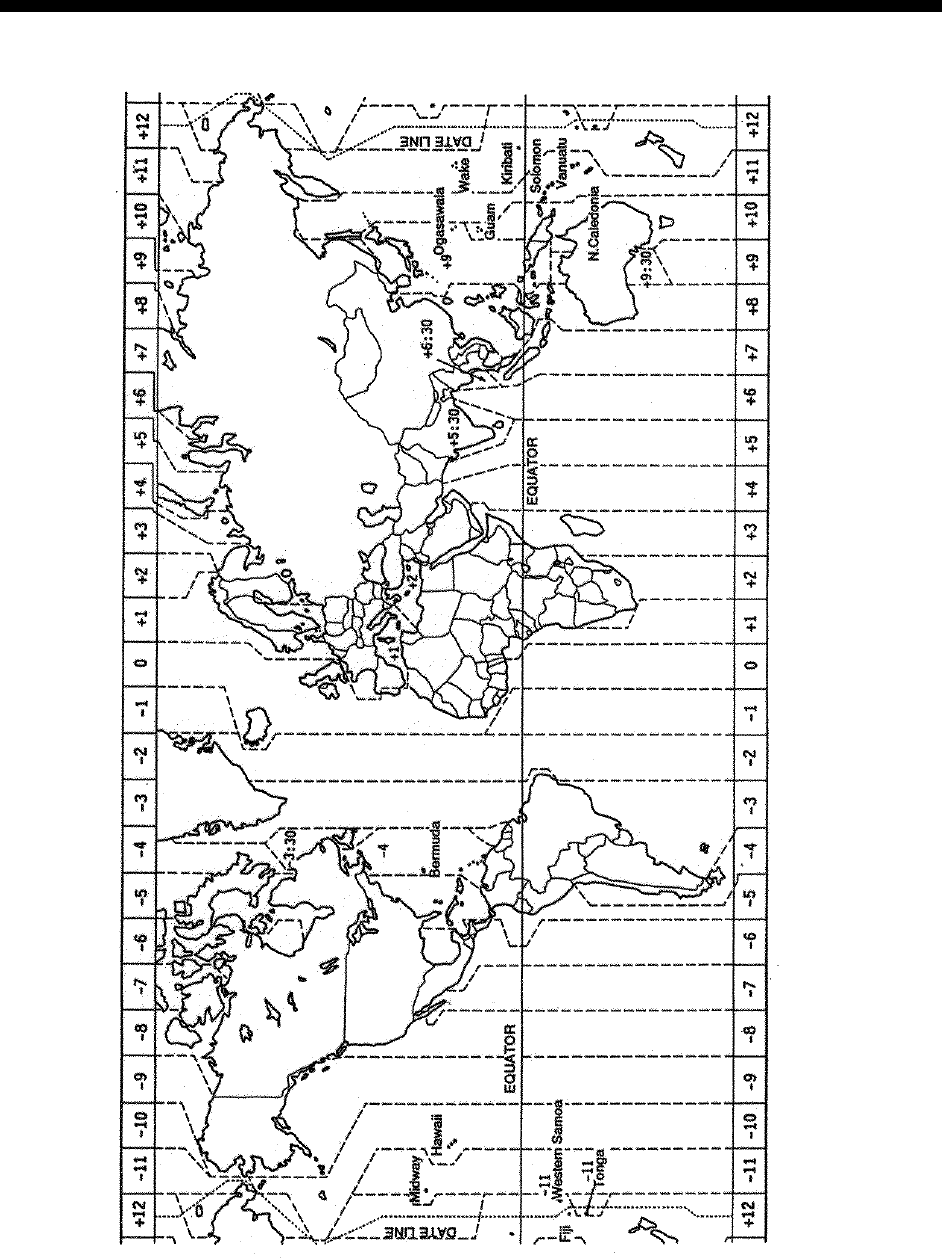

LOCAL TIME (INT GPS)
GPS uses UTC time. If you would rather use local time, key in the time
difference between it and UTC time. Use the [CURSOR ON/OFF] key to switch
from “+” to “-” and vice versa. The setting range is -13:30 to +13.30.
LOCAL TIME (EXT NAV)
If the NMEA time data fed from external equipment is wrong and cannot be
corrected at the external equipment, enter an offset here to correct it. Use the
[CURSOR ON/OFF] key to switch from “+” to “-” and vice versa.
GEODETIC DATUM
Your unit is preprogrammed with most of the major chart systems of the world.
Although the WGS-84 system, the GPS standard, is now widely used other
categories of charts still exist. Select the chart system used, not the area where
your boat is sailing.
1. Rotate the [ENTER] knob to select GEODETIC DATUM.
2. Roll the trackball in left-right direction to select the chart system you are
using.
The geodetic datum system selected appears at the bottom of the PLOTTER (or
PILOT) display.
WGS84: WGS-84 is selected.
TOKYO: TOKYO-MN is selected.
LOCAL: Other chart system is selected.
POSITION SMOOTHING
When the DOP or receiving condition is unfavorable, the GPS fix may change,
even if the vessel is dead in water. This change can be reduced by smoothing
the raw GPS fixes. A setting between 000 to 999 is available. The higher the
setting, the more smoothed the raw data, however too high a setting slows
response time to change in latitude and longitude. This is especially noticeable
at high ship’s speeds. 000 is the normal setting; increase the setting if the GPS
fix changes.
9. CUSTOMIZING YOUR UNIT
9-19
SPEED SMOOTHING
During position fixing, ship’s velocity (speed) is directly measured by receiving
GPS satellite signals. The raw velocity data may change randomly depending on
receiving conditions and other factors. You can reduce this random variation by
increasing the smoothing. Like with latitude and longitude smoothing, the higher
the speed smoothing the more smoothed the raw data. If the setting is too high,
however, the response to speed and course change slows. For no smoothing,
enter all zeroes.
SPEED AVERAGING (INT)
Calculation of ETA and TTG is based on average ship’s speed over a given
period. If the period is too long or too short, calculation error will result. Change
the setting accordingly if calculation error occurs.
SPEED AVERAGING (EXT)
Speed averaging for the ship’s speed data received from external equipment in
NMEA format.
LATITUDE OFFSET, LONGITUDE OFFSET
GPS-generated position may be off by some seconds because of various factors.
In this case, you can apply an offset to GPS position to refine position accuracy.
Calculate the error on a nautical chart.
1. Rotate the [ENTER] knob to select LATITUDE OFFSET or LONGITUDE
OFFSET.
2. Press the numeric keys to enter the error value.
3. To switch North and South (East and West), press the [CURSOR ON/OFF]
key.
4. Press the [ENTER] knob.
The L/L offset icon (
LL
) appears at the bottom of the PLOTTER (or PILOT)
display.
DISABLE SATELLITE
Every GPS satellite is broadcasting abnormal satellite number(s) in its Almanac,
which contains general orbital data about all GPS satellites, including those
which are malfunctioning. Using this information, the GPS receiver automatically
eliminates any malfunctioning satellite from the GPS satellite schedule. However,
the Almanac sometimes may not contain this information. If you hear about a
malfunctioning satellite from another source, you can disable it manually. Enter
satellite number (max. 3 satellites) in two digits.
9. CUSTOMIZING YOUR UNIT
9-20
DEFAULT LATITUDE, DEFAULT LONGITUDE
The default latitude and longitude position is Seattle, U.S.A. (45°35.000’N,
125°00.000’W). When the unit is turned on for the first time it begins searching
for its actual position. To lessen the time required to find position, you may enter
your position manually. Use the [CURSOR ON/OFF] key to switch co-ordinate.
ANTENNA HEIGHT
Enter the height of the antenna unit above sea surface. For further details, refer
to the installation manual.
GPS FIX MODE
You can choose the position-fixing mode from 2D or 2D/3D. When selecting
2D/3D, 2D or 3D is automatically chosen depending on the number of available
satellites. (3D requires four or more satellites.)
DGPS/WAAS
Choose the position-fixing method among DGPS, WAAS and AUTO. DGPS
requires the optional DGPS receiver board. For WAAS, see the “WAAS Facility”
at the back of this manual.
AUTO fixes position by WAAS when DGPS correction data is not available.
For normal GPS positioning, select “OFF.”
DGPS/WAAS ALARM
This alarm alerts you (by aural and visual alarms) when the WAAS or DGPS
signal is lost.
YES: Alarm sounds when the position fixing method is switched from WAAS to
DGPS or vice versa.
NO: Alarm sounds once when WAAS or DGPS signal is lost.
DGPS BEACON STATION
DGPS reference station can be searched automatically or manually. For manual
search, select MANUAL here, and set frequency of DGPS reference station.
1. Rotate the [ENTER] knob to select DGPS BEACON STATION.
2. Press the [2] key to select “2. MANUAL.”
3. Rotate the [ENTER] knob to select SELECT FREQUENCY.
4. Roll the trackball in left-right direction to set the station of DGPS reference
station which is the nearest to own ship.
DGPS BAUD RATE
Selects the transmission rate of the DGPS reference station nearest you, among
50, 100 or 200 (bps). This setting is only effective when DGPS BEACON
STATION is “MANUAL.”
9. CUSTOMIZING YOUR UNIT
9-21
WAAS SEARCH
Chooses AUTO for automatic search or MANUAL for manual search. For
MANUAL, enter appropriate WAAS satellite number, referring to the illustration
below.

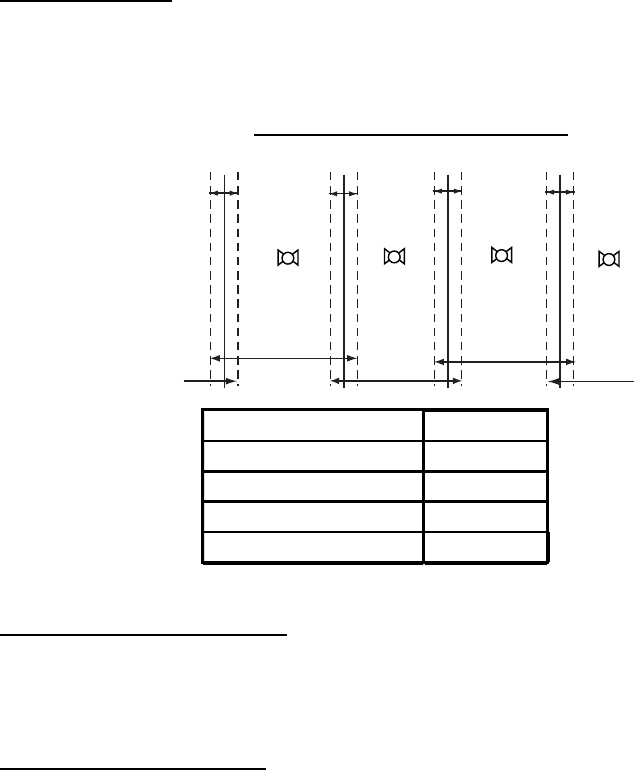

AUTO mode and GEO satellite
122
AOR-W
54˚W
120
AOR-E
15.5˚W
131
IOR
64.5˚E
134
POR
178˚E
118˚W 34.75˚W 24.5˚E 121.25˚E
2˚ 2˚ 2˚ 2˚
Longitude Range
120.25
˚
E to 117
˚
W 134
119
˚
W to 33.75
˚
W 122
35.75
˚
W to 25.5
˚
E 120
23.5
˚
E to 122.25
˚
E 131
Satellite
CORRECTIONS DATA SET
Determines how to use the WAAS signal, which is currently in the test mode.
Use “00” (default setting).
OVERWRITE WAYPOINT
Chooses whether to show “waypoint overwrite confirmation” message or not
when an existing waypoint name is entered.
9. CUSTOMIZING YOUR UNIT
9-22
9.5 PROGRAMMABLE KEYS & REMOTE
CONTROLLER SETUP Menu
This paragraph shows the programmable key and remote controller (option).
9.5.1 Programmable key setup
The [PROG] key provides one-touch execution of desired function. Further, the
[SHIFT], [RANGE], [GAIN] and [VRM] keys can also be programmed for other
functions. The default programs for those keys are as shown in the table below.
Key label Functions
PROG 1 Shows the WAYPOINTS LIST.
PROG 2 Shows DELETE SHIP’S TRACKS window.
PROG 3 Changes the line style.
PROG 4 Shows E/S GAIN window.
VRM Use the VRM function. (When the menu is turned off.)
If the above settings are not to your liking, you may change them as below.
1. Press the [MENU] key to show the main menu.
2. Press the [0] key to show the SYSTEM SETUP menu.
3. Press the [3] key to show the PROGRAMMABLE KEYS & REMOTE
CONTROLLER SETUP menu.
9. CUSTOMIZING YOUR UNIT
9-23
0-3. PROGRAMMABLE KEYS & REMOTE CONTROLLER SETUP
PROGRAMMABLE KEYS 1 SETUP
WAYPOINTS LIST
PROGRAMMABLE KEY 2 SETUP
DELETE TRACKS
PROGRAMMABLE KEY 3 SETUP
MARKS/LINES
PROGRAMMABLE KEY 4 SETUP
RESET TRIP LOG
VRM KEY SETUP
VRM
REMOTE CONTROLLER KEY SETUP
SAVE/MOB KEY
REMOTE CONTROLLER KEY 2 SETUP
PRESS KNOB TO ENTER
REMOTE CONTROLLER KEY 3 SETUP
CLEAR KEY
REMOTE CONTROLLER KEY 4 SETUP
MARK 1
REMOTE CONTROLLER KEY 5 SETUP
RANGE - ZOOM IN
REMOTE CONTROLLER KEY 6 SETUP
RANGE - ZOOM OUT
TURN KNOB TO SELECT MENU AND PRESS KNOB TO ENTER.
REMOTE CONTROLLER
12
3 4
5
6
Programmable key & remote controller setup menu
4. Rotate the [ENTER] knob to select the item (key) you want to change, and
then press the [ENTER] knob.
When changing the function of the [PROG] key, for example, select
PROGRAMMABLE KEYS SETUP.
The PROGRAMMABLE FUNCTION LIST appears (shown on the next page).
5. Rotate the [ENTER] knob to choose a function and press the [ENTER] knob.
The selected function appears in the menu.
6. Press the [MENU] key several times to close the menu.
The next page shows the menu items and functions.
9. CUSTOMIZING YOUR UNIT
9-24
Function keys
Menu item Function
WAYPOINTS LIST Shows the WAYPOINTS LIST.
ROUTES LIST Shows ROUTES LIST.
DISP MEMORY CARD Shows the DISPLAY DATA FROM MEMORY CARD
menu appears.
DISP INT MEMORY Shows the DISPLAY DATA FROM INTERNAL
MEMORY menu.
INT MEM OPERATION Shows the OPERATE INTERNAL MEMORY menu.
MARKS/LINES Each pressing the key changes the line type as the
sequence below.
Solid line → Dotted line → Alternate long and short
dashed lines → Double-dashed line
DISP TARGET TRACKS Turns the target tracks on or off.
DISP SUB TRACKS Turns the sub tracks on or off.
EDIT MARKS Shows the EDIT MARKS window.
DELETE MARKS Shows the DELETE MARKS window
SAVE MARKS Shows the SAVE MARKS window
EDIT TRACKS Shows the EDIT SHIP’S TRACKS window.
DELETE TRACKS Shows the DELETE SHIP’S TRACKS window.
DELETE ALL TRACKS Deletes own ship’s track wholly. (This function is not
available when a menu is displayed.)
ALARM SETUP Shows the ALARM SETUP menu.
DISP ALL SYMBOLS Turns all navigation symbols on or off.
CONTOUR LINE SETUP Turns the contour lines on or off. (This function is not
available when a menu is displayed.)
RESET TRIP LOG Resets the trip log to “0.”
PANEL DIMMER Change the panel dimmer in the sequence of
1→2→3→…→8→7…
HUE Each press of the [PROG] key changes
DAY→NIGHT→TWILI (twilight) →MANUAL→DAY in
that order. (This function is not available when a menu
is displayed.)
VRM Enables the VRM function. (This function is not
available when a menu is displayed.)
9. CUSTOMIZING YOUR UNIT
9-25
9.5.2 Remote controller (option) setup
The keys of the optional remote controller can be programmed as below.
1. Press the [MENU] key to show the main menu.
2. Press the [0] key to show the SYSTEM SETUP menu.
3. Press the [3] key to show the PROGRAMMABLE KEYS & REMOTE
CONTROLLER SETUP menu.
4. Rotate the [ENTER] knob to select a key No. of the remote controller, and
then press the [ENTER] knob.
For key location, refer to the figure in the menu.
The PROGRAMMABLE KEYS & REMOTE CONTROLLER SETUP menu
appears.
0-3. PROGRAMMABLE FUNCTION LIST FOR REMOTE CONTROLLER 1/2
NEXT PAGE
SAVE/MOB KEY
WAYPOINT KEY
GOTO KEY
DISPLAY MODE KEY
RANGE - ZOOM IN
RANGE - ZOOM OUT
CLEAR KEY
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
MARK 8
MARK 9
MARK 0
MARK COLOR KEY
VRM KEY
TRCK COLOR KEY
CURSOR KEY
SHIP'S CENTER KEY
PLOT INTERVAL KEY
TURN KNOB TO SELECT MENU AND PRESS KNOB TO ENTER.
ZOOM IN: PREVIOUS PAGE ZOOM OUT: NEXT PAGE
0-3. PROGRAMMABLE FUNCTION LIST FOR REMOTE CONTROLLER 2/2
PREVIOUS PAGE
TURN KNOB TO RIGHT
TURN KNOB TO LEFT
PRESS KNOB TO ENTER
TRACKBALL - RIGHT
TRACKBALL - LEFT
TRACKBALL - UP
TRACKBALL -DOWN
TURN KNOB TO SELECT MENU AND PRESS KNOB TO ENTER.
ZOOM IN: PREVIOUS PAGE ZOOM OUT: NEXT PAGE
Press the
[ZOOM IN]
or
[ZOOM OUT]
key
Programmable functions list for remote controller
5. Rotate the [ENTER] knob to select a function, and then press the [ENTER]
knob.
6. Press the [MENU] key several times to close the menu.
7. Write the selected function name on the label supplied with the remote
controller.
8. Attach the above label on the remote controller.
9. CUSTOMIZING YOUR UNIT
9-26
Function keys for remote controller
Menu items Functions
SAVE/MOB KEY Same as [SAVE/MOB] key on the display unit
WAYYPOINT KEY Enters waypoint under the youngest empty
waypoint number not used.
GOTO KEY Same as [GOTO] key on the display unit.
DISPLAY MODE KEY Same as [DISP] key on the display unit.
RANGE-ZOOM IN Same as [ZOOM IN] key on the display unit.
RANGE-ZOOM OUT Same as [ZOOM OUT] key on the display unit.
CLEAR KEY Same as [CLEAR] key on the display unit.
MARK 1 to 0 Same as [1] to [0] keys on the display unit.
MARK COLOR KEY Same as [MARK COLOR] key on the display
unit.
VRM KEY Same as [VRM] key on the display unit.
TRACK COLOR KEY Same as [TRACK COLOR] key on the display
unit.
CURSOR KEY Same as [CURSOR ON/OFF] key on the
display unit.
SHIP’S CENTER key Same as [CENTER] key on the display unit.
PLOT INTERVAL KEY Same as [PLOT INTVL] key on the display
unit.
TURN KNOB TO RIGHT (TO LEFT) Same as the function rotating the [ENTER]
knob on the display unit clockwise
(counterclockwise).
PRESS KNOB TO ENTER Same as pressing the [ENTER] knob.
TRACKBALL-RIGHT (LEFT, UP, DOWN) Same as rolling the trackball to right (left,
upward, downward) direction.
9. CUSTOMIZING YOUR UNIT
9-27
9.6 DISPLAY MODES & NAV DATA WINDOW SETUP
Menu
This menu sets up the DISPLAY MODE and NAVIGATION DATA screens.
9.6.1 Setting the DISPLAY MODE screen
The DISPLAY MODE screen appears when pressing the [DISP] key and it is
used to choose a display mode. You may choose and arrange the display mode
icons as desired.
1. Press the [MENU] key to show the main menu.
2. Press the [0] key to show the SYSTEM SETUP menu.
3. Press the [4] key to show the DISPLAY MODES & NAV DATA WINDOW
SETUP menu.
0-4. DISPLAY MODES & DATA WINDOW SETUP
1. DISPLAY MODES SETUP
2. NAV DATA WINDOW SETUP
TURN KNOB TO SELECT MENU AND PRESS KNOB TO ENTER.
OR PRESS APPROPRIATE NUMERIC KEY TO SELECT MENU.
Display modes & nav data window setup menu
4. Press the [1] key to show the DISPLAY MODES SETUP menu.
9. CUSTOMIZING YOUR UNIT
9-28
0-4-1. DISPLAY MODE
TURN KNOB TO SELECT DISPLAY MODE AND PRESS KNOB TO ENTER.
OR PRESS APPROPRIATE NUMERIC KEY TO SELECT DISPLAY MODE.
2. PLOTTER
NAV INFO 1
3. PLOTTER
NAV INFO 2
4. PILOT 5. PILOT
NAV INFO 1 6. PILOT
NAV INFO 2
7. COMPASS
PLOTTER 8. COMPASS
PILOT 9. GPS STATUS
1. PLOTTER
Display modes setup menu
5. Press the appropriate numeric key to select the display you want to change.
The setup menu appears.
9. CUSTOMIZING YOUR UNIT
9-29
0-4-1. PLOTTER MODES SETUP
PLOTTER
PLOTTER WITH NAV INFORMATION 1
PLOTTER WITH NAV INFORMATION 2
VIDEO PILOT
VIDEO PILOT WITH NAV INFORMATION 1
VIDEO PILOT WITH NAV INFORMATION 2
COMPASS + PLOTTER
COMPASS + PLOTTER WITH NAV INFORMATION 1
COMPASS + PLOTTER WITH NAV INFORMATION 2
COMPASS + VIDEO PILOT
COMPASS + VIDEO PILOT WITH NAV INFORMATION 1
COMPASS + VIDEO PILOT WITH NAV INFORMATION 2
GPS STATUS
TURN KNOB TO SELECT DISPLAY MODE AND PRESS KNOB TO ENTER.
Plotter modes setup menu
6. Rotate the [ENTER] knob to select a display type, and then press the
[ENTER] knob.
The DISPLAY MODES SETUP menu appears.
7. Press the [MENU] key to close the menu.
9. CUSTOMIZING YOUR UNIT
9-30
9.6.2 Setting the navigation data window
The navigation data window appears at the top of the PLOTTER (or PILOT) NAV
INFO 1 display and PLOTTER (or PILOT) NV INFO 2 display. You may select
the data to display and where to display it as follows:
1. Press the [MENU] key to show the main menu.
2. Press the [0] key to show the SYSTEM SETUP menu.
3. Press the [4] key to show the DISPLAY MODES & NAV DATA WINDOW
SETUP menu.
4. Press the [2] key to show the NAVIGATION DATA WINDOW SETUP menu.
0-4-2. NAVIGATION DATA WINDOW SETUP
NAV INFO 1 NAV INFO 2 GOTO INFO1 GOTO INFO2
TURN KNOB TO SELECT NAV DATA AND PRESS KNOB TO ENTER.
Navigation data window setup menu
5. Roll the trackball in left-right direction to select a display title.
NAV INFO1: Window shown on NAV INFO1 display.
NAV INFO2: Window shown on NAV INFO2 display.
GOTO INFO1: Window shown when a destination is set at NAV INFO1
display.
GOTO INFO2: Window shown when a destination is set at NAV INFO2
display.
6. Rotate the [ENTER] knob to select a display pattern, and then press the
[ENTER] knob.
9. CUSTOMIZING YOUR UNIT
9-31
0-4-2. NAVIGATION DATA WINDOW SETUP
NEXT PAGE
OWN SHIP POSITION LAT/LON
OWN SHIP POSITION TD LORAN-A
OWN SHIP POSITION TD LORAN-C
OWN SHIP POSITION TD DECCA
CURSOR POSITION LAT/LON
CURSOR POSITION TD LORAN-A
CURSOR POSITION TD LORAN-C
CURSOR POSITION TD DECCA
OWN SHIP/CURSOR POSITION LAT/LON
OWN SHIP/CURSOR POSITION TD LORAN-A
OWN SHIP/CURSOR POSITION TD LORAN-C
OWN SHIP/CURSOR POSITION TD DECCA
WAYPOINT POSITION LAT/LON
WAYPOINT POSITION TD LORAN-A
WAYPOINT POSITION TD LORAN-C
WAYPOINT POSITION TD DECCA
WAYPOINT POSITION ETA & TTG
WAYPOINT POSITION ETA & TTG
SELECT THE POSITION TO BE DISPLAYED BY TRACKBALL.
TURN KNOB TO SELECT NAV DATA AND PRESS KNOB TO ENTER.
ZOOM IN: PREVIOUS PAGE ZOOM OUT: NEXT PAGE
PLOT INTERVAL
DATE
TIME
SOG
COG
DEGREE
SHIP/CURSOR POSITION
LAT/LON
Large column Middle column
Small column
Press the [ZOOM IN]
or [ZOOM OUT] key to
change the page.
Navigation data window setup menu
7. Operate the trackball to select a location.
The selected column becomes red.
8. Rotate the [ENTER] knob to select the data to display.
The navigation data window setup menu has three pages, changed by pressing
the [ZOOM IN] or [ZOOM OUT] keys. Depending on the column size, the
available data may be changed. (See the table on the next page.)
9. Press the [ENTER] knob.
The data selected at step 8 appears at the location selected at step 7.
10. Press the [MENU] key several times to close the menu.
9. CUSTOMIZING YOUR UNIT
9-32
Available data
Data Large column Middle column Small column
OWN SHIP POSIITON YES YES NO
OWN SHIP POSITION TD LORAN-A YES YES NO
OWN SHIP POSITION LORAN-C YES YES NO
OWN SHIPOSITION TD DECCA YES YES NO
CURSOR POSIITON LAT/LON YES YES NO
CURSOR POSIITON TD LORAN-A YES YES NO
CURSOR POSIITON TD LORAN-C YES YES NO
CURSOR POSIITON TD DECCA YES YES NO
OWN SHIP/CURSOR POSIITON LAT/LON YES YES NO
OWN SHIP/CURSOR POSIITON TD
LORAN-A*
YES YES NO
OWN SHIP/CURSOR TD LORAN-C* YES YES NO
OWN SHIP/CURSOR POSIITON TD
DECCA*
YES YES NO
WAYPOINT POSITION LAT/LON YES YES NO
WAYPOINT POSITION TD LORAN-A YES YES NO
WAYPOINT POSITION TD LORAN-C YES YES NO
WAYPOINT POSITION TD DECCA YES YES NO
WAYPOINT POSITION ETA & TTG YES YES NO
CURSOR POSITION ETA & TTG YES NO NO
DISTANCE TO CURSOR POSITION NO YES YES
BEARING TO CURSOR (DEGREE) NO YES YES
BEARING TO CURSOR
(NORTH-SOUTH-EAST-WEST)
NO YES YES
TTG TO CURSOR POSITIONJ NO YES YES
ETA TO CURSOR POSITION NO YES YES
WAYPOINT NAME NO YES YES
DISTANCE TO WAYPOINT NO YES YES
BEARING TO WAYPOINT (DEGREE) NO YES YES
BEARING TO WAYPOINT
(NORTH-SOUTH-EAST-WEST)
NO YES YES
TTG TO WAYPOINT NO YES YES
ETA TO WAYPOINT NO YES YES
COG (DEGREE) NO YES YES
COG (NORTH-SOUTH-EAST-WEST) NO YES YES
HEADING (DEGREE) NO YES YES
HEADING (NORTH-SOUTH-EAST-WEST) NO YES YES
SOG NO YES YES
9. CUSTOMIZING YOUR UNIT
9-33
STW NO YES YES
TRIP LOG NO YES YES
ODOMETER NO YES YES
DEPTH NO YES YES
TEMPERATURE NO YES YES
DATE NO YES YES
TIME NO YES YES
OWN SHIP POSITION (FOR JAPANESE) Not used.
CURSOR POSITION (FOR JAPANESE) Not used.
OWN SHIP/CURSOR POSITION (FOR
JAPANESE)
Not used.
SHIP’S TRACK PLOTTING INTERVAL NO YES YES
SCALE NO YES YES
GPS STATUS NO YES YES
DOP NO YES YES
ALARM NO YES YES
*: When turning the cursor on, the data for cursor is shown. (If turned off, the
data for own ship’s position appears.)
9. CUSTOMIZING YOUR UNIT
9-34
9.7 I/O PORT SETUP Menu
This menu sets up the I/O ports, and should be done at the installation. Note that
the data transfer between this unit and external equipment may be wrong after
changing this menu settings. Be sure to set the ports correctly: Improper setting
may prevent proper transfer of data.
1. Press the [MENU] key to show the main menu.
2. Press the [0] key to show the SYSTEM SETUP menu.
3. Press the [5] key to show the I/O PORT SETUP menu.
0-5. I/O PORT SETUP
NMEA I/O PORT 1
NMEA FORMAT 1. NMEA0183 Ver 1.5 2. Ver 2.0
TLL OUTPUT 1. ON 2. OFF
L/L FORMAT 1.DD˚MM.MM' 2.DD˚MM.MMM'
3.DD˚MM.MMMM'
OUTPUT DESTINATION 1. ON 2. OFF
SELECT OUTPUT SENTENCE
1. ON 2. OFF
NMEA I/O PORT 1
NMEA FORMAT 1. NMEA0183 Ver 1.5 2. Ver 2.0
TLL OUTPUT 1. ON 2. OFF
L/L FORMAT 1.DD˚MM.MM' 2.DD˚MM.MMM'
3.DD˚MM.MMMM'
OUTPUT DESTINATION 1. ON 2. OFF
SELECT OUTPUT SENTENCE
1. ON 2. OFF
RS232C FORMAT
BAUD RATE 1. 4800 2. 9600 3. 19200 4. 38400
CHARACTER LENGTH 1. 7 BIT 2. 8 BIT
STOP BIT 1. 1 BIT 2. 2 BITS
PARITY 1. EVEN 2.ODD 3. OFF
NMEA FORMAT 1. NMEA0183 Ver 1.5 2. Ver 2.0
L/L FORMAT 1.DD˚MM.MM' 2.DD˚MM.MMM'
3.DD˚MM.MMMM'
OUTPUT DESTINATION 1. ON 2. OFF
SELECT OUTPUT SENTENCE
1. ON 2. OFF
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
I/O port setup menu
9. CUSTOMIZING YOUR UNIT
9-35
NMEA FORMAT
Select NMEA0183 version 1.5 or 2.0 depending on the navigator connected.
TLL OUTPUT
Select ON to output L/L data to the navigator connected at the moment a mark is
entered.
L/L FORMAT
Selects the number minute places to shown in latitude and longitude position,
from hundredth, thousandth or ten thousandth.
OUTPUT DESTINATION
Select ON to output the WPL and RTE sentences to the navigator connected
when setting a route as destination.
SELECT OUTPUT SENTENCE
Selects sentences to output.
1. Rotate the [ENTER] knob to select SELECT OUTPUT SENTENCE.
2. Press the [1] key to select “1. ON” to show the NMEA SENTENCES LIST.
3. Rotate the [ENTER] knob to select a sentence.
4. Press the [ENTER] knob to display ON or OFF as appropriate.
5. Repeat step 3 and 4 for other sentences.
6. Press [MENU] key to return to I/O PORT SETUP menu.
9. CUSTOMIZING YOUR UNIT
9-36
AAM: Arrival alarm
APB: Autopilot sentence (XTE, XTE direction, arrival radius, bearing and
destination from origin to destination)
BOD: Bearing origin to destination
BWR: Bearing and distance to waypoint (rhumb line)
BWC: Bearing and distance to waypoint (great circle)
DPT: Depth (only for Version 2.0)
DBT: Depth below transducer (only for Version 1.5)
GGA: GPS fix data (UTC of position, L/L, receiving status,
number of satellite in use, DOP)
GLL: Longitude and latitude
GTD: TD Loran-C
MTW: Water temperature
RMA: Recommended minimum specific Loran-C data
RMB: Recommended minimum navigation information (XTE, direction to steer,
destination waypoint ID, origin waypoint L/L, destination waypoint L/L,
range and bearing between waypoints, range and bearing to destination,
destination closing velocity, arrival alarm)
RMC: Recommended minimum specific GPS/TRANSIT data
VHW: Water speed and heading
VTG: Course over ground and ground speed
WPL: Waypoint location
XTE: Cross-track error, measured
ZDA: Time and date
HDT: Heading true
HDG: Heading, deviation and variation
MWV: Wind speed and angle
TTM: Tracked target message
BAUD RATE
Selects data baud rate among 4800, 9600, 19200 and 38400.
CHARACTER LENGTH
Selects data character length 7 bit or 8 bit.
STOP BIT
Selects stop bit, 1 bit or 2 bit.
PARITY
Selects parity among EVEN, ODD or OFF.
9. CUSTOMIZING YOUR UNIT
9-37
9.8 TEST & MEMORY CLEAR Menu
This menu provides the diagnostic test, memory clearing, GPS cold start and
setting the password.
In this section, only the password function is described. For other items, see
Chapter 12.
9.8.1 Setting the password
You may use a password to prevent unauthorized operation of the equipment.
The equipment cannot be operated unless the correct password is entered, at
the power is on of the equipment. Do not forget the password. If you forget the
password, contact a FURUNO agent or dealer for advice. (The serviceman will
restore default settings, all waypoints and marks are erased.)
1. Press the [MENU] key to show the main menu.
2. Press the [0] key to show the SYSTEM SETUP menu.
3. Press the [6] key to show the TEST & MEMORY CLEAR menu.
0-6. TEST & MEMORY CLEAR
1. MEMORY I/O TEST
2. KEYBOARD TEST
3. TEST PATTERN
4. MEMORY CLEAR
5. GPS COLD START
6. SET PASSWORD
7. RESET PASSWORD
TURN KNOB TO SELECT MENU AND PRESS KNOB TO ENTER.
OR PRESS APPROPRIATE NUMERIC KEY TO SELECT MENU.
Test & memory clear menu
9. CUSTOMIZING YOUR UNIT
9-38
4. Press the [6] key to show the password window.
END
A B C D E F G H I J K L M N O P Q R S T U V W X Y
Z , - ! ? / & = # _ 1 2 3 4 5 6 7 8 9 0 _ _ _ _ _
a b c d e f g h i j k l m n o p q r s t u v w x y
z _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
5. Operate the trackball and [ENTER] knob to enter a password.
The entered character is shown with asterisk.
6. Operate the trackball to select “END”, and then press the [ENTER] knob.
7. Enter the password set at step 5.
8. Select “END”, and then press the [ENTER] knob to return to the TEST &
MEMORY CLEAR menu.
Note 1: If the passwords entered at step 5 and 7 are different, an error
message appears. Enter the correct password again.
Note 2: When the [MENU] key is pressed before “END” is selected, the
screen shows the TEST & MEMORY CLEAR menu, and the password
is not complete.
9. Press the [MENU] key several times to close the menu.
Note: At the next power-up, you will be prompted to enter the password.
Enter it as follows
a) Enter your password. The characters are shown with asterisk mark.
b) Select “END”, and then press the [ENTER] knob.
When your password is correct, the password window disappears after
appearance of the message “PASSWORD IS ENTERED”. If you enter an
wrong password, the message “THE PASSWORD WAS INVALID. ENTER
PASSWORD AGAIN.” appears. Reenter your password.
9.8.2 Removing the password
To remove the password, do the following:
1. Press the [MENU] key to show the main menu.
2. Press the [0] key to show the SYSTEM SETUP menu.
3. Press the [6] key to show the TEST & MEMORY CLEAR menu.
4. Press the [7] key to select RESET PASSWORD.
5. Press the [ENTER] knob to remove the password, or the [CLEAR] key to
escape
6. Press the [MENU] key several times to close the menu.
10-1
10. RECORDING & PLAYING BACK
DATA
This chapter provides information necessary for recording and playing back data,
and uploading and downloading data to (from) a PC.
10.1 Recording Data
Data can be recorded in the “working memory.” The working memory stores data
such as position, marks, lines, waypoints. When it is full, earliest data are erased
one by one to make room for new data. Thus it is good idea to save important
data to a memory card or the internal memory.
This unit’s memory configuration is as shown below.
Working memory
Track
Mark/Line
Waypoint/Route
Setting data
Internal memory
Track/Mark(Line)
Waypoint/Route
Setting data
Record
Replay
Display
Display Unit
Memory card
Record
Replay
Display
Display
*
*: There are five internal memory blocks.
Max. 16,000 points of tracks, marks and line
can be stored in each block.
Memory configuration
10. RECORDING & PLAYING BACK DATA
10-2
10.2 Memory Card Operation
10.2.1 Formatting the memory card
Before you can use a memory card, it must be formatted. Formatting prepares
the card for use with the system. To format a card, do the following procedure.
Note: Formatting a memory card erases all data from the card.
1. Open the slot cover at the front of the display unit.
2. Insert a blank memory card in to the left-hand card slot, with groove side up.
3. Close the slot cover.
4. Press the [MENU] key to show the main menu.
5. Press the [3] key to show the MEMORY CARD OPERATION & DATA
TRANSFER menu.
3. MEMORY CARD OPERATIONS & DATA TRANSFER
1. SAVE DATA TO MEMORY CARD
2. PLAYBACK DATA FROM MEMORY CARD
3. DISPLAY DATA FROM MEMORY CARD
4. DELETE FILE IN MEMORY CARD
5. FORMAT MEMORY CARD
6. AUTO BACKUP
7. DISPLAY DATA FROM INTERNAL MEMORY
8. OPERATE INTERNAL MEMORY
9. DATA TRANSFER
TURN KNOB TO SELECT MENU AND PRESS KNOB TO ENTER.
OR PRESS APPROPRIATE NUMERIC KEY TO SELECT MENU.
Memory card operation & data transfer menu
6. Press the [5] key to show the FORMAT MEMORY CARD menu.
10. RECORDING & PLAYING BACK DATA
10-3
3-5. FORMAT MEMORY CARD
FORMAT MEMORY CARD 1. YES 2. NO
SELECT "YES" BY TRACKBALL TO START THE FORMAT.
Format memory card menu
7. Press the [1] key to select “1. YES.”
The following message appears.
START FORMATTING
MEMORY CARD.
ARE YOU SURE?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
8. Press the [ENTER] knob.
The message “NOW FORMATTING MEMORY CARD” appears. When the
formatting is completed, the message “FORMAT COMPLETED. PRESS KNOB
TO CONTINUE.” appears.
9. Press the [ENTER] knob.
Note: If you insert a mini chart card in the left slot, an error message
appears. After pressing the [ENTER] knob, insert a memory card and
then retry the formatting.
10. Press the [MENU] key several times to close the menu.
10. RECORDING & PLAYING BACK DATA
10-4
10.2.2 Saving data to a memory card
You can save the data in the working memory (tracks, marks/lines,
waypoints/routes data) to a memory card.
There are two methods to enter data: save data to a new file or save it to an
existing file in which the previous data is written over.
Note: Max. 11 files can be saved on one card.
Creating a new file
1. Insert a formatted memory card into the left slot.
2. Press the [MENU] key to show the main menu.
3. Press the [3] to show the MEMORY CARD OPERATIONS & DATA
TRANSFER menu.
4. Press the [1] key to show the SAVING DATA TO MEMORY CARD menu.
3-1. SAVING DATA TO MEMORY CARD
SHIP'S TRACKS 1. YES 2. NO
MARKS & LINES 1. YES 2. NO
WAYPOINTS & ROUTES 1. YES 2. NO
SETTING DATA 1. YES 2. NO
CREATE NEW FILE
TURN KNOB TO SELECT MENU. SELECT THE ITEM OF EACH MENU
BY TRACKBALL. MOVE THE CURSOR ON THE FILE NAME
AND PRESS KNOB TO SAVE DATA.
Name of files in the memory card
Saving data to memory card menu
5. Rotate the [ENTER] knob to select item to save.
SETTING DATA means user setting.
6. Press the [1] key to select “YES.”
7. Repeat steps 5 and 6 for other items to save.
8. Rotate the [ENTER] knob to select CREATE NEW FILE, and then press the
[ENTER] knob.
The character window appears.
9. Operate the trackball and [ENTER] knob to enter the file name. (max. 16
characters)
Enter the simple name, i.e., contents on purpose to use, to search it easily.
10. RECORDING & PLAYING BACK DATA
10-5
10. Operate the trackball to select “END”, and then press the [ENTER] knob.
The message “NOW SAVING DATA TO MEMORY CARD. DO NOT TURN OFF
DISPLAY UNIT UNTIL COMPLETED.” appears.
When saving is completed, “COMPLETED SAVING DATA. PUSH ENTER KNOB
TO CONTINUE.” appears.
Note 1: When the file name entered at step 9 has been already exists, an
error message appears. Press the [ENTER] knob to overwrite, or
[CLEAR] key to cancel the saving.
Note 2: If data could not be saved, the message “SAVING IS FAILED. PUSH
THE KNOB TO CONTINUE.” appears. Press the [ENTER] knob to
escape from the message.
Note 3: Various memory card messages appear to alert you to memory
card-related error. These are shown below.
Memory card is not inserted.
“MEMORY CARD IS NOT INSERTED. PLEASE INSERT MEMORY
CARD. PUSH KNOB TO CONTINUE.”
Unformatted memory card
“MEMORY CARD IS NOT FORMATTED. PUSH KNOB TO
CONTINUE.”
Chart card inserted instead of memory card.
“WRONG CARD IS INSERTED. PLEASE INSERT CORRECT
MEMORY CARD. PUSH KNOB TO CONTINUE.”
11. Press the [ENTER] knob to show the new file name.
12. Press the [ENTER] knob several times to close the menu.
Saving to the existing file
1. Insert the memory card to be saved into the left slot.
2. Press the [MENU] key to show the main menu.
3. Press the [3] key to show the MEMORY CARD OPERATIONS & DATA
TRANSFER menu.
4. Press the [1] key to show the SAVING DATA TO MEMORY CARD menu.
5. Rotate the [ENTER] knob to select item to save.
6. Press the [1] key to select “YES.”
7. Repeat steps 5 and 6 for other items to save.
8. Rotate the [ENTER] knob to select a file to be saved.
9. Press the [ENTER] knob to show the following window.
OVERWRITE?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
10. RECORDING & PLAYING BACK DATA
10-6
10. Press the [ENTER] knob.
The overwriting starts.
The message “NOW SAVING DATA TO MEMORY CARD. DO NOT TURN OFF
DISPLAY UNIT UNTIL COMPLETED.” appears. When the overwriting is finished,
the message “COMPLETED SAVING DATA. PRESS KNOB TO CONTINUE.”
appears.
11. After the “completed” message appears, press the [ENTER] knob.
12. Press the [MENU] key several times to close the menu.
10.2.3 Displaying data from a memory card
Tracks and marks in a memory card can be displayed on the screen as follows.
1. Insert a memory card into the left slot.
2. Press the [MENU] key to show the main menu.
3. Press the [3] key to show the MEMORY CARD OPERATIONS & DATA
TRANSFER menu.
4. Press the [3] key to show the DISPLAY DATA FROM MEMORY CARD menu.
3-3. DISPLAY DATA FROM MEMORY CARD
FILE NAME TRACKS MARKS DISPLAY
FILE 1 120 20 NO
FILE 2 916 0 NO
TURN KNOB TO SELECT FILE.
PRESS KNOB TO DISPLAY DATA.
Display data from memory card
Note: If an empty memory card is inserted, a beep sounds at step 4
operation.
5. Rotate the [ENTER] knob to select a file to load.
6. Press the [ENTER] knob to show “YES” at the DISPLAY column.
7. Repeat steps 5 and 6 to load other files.
Note: To escape, press the [ENTER] knob to select “NO.”
8. Press the [MENU] key several times to close the menu.
Tracks and marks are displayed on the screen. These data can not be edited or
erased.
10. RECORDING & PLAYING BACK DATA
10-7
10.2.4 Playing back data from a memory card
Files stored on a memory card can be loaded to the working memory and
displayed on the screen. This is useful for analyzing data, however, replayed
waypoints/routes and setting data will replace with current data. For that reason,
you may want to record the current display before replaying data.
1. Insert a memory card into the left slot.
2. Press the [MENU] key to show the main menu.
3. Press the [3] key to show the MEMORY CARD OPERATIONS & DATA
TRANSFER menu.
4. Press the [2] key to show the PLAYBACK DATA FROM MEMORY CARD
menu.
3-2. PLAYBACK DATA FROM MEMORY CARD
SHIP'S TRACKS 1. YES 2. NO
MARKS & LINES 1. YES 2. NO
WAYPOINTS & ROUTES 1. YES 2. NO
SETTING DATA 1. YES 2. NO
FILE NAME TRACKS MARKS
SELECT THE MENU TO PLAYBACK BY TRACKBALL.
TURN KNOB OT SELECT THE FILE TO PLAYBACK
AND PRESS KNOB TO START.
Playback data from memory card menu
5. Rotate the [ENTER] knob to select item to load.
6. Press the [1] key to select “YES.”
7. Repeat steps 5 and 6 to load other items.
8. Rotate the [ENTER] knob to select a file, and then press the [ENTER] knob.
The following window appears.
PLAY BACK FILE.
ARE YOU SURE?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
9. Press the [ENTER] knob.
The message “NOW LOADING DATA FROM MEMORY CARD.” appears. When
the loading is finished, the message “COMPLETED LOADING DATA. PRESS
KNOB TO CONTINUE.” appears.
10. RECORDING & PLAYING BACK DATA
10-8
Note 1: To escape, press the [CLEAR] key instead of the [ENTER] knob.
Note 2: Loaded and current data are processed as follows:
Tracks: Since loaded track data is added to internal track, oldest track will be
erased when the track memory capacity is exceeded.
Waypoints & routes: The loaded data replaces data previously stored.
Marks and lines: The loaded data is added to internal data. When the mark/line
memory becomes full no marks may be entered.
Setting data: The loaded data replaces current configuration settings. If the
memory card is ejected while loading or data could not be loaded, push the
[ENTER] knob to restart. Note that track memory allocalion is not saved or
loaded. To use loaded setting data, turn the power off and on again.
10. Press the [ENTER] knob.
When loading SETTING DATA, the unit restarts automatically.
11. Press the [MENU] key several times to close the menu.
10.2.5 Deleting files
1. Insert a memory card into the left slot.
2. Press the [MENU] key to show the main menu.
3. Press the [3] key to show the MEMORY CARD OPERATIONS & DATA
TRANSFER menu.
4. Press the [4] key to select DELETE FILE IN MEMORY CARD menu.
3-4. DELETE FILE IN MEMORY CARD
FILE NAME
FILE 1
FILE 2
TURN KNOB TO SELECT FILE TO DELETE.
PRESS KNOB TO DELETE FILE.
Delete file in memory card menu
Note: When the memory card has no data, a beep sounds at step4.
5. Rotate the [ENTER] knob to select the file to delete, and then press the
[ENTER] knob.
DELETE FILE.
ARE YOU SURE?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
6. Press the [ENTER] knob to delete file. To escape, press the [CLEAR] key.
7. Press the [MENU] key several times to close the menu.
10. RECORDING & PLAYING BACK DATA
10-9
10.3 Automatic Backup Function
Your unit can backup data (tracks, marks/lines, waypoints/route and setting data)
automatically when turning the power on.
There are two backup methods; backup by a memory card and backup by the
internal memory. Note that this function may delay the normal display after the
turning power on.
10.3.1 Backup to a memory card
After activating this method, insert a memory card into the left slot.
1. Press the [MENU] key to show the main menu.
2. Pres the [3] key to show the MEMORY CARD OPERATIONS & DATA
TRANSFER menu.
3. Press the [6] key to show the AUTO BACKUP menu.
3-6. AUTO BACKUP
AUTO BACKUP TO MEMORY CARD
1. YES 2. NO
FILE NAME BACKUP
AUTO BACKUP TO INT. MEMORY
1. YES 2. NO
SELECT BLOCK OF INT. MEMORY
1. BLK1 2. BLK2
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF OF EACH MENU BY TRACKBALL.
Auto backup menu
4. Rotate the [ENTER] knob to select AUTO BACKUP TO MEMORY CARD.
5. Press the [1] key to select “1. YES.”
6. Press the [MENU] key several times to close the menu.
Then, whenever you turn on the power, data is automatically saved to the
“BACKUP” file in the memory card. The message “NOW DOING AUTO BACKUP.
WAIT FOR A WHILE.” appears while the backup. If the memory card is not inserted
into the slot though “1. YES” is selected at step5, the following window appears.
MEN CARD NOT INSERTED
TO DO BACKUP.
CONTINUE?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
To continue, insert a memory card into the left slot, and then press the [ENTER]
knob. If you cancel, press the [CLEAR] key.
10. RECORDING & PLAYING BACK DATA
10-10
10.3.2 Backup to internal memory
1. Press the [MENU] key to show the main menu.
2. Press the [3] key to show the MEMORY CARD OPERATIONS & DATA
TRANSFER menu.
3. Press the [6] key to show the AUTO BACKUP menu.
4. Rotate the [ENTER] knob to select AUTO BACKUP TO INT. MEMORY.
5. Press the [1] key to select “1. YES.”
You can select it by pressing the [1] key.
6. Rotate the [ENTER] knob to select SELECT BLOCK OF INT. MEMORY.
7. Press the [1] or [2] key to select the memory block where to save backup
data.
8. Press the [MENU] key several times to close the menu.
Whenever turning the power on, data is stored in the block selected at step 7.
Then, whenever you turn on the power, data is saved to the “BACKUP” file in the
memory card. If a memory card is not inserted, an error message appears.
Note: When this setting is done, the backup starts automatically after the caution
screen at the power on. The message “NOW DOING AUTO BACKUP.
WAIT FOR A WHILE.” appears while the backup.
10. RECORDING & PLAYING BACK DATA
10-11
10.4 Internal Memory
Your unit has five internal memories in which to store data. Data are saved and
replayed between the working memory and internal memory.
10.4.1 Saving data to internal memory
Data in the working memory can be saved in internal memories. The total
number of points for tracks, marks and lines is 16,000.
1. Press the [MENU] key to show the main menu.
2. Press the [3] key to show the MEMEMORY CARD IOERATIONS & DATA
TRANSFER menu.
3. Press the [8] key to show the OPERATE INTERNAL MEMORY.
3-8. OPERATE INTERNAL MEMORY
SHIP'S TRACKS & MARKS
1. YES 2. NO
WAYPOINTS & ROUTES 1. YES 2. NO
SETTING DATA 1. YES 2. NO
SAVE TO INTERNAL MEMORY
BLOCK-1 1. YES 2. NO
BLOCK-2 1. YES 2. NO
BLOCK-3 1. YES 2. NO
BLOCK-4 1. YES 2. NO
BLOCK-5 1. YES 2. NO
PLAYBACK FROM INTERNAL MEMORY
BLOCK-1 1. YES 2. NO
BLOCK-2 1. YES 2. NO
BLOCK-3 1. YES 2. NO
BLOCK-4 1. YES 2. NO
BLOCK-5 1. YES 2. NO
TURN KNOB TO SELECT MENU. SELECT THE ITEM OF EACH MENU BY
TRACKBALL. NOTE: TRACKS & MARKS ONLY CAN BE SAVED IN THE
BLOCK 3-5. WAYPOINTS & ROUTES CAN BE SAVED IN THE BLOCK.
Operate internal memory
4. Rotate the [ENTER] knob to select item to save.
5. Press the [1] key to select “1. YES.”
6. Repeat steps 4 and 5 to save other items.
7. Rotate the [ENTER] knob to select BLOCK 1, 2, 3, 4 or 5 as appropriate.
BLOCK-1, 2: For track, mark, waypoint, route and setting data
BLOCK 3, 4, 5: For track and mark only
Note: If BLOCK-1 or 2 is used for backup (see paragraph 10.3.2), it cannot be
selected here.
10. RECORDING & PLAYING BACK DATA
10-12
8. Press the [1] key to select “1. YES.”
When there are data in a memory block selected, the following window appears.
Press the [ENTER] knob to continue.
ALL TRACKS, MARKS, WPTS &
ROUTES WILL BE DELETED.
ARE YOU SURE?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
The message “NOW SAVING DATA TO INTERNAL MEMORY. DO NOT TURN
OFF DISPLAY UNIT UNTIL COMPLETED.” appears.
When the saving is finished, the message “COMPLETED SAVING DATA TO
INTERNAL MEMORY. PRESS KNOB TO CONTINUE.” appears.
Note: When you select the block set for the backup (paragraph 10.3.2), the
message “THIS BLOCK IS ALREADY SET FOR AUTO BACKUP. SELECT
ANOTHER BLOCK” appears. Reselect another block.
9. Press the [ENTER] knob.
10. Press the [MENU] key to close the menu.
10.4.2 Displaying tracks and marks stored in the internal memory
Tracks and marks stored in the internal memory can be displayed on the screen.
1. Press the [MENU] key to show the main menu.
2. Press the [3] key to show the MEMORY CARD OPERATIONS & DATA
TRANSFER menu.
3. Press the [7] key to show the DISPLAY DATA FROM INTERVAL MEMORY
menu.
10. RECORDING & PLAYING BACK DATA
10-13
3-7. DISPLAY DATA FROM INTERNAL MEMORY
BLOCK ITEM NUMBER DISPLAY
BLOCK-1 TRACKS 3,246 NO
MARKS 3 NO
BLOCK-2 TRACKS 36 NO
MARKS 0 NO
BLOCK-3 TRACKS 0 NO
MARKS 0 NO
BLOCK-4 TRACKS 0 NO
MARKS 0 NO
BLOCK-5 TRACKS 0 NO
MARKS 0 NO
TURN KNOB TO SELECT MENU AND PRESS KNOB TO DISPLAY
DATA.
Display data from internal memory menu
4. Rotate the [ENTER] knob to select TRACKS or MARKS in a block number
you wish to load..
5. Press the [ENTER] knob to show “YES” at the right side of screen.
To escape, press the [ENTER] knob to select “NO.”
6. Repeat steps 4 and 5 to load data from other blocks.
7. Press the [MENU] key several times to close the menu.
Selected marks (or tracks) appear on the screen. Note that these cannot be
erased or edited.
10. RECORDING & PLAYING BACK DATA
10-14
10.4.3 Playing back data from the internal memory
Data in the internal memory can be loaded to the working memory and played
back on the screen. However, loaded waypoint/route and setting data will
replace with current data. For that reason, you may want to record the current
display before replaying data.
1. Press the [MENU] key to show the main menu.
2. Press the [3] key to show the MEMORY CARD OPERATIONS & DATA
TRANSFER menu.
3. Press the [8] key to show the OPERATE INTERNAL MEMORY menu.
4. Rotate the [ENTER] knob to select item to replay.
5. Press the [1] key to select “1. YES.”
6. Repeat steps 4 and 5 for other items to replay.
7. Rotate the [ENTER] knob to select BLOCK 1, 2, 3, 4 or 5 of PLAYBACK
FROM INTERNAL MEMORY.
8. Press the [1] key to select “1. YES. ”
The following message window appears.
OVERWRITE?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
9. Press the [ENTER] knob.
10. After the “completed” message appears, press the [ENTER] knob.
The unit restarts automatically when selecting SETTING DATA.
11. Press the [MENU] key several times to close the menu.
10. RECORDING & PLAYING BACK DATA
10-15
10.5 Uploading, Downloading Data
You can upload/download mark, line, waypoint (in alphabetical order) and route
(in numerical order) from/to a PC to the working memory, through the PC/NMEA
IN port at the rear of the display unit. To upload/download, use the “Hyper
Terminal (supplied with Windows)”, “Tera Term (free software)” or equivalent.
Note 1: Route data contains comment data for routes.
Note 2: DGPS facility is not available while uploading/downloading data.
Note 3: The DATA TRANSFER FROM/TO PC menu provides a wiring diagram
for connection of a PC. Refer to it to connect a PC.
10.5.1 Downloading data
You may download data in the working memory to a PC as follows:
1. Connect the PC to the equipment.
2. Press the [MENU] key to show the main menu.
3. Press the [3] key to show the MEMORY CARD OPERATIONS & DATA
TRANSFER menu.
4. Press the [9] key to show the DATA TRANSFER FROM/TO PC menu.
3-9. DATA TRANSFER FROM/TO PC
TRANSFER FROM PC 1. YES 2. NO
MARKS & LINES 1. YES 2. NO
WAYPOINTS & ROUTES 1. YES 2. NO
TRANSFER TO PC 1. YES 2. NO
MARKS & LINES 1. YES 2. NO
WAYPOINTS & ROUTES 1. YES 2. NO
BAUD RATE 1. 4800 2. 9600 3. 19200 4. 38400
CHARACTER LENGTH 1. 7 BITS 2. 8 BITS
STOP BIT 1. 1 BIT 2. 2 BITS
PARITY 1. EVEN 2. ODD 3. NONE
X CONTROL
PC/NMEA IN CABLE TYPE: MJ-A7SPF0007-050
PC_TD >1> --- WHITE
PC_RD >2> --- BLUE
RD3_H >3> --- YELLOW
RD3_C >4> --- GREEN
+12V >5> --- RED
GROUND>6> --- BLACK
SHIELD>7> --- SHIELD
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
Note: Use 1, 2 and 6 pins only for connection with PC.
Data transfer from/to PC menu
10. RECORDING & PLAYING BACK DATA
10-16
5. To download mark/line data, rotate the [ENTER] knob to select MARKS &
LINES of TRANSFER TO PC.
6. Press the [1] key to select “1. YES.”
7. To download waypoint/route data, rotate the [ENTER] knob to select
WAYPOINTS & ROUTES of TRANSFER TO PC>.
8. Press the [1] key to select “1. YES.”
9. Set RS-232C as follows.
a) Rotate the [ENTER] knob to select BAUD RATE.
b) Roll the trackball in left-right direction to select the baud rate among 4800,
9600, 19200 and 38400.
c) Rotate the [ENTER] knob to select CHARACTER LENGTH.
d) Roll the trackball in left-right direction to select the character length: 7 BITS or
8 BITS.
e) Rotate the [ENTER] knob to select STOP BIT.
f) Roll the trackball in left-right direction to select the stop bit: 1 BIT or 2 BITS.
g) Rotate the [ENTER] knob to select PARITY.
h) Roll the trackball in left-right direction to select the parity from among EVEN,
ODD and NONE.
10. Rotate the [ENTER] knob to select TRANSFER TO PC.
11. Press the [1] key to select “1. YES.”
The following message appears.
OUTPUT DATA TO PC.
ARE YOU SURE?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
12. Press the [ENTER] knob.
13. When the downloading is completed, press the [ENTER] knob.
14. Press the [MENU] key several times to close the menu.
10. RECORDING & PLAYING BACK DATA
10-17
10.5.2 Uploading data
Data in the PC can be uploaded to the working memory.
Note: When waypoint or route data are uploaded, all data in the internal memory
will be replaced with the uploaded data.
1. Connect the PC to the equipment.
2. Press the [MENU] key to show the main menu.
3. Press the [3] key to show the MEMORY CARD OPERATIONS & DATA
TRANSFER menu.
4. Press the [9] key to show the DATA TRANSFER menu.
5. To upload mark/line, rotate the [ENTER] knob to select MARKS & LINES of
TRANSFER FROM PC.
6. Press the [1] key to select “1.YES.”
7. To upload waypoint/route, rotate the [ENTER] knob to select WAYPOINT &
ROUTE of TRANSFER FROM PC.
8. Press the [1] key to select “1. YES.”
9. Set RS-232C referring to paragraph 10.5.1.
10. Rotate the [ENTER] knob to select TRANSFER FROM PC.
11. Press the [1] key to select “1. YES.”
One of the following message appears.
UPDATE DATA
FROM PC?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
Mark/line Waypoint/Route
ALL WAYRINTS &
ROUTE WILL BE DELETED.
ARE YOU SURE?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
12. Press the [ENTER] knob to upload data.
You are asked if you are sure to upload data.
The message “UPDATING FROM PC NOW” appears. When the updating is
finished, the message “UPDATE IS COMPLETED. PRESS ENTER KNOB.”
appears.
13. When the uploading is completed, press the [ENTER] knob.
14. Press the [MENU] key several times to close the menu.
10. RECORDING & PLAYING BACK DATA
10-18
Waypoint data format
1 2 3 4 5 6 77
PFEC, GPwpl, llll.llll, a, yyyyy.yyy, a, c----c, c, c----c, a <CR><LF>
8
Waypoint data format
1: Waypoint latitude
2: N/S
3: Waypoint longitude
4: E/W
5: Waypoint name (Number of characters is fixed 6 and space code is placed
when the number of characters are less than 6.)
6: Waypoint color
7. Waypoint comment (1 byte for mark code +13 characters of comment.)
1
st byte of mark code: Fixed to “@”.
2
nd byte of mark code: Internal mark code. See Note 1.
8. Information of marking waypoint. Always set to “A”.
“A”: Displayed
“V”: Not displayed.
Note 1: The following characters can be used for comments:
_ABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789&'#
=9 =: =; =< = =
=> =? =@ =A
=B =C =D =E
=F =G =H
Characters available for comment
10. RECORDING & PLAYING BACK DATA
10-19
Route data menu
$GPRTE, x, x, a, ccc, c----c, c----c, ... , c----c <CR><LF>
12345612
Route comment format
1: Number of sentences required for one complete route data (1 to 4). See Note
2.
2: Number of sentences currently used (1 to 4)
3: Message mode (Always set to C)
4: Route No. (001 to 300, 3 digits required)
5 through 12: Waypoint name (Max. 8 names, length of each waypoint name is
fixed to 7 byte)
Note 2: A route can may contain 35 waypoints, and the GPRTE sentence for
one route data may exceed 80 byte limitation. In this case, route data is
divided into several GPRTE sentences (Max. 4 sentences). This value
shows the number of sentences the route data has been divided.
Route comment data format
12
$PFEC, GPrtc, xx, c----c <CR><LF>
Route comment format
1. Route No. (01 to 200, 3 digits required)
2. Route comment (Max. 16 characters, variable length)
3. The same characters of the comment for waypoint comment can be used.
End of sentence
$PFEC, GPxfr, CTL, E <CR><LF>
End of sentence
10. RECORDING & PLAYING BACK DATA
10-20
This page is intentionally left blank.
11-1
11. MAINTENANCE &
TROUBLESHOOTING
11.1 Maintenance
Regular maintenance is important for continued performance. Important points to
be checked from time to time are shown below.
Do not open the equipment.
Hazardous voltage which can cause
electrical shock exists inside the
equipment. Only qualified personnel
should work inside the equipment.
WARNING
Location Check point Remedy
Antenna unit Check for loosened and
corroded bolts.
Tighten loosened bolts. Replace heavily
corroded bolts.
Check connection point for
watertightness.
Check connector for tightness
and corrosion.
Antenna cable
Check cables for damage.
Replace damaged parts.
Display unit connectors Check for tight connection. Tighten loosened connectors.
Ground terminal Check for tight connection and
corrosion.
Clean or replace as necessary.
Display unit Dust and foreign material on
the display unit.
Dust or dirt may be removed from the
cabinet with soft cloth. Water-diluted mild
detergent may be used if desired. DO
NOT use chemical cleaners to clean the
display unit; they may remove paint and
markings.
Wipe the LCD carefully to prevent
scratching, using tissue paper and an
LCD cleaner. To remove dirt or salt
deposits, use an LCD cleaner, wiping
slowly with tissue paper so as to dissolve
the dirt or salt. Change paper frequently
so the salt or dirt will not scratch the
LCD. Do not use solvents such as
thinner, acetone or benzene for cleaning.
11. MAINTENANCE & TROUBLESHOOTING
11-2
11.2 Replacement of Fuse
Use the correct fuse.
Use of a wrong fuse can cause fire or
damage the equipment.
CAUTION
The fuse on the power cable protects the system from reverse polarity of the
ship’s mains and equipment fault. If the fuse blows, find the cause before
replacing it. Use only a 3 A fuse. Using the wrong fuse will damage the unit and
void the warranty.
Name Type Code No.
Fuse FGBO-A 3A AC125V 000-549-063
11.3 Replacement of Battery
A battery installed on the circuit board inside display unit preserves data when
the power is turned off. The life of the battery is about three years. When the
battery voltage is low the battery icon ( ) appears on the display. When this
happens, contact your dealer to request replacement of the battery.
Name Type Code No.
BATT (L1) CR2450-F2ST2L 000-144-941
Note: Save data into the memory card or internal memory before replacement of
the battery.
11. MAINTENANCE & TROUBLESHOOTING
11-3
11.4 Trackball Maintenance
If the cursor skips or moves abnormally, you may need to clean the trackball.
1. Turn the retainer ring counterclockwise 45° to unlock it.
Retainer ring
Ball
Display unit
2. Remove the retainer ring and ball.
3. Clean the ball with a soft lint-free cloth, and then blow carefully into the
ball-cage to dislodge dust and lint.
4. Look for a build-up of dirt on the metal rollers. If dirty, clean the rollers using a
cotton swab moistened lightly with isopropyl-rubbing alcohol.
5. Make sure that fluff from the swab is not left on the rollers.
6. Replace the ball and retainer ring.
Note: Trackball maintenance parts are available as below.
Part Type Code No.
Retainer ring and ball MU3721 000-144-645
11. MAINTENANCE & TROUBLESHOOTING
11-4
11.5 Simple Troubleshooting
This section provides simple troubleshooting procedures which the user can
follow to restore normal operation. If you cannot restore normal operation do not
attempt to check inside the unit. Any trouble should be referred to a qualified
technician.
General troubleshooting
If… Then…
●check for blown fuse
●check that the power connector is firmly fastened
●check for damaged power cable.
●check battery for proper voltage output.
you cannot turn on the power
●press the [POWER] key a little harder.
no picture appears ●press the [BRILL] key for several times.
there is no response when a key
is pressed ●turn off and on the power.
Plotter troubleshooting
If… Then…
●check that antenna connector is firmly
fastened.
position is not fixed within 90 seconds
●check number of satellites received, on the
GPS STATUS display.
●check that the correct geodetic chart system
is selected on the NAVIGATOR SETUP menu.
position is wrong
●enter position offset, on the NAVIGATOR
SETUP menu.
●check that “1. ON” is selected at DISP
TRACKS (HOLD) in the MARKS/SHIP’S
TRACKS SETUP menu.
the track is not plotted
●check that “1. ON” is selected at SHIP’S
TRACKS DISP in the MARKS/SHIP’S
TRACKS SETUP menu.
Loran C (or Decca) TDs are wrong ●enter TD offset, on the PLOTTER SETUP
menu.
Loran C (or Decca) TDs are wrong ●enter TD offset, on the
Bearing is wrong ●check the MAGNETIC VARIATION in the
DISPLAY SETUP menu.
The ship’s speed indication is not zero after
the ship is stopped ●try to decrease speed/course smoothing.
11. MAINTENANCE & TROUBLESHOOTING
11-5
11.6 Diagnostics
This section provides the procedures for testing the equipment for proper
operation. Three tests are provided: MEMORY I/O TEST, KEYBOARD TEST and
TEST PATTERN.
11.6.1 Memory I/O test
The memory I/O test checks each memory circuits and signal I/O circuit,
displaying program number. Results for device checks are shown as OK or NG
(No Good). For any “NG”, request service.
1. Press the [MENU] key to show the main menu.
2. Press the [0] key to show the SYSTEM SETUP menu.
3. Press the [6] key to show the TEST & MEMORY CLEAR menu.
0-6. TEST & MEMORY CLEAR
1. MEMORY I/O TEST
2. KEYBOARD TEST
3. TEST PATTERN
4. MEMORY CLEAR
5. GPS COLD START
6. SET PASSWORD
7. RESET PASSWORD
TURN KNOB TO SELECT MENU AND PRESS KNOB TO ENTER.
OR PRESS APPROPRIATE NUMERIC KEY TO SELECT MENU.
Test & memory clear menu
4. Press the [1] key to start the MEMORY I/O TEST.
11. MAINTENANCE & TROUBLESHOOTING
11-6
0-6. MEMORY I/O TEST
PLOTTER
ROM : OK
RAM : OK
NMEA IN/OUT 1 : - -
NMEA IN/OUT 2 : - -
NMEA IN : - -
RS232C : - -
BACKUP DATA : OK
INTERNAL BATTERY : OK
INTERNAL GPS : OK
INTERNAL BEACON : OK
PROGRAM NUMBER
PLOTTER : 1451712-XX.XX*
GPS RECEIVER : 48502640XX
BEACON RECEIVER : 08501820XX
PRESS MENU KEY TO FINISH THE TEST.
XX: Program version No.
For "NMEA IN/OUT 1", "NMEA IN/OUT 2", "NMEA IN" and "PC" are for factory use.
Normally, "- -" appears on the test screen.
Only when the optional DGPS receiver board is equipped.
*: C-MAP: 1451714-XX.XX
Memory I/O test
5. Confirm that all check items are “OK.”
6. Press the [MENU] key to finish the memory I/O test.
7. Press the [MENU] key for several times to close the menu.
11. MAINTENANCE & TROUBLESHOOTING
11-7
11.6.2 Keyboard test
The keyboard test checks the controls on the display unit and remote controller
for proper operation.
1. Press the [MENU] key to show the main menu.
2. Press the [0] key to show the SYSTEM SETUP menu.
3. Press the [6] key to show the TEST & MEMORY CLEAR menu.
4. Press the [2] key to show the KEYBOARD TEST.
0-6. KEYBOARD TEST
PRESS CLEAR KEY 3 TIMES TO FINISH THE TEST.
REMOTE CONTROLLER
Keyboard test
5. Operate each control on the display unit and remote controller one by one. A
key is functioning properly if its on-screen location “fills” in black when the
key is pressed. For the [ENTER] knob and trackball, rotate them to show
their X-Y positions digitally, and push the [ENTER] knob to confirm its
function. Note that the [POWER] key cannot be tested.
6. Press the [CLEAR] key three times to finish the test.
7. Press the [MENU] key for several times to close the menu.
11. MAINTENANCE & TROUBLESHOOTING
11-8
11.6.3 Test pattern
The test pattern test checks the display for proper display of colors.
1. Press the [MENU] key to show the main menu.
2. Press the [0] key to show the SYSTEM SETUP menu.
3. Press the [6] key to show the TEST & MEMORY CLEAR menu.
4. Press the [3] key to show the test pattern screen (four-colored display).
5. Rotate the [ENTER] knob to change the pattern in the sequence shown
below.
Press KNOB TO CHANGE COLOR PATTERN.
PRESS MENU KEY TO FINISH THE TEST.
Black
Blue
Green
Red
White
White Red
Green
BlueBlack
Test pattern
6. Press the [MENU] key to finish the test.
7. Press the [MENU] key for several times to close the menu.
11. MAINTENANCE & TROUBLESHOOTING
11-9
11.7 Clearing the Working Memory
The working memory can be cleared to restart operation with default settings.
All tracks, marks, waypoints and routes are deleted. Note that the cleared
memory cannot be restored.
1. Press the [MENU] key to show the main menu.
2. Press the [0] key to show the SYSTEM SETUP menu.
3. Press the [6] key to show the TEST & MEMORY CLEAR menu.
4. Press the [4] key to show the following window.
CLEAR ALL MEMORY INCL.
MARKS/TRKS/WPTS/RTES.
ARE YOU SURE?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY.
5. Press the [ENTER] knob to clear the memory.
The equipment restarts automatically, and then the following window appears.
START SIMULATION MODE?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
Note: Press the [CLEAR] key to escape.
6. To start the simulation mode, press the [ENTER] knob. (For normal operation,
press the [CLEAR] key.)
Soon after the memory clearing, “BACK DATA: NG” and the message “SYSTEM
HAS FAILED START UP TEST. PLEASE CONTACT A LOCAL FURUNO
REPRESENTATIVE FOR REPAIR. PRESS ANY KEY TO CONTINUE” appear
on the startup test screen. These mean no problem.
7. Press any key twice.
11. MAINTENANCE & TROUBLESHOOTING
11-10
11.8 Cold Start
Cold start is automatically executed at initial power application or when the GPS
memory is cleared. This is done to acquire the Almanac to receive a GPS
satellite. You can also do the cold start manually when the Almanac is too old to
acquire a satellite; for example, when the equipment has not been used for one
year or more. Manually cold starting the receiver erases the existing Almanac to
receive the current one.
1. Press the [MENU] key to show the main menu.
2. Press the [0] key to show the SYSTEM SETUP menu.
3. Press the [6] key to show the TEST & MEMORY CLEAR menu.
4. Press the [5] key to show the following window.
BEGIN COLD START
TO CLEAR GPS MEMORY.
ARE YOU SURE?
YES ... PRESS KNOB
NO ... PRESS CLEAR KEY
5. Press the [ENTER] knob to begin the cold start. Cold start takes about 90
seconds to complete.
Note: To cancel, press the [CLEAR] key.
6. Press the [MENU] key for several times to close the menu.
The Almanac description is shown below.
Almanac
Every GPS satellite is broadcasting general orbital data (called Almanac) about
all other satellites. The GPS receiver decodes the Almanac to calculate when
and at what angle the GPS satellite is to appear. If there is no Almanac in the
receiver the estimated arrival time of the GPS satellite cannot be found and thus
GPS position fix cannot be calculated. The GPS receiver is shipped with no
Almanac in its memory. When the power is first turned on after installation the
receiver starts receiving the Almanac. This is called “cold start.” Each time the
GPS receiver receives orbital data the Almanac is replaced with the latest one.
A
P-1
MENU TREE
1. WAYPOINTS LIST SORT (1. ALPHA, 2. DIST, 3. MARK)
SPD TO CALC TTG (ACTUAL SPD, SIM SPD 0~99.9 kt; 0 kt)
2. ROUTES LIST BACK TRACK (1. YES, 2. NO)
RECORD TYPE (DISTANCE 0~99.9 nm; 0.1 nm,
TIME 0M~99H59M; 1M)
SPD TO CALC TTG (ACTUAL SPD, SIM SPD 0~99.9 kt; 0 kt)
3. MEMORY CARD 1. SAVE DATA TO SHIP'S TRACKS (1. YES, 2. NO)
OPERATIONS & MEMORY CARD MARKS & LINES (1. YES, 2. NO)
DATA TRANSFER WAYPOINTS & ROUTES (1. YES, 2. NO)
SETTING DATA (1. YES, 2. NO)
CREATE NEW FILE
2. PLAYBACK DATA SHIP'S TRACKS (1. YES, 2. NO)
FROM MEMORY MARKS & LINES (1. YES, 2. NO)
CARD WAYPOINTS & ROUTES (1. YES, 2. NO)
SETTING DATA (1. YES, 2. NO)
3. DISPLAY DATA FROM MEMORY CARD
4. DELETE FILE IN MEMORY CARD
5. FORMAT MEMORY CARD (1. YES, 2. NO)
6. AUTO BACKUP AUTO BACKUP TO MEMORY CARD (1. YES, 2. NO)
AUTO BACKUP TO INT. MEMORY (1. YES, 2. NO)
SELECT BLOCK OF INT. MEMORY (1. BLK1, 2. BLK2)
7. DISPLAY DATA FROM INTERNAL MEMORY
8. OPERATE SHIP'S TRACKS & MARKS (1. YES, 2. NO)
INTERNAL WAYPOINTS & ROUTES (1. YES, 2. NO)
MEMORY SETTING DATA (1. YES, 2. NO)
SAVE TO INTERNAL MEMORY
(BLOCK-1 to 5; 1. YES, 2. NO)
PLAYBACK FROM INTERNAL MEMORY
(BLOCK-1 to 5; 1. YES, 2. NO)
9. DATA TRANSFER TRANSFER FROM PC (1. YES, 2. NO)
MARKS & LINES (1. YES, 2. NO)
WAYPOINTS & ROUTES (1. YES, 2. NO)
TRANSFER TO PC (1. YES, 2. NO)
MARKS & LINES (1. YES, 2. NO)
WAYPOINTS & ROUTES (1. YES, 2. NO)
BAUD RATE (1. 4800, 2. 9600, 3. 19200, 4. 38400)
CHARACTER LENGTH (1. 7 BITS, 2. 8 BITS)
STOP BIT (1. 1 BIT, 2. 2 BITS)
PARITY (1. EVEN, 2. ODD, 3. NONE)
4. MARKS/SHIP'S MARKS SIZE (1. L, 2. L+, 3. S)
TRACKS SETUP LINES STYLE (1. 2. 3. 4. )
TRACK INTERVAL 1 (TIME 0s~99M59s; 10s, DIST 0~9.99 nm; 0.1 nm)
TRACK INTERVAL 2 (TIME 0s~99M59s; 10s, DIST 0~9.99 nm; 0.1 nm)
SHIP'S TRACKS DISP (1. ON, 2. OFF)
DISP TRACKS (HOLD) (1. ON, 2. OFF)
PLOT TRACKS (HOLD) (1. ON, 2. OFF)
TRACKS STYLE (1. 2. 3. 4. )
TRACKS BY TEMP (RANGE, GRDNT; 0.2˚F, 20˚F)
TRACKS BY DEPTH (RANGE, GRDNT; 2ft, 20ft, 200ft)
SHIP'S TRACKS (0~16000; 12000)
[MENU] key
1
Page 1
2
MENU TREE
AP-2
4. MARKS/SHIP'S DISP TARGET TRACKS (1. ON, 2. OFF)
TRACKS SETUP
TARGET TRACK COLOR (1. RED, 2. YEL, 3. GRN, 4. L-BLU, 5. PPL, 6. BLU, 7. WHT)
TARGET TRACK STYLE (1. 2. 3. 4. )
DISP SUB TRACKS (1. ON, 2. OFF)
SUB TRACKS COLOR (1. RED, 2. YEL, 3. GRN, 4. L-BLU, 5. PPL, 6. BLU, 7. WHT)
SUB TRACK STYLE (1. 2. 3. 4. )
SUB TRACK TALKER (1. GP, 2. II, 3. IN, 4. SN, 5. TR, 6. LA, 7. LC, 8. DE, 9. EC)
5. MARKS/SHIP'S 1. EDIT MARKS ENTER
TRACKS EDITION SELECT (1. CURSOR, 2. AREA, 3. INSIDE, 4. OUTSDE)
COLOR (1. RED, 2. YEL, 3. GRN, 4. L-BLU,
5. PPL, 6. BLU, 7. WHT, 8. NONE)
SHAPE ( , , , , , , , , , , , NONE)
2. DELETE ENTER
MARKS
SELECT (1. CURSOR, 2. AREA, 3. INSIDE, 4. OUTSDE, 5. ALL)
COLOR (1. RED, 2. YEL, 3. GRN, 4. L-BLU, 5. PPL, 6. BLU,
7. WHT, 8. ALL)
SHAPE( , , , , , , , , , , , ALL)
3. ENTER LAT/LON
MARKS COLOR (1. RED, 2. YEL, 3. GRN, 4. L-BLU, 5. PPL, 6. BLU,
7. WHT)
SHAPE ( , , , , , , , , , , )
LINE (1. YES, 2. NO)
4. EDIT SHIP'S ENTER
TRACKS SELECT (1. 2 PTS, 2. AREA, 3. INSIDE, 4. OUTSIDE)
COLOR (1. RED, 2. YEL, 3. GRN, 4. L-BLU, 5. PPL, 6. BLU,
7. WHT, 8. NONE)
STYLE (1. , 2. , 3. ,4. , 5. NONE)
5. DELETE ENTER
SHIP'S SELECT (1. 2 PTS, 2. AREA, 3. INSIDE, 4. OUTSIDE, 5. ALL)
TRACKS COLOR (1. RED, 2. YEL, 3. GRN, 4. L-BLU, 5. PPL, 6. BLU,
7. WHT, 8. ALL)
STYLE (1. ,
2. ,
3. ,
4. ,
5. ALL)
6. ALARM SETUP AUDIO ALARM (1. SHORT, 2. LONG, 3. CONT, 4. OFF)
ARRIVAL/ANCHOR WATCH (1. ARRIVAL, 2. ANCHOR, 3. OFF)
RANGE TO MONITOR (0.001~9.999 nm; 0.05 nm)
XTE/BORDER ALARM (1. XTE, 2. BORD, 3. OFF)
RANGE TO MONITOR (0.001~9.999 nm; 0.05 nm)
PROXIMITY ALARM (1. ON, 2. OFF)
SPEED ALARM (1. INSIDE, 2. OUT, 3. OFF)
MINIMUM SPEED (0~999.9 kt; 0 kt)
MAXIMUM SPEED (0~999.9 kt; 30 kt)
TRIP LOG ALARM (1. ON, 2. OFF)
DIST TO MONITOR (0.1~9999.9 nm; 0.1 nm)
TEMPERATURE ALARM (1. INSIDE, 2. OUT, 3. OFF)
MINIMUM TEMPERATURE (-99.9~+99.9˚F; +32.0˚F)
MAXIMUM TEMPERATURE (-99.9~+99.9˚F; +86.0˚F)
SHEAR ALARM (1. ON, 2. OFF)
GRADIENT OF TEMP (0.1~10˚F; 0.2˚F)
INTERVAL (10~120s; 10s)
BOTTOM ALARM (1. ON, 2. OFF)
DEPTH (0~9999.9 ft; 0 mft
RANGE (0~99.9 ft; 0 ft)
Page 2
12
3
MENU TREE
A
P-3
7. CHART SETUP OFFSET CHART POS (1. YES, 2. NO)
OFFSET METHOD (1. CURSOR, 2. LAT/LON,
3. DELTA L/L, 4. CANCEL)
LAT/LON GRID (0. OFF, select from among 7 colors; GRN)
TEXT INFORMATION (1. YES, 2. NO)
WAYPOINTS (1. LARGE, 2. SMALL, 3. OFF)
WAYPOINT NAME (1. LARGE, 2. SMALL, 3. OFF)
CHART BORDER LINES (1. YES, 2. NO)
LANDMASS (0. OFF, select from among 16 colors; YEL)
TRIMMING BORDER LINE (0. OFF, select from among 16 colors; YEL)
BACKGROUND (0. OFF, select from among 16 colors)
NAV AIDS (1. ON, 2. OFF)
LIGHT HOUSES (1. ON, 2. OFF)
OTHER SYMBOLS (0. OFF, select from among 7 colors; WHT)
CONTOUR LINES (1. ON, 2. OFF)
DEPTH < 10 m (0. OFF, select from among 7 colors; RED)
DEPTH = 10 m (0. OFF, select from among 7 colors; YEL)
DEPTH > 10 m (0. OFF, select from among 7 colors; BLU)
DEPTH INFORMATION (0. OFF, select from among 7 colors; RED)
CONTOUR LINES AREA (00000~00328 ft)
8. PLOTTER SETUP LORAN-A GRI (00-01)
CORRECTION 1 (-999.9~+999.9 µs; +000.0 µs)
CORRECTION 2 (-999.9~+999.9 µs; +000.0 µs)
LORAN-C GRI (00:11-29)
CORRECTION 1 (-999.9~+999.9 µs; +000.0 µs)
CORRECTION 2 (-999.9~+999.9 µs; +000.0 µs)
DECCA CHAIN (01 R-G)
CORRECTION 1 (-99.99~+99.99 LANE; +00.00 LANE)
CORRECTION 2 (-99.99~+99.99 LANE; +00.00 LANE)
TD DISPLAY (1. LORAN-A, 2. LORAN-C, 3. DECCA)
RESET TRIP LOG (1. YES, 2. NO)
PLOTTER RANGE SETUP (1. YES, 2. NO) 0.125~1024 (1. ON, 2. OFF)
PANEL DIMMER (1, 2, 3, 4, 5, 6, 7, 8)
HUE (1. DAY, 2. NIGHT, 3. TWILI, 4. MANUAL)
CONTOUR LINES SETUP
CHART DETAILS SETUP
3
4
(NavChart /FURUNO)
(C-MAP)
OFFSET CHART POS (1. YES, 2. NO)
OFFSET METHOD (1. CURSOR, 2. LAT/LON,
3. DELTA L/L, 4. CANCEL)
WAYPOINT (1. ON, 2. OFF)
WAYPOINTS NAME (1. ON, 2. OFF)
LAND NAME (1. ON, 2. OFF)
LAT/LON GRID (1. ON, 2. OFF)
CHART BORDER LINES (1. ON, 2. OFF)
BACKGROUND (1. ON, 2. OFF)
PORT SERVICES (1. ON, 2. OFF)
ATTENTION AREAS (1. ON, 2. OFF)
ALL SYMBOLS (1. ON, 2. OFF)
NAV LANES (1. ON, 2. OFF)
LIGHTHOUSE (1. SECTOR ON, 2. SECTOR OFF, 3. OFF)
BUOYS & BEACONS (1. ON, 2. OFF)
SIGNALS (1. ON, 2. OFF)
CARTOGRAPHIC OBJECTS (1. ON, 2. OFF)
COMPASSES (1. ON, 2. OFF)
TIDE & CURRENT (1. ON, 2. OFF)
NATURAL FEATURES (1. ON, 2. OFF)
RIVERS & LAKES (1. ON, 2. OFF)
BUILDING/FACILITY (1. ON, 2. OFF)
LANDMARKS (1. ON, 2. OFF)
CHART CARD INFO (1. ON, 2. OFF)
OTHER SYMBOLS (1. ON, 2. OFF)
COMPLEX OBJECT ICONS (1. MULTIPLE, 2. SINGLE)
INFORMATION LEVEL (1. BASIC, 2. DETAILED)
NT
CONTOUR LINES SETUP
CONTOUR LINES (1. ON, 2. OFF)
DEPTH (1. ON, 2. OFF)
BOTTOM TYPE (1. ON, 2. OFF)
DEPTH SHADE AREA
(00000 to 99999, 00020, 00164 ft)
CONTOUR LINES AREA
(00000 to 99999, 00000, 00033 ft)
MENU TREE
AP-4
0. SYSTEM 1. DISPLAY LANGUAGE (ENGLISH, Others)
SETUP SETUP KEY BEEP (1. ON, 2. OFF)
SPEED SOURCE (1. INT GPS, 2. NMEA SOG, 3. NMEA STW,
4. INTERNAL E/S)
NMEA SPEED CALIB (-50~+50%; +0%)
NMEA TEMP CALIB (-40~+40˚F; +0˚F)
NMEA DEPTH CALIB (-15~+100 ft; +0 ft)
LAT/LON DISPLAY (1. DD˚ MM.MM', 2. DD˚ MM.MMM',
3. DD˚ MM.MMMM', 4. DD˚ MM'SS,S)
RANGE & SPEED UNITS (1. nm, kt, 2. km, km/h, 3. sm, mph)
DEPTH UNIT (1. m, 2. ft, 3. fa, 4. pb)
TEMPERATURE UNIT (1. ˚C, 2. ˚F)
TIME DISPLAY (1. 12 HOURS, 2. 24 HOURS)
BEARING READOUT (1. TRUE, 2. MAGNETIC)
MAGNETIC VARIATION (1. AUTO, 2. MANUAL 07.0˚W)
HEADING MARKER (1. ON, 2. OFF)
COURSE VECTOR (1. LINE, 2. VECTOR, 3. OFF)
WAYPOINT SWITCHING (1. PERPENDICULAR, 2. ARRIVAL CIRCLE)
RNG & BRG MODE (1. RHUMB LINE, 2. GREAT CIRCLE)
SET GOTO METHOD (1. 1 POINT, 2. 35 POINTS, 3. NEAR SERVICE,
4. PORT SERVICE*)
RANGE/SCALE (1. RANGE, 2. SCALE)
SCALE DISPLAY (1. ON, 2. OFF)
GPS STATUS (1. ON, 2. OFF)
WAYPOINT STATUS (1. ON, 2. OFF)
WAYPOINT INFO (1. ON, 2. OFF)
MARK STATUS (1. ON, 2. OFF)
OWN SHIP'S MARK (1. LARGE, 2. SMALL, 3. SHIP)
SHIP'S LENGTH (0.1~99.9 m; 10 m)
SHIP'S WIDTH (0.1~99.9 m; 2 m)
ANTENNA POSITION Va (0.1~99.9 m; 5 m)
ANTENNA POSITION Hb (0.1~99.9 m; 1 m)
2. NAVIGATOR SELECT NAV SOURCE (1. INT, 2. EXT, 3. EXT LORAN-C, 4. ALL)
SETUP LOCAL TIME (INT GPS) (-13:30~+13:30; +00:00)
LOCAL TIME (EXT NAV) (-13:30~+13:30; +00:00)
GEODETIC DATUM (WGS-84)
POSITION SMOOTHING (0~999; 0)
SPEED SMOOTHING (0~999; 0)
SPEED AVERAGING (INT) (0~999; 60)
SPEED AVERAGING (EXT) (0~999; 60)
LATITUDE OFFSET (0.000~9.999'N(S); 0.000'N)
LONGITUDE OFFSET (0.000~9.999'E(W); 0.000'E)
DISABLE SATELLITE
DEFAULT LATITUDE (45˚ 35.000'N)
DEFAULT LONGITUDE (125˚ 00.000'W)
ANTENNA HEIGHT (0~99 m; 5 m)
GPS FIX MODE (1. 2D, 2. 2D/3D)
DGPS/WAAS (1. DGPS, 2. WAAS, 3. AUTO, 4. OFF)
DGPS/WAAS ALARM (1. YES, 2. NO)
DGPS BEACON STATION (1. AUTO, 2. MANUAL)
SELECT FREQUENCY
(283.5 kHz)
DGPS BAUD RATE (1. 50, 2. 100, 3. 200)
WAAS SERACH (1. AUTO, 2. MAN; 134)
CORRCTIONS DATA SET (00)
OVERWRITE WAYPOINT (1. DIALOG, 2. NO DIALOG)
Page 2
Page 1
4
5
*: NavChart /FURUNO only
TM
MENU TREE
A
P-5
3. PROGRAMMABLE
PROGRAMMABLE KEY 1 SETUP (WAYPOINTS LIST) PROGRAMMABLE
KEYS & REMOTE
PROGRAMMABLE KEY 2 SETUP (DELETE TRACKS) FUNCTIONS LIST
CONTROLLER
PROGRAMMABLE KEY 3 SETUP (MARKS/LINES)
SETUP
PROGRAMMABLE KEY 4 SETUP (RESET TRIP LOG)
VRM KEY SETUP (VRM)
REMOTE CONTROLLER KEY 1 SETUP (WAYPOINT KEY)
PROGRAMMABLE
REMOTE CONTROLLER KEY 2 SETUP (PRESS KNOB TO ENTER)
FUNCTIONS LIST FOR
REMOTE CONTROLLER KEY 3 SETUP (CLEAR KEY)
REMOTE CONTROLLER
REMOTE CONTROLLER KEY 4 SETUP (MARK 1)
REMOTE CONTROLLER KEY 5 SETUP (RANGE - ZOOM IN)
REMOTE CONTROLLER KEY 6 SETUP (RANGE - ZOOM OUT)
4. DISPLAY MODES
1. DISPLAY MODES PLOTTER MODES SETUP
WINDOW SETUP
2. NAV DATA WINDOW NAVIGATION DATA
SETUP WINDOW SETUP
5. I/O PORT NMEA I/O PORT 1
SETUP NMEA FORMAT (1. NMEA0183 Ver 1.5, 2. Ver 2.0)
TLL OUTPUT (1. ON, 2. OFF)
L/L FORMAT (1. DD˚ MM.MM', 2. DD˚ MM.MMM', 3. DD˚ MM.MMMM')
OUTPUT DESTINATION (1. ON, 2. OFF)
SELECT OUTPUT SENTENCE (1. ON, 2. OFF)
NMEA I/O PORT 2
NMEA FORMAT (1. NMEA0183 Ver 1.5, 2. Ver 2.0)
TLL OUTPUT (1. ON, 2. OFF)
L/L FORMAT (1. DD˚ MM.MM', 2. DD˚ MM.MMM', 3. DD˚ MM.MMMM')
OUTPUT DESTINATION (1. ON, 2. OFF)
SELECT OUTPUT SENTENCE (1. ON, 2. OFF)
RS232C FORMAT
BAUD RATE (1. 4800, 2. 9600, 3. 19200, 4. 38400)
CHARACTER LENGTH (1. 7 BITS, 2. 8 BITS)
STOP BIT (1. 1 BIT, 2. 2 BITS)
PARITY (1. EVEN, 2. ODD, 3. OFF)
NMEA FORMAT (1. NMEA0183 Ver 1.5, 2. Ver 2.0)
L/L FORMAT (1. DD˚ MM.MM', 2. DD˚ MM.MMM', 3. DD˚ MM.MMMM')
OUTPUT DESTINATION (1. ON, 2. OFF)
SELECT OUTPUT SENTENCE (1. ON, 2. OFF)
6. TEST 1. MEMORY I/O TEST
& MEMORY 2. KEYBOARD TEST
CLEAR 3. TEST PATTERN
4. MEMORY CLEAR
5. GPS COLD START
6. SET PASSWORD
7. RESET PASSWORD
ON: APB,
GLL,
RMB,
RMC,
VTG,
ZDA
OFF: AAM,
BOD,
BWR(BWC)#1,
DBT(DPT)#2,
GGA,
GTD,
MTW,
RMA,
VHW,
WPL,
XTE,
HDT,
HDG,
MWV,
TTM
#1:BWR (RHUMB LINE), BWC (GREAT CIRCLE)
#2:DBT(NMEA0183 Ver1.5), DPT(Ver2.0)
*
5
NAV INFO 1
NAV INFO 2
GOTO INFO1
GOTO INFO2
7. SIMULATION
MODE
PLOTTER (1. SIM, 2. LIVE)
SPEED (0~99.9 kt; 0 kt)
COURSE (1. DIRECTION, 2. 8 FIGURE)
DIRECTION (0~359.9˚; 0˚)
LATITUDE (90˚ 0.0'N~90˚ 0.0S; 45˚ 35.000'N)
LONGITUDE (180˚ 0.0'E~180˚ 0.0W; 125˚ 00.000'W)
DATE & TIME (Year. Month. day HOUR: MIMUTE)
AP-6
WORLD TIME CHART
A
P-7
GEODETIC CHART LIST
001 : WGS84
002 : WGS72
003 : TOKYO : Mean Vallue (Japan, Korea, and Okinawa)
004 : NORTH AMERICAN 1927 : Mean Vallue (CONUS)
005 : EUROPEAN 1950 : Mean Vallue
006 : AUSTRALIAN GEODETIC 1984 : Australla and Tasmania Island
007 : ADINDAN : Mean Value(Ethiopia and Sudan)
008 : : Ethiopia
009 : : Mall
010 : : Senegal
011 : : Sudan
012 : AFG : Somalla
013 : AIN EL ABD 1970 : Bahrain Island
014 : ANNA 1 ASTRO 1965 : Cocos Island
015 : ARC 1950 : Mean Value
016 : : Bostswana
017 : : Lesotho
018 : : Malawi
019 : : Swazlland
020 : : Zaire
021 : : Zambla
022 : : Zimbabwe
023 : ARC 1960 : Mean Value (Kanya, Tanzania)
024 : : Kenya
025 : : Tanzania
026 : ASCENSION ISLAND 1958 : Ascension Island
027 : ASTRO BEACON "E" : Iwo Jima Island
028 : ASTRO B4 SOR. ATOLL : Tem Island
029 : ASTRO POS 71/4 : St. Helena Island
030 : ASTRONOMIC STATION 1952 : Marcus Island
031 : AUSTRALIAN GEODETIC 1966 : Australla and Tasmania Island
032 : BELLEVUE (IGN) : Efate and Erromango Islands
033 : BERMUDA 1957 : Bermuda Islands
034 : BOGOTA OBSERVATORY : Colombla
035 : CAMPO INCHAUSPE : Argentina
036 : CANTON ISLAND 1966 : Phoenix Islands
037 : CAPE : South Africa
038 : CAPE CANAVERAL : Mean Value (Florida and Bahama Islands)
039 : CARTHAGE : Tunisia
040 : CHATHAM 1971 : Chatham Island (New Zealand)
041 : CHUA ASTRO : Paraguay
042 : CORREGO ALEGRE : Brazil
043 : DJAKARTA (BATAVIA) : Sumatra Island (Indonesia)
044 : DOS 1968 : Gizo Island (New Georgla Island)
045 : EASTER ISLAND 1967 : Easter Island
046 : EUROPEAN 1950 (Cont'd) : Westem Europe
047 : : Cypus
048 : : Egypt
049 : : England, Scotland, Channel, and Shetland
Islands
050 : : England,Ireland, Scotland, and Shetland Islands
051 : : Greece
052 : : Iran
053 : : Italy • • Sardinla
054 : : Italy • • Sicily
055 : : Norway and Finland
056 : : Portugal and Spain
057 : EUROPEAN 1979 : Mean Value
058 : GANDAJIKA BASE : Republlc of Maldives
059 : GEODETIC DATUM 1949 : New Zealand
060 : GUAM 1963 : Guam Island
061 : GUX 1 ASTRO : Guadalcanal Island
062 : HJORSEY 1955 : Iceland
063 : HONG KONG 1963 : Hong kong
064 : INDIAN : Thailand and Vletnam
065 : : Bangladesh, India, and Nepal
066 : IRELAND 1956 : Ireland
067 : ISTS 073 ASTRO 1969 : Diego Garcia
068 : JHONSTON ISLAND 1961 : Jhonston Island
069 : KANDAWALA : Sri Lanka
070 : KERGUELEN ISLAND : Kerguelen Island
071 : KERTAU 1948 : West Malaysia and Singapore
072 : LA REUNION : Mascarene Island
073 : L.C. 5 ASTRO : Cayman Brac Island
074 : LIBERIA 1964 : Liberia
075 : LUZON : Philippines (Exciuding Mindanao Island)
076 : : Mindanao Island
077 : MAHE 1971 : Mahe Island
078 : MARCO ASTRO : Salvage Islands
079 : MASSAWA : Eritrea (Ethlopia)
080 : MERCHICH : Morocco
081 : MIDWAY ASTRO 1961 : Midway Island
082 : MINNA : Nigeria
083 : NAHRWAN : Masirah Island(Oman)
084 : : United Arab Emirates
085 : : Saudi Arabia
086 : NAMIBIA : Namibla
087 : MAPARIMA, BWI : Trinldad and Tobago
088 : NORTH AMERICAN 1927 : Western United States
089 : : Eastern United States
090 : : Alaska
091 : : Bahamas (Excluding San Saivador Island)
092 : : Bahamas • • San Saivador Island
093 : : Canada (Including Newfoundland Island)
094 : : Alberta and British Columbla
095 : : East Canada
096 : : Manitoba and Ontario
097 : : Nothwest Territories and Saskatchewan
098 : : Yukon
099 : : Canal Zone
100 : : Caribbean
101 : : Central America
102 : : Cuba
103 : : Greenland
104 : : Mexico
105 : NORTH AMERICAN 1983 : Alaska
106 : : Canada
107 : : CONUS
108 : : Mexico, Central America
109 : OBSERVATORIO 1966 : Corvo and Flores Islands (Azores)
110 : OLD EGYPTIAN 1930 : Egypt
111 : OLD HAWAIIAN : Mean Value
112 : : Hawaii
113 : : Kaual
114 : : Maui
115 : : Oahu
116 : OMAN : Oman
117 : ORDNANCE SURVEY OF GREAT BRITAIN 1936 : Mean Value
118 : : England
119 : : England, Isie of Man, and Wales
120 : : Scotland and Shetland Islands
121 : : Wales
122 : PICO DE LAS NIVIES : Canary Islands
123 : PITCAIRN ASTRO 1967 : Pitcaim Island
124 :
PROVISIONAL SOUTH CHILEAN 1963
: South Chile (near 53° s)
125 :
PROVISIONAL SOUTH AMERICAN 1956
: Mean Value
126 : : Bolivia
127 : : Chile • • Northem Chie (near 19° s)
128 : : Chile • • Southem Chile (near 43° s)
129 : : Colombia
130 : : Ecuador
131 : : Guyana
132 : : Peru
133 : : Venezuela
134 : PUERTO RICO : Puerto Rico and Virgln Islands
135 : QATAR NATIONAL : Qatar
136 : QORNOQ : South Greenland
137 : ROME 1940 : Sardinia Islands
138 : SANTNA BRAZ : Sao Maguel, Santa Maria Islands (Azores)
139 : SANTO (DOS) : Espirlto Santo Island
140 : SAPPER HILL 1943 : East Faikland Island
141 : SOUTH AMERICAN 1969 : Mean Value
142 : : Argentina
143 : : Bollvia
144 : : Brazil
145 : : Chile
146 : : Colombia
147 : : Ecuador
148 : : Guyana
149 : : Paraguay
150 : : Peru
151 : : Trinldad and Tobago
152 : : Venezuela
153 : SOUTH ASIA : Singapore
154 : SOUTHEAST BASE : Porto Santo and Medeira Islands
155 : SOUTHWEST BASE : Falal, Graclosa,Pico, Sao Jorge, and Terceira
Islands
156 : TIMBALAI 1948 : Brunel and East Malaysia (Sarawak and Sadah)
157 : TOKYO : Japan
158 : : Korea
159 : : Okinawa
160 : TRISTAN ASTRO 1968 : Tristan da Cunha
161 : VITI LEVU 1916 : Vitl Levu Island (Fiji Islands)
162 : WAKE-ENIWETOK 1960 : Marshall Islands
163 : ZANDERIJ : Suriname
164 : BUKIT RIMPAH : Bangka and Belltung Islands (Indonesia)
165 : CAMP AREA ASTRO : Camp Mcmurdo Area, Antarctica
166 : G. SEGARA : Kalimantan Islands(Indonesia)
167 : HERAT NORTH : Afghanistan
168 : HU-TZU-SHAN : Taiwan
169 : TANANARIVE OBSERVATORY 1925 : Madagascar
170 : YACARE : Uruguay
171 : RT-90 : Sweden
172 : PULKOVO 1942 : Russia
173 : FINNISH KKJ : Finland
AP-8
ICONS
Icon Meaning
Selected mark’s shape and color.
Shape:
,,,,,,,,
,,,,, ,,
Color: RED, YEL, GRN, L-BLU, PPL, BLU, WHT
North marker points to North.
Correct chart and suitable scale.
Chart over-enlarged.
• Chart card not inserted.
• Wrong chat card.
• Chart scale too small.
Alarm setting violated.
H
Track is not being recoded.
Chart offset applied.
S A
V E
Voyage-based route is being created.
LL
Latitude and longitude position offset applied.
Voltage of battery on circuit board in display unit is low.
Contact your dealer about replacement.
A
P-9
WHAT IS WAAS?
WAAS, available in North America, is a provider in the woridwide SBAS (Satelite
Based Augmentation System) navigation system. CBAS provides GPS signal
corrections to SBAS users, for even better position accuracy, typically better
than three meters. Two more SBAS providers are also currently under
development, MSAS (Multi-Functional Satellite Augmentation System) for Japan
and EGNOS (Euro Geostationary Navigation Overlay Service) for Europe. All
providers will be compatible with one another, thus providing "seamless" position
fixes to SBAS users. The illustration below shows the coverage area. (Accuracy
may be affected when using a GEO satellite not within your current location.)
Satellite, Region
120, AOR-E
15.5°W
122, AOR-W
54°W
131, IOR
64.5°E
134, POR
178°E
Position
150°W 120°W 90°W 60°W 30°W 0 30°E 60°E 90°E 120°E 150°E
150°W 120°W 90°W 60°W 30°W 0 30°E 60°E 90°E 120°E 150°E
0
20°S
40°S
60°S
20°N
40°N
60°N
0
20°S
40°S
60°S
20°N
40°N
60°N
WAAS
EGNOS MSAS
131 134
122 120
At the time of this software release, SBAS is still under development (Providers
are expected to have initial operations capability from the times shown above.)
During this developmental period, which may last for several years, there is no
guarantee of the accuracy, integrity, continuity, or availability of the SBAS signal.
Furuno will accept no responsibility for the use of the signal for other than the
above stated purpose. It is the user’s responsibility to exercise common
prudence and navigational judgment while using the SBAS signal. Users are
reminded that the SBAS has not been commissioned for use in safety of life
applications (SOLAS) and must be turned to the "OFF" position on any SOLAS
vessels.
FURUNO
GP-3500
SPECIFICATIONS OF COLOR GPS PLOTTER
GP-3500
1 DISPLAY
1.1 Display system 10.4-inch TFT color LCD
1.2 Effective area 158.4 (W) x 211.2 (H) mm
1.3 Display pixels 480 (H) x 640 (V) dots
1.4 Position indication Latitude/longitude or Loran C or A LOPS
1.5 Projection Mercator
1.6 Usable area 85° latitude or below
1.7 Display mode Plotter, Video pilot, NAV data
2 GPS RECEIVER
2.1 Receiving channels GPS: 12 channels, 12 satellite, parallel tracking
WAAS: 1 channel
2.2 Rx frequency 1575.42 MHz
2.3 Rx code C/A code, WAAS
2.4 Position fixing system All in view, 8-state Kalman filter
2.5 Position accuracy GPS: 10 m approx., 95% of the time, 2 drms, HDOP≦4
WAAS: 3m approx., 95% of the time, 2 drms
2.6 Tracking velocity 999 kt
2.7 Position-fixing time Warm start: 12 s, Cold start: 90 s
2.8 Position update interval 1 s
3 PLOTTER
3.1 Effective projection area 0.125 nm to 6,144 nm (at equatorial area)
3.2 Track display Plot interval: by time (1s to 99m 59s) or distance (0.01 to 9.99 nm)
3.3 Memory capacity
Track and mark point: 16,000 points
Waypoint: 3,500 points with comment (QP 35 points)
Route: 200 routes and 1 simple route with 35 waypoints each
3.4 Alarms Arrival and Anchor watch alarms
Cross track error and border alarms
Ship’s speed in and out alarms
3.5 Electronic chart card FURUNO chart card or NAVIONICS chart card available
3.6 Information display Ship’s L/L position (Loran C/A or Decca TDs also available)
Date and Time, Ship’s speed, Chart scale, Waypoint L/L position,
Range and bearing to destination waypoint,
Cursor intersection L/L position,
SP - 1 E4421S01C
FURUNO
GP-3500
SP - 2 E4421S01C
Range and bearing to cursor intersection,
Water temperature and water depth (sensor data required)
4 INTERFACE
4.1 Number of ports Input: 3 ports, Output: 2 ports
4.2 Input data IEC 61162-1, NMEA0183 Ver1.5/2.0
Sentences BWC, BWR, DPT, DBT, DBK, DBS, GGA, GLC, GLL, GNS, GTD,
HDT, HDG, HDM, MTW, RMA, RMB, RMC, RTE, TLL, TTM, VHW,
VTG, ZDA
4.3 Output data IEC 61162-1, NMEA0183 Ver1.5/2.0
Sentences AAM, APB, BOD, BWC or BWR, DPT or DBT, GGA, GLL, GNS,
GTD, HDG, HDT, MTW, MWV, RMA, RMB, RMC, RTE, TTM,
VHW, VTG, WPL, XTE, ZDA
4.4 I/O data RS-232C for PC
5 POWER SOURCE
5.1 Display unit 12-24 VDC: 1.5-0.8 A
6 ENVIRONMENTAL CONDITIONS
6.1 Ambient temperature Antenna unit: -25℃ to + 70℃
Display unit: -15℃ to + 55℃
6.2 Relative humidity 95% (40℃)
6.3 Waterproof Antenna unit: IPX6
(IEC60529) Display unit: IPX2 (external monitor attached: IPX0)
6.4 Vibration IEC 60945
7 COATING COLOR
7.1 Display unit Chassis: Munsell 2.5GY5/1.5, Panel: N3.0
7.2 Antenna unit N9.5 (white)
8 COMPASS SAFE DISTANCE
8.1 Display unit Standard: 0.6 m Steering: 0.4 m

Navigation menu
