Futaba FRN601U-T1 Transmitter for Radio Remote Control Unit User Manual Rev 01 150430

Futaba Corporation Transmitter for Radio Remote Control Unit Rev 01 150430

User Manual-Rev.01(150430)

Introduction
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
IC: 2914D-FRN601UT1
Caution:
This device complies with Industry Canada license-exempt RSS-210 standard. Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

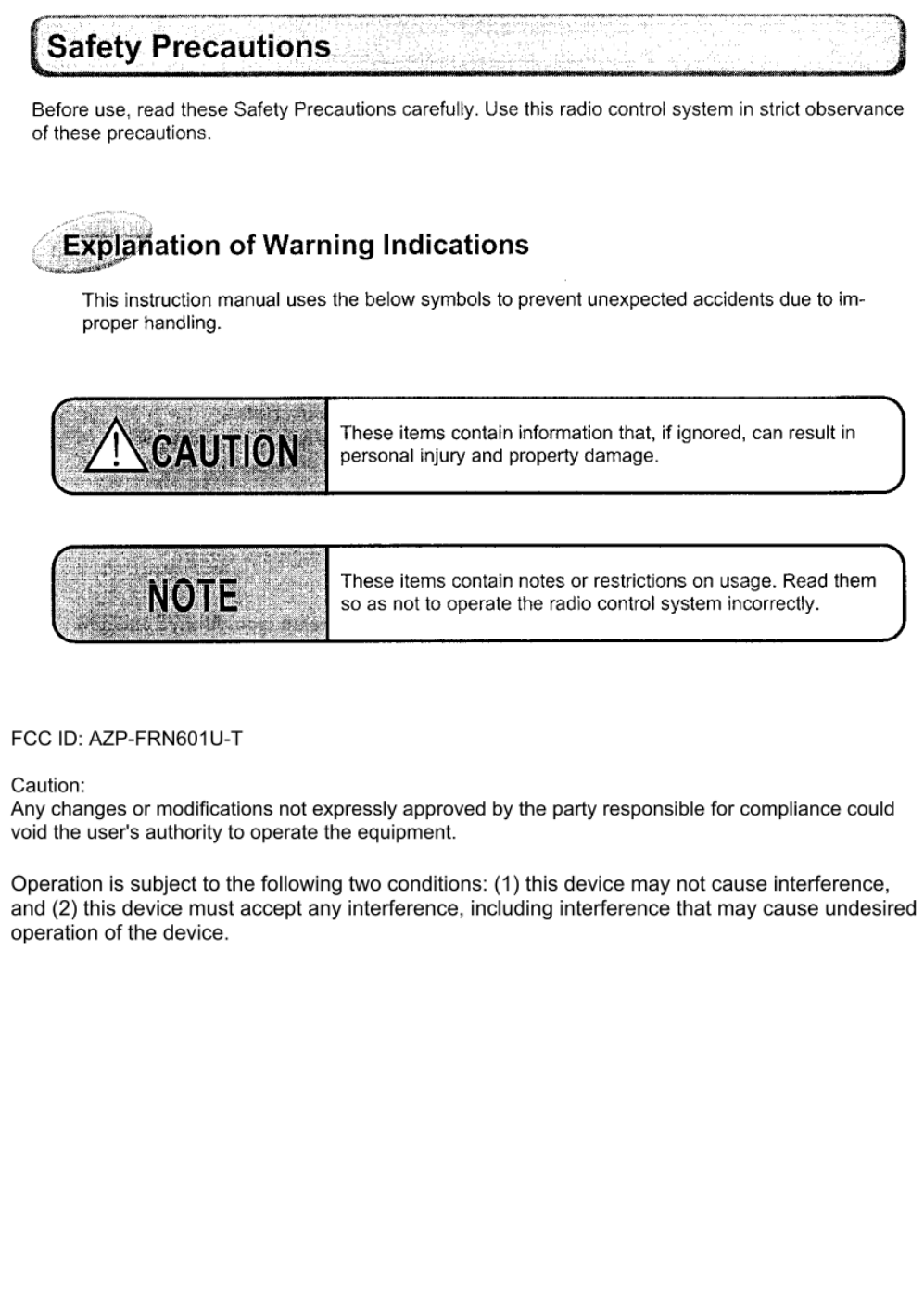

Explanation of Warning Indications
1
Introduction
French:
Cet appareil radio est conforme au CNR-210 d’Industrie Canada. L’utilisation de ce dispositif est autorisée
seulement aux deux conditions suivantes : (1) il ne doit pas produire de brouillage, et (2) l’utilisateur du
dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de
compromettre le fonctionnement du dispositif.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement
non contrôlé.
Explanation of Warning Indications
Introduction
1-1. Transmitter and Receiver Model Codes
Number of channels
Receive output Transmitter model code
FRN601U-T1 Receiver model code
FRN601U-R1
2ch + power supply voltage output /
Independent relay contact output FRN2**T2** FRN2**R2**
4ch + power supply voltage output /
Independent relay contact output FRN4**T2** FRN4**R2**
6ch + power supply voltage output /
Independent relay contact output FRN6**T2** FRN6**R2**
1
-
Transmitter and Receiver Model Codes / 1
-
How to Order a Transmitter
Also, when ordering a transmitter, inform Futaba of the transmitter model code.
This information is available in "1-1. Transmitter and Receiver Model codes".
