RF Safety Booklet Revised

Futurecom Systems Group, ULC
DVRS
RF Safety Booklet
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 2 of 24
Document Revisions
Rev Date By Notes & References
R10 June 30,2017 FC Added APX 8500
R11 Nov 10, 2017 FC Revised APX8500 Antenna Installation instructions
R12 Dec 21,2017 FC
R13 March 14, 2018 FC Revised FCC label
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 3 of 24
Product Safety and RF Energy Exposure Booklet for
Digital Vehicular Repeater Systems (DVRS)
ATTENTION!
Before using this equipment, please read this booklet which contains
important operating instructions for safe usage, RF energy control and
compliance with FCC/ISED exposure limits.
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 4 of 24
Notes, Attentions, Important
Throughout this manual, you will see Notes, and Attentions, Important
Their meaning is as follows:
NOTE
A clarifying statement that expands on the text that follows.
IMPORTANT
An important statement that should be considered and / or implemented in order to achieve
adequate equipment operation.
ATTENTION!
An instruction that must be followed in insure compliance with the appropriate standards or proper
equipment operations
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 5 of 24
NOTE:
This equipment has been tested and found to comply with the limits for Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial
environment. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the installation manual, may cause harmful
interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation.
ATTENTION!
Changes or modifications not expressly approved by Futurecom Systems Group, ULC
could void the User’s authority to operate the equipment.
USA Users: Do not use the DVRS in the frequency band 406.0 – 406.1MHz. This
frequency
band is reserved for distress beacons.
RF EXPOSURE
ATTENTION!
This radio is intended for use in occupational / controlled conditions, where users
have full knowledge of their exposure and can exercise control over their exposure
to meet FCC /ISED limits. This radio device is NOT authorized for general
population,
consumer, or any other use.
RADIO OPERATOR
It is the responsibility of the Repeater Operator to ensure that Maximum
Permissible Exposure (MPE) limits are observed at all times during repeater
transmissions. If this vehicular repeater is used in combination with a separate
Mobile radio transmitter, the Repeater operator must ensure at all times that no
person comes within the MPE
distance from the vehicle body to ensure compliance with the FCC/ISED RF energy
exposure limits for the general population.
The minimum lateral distance between all possible personnel and the body of the DVRS
equipped vehicle must be as specified in Table 1 (Stand-alone DVR) and Table 2 (DVR
interfaced to a Mobile Radio i.e. DVRS).
Failure to observe the MPE distance exclusion area around the antenna may expose
persons within this area to RF energy above the FCC exposure limit for bystanders
(general population).
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 6 of 24
Stand Alone DVR (20W) Recommended Lateral Distance from Antenna
VHF 82cm (32.3 inches) (up to 50% Tx duty cycle)
UHF 380-512MHz 75cm (29.5 inches) (up to 50% Tx duty cycle)
700MHz 73cm (28.7 inches) (up to100% Tx duty cycle)
800MHz 76cm (29.9 inches) (up to100% Tx duty cycle)
Table 1 Recommended Lateral Distance - Stand Alone DVR
NOTE:
50% Tx duty cycle is defined as Push To Talk (PTT), 50% Talk - 50% Listen.
100% Tx duty cycle is defined as Push To Talk (PTT), 100% Talk.
Mobile Radio Rated Power
(up to 50% Tx duty cycle)
Recommended Lateral Distance from
Vehicle Body
DVRS with <7 Watt XTL Mobile Radio 20 cm (7.9 inches)
DVRS with 7 to 15 Watt XTL Mobile Radio 30 cm (11.8 inches)
DVRS with 16 to 39 Watt XTL Mobile Radio 60 cm (23.6 inches)
DVRS with 40 to 100 Watt XTL Mobile Radio 90 cm (35.4 inches)
DVRS with up to 100 Watt APX Mobile Radio 90 cm (35.4 inches
Table 2 Recommended Lateral Distance – DVRS (DVR interfaced to a Mobile Radio)
IMPORTANT
The maximum allowed gain of the λ/4 omni-directional antenna for the Digital Vehicular
Repeater (DVR) is Unity (0dBd).

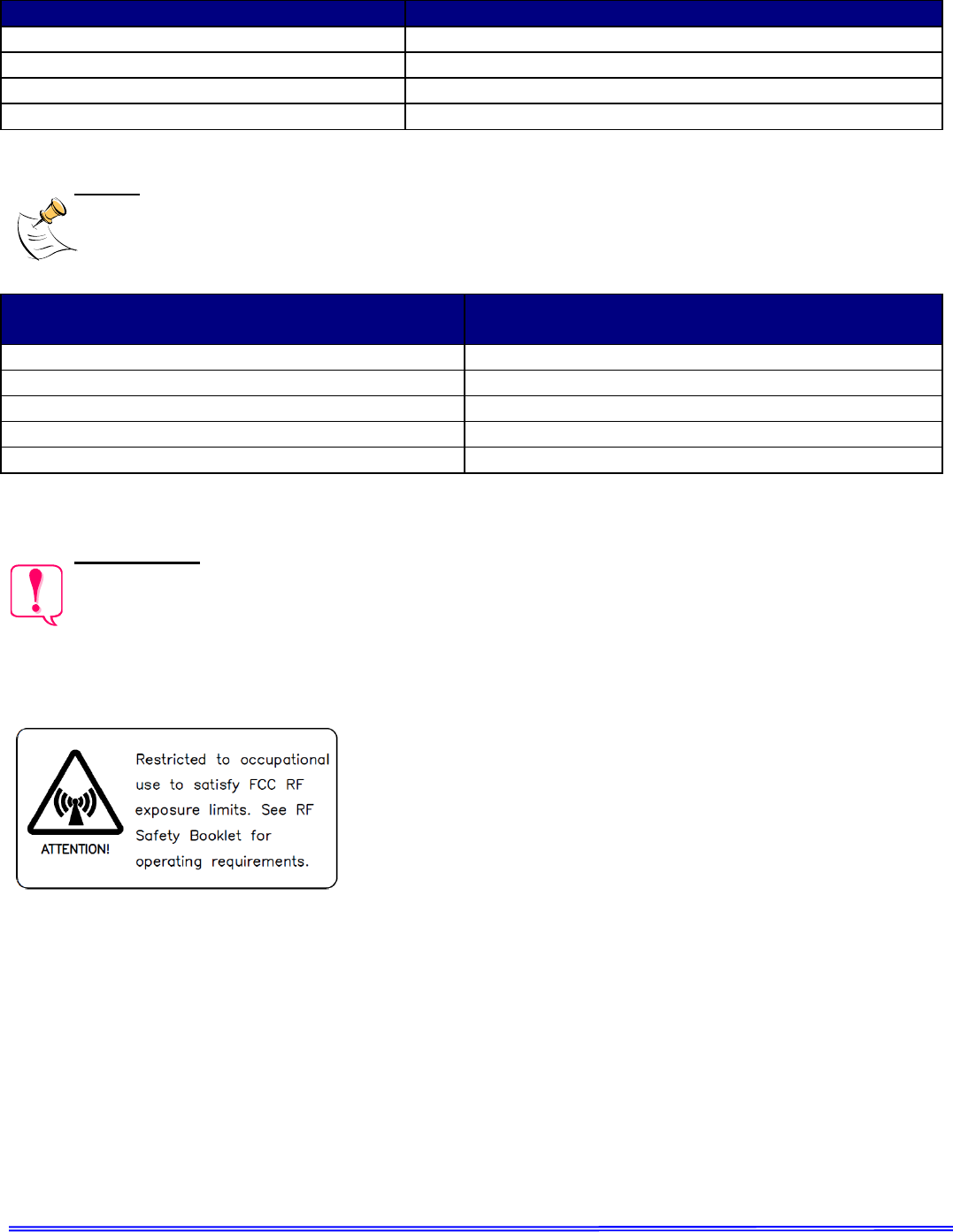

RF Exposure Label
The RF Exposure Label should be affixed in the vehicle beside the mobile radio control head.
The label should be in the direct view of the Repeater operator. The label is supplied with the
Digital Vehicular Repeater(DVR).
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 7 of 24
FCC Label
Installation Requirements for Compliance with Radio
Frequency (RF) Energy Exposure Safety Standards
ATTENTION!
To ensure compliance with RF Energy Safety Standards:
Install only Futurecom / Motorola approved antennas and accessories and set conducted
power into the DVR and Mobile antennas equal to or lower then the approved power levels –
refer to Table 3 (Stand Alone DVR) or Table 4 (DVR interfaced to XTL Mobile Radio) or Table
5 (DVR interfaced to APX Mobile Radio).

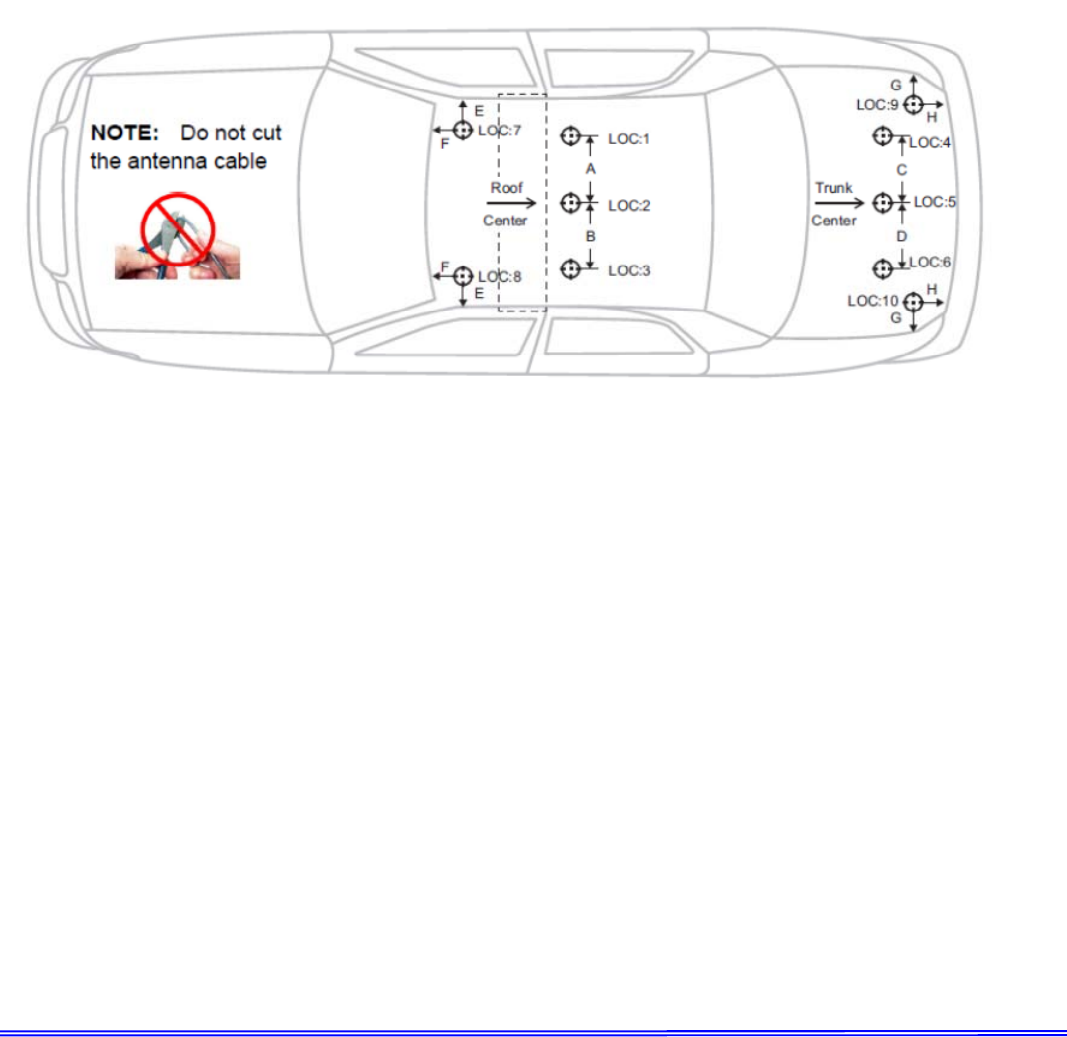

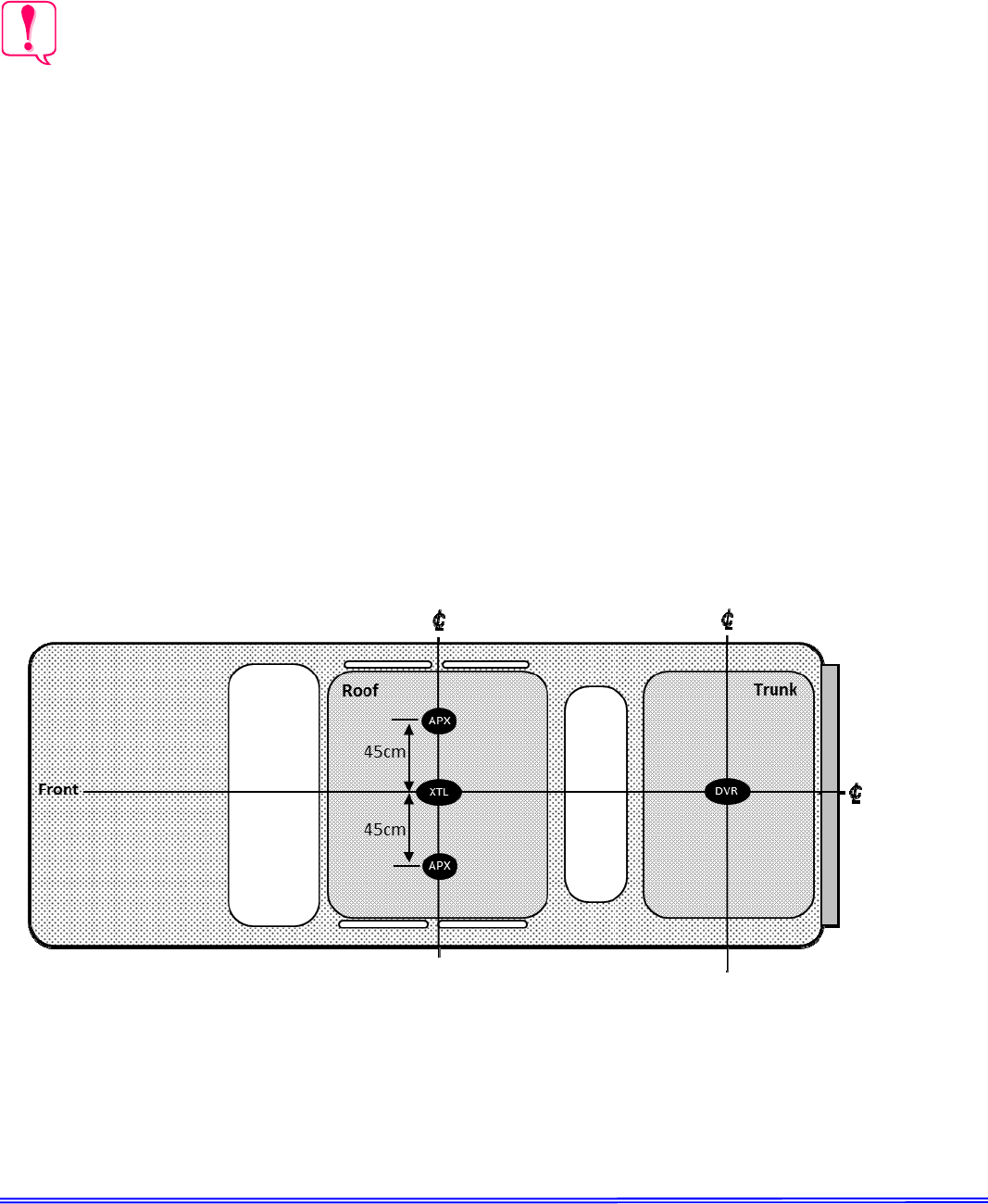

Ensure the antenna installation is consistent with the DVR Antenna Installation instructions
described in this document as well as with the Mobile Radio Antenna Installation Instructions
published in the applicable Motorola Installation Manual.
Ensure the Product & RF Safety Booklets 8F083X03(FCC) or 8F083X05(ISED) enclosed
with the Mobile Radio and the DVR are available to the end user upon completion of the
installation.
ANTENNA STAND ALONE DVR MODEL
# Kit # Freq.
Range
[MHz] Type
700 MHz
(20W)
(up to 100%
Tx duty
cycle)
800 MHz
(20W)
(up to 100%
Tx duty
cycle)
403-430
(20W)
(up to 50%
Tx duty
cycle)
450-470
(20W)
(up to 50%
Tx duty
cycle)
470-512
(20W)
(up to 50%
Tx duty
cycle)
VHF (20W)
(up to 50%
Tx duty
cycle)
1 HAF4016 764-870 ¼ wave 20W 20W
2 HAE6012A 380-433 ¼ wave 20W
3 HAE4003A 450-470 ¼ wave 20W
4 HAE4004 470-512 ¼ wave 20W
5 HAD4006 136-144 ¼ wave 20W
6 HAD4007 144-150.8 ¼ wave 20W
7 HAD4008 150.8-162 ¼ wave 20W
8 HAD4009 162-174 ¼ wave 20W
Table 3 Approved Stand-Alone DVR Combinations
including interference that may cause undesired
2) This device must accept any interference received,
1) This device may not cause harmful interference, and
Operation is subject to the following two conditions:
This device complies with Part 15 of the FCC Rules.
operation.
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 8 of 24
NOTE:
Mobile RF conducted antenna power in the tables below denotes up to 50% Tx duty cycle.
DVR RF conducted antenna power in the tables below denotes up to 100% Tx duty cycle.
DVR: 7V083X06 (DQPMDVR8000P) Freq Range: 806-825, 851-870MHz, Trunk Mounted Antenna: HAF4016A, 1/4 wave, 0dBd
FCC ID: LO6-DVRS800 Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna
A
ntenna
A
ntenna
A
ntenna Antenna
A
ntenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
Table 4A Approved 800 DVRS Configurations – XTL5000 / XTL2500
DVR: 7V083X05 (DQPMDVR7000P) Freq Range: 764-776, 794-806MHz, Trunk Mounted Antenna: HAF4016A, 1/4 wave, 0dBd
FCC ID: LO6-DVRS700 Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna
A
ntenna
A
ntenna
A
ntenna Antenna
A
ntenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 5W / 57W 5W / 57W 5W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 5W / 57W 5W / 57W 5W / 57W 20W / 120W *
* XTL5000 VHF (136-174MHz)
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 5W / 120W 5W / 120W 5W / 120W 5W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 5W / 48W 5W / 48W 5W / 48W 5W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 5W / 54W 5W / 54W 5W / 54W 5W / 54W 5W / 54W 5W / 57W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 5W / 42W 5W / 42W 5W / 42W 5W / 42W
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A, 1/4
wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
RAD4010A,
1/2 wave, 3dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
Table 4B Approved 700 DVRS Configurations – XTL5000 / XTL2500
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 9 of 24

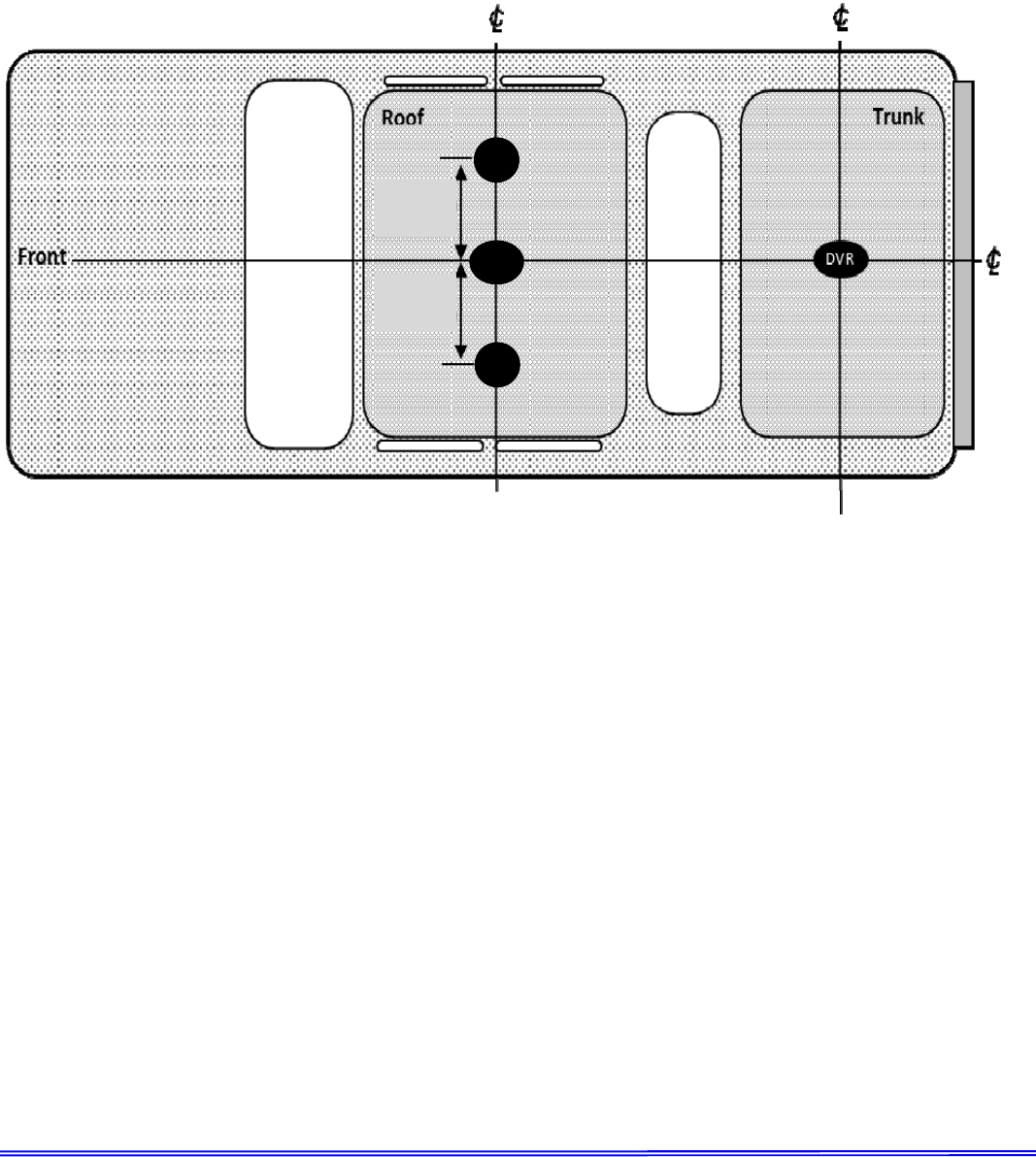

DVR: 7V083X04 (DQPMDVR6000P) Freq Range: 470-512MHz, Trunk Mounted Antenna: HAE4004A, 1/4 wave, 0dBd, HAE6016A, 1/4 wave, 0dBd
FCC ID: LO6-DVRSUHF Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna
A
ntenna
A
ntenna
A
ntenna Antenna
A
ntenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4009A,
1/4 wave, 0dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
Table 4C Approved 470-512MHz DVRS Configurations – XTL5000 / XTL2500
DVR: 7V083X03 (DQPMDVR5000P) Freq Range: 450-470MHz, Trunk Mounted Antenna: HAE4003A, 1/4 wave, 0dBd, HAE6016A, 1/4 wave, 0dBd
FCC ID: LO6-DVRSUHF Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna
A
ntenna
A
ntenna
A
ntenna Antenna
A
ntenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
Table 4D Approved 450-470MHz DVRS Configurations – XTL5000 / XTL2500
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 10 of 24
DVR: 7V083X07 (DQPMDVR4000P) Freq Range: 380-430MHz, Trunk Mounted Antenna: HAE6012A, 1/4 wave, 0dBd
FCC ID: LO6-DVRSUHF Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna
ntenna
ntenna
ntenna Antenna
ntenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 10W / 57W 10W / 57W 10W / 57W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 10W / 120W 10W / 120W 10W / 120W 10W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 10W / 48W 10W / 48W 10W / 48W 10W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W 10W / 54W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 10W / 42W 10W / 42W 10W / 42W 10W / 42W
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4009A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
Table 4E Approved 380-430MHz DVRS Configurations – XTL5000 / XTL2500
DVR: 7V083X01 (DQPMDVR3000P) Freq Range: 136-174MHz, Trunk Mounted Antenna: HAD4006A, 1/4 wave, 0dBd, HAD4007A, 1/4 wave, 0dBd,
FCC ID: LO6-DVRSVHF HAD4008A, 1/4 wave, 0dBd, HAD4009A, 1/4 wave, 0dBd
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna
A
ntenna
A
ntenna
A
ntenna Antenna
A
ntenna
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3806
Max Power: DVR / Mobile 6W / 57W 6W / 57W 6W / 57W
XTL5000 VHF (147-174MHz)
FCC ID: AZ492FT3808
Max Power: DVR / Mobile 6W / 57W 6W / 57W 6W / 57W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4870
Max Power: DVR / Mobile 6W / 120W 6W / 120W 6W / 120W 6W / 120W
XTL5000 UHF R1(380-470MHz)
FCC ID: AZ492FT4862
Max Power: DVR / Mobile 6W / 48W 6W / 48W 6W / 48W 6W / 48W
XTL5000 UHF R2(450-512MHz)
FCC ID: AZ492FT4867
Max Power: DVR / Mobile 6W / 54W 6W / 54W 6W / 54W 6W / 54W 6W / 54W 6W / 54W
XTL5000 700/800MHz
FCC ID: AZ492FT5823
Max Power: DVR / Mobile 6W / 42W 6W / 42W 6W / 42W 6W / 42W
HAF4013A,
1/4 wave, 3dBd
HAF4014A,
1/4 wave, 3dBd
HAF4016A,
1/4 wave, 0dBd
HAF4017A,
1/4 wave, 3dBd
HAE4013A,
1/4 wave, 3.5dBd
HAE4004A,
1/4 wave, 0dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE6016A,
1/4 wave, 0dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE4012A,
1/4 wave, 3.5dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAE6012A,
1/4 wave, 0dBd
HAE6013A,
1/2 wave, 2dBd
HAE4003A,
1/4 wave, 0dBd
HAE4011A,
1/2 wave, 3.5dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
HAD4007A,
1/4 wave, 0dBd
HAD4008A,
1/4 wave, 0dBd
HAD4009A,
1/4 wave, 0dBd
Table 4F Approved 136-174MHz DVRS Configurations – XTL5000 / XTL2500
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 11 of 24
DVR:
7V083X06
(DQPMDVR8000P)
FCC ID:
LO6‐DVRS800
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/APX7500VHF
(136‐174MHz)
FCCID:AZ492FT3824
MaxPower:DVR/Mobile 10W/60W 10W/60W 10W/60W
APX6500/APX7500
700/800MHz
FCCID:AZ492FT5858
MaxPower:DVR/Mobile 10W/42W 10W/42W 10W/42W 10W/42W
APX6500/APX7500VHF
(136‐174MHz)
FCCID:AZ492FT3821
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W
APX6500/APX7500UHFR1
(380‐470MHz)
FCCID:AZ492FT4894
MaxPower:DVR/Mobile 10W/48W 10W/48W 10W/48W 10W/48W
APX6500/APX7500UHFR1
(380‐470MHz)
FCCID:AZ492FT4897
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W 10W/120W
APX6500/APX7500UHFR2
(450‐520MHz)
FCCID:AZ492FT4896
MaxPower:DVR/Mobile 10W/54W 10W/54W 10W/54W 10W/54W
APX75007/800MHz35W‐
VHF50W
FCCID:AZ492FT7037
MaxPower:DVR/Mobile 10W/42W 10W/42W 10W/42W 10W/42W 10W/60W 10W/60W 10W/60W
APX7500VHF100W‐7/800
MHz35W
FCCID:AZ492FT7035
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W 10W/42W 10W/42W 10W/42W 10W/42W
APX7500UHFR140W‐
7/800MHz35W
FCCID:AZ492FT7043
MaxPower:DVR/Mobile 10W/48W 10W/48W 10W/48W 10W/48W 10W/42W 10W/42W 10W/42W 10W/42W
APX7500UHFR1100W‐
7/800MHz35W
FCCID:AZ492FT7048
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W 10W/120W 10W/42W 10W/42W 10W/42W 10W/42W
APX7500UHFR245W
7/800MHz35W
FCCID:AZ492FT7044
MaxPower:DVR/Mobile 10W/54W 10W/54W 10W/54W 10W/54W 10W/42W 10W/42W 10W/42W 10W/42W
APX7500VHF50W‐UHF
R140W
FCCID:AZ492FT4895
MaxPower:DVR/Mobile 10W/60W 10W/60W 10W/60W 10W/48W 10W/48W 10W/48W 10W/48W
APX7500VHF100W‐UHF
R1100W
FCCID:AZ492FT4898
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W 10W/120W 10W/120W 10W/120W 10W/120W
APX7500VHF50W‐UHF
R245W
FCCID:AZ492FT7047
MaxPower:DVR/Mobile 10W/60W 10W/60W 10W/60W 10W/54W 10W/54W 10W/54W 10W/54W
APX6500UHFR140W‐
UHFR245W
FCCID:AZ492FT4904
MaxPower:DVR/Mobile 10W/48W 10W/48W 10W/48W 10W/48W 10W/54W 10W/54W 10W/54W 10W/54W
HAD4008A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE4011A,
1/2wave,
3.5dBd
Freq Range: 806-825, 851-870MHz, Trunk Mounted Antenna: HAF4016A, 1/4 wave, 0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
HAF4017A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAE6015A,
1/2wave,2dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6015A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAF4017A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE4004A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAD4021A,
1/4wave,0dBd
HAE6015A,
1/2wave,2dBd
HAE6015A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4004A,
1/4wave,0dBd
HAE4004A,
1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4004A,
1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4014A,
1/4wave,3dBd
HAE4011A,
1/2wave,
3.5dBd
HAD4021A,
1/4wave,0dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4013A,
1/4wave,3dBd
HAD4021A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
Table 5A Approved 800 DVRS Configurations – APX6500 / APX7500
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 12 of 24
DVR:
7V083X05
(DQPMDVR7000P)
FCC ID:
LO6‐DVRS700
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/APX7500VHF
(136‐174MHz)
FCCID:AZ492FT3824
MaxPower:DVR/Mobile 5W/60W 5W/60W 5W/60W
APX6500/APX7500
700/800MHz
FCCID:AZ492FT5858
MaxPower:DVR/Mobile 5W/42W 5W/42W 5W/42W 5W/42W
APX6500/APX7500VHF
(136‐174MHz)
FCCID:AZ492FT3821
MaxPower:DVR/Mobile 5W/120W 5W/120W 5W/120W
APX6500/APX7500UHFR1
(380‐470MHz)
FCCID:AZ492FT4894
MaxPower:DVR/Mobile 5W/48W 5W/48W 5W/48W 5W/48W
APX6500/APX7500UHFR1
(380‐470MHz)
FCCID:AZ492FT4897
MaxPower:DVR/Mobile 5W/120W 5W/120W 5W/120W 5W/120W
APX6500/APX7500UHFR2
(450‐520MHz)
FCCID:AZ492FT4896
MaxPower:DVR/Mobile 5W/54W 5W/54W 5W/54W 5W/54W
APX75007/800MHz35W‐
VHF50W
FCCID:AZ492FT7037
MaxPower:DVR/Mobile 5W/42W 5W/42W 5W/42W 5W/42W 5W/60W 5W/60W 5W/60W
APX7500VHF100W‐7/800
MHz35W
FCCID:AZ492FT7035
MaxPower:DVR/Mobile 5W/120W 5W/120W 5W/120W 5W/42W 5W/42W 5W/42W 5W/42W
APX7500UHFR140W‐
7/800MHz35W
FCCID:AZ492FT7043
MaxPower:DVR/Mobile 5W/48W 5W/48W 5W/48W 5W/48W 5W/42W 5W/42W 5W/42W 5W/42W
APX7500UHFR1100W‐
7/800MHz35W
FCCID:AZ492FT7048
MaxPower:DVR/Mobile 5W/120W 5W/120W 5W/120W 5W/120W 5W/42W 5W/42W 5W/42W 5W/42W
APX7500UHFR245W
7/800MHz35W
FCCID:AZ492FT7044
MaxPower:DVR/Mobile 5W/54W 5W/54W 5W/54W 5W/54W 5W/42W 5W/42W 5W/42W 5W/42W
APX7500VHF50W‐UHF
R140W
FCCID:AZ492FT4895
MaxPower:DVR/Mobile 5W/60W 5W/60W 5W/60W 5W/48W 5W/48W 5W/48W 5W/48W
APX7500VHF100W‐UHF
R1100W
FCCID:AZ492FT4898
MaxPower:DVR/Mobile 5W/120W 5W/120W 5W/120W 5W/120W 5W/120W 5W/120W 5W/120W
APX7500VHF50W‐UHF
R245W
FCCID:AZ492FT7047
MaxPower:DVR/Mobile 5W/60W 5W/60W 5W/60W 5W/54W 5W/54W 5W/54W 5W/54W
APX6500UHFR140W‐
UHFR245W
FCCID:AZ492FT4904
MaxPower:DVR/Mobile 5W/48W 5W/48W 5W/48W 5W/48W 5W/54W 5W/54W 5W/54W 5W/54W
HAD4008A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAD4008A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAD4021A,
1/4wave,0dBd
HAE6015A,
1/2wave,2dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4004A,
1/4wave,0dBd
HAE4004A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6015A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6015A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAF4016A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
Freq Range: 764-776, 794-806MHz, Trunk Mounted Antenna: HAF4016A, 1/4 wave, 0dBd
HAE4004A,
1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAD4021A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6015A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE4004A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Table 5B Approved 700 DVRS Configurations – APX6500 / APX7500
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 13 of 24
DVR:
7V083X07
(DQPMDVR4000P)
FCC ID:
LO6‐DVRSUHF
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/APX7500VHF
(136‐174MHz)
FCCID:AZ492FT3824
MaxPower:DVR/Mobile 10W/60W 10W/60W 10W/60W
APX6500/APX7500
700/800MHz
FCCID:AZ492FT5858
MaxPower:DVR/Mobile 10W/42W 10W/42W 10W/42W 10W/42W
APX6500/APX7500VHF
(136‐174MHz)
FCCID:AZ492FT3821
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W
APX6500/APX7500UHFR1
(380‐470MHz)
FCCID:AZ492FT4894
MaxPower:DVR/Mobile 10W/48W 10W/48W 10W/48W 10W/48W
APX6500/APX7500UHFR1
(380‐470MHz)
FCCID:AZ492FT4897
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W 10W/120W
APX6500/APX7500UHFR2
(450‐520MHz)
FCCID:AZ492FT4896
MaxPower:DVR/Mobile 10W/54W 10W/54W 10W/54W 10W/54W
APX75007/800MHz35W‐
VHF50W
FCCID:AZ492FT7037
MaxPower:DVR/Mobile 10W/42W 10W/42W 10W/42W 10W/42W 10W/60W 10W/60W 10W/60W
APX7500VHF100W‐7/800
MHz35W
FCCID:AZ492FT7035
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W 10W/42W 10W/42W 10W/42W 10W/42W
APX7500UHFR140W‐
7/800MHz35W
FCCID:AZ492FT7043
MaxPower:DVR/Mobile 10W/48W 10W/48W 10W/48W 10W/48W 10W/42W 10W/42W 10W/42W 10W/42W
APX7500UHFR1100W‐
7/800MHz35W
FCCID:AZ492FT7048
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W 10W/120W 10W/42W 10W/42W 10W/42W 10W/42W
APX7500UHFR245W
7/800MHz35W
FCCID:AZ492FT7044
MaxPower:DVR/Mobile 10W/54W 10W/54W 10W/54W 10W/54W 10W/42W 10W/42W 10W/42W 10W/42W
APX7500VHF50W‐UHF
R140W
FCCID:AZ492FT4895
MaxPower:DVR/Mobile 10W/60W 10W/60W 10W/60W 10W/48W 10W/48W 10W/48W 10W/48W
APX7500VHF100W‐UHF
R1100W
FCCID:AZ492FT4898
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W 10W/120W 10W/120W 10W/120W 10W/120W
APX7500VHF50W‐UHF
R245W
FCCID:AZ492FT7047
MaxPower:DVR/Mobile 10W/60W 10W/60W 10W/60W 10W/54W 10W/54W 10W/54W 10W/54W
APX6500UHFR140W‐
UHFR245W
FCCID:AZ492FT4904
MaxPower:DVR/Mobile 10W/48W 10W/48W 10W/48W 10W/48W 10W/54W 10W/54W 10W/54W 10W/54W
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Freq Range:
380‐430MHz,
Trunk Mounted Antenna:
HAE6012A,1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAE6012A,
1/4wave,0dBd
HAE6015A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE4004A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAD4008A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAF4014A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAE4003A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6015A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE4004A,
1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAF4016A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4016A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE4004A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4017A,
1/4wave,3dBd
HAE4004A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAE6015A,
1/2wave,2dBd
HAE6015A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
Table 5C Approved UHF R1 DVRS Configurations – APX6500 / APX7500
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 14 of 24
DVR:
7V083X03
(DQPMDVR5000P)
FCC ID:
LO6‐DVRSUHF
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/APX7500VHF
(136‐174MHz)
FCCID:AZ492FT3824
MaxPower:DVR/Mobile 10W/60W 10W/60W 10W/60W
APX6500/APX7500
700/800MHz
FCCID:AZ492FT5858
MaxPower:DVR/Mobile 10W/42W 10W/42W 10W/42W 10W/42W
APX6500/APX7500VHF
(136‐174MHz)
FCCID:AZ492FT3821
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W
APX6500/APX7500UHFR1
(380‐470MHz)
FCCID:AZ492FT4894
MaxPower:DVR/Mobile 10W/48W 10W/48W 10W/48W 10W/48W
APX6500/APX7500UHFR1
(380‐470MHz)
FCCID:AZ492FT4897
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W 10W/120W
APX6500/APX7500UHFR2
(450‐520MHz)
FCCID:AZ492FT4896
MaxPower:DVR/Mobile 10W/54W 10W/54W 10W/54W 10W/54W
APX75007/800MHz35W‐
VHF50W
FCCID:AZ492FT7037
MaxPower:DVR/Mobile 10W/42W 10W/42W 10W/42W 10W/42W 10W/60W 10W/60W 10W/60W
APX7500VHF100W‐7/800
MHz35W
FCCID:AZ492FT7035
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W 10W/42W 10W/42W 10W/42W 10W/42W
APX7500UHFR140W‐
7/800MHz35W
FCCID:AZ492FT7043
MaxPower:DVR/Mobile 10W/48W 10W/48W 10W/48W 10W/48W 10W/42W 10W/42W 10W/42W 10W/42W
APX7500UHFR1100W‐
7/800MHz35W
FCCID:AZ492FT7048
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W 10W/120W 10W/42W 10W/42W 10W/42W 10W/42W
APX7500UHFR245W
7/800MHz35W
FCCID:AZ492FT7044
MaxPower:DVR/Mobile 10W/54W 10W/54W 10W/54W 10W/54W 10W/42W 10W/42W 10W/42W 10W/42W
APX7500VHF50W‐UHF
R140W
FCCID:AZ492FT4895
MaxPower:DVR/Mobile 10W/60W 10W/60W 10W/60W 10W/48W 10W/48W 10W/48W 10W/48W
APX7500VHF100W‐UHF
R1100W
FCCID:AZ492FT4898
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W 10W/120W 10W/120W 10W/120W 10W/120W
APX7500VHF50W‐UHF
R245W
FCCID:AZ492FT7047
MaxPower:DVR/Mobile 10W/60W 10W/60W 10W/60W 10W/54W 10W/54W 10W/54W 10W/54W
APX6500UHFR140W‐
UHFR245W
FCCID:AZ492FT4904
MaxPower:DVR/Mobile 10W/48W 10W/48W 10W/48W 10W/48W 10W/54W 10W/54W 10W/54W 10W/54W
HAF4017A,
1/4wave,3dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAE6015A,
1/2wave,2dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAE4004A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6015A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE4004A,
1/4wave,0dBd
HAF4014A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6015A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE4004A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAF4016A,
1/4wave,0dBd
HAF4014A,
1/4wave,3dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAE6015A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAD4008A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAF4017A,
1/4wave,3dBd
HAF4017A,
1/4wave,3dBd
HAE6012A,
1/4wave,0dBd
HAF4016A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAE4011A,
1/2wave,
3.5dBd
HAE4004A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
Freq Range:
450‐470MHz,
Trunk Mounted Antenna:
HAE4003A,1/4wave,0dBd;HAE6016A,
1/4wave,0dBd(HAE6016AofferedonlywithDVR/XTLcombination)
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Table 5D Approved UHF R2 DVRS Configurations – APX6500 / APX7500
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 15 of 24
DVR:
7V083X04
(DQPMDVR6000P)
FCC ID:
LO6‐DVRSUHF
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/APX7500VHF
(136‐174MHz)
FCCID:AZ492FT3824
MaxPower:DVR/Mobile 10W/60W 10W/60W 10W/60W
APX6500/APX7500
700/800MHz
FCCID:AZ492FT5858
MaxPower:DVR/Mobile 10W/42W 10W/42W 10W/42W 10W/42W
APX6500/APX7500VHF
(136‐174MHz)
FCCID:AZ492FT3821
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W
APX6500/APX7500UHFR1
(380‐470MHz)
FCCID:AZ492FT4894
MaxPower:DVR/Mobile 10W/48W 10W/48W 10W/48W 10W/48W
APX6500/APX7500UHFR1
(380‐470MHz)
FCCID:AZ492FT4897
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W 10W/120W
APX6500/APX7500UHFR2
(450‐520MHz)
FCCID:AZ492FT4896
MaxPower:DVR/Mobile 10W/54W 10W/54W 10W/54W 10W/54W
APX75007/800MHz35W‐
VHF50W
FCCID:AZ492FT7037
MaxPower:DVR/Mobile 10W/42W 10W/42W 10W/42W 10W/42W 10W/60W 10W/60W 10W/60W
APX7500VHF100W‐7/800
MHz35W
FCCID:AZ492FT7035
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W 10W/42W 10W/42W 10W/42W 10W/42W
APX7500UHFR140W‐
7/800MHz35W
FCCID:AZ492FT7043
MaxPower:DVR/Mobile 10W/48W 10W/48W 10W/48W 10W/48W 10W/42W 10W/42W 10W/42W 10W/42W
APX7500UHFR1100W‐
7/800MHz35W
FCCID:AZ492FT7048
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W 10W/120W 10W/42W 10W/42W 10W/42W 10W/42W
APX7500UHFR245W
7/800MHz35W
FCCID:AZ492FT7044
MaxPower:DVR/Mobile 10W/54W 10W/54W 10W/54W 10W/54W 10W/42W 10W/42W 10W/42W 10W/42W
APX7500VHF50W‐UHF
R140W
FCCID:AZ492FT4895
MaxPower:DVR/Mobile 10W/60W 10W/60W 10W/60W 10W/48W 10W/48W 10W/48W 10W/48W
APX7500VHF100W‐UHF
R1100W
FCCID:AZ492FT4898
MaxPower:DVR/Mobile 10W/120W 10W/120W 10W/120W 10W/120W 10W/120W 10W/120W 10W/120W
APX7500VHF50W‐UHF
R245W
FCCID:AZ492FT7047
MaxPower:DVR/Mobile 10W/60W 10W/60W 10W/60W 10W/54W 10W/54W 10W/54W 10W/54W
APX6500UHFR140W‐
UHFR245W
FCCID:AZ492FT4904
MaxPower:DVR/Mobile 10W/48W 10W/48W 10W/48W 10W/48W 10W/54W 10W/54W 10W/54W 10W/54W
HAF4017A,
1/4wave,3dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAE6015A,
1/2wave,2dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAE4004A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6015A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE4004A,
1/4wave,0dBd
HAF4014A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6015A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE4004A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAF4016A,
1/4wave,0dBd
HAF4014A,
1/4wave,3dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAE6015A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAD4008A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAF4017A,
1/4wave,3dBd
HAF4017A,
1/4wave,3dBd
HAE6012A,
1/4wave,0dBd
HAF4016A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAE4011A,
1/2wave,
3.5dBd
HAE4004A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4013A,
1/4wave,3dBd
HAF4014A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
Freq Range:
470‐512MHz,
Trunk Mounted Antenna:
HAE4004A,1/4wave,0dBd;HAE6016A,
1/4wave,0dBd(HAE6016AofferedonlywithDVR/XTLcombination)
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Table 5E Approved UHF R3 DVRS Configurations – APX6500 / APX7500
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 16 of 24
DVR:
7V083X01
(DQPMDVR3000P)
FCC ID:
LO6‐DVRSVHF
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX6500/APX7500VHF
(136‐174MHz)
FCCID:AZ492FT3824
MaxPower:DVR/Mobile 6W/60W 6W/60W 6W/60W
APX6500/APX7500
700/800MHz
FCCID:AZ492FT5858
MaxPower:DVR/Mobile 6W/42W 6W/42W 6W/42W
APX6500/APX7500VHF
(136‐174MHz)
FCCID:AZ492FT3821
MaxPower:DVR/Mobile 6W/120W 6W/120W 6W/120W
APX6500/APX7500UHFR1
(380‐470MHz)
FCCID:AZ492FT4894
MaxPower:DVR/Mobile 6W/48W 6W/48W 6W/48W 6W/48W
APX6500/APX7500UHFR1
(380‐470MHz)
FCCID:AZ492FT4897
MaxPower:DVR/Mobile 6W/120W 6W/120W 6W/120W 6W/120W
APX6500/APX7500UHFR2
(450‐520MHz)
FCCID:AZ492FT4896
MaxPower:DVR/Mobile 6W/54W 6W/54W 6W/54W 6W/54W
APX75007/800MHz35W‐
VHF50W
FCCID:AZ492FT7037
MaxPower:DVR/Mobile 6W/42W 6W/42W 6W/42W 6W/60W 6W/60W 6W/60W
APX7500VHF100W‐7/800
MHz35W
FCCID:AZ492FT7035
MaxPower:DVR/Mobile 6W/120W 6W/120W 6W/120W 6W/42W 6W/42W 6W/42W
APX7500UHFR140W‐
7/800MHz35W
FCCID:AZ492FT7043
MaxPower:DVR/Mobile 6W/48W 6W/48W 6W/48W 6W/48W 6W/42W 6W/42W 6W/42W
APX7500UHFR1100W‐
7/800MHz35W
FCCID:AZ492FT7048
MaxPower:DVR/Mobile 6W/120W 6W/120W 6W/120W 6W/120W 6W/42W 6W/42W 6W/42W
APX7500UHFR245W
7/800MHz35W
FCCID:AZ492FT7044
MaxPower:DVR/Mobile 6W/54W 6W/54W 6W/54W 6W/54W 6W/42W 6W/42W 6W/42W
APX7500VHF50W‐UHF
R140W
FCCID:AZ492FT4895
MaxPower:DVR/Mobile 6W/60W 6W/60W 6W/60W 6W/48W 6W/48W 6W/48W 6W/48W
APX7500VHF100W‐UHF
R1100W
FCCID:AZ492FT4898
MaxPower:DVR/Mobile 6W/120W 6W/120W 6W/120W 6W/120W 6W/120W 6W/120W 6W/120W
APX7500VHF50W‐UHF
R245W
FCCID:AZ492FT7047
MaxPower:DVR/Mobile 6W/60W 6W/60W 6W/60W 6W/54W 6W/54W 6W/54W 6W/54W
APX6500UHFR140W‐
UHFR245W
FCCID:AZ492FT4904
MaxPower:DVR/Mobile 6W/48W 6W/48W 6W/48W 6W/48W 6W/54W 6W/54W 6W/54W 6W/54W
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
HAF4017A,
1/4wave,3dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6015A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE4004A,
1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAD4008A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAD4009A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAF4017A,
1/4wave,3dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4013A,
1/4wave,3dBd
HAE6012A,
1/4wave,0dBd
HAF4016A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4013A,
1/4wave,3dBd
HAF4016A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE6015A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAF4017A,
1/4wave,3dBd
HAE4011A,
1/2wave,
3.5dBd
HAF4016A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE4004A,
1/4wave,0dBd
Freq Range:
136‐174MHz,
Trunk Mounted Antenna:
HAD4006A,1/4wave,0dBd,HAD4007A,
1/4wave,0dBd,HAD4008A,1/4wave,0dBd,HAD4009A,1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6015A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAF4013A,
1/4wave,3dBd
HAD4021A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
HAE6015A,
1/2wave,2dBd
HAE6013A,
1/2wave,2dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE4004A,
1/4wave,0dBd
HAE4003A,
1/4wave,0dBd
HAE6012A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE4003A,
1/4wave,0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE4004A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4008A,
1/4wave,0dBd
HAD4009A,
1/4wave,0dBd
HAD4021A,
1/4wave,0dBd
Table 5F Approved VHF DVRS Configurations – APX6500 / APX7500
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 17 of 24
DVR:
7V083X06
(DQPMDVR8000P)
FCC ID:
LO6‐DVRS800
Roof Mounted Roof MountedRoof Mounted Roof MountedRoof MountedRoof MountedRoof MountedRoof Mounted Roof MountedRoof MountedRoof Mounted Roof MountedRoof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX8500VHF(136‐
174MHz)
FCCID:AZ492FT7089
MaxPower:DVR/Mobile 10W/60W 10W/60W 10W/60W 10W/60W 10W/60W 10W/60W 10W/60W 10W/60W 10W/60W 10W/60W
APX8500UHF(380‐
470MHz)
FCCID:AZ492FT7089
MaxPower:DVR/Mobile 10W/54W 10W/54W 10W/54W 10W/54W 10W/54W 10W/54W 10W/54W 10W/54W 10W/54W 10W/54W 10W/54W
APX8500UHF(450‐
520MHz)
FCCID:AZ492FT7089
MaxPower:DVR/Mobile 10W/54W 10W/54W 10W/54W 10W/54W 10W/54W 10W/54W 10W/54W 10W/54W 10W/54W 10W/54W 10W/54W 10W/54W 10W/54W
APX85007/800MHz
FCCID:AZ492FT7089
MaxPower:DVR/Mobile 10W/42W 10W/42W 10W/42W 10W/42W 10W/42W
HAE4013A,
1/2wave,
3.5dBd
RAE4015ARM,
5/8wave,
5dBd
RAE40416ARB
,5/8wave,
5dBd
HAF4013A,
1/4wave,
3dBd
HAF4014A,
1/4wave,
3dBd
HAF4016A,
1/4wave,
0dBd
HAF4017A,
1/4wave,
3dBd
RAE4014ARB,
5/8wave,
5dBd
HAE6013A,
1/2wave,
2dBd
HAE6031A,
1/2wave,
2dBd
HAE4003A,
1/4wave,
0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6015A,
1/2wave,
2dBd
HAE6016A,
1/4wave,
0dBd
RAE4014ARB,
5/8wave,
5dBd
HAE4004A,
1/4wave,
0dBd
HAE4012A,
1/2wave,
3.5dBd
HAE6013A,
1/2wave,
2dBd
HAE6031A,
1/2wave,
2dBd
HAE4003A,
1/4wave,
0dBd
HAE4011A,
1/2wave,
3.5dBd
HAE6015A,
1/2wave,
2dBd
HAE6016A,
1/4wave,
0dBd
HAD4009A,
1/4wave,
0dBd
HAD4016A,
1/4wave,
0dBd
HAD4017A,
1/4wave,
0dBd
HAD4021A,
1/4wave,
0dBd
HAD4022A,
5/8wave,
3dBd
RAD4010ARB,
1/2wave,
3dBd
AN000131A01
,1/4wave,
0dBd
AN000131A01
,1/4wave,
0dBd
AN000131A01
,1/4wave,
0dBd
HAD4006A,
1/4wave,
0dBd
HAD4007A,
1/4wave,
0dBd
HAD4008A,
1/4wave,
0dBd
HAE6010A,
1/2wave,
3.5dBd
HAE6011A,
5/8wave,
5dBd
HAE6012A,
1/4wave,
0dBd
Freq Range: 806-825, 851-870MHz, Trunk Mounted Antenna: HAF4016A, 1/4 wave, 0dBd
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
AN000131A01
,1/4wave,
0dBd
Table 6A Approved 800 DVRS Configurations – APX8500
DVR:
7V083X05
(DQPMDVR7000P)
FCC ID:
LO6‐DVRS700
Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted Roof Mounted
Mobile Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna Antenna
APX8500VHF(136‐
174MHz)
FCCID:AZ492FT7089
MaxPower:DVR/Mobile 5W/60W 5W/60W 5W/60W 5W/60W 5W/60W 5W/60W 5W/60W 5W/60W 5W/60W 5W/60W
APX8500UHF(380‐
470MHz)
FCCID:AZ492FT7089
MaxPower:DVR/Mobile 5W/54W 5W/54W 5W/54W 5W/54W 5W/54W 5W/54W 5W/54W 5W/54W 5W/54W 5W/54W 5W/54W
APX8500UHF(450‐
520MHz)
FCCID:AZ492FT7089
MaxPower:DVR/Mobile 5W/54W 5W/54W 5W/54W 5W/54W 5W/54W 5W/54W 5W/54W 5W/54W 5W/54W 5W/54W 5W/54W 5W/54W 5W/54W
APX85007/800MHz
FCCID:AZ492FT7089
MaxPower:DVR/Mobile 5W/42W 5W/42W 5W/42W 5W/42W 5W/42W
Maximum conducted power delivered to antenna: DVR (W) / Mobile (W)
Freq Range: 764-776, 794-806MHz, Trunk Mounted Antenna: HAF4016A, 1/4 wave, 0dBd
AN000131A01,
1/4wave,0dBd
AN000131A01,
1/4wave,0dBd
AN000131A01,
1/4wave,0dBd
AN000131A01,
1/4wave,0dBd
HAD4006A,
1/4wave,
0dBd
HAD4007A,
1/4wave,
0dBd
HAD4008A,
1/4wave,
0dBd
HAD4009A,
1/4wave,
0dBd
HAD4016A,
1/4wave,
0dBd
HAD4017A,
1/4wave,
0dBd
HAD4021A,
1/4wave,
0dBd
HAD4022A,
5/8wave,
3dBd
RAD4010ARB,
1/2wave,
3dBd
HAF4013A,1/4
wave,3dBd
HAF4014A,1/4
wave,3dBd
HAF4016A,1/4
wave,0dBd
HAF4017A,1/4
wave,3dBd
HAE6010A,1/2
wave,3.5dBd
HAE6011A,5/8
wave,5dBd
HAE6012A,1/4
wave,0dBd
HAE6013A,1/2
wave,2dBd
HAE6031A,1/2
wave,2dBd
HAE4003A,1/4
wave,0dBd
HAE4011A,1/2
wave,3.5dBd
HAE6015A,1/2
wave,2dBd
HAE6016A,1/4
wave,0dBd
RAE4014ARB,
5/8wave,
5dBd
HAE6013A,1/2
wave,2dBd
HAE6031A,1/2
wave,2dBd
HAE4003A,1/4
wave,0dBd
HAE4011A,1/2
wave,3.5dBd
HAE6015A,1/2
wave,2dBd
RAE40416ARB,
5/8wave,
5dBd
HAE6016A,1/4
wave,0dBd
RAE4014ARB,
5/8wave,
5dBd
HAE4004A,1/4
wave,0dBd
HAE4012A,1/2
wave,3.5dBd
HAE4013A,1/2
wave,3.5dBd
RAE4015ARM,
5/8wave,
5dBd
Table 6B Approved 700 DVRS Configurations – APX8500
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 18 of 24
Antenna Installation Instructions
IMPORTANT: To assure optimum performance and compliance with FCC/ISED RF
Energy Exposure regulations, these antenna installation guidelines and instructions
are limited to metal-body vehicles with appropriate ground planes and take into
account the potential exposure of back seat passengers and bystanders outside the
vehicle.
Selecting an Antenna Site/Location on a Metal Body Vehicle
1. External installation
Check the requirements of the antenna supplier and install the vehicle antenna external to a metal
body vehicle in accordance with those requirements.
2. Roof top
XTL mobile radio: For optimum performance and compliance with RF Energy Safety standards,
mount the mobile radio antenna in the center area of the roof.
APX mobile radio: For optimum performance and compliance with RF Energy Safety standards,
mount the mobile radio antennas (dual and single band) at 45cm (17.7 inches) from the center as
shown in the figure below. NOTE: For single band applications (one antenna), choose either side
for the installation (not the center).
Fig.1 Applicable to XTL and Non APX 8500
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 19 of 24
APX8500 mobile radio: For optimum performance and compliance with RF Energy Safety
standards, mount the mobile radio antennas (all band and LMR 700/800 band) at location 2 only.
Standard LMR VHF and UHF antennas should only be placed at location 1 & 3, which is 20cm (8
inches) from the center as shown in the figure below.
Fig.2 Applicable to APX8500 only
3. Trunk lid
On some vehicles with clearly defined, flat trunk lids, the antennas of some radio models (see
restrictions below) can also be mounted on the center area of the trunk lid. For vehicles without
clearly defined, flat trunk lids (such as hatchback autos, sports utility vehicles, and pick-up trucks),
mount the antenna in the center area of the roof.
Before installing an antenna on the trunk lid,
- Be sure that the distance from the antenna location on the trunk lid will be at least 85 cm (33
inches) from the rear seat head-rest to ensure compliance with RF Energy Exposure regulations.
- Ensure that the trunk lid is grounded by connecting grounding straps between the trunk lid and
the vehicle chassis.
Do not install the trunk antenna if the distance between the back seat
passenger and the trunk mount antenna is less than 85cm.
4. Mounting restrictions for certain radio models.
NOTE: Do not cut antenna cables to ensure compliance with RF Energy Exposure regulations
20cm
20cm
1
3
2
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 20 of 24
NOTE: VHF and UHF 1/4 wave antenna should be mounted on the roof, not on the trunk lid, to
ensure compliance with RF Energy Exposure regulations.
5. Ensure that the antenna cable can be easily routed to the radio. Route the antenna cable
as far away as possible from any vehicle electronic control units and associated wiring.
6. Check the antenna location for any electrical interference.
NOTE: Any two metal pieces rubbing against each other (such as seat springs, shift levers, trunk
and hood lids, exhaust pipes, etc.) in close proximity to the antenna can cause severe receiver
interference.
Fig 3 Multiple Antennas Separation for locations 1-10
Fig. 3 indicates the separation distances required for the various antennas used with an APX
8500 midpower radio. Each "cross-hair" symbol represents a possible location (i.e. LOC) of an
antenna. The recommendation is to locate them as close to the center of the roof and/or trunk as
possible, without interference with a lightbar. This picture is not drawn to scale. For letters A, B, C,
and D, the table indicates the EXACT distance for separation of the LMR antennas. For letters E,
F, G, and H, the table indicates the maximum distance between the edge of the ground plane and
the accessory antenna location.
NOTE:
• A minimum of 18 inch separation is required between lightbar and any roof mounted antennas, to
prevent interference with the lightbar circuitry (see lightbar manufacturer’s installation information).
• The LMR 700/800 antennas should only be placed at LOC:2 or LOC:5.
• Standard LMR VHF and UHF antennas should only be placed at LOC:1, LOC:3, LOC:4 and LOC:6.
• 1/4 wave LMR VHF and UHF antennas should only be placed at LOC:1 and LOC:3 (i.e. Roof only)
to ensure compliance with RF Energy Exposure regulations.
• The VML antenna must be separated from any LMR antenna by at least 40 inches.
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 21 of 24
• The LTE Main and Diversity Antenna locations should be at LOC:9 and LOC:10 when the LMR All-
Band or LMR 700/800 narrow band antennas are at LOC:2 (i.e LTE opposite location from the
LMR).
• The LTE Main and Diversity Antenna locations should be at LOC:7 and LOC:8 when the LMR All-
Band or LMR 700/800 narrow band antennas are at LOC:5 (i.e LTE opposite location from the
LMR).
• In some mobile installations that include an LTE modem, external filtering on the LMR port and/ or
the LTE port may be needed to reduce interference. Contact your local Motorola Solutions Service
Center for more information and for filter kit numbers (See Appendix for contact info).

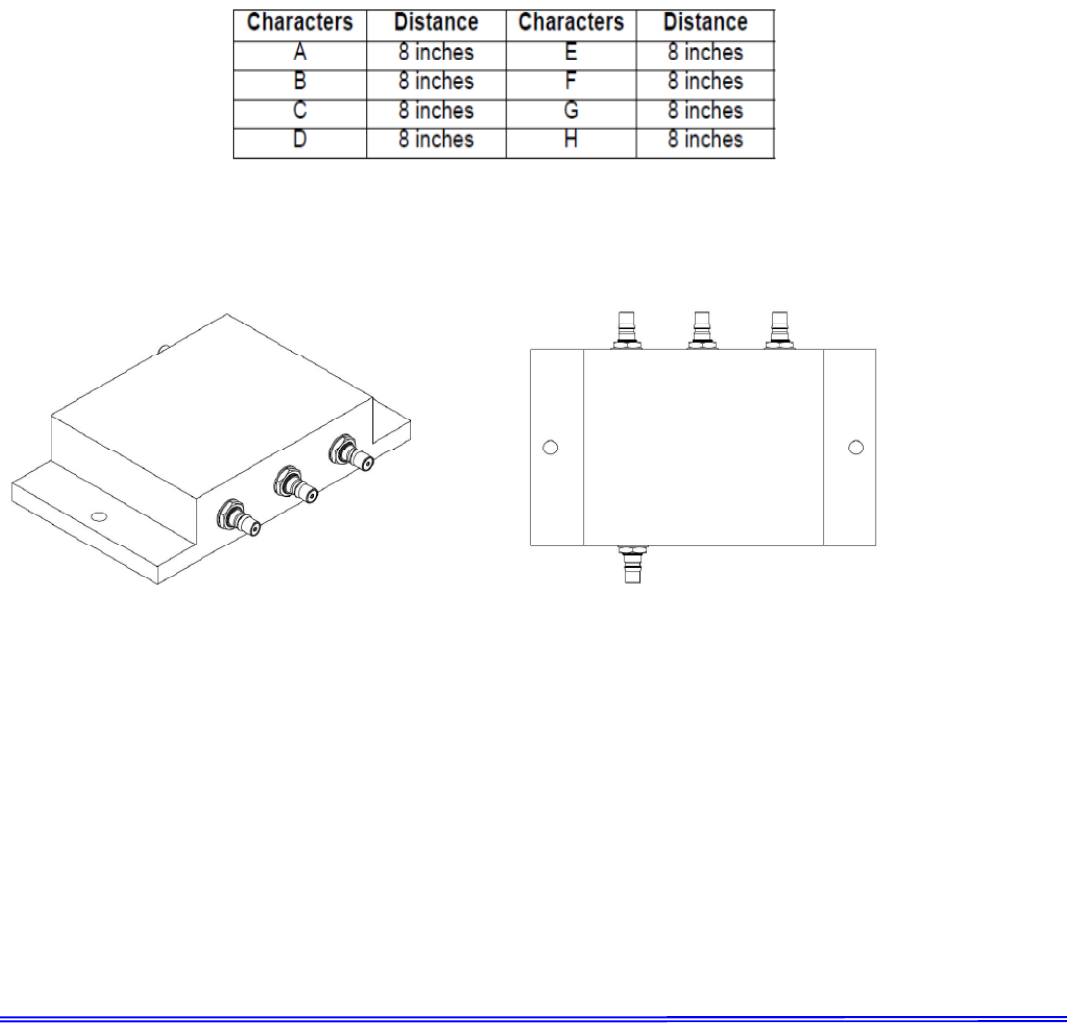

Table 7 Distance between Antenna
Multiplexers and Vehicle Installation
Fig. 4 Multiplexer Views
QMA Connection (APX8500 Only)
APX8500 is using a quick disconnect connection called QMA. This does not require any
tightening.
• Ensure there is sufficient slack in the antenna cable.
• Ensure that the collar of the antenna cable plug does not bind.
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 22 of 24
• Engage the QMA cable plug onto the jack, listening for a click to ensure proper
engagement.
• Gently tug on the cable to ensure that it is engaged.
• To disengage, pull back on the cable plug’s collar and pull the cable straight off the jack.
GPS/GLONASS/Wi-Fi/Antenna Placement (APX8500 Only)

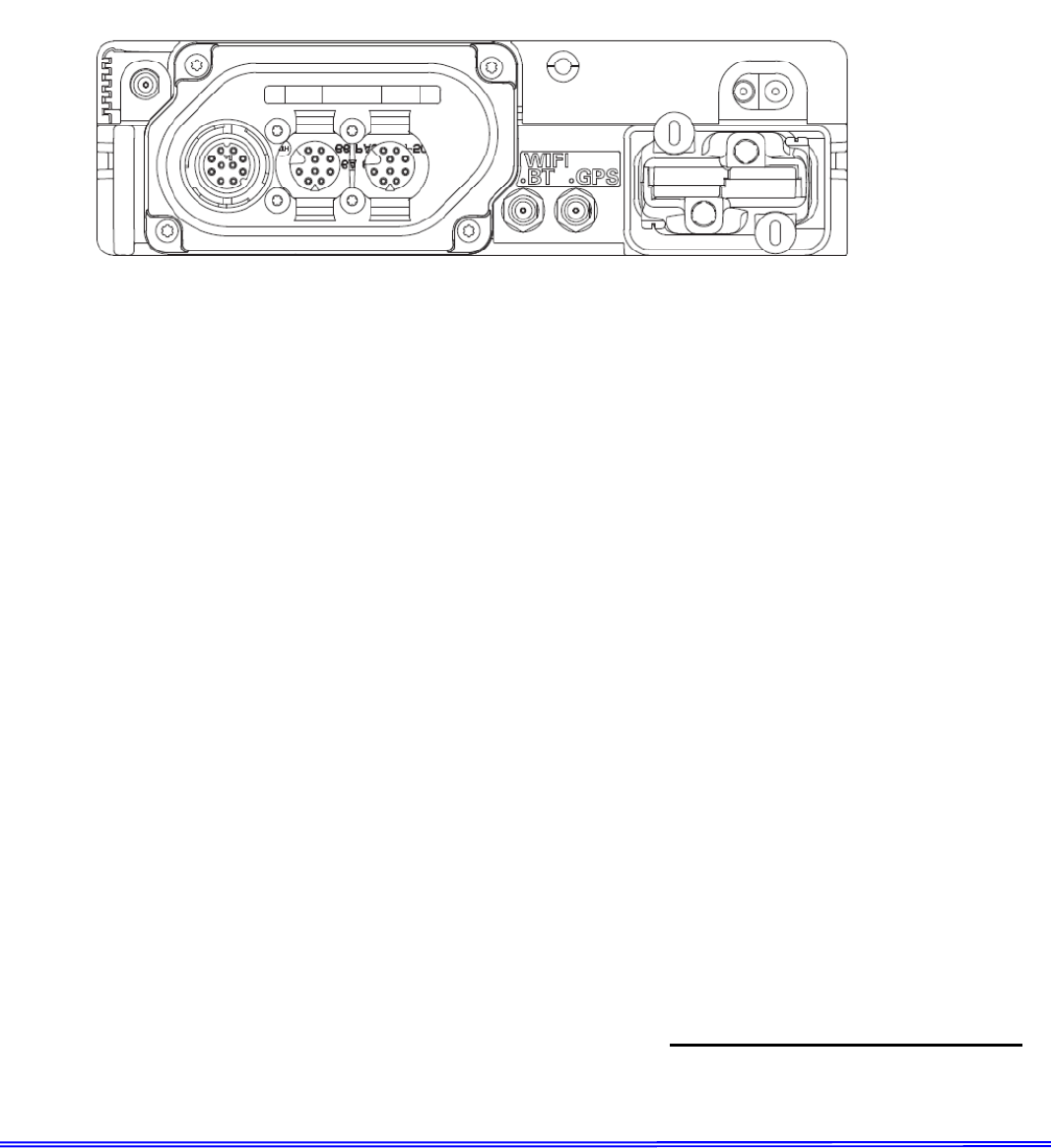

. Fig. 5 GPS/GLONASS and Wi-Fi Antenna Connector on the Back of the Mid Power Radio
Mobile Radio / DVR Antenna separation
To ensure interference-free performance when both the Mobile Radio and the DVR are active at
the same time, the two antennas must be mounted in such way as to provide 30dB minimum
antenna isolation.
Fixed DVRS Site Antennas
Mobile radio equipment is sometimes installed at a fixed location and operated as a control station
or as a fixed unit. In such cases the antenna installation must comply with the following
requirements in order to assure optimal performance and make sure human exposure to radio
frequency electromagnetic energy is within the guidelines set forth in the above standards.
• The antennas must be mounted outside the building.
• Mount the antennas on a tower if at all possible.
• If the antennas are to be mounted on a building then it must be mounted on the roof.
• As with all fixed site antenna installations, it is the responsibility of the licensee to manage the
site in accordance with applicable regulatory requirements and may require additional compliance
actions such as site survey measurements, signage, and site access restrictions in order to insure
that exposure limits are not exceeded.
Temporary-Fixed Site
Futurecom requires the P25 Transportable DVRS (TDVRS) operator to ensure FCC/ISED
Requirements for Radio Frequency Exposure are met. It is the responsibility of the Licensee to
ensure that the appropriate separation distances between the antennas and bystanders are
established and followed to meet the FCC/ISED Maximum Permissible Exposure (MPE)
Requirements in any particular Temporary-Fixed location. In situations where a site assessment is
not practical, it is recommended that the antennas be located at least 9 feet from bystanders.
This should ensure MPE compliance in any Temporary-Fixed application and is likely to be a
much greater separation distance than is necessary in most cases. Failure to observe the MPE
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 23 of 24
distance exclusion area around the antenna may expose persons within this area to RF energy
above the FCC/ISED exposure limits for bystanders (general population).
Approved Antennas and Maximum output power (W) for combination DVR and APX
mobiles for Temporary-Fixed Site
NOTE:
APX mobile RF conducted antenna power in the tables below denotes up to 50% Tx duty cycle.
DVR RF conducted antenna power in the tables below denotes up to 100% Tx duty cycle.
DVR
Band Antenna
Power
(W)
VHF (136-174MHz) DDN9014 6
UHF1 (406-430MHz) DDN9015 10
UHF2 (450-470MHz) DDN9015 10
UHF3 (470-512MHz) DDN9015 10
700 (768-806MHz) DDN9016 5
800 (806-869MHz) DDN9016 10
APX 8500
Band Antenna
Power
(W)
VHF (136-174MHz) DDN9014 60
UHF1 (406-470MHz) DDN9015 48
UHF2 (450-520MHz) DDN9015 54
700/800 (764-
870MHz) DDN9016 42
Max Power (W) for combination DVR and APX 8500
APX 8500
DVR/APX VHF UHFR1 UHFR2 700/800MHz
DVR
VHF 6/60 6/48 6/54 6/42
UHFR1 10/60 10/48 10/54 10/42
UHFR2 10/60 10/48 10/54 10/42
UHFR3 10/60 10/48 10/54 10/42
700MHz 5/60 5/48 5/54 5/42
800MHz 10/60 10/48 10/54 10/42
8F083X03 Rev 13
DVRS - Product Safety and RF Energy Exposure Booklet Page 24 of 24

Navigation menu
