Fuzhou Emax Electronic Co., Ltd. Outdoor Remote Sensor TX07 Manual
User manual
TX07 Manual
Features:
` Temperature measurement ranges: -20°C (-4°F) ~ 60°C (140°F)
` Temperature alternatively in ºC or ºF.
` Humidity measurable range: 20%RH ~ 95%RH
` Data transmission frequency: 433.92MHz
` Wireless range: max. 60 m (open area)
` Wireless channel: 1 channel
` Battery:2 x LR6 AA

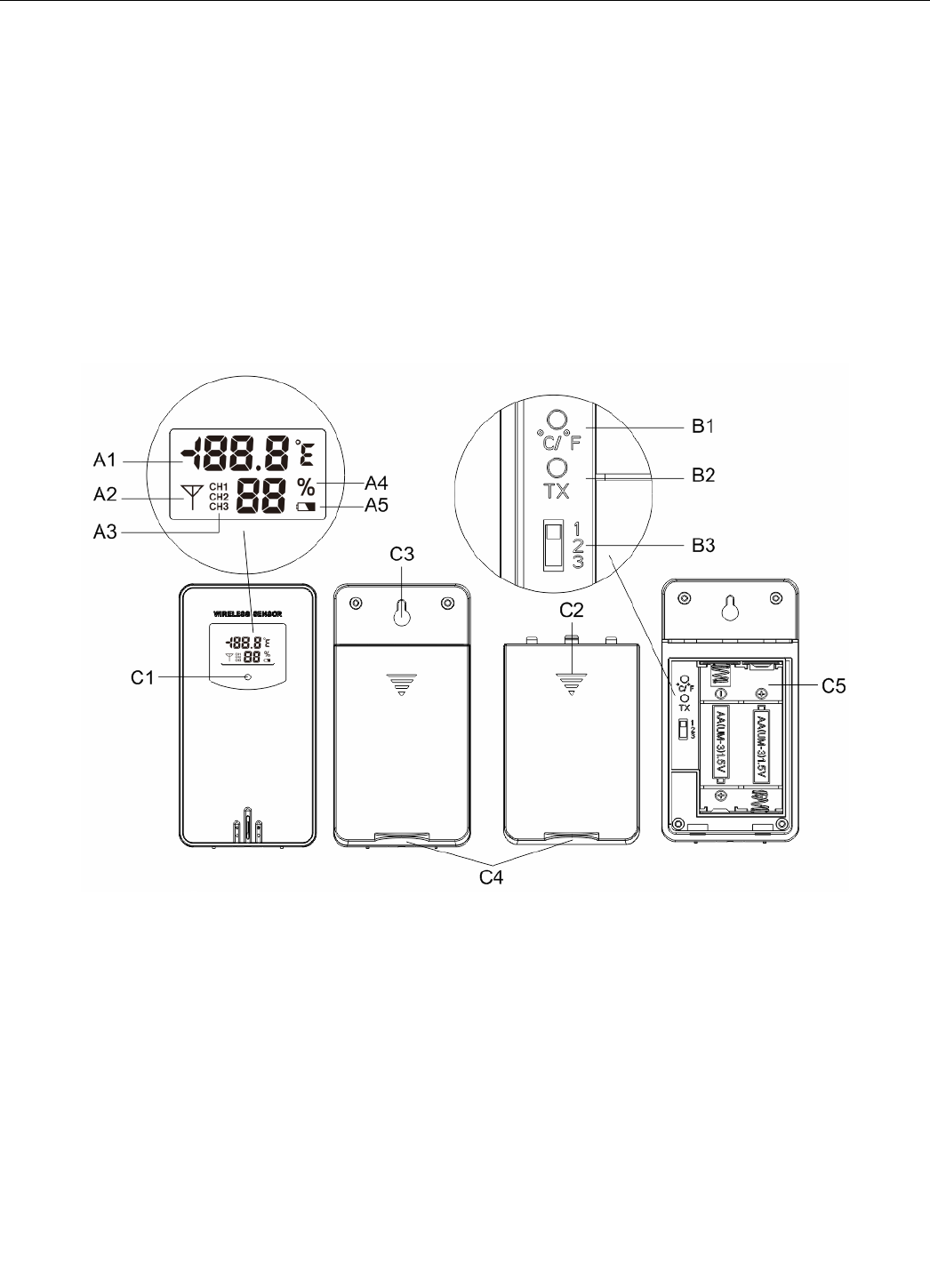

Parts description:
Part A –LCD Display:
A1: Temperature
A2: RF icon
A3: Channel icon
A4: Humidity
A5: Low battery icon
Part B –Button & switch:
B1: ºC/ºF button
B2: TX button
B3: channel Selection switch
Part C –Appearance:
C1:
Signal LED
C2: Battery compartment cover
C3: Eyebolt
C4: Stand
C5: battery compartment
TX07 Manual
Initial operation:
` Open the battery compartment on the back of the wireless transmitter by sliding the battery cover in the
direction of the arrow.
` Insert the new batteries, type LR06, in the battery compartment. Check the polarity of the battery during
insertion. This is indicated in the battery compartment.
` Close the battery cover.
` The signal LED at the front of the outdoor sensor will briefly light up. The signal LED will then flash about
twice a minute, indicating wireless transmission.
Set the transmission channel:
` Sliding the CH switch inside the remote’s battery compartment to select Channel 1 or Channel 2 or Channel
3. The Channel number assigned will appear on the remote’s LCD screen.
°C/°F temperature display:
` The temperature is displayed either in °C or °F. Briefly pressing the “°C/°F” button inside the remote’s
battery compartment allows you to switch between the individual models.
Manual transmit signal
` Pressing the “TX” button inside the remote’s battery compartment 1 times, the wireless transmitter will
immediately transmit the 1 wireless data, The Signal LED and an RF icon on the remote will flash when a
signal is sent.
FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
