Tablet quick set up guide
Power On / Off
Power On : press the power button to turn the machine.
Shutdown: In any mode, press the power button for 2 seconds, there shutdown device
options, click on the "off" to turn off the product。

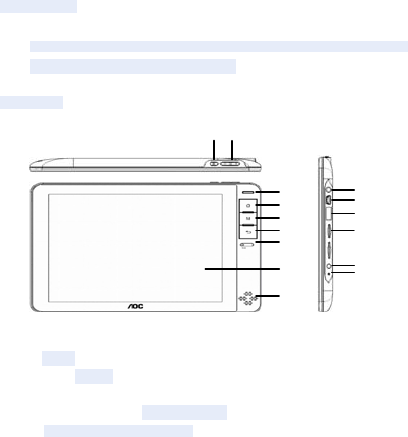

Appearance
A Power
B Volume +/-
C Power indicator
D Home：short press to return home page
Press 2second to Recall the recent
implementation of six applications
E M（MENU）
F Preview
G Built in MIC hole
H Touch Screen
I Built in Speaker
J Earphone jack
K MINI USB Port（connect to PC）
L OTG interface（connect USB）
M T-Flash Card
N DC Jack
O Reset
A B
J
K
L
M
O
N
C
D
E
G
H
I
F
-2-

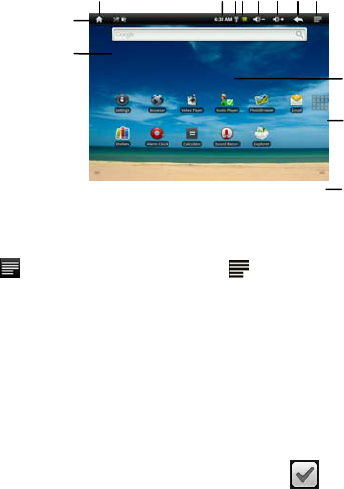

Main interface
A Information check
Drug the bar to check
B IE address bar
C Back key
D Time
E Wi-Fi Signal Indication
F Battery Indicator
G/H Volume-/+
I Return
J Menu button
K Home
L Enter“Application”
M Interface switching
Menu key in the touch screen equals to the menu key in the machjne.
Wireless Network
1．Enter into the main interface when MID is turned on . The screen is settled to be
locked, press “Menu” key to unlock。
Manager wifi set-up to connect wireness network.
• Wi-Fi: Turn on or Turn off WiFi.
-- when WiFi mentions “ Turn on WiFi” , and the icon in the right shows , it means
A
DE
K
B
L
M
F G HIJ
C
-3-
WiFi is in the closed position
--Click WiFi , and the status mention that it is turning on … , and the icon in the right side
shows , it means that WiFi is in the open position.
Note: In the set-up of this device , other than the follwing additional description
- The right icon shows , it means that the option is in close position.
- The right icon shows , it means that the option is in open position.
• Wi-Fi Set-up: to set up and manage wireless access point
-- Network notice that the right icon is , it means
that automatic scanning is in the close position.
-- Click Network notice, the right icon shows , it
means that scanner is in the open position ,
the deive will seach automaticly and add the nearby
WiFi network which can be connected. Click wireless network port , then you can
connect network. After connectiong successful , the WiFi set-up icon will show have
connected to ……, it means that the device have connected to network successfully.
--As to the WiFi router which have been connected before, this machine will keep
record automaticly, if you need to connect again in the future , you just need to
turn on WiFi in the WiFi set-up , or choose this WiFi router then connect it.
-4-
When the status of WiFi set-up is open ( showing turn off WiFi), the machine will
search the WiFi router automaticly and then connect to it when the device is
started up each time.
Notes:
You can enter into Wi-Fi set-up directly by pressing the icon network connect
manager
Virtual keyboard Input
Click input character area then popup virtual keyboard。
Android Keyboard：
A Display the input text。
B Caps Lock Switch
C Numbers and symbols
keyboard switch
D Input space
E Search the input web
F Delete the edited text
File transmission
Connect to Pc：
1.Boot condition，connect the tablet PC to PC with USB line 。
2.After connecting，It will disappear two dish，one is the equipment memory，
another is storage memory。It can do data transmission now。
Disconnect Pc：
Click on the icon on the right corner of the screen to move the hardware from
E
D
F
A
B
C
-5-
computer in safety。
VideoPlayer /Audio Player / Photo Browse
1． First download the Video / Audio / Pictures files to the Unit。
2． Click the “video player” “audio player”, “photo browser” to enter
the mode.
3． Click the file which you want to play.
Explorer(Resource Manager)
Click “Explorer” on the homepage to enter.
Homepage：return to sub menu
Last interface：return the above menu
Multichoose：choose one more files
Edit：Copy,delete,move,paste,rename the file folder.
Last：Return last operation
Next：Return the next cooperation
APK Installer
APK Installer：This device support the third party’s applications on the basis of android
-6-
platform. Most of the applications can be downloaded from the website, and copoed into the
flash or SD card of this device.
Installation Installer：Click the Install Installer when enter the Apk installation interface
Note:it can not unload the factory default installation software.
specifications
product model E800
System android V2.1
processor RK2818
Memory support DDRII 128MB - 512 MB, and memory capacity 24bit ECC
memory (MLC support 2G 32GB capacity)
WIFI support standard 802.11b
FLASH built-in FLASH memory (2G FLASH)
Expansion card standard TF card, the biggest support 16 GB
LCD TFT LCD 8 inches high definition, resolution 800 * 480.
Power specifications
Voltage power supply voltage: 5V recharging voltage: 5V
power
maximum play direct current 0.8 A
Maximum charge current dc 1A
battery
built-in polymer lithium ion battery recharging the battery, 3.7 V,
3500mAh
adapter ac input: 100-60Hz 240V 50 / dc output: 5V 2.5 A
Charging time with standard charger :charging time about six hours, charging time
-7-
also will be different depending on the residual capacity battery
Please note during charging, the time does not exceed 12 hours.
battery life
(at normal temperature and
full battery
audio: about 20 hours
Video: about six hours
Note: this playing time, is under room temperature 25 ℃, earphones
output, brightness biggest, volume two-thirds place, screen standb
y
time for 1 minute, not connected WIFI, audio standard MP3 music
bitrate for 128Kbps; Video playback RealVideo 9 coding RMVB
files, streaming for 451Kbps, continuous broadcast forward-test
income. Due to the operating environment different, broadcast file
format, streaming, and other factors, the actual broadcast time may
b
e with this test playing time some variations, this belongs to the
normal phenomenon
Music, pictures and video specifications
Audio formats MP3、WMA、FLAC、APE、WAV、OGG
compression rate
MP3：MPEG 1.0 Layer 3 96Kbps～320Kbps
WMA：80Kbps～192Kbps
FLAC：8～48KHz
APE：support the normal or fast zip file in V3.95 V3.97 V3.98
V3.99 version
Recording MIC: 3GPP
Audio output earphone, external speaker: stereo output
Video format
AVI
Video coding: MPEG4， XVID， DIVX4/5/6
Maximum play resolution: 1280x720
Maximum frame number: 30fps
Audio coding: MP1， MP2， MP3， AC3， AAC
-8-
3GP/MP4
Video coding: H.264， MPEG4， XVID， DIVX4/5/6
Maximum play resolution: 1280x720
Maximum frame number: 30fps
Audio coding: MP2， MP3， AAC， AMR
RM/RMVB
Video coding: Realvideo 8/9/10
Maximum play resolution: 1280x720
Maximum frame number: 30fps
Audio coding: MP3， AAC
FLV
Video coding: Sorenson H.263， H.264
Maximum play resolution: 720x480(H.263)， 1280x720(H.264)
Maximum frame number: 30fps
Audio coding: MP3， AAC
MKV
Video coding: H.264， MPEG4， XVID， DIVX4/5/6
Maximum play resolution: 1280x720
Maximum frame number: 30fps
Audio coding: MP1， MP2， MP3， AC3， AAC
MOV
Video coding: MPEG4, H.264
Maximum play resolution: 1280x720
Maximum frame number: 30fps
Audio coding: MP2， MP3， AC3， AAC， AMR
Picture Format
JPEG maximum resolution＜8000*8000
BMP maximum resolution＜1000*1000
N
ote: do not guarantee all the above extensions documents are able to
play properly
Size(L×W×H) 150¯89¯18 mm
Unit Weight 296g（including battery）
USB port Mini USB 2.0 OTG、USB 1.1 HOST
-9-
Operating Temperature 0℃ ～ 40℃
Storage Temperature -20℃ ～ 55℃
Max Humidity 90% RH
Operation System Windows 7、Windows Vista、Windows XP
