GIT G1QDDMM003 Scan Tool User Manual

G.I.T Co.,Ltd. Scan Tool

User Manual

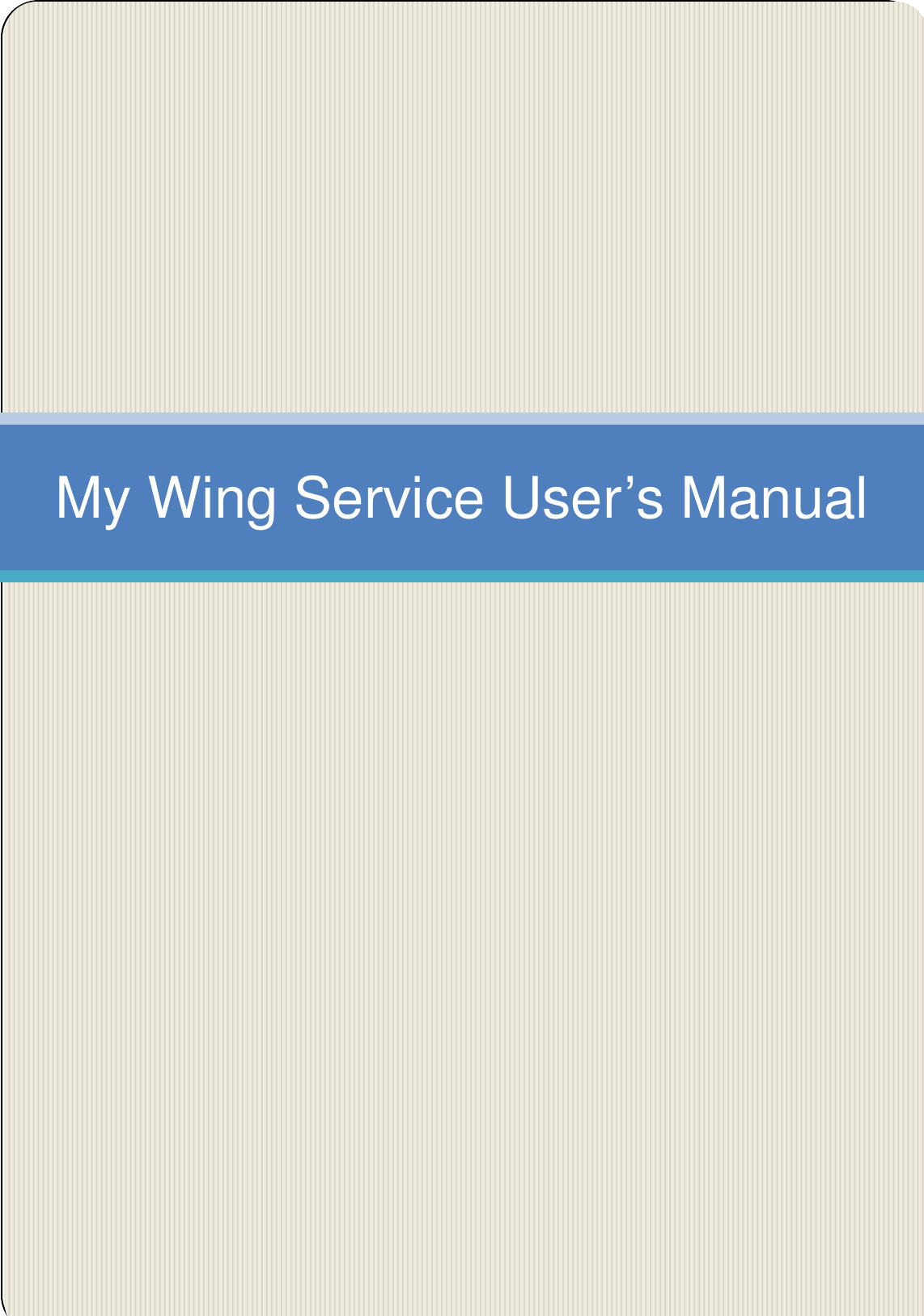

1My Wing Service User’s Manual
2Before UseBefore using My Wing Service, read the instructions thoroughly for proper operation.This manual contains the basic instructions of My Wing Service.The instructions provided by this manual is subject to change without prior notice.The several features of My Wing Service application includes transfer data over cellular networkwhich may result in additional fees. GIT has no liability for the additional fees from the usage ofcellular network.Safety Warning and Caution Before UseThis section contains WARNING and CAUTION for safe usage of product. Before using Digital PDI,user should read the following information.WARNINGThis indicates incorrect handling may result in a major accident involving death or serious injury.The AUTO LINK should be secured in a safe location when operating the vehicleto avoid interference with other vehicle equipment.Only use the specified adapters and cables when connecting the AUTO LINKmodule. (7~18VDC)Ensure all cables are properly connected during operation. Do not disconnectcommunication cable or power cables unless finished with the equipment.Do not disassemble the AUTO LINK module.Use only genuine accessory parts supplied by GIT.Never connect the device to equipment rather than vehicles.Products are to be stored within the right temperatures. (Refer to CAUTION)

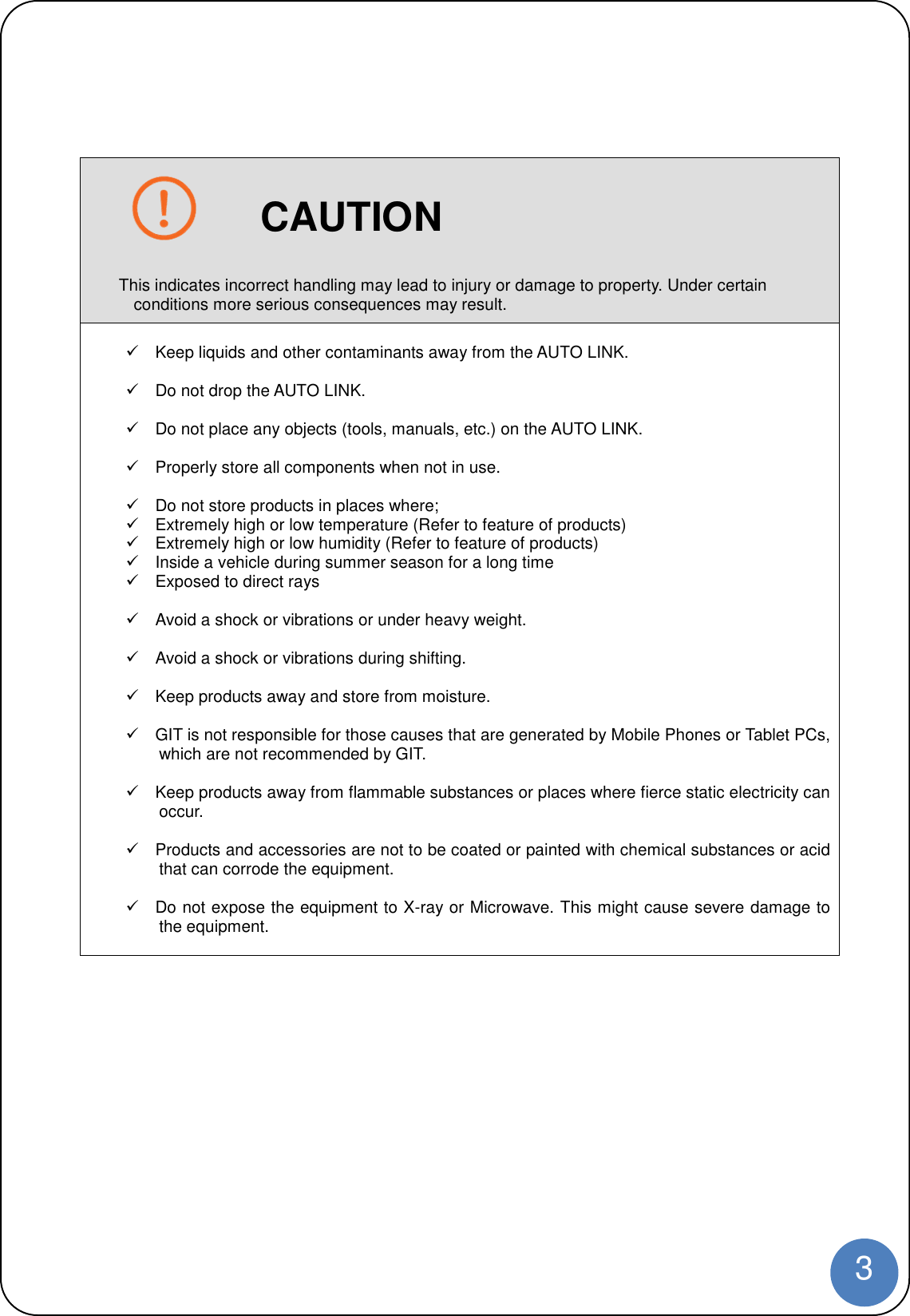

3CAUTIONThis indicates incorrect handling may lead to injury or damage to property. Under certainconditions more serious consequences may result.Keep liquids and other contaminants away from the AUTO LINK.Do not drop the AUTO LINK.Do not place any objects (tools, manuals, etc.) on the AUTO LINK.Properly store all components when not in use.Do not store products in places where;Extremely high or low temperature (Refer to feature of products)Extremely high or low humidity (Refer to feature of products)Inside a vehicle during summer season for a long timeExposed to direct raysAvoid a shock or vibrations or under heavy weight.Avoid a shock or vibrations during shifting.Keep products away and store from moisture.GIT is not responsible for those causes that are generated by Mobile Phones or Tablet PCs,which are not recommended by GIT.Keep products away from flammable substances or places where fierce static electricity canoccur.Products and accessories are not to be coated or painted with chemical substances or acidthat can corrode the equipment.Do not expose the equipment to X-ray or Microwave. This might cause severe damage tothe equipment.

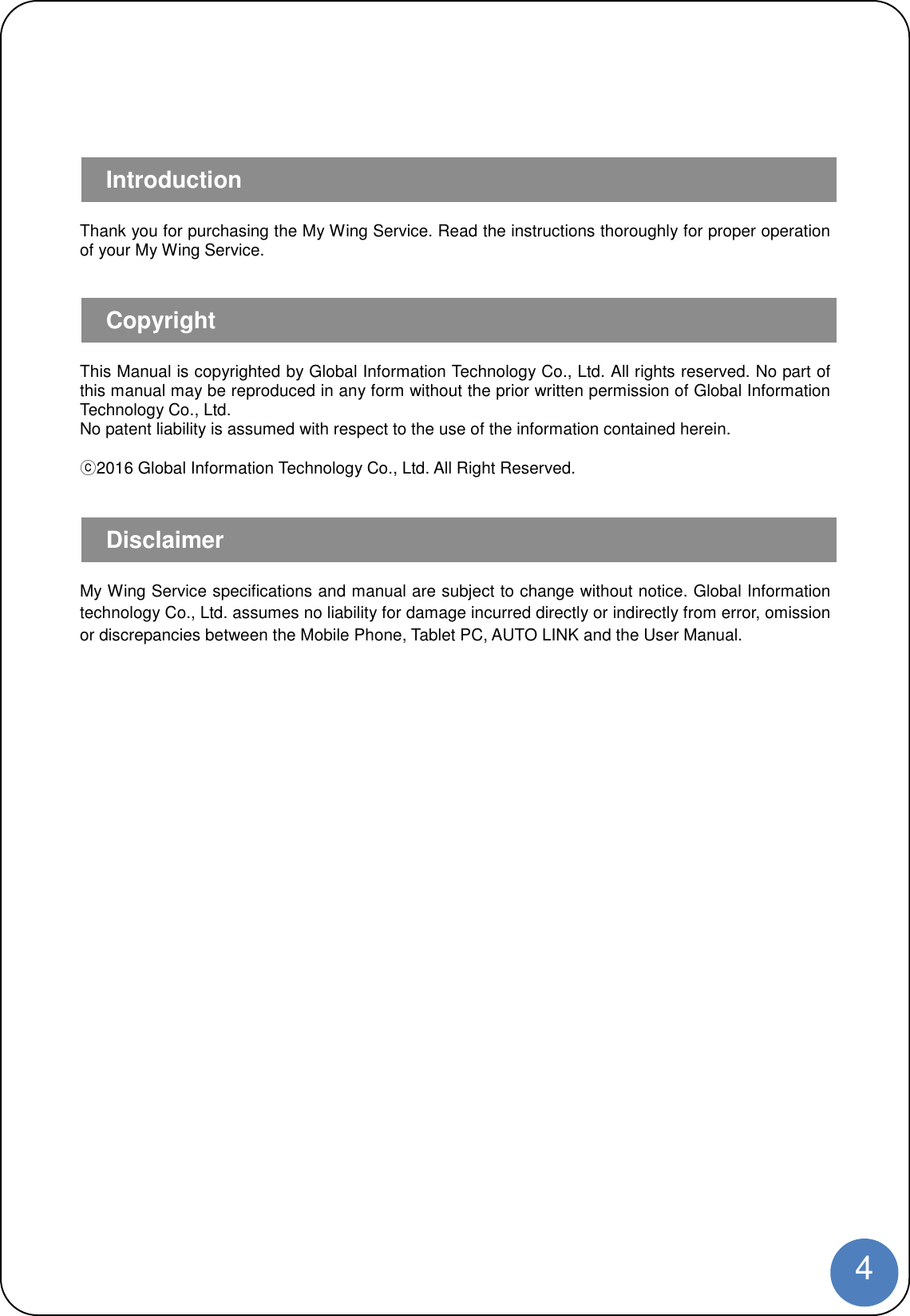

4Thank you for purchasing the My Wing Service. Read the instructions thoroughly for proper operationof your My Wing Service.This Manual is copyrighted by Global Information Technology Co., Ltd. All rights reserved. No part ofthis manual may be reproduced in any form without the prior written permission of Global InformationTechnology Co., Ltd.No patent liability is assumed with respect to the use of the information contained herein.ⓒ2016 Global Information Technology Co., Ltd. All Right Reserved.My Wing Service specifications and manual are subject to change without notice. Global Informationtechnology Co., Ltd. assumes no liability for damage incurred directly or indirectly from error, omissionor discrepancies between the Mobile Phone, Tablet PC, AUTO LINK and the User Manual.IntroductionCopyrightDisclaimer

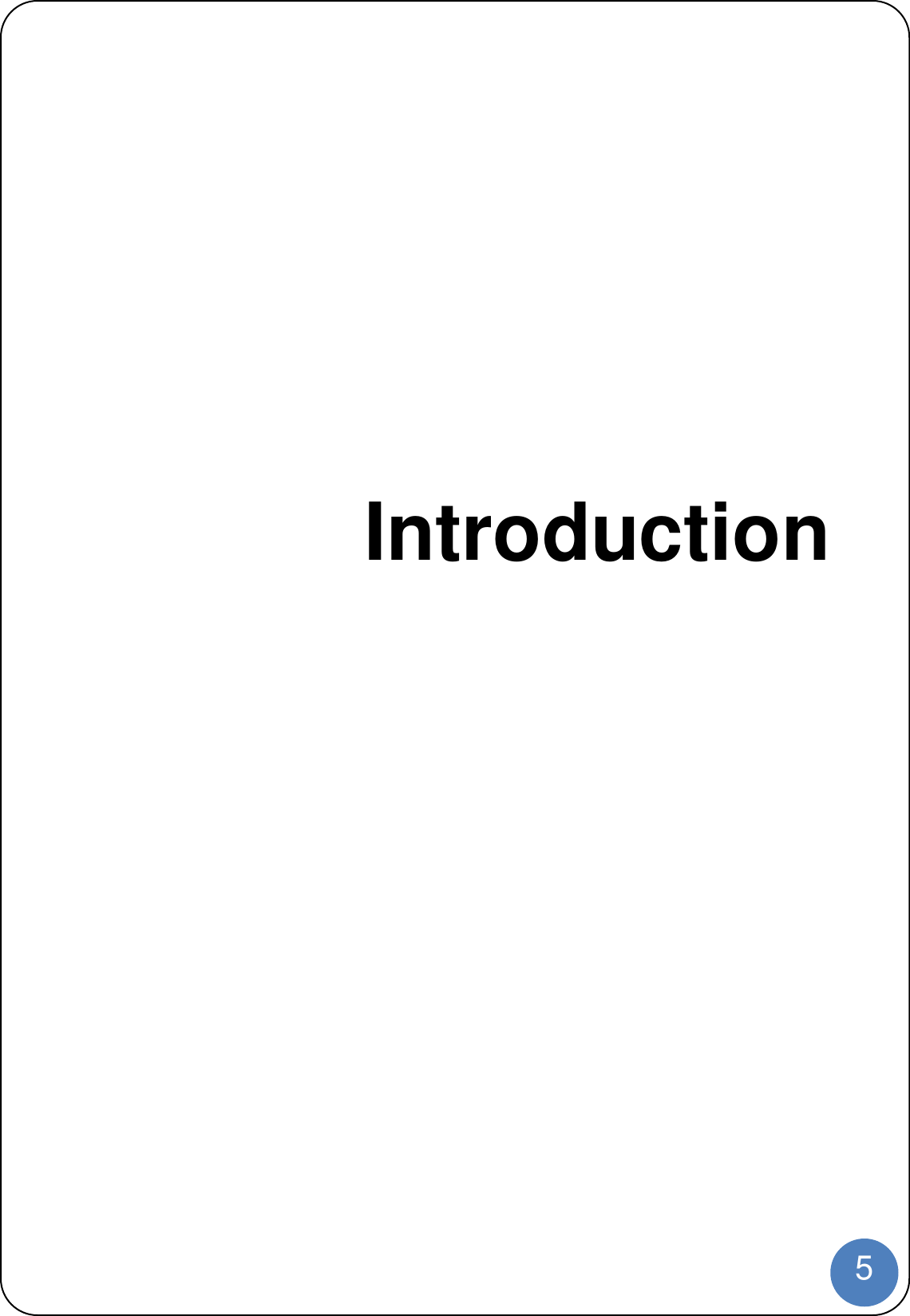

5Introduction

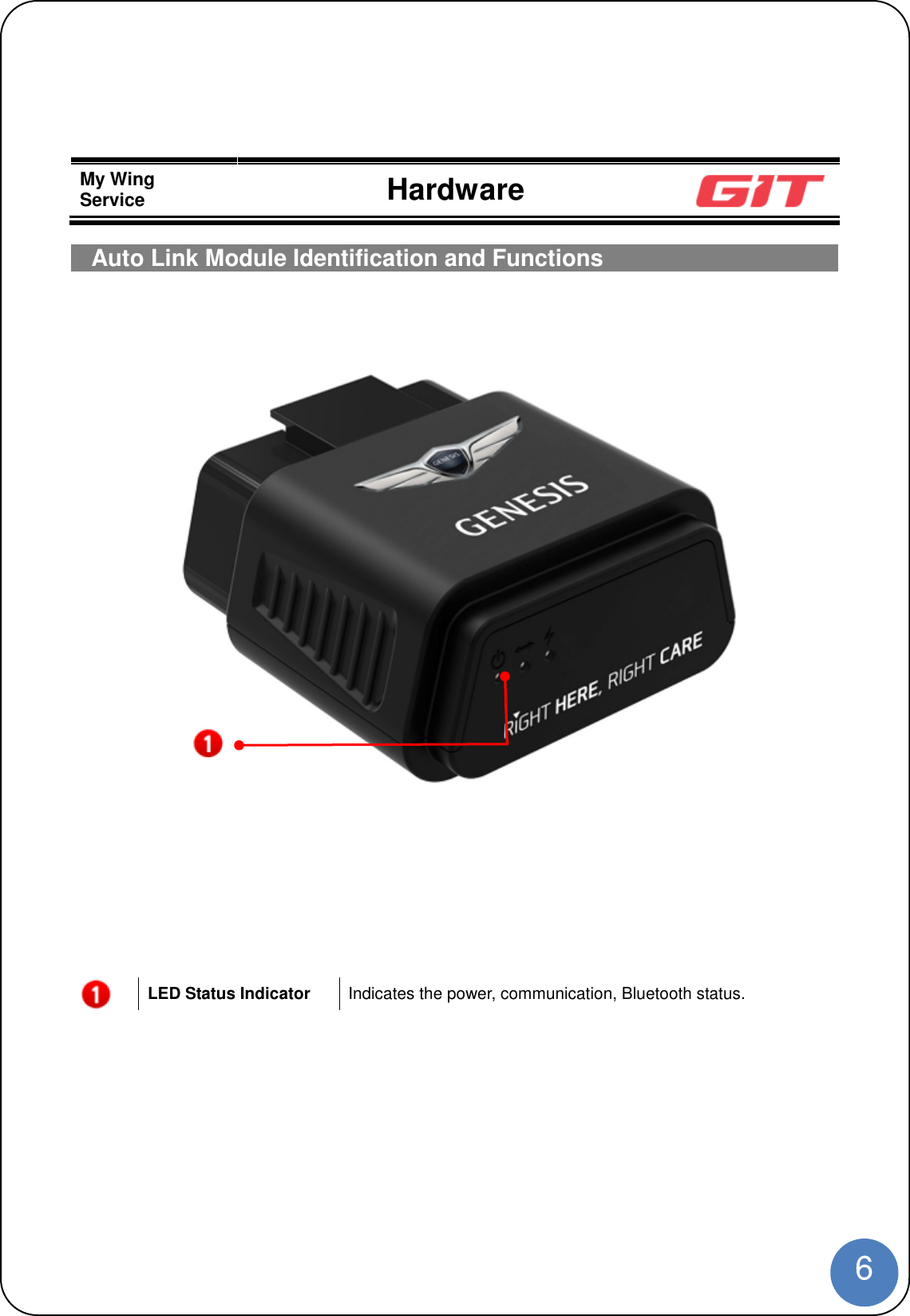

6My WingService HardwareAuto Link Module Identification and FunctionsLED Status Indicator Indicates the power, communication, Bluetooth status.
7Auto Link Module SpecificationsItem SpecificationsCPU ARM 32-bit Cortex™-M3 (STM32F105RCT6)@ 72MHzMemory Flash Memory 256KByte, SRAM 64KByteExternal Serial Flash Memory 8MByteOperating Voltage 7V ~ 18VOperating Temperature -10℃~50℃Storage Temperature -20℃~80℃Current Consumption Typical 120mA @ 12VBelow Standby 3mA @12VBluetooth Protocol Bluetooth Low Energy 4.1 (Power Class 2)CAN Interface High CAN (Ch6, Ch14)Dimension 53 X 52 X 24 mmCase ABS
8Auto Link Module ConnectionAuto Link module is used for inspecting the vehicle systems.Auto Link module and My Wing Service is paired via Bluetooth communication and must be set up as<Preparation> instructions.PreparationNoticeAuto Link Module must be connected to OBD-II connector of vehicle, in order to communicationwith vehicle.
9My WingService Settings and Basic OperationDevice Settings / Vehicle Settings• Device Settings1. When application is launched and Auto Link module is not set, the device setting screen isdisplayed.Tap [Start] button to start the nearby Auto Link module searching.2. The ‘Searching’ screen is displayed while searching for nearby Auto Link module.12

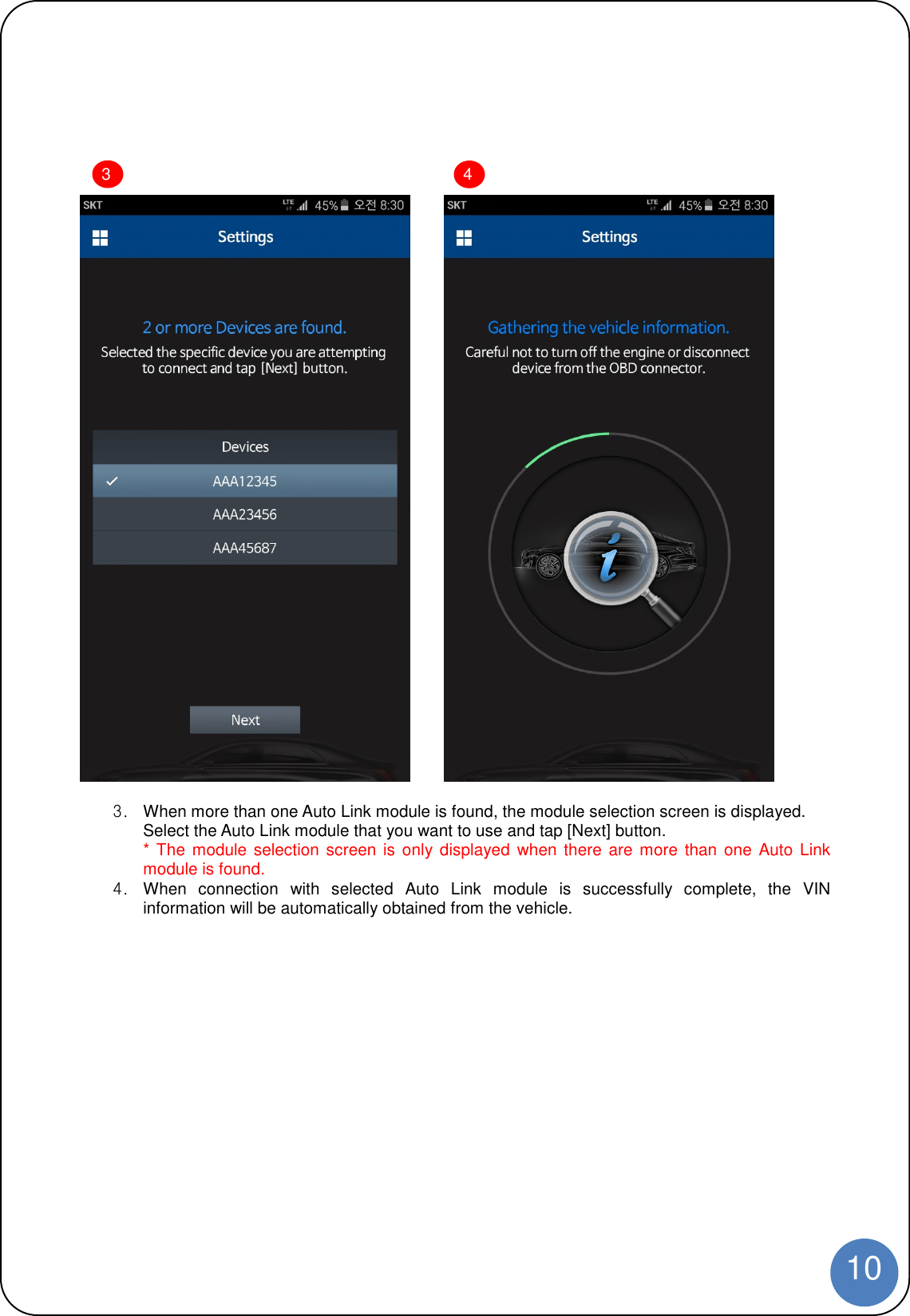

103. When more than one Auto Link module is found, the module selection screen is displayed.Select the Auto Link module that you want to use and tap [Next] button.* The module selection screen is only displayed when there are more than one Auto Linkmodule is found.4. When connection with selected Auto Link module is successfully complete, the VINinformation will be automatically obtained from the vehicle.34

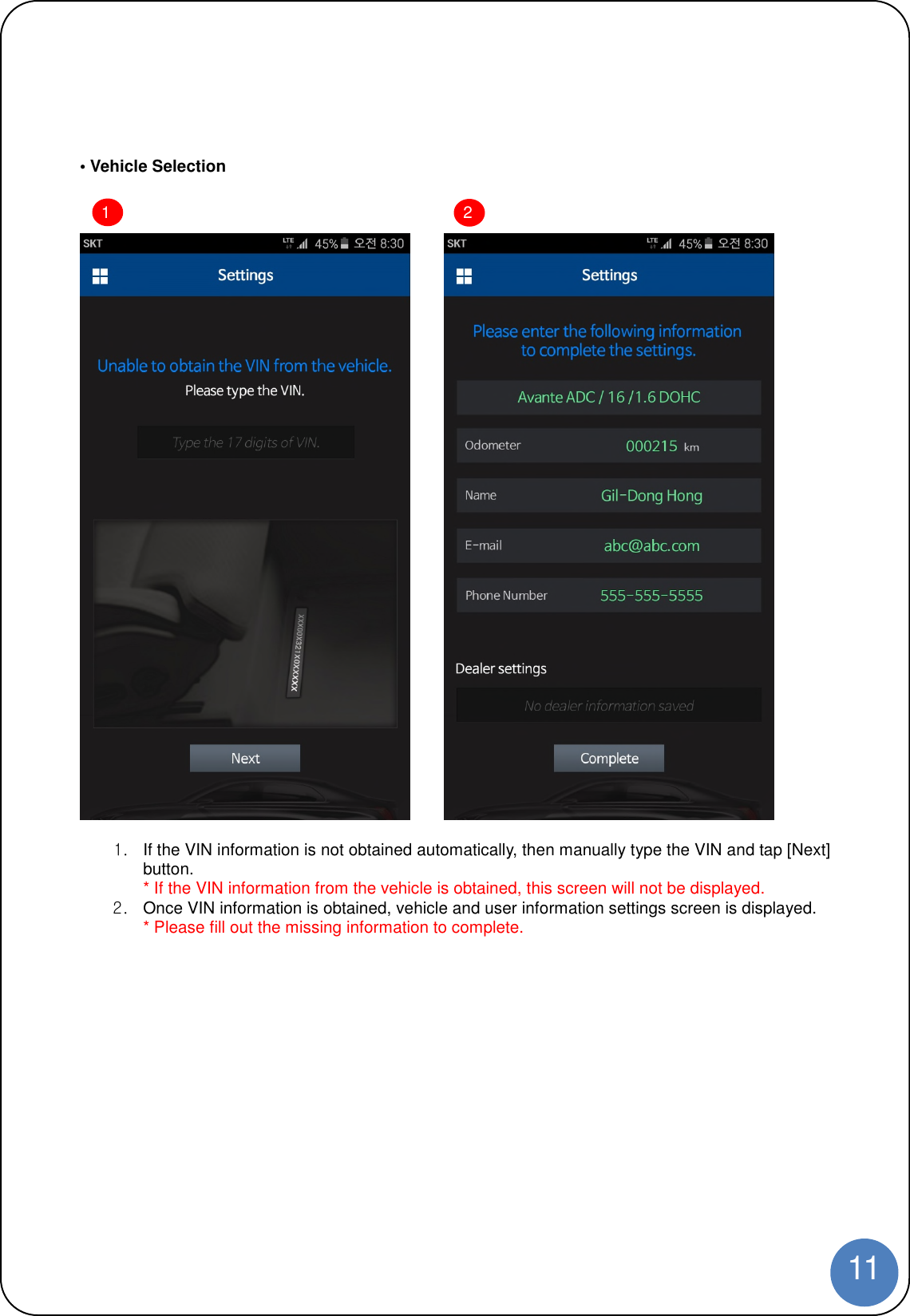

11• Vehicle Selection1. If the VIN information is not obtained automatically, then manually type the VIN and tap [Next]button.* If the VIN information from the vehicle is obtained, this screen will not be displayed.2. Once VIN information is obtained, vehicle and user information settings screen is displayed.* Please fill out the missing information to complete.12

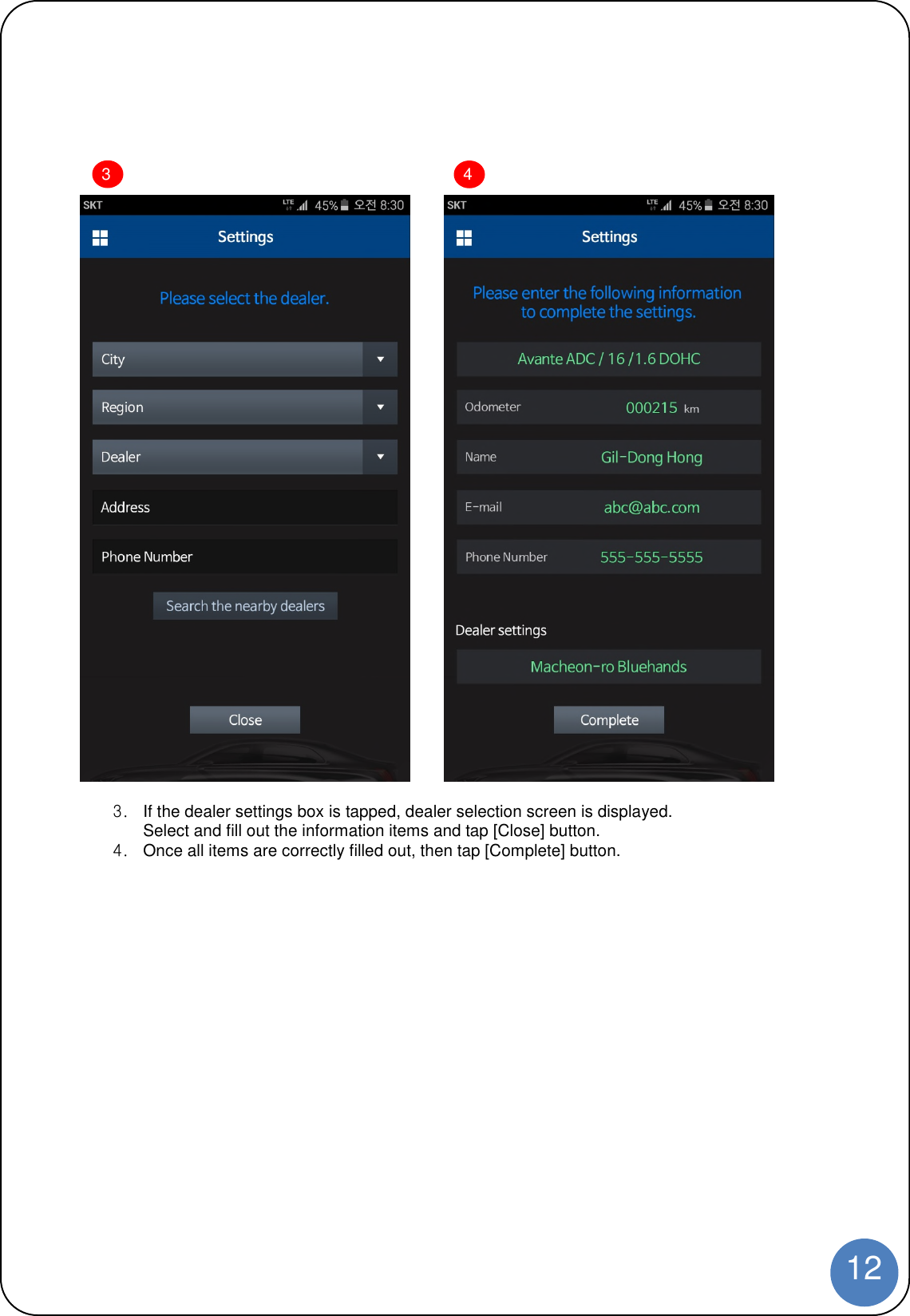

123. If the dealer settings box is tapped, dealer selection screen is displayed.Select and fill out the information items and tap [Close] button.4. Once all items are correctly filled out, then tap [Complete] button.34

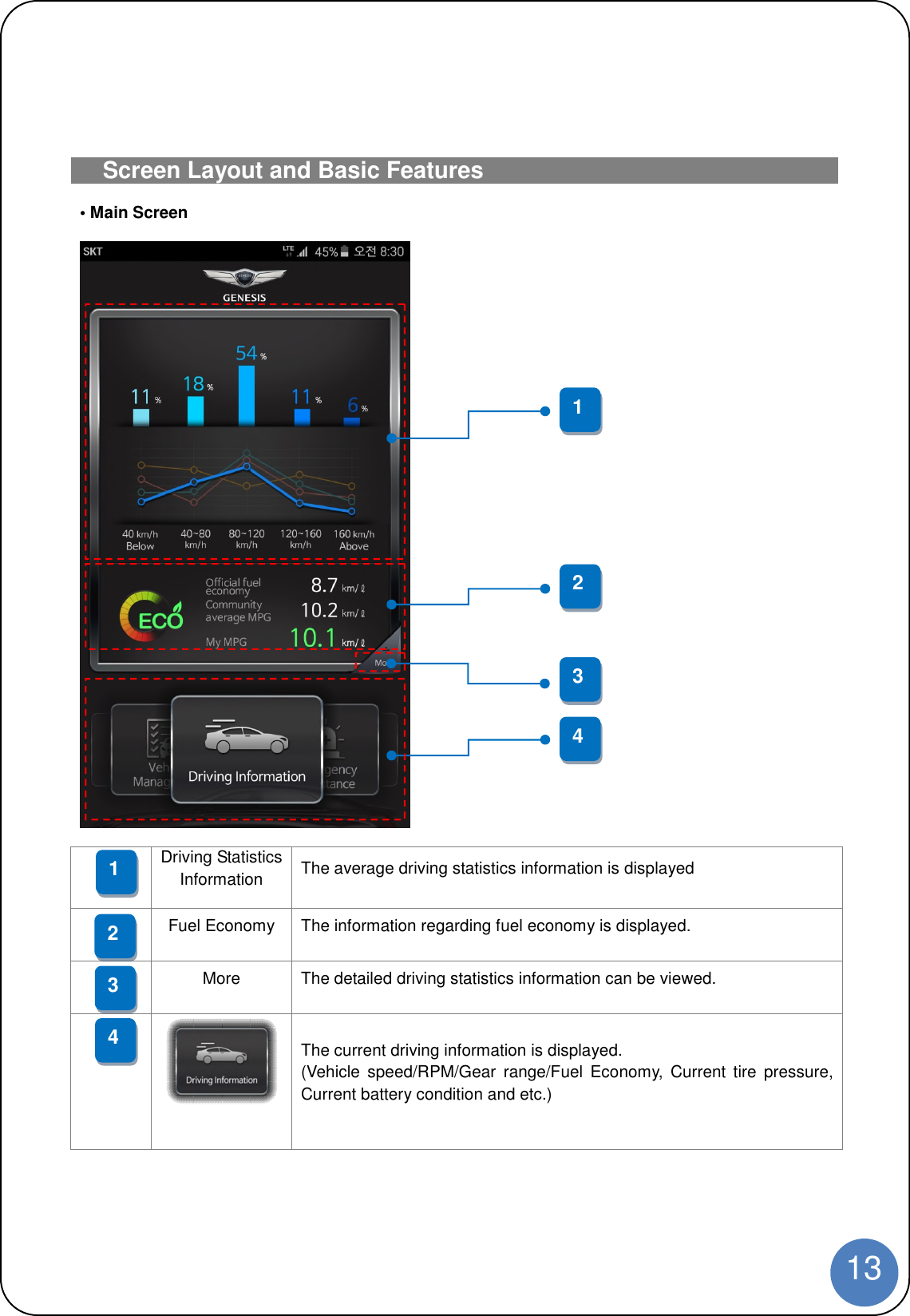

13Screen Layout and Basic Features• Main ScreenDriving StatisticsInformation The average driving statistics information is displayedFuel Economy The information regarding fuel economy is displayed.More The detailed driving statistics information can be viewed.The current driving information is displayed.(Vehicle speed/RPM/Gear range/Fuel Economy, Current tire pressure,Current battery condition and etc.)12341234

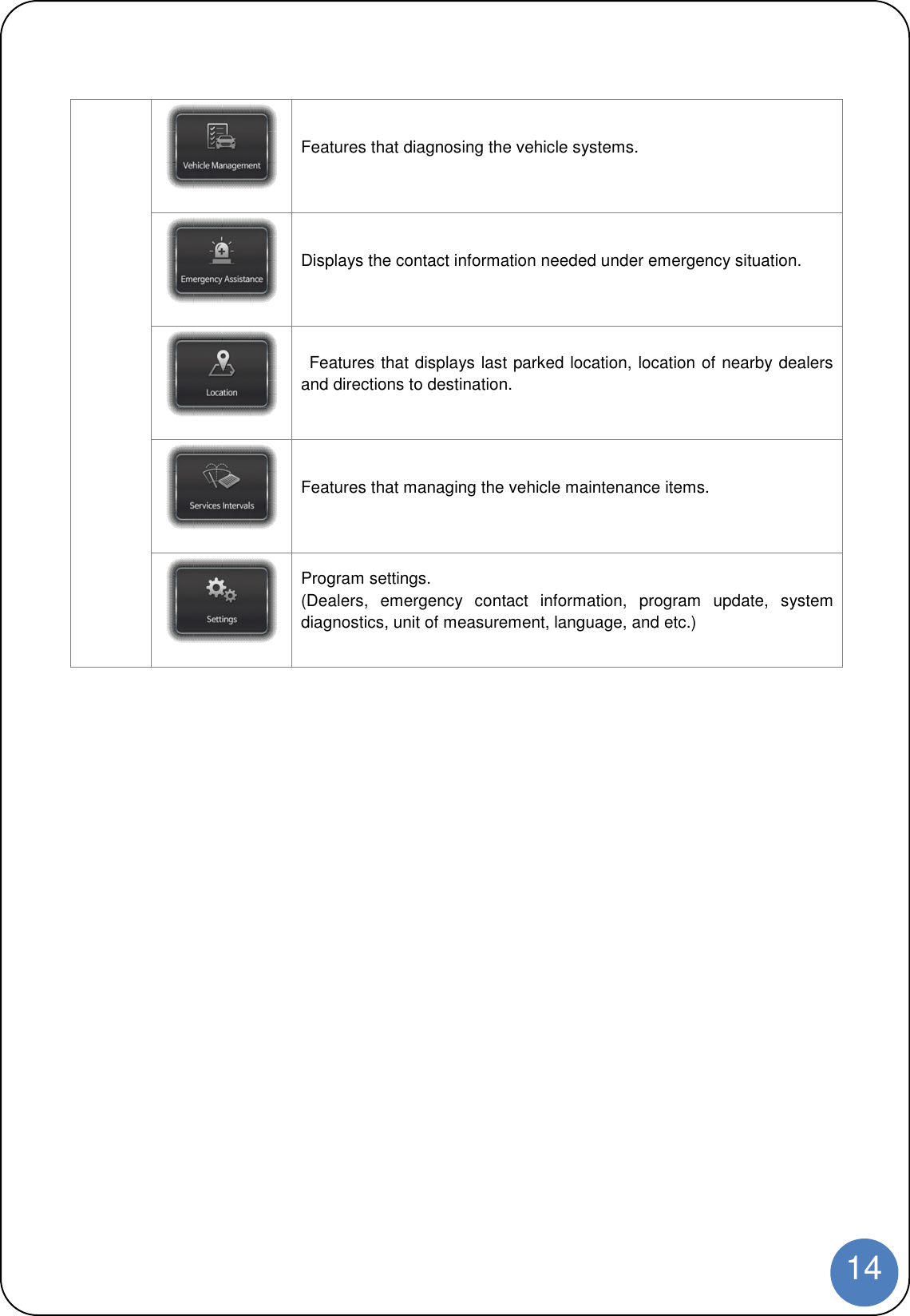

14Features that diagnosing the vehicle systems.Displays the contact information needed under emergency situation.Features that displays last parked location, location of nearby dealersand directions to destination.Features that managing the vehicle maintenance items.Program settings.(Dealers, emergency contact information, program update, systemdiagnostics, unit of measurement, language, and etc.)

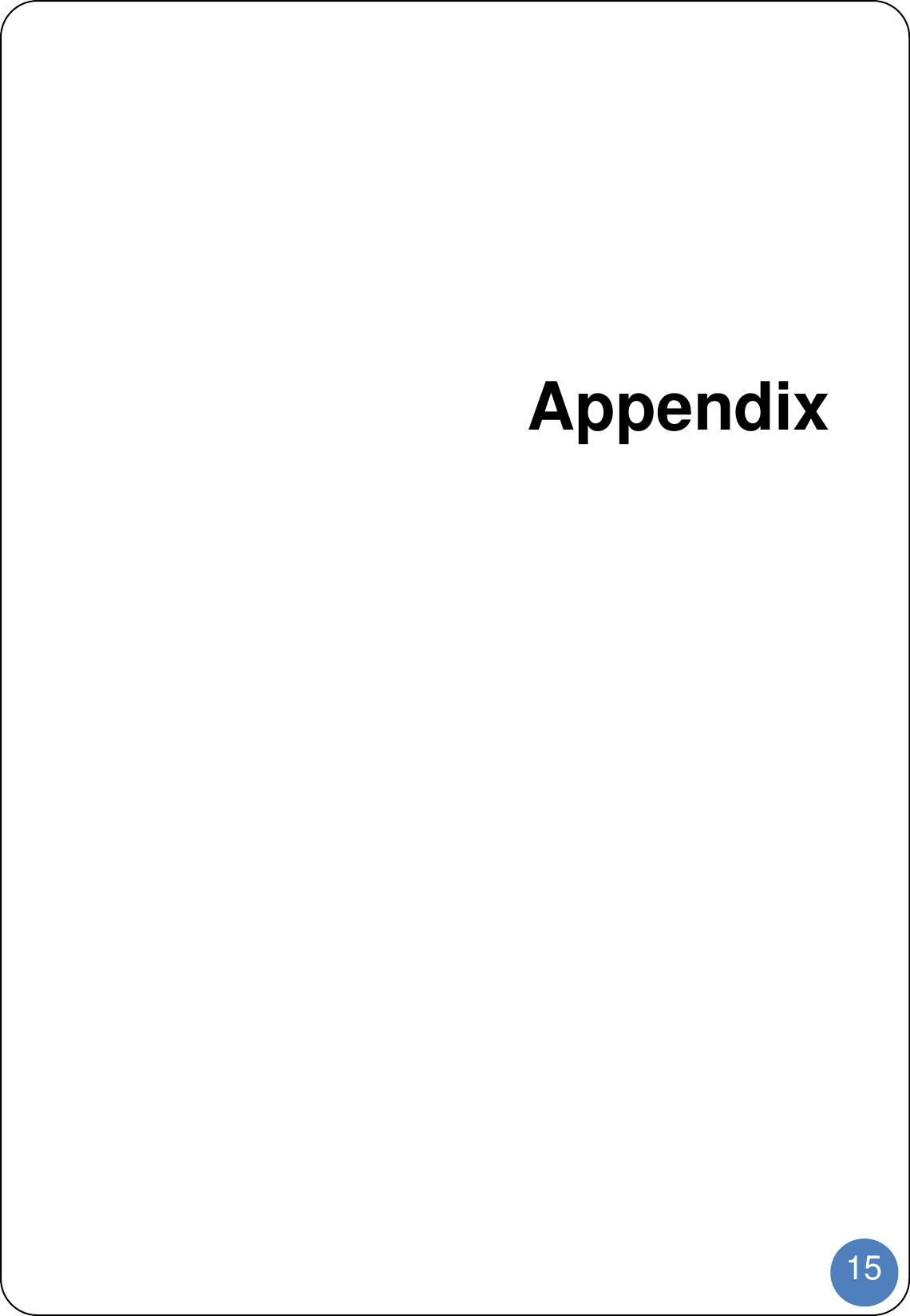

15Appendix

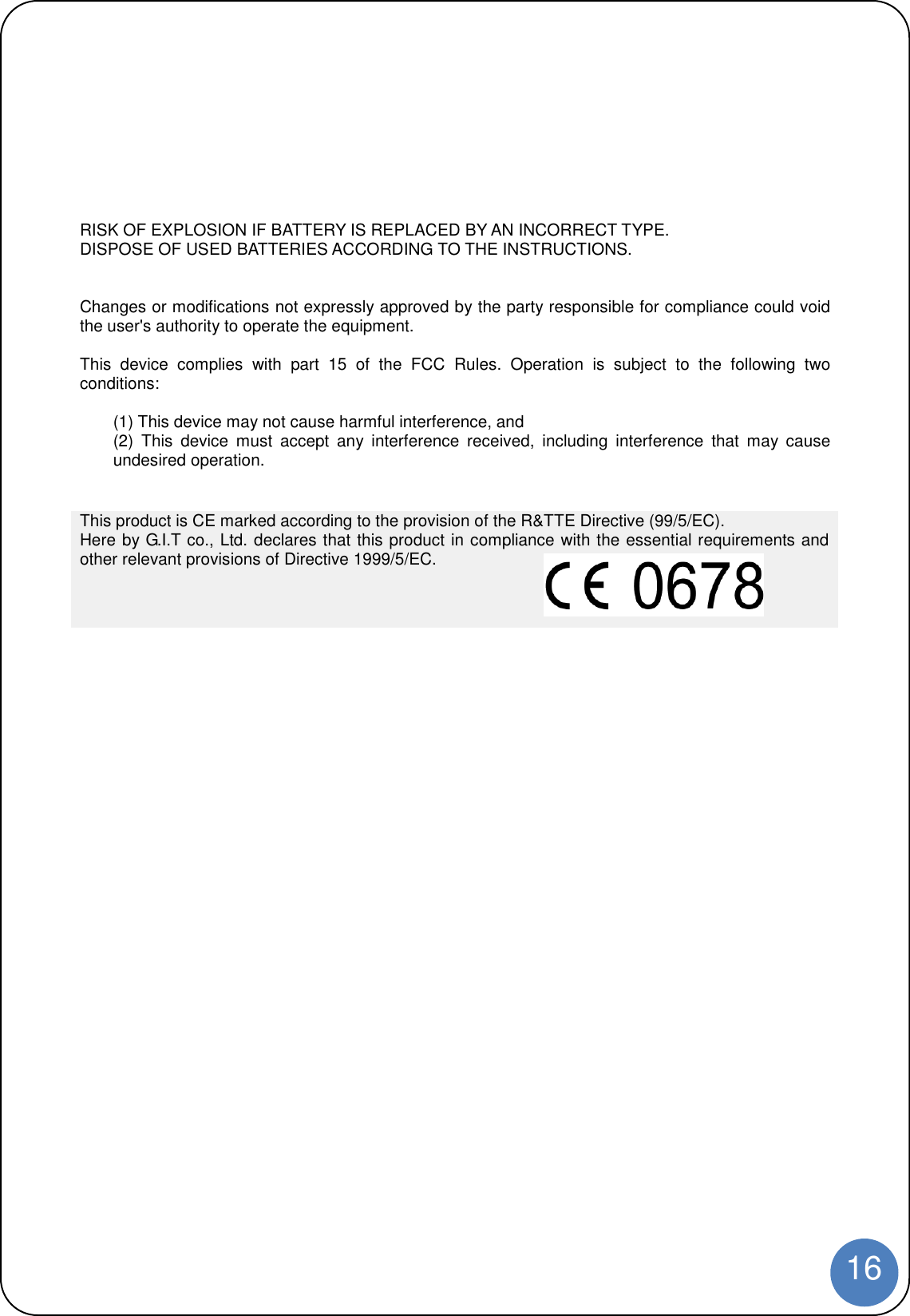

16RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.Changes or modifications not expressly approved by the party responsible for compliance could voidthe user's authority to operate the equipment.This device complies with part 15 of the FCC Rules. Operation is subject to the following twoconditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may causeundesired operation.This product is CE marked according to the provision of the R&TTE Directive (99/5/EC).Here by G.I.T co., Ltd. declares that this product in compliance with the essential requirements andother relevant provisions of Directive 1999/5/EC.

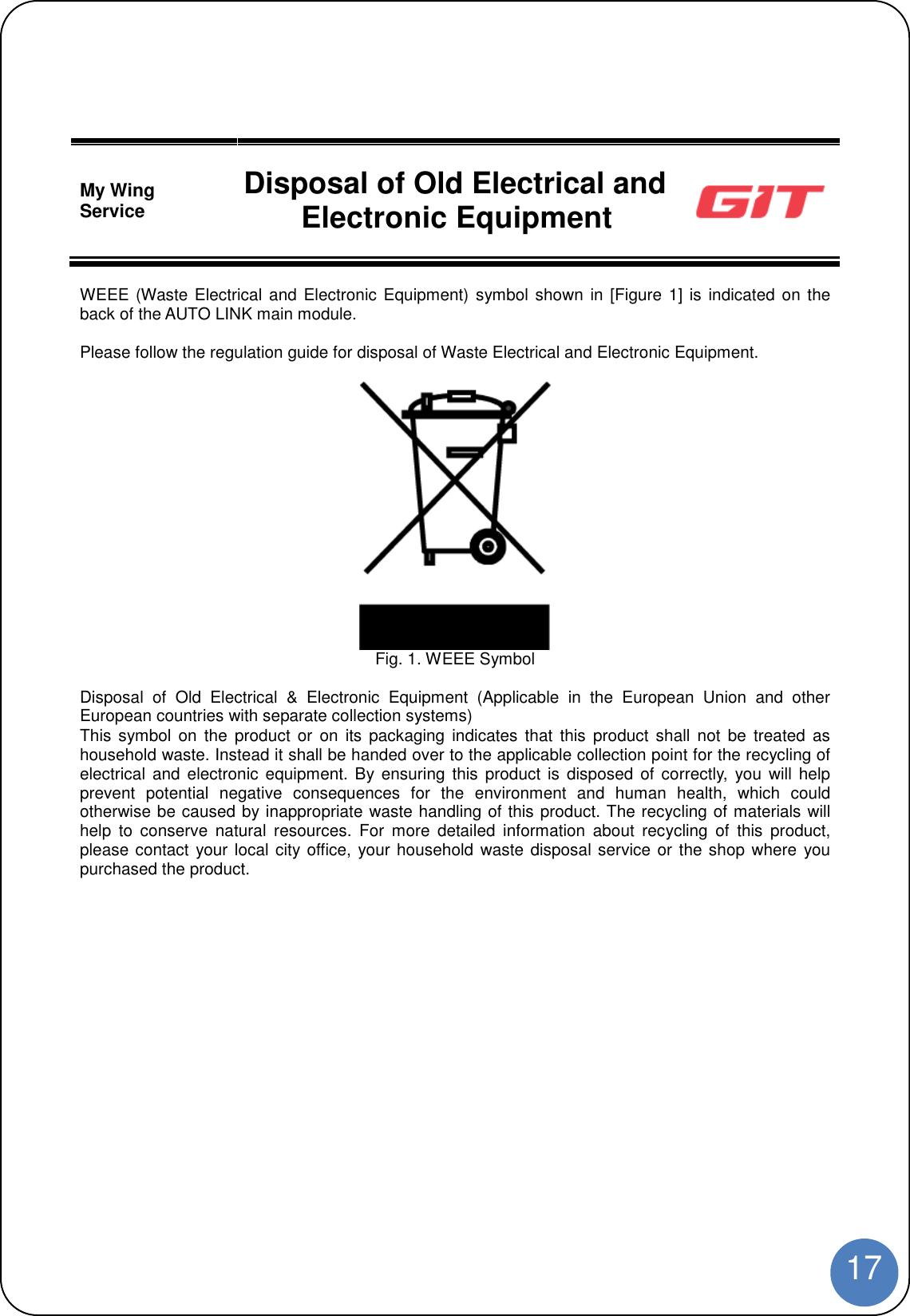

17My WingService Disposal of Old Electrical andElectronic EquipmentWEEE (Waste Electrical and Electronic Equipment) symbol shown in [Figure 1] is indicated on theback of the AUTO LINK main module.Please follow the regulation guide for disposal of Waste Electrical and Electronic Equipment.Fig. 1. WEEE SymbolDisposal of Old Electrical & Electronic Equipment (Applicable in the European Union and otherEuropean countries with separate collection systems)This symbol on the product or on its packaging indicates that this product shall not be treated ashousehold waste. Instead it shall be handed over to the applicable collection point for the recycling ofelectrical and electronic equipment. By ensuring this product is disposed of correctly, you will helpprevent potential negative consequences for the environment and human health, which couldotherwise be caused by inappropriate waste handling of this product. The recycling of materials willhelp to conserve natural resources. For more detailed information about recycling of this product,please contact your local city office, your household waste disposal service or the shop where youpurchased the product.
