GIT G1TDDMN006 TPMS Module User Manual

G.I.T Co.,Ltd. TPMS Module

User Manual

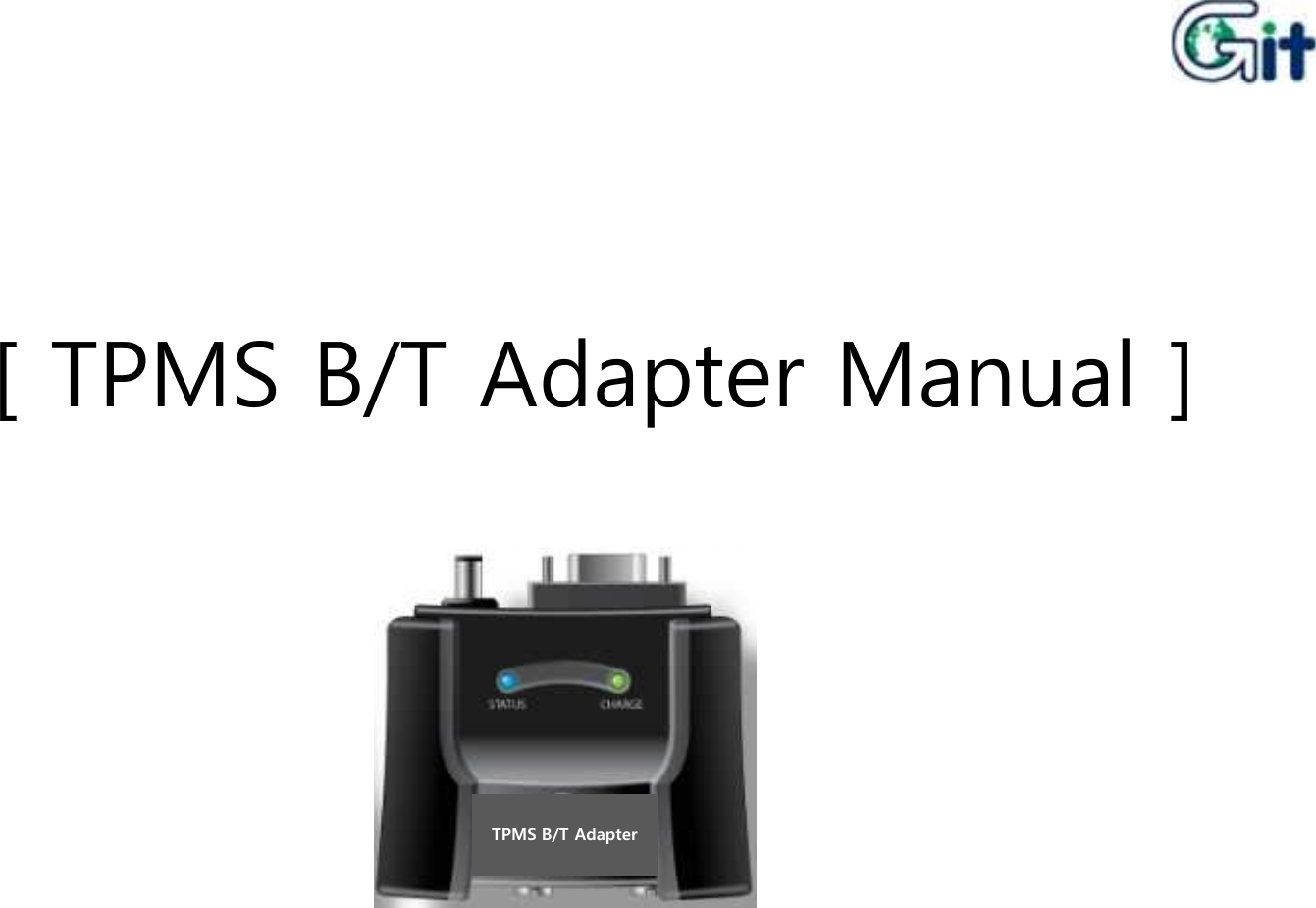

[ TPMS B/T Adapter Manual ]TPMS B/T Adapter

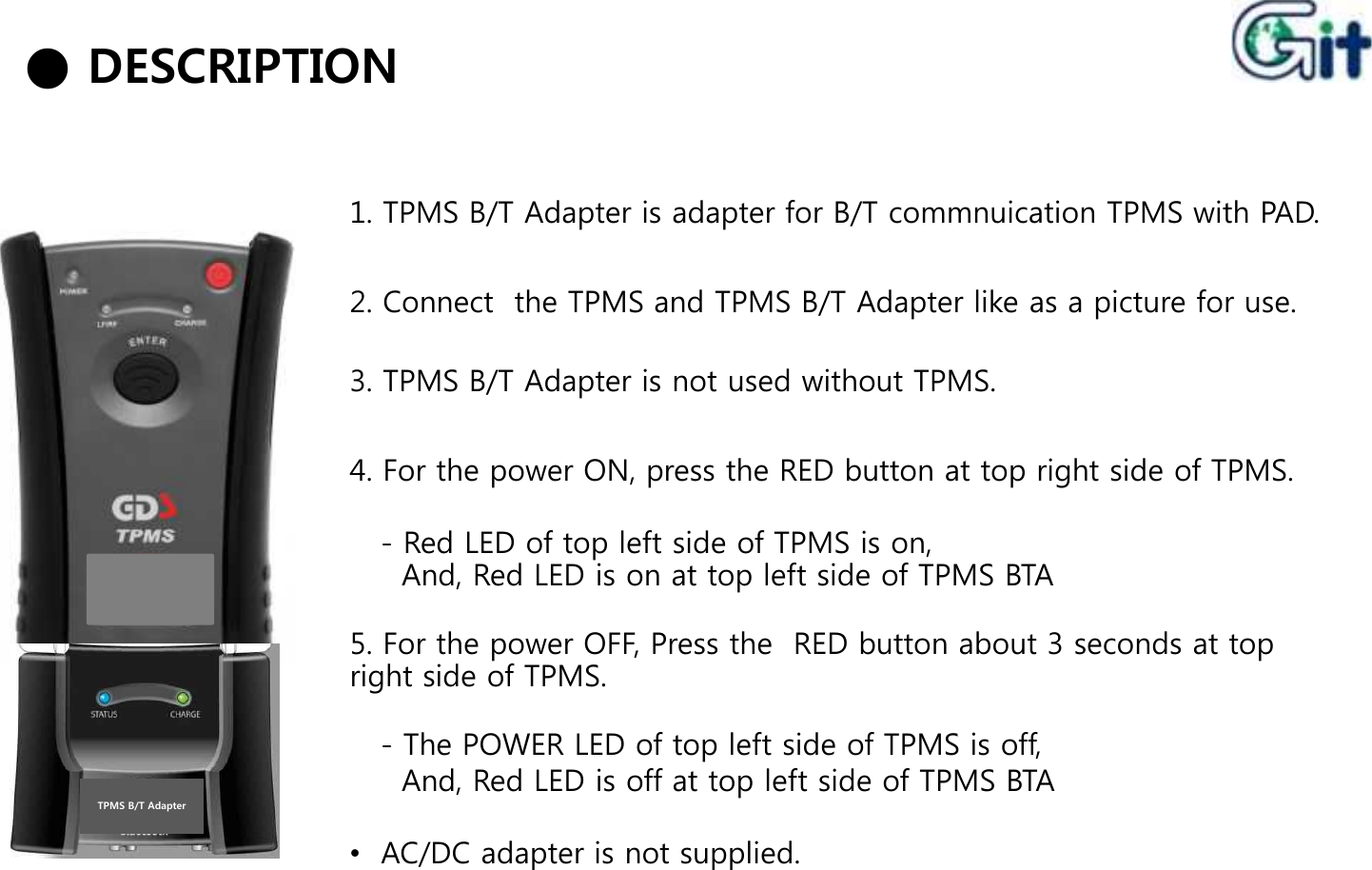

1. TPMS B/T Adapter is adapter for B/T commnuication TPMS with PAD.2. Connect the TPMS and TPMS B/T Adapter like as a picture for use.3. TPMS B/T Adapter is not used without TPMS.● DESCRIPTION4. For the power ON, press the RED button at top right side of TPMS.- Red LED of top left side of TPMS is on,And, Red LED is on at top left side of TPMS BTA- Red LED of top left side of TPMS is on,And, Red LED is on at top left side of TPMS BTA5. For the power OFF, Press the RED button about 3 seconds at top right side of TPMS.- The POWER LED of top left side of TPMS is off,And, Red LED is off at top left side of TPMS BTATPMS B/T Adapter•AC/DC adapter is not supplied.

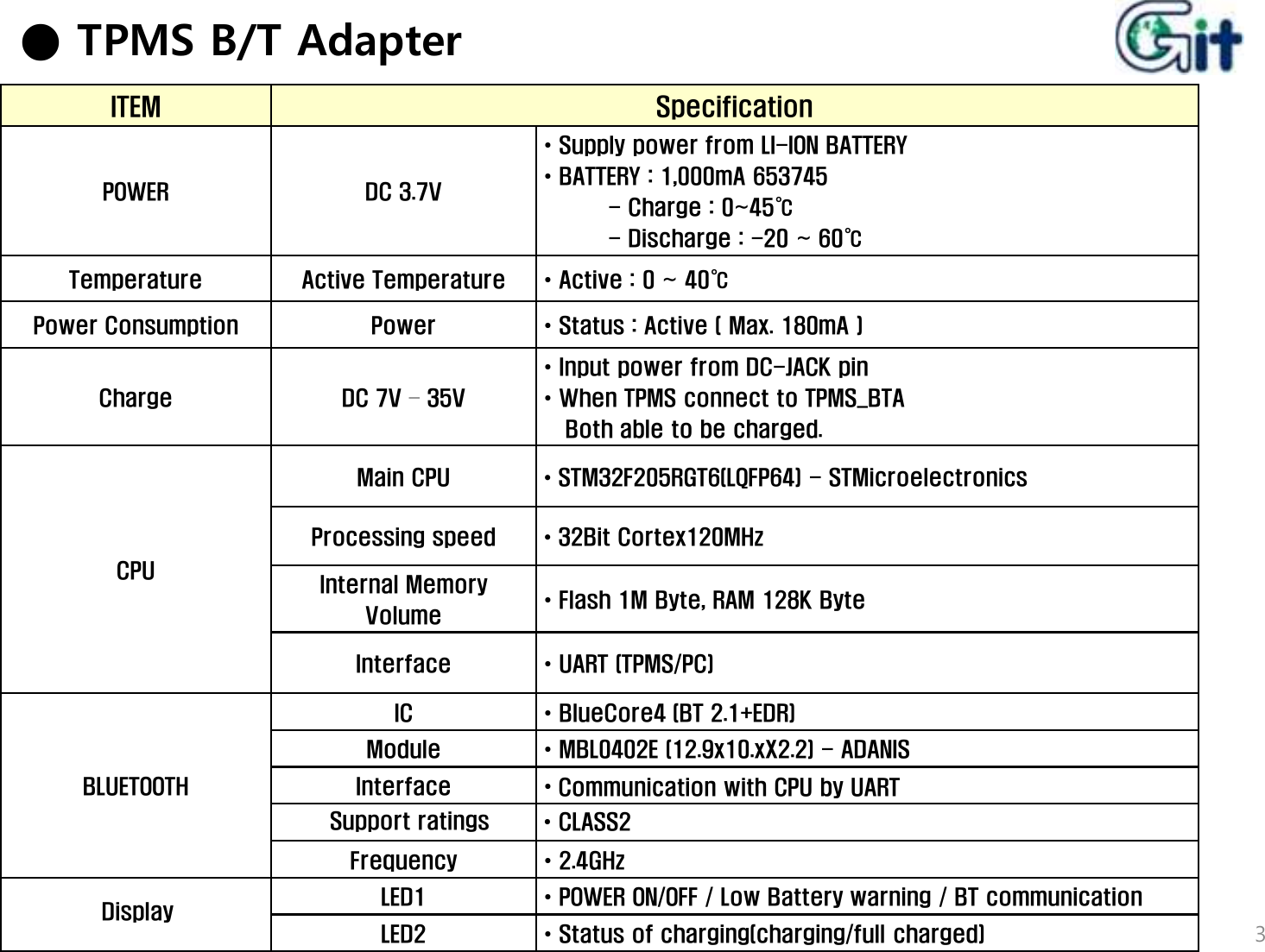

ITEM SpecificationPOWER DC 3.7V•Supply power from LI-ION BATTERY•BATTERY : 1,000mA 653745- Charge : 0~45℃- Discharge : -20 ~ 60℃Temperature Active Temperature •Active : 0 ~ 40℃Power Consumption Power •Status : Active ( Max. 180mA )Charge DC 7V –35V•Input power from DC-JACK pin•When TPMS connect to TPMS_BTA Both able to be charged.Main CPU •STM32F205RGT6(LQFP64) - STMicroelectronics● TPMS B/T AdapterCPUMain CPU •STM32F205RGT6(LQFP64) - STMicroelectronicsProcessing speed •32Bit Cortex120MHz Internal Memory Volume •Flash 1M Byte, RAM 128K ByteInterface •UART (TPMS/PC)BLUETOOTHIC •BlueCore4 (BT 2.1+EDR)Module •MBL0402E (12.9x10.xX2.2) - ADANISFrequency •2.4GHzLED1 •POWER ON/OFF / Low Battery warning / BT communicationLED2 •Status of charging(charging/full charged) 3Display•CLASS2Support ratingsInterface •Communication with CPU by UART

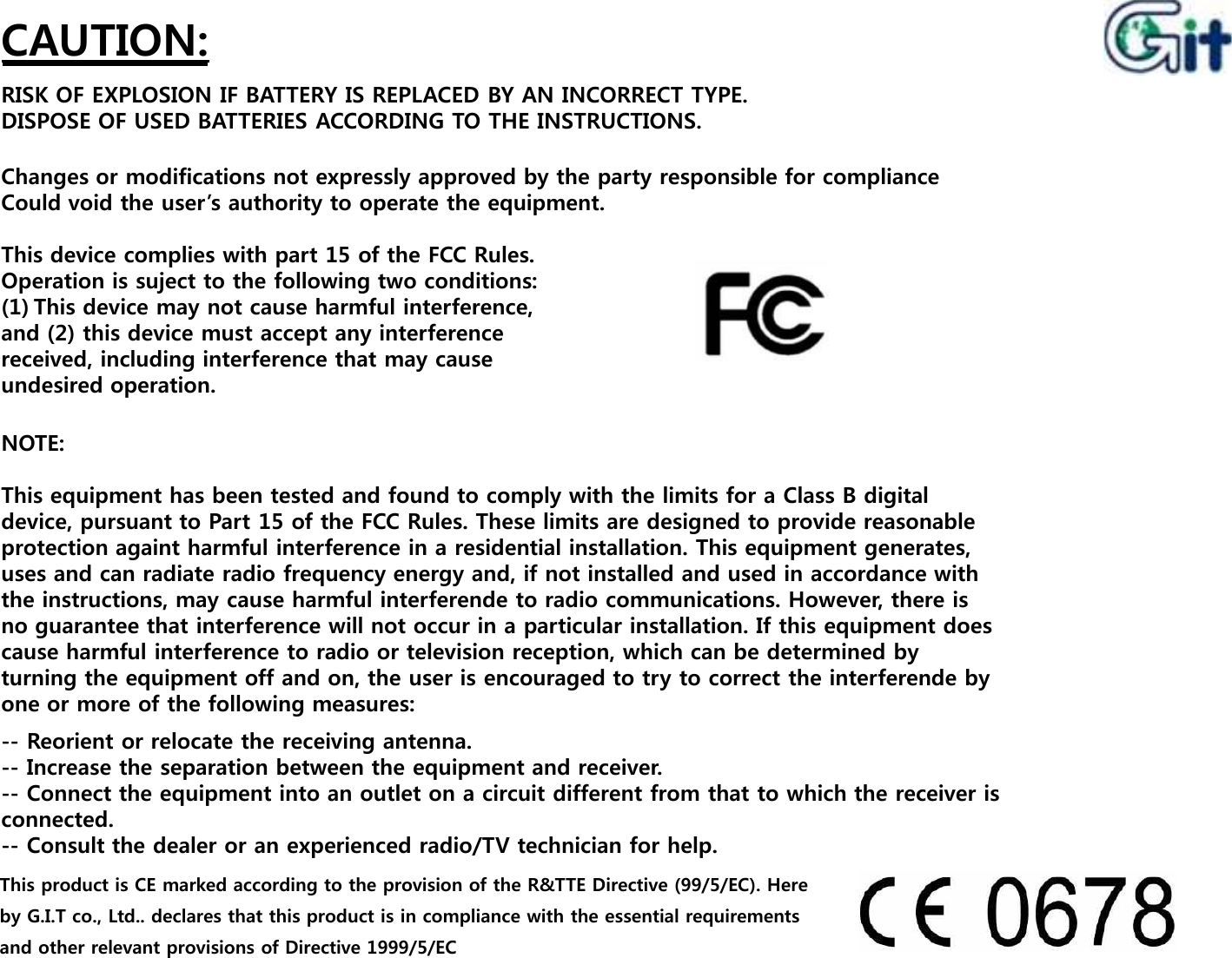

CAUTION:RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.Changes or modifications not expressly approved by the party responsible for complianceCould void the user’s authority to operate the equipment.This device complies with part 15 of the FCC Rules.Operation is suject to the following two conditions:(1) This device may not cause harmful interference,and (2) this device must accept any interferencereceived, including interference that may causeundesired operation.NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection againt harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interferende to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interferende by one or more of the following measures:4NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection againt harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interferende to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interferende by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.This product is CE marked according to the provision of the R&TTE Directive (99/5/EC). Here by G.I.T co., Ltd.. declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC
