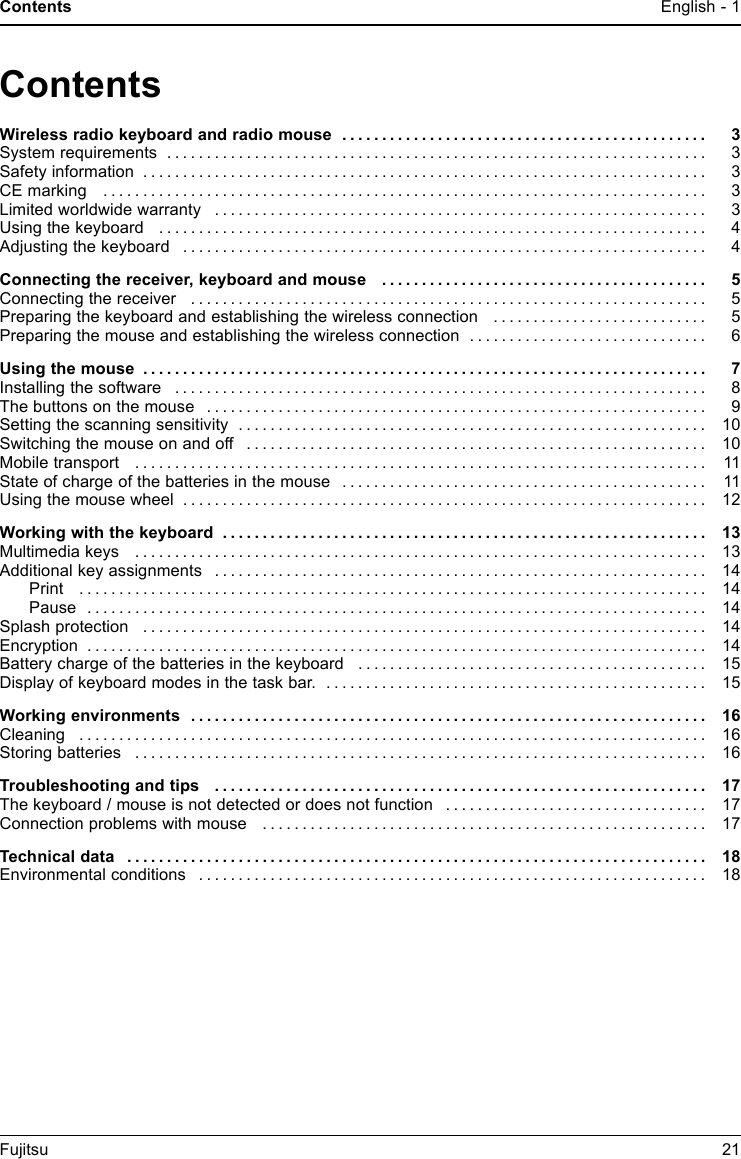

Contents English - 1EnglishContentsWireless radio keyboard and radio mouse . . ............................................ 3Systemrequirements .................................................................... 3Safetyinformation ....................................................................... 3CEmarking ............................................................................ 3Limitedworldwidewarranty .............................................................. 3Using the keyboard . . . .................................................................. 4Adjusting the keyboard .................................................................. 4Connecting the receiver, keyboard and mouse . ........................................ 5Connecting the receiver . . . . . . ........................................................... 5Preparing the keyboard and establishing the wireless connection . . ......................... 5Preparing the mouse and establishing the wireless connection . ............................. 6Usingthemouse ....................................................................... 7Installingthesoftware ................................................................... 8Thebuttonsonthemouse ............................................................... 9Settingthescanningsensitivity ........................................................... 10Switchingthemouseonandoff .......................................................... 10Mobiletransport ........................................................................ 11Stateofchargeofthebatteriesinthemouse .............................................. 11Using the mouse wheel .................................................................. 12Workingwiththekeyboard ............................................................. 13Multimediakeys ........................................................................ 13Additional key assignments . . . ........................................................... 14Print ............................................................................... 14Pause .............................................................................. 14Splashprotection ....................................................................... 14Encryption .............................................................................. 14Battery charge of the batteries in the keyboard ............................................ 15Displayofkeyboardmodesinthetaskbar. ................................................ 15Workingenvironments ................................................................. 16Cleaning ............................................................................... 16Storingbatteries ........................................................................ 16Troubleshootingandtips .............................................................. 17The keyboard / mouse is not detected or does not function . . . . ............................. 17Connection problems with mouse . ....................................................... 17Technicaldata ......................................................................... 18Environmentalconditions ................................................................ 18Fujitsu 21

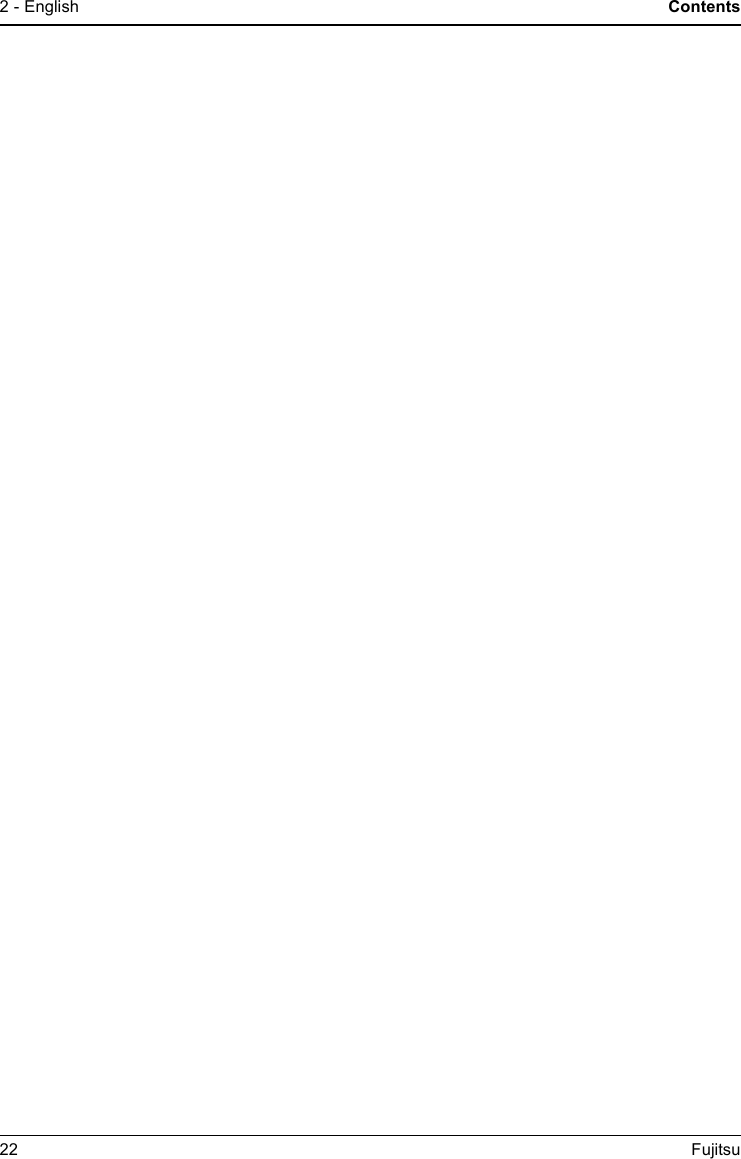

2 - English Contents22 Fujitsu

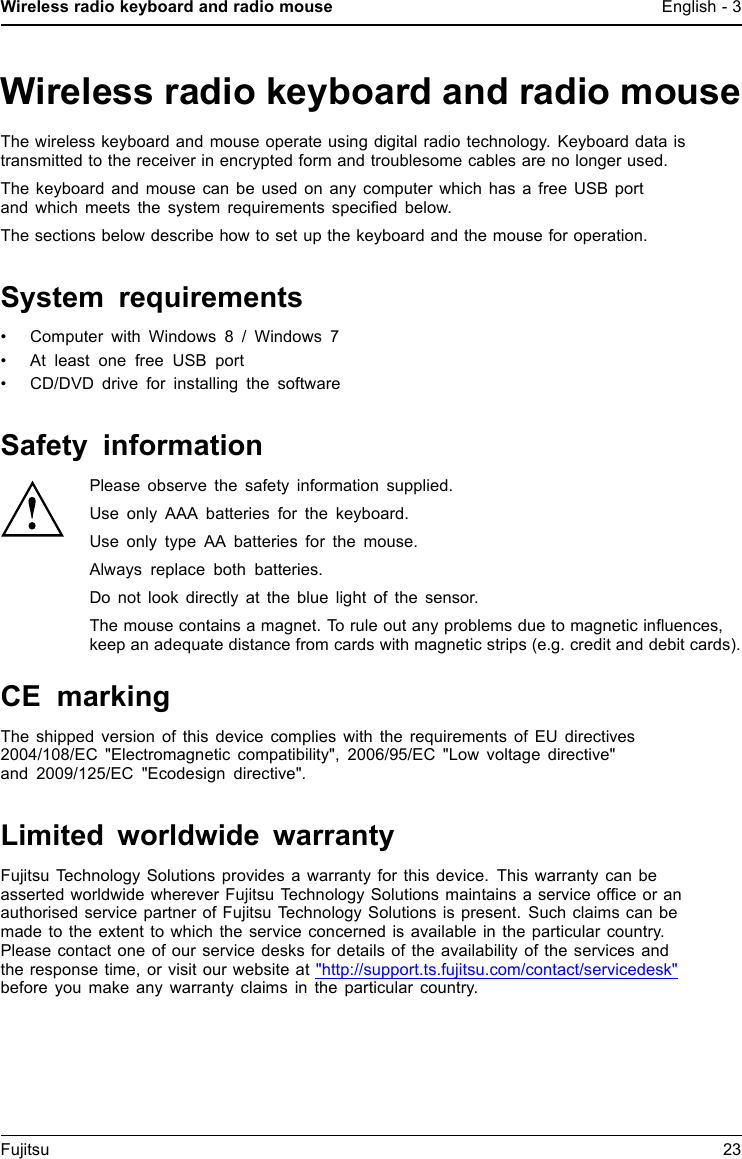

Wireless radio keyboard and radio mouse English - 3Wireless radio keyboard and radio mouseThe wireless keyboard and mouse operate using digital radio technology. Keyboard data istransmitted to the receiver in encrypted form and troublesome cables are no longer used.The keyboard and mouse can be used on any computer which has a free USB portand which meets the system requirements specified below.The sections below describe how to set up the keyboard and the mouse for operation.System requirements• Computer with Windows 8 / Windows 7• At least one free USB port• CD/DVD drive for installing the softwareSafety informationPlease observe the safety information supplied.Use only AAA batteries for the keyboard.Use only type AA batteries for the mouse.Always replace both batteries.Do not look directly at the blue light of the sensor.The mouse contains a magnet. To rule out any problems due to magnetic influences,keep an adequate distance from cards with magnetic strips (e.g. credit and debit cards).CE markingThe shipped version of this device complies with the requirements of EU directives2004/108/EC "Electromagnetic compatibility", 2006/95/EC "Low voltage directive"and 2009/125/EC "Ecodesign directive".Limited worldwide warrantyFujitsu Technology Solutions provides a warranty for this device. This warranty can beasserted worldwide wherever Fujitsu Technology Solutions maintains a service office or anauthorised service partner of Fujitsu Technology Solutions is present. Such claims can bemade to the extent to which the service concerned is available in the particular country.Please contact one of our service desks for details of the availability of the services andthe response time, or visit our website at "http://support.ts.fujitsu.com/contact/servicedesk"before you make any warranty claims in the particular country.Fujitsu 23

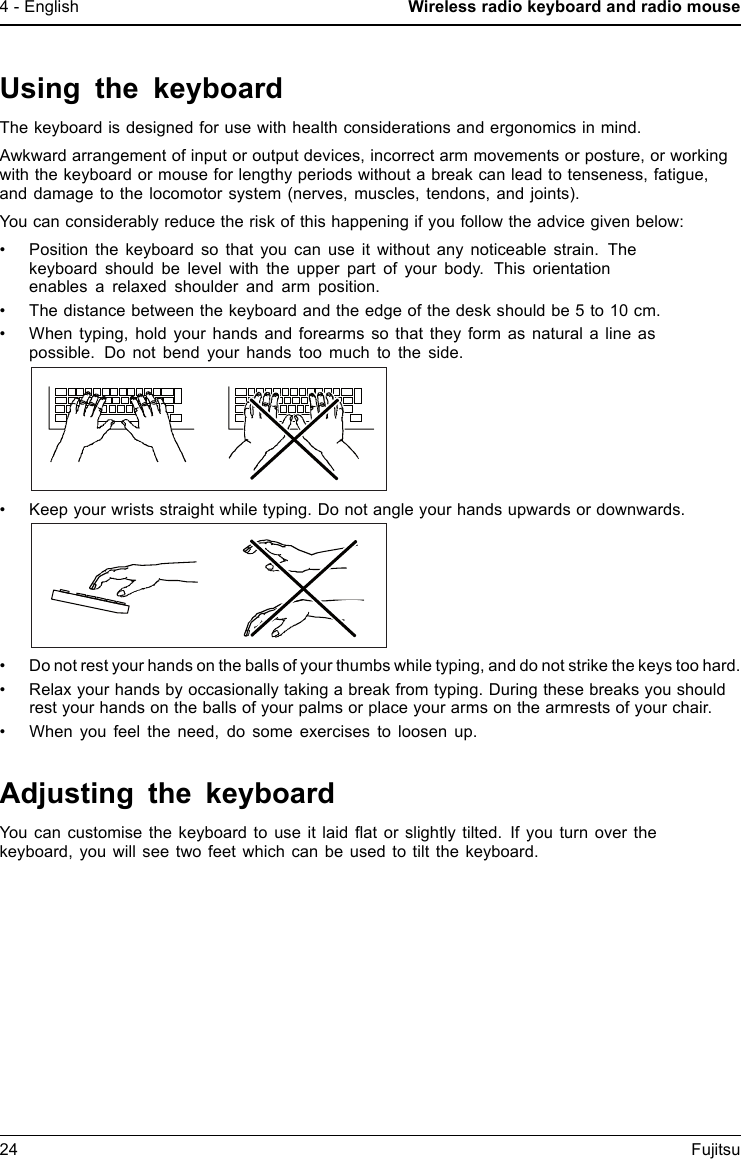

4 - English Wireless radio keyboard and radio mouseUsing the keyboardThe keyboard is designed for use with health considerations and ergonomics in mind.Awkward arrangement of input or output devices, incorrect arm movements or posture, or workingwith the keyboard or mouse for lengthy periods without a break can lead to tenseness, fatigue,and damage to the locomotor system (nerves, muscles, tendons, and joints).You can considerably reduce the risk of this happening if you follow the advice given below:• Position the keyboard so that you can use it without any noticeable strain. Thekeyboard should be level with the upper part of your body. This orientationenables a relaxed shoulder and arm position.• The distance between the keyboard and the edge of the desk should be 5 to 10 cm.• When typing, hold your hands and forearms so that they form as natural a line aspossible. Do not bend your hands too much to the side.• Keep your wrists straight while typing. Do not angle your hands upwards or downwards.• Do not rest your hands on the balls of your thumbs while typing, and do not strike the keys too hard.• Relax your hands by occasionally taking a break from typing. During these breaks you shouldrest your hands on the balls of your palms or place your arms on the armrests of your chair.• When you feel the need, do some exercises to loosen up.Adjusting the keyboardYou can customise the keyboard to use it laid flat or slightly tilted. If you turn over thekeyboard, you will see two feet which can be used to tilt the keyboard.24 Fujitsu

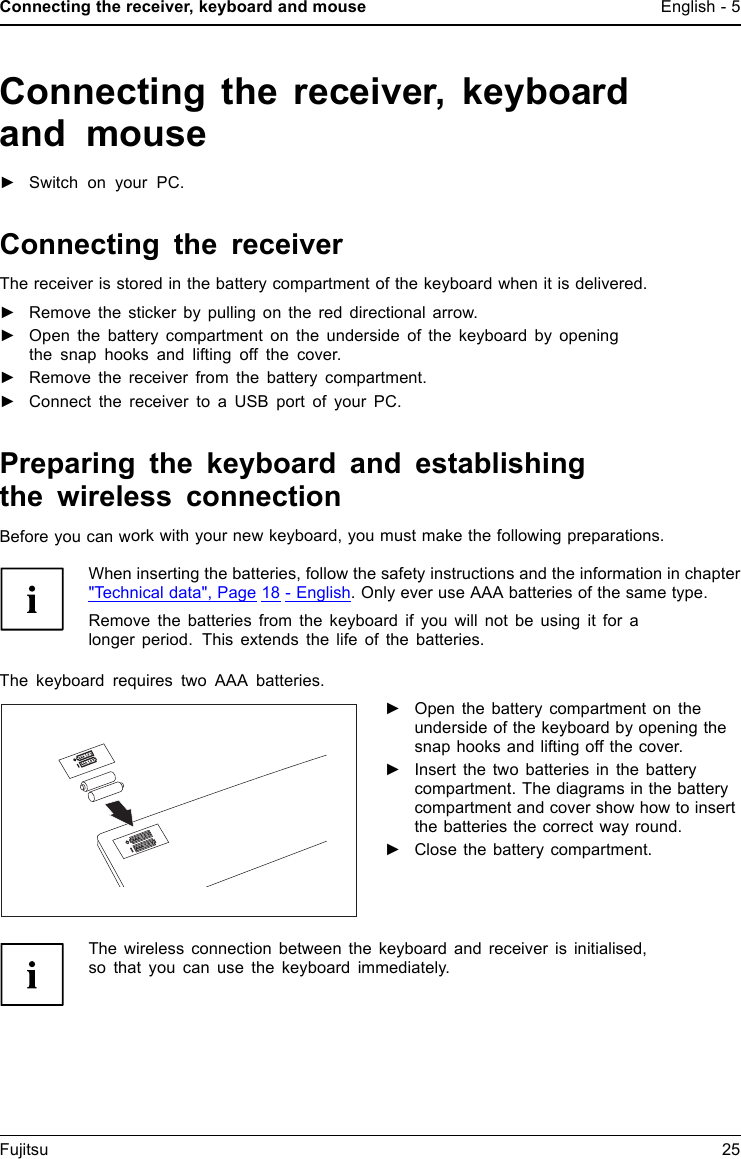

Connecting the receiver, keyboard and mouse English - 5Connecting the receiver, keyboardand mouse►Switch on your PC.Connecting the receiverThe receiver is stored in the battery compartment of the keyboard when it is delivered.►Remove the sticker by pulling on the red directional arrow.►Open the battery compartment on the underside of the keyboard by openingthe snap hooks and lifting off the cover.►Remove the receiver from the battery compartment.►Connect the receiver to a USB port of your PC.Preparing the keyboard and establishingthe wireless connectionBefore you can work with your new keyboard, you must make the following preparations.When inserting the batteries, follow the safety instructions and the information in chapter"Technical data", Page 18 - English. Only ever use AAA batteries of the same type.Remove the batteries from the keyboard if you will not be using it for alonger period. This extends the life of the batteries.The keyboard requires two AAA batteries.►Open the battery compartment on theunderside of the keyboard by opening thesnap hooks and lifting off the cover.►Insert the two batteries in the batterycompartment. The diagrams in the batterycompartment and cover show how to insertthe batteries the correct way round.►Close the battery compartment.The wireless connection between the keyboard and receiver is initialised,so that you can use the keyboard immediately.Fujitsu 25

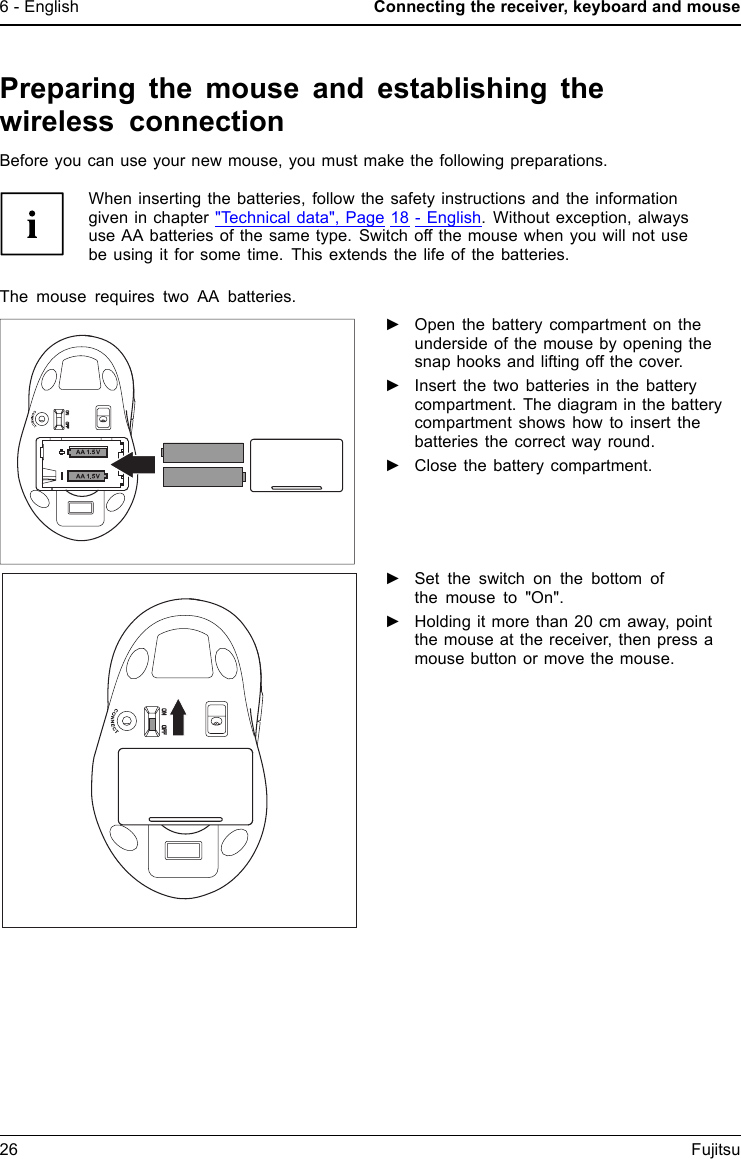

6 - English Connecting the receiver, keyboard and mousePreparing the mouse and establishing thewireless connectionBefore you can use your new mouse, you must make the following preparations.When inserting the batteries, follow the safety instructions and the informationgiven in chapter "Technical data", Page 18 - English. Without exception, alwaysuse AA batteries of the same type. Switch off the mouse when you will not usebe using it for some time. This extends the life of the batteries.The mouse requires two AA batteries.►Open the battery compartment on theunderside of the mouse by opening thesnap hooks and lifting off the cover.►Insert the two batteries in the batterycompartment. The diagram in the batterycompartment shows how to insert thebatteries the correct way round.►Close the battery compartment.►Set the switch on the bottom ofthemouseto"On".►Holding it more than 20 cm away, pointthe mouse at the receiver, then press amouse button or move the mouse.26 Fujitsu

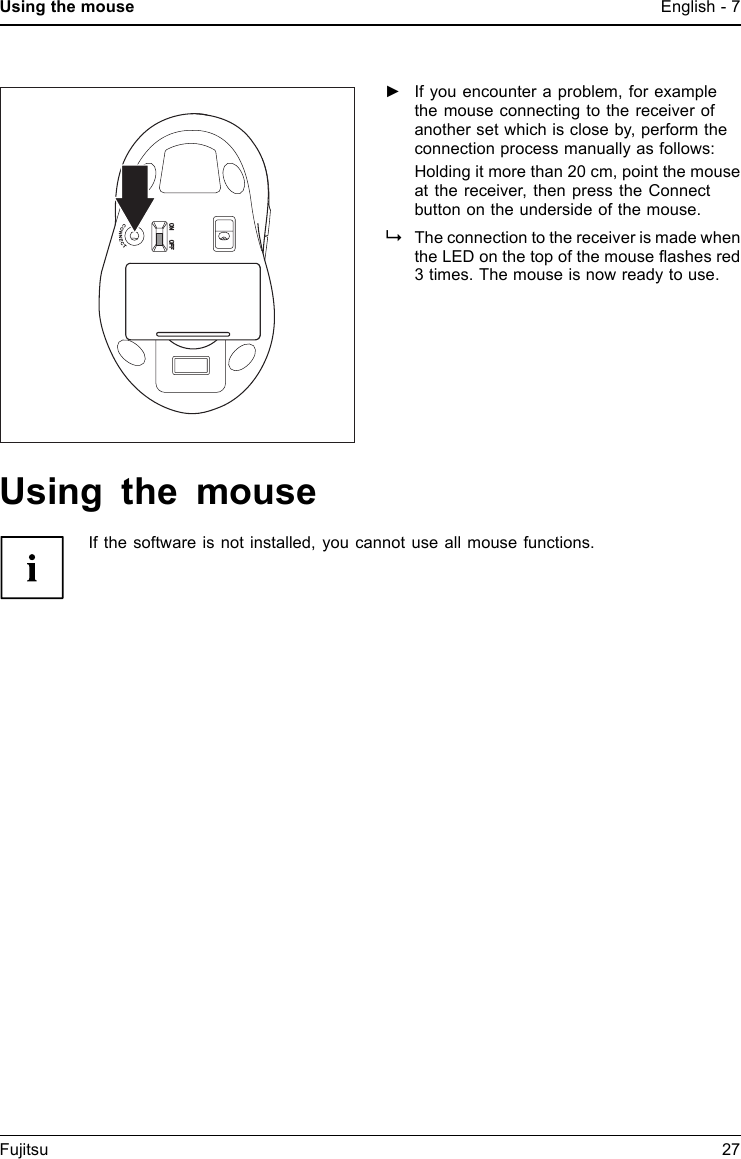

Using the mouse English - 7►If you encounter a problem, for examplethe mouse connecting to the receiver ofanother set which is close by, perform theconnection process manually as follows:Holdingitmorethan20cm,pointthemouseat the receiver, then press the Connectbutton on the underside of the mouse.The connection to the receiver is made whenthe LED on the top of the mouse flashes red3 times. The mouse is now ready to use.Using the mouseIf the software is not installed, you cannot use all mouse functions.Fujitsu 27

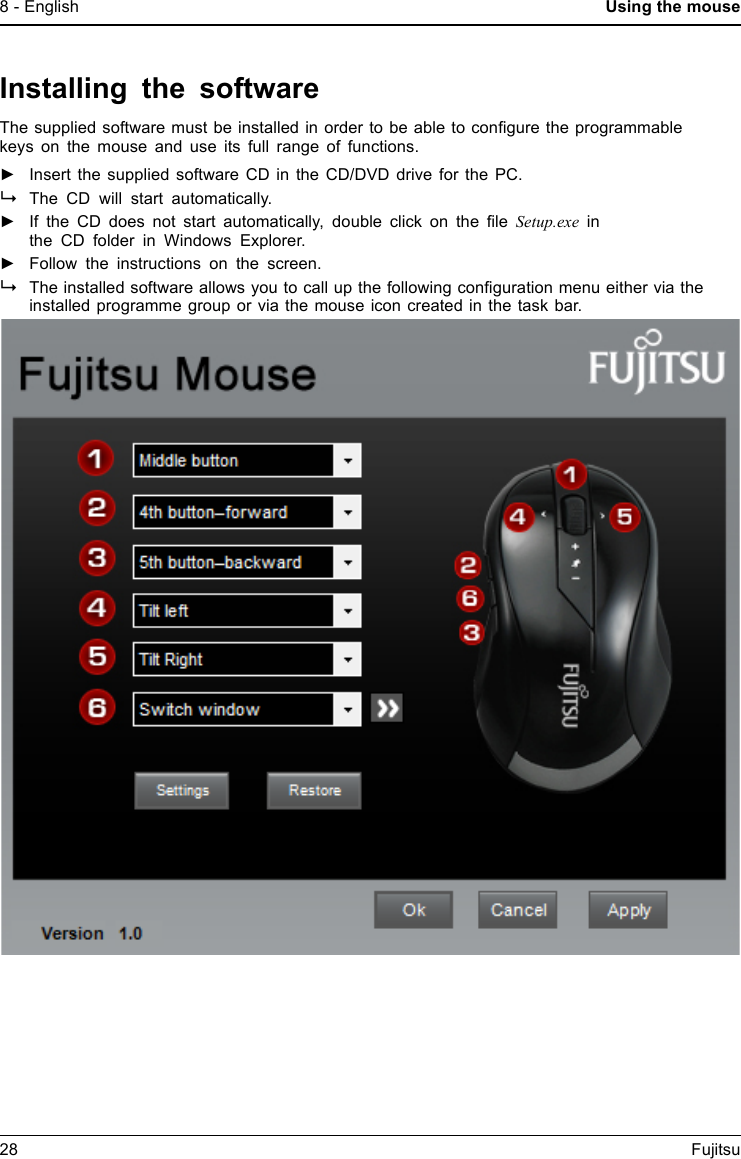

8 - English Using the mouseInstalling the softwareThe supplied software must be installed in order to be able to configure the programmablekeys on the mouse and use its full range of functions.►Insert the supplied software CD in the CD/DVD drive for the PC.The CD will start automatically.►If the CD does not start automatically, double click on the file Setup.exe inthe CD folder in Windows Explorer.►Follow the instructions on the screen.The installed software allows you to call up the following configuration menu either via theinstalled programme group or via the mouse icon created in the task bar.28 Fujitsu

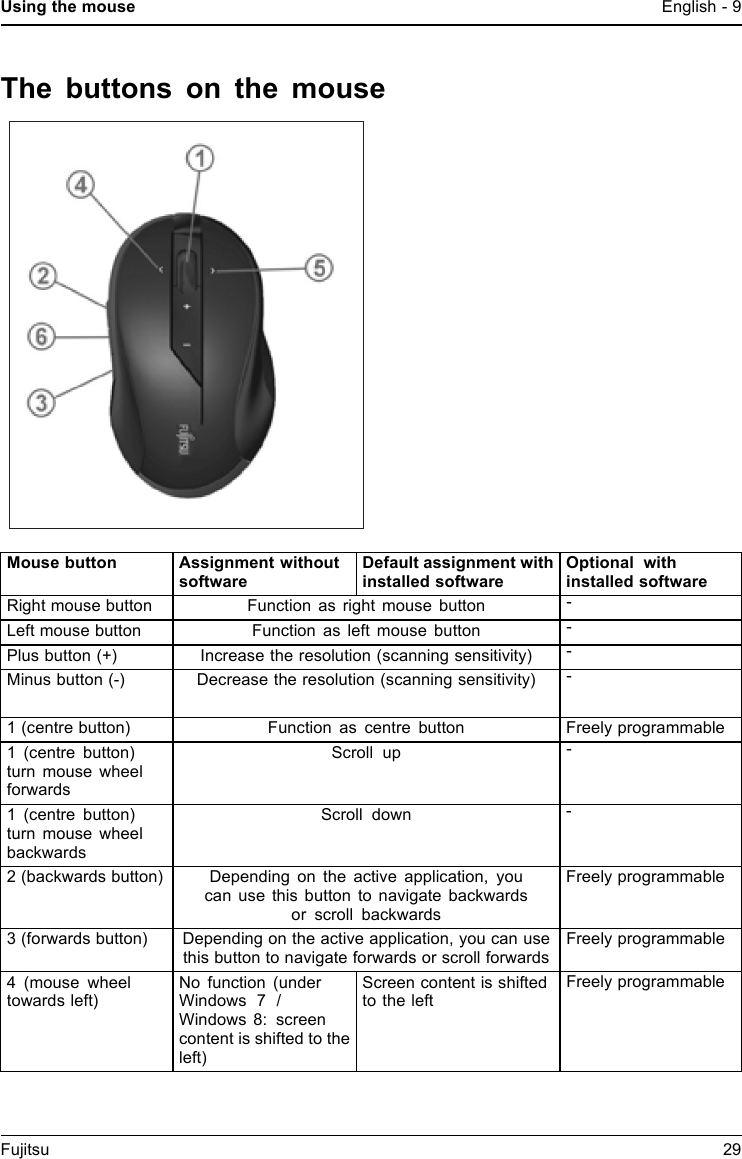

Using the mouse English - 9The buttons on the mouseMouse button Assignment withoutsoftwareDefault assignmentwithinstalled softwareOptional withinstalled softwareRight mouse buttonFunction as right mouse button -Left mouse button Function as left mouse button -Plus button (+) Increase the resolution (scanning sensitivity) -Minus button (-)Decrease the resolution (scanning sensitivity) -1 (centre button) Function as centre button Freely programmable1 (centre button)turn mouse wheelforwardsScroll up -1 (centre button)turn mouse wheelbackwardsScroll down-2 (backwards button) Depending on the active application, youcan use this button to navigate backwardsor scroll backwardsFreely programmable3 (forwards button) Depending on the active application, you can usethis button to navigate forwards or scroll forwardsFreely programmable4 (mouse wheeltowards left)No function (underWindows 7 /Windows 8: screencontent is shifted to theleft)Screen content is shiftedto the leftFreely programmableFujitsu 29
10 - English Using the mouseMouse button Assignment withoutsoftwareDefault assignment withinstalled softwareOptional withinstalled software5 (mouse wheeltowards right)No function (underWindows 7 /Windows 8: screencontent is shifted to theright)Screen content is shiftedto the rightFreely programmable6 (side button) No function Function ALT+TAB(switch between thetwo last active windows)Freely programmableSetting the scanning sensitivityThe mouse supports resolutions (scanning sensitivity) of 800, 1200 and 1600 dpi.The default setting is 1200 dpi.DPI+DPI-LED►To increase the scanning sensitivity,press the plus key.The mouse responds faster.►To decrease the scanning sensitivity,press the minus key.The mouse responds slower.When setting the scanning sensitivity,the LED flashes 3 times:• red for 800 dpi• green for 1200 dpi• orange for 1600 dpiSwitching the mouse on and offIf you are not intending to use the mouse for a long time, you can switch it off to save power.Set the switch on the bottom of the mouse to "Off".If you wish to resume work with the mouse, do not forget to switch it on again.30 Fujitsu

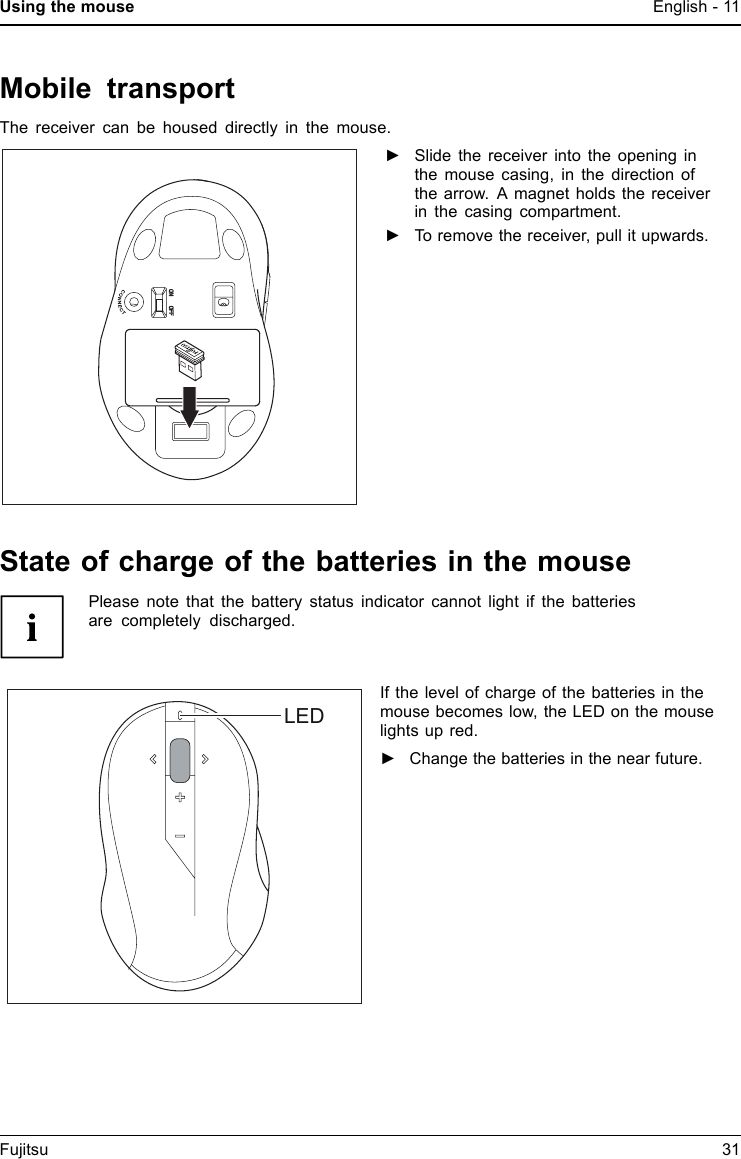

Using the mouse English - 11Mobile transportThe receiver can be housed directly in the mouse.►Slide the receiver into the opening inthe mouse casing, in the direction ofthe arrow. A magnet holds the receiverin the casing compartment.►To remove the receiver, pull it upwards.State of charge of the batteries in the mousePlease note that the battery status indicator cannot light if the batteriesare completely discharged.LEDIf the level of charge of the batteries in themouse becomes low, the LED on the mouselights up red.►Change the batteries in the near future.Fujitsu 31

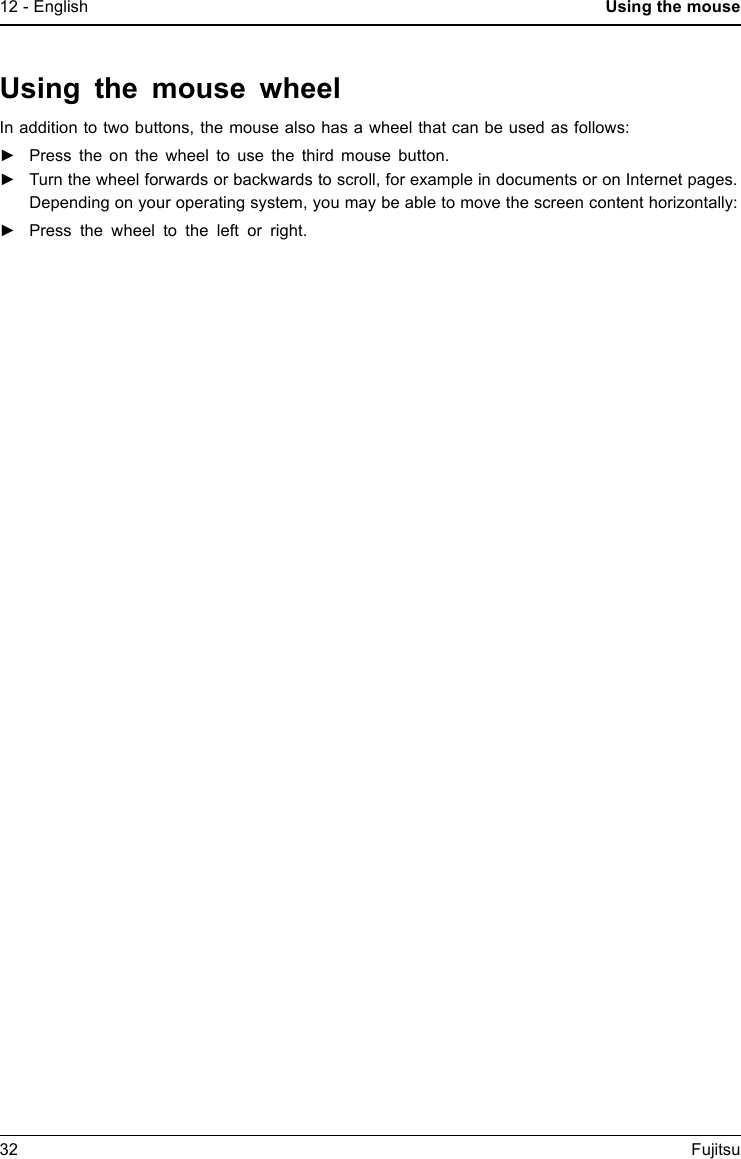

12 - English Using the mouseUsing the mouse wheelIn addition to two buttons, the mouse also has a wheel that can be used as follows:►Press the on the wheel to use the third mouse button.►Turn the wheel forwards or backwards to scroll, for example in documents or on Internet pages.Depending on your operating system, you may be able to move the screen content horizontally:►Press the wheel to the left or right.32 Fujitsu

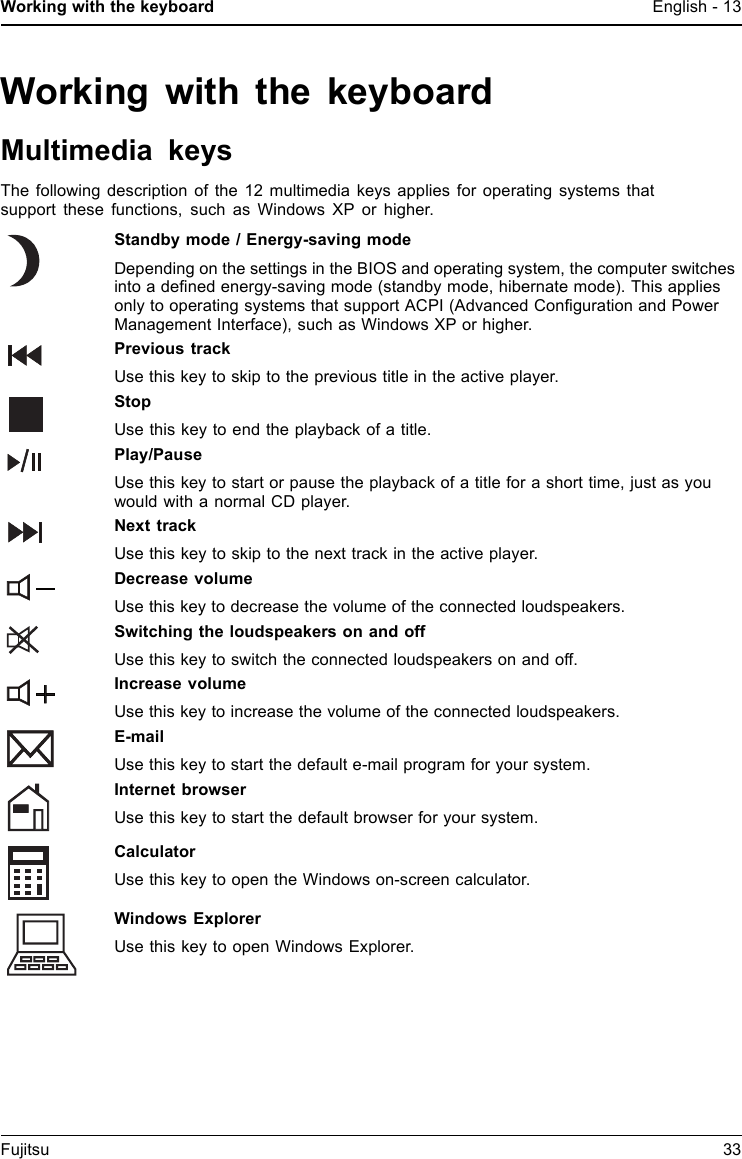

Working with the keyboard English - 13Working with the keyboardMultimedia keysThe following description of the 12 multimedia keys applies for operating systems thatsupport these functions, such as Windows XP or higher.Standby mode / Energy-saving modeDepending on the settings in the BIOS and operating system, the computer switchesinto a defined energy-saving mode (standby mode, hibernate mode). This appliesonly to operating systems that support ACPI (Advanced Configuration and PowerManagement Interface), such as Windows XP or higher.Previous trackUse this key to skip to the previous title in the active player.StopUse this key to end the playback of a title.Play/PauseUse this key to start or pause the playback of a title for a short time, just as youwouldwithanormalCDplayer.Next trackUsethiskeytoskiptothenexttrackintheactiveplayer.Decrease volumeUse this key to decrease the volume of the connected loudspeakers.Switching the loudspeakers on and offUse this key to switch the connected loudspeakers on and off.Increase volumeUse this key to increase the volume of the connected loudspeakers.E-mailUse this key to start the default e-mail program for your system.Internet browserUse this key to start the default browser for your system.CalculatorUse this key to open the Windows on-screen calculator.Windows ExplorerUse this key to open Windows Explorer.Fujitsu 33

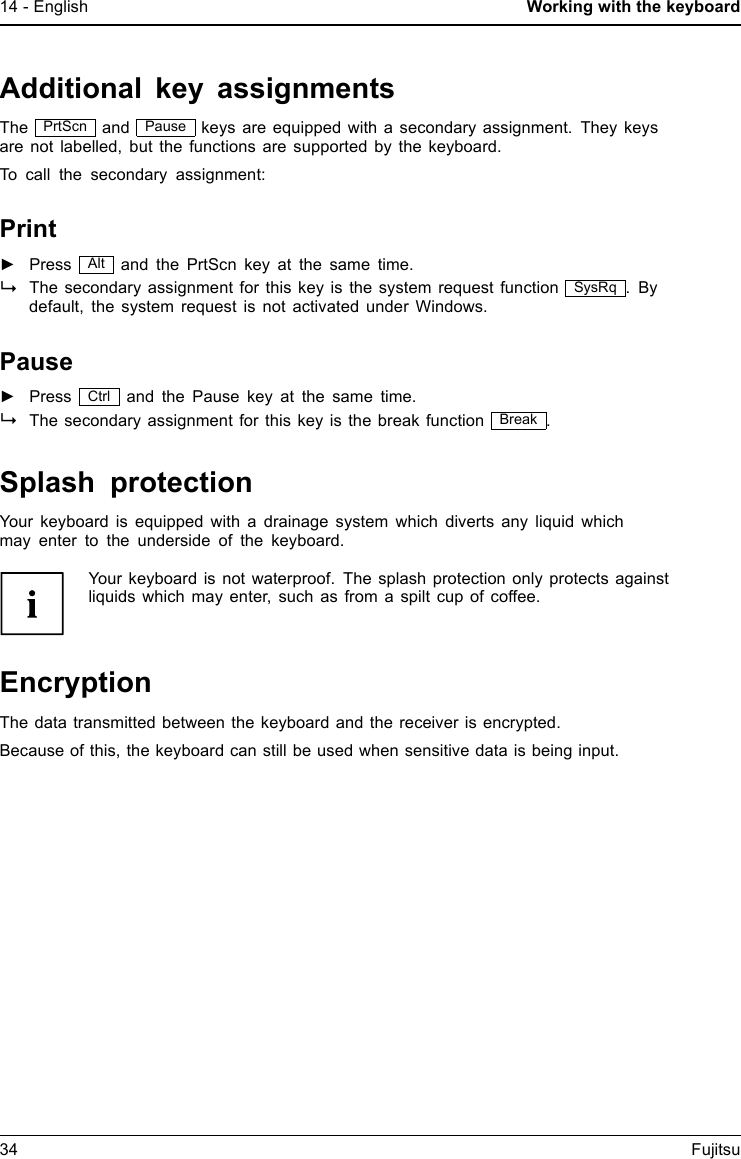

14 - English Working with the keyboardAdditional key assignmentsThe PrtScn and Pause keys are equipped with a secondary assignment. They keysare not labelled, but the functions are supported by the keyboard.To call the secondary assignment:Print►Press Alt and the PrtScn key at the same time.The secondary assignment for this key is the system request function SysRq .Bydefault, the system request is not activated under Windows.Pause►Press Ctrl and the Pause key at the same time.The secondary assignment for this key is the break function Break .Splash protectionYour keyboard is equipped with a drainage system which diverts any liquid whichmay enter to the underside of the keyboard.Your keyboard is not waterproof. The splash protection only protects againstliquids which may enter, such as from a spilt cup of coffee.EncryptionThe data transmitted between the keyboard and the receiver is encrypted.Because of this, the keyboard can still be used when sensitive data is being input.34 Fujitsu

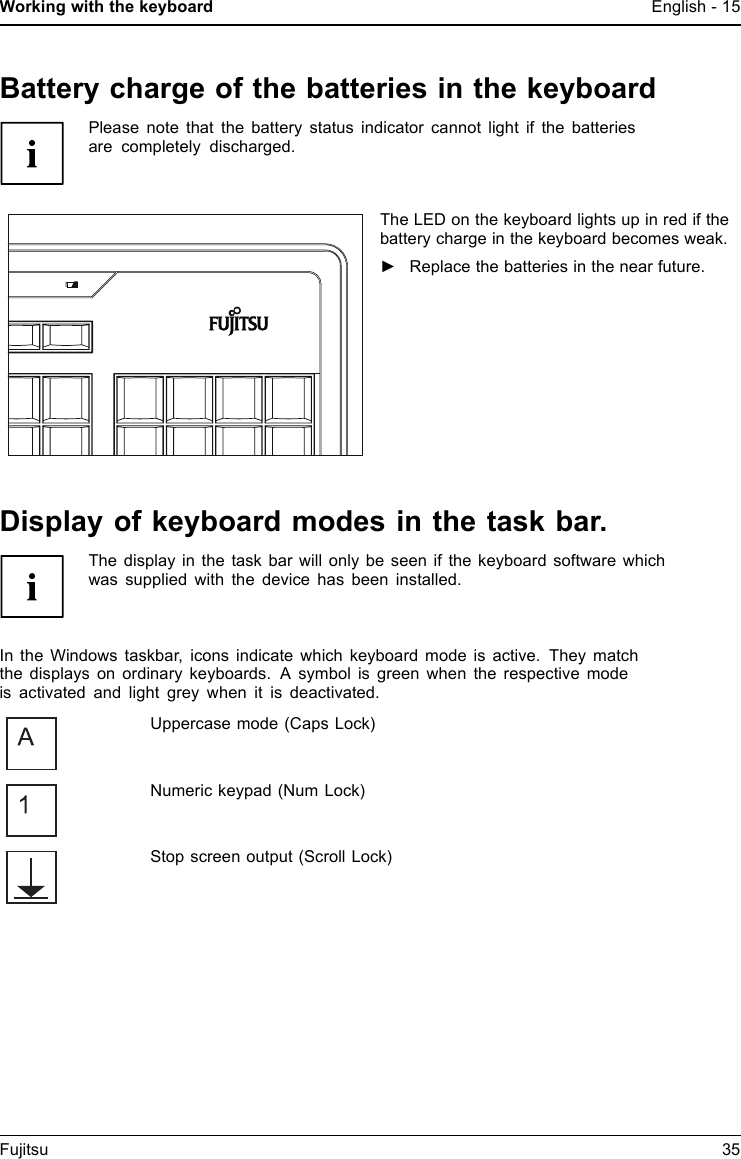

Working with the keyboard English - 15Battery charge of the batteries in the keyboardPlease note that the battery status indicator cannot light if the batteriesare completely discharged.The LED on the keyboard lightsupinredifthebattery charge in the keyboard becomes weak.►Replace the batteries in the near future.Display of keyboard modes in the task bar.The display in the task bar will only be seen if the keyboard software whichwas supplied with the device has been installed.In the Windows taskbar, icons indicate which keyboard mode is active. They matchthe displays on ordinary keyboards. A symbol is green when the respective modeis activated and light grey when it is deactivated.Uppercase mode (Caps Lock)Numeric keypad (Num Lock)Stop screen output (Scroll Lock)Fujitsu 35

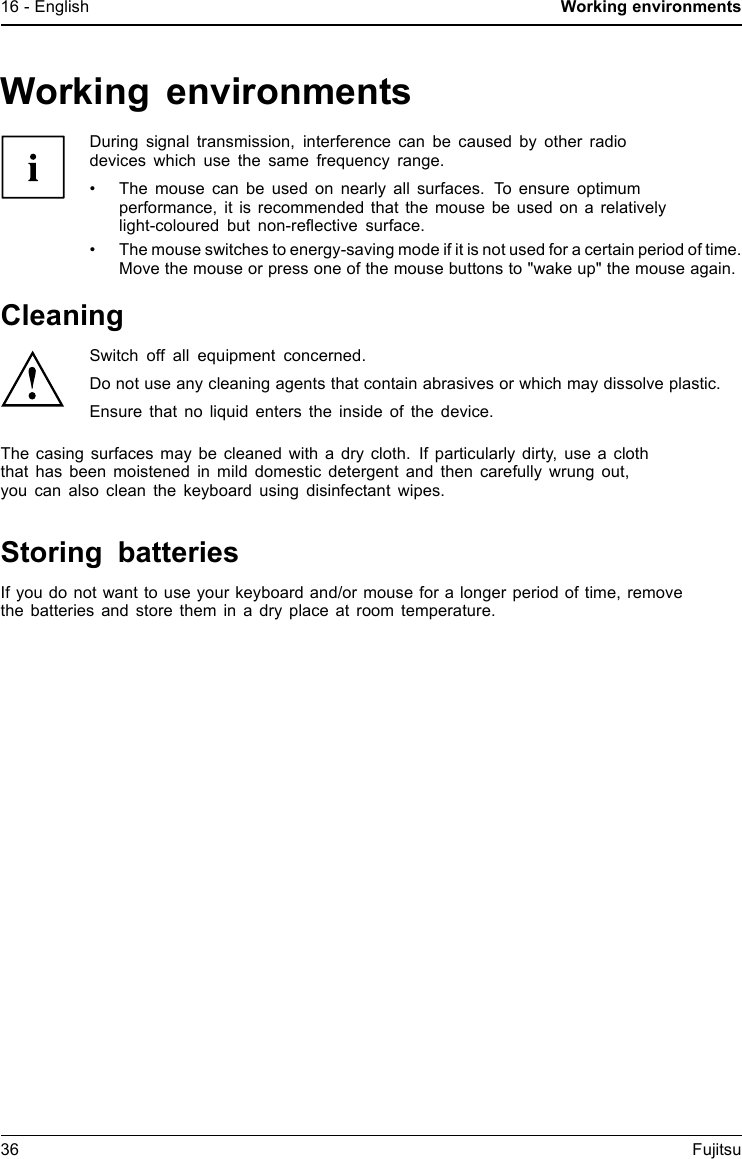

16 - English Working environmentsWorking environmentsDuring signal transmission, interference can be caused by other radiodevices which use the same frequency range.• The mouse can be used on nearly all surfaces. To ensure optimumperformance, it is recommended that the mouse be used on a relativelylight-coloured but non-reflective surface.• The mouse switches to energy-saving mode if it is not used for a certain period of time.Move the mouse or press one of the mouse buttons to "wake up" the mouse again.CleaningSwitch off all equipment concerned.Do not use any cleaning agents that contain abrasives or which may dissolve plastic.Ensure that no liquid enters the inside of the device.The casing surfaces may be cleaned with a dry cloth. If particularly dirty, use a cloththat has been moistened in mild domestic detergent and then carefully wrung out,you can also clean the keyboard using disinfectant wipes.Storing batteriesIf you do not want to use your keyboard and/or mouse for a longer period of time, removethe batteries and store them in a dry place at room temperature.36 Fujitsu

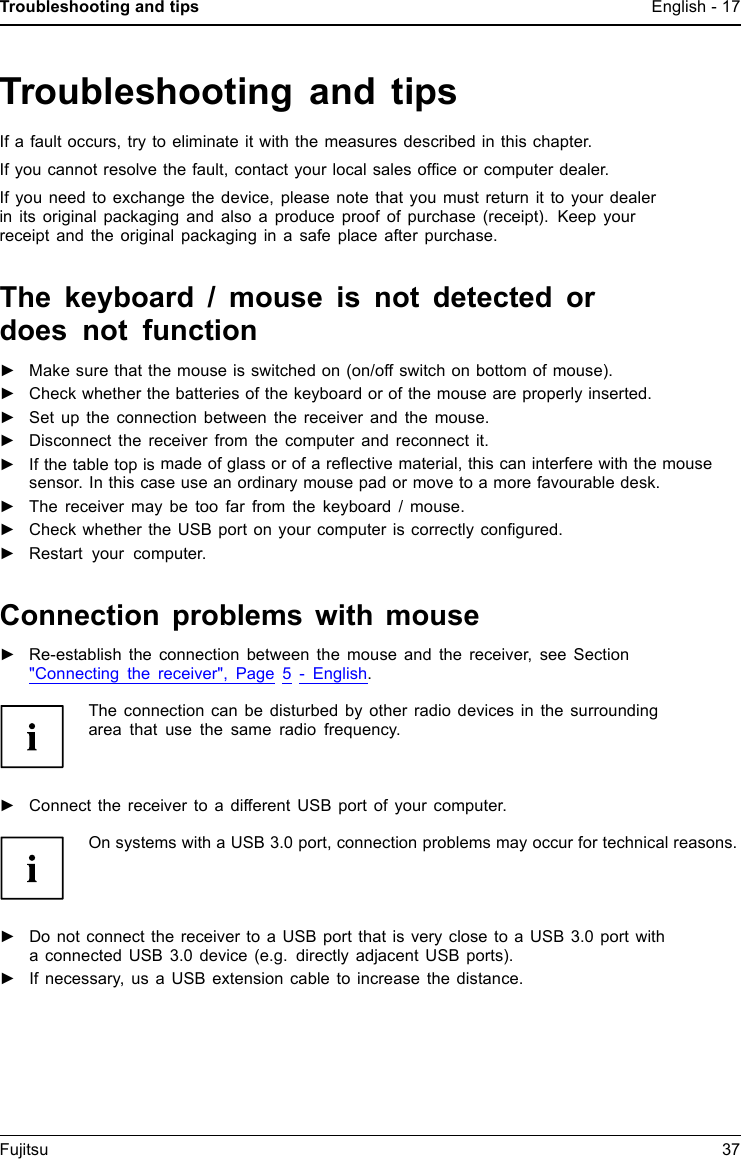

Troubleshooting and tips English - 17Troubleshooting and tipsIf a fault occurs, try to eliminate it with the measures described in this chapter.If you cannot resolve the fault, contact your local sales office or computer dealer.If you need to exchange the device, please note that you must return it to your dealerin its original packaging and also a produce proof of purchase (receipt). Keep yourreceipt and the original packaging in a safe place after purchase.The keyboard / mouse is not detected ordoes not function►Make sure that the mouse is switched on (on/off switch on bottom of mouse).►Check whether the batteries of the keyboard or of the mouse are properly inserted.►Set up the connection between the receiver and the mouse.►Disconnect the receiver from the computer and reconnect it.►If the table top is made of glass or of a reflective material, this can interfere with the mousesensor. In this case use an ordinary mouse pad or move to a more favourable desk.►The receiver may be too far from the keyboard / mouse.►Check whether the USB port on your computer is correctly configured.►Restart your computer.Connection problems with mouse►Re-establish the connection between the mouse and the receiver, see Section"Connecting the receiver", Page 5 - English.The connection can be disturbed by other radio devices in the surroundingarea that use the same radio frequency.►Connect the receiver to a different USB port of your computer.On systems with a USB 3.0 port, connection problems may occur for technical reasons.►Do not connect the receiver to a USB port that is very close to a USB 3.0 port witha connected USB 3.0 device (e.g. directly adjacent USB ports).►If necessary, us a USB extension cable to increase the distance.Fujitsu 37

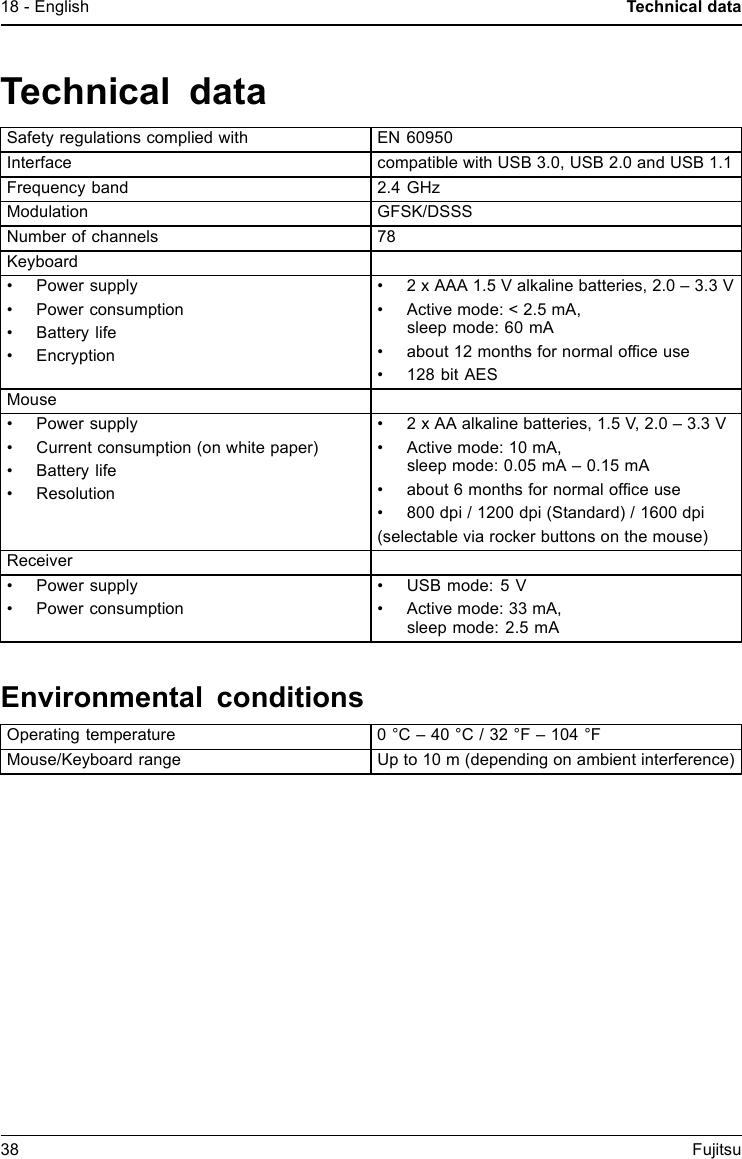

18 - English Technical dataTechnical dataSafety regulations complied with EN 60950Interface compatible with USB 3.0, USB 2.0 and USB 1.1Frequency band 2.4 GHzModulation GFSK/DSSSNumber of channels 78Keyboard• Power supply• Power consumption•Batterylife• Encryption• 2 x AAA 1.5 V alkaline batteries, 2.0 – 3.3 V• Active mode: < 2.5 mA,sleep mode: 60 mA• about 12 months for normal office use• 128 bit AESMouse• Power supply• Current consumption (on white paper)•Batterylife• Resolution• 2 x AA alkaline batteries, 1.5 V, 2.0 – 3.3 V• Active mode: 10 mA,sleep mode: 0.05 mA – 0.15 mA• about 6 months for normal office use• 800 dpi / 1200 dpi (Standard) / 1600 dpi(selectable via rocker buttons on the mouse)Receiver• Power supply• Power consumption• USB mode: 5 V• Active mode: 33 mA,sleep mode: 2.5 mAEnvironmental conditionsOperating temperature 0 °C – 40 °C / 32 °F – 104 °FMouse/Keyboard range Up to 10 m (depending on ambient interference)38 Fujitsu

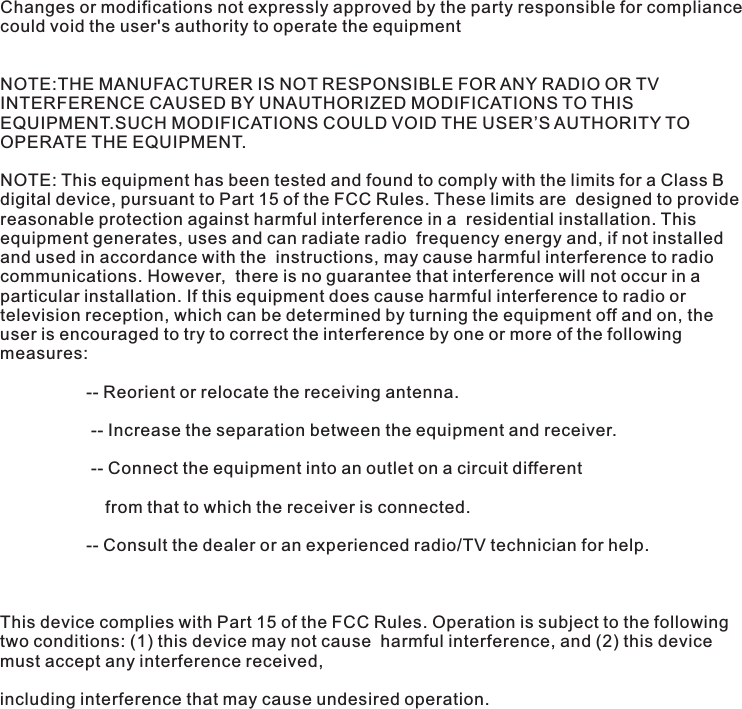

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment NOTE:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
