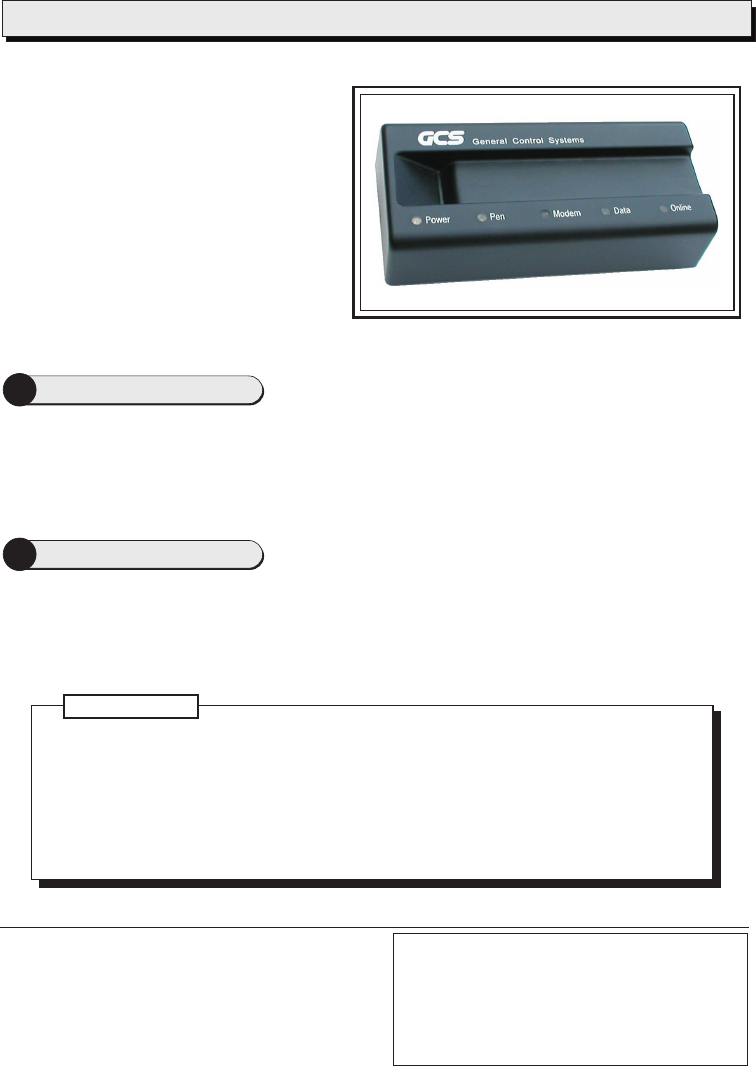

Installation and User Instructions for the GCS USB-DTU
®
If you are using the USB interface, connect a standard A-to-B USB cable to the unit.
If you are using the RS232 interface, connect a 9-pin modem-type serial cable to the unit. When
using the RS232 interface, an external 9-volt power supply must also be connected to the 2.5mm
Jack socket.
1Installing the DTU
Communications between the Proxy Pen and DTU is wireless and simply requires the pen to be
placed in the cradle at the top of the DTU.
To download data from the Proxy Pen, please refer to the Top Guard or WinDau software manual.
2Using the DTU
This leaflet provides user and installation
instructions for the Universal Serial Bus
(USB) version of the ProxiPen Data
Termination Unit (DTU). The unit is
equipped with both a 9-pin RS232 port and
a USB port, enabling the unit to
communicate with a PC running the WinDau
or Top Guard software through either port.
When using the RS232 port, the unit must
be powered from a separate 9Vdc power
supply. When using the USB port, power is
provided through the USB cable.
About the LEDs
Power
Pen
Modem
Data
Online
– Lit when you connect the external 9Vdc power supply or USB cable from the PC
– Lit when the Proxy Pen is in the cradle and communicating with the DTU.
– Lit if the DTU recognizes a modem connected to its RS232 port.
– Lit when data is being transferred from the Proxy Pen to the DTU, or vice versa.
– Lit when you connect the DTU to a PC. If you are connecting via the USB port, the
PC must have the Top Guard or WinDau software installed for the LED to illuminate.
.
Specifications
External supply (only when RS232 connection
used): 9Vdc.
Input current; 30mA.
Operating temperature: 32 to 95 F (0 to 35 C).
Operating humidity: 15 to 90%, non-condensing.
Approvals: EN300 330, R&TTE.
°°
9600-0391. Installation and User Instructions for the USB Data
Termination Unit, Issue 1.0x2 14th January 2004. General Control
Systems, 2004.
All trademarks acknowledged. GCS is a trademark of General Control
Systems.
FCC Notice: This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
Any unauthorized modification to this device may void the authority of
the user to operate it.
©
