S831 Installation instructions
Installation and User Instructions for S831 Readers

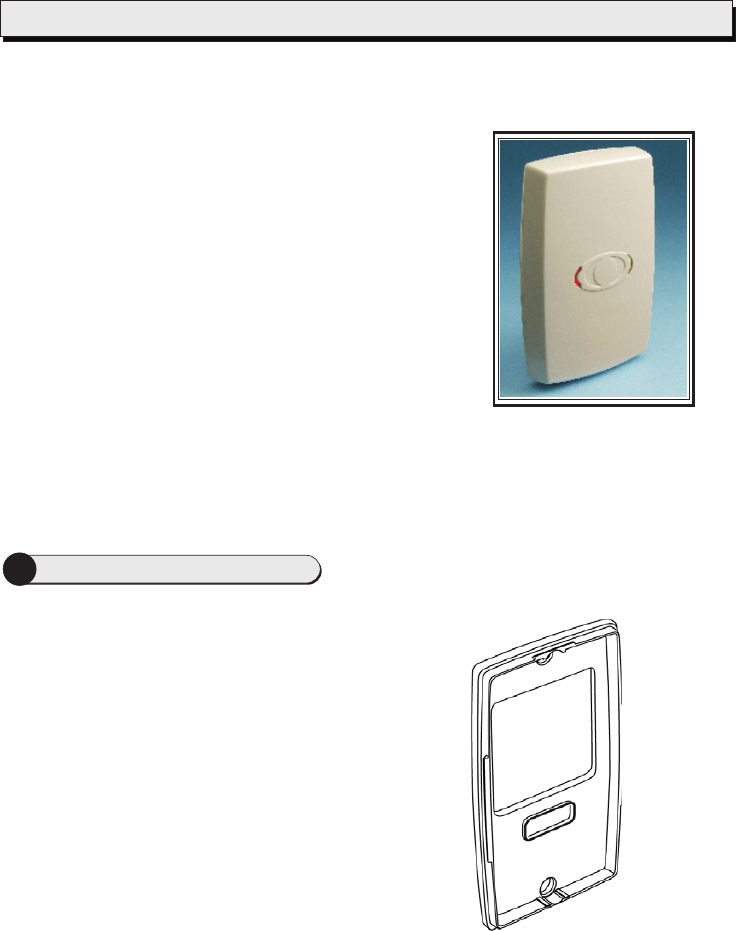

1Mount the Backplate
To mount the backplate:
1) Detach the main body of the reader from the
backplate by inserting a fingernail into the groove in
the bottom edge of the reader and swinging the
reader upwards.
2) Mount the backplate adjacent to the opening edge
of the door and at a convenient height. Feed the
cable to the reader through the backplate.
The S831 is a small-footprint contactless smart-card
reader, which uses p
. The S831 is able to read Texas
Instruments (ISO 15693) and Philips MIFARE smart
cards.
For either type of card, the S831 supports the use of
unencoded cards (where only the unique card serial
number is read). In the case of Texas Instruments (TI)
cards, an encoded card number can be read. Encoding
formats supported include TI's own formats and the
"smartMAX TI" format.
The reader can simultaneously support two different card
types/formats (e.g. "smartMAX TI" and MIFARE). The
reader is automatically configured to accept the first two
card types/formats presented.
TM
20mA current loop seudo-random
communications
®®
9600-0344. Installation and User Instructions for S831 Readers,
Issue 1.0x1 17th Oct. 2003. AMAG Technology, 2003.
Texas Instruments is a trademark of
Texas Instruments Incorporated. Philips and MIFARE are registered
trademarks of Philips Electronics, NV.
FCC Notice: This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may
cause undesired operation.
Any unauthorized modification to this device may void the authority
of the user to operate it.
All trademarks acknowledged.
©
4Using the Reader

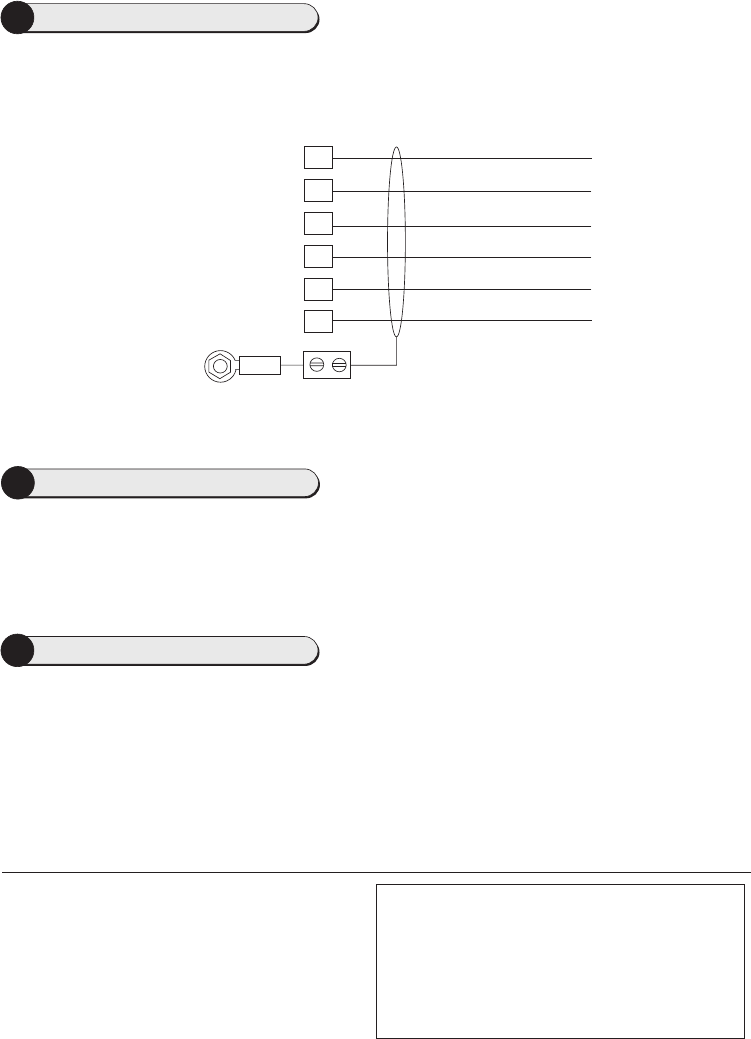

2Reader Connections
0V
Connect shield at
controller end only
connect to case)
Tx-
Tx+
Rx-
Rx+
12V
Controller connections
(20mA reader port)
Red
Black
White
Blue
Green
Orange
Note: the brown
wire is not used
Reader
Present the proximity card face-on to the reader until you hear a "bleep". If the green indicator is lit,
the card has been accepted and the door is unlocked. If the red indicator is lit, either the card has
not been accepted, or you do not have access through the door. If the red and green indicators
flash alternatively, please wait.
cards can be presented in rapid succession - there is no need to wait for the green or red
LED to extinguish before presenting another card.
Note:
Specifications
Input voltage: 9-14V.
Input current: xxmA @ nominal 12Vdc supply.
Operating temperature: -13 to 158 F (-25 to 70 C).
Operating humidity: 15 to 90%, non-condensing.
Maximum read range: xx" (xxmm).
Approvals: EN50133, R&TTE, IP656.
°°
20mA Current Loop Reader Connections
The reader supports the first two different card types/formats presented after power-up. For
example, unencoded MIFARE and encoded TI cards (in this example, unencoded TI cards would
not be recognized). The reader enters this configuration mode whenever power is re-applied.
3Reader Configuration
