G53 Limited Function phone

User Manual

                                    Limited    FSG2        Instruction Manual - English

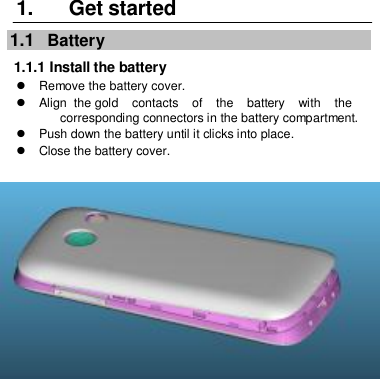

1.  Get started  1.1   Battery   1.1.1 Install the battery     Remove the battery cover.     Align  the gold    contacts    of    the    battery    with    the corresponding connectors in the battery compartment.     Push down the battery until it clicks into place.     Close the battery cover.

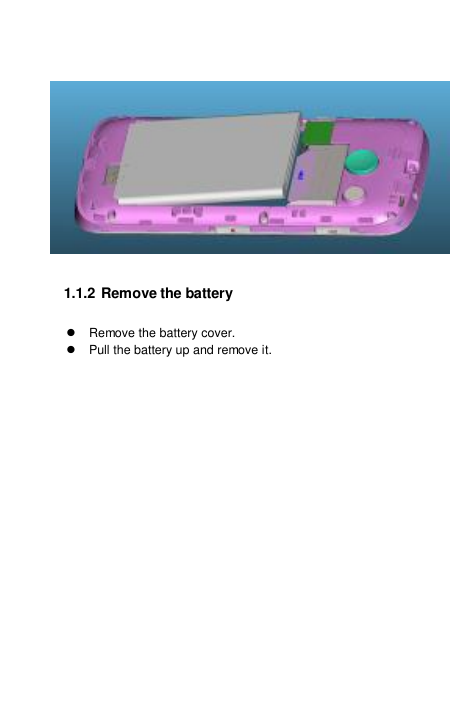

           1.1.2 Remove the battery      Remove the battery cover.     Pull the battery up and remove it.

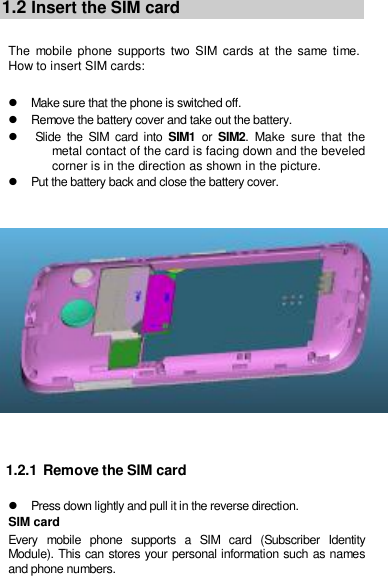

1.2 Insert the SIM card  The  mobile phone  supports  two  SIM  cards at  the same time. How to insert SIM cards:      Make sure that the phone is switched off.     Remove the battery cover and take out the battery.     Slide  the  SIM card into  SIM1  or SIM2.  Make  sure  that  the metal contact of the card is facing down and the beveled corner is in the direction as shown in the picture.     Put the battery back and close the battery cover.             1.2.1 Remove the SIM card      Press down lightly and pull it in the reverse direction. SIM card Every  mobile  phone  supports  a  SIM  card  (Subscriber  Identity Module). This can stores your personal information such as names and phone numbers.

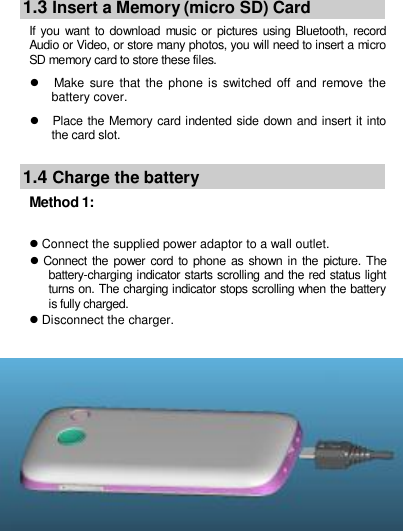

  1.3 Insert a Memory (micro SD) Card If you want to download music or  pictures using Bluetooth, record Audio or Video, or store many photos, you will need to insert a micro SD memory card to store these files.    Make sure that the phone is  switched off and remove  the battery cover.    Place the Memory card indented side down and insert it into the card slot.   1.4 Charge the battery Method 1:   Connect the supplied power adaptor to a wall outlet.  Connect the power cord to phone as shown in the picture. The battery-charging indicator starts scrolling and the red status light turns on. The charging indicator stops scrolling when the battery is fully charged.  Disconnect the charger.
Method 2  :  You  can  also  charge  phone  by  connecting  it  to  a  computer using the supplied USB data cable.  Method 3 :  You can connect the AC adapter to charge seat at one end, the  other end  connected  to an  external  power  source,  and then  your  phone  is  placed  on  the charging  base,  start charging.  Note: charge the battery at least 12 hours at the first time.  1.5 Power on/off Press and hold End key to switch the phone on or off.  Note:  Make sure the SIM card and the battery have been inserted properly before startup.
2.   Your phone  2.1 Keys   Torch                                                         Up/Down side keys Torch key     Lock key                                                                                           Up/Down key                                                          End/Power key Send key   Alpha/numeric key  *  key                                                                                                     # key
      Up/Down side keys During a call: Press up/down side key to increase or decrease the earpiece or speaker volume. In standby mode: Press up/down side key to increase or decrease ringer volume. UP/Down Key NAVIGATOR In standby mode: Press the Up key to go to FM radio mode.  Press Down key to go to Camera.  Send Key  In standby mode:  Press this key goes to call history.  End/Power key End an active call or reject calls. Press and hold to switch the phone on or off.  Alpha/numeric key Use these keys to enter numbers and characters.  Camera: Press  "5" to take shoot camera.  SOS key (Phone back) Press this key to turn on SOS Tone.  # key  Press and Hold this key to switch between meeting mode and general mode.

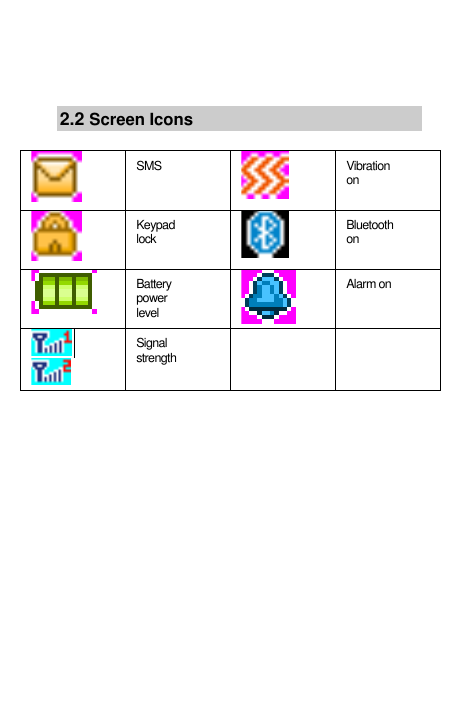

    2.2 Screen Icons   SMS  Vibration on  Keypad lock  Bluetooth on  Battery power level  Alarm on   Signal strength

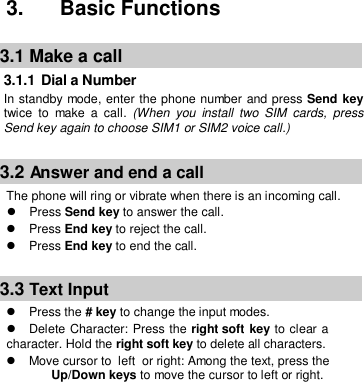

3.      Basic Functions  3.1 Make a call 3.1.1 Dial a Number In standby mode, enter the phone number and press Send key twice  to  make  a  call.  (When  you  install  two  SIM  cards,  press Send key again to choose SIM1 or SIM2 voice call.)  3.2 Answer and end a call The phone will ring or vibrate when there is an incoming call.     Press Send key to answer the call.     Press End key to reject the call.     Press End key to end the call.  3.3 Text Input     Press the # key to change the input modes.     Delete Character: Press the right soft key to clear a character. Hold the right soft key to delete all characters.     Move cursor to  left  or right: Among the text, press the Up/Down keys to move the cursor to left or right.
3.4 Adding contact to the Phonebook You  can  save  numbers  to  your contact  phonebook.  Access these numbers quickly and easily.     Go to Menu--- Phonebook---Add new contact.     Edit the information and save it.  3.5 Sending and receiving messages You can use your mobile phone to send and receive message.     Send a message     Go     to      Menu---Messaging---Write     message---Text message.     Write your message.      When you finish writing an SMS, select send or save the message.     Receive a message  When you receive a new message, press left soft key to Inbox to read the message.  3.6 SOS Function Press the SOS key for 3 seconds to dial an emergency number under all  circumstances, even  if the phone is locked. You can go to Menu→ Settings→ Phone settings→ SOS to set those functions :      SETTING: To activate and deactivate SOS Function.    SOS Number: 1 emergency number can be set at most. If you  have  been  set  SOS number,  press  left  soft  key  to select Edit or Delete. You can change Phone number.     SOS SMS:  You can set a Message and can be edited.

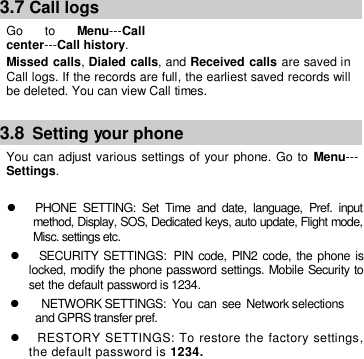

 3.7 Call logs Go to Menu---Call center---Call history. Missed calls, Dialed calls, and Received calls are saved in Call logs. If the records are full, the earliest saved records will be deleted. You can view Call times.  3.8  Setting your phone You can adjust various settings of your phone. Go to Menu---Settings.       PHONE  SETTING:  Set  Time  and  date,  language,  Pref.  input method, Display, SOS, Dedicated keys, auto update, Flight mode, Misc. settings etc.      SECURITY SETTINGS:  PIN code, PIN2 code, the phone is locked, modify the phone password settings. Mobile Security to set the default password is 1234.        NETWORK SETTINGS:  You can see Network selections and GPRS transfer pref.      RESTORY SETTINGS: To restore the factory settings, the default password is 1234.

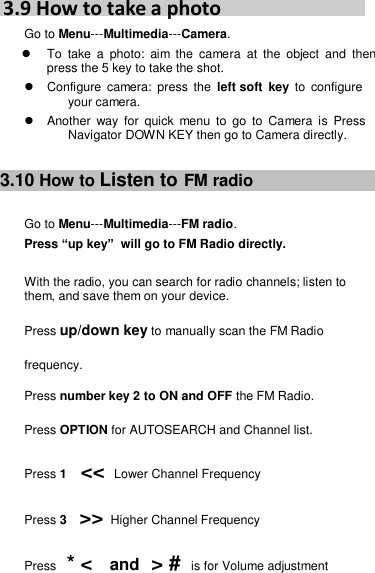

 3.9 How to take a photo Go to Menu---Multimedia---Camera.      To  take  a  photo:  aim  the  camera  at  the  object  and  then press the 5 key to take the shot.     Configure  camera:  press  the  left soft  key  to  configure your camera.     Another  way  for  quick  menu to go to  Camera  is  Press Navigator DOWN KEY then go to Camera directly.  3.10 How to Listen to FM radio    Go to Menu---Multimedia---FM radio. Press “up key”  will go to FM Radio directly.  With the radio, you can search for radio channels; listen to them, and save them on your device.  Press up/down key to manually scan the FM Radio frequency.  Press number key 2 to ON and OFF the FM Radio. Press OPTION for AUTOSEARCH and Channel list.  Press 1    <<  Lower Channel Frequency  Press 3   >>  Higher Channel Frequency  Press   * <   and  > #   is for Volume adjustment
 3.11 Profiles    Go to Menu---Profiles. The mobile phone provides multiple user profiles, including General, Silent, Meeting and Outdoor.  3.12 Extras     Go to Menu---Extras. You can set Bluetooth, Calculator, Calendar, Alarm and STK etc through this access.

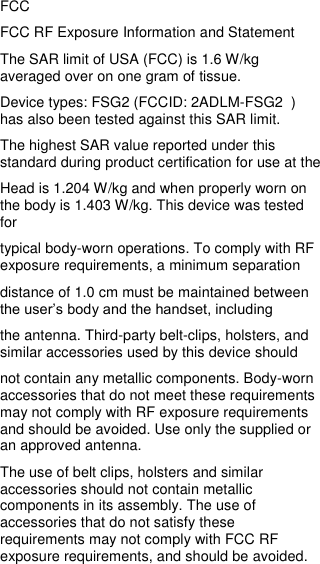

FCC FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over on one gram of tissue. Device types: FSG2 (FCCID: 2ADLM-FSG2  ) has also been tested against this SAR limit.  The highest SAR value reported under this standard during product certification for use at the Head is 1.204 W/kg and when properly worn on the body is 1.403 W/kg. This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.

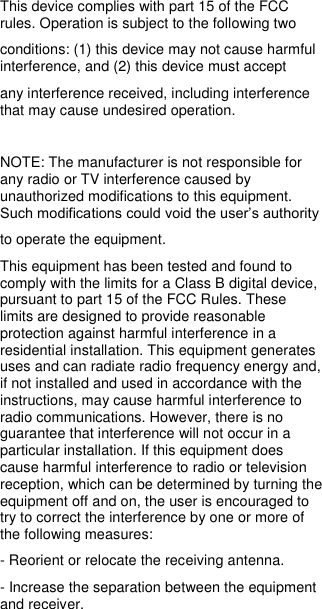

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.
