AZ85H18DAC

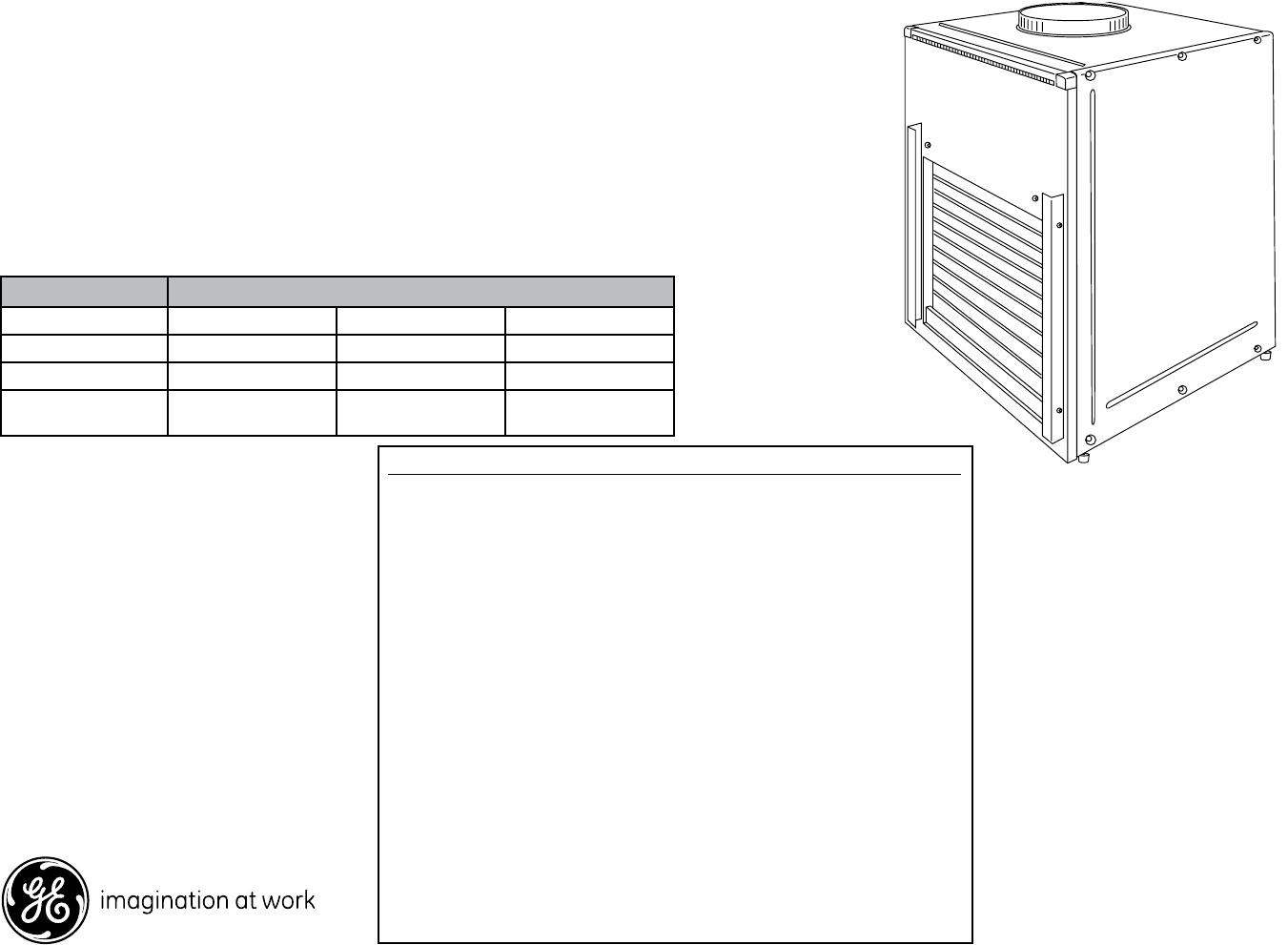

GE® Zoneline Single Package Vertical Heat Pump
Specification Revised 1/12 390636
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Minimum Clearances:
Front
• Allow 4 inches in front of unit. When determining closet depth, note that plenum
may protrude into closet up to 4 inches, depending on exterior wall depth.
Sides
• Allow 3 inches on each side of unit.
• For side access closets only: Allow 5 inches clearance to front of unit and 5 inch
clearance on the access side.
Platform
• An 8”-12” (minimum) high, field-supplied platform is recommended for drain access.
Dimensions and Installation Information (in inches)
23 1/8” W
32 1/4” H
23 1/8” D
ZONELINE® WARRANTY*
WHAT IS COVERED
LIMITED ONE-YEAR WARRANTY
For one year from date of original
purchase, we will provide, free of
charge, parts and service labor on
site to repair or replace any part
of the Zoneline that fails because
of a manufacturing defect.
LIMITED ADDITIONAL FOUR-YEAR
WARRANTY
For an additional four years from
the date of original purchase,
we will provide, free of charge,
parts and on-site service labor to
repair or replace any part of the
sealed refrigerating system (the
compressor, condenser, evaporator
and all connecting tubing) that
fails because of a manufacturing
defect.
*SEE WRITTEN WARRANTY FOR DETAILS
LIMITED 2ND THROUGH
5TH YEAR PARTS WARRANTY
For the second through the
fifth year from date of original
purchase, General Electric
will provide, free of charge,
parts that fail as a result of a
manufacturing defect. Parts
covered are fan motors, switches,
heater, heater protectors,
compressor overload, solenoids,
circuit boards, auxiliary controls,
thermistors, frost controls,
capacitors and varistors. This is a
limited parts-only warranty, and does
not include labor or transportation
to and from the service shop.
All warranty service will be
provided by our Factory Service
Centers or by our authorized
Customer Care® servicers
during normal working hours.
230/208 Volt Line Cord Connected Units
Power Connection Kit RAK3152 RAK3202 RAK3302
Heater KW 2.61/2.19 3.42/2.87 4.81/4.07
Min. Circuit Amps 15 20 30
Recommended
Protective Device
15 Amp Time Delay
Fuse or Breaker
20 Amp Time Delay
Fuse or Breaker
30 Amp Time Delay
Fuse or Breaker
AZ85H18DAC
GE® Zoneline Single Package Vertical Heat Pump
Specification Revised 1/12 390636
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Features and Benefits
• 17,700/17,400 BTUH Cooling Capacity
• 16,700/16,300 BTUH Heating Capacity
• 9.1/9.1 E.E.R. (BTUH/Watt)
• 3.0/3.0 C.O.P.
• R-410A Refrigerant
• Vertical Design Optimizes Floor Space—Unique Sleeve Design
Makes It Easier to Install
• Freeze Sentinel™ Protects Unoccupied Rooms Against Freeze-Up
(Requires RAVRMS kit)
• Three-Way, Slide-Out Chassis with Specially Designed Case Makes
Maintenance and Service Quick and Easy
• Full Corrosion Treatment on Outside Coils and Other Components
is Standard

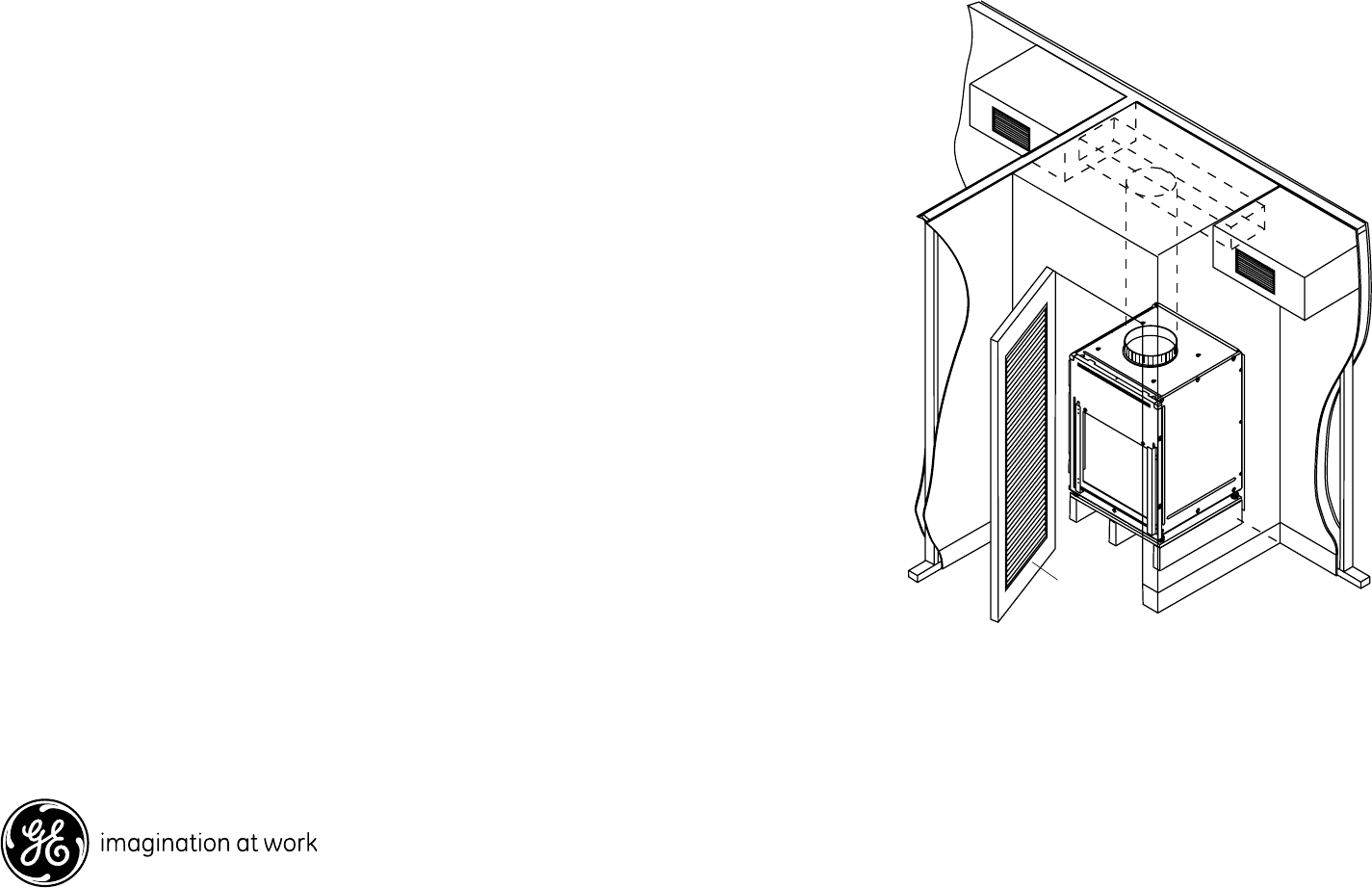

Closet Door
