Safety Instructions .......... 2-4

Operating Instructions

Automatic Icemaker ............ 7

Care and Cleaning ............. 8

Shelves ..................... 5, 6

Storage Drawers ............... 6

Temperature Controls .......... 5

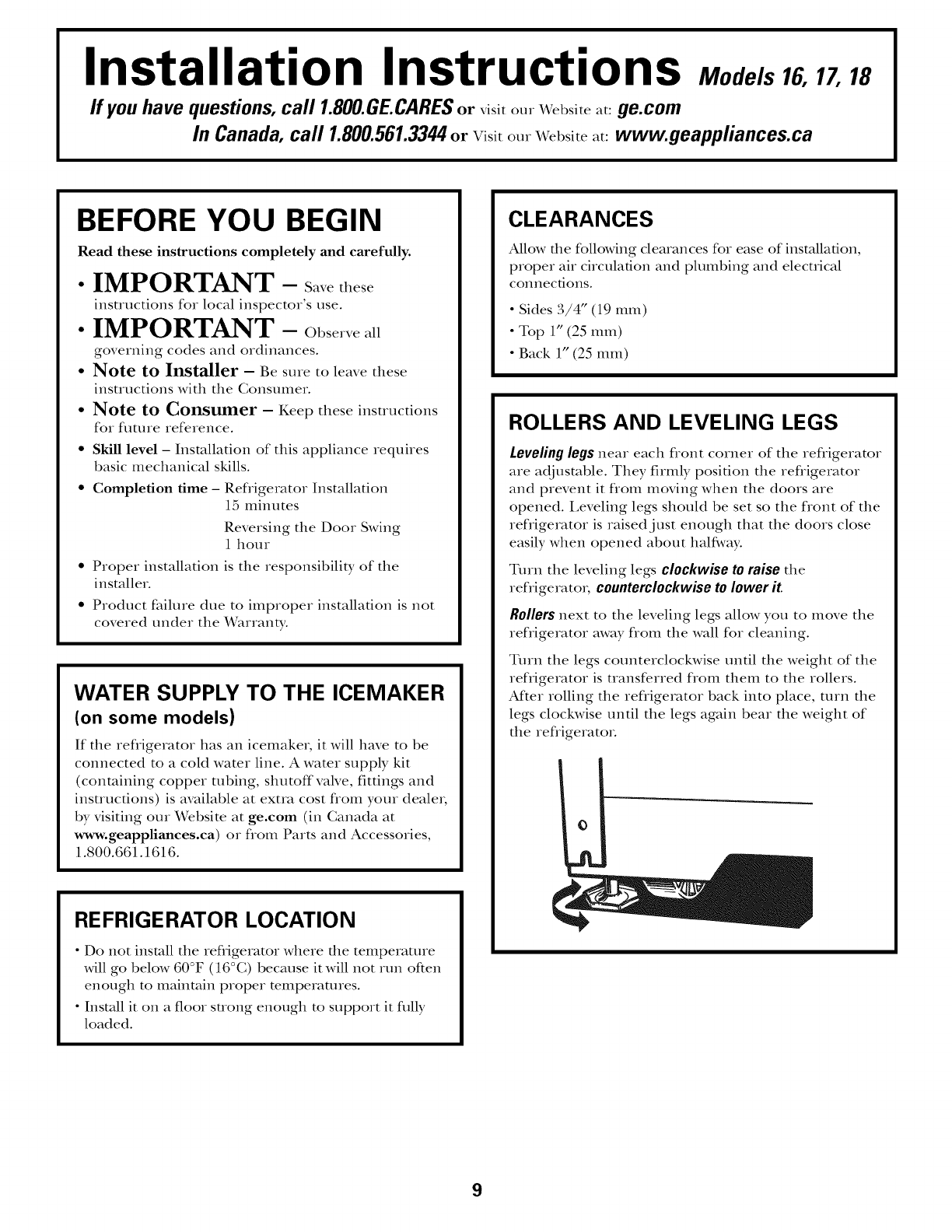

Installation Instructions

Preparing to Install

the Refrigerator ............... 9

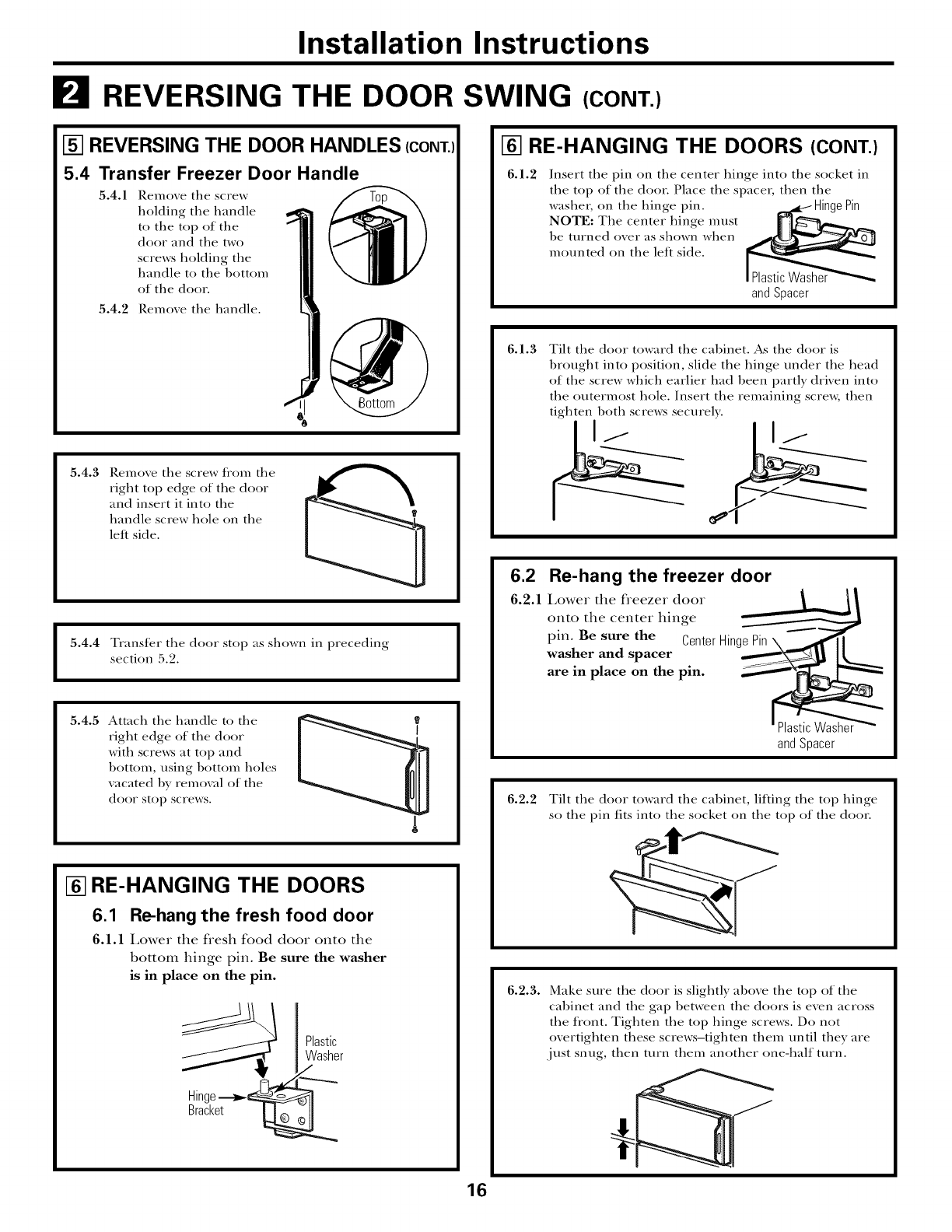

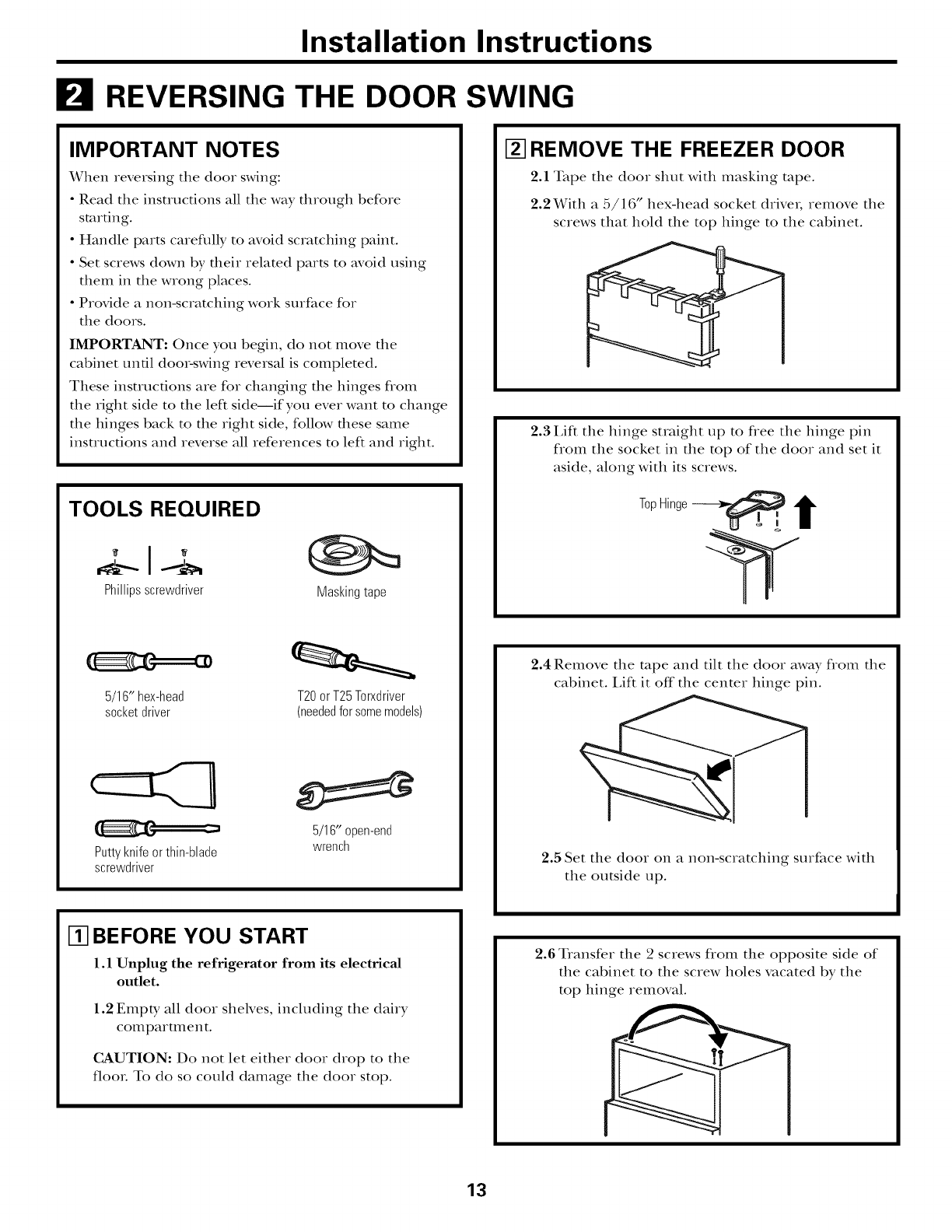

Reversing the Door Swing ...13-16

Water i,ine Installation ...... 10-12

Troubleshooting Tips

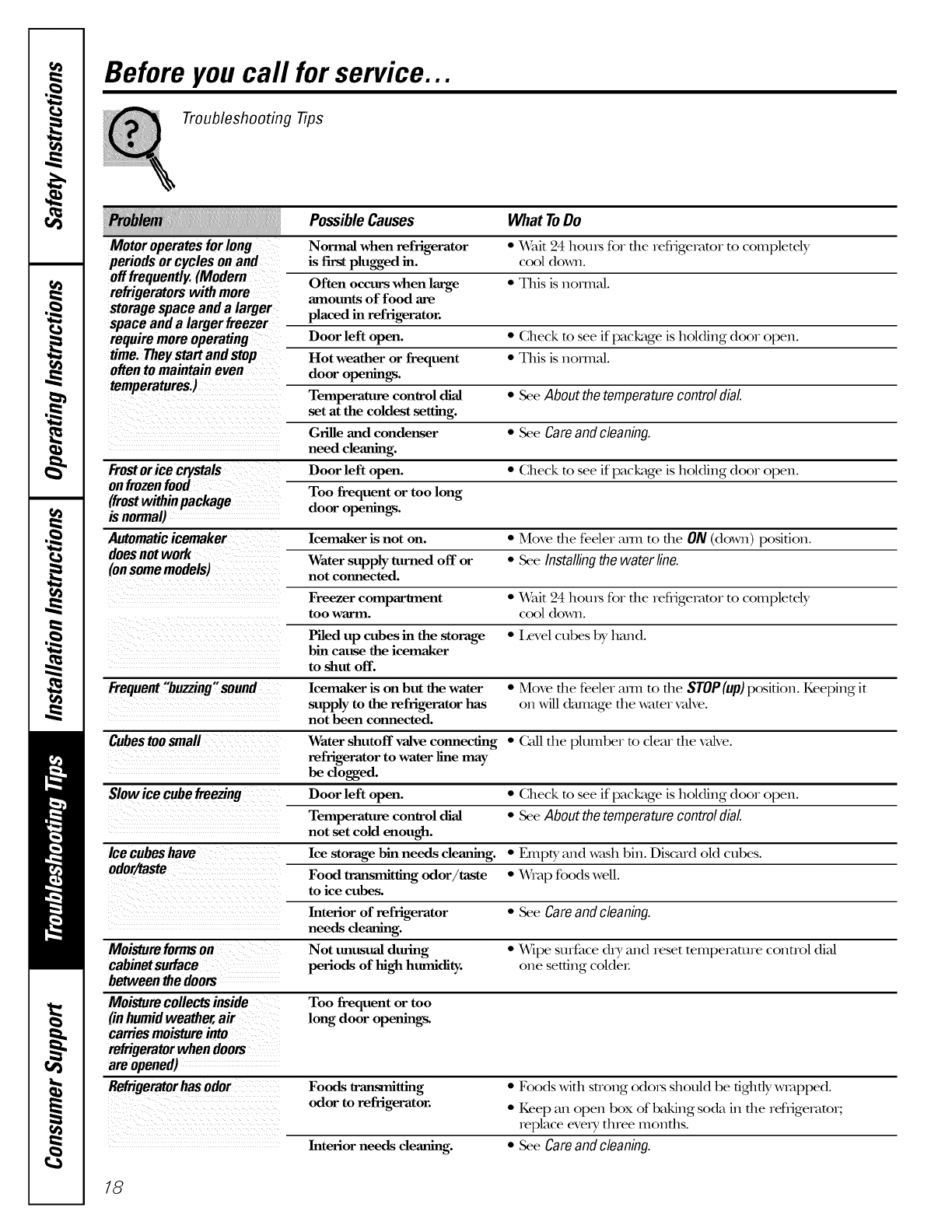

Befi)re You Call For Service .. 17, 18

Normal Operating Sounds ...... 17

Consumer Support

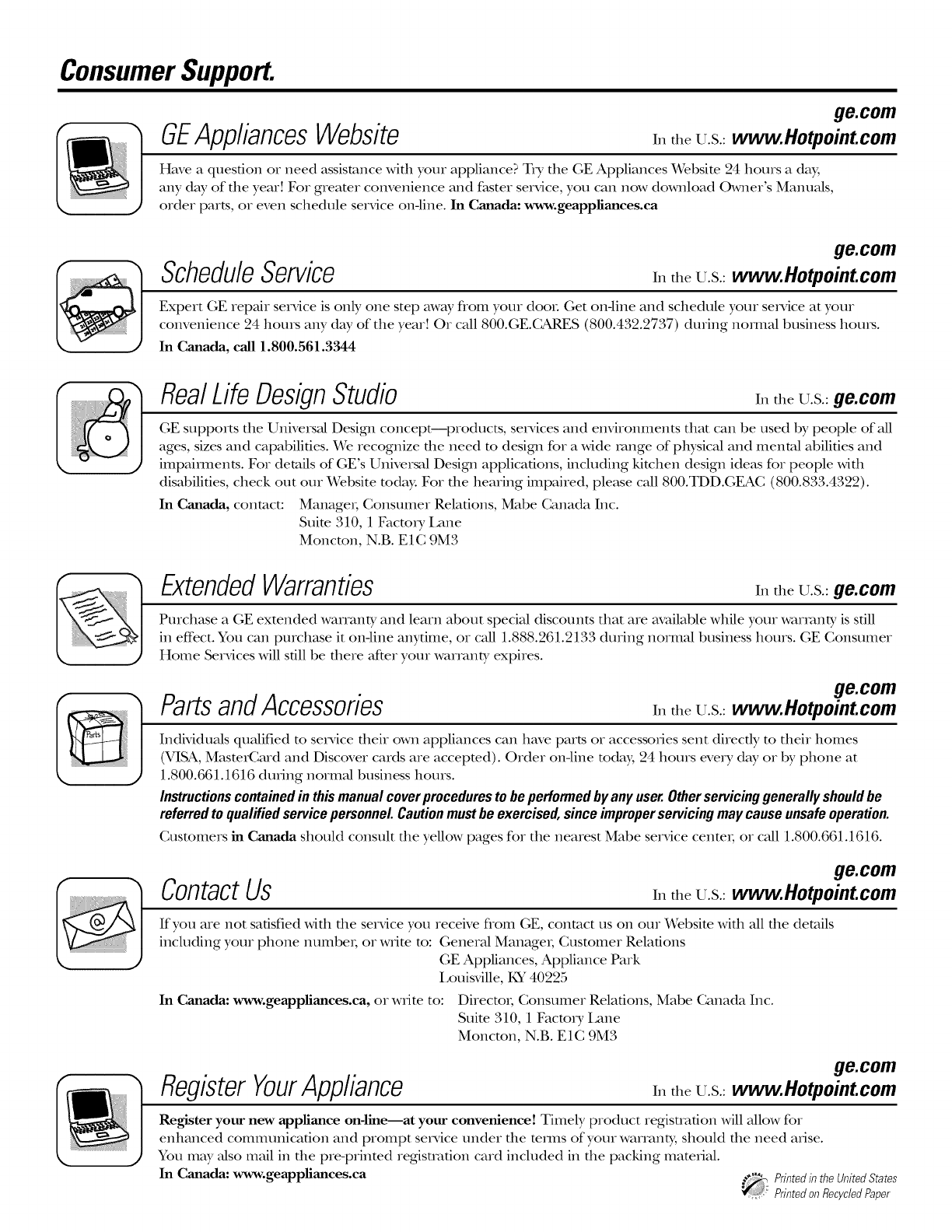

Consumer Support .... Back Cover

Product Registration

(Canadian) ............... 21, 22

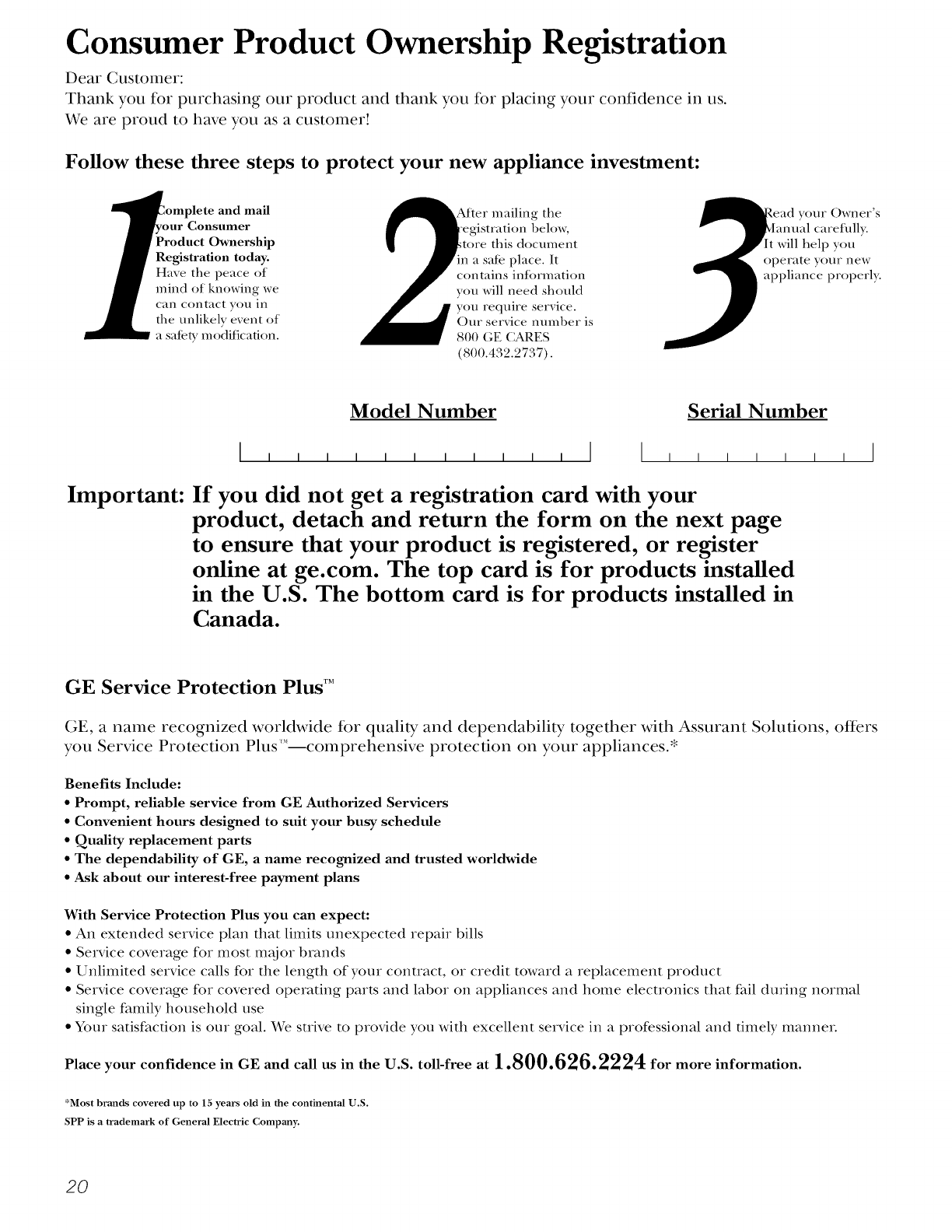

Product Registration (U.S.) . 20-22

Warranty fi)r

Canadian Customers .......... 19

Warranty for U.S. Customers ... 23

Write the model and serial

numbers here:

Model #

Serial #

You can find them on a label on

the upper left side of the flesh food

compartment.

Models 16,17,18

197D7799PO01 49-60521-1 08-08Jfl

IMPORTANT SAFETYINFORMATION.

READALL INSTRUCTIONS BEFOREUSING.

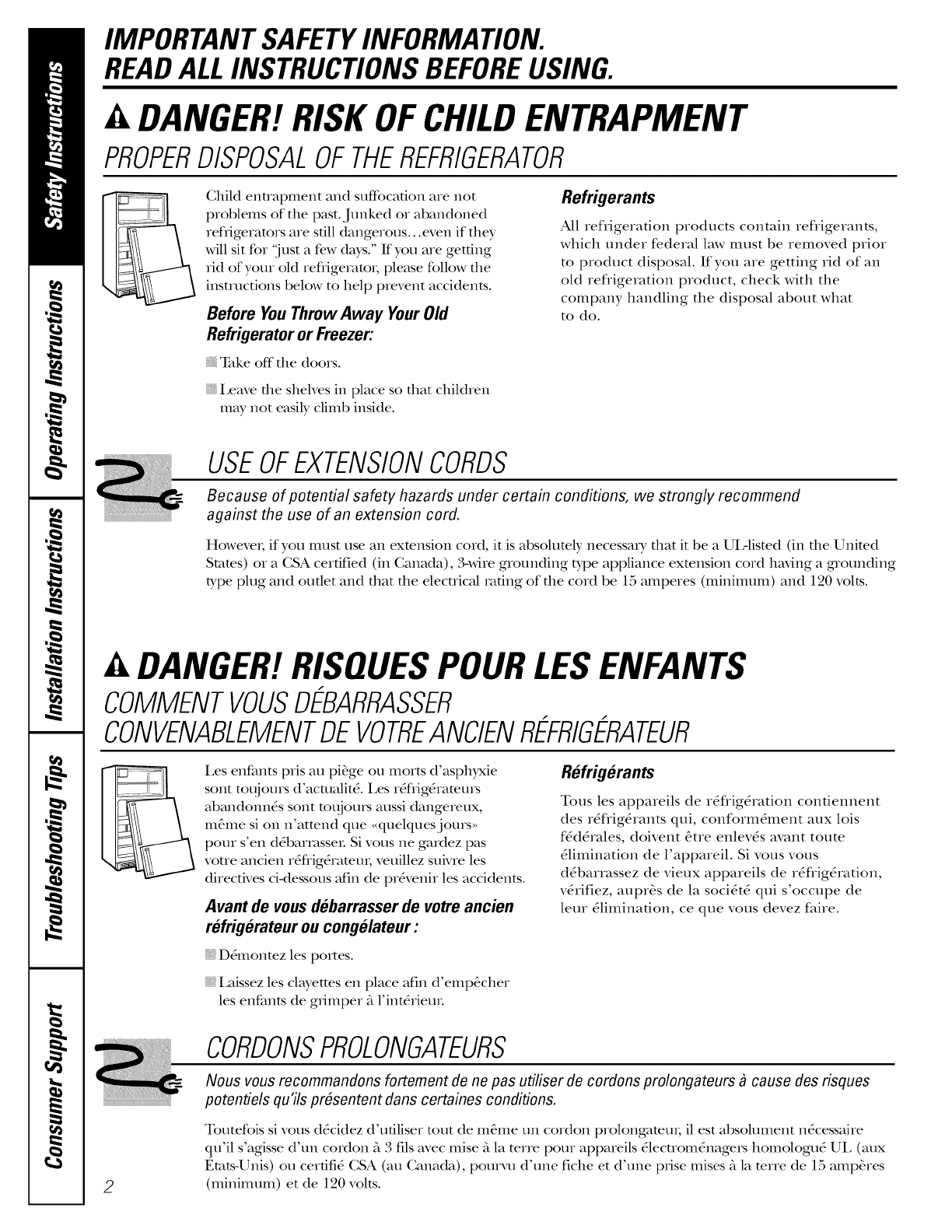

[, DANGER! RISK OF CHILD ENTRAPMENT

PROPERDISPOSALOFTHEREFRIGERATOR

Child entrapment and suffbcation are not

problems of the past. Junked or abandoned

refJigeramrs are still dangerous.., even if they

will sit for "just a few dws." If you are getting

rid of your old refl-igeramt; please follow tile

instructions below to help prevent accidents.

Before You ThrowAway Your Old

Refrigerator or Freezer:

_ke offthe doors.

I,eave the shelves in place so that children

may not easily climb inside.

Refrigerants

All refrigeration products contain refiigerants,

which under federal law must be removed prior

to product disposal. If you are getting rid of an

old refiigeration product, check with the

company handling the disposal about what

to do.

USEOFEXTENSIONCORDS

Because of potential safety hazards under certain conditions, we strongly recommend

against the use of an extension cord.

However; if you must use an extension cord, it is absolutely necessat T that it be a UIAisted (in the United

States) or a CSA certified (in Canada), 3-wire grounding type appliance extension cord having a grounding

type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.

DANGER! RISQUES POUR LESENFANTS

COMMENTVOUSDEBARRASSER

CONVENABLEMENTDEVOTREANCIENREFRIGERATEUR

Les enfants pris au pi&ge ou morts d'asphyxie

sent tot_jours d'acmalit_. Les r_fl_ig&amm_

abandonn_s sent mr{joins aussi dangereux,

tile.tIle si on n'attend que <<quelquesjours,,

pour s'en d_barrasseL Si vous ne gardez pas

voue ancien r_flig&amuI; veuillez suMe les

directives ci-dessous afin de pr&_enir les accidents.

Avant de vous d_.barrasser de votre ancien

refrigerateur ou congelateur :

D_montez les portes.

Laissez les clayettes en place afin d'emp_cher

les enfants de grimper ?_l'int_riem.

Refrigerants

Tous les appareils de r_flig_ration confiennent

des r_flig_rants qui, conform_ment aux lois

f_d_rales, doivent &.treenlev_s avant route

_limination de l'appareil. Si vous vous

d_barrassez de vieux appareils de r_flig_ration,

v_.rifiez, aupr&s de la soci_t_ qui s'occupe de

leur _limilmtion, ce que vous devez faire.

CORDONSPROLONGATEURS

Nous vous recommandons fortement de no pas utiliser de cordons prolongateurs _cause des risques

potenfiels qu'ils prOsentent dans certaines conditions.

Toutefois si vous d_cidez d'utiliser tout de re&me tm cordon prolongateuI; il est absolument n_cessaire

qu'il s'agisse d'un coMon _'_3 ills avec raise ?_la terre pour appareils _lectrom&mgeis homologu_ UL (aux

t_mts-Unis) ou cerfifi_ CSA (au Canada), pourvu d'une fiche et d'une prise mises ?_la terre de 115amp&res

(minimum) et de 120 volts.

IMPORTANT SAFETYINFORMATION.

READALL INSTRUCTIONS BEFOREUSING.

AWARNING!

ge.com

Use this appliance only for its intended purpose as described in this Owner's Manual

SAFETYPRECAUTIONS

When using electrical appfiances, basic safety precautions should be followed, including the following:

This refrigerator must be properly installed

and located in accoMance with the Inst_fllation

Instructions before it is used.

Do not allow children to climb, stand or hang

on the shelves in the reffigeramL They could

&mmge the refrigerator and seriously i_jure

themseNes.

{{_iDo not touch the cold surfaces in the fleezer

compamnent when hands are damp or wet.

Skin may stick to these extremely cold surfaces.

{{_iDo not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

{{_iKeep fingers out of the "pinch point" areas;

clearances between the doors and between

the (loots and cabinet are necessarily small.

Be careflfl closing doors when children are

in the area.

In refligeramrs Mill automatic icemakers,

avoid contact with the moving parts of the

ejector mechanism, or with the heating element

that releases the cubes. Do not place fingers or

hands on the automatic icemaking mechanism

while the refligeramr is plugged in.

Unplug die refligetamr before cleaning and

making repai,_.

NOTE:Westrong&recommendthatanyservicingbe

performedbyaquafifiedindividual

{{_iTurning the control to the 0position does

not remove power to the light circuit.

{{_iDo not refleeze flozen foods which have

thawed completel):

MESURESDES 'CURIT "IMPORTANTES.

LISEZD'ABORDTOUTESLESDIRECTIVES.

.4,AVERTISSEMENT!

N'utilisez cot filectromfinager que pour I'usage auquel il est destinfi, comme expliqufi dans le

prOsent manuel

MESURESDESECURITE

Lorsque vous utilisez un appareil filectrique, observez toujours Ins mesures de sficurffi de base,

y compris les suivantes.

Insmllez le r4flig4rateur conform4ment aux

directives d'insmllation avant de l'utiliset.

Ne lmssez pas les enfants grimpet; s'asseoiI;

se mnir debout ni se pendre aux clayettes du

r_ffig_ramtn. Ils pourraient endommager le

r_ffig_ramur et se blesser gmvement.

N'enueposez et n'ufilisez pas d'essence ou

auues vapetn_ et liquides inflammables _'_

proximit_ de cet appareil ou de rout autre

appareil _lecuom_naget.

t_loignez les doigts des parties du r_flig&ateur

off l'on peut facilement se pincer : les espaces

entre les portes et entre les porms et les placards

sont tot{jours _uoits. Soyez prudent lorsque

vous femlez les potms de l'appareil en presence

des enfants.

Si votre r_flig&ateur est dot_, d'une machine A

glacons automatique _vitez le contact avec les

pi_ces mobiles du m_canisme _jectem; ou avec

l'_l_ment chauffant qui lib&re les glacons.

Ne posez pas les doigts ou les mmns sur le

m_canisme de la machine _'_glacons pendant

que le r_flig&amur est branch,.

Ne touchez pas les surfaces ffoides du cong_lateur

si vous avez les mains humides ou mouill_es : la

peau risque d'adh&er ?_ces surfaces tr_s floides.

D_branchez voue r_flig_tamur avant de le

nettoyer ou de le r_paret.

REMARQUE: Nousvousrecommandonsvivementde

confiertouter#paration_untechnicienqua/iriS

Lorsque vous r_ez la commande sur 0(&eint),

l'alimenmtion _lectrique de l'ampoule n'est pas

couple.

Ne recongelez pas les aliments surgel_s qui ont

compl_tement d_gel& 3

IMPORTANT SAFETYINFORMATION.

READALL INSTRUCTIONS BEFOREUSING.

AWARNING'!

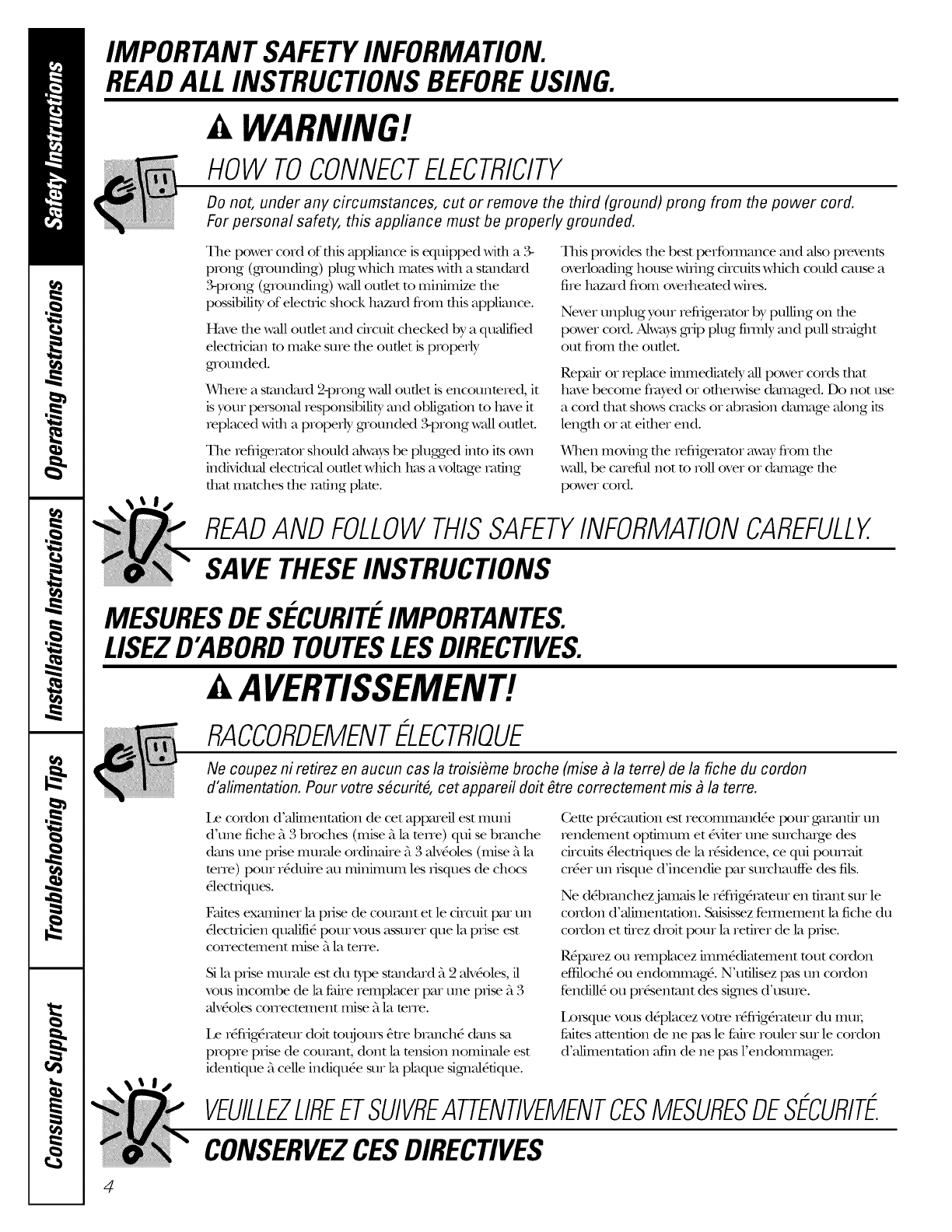

HOWTOCONNECTELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

For personal safety, this appfiance must be properly grounded.

The power cord of dds appliance is equipped widl a _g

prong (gnounding) plug which mates with a standmd

,%prong (grounding) wall outlet m minimize the

possibilily of electric shock h_taud flom this appliance.

Have file wall outlet and circuit checked by a qualified

elecnician m make sure the outlet isproperly

grounded.

X_rhere a standard 2-prong wall outlet is encounmred, it

is your personal responsibility and obligation to have it

replaced with a properly grounded ,%prong wall outlet.

The refligerator shouM alwa}sbe plugged into its own

indMdual elecnical outlet which has a voltage mdng

flint matches the mdng plato.

This prcMdes file best perfomlance and also prevents

overloading house wiring circuits which could cause a

fire hazaJd from oveflleamd wir_.

Never unplug your refligermor by pulling on file

power cord. Alwa)s grip plug firefly and pull smdght

out flom file outlet.

Repair or replace immediately all power cords dlat

have become flayed or oflletwise damaged. Do not use

a cord fllat shows crocks or abrasion damage along its

length or at either end.

X4rhenmoving file refligemtor awayflom the

wall, be carefifl not m roll over or &unage the

power cord.

READAND FOLLOWTHISSAFETYINFORMATIONCAREFULLY.

SAVE THESEINSTRUCTIONS

MESURESDES_'CURIT_"IMPORTANTES.

LISEZD'ABORDTOUTESLESDIRECTIVES.

AA VERTISSEMENT!

RACCORDEMENT&ECTRIQUE

Ne coupez ni retirez en aucun cas la troisiOme broche (mise _la terre) de la fiche du cordon

d'alimentation. Pour votre sOcurit#, cet appareil dolt Otre correctement mis _la terre.

I _ coition d'alimentation de cet app_ueil est muni

d'une fiche _'_3 brochm (raise _'tla tene) qui se braxlche

dmls une prise tamale ordinaire _'_3 alvg_des (raise _'_la

term) pour r_duire au minimum lm fisqum de chocs

41ecuiqum.

Faims examiner la prise de courant et le circuit par un

_lectficien qualifi_ pour vous _tssurer que la prise mt

conectement raise _'_la terre.

Si la prise murale est du t)pe st_m(Lud _'_2 alv_oles, il

vous incombe de la faire remplacer par une pfi_ _'_3

ah'_olm conecmment raise _'_la mne.

Le r_fl_ig_rateur dolt toujoms &re branch_ dmls sa

propre prise de coumnt, dont la mnsion nominate est

idenfique _'_celle indiqu_e sur la plaque signal_fique.

Cette precaution mt recommand_e [K_urgmantir un

rendement optimum et gMmr une smcha_ge des

drcuits dlecniques de la rd0dence, ce qui potmait

crder un risque d'incendie par smvhaufIb dm ills.

Ne d_bmnchezj_un_fis le r_flig&ateur en fimnt sur le

cordon d'alimentation. Ndsissezfemaement la fiche du

cordon et drez droit pour la redrer de la prise.

R@arez ou remplacez imm_diatement tout cordon

effiloch_ ou endommag_. N'udlisez pas un cordon

fendill_ ou pr&enmnt des signes d'usure.

I _nsque vous d_placez voue r_flig&ateur du ram;

thims attention de ne pas le faire fouler sur le cordon

d'alimenmdon mqn de ne p_ts l'endommagen

VEUILLEZLIREETSUIVREATTENTIVEMENTCESMESURESDESECURITE.

CONSERVEZCESDIRECTIVES

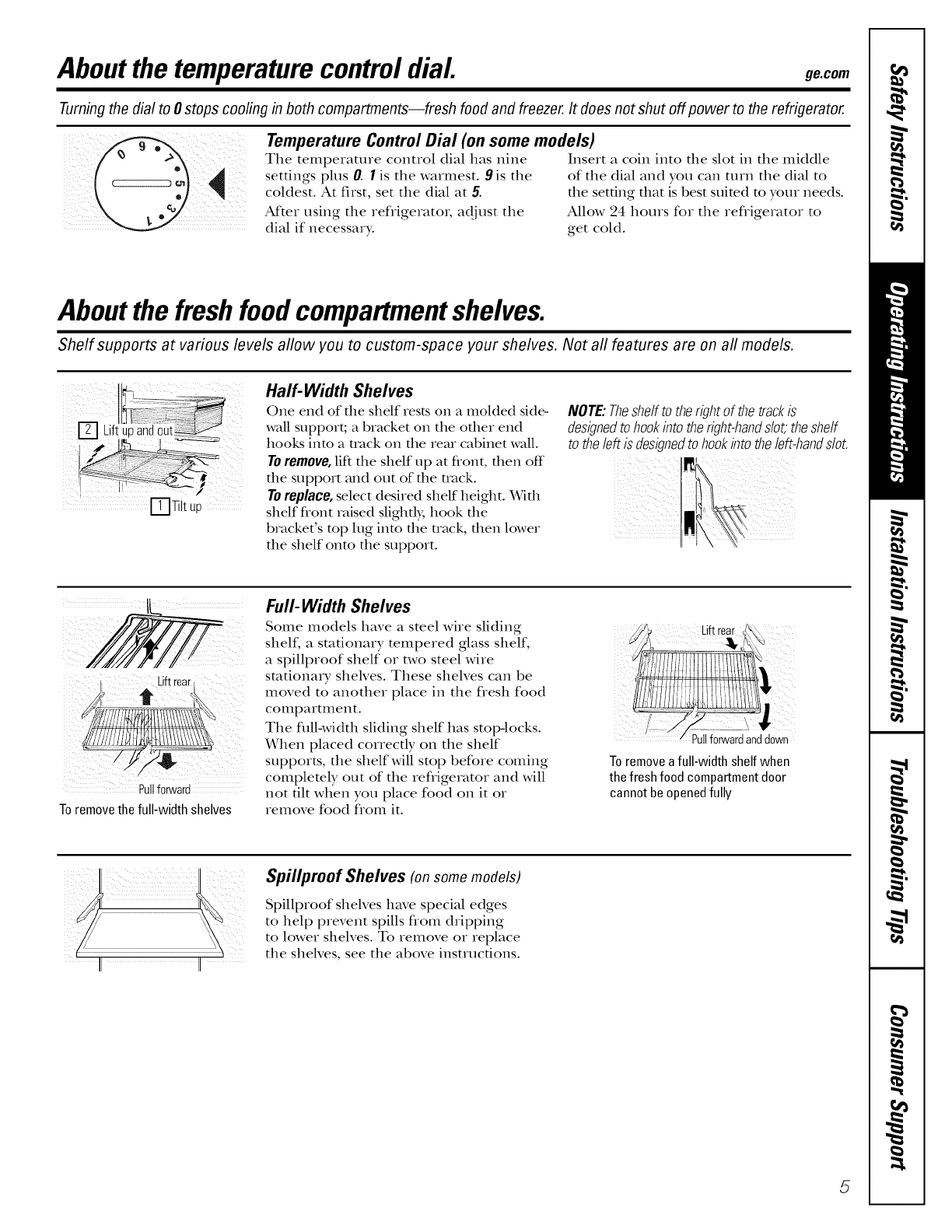

Aboutthe temperaturecontroldial ge.oom

Turning the dial to 0stops cooling in both compartments--fresh food and freezer. It does not shut off power to the refrigerator.

The temperature control dial has nine Insert a coin into the slot in the middle

settings plus/7. I is the warmest. 9 is the of the dial and you can turn the dial to

coldest. At first, set the dial at 5. the set6ng that is best suited to your needs.

After using the refrigerator; adjust the Allow 24 hours for the refrigerator to

dial if necessary, get cold.

About the freshfood compartmentshelves.

Shelf supports at various levels allow you to custom-space your shelves. Not all features are on all models.

[_Tilt up

Half- Width Shelves

One end of tile shelf rests on a molded side-

wall support; a bracket on the other end

hooks into a track on tile Ie_tl cabinet waU.

TOremove, lift the shelf up at flont, then off

tile support and out of tile track.

Toreplace, select desired shelf height. With

shelf front raised slightly, hook the

bracket's mp lug into tile track, then lower

the shelf Ohm the support.

NOTE:Theshelfto therightof thetrackis

designedto hookinto theright-handslot,theshelf

to theleftis designedtohookinto theleft-handslot.

_i iI

kiftrearj

Pullfo_vard

Toremovethe full-width shelves

Full- Width Shelves

Some models have a steel wire sliding

shelf, a stationary tempered glass shelf,

a spillproof shelf or two steel wire

stationary shelves. These shelves can be

moved to another place in tile flesh food

compartlnent.

Tile full-width sliding shelf has stop-locks.

When placed correctly on the shelf

supports, tile shelf will stop before coming

completely out of the refrigerator and will

not flit when you place food on it or

remove food flom it.

To removea full-width shelf when

the fresh food compartment door

cannot beopenedfully

II II

Spillproof Shelves (on some models)

Spillproof shelves have special edges

to help prevent spills flom dripping

to lower shelves. To remove or replace

tile shekes, see tile above insu_ucfions.

About the freezer compartment shelves.

Step Shelf

Toremovethe step shelf:

[-7]I,ift left side of shelf slightly.

[_-]Move shelf to the left to free its iight

ends flom holes in the cabinet wall.

[-_] Lower _ight side of shelf, move shelf to

the _ight and rake it out.

Toreplace the step shelf:

[--_]With shelf tilted as shown, fit left ends

of shelf into holes in cabinet wall. [_--]I_iffleft side of shelf slightly, swing shelf

up, fit right ends of shelf into holes in

cabinet wall, and lower shelf into place.

About the storage drawers.

Not aft features are on all models.

Fruit and Vegetable Drawers

Excess water that may accumulate in the

bottom of the drawers should be emptied

and the drawers wiped d_T.

..... i Snacks Drawer

The snacks drawer can be moved to the

most useflfl location for your family's

needs.

About storage drawer and cover removal, ge.com

Not aft features are on aft models.

Humidity Control

HIGH LOW

Adjustable Humidity Drawer (onsomemodels)

Slide the control all die way to the Slide the control all die way to the LOW

HIGHsetting to provide high humidity setting to provide lower humidity levels

recommended for most vegetables, recommended for most fl_uits.

Drawer and Cover Removal

Drawers can be removed easily by grasping the sides and lifting up slighdy while pulling

drawers past tile stop location.

Full-Width Drawer with

Plastic Cover

Toremovethe cover,lift it off its supports,

pull it forward, tilt it and take it out.

!iii /iii

7¸ • :i;i •_ ....

Twin Drawer Shelf

Toremove:

[-'7]Remove tile dxmvers.

F_-]Reach in, push the flont of glass cover

up, and at the same time, pull it forward

_tsfar as it will come.

Tilt it and take it out. Avoid cleaning the cold

glass covet"with hot water becmlse the exu'eme

temperature difference mW cause it m break.

_] Remove tile drawer flmne. (Always

remove tile ,glasscover before you rake

out the drawer flame.)

iJfi the fi'mne off the supports at each side

aud back, pull it forward, flit it aud take it out.

Toreplace:

[-_ Lower tile frame until it rests (m tile

supports at each side and back.

F_--]Replace tile glass covei, pushing its rear

edge firmly into the rear flvmm channel

and gendy lowedng tile flont into place.

[j] Replace tile (hmve_s.

About the automatic icemaker.

A newly-installed refrigerator may take 12to 24 hours to begin making ice.

There are 2 types of icemakers:

Power Switih ]cemaier

GreenPowerLight FeelerArm

Power switch model

FeelerArmin

the STOP

FeelerArmin (up) position

the ON (down)

position

Feeler arm model

Automatic Icemaker (onsomemodels)

The icemaker will produce approximately

100-130 cubes in a 24-hour period,

depending on the fl'eezer compai'unent

temperature, room temperature, number of

door openings mid other rise conditions.

If the refl'igeramr is operamd before the water

connection is made to the icemaket; move the

feeler m'm to the STOP(.p) position.

When the refligeramr has been connecmd

m the wamr supply, move the feeler am1 m

the ON (down) position.

The icemaker willfill with water when it cools

to 15°E A newly-installed refi'igerator mW rake

12 m 24 hours to begin making ice cubes.

Once the icemaker starts m make ice,

it mW take up m 48 hours m fill the bin,

depending on the mmperamre setdngs

and number of door openings.

You will hear a buzzing sound each dine

the icemaker fills with WamL

Throw away tile fi[st few batches of ice

to allow the water line to cleaL

Be sure nothing interferes with tile sweep

of tile feeler arm.

When die bin fills to die level of die feeler

arm, die icemaker will stop producing ice.

It is normal for severed cubes m be joined

mgetheL

If ice is not used flequendy, old ice cubes

will become cloudy, tasm stale, shrink or

fuse mgetbeL

On power switch models, the g_een power

light will blink if ice cubes get stuck in the

icemakeL To correct this, set the power

switch m 0 (off) and remove the cubes. Set

the power switch m I (on) m resm_* the

icemakeL Af_er the icemaker h_ts been

turned on again, there will be a del W of

about 45 minums before tile icemaker

resumes ope_v_fion.

NOTE: In homeswith lower-than-averagewater

pressure,youmayhear the icemakercycle multiple

times when makingonebatch of ice.

IcemakerAccessoryKit

If your refi'igerator did not ah'eady come

equipped with an maomafic icemaker, an

icemaker accessoW kit is available at extra cost.

Check tlle back of tlle refligerator for

tile specific icemaker kit needed for 7

your model.

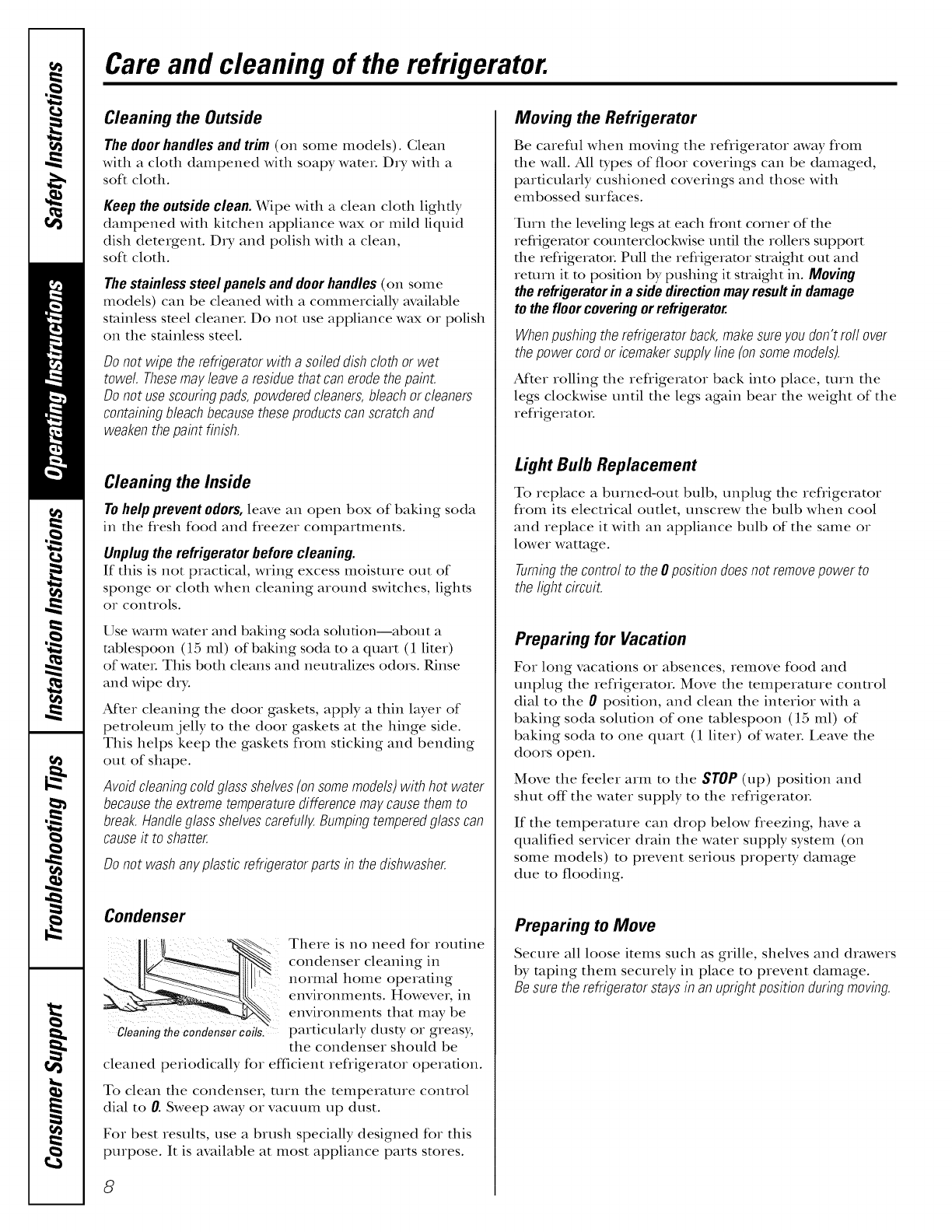

Care and cleaning of the refrigerator.

Cleaning the Outside

Thedoorhandlesandtrim (on some models). Clean

with a cloth dampened Mtb soapy wateL Dry Mtb a

soft cloth.

Keep the outsideclean. Wipe Mtb a clean cloth lighdy

dampened with kitchen appliance wax or mild liquid

dish detergent. DxT and polish with a clean,

soft cloth.

The stainless steel panels and door handles (on some

models) can be cleaned with a commercially available

stainless steel cleaneL Do not use appliance wax or polish

on the stainless steel.

Do not wipe therefrigeratorwith a soileddish clothor wet

towel. Thesemayleavea residuethat canerodethepaint.

Do not usescouringpads,powderedcleaners,bleachorcleaners

containingbleachbecausetheseproductscanscratchand

weakenthe paint finish.

Cleaning the Inside

Tohelp preventodors,leave an open box of baking soda

in the flesh food and freezer compartments.

Unplugthe refrigeratorbeforecleaning.

If this is not practical, wring excess moisture out of

sponge or cloth when cleaning around switches, lights

or controls.

Use warm wamr and baking soda solution--about a

tablespoon (15 ml) of baking soda to a quart (1 liter)

ofwateL This both cleans and neutralizes odors. Rinse

and wipe dry.

Aider cleaning the door gaskets, apply a thin layer of

peuoleum jelly to the door gaskets at the hinge side.

This helps keep the gaskets from sticking and bending

out of shape.

Avoidcleaningcoldglassshelves(onsomemodels)with hot water

becausethe extremetemperaturedifferencemaycausethemto

break.Handleglassshelvescarefully.Bumpingtemperedglasscan

causeit to shatter.

Do not washany.plasticrefrigeratorparts in the dishwasher.

Condenser

/ _"-, There is no need for routine

_;,_ condenser cleaning in

normal home operating

ex,vi,ox,mex,ts.Howevex,ix,

environments that may be

gleaning thecondensercoils, particularly dusty or greasy,

the condenser should be

cleaned periodically for efficient refrigerator operation.

To clean the condensex; turn the temperature control

dial to 0. Sweep away or vacuum up dust.

Fox best results, use a brush specially designed for this

purpose. It is available at most appliance parts stores.

Moving the Refrigerator

Be carefld when moving the refligerator away flom

the wall. All types of floor coverings can be damaged,

particularly cushioned coverings and those with

embossed surfaces.

Turn the leveling legs at each flont corner of the

refiigemtor counterclockwise until the rollers support

the refiigeratoL Pull the refiigeramr suaight out and

rental it m position by pushing it suaigbt in. Moving

the refrigeratorin aside directionmat,resultin damage

to thefloorcoveringorrefrigerator.

Whenpushingthe refrigeratorback,makesurey.oudon't roll over

thepower cordoricemakersupplyline (onsomemodels).

Aider rolling the refligerator back into place, mrn the

legs clockwise until the legs again bear the weight of the

refiigeratoL

Light Bulb Replacement

To replace a burned-out bulb, unplug the refrigerator

flom its electrical outlet, unscrew the bulb when cool

and replace it with an appliance bulb of the same or

lower wattage.

Turning the control to the 0position does not remove power to

the light circuit.

Preparing for Vacation

Fox long vacauons or absences, remove food and

unplug the refrigerator. Move the temperature control

dial to the 0position, and clean the interior with a

baking soda solution of one tablespoon (15 ml) of

baking soda to one quart (1 liter) ofwateL Leave the

doors open.

Move the feeler arm to the SlOP (up) posidon and

slmt off"the water supply to the refligeratoL

If the temperature can drop below fleezing, have a

qualified servicer drain the water supply system (on

some models) to prevent serious property damage

due to flooding.

Preparing to Move

Secure all loose items such as grille, shelves and drawers

by roping them securely in place to prevent damage.

Besurethe refrigeratorstaysin an uprightpositionduringmoving.

Installation Instructions Models 16,

ff you have questions, call 1.800.GE.CARESor visitour Website at: ge.com

In Canada, call 1.800.561.3344or Visit our Website at: www.geappliances.ca

17, 18

BEFORE YOU BEGIN

Read these instructions completely and carefully.

•IMPORTANT - S},vethese

instructions for local inspector's use.

•IMPORTANT - Obseave

governing codes and ordinances.

•Note to Installer -Be sure to leave these

instructions with the Gonsumer.

•Note to Consumer - Keep these insuuctions

for future reference.

•Skill level - Installation of tiffs appliance requires

basic mechanical skills.

•Completion time - Refrigerator Installation

15 minutes

Reversing the Door Swing

1 hour

• Proper installation is the responsibility of the

installer.

• Product failure due to improper installation is not

covered under the _Warranty.

WATER SUPPLY TO THE ICEMAKER

(on some models)

If the refligerator has an icemaker, it will have to be

connected to a cold water line. A water supply kit

(containing copper tubing, shutoff vane, fittings and

instructions) is available at extra cost flom your dealm;

by visiting our Website at ge.com (in Canada at

www.geappliances.ca) or from Parts and Accessories,

1.800.661.1616.

REFRIGERATOR LOCATION

• Do not install the refligerator where file temperature

will go below 60°F (16°C) because it will not run often

enough to maintain proper mmperamres.

•Install it on a floor suong enough to support it flail),

loaded.

CLEARANCES

Allow file following clearances for ease of installa6on,

proper air circulation and plumbing and electrical

coIlIlectioIIs.

• Sides 3/4" (19 mm)

• Top 1" (25 mm)

• Back 1" (25 ram)

ROLLERS AND LEVELING LEGS

Levelinglegs near each flont corner of the refligerator

are adjustable. They firmly position the refligerator

and prevent it flom moving when the doors are

opened. Leveling legs should be set so the front of the

refrigerator is raised]usa enough that the doors close

easily when opened about half,,ray.

Turn the leveling legs clockwise to raise the

refrigeratoa, counterclockwiseto lower it.

Rollers next to the leveling legs allow you to move the

refligerator away flom the wall for cleaning.

Turn the legs counterclockwise until the weight of the

refligerator is uansferred from them to tim rollers.

Afker rolling the refligerator back into place, mrn the

legs clockwise until the legs again bear the weight of

the reffigeratoL

Installation Instructions

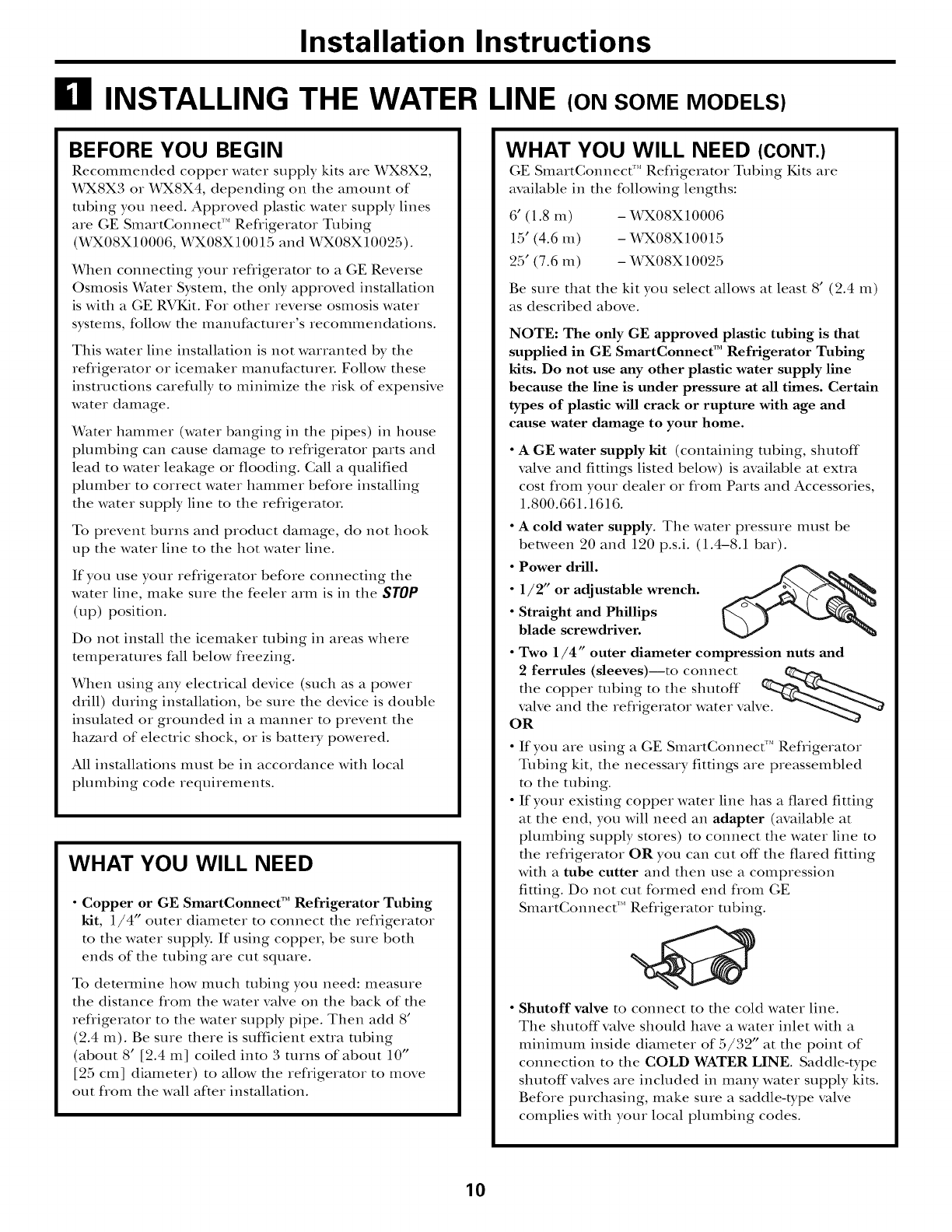

INSTALLING THE WATER LINE IONSOMEMODELS)

BEFORE YOU BEGIN

Recommended copper water supply kits are X_K8X2,

_qX8X3 or _X8X4, depending on the amount of

ulbing you need. Approved plastic water supply lines

are GE SmartConnect'" Refligerator Tubing

(X_gK.08X10006,X_qK08X10015 and X_qK08X10025).

When connecting your refligerator to a GE Reverse

Osmosis Water System, the only approved installation

is with a GE RVKit. For other reverse osmosis water

systems, follow the manufacturer's recommendations.

This water line installation is not warranted by the

refligerator or icemaker manuthcmrer. Follow these

instructions carefully to minimize the risk of expensive

water damage.

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refiigerator parts and

lead to water leakage or flooding. Call a qualified

plumber to correct water hammer before installing

the water supply line to the refiigeratoL

To prevent burns and product damage, do not hook

up tim water line to tim hot water line.

If you use your refligerator before commcting the

water line, make sure the feeler arm is in the STOP

(up) posiOon.

Do not install tim icemaker robing in areas where

temperatures fall below freezing.

When using any electrical device (such as a power

drill) during installation, be sure the device is double

insulated or grounded in a maturer to prevent the

hazard of electric shock, or is battm y powered.

All installations must be in accordance with local

plumbing code requirements.

WHAT YOU WILL NEED

•Copper or GE SmartConnect TM Refrigerator Tubing

kit, 1/4" outer diameter to connect the refrigerator

to tim water supply: If using copper, be sure both

ends of tim tubing are cut square.

To determine how much robing you need: measure

the distance flom the water valve on tim back of tim

refligerator to the water supply pipe. Then add 8'

(2.4 m). Be sure there is sufficient exua robing

(about 8' [2.4 m] coiled into 3 turns of about 10"

[25 cm] diameter) to allow the refrigerator to move

out flom the wall after insmllaOon.

WHAT YOU WILL NEED (CONT.)

GE SmartConnect"* Refrigerator Tubing Kits are

available in the following lengths:

6' (1.8 m) -_qK08X10006

15' (4.6 m) - X4qK08X10015

25' (7.6 m) - _qK08X10025

Be sure that the kit you select allows at least 8' (2.4 m)

as described above.

NOTE: The only GE approved plastic tubing is that

supplied in GE SmartConnect TM Refrigerator Tubing

kits. Do not use any other plastic water supply line

because the line is under pressure at all times. Certain

types of plastic will crack or rupture with age and

cause water damage to your home.

• A GE water supply kit (containing robing, stmtoff

valve and fittings listed below) is available at extra

cost flom your dealer or flom Parts and Accessories,

1.800.661.1616.

•A cold water supply. The water pressure must be

between 20 and 120 p.s.i. (1.4-8.1 bar).

•Power drill. _,_

• 1/2" or adjustable wrench.

• Straight and Phillips

blade screwdriver.

• Two 1/4" outer diameter compression nuts and

2 ferrules (sleeves)--to connect

the copper tubing to the stmtoff ___

valve and tim refligerator water val_._'-_'-___"--Q

• If you are using a GE SmartConnect"* Refligerator

Tubing kit, the necessary fit6ngs are preassembled

to the tubing.

• If your existing copper water line has a flared fitting

at the end, you will need an adapter (available at

plumbing supply stores) to connect the water line to

the refligerator OR you can cut off the flared fit6ng

with a tube cutter and then use a compression

fit6ng. Do not cut formed end flom GE

SmartConnect '' Refligerator robing.

•Shutoff valve to connect to the cold water line.

The shutoff valve should have a water inlet with a

minimum inside diameter of 5/32" at the point of

connec6on to the COLD WATER LINE. Saddle-type

shutoff vanes are included in many water supply kits.

Before purchasing, make sure a saddle-type valve

complies with your local plumbing codes.

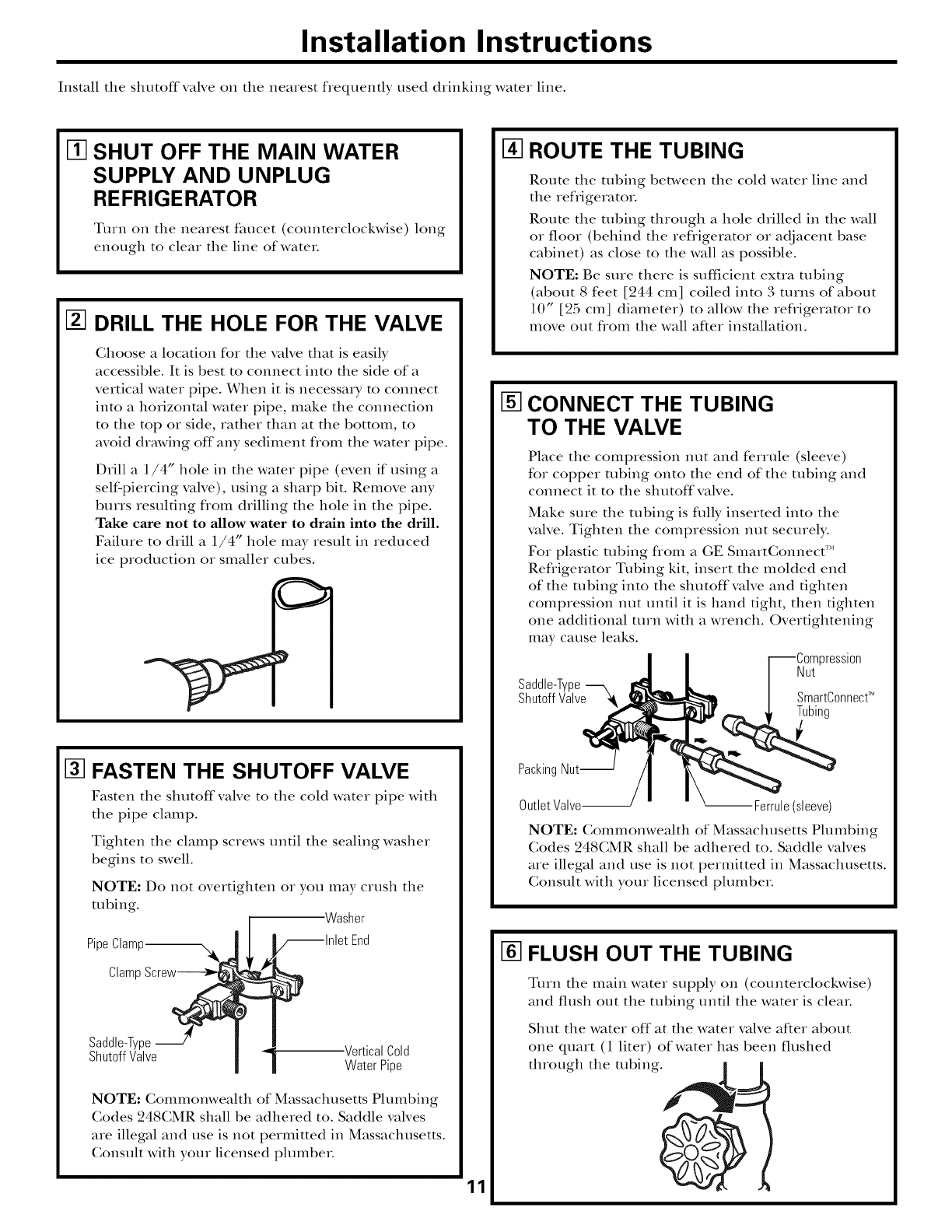

Installation Instructions

Install the shutoff vaNe on the nearest frequently used drinking water line.

mSHUT OFF THE MAIN WATER

SUPPLY AND UNPLUG

REFRIGERATOR

Turn on the nearest faucet (counterclockwise) long

enough to clear the line ofwatm.

I_ DRILL THE HOLE FOR THE VALVE

Ghoose a location for the vaNe that is easily

accessible. It is best to connect into the side of a

vertical water pipe. When it is necessary to connect

into a horizontal water pipe, make the connection

to the top or side, rather than at the bottom, to

avoid drawing off any sediment flom the water pipe.

Drill a 1/4" hole in the water pipe (even if using a

self-piercing valve), using a sharp bit. Remove any

burrs resulting fiom drilling the hole in the pipe.

Take care not to allow water to drain into the drill.

Failure to drill a 1/4" hole may result in reduced

ice production or smaller cubes.

I_ FASTEN THE SHUTOFF VALVE

Fasten the shutoff vaNe to the cold water pipe with

the pipe clamp.

Tighten the clamp screws until the sealing washer

begins to swell.

NOTE: Do not overtighten or you may crush the

tubing.

PipeClamp-_N4k_ e

ClampScrsw#

Saddle-Type_/' J

ShutoffValve

Washer

_lnlet End

VerticalCold

Water Pipe

NOTE: Gommonwealttl of Massachusetts Plumbing

Godes 248GMR shall be adhered to. Saddle vanes

are illegal and use is not permitted in Massachusetts.

Gonsult with your licensed plumbe_.

I_ ROUTE THE TUBING

Route the tubing between the cold water line and

the refligerator.

Route the tubing through a hole drilled in the wall

or floor (behind the refligerator or adjacent base

cabinet) as close to the wall as possible.

NOTE: Be sure there is sufficient extra robing

(about 8 feet [244 cm] coiled into 3 turns of about

10" [25 cm] diameter) to allow the refligerator to

move out flom the wall after installation.

1-51CONNECT THE TUBING

TO THE VALVE

Place the compression nut and ferrule (sleeve)

for copper robing onto the end of the tubing and

connect it to the shutoff valve.

Make sure the robing is fully inserted into the

valve. Tighten the compression nut securely.

For plastic robing flom a GE SmartGonnect"*

Refligerator Tubing kit, insert the molded end

of the tubing into the shutoff valve and tighten

compression nut until it is hand tight, then tighten

one additional turn with a wrench. Overtightening

may cause leaks.

_ression

Nut

Saddle-Type

ShutoffValve SmartConnecU

Tubing

PackingNut--

Outlet Valve. -- Ferrule (sleeve)

NOTE: Gommonwealth of Massachusetts Plumbing

Godes 248GMR shall be adhered to. Saddle vanes

are illegal and use is not permitted in Massachusetts.

Gonsult with your licensed plumber.

I_ FLUSH OUT THE TUBING

Turn the main water supply on (counterclockwise)

and flush out the tubing until the water is clea_.

Shut the water off at the water valve after about

one quart (1 liter) of water has been flushed

through the tubing. |

Installation Instructions

B INSTALLING THE WATER LINE (CONT.)

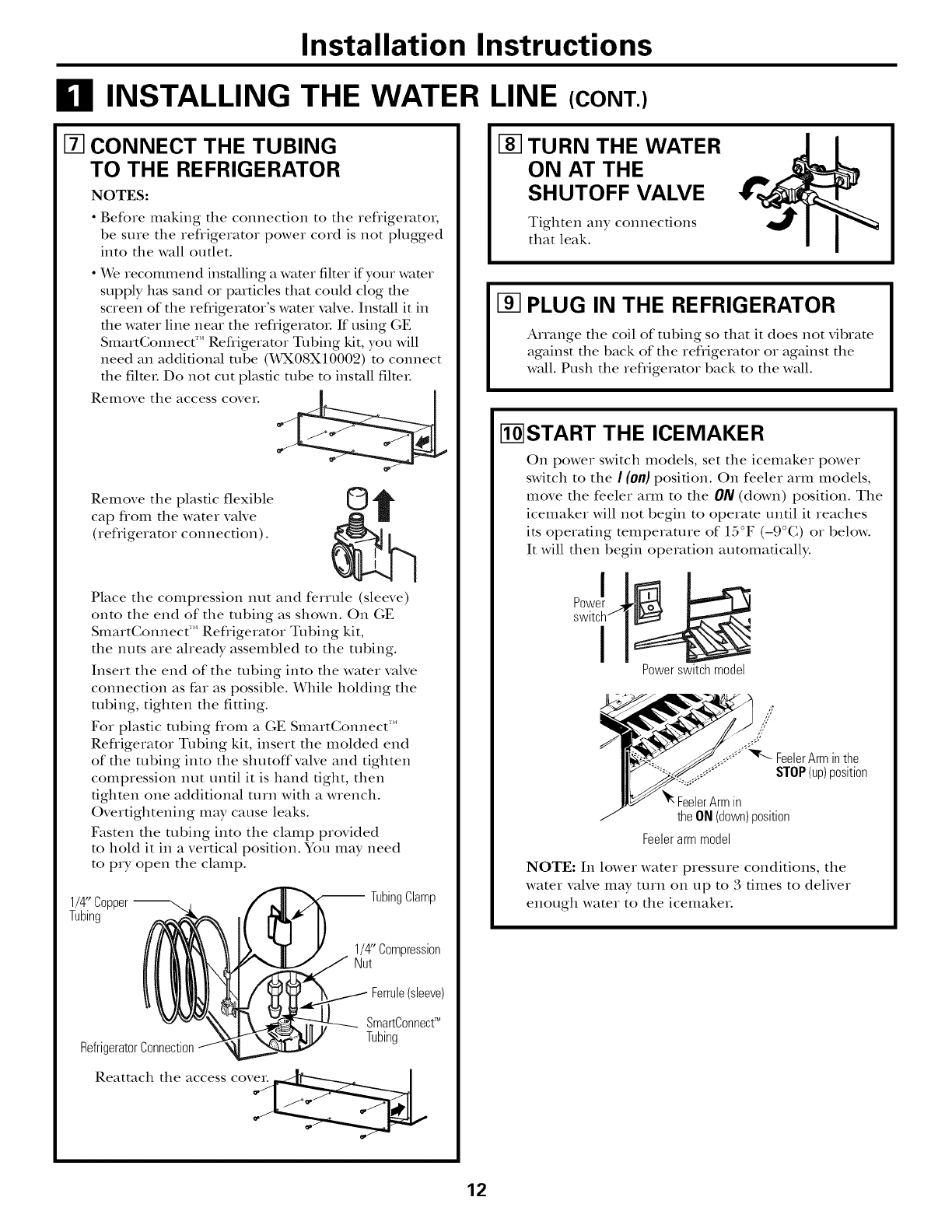

I_ CONNECT THE TUBING

TO THE REFRIGERATOR

NOTES:

• Before making the connection to the refrigerator,

be sure the refligerator power cord is not plugged

into the wall outlet.

• _re recommend installing a wamr filter if your wamr

supply has sand or particles that could clog the

screen of the refligerator's water vane. Install it in

the water line near the refligeratoL If using GE

SmartGonnect'" Refiigeramr Tubing kit, you will

need an additional robe (X_X08X10002) to connect

the filmL Do not cut plastic tube to install filmL

Remove the access coveL .-_r-----_ [

Remove the plastic flexible

cap fiom the water valve

(refiigerator connection).

Place the compression nut and ferrule (sleeve)

onto the end of the tubing as shown. On (7;E

SmartGonnect '_'Refligerator Tubing kit,

the nuts are aheady assembled to the tubing.

Insert the end of the tubing into the water valve

connec6on as far as possible. While holding the

tubing, tighten the fitting.

For plas6c robing flom a GE SmartGonnect'"

Refrigerator Tubing kit, insert the molded end

of the tubing into the shutoff valve and tighten

compression nut un61 it is hand 6ght, then

dgbten one additional ulrn with a wrench.

Overdghtening mW cause leaks.

Fasten the ulbing into the clamp provided

to hold it in a vertical position. You may need

to pry open the clamp.

1/4"Copper

Tubing

TubingClamp

1/4"Compression

Nut

Ferrule(sleeve)

RefrigeratorConnection

SmartConnect_

Tubing

Reatmch the access co__ A..Co- o q; ll

I-8--1TURN THE WATER

ON AT THE

SHUTOFF VALVE

Tighten any connections

that leak.

PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate

against the back of the refligerator or against the

wall. Push the refligerator back to the wall.

I_ISTART THE ICEMAKER

On power switch models, set the icemaker power

switch to the / (0n) position. On feeler arm models,

move the feeler arm to the ON (down) position. The

icemaker will not begin to operate until it reaches

its operating temperature of 15°F (-9°(0 or below.

It will then begin operation automatically.

Powerswitchmodel

theON(down)position

Feelerarmmodel

NOTE: In lower water pressure conditions, the

water valve may tuin on up to 3 times to deliver

enough water to the icemakeL

Installation Instructions

REVERSING THE DOOR SWING

IMPORTANT NOTES

When reversing the door swing:

•Read the instructions all the way through before

starting.

• Handle parts carefldly to avoid scratching paint.

• Set screws down by their related parts to avoid using

them in the wrong places.

• Provide a non-scratching work surface for

the doors.

IMPORTANT: Once you begin, do not move the

cabinet until door-swing reversal is completed.

These insu_ucfions are for changing the hinges flom

the right side to the left side--if you ever want to change

the hinges back to the right side, follow these same

insu-ucfions and reverse all references to left and right.

TOOLS REQUIRED

Phillipsscrewdriver Maskingtape

5/16" hex-head

socketdriver

T20or T25Torxdriver

(neededfor somemodels)

Puttyknife orthin-blade

screwdriver

5/16" open-end

wrench

[] REMOVE THE FREEZER DOOR

2.1 Tape the door shut with masking tape.

2.2 With a 5/16" hex-head socket drivm, remove the

screws that hold the top hinge to the cabinet.

2.3 Lift the hinge straight tap to flee the hinge pin

flom the socket in the top of the (loot and set it

aside, along with its screws.

T°pHinge_ I

2.4 Remove the rope and tilt the (loot away flom the

cabinet. Lift it off the center hinge pin.

2.5 Set the (loot on a non-scratching surface with

the outside up.

Ill BEFORE YOU START

1.1 Unplug the refrigerator from its electrical

outlet.

1.2 Empty all door shelves, including the dairy

compartment.

CAUTION: Do not let either (loot drop to the

floor. To do so could damage the (loot stop.

2.6 Transfer tim 2 screws flom tim opposite side of

the cabinet to the screw holes vacated by the

top hinge removal.

Installation Instructions

REVERSING THE DOOR SWING (CONT.)

[] REMOVE THE FRESH FOOD DOOR

3.1 Tape the door shut with masking tape.

3.2 Using a 5/16" hex-head socket screwdriver and

a 5/16" open-end wrench, remove the two

screws holding the center hinge to the cabinet.

I,ift the center hinge to fiee its pin flom the

socket in the top of the door, and set hinge and

screws aside. Be careful not to lose the center

hinge spacer and washer.

3.3 Remove dm tape and flit the door away flom the

cabinet. Lift the door flom the pin in the bottom

hinge bracket. (If the plastic washer socks m the

door bottom, put it back on the hinge.)

3.4 Set the door outside-up on a non-scratching surface.

REMOVE THE FRESH FOOD DOOR (CONT.)

3.5 Transfer the two screws flom the opposite side of the

cabinet to the screw holes vacated by the center

hinge removal.

3.6 Transfer the washer (if your model has one) to the

opposite side.

3.7 q_ke one of the screws removed in step 2 and start

it in the outemaost screw hole on the opposite side.

Do not (hive it all the way downi-leave enough space

under the screw head for thickness of the bracket.

REVERSING THE HARDWARE

4.1 Moxe the bottom hinge bracket and plastic washer fiom

the right side to the left side.

Plastic

_..J_ [.. --1 Washer

Switchthe hingepin to the ®_¢"I _lr_l_

oppositesideof the bracket. II_-.]:_

Hinge

Bracket

Installation Instructions

I_ REVERSING THE HARDWARE (CONT.)

4.2 Interchange hinge and screws at top right with

screws at top left of cabinet. Do not tighten screws

on hinge side at this time.

Installingthe hingeonthe left.

I}$

Installingthe hinge onthe right.

NOTES:

•Some hinges have four holes. Which holes you

use for installing the hinge depends on which

side you install the hinge.

• The outer edge of the hinge should be parallel

to the edge of the case for correct installation.

[] REVERSING THE DOOR

HANDLES ICONT.I

5.1.4 Remove plug button fl'om the top hinge hole on

the left side of the door and insert it into the hole

on the opposite side that was vacated by removal of

the top hinge.

PlugB_

5.1.5 Pull the plug button flom the flont of the door

and transfer it to the opposite side.

Toreattachthe

handleon the

oppositeside.

I-_ REVERSING THE DOOR HANDLES

5.1 Transfer fresh food door handle

5.1.1 Remove the handle plug using a rope-tipped

putty knife under the edge, and remove the

screw underneath. Remove the two screws

holding the handle to the top of the dooL

Plug,_

5.2 Transfer door stop

5.2.1 Move the metal or plastic door stop and

screws flom the right side to the left side.

_ Metal DoorStop

Left__

PlasticDoorStop

RightSid_

RightSid_ z

I5.1.2 Remove the handle.

5.1.3 Remove the screws flom the right edge of the

door top and insert them into the handle screw

holes on the opposite side.

Reinstall the fresh food door handle

5.3.1 Attach the handle to

the right side of the

door with screws at

the top and under

the handle plug.

5.3.2 Reinstall the

handle plug.

Installation Instructions

REVERSING THE DOOR SWING (CONT.)

I-_ REVERSING THE DOOR HANDLES (CONT,)

5.4 Transfer Freezer Door Handle

5.4.1 Remove the screw

holding the handle

to the top of the

door and the two

screws holding the

handle to the 1)ottom

of the door.

5.4.2 Remove the handle.

5.4.3 P, emovc the screw fl'om the

right top edge of the door

and insert it into the

handle screw hole on the

left side.

5.4.4 Transfer the door stop as shown in preceding

section 5.2. I

5.4.5 Attach the handle to the

right edge of the door

with screws at top and

1)ottom, using bottom holes

w_cated 1)y removal of the

door stop screws.

[] RE-HANGING THE DOORS

6.1 Re-hang the fresh food door

6.1.1 I,ower the fresh food door onto the

bottom hinge pin. Be sure the washer

is in place on the pin.

Hinge.m_-_

Bracket

Plastic

Washer

RE-HANGING THE DOORS (CONT.)

6.1.2 Insert the pin on the center hinge into the socket in

the top of the door. Place the spacer, then the

washer, on the hinge pin. "_t_ Hinge Pin

NOTE: The center hinge must

be turned o_er as shown when

mounted on the left side.

and Spacer

6.1.3 Tilt the door toward the cabinet. As the door is

1)rought into position, slide the hinge under the head

of the screw which earlier had been partly driven into

the outermost hole. Insert the remaining screw, then

tighten 1)oth screws securely.

6.2 Re-hang the freezer door

6.2.1 Lower the freezer door

onto the center hinge

pin. Be sure the CenterHing

are in place on the pin " .........

and Spacer

6.2.2 Tilt the door toward the cabinet, lifting the top hinge

so the pin fits into the socket on the top of the door.

6.2.3. Make sure the door is slightly above the top of the

cabinet and the gap between the doors is even across

the fl'ont. Tighten the top hinge screws. Do not

overtighten these screws-tighten them until they are

just snug, then turn them another one-half turn.

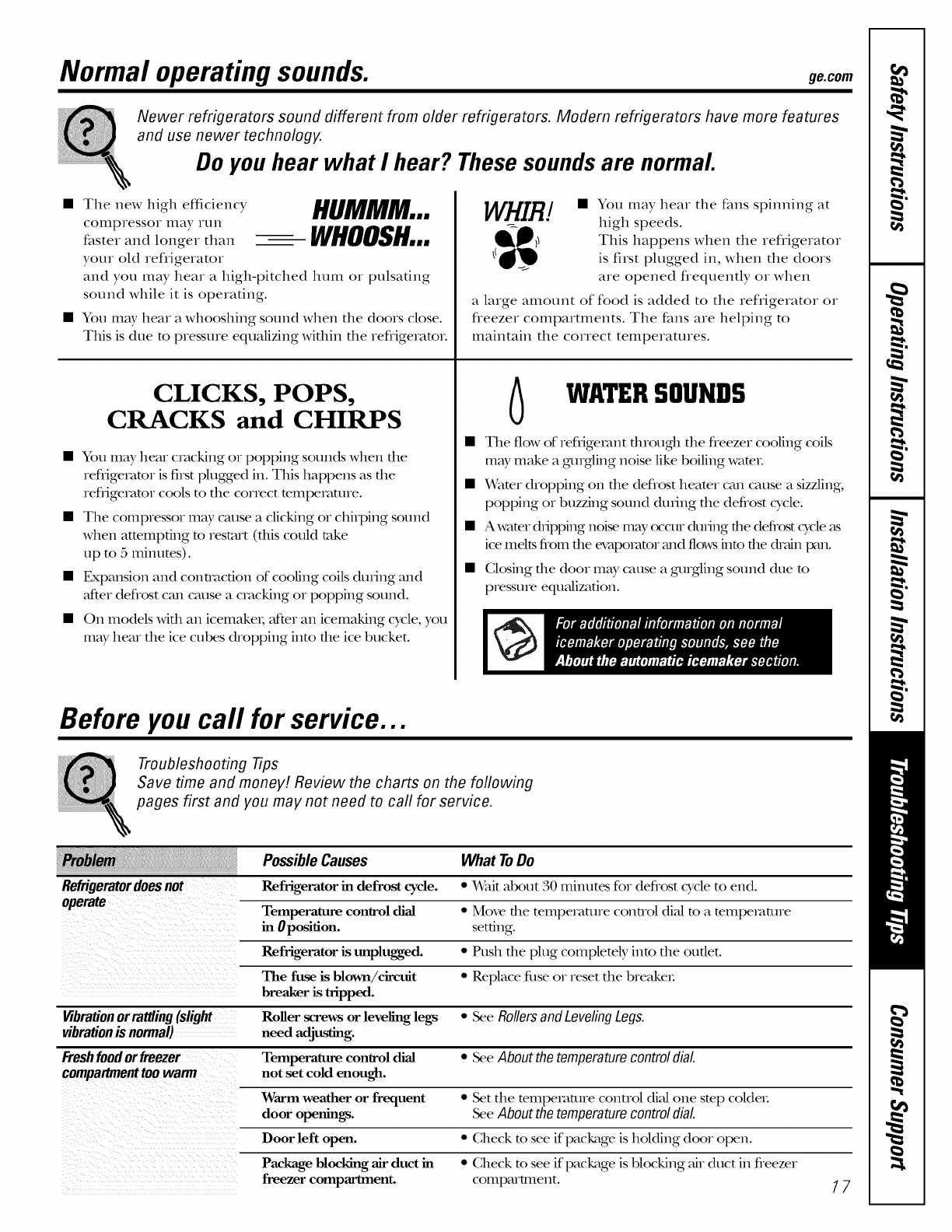

Normal operating sounds, geoom

Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features

and use newer technology.

Do you hear what I hear? These sounds are normal.

•The.ewhighefr,cie.cy HUMMM...

conlpIessoI nlay Itln

fas_e,a.dlonge,_ha. -- wnuuan...

your old refrigerator

and you may hear a high-pitched hum or pulsaung

sound while it is operating.

• You may hear a whooshing sound when die doors close.

This is due m pressure equalizing wiflfin file refligeramI.

CLICKS, POPS,

CRACKS and CHIRPS

• You may hear cracking or popping sounds when file

refligerator is fi_stplugged in. This happens as the

reflige_tor cools m the correct mmpe_mne.

• The compressor may cause a clicking or chiIping sound

when attempting m restart (flds could rake

up to 5 mint]ms).

• Expan0on and cormaction of cooling coils during and

after deflost can cause a c_wcking or popping sound.

• On models with an icemake_; _ff_ceran icemaking cycle, you

mW hear the ice cubes dropping into file ice bucket.

WHIR! • You may hear the fans spinning at

high speeds.

This happens when the refligerator

is first plugged in, when the doors

are opened flequendy or when

a large amount of food is added to the refligerator or

fleezer compartments. The fans are helping to

maintain the correct temperatures.

6WATERSOUNDS

• The flow of refligemnt flnough die fleezer cooling coils

mW make a gurgling noise like b41ing wateL

•Wamrdropping on the deflost heater can cause a sizzling,

popping or buzzing sound during the deflost cycle.

• Awater d_ippi_g n4se may (xcctliduring file defrost cycleas

ice melts flom file evapo_tor mid flowsinto file &vfinDin.

• Closing file door mW cause a gurgling sound due m

pressure equalization.

Before you call for service...

Troubleshooting Tips

Save time and money! Review the charts on the following

pages first and you may not need to call for service.

Refrigeratordoesnot

operate

What ToDo

• _Mfitabout 30 minutes for defrost cycle to end.

• Move file mmpe_mne conuol dial m a mmpemmre

setting.

• Push the plug complemly into the outlet.

• Replace filse or reset the breakeL

PossibleCauses

Refrigerator in defrost cycle.

Temperature control dial

in 0position.

Refrigerator is unplugged.

The fuse is blown/circuit

breaker is tripped.

Roller screws or leveling legs

need adjusting.

Temperature control dial

not set cold enough.

Warm weather or frequent

door openings.

Door left open.

Package blocking air duct in

freezer compartment.

Vibrationorrattling(slight •See RollersandLevelingLegs.

vibrationis normal)

Freshfoodorfreezer •See About thetemperaturecontroldial.

compartmenttoowarm

• Set die mmperamre conuol dial one stop coldeL

SeeAbout thetemperaturecontroldial

•Check to see if package is holding door open.

• Check m see if package is Mocking air duct in fleezer

co[IlpalQllent. 77

Before you call for service...

Troubleshooting Tips

PossibleCauses What ToDo

•_(Mfit24 horns for file reflige_tor to completely

cool down.

Motor operates for long Normal when refrigerator

periods or cycles on and is first plugged in.

offfrequently. (Modern

refrigerators with more Often occurs when large *This is nomlal.

amounts of food are

storage space and a larger placed in refrigerator.

space and a larger freezer

require more operating Door left open. *Check to see if pacl_ge is holding door open.

tithe. They start and stop Hot weather or frequent • This is nomaal.

often to maintain even door openings.

temperatures.) Temperature control dial •See About the temperature control dial.

set at the coldest setting.

Grille and condenser • See Care and cleaning.

need cleaning.

Frostor ice crystals Door left open. • Check to see if package is holding door open.

onfrozenfood Too frequent or too long

(frostwithin package door openings.

is normal)

Automaticicemaker Icemaker is not on. •Move the feeler aim to the ON (down) position.

does not work Water supply turned off or •See Installing the water line.

(on somemodels/ not connected.

Freezer comparanent •_(A,hit 24 horns for die refl-ige_tor to completely

too warm. cool dox,_L

Piled up cubes in the storage • l*_vel cubes by hand.

bin cause the icemaker

to shut off.

Frequent"buzzing" sound Icemaker is on but the water *Move the feeler am1 to the STOP(up)position. Keeping it

supply to the refrigerator has on will damage the water valve.

not been connected.

Cubestoo small Water shutoff valve connecting •(hll the plumber m cleat the valve.

refrigerator to water line may

be dogged.

SIowice cube freezing Door left open. • Check to see if package is holding door open.

Temperature control dial • See About the temperature control dial

not set cold enough.

Ice cubeshave Ice storage bin needs cleaning. • Erupt T and w;ksh bin. Discard old cubes.

odor/taste Food transmitting odor/taste • _(Vt_p foods well.

to ice cubes.

Interior of refrigerator •See Care and cleaning.

needs cleaning.

Moisturo formson Not unusual during • Wipe surface (hT and reset teinpemture control dial

cabinetsurface periods of high humidity, one setting calder.

between _e doors

Moisture collectsinside Too frequent or too

(in humid weather, air long door openings.

carries moisture into

refrigerator when doors

are opened)

Refrigeratorhas odor Foods transmitting *Foods with strong odors should be dghtly wrapped.

odor to refrigerator. • Keep an open box of baking soda in the refrige_tor;

replace ever y three months.

Interior needs cleaning. •See Care and cleaning.

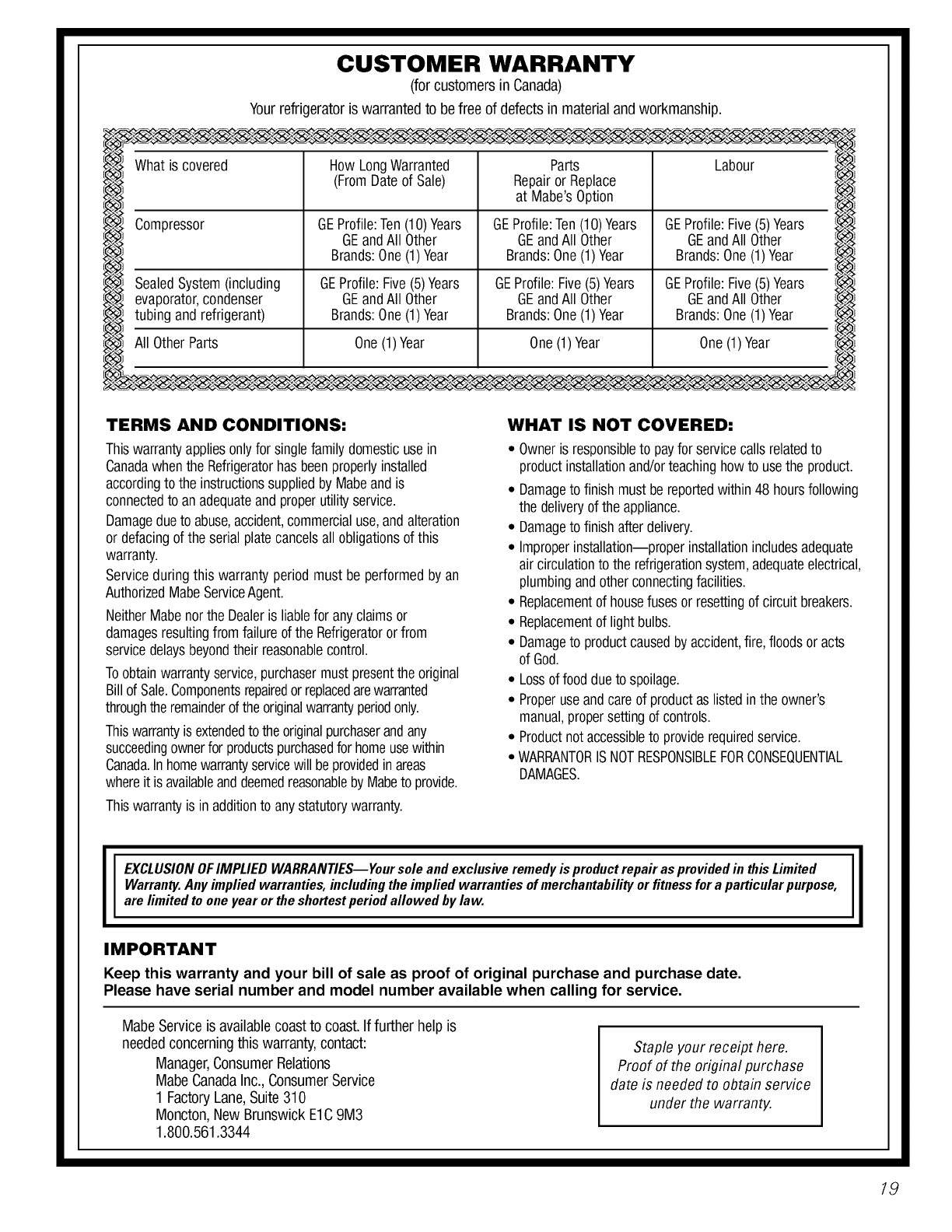

CUSTOMER WARRANTY

(forcustomersin Canada)

Yourrefrigeratoris warrantedto befree of defectsin materialandworkmanship.

Whatis covered HowLongWarranted Parts Labour

(FromDateof Sale) Repairor Replace

at Mabe'sOption

Compressor GEProfile:Ten(1O)Years GEProfile:Ten(1O)Years GEProfile:Five(5)Years

GEandAll Other GEandAll Other GEandAll Other

Brands:One(1)Year Brands:One(1)Year Brands:One(1)Year

SealedSystem(including GEProfile:Five(5)Years GEProfile:Five(5)Years GEProfile:Five(5)Years

evaporator,condenser GEandAll Other GEandAll Other GEandAll Other

tubing and refrigerant) Brands:One(1)Year Brands:One(1)Year Brands:One(1)Year

All OtherParts One(1)Year One(1)Year One(1)Year

TERMS AND CONDITIONS:

Thiswarrantyappliesonlyfor singlefamily domesticusein

Canadawhenthe Refrigeratorhasbeenproperlyinstalled

accordingto the instructionssuppliedby Mabeandis

connectedto anadequateandproperutilityservice.

Damagedueto abuse,accident,commercialuse,andalteration

or defacingof the serial platecancelsallobligationsof this

warranty.

Serviceduringthis warrantyperiodmust be performedby an

AuthorizedMabeServiceAgent.

NeitherMabenorthe Dealeris liablefor anyclaimsor

damagesresultingfromfailureof the Refrigeratororfrom

servicedelaysbeyondtheir reasonablecontrol.

Toobtainwarrantyservice,purchasermustpresentthe original

Billof Sale.Componentsrepairedor replacedarewarranted

throughtheremainderofthe originalwarrantyperiodonly.

Thiswarrantyis extendedto theoriginalpurchaserandany

succeedingownerfor productspurchasedfor homeusewithin

Canada.In homewarrantyservicewill beprovidedinareas

whereit is availableanddeemedreasonableby Mabeto provide.

Thiswarrantyis inadditionto anystatutorywarranty.

WHAT IS NOT COVERED:

° Owneris responsibleto payfor servicecallsrelatedto

productinstallationand/orteachinghowto usethe product.

° Damageto finishmustbe reportedwithin48 hoursfollowing

the deliveryof the appliance.

• Damageto finishafterdelivery.

° Improperinstallation--properinstallationincludesadequate

air circulationto the refrigerationsystem,adequateelectrical,

plumbingandotherconnectingfacilities.

° Replacementof housefusesor resettingof circuitbreakers.

° Replacementof light bulbs.

° Damageto productcausedby accident,fire,floodsoracts

of God.

° Lossof fooddueto spoilage.

° Properuseandcareof productas listedinthe owner's

manual,propersettingof controls.

• Productnot accessibleto providerequiredservice.

• WARRANTORISNOTRESPONSIBLEFORCONSEQUENTIAL

DAMAGES.

EXCLUSIONOFIMPLIEDWARRANTIES--Yoursoleandexclusiveremedyisproductrepa#asprovidedin thisLimited

Warranty.Anyimpliedwarranties,includingtheimpliedwarrantiesofmerchantabilityorfitnessforaparticularpurpose,

are limitedtooneyearortheshortestperiodallowedbylaw.

IMPORTANT

Keep this warranty and your bill of sale as proof of original purchase and purchase date.

Please have serial number and model number available when calling for service.

Mabe Serviceis availablecoastto coast.If further help is

neededconcerningthis warranty,contact:

Manager,ConsumerRelations

MabeCanadaInc.,ConsumerService

1 FactoryLane,Suite 310

Moncton,NewBrunswickE1C 9M3

1.800.561.3344

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

Consumer Product Ownership Registration

Dear Customer:

Thank you for purchasing our product and thank you for placing your confidence in us.

We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

and mail

Product Ownership

Re_stration today.

Have tlte peace of

mind of knowing we

can contact yon in

the unlikely event of

a saictv modification.

Alter mailing tlte

istration below,

;tore this document

in a sate place. It

contains iniormation

yon will need sltonld

you require service.

Our service number is

800 GE CARES

(800.432.2737).

your Owner's

carefldl>

[t will ltelp you

operate your new

appliance properl>

Important:

Model Number Serial Number

If you did not get a registration card with your

product, detach and return the form on the next page

to ensure that your product is registered, or register

online at ge.com. The top card is for products installed

in the U.S. The bottom card is for products installed in

Canada.

GE Service Protection Plus TM

GE, a name recognized worldwide ff)r quality and dependability together with Assurant Solutions, otters

you Service Protection Plus'_'--comprehensive protection on your appliances.*

Benefits Include:

•Prompt, reliable service from GE Authorized Servicers

•Convenient hours designed to suit your busy schedule

•Quality replacement parts

•The dependability of GE, a name recognized and trusted worldwide

•Ask about our interest-free payment plans

With Service Protection Plus you can expect:

• An extended service plan that limits unexpected repair bills

• Service coverage for most m_jor brands

• Unlimited service calls for the length of your contract, or credit toward a replacement product

• Service coverage for covered operating parts and labor on appliances and home electronics that fail during normal

single family household use

• Your satisfaction is our goal. We suive to provide you with excellent service in a professional and timely manneL

Place your confidence in GE and call us in the U.S. toll-free at 1.800.626.2224 for more information.

*Most brands covered up to 15 years old in the continental U.S.

SPP is a trademark of General Electric Company,

For refrigerators installed in the U.S. _. c,, he,_e

Please place in envelope and mail to:

General Electric Company

Warranty Registration Department

P.O. Box 32150

Louisville, KY 40232-2150

Forrefrigeratorsinstalledin Canada

_Ct_t here

Please place in envelope and mail to:

Veuillez mettre dans une enveloppe et envoyez & :

OWHERSHIPREGiSTRATiOH

P.O,BOX1780

MiSSISSAUGA,OHTARiO

L4Y4G1

(FORCAHADIAHCONSUMERSONLY)

For refrigerators installed in the U.S. _,,,_ Cu t here

Consumer Product Ownership Registration

Model Number Serial Number

Mr. ]Ms. Mrs. Miss

First ] ] I_st ]

Name IIIIIIIII Name I I I I I I I I

Street [

Address IIIIIIIIIIIIIIIIIIIIIII

Zip

I)atc l>laccd

'"_(I _IDayl_I_arl I IPhone

.mberi I. I-I.. I-i . .

Month

GE Consumer &Industrial

Appliances

General Electric Company

Louisville, KY/40225

ge£om

*Please provide )our e-mail address to receive, via e-mail, discom]ts, special offers and other

important commm]ications fi'om GE Appliances (GEA).

{i Check here if )ou do not _u]t to receive commm]ications fi'om GFA's carefldl) selected

partners.

FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR

WARRANTY RIGHTS.

For intormation about C,EA's privac) and data usage policy, go to ge.com and click on

"Privac) Polic)" or call 800.626.2224.

Forrefrigeratorsinstalled in Canada

For Canadian z,,I

Customers _',

LLII

rr" I

<,,

--il I

co,

_,,

{o',

Pour les _01

Consommateurs _i

Canadiens :D,

c}l

Pleaseregisteryourproductto enableustocontactyou

intheremoteeventasafetynoliceisissuedforthisproduct

andto allowforefficientcommunicalJonundertheterms

ofvourwarranty,shouldtheneedarise.

REGISTERON-LINE: wwvv.geappliances.ca MAIL TO:,

ENREGISTREMENTSUR INTERNET_,: vwwv.electromenaqersqe.ca POSTERA:

FI[]MISS/MLLE.MR'/M[][] Ms.MRS'/NME'" FIRSTNAME/PRENOM LASTNAME/NOM

STREETNO /NORUE STREETNAME/RUE

CITY/VILLE

AREACODE/IND.REG.[TELEPHONE IE-MAIL

DIDYOUPURCHASEASERVICECONTRACTFORTHISAPPLIANCE?

AVEZ-VOUSACHETI_UNCONTRATDESERVICEPOURCETAPPAREIL?

Veuillezenregis_ervogeproduitafindenousperme_ede

communiqueravecvoussijamaisunavisdes_curitOconcemant

ceproduitOtait6misetdecommuniquerfaclementavecvousen

vertudevotregaranlie,silebesoins'enfaitserrdr.

P.O.BOX1780,MISSISSAORA

ONTARIO,L4Y461

APE.NO/APR/RR#

PROVINCE POSTALCODE/POSTAL

YES/OUI [] IFYES/SIOUl: EXPIRATION

Y/A M D/J

NO/NON []

NAME OFSELLINGDEALER/NOM DU MARCHAND

INSTALLATIONDATE/DATED'INSTALLATION

Y/A M D/J CORRESPONDENCE [] ENGLISH

CORRESPONDANCE [] FRAN(_AIS

MODEL/MODI_LE

SERIAL/SE_RIE

[] Ido notwish to receiveanypromotionaloffersregardingthisproduct.

[] Jened_sirepasrecevoird'offrespromotionnellesconcernantceproduit,

RefrigeratorWarranty.(ForcustomersintheUnitedStates)

All warranty service provided by our Factory Service Centers,

or an authorized Customer Care®technician. Toschedule service,

on-line, 24 hours a day, visit us at ge.com, or call 800.GE.CARES

(800.432.2737). Please have serial number and model number

available when calling for service.

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

GE Will Replace:

GEandGEPROFILEMODELS:

One Year

Fromthe date of the

originalpurchase

Anypartof die refligeramr which fails due m a defect in mateIials or workmanship.

During dfis limited one-year warranty, GE will also provide, free of charge, all labor and

related sela'ice to replace die defective part.

ThirtyDays

(Waterfilter, if included)

Fromthe original

purchasedate of

the refrigerator

Anypartof file water filter cartridge which fails due m a defect in materials or workmanship.

During dfis limited thirty-day warranty, GE will Mso provide, free of charge, a replacement water

filmr camidge.

GEPROFILEMODELSONLY'.

Anypartof thesealedrefrigeratingsystem(die compressoi; condensei, evapolvtmr

(GEProfilemodelsonly) and all connecting robing) which fails due m a defect in materials or workmanship.

Fromthe date of the During this limited five-yearsealedrefrigeratingsystemwarranty,(;E will also provide,

freeofcharge,all labor and related service to replace the defective part in the sealed

refrigerating system.

Service trips to your home to teach you how to use

the product.

Improper installation, delivery or maintenance.

Failure of the product if it is abused, misused, or used for

other than the intended purpose or used commercially.

Loss of food due to spoilage.

Replacement of house fuses or resetting of circuit

breakers.

Damage caused after delivery.

Replacement of the water f'dter cartridge, if included,

due to water pressure that is outside the specified

operating range or due to excessive sediment in the

water supply.

Replacement of the light bulbs, if included, or water filter

cartridge, if included, other than as noted above.

Damage to the product caused by accident, fire, floods

or acts of God.

Incidental or consequential damage caused by possible

defects with this appliance.

Product not accessible to provide required service.

EXCLUSION OFIMPLIED WARRANTIES--Your sole and exclusive remedy is product repair as provided in this

Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a

particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home

use within the USA. If the product is located in an area where service by a GEAuthorized Servicer is not available,

you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service

location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives

you specific legal rights, and you may also have other rights which vary from state to state. To know what your

legal rights are, consult your local or state consumer affairs office or your state's Attorney General

Warrantor:GeneralElectric Company.Louisville,KY40225 23

ConsumerSupport.

GEAppliancesWebsite ge.com

_ntheu.s.: vvvvw.Hotpoint.com

Have a question or need assistance with your appliance? TD, the GE Appliances Website 24 hours a day,

any day of the year! For greater convenience and lc,tster service, you can now download Owner's Manuals,

order parts, or even schedule service on-line. In Canada: www.geappliances.ca

ScheduleService ge.com

x. theU.S.:www.Hotpoint.com

Expert GE repair service is on b, one step away flom your deal Get on-line and schedule your se2_ice at your

convenience 24 hours any day of the year! 02 call 800.GE.CARES (800.432.2737) during natural business hems.

In Canada, call 1.800.561.3344

RealLifeDesignStudio In the U.S.: ge.com

GE supports the Universal Design concept--products, services and environments thin can be used by people of all

ages, sizes and capabiliOes. We recognize the need m desigm for a wide range of physical and mental abilities and

impaimmnts. For derails of GE's Universal Design applications, including kitchen design ideas for people with

disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, contact: Manage2; Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Farm2 T Lane

Moncmn, N.B. E1C 9M3

ExtendedWarranties In the U.S.: ge.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still

_ 33 '

in eff>ct. You can purchase it on-line anytime, 02 call 1.888.261.2 l, , during normal business hours. GE Consumer

Home Services will still be there after your warranty expires.

PartsandAccessories ge.com

x. theU.S.:www.Hotpoint.com

IndMduals qualified m service dleir own appliances can have parts or accessories sent directly m their homes

(VISA, MasmrCard and Discover cards are accepted). Order on4ine today, 24 hours eve2T day 02 by phone at

1.800.661.1616 du2ing harmed business hours.

Instructions contained in this manual cover procedures to be performed by any user. Otherservicing generally should be

referred to qualified service personnel Caution must be exercised, since improper servicing may cause unsafe operation.

Customers in Canada should consult the yellow pages for the nearest Mabe service cente2; or call 1.800.661.1616.

ContactUs ge.com

x. theU.S.:www.Hotpoint.com

If you are not satisfied wit1 die service you receive flom GE, contact us on our Website wit1 all die derails

including your phone numbe2; 02 wrim m: General Manage2; Customer Relations

GE Appliances, Appliance Park

Louisville, KY40225

In Canada: www.geappliances.ca, 02 wrim to: Direcm2; Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Facm2y Lane

Moncmn, N.B. E1C 9M3

RegisterYourAppliance ge.com

x. theU.S.:www.Hotpoint.com

enhanced communication and prompt se2_ice under the temls of your warranty, should the need a2ise.

You may also mail in the pre-printed registration card included in the packing material.

In Canada: www.geappliances.ca ,_" Printedi)_the United States

_Printed on Recycled Paper

GE GTH17BBC2LWW User Manual REFRIGERATOR C SERIES Manuals And Guides L0906041

GE Top Mount Refrigerator Manual L0906041 GE Top Mount Refrigerator Owner's Manual, GE Top Mount Refrigerator installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
